36-50 MULTI-ZONE
MIXING AMPLIFIER
Installation and User Guide
36-50 Installation and User Guide V1.0
WARNING:
To reduce the risk of re or electric shock, do not expose this appliance to rain or moisture.
CAUTION:
Use of controls or adjustments or performance of procedures other than those specied may result in hazardous radiation
exposure.
WARNING: SHOCK HAZARD – DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE – NE PAS OUVRIR
The lightning ash with the arrowhead symbol within an equilateral
triangle, is intended to alert you to the presence of uninsulated
dangerous voltages within the product’s enclosure that may be of
sufcient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
36-50 Installation and User Guide V1.02
IMPORTANT SAFETY INSTRUCTIONS
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturers’ instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including ampliers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specied by the manufacturer or sold with the apparatus,
when a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Do not expose the apparatus to dripping or splashing, and ensure that no objects lled with water, such as vases, are
placed on the apparatus.
L’appareil ne doit être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel
qu’un vase, ne doit être placé sur l’appareil.
The mains plug is used as the disconnect device and it should remain readily accessible during intended use. In order
to isolate the apparatus from the mains, the mains plug should be completely removed form the mains outlet socket.
Le prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être
complètement déconnnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.
This apparatus is of Class 1 construction and must only be connected to a mains outlet socket with a protective
earthing connection.
Terminals marked with the symbol may use Class 2 Wiring, but voltages at these terminals may be of sufcient
magnitude to constitute a risk of electric shock. The external wiring connected to these terminals requires
installation by an instructed person or the use of pre-made leads or cords.
36-50 Installation and User Guide V1.0 3
Contents
IMPORTANT SAFETY INSTRUCTIONS ................................................................................... 3
SAFETY INFORMATION ............................................................................................................. 6
Safety Notes regarding Installation ............................................................................................................................ 6
Conformities ................................................................................................................................................................... 6
Safety Considerations and Information .................................................................................................................... 6
Caution – High Voltage .............................................................................................................................................. 6
Caution – Mains Fuse ................................................................................................................................................ 6
Caution – Servicing .................................................................................................................................................... 6
OVERVIEW ..................................................................................................................................... 7
Introduction .................................................................................................................................................................... 7
Scope of this manual ..................................................................................................................................................... 7
What’s in the box .......................................................................................................................................................... 7
36-50 Main features ....................................................................................................................................................... 7
Optional system components ..................................................................................................................................... 8
RL-1 Series Remote Music Level Control............................................................................................................. 8
RSL-6 Series Remote Music Level/Source Control ............................................................................................ 8
PM Series microphones ............................................................................................................................................. 8
Block Diagram ................................................................................................................................................................ 9

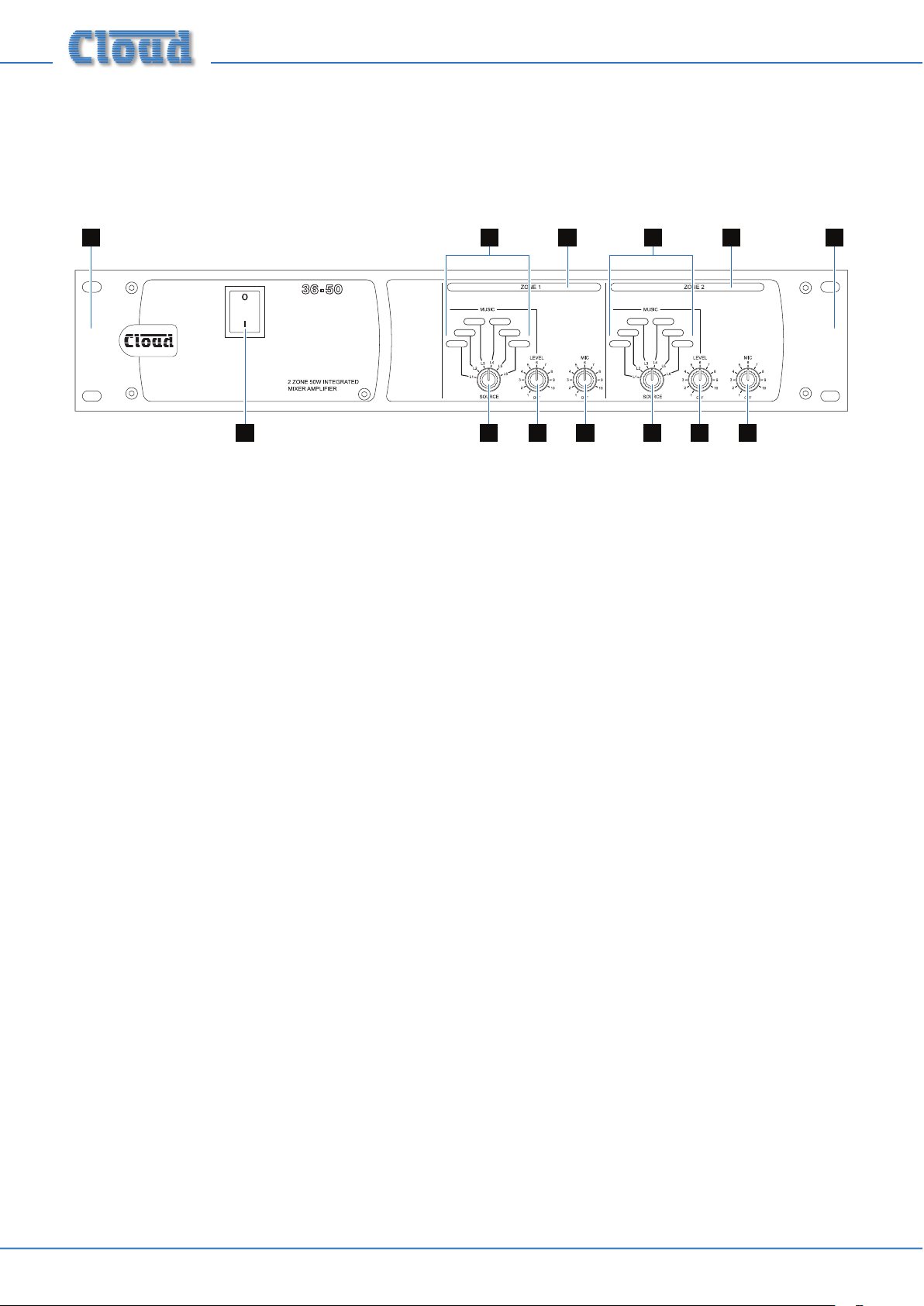

Front panel description ........................................................................................................................................... 10
Rear panel description ............................................................................................................................................11
INSTALLATION ........................................................................................................................... 12
Hardware considerations ...........................................................................................................................................12
Power Supply ................................................................................................................................................................ 12
Fuses and ratings .......................................................................................................................................................12
System connections .....................................................................................................................................................12
Music sources ............................................................................................................................................................ 12
Microphone input .....................................................................................................................................................13
Paging system connections .....................................................................................................................................13
Music control .............................................................................................................................................................14
Music Mute .................................................................................................................................................................15
Speaker outputs (Lo-Z) ...........................................................................................................................................15
Speaker outputs (100/70 V-line operation) ......................................................................................................... 15
36-50 Installation and User Guide V1.04
SETTING UP & OPERATION .................................................................................................... 16
Music Inputs ..................................................................................................................................................................16
Gain & level ................................................................................................................................................................16
Local/remote control ............................................................................................................................................... 16
Microphone input ........................................................................................................................................................ 17
Phantom power ........................................................................................................................................................ 17
Gain & level ................................................................................................................................................................17
EQ ................................................................................................................................................................................17
High-pass lter .......................................................................................................................................................... 17
Zone and Utility outputs ............................................................................................................................................17
EQ ................................................................................................................................................................................17
Utility output settings .............................................................................................................................................. 17
High-pass lters ........................................................................................................................................................17
Priorities ........................................................................................................................................................................ 18
Mic-over-Music priority ........................................................................................................................................... 18
Line 6 priority ............................................................................................................................................................18
OPTIONS AND ADDITIONAL INFORMATION..................................................................... 19
RL-1 and RSL-6 Series remote control plates – general considerations ........................................................19
Control of music source and level via external DC ......................................................................................... 19
Fitting loudspeaker EQ cards ....................................................................................................................................20
Fitting the CXL-3120 transformer module ........................................................................................................... 20
APPENDIX ................................................................................................................................... 21
Table of internal jumpers and default settings .......................................................................................................21
PCB jumper locations .............................................................................................................................................. 22
EMC considerations ....................................................................................................................................................22
Ground loops ............................................................................................................................................................22
TECHNICAL SPECIFICATIONS ............................................................................................... 23
GENERAL SPECIFICATIONS .................................................................................................... 23
36-50 Installation and User Guide V1.0 5
SAFETY INFORMATION
Safety Notes regarding Installation
• Do not expose the unit to water or moisture.
• Do not expose the unit to naked ames.
• Do not block or restrict any air vent.
• Do not operate the unit in ambient temperatures above
35°C
• Do not touch any part or terminal carrying the hazardous
live symbol while power is supplied to the unit.
• Do not perform any internal adjustments unless you
are qualied to do so and fully understand the hazards
associated with mains-operated equipment.
• The unit has no user-serviceable parts. Refer servicing to
qualied service personnel.
• If the moulded plug is cut off the AC power lead for
any reason, the discarded plug is a potential hazard and
should be disposed of in a responsible manner.
Safety Considerations and
Information
The Cloud 36-50 must be earthed. Ensure that the mains
power supply provides an effective earth connection using a
three-wire termination.
Caution – High Voltage
Do not touch any part or terminal carrying the hazardous live
symbol while power is applied to the unit. Terminals to
which the hazardous live symbol refers require installation by
a qualied person.
Caution – Mains Fuse
The 36-50 contains no user-replaceable fuses. Mains overcurrent protection is provided by the fuse in the IEC
receptacle; only replace this fuse with one of an identical
type and rating. If the replacement fuse blows immediately it
indicates that the mixing amplier has developed a fault, which
should be referred to competent service personnel.
Conformities
This product conforms to the following European EMC
Standards:
BS EN 55103-1:2009
BS EN 55103-2:2009
This product has been tested for use in commercial and
light industrial environments. If the unit is used in controlled
EMC environments, the urban outdoors, heavy industrial
environments or close to railways, transmitters, overhead
power lines, etc., the performance of the unit may be degraded.
The product conforms to the following European electrical
safety standard:
BS EN 60065:2012
Caution – Servicing
The unit contains no user-serviceable parts. Refer servicing to
qualied personnel. Do not perform servicing unless you are
qualied to do so. Disconnect the power cable from the unit
before removing the top panel and do not make any internal
adjustments with the unit switched on. Only reassemble the
unit using bolts/screws identical to the original parts.
36-50 Installation and User Guide V1.06
OVERVIEW
Introduction
Thank you for purchasing this Cloud Multi-Zone Mixing
Amplier. We are condent that you will be pleased with its
performance, features, exibility and reliability.
The Cloud 36-50 is a three-zone (two primary zones plus a
Utility output), analogue audio mixing amplier. It combines
simple control of background music with versatile microphone
paging and power amplication in a single unit. It is suitable
for use in many types of premises, including pubs, bars, clubs,
shops, ofces, hotels, etc. It is compatible with Cloud PM
Series paging microphones and is also designed to interface
with most third-party paging microphones conforming to
industry standards.
• Cloud 36-50 (or 36-50T) Multi-Zone Mixing Amplier
• IEC mains lead (AC cord) with moulded plug appropriate
to the territory
• Set of mating connectors for all rear panel multi-pin
screw-terminal connectors
• Set of rubber feet, with xing screws
• Miniature multi-blade adjustment tool
36-50 Main features
• Mixing Amplier for two or three zones (Zone 3 via
Utility output)
• Utility output can be used for a third zone, secondary
areas, or can double power output available for Zone 1
Scope of this manual
This manual provides a comprehensive guide to the features
and functionality of the Cloud 36-50 Multi-Zone Mixer
Amplier. The 36-50 is available in two versions, the 36-50 and
36-50T. The two models are identical in facilities and features,
and differ only in that the 36-50T includes a factory-tted
and pre-wired CXL-3120 transformer module for 70 V-line
operation (can be altered to 100 V-line operation).
Please read through the manual to become fully acquainted
with the various conguration and control functions the
36-50 offers.
The manual is arranged as follows:
• Overview – introduction to the 36-50 and its
options.
• Installation – wiring the 36-50 in a practical
situation.
• Setting Up & Operation – setting the system up
and user instructions.
• Options and Additional Information –
additional information about system options.
• Appendix – additional technical information.
Includes technical specications.
The 36-50 manual includes basic information on interfacing
Cloud PM Series paging microphones and connecting
Cloud RL-1 Series and RSL-6 Series remote control plates.
Full installation information for each of these options is
supplied with the items themselves.
Thank you again for placing your condence in Cloud products.
What’s in the box
Unpack the 36-50 and its accessories with care. It is always a
good idea to store all packaging (if practical), in case you ever
need to return the unit to your Cloud dealer for any reason.
• Six (unbalanced) stereo line inputs with individual gain
trim controls
• Front panel user controls for music source, music level
and mic level in each zone
• Balanced mic input; 15 V phantom power selectable
• Contact closure access port for paging zone selection
• Switchable mic-over-music priority (Automatic Voice
Over)
• Selectable LINE 6 priority per-zone, with choice of
release times
• 3 x 50 W power output (lo-Z operation)
• Rear panel adjustments for: i) mic input sensitivity and
HF/LF EQ, ii) zone output HF/LF music EQ, iii) utility
output music and mic level
• Optional internal CXL-3120 3-channel 70/100 V
transformer module can be retrotted to convert 36-50
to 36-50T
• Optional external CXL-40T 70/100 V toroidal
transformers available for use with any or all outputs
• Selectable 65 Hz high-pass lter per-output (for use with
70/100 V transformers)
• Music Mute control input (N/O or N/C) to interface to
emergency system
• Compatible with standard Cloud remote control plates:
RL Series (music level) and RSL Series (music level and
source selection), per-zone
• Optional EQ cards available to suit various popular
installation loudspeakers may be tted to any or all
outputs
• 2U 19” rack-mounting unit
• Convection cooled – silent in operation
As well as this manual, the shipping carton should contain
the items listed below. Please contact your Cloud dealer
immediately if any of them are missing or damaged.
36-50 Installation and User Guide V1.0 7
Optional system components
The following components may form part of the audio system
and may be ordered separately if required. They may also be
retrotted to a system at a later time. Separate datasheets
are available for each of the individual components; download
them at www.cloud.co.uk.
RL-1 Series Remote Music Level Control
5
6
4
3
2
1
0
MUSIC LEVEL
7
8
9
10
RL-1
Cloud PM Series paging microphones may be connected
directly to the 36-50 using the mic input and access port.
Models are available which can page to 4, 8, 12 or 16 zones,
and also to 4 or 8 zones with storage for built-in spot
announcements. As the 36-50 only supports three zones, not
all zones on any of the models can be accommodated by a
single 36-50; the PM4 and PM4-SA (4-zone) models are most
likely to be useful. See page 13 for more information.
The RL-1 Series is a range of small plates with a single control
for locally adjusting the music level in a zone. They connect
to one of the 36-50’s REMOTE SOURCE + LEVEL ports. See
page 14 and page 19 for more information.
RSL-6 Series Remote Music Level/
Source Control
345
2
1
SOURCE SELECT
3
2
1
MUSIC LEVEL
6
5
6
4
0
7
8
9
10
RSL 6-
The Cloud PM1 paging microphone is also compatible with
the 36-50. It is a much simpler unit which addresses a single
zone (though zones may be paralleled for wider access). See
page 14 for more information.
The RSL-6 Series is a range of plates allowing local (per-zone)
music source selection as well as music level control. They are
the same size as the RL-1s, and connect in a similar way. See
page 15 and page 19 for more information.
PM Series microphones
36-50 Installation and User Guide V1.08
Block Diagram
The simplied block diagram above illustrates the basic signal architecture of the 36-50.
36-50 Installation and User Guide V1.0 9
Front panel description
67 5 5 76
14 2 3 321
1. MUSIC SOURCE – 6-way rotary switch selecting which Line Input (1 to 6) will be the music source for each zone. See
page 16.
2. MUSIC LEVEL – adjusts the music level in each zone. See page 16.
3. MIC – adjusts the level of the microphone connected to the rear panel mic input in each zone. See page 16.
4. Power – rocker switch with internal illumination.
5. Zone idents – a space is provided above each zone’s controls for printed labels identifying the zone by name.
6. Source idents – a space is provided above the MUSIC SOURCE controls for printed labels identifying each music
source by name.
7. Rack mounting ears - the unit may be rack-mounted in a standard 19” equipment rack. It requires 2U of rack height.
See page 12.
36-50 Installation and User Guide V1.010
Rear panel description
1
2 22 2 15
3 4 5 6 810 11 1110 8 9 1214 137
1. LINE 1 to LINE 6 – 6 pairs of RCA (phono) sockets for connection of music sources. Inputs are stereo, summed internally
to mono. See page 12.
2. GAIN – preset trim control for each line input, providing ±10 dB of gain adjustment for input level matching. See page 16.
3. MICROPHONE INPUT – balanced microphone input on 3-pin female XLR connector. See page 13.
4. GAIN – preset mic gain control, gain range 10 to 60 dB. See page 16.
5. MIC EQ – HF & LF preset EQ controls. See page 17.
6. ACCESS – 4-pin 5 mm-pitch screw-terminal connector for per-zone paging access by contact closure. See page 13.
7. PRIORITY – activates Automatic Voice Over (AVO) mode, giving immediate priority to announcements made via the mic
input. See page 18.
8. MUSIC EQ – HF & LF EQ adjustment for each zone output. See page 17.
9. UTILITY MIC & MUSIC – two pre-set controls, adjusting the level of the microphone input and chosen music source
respectively at the Utility Output. See page 17.
10. REMOTE SOURCE + LEVEL – 3-pin 5 mm-pitch screw terminal connector for each primary zone, for connection of
RL-1/RSL-6 remote control plates. See page 14.
11. MUSIC CONTROL SWITCHES – determine whether front panel music source and level controls will remain active
when remote control plates are connected (per-zone). See page 14.
12. LOW IMPEDANCE SPEAKER OUTPUTS – outputs for each of the three zones (two primary plus Utility output) on
3-pin 3.5 mm-pitch screw-terminal connector. See page 15
13. SPEAKER LINE OUTPUTS – location of output terminals for 70 V/100 V-line operation when CXL-3120 transformer
module is tted internally (either on Model 36-50T, or as retrotted option). See page 15.
14. MUSIC MUTE – 2-pin 5 mm-pitch screw terminal connector for connection of external emergency muting relay (e.g. re
control panel). See page 15.
15. Mains – fused IEC receptacle for AC mains (includes storage for spare fuse). See page 12.
36-50 Installation and User Guide V1.0 11

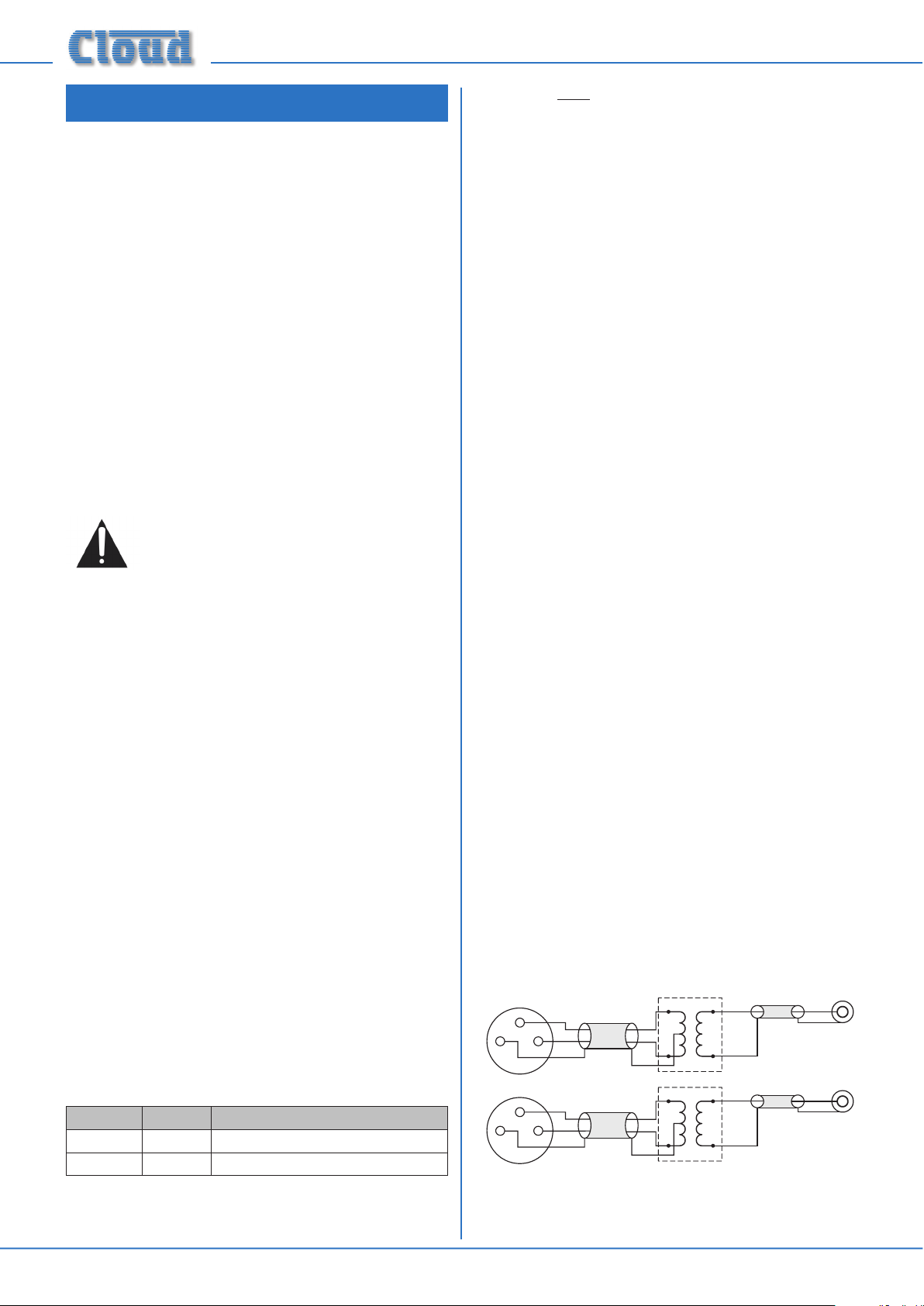

INSTALLATION
Hardware considerations
The 36-50 Mixing Amplier is built in a 2U-high 19” rack
mount enclosure. It is recommended that the 36-50 is installed
in a 19” rack wherever possible. The units are approx. 300 mm
deep, but at least 400 mm of rack depth should be available to
allow for rear connectors and cabling.
is that in the inner cavity.
Internally, two 20mm x 5mm fast-blow F4.0A fuses protect
each amplier channel (six in total). These are service
components, and should not require attention. Failure of any
of these fuses indicates a fault condition, which should be
immediately referred to a competent technician or authorised
service centre.
The 36-50 uses convection cooling and there are no thermal
considerations other than ensuring that the ventilation grilles
are not obstructed once the Mixing Amplier is installed. The
ventilation grilles are in the top and bottom panels, to the
right-hand side of the panels as viewed from the front. It is
recommended that 1U ventilation panels are tted in the rack
above and below the 36-50.
If the unit is to be used free-standing (i.e., not mounted in
a rack), the four feet supplied in the accessory pack should
be tted to the bottom of the unit to provide a satisfactory
airow. Attach these with the M4 x 12 pan-head screws
provided; four M4 tapped holes are clearly identiable in the
corners of the bottom panel.
Do not use any longer screws, as they may foul
internal components or wiring.
The choice of location will be dictated by the specics of the
system and building layout. It is recommended that wherever
possible, the 36-50 should be mounted adjacent to as many
of the music sources (CD players, music servers, TV receiver
boxes, etc.) as practical.
When deciding the Mixing Amplier’s location, bear in mind
that access to it (particularly the rear panel) will probably be
required even if a full complement of remote controls is being
tted as part of the system, as certain adjustments can only
be made on the unit itself.
Power Supply
The European version of the 36-50 operates on standard 230V
AC mains; an alternative version is available which operates
on 115 V AC. An IEC mains cable with a plug appropriate for
each country is supplied with the European unit. The unit’s
power consumption is 112 VA (measured using pink noise, all
channels driven at 1/3-rated max. power into 4 ohms.)
Fuses and ratings
The only externally-accessible fuse is an AC mains fuse in
the IEC connector housing. Only replace a fuse with one of
exactly the same type. The table below gives the correct fuse
types.
VERSION RATING FUSE TYPE
230 V 3.15 A 20 mm x 5 mm slo-blo T3.15AH
115 V 6.3 A 20 mm x 5 mm slo-blo T6.3AH
System connections
Music sources
Connect the system’s various music sources to LINE 1 to
LINE 6. All line inputs offer unbalanced connection for stereo
sources on a pair of standard RCA jacks (phono sockets).
The sensitivity range available should allow most standard
items of audio equipment such as computers/tablets, music
servers and media receivers, etc., to operate at a satisfactory
level. Most equipment of this type will have stereo unbalanced
outputs, and as long as the source equipment is adjacent to
the Mixing Amplier, normal phono-phono (or 3.5 mm jackto-phono) leads can be used. Always avoid using pre-made
leads of an unnecessary length.
Mono and stereo sources:
The mixing section of the 36-50 is mono; the stereo line inputs
are summed internally. Stereo sources should be connected
in a normal stereo conguration, using both L and R inputs. If
connecting a mono source with only a single output, it may be
connected to either the left or the right input.
Balanced sources:
If it is necessary to connect an item of source equipment
with a balanced output to the 36-50, a balancing transformer
should ideally be inserted between the source and the
unbalanced input. Suitable audio transformers, which should
have a ratio of 1:1, are readily available from major audio
component suppliers. The transformer(s) should be mounted
as close to the 36-50 as practical, and housed in a screened
enclosure if they are not individually screened. The preferred
connection method is shown below.
Balanced outputs (XLRs):
pin1ground
pin2hot
pin3cold
LEFT
3
12
RIGHT
3
12
-
+
SCN
-
+
SCN
Audio balancingtransformers
-
+
SCN
-
+
SCN
SCN
SCN
LEFT
Unbalanced
inputs
RIGHT
Unbalanced
inputs
The fuseholder may be accessed by prising the slide below the
connector open, using a small screwdriver. The holder has an
extra cavity for storing a spare fuse; note that the “active” fuse
36-50 Installation and User Guide V1.012
If transformers are not available, a balanced source may feed
an unbalanced input directly as long as care is taken over how
the connections are made. A variety of design techniques are
in use to implement balanced outputs in audio equipment,
and some designs require different wiring protocols to others.
Installers are advised to check the manuals with each item
for guidance on how the outputs should be connected to an
unbalanced input.
The mic input may be routed to either primary zone, or to the
Utility Output, at any level in each. Microphone priority may
be set so that any microphone announcements automatically
reduce the music level in that zone while the announcement
is in progress (see page 18 for more details.)
However, the wiring methods shown below will work in a
large number of cases. If hum or other distortion is found to
result, try disconnecting the ‘cold’ leg of the balanced output
(pin 3 on XLRs).
When using single-core cable,
join ‘cold’ to screen at the
3
1
LEFT
3
1
RIGHT
Balanced outputs (XLRs):
pin1ground
pin2hot
pin3cold
3
1
LEFT
3
1
RIGHT
Balanced outputs (XLRs):
pin1ground
pin2hot
pin3cold
+
2
SCN
+
2
SCN
-
+
2
SCN
-
+
2
SCN
source
Unbalanced
inputs
LEFT RIGHT
SCN
+
SCN
+
Unbalanced
inputs
LEFT RIGHT
SCN
-
+
When usingtwin-and-screen
cable, join ‘cold’toscreenat
36-50end
SCN
-
+
Microphone input
The MICROPHONE INPUT is intended for the direct
connection of microphones. It is electronically balanced and
transformerless with an input impedance of greater than
2 kohms and optimised for use with microphones of 200 to
600 ohms impedance. The XLR input connector should be
wired thus:
PIN CONNECTION
1 Screen
2 Signal ‘+’ (hot)
3 Signal ‘-‘ (cold)
Paging system connections
Cloud PM Series paging microphones may be connected
directly to the 36-50.
Two connections are required: the paging mic audio signal
should be connected to the MICROPHONE INPUT ([3]
on page 11) and the control cable to the 4-pin Zone Access
port ([6] on page 11). The pinout of the Zone Access port
is given below:
PIN NO. FUNCTION
1 0 V
2 Zone 1
3 Zone 2
4 Utility Output
Connecting PM4/PM4-SA paging microphones
These microphones are equipped with both digital and
analogue paging interfaces; with the 36-50, the analogue
interface is used. PM microphones are available in 4, 8, 12
or 16-zone versions; the installer should be sure he/she
understands how paging zones correspond to mixer zones
before commencing wiring. Although the 36-50 only supports
a maximum of three zones, there is no technical reason to
prevent a PM microphone being used in a restricted manner.
Standard two-core screened audio cable may be used for
the audio signal, and stranded multicore (3-core is adequate)
cable with an overall screen for the control cable. Note that
PM Series microphones cannot be powered from the 36-50,
and need an external PSU.
Connections on the PM microphone are made via the
rear cable access glands and screw terminal blocks on the
internal PCB (TERM2 and TERM 8 in the case of a PM4). Full
connection details can be found in the PM Series Installation
and User Guide.
The following diagram shows the cable connections between
a PM4 and a 36-50. Note that PM microphone must be
powered independently (either by a local PSU or via the
CDPM digital network from another PM unit); the 36-50 does
not have a facility for providing power to external accessories.
Unbalanced microphones may be used by connecting pin 3
to pin 1 (cable screen) in the mating (male) connector. 15 V
phantom power is available, see page 17.
36-50 Installation and User Guide V1.0 13
TERM1
+V
PM4 PAGING MICROPHONE
Z1 Z2 Z3
0V
TERM2
Z4
Z5 Z6 Z7
TERM8
Z8
HOT
COLD
GND
PAGING MIC INPUT
1 2 3
36-50
ZONE ACCESS CONNECTOR
0V Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 +V
CONNECT TO
ZONE(S) IN USE
Z1 Z2 UTIL
0 V
36-50
2
3
MICROPHONE
INPUT
1
Note that the default factory setting is for all three ACCESS
port inputs to be permanently enabled. In order for the
36-50’s mic input to function correctly with a paging mic,
internal jumpers J2 (Zone 1), J3 (Zone 2) and Z4 (Utility
output) should be removed. See page 4 for jumper
locations.
For automatic music ducking during an announcement, set
the rear panel PRIORITY switch to ON. See page 18 for
further information.
Connecting a PM1 paging mic
SCN COLD HOT N/O N/C GND
U2 AUDIO U3 ACCESS
PM1
Note that the default factory setting is for all three ACCESS
port inputs to be permanently enabled. In order for the
36-50’s mic input to function correctly with a paging mic,
internal jumpers J2 (Zone 1), J3 (Zone 2) and Z4 (Utility
output) should be removed. See page 4 for jumper
locations.
For automatic music ducking during an announcement, set
the rear panel PRIORITY switch to ON. See page 18 for
further information.
Music control
Like many other Cloud products, the 36-50 allows remote
control of music level and source selection in each of the
primary zones. Cloud remote control plates from the RL-1
Series (music level only) and RSL-6 Series (music level and
source selection) provide an elegant solution, though control
via a DC voltage from third-party systems is also possible (see
page 19).
The PM 1 is a simple, passive paging microphone suitable
for situations where announcements are always made to
the same zone(s). It can be connected directly to the 36-50
Mixing Amplier, the control cable being wired to the pin(s) of
the Zone Access port corresponding to the zone(s) in which
announcements are required. Any or all of the zones may be
paralleled if multiple zones need to operate from the PM1.
Either a single 2-pair individually-screened cable may be
used (this gives the neatest nish), or two separate standard
microphone cables. Connections on the PM1 are made via the
rear cable gland in the base and the screw terminal blocks on
the internal PCB (U2 and U3). Full connection details can be
found in the PM1 Installation and User Guide. Note that the
PM1 does not require DC power.
The following diagram shows the connections between a PM1
and a 36-50. Use of 2-pair cable is assumed; the same wiring
principle is adopted if separate cables are being used for audio
and control.
36-50 Installation and User Guide V1.014
Both types of plate connect via the REMOTE SOURCE &
LEVEL port for the relevant zone (see [10] on page 11) .
This connector is a 3-pin 5 mm-pitch screw terminal type.
Please refer to page 19 for additional information regarding
cable lengths, etc.
Connecting an RL-1 Series remote control plate
Wire the remote control plate as shown below. Either singlecore screened or twin-and-screen cable may be used; in the
case of the latter, ignore one of the cores. Maximum reliable
cable run is 100 m.
RL-1
MUSIC MUTE
REMOTE LEVEL CONTROL WIRING
123
REMOTE
SOURCE + LEVEL
123
(i.e., music) should be muted in an emergency, to ensure that
any emergency messages are clearly audible.
The MUSIC MUTE input is on a 2-pin 5 mm-pitch screwterminal connector. It should be connected to the appropriate
alarm output on whichever building management system
registers the alarm (typically the Fire System). The alarm
output must be volt-free; if no such output is available, an
intermediate relay or other isolation device must be installed
between the alarm output and the MUSIC MUTE input.
INPUT
SINGLE-CORE SCREENED CABLE MAY BE USED
Before the RL-1 will operate, the zone’s Music Control
Port must be enabled by setting the adjacent push-button
switch ([11] on page 11) to REMOTE (i.e., pressing it in).
In this setting, the zone’s front panel MUSIC LEVEL and
SOURCE SELECT controls become inoperative. As music
source selection will still be required from the mixer’s front
panel when an RL-1 is in use, the REMOTE setting may be
overridden for the source selection control only by moving
internal jumper J6 (Zone 1) or J7 (Zone 2) on the internal
PCB. See page 4 for location of internal jumpers.
Connecting an RSL-6 Series remote control plate
Wire the remote control plate as shown below. Twin-andscreen cable should be used. Maximum reliable cable run is
100 m.
REMOTE SOURCE & LEVEL CONTROL WIRING
123
RSL-6
REMOTE
SOURCE + LEVEL
123
1 2
RELAY
NORMALLY OPEN (NO)
CONNECTION
Speaker outputs (Lo-Z)
The speaker output connector is a 6-pin, 5 mm-pitch screwterminal connector. Mating connectors are supplied. The
power amplier outputs of both primary zones and the Utility
Output are present on this connector. Connect to speakers
using pairs of terminals as shown in the table:
Panel marking Connect to:
1 0V Zone 1 output ‘-‘
2 Z1 Zone 1 output ‘+‘
3 0V Zone 2 output ‘-‘
4 Z2 Zone 2 output ‘+‘
5 0V Utility Output
6 UT Utllity Output
USE TWO-CORE SCREENED CABLE
Before the RSL-6 will operate, the zone’s MUSIC CONTROL
port must be enabled by setting the adjacent push-button
switch ([11] on page 11) to REMOTE (i.e., pressing it in).
In this setting, the zone’s front panel MUSIC LEVEL and
SOURCE SELECT controls become inoperative.
Music Mute
External muting of music is available at the MUSIC MUTE
connector. National or Local Authority regulations governing
such systems may require that normal programme material
Each output stage is designed to drive into an impedance
of not less than 4 ohms. Check the impedance of the
loudspeaker(s) in use and, taking into account any series and/
or parallel wiring, ensure that the total load on each channel
is not less than 4 ohms.
Speaker outputs (100/70 V-line
operation)
The 36-50 may be converted for 100 V/70 V-line operation
by the use of the Cloud CXL-3120 transformer module. This
module is tted internally, and consists of three independent
transformers with separate ying leads, so any or all outputs
of the 36-50 may be converted to 100 V and/or 70 V-line
operation as required.
36-50 Installation and User Guide V1.0 15
The low impedance outputs are still active, but
should not have a load connected to them while
the 70 V/100 V-line outputs are in use.
In the 36-50T model variant, the CXL-3120 is pre-installed
at the factory, and wired for 70 V-line operation. This can
be changed to 100 V-line operation (per-output) if wished
by moving on-board links. Alternatively, the standard 36-50
model may be modied for 100 V/70 V-line operation by
retrotting the CXL-3120 module, which is available from
Cloud Electronics as an option. Full installation instructions
are supplied with the module.
When the CXL-3120 is tted, a 6-pin 5 mm-pitch screwterminal connector occupies the blank connector slot [13] at
page 11. The connector is wired as shown below:
Panel marking Connect to:
1 Z1+ Zone 1 output ‘+‘
2 Z1- Zone 1 output ‘-‘
3 Z2+ Zone 2 output ‘+‘
4 Z2- Zone 2 output ‘-‘
5 UT+ Utility Output ‘+‘
6 U T- Utility Output ‘-‘
If preferred, individual external transformers may be employed
to convert low impedance outputs to 100 V/70 V-line
operation. A suitable transformer is the CXL-40T, available
as an accessory from Cloud Electronics. A 19” rack tray for
mounting multiples of these is also available.
When using the 36-50 for 100 V/70 V-line operation, the
65 Hz high-pass lters in each zone to be used in this mode
should be enabled. See page 17 for full details.
SETTING UP & OPERATION
Music Inputs
Gain & level
To avoid dramatic changes in volume when switching between
sources, the 36-50’s music inputs are provided with preset
gain trim controls ([2] on page 11). These vary the input
sensitivity from -12 dBu (195 mV) to +8 dBu (2.0 V). When
setting the system up, play audio from all the sources in use
and listen to them one at a time in a convenient zone (ideally
that in which the mixer is located) at a reasonable volume.
Taking a source of “average” volume as the reference, the gain
controls of the others should be adjusted so that there is no
appreciable difference in volume between any of the sources.
(With a typical music source, setting the gain on its channel
to mid-way is a good starting point.) Note that consideration
may need to be given to the type of programme in use,
particularly if one or more sources are TV sound.
In normal operation, the music level in each primary zone
is set with the MUSIC LEVEL control on the front panel
([2] on page 10). This control will not be operative if the
corresponding rear panel MUSIC CONTROL push-button
is set to REMOTE. The music level at the Utility output is set
with the rear panel preset control ([9] on page 11).
Note that the setting of the music level has no effect on
microphone volume.
Local/remote control
If a zone has an RL-1 or RSL-6 Series remote control plate
connected in any zone(s), the corresponding rear panel
MUSIC CONTROL push-button(s) must be set to
REMOTE (button in) for the remote controls to be operative
and for the corresponding front panel controls to be disabled.
Zones without such plates should be set to LOCAL (button
out).
The setting of the internal PCB jumpers J6 and J7 is also
relevant. The default setting is SW. This means that the method
of zone music source selection will be determined by the rear
panel switch setting; the front panel control will make the
selection if MUSIC CONTROL is set to LOCAL and via a
remote plate or other external control if set to REMOTE. If a
jumper is set to FR, the source selection will always be made
with the front panel control whatever is connected at the rear
panel or the setting of the MUSIC CONTROL switch. If
external control of music level only (i.e., not source selection)
is required, J6 (Zone 1) and/or J7 (Zone 2) should be set to
FR and the MUSIC CONTROL switch to REMOTE.
See page 4 for location of internal jumpers.
Note that independent remote control of music level or
source selection in areas fed by the Utility output is not
possible. However, the Utility Output can be “slaved” to
Zone 1’s source selection and level; the Utility output will
then follow any remote control in Zone 1. See page 17 for
more details.
36-50 Installation and User Guide V1.016
Microphone input
Phantom power
The MICROPHONE INPUT has 15 V phantom power
available. This will be adequate to power a wide range of
condenser microphones. (Some “studio quality” mics may
require a higher phantom voltage and thus necessitate an
external PSU.) To enable phantom power at the mic input,
internal motherboard jumper J1 should be moved to its ON
position. See page 4 for jumper location.
Phantom power should NOT be enabled if dynamic
microphones are to be used.
EQ
The various zones in a building often have different acoustic
properties, and may also have different models of loudspeaker
installed. The 36-50 is tted with HF and LF EQ adjustments
([8] on page 11) for the music signal of each primary zone
output to enable the audio frequency response to be best
matched to each zone. The controls should be adjusted by
listening; up to 10 dB of cut or boost at 10 kHz (HF) and
50 Hz (LF) is available. Note that these EQ adjustments do
not affect the frequency response of the microphone signal.
Utility output settings
Gain & level
The MICROPHONE INPUT is provided with a rear panel
preset GAIN control ([4] on page 11). A wide range of gain
is available and there should be no problem in obtaining a
satisfactory level from any normal microphone.
The GAIN control should be adjusted by speaking normally
into a microphone of the correct type. Turn the front panel Mic
Level control up to maximum and listen in a convenient zone;
the rear panel gain control should be carefully advanced until
the mic volume is as loud as it is ever likely to be needed, and
then reduced slightly. There should be no audible distortion.
The use to which the microphone is to be put should be
borne in mind – karaoke is more likely to overload the mic
preamplier than spoken announcements, if the gain is not
set correctly.
In normal operation, the mic level in each primary zone is set
with the Mic Level controls on the front panel ([3] on page
10). The mic level at the Utility output is set with the rear
panel preset control ([9] on page 11).
EQ
The mic input has associated HF and LF EQ controls ([5] on
page 11) These provide 10 dB of cut or boost at 5 kHz and
100 Hz respectively and should be adjusted by listening to
achieve a clear mic sound. Again, the application should be
borne in mind when making adjustments.
The “third” channel of the 36-50 can be used for various
purposes: a common application is to drive loudspeakers in
secondary areas such as corridors, lobbies or toilets, where
there is no necessity to make frequent alterations to the
music source or level.
Alternatively, it can be used to effectively double the power
available from Zone 1’s amplier, by “slaving” its power
amplier section to that of Zone 1. The Utility output then
becomes an additional power amplier “paralleled” to Zone 1.
Three conguration options are available for the Utility
output, selectable by internal jumpers J10. These are:
• The Utility output is always fed with the music signal
connected to LINE 1.
• The Utility output always follows the music source
selection made for Zone 1 (either on the front panel or
via a remote control plate). The MUSIC LEVEL control
for Zone 1 does not affect the level at the Utility output,
which continues to be determined by the setting of the
rear panel UTILITY MUSIC preset control. This is the
factory default setting.
• The Utility output is fed with Zone 1’s signal, post its
MUSIC LEVEL control, thus becoming a “slave” of
Zone 1. The front panel MUSIC LEVEL, MUSIC
SOURCE and MIC LEVEL controls will all affect the
signal at the Utility output, and the rear panel UTILITY
MIC and MUSIC preset controls are inoperative.
See page 4 for locations and settings of PCB jumpers.
High-pass lter
The mic input has a xed 100 Hz high-pass lter to remove
the lowest frequencies. This helps to reduce the effects of
breath blasts and microphone handling noise. The lter is
always in circuit.
Zone and Utility outputs
In normal operation, the music level in each primary zone
will be set by the front panel MUSIC LEVEL control, or by
a corresponding control on a remote plate. The music level
at the Utility output will be set by the rear panel UTILITY
MUSIC preset control.
High-pass lters
When the 36-50 is used to drive 70 V/100 V-line loudspeaker
systems, either via an internal CXL-3120 module (as in the
36-50T) or via external CXL-40T transformers, there is a risk
of transformer saturation at high levels and low frequencies.
To prevent this, each of the 36-50’s three channels (two
primary zones and the Utility output) are provided with a
switchable 65 Hz high-pass lter. These should be enabled for
any channels being used to drive 70 V/100 V-line systems.
The lters are enabled by moving internal PCB jumpers J5
(Zone 1), J8 (Zone 2) and J9 (Utility output). See page 4
for locations of PCB jumpers.
In the Model 36-50T, the jumpers are set with the lters
enabled at the factory for all channels.
36-50 Installation and User Guide V1.0 17
Priorities
The 36-50 offers several options for determining what
happens to music signals when announcements are made.
Mic-over-Music priority
Fully automatic, voice operated priority is available for the mic
input. This is selected by the rear panel PRIORITY button,
which should be IN to enable priority operation. When
enabled, all music signals will attenuate by approximately
30 dB when the microphone is used; after the announcement,
the music signals will restore smoothly to their former level,
over a period of 3, 6 or 12 seconds.
The “release” time may be set 3 s or 6 s by moving J11, or to
12 s by removing J11 altogether. Note that the release time
setting will apply to all music ducking, regardless of whether
initiated by the mic input or Line 6 priority (see below).
See page 4 for location of the internal jumpers.
Line 6 priority
It may sometimes be necessary for one music input to have
priority over all the others; for example, a jukebox in a bar,
or a digital sound store programmed to make automatic
announcements in a public space. Input LINE 6 may be set to
have priority in either or both primary zones over whichever
source is selected for the zone by its MUSIC SOURCE
control. This priority is set by moving internal jumper J12
(Zone 1) or J13 (Zone 2) to the ‘ON’ position. (The default
setting is ‘OFF’.)
When the priority is selected, a signal present at Line 6 will
force the zone’s source selection to that input; when the signal
disappears, the previously-selected source will be restored
over the time constant selected by J11.
See page 4 for location of the internal jumpers.
36-50 Installation and User Guide V1.018
OPTIONS AND ADDITIONAL INFORMATION
RL-1 and RSL-6 Series remote
control plates – general
considerations
Cloud RL-1 Series and RSL-6 Series remote control plates
are available in three form factors, two t single-gang UK or
American electrical back boxes respectively; the third is a 50 x
50 mm “Media” module, suitable for “Euro-module” mounting
frames available in most European countries. Back boxes of
either the recessed type or surface-mounting type may be
used, providing they are at least 25 mm deep.
The plates should be connected to the REMOTE
SOURCE+LEVEL port of the relevant zone using single- or
twin-core screened cable as described at page 14 and page 15.
The plate terminations are conventional screw terminals and
the REMOTE SOURCE+LEVEL port on the mixer is a 3-pin
5 mm-pitch screw terminal connector.
The remote control plates are passive and thus do not draw
any current from the mixer.
Control of music source and level via
external DC
It may be necessary in some installations to adjust the music
level and select music source in one or more zones from
an external control system (e.g., Crestron, AMX, etc.). If the
REMOTE SOURCE+LEVEL ports are not required for
RL-1/RSL-6 Series remote control plates, they may be used to
receive DC voltages from the external system to effect these
adjustments.
power earth, there is a small risk of creating a ‘ground loop’
by linking the mixer technical ground (0 V) to the ground (0 V)
of the equipment supplying the control voltages. To minimise
this risk, we suggest that all pieces of equipment be in close
proximity, and supplied from the same power outlet.
Music level
Music level in a zone may be varied over its full range by
applying a DC voltage of between 0 V and +10 V to pin 2,
the 0 V reference being connected to Pin 1. 0 V on pin 2
corresponds to maximum level and +10 V will produce 60 dB
of attenuation. The rate of attenuation is approximately 165
mV/dB.
Note that there is an internal 4k7 “pull-up” resistor between
pin 2 and the internal +15 V rail. If pin 2 is left “oating”, this
pull-up will result in full attenuation. The output impedance of
the control voltage source should be low enough to overcome
the effect of this resistor.
Music source
Music source for a zone may be controlled by applying various
DC voltages of between 0 and +10 V to pin 3, the 0 V reference
being connected to pin 1. 0 V at pin 3 will select Line input
6 and between +7.5 and +9 V will select Line input 1. The
other line inputs will be selected with intermediate voltages.
Taking pin 3 above +9 V will deselect all inputs, making the
zone effectively ‘off’ for music.
The table below lists the DC voltages required at pin 3 to
select each line input. The third column is the value of a
resistor which should be connected between pins 1 and 3 to
permanently ‘force’ a zone to a particular line input.
Both music source selection and level can be controlled over
their full ranges with a DC voltage of 0 to +10 V. The pinout of
the REMOTE SOURCE+LEVEL port is as follows:
PIN USE
1 0 V ref.
2 Music level control (0 to +10 V)
3 Music source selection (0 to +10 V)
+15V
CONTROL
SYSTEM
SOURCECONTROL
LEVELCONTROL
0VREF
REMOTE
SOURCE+LEVEL
PORT
4k7
15k
3
2
1
0V
MUSICVCA
36-50
MUSICSOURCE
SELECT
NOTE: If the control voltage source is not isolated from the
INPUT DC VOLTAGE RESISTOR VALUE
OFF >+9.0 V
Line 1 +7.5 V 16k
Line 2 +6.0 V 11k
Line 3 +4.5 V 6k8
Line 4 +3.0 V 3k9
Line 5 +1.5 V 1k8
Line 6 0 V short-circuit
Note that there is an internal 15k “pull-up” resistor between
pin 3 and the internal +15 V rail. If pin 3 is left “oating”, this
pull-up will cause ‘OFF’ to be selected. The output impedance
of the control voltage source should be low enough to
overcome the effect of this resistor.
36-50 Installation and User Guide V1.0 19
Fitting loudspeaker EQ cards
Fitting the CXL-3120 transformer
The 36-50 is compatible with various popular installed-sound
loudspeakers; a single-channel loudspeaker equalisation
module may be tted to any or all of the three outputs as
required, to optimise the frequency response of the channel
to the loudspeaker type being used.
The cards may be obtained from Cloud Electronics as
optional accessories. Please check the Cloud website
(www.cloud.co.uk) for makes and models of loudspeakers
for which compatible EQ cards are available. For the 36-50,
an adaptor (Cloud Part No. CA963EQA) is also required for
each channel; these will be supplied with the EQ cards.
To install equalisation modules, rst disconnect the 36-50 from
the AC mains supply, then remove the top cover from the
36-50 (8 screws). The modules plug into the 10-pin headers
labelled CON2 (Zone 1), CON3 (Zone 2) and CON4 (Utility
output) on the main PCB. Proceed as follows:
1. For each of the channel(s) having the EQ cards tted,
remove the factory jumper tted to the right-hand pair
of pins (as viewed from the rear).
2. For the same channel(s), enable the 65 Hz high-pass lter
by moving jumpers J5 (Zone 1), J8 (Zone 2) and/or J9
(Utility output) to their ON position.
3. Remove the M3 screws (identied with white arrows)
adjacent to the three 10-pin headers; retain it.
4. Fit the M3 hex spacer supplied with the EQ card in place
of the screw.
5. Plug the 12-pin to 10-pin adaptor supplied with the EQ
card onto the 10-pin PCB header, ensuring that the hole
in the card aligns with the hex spacer.
6. Use the screw from step 3 to secure the adaptor to the
spacer
7. Plug the EQ card into the 12-pin socket on the adaptor,
8. Replace the top panel.
module
NOTE: Full installation instructions are included
with the transformer module.
The notes below are an abridged version.
The CXL-3120 transformer allows the 36-50 to be used with
100 V/70 V-line loudspeaker systems.
1. Disconnect the 36-50 from the mains and remove the
top cover.
2. Remove the blanking plate from the SPEAKER LINE
OUTPUTS connector location on the rear panel; retain
the plate and screws, nuts and washers.
3. The CXL-3120 is preset for 100 V-line operation. If 70 V
operation is needed, change the solder links on the rear
of the CXL-3120 PCB.
4. Fit the module to the right-hand side of the 36-50
(viewed from the rear) by the six hex spacers, using the
screws supplied.
5. Connect the 2-pin headers on the CXL-3120 PCB to
the corresponding headers on the 36-50 main PCB
(immediately behind the lo-Z output connector) using
the jumper cables supplied. Note that any or all of the
three channels may be converted as required.
6. Enable the 65 Hz high-pass lters for the relevant
channels (J5, J8 & J9). See page 4 for jumper locations.
7. Fit the two hex spacers supplied to the holes vacated in
Step 2 using the same screws, nuts and washers.
8. Replace the cover.
9. After connecting the 100 V/70 V-line loudspeaker system
using the supplied mating connector (see page 15),
t the blanking plate from Step 2 onto the hex spacers
(Step 6) over the connector, with the printed warnings
outwards.
See the Appendix section “PCB jumper locations and settings”
page 4 for further details. Replace the top cover with the
original screws after tting.
36-50 Installation and User Guide V1.020
APPENDIX
Table of internal jumpers and default settings
The 36-50 has various internal jumpers, the setting of which may require alteration during installation. All the jumpers are on
the main PCB. The table below lists each jumper and its purpose, together with the factory default setting.
JUMPER NAME EFFECT DEFAULT
J1 Mic phantom power OFF: MIC 1 phantom power OFF
ON: MIC 1 phantom power ON
J2 Bypass mic access port for Zone 1 PRESENT: Mic has permanent access to Z1
ABSENT: Use access port to enable access to Z1
J3 Bypass mic access port for Zone 2 PRESENT: Mic has permanent access to Z2
ABSENT: Use access port to enable access to Z2
J4 Bypass mic access port for Utility output PRESENT: Mic has permanent access to Utility output
ABSENT: Use access port to enable access to Utility output
J5 Zone 1 65 Hz high-pass lter OFF: full frequency response
ON: 65 Hz hi-pass lter enabled for Zone 1
J6 Music source selection – Zone 1 SW: Source follows rear panel MUSIC CONTROL switch
FR: Always via front panel only (Z1)
J7 Music source selection – Zone 2 SW: Source follows rear panel MUSIC CONTROL switch
FR: Always via front panel only (Z1)
J8 Zone 2 65 Hz high-pass lter OFF: full frequency response
ON: 65 Hz hi-pass lter enabled for Zone 2
J9 Utility output 65 Hz high-pass lter OFF: full frequency response
ON: 65 Hz hi-pass lter enabled for Utility output
J10* Utility output source select LINE 1: Utility output always uses Line 1 as source
ZONE 1: Utility output follows Zone 1 source selection
SLAVE: Utility output follows Zone source and level
J11 Music ducking release time 3S: 3 seconds release time
6S: 6 seconds release time
ABSENT: 12 seconds release time
J12* Line 6 priority – Zone 1 OFF: No priority
ON: Line 6 has VOX-triggered priority over other sources in Zone 1
J13* Line 6 priority – Zone 2 OFF: No priority
ON: Line 6 has VOX-triggered priority over other sources in Zone 2
OFF
PRESENT
PRESENT
PRESENT
OFF
SW
SW
OFF
OFF
ZONE 1
3S
OFF
OFF
*NOTE: J10, J12 & J13 each consist of two sets of jumpers
36-50 Installation and User Guide V1.0 21
PCB jumper locations
The diagram below shows the locations of the internal jumpers (not to scale) on the main PCB. The jumpers have two possible
positions; the black square in the symbol indicates the default setting. If any jumpers need to be changed, turn the Mixer Amplier
off and disconnect it from the mains. Undo the 8 screws securing the top cover of the unit and remove it. Use a pair of small
pliers to gently remove the jumpers from the PCB headers and reposition them. Ret the top cover using the original screws.
The diagram also shows the locations of the socket for the optional loudspeaker EQ cards (CON2, CON3 & CON4).
NOT TO SCALE – ONLY PRIMARY
COMPONENTS SHOWN
J12
J13
J11
J5
CON2
J1
(below sub-board)
OFF ON
OFF ON
6S 3S
OFF ON
J2
(below sub-board)
OFF ON
SW FR
J4J3
(below sub-board)
SW FR
J6
CON3
J9
OFF ON
OFF ON
Headers for connection of
J7
J8
J10
CON4
CXL-3120 transformer module
EMC considerations
The Cloud 36-50 fully conforms to the relevant electromagnetic compatibility (EMC) standards and is technically well behaved;
you should experience no operational problems and under normal circumstances, no special precautions need to be taken.
If the unit is to be used within close proximity to potential sources of HF disturbance such as high power communications
transmitters, radar stations and the like, the performance of the mixer may be reduced; we suggest that the microphone cable
screen be connected to the shell of the XLR type connector and the line input leads are kept as short as possible.
Ground loops
If, despite your best efforts, the completed sound system ‘hums’ you probably have a ‘ground loop’. The offending signal source
can often be identied by setting the volume control to minimum, then disconnecting the input leads (both left & right channels)
on each line input until the ‘hum’ disappears. This problem is often caused by terminating a screened input cable into a signal
source positioned a signicant distance from the mixer. A good way of avoiding this potential problem is to use signal sources
(typically ‘consumer’ equipment) that are double insulated with no connection to the mains supply earth. If a signal feed were
derived from a second mixer (a club or microphone mixer for example) it would be perfectly normal to expect this to be
earthed; we suggest that a transformer be used to isolate the signal and prevent a noisy loop (see page 12).
36-50 Installation and User Guide V1.022
TECHNICAL SPECIFICATIONS
Line Inputs
Frequency Response 20 Hz to 20 kHz ±0.5 dB
Distortion <0.05%, 20 Hz to 20 kHz
Sensitivity 195 mV (-12 dBu) to 2.0 V (+8 dBu)
Input gain control range 20 dB
Input Impedance 47 kohms
Headroom >20 dB
Noise -90 dB A-weighted (0 dB gain)
Equalisation HF: ±10 dB @10 kHz; LF: ±10 dB @ 50 Hz
Microphone Inputs
Frequency Response 100 Hz -3 dB (xed lter) to 20 kHz ±0.5 dB
Distortion <0.05%, 20 Hz to 20 kHz
Gain Range 0 dB to 60 dB
Input Impedance >2 kohms (balanced)
Common mode rejection >70 dB @ 1 kHz
Headroom >20 dB
Noise -126 dB EIN, 22 Hz to 22 kHz (Rs = 150 ohms)
Equalisation HF: ±10 dB @ 5 kHz; LF: ±10 dB @ 100 Hz
Outputs
4 ohm load(s)
Low Impedance Outputs
8 ohm load(s)
100V-line Output* 100 V balanced – 250 ohm min. load
70V-line Output* 70 V balanced – 125 ohm min. load
Amplier protection VI Limiting, DC Offset, thermal & switch-on delay
Cooling Convection
1ch driven 60 W
2chs driven 52 W
3chs driven 45 W
1ch driven 37 W
2chs driven 34 W
3chs driven 30 W
* with optional CXL-3120 module tted internally
GENERAL SPECIFICATIONS
Power input 230 V ±5% (115 V ±5% available)
Fuse rating 230 V: T3.15AH; 115 V: T6.3AH
Fuse type 20 mm x 5 mm 250 V
Dimensions 482.6 mm x 88 mm (2U) x 300 mm deep (not inc.
Weight 6.7 kg net (36-50); 8.9 kg net (36-50T)
rear connectors)
36-50 Installation and User Guide V1.0 23
Cloud Electronics Limited
140 Staniforth Road
Shefeld S9 3HF
England
Tel: +44 (0)114 244 7051
Fax: +44 (0)114 242 5462
email: info@cloud.co.uk
web: www.cloud.co.uk
