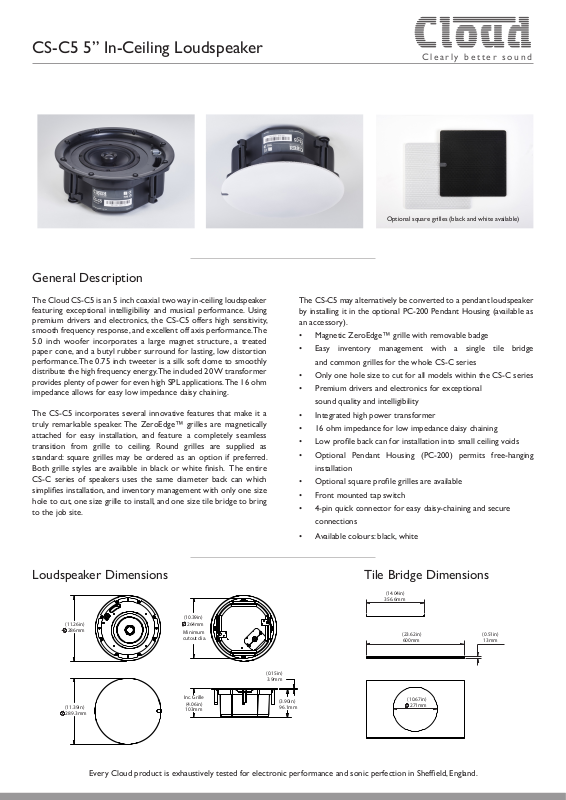

CS-C5 5” In-Ceiling Loudspeaker
General Description
Optional square grilles (black and white available)
The Cloud CS-C5 is an 5 inch coaxial two way in-ceiling loudspeaker
featuring exceptional intelligibility and musical performance. Using
premium drivers and electronics, the CS-C5 offers high sensitivity,
smooth frequency response, and excellent off axis performance. The
5.0 inch woofer incorporates a large magnet structure, a treated
paper cone, and a butyl rubber surround for lasting, low distortion
performance. The 0.75 inch tweeter is a silk soft dome to smoothly
distribute the high frequency energy. The included 20 W transformer
provides plenty of power for even high SPL applications. The 16 ohm
impedance allows for easy low impedance daisy chaining.
The CS-C5 incorporates several innovative features that make it a
truly remarkable speaker. The ZeroEdge™ grilles are magnetically
attached for easy installation, and feature a completely seamless
transition from grille to ceiling. Round grilles are supplied as
standard: square grilles may be ordered as an option if preferred.
Both grille styles are available in black or white nish. The entire
CS-C series of speakers uses the same diameter back can which
simplies installation, and inventory management with only one size
hole to cut, one size grille to install, and one size tile bridge to bring
to the job site.
The CS-C5 may alternatively be converted to a pendant loudspeaker
by installing it in the optional PC-200 Pendant Housing (available as
an accessory).
• Magnetic ZeroEdge™ grille with removable badge
• Easy inventory management with a single tile bridge
and common grilles for the whole CS-C series
• Only one hole size to cut for all models within the CS-C series
• Premium drivers and electronics for exceptional
sound quality and intelligibility
• Integrated high power transformer
• 16 ohm impedance for low impedance daisy chaining
• Low prole back can for installation into small ceiling voids
• Optional Pendant Housing (PC-200) permits free-hanging
installation
• Optional square prole grilles are available
• Front mounted tap switch
• 4-pin quick connector for easy daisy-chaining and secure
connections
• Available colours: black, white
Loudspeaker Dimensions Tile Bridge Dimensions
(14.04in)
356.6mm
(11.26in)
286mm
(11.39in)
289.3mm
Every Cloud product is exhaustively tested for electronic performance and sonic perfection in Shefeld, England.
(10.39in)
264mm
Minimum
cutout dia.
Inc. Grille
(4.06in)
103mm
(23.62in)
600mm
(0.15in)
3.9mm
(3.90in)
96.1mm
(10.67in)
271mm
(0.51in)
13mm
Clearly better sound
Applications
The CS-C5 was developed as a versatile background music and
mid-SPL paging speaker. It offers superior acoustic performance, and
premium design at an economic price point. It is ideally suited for use
in restaurants, retail stores, airports, churches, board rooms, health
care facilities, and hotels. The entire CS-C series shares the same
acoustic signature, so installations with varying SPL requirements
can seamlessly integrate multiple models from the line. The CS-C5
is a premium background and paging speaker that offers high end
performance and design at an affordable price point.
Tap Settings
Ta p Tap Settings
100 V 70 V 25 V
1 16 ohm
2 X 20W 2.5W
3 20W 10W 1.3W
4 10W 5W 0.6W
5 5W 2.5W 0.3W
6 2.5W 1.25W 0.2W
Graphs
Frequency Response
Optional
PC-200
Pendant
Housing
Impedance
Clearly better sound
Technical Specications
Description 5” 2-way in-ceiling with magnetic grill and steel back can.
Response (f3) 105 Hz -20 kHz
Response (f10) 89 Hz -20 kHz
Impedance 16 ohm
Crossover frequency 4.2 kHz
Sensitivity (2.83 V/1 m) 85 dB
Sensitivity (1 W/1 m) 88 dB
Power handling 32 W
Maximum SPL 103 dB
Average coverage angle (2 kHz - 10 kHz) 135°
Transformer taps 20,10, 5, 2.5, 1.3 W
Tweeter 0.75 inch silk dome
Woofer 5.0 inch treated paper with rubber surround
Input 4 pin Euroblock
Included accessories Input cover plate (installed), male Euroblock
Optional accessories Tile bridge, square prole grilles (black or white)
Available colours Black (RAL9011), White (RAL9003)
Net weight/Gross weight 2.3 kg (5 lb) / 2.9 kg (6.4 lb)
Packaging 1 per box, cardboard inner packaging, single instruction sheet
Conformance UL1480 / 2043 planned, RoHS, CE approved
Architect’s and Engineer’s Specication
The loudspeaker shall consist of one powder coated steel enclosure containing two transducers, a frequency dividing network, a transformer, and
acoustic damping material. It shall incorporate an integrated clamping system including 4 dog ears. It shall include one removable circular prole
steel grille afxed to the bafe via integrated magnets. The grille shall include a removable logo tab. Square prole grilles shall be available as an
optional accessory.
A pendant housing shall be available as an optional accessory, permitting the loudspeaker to be suspended in free space. The housing shall consist
of an ABS plastic moulding with tapped steel inserts as mounting points. The housing shall be supplied with a full set of suspension components to
allow a safe installation.
The loudspeaker shall include one 127 mm (5.0 inch) low-frequency transducer and one 19.5 mm (0.75 inch) high-frequency transducer with a
frequency-dividing crossover network installed in a ported enclosure. The low frequency voice coil diameter shall be 19.5 mm (0.75 inch). The
low-frequency transducer shall have a treated paper cone material with a rubber surround. The high-frequency transducer shall incorporate a silk
dome with a plastic phase plug.
The loudspeaker shall include a 20 watt transformer with taps at 20 W, 10 W, 5 W, 2.5 W, and 1.3 W. Said taps shall be selected via an included
tap switch located on the front baffle, under the magnetically removable grille. The transformer shall accept 25 V, 70.7 V, or 100 V. The tap
switch shall also include a transformer bypass position, allowing for direction connection to the 16 ohm low impedance circuit.
Nominal performance specications shall be as follows: The loudspeaker shall have a usable frequency range extending from
89 Hz - 20 kHz (-10 dB). The nominal impedance shall be 16 ohms, and the maximum continuous RMS power handling shall be at least 32 W
according to the EIA-426-B standard. Sensitivity measured at 2.83 V / 1 m shall be 85 dB. The maximum output at 1 m shall be 103 dB.
Installation for the speaker shall be by 4 blind-mount constant-tension dog ear clips and shall attach to ceiling thicknesses ranging from
3.18 mm (0.125 inches) to 50.8 mm (2 inches). The external wiring shall be via 4-position 5.08 mm Euroblock connector, accepting up to 10 gauge
wire. An optional tile bridge is available.
The maximum overall height shall be no more than 103 mm (4.06 inches) and the maximum diameter shall be no more than
289.3 mm (11.39 inches). The maximum visible dimensions shall be no more than 3.9 mm (0.15 inches) in height by 289.3 mm (11.39 inches) in
diameter. The back can shall have a maximum diameter of 264.0 mm (10.39 inches), and shall t within a cutout diameter of 266.7 mm (10.5 inches).
The unit is factory preset to the 20 watt setting in the 70.7 volt operating mode, with a tap switch located on the front bafe.
The system shall be the Cloud CS-C5 for both low- and high- impedance applications. The optional pendant housing shall be the Cloud PC-200.
The optional square grilles shall be the Cloud CS-8SQGRILLW (white nish) and CS-8SQGRILLB (black nish).
