Page 1

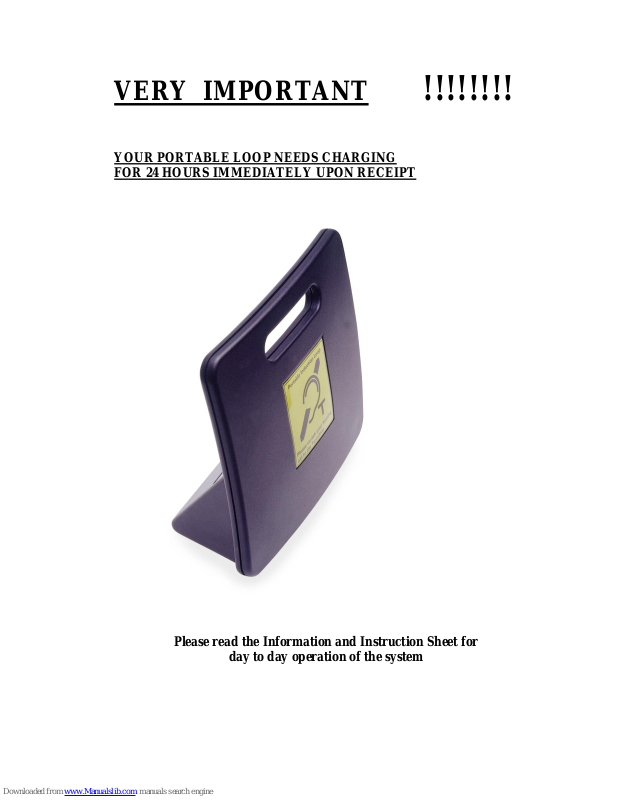

VERY IMPORTANT !!!!!!!!
YOUR PORTABLE LOOP NEEDS CHARGING
FOR 24 HOURS IMMEDIATELY UPON RECEIPT
Please read the Information and Instruction Sheet for
day to day operation of the system
Page 2
CILP-10 Portable Induction loop System
www.clockaudio.com
Information and Instruction sheet
Operation of Unit
Place the main unit on the desk or counter top between the member of staff and the user of the hearing
aid. The rear of the unit, with the integral microphone, should face towards the staff member and the
front, with “T” label, towards the customer. See diagram at the bottom of this page.
Switch the system on using the ON/OFF switch on the left hand side of the rear of the main unit.
Adjust the position of the main unit to optimize the benefit to the customer according to their particular
hearing loss, while still maintaining ease of use of both microphone and displays for the member of
staff.
During normal operation, while conversations are taking place, the status LED will flash green in relation
to the speech, indicating to the staff member that the unit is working.
When the batteries are fully charged the system will operate for at least 24 hours.
The status LED will flash red periodically if the battery charge becomes low. If this occurs the unit should
be charged by connecting the power adaptor provided to the socket labeled PWR on the rear. This may
be done while the system is in operation.
If the system is used for prolonged discussions it is recommended that the unit is put on charge
overnight to ensure that it is ready for use on the next occasion. Similarly, if the system is not used for a
while it would be good practice to recharge the unit periodically, say once per month.
When the device is charging the status LED on the rear panel will glow red continuously.
Page 3
CILP-10 Portable Induction Loop System
Information and Instruction Sheet
Designed to help communication with people wearing a
hearing aid that has a "T" facility
Portable and Easy to carry.
Quick and simple to set up
Integral microphone
External Microphone Socket
Elegant and robust ABS plastic construction
Battery powered with greater than 24 hours use from full charge.
Plug in power adaptor for recharging and continuous use
Led indications of speech and low charge battery condition
______________________________________________________
As part of a continuous product improvement programme, we reserve the right
to alter specifications without prior notice.
