Page 1

AUDIO GUIDE AG-100

[USER MANUAL]

22 Arnside Road Waterlooville Hampshire PO7 7UP England

WWW.CLOCKAUDIO.COM

Page 2

PREFACE:

INDEX:

Thank you for the purchase of this Audio Guide AG-100. This user manual offers comprehensive operation of the unit. Please read it over before your use.

This unit can work with Audio Guide Charger ATC-110 or Audio Guide Updater ATC-110U for better performance. Please refer to ATC-110 and ATC-110U user manual for more information.

AG-100 AUDIO GUIDE

Illustration

...........................

How to use

........................

Caution/Troubleshooting. Features / Specifications...

1-2 3~4

....5

,..6

Page 3

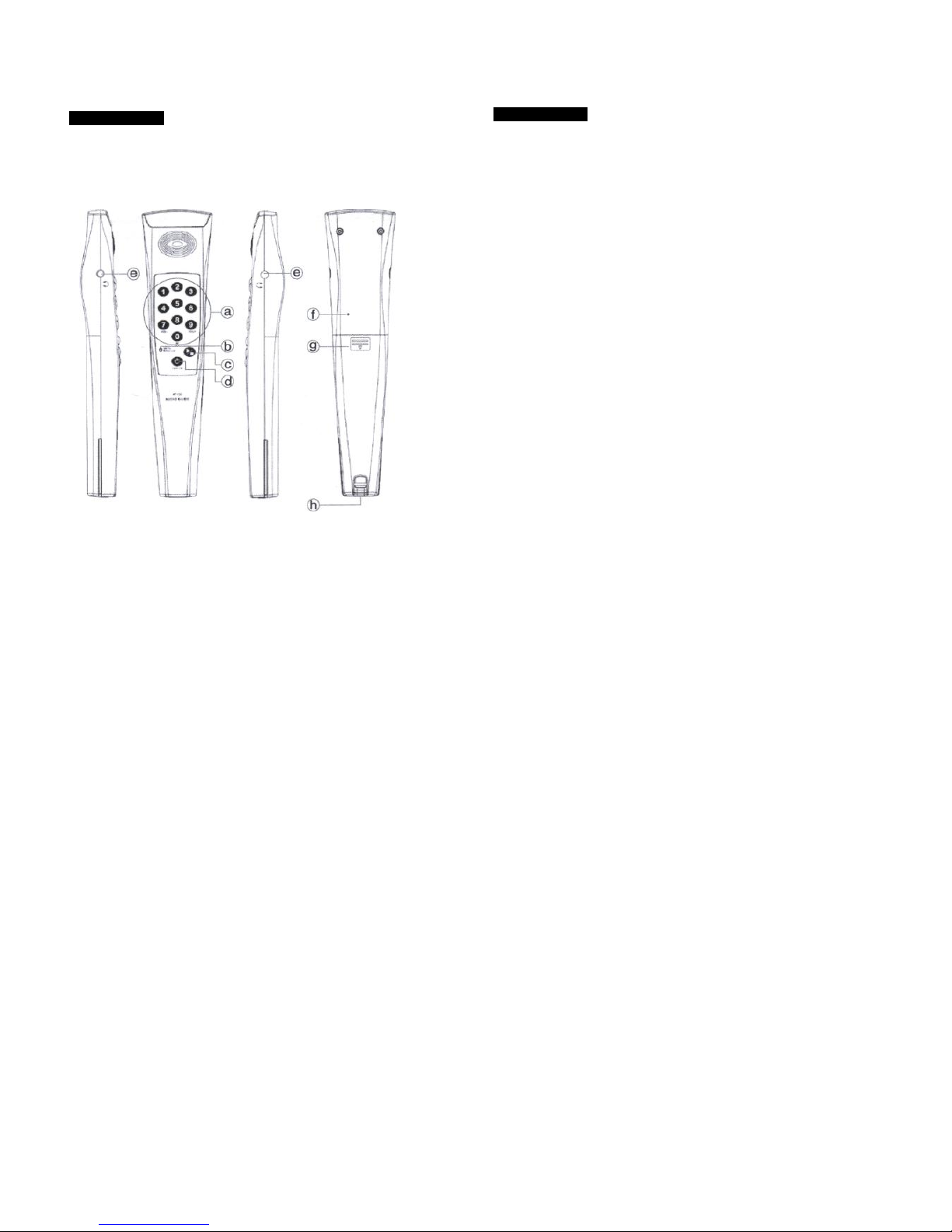

ILLUSTRATION

•

® Numeric keypad (0-9): Press required numbers through numeric

keypad to listen. Number "0", "7" and "9" offer special functions described as below.

A. rOj : Pause/Resume. B. r7j : Volume down. C. r9j : Volume up.

A. Indicator lights greenly: Device is working under good condition. B. Indicator lights amber: Battery energy is not sufficient. C. Indicator glitters redly: Device is running out of power.

language folder.

@ Power on: Turn on the unit by pressing it until LED indicator lights

greenly. Turn off the unit by pressing it up to 2 sec and LED indicator goes out.

earphone.

To open the battery door, please insert a needle (010mm) into the hole and push battery door forward at the same time.

@ Battery door. (ft Loop for neck cord.

Page 4

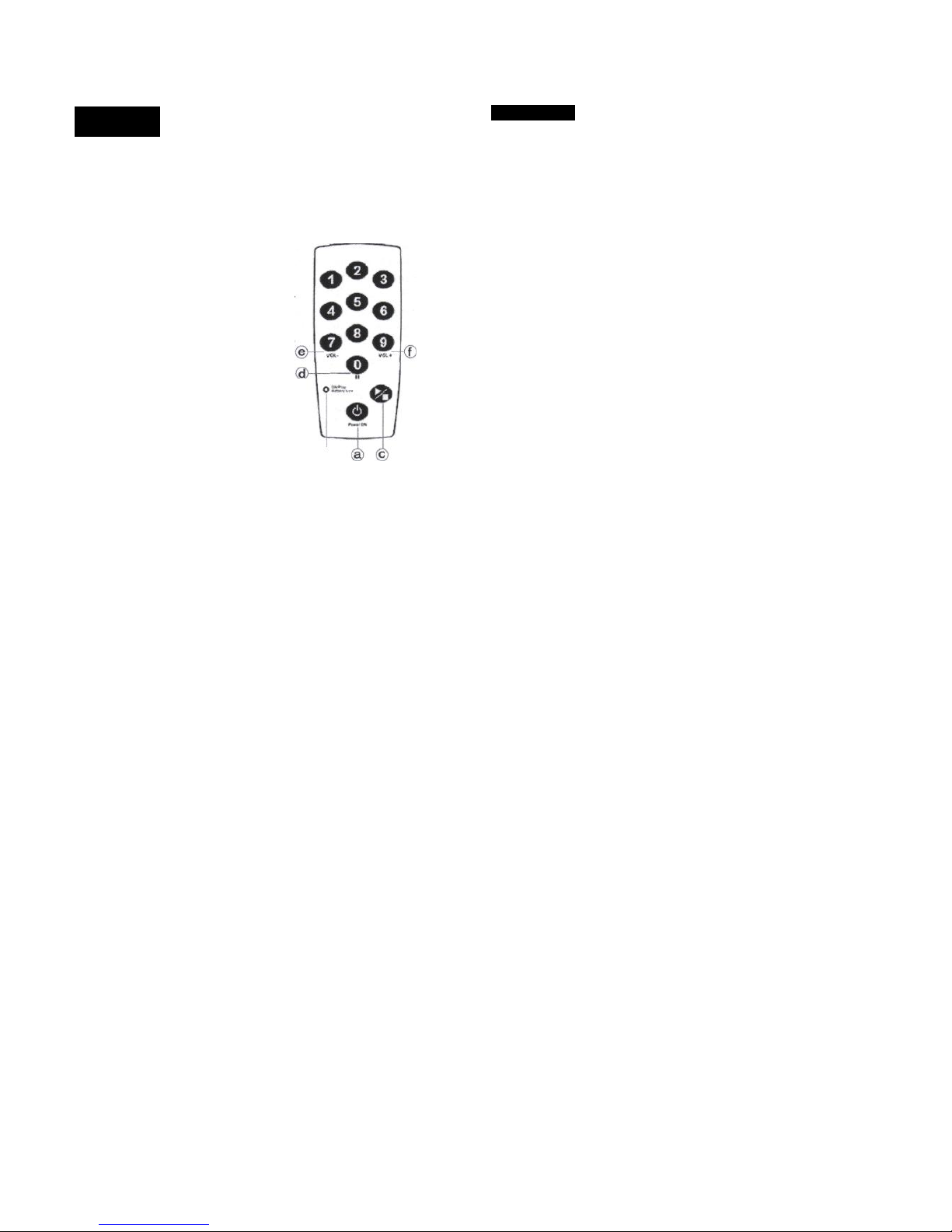

HOW TO USE

A. General operation: (for general users.)

1. Insert batteries correctly. Batteries could be 2 AA rechargeable NiMH batteries 1 .2 V (1600 mAh or above is recommended), or 2 AA Alkaline batteries 1 .5 V. Do not mix batteries to use.

2. Turn on the device by pressing greenly.

3. If you wan to play 4 file under a selected

language folder, simply press POWER ON © (a) and press numeric 4 after indicator lights greenly then press PLAY/STOP© c The indicator O 6} will glitter greenly while playing selected file. When play is finished, the indicator will become green and keep on

4. If you wan to PAUSE the play of 4th file

simply press numeric 0 (n ;cj;), the indicator will glitter slowly.

5. Press numeric 0 (II (rjp) or PLAY/STOP ©

Cc to keep on playing. The file stars to play from where just paused and the indicator will glitter fast.)

6. Adjust the volume level by pressing numeric 9 (up) VOL+ Cf) or

numeric 7 (down) VOL- <je). Totally 10 levels are available. Every press on numeric 9 VOL+-' f). or numeric 7 VOL- e) will get a respective volume up or down. Factory preset of volume is fixed at 6th level.

7. Volume adjustment (numeric 9 & 7) can't be in function when PAUSE or STOP playing the file.

8. When the file is on play, press PLAY/STOP © (c) to stop. When a file is on play, must press PLAY/STOP © before entering a desired file number.

9. AT-100 will turn off (LED O <&, off) automatically when there isn't any action made to the unit under standby mode for certain of period, (please refer to ATC-110U user manual for further setup.)

B. Advanced operation: (for system maintainers or service providers)

1. Please change batteries (Alkaline) or put AG-100 onto compatible charger (ATC-110/ATC-110U) when pressing POWER ON © ® and the LED indicator O :b shows red.

2. Change language folder: Totally 32 language folders are available, number code given from 951 to 982.

3. How to change to desired language folder: Enter desired language folder code under standby mode (LED indicator lights greenly); and press PLAY/STOP © © to implement. For example, if language folder code 951 is the desired one to change from current language folder, simply enter numeric 9, 5, 1 and press PLAY/STOP © ;c

to implement under standby mode. The indicator will glitter twice at the same time, and it means this change is successful.

4. How to update data: Please refer to Audio Guide Updater ATC-110U for more information.

iaj until LED indicator (& lights

Page 5

CAUTION / TROUBLESHOOTING

FEATURES / SPECIFICATIONS

Caution:

1. Keep away from heating source; don't put the unit next to any object with high heat or temperature.

2. Inappropriate move or squeeze is prohibited.

3. DO NOT use rechargeable and general batteries together. DO NOT mix old and new batteries to charge.

4. Please take out batteries if the units won't be in use for a longer period in case of any leakage from batteries.

Troubleshooting:

1. Fail to turn on: Make sure batteries were inserted correctly. Make

sure batteries are in good conditions.

2. Numeric keypad fail to react: Make sure the selected folder or file

exists or not.

3. AG-100 will fail to play when changed to a new language folder

which is empty in content and has no greeting edited. Please update AG-100 through computer.

4. When entered a number code in a language folder but it failed to

react: Make sure the file(s) exists or not.

5. LED indicator lights redly when turn on: Batteries are running out of

energy. Please change with new batteries or charge batteries (NiMH rechargeable only).

FEATURES

1. User friendly.

2. Built-in speaker.

3. 2 stereo output available for earphone.

4. Offer up to 32 language folders to edit.

5. Quality sound rivals to CD.

Audio parameters

50 Hz ~ 18 kHz

95 dB < 0.1 %

0.2 W @ 8 Q

3.5 mm earphone jack (stereo) x 2

1,024 minutes (stereo) or 2,048 minutes (mono) @ 44.1 kHz sampling, 128 kbps bit-rate 32 (max.) 950 (max.) SD memory stick 1GB/2GB FAT-12 / FAT-16 / FAT-32 12 buttons available Power on (LED lights greenly), Playing (LED flashes greenly), Battery low (LED lights redly)

-10~50°C

2 x AA1.2 V (NiMH, 1600 mAh) rechargeable / 2 xAA 1.5V alkaline 10 hours (rechargeable) /16 hours (alkaline) <10uA 100 mA (standby) /160 mA (playing) D 28 x W 59 x H 235 (mm) 180 g (batteries included)

General parameters

Recording time capacity (1GB) Available language folders Available files to edit Storage medium Optional SD memory stick File format Controlled keypad

Indicator Ambient temperature Power supply

Battery autonomy Static current consumption Current consumption Size Weight

Frequency response Dynamic range T.H.D. Built-in speaker Audio output

Page 6

MEMO
