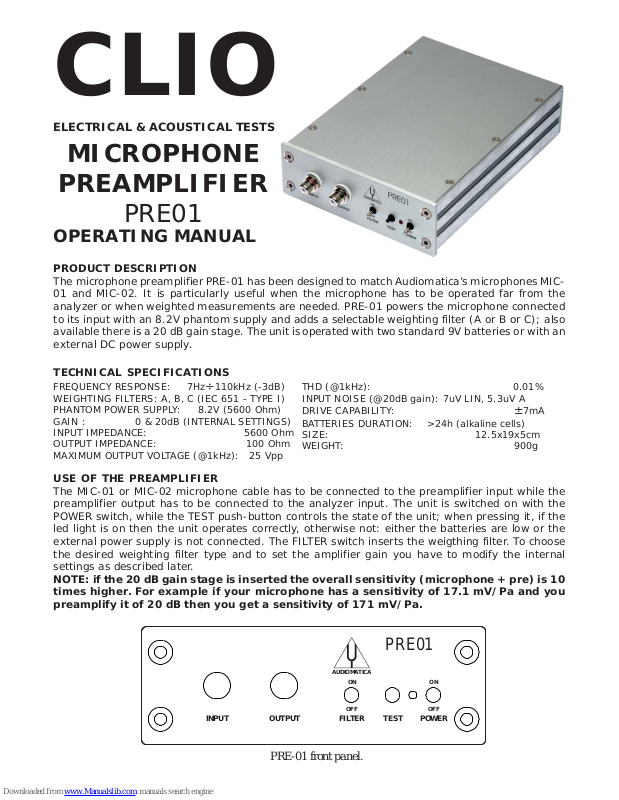

CLIO PRE01 Operating Manual

INPUT OUTPUT FILTER TEST POWER

PRE01

ON

OFF

AUDIOMATICA

ON

OFF

PRE-01 front panel.

CLIO

ELECTRICAL & ACOUSTICAL TESTS

MICROPHONE

PREAMPLIFIER

PRE01

OPERATING MANUAL

PRODUCT DESCRIPTION

The microphone preamplifier PRE-01 has been designed to match Audiomatica’s microphones MIC ­01 and MIC-02. It is particularly useful when the microphone has to be operated far from the
analyzer or when weighted measurements are needed. PRE-01 powers the microphone connected
to its input with an 8.2V phantom supply and adds a selectable weighting filter (A or B or C); also
available there is a 20 dB gain stage. The unit is operated with two standard 9V batteries or with an
external DC power supply.

TECHNICAL SPECIFICATIONS

FREQUENCY RESPONSE: 7Hz÷110kHz (-3dB)
WEIGHTING FIL TERS: A, B , C (IEC 651 - TYPE I)
PHANTOM POWER SUPPLY: 8.2V (5600 Ohm)
GAIN : 0 & 20dB (INTERNAL SETTINGS)
INPUT IMPEDANCE: 5600 Ohm
OUTPUT IMPEDANCE: 100 Ohm
MAXIMUM OUTPUT VOLTAGE (@1kHz): 25 Vpp

THD (@1kHz): 0.01%
INPUT NOISE (@20dB gain): 7uV LIN, 5.3uV A

DRIVE CAPABILITY: ±7mA
BATTERIES DURATION: >24h (alkaline cells)
SIZE: 12.5x19x5cm
WEIGHT: 900g

USE OF THE PREAMPLIFIER

The MIC-01 or MIC-02 microphone cable has to be connected to the preamplifier input while the
preamplifier output has to be connected to the analyzer input. The unit is switched on with the
POWER switch, while the TEST push-button controls the state of the unit; when pressing it, if the
led light is on then the unit operates correctly, otherwise not: either the batteries are low or the
external power supply is not connected. The FILTER switch inserts the weigthing filter. To choose
the desired weighting filter type and to set the amplifier gain you have to modify the internal
settings as described later.

NOTE: if the 20 dB gain stage is inserted the overall sensitivity (microphone + pre) is 10
times higher. For example if your microphone has a sensitivity of 17.1 mV/Pa and you
preamplify it of 20 dB then you get a sensitivity of 171 mV/Pa.

VIA MANFREDI 12 - 50136 FIRENZE -ITALY
TEL : [phone]- FAX : [phone]
E-MAIL: [e-mail]
INTERNET: www.audiomatica.com

CLIO

ELECTRICAL & ACOUSTICAL TESTS

AUDIOMATICA

For More Information ....

USE OF AN EXTERNAL POWER SUPPLY

As it may be seen from the above figure the unit can be powered by an external DC power supply
in the range 12÷16V capable of delivering a minimum of 100 mA. The silk-screen also reports
connector wiring with the positive at the tip contact.

INTERNAL SETTINGS

To be able to modify the unit’s internal settings and to replace the batteries you have to open the
unit itself; to do this first turn power off and then carefully unscrew the four screws at the top of the
case. You will gain access to the preamplifier PCB where the dip switches 1-4 and the batteries are
located. Please have Fig.1 as your reference.

TO REPLACE BATTERIES

Substitute the two 9V cells (BAT1 and BAT2) with two equivalent among the many available in the
market (PP3, 6AM6, 6LR6, MN1604 etc.). Y ou may also use rechargeable ones. Take great care to
the polarity when inserting them into the sockets.

TO SELECT A WEIGTHING FILTER

Use dip switches 1-3, selecting one at a time, as follow:

- ‘A weighting’ filter !dip switch 1 ON (2&3 OFF)

- ‘B weighting’ filter !dip switch 2 ON (1&3 OFF)

- ‘C weighting’ filter !dip switch 3 ON (1&2 OFF)

Factory setting: ‘A weighting’ filter.

TO CHANGE AMPLIFIER GAIN

Use dip switch 4 as follow:

- +20 dB gain ! dip switch 4 ON

- 0 dB gain ! dip switch 4 OFF

Factory setting: +20 dB gain.

DIP SWITCHES 1-4

BATTERIES POLARITY

+ -

+ -

Fig.1 Internal settings.

PRE-01 rear panel.

BATTERY OPERATED MICROPHONE POWER

SUPPLY & PREAMPLIFIER

SERIAL No ____________

MADE IN ITALY

AUDIOMATICA SRL

DC IN (12÷16V)

+
