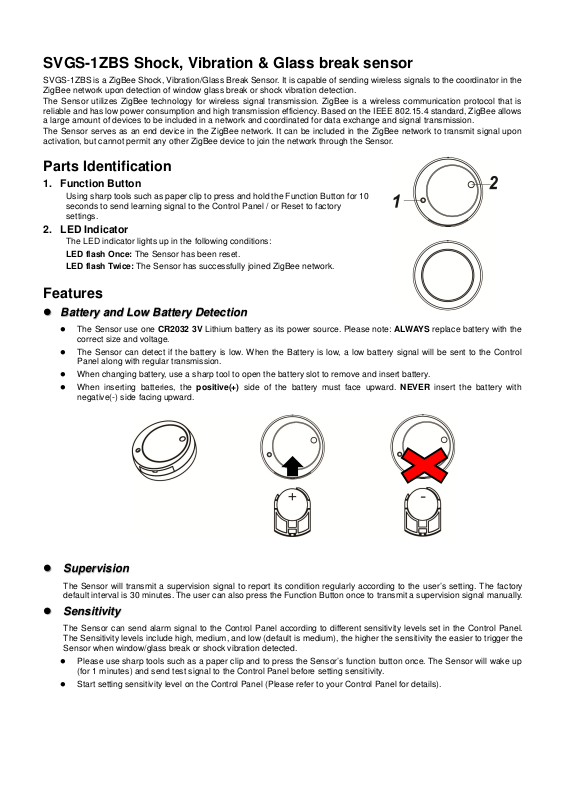

SVGS-1ZBS Shock, Vibration & Glass break sensor

SVGS-1ZBS is a ZigBee Shock, Vibration/Glass Break Sensor. It is capable of sending wireless signals to the coordinator in the
ZigBee network upon detection of window glass break or shock vibration detection.

The Sensor utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless communication protocol that is
reliable and has low power consumption and high transmission efficiency. Based on the IEEE 802.15.4 standard, ZigBee allows
a large amount of devices to be included in a network and coordinated for data exchange and signal transmission.

The Sensor serves as an end device in the ZigBee network. It can be included in the ZigBee network to transmit signal upon
activation, but cannot permit any other ZigBee device to join the network through the Sensor.

Parts Identification

1. Function Button

Using sharp tools such as paper clip to press and hold the Function Button for 10
seconds to send learning signal to the Control Panel / or Reset to factory
settings.

2. LED Indicator

The LED indicator lights up in the following conditions:

LED flash Once: The Sensor has been reset.
LED flash Twice: The Sensor has successfully joined ZigBee network.

Features

 Battery and Low Battery Detection



The Sensor use one CR2032 3V Lithium battery as its power source. Please note: ALWAYS replace battery with the
correct size and voltage.



The Sensor can detect if the battery is low. When the Battery is low, a low battery signal will be sent to the Control
Panel along with regular transmission.



When changing battery, use a sharp tool to open the battery slot to remove and insert battery.



When inserting batteries, the positive(+) side of the battery must face upward. NEVER insert the battery with
negative(-) side facing upward.

 Supervision

The Sensor will transmit a supervision signal to report its condition regularly according to the user’s setting. The factory
default interval is 30 minutes. The user can also press the Function Button once to transmit a supervision signal manually.

 Sensitivity

The Sensor can send alarm signal to the Control Panel according to different sensitivity levels set in the Control Panel.
The Sensitivity levels include high, medium, and low (default is medium), the higher the sensitivity the easier to trigger the
Sensor when window/glass break or shock vibration detected.



Please use sharp tools such as a paper clip and to press the Sensor’s function button once. The Sensor will wake up
(for 1 minutes) and send test signal to the Control Panel before setting sensitivity.



Start setting sensitivity level on the Control Panel (Please refer to your Control Panel for details).

ZigBee Network Setup

 ZigBee Device Guideline

ZigBee is a wireless communication protocol that is reliable and has low power consumption and high transmission
efficiency. Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network and
coordinated for data exchange and signal transmission.

Due to the fundamental structure of ZigBee network, ZigBee device will actively seek and join network after powering on.
Since performing a task in connecting network may consume some power, it is required to follow the instructions to avoid
draining battery of a ZigBee device.

- Ensure your ZigBee network router or coordinator is powered on before inserting battery into the ZigBee device.

- Ensure the ZigBee network router or coordinator is powered on and within range while a ZigBee device is in use.

- Do not remove a ZigBee device from the ZigBee network router or coordinator without removing the battery from a
ZigBee device.

 Joining the ZigBee Network

As a ZigBee device, the Sensor needs to join a ZigBee network to transmit signal when it is triggered. Please follow the
steps bellow to join the Sensor into the ZigBee network.

1. Remove the insulator from the Sensor to power on.

2. After powering up, use sharp tools such as a paper clip to press and hold the Function button for 10 seconds until LED
flash once, then release it to join the network. Please make sure the permit-join feature on the router or coordinator of
your ZigBee network is enabled.

3. If the Sensor successfully joins a ZigBee network, the LED Indicator will flash twice to confirm (refer to you Control
Panel to complete learning).

4. After joining the ZigBee network, the Sensor will be registered in the network automatically. Please check the ZigBee
coordinator, system control panel or CIE (Control and Indicating Equipment) to confirm if joining and registration is
successful.

5. After joining the ZigBee network, if the Sensor loses connection to current ZigBee network, the LED will flash every 20
minutes to indicate. Please check your ZigBee network condition and Sensor signal range to correct the situation.

 Removing Device from ZigBee Network (Factory Reset)

To remove the Sensor from current ZigBee network, the Sensor must be put to Factory Reset to complete device removal.
Factory Reset function will clear the Sensor of its stored setting and information and prompt the Sensor to search for new
ZigBee network.

Before removing device, make sure the Sensor is within current ZigBee network signal range

1. Press and hold the function button for 10 seconds, then release the button to reset Sensor.

2. Upon reset, the Sensor will clear current ZigBee network setting and transmit signal to ZigBee coordinator to remove
itself from current ZigBee network. It will then actively search for available ZigBee network again and join the network
automatically.

Installation

The Sensor should be installed on a glass to detect shock/vibration or glass breakage. Use the double side adhesive tape
provided to secure the Sensor on the window.

Appendix

 Vibration Movement Sensor Cluster ID

Device ID: IAS Zone 0x402
Endpoint: 0x01

Server Side Client Side
Mandatory

Basic (0x0000) Basic (0x0000)
Identify(0x0003)
IAS Zone(0x0500)

Optional

None None

 Attribute of Basic Cluster Information

Identifier

0x0000 ZCLVersion

(For developers only)

Name Type Range Access Default

Unsigned 8-bit

integer

0x00 –0xff Read only 0x01 M

Mandatory /

Optional
