Climax Technology Co MINISD Users manual

Manufacturer: Climax Technology CO., LTD.
No. 258, Xinhu 2nd Rd., Neihu Dist., Taipei
114, Taiwan (R.O.C.)
Version 1.0

GX9MINISD

Mini Smoke Detector (Mini-SD)

General Information

Before installation of the Mini Smoke Detector, please read through this instruction manual thoroughly to understand the Mini Smoke Detector
functions, responses and the guidelines to installing the Mini Smoke Detector.
Please leave this manual with the user of the Mini Smoke Detector.

General Description

When the Mini Smoke Detector is triggered, the built-in buzzer will start a local alarm siren of 85dB (in compliance with the UL Standard 217)
and the Red LED will flash quickly as a local warning. The Mini Smoke Detector will continuously check the smoke concentration and turn the
local warning on if smoke concentration does not drop below the set value. The local alarm siren will continue to siren until the smoke
condition is cleared to reset the Mini Smoke Detector. The test button of the Mini Smoke Detector can be pressed to silence the alarm for 9
minutes.

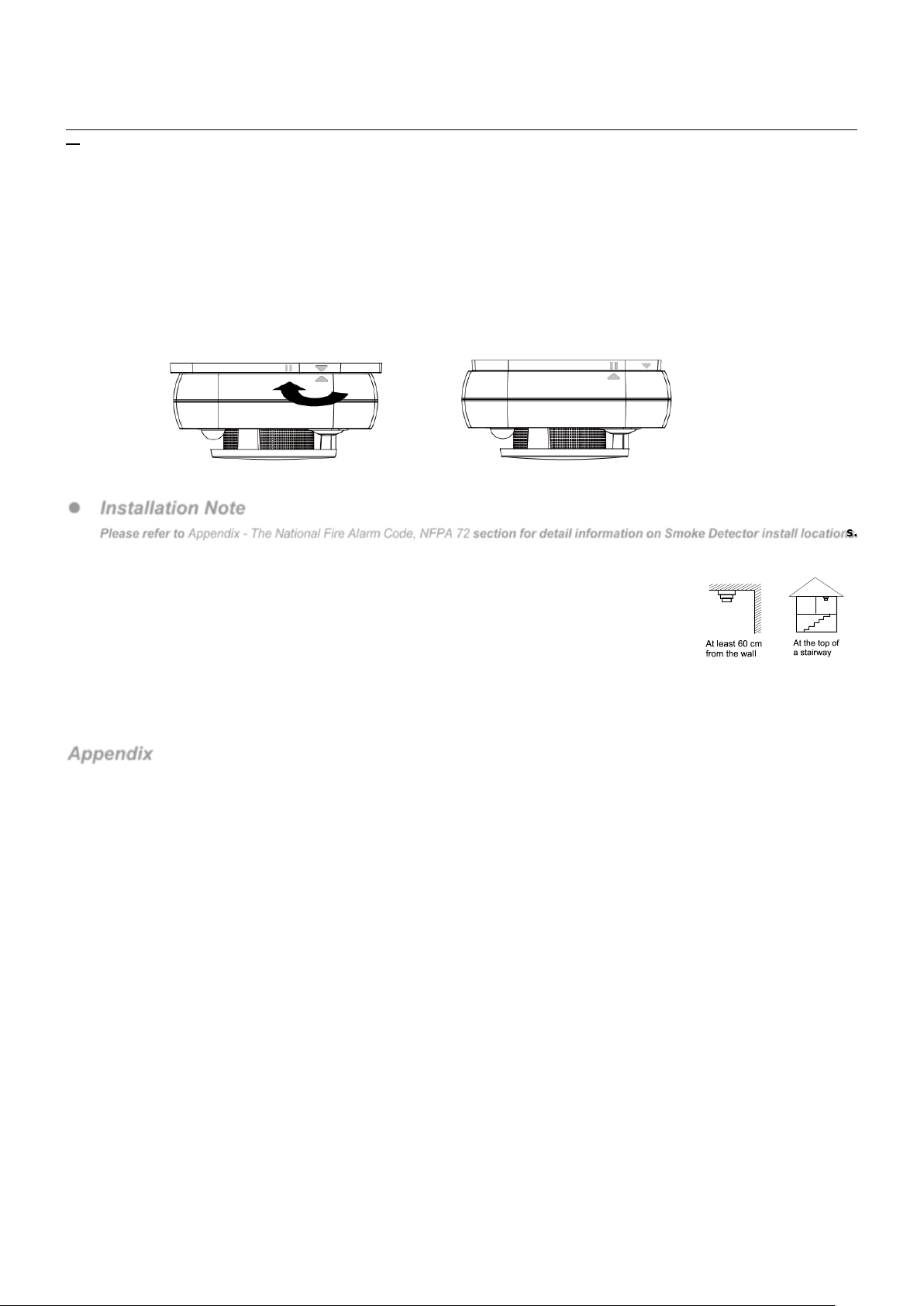

Mounting the Mini Smoke Detector is simplified with the mounting bracket, where the mounting bracket is fixed to the surface using screws
and dowels. The Mini Smoke Detector is then fixed to the mounting bracket by hooking itself onto the mounting bracket.

Identifying the Parts

1. LED Indicator & Test Button

Red LED

 Quick flash: Smoke Alarm
 Flashes every 2 seconds: Mini Smoke Detector under warmup and calibration process.
 Flashes every 4 seconds: battery exhausted.
 On briefly: Test Button pressed

Orange LED

 Flashes every second: Calibration Failure
 Flashes every 4 seconds: battery exhausted.
 Flashes every 45 seconds: Low battery condition

Test Button

 Press the button once to:

 Check smoke detection chamber.
 Silence alarm.

2. Buzzer

3. Mounting Holes

4. Battery compartment

5. Hooks

6. Mounting Holes

Features

 Battery

 A 3V CR123A Lithium Battery is used to supply power to the Mini Smoke Detector. If replacement batteries are required, please

contact the Mini Smoke Detector supplier.

 The Mini Smoke Detector has a foolproof mechanism which prohibits cover closure without first installing battery.
 When the Mini Smoke Detector battery voltage is low, the Orange LED will flash with accompanying low-volume beep once every 45

seconds. Low Battery warning typically starts 1 month before complete exhaustion.

 If the battery is not replaced after low battery voltage is detected and the battery is exhausted, the Mini Smoke Detector will stop all

operation. Both Red and Orange LED will flash every 4 seconds to indicate Smoke Detector is inactive.

<NOTE>

 When changing the battery, after removing the old battery, press the Test Button twice to fully discharge before inserting new

battery.

1

 Testing the Mini Smoke Detector

The Mini Smoke Detector should be tested every week after installation to ensure its performance.

Press the Test Button on the Mini Smoke Detector to test if the Mini Smoke Detector is functioning normally.

 If the Mini Smoke Detector functions normally, the Red LED will turn on for 2 seconds followed by a 2-tone beep.
 If the buzzer sounds 2-tone beeps 3 times, the “Optical Chamber” on the Mini Smoke Detector is either dirty or out-of-order.
 If the Red LED does not respond and no beep is sounded, it means the Mini Smoke Detector is out-of-order.

 Operation

 Smoke Detection:

 When smoke concentration exceeds the set alarm threshold value, the Mini Smoke Detector will activate the buzzer and

the Red LED will flash rapidly to indicate alarm. The alarm volume is 85db and in compliance with the UL Standard.

 If Smoke Detector is under low battery voltage when alarm is activated, it will sound a low-volume alarm instead.
 The Mini Smoke Detector performs smoke concentration check every 8 seconds. If the smoke concentration still exceeds

alarm threshold, the Mini Smoke Detector will continue to sound alarm.

 When the smoke concentration drops below alarm threshold, the alarm will stop automatically. The alarm can also be

stopped temporarily by using the “Alarm Silence” function.

 Alarm Silence:

 When the Mini Smoke Detector is alarming, pressing the Test button will put the Mini Smoke Detector into Alarm Silence

mode to silence the alarm for 9 minutes. In compliance with the UL Standard, the buzzer will only stop sounding after the
alarm has been activated for at least 1-minute. If the button is pressed before alarm time reaches 1 minute, the Mini Smoke
Detector will wait until alarm time has reach 1 minute before silencing the alarm.

 During the 9-minute Alarm Silence period, the Red LED will flash once per second. The Mini Smoke Detector will continue

to monitor smoke concentration during the alarm silence period:

 After the 9-minute Alarm Silence period has expired, if the smoke concentration has dropped

below alarm threshold, the Mini Smoke Detector will emit a 2-tone beep and return to normal
operation without sounding alarm. If smoke concentration still exceeds alarm threshold, the Mini
Smoke Detector will start alarming again.

 If smoke concentration continues to rise during Alarm Silence period and exceeds a second

alarm threshold, the Mini Smoke Detector will start alarming again. An alarm activated by
exceeding the second alarm threshold could not be silenced by pressing the test button.

 Operating Temperature:

The Mini Smoke Detector may be deployed in indoor environment with 4.4°C to 37.8°C normal ambient temperature.

 Smoke Detection Limitation:

The Mini Smoke Detector is not fool-proof, it will not be able to sense every kind of fire in time without fail. The Mini Smoke Detector’s
performance may be reduced in the following situations, which may prevent the Mini Smoke Detector from activating alarm correctly
and timely.

 The Mini Smoke Detector should not be installed at locations where smoke or dust presence is common, such as kitchen,

garage or attic. These locations are likely to cause false alarm from the Mini Smoke Detector.

 The Mini Smoke Detector will not be able to respond to Fire where smoke is blocked from the Mini Smoke Detector by

obstacles, such as closed door. Install multiple Mini Smoke Detectors in different rooms to increase detection coverage
and prevent fire from going unnoticed.

 The Mini Smoke Detector is less effective against some Fire situation with intense flame and little initial smoke, e.g. fire

started by chemical material.

 The Mini Smoke Detector has built-in buzzer which will be activated upon smoke detection, however the sound of alarm

may not always be able to warn the occupant of the fire. If the Mini Smoke Detector is not located at the same room with
the occupant and/or is separated by obstacles, the alarm sound may fail to attract attention. If the occupant is in deep
slumber, under influence of drug or alcohol, or has impaired listening ability, the alarm sound may also fail to notify them. It
is the responsibility of every individual in the household to provide assistance to others whenever possible to safely
evacuate in case of fire.

 Recalibration

As the operation condition of the Mini Smoke Detector may vary after being installed for some time, you may wish to recalibrate
the Mini Smoke Detector to take a new smoke detection threshold value and ensure optimal performance of the Mini Smoke
Detector. To do this:

 Press and hold the Test Button for 10 seconds and release when the Mini Smoke Detector emits 2 beeps. The device will

sound another beep after 5 seconds and enter calibration process. The Red LED will flash every 2 seconds to indicate.

 Calibration process lasts 1~9 minute.
 When the calibration is finished. The Mini Smoke Detector will sound a two-tone beep. The Red LED will stop flashing to

indicate it has returned to normal mode.

 If calibration fails, the Mini Smoke Detector will beep continuously. The Orange LED will flash every second. Please

remove the battery, press the Test Button twice to fully discharge the battery, then reinsert the battery to restart Mini Smoke
Detector.
