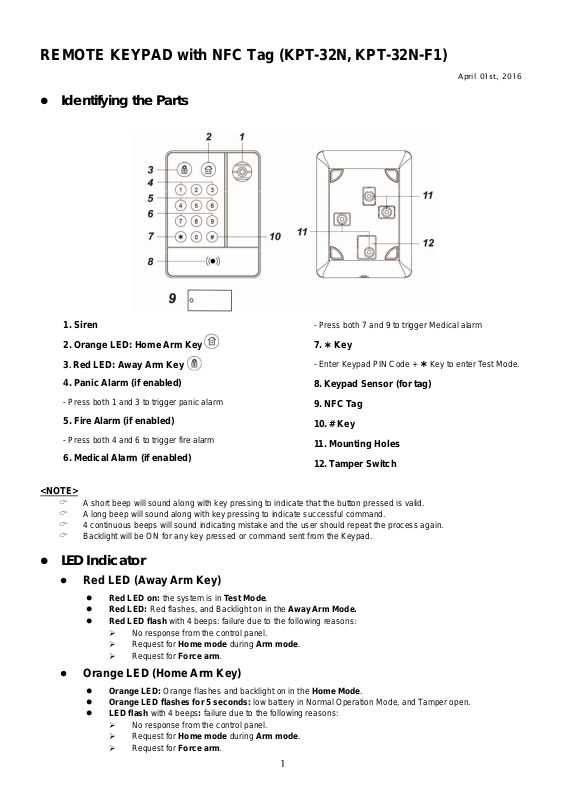

REMOTE KEYPAD with NFC Tag (KPT-32N, KPT-32N-F1)
April 01st, 2016
z Identifying the Parts
1. Siren
2. Orange LED: Home Arm Key
. Red LED: Away Arm Key
3
4. Panic Alarm (if enabled)
- Press both 1 and 3 to trigger panic alarm
5. Fire Alarm (if enabled)
- Press both 4 and 6 to trigger fire alarm
6. Medical Alarm (if enabled)
<NOTE>
&
A short beep will sound along with key pressing to indicate that the button pressed is valid.
- Press both 7 and 9 to trigger Medical alarm
7. ¿ Key
- Enter Keypad PIN Code + ¿ Key to enter Test Mode.
8. Keypad Sensor (for t ag)
9. NFC Tag
10. # Key
11. Mounting Holes
12. Tamper Switch
& A long beep will sound along with key pressing to indicate successful command.
& 4 continuous beeps will sound indicating mistake and the user should repeat the process again.
& Backlight will be ON for any key pressed or command sent from the Keypad.
z LED Indicator
z Red LED (Away Arm Key)
z Red LED on: the system is in Test Mode.
z Red LED: Red flashes, and Backlight on in the Away Arm Mode.
z Red LED flash with 4 beeps: failure due to the following reasons:
¾ No response from the control panel.
¾ Request for Home mode during Arm mode.
¾ Request for Force arm.
z Orange LED (Home Arm Key)
z Orange LED: Orange flashes and backlight on in the Home Mode.
z Orange LED flashes for 5 seconds: low battery in Normal Operation Mode, and Tamper open.
z LED flash with 4 beeps: failure due to the following reasons:
¾ No response from the control panel.
¾ Request for Home mode during Arm mode.
¾ Request for Force arm.
1
<NOTE>
&
When Arm/Home, Red/Orange LED will turn off after successful completion of a valid keystroke sequence, or when
the pause in between Control panel User code/PIN code keystrokes exceeds 2 seconds along with 4 beeps.
& If Arm/Home button is pressed but no Control Panel User Code/PIN code is entered, in 5 seconds the keypad will enter
sleep mode.
z Built-in Siren
I. Exit Delay — the Remote keypad continuously beeps. If enter Arm mode or Home Mode, Remote Keypad will emit
long beep.
II. Entry Delay —The Remote keypad continuously beeps. When entering Disarm Mode, the Remote Keypad will emit 2
beeps.
III. Alarm siren — Siren will sound continuously when an alarm is triggered. Fire Alarm will sound 2 seconds and 1
second off.
z Power
z Remote keypad uses three EL123AP 3V Lithium batteries as its power source.
z Remote keypad can also detect the battery status. If the battery voltage is low, the Orange LED will flash for 5 seconds.
The Low battery signal will be sent along with regular signal transmissions to the Control Panel for displaying the status
accordingly.
z When the battery is exhausted, the Remote keypad will stop all function, all LED will flash every 4 seconds.
z Power Saving Feature
z When idle, Remote keypad is in Stand-by mode and uses no power. It will activate and wake-up for 5 second when
any key is pressed or keypad sensor is detected.
z After 5 seconds of key inactivity, the power goes off and it returns to Stand-by mode.
z Upon completion of a command input, the power goes off and Remote keypad returns to Stand-by mode.
<NOTE>
You can also press and hold ＊ and # key for 2 seconds to send learning code when Idle.
z Test Mode
z Remote keypad can be put into Test mode by entering the Keypad PIN code (default: 0000) followed by “＊” key along
with a long beep sounding, the Red LED and backlight will turn on.
z To exit Test mode, press # key twice (long beep). Otherwise, Remote keypad will automatically exit Test mode after 5
minutes and return to Stand-by mode.
Under the Test mode, the following functions can be enabled:
Press ＊ key and then 1 key — to enter the Tag Management mode.
Press ＊ key and then 2 key — to enable Dual-key Panic Alarm function
Press ＊ key and then 3 key — to enable Dual-key Fire Alarm function
Press ＊ key and then 4 key — to enable Dual-key Medical Alarm function
Press ＊ key and then 5 key — to disable all Dual Key function (long beep). (Default)
Press ＊ key and then 6 key — to change the Keypad PIN Code
1. Enter Old Keypad Pin Code and then press * key along with a long beep. If incorrect PIN Code is entered, they
Keypad will emit 4 beeps and exit PIN Code change function. (Pressing # key will also exit PIN Code c hange
function)
2. Enter New 4-digit Keypad PIN Code and then press # key. The Keypad will emit a long beep and will exit
change Keypad PIN Code function automatically.
Press ＊ key and then 7 key — to transmit Remote keypad learn signal with a long beep.
Press ＊ key and then 8 key — to enable Arm/ Home without Control Panel User Code function with a long beep.
(the code is checked by panel).
Press ＊ key and then 9 key — to enable Arm/ Home with Control Panel User Code function with a long beep (the
code checked by panel) (Default).
Press “#” key twice — to exit Test Mode.
z Installation Procedures
Step 1. Put the Control Panel into Learning Mode. Please refer to the Control Panel manual.
Step 2. Enable Remote keypad to enter Test mode first. Enter the Keypad PIN code (default: 0000) followed by ＊ key.
The Red LED will turns on and sound a long beep.
2
