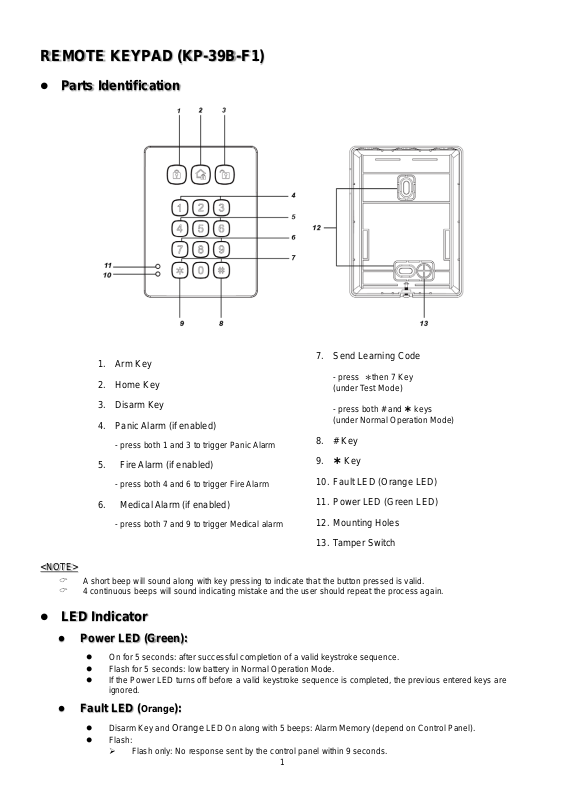

REMOTE KEYPAD (KP-39B-F1)

 Parts Identification

1. Arm Key

2. Home Key

3. Disarm Key

4. Panic Ala rm (if enabled)

- press both 1 and 3 to trigger Panic Alarm

5. Fire Alarm (if enabled)

- press both 4 and 6 to trigger Fire Alarm

6. Medical Alarm (if enabled)

- press both 7 and 9 to trigger Medical alarm

<NOTE>

 A short beep will sound along with key pressing to indicate that the button pressed is valid.
 4 continuous beeps will sound indic ating mistake and the user should repeat the process again.

7. Send Learning Code

- press ＊then 7 Key
(under Test Mode)

- press both # and  keys
(under Normal Operation Mode)

8. # Key

9.  Key

10. Fault LED (Orange LED)

11. Power LED (Green LED)

12. Mounting Holes

13. Tamper Switc h

 LED Indicator

 Power LED (Green):

 On for 5 seconds: after successful completion of a valid keystroke sequence.
 Flash for 5 seconds: lo w b attery in Normal Operation Mode.
 If the Power LED turns off before a valid keystroke sequenc e i s completed, the previous entered keys are

ignored.

 Fault LED (Orange):

 Disarm Key and Orange LED On along with 5 beeps: Alarm Memory (depend on Control Panel).
 Flash:

 Fl as h only: No response sent by the control panel within 9 seconds.

1

 Fl as h along with 2 beeps: Request for Home mode during Arm mode.

＊

 Fl as h along with 3 beeps: Request for Home or Arm Mode when fault condition exis ts.
 Fl as h along with 4 beeps: PIN code was incorrect.

 General Operation

 Enter Test mode — Enter Keypad PIN code and then press ＊ key.
 Panic Alarm — Press 1 key + 3 key at the same time. (if the function is enabled)

 Fire Alarm — Press 4 key + 6 key at the same time. (if the function is enabled)
 Medical Alarm — Press 7 key + 9 ke y at the s ame time. (if the function is enabled)
 Check Control Panel S tatus — Normal Mode Press # key.

 Power

 Remote keypad uses one CR123 3V Lithium battery as its power source.
 Remote keypad can also det ect the batter y status. If the battery volta ge is low, the Power LED will flash for 5 seconds

during operation. The Low batt ery signal will be sent along with regular signal transmissions to th e Control Panel for
displaying the status accordingly.

 Before shipment, the battery is pre-insta l led by the factory.
 When changing battery, press any key a couple times to discharge before inserting new battery.

 Power Saving Feature

 When idle, Remote keypad is in Stand-by mode and us es no power. It will activate and wake-up for 5 seconds when

any key is pressed.

 After 5 seconds of key inactivity, the power goes off and it returns to Stand-by mode.

 Tamper Protection

 The keypad is protected against any attempt to open the lid or to detach keypad from its mounting surface.
 Tamper protection is disabled when the keypad is in Test Mode.

 Getting Started

Step 1. Put the Control panel into learning mode, .
Step 2. Adding remote keypad into the Control P anel:
Test Mode:

I. Put remote keypad in Test mode by entering KP PIN code (default: 0000), then press ＊ key.

The three LEDs will turn on along with a long beep.

II. Press ＊ key then 7 key to transmit leaning signal. Remote keypad will sound a long beep.

(Please refer to “Arm/Home without Control Panel PIN Code” for details, page 3).

<NOTE>

Test Mode Function:

I. Press ＊ key and then 2 key — Enable Dua l -key Panic Alarm function
II. Press ＊ key and then 3 key — Enable Dual-key Fire Alarm function
III. Press ＊ key and then 4 key — Enable Dual-key Medical Alarm function
IV. Press ＊ key and then 5 key — Disable all Dual Key function (Default)
V. Press ＊ key and then 6 key — Edit K eypad Pin Code

..Enter Old Keypad Pin Code and then pr ess
..Enter New a new 4-digit Keypad Pin Code and then press # key.

VI. Press ＊ key and then 8 key — .Enable Arm/ Home without PIN Code func tion.

VII. Press ＊ key and then 9 key — Enable Arm/ Home with Control Panel User PIN Code function (Default).
(Please refer to “Arm/Home with Control Panel PIN Code” for details, page 3).

key

 If the remote keypad did not sound a long beep, it means the remote keypad did not send the lear ning

code to the Control Panel, please press ＊ key then 7 key again to send the learning code.

 If the Control Panel receives the learning code, it will display the inf o accor dingly. Refer to the operation

manual of your Control Panel to complete t he learn-in process.

 After Control Panel receives the signal from remote keypad, it will send an acknowledg ement back to

remote keypad. The remote keypad will then beep 3 times to confirm the acknowledgement has been

2
