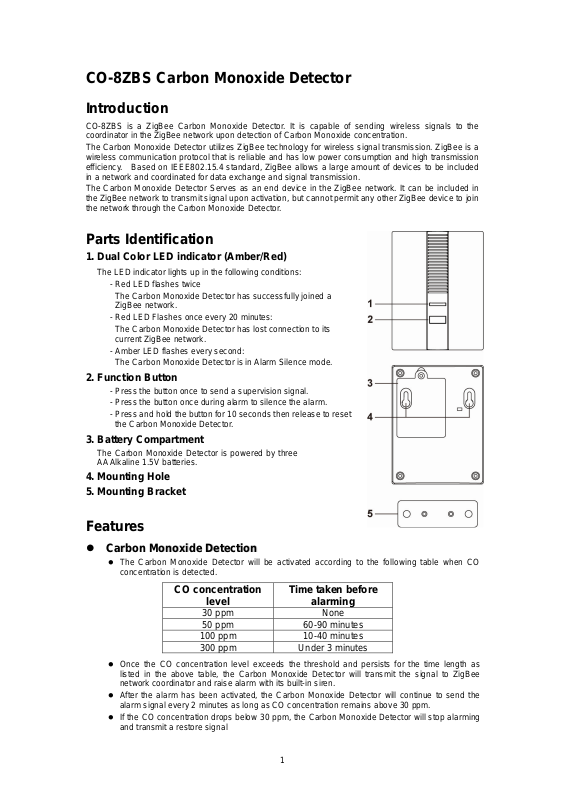

Page 1
CO-8ZBS Carbon Monoxide Detector
Introduction
CO-8ZBS is a ZigBee Carbon Monoxide Detector. It is capable of sending wireless signals to the
coordinator in the ZigBee network upon detection of Carbon Monoxide concentration.
The Carbon Monoxide Detector utilizes ZigBee technology for wireless signal transmission. ZigBee is a
wireless communication protocol that is reliable and has low power consumption and high transmission
efficiency. Based on IEEE802.15.4 standard, ZigBee allows a large amount of devic es to be included
in a network and coordinated for data exchange and signal transmission.
The Carbon Monoxide Detector Serves as an end device in the ZigBee network. It can be included in
the ZigBee network to transmit signal upon activation, but cannot permit an y other ZigBee dev ice to join
the network through the Carbon Monoxide Detector.
Parts Identification
1. Dual Color LED indicator (Amber/Red)
The LED indicator lights up in the following conditions:
- Red LED flashes twice
The Carbon Monoxide Detector has successfully joined a
ZigBee network.
- Red LED Flashes once every 20 minutes:
The Carbon Monoxide Detector has lost connection to its
current ZigBee network.
- Amber LED flashes every second:
The Carbon Monoxide Detector is in Alarm Silence mode.
2. Function Button
- Press the button once to send a supervision signal.
- Press the button once during alarm to silence the alarm.
- Press and hold the button for 10 seconds then release to reset
the Carbon Monoxide Detector.
3. Battery Compartment
The Carbon Monoxide Detector is powered b y three
AA Alkaline 1.5V batteries.
4. Mounting Hole
5. Mounting Bracket
Features
CCaarrbboonn MMoonnooxxiiddee DDeetteeccttiioonn
The Carbon Monoxide Detector will be activated according to the following table when CO
concentration is detected.
CO concentration
level
30 ppm None
50 ppm 60-90 minutes
100 ppm 10-40 minutes
300 ppm Under 3 minutes
Once the CO concentration level exceeds the threshold and persists for the time length as
listed in the above table, the Carbon Monoxide Detector will transmit the signal to ZigBee
network coordinator and raise alarm with its built-in siren.
After the alarm has been activated, the Carbon Monoxide Detector will continue to s end the
alarm signal every 2 minutes as long as CO concentration remains above 30 ppm.
If the CO concentration drops below 30 ppm, the Carbon Monoxide Detector will stop alar ming
and transmit a restore signal
Time taken before
alarming
1
Page 2
AAllaarrmm SSiilleennccee
When the Carbon Monoxide Detector is alarming, you can press the Function button once on
Carbon Monoxide Detector to enter Alarm Silence mode for 10 minutes
Under Alarm Silence mode, the Carbon Monoxide Detect or will not sound alarm; the Amber
LED Indicator will flash every second to indicate it is under Alarm Silence mode.
After 10 minutes, if CO concentration still exceeds 30ppm, the Carbon Monoxide Detector will
raise alarm and send alarm signal again.
BBaatttteerryy aanndd LLooww BBaatttteerryy DDeetteeccttiioonn
The Carbon Monoxide Detector uses three 1.5V Alkaline batteries as its power source. The
batteries are included in the package.
The Carbon Monoxide Detector feature Low Battery Detection function. When low battery
voltage is detected, the Carbon Monoxide Detector will transmit Low Battery signal to notify the
user.
When changing batteries, after removing the old batteries, press the Function Button twice to
fully discharge before inserting new batteries.
SSuuppeerrvviissiioonn
The Carbon Monoxide Detector will transmit a supervision signal to report its condition regularly
according to user setting. The factory default interval is 30 minutes. The user can also press the
Function Button once to transmit a supervision signal manually.
ZigBee Network Setup
ZZiiggBBeeee DDeevviiccee GGuuiiddeelliinnee
ZigBee is a wireless communication protocol that is reliable and has low power consumption and
high transmission efficiency. Based on IEEE802.15.4 standard, ZigBee allows a large amount of
devices to be included in a network and coordinated for data exchange and signal transmission.
Due to the fundamental structure of ZigBee network, ZigBee device will actively seek and join
network after powering on. Since performing a task in connecting network may consume some
power, it is required to follow the instructions to avoid draining battery of a ZigBee device
- Ensure your ZigBee network router or coordinator is powered on before inserting battery into the
ZigBee device.
- Ensure the ZigBee network router or coordinator is powered on and within range while a ZigBee
device is in use.
- Do not remove a ZigBee device from the ZigBee network router or coordinator without removing
the battery from a ZigBee device.
JJooiinniinngg tthhee ZZiiggBBeeee NNeettwwoorrkk
As a ZigBee device, the Carbon Monoxide Detector needs to join a ZigBee net work to transmit
signal when smoke concentration is detected. Please follow the steps bellow to join the Carbon
Monoxide Detector into the ZigBee network.
1. Insert the batteries into the battery compartment to power on the Carbon Monoxide Detector.
2. The Carbon Monoxide Detector will emit two short beeps when it is powered on.
3. Press and hold the function button for 10 seconds then release to join ZigBee network. Please
make sure to enable the permit-join feature on the router or coordinator of your ZigBee network
4. After joining the ZigBee network, the Carbon Monoxide Detector will be registered in the network
automatically. Please check the ZigBee network coordinator, system control panel or CIE
(Control and Indicating Equipment) to confirm if joining and registration is successful. If the
Carbon Monoxide Detector successfully joins the ZigBee network, the Red LED will flash twice to
confirm.
5. After joining the ZigBee network, if the Carbon Monoxide Detector loses connection with its
current ZigBee network, the Red LED will flash every 20 minutes to indicate. Please check your
ZigBee network condition and Carbon Monoxide Detector signa l range to correct the situation.
RReemmoovviinngg DDeevviiccee ffrroomm ZZiiggBBeeee NNeettwwoorrkk ((FFaaccttoorryy RReesseett))
To remove the Carbon Monoxide Detector from current ZigBee network, the device must be put to
Factory Reset to complete device removal. Factory Reset function will clear the Carbon Monoxide
Detector of its stored setting information and prompt the device to search for new ZigBee network.
Before removing device, make sure the Carbon Monoxide Detector is within current ZigBee
network signal range
1. Press and hold the function button for 10 seconds, then release the button to reset Carbon
Monoxide Detector.
2
Page 3
2. Upon reset, the device will clear current ZigBee network setting and transmit signal to Z igBee
coordinator to remove itself from current ZigBee network. It will then actively search for
available ZigBee network again and join the network automatically.
Installation
IInnssttaallllaattiioonn GGuuiiddeelliinnee
It is recommended to install the Carbon Monoxide Detector in following locations.
Install the Carbon Monoxide Detector in your bedrooms to protect your safety.
For houses with garage, also mount near the internal door to garage and the room above the
garage for protection in case when car engin is not turned off.
Avoid mounting in following locations.
Inside kitchen and garage – to avoid false alarm when
Corner or location with stagnant air – to avoid false alarm
Fireplace – Keep at least 4.5 meters of distance to avoid false alarm.
IInnssttaallllaattiioonn
A mounting bracket is provide in the package for mounting the Carbon Monoxide Detector on the
wall.
1. Refer to Control Panel manual and put the Control Panel into Walk Test mode.
Put the Carbon Monoxide Detector at desired installation location, press the Learn/Test button to
2.
transmit signal to panel.
If the panel receives signal, it will display the device signal strength. Check and make sure the
3.
panel can receive signal normally from device at current location. If signal reception is
unsatisfactory, relocate the Carbon Monoxide Detector and repeat Step 1~3 until an ideal
installation location is found.
Use the mounting bracket as template to mark the two holes on the wall at chosen location for
4.
installing screws.
Screw the mounting bracket onto the wall according to marked location. Install wall plugs if
5.
necessary.
Hook the Carbon Monoxide Detector onto the mounting bracket. Installation is now complete.
6.
UUssiinngg CCaarrbboonn MMoonnooxxiiddee DDeetteeccttoorr wwiitthh ZZiiggBBeeee RRoouutteerr
IMPORTANT NOTE
If the Carbon Monoxide Detector installation location is away from your system control panel and
requires ZigBee routers to improve signal strength. DO NOT use a ZigBee Router without backup
battery. A ZigBee router without battery will be powered down during AC power failure and the
Carbon Monoxide Detector connected to the router will lose connection with ZigB ee network. You
should plan your Carbon Monoxide Detector installation location using only ZigBee router with
backup battery.
Appendix (For developers only.)
CCaarrbboonn MMoonnooxxiiddee DDeetteeccttoorr CClluusstteerr IIDD
Device ID: IAS Zone 0x402
Endpoint: 0x01
Server Side Client Side
Mandatory
Basic (0x0000)
Identify(0x0003)
IAS Zone(0x0500)
Optional
None None
AAttttrriibbuuttee ooff BBaassiicc CClluusstteerr IInnffoorrmmaattiioonn
Identifier Name Type Range Access Default
0x0000
0x0003
ZCLVersion
HWVersion
Unsigned
8-bit integer
Unsigned
8-bit integer
0x00 –0xff Read only 0x01 M
0x00 –0xff Read only 0 O
3
None
Mandatory
/ Optional
Page 4
0x0004
0x0005
0x0006
0x0007
0x0010
0x0011
0x0012
ManufacturerName
ModelIdentifier
DateCode
PowerSource
LocationDescription
PhysicalEnvironment
DeviceEnabled
AAttttrriibbuuttee ooff IIddeennttiiffyy CClluusstteerr IInnffoorrmmaattiioonn
Character
String
Character
String
Character
String
0 – 32 bytes Read only
0 – 32 bytes Read only
0 – 16 bytes Read only
8-bit 0x00 –0xff Read only M
Character
String
0 – 32 bytes
8-bit 0x00 –0xff
Boolean 0x00 –0x01
Read /
Write
Read /
Write
Read /
Write
Identifier Name Type Range Access Default
0x0000
IdentifyTime
AAttttrriibbuuttee ooff IIAASS ZZoonnee CClluusstteerr IInnffoorrmmaattiioonn
Unsigned
16-bit integer
0x00 –0xffff
Read /
Write
Identifier Name Type Range Access Default
0x0001
0x0002
0x0003
0x0010
0x0011
ZoneState
ZoneType
ZoneStatus
IAS_CIE_ADDRESS
ZONE_ID
8-bit
Enumeration
8-bit
Enumeration
16-bit bitmap All
IEEE
ADDRESS
Valid 64bit
IEEE address
Unsigned 8-bit
integer
All
All
All
Read
only
Read
only
Read
only
Read /
Write
Read
only
Climax
Technology
(Model
Version)
O
0x00 O
0x01 M
Mandatory
/ Optional
0x0000 M
Mandatory
/ Optional
0x00 M
M
0x00 M
M
0xFF M
O
O
O
4
Page 5
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
: To assure continued compliance, any changes or
modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to
computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
alled and operated with a minimum distance of 20 centimeters
inst
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The ant
separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
ennas used for this transmitter must be installed to provide a
5
Loading...
