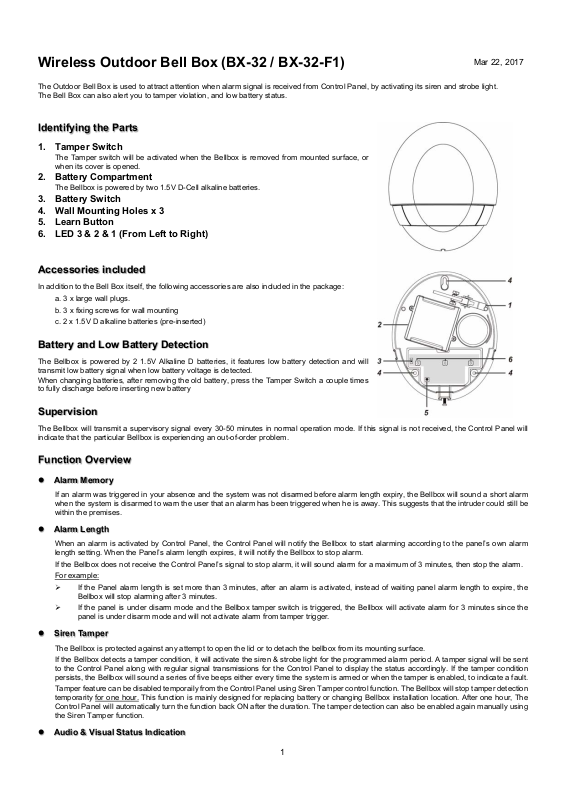

Wireless Outdoor Bell Box (BX-32 / BX-32-F1)
The Outdoor Bell Box is used to attract attention when alarm signal is received from Control Panel, by activating its siren and strobe light.
The Bell Box can also alert you to tamper violation, and low battery status.
Mar 22, 2017
Identifying the Parts
1. Tamper Switch
The Tamper switch will be activated when the Bellbox is removed from mounted surface, or
when its cover is opened.
2. Battery Compartment
The Bellbox is powered by two 1.5V D-Cell alkaline batteries.
3. Battery Switch
4. Wall Mounting Holes x 3
5. Learn Button
6. LED 3 & 2 & 1 (From Left to Right)
Accessories included
In addition to the Bell Box itself, the following accessories are also included in the package:
a. 3 x large wall plugs.
b. 3 x fixing screws for wall mounting
c. 2 x 1.5V D alkaline batteries (pre-inserted)
Battery and Low Battery Detection
The Bellbox is powered by 2 1.5V Alkaline D batteries, it features low battery detection and will
transmit low battery signal when low battery voltage is detected.
When changing batteries, after removing the old battery, press the Tamper Switch a couple times
to fully discharge before inserting new battery
Supervision
The Bellbox will transmit a supervisory signal every 30-50 minutes in normal operation mode. If this signal is not received, the Control Panel will
indicate that the particular Bellbox is experiencing an out-of-order problem.
Function Overview
Alarm Memory
If an alarm was triggered in your absence and the system was not disarmed before alarm length expiry, the Bellbox will sound a short alarm
when the system is disarmed to warn the user that an alarm has been triggered when he is away. This suggests that the intruder could still be
within the premises.
Alarm Length
When an alarm is activated by Control Panel, the Control Panel will notify the Bellbox to start alarming according to the panel’s own alarm
length setting. When the Panel’s alarm length expires, it will notify the Bellbox to stop alarm.
If the Bellbox does not receive the Control Panel’s signal to stop alarm, it will sound alarm for a maximum of 3 minutes, then stop the alarm.
For example:
If the Panel alarm length is set more than 3 minutes, after an alarm is activated, instead of waiting panel alarm length to expire, the
Bellbox will stop alarming after 3 minutes.
If the panel is under disarm mode and the Bellbox tamper switch is triggered, the Bellbox will activate alarm for 3 minutes since the
panel is under disarm mode and will not activate alarm from tamper trigger.
Siren Tamper
The Bellbox is protected against any attempt to open the lid or to detach the bellbox from its mounting surface.
If the Bellbox detects a tamper condition, it will activate the siren & strobe light for the programmed alarm period. A tamper signal will be sent
to the Control Panel along with regular signal transmissions for the Control Panel to display the status accordingly. If the tamper condition
persists, the Bellbox will sound a series of five beeps either every time the system is armed or when the tamper is enabled, to indicate a fault.
Tamper feature can be disabled temporaily from the Control Panel using Siren Tamper control function. The Bellbox will stop tamper detection
temporarity for one hour. This function is mainly designed for replacing battery or changing Bellbox installation location. After one hour, The
Control Panel will automatically turn the function back ON after the duration. The tamper detection can also be enabled again manually using
the Siren Tamper function.
Audio & Visual Status Indication
1
While arming / disarming the system, the Bellbox uses different methods to distinguish various statuses for the user, as listed in the table.
* The Siren Audio indication will be affected by the Confirmation ON / OFF setting. When setting Confirmation to OFF, the confirmation sound
will not be available. Refer to Control Panel Sound/Siren setting for Confirmation function.
Arm/Home 1 beep* 3 LED groups flash once
Disarm 2 beeps* Sequentially flashes for 1 cycle
Arm (Low Battery) 3 beeps 3 LED groups flash for three times
Disarm (Low Battery) 3 beeps Sequentially flashes for 3 cycles
Arm (Tamper) 5 beeps 3 LED groups flash for 5 times
Disarm (Tamper) 5 beeps Sequentially flashes for 5 cycles
Entry/Exit Sound Count-down beeps
Siren Audio Strobe light indication
Getting Started
Learning
Step 1: Release the bottom screw of the Bellbox using a Philips screwdriver and remove the top cover.
Step 2: Put the Control Panel into learning mode (refer to Control Panel’s user manual for details).
Step 3: Slide the battery switch to ON position to power on the Bellbox. All LEDs will flash once and the buzzer will emit 1 beep.
Step 4: Press the Learn button once. The Bellbox will emit a short beep and LED 1 & 3 will turn on briefly. The Bellbox is now in learning mode
Step 5: If the Control Panel did not receive a learning code, press the learn button again (the Bellbox will not sound a beep this time).
Step 6: If the Control Panel receives the learning code, it will list the device information accordingly, follow Control Panel manual instruction to
Step 7: Refer to the Control Panel manual and use Edit Device function to check Bellbox settings. You can edit the operation area, zone number,
<NOTE>
Edit Bellbox Operation Area
Follow instruction below to change Bellbox Operation Area in the Control Panel
Step 1: Use the panel Edit Device function to change Bellbox area setting.
Step 2: Press the learn button on the Bellbox to send signal to panel, the Bellbox will emit a beep and flash LED 1 & 3 once.
Step 3: When the Bellbox receives acknowledgement signal from panel, it will emit a beep and flash LED 2 once to indicate the setting has been
and will transmit a learning code to the Control Panel.
complete the learning procedure. An acknowledgement will be sent to the Bellbox. When the acknowledgment is received, the Bellbox
will sound a short beep and flash LED 2 once to indicate that learning process is successful. The Bellbox will then leave learning mode.
and device name for the Bellbox.
If the learning process fails, please remove the Bellbox from the Control Panel and repeat Steps 4-7 again.
If the Bellbox does not receive the confirm code from the Control Panel within one minute, the Bellbox will leave learning mode. Restart
learning process from Step 4.
updated. The Bellbox will return to normal operation.
Installation
Proceed to installation after complete learning.
Step 1. Disable the Siren Tamper function on the Control Panel (please refer to the Control Panel
<NOTE>
Step 2. Find the location where the Bellbox is to be mounted.
Step 3. Remove the Top cover by releasing the bottom screw using a Philips screwdriver and remove
Step 4. Hold the Bellbox at the position where it will be mounted, supply power to Bellbox
Step 5. Check whether BX has a strong enough signal with the Control Panel by putting the Control
Step 6. If you are satisfied with the signal strength, Identify the 3 mounting holes, mount and fix the Bellbox on the wall using the large screws
<NOTE>
instruction manual). The bellbox will sound a beep to indicate the tamper switch is now
disabled.
The function Siren Tamper will only turn OFF for a duration of one hour. The Control Panel
will automatically turn the function back ON after the duration.
the top cover.
Panel into Walk Test mode (please refer to Control Panel manual). Press the Learn Button
check whether the signal is strong enough (please refer to Control Panel manual for signal
strength).
and wall plugs provided. Secure the screws using a Philips screwdriver. Make sure the Tamper Switch is fully depressed against the wall
The tamper switch protrudes through the back of the unit. When the siren is
pulled off from the wall, the alarm will be activated. Ensure it is fully depressed
when the siren is mounted. If there is a gap, pack with suitable spacing material.
