Climax Technology Co 1908 Users manual
Nov-1 1-2013
TableofContents
1. Introduction______________________________________________________________1
2. Application Overview _____________________________________________________2
2.1. Identifying the Parts_________________________________________________________ 2
2.3. System Requirements_______________________________________________________ 3
3. Getting Started ___________________________________________________________4
3.1 Running the Finder software _________________________________________________ 4

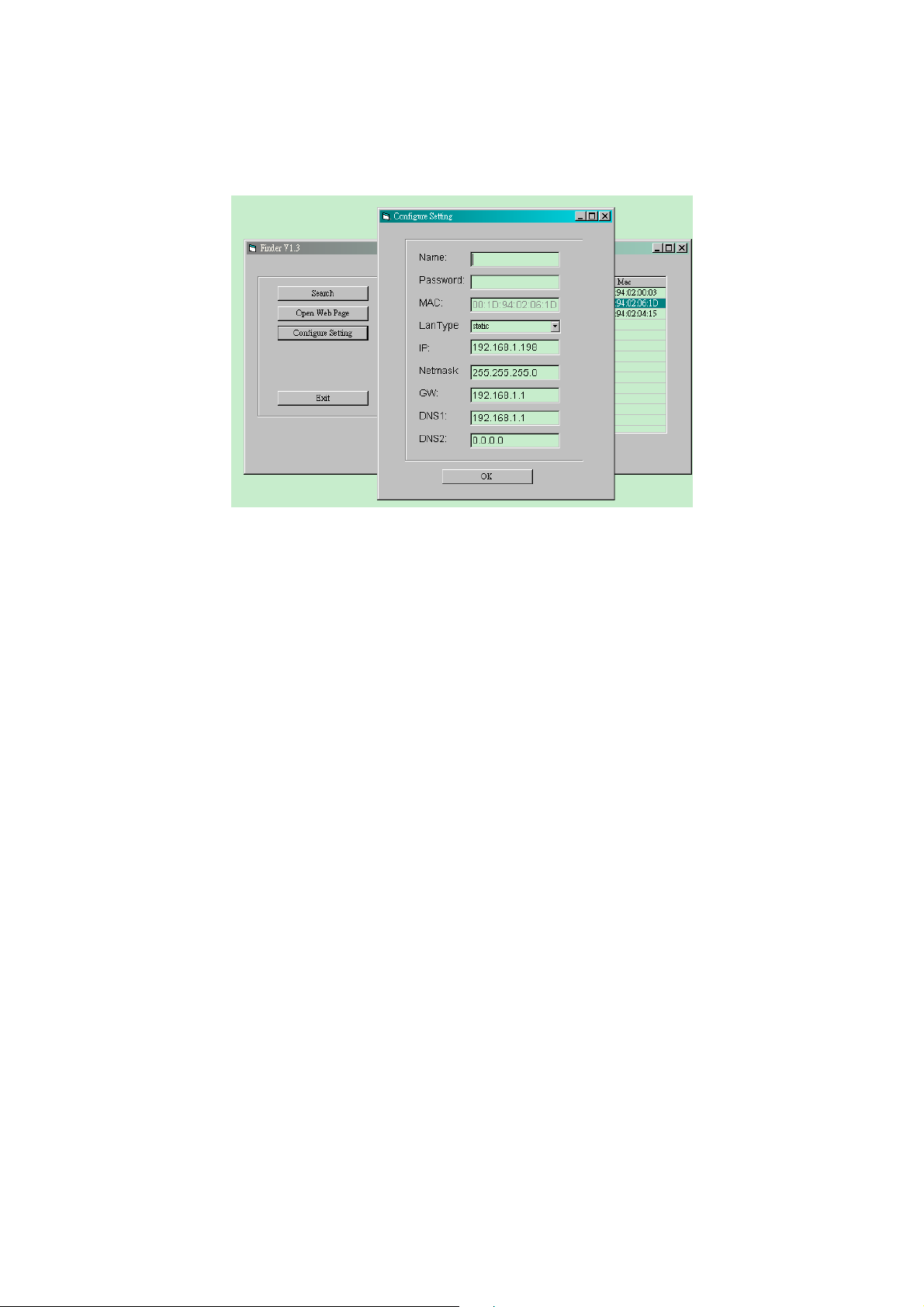

3.2 Configure Setting ___________________________________________________________ 6

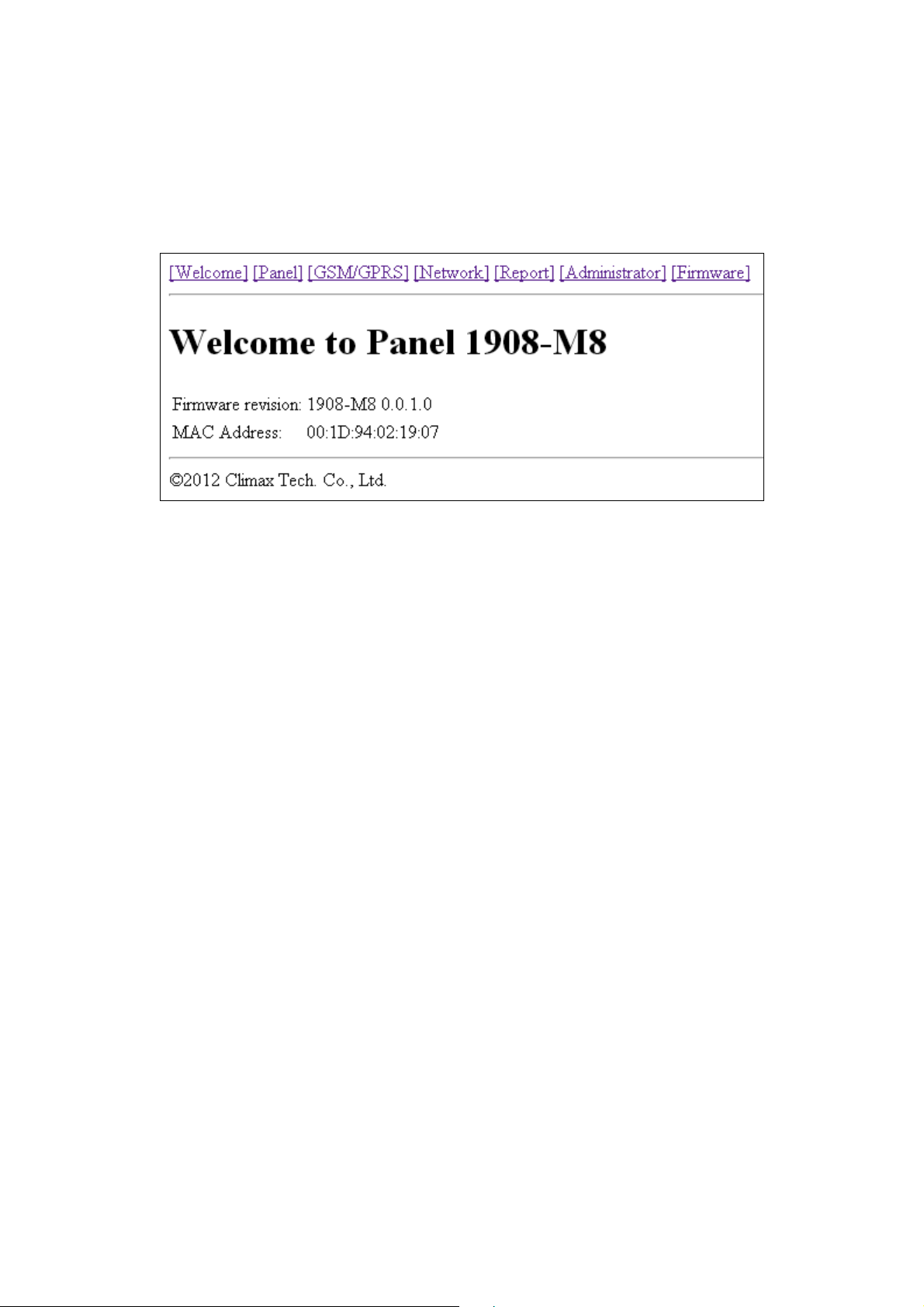

4. Connecting to Webpage___________________________________________________7
5. System Configuration_____________________________________________________8

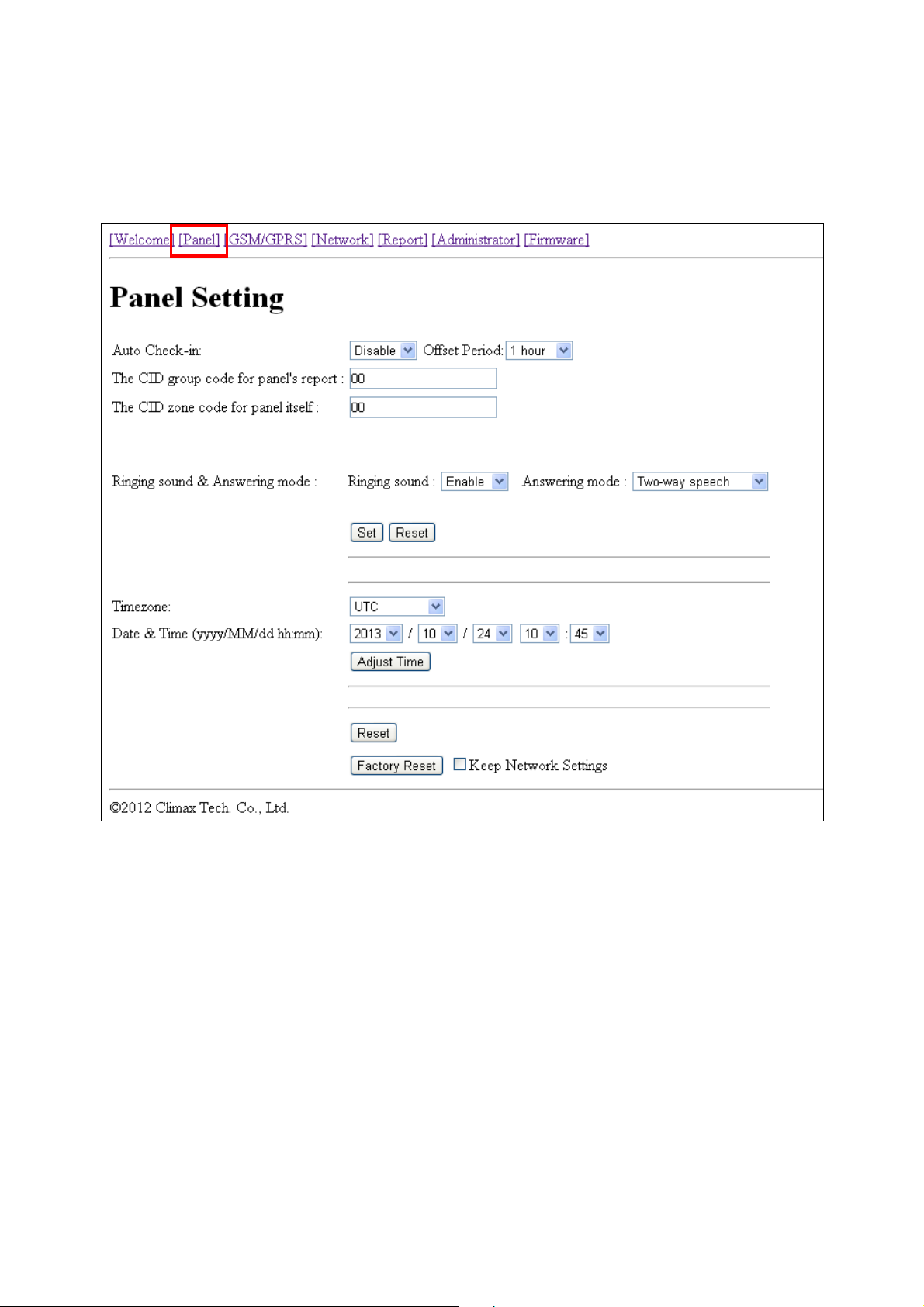

5.1. Panel ______________________________________________________________________ 8

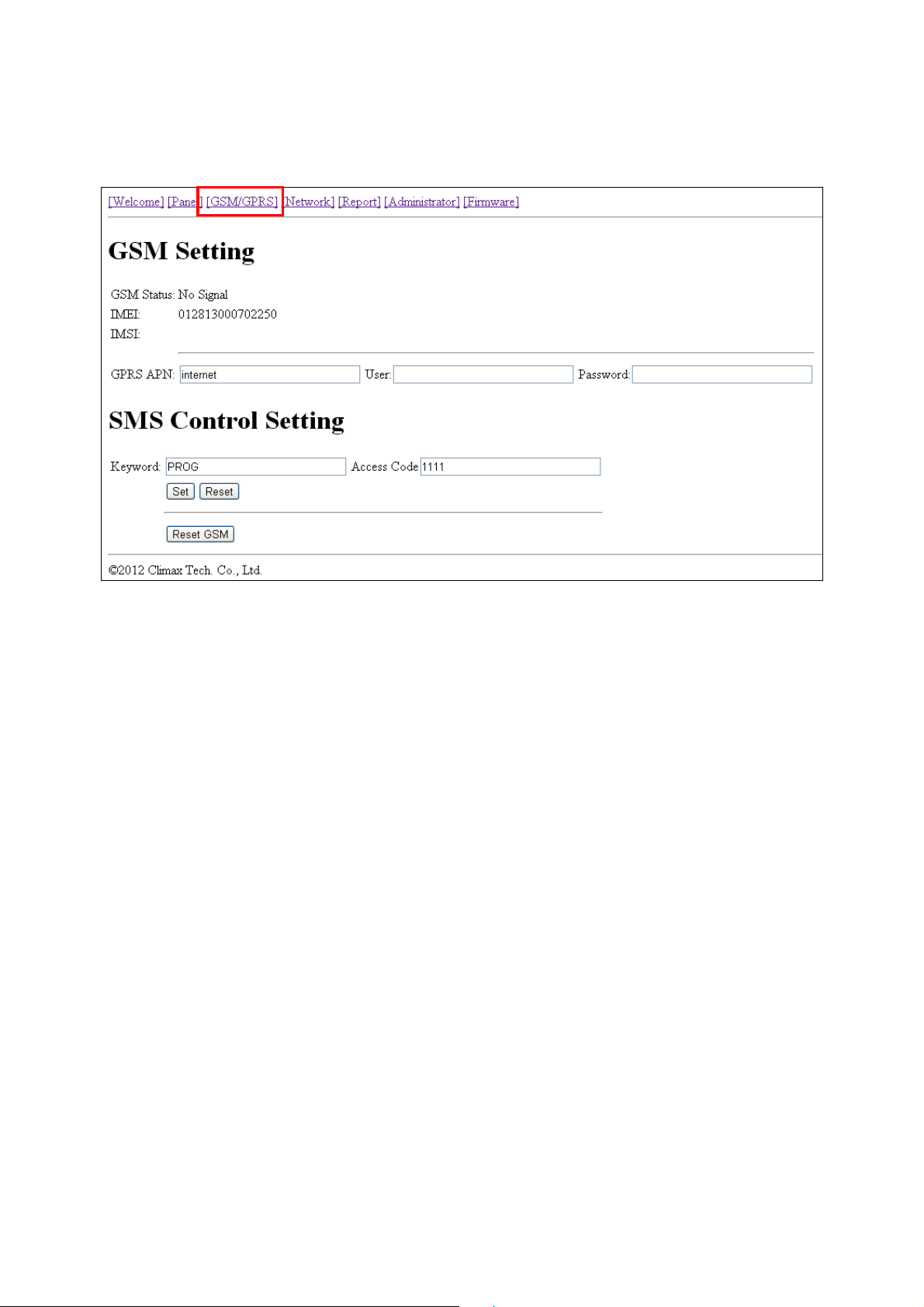

5.2. GSM/GPRS ________________________________________________________________ 10

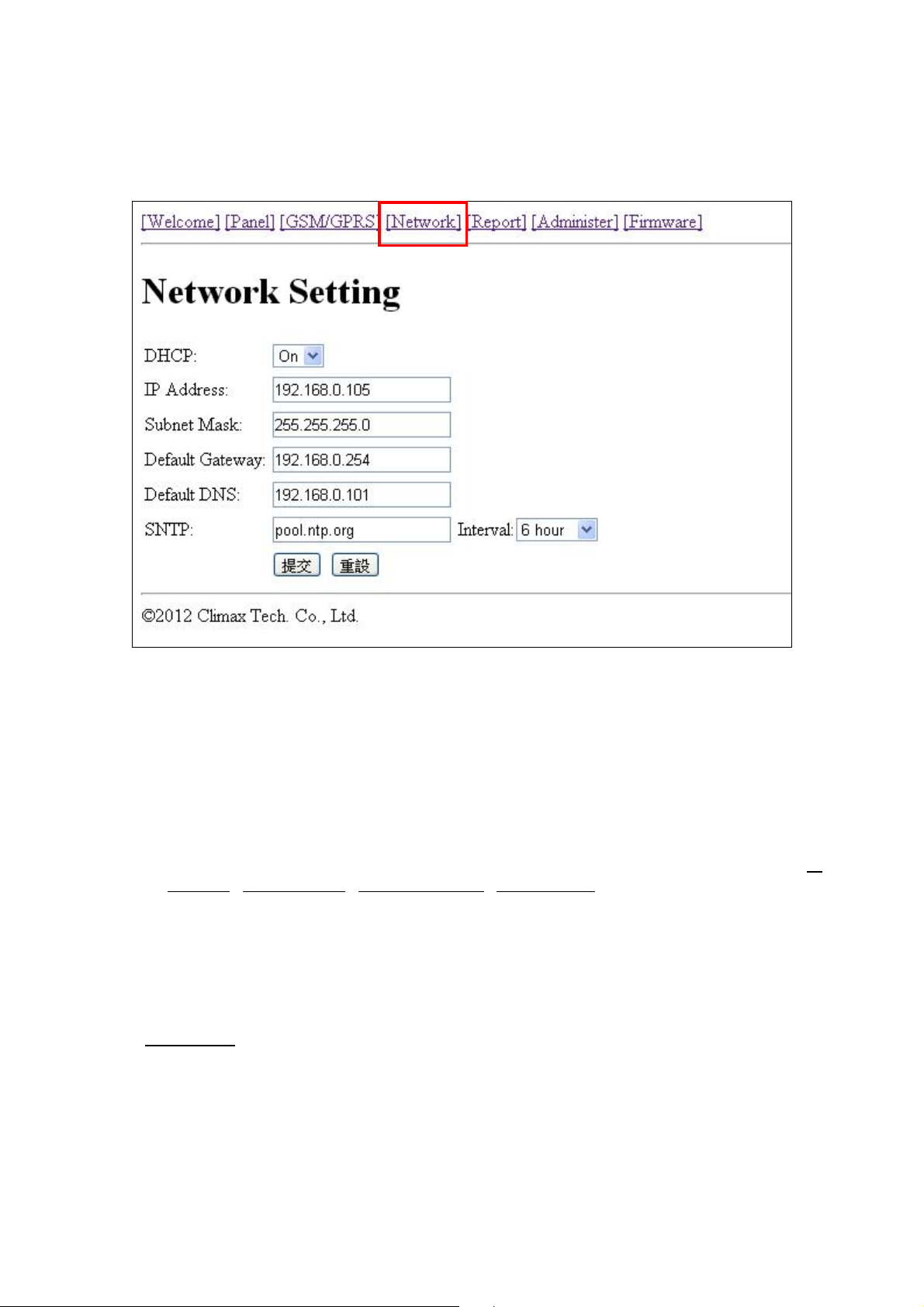

5.3. Network____________________________________________________________________11

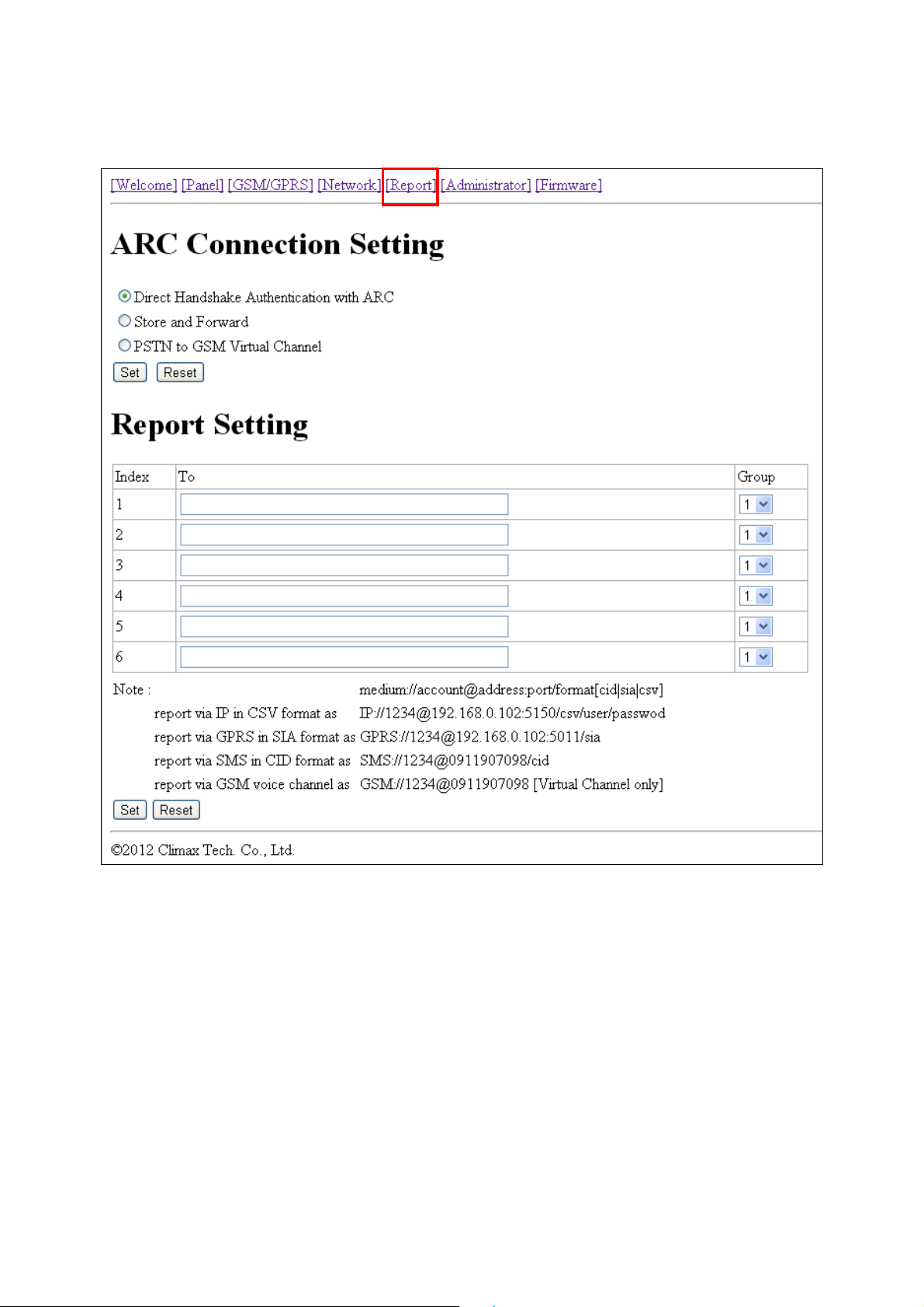

5.4. Report ____________________________________________________________________ 12

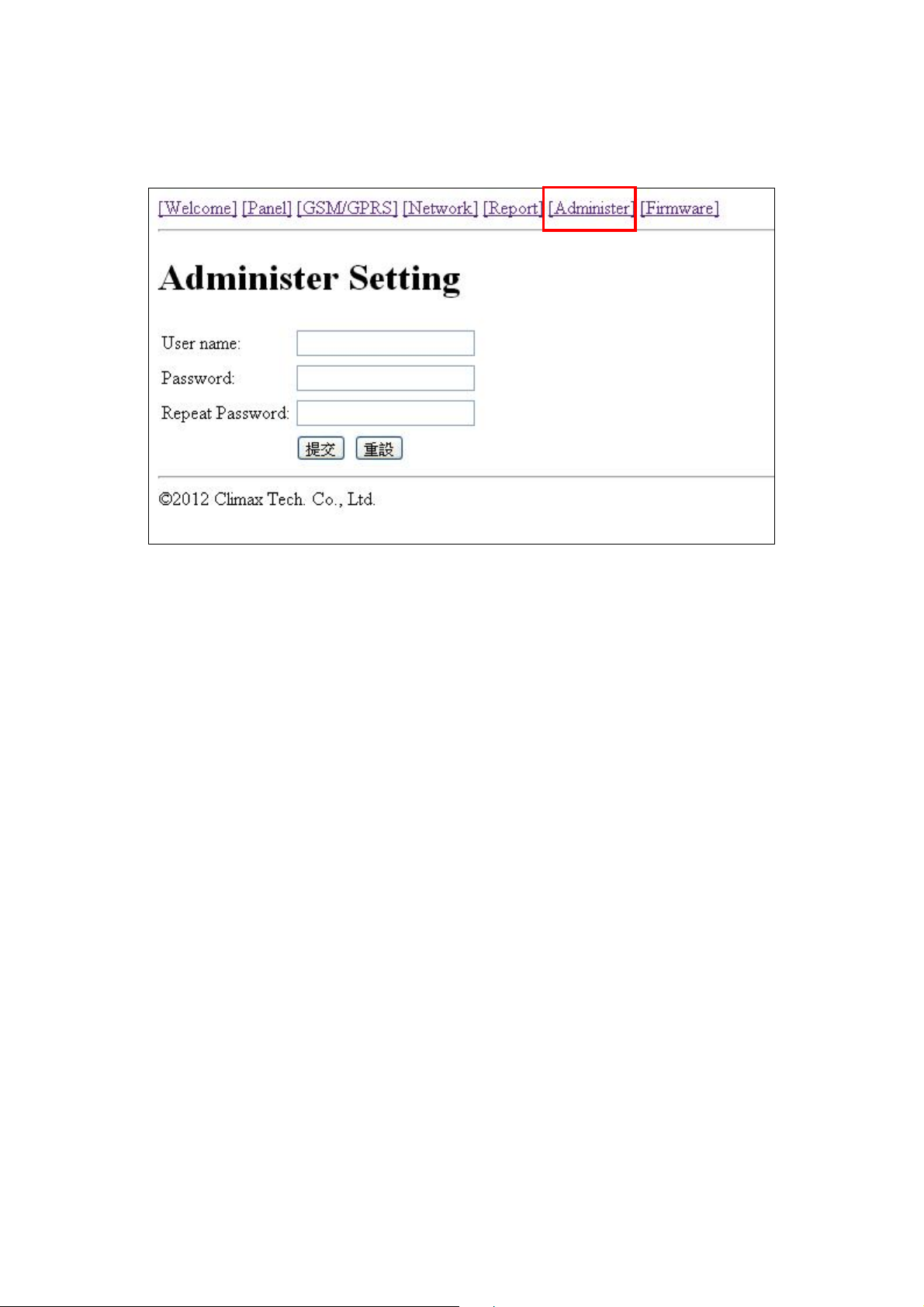

5.5. Administrator______________________________________________________________ 12

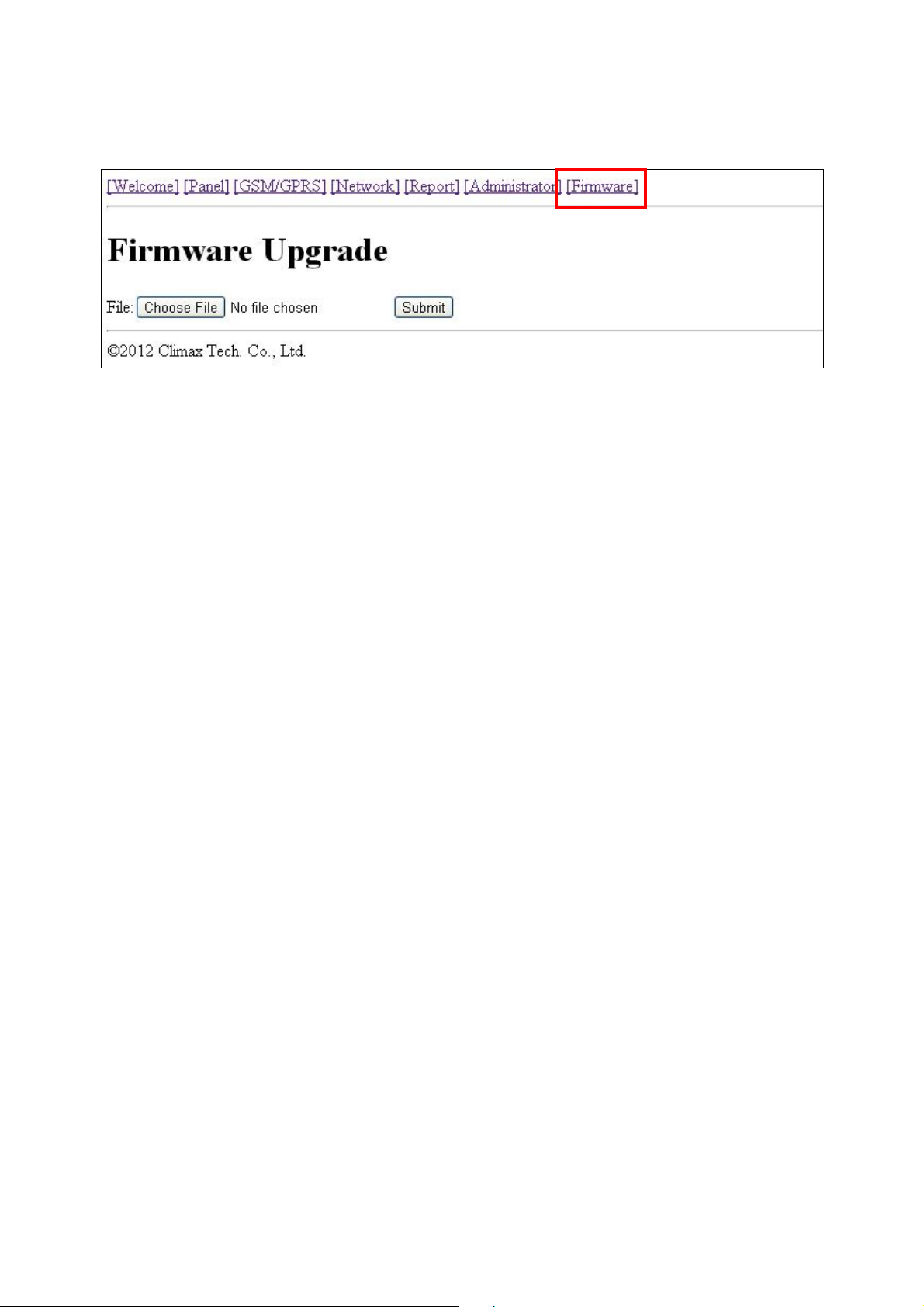

5.6. Firmware__________________________________________________________________ 17
5.7. SMS Remote Command ____________________________________________________ 18
1. Introduction
CTC-1908M Series are PSTN converters, which upgrades your existing Control Panel to send
reporting via the internet or GSM/GPRS instead of PSTN.
1
2. Application Overview
2.1. Identifying the Parts
1. GSM LED (Red)
ON: GSM Fault
Slow Flash : GSM Normal
Quick Flash: GPRS reporting
2. Fault LED (Amber)
OFF: Normal
ON: CTC-1908M has fault:
GSM fault
PSTN line fault
Ethernet line fault (only when IP reporting is
programmed)
3. PSTN Panel LED (Blue)
ON: PSTN Panel is off hook
OFF: PSTN Pane is on hook
4. Power LED (Green)
ON: AC Power connected
OFF: AC Power failure
5. SIM Card Base
6. Phone Jack (RJ-11)
2
Connects to the Phone Jack marked “Line” on the PSTN Control Panel
7. DC Jack
DC 12V 1A switching power connection (Cannot be used with DC Input Terminal at the
same time)
8. DC Input Connection Terminal
DC 12V 1A Power input (Cannot be used with DC Jack at the same time)
9. Internet Connection (RJ-45)
10. External Antenna Connection Port. (CTC-1908M-3/8 EX only)
2.2. The Power Supply
An AC switching power is required to connect to a wall outlet. Be sure only to use an adapter
with the appropriate AC voltage rating to prevent component damage. A DC 12V 1A switching
power is generally used to power the converter.
2.3. System Requirements
The system requires a TCP/IP network environment for CTC-1908M to connect to your Local
Area Network (LAN).
To install the CD Wizard, your computer must have:
Microsoft Windows 98, ME, NT4.0, 2000, XP, Vista, 7, or 8 operating system.
Microsoft Internet Explorer 5.x, or later and Mozilla Firefox 1.0 compatible.
CD-ROM drive
CPU: Intel Pentium II 266MHz or above
Memory: 32MB (64MB recommended)
VGA resolution: 800x600 or above
3
3. Getting Started
In order to use CTC-1908M with the existing PSTN Control Panel, it must be programmed via
LAN first. Please follow the steps below to setup and program your CTC-1908
Step 1. Connect the telephone line from the PSTN Control Panel’s phone jack to
CTC-1908M’s phone jack.
Step 2. Plug-in the LAN/Internet connection cable into the Internet Port (RJ-45) on
CTC-1908M.
Step 3. Insert the SIM Card into the SIM Card base.
>
<<NNOOTTEE>
Before inserting the SIM card, please make sure the SIM Card PIN code is disabled.
Step 4. For CTC-1908M-3/8 EX, you can also connect an external antenna to the converter to
Step 5. Connect the DC 12V 1A switching power to a Wall Outlet and the other end to
3.1 Running the Finder software
To install the Finder software
improve GSM signal strength.
CTC-1908M.
Step 1. Insert the supplied CD-ROM into your CD-ROM drive
Step 2. Find the FinderV1.x software icon in the CD-ROM.
Step 3. Double click on the FinderV1.x to initiate the installation.
Step 5. Click Next to re-name the shortcut folder
to get ready for the installation process.
Step 6. Another click on Next to begin the Installation; once the installation is complete, click
Finish to confirm.
, if no renaming is required; please click Next
Step 7. A new icon will be displayed on your desktop.
Step 8. Double click on the Finder.exe to start the installation. The following screen will be
displayed:
4
Step 9. Click on Search, It will start searching for recognized IP address within the Local
Network Service.
Step 10. You will be able to locate the current CTC-1908 IP address among the list, displayed
with MAC Address and Firmware version.
Step 11. Once CTC-1908M information is identified, click on Open Web Page, or double click
on the CTC-1908M info to open the IP Security System Web page.
5
