Page 1

Tranquility®Vertical Stack

(TSL)

Series

Commercial

Vertical Stack

Water-Source Heat Pumps

Installation, Operation

& Maintenance

97B0127N01

Rev.: April 24, 2019

Table of Contents

General Information 3 TSL Model Nomenclature - Cabinet 4 TSL Hybrid Nomenclature - Cabinet 5 Heat Pump Cabinet Slot Dimensions and Riser Arrangements 6 E Cabinet Slot Dimensions and Riser Arrangements 7 TSL Model Nomenclature - Chassis 8 Accessory Nomenclature 9 Pre-Installation Information 11 Riser Installation 12-15 Cabinet Installation 16-22 Water-Loop Heat Pump Applications 23 Ground-Loop Heat Pump Applications 24 Ground-Water Heat Pump Applications 25 Water Quality Standards 26 Electrical Wiring - Line Voltage 27 Electrical Wiring - Low Voltage 28 Blower Performance Data 29-36 Thermostat Installation 37 Chassis Pre-Installation 38 Hose Kit & Chassis Installation 39-41 Start-Up Preparation 42 CXM Control 43 DXM2 Control 44 Safety Features - CXM/DXM2 Controls 46 Unit Commissioning and Operating Conditions 48 Unit and System Checkout 49 Unit Start-Up Procedures 50 Unit Operating Pressures and Temperatures 51-53 Coax Water Pressure Drop 54 Hybrid Unit CorrectionTables 54 Start-Up Log Sheet 55 Preventive Maintenance 56 Functional Troubleshooting 57 Performance Troubleshooting 58 Harness Part Numbers 59-65 Troubleshooting Form 66 Warranty 67 Revision History 68

Page 2

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

This Page Intentionally Left Blank

ClimateMaster Water-Source Heat Pumps

Page 3

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Safety

Warnings, cautions, and notices appear throughout this manual. Read these items carefully before attempting any installation, service, or troubleshooting of the equipment.

Vertical Stack

Rev.: 04/24/2019

General Information - Inspection

CAUTION: Indicates a potentially hazardous situation or

an unsafe practice, which if not avoided could result in minor or moderate injury or product or property damage.

DANGER: Indicates an immediate hazardous situation, which if not avoided will result in death or serious injury. DANGER labels on unit access panels must be observed.

WARNING: Indicates a potentially hazardous situation, which if not avoided could result in death or serious injury .

 WARNING! 

WARNING! Verify refrigerant type before proceeding.

Units are shipped with R-407c and HFC-410A (EarthPure®) refrigerants. The unit label will indicate which refrigerant is provided. The EarthPure® Application and Service Manual should be read and understood before attempting to service refrigerant circuits with R-407c or HFC-410A.

 WARNING! 

WARNING! To avoid the release of refrigerant into the

atmosphere, the refrigerant circuit of this unit must be serviced only by technicians who meet local, state, and federal proﬁ ciency requirements.

 WARNING! 

WARNING! The installation of water-source heat pumps and all associated components, parts, and accessories which make up the installation shall be in accordance with the regulations of ALL authorities having jurisdiction and MUST conform to all applicable codes. It is the responsibility of the installing contractor to determine and comply with ALL applicable codes and regulations.

Dimensions ar e inch es ( m m ).

NOTICE: Notiﬁ cation of installation, operation, or maintenance information, which is important, but which is not hazard-related.

 WARNING! 

WARNING! All refrigerant discharged from this unit must

be recovered WITHOUT EXCEPTION. Technicians must follow industry accepted guidelines and all local, state, and federal statutes for the recovery and disposal of refrigerants. If a compressor is removed from this unit, refrigerant circuit oil will remain in the compressor. To avoid leakage of compressor oil, refrigerant lines of the compressor must be sealed after it is removed.

 CAUTION! 

CAUTION! To avoid equipment damage, DO NOT use

these units as a source of heating or cooling during the construction process. The mechanical components and ﬁ lters will quickly become clogged with construction dirt and debris, which may cause system damage.

 WARNING! 

WARNING! Polyolester Oil, commonly known as POE oil, is

a synthetic oil used in many refrigeration systems including those with HFC-410A refrigerant. POE oil, if it ever comes in contact with PVC or CPVC piping, may cause failure of the PVC/CPVC. PVC/CPVC piping should never be used as supply or return water piping with water source heat pump products containing HFC-410A as system failures and property damage may result.

Inspection -

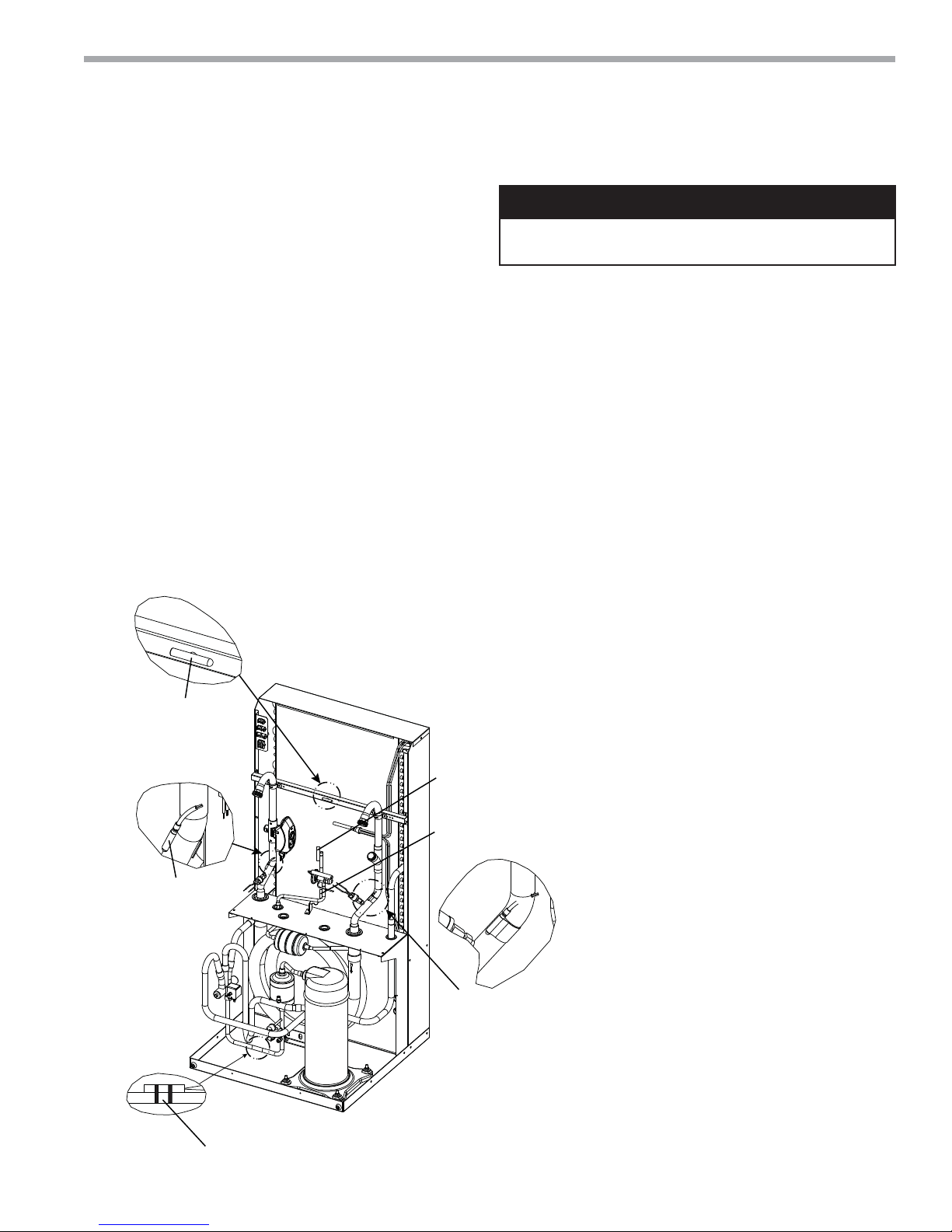

check the shipment against the bill of lading. See ﬁ gure 1 for components. Make sure all units have been received. Inspect the packaging of each unit, and inspect each unit for damage. Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report. Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment. If not ﬁ led within 15 days, the freight company can deny the claim without recourse. Note: It is the responsibility of the purchaser to ﬁ le all necessary claims with the carrier. Notify your equipment supplier of all damage within ﬁ fteen (15) days of shipment.

Upon receipt of the equipment, carefully

climatemaster.com

Page 4

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

TSL Model Nomenclature - Cabinet

Heat Pump Cabinet

CABINET SIZE

1 = 09 2 = 12 3 = 15 4 = 18 5 = 24 6 = 30 7 = 36

OPTION

S.S. DRAIN PAN

–

A B

X –

–

2 3

–

HARNESS CONTROLS

PSC

STANDARD

YES

NO NO

ECM CONSTANT VOLUME

OPTION

A B C D L M N R T U V 1 2 3 4

1 2835

NG 0E 0 0 0 0 D

VOLTAGE

Volt/Hertz/PhazeOPTION

208/230/60/1

265/60/1

OPTIONS

PREMIUM SEAL

(DXM2 ONLY)

NO YES NO YES NO YES NO

YES

1Ý and 2Ý FILTER

X –

X – X –

X –

ECM CONSTANT TORQUE

A B

C D E 0

1Ý 1Ý 1Ý 1Ý 2Ý 2Ý 2Ý 2Ý

S=SURFACE

M = MPC

R =REMOTE

A = ADA

R R A W R A

L = LON

BREAKERDISCONNECT SWITCHOPTION

YES YES

NO NO

W = WALL SENSOR

YES

POWER TERMINATION

YES

NO NO YES NO

ISP

YES YES

RISER STYLE

0 = SLAVE / NONE 1 = STANDARD 2 = MASTER

RISER: LOCATION

0 = None 1 = Shipped Separately 6 = Chassis ships in Cabinet (Risers Not Attached)

CABINET HEIGHT 65”

OPTION

ENO F L M

ISO PAD

YES

10 11 12 13 14 15

STANDARD

0 = STANDARD

A, B, C etc.... = SPECIAL 1, 2, 3 etc....

T-STAT WHIP

0 = No Whip 1 = 15’ whip 2 = 25’ whip 3 = 35’ whip A = Knock Out + Cover + No Whip B = Knock Out + Cover + 15’ Whip C = Knock Out + Cover + 25’ Whip D = Knock Out + Cover + 35’ Whip

Discharge Openings

N/A

0 = Not Used

Discharge Air

E = Top Opening

Riser Ball Valve Options

0 = None 4 = Ball Valve, Union 5 = Ball Valve, Sweat

For Unit Size 65”

09 thru 12 15 thru 18 24 thru 36

REVISION LEVEL

D = CURRENT REVISION

TOPUNIT SIZE

11.5” x 6”

11.5” x 6” 12” x 16”

ClimateMaster Water-Source Heat Pumps

Page 5

Hybrid Cabinet

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

TSL Hybrid Series Nomenclature

SERIES

E = 65” 80” and 88” HYBRID CABINETS

UNIT SIZE

OPTION

B D R S 1

2 4 5

1 = 09

2 = 12 3 = 15

4 = 18 5 = 24 6 = 30 7 = 36

S.S. DRAIN PANOPTION

YES

1 2

YES

YES YES

NO NO

HARNESS CONTROLS

ECM

CONSTANT

VOLUME

YES

2835

VOLTAGE

Volt/Hertz/PhazeOPTION

208/230/60/1

265/60/1

OPTIONS

PREMIUM SEAL

YES

A = ADA

ECM

R =REMOTE

CONSTANT

S=SURFACE

TORQUE

W=WALL SENSOR

YES

POWER TERMINATION

A B C

D E

FILTER SIZE

1” 1” 1” 1” 2” 2” 2” 2”

A W R S A W R S

YES

NO OPTIONS

A B C D

E F

NG NA 0 0 0 0 A

MPC

YES

BREAKERDISCONNECT SWITCHOPTION

ISP / BREAKER

YES

CABINET HEIGHT

88”

YES

NO NO

RISER STYLE OPTIONS

OPTION

0 = SLAVE/NONE 1 = STANDARD

2 = MASTER

1, 2, 3 , 4, 5, 6

65”80”OPTION

NO NO NO

NO YES YES

DIGIT 9

0, 8

ISO PAD

YES

10 1 1 12 13 14 15

REVISION LEVEL

TYPE

0 = STANDARD A - Z = SPECIAL EXCEPT “W”

A = CURRENT REVISION

MISCELLANEOUS CABINET OPTIONS

A = Factory Configure Supply Air Openings + Dust Protection + No Whip B = Factory Configure Supply Air Openings + Dust Protection + 15’ Whip C = Factory Configure Supply Air Openings + Dust Protection + 25’ Whip D = Factory Configure Supply Air Openings + Dust Protection + 35’ Whip 0 = Field to Configure Supply Air Openings + No Whip

1 = Field to Configure Supply Air Openings + 15’ Whip 2 = Field to Configure Supply Air Openings + 25’ Whip 3 = Field to Configure Supply Air Openings + 35’ Whip 4 = Factory Configure Supply Air Openings + No Whip 5 = Factory Configure Supply Air Openings + 15’ Whip 6 = Factory Configure Supply Air Openings + 25’ Whip 7 = Factory Configure Supply Air Openings + 35’ Whip

SIDE DISCHARGE OPTIONS

DISCHARGE

OPTION

NONE

RIGHT SMALL

RIGHT LARGE LEFT SMALL

C D

LEFT LARGE

RIGHT SMALL & LEFT SMALL

E F

RIGHT LARGE & LEFT LARGE RIGHT SMALL & LEFT LARGE

RIGHT LARGE & LEFT SMALL

BACK/FRONT/TOP DISCHARGE OPTIONS

UNIT SIZE

OPTION

DISCHARGE

NONE

0 A

BACK SMALL BACK LARGE

FRONT SMALL

FRONT LARGE

TOP

BACK SMALL & TOP

BACK LARGE & TOP

FRONT SMALL & TOP

H J

FRONT LARGE & TOP

BACK SMALL & FRONT SMALL

BACK LARGE & FRONT LARGE

BACK SMALL & FRONT LARGE

M N

BACK LARGE & FRONT SMALL

BACK SMALL & FRONT SMALL W/TOP BACK LARGE & FRONT LARGE W/TOP

Q R

BACK SMALL & FRONT LARGE W/TOP BACK LARGE & FRONT SMALL W/TOP

UNIT SIZE

09-18 TOP

15-16 TOP

N/A

12 X 12 14 X 14 16 X 16

N/A

12 X 12 14 X 14 16 X 16

UNIT SIZE 24-36 TOP

C-SERIES

80”

TSM

YES

NO YES

NO NO YES YES NO NO YES

C-SERIES

88”

TSM

YES

RISER: RISER BALL VALVE OPTIONS

4 = Ball Valve, Union

RISER LOCATION/PACKAGING OPTIONS

OPTION

0 = NONE

1 = SHIPPED SEPERATEL Y

2 = LEFT BACK 3 = RIGHT BACK 4 = LEFT SIDE 5 = RIGHT SIDE 6 = CHASSIS SHIPPED IN CABINET

5 = Ball Valves, Sweat N = None

VERTICAL

PKG YES

YES

HORIZONTAL

PKG

YES

VALVE ASM QTY 2

SHIPPED IN CABINET

YES

VALVE ASM QTY 2

SHIPPED W/RISERS

YES

climatemaster.com

Page 6

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Heat Pump Cabinet Slot Dimensions and Riser Arrangements

Cabinet Shown Up to Riser

2.75”

12.00” (305)

(70)

INNER PANEL

5.00” (127)

9.25” (235)

FRONT OF

CABINET

STYLE 4

Risers Left

Side

SIDE

2.88” (73)

12.12”

Model

09-12 15-18 24-36

(308)

TOP VIEWS

17.00 [432]

19.25 [489]

24.25 [616] 24 [610]

SRD

STYLE 5

Risers Right

17 [432]

19 [483]

2.88” (73)

SRD

9.25”

(235)

Side

SIDE

1/4” to 1”

(6 to 25)

2.75”

(70)

STYLE

3 RA

STYLE

2 RA

STYLE

4 RA

STYLE

5 RA

STYLE

5 RA

STYLE

2 RA

STYLE

3 RA

STYLE

4 RA

Note 8

STYLE

2 RA

STYLE

5 RA

STYLE

3 RA

STYLE

4 RA

STYLE 3

Risers Back

Right

SIDE

FRONT VIEW

STYLE 3

2.88” (73)

12.00” [305]

2.50” (64)

2.25” (57)

5.00” (127)

12.12” (308)

3.00” (76)

35.75” [908]

3.125” (all sizes) (79)

39.75” [1100] ± .50” (13)

Note 7

STYLE

STYLE 2

Risers Back

Left

4 RA

STYLE

3 RA

STYLE

2 RA

Note 8

SIDE

 NOTICE! 

NOTICE! Not all styles will stack above

or adjacent to each other. (See Note 8).

Notes:

1. Dimensions are inches [mm].

2. Style refers to cabinet to riser conﬁ guration.

3. Return air side is the front of the cabinet.

4. Supply riser is closest to corner.

5. Drain is not centered on all cabinets

6. Slots allow for riser stack expansion and contraction.

7. Riser stub out is 39.75" (1100) from bottom cabinet and is not centered in slot.

8. From ﬂ oor to ﬂ oor on one riser stack you can only have; all same style, styles 2 and 5; or styles 3 and 4. For master/slave units you can only have styles 3 or 4 adjacent to 2 or 5.

STYLE

5 RA

ClimateMaster Water-Source Heat Pumps

Page 7

Cabinet Shown Up to Riser

2.75”

12.00” (305)

(70)

5.00” (127)

9.25”

(235)

STYLE 4

Risers Left

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

E Cabinet Slot Dimensions and Riser Arrangements

1/4” to 1”

(6 to 25)

2.75”

(70)

STYLE

3 RA

STYLE

4 RA

STYLE

5 RA

STYLE

2 RA

Side

TOP VIEWS

STYLE 5

Risers Right

Side

INNER

PANEL

FRONT OF

CABINET

FRONT VIEW

SIDE

2.88” (73)

STYLE 3

Risers Back

Right

SIDE

STYLE 3

Model

09-12 15-18 24-36

12.12” (308)

17.00 [432]

19.25 [489]

24.25 [616]

SRD

SIDE

20.00 [508]

22.00 [559]

27.00 [686]

2.88” (73)

SRD

9.25” (235)

STYLE 2

Risers Back

Left

STYLE

2 RA

STYLE

5 RA

STYLE

4 RA

STYLE

5 RA

STYLE

2 RA

STYLE

3 RA

STYLE

Note 8

STYLE

3 RA

4 RA

STYLE

3 RA

STYLE

4 RA

STYLE

5 RA

STYLE

2 RA

Note 8

SIDE

 NOTICE! 

NOTICE! Not all styles will stack above

or adjacent to each other. (See Note 8).

2.88” (73)

5.00” (127)

12.00” [305]

2.50” (64)

12.12” (308)

2.25” (57)

3.00” (76)

35.75” [908]

3.125” (all sizes) (79)

39.75” [1100] ± .50” (13)

Note 7

climatemaster.com

Notes:

1. Dimensions are inches [mm].

2. Style refers to cabinet to riser conﬁ guration.

3. Return air side is the front of the cabinet.

4. Supply riser is closest to corner.

5. Drain is not centered on all cabinets.

6. Slots allow for riser stack expansion and contraction.

7. Riser stub out is 39.75" (1100) from bottom cabinet and is not centered in slot.

8. From ﬂ oor to ﬂ oor on one riser stack you can only have; all same style, styles 2 and 5; or styles 3 and 4. For master/slave units you can only have styles 3 or 4 adjacent to 2 or 5.

Page 8

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

TSL Model Nomenclature - Chassis

Chassis

T S L

Series

TSL = TRANQUILITY® HIGH RISE CHASSIS

Unit Size

09 12 15 18 24 30 36

Chassis Options

S.S.

OPTION

Drain

Ultraquiet

Pan A B C S D E F G H K L M N P Q R

YES

NONO NO

YES

NONO NO

YES

NONO NO

YES

NONO

AUTO-FLOW REGULAT OR (US GPM) CODE

5/8 SWEAT

UNIT

1.5 - - - - - -

C D

2.0

2.5

3.0

J K

----

-----

S = STANDARD - NO FLOW REGULATOR

1 2 3

Voltage

E = 265/60/1 G = 208/230/60/1

For

Communicating

T-Stat

YES

UNIT

2.0

2.5

3.0

3.5

UNIT

4 5 6 7 9 10 11 12 13

09 G

RIB

RELAY

S S S C S

Shipping

6 = Chassis Will Ship In Cabinet S = Standard

Heat Exchanger Options

Position 11

Standard Tubing

Insulated Tubing (Extended Range)

Water Valve & Pump Option

S = No Water Options

YES

Controls

A = CXM B = DXM2

7/8 SWEAT

UNIT

-----

2.5 - - - -

3.0 - - -

3.0

3.5

4.0

5.0-5.0

UNIT30UNIT

UNIT

---

4.0

6.0

7.0

5.0

6.0

7.0

8.0

9.0

10.0

M = 2-Way Water Valve (Normally Closed) N = 2-Way Water Valve (Normally Open) P = Secondary Circulating Pump

T = Modulating Water Valve H = Hybrid with Standard Water Valve (Normally Closed)

J = Hybrid with Standard Water Valve (Normally Open) L = Hybrid with 3-Way Water Valve K = Hybrid with Secondary Water Pump and 3-Way Water Valve

Revision Level

C = Current Revision Level

Standard

S = Standard A = Special #1 B = Special #2

Etc.....

Blower Motor

A = PSC High Static C = ECM Constant Torque D = ECM Constant Volume

Tin Plated Air Coil Non-Coated Air Coil

Copper

Cupro-nickel Cupro-nickelCopper

(Risers Not Attached)

Chassis Cabinet

09 D1/E1 12 D2/E2 15 D3/E3 18 D4/E4 24 D5/E5 30 D6/E6 36 D7/E7

ClimateMaster Water-Source Heat Pumps

Page 9

Hose Kit

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Accessory Nomenclature

1 2 3 4 5 6 8

0 5 0A H H B3

AHH = Accessory Hose Kit AHU = Accessory Hose Kit

Note: If cabinet digit 10 is 4 use AHH; 5 use AHU

Group

Cabinet Stands (Ship loose in bulk)

1 2 3 4

ACST

Accessory Cabinet Stand

TSM/TSL

CABINET SIZE

0 = 17” x 17” 1 = 19” x 19”

2 = 24” x 24” 3 = 17” x 20” 4 = 19” x 22”

5 = 24” x 27”

050 = 1/2” Nominal

075 = 3/4” Nominal

HEIGHT

01 = 1” 02 = 2” 03 = 3” 04 = 4” 05 = 5” 06 = 6” 07 = 7” 08 = 8” 09 = 9” 10 = 10” 11 = 11” 12 = 12” 13 = 13”

Hose Size

100 = 1” Nominal

FUTURE USE

0 = STANDARD

Revision Level

B = Current Revision

Length

3 = Length in Feet

011012B

FUTURE USE

0 = STANDARD

FUTURE USE

0 = STANDARD

REVISION

B = CURRENT REVISION

FUTURE USE

0 = STANDARD

ISO PAD

0 = STANDARD (NO ISO PAD) 1 = ISO PAD

climatemaster.com

Page 10

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Accessory Nomenclature

Return Air Panel “G”

A V H S 1 S F S S

ACCESSORY VHS

RETURN AIR PANEL

Return Air Panel “L”

1 2 3 4

TYPE

“G”

DESCRIPTION

Removable

UNIT WIDTH

WIDTH

OPTION

17”

19”

24”

789

STYLE

A = DOOR w/ADA TSTAT MOUNTING C = DOOR w/ADA TSTAT MOUNTING & LOCK

L = DOOR w/KEY LOCKS (18 GA. SHEET METAL) S = STANDARD (20 GA. SHEET METAL)

COLOR

S = STANDARD (POLAR ICE) W = BRIGHT WHITE

INSULATION TYPE

F = FIBERGLASS

1 2 3 4 5

789

A V H R L 1 S F S 0

STANDARD

S = STANDARD

REVISION LEVEL

N = CURRENT REVISION TSM (”G” PANEL)

A12S

ACCESSORY VS RETURN AIR PANEL

AVHRL = L-PANEL

UNIT WIDTH

OPTION WIDTH

1 2 3 4

TSM/TSL

17”

09 - 12,

19”

15, 18

24” 24”

30 - 36

COLOR

S = STANDARD (POLAR ICE) W = BRIGHT WHITE

INSULATION TYPE

F = FIBERGLASS

COMPONENT

F = FRAME P = PANEL

STYLE

S = STANDARD

STANDARD

S = STANDARD

REVISION LEVEL

A = CURRENT REVISION

RESERVED FOR FUTURE USE

0 = STANDARD

ClimateMaster Water-Source Heat Pumps

Page 11

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Pre-Installation Information

Storage -

packaging in a clean, dry area. Store chassis in an upright position at all times. Stack units at a maximum of 2 units high.

Store cabinets how they were shipped - vertical, keeping them on their pallets for protection. Do not stack multipacks. Store risers in secure area. ClimateMaster will not replace missing risers.

Unit Protection -

the original packaging or an equivalent protective covering. Cap the open ends of pipes stored on the job site. In areas where painting, plastering, and/or spraying has not been completed, all due precautions must be taken to avoid physical damage to the units and contamination by foreign material. All openings in cabinet must be covered during all stages of construction. Physical damage and contamination may prevent proper start-up and may result in costly equipment clean-up.

Examine all pipes, ﬁ ttings, and valves before installing any of the system components. Remove any dirt or debris found in or on these components.

Prior to ﬂ ushing risers with water, be sure that the temperature in building will always be above freezing.

Pre-Installation -

Maintenance instructions are provided with each unit. The installation site chosen should include adequate service clearance around the unit. Before unit installation and start-up, read all manuals and become familiar with the unit and its operation. Thoroughly check the system before operation.

Your installation may require additional, different sequence, or modiﬁ cation to steps in this IOM.

Equipment should be stored in its original

Cover units on the job site with either

Installation, Operation, and

7. A base vibration dampening pad is recommended to help eliminate transfer of vibration to the structure. If isolation pad was not ordered, obtain of 0.070” to

0.125” (1.5 to 3) thick pad and apply to the bottom of the cabinet.

8. For chassis shipped inside cabinet remove and discard 4 shipping bolts.

9. Remove inner panel (8 screws) and save for reinstallation after chassis is installed.

10. For standard cabinets remove and discard condensate pan shipping wire ties.

Prepare chassis for installation as follows:

1. Verify refrigerant tubing is free of kinks or dents and that it does not touch other tubes or unit parts as it passes over or through. Adjust if needed and separate with closed cell insulation.

2. Inspect all electrical connections. Connections must be clean and tight at the terminals.

3. If chassis is not installed in cabinet, store in original carton in a clean and dry location.

 WARNING! 

WARNING! To avoid damage from clogged coil surfaces,

clogged motor ventilation openings, seized fan blades and potential unit failure, DO NOT OPERATE UNIT without complete enclosure, supply grille, return air panel and ﬁ lter in place.

 CAUTION! 

CAUTION! DO NOT store or install units in corrosive

environments or in locations subject to temperature or humidity extremes (e.g., attics, garages, rooftops, etc.). Corrosive conditions and high temperature or humidity can signiﬁ cantly reduce performance, reliability, and service life. Always move and store units in an upright position. Tilting units on their sides may cause equipment damage.

Prepare cabinet for installation as follows:

1. Compare the electrical data on the unit nameplate with ordering and shipping information to verify that the correct unit has been shipped.

2. Each cabinet has a tag to indicate the location to be installed.

3. Keep the cabinet openings and exposed sheet metal covered until installation is complete and all plastering, painting, etc. is ﬁ nished and cleaned.

4. Inspect all electrical connections. Connections must be clean and tight at the terminals.

5. Remove correct riser knockouts, slit insulation vertical down center (do not remove).

6. Repair any torn insulation with foil tape.

CAUTION! CUT HAZARD - Failure to follow this caution may result in personal injury. Sheet metal parts may have sharp edges or burrs. Use care and wear appropriate protective clothing, safety glasses and gloves when handling parts and servicing heat pumps.

climatemaster.com

 CAUTION! 

Page 12

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

Low Voltage Exit For Remote Thermostat (Optional Whip Exit)

High Voltage Entry

Do not

drive screws

into this area

both sides

Service Area

Note

24”

(610)

2”

(50)

and this area

far side

TSL Vertical Stack

Rev.: 04/24/2019

Riser Installation

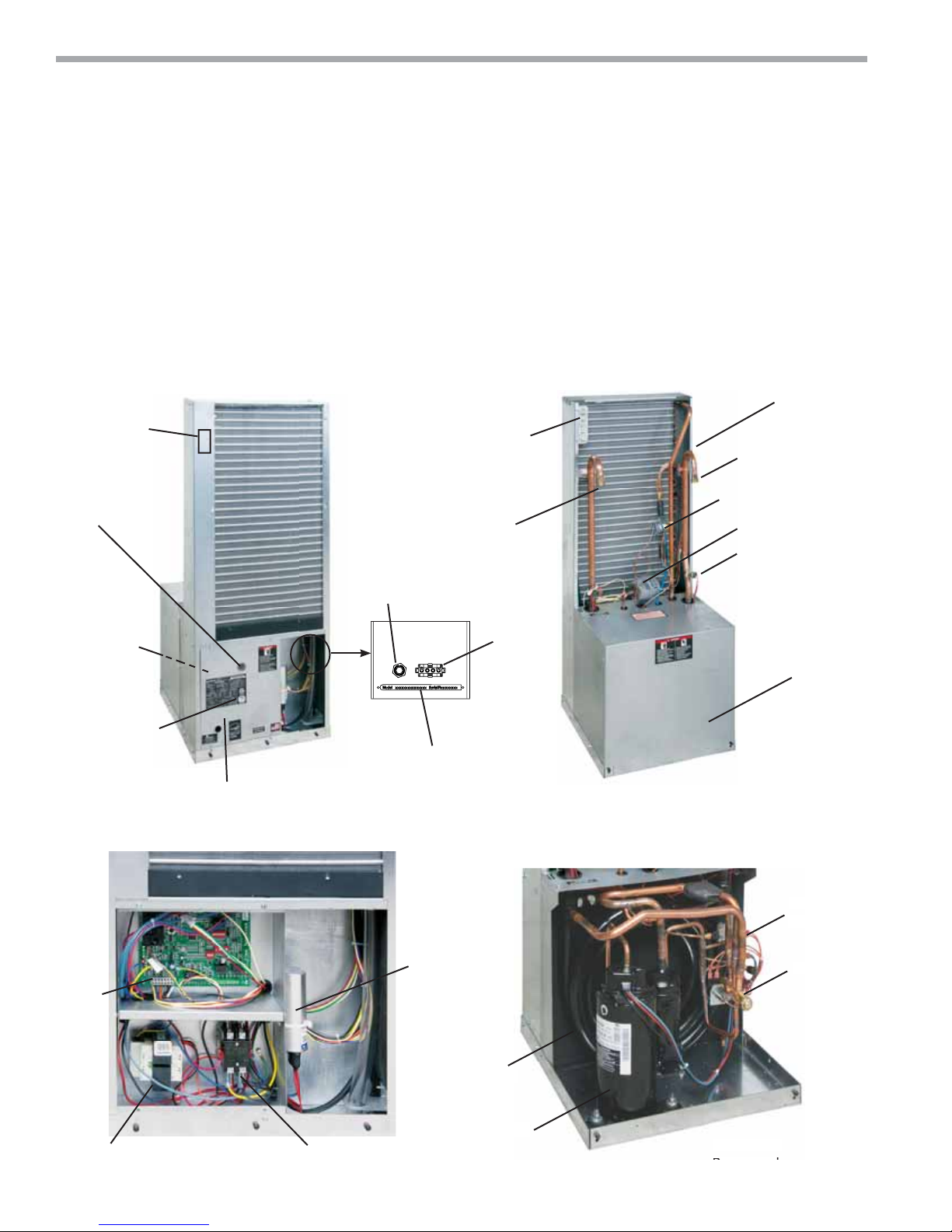

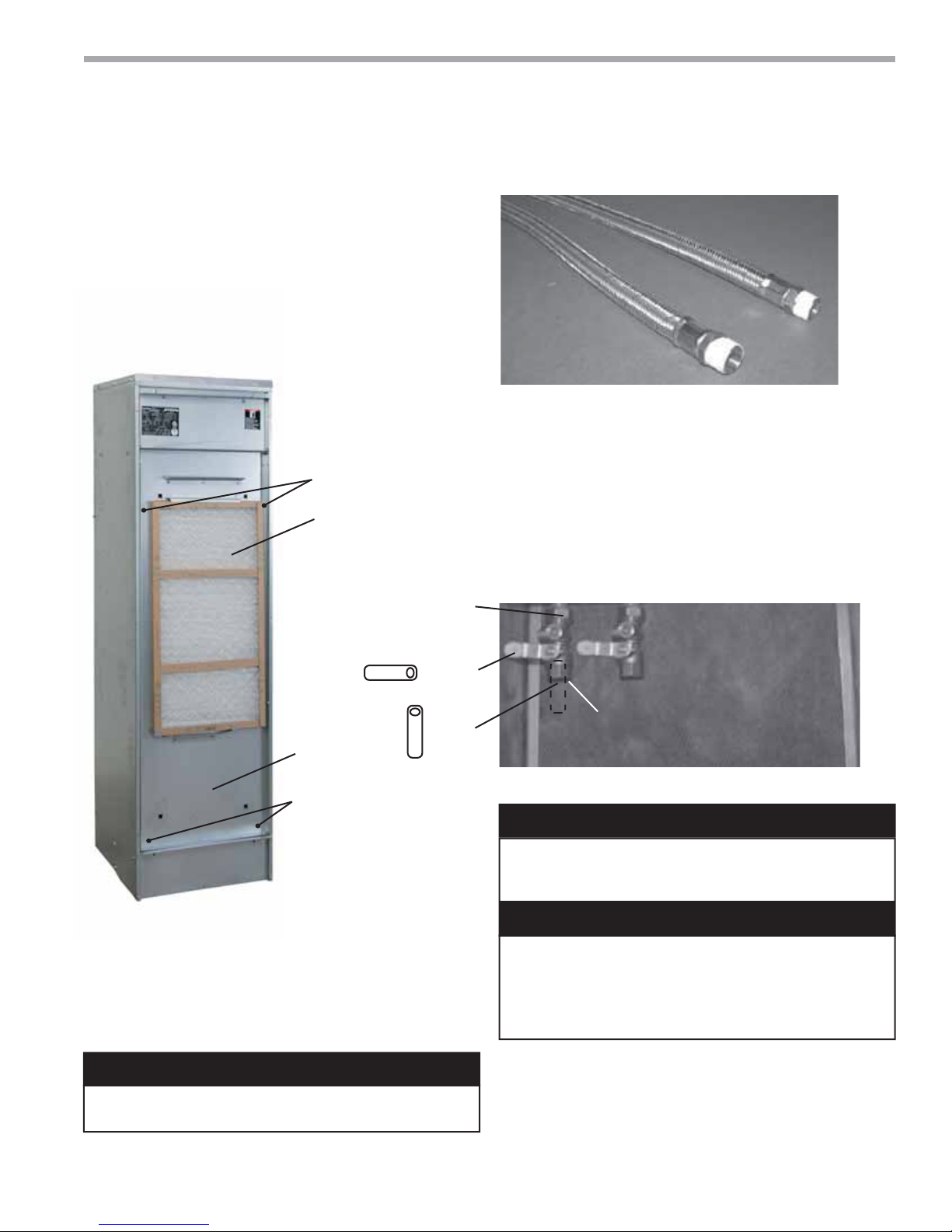

Figure 1: Vertical Stack Unit Components

1 Supply, Return, and Condensate Risers (not shown) 2 Cabinet 3 Cabinet Inner Panel and Filter

4 Chassis 5 Return Air Panel 6 Thermostat (Not shown) 7 Hoses (Not shown)

Note:

Matching labels for visual aid, chassis, and cabinet same size and voltage.

WARNING! To prevent electrical shorts and drain pan leaks, assure that screws do not penetrate unit components when driving screws near the unit control box or drain pan. Do not allow screws or nails to penetrate chassis, risers, electrical junction boxes, raceways or to interfere with chassis removal.

To avoid motor or compressor damage, keep drywall dust out of the unit.

 WARNING! 

Core Drilling For Vertical Riser Stack

Core drilling slab slot/holes will determine cabinet place-

Install Now

}

Install Later

}

ClimateMaster Water-Source Heat Pumps

ment and surrounding walls. Slot/holes size, location on ﬂ oor and plumb alignment in two planes from top to bottom are all very important, check plans. Size of slot/hole will depend on slab thickness, ceiling height, riser length. See TSL submittal.

Risers -

in crates. Crates will have layers of risers by ﬂ oors, each cabinets 3 risers (S,R,D) will be next to each other. Lowest ﬂ oor will be on top layer. Risers will have tag with ﬂ oor, riser number (if ﬁ lled out on EZ Order). Entire riser stacks can be assembled, pressure tested, ﬂ ushed, and ﬁ lled before setting cabinets. Use caution if ﬁ lled risers are in unconditioned space, prevent freezing. Do not construct walls until cabinets are set.

Description - Supply and return risers can be straight, transition up, transition down, bottom capped, or top capped. Drain risers can be straight, transition up, or top capped. All drain risers and extended range (operation below 60 ºF entering water temperature) supply and return risers need insulation. Repair or replace any damaged or missing insulation.

Type M has red identiﬁ cation marking (stripe running down the tube) and Type L (thicker wall) has blue identiﬁ cation marking. If tube is insulated pull back carefully to check color.

Shutoff and hose size for cabinet/chassis- ½” for D1 (09) and D2 (12); ¾” for D3 (15) and D4 (18); 1” for D5 (24), D6 (30), and D7 (36).

Supply riser is always closest to back corner of cabinet, return riser next, and drain riser in approx. middle of the cabinet. Risers are 9.25” (235) apart on centerline. See Figure 5.

1. Check riser diameter, type, valve size, and position

2. Suggest each cabinet location be marked with all

3. Starting on lowest ﬂ oor center risers in slot. Set height

4. If riser extensions are used insert them on lower ﬂ oor

Risers are ordered loose and will be shipped

Note: Type L may be substituted for type M.

(S,R,D or D,S,R) of risers per cabinet conﬁ guration (see ﬂ oor plans).

information (see ﬁ gure 5 ).

of supply and return runouts to 39.75” (1100) and drain runout to 3.12” (79) from bottom of cabinet.

Temporally secure risers (not by runout or valve) so they do not move.

top of riser , mark like step 5.

Page 13

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

5. Next ﬂ oor up mark riser at bottom at 1” (25) and 2.50” (63), drop through slot and position runouts same as step 2. Temporally support.

6. On lower ﬂ oor check that above riser is inserted between 1” (25) and 2.50” (63) (between 2 marks you made). Cut riser if needed or use extension.

 CAUTION! 

CAUTION! To ensure correct riser positioning and to

compensate for variations in ﬂ oor-to-ﬂ oor dimensions, do not allow the unit to unit riser joint to bottom out.

7. Insert expansion devices if required by plans.

8. Continue until complete riser stack is assembled.

9. Check all risers are correct diameter , type, valve size; correctly positioned; centered in slot; plumb from top to bottom; depth into swedge correct; runouts at correct height, and shutoff valve handles are parallel with the side of cabinet. (see Figure 2)

10. Braze all joints with high temperature alloy like Phoscopper or Silfos. (DO NOT use soft solder 50-50, 60-40 or 85-15; low temperature alloys are not acceptable for this application).

11. Must securely anchor riser stacks to building structure at least on one ﬂ oor. Typically at middle ﬂ oor and additional ﬂ oors as needed. Example: 40 ﬂ oors, anchor at 10, 20, and 30. Use expansion devices between anchors.

12. Remove temporary supports.

13. Check that risers did not drop. If stack dropped, jack up and add additional anchor support.

14. V erify all shutof f valves are closed. DO NOT OPEN VALVES until system has been cleaned and ﬂ ushed.

15. Pressure check risers–locate and r epair any leaks–r etest

during installation.

NOTICE

location, brazed incorrect, modiﬁ ed incorrect (including cutting off or extending), runoff at incorrect height,

Supply and Return Stack

1. Install a drain valve, shut-off/balancing valves, ﬂ ow

2. Install strainers at the inlet of each circulating pump.

3. Insulate loop water piping which runs through

4. Cabinet slots and riser stack assemblies are designed

5. Installer must remove riser knockouts (2). Replace and

Condensate Stack - All TSL cabinets - installer must remove drain knockout and connect drain pan to riser Installer must clip and remove 2 drain pan shipping ties, lift drain pan, cut drain hose to length, connect to drain pan and riser, and clamp both ends. For slave cabinets

- suggest extending drain stub into cabinet so clamp is accessable.

If local codes allow-PVC drain risers may be used. All couplings and reducers are to be ﬁ eld supplied.

: Any risers misplaced, assembled in wrong

indicators and drain tees at the base of each supply and return riser stack to enable system ﬂ ushing at start-up, balancing and during servicing.

nonconditioned areas or outside the building. For boiler tower applications loop temperature is normally between 60°F and 90°F, piping does not sweat or suffer heat loss under ambient conditions. For geothermal applications insulate all loop water piping.

to accommodate a maximum of 1-½”(38) expansion and 1-½”(38) contraction. If the calculated riser stack expansion or contraction exceeds 1-½”(38), expansion devices must be provided.

seal any KO’s removed by mistake.

Secure Riser Stack to building structure so stack does not drop over time. Cabinet slots allow for 1.50” (38mm) maximum expansion and 1.50” (38mm) maximum contraction, use expansion devices if you exceed these values.

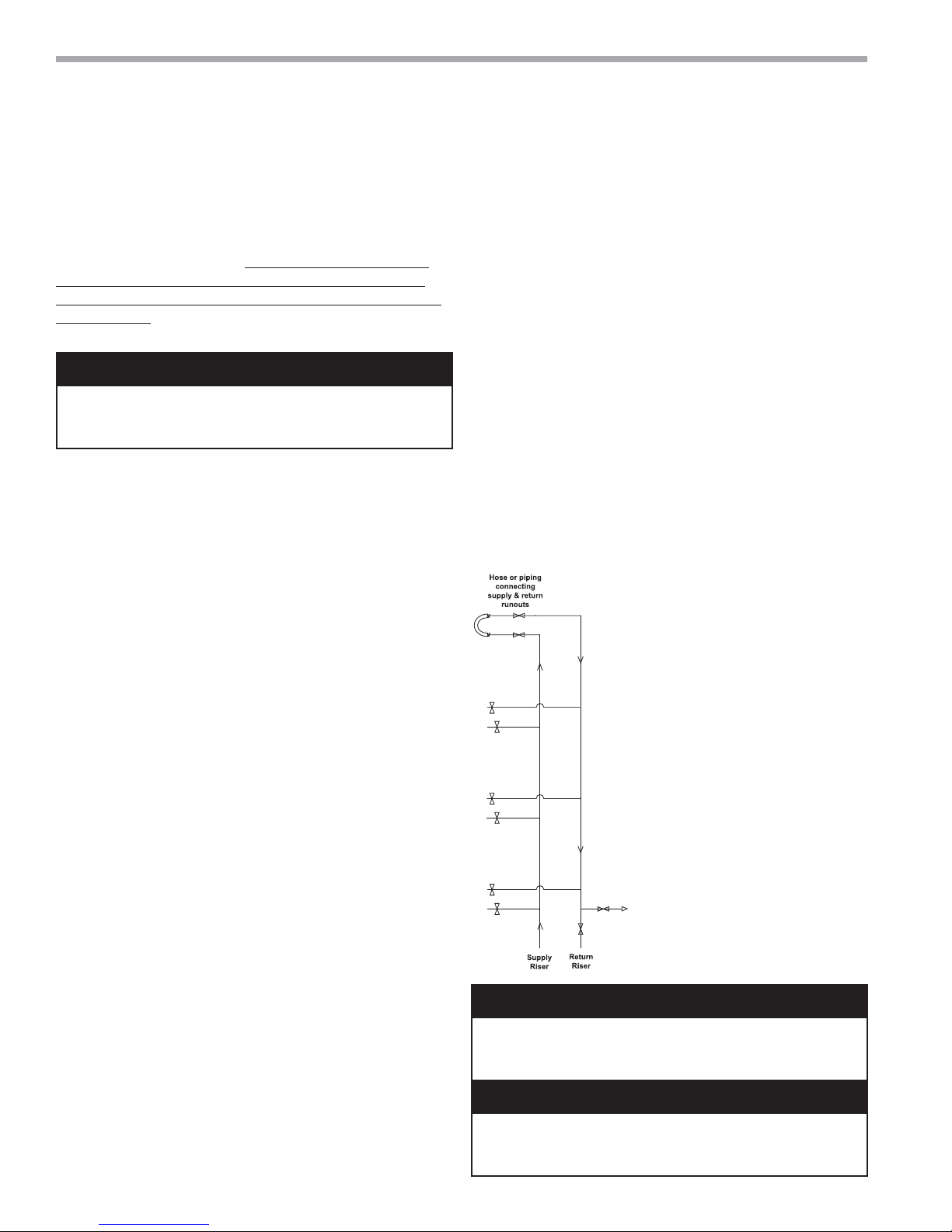

To facilitate cleaning and ﬂ ushing, install the hose kit at the end farthest from the pump and connect the ends of the hoses with the riser ﬂ ush adapter (Kit - AFL5751). Then open both valves before pumping fresh water through the system, close the valves when the system is clean. Remove the ﬂ ush adapter before installing the chassis.

Note: Refer to System Flushing Section of this manual for more information.

Install air vents in piping loop at highest accessible point as required to bleed the system of air accumulated

Misalignment found anytime including when cabinets are set, not using expansion devices if speciﬁ ed, or stack was not supported correctly is the sole responsibility of the installing contractor.

climatemaster.com

Page 14

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Figure 2: Riser Placement Figure 3: Riser Setting Detail

Shuto Handle

Side

DR S

Style 3

Only

RA Side

DR S

Style 4

Only

DR S

9.25

(235)

5.00

90° ±3°

2.75 (70)

Note: Cabinet Model Digit 9 Indicates Style

SRD

Style 2

Only

RA Side

SSRSR D

Style 5

Only

1/4” to 1” GAP

(6 to 25mm)

Side

Cabinet Size Valve FPT

D1, D2 09, 12 1/2“ (13)

D3, D4 15, 18 3/4” (19)

D5, D6, D7 24, 30, 36 1” (25)

Runout

Shuto

Valve

Bottom of

Cabinet

Supply and Return Drain

39.75 (1100) ± .50 (13)

Always

Insulated

3.12 (79) ± .12 (3)

Not Acceptable

Figure 4: Riser or Extension Insertion

1.00 Min (25)

2.50 Max (63)

Figure 5: Suggested Floor Markings

(Change data for your unit)

(

(S) (R) (D)

Model ( Size (12) Style (5) Tag (_) Riser Number (_)

ClimateMaster Water-Source Heat Pumps

)(

Slot

Riser DIA

)(

)

Top/Bottom

DIA Placement

Valve Size

D2)

(

Side

Page 15

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Figure 6: Riser Identiﬁ cation

Propress Riser is straight (no swage)

Standard Riser

Swaged 3” Deep For A Dia. Riser From Above

A Dia.

Shutoff Valve Assembly

Runout

Into

Cabinet

Bottom of

Cabinet

Runout

Into

Cabinet

39.75

(1100)

± .50ß (13)

(Note 10)

A Dia.

B Dia.

Runout

Into

Cabinet

6.00

(152) MAX

A Dia.

C Dia.

3.00 (76)

Drain Runout Into Cabinet

A Dia. A Dia.

B Dia.

3.12 (79)

± .50ß (13)

(Note 10)

Runout

Into

Cabinet

Runout for Slave Cabinet

(Note 8)

Drain Only

3.00 (76)

Runout

Into

Cabinet

Vertical Stack

Rev.: 04/24/2019

Bottom Capped

Supply and Return

Notes:

1. Y ou must know water ﬂ ow direction to determine if cabinet requires transition up or down.

2. T ransitions can only change by one diameter (1" to 1¼", 1¼" to 1½", etc.)

3. Riser transition couplings and runouts are factory brazed.

4. All risers are factory pressure tested.

5. Standard riser diameters are 1", 1¼", 1½", 2", 2½" and 3"nominal water tubing.

6. Copper Type M and L available.

7. Drain riser insulated standard. Supply and return insulated optional.

8. Master riser - contractor provides tubing from runout to slave cabinet if needed and brazes shutoff for slave.

9. Shutoff and hose size 1/2” for C1(09), C2(12); 3/4” for C3(15), C4(18); or 1” for C5(24), C6(30), C7(36).

10. Position runout perpendicular to side of cabinet.

When cabinets are pushed up to risers allow suent clearance. Shutos should be inside cabinet.

Push Push

Step 1

Risers Opposite

Return Air Opening

Risers Adjacent to

Return Air Opening

A 1.00 1.25 1.50 2.00 2.50 3.00 4.00 B 1.25 1.50 2.00 2.50 3.00 - - C - 1.00 1.25 1.50 2.00 2.50 -

Note - All ClimateMaster units with optional motorized valve have water high pressure switches. Do not design riser stack where switch will not reset. (Trip - 300 PSI; Reset - 250 PSI)

Approx.

6”

(152)

Push

Step 2Step 1

Final

Cabinet Postion

1/4” to 1”

(6 to 25)

Shutos

Inside

climatemaster.com

Page 16

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Cabinet Installation

1. Check plans that cabinet is correct for location, cabinet will have tag and data plate with information, including unit size, diameters of risers, and electrical data.

2. Remove riser KO’s (3) for your cabinet conﬁ guration (see ﬁ gure 2).

3. Cover supply and return openings with 4 pads. Slit with knife (see ﬁ gure 7).

4. Slide cabinet up to riser allow 1/4” to 1” (6 to 25mm) clearance.

5. Attach the cabinet assembly to the ﬂ oor on at least two sides using sheet metal angles. Additional anchorage may be provided by installing brackets at the top of the cabinet. a. Anchor built-in risers to the building structure

with at least one contact point. To accommodate vertical expansion and contraction DO NOT fasten risers rigidly within the unit.

b. Verify that unit shut-off valves are closed. DO NOT

OPEN VALVES until the system has been cleaned and ﬂ ushed.

For cabinets with chassis inside - remove 4 shipping screws, discard.

7. Remove inner panel (8 screws), save both.

Remove condensate pan shipping wire ties.

9. P-Trap Hose must be connected, lift drain pan, and clamp to riser stub and pan. If condensate hose must be rotated, loosen clamp on pan, rotate, and reclamp. Check condensate drain - clean pan if needed. Slowly pour 1 to 2 quarts (1 to 2 liters) of water into pan. Water should drain freely. Check for water in cabinet and on ﬂ oor. Repair if needed, Retest.

10.

Sheet metal ductwork should not be attached to the cabinet. A canvas-type ﬂ exible connection is recommended between the cabinet and the ductwork.

11. Optional Electric Heater – Single point power to unit.

Note: Steps 6-10 do after drywall installation. Figure 7

Slit

Through

Cover S/R Openings

with 4 Pads

NOTICE! ClimateMaster is not responsible for drywall repair if 2 x 4 box was not in correct orientation.

Optional Frame for G Return Air Panel -

cabinet) Position studs in front of cabinet and install frame in opening. Seal the gap between the cabinet and the frame. If fresh air motorized damper assembly is used, ﬁ eld fabricate and install duct from outside to frame opening. Assembly is installed later. See instructions with assembly. NOTICE! Allow for drywall thickness under frame front ﬂ ange. Must use damper motor assembly if fresh air is needed.

Optional Field Supplied Return Air Duct Installation

When return air is required to enter the unit through openings in a stud wall, supply and ﬁ eld install an optional duct. Seal duct against the return air opening with foam. Ensure that all air entering the unit passes through the

ﬁ lter and refrigerant-to-air coil. Note: Chassis must be removable for service.

Drywall Installation

For best sound attenuation, it is recommended not to attach drywall to cabinet. Install studs and drywall using conventional construction methods. Secure drywall to studs with low proﬁ le, pan-head sheet metal screws. Drywall can be attached directly to cabinet (except in places indicated in Fig 1), front of cabinet requires double thickness. Must not be fastened to drain pan edges or control box enclosure. Do not attach studs to cabinet. Do not install drywall using adhesive alone.

See typical construction ﬁ gures to determine stud layouts and dimension from cabinet to ﬁ nished wall. Vacuum all drywall dust and construction debris from cabinet insulation, drain pans and blower discharge plenum after cutting out supply. Insulation should be placed between the drywall and the cabinet for sound attenuation.

When drywall installation is complete, cover all cabinet openings and exposed sheet metal. (Cardboard from unit shipping cartons can be used). Do not allow paint or wall texture over-spray to contact insulation, sheet metal, coil, fan or other unit components. Warranties are void if paint or other foreign debris is allowed to contaminate internal unit components.

 NOTICE! 

(See recessed

Cabinet Side

ClimateMaster Water-Source Heat Pumps

Page 17

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Master/Slave Cabinet Installation

(Note 4)

Field connect hoses in both cabinets-

supply to supply and return to return. (Cabinet supply is closest to corner, chassis supply is on left facing air coil)

Slave Cabinet

Riser Pads (4)

Note 4

Field braze valve package slave side (shut off with tubing).

(Note 5) Shuttoff handle to be inside cabinet.

2” (50) Minimum extend copper stubs for S/R/C if over 3” (75)

Master Slave

Field install P-Trap and clamp both ends. Suggest hard drain

connection be extended into cabinet so clamp is always accessable.

Notes:

1. Contractor must meet all ﬁ re code requirements.

2. Size riser diameter for both units GPM.

3. Master/Slave means both units share common riser.

4. Install pads on back of slave cabinet to cover slots used for S/R risers.

climatemaster.com

Page 18

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Typical Cabinet with L Return Flush Mounted Air Panel Installation

 NOTICE! 

Frame is attached to studs. Panel is removable for chassis access.

AVHRL

Digit 6

1 22.1 2.0 19.5 55.8 2 24.1 2.0 21.5 55.8 3 29.6 2.0 26.5 55.9 4 29.6 2.0 26.5 55.9

DEFG

Unit

09,12 15,18

30,36

Frame Installation

Cabinet

.75

58.50

Fixed

Frame

.50

30 and 36 will have stamped louvers.

Removable Inner Panel

Unit A B C 09,12 15,18

24,30,36

22.3 58.6 2.5

24.3 58.6 2.5

29.7 58.6 2.7

1/8

Continuous

Bottom

Track

Steel Stud

1/2

Drywall

web

Corner Bead

Shim

Screw

Frame

Caulk Gap

Note 5

(if needed)

Foam

Top View

Cabinet

Return Air Panel

4” TYP 8”

Note 7

1. Dimensions are in inches .

2. Frame and panel painted bright white.

3. Panel is removavable for ﬁ lter replacement or chassis removal.

4. Frame ships with cabinet—must be installed while framing.

5. Set bottom track 1/8" in front of cabinet.

6. Drywall mud is added to the corner bead to produce a smooth ﬁ nished surface.

7. Unobstructed area for required air ﬂ ow.

(RO)

Front View

Cabinet

(RO = Rough Opening)

6”

From bottom of cabinet

ClimateMaster Water-Source Heat Pumps

Page 19

Figure 8

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Typical Cabinet with G Return Air Panel Installation

R.O.

X X

Note 4

OUTSIDE

CORNER

Note

INSIDE

CORNER

5/8” (16) drywall 1 or 2 layers. Position studs accordingly.

TSL CABINET

REMOTE

MOUNTED

THERMOSTAT

TOP VIEW

Low Voltage Conduit

1-3/8” (35) min - Note 7 to 2 3/8” (60) max from cabinet to front of finished wall

1.25 (32)

High Voltage

FRONT

VIEW

57 1/2

2 x 4 nominal studs

seal gap (4) sides

Cabinet Flange (4) sides

1 Layer

Floor

Model

09-12

15-18 24-36

(1460)

5 7/8 (149)

Note 6

Drywall Opening

[432]17[432]20[508]

19.25 [489]

24.25 [610]

Heat Pump Hybrid

[483]

[610]

[559]

[686]

17.25 [438]

19.5

[495]

24.5

[622]

 NOTICE! 

Seal between studs and cabinet ﬂ anges with weather tight foam material to prevent wall cavity air from inﬁ ltrating unit or room.

1. All dimensions are in inches (mm).

2. Cabinet conﬁ guration will determine slab core

3. Recommend stud walls surrounding cabinet.

4. Return air panel (not shown) overlaps rough

5. Installer supplied top duct should connect with

6. If cabinet stand or ISO pad is used add to

7. For 2"(50) ﬁ lter set cabinet 2"(50) minimum

climatemaster.com

drilling location and walls surrounding cabinet. Drywall and studs should not be attached or

contacting cabinet for best sound attenuation. Where possible ﬁ ll gaps with sound absorbing material. Use iso pad under cabinet. Secure cabinet to ﬂ oor in two places at back.

opening, allow minimum of 3 1/2" (89) dry wall to corner. Do not caulk G panel to wall.

ﬂ ex boot. dimension. from front of drywall.

Page 20

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

(

TSL Vertical Stack

Rev.: 04/24/2019

Typical Cabinet with G Panel Installation - Flush Air Frame

6.00 (152)

Note 8, 9

Seal Gap (4) Sides

CABINET

TOP VIEW

ѥ NOTICE! ѥ

Recessed cabinet requires frame kit. Outside air requires motorized damper

or pre-treated air Above 45°F (7°C).

between the frame and cabinet with

Seal

weather seal material to avoid air being pulled

in from the wall cavity.Attach frame to studs not cabinet.

Do not distort frame shim sides if required.

Frame Outside Drywall

G Style Return Air Panel

Frame

Crossbars

(Note 4)

3-1/2

(89)

It is recommended to leave 2” (51) minimum clearance on both sides for removing panel

“G” Frame

12-1/4

(311)

28-5/8

(727)

Floor

* Dimension if cabinet is on floor.

Add if cabinet is on stand/pad.

Notes

1. Cabinet conƂguration will determine slab coredrilling location and walls surrounding cabinet.

.38 (10)

R.O.

FRONT VIEW

DRYWALL

5/8" (16)

9.00 x 2.00 KO (228 x 51) Outside air opening,

left or right side to suit installation.

24.12

(612)

(120)

4.75

57-1/2

(1460) R.O.

5-7/8*

(149)

Cabinet

Flange

1.25 (32)

Kit Size

48A0100N

48A0100N51

48A0100N52

Cross bars

09-12

15-18

24-36

Kit Part

Frame Kit

17.00 (432)

19.25 (489)

24.25 (616)

Note 5

17.00 (432)

(483)

(610)

Optional Damper Motor

(Order seperately) 48A0100N04 may be installed on left or right side. Note 7 short wire harness to be installed in electric box, remove ko in box cover, snap in molex.

Description

Qty

1 2

Frame1

Cross Bar

Panel

(400)

(498)

(620)

18.50 (470)

21.50 (546)

25.50 (648)

(1599)

4.50

* (114)

16-5/8

19-5/8

24-3/8

Front View

Frame Installed

G Panel Perimet

Crossb

Third Pai Tabs fro

4 Pane

Mounting Nuts (1/4

Lowest of Tabs

2. Recommend stud walls surrounding cabinet. Drywall and studs should not be attached or contacting cabinet for best sound attenuation. Where possible Ƃll gaps with sound absorbing material. Use iso pad under cabinet. Secure cabinet ƃoor in two places atback.

3. Return air panel overlaps rough opening, allow minimum of 3 1/2" (89) dry wall to corner. Do not caulk panel to wall.

4. G Panel attaches to frame cross bars. Cabinet must be recessed behind wall.

5. Bend out 4 tabs per side on frame. Position cross bars behind ears, attach with 8 screws.

6. For Ƃlter access, pivot inner panel, open Ƃlter access snap. For chassis removal, remove G Panel, remove 2 cross bars, remove Ƃlter panel, slideout chassis.

7. When untreated outside air is required, 48A0100N04 motorized damper must be used, mixed air temperature must be no lower than 45°F (7°C), no higher than 95 DB/75 WB, and not exceed 20% of total CFM. Contractor must supply air duct, cut hole in stud, remove K.O., assemble and wire damper assembly. Note: Use extreme weather temperatures.

8. For 2" wlter set cabinet 6.25"

158) from front of drywall.

ClimateMaster Water-Source Heat Pumps

Page 21

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

NOTICE - Drywall openings shown below are for speciﬁ c

cabinets as indicated. Cut openings for your cabinet

and thermostat.

One or two layers

of drywall. Set

studs accordingly.

Finished Wall

(Notes 1 and 3)

Note 2

Opening for

“G” Panel

15' Whip

Slab

5⁄”

(622)

57½”

(1461)

24.25” (616)

½”

(622)

Cabinet

Figure 10

Supply Air

Ductwork

(Customer Supplied)

Canvas Type

Flex Boot

(Customer

Supplied)

65”

(1650)

Cabinet

for D5G0RAE115E010C and G Return Air Panel

Notes:

1. Optional factory-installed whips (Model Digit 13) end with 9 pin molex connector.

2. Field-supplied 2x4 Box must be a type that the side can be removed so molex can be put inside. Position box horizontal or vertical for thermostat.

3. Optional 15, 25, or 35 foot whips (thermostat cable Class 2) available. Whips in BX armor available as special.

4. 1” to 12”(25 to 305) stands available, stands are bulk shipped and must be ﬁ eld installed.

5. When stands are used, make sure riser length and position is calculated correctly. Stand pads raises everything up.

6. For 2” ﬁ lter, set cabinet 2” (50) minimum from front of drywall.

Drywall Openings

climatemaster.com

Page 22

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

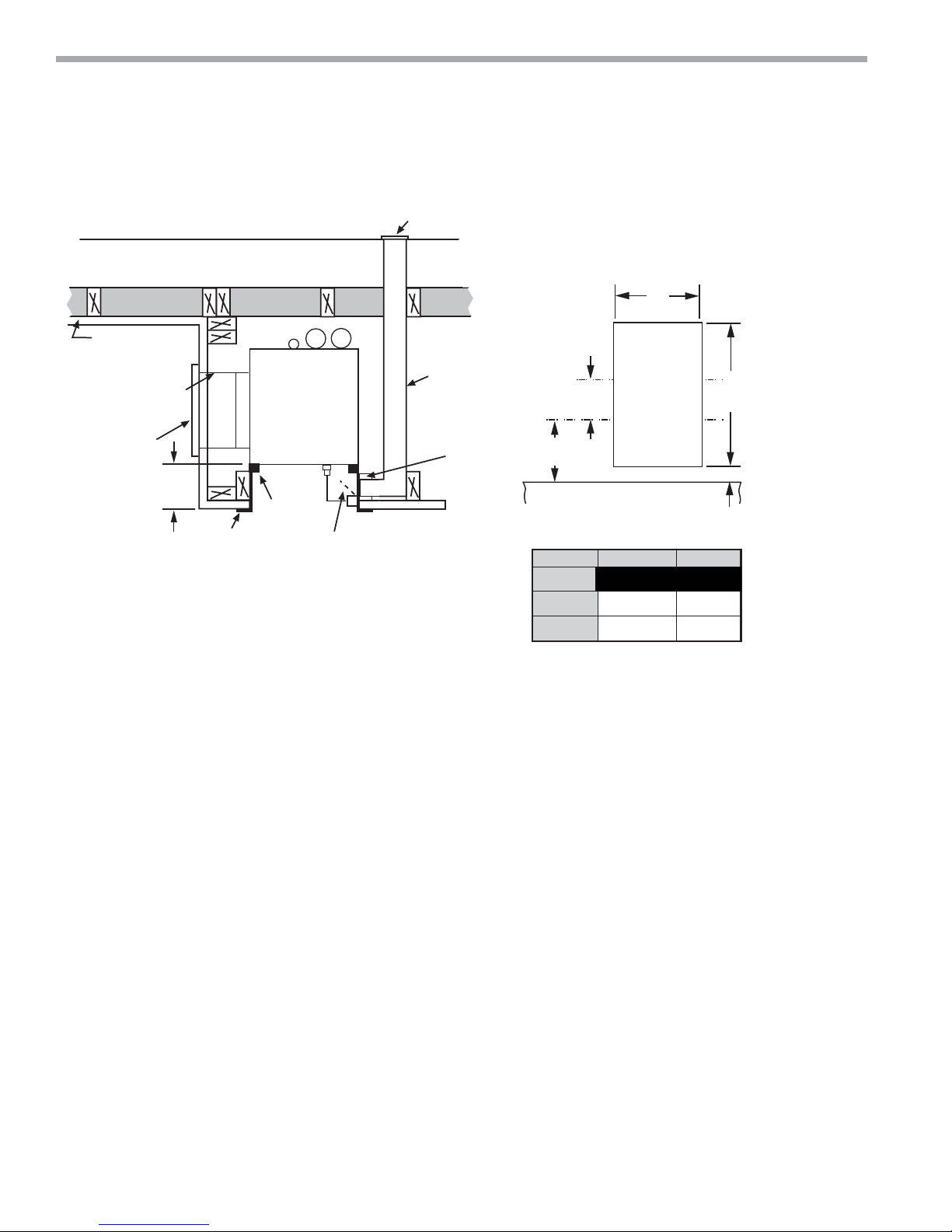

Figure 6: Cabinet with G Panel Frame and Optional Outside Air Duct (Field Fabricated)

Field Supplied Grille with

Insect Screen

Outside Wall

Insulation

Drywall

Field Supply

Flex Duct Collar

or Fabricate Extension.

Seal to Cabinet and Wall.

Supply Air

Grille Opening

Note

Seal 4 Sides

Field Supplied

Insulated Ductwork

Cut Hole

in Stud

and Seal.

See IOM

with Kit for

Location and Size.

28-5/8

(727)

Floor

12-1/4

(311)

R.O.

FRONT VIEW

57-1/2

(1460) R.O.

*If cabinet is on floor

5-7/8*

(149)

Drywall opening for “G” frame

G Panel Frame

(Over Drywall)

Motorized Air Damper 48A0100N04

Assembled to Frame.

Connect Molex Wire Harness

to Chassis Control Box.

TOP VIEW

Models Frame A

For 09-12

For 15-18 48A0100N51

For 24-36 48A0100N52

19 5/8

(498)

24 3/8

(620)

Notes:

1. All units with outside air option must use motorized air damper. Damper to be closed when unit not operating.

2. Duct can be on right or left side.

3. On all installations, mixed return air to unit must be 45°F (7°C) to 95°F (35°C), and not exceed 20% of total CFM.

4. On all installations, the ambient temperature behind interior wall must be above freezing.

5. Prevent condensate on all installations of risers and loop piping insulate if required.

6. Frame attaches to studs, do not distort shim if required.

7. %CDKPGVUYKVJqƂNVGTTCEMrGOQXGUKFGECDKPGVƃCPIGUUGVDCEMqOKPKOWOqƂNVGTTCEM

UGVDCEMqOKPKOWO

8. 5GCNUKFGUDGVYGGPHTCOGCPFECDKPGVWUGHQCOHQKNVCRGECWNMQTƂGNFHCDTKECVGFUJGGVOGVCN

ClimateMaster Water-Source Heat Pumps

Page 23

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Water-Loop Heat Pump Applications

Commercial Water Loop Applications - Commercial

systems typically include a number of units connected to a common piping system with a cooling tower and boiler. Any unit plumbing maintenance work can introduce air into the piping system; therefore air elimination equipment is a major portion of the mechanical room plumbing. In piping systems expected to utilize water temperatures below 50°F [10°C], 1/2” (13mm) closed cell insulation is required on all piping surfaces to eliminate condensation (extended range units required). Metal to plastic threaded joints should never be used due to their tendency to leak over time.

Teﬂ on tape thread sealant is recommended to minimize internal fouling of the heat exchanger. Do not over tighten connections and route piping so as not to interfere with service or maintenance access. Hose kits are available from ClimateMaster. The piping system should be ﬂ ushed to remove dirt, piping chips, and other foreign material prior to operation (see “Piping System Cleaning and Flushing Procedures” in this manual). The ﬂ ow rate is usually set between 2.25 and 3.5 gpm per ton [2.9 and 4.5 l/m per kW] of cooling capacity. ClimateMaster recommends 3 gpm per ton [3.9 l/m per kW] for most applications of water loop heat pumps.

Water Quality Standards - Table 3 should be consulted for water quality requirements. Scaling potential should be assessed using the pH/Calcium hardness method. If the pH <7.5 and the calcium hardness is less than 100 ppm, scaling potential is low. If this method yields numbers out of range of those listed, the Ryznar Stability and Langelier Saturation indecies should be calculated. Use the appropriate scaling surface temperature for the application, 150°F [66°C] for direct use (well water/open loop) and DHW (desuperheater); 90°F [32°F] for indirect use. A monitoring plan should be implemented in these probable scaling situations. Other water quality issues such as iron fouling, corrosion prevention and erosion and clogging should be referenced in Table 3.

Water loop heat pump (cooling tower/boiler) systems typically utilize a common loop, maintained between 60 and 90°F [16 - 32°C]. The use of a closed circuit evaporative cooling tower with a secondary heat exchanger between the tower and the water loop is recommended. If an open type cooling tower is used continuously, chemical treatment and ﬁ ltering will be necessary.

climatemaster.com

Page 24

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Ground-Loop Heat Pump Applications

 CAUTION! 

CAUTION! The following instructions represent industry

accepted installation practices for closed loop earth coupled heat pump systems. Instructions are provided to assist the contractor in installing trouble free ground loops. These instructions are recommendations only. State/provincial and local codes MUST be followed and installation MUST conform to ALL applicable codes. It is the responsibility of the installing contractor to determine and comply with ALL applicable codes and regulations.

 CAUTION! 

CAUTION! Ground loop applications require extended range

equipment and optional refrigerant/water circuit insulation.

Pre-Installation - Prior to installation, locate and mark all existing underground utilities, piping, etc. Install loops for new construction before sidewalks, patios, driveways, and other construction has begun. During construction, accurately mark all ground loop piping on the plot plan as an aid in avoiding potential future damage to the installation.

Piping Installation - All earth loop piping materials should be limited to polyethylene fusion only for inground sections of the loop. Galvanized or steel ﬁ ttings should not be used at any time due to their tendency to corrode. All plastic to metal threaded ﬁ ttings should be avoided due to their potential to leak in earth coupled applications. A ﬂ anged ﬁ tting should be substituted. P/T plugs should be used so that ﬂ ow can be measured using the pressure drop of the unit heat exchanger.

Earth loop temperatures can range between 25 and 110°F [-4 to 43°C]. Flow rates between 2.25 and 3 gpm per ton [2.41 to 3.23 l/m per kW] of cooling capacity is recommended in these applications.

Test individual horizontal loop circuits before backﬁ lling. Test vertical U-bends and pond loop assemblies prior to installation. Pressures of at least 100 psi [689 kPa] should be used when testing. Do not exceed the pipe pressure rating. Test entire system when all loops are assembled.

Flushing the Earth Loop - Upon completion of system installation and testing, ﬂ ush the system to remove all foreign objects and purge to remove all air.

indecies should be calculated. Use the appropriate scaling surface temperature for the application, 150°F [66°C] for direct use (well water/open loop) and DHW (desuperheater); 90°F [32°F] for indirect use. A monitoring plan should be implemented in these probable scaling situations. Other water quality issues such as iron fouling, corrosion prevention and erosion and clogging should be referenced in Table 3.

Antifreeze - If any liquid ﬂ uid or piping is exposed to unconditioned ambient below 42°F (5.5 C), antifreeze must be added. If the liquid ﬂ uid entering the heat pump is 50°F (10°C) or below, calculate the leaving heat pump temperature (shown in submittal on performance data selection notes section). Using the lowest temperature leaving the heat pump, must protect system 15°F (8°C) lower. IE: if temperature leaving the heat pump is 35°F subtract 15°F = 20°F protection required, if Methanol is used the system would require 16% mix by volume. Antifreeze is available in alcohol and glycols, contact local sales ofﬁ ce for the best type for your system and area. Following must be considered safety, thermal performance, corrosiveness, local codes, stability, convenience, and cost.

All alcohols should be premixed and pumped from a reservoir outside of the building when possible or introduced under the water level to prevent fumes. Calculate the total volume of ﬂ uid in the piping system. Then use the percentage by volume shown in table 2 for the amount of antifreeze needed. Antifreeze concentration should be checked from a well mixed sample using a hydrometer to measure speciﬁ c gravity.

Low Water Temperature Cutout Setting - CXM Control

When antifreeze is selected, the LT1 jumper (JW3) should be clipped to select the low temperature (antifreeze

10.0°F [-12.2°C]) setpoint and avoid nuisance faults (see “Low Water Temperature Cutout Selection” in this manual). Note: Low water temperature operation

requires extended range equipment. Table 2: Antifreeze Percentages by Volume

Minimum temperature leaving the unit F (C)

25 (-4) 30 (-1) 35 (1.5) 42 (5.5)

Type 10 (-12) 15 (-9) 20 (-6.5) 25 (-2.5)

Methanol 25% 21% 16% 10%

100% Food Grade PG 38% 25% 22% 15%

Ethanol* 29% 25% 20% 14%

*Ethanol must not be denatured with any petroleum based product CXM/DXM - must clip LT1 jumper if antifreeze is used. DO NOT clip without

antifreeze. Check with hydrometer after pump has mixed ﬂ uid well, now and at beginning

of each heating season.

Protect liquid ﬂ uid to

ClimateMaster Water-Source Heat Pumps

Page 25

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Ground-Water Heat Pump Applications

Open Loop - Ground Water Systems - Shut off valves

should be included for ease of servicing. Boiler drains or other valves should be “tee’d” into the lines to allow acid ﬂ ushing of the heat exchanger. Shut of f valves should be positioned to allow ﬂ ow through the coax via the boiler drains without allowing ﬂ ow into the piping system. P/T plugs should be used so that pressure drop and temperatur e can be measured. Piping materials should be limited to copper or PVC SCH80. Note: Due to the pressure and

temperature extremes, PVC SCH40 is not recommended.

Water quantity should be plentiful and of good quality. Consult Table 4 for water quality guidelines. The unit can be ordered with either a copper or cupro-nickel water heat exchanger. Consult T able 4 for r ecommendations. Copper is recommended for closed loop systems and open loop ground water systems that are not high in mineral content or corrosiveness. In conditions anticipating heavy scale formation or in brackish water, a cupro-nickel heat exchanger is recommended. In ground water situations where scaling could be heavy or where biological growth such as iron bacteria will be present, an open loop system is not recommended. Heat exchanger coils may over time lose heat exchange capabilities due to build up of mineral deposits. Heat exchangers must only be serviced by a qualiﬁ ed technician, as acid and special pumping equipment is required. Desuperheater coils can likewise become scaled and possibly plugged. In areas with extremely hard water, the owner should be informed that the heat exchanger may require occasional acid ﬂ ushing. In some cases, the desuperheater option should not be recommended due to hard water conditions and additional maintenance required.

Expansion Tank and Pump - Use a closed, bladder-type expansion tank to minimize mineral formation due to air exposure. The expansion tank should be sized to provide at least one minute continuous run time of the pump using its drawdown capacity rating to prevent pump short cycling.

Discharge water from the unit is not contaminated in any manner and can be disposed of in various ways, depending on local building codes (e.g. recharge well, storm sewer, drain ﬁ eld, adjacent stream or pond, etc.). Most local codes forbid the use of sanitary sewer for disposal. Consult your local building and zoning department to assure compliance in your area.

Water Control Valve - Always maintain water pressure in the heat exchanger by placing the water control valve(s) on the return line to prevent mineral precipitation during the of fcycle. Pilot operated slow closing valves are recommended to reduce water hammer. If water hammer persists, a miniexpansion tank can be mounted on the piping to help absorb the excess hammer shock. Ensure that the total ‘V A’ draw of the valve can be supplied by the unit transformer. For instance, a slow closing valve can draw up to 35VA. This can overload smaller 40 or 50 VA transformers depending on the other controls in the circuit. A typical pilot operated solenoid valve draws approximately 15V A.

Flow Regulation - Flow regulation can be accomplished by two methods. One method of ﬂ ow regulation involves simply adjusting the ball valve or water control valve on the return line. Measure the pressur e dr op thr ough the unit heat exchanger, and determine ﬂ ow rate from. Since the pr essur e is constantly varying, two pressure gauges may be needed. Adjust the valve until the desired ﬂ ow of 1.5 to 2 gpm per ton [2.0 to 2.6 l/m per kW] is achieved. A second method of ﬂ ow control requires a ﬂ ow control device mounted on the outlet of the water control valve. The device is typically a brass ﬁ tting with an oriﬁ ce of rubber or plastic material that is designed to allow a speciﬁ ed ﬂ ow rate. On occasion, ﬂ ow control devices may produce velocity noise that can be reduced by applying some back pressure fr om the ball valve located on the discharge line. Slightly closing the valve will spread the pressure dr op over both devices, lessening the velocity noise. Note: When EWT is below 50°F [10°C], 2

gpm per ton (2.6 l/m per kW) is required. Water Coil Low Temperature Limit Setting - For all open

loop systems, CXM/DXM JW3 Jumper (LT1) should never be clipped to avoid freeze damage to the unit, and voiding your warranty. See “Low Water Temperature Cutout Selection” in this manual for details on the low limit setting.

NOTICE! Ground-water applications for commercial buildings with more than 2-3 units should include a plate frame heat-exchanger to isolate the heat pumps from the ground-water and conﬁ ne heat exchanger cleanings to one location and lessen maintenance. Direct use of ground-water may increase the fr equency of heat pump maintenance and may shorten life expectancy.

climatemaster.com

Page 26

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

Water Quality

Parameter

Material

Closed

Recirculating

Open Loop and Recirculating Well

Scaling Potential - Primary Measurement

pH/Calcium Hardness

All

pH < 7.5 and Ca Hardness <100ppm

Method

Index Limits for Probable Scaling Situations - (Operation outside these limits is not recommended)

Ryznar

All

- 6.0 - 7.5

Stability Index If >7.5 minimize steel pipe use. Langelier

All

-0.5 to +0.5

Saturation Index

If <-0.5 minimize steel pipe use. Based upon 66°C HWG and

Direct well, 29°C Indirect Well HX

Iron Fouling

Iron Fe2+(Ferrous)

All

<0.2 ppm (Ferrous)

(Bacterial Iron potential)

If Fe

(ferrous)>0.2 ppm with pH 6 - 8, O2<5 ppm check for iron bacteria.

Iron Fouling

All

<0.5 ppm of Oxygen

Above this level deposition will occur.

Corrosion Prevention

All

6 - 8.5

Monitor/treat as

needed

Minimize steel pipe below 7 and no open tanks with pH <8

Hydrogen Sulfide (H

All

- <0.5 ppm

At H

S>0.2 ppm, avoid use of copper and copper nickel piping or HX's.

Rotten egg smell appears at 0.5 ppm level.

Copper alloy (bronze or brass) cast components are OK to <0.5 ppm.

Ammonia ion as hydroxide, chloride, nitrate and sulfate compounds

All

<0.5 ppm

Maximum

Maximum Allowable at maximum water temperature.

Chloride Levels

10$C24$C38

Copper

Cupronickel

- <20ppm NR NR

- <150 ppm NR NR

304 S

S - <400 ppm <250 ppm <150 ppm

316 S

S - <1000 ppm <550 ppm < 375 ppm

Titanium - >1000 ppm >550 ppm >375 ppm

Erosion and Clogging

Particulate Size and Erosion

All

<10 ppm of particles and a maximum velocity of 1.8 m/s Filtered for maximum 841 micron [0.84 mm, 20 mesh] size.

<10 ppm (<1 ppm "sandfree” for reinjection) of particles and a maximum velocity of 1.8 m/s. Filtered for maximum 841 micron 0.84 mm, 20 mesh] size. Any particulate that is not removed can potentially clog components.

Notes:

• NR - Application not recommended.

• "-" No design Maximum.

• Closed Recirculating system is identified by a

closed pressurized piping system.

• Recirculating open wells should observe the open recirculating design considerations.

Above the given limits, scaling is likely to occur. Scaling indexes should be calculated using the limits below

Scaling indexes should be calculated at 66°C for direct use and HWG applications, and at 32°C for indirect HX use. A monitoring plan should be implemented.

The ClimateMaster Water Quality Table provides water quality requirements for ClimateMaster coaxial heat exchangers. The water should be evaluated by an independent testing facility comparing to this Table and when properties are outside of these requirements, an external secondary heat exchanger must be used to isolate the heat pump heat exchanger from the unsuitable water. Failure to do so will void the warranty for the coaxial heat exchanger and any other components damaged by a leak.

TSL Vertical Stack

Rev.: 04/24/2019

Water Quality Standards

The ClimateMaster Water Quality Table provides water quality requirements for ClimateMaster coaxial heat exchangers. When water properties are outside of those requirements, an external secondary heat exchanger must be used to isolate the heat pump heat exchanger from the unsuitable water. Failure to do so will void the warranty for the coaxial heat exchanger.

Table 3: Water Quality Standards

ClimateMaster Water-Source Heat Pumps

Page 27

THE SMART SOLUTION FOR ENERGY EFFICIENCY

 WARNING! 

WARNING! To avoid possible injury or death due to electrical

shock, open the power supply disconnect switch and secure it in an open position during installation.

 CAUTION! 

CAUTION! Use only copper conductors for ﬁ eld installed

electrical wiring. Unit terminals are not designed to accept other types of conductors.

Electrical - Line Voltage

All ﬁ eld installed wiring, including electrical ground, must comply with the National Electrical Code as well as all applicable local codes. Refer to the unit electrical data for fuse sizes. Consult wiring diagram for ﬁ eld connections that must be made by the installing (or electrical) contractor.All ﬁ nal electrical connections must be made with a length of ﬂ exible conduit to minimize vibration and sound transmission to the building.

 WARNING! 

WARNING! Disconnect electrical power source to prevent

injury or death from electrical shock.

Vertical Stack

Rev.: 04/24/2019

Electrical Wiring - Line Voltage

Blower Speed Selection – Units with PSC or ECM-CT Motor

PSC (Permanent Split Capacitor) blower fan speed can be changed by moving the speed tap wires on the fan motor terminal block. See Figure 12. Note: Check blower table 5a-5g, must maintain minimum CFM for your external static.

Blower Speed Selection – Units with ECM-CV Motor

CFM can be changed from default settings by using ATC32U03C Thermostat or ACDU03C service tool with 11B0100N27 Harness. Use information in Table 5 to set CFM for your static.

Special Note for AHRI Testing: To achieve rated airﬂ ow for AHRI testing purposes on all PSC products - TSL09 and 12 use high speed tap for heating and medium tap for cooling. All other models use high speed tap for both. When the heat pump has experienced less than 100 operational hours and the coil has not had sufﬁ cient time to be “seasoned”, it is necessary to clean the coil with a mild surfactant such as Calgon to remove the oils left by manufacturing processes and enable the condensate to properly “sheet” off of the coil.

General Line Voltage Wiring - Be sure the available power is the same voltage and phase shown on the unit serial plate. Line and low voltage wiring must be done in accordance with local codes or the National Electric Code, whichever is applicable.

Power Connection - Line voltage connection is made by connecting the incoming line voltage wires to the “L” side of the contactor.

208 Volt Operation - All commercial 208-230 Volt units are factory wired for 208 Volt operation. If supply voltage is 230V, then the transformer must be rewired to the 230V tap as illustrated on the wiring diagram by switching the red (208V) and the orange (230V) wires at the contactor terminal.

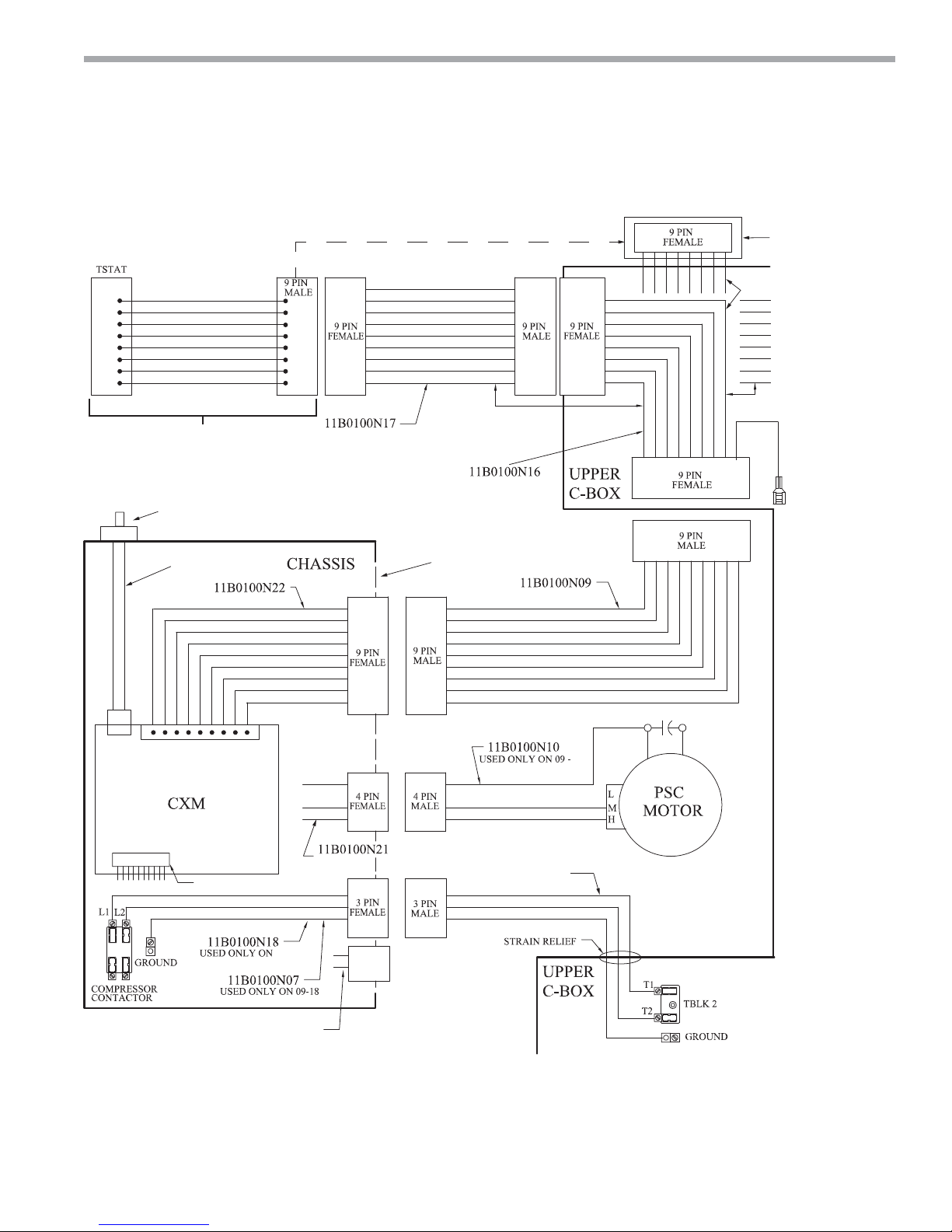

Unit wiring diagrams available at www.climatemaster.com. Select ‘Commercial Professional ‘, ‘ Literature ‘, ‘ Wiring Diagrams’

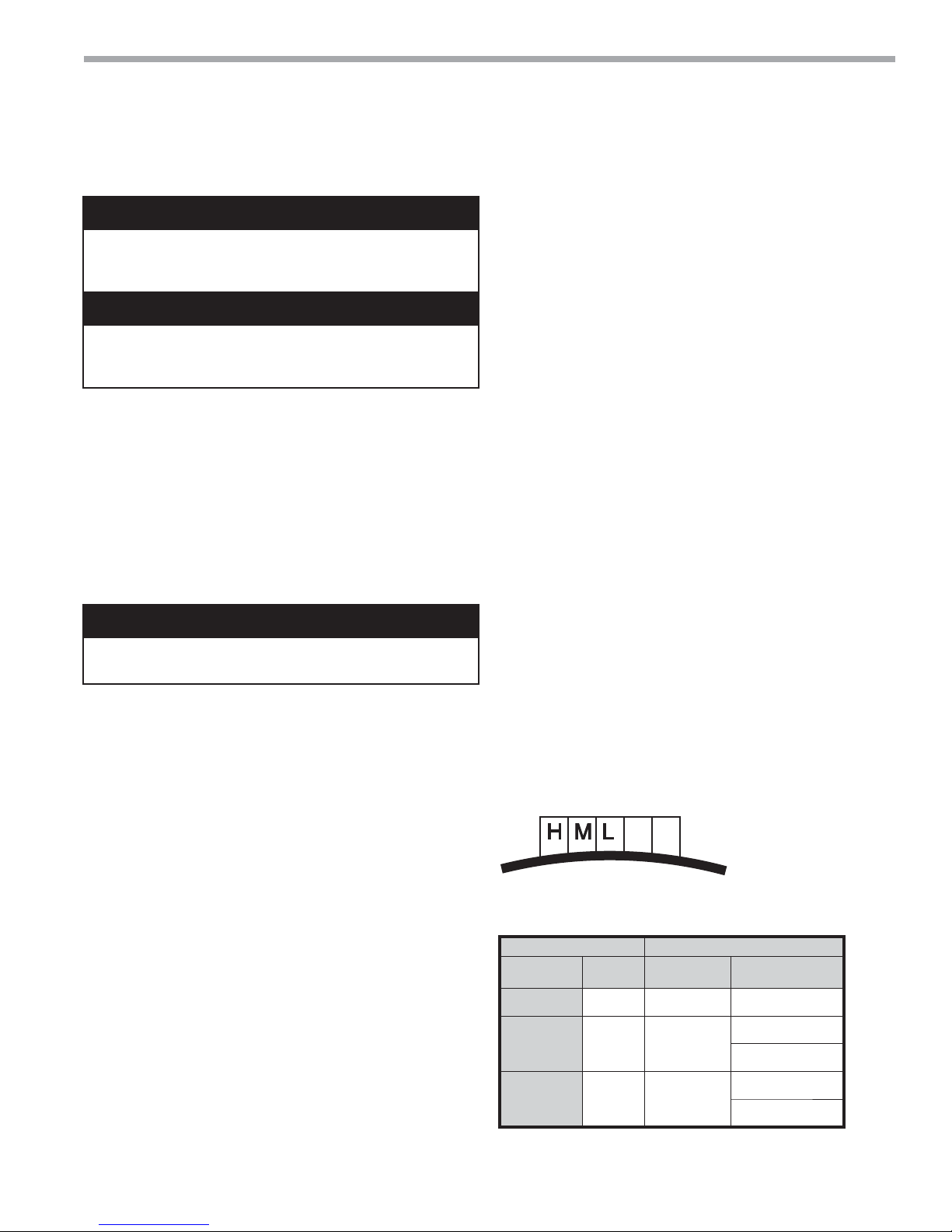

Figure 12: PSC Motor Speed Tap Selection

H for High speed tap M for Medium speed tap L for Low speed tap

Fan Motor

Table 4

Thermostat Unit

Factory Motor

Connection

Med TAP High TAP

Board Connection

DXM2/ CXM

DXM2

CXM

BR2

Relay

DXM2

CXM

BR2

Relay

Type Terminal

1 Stage G Med TAP G

2 Stage

Auto Speed

Change

2 Speed

Manual

Change

climatemaster.com

Page 28

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

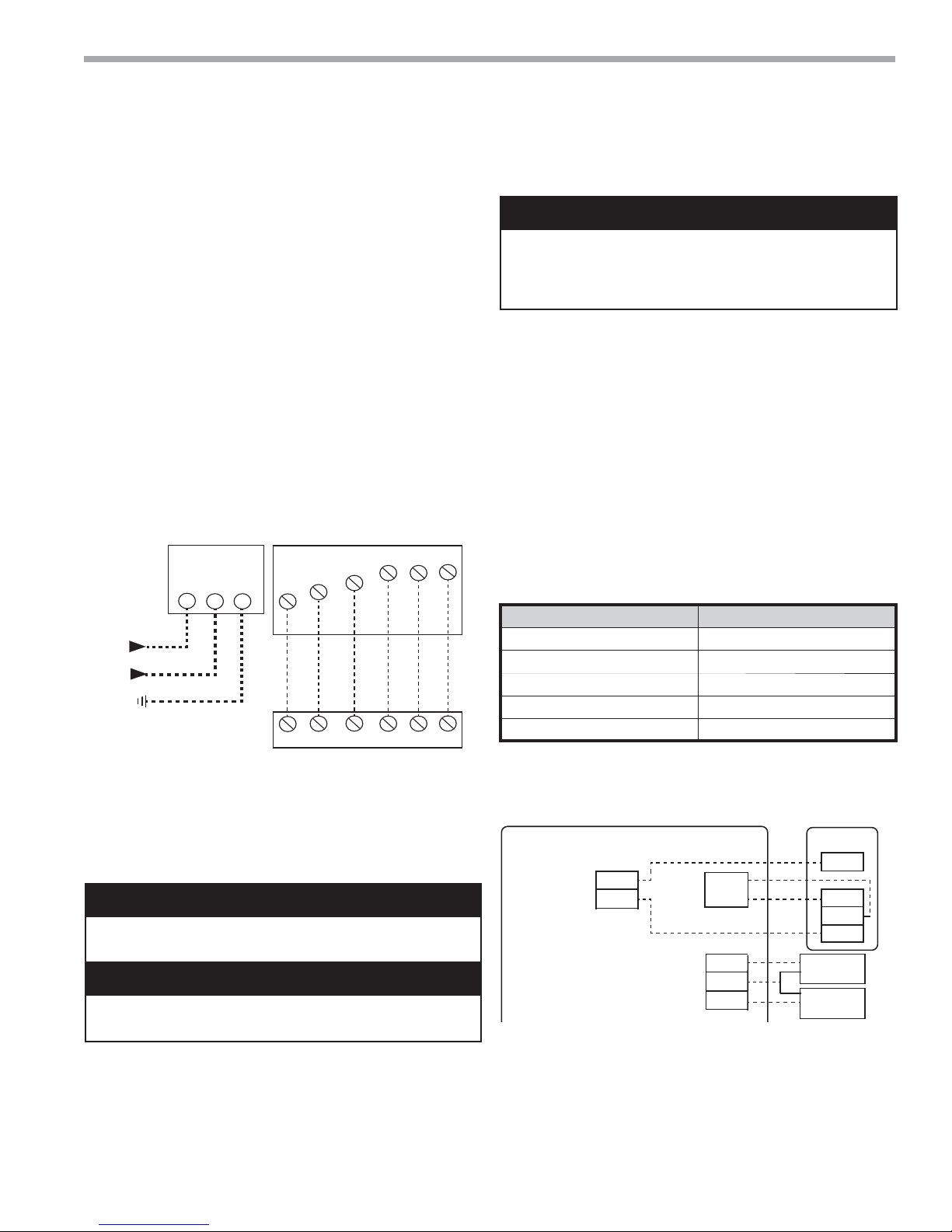

Electrical Wiring - Low Voltage

Thermostat Connections - The thermostat can be

spliced or wired directly to the CXM or DXM2 board. See Unit Wire Diagram. Review the appropriate thermostat AOM (Application, Operation and Maintenance) manual.

Wall Sensors (ASW) for MPC or LON - Connections are made to DDC controller, see Unit Wire Diagram.

Cabinets with MPC or LON (model digit 5 is C,D,L,M or U) requires ﬁ eld to clip JW1 jumper on CXM or DXM2 board in chassis.

Low Water Temperature Cutout Selection - The CXM/

DXM2 control allows the ﬁ eld selection of low water (or water-antifreeze solution) temperature limit by clipping jumper JW3, which changes the sensing temperature associated with thermistor LT1. Note that the LT1 thermistor is located on the refrigerant line between the coaxial heat exchanger and expansion device (TXV). Therefore, LT1 is sensing refrigerant temperature, not water temperature, which is a better indication of how water ﬂ ow rate and temperature is affecting the refrigeration circuit.

The factory setting for LT1 is for systems using water no lower than 50ºF (10ºC), boiler tower or open loop. Water temperature below 50ºF (10ºC) (extended range) applications must use antifreeze (most ground loops), jumper JW3 must be clipped as shown in Figure 8. Lowest refrigerant temperature, LT1 can sense without faulting off is, with LT1 unclipped - 30ºF (-1ºC) and clipped - 10ºF (-12ºC). All ClimateMaster units operating with entering water temperatures below 59°F [15°C] must include the optional water/refrigerant circuit insulation package to prevent internal condensation.

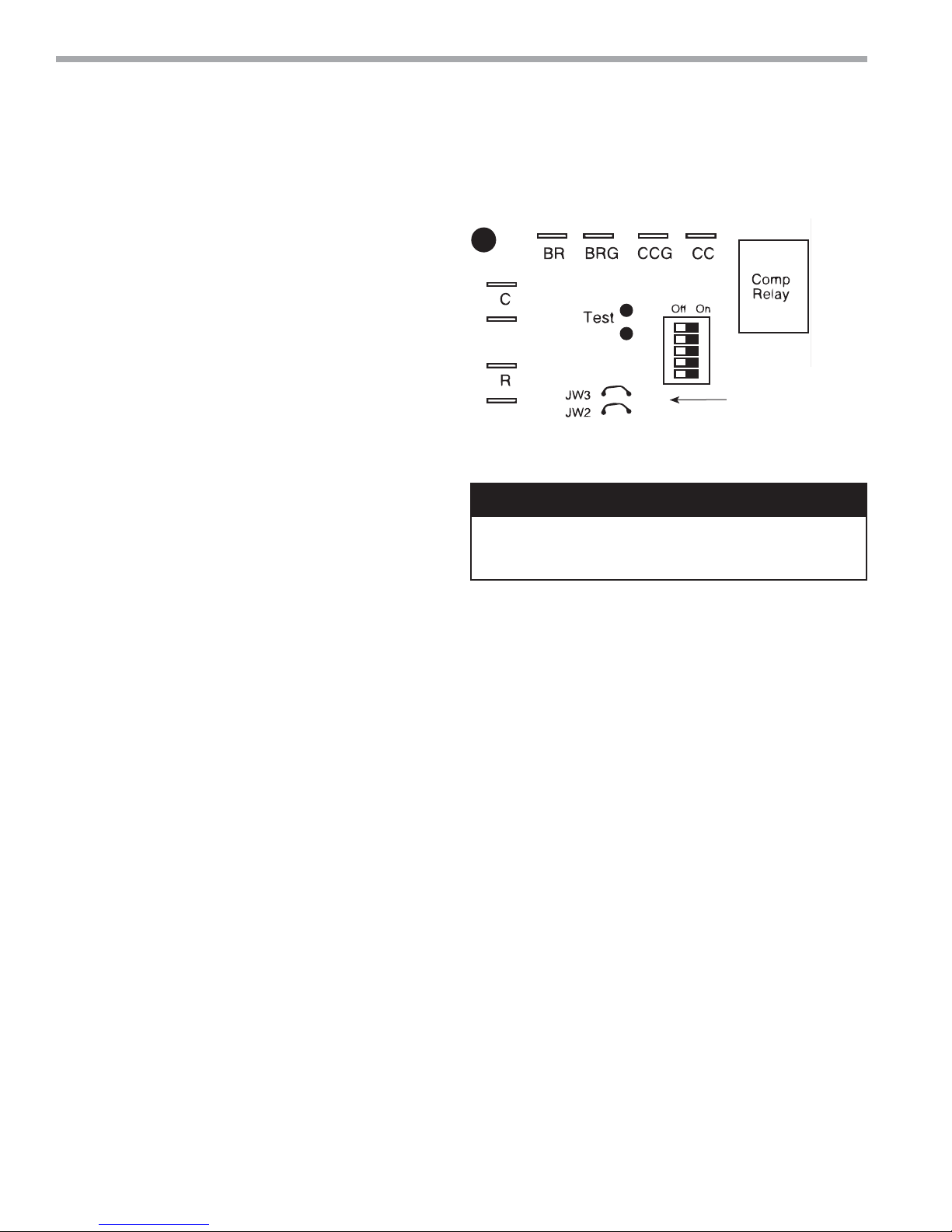

Figure 13: LT1 Limit Setting

JW3-LT1 jumper

LT1 LT2

CXM PCB

should be clipped for low temperature operation

 NOTICE! 

JW3 should never be clipped for equipment or systems without correct antifreeze mixture.

ClimateMaster Water-Source Heat Pumps

Page 29

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Table 5: TSL with ECM-CV Motor

Airﬂ ow in CFM with wet coil and clean 1” ﬁ berglass air ﬁ lter.

Tranquility

Model

Setting

Cooling Mode Dehumid Mode Heating Mode

Stg 1 Stg 2 Stg 1 Stg 2 Stg 1 Stg 2

Vertical Stack

Rev.: 04/24/2019

ECM-CV Blower Performance Data

Constant

Fan Only

Mode

Hi Fan

Mode

Aux

Emerg

Mode

Default

TSL09

TSL12

TSL15

TSL18

TSL24

TSL30

TSL36

All units AHRI/ISO/ASHRAE 13256-1 rated on CFM shown on performance data page. Airﬂ ow is rated at lowest Voltage if unit is dual Voltage rated, i.e. 208V for 208-230V units. Unit must have DXM2. Shipped on default settings. C = Cooling; H = Heating; D = Dehumidiﬁ cation.

Maximum Minimum Default Maximum Minimum Default Maximum Minimum Default Maximum Minimum Default Maximum Minimum Default Maximum Minimum Default Maximum Minimum

250 350 250 300 250 350 250 250 400 400 400 400 400 400 400 400 400 400 250 250 250 250 250 250 250 250 250 300 400 300 350 300 400 300 300 500 500 500 500 500 500 500 500 500 500 300 300 300 300 300 300 300 300 300 450 600 425 450 425 600 500 500 600 700 700 600 700 700 700 700 700 700 450 600 425 450 425 500 500 500 500 525 700 500 525 500 700 500 500 700 800 800 700 800 800 800 800 800 800 525 700 500 525 500 600 500 500 600 625 850 600 625 600 850 600 600 850 800 950 800 950 850 950 950 950 950 625 800 600 625 600 750 600 600 750 825 1000 800 825 800 1000 700 700 1000

1150 1150 1000 1100 1150 1150 1100 1100 1150

825 1000 800 825 800 1000 700 700 1000 925 1200 900 925 900 1200 900 900 1200

1200 1350 1100 1200 1200 1350 1250 1250 1350

925 1100 900 925 900 1100 900 900 1100

climatemaster.com

Page 30

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL09

Table 5a

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 1000 1120 1210 1290 1380

Low

Medium

PSC - High Static

High

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

ECM - Constant Torque

250

300

Volume

350

ECM - Constant

400

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

Power (W) 145 139 132 125 119

CFM 350 340 320 290 270 RPM 1520 1570 1610 1650

Power (W) 162 151 139 127

CFM 430 390 340 280 RPM 1710

Power (W) 151

CFM 390

RPM 980 1080 1170 1260 1360

Power (W) 47 51 54 58 62

CFM 340 320 290 270 240 RPM 1060 1160 1230 1320 1390 1500

Power (W) 58 62 66 70 75 79

CFM 380 360 330 310 280 260 RPM 1230 1310 1390 1440 1530 1590 1650

Power (W) 79 84 88 92 97 101 105

CFM 400 380 360 340 320 290 270 RPM 1470 1480 1550 1630 1680

Power (W) 108 113 117 122 126

CFM 410 390 370 360 340

CFM 0.1 0.2 0.3 0.4 0.5 0.6 360 340

RPM 810 950 1100 1230 1370 1490 1560 1640

Power (W) 30 38 47 57 67 78 89 101

RPM 900 1050 1180 1300 1410 1520 1590 1660

Power (W) 38 48 58 69 81 93 105 118

RPM 1000 1140 1260 1380 1450 1540 1620 1690

Power (W) 50 62 73 85 98 110 124 137

RPM 1100 1230 1340 1450 1490 1570

Power (W) 65 79 92 105 119 132

Operation not recommended

ClimateMaster Water-Source Heat Pumps

Page 31

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL12

Table 5b

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 980 1090 1190

Low

Medium

PSC - High Static

High

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

ECM - Constant Torque

300

350

400

450

ECM - Constant Volume

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

500

Power (W) 145 139 132

CFM 350 340 320 RPM 1290 1360 1440 1470 1540 1590

Power (W) 197 185 174 162 151 139

CFM 500 480 460 430 390 340 RPM 1590 1630 1680

Power (W) 151 151 151

CFM 520 470 390

RPM 1070 1140 1230 1320 1400

Power (W) 66 70 74 78 82

CFM 410 380 360 330 310 RPM 1140 1190 1280 1370 1430 1510 1580

Power (W) 54 58 61 65 69 73 77

CFM 450 420 400 380 360 330 310 RPM 1190 1240 1320 1400 1450 1530 1590 1660

Power (W) 79 83 87 91 96 100 104 108

CFM 480 460 440 420 400 370 350 330 RPM 1510 1580 1630 1690

Power (W) 132 137 141 145

CFM 500 480 460 440

CFM 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 890 1040 1170 1300 1400 1500 1570 1660

Power (W) 38 48 58 69 81 93 105 118

RPM 980 1100 1220 1340 1430 1520 1590 1670

Power (W) 50 62 73 85 98 110 124 137

RPM 1060 1170 1280 1380 1450 1540

Power (W) 65 79 92 105 119 132

RPM 1140 1230 1330 1430

Power (W) 87 101 115 128

RPM 1220

Power (W) 111

climatemaster.com

Page 32

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL15

Table 5c

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 860 890 900 950 990 1050

Low

Medium

High

PSC - High Static

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

ECM - Constant Torque

450

500

600

650

ECM - Constant Volume

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

700

Power (W) 219 208 197 186 175 164

CFM 700 660 610 570 520 480 RPM 960 1010 1030 1070 1590

Power (W) 225 212 200 187 139

CFM 710 670 610 540 340 RPM 1080 1110 1140 1680

Power (W) 248 233 219 151

CFM 720 630 530 390

RPM 720 770 810 870

Power (W) 66 70 74 79

CFM 560 520 480 430 RPM 770 810 850 910 960

Power (W) 79 83 87 92 98

CFM 610 570 540 500 450 RPM 820 860 890 930 990 1040

Power (W) 95 101 104 110 114 121

CFM 660 630 600 540 500 460 RPM 850 900 910 970 1010 1070 1120

Power (W) 107 111 117 123 128 134 141

CFM 690 670 630 600 560 520 470 RPM 960 1010 1050 1100 1150 1210

Power (W) 142 147 153 159 166 167

CFM 710 670 640 600 560 510

CFM 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 620 700 790 880 960 1040 1110 1190

Power (W) 39 53 67 82 96 110 124 139

RPM 670 750 830 910 990 1060 1130 1210

Power (W) 50 64 78 93 107 121 135 150

RPM 760 840 890 970 1030 1100 1160 1230

Power (W) 83 97 111 125 139 153 167 181

RPM 810 880 920 1000 1050 1120 1180 1250

Power (W) 104 118 133 147 162 176 191 205

RPM 860 930 960 1030 1070 1140 1200 1260

Power (W) 125 140 155 170 185 199 214 229

ClimateMaster Water-Source Heat Pumps

Page 33

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL18

Table 5d

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 1030 1090 1110 1120 1130

Low

Medium

PSC - High Static

ECM - Constant Torque

Volume

High

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

500

600

700

ECM - Constant

800

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

Power (W) 246 235 223 212 200

CFM 760 710 650 580 510 RPM 1130 1130 1140 1140

Power (W) 251 239 228 216

CFM 750 680 610 530 RPM 1180 1180 1170

Power (W) 282 270 258

CFM 740 660 570

RPM 750 800 850 880

Power (W) 73 77 82 87

CFM 590 550 500 450 RPM 820 860 910 960 990 1030

Power (W) 95 99 105 110 115 119

CFM 660 630 590 540 500 460 RPM 890 930 960 1040 1060 1090 1130 1200

Power (W) 123 127 132 138 144 149 154 158

CFM 730 700 670 640 590 550 520 490 RPM 970 1000 1080 1110 1140 1170 1220

Power (W) 148 152 158 164 170 176 172

CFM 750 720 690 660 610 570 520 RPM 1230 1180 1180

Power (W) 217 182 154

CFM 730 580 470

CFM 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 660 750 850 920 990 1060 1120 1200

Power (W) 52 67 81 96 110 125 139 153

RPM 760 840 920 1010 1070 1130 1200 1270

Power (W) 88 102 116 130 144 158 172 186

RPM 860 930 980 1090 1150 1210 1280 1340

Power (W) 138 153 167 182 196 211 225 240

RPM 960 1010 1050 1170 1220 1280 1360 1400

Power (W) 199 216 232 249 265 282 298 315

climatemaster.com

Page 34

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL24

Table 5e

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 900 940 980 1020 1070

Low

Medium

PSC - High Static

ECM - Constant Torque

ECM - Constant Volume

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

High

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

600

700

800

900

950

Power (W) 311 295 279 263 246

CFM 940 880 810 720 630 RPM 980 1010 1040 1080

Power (W) 325 305 285 265

CFM 980 900 800 690 RPM 1110

Power (W) 343

CFM 890

RPM 680 720 770 820 870 930

Power (W) 110 117 123 131 138 146

CFM 840 800 760 720 670 630 RPM 730 770 810 860 910 960 1020 1080

Power (W) 145 153 160 167 175 183 192 199

CFM 940 900 860 830 790 750 710 670 RPM 900 950 1000 1050 1100

Power (W) 212 219 227 236 246

CFM 940 900 870 830 790 RPM 1080 1120

Power (W) 285 294

CFM 940 900 RPM

Power (W)

CFM

CFM 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 560 630 710 780 840 920 990 1070

Power (W) 52 70 87 104 122 139 157 174

RPM 610 680 750 820 880 950 1020 1080

Power (W) 77 96 115 134 153 172 191 210

RPM 660 720 790 850 910 980 1040 1100

Power (W) 102 122 143 164 184 205 226 246

RPM 710 770 830 890 950 1010 1070 1120

Power (W) 134 155 176 197 218 239 261 282

RPM 740 790 850 900 970 1020 1080 1120

Power (W) 172 193 214 234 255 276 296 317

ClimateMaster Water-Source Heat Pumps

Page 35

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL30

Table 5f

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 800 840 880 920 950 980

Low

Medium

PSC - High Static

ECM - Constant Torque

Volume

High

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

750

875

1000

ECM - Constant

1150

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

Power (W) 360 344 328 311 295 279

CFM 1020 1010 980 940 880 810 RPM 870 910 940 980 1000 1020 1040

Power (W) 405 385 365 345 325 305 285

CFM 1130 1120 1080 1040 980 900 800 RPM 1120 1120 1130

Power (W) 395 369 343

CFM 1120 1010 890

RPM 810 840 870 910 950 1000 1050 1090

Power (W) 177 185 194 203 212 221 229 236

CFM 1040 1000 960 920 880 850 810 770 RPM 850 890 920 960 990 1040 1090 1130

Power (W) 220 229 237 247 257 266 275 283

CFM 1110 1080 1050 1010 970 940 910 880 RPM 1070 1110 1150 1180

Power (W) 351 363 373 384

CFM 1140 1100 1070 1040 RPM 1190 1220

Power (W) 442 451

CFM 1170 1140 RPM

Power (W)

CFM

CFM 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 620 690 750 810 890 960 1030 1080

Power (W) 85 109 133 157 182 206 230 254

RPM 700 760 820 880 950 1010 1070 1130

Power (W) 131 157 183 209 235 261 287 313

RPM 780 840 890 950 1010 1070 1120 1170

Power (W) 191 219 247 275 303 331 359 387

RPM 880 930 980 1040 1080 1130 1180 1220

Power (W) 284 310 336 361 387 413 438 464

climatemaster.com

Page 36

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Blower Performance Data TSL36

Table 5g

External Static Pressure (in. wg)

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 730 770 820

Low

Medium

PSC - High Static

ECM - Constant Torque

Volume

High

Speed Tap 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

900

1050

1200

ECM - Constant

1350

All data is presented as lowest of nameplate voltage. All data is shown wet coil with clean 1" ﬁ lter. All data is ran at 80°F DB and 67°F WB. CFM Tolerance is 7% RPM/Watt Tolerance 10%

Power (W) 378 358 338

CFM 930 920 900 RPM 910 950 970 1000 1020 1040

Power (W) 485 459 432 405 379 352

CFM 1210 1190 1150 1100 1030 950 RPM 1100 1120 1120 1130 1130 1130

Power (W) 529 501 472 444 415 386

CFM 1370 1310 1230 1130 1020 900

RPM 830 860 890 930 970 1020

Power (W) 193 201 211 221 231 239

CFM 1080 1050 1020 980 950 910 RPM 920 950 970 1010 1060 1090 1140 1170

Power (W) 265 273 282 294 305 316 326 335

CFM 1220 1190 1150 1130 1100 1060 1030 1000 RPM 1020 1040 1070 1110 1140 1180 1220 1250

Power (W) 361 369 377 387 401 414 426 428

CFM 1370 1340 1310 1290 1260 1230 1200 1160 RPM 940 970 1010 1050 1070 1150

Power (W) 315 322 332 341 351 430

CFM 1240 1230 1200 1170 1140 1200 RPM

Power (W)

CFM

CFM 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RPM 710 760 820 880 950 1020 1070 1130

Power (W) 132 157 183 208 234 260 285 311

RPM 810 860 910 970 1030 1090 1150 1200

Power (W) 215 244 272 301 329 358 386 415

RPM 910 950 1000 1050 1110 1160 1220 1260

Power (W) 299 331 362 393 425 456 487 519

RPM 1000 1050 1090 1140 1190 1240 1290 1330

Power (W) 458 483 509 534 560 585 611 636

ClimateMaster Water-Source Heat Pumps

Page 37

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Installation of Optional Wall-Mounted Thermostat - The unit can be furnished with a 24-volt surface mounted ACO or MCO control circuit or a remote 24-volt ACO or MCO thermostat. A typical ﬁ eld connection diagram is shown in Figure 14. Refer to instructions provided with remote thermostat for wiring instructions.

Vertical Stack

Rev.: 04/24/2019

Thermostat Installation

 WARNING! 

WARNING! Zone integrity must be maintained to efﬁ ciently

control units or groups of units. Unless zones of control are considered and accounted for, adjacent units may operate in heating and cooling modes simultaneously.

Low-voltage wiring between the unit and the wall thermostat must comply with all applicable electrical codes (i.e., NEC and local codes), and be completed before the unit is installed. Use of eight wire, colorcoded, low-voltage cable is recommended.

Note: Your thermostat may require fewer than 8 connections, 8 wires allow future upgrading thermostat. Tape off unused wires.

Figure 14: Typical Field Connections for units with Wall-Mounted 24V Thermostat

JUNCTION

Line

Voltage

UNIT

BOX

PDB

GND

24 Vac Thermostat Digital 2 Heat, 2 Cool, MCO, or ACO

Will provide auto speed change (for CXM connect Y2 to blower relay coil - see unit wire diagram).

DXM2

GY O

Table 6 below lists recommended wire sizes and lengths to install the thermostat. The total resistance of lowvoltage wiring must not exceed 1 ohm. Any resistance in excess of 1 ohm may cause the control to malfunction because of high voltage drop.

A91558 Series Thermostats have 6” (152) pigtail ending with 9-pin Molex. This allows an easy connection to either surface mount or remote with factory whip option.

AT Series Thermostats have to be wired to screw terminals under the cover.

Table 6: Recommended Thermostat Wire Sizes

WIRE SIZE MAX. WIRE LENGTH

22-Gauge 30 Feet 20-Gauge 50 Feet 18-Gauge 75 Feet 16-Gauge 125 Feet 14-Gauge 200 Feet

*Physical distance from thermostat to unit

Unit wiring diagrams available at www.climatemaster.com. Select ‘Commercial Professional ‘, ‘ Literature ‘, ‘ Wiring Diagrams’

 WARNING! 

WARNING! Disconnect electrical power source to prevent

injury or death from electrical shock.

 CAUTION! 

CAUTION! Use copper conductors only to prevent equipment damage

Note: All customer-supplied wiring to be copper only, and must conform to NEC and local electrical codes. Wiring shown with dashed lines must be ﬁ eld-supplied and ﬁ eld-installed.

Figure 9a: Communicating Thermostat to

24Vac Common

24Vac Hot

climatemaster.com

iGate® Thermostat

ATC32U03

Comm +

Comm -

A+

B-

GND

DXM2

Gnd

BA+

24V

Outdoor

Sensor

(Optiona)

Remote Indoor

Sensor

(Optiona)

Page 38

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

closure

TSL Vertical Stack

Rev.: 04/24/2019

Chassis Pre-Installation

See Figures 15-18

1. Check chassis data plate. Verify chassis is correct for cabinet. Chassis I.D. sticker should match sticker on cabinet blower housing.

2. Check for any shipping or handling damage. Make repairs or adjustments.

a. Verify refrigerant tubing is free of kinks or dents and

that it does not touch other tubes or unit parts as it passes over or through. Adjust if needed and separate with closed cell insulation.

Figure 15

I.D.

Label

(Match to

Cabinet)

Board Flash

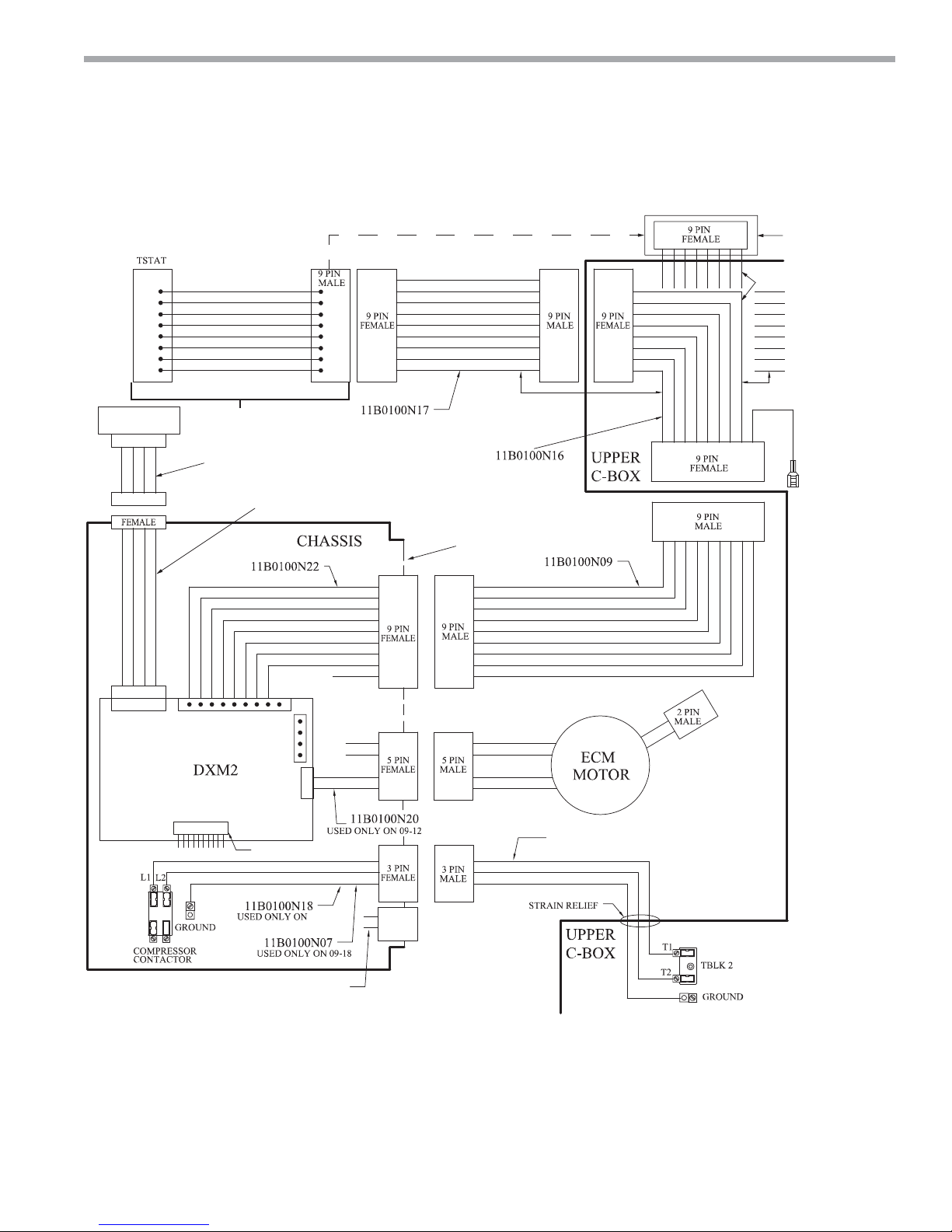

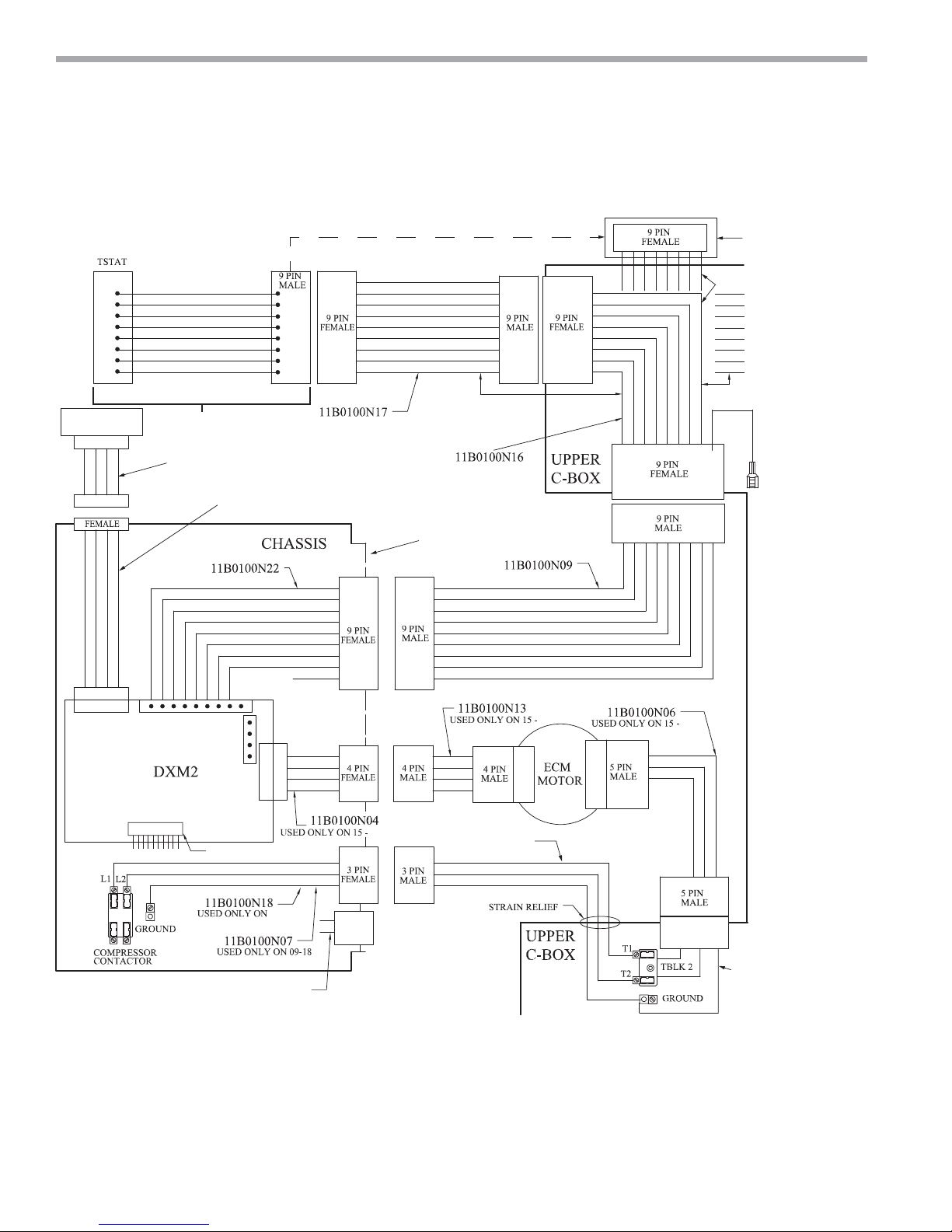

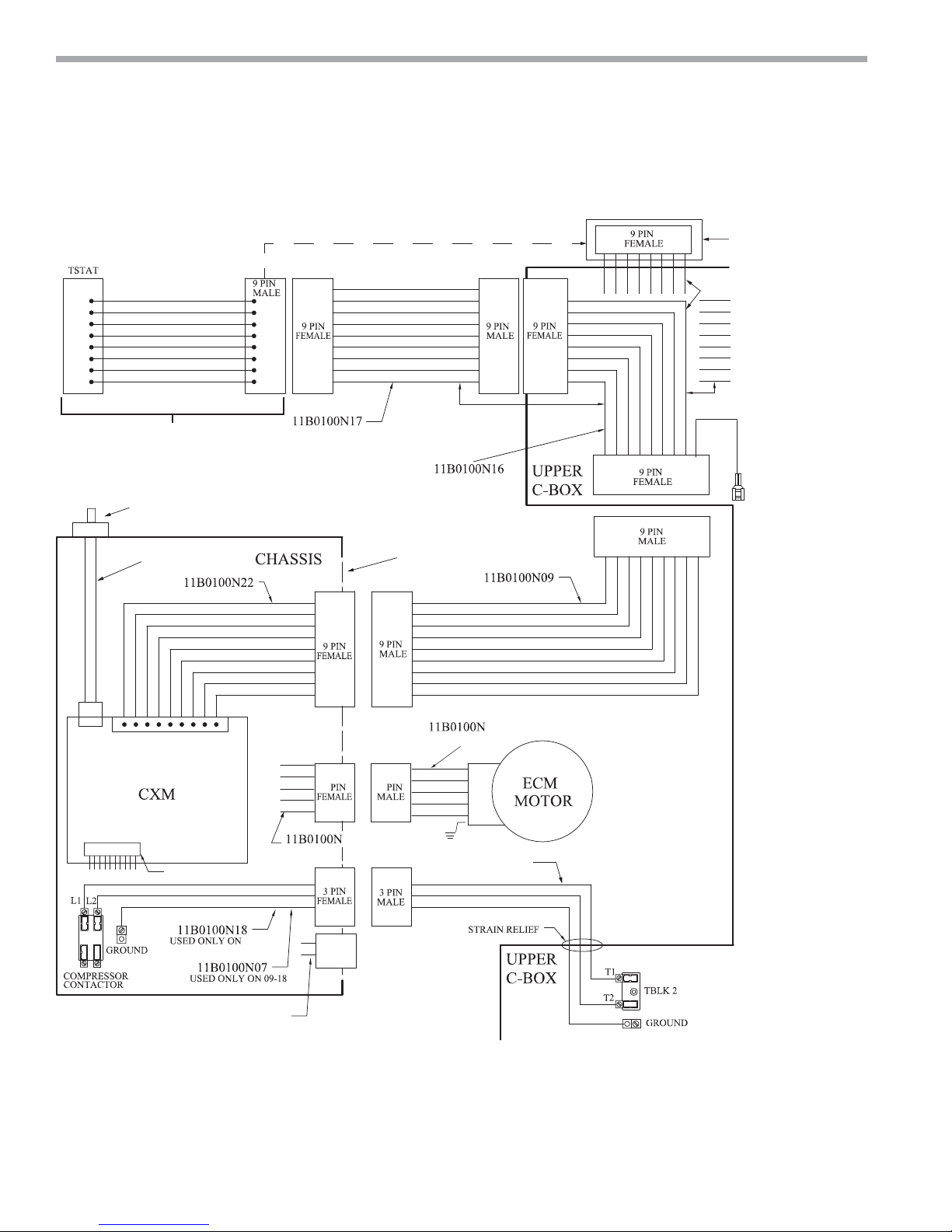

Electrical Connections 3 - PIN (Line Voltage) 5 - PIN (Motor) 9 - PIN (Thermostat)

Code Window

CXM

Test Button

Wire Diagram (on back)

b. Inspect insulation inside compressor enclosure for

rubs from tubing or reversing valve. Adjust tubing or RV inward if needed. Be careful not to cause hit somewhere else.

3. Inspect all electrical connections. Connections must be clean and tight at the terminals.

4. Replace any panels or covers removed for steps 2-4.

The chassis is now ready for installation. Always keep chassis upright.

Figure 17

Return (Water Out)

DXM2

Service Tool

Port

Supply (Water In)

NPSH (BPPT) Male Fitting for AHH Hose

TXV

Filter Drier

Water High Pressure Switch

Compressor Enclosure

Chassis

Data Plate

Figure 16

CXM/ DXM2

Transformer

Control Box

Cover

Control Box

Cover Removed

Chassis Model and Serial

Number Sticker

Compressor Capacitor

Coaxial Water/Ref Coil

Compressor Contactor (Optional RIB relay location 09-18)

Figure 18

Enclosure Removed

Pressure Switches

ClimateMaster Water-Source Heat Pumps

Page 39

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Hose Kit & Chassis Installation

Hose Kit and Chassis Installation - After cabinets are

installed, and walls ﬁ nished remove the ﬁ lter and front blockoff panel. SAVE THESE FOR RE-INSTALLATION AFTER THE CHASSIS IS INSTALLED!

Step 1: Remove ﬁ lter and inner panel. (Figure 14) For chassis shipped in cabinet – Remove and discard 4 shipping bolts.

Figure 19

Shipping Bolt Location

Filter

Shutoff

union nut

Figure 20

For AHH Hoses - Apply Teﬂ on tape to the male pipe

thread end of each hose (Figure 15). When antifreeze is used in the loop, ensure the Teﬂ on tape or pipe joint compound is compatible with the antifreeze type. Locate the 2 shutoff valves inside the unit cabinet (Figure 16). Supply (water in) is always closest to corner). Attach the hoses to the water valves with 2 crescent wrenches. Always use a back-up wrench when tightening the hose to the shutoff valve. Check union valve is tight.

Figure 16

Closed Position

Open

Inner Panel

Shipping Bolt Location

Step 2: Attach the Flex Hoses to shutoffs in the cabinet.

Unpack and examine hose kit. Remove all shipping and/or packing material such as rubber bands, plastic caps, and styrofoam. Hose kit should contain (2) hoses.

Position

 CAUTION! 

CAUTION! If the risers are under pressure, do not open shut

off valves until installation is complete!

Return

(water out)

Supply

(water in)

Cabinet (Style 2 riser back left) Shutoff Location Shown

 WARNING! 

WARNING! Do Not Remove Valve or loosen valve union nut

without ﬁ rst draining the risers below cabinet level. Check with contractor if risers have water.

 WARNING! 

WARNING! Under no circumstances should any part of the

hose itself be gripped or twisted by hand, pliers, channel locks or any other tool. Leakage or bursting may occur! Wrenches are used on pipe threads only. Hand tighten swivel connections.

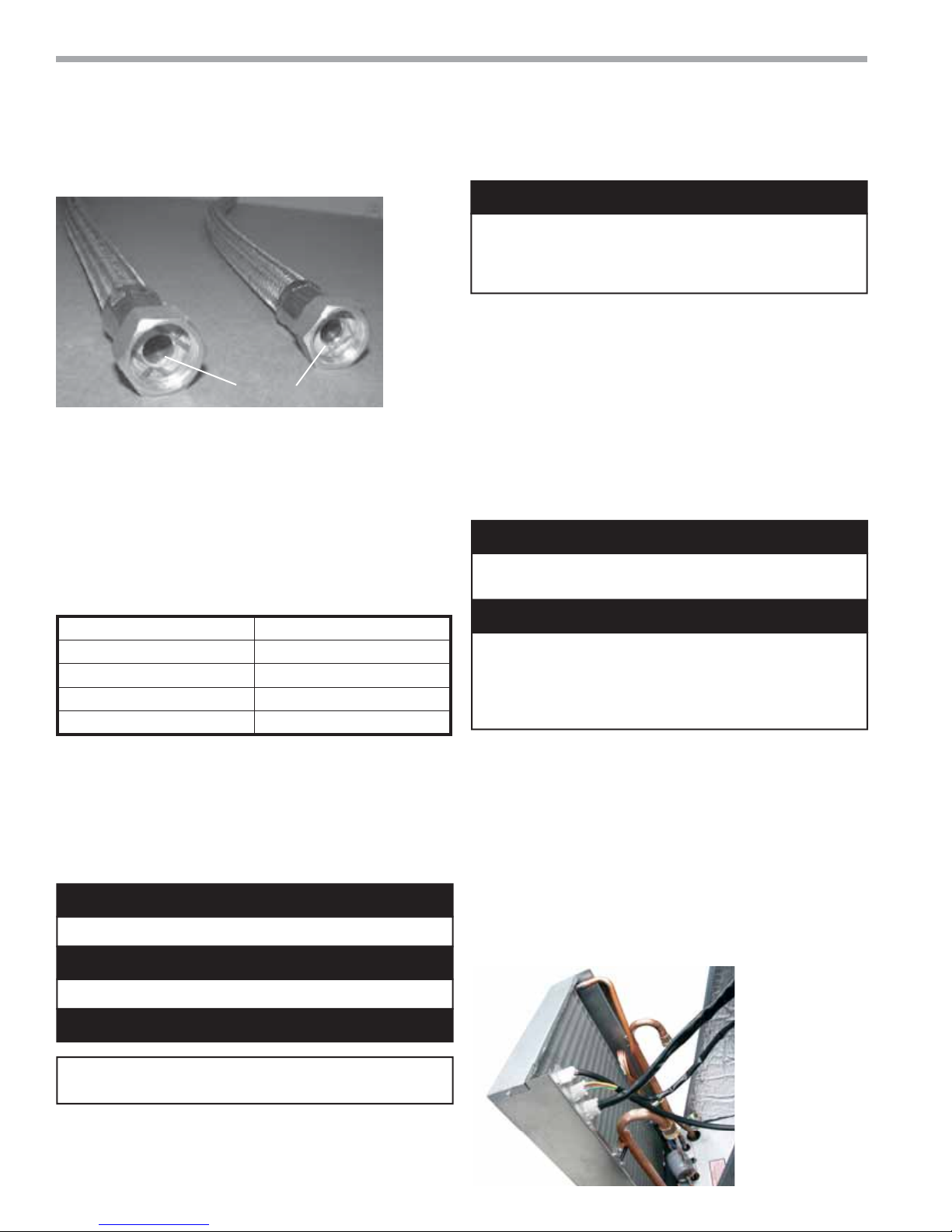

For AHU Hose - Check swivel ends have washer inside (ﬁ gure 17). Hand tighten hose to shut off.

Note: Make sure the valve handles are in a position that enables them to be fully opened and closed.

climatemaster.com

Page 40

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Figure 22

 WARNING! 

WARNING! Under no circumstances should any part of the

hose itself be gripped or twisted by hand, pliers, channel locks or any other tool. Leakage or bursting may occur! Always use a back-up wrench when tightening the hose.

Step 4: Chassis Installation - Check condensate pan is free and on 4 rubber grommets.

Install the Chassis as follows:

Washers

Step 3: Attach AHH or AHU hoses to the Chassis. Check the swivel ends of the hoses (Figure 22). Washers must be in the hose for water tight connection. Slide the chassis part way into the cabinet. Match the WATER IN (supply) hose to the WATER IN tube on the chassis and the WATER OUT (Return) hose to the WATER OUT tube. Position hose toward chassis, use gentle loop- see bend radii Table 7. Hand tighten hose.

Table 7: Metal Hose Minimum Bend Radii

Hose Diameter Minimum Bend Radii

1/2" (12.7) 2-1/2" (64) 3/4" (19.1) 4" (102)

1" (25.4) 5-1/2" (140)

1-1/4" (31.8) 6-3/4" (170)

1. Slide Chassis fully into cabinet. Check hose for kinks, do not allow less than minimum bend radius (see table 7), pull chassis partway out, loosen hose and reposition hose if needed, retighten.

2. Verify that both the shut-off valves are closed. See Fig. 21. (handle horizontal)

3. Verify riser stack has been pressure tested, and all leaks have been repaired.

 WARNING! 

WARNING! Do Not open valves to chassis until system has

ﬂ ushed and purged of air!

 IMPORTANT! 

IMPORTANT! After the system has been ﬁ lled and system

pump is started, all connections should be rechecked for water leaks. ClimateMaster WILL NOT be responsible or liable for damage caused by water leaks at any ﬁ eld water connections!

Do not bend hoses at less than the minimum bend radius for the hose selected. Less than the minimum bend radius may cause the hose to collapse, which reduces water ﬂ ow rate. Install an angle adapter to avoid sharp bends in the hose when the radius falls below the required minimum.

 CAUTION! 

CAUTION! Do not bend or kink supply lines or hoses.

 CAUTION! 

CAUTION! Piping must comply with all applicable codes.

 CAUTION! 

CAUTION! Corrosive system water requires corrosion

resistant ﬁ ttings and hoses, and may require water treatment.

4. Flush system following the procedure in Preparation for Start-up Section of this manual.

5. When the system is clean and ﬂ ushed, open both water shut off valves and check piping for leaks. Repair all leaks before continuing.

6. Complete electrical connections between cabinet and chassis. Connect wire harnesses hanging down from under side of control box to chassis connections. (See Figure 23). Check that Molex connectors are snapped together, pull gently on connector - do not pull on wires.

Figure 23

ClimateMaster Water-Source Heat Pumps

Page 41

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

7. Before installing the inner panel and ﬁ lter, perform the following checks: a. Verify all pre-installation and installation steps were

completed.

b. Verify all copper tubes do not touch or rub other

tubes or parts of the unit.

c. Ensure that fan wheel rotates freely and does not

rub against housing. If rough handling during shipping has caused fan wheel to shift, adjust as necessary.

d. Verify that water piping connections to the chassis

are complete and that unit service valves which were closed during ﬂ ushing have been opened.

e. Verify that power between the cabinet and chassis

is properly connected.

f. Assure that the unit drain is properly positioned,

secured and not blocked.

g. Verify that the nuts used to secure the blower

assembly to the fan deck are tight.

h. Check that chassis is fully inserted, front to back,

side gap equal and chassis is centered in cabinet.

i. After the system has been ﬁ lled and system pump

is started, all connections should be re-checked for water leaks. ClimateMaster WILL NOT be responsible or liable for damage caused by water leaks at any ﬁ eld water connections!

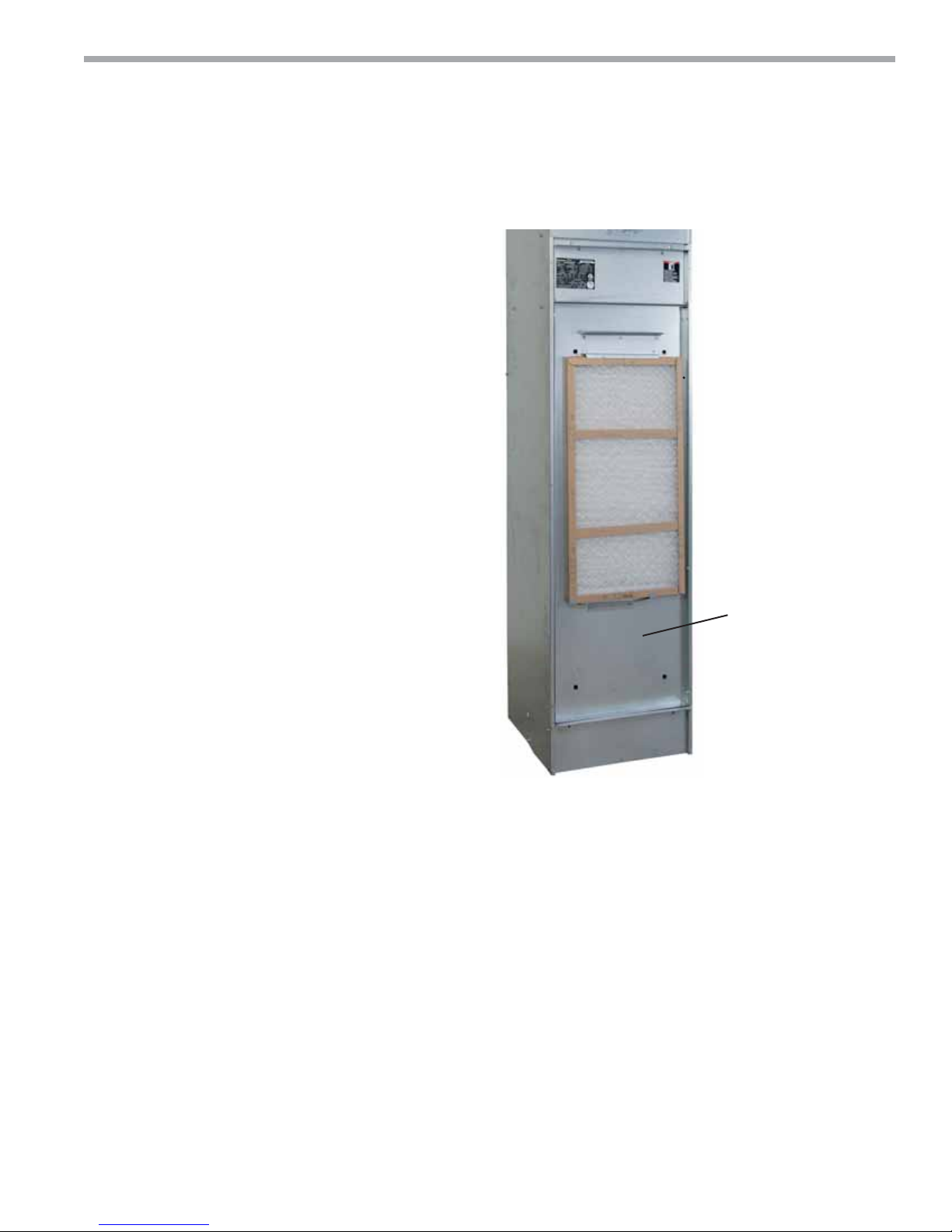

8. Re-attach the inner panel (8 screws) and ﬁ lter as shown in Figure 24. Chassis must free ﬂ oat on condensate pan. If inner panel holes do not align, push chassis further in.

9. Install the cabinet return air panel after start up. See installation instructions shipped with return air/access panel for detailed information.

Figure 24

Inner Panel

climatemaster.com

Page 42

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

Waste

TSL Vertical Stack

Rev.: 04/24/2019

Start-Up Preparation

System Cleaning and Flushing - Cleaning and ﬂ ushing the unit is the single most important step to ensure proper start-up and continued efﬁ cient operation of the system. Follow the instructions below to properly clean and ﬂ ush the system: Do not ﬂ ush through the chassis. Coax can get plugged and water ﬂ ow will be

reduced, causing poor performance and may cause LT1 sensor to trip.

 WARNING! 

WARNING! To prevent injury or death due to electrical shock

or contact with moving part, open unit disconnect before servicing unit.

1. Verify that electrical power to the unit is disconnected.

2. Verify that supply and return riser service valves are closed at each unit.

3. Fill the system with water. Bleed all air from the system but do not allow the system to over ﬂ ow. Check the system for leaks and make any required repairs.

4. Adjust the water and air level in the expansion tank.

5. With strainers in place, (ClimateMaster recommends a strainer with a #20 stainless steel wire mesh) start the pumps. Systematically check that all of the air is bled from the system.

6. Verify that make-up water is available and adjusted to properly replace any space remaining when all air is evacuated. Check the system for leaks and make any additional repairs required.

7. Set the boiler to raise the loop temperature to approximately 85°F [29.4°C]. Open the drain at the lowest point in the system. Verify that make-up water replacement rate equals rate of bleed. Continue to bleed the system until the water appears clean or for at least three hours whichever is longer.

8. Completely drain the system.

6. Repeat ﬂ ushing procedure for each set of risers in the building.

7. Reﬁ ll the system and add in a proportion of trisodium phosphate approximately one pound per 150 gallons [0.4kg per 500 liters] of water. Reset the boiler to raise the loop temperature to about 100°F [37.8°C].

8. Circulate the solution for between 8 to 24 hours. At the end of this period, shut off the circulating pump and drain the solution. Repeat system cleaning if desired.

9. Open the supply and return riser service valves at each unit. Reﬁ ll the system and bleed off all air.

10. Test the system pH with litmus paper. The system water should have a pH of 6 to 8.5. Add chemicals as appropriate to maintain pH levels.

11. When the system is successfully cleaned, ﬂ ushed, reﬁ lled, and bled, check the main system panels, safety cutouts, and alarms. Set controls to properly maintain loop temperature.

Figure 25: Typical piping arrangement for ﬂ ushing risers.

Flush risers as follows: (Refer to Figure 25).

1. Remove cabinet ﬁ lter and front inner panel. Save these for reinstallation after the chassis is installed.

2. Close shut-off valves at each cabinet on the riser except the shut-off valve on the top ﬂ oor.

3. At the top ﬂ oor, install the hose kit and connect the ends of the hoses with the factory riser ﬂ ush adapter from AFL5751. For sweat shutoffs, one AHU hose can be used.

4. Flush solution through supply riser. Note: The solution passes through the top ﬂ oor connection down the return riser.

5. When the building has more than 10 ﬂ oors, connect the supply and return runouts on the top two ﬂ oors to divide the water ﬂ ow and reduce pressure drop at the pump.

 CAUTION! 

CAUTION! Do Not use "Stop-Leak" or any similar chemical

agent in this system. Addition of these chemicals to the loop water can foul the system and can inhibit unit operation.

 CAUTION! 

CAUTION! To avoid possible damage to piping systems

constructed of plastic piping, DO NOT allow loop temperature to exceed 110°F [43.3°C].

ClimateMaster Water-Source Heat Pumps

Page 43

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

CXM Control

CXM Control - For detailed control information, see

CXM Application, Operation and Maintenance (AOM) manual (part # 97B0003N12).

Field Selectable Inputs - Test mode: Test mode allows the service technician to check the operation of the control in a timely manner. At board, momentarily shorting the test terminals or externally, momentarily push test button (See Fig 10), the CXM control enters a 20 minute test mode period in which all time delays are sped up 15 times. Upon entering test mode, the status LED will ﬂ ash a code representing the last fault. For diagnostic ease at the thermostat, the alarm relay will also cycle during test mode. The alarm relay will cycle on and off similar to the status LED to indicate a code representing the last fault, at the thermostat. Test mode can be exited by shorting the test terminals or holding button for 3 seconds. Retry Mode: If the control is attempting a retry of a fault, the status LED will slow ﬂ ash (slow ﬂ ash = one ﬂ ash every 2 seconds) to indicate the control is in the process of retrying.

Field Conﬁ guration Options - Note: In the following ﬁ eld conﬁ guration options, jumper wires should be clipped ONLY when power is removed from the CXM control.

Water coil low temperature limit setting: Jumper 3 (JW3LT1 Low Temp) provides ﬁ eld selection of temperature limit setting for LT1 of 30°F or 10°F [-1°F or -12°C] (refrigerant temperature).

Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C].

Air coil low temperature limit setting: Jumper 2 (JW2LT2 Low Temp) provides ﬁ eld selection of temperature limit setting for LT2 of 30°F or 10°F [-1°F or -12°C] (refrigerant temperature). Note: This jumper should

only be clipped under extenuating circumstances, as recommended by the factory.

Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C].

Alarm relay setting: Jumper 1 (JW1-AL2 Dry) provides ﬁ eld selection of the alarm relay terminal AL2 to be jumpered to 24VAC or to be a dry contact (no connection).

Not Clipped = AL2 connected to R. Clipped = AL2 dry contact (no connection).

DIP Switches - Note: In the following ﬁ eld conﬁ guration options, DIP switches should only be changed when power is removed from the CXM control.

provides ﬁ eld selection to disable the UPS feature.

On = Enabled. Off = Disabled.

DIP switch 2: Stage 2 Selection - provides selection of whether compressor has an “on” delay. If set to stage 2, the compressor will have a 3 second delay before energizing. Also, if set for stage 2, the alarm relay will NOT cycle during test mode.

On = Stage 1. Off = Stage 2

DIP switch 3: Not Used. DIP switch 4: DDC Output at EH2 - provides selection for

DDC operation. If set to “DDC Output at EH2,” the EH2 terminal will continuously output the last fault code of the controller. If set to “EH2 normal,” EH2 will operate as standard electric heat output. On = EH2 Normal. Off = DDC Output at EH2.

Note: Some CXM controls only have a 2 position DIP switch package. If this is the case, this option can be selected by clipping the jumper which is in position 4 of SW1.

Jumper not clipped = EH2 Normal. Jumper clipped = DDC Output at EH2.

DIP switch 5: Factory Setting - Normal position is “On.” Do not change selection unless instructed to do so by the factory.

Table 9: LED And Alarm Relay Operations

Description of Operation LED Alarm

Normal Mode

Normal Mode w/UPS Warning

CXM is non-functional

Fault Retry

Lockout

Over/Under Voltage Shutdown

Test Mode - No Fault in Memory Test Mode - HP Fault in Memory

Test Mode - LP Fault in Memory Test Mode - LT1 Fault in Memory Test Mode - LT2 Fault in Memory

Test Mode - CO Fault in Memory

Test Mode - Over/Under

Shutdown in Memory

Test Mode - UPS in Memory

Test Mode - Swapped Thermistor

ON Open ON

OFF Open

Slow Flash Open

Fast Flash Closed

Slow Flash

Flashing Code 1 Cycling Code 1 Flashing Code 2 Cycling Code 2 Flashing Code 3 Cycling Code 3 Flashing Code 4 Cycling Code 4 Flashing Code 5 Cycling Code 5 Flashing Code 6 Cycling Code 6

Flashing Code 7 Cycling Code 7 Flashing Code 8 Cycling Code 8

Flashing Code 9 Cycling Code 9

Cycle (Closed 5 seconds,

Open 25 seconds)

Open (Closed after 15

Minutes)

-Slow Flash = 1 ﬂ ash every 2 seconds

-Fast Flash = 2 ﬂ ashes every 1 second

-Flash code 2 = 2 quick ﬂ ashes, 10 second pause, 2 quick ﬂ ashes, 10 second pause, etc.

-On pulse 1/3 second; off pulse 1/3 second

DIP switch 1: Unit Performance Sentinel Disable -

climatemaster.com

Page 44

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

DXM2 Control

DXM2 Control - For detailed control information, see

DXM2 AOM (part #97B0003N15), Lon controller AOM (part #97B0013N01) or MPC AOM (part # 97B0031N01).

Field Conﬁ guration Options - Note: In the following ﬁ eld conﬁ guration options, jumper wires should be clipped ONLY when power is removed from the DXM 2 control.

Table 10: LED And Alarm Relay Output Table

DMX2 CONTROLLER FAULT CODES

DMX2 Fault and Status LED Operation

with Test Mode Not Active

DXM2 Is Non-Functional Off Off Open

Normal Operation - No Active Communications On On Open

Normal Operation - With Active Communications Very Slow Flash ON Open

Control Is Currently In Fault Retry Mode Slow Flash - Open

Control Is Currently Locked Out Fast Flash - Closed

Control Is Currently In An Over/ Under Voltage Condition Slow Flash - Open (Closed After 15 min)

(ESD) Emergency Shutdown Condition Recognized - Flashing Code 3 -

Test Mode Active With No ECM Connected Or Operating - Fast Flash -

- Fast Flash = 2 ﬂ ashes every 1 second.

- Slow Flash = 1 ﬂ ash every 2 seconds.

- Very Slow Flash = 1 ﬂ ash every 5 seconds.

- Numeric Codes = On pulse 1/3 second; Off pulse 1/3 second followed by a 10 second delay.

- ECM Airﬂ ow = 1 ﬂ ash per 100 CFM; On pulse 1/3 second followed by a 10 second delay.

- Alarm Relay Open = alarm signal off; Alarm Relay Closed = alarm signal on.

Hot Water Mode Active - Slow Flash Open

(NSB) Night Setback Condition Recognized - Flashing Code 2 -

Invalid Thermostat Input Combination - Flashing Code 4 -

High Hot Water Temperature Lockout Active - Flashing Code 5 -

Hot Water Mode Sensor Fault Active - Flashing Code 6 -

DMX2 Fault LED and Status Operation

with Test Mode Active

No Fault Since Power Up In Memory Flashing Code 1 - Cycling Code 1

High Pressure Fault In Memory Flashing Code 2 - Cycling Code 2

Low Pressure Fault In Memory Flashing Code 3 - Cycling Code 3 Low Temperature Protection 1 In Fault Memory Flashing Code 4 - Cycling Code 4 Low Temperature Protection 2 In Fault Memory Flashing Code 5 - Cycling Code 5

Condensate Overﬂ ow Fault In Memory Flashing Code 6 - Cycling Code 6

Over/Under Voltage Shutdown In Memory Flashing Code 7 - Cycling Code 7

UPS Warning In Memory Flashing Code 8 - Cycling Code 8

UPT Fault In Memory Flashing Code 9 - Cycling Code 9

ECM Air Flow Fault In Memory Flashing Code 10 - Cycling Code 10

Test Mode Active With ECM Operating - Flashing ECM Airﬂ ow -

Fault LED

(Red)

Fault LED

(Red)

Status LED

(Green)

Status LED

(Green)

Alarm Relay

Water coil low temperature limit setting: Jumper 3 (JW3-

LT1 Low T emp) provides ﬁ eld selection of temperature limit setting for LT1 of 30°F or 10°F [-1°F or -12°C] (refrigerant temperature). Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C]. Air coil low temperature limit setting: Jumper 2 (JW2-LT2 Low Temp) provides ﬁ eld selection of temperature limit setting for LT2 of 30°F or 10°F [-1°F or -12°C] (refrigerant temperature).

Note: This jumper should only be clipped under extenuating circumstances, as recommended by ClimateMaster technical services.

Not Clipped = 30°F [-1°C]. Clipped = 10°F [-12°C]. Alarm relay setting: Jumper 4 (JW4-AL2 Dry) provides ﬁ eld selection of the alarm relay terminal AL2 to be jumpered to 24VAC or to be a dry contact (no connection).

Field Selectable Inputs - Test mode: T est mode allows the service technician to check the operation of the control in a timely manner, at the board, by pushing test button, or externally, with service tool using harness 11B0100N27 connected to port (See Fig 15). The DXM 2 control enters a 20 minute test mode period in which all time delays are sped up 15 times. Upon entering test mode, the status LED will ﬂ ash a code representing the last fault. For diagnostic ease at the thermostat, the alarm relay will also cycle during test mode. The alarm relay will cycle on and off similar to the status LED to indicate a code representing the last fault, at the thermostat. Test mode can be exited by holding test button on board for 3 seconds or service tool. Retry mode: If the control is attempting a retry of a fault, the status LED will slow ﬂ ash (slow ﬂ ash = one ﬂ ash every 2 seconds) to indicate the control is in the process of retrying.

Not Clipped = AL2 connected to R. Clipped = AL2 dry contact (no connection). Low pressure normally open: Jumper 1 (JW1-LP norm open) provides ﬁ eld selection for low pressure input to be normally closed or normally open. Not Clipped = LP normally closed. Clipped = LP normally open.

ECM Motor Option Jumpers (Set at Factory): For TSL09 and 12 switch ECM motor set AO-1 jumper to PWM.

DIP Switches - Note: In the following ﬁ eld conﬁ guration options, DIP switches should only be changed when power is removed from the DXM control. DIP Package #1 (S1) - DIP Package #1 has 8 switches and

provides the following setup selections:

ClimateMaster Water-Source Heat Pumps

Page 45

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

1.1 - Unit Performance Sentinel (UPS) disable: DIP Switch

1.1 provides ﬁ eld selection to disable the UPS feature. On = Enabled. Off = Disabled.

1.2 - Compressor relay staging operation: DIP 1.2 provides selection of compressor relay staging operation. The compressor relay can be selected to turn on with a stage 1 or stage 2 call from the thermostat. This is used with dual stage units (2 compressors where 2 DXM 2 controls ar e being used) or with master/slave applications. In master/ slave applications, each compressor and fan will stage according to its appropriate DIP 1.2 setting. If set to stage 2, the compressor will have a 3 second on-delay before energizing during a Stage 2 demand. Also, if set for stage 2, the alarm relay will NOT cycle during test mode. On = Stage 1. Off = Stage 2.

1.3 - Thermostat type (heat pump or heat/cool): DIP 1.3 provides selection of thermostat type. Heat pump or heat/cool thermostats can be selected. When in heat/ cool mode, Y1 is the input call for cooling stage 1; Y2 is the input call for cooling stage 2; W1 is the input call for heating stage 1; and O/W2 is the input call for heating stage 2. In heat pump mode, Y1 is the input call for compressor stage 1; Y2 is the input call for compressor stage 2; W1 is the input call for heating stage 3 or emergency heat; and O/W2 is the input call for reversing valve (heating or cooling, depending upon DIP 1.4). On = Heat Pump. Off = Heat/Cool.

1.4 - Thermostat type (O/B): DIP 1.4 provides selection of thermostat type for reversing valve activation. Heat pump thermostats with “O” output (reversing valve energized for cooling) or “B” output (reversing valve energized for heating) can be selected with DIP 1.4. On = HP stat with “O” output for cooling. Off = HP stat with “B” output for heating.

1.5 - Dehumidiﬁ cation mode: DIP 1.5 provides selection of normal or dehumidiﬁ cation fan mode. In dehumidiﬁ cation mode, the fan speed relay will remain off during cooling stage 2. In normal mode, the fan speed relay will turn on during cooling stage 2. On = Normal fan mode. Off = Dehumidiﬁ cation mode.

1.6 - DDC output at EH2: DIP 1.6 provides selection for DDC operation. If set to “DDC Output at EH2,” the EH2 terminal will continuously output the last fault code of the controller. If set to “EH2 normal,” EH2 will operate as standard electric heat output. On = EH2 Normal. Off = DDC Output at EH2.

1.7 - Boilerless operation: DIP 1.7 provides selection of boilerless operation. In boilerless mode, the compressor is only used for heating when LT1 is above the temperature speciﬁ ed by the setting of DIP 1.8. Below DIP 1.8 setting, the compressor is not used and the control goes into emergency heat mode, staging on EH1 and EH2 to provide heating. On = normal. Off = Boilerless operation.

1.8 - Boilerless changeover temperature: DIP 1.8 provides selection of boilerless changeover temperature setpoint.

Note that the LT1 thermistor is sensing refrigerant temperature between the coaxial heat exchanger and the expansion device (TXV). Therefore, the 50°F [10°C] setting is not 50°F [10°C] water, but approximately 60°F [16°C] EWT. On = 50°F [10°C]. Off = 40°F [16°C].

DIP Package #2 (S2) - DIP Package #2 has 8 switches and provides the following setup selections:

2.1 - Accessory1 relay personality: DIP 2.1 provides selection of ACC1 relay personality (relay operation/ characteristics). See table 9 for description of functionality.

2.2 - Accessory1 relay personality: DIP 2.2 provides selection of ACC 1 relay personality (relay operation/ characteristics). See table 9 for description of functionality.

2.3 - Accessory1 relay personality: DIP 2.3 provides selection of ACC 1 relay options. See table 11 for description of functionality.

2.4 - Accessory2 relay personality: DIP 2.4 provides selection of ACC 2 relay personality (relay operation/ characteristics). See table9 for description of functionality.

2.5 - Accessory2 relay personality: DIP 2.5 provides Table 11: Accessory DIP Switch Settings

DIP 2.1 DIP 2.2 DIP 2.3 ACC1 Relay Option

On On On Cycle with fan Off On On Digital NSB On Off On Water Valve - slow opening On On Off OAD Off Off Off Reheat Option - Humidistat Off On Off Reheat Option - Dehumidistat

DIP 2.4 DIP 2.5 DIP 2.6 ACC2 Relay Option

On On On Cycle with compressor Off On On Digital NSB On Off On Water Valve - slow opening On On Off OAD

All other DIP combinations are invalid

selection of ACC 2 relay personality (relay operation/ characteristics). See table 9 for description of functionality.

2.6 - Accessory2 relay personality: DIP 2.6 provides selection of ACC 2 relay options. See table 9 for description of functionality.

DIP Package #3 (S3) - Currently not used.

2.7 - Auto dehumidiﬁ cation fan mode or high fan mode:

DIP 2.7 provides selection of auto dehumidiﬁ cation fan mode or high fan mode. In auto dehumidiﬁ cation mode, the fan speed relay will remain off during cooling stage 2 IF the H input is active. In high fan mode, the fan enable and fan speed relays will turn on when the H input is active. On = Auto dehumidiﬁ cation mode. Off = High fan mode.

2.8 - Special factory selection: DIP 2.8 provides special factory selection. Normal position is “On”. Do not change selection unless instructed to do so by the factory.

climatemaster.com

Page 46

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Safety Features - CXM/DXM2 Controls

Safety Features – CXM/DXM 2 Control

The safety features below are provided to protect the compressor, heat exchangers, wiring and other components from damage caused by operation outside of design conditions. Anti-short cycle protection: The control featur es a 5 minute anti-short cycle protection for the compressor. Note: The 5 minute anti-short cycle also occurs at power up. Random start: The control features a random start upon power up of 5-80 seconds. Fault Retry: In Fault Retry mode, the Status LED begins slowly ﬂ ashing to signal that the control is trying to recover from a fault input. The control will stage off the outputs and then “try again” to satisfy the thermostat input call. Once the thermostat input call is satisﬁ ed, the control will continue on as if no fault occurred. If 3 consecutive faults occur without satisfying the thermostat input call, the control will go into “lockout” mode. The last fault causing the lockout will be stored in memory and can be viewed at the “fault” LED (DXM2 board) or by going into test mode (CXM board). Note: LT1/LT2 faults are factory set at only one try. Lockout: In lockout mode, the status LED will begin fast ﬂ ashing. The compressor relay is turned off immediately. Lockout mode can be “soft” reset by turning off the thermostat (or satisfying the call). A “soft” reset keeps the fault in memory but resets the control. A “hard” reset (disconnecting power to the control) resets the control and erases fault memory. Lockout with emergency heat: While in lockout mode, if W becomes active (CXM), emergency heat mode will occur. If DXM 2 is conﬁ gured for heat pump thermostat type (DIP 1.3), emergency heat will become active if O/ W2 is energized.

For LED fault codes and alarm relay output for CXM see table 9 and DXM 2 see table 10. High pressure switch: When the high pressur e switch

opens due to high refrigerant pressures, the compr essor relay is de-energized immediately since the high pressur e switch is in series with the compressor contactor coil. The high pressure fault recognition is immediate (does not delay for 30 continuous seconds before de-energizing the compressor). Note: For units with motorized water valve, one high pressure water switch is in series with refrigerant high pressure switch and will cause fault if pressur e is 300 PSI (reset at 240 PSI). Low pressure switch: The low pressur e switch must be open and remain open for 30 continuous seconds during “on” cycle to be recognized as a low pressure fault. If the low pressure switch is open for 30 seconds prior to compressor power up it will be considered a low pressur e (loss of charge) fault. The low pressure switch input is

bypassed for the initial 120 seconds of a compressor run cycle. Water coil low temperature (LT1): The LT1 thermistor temperature must be below the selected low temperature limit setting for 30 continuous seconds during a compressor run cycle to be recognized as a LT1 fault. The LT1 input is bypassed for the initial 120 seconds of a compressor run cycle. LT1 is set at the factory for one try. Therefore, the control will go into lockout mode once the LT1 fault has occurred. Air coil low temperature (LT2): The LT2 thermistor temperature must be below the selected low temperature limit setting for 30 continuous seconds during a compressor run cycle to be recognized as a LT2 fault. The LT2 input is bypassed for the initial 60 seconds of a compressor run cycle. LT2 is set at the factory for one try. Therefore, the control will go into lockout mode once the LT2 fault has occurred. Condensate overﬂ ow: The condensate overﬂ ow sensor must sense overﬂ ow level for 30 continuous seconds to be recognized as a CO fault. Condensate overﬂ ow will be monitored at all times. Over/under voltage shutdown: An over/under voltage condition exists when the control voltage is outside the range of 19VAC to 30VAC. Over/under voltage shut down is a self-resetting safety. If the voltage comes back within range for at least 0.5 seconds, normal operation is restored. This is not considered a fault or lockout. If the CXM/DXM2 is in over/under voltage shutdown for 15 minutes, the alarm relay will close. Unit Performance Sentinel-UPS (patent pending): The UPS feature indicates when the heat pump is operating inefﬁ ciently. A UPS condition exists when:

a. In heating mode with compressor energized, LT2

is greater than 125°F [52°C] for 30 continuous seconds, or:

b. In cooling mode with compressor energized, LT1

is greater than 125°F [52°C] for 30 continuous seconds, or:

c. In cooling mode with compressor energized, LT2 is

less than 40°F [4.5°C] for 30 continuous seconds.

If a UPS condition occurs, the control will immediately go to UPS warning. The status LED will remain on as if the control is in normal mode. Outputs of the control, excluding LED and alarm relay, will NOT be affected by UPS. The UPS condition cannot occur during a compressor off cycle. During UPS warning, the alarm relay will cycle on and off. The cycle rate will be “on” for 5 seconds, “off” for 25 seconds, “on” for 5 seconds, “off” for 25 seconds, etc.

ClimateMaster Water-Source Heat Pumps

Page 47

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Swapped LT1/LT2 thermistors: During test mode, the control monitors to see if the LT1 and LT2 thermistors are in the appropriate places. If the control is in test mode, the control will lockout with code 9 after 30 seconds if:

a. The compressor is on in the cooling mode and the

LT1 sensor is colder than the LT2 sensor, or:

b. The compressor is on in the heating mode and the

LT2 sensor is colder than the LT1 sensor. ESD (DXM2 only): The ESD (Emergency Shut Down) mode can be enabled from an external common signal to terminal ESD to shut down the unit. The green status light will ﬂ ash code 3 when the unit is in ESD mode.

Diagnostic Features - The LED on the CXM board advises the technician of the current status of the CXM control. The LED can display either the current CXM mode or the last fault in memory if in test mode. If there is no fault in memory, the LED will ﬂ ash Code 1 (when in test mode).

Figure 26: DXM2 Sensor Placement

 CAUTION! 

CAUTION! Do not restart units without inspection and

remedy of faulting condition. Equipment damage may occur.

The green status LED and red fault LED on the DXM 2 board advise the technician of the current status of the DXM 2 control. The status LED will indicate the current mode that the DXM 2 control is in. The fault LED will ALWAYS ﬂ ash a code representing the LAST fault in memory. If there is no fault in memory, the fault LED will ﬂ ash Code 1. The yellow test LED will turn on when in test mode.

CXM/DXM 2 Control Start-up Operation - The control will not operate until all inputs and safety controls are checked for normal conditions. The compressor will have a 5 minute anti-short cycle delay at power-up. The ﬁ rst time after power-up that there is a call for compressor, the compressor will follow a 5 to 80 second random start delay. After the random start delay and anti-short cycle delay, the compressor relay will be energized. On all subsequent compressor calls, the random start delay is omitted.

17B0008N05 Leaving Air Temp Sensor (White (2) Wires Connect to DXM2-T4)

17B0030N06 Leaving Water Temp Sensor (Yellow (2) Wires Connect to DXM2-T2)

DXM2 has 4 sensors that can be read with service tool ACDU03C and harness 11B0100N27 or thermostat ATC32U03C. Sensors are entering and leaving water temperature, leaving air temperature, and discharge line temperature. (See FIG 26)

LT2 Air Coil Protector (Violet (2) Wires - Harness to DXM2-LT2)

LT1 Water Coil Protector (Grey (2) Wires - Harness to DXM2-LT1)

17B0030N05 Entering Water Temp Sensor (Green (2) Wires Connect to DXM2-T3)

Notes:

1. Sensors must be positioned on clean section of copper tube approximately as shown, clamped securely, and completely wrapped (except Leaving Air Sensor - Do Not wrap) with cork tape.

2. All sensors are NTC 10K OHM. To check calibration use resistance table in DXM2 AOM.

17B0031N04 Discharge Line Temp Sensor (Black (2) Wires Connect to DXM2-T6)

climatemaster.com

Page 48

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Unit Commissioning and Operating Conditions

Environment - This unit is designed for indoor

installation only. Do not install in an area subject to freezing or where humidity levels can cause cabinet condensation.

Power Supply - A voltage variation of +/- 10% of nameplate utilization voltage is acceptable.

Operation and performance is primarily dependent upon return air temperature, airﬂ ow, water temperature, water ﬂ ow rate and ambient air temperature. This water to air heat pump is capable of operating over a wide temperature range and with ﬂ ow rates of between 1.5 GPM (.1 l/s) and 3 GPM (.19 l/s) per ton, however usually no more than one of these factors may be at a minimum or maximum level at a time.

Table 12: Building Commissioning Limits

BUILDING COMMISSIONING

ALL TSM/TSL MODELS

Cooling °F [°C] Heating °F [°C]

AMBIENT MIN - MAX DB 45-110 [7-43] 40-85 [4.5-29]

RETURN AIR MIN DB/WB 60/45 [16/7] 40 [4.5]

RETURN AIR MAX DB/WB 100-83 [38-28] 80 [27]

STANDARD UNIT ENTERING

WATER MIN* - MAX

EXTENDED RANGE UNIT** EN-

TERING WATER MIN* - MAX

*- Requires optional insulation package when operating below the dew point **- Requires antifreeze, optional insulation package and jumper clipped. ***- Operating range of Hybrid units is 90-120 [32-49]

40-120 [4.5-49] 60-90 [16-32]

30-120 [-1-49] 20-90 [-6.7-32]

***

The commissioning table 12 indicates air and water temperatures which are suitable for initial unit commissioning in an environment where the ﬂ ow rate and water temperature is not yet stable and to avoid nuisance shut down of the units freeze and refrigerant pressure safeties.

The operating table 13 indicates the maximum and minimum ranges of the unit.

For more speciﬁ c unit performance reference the product catalog, the submittal data sheets or contact your supplier for assistance.

Table 13: Unit Operating Limits

UNIT OPERATING LIMITS

ALL TSM/TSL MODELS

Cooling °F [°C] Heating °F [°C]

AMBIENT MIN - MAX DB 50-100 [10-38] 50-85 [10-29]

RETURN AIR MIN DB/WB 65/60 [18/15.5] 50 [10]

RETURN AIR MAX DB/WB 95/75 [35/24] 80 [27]

STANDARD UNIT ENTERING

WATER MIN* - MAX

EXTENDED RANGE UNIT** EN-

TERING WATER MIN* - MAX

50-120 [10-49] 60-90 [16-32]

30-120 [-1-49] 20-90 [-6.7-32]

***

ClimateMaster Water-Source Heat Pumps

Page 49

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Unit and System Checkout

 CAUTION! 

CAUTION! To avoid possible damage to a plastic (PVC) piping

system, do not allow temperatures to exceed 1 10ºF (43ºC).

Note: The manufacturer strongly recommends all piping connections, both internal and external to the unit, be pressure tested by an appropriate method prior to any ﬁ nishing of the interior space or before access to all connections is limited. Test pressure may not exceed the maximum allowable pressure for the unit and all components within the water system. The manufacturer will not be responsible or liable for damages from water leaks due to inadequate or lack of a pressurized leak test, or damages caused by exceeding the maximum pressure rating during installation.

BEFORE POWERING SYSTEM, please check the following:

SYSTEM CHECKOUT

 System water temperature: Check water temperature

for proper range and also verify heating and cooling set points for proper operation.

 System pH: Check and adjust water pH if necessary to

maintain a level between 6 and 8.5. Proper pH promotes longevity of hoses and ﬁ ttings (see T able 3).

 System ﬂ ushing: Verify that all hoses ar e connected end

to end when ﬂ ushing to ensure that debris bypasses the unit heat exchanger, water valves and other components. Water used in the system must be potable quality initially and clean of dirt, piping slag, and strong chemical cleaning agents. Verify that all air is pur ged fr om the system. Air in the system can cause poor operation or system corrosion.

 Cooling tower/boiler: Check equipment for proper set

points and operation.

 Standby pumps: Verify that the standby pump is

properly installed and in operating condition.

 System controls: Verify that system controls function

and operate in the proper sequence.

 Low water temperature cutout: Verify that low water

temperature cut-out controls are provided for the outdoor portion of the loop. Otherwise, operating problems may occur.

 System control center: Verify that the control center

and alarm panel have appropriate set points and are operating as designed.

 Miscellaneous: Note any questionable aspects of

the installation.

 CAUTION! 

CAUTION! Verify that ALL water control valves are open and

allow water ﬂ ow prior to engaging the compressor. Freezing of the coax or water lines can permanently damage the heat pump.

 CAUTION! 

CAUTION! To avoid equipment damage, DO NOT

leave system ﬁ lled in a building without heat during the winter unless antifreeze is added to the water loop. Heat exchangers never fully drain by themselves and will freeze unless winterized with antifreeze.

UNIT CHECKOUT

 Balancing/shutoff valves: Ensure that all isolation

valves are open and water control valves are wired.

Line voltage and wiring: Verify that voltage is within

an acceptable range for the unit and wiring and fuses/ breakers are properly sized. Verify that low voltage wiring is complete.

 Unit control transformer: Ensure that transformer has

the properly selected voltage tap. Commercial 208230V units are factory wired for 208V operation unless speciﬁ ed otherwise.

 Entering water and air: Ensure that entering water and

air temperatures are within operating limits of Tables 12 & 13.

 Low water temperature cutout: Verify that low water

temperature cut-out on the CXM/DXM2 control is properly set.

 Unit fan: Manually rotate fan to verify free rotation

and ensure that blower wheel is secured to the motor shaft. Be sure to remove any shipping supports if needed. DO NOT oil motors upon start-up. Fan motors are pre-oiled at the factory. Check unit fan speed selection and compare to design requirements.

 Condensate line: Verify that condensate line is open

and properly pitched toward drain.

 Water ﬂ ow balancing: Record inlet and outlet water

temperatures for each heat pump upon startup. This check can eliminate nuisance trip outs and high velocity water ﬂ ow that could erode heat exchangers.

 Unit air coil and ﬁ lters: Ensure that ﬁ lter is clean and

accessible. Clean air coil of all manufacturing oils.

 Unit controls: Verify that CXM or DXM2 ﬁ eld selection

options are properly set.

climatemaster.com

Page 50

CLIMATEMASTER WATER-SOURCE HEAT PUMPS

TSL Vertical Stack

Rev.: 04/24/2019

Unit Start-Up Procedures

Unit Start-up Procedure

1. Adjust all valves to their full open positions. Turn on the line power to all heat pumps.

2. Turn the thermostat fan position to “ON”. Blower should start.

3. Balance air ﬂ ow at registers.

4. Room temperature should be within the minimummaximum ranges of Tables 12 & 13. During start-up checks, loop water temperature entering the heat pump should be between 60°F [16°C] and 95°F [35°C].

5. Two factors determine the operating limits of ClimateMaster heat pumps, (a) return air temperature, and (b) water temperature. When any one of these factors is at a minimum or maximum level, the other factor must be at normal level to ensure proper unit operation.

a. Adjust the unit thermostat to the warmest

setting. Place the thermostat mode switch in the “COOL” position. Slowly reduce thermostat setting until the compressor activates.

b. Check for cool air delivery at the unit grille

within a few minutes after the unit has begun to operate. Note: Units have a ﬁ ve minute time

delay in the control circuit that are eliminated in the test mode.

c. Check the elevation and cleanliness of the

condensate lines. Dripping may be a sign of a blocked line. Check that the condensate trap is ﬁ lled to provide a water seal.

d. Refer to Tables 12 & 13. Check the temperature

of both entering and leaving water. If temperature is within range, proceed with the test. If temperature is outside of the operating range, check refrigerant pressures.

e. Check air temperature drop across the air coil

when compressor is operating. Air temperature drop should be between 15°F and 25°F [8°C and 14°C].

f. Turn thermostat to “OFF” position. A hissing

noise indicates proper functioning of the reversing valve.

6. Allow ﬁ ve (5) minutes between tests for pressure to equalize before beginning heating test.

a. Adjust the thermostat to the lowest setting.

Place the thermostat mode switch in the “HEAT” position.

b. Slowly raise the thermostat to a higher

temperature until the compressor activates.

c. Check for warm air delivery within a few minutes

after the unit has begun to operate.

d. Check the temperature difference between

entering and leaving water, see table 14. If

temperature is within range, proceed with the test. If temperature is outside of the operating range, check refrigerant pressures, see table 15A

- D.

e. Check air temperature rise across the air coil when

compressor is operating. Air temperature rise should be between 20°F and 30°F [11°C and 17°C].

f. Check for vibration, noise, and water leaks.

7. Inner panel and ﬁ lter must be on chassis to block air from bypassing air coil. Bypass air will cause unit to fault off.

8. If unit fails to operate, perform troubleshooting analysis

(see troubleshooting section). If the check described fails to reveal the problem and the unit still does not operate, contact a trained service technician to ensure proper diagnosis and repair of the equipment.

9. When testing is complete,

a. Set thermostat to owners b. Re-assemble all parts.

10. Save start up log sheet for future reference.

11. BE CERTAIN TO FILL OUT AND FORWARD

ALL WARRANTY REGISTRATION PAPERS TO CLIMATEMASTER.

Note: If performance during any mode appears abnormal, refer to the CXM and DXM2 sections or troubleshooting section of this manual. To obtain maximum performance, the air coil should be cleaned before start-up. A 10% solution of dishwasher detergent and water is recommended.

 WARNING! 

WARNING! When the disconnect switch is closed, high

voltage is present in some areas of the electrical panel. Exercise caution when working with energized equipment.

 CAUTION! 

CAUTION! Verify that ALL water control valves are open and

allow water ﬂ ow prior to engaging the compressor. Freezing of the coax or water lines can permanently damage the heat pump.

Table 14: Water Temperature Change Through Heat Exchanger

ClimateMaster Water-Source Heat Pumps

Page 51

THE SMART SOLUTION FOR ENERGY EFFICIENCY

Vertical Stack

Rev.: 04/24/2019

Unit Operating Pressures and Temperatures

Notes for Tables 15A - 15F:

• Airflow is at nominal (rated) conditions;

• Entering air is based upon 70°F [21°C] DB in heating and 80/67°F [27/19°C] in cooling;

Table 15A: TSL09 and TSL12

Entering

Water

Temp ºF

100

120

Water

Flow GPM

Suction

Pressure

PSIG

1.5

2.25

3.0 60 - 63 289 - 306 9 - 12 8 - 17 3 - 4 20 - 22

1.5 122 - 125 197 - 204 13 - 16 15 - 20 20 - 24 22 - 23 67 - 71 297 - 315 10 - 12 9 - 18 8 - 9 22 - 23

2.25 116 - 119 177 - 184 17 - 19 15 - 18 13 - 16 21 - 22 71 - 75 301 - 321 10 - 12 10 - 19 6 - 7 23 - 24

3.0 112 - 115 168 - 173 19 - 21 14 - 18 10 - 12 21 - 22 74 - 76 303 - 323 11 - 13 10 - 19 4 - 5 23 - 25

1.5 128 - 134 240 - 252 11 - 14 13 - 16 20 - 22 21 - 22 97 - 102 333 - 355 9 - 11 13 - 21 11 - 12 29 - 30

2.25 122 - 131 219 - 233 12 - 17 12 - 16 13 - 15 21 - 22 104 - 108 339 - 361 9 - 11 13 - 21 8 - 9 30 - 31

3.0 119 - 129 209 - 224 13 - 18 11 - 15 10 - 11 21 - 22 107 - 122 342 - 369 9 - 11 13 - 20 6 - 7 31 - 32

1.5 132 - 139 311 - 329 9 - 12 12 - 15 19 - 21 20 - 21 130 - 135 367 - 392 9 - 11 13 - 21 14 - 16 35 - 37

2.25 131 - 137 287 - 306 10 - 13 10 - 12 13 - 14 20 - 21 139 - 144 375 - 402 10 - 11 13 - 20 10 - 12 37 - 38

3.0 131 - 136 275 - 294 10 - 13 9 - 11 9 -11 20 - 21 145 - 149 380 - 407 10 - 11 13 - 19 8 - 9 38 - 39

1.5 137 - 144 400 - 420 8 - 10 13 - 16 19 - 20 19 - 20 164 - 169 401 - 430 10 - 13 13 - 17 18 - 20 41 - 43

2.25 135 - 142 373 - 395 9 - 11 10 - 12 12 - 14 19 - 20 175 - 178 411 - 442 12 - 16 14 - 17 12 - 14 43 - 45

3.0 135 - 141 359 - 383 9 - 12 9 - 11 9 - 10 19 - 20 179 - 187 415 - 455 13 - 18 14 - 16 9 - 11 44 - 46

1.5 139 - 147 448 - 471 8 - 9 13 - 16 18 - 20 18 - 19

2.25 138 - 146 420 - 445 8 - 10 11 - 13 12 - 13 18 - 19

3.0 138 - 146 405 - 432 8 - 10 10 - 11 9 - 10 18 - 19

1.5 144 - 153 549 - 583 7 - 8 15 - 17 17 - 19 17 - 18

2.25 143 - 153 525 - 557 7 - 8 12 - 14 11 - 13 17 - 18

3.0 143 - 152 511 - 543 8 - 9 11 - 13 9 - 10 17 - 18

Discharge

Pressure

PSIG

Cooling Heating

Super-

heat

Sub-

cooling

Water Temp

Rise ºF

• Subcooling is based upon head pressure at compressor service port;

• Cooling air and water values can vary greatly with changes in humidity level.

Air Temp

Drop ºF

Suction

Pressure

PSIG

Discharge

Pressure

PSIG

Super-

heat

Sub-

cooling

Water

Temp

Drop ºF

Air Temp

Rise ºF

Table 15B: TSL15
