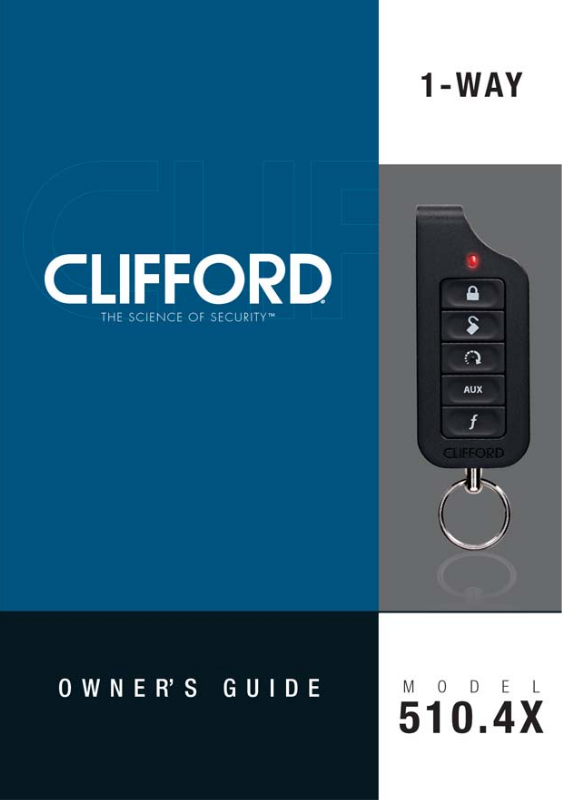

Clifford Security System 510.4X User Manual

Congratulations

Congratulations on the purchase of your state-of-the-art remote start and security system. Reading this Owner’s Guide prior to using your system will help maximize the use of your system and its many features. Please visit the below website: http://www.clifford.com – For general and additional guide information. For any additional questions please contact your authorized Directed dealer or contact Directed at 1-800-753-0600.

What you get

Welcome to the best generation of security with remote start. Your system contains everything you need.

s Two 1-way SuperCode remote controls s Owner’s guide s Warranty card

AUX AUX

Owner’s

Guide

Warranty

Card

Important information

Government Regulations and Safety information

Read the Government Regulations and Warning! Safety First sections of this manual prior to operating this system.

Warning! Failure to heed this information can result in death, personal injury or property damage and may also result in the illegal use of the system beyond its intended purpose.

Your Warranty

Your system comes with a warranty. Please make sure you receive the warranty registration card and proof of purchase from your dealer indicating the product was installed by an authorized Directed dealer. Please validate it online at www.prodregister.com/directed or com- plete and return the warranty registration card.

Replacement remote controls

If additional remote controls (P/N 7153X) are desired, please see your authorized dealer or visit us at www.directedstore.com to order.

Contents

Getting Started .................................................................................................... 3

Keys to using this manual ...................................................................... 3

Remote Control ...................................................................................................4

Using your System ............................................................................................... 6

Commanding the system ....................................................................... 6

Performing Commands ......................................................................... 6

Remote Control Command table ............................................................ 7

Basic Commands (Direct Access) ..........................................................................8

Arm ................................................................................................... 8

Disarm ............................................................................................... 8

Remote Start ........................................................................................ 9

AUX/Trunk .......................................................................................... 9

Advanced Commands: (Level 1) .........................................................................10

Silent Arm ......................................................................................... 10

Runtime Reset .................................................................................... 10

AUX 1 .............................................................................................. 10

Advanced Commands: (Level 2) .........................................................................11

Sensor Bypass ................................................................................... 11

Remote Valet .................................................................................... 11

Timer Start* ...................................................................................... 12

AUX 2 .............................................................................................. 12

Advanced Commands: (Level 3) .........................................................................13

Sensor Silent Arm* ............................................................................ 13

Smart Start** .................................................................................... 13

AUX 3 .............................................................................................. 13

Advanced Commands: (Level 4) .........................................................................14

Full Silent Arm* ................................................................................. 14

Defogger** ...................................................................................... 14

AUX 4 .............................................................................................. 14

Remote Control Configuration ............................................................................15

Remote Programming ......................................................................... 15

Remote Pairing ................................................................................. 15

Remote Features ............................................................................... 16

Sensor Adjust .................................................................................... 17

Alarm Features .................................................................................................18

Normal Arm Protection ....................................................................... 18

Sensor Silent Arm protection ............................................................... 18

Sensor Warn-away output .................................................................. 19

Full Trigger output .............................................................................. 19

Emergency Override .......................................................................... 19

Trigger Zone Fault Report.................................................................... 19

Alarm Report ..................................................................................... 20

Nuisance Prevention (NPC) ................................................................. 20

Remote Start Features ........................................................................................ 21

Pit Stop Mode ................................................................................... 21

Key Takeover..................................................................................... 21

Remote Start Safe-lock ........................................................................ 22

Disabling Remote Start ....................................................................... 22

Advanced Start ................................................................................. 22

Manual Transmission Start (MTS mode) ................................................ 23

Turbo Timer Mode .............................................................................. 24

Remote Start Faults ............................................................................. 25

Remote and System Operations .......................................................................... 26

Passive Arming* ................................................................................ 26

Auto Re-arming* ................................................................................ 26

Valet Mode ....................................................................................... 27

Power Save ....................................................................................... 27

Rapid Resume ................................................................................... 27

Car Select ......................................................................................... 27

System Expansion Options .................................................................................28

Battery Information ............................................................................................ 29

Low Battery Alerts .............................................................................. 29

Battery Replacement ........................................................................... 29

Battery Disposal ................................................................................ 30

Patent Information ............................................................................................. 30

Glossary of Terms ..............................................................................................31

Government Regulations .................................................................................... 32

Warning! Safety First .........................................................................................33

Installation ........................................................................................ 33

Remote Start Capable ........................................................................ 33

Manual Transmission Vehicles ............................................................. 33

Interference ....................................................................................... 35

Upgrades ......................................................................................... 35

Water/Heat Resistance ...................................................................... 35

Limited lifetime consumer warranty ..................................................................... 36

Getting Started

Keys to using this manual

Speciﬁc actions (in bold type) and style conventions are used consistently throughout this manual, they are as follows:

s Press: implies pushing in and releasing a button. s Hold: is used after Press actions when a button needs to be held

in position for an extended period of time, typically several seconds.

s Italicized words denote section/sub headings in this guide and

can be located through the table of contents.

s An asterisk (*) when used after a word or phrase denotes that

additional details can be found in related sections usually noted at the bottom of the page or end of the section.

Remote Control

Interna

Antenna

Transmit

LED

Command

Buttons

AUX

Feature Description

Internal Antenna Used for transmitting information

Transmit LED Active when transmitting information

Command buttons (4) Used to perform arming, disarming, auxiliary channel and

remote start commands

Function button Used to access function levels for commands, configuration

menus for programming and Car Selection

Function

Button

Control Center

Control button

Antenna

Status LED

The Control Center, typically located on the upper part of the front windshield. It consists of:

s The In-vehicle system antenna. s The Status LED, as a visual indicator of the system’s status. s The Control button, for placing the system into Valet Mode* and

to perform the Emergency Override** operation.

* See Remote and System Operations section for details. ** See

Alarm Features for details.

Using your System

Commanding the system

Commands, Basic or Advanced, are used to activate system features and are performed by pressing one of the Command buttons. Basic commands control the most often used security and remote start features while Advanced commands control more specialized features.

Conﬁrmations for Basic or Advanced commands are indicated by siren chirps and parking light ﬂashes. A description of each feature conﬁrmation is found in the following Basic command and Advanced command sections.

Performing Commands

Perform Basic commands by pressing a Command button. Perform Advanced Commands by ﬁrst accessing Levels 1-4 using the

button and then by pressing a Command button while within a

level.

Advanced command example: Silent Arm

1. Press the

mit LED single ﬂashes for 3 seconds.

2. Press the

perform the Silent Arm command.

3. The system will arm, lock the doors and ﬂash the parking lights without siren chirps.

button once to access Function Level 1, The trans-

button while the transmit LED is still ﬂashing to

Remote Control Command table

Direct Access

Level

Button

Arm/Lock

(Panic)

Disarm/Unlock Silent Disarm Remote Valet Car Finder

x 1

LEVEL 1

Silent Arm Sensor

LEVEL 2

Bypass

x 2

x 3

LEVEL 3

Sensor Silent

Arm

x 4

LEVEL 4

Full Silent

Arm

Remote Start Runtime

Reset

Aux/Trunk AUX 1 AUX 2 AUX 3 AUX 4

AUX

Advance Level,

Enter program-

ming (8 sec)

Timer Start Smart Start Defogger

Basic Commands (Direct Access)

Arm

Press and release

The alarm arms, doors lock (if connected), and the siren chirps and parking lights ﬂash once. If Valet mode* is On, the doors lock without siren chirps, the alarm is disabled. Exit Valet mode to arm the alarm normally.

If a trigger zone fault is detected the siren chirps once again and the control center LED generates a Trigger Zone Fault report**.

To Arm and Panic

Press and hold

The alarm Arms (or Locks in Valet) and, after 2 seconds, sounds the siren and ﬂashes the parking lights. Press the to stop the output.

Disarm

Press and release

The alarm disarms, doors unlock (if connected), and the siren chirps and parking lights ﬂash twice.

or button

An Alarm Report** alert of 4 or 5 siren chirps will replace the normal disarm chirps if the alarm was triggered.

Remote Start

Press and release

Activates (or if On, deactivates) the remote starter. The engine and parking lights turn On, or the engine and parking lights turn Off accordingly. If a Remote start conﬁguration issue prevents the engine from starting, the parking lights ﬂash a Remote Start fault report*** to identify the fault.

AUX/Trunk

Press and hold

The Trunk opens (if connected) when this button is pressed for 2 seconds.

AUX

* See Remote and System Operations for details. ** See Alarm Features for details. *** See Remote Start Faults (under Remote Start Features) for details. For Manual transmission vehicles see Manual Transmission Start in the

Remote Start Features

section for more details.

Advanced Commands: (Level 1)

Press and release the button 1 time. The transmit LED illuminates in sets of single ﬂashes to indicate Level 1.

Silent Arm

Press and release The alarm arms, doors lock (if connected), and the parking lights ﬂash once.

Silent Disarm

Press and release The alarm disarms, doors unlock (if connected), and the parking lights ﬂash twice. The Silent Disarm output may be replaced by the Alarm Report*

Runtime Reset

Press and release If more time is needed while remote start is active, runtime reset will reset the runtime counter to the pre-programmed setting.

Remote Start must be On to use this feature.

Note

AUX 1

Press and release Activates (or if On, deactivates) the Aux 1 output.

AUX

* See Alarm Features for details.
