User Manual
1 | 95
ClientPOS PT6300 User Manual
Version: 2.0
Copyright
Copyright 2010 Publishing. All Rights Reserved.
This manual, software and firmware described i n i t are copyrighted by their respective owners
and protected under the laws of the Universal Copyright Convention. You may not reproduce,
transmit, transcribe, store in a retrieval system, or translate into any language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, biological, molecular,
manual, or otherwise, any part of this publication without the express written permission of the
publisher.
All products and trade names described within are mentioned for identification purpose only.
No affiliation with or endorsement of the m anufacturer is made or implied. Product names and
brands appearing in this manual are registere d trademarks of their respective companies.
The information published herein has been checked for accuracy as of publishing time. No
representation or warranties regarding the fitness of this document for any use are made or
implied by the publisher. We reserve the right to revise this document or make changes in the
specifications of the product described therein at any time without notice and without obligat ion
to notify any person of such revision or change.
2 | 95
ClientPOS PT6300 User Manual
Version: 2.0
Safety Instructions
1. Read these instructions carefully. Keep these i nstructions for future reference.
2. Please disconnect this equipment from AC out l et before cleaning. Don’t use liquid or
sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
3. Please keep this equipment from humidity.
4. Lay this equipment on a reliable surface when install. A drop or fall could cause injury.
5. Make sure power cord such a way that people can n ot step on it. Do not place anything
over the power cord.
6. All cautions and warnings on the equipment should be noted.
7. If the equipment is not used for long time, disconnect the equipment from main to avoid
being damaged by transient over voltage.
8. Never pour any liquid into opening, this coul d cause fire or electrical shock.
9. If one of the following situations arises, get the equipment checked by a service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well or you can not get it work according to user
manual.
e. The equipment has dropped and damaged.
10. Do not leave this equipment in an environment un condi tione d, storage t em pera ture bel ow
-20°C or above 60°C, it may damage the equipment.
11. Unplug the power cord when doing any service or adding optional kits.
Lithium Battery Caution:
1. Danger of explosion can happen if the battery i s i ncorrectly replaced. Replace only the
original or equivalent type recommended by the m anufacture. Dispose used batteries
according to the manufacture’s instructions.
Do not remove the cover, and ensure no user serviceable components are inside. Take the
unit to the service center for service and repair.
3 | 95
Table of Contents
1. Packing List……………………………………………….
1-1 Standard Accessories………………………………………...
1-2 Optional Accessories…………………………………………
2. System View ………………………………………………
2-1 Rear View………………………………………………………
2-2 Specification……………………………………………………
2-3 Internal Layout…………………………………………………
2-4 Touch Panel Life test condition……………………………….
3. Pin Definition………………………………………………
4. Rear I/O Interface…………………………………………
5. System Assembly & Disassembly……………………
5-1 HDD…………………………………………………………….
5-2 CFast Card……………………………………………………..
5-3 MSR…………………………………………………………….
5-4 Cable Cover……………………………………………………
5-5 15” 2nd Display…………………………………………………
5-6 Internal VFD…..……………………………………………….
5-7 Wi-Fi…………………………………………………………….
5-8 8” 2nd Display…………………………………………………..
5-9 1D/2D/i-Button with RFID module..………………………….
6. Device Driver Installation………………………………
6-1 Resistive Type Touch Panel and P-Cup…………………….
6-2 MagStripe Card Reader Configuration Utility………………
6-3 Fingerprint Reader……………………………………………
6-4 RFID……………………………………………………………
6-5 Internal VFD…………………………………………………...
6-6 i-Button Reader Configuration Utility…………………..……
6-7 Installation and Testing of Smart Card Reader…………….
6-8 Wi-Fi……………………………………………………………
7. BIOS/Utility Setup………………………………………...
7-1 Advanced………………………………………………………
7-2 Chipset…………………………………………………………
7-3 Boot…………………………………………………………….
7-4 Security………………………………………………………...
P6
P6
P6
P7
P7
P8
P9
P10
P11
P13
P15
P15
P15
P17
P17
P18
P22
P23
P25
P29
P30
P30
P36
P41
P52
P62
P66
P69
P74
P75
P76
P87
P91
P92
4 | 95
ClientPOS PT6300 User Manual
8. LCD Surface Cleaning……………………………………
P94
Version: 2.0
7-5 Save & Exit…………………………………………………….
P93
5 | 95
a. b.
a. System (with stand)
c.
d.
e. f.
a. b.
a. Single MSR
c.
Packing List
1
Packing List

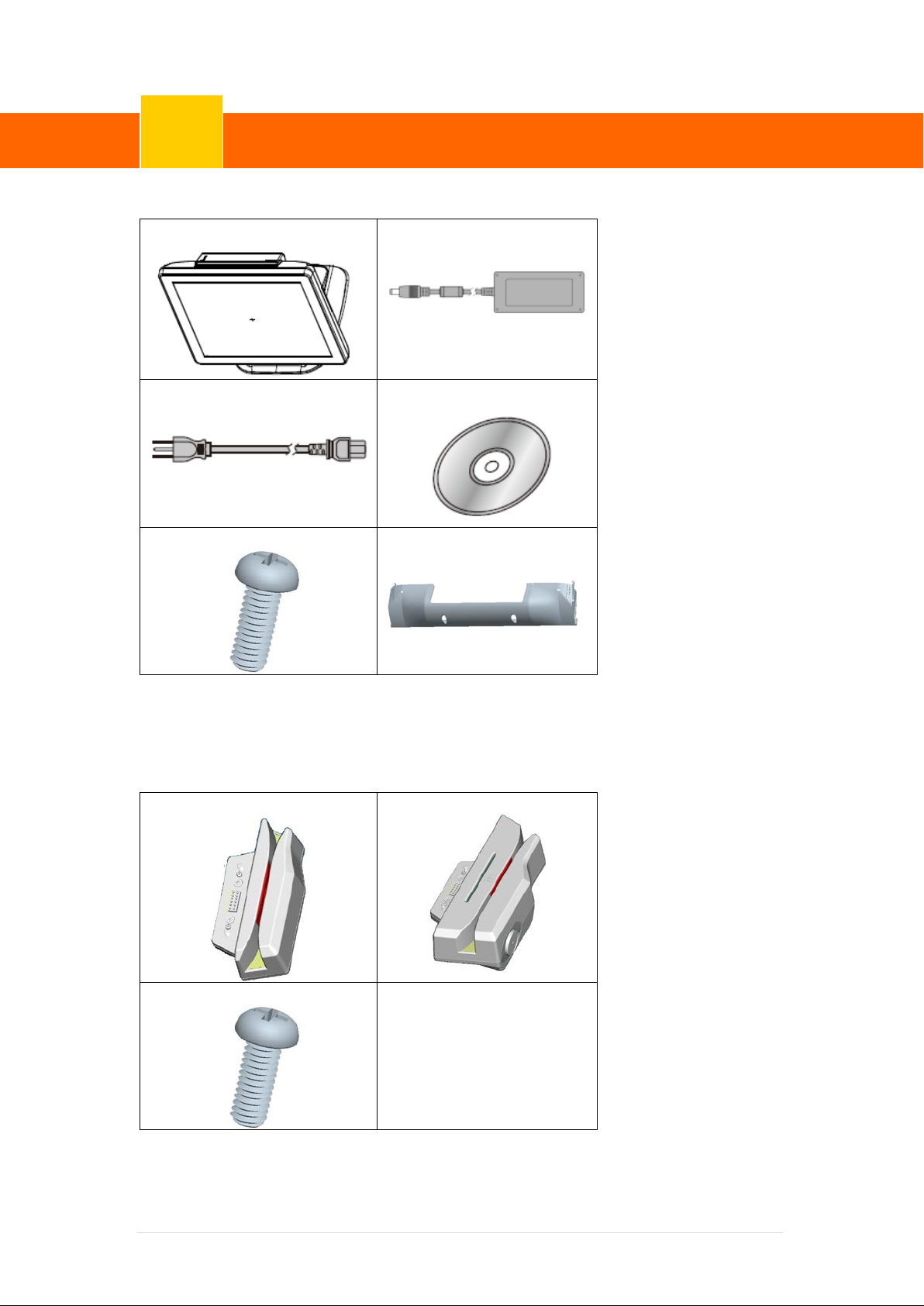

1-1 Standard Accessories
b. Power Adapter
c. Power Cord
d. Driver Bank
e. Screw
f. Cable Cover
x2
1-2 Optional Accessories
b. 3 IN 1 MSR
c. Screw
x2
6 | 95
ClientPOS PT6300 User Manual
Item
System View
2
Version: 2.0
System View

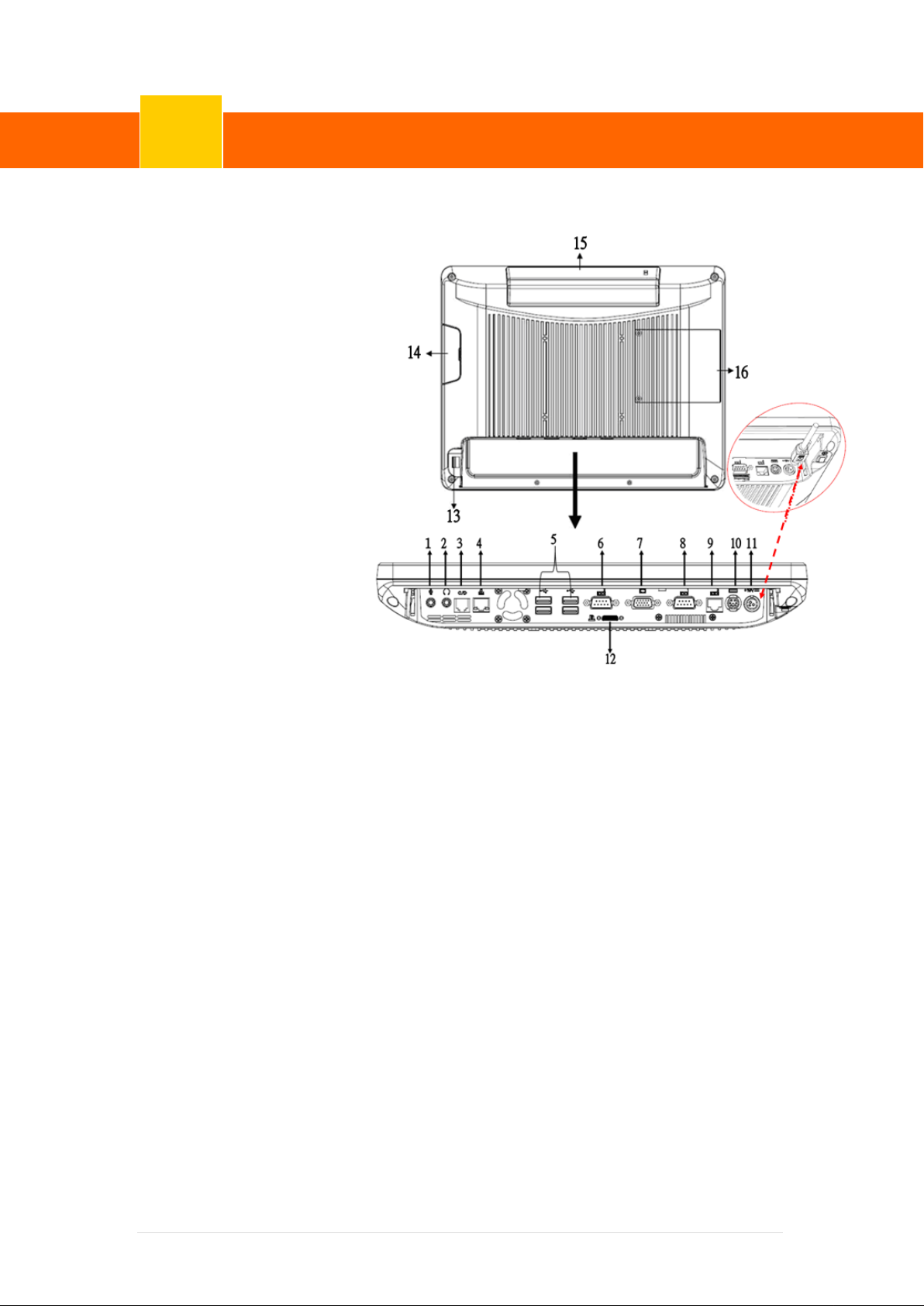

2-1 Rear View
1. Mic
2. Line-Out
3. RJ11 (Cash Drawer )
4. RJ45(LAN)
5. USB 2.0 X4
6. COM1
7. VGA
8. COM2
9. RJ45(COM 3 external)
10. PS2(K/B)
11. 19V DC Input
12. Parallel port (Option)
13. Power Button
14. MSR/Smart Card/
i-Button/ Fingerprint/
RFID (Option)
15. VFD(Option)
16. HDD/CFast CARD
7 | 95
ClientPOS PT6300 User Manual
Bridge
up to
Network
Storage
BIOS
Power
Thermal Solution
Dimension
368 (W) x 264.2 (H) x 285 (D) mm
Operating Temperature
Storage Temperature
-20°C ~ 60°C
Storage Humidity
Display
Resolution
Brightness
Touch Panel
Tilt Angle
30°~90° <DC 36W(12V) external power adapter>
Version: 2.0
2-2 Specification
Intel® Core™ i3-2120 processor (3M Cache, 3.30GHz)
Processor
Chipsets: North Bridge/South
Intel® Pentium® G850 processor (3M Cache, 2.90GHz)
Intel® Celeron® G540 processor (2M Cache, 2.50GHz)
H61
Memory
Audio
USB
LCD Panel Size
One SO-DIMM socket supports DDR3 1333MHZ
4GB
Line-out/Mic-in
RJ45 10/100/1000 Base-T
4*USB 2.0
CFast type I / 2.5” SATA HDD / SSD
AMI UEFI BIOS
DC 19V 180W Adaptor
Heat sink + Fan X3
0°C ~ 35°C
20% ~ 80%, non-condensing
15-inch TFT Active Matrix Display
1024*768 Pixels
250 cd/m2
5-wire Resistive Type / Projected Capacitive Type
8 | 95
ClientPOS PT6300 User Manual
Version: 2.0

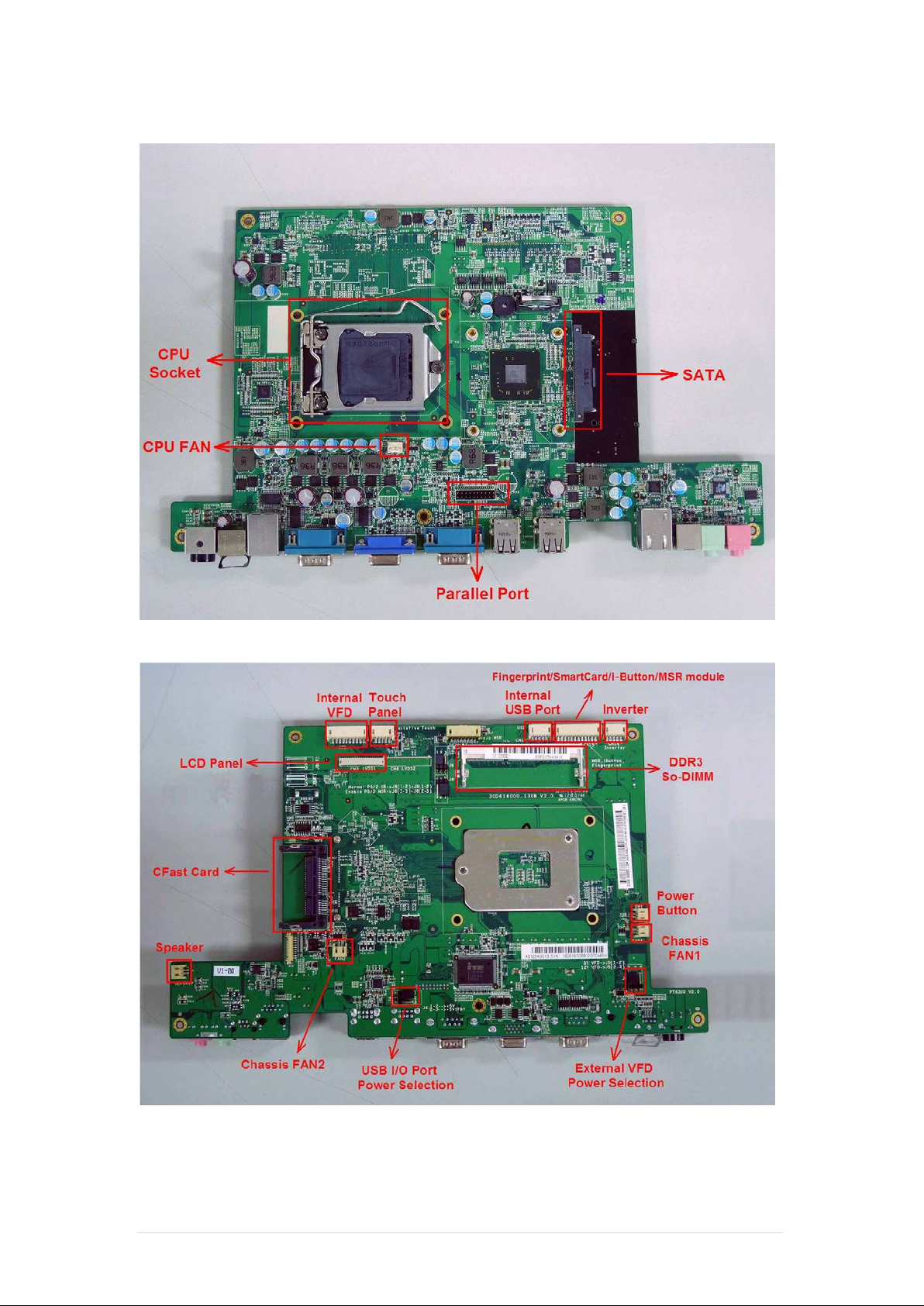

2-3 Internal Layout
9 | 95
ClientPOS PT6300 User Manual
Version: 2.0
2-4 Touch Panel Life Test Condition
2-4-1 Pointing life test
Hit it thirty five million times with a silicon rubber of R 0.8, Hs 60 and measure it. The
measurement must satisfy the under-metioned items. Hitting force shall be 250g and hitting
speed 3 times per second.
- Resistance state should the same 5.1
- Linearity should the same 5.2
- Insulation resistance should the same 5.3
2-4-2 Hand Writing test
Write one hundred thousand times of 40mm straight line to and fro (counts as twice) with and
engineering plastic stylus in AA area. The measurement items must satisfy the
under-mentioned items. Writing force shall be 250g and writing speed 3,000 times per hour.
- Resistance state should the same 5.1
- Linearity should the same 5.2
- Insulation resistance should the same 5.3
10 | 95
ClientPOS PT6300 User Manual

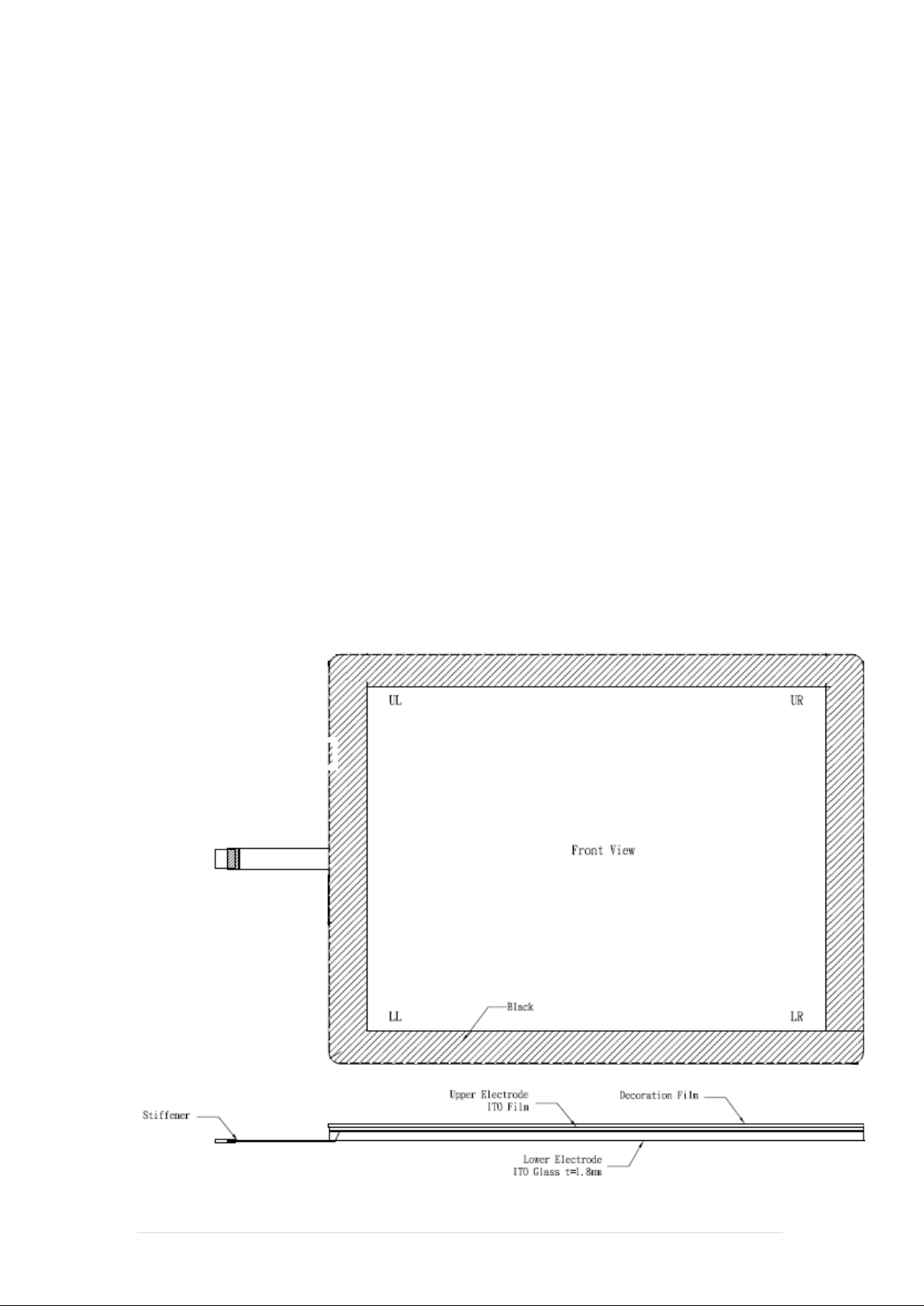

3
1
T_UR
3
T_SG
5
T_LR
2
T_UL
4
T_LL
Pin Definition
3
Version: 2.0
Pin Definition
1. COM 4 for Touch Panel (CN 16)
Pin Function Pin Function Pin Function
2. Parallel J7
Pin NO. Pin Name Description Pin NO. Pin Name Description
1 STB# Printer Strobe 14 AFD# Printer Auto Line Feed
2 PD0 Parallel Port DATA0 15 ERR# Printer Error
3 PD1 Parallel Port DATA1 16 INIT# Printer Initialize
4 PD2 Parallel Port DATA2 17 SLIN# Printer Select Input
5 PD3 Parallel Port DATA3 18 GND Ground
6 PD4 Parallel Port DATA4 19 GND Ground
7 PD5 Parallel Port DATA5 20 GND Ground
8 PD6 Parallel Port DATA6
9 PD7 Parallel Port DATA7
10 ACK# Printer Acknowledge
11 BUSY Printer Busy
12 PE Printer Paper End
13 SLCT Printer Select
3. Lin-out J3
Pin NO. Pin Name Description
1 GND Ground
2 GND Ground
3 Line OUT R Line out
4 Line OUT L Line out
5 Detect Detect
4. VFD Connector CN9
Pin NO. Pin Name Description
1 5V +5V
2 NDSR DSR
3 GND Ground
4 NDTR DTR
5 NRTS RTS
6 NCTS CTS
7 NTXD TXD
8 NRXD RXD
9 GND Ground
10 12C +12V
11 | 95
ClientPOS PT6300 User Manual
Version: 2.0
5. Mic
Pin NO. Pin Name Description
1 GND Ground
2 GND Ground
3 Mic R Mic right
4 Mic L Mic left
5 Detect Detect
6. Speaker SP1
Pin NO. Pin Name Description
1 + Speaker +
2 - Speaker -
7. LVDS CN 2
Pin NO. Pin Name Description Pin NO. Pin Name Description
1 LCDVCC +3.3v 15 CLK+ LVDS CLK+
2 LCDVCC +3.3v 16 GND Ground
3 GND Ground 17 NC NC
4 NC NC 18 NC NC
5 DATA 0- LVDS Output DATA0- 19 GND Ground
6 DATA 0+ LVDS Output DATA0+ 20 NC NC
7 GND Ground
8 DATA 1- LVDS Output DATA1-
9 DATA 1+ LVDS Output DATA1+
10 GND Ground
11 DATA 2- LVDS Output DATA2-
12 DATA 2+ LVDS Output DATA2+
13 GND Ground
14 CLK- LVDS CLK-
8. Inverter CN14
Pin NO. Pin Name Description
1 VCC +12V
2 GND Ground
3 NC NC
4 BKL_CTL Back Light Brightness
5 BKL_EN Back Light Enable
9. Extra USB CN13
Pin NO. Pin Name Description
1 VCC +5V
2 - DATA D3 + DATA D+
4 GND Ground
5 GND Ground
12 | 95
ClientPOS PT6300 User Manual
4
1
CD
Carrier Detect (IN)
6
DSR
Data Set Ready (In)
2
RD
Receive Data (IN)
7
RTS
Request To Send (OUT)
3
TD
Transmit Data(OUT)
8
CTS
Clear To Send (IN)
4
DTR
Data Terminal Ready(OUT)
9
Ring/5V/12V
Setting by BIOS
5
GND
Ground
1
Out
Red Video
9 - Key (Plugged Hole)
2
Out
Green Video
10 - Sync Ground
3
Out
Blue Video
11
In
Monitor ID 0
4
In
Monitor ID 2
12
In
Monitor ID 1
5 - TTL Ground (Monitor S el f Test)
13
Out
Horizontal Sync
6 - Red Analogue Ground
14
Out
Vertical Sync
7 - Green Analogue Ground
15
In
Monitor ID 3
8 - Blue Analogue Ground
Pin
Signal Name
Wire Colour
Comment
1
VCC
Red
Cable Power
2
- Data
White
Data Transfe r
3
+ Data
Green
Data Transfe r
4
Ground
Black
Cable Ground
Shell
Shield
-
Drain Wire
Rear I/O Interface
4
☆
☆☆
COM 3 or internal VFD.)
Version: 2.0
Rear I/O Interface

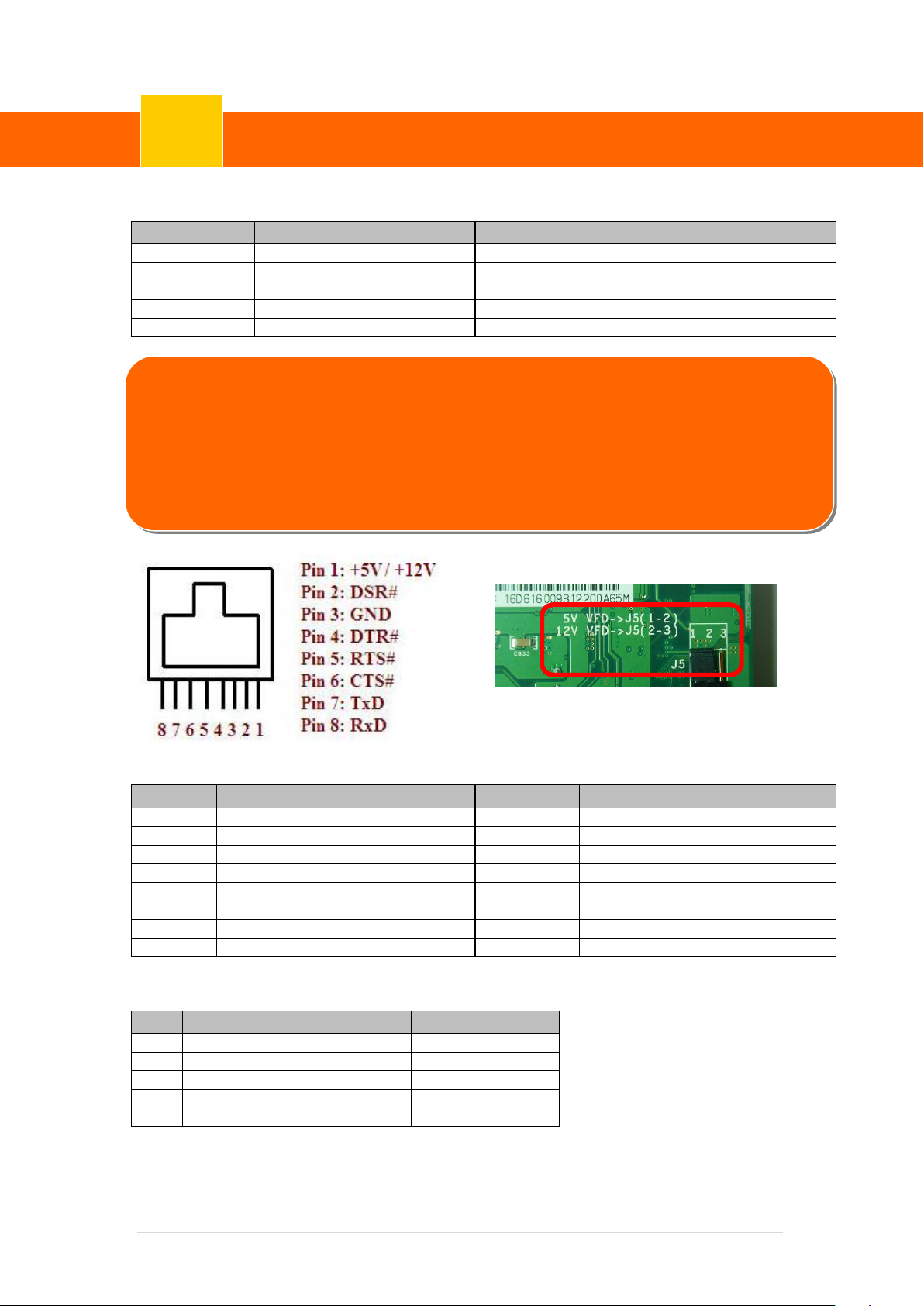

1. COM1’ COM2’ port
Pin Signal Function Pin Signal Function
NOTICE:
Warning!! COM 3 (RJ45 Connector) is for external V FD use on ly.
Do not use on network device. If you use on the network device, it would cause the
device damaged.
COM 3 port can not be connected if POS has built-in internal VFD. (Alternative of
Jumper for COM 3 Voltage Setting
2. VGA port
Pin I/O Function Pin I/O Function
3. USB port
13 | 95
ClientPOS PT6300 User Manual
Pin
Signal Name
1
Data from Device
2
Not Connected
3
Ground
4
+5V DC
5
Clock
6
Not Connected
Pin
Wire Colour
Description
1
White / Orange
Transmit
2
Orange
Transmit
3
White / Green
Receive
4
Blue
Not Used
5
White / Blue
Not Used
6
Green
Receive
7
White / Brown
Not Used
8
Brown
Not Used
Pin
Signal Name
Direction 1 Frame GND
-
2
Drawer Kick-out drive signal 1
Output
3
N/C
-
4
+12V
-
5
N/C
-
6
Signal GND
-
Pin
Signal Name
1
DC IN 19V
2
Ground
Example DOS COMMAND for Cash Drawer:
COPY TEST.TXT COM 5
Version: 2.0
4. PS/2 K/B port
5. LAN port
6. RJ11 port (for Cash Drawer)
7. DC Jack
1. Create the file: TEST.TXT
2. Input below contents in TEST.TXT
CONTEXT-"000.0”
MODE COM5:300
3. Run COMMAND under DOS mode
14 | 95
ClientPOS PT6300 User Manual
UP
System Assembly & Disassembly
5
Version: 2.0
System Assembly & Disassembly
5-1 HDD
1. Unfasten the HDD
cover screw*2
2. Pull out the HDD
bracket
3. Fasten the screw*4
4. Place the HDD
bracket back to the
module

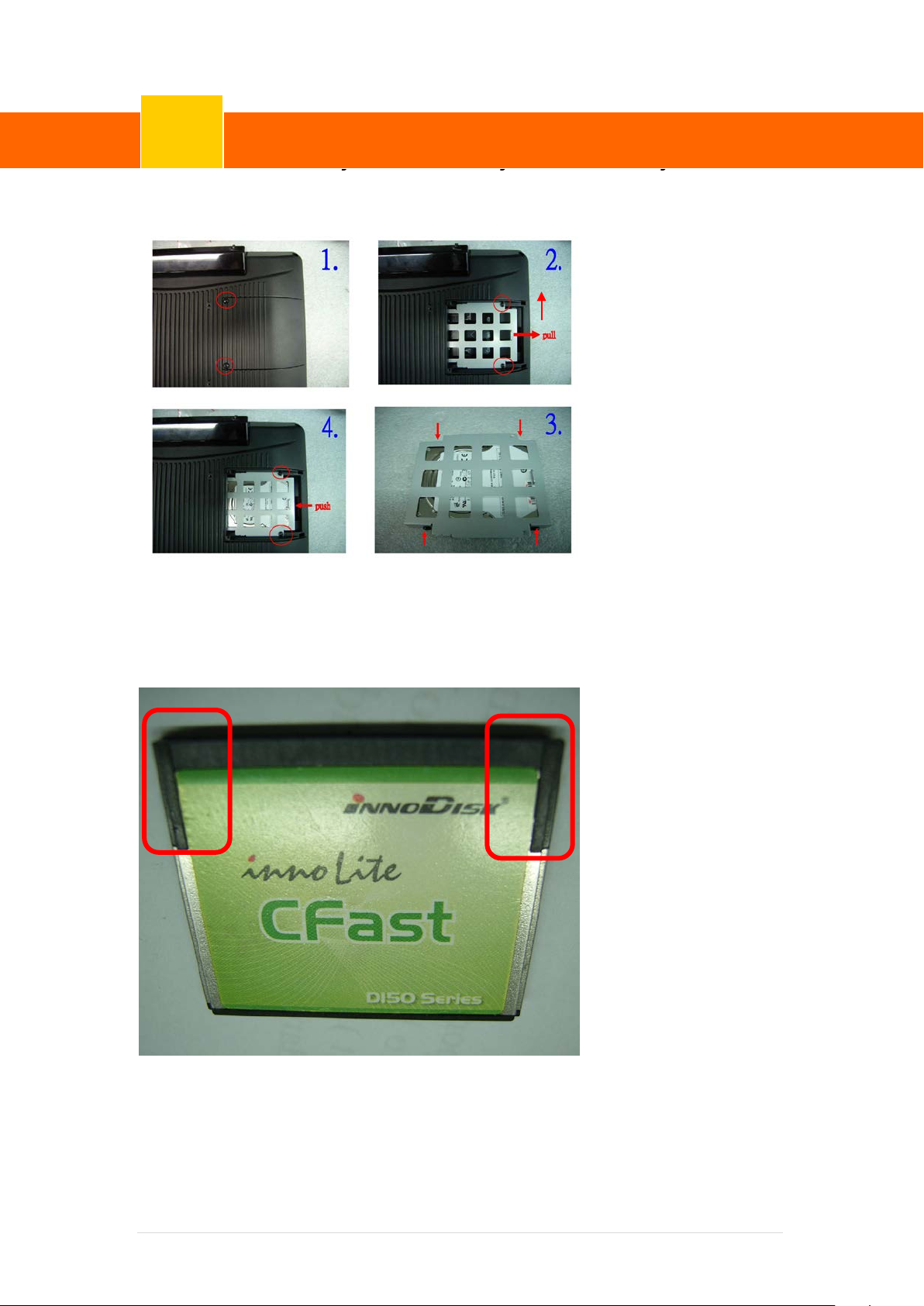

5-2 CFast Card

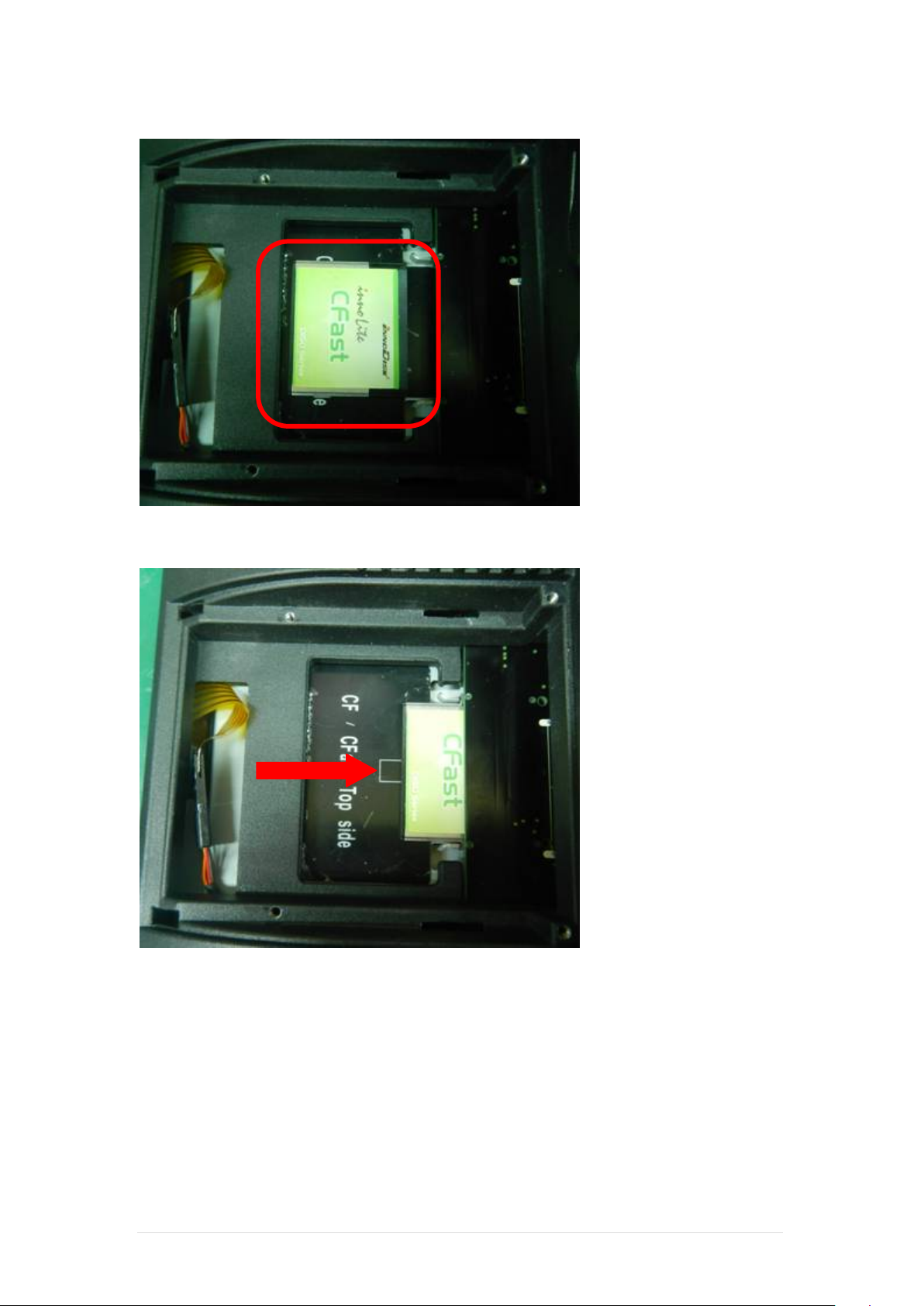

1. Please notice the unnotched CFast Card . This side up.
15 | 95
ClientPOS PT6300 User Manual
Version: 2.0
2. Before Installing CFast Card.
3. After Installing CFast Card
16 | 95
ClientPOS PT6300 User Manual
Version: 2.0
5-3 MSR

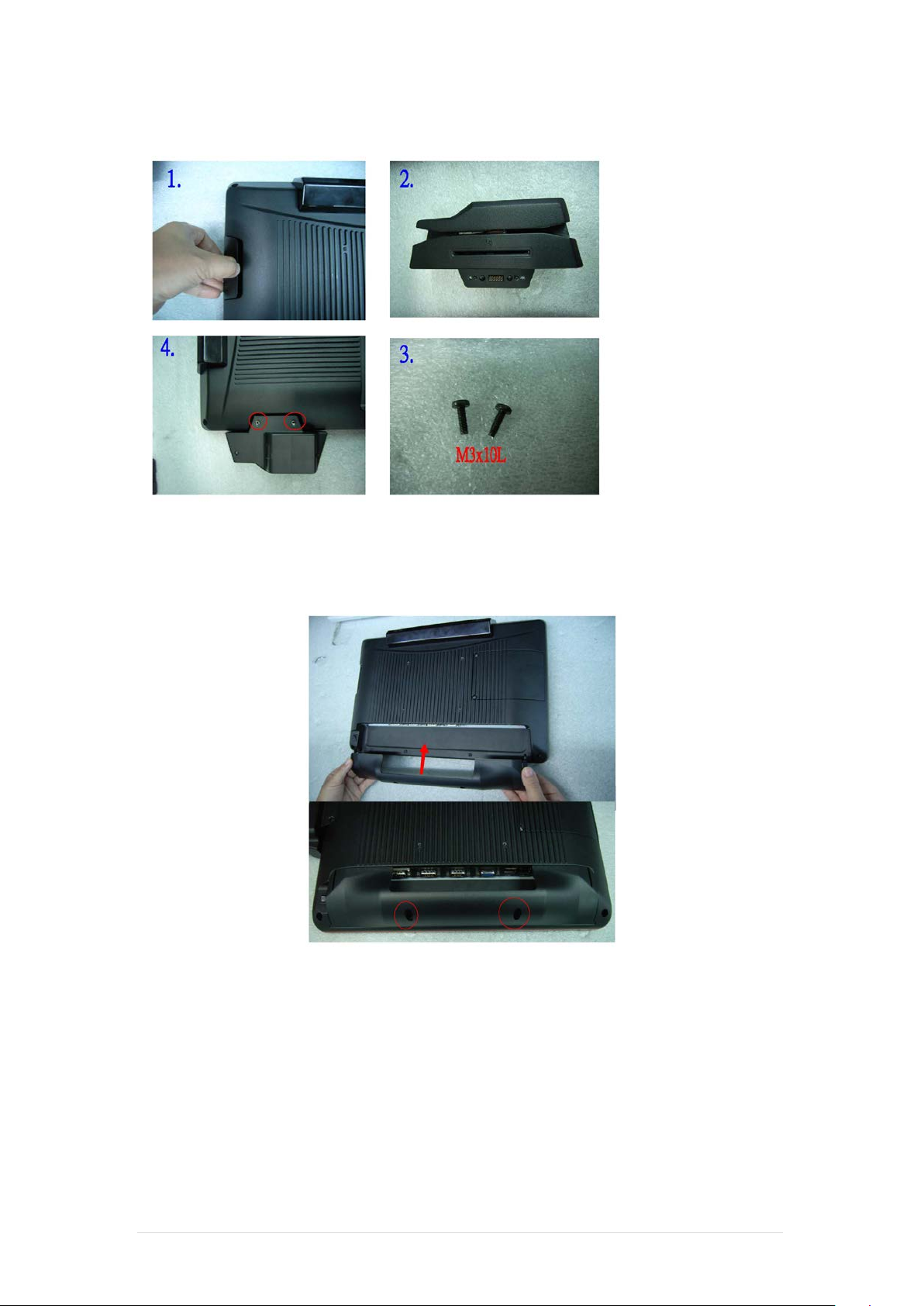

1. Open the MSR
cover
2. Single MSR or
3-in-1 MSR
3. Screw*2 M3x10L
4. Fasten the screw
5-4 cable cover
Assemble the cable cover from bottom and m ake sure the two latc hes are on t he right po sition.
Then fasten 2 screws (M3*5L).
17 | 95
ClientPOS PT6300 User Manual
Version: 2.0
5-5 15” 2nd Display

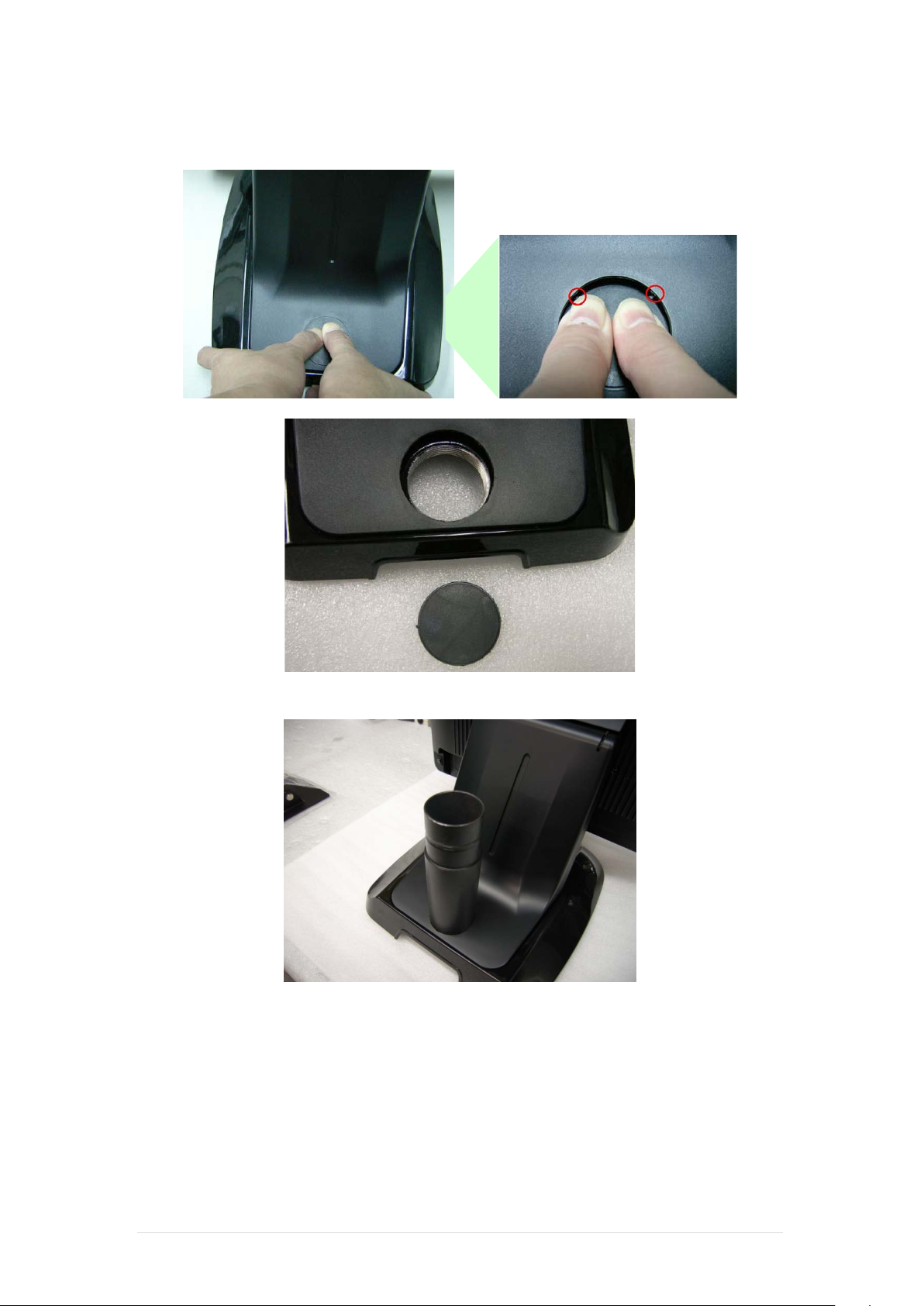

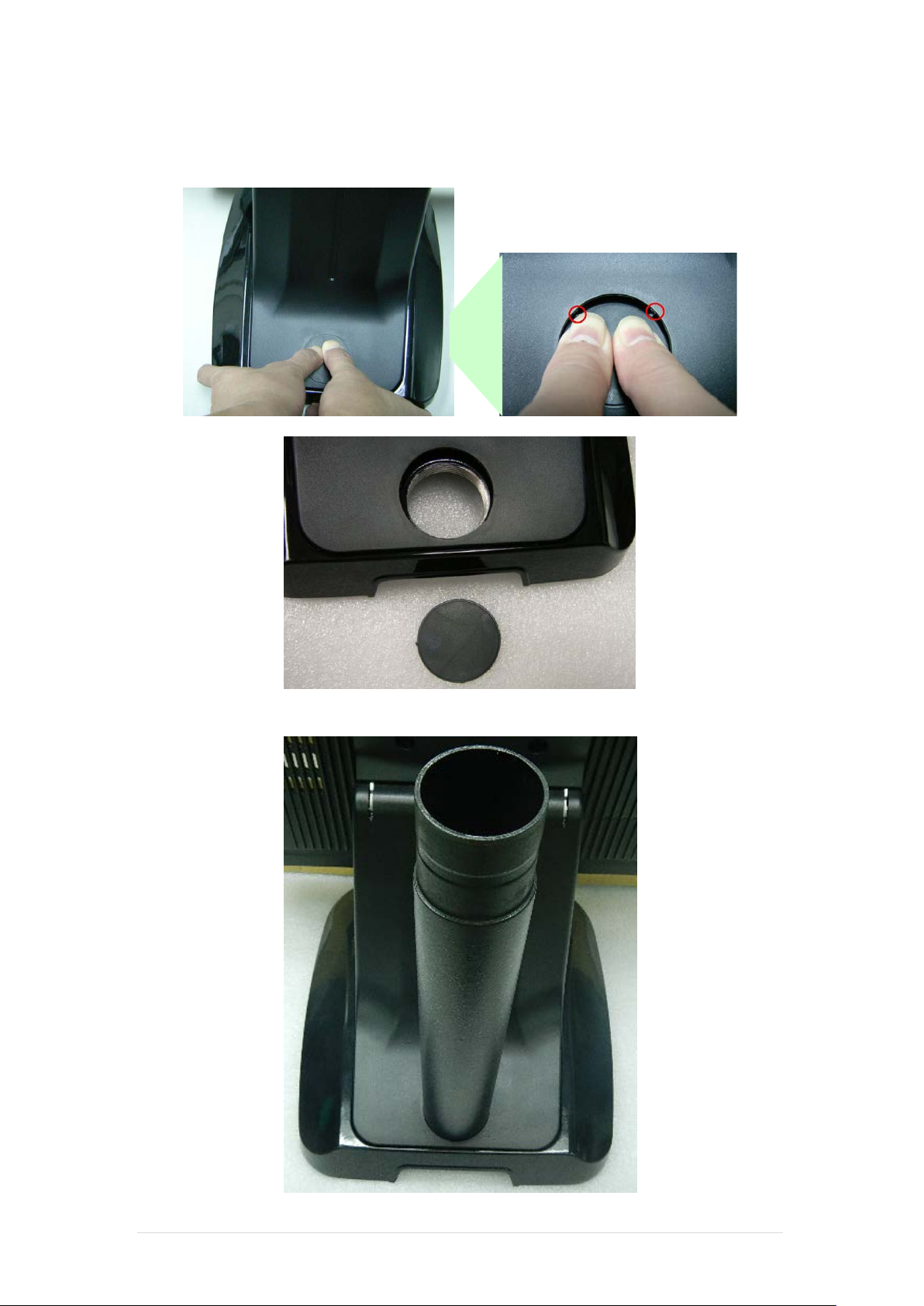

1. Remove the plastic pole cover from the stand.
2. Install the pole into the socket in cloc kwise direction.
18 | 95
ClientPOS PT6300 User Manual
2
3
1

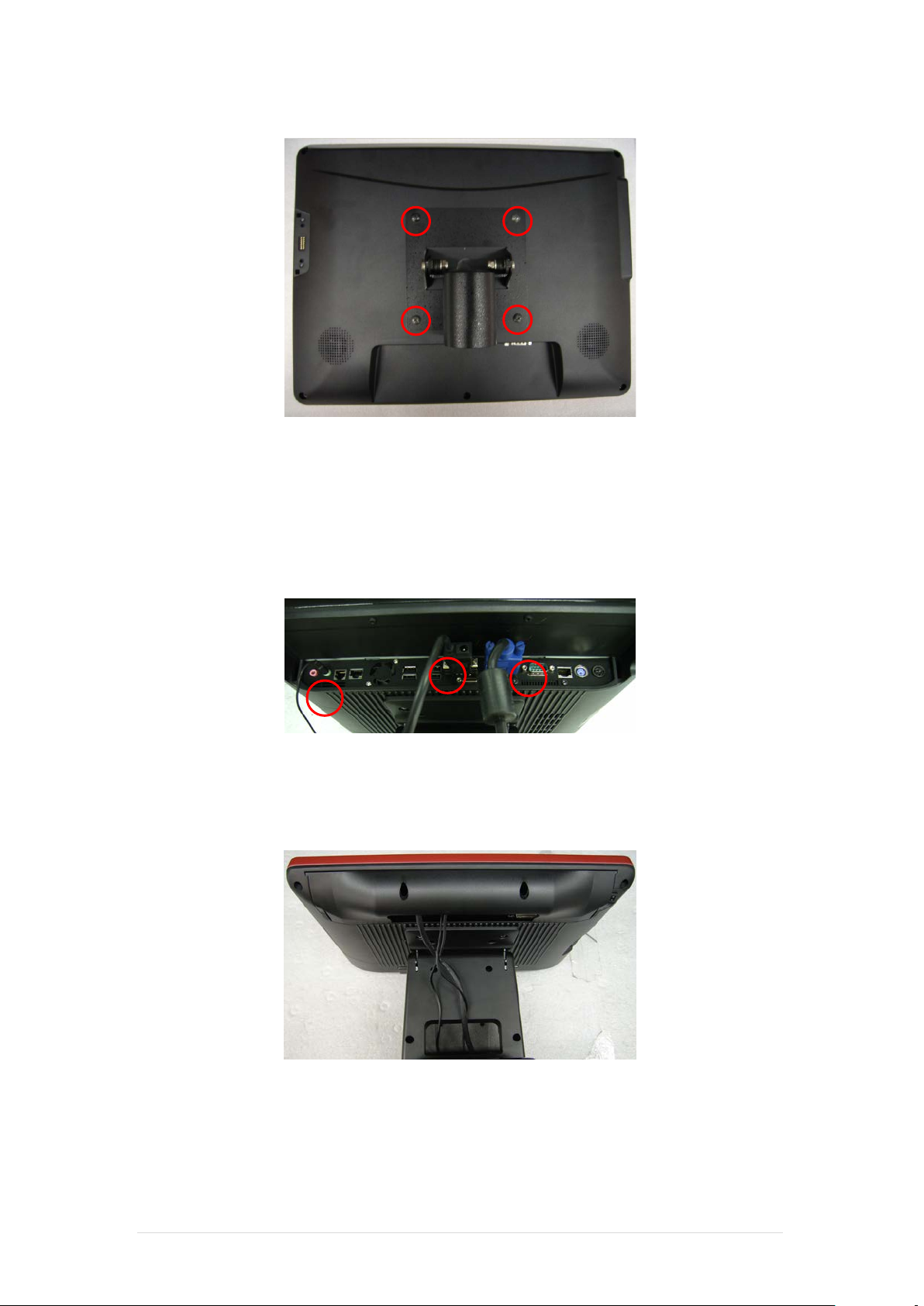

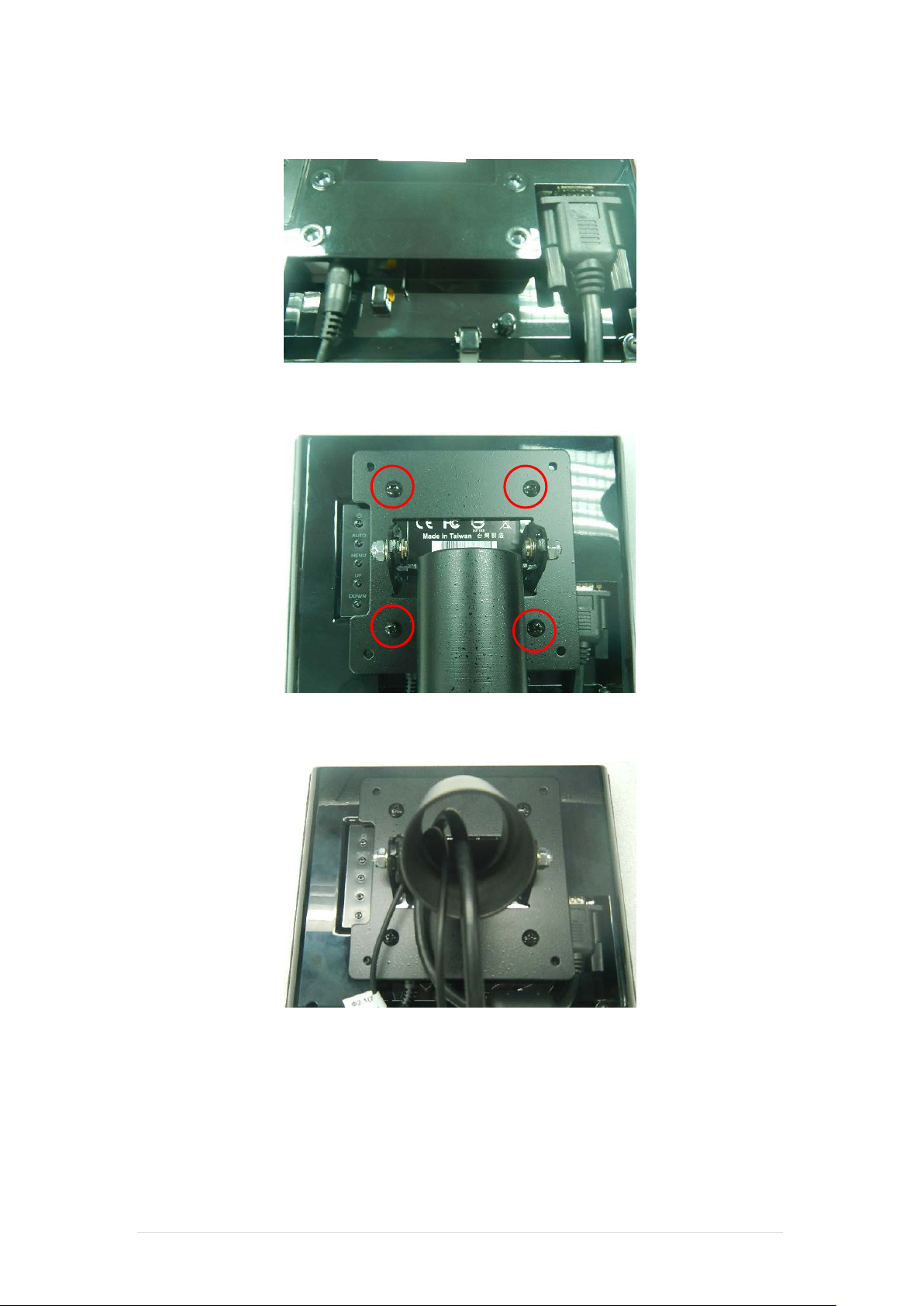

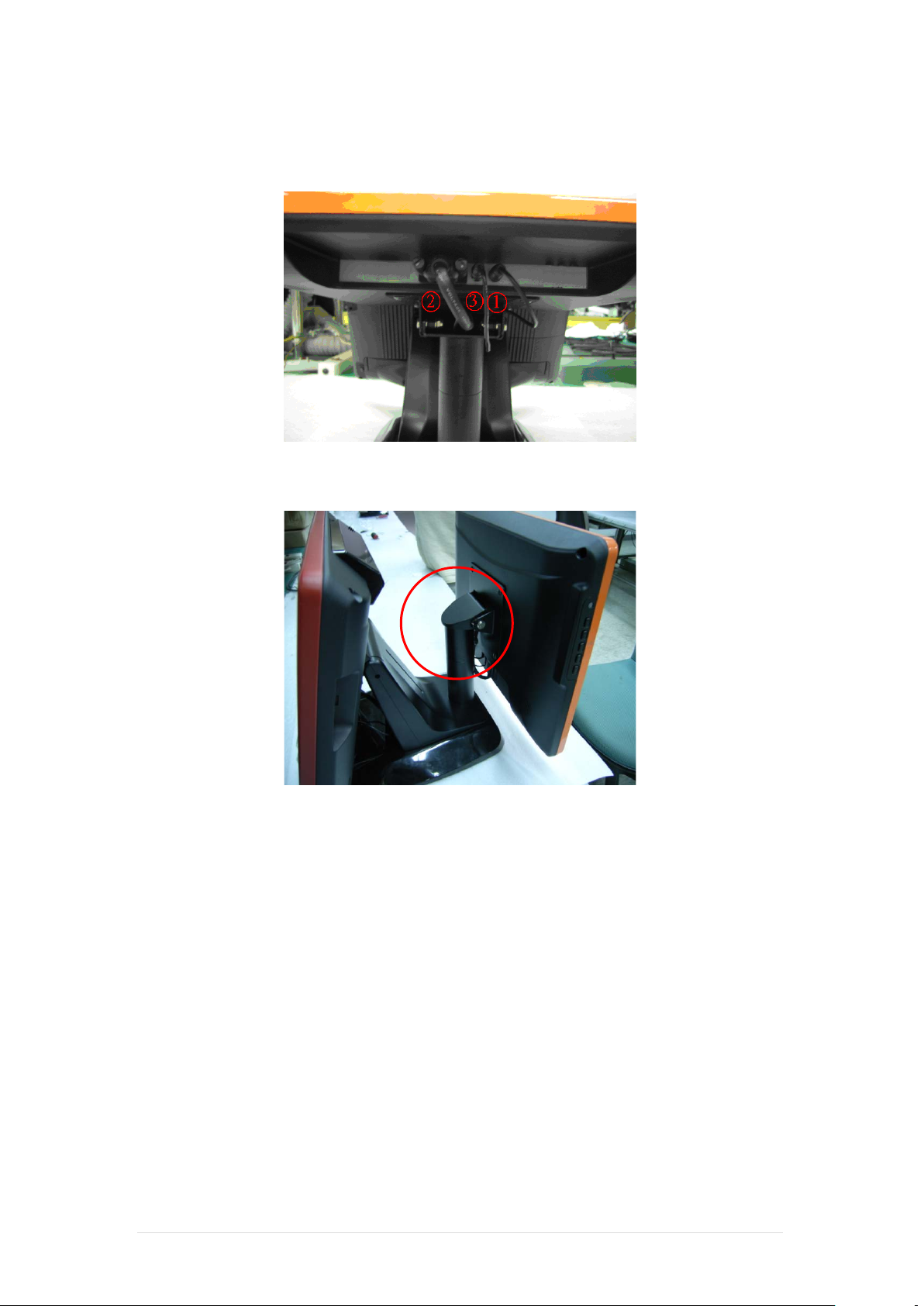

3. Fasten the four screws (M4*8L) to joint the VE SA bracket and the rear cover.
Version: 2.0
4. Connect the COM port, DC cable as shown in figure. (Please ref er to p age 89 to set the
COM port pin9 with 12V DC output.)
5. Connect the VGA cable as shown in figure
6. Connect the audio cable as shown in figure
.
.
7. Assemble the cable cover from bottom and make sure the two latches are on the right
position, and fasten the two screws (M3*5L).
19 | 95
ClientPOS PT6300 User Manual

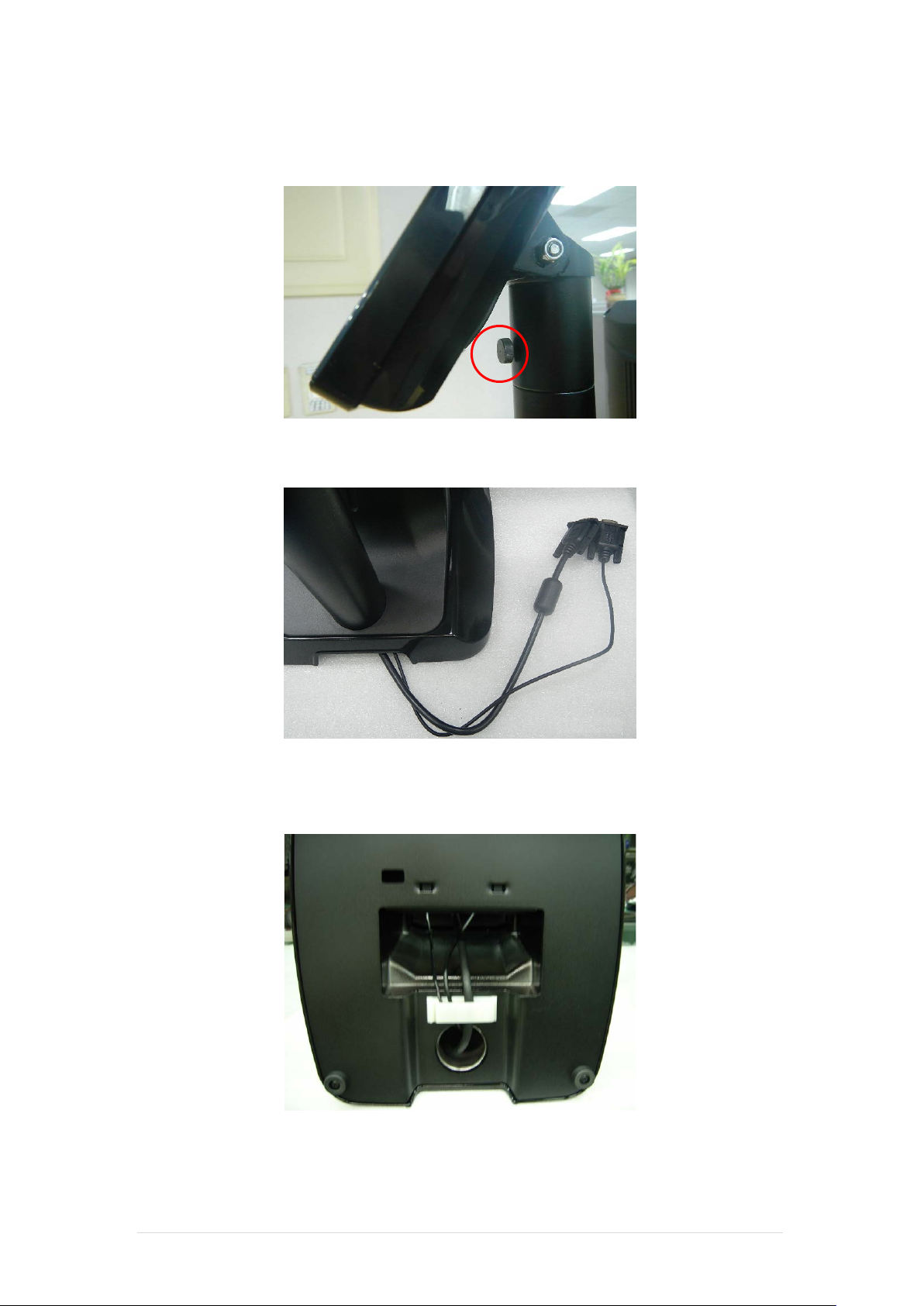

8. Route the cables through the opening of stand front cover and cable clip at the bottom
Version: 2.0
and route the cables into the tube of pole.
9. Reeve the cables out of the tube.
10. Mount the VESA bracket on the pole and route cables out of the tube of VES A bracket.
Fasten the thumb screw to fix the VESA bracket.
20 | 95
ClientPOS PT6300 User Manual

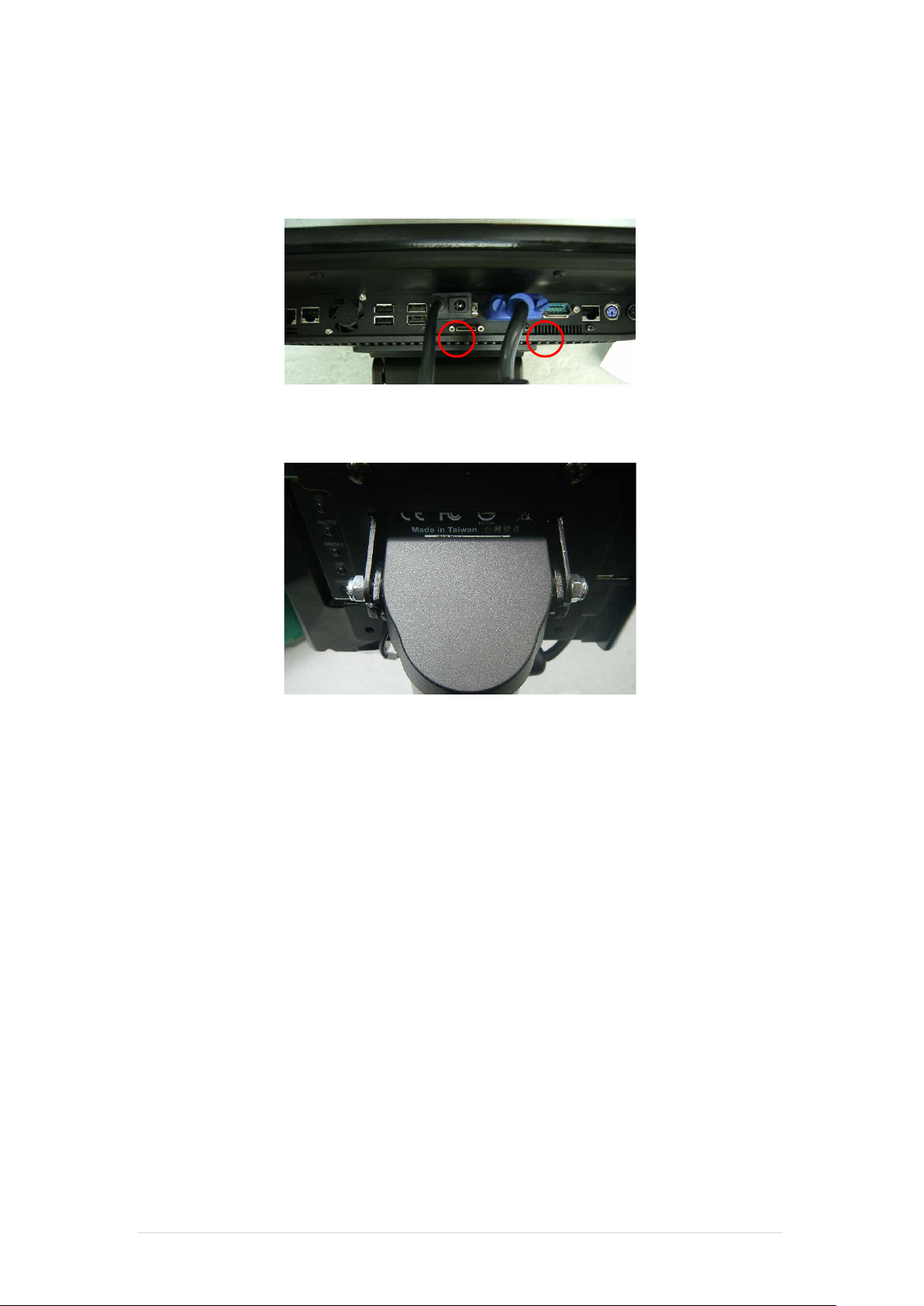

11. Connect the DC power cable as shown in figure.
12. Connect the VGA cable as shown in figure.
13. Connect the Audio cable as shown in figure.
Version: 2.0
14. Put the cable cover on the hinge of VESA bracket.
21 | 95
ClientPOS PT6300 User Manual
Operation

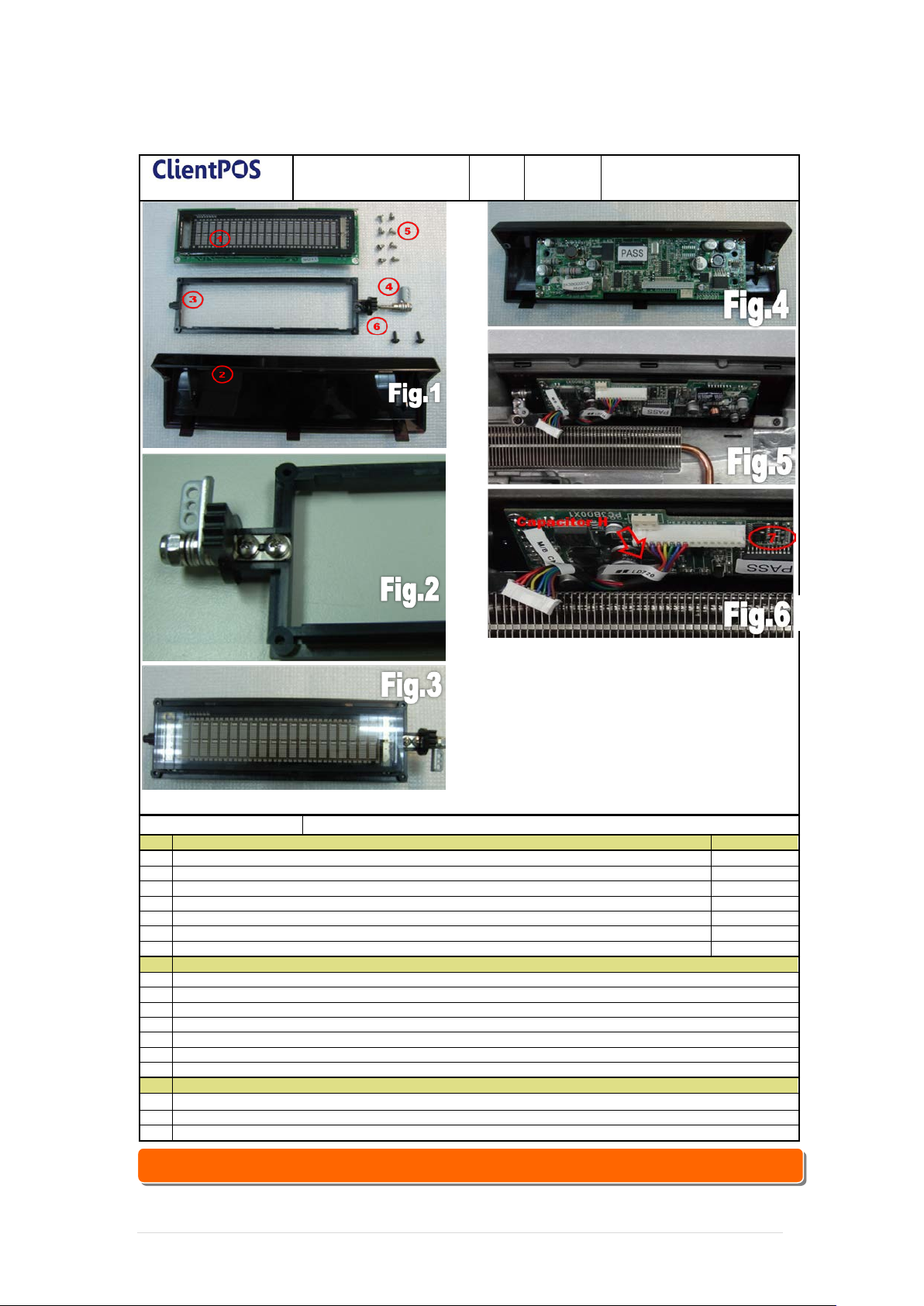

VFD MODULE assemblely
Item
Operation procedure
Remark
1
Prepare all components as Fig 1
2
Assemble HOLDER & HINGE ASSY by TAPPING SCREW P/H 2.6φ*5 x2 pcs(As Fig 2)
Torque 2Kgf
3
Fix VFD MODULE on holder assy by TAPPING SCREW P/H 2.6φ*5 x4 pcs as Fig 3
Torque 2Kgf
4
Screw DISPLAY MODULE on VFD cover by TAPPING SCREW P/H 2.6φ*5 x 2pcs AS fig 4)
Toqure 2Kgf
5
Fix VFD moduler on Rear cover by TAPPING SCREW R/H M3*8L x 2pcs (As Fig 5)
Torque 2Kgf
6
The VFD CABLE must be around to capacitor H below, so as not to interfere HINGE action
(As Fig 6)
Item
P/N and Component
1
20D990002-000B DISPLAY MODULE VFD *1
2
68D350235-000B COVER FOR VFD *1
3
78D300021-000B HOLDER FOR VFD *1
4
26D100005-000B HINGE ASSY FOR VFD *1
5
64D426051-000T SCREW TAPPING P/H 2.6φ*5 *8
6
64D430088-000T SCREW TAPPING R/H M3*8L *2
7
35D510480-000B CABLE 16P femail TO 8P female *1
Item
Action item
1
Wear cotton gloves ﹑ wrist strap and may not wear watches, rings, etc.
2
Screws to lock in place and can not lost
3
Electric screwdriver Torque to be regularly calibrated,
☆ Alternative of external COM 3 (RJ45 Connector) or Internal VFD.
Version: 2.0
5-6 Internal VFD
ClientPOS electronics
Inc.
Model PT6300 Assembling Figure
22 | 95
ClientPOS PT6300 User Manual
Version: 2.0
5-7 Wi-Fi

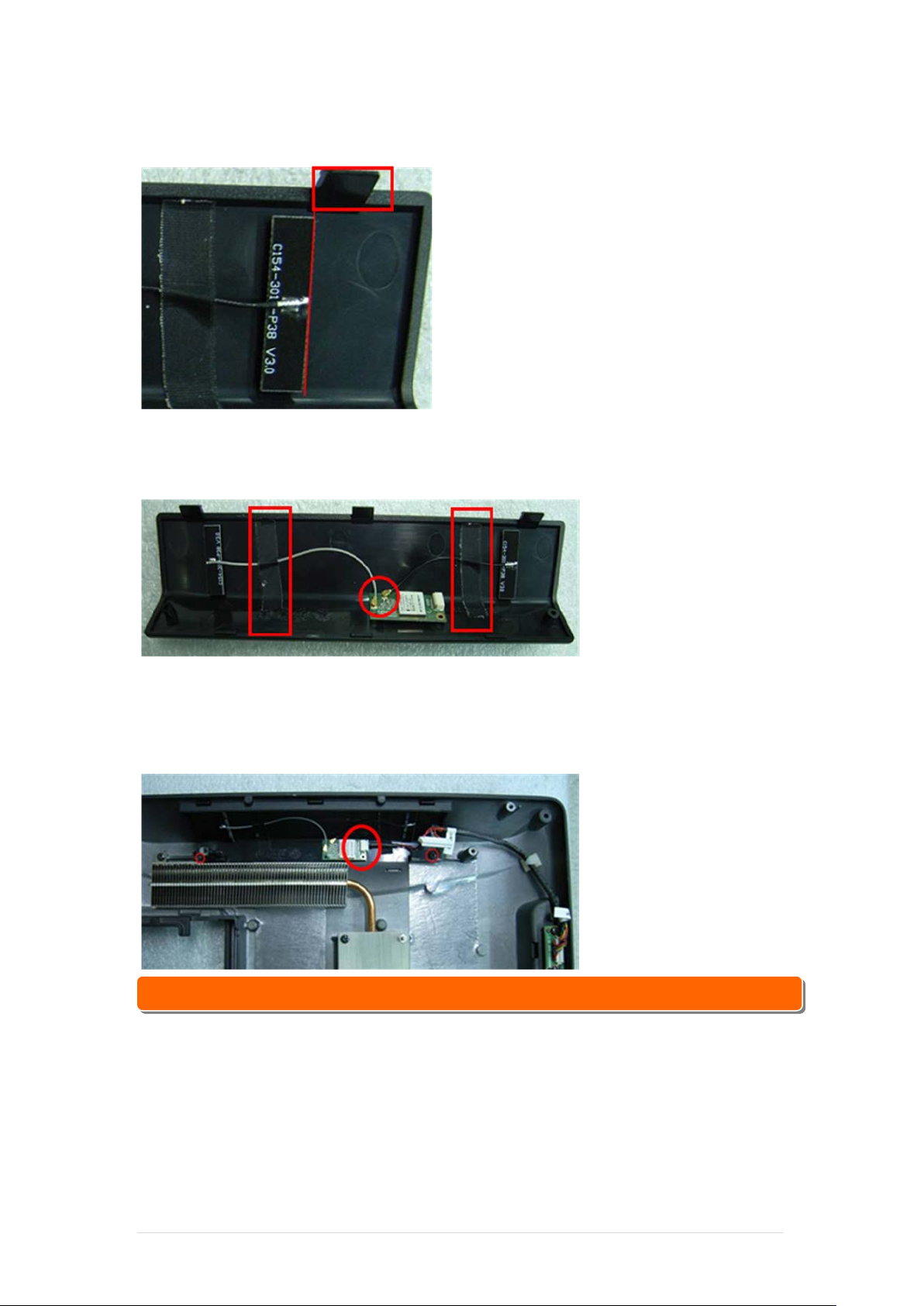

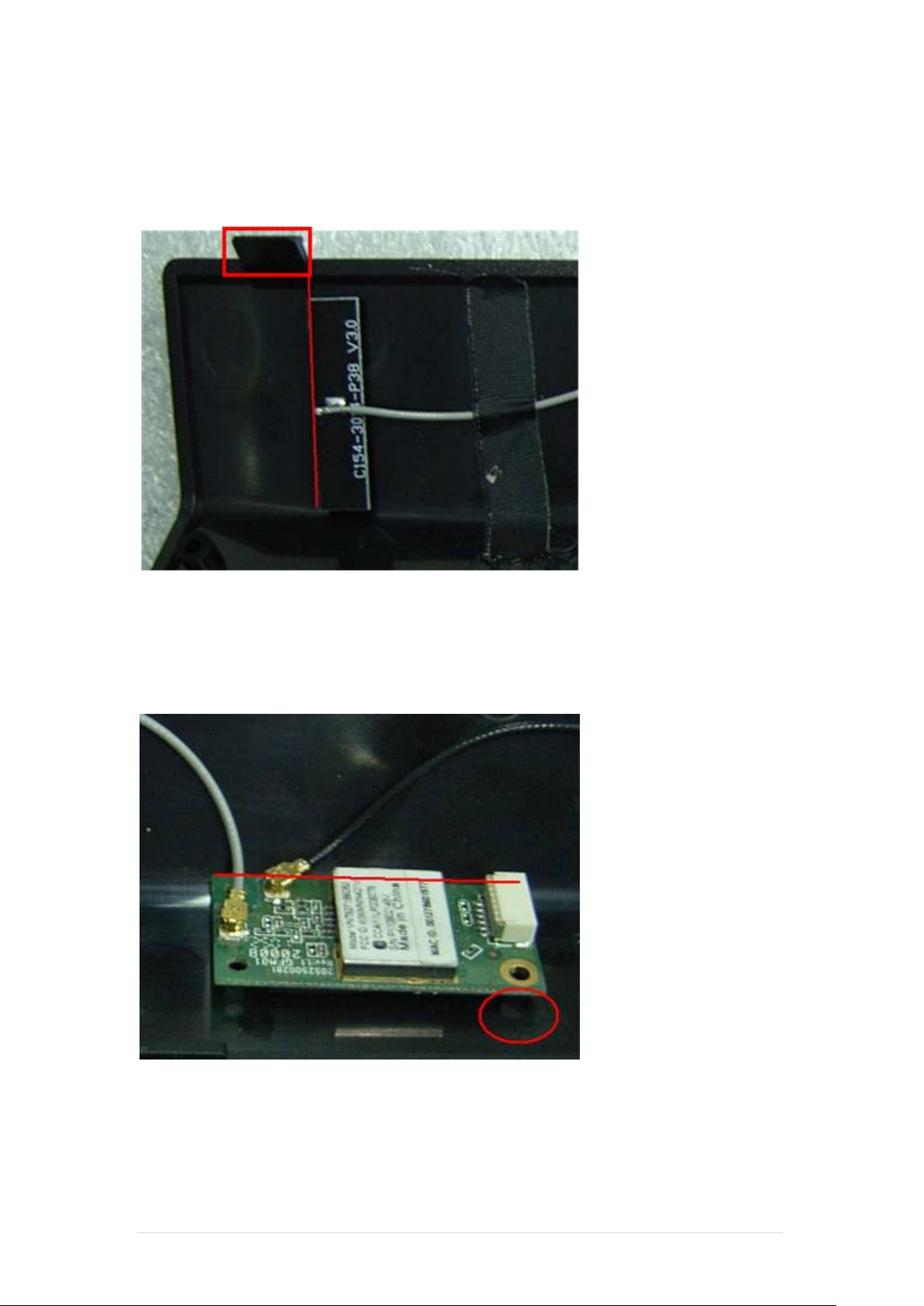

1. Fasten antenna (Part No.: 35D510530-000B) to the left side of V F D cover. Antenna is
vertical to the right of the left snap(as the red frame) as shown in the figure below
2. After fastening the Wi-Fi Module to the Rubber (Part No.: 78D200655-000T), fix this on
the VFD cover. The left side of Wi-Fi module should align the interior cover as the
position of the red line. The right side of Wi-Fi module should align another side as the
red circle.
23 | 95
ClientPOS PT6300 User Manual
☆ Alternative of WiFi or Internal VFD.
Version: 2.0
3. Fasten antenna (Part No.: 35D510530-000B) to the right side of VFD cover. Antenna is
vertical to the left snap (as the red fram e) as shown in the figure below.
4. Fasten antenna cable connector to Wi-Fi module terminal. Then fasten antenna cable to
the cover by adhesive tapes
5. Fasten the VFD cover to the rear lid. Push the snap of the top VFD cover into the slot of
rear lid and fasten the bottom cover with 2 screws (Part No.: 64D430088-000T). Then
connect Wi-Fi /MSR cable (Part No.:35D510522-000B) to Wi-Fi module
24 | 95
ClientPOS PT6300 User Manual
Version: 2.0
5-8 8” 2

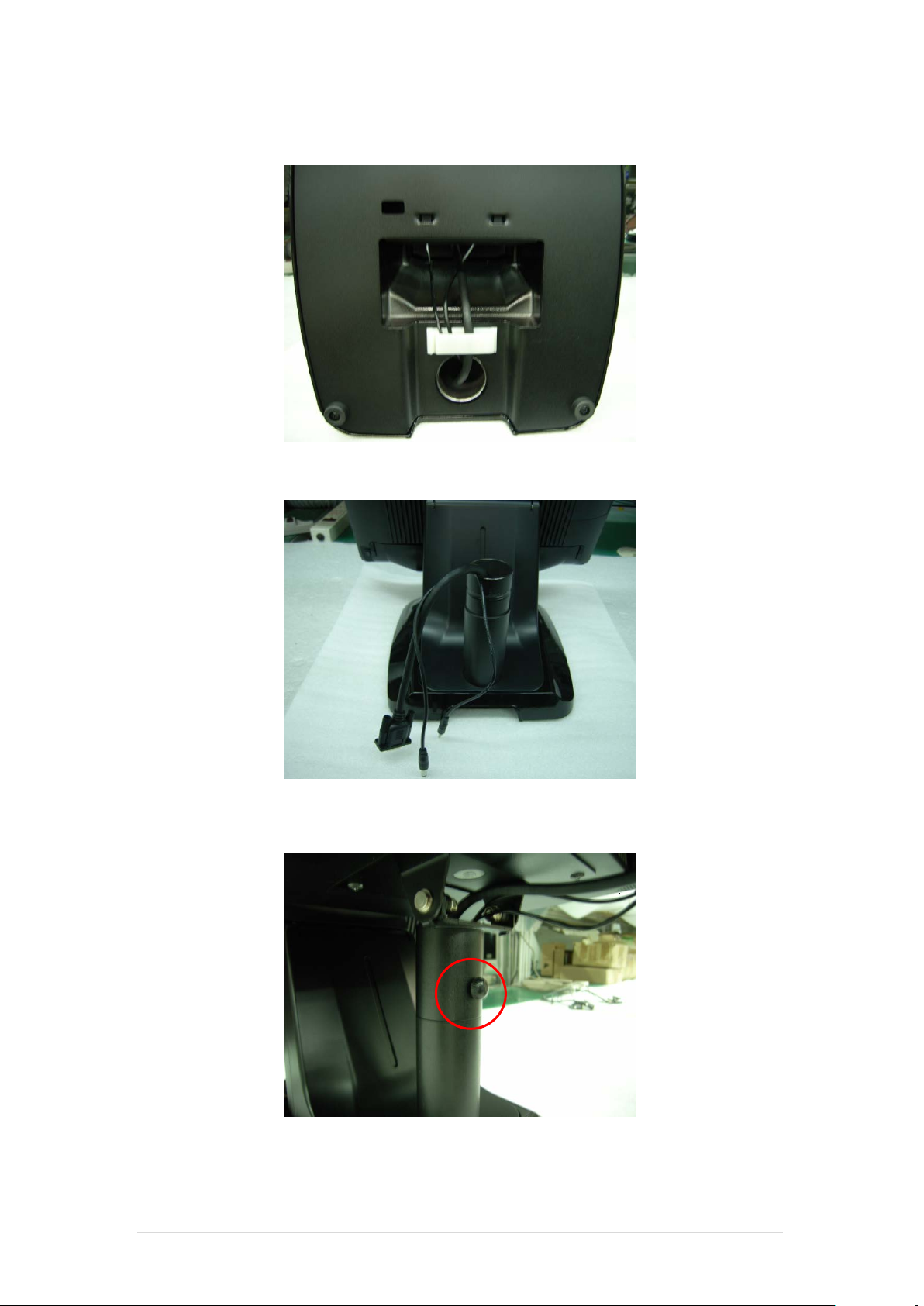

1. Remove the plastic pole cover from the stand.
nd
Display
2. Install the pole into the socket in clockwise direction.
25 | 95
ClientPOS PT6300 User Manual
Version: 2.0
3. Connect VGA cable and DC power cable

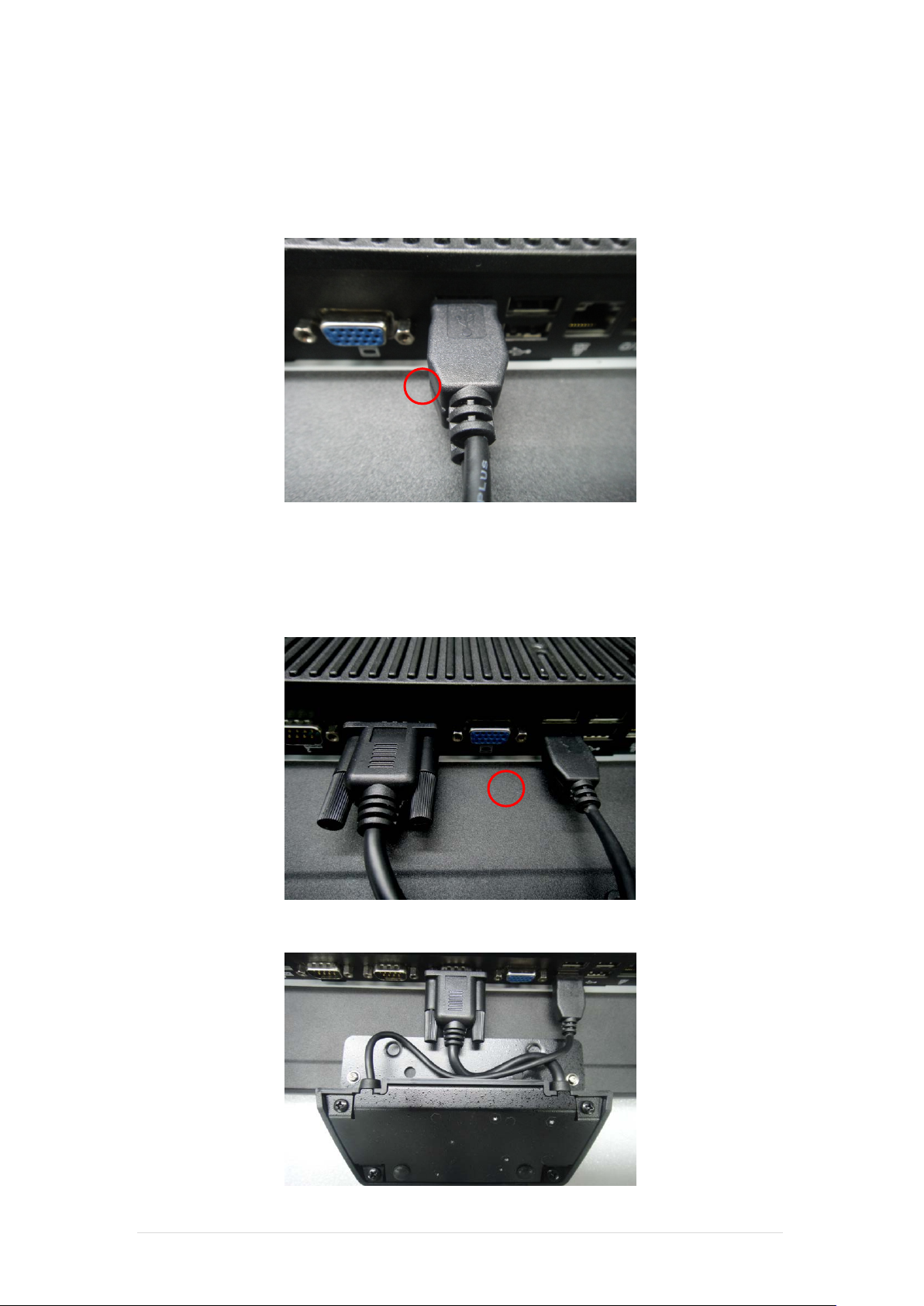

4. Fasten the four screws (M4*8L) to joint the VESA bracket and the rear cover.
5. Reeve the cables out of the tube.
26 | 95
ClientPOS PT6300 User Manual
Version: 2.0
6. Mount the VESA bracket on the pole and route cables out of the tube of VESA bracket.
Fasten the thumb screw to fix the VESA bracket.
7. Reeve the cables out from the bottom of pole.
8. Route the cables through the opening of stand front cover and cable clip at the bottom
and route the cables into the tube of pole.
27 | 95
ClientPOS PT6300 User Manual
☆
2
1
9. Connect the DC power cable as shown in figure.
To setup COM port PIN9 with 12V DC output from BIOS setup, please refer to page 89,
Advanced Chipset Features / COM port PIN9 setting.
10. Connect the VGA cable as shown in figure.
Version: 2.0
11. Put the cable cover on the hinge of VESA bracket.
28 | 95
ClientPOS PT6300 User Manual
☆
1
2
Version: 2.0
5-9 1D / 2D / i-Button with RFID module
1. Cable installation.
a. For i-Button with RFID module; For 2D barcode scanner with RFID module:
Connect the cable as shown in figure.
b. For 1D barcode scanner with RFID module:
Connect the cable as shown in figure.
Before COM port cable connection, please setup COM port PIN9 with 5V DC
output from BIOS setup.
Please refer to page 89, Advanced Chipset Features / COM port PIN9 setting.
2. Fix the screws as shown in below figure.
29 | 95
ClientPOS PT6300 User Manual
6
Device Driver Installation
6

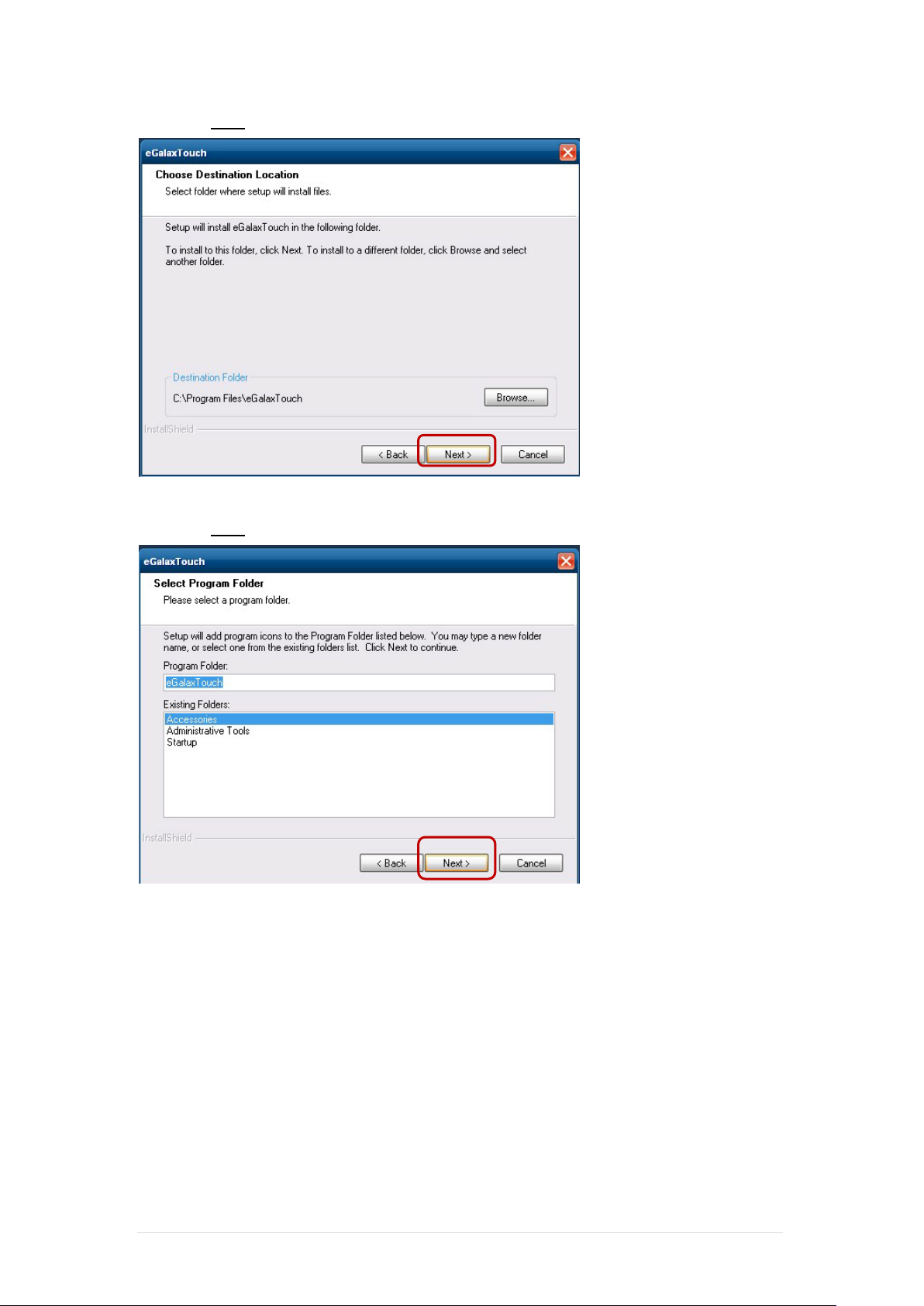

6-1. Resistive Type Touch Panel and P-CAP

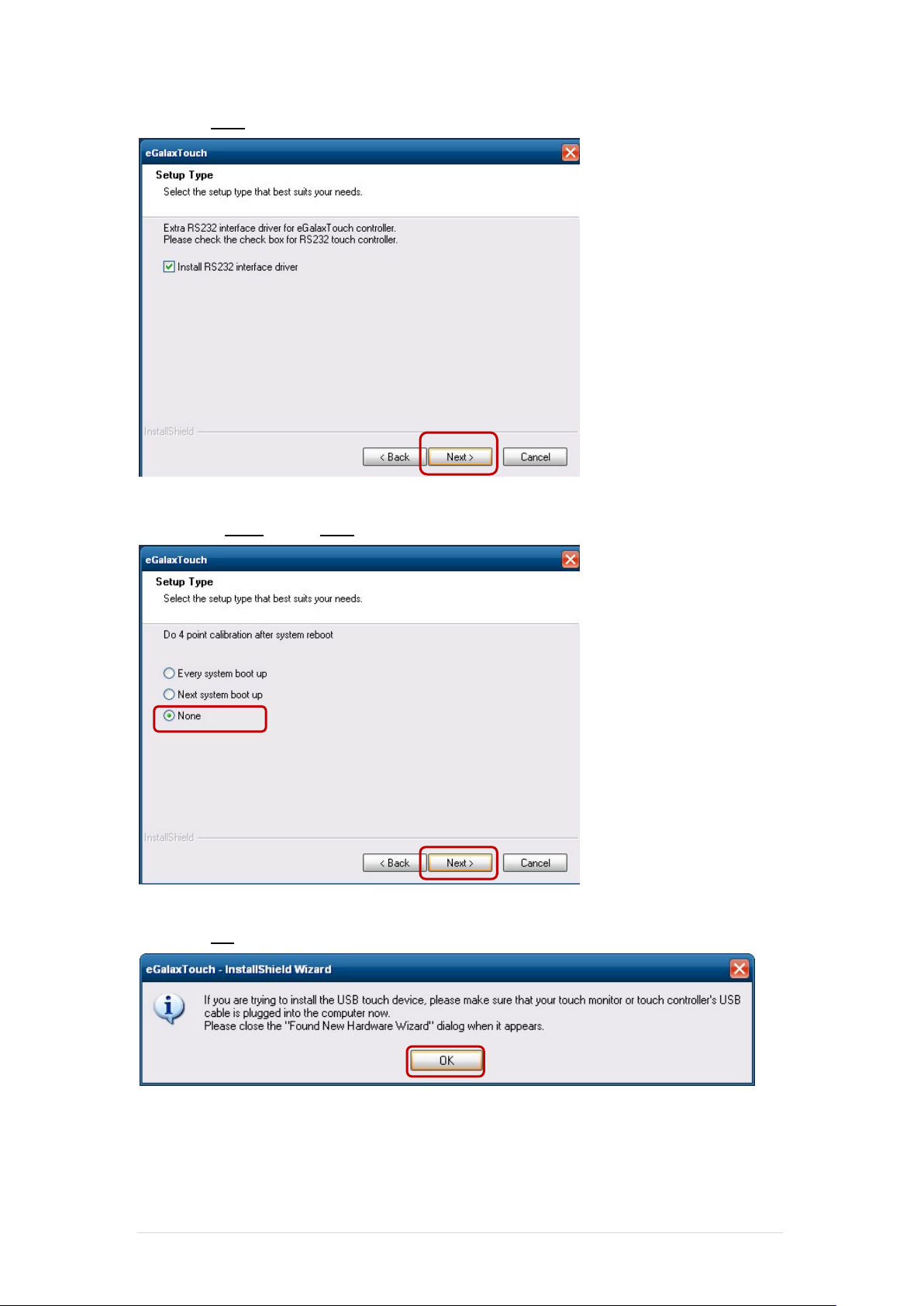

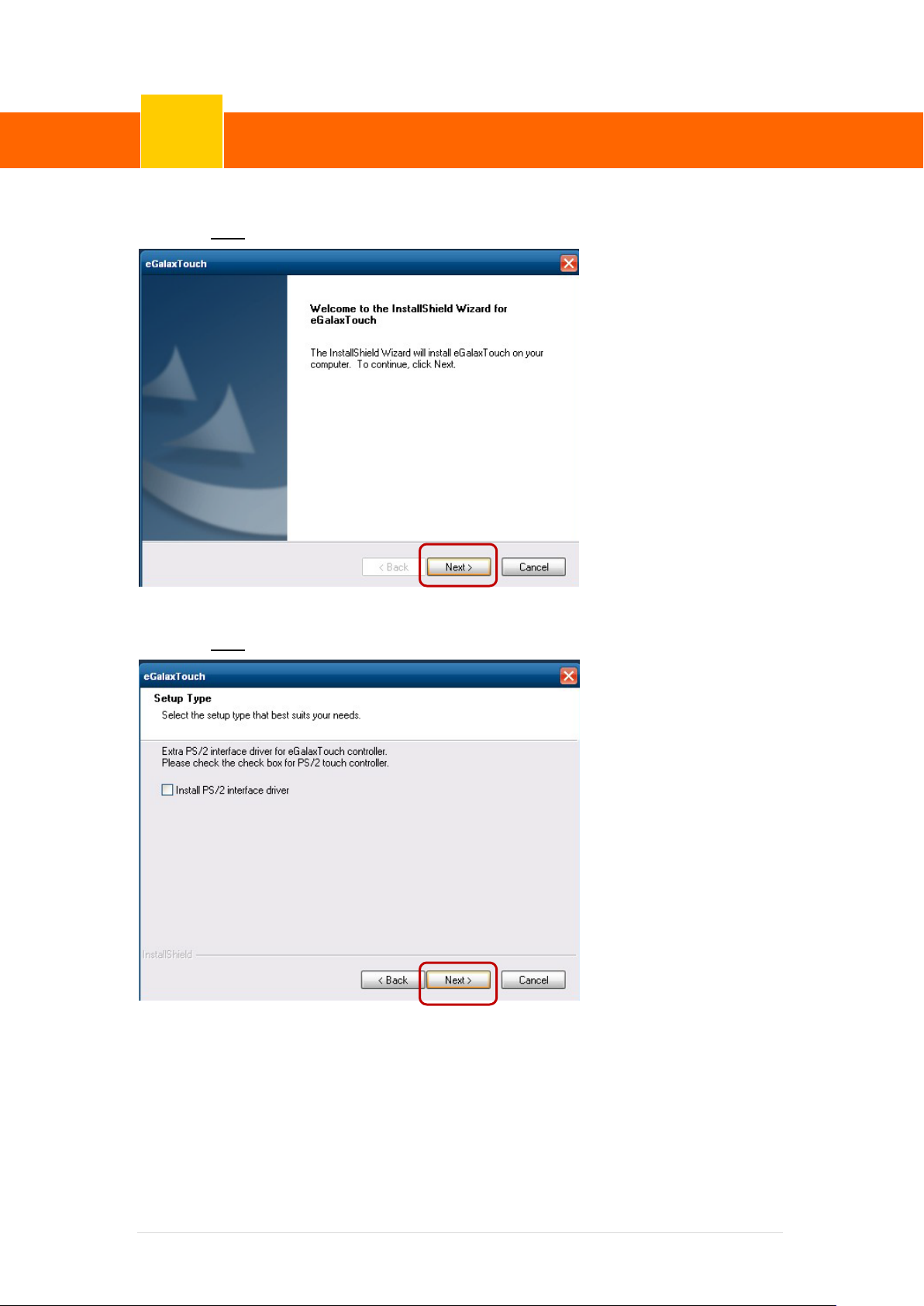

1. Click “Next”.
Device Driver Installation
Version: 2.0
2. Click “Next”.
30 | 95
ClientPOS PT6300 User Manual
3. Click “Next”.
Version: 2.0
4 . Select “None”, Click “Next”.
5. Click “OK”.
31 | 95
ClientPOS PT6300 User Manual

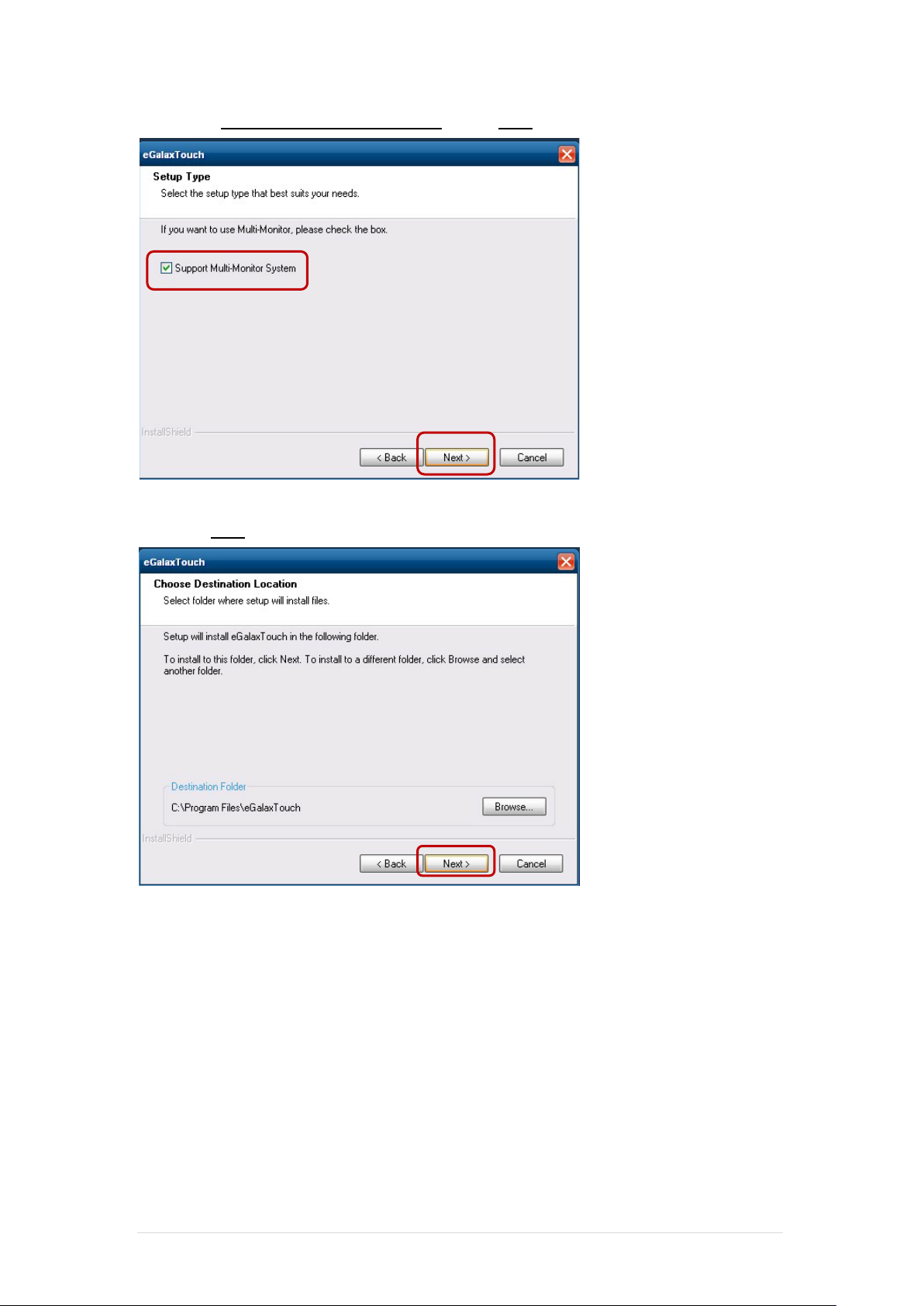

6. Select “Support Multi-Monitor System”, Click “Next”.
Version: 2.0
7. Click “Next”.
32 | 95
ClientPOS PT6300 User Manual
8. Click “Next”.
Version: 2.0
9. Click “Next”.
33 | 95
ClientPOS PT6300 User Manual
Version: 2.0

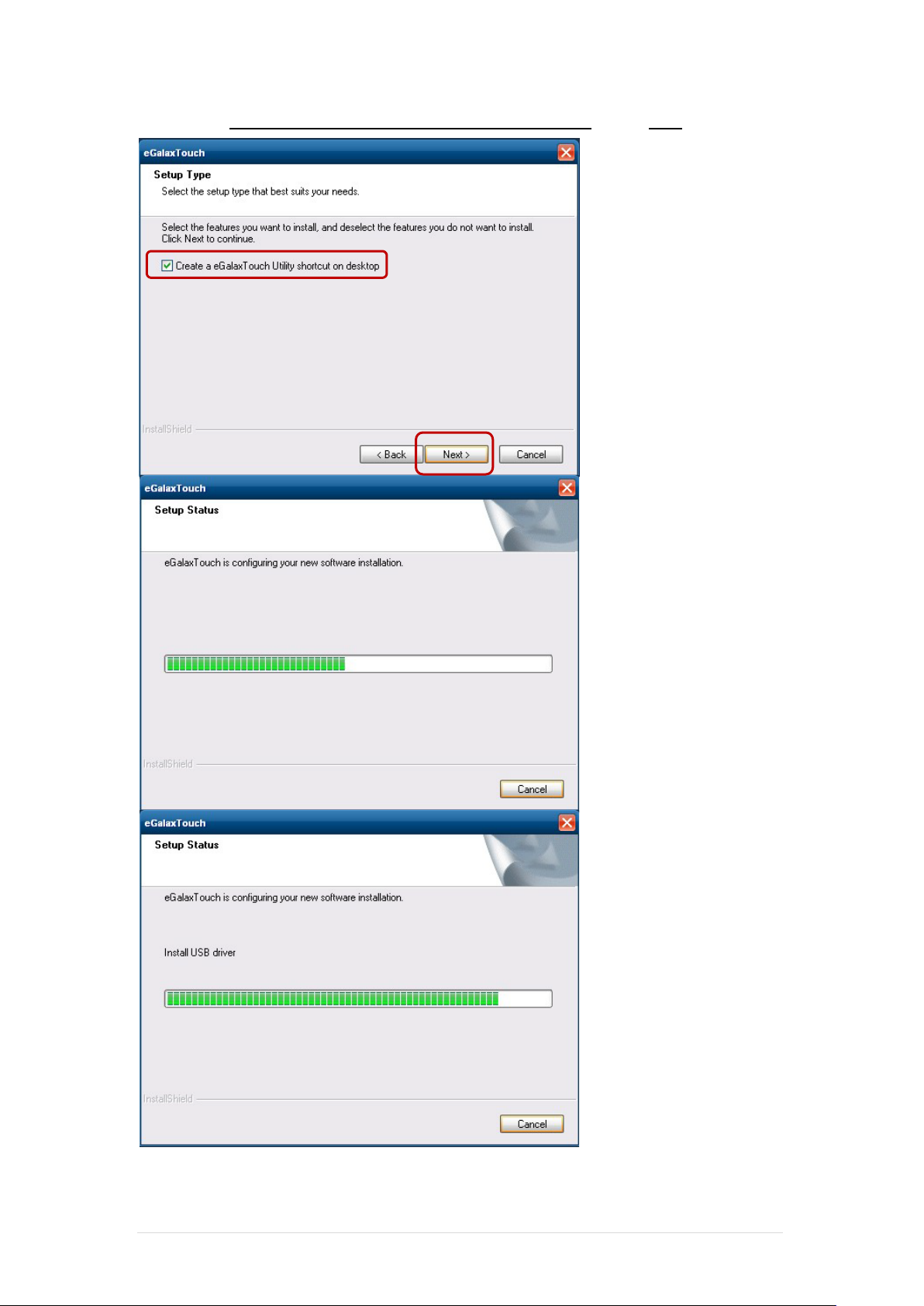

10. Select “Create a eGalaxTouch Utility shortcut on desktop”, Click “Next”.
34 | 95
ClientPOS PT6300 User Manual
Version: 2.0

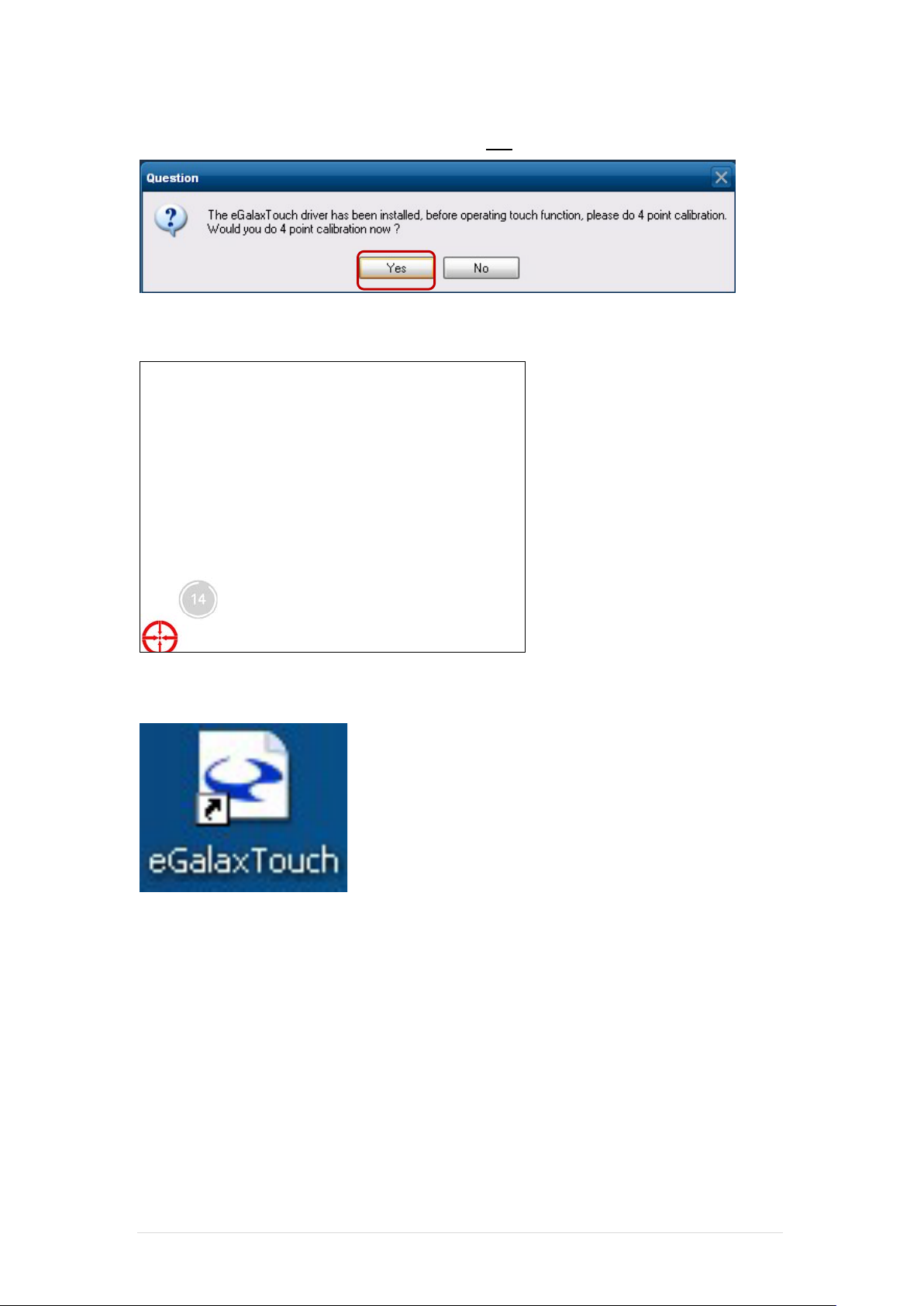

12. Would you do 4 point calibration now? Click “Yes”.
13. Do 4 points aligrment to match display.
14. Calibration utility.
35 | 95
ClientPOS PT6300 User Manual
Version: 2.0
6-2 MagStripe Card Reader Configuration Utility
The MagStripe Card Reader Configuration Utility is used to set up the output format of HID
MSR
Installation
Below steps guide you how to install the Utility program.
Insert the setup CD
Run the HID_MSR_PSW00003_V2_0_0.exe setup file t hat is located in the Software
folder of CD.
Follow the wizard to complete the installation.
Launching Program
Below steps guide you how to load the Utility program.

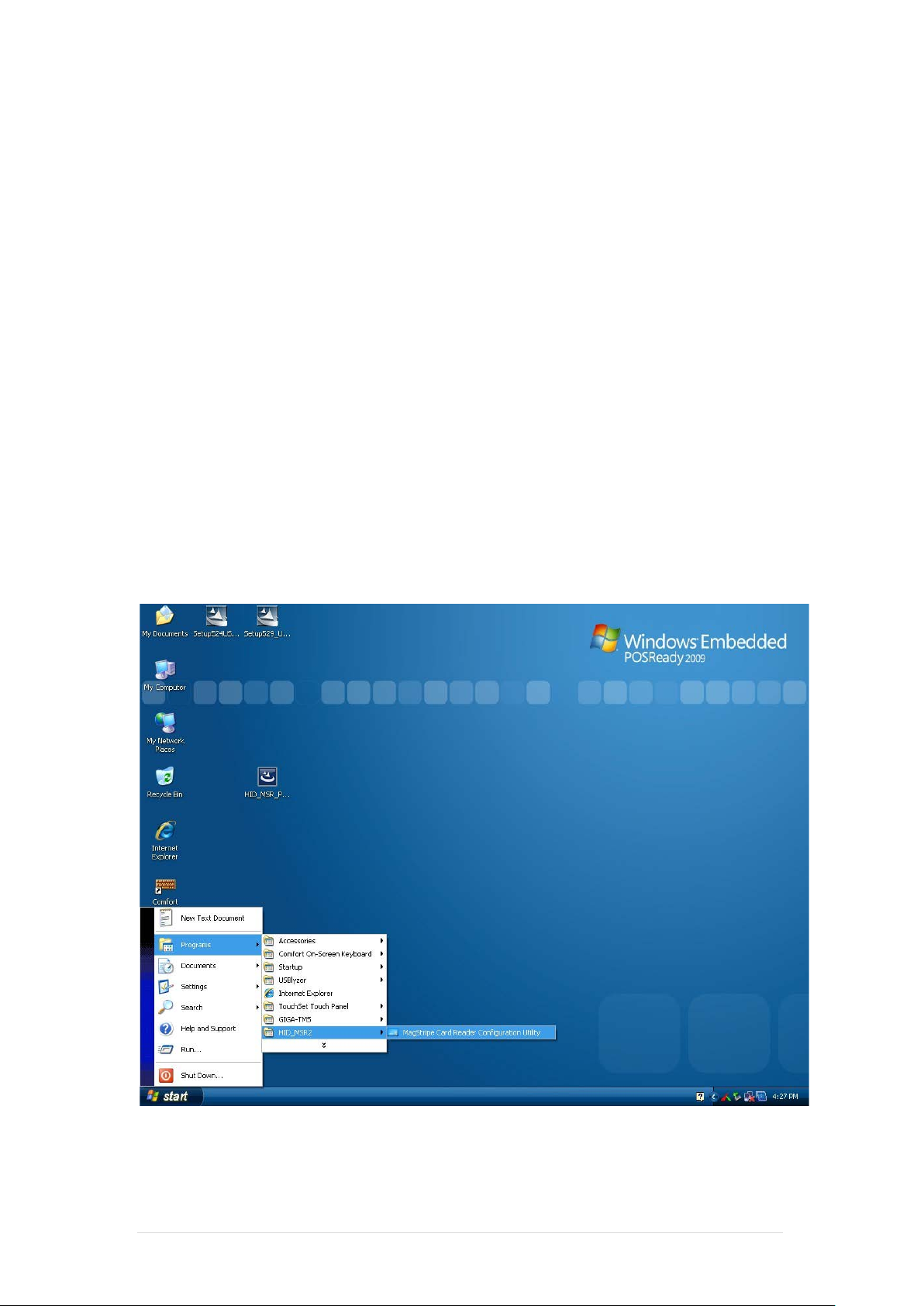

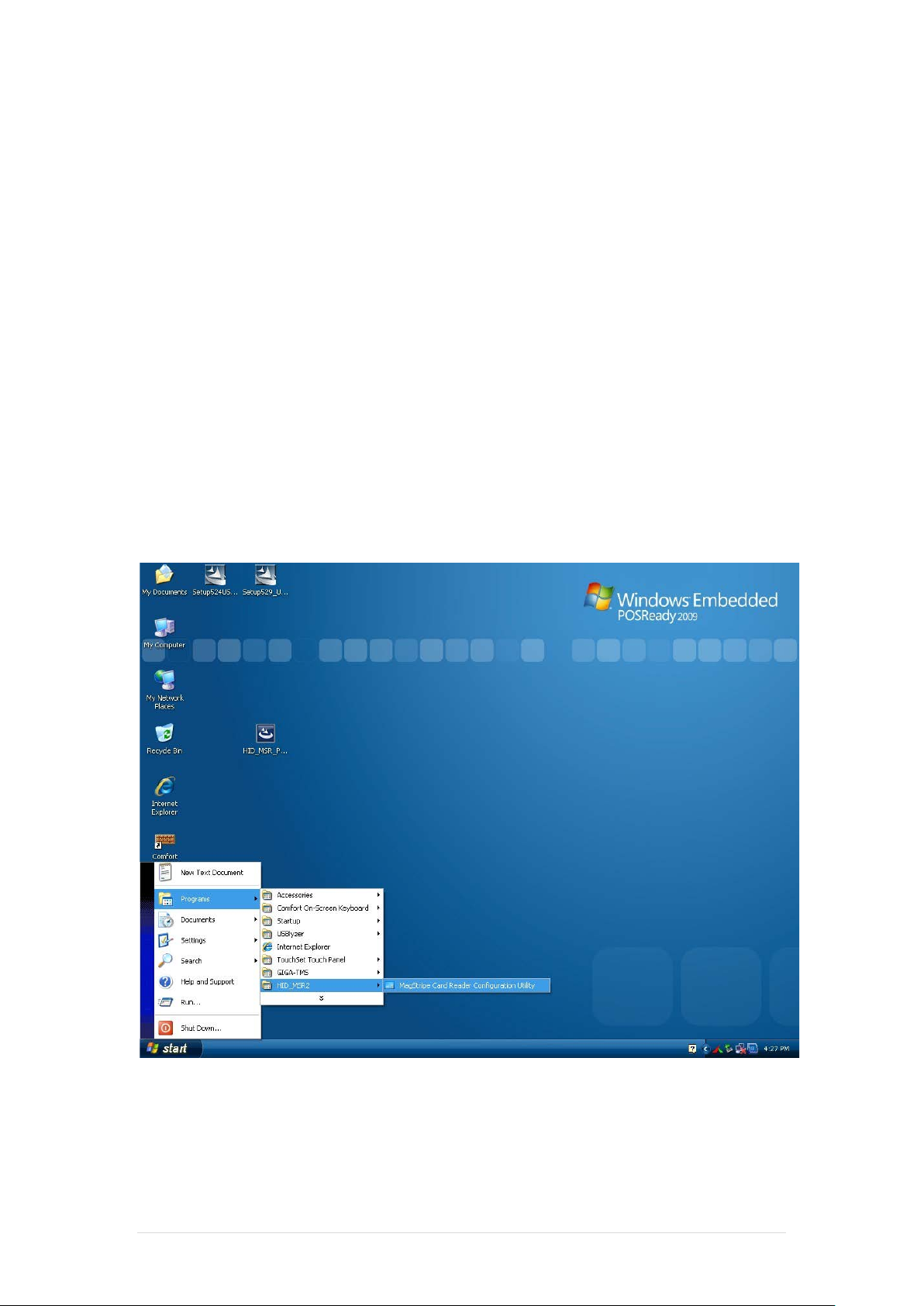

From Start/Programs, click HID_MSR2 folder
Click MagStripe Card Reader Configuration Utility to launch the program.
36 | 95
ClientPOS PT6300 User Manual
Version: 2.0

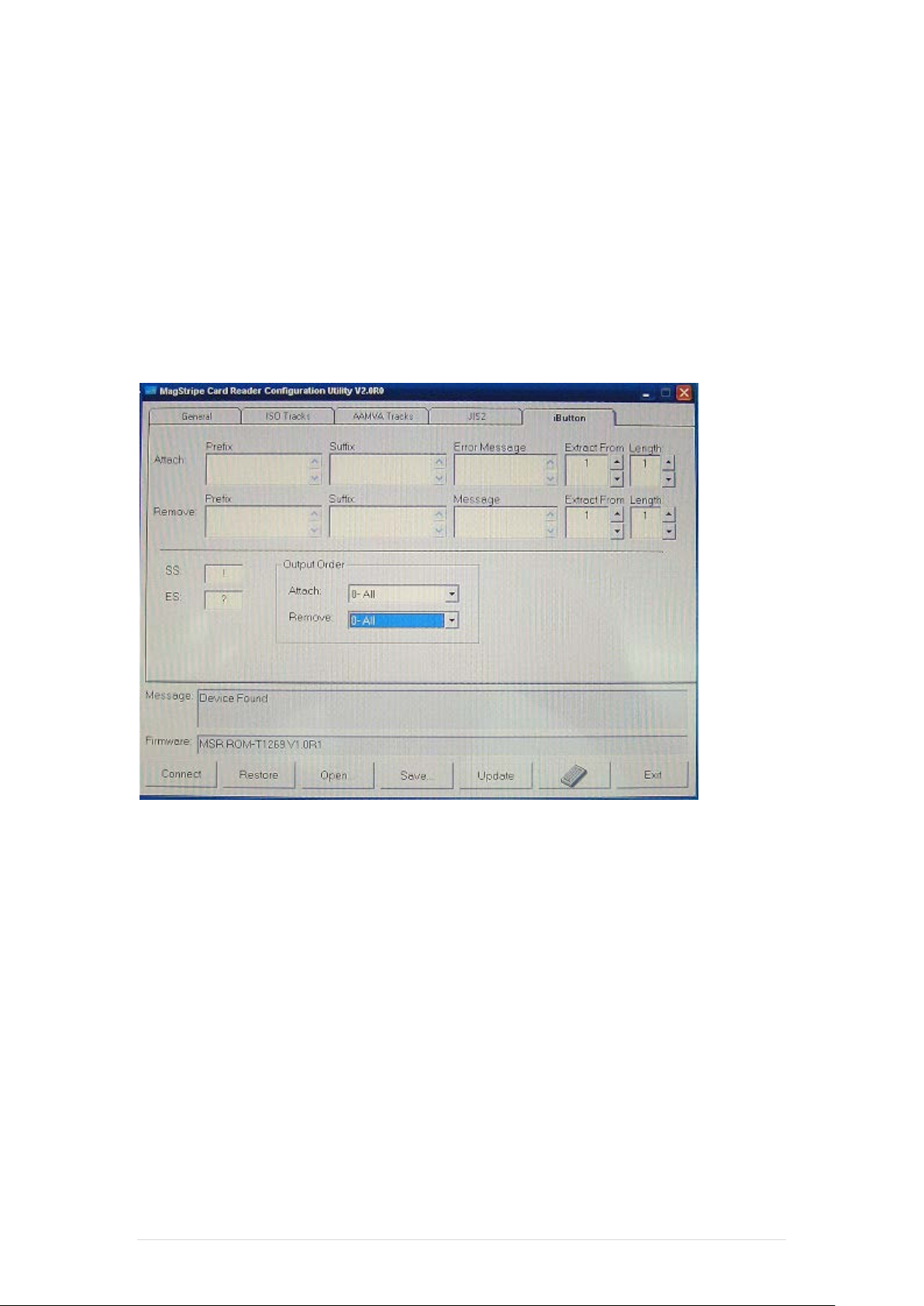

The utility program will detect the connected reader. If detected, all the input text boxes
will be enabled.
If the reader has not been connected to PC yet, please connect t he reade r and t hen click
Refresh to get connected.
Configuration

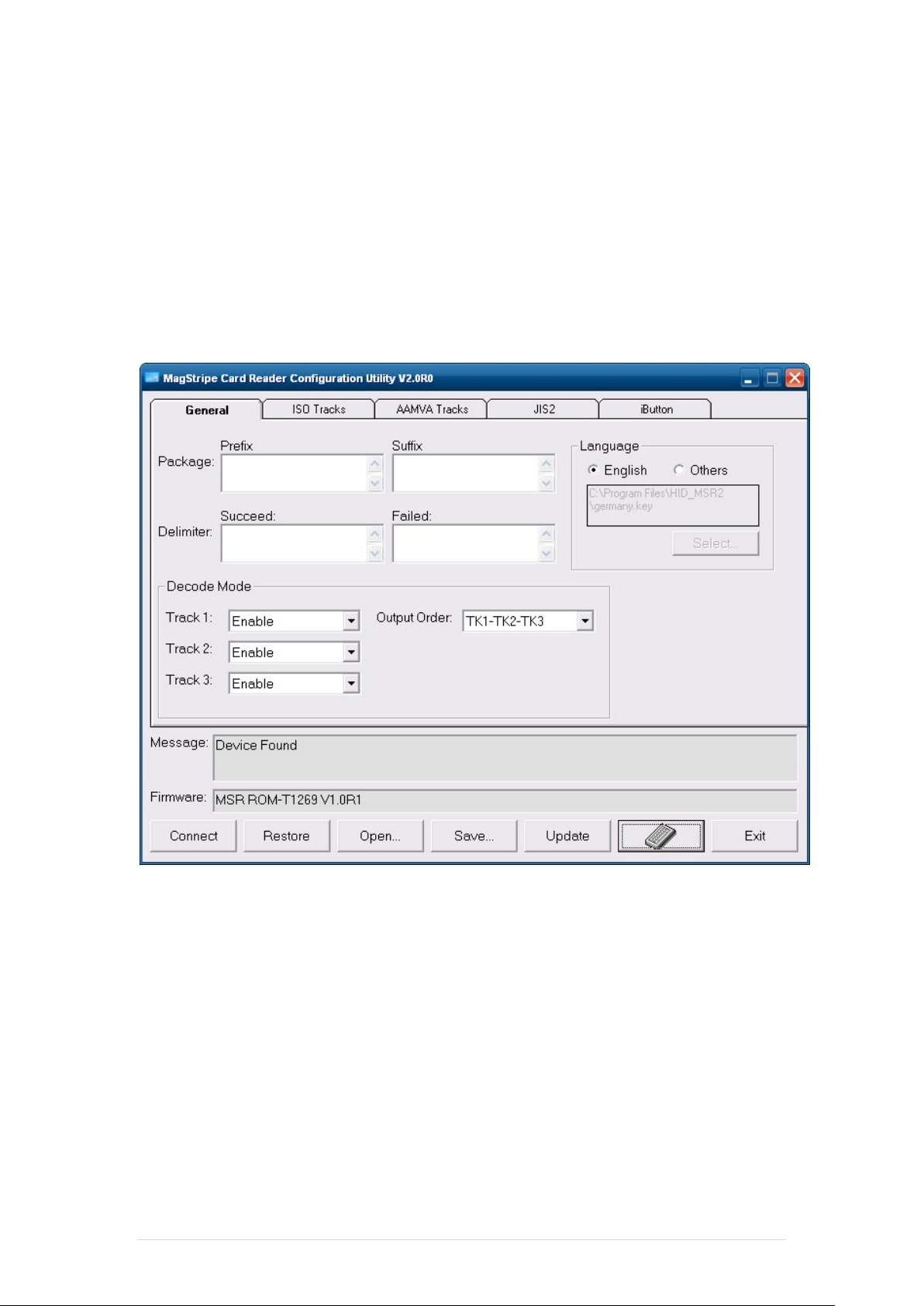

Below is the main window of Utility program.
For the settings, there are:
Language: The language defines the code positions of the key board. Each language
should use its own settings. Wrong language s el ected will cause the wrong character
displayed.
Prefix/Suffix: Defines the data string which you would like to append in front or end of
the MSR data string.
Error Message: Indicates which track number cause the error.
Delimiter: Indicates the swipe result.
ISO: Define start and end sentinel character.
Decode Mode: Determines the way of outputting the three tracks data.
37 | 95
ClientPOS PT6300 User Manual
PP
PR1
SS1
TK1
ES1
SU1
PR2
SS2
TK2
ES2
SU2
PR3
SS3
TK3
ES3
SU3
SU
DM
Version: 2.0
Shown below is the data structure of the output string for MSR.
PP: Prefix for package.
PR1: Prefix for track 1.
SS1: Start sentinel for track 1.
TK1: Data for track 1, if error happens, using Error M essage instead.
ES1: End sentinel for track 1.
SU1: Suffix for track 1.
PR2: Prefix for track 2.
SS2: Start sentinel for track 2.
TK2: Data for track 2, if error happens, using Error M essage instead.
ES2: End sentinel for track 2.
SU2: Suffix for track 2.
PR3: Prefix for track 3.
SS3: Start sentinel for track 3.
TK3: Data for track 3, if error happens, using Error M essage instead..
ES3: End sentinel for track 3.
SU3: Suffix for track 3.
SU: Suffix for package.
DM: Delimiter for the swipe result.
Prefix/Suffix
In default, the prefix and suffix setti ngs are all keep bl ank. There a re 4 kinds of p refix and suffix
to be defined, which are:
Package: For the prefix string, it is appended in the front of the whole MSR data. For the
suffix, it is appended in the end of the whole MS R data. In most case, the suffix for package is
always to be the “Enter” or “Tab” character. The max data l ength of the pref ix an d suf fix for t he
package can be up to 127.
TK1: For the prefix string, it is appended in the front of the start sentinel of track 2. For
the suffix, it is appended in the end of the end sentinel of track 2. The max data length of the
prefix and suffix for the TK1 can be up to 127.
TK2: For the prefix string, it is appended in the front of the start sentinel of track 2. For
the suffix, it is appended in the end of the end sentinel of track 2. The max data length of the
prefix and suffix for the TK1 can be up to 127.
TK3: For the prefix string, it is appended in the front of the start sentinel of track 3. For
the suffix, it is appended in the end of the end sentinel of track 3. The max data length of the
prefix and suffix for the TK1 can be up to 127.
38 | 95
ClientPOS PT6300 User Manual
Version: 2.0
ISO
This group defines the start and end sentinel for each track. The sentinel is always used to
extract the track data from the whole MSR data string. The data length for each sentinel is
fixed to one character. Because there is ISO st andard that defining the start and end sentinel
for the three tracks. For the compatible reas on, please do not modify the default value if
possible.
Decode Mode
For this group, it contains two kinds of settings, which are:
Track Data Filtering: Determine which track to be, not to be output or needed t o be
output.

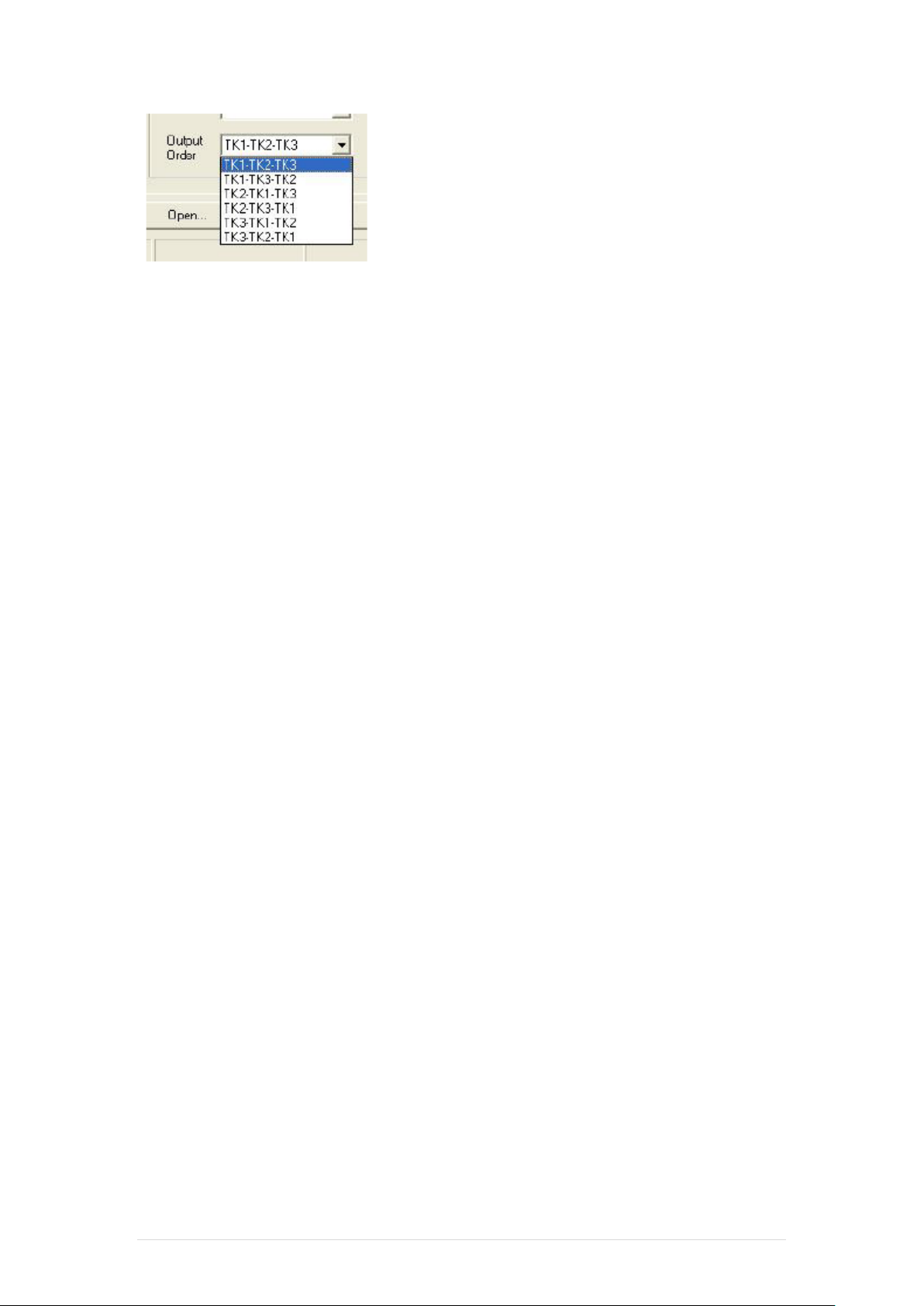

Switch Output Order: Change the output order of track 1 ~ 3.
Track Data Filtering
Shown below is the filter setting for track 1. T hi s provides a fool-proofing method in case of
receiving unwanted or uncompleted track data.
These three filter settings are:
Enable: If selected, the data of specified track will be packaged i n the M SR data st ring. If
the specified track data is not decoded, it will l eave blank in the MSR data string.
Required: If selected, which means the output MSR data string must contain the
specified track data. If the specified track data is not decoded, even MSR data string
contains other track data, it will still not t o be output.
Disable: If selected, the data of specified track will not be packaged in the MSR data
string. No matter it is decoded or not.
Switch Output Order
Show below is the selection of the three track data output order (sequence). The default order
is Track 1–Track 2–Track 3
39 | 95
ClientPOS PT6300 User Manual
Version: 2.0
There 6 orders allow to be selected. Please select one to fit your application needs.
Update Settings
Once complete the settings, click Update to update the settings to connected HID MSR
reader.
Save Settings
To save the settings to a file, click Save; specify the file name and location to be saved.
Open Settings
To load pre-saved settings, click Open, specify the setti ngs f i l e, and then click OK to load into
program.
Restore MSR Reader Settings
To load restore settings of connected MSR reader, click Restore ES2: End sentinel for track.
40 | 95
6-3 Fingerprint Reader

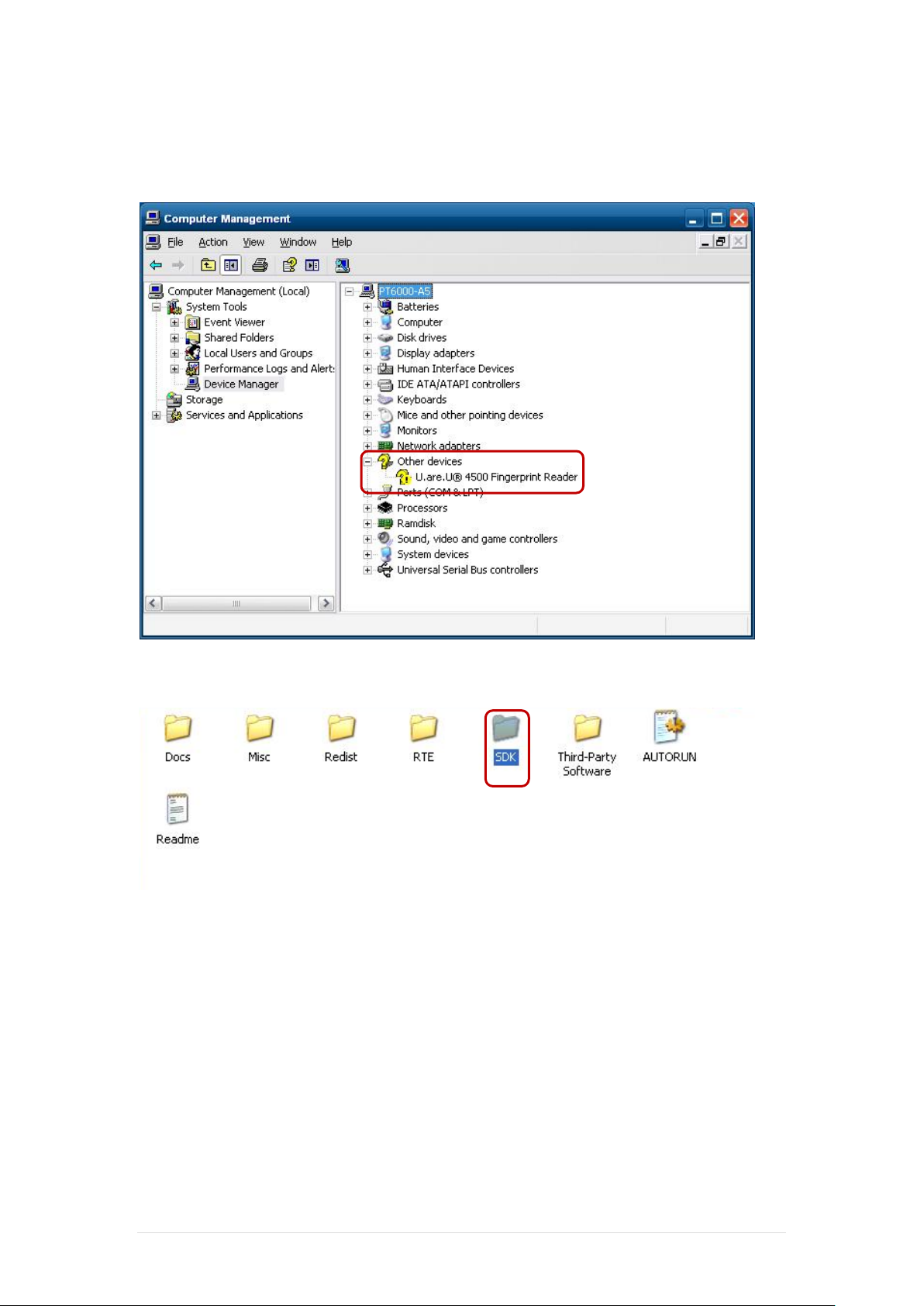

1. Check Fingerprint reader be detected by “Devi ce manager “
2. Select SDK folder.
41 | 95
ClientPOS PT6300 User Manual

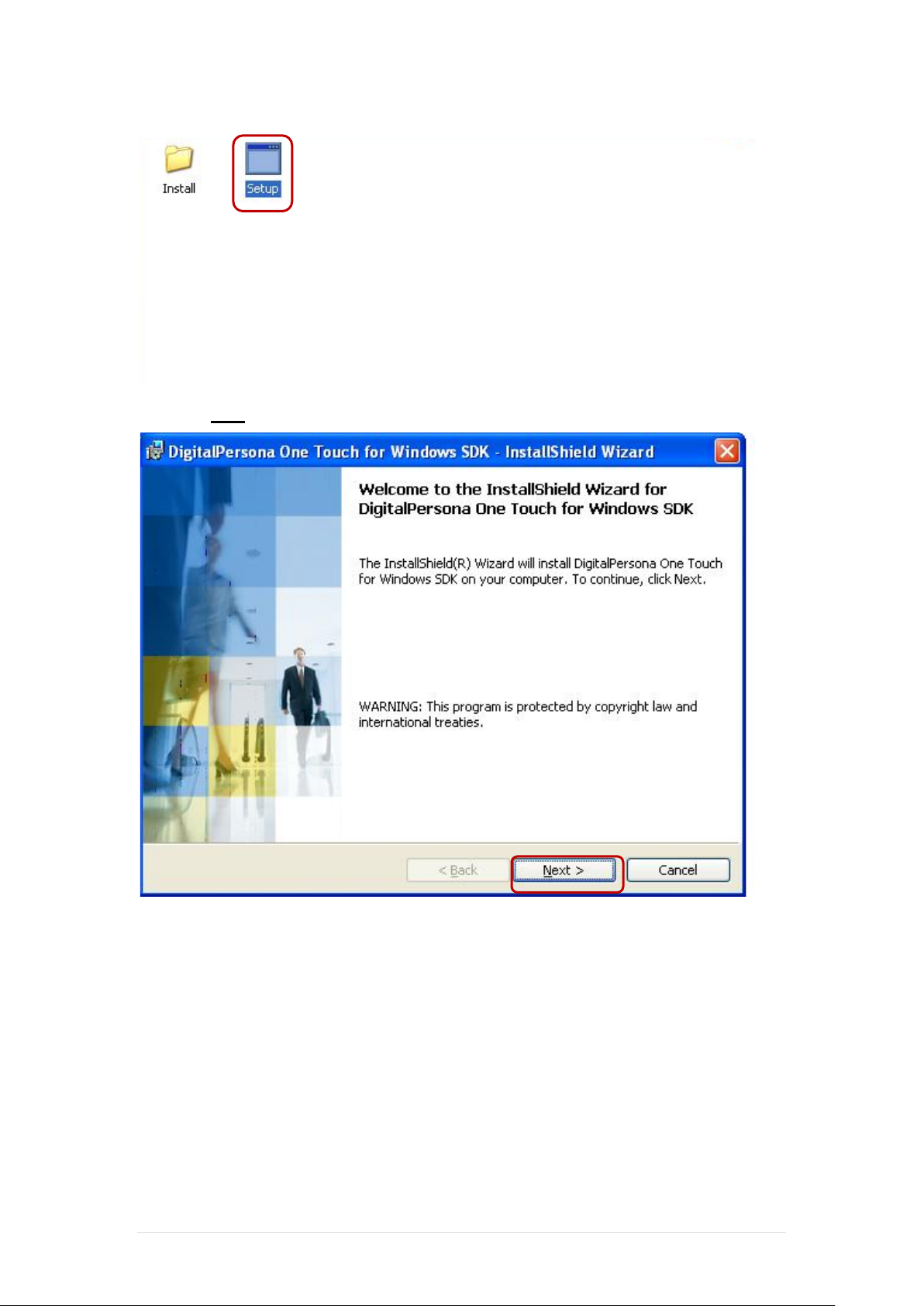

Version: 2.0
3. Run Setup.exe.
4. Click “Next”.
42 | 95
ClientPOS PT6300 User Manual

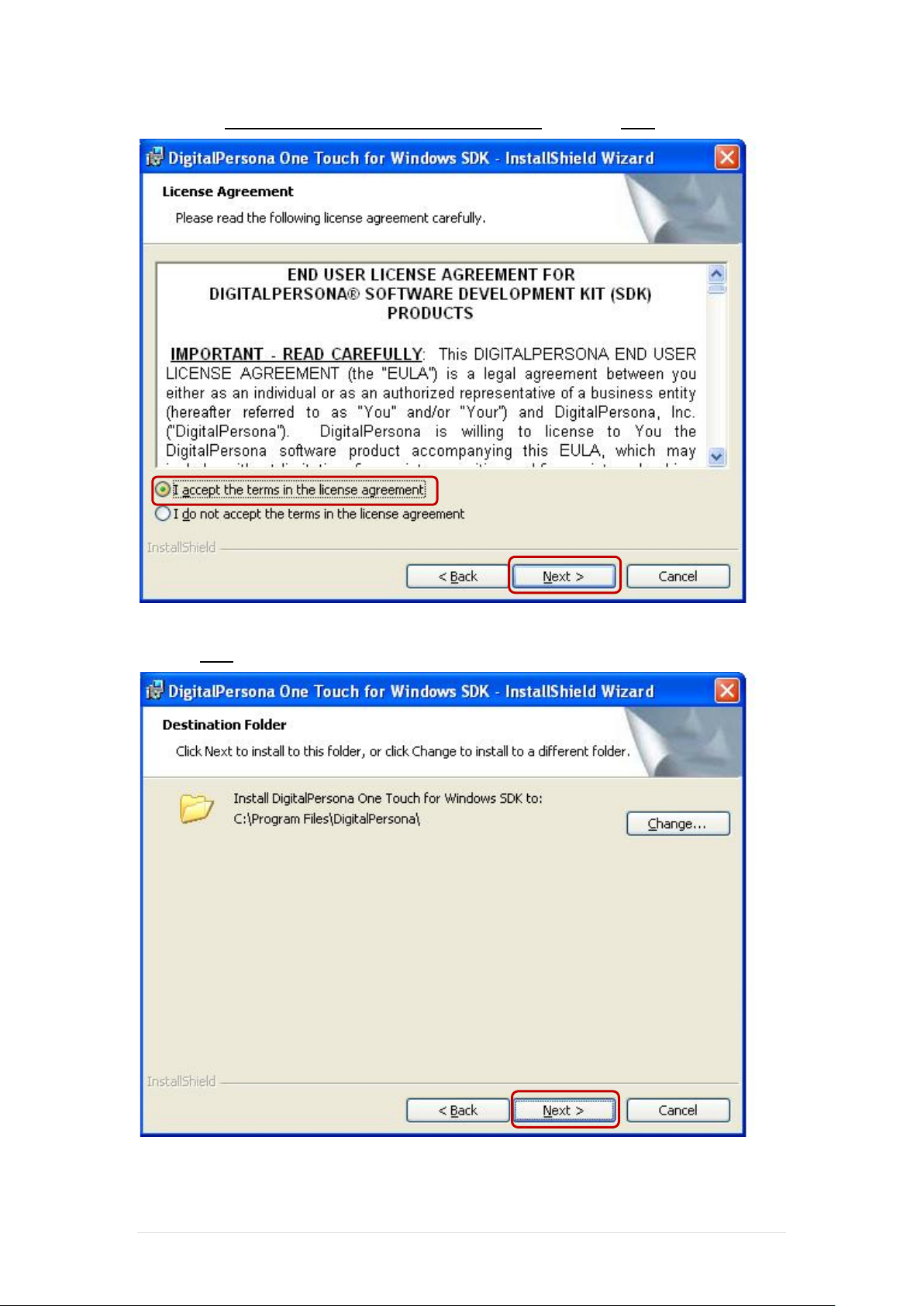

5. Select “ I accept the terms in the license agreement” and click “Next”.
Version: 2.0
6. Click “Next”.
43 | 95
ClientPOS PT6300 User Manual

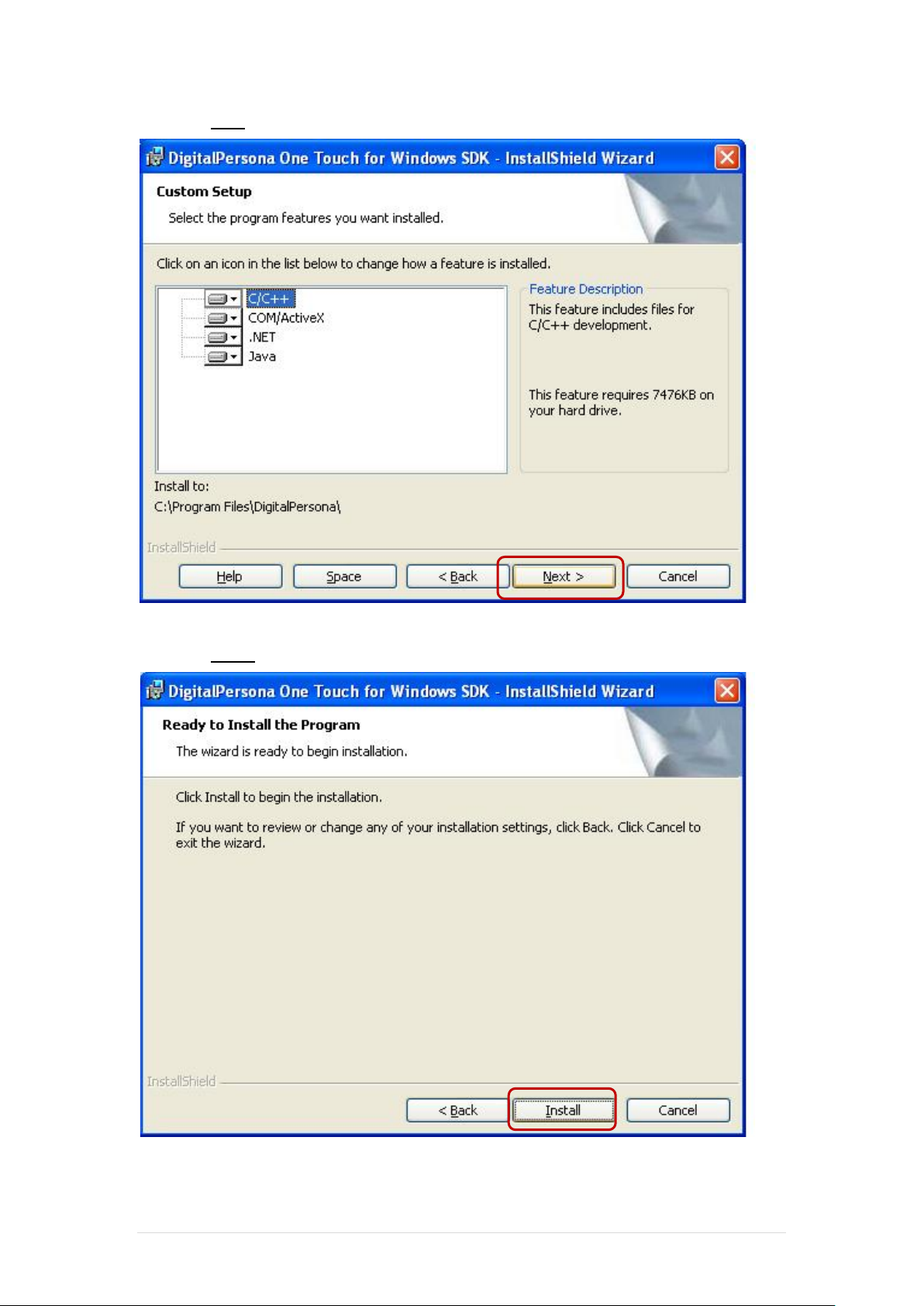

7. Click “Next”.
Version: 2.0
8. Click “Install”.
44 | 95
ClientPOS PT6300 User Manual

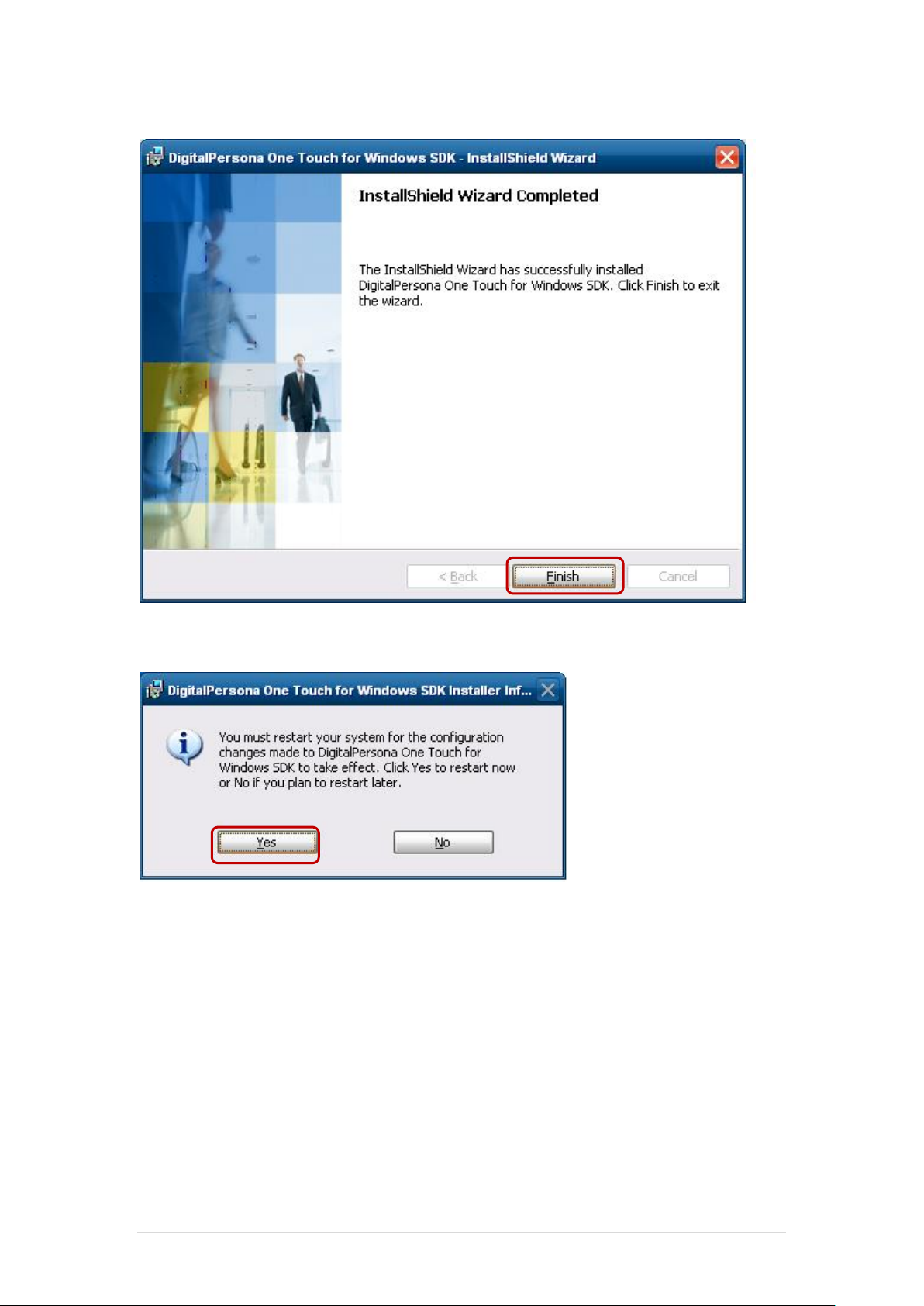

9. Click “Finish”.
Version: 2.0
10. Restart systems.
45 | 95
ClientPOS PT6300 User Manual
Version: 2.0

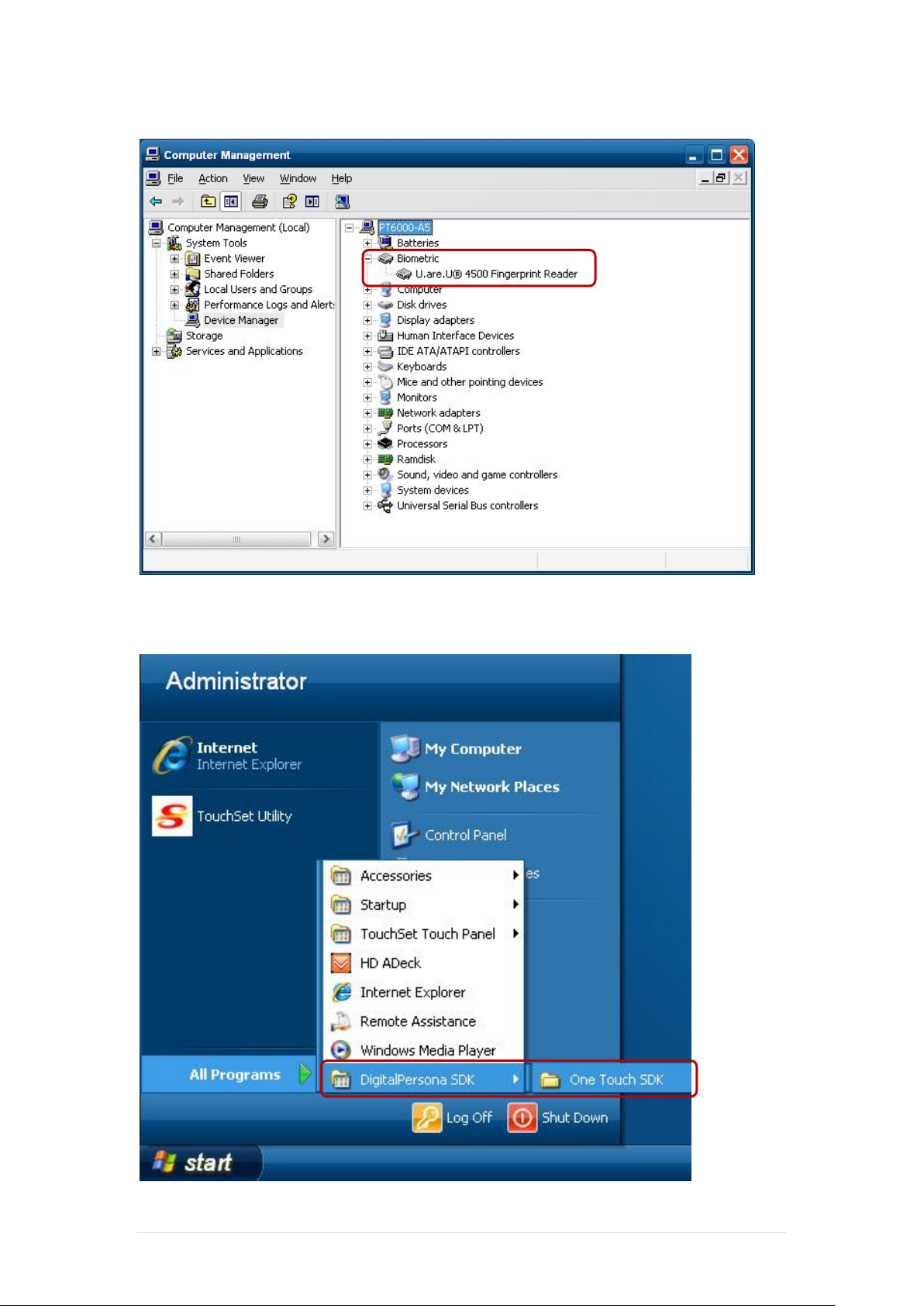

11. Check Fingerprint reader in Device Manag er.
12. Launch Fingerprint reader from start menu
46 | 95
ClientPOS PT6300 User Manual

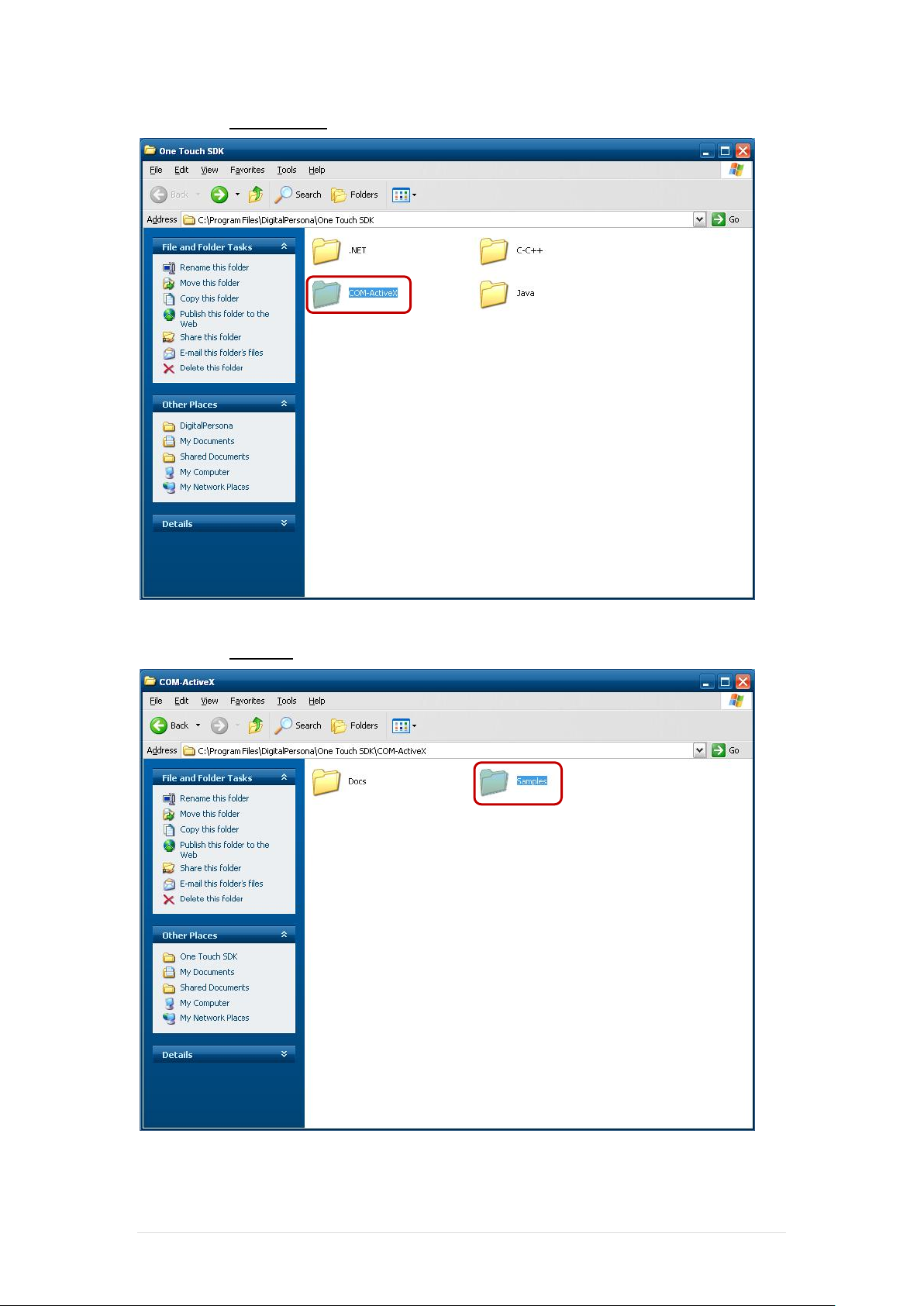

13. Select “COM-ActiveX”
Version: 2.0

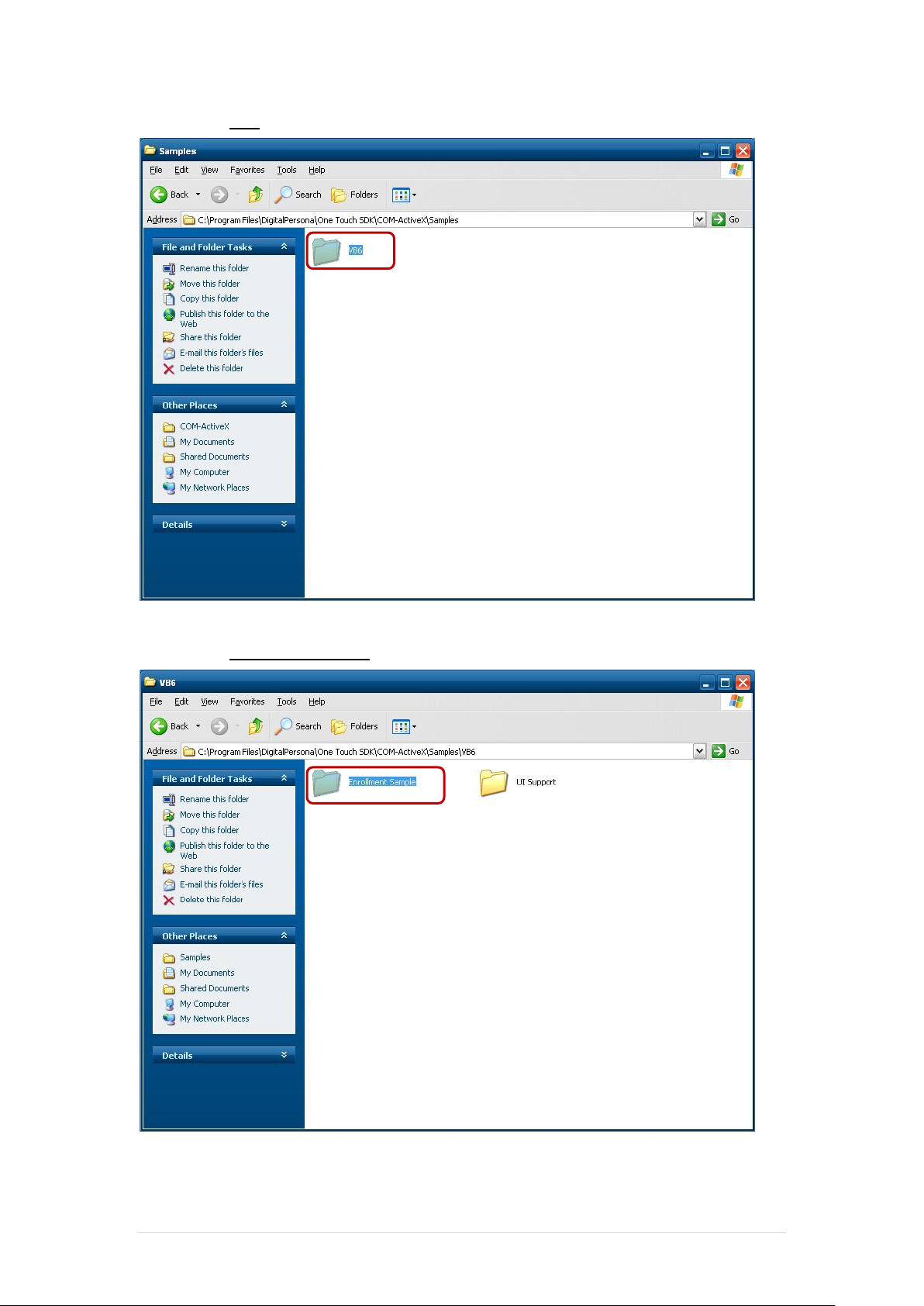

14. Select “Samples”
47 | 95
ClientPOS PT6300 User Manual
15. Select ”VB6’.
Version: 2.0
16. Select “Enrollment Sample”.
48 | 95
ClientPOS PT6300 User Manual

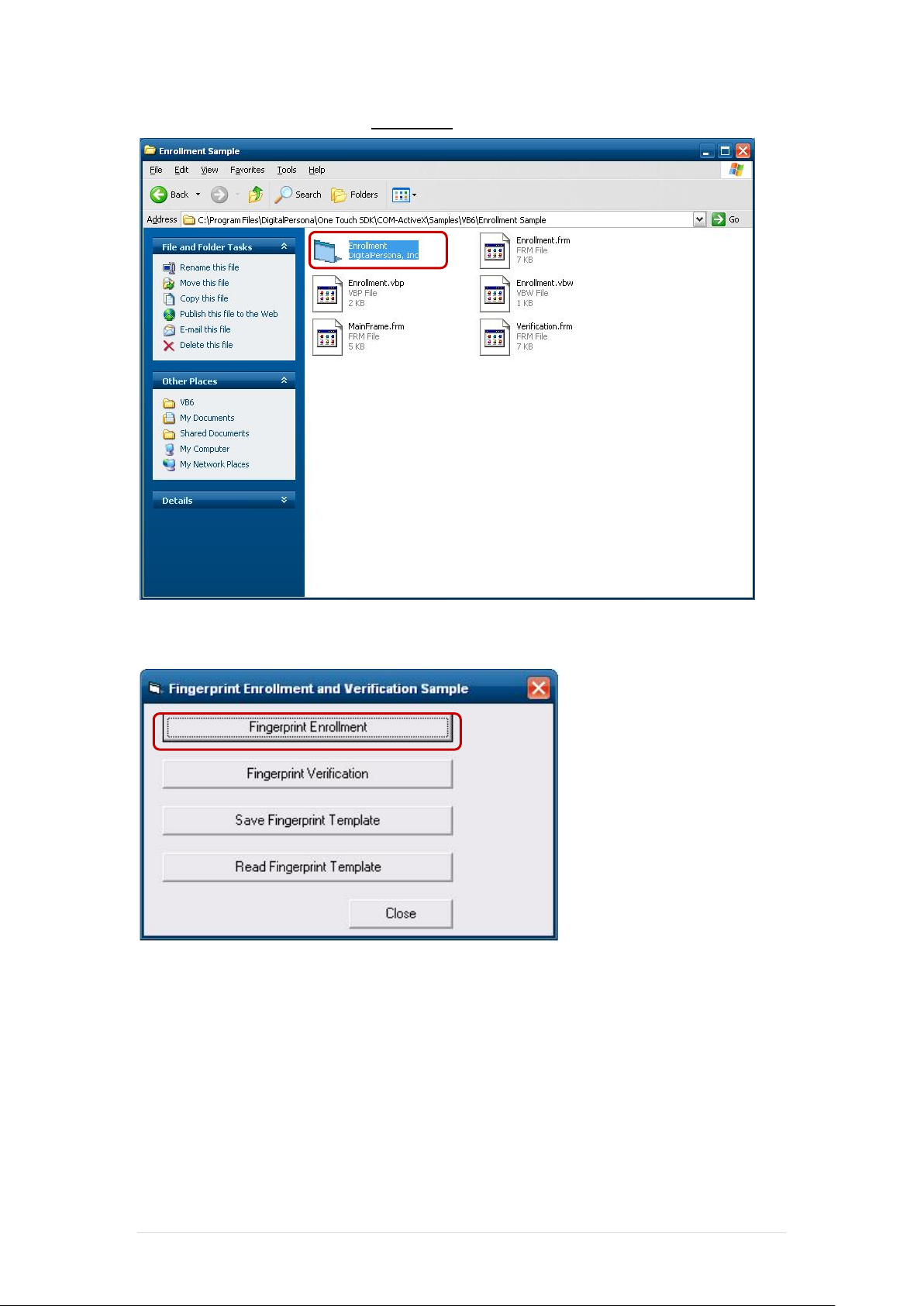

17. Enroll the fingerprint by the “Enrollment“
Version: 2.0
18. Select “Fingerprint Enrollment”
49 | 95
ClientPOS PT6300 User Manual
Version: 2.0

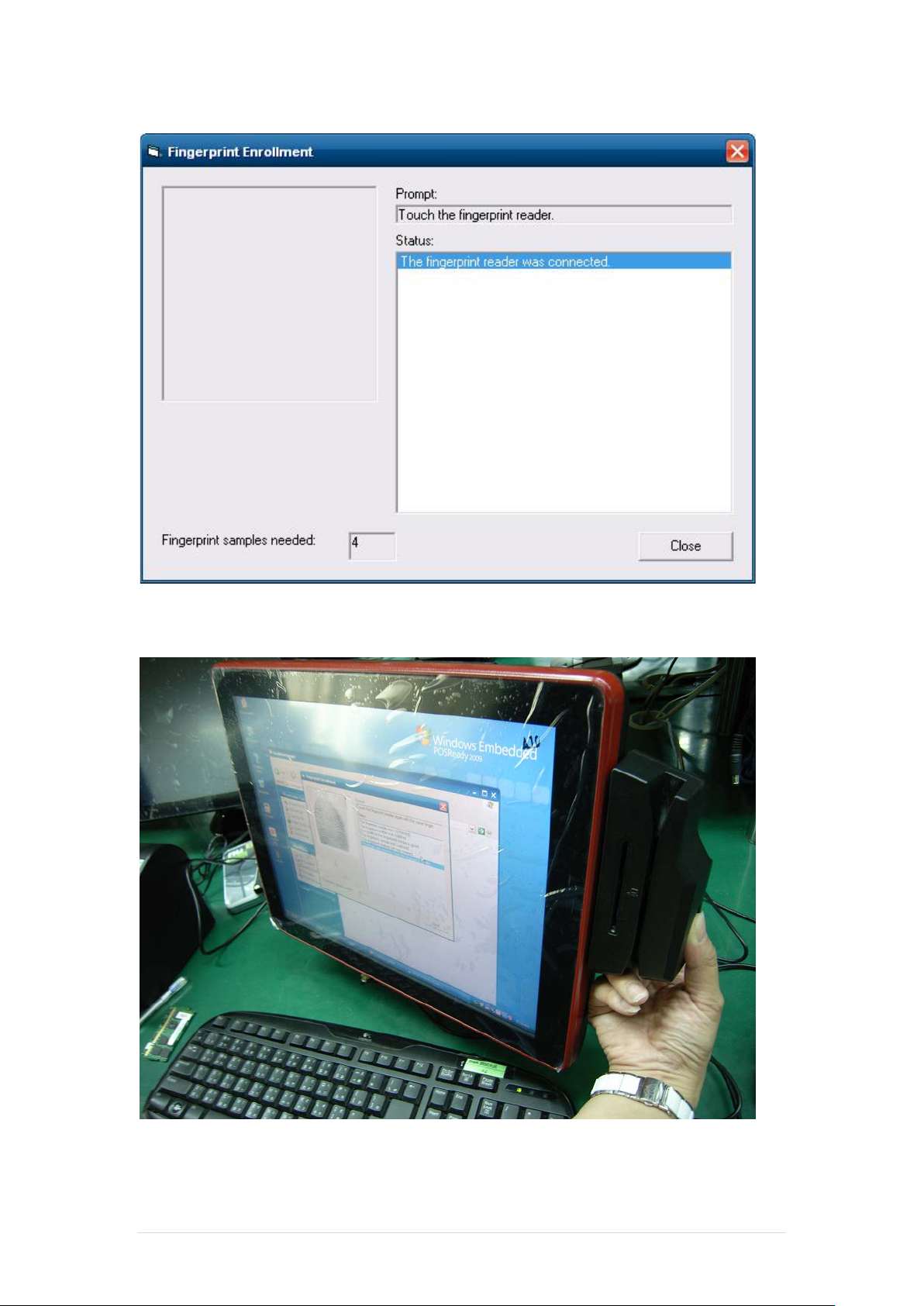

19. Put your finger on fingerprint reader and follow the direction to enroller your fingerprint, it
need scan your fingerprint 4 times
50 | 95
ClientPOS PT6300 User Manual
Version: 2.0

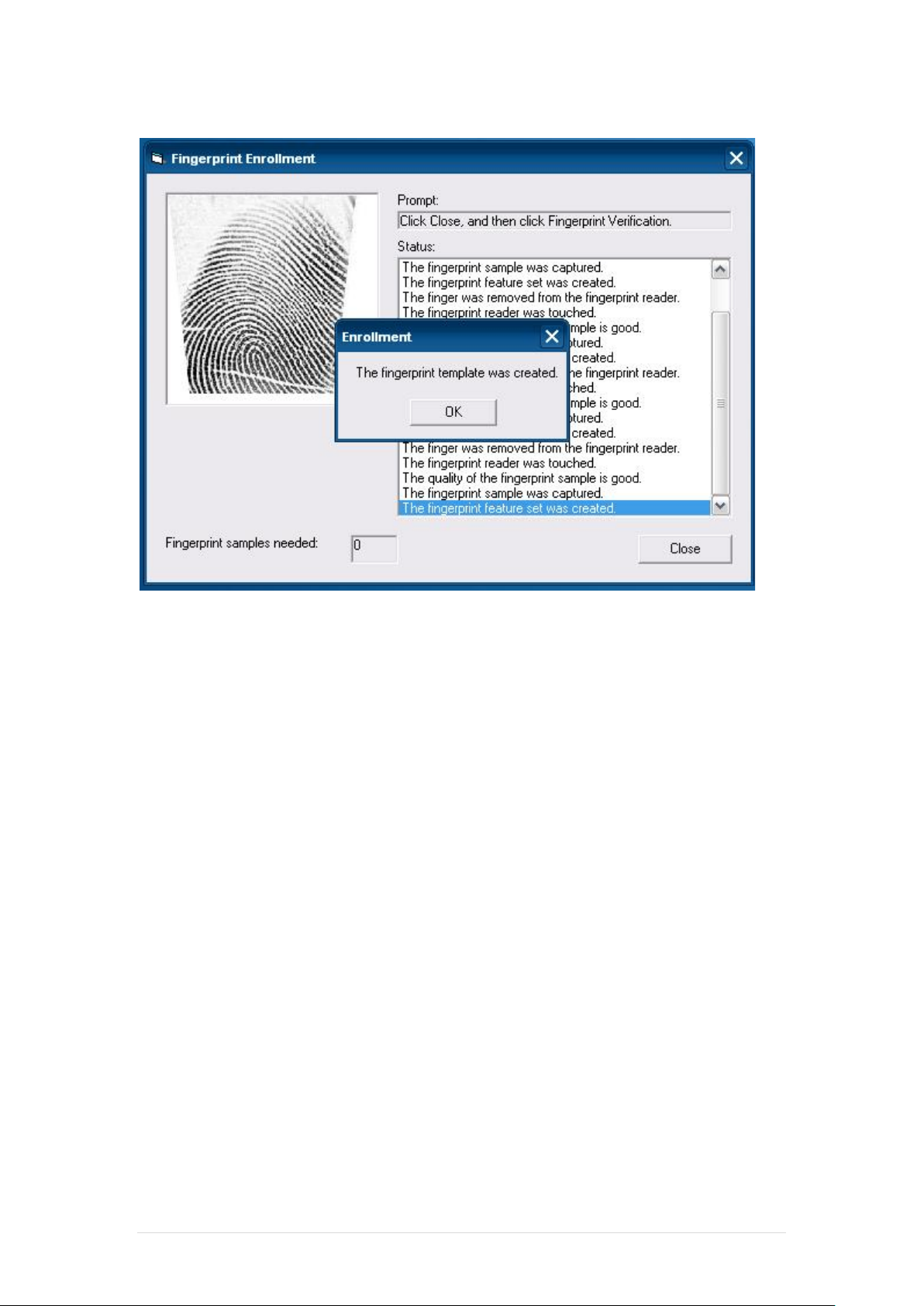

20. After enroller finish it will popup a dialog box
51 | 95
ClientPOS PT6300 User Manual
Version: 2.0
6-4 RFID
1. Install (Operating System: Microsoft Windows POSReady 2009)
1.1 Check the Device Manager to verify the status of RFID reader.

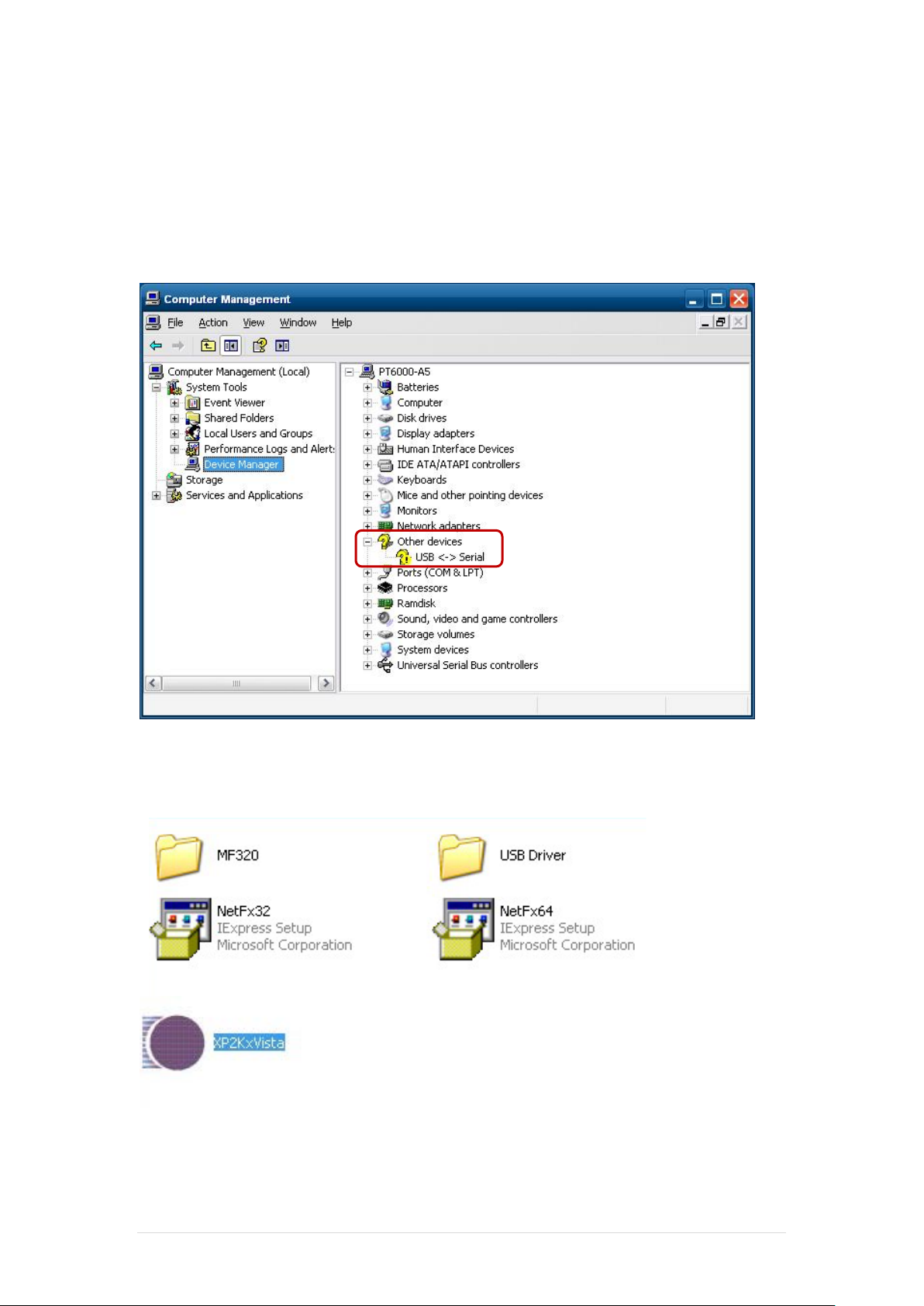

Computer Management -> Device Manager -> Other devices (The device will show a
question mark if the installation i s not done properly.)
1.2 Install RFID driver，file name：XP2KxVista.exe
2-1 Path:\USB Driver\ XP2KxVista.exe
52 | 95
ClientPOS PT6300 User Manual
1.2.1 After clicking” Next”, A pop up console window appears as below.
Version: 2.0

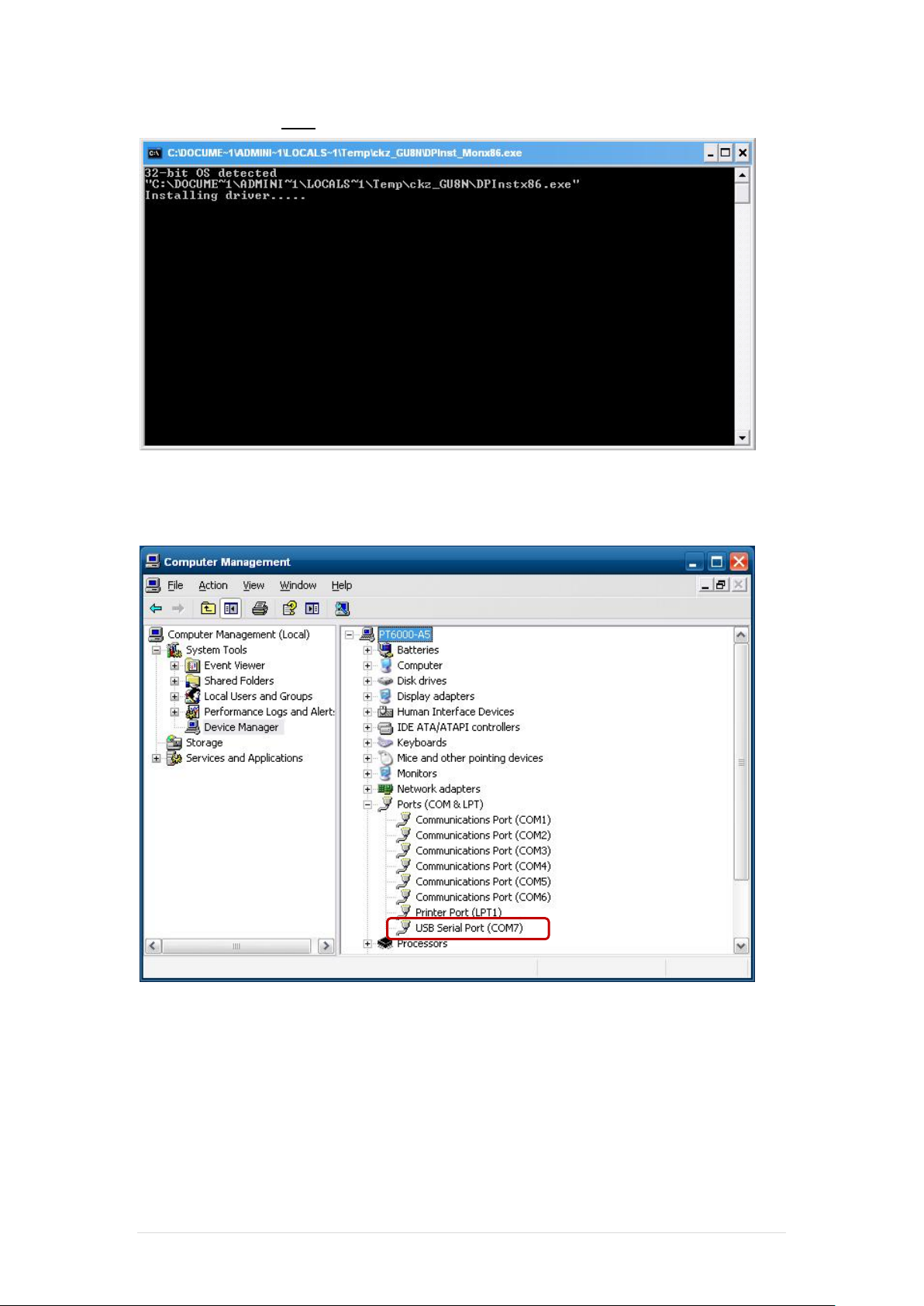

1.2.2 Check the Device Manager to verify the statu s of RFID reader.
Computer Management -> Device Manager -> Ports (COM & LPT)
53 | 95
ClientPOS PT6300 User Manual
1.3 Install RFID utility
MifareDemoSetup_PSW00020.exe
3-1 Path:\MF320\MifareDemoSetup_PSW00020.exe

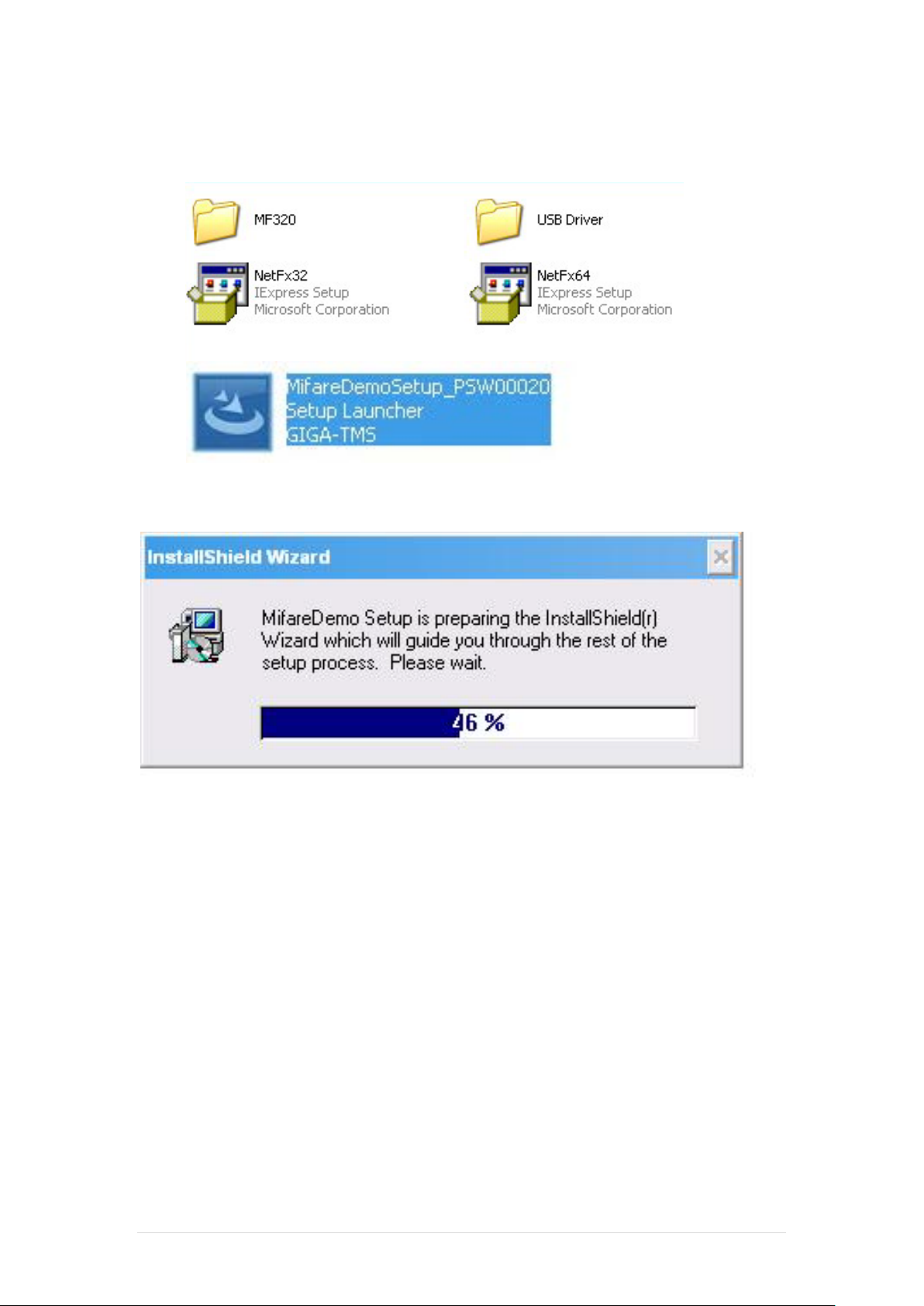

Version: 2.0
1.3.1 InstallShield Wizard will be activated.
54 | 95
ClientPOS PT6300 User Manual
1.3.2 Click “Next”.
Version: 2.0
1.3.3 Click “Next”.
55 | 95
ClientPOS PT6300 User Manual
Version: 2.0

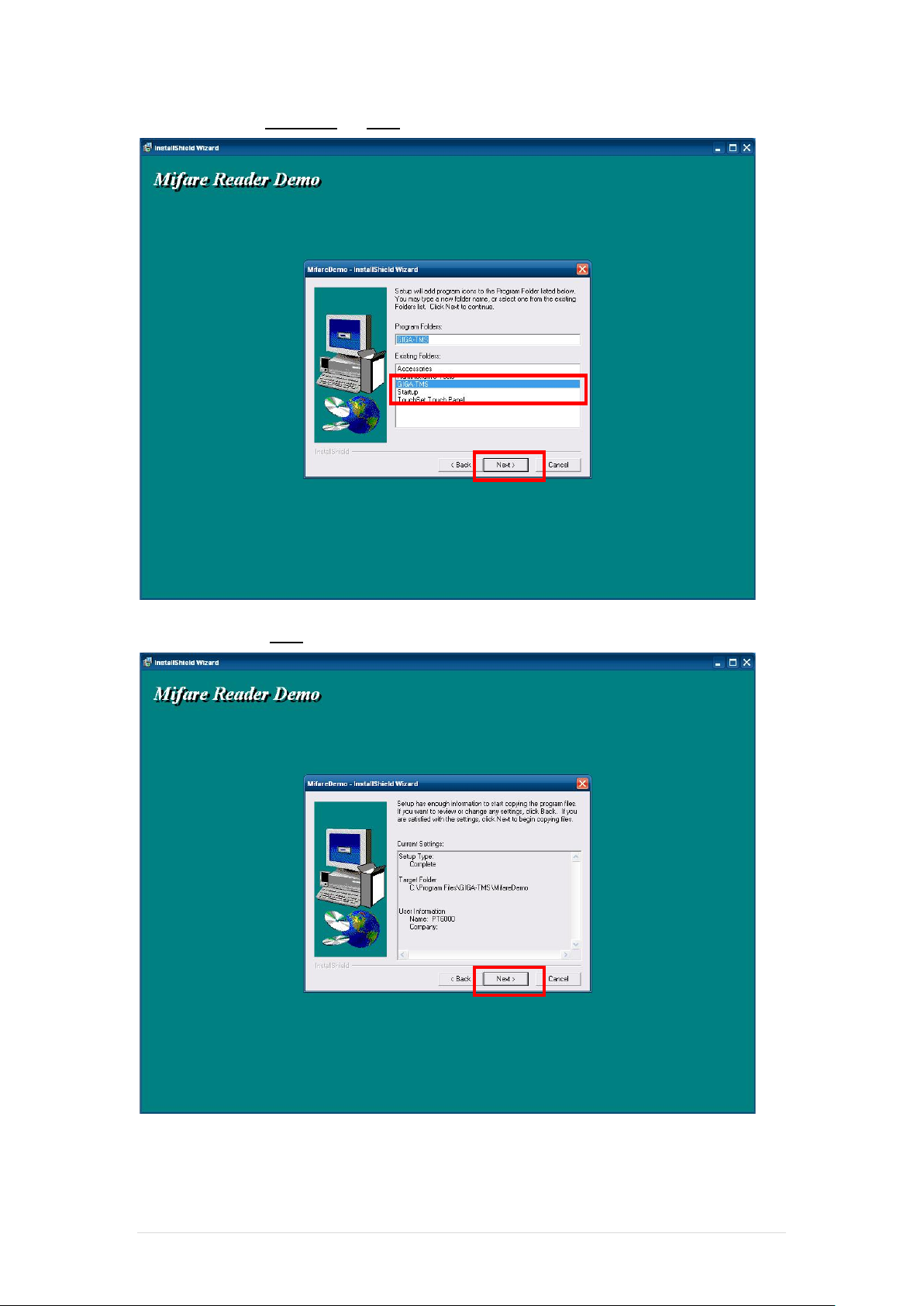

1.3.4 Click “Giga-TMS” & “Next”.
1.3.5 Click “Next”.
56 | 95
ClientPOS PT6300 User Manual
Version: 2.0

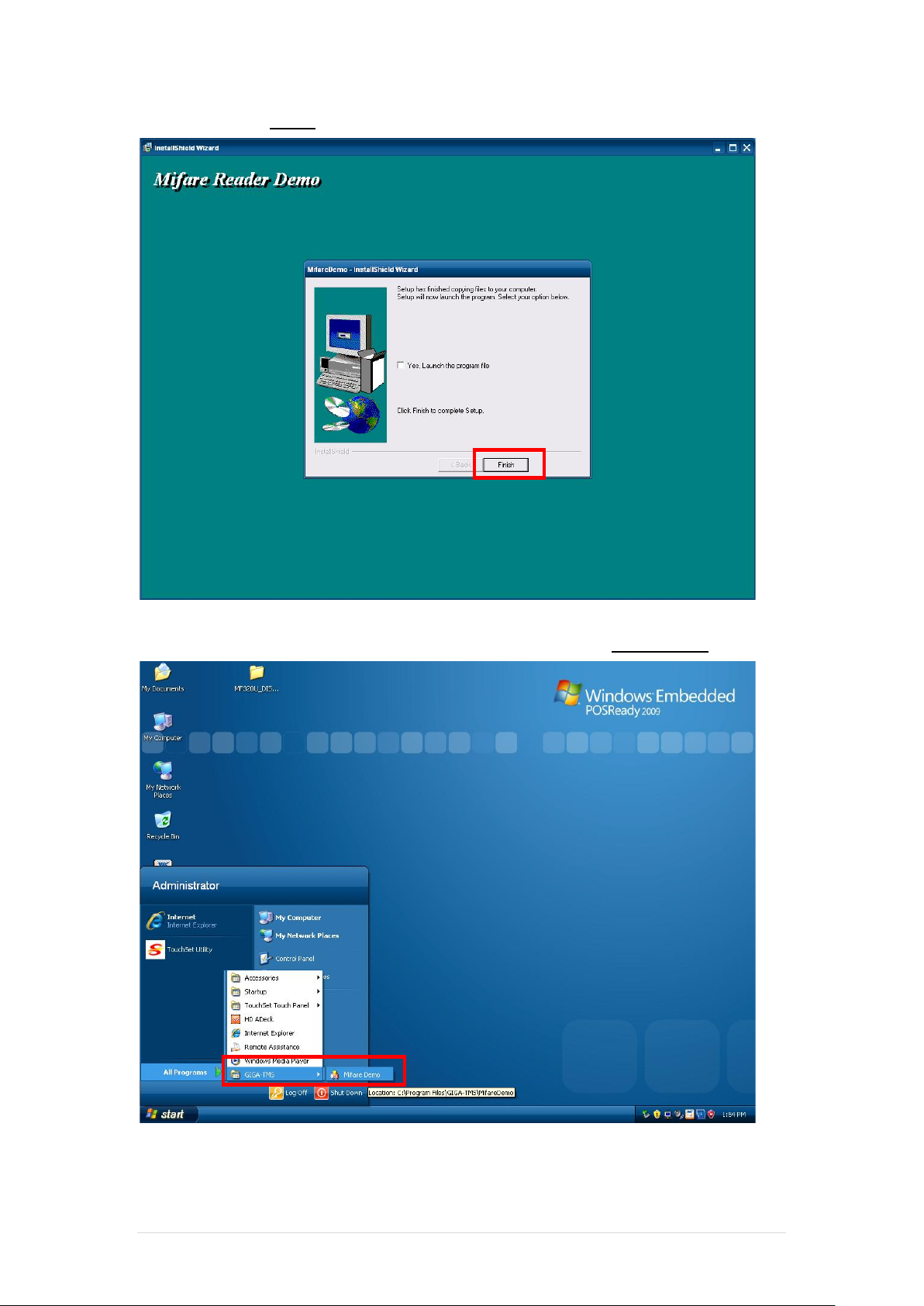

1.3.6 Click “Finish”
2. Run RFID demo program. Start -> All Programs -> GIGA-TMS -> Mifare Demo
57 | 95
ClientPOS PT6300 User Manual
Version: 2.0

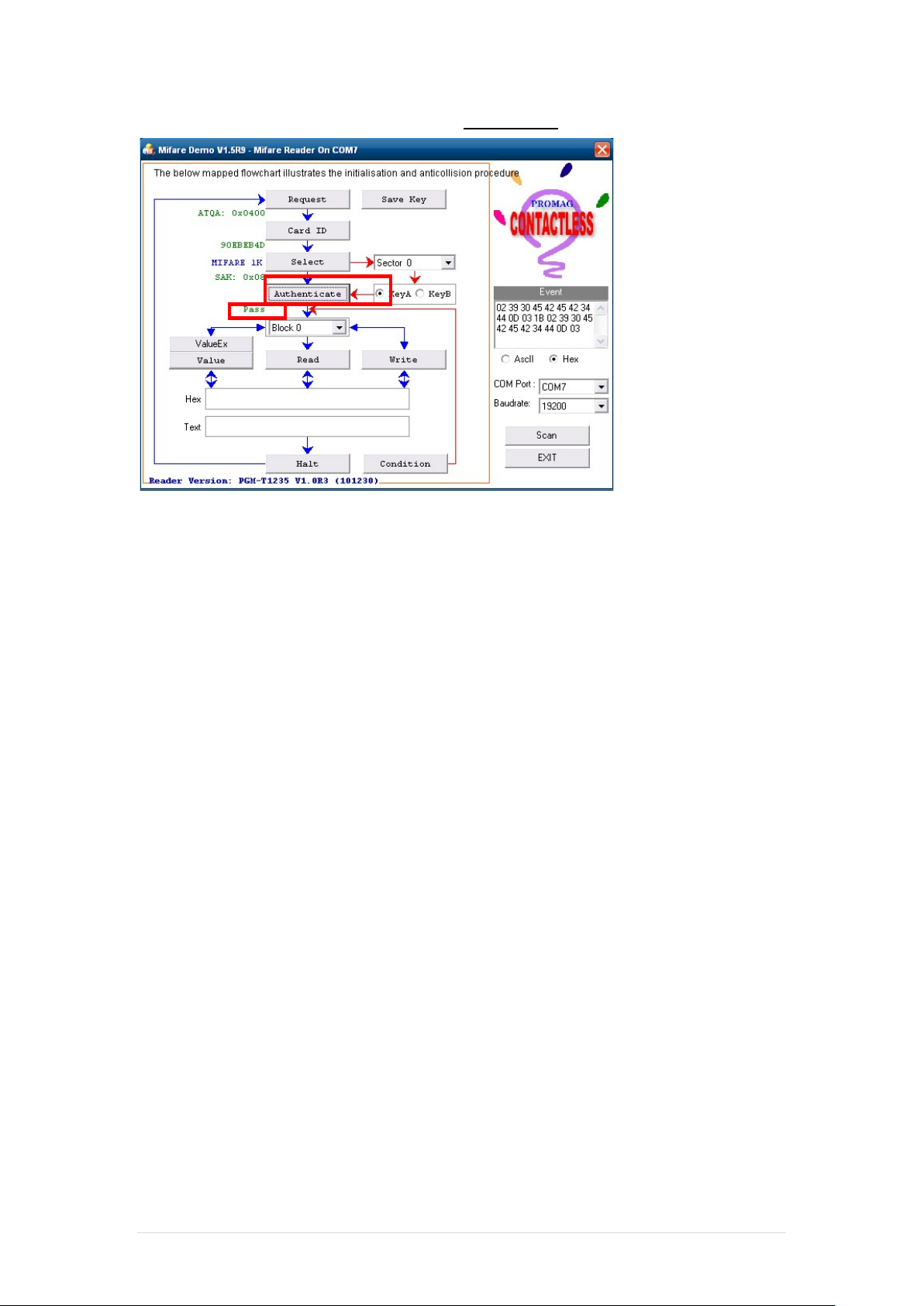

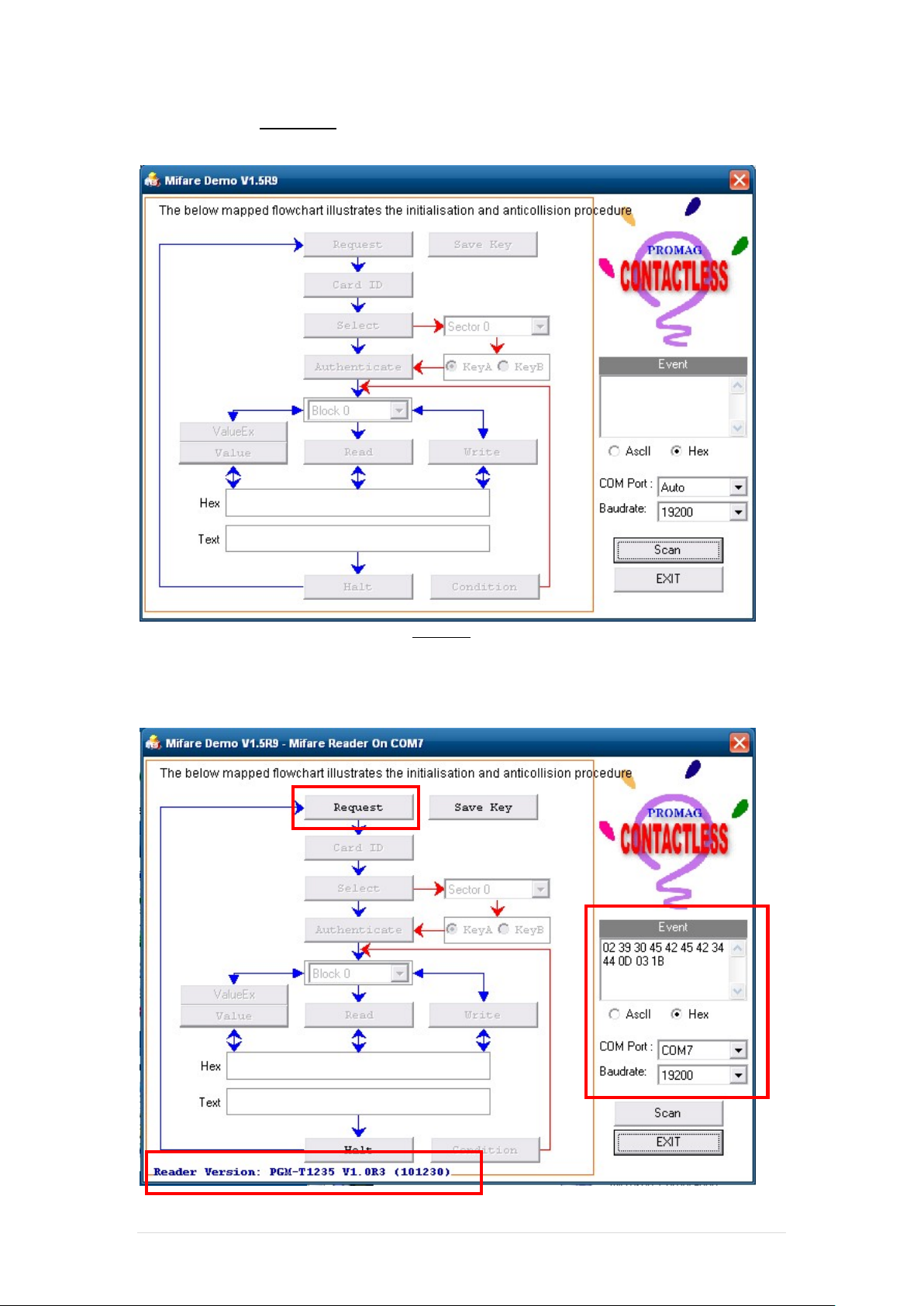

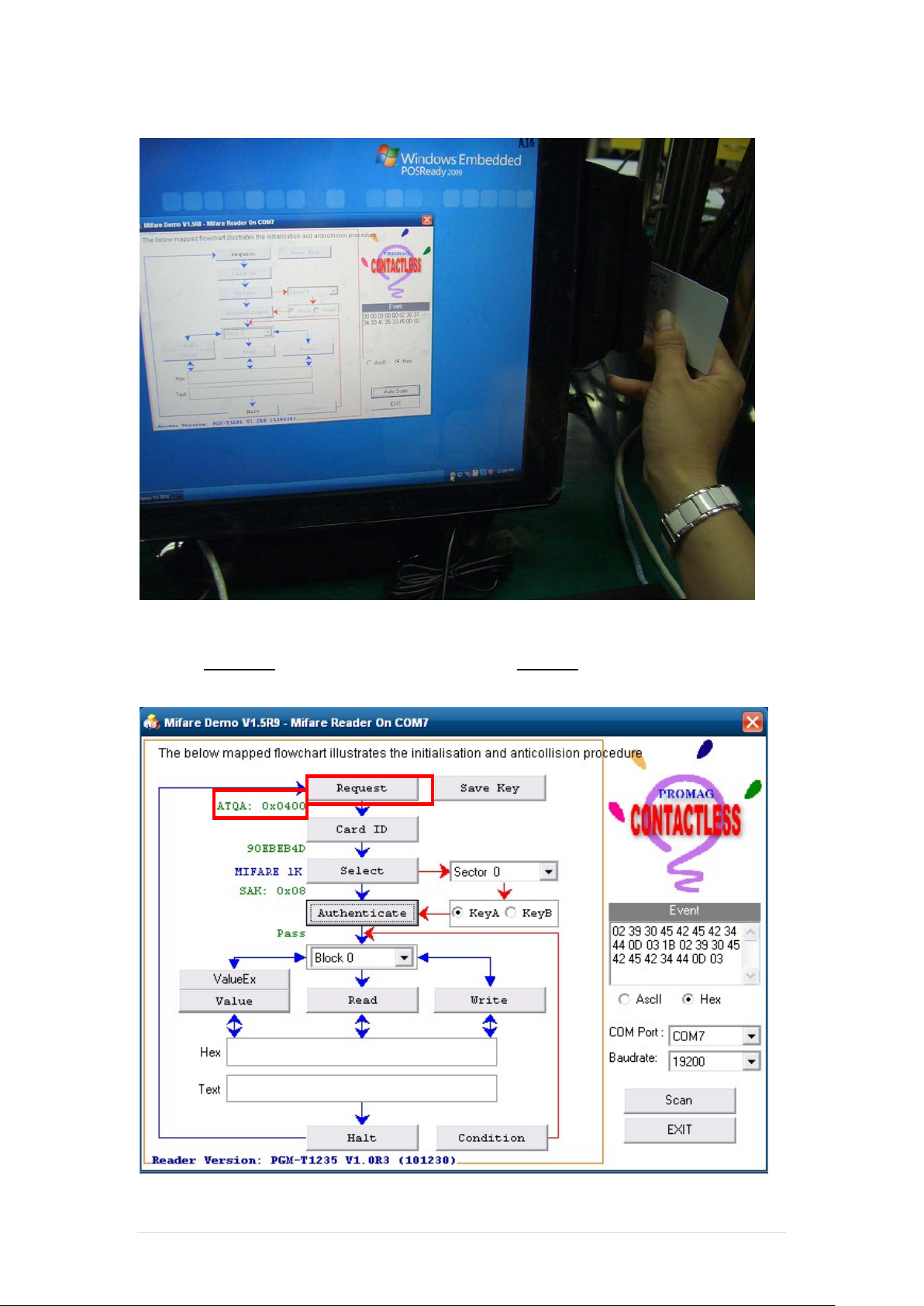

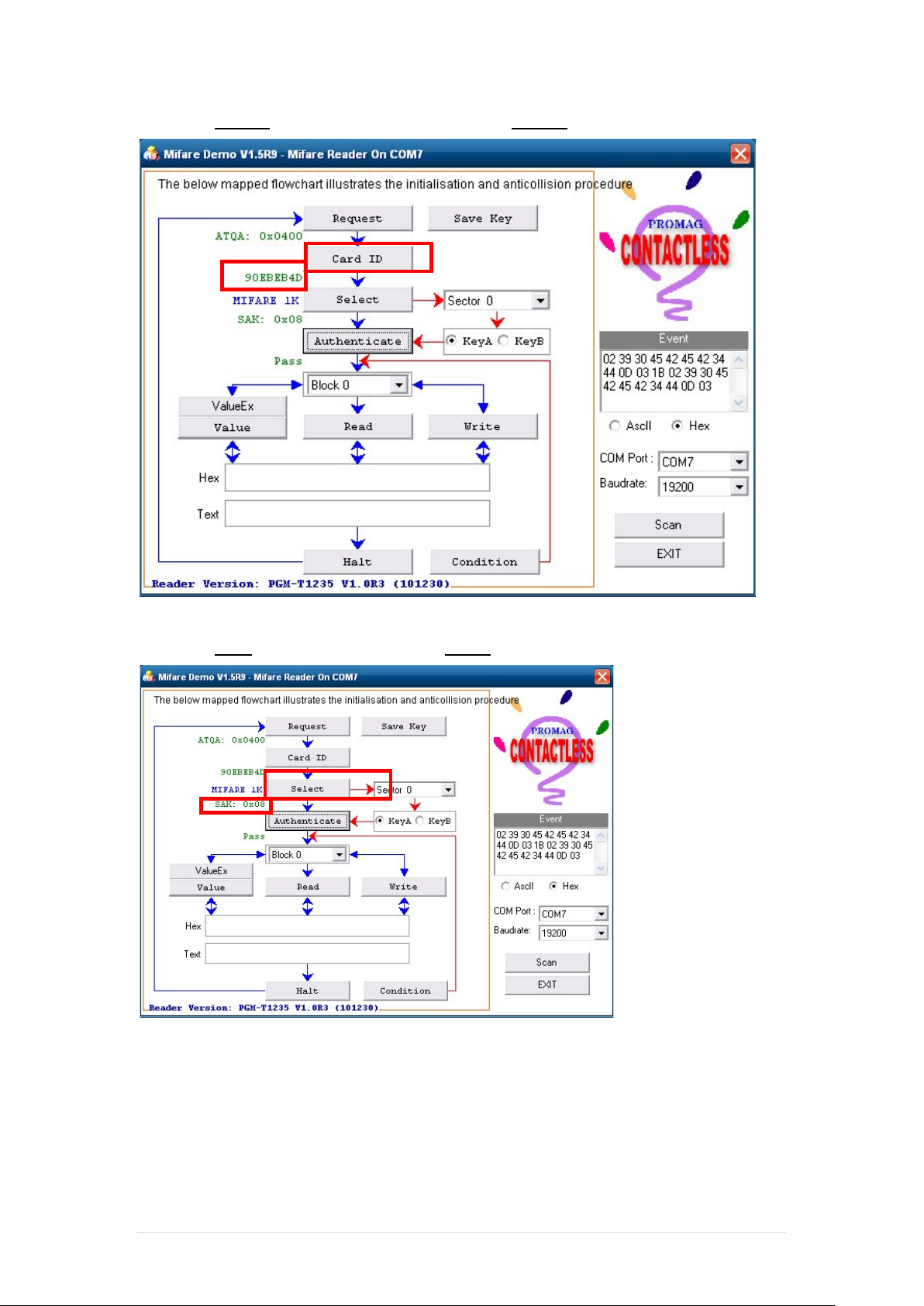

2-1 Run “Auto Scan” Demo AP will detect the RFID re ader automatically .
Or select the RFID COM port
2-2 After finishing the A utoScan, Request box will be ready for the click and Reader
Version will show on the position as marked. (Reader Version: PGM-T1235 V1.0R3
(101230) Place Mifare Card to the RFID reader area. Event Dialog window gets the data
from the Mifare Card
58 | 95
ClientPOS PT6300 User Manual
Place the RFID card on the RFID reader.
Version: 2.0
2-3 Card type will be recognized when you click “Request”.
(Your Mifare card should be placed on the RFID reader ar ea.)
59 | 95
ClientPOS PT6300 User Manual
2-4 Card ID will be recognized when you click “Card ID”.
Version: 2.0
2-5 SAK will be read when you click “Select”.
60 | 95
ClientPOS PT6300 User Manual
Version: 2.0
2-6 The result will show when you click “Authenticate”.
61 | 95
ClientPOS PT6300 User Manual
Display Method

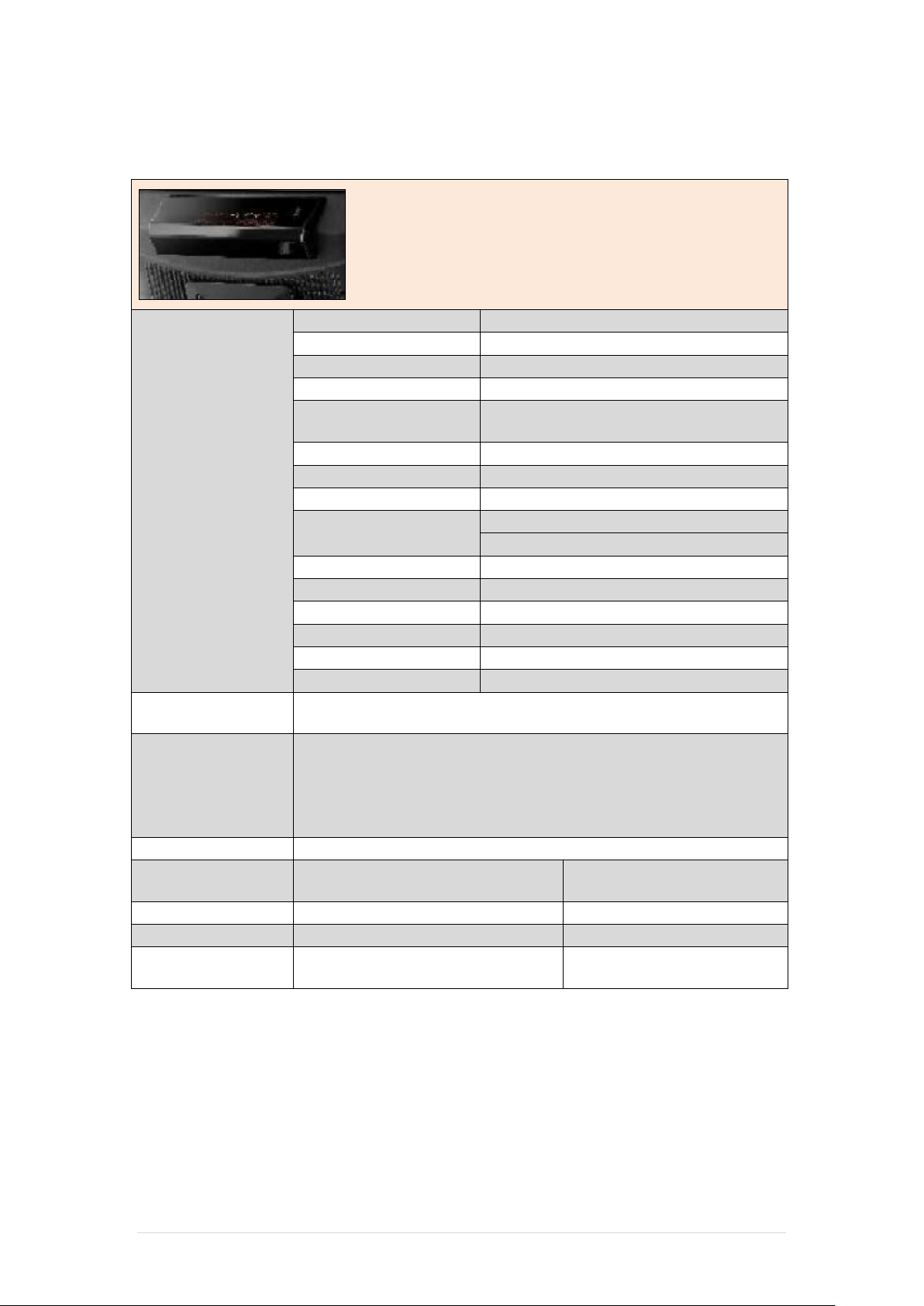

Vacuum Fluorescent Display(blue-Green)
Number of Characters
40 (20 Columns X 2 Lines)
Brightness
500 ~ 1000 cd/m2
Character Font
5X7 Doc Matrix
95 Alphanumeric, 32 International
Character Size
6.75(H) X 3.75(W)mm
Doc Size (X x Y)
0.55 x 0.75 mm
Download Characters
9 Characters
4.70” (120mm) with Stand-alone Base
9.80” (250mm) with Base and 1 Extension
Panel Dimension
75(H) x 170(W) x 50(D) mm
Pole Dimension
Per Support Length: 130 mm
Base Dimension
33(H) x 159.8(W) x 100(D) mm
Viewing Angle
Max. 90o
Horizontal Rotation
Max. 355 o
Weight
Approx. 980 Grams
LD220, EPSON, AEDEX, UTC/S, UTC/P, ADM788, DSP800,
US English, Int’l English, Bosnia, Croatian, Czech, Danish, Dutch,
Greek, Hebrew, Hungarian, Icelandic, Indonesian, Irish, Italian,
Katakana, Latvian, Lithuanian, Norwegian, Polish, Portuguese,
Romanian, Russian, Slovene, Slovak, Spanish, Swedish
Interface
RS-232(Serial)/USB
Direct Connection 9600 or
Reliability
MTBF
30,000 Hours
Power
Consumption
5-12 VDC
EMC Standards
Version: 2.0
6-5 Internal VFD
Specification
General
Commands Mode
Language Support
Character T ype
Height
CD5220, EMAX, LOGIC CONTROL, Ultimate
Estonian, Faroese, Finnish, Flemish, French, Fr Canadian, German,
Characters
Connection
Safety
Baud Rate
Safety S tandards
62 | 95
19,200 bps
FCC, CE
ClientPOS PT6300 User Manual

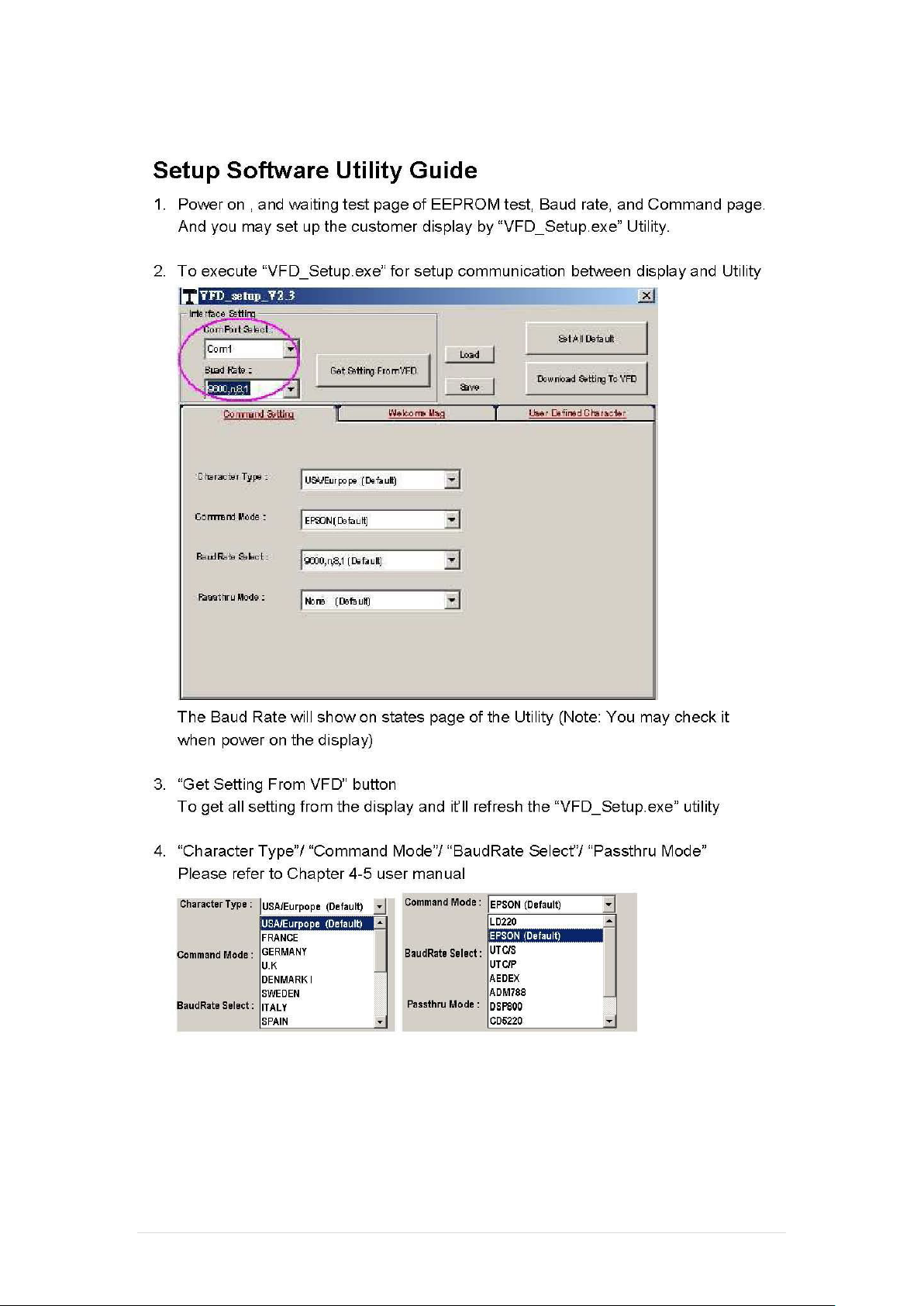

Version: 2.0
63 | 95
ClientPOS PT6300 User Manual

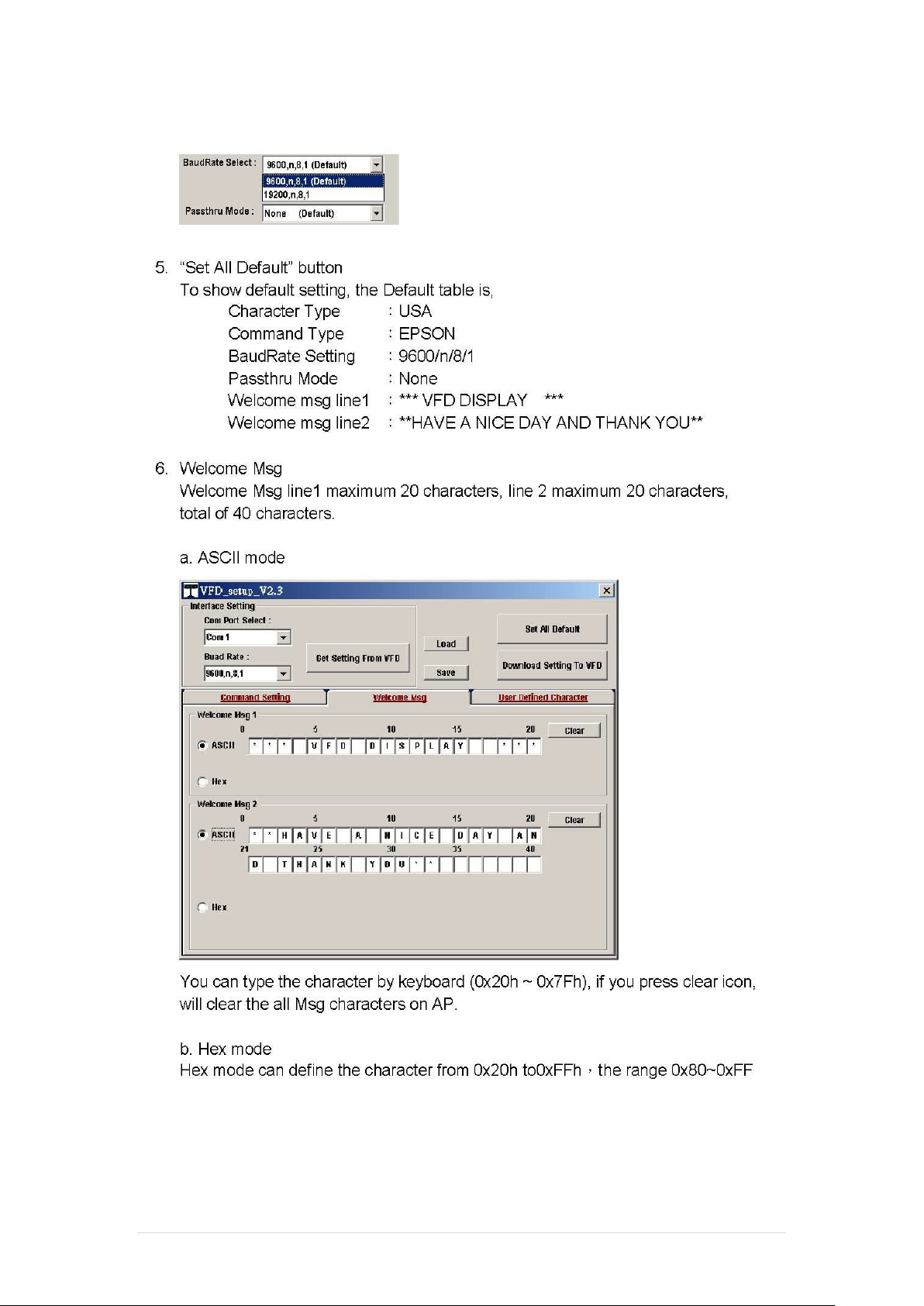

Version: 2.0
64 | 95
ClientPOS PT6300 User Manual

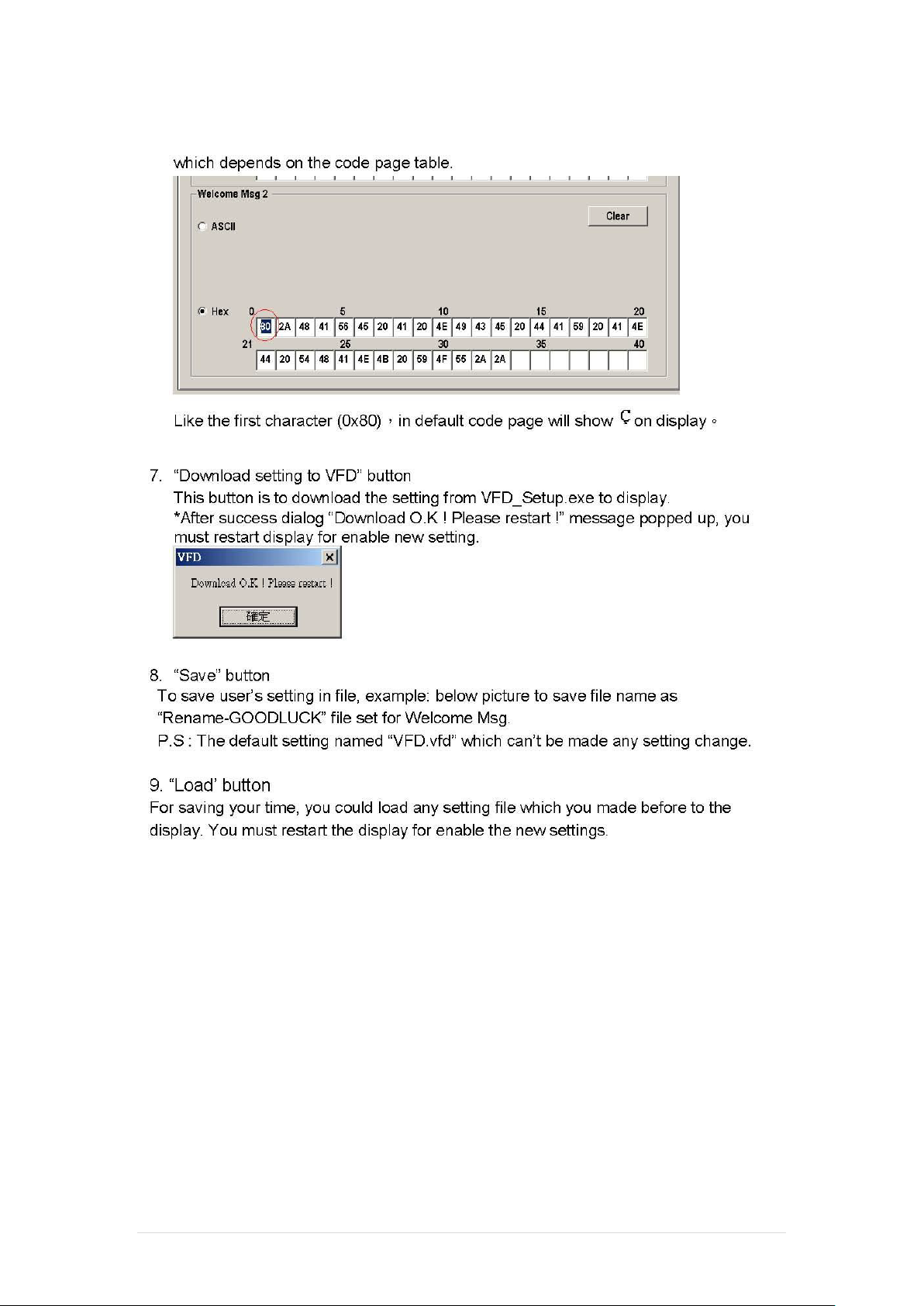

Version: 2.0
65 | 95
ClientPOS PT6300 User Manual
Version: 2.0
6-6 i-Button Reader Configuration Utility
The i-Button Reader Configuration Utility is used to set up the output format of HID MSR
Installation
Below steps guide you how to install the Utility program.
Insert the setup CD
Run the HID_MSR_PSW00003_V2_0_0.exe setup file t hat is located in the Software
folder of CD.
Follow the wizard to complete the installation.
Launching Program
Below steps guide you how to load the Utility program.
From Start/Programs, click HID_MSR2 folder
Click MagStripe Card Reader Configuration Utility to launch the program.
66 | 95
ClientPOS PT6300 User Manual
The utility program will detect the connected reader. If detected, all the input text boxes
will be enabled.
If the reader has not been connected to PC yet, pl ease co nnect the read er a nd t hen click
Refresh to get connected.
Version: 2.0
Configuration
Below is the main window of i-Button Utility program.
For the settings, there are:
Prefix/Suffix: Defines the data string which you would like to append in front or end of
the i-Button key string.
Error Message: Indicates error message when i-Button key read fail.
Message: Indicates message when i-Button key read correctly
SS/ES : Define Start and End sentinel byte for the i-Button ID string
Length : i-Button ID length request from 0~16
Output order : 4 format could be select at Attach /Remove i-Button ID
67 | 95
ClientPOS PT6300 User Manual
Version: 2.0
Update Settings
Once complete the settings, click Update to update the settings to connected HID MSR
reader.
Save Settings
To save the settings to a file, click Save; specify the file name and location to be saved.
Open Settings
To load pre-saved settings, click Open, specify the setti ngs file, and then click OK to load into
program.
Restore MSR Reader Settings
To load restore settings of connected MSR reader, click Restore ES2: End sentinel for track.
68 | 95
ClientPOS PT6300 User Manual
Version: 2.0
6-7 Installation and Testing of Smart Card Reader

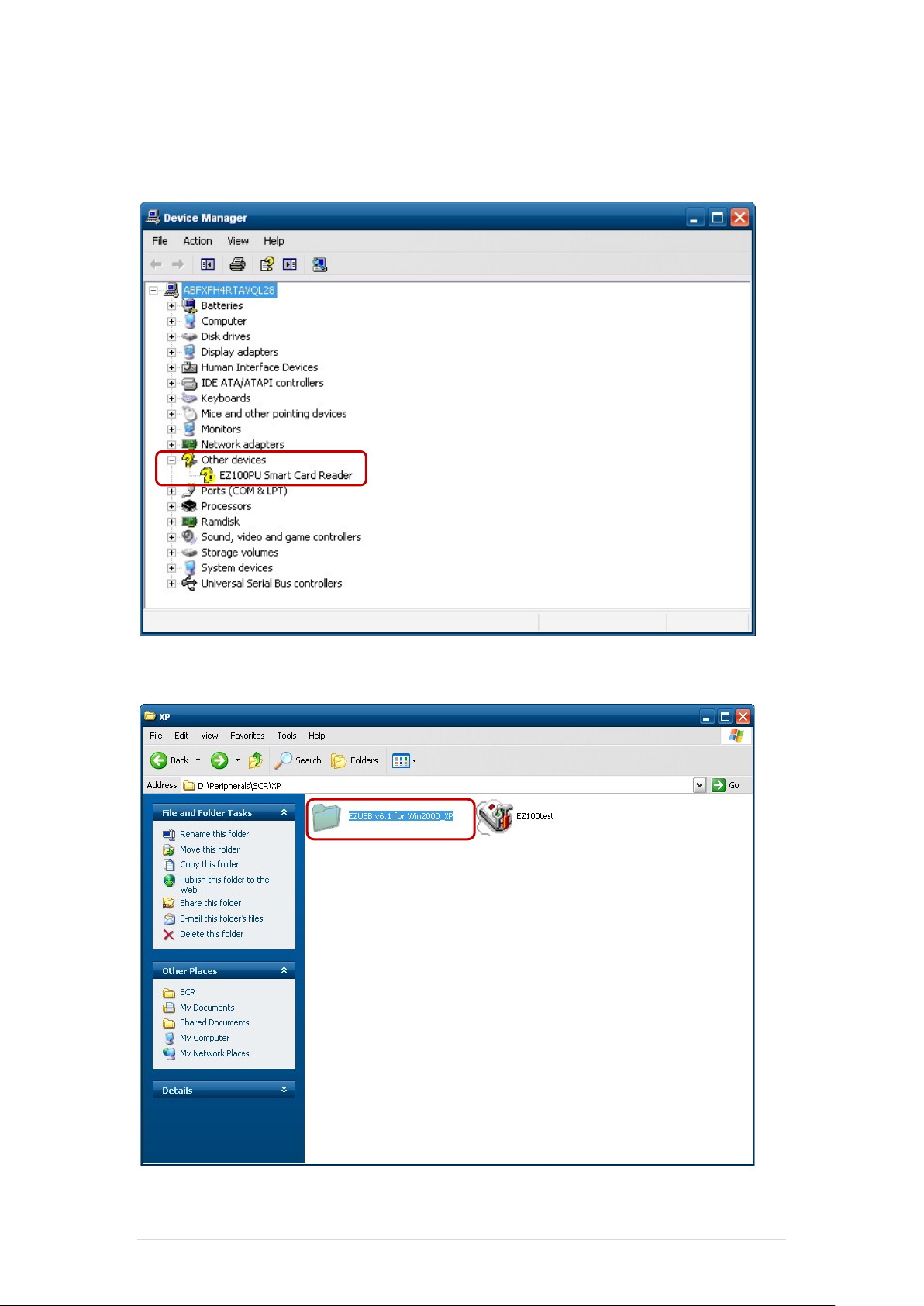

1. Check smart card reader be detected by “Device manager”.

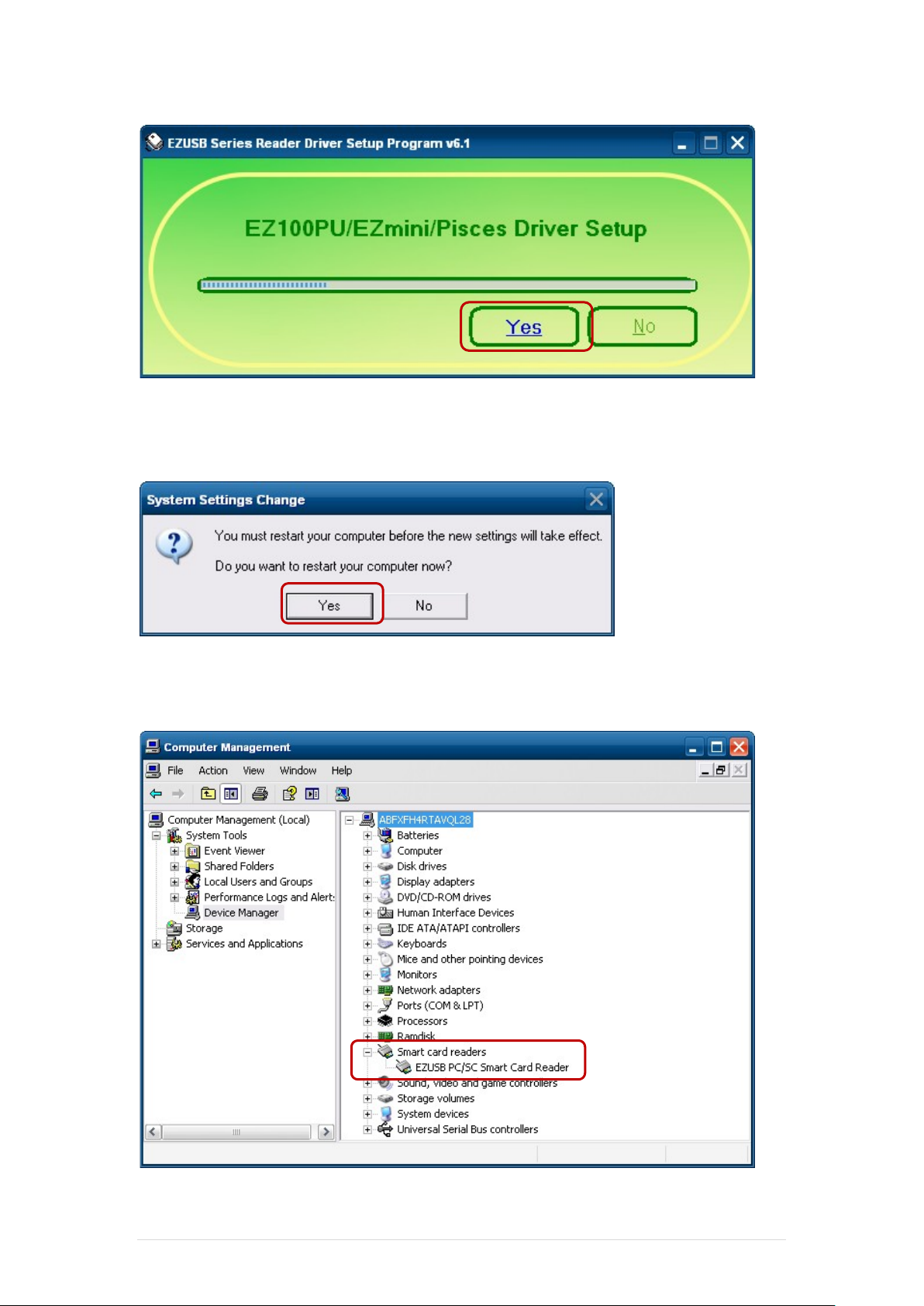

2. Install the SCR driver.
69 | 95
ClientPOS PT6300 User Manual
Version: 2.0

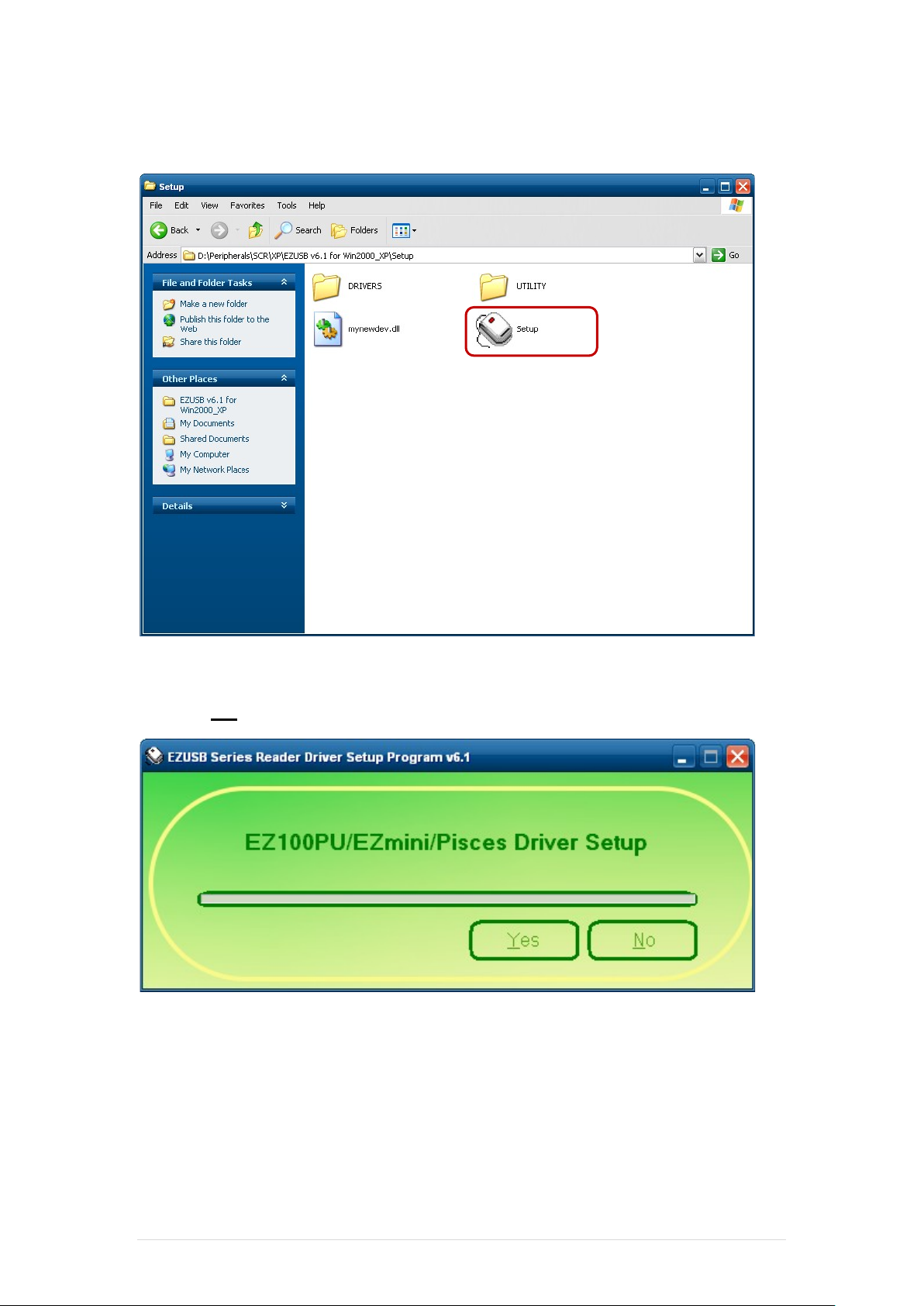

3. Run Setup.exe.
4. Click “Yes”.
70 | 95
ClientPOS PT6300 User Manual
Version: 2.0
5. Restart systems.
6. Check SCR reader in Device Manager.
71 | 95
ClientPOS PT6300 User Manual
Version: 2.0

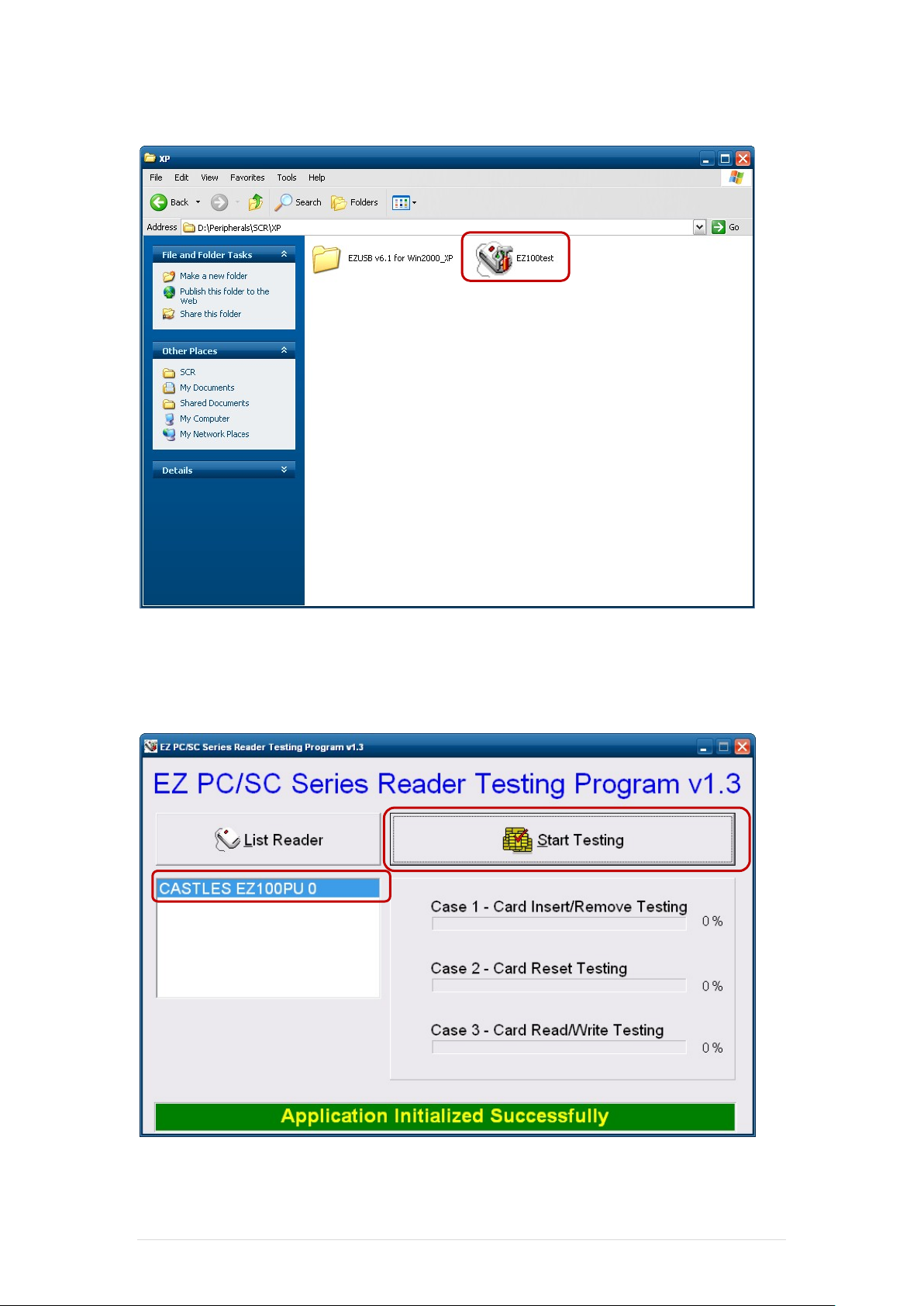

7. Run the testing program – EZ100test.
8. Conferm that SCR can be detected by the testing program, then run the program - the
Start Testing.
72 | 95
ClientPOS PT6300 User Manual
Version: 2.0

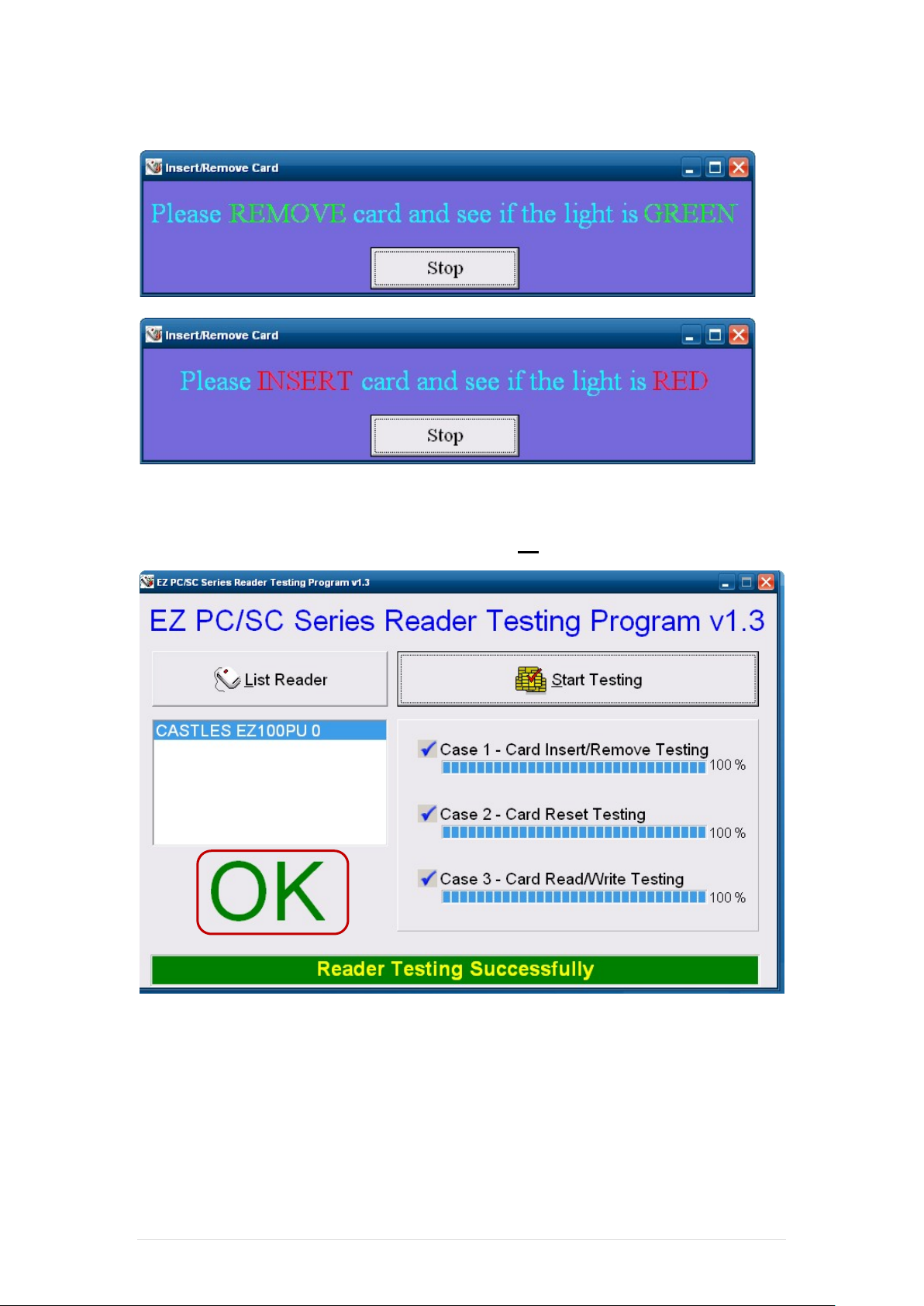

9. Follow dialog boxes displayed to remove and insert card.
10. After finishing the testing, the dialog box will show “oK”.
73 | 95
ClientPOS PT6300 User Manual
Version: 2.0
6-7 Wi-Fi

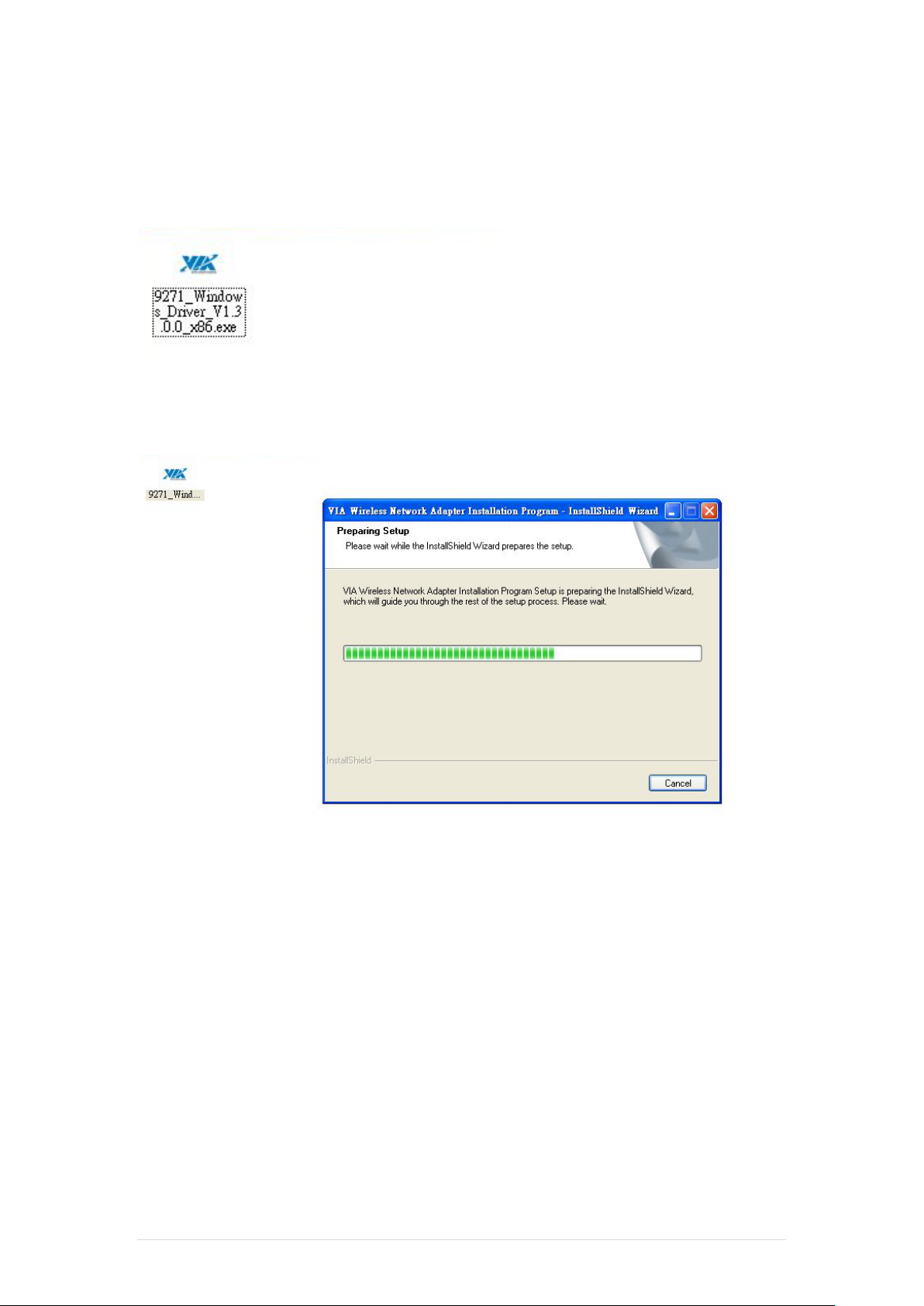

1. Install the Wi-Fi driver.
2. Run Setup.exe.
74 | 95
ClientPOS PT6300 User Manual
☆

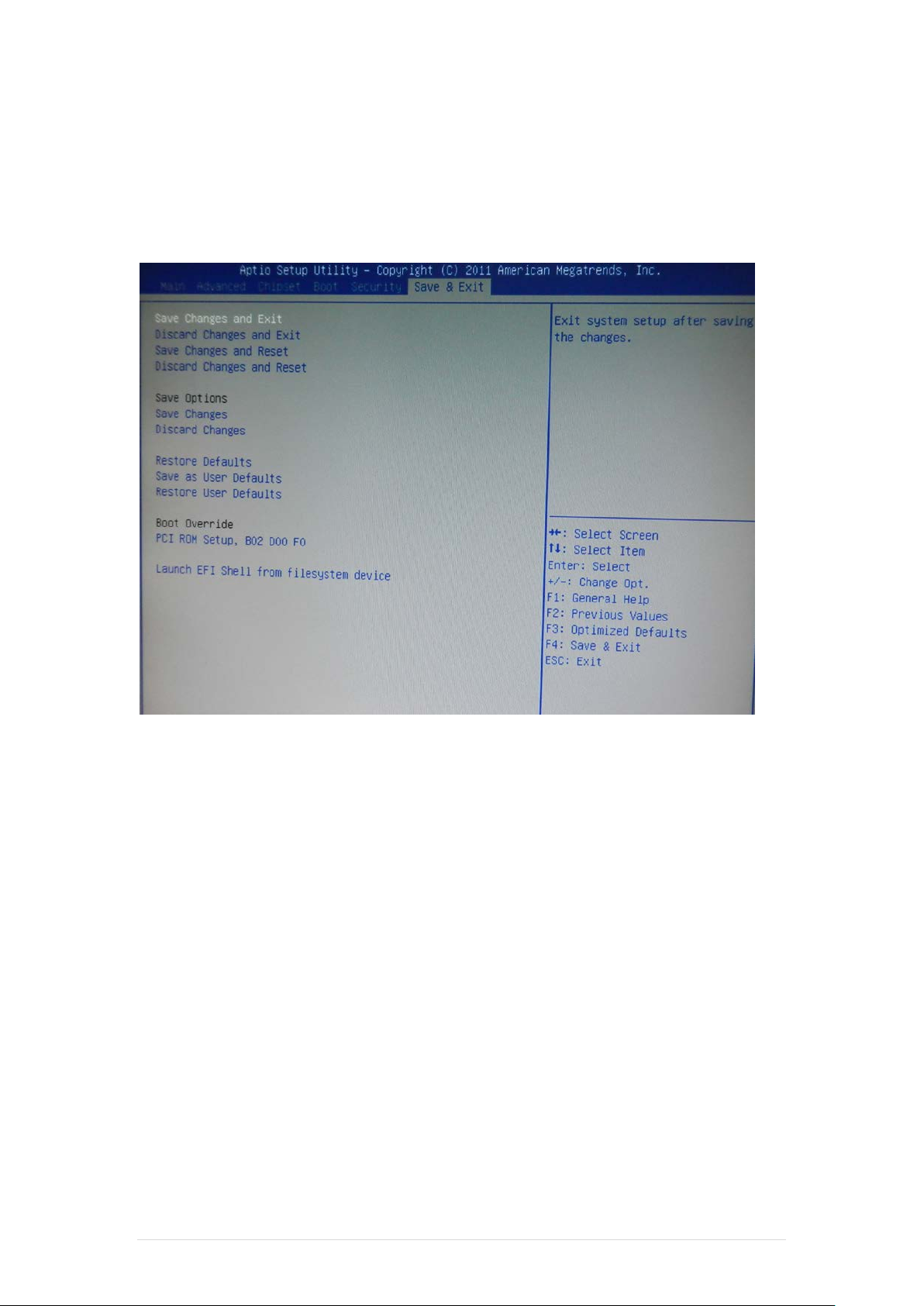

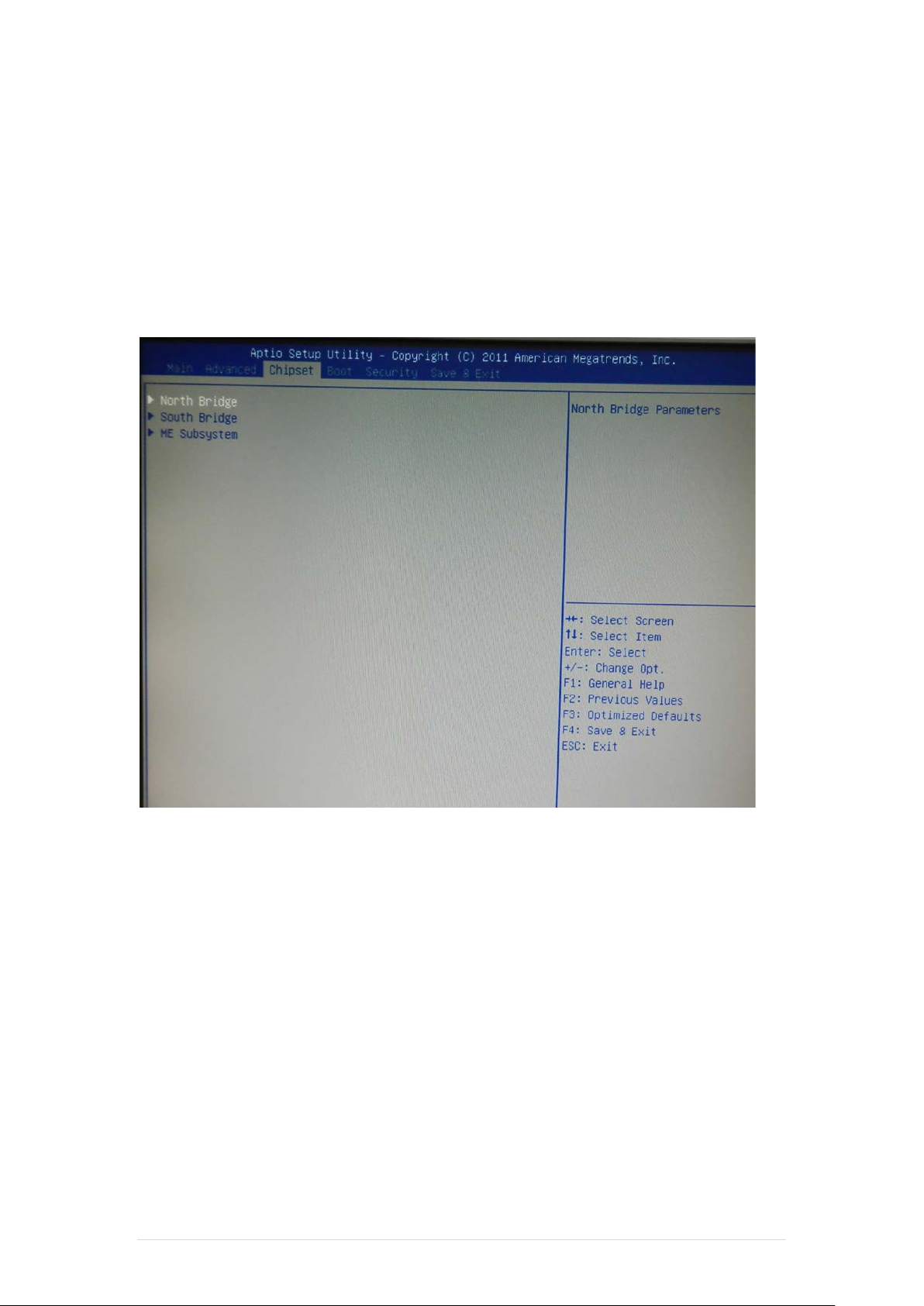

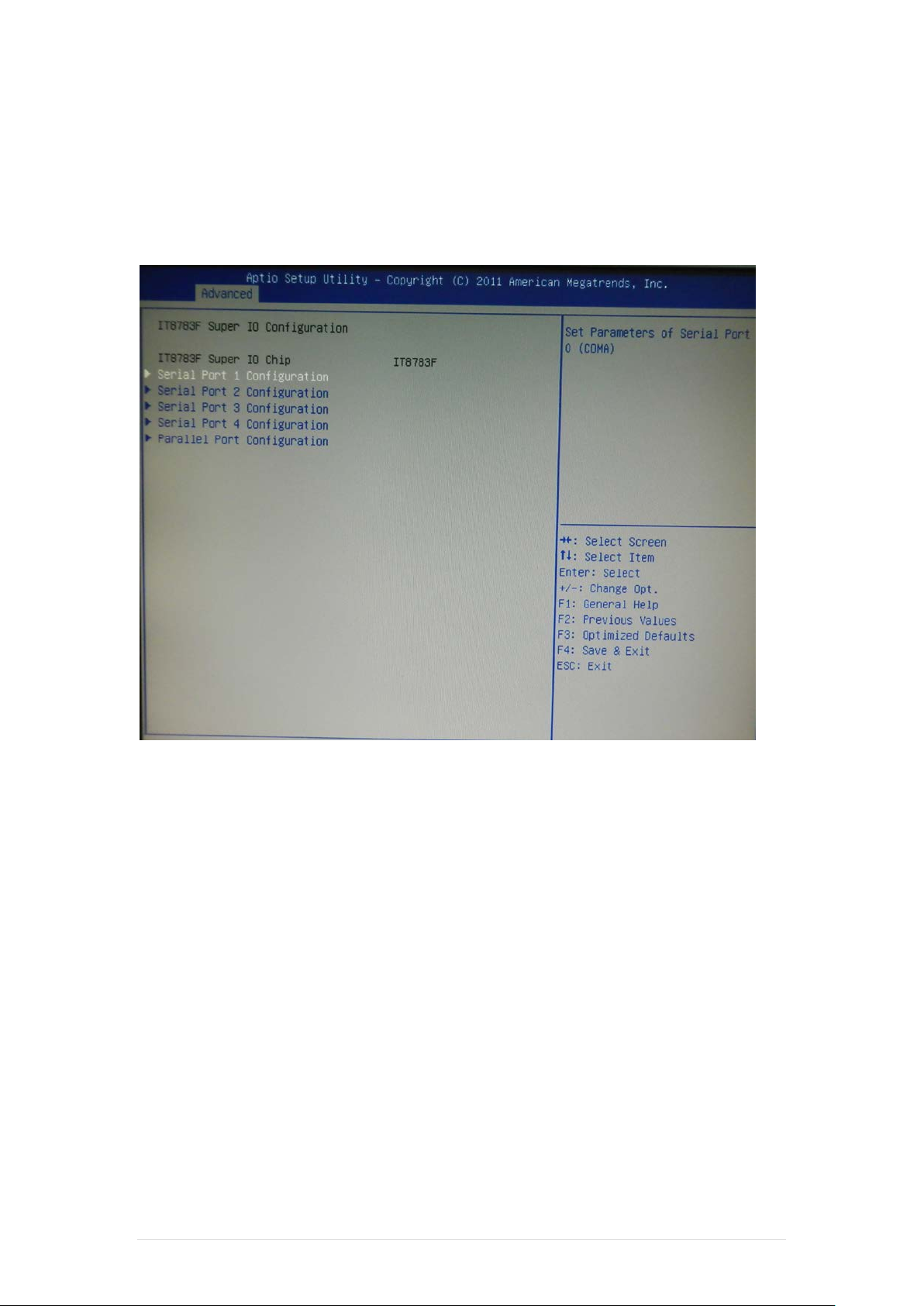

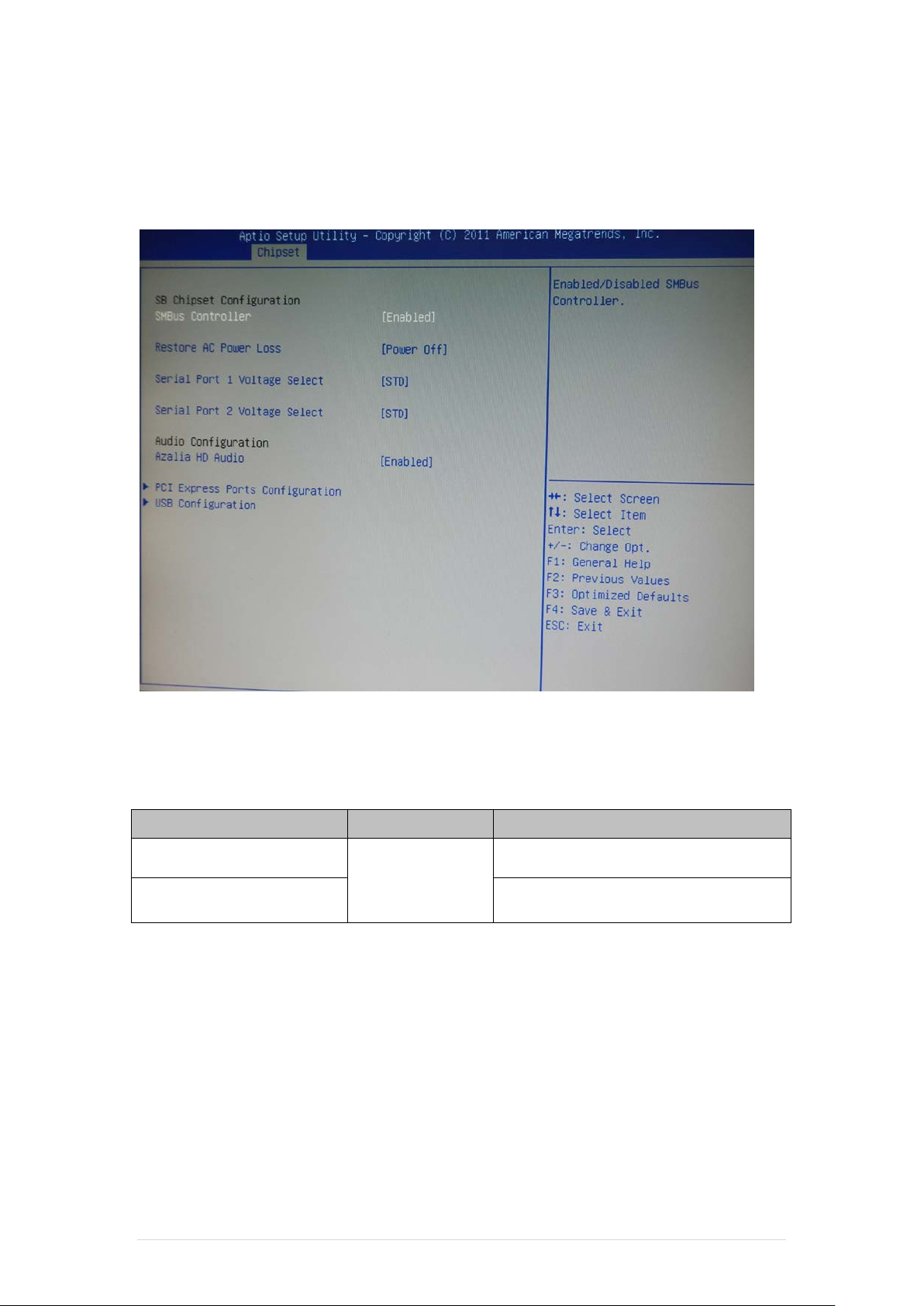

BIOS/Utility Setup
7
Version: 2.0
BIOS/Utility setup

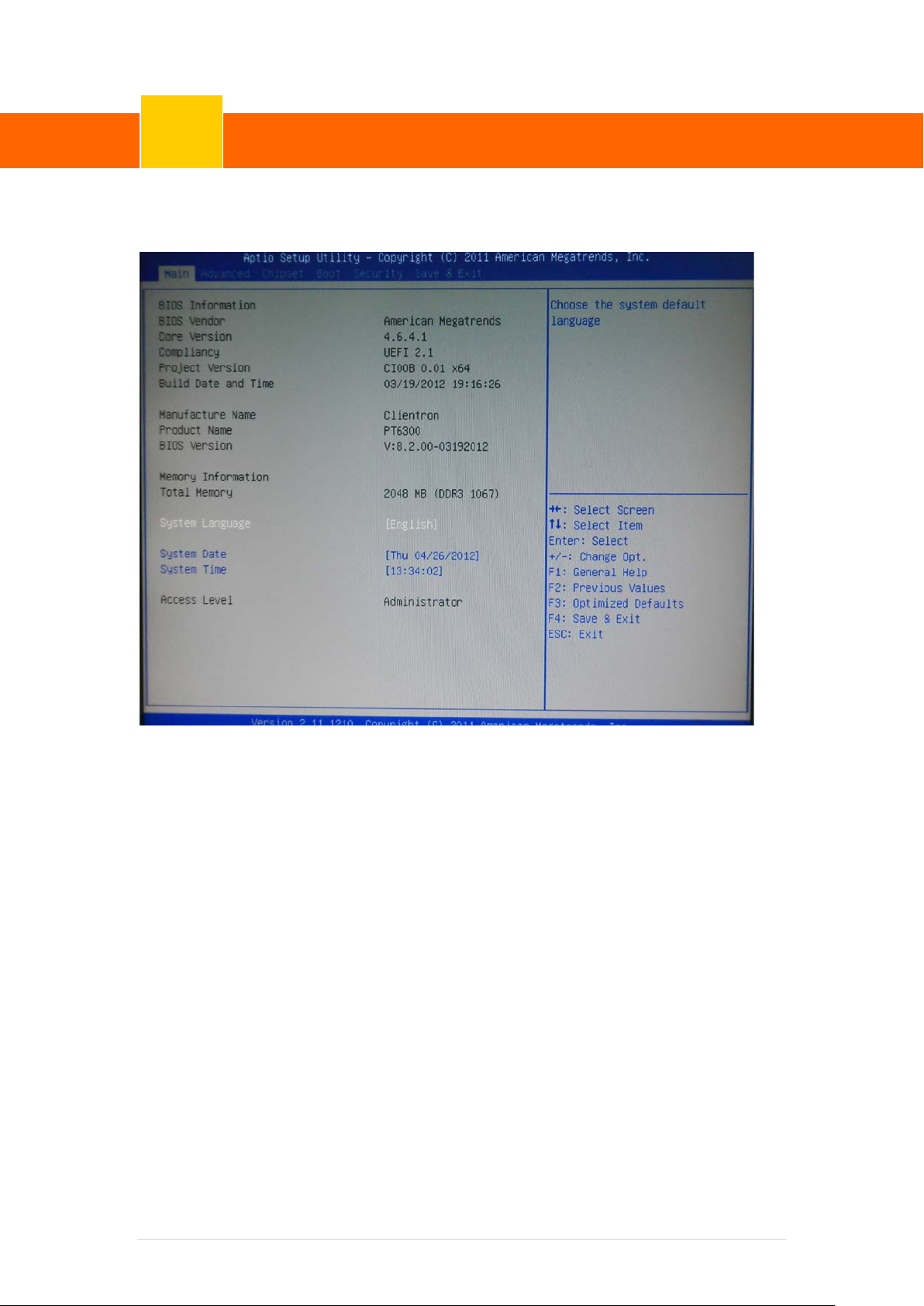

Press <DEL > / <F2> key to enter BIOS SETUP UTILITY when system boot up.
Please press <DEL > / <F2> key tenderly and slowly.
Date and Time
The Date and Time items show the current date and time on the computer. If you are running a
Windows OS, these items are automatically updated whenever you make changes to the
Windows Date and Time Properties utility.
WARNING!
Setting the wrong values in the sections belo w may cause the system to malfunction.
Make sure that the settings made are compatible with the hardware.
75 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-1 Advanced

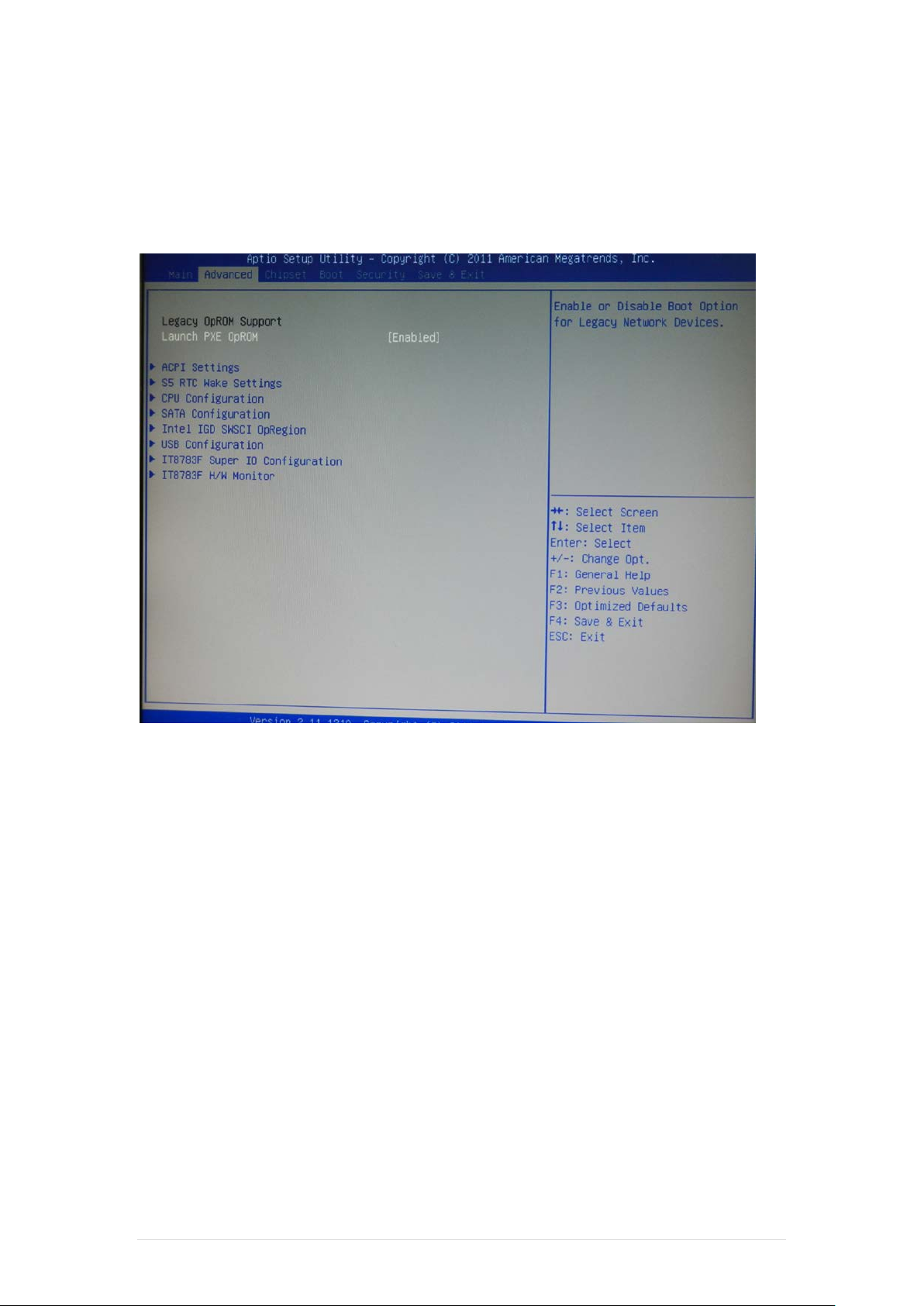

Use the Advanced menu to configure the CPU and peripheral devices through the following
sub-menus:
76 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-1-1 ACPI Configuration

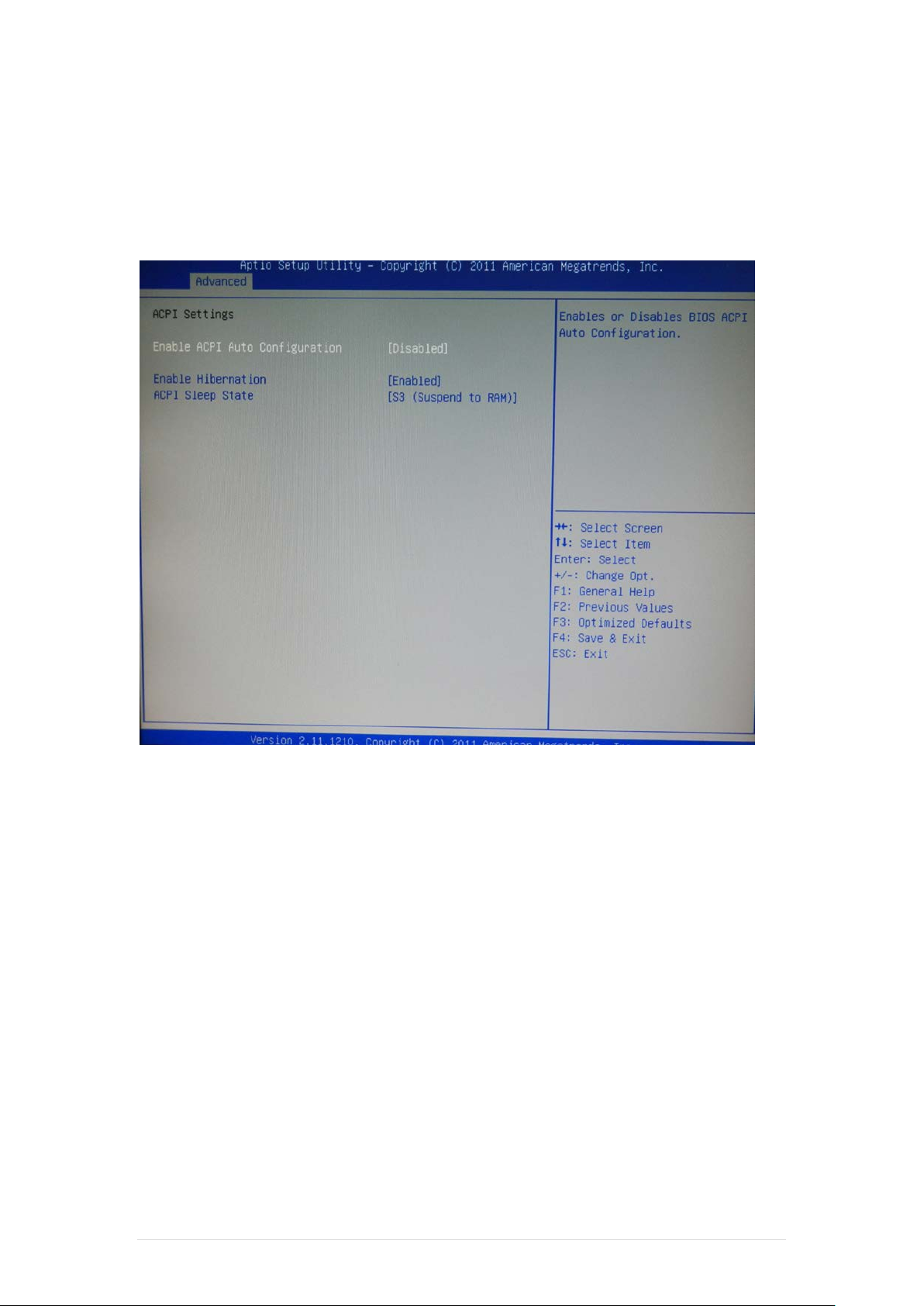

The ACPI Configuration menu configures the A dvanced Configuration and Power Interface
(ACPI) options
ACPI Sleep State
Use the ACP I Sleep State option to sp ecify the sleep state the system enters when it is
not being used.
1. Suspend Disabled
2. S1 (CPU Stop Clock)
DEFAULT The system enters S1 (POS) sleep state. The system appears off. The
CPU is stopped; RAM is refreshed; the system i s running in a low power mode.
3. S3 (Suspend to RAM)
The caches are flushed and the CPU is powered off. Power to the RAM is
maintained. The comput er returns slower to a working state, but more power is
saved.
77 | 95
ClientPOS PT6300 User Manual
Version: 2.0

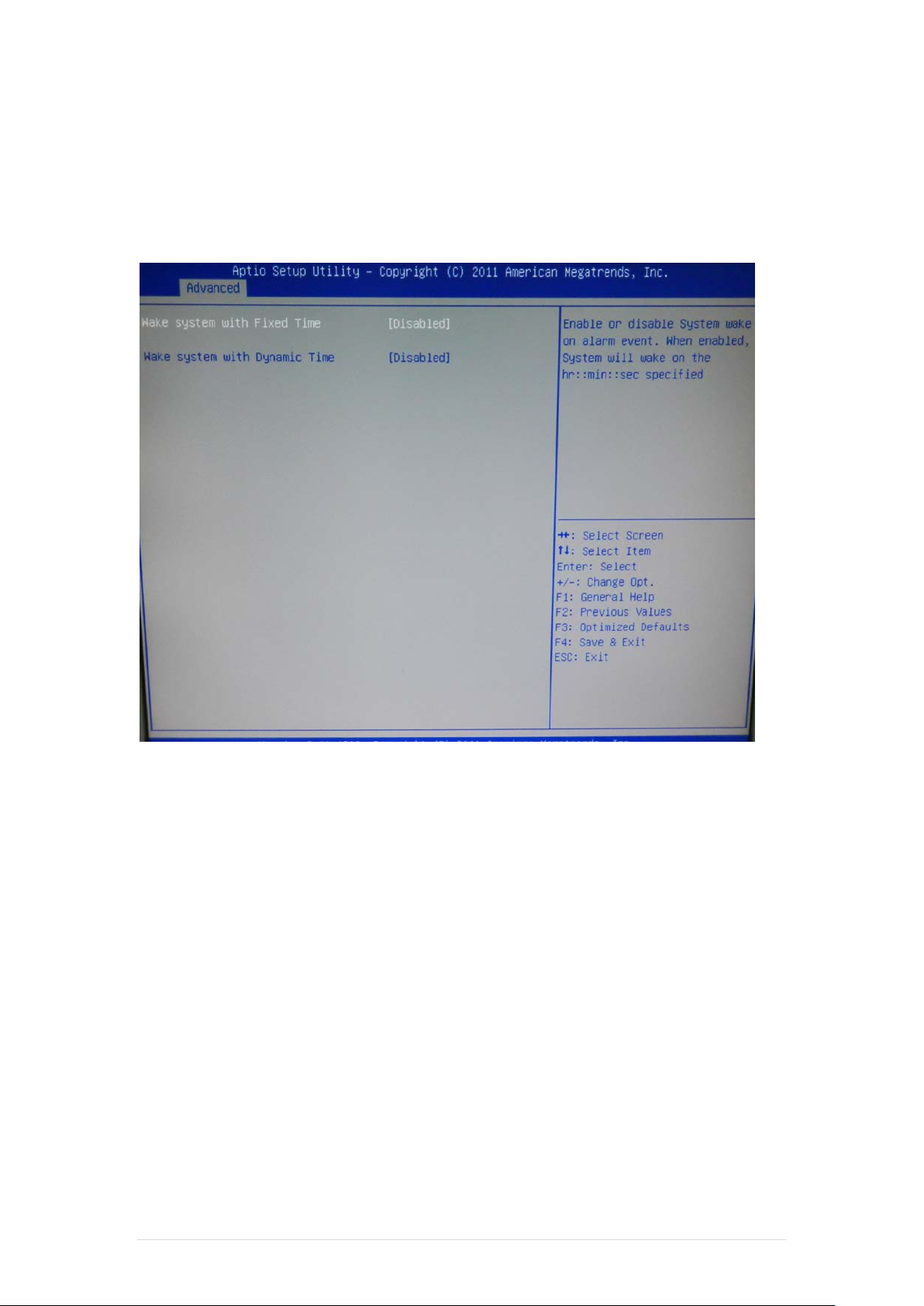

7-1-2 S5 RTC Wake Settings
Enable or disable system wake on alarm event. When enabled, system will wake on the
hr::min::sec specified.
78 | 95
ClientPOS PT6300 User Manual
Version: 2.0

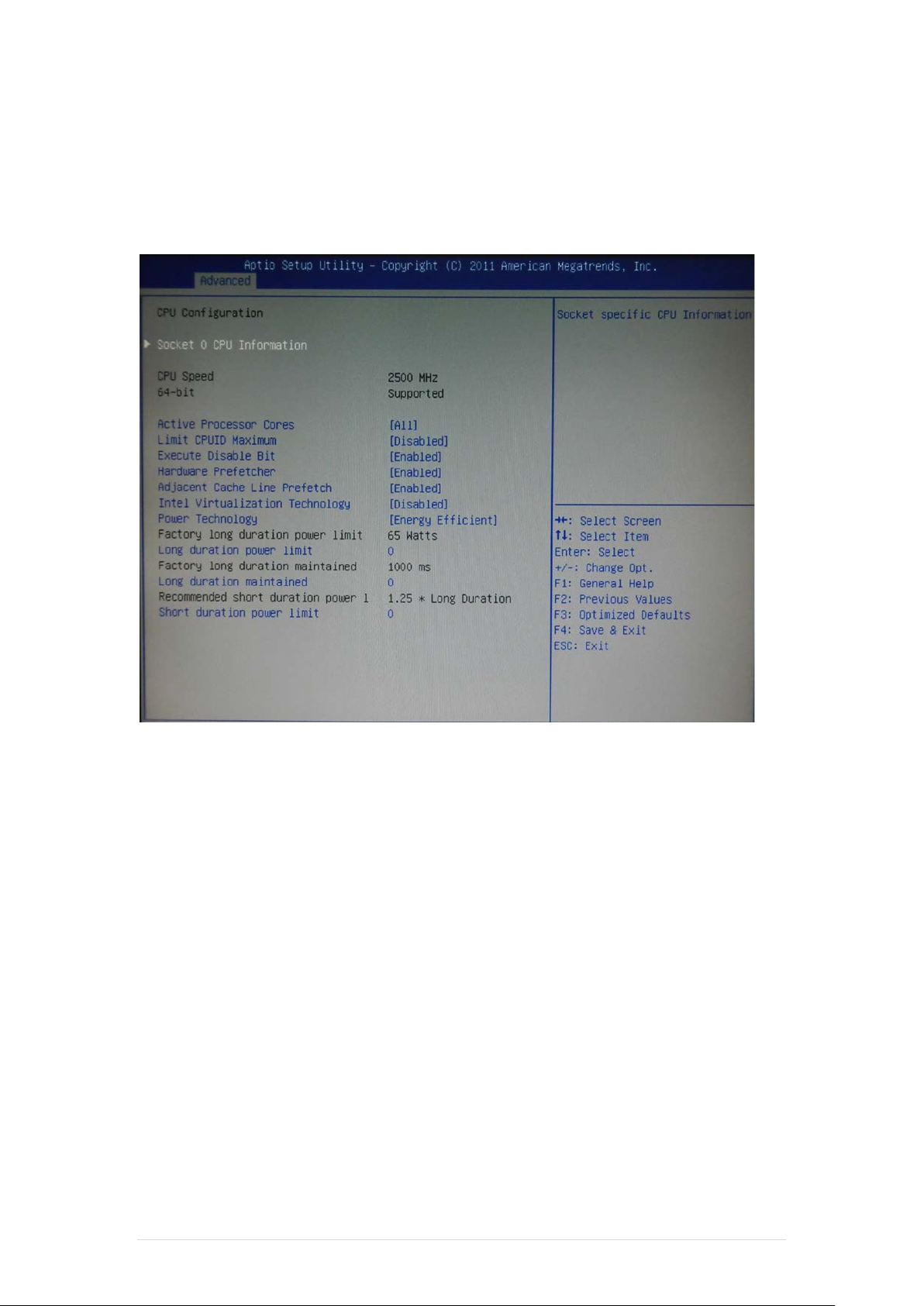

7-1-3 CPU Configuration
Use the CPU Configuration menu to enter the CPU Information submenu or setup Intel CPU
parameter.
79 | 95
ClientPOS PT6300 User Manual
Version: 2.0

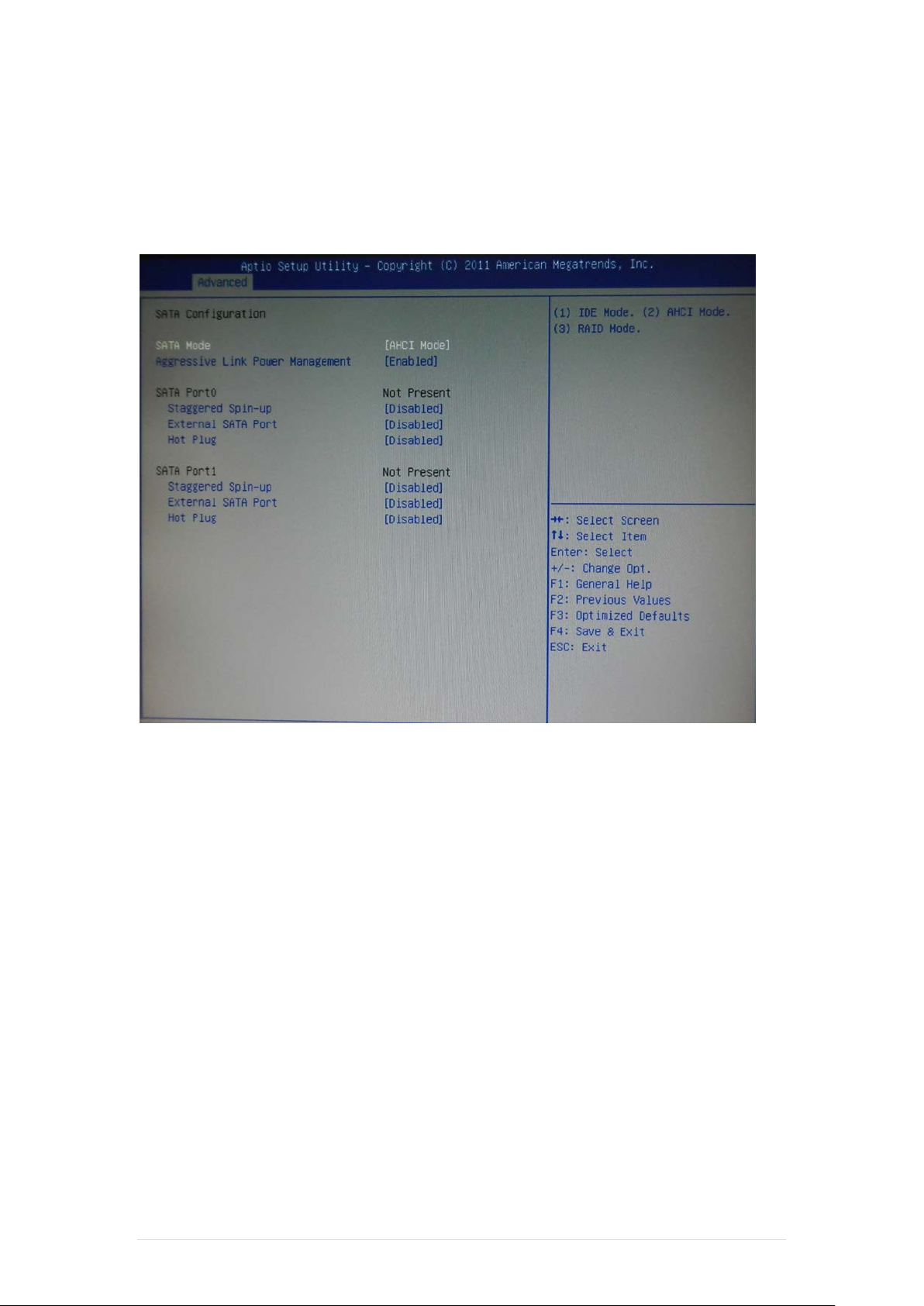

7-1-4 SATA Configuration
Use the SATA Configuration menu to change and/or set the configuration of the SATA devices
installed in the system.
SATA Mode
Use the SATA Mode option to configure SATA devices as normal IDE devices.
Disable Disables SATA devices.
IDE Mode Configures SATA devices as normal IDE device.
RAID Mode Configures SATA devices as RAID device.
80 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-1-5 Intel IGD SWSCI OpRegion Configuration

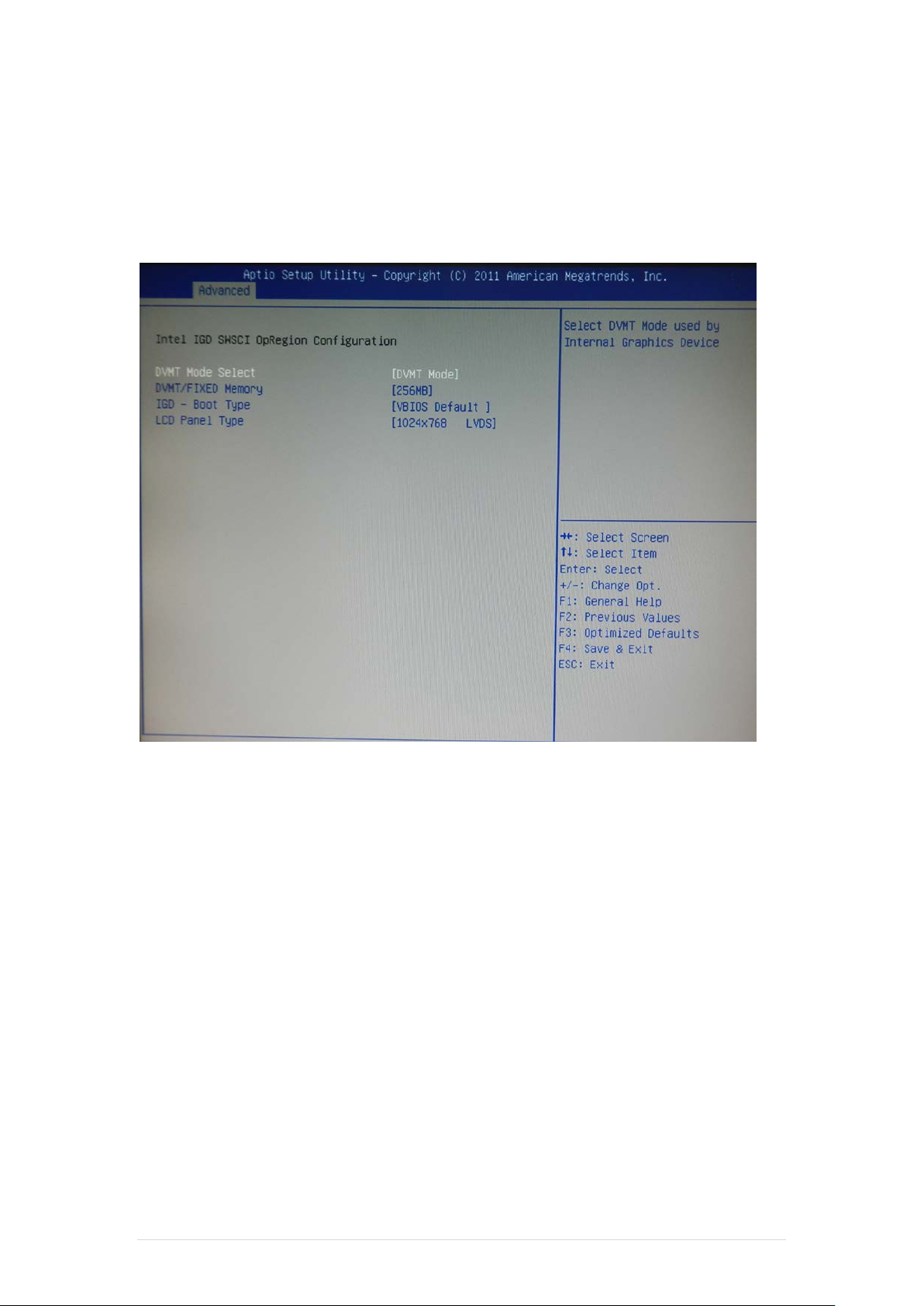

Use the Configuration menu to change and/or set the configuration of the internal graphics
devices installed in the system.
DVMT Mode
Use the DVMT Mode option to configure internal graphics device.
DVMT/FIXED Memory
Use the option to configure memory size of internal graphics device.
81 | 95
ClientPOS PT6300 User Manual
Version: 2.0

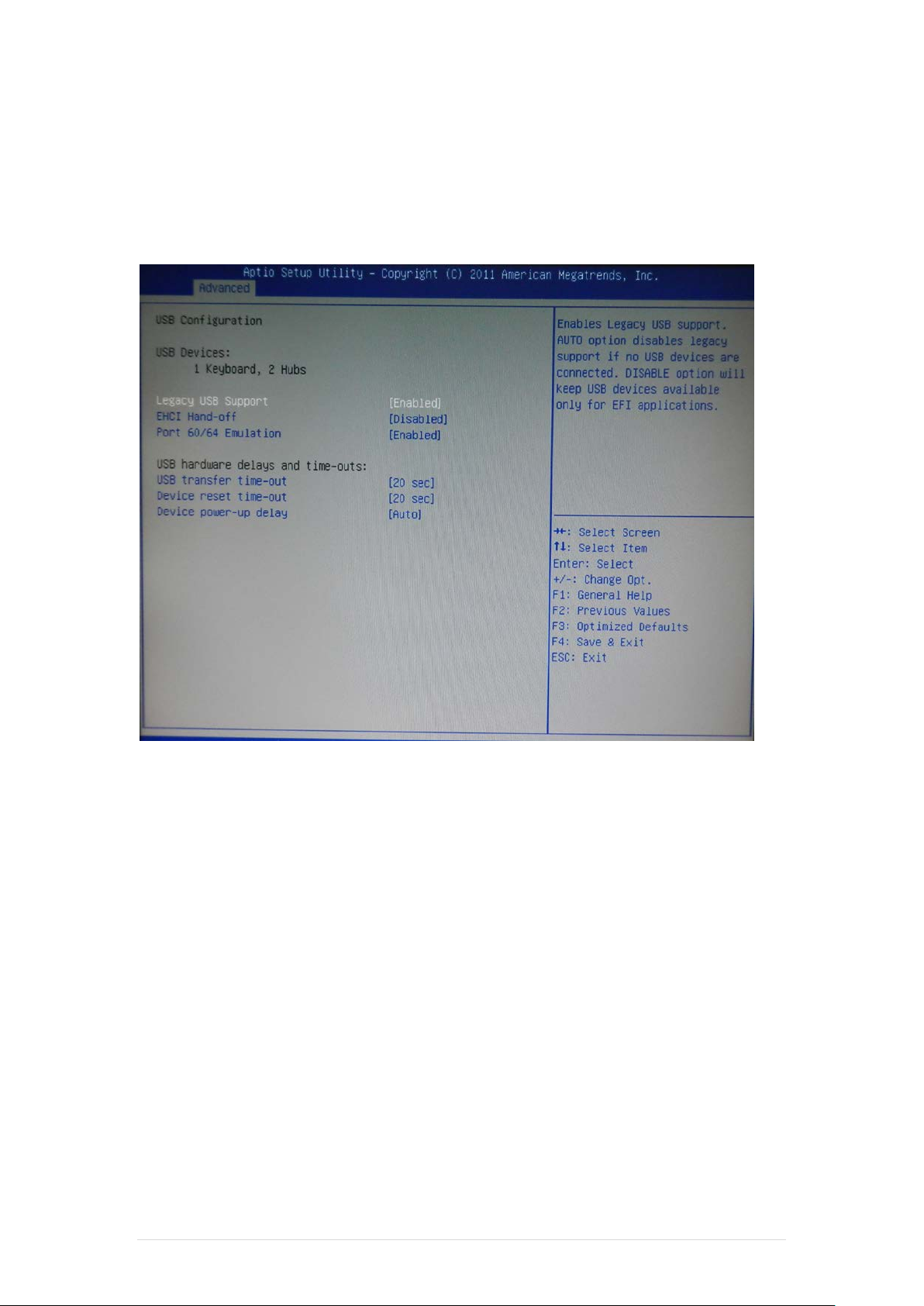

7-1-6 USB Configuration
Use the USB Configuration menu to read USB configuration information and configure the
USB settings.
USB Devices
The USB Devices Enabled field lists the US B devices that are enabled on the system
Legacy USB Support [Enabled]
Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard
support. Normally if this option is not enabled, any attached USB mouse or USB
keyboard does not become available until a USB compatible operating system is fully
booted with all USB drivers loaded. When t hi s option is enabled, any attached USB
mouse or USB keyboard can control the system even when there is no USB driver
loaded onto the system.
Disabled Legacy USB support disabled
Enabled Legacy USB support enabled
82 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-1-7 IT8783F Super IO Configuration
Use the Super IO Configuration menu to set or change t he configur ations fo r p ar allel port s and
serial ports.
83 | 95
ClientPOS PT6300 User Manual
Version: 2.0
Serial Port n Configuration

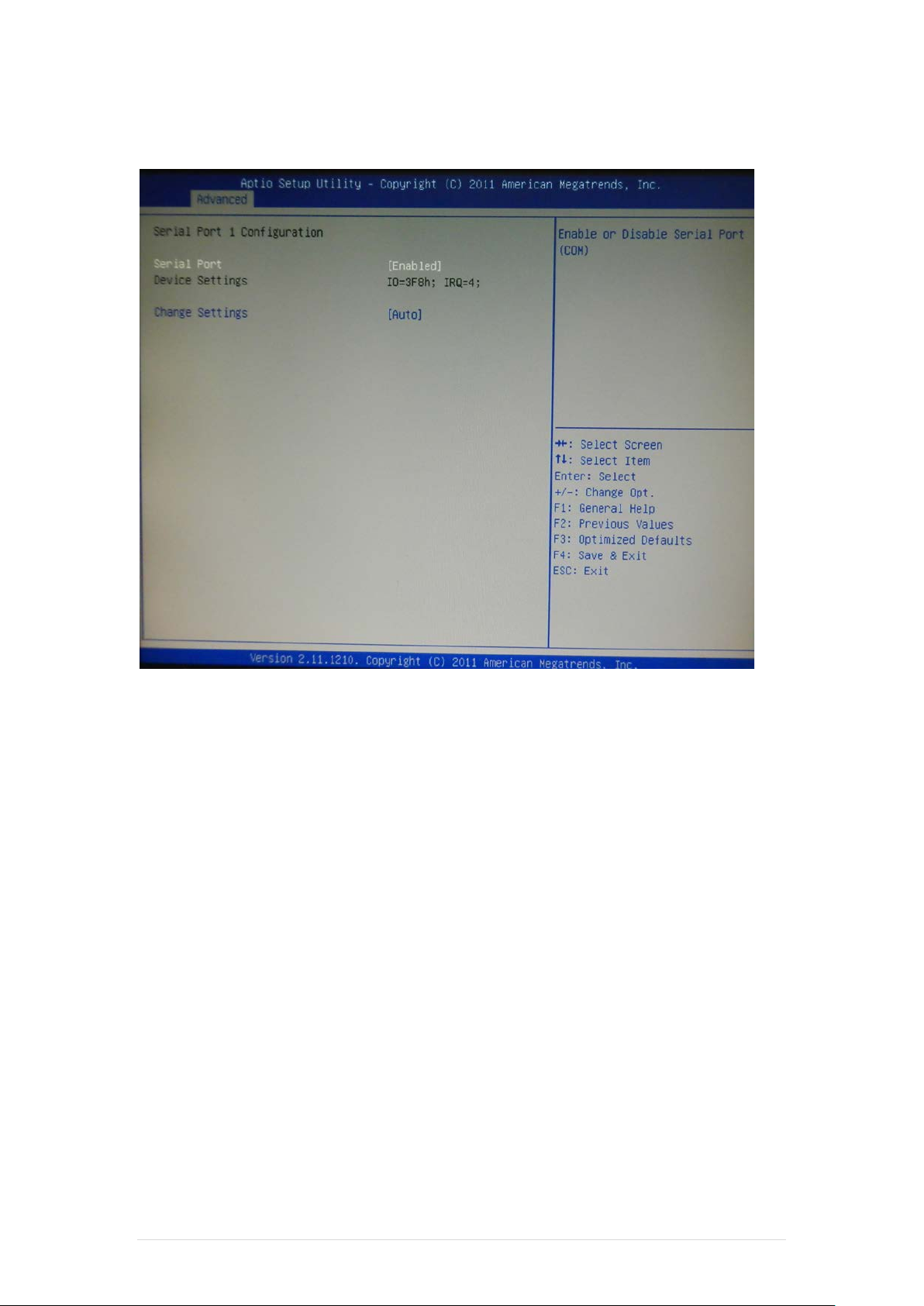

Use the Serial Port n Configuration menu to conf i gure the serial port n.
Serial Port [Enabled]
Use the Serial Port option to enable or disable the serial port.
Disabled Disable the serial port
Enabled Enable the serial port
Change Settings [Auto]
Use the Change Settings option to change the se rial port IO port address and interrupt
address.
Auto The serial port IO port address and interru pt address are automatically
detected.
84 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-1-8 Parallel Port Configuration

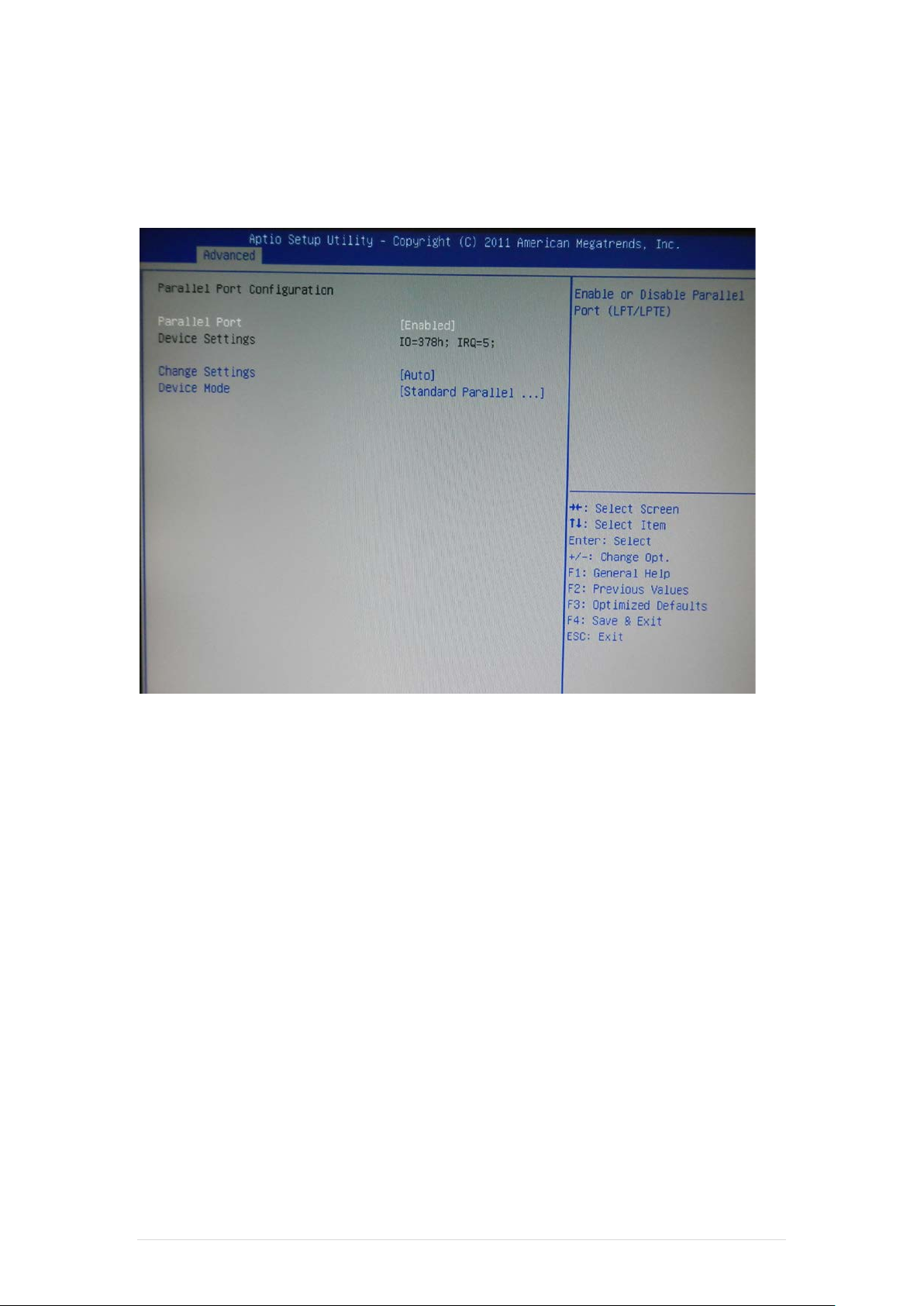

Use the Parallel Port Configuration menu to conf i gure the parallel port.
85 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-1-9 H/W Monitor

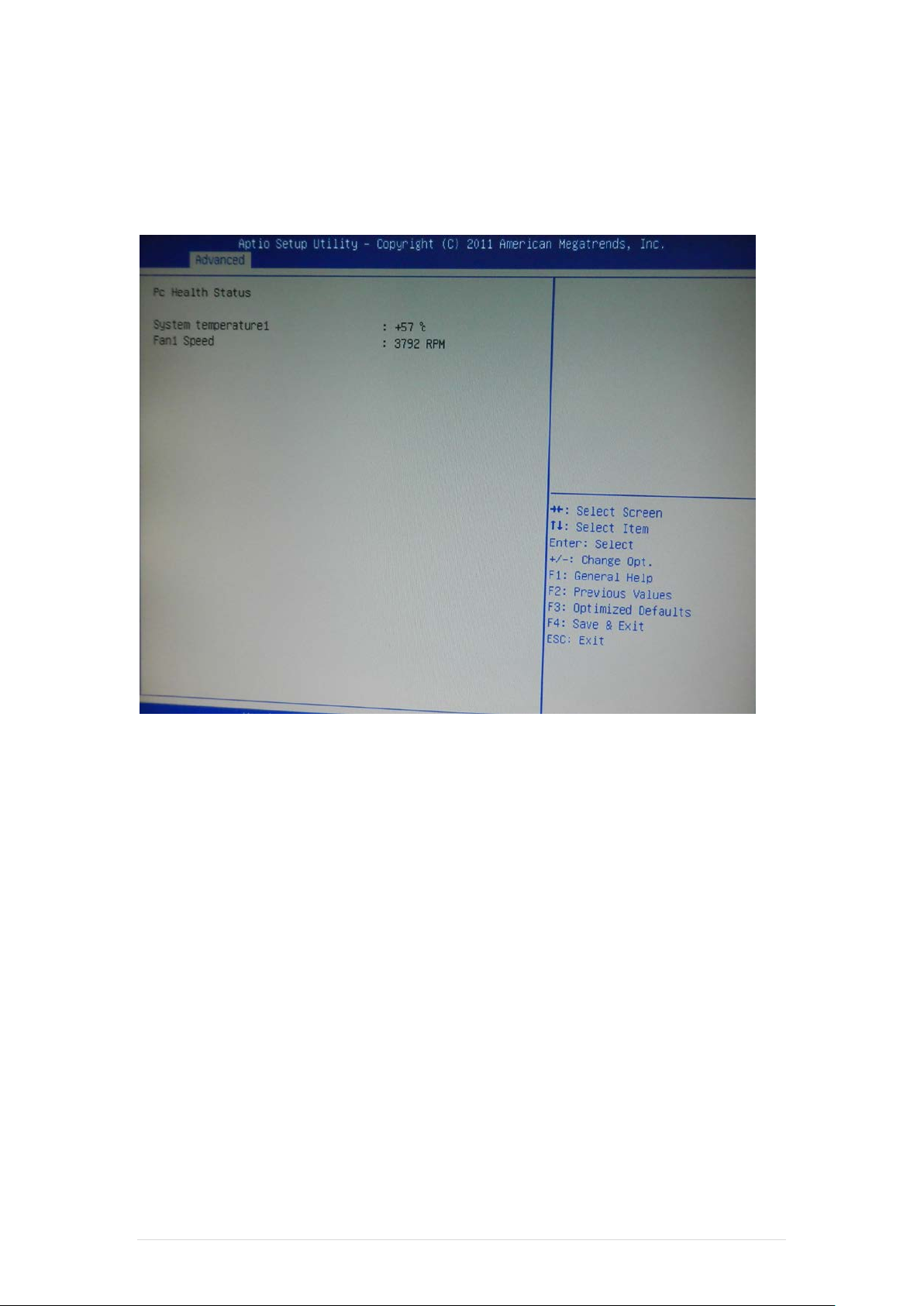

The H/W Monitor menu shows the operating t em perature and fan speeds.
86 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-2 Chipset
Use the Chipset menu to access the Northbridge and Southbridge configuration menus
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may
cause the system to malfunction.
87 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-2-1 Northbridge Configuration

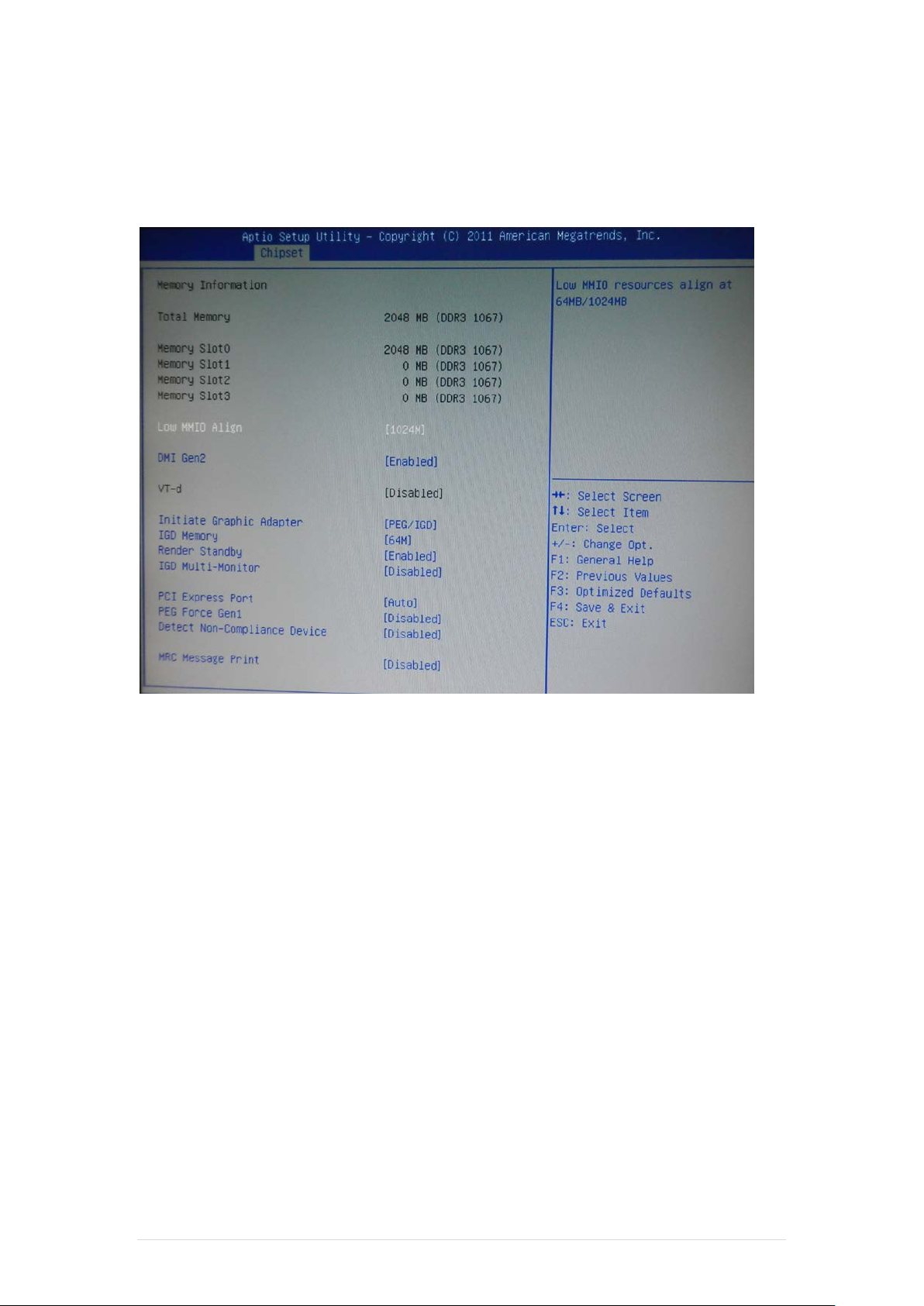

Use the Northbridge Chipset Configuration menu to configure the Northbridge chipset.
Initiate Graphic Adapter [PEG/IGD]
Use the Initiate Graphic Adapter option to select the graphics controller used as the
primary boot device. Select either an integrate d graphics controller (IGD) or a
combination of PCI graphics controller, a PCI express (PEG) controller or an IGD.
Configuration options are listed below:
IGD
PCI/IGD
PCI/PEG
PEG/IGD DEFAULT
PEG/PCI
IGD Memory [64 M]
Use the IGD Memory option to specify the amount of system memory that can be used
by the internal graphics device
88 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-2-2 Southbridge Configuration
Use the Southbridge Configuration menu to confi gure the Southbridge chipset.
Serial Port 1/2 Voltage Select [STD]
Select "COM1/2 PIN9 Function" and press <Enter> to setup COM 1/2 PIN9 function.
ITEM Option Descriptions
COM1 PIN9 Function STD (Default)
COM2 PIN9 Function COM1/2 Pin9 select 5V/12V function
5V
COM1/2 Pin9 select RING function
12V
89 | 95
ClientPOS PT6300 User Manual
Version: 2.0

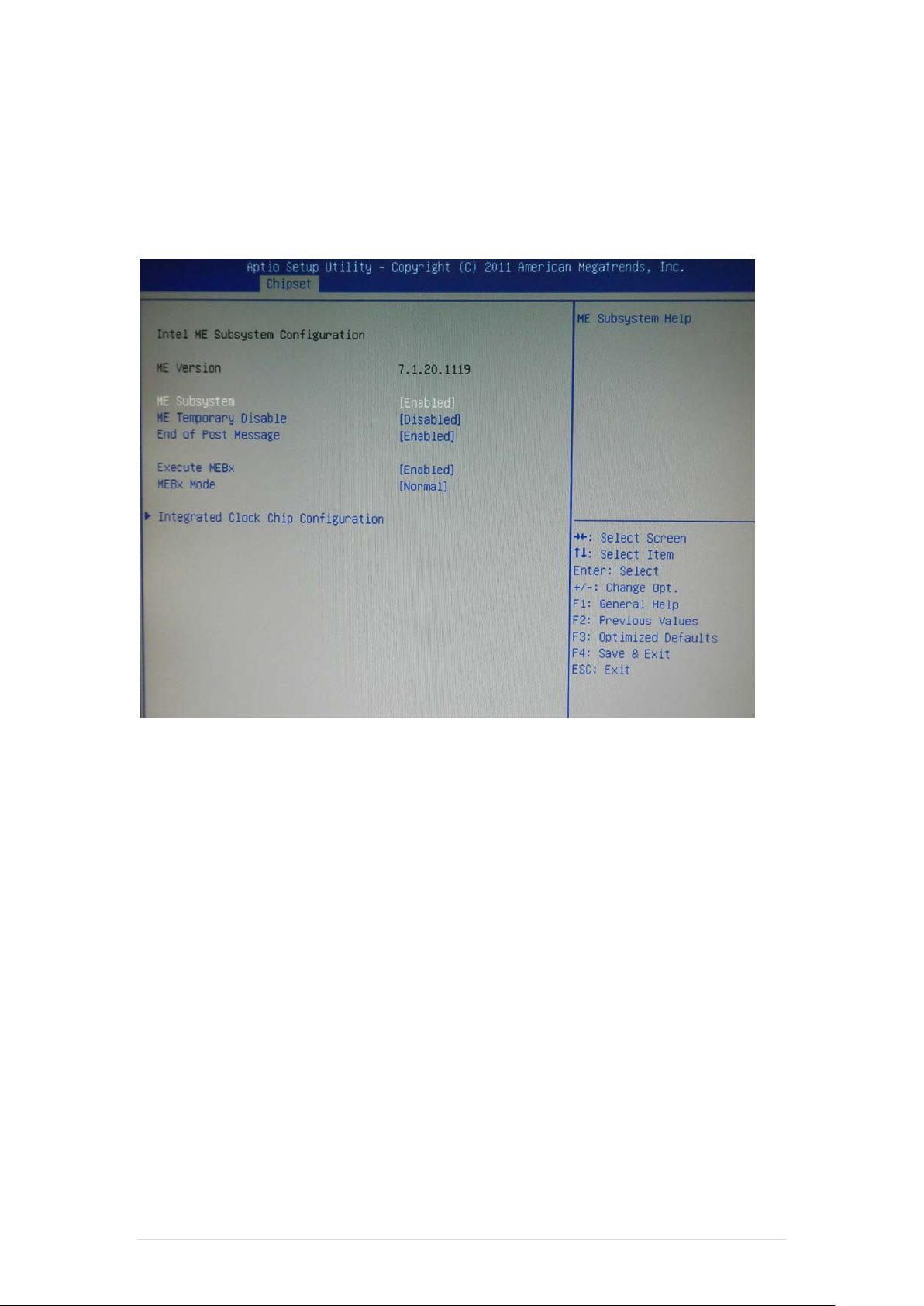

7-2-3 ME Subsystem
Use the ME Subsystem menu to configure the I ntel® Management Engine (ME) configuration
options.
90 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-3 Boot
Use the Boot menu to configure system boot options.

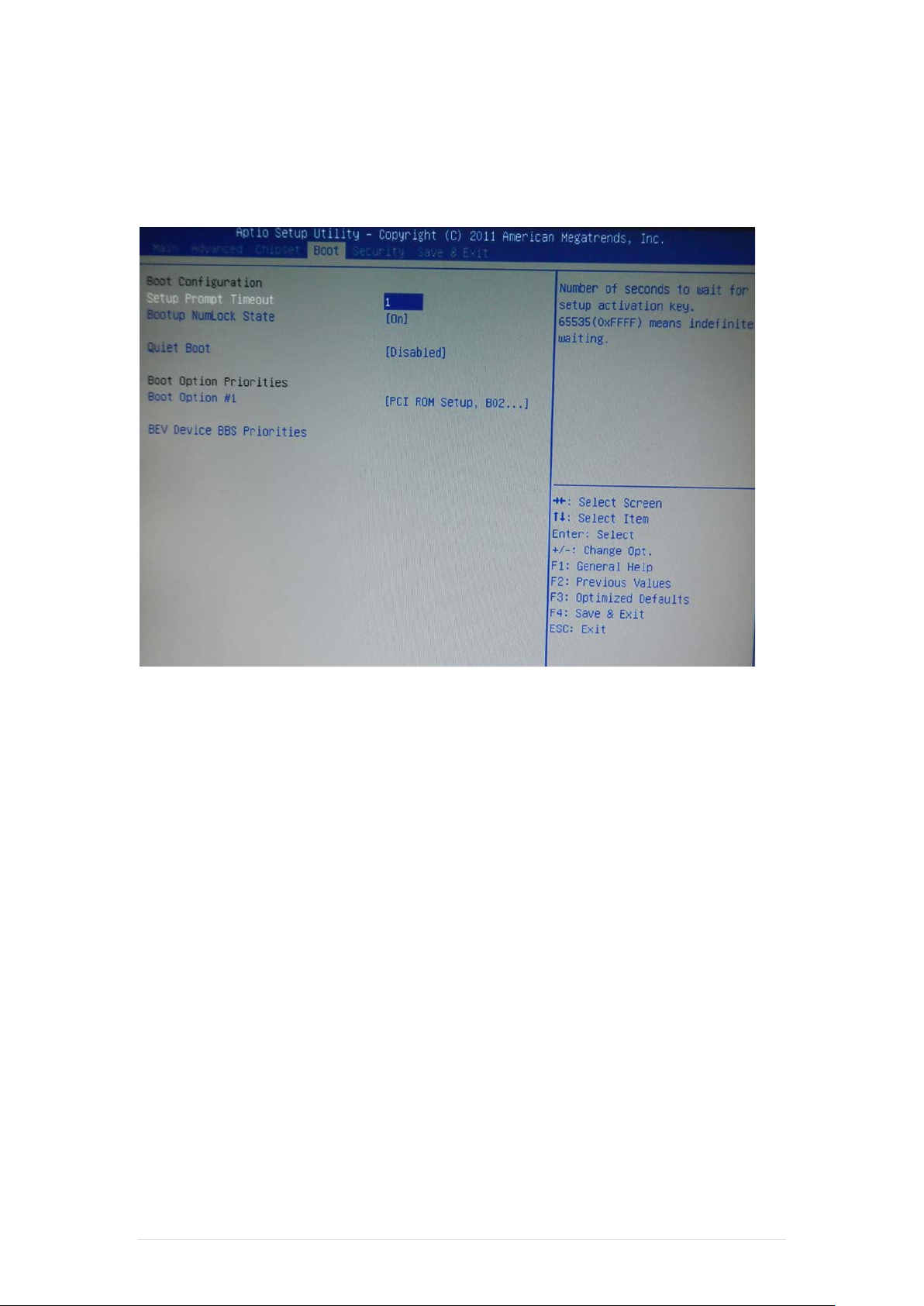

Bootup NumLock State [On]
Use the Bootup NumLock State BIOS option to specify if the number l ock s etting must be
modified during boot up.
Quiet Boot [Enabled]
Use the Quiet Boot BIOS option to select the scr een display when the system boots.
91 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-4 Security

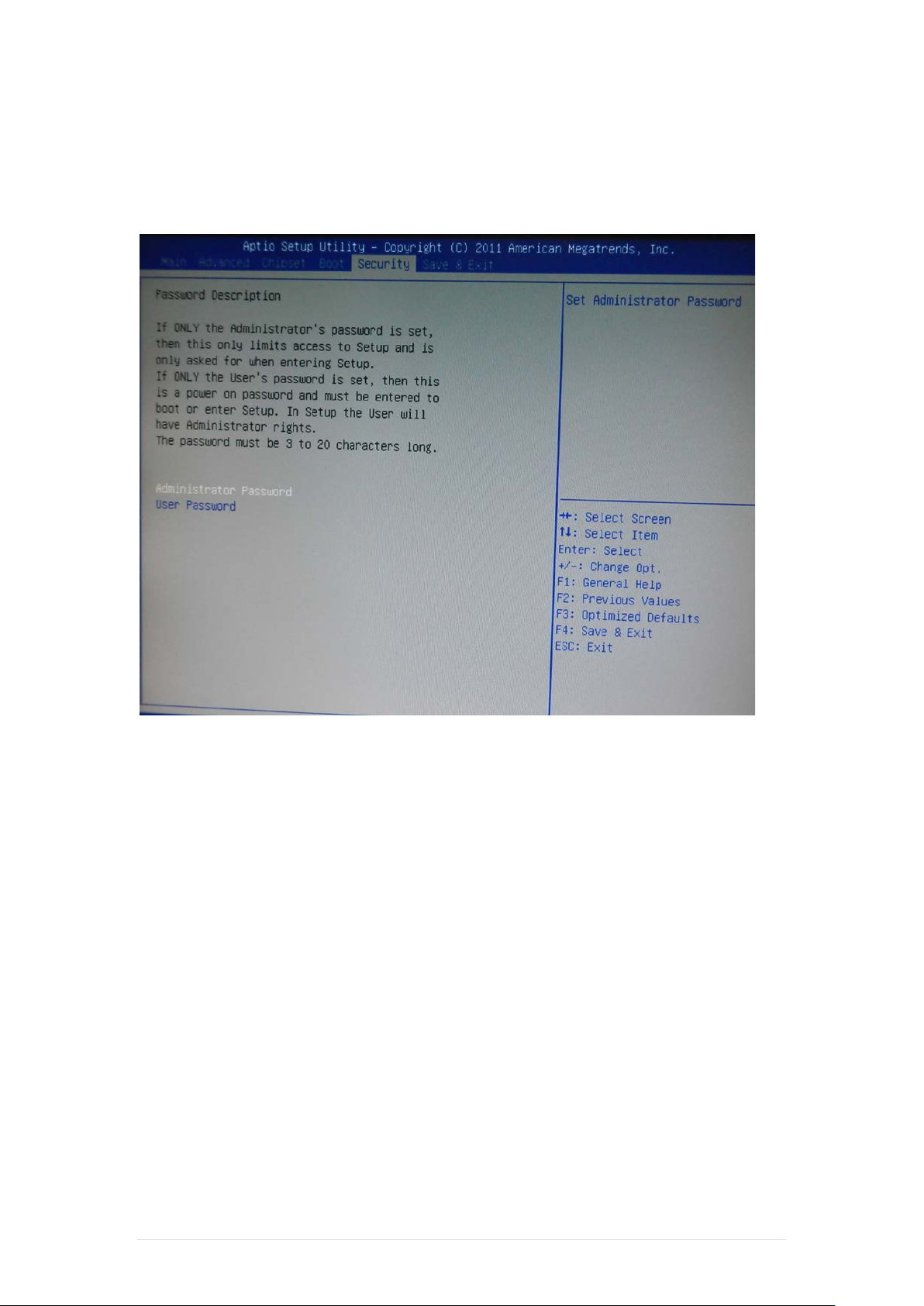

Use the Security menu to set system and user passwords.
Administrator Password
Use the Adm inistrator Password to set or change an administrator pas sw ord.
User Password
Use the User Password to set or change a user password.
92 | 95
ClientPOS PT6300 User Manual
Version: 2.0
7-5 Save & Exit
Use the Save & Exit menu to load default BIOS values, optimal failsafe values and to save
configuration changes.
93 | 95
ClientPOS PT6300 User Manual
8
LCD Surface Cleaning
8
CD Surface Cleaning
Version: 2.0
1. How to clean the LCD surface properly?
☆ Do not spray any liquids on the LCD screen directly, and do not use paper towels,
this can cause the LCD screen to become scratched.
☆ Always apply the solution to your cloth first, not directly t o the parts you are
cleaning. You want to avoid dripping the solution directly into your computer or
laptop.
☆ Stroke the cloth across the display in one direction, moving from the top of the
display to the bottom.
2. What are some of the basic supplies needed to clean an LCD
screen?
☆ A soft cot ton cloth. When cleaning the LCD screen it is important to use a soft
cotton cloth, rather than an old rag. Some m aterials, such as paper towels, could
cause scratches and damage the LCD screen.
☆ Solution of water and isopropyl alcohol. Thi s solution can be used along with the
soft cotton cloth.
☆ Computer wipes. Only use these if they specifically state on the package they are
designed for LCD laptop screens. Computer wipes can come in handy for fast
clean-ups or when you want to avoid mixing up a cleaning solution yourself.
3. What types of cleaners are acceptable?
☆ Water
☆ Vinegar (mixed with water)
☆ Isopropyl Alcohol
NOTICE: The following cleaners are unacceptable:
☆ Acetone
☆ Ethyl alcohol
☆ Ethyl acid
☆ Ammonia
☆ Methyl chloride
94 | 95
ClientPOS PT6300 User Manual
Version: 2.0
CE Notice
This device complies with the requirements of the CE directive.
FCC Notice
This equipment has been tested and found t o comply with the li mits f or a Class B digital device,
pursuant to Part 15 of the FCC rules. These li m its are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy an d, if not inst alled and used in a ccordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occ ur i n a particular installation. If this equipment does
cause harmful interference to radio or television rec epti on, which ca n be determi ned by t urning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/ T V technician for help.
Shielded interface cables must be used in orde r to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equi pment.
WEEE Notice
This appliance is labeled in accordance wit h European Dir ective 2002/96/ EC concerning waste
electrical and electronic equipment (WE EE). The Directive determines the framework for the
return and recycling of used appliances as appli cable throughout the European Union. This
label is applied to various products to indicate that the product is not to be thrown away, but
rather reclaimed upon end of life per this Dire ct i ve.
95 | 95
Loading...
