Clevo W549TU Schematic

Appendix B: Schematic Diagrams

Table B - 1

SCHEMATIC

DIAGRAMS



Version Note

The schematic diagrams in this chapter are based upon version 6-7P-W54T4-004. If your mainboard (or other boards) are a later version, please check with the Service Center for updated diagrams (if required).

This appendix has circuit diagrams of the W950TU notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 Panel, CRT - Page B - 14 1.5VS, 1.5V, VTT_MEM - Page B - 26 Processor 1/8 - Page B - 3 HDMI - Page B - 15 1.0V, 1.05VS, 1.24V - Page B - 27 Processor 2/8 - Page B - 4 LAN, Card Reader - Page B - 16 VCore - Page B - 28 Processor 3/8 - Page B - 5 Mini Card - Page B - 17 AC IN, Charger - Page B - 29 Processor 4/8 - Page B - 6 HDD, ODD, LED, LID - Page B - 18 Audio Board - Page B - 30 Processor 5/8 - Page B - 7 USB, Touch Panel - Page B - 19 TPM - Page B - 31 Processor 6/8 - Page B - 8 Conn, CCD, Fan, Click, TV - Page B - 20 SW Board - Page B - 32 Processor 7/8 - Page B - 9 Audio Codec - Page B - 21 Touch Panel Board - Page B - 33 Processor 8/8 - Page B - 10 KBC-ITE IT8587E - Page B - 22 Level Shifter 1 - Page B - 34 DDR3 SO-DIMM_0 - Page B - 11 AU6259 - Page B - 23 Level Shifter 2 - Page B - 35 DDR3 SO-DIMM_1 - Page B - 12 5VS, 3VS, 1.8VS, 1.0VS - Page B - 24 RTD2136 - Page B - 13 VDD3, VDD5 - Page B - 25

Schematic Diagrams

B.Schematic Diagrams

B - 1

Schematic Diagrams

Sheet 1 of 34

System Block

Diagram

5

4

3

2

1

D D

C C

B B

A A

SHEET 26

W549TU/W940TU Bay Trail System Block Diagram

(USB1)

SHEET 25

LVDS

CRT

TOUCH PAD

LPC

SMART BATTERY

SHEET 28

HP OUT

SHEET 20

PCIE

25x27mm 1170 Ball FCBGA

SENTELIC

EC

24 MHz

SHEET 21

MIC IN

VT1802S

SHEET 21

14*14*1.6mm

128pins LQFP

SHEET 13

100 MHz

THERMAL SENSOR

25 MHz

SHEET 21

32.768KHz

SMART FAN

SHEET 19

EC SMBUS

AZALIA LINK

SYSTEM SMBUS

ITE 8587E

Bay Trail SoC

INT. K/B

EC

Azalia Codec

SHEET 19

SHEET 23

5V/VS, 3V/VS, 1.8VS,

1.0VS/VSX, 1.35VS/VSX

3.3VA

1.0V, 1.05VS, RTC_VCC

SHEET 16

32.768 KHz

1.35V, 1.8V, 1.5VS, VTT_MEM

SHEET 2, 3, 4, 5, 6, 7, 8, 9SHEET 3

1066/ 1333 MHz DDR3L / 1.35V

SHEET 29

AUDIO BOARD

HDMI

SHEET 13

VCORE,VGFX_CORE

SHEET 27

AC-IN

SHEET 15 SHEET 15

9IN1 SOCKET

RJ-45

INT SPKER-L

SHEET 20

ODDHDD

SHEET 17SHEET 17

INT SPKER-R

25 MHz

SHEET 29

PHONE JACK x2, USB2.0 x1

AUDIO BOARD

SHEET 1~28

MAIN BOARD

SHEET 18

USB3.0 port1

(USB0)

DDR3L

SHEET 10

SO-DIMM1

SHEET 11

SO-DIMM2

USB2.0 480Mbps

POWER SWITCH BOARD

SHEET 31

SATA

USB3.0 6Gbps

Mini PCIE SOCKET

RTL8402

SHEET 15

LAN/Card reader

BIOS

SHEET 5

SHEET 24

VDD3,VDD5

ACIN, CHARGER

SHEET 28

SHEET 14

SPISPI

PS8625 (EDP to LVDS)

SHEET 12

(USB0)

AUDIO BOARD

SHEET 22

USB2.0 HUB

(USB3)

AU6259

SHEET 18

USB2.0 port1

SHEET 19

CCD+INT MIC

SHEET 19

USB2.0 port2 TV tuner

SHEET 19

Touch Panel

SHEET 18

(USB2)

SHEET 30

TPM

SHEET 32

TOUCH PANEL BOARD

SATA II SATA II

SATA 0 SATA 1

FOR 15"

USB2.0 port1

SHEET 19

FOR 14"

SHEET 16

G SENSOR

OPTION

FOR 14"

AUDIO BOARD

Title

Size Document Number Re v

Date: Sheet

of

6-7P-W54T4-004

3.0

[01] BLOCK DIAGRAM

A3

134Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Re v

Date: Sheet

of

6-7P-W54T4-004

3.0

[01] BLOCK DIAGRAM

A3

134Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Re v

Date: Sheet

of

6-7P-W54T4-004

3.0

[01] BLOCK DIAGRAM

A3

134Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

System Block Diagram

B.Schematic Diagrams

B - 2 System Block Diagram

Processor 1/8

Sheet 2 of 34

Processor 1/8

5

4

3

2

1

D D

C C

B B

A A

SOC-1 DDR0

SOC-2 DDR1

ྤ

P/N

D02 modify

D02 modifyD02 modify

D02 del R7

D02 modify

D03 EMI add C1118

DDR3_RCOMP_0

M_A_A9

M_A_A8

M_A_A7

M_A_A5 M_A_A6

M_A_A4

M_A_A3

M_A_A2

M_A_A1

M_A_A0

M_A_A15

M_A_A14

M_A_A13

M_A_A11 M_A_A12

M_A_A10

DDR3_RCOMP_1

ICLK_DRAM_TERMN_0

M0_DM7

M0_DM5 M0_DM6

M0_DM4

M0_DM3

M0_DM2

M0_DM1

M0_DM0

DDR3_RCOMP_2

ICLK_DRAM_TERMN_1

M_A_DQS#0

M_A_DQS#4

M_A_DQS#7

M_A_DQS#6

M_A_DQS#5

M_A_DQS#4

M_A_DQS#3

M_A_DQS#1

M_A_DQS#2

M_A_DQS#0

M_A_DQS7

M_A_DQS6

M_A_DQS5

M_A_DQS4

M_A_DQS3

M_A_DQS1

M_A_DQS2

M_A_DQS0

M_A_DQ1 M_A_DQ2 M_A_DQ3 M_A_DQ4

M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ32 M_A_DQ33 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37

M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47

M_A_DQ38

M_A_DQ49 M_A_DQ50

M_A_DQ28

M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55

M_A_DQ48

M_A_DQ5 M_A_DQ6

M_A_DQ56 M_A_DQ57 M_A_DQ58

M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63

M_A_DQ59

M_A_DQ7 M_A_DQ8 M_A_DQ9

M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19

M_A_DQ10

M_A_DQ21 M_A_DQ22

M_A_DQ0

M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27

M_A_DQ20

M_A_DQS#1

M_A_DQS#5

M_A_DQS#2

M_A_DQS#6 M_A_DQS#7

M_A_DQS#3

M_B_A5 M_B_A6

M_B_A4

M_B_A3

M_B_A2

M_B_A1

M_B_A0

M_B_A12 M_B_A13

M_B_A11

M_B_A10

M_B_A9

M_B_A8

M_B_A7

M_B_A15

M_B_A14

M1_DM7

M1_DM5 M1_DM6

M1_DM4

M1_DM3

M1_DM2

M1_DM1

M1_DM0

M_B_DQS#3

M_B_DQS#7

M_B_DQS#5 M_B_DQS#6

M_B_DQS#4

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS#7

M_B_DQS5

M_B_DQS6

M_B_DQS4

M_B_DQS3

M_B_DQS2

M_B_DQS1

M_B_DQS0

M_B_DQS7

M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

M_B_DQ11 M_B_DQ12

M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9

M_B_DQ10

M_B_DQ0

M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35

M_B_DQS#0

M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46

M_B_DQS#4

M_B_DQS#1

M_B_DQS#5

M_B_DQS#2

M_B_DQS#6

DDR3_VREF

DDR1.35V_PWRGD_R DRAM_CORE_PWROK_R

DDR1.35V_PWRGD_R

DRAM_CORE_PWROK_R

1.35V

1.35V3.3V

M_A_CKE110

M_A_CLK_DDR110

M_A_CLK_DDR#110

M_A_A[15:0]10

M_A_CS#010

M_A_CS#110

M_A_CKE010

M_A_CLK_DDR010

M_A_CLK_DDR#010

M_A_ODT110

M_A_ODT010

M_A_BS110 M_A_BS210

M_A_CAS#10

M_A_RAS#10

M_A_WE#10

M_A_BS010

M0_DM[7:0]10

M_A_DQ[63:0] 10

M_A_DQS#[7:0] 10

M_A_DQS[7:0] 10

M_B_BS011 M_B_BS111 M_B_BS211

M_B_A[15:0]11

M_B_RAS#11

M_B_WE#11

M_B_CAS#11

M_B_CKE311

M_B_CLK_DDR311

M_B_CLK_DDR#311

M_B_CKE211

M_B_CLK_DDR211

M_B_CLK_DDR#211

M_B_ODT311

M_B_ODT211

M_B_CS#211

M_B_CS#311

M1_DM[7:0]11

M_B_DQ[63:0] 11

M_B_DQS#[7:0] 11

M_B_DQS[7:0] 11

DRAM_A_RST#10

3.3V 3,13,15,16,19,21,23,24,25,26,27,30,33,34

DRAM_B_RST#11

1.35V 7,10,11,23,25

DRAM_CORE_PWROK21

DDR1.35V_PWRGD25

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D03

3.0

[02] SOC 1/8 DDR3L

Custom

234Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D03

3.0

[02] SOC 1/8 DDR3L

Custom

234Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D03

3.0

[02] SOC 1/8 DDR3L

Custom

234Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R1170 10K_04

C1075 *0.1u_16V_Y5V_04

VLV_M_D

?

REV = 1.2

1 OF 13

?

U1A

VLV_M_D/BGA

DRAM0_DM_77

Y52

DRAM0_MA_99

E52

DRAM0_MA_1414

B49

DRAM0_BS_22

D52

DRAM0_DQ_1919

J42

DRAM0_DQ_1818

F42

DRAM0_DQ_2424

A41

DRAM0_DQ_2323

D42

DRAM0_DQ_2222

G44

DRAM0_DQ_2121

C38

DRAM0_DQ_2020

G40

DRAM0_DQ_2929

B40

DRAM0_DQ_2828

C40

DRAM0_DQ_2727

B46

DRAM0_DQ_2626

A45

DRAM0_DQ_2525

C41

DRAM0_DQ_3434

T52

DRAM0_DQ_3333

K51

DRAM0_DQ_3232

K52

DRAM0_DQ_3131

B47

DRAM0_DQ_3030

B48

DRAM0_DQ_3939

R53

DRAM0_DQ_3838

R51

DRAM0_DQ_3737

L53

DRAM0_DQ_3636

L51

DRAM0_DQ_3535

T51

DRAM0_DQ_4040

T47

DRAM0_DQ_4444

T48

DRAM0_DQ_4343

V41

DRAM0_DQ_4242

Y40

DRAM0_DQ_4141

T45

DRAM0_DQ_4545

T50

DRAM0_DQ_4949

V47

DRAM0_DQ_4848

V45

DRAM0_DQ_4747

AB40

DRAM0_DQ_4646

Y42

DRAM0_DQ_5050

AD48

DRAM0_DQ_5555

Y45

DRAM0_DQ_5454

AB44

DRAM0_DQ_5353

V50

DRAM0_DQ_5252

V48

DRAM0_DQ_5151

AD50

DRAM0_DQ_6060

W53

DRAM0_DQ_5959

AC51

DRAM0_DQ_5858

AC53

DRAM0_DQ_5757

W51

DRAM0_DQ_5656

V52

DRAM0_DQ_6363

AD51

DRAM0_DQ_6262

AD52

DRAM0_DQ_6161

Y51

DRAM0_DQSP_00

J38

DRAM0_DQSN_00

K38

DRAM0_DQSN_11

B34

DRAM0_DQSP_11

C35

DRAM0_DQSP_22

D40

DRAM0_DQSP_33

B44

DRAM0_DQSN_22

F40

DRAM0_DQSN_33

C43

DRAM0_DQSP_44

N53

DRAM0_DQSN_44

M52

DRAM0_DQSN_55

T44

DRAM0_DQSP_55

T42

DRAM0_DQSP_77

AB52

DRAM0_DQSN_66

Y48

DRAM0_DQSP_66

Y47

DRAM0_DQSN_77

AA51

DRAM0_MA_33

H44

DRAM0_MA_22

L41

DRAM0_MA_11

H47

DRAM0_MA_00

K45

DRAM0_MA_44

H50

DRAM0_MA_66

H49

DRAM0_MA_55

G53

DRAM0_MA_1515

B50

DRAM0_DM_11

B36

DRAM0_DM_00

G36

DRAM0_DM_22

F38

DRAM0_DM_44

P51

DRAM0_WE

H51

DRAM0_BS_00

K47

DRAM0_CS_2

P45

DRAM_RCOMP_00

AD44

DRAM_RCOMP_11

AF45

DRAM_RCOMP_22

AD45

RESERVED_AF40

AF40

RESERVED_AF41

AF41

RESERVED_AD41

AD41

RESERVED_AD40

AD40

DRAM0_MA_88

G52

DRAM0_MA_77

D50

DRAM0_CAS

M44

DRAM0_RAS

M45

DRAM0_DM_66

Y50

DRAM0_DM_55

V42

DRAM_CORE_PWROK

AB42

DRAM0_CKE_00

C47

DRAM0_CKE_22

F44

DRAM0_ODT_0

T41

DRAM0_ODT_2

P42

DRAM0_CKP_0

M50

DRAM0_CKN_0

M48

DRAM0_DRAMRST

P41

DRAM0_CKN_2

P48

DRAM0_CKP_2

P50

DRAM_VREF

AF44

DRAM0_CS_0

P44

DRAM0_BS_11

K44

DRAM0_DM_33

B42

DRAM0_DQ_1717

G38

DRAM0_DQ_1616

F36

DRAM0_DQ_1515

B38

DRAM0_DQ_1414

C37

DRAM0_DQ_1313

A33

DRAM0_DQ_1212

C33

DRAM0_DQ_1111

A37

DRAM0_DQ_1010

C36

DRAM0_DQ_88

B32

DRAM0_DQ_77

K42

DRAM0_DQ_66

K40

DRAM0_DQ_55

N36

DRAM0_DQ_44

P36

DRAM0_DQ_33

M40

DRAM0_DQ_22

P40

DRAM0_DQ_11

J36

DRAM0_DQ_00

M36

DRAM0_MA_1313

J51

DRAM0_MA_1212

F47

DRAM0_MA_1111

E51

DRAM0_MA_1010

K48

RESERVED_E46

E46

RESERVED_D48

D48

DRAM_VDD_S4_PWROK

AD42

ICLK_DRAM_TERMN_AF42

AF42

DRAM0_DQ09_C32

C32

ICLK_DRAM_TERM_1

AH42

R1172*10mil_short_04

VLV_M_D

?REV = 1.2

?

2 OF 13

U1B

VLV_M_D/BGA

DRAM1_ODT_0

AP41

DRAM1_CKN_0

AV48

DRAM1_CKP_0

AV50

DRAM1_DRAMRST

AT41

DRAM1_CKN_2

AT48

DRAM1_CKP_2

AT50

DRAM1_DQSN_77

AJ51

DRAM1_DQSP_77

AH52

DRAM1_DQSN_66

AK48

DRAM1_DQSP_66

AK47

DRAM1_DQSN_55

AP44

DRAM1_DQSP_55

AP42

DRAM1_DQSN_44

AV52

DRAM1_DQSP_44

AU53

DRAM1_DQSN_33

BG43

DRAM1_DQSP_33

BH44

DRAM1_DQSN_22

AY38

DRAM1_DQSP_22

BA38

DRAM1_DQSN_11

BH34

DRAM1_DQSP_11

BG35

DRAM1_DQSN_00

BD40

DRAM1_DQSP_00

BF40

DRAM1_DQ_6363

AF51

DRAM1_DQ_6262

AF52

DRAM1_DQ_6161

AK51

DRAM1_DQ_6060

AL53

DRAM1_DQ_5959

AG51

DRAM1_DQ_5858

AG53

DRAM1_DQ_5757

AL51

DRAM1_DQ_5656

AM52

DRAM1_DQ_5555

AK45

DRAM1_DQ_5454

AH44

DRAM1_DQ_5353

AM50

DRAM1_DQ_5252

AM48

DRAM1_DQ_5151

AF50

DRAM1_DQ_5050

AF48

DRAM1_DQ_4949

AM47

DRAM1_DQ_4848

AM45

DRAM1_DQ_4747

AH40

DRAM1_DQ_4646

AK42

DRAM1_DQ_4545

AP50

DRAM1_DQ_4444

AP48

DRAM1_DQ_4343

AM41

DRAM1_DQ_4242

AK40

DRAM1_DQ_4141

AP45

DRAM1_DQ_4040

AP47

DRAM1_DQ_3939

AR53

DRAM1_DQ_3838

AR51

DRAM1_DQ_3737

AW53

DRAM1_DQ_3636

AW51

DRAM1_DQ_3535

AP51

DRAM1_DQ_3434

AP52

DRAM1_DQ_3333

AY51

DRAM1_DQ_3232

AY52

DRAM1_DQ_3131

BH47

DRAM1_DQ_3030

BH48

DRAM1_DQ_2929

BH40

DRAM1_DQ_2828

BG40

DRAM1_DQ_2727

BH46

DRAM1_DQ_2626

BJ45

DRAM1_DQ_2525

BG41

DRAM1_DQ_2424

BJ41

DRAM1_DQ_2323

AY40

DRAM1_DQ_2222

AY42

DRAM1_DQ_2121

AV36

DRAM1_DQ_2020

BA36

DRAM1_DQ_1919

AT40

DRAM1_DQ_1818

AV40

DRAM1_DQ_1717

AT36

DRAM1_DQ_1616

AU36

DRAM1_DQ_1515

BH38

DRAM1_DQ_1414

BG37

DRAM1_DQ_1313

BJ33

DRAM1_DQ_1212

BG33

DRAM1_DQ_1111

BJ37

DRAM1_DQ_1010

BG36

DRAM1_DQ_99

BG32

DRAM1_DQ_88

BH32

DRAM1_DQ_77

BC44

DRAM1_DQ_66

BF42

DRAM1_DQ_55

BD36

DRAM1_DQ_44

BC38

DRAM1_DQ_33

BD42

DRAM1_DQ_22

BA42

DRAM1_DQ_11

BC40

DRAM1_DQ_00

BG38

DRAM1_ODT_2

AT42

DRAM1_CKE_22

BD44

DRAM1_CKE_00

BG47

DRAM1_CS_2

AT45

DRAM1_CS_0

AT44

DRAM1_BS_22

BF52

DRAM1_BS_11

AY44

DRAM1_BS_00

AY47

DRAM1_WE

BB51

DRAM1_CAS

AV44

DRAM1_RAS

AV45

DRAM1_DM_77

AK52

DRAM1_DM_66

AK50

DRAM1_DM_55

AM42

DRAM1_DM_44

AT51

DRAM1_DM_33

BH42

DRAM1_DM_22

BC36

DRAM1_DM_11

BH36

DRAM1_DM_00

BD38

DRAM1_MA_1515

BH50

DRAM1_MA_1414

BH49

DRAM1_MA_1313

BA51

DRAM1_MA_1212

BD47

DRAM1_MA_1111

BE51

DRAM1_MA_1010

AY48

DRAM1_MA_99

BE52

DRAM1_MA_88

BC52

DRAM1_MA_77

BF50

DRAM1_MA_66

BB49

DRAM1_MA_55

BC53

DRAM1_MA_44

BB50

DRAM1_MA_33

BB44

DRAM1_MA_22

AW41

DRAM1_MA_11

BB47

DRAM1_MA_00

AY45

RESERVED_BF48

BF48

RESERVED_BE46

BE46

S

D

G

Q71B *MTDN7002ZHS6R

5

34

R1173 0_04

R323.2_1%_04

R429.4_1%_04

R8 4.7K_1%_04 C1067 *0.1u_16V_Y5V_04

R1 100K_04

R1071 10K_04

C1118

*0.1u_16V_Y5V_04

C1

0.1u_16V_Y5V_04

R2 100K_04

R6 4.7K_1%_04

S

D

G

Q71A *MTDN7002ZHS6R

2

61

R5162R

R1171 *10K_04

Schematic Diagrams

B.Schematic Diagrams

Processor 1/8 B - 3

Schematic Diagrams

Sheet 3 of 34

Processor 2/8

5

4

3

2

1

D D

C C

B B

A A

SOC-3 DISPLAY

NEAR CPU

STRAPS

STRAP RESISTORS SHOULD BE PLACED CLOSE TO SOC

7/2 modify name

6-13-40201-28C

D02 modify

D02 del

D02 R22, R23 change to short

D02 R16, R17 change to short

1:2 (4mils:8mils)

1

2

3

6-17-10300-730

W/O CPU THERMAL ICழழழழ, PCBᄵᄵᄵᄵ৫৫৫৫ၦၦၦၦྒྷྒྷྒྷྒྷشششش

Analog Thermal Sensor

3!Qdt

3!Qdt3!Qdt

3!Qdt

SC70-3

٥٥٥٥ششششሿሿሿሿٙٙٙٙறறறற

6-17-10320-731 (M-R0402)

٥٥٥٥ششششሿሿሿሿٙٙٙٙறறறற

6-17-10300-731 (M-R0603)

EVT ৵৵৵৵ᆖᆖᆖᆖ The r mal ᐙᐙᐙᐙቝቝቝቝᑷᑷᑷᑷઌઌઌઌᏚᏚᏚᏚᒔᒔᒔᒔࡳࡳࡳࡳ PCB່່່່೏೏೏೏ᄵᄵᄵᄵ৫৫৫৫ , NTC ᚨᚨᚨᚨᇠᇠᇠᇠ࣋࣋࣋࣋ᆜᆜᆜᆜPCB່່່່೏೏೏೏ᄵᄵᄵᄵ৫৫৫৫๠๠๠๠ .

D02A modify

D03 no stuff D03 no stuff

DAC_B

DAC_G

DAC_R

DDI1_GEN_R_DAT

DAC_IREF_R

DAC_R

DAC_G

DAC_B

GPIO_NC13

GPIO_NC13 DDI1_GEN_R_DAT

1.8VS

3.3V

DAC_R 13

HDMIC_CLKCN14

HDMIC_CLKCP14

HDMIC_C1CN14

HDMIC_C1CP14

HDMIC_C2CN14

HDMIC_C2CP14

HDMIC_C0CN14

HDMIC_C0CP14

HDMI_HPD14

HDMI_CTRLCLK33

HDMI_CTRLDATA33

EDP_TXP_0 12

DP_AUXP 12 DP_AUXN 12

EDP_HPD 12,13

PCH_BRIGHTNESS_N 33

NB_ENAVDD_N 34

DAC_HSYNC 13 DAC_VSYNC 13

DDC_CLK 13

1.8VS 4,5,6,8,14,20,21,23,33

EDP_TXN_0 12

EDP_TXN_1 12

EDP_TXP_1 12

BLON_N 34

DDC_DATA 13

3.3V 2,13,15,16,19,21,23,24,25,26,27,30,33,34

DAC_B 13

DAC_G 13

GPIO_S0_SC_56 6 I2S_2_FS 4 I2S_2_TXD_R_AICO 4

THERM_VOLT2 21

THERM_VOLT 21

Title

Size Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[03] SOC 2/8 DISPLAY

Custom

3

35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[03] SOC 2/8 DISPLAY

Custom

3

35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[03] SOC 2/8 DISPLAY

Custom

3

35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R48 *4.7K_04

R16 *10mil_short_04

R21357_1%_06

R9 10K_04

R13 2.2K_04

R20150_1%_04

R25 10K_04

R14 2.2K_04

R17 *10mil_short_04

R46 *10K_04

R951

10K_1%_04

R18150_1%_04

C1103

*0.1u_10V_X7R_04

R19150_1%_04

R1086

2.2K_04

C198

*0.1u_10V_X7R_04

R12 100K_04

PTH3 10K_1%_NTC_04

1 2

R1082 *10K_04

R1084 *10K_04

C3*33p_50V_NPO_04

R1083 *10K_04

Q80

*G711ST9U

OUT1VCC

2

GND

3

R1085 *10K_04

R1243

*10K_1%_04

VLV_M_D

3 OF 13

REV = 1.2

?

U1C

VLV_M_D/BGA

DDI1_TXP_0

AG3

DDI0_HPD

D27

DDI1_TXN_1

AF2

DDI1_TXP_1

AF3

VGA_HSYNC

BD2

VGA_IRTN

AY3

VGA_IREF

AW1

VGA_GREEN

BA1

DDI0_TXP_0

AV3

DDI0_TXN_0

AV2

DDI0_TXP_1

AT2

DDI0_TXN_1

AT3

DDI0_TXP_2

AR3

DDI0_TXP_3

AP3

DDI0_TXN_2

AR1

DDI0_TXN_3

AP2

DDI0_AUXP

AL3

DDI0_AUXN

AL1

DDI0_DDCDATA

C26

DDI0_DDCCLK

C28

DDI0_BKLTEN

C27

DDI0_VDDEN

B28

RESERVED_AM13

AM13

RESERVED_T2

T2

RESERVED_W3

W3

RESERVED_W1

W1

RESERVED_V2

V2

RESERVED_R3

R3

RESERVED_V3

V3

RESERVED_R1

R1

RESERVED_AD6

AD6

RESERVED_AD4

AD4

RESERVED_AB7

AB7

RESERVED_AB9

AB9

RESERVED_Y4

Y4

RESERVED_Y6

Y6

RESERVED_V4

V4

RESERVED_V6

V6

RESERVED_AB14

AB14

GPIO_S0_NC12

B30

RESERVED_C30

C30

DDI1_TXN_0

AG1

DDI1_TXP_2

AD3

DDI1_TXN_2

AD2

VGA_BLUE

AY2

VGA_RED

BA3

DDI1_BKLTCTL

M30

DDI1_BKLTEN

J30

DDI1_VDDEN

N30

DDI1_DDCCLK

G30

DDI1_DDCDATA

P30

DDI1_HPD

K30

DDI1_AUXN

AK2

DDI1_AUXP

AK3

DDI1_TXN_3

AC1

DDI1_TXP_3

AC3

RESERVED_AF13

AF13

RESERVED_AF14

AF14

RESERVED_AH13

AH13

RESERVED_AH14

AH14

VGA_DDCDATA

BC2

VGA_DDCCLK

BC1

VGA_VSYNC

BF2

RESERVED_T7

T7

RESERVED_AB13

AB13

RESERVED_T9

T9

RESERVED_AB12

AB12

RESERVED_Y13

Y13

RESERVED_Y12

Y12

RESERVED_T12

T12

RESERVED_V9

V9

RESERVED_V10

V10

RESERVED_V14

V14

RESERVED_T10

T10

RESERVED_T13

T13

RESERVED_T14

T14

RESERVED_V13

V13

RESERVED_T4

T4

RESERVED_T6

T6

RESERVED_P14

P14

RESERVED_K34

K34

DDI0_BKLTCTL

B26

RESERVED_AM14

AM14

RESERVED_Y2

Y2

RESERVED_Y3

Y3

RESERVED_AB2

AB2

RESERVED_AB3

AB3

RESERVED_T3

T3

RESERVED_A29

A29

RESERVED_N32

N32

RESERVED_M32

M32

RESERVED_K28

K28

RESERVED_J34

J34

RESERVED_J28

J28

RESERVED_F34

F34

RESERVED_F32

F32

RESERVED_F28

F28

RESERVED_D34

D34

RESERVED_D32

D32

RESERVED_D28

D28

RESERVED_C29

C29

DDI0_RCOMP

AK13

DDI0_RCOMP_P

AK12

RESERVED_VSS0

AM3

RESERVED_VSS1

AM2

RESERVED_VSS2

AH3

RESERVED_VSS3

AH2

R22*10mil_short_04

C4*33p_50V_NPO_04

R23*10mil_short_04

R15 402_1%_04

R24 *10K_04

C2*33p_50V_NPO_04

Q1

MTN7002ZHS3

G

DS

Processor 2/8

B.Schematic Diagrams

B - 4 Processor 2/8

5

4

3

2

1

D D

C C

B B

A A

SATA HDD

SOC-4 SATA AND PCI EXPRESS

SATA ODD

Layout Note:

CAD Note: Capacitor need to be placed close to buffer output pin

PCI-E x1 Usage

Lane 3 X

Lane 2 X

Lane 0 LAN/CARD READER Lane 1 WLAN

Close to SOC

6-13-40201-28C

D02 del R963, Q2, R34, R35, R32 no stuff

D02 SCI#_N change to TP

D02 add PCIE net for W97 card reader

D02 change R50,R52 to TP, R51 short

D02 R36, R37 short

D02 R26, R28 short

D02A modify

HDA_BITCLK_R

HDA_SYNC_R

HDA_SDOUT_R

HDA_RST#_R

HDA_BITCLK_R

HDA_SYNC_R

HDA_SDOUT_R

PCIECLKRQ3#

CARD_CLKREQ#

H_PROCHOT#_D H_PROCHOT#

LAN_CLKREQ#

WLAN_CLKREQ#

PCIECLKRQ3#

SATA_RCOMP_DP SATA_RCOMP_DN

SATA_RCOMP_DP

SATA_RCOMP_DN

PCIE_RCOMP_DP

PCIE_RCOMP_DN

PCIE_RCOMP_DP PCIE_RCOMP_DN

HDA_RST#_R

H_PROCHOT#

PCIE_TXP0_C PCIE_TXN0_C

PCIE_TXP1_C PCIE_TXN1_C

I2S_2_TXD_R_AICO

1.8VS

1.0VS

1.8VS

SATA_LED#_N34

HDA_BITCLK20

HDA_SYNC20

HDA_SDOUT20

SATARXP117

SATATXN117

SATATXP117

HDA_SDIN0 20

H_PROCHOT# 27

1.8VS 3,5,6,8,14,20,21,23,33

H_PROCHOT_EC21

1.0VS 5,8,23,27

SATATXN017

SATARXP017

SATATXP017

SATARXN017

SATARXN117

HDA_RST#20

PCIE_TXP0_LAN 15 PCIE_TXN0_LAN 15

PCIE_RXP0_LAN 15 PCIE_RXN0_LAN 15

PCIE_TXP1_WLAN 16 PCIE_TXN1_WLAN 16

PCIE_RXN1_WLAN 16

PCIE_RXP1_WLAN 16

WLAN_CLKREQ# 16

LAN_CLKREQ# 15

I2S_2_TXD_R_AICO 3

I2S_2_FS 3

PCIE_TXP2_CARD 15 PCIE_TXN2_CARD 15

PCIE_RXP2_CARD 15 PCIE_RXN2_CARD 15

CARD_CLKREQ# 15

ME_WE 21

Title

Size

Document Number Re v

Date: Sheet

of

6-71-W54T0-D03

3.0

[04] SOC 3/8 SATA, PCI EXPRESS

Custom

434Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Re v

Date: Sheet

of

6-71-W54T0-D03

3.0

[04] SOC 3/8 SATA, PCI EXPRESS

Custom

434Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Re v

Date: Sheet

of

6-71-W54T0-D03

3.0

[04] SOC 3/8 SATA, PCI EXPRESS

Custom

434Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R962 *0_04

R38 402_1%_04

R39 10K_04

D33

RB751S-40C2

A C

C11000.1u_10V_X7R_04

R44 49.9_1%_04

R954 *0_04

R955 *0_04

R36 *10mil_short

R1238*910_04

R40 10K_04

R33 402_1%_04

R47*10mil_short_04

R32 *1M_04

R959 *0_04

R37 *10mil_short

C80.1u_10V_X7R_04

R41 49.9_1%_04

R964 33_04

C17

47p_50V_NPO_04

R49 *75_04

R43

10K_04

R51 *10mil_short_04

R961 *0_04

R956 *0_04

R54 0_04

C70.1u_10V_X7R_04

C90.1u_10V_X7R_04

R56

*100K_04

Q3

MTN7002ZHS3

G

DS

C1017 *22p_50V_NPO_04

R55 *73.2_1%_04

R30 33_04

R960 *0_04

R27 33_04

C60.1u_10V_X7R_04

R26 *10mil_short

R31 33_04

R29 10K_04

R42

10K_04

R53 49.9_1%_04

4 OF 13

REV = 1.2

? VLV_M_D

?

U1D

VLV_M_D/BGA

LPE_I2S2_CLK

BF28

SD3_RCOMP

BF26

SD3_1P8EN

BF22

HDA_LPE_RCOMP

BF20

LPE_I2S2_DATAIN

BD28

SD3_PWREN

BD22

LPE_I2S2_DATAOUT

BC30

SD3_CD#

BC24

SD2_CMD

BC18

LPE_I2S2_FRM

BA30

MMC1_RST

BA24

SD2_CLK

BA18

SD3_CLK

AY26

MMC1_RCOMP

AY18

SD3_CMD

AV28

MMC1_CMD

AV26

MMC1_CLK

AT22

PCIE_CLKREQ_0

BG3

PCIE_CLKREQ_1

BD7

PCIE_CLKREQ_2

BG5

PCIE_CLKREQ_3

BE3

PCIE_TXN_0

AY6

SATA_TXP_0

BF6

SATA_TXN_0

BG7

PCIE_RXP_0

AT14

PCIE_RXN_0

AT13

SATA_RXN_0

AV16

PCIE_TXP_1

AV6

PCIE_TXN_1

AV4

SATA_TXN_1

BF10

PCIE_RXN_1

AT9

PCIE_RXP_1

AT10

SATA_RXN_1

BA16

PCIE_TXP_2

AT7

PCIE_TXN_2

AT6

PCIE_RXN_3

AP7

PCIE_RXP_3

AP9

PCIE_TXN_3

AP4

RESERVED_P34

P34

RESERVED_N34

N34

RESERVED_AK9

AK9

RESERVED_AK7

AK7

PROCHOT

C24

HDA_RST

BG22

HDA_SYNC

BH20

HDA_CLK

BJ21

HDA_SDO

BG20

HDA_SDI0

BG19

HDA_SDI1

BG21

GPIO_S0_SC_14

BH18

GPIO_S0_SC_15

BG18

PCIE_RXP_2

AP12

PCIE_RXN_2

AP10

PCIE_TXP_3

AP6

SATA_GP0

BA12

SATA_LED

AY12

SATA_GP1

AY14

PCIE_TXP_0

AY7

SATA_RXP_1

AY16

SATA_RXP_0

AU16

MMC1_D0

AV20

MMC1_D1

AU22

MMC1_D2

AV22

MMC1_D3

AT20

MMC1_D4

AY24

MMC1_D5

AU26

MMC1_D6

AT26

MMC1_D7

AU20

SD2_D0

AY20

SD2_D1

BD20

SD2_D2

BA20

SD2_D3_CD

BD18

SD3_D0

AT28

SD3_D1

BD26

SD3_D2

AU28

SD3_D3

BA26

SD3_WP_BD5

BD5

RESERVED_BB4

BB4

RESERVED_BB3

BB3

RESERVED_AV10

AV10

RESERVED_AV9

AV9

SATA_RCOMP_P_AU18

AU18

SATA_RCOMP_N_AT18

AT18

PCIE_RCOMP_P_AP14_AP14

AP14

PCIE_RCOMP_N_AP13_AP13

AP13

SATA_TXP1

BD10

RESERVED_VSS4

BB10

RESERVED_VSS5

BC10

RESERVED_VSS6

BB5

RESERVED_VSS7

BB7

R28 *10mil_short

C10990.1u_10V_X7R_04

R957 *0_04

Sheet 4 of 34

Processor 3/8

Schematic Diagrams

B.Schematic Diagrams

Processor 3/8 B - 5

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

33MHz

25MHz

SOC-5 PMU AND CLOCKS

Zo= 50ȍ ±15%

˅˃˼˿

˅˃˼˿˅˃˼˿

˅˃˼˿

˅˃˼˿˅˃˼˿

˅˃˼˿

RTC CLEAR

˄˃˼˿

˄˃˼˿˄˃˼˿

˄˃˼˿

RTC CLEAR

SVID Signals

CRB to EC

CRB 73.2 check list 70

100MHz

BIOS ROM

64Mbit

SPI_* = 1.5"~6.5"

Share ROM

D02 del R71, R1167

D02 modify

D02 C20,C22 change to 15P

D02 add R1126(4.7K_04), add net SCI#_N, SWI#_N

D02 add R1230

D02A stuff

D02A 1.8V=>1.8VS

D02A modify

D03 add R1269

XCLK_RCOMP

XTAL25_IN XTAL25_OUT

RTC_X1 RTC_X2

RTC_RST#

SRTC_RTC#

SPI_SCLK

SPI_SO

SPI_CS_0# SPI_CS_1#

SPI_SI SPI_SI_R

SPI_SO_R

SPI_SCLK_R

SPI_CS0#

ICLKICOMP

PMC_BATLOW#_R

RSMRST#

SUSCLK

PCIE_WAKE#_R

PLT_RST#

SLP_S0IX#_N

RST_BTN#

H_CPU_SVIDDAT_R

H_CPU_SVIDALRT#_R

H_CPU_SVIDCLK_R

RTC_VBAT

RTC_RST#

SRTC_RTC#

RTC_VBAT_1

H_CPU_SVIDALRT#

H_CPU_SVIDCLK

H_CPU_SVIDDAT

RST_BTN#

CLK_PCIE_MINI

CLK_PCIE_LAN

CLK_PCIE_MINI#

CLK_PCIE_LAN#

SPI_SISPI_VDD

SPI_CS0#

SPI_SCLK

SPI_SO

SPI_WP#

SPI_HOLD#

SPI_CS_1#

SPI_SI_R

SPI_CS_0#

SPI_SCLK_R

SPI_SO_R

XDP_H_TCK XDP_H_TRST_N XDP_H_TMS XDP_H_TDI XDP_H_TDO

1.8VS

RTCVCC

1.8V

1.0VS

1.8V

RTC_VCCVDD3

SUSB#_N 3 4

SUSC#_N 34

SUS_PWR_ACK_N 34

PCIE_WAKE#_R 34

H_CPU_SVIDCLK 27

H_CPU_SVIDDAT 27

H_CPU_SVIDALRT# 27

RTCVCC 8 VDD3 15,16,17,21,23,24,25,26,28,33

1.8V 6,8,16,23,25,33,34

1.0VS 4,8,23,27

PLT_RST#_N 34

RSMRST# 21

SLP_S0IX#_N 34

S4_STATE#_N 30

CLK_PCIE_MINI16

CLK_PCIE_MINI#16

CLK_PCIE_LAN#15

CLK_PCIE_LAN15

HSPI_SCLK21

HSPI_MSI21

HSPI_MSO21

HSPI_CE#21

AC_PRESENT 21,34

PWR_BTN#_R 21,34

SB_KBCRST#_R21,34

SWI#_N33

PMC_BATLOW#_R 21,34

PMC_CORE_PWROK 21

CLK_PCIE_CARD15

CLK_PCIE_CARD#15

SCI#_N33

SMI#_N33

G_INT116

1.8VS 3,4,6,8,14,20,21,23,33

RTC_VCC 2 6

Title

Size Document Number Rev

Date: Sh eet

of

6-71-W54T0-D03

3.0

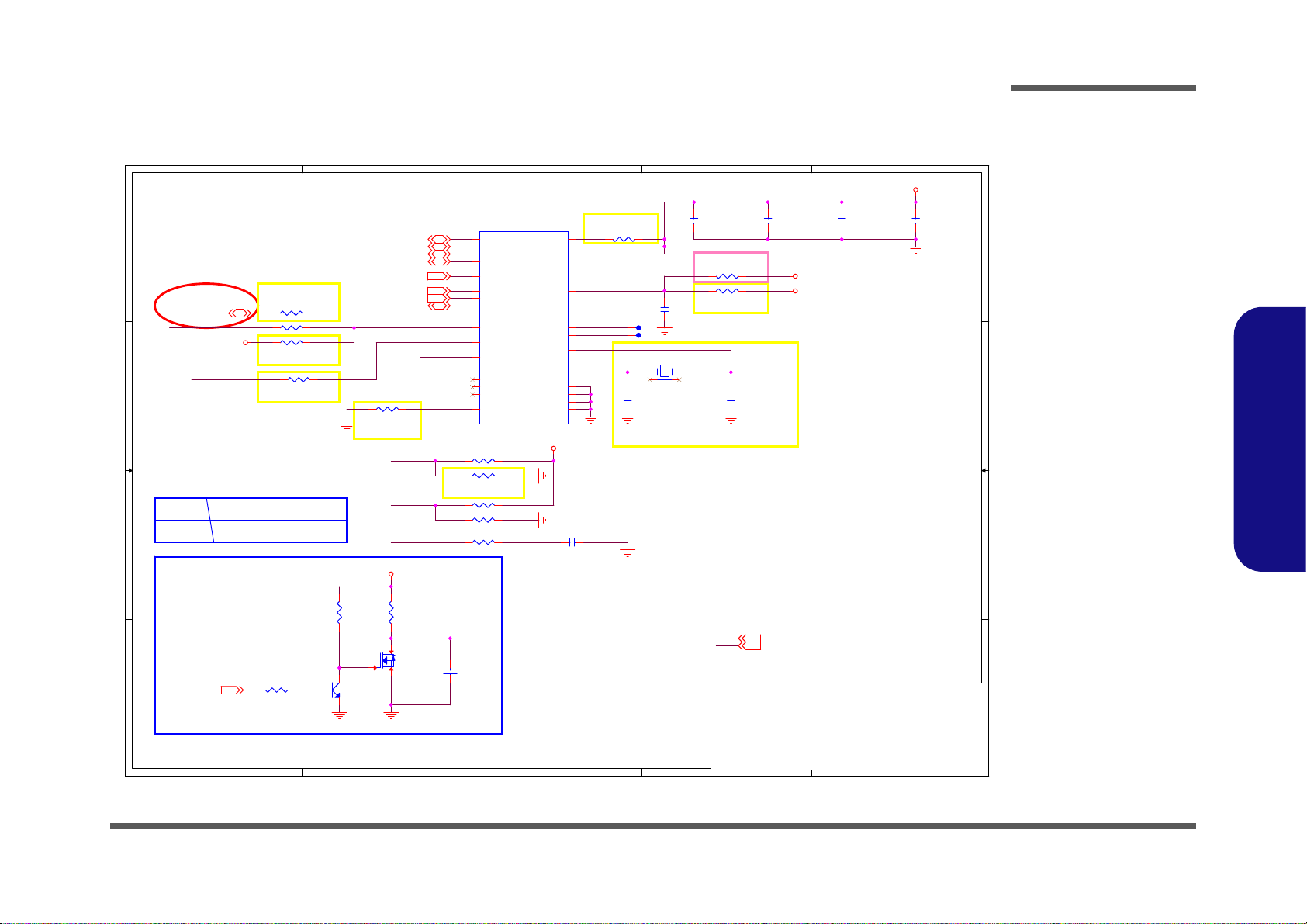

[05] SOC 4/8 PMU, CLOCKS

Custom

534Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Rev

Date: Sh eet

of

6-71-W54T0-D03

3.0

[05] SOC 4/8 PMU, CLOCKS

Custom

534Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Rev

Date: Sh eet

of

6-71-W54T0-D03

3.0

[05] SOC 4/8 PMU, CLOCKS

Custom

534Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R75

10M_04

C26 0.1u_16V_Y5V_04

R96 *0_04

U2

MX25U6435F

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R971

*1K_04

R1039 10K_04

R97 *0_04

X1

FSX5L_25MHZ

12

C23 0.1u_10V_X7R_04

J_RTC1

W5000102-001

1

2

R79 20_1%_04

R82 22_04

R1247 *0_04

X2 CM315D_32.768KHZ

12

R88 69.8_1%_04

R99 *0_04

R78 20K_1%_04

R81 0_04

R65 *10mil_short

C

A

D2

BAT54CS3

1

2

3

C21 1u_6.3V_X5R_04

R1076 *1K_04

JOPEN2 *OPEN_10mil-1MM

12

R93 49.9_1%_04

R87 69.8_1%_04

R80 16.9_1%_04

R624.02K_1%_04

JOPEN1 *OPEN_10mil-1MM

12

C25 1u_6.3V_X5R_04

R63 100K_04

R90 4.7K_04

C1822p_50V_NPO_04

R1246 0_04R114

*100_04

C22 15p_50V_NPO_04

R94

3.3K_1%_04

R91

3.3K_1%_04

J_RTC2

*BHKB7410AP2PT

1

2

NC1 SHORT

R1227 4.7K_04

R86 22_04

R98 *0_04

R1269 10K_04

R1181 *51_04

C20 15p_50V_NPO_04

R85 22_04

R92 4.7K_04

R1179 *51_04

R57

1M_04

R83 *0_04

C1922p_50V_NPO_04

VLV_M_D

?

5 OF 13

?

REV = 1.2

U1E

VLV_M_D/BGA

ICLK_ICOMP

AD14

ICLK_RCOMP

AD13

ICLK_OSCOUT

AH10

RESERVED_AD9

AD9

RESERVED_AD10

AD10

RESERVED_AD12

AD12

PCIE_CLKN_00

AF6

PCIE_CLKP_00

AF4

PCIE_CLKN_11

AF9

PCIE_CLKP_11

AF7

GPIO_RCOMP

N26

PMC_PLT_CLK_00

BH7

PMC_PLT_CLK_22

BH4

PMC_PLT_CLK_11

BH5

PMC_PLT_CLK_33

BH8

PMC_PLT_CLK_44

BH6

PMC_PLT_CLK_55

BJ9

ILB_RTC_RST

C12

PCIE_CLKP_22

AK6

PCIE_CLKN_22

AK4

PCIE_CLKP_33

AM6

PCIE_CLKN_33

AM4

TAP_TCK

D14

TAP_TDO

G16

TAP_PREQ

F16

TAP_PRDY

D18

RESERVED

AT34

PCU_SPI_CS_00

C23

PCU_SPI_CS_11

C21

PCU_SPI_MISO

B22

PCU_SPI_MOSI

A21

PCU_SPI_CLK

C22

SIO_UART2_CTS

BF32

SIO_SPI_CS

AV32

SIO_SPI_MISO

BA28

SIO_SPI_CLK

AY30

SIO_SPI_MOSI

AY28

SIO_PWM_00

AU32

SIO_PWM_11

AT32

SVID_CLK

C25

PMC_SUSPWRDNACK

D26

PMC_SLP_S0IX

F18

PMC_SLP_S4

F22

PMC_SLP_S3

D22

PMC_BATLOW

K26

PMC_ACPRESENT

D20

PMC_RSTBTN

BG9

PMC_PWRBTN

J26

PMC_PLTRST

F20

SIO_UART2_RTS

BD32

SIO_UART2_TXD

BD34

SIO_UART2_RXD

BF34

SIO_UART1_TXD

AV34

SIO_UART1_RTS

BA34

SIO_UART1_CTS

AY34

ICLK_OSCIN

AH12

SIO_UART1_RXD

AU34

TAP_TRST

G12

TAP_TMS

F14

TAP_TDI

F12

SVID_DATA

A25

SVID_ALERT

B24

ILB_RTC_EXTPAD

B8

ILB_RTC_X2

A9

ILB_RTC_X1

C9

PMC_CORE_PWROK

B7

PMC_RSMRST

B10

ILB_RTC_TEST

C11

PMC_SUS_STAT

G18

PMC_WAKE_PCIE_0

F26

GPIO_S5_22

K24

GPIO_S5_23

N24

GPIO_S5_24

M20

GPIO_S5_25

J18

GPIO_S5_26

M18

GPIO_S5_27

K18

GPIO_S5_28

K20

GPIO_S5_29

M22

GPIO_S5_30

M24

GPIO_S5_0

B18

GPIO_S5_1

B16

GPIO_S5_2

C18

GPIO_S5_3

A17

GPIO_S5_4

C17

GPIO_S5_5

C16

GPIO_S5_6

B14

GPIO_S5_7

C15

GPIO_S5_8

C13

GPIO_S5_9

A13

GPIO_S5_10

C19

GPIO_S5_17

J24

GPIO_S5_14

J20

PMC_SUSCLK0_G24

G24

RESERVED_AM10

AM10

RESERVED_AM9

AM9

R1180 *51_04

R76

20K_1%_04

R89 69.8_1%_04

R1230 3.3K_1%_04

R77 1K_04

C24 1u_6.3V_X5R_04

R102 *0_04

R1182 *51_04

R1178 *51_04

R6047.5_1%_04

R113 *10mil_short_04

R84 22_04

Sheet 5 of 34

Processor 4/8

B.Schematic Diagrams

B - 6 Processor 4/8

Processor 5/8

5

4

3

2

1

D D

C C

B B

A A

SOC-6 USB

Touch Panel

MINI CARD

USB HUB

M/B USB port

6-13-45R31-28B

D02 del R966, R967

D02 add

R1200, R1201

USB_OC#02

USB_OC#01

SERIRQ_N

SMB_DATA_N SMB_CLK_NSMB_ALERT# SMB_ALERT#

1.8V

1.8VS

USB_PN018

USB_PP018

USB_PN116

USB_PP116

USB_PN218

USB_PP218

LPC_AD021,30 LPC_AD121,30 LPC_AD221,30 LPC_AD321,30

LPC_FRAME#21,30

SERIRQ_N33

USB3_TX1_P 18 USB3_TX1_N 18

USB3_RX1_P 18 USB3_RX1_N 18

1.8VS 3,4,5,8,14,20,21,23,33

USB_OC#0118 USB_OC#0219

PCLK_KBC21

ICH_SPKR_N 34

USB_PN322

USB_PP322

SMB_CLK_N16,19,33

SMB_DATA_N16,19,33

1.8V 5,8,16,23,25,33,34

PM_CLKRUN#30

PCLK_TPM30

GPIO_S0_SC_56 3

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[06] SOC 5/8 USB

A3

635Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[06] SOC 5/8 USB

A3

635Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[06] SOC 5/8 USB

A3

635Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R105 1K_04

R907 1.24K_1%_04

R108 45.3_1%_04

R10610K_04

R1200 10_1%_04

R10710K_04

R110 45.3_1%_04

R969 *0_04

R970 *2.2K_04

R1201 10_1%_04

R111 49.9_1%_04

VLV_M_D

?

6 OF 13

REV = 1.2

U1F

VLV_M_D/BGA

SIO_I2C5_DATA

BH28

SIO_I2C5_CLK

BG28

PCU_SMB_ALERT

BG11

PCU_SMB_CLK

BH10

PCU_SMB_DATA

BG12

ILB_LPC_SERIRQ

BG13

ILB_LPC_CLK_00

BG15

ILB_LPC_AD_33

BG14

ILB_LPC_AD_11

BJ17

ILB_LPC_CLKRUN

BG16

ILB_LPC_CLK_11

BH14

ILB_LPC_FRAME

BG17

ILB_LPC_AD_22

BJ13

ILB_LPC_AD_00

BH16

USB_HSIC_RCOMP

A7

SIO_I2C0_CLK

BG23

SIO_I2C0_DATA

BH22

USB_HSIC1_STROBE

D2

USB_HSIC1_DATA

E2

USB_HSIC0_STROBE

B5

USB_HSIC0_DATA

B4

USB_RCOMPO

D6

USB_RCOMPI

C7

USB_OC_00

C20

USB_OC_11

B20

RESERVED_M9

M9

RESERVED_M10

M10

RESERVED_H7

H7

RESERVED_H8

H8

SIO_I2C1_CLK

BH24

SIO_I2C1_DATA

BG24

SIO_I2C2_DATA

BG25

SIO_I2C2_CLK

BJ25

SIO_I2C6_CLK

BG29

SIO_I2C6_DATA

BJ29

SIO_I2C4_CLK

BG27

SIO_I2C4_DATA

BF27

SIO_I2C3_CLK

BH26

SIO_I2C3_DATA

BG26

ILB_8254_SPKR

BH12

GPIO_S0_SC_55

BD12

GPIO_S0_SC_56

BC12

GPIO_S0_SC_57

BD14

GPIO_S0_SC_58

BC14

GPIO_S0_SC_59

BF14

GPIO_S0_SC_60

BD16

GPIO_S0_SC_61

BC16

LPC_RCOMP

BF18

ICLK_USB_TERMN

F10

RESERVED_M4

M4

RESERVED_M6

M6

RESERVED_M7

M7

RESERVED_P10

P10

RESERVED_P12

P12

USB_DN0

K16

USB_DN1

G14

USB_DN2

J12

USB_DN3

H10

USB_DP0

M16

USB_DP1

J14

USB_DP2

K12

USB_DP3

K10

GPIO_S0_SC_092

BH30

GPIO_S0_SC_093

BG30

GPIO_S5_31

G2

GPIO_S5_32

M3

GPIO_S5_33

L1

GPIO_S5_34

K2

GPIO_S5_35

K3

GPIO_S5_36

M2

GPIO_S5_37

N3

GPIO_S5_38

P2

GPIO_S5_39

L3

GPIO_S5_40

J3

GPIO_S5_41

P3

GPIO_S5_42

H3

GPIO_S5_43

B12

USB3_REXT0

M12

USB3_RXN0

E3

USB3_RXP0

D4

USB3_TXN0

K7

USB3_TXP0

K6

RESERVED_P7

P7

RESERVED_P6

P6

USB_PLL_MON

M13

RESERVED_H5

H5

RESERVED_H4

H4

ICLK_USB_TERM_1

D10

R104 1K_04

Sheet 6 of 34

Processor 5/8

Schematic Diagrams

B.Schematic Diagrams

Processor 5/8 B - 7

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

SOC-7 SOC POWER1

5A

D02 del

D02A del PJ76

D03 EMI add C1117, C1118

VCORE

1.35V

VGFX_CORE

VCORE

VGFX_CORE

VGFX_CORE 27

VCORE 27

VCORE_VCC_SENSE27 VR1_VCCGT_SENSEA27 VCORE_VSS_SENSE27

1.35V 2,10,11,23,25

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[07] SOC 6/8 POWER1

A3

735Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[07] SOC 6/8 POWER1

A3

735Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[07] SOC 6/8 POWER1

A3

735Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

PJ75 *OPEN-1mm

1 2

C47

22u_6.3V_X5R_08

C1024

*0.1u_10V_X5R_04

C68

4.7u_6.3V_X5R_04

C64

1u_6.3V_X5R_04

C61

22u_6.3V_X5R_08

C1025

*0.1u_10V_X5R_04

C46

22u_6.3V_X5R_08

C31

*0.1u_6.3V_X5R_04

C67

4.7u_6.3V_X5R_04

C1021

0.1u_10V_X5R_04

C70

*0.1u_6.3V_X5R_04

C63

1u_6.3V_X5R_04

+

C54

330uF_2.5V_12m_6.6*6.6*4.2

C62

22u_6.3V_X5R_08

C1026

*0.1u_10V_X5R_04

C1022

0.1u_10V_X5R_04

C45

22u_6.3V_X5R_08

C95

1u_6.3V_X5R_04

C59

22u_6.3V_X5R_08

C52

*0.1u_6.3V_X5R_04

C91

10u_6.3V_X5R_06

C1023

0.1u_10V_X5R_04

C37

2.2u_6.3V_X5R_04

R117 100_1%_04

C60

22u_6.3V_X5R_08

C33

2.2u_6.3V_X5R_04

C66

22u_6.3V_X5R_08

C57

22u_6.3V_X5R_08

R115 100_1%_04

C93

2.2u_6.3V_X5R_04

C44

*22u_6.3V_X5R_08

C58

22u_6.3V_X5R_08

C92

2.2u_6.3V_X5R_04

C39 0.1u_10V_X5R_04

C1027

*0.1u_10V_X5R_04

C38 1u_6.3V_X5R_04

C40

2.2u_6.3V_X5R_04

C1020

0.1u_10V_X5R_04

+

C34

*220u_6.3V_6.3*6.3*4.2

C41

2.2u_6.3V_X5R_04

C55

10u_6.3V_X5R_06

C32

*0.1u_6.3V_X5R_04

C56

10u_6.3V_X5R_06

C65

*10u_6.3V_X5R_06

R116 100_1%_04

VLV_M_D

REV = 1.2

7 OF 13

?

U1G

VLV_M_D/BGA

CORE_VSS_SENSE_N28

N28

CORE_VCC_SENSE_P28

P28

DRAM_VDD_S4

A48

TP2_CORE_VCC_S0IX

AA22

UNCORE_VNN_S3_AA24

AA24

CORE_VCC_S0IX_AA27

AA27

CORE_VCC_S0IX_AA29

AA29

CORE_VCC_S0IX_AA30

AA30

UNCORE_VNN_S3_AC22

AC22

CORE_VCC_S0IX_AC27

AC27

CORE_VCC_S0IX_AC29

AC29

CORE_VCC_S0IX_AC30

AC30

UNCORE_VNN_S3_AD22

AD22

UNCORE_VNN_S3_AD24

AD24

CORE_VCC_S0IX_AD27

AD27

CORE_VCC_S0IX_AD29

AD29

CORE_VCC_S0IX_AD30

AD30

DRAM_VDD_S4_AD38

AD38

UNCORE_VNN_S3_AF22

AF22

UNCORE_VNN_S3_AF24

AF24

CORE_VCC_S0IX_AF27

AF27

CORE_VCC_S0IX_AF29

AF29

TP_CORE_V1P05_S4

AF30

DRAM_VDD_S4_AF38

AF38

UNCORE_VNN_S3_AG22

AG22

UNCORE_VNN_S3_AG24

AG24

CORE_VCC_S0IX_AG27

AG27

CORE_VCC_S0IX_AG29

AG29

CORE_VCC_S0IX_AG30

AG30

UNCORE_VNN_S3_AJ22

AJ22

UNCORE_VNN_S3_AJ24

AJ24

UNCORE_VNN_S3_AK22

AK22

UNCORE_VNN_S3_AK24

AK24

UNCORE_VNN_S3_AK25

AK25

UNCORE_VNN_S3_AK27

AK27

UNCORE_VNN_S3_AK29

AK29

UNCORE_VNN_S3_AK30

AK30

UNCORE_VNN_S3_AK32

AK32

DRAM_VDD_S4_AK38

AK38

UNCORE_VNN_S3_AM22

AM22

DRAM_VDD_S4_AM38

AM38

DRAM_VDD_S4_AV41

AV41

DRAM_VDD_S4_AV42

AV42

UNCORE_VNN_SENSE

BB8

DRAM_VDD_S4_BB46

BB46

DRAM_VDD_S4_BD49

BD49

DRAM_VDD_S4_BD52

BD52

DRAM_VDD_S4_BD53

BD53

DRAM_VDD_S4_BF44

BF44

DRAM_VDD_S4_BG51

BG51

DRAM_VDD_S4_BJ48

BJ48

DRAM_VDD_S4_C51

C51

DRAM_VDD_S4_D44

D44

DRAM_VDD_S4_F49

F49

DRAM_VDD_S4_F52

F52

DRAM_VDD_S4_F53

F53

DRAM_VDD_S4_H46

H46

DRAM_VDD_S4_M41

M41

DRAM_VDD_S4_M42

M42

CORE_VCC_S0IX_P26

P26

CORE_VCC_S0IX_P27

P27

CORE_VCC_S0IX_U27

U27

CORE_VCC_S0IX_U29

U29

CORE_VCC_S0IX_V27

V27

CORE_VCC_S0IX_V29

V29

CORE_VCC_S0IX_V30

V30

DRAM_VDD_S4_V38

V38

CORE_VCC_S0IX_Y27

Y27

CORE_VCC_S0IX_Y29

Y29

CORE_VCC_S0IX_Y30

Y30

DRAM_VDD_S4_Y38

Y38

UNCORE_VNN_S3_AC24

AC24

Sheet 7 of 34

Processor 6/8

B.Schematic Diagrams

B - 8 Processor 6/8

5

4

3

2

1

D D

C C

B B

A A

SOC-8 SOC POWER2

V1P0Sx

V1P35Sx

D01A modify

D02 del R953, R952 short

D02A add C1101

D02A modify

D02A Del PJ63, PJ65

D02A modify(near to SOC AN24 pin)

1.05VS

1.0VS

1.0VSX

1.0VS

1.0VSX

1.0V

1.0VS

1.0VSX

1.0VS

1.05VS

1.35VSX

1.35VS

1.35VSX

1.35VS

1.35VSX

1.8VS

3.3VA

1.8V

1.0V

1.8V

1.8VS

3.3VS

1.8VS

3.3VS

1.8VS

1.5VS

3.3VS

RTCVCC

3.3VS

1.0VSX 23

1.0VS 4,5,23,27

1.0V 23,26

1.05VS 26

RTCVCC 5

3.3V 2,3,13,15,16,19,21,23,24,25,26,27,30,33,34

3.3VS 10,11,12,13,15,16,17,19,20,21,23,24,27,30,33,34

1.8VS 3,4,5,6,14,20,21,23,33

1.8V 5,6,16,23,25,33,34

1.5VS 20,25

1.35VSX 23

1.35VS 23

3.3VA 23,34

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[08] SOC 7/8 POWER2

A3

835Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[08] SOC 7/8 POWER2

A3

835Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[08] SOC 7/8 POWER2

A3

835Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

C10151u_6.3V_X5R_04

C102910u_6.3V_X5R_06

C1004 1u_6.3V_X5R_04

C771u_6.3V_X5R_04

C97 1u_6.3V_X5R_04

C1012

1u_6.3V_X5R_04

.

L1 HCB1005KF-121T20

C1034 1u_6.3V_X5R_04

C1013

1u_6.3V_X5R_04

C871u_6.3V_X5R_04

C901u_6.3V_X5R_04 R1078 0_04

C1010*1u_6.3V_X5R_04

C841u_6.3V_X5R_04

C1031 1u_6.3V_X5R_04

R1080 0_04

R1187 0_04

C10051u_6.3V_X5R_04

C53*1u_6.3V_X5R_04

C1003 1u_6.3V_X5R_04

C981u_6.3V_X5R_04

C851u_6.3V_X5R_04

C102822u_6.3V_X5R_08

C1021u_6.3V_X5R_04

C10091u_6.3V_X5R_04

R1081 *0_04

R1079 *0_04

R1188 *0_04

C791u_6.3V_X5R_04

C1011 *1u_6.3V_X5R_04

C831u_6.3V_X5R_04

C1101 1u_6.3V_X5R_04

C1032 *1u_6.3V_X5R_04

C7222u_6.3V_X5R_08

C1112 22u_6.3V_X5R_06

C10061u_6.3V_X5R_04

C500.1u_10V_X5R_04

C881u_6.3V_X5R_04

C761u_6.3V_X5R_04

C360.01u_16V_X7R_04

C1002 0.1u_10V_X5R_04

C941u_6.3V_X5R_04

C821u_6.3V_X5R_04

C1113 22u_6.3V_X5R_06

C751u_6.3V_X5R_04

C1033 1u_6.3V_X5R_04

C1035 1u_6.3V_X5R_04

C10071u_6.3V_X5R_04

C991u_6.3V_X5R_04

C741u_6.3V_X5R_04

C511u_6.3V_X5R_04

C86*1u_6.3V_X5R_04

?

8 OF 13

REV = 1.2

VLV_M_D

U1H

VLV_M_D/BGA

UNCORE_V1P0_S0IX_V24

V24

UNCORE_V1P0_S0IX_Y24

Y24

UNCORE_V1P0_S0IX_Y22

Y22

UNCORE_V1P0_S0IX_AN29

AN29

UNCORE_V1P0_S0IX_AN30

AN30

CORE_V1P05_S3_AC32

AC32

CORE_V1P05_S3_Y32

Y32

CORE_V1P05_S3_AA33

AA33

CORE_V1P05_S3_AF33

AF33

CORE_V1P05_S3_AG33

AG33

CORE_V1P05_S3_AG35

AG35

CORE_V1P05_S3_U33

U33

CORE_V1P05_S3_U35

U35

CORE_V1P05_S3_V33

V33

DDI_V1P0_S0IX_AJ18

AJ18

DDI_V1P0_S0IX_AK19

AK19

DDI_V1P0_S0IX_AK21

AK21

DDI_V1P0_S0IX_AM16

AM16

DRAM_V1P0_S0IX_AA36

AA36

DRAM_V1P0_S0IX_AD35

AD35

DRAM_V1P0_S0IX_AF35

AF35

DRAM_V1P0_S0IX_AF36

AF36

DRAM_V1P0_S0IX_AJ36

AJ36

DRAM_V1P0_S0IX_AK35

AK35

DRAM_V1P0_S0IX_AK36

AK36

DRAM_V1P0_S0IX_Y35

Y35

DRAM_V1P0_S0IX_Y36

Y36

GPIO_V1P0_S3_AN25

AN25

HDA_LPE_V1P5V1P8_S3_AM32

AM32

LPC_V1P8V3P3_S3_AM27

AM27

PCIE_SATA_V1P0_S3_AN18

AN18

PCU_V1P8_G3_V25

V25

PCU_V3P3_G3_N22

N22

PMU_V1P8_G3_U25

U25

RESERVED_F1

F1

RTC_VCC_P22

P22

SATA_V1P0_S3_AN19

AN19

SD3_V1P8V3P3_S3_AN27

AN27

SVID_V1P0_S3_V32

V32

UNCORE_V1P0_G3_B6

B6

UNCORE_V1P0_G3_C5

C5

UNCORE_V1P0_G3_U22

U22

UNCORE_V1P0_G3_V22

V22

UNCORE_V1P0_S0IX_AF21

AF21

UNCORE_V1P0_S0IX_AG21

AG21

UNCORE_V1P0_S3_AF16

AF16

UNCORE_V1P0_S3_AF18

AF18

UNCORE_V1P0_S3_G1

G1

UNCORE_V1P0_S3_Y18

Y18

UNCORE_V1P8_G3_U24

U24

UNCORE_V1P8_S3_AM30

AM30

UNCORE_V1P8_S3_AN32

AN32

UNCORE_V1P8_S3_U38

U38

USB3_V1P0_G3_C3

C3

USB3_V1P0_G3_Y19

Y19

USB_V1P0_S3_M14

M14

USB_V1P0_S3_U18

U18

USB_V1P0_S3_U19

U19

USB_V1P8_G3_N20

N20

USB_V3P3_G3_N18

N18

USB_V3P3_G3_P18

P18

USB_VSSA_U16

U16

VGA_V1P0_S3_BJ6

BJ6

VGA_V1P35_S3_F1_BD1

BD1

VGA_V3P3_S3_AN24

AN24

VSSA_AN16

AN16

VSS_A3_A3

A3

VSS_A5_A5

A5

VSS_A6_A6

A6

VSS_A49_A49

A49

VSS_A51_A51

A51

VSS_A52_A52

A52

VSS_AD16

AD16

VSS_AD18

AD18

VSS_B2_B2

B2

VSS_B52_B52

B52

VSS_B53_B53

B53

VSS_BE1_BE1

BE1

VSS_BE53_BE53

BE53

VSS_BG1_BG1

BG1

VSS_BG53_BG53

BG53

VSS_BH1_BH1

BH1

VSS_BH2_BH2

BH2

VSS_BH52_BH52

BH52

VSS_BH53_BH53

BH53

VSS_BJ2_BJ2

BJ2

VSS_BJ3_BJ3

BJ3

VSS_BJ5_BJ5

BJ5

VSS_BJ49_BJ49

BJ49

VSS_BJ51_BJ51

BJ51

VSS_BJ52_BJ52

BJ52

VSS_C1_C1

C1

VSS_C53_C53

C53

VSS_E1_E1

E1

VSS_E53_E53

E53

UNCORE_V1P8_G3_AA18

AA18

UNCORE_V1P35_S0IX_F5_AA25

AA25

DRAM_V1P35_S0IX_F1_AD36

AD36

UNCORE_V1P35_S0IX_F6

AF19

UNCORE_V1P35_S0IX_F3_V36

V36

USB_HSIC_V1P24_G3_V18

V18

UNCORE_V1P35_S0IX_F4_U36

U36

PCIE_V1P0_S3_AN21

AN21

PCIE_V1P0_S3_AM21

AM21

PCIE_V1P0_S3_AM18

AM18

PCIE_V1P0_S3_AK18

AK18

ICLK_V1P35_S3_F1_AJ19

AJ19

UNCORE_V1P35_S0IX_F2_AG32

AG32

UNCORE_V1P35_S0IX_F1_AG19

AG19

ICLK_V1P35_S3_F2

AG18

C10422u_6.3V_X5R_08

C1061u_6.3V_X5R_04

C81*1u_6.3V_X5R_04

C10081u_6.3V_X5R_04

C78 1u_6.3V_X5R_04

C10522u_6.3V_X5R_08

C35 0.47u_6.3V_X5R_04

C1030 1u_6.3V_X5R_04

C891u_6.3V_X5R_04

R952 *10mil_short

C10322u_6.3V_X5R_08

C1014

*1u_6.3V_X5R_04

C107 1u_6.3V_X5R_04

Sheet 8 of 34

Processor 7/8

Schematic Diagrams

B.Schematic Diagrams

Processor 7/8 B - 9

Schematic Diagrams

Sheet 9 of 34

Processor 8/8

5

4

3

2

1

D D

C C

B B

A A

SOC-9 SOC VSS

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[09] SOC 8/8 VSS

A3

935W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[09] SOC 8/8 VSS

A3

935W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[09] SOC 8/8 VSS

A3

935W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

VLV_M_D

?

13 OF 13

?REV = 1.2

U1M

VLV_M_D/BGA

VSS282

L13

VSS283

L19

VSS284

L27

VSS287

M26

VSS289

M34

VSS288

M27

VSS290

M35

VSS292

M47

VSS291

M38

VSS293

M51

VSS294

N1

VSS295

N16

VSS297

N51

VSS296

N38

VSS299

P16

VSS298

P13

VSS300

P19

VSS301

P20

VSS302

P24

VSS303

P32

VSS305

P38

VSS304

P35

VSS306

P4

VSS307

P47

VSS308

P52

VSS309

P9

VSS310

T40

VSS311

U1

VSS312

U11

VSS313

U12

VSS315

U21

VSS314

U14

VSS316

U3

VSS317

U30

VSS320

U42

VSS322

U45

VSS321

U43

VSS323

U46

VSS327

U51

VSS326

U5

VSS328

U53

VSS329

U6

VSS330

U8

VSS332

V12

VSS331

U9

VSS334

V19

VSS333

V16

VSS335

V21

VSS336

V35

VSS337

V40

VSS338

V44

VSS340

V7

VSS339

V51

VSS341

Y10

VSS342

Y14

VSS343

Y16

VSS344

Y21

VSS345

Y25

VSS346

Y33

VSS347

Y41

VSS348

Y44

VSS350

Y9

VSS349

Y7

VSS285

L35

VSS286

M19

VSS324

U48

VSS325

U49

VSS281

K9

VSS319

U40

VSS318

U32

VLV_M_D

?

?REV = 1.2

10 OF 13

U1J

VLV_M_D/BGA

VSS73

AH41

VSS72

AH4

VSS71

AG38

VSS104

AM40

VSS105

M28

VSS103

AM36

VSS102

AM35

VSS101

AM33

VSS100

AM29

VSS99

AM25

VSS98

AM24

VSS97

AM19

VSS96

AM12

VSS94

AK41

VSS95

AK44

VSS93

AK33

VSS92

AK16

VSS91

AK14

VSS90

AK10

VSS88

AJ38

VSS89

AJ53

VSS86

AJ33

VSS87

AJ35

VSS85

AJ32

VSS84

AJ30

VSS83

AJ3

VSS81

AJ27

VSS82

AJ29

VSS80

AJ25

VSS78

AJ16

VSS79

AJ21

VSS76

AH9

VSS77

AJ1

VSS75

AH7

VSS74

AH45

VSS139

AT16

VSS140

AT19

VSS138

AT12

VSS137

AP40

VSS136

AN9

VSS135

AN8

VSS134

AN6

VSS133

AN53

VSS132

AN51

VSS131

AN5

VSS129

AN48

VSS130

AN49

VSS128

AN46

VSS127

AN45

VSS126

AN43

VSS125

AN42

VSS123

AN38

VSS124

AN40

VSS121

AN35

VSS122

AN36

VSS120

AN33

VSS119

AN3

VSS118

AN22

VSS116

AN12

VSS117

AN14

VSS115

AN11

VSS113

AM7

VSS114

AN1

VSS111

AM44

VSS112

AM51

VSS110

AH6

VSS109

AH51

VSS108

AH50

VSS107

AH48

VSS106

AH47

VLV_M_D

?

12 OF 13

REV = 1.2

U1L

VLV_M_D/BGA

VSS211

BF30

VSS212

BF36

VSS213

BF4

VSS214

BG31

VSS215

BG34

VSS217

BG42

VSS216

BG39

VSS219

BG49

VSS218

BG45

VSS220

BJ11

VSS222

BJ19

VSS221

BJ15

VSS229

BJ47

VSS231

C14

VSS232

C31

VSS233

C34

VSS235

C42

VSS234

C39

VSS236

C45

VSS237

C49

VSS238

D12

VSS239

D16

VSS240

D24

VSS241

D30

VSS242

D36

VSS243

D38

VSS245

E35

VSS244

E19

VSS252

F35

VSS254

F7

VSS253

F5

VSS255

G10

VSS257

G22

VSS256

G20

VSS258

G26

VSS259

G28

VSS260

G32

VSS262

G42

VSS261

G34

VSS264

H27

VSS263

H19

VSS265

H35

VSS266

J1

VSS267

J16

VSS268

J19

VSS270

J27

VSS269

J22

VSS271

J32

VSS272

J35

VSS273

J40

VSS274

J53

VSS275

K14

VSS276

K22

VSS277

K32

VSS278

K36

VSS280

K50

VSS279

K4

VSS230

BJ7

VSS228

BJ43

VSS227

BJ39

VSS226

BJ35

VSS225

BJ31

VSS224

BJ27

VSS223

BJ23

VSS251

F30

VSS250

F27

VSS249

F24

VSS248

F2

VSS247

F19

VSS246

E8

VLV_M_D

?

?REV = 1.2

9 OF 13

U1I

VLV_M_D/BGA

VSS1

A11

VSS2

A15

VSS3

A19

VSS4

A23

VSS5

A27

VSS6

A31

VSS7

A35

VSS9

A43

VSS8

A39

VSS10

A47

VSS12

AA16

VSS11

AA1

VSS15

AA3

VSS14

AA21

VSS13

AA19

VSS16

AA32

VSS17

AA35

VSS19

AA53

VSS18

AA38

VSS20

AB10

VSS21

AB4

VSS22

AB41

VSS23

AB45

VSS24

AB47

VSS25

AB48

VSS27

AB51

VSS26

AB50

VSS28

AB6

VSS29

AC16

VSS30

AC18

VSS31

AC19

VSS32

AC21

VSS33

AC25

VSS34

AC33

VSS35

AC35

VSS37

AC38

VSS36

AC36

VSS38

AD19

VSS39

AD21

VSS40

AD25

VSS41

AD32

VSS42

AD33

VSS44

AD7

VSS43

AD47

VSS45

AE1

VSS47

AE12

VSS46

AE11

VSS50

AE4

VSS49

AE3

VSS48

AE14

VSS51

AE40

VSS52

AE42

VSS53

AE43

VSS54

AE45

VSS55

AE46

VSS56

AE48

VSS57

AE50

VSS58

AE51

VSS59

AE53

VSS60

AE6

VSS62

AE9

VSS61

AE8

VSS63

AF10

VSS64

AF12

VSS65

AF25

VSS66

AF32

VSS67

AF47

VSS68

AG16

VSS69

AG25

VSS70

AG36

VLV_M_D

?

11 OF 13

?REV = 1.2

U1K

VLV_M_D/BGA

VSS141

AT24

VSS142

AT27

VSS143

AT30

VSS144

AT35

VSS145

AT38

VSS147

AT47

VSS146

AT4

VSS149

AU1

VSS148

AT52

VSS150

AU24

VSS152

AU30

VSS151

AU3

VSS153

AU38

VSS154

AU51

VSS155

AV12

VSS157

AV14

VSS156

AV13

VSS159

AV19

VSS158

AV18

VSS160

AV24

VSS161

AV27

VSS162

AV30

VSS163

AV35

VSS165

AV47

VSS164

AV38

VSS166

AV51

VSS167

AV7

VSS170

AW27

VSS172

AW35

VSS173

AY10

VSS175

AY32

VSS174

AY22

VSS209

BF24

VSS210

BF38

VSS208

BF16

VSS207

BF12

VSS206

BE8

VSS205

BE35

VSS204

BE2

VSS203

BE19

VSS202

BD35

VSS201

BD30

VSS199

BD24

VSS200

BD27

VSS198

BD19

VSS197

BC42

VSS196

BC34

VSS195

BC32

VSS193

BC26

VSS194

BC28

VSS191

BC20

VSS192

BC22

VSS190

BB35

VSS189

BB27

VSS188

BB19

VSS186

BA40

VSS187

BA53

VSS185

BA35

VSS183

BA27

VSS184

BA32

VSS181

BA19

VSS182

BA22

VSS180

BA14

VSS179

AY9

VSS178

AY50

VSS177

AY4

VSS176

AY36

VSS168

AW13

VSS169

AW19

VSS171

AW3

Processor 8/8

B.Schematic Diagrams

B - 10 Processor 8/8

Sheet 10 of 34

DDR3 SO-DIMM_0

5

4

3

2

1

D D

C C

B B

A A

SO-DIMM A

20mils

signal/space/signal:

Layout Note:

8 / 4 / 8

CLOSE TO SO-DIMM_0

6/26 modify

D02 modify

SA0_DIM0

M_A_DQS#3

M_A_DQS1 M_A_DQS2

M_A_DQS#7

M_A_DQS6

M_A_DQS0

M_A_DQS5

M_A_DQS#2

SA1_DIM0

M_A_DQS7

M_A_DQS#5 M_A_DQS#6

M_A_DQS#0

M_A_DQS3

M_A_DQS#1

M_A_DQS4

M_A_DQS#4

M_A_DQ1

M_A_DQ0

M_A_A9

M_A_A8

M_A_A7

M_A_A5 M_A_A6

M_A_A4

M_A_A3

M_A_A2

M_A_A1

M_A_A0

M_A_A15

M_A_A14

M_A_A13

M_A_A11 M_A_A12

M_A_A10

MVREF_DIM0

MVREF_DQAMVREF_DQA

MVREF_DQA

SA1_DIM0

SA0_DIM0

M0_DM7

M0_DM5 M0_DM6

M0_DM4

M0_DM3

M0_DM2

M0_DM1

M0_DM0

MVREF_DIM0

M_A_DQ2 M_A_DQ3 M_A_DQ4 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ8 M_A_DQ9 M_A_DQ10 M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19 M_A_DQ20 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ28 M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ32 M_A_DQ33 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47 M_A_DQ48 M_A_DQ49 M_A_DQ50 M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ58 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63

1.35V

3.3VS

VTT_MEM

1.35V

3.3VS

1.35V

M_A_CLK_DDR12

M_A_BS12

M_A_RAS#2

M_A_ODT12

M_A_CLK_DDR#12

M_A_CAS#2

M_A_WE#2

M_A_BS02

M_A_ODT02

M_A_CLK_DDR02

M_A_CKE02

M_A_BS22

M_A_CKE12

M_A_CS#12

M_A_CLK_DDR#02

M_A_CS#02

M_A_A[15:0]2

DRAM_A_RST#2

TS#_DIMM0_111

SMB_CLK11,33

M_A_DQ[63:0] 2

SMB_DATA11,33

M_A_DQS[7:0]2

M_A_DQS#[7:0]2

M0_DM[7:0]2

1.35V 2,7,11,23,25 VTT_MEM 11,25

3.3VS 8,11,12,13,15,16,17,19,20,21,23,24,27,30,33,34

SA1_DIM1 11 SA0_DIM1 11

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[10] DDR3 SO-DIMM_0

A3

10 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[10] DDR3 SO-DIMM_0

A3

10 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[10] DDR3 SO-DIMM_0

A3

10 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

C115 *0.1u_16V_Y5V_04

R118 10K_04

C112

1u_6.3V_X5R_04

C134

0.1u_16V_Y5V_04

C126

1u_6.3V_X5R_04

C129

0.1u_16V_Y5V_04

R120

4.7K_1%_04

C139

10u_6.3V_X5R_06

C971

1u_6.3V_X5R_04

C130

0.1u_16V_Y5V_04

C114 1u_6.3V_X5R_04

C123

1u_6.3V_X5R_04

C135

0.1u_16V_Y5V_04

C973

1u_6.3V_X5R_04

C132

0.1u_16V_Y5V_04

C118

0.1u_10V_X5R_04

JDIMM1B

91-93469-179

VDD1

75

VDD2

76

VDD3

81

VDD4

82

VDD5

87

VDD6

88

VDD7

93

VDD8

94

VDD9

99

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

77

NC2

122

NCTEST

125

VREF_DQ

1

VSS1

2

VSS2

3

VSS3

8

VSS4

9

VSS5

13

VSS6

14

VSS7

19

VSS8

20

VSS9

25

VSS10

26

VSS11

31

VSS12

32

VSS13

37

VSS14

38

VSS15

43

VSS16

44

VSS17

48

VSS18

49

VSS19

54

VSS20

55

VSS21

60

VSS22

61

VSS23

65

VSS24

66

VSS25

71

VSS26

72

VSS27

127

VSS28

128

VSS29

133

VSS30

134

VSS31

138

VSS32

139

VSS33

144

VSS34

145

VSS35

150

VSS36

151

VSS37

155

VSS38

156

VSS39

161

VSS40

162

VSS41

167

VSS42

168

VSS43

172

VSS44

173

VSS45

178

VSS46

179

VSS47

184

VSS48

185

VSS49

189

VSS50

190

VSS51

195

VSS52

196

G2

GND2

G1

GND1

VTT2

204

VTT1

203

VREF_CA

126

RESET#

30

EVENT#

198

VDD13

111

VDD14

112

VDD16

118

VDD15

117

VDD17

123

VDD18

124

C140

10u_6.3V_X5R_06

C131

0.1u_16V_Y5V_04

C141

10u_6.3V_X5R_06

C116 1u_6.3V_X5R_04

C113

*0.1u_16V_Y5V_04

C117 *0.1u_16V_Y5V_04

C142

10u_6.3V_X5R_06

C143

10u_6.3V_X5R_06

C144

10u_6.3V_X5R_06

RN1 10K_8P4R_04

1 2 3 4 5

6

7

8

R121 4.7K_1%_04

+

C121

*330uF_2.5V_12m_6.6*6.6*4.2

C145

10u_6.3V_X5R_06

R122

4.7K_1%_04

C136

0.1u_16V_Y5V_04

C137

10u_6.3V_X5R_06

C120

10u_6.3V_X5R_06

JDIMM1A

91-93469-179

A0

98

A1

97

A2

96

A3

95

A4

92

A5

91

A6

90

A7

86

A8

89

A9

85

A10/AP

107

A11

84

A12/BC#

83

A13

119

A14

80

A15

78

DQ0

5

DQ1

7

DQ2

15

DQ3

17

DQ4

4

DQ5

6

DQ6

16

DQ7

18

DQ8

21

DQ9

23

DQ10

33

DQ11

35

DQ12

22

DQ13

24

DQ14

34

DQ15

36

DQ16

39

DQ17

41

DQ18

51

DQ19

53

DQ20

40

DQ21

42

DQ22

50

DQ23

52

DQ24

57

DQ25

59

DQ26

67

DQ27

69

DQ28

56

DQ29

58

DQ30

68

DQ31

70

DQ32

129

DQ33

131

DQ34

141

DQ35

143

DQ36

130

DQ37

132

DQ38

140

DQ39

142

DQ40

147

DQ41

149

DQ42

157

DQ43

159

DQ44

146

DQ45

148

DQ46

158

DQ47

160

DQ48

163

DQ49

165

DQ50

175

DQ51

177

DQ52

164

DQ53

166

DQ54

174

DQ55

176

DQ56

181

DQ57

183

DQ58

191

DQ59

193

DQ60

180

DQ61

182

DQ62

192

DQ63

194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

73

CKE1

74

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200

SCL

202

SA1

201

SA0

197

DM0

11

DM1

28

DM2

46

DM3

63

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

12

DQS1

29

DQS2

47

DQS3

64

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

10

DQS1#

27

DQS2#

45

DQS3#

62

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

79

C119

0.1u_10V_X5R_04

R119 4.7K_1%_04

C133

0.1u_16V_Y5V_04

C138

10u_6.3V_X5R_06

Schematic Diagrams

B.Schematic Diagrams

DDR3 SO-DIMM_0 B - 11

Sheet 11 of 34

DDR3 SO-DIMM_1

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

SO-DIMM B

Layout Note:

8 / 4 / 8

20mils

signal/space/signal:

CLOSE TO SO-DIMM_1

CLOSE TO SO-DIMM1

6/26 modify

SA1_DIM1

MVREF_DQB

SA0_DIM1

M_B_DQ9

M_B_DQ8

M_B_A5 M_B_A6

M_B_A4

M_B_A3

M_B_A2

M_B_A1

M_B_A0

M_B_A12 M_B_A13

M_B_A11

M_B_A10

M_B_A9

M_B_A8

M_B_A7

M_B_A14

M_B_DQS1 M_B_DQS0 M_B_DQS2 M_B_DQS3 M_B_DQS4 M_B_DQS5 M_B_DQS6 M_B_DQS7

M_B_DQS#1 M_B_DQS#0 M_B_DQS#2 M_B_DQS#3 M_B_DQS#4 M_B_DQS#5 M_B_DQS#6 M_B_DQS#7

M_B_A15

MVREF_DIM1

MVREF_DQB

M1_DM7

M1_DM5 M1_DM6

M1_DM4

M1_DM3

M1_DM2

M1_DM0

M1_DM1

MVREF_DIM1

M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

1.35V

3.3VS

VTT_MEM

1.35V

VTT_MEM

1.35V

M_B_A[15:0]2

M_B_CLK_DDR32

M_B_BS12

M_B_RAS#2

M_B_CLK_DDR#32

M_B_CAS#2

M_B_WE#2

M_B_BS02

M_B_CLK_DDR22

M_B_CKE22

M_B_BS22

M_B_CKE32

M_B_CS#32

M_B_CLK_DDR#22

M_B_CS#22

M_B_ODT32

M_B_ODT22

DRAM_B_RST#2

TS#_DIMM0_110

SA0_DIM110 SA1_DIM110

SMB_DATA10,33

SMB_CLK10,33

M_B_DQS[7:0]2

M_B_DQS#[7:0]2

M_B_DQ[63:0] 2

M1_DM[7:0]2

1.35V 2,7,10,23,25 VTT_MEM 10,25

3.3VS 8,10,12,13,15,16,17,19,20,21,23,24,27,30,33,34

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D01A

1.0A

[11] DDR3 SO-DIMM_1

A3

11 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D01A

1.0A

[11] DDR3 SO-DIMM_1

A3

11 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D01A

1.0A

[11] DDR3 SO-DIMM_1

A3

11 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

C164

10u_6.3V_X5R_06

C153 *0.1u_16V_Y5V_04

C177

0.1u_16V_Y5V_04

C159

1u_6.3V_X5R_04

C161

10u_6.3V_X5R_06

R124

4.7K_1%_04

C152 1u_6.3V_X5R_04

C176

0.1u_16V_Y5V_04

C157

1u_6.3V_X5R_04

C150 1u_6.3V_X5R_04

C167

10u_6.3V_X5R_06

C151 *0.1u_16V_Y5V_04

+

C169

330uF_2.5V_12m_6.6*6.6*4.2

C160

1u_6.3V_X5R_04

C154

0.1u_10V_X5R_04

JDIMM2B

91-93469-178

VDD1

75

VDD2

76

VDD3

81

VDD4

82

VDD5

87

VDD6

88

VDD7

93

VDD8

94

VDD9

99

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

77

NC2

122

NCTEST

125

VREF_DQ

1

VSS1

2

VSS2

3

VSS3

8

VSS4

9

VSS5

13

VSS6

14

VSS7

19

VSS8

20

VSS9

25

VSS10

26

VSS11

31

VSS12

32

VSS13

37

VSS14

38

VSS15

43

VSS16

44

VSS17

48

VSS18

49

VSS19

54

VSS20

55

VSS21

60

VSS22

61

VSS23

65

VSS24

66

VSS25

71

VSS26

72

VSS27

127

VSS28

128

VSS29

133

VSS30

134

VSS31

138

VSS32

139

VSS33

144

VSS34

145

VSS35

150

VSS36

151

VSS37

155

VSS38

156

VSS39

161

VSS40

162

VSS41

167

VSS42

168

VSS43

172

VSS44

173

VSS45

178

VSS46

179

VSS47

184

VSS48

185

VSS49

189

VSS50

190

VSS51

195

VSS52

196

G2

GND2

G1

GND1

VTT2

204

VTT1

203

VREF_CA

126

RESET#

30

EVENT#

198

VDD13

111

VDD14

112

VDD16

118

VDD15

117

VDD17

123

VDD18

124

R123 4.7K_1%_04

C158

1u_6.3V_X5R_04

R125 4.7K_1%_04

C148

1u_6.3V_X5R_04

C165

10u_6.3V_X5R_06

R126

4.7K_1%_04

C155

0.1u_10V_X5R_04

C162

10u_6.3V_X5R_06

C168

10u_6.3V_X5R_06

C175

0.1u_16V_Y5V_04

C163

10u_6.3V_X5R_06

C171

0.1u_16V_Y5V_04

C149

*0.1u_16V_Y5V_04

C173

0.1u_16V_Y5V_04

C156

10u_6.3V_X5R_06

C166

10u_6.3V_X5R_06

C170

0.1u_16V_Y5V_04

JDIMM2A

91-93469-178

A0

98

A1

97

A2

96

A3

95

A4

92

A5

91

A6

90

A7

86

A8

89

A9

85

A10/AP

107

A11

84

A12/BC#

83

A13

119

A14

80

A15

78

DQ0

5

DQ1

7

DQ2

15

DQ3

17

DQ4

4

DQ5

6

DQ6

16

DQ7

18

DQ8

21

DQ9

23

DQ10

33

DQ11

35

DQ12

22

DQ13

24

DQ14

34

DQ15

36

DQ16

39

DQ17

41

DQ18

51

DQ19

53

DQ20

40

DQ21

42

DQ22

50

DQ23

52

DQ24

57

DQ25

59

DQ26

67

DQ27

69

DQ28

56

DQ29

58

DQ30

68

DQ31

70

DQ32

129

DQ33

131

DQ34

141

DQ35

143

DQ36

130

DQ37

132

DQ38

140

DQ39

142

DQ40

147

DQ41

149

DQ42

157

DQ43

159

DQ44

146

DQ45

148

DQ46

158

DQ47

160

DQ48

163

DQ49

165

DQ50

175

DQ51

177

DQ52

164

DQ53

166

DQ54

174

DQ55

176

DQ56

181

DQ57

183

DQ58

191

DQ59

193

DQ60

180

DQ61

182

DQ62

192

DQ63

194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

73

CKE1

74

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200

SCL

202

SA1

201

SA0

197

DM0

11

DM1

28

DM2

46

DM3

63

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

12

DQS1

29

DQS2

47

DQS3

64

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

10

DQS1#

27

DQS2#

45

DQS3#

62

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

79

C172

0.1u_16V_Y5V_04

C178

10u_6.3V_X5R_06

C174

0.1u_16V_Y5V_04

DDR3 SO-DIMM_1

B.Schematic Diagrams

B - 12 DDR3 SO-DIMM_1

Sheet 12 of 34

RTD2136

5

4

3

2

1

D D

C C

B B

A A

From PCH

From EC

PIN38PIN50

H'3 ՂՂՂՂٙٙٙٙ 

PIN6

/9'6 ՂՂՂՂٙٙٙٙ 

PIN6

PIN13/14

I2C_ADDR: I2C Slave address selection, internal pull-down ~80K L: 0x10h~0x1Fh H: 0x90h~0x9Fh

RLV_CFG: LVDS color depth and data mapping selection, internal pull-down ~80K L: 8-bit LVDS, VESA mapping M: 8-bit LVDS, JEIDA mapping H: 6-bit LVDS, both VESA and JEIDA mapping

Power On Configuration

RLV_LNK: LVDS single link or dual link selection, internal pull-down ~80K L: Single link LVDS H: Dual link LVDS

PWMI: 0~100KHz, 0~100% duty cycle

/Ŷŝƚ ŝ Ăů ŽĚĞ WZKD

TX_LANE0p

GPU

TX_LANE0n

(Even)

AUXn

Single link LVDS

TX_LANE1p

(Odd)

TX_LANE1n

HPD

Dual link LVDS

ƐŝŶŐůĞW ƚƌĂĐĞ

I2C_CFG = "H" EEPROM for Initial Code I2C Address: 0xA0 Suggest minimum 2Kbit

AUXp

PWM

D02 add Q78, Q79, del R924, R925

D02 R1213 connect PWM_IN

D02A stuff

PWM_IN

RST#PD#

HPD

PWM_IN

DP_AUXN DP_AUXP

EDP_TXP_0 EDP_TXN_0

EDP_TXP_1 EDP_TXN_1

RLV_LNK

VDDIO

RLV_CFG

VDDIOGND

RTD_PLVDD_EN

VDD12

SW_OUT

RLV_CFG

RLV_LNK

LVDS-L0P

GND

CSDA/MSDA

LVDS-L1N

DRX0n

CSCL/MSCL

RLV_LNK

DRX0p

DAUXn

DRX1n

CSCL/MSCL

LVDS-L1P

DAUXp

VDDIOX

LVDS-L2N

RST#

GND_PS8625

VDDIOX

SW_OUT

LVDS-LCLKP

GND_PS8625

SW_OUT

PD#

REXT

LVDS-L2P

GND

ENBLT

LVDS-LCLKN

RLV_AMP

GND_PS8625

GND

LVDS-L0N

GND_PS8625

DRX1p

VDDRX

VDD12

CSCL/MSCL

CSDA/MSDA

PANEL_PWM

GND_PS8625

VDDIO

GND_PS8625

VDDIO

GND_PS8625

VDDIO

3.3VS

VDDIO

3.3VS

VDDRX

GND_PS8625

VDDRX

VDD12

VDDIOX

VDDIO

VDDIO VDDIO

VDDIOX

GND_PS8625

3.3VS

3.3VS 8,10,11,13,15,16,17,19,20,21,23,24,27,30,33,34

BRIGHTNESS 21

L_BRIGHTNESS_R 33

LVDS-L2P 13

SB_BLON 13

RTD_PLVDD_EN 13

P_DDC_CLK 13

P_DDC_DATA 13

EDP_HPD3,13

LVDS-U1P 13

LVDS-U2N 13 LVDS-U2P 13

LVDS-LCLKN 13

LVDS-UCLKN 13

LVDS-LCLKP 13

LVDS-UCLKP 13

LVDS-L0N 13

LVDS-U0N 13

EDP_TXP_03

LVDS-L0P 13

LVDS-U0P 13

EDP_TXN_03

LVDS-L1N 13

LVDS-U1N 13

EDP_TXP_13

LVDS-L1P 13

EDP_TXN_13

LVDS-L2N 13

DP_TXP113 DP_TXN113

DP_TXP013 DP_TXN013

DP_AUX#13 DP_AUX13

DP_AUXN3 DP_AUXP3

PANEL_PWM13

SMB_CLK_MULT21,27

SMB_DATA_MULT21,27

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[12] RTD2136 (EDP to LVDS)

Custom

12

35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[12] RTD2136 (EDP to LVDS)

Custom

12

35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[12] RTD2136 (EDP to LVDS)

Custom

12

35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R921 4.7K_04

C981

0.47u_10V_Y5V_04

R912 1K_04

C27 0.01u_16V _X7R_04

C988 0.1u_10V_X7R_04

R1005 *0_04

R917

*100K_04

R1208

10K_04

U34

PS8625

SW_OUT15SW_OUT16GNDX17GNDX18VDD1219TESTMODE20RLV_LNK/GPIO021RLV_CFG22ENBLT23CSDA/MSDA24CSCL/MSCL25REXT26BLV_AMP27GND

28

TA1n

42

TA1p

41

TB1n

40

TB1p

39

VDDIO

38

TC1n

37

TC1p

36

TCK1n

35

TCK1p

34

ENPVCC/I2C_ADDR

33

TD1n

32

TD1p

31

DDC_SDA

30

DDC_SCL

29

NC56NC

55

TA0n54TA0p53TB0n52TB0p

51

VDDIO

50

TC0n49TC0p

48

TCK0n47TCK0p

46

PWMI

45

TD0n44TD0p

43

DAUXn

1

DAUXp

2

GND

3

DRX0p

4

DRX0n

5

VDDRX

6

DRX1p

7

DRX1n

8

RST#

9

PD#

10

HPD

11

PWMO

12

VDDIOX

13

VDDIOX

14

Epad

57

C985 0.1u_10V_X7R_04

C979

1u_6.3V_X5R_04

C982 0.1u_10V_X7R_04

R1216 4.7K_04

R1006 *0_04

L35

HCB1005KF-121T20

1 2

C28 0.1u_10V_X7R_04

C1089

4.7u_6.3V_X5R_06

C983 0.1u_10V_X7R_04

R1209 4.99K_1%_04

R1008 *0_04

R1004 *0_04

R1221 4.99K_1%_04

R922 4.7K_04

L34

HCB1005KF-121T20

1 2

R1217

*10mil_short

C1094

0.1u_10V_X7R_04

R1210 *4.7K_04

L43

HCB1005KF-121T20

1 2

C978

0.47u_10V_Y5V_04

C1090

1u_6.3V_X5R_04

R1213 *0_04

R1224 *4.7K_04

C984 0.1u_10V_X7R_04

R1219 *10mil_short

C1098

0.1u_10V_X7R_04

Q78 MTN7002ZHS3

G

D S

R1212 *4.7K_04

R1009 *0_04

C980

4.7u_6.3V_X5R_06

C1097

0.01u_16V_X7R_04

Q79 MTN7002ZHS3

G

D S

C1096

0.1u_10V_X7R_04

R1007 *0_04

C1091

2.2u_6.3V_X5R_06

U35

*M24C02~M24C16

VCC

8

WC#

7

SCL

6

SDA5VSS

4

E2

3

E1

2

E0

1

D31 *RB751S-40C2

AC

C987 0.1u_10V_X7R_04

R1225

10K_04

L42

BCNR3010C-2R2M

1 2

C1088

1u_6.3V_X5R_04

D32 RB751S-40C2

AC

RTD2136

Schematic Diagrams

B.Schematic Diagrams

RTD2136 B - 13

Schematic Diagrams

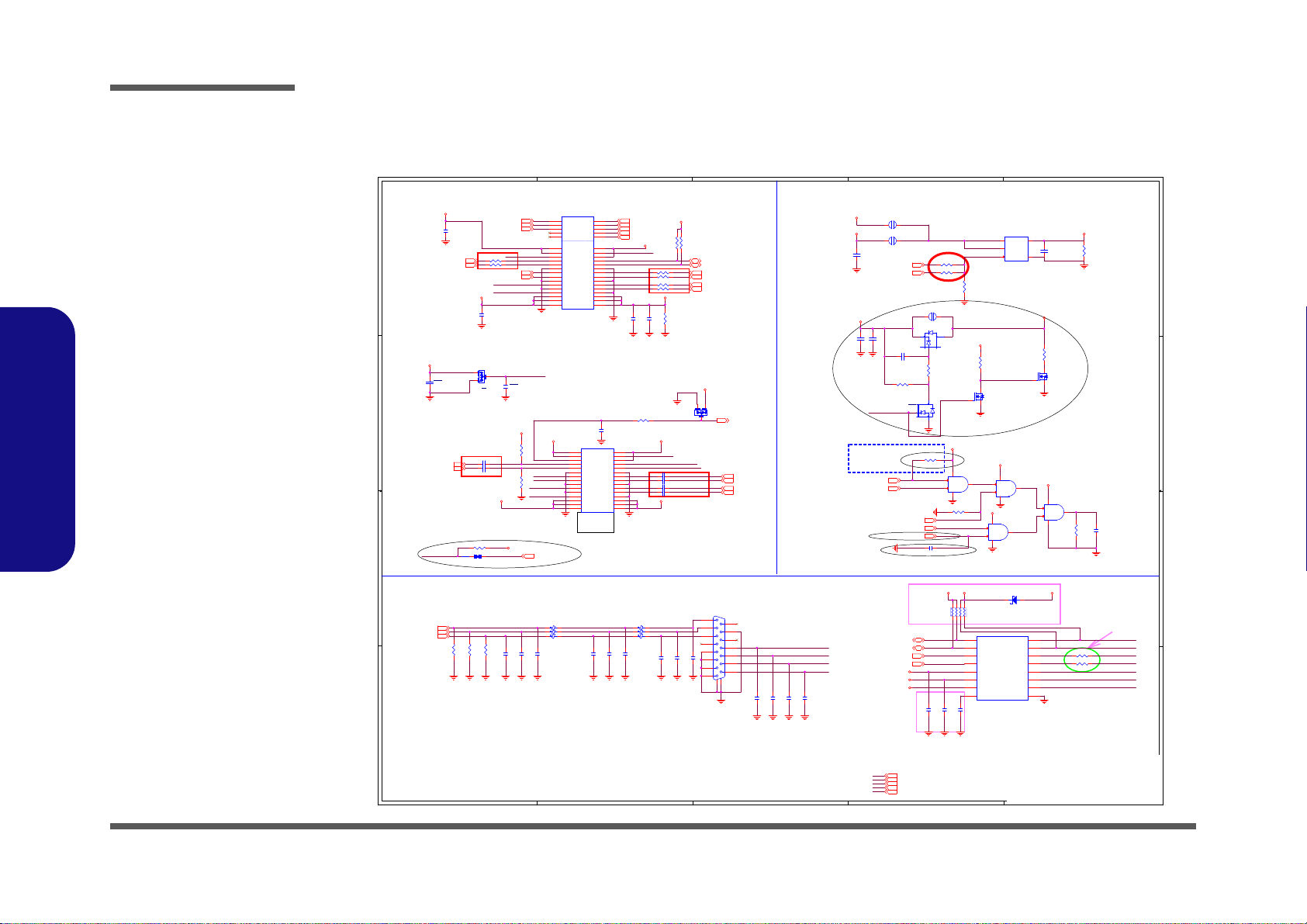

Sheet 13 of 34

Panel, CRT

5

4

3

2

1

D D

C C

B B

A A

BY

ᖲᖲᖲᖲጟጟጟጟ

24 mil

6-19-31001-266

CRT Port

խխխխ֨֨֨֨

H=3

PN:6-20-14X00-015

Closed to CRT Connector

TPD7S019 SOP16P PN:6-02-07019-B20

X5R-->Y5V

2A 2A

PANEL CONN PANEL POWER

CRT PORT

0 ohm

2A

1A

2A

ڶڶڶڶᏁᏁᏁᏁޣޣޣޣ٦٦٦٦ՂՂՂՂٙٙٙٙ

Brightness

ᇆቃఎ࣋ሽঅᥨሽሁ

CLOSE TO CONN.

30 pin LVDS

6-20-51A40-215

[PIN DEFINEྤFOLLOW

٥ش๻ૠ

]

D02 modify

CHECK

D02 PJ3 short, other no stuff

D02 R156 short

D02A no stuff

R166 LVDS no stuff EDP stuff

eDP => R158 stuff LVDS=> R159 stuff

D03 EMI add C1115

DDCLK

FGRN

FRED

DDCDATA

VSYNC

HSYNC

FGRN_L

FRED_L

CRT_HSYNC

DDCDATA

DDCLK

FBLU_L

FGRN

FRED

FBLU

CRT_VSYNC

HSYNC

VSYNC

FBLU

BRIGHTNESS_R

BLON1

BLON2

INV_BLON

LID_SW#1

PANEL_VCC_EN

LVDD_EN#

PANEL_VCC_EN

BRIGHTNESS_R

INV_BLON

DAUX# DAUX

DRX0# DRX0

DRX2# DRX2

HPD_L

BRIGHTNESS_R

LVDS-L1P

INV_BLON

BRIGHTNESS_R

PANEL_VCC_EN

DAUX# DAUX

DRX0# DRX0

DRX2# DRX2

VLED

P_DDC_CLK P_DDC_DATA

LVDS-L1N

HPD_L

GND

3.3VS

GND GND

GNDGNDGND

GND

GND GND

GNDGND GND

GND

3.3VS

GND

3.3VS

GND GND GND

5VS_CRT

5VS5VS_CRT

VLED

5VS

3.3V

VIN

3.3VS PLVDD

PLVDD

3.3VS

5VS

PLVDD

3.3VS

VLED

3.3V

VLED

3.3VS

PLVDD 3.3VS

5VS

DDC_CLK3

DAC_G3

DDC_DATA3

DAC_R3

DAC_B3

DAC_HSYNC3

DAC_VSYNC3

PANEL_PWM 12

RTD_PLVDD_EN12

NB_ENAVDD34

ALL_SYS_PWROK21,23

LID_SW#17,21

SB_BLON12

5VS 14,17,18,19,20,22,23,24

3.3V 2,3,15,16,19,21,23,24,25,26,27,30,33,34

3.3VS 8,10,11,12,15,16,17,19,20,21,23,24,27,30,33,34

VIN 23,24,25,26,27,28

1.0VS 4,5,8,23,27

P_DDC_CLK 12 P_DDC_DATA 12

LVDS-L1N12

LVDS-LCLKN12 LVDS-LCLKP12

LVDS-L0P 12

LVDS-U0P 12

LVDS-U0N 12

LVDS-L2N 12

LVDS-L1P12

LVDS-L2P 12

LVDS-L0N 12

LVDS-U2P 12

LVDS-U2N 12LVDS-U1N12

LVDS-UCLKN12

LVDS-U1P12

LVDS-UCLKP 12

EDP_HPD 3,12

DP_TXN1 12 DP_TXP1 12

DP_TXN0 12 DP_TXP0 12

DP_AUX#12 DP_AUX12

BLON34

BKL_EN21

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[13] PANEL, CRT

Custom

13 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[13] PANEL, CRT

Custom

13 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[13] PANEL, CRT

Custom

13 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

C1050 *0.1u_10V_X5R_04

C217

0.22u_10V_Y5V_04

R149

2.2K_04

C224

*0.22u_50V_Y5V_06

R166 *100K_04

Q4B

*MTS3572G6

S1

2

D1

6

G1

1

U6

TPD7S019

VCC_SYNC

1

VCC_VIDEO

2

VIDEO_1

3

VIDEO_2

4

VIDEO_3

5

GND

6

VCC_DDC

7

BYP

8

DDC_OUT1

9

DDC_IN1

10

DDC_IN211DDC_OUT2

12

SYNC_IN113SYNC_OUT1

14

SYNC_IN215SYNC_OUT2

16

R145

150_1%_04

C401 *0.1u_10V_X5R_04

S

D

G

Q5A

*MTDN7002ZHS6R

2

6

1

R1014 0_04

L11 FCM1005MF-600T01

R158 *0_04

C183 *0.1u_10V_X5R_04

L10 FCM1005MF-600T01

R1015

*4.7K_06

C218

0.22u_10V_Y5V_04

L6 FCM1005MF-600T01

C221

1u_6.3V_X5R_04

U8B 74LVC08PW

4

5

6

147

RN2

2.2K_8P4R_04

123

45

678

C184 *0.1u_10V_X5R_04

R159 0_04

C185

0.1u_50V_Y5V_06

PJ2 3mm

1 2

R156 *10mil_short_04

C203

20p_50V_NPO_04

L9 FCM1005MF-600T01

C199

10p_50V_NPO_04

C220

1u_6.3V_X5R_04

C225 *0.1u_16V_Y5V_04

C211

1000p_50V_X7R_04

C398 *0.1u_10V_X5R_04

R164

*10K_04

R1016 0_04

C222

*0.1u_50V_Y5V_06

PJ1 3mm

1 2

C202

20p_50V_NPO_04

R154 33_04

C209

220p_50V_NPO_04

C399 *0.1u_10V_X5R_04

U8D 74LVC08PW

12

13

11

147

R160 100K_04

R384 0_04

D6 *BAV99

A

C

AC

C208

1000p_50V_X7R_04

J_LCD1

*87216-4006

111112

12

131314

14

151516

16

171718

18

191920

20

212122

22

232324

24

252526

26

272728

28

292930

30

313132

32

333334

34

353536

36

373738

38

393940

40

1

3

5

7

9

2

4

6

8

10

R909 *10K_04

C200

10p_50V_NPO_04

R162

*1M_04

PJ3 OPEN_2A

1 2

R169 100K_04

R155 33_04

D29*BAV99

A

C

AC

U7

G5243A

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

C182 1u_6.3V_X5R_04

C219

0.22u_10V_Y5V_04

C210

220p_50V_NPO_04

R165 *100K_04

J_LCD2

50238-0307N-001

112

2

334

4

556

6

778

8

9910

10

111112

12

131314

14

151516

16

171718

18

191920

20

212122

22

232324

24

252526

26

272728

28

292930

30

L7 FCM1005MF-600T01

C593

*0.1u_16V_Y5V_04

R148

2.2K_04

D5

RB551V-30S2

AC

C1115 *0.1u_16V_Y5V_04

R1010 0_04

R147

150_1%_04

R603 1K_04

C204

20p_50V_NPO_04

C396

0.01u_50V_X7R_04

U8A 74LVC08PW

1

2

3

147

R605

*100K_04

C216

*0.1u_16V_Y5V_04

R1011 0_04

R146

150_1%_04

R161

*4.7K_06

R168 100K_04

R157

*100K_04

C206

10p_50V_NPO_04

R604

*100K_04

L8 FCM1005MF-600T01

C397

0.1u_16V_Y5V_04

J_CRT1

C10556-11505-L

8

7

6

5

4

3

2

1

9

10

11

12

13

14

15

GND2

GND1

C223 *0.1u_50V_Y5V_06

C215

*0.1u_16V_Y5V_04

C207

10p_50V_NPO_04

S

D

G

Q5B

*MTDN7002ZHS6R

5

3

4

Q4A *MTS3572G6

S24D2

3

G2

5

C205

10p_50V_NPO_04

R1012 0_04

U8C 74LVC08PW

9

10

8

147

C201

10p_50V_NPO_04

Panel, CRT

B.Schematic Diagrams

B - 14 Panel, CRT

HDMI

Sheet 14 of 34

HDMI

5

4

3

2

1

D D

C C

B B

A A

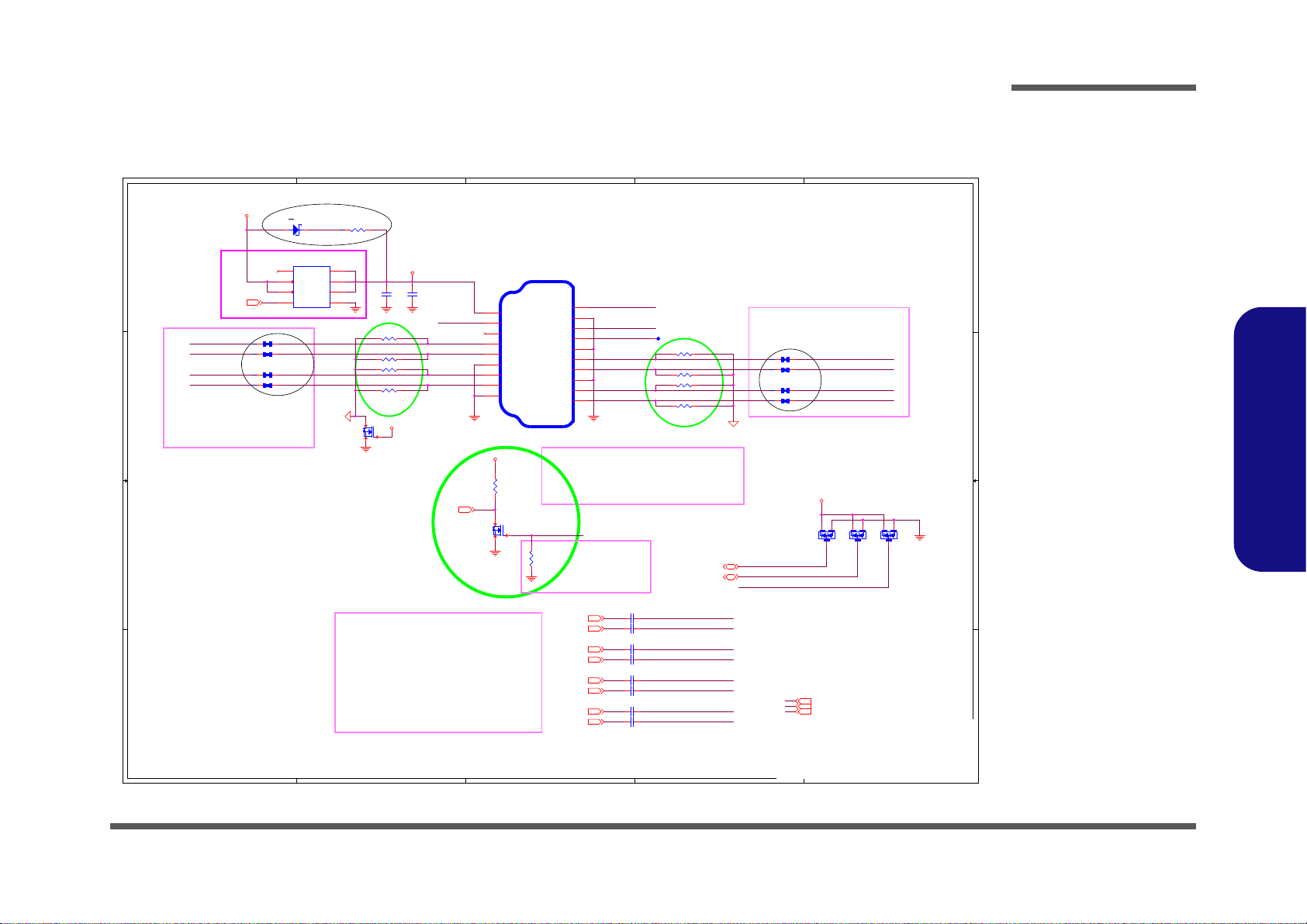

HDMI CONNECTOR ( W/O LEVELSHIFT)

PIN GND1~4=GND

For ESD

˧˴˿ˍʳ ˆˊʳ˖˸ˁ

˧˴˿ˍʳ ˆˊʳ˖˸ˁ˧˴˿ˍʳ ˆˊʳ˖˸ˁ

˧˴˿ˍʳ ˆˊʳ˖˸ˁ

60950-1ڜڜڜڜ๵๵๵๵૞૞૞૞ޣޣޣޣ, ؆؆؆؆ࠎࠎࠎࠎሽሽሽሽᄭᄭᄭᄭฤฤฤฤٽٽٽٽLPS ЉЉЉЉ 8A ๻๻๻๻ૠૠૠૠ

R594,R599,R600,R604,R598,R602,R603,R608

ኙኙኙኙچچچچଖଖଖଖ

BY PLATFROM HURON RIVER 680_1%_04 CEDAR TRAIL 619_1%_04 For Chief River 680_1%_04 same as Huron River. (WITH LEVELSHIFT

ழழழழլլլլՂՂՂՂٙٙٙٙ

)

ᙁᙁᙁᙁננננࡎࡎࡎࡎټټټټאאאא

I NTE L IC PI N

ࡳࡳࡳࡳᆠᆠᆠᆠ, ൷൷൷൷ᒵᒵᒵᒵᒔᒔᒔᒔᎁᎁᎁᎁ

IC

ጤጤጤጤ

CONNECTOR

ጤጤጤጤ

DATA2 DATA0 DATA1 DATA1 DATA0 DATA2 CLOCK CLOCK

ৱৱৱৱ

EMI

ྒྷྒྷྒྷྒྷᇢᇢᇢᇢݙݙݙݙګګګګ,ڕڕڕڕլլլլᏁᏁᏁᏁՂՂՂՂٙٙٙٙ

٦٦٦٦ޏޏޏޏڕڕڕڕՂՂՂՂ

SHORT

ሿሿሿሿٙٙٙٙլլլլՂՂՂՂٙٙٙٙ

ৱৱৱৱ

EMI

ྒྷྒྷྒྷྒྷᇢᇢᇢᇢݙݙݙݙګګګګ,ڕڕڕڕլլլլᏁᏁᏁᏁՂՂՂՂٙٙٙٙ

٦٦٦٦ޏޏޏޏڕڕڕڕՂՂՂՂ

SHORT

ሿሿሿሿٙٙٙٙլլլլՂՂՂՂٙٙٙٙ

ڕڕڕڕڶڶڶڶլլլլٵٵٵٵ,٦٦٦٦ࠉࠉࠉࠉIC૞૞૞૞ޣޣޣޣװװװװᓳᓳᓳᓳᖞᖞᖞᖞ

ޏޏޏޏ׽׽׽׽ఎఎఎఎ

0 ohm

ሽሽሽሽ,լլլլఎఎఎఎ

common choke

ޏޏޏޏ׽׽׽׽ఎఎఎఎ

0 ohm

ሽሽሽሽ

,

լլլլఎఎఎఎ

commo n choke

ኙኙኙኙچچچچଖଖଖଖ

BY PLATFROM

ଥଥଥଥإإإإ

499 -> 620

D02 R171, R172, R178, R180 short

D02 R175, R177, R183, R184 short

D02 add D1, R45

TMDS_DATA0#

HDMI_CEC

TMDS_DATA1-R

TMDS_DATA2

TMDS_DATA2#

HDMI_SCL-C

TMDS_DATA1#-R

HDMI_SDA-C

TMDS_DATA0

HDMI_HPD-C

TMDS_DATA0-R

TMDS_CLOCK#

TMDS_CLOCK

TMDS_DATA1#

TMDS_DATA1

HDMI_SCL-C

HDMI_HPD-C

HDMI_SDA-C

TMDS_DATA0#-R

TMDS_DATA1#-R

TMDS_CLOCK-R

TMDS_CLOCK#-R

TMDS_DATA1-R

TMDS_DATA2#-R

TMDS_DATA2-R

TMDS_DATA0-R

TMDS_CLOCK#-R

TMDS_DATA2-R

TMDS_DATA2#-R

TMDS_CLOCK-R

TMDS_DATA0#-R

HDMI_HPD-C

5VS

GND_HDMI

5VS

5VS_HDMI

1.8VS

5VS_HDMI

HDMIC_CLKCP3

HDMIC_C1CP3

HDMIC_CLKCN3

HDMIC_C1CN3

HDMIC_C0CP3

HDMIC_C0CN3

HDMIC_C2CP3

HDMIC_C2CN3

HDMI_HPD3

SUSB23,25

5VS 13,17,18,19,20,22,23,24

1.8VS 3,4,5,6,8,20,21,23,33

5VS_HDMI 33

HDMI_SDA-C33

HDMI_SCL-C33

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[14] HDMI

A3

14 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[14] HDMI

A3

14 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[14] HDMI

A3

14 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R173 619_1%_04

C231 0.1u_10V_X7R_04

R175 *10mil_short

R171 *10mil_short

C227

22u_6.3V_X5R_08

R183 *10mil_short

R181 619_1%_04

R172 *10mil_short

C228 0.1u_10V_X7R_04

R177 *10mil_short

D11

*BAV99

A

C

AC

D9

*BAV99

A

C

AC

R182 619_1%_04

R185 619_1%_04

R184 *10mil_short

J_HDMI1

116B-1A002-21U

SHIELD2

2

TMDS DATA1+

4

TMDS DATA1-

6

SHIELD0

8

TMDS CLOCK+

10

TMDS CLOCK-

12

RESERVED

14

SDA

16

+5V

18

TMDS DATA2+

1

TMDS DATA2-

3

SHIELD1

5

TMDS DATA0+

7

TMDS DATA0-

9

CLK SHIELD

11

CEC

13

SCL

15

DDC/CEC GND

17

HOT PLUG DETECT

19

R178 *10mil_short

C230 0.1u_10V_X7R_04

R45 *1_04

C233 0.1u_10V_X7R_04

R176 619_1%_04

C234 0.1u_10V_X7R_04

D1

*RB551V-30S2

A C

C226

22u_6.3V_X5R_08

R180 *10mil_short

C232 0.1u_10V_X7R_04

U9

SY6288DCAC

VOUT1

6

VOUT3

8

VIN2

3

VIN12VOUT2

7

GND

1

EN#

4

FLG#

5

R186

10K_04

R179 619_1%_04

C235 0.1u_10V_X7R_04

R189 100K_04

R174 619_1%_04

Q9 MTN7002ZHS3

G

DS

Q7 MTN7002ZHS3

G

DS

R170 619_1%_04

C229 0.1u_10V_X7R_04

D10

*BAV99

A

C

AC

Schematic Diagrams

B.Schematic Diagrams

HDMI B - 15

Schematic Diagrams

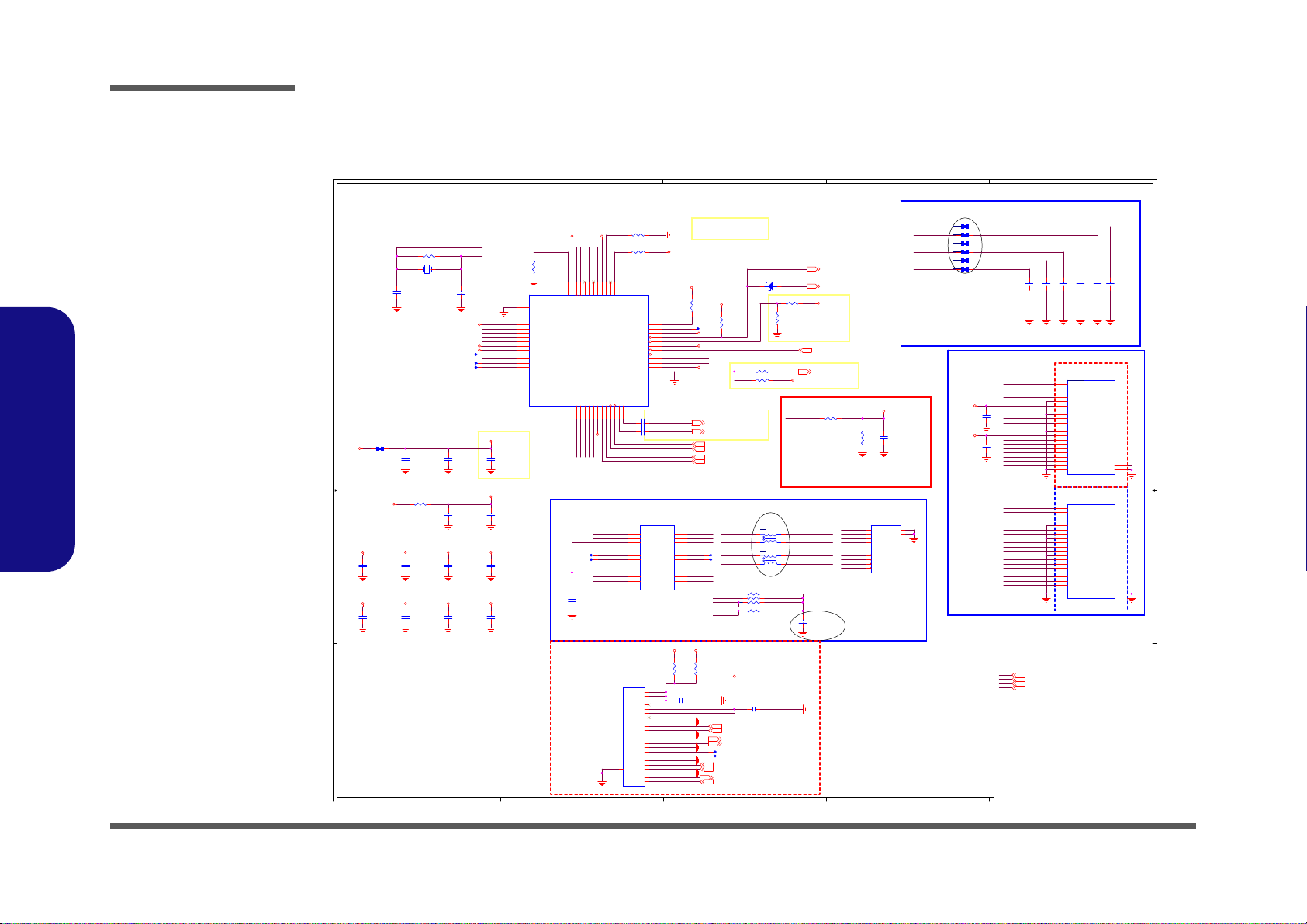

5

4

3

2

1

D D

C C

B B

A A

ৱৱৱৱ

EMI

ᒔᒔᒔᒔᎁᎁᎁᎁݙݙݙݙ,ޏޏޏޏ

SHORT

PIN34 PIN47

SD/MMC/MS/MS PRO---Card Reader

Near Cardreader CONN

Close to chip

Close to RTL8402 for SDXC EMI

SD_D0_R;SD_D1/MS_CLK_R;SD_D2_R;S D_D3/MS_D2; SD_CLK/MS_ D3_R ߨߨߨߨփփփփᐋᐋᐋᐋ.

LAN_CLKREQ#

ڕڕڕڕլլլլࠌࠌࠌࠌششششױױױױឰឰឰឰၲၲၲၲ,࣍࣍࣍࣍

PCH

ጤጤጤጤ൷൷൷൷

PULL DOWN

3.4A

ଥޏ

PIN47

Crystal ޏޏޏޏشششش5032 SI ZE

BIOS pulls high or low to GPO pin, Pkease refer to LAN/PHY Disable Application Note.

meet realtek Freq tolerance 50ppm

TO EC

TO SB PCH WAKE#.

FOR S5 WAKE UP ON LAN

PIN7

RTL8402 command

Pin#26

PIN18 PIN18

PIN1 PIN6 PIN31

The DVDD33 rise time must be controlled between 1mS and 100mS.

60 mil

RTL8402 incorporates a linear Low dropout regulator

C294 & C295 capacitors must be close to pin side.

Remind that R112 using the main power (S0 power).

FOR 10/100M RTL8402

ழழழழࠌࠌࠌࠌشششش

(DEFAULT)

Close to chip

ᅝᅝᅝᅝᣂᣂᣂᣂຨຨຨຨ hostሽሽሽሽᄭᄭᄭᄭ / CARD ࢸࢸࢸࢸ༺༺༺༺ழழழழ ,VCC_CARD ሽሽሽሽᚘᚘᚘᚘᚨᚨᚨᚨ܅܅܅܅࣍࣍࣍࣍0.5ٗٗٗٗ௽௽௽௽ , ່່່່֟֟֟֟ᏁᏁᏁᏁ૞૞૞૞1msཚཚཚཚၴၴၴၴ

Pin#40Pin#26 Pin#40

LAN (RTL8402)

6-21-G4040-123 MDR019-A0-1072

6-21-B4060-008

FOR W940TU

FOR W549TU

FOR W950TU

D01A modify

D02 modify

for 17"

D02 R190, R192, R193, R195, R197, R199 short

D02 Add

LED1/EESK

LAN_MDIP1 LAN_MDIN1

SD_D0_R

SD_D3/MS_D2_R

SD_CMD_R

SD_CLK/MS_D3_R

SD_D2_R

SD_D1/MS_CLK_R

SD_D0_R

SD_CMD

SD_D3/MS_D2

SD_WP/MS_D1

LED2/EEDI

MS_D0

SD_CLK/MS_D3

SD_D1/MS_CLK

SD_CD# SD_D2

MS_INS#

SD_CLK/MS_D3

SD_WP/MS_D1

SD_D3/MS_D2

MS_BS

SD_D0

SD_D1/MS_CLK

SD_CMD_R SD_CMD

EECS

LED_CR

SD_D7

CARD_3V3

SD_D0

SD_D2_R

XTAL2

XTAL1

SD_CLK/MS_D3_R

SD_D5

MS_D0

SD_D1/MS_CLK_R

LAN_WAKEUP# ISOLATE B

XTAL2

XTAL1

MS_INS# SD_WP/MS_D1

SD_D2

SD_D1/MS_CLK

SD_D3/MS_D2

LMX1-

LMX2+

RSET

TCT

DLMX3-

DLMX4-

SD_D4

DLMX4+

DLMX2-

DLMX3+

NMCT_1 NMCT_2

NMCT_R

LMX1+ DLMX1-DLMX1-

DLMX2+DLMX2+

DLMX1+DLMX1+

LAN_MDIP1

MS_BS

LAN_MDIP0

LMX2+

LAN_MDIN1

NS_NC3

LMX1-

NS_NC4

LMX1+

LMX2NMCT_2

NMCT_1

LAN_MDIN0

NS_NC2

NS_NC1

LAN_MDIP0 LAN_MDIN0

SD_CLK/MS_D3

SD_CD#

SD_D3/MS_D2_R

CLKREQB

DLMX1+

DLMX2-LMX2-

DLMX2+

DLMX1-

SD_CMD

SD_D3/MS_D2

SD_WP/MS_D1

MS_D0

SD_CLK/MS_D3

SD_D1/MS_CLK

SD_CD# SD_D2

MS_INS#

VCC_CARD

SD_CLK/MS_D3

SD_WP/MS_D1

SD_D3/MS_D2

MS_BS

SD_D0

SD_D1/MS_CLK

VCC_CARD

DLMX3+ DLMX3DLMX4+ DLMX4-

CARD_3V3

DVDD33

3.3VS

DVDD33

VCC_CARD

VDD33/18 VDD33/18 VDD33/18VDD33/18

CARD_3V3

DVDD33

EVDD10

DVDD33

VDD33/18

VDD10

DVDD33

VDD33/18

DVDD33

VCC_CARD

VDD10

EVDD10

VDD3

DVDD33

VDD10 VDD10 VDD10

DVDD33

3.3V 3.3VS

5V

PCIE_RXN0_LAN 4

PCIE_RXP0_LAN 4

PCIE_WAKE# 16,34

LAN_WAKEUP# 21

CLK_PCIE_LAN 5

CLK_PCIE_LAN# 5

BUF_PLT_RST# 15,16,21,30,34

PCIE_TXP0_LAN 4

PCIE_TXN0_LAN 4

VDD3 5,16,17,21,23,24,25,26,28,33

3.3VS 8,10,11,12,13,16,17,19,20,21,23,24,27,30,33,34

LAN_CLKREQ# 4

BUF_PLT_RST# 15,16,21,30,34

3.3V 2,3,13,16,19,21,23,24,25,26,27,30,33,34 5V 18,19,22,23,24,25,26,27

PCIE_RXN2_CARD 4 PCIE_RXP2_CARD 4

PCIE_TXN2_CARD 4 PCIE_TXP2_CARD 4

CLK_PCIE_CARD# 5 CLK_PCIE_CARD 5

CARD_CLKREQ# 4

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[15] RTL8402 (LAN/ CARD READER)

Custom

15 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[15] RTL8402 (LAN/ CARD READER)

Custom

15 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[15] RTL8402 (LAN/ CARD READER)

Custom

15 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C243

27p_50V_NPO_04

J_CARD2

*3IN1

DAT2_SD

P2

VSS_MS

P21

CD/DAT3_SD

P3

CMD_SD

P4

VSS_SD

P5

VDD_SD

P6

CLK_SD

P7

VSS_SD

P8

DAT0_SD

P9

DAT1_SD

P10

WP_SD

P11

VSS_MS

P12

VCC_MS

P13

SCLK_MS

P14

DAT3_MS

P15

INS_MS

P16

DAT2_MS

P17

SDIO/DAT0_MS

P18

DAT1_MS

P19

BS_MS

P20

CD_SD

P1

GND

P23

GND

P22

C252

0.1u_16V_Y5V_04

R209 75_1%_04

C448 *0.1u_10V_X7R_04

R212 75_1%_04

C242

*5p_50V_NPO_04

R198

2.49K_1%_04

R202 10K_04

C247

4.7u_6.3V_X5R_06

T15

T12

C255

0.1u_16V_Y5V_04

U10

RTL8402

MS_D0/xD_D143MS_D4/xD_D0

42

LED0/SPICSB

39

GPO

38

XD_CD#

44

SD_CD#/MS_D5/xD_ALE

41

LED1/SPISCK

37

DVDD10

47

SD_CMD/MS_D6/xD_D315SD_D3/MS_D2/xD_D216SD_D2/xD_D7

17

GND

25

HSIP19HSIN20REFCLK_P21REFCLK_N22EVDD1018HSOP23HSON

24

SDA/SPIDI

36

SCL/LED_CR

35

DVDD10

34

LANWAKEB

33

ISOLATE B

32

PERSTB

30

CLKREQB

29

SD_WP/MS_D1/xD_WP#

28

MS_BS/xD_CLE

27

RSET

48

CKXTAL246CKXTAL1

45

VDD33/18

26

GND

49

AVDD33

1

MDIP0

2

MDIN0

3

MDIP1

4

MDIN1

5

DVDD33

6

Card_3V3

7

SD_D7/xD_RDY

8

SD_D6/MS_INS#/xD_RE#

9

SD_D5/xD_CE#

10

SD_D4/xD_WE#

11

SD_D1/MS_CLK/xD_D6

12

SD_D0/MS_D7/xD_D513SD_CLK/MS_D3/xD_D4

14

DVDD33

31

VDD33/18

40

R204 *0_04

C259

100PF 2KV 1206

R207

*150_06

130451-0M

J_RJ_1

DD-

8

DD+

7

DB-

6

DC-

5

DC+

4

DB+

3

DA-

2

DA+1shield

GND1

shield

GND2

R190 *10mil_short

D12 RB751S-40C2

AC

C241

27p_50V_NPO_04

R191 *1K_04

L13

NS681680

RD+

1

RD-

2

RX+

16

RX-

15

RD_CT3RX_CT

14

NC

4

NC12NC

5

TD_CT

6

TD+

7

NC

13

TX-9TD-

8

TX_CT

11

TX+

10

T13

C245 0.1u_10V_X7R_04

R201 1K_04

C256

1u_6.3V_X5R_04

R194 *10K_04

X3

FSX5L_25MHZ

12

L15

*WCM2012F2S-161T03-short

142

3

R192 *10mil_short

C261

0.1u_16V_Y5V_04

R200 *1.5K_04

C262

0.1u_16V_Y5V_04

C237

*5p_50V_NPO_04

R205 *10K_04

J_CN1

*FP225-022S10M

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 1920NC1

NC2

21 22

T14

R196 1M_04

R193 *10mil_short

C250

0.1u_16V_Y5V_04

C244

0.1u_16V_Y5V_04

R211 75_1%_04

C254

0.1u_16V_Y5V_04

R444 *0_06

C240

*5p_50V_NPO_04

R208 *0_06

L12 *15mil_short

C246 0.1u_10V_X7R_04

R203 15K_04

C249

0.1u_16V_Y5V_04

R195 *10mil_short

C447 *0.1u_10V_X7R_04

C236

*5p_50V_NPO_04

C238

*5p_50V_NPO_04

R436 *0_06

C248

0.1u_16V_Y5V_04

C263

*4.7u_6.3V_X5R_06

R197 *10mil_short

C239

*5p_50V_NPO_04

C251

0.1u_16V_Y5V_04

C253

1u_6.3V_X5R_04

R206 0.2R 5% SMD0603

R199 *10mil_short

C260

*4.7u_6.3V_X5R_06

L14

*WCM2012F2S-161T03-short

142

3

C257

1u_6.3V_X5R_04

R210 75_1%_04

J_CARD1

3IN1

DAT2_SD

P2

VSS_MS

P21

CD/DAT3_SD

P3

CMD_SD

P4

VSS_SD

P5

VDD_SD

P6

CLK_SD

P7

VSS_SD

P8

DAT0_SD

P9

DAT1_SD

P10

WP_SD

P11

VSS_MS

P12

VCC_MS

P13

SCLK_MS

P14

DAT3_MS

P15

INS_MS

P16

DAT2_MS

P17

SDIO/DAT0_MS

P18

DAT1_MS

P19

BS_MS

P20

CD_SD

P1

GND

P23

GND

P22

C258

0.01u_16V_X7R_04

Sheet 15 of 34

LAN, Card Reader

B.Schematic Diagrams

B - 16 LAN, Card Reader

5

4

3

2

1

D D

C C

B B

A A

20 mil

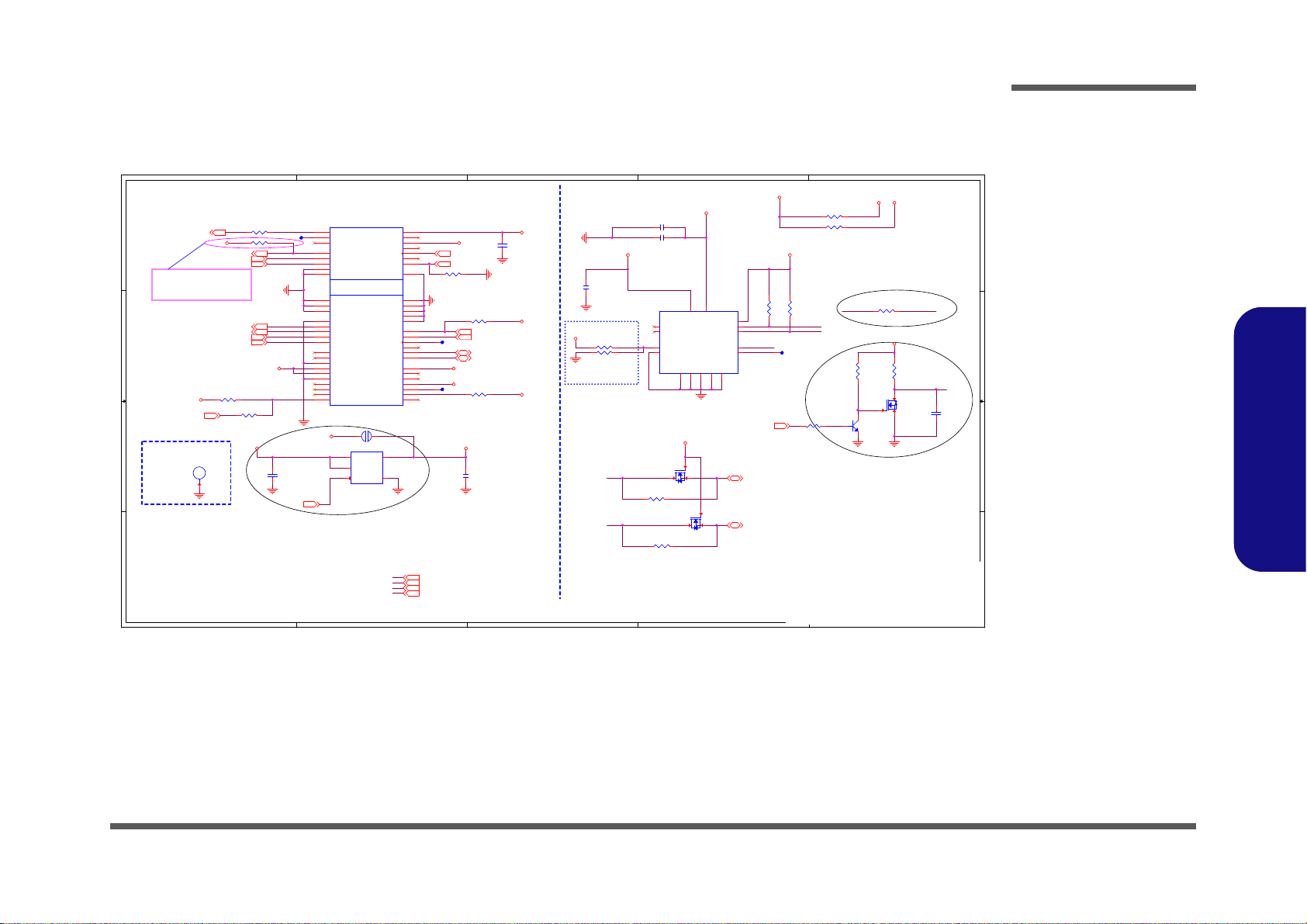

WLAN

>120 mil

൳ࠫ

PI N 2,24,39,41,5 3

>120 mil

൷ࠩ

EC ,ႊፖEC

ᒔᎁ

WLAN_CLKREQ# Pull hi

3.3V or 3.3VSor VDD3 by Platform.

6-21-84DM0-226

6-36-00180-202-1

J_MINI1

G SENSOR

D02 add

HI: ADDRESS 0X33h 0X32h LOW: ADDRESS 0X31h 0X30h

ᒔࡳࠌش 

A D DRESS

Δױ ൷࿍ሁ

D02A modify PJ4 short, U11 and C265 del

D02A Add

D02A modify

WLAN_LED#

BT_EN_R

G_I2CD

G_I2CC

G_INT2

G_INT1_R

G_I2CD G_I2CC

G_INT1_R

G_INT1_RG_INT1

VDD3

3.3V_WLAN

3.3VS

3.3V_WLAN

3.3V

3.3V_WLAN

3.3V

3.3V_WLANVDD3

3.3V_WLAN

3.3V

3.3V_GSENSOR 3.3V_GSENSOR

3.3V_GSENSOR

3.3V

1.8V3.3V

3.3V

3.3V_GSENSOR

BT_EN21

WLAN_EN 21

3IN1 21

PCIE_RXN1_WLAN4

PCIE_WAKE#15,34

USB_PP1 6

PCIE_RXP1_WLAN4

PCIE_TXP1_WLAN4

USB_PN1 6

CLK_P CIE_M INI#5

CLK_PCIE_MINI5

BUF_PLT_RST# 15,21,30,34PCIE_TXN1_WLAN4

80CLK 21

WLAN_PWR_EN21

VDD3 5,15,17,21,23,24,25,26,28,33

3.3V 2,3,13,15,19,21,23,24,25,26,27,30,33,34

3.3VS 8,10,11,12,13,15,17,19,20,21,23,24,27,30,33,34

WLAN_CLKREQ#4

SMB_CLK_N 6,19,33

SMB_DATA_N 6,19,33

G_INT15

1.8V 5,6,8,23,25,33,34

Title

Size Document Number R ev

Date: Sh eet

of

6-71-W54T0-D01A

1.0A

[16] MINI CARD (WLAN)

Custom

16 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sh eet

of

6-71-W54T0-D01A

1.0A

[16] MINI CARD (WLAN)

Custom

16 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: Sh eet

of

6-71-W54T0-D01A

1.0A

[16] MINI CARD (WLAN)

Custom

16 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

C377 *0.1u_10V_X7R_04

R219 0_04

Q82 *MTN7002ZHS3

G

DS

R1254 *0_04

R214 *10K_04

C1104

*0.1u_16V_Y5V_04

PJ4 OPEN_2A

12

KEY

J_MINI1

MPCET-S5201-TP67

BT_DATA

3

BT_CHCLK

5

CLKREQ#

7

GND0

9

REFCLK-

11

REFCLK+

13

WAKE#

1

GND1

15

PETn0

23

PETp0

25

GND2

21

GND3

27

PERn0

31

PERp0

33

GND4

29

NC3

17

NC4

19

W_DISABLE#

20

NC6

37

NC7

39

NC8

41

NC9

43

NC10

45

NC11

47

NC12

49

NC13

51

LED_WLAN#

44

NC(LED_WWAN#)

42

GND6

18

UIM_VPP

16

UIM_RESET

14

3.3V_0

2

UIM_CLK

12

UIM_DATA

10

UIM_PWR

8

1.5V_0

6

GND5

4

PERSET#

22

3.3VAUX

24

GND7

26

1.5V_1

28

NC(SMB_CLK)

30

NC(SMB_DATA)

32

GND8

34

NC(USB_D-)

36

NC(USB_D+)

38

GND9

40

NC(LED_WPAN#)

46

1.5V_2

48

GND10

50

3.3V_1

52

GND11

35

H19 h4_7b6_0d3_8

R1202 *0_04

R1241 *10K_04

R1203 *0_04

R1198

*2.2K_04

C1082*10u_6.3V_X5R_06

R1242 *10K_04

S

D

G

Q76A

*MTDK5S6R

2

6 1

R1252 *0_04

C264

0.1u_16V_Y5V_04

R1197

*2.2K_04

R1253 *0_04

C1084*0.1u_10V_X7R_04

R1257 *0_04

C265

*1u_6.3V_X5R_04

S

D

G

Q76B

*MTDK5S6R

5

3 4

C266

0.1u_16V_Y5V_04

R1258 *0_04

U44 *LIS3DH

CS

8

INT1

11

INT2

9

SDO/SA0

7

SDA/SDI/SDO

6

GND1

5

NC2

3

NC1

2

SCL/SPC

4

ADC313GND2

12

VDD

14

VDD I/O

1

RES

10

ADC215ADC1

16

R216 10K_04

R217 *10K_04

R213 *0_04

Q81

*2N3904

B

E C

R215 *20K_04

U11

*NCT3522U

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

R1240 *1K_04

R218 *10K_04

Mini Card

Sheet 16 of 34

Mini Card

Schematic Diagrams

B.Schematic Diagrams

Mini Card B - 17

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

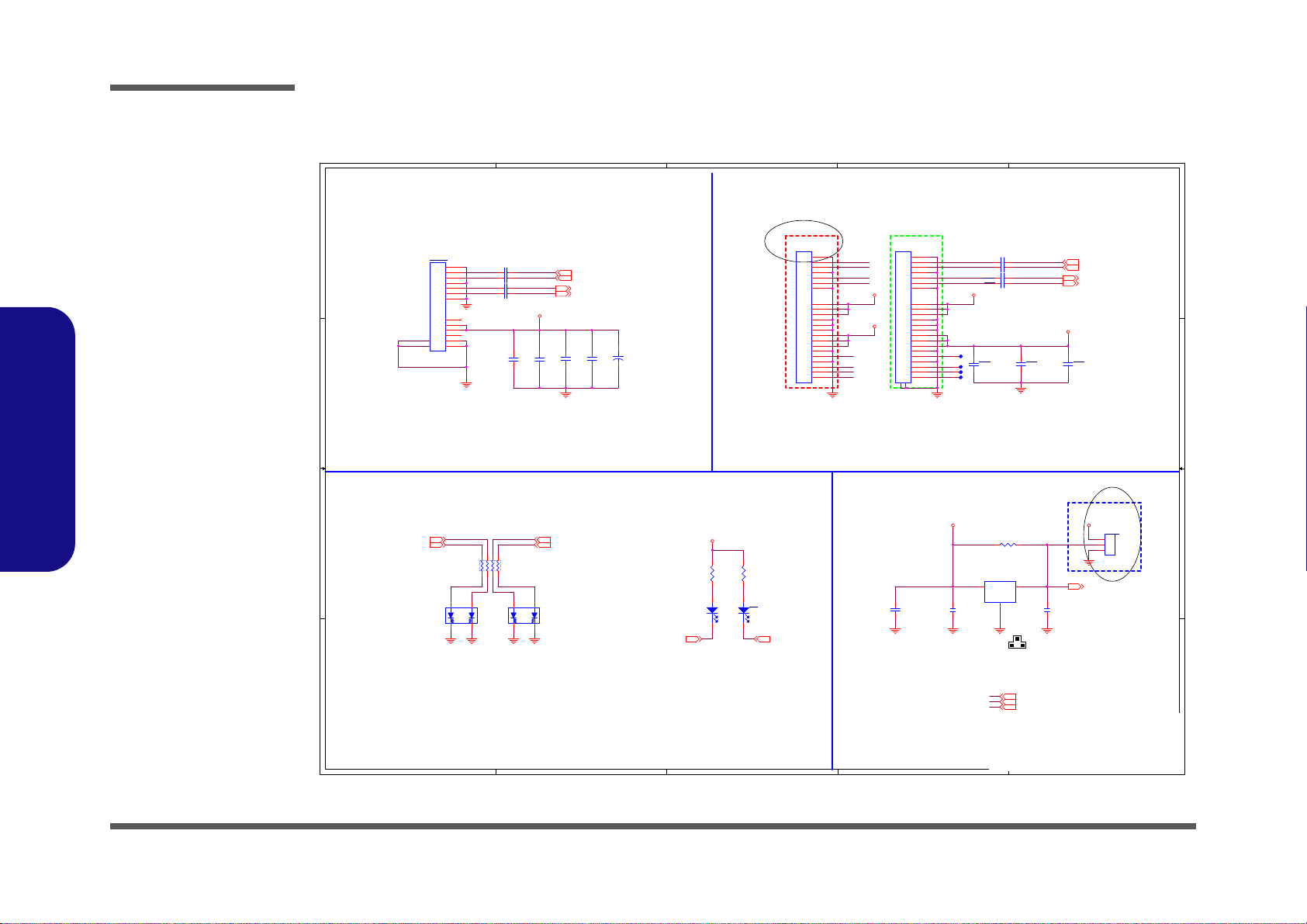

PIN GND1~4=GND

6-21-130B0-013

SATA ODD SATA HDD

PIN GND1~2=GND

AC IN/ POWER ON LED

2

1

3

LID SWITCH IC

6-02-00248-LC2

LED

BAT CHARGE/ FULL LED HDD LED

ڼՠᐗቃఎ

( 06 SIZE )

AIRPLANE LED

7/8 add J_HDD2

6-52-55001-021 6-52-55001-021

6-21-C4790-122

6-20-437H0-022

FOR W940TU FOR W549TU

FOR W950TU

D02A modify

SATARXN0_R SATARXP0_R

SATATXP0_R SATATXN0_R

P14

P11

P15

P13

SATATXP0_R SATATXN0_R

SATARXN0_R SATARXP0_R

P14 P15

P11

P13

3.3VS

5VS

3.3VS

VDD3

3.3VS

5VS

VDD3

SATA_LED#34

SATARXP1 4

SATARXN1 4

SATATXP1 4 SATATXN1 4

VDD3 5,15,16,21,23,24,25,26,28,33

3.3VS 8,10,11,12,13,15,16,19,20,21,23,24,27,30,33,34

5VS 13,14,18,19,20,22,23,24

SATARXN0 4

SATATXP0 4

SATARXP0 4

SATATXN0 4

LED_ACIN 21

LED_PWR 21

LED_BAT_FULL21

LED_BAT_CHG21

LID_SW# 13,21

AIRPLAN_LED# 21

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D01A

1.0A

[17] HDD, ODD, LED, LID

A3

17 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D01A

1.0A

[17] HDD, ODD, LED, LID

A3

17 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D01A

1.0A

[17] HDD, ODD, LED, LID

A3

17 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R1017

220_04

C267 0.01u_16V_X7R_04

J_ODD1

50861-0137P-001

13 12 11 10 9 8 7

6 5 4 3 2 1GND1

GND2

C303

0.1u_16V_Y5V_04

+

C275

220u_6.3V_6.3*6.3*4.2

RN3 220_8P4R_04

123

45

678

D30

RY-SP190YG34-5M

AC

C302 *1u_10V_Y5V_06

C974

10u_6.3V_X5R_06

C270 0.01u_16V_X7R_04

C304 *100p_50V_NPO_04

C996

1u_6.3V_X5R_04

C269 0.01u_16V_X7R_04

R225 100K_04

C998 0.01u_16V_X7R_04

R220

220_04

U15 MH248-ALFA-ESO

VCC1OUT

2

GND

3

C268 0.01u_16V_X7R_04

C124 0.01u_16V_X7R_04

D15

RY-SP190YG34-5M

AC

C274

10u_6.3V_X5R_06

C125 0.01u_16V_X7R_04

C997

0.1u_16V_Y5V_04

J_HDD2

*50813-0220P-001

S1 S2 S3 S4 S5 S6 S7

P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15

SG

Y

D13

RY-SP155HYYG4-1

1

3

2

4

J_HDD1

C166W9-12205-L

S1 S2 S3 S4 S5 S6 S7

P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15

GND2

GND1

SG

Y

D14

RY-SP155HYYG4-1

1

3

2

4

C272

0.1u_16V_Y5V_04

C999 0.01u_16V_X7R_04

J_LID1

*85204-03001

1 2 3

C273

1u_6.3V_X5R_04

C271

0.1u_16V_Y5V_04

Sheet 17 of 34

HDD, ODD, LED,

LID

HDD, ODD, LED, LID

B.Schematic Diagrams

B - 18 HDD, ODD, LED, LID

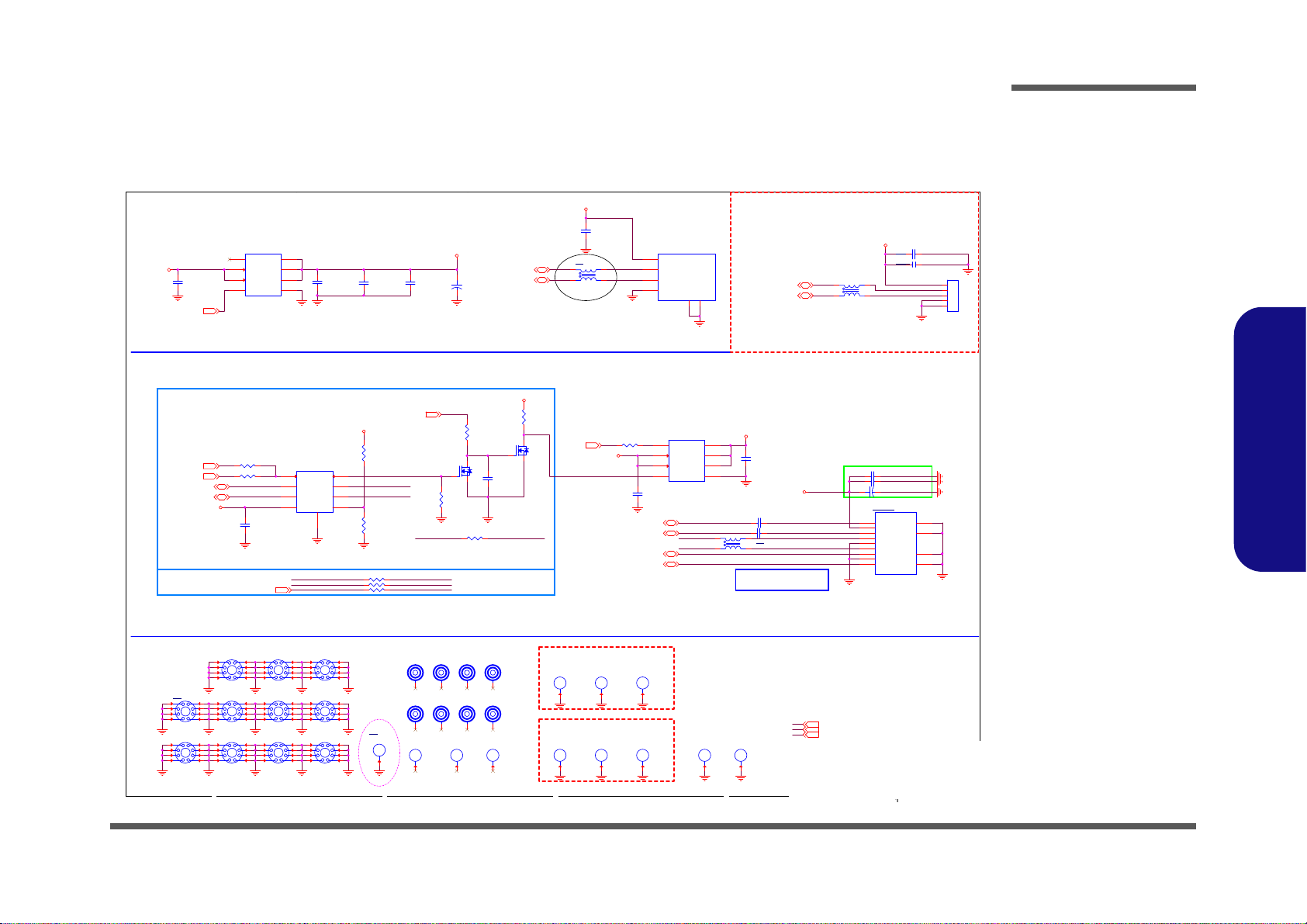

USB, Touch Panel

5

4

3

2

1

D D

C C

B B

A A

USB 3.0 port (CHARGER)

60 mil

100 MIL

CLOSE TO CONNECTOR

USB3.0 Max Trace length Follow Design Guide

100 MIL

2A/90mohm

USB 2.0 port TOUCH PANEL CONN

100 MIL

USB PORT Charge

Default Low

SLG55583VTR : 6-02-55583-9D0

W/O USB CHARGER

W/ USB CHARGER

6-20-B4Z30-109

6-34-M56AS-011-16-34-M56AS-011-16-34-M56AS-011-1

6-34-W940S-011 6-34-W940S-0116-34-W940S-011

ON BOT FOR FAN

ON BOT FOR CPU

FOR W941TU-T

D02 modify

D02A Add H24

D03 modify

USB_DM1_R

USB_DP1_R

USB3_TX1N

USB3_TX1P

USB_PN0_R

USB_PP0_R

USB_PN0_R

USB_PP0_R

USB_PN0

USB_PP0

USB_PP0 DD_ON#

USB_PN0 USB_PN0_R

USB_DD_ON#

USB_PP0_R

PRE#

USB_DD_ON#

PRE#

USB_DD_ON#

GND

GNDGNDGND

GND

GNDGND

USBVCC01

5V

USBVCC01

USBVCC_CH

VDD5

USBVCC_CH

5VS

VDD5

GNDGNDGND

VDD5

DD_ON#18,19,23,25

USB3_RX1_N6

USB3_RX1_P6

USB3_TX1_N6

USB3_TX1_P6

5V 15,19,22,23,24,25,26,27

USB_DP122

USB_DM122

USB_OC#016

5VS 13,14,17,19,20,22,23,24

USB_PP26

USB_PN26

USB_PP06

USB_PN06

DD_ON21,23,24,25,26

SUSB#21,23,27,34

VDD5 23,24,25,26

DD_ON#18,19,23,25

USB_CHARGE_EN21,24

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D03

3.0

[18] USB port, TOUCH PANEL

A3

18 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D03

3.0

[18] USB port, TOUCH PANEL

A3

18 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: S heet

of

6-71-W54T0-D03

3.0

[18] USB port, TOUCH PANEL

A3

18 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

H15 H6_0D3_7

C301 0.1u_10V_X7R_04

C291

0.1u_16V_Y5V_04

1

H20

MTH10_0B8_0D2_8

2 3 4 5 6

7

8

9

L39

*WCM2012F2S-161T03-short

1

4

2

3

C1114

0.1u_16V_Y5V_04

R1067 *10K_04

C290

10u_10V_Y5V_08

R10

1M_04

R11 100K_04

H23 C87D87N

H17 OB7_5X7_0D2_8X2_3

C11

0.1u_16V_Y5V_04

M6 M-MARK

U13

SY6288DCAC

VOUT1

6

VOUT3

8

VIN2

3

VIN12VOUT2

7

GND1EN#

4

FLG#

5

L18 *WCM2012F2S-161T03-short

1

4

2

3

C296 *22u_6.3V_X5R_08

M1 M-MARK

R1065 0_04

U42

SLG55583VTR

TDFN8-2X2MM

PRE#

1

DM

2

DP

3

CDP

4

VCC

5

TDP

6

TDM

7

CB

8

GND

9

H14 H6_0D3_7

C288

0.1u_16V_Y5V_04

R367 *0_04

H6 H8_0D2_8

J_TPT1

85205-05001

1

2

3

4

5

R366 *0_04

J_USB1

USB-04AP0B

V+

1

GND1

DATA_L

2

DATA_H

3

GND

4

GND2

M2 M-MARK

C295

10u_10V_Y5V_08

1

H8

MTH8_0D2_8

2 3 4 5 6

7

8

9

C300 0.1u_10V_X7R_04

R1268 *0_04

L19

*WCM2012F2S-161T03-short

1

4

2

3

H21 H6_0D3_7

C297 *22u_6.3V_X5R_08

C293

22u_6.3V_X5R_08

+

C298 220u_6.3V_6.3*6.3*4.2

H13 H6_0D3_7

H24 H6_0D2_8

C299

0.1u_16V_Y5V_04

M4 M-MARK

C292

22u_6.3V_X5R_08

C1019 *0.1u_16V_Y5V_04

1

H7

MTH10_0B8_0D2_8

2 3 4 5 6

7

8

9

M5 M-MARK

R1068 10K_04

+

C294

*220u_6.3V_6.3*6.3*4.2

S

D

G

Q85B

MTDN7002ZHS6R

5

34

S

D

G

Q85A

MTDN7002ZHS6R

2

61

1

H2

MTH8_0D2_8

2 3 4 5 6

7

8

9

1

H1

MTH10_0B8_0D2_8

2 3 4 5 6

7

8

9

H22 H8_0D2_8

Standard-A

J_USB3_2

377AH09FZTS4NVCB

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

SHIELD

GND3

SHIELD

GND4

R1066 *0_04

1

H10

MTH8_0D2_8

2 3 4 5 6

7

8

9

M7 M-MARK

M3 M-MARK

U14

SY6288DCAC

VOUT1

6

VOUT3

8

VIN2

3

VIN12VOUT2

7

GND

1

EN#

4

FLG#

5

R1069 *0_04

1

H3

MTH8_0D2_8

2 3 4 5 6

7

8

9

H12 H6_0D3_7

R1064 100K_04

1

H9

MTH8_0D2_8

2 3 4 5 6

7

8

9

1

H11

MTH10_0B8_0D2_8

2 3 4 5 6

7

8

9

1

H5

MTH6_0D2_2

2 3 4 5 6

7

8

9

H16 H6_0D3_7

H18 OB7_5X7_0D2_8X2_3

1

H4

MTH6_0D2_2

2 3 4 5 6

7

8

9

R222 *0_04

M8 M-MARK

C1018 10u_6.3V_X5R_06

Sheet 18 of 34

USB, Touch Panel

Schematic Diagrams

B.Schematic Diagrams

USB, Touch Panel B - 19

5

4

3

2

1

D D

C C

B B

A A

CLICK CONN

POWER SW BOARD CONN

20mil

RIGHT KEY

LIFT KEY

6-53-3050B-0426-53-3050B-042

6-24-30003-008

6-02-03940-B20 6-02-00995-B20 6-02-99011-B20

AX995B(SOT23-6) & APE8872 Co-Layout

1

CPU FAN CONN

J_FAN1

3

TV tuner CONN

Close to J_AUDIO

1.1A 60mils 100 MIL

100 MIL2A

2A

AUDIO BOARD CONN

check pin define

6-20-41150-106

FOR W940TU

FOR W549TU

[TO PAGE29 or 30]

[TO PAGE30]

1A

From EC default HI

CCD + Internal Anolog MIC

Closs to J_CCD

7/10 add

143

2

CSW1~4

143

2

CSW1~4

'0,&/VWXII & VWXIISB9B132B 32:(59

$0,&5VW XII& VWXIISB9B132B 32:(59

D02 add

FOR W950TU

FOR W940TU

FOR W950TU

D02 J_CCD1 change footprint

D02 modify

D02A change to 3.3V

20mil

D02A Add click pad for W97

100 MIL2A

2A

D02A Add

D02A modify

FOR W950TU

D-MIC => R1190 stuff A-MIC => R1189 stuff

M_BTN#

TPBUTTON_ L TPBUTTON_ R

TPBUTTON_ L TPBUTTON _R

FON#

TPBUTTON_ L TPBUTTON _R

TP_CLK

SMB_CLK_TP

TP_DATA

SMB_DAT_TP

5VS

5VS_TP

3.3VS

5VS_FAN

3.3VS

5VS

5VS_FAN

5VS

5V

5V_TV

AUDG

USBVCC02

5V

USBVCC02

5V

3.3V

CCD_PWR

3.3VS

5V

3.3VS

USBVCC03

5VS

5VS_TP

USBVCC03

5V

USBVCC03 USBVCC02

3.3VS

5VS_TP 5VS_TP

3.3VS

M_BTN# 23,28

TP_CLK 19,21 TP_DATA 19,21

5VS 13,14,17,18,20,22,23,24 5V 15,18,22,23,24,25,26,27

CPU_FANSEN21

3.3VS 8,10,11,12,13,15,16,17,20,21,23,24,27,30,33,34

CPU_FAN21

MIC1_R_M20 MIC1_L_M20

USB_DM222 USB_DP222

SPKOUTR+_R20 SPKOUTR-_R20

HP_SENSE20

MIC_SENSE20

HEADPHONE_L20

HEADPHONE_R20

USB_OC#026,19

DD_ON#18,19,23,25

TV_EN21

3.3V 2,3,13,15,16,21,23,24,25,26,27,30,33,34

USB_DM322 USB_DP322

CCD_EN21

DMIC_DAT20 DMIC_CLK20

INT_MIC_OUT20

USB_DM419,22

USB_DP419,22

USB_DM419,22 USB_DP419,22

SPDIFO20

TP_CLK 19,21 TP_DATA 19,21

SMB_CLK_N 6,16,33

SMB_DATA_N 6,16,33

USB_OC#026,19

DD_ON#18,19,23,25

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[19] CONN, CCD, FAN, CLICK, TV

Custom

19 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[19] CONN, CCD, FAN, CLICK, TV

Custom

19 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[19] CONN, CCD, FAN, CLICK, TV

Custom

19 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

U17

*G5243A

VIN

4

VIN

5

EN

3

VOUT

1

GND

2

L40 HCB1005KF-121T20

1 2

C1000 *0.01u_16V_X7R_04

R227 *1K_04

J_TV1

50273-0060N-001

1 2 3 4 5 6

R1194 *0_04

U21

SY6288DCAC

VOUT1

6

VOUT38VIN2

3

VIN12VOUT2

7

GND1EN#

4

FLG#

5

C305

10u_6.3V_X5R_06

R1234 *0_04

R231 0_06

R906 *0_04

L41 HCB1005KF-121T20

1 2

C1001

1u_6.3V_X5R_04

C966

*180p_50V_NPO_04

C310

1u_6.3V_X5R_04

SW8 TJG-532-V-T/R

314

2

5

6

SW5 TJG-532-V-T/R

314

2

5

6

R1164 *0_04

C306

1u_6.3V_X5R_04

L33 *28mil_06

R1192 0_04

R1195 *0_04

U16

NCT3940S-A

VOUT

3

GND

5

VIN

2

FON

1

VSET

4

GND

6

GND

8

GND

7

R232

10K_04

C1078

47p_50V_NPO_04

C968

*0.1u_10V_X5R_04

SW7 TJG-532-V-T/R

314

2

5

6

R1193 0_04

C965

1000p_50V_X7R_04

R1189 *0_06

C696

10u_10V_Y5V_08

U45

*SY6288DCAC

VOUT1

6

VOUT38VIN2

3

VIN12VOUT2

7

GND1EN#

4

FLG#

5

Q83 *MTN7002ZHS3

G

D S

C967

*180p_50V_NPO_04

+

C679

*220u_6.3V_6.3*6.3*4.2

R1190 0_06

R233

10K_04

J_CCD1

85205-08001

1 2 3 4 5 6 7 8

Q84

*MTN7002ZHS3

G

D S

J_TP1

FP215H-006S1BM

1 2 3 4 5 6

C308

2.2u_6.3V_X5R_06

C677

22u_6.3V_X5R_08

R404 *2.2K_04

C315

*0.1u_16V_Y5V_04

R1248 *0_04

R1191 *0_04

C313

47p_50V_NPO_04

C969 2.2u_6.3V_X5R_06

C312

47p_50V_NPO_04

SW6 TJG-532-V-T/R

314

2

5

6

C680

*0.1u_16V_Y5V_04

R405 *2.2K_04

R1249 *0_06

U18

G5243A

VIN

4

VIN

5

EN

3

VOUT

1

GND

2

C1079

47p_50V_NPO_04

R229 4.7K_04

C678

22u_6.3V_X5R_08

C311 *0.1u_16V_Y5V_04

SW9 *TJG-532-V-T/R

314

2

5

6

J_FAN1

50273-0037N-001

1 2 3

J_AUDIO1

85201-14051-01

PCB Footprint = 85201-14x5_R

1 2 3 4 5 6 7 8

10 11 12 13 14

9

L32 *28mil_06

R1250 *0_06

C309

*10u_6.3V_X5R_06

C307

1u_6.3V_X5R_04

J_TP2

*88296-08L

1 2 3 4 5 6 7 8

C1109

*10u_10V_Y5V_08

R226 *0_04

R468 0_06

C695

*0.1u_16V_Y5V_04

J_SW2

FP215H-004S1BM

1 2 3 4

R228 *10mil_short_04

C1110

*22u_6.3V_X5R_08

SW1 *TJG-532-V-T/R

314

2

5

6

C314

*0.1u_16V_Y5V_04

C1107

*22u_6.3V_X5R_08

D16 AVLC18S02015

1 2

SW10 *TJG-532-V-T/R

314

2

5

6

C1111

*0.1u_16V_Y5V_04

C694

*0.1u_16V_Y5V_04

R1233 0_04

R1251 *0_06

SW2 *TJG-532-V-T/R

314

2

5

6

C1073

0.1u_10V_X7R_04

J_AUDIO2

*50578-0060N-001

1 2 3 4 5 6

Sheet 19 of 34

Conn, CCD, Fan,

Click, TV

Schematic Diagrams

Conn, CCD, Fan, Click, TV

B.Schematic Diagrams

B - 20 Conn, CCD, Fan, Click, TV

5

4

3

2

1

D D

C C

B B

A A

For VT1802S

ALC269VB L75,C720

૞૞૞૞ՂՂՂՂٙٙٙٙ

Close to Codec

Mic noise check W150DAQ

VT1802S 10u

VT1802S L75 ,C720

լլլլՂՂՂՂٙٙٙٙ

VT1802S 10u

1.5V OR 1.8V OR 3.3V BY PLATFORM DESIGN,

ᖗԫࠌش

For 1.5V HDA Link.

For 3.3V HDA Link.

33

3333

33pin

pinpin

pin000044

4444

44pin

pinpin

pin0000@@@@pin

pinpin

pin----٩٩٩٩ qmbugpsn !eftjho !hvjef

qmbugpsn !eftjho !hvjefqmbugpsn !eftjho !hvjef

qmbugpsn !eftjho !hvjef ᡂ ୏

ᡂ୏ᡂ୏

ᡂ୏

VT1802S

൷൷൷൷

AUDG

ALC269

൷൷൷൷

GND (

ٵٵٵٵ

PIN42/PIN43)

Closed to VT1802S Pins.

ALC269 VB7 VT1802S

EMI Require

ᒔᒔᒔᒔᎁᎁᎁᎁ

MIC

ኔኔኔኔ᧯᧯᧯᧯إإإإ૤૤૤૤ጤጤጤጤ

ፖፖፖፖ

FOOTPRINT

ܡܡܡܡჸჸჸჸ಻಻಻಻

ီီီီ

LAYOUT

, ڕڕڕڕ֜֜֜֜᎛᎛᎛᎛ױױױױᐘᐘᐘᐘࢤࢤࢤࢤ

ᠰᠰᠰᠰ؆؆؆؆֊֊֊֊ԫԫԫԫ

G R OUN D

٦٦٦٦ፖፖፖፖ

GND

ຑຑຑຑ൷൷൷൷

Speaker wire length less than 8000mils , It don't need LC Filter.

Speaker 8 ohm------> 20mils, Via hole----->C40D20.

Speaker 4 ohm------> 30mils, Via hole----->C40D20.

SPKOUTR+,R-,L+,L- Trace width

AUDIO CODEC

VT1802S EAPD

ᏁᏁᏁᏁ

PULL HIGH

ڕڕڕڕᒵᒵᒵᒵ၌၌၌၌መመመመ

10i nch,

TRACE

ؘؘؘؘႊႊႊႊՕՕՕՕ࣍࣍࣍࣍

25 mil (W350ST)

Thermal Pad Via Hole Max

VT1802S C751

ՂՂՂՂٙٙٙٙ

100p_50V_NPO_04

DIGITAL

ANALOG

GND

HP-R

Headphone ಛಛಛಛᇆᇆᇆᇆᒵᒵᒵᒵᐈᐈᐈᐈ > 10mils ၏၏၏၏ᠦᠦᠦᠦ phon e jack။။။။᎛᎛᎛᎛ ᒵᒵᒵᒵஉஉஉஉ༉༉༉༉ؘؘؘؘႊႊႊႊ။။။။ᐈᐈᐈᐈ R/Lؘؘؘؘႊႊႊႊץץץץ៿៿៿៿ GND׊׊׊׊ၴၴၴၴ၏၏၏၏3*ᒵᒵᒵᒵᐈᐈᐈᐈ

3*R/L

ᒵᒵᒵᒵᐈᐈᐈᐈ

Layout note:

Thermal Pad place 9 Via hole.

HP-L

GND

PC BEEP

EMI Require

ˈˋʳ˖˸ˁ

ˈˋʳ˖˸ˁˈˋʳ˖˸ˁ

ˈˋʳ˖˸ˁ

Closed to CODEC

GND and AUDG space is 60mils ~ 100mils

Layout note:

VT1802S 3.3K_1%_04

VT1802S NC PIN

Dpefd! ! Tqfblfs! nffu! Q)SNT*! y! 91&

Dpefd! ! Tqfblfs! nffu! Q)SNT*! y! 91&Dpefd! ! Tqfblfs! nffu! Q)SNT*! y! 91&

Dpefd! ! Tqfblfs! nffu! Q)SNT*! y! 91& Tqfd

TqfdTqfd

Tqfd////JG! Tqfblfs!

JG! Tqfblfs!JG! Tqfblfs!

JG!Tqfblfs!኱ྗф౗εܭ!

኱ྗф౗εܭ!኱ྗф౗εܭ!

኱ྗф౗εܭ!QQQQ\\\\SNT

SNTSNT

SNT^^^^yyyy91

9191

91&&&&----

Ѹ໪࿶җ

Ѹ໪࿶җѸ໪࿶җ

Ѹ ໪ ࿶җTqfb lfs!Wfo e p s!

Tqfb lfs!Wfoe p s!Tqfblfs!Wfo e p s!

Tqfb lfs!Wfoe p s! ᇡё

ᇡёᇡё

ᇡё////

FOR VOLUMN ADJUST

PIN39 PIN39

PIN46PIN46

PIN25 PIN2 5

PIN38 PIN3 8

PIN9PIN9

PIN1 PIN1

VT1802S 5.1K_1%_04, C750

ՂՂՂՂٙٙٙٙ

100p_50V_NPO_0 4

VT1802S

3.3K_04

HDA_RST# Fo r 1.5V HDA Link De-pop

PD# Control

AZ_RST# For 3.3V HDA Link De-pop

PD#

AZ_RS T#

3.3VS_AUD

5VS

20ms

FOR VT1802S

Very close to Audio Codec

ALC269 VB7

ALC269 VB7 Headphone Anti-Pop Circuit On Main Board End.

Driver lnitialization: Delay EAPD at least 5 secs and set high after driver finishing initialization. Driver unloading: Set EAPD low then wait at least 500ms before unloading driver.

VB7 Driver Customization for Headphone Anti-Pop Circuit :

For 1.8V HDA Link.

D02 D17ངfoorprint M-SOT323D

D02 modify C343 footprint

D02 del C341

D02 modify

D02A modify EMI

D02A Add for EMI

BEEP_R

SPKOUTR-_R

CODEC_VREF

MIC1_R_M

EAPD

AZ_SDOUT_R

AZ_SYNC_R

AZ_SDIN0_R

MIC1_VREFO_R MIC2_VREFO

HEADPHONE_L HEADPHONE_R

CODEC_CBN

CODEC_CBP

LINE1_L LINE1_R

MIC1_R_C

MIC1_L_C

MONO_OUT

SENSE_B

MIC2_L MIC2_R

MIC1_VREFO_L

MIC1_VREFO_R

LINE2_R

LINE2_L

MIC_SENSE

HP_SENSE

SPKOUTRSPKOUTR+

SPKOUTL-

SPKOUTL+

SPKOUTR+

SPKOUTR-

SPKOUTR+_R

MIC1_R

MIC1_L

MIC1_VREFO_L

AZ_RST#_R

BEEP_D

SPKOUTL-_L

SPKOUTL-

SPKOUTL+

SPKOUTL+_L

BEEP_C

HDA_RST#

CODEC_VREF

SENSE_A

INT_MIC

HDA_RST#

JDREF

LDO_CAP

MIC1_L_M

MIC2_VREFO

MIC2_R

MIC2_L

MIC1_L_C

MIC1_R_C

AZ_SYNC_R

AZ_RST#_R

AZ_SDOUT_R

AZ_SDIN0_R

HEADPHONE_R

HEADPHONE_L

EAPD

AZ_BITCLK_R

DMIC_CLK_R

DMIC_DAT_R

BEEP_D

DMIC_CLK_R

DMIC_DAT_R

AUDG

5VS_AUD

5VS

AUDG

3.3VS

AUDG

5VS

3.3VS_AUD

5VS

PVDD1_2

AUDGAUDG

AUDG

3.3VS_AUD

AUDG

3.3VS_AUD

AUDG

5VS_AUD3.3VS_AUD

3.3VS_AUD

1.5VS

DVDD_IO

AUDG

3.3VS_AUD

1.8VS

AUDG

3.3VS 8,10,11,12,13,15,16,17,19,21,23,24,27,30,33,34

5VS 13,14,17,18,19,22,23,24

HDA_BITCLK4

HDA_SYNC4

HDA_SDIN04

HDA_SDOUT4

KBC_MUTE#21

HDA_RST#4

INT_MIC_OUT19

MIC1_L_M 19 MIC1_R_M 19

HEADPHONE_L 19 HEADPHONE_R 19

MIC_SENSE 19

HP_SENSE 19

1.8VS 3,4,5,6,8,14,21,23,33

ICH_SPKR34

SPKOUTR+_R 19

SPKOUTR-_R 19

1.5VS 8,25

SPDIFO19

BEEP21

DMIC_DAT19

DMIC_CLK19

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[20] ALC269 (AUDIO CODEC)

Custom

20 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[20] ALC269 (AUDIO CODEC)

Custom

20 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[20] ALC269 (AUDIO CODEC)

Custom

20 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R243 39.2K_1%_04

R256 *10K_04

L21

HCB1005KF-121T20

1 2

L25 FCM1608K-121T06

Q14 *BTD2444N3

B

E C

R1144 *0_04

R1185 22_04

R249 1K_04

R246 3.3K_1%_04

C324

0.1u_16V_Y5V_04

R262 *1M_04

C336 *10u_6.3V_X5R_06

C331

*1u_6.3V_X5R_04

R968 *0_04 C319

0.1u_16V_Y5V_04

C339 10u_6.3V_X5R_06

R257 47K_04

C1102 *1000p_50V_X7R_04

R245 100K_04

J_SPK2

50271-0020N-001

1 2

R237

*3.3K_1%_04

C347

*100p_50V_NPO_04

L26 FCM1608K-121T06

C354

180p_50V_NPO_04

R247 5.1K_1%_04R1239 0_04

C330

10u_10V_Y5V_08

R235

*15mil_short_06

C334 100p_50V_NPO_04

R1235 3.9K_1%_0402

C

A

D17 BAT54AS3

1

2

3

R239

10K_04

C351

180p_50V_NPO_04

R250 1K_04

C348

2.2u_6.3V_X5R_04

C317

0.1u_16V_Y5V_04

C5 22p_50V_NPO_04

R1236 4.7K_04

L23 *FCM1608K-121T06_short

C318

10u_10V_Y5V_08

JP1 *10mil_short

C338 10u_6.3V_X5R_06

C340 0.1u_16V_Y5V_04

R1244 0_04

R266 *1K_04

R260 *1M_04

C345 2.2u_6.3V_X5R_04

L20 *HCB1005KF-121T20

1 2

C1105 *1000p_50V_X7R_04

Q11 MTN7002ZHS3

G

DS

C353 22p_50V_NPO_04

R242 *0_04

C342 10u_6.3V_X5R_06

R254 *10mil_short_04

R1186 22_04

R234 0_04

C346

1u_6.3V_X5R_04

L24 *FCM1608K-121T06_short

C355 22p_50V_NPO_04

C349

*180p_50V_NPO_04

C335 *10u_6.3V_X5R_06

R265 *4.7K_04

C357

*10u_10V_Y5V_08

C333

*0.022u_16V_X7R_04

R255 *10mil_short_04

C327

0.1u_16V_Y5V_04

R1183 *0_04

R259 *1M_04

C325

10u_10V_Y5V_08

R1245 0_04

R251 *10mil_short_04

R244 *100K_04

C343 *10u_6.3V_X5R_06

C332

*100p_50V_NPO_04

R1184 0_04

JP2 *10mil_short

C356 22p_50V_NPO_04

C322

10u_10V_Y5V_08

C316 10u_10V_Y5V_08

C1106 *1000p_50V_X7R_04

C352 22p_50V_NPO_04

R240

10K_04

C337 100p_50V_NPO_04

R263 *1K_04

Q16 *BTD2444N3

B

E C

R258

10K_04

R238 *1K_04

C326

0.1u_16V_Y5V_04

C320 0.1u_16V_Y5V_04

R261 *1M_04

R264

*220K_04

DIGITAL

ANALOG

U19

VT1802S

DVDD1

1

GPIO0-DMIC-DAT

2

GPIO1-DMIC-CLK

3

PD#

4

SDATA-OUT

5

BIT-CLK

6

DVSS2

7

SDATA-IN

8

DVDD-IO

9

SYNC

10

RESET#

11

PCBEEP

12

Sense A

13

LINE2-L

14

LINE2-R

15

MIC2-L

16

MIC2-R

17

Sense-B

18

JDREF

19

MONO-OUT

20

MIC1-L

21

MIC1-R

22

LINE1-L

23

LINE1-R

24

AVSS1

26

VREF

27

LDO_CAP

28

MIC2-VREFO

29

MIC1-VREFO-R

30

MIC1-VREFO-L

31

HP-OUT-L

32

AVSS2

37

OPVEE

34

CBN

35

CBP

36

HP-OUT-R

33

PVDD1

39

SPK-L+

40

SPK-L-

41

PVSS142PVSS2

43

SPK-R+

45

SPK-R-

44

PVDD2

46

SPDIFC2/EAPD

47

SPDIFO

48

AVDD238AVDD1

25

GND

49

Q13

*BSS138_NL

G

DS

R248 3.3K_1%_04

R253 33_04

R241 20K_1%_04

C328

10u_10V_Y5V_08

Q12

*MTN7002ZHS3

G

DS

C

A

D18 BAT54CS3

1

2

3

R252 *10mil_short_04

C329

0.1u_16V_Y5V_04

C344

*180p_50V_NPO_04

C350

100p_50V_NPO_04

Q15

*BTB1590N3

B

EC

C323

0.1u_16V_Y5V_04

C321 0.1u_16V_Y5V_04

L22

*HCB1005KF-121T20

1 2

Sheet 20 of 34

Audio Codec

Schematic Diagrams

B.Schematic Diagrams

Audio Codec B - 21

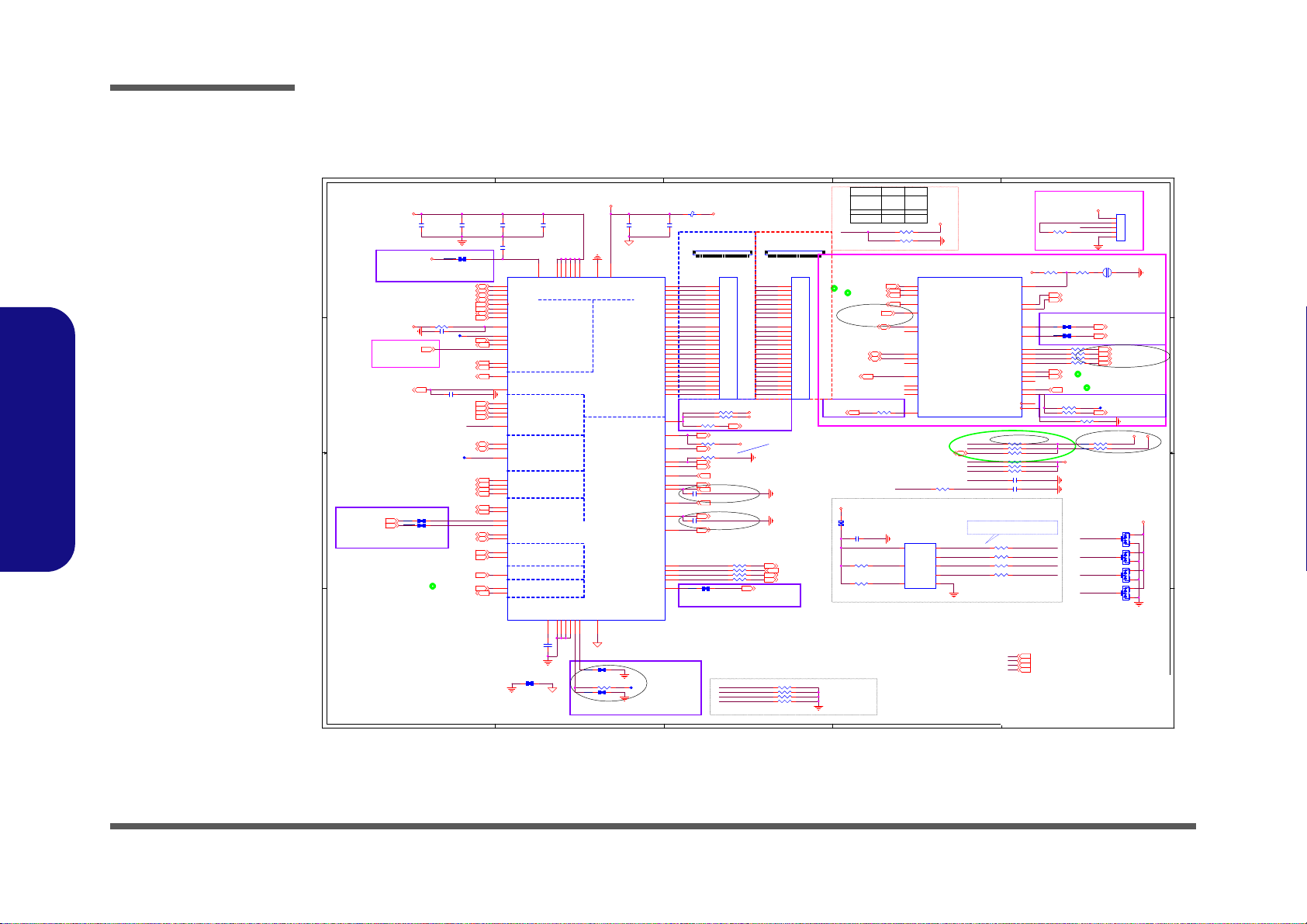

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

RSMRST# PCH & EC

׽׽׽׽ᏁᏁᏁᏁ

PUL L DOWN

ԫԫԫԫᢰᢰᢰᢰ,ᖗᖗᖗᖗ

1

IT8587 & IT8987 COLAY

RA

RB

OPTION (

ױא᧢೯ࠉEC༼ࠎ

EXECL)

آڇ

EXECL

խפ౨ױא۞۩ࡎټ

OPTION

J_KB1

124

J_KB2

124

CRB +V3P3S_KBC

H_PECI

GA20

IT8587: 3.3VS IT8987: 3.3VS/1.8VS FOR LPC

IT8587: SUSB# & SUSC# IT8987: USB_CHARGE_EN & BT_EN

IT8587: GND & GND IT8987: 3G_EN & ALL_SYS_PWRGD

IT8587: AIRPLAN_LED# IT8987: GND

VSTBY_FSPI

๻๻๻๻ࡳࡳࡳࡳ

FSPI

LEVEL(3.3V/1.8V),

ࠌࠌࠌࠌشششش

STB Y POWER

IT8587: 3G_EN IT8987: CCD_EN

DEBUG PORT

OPTION (

ױאᙇᖗܡቃఎ

)

IT8587: USB_CHARGE_EN & BT_EN IT8987: SUSB# & SUSC#

8Mbit

KBC_SPI_*_R = 0.1"~0.5"

IT8587: ALL_SYS_PWRGD IT8987: AIRPLAN_LED#

FOR W549TU

FOR W940TU

D02 R1093, R1095 short

D02 add R1229

D02 pin96~99 connect to SB_KBCRST#_R AC_PRESNT PWR_BTN#_R PMC_BATLOW#_R

D02A Add

D02A modify

D03 EMI add C1116

D03 EMI add C1117

MODEL_ID RB

10KW549TU

W940TU

X

RA

W950TU W970TU 6.49K 10K

X 10K

BRIGHTNESS

MODEL_ID

BAT_VOLT

ALSPI_SCLK

ALSPI_MSO

PCLK_KBC_RPCLK_KBC

ALSPI_MSI

ALSPI_CE#

KBC_WRESET#

KB-SI3

KB-SI2

KB-SO5

KB-SI1

KB-SO3 KB-SO4

KB-SO11

KB-SI6

KB-SI4

KB-SO8

KB-SO7

KB-SO6

KB-SO14

KB-SO2

KB-SO15

KB-SI0

KB-SI5

KB-SO12

KB-SO1

KB-SO10

KB-SO0

KB-SI7

KB-SO9

KB-SO13

CPU_FAN

KB-SI3

KB-SI2

KB-SO5

KB-SI1

KB-SO3 KB-SO4

KB-SO11

KB-SI6

KB-SI4

KB-SO8

KB-SO7

KB-SO6

KB-SO14

KB-SO2

KB-SO15

KB-SI5

KB-SO12

KB-SO1

KB-SI0

KB-SO10

KB-SO0

KB-SI7

KB-SO9

KB-SO13

KBC_SPICE#

KBC_SPISO KBC_SPISCLK

KBC_SPISI

SCI# SWI#

SMC_BAT SMD_BAT BAT_DET

SMC_BAT

80CLK

3IN1

80PORT_DET#

SMD_BAT

BAT_DET

BAT_VOLT

HSPI_CE# HSPI_MSI HSPI_MSO HSPI_SCLK

VSTBY_FSPI

KBC_HOLD#

KBC_SPI_SCLK_R

KBC_SPI_SO_R

SPI_VDD_1

KBC_FLASH

ALSPI_MSIKBC_SPI_SI_R

KBC_SPI_CE#_R

ALSPI_MSO

ALSPI_SCLK

ALSPI_CE#

EC_CK32K

SMI#

VDD3

KBC_AGND

KBC_AVDD

VDD3

3.3VS

KBC_AGND

VDD3

3.3VS

1.8VS

VDD3

3.3VVDD3

PWR_SW#23 LID_SW#13,17

TP_CLK19

TP_DATA19

BEEP20

LED_BAT_FULL17

LED_PWR17

LED_BAT_CHG17

SMC_BAT28 SMD_BAT28

TOTAL_CUR28

ME_WE4

BKL_EN 13

H_PROCHOT_EC4

BUF_PLT_RST#15,16,30,34

SERIRQ30,33

LPC_AD36,30

LPC_AD26,30

LPC_AD16,30

LPC_AD06,30

AC_PRESENT_EC34

LED_ACIN17

AC_IN#28

SMI#33

KBC_MUTE#20

DD_ON 18,23,24,25,26

LAN_WAKEUP# 15

RSMRST# 5

PWR_BTN#34

VDD3 5,15,16,17,23,24,25,26,28,33

3.3VS 8,10,11,12,13,15,16,17,19,20,23,24,27,30,33,34

SCI#33

PMOSFET_ CONTROL# 28

LPC_FRAME#6,30

BRIGHTNESS12

PCLK_KBC6

SMB_CLK_MULT12,27 SMB_DATA_MULT12,27

LOT6_CHG 28

CPU_FANSEN 19

BAT_VOLT28

BAT_DET28

CPU_FAN19

THERM_VOLT3

SUS_PWR_ACK34

SUSB#18,23,27,34 SUSC#25,34

3IN116

80CLK16

AIRPLAN_LED# 17,21

CCD_EN19,21

USB_CHARGE_EN 18,24

BT_EN 16

1.8VS 3,4,5,6,8,14,20,23,33

CCD_EN 19,21

WLAN_EN 16

WLAN_PWR_EN 16

HSPI_CE# 5 HSPI_MSI 5 HSPI_MSO 5 HSPI_SCLK 5

SB_KBCRST# 34

ALL_SYS_PWROK13,23

DELAY_VR_PWRGD 23,27

PMC_CORE_PWROK 5

DRAM_CORE_PWROK2

PMC_BATLOW#34

TV_EN 1 9

SLP_S0IX# 23 ,34

AIRPLAN_LED# 17,21

CHG_JAP 28

SWI#21,33

AC_PRESENT 5,34

PMC_BATLOW#_R 5,34

PWR_BTN#_R 5,34

SB_KBCRST#_R 5,34

THERM_VOLT23

3.3V 2,3,13,15,16,19,23,24,25,26,27,30,33,34

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D03

3.0

[21] KBC (ITE IT8587E)

Custom

21 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D03

3.0

[21] KBC (ITE IT8587E)

Custom

21 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D03

3.0

[21] KBC (ITE IT8587E)

Custom

21 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R267 10K_04

C360

0.1u_16V_Y5V_04

J_KB3

85208-24051

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

J_KB1

*885208-24051

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

R269 10K_04

R279 10K_04

C366 *10p_50V_NPO_04

R1229 10K_04

C964 1u_6.3V_X5R_04

D21 BAV99N3

A

C

AC

R1098 0_04

R1106 0_04

IT8587

U20B

IT8587

GPA0/PWM0/5VT

24

GPA2/PWM2/5VT

28

GPA3/PWM3/5VT

29

GPA4/PWM4/5VT

30

GPI2/ADC2

68

GPI5/ADC5/DCD1#

71

GPI6/ADC6/DSR1#

72

GPJ0/TACH2

76

GPJ4/DAC4/DCD0#

80

GPJ5/DAC5/RIG0#

81

GPC1/SMCLK1/5VT

115

GPC2/SMDAT1/5VT

116

GPE4/PWRSW

125

CK32KE/GPJ7

2

TACH1/TMA1/GPD7

48

5VT/EGAD/GPE1

82

5VT/EGCS#/GPE2

83

5VT/EGCLK/GPE3

84

5VT/CLKRUN#/ID0/GPH0

93

5VT/ID3/GPH3

96

5VT/ID4/GPH4

97

5VT/ID5/GPH5

98

5VT/ID6/GPH6

99

5VT/SSCE0#/GPG2

100

5VT/CRX0/GPC0

119

CK32K/GPJ6

128

5VT/CRX1/SIN1/SMCLK3/ID1/GPH1

94

GPJ2/DAC2//TACH0B

78

GPF7/SMDAT2/PECIRQT#

118

KSO16/SMOSI/GPC3

56

KSO17/SMISO/GPC5

57

U36

PM25LD010C-SCE

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

C358

10u_10V_Y5V_08

R281 *0_04

R289 *10K_04

J_80DEBUG1

*88266-05001

1 2 3 4 5

R1116 1.5K_04

R987 2.2K_04

LPC

DAC

SMBUS

PWM

PS/2

WAKE UP

GP INTERRUPT

UART

K/B MATRIX

IT8587

ADC

U20A

IT8587E/FX

GPB6/KBRST#

4

GPM6/SERIRQ

5

GPM5/LFRAME#

6

GPM3/LAD3

7

GPM2/LAD2

8

GPM1/LAD1

9

GPM0/LAD0

10

GPM4/LPCCLK

13

WRST#

14

GPD4/ECSMI#

15

GPC7/PWUREQ#/BBO/SMCLK2ALT

16

GPD0/RI1#

18

GPE7/L80LLAT/5VT

20

GPD1/RI2#/5VT

21

GPD2/LPCRST#/5VT

22

GPD3/ECSCI#/5VT

23

GPA1/PWM1/5VT

25

GPA5/PWM5/5VT

31

GPA6/PWM6/SSCK/5VT

32

GPD5/GINT/CTS0#/5VT

33

GPA7/PWM7/RIG1#/5VT

34

GPJ1

77

GPJ3/DAC3/TACH1B

79

GPF0/PS2CLK0/TMB0/CEC/5VT

85

GPF2/PS2CLK1/DTR0#/5VT

87

GPF4/PS2CLK2/5VT

89

GPF5/PS2DAT2/5VT

90

GPB0/RXD/SIN0/5VT

108

GPB1/TXD/SOUT0/5VT

109

GPB3/SMCLK0/5VT

110

GPB4/SMDAT0/5VT

111

GPF6/SMCLK2/PECI

117

GPB5/GA20

126

5VT/LPCPD#/GPE6

17

5VT/L80HLAT/BAO/GPE0

19

5VT/RTS1#/GPE5

35

KSO0/PD0

36

KSO1/PD1

37

KSO2/PD2

38

KSO3/PD3

39

KSO4/PD4

40

KSO5/PD5

41

KSO6/PD6

42

KSO7/PD7

43

KSO8/ACK#

44

KSO9/BUSY

45

KSO10/PE

46

TACH0A/GPD6

47

KSO11/ERR#

51

KSO12/SLCT

52

KSO13

53

KSO14

54

KSO15

55

KSI0/STB#

58

KSI1/AFD#

59

KSI2/INIT#

60

KSI3/SLIN#

61

KSI4

62

KSI5

63

KSI6

64

KSI7

65

5VT/SSCE1#/VCEN/TM/GPG0

106

5VT/( PD )DTR1#/SBUSY/ID7/GPG1

107

5VT/RING#/PWRFAIL#/C K32KOUT/LPCRST#/GPB7

112

TMRI0/GPC4

120

CTX0/TMA0/GPB2

123

TMRI1/GPC6

124

VBAT

3

VCC

11

VSTBY126VSTBY2

50

AVCC

74

VSTBY392VSTBY4

114

VSTBY5

121

VSTBY6

127

VSS11VCORE12VSS327VSS449AVSS

75

VSS591VSS6

113

VSS7

122

GPF1/PS2DAT0/TMB1/5VT

86

GPF3/PS2DAT1/RTS0#/5VT

88

GPI0/ADC0

66

GPI1/ADC1

67

GPI3/ADC3

69

GPI4/ADC4

70

GPI7/ADC7/CTS1#

73

5VT/CTX1/SOUT1/DAT3/ID2/GPH2

95

5VT/FSCE#/GPG3

101

5VT/FMOSI/GPG4

102

5VT/FMISO/GPG5

103

5VT/FSCK/GPG7

105

5VT/DSR0#/GPG6

104

R941 15_1%_04

R1100 *10mil_short

R1099 *0_04

R1107 *0_04

R282 *0_04

R288 10K_04

R270 1K_04

.

L27 HCB1005KF-121T20

D22 BAV99N3

A

C

AC

R942 1K_04

R283 *0_04

R287 *10K_04

R943 *0_04

C363

*0.1u_16V_Y5V_04

R1117 1.5K_04

C400 0.1u_16V_Y5V_04

C359

0.1u_16V_Y5V_04

R285 *10K_04

R1102 *10mil_short

R268 *10K_04

R271 100K_04

R937 47_04

R1119 *0_04

R290 *10K_04

R945 0_04

R274 *10K_04

R284 *0_04

C1116 *0.1u_16V_Y5V_04

D20 BAV99N3

A

C

AC

R1104 *10mil_short

R938 15_1%_04

C963

0.1u_16V_Y5V_04

R1090 *20mil_04

R1114 *0_04

R280 *10_04

R944 0_04

R1110 *10mil_short

R276 *10K_04

D19 BAV99N3

A

C

AC

NC3

SHORT

R1115 *0_04

R946 *0_04

C361

0.1u_16V_Y5V_04

C364

0.1u_16V_Y5V_04

C365 0.1u_16V_Y5V_04

R988 10K_04

C1117 *0.1u_16V_Y5V_04

R1094 *0_04

R939 47_04

C362

0.1u_16V_Y5V_04

R1093 *10mil_short

R1112 *10mil_short

PJ5

*OPEN_10mil-1MM

1 2

C1016 0.1u_16V_Y5V_04

R273 10K_04

R1108 *0_04

R286 *10mil_short

R1095 *10mil_short

R940

4.7K_04

Sheet 21 of 34

KBC-ITE IT8587E

B.Schematic Diagrams

B - 22 KBC-ITE IT8587E

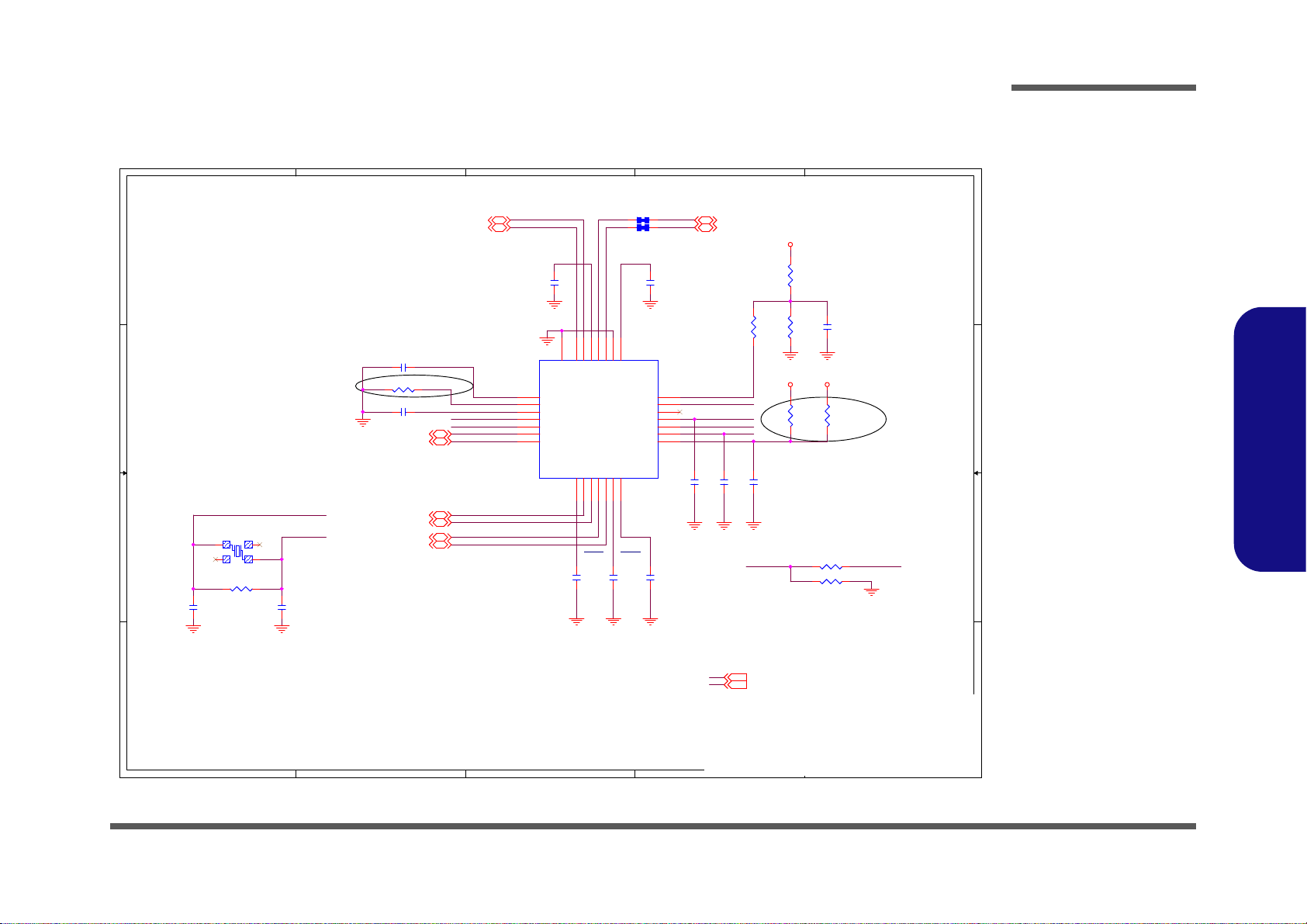

AU6259

5

4

3

2

1

D D

C C

B B

A A

CCD

USB port (M/B) USB port (AUDIO B'd)

port1 port2 port3 port4 TV tuner

P/N: 6-22-12R00-1B0

'1' = Self Powered '0' = Bus Powered

USB signal line trace:

1.Keep traces of USB bus D+ and D- the same length.

2.Achieve 90 ohm differential characteristic impedance.

3.Achieve 45 ohm common characteristic impedance.

4.Maintain parallelism between D+ and D-.

5.Do not route USB2.0 D+ and D- over the power plane split.

6.Do not route USB2.0 D+ and D- over the other high frequency signals.

7.It is preferred to route USB2.0 D+ and D- over ground layer.

8.It is preferred to route USB2.0 D+ and D- using single layer. For more detail,see design guideline in design kit.

D02A

D03 modify

USBH_V33

USBH_V33 USBH_RREF USBH_V18

USBH_V18

BUS_PWREDN

USBH_XSCI

USBH_V33

USBH_XSCI

USBH_XSCO

USBH_RST#

USBH_V18

USBH_V33

BUS_PWREDN

5VS5V

5V

5VS 13,14,17,18,19,20,23,24 5V 15,18,19,23,24,25,26,27

USB_PN3 6

USB_PP3 6

USB_DP118

USB_DM118

USB_DM419

USB_DM219

USB_DP219

USB_DM319

USB_DP319

USB_DP419

Title

Size

Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[22] AU6259 (USB HUB)

A4

22 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[22] AU6259 (USB HUB)

A4

22 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[22] AU6259 (USB HUB)

A4

22 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

R336

10K_04

C387

12p_50V_NPO_04

R933 0_04

R339

470K_04

R934 680_1%_04

R928

1_1%_06

C1083

0.1u_10V_X7R_04

C383

4.7u_6.3V_X5R_06

R929

*1_1%_06

C378 0.1u_10V_X7R_04

C381

0.1u_10V_X7R_04

C390

2.2u_6.3V_X5R_04

U33

AU6259-JGF

PVDD

3

XSCO

4

XSCI

5

DP2_DM

6

DP2_DP

7

AVDD8DP3_DM9DP3_DP10DP4_DM11DP4_DP

12

AVDD5V

15

BUS_PWREDN

17

ChipResetN

21

V33

16

AVDD

26

SUSPEND

19

DP1_DM

27

VDD

18

VDDH

22

V18

14

AVSS

23

UP_DM

24

UP_DP

25

AVDD

13

AVDD

1

UP_RREF

2

VDD

20

DP1_DP

28

Die Pad

29

C379 0.1u_10V_X7R_04

C380

0.1u_10V_X7R_04

C382

0.1u_10V_X7R_04

R935 *10mil_short

R335

47K_04

C389

1u_6.3V_X5R_04

R936 *10mil_short

C1077

0.1u_10V_X7R_04

C388

12p_50V_NPO_04

X4 HSX321G_12Mhz

12

3 4

R340 1M_04

C384

1u_6.3V_X5R_04

R932 *0_04

Sheet 22 of 34

AU6259

Schematic Diagrams

B.Schematic Diagrams

AU6259 B - 23

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

ON

3A

NMOS

5V

NMOS

5VS

ON

3.3VS

NMOS

Short PJ9

ΔΔΔΔ

cost down 5V MOS

ON

3.3V

3A

NMOS

EMI

D02 stuff

D02 modify

ON

D02 del

ON

1.35VS 1.35VSX

ON

1.0VS 1.0VSX

ON

D02 1.35VS/1.35VSX switch modify to G5010

D02 1.0VS/1.0VSX switch modify to G5010

ON

1.8VS

3.3VA

0.1A 0.1A

1A 3A

ON

D02A Add 3.3VA circuit & combine 1.8VS to G5010

D02A modify

D03 modify

W549TU => STUFF PD1 W94/W95/W970TU => STUFF PR2

V_EN

SUSB

5VS_EN1

PWR_SW#_R

3.3VS_EN1

DDON_LATCH

DD_ON#

DD_ON

SUSB

SLP_S0IX

5V_EN1

3.3V_EN1

V_EN

DD_ON#

SUSB

VSX_EN

SUSB#3V3

VSX_EN

SUSB#3V3 SUSB#3V3

SLP_S0IX

SYS15V SYS15V VDD5 5VS

SYS15V 3.3VS

VDD5 5V

VDD3

VAVIN VIN 1

VDD3

SYS15V 3.3VVDD3

VDD3

3.3VS

1.35VSX

VIN VIN

VDD3

1.35V

1.35VSX

1.35V

1.35VS

VDD5

1.0V

1.0VSX

1.0V

1.0VS

5V

VDD3

3.3VA

VDD3

1.8V

1.8VS

VDD5

PWR_SW # 21

DD_ON# 18,19,25

DD_ON18,21,23,24,25,26

M_BTN#19,28

1.35VSX 8 VDD3 5,15,16,17,21,24,25,26,28,33

VDD5 18,24,25,26 5V 15,18, 19,22,24,25,26,27

3.3V 2,3,13,15,16,19,21,24,25,26,27,30,33,34

5VS 13,14, 17,18,19,20,22,24

3.3VS 8,10,11,12,13,15,16,17,19,20,21,24,27,30,33, 34

1.35V 2,7,10,11,25

1.35VS 8

1.0VSX 8

VIN 13,24,25,26,27,28 VA 28 VIN1 24 SYS15V 24

1.0V 8,26

1.0VS 4,5,8,27

1.8V 5,6,8,16,25,33,34

1.8VS 3,4,5,6,8,14,20,21,33

SLP_S0IX#21,34

ALL_SYS_PWROK 13,21

SUSB#18,21,27,34

DELAY_VR_PWRGD21,27

SUSB 14,25

SUSB#3V3 23,24,25,26

SUSB#3V323,24,25,26

3.3VA 8,34

DD_ON 18,21,23,24,25,26

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[23] 5VS, 3VS, 1.8VS, 1.0VS

Custom

23 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[23] 5VS, 3VS, 1.8VS, 1.0VS

Custom

23 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[23] 5VS, 3VS, 1.8VS, 1.0VS

Custom

23 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

PC438

*0.1u_16V_Y5V_04

PQ66

2N3904

B

E C

PR1179 *200_04

PQ4 MTN7002ZHS3

G

DS

PR14

*1M_04

PC433

0.1u_16V_Y5V_04

PC9

*1000p_50V_X7R_04

PC416 *0.1u_10V_X7R_04

PR1167

10K_04

PR8

*1M_04

PC492 220p_50V_NPO_04

PQ11

*MTN7002ZHS3

G

DS

PR566 *200_04

PR18 10K_04

PC476 390p_50V_X7R_04

PC10

*2200p_50V_X7R_04

PR580 * 0_04

PU1

P2808B0

VA

1

VIN

2

M_BTN#

3

INSTANT-ON4GND

5

PWR_SW#

6

DD_ON_LATCH

7

VIN1

8

PC500 470p_50V_X7R_04

PC18 *0.1u_10V_X7R_04

PQ2A *MTNN20N03Q8

137

28

PC428 390p_50V_X7R_04

PR3 100K_04

PC14

*0.1u_16V_Y5V_04

PC487

0.1u_16V_Y5V_04

PC19 1u_16V_X5R_06

PQ2B *MTNN20N03Q8

6

5

4

S

D

G

PQ68A MTDN7002ZHS6R

2

61

PR1181 *200_04

G5010AC1U

PU22

CT2

1

OUT2

2

EN2

10

VBIAS

9

IN2

3

GND

8

EN1

7

CT1

6

OUT1

5

IN1

4

PJ60

*40mil

12

PQ7A *MTNN20N03Q8

137

28

PR1180

*0_04

G5010AC1U

PU20

CT2

1

OUT2

2

EN2

10

VBIAS

9

IN2

3

GND

8

EN1

7

CT1

6

OUT1

5

IN1

4

PJ95

OPEN_4mil

1 2

S

D

G

PQ68B MTDN7002ZHS6R

5

34

PC11

*0.1u_16V_Y5V_04

PC501

0.1u_16V_Y5V_04

PC434

*0.1u_16V_Y5V_04

PR11 *100_1%_04

PQ3B *MTNN20N03Q8

6

5

4

PR17 *75_04

R291 *100K_04

PR569 *0_04

PR12

100K_04

PC478

0.1u_16V_Y5V_04

PQ3A *MTNN20N03Q8

137

28

PC23 *0.1u_10V_X7R_04

PJ97 *CV-40mil

12

PC484 100p_50V_NPO_04

PC437

*0.1u_16V_Y5V_04

PQ9A *MTNN20N03Q8

137

28

PQ7B *MTNN20N03Q8

6

5

4

PR1183 10K_04

PR2 0_04

PR568

47K_04

PC8

*10u_10V_Y5V_08

PJ99

OPEN_4mil

1 2

PR570 0_04

PC431 100p_50V_NPO_04

S

D

G

PQ10A MTDN7002ZHS6R

2

61

PR15

*1M_04

PJ98

*CV-40mil

12

PC13

*10u_6.3V_X5R_06

PJ6 *OPEN-3mm

12

PC7

*0.1u_16V_Y5V_04

PC471

*0.1u_16V_Y5V_04

PR557 10K_04

PC430

0.1u_16V_Y5V_04

PC12

*0.1u_16V_Y5V_04

PR5 10K_04

PD1

*MDL914S2

AC

S

D

G

PQ10B MTDN7002ZHS6R

5

34

PC502

0.1u_16V_Y5V_04

PC20

0.1u_16V_Y5V_04

G5010AC1U

PU21

CT2

1

OUT2

2

EN2

10

VBIAS

9

IN2

3

GND

8

EN1

7

CT1

6

OUT1

5

IN1

4

PR10 *100_1%_04

PR7

100K_04

PJ61

*40mil

12

PC429

0.1u_16V_Y5V_04

PR16 *75_04

PQ6

*MTN7002ZHS3

G

DS

PQ9B *MTNN20N03Q8

6

5

4

PC15

*10u_6.3V_X5R_06

PQ8

*MTN7002ZHS3

G

DS

PQ167 MTN7002ZHS3

G

DS

PR1176 *200_04

PR19 10K_04

PC493 *0.1u_10V_X7R_04

PC486

0.1u_16V_Y5V_04

PC5

*10u_10V_Y5V_08

PC2

*0.01u_50V_X7R_04

PR9

*1M_04

PC415 *0.1u_10V_X7R_04

PC6

*0.1u_16V_Y5V_04

PR590

47K_04

PR6 1K_04

PR13

47K_04

PR588 10K_04

PC494 1u_16V_X5R_06

PR1165 10K_04

PQ171 MTN7002ZHS3

G

DS

PC4

*0.1u_16V_Y5V_04

PC3

0.01u_50V_X7R_04

PC17

*4700p_50V_X7R_04

PC16

*3300p_50V_X7R_04

PC479

0.1u_16V_Y5V_04

PR564 *200_04

PR1175 *200_04

PR1166 1K_04

PC21 *0.1u_10V_X7R_04

PC22

0.1u_16V_Y5V_04

PR4 10K_04

PC432

0.1u_16V_Y5V_04

PR21 10K_04

PQ5 *MTN7002ZHS3

G

DS

PC414 1u_16V_X5R_06

PR589

47K_04

Sheet 23 of 34

5VS, 3VS, 1.8VS,

1.0VS

5VS, 3VS, 1.8VS, 1.0VS

B.Schematic Diagrams

B - 24 5VS, 3VS, 1.8VS, 1.0VS

5

4

3

2

1

D D

C C

B B

A A

5A

Rb

Ra

11/5

5VS 5V

3A 3A

3.3V

3A 3A

3.3VS

D02 modify

ON ON ON ON

ON

D02 PD24,PD25ངfoorprint M-SOT323D

D02A modify

D02A Modify

D02A modify

D02A Add

D03 no stuff

EN_3V

EN_5V

Z2419

Z2418

Z2404

Z2417

EN_ALL

EN_5V

Z2413

Z2406

Z2410

Z2416

Z2403

Z2401

Z2407

Z2405

Z2411

Z2412

EN_3V

Z2414

Z2420

Z2421

DD_ON

SUSB#3V3

VDD3

VREF

VIN

SYS3V

VIN

VDD5

VREG3

VREG5

VIN1 VREG5

VREF

VDD3

VREG5

VIN

SYS5V

SYS10V

SYS5V

SYS15V

VDD5

5V

VDD3

VDD5

5VS

VDD5

3.3V

VDD5

VDD3

3.3VS

VIN

DD_ON18,21,23,24,25,26

VDD3 5,15,16,17,21,23,25,26,28,33

VIN1 23

SYS15V 23

VIN 13,23,25,26,27,28

USB_CHARGE_EN18,21

VDD5 18,23,25,26

SUSB#3V323,25,26

3.3V 2,3,13,15,16,19,21,23,25,26,27,30,33,34

3.3VS 8,10,11,12,13,15,16,17,19,20,21,23,27,30,33,34

5V 15,18,19,22,23,25,26,27 5VS 13,14,17,18,19,20,22,23

DD_ON 18,21,23,24,25,26

1.0V_EN 26

AC_IN28

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[24] POWER VDD3,VDD5

Custom

24 35Wednesday, Dec ember 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[24] POWER VDD3,VDD5

Custom

24 35Wednesday, Dec ember 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[24] POWER VDD3,VDD5

Custom

24 35Wednesday, Dec ember 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

PR505

100K_04

PJ69

OPEN_4mil

1 2

PR594 10K_04

PC457

0.1u_16V_Y5V_04

PC361

4.7u_25V_X5R_08

PC363 *0.01u_50V_X7R_04

PJ68 *CV-40mil

12

PR494

*680K_1%_04

PR593 10K_04

PC451

0.1u_16V_Y5V_04

PC443 *0.1u_10V_X7R_04

PD26 RB751S-40C2

AC

PC360 *2200p_50V_X7R_04

PR486 *0_04

PU11

uP6182B

VREF

3

EN1

1

VFB1

2

TONSEL

4

LDO5

17

LGATE1

19

PHASE1

20

VFB2

5

UGATE2

10

VCLK

18

BOOT2

9

EN2

6

VO2

7

LDO3

8

PHASE2

11

LGATE2

12

EN013SKIPSEL14GND15VIN

16

UGATE1

21

BOOT1

22

POK

23

VO1

24

GND PAD

25

C

A

PD24 *BAT54SS3

1

2

3

+

PC357 220UF

PQ110

MTN7002ZHS3

G

DS

PC458

0.1u_16V_Y5V_04

PC441 1u_16V_X5R_06

PJ70

OPEN_4mil

1 2

PR492 13K F 1/16W SMD0402

PC440 1u_16V_X5R_06

+

PC503 *15u25V_6.3*4.4

PC356 1000p_50V_X7R_04

PC350 1u_6.3V_X5R_04

PC346

4.7u_25V_X5R_08

PR503

10K_04

C

A

PD25 *BAT54SS3

1

2

3

PC445 *0.1u_10V_X7R_04

PR598 *200_04

PC447 470p_50V_X7R_04

PQ155

*MTN7002ZHS3

G

DS

PQ108B EMB17A03V

1

2

789

PC347

4.7u_25V_X5R_08

PR504 0_04

PJ55

*OPEN-1mm

12

PJ54

*OPEN-5mm

1 2

+

PC504 *220u_25V_6.3*12

PR1177 *100_04

+

PC354 220UF

PR597 *100_04

PR488 130K_1%_04

PC345

0.1u_50V_Y5V_06

PC344 1000p_50V_X7R_04

PR1178 *200_04

PC343 1000p_50V_X7R_04

PJ53

*OPEN-5mm

12

PC364 *2200p_50V_X7R_04

PC454

0.1u_16V_Y5V_04

PC351

0.1u_10V_X7R_04

PJ80

*CV-40mil

12

PC450 470p_50V_X7R_04

PR499 2_06

PQ107A EMB17A03V

3

4

5610

PC358

0.1u_16V_Y5V_04

PC348

4.7u_25V_X5R_08

PR498 *0_04

PC448 470p_50V_X7R_04

PQ107B EMB17A03V

1

2

789

PC449 3900p_50V_X7R_04

PQ109 MTN7002ZHS3

G

DS

PQ172

MTN7002ZHS3

G

DS

PL17 BCIHP0730-4R7M

1 2

PD23 CSOD140SH

A C

PC442 *0.1u_10V_X7R_04

PR497 *0_04

PR501 *0_04

PR490 10K_04

PC349

4.7u_25V_X5R_08

PR491 30K_1%_04

PR496

18.7K_1%_04

PC359 *0.01u_50V_X7R_04

PJ71

OPEN_4mil

1 2

PR502 *0_04

G5010AC1U

PU18

CT2

1

OUT2

2

EN2

10

VBIAS

9

IN2

3

GND

8

EN1

7

CT1

6

OUT1

5

IN1

4

PR495 *100K_1%_06

PC365

0.1u_10V_X5R_04

G5010AC1U

PU19

CT2

1

OUT2

2

EN2

10

VBIAS

9

IN2

3

GND

8

EN1

7

CT1

6

OUT1

5

IN1

4

PC353

0.1u_16V_Y5V_04

PC342 1u_6.3V_X5R_04

PC452

0.1u_16V_Y5V_04

PR500 0_04

PQ108A EMB17A03V

3

4

5610

PC456

0.1u_16V_Y5V_04

PR596 10K_04

PJ72

OPEN_4mil

1 2

PC352

0.1u_10V_X7R_04

PJ79

*CV-40mil

12

PC362 1u_10V_Y5V_06

PR595 10K_04

PR493 20K_1%_04

PR489 130K_1%_04

PC455

0.1u_16V_Y5V_04

PL16

BCIHP0730-4R7M

12

PJ67 *CV-40mil

12

PC444 *0.1u_10V_X7R_04

PD22 CSOD140SH

A C

PC453

0.1u_16V_Y5V_04

PC355 100p_50V_NPO_04

PR487 0_04

Sheet 24 of 34

VDD3, VDD5

Schematic Diagrams

B.Schematic Diagrams

VDD3, VDD5 B - 25

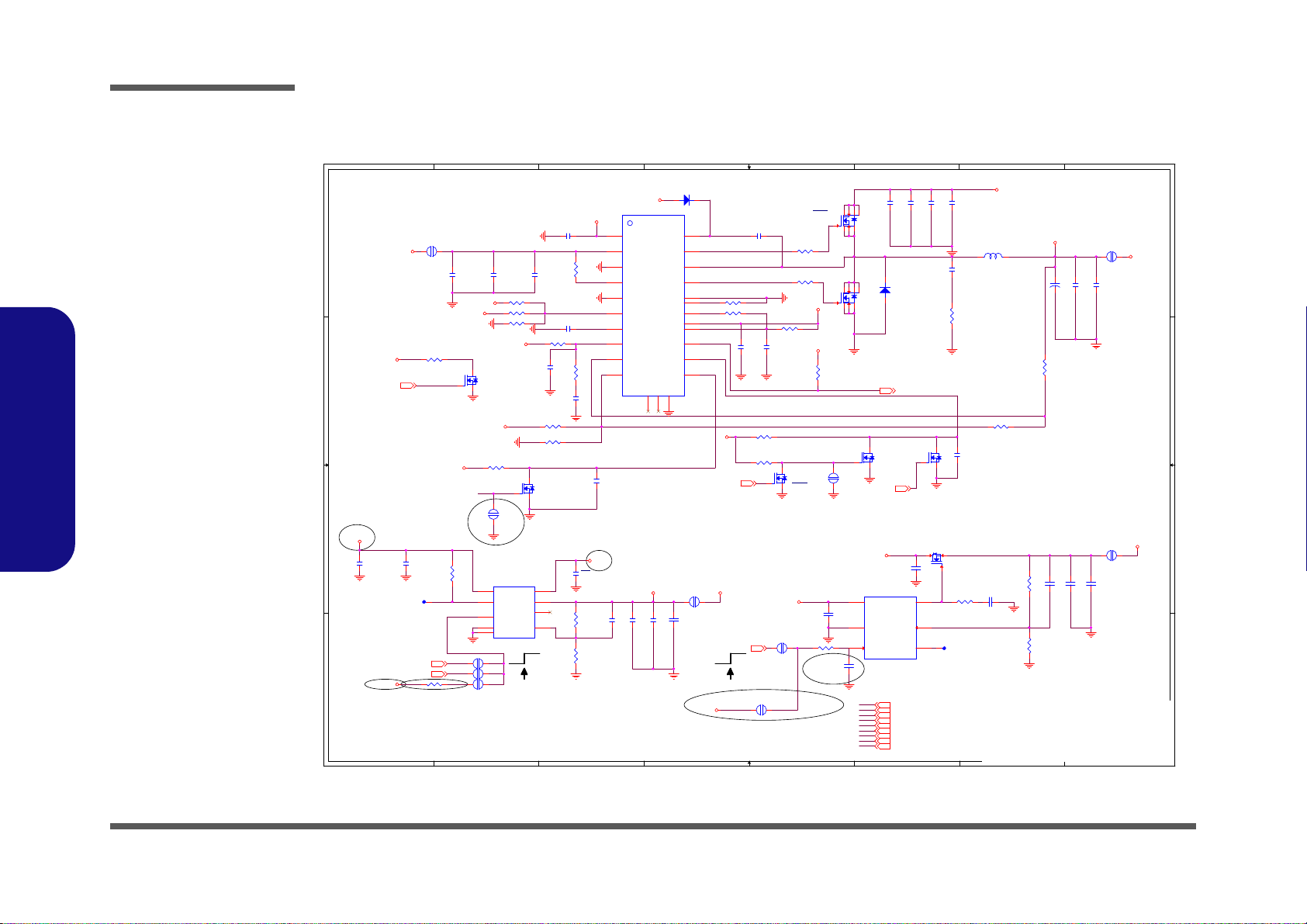

1

2

3

4

5

6

7

8

A A

B B

C C

D D

1.35V

6A

R2

R1

Vout=(R1/R2+1)*0 .75

VTT_MEM

1A

Rb

Ra

Vout = 0.8V ( 1 + Ra / Rb )

૞ฝᔾ

PIN6

ᆬ

1.8V

100mA

૞ฝᔾ

P I N1,2

ᆬ

50mA

1.5VS

1.5VS_PWRGD

1.8V_PWRGD

ON ON

D02 add

D02 add PJ94

D02 add

MODE

COMP_VDD

CS

SUSB

VTTEN

VBST

DRVH

LL

VTTSNS

VTT

VTTREF

VDDQSNS

DDR1.35V_PWRGD

SUSB

VDDQSET

DRVL

S5_6163

1.8V_EN

VIN

VDDQ

1.35V

VTT_MEM

3.3V

5V

VTT_MEM

5V

VDDQ

5V

VDDQ

5V

VDD3

VDD5

1.8VV1.8

1.5VS

5V

1.8V

VDD3

3.3V

DDR1.35V_PWRGD 2

DD_ON#18,19,23

SUSC#21,34

SUSB14,23

1.35V 2,7,10,11,23

3.3V 2,3,13,15,16,19,21,23,24,26,27,30,33,34

5V 15,18,19,22,23,24,26,27

VTT_MEM 10,11 VIN 13,23,24,26,27,28

1.8V 5,6,8,16,23,33,34

1.5VS 8,20

DD_ON18,21,23,24,26

1.0V_PWRGD26

SUSB#3V323,24,26

VDD3 5,15,16,17,21,23,24,26,28,33

VDD5 18,23,24,26

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[25] POWER 1.5VS, 1.8V, VTT_MEM

A3

25 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[25] POWER 1.5VS, 1.8V, VTT_MEM

A3

25 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[25] POWER 1.5VS, 1.8V, VTT_MEM

A3

25 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

PJ56

*OPEN_3mm

1 2

PR563

10K_1%_04

PR237 *20mil_04

PR187 *28mil_06

PC371

10u_6.3V_X5R_06

S

D

G

PQ48B MTDK5S6R

5

34

PC201

0.1u_10V_X7R_04

PR562 100_04

PC205

0.1u_16V_Y5V_04

PJ82 *40mil

1 2

PR188 10K_1%_04

PR506

12.7K_1%_04

PC202

*1000p_50V_X7R_04

PC206

0.1u_50V_Y5V_06

PD20

RB0540S2

A C

PC369

82p_50V_NPO_04

PU17 G9330

PGOOD

3

IN

1

GND

2

DRV

6

ADJ

5

EN

4

PJ50

*40mil

12

PR599

47K_04

PC207

4.7u_25V_X5R_08 PL18

BCIHP0730-1R0M

1 2

PC370

10u_6.3V_X5R_06

PR189 100K_04

PC426

1u_6.3V_X5R_04

PR231 8.06K_1%_04

PJ83 *40mil

1 2

PR238 *28mil_06

PR190 2.2_06

PR507

10K_1%_04

PJ62

OPEN_1A

1 2

PU9 G5616

VTTGND

1

VLDOIN

23

VTT

24

VTTSNS

2

GND

3

MODE

4

VTTREF5VCC5

14

PGOOD

13

S5

11

S3

10

VDDQSET

9

VDDQSNS

8

COMP

6

CS

16

PGND

18

DRVL

19

LL

20

DRVH

21

VBST

22

PVCC5

15

CS_GND

17

NC7NC12GND

25

PR232 *10K_1%_04

PR183 *10_04

PJ51

*OPEN-3mm

1 2

PC195

0.1u_50V_Y5V_06

PC203

*10u_6.3V_X5R_06

PQ160 MTN7002ZHS3

G

D S

PQ51

*MTN7002ZHS3

G

DS

PQ47

*MTN7002ZHS3

G

DS

PQ113 QM3006M3

4

5255315

PJ94 *40mil

1 2

PR239

*20mil_04

PC488

0.1u_16V_Y5V_04

PC196

22u_6.3V_X5R_08

+

PC366

560u_2.5V_6.6*6.6*5.9

PR241 *0_04

PR233

*47K_04

PC175

*1000p_50V_X7R_04

PR1168 10K_04

PR240

*5.1_06

PC197 10u_6.3V_X5R_06

PC423

10u_6.3V_X5R_06

PC211

*10u_6.3V_X5R_06

PR234

0_06

S

D

G

PQ48A

MTDK5S6R

2

61

PU12 G9661-25ADJF11U

GND

8

VCNTL

4

NC

5

VIN

3

VOUT

6

VFB

7

POK

1

EN

2

GND

9

PC208

0.1u_16V_Y5V_04

PR191 *22_04

PC422

10u_6.3V_X5R_06

PJ81 *40mil

1 2

PR561

20K_1%_04

PR235 100K_04

PR184

0_06

PC209

0.1u_16V_Y5V_04

PC198

0.1u_16V_Y5V_04

PJ93 *40mil

1 2

PC424

0.1u_10V_X5R_04

PR236 10K_1%_04

PR185 *0_04

PC368

0.1u_10V_X5R_04

PQ49 MTN7002ZHS3

G

DS

PR192

*28mil_06

PJ84 *40mil

1 2

PC425

0.47u_6.3V_X5R_04

PD21

CSOD140SH

A C

PR186 47K_04

PC367 10u_6.3V_X5R_06

PC210

4.7u_25V_X5R_08

PC199

1u_6.3V_X5R_04

PC372

0.1u_16V_Y5V_04

PC421

10u_6.3V_X5R_06

PC204

*1000p_50V_X7R_04

PC193 0.1u_10V_X7R_04

PC1

1u_10V_Y5V_06

PR1170 10K_04

PQ112 QM3004M3

4

5255315

PJ52

*OPEN-2mm

12

PC200

1u_6.3V_X5R_04

Sheet 25 of 34

1.5VS, 1.5V, VTT_MEM

Schematic Diagrams

1.5VS, 1.5V, VTT_MEM

B.Schematic Diagrams

B - 26 1.5VS, 1.5V, VTT_MEM

1.0V, 1.05VS, 1.24V

5

4

3

2

1

D D

C C

B B

A A

1A

1.0V

1.05VS

R1

R2

4A

Vout

=0.75*(1+R1/R2) =0.75*(1+10K/30K) =1V

ON

D02 modify value & footprint

D02 add

D02 add PR1174 10K_04

50mA

D02A Add VIN=>RTCVCC circuit

D02A modify

D03 EMI add C1119

D03 no stuff

Z3606

Z3604Z3605

Z3610

Z3609

Z3611

Z3607

Z3612

Z3613

1.05VS_EN

5V

1.05VS

VDD5

VIN

VDD5

VDD3

1.0V

3.3V

VIN

RTC_VCC

1.35V 2,7,10,11,23,25

3.3V 2,3,13,15,16,19,21,23,24,25,27,30,33,34

5V 15,18,19,22,23, 24,25,27

VIN 13,23,24,25,27,28

1.05VS 8

1.0V 8,23

1.0V_PWRGD25

SUSB#3V323,24,25

DD_ON18,21,23,24,25

VDD3 5,15,16,17,21,23,24,25,28,33

RTCVCC 5,8

VDD5 18,23,24,25

1.0V_EN24

RTC_VCC 5

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[26] POWER 1.0V, 1.05VS, 1.24V

Custom

26 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[26] POWER 1.0V, 1.05VS, 1.24V

Custom

26 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[26] POWER 1.0V, 1.05VS, 1.24V

Custom

26 35W ednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

PC419

4.7u_25V_X5R_08

PR1169 10K_04

PC212

*4.7u_25V_X5R_08

PR1174 10K_04

PJ85 *40mil

1 2

PJ64

OPEN_1A

1 2

PC376

10u_10V_Y5V_08

PC382 *15p_50V_NPO _04

PR513

26.1K_1%_04

PU13 G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST

13

DH

12

LX

11

ILIM

10

VDD

9

DL

8

PGND

7

PGND

17

NC5NC

14

C1119

*0.1u_16V_Y5V_04

PC328

10u_10V_Y5V_08

PJ57

*OPEN-2mm

1 2

PR510 0_06

PR509

2.2_04

PR246

*143K_1%_04

PC380

*47P_6.3V_Y5V_04

PL20

UHP252012NF-2R2M

1 2

PJ86 *40mil

1 2

PC418

4.7u_25V_X5R_08

PJ92 *40mil

1 2

PU15 *G922T11

IN1OUT

5

ADJ

4

EN

3

GND

2

PR559 47K_04

PR247

*100K_1%_04

PL19

BCIHP0730-1R0M

1 2

PR511 15K_1%_04

PC329

*10u_10V_Y5V_08

PC420

0.1u_50V_Y5V_06

PJ87

OPEN_4mil

1 2

PC152

*470p_50V_X7R_04

12

PR1184 *10K_04

PC378

0.1u_10V_X7R_04

PC375

10u_10V_Y5V_08

PC417

0.1u_50V_Y5V_06

PD36

CSOD140SH

A C

PJ58

*OPEN_1A

1 2

PR508 820K_1%_06

PC427

*10u_6.3V_X5R_06

PQ159B EMB17A03V

1

2

789

PR516 30K_1%_04

PC377

1u_6.3V_X5R_04

PU14 G5719TB1U

1

EN

VIN

4

GND

2

NC

5

VFB

6

LX

3

PR512 20K _1%_04

PQ159A EMB17A03V

3

4

5610

PC489 0.035u_16V_X7R_04

PC381

1u_6.3V_X5R_04

PR560 0_04

PC446

*10u_6.3V_X5R_06

+

PC379

560u_2.5V_6.6*6.6*5.9

PR515 10K_1%_04

Sheet 26 of 34

1.0V, 1.05VS, 1.24V

Schematic Diagrams

B.Schematic Diagrams

1.0V, 1.05VS, 1.24V B - 27

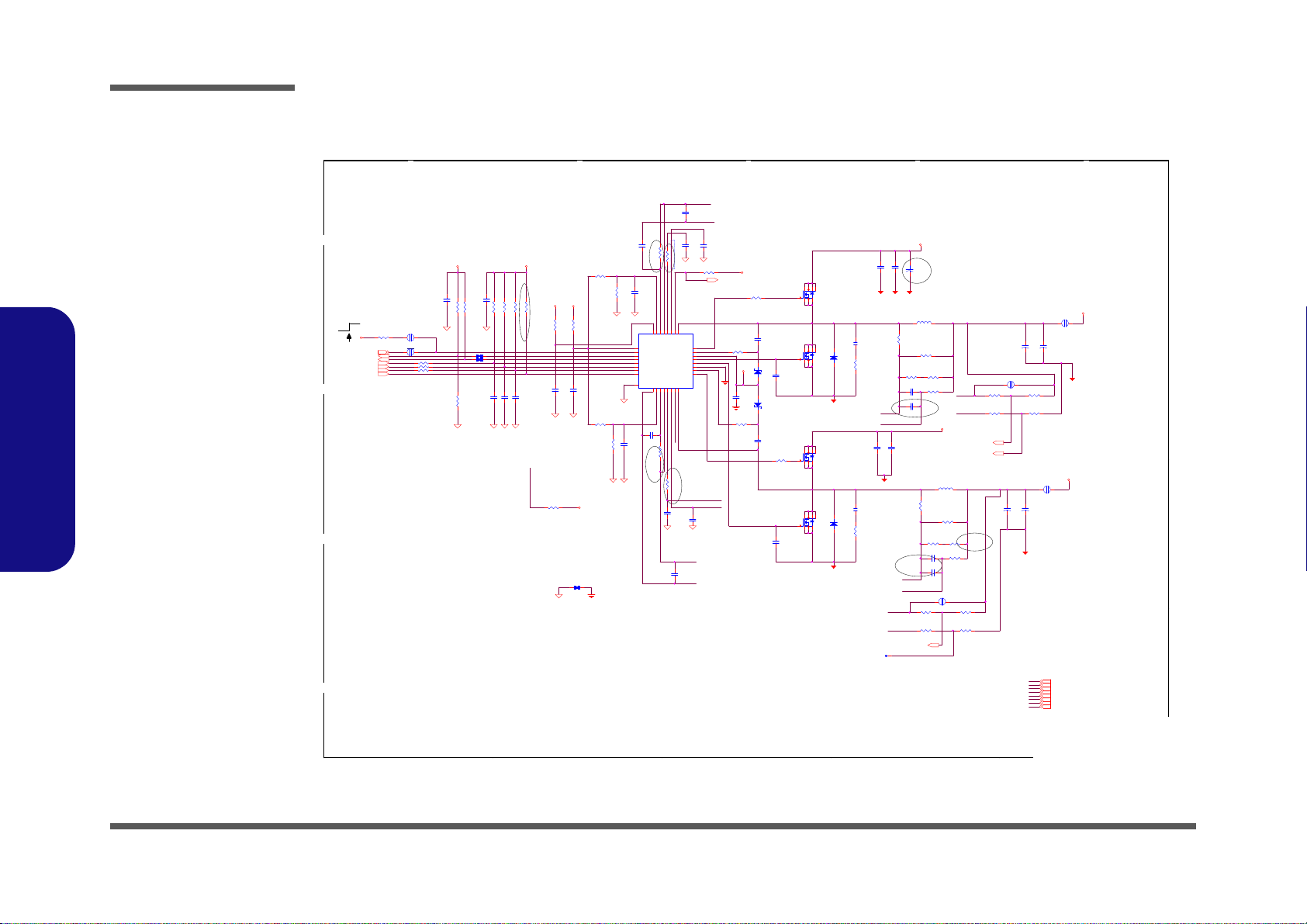

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

Iout=15A OCP=17A

DCR=10 mohm Max

Iout=10A OCP=12

DCR=1.8 mohm Max

RLL_CPU: -2.9mV/A

RLL_GFX: -3.9mV/A

100K_1%_NTC_04 100K_1%_NTC_04

100K_1%_NTC_04

6-19-41001-234

100K_1%_NTC_04

6-07-56214-3A0

ON

D02 PR243 modify

D02 PR97 modify

D02 PR127, PR128 modify

D02 PC149, PC163 change to 3300P_50V_X7R_04

D02A modify

D03 modify D03 PC279 =>220uF_25V

CSNB

RSN

VCORE_VSS_SENSE

RSPB

BSTA

CSNB1

LXB

TEMPB

CSNA

CSPA

PGB

CSNA1

CSPB

VDDA

RSN

RSP_LLA

RSN

BSTB

5V

CSNA

CSPA

ALRTb

HDRB

TEMPA

RSPA

PGA

RSPB

CSPB

CSNB

VR_TTb

HDRA

RSN

VIN_32

RSPA

VCLK

VDIO

RSPB

LDRB

LDRA

LXA

PGB

8296_EN

SDA

SCL

SMB_CLK_MULT12,21

H_CPU_SVIDDAT5

H_CPU_SVIDALRT#5

SMB_DATA_MULT12,21

DELAY_VR_PWRGD 21,23

H_CPU_SVIDCLK5 H_PROCHOT#4

VCORE_VCC_SENSE7

VCORE_VSS_SENSE7

VR1_VCCGT_SENSEA7

3.3VS

8296_AGNG

VCORE

8296_AGNG

VIN

5V

8296_AGNG8296_AGNG

8296_AGNG

VGFX_CORE

8296_AGNG8296_AGNG

8296_AGNG

VIN

1.0VS

8296_AGNG

3.3V

8296_AGNG

5V

3.3V

8296_AGNG

3.3V

VCORE 7

3.3V 2,3,13,15,16,19,21,23,24,25,26,30,33,34

5V 15,18,19,22,23,24,25,26

VIN 13,23,24,25,26,28

VGFX_CORE 7

3.3VS 8,10,11,12,13,15,16,17,19,20,21,23,24,30,33,34

1.0VS 4,5,8,23

SUSB#18,21,23,34

VDD3 5,15,16,17,21,23,24,25,26,28,33

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[27] POWER VCORE, VGFX_CORE

A2

27 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[27] POWER VCORE, VGFX_CORE

A2

27 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[27] POWER VCORE, VGFX_CORE

A2

27 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

W54XTU

PR577 0_04

12

PR120*0_04

1 2

PR100

4.87K_1%_06

1 2

PR318

75K_1%_04

1 2

PR578

2.2_04

12

PR97

2.05K_1%_04

12

PR135

51.1_1%_04

1 2

PJ77

*OPEN-5mm

12

PR317

TH05-4F104FR

PR243

1.47K_1%_04

12

PC143

*1000P_50V_X7R_04

PC144

470p_50V_X7R_04

12

PR575 20_1%_04

12

PC160

22p_50V_NPO_04

PC148

1u_6.3V_X5R_04

12

PC337

1000P_50V_X7R_04

PR316

46.4K_1%_04

12

PQ98 QM3004M3

4

5255315

PR139

100_1%_04

1 2

+

PC340

560u_2.5V_6.6*6.6*5.9

PC147

*1000P_50V_X7R_04

PR573 0_04

12

PR99 47K_04

12

PR118

51.1_1%_04

1 2

PC151

0.22u_16V_06

12

PJ90 *CV-40mil

1 2

PR132 *26.1K_1%_04

1 2

PC142

*1000P_50V_X7R_04

PC335

2200p_50V_X7R_04

PL15

BCIHP0730-1R0M

PR24222_04

12

PJ91 *C V-40mil

1 2

PR134 TH05-4F104FR

PD12

CSOD140SH

A C

PC161

2200p_50V_X7R_04

12

PJ89 *C V-40mil

1 2

PR130

*10K_1%_04

12

PR313

100_1%_04

1 2

+

PC339

*560u_2.5V_6.6*6.6*5.9

PR1171 10K_04

PC150

1000P_50V_X7R_04

PC332

1000P_50V_X7R_04

PU10

OZ8296

SCL

3

SDA

4

ALRTb

5

VCLK

7

VRTTb

8

CSNB

13

GNDP

19

HDRB

17

LXB

16

BSTB

18

LDRA

21

CSNA

28

CSPA

27

CSPB14TEMPB

10

TEMPA

31

VIN

32

RSPB

12

VDDA

1

PGA

26

LDRB

20

PGB

15

RSP_LLA

30

RSP_LLB

11

HDRA

24

RSN

9

VR_EN

2

VDIO

6

RSPA

29

LXA

25

VDDP

22

BSTA

23

GNDA

33

PC149

3300P_50V_X7R_04

PD3

RB0540S2

A C

PC436 2200p_50V_X7R_04

PC1661u_6.3V_X5R_04

PC331

4.7u_25V_X5R_08

PR576 0_04

12

PR244

100_1%_04

1 2

PR312 *20mil_04_short

PC155

1000P_50V_X7R_04

PC341

1u_6.3V_X5R_04

PQ100 QM3004M3

4

5255315

PR128

1.87K_1%_06

12

PC146

*0.012U_10V_X5R_04

+

PC266 *560u_2.5V_6.6*6.6*5.9

PR574 16.9_1%_04

12

PC131

4.7u_25V_X5R_08

PR314

46.4K_1%_04

12

PR5211K_1%_04

1 2

PQ102 QM3006M3

4

5255315

PR136

10_04

1 2

PR127

1.62K_1%_06

12

PC165 1000P _50V_X7R_04

PC163 3300P_50V_X7R_04

PC134

1000P_50V_X7R_04

PR119

10_04

1 2

PR125

0_06

1 2

PC164 *0.012U_10V_X5R_04

PR138

10_04

1 2

PR121

100_1%_04

1 2

PR133

73.2K_1%_04

1 2

PR105*73.2_1%_04

1 2

PD4

RB0540S2

AC

PR5201K_1%_04

1 2

PR114

*26.1K_1%_04

1 2

R1256 *10m il_short

PC330

22p_50V_NPO_04

PC145

1u_6.3V_X5R_04

12

PC435 2200p_50V_X7R_04

PR124

4.87K_1%_06

1 2

PC336

4.7u_25V_X5R_08

PR106*73.2_1%_04

1 2

PR101TH05-4F104FR

PR122

10_04

1 2

PR31510K_04

12

PC334

4.7u_25V_X5R_08

PD11

CSOD140SH

A C

PL14 BCIHP0735-R68M

+

PC265 560u_2.5V_6.6*6.6*5.9

PJ78

*OPEN-5mm

12

PC338

0.22u_16V_06

12

PR245

0_06

12

+

PC279

220uF_25V

PC141

2200p_50V_X7R_04

12

PR104*73.2_1%_04

1 2

PJ88

OPEN_4mil

1 2

PR579

2.2_04

12

PR126TH05-4F104FR

R1255 *10m il_short

PC333

2200p_50V_X7R_04

PQ101 QM3006M3

4

5255315

PR10769.8_1%_04

1 2

Sheet 27 of 34

VCore

B.Schematic Diagrams

B - 28 VCore

AC IN, Charger

5

4

3

2

1

D D

C C

B B

A A

1) LOT6_CHG : AC only,EC ᣂൾ CHA RGER IC INPUTሽᄭ(EC:#120)

2) PMOSFET_CONTROL# : ߻ַך堷ሽ,طᙁנጤڃ඄ທګዥሽ ,4SሽۃᏁ ௽ܑࣹ რ (EC:# 1 1 2)

3) BAT_DET : ECܒࡳሽۃڶྤຑ࿨ ߓอ(EC:#66)

4 BAT_VOLT : ECܒࡳሽۃሽᚘ , ױڇSMBUS F AILࠌش(EC:#67)

5) AC_IN# : ECܒࡳ Adapt erڶྤຑ࿨ߓ อ(EC:#4)

6)CHG_JAP:Forֲءpea k shif t f unction(EC: OPTI ON)

CHARGER <->EC

ᔾᔾᔾᔾ

JBATTA1

BAT DET(BATTERY INTERNAL) :

2S / 10K / NT1908 3S / 2K

4S / 390

3S/2800mAH / 4.02K

4S/2800mAH /7.15K

2S / 5K / NT1912

ڃ඄ᒵؘႊط

Rsense

ࠟጤࢮ ڃ

ᔾ

IC

ᔾ

IC

Hi-----Battery in Charge Low-----Battery remove no charge EC GPIO PD pin

D02

EC GPIO (PD) pin; Hi -Pmosfet open; Low----Pmosfet turn on

6/13

6/21

7/1 add

7/2 add

7/3 add

D02 PL21 change

D02 add RPR1172, PR1173, PD37,PD38

D02A Del JBATTA2

D02A modify

For W950TU power shift => STUFF

D03 modify

W549TU => STUFF W94/W95/W970TU => NO STUFF

VDDP

ICHM

SMD_BAT_R

LDR

AC AV

VAC

IAC1IACM

ICHP

SMC_BAT_R

COMPIACP

LX

SMC_BAT SMD_BAT

SMD_BAT

BAT_DET

SMC_BAT

V_BAT

S8254CTL

SMD_BAT

SMC_BAT

SMC_BAT SMD_BAT

V_BAT

VA

VIN

VA

VDD3

VA VA1

VDD3

VJACK VA

VJACK

VDD3

AC_IN# 21

SMD_BAT 21

SMC_BAT 21

TOTAL_CUR 21

LOT6_CHG21

BAT_VOLT 21

M_BTN#19,23

BAT_DET21

VA 23

VIN 13,23,24,25,26,27 VDD3 5,15,16,17,21,23,24,25,26,33

PMOSFET_ CONTROL#21

CHG_JAP21

AC_IN 24

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[28] ACIN,CHARGER(Smart Charge)

A3

28 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[28] ACIN,CHARGER(Smart Charge)

A3

28 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D01A

1.0A

[28] ACIN,CHARGER(Smart Charge)

A3

28 35Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

JBATTA3

BTD-06RC1B

1

2

3

4

6 5

PC409

1u_25V_Y5V_08

PR532 10_04

PQ121 DTC114EUA

CE

B

PR591 0_04

PC402 0.1u_50V_Y5V_06

PC403

0.047u_10V_X7R_04

PR531 100K_04

PC459 30p_50V_NPO_04

PD32

MDL914S2

A C

PC387

0.1u_16V_Y5V_04

PQ67

*2SK3018S3

G

DS

PR484

300K_1%_04

PR548

24K_1%_04

PC460 30p_50V_NPO_04

PC393

4.7u_25V_X5R_08

PQ106 MTP3403N3

G

DS

PR553 *100K_04

PC413

47p_50V_NPO_04

PR538 100K_04

PC410 1u_10V_Y5V_06

PR208 *100K_04

PR524 100K_1%_04

PC187

*0.1u_50V_Y5V_06

PC461 30p_50V_NPO_04

PR550 *100K_04

PD37*MMSZ5232BS

A C

PQ115 MTP3403N3

G

DS

PD30

*SS1040WG

A C

PR535 10_04

PC395

4.7u_25V_X5R_08

PR528 470K_04

J_DC_JACK2 JDD-52048AS1F-165

GND2

GND1

2

1

3

PQ123

*2SK3018S3

G

DS

PQ116

MTN7002ZHS3

G

DS

PC394

4.7u_25V_X5R_08

PD15 *MDL914S2

A C

PR527 *100K_04

PQ122 *2N3904

B

E C

PR1173 330_04

PR554 *100K_04

PD38*MMSZ5232BS

A C

PR485

100K_1%_04

PD35

ZD5245BS2

AC

SW4

*TJG-532-V-T/R

3

1

4

2

5

6

PR205 *10K_04

PQ120 *EMB20P03V

4

62 5731

8

PR514 *20mil_04

PC407

*1u_25V_X7R_08

PQ118 EMB20P03V

4

6 2 5

7 3

1

8

PR207 *10K_04

PQ53

MTN7002ZHS3

G

DS

PC401 4.7u_25V_X5R_08

PL22

BCIHP-0730 8R2M

PR537 10_04

PC412

0.47u_10V_Y5V_04

PC397 4.7u_25V_X5R_08

.

PL23 HCB1005KF-121T20

PJ59 3mm

12

.

L44 HCB1005KF-121T20

PR525

60.4K_1%_04

PR533 10_04

PR543

0_04

PQ111B EMB17A03V

1

2

789

PR542 10_04

PC392 4.7u_25V_X5R_08

PQ119

MTN7002ZHS3

G

DS

PR555 *10K_04

PR549

10K_04

PQ117 EMB20P03V

4

62

5731

8

PQ111A EMB17A03V

3

4

5

6

10

PC399 4.7u_25V_X5R_08

PR546

100K_04

.

L45 HCB1005KF-121T20

PR540 0_04

PR1172 330_04

PC405

0.047u_10V_X7R_04

PR523

0_04

PC400 4.7u_25V_X5R_08

PD34

*ZD5245BS2

A C

PR206

*10K_04

PR534 10_04

PR483

*0_06

PR529

0.01_1%_32

PC390 4.7u_25V_X5R_08

PR522 300K_1%_04

PR530

0.01_1%_32

PR544

*0_04

PR551 *10K_04

PR545 *15mil_short

PC406

1000p_50V_X7R_04

PC391 4.7u_25V_X5R_08

PC396

4.7u_25V_X5R_08

PC404

0.1u_50V_Y5V_06

PC398 4.7u_25V_X5R_08

PR547 100_04

PC408

*1u_25V_X7R_08

PD33 MDL914S2

AC

PD31

*SS1040WG

A C

PU16

OZ8681-E

LX

14

LDR

16

BST

12

VAC

1

VDDP

15

IACM

3

VDDA

6

SDA

11

ICHP

5

ICHM

4

COMP

8

HDR

13

BASE

17

SCL

10

IAC

7

IACP

2

ACAV

9

PR592 2.2_04

PD29

*SS1040WG

A C

PC439 2200p_50V_X7R_04

PR526 *470K_04

PC411 1u_10V_Y5V_06

PC183

*0.1u_16V_Y5V_04

PR536 15K_04

PC388

0.1u_50V_Y5V_06

PR552 *20K_1%_04

PL21 HCB2012KF-800T80

Sheet 28 of 34

AC In, Charger

Schematic Diagrams

B.Schematic Diagrams

AC IN, Charger B - 29

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

BLACK

AUDIO JACK

BLACK

TO M/B

2

MIC IN

6-20-B2800-106

J_SPK1

HEADPHONE

USB PORT

60 mil

1

6-20-B2800-106

Close to AJ_AUDIO1

PCBA CHECK

AMIC1-R

ASPKOUTR+_R ASPKOUTR-_R

ASPKOUTR+

ASPKOUTR-

ASPKOUTR+

AHP_SENSE AUSB_PN1 AUSB_PP1

ASPK_HP#

AHP_SENSE

AUSB_PN1

AUSB_PP1_RAUSB_PP1

AUSB_PN1_R

AHEADPHONE-L

AHEADPHONE-R

AMIC1-L

AMIC_SENSE

AMIC1-R

AHEADPHONE-R

AMIC_SENSE

AHEADPHONE-L

AMIC1-L

A_AUDG

A_USBVCC

A_AUDG

AGND

A_USBVCC

AGND

AGNDAGND

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54K8-D02

2.0

[29] AUDIO BOARD (14")

A3

29 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54K8-D02

2.0

[29] AUDIO BOARD (14")

A3

29 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Re v

Date: Sheet

of

6-71-W54K8-D02

2.0

[29] AUDIO BOARD (14")

A3

29 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

AC1 *180p_50V_NPO_04

AC6

100p_50V_NPO_04

AJ_SPKR1

50271-0020N-001

1 2

AL6

*WCM2012F2S-SHORT

1

4

2

3

AL4 FCM1005KF-121T03

R

L

AJ_HP1

2SJ-T351-S23

2 6

5

3

1

4

AH4

C71D71

AC5 *0.1u_10V_X5R_04

AC7

100p_50V_NPO_04

AH1

O6X4_5B3X1_5D3X1_5

AC10 *0.1u_10V_X5R_04

AC2

22u_6.3V_X5R_08

AL3 FCM1005KF-121T03

AC8

100p_50V_NPO_04

3AAR *0_04

AR1 68_04

AC3

22u_6.3V_X5R_08

AJ_AUDIO1

50578-0140N-001

PCB Footprint = 85201-14X5_L

1 2 3 4 5 6 7 8 9 10 11 12 13 14

6AAR *0_04

AR2

*1K_04

AC4

0.1u_10V_X5R_04

5AAR *0_04

AR4

*1K_04

AL2 FCM1005KF-121T03

AH3 C217D110

4AAR *0_04

AR6

*15mil_short_06

R

L

AJ_MIC1

2SJ-T351-S23

2 6

5

3

1

4

AR3 68_04

AJ_USB1

US04036BCA081

V+

1

GND1

DATA_L

2

DATA_H

3

GND

4

GND2

GND4

GND3

AL1 FCM1005KF-121T03

1

AH2

MTH8_0D2_8

2 3 4 5 6

7

8

9

2AAR *0_04

AC12 0.1u_10V_X5R_04

AC13

*1000p_50V_X7R_04

AC14 *180p_50V_NPO_04

1AAR *0_04

AC9

100p_50V_NPO_04

AR5

*15mil_short_06

AC11 *0.1u_10V_X5R_04

Sheet 29 of 34

Audio Board

B.Schematic Diagrams

B - 30

TPM

5

4

3

2

1

D D

C C

B B

A A

Pull-high???

PCLK_TPM

LPC reset timing:

TPM_PP

TPM_BADD

Asserted before entering S3

LPCPD# inactive to LRST# inactive 32~96us

HI: ACCESS LOW: NORMAL ( Internal PD )

TMC

TMCTMC

TMC:746!

:746!:746!

:746!΢ ҹ

΢ҹ΢ҹ

΢ҹ

HI: 4E/ 4F H LOW: 2E/ 2F H

TMC

TMCTMC

TMC:746!

:746!:746!

:746!ό ΢ ҹ

ό΢ҹό΢ҹ

ό΢ҹ

TMC

TMCTMC

TMC:746!

:746!:746!

:746!΢ ҹ

΢ҹ΢ҹ

΢ҹ

TMC

TMCTMC

TMC:746!

:746!:746!

:746!΢ ҹ

΢ҹ΢ҹ

΢ҹ////

TMC

TMCTMC

TMC:766!

:766!:766!

:766!΢ ҹ

΢ҹ΢ҹ

΢ҹ////

TMC

TMCTMC

TMC:746!

:746!:746!

:746!΢ ҹ

΢ҹ΢ҹ

΢ҹ

SLB9635TT & SLB9655TT Co-Layout

TMC

TMCTMC

TMC:746!

:746!:746!

:746!΢ ҹ

΢ҹ΢ҹ

΢ҹ

TMC

TMCTMC

TMC:746!

:746!:746!

:746!ό ΢ ҹ

ό΢ҹό΢ҹ

ό΢ҹ////

TMC

TMCTMC

TMC:746!

:746!:746!

:746!ό ΢ ҹ

ό΢ҹό΢ҹ

ό΢ҹ

S4_STATE#

TPM_BADD

LPCPD#_TPM

TPM_GPIO2

TESTI_TPM

TPM_BADD

TPM_PP

TPM_GPIO

TPM_PP

PCLK_TPM1PCLK_TPM

XTALI

S4_STATE#

XTALO

VSB_TPM

CLKRUN#

BUF_PLT_RST#

3.3V

3.3VS

3.3V

3.3VS

PCLK_TPM6

S4_STATE#_N5

LPC_AD16,21

LPC_AD36,21

LPC_AD26,21

LPC_AD06,21

PM_CLKRUN#6

BUF_PLT_RST#15,16,21,34

SERIRQ21,33

LPC_FRAME#6,21

3.3VS 8,10,11,12,13,15,16,17,19,20,21,23,24,27,33,34

3.3V 2,3,13,15,16,19,21,23,24,25,26,27,33,34

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[30] TPM

A4

30 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[30] TPM

A4

30 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size

Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[30] TPM

A4

30 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R1024 *0_04

C1053

*15p_50V_NPO_04

R1026 *10K_04

C1054

*10p_50V_NPO_04

R1032 *0_04

R1031 0_04

C1058

0.1u_16V_Y5V_04

R1034 10K_04

R1030 *10K_04

C1056

0.1u_16V_Y5V_04

C1057

0.1u_16V_Y5V_04

R1035 0_04

Q33

2N3904

B

E C

R1033 0_04

Q30 MTN7002ZHS3

G

DS

R1029 *0_04

R1047 1K_04

C1055

0.1u_16V_Y5V_04

TPM

U41

SLB9655TT_FW4.32

LAD3

17

LAD0

26

LAD1

23

LAD2

20

VDD1

10

XTALI

13

VDD3

24

VDD2

19

LFRAME#

22

LCLK

21

LRESET#

16

SERIRQ

27

CLKRUN#

15

GND_1

4

GND_2

11

GND_3

18

GND_4

25

GPIO

6

GPIO2

2

XTALO

14

TESTI

8

TESTBI/BADD

9

PP

7

NC_1

1

NC_2

3

NC_3

12

LPCPD#

28

VSB

5

R1041 10K_04

C1051

*15p_50V_NPO_04

R1028

*33_04

C1060

*0.1u_16V_Y5V_04

R1025 *10K_04

C1052

1u_6.3V_X5R_04

X6 *MC-306_32.768KHz

14

3 2

R1040 10K_04

R1023 0_04

R1027 *0_04

Sheet 30 of 34

TPM

Schematic Diagrams

B.Schematic Diagrams

TPM B - 31

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

POWER BUTTON

6-53-3050B-042

POWER SWITCH LED

20mil

POWER SW & LED

20mil

6-52-57001-022 6-52-57301-021

FOR W940TU

FOR W549TU

PCBA CHECK

Z4301

SM_BTN#

S_3.3VS

SMGND SMGND

SMGND

SMGND SMGND

SMGND

S_3.3VS

SMGND

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54KS-D03

3.0

[31] POWER SW BOARD

A3

31 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54KS-D03

3.0

[31] POWER SW BOARD

A3

31 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54KS-D03

3.0

[31] POWER SW BOARD

A3

31 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

2PPR *0_04

1PPR *0_04

SD2 HT-150BP

AC

SD1

*BAV99 RECTIFIER

C

AC

A

SC2

*0.1u_10V_X5R_04

SR1

330_04

1

SMH1

MTH6_0D2_2

2 3 4 5 6

7

8

9

SC1

0.1u_50V_Y5V_06

3PPR *0_04SD3

*HT-150BP

AC

6PPR *0_04

SPWR_SW1 TJG-532-V-T/R

3

1

4

2

5

6

SPWR_SW2 *TJG-532-V-T/R

3

1

4

2

5

6

5PPR *0_04

SC3

*0.1u_50V_Y5V_06

4PPR *0_04

SJ_SW1

50578-0040N-001

1 2 3 4

Sheet 31 of 34

SW Board

B.Schematic Diagrams

B - 32 SW Board

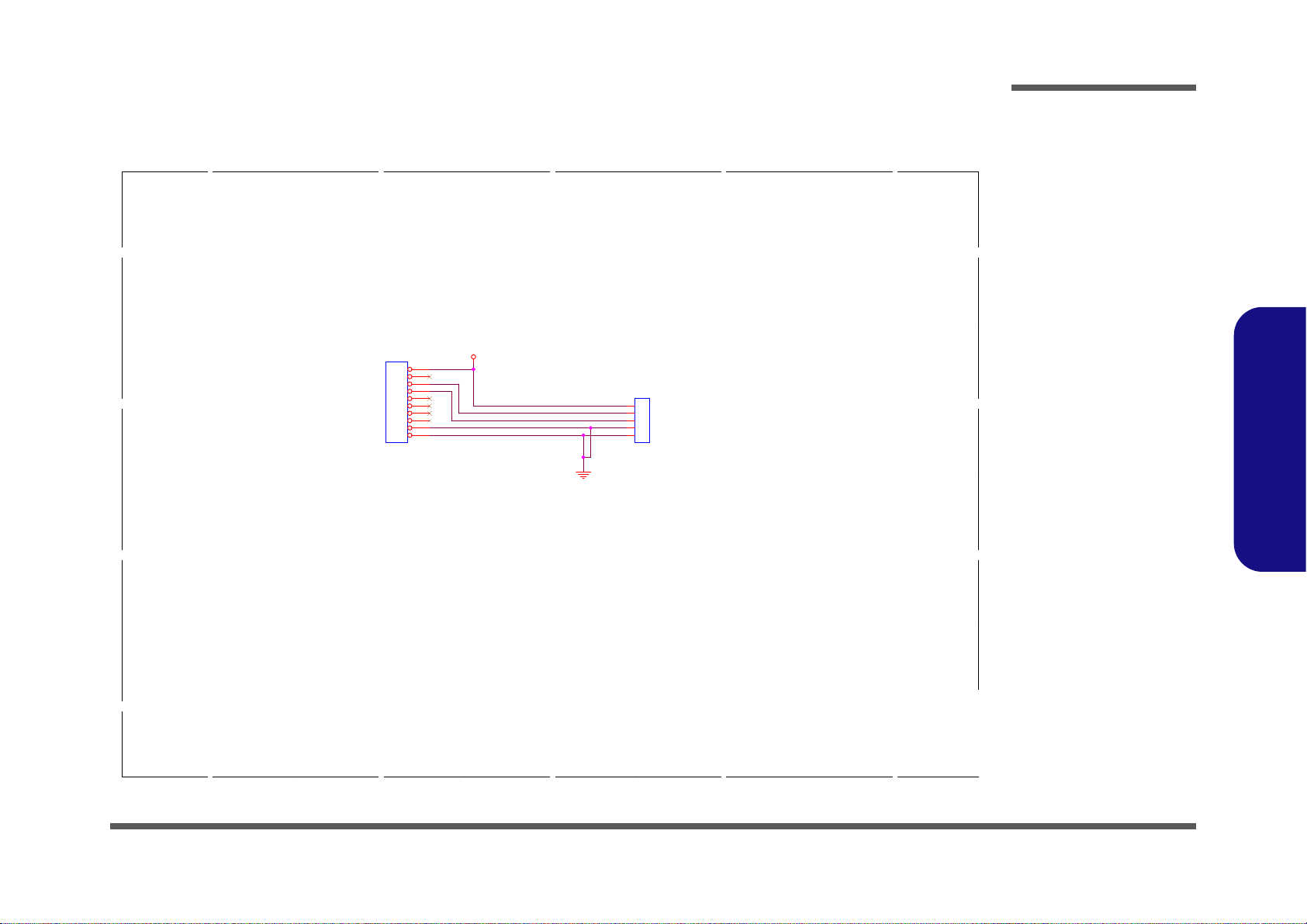

Touch Panel Board

5 4 3 2 1

D

C

B

A

TOUCH PANEL TRANSFER BOARD

T_USB_PN10 T_USB_PP10

TGND

T_5VS

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54C1-D01

1.0

[32] TOUCH PANEL BOARD

A4

32 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54C1-D01

1.0

[32] TOUCH PANEL BOARD

A4

32 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size

Document Number Rev

Date: Sheet

of

6-71-W54C1-D01

1.0

[32] TOUCH PANEL BOARD

A4

32 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

TJ_TPT2

88266-05001

1

2

3

4

5

TJ_TPT1

GB5RF101-110N-7H

1

2

3

4

5

6

7

8

9

10

Sheet 32 of 34

Touch Panel Board

Schematic Diagrams

B.Schematic Diagrams

Touch Panel Board B - 33

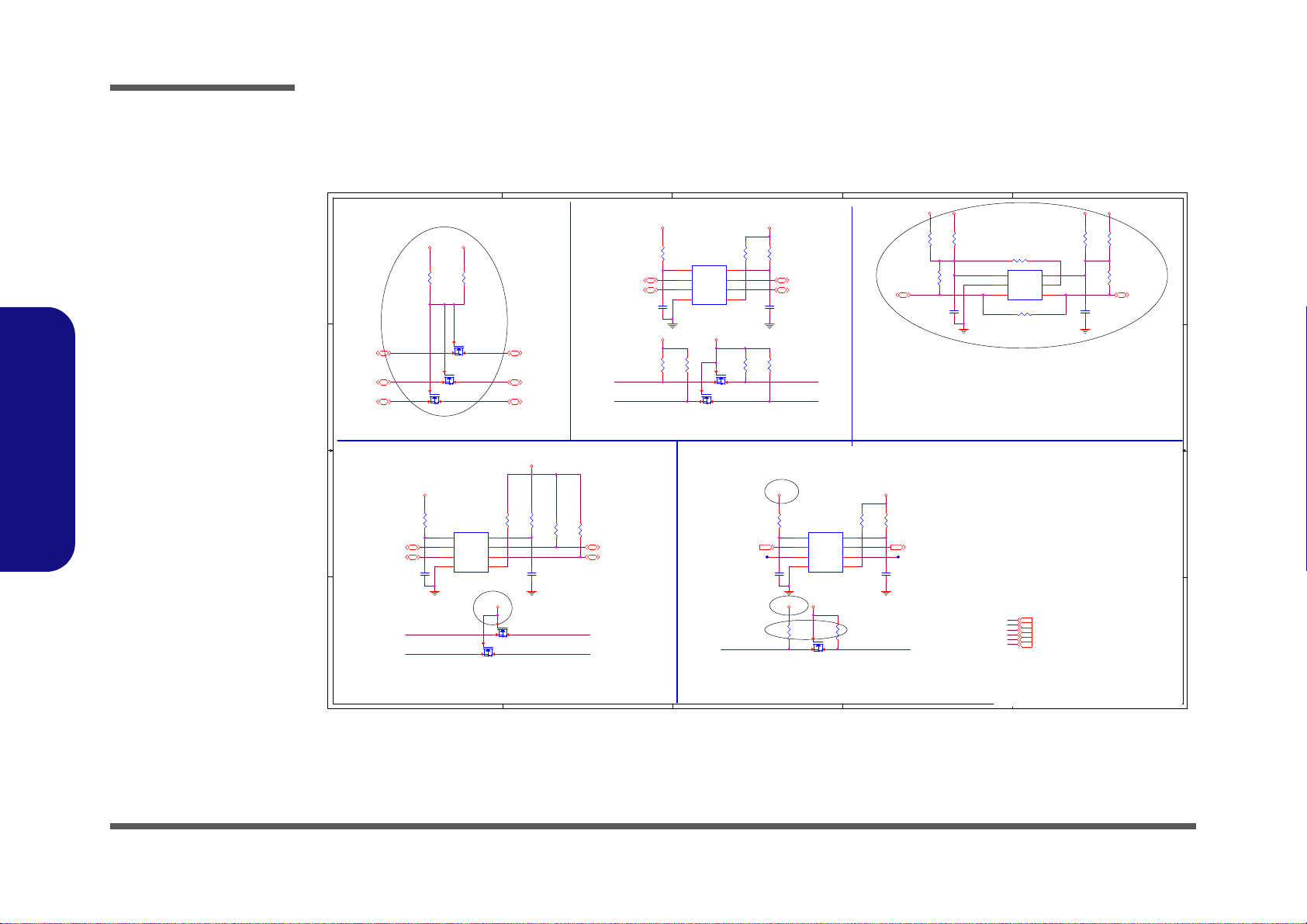

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

SCI# SWI#

HDMI_CTRLCLK HDMI_CTRLDATA

SERIRQ

SMB_DATA

SMB_CLK

PCH_BRIGHTNESS

D02 modify

D02 stuff

D02 modufy

SMI#

D02A modify

D03 LVDS R1160 =>1K ohm eDP R1160 =>750 ohm

HDMI_CTRLCLK

HDMI_SDA-CHDMI_CTRLDATA

HDMI_SCL-C

SCI#_N

SCI#

SWI#_N

SWI#

SMB_CLK_N

SMB_DATA_N

PCH_BRIGHTNESS_N L_BRIGHTNESS_R

SMB_DATA

SMB_CLK

SMI#_N

SMI#

1.8VS

5VS_HDMI

3.3VS1.8VS

3.3VS1.8V S

3.3VS

1.8VS 3.3VS

1.8V 3.3V

3.3VVDD3

HDMI_SCL-C 14

HDMI_SDA-C 14

HDMI_CTRLCLK3

HDMI_CTRLDATA3

SERIRQ 21,30

SMB_DATA_N6,16,19

SMB_CLK_N6,16,19 SMB_CLK 10,11

SMB_DATA 10,11

L_BRIGHTNESS_R 12PCH_BRIGHTNESS_N3

SERIRQ_N6

1.8VS 3,4,5,6,8,14,20,21,23

3.3V 2,3,13,15,16,19,21,23,24,25, 26,27,30,34

3.3VS 8,10,11,12,13,15,16, 17,19,20,21,23,24,27,30,34

1.8V 5,6,8,16,23,25,34

5VS_HDMI 14

VDD3 5,15, 16,17,21,23,24,25,26,28

SCI# 21

SWI# 21

SCI#_N5

SWI#_N5

SMI#_N5 SMI# 21

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[33] Level shifter1

Custom

33 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[33] Level shifter1

Custom

33 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[33] Level shifter1

Custom

33 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C1045

*0.1u_16V_Y5V_04

U39

*NCT5917W

VccA

1

SCLA

2

SDAA

3

GND

4

VccB

8

SCLB

7

SDAB

6

EN

5

Q53 MTN7002ZHS3

G

DS

R1159

*10K_04

Q58 MTN7002ZHS3

G

DS

R991 *0_04

U43

*NCT5917W

VccA

1

SCLA

2

SDAA

3

GND

4

VccB

8

SCLB

7

SDAB

6

EN

5

R990 *0_04

Q77 MTN7002ZHS3

G

DS

R996 *0_04

U38

*NCT5917W

VccA

1

SCLA

2

SDAA

3

GND

4

VccB

8

SCLB

7

SDAB

6

EN

5

R1019 *10K_04

R1097 *0_04

R1021 *10K_04

C1068

*0.1u_16V_Y5V_04

U40

TXS0101DBVR

VccA

1

GND

2

A

3

VccB

6

OE

5

B

4

R993 1K_04

R1128 *10K_04

R1127 10K_04

Q60 MTN7002ZHS3

G

DS

R1073 *10K_04

R999 0_04

R1232 *0_04

R1133

2.2K_04

C1047

0.1u_16V_Y5V_04

R1134

2.2K_04

Q51 MTN7002ZHS3

G

DS

R1231 *0_04

R187

2.2K_04

C1044 *0.1u_16V_Y5V_04

R995 *0_04

Q59 MTN7002ZHS3

G

DS

C1043

*0.1u_16V_Y5V_04

R1074 *0_04

Q54 MTN7002ZHS3

G

DS

R102010K _04

R989 0_04

R992 *0_04

R1160 1K_04

C1046 *0.1u_16V_Y5V_04

R1075 *0_04

Q61 MTN7002ZHS3

G

DS

C1069 *0.1u_16V_Y5V_04

R188

2.2K_04

R994 1K_04

C1048

0.1u_16V_Y5V_04

R1000 0_04

Sheet 33 of 34

Level Shifter 1

B.Schematic Diagrams

B - 34 Level Shifter 1

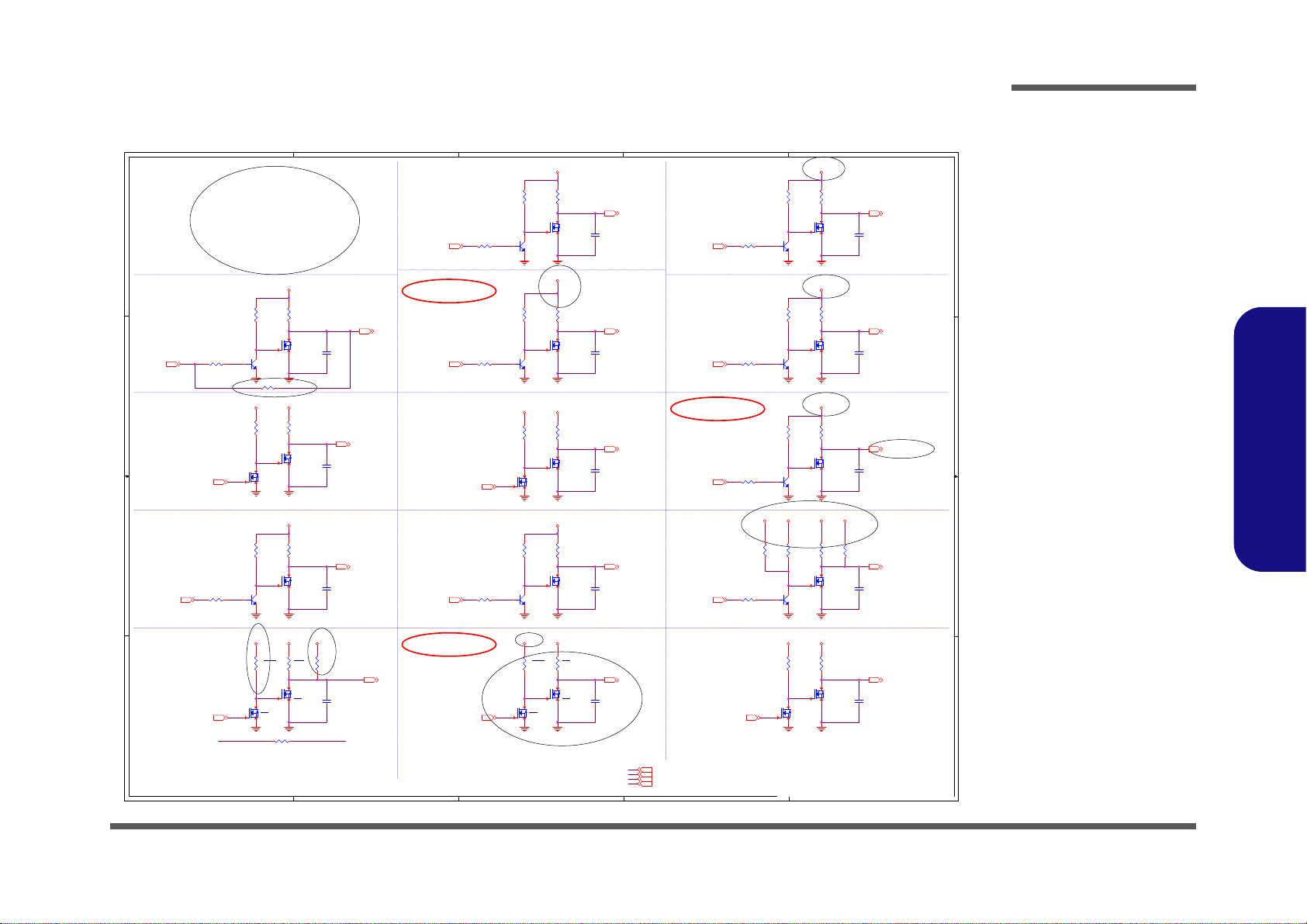

Level Shifter 2

5

4

3

2

1

D D

C C

B B

A A

NB_ENAVDD

BLON

ICH_SPKR

PCIE_WAKE#

SUS_PWR_ACK

SATA_LED# PLT_RST#

SUSB#

SUSC#

SLP_S0IX#

to EC

AC_PRESENT PWR_BTN# SB_KBCRST#

D02 del

PMC_CORE_PWROK

PMC_BATLOW#

D02 modify

EC OD PINEC OD PIN

EC OD PIN

D02A stuff

D03

D03 D03

D03

AC_PRESENTAC_PRESENT_EC

3.3VS

3.3V

3.3VS

3.3VA

3.3VA1.8V3.3V

1.8V3.3VA 3.3VA 1.8V3.3VA 1.8V3.3V

1.8V3.3V

3.3VA

3.3V 3.3V3.3VA 3.3VA

NB_ENAVDD_N3

NB_ENAVDD 13

BLON 13

BLON_N3

ICH_SPKR_N

ICH_SPKR 20

3.3V 2,3,13,15,16,19,21,23,24,25,26,27,30,33

3.3VS 8,10,11,12,13,15,16,17,19,20,21,23,24,27,30,33

SUS_PWR_ACK 2 1

SUS_PWR_ACK_N5

SATA_LED# 17

SATA_LED#_N4 PLT_RS T#_N5

BUF_PLT_RST# 15,16,21,30

SUSB#_N5

SUSB# 18,21,23,27

SUSC# 21,25

SUSC#_N5

SLP_S0IX#_N5

SLP_S0IX# 21,23

PCIE_WAKE#15,16

PCIE_WAKE#_R 5

AC_PRESENT_EC21

AC_PRESENT 5,21 PWR_BTN#_R 5,21

PWR_BTN#21 SB_KBCRST#21

SB_KBCRST#_R 5,21

1.8V 5,6,8,16,23,25,33

PMC_BATLOW#_R 5,21

PMC_BATLOW#21

3.3VA 8,23

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[34] Level shifter2

Custom

34 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[34] Level shifter2

Custom

34 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-W54T0-D03

3.0

[34] Level shifter2

Custom

34 34Wednesday, December 04, 2013

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C1063

*0.1u_16V_Y5V_04

R1162 10K_04

Q31 MTN7002ZHS3

G

DS

R1062 *10K_04

Q24 MTN7002ZHS3

G

DS

R1059 10K_04

Q49 *MTN7002ZHS3

G

DS

C1076

*0.1u_16V_Y5V_04

C1059

*0.1u_16V_Y5V_04

R1266

*10K_04

Q63 MTN7002ZHS3

G

DS

R1163 *10K_04

R1043 10K_04

R1049 10K_04

R1161 *0_04

R1063 *10K_04

Q39

*2N3904

B

E C

R1060 10K_04

R1267 *10K_04

R984

10K_04

Q73 *MTN7002ZHS3

G

DS

C1038

*0.1u_16V_Y5V_04

R1057 *1K_04

R986 1K_04

Q65 *MTN7002ZHS3

G

DS

R978 10K_04

R1042 10K_04

R1237 0_04

Q20 MTN7002ZHS3

G

DS

Q42 MTN7002ZHS3

G

DS

Q38 *MTN7002ZHS3

G

DS

C1070

*0.1u_16V_Y5V_04

R1174 10K_04

Q27 2N3904

B

E C

C1037

*0.1u_16V_Y5V_04

Q23 2N3904

B

E C

C1071

*0.1u_16V_Y5V_04

C1040

*0.1u_16V_Y5V_04

R976 10K_04

Q22 MTN7002ZHS3

G

DS

C1062

*0.1u_16V_Y5V_04

R1061 *1K_04

Q28 2N3904

B

E C

Q17 *MTN7002ZHS3

G

DS

R1175 *10K_04

Q26 MTN7002ZHS3

G

DS

R975 10K_04

R980 1K_04

R1001 1K_04

C1039

*0.1u_16V_Y5V_04

Q40

2N3904

B

E C

Q62 MTN7002ZHS3

G

DS

C1066

*0.1u_16V_Y5V_04

R985 10K_04

R1054 *10K_04

R979 10K_04

Q21

2N3904

B

E C

C1072

*0.1u_16V_Y5V_04

R982 10K_04

R965

2.2K_04

Q29 MTN7002ZHS3

G

DS

Q44

*2N3904

B

E C

Q74 *MTN7002ZHS3

G

DS

C1065

*0.1u_16V_Y5V_04

R69 *2.2K_04

Q36 MTN7002ZHS3

G

DS

R977 1K_04

R981 10K_04

C1049

*0.1u_16V_Y5V_04

R74 10K_04

R1053 *10K_04

Q34

2N3904

B

E C

R1055 1K_04

Q64 *MTN7002ZHS3

G

DS

Q45 *MTN7002ZHS3

G

DS

R1077 *10K_04

Q25 2N3904

B

E C

R1002 10K_04

Q43 MTN7002ZHS3

G

DS

R1050 10K_04

R1046 1K_04

R1003 10K_04

R983 1K_04

R1158 10K_04

Sheet 34 of 34

Level Shifter 2

Schematic Diagrams

B.Schematic Diagrams

Level Shifter 2 B - 35

Schematic Diagrams

B.Schematic Diagrams

B - 36

Appendix C:Updating the FLASH ROM BIOS



BIOS Version

Make sure you download the latest correct version of the BIOS appropriate for the computer model you are working on.

You should only download BIOS versions that are V1.01.XX or higher as

appropriate for your computer model.

Note that BIOS versions are not backward compatible and therefore

you may not downgrade your BIOS to an older version after up-

grading to a later version (e.g if you upgrade a BIOS to ver 1.01.05, you MAY NOT then go back and flash the BIOS to ver 1.01.04).

To update the FLASH ROM BIOS, you must:

• Download the BIOS update from the web site.

• Unzip the files onto a bootable CD/DVD/USB Flash Drive.

• Reboot your computer from an external CD/DVD/USB Flash Drive.

• Use the flash tools to update the flash BIOS using the commands indicated below.

• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.

• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.

• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS settings.

Download the BIOS

1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.

2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files

(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model (see sidebar for important information on BIOS versions).

Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive

1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the

downloaded files.

2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB

flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).

Set the computer to boot from the external drive

1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the

computer and press F2 (in most cases) to enter the BIOS.

2. Use the arrow keys to highlight the Boot menu.

3. Use the “+” and “-” keys to move boot devices up and down the priority order.

4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

BIOS Update

C:BIOS Update

C - 1

BIOS Update

Use the flash tools to update the BIOS

1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you

see the message “EFI Shell”. You will then be prompted to give “Y” or “N” responses to the programs being loaded by EFI Shell. Choose “N” for any memory management programs.

2. You should now see DISK fsX:\> (X is the designated drive number for the CD/DVD drive/USB flash drive).

3. Type the following command:

4. The utility will then proceed to flash the BIOS.

5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but

make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer restarts.

Restart the computer (booting from the HDD)

1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from

the HDD.

2. Press F2 as the computer restarts to enter the BIOS.

3. Use the arrow keys to highlight the Exit menu.

C:BIOS Update

4. Select Load Setup Defaults (or press F3) and select “Yes” to confirm the selection.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

fsX:\> Flash.nsh

Your computer is now running normally with the updated BIOS

You may now enter the BIOS and make any changes you require to the default settings.

C - 2

Clevo W549TU Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
