Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information
contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or
any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear
in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse)
of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, trans­mitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators
of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trade­marks of their respective companies. They are mentioned for identification purposes only and are not intended
as an endorsement of that product or its manufacturer.
©December 2008

Trademarks

Intel and Atom are trademarks/registered trademarks of Intel Corporation.

I

Preface

FCC Statement

(Federal Communications Commission)

You are cautioned that changes or modifications not expressly approved by the party responsible for comp liance
could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in­stalled and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1. This device may not cause interference.
And

2. This device must accept any interference, including interference that may cause undesired operation of the

device.

II

Preface

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not ex­pressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the
equipment.

III

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury
to persons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There

may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC

Output of 12V, 3.A (36 Wa tts) OR AC Input of 100 - 240V~1500mA / 50 - 60Hz, DC Output of 1 2V, 2500mA ( 30
Watts) minimum AC/DC Adapter.

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,

TELECOMMUNICATION LINE CORD

IV

This Computer’s (optional) Optical Device is a Laser Class 1 Product

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Do not expose the computer
to any shock or vibration.

Do not place it on an unstable
surface.

Do not place anything heavy
on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-

ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly dam­aged.

Do not expose it to excessive
heat or direct sunlight.

Do not leave it in a place
where foreign matter or mois­ture may affect the system.

Don’t use or store the com­puter in a humid environment.

Do not place the computer on
any surface that will block the
Vents/Fan Intakes.

V

Preface

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other

strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he comput er. Shut the computer down properly and don’t for ge t

to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power
until you properly shut down
all programs.

Do not turn off any peripheral
devices when the computer is
on.

5. Take care when using peripheral devices.

Use only approved brands of
peripherals.

VI

Do not disassemble the com­puter by yourself.

Unplug the power cord befor e
attaching peripheral devices.

Perform routine maintenance
on your computer.

Power Safety

The computer has specific power requirements:

Preface

• Only use a power adapter approved for use with this computer.

• Your AC/DC adapter may be designed for international travel but it still requires a

steady , uninterru pted power suppl y. If you are unsure of your local power specifications,
consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third

prong is an important safety feature; do not defeat its purpose. If you do not have access
to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not

by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current

load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power

supplies (i.e. AC/DC adapter or car adapter).

Do not plug in the power
cord if you are wet.

Do not use the power cord if
it is broken.

Do not place heavy objects
on the power cord.



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and discon­nected all peripherals
and cables (including
telephone lines). It is
advisable to also re­move your battery in
order to prevent acci­dentally turning the
machine on.

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not remove any batteries from the computer while it is powered on.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even

if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly
result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service repre sent ative or qual-

ified service personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries

may explode or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.



Battery Disposal & Caution

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life,
under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with
your local solid waste officials for details in your area for recycling options or proper disposal.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the
manufacturer. Discard used battery according to the manufacturer’s instructions.

VIII

Preface

Cleaning

Do not apply cleaner directly to the computer; use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the
computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the
power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord or AC/DC adapter is damaged or frayed.

• If the computer has been exposed to rain or other liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and
screw(s) before turning the computer on.

IX

Preface

Travel Considerations

Packing

As you get ready for your trip, run through this list to make sure the system is ready to go:

1. Check that the battery pack and any spares are fully charged.

2. Power off the computer and peripherals.

3. Close the display panel and make sure it’s latched.

4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.

5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However ,

check with your travel agent to see if you need any socket adapters.

6. Put the notebook in its carrying bag and secure it with the bag’s straps.

7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters

and/or cables.

8. Anticipate customs - Some jurisdictions may have import restrictions or require proof of ownership for both

hardware and software. Make sure your docume nts are prepared.



Power Off Before Traveling

Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a
notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prev ent your
computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.

X

Preface

On the Road

In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting,
keep these points in mind:

Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very
common. Don’t check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knock­ing the computer against hard objects.

Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the com­puter, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and
disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note:
Some airports also scan luggage with these devices.

Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight.
These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make
sure it’s secure. Contents may shift and/or fall out when the compartment is opened.

Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies)
charged.

Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer.
Wait a few minutes before turning it on so that any moisture can evaporate.

XI

Preface

Developing Good Work Habits

Developing good work habits is important if you need to work in front of the computer for long periods of time.
Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or
other joints. The following are some tips to reduce the strain:

• Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the
level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.

• Your knees should be slightly higher than your hips. Place yo ur feet flat on th e floor or on
a footrest if necessary.

• Use a chair with a back and adjust it to support your lower back comfortably.

• Sit straight so that your knees, hips and elbows form approximately 90-degree angles
when you are working.

• Take periodic breaks if you are using the computer for long periods of time.

Remember to:

• Alter your posture frequently.

• Stretch and exercise your body several times a day.

• Take periodic breaks when you work at the computer for long periods of time. Frequent
and short breaks are better than fewer and longer breaks.

XII

Preface

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and
shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display-viewing angle to find the best position.

LCD Screen Care

To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for
an extended period of time) take the following precautions:

• Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.

• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).

• Rotate desktop background images every few days.

• Turn the monitor off when the system is not in use.



Tablet Mode Warning

Do not leave the tablet notebook in tablet mode (powered on or powered off) while not in use for an extended period (in
excess of four hours if powered on), in order to prevent accidental damage to the computer.

XIII

Preface

XIV

Contents

Notice ................................................................................. I

Quick Start Guide

Overview ........................................................................1-1

Advanced Users ...........................................................1-2

Beginners and Not-So-Advanced Users ......................1-2

Warning Boxes ............................................................1-2

Not Included ................................................................1-3

System Software ..........................................................1-4

System Startup ...............................................................1-5

Operating System Setup ................................................1-7

Rotating The LCD Panel ...............................................1-8

Screen Orientation (In Tablet Mode) ........................1-11

G-Sensor Notes: .........................................................1-12

Screen Orientation (In Notebook Mode) ...................1-13

Tablet Notebook Input .................................................1-14

Calibrating the Touch Screen ...................................1-14

Tablet Notebook Input Options .................................1-16

Tablet PC Input Panel ...............................................1-18

System Map: Top View with LCD Panel Open ..........1-19

LED Indicators ................................................. .... ........1-20

Keyboard ......................................................................1-21

Function Keys ............................................................1-22

Preface

Pop Menu .....................................................................1-23

System Map: Front & Rear Views ...............................1-24

System Map: Right & Left Views ...............................1-25

System Map: Bottom View ..........................................1-26

Windows Vista Start Menu & Control Panel ...............1-27

Video Features .............................................................1-28

Display Devices & Options ......................................1-28

Power Options ............................................ .... .... ..........1-30

Features & Components

Overview ........................................................................2-1

Hard Disk Drive .............................................................2-2

External USB Optical (CD/DVD) Device .....................2-3

Loading Discs ..............................................................2-3

Handling CDs or DVDs ...............................................2-4

5-in-1 Card Reader .........................................................2-5

ExpressCard Slot ............................................................2-6

Inserting and Removing ExpressCards ........................2-6

TouchPad and Buttons/Mouse .......................................2-7

Tablet Mode Options .....................................................2-8

Audio Features .............................................................2-14

Adding a Printer ................................................. .... ......2-15

USB Printer ........................................................... ...2-15

XV

Preface

Parallel Printer ..........................................................2-15

Power Management

Overview ........................................................................3-1

The Power Sources ........................................................3-2

AC/DC Adapter ................................................. .... .... ..3-2

Battery .........................................................................3-2

Turning on the Computer ...............................................3-3

Power Plans ...................................................................3-4

Power-Saving States ......................................................3-6

Sleep ...........................................................................3-6

Hibernate ....................................................................3-7

Shut Down ..................................................................3-7

Power Notes for G-Sensor ..........................................3-8

Configuring the Power Buttons .....................................3-9

Resuming Operation .................................................3-10

Battery Information ................................................. ....3-11

Battery Power ...........................................................3-11

Conserving Battery Power .........................................3-12

Battery Life ................................................................3-13

New Battery ..............................................................3-13

Recharging the Battery with the AC/DC Adapter .....3-13

Proper handling of the Battery Pack .........................3-14

Battery FAQ ..............................................................3-15

Drivers & Utilities

What to Install ............................................................... .4-1

Module Driver Installation ..........................................4-1

Driver Installation ..........................................................4-2

Updating/Reinstalling Individual Drivers ...................4-4

User Account Control (Win Vista) ..............................4-4

Windows Security Message .........................................4-4

New Hardware Found ..................................................4-4

Driver Installation Procedure .......................................4-5

Chipset ........................................................................ 4-5

Video ..........................................................................4-5

G-Sensor ..................................................................... 4-5

Touch Panel Application ............................................4-5

Audio ..........................................................................4-5

LAN ............................................................................4-5

Pop Menu Utility ........................................................4-6

Optional Drivers ..........................................................4-7

Bluetooth Module .......................................................4-7

Fingerprint Reader Module ........................................4-7

Wireless LAN Module ...............................................4-7

PC Camera Module ....................................................4-7

GPS Module ...............................................................4-7

XVI

Preface

BIOS Utilities

Overview ........................................................................5-1

The Power-On Self Test (POST) ................................... 5-2

Failing the POST .........................................................5-3

Fatal Errors .................................................................5-3

Non-Fatal Errors .........................................................5-3

The Setup Program ........................................................5-4

Entering Setup .............................................................5-4

Setup Screens ......................................................... ......5-5

Main Menu .....................................................................5-6

Advanced Menu .............................................................5-8

Security Menu ..............................................................5-10

Boot Menu ...................................................................5-12

Exit Menu ....................................................................5-13

Upgrading The Computer

Overview ........................................................................6-1

When Not to Upgrade ..................................................6-2

Removing the Battery ....................................................6-4

Upgrading the System Memory (RAM) ........................6-5

Modules & Options

Overview ........................................................................7-1

Bluetooth Module .................................................... .... ..7-2

Bluetooth Configuration in Windows Vista ...............7-3

Fingerprint Reader Module ............................................7-6

User Enrollment ..........................................................7-7

Fingerprint Control Center Features .........................7-11

Wireless LAN Module .................................................7-12

802.11 b/g WLAN Driver Installation ......................7-12

Connecting to a Wireless Network..............................D-13

PC Camera Module ......................................................7-16

PC Camera Drivers ...................................................7-16

PC Camera Driver Installation .................................7-17

GPS Module .................................................................7-24

Configuring the COM Port for the GPS Module ......7-24

Troubleshooting

Overview ........................................................................8-1

Basic Hints and Tips ......................................................8-2

Backup and General Maintenance .................................8-3

Viruses ...........................................................................8-4

Upgrading and Adding New Hardware/Software .......... 8-5

Problems and Possible Solutions ...................................8-7

Interface (Ports & Jacks)

Overview ....................................................................... A-1

Notebook Ports and Jacks .............................................A-2

XVII

Preface

Intel Video Driver Controls

Intel Video Driver Installation ...................................... B-1

Video Driver .............................................................. B-1

Dynamic Video Memory Technology ........................B-1

Intel Graphics Properties ..............................................B-2

Display Settings .......................................................... B-4

Power Settings ............................................................ B-5

Attaching Other Displays .................................... ......... B-6

Display Modes ..............................................................B-8

Specifications

Processor .......................................................................C-2

Core Logic ....................................................................C-2

LCD .............................................................................. C-2

Memory .........................................................................C-2

Video Adapter ...............................................................C-2

Security ......................................................................... C-2

BIOS ............................................................................. C-2

Storage .......................................................................... C-2

G-Sensor ....................................................................... C-2

Audio ............................................................................ C-3

Keyboard & Pointing Device ........................................C-3

Interface ........................................................................ C-3

Card Reader ..................................................................C-3

Card Slots ................................................. .... ................. C-3

Communication .............................................................C-3

Power Management ............................... .... ...................C-4

Operating System ..........................................................C-4

Power ............................................................................ C-4

Battery ...........................................................................C-4

Environmental Spec ......................................................C-4

Dimensions ................................................................... C-4

& Weight .......................................................................C-4

Accessories ................................................................... C-4

Optional ........................................................................C-4

Windows XP Information

System Startup ..............................................................D-2

Operating System Setup ................................................D-4

Rotating The LCD Panel ...............................................D-5

Screen Orientation (In Tablet Mode).............................D-8

G-Sensor Notes:.................................................. .... ... ....D-9

Screen Orientation (In Notebook Mode).....................D-10

Tablet Notebook Input ................................................D-11

DVD Regional Codes ............................ .... .... .............D-13

Windows XP Start Menu & Control Panel .................D-14

TouchPad and Buttons/Mouse ....................................D-15

Pop Menu ....................................................................D-16

Function Keys .............................................................D-17

Audio Features ............................................................D-18

XVIII

Preface

Video Features ............................................................D-19

Attaching Other Displays ...........................................D-22

Display Modes ............................................................D-23

Power Management Features ......................................D-27

Advanced Configuration and Power Interface ............D-27

The Power Sources .....................................................D-28

AC/DC Adapter...........................................................D-28

Battery..........................................................................D-28

Turning on the Computer ............................................D-29

Power Schemes ...........................................................D-30

System Power Options ................................................D-32

Hibernate Mode vs. Shutdown ....................................D-32

Stand by Mode vs. Hibernate Mode............................D-32

Configuring the Power Button ....................................D-35

Battery Information ................................................. ...D-36

Recharging the Battery with the AC/DC Adapter.......D-37

Battery FAQ.............................................. ...................D-39

Driver Installation .......................................................D-40

Updating/Reinstalling Individual Drivers....................D-42

Driver Installation Procedure.......................................D-42

Module Drivers............................................................D-44

Bluetooth Module .................................................... ...D-45

Fingerprint Reader Module .........................................D-50

Fingerprint Control Center Features ........................D-53

Wireless LAN Module ................................................D-54

PC Camera Module .....................................................D-56

PC Camera Drivers ..................................................D-56

GPS Module ................................................................D-62

Configuring the COM Port for the GPS Module .....D-62

Express Card 34 Approved List

XIX

Preface

XX

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the
computer and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,

optional USB optical device, 5-in-1 card reader, ExpressCard 34), TouchPad & Mouse, Tablet
Mode Options, Audio Features & Printer.

• Chapter 3 The computer’s power saving options.

• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the

computer’s subsystems.

• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).

• Chapter 6 Instructions for upgrading your computer’s RAM and battery removal instructions.

• Chapter 7 A quick guide to the computer’s Bluetooth, Fingerprint, Wireless LAN, PC Camera, and GPS

modules (some of which may be optional depending on your purchase configuration).

• Chapter 8 A troubleshooting guide.

• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external

devices.

• Appendix B Information on the Intel Video driver controls.

• Appendix C The computer’s specifications.

1

Overview 1 - 1

1

Quick Start Guide

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful
to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on

page 6 - 1 in the remainder of this User’s Manual. You may also find t he not es marked wi th a

 of interest to

you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then



Notes

Check the light colored
boxes with the mark
above to find detailed in­formation about the com­puter’s features.

the information contained in this Quick Start Guide should be enough to get you up
and running. Eventually you should try to look through all the documentation (more
detailed descriptions of the functions, setup and system controls are covered in the
remainder of the User’s Manual), but do not worry if you do not understand every­thing the first time. Keep this manual nearby and refer to it to learn as you go. You
may find it useful to refer to the notes marked with a

 as indicated in the margin.

For a more detailed description of any of the interface ports and jacks see “Interface

(Ports & Jacks)” on page A - 1.

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 2 Overview

Quick Start Guide

Not Included

Operating Systems (e.g. Windows Vista) and applications (e.g. word processing, spreadsheet and database pro­grams) have their own manuals, so please consult the appropriate manuals.



Drivers

If you are installing new system software, or are re-configuring your computer for a different system, you will need to install
the drivers listed in Table 4 - 1, on page 4 - 3. Drivers are programs which act as an interface between the computer and
a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order li sted.
You will be unable to use most advanced controls until the necessary drivers and uti lities are properly installed. If your
system hasn’t been properly configured (your service representative may have already done that for you); refer to Chapter

4 for installation instructions.

Ports and Jacks

See “Notebook Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your com­puter to communicate with external devices, connect to the internet etc.

1

Overview 1 - 3

1

Quick Start Guide

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you
are re-configuring your computer for a different system, you will find the following operating systems are sup­ported.

Operating System & Version Supported Note

Windows XP (Home or Professional) with

Service Pack 3

Windows Vista (32-bit) Home Basic Edition with

Service Pack 1

Windows Vista (32-bit) H om e Premium Edition with

Service Pack 1

Table 1 - 1 - Operating Systems Supported

Note that Windows XP does not support Tablet PC Functions

Note that Windows Vista Home Basic Edition supports only
limited Tablet PC functions.

In order to run Windows Vista without limitations or decreased
performance, your computer requires a minimum 1GB of system
memory (RAM).

*Note: For information on the Windows XP OS (specifically power, video and driver information) see “Win-

dows XP Information” on page D - 1.

1 - 4 Overview

Quick Start Guide

System Startup

1. Remove all packing materials and place the computer on a stable surface.

2. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.

3. Attach the AC/DC adapter to the DC-In jack on the left of the computer, then plug the AC power cord into an outlet, and

connect the AC power cord to the AC/DC adapter.

Figure 1 - 1 - AC/DC Adapter In

4. Use one hand to carefully raise the lid/LCD to a comfortable viewing angle, while using the other hand (as illustrated below)

to support the base of the computer (Note: Never lift the computer by the lid/LCD).



LCD/Lid and Power

As a safety precaution the notebook cannot be turne d on by pressing
the power button while the LCD/lid is closed, or if the computer is in
tablet mode.

1

Figure 1 - 2 - Raising The LCD

System Startup 1 - 5

1

Quick Start Guide

5. Press the power button to turn the computer “on” (as a safe ty precaution the notebook cann ot be turned on by press ing

the power button while the LCD/lid is closed, or if the computer is in tablet mode).

Figure 1 - 3 - Power Button

6. See “Rotating The LCD Panel” on page 1 - 8.



Touch Panel Input Device

Do not use any sharp or pointed objects as yo ur input de­vice e.g. the end of a pen or pencil. Be very careful not to
press too hard with the stylus pen when using it as the in­put device.

1 - 6 System Startup



Shutdown

Note that you should always shut your computer down
by choosing the Shut Down command from the Lock
Button Menu in Windows Vista. This will help prevent
hard disk or system problems.

Quick Start Guide

Operating System Setup

If you are installing new system software, or are re-configuring your computer for a different system, make sure you
configure the appropriate OS setting in the BIOS before installing a new operating system.

1. Start-up the computer and press <F2> to enter the BIOS.

2. Go to the Advanced menu, select “Installed O/S” and make sure the appropriate operating system is selected.

3. Go to the Exit menu and select “Exit Saving Changes” (or press F10 and select “Yes” then press Enter) and

press Enter to exit the BIOS and reboot the computer.

1



Network Boot

If you wish to boot the computer
from a network then choose PXE as
the installed O/S.

Figure 1 - 4 - BIOS (Operating System Selection)

Main Advanced Security Boot Exit

Installed O/S: [Vista]

Hyperthreading: [Enabled]
Reset Configuration Data: [No]
Boot-time Diagnostic Screen: [Enabled]
QuickBoot Mode: [Enabled]
POST Beep Sound [Disabled]
Battery Low Alarm Beep: [Disabled]

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Phoenix SecureCore(tm) Setup Utility

Advanced

Item Specific Help

Select the operating
system installed
on your system which
you will use most
commonly.

Note: An incorrect
setting can cause
some operating
systems to display
unexpected behavior.

Operating System Setup 1 - 7

1

Quick Start Guide

Rotating The LCD Panel

The computer can be used in either Notebook Mode, or in Tablet Mode.

To put the computer into Tablet Mode:

1. Raise the lid/LCD panel (make sure the screen orientation is 0 degrees i.e. in a normal landscape orientation).

2. Carefully rotate the lid/LCD panel fully in the (clockwise) direction indicated by the arrow , until it is unable to rotate any

further .

3

1

2

1

Figure 1 - 5 - Fully Rotate the Panel Clockwise

1 - 8 Rotating The LCD Panel

2

2

3

Quick Start Guide

3. Carefully push the lid/LCD panel down into tablet mode (make sure the lid/LCD panel is fully flat and flush to the main

body of the computer).

4. Use the mouse buttons and mouse pointer to replace the touchpad and buttons on the computer, and/or use the

stylus pen as an input device (note that the mouse pointer will only track correctly in tablet mode, if the screen is in a
standard landscape orientation).

5 6

7

4

1



Tablet Mode

Warning

Do not leave the tablet
notebook in tablet mode
(powered on or pow­ered off) while not in
use for an extended pe­riod (in excess of four
hours if powered on),
in order to prevent acci­dental damage to the
computer.

Power Button in Tablet Mode

5

6

4

When the computer is in tablet
mode the power button is automati­cally disabled. To use the power
button you will need to reorientate
the computer into notebook mode.

Touch Panel Input Device

Do not use any sharp or pointed ob­jects as your input device e.g. the
end of a pen or pencil. Be very care­ful not to press too hard with the sty­lus pen when using it as the input
device.

7

Figure 1 - 6 - Input Buttons/Pointer & Stylus Pen

Rotating The LCD Panel 1 - 9



1

Quick Start Guide

To put the computer into Notebook Mode:

1. Raise the lid/LCD panel .

2. Carefully rotate the lid/LCD panel fully in the (counter clockwise) direction indicated by the arrow , until it is unable to

rotate any further .

1

2

3

1

Figure 1 - 7 - Rotating the LCD Panel Into Notebook Mode

2

3

1 - 10 Rotating The LCD Panel

Quick Start Guide

Screen Orientation (In Tablet Mode)

1. The built-in

tation required

2. The computer must be tilted to an angle of ov er 50 degrees in order for the screen to rotate to the orientation required.

3. Hold the computer at an angle of over 50 degrees and move the computer in to portrait/landscape mode and the screen

should then change orientation accordingly.

4. The screen will not change screen orientation if tilted to angle of less than 50 degrees in order to prevent accidental screen

rotation.

G-Sensor

will allow you to orientate the screen into a portrait/landscape mode as the computer is tilted to the orien-

if the computer is in tablet mode

.



Screen Orientation in

Tablet Mode

If the computer is in tablet
mode, then only use the
G-Sensor (by tilting the
screen as illustrated here)
method to change the
screen orientation other­wise you may experience
unexpected behavior on
screen.

1

Figure 1 - 8 - Rotating the Screen (G-Sensor)

Rotating The LCD Panel 1 - 11

1

Quick Start Guide

G-Sensor Notes:

The built-in G-Sensor allows you to rotate the screen to a portrait/landscape orientation as outlined on page 1 -

11 (if the computer is in tablet mode, then only use the G-Sensor method to change the screen orientation other-

wise you may experience unexpected behavior on screen). However please note the following when using the
G-Sensor to rotate the screen in tablet mode:

• Make sure the lid/lcd is fully flat and flush to the main body of the computer to ensure that the computer is

in tablet mode.

• DO NOT vigorously shake the computer from side to side when rotating the screen (give the screen a few

seconds to refresh). A simple smooth movement will rotate the screen as long as it is in tablet mode and
tilted to an angle of over 50 degrees.

• If you shut the computer down in tablet mode, and the screen was rotated into portrait mode, the computer

will take over two minutes to power on if rotated back to notebook mode.

• When the computer resumes from Sleep/Hibernate in tablet/notebook mode, do not change the mode (tablet/

notebook) or the computer may experience unexpected behavior.

• Do not hold/touch the mouse pointer (see “System Map: Top View with LCD Panel Open” on page 1 - 19)

while rotating the screen (note that the mouse pointer will only track correctly in tablet mode, if the screen is
in a standard landscape orientation).

• If the computer is in Idle Mode (i.e. Windows is fully loaded but no applications are running) the G-Sensor

may take up to 6.6 seconds to re-orientate the screen.

1 - 12 Rotating The LCD Panel

Quick Start Guide

Screen Orientation (In Notebook Mode)

If the computer is in notebook mode there are two methods available to rotate the screen to a portrait/land­scape orientation (recalibrate the touch screen after orientation).

• Use the screen rotation control from the Intel(R) GMA Driver for ultra mobile control panel (see below).

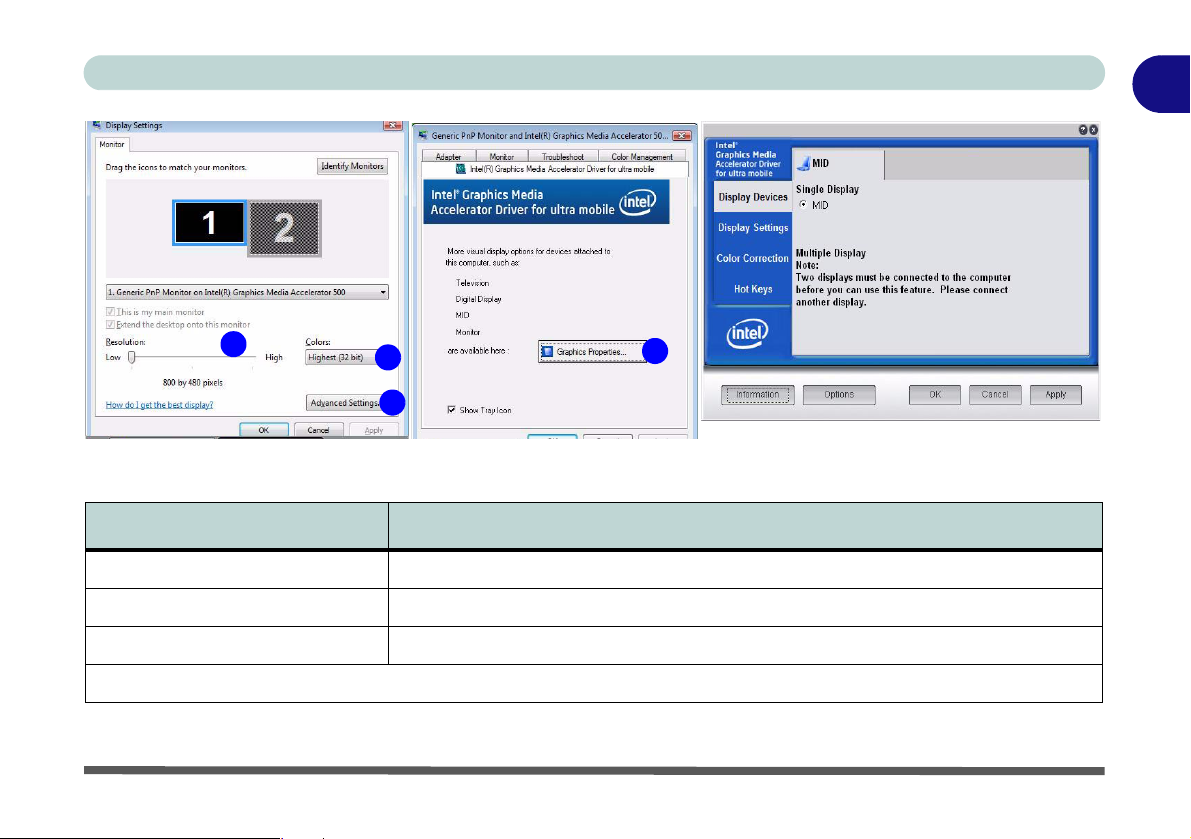

Figure 1 - 9 - Intel(R) GMA Driver for Ultra Mobile (Display Settings > Rotation) & Windows Mobility Center

•Use the Win Key + X key combination (to bring up the Windows Mobility Center and use the Rotate

Screen button).

1

Note: After reorientating the screen you will need to recalibrate the touch screen (see “Calibrating the Touch

Screen” on page 1 - 14). Make sure the screen orientation is 0 degrees, i.e. in a normal landscape orientation,

before putting the computer in to tablet mode. Note that the Mouse Pointer is designed to track accurately in
tablet mode (in notebook mode there may be inaccuracies in tracking).

Rotating The LCD Panel 1 - 13

1

Quick Start Guide

Tablet Notebook Input

Use the stylus pen provided to interact with the computer in the same way you would use the mouse (tap twice
to double-click and keep the pen in contact with the scr een to right-click). Before using the stylus pen you should
calibrate the touch screen.

Calibrating the Touch Screen

1. Double-click the

group (the driver must be installed).

2. Click

3. Click

General
4 pts calibration

Advance

T ou ch tool

.

(if you would prefer to calibrate more accurately, or are having distortion/tracking problems, then click

and choose either

utility icon on the desktop OR from the

9 pts linearization

or

25 pts linearization



Screen Orientation &

Re-Calibration

Note that you should re­calibrate the touch screen
after you have orientated
the screen to display in a
different mode from that
first calibrated.

Touch Package

).

folder in the

Programs/All Programs

Figure 1 - 10 - Touch Package (General & Advance)

1 - 14 Tablet Notebook Input

Quick Start Guide

4. Use the stylus pen to touch the blinking symbol until symbol changes color (maintain contact until the symbol stops blinking)

and you will be prompted to lift up the pen.

5. Repeat the process for all the remaining screen points.

6. Click Free Draw (button) to test the calibration.

7. Use the Mouse Settings and Sound control panels to further adjust the settings to your preference.

1



Touch Panel Input

Device

Do not use any sharp or
pointed objects as your
input device e.g. the end
of a pen or pencil. You
should only use the pro­vided stylus pen (PDA
type) as your input de­vice. Be very careful not
to press too hard with the
stylus pen when using it
as the input device.



Screen Distortion

If you experience any line
distortion, or tracking in­accuracy, recalibrate the
touch screen using 25pts
of calibration (click the

Advance item in the
Touch package and
click 25pts lineariza­tion).

Figure 1 - 11 - Screen Calibration

Tablet Notebook Input 1 - 15

1

Quick Start Guide

Tablet Notebook Input Options

Configure the following options as outlined for optimum tablet mode input sensitivity for the computer’s screen
size (and in order to prevent screen damage).

1. Click

2. Double-click Taskbar and Start Menu (Appearance and Personalization).

3. Make sure that Auto-hide the taskbar is not selected (the box is not ticked) and click OK.

Start

, and click

Control Panel

(or point to

Settings

and click

Control Panel

).



Windows Vista Home

Basic Edition

Note that the Tablet PC In­put Panel (see “Tablet PC

Input Panel” on page 1 -

18) and the Pointer Op-

tions & Flicks control pan­el tabs are not available in

Windows Vista Home Ba­sic Edition.

Figure 1 - 12 - Taskbar and Start Menu Settings

1 - 16 Tablet Notebook Input

Quick Start Guide

4. Return to control panel and double-click Tablet PC Settings (Mobile PC).

5. Click Other (tab) and click Go to Input Panel Settings (Tablet PC Input Panel options).

Figure 1 - 13 - Tablet PC Settings (Other) - Opening

6. Click Opening (tab).

7. Make sure that Show the Inpu t Panel Icon on the taskbar is selected (the box is ticked), and that Show the Input Panel

tab when the pen is out of range is not selected (the box is not ticked).

8. Click OK > Yes to save the settings and then close the control panel.

9. The Tablet PC Input Panel will now appear in the taskbar.

10. Click the taskbar icon to access and hide the Tablet PC Input Panel.

1

Tablet Notebook Input 1 - 17

1

Quick Start Guide

Tablet PC Input Panel

When not in use the Tablet PC Input Panel docks at the side of the screen (and may be docked at either side of
the screen at any height). Click the taskbar icon to access and hide the Tablet PC Input Panel. The input
panel allows you to input text without the use of a keyboard. You can use the writing pad (write continuously),
character pad (write one character at a time) or on-screen keyboard to input text. Use the Help menu for further
information.You can also use the Tablet PC Settings control panel in Windows Vista to adjust the advanced
options (see “Tablet Mode Options” on page 2 - 8 for further information).

Figure 1 - 14 - Tablet PC Input Panel



Power DVD Program and Tablet PC Input Panel

Make sure you close the Tablet PC Input Panel if you are using the Cyberlink Power DVD program as the Tablet PC Input
Panel and Power DVD are incompatible.

1 - 18 Tablet Notebook Input

Quick Start Guide

1

System Map: Top View with LCD Panel Open

9

10

1

2

4

3

6

7

8

11



Wireless Device

Operation Aboard Aircraft

The use of any portable elec­tronic transmission devices
aboard aircraft is usually pro­hibited. Make sure the mod­ule(s) are OFF if you are
using the computer aboard
aircraft.

Use the appropriate function
key combination (see

Table 1 - 4, on page 1 - 22)

?

to toggle power to the wire­less modules (WLAN/Blue­tooth), and check the LED
indicator to see if the
modules are powered on or
not (see Table 1 - 3, on

page 1 - 20).

5

7

Figure 1 - 15

Top View with LCD

Panel Open

1. Built-In PC Camera

2. Microphone

3. Fingerprint Reader
Module (Optional)

4. LCD

5. Mouse Buttons

6. Mouse Pointer

7. Speakers

8. LED Status Indicators

9. Keyboard

10. TouchPad & Buttons

1 1. LED Power &

Communication
Indicators

2

System Map: Top View with LCD Panel Open 1 - 19

1

Quick Start Guide

LED Indicators

The two sets of LED indicators (LED Status Indica­tors and LED Power & Communication Indicators)

on the computer display helpful information about the
current status of the computer.

Icon Color Description

Green Number Lock Activated

Green Caps Lock Activated

Green

Table 1 - 2 - LED Status Indicators

Scroll Lock Activated (to activate

press Fn & Scr Lk)

Icon Color Description

Orange DC Power is Plugged In

Green The Computer is On

Blinking Green

Orange The Battery is Charging

Green The Battery is Fully Charged

Blinking Orange

Green

Orange

Green Hard Disk Activity

Table 1 - 3 - LED Power & Communication Indicators

The Computer is in Sleep

Mode

The Battery Has Reached

Critically Low Power Status

The Wireless LAN Module is

Powered On

The Bluetooth Module is

Powered On

1 - 20 LED Indicators

Quick Start Guide

Keyboard

The keyboard has a numerical keypad for easy numeric data input, and features function keys to allow you to change
operational features instantly. See Table 1 - 4, on page 1 - 22 for details on the function keys.



Special Characters

Some software applications allow the
number-keys to be used with Alt to
produce special characters. These
special characters can only be pro­duced by using the numeric keypad.
Regular number keys (in the upper
row of the keyboard) will not work.
Make sure that NumLk is on.

Figure 1 - 16 - Keyboard



Other Keyboards

If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect
and enable it automatically. However special functions/hot-keys unique to the system’s regular keyboard may not work.

1

Keyboard 1 - 21

1

Quick Start Guide

Function Keys

The function keys will act as hot keys when pressed while the Fn key is held down.

Keys Function Keys Function

Fn + Esc Mute Toggle Fn + D PC Camera Power Toggle

Fn + F1 Bluetooth Module Power Toggle Fn + G GPS Module Power Toggle
Fn + F2 Sleep Toggle Fn + Q Volume Increase
Fn + F3 Display Toggle Fn + A Volume Decrease
Fn + F4 WLAN Module Power Toggle Fn + W Brightness Increase

Fn + C

T ou c hPa d & Buttons / Mouse Pointer &

1 - 22 Keyboard

Buttons Toggle

Fn + S Brightness Decrease

Fn + ScrLk Scroll Lock Toggle

Table 1 - 4 - Function Keys

Quick Start Guide

Pop Menu

Double-click the Pop Menu icon to access the on-screen Pop Menu (make sure you install the pop menu
driver provided). Use the stylus pen to touch any of the buttons to activate the control. If the PC Camera, Blue-
tooth, WLAN or GPS (optional) modules are on the indicator will appear green ; if the modules are off then
the indicator will appear black . Press Esc, or right-click the Pop Menu icon , to quit the menu.

Pop Menu Function On-Screen Button Function On-Screen Button

1

Brightness

Decrease/Increase

Mute Toggle

Volume Decrease/

Increase

Note: Use the stylus pen to tap the appropriat e on-screen button t o

adjust the setting.

Table 1 - 5 - Pop Menu Buttons

PC Camera

Module Power

Toggle

Bluetooth Module

Power Toggle

WLAN Module

Power Toggle

GPS Module

Power Toggle

Pop Menu 1 - 23

1

Quick Start Guide

System Map: Front & Rear Views

Figure 1 - 17

Front & Rear Views

1. Microphone-In Jack

2. Headphone-Out Jack

3. LED Power &
Communication
Indicators

4. Battery

Front

Rear

2

1

3

4

1 - 24 System Map: Front & Rear Views

Quick Start Guide

1

System Map: Right & Left Views

2

1

3

8

7

9



5-in-1 Card Reader

The card reader allows you to use

the most popular digital storage card

formats:

SD (Secure Digital)

Mini SD (requires PC adapter)

Micro SD (requires PC adapter)

MMC (MultiMedia Card)

RS MMC (requires PC adapter)

1

4

10

Express Card Slot & 1394 Card Support

Note that the Express Card slot DOES NOT support
1394 Express Card modules.

There is a list of approved Express Card modules list­ed on Table E - 1, on page E - 1 Please make sure
any Express Cards modules you use with this com­puter are included in the list. Contact your service
center for further information.

Left

5



Right

Figure 1 - 18

Right & Left Views

1. 2 * USB 2.0 Ports

2. 5-in-1 Card Reader

6

11

3. ExpressCard/34 Slot

4. RJ-45 LAN Jack

5. External Monitor Port

6. Power Button

7. Security Lock Slot

8. DC-In Jack

9. GPS Antenna

10. Vent
1 1. Stylus Pen Holder



Power Button in Tablet

Mode

When the computer is in tab­let mode the power button is
automatically disabled. To
use the power button you will
need to reorientate the com­puter into notebook mode.

System Map: Right & Left Views 1 - 25

1

Quick Start Guide

System Map: Bottom View

Figure 1 - 19

Bottom View

1. Battery

2. Battery Release Latch

3. Component Bay Cover

4. Vent

The CPU is not a user ser­viceable part. Accessing
the CPU in any way may
violate your warranty.

To prevent your computer
from overheating make
sure nothing blocks the
Vent/Fan Intake while the
computer is in use.



CPU

Overheating

2

4



Battery Information

1

2

3

4

4

Always completely discharge, then fully charge, a new battery before using it. Completely dis­charge and charge the battery at least once every 30 days or after about 20 partial discharges.
See “Battery Information” on page 3 - 11 for more information.

1 - 26 System Map: Bottom View

Quick Start Guide

Windows Vista Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are
accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk
drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu
icon , and then select Properties if you want to customize the appearance of the Start menu.

Click here to toggle Classic View

Figure 1 - 20 - Start Menu & Control Panel

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control
Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features

in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea-
tures, however many new controls are added (or existing ones are enhanced) when you install the drivers pro­vided. To see all controls it may be necessary to toggle to Classic View on.

1

Windows Vista Start Menu & Control Panel 1 - 27

1

Quick Start Guide

Video Features

You can switch display devices, and configure display options, from the Display Settings control panel (in Per­sonalization) in Windows Vista as long as the appropriate Intel video driver is installed.

To access Display Settings in Windows Vista:

1. Click

2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click Personalization >

3. Move the slider to the preferred setting in Resolution: (Figure 1 - 21 on page 1 - 29).

4. Click the arrow, and scroll to the preferred setting In Colors: (Figure 1 - 21 on page 1 - 29).

5. Click Advanced Settings (button) (Figure 1 - 21 on page 1 - 29) and click Intel(R) GMA Driver for ultra mobile (tab).

6. Click Graphics Properties (button) (Figure 1 - 21 on page 1 - 29) to access the Intel GMA Driver for ultra mobile

7. The Intel GMA control panel can also be accessed by clicking the icon in the taskbar and selecting Graphics Properties

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or external Flat Panel Display
connected to the external monitor port as your display device. Note: MID (Mobile Internet Device) is the com­puter’s LCD display.

Start

, and click

Display Settings).

control panel (this control panel can also be accessed by double-clicking Intel(R) GMA Driver for ultra mobile control panel
in Windows Classic View).

from the menu.

Control Panel

(or point to

3

4

Settings

and click

1

2

Control Panel

).

1 - 28 Video Features

Quick Start Guide

1

1

2

4

3

Figure 1 - 21 - Display Properties Desktop

Intel Display Mode Description

Single Mode One of the connected displays is used as the display device
Intel(R) Dual Display Clone Mode Both connected displays output the same view and may be configured independently
Extended Desktop Mode Both connected displays are treated as separate devices, and act as a virtual desktop
See “Screen Resolution for Games and Power DVD” on page B - 4 for information on optimu m display settings.

Table 1 - 6 - Display Options

Video Features 1 - 29

1

Quick Start Guide

Power Options

The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 27 ) allows you
to configure power management features for your computer. You can conserve power by means of power plans
and configure the options for the power button, sleep button, computer lid (when closed), display and sleep
mode from the left menu. Note that the Power saver plan may have an affect on computer performance.

Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to
create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con-
figuration options. See also “The Power Button in Tablet Mode” on page 3 - 9.

1 - 30 Power Options

Note: Sleep is the default power saving state in Windows Vista

Figure 1 - 22 - Power Options

Features & Components

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components
of the computer:

•Hard Disk Drive

• External USB Optical (CD/DVD) Device

• 5-in-1 Card Reader

• ExpressCard Slot

• TouchPad and Buttons/Mouse

• Tablet Mode Options

• Audio Features

• Adding a Printer

2

Overview 2 - 1

Features & Components

2

Before attempting to ac­cess any of the internal
components of your
computer please ensure
that the machine is not
connected to the AC
power, and that the ma­chine is turned off. Also
ensure that all peripher­al cables, including
phone lines, are discon­nected from the comput­er.



Power Safety

Hard Disk Drive

The hard disk drive is used to store your data in the computer. The hard disk can be
taken out to accommodate other 1.8" parallel (PATA) hard disk drives with a height
of 5.0 mm.

The hard disk drive is accessible from the bottom of your computer as seen below.
Due to the delicate nature of the hard disk cable we recommend that you do not do
this yourself, since if it is done incorrectly you may damage the hard disk cable.
Please contact your customer service representative for help with upgrading the in­ternal storage device.

Figure 2 - 1

Hard Disk Location

2 - 2 Hard Disk Drive

Features & Components

External USB Optical (CD/DVD) Device

An external USB optical (CD/DVD) device is available as an option for this com­puter. The optical device may be used as a boot device if properly set in the BIOS
(see “Boot Menu” on page 5 - 12).

Loading Discs

To insert a CD/DVD, simply slide the disc into the disc slot with label-side facing
up. The busy indicator will light up while data is being accessed, or while a disc is
playing. If power is unexpectedly interrupted, insert an object such as a straightened
paper clip into the emergency eject hole to eject the disc.



USB Cables

You can connect the op­tional USB optical de­vice using one of the
USB cables. However if
you are experiencing
connection or power
problems, connect both
USB cables from the de­vice to the computer.

Figure 2 - 2

Optional Optical

Device

2

External USB Optical (CD/DVD) Device 2 - 3

Features & Components

2

CD Emergency Eject

If you need to manually
eject a CD (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. However please
do NOT use a sharp­ened pencil or similar
object that may break
and become lodged in
the hole.

Disk Eject Warning

Don’t try to remove a
CD/DVD while the sys­tem is accessing it. This
may cause the system
to “crash”.



Proper handling of your CDs/DVDs will prevent them from being damaged. Please
follow the advice below to make sure that the data stored on your CDs/DVDs can be
accessed.

Note the following:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Handling CDs or DVDs

2 - 4 External USB Optical (CD/DVD) Device

Features & Components

5-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the
card into the slot and it will appear as a removable device, and can be accessed in
the same way as your hard disk (s).

• SD (Secure Digital)

• Mini SD (requires PC adapter*)

• Micro SD (requires PC adapter*)

*Note: The PC adapters are usually supplied with these cards.

1

• MMC (MultiMedia Card)

• RS MMC (requires PC adapter*)



Card Reader Cover

Make sure you keep the
rubber cover provided in
the card reader when
not in use. This will help
prevent foreign objects
and/or dust getting in to
the card reader.

Figure 2 - 3

Right View

1. Card Reader

2

5-in-1 Card Reader 2 - 5

Features & Components

2

There is a list of approved
Express Card modules list­ed on Table E - 1, on

page E - 1 Please make

sure any Express Cards
modules you use with this
computer are included in
the list. Contact your ser­vice center for further infor­mation.



Express Cards

Approved

ExpressCard Slot

The computer is equipped with an ExpressCard/34 slot (34mm). ExpressCards are
the successors to PCMCIA (PC Cards).



Express Card Slot &

1394 Card Support

Note that the Express Card
slot DOES NOT support 1394
Express Card modules.

1

Inserting and Removing ExpressCards

Figure 2 - 4

Left View

1. ExpressCard Slot

Figure 2 - 5

Inserting &

Removing Express

Cards

• Align the ExpressCard with the slot and push it in until it locks into place (as
pictured in the generic figure below).

• To remove an ExpressCard, simply press the card to eject it.

2 - 6 ExpressCard Slot

Features & Components

TouchPad and Buttons/Mouse

The TouchPad is an alternative to the mouse (stylus pen); however, you can also add
a mouse to your computer through one of the USB ports. The TouchPad buttons
function in much the same way as a two-button mouse.

You can configure the settings from the mouse control panel in Windows.



Mouse Driver

If you are using an ex­ternal mouse your op­erating system may be
able to auto-configure
your mouse during its
installation or only en­able its basic functions.
Be sure to check the
device’s user docu­mentation for details.

Figure 2 - 6

Mouse Properties

2

TouchPad and Buttons/Mouse 2 - 7

Features & Components

2



Tablet Mode Options

Chapter 1 contains information on rotating the screen into Tablet mode (see “Ro-

Windows Vista

Home Basic Edition

Note that the Tablet PC
Input Panel, Pointer
Options & Flicks and
Handwriting Recogni­tion are not available in

Windows Vista Home
Basic Edition.

tating The LCD Panel” on page 1 - 8), Tablet Notebook input (see “Tablet Note­book Input” on page 1 - 14) and the Pop Menu functions (see “Pop Menu” on
page 1 - 23).

Windows Vista also has built in control panels which help you get the most out of
your Tablet Notebook (see sidebar for information on Vista Home Basic Edition).

2 - 8 Tablet Mode Options

Features & Components

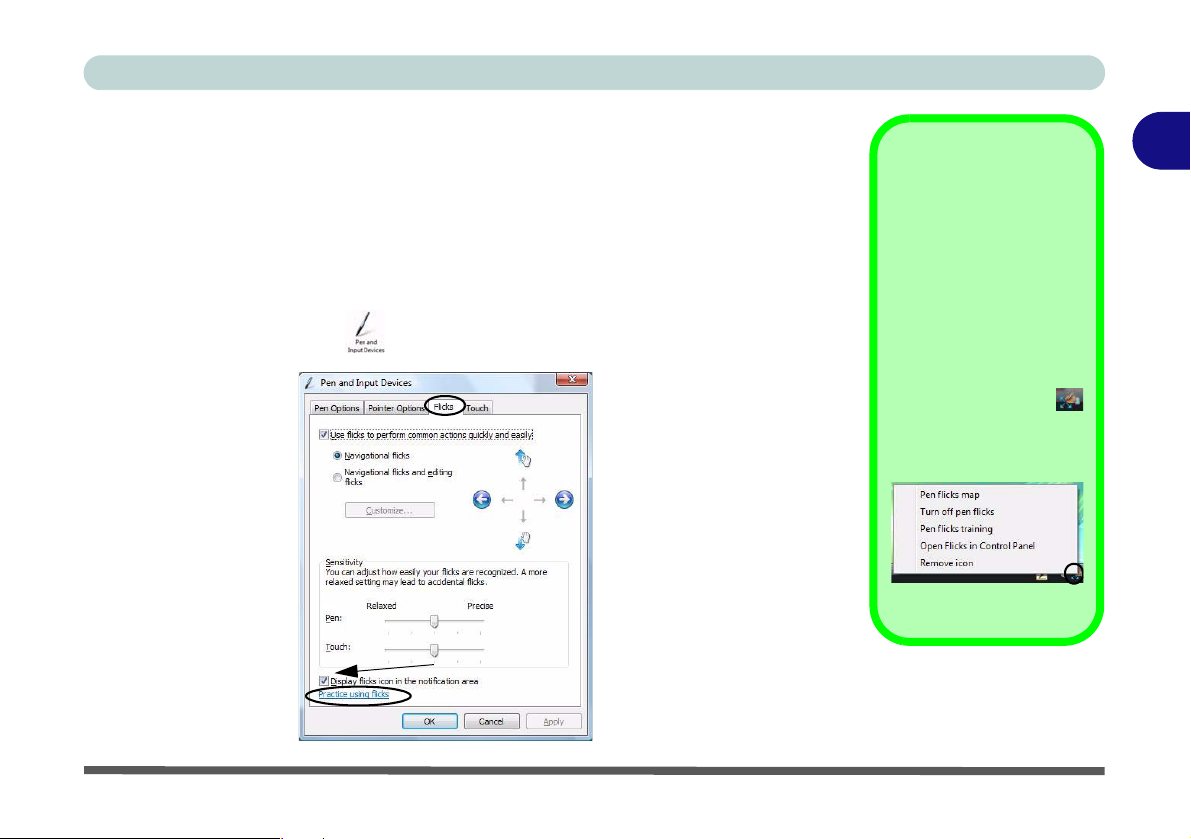

Flicks

Flicks are quick gestures that can be assigned various actions (similar to quickly
drawing a line in one of eight directions). It is important that the motion is straight
and quick. Configure flicks from the Pen and Input Devices control panel in Win-
dows.

1. Click

2. Click Mobile PC and double-click Pen and Input Devices (or just double-click

3. Click Flicks (tab).

Start

, and click

Pen and Input Devices ).

Control Panel

(or point to

Settings

and click

Control Panel

Pen Flick Training

Click Practice using
flicks in the Flicks con-

trol panel tab to access

).

the Pen Flick Training
to help you get used to
using flicks.

You can also right-click
the taskbar icon
(notification area) to
bring up the pen flicks
menu (below).



2

Click to Display Taskbar Icon

Pen Flick Training

Figure 2 - 7

Flicks

Tablet Mode Options 2 - 9

Features & Components

You can enable/disable flicks or customize your own. To customize flicks, click on

2

the drop down menu next to one of the actions and select Add. You can then give
the action a name and specify the key combination required.

Figure 2 - 8

Customize Flicks

2 - 10 Tablet Mode Options

Features & Components

Handwriting Recognition

You can teach the computer to recognize your handwriting in order to help to mini­mize data entry errors when using the writing or character pads.

1. Open the Tablet PC Input Panel (see “Tablet PC Input Panel” on page 1 - 18).

2. Click Tools and select Personalize Handwriting Recognition.

3. Click Target specific recognition errors (to help correct specific characters
which are not being recognized correctly), or Teach the recognizer your
handwriting style (to teach the computer your overall handwriting style).

4. Follow the on-screen instructions to complete handwriting recognition.



Handwriting

Recognition Help

Open the Tablet PC
Settings control panel

in Windows Vista con­trol panel (see page 1 -

18) and click the Hand-

writing Recognition
tab.

Click on Learn more
about handwriting per­sonalization to bring up

the help menu.

Figure 2 - 9

Tablet PC Settings

Control Panel &

Handwriting

Personalization

2

Tablet Mode Options 2 - 11

Features & Components

Other Useful Windows Vista Features for Tablet Notebook Users

2

Multi-Select Files in Windows Explorer

The option to multi-select files in Windows Explorer in Windows Vista is very
useful when using a pen as your input device.

1. Click

2. Click Appearance and Personalization and click Folder Options (or just
double-click Folder Options).

3. Click View (tab), and make sure Use check boxes to select items is ticked.

4. Click OK to save the setting.

5. Check boxes will appear in open folders to allow you to easily multi-select files with
a pen.

Figure 2 - 10

Folder Options

&

Multi-Select Files

2 - 12 Tablet Mode Options

Start

, and click

Control Panel

(or point to

Settings

and click

Control Panel

).

Features & Components

Internet Explorer Panning Hand Tool
Internet Explorer has a Panning Hand tool that allows easier navigation of Inter-

net webpages. Simply click the Panning Hand icon in the Command Bar
to activate the tool. The hand icon will appear to allow you to pan around the
webpage, however the icon will change to a pointed finger icon when you move
across a link.

2

Tablet Mode Options 2 - 13

Features & Components

2



Audio Features

You can configure the audio options on your computer from the Sound control

Sound Volume

Adjustment

The sound volume level
is set using the volume
control within Windows
(and the volume func­tion keys on the comput­er). Click the volume
icon in the taskbar to
check the setting.

panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/
control panel (right-click the taskbar icon to bring up an audio menu). The volume
may also be adjusted by means of the Fn + Q/A key combination.

Right-click the icon
to access the menu
above.

Figure 2 - 11

Realtek Audio

Manager

2 - 14 Audio Features

Features & Components

Adding a Printer

The most commonly used peripheral is a printer. The following conventions will
help you to add a printer; however it is always best to refer to the printer manual for
specific instructions and configuration options.

USB Printer

Most current printers have a USB interface connection. You may use any one of the
ports to connect the printer.

Install Instructions:

1. Set up the printer according to its instruction s (unpacking, p aper tr ay, toner/ink car­tridge etc.).

2. Turn ON the computer.

3. Turn ON the printer.

4. Connect the printer’s USB cable to one of the USB ports on the computer.

5. Windows will identify the printer and either load one of its own drivers or ask you
to supply one. Follow the on-screen instructions.

Parallel Printer

This is still a very common type of printer. The install instructions are in the sidebar,
however you will need to purchase a parallel to USB converter.



Parallel Printer

After setting up the print­er attach the parallel ca­ble to the printer.

Connect the printer’s
parallel cable to the Par­allel to USB converter,
and then plug the con­verter into the USB port.

Turn ON the printer,
then turn ON the com­puter.

Windows will identify the
printer and either load
one of its own drivers or
ask you to supply one.
Follow the on-screen in­structions.

2

Adding a Printer 2 - 15

Features & Components

2

2-16

Power Management

Chapter 3: Power Management

Overview

To conserve power, especially when using the battery, your computer power man­agement conserves power by controlling individual components of the computer
(the monitor and hard disk drive) or the whole system. This chapter covers:

• The Power Sources

• Turning on the Computer

• Power Plans

• Power-Saving States

• Configuring the Power Buttons

• Battery Information

The computer uses enhanced power saving techniques to give the operating system
(OS) direct control over the power and thermal states of devices and processors. For
example, this enables the OS to set devices into low-power states based on user set­tings and information from applications.



OS Note

Power management
functions will vary slight­ly depending on your
operating system. For
more information it is
best to refer to the user’s
manual of your operat­ing system.

Hibernate Mode In

Windows Vista SP1

If you are using Win­dows Vista SP1 with

4GB RAM installed, see
page 3 - 7 for informa­tion on Hibernate.

3

Overview 3 - 1

Power Management

The Power Sources

The computer can be powered by either an AC/DC adapter or a battery pack.

3

AC/DC Adapter

Use only the AC/DC adapter that comes with your computer. The wrong type of AC/
DC adapter will damage the computer and its components.

1. Attach th e AC/DC adapter to the DC-in jack on the left of the computer.

2. Plug the AC power cord into an outlet, and then conne ct the AC power co rd to the
AC/DC adapter.

3. Raise the lid/LCD to a comfortable viewing angle.

4. Press the power button to turn the computer “on” (as a safety precaution the
notebook cannot be turned on by pressing the power button while the LCD/lid is
closed).

Battery

The battery allows you to use your computer while you are on the road or when an
electrical outlet is unavailable. Battery life varies depending on the applications and
the configuration you're using. To increase battery life, let the battery discharge
completely before recharging (see “How do I completely discharge the battery?”

on page 3 - 15).

We recommend that you do not remove the battery. For more information on the bat­tery, please refer to “Battery Information” on page 3 - 11.

3 - 2 The Power Sources

Turning on the Computer

Press the power button to turn the computer “on” (as a safety precaution the note­book cannot be turned on by pressing the power button while the LCD/lid is closed).

When the computer is on, you can use the power button as a Sleep/Hibernate hot­key button when it is pressed for less than 4 seconds (pressing and holding the power
button for longer than this will force the computer to shut down). Use Power Op-
tions (Hardware and Sound menu) control panel in Windows Vista to configure
this feature.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, slide and hold
the power button for 4 seconds, or longer, to force the system to turn itself off.

Power Button Sleep

Sleep is the default power mode when the power button is pressed for less than 4 seconds.
You may configure the options for the power button from the Power Options (Hardware
and Sound menu) control panel in Windows Vista (see your OS’s documentation, or

“Configuring the Power Buttons” on page 3 - 9/“The Power Button in Tablet Mode”
on page 3 - 9 for details).

Power Management



Shut Down

Note that you should al­ways shut your comput­er down by choosing the
Shut Down command
from the Lock Button

Menu in Windows Vis-
ta. This will help prevent

hard disk or system
problems.

3

Turning on the Computer 3 - 3

Power Management

Power Plans



3

Resuming
Operation

See Table 3 - 1, on

page 3 - 10 for informa-

tion on how to resume
from a power-saving
state.

Password

It is recommended that
you enable a password
on system resume in or­der to protect your data.

Figure 3 - 1

Power Plan -

Advanced Settings

The computer can be configured to conserve power by means of power plans. You
can use (or modify) an existing power plan, or create a new one.

The settings may be adjusted to set the display to turn off after a specified time, and
to send the computer into Sleep after a period of inactivity.

Click Change plan settings and then click Change advanced power settings to ac­cess further configuration options in Advanced Settings.

3 - 4 Power Plans

Each Windows power plan will also adjust the processor performance of your ma­chine in order to save power. This is worth bearing in mind if you are experiencing
any reduced performance (especially under DC/battery power).

Choose High performance for maximum performance when the computer is pow­ered from an AC power source. Choose the Power saver (bear in mind that this
scheme may slow down the overall performance of the computer in order to save
power) for maximum power saving when the computer is battery (DC power) pow­ered.

Power Management

3

Figure 3 - 2

Power Plans

Power Plans3-5

Power Management

Power-Saving States



3

Power Button

The Power Button
in the Start Menu (in
Classic View use the
Shut Down button )
can be used to send the
computer into a power­saving state.

Sleep Mode &

Mobile PC Battery

A mobile PC in Sleep
uses very little battery
power.

After an extended peri­od of time the computer
will save any open docu­ments and applications
to hard disk.

You can use power-saving states to stop the computer’s operation and restart where
you left off. Sleep is the default power-saving state in Windows Vista (see “The

Power Button in Tablet Mode” on page 3 - 9 for an exception to this default).

Earlier versions of Windows used Stand By and Hibernate as system power-saving
states. Windows Vista combines the features of Stand By and Hibernate into the de­fault Sleep power-saving state.

Sleep

In Sleep all of your work, settings and preferences are saved to memory before the
system sleeps. When you are not using your computer for a certain length of time,
which you specify in the operating system, it will enter Sleep to save power.

The PC wakes from Sleep within seconds and will return you to where you last left
off (what was on your desktop) without reopening the application(s) and file(s) you
last used.

If your mobile PC in Sleep is running on battery power the system will use only a
minimum amount of power. After an extended period the system will save all the
information to the hard disk and shut the computer down before the battery becomes
depleted.

3 - 6 Power-Saving States

Hibernate

Hibernate uses the least amount of power of all the power-saving states and saves
all of your information on a part of the hard disk before it turns the system off. If a
power failure occurs the system can restore your work from the hard disk; if a power
failure occurs when work is saved only to memory, then the work will be lost. Hi-
bernate will also return you to where you last left off within seconds. You should
put your mobile PC into Hibernate if you will not use the computer for a period of
time, and will not have the chance to charge the battery.

Shut Down

You should shut down the computer if you plan to install new hardware (don’t for­get to remove the battery and follow all the safety instructions in Chapter 6), plan
to be away from the computer for several days, or you do not need it to wake up and
run a scheduled task. Returning to full operation from shut down takes longer than
from Sleep or Hibernate.

Power Management

3

Figure 3 - 3

Lock Button menu

Power-Saving States 3 - 7

Power Management

Power Notes for G-Sensor

• If you shut the computer down in tablet mode, with the screen was rotated into

3

portrait mode, the computer will take over two minutes to power on if rotated
back to notebook mode.

• When the computer resumes from Sleep/Hibernate in tablet/notebook mode, do

not change the mode (tablet/notebook) or the computer may experience unex­pected behavior.

3 - 8 Power-Saving States

Configuring the Power Buttons

The power button/sleep button (Fn + F2 key combo) and closed lid may be set to
send the computer in to a power-saving state.

Power Management



Password

Protection

It is recommended that
you enable a password
on wake up in order to
protect your data.

However you can dis­able this setting from the
Power Options menu
by clicking Require a

password on wakeup

in the left menu, and se­lecting the options (click

Change settings that
are currently unavail­able).

3

The Power Button in Tablet Mode

When the computer is in tablet mode the power button is automatically disabled. To
use the power button you will need to reorientate the LCD into notebook mode (see

“Screen Orientation (In Notebook Mode)” on page 1 - 13).

Configuring the Power Buttons 3 - 9

Figure 3 - 4

Power Options

Define Power

Buttons

Power Management

Resuming Operation



3

Closing the Lid

If you have chosen to
send the computer to
Sleep when the lid is
closed, raising the lid
will wake the system up.

You can resume operation from power-saving states by pressing the power button,
or in some cases pressing the sleep button (Fn + F2 key combo).

Power Status

Power Off Off Press The Power Button

Sleep Blinking Green

Icon Color

Press the Sleep Button (Fn + F2 Key Combo)

To Resume

Press The Power Button

Table 3 - 1

Resuming
Operation

Hibernate

Display Turned Off Green

When the computer is on, you can use the power button as a Sleep/Hibernate/Shut Down
hot key button when it is pressed and released in less than 4 seconds (pressing and hold­ing the power button for longer than this will force the computer to shut down).

3 - 10 Configuring the Power Buttons

Off (battery)

Press The Power Button

Orange (AC/DC adapter)

Press a Key or Move the Mouse/Touchpad/

Touch the Screen



Power Button

Battery Information

Please follow these simple guidelines to get the best use out of your battery.

Battery Power

Your computer’s battery power is dependent upon many factors, including the pro­grams you are running, and peripheral devices attached. You can set actions to be
taken (e.g. Shut down, Hibernate etc.), and set critical and low battery levels from
power plan Advanced Settings (see Figure 3 - 1 on page 3 - 4).

Click the battery icon in the taskbar to see the current battery level and charge
status.

Power Management



Low Battery

Warning

When the battery is criti­cally low, immediately
connect the AC/DC
adapter to the computer
or save your work, oth­erwise, the unsaved
data will be lost when
the power is depleted.

Figure 3 - 5

Battery Icon

(Taskbar) & Battery

Advanced Settings

3

Battery Information 3 - 11

Power Management

Conserving Battery Power



3

Windows Mobility

Center

The Windows Mobility
Center control panel

provides an easy point
of access for information
on battery status, power
plans used and wireless
device status etc.

However DO NOT use
the Windows Mobility
Center to power on/off
the WLAN module as
this can cause some un­expected behavior.

Figure 3 - 6

Windows Mobility

Center

•Use a power plan that conserves power (e.g Power saver), however note that

this may have an affect on computer performance.

• Lower the brightness level of the LCD display. The system will decrease LCD

brightness slightly to save power when it is not powered by the AC/DC adapter.

• Reduce the amount of time before the display is turned off.

• Close wireless (DO NOT use the Windows Mobility Center to power on/off

WLAN), Bluetooth, modem or communication applications when they are not
being used.

• Disconnect/remove any unnece ssary ex ternal devices e.g. USB devices,

ExpressCards etc.

3 - 12 Battery Information

Battery Life

Battery life may be shortened through improper maintenance. To optimize the life
and improve its performance, fully discharge and recharge the battery at least
once every 30 days.

We recommend that you do not remove the battery yourself. If you do need to re­move the battery for any reason see “Removing the Battery” on page 6 - 4.

New Battery

Always completely discharge, then fully charge, a new battery (see “Battery FAQ”

on page 3 - 15 for instructions on how to do this).

Recharging the Battery with the AC/DC Adapter

The battery pack automatically recharges when the AC/DC adapter is attached and
plugged into an electrical outlet. If the computer is powered on, and in use, it will
take several hours to fully recharge the battery. When the computer is turned off but
plugged into an electrical outlet, battery charge time is less. (Refer to “LED Indica-

tors” on page 1 - 20 for information on the battery charge status, and to “Battery
Information” on page 3 - 11 for more information on how to maintain and properly

recharge the battery pack.)

Power Management

3

Battery Information 3 - 13

Power Management

Proper handling of the Battery Pack



3

Caution

Danger of explosion if
battery is incorrectly re­placed.

• DO NOT disassemble the battery pack under any circumstances

• DO NOT expose the battery to fire or high temperatures, it may explode

• DO NOT connect the metal terminals (+, -) to each other



Replace only with the
same or equivalent type
recommended by the
manufacturer. Discard
used battery according
to the manufacturer’s in­structions.

Should you notice any physical defects (e.g. the battery is bent ou t of shape after being
dropped), or any unusual smells emanating from the notebook battery, shut your computer
down immediately and contact your service center. If the battery has bee n d roppe d we do
not recommend using it any further, as even if the computer continues to work with a dam­aged battery in place, it may cause circuit damage, which may possibly result in fire . It is
recommended that you replace your computer battery every two years.

Damaged Battery Warning

3 - 14 Battery Information

Battery FAQ

How do I completely discharge the battery?

Use the computer with battery power until it shuts down due to a low battery. Don’t
turn off the computer even if a message indicates the battery is critically low, just let
the computer use up all of the battery power and shut down on its own.

1. Save and close all files and applications.

2. Create a power plan for dischar ging the battery and set all the options to Never.

3. Click Change plan settings (after saving it) and click Change advanced power
settings.

Power Management

3

Figure 3 - 7

Power Plan - Create

Battery Information 3 - 15

Power Management

4. Scroll down to Battery and click + to expand the battery options.

5. Choose the options below (click Yes if a warning appears).

3

Figure 3 - 8

Power Options

Advanced Settings -

Battery

• Low battery levels = 0%

• Critical battery Levels = 0%

• Low battery action = Do Nothing

• Critical battery action (On battery) = Shut Down

• Critical battery action (Plugge d in) = Do Nothing

3 - 16 Battery Information

How do I fully charge the battery?

When charging the battery, don’t stop until the LED charging indicator light changes
from orange to green.

How do I maintain the battery?

Completely discharge and charge the battery at least once every 30 days or after
about 20 partial discharges.

Power Management

3

Battery Information 3 - 17

Power Management

3

3-18

Chapter 4: Drivers & Utilities

Drivers & Utilities

This chapter deals with installing the drivers and utili­ties essential to the operation or improvement of some
of the computer’s subsystems. The system takes ad­vantage of some newer hardware components for
which the latest versions of most available operating
systems haven’t built in drivers and utilities. Thus,
some of the system components won’t be auto-config­ured with an appropriate driver or utility during oper­ating system installation. Instead, you need to
manually install some system-required drivers and
utilities.

Note: For Windows XP driver installation information
see “Driver Installation” on page D - 40.

What to Install

You will need to attach a CD/DVD drive to the com­puter in order to access the drivers on the Device Driv-
ers & Utilities + User’s Manual disc. This contains
the drivers and utilities necessary for the proper oper­ation of the computer.

Table 4 - 1, on page 4 - 3 lists what you need to install

and it is very important that the drivers are in-
stalled in the order indicated.

Module Driver Installation

The procedures for installing drivers for the Finger­print, Wireless LAN and PC Camera modules are

provided in “Modules & Options” on page 7 - 1.

Note: The operating system is the default setting for
Bluetooth control in Windows Vista, and does not re-

quire a driver. See “Bluetooth Module” on page 7 - 2
for configuration instructions.

4

What to Install 4 - 1

Drivers & Utilities

Driver Installation

Insert the Device Drivers & Utilities + User’s Manual
disc and click Install Drivers (button), or Option Driv-
ers (button) to access the optional driver menu.

4

Figure 4 - 1 - Drivers Installer Screen 1

1. Check the driver installation order from Table 4 - 1,

on page 4 - 3 (the drivers must be installed in

this order) which is the same as that listed in the

Drivers Installer menu below.

2. Click to select the driver you wish to install, after
installing each driver it will become grayed out (if
you need to reinstall any driver, click the Unlock
button).

3. Follow the instructions for each individual driver
installation procedure as listed on the following
pages.

4 - 2 Driver Installation

Figure 4 - 2 - Drivers Installer Screen 2

Drivers & Utilities

Driver Name Page #

Chipset Page 4 - 5
Video Page 4 - 5
G-Sensor Page 4 - 5
Touch Panel Application Page 4 - 5
Audio Page 4 - 5
LAN Page 4 - 5
Pop Menu Utility Page 4 - 6
Fingerprint Reader Module Page 7 - 6
Wireless LAN Module Page 7 - 12
PC Camera Module Page 7 - 16
GPS Module Page 7 - 24

Table 4 - 1 - Driver Installation

Manual Driver Installation

Click Browse CD (button) in the Drivers Installer ap-
plication and browse to the executable file in the ap­propriate driver folder.

Windows Update

After installing all the drivers make sure you enable
Windows Update in order to get all the latest security
updates etc. (all updates will include the latest hotfixes
from Microsoft). See “Windows Update” on page 4 -

6 for instructions.



Windows Vista Service Pack 1

Make sure you install Windows Vista Service Pack 1
(or a Windows Vista version which includes Service
Pack 1) before installing any drivers. Go to the Micro­soft website for download details, or contact your service
center.

4

Driver Installation 4 - 3

Drivers & Utilities

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it
may be necessary to uninstall the original driver.To do
this go to the Control Panel in the Windows OS and
double-click the Programs and Features icon (Pro-

4

grams > Uninstall a program). Click to select the
driver (if it is not listed see below) and click Uninstall,
and then follow the on screen prompts (it may be nec­essary to restart the computer). Reinstall the driver as
outlined in this chapter.

If the driver is not listed in the Programs and Fea-
tures menu:

1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).

2. Double-click Device Manager (Hardware and
Sound > Device Manager).

3. Double-click the device you wish to update/reinstall
the driver for (you may need to click “+” to expand
the selection).

4. Click Driver (tab) and click the Update Driver or

Uninstall button and follow the on screen prompts.

User Account Control (Win Vista)

If a User Account Control prompt appears as part of
the driver installation procedure, click Continue/Al-
low, and follow the installation procedure as directed.

Windows Security Message

If you receive a Windows security message as part of
the driver installation process. Just click “Install this
driver software anyway” or Install to continue the in-
stallation procedure.

You will receive this message in cases where the driv­er has been released after the version of Windows you
are currently using. All the drivers provided will have
already received certification for Windows.

New Hardware Found

If you see the message “New Hardware Found”
(Found New Hardware Wizard) during the installa­tion procedure (other than when outlined in the
driver install procedure), click Cancel to close the
window, and follow the installation procedure.

4 - 4 Driver Installation

Drivers & Utilities

Driver Installation Procedure

Insert the Device Drivers & Utilities + User’s Manual
disc into your attached CD/DVD drive and click In-
stall Drivers (button), or Option Drivers (button) to
access the optional driver menu.

Chipset

1. Click 1.Install Chipset Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish.

Video

1. Click 2.Install Video Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer .

G-Sensor

1. Click 3.Install GSENSOR AP > Yes.

2. Click Next > Install.

3. Click Finish > Finish to restart the computer.

Touch Panel Application

1. Click 4.Install Touch Panel AP > Yes.

2. Click Next > Next > Install.

3. Click Finish.

4. You will then need to calibrate the touch panel

(see “Calibrating the Touch Screen” on

page 1 - 14).

5. Click OK to restart the computer after calibra-

tion.

Audio

1. Click 5.Install Audio Driver > Yes.

2. Click Next.

3. Click Finish to restart the computer.

LAN

1. Click 6.Install LAN Driver > Yes.

2. Click Next > Install.

3. Click Finish.

4. The network settings can now be configured.

4

Driver Installation 4 - 5

Drivers & Utilities

Pop Menu Utility

1. Click 7.Install POP Menu Utility > Yes.

2. Click Next > Install.

3. Click Finish > Finish to restart the computer.

4. See “Pop Menu” on page 1 - 23 for details.

4



Windows Update

After installing all the drivers make sure you enable Win­dows Update in order to get all the latest security up-

dates etc. (all updates will include the latest hotfixes
from Microsoft).

To enable Windows Update make sure you are con-
nected to the internet:

1. Click Start, and click Control Panel (or point
to Settings and click Control Panel).

2. Click Check for updates (Security), or
double-click Security Center and click
Windows Update.

3. Double-click Check for updates (button).

4. The computer will now check for updates
(you need to be connected to the internet).

5. Click Install now (button) to install the
updates.

4 - 6 Driver Installation

Drivers & Utilities

Optional Drivers

See the pages indicated for the driver installation pro­cedures for any modules included in your purchase op­tion.

Figure 4 - 3 - Optional Drivers

Bluetooth Module

Note: The operating system is the default setting for
Bluetooth control in Windows Vista, and does not re-

quire a driver. See “Bluetooth Module” on page 7 - 2
for configuration instructions.

4

Fingerprint Reader Module

See the introduction in “Fingerprint Reader Module”

on page 7 - 6, and check the installation procedure.

Wireless LAN Module

See the introduction in “Wireless LAN Module” on

page 7 - 12, and check the installation procedure.

PC Camera Module

See the introduction in “PC Camera Module” on

page 7 - 16, and check the installation procedure.

GPS Module

See the introduction in “GPS Module” on page 7 - 24,
and check the installation procedure.

Driver Installation 4 - 7

Drivers & Utilities

4

4-8

BIOS Utilities

Chapter 5: BIOS Utilities

Overview

This chapter gives a brief introduction to the computer’s built-in software:

Diagnostics: The POST (Power-On Self Test)

Configuration: The Phoenix SecureCore(tm) Setup Utility

If your computer has never been set up, or you are mak ing important chan ges to the
system (e.g. hard disk setup), then you should review this chapter first and note the
original settings found in Setup. Even if you are a beginner, keep a record of the set­tings you find and any changes you make. This information could be useful if your
system ever needs servicing.

There is one general rule: Don’t make any changes unless you are sure of what you
are doing. Many of the settings are required by the system, and changing them could
cause it to become unstable or worse. If you have any doubts, consult your service
representative.



BIOS Settings

Warning

Incorrect settings can
cause your system to
malfunction. To correct
mistakes, return to Set-

up and restore the Set­up Defaults with <F9>.

5

Overview 5 - 1

BIOS Utilities

Phoenix TrustedCore(tm) NB
Copyright 1985-2006 Phoenix Technologies Ltd.
All Rights Reserved
Bios Revision: ********
KBC/EC Firmware Revision: ********

CPU=1Processors Detected
Genuine Intel(R) CPU @ 1.60GHz
1015M System RAM Passed
521 KB L2 Cache
System BIOS shadowed
Video BIOS shadowed
Fixed Disk 0: SAMSUNG HS030GB
Mouse intialized

Press <F2> to enter SETUP



POST Screen

1.BIOS information

2.CPU type

3.Memory status

5

4.Enter Setup prompt
appears only during

POST

Note:

The

POST

screen
as pictured right is for
guideline purposes only.

POST

The
your computer may ap­pear slightly different. If
you disable the

time Diagnostic Screen

the POST screen will not
appear.

screen on

Boot-

Figure 5 - 1

POST Screen

,

The Power-On Self Test (POST)

Each time you turn on the computer, the system takes a few seconds to conduct a
POST, including a quick test of the on-board RAM (memory). The screen below
will appear if you have enabled the Boot-time Diagnostic Screen (see “Boot-time

Diagnostic Screen: (Advanced Menu)” on page 5 - 9).

As the POST proceeds, the computer will tell you if there is anything wrong. If there
is a problem that prevents the system from booting, it will display a system summary
and prompt you to run Setup. If there are no problems, the Setup prompt will disap­pear and the system will load the operating system. Once that starts, you can’t get
into Setup without rebooting.

1

2

3

4

5 - 2 The Power-On Self Test (POST)

Failing the POST

Errors can be detected during the POST. There are two categories, “fatal” and “non­fatal”.

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong
with your system. Take the computer to your service representative or authorized
service center as soon as possible.

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the
problem (make a note of this message!) followed by the prompt:

• Press <F1> to resume

• <F2> to enter Setup

Press F1 to see if the boot process can continue. It may work, without the correct
configuration.

BIOS Utilities

5

Press F2 to run the Setup program and try to correct the problem. If you still get an
error message after you change the setting, or if the “cure” seems even worse, call
for help.

The Power-On Self Test (POST) 5 - 3

BIOS Utilities

The Setup Program

The Phoenix SecureCore(tm) Setup Utility tells the system how to configure itself
and manage basic features and subsystems (e.g. port configuration).

Entering Setup

To enter Setup, turn on the computer and press F2 during the POST. The prompt

5

(Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds
after you turn on the system. If you get a “Keyboard Error”, (usually because you
pressed F2 too quickly) just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and
then hold down F2 when prompted. The Setup main menu will appear.

5 - 4 The Setup Program

Setup Screens

The following pages contain additional advice on portions of the Setup.

Along the top of the screen is a menu bar with menu headings. When you select a
heading, a new screen appears. Scroll through the features listed on each screen to
make changes to Setup.

Instructions on how to navigate each screen are in the box along the bottom of the
screen. If these tools are confusing, press F1 to call up a General Help screen, and
then use the arrow keys to scroll up or down the page.

The Item Specific Help on the right side of each screen explains the highlighted
item and has useful messages about its options.

If you see an arrow next to an item, press Enter to go to a sub-menu on that sub­ject. The sub-menu screen that appears has a similar layout, but the Enter key may
execute a command.

BIOS Utilities



Setup Menus

The Setup menus
shown in this section are
for reference only. Your
computer’s menus will
indicate the configura­tion appropriate for your
model and options.

5

The Setup Program 5 - 5

BIOS Utilities

Main Advanced Security Boot Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

<Tab>, <Shift Tab>, or
<Enter> selects field.

Main

System Time: [22:12:05]

System Date: [08/15/2008]

 Primary Master [SAMSUNG HS030GB-(PM)]

System Memory 640 KB
Extended Memory 1014 MB

BIOS Revision ********
KBE/EBC Firmware Revision: ********

Phoenix SecureCore(tm) Setup Utility

Main Menu

Figure 5 - 2

Main Menu

5

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you
can change the date and time settings in your operating system, you will also change
these settings. Some applications may also alter data files to reflect these changes.

5-6Main Menu
