CLEVO TN12XR Users Manual

Preface

Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, trans­mitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trade­marks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. ©October 2007
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. pat­ents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineer­ing or disassembly is prohibited. Intel, Celeron, and Intel Core are trademarks/registered trademarks of Intel Corporation.
I
Preface
FCC Statement
(Federal Communications Commission)
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in­stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re orient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the service representative or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible for comp liance could void your authority to operate the equipment. Operation is subject to the following two conditions:
This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.
II
Preface
Warning
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not ex­pressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the equipment.
If your purchase option includes both Wireless LAN and 3.5G modules, then the appropriate antennas will be installed. Note that In order to comply with FCC RF exposure compliance requirements, the antenna must not be co -located or o perate in conjunction with any other antenna or transmitter.
III
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output of 19V, 3.42A (65 Watts) minimum AC/DC Adapter.
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
IV
This Computer’s Optical Device is a Laser Class 1 Product
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
Do not expose the computer to any shock or vibration.
Do not place it on an unstable surface.
Do not place anything heavy on the computer.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele- ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly dam­aged.
Do not expose it to excessive heat or direct sunlight.
Do not leave it in a place where foreign matter or mois­ture may affect the system.
Don’t use or store the com­puter in a humid environment.
Do not place the computer on any surface that will block the Vents/Fan Intakes.
V
Preface
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data.
4. Follow the proper workin g procedu res for t he computer. Shut the computer down proper ly and don ’t for ge t to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not turn off the power until you properly shut down all programs.
Do not turn off any peripheral devices when the computer is on.
5. Take care when using peripheral devices.
Use only approved brands of peripherals.
VI
Do not disassemble the com­puter by yourself.
Unplug the power cord befor e attaching peripheral devices.
Perform routine maintenance on your computer.
Power Safety
The computer has specific power requirements:
Preface
Only use a power adapter approved for use with this computer.
Your AC/DC adapter may be designed for international travel but it still requires a
steady , uninterru pted power suppl y. If you are unsure of your local power specifications, consult your service representative or local power company.
The power adapter may have either a 2-prong or a 3-prong grounded plug. The third
prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
When you want to unplug the power cord, be sure to disconnect it by the plug head, not
by its wire.
Make sure the socket and any extension cord(s) you use can support the total current
load of all the connected devices.
Before cleaning the computer, make sure it is disconnected from any external power
supplies (i.e. AC/DC adapter or car adapter).
Do not plug in the power cord if you are wet.
Do not use the power cord if it is broken.
Do not place heavy objects on the power cord.
Power Safety
Warning
Before you undertake any upgrade proce­dures, make sure that you have turned off the power, and discon­nected all peripherals and cables (including telephone lines). It is advisable to also re­move your battery in order to prevent acci­dentally turning the machine on.
VII
Preface
Battery Precautions
Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
Do not remove any batteries from the computer while it is powered on.
Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even
if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service repre sent ative or qual-
ified service personnel.
Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
Keep the battery away from metal appliances.
Affix tape to the battery contacts before disposing of the battery.
Do not touch the battery contacts with your hands or metal objects.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.
VIII
Preface
Cleaning
Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:
When the power cord or AC/DC adapter is damaged or frayed.
If the computer has been exposed to rain or other liquids.
If the computer does not work normally when you follow the operating instructions.
If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
If there is an unusual odor, heat or smoke coming from your computer.
Removal Warning
When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and screw(s) before turning the computer on.
IX
Preface
Travel Considerations
Packing
As you get ready for your trip, run through this list to make sure the system is ready to go:
1. Check that the battery pack and any spares are fully charged.
2. Power off the computer and peripherals.
3. Close the display panel and make sure it’s latched.
4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.
5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However , check with your travel agent to see if you need any socket adapters.
6. Put the notebook in its carrying bag and secure it with the bag’s straps.
7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters and/or cables.
8. Anticipate customs - Some jurisdictions may have import restrictions or requ ire proof of ownershi p for both hard­ware and software. Make sure your documents are prepared.
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prev ent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.
X
Preface
On the Road
In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind:
Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common. Don’t check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knock­ing the computer against hard objects.
Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the com­puter, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note: Some airports also scan luggage with these devices.
Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make sure it’s secure. Contents may shift and/or fall out when the compartment is opened.
Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies) charged.
Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer. Wait a few minutes before turning it on so that any moisture can evaporate.
XI
Preface
Developing Good Work Habits
Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. The following are some tips to reduce the strain:
Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.
Your knees should be slightly higher than your hips. Place yo ur feet flat on th e floor or on a footrest if necessary.
Use a chair with a back and adjust it to support your lower back comfortably.
Sit straight so that your knees, hips and elbows form approximately 90-degree angles when you are working.
Take periodic breaks if you are using the computer for long periods of time.
Remember to:
Alter your posture frequently.
Stretch and exercise your body several times a day.
Take periodic breaks when you work at the computer for long periods of time. Frequent and short breaks are better than fewer and longer breaks.
XII
Preface
Lighting
Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.
Position the display to avoid glare or reflections from overhead lighting or outside sources of light.
Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.
Position the display directly in front of you at a comfortable viewing distance.
Adjust the display-viewing angle to find the best position.
LCD Screen Care
To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for an extended period of time) take the following precautions:
Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.
Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).
Rotate desktop background images every few days.
Turn the monitor off when the system is not in use.
XIII
Preface
XIV
Quick Start Guide
Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started.

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide.You may also find the notes marked with a

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then the information contained in this Quick Start Guide should be enough to get you up and running. Eventually you should try to look through all the documentation (more detailed descriptions of the functions, setup and system controls are covered in the remainder of the User’s Manual), but do not worry if you do not understand every­thing the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the
symbol. Also please note the safety and handling instructions as indicated in the Preface.
of interest to you.
as indicated in the margin.
Notes
Check the light colored boxes with the mark above to find detailed information about the computer’s features.
1
Overview - 1
1
Quick Start Guide

Not Included

Operating Systems (e.g. Windows Vista) and applications (e.g. word processing, spreadsheet and database pro­grams) have their own manuals, so please consult the appropriate manuals.

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find this manual refers to the Microsoft Win- dows Vista operating system.
Drivers
If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers on the CD supplied. Drivers are programs which act as an inte rface between the computer and a hardware component e.g. a wireless network module. You will be unable to use most advanced controls until the necessary drivers and utilities are properly installed. If your system is already configured your service repre sentative may have already in­stalled all the drivers for you.
2 - Overview
Quick Start Guide

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the following operating systems are sup­ported.
Operating System & Version Supported Note
In order to run Windows XP without limitations or decreased
*Windows XP Home or Professional Editions
performance, your computer requires a minimum 512MB of system memory (RAM)
1
Windows Vista (64-bit) Home Basic Edition
Windows Vista (64-bit)
Home Premium/Business/Enterprise/Ultimate Editions
Table 1 - Operating Systems Supported
In order to run Windows Vista without limitations or decreased performance, your computer requires a minimum
1GB of system memory (RAM).
Overview - 3
1
Quick Start Guide

System Startup

1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter.
5. Raise the lid/LCD and adjust it to a comfortable viewing angle (If you wish to operate the computer in Tablet Mode see page 1 - 5).
6. Slide the power switch to the left and then release it to turn the computer “on”.
Touch Panel Input Device
Do not use any sharp or pointed objects as your input device e.g. the end of a pen or pencil. You should only use the provided stylus pen (PDA type) as your input device.
Shutdown
Note that you should always shut your computer down by choosing the Shut Down command from the Lock Button Menu in Win- dows Vista. This will help prevent hard disk or system problems.
4 - System Startup
Figure 1 - AC/DC Adapter In
Quick Start Guide

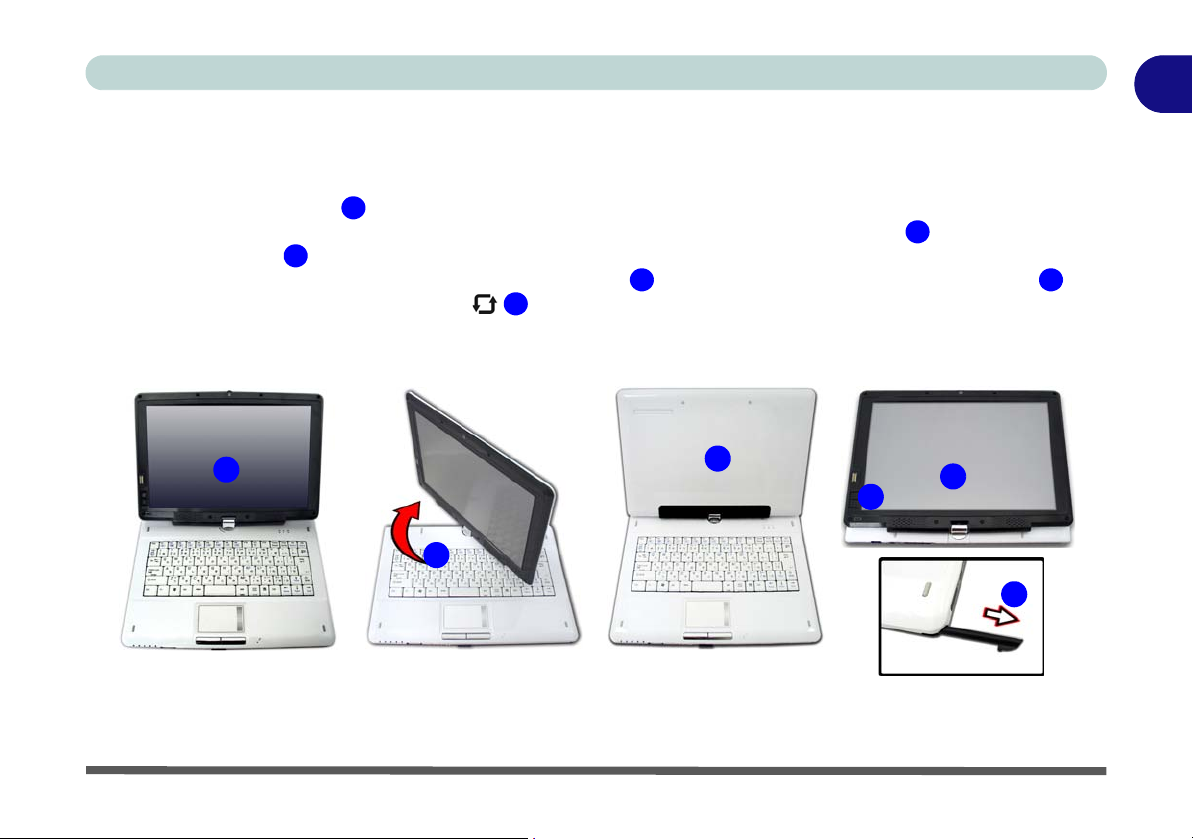

Rotating The LCD Panel

You can use the computer either in Notebook Mode, or in Tablet Mode. To put the computer into Tablet Mode:
1
1. Raise the lid/LCD panel .
2. Carefully rotate the lid/LCD panel fully in the (clockwise) direction indicated by the arrow , until it is unable to rotate any further .
3. Carefully push the lid/LCD panel down into Tablet Mode , and use the stylus pen as an input device .
4. Firmly press the screen rotation button to adjust the screen to the most comfortable viewing orientation (give the screen time to refresh).
5. The on-screen menu allows you to adjust settings, rotate the screen and turn the modules on/off etc.
1
1
2
3
4 5
6
3
4
6
2
5
Figure 2 - Rotating the LCD Panel Into Tablet Mode
Rotating The LCD Panel - 5
1
Quick Start Guide

Tablet PC Input

Use the stylus pen provided to interact with the computer in the same way you would use the mouse. Before using the stylus pen you should calibrate the touch screen.

Calibrating the Touch Screen

1. Double-click the OR
ENE TSC
2. Click Start, and click
3. Click to choose the number of
ENE Touch Screen Utility
folder in the
Programs/All Programs
Programs/All Programs
Calibration Points
icon in the taskbar (the driver must be installed).
group.
and point to
, and then click
ENE TSC (folder
Calibration
(button).
), and then click
Screen Rotation &
Re-Calibration
Note that you should re­calibrate the touch screen after you have rotated the screen to display in a different mode from that first cali­brated.
ENETSC
.
6 - Tablet PC Input
Figure 3 - Touch Screen Utility
Quick Start Guide
4. Use the stylus pen to touch the blinking symbol until you hear a beep or the symbol stops blinking (maintain contact until the symbol stops blinking).
5. The plus (
+) symbol will change from green to white after the reading has been obtained.
Touch Panel Input
Device
Do not use any sharp or pointed objects as your in­put device e.g. the end of a pen or pencil. You should only use the provided sty­lus pen (PDA type) as your input device.
Be very careful not to press too hard with the stylus pen when using it as the input device.
Figure 4 - ENE Touch Screen Calibration Tool
1
6. Repeat the process for all the remaining screen points.
7. Click Draw Test (button) to test the calibration.
Tablet PC Input - 7
1
Quick Start Guide

Stylus Pen Input

Touch the screen with the stylus pen and then release the touch and a mouse icon will appear on screen. Touch the left mouse or right mouse on-screen buttons in order to perform the appropriate action. Touch the screen twice quickly to perform a double-click action.

Tablet PC Input Panel

When not in use the Tablet PC Input Panel docks at the side of the screen (and may be docked at either side of the screen at any height) with just a small portion visible. Move the pen over the TIC and then tap it to activate it. The input panel allows you to input text without the use of a keyboard. You can use the writing pad (write continuously), character pad (write one character at a time) or on-screen keyboard to input text. Use the Help menu for further information.
Figure 5 - Tablet PC Input Panel
You can also use the Tablet PC Settings control panel in Windows Vista to adjust the advanced options.
8 - Tablet PC Input
Quick Start Guide
1

System Map: LCD Panel Open

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec­tronic transmission devices aboard aircraft is usually prohib­ited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.
Use the key combinations to tog­gle power to the 3.5G/WLAN/ Bluetooth modules, and check the LED indicator icon to see if the modules are powered on or not (see Table 4, on page 1 -
12/ Table 3, on page 1 - 10).
3
4
5
10
11
Figure 6
1
2
5
6
7
8
9
12
LCD Panel Open
1. Built-In PC Camera (
Optional
2. LCD
3. Fingerprint Reader Module (Optional)
4. Menu & Screen Rotation Buttons
5. Speakers
6. Screen Hinge
7. LED Status Indicators
8. Keyboard
9. Touchpa d & Buttons
10. LED Power & Communication Indicators
11. Power Switch
12. Built-In Microphone
)
System Map: LCD Panel Open - 9
1
Quick Start Guide

LED Indicators

The two sets of LED indicators (LED Status Indica­tors and LED Power & Communication Indicators)
on the computer display helpful information about the current status of the computer.
Icon Color Description
Green Number Lock Activated
Green Caps Lock Activated
Green
Table 2 - LED Status Indicators
Scroll Lock Activated (to activate
press Fn & Scr Lk)
Icon Color Description
Orange DC Power is Plugged In
Green The Computer is On
Blinking Green
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange
Green Hard Disk Activity
Green
Orange
Green
The Computer is in Sleep
Mode
The Battery Has Reached
Critically Low Power Status
The (optional) Wireless LAN
Module is Powered On
The (optional) Bluetooth
Module is Powered On
The (optional) 3.5G Module is
Powered On
Table 3 - LED Power & Communication Indicators
10 - System Map: LCD Panel Open
Quick Start Guide

Keyboard

The keyboard has a numerical keypad for easy numeric data input, and features function keys to allow you to change operational features instantly (see Figure 7). See Table 4, on page 1 - 12 for details of the function/hot key indicators.
1
Play/Pause Key
Fn Key
Function Keys
Numerical Keypad
NumLk & ScrLk Keys
3.5G Module Power Toggle Key
Special Characters
Some software applications allow the number-keys to be used with Alt to pro­duce special characters. These special characters can only be produced by us­ing the numeric keypad. Regular number keys (in the upper row of the keyboard) will not work. Make sure that NumLk is on.
Figure 7 - Keyboard
Other Keyboards
If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. Th e system will detect and enable it automatically. However spe cial func tions/ho t-keys unique to the system’s regular keyboard ma y not work.
Keyboard - 11
1
Quick Start Guide

Function Keys & Visual Indicators

The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations; visual indicators (see the table below) are available when the hot key utility is in­stalled. After installing the driver an icon will appear in the taskbar.
Keys Function/Visual Indicators Keys Function/Visual Indicators
Fn + ~ Play/Pause (in Audio/Video Programs) Fn + F7 Display Toggle
Fn + _
Fn + F1 TouchPad Toggle Fn + F10
Fn + F2
Fn + F3 Mute Toggle Fn + F12
Fn + F4 Sleep Toggle Fn + NumLk Number Lock Toggle
Fn +F5/F6
(Press a key to or use TouchPad to turn on)
Volume Decrease/
3.5G Module Power Toggle Fn +F8/F9
Turn LCD Backlight Off
Increase
Fn + F11
Fn + ScrLk Scroll Lock Toggle
Brightness
Decrease/Increase PC Camera Power
Toggle
WLAN Module
Power Toggle
Bluetooth Module
Power Toggle
Table 4 - Function Keys & Visual Indicators
12 - Keyboard
Quick Start Guide

On-Screen Menu

Pressing the Menu button on the computer will bring up the on-screen menu buttons (make sure you i nstall the pop menu driver provided). Use the stylus pen to touch any of the buttons to activate the control. If the PC Camera (optional), Bluetooth (optional), WLAN (optional) or 3.5G (optional) modu les are on the indicator will appear green ; if the modules are off then the indicator will appear black .
On-Screen Menu Function On-Screen Button Function On-Screen Button
1
Brightness Decrease/
Increase
Mute Toggle
Volume Decrease/
Increase
LCD Toggle
Screen Rotation
PC Camera
Module Power
Toggle
Bluetooth Module
Power Toggle
WLAN Module
Power Toggle
3.5G Module
Power Toggle
Note: Use the stylus pen to tap the appropriate on-screen button to adjust the setting.
Note that you can also use the screen rotation butt on to
rotate the screen.
Table 5 - On-Screen Menu Buttons
On-Screen Menu - 13
1
Quick Start Guide
Figure 8
Front & Rear Views
1. LED Power & Com­munication Indica­tors
2. Power Switch
3. S/PDIF-Out Jack
4. Microphone-In Jack
5. Headphone-Out Jack
6. 7-in-1 Card Reader
7. Stylus Pen Holder
8. Security Lock Slot
9. 2 * USB 2.0 Ports
10. DC-In Jack
11. Docking Station Port
12. Battery

System Map: Front & Rear Views

1
8
The card reader allows you to use the most popular digital storage card formats:
2
54
9
10
11
63
7-in-1 Card Reader
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
7
12
14 - System Map: Front & Rear Views
Quick Start Guide
1

System Map: Left & Right Views

1
6
7
8
9
3
524
10
Overheating
To prevent your computer from overheating make sure nothing blocks the vent(s)/fan in­take(s) while the computer is in use.
Mini-IEEE 1394
Port
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.
Figure 9
Left & Right Views
1. Stylus Pen Holder
2. Optical Device Drive Bay (for CD/ DVD Device)
3. 1 * USB 2.0 Port
4. RJ-11 Phone Jack
5. RJ-45 LAN Jack
6. Battery
7. External Monitor Port
8. Mini-IEEE 1394 Port
9. Vent/Fan Intake/ Outlet
10. ExpressCard Slot
System Map: Left & Right Views - 15
1
Quick Start Guide
Disk Eject Warning
Don’t try to eject a CD/DVD while the system is ac­cessing it. This may cause the system to “crash”. Stop the disk first then eject it, or press the stop button twice.
CD/DVD Emergency Eject
If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or any ob­ject that may break and become lodged in the hole. Don’t try to remove a floppy disk/CD/DVD while the system is accessing it. This may cause the system to “crash”.
Changing DVD Regional Codes
Go to the Control Panel and double-click Device Manager (Hardware and Sound), then click th e +
next to DVD/CD-ROM drives. Double-click on the DVD-ROM device to bring up the Properties dialog box, and select the DVD Region (tab) to bring up the control panel to allow you to adjust the regional code.
DVD region detection is device dependent, not OS­dependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer.
16 - System Map: Left & Right Views
Quick Start Guide
1

System Map: Bottom View

CPU
The CPU is not a user ser­viceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.
Overheating
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake while the computer is in use.
2
4
Battery Information
Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery at least once every 30 days or after about 20 partial dis­charges.
1
3
4
Figure 10
Bottom View
1. Battery
2. Hard Disk Bay Cover (3.5G Module Location)
3. RAM & CPU Bay Cover
4. Vent/Fan Intake/ Outlet
System Map: Bottom View - 17
1
Quick Start Guide

Windows Vista Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu icon , and then select Properties if you want to customize the appearance of the Start menu.
Click here to toggle Classic View
Figure 11 - Start Menu & Control Panel
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features
in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea- tures, however many new controls are added (or existing ones are enhanced) when you install the drivers pro­vided. To see all controls it may be necessary to toggle to Classic View on.
18 - Windows Vista Start Menu & Control Panel
Quick Start Guide

Video Features

You can switch display devices, and configure display options, from the Display Settings control panel (in Per­sonalization) in Windows Vista as long as the appropriate Intel video driver is installed.
To access Display Settings in Windows Vista:
1. Click Start, and click Control Panel (or point to Settings and click Control Panel).
2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click Personalization > Display Settings).
3. Move the slider to the preferred setting in Resolution: (Figure 12 on page 1 - 20).
4. Click the arrow, and scroll to the preferred setting In Colors: (Figure 12 on page 1 - 20).
5. Click Advanced Settings (button) (Figure 12 on page 1 - 20) and click Intel(R) GMA Driver for mobile (tab).
6. Click Graphic s Properties (button ) (Figure 12 on page 1 - 20) to access the Intel GMA control panel (this control panel can also be accessed by double-clicking Intel(R) GMA Driver for mobile in Classic View).
7. The Intel GMA control panel can also be accessed by clicking the icon in the taskbar and selecting Graphics
Properties from the menu.
3
4

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or external Flat Panel Display connected to the external monitor port as your display device.
1
2
1
Video Features - 19
1
Quick Start Guide
1
2
4
3
Figure 12 - Display Properties Desktop
Intel Display Mode Description
Single Mode One of the connected displays is used as the display device Intel(R) Dual Display Clone Mode Both connected displays output the same view and may be configured independently Extended Desktop Mode Both connected displays are treated as separate devices, and act as a virtual desktop
Table 6 - Display Options
20 - Video Features
Quick Start Guide

Power Options

The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 18) allows you to configure power management features for your computer. You can conserve power by means of power plans and configure the options for the power button, sleep button, computer lid (when closed), display and sleep mode from the left menu. Note that the Power saver plan may have an affect on computer performance.
Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con- figuration options.
1
Note: Sleep is the default power saving state in Windows Vista
Figure 13 - Power Options
Power Options - 21
1
Quick Start Guide
22
Specifications

Appendix A: Specifications

Latest Specification Information
The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/ speeds and CD/DVD device types) may be changed, delayed or updated due to the manufacturer's release schedule. Check with your service center for details.
A
Specifications A - 1
Specifications
A
Feature Specification
Processor Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7100/ T7250
Intel® Core™2 Duo Processor (478-pin) Micro-FC-PGA Package, Socket P T7300/ T7500/ T7700/ T7800
Intel® Celeron® M Processor (478-pin) Micro-FCPGA Package, Socket P
530/ 540/ 550 Core Logic Intel® GM965 + ICH8M Chipset LCD 12.1" WXGA (1280 * 800) TFT LCD Touch Panel Memory Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 667 MHz
64-bit Wide DDRII (DDR2) Data Channel
Memory Expandable up to 4GB (512/ 1024/ 2048 MB DDRII Modules)
512MB Or 1GB Intel® Turbo Memory Module (Option) Video Adapter Intel GM965 Integrated Video
Shared Memory Architecture - Supports up to 256MB of Video Memory (dynamically allocated from system memory where needed) Supports DirectX9.0 3D Graphics Engine Accelerator Supports DualView™
65nm (65 Nanometer) Process Technology 2MB On-die L2 Cache & 800MHz FSB
1.8/ 2.0 GHz 65nm (65 Nanometer) Process Technology
4MB On-die L2 Cache & 800MHz FSB
2.0/ 2.2/ 2.4/ 2.6 GHz 65nm (65 Nanometer) Process Technology
1MB On-die L2 Cache & 533MHz FSB
1.73/ 1.86/ 2.0 GHz
A - 2 Specifications
Specifications
Feature Specification
Security Security (Kensington® Type) Lock Slot
Fingerprint ID Reader Module (Factory Option) BIOS One 8Mb SPI Flash ROM Phoenix™ BIOS Storage One Changeable 12.7mm(h) Optica l Device (CD/DVD) Type Drive (see “Optional” on page A - 6)
Easy Changeable 2.5" 9.5 mm (h) SATA (Serial) HDD Audio Integrated Azalia Compliant Interface
3D Stereo Enhanced Sound System
Sound-Blaster PRO™ Compatible
Keyboard & Pointing Device
Interface Three USB 2.0 Ports
Card Reader Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo) Note: MS Duo/
Winkey Keyboard
Stylus Pen for Touch Panel
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF Out Jack
One Internal Microphone
One CIR Port
Mini SD/ RS MMC Cards require a PC adapter
BIOS Password Trusted Platform Module (Factory Option)
2 * Built-In Speakers Built-In Microphone One S/PDIF Out Jack
Built-In TouchPad with Scrolling Function
One RJ-11 Modem Jack One RJ-45 LAN Jack One DC-in Jack One External Monitor Port One Docking Port One Mini-IEEE 1394 Port 2 Built-In Instant Keys (Menu, Rotation)
A
Specifications A - 3
Specifications
A
Feature Specification
Card SlotS One ExpressCard/34(54) Slot
One MiniCard Slot Supporting USB and PCIe Interfaces
Second MiniCard Slot Supporting USB and PCIe Interfaces (Factory Option)
Communication
*Note: The Blue-
tooth and 3.5G Op­tional Modules
cannot coexist. If one of these factory op­tions is included in your purchase op­tion, then the other is unavailable.
1000/100/ 10 Mb Fast Ethernet LAN
Azalia 56K Plug and Play Fax Modem V.90 & V.92 Compliant
Wireless LAN Module Options:
802.11 b/g MiniCard USB Wireless LAN Module (Option)
Intel PRO/Wireless 3945ABG MiniCard PCIe Wireless LAN Module (Option)
Intel PRO/Wireless 4965AGN MiniCard PCIe Wireless LAN Module (Option)
1.3M or 2.0M Pixel USB PC Camera Module (Factory Option)
Bluetooth OR 3.5G Module Options:
*Bluetooth 2.0 + EDR (Enhanced Data Rate) Module (Factory Option)
OR
*UMTS/HSPDA-based 3.5G Module with MiniCard Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz) UMTS WCDMA FDD (2100 MHz)
Power Management
Supports ACPI 3.0 Supports Wake on LAN
UMTS Modes
Note that UMTS modes CAN NOT be used in North America.
Supports Wake on USB Supports Resume from Modem Ring
A - 4 Specifications
Specifications
Feature Specification
Power Full Range AC/D C Adapter AC input 100 - 240V, 50 - 60Hz, DC Output 19V, 3.42A (65 Watts) Battery 4 Cell Smart Lithium-Ion Battery Pack, 14.8V/2.4AH
8 Cell Smart Lithium-Ion Battery Pack, 14.8V/4.4AH (Option) Environmental
Spec
Dimensions & Weight
Temperature
Operating: 5 Non-Operating: -20°C ~ 60°C
306mm (w) * 224mm (d) * 35 - 37.5mm (h) 2.1 kg With 4 Cell Battery and ODD
°C ~ 35°C
Relative Humidity
Operating: 20% ~ 80% Non-Operating: 10% ~ 90%
A
Specifications A - 5
Specifications
A
Feature Specification
Optional
*Note: The Blue-
tooth and 3.5G Op­tional Modules
cannot coexist. If one of these factory op­tions is included in your purchase op­tion, then the other is unavailable.
Optical Drive Module Options:
DVD/CD-RW Combo Drive Module
Super Multi Drive Module
Wireless LAN Module Options:
802.11 b/g MiniCard USB Wireless LAN Module
Intel PRO/Wireless 3945ABG MiniCard PCIe
Wireless LAN Module
Intel PRO/Wireless 4965AGN MiniCard PCIe
Wireless LAN Module
8 Cell Smart Lithium-Ion Battery Pack
1.3M or 2.0M Pixel USB PC Camera Module
(Factory Option)
Fingerprint ID Reader Module (Factory Option)
Trusted Platform Module (Factory Option)
MCE Remote Control Unit
*Bluetooth 2.0 + EDR (Enhanced Data Rate)
Module (Factory Option) OR
*UMTS/HSPDA-based 3.5G Module with
MiniCard Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz) UMTS WCDMA FDD (2100 MHz)
UMTS Modes
Note that UMTS modes CAN NOT be used in
North America.
512MB Or 1GB Intel® Turbo Memory Module
A - 6 Specifications
Loading...
