Clevo TN120T User guide

Version V09.3.20

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. ©September 2009

Trademarks

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Intel, Celeron, and Intel Core are trademarks/registered trademarks of Intel Corporation.

Preface

FCC Statement

(Federal Communications Commission)

You are cautioned that changes or modifications not expressly approved by the party responsible for comp liance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienced radio/TV technician for help.

Operation is subject to the following two conditions:

1. This device may not cause interference. And

2. This device must accept any interference, including interference that may cause undesired operation of the

device.

Preface

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the equipment.

If your purchase option includes both Wireless LAN and 3.75G modules, then the appropriate antennas will be installed. Note that In order to comply with FCC RF exposure compliance requirements, the antenna must not be co-located or operate in conjunction with any other antenna or transmitter.

III

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There

may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC

Output of 19V, 3.42A (65 Watts) minimum AC/DC Adapter.

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,

TELECOMMUNICATION LINE CORD

This Computer’s Optical Device is a Laser Class 1 Product

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Do not expose the computer to any shock or vibration.

Do not place it on an unstable surface.

Do not place anything heavy on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-

ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

Do not expose it to excessive heat or direct sunlight.

Do not leave it in a place where foreign matter or moisture may affect the system.

Don’t use or store the computer in a humid environment.

Do not place the computer on any surface that will block the Vents/Fan Intakes.

Preface

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other

strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he comput er. Shut the computer down properly and don’t for ge t

to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power until you properly shut down all programs.

Do not turn off any peripheral devices when the computer is on.

5. Take care when using peripheral devices.

Use only approved brands of peripherals.

Do not disassemble the computer by yourself.

Unplug the power cord befor e attaching peripheral devices.

Perform routine maintenance on your computer.

Power Safety

The computer has specific power requirements:

Preface

• Only use a power adapter approved for use with this computer.

• Your AC/DC adapter may be designed for international travel but it still requires a

steady , uninterru pted power suppl y. If you are unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third

prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not

by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current

load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power

supplies (i.e. AC/DC adapter or car adapter).

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not remove any batteries from the computer while it is powered on.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even

if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service repre sent ative or qual-

ified service personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries

may explode or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.



Battery Disposal & Caution

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

VIII

Preface

Cleaning

Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord or AC/DC adapter is damaged or frayed.

• If the computer has been exposed to rain or other liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and screw(s) before turning the computer on.

Preface

Travel Considerations

Packing

As you get ready for your trip, run through this list to make sure the system is ready to go:

1. Check that the battery pack and any spares are fully charged.

2. Power off the computer and peripherals.

3. Close the display panel and make sure it’s latched.

4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.

5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However ,

check with your travel agent to see if you need any socket adapters.

6. Put the notebook in its carrying bag and secure it with the bag’s straps.

7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters

and/or cables.

8. Anticipate customs - Some jurisdictions may have import restrictions or require proof of ownership for both

hardware and software. Make sure your docume nts are prepared.



Power Off Before Traveling

Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prev ent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.

Preface

On the Road

In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind:

Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common. Don’t check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.

Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note: Some airports also scan luggage with these devices.

Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make sure it’s secure. Contents may shift and/or fall out when the compartment is opened.

Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies) charged.

Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer. Wait a few minutes before turning it on so that any moisture can evaporate.

Preface

Developing Good Work Habits

Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. The following are some tips to reduce the strain:

• Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.

• Your knees should be slightly higher than your hips. Place yo ur feet flat on th e floor or on a footrest if necessary.

• Use a chair with a back and adjust it to support your lower back comfortably.

• Sit straight so that your knees, hips and elbows form approximately 90-degree angles when you are working.

• Take periodic breaks if you are using the computer for long periods of time.

Remember to:

• Alter your posture frequently.

• Stretch and exercise your body several times a day.

• Take periodic breaks when you work at the computer for long periods of time. Frequent and short breaks are better than fewer and longer breaks.

XII

Preface

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display-viewing angle to find the best position.

LCD Screen Care

To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for an extended period of time) take the following precautions:

• Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.

• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).

• Rotate desktop background images every few days.

• Turn the monitor off when the system is not in use.

XIII

Preface

XIV

Contents

Notice ................................................................................. I

FCC Statement ..................................................................II

FCC RF Radiation Exposure Statement: ........................ III

Instructions for Care and Operation ................................ V

Power Safety ..................................................................VII

Battery Precautions ......................................................VIII

Cleaning .......................................................................... IX

Servicing ......................................................................... IX

Travel Considerations ...................................................... X

Quick Start Guide

Overview ........................................................................1-1

Advanced Users .............................................................1-2

Beginners and Not-So-Advanced Users ........................1-2

Warning Boxes ..............................................................1-2

Not Included ..................................................................1-3

System Software .............................................. ..............1-4

System Startup ...............................................................1-5

Operating System Setup ................................................1-6

Rotating The LCD Panel ...............................................1-7

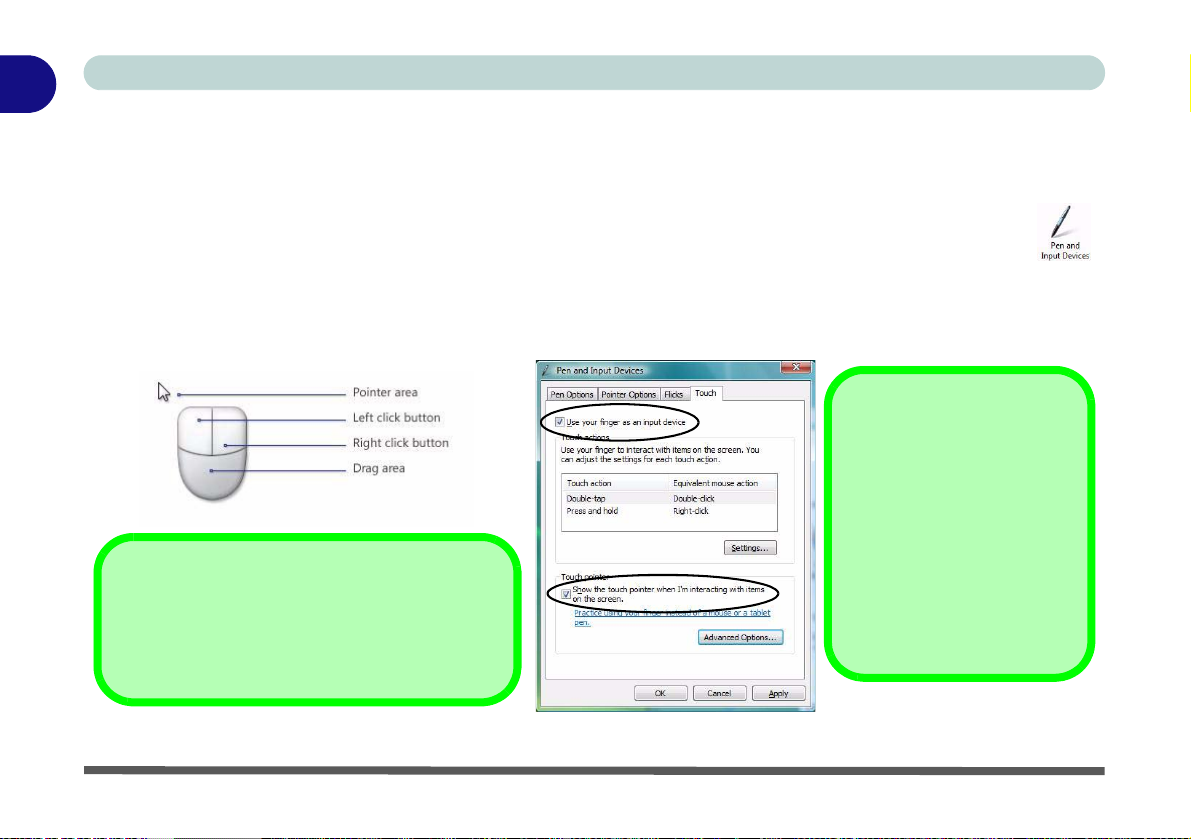

Tablet Notebook Input ...................................................1-8

Calibrating the Touch Panel ..........................................1-8

Stylus Pen Input ...........................................................1-10

Preface

Tablet PC Input Panel ..................................................1-11

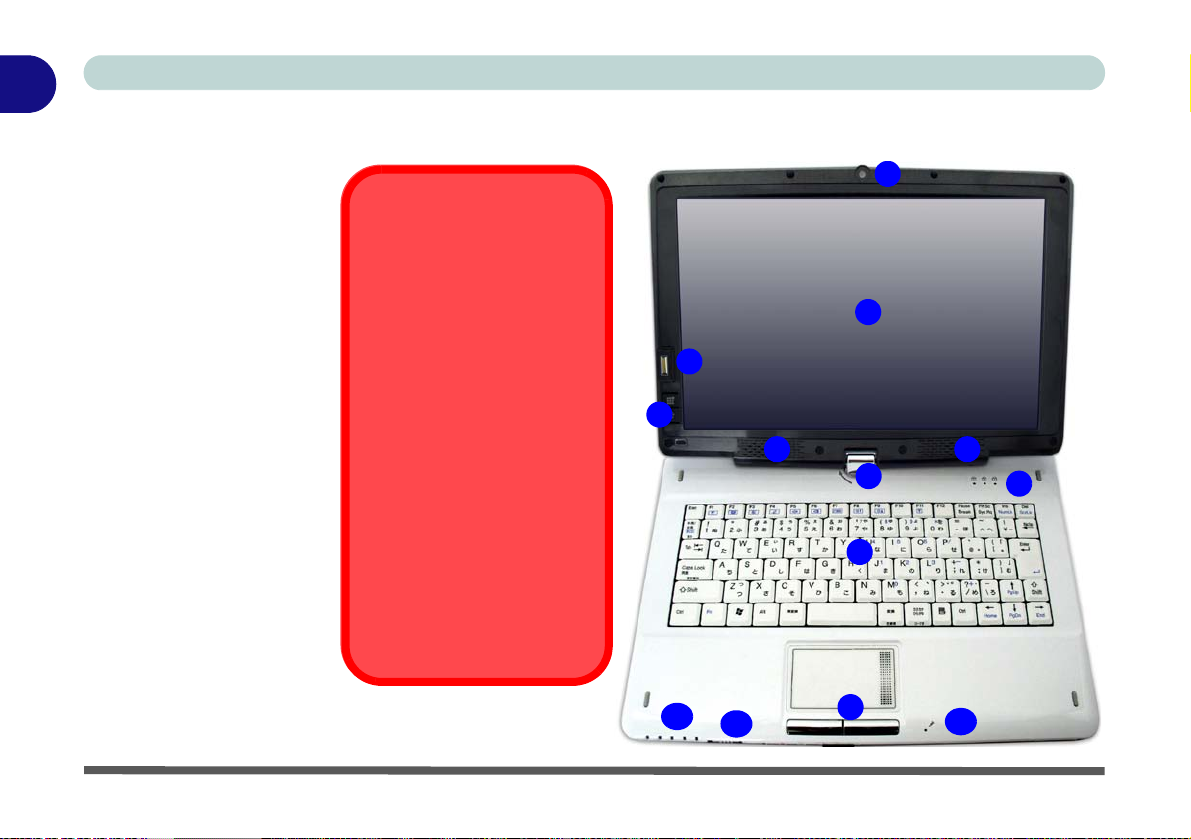

System Map: LCD Panel Open ....................................1-12

LED Indicators .............................................................1-13

Keyboard ...................................................................... 1-14

Function Keys & Visual Indicators .............................1-15

On-Screen Menu ..........................................................1-16

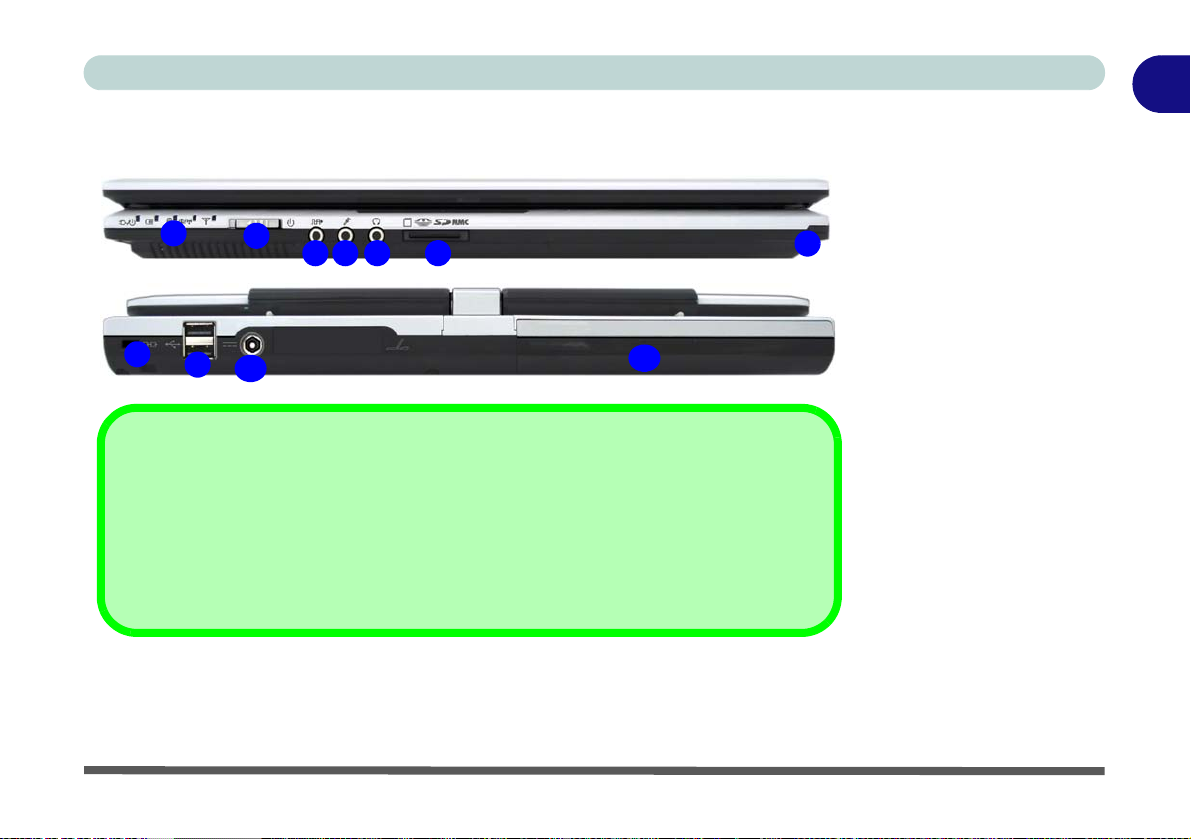

System Map: Front & Rear Views ...............................1-17

System Map: Left & Right Views ...............................1-18

System Map: Bottom View ..........................................1-20

Windows Vista Start Menu & Control Panel ...............1-21

Video Features .............................................................1-22

Display Devices & Options .........................................1-22

Power Options ............................................ .... .... ..........1-24

Features & Components

Overview ........................................................................2-1

Hard Disk Drive .............................................................2-2

Optical (CD/DVD) Device ............................................2-3

Loading Discs ................................................................2-3

Handling CDs or DVDs .................................................2-4

DVD Regional Codes ....................................................2-5

7-in-1 Card Reader .........................................................2-6

ExpressCard Slot ............................................................2-7

Preface

Inserting and Removing ExpressCards ..........................2-7

Touchpad and Buttons/Mouse .......................................2-8

Audio Features ...............................................................2-9

Tablet PC Options ........................................................2-10

Adding a Printer ...........................................................2-15

USB Printer ..................................................................2-15

Parallel Printer .............................................................2-15

Power Management

Overview ........................................................................3-1

The Power Sources ........................................................3-2

AC/DC Adapter .............................................................3-2

Battery ............................................................................3-2

Turning on the Computer ...............................................3-3

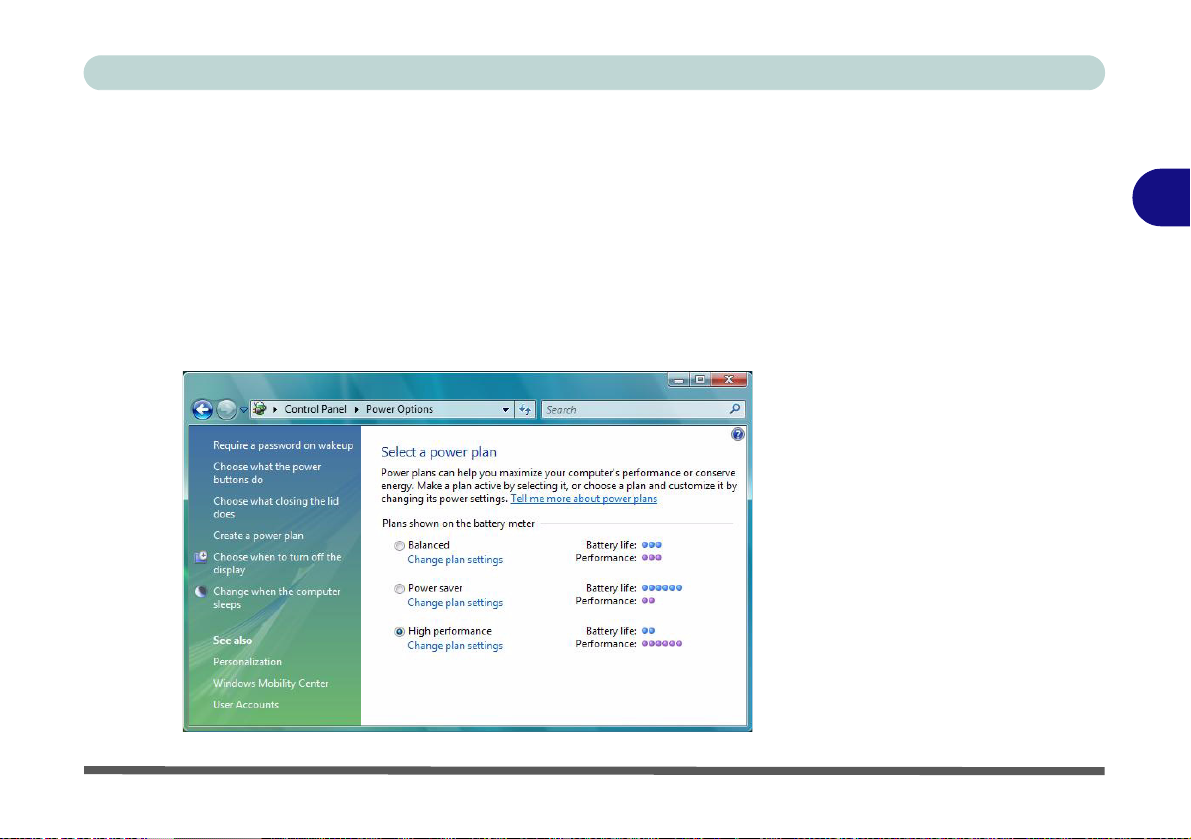

Power Plans ...................................................................3-4

Power-Saving States ......................................................3-6

Sleep ..............................................................................3-6

Hibernate ........................................................................3-7

Shut Down .....................................................................3-7

Configuring the Power Buttons .....................................3-8

Resuming Operation ......................................................3-9

Battery Information ............................................. .... ....3-10

Battery Power ..............................................................3-10

Conserving Battery Power ...........................................3-11

Battery Life .............................................................. ....3-12

New Battery ................................................................. 3-12

Recharging the Battery with the AC/DC Adapter .......3-12

Proper handling of the Battery Pack ............................3-13

Battery FAQ .................................................................3-14

Drivers & Utilities

What to Install ............................................................... .4-1

Module Driver Installation .............................................4-1

Driver Installation ..........................................................4-2

Updating/Reinstalling Individual Drivers ......................4-4

User Account Control (Win Vista) ................................4-4

Windows Security Message ...........................................4-4

New Hardware Found ....................................................4-4

Driver Installation Procedure ......................................... 4-5

Chipset ...........................................................................4-5

Video ..............................................................................4-5

Touch Panel ...................................................................4-5

Modem ...........................................................................4 -5

Card Reader ...................................................................4-6

LAN ...............................................................................4-6

Hot Key AP ....................................................................4-6

Touchpad .......................................................................4-6

1394 Filter Driver ..........................................................4-6

Audio .............................................................................4-6

Optional Drivers ............................................................4-7

XVI

Preface

Bluetooth Module ........................................ ..................4-8

PC Camera Module ........................................................4-8

3.75G/HSPA Module .....................................................4-8

Wireless LAN Module ...................................................4-8

Fingerprint Reader Module ............................................4-8

BIOS Utilities

Overview ........................................................................5-1

The Power-On Self Test (POST) ................................... 5-2

Failing the POST ...........................................................5-3

Fatal Errors ....................................................................5-3

Non-Fatal Errors ............................................................5-3

The Setup Program ........................................................5-4

Entering Setup ...............................................................5-4

Setup Screens .................................................................5-5

Main Menu .....................................................................5-6

System Time & Date (Main Menu) ...............................5-6

SATA Port1/2 (Main Menu) ..........................................5-7

System/Extended Memory: (Main Menu) .....................5-7

Advanced Menu .............................................................5-8

Advanced Chipset Control (Advanced Menu) ..............5-8

Installed O/S (Advanced Menu) ....................................5-9

SATA Mode Selection (Advanced Menu) ....................5-9

Reset Configuration Data (Advanced Menu) ................5-9

Boot-time Diagnostic Screen (Advanced Menu) .........5-10

Legacy OS Boot (Advanced Menu) .............................5-10

Power On Boot Beep (Advanced Menu) .....................5-10

Battery Low Alarm Beep (Advanced Menu) ...............5-10

Fan Control (Advanced Menu) ....................................5-10

Security Menu ..............................................................5-11

Set Supervisor Password (Security Menu) ..................5-11

Set User Password (Security Menu) ............................5-12

Fixed disk boot sector (Security Menu) .......................5-12

Password on boot (Security Menu) ..............................5-12

Boot Menu ...................................................................5-13

Exit Menu ....................................................................5-14

Upgrading The Computer

Overview ........................................................................6-1

When Not to Upgrade ....................................................6-2

Removing the Battery ....................................................6-3

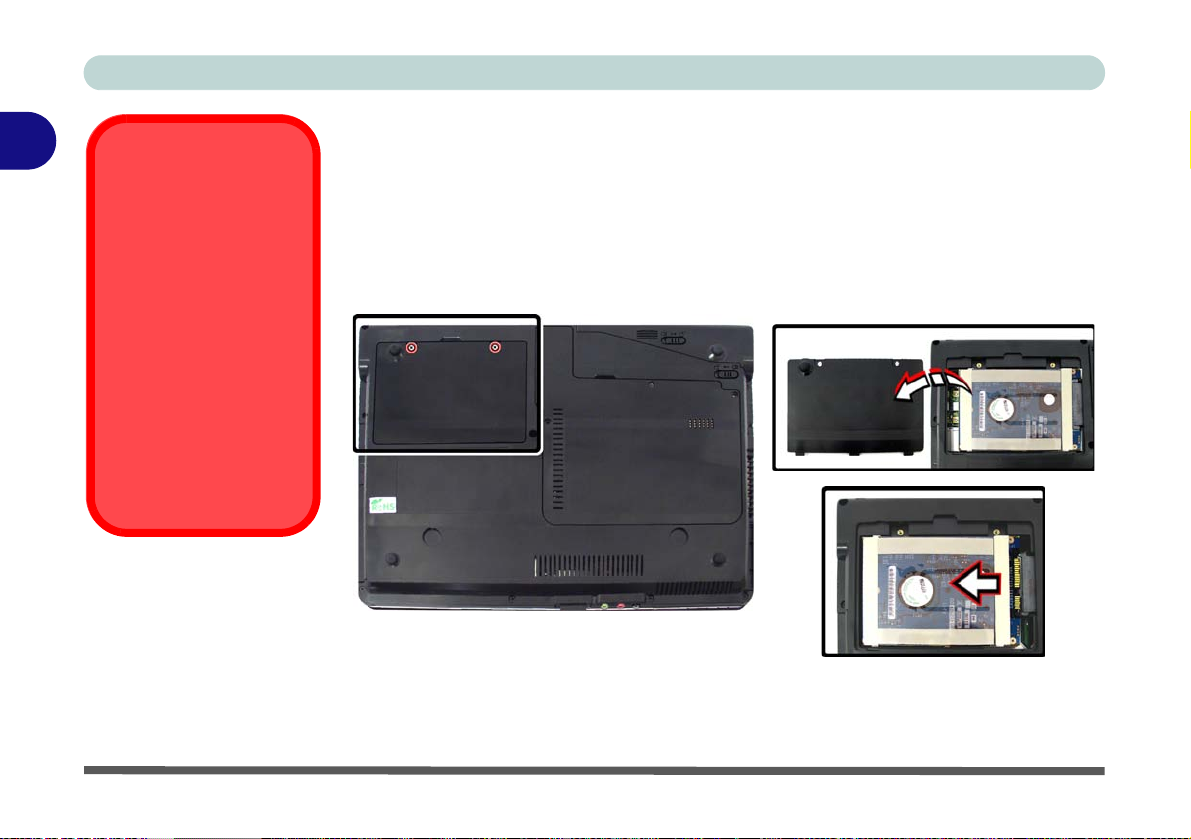

Upgrading the Hard Disk Drive .....................................6-4

Upgrading the Optical (CD/DVD) Device ....................6-7

Upgrading the System Memory (RAM) ........................6-9

Modules & Options

Overview ........................................................................7-1

Bluetooth Module ..........................................................7-2

Bluetooth Configuration in Windows Vista ..................7-3

PC Camera Module ........................................................7-6

XVII

Preface

PC Camera Driver Installation .......................................7-7

3.75G/HSPA Module ...................................................7-14

USIM Card Installation ................................................7-15

3G Watcher Application ..............................................7-18

3G Watcher Application Installation ...........................7-18

Setting Up a Carrier Profile .........................................7-19

Short Messaging Service .............................................7-24

HSPA Modem ..............................................................7-25

HSPA Modem Interface Installation ...........................7-25

HSPA Modem Interface ..............................................7-26

Adding a Profile ...........................................................7-28

Contacts .......................................................................7-30

Messages ...................................................................... 7-31

Settings ........................................................................7-32

Wireless LAN Module .................................................7-34

802.11 b/g WLAN Driver Installation .........................7-35

Intel® Wi-Fi Link 5100/5300 Series (802.11 a/g/n)

Driver Installation ........................................................7-35

Fingerprint Reader Module ..........................................7-40

Fingerprint Reader Driver Installation .........................7-40

User Enrollment ...........................................................7-41

Fingerprint Control Center Features ............................7-44

Troubleshooting

Overview ........................................................................8-1

Basic Hints and Tips ......................................................8-2

Backup and General Maintenance .................................8-3

Viruses ...........................................................................8-4

Upgrading and Adding New Hardware/Software .......... 8-5

Problems and Possible Solutions ...................................8-7

Interface (Ports & Jacks)

Notebook Ports and Jacks .............................................A-2

Intel Video Driver Controls

Intel Video Driver Installation ......................................B-1

Video .............................................................................B-1

Dynamic Video Memory Technology ..........................B-1

Intel Graphics Properties ..............................................B-2

Scheme Options ......................................... ...................B-4

Attaching Other Displays ..............................................B-5

Display Modes ..............................................................B-7

Specifications

Processor ....................................................................... C-2

Core Logic ....................................................................C-2

LCD ..............................................................................C-2

Memory .........................................................................C-3

Video Adapter ...............................................................C-3

Security ......................................................................... C-3

XVIII

Preface

BIOS ............................................................................. C-3

Storage .......................................................................... C-3

Audio ............................................................................ C-3

Keyboard & Pointing Device ........................................C-3

Interface ........................................................................ C-4

Card Reader ......................................................... .... ..... C-4

Card Slots ................................................. .... ................. C-4

Communication ............................................................. C-4

Power Management ...................................................... C-5

Power ............................................................................ C-5

Battery ...........................................................................C-5

Environmental Spec ......................................................C-5

Operating Systems Supported .......................................C -5

Dimensions ................................................................... C-5

& Weight ......................................................................C-5

Optional ........................................................................ C-6

Windows XP Information

Tablet PC Features ........................................................D-2

On-Screen Menu .......................................................... .D-3

DVD Regional Codes ...................................................D-4

Windows XP Start Menu & Control Panel ...................D-5

Touchpad and Buttons/Mouse ......................................D-6

Function Keys & Visual Indicators ..............................D-7

Audio Features ..............................................................D-8

Video Features ..............................................................D-9

Intel GMA Driver Controls .........................................D-11

Power Management Features ......................................D-18

Advanced Configuration and Power Interface ............D-18

The Power Sources .....................................................D-19

AC/DC Adapter ..........................................................D-19

Battery ......................................................................... D-19

Turning on the Computer ............................................D-20

Power Schemes ...........................................................D-21

System Power Options ................................................D-23

Hibernate Mode vs. Shutdown ....................................D-23

Stand by Mode vs. Hibernate Mode ...........................D-23

Configuring the Power Button ....................................D-25

Battery Information .....................................................D-26

Recharging the Battery with the AC/DC Adapter ......D-27

Battery FAQ ................................................................D-29

Driver Installation .......................................................D-30

Driver Installation Procedure ......................................D-32

PC Camera Module .....................................................D-35

Bluetooth Module .......................................................D-41

3.75G/HSPA Module ..................................................D-46

Wireless LAN Module ................................................D-49

Fingerprint Reader Module .........................................D-52

Fingerprint Control Center Features ...........................D-55

XIX

Preface

Windows 7 Information

Windows 7 Start Menu & Control Panel ...................... E-2

Video Features ..............................................................E-3

Screen Resolution ......................................................... E-4

Attaching Other Displays ............................................. E-5

Windows 7 Driver Installation ......................................E-7

Updating/Reinstalling Individual Drivers ..................... E-8

Driver Installation Procedure ........................................ E-9

Chipset .......................................................................... E-9

Video ............................................................................. E-9

Touch Panel .................................................................. E-9

Modem .......................................................................... E-9

1394 Filter Driver ......................................................... E-9

Card Reader ......................................................... ....... E-10

LAN ............................................................................ E-10

Hot Key AP ................................................................. E-10

Touchpad .................................................................... E-10

Audio .......................................................................... E-10

Optional Drivers ......................................................... E-11

PC Camera Module ..................................................... E-12

PC Camera Driver Installation .................................... E-13

3.75G/HSPA Module .................................................. E-14

3G Watcher Application ............................................. E-15

3G Watcher Application Installation .......................... E-15

HSPA Modem .............................................................E-16

HSPA Modem Interface Installation ...........................E-16

Wireless LAN Module ................................................ E-17

Intel® Wi-Fi Link Series Driver Installation .............. E-18

802.11b/g Driver Installation ...................................... E-18

Fingerprint Reader Module .........................................E-19

Fingerprint Reader Driver Installation ........................E-19

User Enrollment ..........................................................E-20

Other Notes: ................................................................ E-22

Bluetooth Module ....................................................... E-22

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,

optical device, 7-in-1 card reader, ExpressCard/34/54), Touchpad & Mouse, Audio Features, Tablet PC Options & Printer.

• Chapter 3 The computer’s power saving options.

• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the

computer’s subsystems.

• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).

• Chapter 6 Instructions for upgrading your computer.

• Chapter 7 A quick guide to the computer’s Bluetooth, Wireless LAN, PC Camera, Fingerprint and 3.75G modules (some of which may be optional depending on your purchase configuration).

• Chapter 8 A troubleshooting guide.

• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external devices.

• Appendix B Information on the Intel Video driver controls.

• Appendix C The computer’s specifications.

• Appendix D Information on the Windows XP OS.

• Appendix E Information on the Windows 7 OS.

Overview 1 - 1

Quick Start Guide

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on

page 6 - 1 in the remainder of this User’s Manual. You may also fi nd the notes mark ed with a

 of interest to

you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then



Notes

Check the light colored boxes with the mark above to find detailed information about the computer’s features.

the information contained in this Quick Start Guide should be enough to get you up and running. Eventually you should try to look through all the documentation (more detailed descriptions of the functions, setup and system controls are covered in the remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

 as indicated in the margin.

For a more detailed description of any of the interface ports and jacks see “Interface

(Ports & Jacks)” on page A - 1.

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 2 Overview

Quick Start Guide

Not Included

Operating Systems (e.g. Windows Vista/Windows 7/Windows XP) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.



Drivers

If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in Table 4 - 1, on page 4 - 3. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network modul e. It i s very i mp ortant that you instal l the drivers in the orde r listed . Yo u will be unable to use most advanced controls until the necessary drivers and utili ties are properly installed. If your system hasn’t been properly configured (your service representative may have already done that for you); refer to Chapter 4 for installation instructions.

Ports and Jacks

See “Notebook Ports and J acks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.

Overview 1 - 3

Quick Start Guide

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the following operating systems are supported. This manual refers to the Windows Vista operating system (for specific driver information on Windows XP or Windows 7 see “Windows XP Information” on page D - 1 or “Windows 7 Information” on page E - 1).

Operating System & Version Supported Note

In order to run Windows XP without limitations or decreased

Windows XP (with Service Pack 3)

Windows Vista (with Service Pack 2) Note that Windows Vista Home Basic Edition supports

performance, your computer requires a minimum 512MB of system memory (RAM)

only limited Tablet PC functions.

Windows 7

Table 1 - 1 - Operating Systems Supported

In order to run Windows Vista/Windows 7 without limitations or decreased performance, your computer requires a minimum 1GB of system memory (RAM).



Windows Vista Service Pack 2

Make sure you install Windows Vista Service Pack 2 (or a Windows Vista version which includes Service Pack 2) before installing any drivers. Go to the Microsoft website for download details, or contact your service center.

1 - 4 Overview

Quick Start Guide

System Startup

1. Remove all packing materials and place the computer on a stable surface.

2. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.

3. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an

outlet, and connect the AC power cord to the AC/DC adapter.

4. Use one hand to carefully raise the lid/LCD to a comfortable viewing angle, while using the other hand (as illustrated

Figure 1 - 1

5. If you wish to operate the computer in

6. Slide the power switch to the left and then release it to turn the computer “on”.

Note that you should always shut your computer down by choosing the Shut Down command from the Lock Button Menu in Windows Vista. This will help prevent hard disk or system problems.

below) to support the base of the computer (

Tablet Mode

see page

Note: Never



Shutdown

1 - 6

lift the computer by the lid/LCD).

Figure 1 - 1 - Opening the Lid/LCD/Computer with AC/DC Adapter Plugged-In

System Startup 1 - 5

Quick Start Guide

Operating System Setup

If you are installing new system software, or are re-configuring your computer for a different system, make sure you configure the appropriate OS setting in the BIOS before installing a new operating system.

1. Start-up the computer and press <F2> to enter the BIOS.

2. Go to the Advanced menu, select “Installed O/S” and make sure the appropriate operating system is selected.

3. Go to the Exit menu and select “Exit Saving Changes” (or press F10 and select “Yes” then press Enter) and

press Enter to exit the BIOS and reboot the computer.

Main AAdvanced Security Boot Exit

Advanced Chipset Control

Installed O/S: [Vista / Win 7] SATA Mode Selection: [AHCI] Reset Configuration Data: [No] Boot-time Diagnostic Screen: [Disabled] Legacy OS Boot: [Enabled] Power On Boot Beep [Disabled] Battery Low Alarm Beep: [Disabled] FAN Control: [Automatic]

Phoenix SecureCore(tm) Setup Utility

Advanced

Item Specific Help

Select options for Advanced Chipset features.

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Figure 1 - 2 - BIOS (Operating System Selection)

1 - 6 Operating System Setup

Quick Start Guide

Rotating The LCD Panel

You can use the computer either in Notebook Mode, or in Tablet Mode. To put the computer into Tablet Mode:

1. Raise the lid/LCD panel .

2. Carefully rotate the lid/LCD panel fully in the (clockwise) direction indicated by the arrow , until it is unable to

rotate any further .

3. Carefully push the lid/LCD panel down into Tablet Mode , and use the stylus pen as an input device .

4. Firmly press the screen rotation button to adjust the screen to the most comfortable viewing orientation

(give the display time to refresh), or use the On-Screen rotation button (see page 1 - 16).

5. The on-screen menu allows you to adjust settings, rotate the screen and turn the modules on/off etc.

4 5

Figure 1 - 3 - Rotating the LCD Panel Into Tablet Mode

Rotating The LCD Panel 1 - 7

Quick Start Guide

Tablet Notebook Input

Use the stylus pen provided to interact with the computer in the same way you would use the mouse (tap twice to double-click and keep the pen in contact with the scr een to right-click). Before using the stylus pen you should calibrate the touch screen.

Calibrating the Touch Panel

1. Double-click the

group (the driver must be installed).

2. Click

3. Click

General 4 pts calibration

Advance

T ou ch tool

(if you would prefer to calibrate more accurately, or are having distortion/tracking problems, then click

and choose either

utility icon on the desktop OR from the

9 pts linearization

25 pts linearization



Screen Orientation &

Re-Calibration

Note that you should recalibrate the touch screen after you have orientated the screen to display in a different mode from that first calibrated.

Touch Package

folder in the

Programs/All Programs

Figure 1 - 4 - Touch Package (General & Advance)

1 - 8 Tablet Notebook Input

Quick Start Guide

4. Use the stylus pen to touch the blinking symbol until symbol changes color (maintain contact until the symbol stops blinking)

and you will be prompted to lift up the pen.

5. Repeat the process for all the remaining screen points.

6. Click Free Draw (button) to test the calibration.

7. Use the Mouse Settings and Sound control panels to further adjust the settings to your preference.



Touch Panel Input

Device

Do not use any sharp or pointed objects as your input device e.g. the end of a pen or pencil. You should only use the provided stylus pen (PDA type) as your input device. Be very careful not to press too hard with the stylus pen when using it as the input device.



Screen Distortion

If you experience any line distortion, or tracking inaccuracy, recalibrate the touch screen using 25pts of calibration (click the

Advance item in the Touch package and click 25pts linearization).

Figure 1 - 5 - Screen Calibration

Tablet Notebook Input 1 - 9

Quick Start Guide

Stylus Pen Input

Configure the stylus pen input settings from the Pen and Input Devices control panel in Windows Vista. Access the control panel as follows:

1. Click

2. Click Mobile PC and d ouble-click Pen and Input Device s (or just double-click Pen and Input Devices ).

3. Click Touch (tab).

4. If you wish to use your finger as an input device you can enable this from this control panel tab.

5. It is recommended you enab le the Touch Pointer (which simulates mouse buttons on screen) for greater input

Start

accuracy.

, and click

Control Panel

(or point to

Settings

and click

Control Panel



Windows Vista Home

Basic Edition

Note that the Pointer Options & Flicks control pan- el tabs, and the Tablet PC



Tablet PC Options

See “Tablet PC Options” on page 2 - 10 for further information on Tablet PC settings etc.

Figure 1 - 6 - Pen and Input Devices Control Panel & Touch Pointer

1 - 10 Tablet Notebook Input

Input Panel (see overleaf)

are not available in Windows Vista Home Basic Edition.

Quick Start Guide

Tablet PC Input Panel

When not in use the Tablet PC Input Panel (not available in Windows Vista Home Basic Edition) docks at the side of the screen (and may be docked at either side of the screen at any height) with just a small portion visible. Move the pen over the TIC and then tap it to activate it. The input panel allows you to input text without the use of a keyboard. You can use the writing pad (write continuously), character pad (write one character at a time) or on-screen keyboard to input text. Use the Help menu for further information.

symbol pad & number pad

Figure 1 - 7 - Tablet PC Input Panel & Tablet PC Settings Control Panel

Tablet PC settings may be customized from the Tablet PC Settings in Windows Vista (Windows Vista Home Basic Edition does not support Handwriting Recognition). Access the control panel as follows:

1. Click

2. Click Mobile PC and double-click Tablet PC Settings (or just double-click Tablet PC Settings ).

Start

, and click

Control Panel

(or point to

Settings

and click

Control Panel

Tablet Notebook Input 1 - 11

Quick Start Guide

System Map: LCD Panel Open

Figure 1 - 8

LCD Panel Open

1. Built-In PC Camera (

Optional

2. LCD

3. Fingerprint Reader Module (Optional)

4. Menu & Screen Rotation Buttons

5. Speakers

6. Screen Hinge

7. LED Status Indicators

8. Keyboard

9. Touchpad & Buttons

10. LED Power & Communication Indicators

11. Power Switch

12. Built-In Microphone

)



Wireless Device

Operation Aboard

Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft.

Use the function key combinations/On-Screen Menu buttons to toggle power to the 3.75G/ WLAN/Bluetooth modules, and check the LED indicator icon to see if the modules are powered on or not (see Table 1 - 4, on

page 1 - 15/ Table 1 - 5, on page 1 - 16/ Table 1 - 3, on page 1 - 13).

1 - 12 System Map: LCD Panel Open

Quick Start Guide

LED Indicators

The two sets of LED indicators (LED Status Indicators and LED Power & Communication Indicators)

on the computer display helpful information about the current status of the computer.

Icon Color Description

Green Number Lock Activated

Green Caps Lock Activated

Green

Table 1 - 2 - LED Status Indicators

Scroll Lock Activated (to activate

press Fn & Scr Lk)

Icon Color Description

Orange DC Power is Plugged In

Green The Computer is On

Blinking Green

Orange The Battery is Charging

Green The Battery is Fully Charged

Blinking Orange

Green Hard Disk Activity

Green

Orange

Green

The Computer is in Sleep

Mode

The Battery Has Reached

Critically Low Power Status

The (optional) Wireless LAN

Module is Powered On

The (optional) Bluetooth

Module is Powered On

The (optional) 3.75G Module

is Powered On

Table 1 - 3 - LED Power & Communication Indicators

System Map: LCD Panel Open 1 - 13

Quick Start Guide

Keyboard

The keyboard has a numerical keypad for easy numeric data input, and features function keys to allow you to change operational features instantly (see Figure 1 - 9). See Table 1 - 4, on page 1 - 15 for details of the function/ hot key indicators.

Play/Pause Key

Fn Key

Function Keys

Numerical Keypad

NumLk & ScrLk Keys

3.75G Module Power Toggle Key

Special Characters

Some software applications allow the number-keys to be used with Alt to produce special characters. These special characters can only be produced by using the numeric keypad. Regular number keys (in the upper row of the keyboard) will not work. Make sure that NumLk is on.



Figure 1 - 9 - Keyboard



Other Keyboards

If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically. However special functions/hot-keys uniqu e to the system’s regular keyboard may not work.

1 - 14 Keyboard

Quick Start Guide

Function Keys & Visual Indicators

The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations; visual indicators (see the table below) are available when the Hot Key driver is installed (see

Keys Function/Visual Indicators Keys Function/Visual Indicators

Fn + ~ Play/Pause (in Audio/Video Programs) Fn + F7 Display Toggle

“Hot Key AP” on page 4 - 6).

Fn + _

Fn + F1 Touchpad Toggle Fn + F10

Fn + F2

Fn + F3 Mute Toggle Fn + F12

Fn + F4 Sleep Toggle Fn + NumLk Number Lock Toggle

Fn +F5/F6

3.75G Module

Power Toggle*

Turn LCD Backlight Off

(Press a key to or use Touchpad to turn on)

Volume Decrease/

Increase

Fn +F8/F9

Fn + F11

Fn + ScrLk Scroll Lock Toggle

Brightness

Decrease/Increase PC Camera Power

Toggle*

WLAN Module Power Toggle*

Bluetooth Module

Power Toggle*

Table 1 - 4 - Function Keys & Visual Indicators

*Note: Any modules not included in your purchase configuration will appear grayed out when the key combination is pressed.

Keyboard 1 - 15

Quick Start Guide

On-Screen Menu

Pressing the Menu button on the computer will bring up the On-Screen Menu buttons (make sure you install the menu driver - see “Hot Key AP” on page 4 - 6). Use the stylus pen to touch any of the buttons to activate the control (note the ON/OFF buttons do not display the current power status of the modules, but the power status that will be executed when you tap the button e.g. tap an ON button to power on the module).

On-Screen Menu Function On-Screen Button Function On-Screen Button

Brightness Decrease/

Increase

Volume Decrease/

Increase

Mute Toggle

LCD Toggle

Screen Rotation

Note: Use the stylus pen to tap the appropriate on-screen button to

1 - 16 On-Screen Menu

PC Camera

Module Power

Toggle*

Bluetooth Module

Power Toggle*

WLAN Module Power Toggle*

3.75G Module Power Toggle*

adjust the setting.

Note: You can also use the screen rotation button to

*Note: Any modules not included in your purchase

configuration will appear grayed out when the key

Table 1 - 5 - On-Screen Menu Buttons

rotate the screen.

combination is pressed.

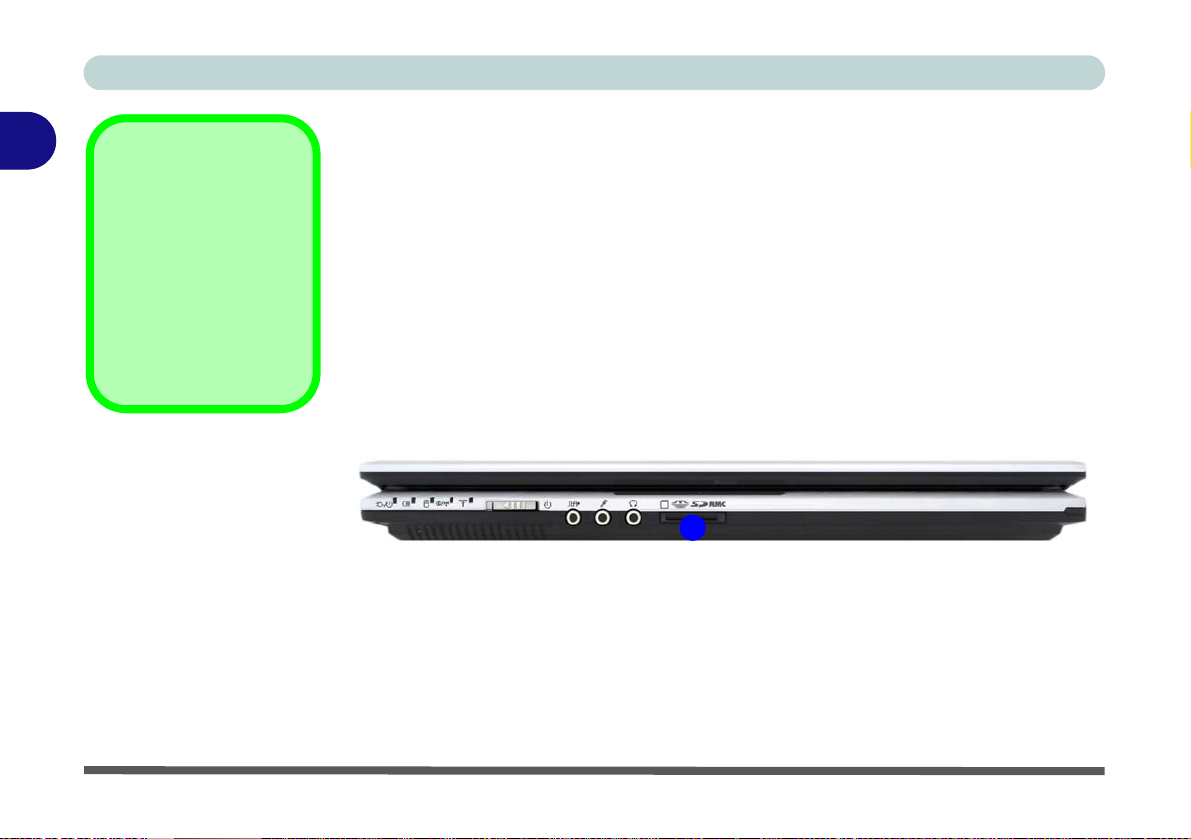

System Map: Front & Rear Views

The card reader allows you to use the most popular digital storage card formats:



7-in-1 Card Reader

MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /

MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /

Mini SD (requires PC adapter) / RS MMC (requires PC adapter)

Quick Start Guide

Figure 1 - 10

Front & Rear Views

1. LED Power & Communication Indicators

2. Power Switch

3. S/PDIF-Out Jack

4. Microphone-In Jack

5. Headphone-Out Jack

6. 7-in-1 Card Reader

7. Stylus Pen Holder

8. Security Lock Slot

9. 2 * USB 2.0 Ports

10. DC-In Jack

11. Battery

System Map: Front & Rear Views 1 - 17

Quick Start Guide

System Map: Left & Right Views

Figure 1 - 11

Left & Right Views

1. Stylus Pen Holder

2. Optical Device Drive Bay (for CD/ DVD Device - see page 2 - 3)

3. 1 * USB 2.0 Port

4. RJ-11 Phone Jack

5. RJ-45 LAN Jack

6. External Monitor Port

7. Mini-IEEE 1394 Port

8. Vent/Fan Intake/ Outlet

9. ExpressCard Slot (see page 2 - 7)



Overheating

To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s) while the computer is in use.



524

Mini-IEEE 1394

Port

The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.

Make sure you install the IEEE 1394 filter driver (see page 4 - 6).

1 - 18 System Map: Left & Right Views

Quick Start Guide



Disk Eject Warning

Don’t try to eject a CD/DVD while the system is accessing it. This may cause the system to “crash”. Stop the disk first then eject it, or press the stop button twice.

CD/DVD Emergency Eject

If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or any object that may break and become lodged in the hole. Don’t try to remove a floppy disk/CD/DVD while the system is accessing it. This may cause the system to “crash”.



Changing DVD Regional Codes

Go to the Control Panel and double-click Device Manager (Hardware and Sound), then click the + next to DVD/CD-ROM drives. Double-click on the DVD-ROM

device to bring up the Properties dialog box, and select the DVD Region (tab) to bring up the control panel to allow you to adjust the regional code (see “DVD Re-

gional Codes” on page 2 - 5).

DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer.

System Map: Left & Right Views 1 - 19

Quick Start Guide

System Map: Bottom View

Figure 1 - 12

Bottom View

1. Battery

2. Hard Disk Bay Cover (3.75G Module Location)

3. RAM & CPU Bay Cover

4. Vent/Fan Intake/ Outlet



CPU

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Overheating

To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake while the computer is in use.



Battery Information

Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges. See “Battery Information” on page 3 - 10 for full instructions.

1 - 20 System Map: Bottom View

Quick Start Guide

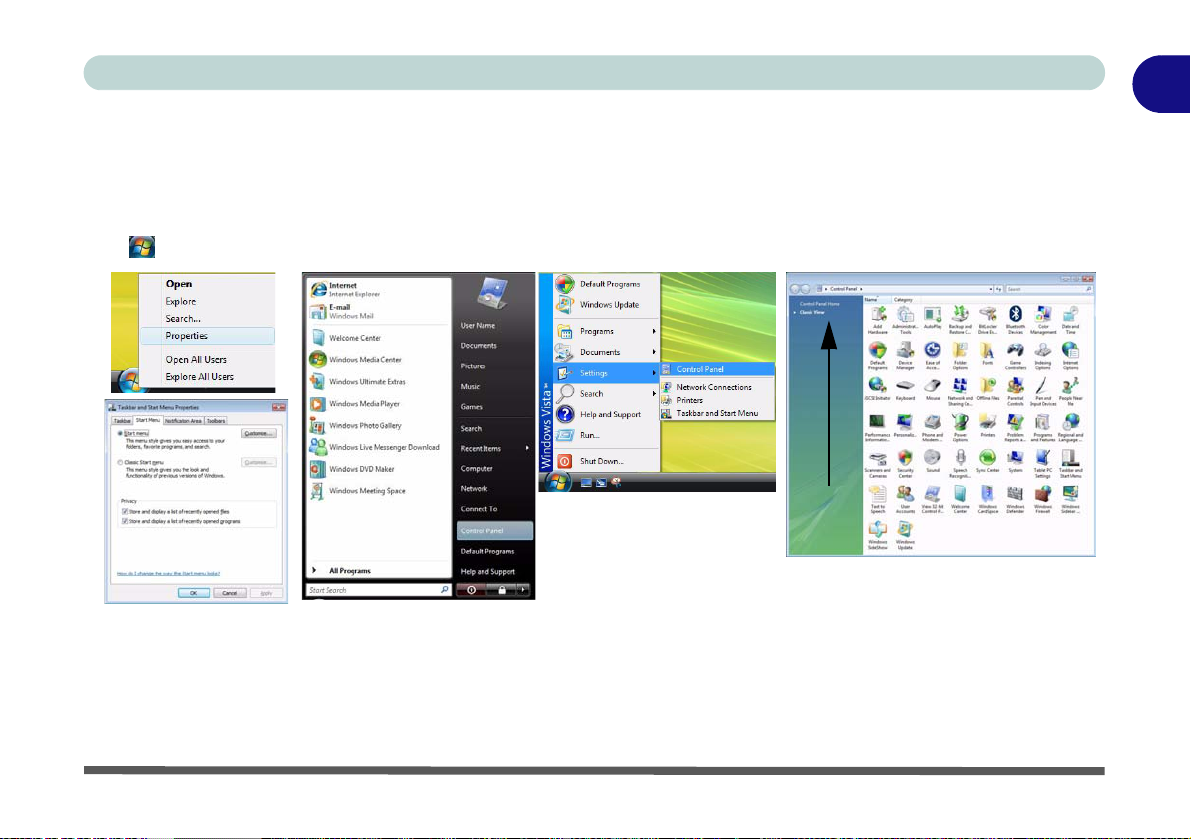

Windows Vista Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu icon , and then select Properties if you want to customize the appearance of the Start menu.

Click here to toggle Views

Figure 1 - 13 - Start Menu & Control Panel

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features

in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea- tures, however many new controls are added (or existing ones are enhanced) when you install the drivers listed in Table 4 - 1, on page 4 - 3. To see all controls it may be necessary to toggle to Classic View on.

Windows Vista Start Menu & Control Panel 1 - 21

Quick Start Guide

Video Features

You can switch display devices, and configure display options, from the Display Settings control panel (in Personalization) in Windows Vista as long as the appropriate Intel video driver is installed. For more detailed vid-

eo information see “Intel Video Driver Controls” on page B - 1.

To access Display Settings in Windows Vista:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click Personalization > Display Settings).

3. Move the slider to the preferred setting in Resolution: (Figure 1 - 14 on page 1 - 23).

4. Click the arrow, and scroll to the preferred setting In Colors: (Figure 1 - 14 on page 1 - 23).

5. Click Advan ced Sett ings (b utton) (Figure 1 - 14 on page 1 - 23) and click Intel(R) GMA Driver for mobile (tab).

6. Click Graphics Properties (button) (Figure 1 - 14 on page 1 - 23) to access the Intel GMA control panel (this control panel can also be accessed by double-clicking Intel(R) GMA Driver for mobile in Classic View).

7. The Intel GMA control panel can also be accessed by clicking the icon in the taskbar and selecting Graphics

Properties from the menu.

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or external Flat Panel Display connected to the external monitor port as your display device.

1 - 22 Video Features

Quick Start Guide

Figure 1 - 14 - Display Properties Desktop

Intel Display Mode Description

Single Mode One of the connected displays is used as the display device Intel(R) Dual Display Clone Mode Both connected displays output the same view and may be configured independently Extended Desktop Mode Both connected displays are treated as separate devices, and act as a virtual desktop

Table 1 - 6 - Display Options

Video Features 1 - 23

Quick Start Guide

Power Options

The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 21 ) allows you to configure power management features for your computer. You can conserve power by means of power plans and configure the options for the power button, sleep button, computer lid (when closed), display and sleep mode from the left menu. Note that the Power saver plan may have an affect on computer performance.

Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con- figuration options.

Pay attention to the instructions on battery care in “Battery Information” on page 3 - 10.

1 - 24 Power Options

Note: Sleep is the default power saving state in Windows Vista

Figure 1 - 15 - Power Options

Features & Components

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components of the computer:

•Hard Disk Drive

• Optical (CD/DVD) Device

• 7-in-1 Card Reader

• ExpressCard Slot

• Touchpad and Buttons/Mouse

• Audio Features

• Tablet PC Options

• Adding a Printer

Overview 2 - 1

Features & Components

Before attempting to access any of the internal components of your computer please ensure that the machine is not connected to the AC power, and that the machine is turned off. Also ensure that all peripheral cables, including phone lines, are disconnected from the computer.



Power Safety

Hard Disk Drive

The hard disk drive is used to store your data in the computer. The hard disk can be taken out to accommodate other 2.5" serial (SATA) hard disk drives (see “Storage”

on page C - 3) with a height of 9.5 mm.

The hard disk is accessible from the bottom of your computer as seen below. For further details see “Upgrading the Hard Disk Drive” on page 6 - 4.

Figure 2 - 1

Hard Disk Location

2 - 2 Hard Disk Drive

Features & Components

Optical (CD/DVD) Device

There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the module you purchased (see “Storage” on page C - 3). The optical device is usually labeled “Drive D:” and may be used as a boot device if properly set in the BIOS (see “Boot Menu” on page 5 - 13).

Loading Discs

To insert a CD/DVD, press the open button and carefully place a CD/DVD onto the disc tray with label-side facing up (use just enough force for the disc to click onto the tray’s spindle). Gently push the CD/DVD tray in until its lock “clicks” and you are ready to start. The busy indicator will light up while data is being accessed, or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole

to open the tray.



Sound Volume

Adjustment

How high the sound volume can be set depends on the setting of the volume control within Win- dows. Click the Volume icon on the taskbar to check the setting (see

“Audio Features” on page 2 - 9).

Figure 2 - 2

Optical Device

Optical (CD/DVD) Device 2 - 3

Features & Components

CD Emergency Eject

If you need to manually eject a CD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. However please do NOT use a sharpened pencil or similar object that may break and become lodged in the hole.

Disk Eject Warning

Don’t try to remove a CD/DVD while the system is accessing it. This may cause the system to “crash”.



Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/DVDs can be accessed.

Note the following:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Handling CDs or DVDs

2 - 4 Optical (CD/DVD) Device

Features & Components

DVD Regional Codes

To change the DVD regional codes see “Changing DVD Regional Codes” on

page 1 - 20.

DVD Regional Coding

Region Geographical Location

1 USA, Canada

6China

Western Europe, Japan, South

Africa, Middle East & Egypt

South-East Asia, Taiwan, South

Korea, The Philippines, Indonesia,

Hong Kong

South & Central America, Mexico,

Australia, New Zealand

N Korea, Russia, Eastern Europe,

India & Most of Africa

Table 2 - 1

DVD Regional Coding

Figure 2 - 3

DVD Regions

Optical (CD/DVD) Device 2 - 5

Features & Components

Card Reader Cover

Make sure you keep the rubber cover provided in the card reader when not in use. This will help prevent foreign objects and/or dust getting in to the card reader.



7-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s). Make sure you install the Card Reader driver (see “Card Reader” on page 4 - 6).

• MMC (MultiMedia Card)

• SD (Secure Digital)

• MS (Memory Stick)

• MS Pro (Memory Stick Pro)

• MS Duo (requires PC adapter*)

• Mini SD (requires PC adapter*)

• RS MMC (requires PC adapter*)

*Note: The PC adapters are usually supplied with these cards.

Figure 2 - 4

Right View

1. Card Reader

2 - 6 7-in-1 Card Reader

Features & Components

ExpressCard Slot

The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/ 34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC Cards). Make sure you install the Card Reader driver

ExpressCard/54 is used for applications which require a larger interface slot, e.g. CompactFlash card reader. The number denotes the card width; 54mm for the Express Card/54 and 34mm for the ExpressCard/34.

Inserting and Removing ExpressCards

• Align the ExpressCard with the slot and push it in until it locks into place (as

pictured in the generic figure below).

• To remove an ExpressCard, simply press the card to eject it.

(see

“Card Reader” on page 4 -



ExpressCard

Slot Cover

Make sure you keep the rubber cover provided in the ExpressCard slot when not in use. This will help prevent foreign objects and/or dust getting in to the ExpressCard Slot.

Figure 2 - 5

Left View

1. ExpressCard Slot

Figure 2 - 6

Inserting &

Removing Express

Cards

ExpressCard Slot 2 - 7

Features & Components

If you are using an external mouse your operating system may be able to auto-configure your mouse during its installation or only enable its basic functions. Be sure to check the device’s user documentation for details.



Mouse Driver

Touchpad and Buttons/Mouse

The Touchpad is an alternative to the mouse; however, you can also add a mouse to your computer through one of the USB ports. The Touchpad buttons function in much the same way as a two-button mouse.

Once you have installed the Touchpad driver (see “Touchpad” on page 4 - 6) you can configure the functions by double-clicking the Touchpad driver icon on the taskbar. You may then configure the Touchpad tapping, buttons, scrolling, pointer motion and sensitivity options to your preferences. You will find further information at www.synaptics.com.

Figure 2 - 7

Mouse Properties

2 - 8 Touchpad and Buttons/Mouse

Features & Components

Audio Features

You can configure the audio options on your computer from the Sound control panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/ control panel (right-click the taskbar icon to bring up an audio menu). The volume may also be adjusted by means of the Fn + F5/F6 key combination or On-Screen Menu buttons.

Right-click the icon to access the menu above.



Sound Volume

Adjustment

The sound volume level is set using the volume control within Windows (and the volume function keys on the computer). Click the volume icon in the taskbar to check the setting.

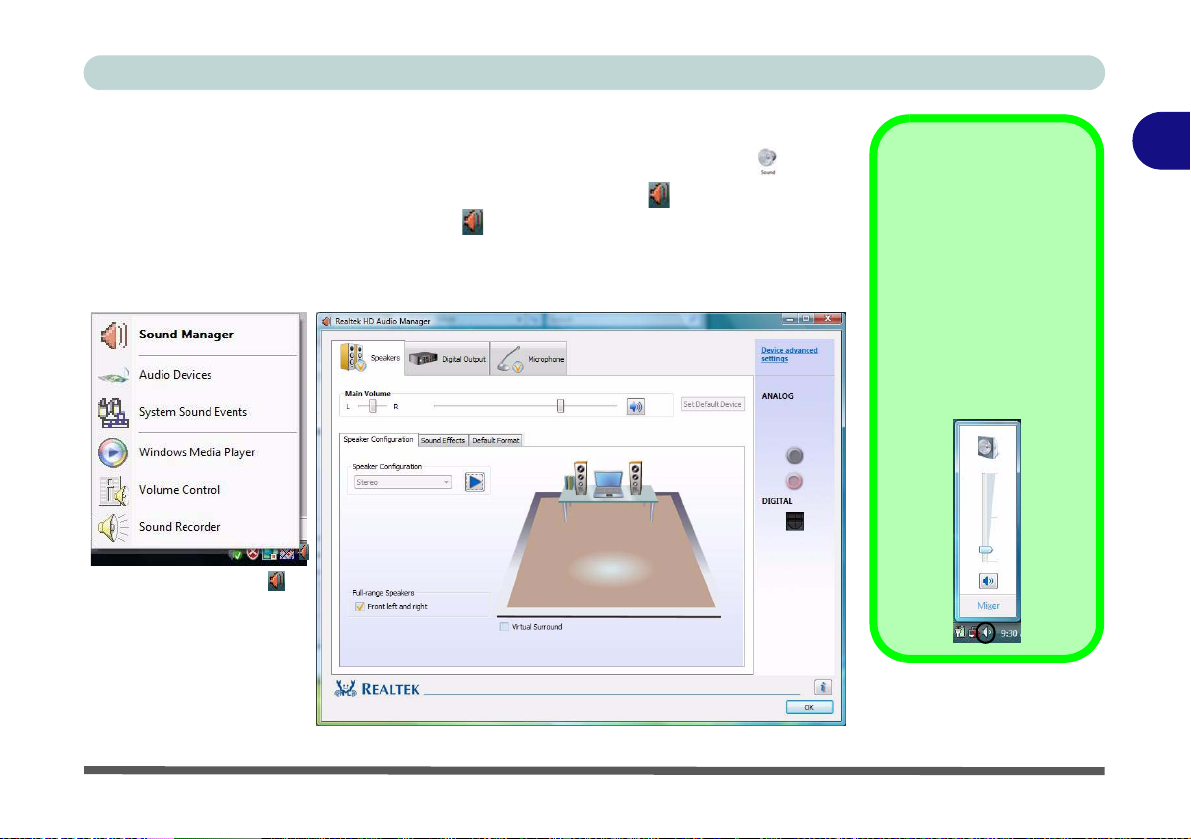

Figure 2 - 8

Realtek Audio

Manager

Audio Features 2 - 9

Features & Components

Home Basic Edition

Note that certain features such as Screen

Orientation, Flicks and Handwriting Recognition are not available in

Windows Vista Home Basic Edition.

Screen Orientation

You can also rotate the screen orientation by means of the rotation button (see page



Windows Vista

On-Screen

1 - 17

Tablet PC Options

Chapter 1 contains information on rotating the screen into Tablet mode (see “Ro-

tating The LCD Panel” on page 1 - 7), Tablet PC input (see “Tablet PC Input” on page 1 - 8) and the On-Screen Menu functions (see “On-Screen M enu” on page 1

- 17).

Windows Vista (not available in Windows Vista Home Basic Edition) also has built

in control panels which help you get the most out of your Tablet PC.

Screen Orientation

1. Click

2. Click Adjust commonly used mobility setting under the Mobile PC menu (or

3. Click on the Rotate Screen button in Screen Orientation to rotate the screen

Start

, and click double-click Windows Mobility Center). (note that you should re-calibrate the touch screen after you have rotated the

screen to display in a different mode from that first calibrated).

Control Panel

(or point to

Settings

and click

Control Panel

Figure 2 - 9

Windows Mobility

Center - Screen

Orientation

2 - 10 Tablet PC Options

Features & Components

Flicks

Flicks are quick gestures that can be assigned various actions (similar to quickly drawing a line in one of eight directions). It is important that the motion is straight and quick. Configure flicks from the Pen and Inpu t Devices control panel (see page

1 - 11).

You can enable navigational flicks (default), editing flicks or customize your own To customize flicks, click on the drop down menu next to one of the actions and select Add. You can then give the action a name and specify the key combination required.



Pen Flick Training

Click Practice using flicks in the Flicks con-

trol panel tab to access the Pen Flick Training to help you get used to using flicks.

You can also right-click the taskbar icon (no- tification area) to bring up the pen flicks menu (below).

Pen Flick Training

Figure 2 - 10

Flicks

Tablet PC Options 2 - 11

Features & Components

Handwriting Recognition

Recognition Help

Open the Tablet PC Settings control panel

(see page 1 - 12) and click the Handwriting Recognition tab.

Click on Learn more

about handwriting personalization to bring up

the help menu.



Handwriting

You can teach the computer to recognize your handwriting in order to help to minimize data entry errors when using the writing or character pads.

1. Open the Tablet PC Input Panel (see “Tablet PC Input Panel” on page 1 - 12).

2. Click Tools and selec t Personalize Handwriting Recognition.

3. Click Target specific recognition errors (to help correct specific characters which are not being recognized correctly), or Teach the recognizer your handwriting style (to teach the computer your overall handwriting style).

4. Follow the on-screen instructions to complete handwriting recognition.

Figure 2 - 11

Tablet PC Settings

Control Panel &

Handwriting

Personalization

2 - 12 Tablet PC Options

Features & Components

Other Useful Windows Vista Features for Tablet PC Users

Multi-Select Files in Windows Explorer

The option to multi-select files in Windows Explorer in Windows Vista is very useful when using a pen as your input device.

1. Click

2. Click Appearance and Personalization and click Folder Options (or just

3. Click View (tab), and make sure Use check boxes to select items is ticked.

4. Click OK to save the setting.

5. Check boxes will appear in open folders to allow you to easily multi-select files with

Start

, and click

double-click Folder Options).

a pen.

Control Panel

(or point to

Settings

and click

Control Panel

Tablet PC Options 2 - 13

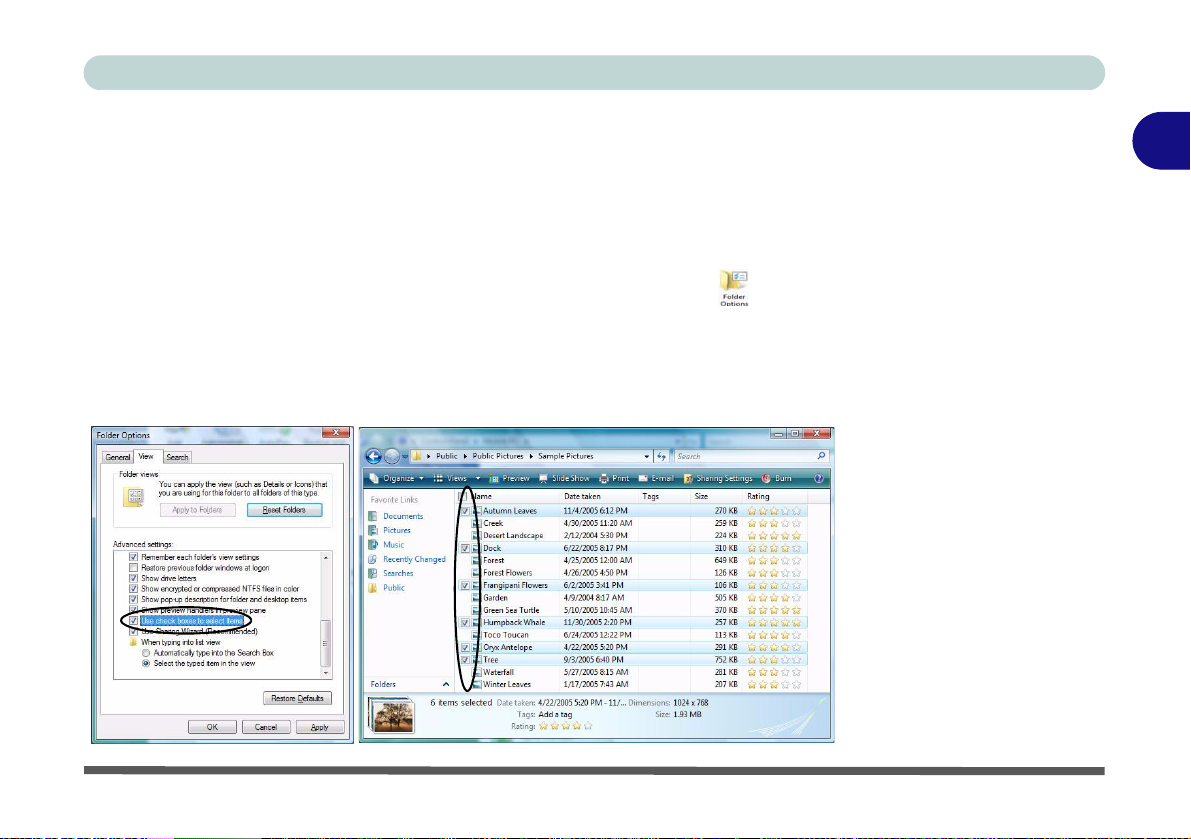

Figure 2 - 12

Folder Options

Multi-Select Files

Features & Components

Internet Explorer Panning Hand Tool

Internet Explorer has a Panning Hand tool that allows easier navigation of Internet webpages. Simply click the Panning Hand icon in the Command Bar to activate the tool. The hand icon will appear to allow you to pan around the webpage, however the icon will change to a pointed finger icon when you move across a link.

2 - 14 Tablet PC Options

Features & Components

Adding a Printer

The most commonly used peripheral is a printer. The following conventions will help you to add a printer; however it is always best to refer to the printer manual for specific instructions and configuration options.

USB Printer

Most current printers have a USB interface connection. You may use any one of the ports to connect the printer.

Install Instructions:

1. Set up the printer according to its instruction s (unpacking, p aper tr ay, toner/ink cartridge etc.).

2. Turn ON the computer.

3. Turn ON the printer.

4. Connect the printer’s USB cable to one of the USB ports on the computer.

5. Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.

Parallel Printer

This is still a very common type of printer. The install instructions are in the sidebar, however you will need to purchase a parallel to USB converter.



Parallel Printer

After setting up the printer attach the parallel cable to the printer.

Connect the printer’s parallel cable to the Parallel to USB converter, and then plug the converter into the USB port.

Turn ON the printer, then turn ON the computer.

Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.

Adding a Printer 2 - 15

Features & Components

2-16

Power Management

Chapter 3: Power Management

Overview

To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer (the monitor and hard disk drive) or the whole system. This chapter covers:

• The Power Sources

• Turning on the Computer

• Power Plans

• Power-Saving States

• Configuring the Power Buttons

• Battery Information

The computer uses enhanced power saving techniques to give the operating system (OS) direct control over the power and thermal states of devices and processors. For example, this enables the OS to set devices into low-power states based on user settings and information from applications.



OS Note

Power management functions will vary slightly depending on your operating system. For more information it is best to refer to the user’s manual of your operating system.

Hibernate Mode In

Windows Vista SP1

If you are using Windows Vista SP1 with

4GB RAM installed, see page 3 - 7 for information on Hibernate.

Overview 3 - 1

Power Management

The Power Sources

The computer can be powered by either an AC/DC adapter or a battery pack.

AC/DC Adapter

Use only the AC/DC adapter that comes with your computer. The wrong type of AC/ DC adapter will damage the computer and its components.

1. Attach the AC/DC adapter to the DC-in jack at the rear of the computer.

2. Plug the AC power cord into an outlet, and then conne ct the AC power co rd to the AC/DC adapter.

3. Raise the lid/LCD to a comfortable viewing angle.

4. Slide the power switch to the left and then release it to turn the computer “on”.

Battery

The battery allows you to use your computer while you are on the road or when an electrical outlet is unavailable. Battery life varies depending on the applications and the configuration you're using. To increase battery life, let the battery discharge completely before recharging (see “How do I completely discharge the battery?”

on page 3 - 14).

We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery Information” on page 3 - 10.

3 - 2 The Power Sources

Turning on the Computer

Now you are ready to begin using your computer. To turn it on slide the power switch on the front panel to the left and release it.

When the computer is on, you can use the power switch as a Sleep/Hibernate hotkey button when you slide it to the left and release it in less than 4 seconds (sliding and holding the power switch to the left without releasing it for longer than this will force the computer to shut down). Use Power Options (Hardware and Sound menu) control panel in Windows Vista to configure this feature.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, slide and hold the power button for 4 seconds, or longer, to force the system to turn itself off.

Power Button Sleep

Sleep is the default power mode when the power switch is slid to the l eft and released in less than 4 seconds. You may configure the options for the power button from the Power Options (Hardware and Sound menu) control panel in Windows Vista (see your OS’s

documentation, or “Configuring the Power Buttons” on page 3 - 8 for details).

Power Management



Shut Down

Note that you should always shut your computer down by choosing the Shut Down command from the Lock Button

Menu in Windows Vis- ta. This will help prevent

hard disk or system problems.

Turning on the Computer 3 - 3

Power Management

Power Plans



Resuming Operation

See Table 3 - 1, on

page 3 - 9 for informa-

tion on how to resume from a power-saving state.

Password

It is recommended that you enable a password on system resume in order to protect your data.

Figure 3 - 1

Power Plan -

Advanced Settings

The computer can be configured to conserve power by means of power plans. You can use (or modify) an existing power plan, or create a new one.

The settings may be adjusted to set the display to turn off after a specified time, and to send the computer into Sleep after a period of inactivity.

Click Change plan settings and then click Change advanced power settings to access further configuration options in Advanced Settings.

3 - 4 Power Plans

Each Windows power plan will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power).

Choose High performance for maximum performance when the computer is powered from an AC power source. Choose the Power saver (bear in mind that this scheme may slow down the overall performance of the computer in order to save power) for maximum power saving when the computer is battery (DC power) powered.

Power Management

Figure 3 - 2

Power Plans

Power Plans3-5

Power Management

Power-Saving States



Power Button

The Power Button in the Start Menu (in Classic View use the Shut Down button ) can be used to send the computer into a power-saving state.

Sleep Mode &

Mobile PC Battery

A mobile PC in Sleep uses very little battery power.

After an extended period of time the computer will save any open documents and applications to hard disk.

You can use power-saving states to stop the computer’s operation and restart where you left off. Sleep is the default power-saving state in Windows Vista.

Earlier versions of Windows used Stand By and Hibernate as system power-saving states. Windows Vista combines the features of Stand By and Hibernate into the default Sleep power-saving state.

Sleep

In Sleep all of your work, settings and preferences are saved to memory before the system sleeps. When you are not using your computer for a certain length of time, which you specify in the operating system, it will enter Sleep to save power.

The PC wakes from Sleep within seconds and will return you to where you last left off (what was on your desktop) without reopening the application(s) and file(s) you last used.

If your mobile PC in Sleep is running on battery power the system will use only a minimum amount of power. After an extended period the system will save all the information to the hard disk and shut the computer down before the battery becomes depleted.

3 - 6 Power-Saving States

Hibernate

Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a power failure occurs the system can restore your work from the hard disk; if a power failure occurs when work is saved only to memory, then the work will be lost. Hi- bernate will also return you to where you last left off within seconds. You should put your mobile PC into Hibernate if you will not use the computer for a period of time, and will not have the chance to charge the battery.

Shut Down

You should shut down the computer if you plan to install new hardware (don’t forget to remove the battery and follow all the safety instructions in Chapter 6), plan to be away from the computer for several days, or you do not need it to wake up and run a scheduled task. Returning to full operation from shut down takes longer than from Sleep or Hibernate.

Power Management

Figure 3 - 3

Lock Button menu

Power-Saving States 3 - 7

Power Management

Configuring the Power Buttons



Password Protection

It is recommended that you enable a password on wake up in order to protect your data.

However you can disable this setting from the Power Options menu by clicking Require a

password on wakeup

in the left menu, and selecting the options (click

Change settings that are currently unavailable).

Figure 3 - 4

Power Options

Define Power

Buttons

The power switch (power button)/sleep button (Fn + F4 key combo) and closed lid may be set to send the computer in to a power-saving state.

3 - 8 Configuring the Power Buttons

Resuming Operation

You can resume operation from power-saving states by sliding the po wer switch, or in some cases pressing the sleep button (Fn + F4 key combo).

Power Status

Power Off Off Slide the Power Switch

Sleep Blinking Green

Icon Color

Press the Sleep Button (Fn + F4 Key Combo)

To Resume

Slide the Power Switch

Power Management



Closing the Lid

If you have chosen to send the computer to Sleep when the lid is closed, raising the lid will wake the system up.

Hibernate

Display Turned Off Green

Off (battery)

Slide the Power Switch

Orange (AC/DC adapter)

Press a Key or Move the Mouse/Touchpad/

Touch the Screen



Power Switch

When the computer is on, you can use the power switch as a Sleep /Hiberna te /Shut Down hot key button when it is slid to the left and released in less than 4 seconds (sliding and holding the power button for longer than this will force the computer to shut down).

Configuring the Power Buttons 3 - 9

Table 3 - 1

Resuming Operation

Power Management

Battery Information



Low Battery

Warning

When the battery is critically low, immediately connect the AC/DC adapter to the computer or save your work, otherwise, the unsaved data will be lost when the power is depleted.

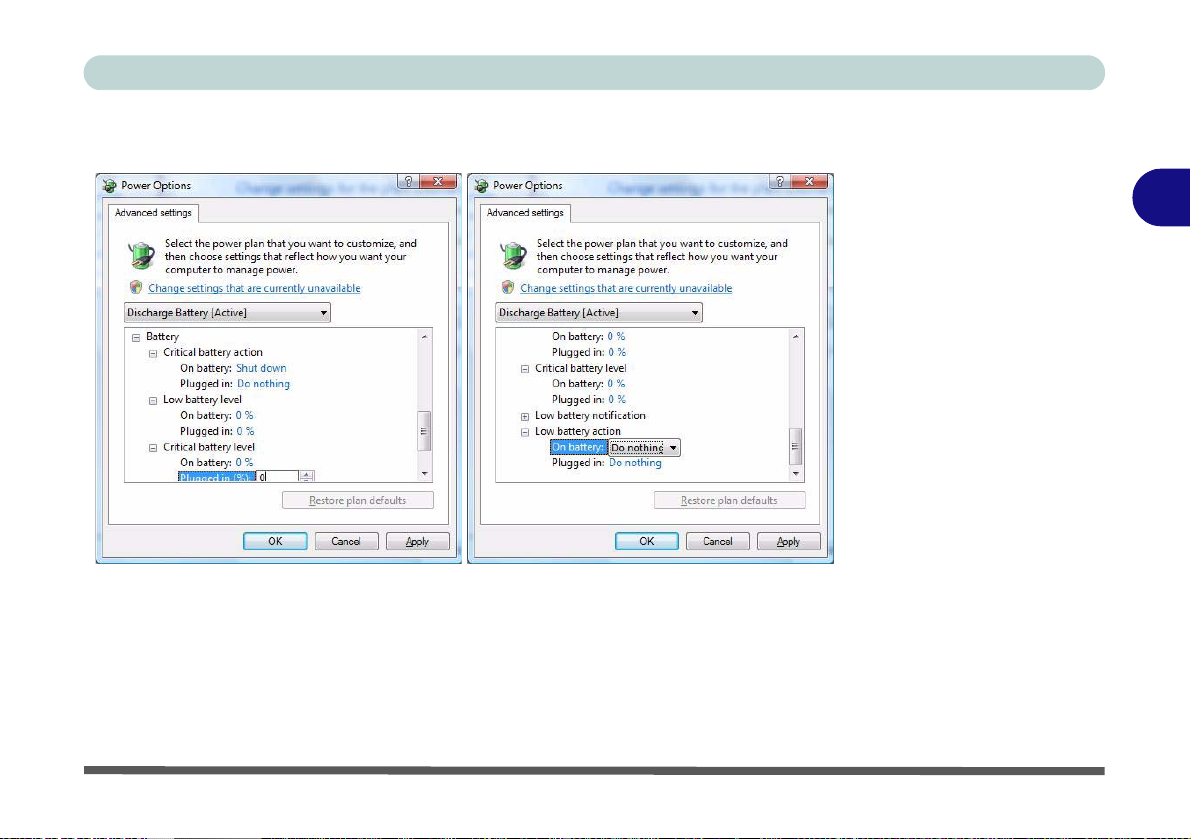

Figure 3 - 5

Battery Icon

(Taskbar) & Battery

Advanced Settings

Please follow these simple guidelines to get the best use out of your battery.

Battery Power

Your computer’s battery power is dependent upon many factors, including the programs you are running, and peripheral devices attached. You can set actions to be taken (e.g. Shut down, Hibernate etc.), and set critical and low battery levels from power plan Advanced Settings (see Figure 3 - 1 on page 3 - 4).

Click the battery icon in the taskbar to see the current battery level and charge status.

3 - 10 Battery Information

Conserving Battery Power

•Use a power plan that conserves power (e.g Power saver), however note that

this may have an affect on computer performance.

• Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

• Reduce the amount of time before the display is turned off.

• Close wireless, Bluetooth, modem or communication applications when they are not being used.

• Disconnect/remove any unnecessary external devices e.g. USB devices, ExpressCards etc.

Power Management



Windows Mobility

Center

The Windows Mobility Center control panel

provides an easy point of access for information on battery status, power plans used etc.

Figure 3 - 6

Windows Mobility

Center

Battery Information 3 - 11

Power Management

Battery Life

Battery life may be shortened through improper maintenance. To optimize the life

and improve its performance, fully discharge and recharge the battery at least once every 30 days.

We recommend that you do not remove the battery yourself. If you do need to remove the battery for any reason (e.g. long term storage) see “Removing the Battery”

on page 6 - 3.

New Battery

Always completely discharge, then fully charge, a new battery (see “Battery FAQ”

on page 3 - 14 for instructions on how to do this).

Recharging the Battery with the AC/DC Adapter

The battery pack automatically recharges when the AC/DC adapter is attached and plugged into an electrical outlet. If the computer is powered on, and in use, it will take several hours to fully recharge the battery. When the computer is turned off but plugged into an electrical outlet, battery charge time is less. (Refer to “LED Indica-

tors” on page 1 - 14 for information on the battery charge status, and to “Battery Information” on page 3 - 10 for more information on how to maintain and properly

recharge the battery pack.)

3 - 12 Battery Information

Proper handling of the Battery Pack

• DO NOT disassemble the battery pack under any circumstances

• DO NOT expose the battery to fire or high temperatures, it may explode

• DO NOT connect the metal terminals (+, -) to each other



Damaged Battery Warning

Should you notice any physical defects (e.g. the battery is bent ou t of shape after being dropped), or any unusual smells emanating from the notebook battery, shut your computer down immediately and contact your service center. If the battery has bee n d roppe d we do not recommend using it any further, as even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire . It is recommended that you replace your computer battery every two years.

Power Management



Caution

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Battery Information 3 - 13

Power Management

Battery FAQ

How do I completely discharge the battery?

Figure 3 - 7

Power Plan - Create

Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.

1. Save and close all files and applications.

2. Create a power plan for discharging the battery and set all the options to Never.

3. Click Change plan settings (after saving it) and click Change advanced power settings.

3 - 14 Battery Information

4. Scroll down to Battery and click + to expand the battery options.

5. Choose the options below (click Yes if a warning appears).

• Low battery levels = 0%

• Critical battery Levels = 0%

• Low battery action = Do Nothing

• Critical battery action (On battery) = Shut Down

• Critical battery action (Plugged in) = Do Nothing

Power Management

Figure 3 - 8

Power Options

Advanced Settings -

Battery

Battery Information 3 - 15

Power Management

How do I fully charge the battery?

When charging the battery, don’t stop until the LED charging indicator light changes from orange to green.

How do I maintain the battery?

Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

3 - 16 Battery Information

Chapter 4: Drivers & Utilities

Drivers & Utilities

This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers and utilities.

What to Install

The Device Drivers & Utilities + User’s Manual disc contains the drivers and utilities necessary for the proper operation of the computer.

Table 4 - 1, on page 4 - 3 lists what you need to install

and it is very important that the drivers are in- stalled in the order indicated (see “Driver Installa-

tion” on page D - 30 for Windows XP information or

see “Windows 7 Driver Installation” on page E - 7 for Windows 7 information).

Module Driver Installation

The procedures for installing drivers for the Wireless LAN, PC Camera, Fingerprint and 3.75G/HSPA

modules are provided in “Modules & Options” on

page 7 - 1.

What to Install 4 - 1

Drivers & Utilities

Driver Installation

Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers (button), or Option Driv- ers (button) to access the optional driver menu.

Figure 4 - 1 - Drivers Installer Screen 1

1. Check the driver installation order from Table 4 - 1,

on page 4 - 3 (the drivers must be installed in

this order) which is the same as that listed in the

Drivers Installer menu below.

2. Click to select the driver you wish to install, after installing each driver it will become grayed out (if you need to reinstall any driver, click the Unlock button).

3. Follow the instructions for each individual driver installation procedure as listed on the following pages.

4 - 2 Driver Installation

Figure 4 - 2 - Drivers Installer Screen 2

Drivers & Utilities

Driver Name Page #

Chipset Page 4 - 5 Video Page 4 - 5 Touch Panel Page 4 - 5 Modem Page 4 - 5 Card Reader Page 4 - 6 LAN Page 4 - 6 Hot Key AP Page 4 - 6 Touchpad Page 4 - 6 1394 Filter Driver Page 4 - 6 Audio Page 4 - 6 PC Camera Module Page 7 - 7

3.75G/HSPA Module Page 7 - 18 Wireless LAN Module Page 7 - 34 Fingerprint Reader Module Page 7 - 40

Table 4 - 1 - Driver Installation

Manual Driver Installation

Click Browse CD (button) in the Drivers Installer ap- plication and browse to the executable file in the appropriate driver folder.

Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security updates etc. (all updates will include the latest hotfixes from Microsoft). See “Windows Update” on page 4 -

7 for instructions.



Windows Vista Service Pack 2

Driver Installation 4 - 3

Drivers & Utilities

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.To do this go to the Control Panel in the Windows OS and double-click the Programs and Features icon (Pro-

grams > Uninstall a program). Click to select the driver (if it is not listed see below) and click Uninstall, and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as outlined in this chapter.

If the driver is not listed in the Programs and Fea- tures menu:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Double-click Device Manager (Hardware and Sound > Device Manager).

3. Double-click the device you wish to update/reinstall the driver for (you may need to click “+” to expand the selection).

4. Click Driver (tab) and click the Update Driver or

Uninstall button and follow the on screen prompts.

User Account Control (Win Vista)

If a User Account Control prompt appears as part of the driver installation procedure, click Continue/Al- low, and follow the installation procedure as directed.

Windows Security Message

If you receive a Windows security message as part of the driver installation process. Just click “Install this driver software anyway” or Install to continue the in- stallation procedure.

You will receive this message in cases where the driver has been released after the version of Windows you are currently using. All the drivers provided will have already received certification for Windows.

New Hardware Found

If you see the message “New Hardware Found” (Found New Hardware Wizard) during the installation procedure (other than when outlined in the driver install procedure), click Cancel to close the window, and follow the installation procedure.

4 - 4 Driver Installation

Drivers & Utilities

Driver Installation Procedure

Insert the Device Drivers & Utilities + User’s Manual disc and click Install Drivers (button), or Option Driv- ers (button) to access the optional driver menu.



Driver Installation General Guidelines

The driver installation procedures outlined in this Chapter (and in Chapter 7 Options & Modules), are accurate at the time of going to press.

Drivers are always subject to upgrade and revision so the exact procedure for certain drivers may differ slightly. As a general guide follow the default on screen instructions for each driver (e.g. Next > Next > Finish) unless you are an advanced user. In many cases a restart is required to install the driver.

Chipset

1. Click 1.Install Chipset Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

Video

1. Click 2.Install Video Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

Touch Panel

1. Click 3.Install Touch Panel AP > Yes.

2. Click Next > Next > Install.

3. Click Finish to restart the computer.

4. Calibrate the T ouchPanel as outlined in page 1 -

8 and click OK to restart.

Modem

1. Click 4.Install Modem Driver > Yes.

2. Click OK.

3. The modem is ready for dial-up configuration.

Driver Installation 4 - 5

Drivers & Utilities

Card Reader

1. Click 5.Install Card Reader Driver > Yes.

2. Click Install > Finish.

LAN

1. Click 6.Install LAN Driver > Yes.

2. Click Next > Install.

3. Click Finish.

4. The network settings can now be configured.

Hot Key AP

1. Click 7.Install Hotkey AP > Yes.

2. Click Next > Install.

3. Click Finish > Finish to restart the computer.

Touchpad

1. Click 8.Install TouchPad Driver > Yes.

2. Click Next.

3. Click Finish > Restart Now to restart the com-

puter.

1394 Filter Driver

1. Click 9.Install 1394 Filter Driver > Yes.

2. Click Install > Finish.

Audio

1. Click 10.Install Audio Driver > Yes.

2. Click Next.

3. Click Finish to restart the computer.

Note that after installing the audio driver the system will not return to the Drivers Installer screen. To in- stall any of the optional drivers listed overleaf, eject the Device Drivers & Utilities + User’s Manual disc and then reinsert it (or double-click the disc icon in My Computer), and click Option Drivers (button) to ac- cess the optional driver menu.

4 - 6 Driver Installation



Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security updates etc. (all updates will include the latest hotfixes from Microsoft).

To enable Windows Update make sure you are con- nected to the internet:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Click Check for updates (Security), or double-click Security Center and click Windows Update.

3. Double-click Check for updates (button).

4. The computer will now check for updates (you need to be connected to the internet).

5. Click Install now (button) to install the updates.

Drivers & Utilities

Optional Drivers

See the pages indicated for the driver installation procedures for any modules included in your purchase option.

Figure 4 - 3 - Drivers Installer Screen 3

Driver Installation 4 - 7

Drivers & Utilities

Bluetooth Module

Note: The operating system is the default setting for Bluetooth control in Windows Vista, and does not re-

quire a driver. See “Bluetooth Module” on page 7 - 2 for configuration instructions.

PC Camera Module

See the introduction in “PC Camera Module” on

page 7 - 6, and check the installation procedure.

3.75G/HSPA Module

See the introduction in “3.75G/HSPA Module” on

page 7 - 14, and check the installation procedure.

Wireless LAN Module

See the introduction in “Wireless LAN Module” on

page 7 - 34, and check the installation procedure.

Fingerprint Reader Module

See the introduction in “Fingerprint Reader Module”

on page 7 - 40, and check the installation procedure.

4 - 8 Driver Installation

BIOS Utilities

Chapter 5: BIOS Utilities

Overview

This chapter gives a brief introduction to the computer’s built-in software:

Diagnostics: The POST (Power-On Self Test)

Configuration: The Phoenix SecureCore(tm) Setup Utility

If your computer has never been set up, or you are mak ing important chan ges to the system (e.g. hard disk setup), then you should review this chapter first and note the original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your system ever needs servicing.

There is one general rule: Don’t make any changes unless you are sure of what you are doing. Many of the settings are required by the system, and changing them could cause it to become unstable or worse. If you have any doubts, consult your service representative.



BIOS Settings

Warning

Incorrect settings can cause your system to malfunction. To correct mistakes, return to Set-

up and restore the Setup Defaults with <F9>.

Overview 5 - 1

BIOS Utilities

Bios Revision: ******** KBC/EC Firmware Revision: ********

CPU=1Processors Detected, Cores per Processor = 2 Intel(R) Core(TM)2 Duo CPU P8400 @ 2.26GHz 3998M System RAM Passed 3072 KB L2 Cache System BIOS shadowed Video BIOS shadowed Fixed Disk 0: FUJITSU MHY2160BH ATAPI CD-ROM: TSSTcorp CDDVDW TS-L633A Mouse intialized

Press <F2> to enter SETUP

The Power-On Self Test (POST)



POST Screen

1.BIOS information

2.CPU type

3.Memory status

4.Enter Setup prompt appears only during

POST

Note:

The

POST

screen as pictured right is for guideline purposes only.

POST

The your computer may appear slightly different. If you disable the

time Diagnostic Screen

the POST screen will not appear.

screen on

Boot-

Figure 5 - 1

POST Screen

Each time you turn on the computer, the system takes a few seconds to conduct a POST, including a quick test of the on-board RAM (memory). The screen below will appear if you have enabled the Boot-time Diagnostic Screen (see “Boot-time

Diagnostic Screen (Advanced Menu)” on page 5 - 10).

As the POST proceeds, the computer will tell you if there is anything wrong. If there is a problem that prevents the system from booting, it will display a system summary and prompt you to run Setup. If there are no problems, the Setup prompt will disappear and the system will load the operating system. Once that starts, you can’t get into Setup without rebooting.

5 - 2 The Power-On Self Test (POST)

Failing the POST

Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the problem (make a note of this message!) followed by the prompt:

• Press <F1> to resume

• <F2> to enter Setup

Press F1 to see if the boot process can continue. It may work, without the correct configuration.

BIOS Utilities

Press F2 to run the Setup program and try to correct the problem. If you still get an error message after you change the setting, or if the “cure” seems even worse, call for help.

The Power-On Self Test (POST) 5 - 3

BIOS Utilities

The Setup Program

The Phoenix SecureCore(tm) Setup Utility tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration).

Entering Setup

To enter Setup, turn on the computer and press F2 during the POST. The prompt

(Press F2 to Enter Setup) seen on page 5 - 2 is usually present for a few seconds after you turn on the system. If you get a “Keyboard Error”, (usually because you pressed F2 too quickly) just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and then hold down F2 when prompted. The Setup main menu will appear.

5 - 4 The Setup Program

Setup Screens

The following pages contain additional advice on portions of the Setup.

Along the top of the screen is a menu bar with menu headings. When you select a heading, a new screen appears. Scroll through the features listed on each screen to make changes to Setup.

Instructions on how to navigate each screen are in the box along the bottom of the screen. If these tools are confusing, press F1 to call up a General Help screen, and then use the arrow keys to scroll up or down the page.

The Item Specific Help on the right side of each screen explains the highlighted item and has useful messages about its options.

If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may execute a command.

BIOS Utilities



Setup Menus

The Setup menus shown in this section are for reference only. Your computer’s menus will indicate the configuration appropriate for your model and options.

The Setup Program 5 - 5

BIOS Utilities

Main Menu

Phoenix SecureCore(tm) Setup Utility

Main

Figure 5 - 2

Main Menu

Main Advanced Security Boot Exit

System Time: [22:12:05]

System Date: [12/10/2008]

 SATA Port 1 [FUJITSU MHY2160BH-(P]  SATA Port 2 [TSSTcorp CDDVDW TS-L]

System Memory 632 KB Extended Memory 3997 MB

BIOS Revision ******** KBC/EC Firmware Revision ********

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

<Tab>, <Shift Tab>, or <Enter> selects field.

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings. Some applications may also alter data files to reflect these changes.

5-6Main Menu

SATA Port1/2 (Main Menu)

Pressing Enter opens the sub-menu to show the configuration of a HDD/optical De- vice on the computer’s SATA Port 1 or SATA Port 2. Use the Auto (Type:) setting to have the items configured automatically for you.

System/Extended Memory: (Main Menu)

This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed.

BIOS Utilities

Main Menu 5 - 7

BIOS Utilities

Main AAdvanced Security Boot Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

Advanced

Select options for Advanced Chipset features.

Phoenix SecureCore(tm) Setup Utility

Advanced Chipset Control

Advanced Menu

Figure 5 - 3

Advanced Menu

5 - 8 Advanced Menu

Only available if Windows Vista / Win 7

is selected as the O/S.

Advanced Chipset Control (Advanced Menu)

The sub-menu here allow you to Enable/Disable detection for External CRT’s (external displays). You can disable detection to save system power.

Installed O/S (Advanced Menu)

This setting tells the computer what kind of operating system you’re using. Make sure you choose the correct setting for your O/S in order to prevent system problems. Note: If you select the Vista / Win 7 O/S then the SATA Mode Selection menu will become available. If you are installing the Windows XP O/S make sure you have set the appropriate operating system here in order to prevent system problems.

BIOS Utilities

SATA Mode Selection (Advanced Menu)

This menu is only available if you select the Vista / Win 7 O/S as your operating system. You can configure SATA (Serial ATA) control to operate in either IDE (native/ compatible) or AHCI (Advanced Host Controller Interface) modes from this menu. The SATA mode should be set to AHCI mode for this system (unless you are sure your hard disk can only operate in IDE mode). If you are unsure of the mode your hard disk supports contact your service center.

Reset Configuration Data (Advanced Menu)

This item is set to No as default. You can change the setting to Yes if you have installed a new add-on which has reconfigured the system, resulting in such a serious system conflict that the operating system is unable to boot.

Advanced Menu 5 - 9

BIOS Utilities

Boot-time Diagnostic Screen (Advanced Menu)

Use this menu item to enable/disable the Boot-time Diagnostic Screen or POST screen (see “The Power-On Self Test (POST)” on page 5 - 2).

Legacy OS Boot (Advanced Menu)

If “Enabled” the system will attempt to load the Legacy OS (e.g. Win Vista/WinXP/ Win 7) first. If set to “Disabled” the system will attempt to EFI (Extensible Firm-

ware Interface) boot before the Legacy OS.

Power On Boot Beep (Advanced Menu)

Use this menu item to enable/disable the beep as the computer starts up.

Battery Low Alarm Beep (Advanced Menu)

Use this menu item to enable/disable the audible warning when the battery has reached low power status.

Fan Control (Advanced Menu)

This menu item allows you to set the fan cooling behavior under light system activity (if you choose Automatic the system will adjust the fan cooling as appropriate for the system activity).

5 - 10 Advanced Menu

Security Menu

Main Advanced SSeeccuurriittyyBoot Exit

Supervisor Password Is: Clear User Password Is: Clear

Set Supervisor Password [Enter]

Set User Password [

Fixed disk boot sector: [ Password on boot: [

Phoenix SecureCore(tm) Setup Utility

Security

]

Item Specific Help

Supervisor Password controls access to the setup utility.

BIOS Utilities



Security Menu

The changes you make here affect the access to the Setup utility itself, and also access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your software OS.

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Figure 5 - 4

Security Menu

Set Supervisor Password (Security Menu)

You can set a password for access to the Phoenix SecureCore (tm) Setup Utility. This will not affect access to the computer OS (only the Phoenix SecureCore (tm) Setup Utility).

Security Menu 5 - 11

BIOS Utilities

Set User Password (Security Menu)



Password Warning

If you set a boot password (Password on boot is “Enabled“), NEVER forget your password.

The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.

You can set a password for user mode access to the Phoenix SecureCore Setup Utility. This will not affect access to the computer OS, (only the Setup utility) unless you choose to set a Password on Boot (see below). Many menu items in the Phoenix SecureCore Setup Utility cannot be modified in user mode. You can only set the

user password after you have set the supervisor password.

Fixed disk boot sector (Security Menu)

If you choose “Write-Protect” this will protect against viruses being written to the hard disk boot sector (this is not a substitute for installing an anti- virus program - see

“Viruses” on page 8 - 4).

Password on boot (Security Menu)

Specify whether or not a password should be entered to boot the computer (you may only set a password on boot if a supervisor password is enabled). If “Enabled” is selected, only users who enter a correct password can boot the system (see the warning in the sidebar). The default setting is “Disabled”.

Note: To clear existing passwords press Enter and type the existing password, then

press Enter for the new password (without typing any password entry) and Enter again to confirm the password clearance.

5 - 12 Security Menu

Boot Menu

BIOS Utilities

Main Advanced Security

Boot priority order:

1: IDE CD: TSSTcorp CDDVDW TS-L633A-(

2: USB CDROM: 3: IDE HDD: FUJITSU MHY2160BH-(PM) 4: PCI BEV: Realtek Boot Agent 5: USB HDD: 6: USB KEY: 7: USB FDC 8:

Excluded from boot order:

: USB ZIP: : USB LS120: : PCI SCSI: : Other USB: :PCI:

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Boot

Exit

Item Specific Help

Keys used to view or configure devices: Up and Down arrows select a device. <+> and <-> moves the device up or down. <f> and <r> specifies the device fixed or removable. <x> exclude or include the device to boot. <Shift + 1> enables or disables a device. <1 - 4> loads default boot sequence.

When you turn the computer on it will look for an operating system (e.g. Windows Vista) from the devices listed in this menu, and in this priority order. If it cannot

find the operating system on that device, it will try to load it from the next device in the order specified in the Boot priority order. Item specific help on the right is available to help you move devices up and down the order.

Phoenix SecureCore(tm) Setup Utility

Figure 5 - 5

Boot Menu

Boot Menu 5 - 13

BIOS Utilities

Phoenix TrustedCore(tm) Setup Utility

F1 Help  Select Item -/+ Change Values F9 Setup Defaults Esc Exit  Select Menu Enter Execute Command F10 Save and Exit

Item Specific Help

Exit System Setup and save your changes to CMOS.

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

Main Advanced Security Boot Exit

Exit Menu

Figure 5 - 6

Exit Menu

Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any changes you have made to the Setup. You can also choose to restore the original Set- up defaults that will return the Setup to its original state, and erase any previous changes you have made in a previous session.

5 - 14 Exit Menu
