Clevo S210TU-L User guide

V14.6.00

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. ©March 2014

Trademarks

Intel and Celeron are trademarks/registered trademarks of Intel Corporation.

Preface

Certificates

R&TTE Directive

This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC.

This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Luxembourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slovenia.

ErP Off Mode Power Consumption Statement:

The figures below note the power consumption of this computer in compliance with European Commission (EC) regulations on power consumption in off mode

• Off Mode < 0.5W

Preface

CE Marking

This device has been tested to and conforms to the regulatory requirements of the European Union and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation. The CE Mark is obligatory for products it applies to: the manufacturer affixes the marking in order to be allowed to sell his product in the European market.

This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to attain CE Marking. A notified body has determined that this device has properly demonstrated that the requirements of the directive have been met and has issued a favorable certificate of expert opinion. As such the device will bear the notified body number 0560 after the CE mark.

The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a product. Secondly, CE Marking is mandatory for the product it applies to, whereas most q uality marking s are vo lu ntary.

III

Preface

FCC Statement

(Federal Communications Commission)

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienc ed radio/TV technician for help.

Operation is subject to the following two conditions:

1. This device may not cause interference. And

2. This device must accept any interference, including interfer ence that may cause undesired operation of the

device.

FCC RF Radiation Exposure Statement:



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the equipment.

If your purchase option includes both Wireless LAN and 3G modules, then the appropriate antenna s will be installed. Note that In order to comply with FCC RF exposure compliance requirements, the antenna must not be co -located or o perate in conjunction with any other antenna or transmitter.

Important Notice - 3G & Bluetooth/Wireless LAN Modules

In order to comply with FCC regulations you should NOT operate the 3G module and the Bl uetoo th/Wirele ss LAN modules at the same time as this may disrupt radio frequency, and cause interference. When the 3Gmodule is powered on, make sure that the Bluetooth/Wireless LAN modules are powered off.

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Preface

Wireless Function Caution with Radio Waves

This device should not be used near microwave ovens and/or commercial, industrial and medical devices where interference may occur from magnetic fields, radio emissions or static electricity; nor in the area of radio waves of about 2.4GHz.

This computer uses the same radio frequency as used by:

• Wireless stations for mobile object identification as used in factory production lines, and amateur radio stations

(license required).

• Specialized low power wireless stations (license not required).

• Industrial, scientific and medical equipment.

Before using this product, ensure that no other wireless stations are being used in the area. If the product does cause radio wave interference with any of the wireless stations listed above, either change the location where this product is used, or immediately stop radio wave emissions from the device.

If there are any other problems concerning this computer’s wireless communications please contact your distributor/supplier.

IMPORTANT SAFETY INSTRUCTIONS



Volume Warning

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example n ear a ba th tub, wash bowl, kitchen sink or laundry tu b, in a wet

basement or near a swimming pool.

2. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

3. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC

Output of 5V, 2A (10 Watts) minimum AC/DC Adapter.

Preface

VII

Preface

Instructions for Care and Operation

The computer is rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

• Do not place it on an unstable surface.

• Do not place anything heavy on the computer

Keep it dry , an d don’t overhea t it.

This is an electrical appliance. If water or any other liquid get s into it, the computer could be badly damaged.

• Do not expose it to excessive heat.

• Do not leave it in a place where foreign matter or moisture may affect the system.

• Don’t store the computer in a humid environment.

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other

strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he computer. Shut the computer down properly and don’t forget

to save your work.

• Do not turn off the power until you properly sh ut down all programs.

• Do not turn off any peripheral devices when the computer is on.

• Do not disassemble the computer by yourself.

• Perform routine maintenance on your computer.

5. Take care when using peripheral devices.

• Use only approved brands of peripherals.

• Unplug the power cord before attaching peripheral devices.

Keep the computer and power supply away from any kind of heating e lement.

VIII

Preface

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC/DC adapter may be designed for international travel but it still requires a st eady, uninterrupted power supply .

If you are unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety fea-

ture; do not defeat its purpose. If you do not have access to a co mpat ible o utlet, have a qu alified electric ian in stall on e.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can suppor t the tot al curre nt load of all th e conne cted de vices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

Preface



Warranty Warning

Please check with your service representative before undertaking any up grade proce dures to find out if this will VOID your warranty.

The CPU is not a user serviceable part. Accessing the CPU in any way will violate your warranty.

Cleaning

Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so will violate your warranty and exp ose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord or AC/DC adapter is damaged or frayed.

• If the computer has been exposed to rain or other liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.

Preface

Travel Considerations

Packing

As you get ready for your trip, run through this list to make sure the system is ready to go:

1. Check that the battery is fully charged.

2. Power off the computer and peripherals.

3. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.

4. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However,

check with your travel agent to see if you need any socket adapters.

5. Put the computer in its carrying bag and secure it with the bag’s straps.

6. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters

and/or cables.

7. Anticipate customs - Some jurisdictions may have import restrictions or req uire proof of ownersh ip for both hard -

ware and software. Make sure your documents are prepared.

Preface

On the Road

In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind:

Hand-carry the computer - For security, don’t let it out of your sight. In some areas, computer theft is very common. Don’t check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.

Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note: Some airports also scan luggage with these devices.

Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, follow them. If you stow the computer in an overhead compartment, make sure it’s secure. Contents may shift and/or fall out when the compartment is opened.

Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery charged.

XII

Preface

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display-viewing angle to find the best position.

LCD Screen Care

To prevent image persistence on the LCD (caused by the continuous display of graphics on the screen for an extended period of time) take the following precautions:

• Set the Windows Power Plans to turn the screen off after a few minutes of screen idle time.

• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).

• Rotate desktop background images every few days.

XIII

Preface

XIV

Preface

Contents

Notice .............................................................................................................................................................I

ErP Off Mode Power Consumption Statement: ...........................................................................................II

FCC Statement ............................................................................................................................................IV

FCC RF Radiation Exposure Statement: .....................................................................................................V

Wireless Function Caution with Radio Waves ...........................................................................................VI

Instructions for Care and Operation ........................................................................................................VIII

Power Safety ...............................................................................................................................................IX

Cleaning .......................................................................................................................................................X

Servicing ......................................................................................................................................................X

Travel Considerations .................................................................................................................................XI

Quick Start Guide

Overview ....................................................................................................................................................1-1

Advanced Users .........................................................................................................................................1-2

Beginners and Not-So-Advanced Users ....................................................................................................1-2

Warning Boxes ..........................................................................................................................................1-2

Not Included ..............................................................................................................................................1-3

System Software ........................................................................................................................................1-4

System Startup ...........................................................................................................................................1-5

System Map: Front & Top Views ..............................................................................................................1-6

System Map: Back & Bottom Views .........................................................................................................1-7

Preface

System Map: Left & Right Views .............................................................................................................1-8

Micro HDMI-Out Port .............................................................................................................................1-10

LED Indicators .........................................................................................................................................1-11

Windows Touch Screen Controls/Gestures .............................................................................................1-12

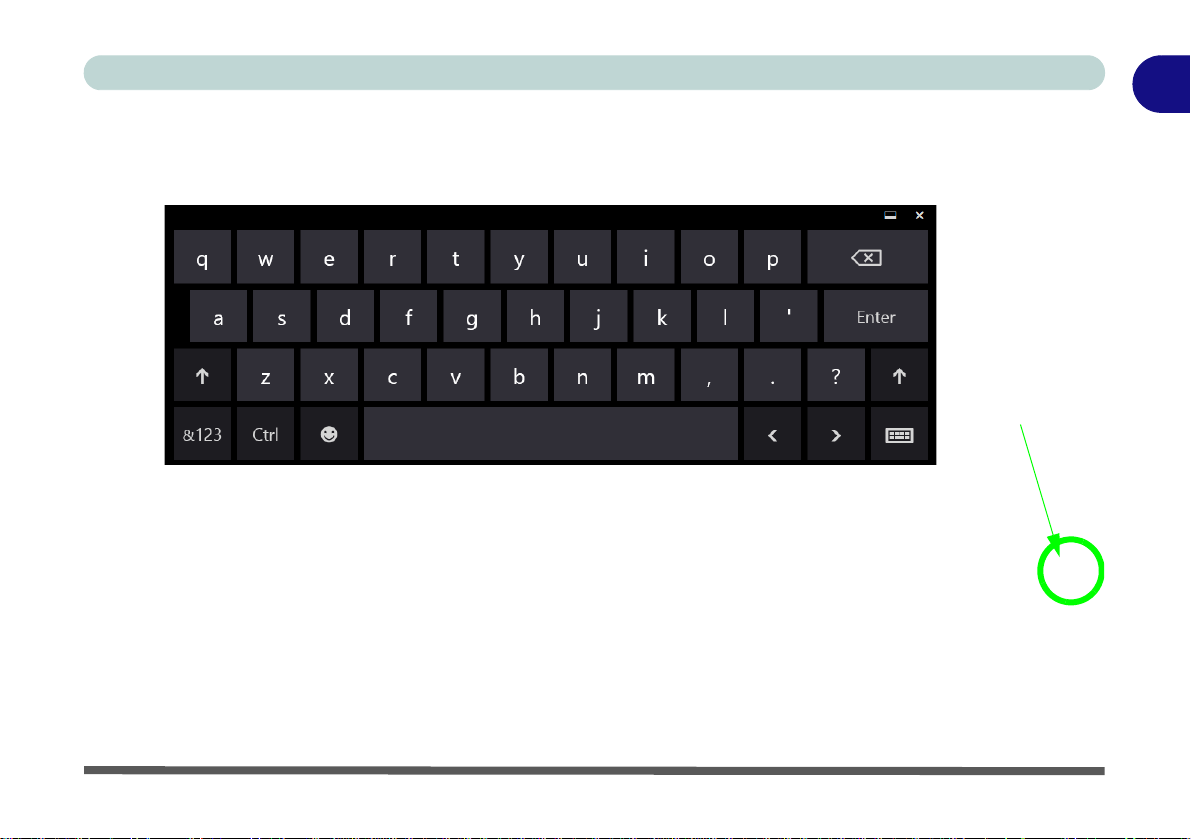

Touch Keyboard ......................................................................................................................................1-14

Bluetooth Keyboard .................................................................................................................................1-16

Screen Auto Rotation ...............................................................................................................................1-17

Turning Screen Auto Rotation On/Off ....................................................................................................1-18

Control Center .........................................................................................................................................1-19

Windows 8.1 Control Panel .....................................................................................................................1-20

Windows 8.1 Start Screen & Desktop .....................................................................................................1-24

Apps & Tiles ............................................................................................................................................1-25

Desktop Application ................................................................................................................................1-26

The Charms Bar .......................................................................................................................................1-27

Windows 8.1 Taskbar ..............................................................................................................................1-29

Video Features .........................................................................................................................................1-30

Power Options .........................................................................................................................................1-33

Running Apps ..........................................................................................................................................1-34

Audio Features .........................................................................................................................................1-36

2-In-1 Audio Jack (Headphone-Out/Microphone-In) ..............................................................................1-39

XVI

Preface

Power Management

Overview ....................................................................................................................................................2-1

The Power Sources ....................................................................................................................................2-2

AC/DC Adapter .........................................................................................................................................2-2

Battery ........................................................................................................................................................2-2

Turning On the Tablet ...............................................................................................................................2-3

Shutting the Tablet PC Down ....................................................................................................................2-4

Power Plans ...............................................................................................................................................2-5

Power-Saving States ..................................................................................................................................2-7

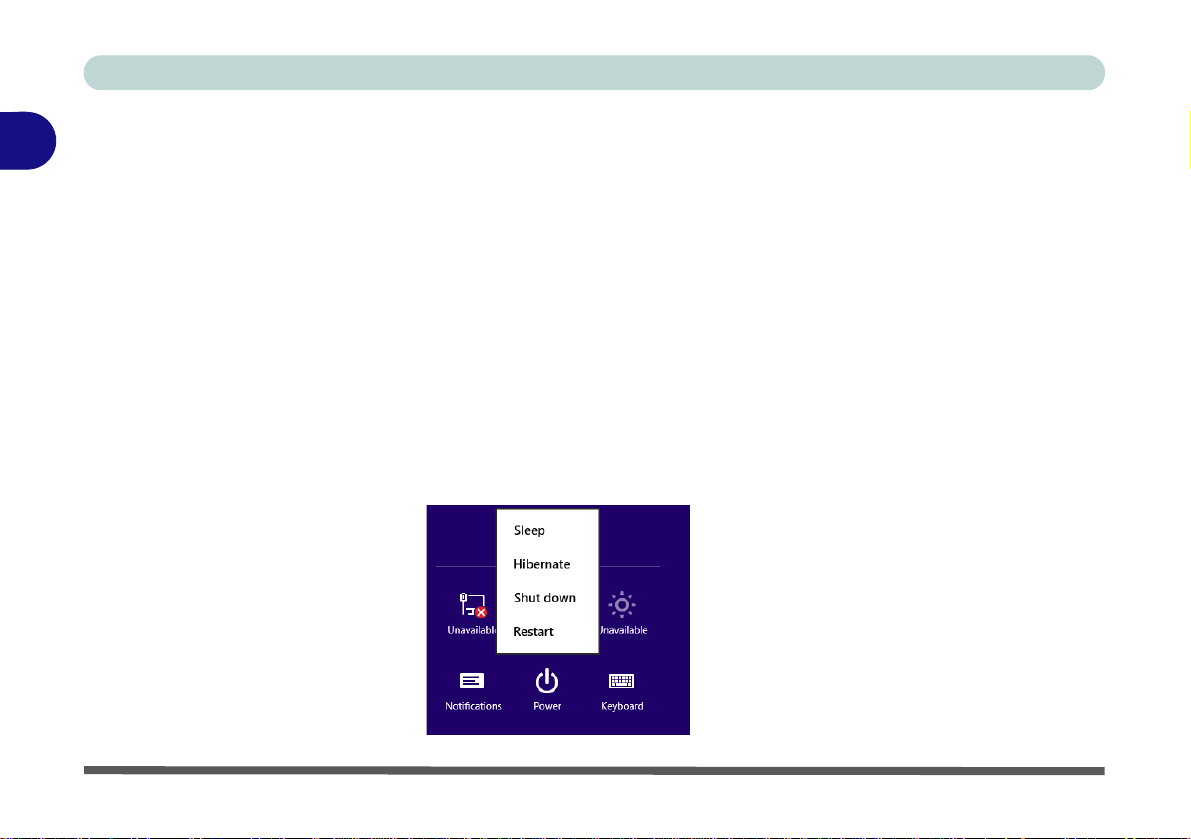

Sleep ..........................................................................................................................................................2-7

Hibernate ....................................................................................................................................................2-8

Shut down ..................................................................................................................................................2-8

Configuring the Power Button ...................................................................................................................2-9

Resuming Operation ................................................................................................................................2-11

Battery Information .................................................................................................................................2-12

Battery Power ..........................................................................................................................................2-12

Battery Life ..............................................................................................................................................2-14

Recharging the Battery with the AC/DC Adapter ...................................................................................2-14

Battery FAQ .............................................................................................................................................2-15

Drivers & Utilities

What to Install ............................................................................................................................................3-1

XVII

Preface

Driver Installation ......................................................................................................................................3-2

Updating/Reinstalling Individual Drivers ..................................................................................................3-4

User Account Control ................................................................................................................................3-5

Windows Security Message .......................................................................................................................3-5

New Hardware Found ................................................................................................................................3-5

Driver Installation Procedure .....................................................................................................................3-6

Chipset .......................................................................................................................................................3-6

Video (VGA) .............................................................................................................................................3-6

Card Reader ...............................................................................................................................................3-6

Airplane .....................................................................................................................................................3-6

Control Center ...........................................................................................................................................3-6

TXE Driver ................................................................................................................................................3-6

MBI Driver ................................................................................................................................................3-7

GPIO Driver ...............................................................................................................................................3-7

Audio .........................................................................................................................................................3-7

Optional Drivers ........................................................................................................................................3-8

PC Camera Module ....................................................................................................................................3-9

PC Camera Driver Installation .................................................................................................................3-11

Camera App .............................................................................................................................................3-17

Camera Options .......................................................................................................................................3-18

Taking Pictures/Capturing Video ............................................................................................................3-19

Camera Roll .............................................................................................................................................3-20

XVIII

Preface

Wireless LAN & Bluetooth Combo Module ...........................................................................................3-24

Wireless LAN Driver Installation ............................................................................................................3-24

Bluetooth Combo Driver Installation ......................................................................................................3-24

WLAN Configuration in Windows .........................................................................................................3-25

Bluetooth Configuration in Windows ......................................................................................................3-28

3G Module ...............................................................................................................................................3-31

3G Configuration in Windows .................................................................................................................3-33

BIOS Utilities

Overview ....................................................................................................................................................4-1

The Setup Utility ........................................................................................................................................4-2

Failing the POST .......................................................................................................................................4-3

Fatal Errors ................................................................................................................................................4-3

Non-Fatal Errors ........................................................................................................................................4-3

Setup Screens .............................................................................................................................................4-4

Main Menu .................................................................................................................................................4-5

System Time & Date (Main Menu) ...........................................................................................................4-5

System/Extended Memory: (Main Menu) .................................................................................................4-6

MB Series / BIOS Revision / KBC/EC firmware Revision ......................................................................4-6

Advanced Menu .........................................................................................................................................4-7

Power On Boot Beep (Advanced Menu) ...................................................................................................4-7

Battery Low Alarm Beep (Advanced Menu) .............................................................................................4-7

XIX

Preface

Security Menu ............................................................................................................................................4-8

Set Supervisor Password (Security Menu) ................................................................................................4-8

Set User Password (Security Menu) ..........................................................................................................4-9

Password on boot (Security Menu) ............................................................................................................4-9

Secure Boot (Security Menu) ....................................................................................................................4-9

Boot Menu ...............................................................................................................................................4-10

Boot Option Priorities (Boot Menu) ........................................................................................................4-11

Exit Menu ................................................................................................................................................4-12

Troubleshooting

Overview ....................................................................................................................................................5-1

Basic Hints and Tips ..................................................................................................................................5-2

Backup and General Maintenance .............................................................................................................5-4

Viruses .......................................................................................................................................................5-5

Upgrading and Adding New Hardware/Software ......................................................................................5-6

Problems and Possible Solutions ...............................................................................................................5-7

Intel Video Driver Controls

Intel Video Driver Installation ..................................................................................................................B-1

Video .........................................................................................................................................................B-1

Intel® HD Graphics Control Panel ...........................................................................................................B-2

Display Devices & Options ....................................................................................................................B-13

Attaching Other Displays .......................................................................................................................B-14

Preface

Attaching Other Displays - Devices (Charms Bar) ................................................................................B-16

HDMI Audio Configuration ...................................................................................................................B-19

Optional Bluetooth Keyboard

Optional Bluetooth Keyboard Setup .........................................................................................................C-2

Keyboard Features ....................................................................................................................................C-5

Keyboard Layout ......................................................................................................................................C-6

Function Keys ...........................................................................................................................................C-8

Touchpad Gestures ...................................................................................................................................C-9

Specifications

Processor ...................................................................................................................................................D-2

Display ......................................................................................................................................................D-2

Memory .....................................................................................................................................................D-2

Video Adapter ...........................................................................................................................................D-2

Storage ......................................................................................................................................................D-2

Audio ........................................................................................................................................................D-2

Keyboard & Pointing Device ....................................................................................................................D-2

Sensors ......................................................................................................................................................D-2

I/O Ports ....................................................................................................................................................D-2

Card Reader ..............................................................................................................................................D-2

Slot ............................................................................................................................................................D-2

Communication .........................................................................................................................................D-2

XXI

Preface

Operating Systems ....................................................................................................................................D-3

Security .....................................................................................................................................................D-3

BIOS .........................................................................................................................................................D-3

Power Management ..................................................................................................................................D-3

Power ........................................................................................................................................................D-3

Battery .......................................................................................................................................................D-3

Design Feature ..........................................................................................................................................D-3

LED Indicators ..........................................................................................................................................D-3

Environmental Spec ..................................................................................................................................D-3

Dimensions & Weight ..............................................................................................................................D-3

XXII

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your Tablet PC, to navigating around the Tablet PC and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 The Tablet PC’s power saving options.

• Chapter 3 The installation of the drivers and utilities essential to the operation or improvement of some of the

Tablet PC’s subsystems.

• Chapter 4 An outline of the Tablet PC’s built-in software or BIOS (Basic Input Output System).

• Chapter 5 A troubleshooting guide.

• Appendix A Information on the Control Center

• Appendix B Information on the Intel Video driver controls.

• Appendix C The Tablet PC’s specification.

Overview 1 - 1



Notes

Check the light colored boxes with the mark above to find detailed information about the Tablet PC’s features.

Quick Start Guide

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 3 - 1 and “BIOS Utilities” on page 4 - 1 in the reminder of the User’s Manual. You may also find the notes marked with a

 of interest to you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then the information contained in the Quick Start Guide should be enough to get you up and running. Eventually you should try to look through all the documentation (more detailed descriptions of the functions, setup and system controls are covered in the remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

 as indicated in the margin.

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 2 Overview

Quick Start Guide



Drivers

If you are installing new system software, or are re-configuring your Tablet PC for a different system, you will need to install the drivers listed in “Drivers & Utilities” on page 3 - 1. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order listed. You will be unable to use most advanced controls until the necessary drivers and utilities are properl y installed. If your system hasn’t been properly configured (your service representative may have already done that for you); refer to

Chapter 3 for installation instructions.

You will need to attach an powered optical device drive (the opt ical device can not draw p ower from th e tablet comp uter) to the tablet computer in order t o access t he d rivers on the Device Drivers & Utilities + User’s Manual disc. To connect a standard USB cable to this system you will need to use an OTG micro USB to standard USB adapter. This contains the drivers and utilities necessary for the proper operation of the computer.

Not Included

Operating Systems (e.g. Windows 8.1) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.

Overview 1 - 3



Windows Versions

Note that the information included on the following pages is for Windows 8.1 only.

Windows OS

In order to run Windows (64 bit) your computer requires a minimum 2GB of system memory (RAM).

Quick Start Guide

System Software

Your tablet computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your Tablet PC for a different system, you will find the Windows 8.1 operating system is supported.

1 - 4 Overview

System Startup



Charging the

Tablet PC

Attach the AC/DC adapter to the micro USB 2.0 port on the left of the Tablet PC. then plug the adapter cord into the adapter, and the adapter into a working outlet to charge the Tablet PC.

Use only the adapter cord supplied with the system to connect to the adapter.

Do not use a computer’s USB port to attempt to charge the Tablet PC.

Figure 1 - 1

Tablet PC with AC/DC Adapter Plugged-In &

Power Button



Shutdown

Note that you should always shut your Tablet PC down by choosing the Shut Down command in Windows (see page 1 - 33). This will help prevent hard disk or system problems.

1. Remove all packing materials.

2. Attach the AC/DC adapter to the micro USB 2.0 port on the left of the Tablet PC.

then plug the adapter cord (use only the adapter co rd supplied with the system to connect to the adapter) into the adapter, and the adapter into an outlet.

3. Press the power button on the top of the Tablet PC to turn the system on.

Quick Start Guide

System Startup 1 - 5

Figure 1 - 2

Front & Top Views

1. Built-In Front (Inward Facing)

1.0M FHD PC Camera

2. PC Camera LED

3. PC Camera Light Sensor

4. LCD

5. Windows Home Logo Button

6. Power Button

7. Built-In Microphone



Wireless Device

Operation Aboard

Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the 3G/WLAN/ Bluetooth module(s) are OFF by putting the system into Airplane Mode if you are using the tablet computer aboard aircraft.

You can use the Con- trol Center to put the system into Airplane Mode (“Control Cen-

ter” on page 1 - 19).



Windows Logo Home Button

Use the Windows Logo Home button Start screen to switch between the Start screen, Windows Desktop and open Apps.

Quick Start Guide

System Map: Front & Top Views

1 - 6 System Map: Front & Top Views

System Map: Back & Bottom Views

Figure 1 - 3

Back & Bottom Views

1. Built-In Rear (Outward Facing) 5.0M FHD PC Camera (

Factory Option

)

2. Micro SD Card Reader

3. Micro SIM Card Reader (for 3G SIM card)

4. Built-In Speaker

5. System Shut Down Hole (See page 5 - 12)



Micro SD Card Reader

The card reader allows you to use the following digital storage card formats:

SDHC / SDXC Compatible

Micro SD

Card Reader

Micro SIM

Card Reader

Quick Start Guide

System Map: Back & Bottom Views 1 - 7

Figure 1 - 4

Left & Right Views

1. Volume Control Button

2. 2-In-1 Audio Jack (Headphone-Out/ Microphone-In)

3. Micro USB 2.0 Port

4. Micro HDMI Port

5. Micro SD Card Reader

6. Micro SIM Card Reader (for 3G SIM Card - See pages 1

- 9 and 3 - 31)*

*Note that the 3G module is a factory option only.



Combination Headphone/Microphone Headsets

This system uses Apple iPhone/iPad compatible combination headphone/microphone headsets only. When purchasing a combination

headphone/microphone headset for use with this system make sure that it is Apple iPhone/iPad compatible otherwise it will not function.

The 2-in-1 audio jack only supports a single headphone (the jack does not support a single microphone). See “2-In-1 Audio Jack (Headphone-

Out/Microphone-In)” on page 1 - 39 for further details.

Micro USB 2.0 Port & Devices

The micro USB 2.0 port allows you to attach flash drives, hard disk drives keyboards, and mice etc. To connect a standard USB cable to this system you will need to use an OTG micro USB to standard USB adapter. Devices such as hard disk drives and optical devices drives will need to be powered as they cannot draw power from the tablet computer.

To install applications and drivers etc. you will need to attach an powered optical device drive to the tablet computer in order to access the driv ers on the Device Drivers & Utilities + User’s Manual disc. This contains the drivers and utilities necessary for the proper operation of the computer.

Quick Start Guide

System Map: Left & Right Views

1 - 8 System Map: Left & Right Views

Quick Start Guide



USIM Card Ejection

Simply press on the SIM card to eject it, however do not do this while a con- nection is in progress.

If you do eject the card while a 3G connection is ongoing, you will need to shut down the system, reinsert the USIM card, restart the system and then reestablish the 3G connection.

If you wish to change SIM cards then you will also need to shut down the system, reinsert the USIM card, restart the system and then reestablish the 3G connection.

3G Module USIM Card Installation

Follow the instructions below to install the USIM card (which will be supplied by your service provider).

1. Make sure the system is off and turn the tablet computer over to access the rear card reader slots.

2. Insert the USIM card into the micro SIM card slot as illustrated below until it clicks fully into position (note that the USIM card’s readable side (with the gold-colored contacts) should face downwards as illustrated).

Figure 1 - 5- USIM Card Insertion

System Map: Left & Right Views 1 - 9

Quick Start Guide

Micro HDMI-Out Port

The Micro HDMI-Out Port (High-Definition Multimedia Interface) is an au- dio/video connector interface for transmitting uncompressed digital streams.

This port allows you to connect an external monitor, TV or Flat Panel Display etc. as a display device by means of a Micro HDMI to HDMI cable (depending in your TV’s or Flat Panel Display’s input ports).

Note that HDMI carries both audio and video signals.

1 - 10 System Map: Left & Right Views

LED Indicators



*Low Battery

If the battery reaches critically low power status (below 10%) the system will shut down, or will not be able to be opened. In this case you should attach the AC/DC adapter and after 30 minutes the power button LED will flash orange, and the system can then be accessed.

LED Color Description

Green (for 3 seconds)

Quick Start Guide

The Tablet PC is On (The LED will be green for 3

seconds to indicate power on, but will then turn off to

save power)

Orange (flashes for 3 seconds if Power

Power Button LED

Green (flashes for 3 seconds if Power On) The Battery is Fully Charged

Front 1M Camera Red Camera is On

Rear 5M Camera Green Camera is On

Off/Hibernate)

Blinking Orange

Blinking Green The Tablet PC is in Sleep Mode

Table 1 - 1 - LED Indicators

The Battery Has Reached Critically Low Power Status

The Battery is Charging

(below 10%)

LED Indicators 1 - 11

Quick Start Guide

Windows Touch Screen Controls/Gestures

The Touch Screen can be used to navigate through he interface in much the same way as a mouse, touchpad and keyboard. The following gestures are useful when navigating the Windows interface.

• Swipe from the right (Access the Charms Bar) - Pull your finger from the right side of the screen (in the

black area) to the left a little bit to bring up the Charms Bar.

Figure 1 - 6 - Swipe from Right & Left

• Swipe from the left (Switch Apps) - If multiple Apps are running you can slide your finger from the left

side of the screen (in the black area) to the right to switch between Apps.

• Swipe slowly from the left (Snap Apps) - Perform the same action above more slowly, to drag one App out

and display it side-by-side with the App that was already on your screen.

1 - 12 Windows Touch Screen Controls/Gestures

Quick Start Guide

• Swipe from left and back (Display running Apps) - Slide your finger from the left and quickly drag it

back towards the right to display a list of Apps that are currently running. Tap any App to switch to it.

• Pull down from the top (Close App) - Close any running App by starting at the top area of the screen and

quickly pulling your finger about halfway down the screen.

• Swipe down/up (Customize menu) - Swiping the finger a little bit down from the top, or up from the bot-

tom of the Start screen will bring up the menu with the Customize icon. Tap the Customize icon and then select the App tiles, and slide them to any selected position to rearrange them.

Figure 1 - 7 - Swipe Up and Tap, Hold & Release (Desktop Right-Click)

• Swipe down on an item (Select/right-click) - Swipe down on any tile in the Start screen to select it and

bring up additional options.

• Tap, Hold & Release (Desktop right-click) - Tap the Desktop, hold until a square icon appears, and then

release to access the right click menu.

Windows Touch Screen Controls/Gestures 1 - 13

Touch Keyboard Desktop App taskbar Icon

Select Keyboard or Writing Pad Input

Quick Start Guide

Touch Keyboard

If you need to type on screen then the Touch Keyboard will pop up when required (e.g. when you need to type in an internet URL address in Internet Explorer). When the Touch Keyboard is displayed you have several display/input options and these can be accessed from the icon at the bottom right of the keyboard. To access the Touch Keyboard from the Desktop App tap the keyboard icon in the taskbar .

1 - 14 Touch Keyboard

Figure 1 - 8 - Touch Keyboard

Quick Start Guide

Tap Help

The Touch Keyboard allows you to input text without the use of an actual keyboard., and you can use writing pad to write (continuously or one character at a time) or touch keyboard to input text. Use the Help menu for further information.

Figure 1 - 9 - Touch Keyboard, Writing Pad Input & Help

Touch Keyboard 1 - 15

Quick Start Guide

Bluetooth Keyboard

A Bluetooth keyboard (which also acts as a stand) with touchpad is av ailable as a f acto ry option for this Tablet PC (see Appendix C for information on the optional Bluetooth ke yboard). You can pair any Bluetooth keyboard with the Tablet PC, or attach any conventional USB keyboard to the micro USB 2.0 port by using an OTG micro USB to standard USB adapter.

Figure 1 - 10 - Tablet PC with Bluetooth Keyboard (Optional)

1 - 16 Bluetooth Keyboard

Quick Start Guide

Landscape Mode

Portrait Mode

Screen Auto Rotation

1. The built-in sensor will allow you to orientate the screen into a portrait/landscape mode as the Tablet PC is tilted to the orientation

required.

2. You can turn auto rotation off or on from the Screen Resolution control panel.

Figure 1 - 11 - Screen Rotation Modes

Bluetooth Keyboard 1 - 17

Quick Start Guide

Turning Screen Auto Rotation On/Off

Screen auto-rotation may be turned on/off from the Screen Resolution control panel.

1. Tap, hold and release the desktop and select Screen resolution

2. Tap in the check box to allow (or leave the box unchecked to prevent) auto-rotation.

3. Click Apply to save the setting change.

1 - 18 Bluetooth Keyboard

Figure 1 - 12 - Screen Resolution (Auto-Rotate)

Quick Start Guide



Wireless Device

Operation Aboard Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the 3G/WLAN/Bluetooth module(s) are OFF by putting the system into Air- plane Mode if you are using the tablet computer aboard aircraft.

Control Center

When in the Windows Desktop application (not in the Start screen) double-tap the icon on the desktop or in the notification area of the taskbar to toggle the Control Center on/off. The Control Center gives quick access to useful controls, and enables you to quickly turn Airplane Mode on/off (see Appendix A for full details). Close the Control Center by tapping the close icon in the top right of the panel.

Figure 1 - 13 - Control Center

Control Center 1 - 19

Tap, hold and release

Desktop App

the icon to access

the menu, and select Control Panel

Apps Screen

Quick Start Guide

Windows 8.1 Control Panel

Throughout this manual you will see an instruction to open the Control Panel. Tap, hold and release in the lower

left hot corner to bring up the context menu and select Control Panel in the Desktop App. You can also go

to the Charms Bar (see “The Charms Bar” on page 1 - 27), tap Settings and then tap Control Panel. Alterna- tively switch to the Apps screen and tap control panel in the Windows System menu.

Figure 1 - 14 - Control Panel Access (Desktop App & Apps Screen)

1 - 20 Windows 8.1 Control Panel

Quick Start Guide

Tap, hold and release the Start button in the Desktop App (or use the Windows Logo Key + X key combination if you have an attached keyboard) to bring up an advan ced context menu of useful features such as Control Panel, Programs and Features, Power Options, Task Manager, Search, File Explorer, Command Prompt, Device Manager and Network Connections etc.

Figure 1 - 15 - Advanced Context Menu (Tap, Hold & Release)

Windows 8.1 Control Panel 1 - 21

Quick Start Guide

The Control Panel can be accessed in a number of ways in Windows 8.1.

•Tap Search in the Windows Charms Bar (see previous page) and the search pane will pop out. Type

Control Panel and select it from the results to the left.

Figure 1 - 16 - Search (Control Panel)

• Tap on This PC (in Apps, or you can to pin This PC to the Start screen), tap on Computer in the top

menu and select Open Control Panel from the ribbon.

Figure 1 - 17 - Open Control Panel (Computer)

1 - 22 Windows 8.1 Control Panel

Quick Start Guide

• When in the Desktop App (this does not apply to the Start screen) tap on Settings in the Charms Bar

and select Control Panel from the menu.

Figure 1 - 18 - Settings Charms Bar (Desktop App Only)

• Tap the arrow at the bottom of the Start screen and tap Control Panel in Apps (Windows System).

Figure 1 - 19 - All Apps - Control Panel

• Tap, hold and release the Start button (Desktop App) to bring up the menu and select Control Panel (see Fig-

ure 1 - 15 on page 1 - 21).

Windows 8.1 Control Panel 1 - 23

Desktop App

Quick Start Guide

Windows 8.1 Start Screen & Desktop

The Apps, control panels, utilities and programs within Windows are accessed from the Start screen and/or Windows Desktop App. The Desktop (which runs as an App within the Start screen) can be accessed by tap-

ping the Desktop item in the Start screen. Swipe a finger up in a blank area of the Start screen to access Apps.

Figure 1 - 20 - Windows Start Screen

1 - 24 Windows 8.1 Start Screen & Desktop

Quick Start Guide

Apps & Tiles

The Start screen will contain a number of Apps, and many more will be installed as you add more applications etc. Not all of these Apps can fit on one screen so you will often need use the slider (drag your finger across the screen to scroll) at the bottom of the screen in order to view all the necessary Apps.

Accessing Pining/Unpinning All Apps

You can add and remove the tiles for Apps and control panels in the Start screen. Use a small swipe from the bottom or top of the screen, and you will see the Customize icon. Tap the Customize icon to display all the

installed applications etc. tap, hold and release on any icon to bring up the menu at the bottom of the screen and you can then tap the appropriate icon to pin the App to (or unpin from) the Start screen, or to the taskbar in the Desktop application (you can also open the App in a new window, run as administrator or open the file location).

Figure 1 - 21 - Customize Apps

Windows 8.1 Start Screen & Desktop 1 - 25

Tap the icon in the bottom left of the screen and to switch back to the Start screen.

Quick Start Guide

Desktop Application

When the Desktop App is running (tap the App in the Start screen or use the Windows Logo button - see

Figure 1 - 2 on page 1 - 6) you can tap the icon in the bottom left hot corner to switch to the Start screen

When the Windows Logo button is pressed, and you are in the Start screen, it will take you back to your most recently used App (if one is running).

Figure 1 - 22 - Desktop

1 - 26 Windows 8.1 Start Screen & Desktop

Quick Start Guide

Swipe a finger from the right to access the Charms Bar

The Charms Bar

The right side of the screen displays the Charms Bar. The Charms Bar contains the Search, Share, Start, Devices and Settings menus. To access up the Charms Bar swipe a finger from the right of the screen, and then tap one of the items in the Charms Bar to activate it.

Figure 1 - 23 - Start Screen with Charms Bar

Windows 8.1 Start Screen & Desktop 1 - 27



Charms Bar - Touch Screen Access

To quick access the Charms Bar using the Touch Screen:

1. Place your finger off the screen (slightly to the right of the screen resting on the black area around the Tablet PC screen).

2. Move your finger across to the left on to the touch screen.

3. The Charms Bar will then pop-up.

Quick Start Guide

Charms Bar Items

• Search : You can search for any file, application, Apps and control panel settings with instantaneous

results.

•Share : This button is used to share information with people via mail or social networks.

•Start : Tap to bring up the Start Menu (the same function as pressing the Windows Logo Key or tapping

the bottom left of the screen).

• Devices : Tap this button to change connected peripheral device settings e.g. an external display.

• Settings : This button gives instant access to the computer settings, such as Network, Audio, Notifications, Power and Keyboard (tap Change PC Settings to activate the PC Settings menu).

Figure 1 - 24 - Settings Menu

1 - 28 Windows 8.1 Start Screen & Desktop

Quick Start Guide

Windows 8.1 Taskbar

In many instances throughout this manual you will see an instruction to access the notification area of the taskbar (system tray). In Windows 8.1 the taskbar is accessed from the Desktop application; if you are in the Start

screen you will need to switch to the Desktop. The taskbar is displayed at the bottom of the Desktop screen, and you can see the notification area (system

tray) of the taskbar in the bottom right of the screen. Some of the control panels and applications referred to during the course of this manual can be accessed from here.

Figure 1 - 25 - Desktop Taskbar & Notification Area (System Tray)

You can pin/unpin Apps to/from the taskbar in much the same way as you can to the Start screen (see “Access-

ing Pining/Unpinning All Apps” on page 1 - 25).

Windows 8.1 Start Screen & Desktop 1 - 29

Quick Start Guide

Video Features

You can switch display devices, and configure display options, from the Display control panel (in Appearances and Personalization) in Windows when running the Desktop App (see “Desktop Application” on page 1 - 26 and Appendix B). It is possible to quickly configure external displays from the Devices menu item in the Charms Bar (see “The Charms Bar” on page 1 - 27).

To Configure Displays from Devices (Charms Bar):

1. Attach your external display to the micro HDMI port using an appropriate cable, and turn the display on.

2. Go the Charms Bar, select Devices.

3. Tap Project (you may need to tap Second Screen).

4. Tap on any one of the options from the menu to select PC screen only, Duplicate, Extend or Second screen

only.

1 - 30 Video Features

Figure 1 - 26- Devices (Project)

Quick Start Guide



Right-Click (Tap, Hold & Release) Desktop

App

1. Tap, hold and release the desktop and select

Screen resolution (Figure 1

- 27).

2. Use the dropbox to select the screen

Resolution

(Figure 1 - 27).

3. Tap Advanced settings (Figure 1 - 27) to bring up the Advanced properties tabs.

123

To access Display (Control Panel) and Screen Resolution in Windows:

1. Go to the Control Panel.

2. Tap Display (icon) - In the Appearance and Personalization category.

3. Adjust resolution.

Figure 1 - 27 - Screen Resolution

Video Features 1 - 31

Quick Start Guide

To access the Intel(R) HD Graphics Control Panel:

1. Tap Advanced settings (Figure 1 - 27 on page 1 - 31) in the Screen Resolution control panel in Win- dows.

2. Tap the Intel(R)... tab and /tap Graphics Properties (button) (Figure 1 - 28 on page 1 - 32) .

3. Tap, hold and release the desktop and select Graphics Properties from the menu.

4. Tap the icon in the notification area of the Desktop taskbar and select Graphics Properties from the menu.

Figure 1 - 28 - Intel Graphics Control Panel

1 - 32 Video Features

Quick Start Guide

Charms Bar Desktop App

Power Options

Power Options (Hardware and Sound) can be accessed from the Control Panel. The Power Menu item in Set- tings in the Charms Bar in Windows 8.1 may be used to Shut down or Restart (you can also add Hibernate/ Sleep to the menu - see “Adding Hibernate/Sleep to the Power Menu” on page 2 - 10). You can also use the context menu (Shut down or sign out) shut the computer down/restart etc.

Shut Down, Restart or Sleep (Charms Bar)

1. Go to the Charms Bar and tap Settings.

2. Tap Power .

3. Select Sleep, Shut Down or Restart.

Figure 1 - 29 - Shut Down/Restart

Power Options 1 - 33



Screen Resolution for Apps

(Windows 8.1)

The minimum resolution in which Apps will run is 1024x768. The minimum resolution required to support a ll the features of

Windows 8 (including multitasking with snap) is 1366x768. These specs are the minimum screen resolution that supports

all the features of Windows 8.1 on a useful physical size.

Quick Start Guide

Running Apps

To run Apps in Windows 8.1 you will need to check that the Screen Resolution and User Account Control Settings are compatible with the system requirements.

Screen Resolution Settings

1. Switch to the Windows Desktop.

2. Tap, hold and release in a blank area of the Windows Desktop and select Screen Resolution. Adjust the

Resolution to make sure that it is at least 10 24 * 768, although preferably 1366 * 768 or above (see sidebar).

1 - 34 Running Apps

Figure 1 - 30 - Screen Resolution

Quick Start Guide

User Account Control Settings

If your computer meets the minimum screen resolution requirements, and still you can't run Apps, then that you have to check the status of User Account Control (UAC). Apps may fail to open when the UAC is turned off. To check whether the UAC is on or off, follow the instructions below.

1. Open the Control Panel.

2. Tap on User Accounts and then tap on Change User Account Control settings (or t ap Syste m and Securit y and tap Change User Account Control Settings under Action Center).

3. If the slider is in the Never notify position, then the UAC is disabled.

4. To enable or turn on the UAC, move the slider to Always notify or Notify me when Apps try to make

changes to my computer (default) position, and then tap OK.

Figure 1 - 31 - User Account Control

Running Apps 1 - 35

Figure 1 - 32

VIA HD Audio Deck

Tap Expert Mode to access the Advanced menus

Quick Start Guide

Audio Features

You can configure the audio options on your Tablet PC from the Sound control panel in Windows, from the HD VDeck icon on the desktop or VIA HD Audio Deck control panel .

1 - 36 Audio Features

Expert Mode will allow you to access more advanced configuration menus for



Syncing Left & Right

Volume

Balance

If you wish to adjust the left and right channel volume levels separately, you will need to adjust this from the

VIA HD Audio Deck in Expert Mode.

Tap Speaker in VIA HD Audio Deck (in Expert Mode) and tap the Sync Left and Right volume

button (see left). You can then adjust the volume sliders independently (this setting also controls the Balance setting in the Windows Sound control panel).

Figure 1 - 33

VIA HD Audio Deck

(Expert Mode)

Note that to adjust the Left & Right volume balance independently tap the Sync Left and Right Volume icon (it should be faded) and adjust the slider as required.



Volume Warning

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Speaker and Microphone.

Quick Start Guide

Audio Features 1 - 37

Quick Start Guide

Volume Levels

The sound volume level is set using the volume control on the Windows desktop (and the volume button on the left side of the Tablet PC). Tap the volume icon in the taskbar to check the setting.

Figure 1 - 34 - Volume Level Sliders

The volume may also be adjusted by means of the volume button on the left side of the Tablet PC (see Figure

1 - 4 on page 1 - 8).

When headphones are inserted a pop-up warning will appear to warn on the dangers of listening at high volume levels for extended periods (tap OK to close the warning).

1 - 38 Audio Features

Figure 1 - 35 - Headphone Warning

Quick Start Guide

2-In-1 Audio Jack (Headphone-Out/Microphone-In)

Note the following with reference to the 2-in-1 audio jack concerning combination headphone/microphone headsets and single headphones or microphones.

Combination Headphone/Microphone Headsets

This system uses Apple iPhone/iPad compatible combination headphone/microphone headsets only. When purchasing a combination headphone/microphone headset for use with this system make sure that it is Apple iPhone/iPad compatible otherwise it will not function.

Headphone/Microphone jack:

• The 2-in-1 audio jack only supports a single headphone (the jack does not support a single microphone).

• When recording through the 2-in-1 audio jack, the recording function is only supported by using combi- nation headphone/microphone headsets.

• When a single headphone is inserted into the 2-in-1 audio jack, Windows will not pop up any message to acknowledge this.

Audio Features 1 - 39

Quick Start Guide

1 - 40

Power Management



OS Note

Power management functions will vary slightly depending on your operating system. For more information it is best to refer to the user’s manual of your operating system.

(Note: All pictures used on the following pages are from the Windows

8.1 OS.)

Power Options

Power management in Windows is configured from Power Options (Hardware and Sound), which can be accessed from the Con- trol Panel (see page 1 -

25).

Chapter 2: Power Management

Overview

To conserve power, especially when using the battery, your Tablet PC power management conserves power by controlling individual components of the computer or the whole system. This chapter covers:

• The Power Sources

• Turning On the Tablet

• Shutting the Tablet PC Down

• Power-Saving States

• Configuring the Power Button

• Battery Information

The system uses enhanced power saving techniques to give the operating system (OS) direct control over the power and thermal states of devices and processors. For example, this enables the OS to set devices into low-power states based on user settings and information from applications.

Overview 2 - 1

Power Management



Charging the

Tablet PC

Attach the AC/DC adapter to the micro USB 2.0 port on the left of the Tablet PC. then plug the adapter cord into the adapter, and the adapter into a working outlet to charge the Tablet PC.

Use only the adapter cord supplied with the system to connect to the adapter.

Do not use a computer’s USB port to attempt to charge the Tablet PC.

The Power Sources

The Tablet PC can be powered by either by the AC/DC adapter or the battery.

AC/DC Adapter

Use only the AC/DC adapter that comes with your Tablet PC. The wrong type of AC/DC adapter will damage the computer and its components.

1. Attach th e AC/DC adapter to the micro USB 2.0 port on the left of the Tablet PC. then plug the adapter cord (use only the adapt er cord supplied with the syste m to connect to the adapter) into the adapter, and th e adapter into an outlet.

2. Press the power button on the top of the Tablet PC to turn the system on.

Battery

Battery life varies depending on the applications and the configuration you're using.

To increase battery life, let the battery discharge completely before recharging

(see “Battery FAQ” on page 2 - 15). Take the opportunity to charge the battery with the AC/DC adapter when an electrical outlet is available.

2 - 2 The Power Sources

Power Management



Power Button as

Stand by or

Hibernate Button

You can use the OS’s “Power Options” control panel to set the power button to send the system into Stand by or Hibernate mode (see your OS’s documentation, or

“Configuring the Power Button” on page 2 9 for details).

Figure 2 - 1

Power Button

Turning On the Tablet

To turn it on simply press the power button on the top of the panel. When the Tablet PC is on, you can use the power button as a Stand by/Hibernate/

Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the Tablet PC down). Use Power Options (Hardware and Sound) in the Windows control panel to configure this feature.

Turning On the Tablet 2 - 3

Power Management

Figure 2 - 2

Shut Down/Restart

Charms Bar Desktop App

Shutting the Tablet PC Down

Note that you should always shut your Tablet PC down by choosing the Shut down command as this will help prevent hard disk or system problems. Use the Shut down or sign out item in the Context Menu of the Desktop App (tap, hold and release the lower left corner of the screen to bring up the menu).

You can also use the Power Menu in Settings in the Windows 8.1 Charms Bar. If you want to add Hibernate/Sleep to the Power Menu see “Adding Hibernate/Sleep

to the Power Menu” on page 2 - 10.

2 - 4 Shutting the Tablet PC Down

Power Management



Resuming

Operation

See Table 2 - 1, on

page 2 - 11 for informa-

tion on how to resume from a power-saving state.

Password

It is recommended that you enable a password on system resume in order to protect your data.

Figure 2 - 3

Power Plan

Advanced Settings

Power Plans

The Tablet PC can be configured to conserve power by means of power plans. You can use (or modify) an existing power plan, or create a new one.

The settings may be adjusted to set the display to turn off after a specified time, and to send the system into Sleep after a period of inactivity.

Tap Change plan settin gs and then tap Change advanced power settings to access further configuration options in Advanced Settings.

Power Plans2-5

Power Management

Figure 2 - 4

Power Plans

Tap to Show/Hide additional power plans

Each Windows power plan will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power).

Choose High performance (you may need to tap Show additional plans to view the High performance plan) for maximum performance when the Tablet PC is powered from an AC power source (e.g when on the keyboard stand on a desktop). Choose the Power saver (bear in mind that this scheme may slow down the overall performance of the computer in order to save power) for maximum power saving when the computer is battery (DC power) powered.

2 - 6 Power Plans

Power Management



Wake On LAN

Support

(Windows 8.1)

Wake-On-LAN is only supported from Sleep or

Hibernate states in Windows 8.1.

If you require your Tablet PC to wake up from network activity in Windows 8 then make sure that the Tablet PC is either in Sleep or Hiber- nate.

Wake-On-LAN is not supported from Shutdown states in Win- dows 8.1.

Power-Saving States

You can use power-saving states to stop the computer’s operation and restart where you left off. Win 8.1 uses the Sleep, Hibernate and Shut Down power-saving states.

Sleep

In Sleep all of your work, settings and preferences are saved to memory before the system sleeps. When you are not using your Tablet PC for a certain length of time, which you specify in the operating system, it will enter Sleep to save power.

The Tablet PC wakes from Sleep within seconds and will return you to where you last left off (what was on your desktop) without reopening the application(s) and file(s) you last used.

If your Tablet PC in Sleep is running on battery power the system will use only a minimum amount of power. After an extended period the system will save all the information to the hard disk and shut the Tablet PC down before the battery becomes depleted.

To add Sleep to the Power Menu see “Adding Hibernate/Sleep to the Power

Menu” on page 2 - 10.

Power-Saving States 2 - 7

Power Management

Figure 2 - 5

Power Menu

Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the eMMC before it turns the system off. If a power failure occurs the system can restore your work from the eMMC; if a power failure occurs when work is saved only to memory, then the work will be lost. Hi- bernate will also return you to where you last left off within seconds. You should put your Tablet PC into Hibernate if you will not use the system for a period of time, and will not have the chance to charge the battery. To add Hibernate to the Power Menu see “Adding Hibernate/Sleep to the Power Menu” on page 2 - 10.

Shut down

You should Shut down the Tablet PC if you plan to be away from the computer for several days, or you do not need it to wake up and run a scheduled task. Returning to full operation from Shut down takes longer than from Sleep or Hibernate.

Hibernate

2 - 8 Power-Saving States

Power Management



Password

Protection

It is recommended that you enable a password on wake up in order to protect your data.

However you can disable this setting from the Power Options menu by tapping Require a

password on wakeup

in the left menu, and selecting the options (tap

Change settings that are currently unavailable).

Figure 2 - 6

Power Options

Define Power

Buttons

Configuring the Power Button

The power button may be set to send the computer into any of the power-saving states. Tap Choose what the power buttons do on the left menu in Power Options to bring up the menu.

Configuring the Power Button 2 - 9

Power Management

Figure 2 - 7

Power Options

Define Power

Buttons - Shutdown

Settings

Adding Hibernate/Sleep to the Power Menu

Add Hibernate/Sleep to the Power Menu as follows.

1. Go to the Power Options (Hardware and Sound) control panel.

2. Tap “Change settings that are currently unavailable” .

3. Tap Choose what the power buttons do.

4. Tap to put a check in the Hibernate/Sleep check box under Shutdown settings.

5. Tap Save Changes and close the control panel.

2 - 10 Configuring the Power Button

Power Management

Table 2 - 1

Power Button LED



*Low Battery

Resuming Operation

You can resume operation from power-saving states by pressing the power button.

LED Color Description

The Tablet PC is On (The LED will be green for 3

Power

Button LED

Green (for 3 seconds)

Orange (flashes for 3 seconds if Power Off/

Hibernate)

Green (flashes for 3

seconds if Power On)

Blinking Orange

Blinking Green The Ta blet PC is in Sleep Mode

seconds to indicate power on, but will then turn off to

save power)

The Battery is Charging

The Battery is Fully Charged

The Battery Has Reached Critically Low Power

Status (below 10%)

Configuring the Power Button 2 - 11

Power Management



*Low Battery

If the battery reaches critically low power status (below 10%) the system will shut down, or will not be able to be opened. In this case you should attach the AC/ DC adapter and after 30 minutes the power button LED will flash orange, and the system can then be accessed.

Figure 2 - 8

Battery Icon

(Notification Area) &

Battery Advanced

Settings

2 - 12 Battery Information

Battery Information

Follow these simple guidelines to get the best use out of your battery.

Battery Power

Your Tablet PC’s battery power is dependent upon many factors, including the programs you are running, and peripheral devices attached. You can set actions to be taken (e.g. Shut down, Hibernate etc.), and set critical and low battery levels from power plan Change plan settings > Change advanced power settings (see Figure

2 - 4 on page 2 - 6).

Tap the battery icon in the notification area of the taskbar in the Desktop App to see the current battery level and charge status.

The icon at the bottom right of the Control Center indicates current battery status.

Figure 2 - 9

Control Center

Conserving Battery Power

•Use a power plan that conserves power (e.g Power saver).

• Lower the brightness level of the display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC/DC adapter.

• Reduce the amount of time before the display is turned off.

• Close wireless or communication applications when they are not being used (e.g. put the system in Airplane Mode).

Power Management

• Disconnect/remove any unnecessary external devices connected to the micro USB port.

Battery Information 2 - 13

Power Management



Charging the

Tablet PC

Attach the AC/DC adapter to the micro USB 2.0 port on the left of the Tablet PC. then plug the adapter cord into the adapter, and the adapter into a working outlet to charge the tablet PC.

Do not use a computer’s USB port to attempt to charge the Tablet PC.

Battery Life

Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days, or after about 20 partial discharges.

Recharging the Battery with the AC/DC Adapter

The battery pack automatically recharges when the AC/DC adapter is attached and plugged into an electrical outlet. If the computer is powered on, and in use, it will take several hours to fully recharge the battery. When the computer is turned off but plugged into an electrical outlet, battery charge time is less.

2 - 14 Battery Information

Power Management

Figure 2 - 10

Power Plan Create

Battery FAQ

How do I completely discharge the battery?

Use the Tablet PC with battery power until it shuts down due to a low battery. Don’t turn off the computer even if a message indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own.

1. Save and close all files and applications.

2. Create a power plan for discharging the battery and set all the options to Never.

Battery Information 2 - 15

Power Management

Figure 2 - 11

Change Plan

Settings / Change

Advanced Power

Settings

3. Tap Change plan settings (after creating it) and tap Change plan settings > Change advanced power settings.

2 - 16 Battery Information

4. Scroll down to Battery and tap + to expand the battery options.

Figure 2 - 12

Power Options

Advanced Settings -

Battery

5. Choose the options below (tap Yes if a warning appears):

• L ow battery levels = 0%

• Critical battery Levels = 1%

• L ow battery action = Do Nothing

• Critical battery action (On battery) = Shut Down

• Critical battery action (Plugged in) = Do Nothing

Power Management

Battery Information 2 - 17

Power Management

2-18

Chapter 3: Drivers & Utilities



Driver Installation &

Power

When installing drivers make sure your computer is powered by the AC/DC adapter connected to a working power source.

Some drivers draw a significant amount of power during the installation procedure, and if the remaining battery capacity is not adequate this may cause the system to shut down and cause system problems (note that there is no safety issue involved here, and the battery will be rechargeable within 1 minute).

This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers and utilities.

What to Install

You will need to attach an powered external DVD (the system cannot power the external DVD through the micro USB port) drive to install the drivers from the

Drivers & Utilities + User’s Manual disc. To connect a standard USB cable to this

system you will need to use an OTG micro USB to standard USB adapter.

The disc contains the drivers and utilities necessary for the proper operation of the Tablet PC. Table 3 - 1, on page 3 - 3 lists what you need to install and it is very important that the drivers are installed in the order indicated.

See this chapter for information on the PC Camera, Wireless LAN & Bluetooth Combo module and 3G module.

Note that the information included on the following pages is for Windows 8.1 only.

Drivers & Utilities

Device

What to Install 3 - 1

Drivers & Utilities

Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual

disc into the attached (powered) DVD drive.

2. Tap the message “Tap to choose what happens with this disc.”

3. Tap Run autorun.exe.

4. Tap Install Drivers (button), or Option Drivers (button) to access the Optional driver menu.

5. Check the driver installation order from Table 3 - 1,

on page 3 - 3 (the drivers must be installed in this

order) which is the same as that listed in the Drivers Installer menu below.

6. Tap to select the driver you wish to install, (you should note down the drivers as you install them).

7. Follow the instructions for each individual driver installation procedure as listed on the following pages.

Note: If you need to reinstall any driver, you should uninstall the driver first.

Figure 3 - 1 - Drivers Installer Screen 1

3 - 2 Driver Installation

Figure 3 - 2 - Drivers Installer Screen 2

Drivers & Utilities

Win 8.1 Driver Page # Win 8.1 - Optional Items Page #

Chipset Page 3 - 6 PC Camera Module Page 3 - 9 Video (VGA) Page 3 - 6 Wireless LAN Driver Installation Page 3 - 24 Card Reader Page 3 - 6 Bluetooth Combo Driver Installation Page 3 - 24 Airplane Page 3 - 6 3G Module (no driver installation required) Page 3 - 31 Control Center Page 3 - 6 TXE Driver Page 3 - 6 MBI Driver Page 3 - 7 GPIO Driver Page 3 - 7 Audio Page 3 - 7

Table 3 - 1- Driver Installation

All drivers provided are for the Windows 8.1 operating system. Note that you need to install both the WLAN & Bluetooth drivers for the WLAN & Bluetooth Combo module.

Driver Installation 3 - 3

Drivers & Utilities

Manual Driver Installation

Tap Browse CD/DVD (button) in the Drivers Installer application and browse to the executable file in the ap-

propriate driver folder.

Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest securi ty updates etc. (all updates will include the latest hotfixes from Microsoft). See “Windows Update” on page 3 -

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.To do this go to the Control Panel in the Windows OS and double-tap the Programs and Features icon (Pro- grams > Uninstall a program). Tap to select the driver (if it is not listed see below) and tap Uninstall, and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as outlined in this chapter.

If the driver is not listed in the Programs and Fea- tures menu:

1. Go to the Control Panel).

2. Double-tap Device Manager (Hardware and

Sound > Devices and Printers > Device Manager).

3. Double-tap the device you wish to update/reinstall the driver for (you may need to tap “+” to expand the selection).

4. Tap Driver (tab) and tap the Update Driver or

Uninstall button and follow the on screen prompts.

3 - 4 Driver Installation

User Account Control



Driver Installation General Guidelines

The driver installation procedure outlined in this Chapter are accurate at the time of going to press.

Drivers are always subject to upgrade and revision so the exact procedure for certain drivers may differ slightly. As a general guide follow the default on screen instructions for each driver (e.g. Next > Next > Finish) unless you are an advanced user. In many cases a restart is required to install the driver.

Make sure any modules (e.g. WLAN or Bluetooth) are ON (i.e. the system is not in Airplane Mode) before installing the appropriate driver.

If a User Account Control prompt appears as part of the driver installation procedure, tap Continue or Al- low, and follow the installation procedure as directed.

Drivers & Utilities

Windows Security Message

If you receive a Windows security message as part of the driver installation process. Just tap “Install this driver software anyway” or “Install” to continue the installation procedure.

You will receive this message in cases where the driver has been released after the version of Windows you are currently using. All the drivers provided will have already received certification for Windows.

New Hardware Found

If you see the message “New Hardware Found” dur- ing the installation procedure (other than when out- lined in the driver install procedure), tap Cancel to close the window, and follow the installation procedure.

Driver Installation 3 - 5

Drivers & Utilities

Driver Installation Procedure

Insert the Device Drivers & Utilities + User’s Manual disc into your attached CD/DVD drive and tap Install

Drivers (button).

Chipset

1. Tap 1.Install Chipset Driver > Yes.

2. Tap Next.

3. Tap the Accept button to agree to the license.

4. Tap Install.

5. Tap Finish.

Video (VGA)

1. Tap 2.Install VGA Driver > Yes.

2. Tap Next > Yes > Next > Next.

3. Tap Finish to restart the Tablet PC.

Card Reader

1. Tap 3.Install Cardreader Driver > Yes.

2. Tap Finish to complete the installation.

Airplane

Note: Do not use Update Driver in Device Manager to install the Airplane Mode driver.

1. Tap 4.Install Airplane AP > Yes.

2. Tap Next.

3. Tap Finish to restart the Tablet PC.

Control Center

1. Tap 5.Install Control Center AP > Yes.

2. Tap Yes.

3. Tap Finish to restart the Tablet PC.

TXE Driver

(Trusted Execution Engine)

1. Tap 6.Install TXE Driver > Yes.

2. Tap Next.

3. T ap in the check box to agree to the license and tap Next.

4. Tap Next.

5. Tap Finish.

3 - 6 Driver Installation

Drivers & Utilities

MBI Driver

1. Tap 7.Install MBI Driver > Yes.

2. Tap Next > Yes > Next.

3. Tap Finish to restart the Tablet PC.

GPIO Driver

1. Tap 8.Install GPIO Driver > Yes.

2. Tap Next.

3. Tap Finish.

Audio

1. Tap 9.Install Audio Driver > Yes.

2. Tap Next.

3. Tap the button to agree to the license and tap

Next.

4. Tap Next > Next > Next.

5. Tap Finish to restart the Tablet PC.

Note that after installing the audio driver the system will not return to the Drivers Installer screen. To in- stall any of the optional drivers listed on the following pages, eject the Device Drivers & Utilities + User’s Manual disc and then reinsert it (or double-tap the disc icon in My Computer), and tap Option Drivers (button) to access the optional driver menu.

(see over)

Driver Installation 3 - 7

Drivers & Utilities



Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security up-

dates etc. (all updates will include the latest hotfixes from Microsoft).

To enable Windows Update make sure you are con- nected to the internet:

1. Go to the Control Panel.

2. Tap Windows Update (System and Security/ Security).

3. Tap Check for updates (button).

4. The computer will now check for updates (you need to be connected to the internet).

5. Tap Install no w (button) to begin checking for the updates.

6. Tap Install updates (button) to install the updates.

Optional Drivers

See the following pages for the driver installation procedures for any modules included in your purchase option.

Figure 3 - 3 - Drivers Installer - Option Drivers Menu

3 - 8 Driver Installation

Drivers & Utilities

1. Built-In Front (Inward Facing)

1.0M FHD PC Camera

2. PC Camera LED

3. PC Camera Light Sensor

4. Built-In Rear (Outward Facing)

5.0M FHD PC Camera (

Factory

Option

)

PC Camera LEDs

Front 1M Camera Red Camera is On

Rear 5M Camera Green Camera is On

PC Camera Module

When the PC Camera application is run the LED indicator will be illuminated in red for the front (inward facing) 1M Camera, or green for the rear (outward facing) 5M Camera. Note that it is reco mmended that you use the IamCapture application to take pictures and capture video.

The light sensor on the front of the Tablet PC will help detect light levels for the camera, so make sure you do not accidentally cover the sensor with a finger when using the camera(s).

Figure 3 - 4 - PC Camera Features

PC Camera Module 3 - 9

Drivers & Utilities

Tap, Hold & Release

PC Camera Audio Setup

1. If you want to capture video & audio with your camera, setup the audio recording options in

2. Go to the Control Panel and tap Sound (Hardware and Sound) and tap Recording (tab).

3. Tap, hold and release Digital Mic (VIA HD Audio) and make sure the item is not disabled.

4. Double-tap Digital Mic (or select Properties from the right-tap action menu). Tap

6. Run the IamCapture application from the desktop shortcut.

7. Go to the Devices menu heading and select Digital Mic (VIA....) (it should have a check alongside it).

8. Go to the Capture menu heading and select Capture Audio (it should have a check alongside it).

Levels (tab), and adjust the Microphone and Microphone Boost sliders to the level required then t a p OK.

Windows

3 - 10 PC Camera Module

Figure 3 - 5 - Audio Setup for PC Camera

Drivers & Utilities

PC Camera Driver Installation

You should install the PC Camera driver for this system, and it is recommended that you use the IamCapture application (and not the Windows Camera App) to take pictures and capture video (the IamCapture application will produce better quality video than the Windows Camera App).

1. Insert the Device Drivers & Utilities + User’s Manual disc into an attached DVD drive.

2. Tap Option Drivers (button).

3. Tap 1.Install Webcam AP > Yes.

4. Tap Next.

5. Tap Finish to complete the installation.

6. Run the IamCapture application from the shortcut on the desktop (tap, hold and release on the Iam-

Capture desktop icon , and select “Pin to Start” to create a shortcut in the Start screen).

PC Camera Module 3 - 11

Drivers & Utilities

Selecting a Camera

If you have included two cameras in your purchase configuration use the camera application to select which camera to use.

1. Run the IamCapture application.

2. Select either the front inward facing 1M camera or the rear outward facing 5M camera by t apping the camera select icon .

3 - 12 PC Camera Module

Figure 3 - 6 - IamCapture (Select Camera)

Drivers & Utilities

Front Facing 1M CameraRear Outward Facing 5M camera

Taking Still Pictures

The camera application allows you to take still pictures.

1. Run the IamCapture application.

2. Select the camera you which to use (if applicable).

3. Tap on a resolution (640 * 480, 1280 * 720, 1920 * 1080 or 2592 * 1944) to select it for still picture use (note that the front inward facing 1M camera can only use 640 * 480, 1280 * 720 resolutions).

4. Tap on the camera icon to take still pictures.

Figure 3 - 7 - IamCapture (Take Still Pictures)

PC Camera Module 3 - 13

Drivers & Utilities



Rotation of Pictures and Video

Note that when previewing pictures and video, they cannot be rotated into a portrait/landscape mode by rotating the Tablet PC (use an ed iting application to do so).

5. The picture (in BMP format) will be placed in the IamCapture folder within the Pictures folder (in This PC).

Picture File Size

Note that the higher the resolution the camera is set to, the greater the amount of disk space is required for each file. After taking a picture, check the file size (tap, hold and release on the file and select Properties) and the remaining free space on your hard disk (tap, hold and release on the C Drive, and select Properties). If necessary you can remove the picture to a removable medium e.g. CD, DVD or USB Flash drive.

Figure 3 - 8 - IamCapture Folder (This PC > Pictures)

3 - 14 PC Camera Module

Drivers & Utilities

Capturing Video

The camera application allows you to capture video (note it is recommended you use the IamCapture applica- tion to capture video as it will produce better quality video than the Windows Camera App).

1. Run the IamCapture application.

2. Select the camera you which to use (if applicable).

3. Tap on a resolution (640 * 480 or 1280 * 720) to select it for video use (video can only be ca ptured in 640 * 480 or 1280 * 720 resolutions).

4. Tap on the video icon begin the video capture process.

5. The top left corner of the application will display the Rec icon and capture time , and the video icon

will be red.

6. Tap the video icon to stop the record process.

Figure 3 - 9 - IamCapture (Video Capture)

PC Camera Module 3 - 15

Drivers & Utilities

7. The video (in AVI format) will be placed in the IamCapture folder within the Pictures folder (in This PC).

Reducing Video File Size

Note that capturing high resolution video files requires a substantial amount of disk space for each file. After recording video, check the video file size (tap, hold and release on the file and select Properties) and the remaining free space on your hard disk (tap, hold and release on the C Drive, and select Properties). If necessary you can remove the recorded video file to a removable medium e.g. CD, DVD or USB Flash drive.

Note that the Windows 8.1 system requires a minimum of 16GB (32-bit) or 20GB (64-bit) of free space on the C: drive system partition. In order to prevent system problems it is recommended that you move any large sized captured video file to a location other than the C: drive.

3 - 16 PC Camera Module

Drivers & Utilities



Exposure

Use the slider to adjust the Exposure level.

Camera App

1. Run the Camera App from the Start screen by tapping on the Camera App icon .

2. The camera interface will display two buttons on the right side of the screen.

Figure 3 - 10 - Camera App Buttons

3. The upper button is used to record video, and the lower button is used to take still pictures.

4. Slide your finger up from the bottom of the scr een to brin g up menu buttons a t the bottom of the screen (use the Change camera button to switch between the 5.0M Pixels and 1.0M HD dual cameras, if included in your purchase option).

5. These buttons enable you to access the camera roll (where captured pictures and video are displayed), set the timer (the time period before capture begins; 3 seconds, 10 seconds or Off) and set the exposure level using the slider to obtain the best results.

Figure 3 - 11- Camera Options

PC Camera Module 3 - 17

Drivers & Utilities

Camera Options

The Camera Options settings may be accessed as follows:

1. Run the Camera App from the Start screen by tapping on the Camera App icon .

2. While the Camera App is running access the Charms Bar.

3. Tap Settings and then tap Options.

4. You can adjust the Photo Aspect Ratio, select the Microphone, Hide/Show grid lines and turn Location Info on or off from the Options panel.

3 - 18 PC Camera Module

Figure 3 - 12 - Camera Options
