CLEVO P955HQ3 Schematics

P955HQ3

Introduction

Figure 7

Mainboard Top

Key Parts

1. KBC-ITE IT8587

2

3

1

1.Introduction

Mainboard Overview - Top (Key Parts)

1 - 8 Mainboard Overview - Top (Key Parts)

1

2

3

6

4

5

7

Figure 8

Mainboard Bottom

Key Parts

1. Mini-Card Connector (M.2 3G/SATA Module)

2. Mini-Card Connector (M.2 PCIE/SATA SSD Module)

3. Mini-Card Connector (WLAN Module)

4. PCH

5. GPU-GTX1060M

6. Memory Slots DDR4 SO-DIMM

7. CPU

Mainboard Overview - Bottom (Key Parts)

Introduction

1.Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 9

Introduction

Figure 9

Mainboard Top

Connectors

1. DC-In Jack

2. HDMI Port

3. Mini Display Ports

4. USB 3.1 Gen 2 Type-C Ports

5. TP Connector

6. Keyboard Cable Connector

7. Microphone-In Jack

8. Headphone & S/ PDIF Combo Jack

9. USB 3.0 (USB 3.1 Gen 1) Port

10.Multi-in-1 Card Reader

11. RJ-45 LAN Jack

11

10

9

7

8

6

5

1

3

4

2

1.Introduction

Mainboard Overview - Top (Connectors)

1 - 10 Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

Figure 10

Mainboard Bottom

Connectors

1. USIM Card Reader (for 3G/4G USIM Cards)

2. Battery Connector

3. HDD Connector

4. Fan Connector

5. LCD Cable Connector

6. CCD Connector

11

12

1

2

4

3

5

6

Introduction

1.Introduction

Mainboard Overview - Bottom (Connectors) 1 - 11

Appendix B: Schematic Diagrams

Table B - 1

SCHEMATIC

DIAGRAMS



Version Note

The schematic diagrams in this chapter are based upon version 6-7P-P9508-001. If your mainboard (or other boards) are a later version, please check with the Service Center for updated diagrams (if required).

This appendix has circuit diagrams of the P955HQ3 notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 Frame Buffer Partition C_D - Page B - 23 3D AMP Headphone - Page B - 44 NVVDD 1 - Page B - 65 Processor 1/7 - Page B - 3 GPU Decoupling 1 - Page B - 24 ASM2142 1/3 - Page B - 45 NVVDD 2 - Page B - 66 Processor 2/7 - Page B - 4 GPU Decoupling 2 - Page B - 25 ASM2142 2/3 - Page B - 46 FBVDDQ - Page B - 67 Processor 3/7 - Page B - 5 Straps and XTAL - Page B - 26 ASM2142 3/3 - Page B - 47 LAN Board - Page B - 68 Processor 4/7 - Page B - 6 IFP I/O Interface - Page B - 27 M.2 3G/LTE - Page B - 48 USB Board, Receiver - Page B - 69 Processor 5/7 - Page B - 7 Misc - GPIO, I2C and ROM - Page B - 28 M.2 WLAN+BT, PCIE4X SSD - Page B - 49 USB Board - Page B - 70 Processor 6/7 - Page B - 8 GPU NVVDD, FBVDDQ - Page B - 29 TPM, TP - Page B - 50 LED Board - Page B - 71 Processor 7/7 - Page B - 9 GPU GND & Sequence - Page B - 30 Connector - Page B - 51 Click Board - Page B - 72 DDR4 CHA SO-DIMM_0 - Page B - 10 PCH 1/9 - Page B - 31 Fan, LID, KB LED - Page B - 52 Reader Board - Page B - 73 DDR4 CHB SO-DIMM_0 - Page B - 11 PCH 2/9 - Page B - 32 5V, 5VS, 3.3V, 3.3VS, 3.3VA - Page B - 53 Power Board - Page B - 74 Panel, Inverter - Page B - 12 PCH 3/9 - Page B - 33 1.0DX_VCCSTG/VCCSFR_OC/2.5V - Page B - 54 Power Sequence - Page B - 75 Mini DP Port - Page B - 13 PCH 4/9 - Page B - 34 1V8_RUN/AON, NV3V3 - Page B - 55 HDMI Connector - Page B - 14 PCH 5/9 - Page B - 35 PEX_VDD - Page B - 56 VGA PCI Express - Page B - 15 PCH 6/9 - Page B - 36 VDD3, VDD5 - Page B - 57 GPU Frame Buffer Partition - Page B - 16 PCH 7/9 - Page B - 37 DDR 1.2V / 0.6VS - Page B - 58 Frame Buffer Partition A - Page B - 17 PCH 8/9 - Page B - 38 Power 1.0V, VCCIO - Page B - 59 Frame Buffer Partition B - Page B - 18 PCH 9/9 - Page B - 39 VCore & VCCGT Output 1 - Page B - 60 Frame Buffer Partition A_B - Page B - 19 KBC IT8587 - Page B - 40 VCore & VCCGT Output 2 - Page B - 61 GPU Frame Buffer Partition - Page B - 20 Backlight KB - Page B - 41 VCCSA - Page B - 62 Frame Buffer Partition C - Page B - 21 Realtek ALC1220 - Page B - 42 AC_In, Charger - Page B - 63 Frame Buffer Partition D - Page B - 22 Smart AMP ALC1306 - Page B - 43 NVVDDS - Page B - 64

Schematic Diagrams

B.Schematic Diagrams

B - 1

Schematic Diagrams

Sheet 1 of 74

System Block

Diagram

5

4

3

2

1

D D

C C

B B

A A

P955HQ1/HQ3 Kabylake System Block Diagram

SHEET 58

SHEET 41

USB3.0 PORT1

SHEET 46

USB3.1 TYPE C

SHEET 56

TOUCH PAD

LPC

(USB1)

SMART BATTERY

SHEET 62

Front R

HP OUT

SHEET 41

<=7"

PCIE

23x23mm FCBGA

480 Mbps

H-processor

24 MHz

MIC IN

SO-DIMM*2

AZALIA LINK

LAN

BIOS SPI

SHEET 30

SPDIF OUT

EC

SHEET 67

5V,3.3V,5VS,3VS,

N17E-Q1 MAX-P N17E-Q3 MAX-Q

SHEET 14~29

RT5

SHEET 30~38

SHEET 2

SHEET 54

1V8_RUN,1V8_AON,NV3V3

REALTEK ALC1220

PROCESSOR

100 MHz

THERMAL SENSOR

33 MHz

SHEET 39

SMART FANx3

SHEET 51

SHEET 45

eDP

SHEET 40

K/B Backlight

SHEET 2~8

1"~12"

INT MIC

DDR4

SHEET 9,10

SHEET 39

32.768KHz

EC SMBUS

SYSTEM SMBUS

ITE 8587A (512KB ROM)

HM175 Platform Controller Hub (PCH-H)

INT. K/B

Azalia Codec

SHEET 52

USB 2.0

DMI*4

VDD3,VDD5

BGA1440

Realtek

VDD1.0,VCCIO

SATA III 6.0Gb/s

SHEET 67

DDR4/1.2V/1866, 2133MHz

SHEET 71

CLICK PAD

PCIE*16

(Optional)

P950HP

USB 3.0

5 Gbps

SOCKET

NGFF PCIE

SHEET 48

WLAN+BT

RTL8111G

(Charging)

SHEET 68

AUDIO JACK

A KEY

SHEET 67

SHEET 68

SOCKET

2IN1

RJ-45

<=4.5"

<=6"

<=4.5"

3"~9"

NVVDD

SHEET 64~65

B KEY

SMART AMP ALC1305

USB3.1 TYPE C

3D surround

SATA HDD 7mm

Front L

(USB6)

SHEET 11

PANEL

TPM2.0

SHEET 49

(Option)

1.0DX_VCCSTG/VCCSFR_OC

SHEET 58

NGFF PCIE SOCKET

SHEET 47

3G

AC-IN

(USB9)

SHEET 67

CCD

SHEET 42

SHEET49

SHEET 32

M KEY

NGFF PCIE SOCKET

SHEET 48

SSD PCIE4X

<8"

PORT 0

SHEET 57

1.25V(VDDQ),0.6VS

AC_IN,CHARGER

SHEET 62

FBVDDQ

SHEET 66

VCC_CORE & VCCGT

SHEET 59~60

VCCSA

SHEET 61

USB3.0 PORT6

CARD READER

2"~7"

27 MHz

24MHz

VPP 2.5V

ASM 2142

SHEET 44~46

NVVDDS

SHEET 63

PEX_VDD

SHEET 55

SHEET 42

USB3.0 PORT2

(USB2)

Realtek

RTS5250

SHEET 68

SV3H612

SHEET 43

HDMI2.0

SHEET 13

SHEET 12

Mini DP 2 Port

SHEET 68

SIM Card

Lan Board

CARD READER Board

PCB:6-71-P9500-D03

SHEET 2~66

P950HR M/B BOARD

3D HeadPhone AMP

SHEET 68

(USB3)

USB3.0 PORT3

PCBA:6-7P-P9508-002

USB Board

CLICK Board

BOM: 6-77-P955HQ10-D03-1A

BOM: 6-77-P955HQ30-D03-A

BOM: 6-77-P955HQ10-D03-A

SHEET 67

P950HP LAN BOARD

SHEET 68

P950HP CARD READER BOARD

SHEET 69

P950HP USB3.0 BOARD

BOM: 6-77-P9502-D02

PCB:6-71-P9504-D02

SHEET 70

BOM: 6-77-P9504-D02

PCB:6-71-P950Z-D02

BOM: 6-77-P950Z-D02

PCB:6-71-P950V-D03

BOM: 6-77-P950V-D03 (W SIM)

PCB: 6-71-P9503-D02

BOM: 6-77-P9503-D01C

P950HP FRONT LED BOARD

BOM: 6-77-P9503-D02

SHEET 74

BOM: 6-77-P950V-D03-1 (W/O SIM)

SHEET 72

PCB: 6-71-P955C-D01 BOM: 6-77-P955C-D01

P955HP Power BOARD

PCB: 6-71-P9503-D01C

PCB:6-71-P9502-D02

P950HP CLICK BOARD

SHEET 71

BOM: 6-77-P955HQ30-D03-1A

Title

Size Document Number Rev

Date: Sheet

of

6-7P-P9508-002

D03

[01]BLOCK DIAGRAM

A3

174Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-7P-P9508-002

D03

[01]BLOCK DIAGRAM

A3

174Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-7P-P9508-002

D03

[01]BLOCK DIAGRAM

A3

174Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

System Block Diagram

B.Schematic Diagrams

B - 2 System Block Diagram

Processor 1/7

Sheet 2 of 74

Processor 1/7

5

4

3

2

1

D D

C C

B B

A A

PLACE NEAR CPU

P/N 6-17-10320-731

PEG_COMP

PEG_TX_0 PEG_TX#_0

PEG_TX_1 PEG_TX#_1

PEG_TX_2 PEG_TX#_2

PEG_TX_3 PEG_TX#_3

PEG_TX_4 PEG_TX#_4

PEG_TX_5 PEG_TX#_5

PEG_TX_6 PEG_TX#_6

PEG_TX_7 PEG_TX#_7

PEG_TX_8 PEG_TX#_8

PEG_TX_9 PEG_TX#_9

PEG_TX_10 PEG_TX#_10

PEG_TX_11 PEG_TX#_11

PEG_TX_12 PEG_TX#_12

PEG_TX_13 PEG_TX#_13

PEG_TX_14 PEG_TX#_14

PEG_TX_15 PEG_TX#_15

VCCIO

3.3V

DMI_MT_IR_0_DP 31 DMI_MT_IR_0_DN 31

DMI_MT_IR_1_DP 31 DMI_MT_IR_1_DN 31

DMI_MT_IR_2_DP 31 DMI_MT_IR_2_DN 31

DMI_MT_IR_3_DP 31 DMI_MT_IR_3_DN 31

DMI_IT_MR_0_DP31 DMI_IT_MR_0_DN31

DMI_IT_MR_1_DP31 DMI_IT_MR_1_DN31

DMI_IT_MR_2_DP31 DMI_IT_MR_2_DN31

DMI_IT_MR_3_DP31 DMI_IT_MR_3_DN31

THERM_VOLT 39

PEG_RX#414

PEG_RX#314

PEG_RX#714

PEG_RX#614

PEG_RX#514

PEG_RX514

PEG_RX714

PEG_RX414

PEG_RX314

PEG_RX214

PEG_RX614

PEG_RX014

PEG_RX114

PEG_RX#1214

PEG_RX#1014

PEG_RX#914

PEG_RX#1114

PEG_RX#1514

PEG_RX#1414

PEG_RX#814

PEG_RX1214

PEG_RX1014

PEG_RX914

PEG_RX1114

PEG_RX1414

PEG_RX814

PEG_RX1314

PEG_RX#214

PEG_RX#114

PEG_RX1514

PEG_RX#014

PEG_RX#1314

PEG_TX#2 14

PEG_TX#3 14

PEG_TX#5 14

PEG_TX#0 14

PEG_TX#7 14

PEG_TX#6 14

PEG_TX#1 14

PEG_TX#4 14

PEG_TX3 14

PEG_TX6 14

PEG_TX0 14

PEG_TX7 14

PEG_TX4 14

PEG_TX5 14

PEG_TX1 14

PEG_TX2 14

PEG_TX#10 14

PEG_TX#11 14

PEG_TX#13 14

PEG_TX#8 14

PEG_TX#15 14

PEG_TX#14 14

PEG_TX#9 14

PEG_TX#12 14

PEG_TX11 14

PEG_TX14 14

PEG_TX8 14

PEG_TX15 14

PEG_TX12 14

PEG_TX13 14

PEG_TX9 14

PEG_TX10 14

3.3V11,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58

VCCIO3,7,53,58

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[02] Processor 1/7-DMI/PEG

A3

274Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[02] Processor 1/7-DMI/PEG

A3

274Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[02] Processor 1/7-DMI/PEG

A3

274Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R527 20K_1%_04

C659 0.22u_10V_X5R_04

C651 0.22u_10V_X5R_04

C654 0.22u_10V_X5R_04

R220

24.9_1%_04

C662 0.22u_10V_X5R_04

C657 0.22u_10V_X5R_04

C644 0.22u_10V_X5R_04

C647 0.22u_10V_X5R_04

C664 0.22u_10V_X5R_04

C652 0.22u_10V_X5R_04

C648 0.22u_10V_X5R_04

C666 0.22u_10V_X5R_04

C646 0.22u_10V_X5R_04

C642 0.22u_10V_X5R_04 C640 0.22u_10V_X5R_04

C660 0.22u_10V_X5R_04

C641 0.22u_10V_X5R_04

C650 0.22u_10V_X5R_04

C665 0.22u_10V_X5R_04

C638 0.22u_10V_X5R_04

C656 0.22u_10V_X5R_04

C639 0.22u_10V_X5R_04

C655 0.22u_10V_X5R_04

C658 0.22u_10V_X5R_04

C653 0.22u_10V_X5R_04

RT1

100k_1%_04_NTC

12

C637 0.22u_10V_X5R_04

KABYLAKE_HALO

BGA1440

3 OF 14

?

REV = 1

U113C

QLM5

PEG_RXN[0]

D25

PEG_RXN[2]

D23

PEG_RXP[2]

E23

PEG_RXN[1]

F24

PEG_RXP[13]

F12

DMI_TXN[3]

B4

DMI_TXP[3]

D4

DMI_TXN[2]

A5

DMI_TXP[2]

B5

DMI_TXP[1]

C6

DMI_TXN[1]

B6

DMI_TXN[0]

A8

DMI_TXP[0]

B8

DMI_RXP[3]

J8

DMI_RXN[3]

J9

DMI_RXN[2]

E5

DMI_RXP[2]

D5

DMI_RXP[1]

E6

DMI_RXN[1]

F6

DMI_RXP[0]

D8

DMI_RXN[0]

E8

PEG_RCOMP

G2

PEG_RXP[15]

F10

PEG_RXP[14]

D11

PEG_RXN[15]

E10

PEG_RXP[8]

D17

PEG_RXN[7]

F18

PEG_RXP[7]

E18

PEG_RXN[3]

F22

PEG_RXP[1]

E24

PEG_RXP[3]

E22

PEG_RXP[4]

E21

PEG_RXN[4]

D21

PEG_RXP[5]

E20

PEG_RXP[6]

E19

PEG_RXP[10]

D15

PEG_RXN[10]

E15

PEG_RXP[11]

F14

PEG_RXN[11]

E14

PEG_RXP[12]

D13

PEG_RXN[13]

E12

PEG_RXN[14]

E11

PEG_TXP[0]

B25

PEG_TXN[0]

A25

PEG_TXP[1]

B24

PEG_TXN[1]

C24

PEG_TXN[2]

A23

PEG_TXP[2]

B23

PEG_TXN[3]

C22

PEG_TXP[3]

B22

PEG_TXP[4]

B21

PEG_TXN[5]

C20

PEG_TXN[4]

A21

PEG_TXP[5]

B20

PEG_TXN[6]

A19

PEG_TXP[6]

B19

PEG_TXP[7]

B18

PEG_TXP[8]

A17

PEG_TXN[10]

B15

PEG_TXP[10]

A15

PEG_TXN[9]

B16

PEG_TXP[11]

C14

PEG_TXN[11]

B14

PEG_TXN[12]

B13

PEG_TXP[12]

A13

PEG_TXN[13]

B12

PEG_TXP[13]

C12

PEG_TXN[14]

B11

PEG_TXP[14]

A11

PEG_TXP[15]

C10

PEG_TXN[15]

B10

PEG_RXN[12]

E13

PEG_RXN[9]

E16

PEG_RXN[8]

E17

PEG_TXP[9]

C16

PEG_TXN[8]

B17

PEG_RXP[9]

F16

PEG_TXN[7]

C18

PEG_RXN[5]

F20

PEG_RXN[6]

D19

PEG_RXP[0]

E25

C663 0.22u_10V_X5R_04

C636 0.22u_10V_X5R_04

C643 0.22u_10V_X5R_04

C635 0.22u_10V_X5R_04

C645 0.22u_10V_X5R_04

C649 0.22u_10V_X5R_04

C661 0.22u_10V_X5R_04

Schematic Diagrams

B.Schematic Diagrams

Processor 1/7 B - 3

Schematic Diagrams

Sheet 3 of 74

Processor 2/7

5

4

3

2

1

D D

C C

B B

A A

Width = 20mil Space = 25mil lengh = 100mil(max)

CLOSE TO CPU

EDP

Zdiff=85ȍ

EDP_RCOMP

EDP_DISP_UTIL

AUD_AZACPU_SDI_R

VCCIO

3.3VS

AUD_AZACPU_SCLK 33 AUD_AZACPU_SDO_R 33

AUD_AZACPU_SDI 33

VCCIO2,7,53,58

3.3VS9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

EDP_TXN0 11

EDP_TXP0 11

EDP_TXP1 11 EDP_TXN1 11 EDP_TXN2 11 EDP_TXP2 11 EDP_TXN3 11 EDP_TXP3 11

EDP_AUX 11 EDP_AUX# 11

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[03] Processor 2/7-DISPLAY

A4

374Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[03] Processor 2/7-DISPLAY

A4

374Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[03] Processor 2/7-DISPLAY

A4

374Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R514100K_04

R215 24.9_1%_04

R512 20_1%_04

KABYLAKE_HALO

BGA1440

4 OF 14

?

?REV = 1

U113D

QLM5

DDI1_TXN[3]

J38

EDP_TXN[1]

E28

EDP_TXN[2]

B29

EDP_TXP[2]

A29

DDI1_TXN[2]

H36

DDI1_TXP[3]

J37

EDP_TXP[0]

D29

EDP_TXN[0]

E29

EDP_TXP[1]

F28

EDP_TXN[3]

B28

EDP_TXP[3]

C28

EDP_AUXP

C26

EDP_AUXN

B26

EDP_DISP_UTIL

A33

EDP_RCOMP

D37

PROC_AUDIO_CLK

G27

PROC_AUDIO_SDI

G25

PROC_AUDIO_SDO

G29

DDI1_AUXP

D27

DDI2_TXN[2]

F35

DDI2_TXP[3]

E37

DDI2_TXP[2]

F34

DDI2_TXN[1]

G38

DDI2_TXP[1]

F37

DDI2_TXN[0]

H33

DDI2_TXP[0]

H34

DDI1_AUXN

E27

DDI2_TXN[3]

E36

DDI2_AUXN

E26

DDI2_AUXP

F26

DDI3_TXP[0]

C34

DDI3_TXN[0]

D34

DDI3_TXP[1]

B36

DDI3_TXN[1]

B34

DDI3_TXP[2]

F33

DDI3_TXN[2]

E33

DDI3_TXP[3]

C33

DDI3_TXN[3]

B33

DDI3_AUXN

B27

DDI3_AUXP

A27

DDI1_TXP[0]

K36

DDI1_TXN[0]

K37

DDI1_TXP[1]

J35

DDI1_TXN[1]

J34

DDI1_TXP[2]

H37

R513100K_04

Processor 2/7

B.Schematic Diagrams

B - 4 Processor 2/7

5

4

3

2

1

D D

C C

B B

A A

CLOSE TO CPU

DDR_RCOMP0 DDR_RCOMP1 DDR_RCOMP2

M_B_DQ0

M_B_DQ33

M_B_DQ18

M_B_DQ48

M_B_DQ34

M_B_DQ19

M_B_DQ49

M_B_DQ57

M_B_DQ35

M_B_DQ20

M_B_DQ50

M_B_DQ36

M_B_DQ58

M_B_DQ21

M_B_DQ2

M_B_DQ51

M_B_DQ37

M_B_DQ3

M_B_DQ22

M_B_DQ59

M_B_DQ52

M_B_DQ11

M_B_DQ4

M_B_DQ38

M_B_DQ23

M_B_DQ60

M_B_DQ53

M_B_DQ12

M_B_DQ5

M_B_DQ24

M_B_DQ39

M_B_DQ61

M_B_DQ54

M_B_DQ6

M_B_DQ25

M_B_DQ40

M_B_DQ62

M_B_DQ55

M_B_DQ26

M_B_DQ41

M_B_DQ63

M_B_DQ27

M_B_DQ42

M_B_DQ28

M_B_DQ43

M_B_DQ13

M_B_DQ29

M_B_DQ44

M_B_DQ14

M_B_DQ7

M_B_DQ30

M_B_DQ45

M_B_DQ15

M_B_DQ56

M_B_DQ1

M_B_DQ8

M_B_DQ31

M_B_DQ46

M_B_DQ16

M_B_DQ9

M_B_DQ32

M_B_DQ17

M_B_DQ47

M_B_DQ10

DIMM_DQ_CPU_VREF_A

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS3

M_B_DQS2

M_B_DQS1

M_B_DQS0

M_B_DQS#5 M_B_DQS#6

M_B_DQS#4

M_B_DQS#7

M_B_DQS5 M_B_DQS6

M_B_DQS4

M_B_DQS7

M_A_DQ9

M_A_DQ36

M_A_DQ25

M_A_DQ51

M_A_DQ10

M_A_DQ37

M_A_DQ26

M_A_DQ52

M_A_DQ11

M_A_DQ38

M_A_DQ27

M_A_DQ53

M_A_DQ12

M_A_DQ39

M_A_DQ28

M_A_DQ54

M_A_DQ13

M_A_DQ40

M_A_DQ29

M_A_DQ55

M_A_DQ14

M_A_DQ41

M_A_DQ30

M_A_DQ15

M_A_DQ56

M_A_DQ1

M_A_DQ42

M_A_DQ31

M_A_DQ16

M_A_DQ57

M_A_DQ43

M_A_DQ32

M_A_DQ17

M_A_DQ58

M_A_DQ0

M_A_DQ2

M_A_DQ44

M_A_DQ18

M_A_DQ59

M_A_DQ3

M_A_DQ45

M_A_DQ19

M_A_DQ60

M_A_DQ4

M_A_DQ46

M_A_DQ20

M_A_DQ61

M_A_DQ5

M_A_DQ47

M_A_DQ21

M_A_DQ6

M_A_DQ62

M_A_DQ33

M_A_DQ48

M_A_DQ22

M_A_DQ7

M_A_DQ63

M_A_DQ34

M_A_DQ49

M_A_DQ23

M_A_DQ8

M_A_DQ35

M_A_DQ50

M_A_DQ24

M_A_CB0 M_A_CB1 M_A_CB2 M_A_CB3 M_A_CB4 M_A_CB5 M_A_CB6 M_A_CB7

M_A_DQS7

M_A_DQS3

M_A_DQS#7

M_A_DQS#6

M_A_DQS#4 M_A_DQS#5

M_A_DQS2

M_A_DQS1

M_A_DQS0

M_A_DQS6

M_A_DQS5

M_A_DQS4

M_A_DQS#3

M_A_DQS#2

M_A_DQS#1

M_A_DQS#0

M_B_CB0 M_B_CB1 M_B_CB2 M_B_CB3 M_B_CB4 M_B_CB5 M_B_CB6 M_B_CB7

M_B_DQ[63:0]10

M_B_CKE0 10 M_B_CKE1 10

M_B_CS#0 10 M_B_CS#1 10

M_B_ODT0 10 M_B_ODT1 10

M_B_RAS# 10 M_B_WE# 10 M_B_CAS# 10

DIMM_CA_CPU_VREF_A 9

DIMM_DQ_CPU_VREF_B 10

M_B_CLK_DDR0 10 M_B_CLK_DDR#0 10 M_B_CLK_DDR#1 10 M_B_CLK_DDR1 10

M_B_DQS#[3:0] 10

M_B_DQS[3:0] 10

M_B_DQS#[7:4] 10

M_B_DQS[7:4] 10

M_B_BA0 10 M_B_BA1 10 M_B_BG0 10

M_B_A0 10 M_B_A1 10 M_B_A2 10 M_B_A3 10 M_B_A4 10 M_B_A5 10 M_B_A6 10 M_B_A7 10 M_B_A8 10 M_B_A9 10 M_B_A10 10 M_B_A11 10 M_B_A12 10 M_B_A13 10 M_B_BG1 10 M_B_ACT# 10

DDR1_B_PARITY 10 DDR1_B_ALERT# 10

M_A_DQ[63:0] 9

M_A_CLK_DDR0 9 M_A_CLK_DDR#0 9 M_A_CLK_DDR#1 9 M_A_CLK_DDR1 9

M_A_CKE0 9 M_A_CKE1 9

M_A_CS#0 9 M_A_CS#1 9

M_A_ODT0 9 M_A_ODT1 9

M_A_RAS# 9 M_A_WE# 9 M_A_CAS# 9

M_A_BA0 9 M_A_BA1 9 M_A_BG0 9

M_A_A0 9 M_A_A1 9 M_A_A2 9 M_A_A3 9 M_A_A4 9 M_A_A5 9 M_A_A6 9 M_A_A7 9 M_A_A8 9 M_A_A9 9 M_A_A10 9 M_A_A11 9 M_A_A12 9 M_A_A13 9 M_A_BG1 9 M_A_ACT# 9

DDR0_A_PARITY 9 DDR0_A_ALERT# 9

M_A_DQS#[3:0] 9

M_A_DQS[7:4] 9

M_A_DQS[3:0] 9

M_A_DQS#[7:4] 9

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[04] Processor 3/7-DDR4

Custom

474Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[04] Processor 3/7-DDR4

Custom

474Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[04] Processor 3/7-DDR4

Custom

474Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R546 100_1%_04

DDR CHANNEL A

KABYLAKE_HALO

BGA1440

1 OF 14

?

?REV = 1

U113A

QLM5

DDR0_DQ[36]/DDR1_DQ[4]

AB5

DDR0_DQ[35]/DDR1_DQ[3]

AA5

DDR0_DQ[34]/DDR1_DQ[2]

AA4

DDR0_DQ[32]/DDR1_DQ[0]

AB1

DDR0_DQ[31]/DDR0_DQ[47]

BC2

DDR0_DQ[30]/DDR0_DQ[46]

BC1

DDR0_DQ[45]/DDR1_DQ[13]

V4

DDR0_ECC[6]

AY1

DDR0_DQ[63]/DDR1_DQ[47]

L1

DDR0_DQ[54]/DDR1_DQ[38]

R1

DDR0_DQ[55]/DDR1_DQ[39]

P1

DDR0_DQ[43]/DDR1_DQ[11]

U2

DDR0_DQ[28]/DDR0_DQ[44]

BD5

DDR0_DQ[20]/DDR0_DQ[36]

BG2

DDR0_DQ[19]/DDR0_DQ[35]

BF5

DDR0_DQ[16]/DDR0_DQ[32]

BG4

DDR0_ECC[4]

BA5

DDR0_DQ[60]/DDR1_DQ[44]

M5

DDR0_DQ[4]

BN5

DDR0_DQ[2]

BP3

DDR0_DQ[3]

BR3

DDR0_DQ[5]

BP6

DDR0_DQ[6]

BP2

DDR0_DQ[7]

BN3

DDR0_DQ[8]

BL4

DDR0_DQ[9]

BL5

DDR0_DQ[10]

BL2

DDR0_DQ[11]

BM1

DDR0_DQ[13]

BK5

DDR0_DQ[14]

BK1

DDR0_DQ[18]/DDR0_DQ[34]

BF4

DDR0_DQ[21]/DDR0_DQ[37]

BG1

DDR0_DQ[23]/DDR0_DQ[39]

BF2

DDR0_DQ[25]/DDR0_DQ[41]

BD1

DDR0_DQ[27]/DDR0_DQ[43]

BC5

DDR0_DQ[29]/DDR0_DQ[45]

BD4

DDR0_DQ[12]

BK4

DDR0_DQ[17]/DDR0_DQ[33]

BG5

DDR0_DQ[15]

BK2

DDR0_CKP[0]

AG1

DDR0_DQ[42]/DDR1_DQ[10]

U1

DDR0_DQ[41]/DDR1_DQ[9]

V2

DDR0_DQ[40]/DDR1_DQ[8]

V5

DDR0_DQ[37]/DDR1_DQ[5]

AB4

DDR0_DQ[33]/DDR1_DQ[1]

AB2

DDR0_DQ[26]/DDR0_DQ[42]

BC4

DDR0_DQ[22]/DDR0_DQ[38]

BF1

DDR0_ECC[3]

AY5

DDR0_DQ[58]/DDR1_DQ[42]

L4

DDR0_DQ[52]/DDR1_DQ[36]

R5

DDR0_DQ[47]/DDR1_DQ[15]

U4

DDR0_DQ[44]/DDR1_DQ[12]

V1

DDR0_DQ[39]/DDR1_DQ[7]

AA1

DDR0_DQSP[8]

AY3

DDR0_DQSN[8]

BA3

DDR0_DQSN[7]/DDR1_DQSN[5]

L3

DDR0_DQSN[6]/DDR1_DQSN[4]

P3

DDR0_DQSN[5]/DDR1_DQSN[1]

U3

DDR0_DQSN[4]/DDR1_DQSN[0]

AA3

DDR0_DQSP[3]/DDR0_DQSP[5]

BC3

DDR0_DQSP[2]/DDR0_DQSP[4]

BF3

DDR0_DQSP[1]

BK3

DDR0_DQSP[0]

BP5

DDR0_DQSP[7]/DDR1_DQSP[5]

M3

DDR0_DQSP[5]/DDR1_DQSP[1]

V3

DDR0_DQSP[6]/DDR1_DQSP[4]

R3

DDR0_DQSN[3]/DDR0_DQSN[5]

BD3

DDR0_DQSP[4]/DDR1_DQSP[0]

AB3

DDR0_DQSN[1]

BL3

DDR0_DQSN[2]/DDR0_DQSN[4]

BG3

DDR0_DQSN[0]

BR5

DDR0_PAR

AG3

DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]

AU2

DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT#

AU3

DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]

AE3

DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12]

AU4

DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]

AN2

DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8]

AN3

DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9]

AT4

DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]

AH2

DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6]

AP3

DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7]

AN1

DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5]

AP1

DDR0_MA[4]

AP2

DDR0_MA[3]

AP5

DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]

AN4

DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1]

AP4

DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]

AH3

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]

AD1

DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]

AG4

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]

AH4

DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]

AU1

DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]

AH1

DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0]

AH5

DDR0_ODT[3]

AD4

DDR0_ODT[2]

AE1

DDR0_ODT[1]

AE4

DDR0_CS#[3]

AE5

DDR0_ODT[0]

AD3

DDR0_CS#[2]

AD2

DDR0_CS#[1]

AE2

DDR0_CKE[3]

AT5

DDR0_CS#[0]

AD5

DDR0_CKE[1]

AT2

DDR0_CKE[2]

AT3

DDR0_CKE[0]

AT1

DDR0_CLKN[3]

AL1

DDR0_CLKN[2]

AK3

DDR0_CLKP[3]

AL2

DDR0_CLKP[2]

AL3

DDR0_CKP[1]

AK2

DDR0_CKN[1]

AK1

DDR0_CKN[0]

AG2

DDR0_ECC[7]

AY2

DDR0_ECC[5]

BA4

DDR0_ECC[2]

AY4

DDR0_ECC[1]

BA1

DDR0_ECC[0]

BA2

DDR0_DQ[62]/DDR1_DQ[46]

L5

DDR0_DQ[61]/DDR1_DQ[45]

M2

DDR0_DQ[59]/DDR1_DQ[43]

L2

DDR0_DQ[56]/DDR1_DQ[40]

M4

DDR0_DQ[57]/DDR1_DQ[41]

M1

DDR0_DQ[53]/DDR1_DQ[37]

P2

DDR0_DQ[51]/DDR1_DQ[35]

P4

DDR0_DQ[50]/DDR1_DQ[34]

R4

DDR0_DQ[49]/DDR1_DQ[33]

P5

DDR0_DQ[48]/DDR1_DQ[32]

R2

DDR0_DQ[46]/DDR1_DQ[14]

U5

DDR0_DQ[38]/DDR1_DQ[6]

AA2

DDR0_DQ[24]/DDR0_DQ[40]

BD2

DDR0_ALERT#

AU5

DDR0_DQ[1]

BT6

DDR0_DQ[0]

BR6

R534 121_1%_04

DDR CHANNEL B

BGA1440

BABYLAKE_HALO

2 OF 14

REV = 1

?

U113B

QLM5

DDR1_DQ[0]/DDR0_DQ[16]

BT11

DDR1_DQ[3]/DDR0_DQ[19]

BR8

DDR1_DQ[4]/DDR0_DQ[20]

BP11

DDR1_DQ[5]/DDR0_DQ[21]

BN11

DDR1_DQ[6]/DDR0_DQ[22]

BP8

DDR1_DQ[7]/DDR0_DQ[23]

BN8

DDR1_DQ[8]/DDR0_DQ[24]

BL12

DDR1_DQ[9]/DDR0_DQ[25]

BL11

DDR1_DQ[11]/DDR0_DQ[27]

BJ8

DDR1_DQ[12]/DDR0_DQ[28]

BJ11

DDR1_DQ[14]/DDR0_DQ[30]

BL7

DDR1_DQ[15]/DDR0_DQ[31]

BJ7

DDR1_DQ[2]/DDR0_DQ[18]

BT8

DDR1_DQ[1]/DDR0_DQ[17]

BR11

DDR1_ECC[3]

AW8

DDR1_ECC[4]

AY10

DDR1_ECC[5]

AW10

DDR1_ECC[6]

AY7

DDR1_ECC[7]

AW7

DDR1_DQ[61]

M10

DDR1_DQ[60]

L10

DDR1_DQ[59]

M8

DDR1_DQ[58]

L7

DDR1_DQ[57]

M11

DDR1_DQ[56]

L11

DDR1_DQ[55]

P8

DDR1_DQ[54]

R7

DDR1_DQ[53]

P10

DDR1_ODT[0]

AF7

DDR1_CS#[3]

AE10

DDR1_CS#[2]

AF10

DDR1_ODT[1]

AE8

DDR1_ODT[2]

AE9

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]

AH10

DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1]

AH9

DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]

AJ9

DDR1_DQSN[6]

R9

DDR0_VREF_DQ

BP13

DDR_VREF_CA

BN13

DDR1_DQSN[5]/DDR1_DQSN[3 ]

W9

DDR1_PAR

AJ7

DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT#

AT9

DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1]

AR7

DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]

AF9

DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]

AN11

DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12]

AR10

DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]

AH7

DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8]

AN8

DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9]

AR11

DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]

AN10

DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6]

AN7

DDR1_MA[3]

AL5

DDR1_MA[4]

AL6

DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5]

AM6

DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]

AK5

DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1]

AK6

DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0]

AR9

DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]

AH8

DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]

AH11

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]

AF8

DDR1_ODT[3]

AE11

DDR1_CS#[1]

AE7

DDR1_CKE[3]

AT11

DDR1_CS#[0]

AF11

DDR1_CKE[2]

AT7

DDR1_CKE[1]

AT10

DDR1_CKE[0]

AT8

DDR1_CLKN[3]

AJ11

DDR1_CLKP[3]

AJ10

DDR1_CLKN[2]

AM10

DDR1_CLKP[2]

AM11

DDR1_CKP[1]

AM7

DDR1_CKN[1]

AM8

DDR1_CKP[0]

AM9

DDR1_CKN[0]

AN9

DDR1_ECC[2]

AY8

DDR1_ECC[1]

AY11

DDR1_ECC[0]

AW11

DDR1_DQ[63]

L8

DDR1_DQ[62]

M7

DDR1_DQ[51]

R8

DDR1_DQ[52]

R10

DDR1_DQ[50]

P7

DDR1_DQ[49]

P11

DDR1_DQ[48]

R11

DDR1_DQ[46]/DDR1_DQ[30]

V7

DDR1_DQ[47]/DDR1_DQ[31]

V8

DDR1_DQ[45]/DDR1_DQ[29]

W10

DDR1_DQ[43]/DDR1_DQ[27]

V11

DDR1_DQ[44]/DDR1_DQ[28]

W11

DDR1_DQ[40]/DDR1_DQ[24]

W8

DDR1_DQ[42]/DDR1_DQ[26]

V10

DDR1_DQ[41]/DDR1_DQ[25]

W7

DDR1_DQ[39]/DDR1_DQ[23]

AC7

DDR1_DQ[38]/DDR1_DQ[22]

AC8

DDR1_DQ[37]/DDR1_DQ[21]

AA8

DDR1_DQ[29]/DDR0_DQ[61]

BB10

DDR1_DQ[23]/DDR0_DQ[55]

BF7

DDR1_DQ[20]/DDR0_DQ[52]

BF11

DDR1_DQ[21]/DDR0_DQ[53]

BF10

DDR1_DQ[17]/DDR0_DQ[49]

BG10

DDR1_DQ[18]/DDR0_DQ[50]

BG8

DDR1_DQ[16]/DDR0_DQ[48]

BG11

DDR1_DQ[13]/DDR0_DQ[29]

BJ10

DDR1_DQ[10]/DDR0_DQ[26]

BL8

DDR1_DQ[19]/DDR0_DQ[51]

BF8

DDR1_DQ[26]/DDR0_DQ[58]

BB8

DDR1_VREF_DQ

BR13

DDR1_DQSN[8]

AY9

DDR1_DQSP[8]

AW9

DDR1_DQSP[7]

L9

DDR1_DQSP[6]

P9

DDR1_DQSP[5]/DDR1_DQSP[3]

V9

DDR1_DQSP[4]/DDR1_DQSP[2]

AA9

DDR1_DQSP[3]/DDR0_DQSP[7]

BB9

DDR1_DQSP[2]/DDR0_DQSP[6]

BF9

DDR1_DQSP[1]/DDR0_DQSP[3]

BJ9

DDR1_DQSP[0]/DDR0_DQSP[2]

BR9

DDR1_DQSN[7]

M9

DDR1_DQSN[4]/DDR1_DQSN[2 ]

AC9

DDR1_DQSN[3]/DDR0_DQSN[7 ]

BC9

DDR1_DQSN[2]/DDR0_DQSN[6 ]

BG9

DDR1_DQSN[1]/DDR0_DQSN[3 ]

BL9

DDR1_DQSN[0]/DDR0_DQSN[2 ]

BP9

DDR1_ALERT#

AR8

DDR1_DQ[36]/DDR1_DQ[20]

AA7

DDR1_DQ[35]/DDR1_DQ[19]

AC10

DDR1_DQ[34]/DDR1_DQ[18]

AC11

DDR1_DQ[33]/DDR1_DQ[17]

AA10

DDR1_DQ[32]/DDR1_DQ[16]

AA11

DDR1_DQ[31]/DDR0_DQ[63]

BB7

DDR1_DQ[30]/DDR0_DQ[62]

BC7

DDR1_DQ[28]/DDR0_DQ[60]

BC10

DDR1_DQ[27]/DDR0_DQ[59]

BC8

DDR1_DQ[25]/DDR0_DQ[57]

BC11

DDR1_DQ[24]/DDR0_DQ[56]

BB11

DDR1_DQ[22]/DDR0_DQ[54]

BG7

DDR_RCOMP[0]

G1

DDR_RCOMP[1]

H1

DDR_RCOMP[2]

J2

R537 75_1%_04

Sheet 4 of 74

Processor 3/7

Schematic Diagrams

B.Schematic Diagrams

Processor 3/7 B - 5

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

FLOAT FOR SKL GND FOR CNL

NEAR CPU

CAD Note: Capacitor need to be placed close to buffer output pin

CFG7

DEFENSIVE PULL DOWN SITE

1: (Default) PEG Train immediately following xxRESETB de assertion 0: PEG Wait for BIOS for training

TO EC

VCCST_PWRGD

CFG[0]: Stall reset sequence after PCU

ɄɄɄɄ

PLL lock until de-asserted: — 1 = (Default) Normal Operation; No stall. — 0 = Stall.

CFG[1]: Reserved configuration lane.

ɄɄɄɄ

CFG[2]: PCI Express* Static x16 Lane

ɄɄɄɄ

Numbering Reversal. — 1 = Normal operation — 0 = Lane numbers reversed.

CFG[3]: Reserved configuration lane.

ɄɄɄɄ

CFG[4]: eDP enable:

ɄɄɄɄ

— 1 = Disabled. — 0 = Enabled.

CFG[6:5]: PCI Express* Bifurcation

ɄɄɄɄ

— 00 = 1 x8, 2 x4 PCI Express* — 01 = reserved — 10 = 2 x8 PCI Express* — 11 = 1 x16 PCI Express*

CFG[7]: PEG Training:

ɄɄɄɄ

— 1 = (default) PEG Train immediately following RESET# de assertion. — 0 = PEG Wait for BIOS for training.

CFG[19:8]: Reserved configuration

ɄɄɄɄ

lanes.

CFG[6:5]

11: (Default) x16 - Device 1 functions 1 and 2 disabled 10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled 01: Reserved - (Device 1 function 1 disabled ; function 2 enabled) 00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

PCIE PORT BIFURCATION STRAPS

CFG2

1: (DEFAULT)NORMAL OPERATION; LANE# DEFINITION MATCHES SOCKET PIN MAP DEFINITION 0: LANE REVERSAL

PCI EXPRESS STATIC LANE REVERSAL FOR ALL PEG PORTS

CFG4

1: DISABLED; NO PHYSICAL DISPLAY PORT ATTACHED TO EMBEDDED DISPLAY PORT 0: ENABLED; AN EXTERNAL DISPLAY PORT DEVICE IS CONNECTED TO THE EMBEDDED DISPLAY PORT

DISPLAY PORT PRESENCE STRAP

H_PROCHOT#_RH_PROCHOT#

H_PM_DOWN_R

H_SKTOCC_N

CFG_RCOMP

CPU_VIDALERT_N

SKL_XDP_MBP_0 SKL_XDP_MBP_1 SKL_MBP_2 SKL_MBP_3

H_TDO

H_TCK

H_TRST# H_PREQ# H_PRDY#

CFG1 CFG2 CFG3 CFG4 CFG5 CFG6 CFG7

CFG0

VCCST_PWRGD_CPU

H_TDO

H_TCK

H_PECI_R

H_SKTOCC_N

VCCST_PWRGD

H_PROCHOT#

1.0V_VCCST

1.0DX_VCCSTG

1.0V_VCCST

VDD3

3.3VA

H_PROCHOT#59

PCH_PECI32

PCH_CPU_BCLK_R_DN35

PCH_CPU_BCLK_R_DP35

PCH_CPU_PCIBCLK_R_DN35

PCH_CPU_PCIBCLK_R_DP35

CPU_24MHZ_R_DN35

CPU_24MHZ_R_DP35

H_PWRGD33

PLTRST_CPU_N32

H_PM_SYNC32

H_PM_DOWN32

PCH_THERMTRIP#32

H_SKTOCC_N34

H_CPU_SVIDCLK59

H_CPU_SVIDDAT59 H_CPU_SVIDALRT#59

H_PROCHOT_EC39

H_PECI39

ALL_SYS_PWRGD11,38,39,59

DDR_VTT_PG_CTRL57

1.0DX_VCCSTG7,53

VDD327,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

1.0V_VCCST7,32,33,58,59

3.3VA30,31,32,33,34,36,38,52

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[05]Processor 4/7-CLK/JTAG/MISC

A3

574Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[05]Processor 4/7-CLK/JTAG/MISC

A3

574Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[05]Processor 4/7-CLK/JTAG/MISC

A3

574Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R622 51_04

R291 *12.1_1%_04

R289 *1K_04

R620

*0_04

R286

56.2_1%_04

R287

220_04

R249 499_1%_04

KABYLAKE_HALO

BGA1440

5 OF 14

REV = 1 ?

?U113E

QLM5

PROC_SELECT#

BN1

CATERR#

BM30

SKTOCC#

BR33

PM_DOWN

BP31

PM_SYNC

BM34

RESET#

BP35

PROCPWRGD

BT31

VCCST_PWRGD

H13

CFG[17]

BN23

CFG[15]

BT19

CFG[16]

BP23

CFG[11]

BT22

CFG[12]

BM19

CFG[10]

BT23

CFG[9]

BR22

CLK24N

D31

CFG[1]

BN27

CFG[3]

BN28

CFG[18]

BN22

PROC_TDI

BL32

CFG[0]

BN25

CFG[2]

BN26

CFG[4]

BR20

CFG[6]

BT20

CFG[5]

BM20

CFG[7]

BP20

CFG[8]

BR23

CFG[13]

BR19

CFG[14]

BP19

CFG[19]

BP22

PROC_PREQ#

BL30

PROC_PRDY#

BP27

VIDSCK

BH32

PROC_TDO

BT28

CLK24P

E31

PCI_BCLKN

C36

PCI_BCLKP

D35

BCLKN

A32

VIDSOUT

BH29

PROCHOT#

BR30

DDR_VTT_CNTL

BT13

CFG_RCOMP

BT25

PROC_TRST#

BP30

PROC_TCK

BR28

PROC_TMS

BP28

VIDALERT#

BH31

THERMTRIP#

J31

PECI

BT34

BCLKP

B31

BPM#[0]

BR27

BPM#[1]

BT27

BPM#[2]

BM31

BPM#[3]

BT30

R623 51_04

S

D

G

Q24A MTDK3S6R

2

61

R254

100K_04

R295 *1K_04

R619

49.9_1%_04

S

D

G

Q24B MTDK3S6R

5

34

C444 *0.01u_16V_X7R_04

R258

1K_04

Q20

2SK3018S3

G

DS

R293 *1K_04

R267

100K_04

R625 1K_04

R268 *0402_short

R297 20_1%_04

R621 *1K_04

R242 1K_04

R255 60.4_1%_04

C416

47p_50V_NPO_04

R292 *0402_short

R285

100_04

R296 *1K_04

R288 *1K_04

R290 100K_04

C462

*0.1u_10V_X7R_04

R624 *1K_04

Sheet 5 of 74

Processor 4/7

B.Schematic Diagrams

B - 6 Processor 4/7

Processor 5/7

5

4

3

2

1

D D

C C

B B

A A

PLACE CAPS AT BOARD EDGE

CPU_TOP_VCCCORE

PLACE CAPS AT BACK

CPU_BACK_VCCCORE

68A 68A

VCC_VCORE_SENSE VSS_VCORE_SENSE

VCORE

VCC_VCORE_SENSE 59 VSS_VCORE_SENSE 59

VCORE60

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[06] Processor 5/7-POWER1

A3

674Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[06] Processor 5/7-POWER1

A3

674Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[06] Processor 5/7-POWER1

A3

674Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C439

1u_6.3V_X6S_04

BGA1440

KABYLAKE_HALO

?

10 OF 14

REV = 1

U113J

QLM5

OPC_RCOMP

BT29

VCCOPC

BK20

VCCOPC

BL16

VCCOPC

BL18

VCCOPC

BL17

VCCOPC

BL19

VCCOPC

BM17

VCCOPC

BL21

RSVD

BJ27

RSVD

BK23

RSVD

BK27

RSVD

BL23

RSVD

BL25

RSVD

BL28

RSVD

BL27

VCCEOPIO

BP15

VCCEOPIO

BT15

RSVD

BT16

RSVD

BR16

RSVD

BP16

RSVD

BP17

VSSEOPIO_SENSE

BM15

VCCEOPIO_SENSE

BN15

VCC_OPC_1P8

BM14

VCC_OPC_1P8

BL14

RSVD

BN16

RSVD

BJ36

RSVD

BJ35

ZVM#

AT13

MSM#

AW13

MSM2#

AY13

ZVM2#

AU13

OPCE_RCOMP

BR25

OPCE_RCOMP2

BP25

RSVD

BM22

RSVD

BL22

VSSOPC_SENSE

BM16

RSVD

BM24

VCCOPC

BJ19

VCCOPC

BJ17

VCCOPC

BJ20

VCCOPC

BK17

VCCOPC

BK19

VCCOPC

BL20

VCCOPC

BN17

RSVD

BJ23

RSVD

BJ26

RSVD

BK26

RSVD

BL24

RSVD

BL26

VCCOPC_SENSE

BL15

VCCEOPIO

BR15

C443

*1u_6.3V_X5R_04

C460

1u_6.3V_X6S_04

C790

*1u_6.3V_X5R_04

C780

1u_6.3V_X6S_04

R584

*49.9_1%_04

C426

*1u_6.3V_X6S_04

C441

1u_6.3V_X6S_04

C391

*10u_4V_X6S_06

C461

*22u_6.3V_X5R_06

C786

*1u_6.3V_X5R_04

C452

1u_6.3V_X6S_04

C781

*1u_6.3V_X5R_04

C442

1u_6.3V_X6S_04

C427

22u_6.3V_X5R_06

C779

*1u_6.3V_X5R_04

C459

22u_6.3V_X5R_06

C457

*1u_6.3V_X5R_04

C392

*10u_6.3V_X5R_06

C425

10u_6.3V_X5R_06

C438

1u_6.3V_X5R_04

C414

*10u_4V_X6S_06

C456

*10u_6.3V_X5R_06

C793

1u_6.3V_X6S_04

C406

1u_6.3V_X6S_04

C458

1u_6.3V_X6S_04

C455

*1u_6.3V_X5R_04

C415

1u_6.3V_X6S_04

C417

22u_6.3V_X5R_06

C451

10u_6.3V_X5R_06

C453

1u_6.3V_X5R_04

BGA1440

KABYLAKE_HALO

?

7 OF 14

REV = 1 ?

U113G

QLM5

VCC

P14

VCC

V31

VCC

V13

VCC

V14

VCC

U36

VCC

U32

VCC

U31

VCC

U33

VCC

U34

VCC

U35

VCC

T37

VCC

T36

VCC

U30

VCC

U29

VCC

T29

VCC

T35

VCC

T32

VCC

R38

VCC

R35

VCC

R36

VCC

R34

VCC

R37

VCC

R33

VCC

R31

VCC

R13

VCC

P36

VCC

R32

VCC

P31

VCC

P30

VCC

P29

VCC

Y30

VCC

Y31

VCC

Y29

VCC

W36

VCC

W35

VCC

W32

VCC

W38

VCC

W29

VCC

W31

VCC

W30

VCC

V35

VCC

V36

VCC

P13

VCC

N37

VCC

N38

VCC

N36

VCC

N35

VCC

N32

VCC

N31

VCC

N30

VCC

N14

VCC

N13

VCC

L13

VCC

AF38

VCC

K13

VCC

K14

VCC

AF37

VCC

AF36

VCC

AF35

VCC

AE38

VCC

AE37

VCC

AD32

VSS_SENSE

AG38

VCC_SENSE

AG37

VCC

AC36

VCC

AD13

VCC

AD14

VCC

AD31

VCC

AD33

VCC

AD34

VCC

AD35

VCC

AD36

VCC

AD37

VCC

AD38

VCC

AE13

VCC

AE14

VCC

AE30

VCC

AE31

VCC

AE32

VCC

AE36

VCC

AE35

VCC

T31

VCC

T30

VCC

L14

VCC

Y32

VCC

Y33

VCC

Y34

VCC

Y35

VCC

Y36

VCC

P32

VCC

P33

VCC

P34

VCC

P35

VCC

V34

VCC

V32

VCC

T38

VCC

W37

VCC

V33

VCC

W14

VCC

AB31

VCC

AB32

VCC

AC30

VCC

AC32

VCC

AC33

VCC

AC34

VCC

AC35

VCC

AB37

VCC

AB38

VCC

AC13

VCC

AC14

VCC

AC29

VCC

AC31

VCC

V38

VCC

V37

VCC

W13

VCC

AB30

VCC

AB29

VCC

AA38

VCC

AA37

VCC

AA35

VCC

AA34

VCC

AA33

VCC

AA32

VCC

AA31

VCC

AA13

VCC

AA36

VCC

AB36

VCC

AB35

C437

*10u_4V_X6S_06

C454

*10u_6.3V_X5R_06

C404

*22u_6.3V_X5R_06

C418

10u_6.3V_X5R_06

C422

22u_6.3V_X5R_06

C424

10u_6.3V_X5R_06

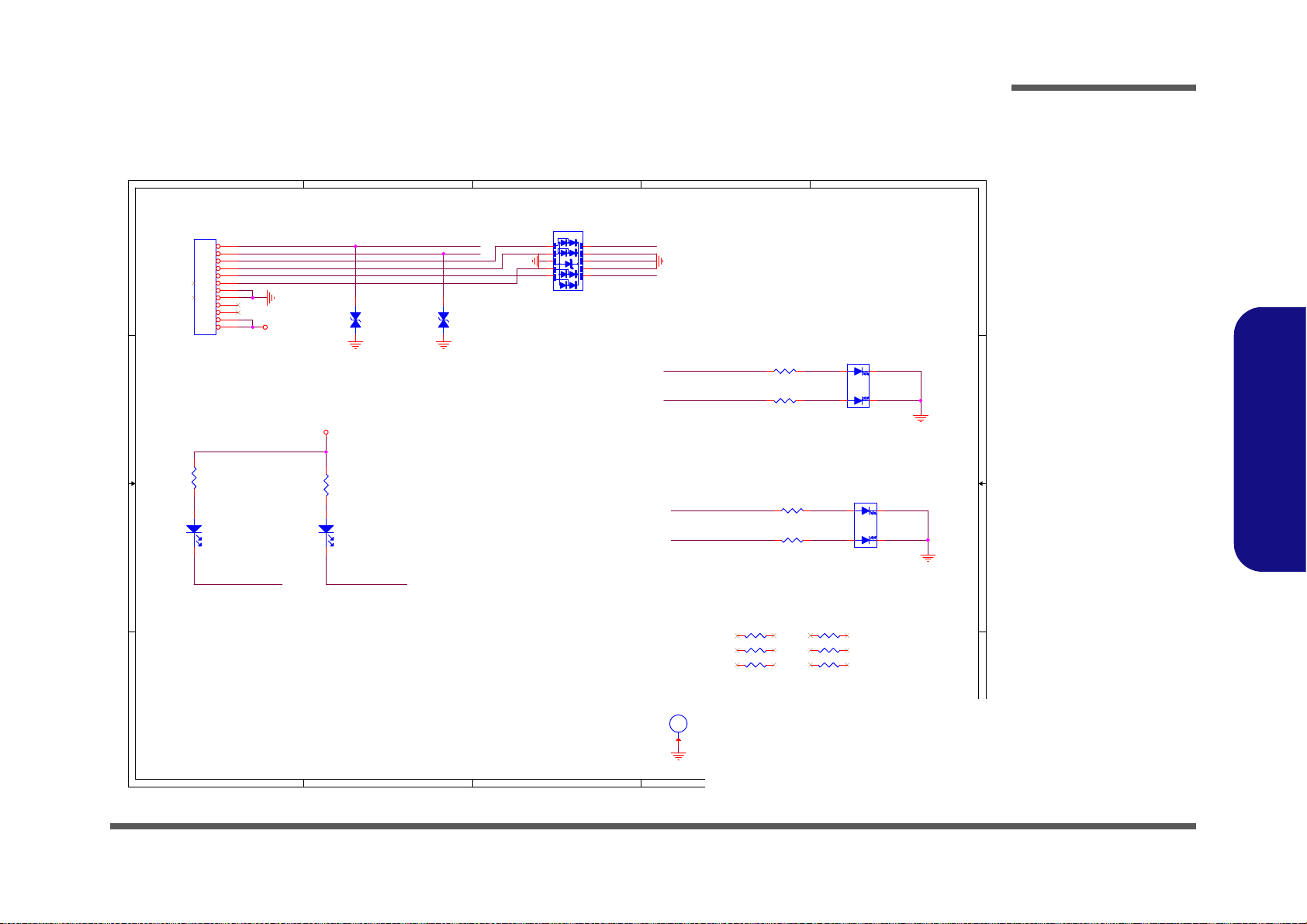

Sheet 6 of 74

Processor 5/7

Schematic Diagrams

B.Schematic Diagrams

Processor 5/7 B - 7

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

PLACE CAP BACKSIDE

PLACE CAP IN BOARD EDGE

CPU_TOP_VCCSA

PLACE CAP IN BACK SIDE

CPU_BACK_VCCSA

11.1A

5.5A

2.8A

0.06A

0.15A

PLACE CAP BACKSIDE

VSS_IO_SENSE

CPU_2_PCH_TRIGGER_R

VCCIO_SENSE

VCCSA

VDDQ

VCCIO

VDDQ

VCCSFR_OC

1.0V_VCCST

1.0DX_VCCSTG

VCCSFR_OC

1.0V_VCCST

VDDQ VDDQ VCCIO

VCCSA

VCCSA VCCSA

VCCIO

1.0V_VCCST

CPU_2_PCH_TRIGGER38

PCH_2_CPU_TRIGGER38

VCCSA_SENSE 61 VSS_SA_SENSE 61

VDDQ9,10,33,53,57

VCCSA61

VCCIO2,3,53,58

1.0DX_VCCSTG5,53

1.0V_VCCST5,32,33,58,59

VCCSFR_OC53

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[07] Processor 6/7-POWER2

A3

774Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[07] Processor 6/7-POWER2

A3

774Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[07] Processor 6/7-POWER2

A3

774Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C387

10u_6.3V_X5R_06

C852

*10u_4V_X6S_06

C385

10u_4V_X6S_06

BGA1440

KABYLAKE_HALO

9 OF 14

?

?REV = 1

U113I

QLM5

VCCSTG

G30

VCCIO

J21

VCCIO

J26

VCCIO

J27

VCCIO

J20

VCCIO

J17

VCCIO

J19

VCCIO

J15

VCCIO

J16

VCCIO

H27

VCCIO

H26

VCCIO

H21

VCCIO

H19

VCCIO

H20

VCCIO

H17

VCCIO

H16

VCCIO

H15

VCCIO

G19

VCCIO

G21

VCCIO

G17

VCCIO

G15

VCCIO

AG12

VCCSA

M34

VCCSA

M33

VCCSA

M32

VCCSA

M31

VCCSA

M30

VCCSA

L38

VCCSA

M29

VCCSA

L37

VCCSA

L36

VCCSA

L32

VCCSA

L35

VCCSA

L31

VCCSA

K35

VCCSA

K34

VCCSA

K29

VCCSA

J30

VCCIO_SENSE

H14

VSSIO_SENSE

J14

VSSSA_SENSE

M37

VCCSA_SENSE

M38

VCCPLL

J28

VCCPLL

H28

VDDQ

AJ12

VDDQ

AG9

VDDQ

AG5

VDDQ

AF6

VDDQ

AF5

VDDQ

AE12

VDDQ

AA6

VDDQ

AL11

VDDQ

AP6

VDDQ

AP7

VDDQ

AR6

VDDQ

AR12

VCCSA

K33

VCCSA

K32

VCCSA

K31

VCCSA

K30

VDDQ

AT12

VDDQ

AY6

VDDQ

AW6

VDDQ

J5

VDDQ

J6

VDDQ

K12

VDDQ

K6

VDDQ

L12

VDDQ

L6

VDDQ

R6

VDDQ

T6

VDDQ

W6

VDDQC

Y12

VCCPLL_OC

BH13

VCCST

H30

VCCSTG

H29

VCCPLL_OC

G11

VCCSA

M36

VCCSA

M35

C386

10u_6.3V_X5R_06

C399

1u_6.3V_X6S_04

C840

10u_4V_X6S_06

C379

1u_6.3V_X6S_04

C380

1u_6.3V_X6S_04

C725

*10u_6.3V_X5R_06

C766

1u_6.3V_X5R_04

C724

10u_6.3V_X5R_06

C381

1u_6.3V_X6S_04

C842

*22u_4V_X6S_06

C767

*1u_6.3V_X5R_04

C841

10u_4V_X6S_06

C378

1u_6.3V_X6S_04

C853

10u_4V_X6S_06

C838 10u_4V_X6S_06

C388

*22u_6.3V_X5R_06

R221 30.1_1%_04

R219

100_1%_04

R216

100_1%_04

C768

1u_6.3V_X5R_04

C851

10u_4V_X6S_06

BGA1440

KABYLAKE_HALO

11 OF 14

?

REV = 1

U113K

QLM5

RSVD

BT17

RSVD

BR17

RSVD

BJ28

RSVD

BK28

RSVD_TP

BK16

RSVD_TP

BJ16

VSS

BJ18

RSVD

BL34

RSVD

BN33

RSVD_TP

BJ13

RSVD

AA14

RSVD

AE29

RSVD_TP

BT2

RSVD

BN35

RSVD

J24

RSVD_TP

E3

RSVD_TP

E2

RSVD_TP

BR1

RSVD

A36

NCTF

C38

NCTF

C1

NCTF

BR2

NCTF

BP1

NCTF

B2

NCTF

B38

PROC_TRIGOUT

J23

PROC_TRIGIN

H23

RSVD

A37

RSVD

R14

RSVD

N29

RSVD

H24

RSVD_TP

BJ14

RSVD

AJ8

RSVD_TP

D1

RSVD_TP

E1

RSVD_TP

BM33

RSVD_TP

BL33

RSVD_TP

BK24

RSVD_TP

BJ24

RSVD

BK21

RSVD

BJ21

VSS

BK18

RSVD_TP

BJ34

RSVD_TP

BJ33

RSVD

G13

RSVD

BL31

RSVD

F30

RSVD

E30

RSVD

B30

RSVD

C30

RSVD

G3

RSVD

J3

RSVD

BR35

RSVD

BR31

RSVD

BH30

C839

22u_4V_X6S_06

C726

22u_6.3V_X5R_06

C384

10u_4V_X6S_06

Sheet 7 of 74

Processor 6/

Processor 6/7

B.Schematic Diagrams

B - 8 Processor 6/7

Processor 7/7

5

4

3

2

1

D D

C C

B B

A A

PLACE CAP IN BOARD EDGE

CPU_TOP_VCCGT

PLACE CAP IN BACK SIDE

CPU_BACK_VCCGT

55A55A55A

VSSGTX_SENSE

VCCGTX_SENSE

VCCGTVCCGT

+VCCGTU

VCCGT

VSSGT_SENSE 59

VCCGT_SENSE 59

VCCGT60

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[08] Processor 7/7-POWER/GND

A3

874Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[08] Processor 7/7-POWER/GND

A3

874Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[08] Processor 7/7-POWER/GND

A3

874Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C514

1u_6.3V_X6S_04

C497

1u_6.3V_X5R_04

BGA1440

KABYLAKE_HALO

REV = 1

?

8 OF 14

U113H

QLM5

VCCGT

BB37

VCCGT

BB35

VCCGT

BB34

VCCGT

BB32

VCCGT

BA31

VCCGT

BA30

VCCGT

BA29

VCCGT

BA14

VCCGT

AV30

VCCGT

AV29

VCCGT

AV31

VCCGT

AV32

VCCGT

AV33

VCCGT

AV35

VCCGT

AV34

VCCGT

AV36

VCCGT

AW14

VCCGT

AW31

VCCGT

AW33

VCCGT

AW32

VCCGT

AW34

VCCGT

AW35

VCCGT

AW36

VCCGT

AW37

VCCGT

AW38

VCCGT

AY38

VCCGT

BA13

VCCGT

BA33

VCCGT

BA35

VCCGT

BA36

VCCGT

BB13

VCCGT

BB31

VCCGT

BB14

VCCGT

BB33

VCCGT

BB36

VCCGT

BC29

VCCGT

BB38

VCCGT

BC30

VCCGT

BC31

VCCGT

BC32

VCCGT

BC35

VCCGT

BC36

VCCGT

BC37

VCCGT

BC38

VCCGT

BD13

VCCGT

BD29

VCCGT

BD14

VCCGT

BD30

VCCGT

BD31

VCCGT

BD32

VCCGT

BD33

VCCGT

BD34

VCCGT

BD35

VCCGT

BE31

VCCGT

BD36

VCCGT

BE32

VCCGT

BE33

VCCGT

BE34

VCCGT

BE36

VCCGT

BE35

VCCGT

AY29

VCCGT

AY30

VCCGT

AY31

VCCGT

AY35

VCCGT

BA34

VCCGT

BG35

VCCGT

BG34

VCCGT

BG36

VCCGT

BH33

VCCGT

BH34

VCCGT

BH36

VCCGT

BH35

VCCGT

BH38

VCCGT

BH37

VCCGT

BJ37

VCCGT

BL36

VCCGT

BJ38

VCCGT

BM36

VCCGT

BL37

VCCGT

BM37

VCCGT

BN37

VCCGT

BN36

VCCGT

BP37

VCCGT

BT37

VCCGT

BE38

VCCGT

BF14

VCCGT

BF13

VCCGT

BF29

VCCGT

BF30

VCCGT

BF31

VCCGT

BF35

VCCGT

BF32

VCCGT

BF36

VCCGT

BG32

VCCGT

BG31

VCCGT

BG33

VCCGT

BG29

VCCGT

BG30

VCCGT

BA32

VCCGT

BN38

VCCGT

BP38

VCCGT

BR37

VCCGT

AY32

VCCGT

AY36

VCCGT

AY37

VCCGT

BF38

VCCGT

BF37

VCCGT

BE37

C505

1u_6.3V_X6S_04

C493

10u_6.3V_X5R_06

C527

10u_6.3V_X5R_06

KABYLAKE_HALO

BGA1440

?

12 OF 14

REV = 1

U113L

QLM5

VSS

C25

VSS

C23

VSS

C21

VSS

C19

VSS

C17

VSS

C15

VSS

C13

VSS

C11

VSS

C9

VSS

C8

VSS

C5

NCTFVSS

C2

NCTFVSS

BT36

NCTFVSS

BT35

VSS

BT32

VSS

BT26

VSS

BT24

VSS

BT21

VSS

BT18

VSS

BT14

VSS

BT12

VSS

BT9

VSS

BT5

NCTFVSS

BT4

NCTFVSS

BT3

NCTFVSS

BR38

VSS

BR36

VSS

BR34

VSS

BR29

VSS

BR26

VSS

BR24

VSS

BR21

VSS

BR18

VSS

BR14

VSS

BR12

VSS

BR7

VSS

BP34

VSS

BP33

VSS

BP29

VSS

BP26

VSS

BP24

VSS

BP21

VSS

BP18

VSS

BP14

VSS

BP12

VSS

BP7

VSS

BN34

VSS

BN31

VSS

BN30

VSS

BN29

VSS

BN24

VSS

BN21

VSS

BN20

VSS

BN19

VSS

BN18

VSS

BN14

VSS

BN12

VSS

BN9

VSS

BN7

VSS

BN4

VSS

BN2

VSS

BM38

VSS

BM35

VSS

BM29

VSS

BM28

VSS

BM27

VSS

BM26

VSS

BM25

VSS

BM23

VSS

BM21

VSS

BM18

VSS

BM13

VSS

BM12

VSS

BM11

VSS

BM9

VSS

BM8

VSS

BM7

VSS

BM6

VSS

BM5

VSS

BM3

VSS

BM2

VSS

BL38

VSS

BL35

VSS

BL29

VSS

BL13

VSS

BL6

VSS

BK29

VSS

BK25

VSS

BK22

VSS

BK15

VSS

BK14

VSS

BK13

VSS

BK6

VSS

BJ32

VSS

BJ31

VSS

BJ30

VSS

BJ29

VSS

BJ25

VSS

BJ22

VSS

BJ15

VSS

BJ12

VSS

BH14

VSS

BH12

VSS

BH11

VSS

BH10

VSS

BH9

VSS

BH8

VSS

BH7

VSS

BH6

VSS

BH5

VSS

BH4

VSS

BH3

VSS

BH2

VSS

BH1

VSS

BG38

VSS

BG37

VSS

BG14

VSS

BG13

VSS

BG12

VSS

BG6

VSS

BF34

VSS

BF33

VSS

BF12

VSS

BF6

VSS

BE30

VSS

BE29

VSS

BE6

VSS

BE5

VSS

BE4

VSS

BE3

VSS

BE2

VSS

BE1

VSS

BD38

VSS

BD37

VSS

BD12

VSS

BD11

VSS

BD10

VSS

BD9

VSS

BD8

VSS

BD7

VSS

BD6

VSS

BC34

VSS

BC33

VSS

BC14

VSS

BC13

VSS

BC12

VSS

BC6

VSS

BB30

VSS

BB29

VSS

BB12

VSS

BB6

VSS

BB5

C473

22u_4V_X6S_06

C479

1u_6.3V_X6S_04

C525

1u_6.3V_X6S_04

C498

10u_6.3V_X5R_06

C523

*1u_6.3V_X6S_04

C515

1u_6.3V_X5R_04

C492

1u_6.3V_X6S_04

C520

10u_6.3V_X5R_06

C513

1u_6.3V_X5R_04

C499

1u_6.3V_X6S_04

C516

10u_6.3V_X5R_06

C474

22u_4V_X6S_06

C496

10u_6.3V_X5R_06

C483

1u_6.3V_X6S_04

C526

10u_6.3V_X5R_06

C495

10u_6.3V_X5R_06

C504

1u_6.3V_X6S_04

C517

10u_6.3V_X5R_06

C521

10u_6.3V_X5R_06

C522

1u_6.3V_X6S_04

KABYLAKE_HALO

BGA1440

?

13 OF 14

REV = 1

U113M

QLM5

VSS

BB4

VSS

BB3

VSS

BB2

VSS

BB1

VSS

BA38

VSS

BA37

VSS

BA12

VSS

BA11

VSS

BA10

VSS

BA9

VSS

BA8

VSS

BA7

VSS

BA6

NCTFVSS

B37

VSS

B9

NCTFVSS

B3

VSS

AY34

VSS

AY33

VSS

AY14

VSS

AY12

VSS

AW30

VSS

AW29

VSS

AW12

VSS

AW5

VSS

AW4

VSS

AW3

VSS

AW2

VSS

AW1

VSS

AV38

VSS

AV37

VSS

AU34

VSS

AU33

VSS

AU12

VSS

AU11

VSS

AU10

VSS

AU9

VSS

AU8

VSS

AU7

VSS

AU6

VSS

AT30

VSS

AT29

VSS

AT6

VSS

AR38

VSS

AR37

VSS

AR14

VSS

AR13

VSS

AR5

VSS

AR4

VSS

AR3

VSS

AR2

VSS

AR1

VSS

AP34

VSS

AP33

VSS

AP12

VSS

AP11

VSS

AP10

VSS

AP9

VSS

AP8

VSS

AN30

VSS

AN29

VSS

AN12

VSS

AN6

VSS

AN5

VSS

AM38

VSS

AM37

VSS

AM12

VSS

AM5

VSS

AM4

VSS

AM3

VSS

AM2

VSS

AM1

VSS

AL34

VSS

AL33

VSS

AL14

VSS

AL12

VSS

AL10

VSS

AL9

VSS

AL8

VSS

AL7

VSS

AL4

VSS

AK30

VSS

AK29

VSS

AK4

VSS

AJ38

VSS

AJ37

VSS

AJ6

VSS

AJ5

VSS

AJ4

VSS

AJ3

VSS

AJ2

VSS

AJ1

VSS

AH34

VSS

AH33

VSS

AH12

VSS

AH6

VSS

AG30

VSS

AG29

VSS

AG11

VSS

AG10

VSS

AG8

VSS

AG7

VSS

AG6

VSS

AF14

VSS

AF13

VSS

AF12

VSS

AF4

VSS

AF3

VSS

AF2

VSS

AF1

VSS

AE34

VSS

AE33

VSS

AE6

VSS

AD30

VSS

AD29

VSS

AD12

VSS

AD11

VSS

AD10

VSS

AD9

VSS

AD8

VSS

AD7

VSS

AD6

VSS

AC38

VSS

AC37

VSS

AC12

VSS

AC6

VSS

AC5

VSS

AC4

VSS

AC3

VSS

AC2

VSS

AC1

VSS

AB34

VSS

AB33

VSS

AB6

VSS

AA30

VSS

AA29

VSS

AA12

NCTFVSS

A34

VSS

A30

VSS

A28

VSS

A26

VSS

A24

VSS

A22

VSS

A20

VSS

A18

VSS

A16

VSS

A14

VSS

A12

VSS

A10

VSS

A9

VSS

A6

NCTFVSS

A4

NCTFVSS

A3

C494

10u_6.3V_X5R_06

C478

22u_4V_X6S_06

C475

22u_4V_X6S_06

KABYLAKE_HALO

BGA1440

?

14 OF 14

REV = 1

U113N

QLM5

VCCGT

AU38

VCCGT

AU37

VCCGT

AU36

VCCGT

AU35

VCCGT

AU32

VCCGT

AU31

VCCGT

AU30

VCCGT

AU29

VCCGT

AU14

VCCGT

AT38

VCCGT

AT37

VCCGT

AT36

VCCGT

AT35

VCCGT

AT34

VCCGT

AT33

VCCGT

AT32

VCCGT

AT31

VCCGT

AT14

VCCGT

AR36

VCCGT

AR35

VCCGT

AR34

VCCGT

AR33

VCCGT

AR32

VCCGT

AR31

VCCGT

AR30

VCCGT

AR29

VCCGT

AP38

VCCGT

AP37

VCCGT

AP36

VCCGT

AP35

VCCGT

AP32

VCCGT

AP31

VCCGT

AP30

VCCGT

AP29

VCCGT

AP14

VCCGT

AP13

VCCGT

AN38

VCCGT

AN37

VCCGT

AN36

VCCGT

AN35

VCCGT

AN34

VCCGT

AN33

VCCGT

AN32

VCCGT

AN31

VCCGT

AN14

VCCGT

AN13

VCCGT

AM36

VCCGT

AM35

VCCGT

AM34

VCCGT

AM33

VCCGT

AM32

VCCGT

AM31

VCCGT

AM30

VCCGT

AM29

VCCGT

AM14

VCCGT

AM13

VCCGT

AL38

VCCGT

AL37

VCCGT

AL36

VCCGT

AL35

VCCGT

AL32

VCCGT

AL31

VCCGT

AL30

VCCGT

AL29

VCCGT

AL13

VCCGT

AK38

VCCGT

AK37

VCCGT

AK36

VCCGT

AK35

VCCGT

AK34

VCCGT

AK33

VCCGT

AK32

VCCGT

AK31

VCCGT

AJ36

VCCGT

AJ35

VCCGT

AJ34

VCCGT

AJ33

VCCGT

AJ32

VCCGT

AJ31

VCCGT

AJ30

VCCGT

AJ29

VCCGTX

AJ14

VCCGTX

AJ13

VCCGT_SENSE

AH38

VSSGT_SENSE

AH37

VCCGTX_SENSE

AH36

VSSGTX_SENSE

AH35

VCCGTX

AH32

VCCGTX

AH31

VCCGTX

AH30

VCCGTX

AH29

VCCGTX

AH14

VCCGTX

AH13

VCCGTX

AG36

VCCGTX

AG35

VCCGTX

AG34

VCCGTX

AG33

VCCGTX

AG32

VCCGTX

AG31

VCCGTX

AG14

VCCGTX

AG13

VCCGTX

AF34

VCCGTX

AF33

VCCGTX

AF32

VCCGTX

AF31

VCCGTX

AF30

VCCGTX

AF29

C476

10u_6.3V_X5R_06

C530

1u_6.3V_X6S_04

KABYLAKE_HALO

BGA1440

?

?REV = 1

6 OF 14

U113F

QLM5

VSS

G9

VSS

F36

VSS

F23

VSS

F11

VSS

Y11

VSS

W34

VSS

V12

VSS

W3

VSS

T34

VSS

T5

VSS

T11

VSS

P12

VSS

R30

VSS

N11

VSS

N1

VSS

N6

VSS

L33

VSS

K10

VSS

K2

VSS

J25

VSS

J4

VSS

H18

VSS

G8

VSS

F21

VSS

F9

VSS

F2

VSS

D16

VSS

E4

VSS

D6

VSS

C31

VSS

D22

VSS

D12

VSS

E35

VSS

F5

VSS

F15

VSS

J36

VSS

K8

VSS

L29

VSS

M13

VSS

N9

VSS

N4

VSS

N34

VSS

R12

VSS

T3

VSS

T14

VSS

W1

VSS

U38

VSS

W12

VSS

Y37

VSS

Y9

VSS

D9

VSS

C27

VSS

H22

VSS

G26

VSS

G18

VSS

Y10

VSS

W33

VSS

Y38

VSS

W2

VSS

T4

VSS

T10

VSS

R29

VSS

P6

VSS

N10

VSS

M14

VSS

N5

VSS

K1

VSS

J22

VSS

H35

VSS

H12

VSS

G23

VSS

G14

VSS

G6

VSS

E38

VSS

D33

VSS

D14

VSS

D3

VSS

J7

VSS

L34

VSS

K3

VSS

J32

VSS

K11

VSS

N2

VSS

N7

VSS

N12

VSS

T1

VSS

P37

VSS

T7

VSS

U6

VSS

Y7

VSS

W4

VSS

Y13

VSS

D20

VSS

E34

VSS

C29

VSS

D10

VSS

F4

VSS

G4

VSS

G10

VSS

F13

VSS

F25

VSS

G20

VSS

J10

VSS

J33

VSS

G28

VSS

H25

VSS

K5

VSS

N33

VSS

N8

VSS

M6

VSS

K38

VSS

N3

VSS

U37

VSS

T13

VSS

T2

VSS

P38

VSS

T8

VSS

Y8

VSS

W5

VSS

V30

VSS

Y14

NCTFVSS

D38

VSS

F17

VSS

K4

VSS

M12

VSS

K7

VSS

C37

VSS

D24

VSS

D26

VSS

D30

VSS

D28

VSS

V29

VSS

T12

VSS

T33

VSS

V6

VSS

F8

VSS

F19

VSS

F29

VSS

L30

VSS

K9

VSS

G24

VSS

G16

VSS

F31

VSS

F27

VSS

G5

VSS

G12

VSS

G22

VSS

H11

VSS

H32

VSS

J18

VSS

T9

VSS

F3

VSS

E9

VSS

D18

C477

22u_4V_X6S_06

C529

*22u_6.3V_X5R_06

C482

1u_6.3V_X6S_04

C519

1u_6.3V_X6S_04

C472

1u_6.3V_X6S_04

C528

10u_6.3V_X5R_06

C518

10u_6.3V_X5R_06

Sheet 8 of 74

Processor 7/7

Schematic Diagrams

B.Schematic Diagrams

Processor 7/7 B - 9

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

Channel A SO-DIMM 0[RAM1]

6-86-24260-002

H=4mm

STD TYPE

CHA_DIMM0=000 CHA_DIMM1=001 CHB_DIMM0=010 CHB_DIMM1=011

PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM

PLACE THE CAP CLOSE TO SODIMM

PLACE NEAR TO PIN

月月月月

DIMM

䪗䪗䪗䪗㒢㒢㒢㒢㓦㓦㓦㓦

000

13A 2A

DDR4_DRAMRST#

DDR_VREFCA_CHA_DIMM

DDR4_DRAMRST#

M_A_DQS#3

M_A_DQS#2

M_A_DQS#1

M_A_DQS#0

M_A_DQS#7

M_A_DQS#6

M_A_DQS#4 M_A_DQS#5

M_A_DQS7

M_A_DQS6

M_A_DQS5

M_A_DQS4

M_A_DQS3

M_A_DQS2

M_A_DQS1

M_A_DQS0

M_A_DQ12

M_A_DQ36

M_A_DQ28

M_A_DQ51

M_A_DQ14

M_A_DQ33

M_A_DQ30

M_A_DQ50

M_A_DQ11

M_A_DQ38

M_A_DQ31

M_A_DQ48

M_A_DQ9

M_A_DQ35

M_A_DQ24

M_A_DQ53

M_A_DQ13

M_A_DQ41

M_A_DQ29

M_A_DQ54

M_A_DQ10

M_A_DQ45

M_A_DQ27

M_A_DQ15

M_A_DQ61

M_A_DQ0

M_A_DQ46

M_A_DQ26

M_A_DQ17

M_A_DQ60

M_A_DQ42

M_A_DQ32

M_A_DQ20

M_A_DQ58

M_A_DQ5

M_A_DQ2

M_A_DQ44

M_A_DQ23

M_A_DQ63

M_A_DQ3

M_A_DQ40

M_A_DQ18

M_A_DQ56

M_A_DQ1

M_A_DQ43

M_A_DQ16

M_A_DQ57

M_A_DQ4

M_A_DQ47

M_A_DQ21

M_A_DQ6

M_A_DQ62

M_A_DQ37

M_A_DQ49

M_A_DQ19

M_A_DQ7

M_A_DQ59

M_A_DQ39

M_A_DQ52

M_A_DQ22

M_A_DQ8

M_A_DQ34

M_A_DQ55

M_A_DQ25

DDR_VREFCA_CHA_DIMM

2.5V

VTT_MEM

VDDQ

VTT_MEM

2.5V

3.3VS

VDDQ

M_A_ODT14

M_A_ODT04

3.3VS3,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

VDDQ7,10,33,53,57

VTT_MEM10,57

M_A_A14

M_A_A04

M_A_A24 M_A_A34

M_A_A54

M_A_A44

M_A_A64 M_A_A74

M_A_A94

M_A_A84

M_A_A104 M_A_A114

M_A_A134

M_A_A124

M_A_RAS#4

M_A_CAS#4

M_A_WE#4

M_A_CKE04 M_A_CKE14

M_A_BG14

M_A_BG04

M_A_BA04 M_A_BA14

M_A_CLK_DDR14 M_A_CLK_DDR#14

M_A_CLK_DDR04 M_A_CLK_DDR#04

DDR0_A_PARITY4

SMB_DATA_R10,33

DDR0_A_ALERT#4

M_A_ACT#4

SMB_CLK_R10,33

DDR4_DRAMRST#10,33

DIMM_CA_CPU_VREF_A4

2.5V10,53

M_A_CS#14

M_A_CS#04

M_A_DQS#[3:0] 4

M_A_DQS#[7:4] 4

M_A_DQS[7:4] 4

M_A_DQS[3:0] 4

M_A_DQ[63:0] 4

DIMM0_CHA_EVENT#32

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[09] DDR4 CHA SO-DIMM_0

A3

974Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[09] DDR4 CHA SO-DIMM_0

A3

974Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[09] DDR4 CHA SO-DIMM_0

A3

974Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C312

1u_6.3V_X5R_04

2DIMM

C465

0.1u_10V_X7R_04

2DIMM

C305

2.2u_6.3V_X5R_04

2DIMM

R261

24.9_1%_04

2DIMM

C310

10u_6.3V_X5R_06

2DIMM

C464

0.022u_16V_X7R_04

2DIMM

C299

1u_6.3V_X5R_04

2DIMM

C436

10u_6.3V_X5R_06

2DIMM

C368

10u_6.3V_X5R_04

2DIMM

R252

240_1%_04

C376

10u_6.3V_X5R_06

2DIMM

J_DIMMA_1B

D4AS0-26001-1P40

2DIMM

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C372

10u_6.3V_X5R_06

2DIMM

R262

1K_1%_04

2DIMM

C320

10u_6.3V_X5R_06

2DIMM

C360

10u_6.3V_X5R_06

2DIMM

C361

1u_6.3V_X5R_04

2DIMM

C339

10u_6.3V_X5R_06

2DIMM

R263

1K_1%_04

2DIMM

C466

*2.2u_6.3V_X5R_04

J_DIMMA_1A

D4AS0-26001-1P40

2DIMM

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

C450

0.1u_10V_X7R_04

2DIMM

C347

10u_6.3V_X5R_06

2DIMM

C306

0.1u_10V_X7R_04

2DIMM

C419

10u_6.3V_X5R_06

2DIMM

C334

10u_6.3V_X5R_06

2DIMM

R272 1.8_1%_04

2DIMM

Sheet 9 of 74

DDR4 CHA SO-

DIMM_0

DDR4 CHA SO-DIMM_0

B.Schematic Diagrams

B - 10 DDR4 CHA SO-DIMM_0

5

4

3

2

1

D D

C C

B B

A A

Channel B SO-DIMM 0[RAM2]

6-86-24260-000

月月月月

DIMM

䪗䪗䪗䪗㒢㒢㒢㒢㓦㓦㓦㓦

H=4mm

RSV TYPE

PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM

PLACE THE CAP CLOSE TO SODIMM

PLACE NEAR TO PIN

CHA_DIMM0=000 CHA_DIMM1=001 CHB_DIMM0=010 CHB_DIMM1=011

010

2A13A

DDR_VREFCA_CHB_DIMM

M_B_DQ5 M_B_DQ7 M_B_DQ3 M_B_DQ4

M_B_DQ27 M_B_DQ30 M_B_DQ26 M_B_DQ39 M_B_DQ35 M_B_DQ32 M_B_DQ37 M_B_DQ34 M_B_DQ38

M_B_DQ36 M_B_DQ41 M_B_DQ45 M_B_DQ46 M_B_DQ43 M_B_DQ40 M_B_DQ44 M_B_DQ42 M_B_DQ47

M_B_DQ33

M_B_DQ48 M_B_DQ49

M_B_DQ28

M_B_DQ51 M_B_DQ52 M_B_DQ54 M_B_DQ53 M_B_DQ50

M_B_DQ55

M_B_DQ2 M_B_DQ1

M_B_DQ61 M_B_DQ62 M_B_DQ60

M_B_DQ59 M_B_DQ57 M_B_DQ56 M_B_DQ63

M_B_DQ58

M_B_DQ6 M_B_DQ9 M_B_DQ14

M_B_DQ15 M_B_DQ8 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ16 M_B_DQ18 M_B_DQ21 M_B_DQ19

M_B_DQ13

M_B_DQ22 M_B_DQ23

M_B_DQ0

M_B_DQ20 M_B_DQ25 M_B_DQ31 M_B_DQ24 M_B_DQ29

M_B_DQ17

DDR4_DRAMRST#

DDR_VREFCA_CHB_DIMM

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS#7

M_B_DQS#6

M_B_DQS#4 M_B_DQS#5

M_B_DQS7

M_B_DQS6

M_B_DQS5

M_B_DQS4

M_B_DQS3

M_B_DQS2

M_B_DQS1

M_B_DQS0

DDR_VREFCA_CHB_DIMM

VTT_MEM

VDDQ

VDDQ VTT_MEM

2.5V

3.3VS

2.5V

VDDQ

DIMM_DQ_CPU_VREF_B4

M_B_ODT04 M_B_ODT14

M_B_CS#04 M_B_CS#14

M_B_CKE04 M_B_CKE14

M_B_CLK_DDR14

M_B_CLK_DDR#14

M_B_CLK_DDR04

M_B_CLK_DDR#04

M_B_RAS#4

M_B_CAS#4

M_B_WE#4

M_B_BG14

M_B_BG04

M_B_BA04 M_B_BA14

M_B_A14

M_B_A04

M_B_A24 M_B_A34

M_B_A54

M_B_A44

M_B_A64 M_B_A74

M_B_A94

M_B_A84

M_B_A104 M_B_A114

M_B_A134

M_B_A124

DDR1_B_PARITY4

M_B_ACT#4

DDR1_B_ALERT#4

DDR4_DRAMRST#9,33

SMB_DATA_R9,33

SMB_CLK_R9,33

M_B_DQ[63:0] 4

M_B_DQS#[3:0] 4

M_B_DQS#[7:4] 4

M_B_DQS[7:4] 4

M_B_DQS[3:0] 4

3.3VS3,9,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

VDDQ7,9,33,53,57

VTT_MEM9,57

2.5V9,53

DIMM1_CHA_EVENT#32

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[10] DDR4 CHB SO-DIMM_0

A3

10 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[10] DDR4 CHB SO-DIMM_0

A3

10 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[10] DDR4 CHB SO-DIMM_0

A3

10 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C432

0.022u_16V_X7R_04

2DIMM

C382

1u_6.3V_X5R_04

2DIMM

C408

*2.2u_6.3V_X5R_04

C319

10u_6.3V_X5R_06

2DIMM

R251 1.8_1%_04

2DIMM

J_DIMMB_1B

D4AR0-26001-1P40

2DIMM

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C325

1u_6.3V_X5R_04

2DIMM

C332

1u_6.3V_X5R_04

2DIMM

C370

1u_6.3V_X5R_04

2DIMM

C377

10u_6.3V_X5R_06

2DIMM

C349

10u_6.3V_X5R_06

2DIMM

R243

240_1%_04

2DIMM

C435

*0.1u_10V_X7R_04

2DIMM

C335

10u_6.3V_X5R_06

2DIMM

C375

1u_6.3V_X5R_04

2DIMM

C367

10u_6.3V_X5R_06

2DIMM

R235

24.9_1%_04

2DIMM

C398

10u_6.3V_X5R_06

2DIMM

C324

1u_6.3V_X5R_04

2DIMM

C298

1u_6.3V_X5R_04

2DIMM

J_DIMMB_1A

D4AR0-26001-1P40

2DIMM

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

C393

10u_6.3V_X5R_06

2DIMM

C409

0.1u_10V_X7R_04

2DIMM

C346

10u_6.3V_X5R_06

2DIMM

C307

2.2u_6.3V_X5R_04

2DIMM

C351

10u_6.3V_X5R_06

2DIMM

C333

10u_6.3V_X5R_06

2DIMM

C326

1u_6.3V_X5R_04

2DIMM

C433

0.1u_10V_X7R_04

2DIMM

C365

1u_6.3V_X5R_04

2DIMM

R237

1K_1%_04

2DIMM

C308

0.1u_10V_X7R_04

2DIMM

R236

1K_1%_04

2DIMM

C355

1u_6.3V_X5R_04

2DIMM

Sheet 10 of 74

DDR4 CHB SO-

DIMM_0

DDR4 CHB SO-DIMM_0

Schematic Diagrams

B.Schematic Diagrams

DDR4 CHB SO-DIMM_0 B - 11

5

4

3

2

1

D D

C C

B B

A A

>80 mil

2A

PANEL POWER

PANEL CONNECTOR (For coaxial cable)

PANEL POWER

DEFAULT SHORT

DEL LVDS SIGNAL

2A

1A

2A

EDP_HPD

PANEL_VCC_EN_R

BRIGHTNESS_R

SB_BLON

LID_SW#1

HPD_L

BLON1

BLON2

INV_BLON

LVDD_EN#NB_ENAVDD

GSYNC_ID_R

BRIGHTNESS_R INV_BLON HPD_L

DRX0# DRX0

DRX1# DRX1

DRX2# DRX2

DRX3# DRX3

PLVDD

3.3VS

PLVDD

3.3V

VIN

VLED

3.3V

PLVDD

3.3VS

VLED

3.3VS

3.3V2,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58

5VS12,13,32,40,41,49,50,51,52,63,64,66

VIN39,42,43,44,52,55,56,57,58,59,60,61,62

3.3VS3,9,10,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

EDP_HPD 34

ALL_SYS_PWRGD5,38,39,59

SB_BLON38

LID_SW#39,51

BKL_EN39

SUSB#32,33,38,42,44,48,52,58

EDP_BRIGHTNESS 32

BLON32

NB_ENAVDD32

EDP_AUX3

EDP_AUX#3

PLVDD27

EDP_TXP23

EDP_TXN23

EDP_TXN33 EDP_TXP33

EDP_TXP03

EDP_TXN03

EDP_TXP13

EDP_TXN13

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[11]PANEL,INVERTER,CRT

A3

11 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[11]PANEL,INVERTER,CRT

A3

11 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[11]PANEL,INVERTER,CRT

A3

11 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R416 1K_04

J_LCD1

lvdfh-03008-tp00+

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

GND1

GND2

GND3

GND4

GND5

Q1B

*MTS3572G6

S1

2

D1

6

G1

1

C204

0.1u_50V_Y5V_06

C272

10u_6.3V_X5R_06

R415 *0402_short

U24C 74LVC08APW

9

10

8

147

D33 BAV99 RECTIFIER

A

C

AC

C257 0.1u_10V_X7R_04

C633

0.1u_10V_X7R_04

S

D

G

Q2A

*MTDK5S6R

2

61

R417 *10K_04

C263

*1u_6.3V_X5R_04

C256 0.1u_10V_X7R_04

C267

1u_6.3V_X5R_04

R61

*100K_04

C215

0.01u_50V_X7R_04

C249 0.1u_10V_X7R_04

R409 *100K_04

C253 0.1u_10V_X7R_04

C246 0.1u_10V_X7R_04

C254 0.1u_10V_X7R_04

R443

100K_04

C668 1u_6.3V_X5R_04

R408 100K_04

PJ2

*2mm

1 2

R414 *100K_04

C220

*0.1u_50V_Y5V_06

U24A 74LVC08APW

1

2

3

147

C219

0.1u_16V_Y5V_04

R45 *4.7K_06

R44

*150K_1%_04

U25

UP7553PMA5-25

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

R49

*10K_04

C250 0.1u_10V_X7R_04

R38 *0_04

R42 *0_04

U24B 74LVC08APW

4

5

6

147

C258 0.1u_10V_X7R_04

S

D

G

Q2B *MTDK5S6R

5

34

C190

*0.22u_50V_Y5V_06

R55 *100K_04

R41

*100K_04

C260 0.1u_10V_X7R_04

U24D 74LVC08APW

12

13

11

147

R413

100K_04

C244

*0.1u_50V_Y5V_06

C259 0.1u_10V_X7R_04

R48 *100K_04

R51 *100K_04

Q1A *MTS3572G6

S24D2

3

G2

5

Sheet 11 of 74

Panel, Inverter

Schematic Diagrams

Panel, Inverter

B.Schematic Diagrams

B - 12 Panel, Inverter

5

4

3

2

1

D D

C C

B B

A A

Close to Display PORT

⛐

dGPU㗪DDC /

AUX

㗗

Multiplax

mini-Display Port F (back)

TO DP_E

ᶵ⎗ⷞ

SY6288DAAC

㚫㺷暣

DP ESD W/O LEVELSHIFT 暨ᶲ, NET ⎗SWAP

Close to Display PORT

inductor for EMI

⛐

dGPU㗪DDC /

AUX

㗗

Multiplax

mini-Display Port E (back)

EMI

㒢㒢㒢㒢㓦㓦㓦㓦

TO DP_E

ᶵ⎗ⷞ

SY6288DAAC

㚫㺷暣

Zdiff=90ȍ

D_MDP_F1

D_MDP_F#1

D_MDP_F0

D_MDP_F#0

D_MDP_F2

D_MDP_F#2

D_MDP_F3

D_MDP_F#3

DP_TDB_AUX_F

DP_TDB_AUX#_F

G_MDPF_MODE

G_DP_F_MODE_R

G_MDPF_MODE

D_MDP_F2J

D_MDP_F#2J

D_MDP_F3J

D_MDP_F#3J

D_MDP_F1J

MDP_F_HPD_R

D_MDP_F#0J

DP_TDB_AUX#_F

DP_TDB_AUX_F

D_MDP_F#1J

D_MDP_F0J

G_MDPF_CEC

MDP_F_HPD_R

D_MDP_F#1J D_MDP_F1J

D_MDP_F#1 D_MDP_F1

D_MDP_F#3J D_MDP_F3J

D_MDP_F#3 D_MDP_F3

D_MDP_E#2 D_MDP_E2

D_MDP_E#0 D_MDP_E0

D_MDP_E#1 D_MDP_E1

D_MDP_E#3 D_MDP_E3

DP_TDB_AUX#_E

G_MDPE_MODE

DP_TDB_AUX_E

G_MDPE_MODE

D_MDP_E#2J D_MDP_E2J

D_MDP_E1J

D_MDP_E#3J D_MDP_E3J

DP_TDB_AUX#_E

D_MDP_E#0J

MDP_E_HPD_R

G_MDPE_CEC

D_MDP_E0J

D_MDP_E#1J

DP_TDB_AUX_E

MDP_E_HPD_R

D_MDP_E3

D_MDP_E#3

D_MDP_E3J

D_MDP_E#3JD_MDP_F#2J

D_MDP_F2J

D_MDP_F#2

D_MDP_F2

D_MDP_E2J D_MDP_E#2JD_MDP_E#2

D_MDP_E2

D_MDP_F#0J

D_MDP_F0J

D_MDP_F#0

D_MDP_F0

G_DP_E_MODE_R

D_MDP_E0 D_MDP_E#0

D_MDP_E#1 D_MDP_E1

D_MDP_E#1J D_MDP_E1J

D_MDP_E0J D_MDP_E#0J

5VS

MDP_F_PWR

3.3VS

NV3V3

MDP_F_PWR

5VS

MDP_E_PWR

3.3VS

MDP_E_PWR

NV3V3

NV3V3MDP_F_PWR

NV3V3MDP_E_PWR

MDP_F026

MDP_F#026

MDP_F#226 MDP_F226

MDP_F126

MDP_F#326 MDP_F326

MDP_F#126

MDP_F_AUX#_SDA26

MDP_F_AUX_SCL26

G_DP_DHPD_F27,34

5VS13,32,40,41,49,50,51,52,63,64,66

3.3VS3,9,10,11,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

NV3V313,14,27,54,55,63,64

SUSB12,13,52,57

MDP_E026

MDP_E#026

MDP_E#226

MDP_E#326

MDP_E126

MDP_E226

MDP_E#126

MDP_E326

MDP_E_AUX#_SDA26

MDP_E_AUX_SCL26

G_DP_DHPD_E27,34

SUSB12,13,52,57

Title

Size Document Number Rev

Date: Sheet

of

D03

[12] MINI DP PORT

A3

12 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

6-71-P9500-D03

Title

Size Document Number Rev

Date: Sheet

of

D03

[12] MINI DP PORT

A3

12 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

6-71-P9500-D03

Title

Size Document Number Rev

Date: Sheet

of

D03

[12] MINI DP PORT

A3

12 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

6-71-P9500-D03

S

D

G

Q56B MTDK3S6R

5

34

R616

100K_1%_04

R2207

0_04

C503 0.1u_10V_X7R_04

C502 0.1u_10V_X7R_04

D48

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

S

D

G

Q57A MTDK3S6R

2

6 1

C500 0.1u_10V_X7R_04

R615

100K_1%_04

C872 0.1u_10V_X7R_04

C869

*10u_6.3V_X5R_06

C876 0.1u_10V_X7R_04

12

20

13

15

10

8

4

3

16

2

6

14

18

1

5

7

9

11

19

17

COMMON

C17737-120A9-L

J_MDP2

PCB Footprint = c-909jd20fstc6-1

P/N = 6-21-11Y20-020

1

GND

2

HPD

3

LANE_0P

4

CONFIG1

5

LANE_0N

6

CONFIG2

7

GND

8

GND

9

LANE_1P

10

LANE_3P

11

LANE_1N

12

LANE_3N

13

GND

14

GND

15

LANE_2P

16

AUX_CHP

17

LANE_2N

18

AUX_CHN

19

GND

20

PWR

GND4

SHIELD6

GND3

SHIELD5

GND2

SHIELD2

GND1

SHIELD1

C541 0.1u_10V_X7R_04

S

D

G

Q57B

MTDK3S6R

5

34

C549 0.1u_10V_X7R_04

L36

FCM1005KF-121T03

C877 0.1u_10V_X7R_04

C906 0.1u_10V_X7R_04

C875 0.1u_10V_X7R_04

S

D

G

Q56A MTDK3S6R

2

6 1

S

D

G

Q58A

MTDK3S6R

2

61

R607

10K_04

R2208

*0_04

C887

220p_50V_NPO_04

C899 0.1u_10V_X7R_04

D16

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

R608

10K_04

R336 0_04

R613 *0_04

D49 BAV99 RECTIFIER

A

C

AC

C873 0.1u_10V_X7R_04

C533 0.1u_10V_X7R_04

R636 *0_04

C878 0.1u_10V_X7R_04

S

D

G

Q51B

MTDK3S6R

5

34

D20 BAV99 RECTIFIER

A

C

AC

D50

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

R2211

0_04

C912 0.1u_10V_X7R_04

C871 0.1u_10V_X7R_04

A

C

D47 BAT54CS3

1

2

3

R631

10K_04

S

D

G

Q51A

MTDK3S6R

2

61

R627

1M_04

C904 0.1u_10V_X7R_04

S

D

G

Q58B

MTDK3S6R

5

34

A

C

D46 BAT54CS3

1

2

3

R618

100K_1%_04

C571

0.01u_16V_X7R_04

S

D

G

Q53A MTDK3S6R

2

6 1

R2212

*0_04

C874 0.1u_10V_X7R_04

R337

1M_04

C870

10u_6.3V_X5R_06

C501 0.1u_10V_X7R_04

S

D

G

Q53B

MTDK3S6R

5

34

R630

10K_04

R614 0_04

U42

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT

1

VIN

5

GND

2

EN#4OC#

3

R629 0_04

C544 0.1u_10V_X7R_04

L20

FCM1005KF-121T03

R637 0_04

C570

220p_50V_NPO_04

C955

0.01u_16V_X7R_04

S

D

G

Q54A MTDK3S6R

2

6 1

C895

10u_6.3V_X5R_06

12

20

13

15

10

8

4

3

16

2

6

14

18

1

5

7

9

11

19

17

COMMON

C17737-120A9-L

J_MDP1

PCB Footprint = c-909jd20fstc6-1

P/N = 6-21-11Y20-020

1

GND

2

HPD

3

LANE_0P

4

CONFIG1

5

LANE_0N

6

CONFIG2

7

GND

8

GND

9

LANE_1P

10

LANE_3P

11

LANE_1N

12

LANE_3N

13

GND

14

GND

15

LANE_2P

16

AUX_CHP

17

LANE_2N

18

AUX_CHN

19

GND

20

PWR

GND4

SHIELD6

GND3

SHIELD5

GND2

SHIELD2

GND1

SHIELD1

C894

*10u_6.3V_X5R_06

D14

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

C885

0.01u_16V_X7R_04

S

D

G

Q54B MTDK3S6R

5

34

R617

100K_1%_04

C956

0.01u_16V_X7R_04

U40

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT

1

VIN

5

GND

2

EN#4OC#

3

Sheet 12 of 74

Mini DP Port

Schematic Diagrams

B.Schematic Diagrams

Mini DP Port B - 13

Sheet 13 of 74

HDMI Connector

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

For ESD

3/23 lay swap

HDMI Logo

4/1 del common choke L35/L6 (

℔䓐䶂嶗

0325)

4/1 del common choke L34/L5 (

℔䓐䶂嶗

0325)

HDMI ESD W/O LEVELSHIFT

暨ᶲ

, NET

⎗

SWAP

EMI

㒢㒢㒢㒢㓦㓦㓦㓦

5/30 EMI

ᶵ⎗ⷞ

SY6288DAAC

㚫㺷暣

HDMI CONNECTOR

3/21

㨇㥳嬲㚜䁢

SMT

䓐㕁

3/22 lay swap3/22 lay swap

Zdiff=100ȍ

HDMI_HPD-C

HDMI_SDA-C

HDMI_SCL-C

HDMI_SDA-C

HDMI_SCL-C

HDMI_HPD-C

TMDS_CLOCK#-R

TMDS_DATA0#-R

TMDS_CLOCK-R

TMDS_DATA1-R TMDS_DATA1#-R

TMDS_DATA2-R TMDS_DATA2#-R

TMDS_DATA0-R

TMDS_DATA1-R

TMDS_DATA1#-R

TMDS_DATA1

TMDS_DATA1#

TMDS_DATA0#-R

TMDS_DATA0-R

TMDS_DATA0

TMDS_DATA2-R

TMDS_DATA2#-R

HDMI_CEC

HDMI_SCL-C

HDMI_SDA-C

HDMI_HPD-C

TMDS_CLOCK-R

TMDS_CLOCK#-R TMDS_CLOCK#

TMDS_CLOCK TMDS_CLOCK#J

TMDS_CLOCKJ

TMDS_DATA1#J

TMDS_DATA1J

TMDS_DATA1#J TMDS_DATA1J

TMDS_DATA1# TMDS_DATA1

TMDS_DATA0#-R TMDS_DATA0-R TMDS_DATA2#-R TMDS_DATA2-R TMDS_CLOCK#-R TMDS_CLOCK-R TMDS_DATA1#-R TMDS_DATA1-R

TMDS_DATA2#

TMDS_DATA2

TMDS_DATA0#

TMDS_DATA0#J

TMDS_DATA0J

TMDS_DATA2#J

TMDS_DATA2J

TMDS_DATA0#J

TMDS_DATA0J

TMDS_CLOCKJ

TMDS_CLOCK#JTMDS_CLOCK#

TMDS_CLOCK

TMDS_DATA0#

TMDS_DATA0

TMDS_DATA2#J

TMDS_DATA2J

TMDS_DATA2#

TMDS_DATA2

5VS

GND_HDMI

HDMI_5VS

1V8_AON

3.3VS

HDMI_5VS

5VS

1V8_AON

NV3V3

HDMI_CTRLCLK26

HDMI_CTRLDATA26

HDMI_HPD27,34

1V8_AON14,24,25,27,28,29,54,55,63,64,66

3.3VS3,9,10,11,12,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

5VS12,32,40,41,49,50,51,52,63,64,66

HDMI_CLOCKP26 HDMI_CLOCKN26

HDMI_DATA1P26 HDMI_DATA1N26

HDMI_DATA2P26 HDMI_DATA2N26

HDMI_DATA0P26 HDMI_DATA0N26

SUSB12,52,57

NV3V312,14,27,54,55,63,64

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[13] HDMI 2.0 PORT

A4

13 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[13] HDMI 2.0 PORT

A4

13 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[13] HDMI 2.0 PORT

A4

13 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

D37

BAV99 RECTIFIER

A

C

AC

C798

22u_6.3V_X5R_08

R609

180_1%_04

R587 499_1%_04

R606 0_04

R592 0_04

U36

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT

1

VIN

5

GND

2

EN#4OC#

3

R597

180_1%_04

R275

0_04

R599 499_1%_04

R611 0_04

R588 0_04

C797

22u_6.3V_X5R_08

R593 499_1%_04

D43

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

C845 0.1u_10V_X7R_04

D11

RB751V-40(lision)

AC

D44

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

R595 499_1%_04

R269

*0_04

C854 0.1u_10V_X7R_04

D12 RB751V-40(lision)

AC

R581

180_1%_04

C856 0.1u_10V_X7R_04

R576 499_1%_04

J_HDMI1

16-A1030-1003-0

SHIELD2

2

TMDS DATA1+

4

TMDS DATA1-

6

SHIELD0

8

TMDS CLOCK+

10

TMDS CLOCK-

12

RESERVED

14

SDA

16

+5V

18

TMDS DATA2+

1

TMDS DATA2-

3

SHIELD1

5

TMDS DATA0+

7

TMDS DATA0-

9

CLK SHIELD

11

CEC

13

SCL

15

DDC/CEC GND

17

HOT PLUG DETECT

19

GND

GND1

GND

GND2

GND

GND3

GND

GND4

R598 0_04

S

D

G

Q45A MTDK3S6R

2

61

C817 0.1u_10V_X7R_04

R550

10K_04

R596 0_04

R579 0_04

S

D

G

Q45B MTDK3S6R

5

34

C833 0.1u_10V_X7R_04

C808 0.1u_10V_X7R_04

R213

2K_04

R583 499_1%_04

R582 0_04

Q48 2SK3018S3

G

DS

R591

180_1%_04

C830

*1.5p_50V_04

R209

2K_04

R557

10K_04

C829 0.1u_10V_X7R_04

Q46 UK3018

G

DS

R571 20K_04

R612 499_1%_04

D41

BAV99 RECTIFIER

A

C

AC

D39

BAV99 RECTIFIER

A

C

AC

C850 0.1u_10V_X7R_04

R605 499_1%_04

C799

*10u_6.3V_X5R_06

R574

1M_04

HDMI Connector

B.Schematic Diagrams

B - 14 HDMI Connector

VGA PCI Express

Sheet 14 of 74

VGA PCI Express

1

2

3

4

5

A A

B B

C C

D D

NV PCI EXPRESS

under GPU PLACE btw GPU & VR

3A

0.21A

Zdiff=85ȍ

PEX_PLL_HVDD_SVDD

PEX_TERMP

PEX_RX3#

PEX_RX2#PEX_RX2#

PEX_RX6#

PEX_RX4#

PEX_RX1#

PEX_RX5#

PEX_RX0#

PEX_RX4

PEX_RX3

PEX_RX7

PEX_RX6

PEX_RX7#

PEX_RX5

PEX_RX1

PEX_RX2

PEX_RX0

PEX_RX11#

PEX_RX10#

PEX_RX14#

PEX_RX12#

PEX_RX9#

PEX_RX13#

PEX_RX8#

PEX_RX12

PEX_RX11

PEX_RX15

PEX_RX14

PEX_RX15#

PEX_RX13

PEX_RX9

PEX_RX10

PEX_RX8

PEX_CLKREQ#

GND

PEX_VDD

1V8_RUN

1V8_AONNV3V3

PEG_TX12

PEG_TX22

PEG_TX#72

PEG_RX22

PEG_TX#02

PEG_TX32

PEG_TX#22

PEG_RX12

PEG_RX72

PEG_RX42

PEG_TX#12

PEG_TX#52

PEG_TX#42

PEG_RX#62

PEG_RX#02

PEG_RX62

PEG_RX32

PEG_RX#52

PEG_RX#12

PEG_TX62

PEG_RX#72

PEG_RX52

PEG_RX02

PEG_TX42

PEG_TX72

PEG_RX#22

PEG_RX#32

PEG_TX52

PEG_RX#42

PEG_TX02

PEG_TX#32

PEG_TX#62

PEG_TX92

PEG_TX102

PEG_TX#152

PEG_RX102

PEG_TX#82

PEG_TX112

PEG_TX#102

PEG_RX92

PEG_RX152

PEG_RX122

PEG_TX#92

PEG_TX#132

PEG_TX#122

PEG_RX#142

PEG_RX#82

PEG_RX142

PEG_RX112

PEG_RX#132

PEG_RX#92

PEG_TX142

PEG_RX#152

PEG_RX132

PEG_RX82

PEG_TX122

PEG_TX152

PEG_RX#102

PEG_RX#112

PEG_TX132

PEG_RX#122

PEG_TX82

PEG_TX#112

PEG_TX#142

CLK_SRC9_VGA35 CLK_SRC9_VGA#35

DGPU_PEX_RST#29

PEX_VDD26,55

NV3V312,13,27,54,55,63,64

NVVDD_PWRGD29,64

1V8_AON13,24,25,27,28,29,54,55,63,64,66

1V8_RUN15,24,25,28,54

CLK_REQ9_PEG#35

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[14] VGA PCI Express

Custom

14 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[14] VGA PCI Express

Custom

14 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[14] VGA PCI Express

Custom

14 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C187 0.22u_10V_X5R_04

R31 *20mil short-p

C141

0.1u_10V_X7R_04

C78 0.22u_10V_X5R_04

R57

10K_04

C114 0.22u_10V_X5R_04

C148 0.22u_10V_X5R_04

C186 0.22u_10V_X5R_04

C188 0.22u_10V_X5R_04

C200 0.22u_10V_X5R_04

C51 0.22u_10V_X5R_04

C201 0.22u_10V_X5R_04

C106 0.22u_10V_X5R_04

C55 0.22u_10V_X5R_04

C132 0.22u_10V_X5R_04

C218 0.22u_10V_X5R_04

C50 0.22u_10V_X5R_04

C80

1u_6.3V_X6S_04

C265

4.7u_6.3V_X6S_06

C202 0.22u_10V_X5R_04

C159 0.22u_10V_X5R_04

C161

1u_6.3V_X6S_04

C147 0.22u_10V_X5R_04

C113 0.22u_10V_X5R_04

1/23 PCI_EXPRESS

COMMON

BGA2152

INS143952840

G1A

BK42

PEX_RX15

BL42

PEX_RX15

BG41

PEX_TX15

BH41

PEX_TX15

BM42

PEX_RX14

BM41

PEX_RX14

BG39

PEX_TX14

BF39

PEX_TX14

BL41

PEX_RX13

BK41

PEX_RX13

BE38

PEX_TX13

BF38

PEX_TX13

BK39

PEX_RX12

BL39

PEX_RX12

BH38

PEX_TX12

BG38

PEX_TX12

BM39

PEX_RX11

BM38

PEX_RX11

BG36

PEX_TX11

BF36

PEX_TX11

BL38

PEX_RX10

BK38

PEX_RX10

BE35

PEX_TX10

BF35

PEX_TX10

BK36

PEX_RX9

BL36

PEX_RX9

BH35

PEX_TX9

BG35

PEX_TX9

BM36

PEX_RX8

BM35

PEX_RX8

BG33

PEX_TX8

BF33

PEX_TX8

BL35

PEX_RX7

BK35

PEX_RX7

BE32

PEX_TX7

BF32

PEX_TX7

BK33

PEX_RX6

BL33

PEX_RX6

BH32

PEX_TX6

BG32

PEX_TX6

BM33

PEX_RX5

BM32

PEX_RX5

BG30

PEX_TX5

BF30

PEX_TX5

BL32

PEX_RX4

BK32

PEX_RX4

BE29

PEX_TX4

BF29

PEX_TX4

BK30

PEX_RX3

BL30

PEX_RX3

BH29

PEX_TX3

BG29

PEX_TX3

BM30

PEX_RX2

BM29

PEX_RX2

BG27

PEX_TX2

BF27

PEX_TX2

BL29

PEX_RX1

BK29

PEX_RX1

BE26

PEX_TX1

BF26

PEX_TX1

BK27

PEX_RX0

BL27

PEX_RX0

BH26

PEX_TX0

BG26

PEX_TX0

BM27

PEX_REFCLK

BM26

PEX_REFCLK

BL26

PEX_CLKREQ

BK26

PEX_RST

BL44

PEX_TERMP

BB30

PEX_PLL_HVDD

BD30

PEX_HVDD

BD27

PEX_HVDD

BC32

PEX_HVDD

BC30

PEX_HVDD

BC29

PEX_HVDD

BC27

PEX_HVDD

BC26

PEX_HVDD

BB32

PEX_HVDD

BB29

PEX_HVDD

BB27

PEX_HVDD

BB26

PEX_HVDD

BD36

PEX_DVDD

BD33

PEX_DVDD

BC36

PEX_DVDD

BC35

PEX_DVDD

BC33

PEX_DVDD

BB36

PEX_DVDD

BB35

PEX_DVDD

BB33

PEX_DVDD

C79 0.22u_10V_X5R_04

C283

4.7u_6.3V_X6S_06

C152

1u_6.3V_X6S_04

C100

4.7u_6.3V_X6S_06

C157

1u_6.3V_X6S_04

C179

1u_6.3V_X6S_04

C185 0.22u_10V_X5R_04

C108 0.22u_10V_X5R_04

C165

22u_4V_X6S_06

C285

22u_4V_X6S_06

R407 2.49K_1%_04

C59

1u_6.3V_X6S_04

C125

1u_6.3V_X6S_04

C60 0.22u_10V_X5R_04

C269

4.7u_6.3V_X6S_06

Q3 2SK3018S3

G

D S

C239 0.22u_10V_X5R_04

C274

10u_4V_X6S_06

C56 0.22u_10V_X5R_04

R56

*10K_04

C109

1u_6.3V_X6S_04

C124 0.22u_10V_X5R_04

C139 0.22u_10V_X5R_04

C203 0.22u_10V_X5R_04

C52 0.22u_10V_X5R_04

C153 0.22u_10V_X5R_04

R58

*10K_04

C61 0.22u_10V_X5R_04

C99 0.22u_10V_X5R_04

C98 0.22u_10V_X5R_04

Schematic Diagrams

B.Schematic Diagrams

VGA PCI Express B - 15

Sheet 15 of 74

GPU Frame Buffer

Partition

Schematic Diagrams

1

2

3

4

5

6

7

8

A A

B B

C C

D D

PAGE3: GPU FRAME BUFFER PARTITION A/B

CMD3 RAS*

A5_BA1

WE*

CMD9

CAS*

CKE*

RST*

A1_A9

A0_A10

A12_RFU

ABI*

A6_A11

A7_A8

A5_BA1

A4_BA2

A2_BA0

A3_BA3

CS*

CMD26

CMD27

CMD28

CMD30

CMD31

ch1 32..63ch0 0..31

CMD0

CMD7

CAS*

A12_RFU

RST*

RAS*

A1_A9

A0_A10

WE*

A7_A8

CMD11

CMD12

CMD13

CMD14

CMD15

CMD16

CMD20

CMD21

CMD24

CMD1

CMD2

CMD4

CMD5

CMD6

CMD8

CMD10

CMD22

CMD25

CMD29

CMD17

CMD18

ABI*

A6_A11

CMD23

CS*

CMD19

A4_BA2

A3_BA3

A2_BA0

CKE*

PLACE AT BALLS

GB3B-256

GDDR5 Mode F Mapping

PLACE AT BALLS

1.55V

FBA_CLK0

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_CLK0#

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_CLK1

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_CLK1#

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_CMD0

FBA_CMD10 FBA_CMD11 FBA_CMD12 FBA_CMD13 FBA_CMD14 FBA_CMD15 FBA_CMD16 FBA_CMD17 FBA_CMD18 FBA_CMD19

FBA_CMD1

FBA_CMD20 FBA_CMD21 FBA_CMD22 FBA_CMD23 FBA_CMD24 FBA_CMD25 FBA_CMD26 FBA_CMD27 FBA_CMD28 FBA_CMD29

FBA_CMD2

FBA_CMD30

FBA_CMD[31..0]

FBA_CMD31

FBA_CMD3 FBA_CMD4 FBA_CMD5 FBA_CMD6 FBA_CMD7 FBA_CMD8 FBA_CMD9

FBA_D0

FBA_D10 FBA_D11 FBA_D12 FBA_D13 FBA_D14 FBA_D15 FBA_D16 FBA_D17 FBA_D18 FBA_D19

FBA_D1

FBA_D20 FBA_D21 FBA_D22 FBA_D23 FBA_D24 FBA_D25 FBA_D26 FBA_D27 FBA_D28 FBA_D29

FBA_D2

FBA_D30 FBA_D31 FBA_D32 FBA_D33 FBA_D34 FBA_D35 FBA_D36 FBA_D37 FBA_D38 FBA_D39

FBA_D3

FBA_D40 FBA_D41 FBA_D42 FBA_D43 FBA_D44 FBA_D45 FBA_D46 FBA_D47 FBA_D48 FBA_D49

FBA_D4

FBA_D50 FBA_D51 FBA_D52 FBA_D53 FBA_D54 FBA_D55 FBA_D56 FBA_D57 FBA_D58 FBA_D59

FBA_D5

FBA_D60 FBA_D61 FBA_D62 FBA_D63

FBA_D6 FBA_D7 FBA_D8 FBA_D9

FBA_DBI0 FBA_DBI1 FBA_DBI2 FBA_DBI3 FBA_DBI4 FBA_DBI5 FBA_DBI6 FBA_DBI7

FBA_EDC0 FBA_EDC1 FBA_EDC2 FBA_EDC3 FBA_EDC4 FBA_EDC5 FBA_EDC6 FBA_EDC7

FBA_WCK01

<NV_NETCLASS>

<DIFFERENTIAL_PAIR>

FBA_WCK01#

<NV_NETCLASS>

<DIFFERENTIAL_PAIR>

FBA_WCK23

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_WCK23#

<NV_NETCLASS>

<DIFFERENTIAL_PAIR>

FBA_WCK45

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_WCK45#

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_WCK67

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBA_WCK67#

<DIFFERENTIAL_PAIR>

<NV_NETCLASS>

FBB_CLK0

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_CLK0#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_CLK1

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_CLK1#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_CMD0

FBB_CMD10 FBB_CMD11 FBB_CMD12 FBB_CMD13 FBB_CMD14 FBB_CMD15 FBB_CMD16 FBB_CMD17 FBB_CMD18 FBB_CMD19

FBB_CMD1

FBB_CMD20 FBB_CMD21 FBB_CMD22 FBB_CMD23 FBB_CMD24 FBB_CMD25 FBB_CMD26 FBB_CMD27 FBB_CMD28 FBB_CMD29

FBB_CMD2

FBB_CMD30 FBB_CMD31

FBB_CMD3 FBB_CMD4 FBB_CMD5 FBB_CMD6 FBB_CMD7 FBB_CMD8 FBB_CMD9

FBB_D0

FBB_D10 FBB_D11 FBB_D12 FBB_D13 FBB_D14 FBB_D15 FBB_D16 FBB_D17 FBB_D18 FBB_D19

FBB_D1

FBB_D20 FBB_D21 FBB_D22 FBB_D23 FBB_D24 FBB_D25 FBB_D26 FBB_D27 FBB_D28 FBB_D29

FBB_D2

FBB_D30 FBB_D31 FBB_D32 FBB_D33 FBB_D34 FBB_D35 FBB_D36 FBB_D37 FBB_D38 FBB_D39

FBB_D3

FBB_D40 FBB_D41 FBB_D42 FBB_D43 FBB_D44 FBB_D45 FBB_D46 FBB_D47 FBB_D48 FBB_D49

FBB_D4

FBB_D50 FBB_D51 FBB_D52 FBB_D53 FBB_D54 FBB_D55 FBB_D56 FBB_D57 FBB_D58 FBB_D59

FBB_D5

FBB_D60 FBB_D61 FBB_D62 FBB_D63

FBB_D6 FBB_D7 FBB_D8 FBB_D9

FBB_DBI0 FBB_DBI1 FBB_DBI2 FBB_DBI3 FBB_DBI4 FBB_DBI5 FBB_DBI6 FBB_DBI7

FBB_EDC0 FBB_EDC1 FBB_EDC2 FBB_EDC3 FBB_EDC4 FBB_EDC5 FBB_EDC6 FBB_EDC7

FBB_WCK01

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK01#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK23

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK23#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK45

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK45#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK67

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBB_WCK67#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FB_PLL_AVDD

FBA_EDC[7..0]

FBA_DBI[7..0]

FBA_D[63..0]

FBB_EDC[7..0]

FBB_DBI[7..0]

FBB_D[63..0]

FBB_CMD[31..0]

FBA_DEBUG0 FBA_DEBUG1

FBB_DEBUG0 FBB_DEBUG1

FB_PLL_AVDD

FBB_CMD17

FBB_CMD18

FBB_CMD1

FBB_CMD2

FBA_CMD17

FBA_CMD18

FBA_CMD1

FBA_CMD2

GND

FBVDDQ

GND

1V8_RUN

GND

FBVDDQ

GND

FBVDDQ

GND

FBA_CMD[31..0] 16

FBA_EDC[7..0] 16

FBA_DBI[7..0] 16

FBA_D[63..0] 16

FBA_CLK0 16

FBA_WCK01 16 FBA_WCK01# 16

FBA_WCK23 16 FBA_WCK23# 16

FBA_WCK45 16 FBA_WCK45# 16

FBA_WCK67 16 FBA_WCK67# 16

FBA_CLK0# 16 FBA_CLK1 16 FBA_CLK1# 16

FBB_EDC[7..0] 17

FBB_CMD[31..0] 17

FBB_DBI[7..0] 17

FBB_D[63..0] 17

FBB_WCK23# 17

FBB_WCK01# 17

FBB_CLK1# 17

FBB_CLK0# 17

FBB_WCK67 17

FBB_WCK45 17

FBB_WCK23 17

FBB_CLK0 17

FBB_WCK01 17

FBB_CLK1 17

FBB_WCK67# 17

FBB_WCK45# 17

FBVDDQ16,17,18,19,20,21,22,24,28,66

1V8_RUN14,24,25,28,54

FB_PLL_AVDD 19

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[15] GPU Frame Buffer Partition

Custom

15 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[15] GPU Frame Buffer Partition

Custom

15 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[15] GPU Frame Buffer Partition

Custom

15 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R19 *60.4_1%_04

C73

0.1u_10V_X7R_04

2/23 FBA

COMMON

BGA2152

INS143815523

G1B

L29

FB_REFPLL_AVDD1

AF42

FB_REFPLL_AVDD0

Y16

GND

Y15

GND

Y14

GND

W8

GND

W6

GND

W51

GND

W49

GND

W47

GND

AR51

FBA_DQS_WP7

AK48

FBA_DQS_WP6

AT50

FBA_DQS_WP5

BB52

FBA_DQS_WP4

AA48

FBA_DQS_WP3

AF44

FBA_DQS_WP2

V48

FBA_DQS_WP1

R48

FBA_DQS_WP0

AR49

FBA_DQM7

AM48

FBA_DQM6

AV50

FBA_DQM5

BB51

FBA_DQM4

AC48

FBA_DQM3

AG47

FBA_DQM2

Y48

FBA_DQM1

U47

FBA_DQM0

AR46

FBA_D63

AR47

FBA_D62

AN47

FBA_D61

AR48

FBA_D60

AN46

FBA_D59

AN45

FBA_D58

AM45

FBA_D57

AM44

FBA_D56

AN49

FBA_D55

AN48

FBA_D54

AM46

FBA_D53

AM47

FBA_D52

AK49

FBA_D51

AJ47

FBA_D50

AJ46

FBA_D49

AJ48

FBA_D48

AV49

FBA_D47

AV52

FBA_D46

AV51

FBA_D45

AT46

FBA_D44

AT48

FBA_D43

AT47

FBA_D42

AT49

FBA_D41

AV48

FBA_D40

AW49

FBA_D39

BA49

FBA_D38

BB50

FBA_D37

BA50

FBA_D36

BA51

FBA_D35

AW50

FBA_D34

BA52

FBA_D33

AW51

FBA_D32

Y44

FBA_D31

AA45

FBA_D30

AA46

FBA_D29

AA47

FBA_D28

AC47

FBA_D27

AC46

FBA_D26

AD48

FBA_D25

AD49

FBA_D24

AD47

FBA_D23

AF48

FBA_D22

AF47

FBA_D21

AF46

FBA_D20

AG49

FBA_D19

AJ45

FBA_D18

AG48

FBA_D17

AJ44

FBA_D16

V51

FBA_D15

U52

FBA_D14

V47

FBA_D13

V50

FBA_D12

Y46

FBA_D11

Y47

FBA_D10

Y45

FBA_D9

V46

FBA_D8

U46

FBA_D7

R47

FBA_D6

R50

FBA_D5

R51

FBA_D4

U49

FBA_D3

U50

FBA_D2

U48

FBA_D1

U51

FBA_D0

AN42

FBA_PLL_AVDD

AT44

FBA_WCKB67

AT45

FBA_WCKB67

AR44

FBA_WCK67

AR45

FBA_WCK67

AW47

FBA_WCKB45

AW48

FBA_WCKB45

AV46

FBA_WCK45

AV47

FBA_WCK45

AD45

FBA_WCKB23

AD46

FBA_WCKB23

AC44

FBA_WCK23

AC45

FBA_WCK23

V44

FBA_WCKB01

V45

FBA_WCKB01

U44

FBA_WCK01

U45

FBA_WCK01

AK45

FBA_CLK1

AK46

FBA_CLK1

AG46

FBA_CLK0

AG45

FBA_CLK0

AN44

FBA_DBG_RFU2

AA44

FBA_DBG_RFU1

AR50

FBA_CMD35

Y50

FBA_CMD34

AF49

FBA_CMD33

AG52

FBA_CMD32

AG51

FBA_CMD31

AG50

FBA_CMD30

AJ50

FBA_CMD29

AJ51

FBA_CMD28

AJ52

FBA_CMD27

AJ49

FBA_CMD26

AK52

FBA_CMD25

AK51

FBA_CMD24

AK50

FBA_CMD23

AM50

FBA_CMD22

AM51

FBA_CMD21

AM52

FBA_CMD20

AM49

FBA_CMD19

AN52

FBA_CMD18

AN51

FBA_CMD17

AN50

FBA_CMD16

AF52

FBA_CMD15

AF51

FBA_CMD14

AF50

FBA_CMD13

AD50

FBA_CMD12

AD51

FBA_CMD11

AD52

FBA_CMD10

AC49

FBA_CMD9

AC52

FBA_CMD8

AC51

FBA_CMD7

AC50

FBA_CMD6

AA50

FBA_CMD5

AA51

FBA_CMD4

AA52

FBA_CMD3

Y49

FBA_CMD2

Y52

FBA_CMD1

Y51

FBA_CMD0

.

L2 HCB1608KF-300T60

C72

0.1u_10V_X7R_04

R3 10K_04

R21 10K_04

3/23 FBB

COMMON

BGA2152

INS143814845

G1C

Y24

GND

Y23

GND

Y22

GND

Y21

GND

Y20

GND

Y19

GND

Y18

GND

Y17

GND

F51

FBB_DQS_WP7

D51

FBB_DQS_WP6

J48

FBB_DQS_WP5

P50

FBB_DQS_WP4

H38

FBB_DQS_WP3

G44

FBB_DQS_WP2

E35

FBB_DQS_WP1

B33

FBB_DQS_WP0

H50

FBB_DQM7

D50

FBB_DQM6

L48

FBB_DQM5

P49

FBB_DQM4

G39

FBB_DQM3

E44

FBB_DQM2

E33

FBB_DQM1

C32

FBB_DQM0

H52

FBB_D63

H49

FBB_D62

J51

FBB_D61

H51

FBB_D60

H48

FBB_D59

J50

FBB_D58

D52

FBB_D57

F50

FBB_D56

F48

FBB_D55

F49

FBB_D54

E50

FBB_D53

E49

FBB_D52

C49

FBB_D51

C48

FBB_D50

C50

FBB_D49

D48

FBB_D48

M47

FBB_D47

M48

FBB_D46

L47

FBB_D45

M46

FBB_D44

L49

FBB_D43

L52

FBB_D42

L51

FBB_D41

L50

FBB_D40

P46

FBB_D39

R46

FBB_D38

P52

FBB_D37

P47

FBB_D36

M49

FBB_D35

M51

FBB_D34

P48

FBB_D33

M50

FBB_D32

E36

FBB_D31

D36

FBB_D30

E38

FBB_D29

F38

FBB_D28

D39

FBB_D27

E39

FBB_D26

F39

FBB_D25

E41

FBB_D24

H41

FBB_D23

F42

FBB_D22

E42

FBB_D21

D42

FBB_D20

G45

FBB_D19

F45

FBB_D18

D45

FBB_D17

E45

FBB_D16

G33

FBB_D15

J32

FBB_D14

D33

FBB_D13

F33

FBB_D12

F36

FBB_D11

J36

FBB_D10

G36

FBB_D9

H36

FBB_D8

F32

FBB_D7

J30

FBB_D6

G32

FBB_D5

E32

FBB_D4

B32

FBB_D3

A33

FBB_D2

D32

FBB_D1

H32

FBB_D0

L38

FBB_PLL_AVDD

J46

FBB_WCKB67

J47

FBB_WCKB67

H46

FBB_WCK67

H47

FBB_WCK67

M45

FBB_WCKB45

M44

FBB_WCKB45

L45

FBB_WCK45

L46

FBB_WCK45

G41

FBB_WCKB23

F41

FBB_WCKB23

H39

FBB_WCK23

J39

FBB_WCK23

H35

FBB_WCKB01

G35

FBB_WCKB01

H33

FBB_WCK01

J33

FBB_WCK01

E47

FBB_CLK1

F47

FBB_CLK1

G42

FBB_CLK0

H42

FBB_CLK0

J41

FBB_DBG_RFU2

J35

FBB_DBG_RFU1

B50

FBB_CMD35

C35

FBB_CMD34

D41

FBB_CMD33

A42

FBB_CMD32

B42

FBB_CMD31

C42

FBB_CMD30

C44

FBB_CMD29

B44

FBB_CMD28

A44

FBB_CMD27

D44

FBB_CMD26

A45

FBB_CMD25

B45

FBB_CMD24

C45

FBB_CMD23

C47

FBB_CMD22

B47

FBB_CMD21

A47

FBB_CMD20

D47

FBB_CMD19

A48

FBB_CMD18

A49

FBB_CMD17

B49

FBB_CMD16

A41

FBB_CMD15

B41

FBB_CMD14

C41

FBB_CMD13

C39

FBB_CMD12

B39

FBB_CMD11

A39

FBB_CMD10

D38

FBB_CMD9

A38

FBB_CMD8

B38

FBB_CMD7

C38

FBB_CMD6

C36

FBB_CMD5

B36

FBB_CMD4

A36

FBB_CMD3

D35

FBB_CMD2

A35

FBB_CMD1

B35

FBB_CMD0

C154

0.1u_10V_X7R_04

R30 *60.4_1%_04

R20 10K_04

R22 *60.4_1%_04

C101

0.1u_10V_X7R_04

R10 10K_04

R13 10K_04

R25 *60.4_1%_04

R4 10K_04

R12 10K_04

R7 10K_04

C58

22u_4V_X6S_06

GPU Frame Buffer Partition

B.Schematic Diagrams

B - 16 GPU Frame Buffer Partition

Sheet 16 of 74

Frame Buffer

Partition A

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FRAME BUFFER PARTITION A

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

FBA_CMD[31..0]

FBA_D10 FBA_D11 FBA_D12 FBA_D13 FBA_D14 FBA_D15

FBA_D24 FBA_D25 FBA_D26 FBA_D27 FBA_D28 FBA_D29 FBA_D30 FBA_D31

FBA_D32 FBA_D33 FBA_D34 FBA_D35 FBA_D36 FBA_D37 FBA_D38 FBA_D39

FBA_D48 FBA_D49 FBA_D50 FBA_D51 FBA_D52 FBA_D53 FBA_D54 FBA_D55

FBA_D[63..0]

FBA_D8 FBA_D9

FBA_DBI1

FBA_DBI3

FBA_DBI4

FBA_DBI6

FBA_EDC1

FBA_EDC3

FBA_EDC4

FBA_EDC6

ŇŃłŠŗœņŇń

FBA_VREFC

0.300

FBA_VREFC

0.300

FBA_VREF_L

0.300

FBA_WCK01 FBA_WCK01#

FBA_WCK23 FBA_WCK23#

FBA_ZQ0 FBA_ZQ2

FBA_CMD16

FBA_CMD17

FBA_CMD18

FBA_CMD19

FBA_CMD20

FBA_CMD21

FBA_CMD22

FBA_CMD23

FBA_CMD24 FBA_CMD25

FBA_CMD26

FBA_CMD27

FBA_CMD28

FBA_CMD29 FBA_CMD30

FBA_CMD31

FBA_CMD0

FBA_CMD1

FBA_CMD2

FBA_CMD3

FBA_CMD4

FBA_CMD5

FBA_CMD6

FBA_CMD7

FBA_CMD8 FBA_CMD9

FBA_CMD10

FBA_CMD11

FBA_CMD12

FBA_CMD13 FBA_CMD14

FBA_CMD15

FBA_DBI[7..0]

FBA_EDC[7..0]

FBA_WCK01 FBA_WCK01# FBA_WCK23 FBA_WCK23# FBA_WCK45 FBA_WCK45# FBA_WCK67 FBA_WCK67#

FBA_DBI0

FBA_EDC0

FBA_D0 FBA_D1 FBA_D2 FBA_D3 FBA_D4 FBA_D5 FBA_D6 FBA_D7

FBA_DBI2

FBA_EDC2

FBA_D16 FBA_D17 FBA_D18 FBA_D19 FBA_D20 FBA_D21 FBA_D22 FBA_D23

FBA_DBI5

FBA_EDC5

FBA_WCK45 FBA_WCK45#

FBA_D40 FBA_D41 FBA_D42 FBA_D43 FBA_D44 FBA_D45 FBA_D46 FBA_D47

FBA_DBI7

FBA_EDC7

FBA_WCK67 FBA_WCK67#

FBA_D56 FBA_D57 FBA_D58 FBA_D59 FBA_D60 FBA_D61 FBA_D62 FBA_D63

GND

GND GND GND

GND

FBVDDQ

FBA_CMD[31..0]15

FBA_D[63..0]15

FBA_DBI[7..0]15

FBA_EDC[7..0]15

FBA_WCK0115 FBA_WCK01#15 FBA_WCK2315 FBA_WCK23#15 FBA_WCK4515 FBA_WCK45#15 FBA_WCK6715 FBA_WCK67#15

GPIO10_ALT_MEM_VREF17,20,21,27

FBVDDQ15,17,18,19,20,21,22,24,28,66

FBA_CLK015 FBA_CLK0#15

FBA_CLK115 FBA_CLK1#15

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[16] Frame Buffer Partition A

A3

16 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[16] Frame Buffer Partition A

A3

16 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[16] Frame Buffer Partition A

A3

16 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R5

40.2_1%_04R940.2_1%_04

R403

121_1%_04

R6

40.2_1%_04

NC

x16x32

MIRRORED

NC

M9D

COMMON

BGA170_MIRR

INS143818018

K4G80325FB-HC25

P5

WCK01

P4

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

P2

DBI0

R2

EDC0

M2

DQ7

M4

DQ6

N2

DQ5

N4

DQ4

T2

DQ3

T4

DQ2

V2

DQ1

V4

DQ0

V10

VREFD

R397 549_1%_04

NC

x16

NORMAL

NC

x32

NC

GND

M8D

COMMON

BGA170

INS143818121

K4G80325FB-HC25

D5

WCK01

D4

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

D2

DBI0

C2

EDC0

F2

DQ7

F4

DQ6

E2

DQ5

E4

DQ4

B2

DQ3

B4

DQ2

A2

DQ1

A4

DQ0

A10

VREFD

C25

0.01u_50V_X7R_04

Q31 2SK3018S3

G

DS

NC

GND

x32 x16

MIRRORED

NC

M9A

COMMON

BGA170_MIRR

INS143818234

K4G80325FB-HC25

D5

WCK23

D4

WCK23

D2

DBI3

C2

EDC3

F2

DQ31

F4

DQ30

E2

DQ29

E4

DQ28

B2

DQ27

B4

DQ26

A2

DQ25

A4

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREFD

R1

40.2_1%_04

C22

0.01u_50V_X7R_04

M9B

COMMON

BGA170_MIRR

INS143818347

K4G80325FB-HC25

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

H4

A7_A8

H5

A6_A11

H10

A5_BA1

H11

A4_BA2

K10

A3_BA3

K11

A2_BA0

K5

A1_A9

K4

A0_A10

J4

ABI

L12

CS

G12

WE

G3

CAS

L3

RAS

NORMAL

x16

NC

x32

M8A

COMMON

BGA170

INS143817750

K4G80325FB-HC25

P5

WCK23

P4

WCK23

P2

DBI3

R2

EDC3

M2

DQ31

M4

DQ30

N2

DQ29

N4

DQ28

T2

DQ27

T4

DQ26

V2

DQ25

V4

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREFD

C615

820p_50V_X7R_04

R396 931_1%_04

C616

820p_50V_X7R_04

R400

121_1%_04

M8B

COMMON

BGA170

INS143817885

K4G80325FB-HC25

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

K4

A7_A8

K5

A6_A11

K10

A5_BA1

K11

A4_BA2

H10

A3_BA3

H11

A2_BA0

H5

A1_A9

H4

A0_A10

J4

ABI

G12

CS

L12

WE

L3

CAS

G3

RAS

R398

1.33K_1%_04

Frame Buffer Partition A

Schematic Diagrams

B.Schematic Diagrams

Frame Buffer Partition A B - 17

Schematic Diagrams

Sheet 17 of 74

Frame Buffer

Partition B

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FRAME BUFFER PARTITION B

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

FBB_D10 FBB_D11 FBB_D12 FBB_D13 FBB_D14 FBB_D15

FBB_D32 FBB_D33 FBB_D34 FBB_D35 FBB_D36 FBB_D37 FBB_D38 FBB_D39

FBB_D48 FBB_D49 FBB_D50 FBB_D51 FBB_D52 FBB_D53 FBB_D54 FBB_D55

FBB_D8 FBB_D9

FBB_DBI1

FBB_DBI4

FBB_DBI6

FBB_EDC1

FBB_EDC4

FBB_EDC6

FBB_VREFC

0.300

FBB_VREFC

0.300

FBB_VREF_H

0.300

FBB_WCK01 FBB_WCK01#

FBB_WCK67 FBB_WCK67#

FBB_ZQ0 FBB_ZQ2

FBB_CMD2 FBB_CMD1

FBB_CMD0

FBB_CMD7

FBB_CMD6

FBB_CMD5 FBB_CMD4

FBB_CMD3

FBB_CMD12 FBB_CMD11

FBB_CMD10

FBB_CMD9

FBB_CMD8

FBB_CMD15

FBB_CMD14

FBB_CMD13

FBB_CMD16

FBB_CMD17

FBB_CMD18

FBB_CMD19

FBB_CMD20

FBB_CMD21

FBB_CMD22

FBB_CMD23

FBB_CMD24 FBB_CMD25

FBB_CMD26

FBB_CMD27

FBB_CMD28

FBB_CMD29 FBB_CMD30

FBB_CMD31FBB_D0 FBB_D1 FBB_D2 FBB_D3 FBB_D4 FBB_D5 FBB_D6 FBB_D7

FBB_DBI0

FBB_EDC0

FBB_D40 FBB_D41 FBB_D42 FBB_D43 FBB_D44 FBB_D45 FBB_D46 FBB_D47

FBB_DBI5

FBB_EDC5

FBB_WCK45 FBB_WCK45#

FBB_D56 FBB_D57 FBB_D58 FBB_D59 FBB_D60 FBB_D61 FBB_D62 FBB_D63

FBB_DBI7

FBB_EDC7

FBB_WCK01 FBB_WCK01# FBB_WCK23 FBB_WCK23# FBB_WCK45 FBB_WCK45# FBB_WCK67 FBB_WCK67#

FBB_DBI[7..0]

FBB_EDC[7..0]

FBB_CMD[31..0]

FBB_D[63..0]

FBB_D24 FBB_D25 FBB_D26 FBB_D27 FBB_D28 FBB_D29 FBB_D30 FBB_D31

FBB_DBI3

FBB_EDC3

FBB_WCK23 FBB_WCK23#

FBB_D16 FBB_D17 FBB_D18 FBB_D19 FBB_D20 FBB_D21 FBB_D22 FBB_D23

FBB_DBI2

FBB_EDC2

GND

FBVDDQ

GND

GPIO10_ALT_MEM_VREF16,20,21,27

FBB_WCK0115 FBB_WCK01#15 FBB_WCK2315 FBB_WCK23#15 FBB_WCK4515 FBB_WCK45#15 FBB_WCK6715 FBB_WCK67#15

FBB_CMD[31..0]15

FBB_DBI[7..0]15

FBB_EDC[7..0]15

FBB_D[63..0]15

FBVDDQ15,16,18,19,20,21,22,24,28,66

FBB_CLK015 FBB_CLK0#15

FBB_CLK115 FBB_CLK1#15

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[17] Frame Buffer Partition B

A3

17 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[17] Frame Buffer Partition B

A3

17 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[17] Frame Buffer Partition B

A3

17 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R395 549_1%_04

R401 931_1%_04

M7B

COMMON

BGA170

INS143820024

K4G80325FB-HC25

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

K4

A7_A8

K5

A6_A11

K10

A5_BA1

K11

A4_BA2

H10

A3_BA3

H11

A2_BA0

H5

A1_A9

H4

A0_A10

J4

ABI

G12

CS

L12

WE

L3

CAS

G3

RAS

C33

0.01u_50V_X7R_04

NC

x16x32

MIRRORED

NC

M10D

COMMON

BGA170_MIRR

INS143819526

K4G80325FB-HC25

P5

WCK01

P4

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

P2

DBI0

R2

EDC0

M2

DQ7

M4

DQ6

N2

DQ5

N4

DQ4

T2

DQ3

T4

DQ2

V2

DQ1

V4

DQ0

V10

VREFD

R2

40.2_1%_04

C617

820p_50V_X7R_04

NC

x16

NORMAL

NC

x32

NC

GND

M7D

COMMON

BGA170

INS143819641

K4G80325FB-HC25

D5

WCK01

D4

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

D2

DBI0

C2

EDC0

F2

DQ7

F4

DQ6

E2

DQ5

E4

DQ4

B2

DQ3

B4

DQ2

A2

DQ1

A4

DQ0

A10

VREFD

Q30 2SK3018S3

G

DS

R399 121_1%_04

C620

820p_50V_X7R_04

R8

40.2_1%_04

C23

0.01u_50V_X7R_04

M10B

COMMON

BGA170_MIRR

INS143819766

K4G80325FB-HC25

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

H4

A7_A8

H5

A6_A11

H10

A5_BA1

H11

A4_BA2

K10

A3_BA3

K11

A2_BA0

K5

A1_A9

K4

A0_A10

J4

ABI

L12

CS

G12

WE

G3

CAS

L3

RAS

R402

1.33K_1%_04

R404 121_1%_04

NORMAL

x16

NC

x32

M7A

COMMON

BGA170

INS143819381

K4G80325FB-HC25

P5

WCK23

P4

WCK23

P2

DBI3

R2

EDC3

M2

DQ31

M4

DQ30

N2

DQ29

N4

DQ28

T2

DQ27

T4

DQ26

V2

DQ25

V4

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREFD

R14

40.2_1%_04

NC

GND

x32 x16

MIRRORED

NC

M10A

COMMON

BGA170_MIRR

INS143819889

K4G80325FB-HC25

D5

WCK23

D4

WCK23

D2

DBI3

C2

EDC3

F2

DQ31

F4

DQ30

E2

DQ29

E4

DQ28

B2

DQ27

B4

DQ26

A2

DQ25

A4

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREFD

R15

40.2_1%_04

Frame Buffer Partition B

B.Schematic Diagrams

B - 18 Frame Buffer Partition B

Frame Buffer Partition A_B

Sheet 18 of 74

Frame Buffer Partition A_B

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FRAME BUFFER PARTITION A/B DECOUPLING

DECOUPLING AROUND FBA MEMORIES (DQ0-DQ31)

PLACE Under MEM

DECOUPLING AROUND FBA MEMORIES (DQ32-DQ63)

PLACE Under MEM

SPARE

1u x 10 10u x 6 22u x 5

SPARE

1u x 10 10u x 6 22u x 5

24A

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

FBVDDQ

GND GND

FBVDDQ

GND

FBVDDQ

GND

FBVDDQ

GND

FBVDDQ

GND

GND GND

FBVDDQ

FBVDDQ15,16,17,19,20,21,22,24,28,66

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[18] Frame Buffer Partition A_B

A3

18 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[18] Frame Buffer Partition A_B

A3

18 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[18] Frame Buffer Partition A_B

A3

18 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

add 1k to VSS

Normal

M8C

INS143821875

COMMON

BGA170

K4G80325FB-HC25

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

J1

MF_VSS/SOE*

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

C45

22u_6.3V_X5R_08

C19

10u_6.3V_X5R_06

C42

22u_6.3V_X5R_08

C34

1u_6.3V_X6S_04

C35

1u_6.3V_X6S_04

C609

22u_6.3V_X5R_08

C47

10u_6.3V_X5R_06

C38

1u_6.3V_X6S_04

C10

10u_6.3V_X5R_06

C1

1u_6.3V_X6S_04

C44

10u_6.3V_X5R_06

C15

22u_6.3V_X5R_08

C4

10u_6.3V_X5R_06

C17

22u_6.3V_X5R_08

C46

10u_6.3V_X5R_06

add 1k to VDD

Mirrored

M10C

COMMON

BGA170_MIRR

INS143822320

K4G80325FB-HC25

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

J1

SOE*/MF_VDD

C619

1u_6.3V_X6S_04

C28

1u_6.3V_X6S_04

C614

10u_6.3V_X5R_06

C36

1u_6.3V_X6S_04

C40

1u_6.3V_X6S_04

C39

1u_6.3V_X6S_04

C618

1u_6.3V_X6S_04

C20

1u_6.3V_X6S_04

C3

10u_6.3V_X5R_06

add 1k to VDD

Mirrored

M9C

COMMON

INS143823250 BGA170_MIRR

K4G80325FB-HC25

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

J1

SOE*/MF_VDD

C49

1u_6.3V_X6S_04

C41

1u_6.3V_X6S_04

C14

10u_6.3V_X5R_06C510u_6.3V_X5R_06

C610

22u_6.3V_X5R_08

C32

1u_6.3V_X6S_04

C2

22u_6.3V_X5R_08

C7

22u_6.3V_X5R_08

C8

10u_6.3V_X5R_06

C43

10u_6.3V_X5R_06

add 1k to VSS

Normal

M7C

COMMON

BGA170

INS143822775

K4G80325FB-HC25

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

J1

MF_VSS/SOE*

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

C6

1u_6.3V_X6S_04

C37

1u_6.3V_X6S_04

Schematic Diagrams

B.Schematic Diagrams

Frame Buffer Partition A_B B - 19

Schematic Diagrams

1

2

3

4

5

6

7

8

A A

B B

C C

D D

GPU FRAME BUFFER PARTITION C/D

ɈɈɈɈP950HP3 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ ɈɈɈɈP950HP6 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

ɈɈɈɈP950HP3 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ ɈɈɈɈP950HP6 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ

FBC_CLK0

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBC_CLK0#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBC_CLK1

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBC_CLK1#

<DIFFERENTIAL_PAIR> <NV_NETCLASS>

FBC_CMD0

FBC_CMD10 FBC_CMD11 FBC_CMD12 FBC_CMD13 FBC_CMD14 FBC_CMD15 FBC_CMD16 FBC_CMD17

FBC_CMD17

FBC_CMD18

FBC_CMD19

FBC_CMD1

FBC_CMD20 FBC_CMD21 FBC_CMD22 FBC_CMD23 FBC_CMD24 FBC_CMD25 FBC_CMD26 FBC_CMD27 FBC_CMD28 FBC_CMD29

FBC_CMD2

FBC_CMD30 FBC_CMD31

FBC_CMD3 FBC_CMD4 FBC_CMD5 FBC_CMD6 FBC_CMD7 FBC_CMD8 FBC_CMD9

FBC_D0

FBC_D10 FBC_D11 FBC_D12 FBC_D13 FBC_D14 FBC_D15 FBC_D16 FBC_D17 FBC_D18 FBC_D19

FBC_D1

FBC_D20 FBC_D21 FBC_D22 FBC_D23 FBC_D24 FBC_D25 FBC_D26 FBC_D27 FBC_D28 FBC_D29

FBC_D2

FBC_D30 FBC_D31 FBC_D32 FBC_D33 FBC_D34 FBC_D35 FBC_D36 FBC_D37 FBC_D38 FBC_D39

FBC_D3

FBC_D40 FBC_D41 FBC_D42 FBC_D43 FBC_D44 FBC_D45 FBC_D46 FBC_D47 FBC_D48 FBC_D49

FBC_D4

FBC_D50 FBC_D51 FBC_D52 FBC_D53 FBC_D54 FBC_D55 FBC_D56 FBC_D57 FBC_D58 FBC_D59

FBC_D5

FBC_D60 FBC_D61 FBC_D62 FBC_D63

FBC_D6 FBC_D7 FBC_D8 FBC_D9

FBC_DBI0 FBC_DBI1 FBC_DBI2 FBC_DBI3 FBC_DBI4 FBC_DBI5 FBC_DBI6 FBC_DBI7

FBC_EDC0 FBC_EDC1 FBC_EDC2 FBC_EDC3 FBC_EDC4 FBC_EDC5 FBC_EDC6 FBC_EDC7

FBC_WCK01

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK01#

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK23

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK23#

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK45

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK45#

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK67

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_WCK67#

<NV_NETCLASS><DIFFERENTIAL_PAIR>

FBC_EDC[7..0]

FBC_DBI[7..0]

FBC_D[63..0]

FBC_CMD[31..0]

FBC_DEBUG1

FBC_DEBUG0

FBD_EDC[7..0]

FBD_DBI[7..0]

FBD_D[63..0]

FBD_CMD[31..0]

FBD_CMD17

FBD_CMD18

FBD_CMD1

FBD_CMD2

FBD_DEBUG1

FBD_DEBUG0

FBD_PLL_AVDD

FBD_D0 FBD_D1 FBD_D2 FBD_D3 FBD_D4 FBD_D5 FBD_D6 FBD_D7 FBD_D8 FBD_D9 FBD_D10 FBD_D11 FBD_D12 FBD_D13 FBD_D14 FBD_D15 FBD_D16 FBD_D17 FBD_D18 FBD_D19 FBD_D20 FBD_D21 FBD_D22 FBD_D23 FBD_D24 FBD_D25 FBD_D26 FBD_D27 FBD_D28 FBD_D29 FBD_D30 FBD_D31 FBD_D32 FBD_D33 FBD_D34 FBD_D35 FBD_D36 FBD_D37 FBD_D38 FBD_D39 FBD_D40 FBD_D41 FBD_D42 FBD_D43 FBD_D44 FBD_D45 FBD_D46 FBD_D47 FBD_D48 FBD_D49 FBD_D50 FBD_D51 FBD_D52 FBD_D53 FBD_D54 FBD_D55 FBD_D56 FBD_D57 FBD_D58 FBD_D59 FBD_D60 FBD_D61 FBD_D62 FBD_D63

FBD_DBI0 FBD_DBI1 FBD_DBI2 FBD_DBI3 FBD_DBI4 FBD_DBI5 FBD_DBI6 FBD_DBI7

FBD_EDC0 FBD_EDC1 FBD_EDC2 FBD_EDC3 FBD_EDC4 FBD_EDC5 FBD_EDC6 FBD_EDC7

FBD_CMD0 FBD_CMD1 FBD_CMD2 FBD_CMD3 FBD_CMD4 FBD_CMD5 FBD_CMD6 FBD_CMD7 FBD_CMD8 FBD_CMD9 FBD_CMD10 FBD_CMD11 FBD_CMD12 FBD_CMD13 FBD_CMD14 FBD_CMD15 FBD_CMD16 FBD_CMD17 FBD_CMD18 FBD_CMD19 FBD_CMD20 FBD_CMD21 FBD_CMD22 FBD_CMD23 FBD_CMD24 FBD_CMD25 FBD_CMD26 FBD_CMD27 FBD_CMD28 FBD_CMD29 FBD_CMD30 FBD_CMD31

FBC_PLL_AVDD

GND

FBVDDQ

GND

FBVDDQ

GND

FBC_EDC[7..0] 20

FBC_CMD[31..0] 20

FBC_DBI[7..0] 20

FBC_D[63..0] 20

FBC_WCK23# 20

FBC_WCK01# 20

FBC_CLK1# 20

FBC_CLK0# 20

FBC_WCK67 20

FBC_WCK45 20

FBC_WCK23 20

FBC_CLK0 20

FBC_WCK01 20

FBC_CLK1 20

FBC_WCK67# 20

FBC_WCK45# 20

FBD_EDC[7..0] 21

FBD_CMD[31..0] 21FBD_DBI[7..0] 21

FBD_D[63..0] 21

FBD_WCK23* 21

FBD_WCK01* 21

FBD_CLK1* 21

FBD_CLK0* 21

FBD_WCK67 21

FBD_WCK45 21

FBD_WCK23 21

FBD_CLK0 21

FBD_WCK01 21

FBD_CLK1 21

FBD_WCK67* 21

FBD_WCK45* 21

FBVDDQ15,16,17,18,20,21,22,24,28,66

FB_PLL_AVDD 15,19

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[19] GPU Frame Buffer Partition

A3

19 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[19] GPU Frame Buffer Partition

A3

19 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[19] GPU Frame Buffer Partition

A3

19 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R107 10K_04

FrameD

R54 10K_04

C227

0.1u_10V_X7R_04

FrameD

R102 10K_04

FrameD

R446 10K_04

FrameD

R63 *60.4_1%_04

R27 10K_04

R50 0_04

FrameD

4/23 FBC

COMMON

BGA2152

INS143825179

G1D

Y32

GND

Y31

GND

Y30

GND

Y29

GND

Y28

GND

Y27

GND

Y26

GND

Y25

GND

E24

FBC_DQS_WP7

G21

FBC_DQS_WP6

B29

FBC_DQS_WP5

E30

FBC_DQS_WP4

E12

FBC_DQS_WP3

E17

FBC_DQS_WP2

D8

FBC_DQS_WP1

D5

FBC_DQS_WP0

E26

FBC_DQM7

F20

FBC_DQM6

E27

FBC_DQM5

D29

FBC_DQM4

F12

FBC_DQM3

J18

FBC_DQM2

C8

FBC_DQM1

A5

FBC_DQM0

C26

FBC_D63

B26

FBC_D62

D26

FBC_D61

F26

FBC_D60

G26

FBC_D59

F24

FBC_D58

H26

FBC_D57

G24

FBC_D56

E23

FBC_D55

D21

FBC_D54

E21

FBC_D53

F23

FBC_D52

E20

FBC_D51

G20

FBC_D50

D18

FBC_D49

H20

FBC_D48

G29

FBC_D47

A27

FBC_D46

B27

FBC_D45

C27

FBC_D44

G27

FBC_D43

F27

FBC_D42

J26

FBC_D41

D27

FBC_D40

C30

FBC_D39

H30

FBC_D38

A30

FBC_D37

B30

FBC_D36

G30

FBC_D35

H29

FBC_D34

F30

FBC_D33

J29

FBC_D32

E11

FBC_D31

F11

FBC_D30

G11

FBC_D29

H11

FBC_D28

F14

FBC_D27

E14

FBC_D26

H15

FBC_D25

J15

FBC_D24

H17

FBC_D23

G17

FBC_D22

E15

FBC_D21

D15

FBC_D20

H18

FBC_D19

E18

FBC_D18

G18

FBC_D17

F18

FBC_D16

E6

FBC_D15

F6

FBC_D14

A8

FBC_D13

B8

FBC_D12

B9

FBC_D11

E9

FBC_D10

C9

FBC_D9

D9

FBC_D8

C4

FBC_D7

B3

FBC_D6

A4

FBC_D5

B4

FBC_D4

B6

FBC_D3

A6

FBC_D2

D6

FBC_D1

C6

FBC_D0

L17

FBC_PLL_AVDD

J24

FBC_WCKB67

H24

FBC_WCKB67

H23

FBC_WCK67

G23

FBC_WCK67

F29

FBC_WCKB45

E29

FBC_WCKB45

H27

FBC_WCK45

J27

FBC_WCK45

H14

FBC_WCKB23

G14

FBC_WCKB23

G12

FBC_WCK23

H12

FBC_WCK23

F9

FBC_WCKB01

G9

FBC_WCKB01

G8

FBC_WCK01

F8

FBC_WCK01

J21

FBC_CLK1

H21

FBC_CLK1

F15

FBC_CLK0

G15

FBC_CLK0

J23

FBC_DBG_RFU2

J14

FBC_DBG_RFU1

C24

FBC_CMD35

A9

FBC_CMD34

A17

FBC_CMD33

D17

FBC_CMD32

A18

FBC_CMD31

B18

FBC_CMD30

C18

FBC_CMD29

C20

FBC_CMD28

B20

FBC_CMD27

A20

FBC_CMD26

D20

FBC_CMD25

A21

FBC_CMD24

B21

FBC_CMD23

C21

FBC_CMD22

C23

FBC_CMD21

B23

FBC_CMD20

A23

FBC_CMD19

D23

FBC_CMD18

A24

FBC_CMD17

B24

FBC_CMD16

B17

FBC_CMD15

C17

FBC_CMD14

C15

FBC_CMD13

B15

FBC_CMD12

A15

FBC_CMD11

D14

FBC_CMD10

A14

FBC_CMD9

B14

FBC_CMD8

C14

FBC_CMD7

C12

FBC_CMD6

B12

FBC_CMD5

A12

FBC_CMD4

D11

FBC_CMD3

A11

FBC_CMD2

B11

FBC_CMD1

C11

FBC_CMD0

R80 *60.4_1%_04

R52

*60.4_1%_04

R34

*60.4_1%_04

C208

0.1u_10V_X7R_04

R465

10K_04

FrameD

GP106

UNUSED

GP104

FBD

5/23 FBD

COMMON

BGA2152

INS143825911

G1E

Y9

GND

Y39

GND

Y38

GND

Y37

GND

Y36

GND

Y35

GND

Y34

GND

Y33

GND

M5

FBD_DQS_WP7

U6

FBD_DQS_WP6

H2

FBD_DQS_WP5

E3

FBD_DQS_WP4

AF4

FBD_DQS_WP3

AA9

FBD_DQS_WP2

AG2

FBD_DQS_WP1

AJ3

FBD_DQS_WP0

M9

FBD_DQM7

U5

FBD_DQM6

H3

FBD_DQM5

D3

FBD_DQM4

AD5

FBD_DQM3

AA7

FBD_DQM2

AG1

FBD_DQM1

AJ1

FBD_DQM0

L5

FBD_D63

L4

FBD_D62

L6

FBD_D61

L7

FBD_D60

P5

FBD_D59

P4

FBD_D58

R9

FBD_D57

P6

FBD_D56

U8

FBD_D55

R6

FBD_D54

R5

FBD_D53

U4

FBD_D52

V9

FBD_D51

V6

FBD_D50

V8

FBD_D49

V7

FBD_D48

H5

FBD_D47

H4

FBD_D46

F2

FBD_D45

F1

FBD_D44

J2

FBD_D43

L8

FBD_D42

J4

FBD_D41

J5

FBD_D40

C2

FBD_D39

C3

FBD_D38

D1

FBD_D37

D2

FBD_D36

F5

FBD_D35

F3

FBD_D34

E1

FBD_D33

F4

FBD_D32

AF3

FBD_D31

AF2

FBD_D30

AF8

FBD_D29

AF7

FBD_D28

AD6

FBD_D27

AF6

FBD_D26

AC6

FBD_D25

AD7

FBD_D24

AC4

FBD_D23

AC5

FBD_D22

AA5

FBD_D21

AA6

FBD_D20

Y4

FBD_D19

V5

FBD_D18

Y5

FBD_D17

Y6

FBD_D16

AG5

FBD_D15

AJ6

FBD_D14

AJ5

FBD_D13

AJ4

FBD_D12

AG7

FBD_D11

AG6

FBD_D10

AF9

FBD_D9

AG4

FBD_D8

AK7

FBD_D7

AK9

FBD_D6

AK6

FBD_D5

AK5

FBD_D4

AK3

FBD_D3

AK2

FBD_D2

AK4

FBD_D1

AK8

FBD_D0

V11

FBD_PLL_AVDD

M8

FBD_WCKB67

M7

FBD_WCKB67

P7

FBD_WCK67

P8

FBD_WCK67

H6

FBD_WCKB45

H7

FBD_WCKB45

J7

FBD_WCK45

J6

FBD_WCK45

AC8

FBD_WCKB23

AC7

FBD_WCKB23

AD9

FBD_WCK23

AD8

FBD_WCK23

AG9

FBD_WCKB01

AG8

FBD_WCKB01

AJ7

FBD_WCK01

AJ8

FBD_WCK01

R7

FBD_CLK1

R8

FBD_CLK1

Y7

FBD_CLK0

Y8

FBD_CLK0

P9

FBD_DBG_RFU2

AC9

FBD_DBG_RFU1

J3

FBD_CMD35

AD3

FBD_CMD34

V4

FBD_CMD33

U1

FBD_CMD32

U2

FBD_CMD31

U3

FBD_CMD30

R3

FBD_CMD29

R2

FBD_CMD28

R1

FBD_CMD27

R4

FBD_CMD26

P1

FBD_CMD25

P2

FBD_CMD24

P3

FBD_CMD23

M3

FBD_CMD22

M2

FBD_CMD21

M1

FBD_CMD20

M4

FBD_CMD19

L1

FBD_CMD18

L2

FBD_CMD17

L3

FBD_CMD16

V1

FBD_CMD15

V2

FBD_CMD14

V3

FBD_CMD13

Y3

FBD_CMD12

Y2

FBD_CMD11

Y1

FBD_CMD10

AA4

FBD_CMD9

AA1

FBD_CMD8

AA2

FBD_CMD7

AA3

FBD_CMD6

AC3

FBD_CMD5

AC2

FBD_CMD4

AC1

FBD_CMD3

AD4

FBD_CMD2

AD1

FBD_CMD1

AD2

FBD_CMD0

R26 10K_04

R53 10K_04

R47 *20mil short-p

Sheet 19 of 74

GPU Frame Buffer

Partition

GPU Frame Buffer Partition

B.Schematic Diagrams

B - 20 GPU Frame Buffer Partition

Frame Buffer Partition C

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FRAME BUFFER PARTITION C

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

FBC_D10 FBC_D11 FBC_D12 FBC_D13 FBC_D14 FBC_D15

FBC_D32 FBC_D33 FBC_D34 FBC_D35 FBC_D36 FBC_D37 FBC_D38 FBC_D39

FBC_D8 FBC_D9

FBC_DBI1

FBC_DBI4

FBC_EDC1

FBC_EDC4

FBC_VREFC

0.300

FBC_VREF_L

0.300

FBC_WCK01 FBC_WCK01#

FBC_ZQ0 FBC_ZQ2

FBC_VREFC

0.300

FBC_CMD2 FBC_CMD1

FBC_CMD0

FBC_CMD7

FBC_CMD6

FBC_CMD5 FBC_CMD4

FBC_CMD3

FBC_CMD12 FBC_CMD11

FBC_CMD10

FBC_CMD9

FBC_CMD8

FBC_CMD15

FBC_CMD14

FBC_CMD13

FBC_CMD16

FBC_CMD17

FBC_CMD18

FBC_CMD19

FBC_CMD20

FBC_CMD21

FBC_CMD22

FBC_CMD23

FBC_CMD24 FBC_CMD25

FBC_CMD26

FBC_CMD27

FBC_CMD28

FBC_CMD29 FBC_CMD30

FBC_CMD31

FBC_DBI[7..0]

FBC_EDC[7..0]

FBC_CMD[31..0]

FBC_D[63..0]

FBC_WCK01 FBC_WCK01# FBC_WCK23 FBC_WCK23# FBC_WCK45 FBC_WCK45# FBC_WCK67 FBC_WCK67#

FBC_D5

FBC_D0 FBC_D1 FBC_D2 FBC_D3 FBC_D4

FBC_D6 FBC_D7

FBC_DBI0

FBC_EDC0

FBC_D16 FBC_D17 FBC_D18 FBC_D19 FBC_D20 FBC_D21 FBC_D22 FBC_D23

FBC_DBI2

FBC_EDC2

FBC_D24 FBC_D25 FBC_D26 FBC_D27 FBC_D28 FBC_D29 FBC_D30 FBC_D31

FBC_DBI3

FBC_EDC3

FBC_WCK23 FBC_WCK23#

FBC_D40 FBC_D41 FBC_D42 FBC_D43 FBC_D44 FBC_D45 FBC_D46 FBC_D47

FBC_DBI5

FBC_EDC5

FBC_WCK45 FBC_WCK45#

FBC_D48 FBC_D49 FBC_D50 FBC_D51 FBC_D52 FBC_D53 FBC_D54 FBC_D55

FBC_DBI6

FBC_EDC6

FBC_WCK67 FBC_WCK67#

FBC_D56 FBC_D57 FBC_D58 FBC_D59 FBC_D60 FBC_D61 FBC_D62 FBC_D63

FBC_EDC7 FBC_DBI7

GND

FBVDDQ

GND

GND GND

GPIO10_ALT_MEM_VREF16,17,21,27

FBC_WCK0119 FBC_WCK01#19 FBC_WCK2319 FBC_WCK23#19 FBC_WCK4519 FBC_WCK45#19 FBC_WCK6719 FBC_WCK67#19

FBC_CMD[31..0]19

FBC_DBI[7..0]19

FBC_EDC[7..0]19

FBC_D[63..0]19

FBVDDQ15,16,17,18,19,21,22,24,28,66

FBC_CLK019 FBC_CLK0#19

FBC_CLK119 FBC_CLK1#19

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[20] Frame Buffer Partition C

A3

20 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[20] Frame Buffer Partition C

A3

20 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[20] Frame Buffer Partition C

A3

20 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C630

820p_50V_X7R_04

NORMAL

x16

NC

x32

M11A

COMMON

BGA170

INS143828405

K4G80325FB-HC25

P5

WCK23

P4

WCK23

P2

DBI3

R2

EDC3

M2

DQ31

M4

DQ30

N2

DQ29

N4

DQ28

T2

DQ27

T4

DQ26

V2

DQ25

V4

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREFD

R32

40.2_1%_04

NC

x16

NORMAL

NC

x32

NC

GND

M11D

COMMON

BGA170

INS143828010

K4G80325FB-HC25

D5

WCK01

D4

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

D2

DBI0

C2

EDC0

F2

DQ7

F4

DQ6

E2

DQ5

E4

DQ4

B2

DQ3

B4

DQ2

A2

DQ1

A4

DQ0

A10

VREFD

C628

820p_50V_X7R_04

R36

40.2_1%_04

R29 121_1%_04

NC

GND

x32 x16

MIRRORED

NC

M12A

COMMON

BGA170_MIRR

INS143828145

K4G80325FB-HC25

D5

WCK23

D4

WCK23

D2

DBI3

C2

EDC3

F2

DQ31

F4

DQ30

E2

DQ29

E4

DQ28

B2

DQ27

B4

DQ26

A2

DQ25

A4

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREFD

NC

x16x32

MIRRORED

NC

M12D

COMMON

BGA170_MIRR

INS143828550

K4G80325FB-HC25

P5

WCK01

P4

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

P2

DBI0

R2

EDC0

M2

DQ7

M4

DQ6

N2

DQ5

N4

DQ4

T2

DQ3

T4

DQ2

V2

DQ1

V4

DQ0

V10

VREFD

R35

40.2_1%_04

R410 549_1%_04

R411 931_1%_04

M12B

BGA170_MIRR COMMON

INS143828665

K4G80325FB-HC25

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

H4

A7_A8

H5

A6_A11

H10

A5_BA1

H11

A4_BA2

K10

A3_BA3

K11

A2_BA0

K5

A1_A9

K4

A0_A10

J4

ABI

L12

CS

G12

WE

G3

CAS

L3

RAS

M11B

COMMON

BGA170

INS143828268

K4G80325FB-HC25

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

K4

A7_A8

K5

A6_A11

K10

A5_BA1

K11

A4_BA2

H10

A3_BA3

H11

A2_BA0

H5

A1_A9

H4

A0_A10

J4

ABI

G12

CS

L12

WE

L3

CAS

G3

RAS

R39 121_1%_04

R33

40.2_1%_04

C162

0.01u_50V_X7R_04

C151

0.01u_50V_X7R_04

R412

1.33K_1%_04

Q32 2SK3018S3

G

DS

Sheet 20 of 74

Frame Buffer

Partition C

Schematic Diagrams

B.Schematic Diagrams

Frame Buffer Partition C B - 21

Schematic Diagrams

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FRAME BUFFER PARTITION D

ɈɈɈɈP950HP3 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ (㔜㔜㔜㔜枩枩枩枩ᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ) ɈɈɈɈP950HP6 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ (㔜㔜㔜㔜枩枩枩枩ᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ)

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

FBD_DBI3

FBD_EDC3

FBD_WCK23 FBD_WCK23*

FBD_D17 FBD_D18 FBD_D19 FBD_D20 FBD_D21 FBD_D22 FBD_D23

FBD_D16

FBD_DBI2

FBD_EDC2

FBD_D24 FBD_D25 FBD_D26 FBD_D27 FBD_D28 FBD_D29 FBD_D30 FBD_D31

FBD_CMD2 FBD_CMD1

FBD_CMD6

FBD_CMD5

FBD_CMD0

FBD_CMD7

FBD_CMD4

FBD_CMD12 FBD_CMD11

FBD_CMD9

FBD_CMD3

FBD_CMD10

FBD_CMD8

FBD_CMD14

FBD_CMD13

FBD_CMD15

FBD_VREFC

0.300

FBD_ZQ0

FBD_D40 FBD_D41 FBD_D42 FBD_D43 FBD_D44 FBD_D45 FBD_D46 FBD_D47

FBD_DBI5

FBD_EDC5

FBD_WCK45 FBD_WCK45*

FBD_D33 FBD_D34 FBD_D35 FBD_D36 FBD_D37 FBD_D38 FBD_D39

FBD_DBI7

FBD_EDC7

FBD_WCK67 FBD_WCK67*

FBD_D56 FBD_D57 FBD_D58 FBD_D59 FBD_D60 FBD_D61 FBD_D62 FBD_D63

FBD_D49 FBD_D50 FBD_D51 FBD_D52 FBD_D53 FBD_D54 FBD_D55

FBD_D48

FBD_DBI6

FBD_EDC6

FBD_VREFCFBD_VREF_L

0.300

FBD_CMD16

FBD_CMD17

FBD_CMD18

FBD_CMD19

FBD_CMD20

FBD_CMD21

FBD_CMD22

FBD_CMD23

FBD_CMD24 FBD_CMD25

FBD_CMD26

FBD_CMD27

FBD_CMD28

FBD_CMD29 FBD_CMD30

FBD_CMD31

FBD_DBI[7..0]

FBD_EDC[7..0]

FBD_CMD[31..0]

FBD_D[63..0]

FBD_WCK01 FBD_WCK01* FBD_WCK23 FBD_WCK23* FBD_WCK45 FBD_WCK45* FBD_WCK67 FBD_WCK67*

FBD_D32

FBD_D8

FBD_DBI1

FBD_DBI4

FBD_EDC1

FBD_EDC4

FBD_VREFC

0.300

FBD_WCK01 FBD_WCK01*

FBD_ZQ2

FBD_D1 FBD_D2 FBD_D3 FBD_D4 FBD_D5 FBD_D6 FBD_D7

FBD_D0

FBD_DBI0

FBD_EDC0

FBD_D9 FBD_D10 FBD_D11 FBD_D12 FBD_D13 FBD_D14 FBD_D15

GND GND

GNDGND

FBVDDQ

GND

FBD_WCK0119 FBD_WCK01*19 FBD_WCK2319 FBD_WCK23*19 FBD_WCK4519 FBD_WCK45*19 FBD_WCK6719 FBD_WCK67*19

FBD_CMD[31..0]19

FBD_DBI[7..0]19

FBD_EDC[7..0]19

FBD_D[63..0]19

GPIO10_ALT_MEM_VREF16,17,20,27

FBVDDQ15,16,17,18,19,20,22,24,28,66

FBD_CLK019 FBD_CLK0*19

FBD_CLK119 FBD_CLK1*19

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[21] Frame Buffer Partition D

A3

21 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[21] Frame Buffer Partition D

A3

21 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[21] Frame Buffer Partition D

A3

21 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C684

820p_50V_X7R_04

FrameD

R455

40.2_1%_04

FrameD

R460 121_1%_04

FrameD

C683

820p_50V_X7R_04

FrameD

R454

40.2_1%_04

FrameD

R456

40.2_1%_04

FrameD

NC

x16x32

MIRRORED

NC

M13D

COMMON

BGA170_MIRR

INS143830044

K4G80325FB-HC25

FrameD

P5

WCK01

P4

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

P2

DBI0

R2

EDC0

M2

DQ7

M4

DQ6

N2

DQ5

N4

DQ4

T2

DQ3

T4

DQ2

V2

DQ1

V4

DQ0

V10

VREFD

R463

1.33K_1%_04

FrameD

R458 121_1%_04

FrameD

R461 931_1%_04

FrameD

Q41 2SK3018S3

FrameD

G

DS

NC

x16

NORMAL

NC

x32

NC

GND

M14D

COMMON

BGA170

INS143829673

K4G80325FB-HC25

FrameD

D5

WCK01

D4

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

D2

DBI0

C2

EDC0

F2

DQ7

F4

DQ6

E2

DQ5

E4

DQ4

B2

DQ3

B4

DQ2

A2

DQ1

A4

DQ0

A10

VREFD

NC

GND

x32 x16

MIRRORED

NC

M13A

COMMON

BGA170_MIRR

INS143830183

K4G80325FB-HC25

FrameD

D5

WCK23

D4

WCK23

D2

DBI3

C2

EDC3

F2

DQ31

F4

DQ30

E2

DQ29

E4

DQ28

B2

DQ27

B4

DQ26

A2

DQ25

A4

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREFD

C679

0.01u_50V_X7R_04

FrameD

R462 549_1%_04

FrameD

NORMAL

x16

NC

x32

COMMON

BGA170

INS143830300

M14A

K4G80325FB-HC25

FrameD

P5

WCK23

P4

WCK23

P2

DBI3

R2

EDC3

M2

DQ31

M4

DQ30

N2

DQ29

N4

DQ28

T2

DQ27

T4

DQ26

V2

DQ25

V4

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREFD

R448

40.2_1%_04

FrameD

C676

0.01u_50V_X7R_04

FrameD

M14B

COMMON

BGA170

INS143829801

K4G80325FB-HC25

FrameD

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

K4

A7_A8

K5

A6_A11

K10

A5_BA1

K11

A4_BA2

H10

A3_BA3

H11

A2_BA0

H5

A1_A9

H4

A0_A10

J4

ABI

G12

CS

L12

WE

L3

CAS

G3

RAS

M13B

BGA170_MIRR COMMON

INS143829905

K4G80325FB-HC25

FrameD

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

H4

A7_A8

H5

A6_A11

H10

A5_BA1

H11

A4_BA2

K10

A3_BA3

K11

A2_BA0

K5

A1_A9

K4

A0_A10

J4

ABI

L12

CS

G12

WE

G3

CAS

L3

RAS

Sheet 21 of 74

Frame Buffer

Partition D

Frame Buffer Partition D

B.Schematic Diagrams

B - 22 Frame Buffer Partition D

Frame Buffer Partition C_D

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FRAME BUFFER PARTITION C/D DECOUPLING

DECOUPLING AROUND FBC MEMORIES (DQ0-DQ31)

PLACE Under MEM

SPARE

1u x 10 10u x 6 22u x 5

ɈɈɈɈP950HP3 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ ɈɈɈɈP950HP6 Frame Dᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ

PLACE Under MEM

24A

P95xHP3 VRAM=K4G41325FE-HC25 Value:K4G41325FE-HC25

P95xHP6,P95xHR VRAM=K4G80325FB-HC25 Value:K4G80325FB-HC25

FBVDDQ

GND

FBVDDQ

GND

FBVDDQ

GNDGND

FBVDDQ

GND

FBVDDQ

GND

GND GND

FBVDDQ15,16,17,18,19,20,21,24,28,66

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[22] Frame Buffer Partition C_D

A3

22 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[22] Frame Buffer Partition C_D

A3

22 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[22] Frame Buffer Partition C_D

A3

22 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C623

1u_6.3V_X6S_04

C236

1u_6.3V_X6S_04

add 1k to VDD

Mirrored

COMMON

BGA170_MIRR

INS143832182

M13C

K4G80325FB-HC25

FrameD

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

J1

SOE*/MF_VDD

C625

1u_6.3V_X6S_04

C631

22u_6.3V_X5R_08

C685

10u_6.3V_X5R_06

FrameD

C697

1u_6.3V_X6S_04

FrameD

C150

10u_6.3V_X5R_06

C673

1u_6.3V_X6S_04

FrameD

C632

1u_6.3V_X6S_04

C626

22u_6.3V_X5R_08

C678

1u_6.3V_X6S_04

FrameD

add 1k to VSS

Normal

M11C

INS143833116 BGA170 COMMON

K4G80325FB-HC25

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

J1

MF_VSS/SOE*

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

C199

10u_6.3V_X5R_06

C167

1u_6.3V_X6S_04

C629

22u_6.3V_X5R_08

C701

10u_6.3V_X5R_06

FrameD

C696

1u_6.3V_X6S_04

FrameD

C716

10u_6.3V_X5R_06

FrameD

add 1k to VSS

Normal

COMMON

BGA170

INS143832629

M14C

K4G80325FB-HC25

FrameD

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

J1

MF_VSS/SOE*

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

C123

10u_6.3V_X5R_06

C670

1u_6.3V_X6S_04

FrameD

C682

1u_6.3V_X6S_04

FrameD

C217

10u_6.3V_X5R_06

C681

1u_6.3V_X6S_04

FrameD

C671 22u_6.3V_X5R_08

FrameD

C709 22u_6.3V_X5R_08

FrameD

C634

22u_6.3V_X5R_08

add 1k to VDD

Mirrored

M12C

COMMON

INS143833563

BGA170_MIRR

K4G80325FB-HC25

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

J1

SOE*/MF_VDD

C210

10u_6.3V_X5R_06

C691

10u_6.3V_X5R_06

FrameD

C686

10u_6.3V_X5R_06

FrameD

C627

1u_6.3V_X6S_04

C690

10u_6.3V_X5R_06

FrameD

C675

1u_6.3V_X6S_04

FrameD

C76

10u_6.3V_X5R_06

C624

1u_6.3V_X6S_04

C707 22u_6.3V_X5R_08

FrameD

C717 22u_6.3V_X5R_08

FrameD

C237

1u_6.3V_X6S_04

Sheet 22 of 74

Frame Buffer Partition C_D

Schematic Diagrams

B.Schematic Diagrams

Frame Buffer Partition C_D B - 23

Schematic Diagrams

1

2

3

4

5

6

7

8

A A

B B

C C

D D

MID-FREQ CERAMICS

NVVDD

GPU DECOUPLING1

NVVDD

x49 1uF X6S 0402

x12 10uF 0603 X5R

x17 22uF 0603 X6S

PLACE Near GPU

PLACE Under GPU

NVVDDS

x16 1uF X6S 0402 x4 10uF X6S 0603

CLOSE TO GPU

x4 22uF 0603 X6S

GND

NVVDD

GND

NVVDD

GND

NVVDD

NVVDDS

GND

NVVDD28,64,65 NVVDDS28,63,65

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[23] GPU Decoupling1

A3

23 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[23] GPU Decoupling1

A3

23 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[23] GPU Decoupling1

A3

23 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C92

1u_6.3V_X6S_04

C95

1u_6.3V_X6S_04

C612

47u_2.5V_X6S_08

C621

22u_4V_X6S_06

C206

1u_6.3V_X6S_04

C13

1u_6.3V_X6S_04

C194

1u_6.3V_X6S_04

C611

47u_2.5V_X6S_08

C16

1u_6.3V_X6S_04

C163

1u_6.3V_X6S_04

C2031

1u_6.3V_X6S_04

C94

1u_6.3V_X6S_04

C174

1u_6.3V_X6S_04

C143

1u_6.3V_X6S_04

C189

22u_4V_X6S_06

C112

22u_4V_X6S_06

C130

22u_4V_X6S_06

C103

1u_6.3V_X6S_04

C2032

1u_6.3V_X6S_04

C140

1u_6.3V_X6S_04

C193

22u_4V_X6S_06

C85

22u_4V_X6S_06

C142

1u_6.3V_X6S_04

C156

1u_6.3V_X6S_04

C11

1u_6.3V_X6S_04

C2033

1u_6.3V_X6S_04

C144

1u_6.3V_X6S_04

C145

1u_6.3V_X6S_04

C164

1u_6.3V_X6S_04

C207

1u_6.3V_X6S_04

C2037

47u_2.5V_X6S_08

C84

22u_4V_X6S_06

C118

1u_6.3V_X6S_04

C12

1u_6.3V_X6S_04

C135

22u_4V_X6S_06

C183

1u_6.3V_X6S_04

C177

22u_4V_X6S_06

C89

1u_6.3V_X6S_04

C54

22u_4V_X6S_06

C82

22u_4V_X6S_06

C172

1u_6.3V_X6S_04

C120

1u_6.3V_X6S_04

C83

22u_4V_X6S_06

C2024

1u_6.3V_X6S_04

C97

1u_6.3V_X6S_04

C195

1u_6.3V_X6S_04

C93

1u_6.3V_X6S_04

C138

22u_4V_X6S_06

C128

1u_6.3V_X6S_04

C613

47u_2.5V_X6S_08

C209

1u_6.3V_X6S_04

C96

22u_4V_X6S_06

C2025

1u_6.3V_X6S_04

C107

1u_6.3V_X6S_04

C173

1u_6.3V_X6S_04

C86

22u_4V_X6S_06

C21

1u_6.3V_X6S_04

C105

1u_6.3V_X6S_04

C87

22u_4V_X6S_06

C2026

1u_6.3V_X6S_04

C116 1u_6.3V_X6S_04

C110

1u_6.3V_X6S_04

C90

1u_6.3V_X6S_04

C166

1u_6.3V_X6S_04

C88

22u_4V_X6S_06

C205

1u_6.3V_X6S_04

C2027

1u_6.3V_X6S_04

C117

1u_6.3V_X6S_04

C119

1u_6.3V_X6S_04

C957

1u_6.3V_X6S_04

C2036

22u_4V_X6S_06

C53

22u_4V_X6S_06

C129

1u_6.3V_X6S_04

C127

1u_6.3V_X6S_04

C136

22u_4V_X6S_06

C146

1u_6.3V_X6S_04

C81

22u_4V_X6S_06

C180

1u_6.3V_X6S_04

C137

22u_4V_X6S_06

C91

1u_6.3V_X6S_04

C24

1u_6.3V_X6S_04

C176

22u_4V_X6S_06

C131

22u_4V_X6S_06

C622

22u_4V_X6S_06

C2034

1u_6.3V_X6S_04

C155

1u_6.3V_X6S_04

C104

1u_6.3V_X6S_04

C134

1u_6.3V_X6S_04

C158

1u_6.3V_X6S_04

C18

1u_6.3V_X6S_04

C196

1u_6.3V_X6S_04

C184

1u_6.3V_X6S_04

C26

1u_6.3V_X6S_04

C2030

1u_6.3V_X6S_04

Sheet 23 of 74

GPU Decoupling 1

GPU Decoupling 1

B.Schematic Diagrams

B - 24 GPU Decoupling 1

GPU Decoupling 2

1

2

3

4

5

6

7

8

A A

B B

C C

D D

FBVDDQ

Partition A x2 10uF, x6 1uF

Partition B x2 10uF, x6 1uF

Partition C x2 10uF, x6 1uF

PLACE Under GPU

x4 10uF

GPU DECOUPLING

x9 22uF X5R 0805

MID-FREQ CERAMICS

PLACE Near GPU

Total : x24 1uF x8 10uF

GND

1V8_RUN 1V8_AON

GND

FBVDDQ

GND

FBVDDQ

GND

FBVDDQ15,16,17,18,19,20,21,22,28,66

1V8_AON13,14,25,27,28,29,54,55,63,64,66

1V8_RUN14,15,25,28,54

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[24] GPU Decoupling2

A4

24 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[24] GPU Decoupling2

A4

24 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[24] GPU Decoupling2

A4

24 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C29

10u_4V_X6S_06

C48

22u_4V_X6S_06

C63

22u_4V_X6S_06

C68

1u_6.3V_X6S_04

C111

1u_6.3V_X6S_04

C75

22u_4V_X6S_06

C171

1u_6.3V_X6S_04

C273

4.7u_6.3V_X6S_06

C198

1u_6.3V_X6S_04

C276

4.7u_6.3V_X6S_06

C160

1u_6.3V_X6S_04

C228

1u_6.3V_X6S_04

C241

10u_4V_X6S_06

C57

1u_6.3V_X6S_04

C229

0.1u_10V_X7R_04

C224

1u_6.3V_X6S_04

C77

10u_4V_X6S_06

C67

1u_6.3V_X6S_04

C216

1u_6.3V_X6S_04

C30

22u_4V_X6S_06

C102

22u_4V_X6S_06

C232

0.1u_10V_X7R_04

C65

10u_4V_X6S_06

C238

10u_4V_X6S_06

C168

22u_4V_X6S_06

C169

10u_4V_X6S_06

C242

10u_4V_X6S_06

C266

10u_4V_X6S_06

C245

1u_6.3V_X6S_04

C122

1u_6.3V_X6S_04

C71

1u_6.3V_X6S_04

C149

1u_6.3V_X6S_04

C221

1u_6.3V_X6S_04

C62

1u_6.3V_X6S_04

C261

4.7u_6.3V_X6S_06

C226

1u_6.3V_X6S_04

C31

22u_4V_X6S_06

C133

1u_6.3V_X6S_04

C69

1u_6.3V_X6S_04

C126

1u_6.3V_X6S_04

C192

22u_4V_X6S_06

C225

1u_6.3V_X6S_04

C181

10u_4V_X6S_06

C223

0.1u_10V_X7R_04

C277

0.1u_10V_X7R_04

C231

0.1u_10V_X7R_04

C230

0.1u_10V_X7R_04

C234

1u_6.3V_X6S_04

C262

4.7u_6.3V_X6S_06

C235

1u_6.3V_X6S_04

C64

1u_6.3V_X6S_04

C255

22u_4V_X6S_06

C74

1u_6.3V_X6S_04

C214

1u_6.3V_X6S_04

C233

1u_6.3V_X6S_04

C66

1u_6.3V_X6S_04

C240

22u_4V_X6S_06

Sheet 24 of 74

GPU Decoupling 2

Schematic Diagrams

B.Schematic Diagrams

GPU Decoupling 2 B - 25

Schematic Diagrams

1

2

3

4

5

A A

B B

C C

D D

XTAL

6-22-27R00-1BG

MULTI-LEVEL STRAPS

Rf

Re

Rd

Rc

Near to GPU

30ohm ESR 10mohm bead

40mil

GPU under

Strap 5 Strap 4 Strap 3 SMB_ALT_ADDR

000 0 001 0 010 0 011 0 100 0 101 0 110 0 111 0 111 0 00M 1 0M0 1 0M1 1 01M 1 M00 1 M01 1 M10 1

DEVID_SEL PCIE_CFG0VGA_DEVICE

0 0001 01 10 0

0

1 10 1

0

0 11 11 00 00 01 01 10 10 11

1 0 1 0 1 0 1 0 1 0 1 0

1 = HIGH : Tied to 1.8V

0 = Low : Tied to 0V

M = Middle : Tied to 0.9V

1:Enable 0:Disable SOR 0/1/2/3 ENABLE

1= SMB_ALT_ADDR Enable 0= SMB_ALT_ADDR Disable

1= DEVID_SEL Rebrand 0= DEVID_SEL Orignal

1= PCIE_CFG Low Power 0= PCIE_CFG High Power

1= VGA_DEVICE Enable 0= VGA_DEVICE Disable

M11 1 1 11

40mil

20mil

GPU under

GPU near

eDP ID

GSYNC ID

Strap Samsung K4G80325FB-HC25 B-die 0 X 0 4000MHz 256Mx32 Micron MT51J256M32HF-80:A A-die 0 X 1 4000MHz 256Mx32 Hynix H5GQ8H24MJR-R4C M-die 0 X 2 4000MHz 256Mx32

Setting RAM type

default

DG P.73 recommend Pull down resistor 100k

Strap5 eDP = L Gsync= H

6-22-27R00-1BH

1 M 11 (0x000B) M 0 0 12 (0x000C) M 0 1 13 (0x000D) M 1 0 14 (0x000E) M 1 1 15 (0x000F)

1 1 0 6 (0x0006) 1 1 1 7 (0x0007) 0 0 M 8 (0x0008) 0 M 0 9 (0x0009) 0 M 1 10 (0x000A)

0 0 1 1 (0x0001) 0 1 0 2 (0x0002) 0 1 1 3 (0x0003) 1 0 0 4 (0x0004) 1 0 1 5 (0x0005)

Strap 2 Strap 1 Strap 0 RAMCFG[4:0]

0 0 0 0 (0x0000)

M M M 26 (0x001A)

Strap 2 Strap 1 Strap 0 RAMCFG[4:0]

0 0 0 00000 0 1 0 00010 0 1 1 00011 1 1 0 00110 1 1 1 00111

ROM_SO ROM_SI ROM_SCLK SOR_EXPOSED[3:0]

0 0 0 1111 0 0 1 1110 0 1 0 1101 0 1 1 1100 1 0 0 1011 1 0 1 1010 1 1 1 1000 1 1 M 0000

M 0 M 21 (0x0015) M M 0 22 (0x0016) M M 1 23 (0x0017) M 1 M 24 (0x0018) 1 M M 25 (0x0019)

1 0 M 16 (0x0010) 1 M 0 17 (0x0011) 1 M 1 18 (0x0012) 1 1 M 19 (0x0013) 0 M M 20 (0x0014)

0

Zdiff=90ȍ

6GB/8GB

3GB

6GB/8GB

3GB

P950HP3= 111 VRAM=K4G41325FC-HC03 111

P950HP6,P950HR VRAM=K4G80325FB-HC03 000

XTALOUTBUFF

XTALSSIN

GPU_PLLVDD

XTALOUT

XTALIN

GND

GND GND

GND

1V8_RUN

1V8_AON

1V8_RUN

1V8_RUN14,15,24,28,54

VGA_ROM_SCLK27

VGA_ROM_SO27

VGA_ROM_SI27

STRAP027 STRAP127 STRAP227

STRAP327 STRAP427 STRAP527

1V8_AON13,14,24,27,28,29,54,55,63,64,66

GPU_PLLVDD26

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[25] STRAPS and XTAL

A3

25 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[25] STRAPS and XTAL

A3

25 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[25] STRAPS and XTAL

A3

25 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C251

22u_4V_X6S_06

C243

0.1u_10V_X7R_04

R427

100K_04

X1

U83-076_27MHZ

fsx3m

21

34

R429

*100K_04

C247

0.1u_10V_X7R_04

R78 *49.9K_1%_04

R428

100K_04

C170

0.1u_10V_X7R_04

C669

10p_50V_NPO_04

R433

*100K_04

R77 100K_1%_04

C222

0.1u_10V_X7R_04

R424

100K_04

R68 *100K_1%_04

R434

*100K_04

C667

10p_50V_NPO_04

C70

0.1u_10V_X7R_04

R432

*100K_04

R70

10K_1%_04

C252

0.1u_10V_X7R_04

R75 *100K_1%_04

R67 100K_1%_04

C248

0.1u_10V_X7R_04

C264

22u_4V_X6S_06

C268

0.1u_10V_X7R_04

14/23 XTAL/PLL

COMMON

BGA2152

INS143838181

G1S

BL6

XTALIN

BJ6

XTALSSIN

BB24

XS_PLLVDD

AF11

GPCPLL_AVDD1

U42

GPCPLL_AVDD0

BC12

VID_PLLVDD

BD12

SP_PLLVDD

BM6

XTALOUT

BK6

XTALOUTBUFF

R426

100K_04

R69 10K_1%_04

R79

*100K_1%_04

R76 *100K_1%_04

R435

*100K_04

C271

22u_4V_X6S_06

R436

100K_04

R425

100K_04

R66 100K_1%_04

.

L3 HCB1608KF-300T60

R431

*100K_04

C270

4.7u_6.3V_X6S_06

Sheet 25 of 74

Straps and XTAL

B.Schematic Diagrams

B - 26 Straps and XTAL

IFP I/O Interface

1

2

3

4

5

A A

B B

C C

D D

IFP I/O INTERFACE

HDMI

PLACE Near GPU

PLACE AT BALLS

ŉŅŎŊ

ŉŅŎŊŉŅŎŊ

ŉŅŎŊ

40 mil

eDP

DP

ŮŪůŪġġŅőŠŇ

ŮŪůŪġġŅőŠŇŮŪůŪġġŅőŠŇ

ŮŪůŪġġŅőŠŇ

PLACE AT BALLS

PLACE Near GPU PLACE Under GPU

PLACE Under GPU

ŮŪůŪġġŅőŠņ

ŮŪůŪġġŅőŠņŮŪůŪġġŅőŠņ

ŮŪůŪġġŅőŠņ

20 mil

IF_PLLVDD

GND

PEX_VDD

GND

GNDGND

GND

PEX_VDD

GND

PEX_VDD14,55

HDMI_DATA2P 13

HDMI_DATA2N 13

HDMI_DATA0N 13 HDMI_DATA0P 13

HDMI_DATA1N 13 HDMI_DATA1P 13

HDMI_CLOCKN 13 HDMI_CLOCKP 13

HDMI_CTRLCLK 13

HDMI_CTRLDATA 13GPU_PLLVDD25

MDP_E#0 12

MDP_E#1 12 MDP_E1 12

MDP_E0 12

MDP_E#3 12

MDP_E2 12

MDP_E#2 12

MDP_E3 12

MDP_E_AUX_SCL 12

MDP_E_AUX#_SDA 12

MDP_F#0 12

MDP_F#1 12 MDP_F1 12

MDP_F0 12

MDP_F#3 12

MDP_F2 12

MDP_F#2 12

MDP_F3 12

MDP_F_AUX_SCL 12

MDP_F_AUX#_SDA 12

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[26] IFP I/O Interface

Custom

26 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[26] IFP I/O Interface

Custom

26 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[26] IFP I/O Interface

Custom

26 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

SCL

TXC

TXD2

TXD1

TXD0

8/23 IFPC

IFPC

DVI/HDMI

SDA

TXC

DP

COMMON

BGA2152

INS143839533

G1R

BB23

IFP_IOVDD

BB21

IFP_IOVDD

BD18

IFPCD_PLLVDD

BD20

IFPCD_RSET

BE20

IFPC_L0

BF20

IFPC_L0

BH20

IFPC_L1

BG20

IFPC_L1

BG18

IFPC_L2

BF18

IFPC_L2

BE17

IFPC_L3

BF17

IFPC_L3

BK9

IFPC_AUX

BL9

IFPC_AUX

DPDVI/HDMI

SDA

TXD2

TXD1

TXD0 TXD0

SCL

TXC

TXD2

TXD0

TXD1 TXD1

TXD2

SDA SCL

TXC

TXD2

TXD4

SDA SCL

TXC TXC

TXD0 TXD0

TXD1

TXD5

TXD4

TXD3

TXD2

DL-DVI

TXD3

IFPAB

TXD1

7/23 IFPAB

COMMON

BGA2152

INS143839409

G1N

BB20

IFP_IOVDD

BB18

IFP_IOVDD

BB15

IFP_IOVDD

BB17

IFP_IOVDD

BD21

IFPAB_PLLVDD

BD23

IFPAB_RSET

BK21

IFPB_L0

BL21

IFPB_L0

BM21

IFPB_L1

BM20

IFPB_L1

BL20

IFPB_L2

BK20

IFPB_L2

BK18

IFPB_L3

BL18

IFPB_L3

BH12

IFPB_AUX

BG12

IFPB_AUX

BG24

IFPA_L0

BF24

IFPA_L0

BE23

IFPA_L1

BF23

IFPA_L1

BH23

IFPA_L2

BG23

IFPA_L2

BG21

IFPA_L3

BF21

IFPA_L3

BG11

IFPA_AUX

BH11

IFPA_AUX

C2054

4.7u_6.3V_X6S_06

DP

SDA

TXC

SCL

DVI/HDMI

TXD1

TXD0

TXD2 TXD2

6/23 IFPF

IFPF

COMMON

BGA2152

INS143839341

G1O

BC23

IFP_IOVDD

BC21

IFP_IOVDD

BL14

IFPF_L0

BK14

IFPF_L0

BK12

IFPF_L1

BL12

IFPF_L1

BM12

IFPF_L2

BM11

IFPF_L2

BL11

IFPF_L3

BK11

IFPF_L3

BM8

IFPF_AUX

BM9

IFPF_AUX

C213

0.1u_10V_X7R_04

C284

4.7u_6.3V_X6S_06

R440

100K_04

GP106GP104

UNUSEDMIOB

12/23 MIOB

COMMON

BGA2152

INS143839133

G1U

AW9

MIOB_VREF

AV8

MIOBCAL_PU_GND

AV7

MIOBCAL_PD_VDDQ

AT6

MIOB_CLKIN

AW1

MIOB_CLKOUT

AW2

MIOB_DE

BA7

MIOB_VSYNC

AV5

MIOB_HSYNC

BB7

MIOB_CTL3

BB8

MIOBD11

AW7

MIOBD10

BA8

MIOBD9

AW3

MIOBD8

AV3

MIOBD7

AV1

MIOBD6

AV2

MIOBD5

AW6

MIOBD4

AT1

MIOBD3

AT2

MIOBD2

AV6

MIOBD1

AT3

MIOBD0

C191

0.1u_10V_X7R_04

R441

100K_04

11/23 MIOA

COMMON

BGA2152

INS143839247

G1V

AM7

MIOA_VREF

AM6

MIOACAL_PU_GND

AM5

MIOACAL_PD_VDDQ

AM3

MIOA_CLKIN

AN2

MIOA_CLKOUT

AN1

MIOA_DE

AR7

MIOA_VSYNC

AM1

MIOA_HSYNC

AT7

MIOA_CTL3

AR2

MIOAD11

AR3

MIOAD10

AR8

MIOAD9

AN3

MIOAD8

AM8

MIOAD7

AR5

MIOAD6

AR6

MIOAD5

AR1

MIOAD4

AN6

MIOAD3

AN7

MIOAD2

AM2

MIOAD1

AN9

MIOAD0

R43 1K_1%_04

C115

0.1u_10V_X7R_04

C175

1u_6.3V_X5R_04

C182

0.1u_10V_X7R_04

C282

4.7u_6.3V_X6S_06

C2053

4.7u_6.3V_X6S_06

C212

0.1u_10V_X7R_04

R438

100K_04

.

L1

HCB1608KF-300T60

DP

TXD1

DVI/HDMI

SDA SCL

TXD1

TXD0

TXC

TXD2

10/23 IFPE

IFPE

COMMON

BGA2152

INS143838997

G1P

BC20

IFP_IOVDD

BC18

IFP_IOVDD

BD15

IFPEF_PLLVDD

BD17

IFPEF_RSET

BH17

IFPE_L0

BG17

IFPE_L0

BG15

IFPE_L1

BF15

IFPE_L1

BE14

IFPE_L2

BF14

IFPE_L2

BH14

IFPE_L3

BG14

IFPE_L3

BK8

IFPE_AUX

BL8

IFPE_AUX

DP

SDA SCL

DVI/HDMI

TXC

TXD1 TXD1

TXD2 TXD2

TXD0

TXC

9/23 IFPD

IFPD

COMMON

BGA2152

INS143839609

G1Q

BC17

IFP_IOVDD

BC15

IFP_IOVDD

BM18

IFPD_L0

BM17

IFPD_L0

BL17

IFPD_L1

BK17

IFPD_L1

BK15

IFPD_L2

BL15

IFPD_L2

BM15

IFPD_L3

BM14

IFPD_L3

BE11

IFPD_AUX

BF11

IFPD_AUX

R439

100K_04

R46 1K_1%_04

Sheet 26 of 74

IFP I/O Interface

Schematic Diagrams

B.Schematic Diagrams

IFP I/O Interface B - 27

1

2

3

4

5

6

7

8

A A

B B

C C

D D

MISC: GPIO, I2C, and ROM

śɥ śɨ

NV

⺢⺢⺢⺢嬘嬘嬘嬘

FROM HDMI REDRIVER

HDMI

FROM DP REDRIVER FROM DP REDRIVER

DP_E DP_F

VBIOS ROM 1M (OPTIMUS)

DG P.279 Note: GPIO can 3V3 input , and can not drive a 3V3 levelin push-pull mode.

DG P.261 use 2.2k pull-up on both I2C_SDA/SCL

Zdiff=50ȍ

IVGA_ROM_SI

IVGA_ROM_CS#_R

IVGA_ROM_SCLK

VGA_ROM_CS#

VGA_ROM_SI

VGA_ROM_SCLK

VGA_ROM_SO IVGA_ROM_SO_R

VGA_ROM_CS#

VGA_ROM_SO

VGA_ROM_SI

VGA_ROM_SCLK

OVERT#

GPIO6_NVVDD_PSI#

GPIO12_AC_DETECT_R

GPIO5_FRAME_LOCK#

GPIO4_1V8_MAIN_EN

GPIO9_THERM_ALERT#

I2CC_SCL I2CC_SDA

GPIO10_ALT_MEM_VREF GPIO11_PPEN

GPIO1_GC6_FB_EN GPIO2_GPU_EVENT#

OVERT#

SMC_VGA_THERM

SMD_VGA_THERMSMD_VGA_THERM1

SMC_VGA_THERM1

I2CC_SCL I2CC_SDA

JTAG_TRST

GPIO12_AC_DETECT_R

GPIO27_IFPC_HPD_R GPIO18_IFPE_HPD_R GPIO24_IFPF_HPD_R

GPIO9_THERM_ALERT#

SMD_VGA_THERM

SMC_VGA_THERM

OVERT#

GPIO8_MEM_VDD_CTL

GPIO7_BL_PWM_GPU

GPIO21_RASTER_SYNC0

GPIO28_OC_WARN#

GPIO5_FRAME_LOCK#

GPIO11_PPEN

GPIO13_BLEN

GPIO7_BL_PWM_GPU

GPIO9_THERM_ALERT# GPIO10_ALT_MEM_VREF

GPIO6_NVVDD_PSI#

GPIO12_AC_DETECT_R

GPIO3_PS_NVVDDS_VID GPIO4_1V8_MAIN_EN

GPIO8_MEM_VDD_CTL

GPIO16_SYS_PEX_RST_MON#

GPIO23_GPU_PEX_RST_HOLD#

GPIO17_IFPD_HPD_R

GPIO18_IFPE_HPD_R

GPIO21_RASTER_SYNC0

GPIO27_IFPC_HPD_R

GPIO24_IFPF_HPD_R

GPU_PEX_RST#

GPIO5_FRAME_LOCK#

GPIO23_GPU_PEX_RST_HOLD#

GPU_PEX_RST#

GPIO16_SYS_PEX_RST_MON#

SMC_VGA_THERM1 SMD_VGA_THERM1

1V8_AON

NV3V3

1V8_AON

NV3V3

GND

1V8_AON

1V8_AON 1V8_AON

GND

VDD3

1V8_AON

NV3V3 1V8_AON

1V8_AON

3.3V

PLVDD

STRAP025 STRAP125 STRAP225 STRAP325 STRAP425 STRAP525

VDD35,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

3.3V2,11,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58

1V8_AON13,14,24,25,28,29,54,55,63,64,66

VGA_ROM_SO 25 VGA_ROM_SCLK 25

VGA_ROM_SI 25

GPIO0_NVVDD_PWM_VID 64

GC6_FB_EN 29

GPU_EVENT# 34

SMC_VGA_THERM 39,40

SMD_VGA_THERM 39,40

I2CC_SDA 55

I2CC_SCL 55

AC/BATL#62

VBATT_BOOST#39

HDMI_HPD 13,34

G_DP_DHPD_E 12,34 G_DP_DHPD_F 12,34

NV3V312,13,14,54,55,63,64

OVERT#29

GPIO8_MEM_VDD_CTL 66

GPIO28_OC_WARN# 55

GPIO10_ALT_MEM_VREF 16,17,20,21

GPIO6_NVVDD_PSI# 63,64

GPIO4_1V8_MAIN_EN 29

GPIO3_PS_NVVDDS_VID 63

GPIO29_NVVDD_PH1 64

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44, 48,49,50,51,52,59

d_GPIO9_ALERT_FAN 39

dGPU_GPIO8_OVERT 39

PLVDD11

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[27] Misc-GPIO_I2C_ROM

Custom

27 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[27] Misc-GPIO_I2C_ROM

Custom

27 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[27] Misc-GPIO_I2C_ROM

Custom

27 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C281 *220p_50V_NPO_04

R452 33_04

R87 4.7K_04

R64 2.2K_04

C279 470p_50V_X7R_04

R430 10K _04

R445 10K_04 Q35 BTN3904

M-SOT23-CBE

B

E C

R97 10K_04

C287 *220p_50V_NPO_04

R86 *10K_04

R81 100K _04

R74 10K_04 R90 10K_04

R422 10K _04

C278 470p_50V_X7R_04

R437 0_04

R419

10K_04

R423 100K_04 R59 10K _04

R100 100K_04

R83 10K_04

D34 RB 751V-40(lision)

A C

S

D

G

Q5A MTDK3S6R

2

61

R96 100K_04

C680

0.1u_16V_Y5V_04

R84 *0_04

R95 100K_04

R92 2.2K_04

R91 100K_04

R73 0_04

R442 10K_04

R89 10K_04

C280 220p_50V_NPO_04

R65 *0_04

C286 220p_50V_NPO_04

R418 100K_04

R420 10K _04

S

D

G

Q4A MTDK3S6R

2

61

R85 10K_04

C2018 20p_50V_NPO_04

C674 *220p_50V_NPO_04

R71 2K_04

C275 0.1u_16V_X7R_04

R88 4.7K_04

R82 2K_04

R94 100K_04

R464

10K_04

C2019 *5p_50V_NPO_04

R72 2.2K_04

R450 0_04

S

D

G

Q5B

MTDK3S6R

5

34

R60 *10K_04

R695 10K _04

R421

10K_04

Q33 BTN3904

M-SOT23-CBE

B

E C

INS143840720 SO8

U27

SO8 COMMON

W25Q40EW 1.8V

6-04-02540-A71

1

CS

2

SO

3

WP

4

GND

5

SI

6

SCK

7

HOLD8VCC

C672 220p_50V_NPO_04

R62 100K_04

R444 100K_04

R93 2.2K_04

R451 33_04

R447 100K_04

S

D

G

Q4B MTDK3S6R

5

34

Q34 BTN3904

M-SOT23-CBE

B

E C

R40

10K_04

R449 33_04

R37 10K_04

U1

SN74LV1T32DCKR

4

53

1

2

13/23 MISC 1

COMMON

BGA2152

INS143840863

G1W

BK23

NVJTAG_SEL

BL24

JTAG_TRST

BM24

JTAG_TDO

BM23

JTAG_TDI

BL23

JTAG_TMS

BK24

JTAG_TCK

BJ2

THERMDP

BJ1

THERMDN

BF12

TS_VREF

BG5

OVERT

BA1

GPIO32_RFU

BA2

GPIO31_RFU

BB3

GPIO30

BA3

GPIO29

BB4

GPIO28

BA4

GPIO27

BE7

GPIO26

BB2

GPIO25

BD5

GPIO24

BG3

GPIO23

BB6

GPIO22

BA5

GPIO21

BE5

GPIO20

BD4

GPIO19

BE3

GPIO18

BH1

GPIO17

BE2

GPIO16

BG1

GPIO15

BG4

GPIO14

BB1

GPIO13

BE6

GPIO12

BH3

GPIO11

BD3

GPIO10

BJ3

GPIO9

BH4

GPIO8

BD7

GPIO7

BD2

GPIO6

BG2

GPIO5

BE1

GPIO4

BE4

GPIO3

BD1

GPIO2

BB5

GPIO1

BD6

GPIO0

BF8

I2CB_SDA

BG8

I2CB_SCL

BH9

I2CC_SDA

BG9

I2CC_SCL

BH8

I2CS_SDA

BJ8

I2CS_SCL

15/23 MISC 2

COMMON

BGA2152

INS143841243

G1T

BJ5

STRAP5

BK5

STRAP4

BM5

STRAP3

BM4

STRAP2

BL4

STRAP1

BL3

STRAP0

BF9

BUFRST

BK3

ROM_SCLK

BK4

ROM_SO

BK2

ROM_SI

BJ4

ROM_CS

Sheet 27 of 74

Misc - GPIO, I2C

and ROM

Schematic Diagrams

Misc - GPIO, I2C and ROM

B.Schematic Diagrams

B - 28 Misc - GPIO, I2C and ROM

GPU NVVDD, FBVDDQ

1

2

3

4

5

6

7

8

A A

B B

C C

D D

GPU NVVDD, FBVDDQ

PLACE NEAR G1 PIN E52

PLACE WEST EDGE OF FBD

50A 50A

24A 24A

2A

3A

25A

FB_CAL_PD_VDDQ

FB_CAL_PU_GND

FB_CAL_TERM_GND

FB_VREF_PROBE

FBVDDQ_SENSE_R49

FBVDDQ FBVDDQ

GND

FBVDDQ

NVVDD

NVVDDNVVDD

NVVDDS NVVDDS

1V8_RUN

1V8_AON

FBVDDQ

GPU_NVDDS_SENSE 63,64 GPU_GNDS_SENSE 63,64

FBVDDQ_SENSE 55,66

FBVDDQ_SENSE_RTN 55,66

1V8_AON13,14,24,25,27,29,54,55,63,64,66

FBVDDQ15,16,17,18,19,20,21,22,24,66

NVVDD23,64,65

1V8_RUN14,15,24,25,54

NVVDDS23,63,65

GPU_GND_SENSE 55,64

GPU_NVVDD_SENSE 55,64

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[28] GPU NVVDD, FBVDDQ

A3

28 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[28] GPU NVVDD, FBVDDQ

A3

28 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[28] GPU NVVDD, FBVDDQ

A3

28 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

19/23 VDD_2/2

COMMON

BGA2152

INS143844634

G1G

BB39

VDD

BB38

VDD

BA47

VDD

BA46

VDD

BA45

VDD

BA44

VDD

BA43

VDD

AY45

VDD

AY43

VDD

AY39

VDD

AY35

VDD

AY31

VDD

AY27

VDD

AY26

VDD

AY22

VDD

AY18

VDD

AY14

VDD

AW45

VDD

AW44

VDD

AW43

VDD

AW42

VDD

AW40

VDD

AW13

VDD

AV44

VDD

AV43

VDD

AV42

VDD

AV34

VDD

AV33

VDD

AV32

VDD

AV31

VDD

AV30

VDD

AV23

VDD

AV22

VDD

AV21

VDD

AV20

VDD

AV19

VDD

AU43

VDD

AT42

VDD

AT39

VDD

AT38

VDD

AT37

VDD

AT36

VDD

AT35

VDD

AT34

VDD

AT33

VDD

AT32

VDD

AT31

VDD

AT30

VDD

AT29

VDD

AT28

VDD

AT27

VDD

AT26

VDD

AT25

VDD

AT24

VDD

AT23

VDD

AT22

VDD

AT21

VDD

AT20

VDD

AT19

VDD

AT18

VDD

AT17

VDD

AT16

VDD

AT15

VDD

AT14

VDD

AR40

VDD

AR13

VDD

AP34

VDD

AP33

VDD

AP32

VDD

AP31

VDD

AP30

VDD

AP23

VDD

AP22

VDD

AP21

VDD

BL45

GND_SENSE

BK45

NVVDD_SENSE

W34

VDD

W33

VDD

W32

VDD

W31

VDD

W30

VDD

W23

VDD

W22

VDD

W21

VDD

W20

VDD

W19

VDD

V40

VDD

V13

VDD

U39

VDD

U38

VDD

U37

VDD

U36

VDD

U35

VDD

U34

VDD

U33

VDD

U32

VDD

U31

VDD

U30

VDD

U29

VDD

U28

VDD

U27

VDD

U26

VDD

U25

VDD

U24

VDD

U23

VDD

U22

VDD

U21

VDD

U20

VDD

U19

VDD

U18

VDD

U17

VDD

U16

VDD

BG44

VDD

BG43

VDD

BF51

VDD

BF49

VDD

BF47

VDD

BF45

VDD

BF44

VDD

BF42

VDD

BE52

VDD

BE51

VDD

BE50

VDD

BE49

VDD

BE48

VDD

BE47

VDD

BE46

VDD

BE43

VDD

BE42

VDD

BE41

VDD

BD51

VDD

BD50

VDD

BD49

VDD

BD48

VDD

BD47

VDD

BD46

VDD

BD41

VDD

BD39

VDD

BC49

VDD

BC47

VDD

BC45

VDD

BC41

VDD

BC40

VDD

BC39

VDD

BC38

VDD

BB48

VDD

BB47

VDD

BB46

VDD

BB45

VDD

20/23 FBVDDQ

COMMON

BGA2152

INS143844146

G1H

Y43

FBVDDQ

Y42

FBVDDQ

Y11

FBVDDQ

Y10

FBVDDQ

V43

FBVDDQ

V42

FBVDDQ

V10

FBVDDQ

U43

FBVDDQ

U11

FBVDDQ

U10

FBVDDQ

R43

FBVDDQ

R42

FBVDDQ

AR43

FBVDDQ

AR42

FBVDDQ

AN43

FBVDDQ

AM43

FBVDDQ

AM42

FBVDDQ

AK43

FBVDDQ

AK42

FBVDDQ

AK11

FBVDDQ

AK10

FBVDDQ

AJ43

FBVDDQ

AJ42

FBVDDQ

AJ11

FBVDDQ

AJ10

FBVDDQ

AG43

FBVDDQ

AG42

FBVDDQ

AG11

FBVDDQ

AG10

FBVDDQ

AF43

FBVDDQ

AF10

FBVDDQ

AD43

FBVDDQ

AD42

FBVDDQ

AD11

FBVDDQ

AD10

FBVDDQ

AC43

FBVDDQ

AC42

FBVDDQ

AC11

FBVDDQ

AC10

FBVDDQ

AA43

FBVDDQ

AA42

FBVDDQ

AA11

FBVDDQ

AA10

FBVDDQ

R45

FB_CALTERM_GND

P44

FB_CAL_PU_GND

R44

FB_CAL_PD_VDDQ

P45

FB_VREF

E52

FBVDDQ_SENSE

R11

FBVDDQ

R10

FBVDDQ

P43

FBVDDQ

P42

FBVDDQ

P11

FBVDDQ

P10

FBVDDQ

M43

FBVDDQ

M10

FBVDDQ

L39

FBVDDQ

L36

FBVDDQ

L35

FBVDDQ

L33

FBVDDQ

L32

FBVDDQ

L30

FBVDDQ

L27

FBVDDQ

L26

FBVDDQ

L24

FBVDDQ

L23

FBVDDQ

L21

FBVDDQ

L20

FBVDDQ

L18

FBVDDQ

L15

FBVDDQ

L14

FBVDDQ

K41

FBVDDQ

K39

FBVDDQ

K38

FBVDDQ

K36

FBVDDQ

K35

FBVDDQ

K33

FBVDDQ

K32

FBVDDQ

K30

FBVDDQ

K29

FBVDDQ

K27

FBVDDQ

K26

FBVDDQ

K24

FBVDDQ

K23

FBVDDQ

K21

FBVDDQ

K20

FBVDDQ

K18

FBVDDQ

K17

FBVDDQ

K15

FBVDDQ

K14

FBVDDQ

K12

FBVDDQ

AT43

FBVDDQ

23/23 VDDS

COMMON

BGA2152

INS143846124

G1J

W39

VDDS

W38

VDDS

W37

VDDS

W36

VDDS

W35

VDDS

W29

VDDS

W28

VDDS

W27

VDDS

W26

VDDS

W25

VDDS

W24

VDDS

W18

VDDS

W17

VDDS

W16

VDDS

W15

VDDS

W14

VDDS

R39

VDDS

R38

VDDS

R37

VDDS

R36

VDDS

R35

VDDS

R29

VDDS

R28

VDDS

R27

VDDS

R26

VDDS

R25

VDDS

R24

VDDS

R18

VDDS

R17

VDDS

R16

VDDS

R15

VDDS

R14

VDDS

AV39

VDDS

AV38

VDDS

AV37

VDDS

AV36

VDDS

AV35

VDDS

AV29

VDDS

AV28

VDDS

AV27

VDDS

AV26

VDDS

AV25

VDDS

AV24

VDDS

AV18

VDDS

AV17

VDDS

AV16

VDDS

AV15

VDDS

AV14

VDDS

AP39

VDDS

AP38

VDDS

AP37

VDDS

AP36

VDDS

AP35

VDDS

AP29

VDDS

AP28

VDDS

AP27

VDDS

BM44

GNDS_SENSE

BM45

VDDS_SENSE

AP26

VDDS

AP25

VDDS

AP24

VDDS

AP18

VDDS

AP17

VDDS

AP16

VDDS

AP15

VDDS

AP14

VDDS

AK39

VDDS

AK38

VDDS

AK37

VDDS

AK36

VDDS

AK35

VDDS

AK29

VDDS

AK28

VDDS

AK27

VDDS

AK26

VDDS

AK25

VDDS

AK24

VDDS

AK18

VDDS

AK17

VDDS

AK16

VDDS

AK15

VDDS

AK14

VDDS

AG39

VDDS

AG38

VDDS

AG37

VDDS

AG36

VDDS

AG35

VDDS

AG29

VDDS

AG28

VDDS

AG27

VDDS

AF26

VDDS

AF25

VDDS

AF24

VDDS

AF18

VDDS

AF17

VDDS

AF16

VDDS

AF15

VDDS

AF14

VDDS

AC39

VDDS

AC38

VDDS

AC37

VDDS

AC36

VDDS

AC35

VDDS

AC29

VDDS

AC28

VDDS

AC27

VDDS

AC26

VDDS

AC25

VDDS

AC24

VDDS

AC18

VDDS

AC17

VDDS

AC16

VDDS

AC15

VDDS

AC14

VDDS

R17 2.2_04

18/21 VDD_1/2

G1F

INS143845240 BGA2152 COMMON

BK51

VDD

BK50

VDD

BK49

VDD

BK48

VDD

BK47

VDD

BJ52

VDD

BJ51

VDD

BJ50

VDD

BJ49

VDD

BJ48

VDD

BJ47

VDD

BJ46

VDD

BJ45

VDD

BJ44

VDD

BH52

VDD

BH51

VDD

BH50

VDD

BH49

VDD

BH48

VDD

BH47

VDD

BH45

VDD

BH44

VDD

BG52

VDD

BG51

VDD

BG50

VDD

BG49

VDD

BG48

VDD

BG47

VDD

BG46

VDD

BG45

VDD

AG21

VDD

AG20

VDD

AG19

VDD

AG13

VDD

AF40

VDD

AF34

VDD

AF33

VDD

AF32

VDD

AF31

VDD

AF30

VDD

AF13

VDD

AE39

VDD

AE38

VDD

AE37

VDD

AE36

VDD

AE35

VDD

AE34

VDD

AE33

VDD

AE32

VDD

AE31

VDD

AE30

VDD

AE29

VDD

AE28

VDD

AE27

VDD

AE26

VDD

AE25

VDD

AE24

VDD

AE23

VDD

AE22

VDD

AE21

VDD

AE20

VDD

AE19

VDD

AE18

VDD

AE17

VDD

AE16

VDD

AE15

VDD

AE14

VDD

AC34

VDD

AC33

VDD

AC32

VDD

AC31

VDD

AC30

VDD

AC23

VDD

AC22

VDD

AC21

VDD

AC20

VDD

AC19

VDD

AB40

VDD

AB13

VDD

AA39

VDD

AA38

VDD

AA37

VDD

AA36

VDD

AA35

VDD

AA34

VDD

AA33

VDD

AA32

VDD

AA31

VDD

AA30

VDD

AA29

VDD

AA28

VDD

AA27

VDD

AA26

VDD

AA25

VDD

AA24

VDD

AA23

VDD

AA22

VDD

AA21

VDD

AA20

VDD

AA19

VDD

AA18

VDD

AA17

VDD

AA16

VDD

AA15

VDD

AA14

VDD

U15

VDD

U14

VDD

R34

VDD

R33

VDD

R32

VDD

R31

VDD

R30

VDD

R23

VDD

R22

VDD

R21

VDD

R20

VDD

R19

VDD

P40

VDD

P13

VDD

N39

VDD

N35

VDD

N31

VDD

N27

VDD

N26

VDD

N22

VDD

N18

VDD

N14

VDD

BM51

VDD

BM50

VDD

BM49

VDD

BM48

VDD

BM47

VDD

BL52

VDD

BL51

VDD

BL50

VDD

BL49

VDD

BL48

VDD

BL47

VDD

BL46

VDD

BK52

VDD

AP20

VDD

AP19

VDD

AM39

VDD

AM38

VDD

AM37

VDD

AM36

VDD

AM35

VDD

AM34

VDD

AM33

VDD

AM32

VDD

AM31

VDD

AM30

VDD

AM29

VDD

AM28

VDD

AM27

VDD

AM26

VDD

AM25

VDD

AM24

VDD

AM23

VDD

AM22

VDD

AM21

VDD

AM20

VDD

AM19

VDD

AM18

VDD

AM17

VDD

AM16

VDD

AM15

VDD

AM14

VDD

AL40

VDD

AL13

VDD

AK34

VDD

AK33

VDD

AK32

VDD

AK31

VDD

AK30

VDD

AK23

VDD

AK22

VDD

AK21

VDD

AK20

VDD

AK19

VDD

AH39

VDD

AH38

VDD

AH37

VDD

AH36

VDD

AH35

VDD

AH34

VDD

AH33

VDD

AH32

VDD

AH31

VDD

AH30

VDD

AH29

VDD

AH28

VDD

AH27

VDD

AH26

VDD

AH25

VDD

AH24

VDD

AH23

VDD

AH22

VDD

AH21

VDD

AH20

VDD

AH19

VDD

AH18

VDD

AH17

VDD

AH16

VDD

AH15

VDD

AH14

VDD

AG40

VDD

AG23

VDD

AG22

VDD

R23 60.4_1%_04

R18 *2.2_04

21/23 NC/1V8

COMMON

BGA2152

INS143844524

G1I

BK44

NC

BJ9

NC

BJ11

NC

BH6

NC

BG6

NC

BE12

NC

BD14

NC

BA9

NC

BA6

NC

AT9

NC

AW11

VDD18

AW10

VDD18

AV11

VDD18

AV10

VDD18

AT11

VDD18

AT10

VDD18

AR11

VDD18

AR10

VDD18

AN11

VDD18

AN10

VDD18

AM11

VDD18

AM10

VDD18

BC14

1V8_AON

BB14

1V8_AON

BA10

1V8_AON

R16 *2.2_04

R28 40.2_1%_04

R24 40.2_1%_04

Sheet 28 of 74

GPU NVVDD,

FBVDDQ

Schematic Diagrams

B.Schematic Diagrams

GPU NVVDD, FBVDDQ B - 29

Sheet 29 of 74

GPU GND &

Sequence

Schematic Diagrams

1

2

3

4

5

6

7

8

A A

B B

C C

D D

GPU GND

DEFAULT HW POWER SEQUENCE

HW POWER DOWN SEQUENCE

NVIDIA GPIO LEVEL SHIFT

NVVDDS_PWRGD

GC6_FB_EN_PCH

DGPU_RST#_PCH

DGPU_PWR_EN

DGPU_PEX_RST#

GND GND GNDGND

GND

3.3V

1V8_AON

NV_NVVDDS_EN 63

NV_PEXVDD_EN 55

NV_FBVDDQ_EN 66

GPIO4_1V8_MAIN_EN 27

DGPU_PWR_EN 34,39

NV_3V3_EN 54

NV_1V8RUN_EN 54

NV_1V8AON_EN 54

NV_EN_DOWN39

NVVDDS_PWRGD63

GC6_FB_EN27

GC6_FB_EN_PCH34,39

OVERT#27

1V8_AON_PWRGD54

DGPU_PEX_RST#14

PLT_RST#30,34

DGPU_RST#_PCH34

NVVDD_PWRGD14,64

NV3V312,13,14,27,54,55,63,64

3.3V2,11,27,42,43,44,45,46,47,49,50, 52,53,54,55,57,58

1V8_AON13,14,24,25,27,28,54,55,63,64,66

1V8_RUN14,15,24,25,28,54

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

NV_NVVDD_EN 64

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[29] GPU GND & SEQUENCE

Custom

29 74Friday, J une 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[29] GPU GND & SEQUENCE

Custom

29 74Friday, J une 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[29] GPU GND & SEQUENCE

Custom

29 74Friday, J une 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R223 *100K_04

R112 10K_04

D3 RB751V-40(lision)

AC

16/23 GND_1/3

COMMON

BGA2152

INS143849308

G1K

AH51

GND

AH49

GND

AH47

GND

AH45

GND

AH43

GND

AH4

GND

AH2

GND

AH10

GND

AG44

GND

AG34

GND

AG33

GND

AG32

GND

AG31

GND

AG30

GND

AG3

GND

AG26

GND

AG25

GND

AG24

GND

AG18

GND

AG17

GND

AG16

GND

AG15

GND

AG14

GND

AF5

GND

AF45

GND

AF39

GND

AF38

GND

AF37

GND

AF36

GND

AF35

GND

AF29

GND

AF28

GND

AF27

GND

AF23

GND

AF22

GND

AF21

GND

AF20

GND

AF19

GND

AF1

GND

AE8

GND

AE6

GND

AE51

GND

AE49

GND

AE47

GND

AE45

GND

AE43

GND

AE4

GND

AE2

GND

AE10

GND

AD44

GND

AD39

GND

AD38

GND

AD37

GND

AD36

GND

AD35

GND

AD34

GND

AD33

GND

AD32

GND

AD31

GND

AD30

GND

AD29

GND

AD28

GND

AD27

GND

AD26

GND

AD25

GND

AD24

GND

AD23

GND

AD22

GND

AD21

GND

AD20

GND

AD19

GND

AD18

GND

AD17

GND

AD16

GND

AD15

GND

AD14

GND

AB8

GND

AB6

GND

AB51

GND

AB49

GND

AB47

GND

AB45

GND

AB43

GND

AB4

GND

AB39

GND

AB38

GND

AB37

GND

AB36

GND

AB35

GND

AB34

GND

AB33

GND

AB32

GND

AB31

GND

AB30

GND

AB29

GND

AB28

GND

AB27

GND

AB26

GND

AB25

GND

AB24

GND

AB23

GND

AB22

GND

AB21

GND

AB20

GND

AB2

GND

AB19

GND

AB18

GND

AB17

GND

AB16

GND

AB15

GND

AB14

GND

AB10

GND

AA8

GND

AA49

GND

A51

GND

A50

GND

A32

GND

A3

GND

A29

GND

A26

GND

A2

GND

BC24

GND

BD24

GND

BL37

GND

AR19

GND

AR18

GND

AR17

GND

AR16

GND

AR15

GND

AR14

GND

AP8

GND

AP6

GND

AP51

GND

AP49

GND

AP47

GND

AP45

GND

AP43

GND

AP4

GND

AP2

GND

AP10

GND

AN8

GND

AN5

GND

AN4

GND

AN39

GND

AN38

GND

AN37

GND

AN36

GND

AN35

GND

AN34

GND

AN33

GND

AN32

GND

AN31

GND

AN30

GND

AN29

GND

AN28

GND

AN27

GND

AN26

GND

AN25

GND

AN24

GND

AN23

GND

AN22

GND

AN21

GND

AN20

GND

AN19

GND

AN18

GND

AN17

GND

AN16

GND

AN15

GND

AN14

GND

AM9

GND

AM4

GND

AL8

GND

AL6

GND

AL51

GND

AL49

GND

AL47

GND

AL45

GND

AL43

GND

AL4

GND

AL39

GND

AL38

GND

AL37

GND

AL36

GND

AL35

GND

AL34

GND

AL33

GND

AL32

GND

AL31

GND

AL30

GND

AL29

GND

AL28

GND

AL27

GND

AL26

GND

AL25

GND

AL24

GND

AL23

GND

AL22

GND

AL21

GND

AL20

GND

AL2

GND

AL19

GND

AL18

GND

AL17

GND

AL16

GND

AL15

GND

AL14

GND

AL10

GND

AK47

GND

AK44

GND

AK1

GND

AJ9

GND

AJ39

GND

AJ38

GND

AJ37

GND

AJ36

GND

AJ35

GND

AJ34

GND

AJ33

GND

AJ32

GND

AJ31

GND

AJ30

GND

AJ29

GND

AJ28

GND

AJ27

GND

AJ26

GND

AJ25

GND

AJ24

GND

AJ23

GND

AJ22

GND

AJ21

GND

AJ20

GND

AJ2

GND

AJ19

GND

AJ18

GND

AJ17

GND

AJ16

GND

AJ15

GND

AJ14

GND

AH8

GND

AH6

GND

22/23 GND_3/3

COMMON

BGA2152

INS143850278

G1M

BL40

GND

N51

GND

N49

GND

N47

GND

N45

GND

N43

GND

N4

GND

N2

GND

N10

GND

M6

GND

M52

GND

K8

GND

K6

GND

K51

GND

K49

GND

K47

GND

K45

GND

K40

GND

K4

GND

K37

GND

K34

GND

K31

GND

K28

GND

K25

GND

K22

GND

K2

GND

K19

GND

K16

GND

K13

GND

J52

GND

J49

GND

J38

GND

J20

GND

J17

GND

J12

GND

J1

GND

H43

GND

H40

GND

H37

GND

H34

GND

H31

GND

H28

GND

H25

GND

H22

GND

H19

GND

H16

GND

H13

GND

H10

GND

H1

GND

G6

GND

G51

GND

G49

GND

G47

GND

G4

GND

G38

GND

G2

GND

F7

GND

F52

GND

F46

GND

F44

GND

F43

GND

F40

GND

F37

GND

F35

GND

F34

GND

F31

GND

F28

GND

F25

GND

F22

GND

F21

GND

F19

GND

F17

GND

F16

GND

F13

GND

F10

GND

E8

GND

E51

GND

E5

GND

E48

GND

E4

GND

E2

GND

D7

GND

D49

GND

D46

GND

D43

GND

D40

GND

D4

GND

D37

GND

D34

GND

D31

GND

D30

GND

D28

GND

D25

GND

D24

GND

D22

GND

D19

GND

D16

GND

D13

GND

D12

GND

D10

GND

C52

GND

C51

GND

C5

GND

C33

GND

C29

GND

C1

GND

BM3

GND

BM2

GND

BL7

GND

BL5

GND

BL43

GND

W45

GND

W43

GND

W4

GND

W2

GND

W10

GND

V52

GND

V49

GND

V39

GND

V38

GND

V37

GND

V36

GND

V35

GND

V34

GND

V33

GND

V32

GND

V31

GND

V30

GND

V29

GND

V28

GND

V27

GND

V26

GND

V25

GND

V24

GND

V23

GND

V22

GND

V21

GND

V20

GND

V19

GND

V18

GND

V17

GND

V16

GND

V15

GND

V14

GND

U9

GND

U7

GND

T8

GND

T6

GND

T51

GND

T49

GND

T47

GND

T45

GND

T43

GND

T4

GND

T39

GND

T38

GND

T37

GND

T36

GND

T35

GND

T34

GND

T33

GND

T32

GND

T31

GND

T30

GND

T29

GND

T28

GND

T27

GND

T26

GND

T25

GND

T24

GND

T23

GND

T22

GND

T21

GND

T20

GND

T2

GND

T19

GND

T18

GND

T17

GND

T16

GND

T15

GND

T14

GND

T10

GND

R52

GND

R49

GND

P51

GND

P39

GND

P38

GND

P37

GND

P36

GND

P35

GND

P34

GND

P33

GND

P32

GND

P31

GND

P30

GND

P29

GND

P28

GND

P27

GND

P26

GND

P25

GND

P24

GND

P23

GND

P22

GND

P21

GND

P20

GND

P19

GND

P18

GND

P17

GND

P16

GND

P15

GND

P14

GND

N8

GND

N6

GND

R552 10K_04

17/23 GND_2/3

COMMON

BGA2152

INS143851140

G1L

B48

GND

B46

GND

B43

GND

B40

GND

B37

GND

B34

GND

B31

GND

B28

GND

B25

GND

B22

GND

B2

GND

B19

GND

B16

GND

B13

GND

B10

GND

B1

GND

AY8

GND

AY6

GND

AY51

GND

AY49

GND

AY47

GND

AY4

GND

AY2

GND

AY10

GND

AW8

GND

AW52

GND

AW5

GND

AW46

GND

AW4

GND

AW39

GND

AW38

GND

AW37

GND

AW36

GND

AW35

GND

AW34

GND

AW33

GND

AW32

GND

AW31

GND

AW30

GND

AW29

GND

AW28

GND

AW27

GND

AW26

GND

AW25

GND

AW24

GND

AW23

GND

AW22

GND

AW21

GND

AW20

GND

AW19

GND

AW18

GND

AW17

GND

AW16

GND

AW15

GND

AW14

GND

AV9

GND

AV45

GND

AV4

GND

AU8

GND

AU6

GND

AU51

GND

AU49

GND

AU47

GND

AU45

GND

AU4

GND

AU39

GND

AU38

GND

AU37

GND

AU36

GND

AU35

GND

AU34

GND

AU33

GND

AU32

GND

AU31

GND

AU30

GND

AU29

GND

AU28

GND

AU27

GND

AU26

GND

AU25

GND

AU24

GND

AU23

GND

AU22

GND

AU21

GND

AU20

GND

AU2

GND

AU19

GND

AU18

GND

AU17

GND

AU16

GND

AU15

GND

AU14

GND

AU10

GND

AT8

GND

AT52

GND

AT51

GND

AT5

GND

AT4

GND

AR9

GND

AR52

GND

AR4

GND

AR39

GND

AR38

GND

AR37

GND

AR36

GND

AR35

GND

AR34

GND

AR33

GND

AR32

GND

AR31

GND

AR30

GND

AR29

GND

AR28

GND

AR27

GND

AR26

GND

AR25

GND

AR24

GND

AR23

GND

AR22

GND

AR21

GND

AR20

GND

B51

GND

B5

GND

BL34

GND

BL31

GND

BL28

GND

BL25

GND

BL22

GND

BL2

GND

BL19

GND

BL16

GND

BL13

GND

BL10

GND

BL1

GND

BK1

GND

BJ7

GND

BJ43

GND

BJ42

GND

BJ41

GND

BJ40

GND

BJ39

GND

BJ38

GND

BJ37

GND

BJ36

GND

BJ35

GND

BJ34

GND

BJ33

GND

BJ32

GND

BJ31

GND

BJ30

GND

BJ29

GND

BJ28

GND

BJ27

GND

BJ26

GND

BJ25

GND

BJ24

GND

BJ23

GND

BJ22

GND

BJ21

GND

BJ20

GND

BJ19

GND

BJ18

GND

BJ17

GND

BJ16

GND

BJ15

GND

BJ14

GND

BJ13

GND

BJ12

GND

BJ10

GND

BH5

GND

BH42

GND

BH39

GND

BH36

GND

BH33

GND

BH30

GND

BH27

GND

BH24

GND

BH21

GND

BH2

GND

BH18

GND

BH15

GND

BG7

GND

BG42

GND

BG40

GND

BG37

GND

BG34

GND

BG31

GND

BG28

GND

BG25

GND

BG22

GND

BG19

GND

BG16

GND

BG13

GND

BG10

GND

BF6

GND

BF41

GND

BF4

GND

BF2

GND

BE40

GND

BE39

GND

BE37

GND

BE36

GND

BE34

GND

BE33

GND

BE31

GND

BE30

GND

BE28

GND

BE27

GND

BE25

GND

BE24

GND

BE22

GND

BE21

GND

BE19

GND

BE18

GND

BE16

GND

BE15

GND

BE13

GND

BE10

GND

BD52

GND

BD38

GND

BD35

GND

BD32

GND

BD29

GND

BD26

GND

BC8

GND

BC6

GND

BC51

GND

BC4

GND

BC37

GND

BC34

GND

BC31

GND

BC28

GND

BC25

GND

BC22

GND

BC2

GND

BC19

GND

BC16

GND

BC13

GND

BB49

GND

BA48

GND

B7

GND

B52

GND

R111 10K_04

U2

SLG4U41681

VDD

1

VIN_DOWN

2

OVERT#

3

SUSB#

4

NVVDDS_PWRGD

5

GC6_FB_EN

6

GC6_FB_EN_PCH

7

PLT_RST#

8

dGPU_RST#_PCH

9

GPU_PEX_RST#

10

FBVDDQ_EN

20

PEX_VDD_EN

19

NVVDDS_EN

18

NVVDD_EN

17

3V3_SYS_EN

16

1V8_MAIN_EN

15

1V8_AON_EN

14

GPIO4_1V8_MAIN_EN

13

dGPU_PWR_EN

12

GND

11

GPU GND & Sequence

B.Schematic Diagrams

B - 30 GPU GND & Sequence

Sheet 30 of 74

PCH 1/9

5

4

3

2

1

D D

C C

B B

A A

RTC Wake UP

BIOS + ME ROM 8MB

BOOT HALT ENABLE:LOW (INTERNAL WEAK PD)

CONSENT STRAP ENABLE:LOW (INTERNAL WEAK PU)

JTAG ODT DISABLE:LOW (INTERNAL WEAK PU)

PESONALITY STRAP ENABLE:LOW (INTERNAL WEAK PU)

ESPI FLASH SHARING MODE MASTER ATTACHED FLASH SHARING:LOW SLAVE ATTACEHD FLASH SHARING:HIGH (INTERNAL WEAK PD)

GPP_G_14_GSXDIN: DMI AC COUPLING FULL VOLTAGE MODE WHEN SAMPLED LOW

SPI_* = 1"~6.5"

NEW

64M GD:6-04-02564-A75 MXIC:6-04-25647-490 WINBOND: 6-04-02564-470

SPI_SI_M

SPI_SO_M

SPI_SCLK_M

HSPI_MSI

HSPI_MSO

HSPI_SCLK

HSPI_CE#

HSPI_MSO

HSPI_SCLK

SPI_WP# SPI_CS0#

SPI_HOLD#

HSPI_MSI

SPI_IO2

HSPI_MSO

SPI_IO3

GPP_H_12

SML2DATA SML2CLK

GPP_G_14_GSXDIN

TBCIO_PLUG_EVENT

EXTTS_SNI_DRV0_PCH

EXTTS_SNI_DRV1_PCH

BT_RF_KILL_R_N

TCH_PNL_INTR_N

GPP_H_12

SPI_CS2#

SPI_IO2 SPI_IO3

SPI_WP# SPI_HOLD#

PCH_HP_PLUG

VCC_RTC

VDD3

3.3VA

3.3VS

VDD3

HSPI_CE#39

HSPI_MSO39

HSPI_SCLK39

PLT_RST# 29,34

VDD35,27,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

3.3VS3,9,10,11,12,13,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

VCC_RTC33,36

LAN_WAKEUP#39,48,50

3.3VA5,31,32,33,34,36,38,52

HSPI_MSI39

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[30] PCH 1/12-SPI/SMBUS

A3

30 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[30] PCH 1/12-SPI/SMBUS

A3

30 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[30] PCH 1/12-SPI/SMBUS

A3

30 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C564

0.1u_16V_Y5V_04

R532 10K_04

R490

*4.7K_04

R487 1M_04

R488

*4.7K_04

R469 33_04

R335 33_04

SPT-H_PCH

REV = 1.3

1 OF 12

U114A

HM175_MP

INTRUDER#

BE11

GPP_H10/SML2CLK

BD34

GPP_H11/SML2DATA

AW35

GPP_H12/SML2ALERT#

BD35

GPP_H13/SML3CLK

BC35

GPP_H14/SML3DATA

BA35

GPP_H15/SML3ALERT#

BB36

GPP_H16/SML4CLK

BD39

GPP_H17/SML4DATA

BE34

GPP_H18/SML4ALERT#

BC36

GPP_B4/CPU_GP3

BD24

GPP_B3/CPU_GP2

BC23

GPP_E7/CPU_GP1

AE44

GPP_E3/CPU_GP0

AF41

GPP_G14/GSXDIN

R42

GPP_G13/GSXSLOAD

R36

GPP_G12/GSXDOUT

R39

GPP_G16/GSXCLK

P43

GPP_B13/PLTRST#

BB27

GPP_D21/SPI1_IO2

AG44

GPP_D22/SPI1_IO3

AH43

GPP_D2/SPI1_MISO

AN38

GPP_D3/SPI1_MOSI

AN41

GPP_D0/SPI1_CS#

AL39

GPP_D1/SPI1_CLK

AN36

SPI0_CS2#

AT31

SPI0_IO3

BD30

SPI0_IO2

BC29

SPI0_CS1#

AW31

SPI0_CLK

BC31

SPI0_CS0#

BD31

SPI0_MISO

BE30

SPI0_MOSI

BB29

TP1

AN17

TP2

AR19

RSVD

AE17

RSVD

AF17

RSVD

AG14

RSVD

AG15

GPP_A11/PME#

BD17

GPP_G15/GSXSRESET#

R41

R347 0_04

R331 3.3K_1%_04

R493 *0_04

R473 33_04

R470 *1K_04

R151 *2.2K_04

R471

*4.7K_04

R343 3.3K_1%_04

R558 *1K_04

R529 8.2K_04

U17

GD25B64CSIGR

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R491

*4.7K_04

R492 8.2K_04

R339 33_04

R345 33_04

PCH 1/9

Schematic Diagrams

B.Schematic Diagrams

PCH 1/9 B - 31

Schematic Diagrams

Sheet 31 of 74

PCH 2/9

5

4

3

2

1

D D

C C

B B

A A

DFX TEST MODE XTAL INPUT IS SINGLE ENDED IF SAMPLED LOW ELSE DIFFERENTIAL

RING OSCILLATOR BYPASS

XTAL INPUT FREQUENCY[0]

XTAL INPUT FREQUENCY[1]

USB3 PORT3

FINGER

NGFF WLAN+BT

CCD

USB2 COMP RES: PLACE WITHIN 1 INCH

DESIGN NOTE:

3G

USB3 PORT2

WLAN

WIGIG

USB 3.1 TWO TYPE C

CARD READER

GLAN

USB3 PORT1

VISACH2_D3

USB_OC0#

USB_OC0# USB_OC1# USB_OC2#

USB_OC1#

USB_OC2#

USB2_COMP USB2_VBUSSENSE

USB2_ID

USB_OC4# USB_OC5#

USB_OC7#

USB_OC5# USB_OC6# USB_OC7# USB_OC4#

USB_OC0#

USB_OC1#

VISACH2_D3

USB_OC2#

PCIECOMP_N PCIECOMP_P

USB_OC6#

PCIETXP5

PCIETXN5

PCIETXP6

PCIETXN6

PCIETXN3 PCIETXP3

PCIETXN4 PCIETXP4

3.3VA

DMI_MT_IR_0_DN2 DMI_MT_IR_0_DP2

DMI_MT_IR_1_DN2 DMI_MT_IR_1_DP2

DMI_MT_IR_2_DN2 DMI_MT_IR_2_DP2

DMI_MT_IR_3_DN2 DMI_MT_IR_3_DP2

DMI_IT_MR_0_DN2 DMI_IT_MR_0_DP2

DMI_IT_MR_1_DN2 DMI_IT_MR_1_DP2

DMI_IT_MR_2_DN2 DMI_IT_MR_2_DP2

DMI_IT_MR_3_DN2 DMI_IT_MR_3_DP2

USB_PN7 50 USB_PP7 50 USB_PN8 48 USB_PP8 48 USB_PN9 50 USB_PP9 50

3.3VA5,30,32,33,34,36,38,52

USB_PN6 47 USB_PP6 47

PCIE_TXP5_ASM114244

PCIE_TXP6_ASM114244

PCIE_TXN5_ASM114244

PCIE_TXN6_ASM114244

PCIE_RXP5_ASM114244

PCIE_RXP6_ASM114244

PCIE_RXN6_ASM114244

PCIE_RXN5_ASM114244

PCIE_TXP7_WIGIG148

PCIE_TXN7_WIGIG148

PCIE_RXN7_WIGIG148 PCIE_RXP7_WIGIG148

USB_PN3 50 USB_PP3 50

PCIE_TXP8_WLAN148

PCIE_TXN8_WLAN148

PCIE_RXN8_WLAN148 PCIE_RXP8_WLAN148

PCIE_TXP3_CARD50

PCIE_TXN3_CARD50

PCIE_RXP3_CARD50

PCIE_RXN3_CARD50

PCIE_RXN4_GLAN50 PCIE_RXP4_GLAN50 PCIE_TXN4_GLAN50 PCIE_TXP4_GLAN50

USB_PN1 50 USB_PP1 50

USB_PN2 50 USB_PP2 50

Title

Size Document Num ber Rev

Date: Sheet

of

6-71-P9500-D03

D03

[31] PCH 2/12-DMI/PCIE/USB2.0

Custom

31 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[31] PCH 2/12-DMI/PCIE/USB2.0

Custom

31 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[31] PCH 2/12-DMI/PCIE/USB2.0

Custom

31 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C822 0.22u_10V_X5R_04

DMI

USB 2.0

SPT-H_PCH

PCIe/USB 3

2 OF 12 REV = 1.3

U114B

HM175_MP

USB2N_1

AF5

USB2P_1

AG7

USB2N_2

AD5

USB2P_2

AD7

USB2N_3

AG8

USB2P_3

AG10

USB2N_4

AE1

USB2P_4

AE2

USB2N_5

AC2

USB2P_5

AC3

USB2N_6

AF2

USB2P_6

AF3

USB2N_7

AB3

USB2P_7

AB2

USB2N_8

AL8

USB2P_8

AL7

USB2N_9

AA1

USB2P_9

AA2

USB2N_10

AJ8

USB2P_10

AJ7

USB2N_11

W2

USB2P_11

W3

USB2N_12

AD3

USB2P_12

AD2

USB2N_13

V2

USB2P_13

V1

USB2N_14

AJ11

USB2P_14

AJ13

GPP_E9/USB2_OC0#

AD43

GPP_E10/USB2_OC1#

AD42

GPP_E11/USB2_OC2#

AD39

GPP_E12/USB2_OC3#

AC44

GPP_F15/USB2_OCB_4

Y43

GPP_F16/USB2_OCB_5

Y41

GPP_F17/USB2_OCB_6

W44

GPP_F18/USB2_OCB_7

W43

USB2_COMP

AG3

USB2_VBUSSENSE

AD10

RSVD_AB13

AB13

USB2_ID

AG2

GPD7/RSVD

BD14

DMI_RXN0

L27

DMI_RXP0

N27

DMI_TXN0

C27

DMI_TXP0

B27

DMI_RXN1

E24

DMI_RXP1

G24

DMI_TXN1

B28

DMI_TXP1

A28

DMI_RXN2

G27

DMI_RXP2

E26

DMI_TXN2

B29

DMI_TXP2

C29

DMI_RXN3

L29

DMI_RXP3

K29

DMI_TXN3

B30

DMI_TXP3

A30

PCIE_RCOMPN

B18

PCIE_RCOMPP

C17

PCIE1_RXN/USB3_7_RXN

H15

PCIE1_RXP/USB3_7_RXP

G15

PCIE1_TXN/USB3_7_TXN

A16

PCIE1_TXP/USB3_7_TXP

B16

PCIE2_TXN/USB3_8_TXN

B19

PCIE2_TXP/USB3_8_TXP

C19

PCIE2_RXN/USB3_8_RXN

E17

PCIE2_RXP/USB3_8_RXP

G17

PCIE3_RXN/USB3_9_RXN

L17

PCIE3_RXP/USB3_9_RXP

K17

PCIE3_TXN/USB3_9_TXN

B20

PCIE3_TXP/USB3_9_TXP

C20

PCIE4_RXN/USB3_10_RXN

E20

PCIE4_RXP/USB3_10_RXP

G19

PCIE4_TXN/USB3_10_TXN

B21

PCIE4_TXP/USB3_10_TXP

A21

PCIE5_RXN

K19

PCIE5_RXP

L19

PCIE5_TXN

D22

PCIE5_TXP

C22

PCIE6_RXN

G22

PCIE6_RXP

E22

PCIE6_TXN

B22

PCIE6_TXP

A23

PCIE7_RXN

L22

PCIE7_RXP

K22

PCIE7_TXN

C23

PCIE7_TXP

B23

PCIE8_RXN

K24

PCIE8_RXP

L24

PCIE8_TXN

C24

PCIE8_TXP

B24

R533

*10K_04

R182 1K_04

R181 113_1%_04

C509 0.1u_10V_X7R_04

C510 0.1u_10V_X7R_04

C863 0.1u_10V_X7R_04

C868 0.1u_10V_X7R_04

C823 0.22u_10V_X5R_04

R577 100_1%_04

R193 1K_04

C816 0.22u_10V_X5R_04

C828 0.22u_10V_X5R_04

R528

*10K_04

RN1

10K_8P4R_04

1 2 3 4 5

6

7

8

R524

*10K_04

R535 *10K_04

RN3

10K_8P4R_04

1 2 3 4 5

6

7

8

PCH 2/9

B.Schematic Diagrams

B - 32 PCH 2/9

PCH 3/9

Sheet 32 of 74

PCH 3/9

5

4

3

2

1

D D

C C

B B

A A

BIOS RECOVERY ENABLE :LOW

GFX SELECT TABLE NORMAL GFX:LOW CUSTOMER GFX:HIGH

PCH_RSVD

SATAGP0 & SATAGP1 H: SATA L: PCIe

SSD_1

main HDD

MFG_MODE

SSD_1

PLACE CLOSE TO PCH

3A

RTD3 POWER

ON

7/30/2016

OPTANE

H_PM_SYNC_R

PCH_THERMTRIP#_R

BIOS_REC

GP39_GFX_CRB_DETECT

PCH_RSVD

PCH_SATAHDD_LED#

SCI#_R SATA_TXN2

SATA_TXP2

SATA_RXN2 SATA_RXP2

SWI#_R

MFG_MODE

SWI#_R

SATAGP0

SATAGP2 SATAGP3

SCI#_R

PCH_SATAHDD_LED#

SATAGP0

SATAGP2 SATAGP3

PCH_GPPG8_PCH_1V8AON_EN PCH_GPPG9_PCH_NV3V3_EN PCH_GPPG10_PCH_NVVDD_EN PCH_GPPG11_PCH_NVVDDS_EN

SATAGP1_R

PCH_GPPG0_PCH_PEXVDD_EN PCH_GPPG1_PCH_FBVDDQ_EN

BIOS_REC PCH_RSVD GP39_GFX_CRB_DETECT MFG_MODE

PCH_PECI

PCH_THERMTRIP#

SATATXN2

SATATXP2

SATA_TXN2

SATA_TXP2

SATARXP2

SATARXN2

SATA_RXN2 SATA_RXP2

PCH_THERMTRIP#

SWI#

SCI#

1.0V_VCCST

3.3VS

3.3VA

3.3VS

HDD_5VS

5V

HDD_5VS

5VS

3.3VS

PLTRST_CPU_N 5

H_PM_DOWN 5

PCH_PECI 5

H_PM_SYNC 5

PCH_THERMTRIP# 5

EDP_BRIGHTNESS 11 BLON 11 NB_ENAVDD 11

CL_DATA148 CL_RST#148

CL_CLK148

PCH_SATAHDD_LED# 50

SCI#39

3.3VS3,9,10,11,12,13,30,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

1.0V_VCCST5,7,33,58,59 5VS12,13,40,41,49,50,51,52,63,64,66

PCIE_TXP9_SATA0A_TXP_SSD 48

PCIE_RXP9_SATA0A_RXP_SSD 48

PCIE_RXN9_SATA0A_RXN_SSD 48

PCIE_TXN9_SATA0A_TXN_SSD 48

SWI#39

3.3VA5,30,31,33,34,36,38,52

SATAGP0 48

PCIE_RXP11_SSD48 PCIE_RXN11_SSD48

PCIE_TXP11_SSD48 PCIE_TXN11_SSD48

PCIE_TXP12_SSD48 PCIE_TXN12_SSD48

PCIE_RXN12_SSD48

PCIE_RXP12_SSD48

PCIE_RXN10_SATA1A_RXN_SSD 48 PCIE_RXP10_SATA1A_RXP_SSD 48 PCIE_TXN10_SATA1A_TXN_SSD 48 PCIE_TXP10_SATA1A_TXP_SSD 48

DIMM0_CHA_EVENT# 9

DIMM1_CHA_EVENT# 10

SUSB#11,33,38,42,44,48,52,58

SATA_HDD_PWR_EN38

5V43,45,46,48,50,52,53,54,55,57,59,60,61,65

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[32] PCH 3/12-PCIE/SATA/HOST

A3

32 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[32] PCH 3/12-PCIE/SATA/HOST

A3

32 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[32] PCH 3/12-PCIE/SATA/HOST

A3

32 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R2194 0_06

R2237 *0_04

C947

1u_6.3V_X5R_04

R692 *1K_04

R539

*10K_04

U166

*M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

J_SATA1

FP225H-010S10M

1 2 3 4 5 6 7 8 9

10

R2195

*10K_04

C952 0.01u_16V_X7R_04

R195 10K_04

R2239 *10K_04

R2190 *0_04

C943

10u_6.3V_X5R_06

C2008

*10u_6.3V_X5R_06

R542 1K_04

C946

0.1u_16V_Y5V_04

CLINK

FAN

PCIe/SATA

HOST

SPT-H_PCH

3 OF 12 REV = 1.3

U114C

HM175_MP

CL_CLK

AV2

CL_DATA

AV3

CL_RST#

AW2

GPP_G8/FAN_PWM_0

R44

GPP_G9/FAN_PWM_1

R43

GPP_G10/FAN_PWM_2

U39

GPP_G11/FAN_PWM_3

N42

GPP_G0/FAN_TACH_0

U43

GPP_G1/FAN_TACH_1

U42

GPP_G2/FAN_TACH_2

U41

GPP_G3/FAN_TACH_3

M44

GPP_G4/FAN_TACH_4

U36

GPP_G5/FAN_TACH_5

P44

GPP_G6/FAN_TACH_6

T45

GPP_G7/FAN_TACH_7

T44

PCIE11_TXP

B33

PCIE11_TXN

C33

PCIE11_RXP

K31

PCIE11_RXN

L31

GPP_F10/SCLOCK

AB33

GPP_F11/SLOAD

AB35

GPP_F13/SDATAOUT0

AA44

GPP_F12/SDATAOUT1

AA45

PCIE14_TXN/SATA1B_TXN

B38

PCIE14_TXP/SATA1B_TXP

C38

PCIE14_RXN/SATA1B_RXN

D39

PCIE14_RXP/SATA1B_RXP

E37

PCIE13_TXN/SATA0B_TXN

C36

PCIE13_TXP/SATA0B_TXP

B36

PCIE13_RXN/SATA0B_RXN

G35

PCIE13_RXP/SATA0B_RXP

E35

PCIE12_TXP

A35

PCIE12_TXN

B35

PCIE12_RXP

H33

PCIE12_RXN

G33

PCIE20_TXP/SATA7_TXP

J45

PCIE20_TXN/SATA7_TXN

K44

PCIE20_RXP/SATA7_RXP

N38

PCIE20_RXN/SATA7_RXN

N39

PCIE19_TXP/SATA6_TXP

H44

PCIE19_TXN/SATA6_TXN

H43

PCIE19_RXP/SATA6_RXP

L39

PCIE19_RXN/SATA6_RXN

L37

PCIE9_RXN/SATA0A_RXN

G31

PCIE9_RXP/SATA0A_RXP

H31

PCIE9_TXN/SATA0A_TXN

C31

PCIE9_TXP/SATA0A_TXP

B31

PCIE10_RXN/SATA1A_RXN

G29

PCIE10_RXP/SATA1A_RXP

E29

PCIE10_TXN/SATA1A_TXN

C32

PCIE10_TXP/SATA1A_TXP

B32

PCIE15_RXN/SATA2_RXN

F41

PCIE15_RXP/SATA2_RXP

E41

PCIE15_TXN/SATA2_TXN

B39

PCIE15_TXP/SATA2_TXP

A39

PCIE16_RXN/SATA3_RXN

D43

PCIE16_RXP/SATA3_RXP

E42

PCIE16_TXN/SATA3_TXN

A41

PCIE16_TXP/SATA3_TXP

A40

PCIE17_RXN/SATA4_RXN

H42

PCIE17_RXP/SATA4_RXP

H40

PCIE17_TXN/SATA4_TXN

E45

PCIE17_TXP/SATA4_TXP

F45

PCIE18_RXN/SATA5_RXN

K37

PCIE18_RXP/SATA5_RXP

G37

PCIE18_TXN/SATA5_TXN

G45

PCIE18_TXP/SATA5_TXP

G44

GPP_E8/SATALED#

AD44

GPP_E0/SATAXPCIE0/SATAGP0

AG36

GPP_E1/SATAXPCIE1/SATAGP1

AG35

GPP_E2/SATAXPCIE2/SATAGP2

AG39

GPP_F0/SATAXPCIE3/SATAGP3

AD35

GPP_F1/SATAXPCIE4/SATAGP4

AD31

GPP_F2/SATAXPCIE5/SATAGP5

AD38

GPP_F3/SATAXPCIE6/SATAGP6

AC43

GPP_F4/SATAXPCIE7/SATAGP7

AB44

GPP_F21/EDP_BKLTCTL

W36

GPP_F20/EDP_BKLTEN

W35

GPP_F19/EDP_VDDEN

W42

THERMTRIP#

AJ3

PECI

AL3

PM_SYNC

AJ4

PLTRST_PROC#

AK2

PM_DOWN

AH2

R2191 *0_04

C945 0.01u_16V_X7R_04

C2009

*10u_6.3V_X5R_06

D38

RB751V-40(lision)

AC

R538

*10K_04

C949 0.01u_16V_X7R_04

R2192

*10K_04

R187 *43K_04

R212 10K_04

C2010

*10u_6.3V_X5R_06

R2238 *10K_04

R184 43K_04

R694 *1K_04

D13 RB751V-40(lision)

AC

R194

10K_04

D61

*RB0540S2

AC

R189

10K_04

C954 0.01u_16V_X7R_04

C2011

*1u_6.3V_X5R_04

C2006*0.01u_16V_X7R_04

R531 *10K_04

R2236 *0_04

R177 43K_04

R183 43K_04

C2012

*10u_6.3V_X5R_06

R540

10K_04

R2193 0_06

C2007

*0.01u_16V_X7R_04

R541 604_1%_04

R547 10K_04

R536 30.1_1%_04

Schematic Diagrams

B.Schematic Diagrams

PCH 3/9 B - 33

Schematic Diagrams

Sheet 33 of 74

PCH 4/9

5

4

3

2

1

D D

C C

B B

A A

CLOSE TO PCH

ĳıŮŪŭŴ

ĳıŮŪŭŴĳıŮŪŭŴ

ĳıŮŪŭŴ

ĲıŮŪŭŴ

ĲıŮŪŭŴĲıŮŪŭŴ

ĲıŮŪŭŴ

ESPI/LPC SELECT STARP LPC : LOW (DEFAULT) eSPI: HIGH (INTERNAL WEAK PD)

TOP SWAP OVERRIDE STRAP SWAP ENABLE: HIGH SWAP DISABLE(DEFAULT): LOW (INTERNAL WEAK PD)

EXI BOOT STALL BYPASS ENABLE:HIGH (INTERNAL WEAK PD)

Flash Descriptor Security Overide Low = Disabled-(Default) High = Enabled

TLS CONFIDENTITALITY ENABLE: HIGH (INTERNAL WEAK PD)

KW>>sZE>/^>t,E^DW>>Kt

DRAM_RST#

SKL䘬VCCRTC

天㯪⮷㕤

3.2V

ẍᶳ

(Skarkbay⎗3.3V) ㇨ẍPDG

⺢嬘㍉䓐ẍᶳ暣嶗

(1.5K,45.3K)

℞ῤ⎗婧㔜

'1' 1.20V '0' 1.35V

DESIGN NOTE:

忂䞍

BIOS姕⭂PIN

SRTC_RST#

RTC_RST#

RTC_VBAT_1

GPP_C5

HDA_SDOUT

SKIN_THRM_SNSR_ALERT_N

RSMRST#

PCH_DPWROK

PWR_BTN#

PM_BATLOW#

AC_PRESENT

PM_SLP_LAN#

PCIE_WAKE#

SUS_PWR_ACK#_EC

PM_CLKRUN#

SYS_RESET#

SKIN_THRM_SNSR_ALERT_N

SUSCLK

SMB_CLK SMB_DATA

DDR4_DRAMRST#

SUSWARN#

RSMRST#

SMB_DATA

SMB_CLK

SMD_CPU_THERM

SMC_CPU_THERM_R

RSMRST#

HDA_SDOUT#_R

HDA_BITCLK_R

HDA_SYNC#_R

HDA_RST#_R

PCH_SPKR PCH_HOT_GNSS_DISABLE

SMB_CLK

SMB_DATA

AC_PRESENT

PWR_BTN#

LAN_WAKE#

SLP_SUS#_R

PCH_SPKR

SUS_PWR_ACK#_EC

SUSC#_PCH

SUSB#_PCH

SUSCLK PM_BATLOW#

SLP_A#

PCIE_WAKE#

PM_SLP_LAN#

DDR4_DRAMRST#

PM_CLKRUN#

ISH_GP_6_R

AUD_AZACPU_SDO

AUD_AZACPU_SCLK_R

ITP_PMODE PCH_JTAGX PCH_JTAG_TMS PCH_JTAG_TDO PCH_JTAG_TDI PCH_JTAG_TCK

SUS_PWR_ACK#_EC

SUSWARN#

GPP_C5

SML0_CLK

SML0_DATA

PCH_HOT_GNSS_DISABLE SMC_CPU_THERM_R SMD_CPU_THERM

SUSWARN#

SYS_RESET#

EC_EN

SUSC#_PCH

SUSB#_PCH

AMP_FAULTZ

VCC_RTC

3.3VA

3.3VS 3.3VA

3.3VS

VDDQ

3.3VS

VDD3

3.3VA

1.0V_VCCST

VDD3

AUD_AZACPU_SCLK3

AUD_AZACPU_SDO_R3

AUD_AZACPU_SDI3

HDA_BITCLK41

HDA_SDOUT33,41

HDA_SYNC41

HDA_RST#41,42

HDA_SDOUT 33,41

ME_WE 39

HDA_SDIN041

PM_PCH_PWROK38

RSMRST#39

SMB_CLK42,43,49,57

SMB_DATA42,43,49,57

VDD35,27,30,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

3.3VS3,9,10,11,12,13,30,32,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

DDR4_DRAMRST# 9,10

VCC_RTC30,36

1.0V_VCCST5,7,32,58,59

SMB_CLK_R9,10

SMB_DATA_R9,10

3.3VA5,30,31,32,34,36,38,52

VDDQ7,9,10,53,57

H_PWRGD 5

AC_PRESENT 39

PWR_BTN# 39

EC_SLP_SUS# 39,52,56,58

PCH_SPKR 41

SUS_PWR_ACK#_EC 39

SUSC#_PCH 39

SUSB#_PCH 39

SUSCLK 48

SYS_PWROK 38

PCIE_WAKE# 44,48,50

DDR_VOL_SEL 57

PM_CLKRUN# 49

EC_EN39

SUSB# 11,32,38,42,44,48,52,58

SUSC# 53,57,58

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[33] PCH 4/12-HDA/SMBUS/RTC

A3

33 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[33] PCH 4/12-HDA/SMBUS/RTC

A3

33 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[33] PCH 4/12-HDA/SMBUS/RTC

A3

33 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R128 8.2K_04

R486 10K_04

R478 8.2K_04

R132 *4.7K_04

R157 *10K_04

R122

1K_04

RN2 1K_8P4R_04

1 2 3 4 5

6

7

8

R500 45.3K_1%_04

R485

1K_04

R101 *1K_04

R503 1.5K_1%_04

R479 1K_04

C317

1u_6.3V_X5R_04

C703 *0.1u_10V_X7R_04

C729 *100P_50V_NPO_04

D5 RB751V-40(lision)

A C

R135 20K_1%_04

R494 22_04

R152

1K_04

R502 0_04

R509 10K_04

U4

U74AHC1G08G-AL5-R

1

2

5

4

3

R497 22_04

R118

150K_1%_04

R775 10K_04

R496 22_04

U9

U74AHC1G08G-AL5-R

1

2

5

4

3

R105 1K_04

R149

*4.7K_04

R475 *1K_04

R153 10K_04

R495 22_04

C318 *100P_50V_NPO_04

R156 *10K_04

JOPEN1 *OPEN_10mil-1MM

1 2

R143 *0402_short

C329 *100P_50V_NPO_04

R521 30.1_1%_04

R139

*4.7K_04

JOPEN2 *OPEN_10mil-1MM

12

JTAG

SMBUS

AUDIO

SPT-H_PCH

4 OF 12

REV = 1.3

U114D

HM175_MP

HDA_BCLK

BA9

HDA_RST#

BD8

HDA_SDI0

BE7

HDA_SDI1

BC8

HDA_SDO

BB7

HDA_SYNC

BD9

RSVD_BD1

BD1

RSVD_BE2

BE2

DISPA_SDO

AM1

DISPA_SDI

AN2

DISPA_BCLK

AM2

GPP_D8/I2S0_SCLK

AL42

GPP_D7/I2S0_RXD

AN42

GPP_D6/I2S0_TXD

AM43

GPP_D5/I2S0_SFRM

AJ33

GPP_D20/DMIC_DATA0

AH44

GPP_D19/DMIC_CLK0

AJ35

GPP_D18/DMIC_DATA1

AJ38

GPP_D17/DMIC_CLK1

AJ42

RTCRST#

BC10

SRTCRST#

BB10

PCH_PWROK

AW11

RSMRST#

BA11

DSW_PWROK

AV11

GPP_C2/SMBALERT#

BB41

GPP_C0/SMBCLK

AW44

GPP_C1/SMBDATA

BB43

GPP_C5/SML0ALERT#

BA40

GPP_C3/SML0CLK

AY44

GPP_C4/SML0DATA

BB39

GPP_B23/SML1ALERT#/PCHHOT#

AT27

GPP_C6/SML1CLK

AW42

GPP_C7/SML1DATA

AW45

GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HO LDOFF#

BB17

GPP_A8/CLKRUN#

AW22

GPD11/LANPHYPC

AR15

GPD9/SLP_WLAN#

AV13

DRAM_RESET#

BC14

GPP_B2/VRALERT#

BD23

GPP_B1

AL27

GPP_B0

AR27

GPP_G17/ADR_COMPLETE

N44

GPP_B11

AN24

SYS_PWROK

AY1

WAKE#

BC13

GPD6/SLP_A#

BC15

SLP_LAN#

AV15

GPP_B12/SLP_S0#

BC26

GPD4/SLP_S3#

AW15

GPD5/SLP_S4#

BD15

GPD10/SLP_S5#

BA13

GPD8/SUSCLK

AN15

GPD0/BATLOW#

BD13

GPP_A15/SUSACK#

BB19

GPP_A13/SUSWARN#/SUSPW RDNACK

BD19

GPD2/LAN_WAKE#

BD11

GPD1/ACPRESENT

BB15

SLP_SUS#

BB13

GPD3/PWRBTN#

AT13

SYS_RESET#

AW1

GPP_B14/SPKR

BD26

PROCPWRGD

AM3

ITP_PMODE

AT2

JTAGX

AR3

JTAG_TMS

AR2

JTAG_TDO

AP1

JTAG_TDI

AP2

JTAG_TCK

AN3

R474 *10K_04

R123 20K_1%_04

S

D

G

Q15A

MTDK3S6R

2

61

C314 1u_6.3V_X5R_04

C

A

D35

BAT54CS3

1

2

3

R515 51_04

J_RTC1

50271-0020N-001

PCB Footprint = 85204-02R

P/N = 6-20-43130-102

2

1

R140 *0_04

C322

1u_6.3V_X5R_04

R104 *910_04

R516 51_04

R522 30.1_1%_04

S

D

G

Q15B

MTDK3S6R

5

34

R114 *0_04

R477 470_04

R174 *1.5K_04

R468 1K_04

C728 *100P_50V_NPO_04

R199 *0_04

PCH 4/9

B.Schematic Diagrams

B - 34 PCH 4/9

PCH 5/9

Sheet 34 of 74

PCH 5/9

5

4

3

2

1

D D

C C

B B

A A

24 Mhz

FROM DP F REDRIVER

FROM DP E REDRIVER

BUF_PLT_RST#

USB3 PORT1

L :PORT1 (INTEL) (DEFAULT) H: PORT2 (NV)

FROM HDMI REDRIVER

4G LTE

USB3 PORT3

GPIO H: W / KB_LED L: W/O KB_LED

USB3 PORT2

LPC_PIRQA#

SB_KBCRST#

SERIRQ

DGPU_PWR_EN

GPU_EVENT#

GC6_FB_EN_PCH

DGPU_PRSNT#

DGPU_SELECT#

DGPU_RST#_PCH

PLT_RST#

DGPU_PRSNT#

DGPU_PWRGD_R

GC6_FB_EN_PCH GPU_EVENT# DGPU_SELECT#

KBLED_DET

SERIRQ LPC_PIRQA# SB_KBCRST#

CLK_PCI_KBC_R CLK_PCI_TPM_R

PS8331_SW_R

DGPU_RST#_PCH

KBLED_DET

DGPU_PWR_EN

3.3VA

3.3VS

H_SKTOCC_N 5

BUF_PLT_RST# 39,44,48,49,50

3.3VS3,9,10,11,12,13,30,32,33,35,36,38,39,40,41,42,44,48,49,50,51,52,59

DGPU_PWR_EN 29,39

G_DP_DHPD_F12,27

HDMI_HPD13,27

3.3VA5,30,31,32,33,36,38,52

G_DP_DHPD_E12,27

GPU_EVENT# 27

GC6_FB_EN_PCH 29,39

DGPU_PWRGD 66

USB3_RXP150

USB3_RXN150

USB3_TXP150

USB3_TXN150 LPC_AD0 39,49

LPC_AD1 39,49 LPC_AD2 39,49 LPC_AD3 39,49

PCLK_KBC 39 PCLK_TPM 49

PCH_MUTE# 42

LPC_FRAME# 39,49

SB_KBCRST# 39

SERIRQ 39,49

EDP_HPD11

M2_P0_SATA_DEVSLP 48

DGPU_RST#_PCH 29

PLT_RST#29,30

USB3_TXP350 USB3_TXN350

USB3_RXN350

USB3_RXP350

USB3_TXN647 USB3_TXP647

USB3_RXP647

USB3_RXN647

USB3_TXN250

USB3_TXP250

USB3_RXN250

USB3_RXP250

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[34] PCH 5_6/12-DPP/ESPI/USB3.0

A3

34 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[34] PCH 5_6/12-DPP/ESPI/USB3.0

A3

34 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[34] PCH 5_6/12-DPP/ESPI/USB3.0

A3

34 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R476 22_04

R127 10K_04

R154 22_04

R155 100K_04

R2264 *0_04

R228 *10K_04

R200

*10K_04

SPT-H_PCH

5 OF 12 REV = 1.3

U114E

HM175_MP

GPP_I0/DDPB_HPD0

AW4

GPP_I1/DDPC_HPD1

AY2

GPP_I2/DDPD_HPD2

AV4

GPP_I3/DDPE_HPD3

BA4

GPP_I4/EDP_HPD

BD7

GPP_I7/DDPC_CTRLCLK

BB3

GPP_I8/DDPC_CTRLDATA

BD6

GPP_I5/DDPB_CTRLCLK

BA5

GPP_I6/DDPB_CTRLDATA

BC4

GPP_I9/DDPD_CTRLCLK

BE5

GPP_I10/DDPD_CTRLDATA

BE6

GPP_F14

Y44

GPP_F23

V44

GPP_F22

W39

GPP_G23

L43

GPP_G22

L44

GPP_G21

U35

GPP_G20

R35

GPP_H23

BD36

USB

SATA

LPC/eSPI

SPT-H_PCH

6 OF 12 REV = 1.3

U114F

HM175_MP

USB3_1_TXN

C11

USB3_1_TXP

B11

USB3_1_RXN

B7

USB3_1_RXP

A7

USB3_2_TXN/SSIC_1_TXN

B12

USB3_2_TXP/SSIC_1_TXP

A12

USB3_2_RXN/SSIC_1_RXN

C8

USB3_2_RXP/SSIC_1_RXP

B8

USB3_6_TXN

B15

USB3_6_TXP

C15

USB3_6_RXN

K15

USB3_6_RXP

K13

USB3_5_TXN

B14

USB3_5_TXP

C14

USB3_5_RXN

G13

USB3_5_RXP

H13

USB3_3_TXP/SSIC_2_TXP

D13

USB3_3_TXN/SSIC_2_TXN

C13

USB3_3_RXP/SSIC_2_RXP

A9

USB3_3_RXN/SSIC_2_RXN

B10

USB3_4_TXP

B13

USB3_4_TXN

A14

USB3_4_RXP

G11

USB3_4_RXN

E11

GPP_A1/LAD0/ESPI_IO0

AT22

GPP_A2/LAD1/ESPI_IO1

AV22

GPP_A3/LAD2/ESPI_IO2

AT19

GPP_A4/LAD3/ESPI_IO3

BD16

GPP_A5/LFRAME#/ESPI_CS0#

BE16

GPP_A6/SERIRQ/ESPI_CS1#

BA17

GPP_A7/PIRQA#/ESPI_ALERT0#

AW17

GPP_A0/RCIN#/ESPI_ALERT1#

AT17

GPP_A14/SUS_STAT#/ESPI_RESET#

BC18

GPP_A9/CLKOUT_LPC0/ESPI_CLK

BC17

GPP_A10/CLKOUT_LPC1

AV19

GPP_G19/SMI#

M45

GPP_G18/NMI#

N43

GPP_E6/DEVSLP2

AE45

GPP_E5/DEVSLP1

AG43

GPP_E4/DEVSLP0

AG42

GPP_F9/DEVSLP7

AB39

GPP_F8/DEVSLP6

AB36

GPP_F7/DEVSLP5

AB43

GPP_F6/DEVSLP4

AB42

GPP_F5/DEVSLP3

AB41

R201

10K_04

LED K/B

R2213 *10K_04

R562 10K_04

R204 *10K_04

R175 10K_04

R238 *10K_04

C350 0.1u_10V_X7R_04

R141 *10K_04

U3

74AHC1G08GW

1

2

5

4

3

R233 *10K_04

R113

100K_04

R146 100K_04

R126

100K_04

R480 10K_04

R505 100K_04

Schematic Diagrams

B.Schematic Diagrams

PCH 5/9 B - 35

Schematic Diagrams

Sheet 35 of 74

PCH 6/9

5

4

3

2

1

D D

C C

B B

A A

RTC (10 MOHM RES): DO NOT CHANGE TO 0402

B7 CARD READER B 8 LAN B9 ASM2142 USB3.1 H0 WIGI H1 WLAN H2 VGA H3 SSD

PCI-E CLK Usage

32.768KHZ 6-22-32R76-0B2 6-22-32R76-0BJ

24MHZ 6-22-24R00-1B9 6-22-24R00-1BA

32.768Khz暨␴SOC or PCH

⎴ᶨ朊ᶵ⎗ㇻ

VIA

, XTAL

ᶳ㕡ᶵ⎗㚱

POWER or

ᾉ嘇

2015/10/08

RTC_X2

CLK_REQ10_SSD1# CLK_REQ9_PEG#

XCLK_RBIAS

PCH_XDP_CLK_DN PCH_XDP_CLK_DP

RTC_X1

CLK_REQ9_PEG#

CLK_REQ5_ASM1142#

CLK_REQ10_SSD1#

CLK_REQ5_ASM1142#

VDD1.0

3.3VS

PCH_CPU_PCIBCLK_R_DP 5

PCH_CPU_PCIBCLK_R_DN 5 PCH_CPU_BCLK_R_DP5 PCH_CPU_BCLK_R_DN5

CPU_24MHZ_R_DP5 CPU_24MHZ_R_DN5

CLK_REQ9_PEG#14

VDD1.036,53,58

3.3VS3,9,10,11,12,13,30,32,33,34,36,38,39,40,41,42,44,48,49,50,51,52,59

CLK_SRC5_ASM1142# 44 CLK_SRC5_ASM1142 44

CLK_SRC7_WIGIG1# 48 CLK_SRC7_WIGIG1 48

CLK_SRC10_SSD1# 48 CLK_SRC10_SSD1 48

CLK_SRC9_VGA# 14 CLK_SRC9_VGA 14

CLK_SRC8_WLAN1# 48 CLK_SRC8_WLAN1 48

CLK_REQ5_ASM1142#44

CLK_REQ7_WIGI1#48

CLK_REQ8_WLAN1#48

CLK_REQ10_SSD1#48

CLK_SRC3_CARD# 50 CLK_SRC3_CARD 50

CLK_REQ4_LAN#50

CLK_REQ3_CARD#50

CLK_SRC4_GLAN# 50

CLK_SRC4_GLAN 50

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[35] PCH 7/12-CLKOUT

A4

35 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[35] PCH 7/12-CLKOUT

A4

35 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[35] PCH 7/12-CLKOUT

A4

35 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

SPT-H_PCH

7 OF 12 REV = 1.3

U114G

HM175_MP

GPP_A16/CLKOUT_48

AR17

CLKOUT_CPUNSSC_P

G1

CLKOUT_CPUNSSC

F1

CLKOUT_CPUBCLK_P

G2

CLKOUT_CPUBCLK

H2

XTAL24_OUT

A5

XTAL24_IN

A6

XCLK_BIASREF

E1

RTCX1

BC9

RTCX2

BD10

GPP_B5/SRCCLKREQ0#

BC24

GPP_B6/SRCCLKREQ1#

AW24

GPP_B7/SRCCLKREQ2#

AT24

GPP_B8/SRCCLKREQ3#

BD25

GPP_B9/SRCCLKREQ4#

BB24

GPP_B10/SRCCLKREQ5#

BE25

GPP_H0/SRCCLKREQ6#

AT33

GPP_H1/SRCCLKREQ7#

AR31

GPP_H2/SRCCLKREQ8#

BD32

GPP_H3/SRCCLKREQ9#

BC32

GPP_H4/SRCCLKREQ10#

BB31

GPP_H5/SRCCLKREQ11#

BC33

GPP_H6/SRCCLKREQ12#

BA33

GPP_H7/SRCCLKREQ13#

AW33

GPP_H8/SRCCLKREQ14#

BB33

GPP_H9/SRCCLKREQ15#

BD33

CLKOUT_PCIE_N15

R13

CLKOUT_PCIE_P15

R11

CLKOUT_PCIE_N14

P1

CLKOUT_PCIE_P14

R2

CLKOUT_PCIE_N13

W7

CLKOUT_PCIE_P13

Y5

CLKOUT_PCIE_N12

U2

CLKOUT_PCIE_P12

U3

CLKOUT_ITPXDP

L1

CLKOUT_ITPXDP_P

L2

CLKOUT_CPUPCIBCLK

J1

CLKOUT_CPUPCIBCLK_P

J2

CLKOUT_PCIE_N0

N7

CLKOUT_PCIE_P0

N8

CLKOUT_PCIE_N1

L7

CLKOUT_PCIE_P1

L5

CLKOUT_PCIE_N2

D3

CLKOUT_PCIE_P2

F2

CLKOUT_PCIE_N3

E5

CLKOUT_PCIE_P3

G4

CLKOUT_PCIE_N4

D5

CLKOUT_PCIE_P4

E6

CLKOUT_PCIE_N5

D8

CLKOUT_PCIE_P5

D7

CLKOUT_PCIE_N6

R8

CLKOUT_PCIE_P6

R7

CLKOUT_PCIE_N7

U5

CLKOUT_PCIE_P7

U7

CLKOUT_PCIE_N8

W10

CLKOUT_PCIE_P8

W11

CLKOUT_PCIE_N9

N3

CLKOUT_PCIE_P9

N2

CLKOUT_PCIE_N10

P3

CLKOUT_PCIE_P10

P2

CLKOUT_PCIE_N11

R3

CLKOUT_PCIE_P11

R4

C818

12p_50V_NPO_04

C805

12p_50V_NPO_04

R580

1M_04

R2215 *10K_04

X3 W76-147_24MHZ

fsx3m

2 1

3 4

C698

15p_50V_NPO_04

R2214 10K_04

C699

15p_50V_NPO_04

R498 *10K_04

R499

10M_06

R489 10K_04

R244 2.7K_1%_04

X2

1TJS125DJ4A420P_32.768KHz

CM200S

14

3 2

R484 *10K_04

PCH 6/9

B.Schematic Diagrams

B - 36 PCH 6/9

PCH 7/9

5

4

3

2

1

D D

C C

B B

A A

CLOSE TO PCH (3-5 mm)

2.899A

0.0454A

0.021A

0.024A

0.137A

0.006A

0.533A

0.0908A

0.0061A

0.0002A

0.2875A

0.0811A

0.403A

0.007A

0.114A

0.229A

0.065A

0.0002A

0.082A

0.075A

0.078A

0.029A

3.53A

0.030A

0.11A

0.05A

CLOSE TO PCH (1-3 mm)

CLOSE TO PCH (3-5 mm)

CLOSE TO PCH (1-3 mm)

CLOSE TO PCH (3-5 mm)

CLOSE TO PCH (1-3 mm)

0.012A

0.033A

㺷暣

CLOSE TO PCH (3-5 mm)

+VCC_RTCEXT_CAP

+VCCF24_1P0_L

+VCCDSW_1P0

+VCCAMPHYPLL_1P0

VDD1.0

+VCCAAZPLL_1P0

VDD1.0

VDD3

VDD1.0

VDD3

3.3VA

VDD1.0

3.3VS

3.3VA

VDD1.0

3.3VA

VCC_RTC

VDD3

VDD1.035,53,58

3.3VS3,9,10,11,12,13,30,32,33,34,35,38,39,40,41,42,44,48,49,50,51,52,59

VDD35,27,30,33,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

VCC_RTC30,33

3.3VA5,30,31,32,33,34,38,52

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[36] PCH 8/12-POWER

A3

36 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[36] PCH 8/12-POWER

A3

36 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[36] PCH 8/12-POWER

A3

36 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

.

L31 HCB1608KF-121T30

C309

0.1u_10V_X7R_04

C343

*22u_6.3V_X5R_06

.

L9 HCB1608KF-121T30

C313

1u_6.3V_X5R_04

C715

0.1u_10V_X7R_04

C327

1u_6.3V_X5R_04

VCCGPIO

CORE

MPHY USB

SPT-H_PCH

REV = 1.3

8 OF 12

U114H

HM175_MP

VCCPCIE3PLL_1P0

C44

VCCPRIM_3P3

BE4

VCCPRIM_3P3

BE3

VCCPGPPD

BB45

VCCPGPPD

BC45

VCCSPI

BE42

VCCSPI

BE43

VCCPGPPD

BA45

VCCPRIM_1P0

AJ23

VCCRTC

BA22

VCCRTCPRIM_3P3

BA20

VCCATS

AD13

VCCPRIM_1P0

AD15

VCCPRIM_3P3

AN5

VCCPGPPG

AD41

VCCPGPPEF

AL41

VCCPGPPEF

AJ41

VCCPGPPD

BC44

VCCPGPPBCH

BD40

VCCPGPPBCH

BC42

VCCPGPPA

BA31

VCCDSW_3P3

BA24

VCCPRIM_1P0

AL22

VCCPRIM_3P3

BD3

VCCSPI

BE41

VCCHDAPLL_1P0

AN19

VCCHDA

BA15

VCCDSW_3P3

W15

VCCUSB2PLL_1P0

AL5

VCCUSB2PLL_1P0

AJ5

VCCPRIM_1P0

AC17

VCCAPLLEBB_1P0

V28

VCCMPHYPLL_1P0

B43

VCCPCIE3PLL_1P0

C45

VCCMPHYPLL_1P0

A43

VCCMPHY_1P0

V26

VCCMPHY_1P0

U26

VCCMPHY_1P0

U25

VCCMPHY_1P0

U23

VCCMPHY_1P0

U21

VCCCLK5

K3

VCCCLK2

R17

VCCCLK2

V17

VCCCLK4

U20

VCCCLK3

R19

VCCCLK5

K2

DCPDSW_1P0

BA29

VCCPRIM_1P0

AA28

VCCPRIM_1P0

AA26

VCCPRIM_1P0

AA23

VCCPRIM_1P0

AJ25

VCCPRIM_1P0

AJ21

VCCPRIM_1P0

AJ20

VCCPRIM_1P0

AC23

VCCPRIM_1P0

AC26

VCCPRIM_1P0

AC28

VCCPRIM_1P0

AE23

VCCPRIM_1P0

AE26

VCCPRIM_1P0

Y23

VCCPRIM_1P0

Y25

DCPRTC

BA26

VCCCLK1

N17

C732

22u_6.3V_X5R_08

C316

0.1u_10V_X7R_04

C363 1u_6.3V_X5R_04

C2014

*4.7u_6.3V_X6S_06

.

L6 HCB1608KF-121T30

C706

*1u_6.3V_X5R_04

C795

1u_6.3V_X5R_04

C344

0.1u_10V_X7R_04

C315

0.1u_10V_X7R_04

C712

0.1u_10V_X7R_04

C359

0.1u_10V_X7R_04

C734

1u_6.3V_X5R_04

R116 *100K_04

C358

1u_6.3V_X5R_04

C403

1u_6.3V_X5R_04

C331

1u_6.3V_X5R_04

C294

1u_6.3V_X5R_04

C2015

*4.7u_6.3V_X6S_06

C2013

*4.7u_6.3V_X6S_06

Sheet 36 of 74

PCH 7/9

Schematic Diagrams

B.Schematic Diagrams

PCH 7/9 B - 37

5 4 3 2 1

D

C

B

A

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[37] PCH 9_12/12-VSS

A4

37 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[37] PCH 9_12/12-VSS

A4

37 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[37] PCH 9_12/12-VSS

A4

37 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

SPT-H_PCH

9 OF 12

REV = 1.3

U114I

HM175_MP

VSS

AE29

VSS

AE4

VSS

AE42

VSS

AF18

VSS

AF20

VSS

AF21

VSS

AF23

VSS

AF25

VSS

AF26

VSS

AF28

VSS

AF29

VSS

AG11

VSS

AG13

VSS

AG31

VSS

AG32

VSS

AG33

VSS

AG38

VSS

AG4

VSS

AH1

VSS

AH17

VSS

AH18

VSS

AH20

VSS

AH21

VSS

AH23

VSS

AH25

VSS

AH26

VSS

AH28

VSS

AH29

VSS

AH45

VSS

AJ10

VSS

AJ14

VSS

AJ15

VSS

AJ17

VSS

AJ18

VSS

AJ26

VSS

AJ28

VSS

AJ29

VSS

AJ31

VSS

AJ32

VSS

AJ36

VSS

AK4

VSS

AK42

VSS

AU7

VSS

AV17

VSS

AV24

VSS

AV27

VSS

AV31

VSS

AV33

VSS

AV6

VSS

AW13

VSS

AW19

VSS

AW29

VSS

AW37

VSS

AW9

VSS

AY38

VSS

AY45

VSS

B25

VSS

B3

VSS

B37

VSS

B40

VSS

B6

VSS

BA1

VSS

BB11

VSS

BB16

VSS

BB21

VSS

BB25

VSS

BB30

VSS

BB34

VSS

BC2

VSS

BD43

VSS

BE14

VSS

BE18

VSS

BE23

VSS

BE28

VSS

BE32

VSS

BE37

VSS

BE40

VSS

BE9

VSS

C10

VSS

C2

VSS

C28

VSS

C37

VSS

J7

VSS

K10

VSS

K27

VSS

K33

VSS

K36

VSS

K4

VSS

K42

VSS

K43

VSS

L12

VSS

L13

VSS

L15

VSS

L4

VSS

L41

VSS

L8

VSS

M35

VSS

M42

VSS

N10

VSS

N15

VSS

N19

VSS

N22

VSS

N24

VSS

N35

VSS

N36

VSS

N4

VSS

N41

VSS

N5

VSS

P17

VSS

P19

VSS

P22

VSS

P45

VSS

R10

VSS

R14

VSS

R22

VSS

R29

VSS

R33

VSS

R38

VSS

R5

VSS

T1

VSS

T2

VSS

T4

VSS

Y18

VSS

Y20

VSS

Y21

VSS

Y26

VSS

Y28

VSS

Y29

VSS

A18

VSS

A25

VSS

A32

VSS

A37

VSS

AA17

VSS

AA18

VSS

AA20

VSS

AA21

VSS

AA25

VSS

AA29

VSS

AA4

VSS

AA42

VSS

AB10

VSS

AC18

VSS

AN10

VSS

AN4

VSS

AR5

VSS

AR7

VSS

U15

VSS

AL4

SPT-H_PCH

12 OF 12

REV = 1.3

U114L

HM175_MP

VSS

AB11

VSS

AB7

VSS

AB14

VSS

AB31

VSS

AB32

VSS

AB38

VSS

AB4

VSS

AB5

VSS

AC1

VSS

AC20

VSS

AC21

VSS

AC25

VSS

AC29

VSS

AC45

VSS

AB8

VSS

AD11

VSS

AD14

VSS

AB15

VSS

AD32

VSS

AD33

VSS

AD36

VSS

AD4

VSS

AD8

VSS

AE18

VSS

AE20

VSS

AE21

VSS

AE25

VSS

AE28

VSS

AL10

VSS

AL11

VSS

AL13

VSS

AL17

VSS

AL19

VSS

AL24

VSS

AL29

VSS

AL32

VSS

AL33

VSS

AL38

VSS

AM15

VSS

AM17

VSS

AM19

VSS

AM22

VSS

AM24

VSS

AM27

VSS

AM29

VSS

AM45

VSS

AN11

VSS

AN22

VSS

AN27

VSS

AN31

VSS

AN39

VSS

AN7

VSS

AN8

VSS

AP11

VSS

AP4

VSS

AR33

VSS

AR34

VSS

AR42

VSS

AR9

VSS

AT10

VSS

AT15

VSS

AT36

VSS

AT9

VSS

AU1

VSS

AU35

VSS

AU36

VSS

AU39

VSS

AU45

VSS

C4

VSS

C42

VSS

D10

VSS

D12

VSS

D15

VSS

D16

VSS

D17

VSS

D19

VSS

D21

VSS

D24

VSS

D25

VSS

D27

VSS

D29

VSS

D30

VSS

D31

VSS

D33

VSS

D35

VSS

D36

VSS

E13

VSS

E15

VSS

E31

VSS

E33

VSS

F44

VSS

F8

VSS

G42

VSS

G9

VSS

H17

VSS

H19

VSS

H22

VSS

H24

VSS

H27

VSS

H29

VSS

H3

VSS

H35

VSS

J10

VSS

J11

VSS

J3

VSS

J39

VSS

J5

VSS

T42

VSS

U10

VSS

U11

VSS

U14

VSS

U17

VSS

U18

VSS

U28

VSS

U29

VSS

U31

VSS

U32

VSS

U33

VSS

U38

VSS

U4

VSS

U8

VSS

V18

VSS

V20

VSS

V21

VSS

V23

VSS

V25

VSS

V29

VSS

V3

VSS

V45

VSS

W14

VSS

W31

VSS

W32

VSS

W33

VSS

W38

VSS

W4

VSS

W8

VSS

Y17

Schematic Diagrams

Sheet 37 of 74

PCH 8/9

B.Schematic Diagrams

B - 38 PCH 8/9

PCH 9/9

5

4

3

2

1

D D

C C

B B

A A

DFX TEST MODE QUALIFIER FOR OTHER DFX STRAP WHEN SAMPLED LOW (WEAK INTERNAL PU)

ON

TO VR_ON & EC

EC DELAY ALL_SYS_PWRGD 200ms =PM_PWROK

Board_ID[1:2] P950HP3:1 1

SMI# 䓙GPP_G19䦣军 GPP_B20 , BIOS

天㯪

BOOT STARP ENABLE:LPC IS SELECT (INTERNAL WEAK PD)

NO REBOOT STARP ENABLE: HIGH (INTERNAL WEAK PD)

Board_ID[1:2] P950HR: 1 0

Board_ID[1:2] P950HP6:0 0

SMART AMP(H)

R520 (L)

R519 (H) R160 (L)

10K_04

R519 (H) 10K_04 10K_04

10K_04 10K_04

P950HP6 D02A

ID2

R176 (H)

R160 (L) 10K_04

P950HP3 D02A

P950HR D03

ID1 ID3

P950HP3 D03

P950HP6 D03

R171 (L)

R171 (L) 10K_04

NC

R519 (H) 10K_04 10K_04

R176 (H)

NC

R520 (L) 10K_04

R160 (L) 10K_04

R171 (L) 10K_04

10K_04

PCH_2_CPU_TRIGGER_R

PCH_XDP_PREQ#_R PCH_XDP_PRDY#_R H_TRST#_R

LPSS_GSPI0_MOSI

LPSS_GSPI1_MOSI

UART2_TXD UART2_RXD

UART2_RTS#

SB_BLON_PCH

SB_BLON

BOARD_ID1 BOARD_ID2 BOARD_ID3

SYS_PWROK_R

ALL_SYS_PWRGD

DELAY_PWRGD

LTE_GPIO#

BOARD_ID3 BOARD_ID4

SMI#_RR

BOARD_ID5

NVSR1_DET NVSR2_DET

UART2_CTS#

LPSS_GSPI1_MOSILPSS_GSPI0_MOSI

GPP_B15

VDD3

3.3VS

VDD3

VDD3 VDD3

3.3VS3.3VS 3.3VS

3.3VS

3.3VA

3.3VS

CPU_2_PCH_TRIGGER 7

PCH_2_CPU_TRIGGER 7

SB_BLON 11,38

3G_CONFIG0 47

3G_CONFIG2 47 3G_CONFIG3 47

TPM_DET 49

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,39,40,41,42,44,48,49,50,51,52,59

VDD35,27,30,33,36,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

3.3VA5,30,31,32,33,34,36,52

VCCIO_PWRGD58,61

ALL_SYS_PWRGD 5,11,39,59

VCORE_PG59

SUSB#11,32,33,42,44,48,52,58

PM_PCH_PWROK 33

PM_PWROK39

SYS_PWROK 33

SMI#39

ASM1142_SMI_N44

GPP_B1542

SATA_HDD_PWR_EN 32

SATA_M2_PWR_EN 48 SB_BLON 11,38

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[38] PCH 10_11/12-UART/I2C/GPIO

A3

38 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[38] PCH 10_11/12-UART/I2C/GPIO

A3

38 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[38] PCH 10_11/12-UART/I2C/GPIO

A3

38 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

U35A 74LVC08APW

1

2

3

147

R517 *0_04

R548

10K_04

U35C 74LVC08APW

9

10

8

147

R129 *10K_04

R519

10K_04

R2257 *0402_short

R472

*4.7K_04

R526

*100K_04

SPT-H_PCH

11 OF 12 REV = 1.3

U114K

HM175_MP

GPP_B22/GSPI1_MOSI

AT29

GPP_B21/GSPI1_MISO

AR29

GPP_B20/GSPI1_CLK

AV29

GPP_B19/GSPI1_CS#

BC27

GPP_B18/GSPI0_MOSI

BD28

GPP_B17/GSPI0_MISO

BD27

GPP_B16/GSPI0_CLK

AW27

GPP_B15/GSPI0_CS#

AR24

GPP_C9/UART0_TXD

AV44

GPP_C8/UART0_RXD

BA41

GPP_C11/UART0_CTS#

AU44

GPP_C10/UART0_RTS#

AV43

GPP_C15/UART1_CTS#/ISH_UART1_CTS#

AU41

GPP_C14/UART1_RTS#/ISH_UART1_RTS#

AT44

GPP_C13/UART1_TXD/ISH_UART1_TXD

AT43

GPP_C12/UART1_RXD/ISH_UART1_RXD

AU43

GPP_C23/UART2_CTS#

AN43

GPP_C22/UART2_RTS#

AN44

GPP_C21/UART2_TXD

AR39

GPP_C20/UART2_RXD

AR45

GPP_C19/I2C1_SCL

AR41

GPP_C18/I2C1_SDA

AR44

GPP_C17/I2C0_SCL

AR38

GPP_C16/I2C0_SDA

AT42

GPP_D4/ISH_I2C2_SDA/ISH_I2C3_SDA

AM44

GPP_D23/ISH_I2C2_SCL/ISH_I2C3_SCL

AJ44

GPP_D9

AL44

GPP_D10

AL36

GPP_D11

AL35

GPP_D12

AJ39

GPP_D16/ISH_UART0_CTS#

AJ43

GPP_D15/ISH_UART0_RTS#

AL43

GPP_D14/ISH_UART0_TXD/SML0BCLK/ I2C2_SCL

AK44

GPP_D13/ISH_UART0_RXD/SML0BDATA/I 2C2_SDA

AK45

GPP_H20/ISH_I2C0_SCL

BC38

GPP_H19/ISH_I2C0_SDA

BB38

GPP_H22/ISH_I2C1_SCL

BD38

GPP_H21/ISH_I2C1_SDA

BE39

GPP_A23/ISH_GP5

BC22

GPP_A22/ISH_GP4

BD18

GPP_A21/ISH_GP3

BE21

GPP_A20/ISH_GP2

BD22

GPP_A19/ISH_GP1

BD21

GPP_A18/ISH_GP0

BB22

GPP_A17/ISH_GP7

BC19

R171

10K_04

R520

*10K_04

SPT-H_PCH

REV = 1.3

10 OF 12

U114J

HM175_MP

VSS

A44

VSS

BC1

VSS

BB1

VSS

B1

VSS

A2

VSS

B2

VSS

A3

VSS

A4

VSS

B44

VSS

B45

VSS

A42

VSS

D45

VSS

BE44

VSS

BD44

VSS

BD45

VSS

BD2

PCH_TRIGIN

AK1

PCH_TRIGOUT

AL2

CPU_TRST#

AY5

PRDY#

AT4

PREQ#

AT3

RSVD

P24

RSVD

R24

RSVD

AN29

RSVD

P29

RSVD

N29

RSVD

R27

RSVD

P31

RSVD

U13

RSVD

W13

RSVD

AR22

RSVD

C1

RSVD

D1

RSVD

P27

RSVD

N31

R150

*4.7K_04

R211 *1K_04

U35B 74LVC08APW

4

5

6

147

R172

*10K_04

R504 1K_04

R530 30.1_1%_04

D8

RB751V-40(lision)

AC

R130 10K_04

R160

10K_04

R142

10K_04

R2258 *0_04 R2259 *0_04

U35D 74LVC08APW

12

13

11

147

R176

*10K_04

C771

*0.1u_10V_X7R_04

R525

100K_04

Sheet 38 of 74

PCH 9/9

Schematic Diagrams

B.Schematic Diagrams

PCH 9/9 B - 39

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

RSMRST# PCH & EC

⎒⎒⎒⎒暨暨暨暨

PULL DOWN

ᶨᶨᶨᶨ怲怲怲怲,㑯㑯㑯㑯

1

IT8587

RA

RB

DEBUG PORT

OPTION (

⎗ẍ嬲≽ὅEC㍸ὃ䘬

EXECL堐)

㛒⛐

EXECL

堐䘬≇傥⎗ẍ冒埴␥⎵

DEFAULT

㓡㓡㓡㓡ᶲᶲᶲᶲẞẞẞẞ

, (

⤪⤪⤪⤪㰺㰺㰺㰺㚱㚱㚱㚱ᶲᶲᶲᶲẞẞẞẞ

, RTC

便便便便暣暣暣暣忶忶忶忶⣏⣏⣏⣏

)

EMI Solution

AUTO_LOAD_MODE

DSx

N17E-G1

N17E-G2

VGA Chipset

P950HP

10K X

P950HR

10K

6-20-94A10-024

J_KB1124

x

RA

RB

D02A D03

P950HP

10K

D02A-D03

10K

R332

R329

R332 R332

R329 R329

NC

㓡㓡㓡㓡

VGA_FAN_PWM1~2

EC_RSMRST#

80CLK 3IN1

EC_PECI

BAT_DET

MODEL_ID

3G_RST# SMC_BAT

BAT_DET

SMD_BAT

BAT_VOLT

KBC_WRESET#

KB-SI3

KB-SI2

KB-SO5

KB-SI1

KB-SO3 KB-SO4

KB-SO11

KB-SI6

KB-SI4

KB-SO8

KB-SO7

KB-SO6

KB-SO14

KB-SO2

KB-SO15

KB-SI0

KB-SI5

KB-SO12

KB-SO1

KB-SO10

KB-SO0

KB-SI7

KB-SO9

KB-SO13

SMC_BAT_EC SMD_BAT_EC

VBATT_BOOST#

EC_RSMRST#

KB-SO16 KB-SO17

KB-DET

MODEL_ID

KBC_MUTE#

CPU_FAN

KBC_AGND

VDD3

KBC_AGND

KBC_AVDD

VDD3

3.3VS

VDD3

VIN

VDD3

3.3VS

CCD_EN 50

PWR_SW#52

LID_SW#11,51

TP_CLK49

TP_DATA49

KBC_BEEP41

LED_PWR50

LED_BAT_CHG50

H_PECI5

SMC_BAT39,62 SMD_BAT39,62

THERM_VOLT2 TOTAL_CUR62

BKL_EN 11

H_PROCHOT_EC5

AIRPLAN_LED# 50

HSPI_CE# 30

BUF_PLT_RST#34,44,48,49,50

LPC_FRAME#34,49

SERIRQ34,49

PCLK_KBC34

LPC_AD334,49

LPC_AD234,49

LPC_AD134,49

LPC_AD034,49

AC_PRESENT33

AC_IN#62

SMI#38

SWI# 32

LAN_WAKEUP# 30,48,50

CPU_FANSEN 51

SB_KBCRST# 34

SMC_VGA_THERM27,40 SMD_VGA_THERM27,40

VGA_FANSEN 51

SMC_BAT39,62

SMD_BAT39,62PWR_BTN#33

BAT_DET62

HSPI_MSI 30

VDD35,27,30,33,36,38,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,40,41,42,44,48,49,50,51,52,59

HSPI_MSO 30 HSPI_SCLK 30

SCI#32

PM_PWROK 38

WLAN_PWR_EN 48

ALL_SYS_PWRGD 5,11,38,59

LED_BAT_FULL50

DGPU_PWR_EN 29,34

VBATT_BOOST#27

USB_CHARGE_EN52,56

BT_EN48

3G_EN 47

DD_ON44,50,52,56

SUSB#_PCH 33

SUSC#_PCH 33

VGASEN_SEL51

ME_WE33

3G_RST# 47

SUS_PWR_ACK#_EC33

3G_PWR_EN 47

EC_SSD_LED#50

EC_SLP_SUS# 33,52,56,58

RSMRST# 33

VIN11,42,43,44,52,55,56,57,58,59,60,61,62

BAT_VOLT62

LED_ACIN50

NV_EN_DOWN29

KBC_MUTE#42

EC_CTRL_EN#40

KB-DET 40

KB-SO16 40 KB-SO17 40

EC_EN 33

dGPU_GPIO8_OVERT 27 d_GPIO9_ALERT_FAN 27

WLAN_EN48

ASM1142_PORST_EC44

GC6_FB_EN_PCH29,34

EC_SMB_CLK_130542

EC_SMB_DATA_130542

CPU_FAN_PWM51

VGA_FAN_PWM251

VGA_FAN_PWM151

80CLK 48 3IN1 48

KBLIGHT_ADJ40

ASM1142_BUF_PLT_RST#44

EC_AMP_EN 50

FRONT-JD 41,50

AMP_EN42,43

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[39] ITE KBC 8587

A3

39 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[39] ITE KBC 8587

A3

39 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[39] ITE KBC 8587

A3

39 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R359 10K_04

J_80DEBUG1

85204-04001

PCB Footprint = 85205-0400M

1 2 3 4

C574 0.1u_16V_Y5V_04

R340 *20mil_short-p

R672 *10K_04

W/O USB CHARGE

C547

0.1u_16V_Y5V_04

C2021 *47p_50V_NPO_04

R357 47_04

C583

0.1u_16V_Y5V_04

IT8587

U19B

IT8587E/FX

GPA0/PWM0/5VT

24

GPA2/PWM2/5VT

28

GPA3/PWM3/5VT

29

GPA4/PWM4/5VT

30

GPI2/ADC2

68

GPI5/ADC5/DCD1#

71

GPI6/ADC6/DSR1#

72

GPJ0/TACH2

76

GPJ4/DAC4/DCD0#

80

GPJ5/DAC5/RIG0#

81

GPC1/SMCLK1/5VT

115

GPC2/SMDAT1/5VT

116

GPE4/PWRSW

125

CK32KE/GPJ7

2

TACH1/TMA1/GPD7

48

5VT/EGAD/GPE1

82

5VT/EGCS#/GPE2

83

5VT/EGCLK/GPE3

84

5VT/CLKRUN#/ID0/GPH0

93

5VT/ID3/GPH3

96

5VT/ID4/GPH4

97

5VT/ID5/GPH5

98

5VT/ID6/GPH6

99

5VT/SSCE0#/GPG2

100

5VT/CRX0/GPC0

119

CK32K/GPJ6

128

5VT/CRX1/SIN1/SMCLK3/ID1/GPH1

94

GPJ2/DAC2//TACH0B

78

GPF7/SMDAT2/PECIRQT#

118

KSO16/SMOSI/GPC3

56

KSO17/SMISO/GPC5

57

R370 *10K_04

C578

0.1u_16V_Y5V_04

*0.1u_16V_Y5V_04

.

L22 HCB1005KF-121T20

C580

0.1u_16V_Y5V_04

J_KB1

51592-02401-001

PCB Footprint = 51592-02401-001_L

P/N = 6-21-94A00-024

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

R670 0_04

C590

10u_6.3V_X5R_06

R368 1.5K_04

LPC

DAC

SMBUS

PWM

PS/2

WAKE UP

GP INTERRUPT

UART

K/B MATRIX

IT8587

ADC

U19A

IT8587E/FX

GPB6/KBRST#

4

GPM6/SERIRQ

5

GPM5/LFRAME#

6

GPM3/LAD3

7

GPM2/LAD2

8

GPM1/LAD1

9

GPM0/LAD0

10

GPM4/LPCCLK

13

WRST#

14

GPD4/ECSMI#

15

GPC7/PWUREQ#/BBO/SMCLK2ALT

16

GPD0/RI1#

18

GPE7/L80LLAT/5VT

20

GPD1/RI2#/5VT

21

GPD2/LPCRST#/5VT

22

GPD3/ECSCI#/5VT

23

GPA1/PWM1/5VT

25

GPA5/PWM5/5VT

31

GPA6/PWM6/SSCK/5VT

32

GPD5/GINT/CTS0#/5VT

33

GPA7/PWM7/RIG1#/5VT

34

GPJ1

77

GPJ3/DAC3/TACH1B

79

GPF0/PS2CLK0/TMB0/CEC/5VT

85

GPF2/PS2CLK1/DTR0#/5VT

87

GPF4/PS2CLK2/5VT

89

GPF5/PS2DAT2/5VT

90

GPB0/RXD/SIN0/5VT

108

GPB1/TXD/SOUT0/5VT

109

GPB3/SMCLK0/5VT

110

GPB4/SMDAT0/5VT

111

GPF6/SMCLK2/PECI

117

GPB5/GA20

126

5VT/LPCPD#/GPE6

17

5VT/L80HLAT/BAO/GPE0

19

5VT/RTS1#/GPE5

35

KSO0/PD0

36

KSO1/PD1

37

KSO2/PD2

38

KSO3/PD3

39

KSO4/PD4

40

KSO5/PD5

41

KSO6/PD6

42

KSO7/PD7

43

KSO8/ACK#

44

KSO9/BUSY

45

KSO10/PE

46

TACH0A/GPD6

47

KSO11/ERR#

51

KSO12/SLCT

52

KSO13

53

KSO14

54

KSO15

55

KSI0/STB#

58

KSI1/AFD#

59

KSI2/INIT#

60

KSI3/SLIN#

61

KSI4

62

KSI5

63

KSI6

64

KSI7

65

5VT/SSCE1#/VCEN/TM/GPG0

106

5VT/( PD )DTR1#/SBUSY/ID7/GPG 1

107

5VT/RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7

112

TMRI0/GPC4

120

CTX0/TMA0/GPB2

123

TMRI1/GPC6

124

VBAT

3

VCC

11

VSTBY126VSTBY2

50

AVCC

74

VSTBY392VSTBY4

114

VSTBY5

121

VSTBY6

127

VSS11VCORE12VSS327VSS449AVSS

75

VSS591VSS6

113

VSS7

122

GPF1/PS2DAT0/TMB1/5VT

86

GPF3/PS2DAT1/RTS0#/5VT

88

GPI0/ADC0

66

GPI1/ADC1

67

GPI3/ADC3

69

GPI4/ADC4

70

GPI7/ADC7/CTS1#

73

5VT/CTX1/SOUT1/DAT3/ID2/GPH2

95

5VT/FSCE#/GPG3

101

5VT/FMOSI/GPG4

102

5VT/FMISO/GPG5

103

5VT/FSCK/GPG7

105

5VT/DSR0#/GPG6

104

D15

ZD5231BS2

AC

C2020 *47p_50V_NPO_04

R311 10K_04

R671 10K_04

USB CHARGE

R165 *0_04

R329 10K_04

C560

0.1u_16V_Y5V_04

R332 *10K_04

R314

20K_1%_04

R310 90.9K_1%_04

R166 *0_04

R367 1.5K_04

R356 *10K_04

R2272 0_04

R344 100K_04

R2243 *4.7K_04

Q26 2SK3018S3

G

DS

R320 20K_1%_04

R369 43_1%_04

R341 100K_04

R355 10K_04

R2271 0_04

C543

*0.1u_16V_Y5V_04

C559 1u_6.3V_X5R_04

R308

47K_04

R358 47_04

D22

BAV99 RECTIFIER

A

C

AC

R354 10K_04

D26

BAV99 RECTIFIER

A

C

AC

R328 *10K_04

Q28 BTN3904

M-SOT23-CBE

B

E C

D27

BAV99 RECTIFIER

A

C

AC

R669 *0_04

.

L19 HCB1005KF-121T20

U16 74AHC1G08GW

1

2

5

4

3

C569

0.1u_16V_Y5V_04

R303

47K_04

C589 *5p_50V_NPO_04

Sheet 39 of 74

KBC IT8587

B.Schematic Diagrams

B - 40 KBC IT8587

Backlight KB

Sheet 40 of 74

Backlight KB

5

4

3

2

1

D D

C C

B B

A A

BACKLIGHT KEYBOARD

ᶵἧ䓐⢾悐

RESET,

TLC59116F RESET# pin

天

pull high.

RGB

䘤䘤䘤䘤

K/B

䓐䓐䓐䓐

 9

RGB

䘤䘤䘤䘤

K/B

䓐䓐䓐䓐

MAIN

KBC_LED

WHITE K/B

䓐䓐䓐䓐

20170418

P955HQX

KBZONE1_B

KBZONE1_G

KBZONE1_R

KBZONE2_B KBZONE2_R KBZONE2_G

KBZONE3_B KBZONE3_R KBZONE3_G

KBZONE3_R KBZONE3_G KBZONE3_B

KBZONE2_B

KBZONE1_B KBZONE2_R KBZONE2_G

KBZONE1_R KBZONE1_G

KB-SO16 KB-SO17

KB-DET

KBLIGHT_ADJ

KBCLED

3.3VS

KB_5VS

5VS

KB_5VS

5VS_KBC

5VS

5VS_KBC

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

EC_CTRL_EN#39

SMC_VGA_THERM27,39 SMD_VGA_THERM27,39

KB-SO17 39

KB-SO16 39

KB-DET 39

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,41,42,44,48,49,50,51,52,59

5VS12,13,32,41,49,50,51,52,63,64,66

KBLIGHT_ADJ39

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[40] BACKLIGHT KEYB

A4

40 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[40] BACKLIGHT KEYB

A4

40 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[40] BACKLIGHT KEYB

A4

40 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C2046

*10u_6.3V_X5R_06

C704

0.1u_16V_Y5V_04

RGB K/B

R246

10K_04

RGB K/B

C423 1000p_50V_X7R_04

U168

*NCT3940S-A

VOUT

3

GND

5

VIN

2

FON

1

VSET

4

GND

6

GND

8

GND

7

C710

4.7u_6.3V_X5R_06

RGB K/B

TLC59116FIRHBR

U12

TLC59116FIRHBR

RGB K/B

OUT12

19

OUT11

17

OUT13

20

A1

32

A2

1

A3

2

NC

12

OUT0

3

NC4

30

OUT1

4

OUT2

5

OUT3

6

OUT4

8

OUT5

9

GND

7

OUT6

10

OUT7

11

OUT8

14

OUT10

16

GND2

23

A0

31

OUT9

15

NC3

29

GND118OUT14

21

NC1

13

NC2

28

SCL

25

SDA

26

VCC

27

RESET#

24

OUT15

22

33

E_PAD

J_KBLED_1

FP225H-012S10M

6-20-94K50-012

RGB K/B

1

2

3

4

5

6

7

8

9

10

11

12

NC1

NC2

R222

*10K_04

RGB K/B

R245 *0_04

R2205

*28mil_short-p

J_KBLED_3

*FP225H-006S10M

PCB Footprint = fp225h-006xxxm

1 2 3 4 5 6

C2045

*0.1u_10V_X7R_04

J_KBLED_2

FP226H-004S10M

1 2 3 4

R2206

*28mil_short-p

R232

*10K_04

RGB K/B

Schematic Diagrams

B.Schematic Diagrams

Backlight KB B - 41

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

For 3.3V HDA Link.

33pin044pin0@pin-

33pin044pin0@pin-33pin044pin0@pin-

33pin044pin0@pin-٩٩٩٩qmbugpsn!eftjho!hvjef

qmbugpsn!eftjho!hvjefqmbugpsn!eftjho!hvjef

qmbugpsn!eftjho!hvjefᡂ୏

ᡂ୏ᡂ୏

ᡂ୏

䔞㚱

noise

㗪炻℞ῤ⎗婧㔜⽆

100p~0.1u

+3.3V_Dual or Stanby Power requires to have at least 150mA current budget.

40mil

Spilt by DGND

㔜㭝嶗⼹≈崟Ἦ⮵⛘暣⭡㚨⣏ᶵ天崭忶

33p

BEAD

㓡

10 Ohm,NEW PART

婳忋㍍⇘

AMP IC冯EC/SMB

㍏⇞

嶗⼹⽭枰天㚱㉱

HIGH 3.3V

ẞ

3267,6

6-19-31001-247

Analog

Digital

,&

暞暞暞暞ẞẞẞẞ㔠㔠㔠㔠

: pcs

0+'$

,6

NEW PARTS

NEAR PCH

PC BEEP

SRUW$

SRUW%

SRUW'

SRUW)

SRUW(

SRUW+

SRUW*

SRUW&

Very close to CODEC

Layout Note:

DIP cap. is required for higher SNR/THD+N performance.

CBP

CBN

BEEP_C BEEP_R

BEEP_R

EAPD_MODE P_I2S_DOUT1

P_I2S_MCLK P_I2S_LRCK

P_I2S_SCLK

MIC1_R_C

MIC1_L_C

MIC1-VREFO-L MIC1-VREFO-R

MIC1_L_M

MIC1-VREFO-L

MIC1_L_M MIC1_R_M

MIC1_L MIC1_R

MIC1-VREFO-R

BEEP

JD2

JD4

ALC1220_VREF

ALC1220_SCL

ALC1220_SDA

MIC_CLK_R MIC_DATA_R

MIC1_R_M

LDO1_CAP

CPVEE

LDO2_CAP

LDO2_VRP

JD3

JD1

AUDG

3.3VS 3.3VS_AUD

AUDG

AUDGAUDG

5VS

AUDG

AUDGAUDG

3.3VS_AUD

5VS_AUD

3.3VS

DVDD_IO

3.3VS_AUD

CPVDD

AUDG

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,42,44,48,49,50,51,52,59

5VS12,13,32,40,49,50,51,52,63,64,66

MIC1_R_M50

MIC1_L_M50

KBC_BEEP39

PCH_SPKR33

MIC_DATA50

MIC_CLK50

MIC1-JD50

HDA_BITCLK33

HDA_RST#33,42

HDA_SYNC33

HDA_SDOUT33

HDA_SDIN033

P_I2S_DOUT142

ALC1220_SCL42

ALC1220_SDA42

P_I2S_SCLK42 P_I2S_MCLK42 P_I2S_LRCK42

SPDIFO50

EAPD_MODE42,43,50

PORT D_HEADPHONE_L 43 PORT D_HEADPHONE_R 43

HEADPHONE_L 43 HEADPHONE_R 43

FRONT-JD39,41,50

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[41] CODEC Realtek ALC1220

A4

41 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[41] CODEC Realtek ALC1220

A4

41 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[41] CODEC Realtek ALC1220

A4

41 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C469

2.2u_6.3V_X5R_04

R264

2.2K_04

R273 *100K_1%_04

R260 100K_1%_04

R253 3.3K_1%_04

R274 100K_1%_04

C468 10u_6.3V_X5R_06

C484

*680p_50V_X7R_04

C819 10u_6.3V_X5R_06

R2204 200K_1%_04

R241 *20mil short-p

C410 *22p_50V_NPO_04

C532 0.1u_16V_Y5V_04

C792

10u_6.3V_X5R_06

C489 0.1u_16V_Y5V_04

R240 22_04

C

A

D40 BAT54CWH

1

2

3

+

C800 220u_2V_SMD-V

C531 0.1u_16V_Y5V_04

U14

ALC1220

DVDD

1

DMIC_CLK/GPIO1

3

P_I2S_DIN/GPIO6/EAPD

4

DMIC_DAT/GPIO0

2

P_I2S_DOUT1

5

P_I2S_SCLK

6

P_I2S_MCLK/I2S_OUT2

7

P_I2S_LRCK

8

DVDD_IO

9

RSTB/I2S_MCLK

10

BCLK/I2S_SCLK

11

PCBEEP

15

JD1

48

LINE2_L

23

LINE2_R

22

MIC2-L

35

MIC2-R

34

I2C_SDA

54

I2C_SCL

55

HD_I2C SEL

56

MIC1-L

31

MIC1-R

30

LINE1-L

37

LINE1-R

36

AVSS1

29

VREF

28

MIC1_VREFO_L

18

MIC2_VREFO

17

LINE2_VREFO

16

MIC1_VREFO_R

19

LDO2_CAP

39

JD2

49

FRONT-OUT-L

46

FRONT-OUT-R

45

SURR-OUT-L

25

LDO2_VRP

38

SURR-OUT-R

24

AVSS2

40

CENTER

21

LFE

20

SIDESURR-L

33

SIDESURR-R

32

SYNC/I2S_LRCK

12

SPDIFO

53

CPVDD

41

AVDD1

26

SDI/I2S_OUT

13

SDO/I2S_IN

14

JD3

50

JD4

51

CPVREF

47

LDO1_CAP

27

CBP42CBN43CPVEE

44

LDO3_CAP

52

E-PAD

57

C463

0.1u_16V_Y5V_04

C804 0.1u_16V_Y5V_04

C470 0.1u_16V_Y5V_04

L10 HCB1005KF-121T20

12

C431 0.1u_10V_X7R_04

C467

0.1u_16V_Y5V_04

R270 200K_1%_04

C508

*680p_50V_X7R_04

C796

0.1u_16V_Y5V_04

C491 4.7u_6.3V_X5R_06

R239 4.7K_04

R257

2.2K_04

C449 100p_50V_NPO_04

C855 0.1u_16V_Y5V_04

R234 47K_04

C801

10u_6.3V_X5R_06

C471

2.2u_6.3V_X5R_04

R271 100K_1%_04

L34

HCB1005KF-121T20

R266 100K_1%_04

C480

0.1u_16V_Y5V_04

R281 1K_04

L33

HCB1005KF-121T20

R247 100K_1%_04

L32 HCB1005KF-121T20

L11 HCB1005KF-121T20

12

C301 0.1u_16V_Y5V_04

D42

*ZD5232BS2

A C

C440 100p_50V_NPO_04

C794

0.1u_16V_Y5V_04

JP1

*20mil short-p

C803 10u_6.3V_X5R_06

R256 3.3K_1%_04

R284 1K_04

C488 4.7u_6.3V_X5R_06

C490 10u_6.3V_X5R_06

C807

10u_6.3V_X5R_06

C481

10u_6.3V_X5R_06

C421 *0.1u_10V_X5R_04

Sheet 41 of 74

Realtek ALC1220

B.Schematic Diagrams

B - 42 Realtek ALC1220

Smart AMP ALC1306

5

4

3

2

1

D D

C C

B B

A A

ἧἧἧἧ䓐䓐䓐䓐ℑℑℑℑ柮柮柮柮

SMARTAMP

⎗⎗⎗⎗⎴⎴⎴⎴㗪㗪㗪㗪⮯⮯⮯⮯

SMBUS

㕟㕟㕟㕟攳攳攳攳

,

ἧἧἧἧ䓐䓐䓐䓐⎴⎴⎴⎴

NET NAME(1305_SCL/1305_SDA)

1.8VS_AMP

AUDIO AMP FOR SPEAKER

暞暞暞暞ẞẞẞẞ㔠㔠㔠㔠

:pcs

Close speaker:R405, R406

Power domain: PVDD & AVDD1:6~26V DVDD & AVDD2:1.8V DVDD_IO:1.8V~3.3V (default:3.3V)

,  &  $ G G

6 H O H F W

/ R Z  

+ L  

Stereo Output (BTL Mode)

2W

婳忋㍍⇘

Codec I2C冯EC/SMB

㍏⇞

嶗⼹⽭枰天㚱㉱

HIGH 3.3V

ẞ

AUDIO AMP Enable

AMP POWER 10V

Reserve for AMP_EN deley

10V/6A

4 Ohm

ALC1306

侸⡻ἧ䓐

25V

侸⡻ἧ䓐

25V

侸⡻ἧ䓐

25V

侸⡻ἧ䓐

25V

R1

R2

Vout=1.24V*(1+R1/R2) Vout=1.24V*(1+0.493)=1.85V

20mils

100u_16V_SMD-V

RR+ LL+

R+R-L- L+

1305_PGVDD

ISENSEP_L

IVSENSE_L

VSENSEN_L

ISENSEP_R

1305_SDA

1305_SCL

IVSENSE_R

VSENSEN_R

OUT_D

OUT_A

OUT_B

OUT_C

OUTC_ISENSEP_R

OUTA

OUTB

OUTA_ISENSEP_L

1305_DOUT1

1305_LRCK

AMP_EN

1305_MCLK

1305_SCLK

SUSB#_EN

AMP_EN

1305_SCL

1305_SDA

OUTD

OUTC

VIN

10V

AMP_PWR

1.8VS_AMP

A1.8V

1.8VS_AMP

3.3VS

VDD3 1.8VS_AMP

3.3V

EC_SMB_CLK_130539

SMB_CLK33,43,49,57

ALC1220_SCL41

ALC1220_SDA41

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,44,48,49,50,51,52,59

GPP_B1538

P_I2S_MCLK41

P_I2S_DOUT141

P_I2S_SCLK41

P_I2S_LRCK41

EAPD_MODE 41,43,50

HDA_RST# 33,41

SUSB# 11,32,33,38,44,48,52,58

PCH_MUTE# 34

KBC_MUTE# 39

VIN11,39,43,44,52,55,56,57,58,59,60,61,62

3.3V2,11,27,29,43,44,45,46,47,49,50,52,53,54,55,57,58

SUSB#_EN52,53

EC_SMB_DATA_130539

SMB_DATA33,43,49,57

VDD35,27,30,33,36,38,39,44,48,50,51,52,53,54,55,56,58,61,62,63,66

AMP_EN39,43

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[42] SMART AMP ALC1306

A3

42 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[42] SMART AMP ALC1306

A3

42 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[42] SMART AMP ALC1306

A3

42 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R180 40.2K_0.1%_04

C773

1u_6.3V_X5R_04

R167 40.2K_0.1%_04

R198 40.2K_0.1%_04

R144 *0_04

PR100

100K_1%_04

C747

10u_25V_X5R_08

R570 *0_04

C342 680p_50V_X7R_04

D6

RB751S-40H

A C

R549

95.3K_1%_04

R197 10_04 R190 10_04

R206 40.2K_0.1%_04

R559 0_04

PC68

0.1u_10V_X7R_04

PR112 100K_1%_04

.

L7

HCB1608KF-121T30

R555 10K_04

PC77

0.01u_25V_X7R_04

C785 33p_50V_NPO_04

S

D

G

Q16B

*MTDK3S6R

5

3 4

C777

1u_25V_X5R_06

PC69

*0.01u_50V_X7R_04

U34

NCT3705U-A

IN

1

GND

2

SHDN#

3

VOUT

5

SET

4

PC75

0.1u_25V_X7R_06

C774 330p_50V_X7R_04

PC202

10u_25V_X5R_08

C297

0.1u_16V_Y5V_04

R205

10K_0.1%_04

C345

1000p_50V_X7R_04

C769

0.1u_16V_Y5V_04

.

L4 HCB1608KF-121T30

R566 33_04

C750

1000p_50V_X7R_04

+

PC199

16TQC100MYF.

PC204

4.7u_25V_X5R_08

C770

1u_25V_X5R_06

PR107

100K_1%_04

+

PC205

16TQC100MYF.

C356 330p_50V_X7R_04

C753

1u_25V_X5R_06

R120

1K_04

R169

10K_0.1%_04

R554 22.1K_1%_04

C764

10u_6.3V_X5R_06

C746

10u_25V_X5R_08

PC203

10u_25V_X5R_08

C757

1u_25V_X5R_06

R543

47K_1%_04

C778

1000p_50V_X7R_04

R137 *0_04

R560 10K_1%_04

R405 0.2_1%_08

.

L29

HCB1608KF-121T30

PC201

10u_25V_X5R_08

C340 0.22u_25V_X7R_06

.

L5

HCB1608KF-121T30

C765

0.1u_16V_Y5V_04

C411

1u_6.3V_X5R_04

PC70

1000p_50V_X7R_04

R145 *0_04

R564 22_04

S

D

G

Q14B

MTDK3S6R

5

34

C784 33p_50V_NPO_04

R567 33_04

R192 40.2K_0.1%_04

C296

*0.1u_10V_X7R_04

C755

4.7u_6.3V_X5R_06

C791 33p_50V_NPO_04

C374 0.22u_25V_X7R_06

C754 680p_50V_X7R_04

C383

0.1u_16V_Y5V_04

C373 330p_50V_X7R_04

R568 33_04

C762

*0.01u_50V_X7R_04

D65

RB751S-40H

A C

C776

1u_6.3V_X5R_04

C341 1u_25V_X5R_06

PL11

BCIHP0730-4R7M

PCB Footprint = BCIHP0735A

4.7UH_6.8*7.3*3.5

R565 22_04

R569 33_04

C740

10u_25V_X5R_08

C733

10u_25V_X5R_08

R553 10_04

R121

100K_1%_04

R138

3K_1%_04

R556

*10K_04

C739

10u_25V_X5R_08

C763

1u_25V_X5R_06

D7

*RB751S-40H

A C

PR104

10K_1%_04

C760 680p_50V_X7R_04

+

PC196

16TQC100MYF.

R168

10K_0.1%_04

C775

0.22u_25V_X7R_06

R210 10_04

C362 330p_50V_X7R_04

S

D

G

Q14A

MTDK3S6R

2

61

PU13

MP8715DN-LF-Z

BST

3

SW

2

FB

5

GND

9

IN

1

VCC

7

EN/SYNC

4

SS

8

POK

6

C401

*0.1u_16V_Y5V_04

C364 0.22u_25V_X7R_06

U5 74AHC1G08GW

1

2

5

4

3

C369

1000p_50V_X7R_04

R115

10K_04

C759

0.1u_16V_Y5V_04

R179

10K_0.1%_04

C366 680p_50V_X7R_04

PR101 100K_1%_04

D9

RB751S-40H

A C

R170 40.2K_0.1%_04

C789 1u_25V_X5R_06

PJ44 *OPEN-5mm

12

C348

1000p_50V_X7R_04

R196

10K_0.1%_04

PR97

4.7_06

R2242 *0_04

L30

HCB1608KF-121T30

R406 0.2_1%_08

J_SPK1

88266-04001

PCB Footprint = 88266-04_L

1

2

3

4

PR105

115K_1%_04

U10

ALC1306 V1.1

PVDD_A

1

BST_A

2

GVDD_AB

3

GND

4

OC_ADJ

5

PGVDD

6

SCL

8

MCLK

9

BCLK

10

LRCK

11

DACDAT

12

SPDIF-IN

13

SPDIF_OUT/I2S_OUT

14

PDBJD15DVDD_IO16DVDD17ASEL18DGND19AGND20AVDD221LDO_A1.522VREF23AGND24ISENSEP_L25IVSENSE_L26VSENSEN_L27ISENSEP_R

28

IVSENSE_R

29

VSENSEN_R

30

NC

31

NC

32

AGND

33

AGND

34

NC

35

NC

36

AVDD1

37

SYNC_OUT

38

SYNC_IN

39

GVDD_CD

40

BST_D

41

PVDD_D

42

PVDD_D

43

OUT_D

44

PGND_CD45PGND_CD

46

OUT_C

47

PVDD_C

48

BST_C

49

BST_B

50

PVDD_B

51

OUT_B

52

PGND_AB53PGND_AB

54

OUT_A

55

PVDD_A

56

E-PAD

57

SDA

7

R563

100K_04

R214

10K_04

J2 *CV-40mil

12

S

D

G

Q16A

*MTDK3S6R

2

6 1

PR98

*0_04

C371

1u_6.3V_X5R_04

C412 33p_50V_NPO_04

R136 *0_04

PR102

*100K_1%_04

R191

10K_0.1%_04

Sheet 42 of 74

Smart AMP

ALC1306

Schematic Diagrams

B.Schematic Diagrams

Smart AMP ALC1306 B - 43

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

Ra

Rc

SV3H612

SV3H615

Ra,Rc,Rf,Rg,Rh Rb,Rd,Ca,Cb, Ua

Mount

MountNC

NC

SV3H612 SV3H615pin

13 SGND

14

15

JD

VDD

LS-IN

Re

PWR OFF, HP_JSGND=0V PWR ON, HP_JSGND=2.5V

Rf

Re, Ri烉烉烉烉612炻炻炻炻615䘮䘮䘮䘮ᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ

3D HeadPhone AMP

QA

QB

RB

RC

㬌悐↮劍㚱⮷㜧婳㓦㕤

M/B

SV3H615 ARa

ᶲᶲᶲᶲ

0ohm (AUDIO/B)

SV3H612 QA,QB MTN7002ZHS3, RB,RC 1Mohm

Rg

Rh

Co-Lay

Headphone Anti-Pop Circuit

HP_JSGND

HP_JSGND_EN

3D_HP_R

AMP_EN

HP_INL

HP_INR

HP_SDA

HP_SCL

HEADPHONE-LC

HEADPHONE-RC

3D_HP_L

3D_HP_R

HP_JSGND

HP_L

HP_R

3D_HP_L

HEADPHONE-LC HEADPHONE-RC

AUDG

5V

AUDG

VIN

AUDG

3.3V

5V32,45,46,48,50,52,53,54,55,57,59,60,61,65 VIN11,39,42,44,52,55,56,57,58,59,60,61,62

HP_JSGND 50

SMB_CLK 33,42,49,57 SMB_DATA 33,42,49,57

AMP_EN 39,42

HEADPHONE-LC 50

HEADPHONE-RC 50

HEADPHONE_L41

HEADPHONE_R41

PORT D_HEADPHONE_L41

PORT D_HEADPHONE_R41

EAPD_MODE41,42,50

3.3V2,11,27,29,42,44,45,46,47,49,50,52,53,54,55,57,58

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[43] 3D AMP HeadPhone

A4

43 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[43] 3D AMP HeadPhone

A4

43 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[43] 3D AMP HeadPhone

A4

43 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R134 *0_04

R147 54.9_1%_04

C512

0.1u_16V_Y5V_04

R2269

*1K_04

C2016 1u_16V_X7R_06

Q13 MTN7002ZHS3

G

DS

R161 470_04

C813

22u_6.3V_X5R_08

R2270

*220K_04

Q12 MTN7002ZHS3

G

DS

C511

2.2u_6.3V_X5R_04

C337 1u_6.3V_X5R_04

C336 2200p_50V_X7R_04

C2052

*10u_6.3V_X5R_06

C304 0.01u_16V_X7R_04

C321 10p_50V_NPO_04

R131 15_1%_04

C302 0.01u_16V_X7R_04

C2017 1u_16V_X7R_06

Q66

*PBSS2515E

M-SOT23-CBE

B

E C

C303 0.01u_16V_X7R_04

VSS

U6

SV3H612V

VREF

2

INR

4

REXT

3

INL

1

OUTA5SDA6SCL7C2_3DR

8

C2_3DL

12

C1_3DL

11

PGND

10

C1_SDR

9

OUTL

16

VDD

15

JD

14

SGND

13

VSS

17

C814

22u_6.3V_X5R_08

R2267 *4.7K_04

R124

1M_04

R125 1M_04

R133 22_1%_04

C338 2200p_50V_X7R_04

C328 10p_50V_NPO_04

C787 *1u_16V_X7R_06

R164 54.9_1%_04

R163 470_04

R2266 *0_04

R148 22_1%_04

R162 *240K_04

C311 0.01u_16V_X7R_04

R2268

*1K_04

Q67

*PBSS2515E

M-SOT23-CBE

B

E C

R2265 *0_04

C788 *1u_16V_X7R_06

Q69

*PBMBS3906

M-SOT23-CBE

B

EC

Sheet 43 of 74

3D AMP

Headphone

3D AMP Headphone

B.Schematic Diagrams

B - 44 3D AMP Headphone

5

4

3

2

1

D D

C C

B B

A A

6-04-02510-A91

SPI ROM for FW

Pin 4 Pin 32

Pin 62

Pin 38

Pin 35 Pin 47 Pin 52

Pin 44 Pin 55

DEFAULT

Pin 33

Pin 21 Pin 34

Pin 1 Pin 12

3.3V_ASM

1.2VS_ASM

Pin 20

Pin 24

HW STRAP

ASM2142 USB3.1

3.3VS:4mA

3.3V:0.9mA

2.5VS:220mA

1.05VS:470mA

1.05V:7.5mA

1.05V_ASM

DEFAULT

2A

DELAY CIRCUIT-

-PORT RESET

暨婧㔜

D3hot only: POR Delay 1.2V about 70 ms(min)

2.5VS_ASM

Zdiff=90ȍ

Zdiff=80ȍ

Zdiff=85ȍ

Zdiff=95ȍ

R1

R2

Vout=1.24V*(1+R1/R2) Vout=1.24V*(1+1.037)=2.55V

20mils

D02

ᾖ㬋

2/25

ASM1142_SPI_SI ASM1142_SPI_CE#

ASM1142_SPI_SO

ASM1142_SPI_SCLK

EXTL_O

VCCSUS_VCCLU

ASM1142_UART_TX

ASM_2142_PRON_A

ASM2142_PRON_B

ASM1142_SPI_SO

ASM1142_SPI_SCLK

ASM1142_SPI_CE# ASM1142_SPI_SI

ASM1142_REXT

VCC33_IN

ASM1142_PGND

VCCSUS_IN

VDDP_12P

VDDU_12U

ASM1142_PE_RST_N

ASM1142_TEST_EN

ASM1142_PORST

ASM_11142_XI

ASM_11142_XO

ASM1142_UART_RX ASM1142_UART_TX

ASM1142_PE_RST_N

ASM1142_SPI_SO

ASM1142_UART_RX

ASM1142_SPI_SCLK

ASM1142_TEST_EN

3.3VS_ASM1142

PCIE_WAKE#_ASM

ASM1142_PORST

VDDSUS_IN ASM1142_PE_RST_N

3.3V_ASM

3.3VS

1.2VS

1.2V_ASM

1.2VS_ASM

3.3V 3.3V_ASM

2.5VS_ASM

3.3VS

3.3V

3.3VS

1.2VS_ASM

3.3V_ASM

1.2V_ASM

3.3V_ASM

1.2VS_ASM

1.2V_ASM

2.5VS_ASM

1.2VS

3.3VS_ASM1142

1.2VS_ASM

3.3VS

1.2VS

3.3VS

1.2V_ASM

VDD5

VIN

3.3VS

1.2V_ASM

1.2VS_ASM

VDD3 2.5VS_ASM

3.3V

3.3VS

VDD550,52,56,58

3.3V_ASM45,46

PCIE_TXP6_ASM114231

PCIE_TXN6_ASM114231

PCIE_RXP6_ASM114231

PCIE_RXN6_ASM114231

PCIE_RXP5_ASM114231

PCIE_RXN5_ASM114231

PCIE_TXP5_ASM114231

PCIE_TXN5_ASM114231

CLK_SRC5_ASM1142# 35

CLK_SRC5_ASM1142 35

ASM1142_SMI_N38

CLK_REQ5_ASM1142#35

OCI_B# 45 OCI_A# 46

ASM1142_PORST_EC39

PCIE_WAKE# 33,48,50

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,48,49,50,51,52,59

3.3V2,11,27,29,42,43,45,46,47,49,50,52,53,54,55,57,58

VIN11,39,42,43,52,55,56,57,58,59,60,61,62

DD_ON39,44,50,52,56

B_UTXN_CM 46 B_UTXP_CM 46

B_URXP_CM 46

B_URXN_CM 46

A_URXP_CM 45

A_URXN_CM 45

A_UTXN_CM 45 A_UTXP_CM 45

B_UDP46 B_UDN46 A_UDP45 A_UDN45

SUSB#11,32,33,38,42,44,48,52,58

PRON_A 46

PRON_B 45

VDD35,27,30,33,36,38,39,42,48,50,51,52,53,54,55,56,58,61,62,63,66

DD_ON39,44,50,52,56

VDD1.035,36,53,58

SUSB#11,32,33,38,42,44,48,52,58

BUF_PLT_RST#34,39,48,49,50

ASM1142_BUF_PLT_RST#39

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[44] ASM2142 (USB3.1 1/3)

A3

44 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[44] ASM2142 (USB3.1 1/3)

A3

44 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[44] ASM2142 (USB3.1 1/3)

A3

44 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C556 0.1u_16V_Y5V_04

C913 *10u_6.3V_X5R_06

C914 0.1u_16V_Y5V_04

C917 *0.1u_16V_Y5V_04

C911

0.22u_10V_X5R_04

R651

47K_1%_04

C562

*1u_6.3V_X5R_04

R656 *0_04

R660

4.7K_04

U43

GD25D10BTIGR

M-SO8

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R309 *20mil short-p

C889 10u_6.3V_X5R_06

R2246 *20mil_06

R643

62K_1%_04

R632 *0_04

R696 *0_04

R64610K_04

R316 0_04

R2244 *0402_short

C886

12p_50V_NPO_04

C910

1000p_50V_X7R_04

C550

*10u_6.3V_X5R_06

C880 0.22u_10V_X5R_04

R300 10K_04

U45

MP2315GJ-Z

IN

2

AAM

1

EN/SYNC6FB

8

BST

5

SW

3

VCC

7

GND

4

U20

NCT3705U-A

IN

1

GND

2

SHDN#

3

VOUT

5

SET

4

C558 0.1u_16V_Y5V_04

C884 10u_6.3V_X5R_06

C915 0.1u_16V_Y5V_04

R640 *4.7K_04

C893

0.1u_16V_Y5V_04

C905

15p_50V_NPO_04

C554 0.1u_16V_Y5V_04

R659 *0402_short

C581

*0.01u_50V_X7R_04

C892

0.1u_16V_Y5V_04

R634

4.7K_04

C890 0.1u_16V_Y5V_04

C538 10u_6.3V_X5R_06

C902

*0.1u_10V_X7R_04

C572

4.7u_6.3V_X5R_06

.

L21

HCB1608KF-121T30

R649

0_04

R626

12.1K_1%_04

R302 *20mil short-p

R645 *4.7K_04 R305

4.7K_04

C585

0.1u_16V_Y5V_04

C534 10u_6.3V_X5R_06

C536

220p_50V_NPO_04

D18

RB751V-40(lision)

AC

EM5209U41

CT2

10

OUT2

8

EN2

5

VBIAS

4

IN2

6

GND

11

EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

R644

100K_1%_04

R348

44.2K_1%_04

R648

*0_04

C898

22u_6.3V_X5R_08

R323

*100K_04

U169

*74AHC1G08GW

1

2

5

4

3

R2247 *0_06

D19

*RB751V-40(lision)

A C

C901

0.1u_16V_Y5V_04

C539 0.1u_16V_Y5V_04

C542 4.7u_6.3V_X5R_06

R647

20.5K_1%_04

.

L13

*HCB1608KF-121T30

C576

1u_6.3V_X5R_04

R306

4.7K_04

C881 0.22u_10V_X5R_04

C916 0.1u_16V_Y5V_04

C883 0.22u_10V_X5R_04

C908

4.7u_25V_X5R_08

C552 *10u_6.3V_X5R_06

C900 0.1u_16V_Y5V_04

.

L16

*SWF2520CF-4R7M-M

C891

0.1u_10V_X7R_04

R321 *0_04

R307 1K_04

.

L35

HCB1608KF-121T30

C557 0.1u_16V_Y5V_04

C2051 *0.1u_10V_X7R_04

R633 10_06

C551 10u_6.3V_X5R_06

R650

*0_04

R652

*0_04

R661 *4.7K_04

R349

47K_1%_04

R2263

*100K_04

C896

22u_6.3V_X5R_08

R658

0_04

C903

1u_6.3V_X5R_04

C919 10u_6.3V_X5R_06

X4

FSX3M 20.0000000M16FAO

12

3 4

R635 0_04

PJ32

*2mm

1 2

S

D

G

Q29A *MTDK3S6R

2

61

R2245 *0_04

C909 0.1u_16V_Y5V_04

R324

*100K_04

C561

*1u_6.3V_X5R_04

C897

20p_50V_NPO_04

R322 *0_04R662 0_04

ASM2142

U44

ASM2142

VDD

1

SMI#

2

PE_CLKREQ#

3

VCC

4

SPI_CLK

5

SPI_DO

6

SPI_CS#

7

SPI_DI

8

PORST#

9

UART_RX

10

UART_TX

11

VDD

12

VCC_IN

13

EXTL

14

PGND

15

VCCSUS_IN

16

VDDSUS_O17U2DM_B18U2DP_B19VCCSUS/VCCLU20VDDSUS21U2DM_A22U2DP_A23VCCSUS24PE_WAKE#25PRON_A26PRON_B27OCI_A#28OCI_B#29PE_RST#30TEST_EN31VCC

32

PRX1N

64

PRX1P

63

VCCP

62

PTX1N

61

PTX1P

60

REXT

59

VDDP

58

PTX0N

57

PTX0P

56

VCCP

55

PRX0N

54

PRX0P

53

VDDP

52

XI

51

XO

50

PECLKN

49

PECLKP

48

VDDU

47

U3RXN_A

46

U3RXP_A

45

VCCU

44

U3TXN_A

43

U3TXP_A

42

VDDU

41

U3TXN_B

40

U3TXP_B

39

VCCU

38

U3RXN_B

37

U3RXP_B

36

VDDU

35

VDDSUS

34

VDD

33

GND

65

C918 0.1u_16V_Y5V_04

R638 10K_04

R325

*100K_04

PJ56

*OPEN_3mm

1 2

L37

BCIHP0420TB-2R2M

1 2

R642

4.7K_04

C882 0.22u_10V_X5R_04

S

D

G

Q29B *MTDK3S6R

5

34

C535 0.1u_16V_Y5V_04

R639 *4.7K_04C537 4.7u_6.3V_X5R_06

C907

4.7u_25V_X5R_08

R641

4.7K_04

R350 10K_1%_04

ASM2142 1/3

Sheet 44 of 74

ASM2142 1/3

Schematic Diagrams

B.Schematic Diagrams

ASM2142 1/3 B - 45

5

4

3

2

1

D D

C C

B B

A A

close to connector

MAIN 6-21-B4K30-024

100 MIL

3.3A

pin#A4 pin#A9 pin#B4 pin#B9

pin#12

Near to IC

pin#12

pin#29pin#5

CC1 CH

CC2 CH

USB3.0./3.1 PORT2 (TYPE C)

ASM1142+ASM1543 USB3.1 Max Trace length < 1.3"

0317

Thermal and GND via hole

pin33

pin1

A_URXN_SW1_J

A_URXP_SW1_J

A_UTXN_SW1_J

A_UTXP_SW1_J

A_UTXN_SW2_JA_URXN_SW2_J

TYPEC_UDP_J TYPEC_UDN_J

A_URXP_SW2_J

TYPEC_UDP_J

TYPEC_UDN_J

ASM1543_CC1_J

ASM1543_CC2_J

A_UTXP_SW2_J

A_UTXN_SW2_J

A_URXN_SW2_J A_URXP_SW2_J

TYPEC_UDP_J

TYPEC_UDN_J

ASM1543_CC2 ASM1543_CC1

ASM1543_CC2_J ASM1543_CC1_J

A_URXP_SW1_J A_URXN_SW1_J

A_UTXN_SW1_J

A_UTXP_SW1_J

A_UTXN_SW2 A_UTXP_SW2

A_UTXN_SW1

A_UTXP_SW1

ASM1543_REXT

ASM1543_I_SEL1

ASM1543_I_SEL0

ASM1543_ROLE_SEL

ASM1543_MODE_SEL

ASM1543_VCONN_EN

ASM1543_CC1

ASM1543_CC2

ASM1543_ROLE_SEL

ASM1543_MODE_SEL

ASM1543_VCONN_EN

HC_RDY#

MC_RDY#

CC_RDY#

ASM1543_I_SEL0

ASM1543_I_SEL1

ASM1543_REXT

A_UTXP_SW2_J

ASM1543_PWR_EN

A_URXN_SW1_J A_URXP_SW1_J

A_URXP_SW2_J

A_URXN_SW2_J

A_UTXP_SW1

A_UTXP_SW2

A_UTXN_SW1

A_UTXN_SW2

USBVCC3.1_1

USBVCC3.1_1 USBVCC3.1_1

USBVCC3.1_1

3.3V_ASM

3.3V

USBVCC3.1_15V

USBVCC3.1_1

5V_MUX

3.3V_ASM

5V5V_MUX

3.3V_ASM

5V_MUX

3.3V

OCI_B# 44

A_UDP44

A_UDN44

PRON_B44

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

5V32,43,46,48,50,52,53,54,55,57,59,60,61,65

3.3V2,11,27,29,42,43,44,46,47,49,50,52,53,54,55,57,58

3.3V_ASM44,46

A_URXN_CM44 A_URXP_CM44

A_UTXN_CM44 A_UTXP_CM44

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[45] ASM2142 (USB3.1 2/3)

A4

45 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[45] ASM2142 (USB3.1 2/3)

A4

45 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[45] ASM2142 (USB3.1 2/3)

A4

45 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R680 2.2K_04

C944 22u_6.3V_X5R_08

U21

SY6288E1AAC

6-02-62881-9C0

OUT

1

GND

2

OCB

3

EN

4

IN

5

J_TYPEC1

UCF3T-21S01-0P11Y

_

GND

A1

TX0_P

A2

TX0_N

A3

VBUS

A4

CC1

A5

USB2_P_T

A6

USB2_N_T

A7

SBU1

A8

VBUS

A9

RX1_N

A10

RX1_P

A11

GND

A12

GND

B12

RX0_P

B11

RX0_N

B10

VBUS

B9

SBU2

B8

USB2_N_B

B7

USB2_P_B

B6

CC2

B5

VBUS

B4

TX1_N

B3

TX1_P

B2

GND

B1

GND1

GND2

GND3

GND4

GND5

GND6

GND7

GND8

C594

0.1u_10V_X7R_04

C592

*0.1u_16V_Y5V_04

R686 *0402_short

C953 1u_6.3V_X5R_04

C596 0.22u_10V_X5R_04

C588

10u_6.3V_X5R_06

D28 ESDPSA0402V12

12

C939 1u_6.3V_X5R_04

R371

4.7K_04

U48

ASM1543

I_SEL0/MUX_EN#

1

DA_a

2

DA_b

3

GNDA1

4

VCC1

5

DB_a

6

DB_b

7

I_SEL1/MUX_SEL

8

REXT9DFP_CC210CC211VCONN12CC113DFP_CC114ROLE_SEL15GNDA2

16

DB_b2

17

DB_a2

18

DA_b2

19

DA_a2

20

DB_b1

21

DB_a1

22

DA_b1

23

DA_a1

24

GNDA3

25

HC_RDY#

26

MC_RDY#

27

CC_RDY#

28

VCC2

29

VCONN_EN

30

PWR_EN

31

MODE_SEL

32

GND

33

R678 10K_04R681 12.1K_1%_04

D59 ESDPSA0402V12

12

C941 0.22u_10V_X5R_04

C938 1u_6.3V_X5R_04

C940 22u_6.3V_X5R_08

R684 *0402_short

D29 ESDPSA0402V12

12

C936

1u_6.3V_X5R_04

R361 4.7K_04

D60 ESDPSA0402V12

12

C593

0.1u_10V_X7R_04

C595

0.1u_16V_Y5V_04

D31 ESDPSA0402V12

12

R683 2.2K_04

R682 *0402_short

D56

DT1140-04LP-7

5

1 2 3 4

10 9 8 7 6

R327 0_04

C950 1u_6.3V_X5R_04

C597 0.22u_10V_X5R_04

D58 ESDPSA0402V12

12

R685 *0402_short

C591

1u_6.3V_X5R_04

L42

*WCM2012F2S-SHORT

1

4

2

3

C937

10u_6.3V_X5R_06

.

L23

HCB1608KF-121T30

C942 0.22u_10V_X5R_04

R687 2.2K_04

D30 ESDPSA0402V12

12

R679 10K_04

D57 ESDPSA0402V12

12

Sheet 45 of 74

ASM2142 2/3

Schematic Diagrams

ASM2142 2/3

B.Schematic Diagrams

B - 46 ASM2142 2/3

5

4

3

2

1

D D

C C

B B

A A

MAIN 6-21-B4K30-024

pin#12

pin#29pin#5

USB3.0./3.1 PORT2 (TYPE C)

ASM1142+ASM1543 USB3.1 Max Trace length < 1.3"

0317

Thermal and GND via hole

pin33

pin1

100 MIL

3.3A

pin#A4 pin#A9 pin#B4 pin#B9

Near to IC

CC1 CH

CC2 CH

ASM1142+ASM1543 USB3.1 Max Trace length < 1.3"

close to connector

B_URXN_SW1_J

B_URXP_SW1_J

B_UTXN_SW1_J

B_UTXP_SW1_J

B_UTXN_SW2_JB_URXN_SW2_J

TYPEC_UDP_J_2 TYPEC_UDN_J_2

B_URXP_SW2_J

TYPEC_UDP_J_2

TYPEC_UDN_J_2

ASM1543_CC1_J_2

ASM1543_CC2_J_2

B_UTXP_SW2_J

ASM1543_I_SEL0_2

ASM1543_I_SEL1_2

ASM1543_REXT2

ASM1543_I_SEL1_2

ASM1543_I_SEL0_2

ASM1543_ROLE_SEL2

ASM1543_MODE_SEL2

ASM1543_VCONN_EN2

ASM1543_CC1_2

ASM1543_CC2_2

ASM1543_ROLE_SEL2

ASM1543_MODE_SEL2

ASM1543_VCONN_EN2

HC_RDY#2

MC_RDY#2

CC_RDY#2

B_UTXP_SW2_J

B_UTXN_SW2_J

B_URXN_SW2_J B_URXP_SW2_J

TYPEC_UDP_J_2

TYPEC_UDN_J_2

ASM1543_CC2_2 ASM1543_CC1_2

ASM1543_CC2_J_2 ASM1543_CC1_J_2

B_URXP_SW1_J B_URXN_SW1_J

B_UTXN_SW1_J

B_UTXP_SW1_J

B_UTXN_SW2 B_UTXP_SW2

B_UTXN_SW1

B_UTXP_SW1

ASM1543_PWR_EN2

B_URXN_SW1_J B_URXP_SW1_J

B_URXP_SW2_J

B_UTXP_SW1

B_UTXN_SW1

B_URXN_SW2_J

B_UTXP_SW2

B_UTXN_SW2

USBVCC3.1_2

USBVCC3.1_2 USBVCC3.1_2

USBVCC3.1_2

5V_MUX

3.3V_ASM

5V5V_MUX

3.3V

3.3V_ASM

3.3V

USBVCC3.1_25V

USBVCC3.1_2

3.3V_ASM

5V_MUX

5V32,43,45,48,50,52,53,54,55,57,59,60,61,65

3.3V2,11,27,29,42,43,44,45,47,49,50,52,53,54,55,57,58

3.3V_ASM44,45

B_UTXP_CM44

B_URXN_CM44

B_UTXN_CM44

OCI_A# 44

B_URXP_CM44

PRON_A44

B_UDP44

B_UDN44

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[46] ASM2142 (USB3.1 3/3)

A4

46 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[46] ASM2142 (USB3.1 3/3)

A4

46 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[46] ASM2142 (USB3.1 3/3)

A4

46 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C584 0.22u_10V_X5R_04

C921

10u_6.3V_X5R_06

D51

DT1140-04LP-7

5

1 2 3 4

10 9 8 7 6

R676 4.7K_04

C932 0.22u_10V_X5R_04

D55 ESDPSA0402V12

12

C931 22u_6.3V_X5R_08

R663 12.1K_1%_04

R668 *0402_short

C582 0.22u_10V_X5R_04

C568

1u_6.3V_X5R_04

R666 *0402_short

C933 1u_6.3V_X5R_04

D23 ESDPSA0402V12

12

C929 22u_6.3V_X5R_08

D52 ESDPSA0402V12

12

R653 10K_04

C563

0.1u_10V_X7R_04

C930

0.1u_16V_Y5V_04

R326 0_04

U47

SY6288E1AAC

6-02-62881-9C0

OUT

1

GND

2

OCB

3

EN

4

IN

5

R657 10K_04

R665 *0402_short

L40

*WCM2012F2S-SHORT

1

4

2

3

C926 1u_6.3V_X5R_04

C935 1u_6.3V_X5R_04

.

L41

HCB1608KF-121T30

R655 2.2K_04

D53 ESDPSA0402V12

12

C934 0.22u_10V_X5R_04

R664 *0402_short

D24 ESDPSA0402V12

12

R667 2.2K_04

C920

0.1u_10V_X7R_04

C565

1u_6.3V_X5R_04

D21 ESDPSA0402V12

12

C924

*0.1u_16V_Y5V_04

J_TYPEC2 UCF3T-21S01-0P11Y

_

GND

A1

TX0_P

A2

TX0_N

A3

VBUS

A4

CC1

A5

USB2_P_T

A6

USB2_N_T

A7

SBU1

A8

VBUS

A9

RX1_N

A10

RX1_P

A11

GND

A12

GND

B12

RX0_P

B11

RX0_N

B10

VBUS

B9

SBU2

B8

USB2_N_B

B7

USB2_P_B

B6

CC2

B5

VBUS

B4

TX1_N

B3

TX1_P

B2

GND

B1

GND1

GND2

GND3

GND4

GND5

GND6

GND7

GND8

C928

10u_6.3V_X5R_06

U46

ASM1543

I_SEL0/MUX_EN#

1

DA_a

2

DA_b

3

GNDA1

4

VCC1

5

DB_a

6

DB_b

7

I_SEL1/MUX_SEL

8

REXT9DFP_CC210CC211VCONN12CC113DFP_CC114ROLE_SEL15GNDA2

16

DB_b2

17

DB_a2

18

DA_b2

19

DA_a2

20

DB_b1

21

DB_a1

22

DA_b1

23

DA_a1

24

GNDA3

25

HC_RDY#

26

MC_RDY#

27

CC_RDY#

28

VCC2

29

VCONN_EN

30

PWR_EN

31

MODE_SEL

32

GND

33

D54 ESDPSA0402V12

12

R677

4.7K_04

R654 2.2K_04

C925 1u_6.3V_X5R_04

D25 ESDPSA0402V12

12

Sheet 46 of 74

ASM2142 3/3

Schematic Diagrams

B.Schematic Diagrams

ASM2142 3/3 B - 47

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

PCB Footprint

婳婳婳婳䡢䡢䡢䡢娵娵娵娵㨇㨇㨇㨇㥳㥳㥳㥳ἧἧἧἧ䓐䓐䓐䓐䘬䘬䘬䘬

Connector

3G /LTE CARD USB3.0

>120 mil>120 mil

3G POWER

Windows 8 3G_POWEREN Always hi.

80 mils

CHECK BIOS & EC, 1.8V LEVEL

HUAWEI MU736

⎗㍍⍿

3.3V

CLOSED CONNECTOR

CURRENT2A

㗪

,DON'T DROP BELOW 3.135V

Default ᶵᶲẞ

M.2 3G/4G-LTE module SIM Detect Pin 66

炻ℏ悐䁢

1.8V with

Pull-up

暣旣

普㷔溆

BOT

BODYSAR

⎒䓐㕤⸛㜧

3G_WAKE#

枸䔁ᶵᶲ,Ữ⚈䁢EC㰺

㇨ẍ㓡䁢ᶵ㍍

D02

3/28 ᾖ㬋footprint,

ⶍ⺈天㯪

Close to J_3G1

4G LTE

USB3_RXN6_R

3G_PWR_EN

UIM_DATA

UIM_PWR

UIM_RST

UIM_CLK

PWR_ON_OFF

3G_WAKE#

GPS_DISABLE#

SIM_DET

BODYSAR_N

PWR_ON_OFF

3G_PWR_EN

3G_CONFIG0

M2B_3GSSD_LED#R

3G_EN

GPS_DISABLE#

3G_PWR_EN

3G_3.3V

USB3_TXP6_R

USB3_RXP6_R

USB3_TXN6_R

3.3V

3G_3.3V

GND

3G_3.3V

GND

3G_3.3V

GND

GND GND

GND

3.3V

GND

3.3V2,11,27,29,42,43,44,45,46,49,50,52,53,54,55,57,58

3G_PWR_EN39

3G_EN 39

3G_RST#39

USB_PP631

USB_PN631

USB3_TXP634

USB3_TXN634

USB3_RXP634

USB3_RXN634

3G_CONFIG338

3G_CONFIG038

SIM_DET 50

UIM_DATA 50 UIM_CLK 50 UIM_RST 50

UIM_PWR 50

3G_CONFIG238

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[47] M.2 3G/LTE,SIM

A3

47 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[47] M.2 3G/LTE,SIM

A3

47 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[47] M.2 3G/LTE,SIM

A3

47 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C420 0.1u_16V_Y5V_04

3G

C806 0.1u_16V_Y5V_04

3G

R186 0_04

3G

L28

*WCM2012F2S-SHORT

3G

1

4

2

3

+

C844 220u_6.3V_6.3*4.4

3G

R230 *0_04

R218 *12K_06

R185 *0_04

+

C861

220u_6.3V_6.3*4.4

3G

C751 0.1u_10V_X7R_04

3G

C758

0.1u_16V_Y5V_04

3G

C749 0.1u_10V_X7R_04

3G

R217 *100_06

L24

*WCM2012F2S-SHORT

3G

1

4

2

3

Q50B

MTS3572G6

3G

S1

2

D1

6

G1

1

C430 0.1u_16V_Y5V_04

3G

R590 330K_04

3G

Q50A MTS3572G6

3G

S24D2

3

G2

5

C736

10u_6.3V_X5R_06

3G

R224 10K_04

3G

R248 10_06

3G

R585 100K_04

3G

C407

0.1u_16V_Y5V_04

3G

R225 *10K_04

Q21 UK3018

3G

G

DS

L25

*WCM2012F2S-SHORT

3G

1

4

2

3

C400

*33p_50V_NPO_04

B KEY

J_3G1

NFSB0-S6701-TP40

PCB Footprint = NXSB0-S67XX-XX40

P/N = 6-21-84KD0-075

3G

SUSCLK(32Khz)(O)

68

CLKREQ#(IO)

52

GND9

71

REFCLKP

55

REFCLKN

53

PEWake#(IO)

54

CONFIG_1

69

PETp1/USB3.0-Tx+/SSIC-TxP

37

PETn1/USB3.0-Tx-/SSIC-TxN

35

ANTCTL0(I)1.8V

59

PERp1/USB3.0-Rx+/SSIC-RxP

31

PERn1/USB3.0-Rx-/SSIC-RxN

29

GND8

57

GND3

27

GPIO_9/DAS/DSS#(I)( OD)

10

GND10

73

GPIO_8(IO)1.8V

28

UIM_RESET(I)

30

3.3V2

70

UIM_CLK(I)

32

UIM_DATA(IO)

34

UIM_PWR(I)

36

Reset#(O)1.8V

67

SIM Detect(O)

66

NC1

58

GPIO_0(IO)1.8V

40

NC0

56

USB_D-

9

USB_D+

7

DEVSLP(O)

38

COEX1(I/O)1.8V

64

PERST#(O)

50

COEX3(I/O)1.8V

60

GND7

51

W_DISABLE#1(O)

8

GPIO_5(IO)1.8V

20

3.3V0

2

GPIO_11(IO)1.8V

23

CONFIG_3

1

Full_Card_Power_Off#(O)1.8V

6

GND0

3

CONFIG_0

21

3.3V1

4

GND1

5

GND2

11

GPIO_6(IO)1.8V

22

GPIO_7(IO)1.8V

24

GPIO_10(IO)1.8V

26

GPIO_12(IO)1.8V

25

GND4

33

PERp0/SATA-B-

43

PETp0/SATA-A+

49

PETn0/SATA-A-

47

PERn0/SATA-B+

41

GND5

39

GND6

45

ANTCTL1(I)1.8V

61

ANTCTL2(I)1.8V

63

ANTCTL3(I)1.8V

65

CONFIG_2

75

GPIO_1(IO)1.8V

42

GPIO_2(IO)1.8V

44

GPIO_3(IO)1.8V

46

GPIO_4(IO)1.8V

48

COEX2(I/O)1.8V

62

3.3V3

72

3.3V4

74

C405

1u_6.3V_X5R_04

3G

C413

470p_50V_X7R_04

3G

C330

0.1u_16V_Y5V_04

3G

Sheet 47 of 74

M.2 3G/LTE

B.Schematic Diagrams

B - 48

M.2 WLAN+BT, PCIE4X SSD

5

4

3

2

1

D D

C C

B B

A A

15" WLAN+BT+WIGIG

>120 mil

PCB Footprint

婳婳婳婳䡢䡢䡢䡢娵娵娵娵㨇㨇㨇㨇㥳㥳㥳㥳ἧἧἧἧ䓐䓐䓐䓐䘬䘬䘬䘬

Connector

40 mil

32Khz

>120 mil

㍍⇘

EC ,枰冯EC

䡢娵

M: NCT3522U -- 6-02-03522-9C0 S: G5243A ---- 6-02-05243-9C0 AP2821KTR-G1 6-02-02821-9C0

NGFF_M (M2) SSD_1 (PCIE 4X)

普㷔溆

BOT

KEY

OPTION

M-KEY (J_SSD1) M-KEY (J_SSD2)

1 2

3

4

SATA

PCIE x4, x2

ᶵᶵᶵᶵ㓗㓗㓗㓗㎜㎜㎜㎜

PCIE x4, x2

SATA

USB3

SATA

PCIE_SATA_0 H: PCIe L: SATA

>120 mil

PCB Footprint

婳婳婳婳䡢䡢䡢䡢娵娵娵娵㨇㨇㨇㨇㥳㥳㥳㥳ἧἧἧἧ䓐䓐䓐䓐䘬䘬䘬䘬

Connector

80 mils

WLAN

WiGig

close to J_SSD2 conn

6-21-84K20-075

3A

RTD3 POWER

ON

7/30/2016

OPTANE

SUSCLK

PCIE_SATA_0

PCIE_TXN8_WLAN_R PCIE_TXP8_WLAN_R

PCIE_TXP7_WIGIG_R

PCIE_TXN7_WIGIG_R

WLAN_EN

BT_EN

WLAN_PWR_EN

WLAN_3.3V

WLAN_3.3VVDD3

M2_3.3VS

GND GNDGND

GND

GND GNDGND

GND

M2_3.3VS

3.3VS

WLAN_3.3V

3.3VS

5V

M2_3.3VS

3.3VS

VDD3

VDD35,27,30,33,36,38,39,42,44,50,51,52,53,54,55,56,58,61,62,63,66

USB_PP831

USB_PN831

BT_EN 39

WLAN_EN 39

PCIE_TXP8_WLAN131

PCIE_TXN8_WLAN131

PCIE_RXN8_WLAN131

PCIE_RXP8_WLAN131

CLK_SRC8_WLAN135

CLK_SRC8_WLAN1#35

PCIE_WAKE#33,44,48,50

BUF_PLT_RST# 34,39,44,48,49,50

WLAN_PWR_EN39

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,49,50,51,52,59

3.3V2,11,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58

PCIE_RXP9_SATA0A_RXP_SSD32

PCIE_RXN9_SATA0A_RXN_SSD32

BUF_PLT_RST# 34,39,44,48,49,50

CLK_SRC10_SSD1#35

CLK_SRC10_SSD135

PCIE_TXN9_SATA0A_TXN_SSD32

PCIE_TXP9_SATA0A_TXP_SSD32

SATAGP032

PCIE_T XN7_ WIGIG131

PCIE_R XP7_W IGIG131

CLK_SRC7_WIGIG135

PCIE_T XP7_W IGIG131

PCIE_R XN7_ WIGIG131

CLK_SRC7_WIGIG1#35

BUF_PLT_RST# 34,39,44,48,49,50

SUSCLK 33

PCIE_WAKE# 33,44,48,50

PCIE_RXP10_SATA1A_RXP_SSD32 PCIE_RXN10_SATA1A_RXN_SSD32

PCIE_RXP11_SSD32

PCIE_RXN11_SSD32

PCIE_RXN12_SSD32

PCIE_RXP12_SSD32

PCIE_TXP10_SATA1A_TXP_SSD32

PCIE_TXN10_SATA1A_TXN_SSD32

PCIE_TXN11_SSD32

PCIE_TXP11_SSD32

PCIE_TXP12_SSD32 PCIE_TXN12_SSD32

CLK_REQ8_WLAN1#35

CLK_REQ7_WIGI1# 35

CLK_REQ10_SSD1# 35

CL_DATA1 32

CL_CLK1 32

CL_RST#1 32

M2M_SSD1_LED# 50

M2_P0_SATA_DEVSLP 34

LAN_WAKEUP# 30,39,48,50

LAN_WAKEUP#30,39,48,50

SUSB#11,32,33,38,42,44,52,58

SATA_M2_PWR_EN38

3IN1 39 80CLK 39

5V32,43,45,46,50,52,53,54,55,57,59,60,61,65

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[48] M.2 WLAN+BT, PCIE4X SSDX1

A3

48 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[48] M.2 WLAN+BT, PCIE4X SSDX1

A3

48 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[48] M.2 WLAN+BT, PCIE4X SSDX1

A3

48 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C2040

*10u_6.3V_X5R_06

R765 *0_04

C862

0.1u_10V_X7R_04

R2255 *0_04

C820 0.22u_10V_X5R_04

R2262 0_04

C843 0.22u_10V_X5R_04

C2041

*10u_6.3V_X5R_06

R610

10K_04

R365 *10K_04

C835 0.22u_10V_X5R_04

R2256 *0_04

R2251

*10K_04

R362 *0_04

R363 *0_04

C2042

*10u_6.3V_X5R_06

C951 0.1u_10V_X7R_04

C923 0.1u_10V_X7R_04

R379 *0_04

D66

*RB0540S2

AC

R374 10K_04

C821 0.22u_10V_X5R_04

R364 *10K_04

R373 10K_04

C2043

*1u_6.3V_X5R_04

R376 *0_04

R330 0_04

C587

22u_6.3V_X5R_08

R2252 0_06

C2038*0.01u_16V_X7R_04

U22

UP7553PMA5-25

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

C586

0.1u_16V_Y5V_04

C922 0.1u_10V_X7R_04

C607

22u_6.3V_X5R_08

C2044

*10u_6.3V_X5R_06

C865

22u_6.3V_X5R_08

R2253 0_06

C857

22u_6.3V_X5R_08

C825 0.22u_10V_X5R_04

R301 *0_04

C836 0.22u_10V_X5R_04

C867

0.1u_10V_X7R_04

C2039

*0.01u_16V_X7R_04

C866

0.1u_10V_X7R_04

A KEY

J_WLAN1

NFSA0-S6701-TP40

SUSCLK(32kHz) (I)(0/3.3V)

50

CLKREQ0# (IO)(0/3. 3V)

53

GND13

69

REFCLKP0

47

REFCLKN0

49

PEWake0# (IO)(0/3.3V)

55

PERp1

65

PERn1

67

PETp1

59

PETn1

61

GND12

63

GND7

33

GND14

75

3.3V2

72

DP_ML0n

32

I2C CLK (I)(0/3.3)

60

USB_D-

5

USB_D+

3

I2C DATA (IO)(0/3.3)

58

COEX1 (I/O)(0/1.8V)

48

PERST0#(I)(O/3.3V)

52

COEX3 (I/O)(0/1.8V)

44

GND11

57

LED#2 (O)(OD)

16

3.3V0

2

VENDOR DEFINED0

38

GND0

1

LED#1 (O)(OD)

6

DP_MLDIR GND (In)/ 3.3V (Out)/NC (IO)

17

W_DISABLE#1 (I)(0 /3.3V)

56

3.3V1

4

GND1

7

GND2

18

VENDOR DEFINED1

40

GND8

39

PETp0

35

PERp0

41

PERn0

43

PETn0

37

GND9

45

GND10

51

ALERT# (O)(0/3.3)

62

COEX2 (I/O)(0/1.8V)

46

3.3V3

74

DP_ML3n

19

DP_ML3p

21

GND3

23

DP_AUXn

20

DP_AUXp

22

DP_ML0p

34

VENDOR DEFINED2

42

54

Reserved/W_DISABLE#2 (I)(0/3.3V)

RESERVED1

64

PERST1# (I)(0/3.3V)

66

CLKREQ1# (IO)(0/3. 3V)

68

PEWake1# (IO)(0/3.3V)

70

REFCLKP1

71

REFCLKN1

73

GND4

24

DP_ML1n

26

DP_ML1p

28

GND6

30

DP_ML2n

25

DP_ML2p

27

GND5

29

DP_HPD (IO)(0/3.3V)

31

GND6

36

C837 0.22u_10V_X5R_04

R375 10K_04

C598

1u_6.3V_X5R_04

C864

0.1u_10V_X7R_04

U167

*M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

R2260 0_04

R378 *0_04

R2254

*10K_04

C948 0.1u_10V_X7R_04

C826 0.22u_10V_X5R_04

M KEY

J_SSD1

NFSM0-S6701-TP40

PCB Footprint = NXSM0-S67XX-XX40

P/N = 6-21-84K70-075

SUSCLK(32Khz)(O)

68

CLKREQ#(IO)

52

GND11

71

REFCLKP

55

REFCLKN

53

PEWake#(IO)

54

PEDET(NC-PCIe/GND-SATA)

69

GND10

57

DAS/DSS#(I)(OD)

10

GND12

73

3.3V2

12

NC18

67

NC1

8

NC0

6

DEVSLP(O)

38

PERST#(O)

50

GND9

51

3.3V0

2

GND0

1

3.3V1

4

GND1

3

GND2

9

PERp0/SATA-B-

43

PETp0/SATA-A+

49

PETn0/SATA-A-

47

PERn0/SATA-B+

41

GND7

39

GND8

45

GND13

75

3.3V3

14

3.3V4

16

PERn3

5

PERp3

7

3.3V5

18

GND3

15

PETn3

11

PETp3

13

GND5

27

PETn2

23

GND4

21

PERn2

17

PERp2

19

PETp2

25

NC3

22

NC2

20

NC5

26

NC4

24

NC7

30

NC9

34

NC6

28

NC8

32

NC10

36

NC12

42

NC13

44

NC15

48

NC14

46

NC11

40

PETp1

37

PETn1

35

PERp1

31

PERn1

29

GND6

33

NC16

56

NC17

58

3.3V6

70

3.3V7

72

3.3V8

74

R766 *0_04

R366 0_04

C605

0.1u_16V_Y5V_04

R2261 0_04

R372 10K_04

R360 *0_04

C860

0.1u_10V_X7R_04

Q52 2SK3018S3

G

DS

Sheet 48 of 74

M.2 WLAN+BT,

PCIE4X SSD

Schematic Diagrams

B.Schematic Diagrams

M.2 WLAN+BT, PCIE4X SSD B - 49

5

4

3

2

1

D D

C C

B B

A A

SLB9665TT

LPC_SIRQ & PM_CLKRUN#

䡢䡢䡢䡢娵娵娵娵

PCH

䪗䪗䪗䪗暨暨暨暨

PULL HIGH

PIN10 PIN19 PIN24

PIN5 PIN5

Touch Pad

NGFF WLAN

GPIO H: W / TPM (ᶲ R342) L: W/O TPM (ᶲ R346 )

SMBUS address: 0x2C

6-34-P750S-010

戭戭戭戭㞙㞙㞙㞙BOT朊朊朊朊

OQDU761

OQDU761OQDU761

OQDU761΢ҹ!

΢ҹ!΢ҹ!

΢ҹ!1pin

1pin1pin

1pin

TMC:776071!

TMC:776071!TMC:776071!

TMC:776071!΢ҹ!

΢ҹ!΢ҹ!

΢ҹ!5/8L!pin

5/8L!pin5/8L!pin

5/8L!pin

OQDU761

OQDU761OQDU761

OQDU761΢ҹ

΢ҹ΢ҹ

΢ҹTMC:776071!

TMC:776071!TMC:776071!

TMC:776071!ό΢ҹ

ό΢ҹό΢ҹ

ό΢ҹ

OQDU761

OQDU761OQDU761

OQDU761΢ҹ

΢ҹ΢ҹ

΢ҹ

TMC:776071!

TMC:776071!TMC:776071!

TMC:776071!΢ҹ

΢ҹ΢ҹ

΢ҹ

6-03-09665-0H1

05/16

㍉岤㎃㕁

D02A

㓡

MAIN 6-20-94K00-006

VGA 戭戭戭戭㞙㞙㞙㞙 BOP朊朊朊朊CPU 戭戭戭戭㞙㞙㞙㞙 BOP朊朊朊朊K/B ⫼⫼⫼⫼⼹⼹⼹⼹ Card Reader 戭戭戭戭㞙㞙㞙㞙 BOP朊朊朊朊

NGFF SSD M2 ⫼⫼⫼⫼⼹⼹⼹⼹

LRESET#

LPCPD#_TPM

CLKRUN#

BUF_PLT_RST#

TPM_PP

LRESET#

BUF_PLT_RST#

TP_CLK TP_DATA

TP_SMB_CLK

TP_SMB_DAT

TPM_GPIO

TP_DATA_CON TP_CLK_CON

TP_SMB_DAT_CON TP_SMB_CLK_CON

TP_DATA TP_CLK

TP_SMB_DAT

TP_SMB_CLK

3.3VS

3.3V

3.3VS

TP_VCC

5VS

TP_VCC

3.3VS

TPM_PWR

TP_VCC

TPM_PWR

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,50,51,52,59

PM_CLKRUN#33

LPC_FRAME#34,39

LPC_AD134,39

LPC_AD334,39

LPC_AD234,39

PCLK_TPM34

LPC_AD034,39

SERIRQ34,39

BUF_PLT_RST#34,39,44,48,50

3.3V2,11,27,29,42,43,44,45,46,47,50,52,53,54,55,57,58

5VS12,13,32,40,41,50,51,52,63,64,66

TPM_DET 38

SMB_CLK 33,42,43,57

SMB_DATA 33,42,43,57

TP_DATA 39 TP_CLK 39

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[49] TPM,TP

A3

49 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[49] TPM,TP

A3

49 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[49] TPM,TP

A3

49 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R342

100K_04

TPM

H28 *H6_5B3_9D3_7

H16 *H4_5B3_5D2_5

R334 0_04

TPM

C601

47p_50V_NPO_04

C567

0.1u_16V_Y5V_04

TPM

R384

10K_04

R388 0_04

H23

*H8_0D2_8

C573

*10u_6.3V_X5R_06

TPM

H3

*H8_0D2_8

M15 *M-MARK

H9 *H6_0D3_7

H15 *H8_0D2_8

C566

0.1u_16V_Y5V_04

TPM

M2 *M-MARK

TPM

U18

SLB9665TT_5.51

TPM

LAD3

17

LAD0

26

LAD1

23

LAD2

20

VDD2

10

NC_6

13

VDD4

24

VDD3

19

LFRAME#

22

LCLK

21

LRESET#_1

16

SERIRQ

27

NC_8

15

GND_1

4

GND_2

11

GND_3

18

GND_4

25

GPIO

6

NC_2

2

NC_7

14

NC_4

8

LRESET#_2

9

PP

7

NC_1

1

NC_3

3

NC_5

12

NC_9

28

VDD1

5

H27 *H6_5B3_9D3_7

H2 *C111D111N

M3 *M-MARK

H22 *C111D111N

R382

2.2K_04

R333 4.7K_04TPM

H26 *H8_0D2_8

C575

0.1u_16V_Y5V_04

TPM

H21 *C111D111N

M6 *M-MARK

R318 *10K_04

M4 *M-MARK

H14 *H8_0D2_8

H1 *C111D111N

M1 *M-MARK

S

D

G

Q62A

MTDK3S6R

2

61

H6 *H6_0D3_7

H10 *H8_3D5_0

C603 0.1u_10V_X7R_04

C579

10u_6.3V_X5R_06

TPM

M16 *M-MARK

H12 *H5_0D2_7

R389 *0_04

H17 *H5_0D2_7

M5 *M-MARK

H4 *H4_5B3_5D2_5

H29 *H9_0B6_5D3_7

H13 *H5_0D2_7

1

H19

*MTH8_0D2_8

2

3

4

5

S

D

G

Q62B

MTDK3S6R

5

34

H24 *H6_5B3_9D3_7

R385

10K_04

1

H20

*MTH8_0D2_8

2

3

4

5

C602 1u_6.3V_X5R_04

H5 *H6_0D3_7

R338 *0_04

D32

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

R346 *100K_04

J_TP1

FP225H-006S10M

1

2

3

4

5

6

C604

*10u_6.3V_X5R_06

H7 *H8_3D5_0

R383

2.2K_04

R317 *0_04

H25 *H6_5B3_9D3_7

H18 *H4_5B3_5D2_5

R319 *0_04

C600

47p_50V_NPO_04

H8 *H6_0D3_7

Sheet 49 of 74

TPM, TP

Schematic Diagrams

TPM, TP

B.Schematic Diagrams

B - 50 TPM, TP

5

4

3

2

1

D D

C C

B B

A A

FP

30mil

LAN Board Connect

6-20-94A40-004

婳

EC PIN24

復↢ầ

SSD

LED

≽ἄ䘬㊯䣢炻德忶AP忂䞍

BIOS

⛐⏲䞍

EC

↢≽ἄ

LED BOARD

6-21-C2400-225

Card Reader Board Connect

USB Board Connect

D01A

P950XX POWER BOARD

P/N: 6-20-94A40-004

LED_HDD#

3.3VS

VDD3

3.3VS

5V

AUDG

5VS

VDD5

3.3VS

GND

3.3V

VDD35,27,30,33,36,38,39,42,44,48,51,52,53,54,55,56,58,61,62,63,66

5VS12,13,32,40,41,49,51,52,63,64,66 5V32,43,45,46,48,52,53,54,55,57,59,60,61,65

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,51,52,59

EC_SSD_LED# 39

PCH_SATAHDD_LED# 32

PCIE_WAKE#33,44,48,50 CLK_SRC3_CARD# 35

CLK_SRC3_CARD 35

PCIE_TXN3_CARD 31 PCIE_TXP3_CARD 31CLK_SRC4_GLAN# 35

CLK_SRC4_GLAN 35

PCIE_TXN4_GLAN 31 PCIE_TXP4_GLAN 31

PCIE_RXN4_GLAN 31 PCIE_RXP4_GLAN 31

CLK_REQ4_LAN# 35 PCIE_WAKE# 33,44,48,50 LAN_WAKEUP# 30,39,48 BUF_PLT_RST# 34,39,44,48,49,50

CCD_EN 39 MIC_DATA 41 MIC_CLK 41

BUF_PLT_RST#34,39,44,48,49,50

CLK_REQ3_CARD#35

SIM_DET47

UIM_PWR47 UIM_DATA47 UIM_CLK47 UIM_RST47

HP_JSGND 43

HEADPHONE-LC 43 HEADPHONE-RC 43

USB3_TXN3 34 USB3_TXP3 34

USB3_RXN3 34 USB3_RXP3 34

MIC1_R_M 41 MIC1_L_M 41

SPDIFO 41 MIC1-JD 41 FRONT-JD 39,41

PCIE_RXN3_CARD 31 PCIE_RXP3_CARD 31

DD_ON#50,52,57

USB_PN331

USB_PP331

USB_PN7 31 USB_PP7 31

VDD544,52,56,58

M2M_SSD1_LED# 48

USB_PN9 31

USB_PP9 31

AIRPLAN_LED# 39

LED_BAT_FULL 39

LED_ACIN 39 LED_PWR 39 LED_BAT_CHG 39

M_BTN# 51,52

3.3V2,11,27,29,42,43,44,45,46,47,49,52,53,54,55,57,58

DD_ON 39,44,52,56 DD_ON# 50,52,57

USB_PP1 31 USB_PN1 31

USB3_RXN2 34

USB3_RXP2 34

USB3_TXP2 34

USB3_TXN2 34

USB_PP2 31

USB_PN2 31

USB3_TXP1 34

USB3_TXN1 34

USB3_RXN1 34 USB3_RXP1 34

EC_AMP_EN 39

EAPD_MODE 41,42,43

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[50] CONNECTOR

A4

50 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[50] CONNECTOR

A4

50 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[50] CONNECTOR

A4

50 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

.

L8

FCM1005KF-121T03

C2035

1u_6.3V_X5R_04

J_USB1

FP225H-030S10M

PCB Footprint = fp225h-030gxxm

6-20-94K20-130

1

2

3

4

5

6

7

8

9

10

13

19

12

16

14

18

15

11

17

20

21

24

22

23

25

26

27

28

29

30

J_SW1

*FP226H-004S10M

1 2 3 4

D45

RB751S-40H

A C

R2273 0_04

R2274 *0_04

J_EN1

51049-05041-001

112

2

334

4

556

6

778

8

9910

10

111112

12

131314

14

151516

16

171718

18

191920

20

212122

22

232324

24

252526

26

272728

28

292930

30

313132

32

333334

34

353536

36

373738

38

393940

40

42

41

434344

44

454546

46

474748

48

494950

50

J_LAN1

FP225H-030S10M

PCB Footprint = fp225h-030gxxm

6-20-94K20-130

1

2

3

4

5

6

7

8

9

10

13

19

12

16

14

18

15

11

17

20

21

24

22

23

25

26

27

28

29

30

J_LED1

FP225H-012S10M

PCB Footprint = fp225-012g

1

2

3

4

5

6

7

8

9

10

11

12

NC1

NC2

L12

*WCM2012F2S-SHORT

1

4

2

3

C548

*0.01u_16V_X7R_04

J_FP1

FP225H-006S10M

PCB Footprint = fp225h-006xxxm

1 2 3 4 5 6

R2241 *0_04

U39

74AHC1G08GW

1

2

5

4

3

Sheet 50 of 74

Connector

Schematic Diagrams

B.Schematic Diagrams

Connector B - 51

5

4

3

2

1

D D

C C

B B

A A

CPU FAN CONTROL

CPU_FAN

VGA FAN2 CONTROL

VGA_FAN2

VGA FAN1 CONTROL

VGA_FAN1

VGA FAN CONTROL-Selector

śɥ śɨ

1

3

2

PSU1, PSU2

LID SWITCH IC

2ND:6-02-08251-LC0

6-02-09249-LC0

POWER BTN CONN

B_SW1

21 43

5

6

POWER BUTTON

VARISTOR

6-24-30003-006

P650Rx, P670Rx POWER SWITCH LED

20mil

6-53-3050B-B41 100g

452

3

1

6

20170418

VGA_FAN2SEN

VGA_FAN1SEN

VGA_FAN2SEN VGA_FAN1SEN

M_BTN#

5VS_CPU_FAN

3.3VS

5VS_VGA_FAN2

3.3VS

5VS_VGA_FAN1

5VS

VDD3

GND

GND GND

GND

3.3VS

GND

5VS

CPU_FANSEN39

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,52,59 5VS12,13,32,40,41,49,50,52,63,64,66

VGA_FANSEN 39

VGASEN_SEL39

LID_SW# 11,39

VDD35,27,30,33,36,38,39,42,44,48,50,52,53,54,55,56,58,61,62,63,66

M_BTN# 50,52

CPU_FAN_PWM39

VGA_FAN_PWM239

VGA_FAN_PWM139

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[51] FAN, LID, KB LED

A3

51 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[51] FAN, LID, KB LED

A3

51 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[51] FAN, LID, KB LED

A3

51 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

R2248 *20mil short-p

J_FAN1

85204-04001

PCB Footprint = 85205-0400M

1 2 3 4

R482 4.7K_04

J_VFAN2

85204-04001

PCB Footprint = 85205-0400M

1 2 3 4

R507 100K_04

R158 4.7K_04

U7

AH9249NTR-G1

VCC1OUT

2

GND

3

C723

*100p_50V_NPO_04

J_VFAN1

88266-04001

PCB Footprint = 88266-04_L

1 2 3 4

R2249 *20mil short-p

C722

0.1u_16V_Y5V_04

R11

1K_04

D64

*V15AVLC0402

12

C9

0.1u_50V_Y5V_06

R159 4.7K_04

C27

*0.1u_16V_Y5V_04

D1

*V15AVLC0402

12

C745

10u_6.3V_X5R_06

U8

PI5A3158BZAE

P/N = 6-03-53158-0J1

0B0

2

1B0

11

S0

10

0B1

5

1B1

8

S1

7

VCC

12

A0

1

GND

3

VCC

9

GND

6

A1

4

SW1 T4BJB10BQR

3

1

4

2

C323 0.1u_16V_Y5V_04

D2

RY-SP190DBW71-5A

P/N = RY-SP190DNB84-5/1X

AC

C752

10u_6.3V_X5R_06

C708

10u_6.3V_X5R_06

R2250 *20mil short-p

Sheet 51 of 74

Fan, LID, KB LED

Schematic Diagrams

Fan, LID, KB LED

B.Schematic Diagrams

B - 52 Fan, LID, KB LED

5V, 5VS, 3.3V, 3.3VS, 3.3VA

1

2

3

4

5

A A

B B

C C

D D

ON

6A

5V

6A

5VS

ON

6A

3.3V

6A

3.3VS

Clost to P2808B0

EMIEMI

3A

3.3VA

DEFAULT SHORT DEFAULT SHORT

SUSB

DD_ON#

DD_ON

USB_CHARGE_EN

DD_ON DD_ON_EN

SUSB#

VDD3_R

SUSB#_EN

DD_ON_EN SUSB#_EN3.3VS_ON

VDD3_R

DD_ON#

SUSB

DD_ON#

3.3VS_ON

3.3VA_ON 3.3VA_ON

VIN1

VDD3

VDD5

5V

VDD3

VDD5

5VS

VDD5

VDD3

3.3V

VDD3

3.3VS

VDD3

VAVIN VIN1

VDD3

VA

VIN

VIN VINVIN

VDD3

3.3VA

VDD3

VA62

VIN11,39,42,43,44,55,56,57,58,59,60,61,62

VDD544,50,56,58

VIN156

3.3V2,11,27,29,42,43,44,45,46,47,49,50,53,54,55,57,58

5VS12,13,32,40,41,49,50,51,63,64,66

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,59

PWR_SW# 39

DD_ON39,44,50,56

DD_ON# 50,57 SUSB 12,13,57

SUSB#11,32,33,38,42,44,48,58

M_BTN#50,51

VDD35,27,30,33,36,38,39,42,44,48,50,51,53,54,55,56,58,61,62,63,66

USB_CHARGE_EN 39,56

5V32,43,45,46,48,50,53,54,55,57,59,60,61,65

SUSB#_EN 42,53

EC_SLP_SUS#33,39,56,58

3.3VA5,30,31,32,33,34,36,38

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[52] 5V,5VS,3.3V,3.3VS,3.3VA

A3

52 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[52] 5V,5VS,3.3V,3.3VS,3.3VA

A3

52 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sh eet

of

6-71-P9500-D03

D03

[52] 5V,5VS,3.3V,3.3VS,3.3VA

A3

52 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PC98

*0.1u_16V_Y5V_04

S

D

G

Q44B

MTDK3S6R

5

34

C858

1000p_50V_X7R_04

R601 1K_1%_04

C834

0.1u_50V_Y5V_06

C394

0.1u_16V_Y5V_04

C428 1u_6.3V_X5R_04

PQ39

2SK3018S3

G

DS

R551

100K_04

R573 10K_04

R278 10K_04

R575 *100K_04

C802

0.1u_50V_Y5V_06

C846 1u_6.3V_X5R_04

R604 100K_04

G5016U13

CT2

10

OUT2

8

EN2

5

VBIAS

4

IN2

6

GND

11

EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

C396

330p_50V_NPO_04

C507

0.01u_50V_X7R_04

C447

*0.1u_10V_X7R_04

R229 *100_04

S

D

G

Q25B

MTDK5S6R

5

34

Q23

*2SK3018S3

G

DS

R282 10K_04

R586 1_1%_06

Q19

*2SK3018S3

G

DS

R280 100K_04

S

D

G

Q25A

MTDK5S6R

2

61

R561 *10K_04

C809

0.1u_16V_Y5V_04

C832

0.1u_16V_Y5V_04

C506

1000p_50V_X7R_04

R602 1K_1%_04

R283 10K_04

PR164

10K_04

C395 220p_50V_NPO_04

PR173

100K_04

G5016U38

CT2

10

OUT2

8

EN2

5

VBIAS

4

IN2

6

GND

11

EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

PR170 10K_04

C782

*0.1u_10V_X7R_04

C849

0.1u_50V_Y5V_06

R277 *100_04

R279 10K_04

C812

0.1u_16V_Y5V_04

R603 *100K_04

C783

0.1u_16V_Y5V_04

C810 220p_50V_NPO_04

C831

0.1u_16V_Y5V_04

R600 10K_04

C847

*0.1u_10V_X7R_04

C772

1u_6.3V_X5R_04

R544 10K_04

C811

470p_50V_X7R_04

PJ19 *CV-40mil

1 2

PR143

10K_04

PQ12

2SK3018S3

G

DS

PR169

100K_04

R545

100_04

C848

*0.1u_10V_X7R_04

C397

0.1u_16V_Y5V_04

G5016U33

CT2

10

OUT2

8

EN2

5

VBIAS

4

IN2

6

GND

11

EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

PJ18*CV-40mil

12

U37

P2808B0

VA

1

VIN

2

M_BTN#

3

INSTANT-ON4GND

5

PWR_SW#

6

DD_ON_LATCH

7

VIN1

8

C761

0.1u_16V_Y5V_04

C756 220p_50V_NPO_04

PC92

*0.1u_16V_Y5V_04

S

D

G

Q44A

MTDK3S6R

2

61

C429

0.1u_16V_Y5V_04

R276 100_04

C859

0.01u_50V_X7R_04

Q47 2SK3018S3

G

DS

PJ20 *1mm

1 2

C446

*0.1u_10V_X7R_04

R226 100_04

C448

0.1u_16V_Y5V_04

PJ17 *1mm

12

R572 10K_04

Sheet 52 of 74 5V, 5VS, 3.3V,

3.3VS, 3.3VA

Schematic Diagrams

B.Schematic Diagrams

5V, 5VS, 3.3V, 3.3VS, 3.3VA B - 53

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

1.0DX_VCCSTG

VCCSFR_OC

1A 1A

*1 VOUT rising time can be speed up if adding R1 & D1 network between EN and GATE *2 VOUT rising time can be slow down if adding C1 between GATE and GND

R1

D1

C1

R1

D1

C1

*1 VOUT rising time can be speed up if adding R1 & D1 network between EN and GATE *2 VOUT rising time can be slow down if adding C1 between GATE and GND

NOTE:

1.0DX_VCCSTG TURN-ON need <65us M5938 TURN-ON TIME=60us

6-15-59381-7B06-15-59381-7B0

DEFAULT SHORT

1A 1A

2.5V/3A

NB671_SIGNAL_GND2

DEFAULT

DEFAULT SHORT

3A

Ra

Rb

3A

2.5V_LDO

天䦣月役

PIN6

儛

Vout = 0.8V ( 1 + Ra / Rb )

For CV test

VCCSTG_EN

VCCSFROC_EN

2.5V_PG

SUSB#_EN VCCSFROC_ENVCCSTG_EN

VDD1.0

1.0DX_VCCSTG

5V

VDDQ

VCCSFR_OC

5V

VDD3

V2.5_LDO

3.3V

5V

2.5V

VDD3

VCCIO

VDD1.035,36,58

1.0DX_VCCSTG5,7 5V32,43,45,46,48,50,52,54,55,57,59,60,61,65

SUSB#_EN42,52

VCCSFR_OC7

VDDQ7,9,10,33,57

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,54,55,56,58,61,62,63,66

2.5V9,10

VCCIO_EN58,61

SUSC#33,57,58

3.3V2,11,27,29,42,43,44,45,46,47,49,50,52,54,55,57,58

VCCIO2,3,7,58

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[53] 1.0DX_VCCSTG/VCCSFR_OC/2.5

A3

53 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[53] 1.0DX_VCCSTG/VCCSFR_OC/2.5

A3

53 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[53] 1.0DX_VCCSTG/VCCSFR_OC/2.5

A3

53 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PJ52

*2mm

1 2

PU17 G9661-25ADJF11U

GND

8

VCNTL

4

NC

5

VIN

3

VOUT

6

VFB

7

POK

1

EN

2

GND

9

PR388

21.5K_1%_04

PC267

82p_50V_NPO_04

S

D

G

Q27B

*MTDK5S6R

5

34

PR394 *0402_short

R203 *4.7K_04

C540

10u_6.3V_X5R_06

C555

1u_6.3V_X5R_04

U11

*M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

S

D

G

Q27A

*MTDK5S6R

2

61

PR400

100K_04

C389

*10u_6.3V_X5R_06

R208

*100_04

R299

*100_04

C390

*10u_6.3V_X5R_06

PJ54

*CV-40mil

1 2

S

D

G

Q18B

*MTDK5S6R

5

34

C354

*0.01u_10V_X7R_04

C352

*1u_6.3V_X5R_04

PJ30 *1mm

1 2

D17

*RB0540S2

AC

R227

*100K_04

PC261

1u_6.3V_X5R_04

PC263

0.1u_10V_X7R_04

R312

*100K_04

R315 *0402_short

PR383

47K_04

C545

10u_6.3V_X5R_06

PC262

22u_6.3V_X5R_08

C553

*0.01u_16V_X7R_04

PJ12 *1mm

1 2

PJ55

*OPEN_4mil

1 2

D10

*RB0540S2

AC

S

D

G

Q18A

*MTDK5S6R

2

61

R202 *10K_04

R188 *10K_04

PJ73 *1m m

12

R313

*10K_04

U15

M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

C402

10u_6.3V_X5R_06

C546

10u_6.3V_X5R_06

PR395

10K_1%_04

C353

*0.22u_10V_X5R_04

PC264 10u_6.3V_X5R_06

PC277

*0.1u_16V_Y5V_04

PC260

*10u_6.3V_X5R_06

Sheet 53 of 74

1.0DX_VCCSTG/

VCCSFR_OC/2.5V

1.0DX_VCCSTG/VCCSFR_OC/2.5V

B.Schematic Diagrams

B - 54 1.0DX_VCCSTG/VCCSFR_OC/2.5V

1

2

3

4

5

6

7

8

A A

B B

C C

D D

C1

1V8_AON

2.6Amps @ 1.8V

1A

R1

D1

1A

DEFAULT SHORT

6-15-59381-7B0

R1

D1

C1

3A3A

1V8_RUN

DEFAULT SHORT

6-15-59381-7B0

Rb

Rt

1.8V= 0.6 * (1+(20K/10K))

Open VREG Type 0

Vout= Vref * (1+(Rt/Rb))

3A 3A

Default

NV3V3

1V8_AON

M:6-02-05841-CD0 S:6-02-08071-CD0

4/20

㍉岤天㯪⮶ℍ

2ND

DEFAULT SHORT

<NV_NET_MAX_CURRENT>

<MIN_LINE_WIDTH>

<NV_NET_MAX_CURRENT>

<MIN_LINE_WIDTH>

DGPU_PWR_EN_R

1V8_AON_PWRGD

NV3V3_EN

1.8V_RUN_EN

DGPU_PWR_EN_R

1.8V_RUN_EN

NV3V3_EN

VDD3

NV3V3

5V

VDD3

1V8_AON

1V8_RUN

5V

GND

GNDGND

GND

3.3V

GND

3.3V

VDD3

1V8_AON

3.3V

5V

1V8_AON

NV3V312,13,14,27,55,63,64

1V8_RUN14,15,24,25,28

1V8_AON13,14,24,25,27,28,29,55,63,64,66 5V32,43,45,46,48,50,52,53,55,57,59,60,61,65

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,55,56,58,61,62,63,66

NV_1V8RUN_EN29

NV_3V3_EN29

NV_1V8AON_EN29

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59

3.3V2,11,27,29,42,43,44,45,46,47,49,50,52,53,55,57,58

1V8_AON_PWRGD29

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[54] 1V8_RUN, 1V8_AON , NV3V3

A3

54 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[54] 1V8_RUN, 1V8_AON , NV3V3

A3

54 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[54] 1V8_RUN, 1V8_AON , NV3V3

A3

54 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

C730

10u_6.3V_X5R_06

PR318 20K_1%_04

C289

10u_6.3V_X5R_06

PC185

22u_6.3V_X5R_08

C741

*0.1u_10V_X7R_04

PR88 *0402_short

C731

10u_6.3V_X5R_06

C290

*0.1u_10V_X7R_04

PR409 10K_04

R103

100K_04

OpenVReg

PU12

EM5841BVT

DFN10 COMMON

1

FB

2

VCC

3

VIN

4

GND

5

GND

6

SW

7

SW

8

BOOT/NC

9

PGOOD

10

EN/FS

11

THERM

C713

10u_6.3V_X5R_06

C288

10u_6.3V_X5R_06

R108

10_06

D4

*RB0540S2

AC

C687

100p_50V_NPO_04

R109

*10K_04

R523 *0402_short

PR317 *20mil short-p

R518 *10K_04

S

D

G

Q11A

MTDK3S6R

2

61

C738*0.01u_10V_X7R_04

C688

1u_6.3V_X5R_04

C677

*10u_6.3V_X5R_06

PJ42 *1mm

1 2

R459

*10_06

U31

M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

PC187

22u_6.3V_X5R_08

PC186

22u_6.3V_X5R_08

S

D

G

Q43A

MTDK3S6R

2

61

R110 *0402_short

S

D

G

Q43B

MTDK3S6R

5

34

PJ39 *3mm

1 2

C737

1u_6.3V_X5R_04

PC191 3300p_50V_X7R_04

R506

100K_04

PR95 *160K_04

S

D

G

Q10B

MTDK3S6R

5

34

PU10

M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

D36

*RB0540S2

AC

PC65

1u_6.3V_X5R_04

PR325 *10K_04

S

D

G

Q11B

MTDK3S6R

5

34

PR96 10K_1%_04

R511

10_06

R106

100K_04

PR320 *20mil short-p

PR326 10K_04

S

D

G

Q10A

MTDK3S6R

2

61

PR319 9.53K_1%_04

PJ36 *1mm

1 2

PC194

*0.22u_10V_X5R_04

PC66

0.1u_10V_X7R_04

PC197 *0.01u_16V_X7R_04

PR73 10_06

PL10

2.2uH_4*4*2.0

1 2

PJ41*CV-40mil

12

PC189

0.1u_10V_X7R_04

Sheet 54 of 74

1V8_RUN/AON,

NV3V3

1V8_RUN/AON, NV3V3

Schematic Diagrams

B.Schematic Diagrams

1V8_RUN/AON, NV3V3 B - 55

1

2

3

4

5

6

7

8

A A

B B

C C

D D

POWER RAIL State in GC6

1V8_AON

1V8_MAIN

PEX&1.05V

NVVDD

ON

OFF

Cold boot/Optimus: 1V8_AONĺ1V8_RUNĺNVVDDĺNVVDDS ĺPEX_VDDĺFBVDDQ GC6 2.1 Exit: 1V8_RUNĺNVVDD_LĺNVVDD_SĺPEX_VDD or 1V8_RUNĺNVVDD_LĺNVVDD_S & PEX_VDD

GC6 2.1 Control Signals

1.1V8_MAIN_EN

2.GC6_FB_EN

3.GPU_EVENT#

4.GPU_PEX_RST_HOLD#

5.SYS_PEX_RST_MON#

GPU

1V8_MAIN_EN

GC6_FB_EN

VR Complex

1V8_AON 1V8_MAIN NVVDD

PEX&1.05V

NVVDDS

EC/PCH

GPU_PWR_EN

GPU_EVENT#

GPU_RST# PLATFORM_RST#

SYS_PEX_RST_MON#

GPU_PEX_RST_HOLD#

GPU_PEX_RST#

FBVDD/Q

FBVDD/Q ON

NVVDDS OFF

GC6 2.1 - VR Complex

1. GPU_PWR_EN

2. 1V8_MAIN_EN

3. GC6_FB_EN

GPU

GPU_PWR_EN (SYSTEM)

1V8_AON

1V8_MAIN_EN 1V8_MAIN

PEX&1.05V

NVVDD

FBVDD/Q

EN

PGOOD

PGOOD PGOOD

PGOOD

GC6_FB_EN

PGOOD

Rt

2.6Amps @ 1.0V

Open VREG Type 0

PEX_VDD

Vout= Vref * (1+(Rt/Rb))

Rb

1.050V= 0.6 * (1+(7.5K/10K))

DG P.93 note: t1(from 1V8_RUN_EN to PEX_VDD/NVVDD_PG) must NOT exceed 4ms.

N17E

FBVDDQ

POWER ON SEQUENCE POWER OFF SEQUENCE

GPPG0_PCH_PEXVDD_EN (GPP_G0) (PEX_VDD)

GPPG11_PCH_NVVDDS_EN (GPP_G11) (NVVDDS)

GPPG10_PCH_NVVDD_EN (GPP_G10) (NVVDD)

GPPG9_PCH_NV3V3_EN (GPP_G9) (NV3V3)

GPPG8_PCH_1V8RUN_EN (GPP_G8) (1V8_MAIN)

DGPU_PWR_EN (GPP_F23) (1V8_AON)

net PCH_GPIO Voltage

NVVDDS

NVVDD

close to ICPlace resistors

FBVDDQ_SENSE

FBVDDQ_SENSE_RTN

I2CC_SCL

I2CC_SDA

GPU_NVVDD_SENSE

GPU_GND_SENSE

PEX_VDD_R

0.400

0.200

PEX_VDD_PWRGD

PEXVDD_EN

PEX_VDD_R

0.400

PWR_SRC_VINNPWR_SRC_VINN_R

PWR_SRC_VINP_R

VIN2N

VIN2P

PWR_SRC_VINP

SNN_VIN3P

SNN_VIN3N

PWR_SRC_VALID SNN_TC SNN_VPU

I2CC_SCL I2CC_SDA

PWR_SRC_IMON_A0

PWR_SRC_WARN*

PWR_SRC_CRTCAL*

GND

<HDL_POWER>

GND

PEX_VDD

GND

3.3V

VDD3

GND

VIN

PWR_SRC_NV_FB

NV3V3

1V8_AON

GND

FBVDDQ_SENSE_RTN28,66

FBVDDQ_SENSE28,66

GPU_NVVDD_SENSE28,64

GPU_GND_SENSE28,64

I2CC_SDA27,55

I2CC_SCL27,55

5V32,43,45,46,48,50,52,53,54,57,59,60,61,65

1V8_RUN14,15,24,25,28,54

3.3V2,11,27,29,42,43,44,45,46,47,49, 50,52,53,54,57,58

VIN11,39,42,43,44,52,56,57,58,59,60,61, 62

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,56,58,61, 62,63,66

PWR_SRC_NV_FB63,64,66

PEX_VDD14,26

NV3V312,13,14,27, 54,63,64

NV_PEXVDD_EN29

PWR_SRC_NVS_VINNP_R63

PWR_SRC_NVS_VINN_R63

PWR_SRC_NV_VINP_R64

PWR_SRC_NV_VINN_R64

I2CC_SDA 27,55

I2CC_SCL 27,55

GPIO28_OC_WARN# 27

1V8_AON13,14,24,25,27,28,29,54,63,64,66

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[55] PEX_VDD

Custom

55 74Friday, J une 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[55] PEX_VDD

Custom

55 74Friday, J une 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[55] PEX_VDD

Custom

55 74Friday, J une 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PC190 3300p_50V_X7R_04

PR313 6.8K_1%_04

PJ35 *3mm

1 2

OpenVReg

PU11

EM5841BVT

DFN10 COMMON

1

FB

2

VCC

3

VIN

4

GND

5

GND

6

SW

7

SW

8

BOOT/NC

9

PGOOD

10

EN/FS

11

THERM

PC55 10u_6.3V_X5R_06

PR85 10_1%_04

S

D

G

Q42A

MTDK5S6R

2

61

PR49 *10K_04

PR324 9.53K_1%_04

PC183

22u_6.3V_X5R_08

PRS6

1206

*RL1632T4F-B-R005-FNH

1%

COMMON

1 2 3

4

PR78 *0402_s hort

S

D

G

Q42B

MTDK5S6R

5

34

PR79 10K _04

PR321 10_06

PR64 10K _04

PR87 665K_1%_04

R457

10_06

PR55 665K_1%_04

PR272 10_1%_04

PR314 *20mil short-p

PC198

*0.1u_10V_X7R_04

PR322 10K_04

PC192 *0.01u_16V_X7R_04PR323 0_04

R483

100K_04

PC50

0.01u_50V_X7R_04

PR43 665K_1%_04

PR67 *0402_s hort

PC193

22u_6.3V_X5R_08

PR315 *160K_04

PC51 10u_6.3V_X5R_06

PR27 10_1%_04

INS144386293

PU1

COMMON

QFN16

INA3221AIRGV

1

VIN3N

2

VIN3P

3

GND

4

VS

5

A0

6

SCL

7

SDA

8

WARN

9

CRIT

10

PV

11

VIN1N

12

VIN1P

13

TC

14

VIN2N

15

VIN2P

16

VPU

17

PAD

PR274 10_1%_04

PR25 10_1%_04

PR86 10_1%_04

PR52 10K_04

PC60 10u_6.3V_X5R_06

PL9

2.2uH_4*4*2.0

1 2

PC184

22u_6.3V_X5R_08

PRS2

1206

RL1632T4F-B-R005-FNH

1%

COMMON

1234

PC195

0.1u_10V_X7R_04 PR311 *20mil short-p

PC188

0.1u_10V_X7R_04

PR316 10K_1%_04

PC181

0.1u_10V_X7R_04

Sheet 55 of 74

PEX_VDD

Schematic Diagrams

PEX_VDD

B.Schematic Diagrams

B - 56 PEX_VDD

VDD3, VDD5

5

4

3

2

1

D D

C C

B B

A A

DMFWP!DP/!!ᙔϺႝတ

8A

R1

=2.01*(1+13.7K/20K) =3.38

Vout=2.01*(1+R1/R2)

R2

R1

R2

Vout=2.01*(1+R1/R2)

=2.01*(1+30.1K/19.1K) =5.178

VDD3

6-02-51125-CQ1

VDD5

DEFAULT SHORT

for EMI

7/26

Qpxfs!po!WEE40WEE6

Qpxfs!po!WEE40WEE6Qpxfs!po!WEE40WEE6

Qpxfs!po!WEE40WEE6 QXN

QXNQXN

QXN

AC_IN VDD5

ᶵᶲẞ

8/18

9/6

EN_ALL

EN_3V EN_5V

EN_3V

EN_3V5V

DD_ON_EN_VDD

EN_5V

VDD3

VREF

VIN

SYS3V

VIN

VDD5

VREG3

VIN1

VREG5

VREF

SYS5V

VREG5

VIN

SYS5V

VREG5

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,58,61,62,63,66

VDD544,50,52,58

VIN152

VIN11,39,42,43,44,52,55,57,58,59,60,61,62

VDD3_5_POK 58

VREG558

DD_ON39,44,50,52

USB_CHARGE_EN39,52

EC_SLP_SUS#33,39,52,58

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[56] VDD3,VDD5(Power)

A3

56 74Friday, June 23, 2017

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[56] VDD3,VDD5(Power)

A3

56 74Friday, June 23, 2017

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[56] VDD3,VDD5(Power)

A3

56 74Friday, June 23, 2017

P955HQx

PR331 *0_04

PR337 10K_04

PD20

SS1040G

A C

PC241

1u_10V_X7R_06

PR182

30.1K_1%_06

PR334

100K_1%_04

PR345

100K_04

PC232

1u_10V_X7R_06

PJ50

*5mm

1 2

PR347

*680K_1%_04

PC254

4.7u_25V_X5R_08

PC215

1u_10V_Y5V_06

PR352 2.2_06

PQ44

QM3110M3

4

5255315

PR348 0_04

PC221 1000p_50V_X7R_04

PC251

4.7u_25V_X5R_08

PD21

SS1040G

A C

PR330 *0_04

PC218 *100p_50V_NPO_04

PQ43

QM3004M3

4

5255315

PR340

13.7K_1%_06

PQ41

QM3006M3

4

5255315

PR349 *0_04

PC237

0.1u_10V_X7R_04

PC116

0.1u_16V_Y5V_04

PC252

4.7u_25V_X5R_08

PR346

20K_1%_06

PC236 0.1u_10V_X7R_04

R578 *5.1_06

EMI

R594

*5.1_06

EMI

PL15

BCIHP0730-2R2M

12

PQ6

2SK3018S3

G

DS

+

PC256

220u_6.3V_6.3*4.4

S

D

G

PQ7A

MTDK3S6R

2

6

1

PQ42

QM3114M3

4

5255315

PJ23

*5mm

12

PR332

75K_1%_04

PD22

RB751V-40(lision)

AC

+

PC240 15u_25V_6.3*4.4

12

PC223

1000p_50V_X7R_04

PR183

19.1K_1%_06

C827 *1000p_50V_X7R_04

EMI

PR350 *0_04

PR351

10K_04

PC80

0.1u_16V_Y5V_04

PR341

*20mil short-p

PC250

4.7u_25V_X5R_06

PL16

BCIHP0730-4R7M

12

PR335 0_04

PC117

0.1u_50V_Y5V_06

PQ9

*2SK3018S3

G

DS

PJ48 *CV-40mil

12

S

D

G

PQ7B

MTDK3S6R

5

3

4

PC253

4.7u_25V_X5R_08

PR342

*0_04

PR333 *20mil short-p

+

PC257

220u_6.3V_6.3*4.4

PC118

0.1u_50V_Y5V_06

C815

*1000p_50V_X7R_04

EMI

PU14

TPS51125ARGER

VREF

3

EN1

1

VFB1

2

TONSEL

4

LDO5

17

LGATE1

19

PHASE1

20

VFB2

5

UGATE2

10

VCLK

18

BOOT2

9

EN2

6

VO2

7

LDO3

8

PHASE2

11

LGATE2

12

EN013SKIPSEL14GND15VIN

16

UGATE1

21

BOOT1

22

POK

23

VO1

24

GND PAD

25

PC113

*1000p_50V_X7R_04

Sheet 56 of 74

VDD3, VDD5

Schematic Diagrams

B.Schematic Diagrams

VDD3, VDD5 B - 57

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

ON

CV Test

DDR4

1.2V/0.6VS

⮔⹎≈⣏䁢

8mil

DEFAULT SHORT

2A

1.2V

VTT_MEM(0.675V)

2A

11/17

DEFAULT SHORT

13A

HIGH 1.35V

GPIO DDR Vout

暣⡻ὅ

TABLE

LOW 1.2V

1.35V/1.5V

↯㎃䶂嶗ㇵ暨⮶ℍ

,

╖ᶨ暣㸸䓐⍇㛔

IC PG

5/13 D02A LOCATION

7/26

R1

R2

45mil

VDDQ_DRVH

VTTEN

VTT_TON

VTT_SNS

VDDQ_VBST

VTT_REF

VDDQSET

VDDQ_S5VDDQ_SNS

VTT_MEM_R

VDDQ_L

VDDQ_DRVL

VDDQ_VCC5

VDDQ_CS

VDDQ_PWRGD

VTTEN_R

VDDQSET

VDDQSET_R

VDDQSET

VIN

5V

VDDQ

VIN

VDDQ_R

VTT_MEM

5V

VDDQ

VDDQ_R

3.3V

5V

3.3V

DD_ON#50,52

SUSC#33,53,58

VDDQ_PWRGD 58

VDDQ7,9,10,33,53 VIN11,39,42,43,44,52,55,56,58,59,60,61,62

3.3V2,11,27,29,42,43,44,45,46,47,49,50,52,53,54,55,58

VTT_MEM9,10

5V32,43,45,46,48,50,52,53,54,55,59,60,61,65

SUSB12,13,52

DDR_VTT_PG_CTRL5

SMB_CLK 33,42,43,49

SMB_DATA 33,42,43,49

DDR_VOL_SEL33

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[57] DDR 1.2V/0.6VS(Power)

A3

57 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[57] DDR 1.2V/0.6VS(Power)

A3

57 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[57] DDR 1.2V/0.6VS(Power)

A3

57 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PC127

0.1u_50V_Y5V_06

Q59

2SK3018S3

G

DS

+

PC284 330uF_2V_5*5*4.2

Q61

*2SK3018S3

G

DS

PD7

*RB0540S2

A C

PR217 *15mil_short

PR225

*100K_04

PU7 G5616BRZ1U

VTTGND

1

VLDOIN

19

VTT

20

VTTSNS

2

GND

3

TON

9

VTTREF4VCC5

11

PGOOD

10

S5

8

S3

7

VDDQSET

6

VDDQSNS

5

CS

13

PGND

14

DRVL

15

LL

16

DRVH

17

VBST

18

PVCC5

12

GND

21

C599

*0.22u_10V_X5R_04

PR405

*22K_1%_04

PC285

22u_6.3V_X5R_08

C879

0.01u_16V_X7R_04

PC129 10u_6.3V_X5R_06

PJ53

*CV-40mil

12

PC287

2200p_50V_X7R_04

EMI

PR406

*100K_04

R391 *0402_short

PC286

*10u_6.3V_X5R_06

PC132

1u_6.3V_X5R_04

C888

*0.1u_16V_Y5V_04

PQ50 MDU1531

ULTRASO-8

G

DS

Q55

2SK3018S3

G

DS

PR398 *0_04

PR412 0_04

PR676

2.2_1%_06

EMI

PJ31

*8mm

1 2

PQ13

*BTN3904

M-SOT23-CBE

B

E C

PR228 *0_04

PC125

4.7u_25V_X5R_08

PC126

4.7u_25V_X5R_08

PR222 560K_1%_04

PR382 1K_04

PR404 *15mil_short

PQ47 BTN3904

M-SOT23-CBE

B

E C

U23

UP1804AMA8

VCC

1

BUS_SEL

2

GND

3

SDA4SCL

5

NC

6

NC

7

OUT

8

PR221

10K_04

PQ14

*2SK3018S3

G

DS

C606

*1u_6.3V_X5R_04

PR227 8.06K_1%_04

PD23 SS1040G

A C

PQ52

*2SK3018S3

G

DS

R394

10_04

PL20

BCIHP0730-1R0M

PCB Footprint = BCIHP0735A

1 2

C608

1u_6.3V_X5R_04

PR218 *100_04

PC131 0.1u_10V_X7R_04

PR226 4.99K_1%_04

R390

*0_04

R628 10K_04

PC124

0.1u_10V_X7R_04

PJ57

*2mm

1 2

PR407 *0_04

PC130

1u_6.3V_X5R_04

R386 *0402_short

PQ51 MDU1516

ULTRASO-8

G

DS

R387 *0402_short

PR219

6.19K_1%_06

PR220 2_06

R688 100K_04

PJ59

*CV-40mil

12

PR408

*10K_04

PC133

*100p_50V_NPO_04

Q60 2SK3018S3

G

DS

R393

10K_04

R392 *0402_short

PC128 0.1u_10V_X7R_04

PJ58

*CV-40mil

12

PR224

*100K_04

R690 47K_04

PR223 0_04

PR393 10K_04

Sheet 57 of 74

DDR 1.2V / 0.6VS

B.Schematic Diagrams

B - 58 DDR 1.2V / 0.6VS

Power 1.0V, VCCIO

1

2

3

4

5

A A

B B

C C

D D

VTT_SELECT VTT VR Output Voltages low 1.1 V high (V1.1S_VTT) 1.05 V

DEFAULT SHORT

EE

0.75*(1+36K/100K)=1.02

10A

For CV test

1.0V

6A

VCCIO

1A

20mil

DEFAULT SHORT

20mil

DEFAULT SHORT

5/13 D02A LOCATION

ON

DEFAULT SHORT

for EMI

VDD1.0

NOTE:

1.0V_VCCST Ton need <10ms G5016 TURN-ON TIME=1.21ms

For CV test

7/26

OCP 12A

8/18

DEFAULT SHORT

VDD1.0_EN

VCCIO_EN

SUSC#

VCCIO_PWRGD

SUSC#

VCCIO_EN

VDD1.0_PWRGD

V1.0A

G5602_5V

VIN

G5602_5V

VDD1.0

VDD3

VDD1.0 VDD1.0

VCCIO

VDD3

1.0V_VCCST

G5602_5V

VDD5

VREG5

VDD3

3.3V

VCCIO

3.3V

VDD3

VCCIO2,3,7,53

VDD544,50,52,56

VIN11,39,42,43,44,52,55,56,57,59,60,61,62

VDD1.035,36,53

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,61,62,63,66

VDD3_5_POK56

SUSC#33,53,57

1.0V_VCCST5,7,32,33,59

3.3V2,11,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57

VCCIO_EN 53,61

VREG556

EC_SLP_SUS#33,39,52,56

VCCIO_PWRGD 38,61

SUSB# 11,32,33,38,42,44,48,52

VDDQ_PWRGD 57

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[58] POWER 1.0V,VCCIO(Power)

A3

58 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[58] POWER 1.0V,VCCIO(Power)

A3

58 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[58] POWER 1.0V,VCCIO(Power)

A3

58 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PU3

G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST

13

DH

12

LX

11

ILIM

10

VDD

9

DL

8

PGND

7

PGND

17

NC5NC

14

PC72

0.1u_10V_X7R_04

C714 220p_50V_NPO_04

PJ37 *CV-40mil

1 2

C689

*22u_6.3V_X5R_08

PC76

*0.01u_16V_X7R_04

PR103

100K_1%_04

+

PC200 330uF_2V_5*5*4.2

C705

0.1u_16V_Y5V_04

PC207

4.7u_25V_X5R_08

PJ5 *1mm

12

Q49

BTN3904

M-SOT23-CBE

B

E C

PR109 *20mil short-p

C721

0.1u_16V_Y5V_04

PJ38 *1mm

1 2

S

D

G

Q40B

*MTDK5S6R

5

34

R467 10K_04

U26 74AHC1G08GW

1

2

5

4

3

PQ31

QM3004M3

4

5255315

PR113 820K_1%_06

R501 *5.1_06

EMI

PR115 100K_04

R589

100K_04

R508

*100_04

PC71

1u_6.3V_X5R_04

R119 68K_1%_04

PR111 40.2K_1%_04

PJ6 *1mm

1 2

R265 10K_04

C700

0.1u_16V_Y5V_04

Q22

2SK3018S3

G

DS

PJ4 *1mm

12

C718 *1000p_50V_X7R_04

EMI

C445

*0.01u_16V_X7R_04

PR106 7.5K_1%_04

PJ15

*CV-40mil

12

G5016 U28

CT2

10

OUT2

8

EN25VBIAS

4

IN2

6

GND11EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

S

D

G

Q36B

*MTDK5S6R

5

34

PJ7 *1mm

1 2

C295

1000p_50V_X7R_04

PL12

BCIHP0730-1R0M

12

PJ40 *5mm

1 2

R481

*100K_04

PR108

2.2_04

PC73

1u_6.3V_X5R_04

C727

0.1u_16V_Y5V_04

C824

0.022u_16V_X7R_04

S

D

G

Q36A

*MTDK5S6R

2

61

C7020.1u_10V_X7R_04

R466 *100K_04

C711

220p_50V_NPO_04

C695

*22u_6.3V_X5R_08

PD14

SS1040G

M-SOD123

A C

S

D

G

Q40A

*MTDK5S6R

2

61

PC213

0.1u_50V_Y5V_06

R453 *100_04

PJ43 *6mm

1 2

R259 10K_04

PJ8 *CV-40mil

12

PC74 *15p_50V_NPO_04

C300

0.1u_10V_X7R_04

PC212

4.7u_25V_X5R_08

PR99 10K_04

PQ29

QM3006M3

4

5255315

C357

1u_6.3V_X5R_04

PJ46*1m m

12

Sheet 58 of 74

Power 1.0V, VCCIO

Schematic Diagrams

B.Schematic Diagrams

Power 1.0V, VCCIO B - 59

Schematic Diagrams

8

7

6

5

4

3

2

1

D D

C C

B B

A A

VBOOT=0.8V

FOR CV

H-line 42

unused floating.

CORE Max Switching Frequency=421Khz

,QWHO6.</$.(,09332:(5&.73+$6(

unused floating.

The unused ISENAxP pins are recommended to be connected to VCC

PSYS&OFSA

GT Max Switching Frequency=425Khz

10k ntc

VCORE IMON GT IMON

NO Load Offset PSYS DISABLE

GT

CORE

9/21

Short

DEFAULT SHORT

DEFAULT OPEN

CPU Thermal event malfunction.

DEFAULT OPEN

POWER

㕘⡆ᾖ㓡暣⭡ῤ

2/18

TONSET

SET2

SET1

SET3

SETA1

SETA2

IMON

IMONA

OFSA/PSYS

OFSM

VR_ENABLE

TONSETA

5V

VIN

VREF_VCORE

3.3VS

VREF_VCORE

1.0V_VCCST

5V

VIN

5V

VREF_VCORE

5V

VCCGT_R

3.3VS

VIN

VCORE_R

VREF_VCORE

VIN11,39,42,43,44,52,55,56,57,58,60,61,62

3.3VS3,9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52

5V32,43,45,46,48,50,52,53,54,55,57,60,61,65

1.0V_VCCST5,7,32,33,58

VCCGT_R60 VCORE_R60

PWM21 60

PWM11 60

CSN21 60

CSN11 60

DRVON160

CSP21 60

CSP11 60

H_CPU_SVIDCLK 5

H_CPU_SVIDALRT# 5

H_CPU_SVIDDAT 5

VCC_VCORE_SENSE6

VSS_VCORE_SENSE6

VCORE_PG 38

ALL_SYS_PWRGD 5,11,38,39

VCCGT_SENSE8

VSSGT_SENSE8

PSYS 62

H_PROCHOT# 5

PWM12 60

CSN12 60

CSP12 60

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[59] VCORE&VCCGT OUTPUT1(Power)

A3

59 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[59] VCORE&VCCGT OUTPUT1(Power)

A3

59 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[59] VCORE&VCCGT OUTPUT1(Power)

A3

59 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PC115

*1000p_50V_X7R_04

PR168 680_1%_04

PC255

1u_6.3V_X5R_04

PR178 20K_04

PR134 330K_1%_06

PR188

4.87K_1%_04

PJ24 *1mm

1 2

PR396

0_04

PR358

0_04

PR171 680_1%_04

PR367 45.3_1%_04

PR361

21.5K_1%_04

PR194 0_04

PR184 *0_04

PR379

*20mil short-p

PR355

100_04

PR372

0_04

PR366

432K_1%_06

PR363

0_04

PR176 43.2K_1%_04

PC114

*1000p_50V_X7R_04

PR375

0_04

PR162 10K_06

PR360

0_04

PR392

0_04

PR200

36.5K_1%_04

PR204

22.1K_1%_04

PR179 *0_04

PC112 *1000p_50V_X7R_04

PJ21 *1mm

1 2

PC110 120pF_50V_NPO_04

PJ27

*CV-40mil

12

RT4

100k_1%_04_NTC

1 2

PR373

17.8K_1%_04

PR359 49.9_1%_04

PR185 10K_04

PR191

100_04

PR165 100_04

PR362

5.9K_1%_04

PR198

0_04

PR357 1_04

PR175 10K_1%_04

PJ22 *1mm

1 2

PR174 100_04

PC111

4.7u_6.3V_X5R_04

PR354

*20mil short-p

PR167 10K_1%_04

PR192 *0402_short

PR199

0_04

PR205

0_04

PR150 1_1%_06

PR391

56K_1%_04

PR374 0_04

PR181

*20mil short-p

PC100 220p_50V_NPO_04

PC106

*1000p_50V_X7R_04

PR368

80.6K_1%_04

PR144 100K_1%_04

PR370

0_04

PR148 499K_1%_06

PR180

100_04

PJ16 *1mm

1 2

PC109 470p_50V_NPO_04

PR190

806_1%_04

PC108

*1000p_50V_X7R_04

PR356

100K_1%_04

PJ26

*1mm

1 2

PR186 *0_04

C524

*0.1u_10V_X7R_04

PR189

0_04

PR187

0_04

PR211

42.2K_1%_04

PC99 82p_50V_NPO_04

PR371

200K_1%_04

PR212

2K_1%_04

PR135 1_1%_06

PR378

2.37K_1%_04

PR151 560K_1%_06

RT5

EWTF02-103F3I-N

1 2

PC103

*1000p_50V_X7R_04

PR206

*1K_1%_04

PR386

1K_1%_04

PR149

10K_06

PR397

11K_1%_04

PC249

0.47u_16V_X7R_06

PR364

8.45K_1%_04

PR387 *20mil short-p

PR166 18K_1%_04

PC90

0.22u_50V_Y5V_06

PR377

33.2K_1%_04

RT2

100k_1%_04_NTC

1 2

PR365

10K_1%_04

PR208 100_04

PC95 0.1u_16V_X7R_04

PR177

1_06

PR376

432K_1%_06

PJ28 *OPEN_4mil

1 2

PR163 10K_06

PR193 10_04

PR153 680_1%_04

PC97

0.22u_50V_Y5V_06

PR207 *45.3_1%_04

PR369

0_04

RT3

100k_1%_04_NTC

1 2

PR197

31.6K_1%_04

GND

57%(

PU6

RT3606BEGQW

ISEN3N

3

PS4

43

VCLK

23

IMONA

19

VSEN

10

ISEN2N

7

ISEN3P

2

ISEN1N

4

NC

40

SET2

13

COMPA31FBA32RGNDA

29

SETA2

16

VSENA

30

OFSA/PSYS

26

IBIAS

28

ISENA1P

35

SET1

12

PGOOD

47

SETA1

15

PWMA1

42

EN

24

ISEN2P

6

ALERT#

21

ISEN1P

5

IMON

17

COMP

9

ISENA2P34ISENA2N

33

FB

8

RGND

11

VCC

27

TSEN

1

VDIO

22

GND

49

DVD

39

ISENA1N

36

PWMA2

41

PWM3

46

PWM1

45

PWM2

44

SET3

14

OFSM

25

TONSET

48

TONSETA

38

TSENA

37

V06

18

VRHOT

20

PJ25

*CV-40mil

12

Sheet 59 of 74

VCore & VCCGT

Output 1

VCore & VCCGT Output 1

B.Schematic Diagrams

B - 60 VCore & VCCGT Output 1

VCore & VCCGT Output 2

8

7

6

5

4

3

2

1

D D

C C

B B

A A

Loadline=1.8mr

VCORE & VCCGT OUTPUT STAGE

CHOKE CMME063T R15 Ḧ ✌ DCR=0.90mR PPM=4453

CHOKE CMME063T R15

Ḧ ✌

DCR=0.90mR

hi side RDSON=6.8mR lowi side RDSON=2.8mR

㕘㕁

H-line 42 Loadline=2.65mr

H-line 42

7/29

䨢攻⓷柴㓡䁢

POSCAP 1.1mm H

VCORE 2Phase

VCCGT1Phase

2A

4A

Default SHORT

66A

10A

0V~1.5V

0V~1.52V

7/29

8/18

9/30

B2

冯

2PCS 0805 CO-LAY

B2

冯

2PCS 0805 CO-LAY

B2

冯

2PCS 0805 CO-LAY

VCORE_R

VCCGT_R

5V

VCORE

VIN

5V

VCCGT

VIN

VCORE6

VIN11,39,42,43,44,52,55,56,57,58,59,61,62

5V32,43,45,46,48,50,52,53,54,55,57,59,61,65

VCCGT8

PWM1159

DRVON159,60

PWM2159

CSP2159

CSN2159

CSP1159

CSN1159

DRVON159,60

PWM1259

DRVON159,60

CSP1259

VCCGT_R 59

VCORE_R 59

CSN1259

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[60] VCORE&VCCGT OUTPUT2(Power)

A3

60 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[60] VCORE&VCCGT OUTPUT2(Power)

A3

60 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: S heet

of

6-71-P9500-D03

D03

[60] VCORE&VCCGT OUTPUT2(Power)

A3

60 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PR384 1_1%_06

PR390

2.2_06

PC269

2200p_50V_X7R_04

PR209 *20mil_04

PC265

1u_25V_X7R_06

+

PC272

*16TQC100MYF.

PR210 *20mil_04

PL18

CMME063T-R15MS0R907

12

+

PC276 470u_2V_SMD-V

PC123

0.47u_16V_X7R_06

+

PC234 220u_2V_SMD-V

RT9610BZQW

PU16

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND

6

LGATE

7

GND

9

COMMON

MLP08

INS146687553

PQ45

CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PQ54

MDU5693

1

283

4

9

567

PC119

2200p_50V_X7R_04

PC122

0.47u_16V_X7R_06

PC274

1u_25V_X7R_06

PR213 374_1%_04

PC258

1u_16V_X7R_06

PC268

4.7u_25V_X7R_08

PR389 1_1%_06

PR215 *20mil_04

PC279

0.1u_25V_X7R_06

RT9610BZQW

PU15

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND

6

LGATE

7

GND

9

PC282

4.7u_25V_X7R_08

PR196 *20mil_04

PC271

4.7u_25V_X7R_08

PR380 1_1%_06

PC280

4.7u_25V_X7R_08

PC270

4.7u_25V_X7R_08

PC278

1u_16V_X7R_06

PR401 1_1%_06

PC121

0.47u_16V_X7R_06

+

PC239 220u_2V_SMD-V

PC275

0.1u_25V_X7R_06

PR402 1_1%_06

PC283

1u_25V_X7R_06

PC120

2200p_50V_X7R_04

PR216 374_1%_04

COMMON

MLP08

INS146687392

PQ46

CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PR381 1_1%_06

PR214 *20mil_04

+

PC238 220u_2V_SMD-V

PL17

CMME063T-R15MS0R907

12

+

PC281

*25TQC15MYFB

12

RT9610BZQW

PU18

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND

6

LGATE

7

GND

9

PL19

CMME063T-R15MS0R907

12

PR201

2.2_1%_06

PR202

2.2_1%_06

PR385

2.2_06

PR403

2.2_06

+

PC294

*25TQC15MYFB

12

+

PC235 220u_2V_SMD-V

PR203 374_1%_04

PC273

4.7u_25V_X7R_08

PC266

0.1u_25V_X7R_06

PR195 *20mil_04

PJ51 *6mm

1 2

PJ49

*OPEN-10mm

1 2

PR399

2.2_1%_06

PC259

1u_16V_X7R_06

Sheet 60 of 74

VCore & VCCGT

Output 2

Schematic Diagrams

B.Schematic Diagrams

VCore & VCCGT Output 2 B - 61

Schematic Diagrams

8

7

6

5

4

3

2

1

D D

C C

B B

A A

10A

For CV test

VCCSA

(40.2K/100K+1)*0.75=1.05V

DEFAULT SHORT

7/26

DEFAULT SHORT

5V

VCCSA

VDD3

VIN

5V32,43,45,46,48,50,52,53,54,55,57,59,60,65 VIN11,39,42,43,44,52,55,56,57,58,59,60,62

VCCSA7

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,62,63,66

VCCIO_EN53,58

VCCIO_PWRGD38,58

VCCSA_SENSE 7

VSS_SA_SENSE 7

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[61] VCCSA(Power)

A4

61 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[61] VCCSA(Power)

A4

61 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[61] VCCSA(Power)

A4

61 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PR119 100K_04

PR118 10K_04

PD16SS1040G

A C

PU4

G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST

13

DH

12

LX

11

ILIM

10

VDD

9

DL

8

PGND

7

PGND

17

NC5NC

14

PR127 100_04PC89 *15p_50V_NPO_04

PC88

0.1u_10V_X7R_04

PC79

*0.01u_16V_X7R_04

PC224

4.7u_25V_X5R_08

PC94

1u_6.3V_X5R_04

PR128 40.2K_1%_04

PC233

0.1u_50V_Y5V_06

PR137 100_04

PJ13 *1mm

1 2

+

PC206 330uF_2V_5*5*4.2

PJ11

*CV-40mil

12

PR123 *20mil_06

PC83

1u_6.3V_X5R_04

PJ9 *1mm

1 2

PR120 820K_1%_06

PR133

100K_1%_04

PC217

4.7u_25V_X5R_08

PL13

BCIHP0730-1R0M

PCB Footprint = BCIHP0735A

1 2

+

PC222

*16TQC100MYF.

PQ33

QM3006M3

4

5255315

PJ14 *1mm

1 2

PJ10 *1mm

1 2

PC214 22u_6.3V_X5R_08

PR126

2.2_04

PQ8

QM3004M3

4

5255315

PJ47

*8mm

1 2

PR411 *20mil_06

PR131 4.12K_1%_04

Sheet 61 of 74

VCCSA

VCCSA

B.Schematic Diagrams

B - 62 VCCSA

AC_In, Charger

1

2

3

4

5

A A

B B

C C

D D

D02A modify

D02_0306_REX

SMART CHARGER TI24780S

Option close to EC

V_BAT

AC_IN

VA1

BTST

SMD_BAT

ACN

SMD_BAT

SMC_BAT

ACPRES

ACDRV

V_BAT

REGN

TB_STAT

SMC_BAT

IDCHG

ACDET

ILIM

Phase

CMSRC

ACP

BATDRV

SRP SRN

LODRV

HIDRV

IOUT

VDD3

VIN

VDD3

VA

VDD3

VA

VIN11,39,42,43,44,52,55,56,57,58,59,60,61

VA52

1.0DX_VCCSTG5,7,53

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,63,66

BAT_DET39

BAT_VOLT 39

SMD_BAT 39

SMC_BAT 39

TOTAL_CUR 39

AC_IN# 39

AC/BATL# 27,62

PSYS59

AC/BATL#27,62

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[62] AC_IN,CHARGER(Power)

A2

62 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[62] AC_IN,CHARGER(Power)

A2

62 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[62] AC_IN,CHARGER(Power)

A2

62 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PC763 1u_25V_X5R_06

PR1966 0_04

+

PC751

*15u_25V_6.3*4.4

12

PC740

0.047u_25V_X7R_06

PRS5

0.01_1%_32

PC78

0.1u_16V_Y5V_04

PR336

100K_04

PR41310_04

PQ57 QM3004M3

4

5255315

PD6

*MMSZ5232BS

A C

PC755

1000p_50V_X7R_04

PR419

470K_04

PC760

2.2u_16V_X5R_06

PC290

0.1u_50V_Y5V_06

PR417

4.02K_1%_04

PD15 *RB0540S2

A C

PR19610_06

PC246

0.1u_25V_X7R_06

PD29 MDL914S2

AC

PC761

1000p_50V_X7R_04

PRS4

0.01_1%_32

PR1964 *0_04

PR116 300K_1%_04

PQ59

2SK3018S3

G

DS

PL1 HC B1005KF-121T20

PC748

0.1u_50V_Y5V_06

PQ61

2SK3018S3

G

DS

PC747

0.1u_50V_Y5V_06

PC757

4.7u_25V_X7R_08

PD3

*MMSZ5232BS

A C

PC288

0.01u_25V_X7R_04

PR426 *0402_short

PQ62

BTN3904

M-SOT23-CBE

B

E C

PR141

10K_04

PU5

BQ24780SRUYR

ACN

1

ACP

2

CMSRC

3

ACDRV

4

ACOK

5

ACDET

6

IADP

7

IDCHG8PMON9PROCHOT#10SDA11SCL12CMPIN13CMPOUT

14

BATPRES#

15

TB_STAT#

16

BATSRC

17

BATDRV

18

SRN

19

SRP

20

ILIM

21

GND_1

22

LODRV

23

REGN

24

BTST

25

HIDRV

26

PHASE

27

VCC

28

GND_2

29

PR1957 287K_1%_04

PR1967

10K_1%_04

PC291

100p_50V_NPO_04

L18

HCB2012KF-800T80

PR421

4.7_04

C2047 30p_50V_NPO_04

PC764

4.7u_25V_X7R_08

PQ40 QM3006M3

4

5255315

PR420

75K_1%_04

PR117

60.4K_1%_04

PC75810u_25V_X5R_08

PC749

0.1u_25V_X7R_06

PD4

SS1040WG

A C

PC752

0.1u_50V_Y5V_06

PR1955 10_1%_06

PD28 MDL914S2

AC

PC245

4.7u_25V_X7R_08

PC293

2.2u_25V_X5R_08

C2048

10u_25V_X5R_08

PR422

4.7_04

PR1969

45.3K_1%_04

C2050 30p_50V_NPO_04

PTVS1 SMAJ20A

A C

C2049 30p_50V_NPO_04

PQ64 QM3004M3

4

5 2 5

5 3

1

5

J_DC_JACK1

2DC3157-002111F

1 2

3

4

PL2

HCB1005KF-121T20

PC742

0.1u_50V_Y5V_06

PC229

4700p_50V_X7R_04

PR195910_04

PC759 1u_25V_X5R_06

PR415 *10K_1%_04

PC289

0.1u_50V_Y5V_06

L43

HCB2012KF-800T80

PC753

0.1u_50V_Y5V_06

J_BAT1

50458-00801-002

2 3 4

6

5

7 8

1

PC741*10u_25V_X5R_08

PC746

0.1u_50V_Y5V_06

PC743

4.7u_25V_X7R_08

PR423

4.7_06

PR1962 0_04

PR1958

*20K_04

PR1965 *0_04

PC762

0.1u_50V_Y5V_06

PC292

100p_50V_NPO_04

PC744

0.1u_50V_Y5V_06

PR1968 0_04

PC754

100p_50V_NPO_04

PR1960

4.02K_1%_04

PR138

10K_04

PQ32 QM3004M3

4

52 5531

5

PQ58 QM3006M3

4

5255315

PR414

10K_1%_04

PQ63 QM3004M3

4

52 5531

5

PR418

4.02K_1%_04

PR416

10K_1%_04

PL14

BCIHP0730-4R7M

12

PR145 10K_04

PQ60

MTE1K0P15KN3

G

DS

PR424

4.7_06

PQ30 QM3004M3

4

5 2 5

5 3

1

5

PC745*10u_25V_X5R_08

PD5

SS1040WG

A C

PR1970 24K_1%_04

PR427 *0402_short

PR196310_04

PR142

47K_04

PC73910u_25V_X5R_08

PD30

ZD5245BS2

AC

PC756

1500p_50V_04

PR1956

2.2_06

Sheet 62 of 74

AC_In, Charger

Schematic Diagrams

B.Schematic Diagrams

AC_In, Charger B - 63

Schematic Diagrams

1

2

3

4

5

6

7

8

A A

B B

C C

D D

7/26

P950HP3,P950HP6 = G1 Phase P950HR = G1 Phase

0.6V~1.2V

NVVDDS FOR N17_VGA

10A

NVVDDS PHASE

EMI

9/8

20A

15R ⎒㚱06㰺㚱08size

1A

7/29

7/27

10A

1A

POWER

ᶲẞ暣旣暣⭡ῤ

2/16

HR/HP

HP ᶵᶲ

HR/HP ᶵᶲ

4/12

4/13

PVCC_UPI_1666

NVVDDS_VREF

UP1666_FBDRTN

LX1_UPI_1666UP1666_REFADJ

UGATE1_UPI_1666

UP1666_REFADJ

NVVDDS

NVVDDS_VREF

PWR_SRC_NVVDDS

1V8_AON

5VS

PWR_SRC_NVVDDS PWR_SRC_NV_FB

VDD3

PWR_SRC_NVVDDS

NVVDDS

NV3V3

NVVDDS

PWR_SRC_NVVDDS

1V8_AON

PWR_SRC_NV_FB55,64,66

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,66

NV3V312,13,14,27,54,55,64

NVVDDS23,28,65

GPU_NVDDS_SENSE28,64

GPU_GNDS_SENSE28,64

GPIO3_PS_NVVDDS_VID27

PWR_SRC_NVS_VINN_R55 PWR_SRC_NVS_VINNP_R 55

GPIO6_NVVDD_PSI# 27,64

NVVDDS_PWRGD29

NV_NVVDDS_EN 29,63

1V8_AON13,14,24,25,27,28,29,54,55,64,66

5VS12,13,32,40,41,49,50,51,52,64,66

NV_NVVDDS_EN29,63

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[63] NVVDDS(Power)

Custom

63 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[63] NVVDDS(Power)

Custom

63 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[63] NVVDDS(Power)

Custom

63 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PR6 0_04

PC2

1u_6.3V_X5R_04

PC137

0.1u_25V_X7R_06

PC14 1u_25V_X7R_06

PC20 4.7u_25V_X5R_06

PD9

SS1040G

A C

PR240 10K_04

PR266

*0_04

PC19 4.7u_25V_X5R_06

PR268

*10K_04

PR248 2.2_04

PR261

309_1%_04

PQ19

MDU5693

1

283

4

9

567

PR232 *0_04

PR252

4.32K_1%_04

PR237 100K_04

+

PC22 470u_2V_SMD-V

PU8

RT8816A

qfn20-3x3mm-rt8816

REFIN

7

VREF

8

FS/OC

9

FB

11

COMP

12

EN

3

VID

5

PVCC

18

PSI

4

LGATE2

17

PHASE1

20

GND

21

FBDRTN

10

LGATE1

19

REFADJ

6

BOOST1

1

UGATE1

2

PGOOD13UGATE214BOOT2

15

PHASE2

16

+

PC147 25TQC15MY FB

PR255

6.19K_1%_04

PC3

1u_6.3V_X5R_04

PR5 0_04

PR269 *0_04

N17EG1

PR260 100K_04

PR239 0_04

PR9

15_1%_06

PR271

2.2_1%_06

+

PC9 220u_2V_SM D-V

PR1

110K_1%_04

PJ34 *CV-40mil

1 2

PR253 16.5K_1%_04

PRS3

1206

RL1632T4F-B-R005-FNH

1%

COMMON

1 2 3

4

PC144

0.1u_25V_X7R_06

PR24

2K_04

PR243 100_04

PC142 1500p_50V_04

PC141

4700p_50V_X7R_04

PC6 0.1u_10V_X7R_04

PQ15

MDU5693

1

283

4

9

567

PQ21

2SK3018S3

G

DS

PR250

20.5K_1%_04

PC143

*0.01u_50V_X7R_04

PR242 1K_1%_04

PR1971 *10K_04

PC21 1u_25V_X7R_06

PC5

*0.1u_10V_X7R_04

PR230 100_04

PR265 0_04

PC134

2200p_50V_X7R_04

PC146

2200p_50V_X7R_04

PD8

SS1040G

A C

PR12

15_1%_06

PL4

CMME063T-R24MS1R197

12

PC139

*120pF_50V_NPO_04

PC17 *10u_6.3V_X5R_06

PL3

CMME063T-R24MS1R197

12

PR246 499K_1%_1/16W_04

PR229

2.2_1%_06

PQ2

QM3006M3

4

5255315

PC18

*10u_6.3V_X5R_06

PC11 4.7u_25V_X5R_06

PR10

15_1%_06

PC8 4.7u_25V_X5R_06

PR11

15_1%_06

Sheet 63 of 74

NVVDDS

NVVDDS

B.Schematic Diagrams

B - 64 NVVDDS

NVVDD 1

1

2

3

4

5

6

7

8

A A

B B

C C

D D

layout 1pcs B2 慵䔲2PCS 0805 size

0.6V~1.2V

”NP-A”㗗NO PASTEMASK

4/26 power

妋

restart

⓷柴

,PC63

ᶵᶲẞ

4/26 power 妋restart

⓷柴

,PC85

ᶵᶲẞ

PR48

Output Voltage Ramp Up Time

15K 150us

20K 500us

30K 1ms

OPEN 1.5ms

2/4 power change X7R

Test

1ms

1.5ms

2ms

8/5

7/29

place at MOSFET side

30A

layout 1pcs B2 慵䔲2PCS 0805 size

place at MOSFET side

30A

9/29

HR ᶵᶲ

HR/HPᶲẞ

4/6 2017

NV_VDD_L

PH1_UPI_9509

UGATE2_UPI_9509

UP9509_VREF

UP9509_FBDRTN

UP9509_REFADJ

NVVDD

UP9509_VREF

UP9509_REFADJ

UP9509_FBDRTN

PH2_UPI_9509

PH1_UPI_9509

5VCC

PH1_UPI_9509

PH2_UPI_9509

UGATE2_UPI_9509

UP9509_FBDRTN

1V8_AON

NVVDD

PWR_SRC_NV

NVVDD

PWR_SRC_NV

5VCC 5VS

NV3V3

PWR_SRC_NV

1V8_AON

PWR_SRC_NV

PWR_SRC_NV_FB

1V8_AON

5VS

GPIO29_NVVDD_PH1 27

NV3V312,13,14,27,54,55,63

1V8_AON13,14,24,25,27,28,29,54,55,63,66

PWR_SRC_NV_FB55,63,66

3.3V2,11,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

5VS12,13,32,40,41,49,50,51,52,63,66

NVVDD23,28,65

NVVDD_PWRGD14,29

GPU_NVVDD_SENSE28,55

GPU_GND_SENSE28,55

GPIO0_NVVDD_PWM_VID27

PWR_SRC_NV_VINN_R55 PWR_SRC_NV_VINP_R 55

GPIO6_NVVDD_PSI#27,63

NV_NVVDD_EN 29

GPU_GNDS_SENSE28,63

GPU_NVDDS_SENSE28,63

PH3_UPI_950965

PWM3_1 65

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[64] NVVDD 1 (Power)

A3

64 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[64] NVVDD 1 (Power)

A3

64 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[64] NVVDD 1 (Power)

A3

64 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

COMMON

MLP08

INS148785000

PQ24 CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PC156

1u_25V_X7R_06

COMMON

MLP08

INS148785103

PQ25 CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PC170 4.7u_25V_X7R_08

PC166 4.7u_25V_X7R_08

PR299 2_1%_04

PC168

1u_25V_X7R_06

COMMON

MLP08

INS148784909

PQ26 CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PR307

2.2_1%_06

PR301

*10K_04

PL6

CMME063T-R15MS0R907

12

+

PC12 *25TQC15MYFB

PC154

4.7u_25V_X7R_08

COMMON

MLP08

INS148785425

PQ23 CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PR306

2.2_06

PC16 4700p_50V_X7R_04

PC10

*0.01u_50V_X7R_04

PR22

11K_1%_04

PR4 *0_04

PC150

*33p_50V_NPO_04

PC23

0.1u_10V_X7R_04

PR294

100K_1%_04

PD10

SS1040G

A C

PC167 4.7u_25V_X7R_08

PR1930 10K_1%_04

PC171

1u_25V_X7R_06

PR23 10K_04

PR273 100_04

PR7 *0_04

PR16 16.5K_1%_04

PC172

2200p_50V_X7R_04

PD11

SS1040G

A C

PC158

1u_16V_X7R_06

PR292

2_1%_04

PR26 *10K_1%_04

PR20

4.32K_1%_04

PR308

2.2_1%_06

PR286 *0_04

PR302

100K_1%_04

PR13 0_04

PQ22 *MTN2002ZS3

G

DS

PR287 *0_04

PU9

RT8813DGQW

REFIN

7

VREF

8

TON

9

FB

11

COMP

12

EN

3

VID

5

PVCC

21

PSI

4

LGATE2

20

PHASE1

24

GND

25

FBDRTN

10

LGATE1

23

REFADJ

6

BOOST1

1

UGATE1

2

PGOOD16UGATE217BOOT2

18

PHASE2

19

ISEN313ISEN214ISEN1

15

PWM3

22

PC160

2200p_50V_X7R_04

PR289 *100K_1%_04

PR21

6.19K_1%_04

PR14 0_04

PR277 *0_04

PR8

309_1%_04

PL5

CMME063T-R15MS0R907

12

PR293 *30.1K_04

PRS1

1206

RL1632T4F-B-R005-FNH

1%

COMMON

1 2 3

4

PC169 4.7u_25V_X7R_08

+

PC13 *25TQC15MYFB

PR290 10K_1%_04

PR304 *0_04

PR285 10K_1%_04

PC15

4700p_50V_X7R_04

PR298 *10K_04

PC25 *0.01u_16V_X7R_04

PR284 10K_1%_04

PR18 499K_1%_1/16W_04

PR17

20.5K_1%_04

PC152

4.7u_25V_X7R_08

PC155

4.7u_25V_X7R_08

PC157

0.1u_25V_X7R_06

PC151

4.7u_25V_X7R_08

PC153

1u_25V_X7R_06

PC159 0.1u_25V_X7R_06

PR19 100_04

PR279 0_04

Sheet 64 of 74

NVVDD 1

Schematic Diagrams

B.Schematic Diagrams

NVVDD 1 B - 65

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

”NP-A”㗗NO PASTEMASK

3/7 co-lay

ᶵᶲẞ

,

㇨ẍᾖ㬋

footprint䁢PASTEMASK

120A

GPU DECOUPLING

HP Short Only

D02A

0.6V~1.2V

DCR 0.6m ohm

30A

place at MOSFET side

layout 1pcs B2

慵䔲

2PCS 0805 size

7/26

G1

ᶵᶵᶵᶵᶲᶲᶲᶲẞẞẞẞ

/G2

ᶲᶲᶲᶲẞẞẞẞ

PH3_UPI_9509

NVVDDNVVDDS

5V

NVVDD

PWR_SRC_NV

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66

NVVDD23,28,64

NVVDDS23,28,63

PH3_UPI_9509 64

PWM3_164

5V32,43,45,46,48,50,52,53,54,55,57,59,60,61

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[65] NVVDD 2 (Power)

A3

65 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[65] NVVDD 2 (Power)

A3

65 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[65] NVVDD 2 (Power)

A3

65 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PC165

47u_2.5V_X6S_08

PC44

22u_4V_X6S_06

+

PC39

220u_2V_SMD-V

COMMON

MLP08

INS148786924

PQ55 CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PJ1 *3mm

1 2

PC33

22u_4V_X6S_06

PR1951 0_04

PC719 4.7u_25V_X7R_08

PC735

2200p_50V_X7R_04

PC42

22u_4V_X6S_06

PC738 4.7u_25V_X7R_08

+

PC30

470u_2V_SMD-V

PC163

47u_2.5V_X6S_08

PC35

22u_4V_X6S_06

+

C178

220u_2V_SMD-V

PC736 4.7u_25V_X7R_08

+

PC31

220u_2V_SMD-V

PR1954 2_1%_04

PC38

22u_4V_X6S_06

+

C121

220u_2V_SMD-V

PC34

22u_4V_X6S_06

PC737 4.7u_25V_X7R_08

PR1949 100K_1%_04

PC40

22u_4V_X6S_06

PC164

47u_2.5V_X6S_08

PC36

22u_4V_X6S_06

PC161

47u_2.5V_X6S_08

PC32

22u_4V_X6S_06

PR1952 1K_1%_04

PR556 *0_04

PC26

22u_4V_X6S_06

RT9610BZQW

PU30

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND6LGATE

7

GND

9

PD34

SS1040G

A C

PC43

22u_4V_X6S_06

PC27

22u_4V_X6S_06

PR1944 *0_04

PC723

1u_25V_X7R_06

PR1947

2.2_1%_06

COMMON

MLP08

INS148786996

PQ56 CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PC726

2.2u_16V_X5R_06

PL23

CMME063T-R15MS0R907

12

PJ60 *3mm

1 2

PC295

1u_25V_X7R_06

PC37

22u_4V_X6S_06

PD33 MDL914S2

A C

PC734 0.1u_25V_X7R_06

PR1942

2.2_06

PC162

47u_2.5V_X6S_08

Sheet 65 of 74

NVVDD 2

B.Schematic Diagrams

B - 66 NVVDD 2

FBVDDQ

1

2

3

4

5

6

7

8

A A

B B

C C

D D

3/28 ᾖ㬋footprint,

ⶍ⺈天㯪

2A

8/5

7/29

2A

Vout = Vref * (1 + Rtop / Rbot)

1.55V = 0.704V * (1 + (24.3K/20K))

1.35V = 0.6096V * (1 + 24.3k/20K)

from NV

7/29

4/7 power change

ᶵᶲẞ

4/25 modify timing 10k change to 20k , *1500p change to 0.1u

婧㔜

FBVDDQ RC, delay FBVDDQ_EN

3/14 ADD follow NV

℔⚾

H = 1.55V L = 1.35V

3/14 power change net

3/14 40.2k change to 78.8k (power change)

3/14 19.6k change to 4.99k (power change)

3/14 0_04 change to 10k (power change)

3/18 2 phase

ᶵᶲẞ

(power check)

3/14 41.2k change to 40.2k (power change)

3/14 0_04 change to 12.1k (power change)

12A

FBVDDQ FOR N17_VGA

1.35V

EMI

12A

24A

9/30

12/23

4/12

UP1666_VREF

FBDRTN

LX1

FBVDDQ_REFIN

UGATE2

UGATE1

PVCC

NV_FBVDDQ_EN

FBVDDQ

UP1666_VREF

FBVDDQ_REFIN

NV_FBVDDQ_EN

1V8_AON

VDD3

PWR_SRC_NV_FB

FBVDDQ

1V8_AON

PWR_SRC_NV_FB

1V8_AON

5VS

PWR_SRC_NV_FB

5VS

1V8_AON13,14,24,25,27,28,29,54,55,63,64

VDD35,27,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63

PWR_SRC_NV_FB55,63,64

FBVDDQ15,16,17,18,19,20,21,22,24,28

5VS12,13,32,40,41,49,50,51,52,63,64

GPIO8_MEM_VDD_CTL27

FBVDDQ_SENSE28,55

DGPU_PWRGD 34

NV_FBVDDQ_EN 29

FBVDDQ_SENSE_RTN28,55

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[66] FBVDDQ(Power)

A3

66 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[66] FBVDDQ(Power)

A3

66 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[66] FBVDDQ(Power)

A3

66 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

PR81 100_04

S

D

G

PQ5B

MTDK3S6R

5

3

4

PL8

CMME063T-R24MS1R197

12

+

PC4 220u_2V_SMD-V

PR309

2.2_1%_06

PC174 0.1u_10V_X7R_04

PR36

*1K_1%_04

PR68 *0_04

PR37 *0_04

PR90

4.99K_1%_04

PC45 *0.01u_50V_X7R_04

PR62

120K_1%_04

PC176

2200p_50V_X7R_04

PR312 2.2_04

PC41

0.01u_50V_X7R_04

PQ28

MDU5693

1

283

4

9

567

PR41

*10K_1%_04

PR74 1K_1%_04

PQ17 2SK3018S3

G

DS

PC140 *10u_6.3V_X5R_06

PR82 100_04

PC138

10u_6.3V_X5R_06

PD12

SS1040G

A C

+

PC47 220u_2V_SMD-V

+

PC182 *25TQC15MYFB

PR259

15_1%_06

PR61

*0_04

+

PC46 220u_2V_SMD-V

PR94 499K_1%_1/16W_04

PC52

1u_6.3V_X5R_04

PC177 4.7u_25V_X7R_08

PL7

CMME063T-R24MS1R197

12

PR257

15_1%_06

PR84

10K_04

PC48 0.1u_50V_Y5V_06

PC57

*0.1u_10V_X7R_04

PC179 4.7u_25V_X7R_08

PQ27

MDU5693

1

283

4

9

567

+

PC173 330U_2V_D2_D

PR89

12.1K_1%_04

PR51 0_04

PC178 4.7u_25V_X7R_08

PC62

2200p_50V_X7R_04

PC63

1u_6.3V_X5R_04

PR54 0_04

PR58

10K_04

PC59

*33p_50V_NPO_04

PC53

0.1u_25V_X7R_06

PC49 0.1u_50V_Y5V_06

PC175

2200p_50V_X7R_04

PR236

2K_04

PR38

10K_04

PR75 0_04

PC54

0.1u_25V_X7R_06

S

D

G

PQ5A

MTDK3S6R

2

6

1

PR45 100K_04

PR258

15_1%_06

PJ3 *CV-40mil

12

PR42

78.7K_1%_04

PU2

RT8816A

qfn20-3x3mm-rt8816

REFIN

7

VREF

8

FS/OC

9

FB

11

COMP

12

EN

3

VID

5

PVCC

18

PSI

4

LGATE2

17

PHASE1

20

GND

21

FBDRTN

10

LGATE1

19

REFADJ

6

BOOST1

1

UGATE1

2

PGOOD13UGATE214BOOT2

15

PHASE2

16

PR83 0_04

PR410 *2K_04

PC67

*0.01u_50V_X7R_04

+

PC7 220u_2V_SMD-V

PC180 4.7u_25V_X7R_08

PR57

100K_04

PR256

15_1%_06

PR65 1K_04

PQ18

QM3006M3

4

5255315

PD13

SS1040G

A C

PR80 40.2K_1%_04

PR310

2.2_1%_06

Sheet 66 of 74

FBVDDQ

Schematic Diagrams

B.Schematic Diagrams

FBVDDQ B - 67

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

LAN Board

MAIN: 6-20-44A00-108 2ND: 6-21-C3A00-108

BEAD & CAP FOR EMI

6-20-44A00-108

Port 9

From KBC default HI

48 mil

CCD

1A1A

3.3VS:190mA

3.3VS:50mA

GIGA LAN

MAIN 6-20-B4J00-008

(RTL8111GS & RTL8118AS)

FOR S5 WAKE UP ON LAN

capacitors must be close to pin side.

40 mil

GIGA LAN

Cc

Ra

(>60mil)

(W>60mil L<200mil)

PIN11

LDO Mode

60 mil

PIN22 PIN30

W>40mil

PIN22

PIN8PIN3Pin#32

meet realtek Freq tolerance 50ppm

VDD3:700mA

LAN Connect

L_MIC_CLK

L_MIC_DATA

L_USB_PN9

L_USB_PP9

L_CCD_EN

L_MIC_DATA_L L_MIC_CLK_L

L_REGOUT

L_RTL8111G_HSOP

L_LAN_WAKEUP#

L_RTL8111G_HSON

L_PCIE_RXP4_GLAN

L_LAN_MDIN1

L_LAN_MDIP1

L_LAN_MDIN2

L_LAN_MDIP2

L_LED1/GPO

L_LAN_MDIN3

L_LAN_MDIP3

L_RSET

L_LED0

L_CLK_SRC4_GLAN

L_CLK_SRC4_GLAN#

L_PERSTB

L_LAN_MDIP0

L_PCIE_TXN4_GLAN L_PCIE_TXP4_GLAN

L_BUF_PLT_RST#

L_PCIE_WAKE#

L_PCIE_RXN4_GLAN

L_LAN_MDIN0

L_XTAL1

L_XTAL2

L_LAN_MDIP0

L_LAN_MDIP3

L_LAN_MDIN1 L_LMX2-

L_LMX3-

L_LMX1+

L_LMX1-

L_NMCT_R

L_LAN_MDIN3

L_LAN_MDIN0

L_LMX3+L_LAN_MDIP2

L_LMX4+

L_DLMX2+

L_DLMX3-

L_DLMX3+

L_DLMX4+

L_DLMX1+

L_DLMX4-

L_DLMX1-

L_DLMX2-

L_LAN_MDIN2

L_LAN_MDIP1

L_DLMX4-

L_DLMX4+

L_NMCT_3 L_NMCT_2

L_DLMX1+

L_DLMX2-

L_ISOLATEB

L_DLMX3+

L_DLMX1L_DLMX2+

L_DLMX3-

L_NMCT_4

L_LAN_WAKEUP#

L_LMX4-

L_NMCT_1

L_LMX2+

L_XTAL1

L_LED2

L_REGOUT

L_XTAL2

L_CLK_REQ4_LAN#

L_CLK_SRC4_GLAN# L_CLK_SRC4_GLAN

L_PCIE_TXN4_GLAN L_PCIE_TXP4_GLAN

L_PCIE_RXN4_GLAN L_PCIE_RXP4_GLAN

L_USB_PN9 L_USB_PP9

L_CLK_REQ4_LAN#

L_CCD_EN L_MIC_DATA L_MIC_CLK

L_LAN_WAKEUP#

L_PCIE_WAKE#

L_BUF_PLT_RST#

L_CCD_PWR

L_3.3VS

LGND LGND

L_VDD10

L_VDD10L_VDD10

L_AVDD33

L_VDD10

L_AVDD33

L_VDDREG/VDD33

L_REGOUT

L_VDD10

L_AVDD33

L_3.3VS

L_VDD10

L_VDDREG/VDD33

L_VDD3

L_AVDD33

L_3.3VS

LGND

LGNDLGNDLGND

LGND LGND

LGND

LGNDLGND

LGND

L_VDD3

L_3.3VS

LGND

L_VDD10L_VDD10

LGND LGND

LGND

LGNDLGND

LGND

Title

Size Document Number Rev

Date: Sheet

of

6-71-P950Z-D02

D03

[67] Lan Board_L(Lan,CCD)

A3

67 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P950Z-D02

D03

[67] Lan Board_L(Lan,CCD)

A3

67 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P950Z-D02

D03

[67] Lan Board_L(Lan,CCD)

A3

67 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

QFN32

LU1

RTL8111G-CG

MDIP0

1

MDIN0

2

MDIP1

4

MDIN1

5

MDIP2

6

MDIN2

7

AVDD10

8

MDIP39MDIN310AVDD3311CLKREQB

12

REG_OUT

24

VDDREG

23

DVDD10

22

ISOLATEB

20

PERSTB

19

AVDD10

30

HSON

18

HSOP

17

AVDD33

32

RSET

31

CKXTAL229CKXTAL1

28

LED0

27

LANWAKEB

21

LED1/GPO

26

LED2

25

HSIP13HSIN14REFCLK_P15REFCLK_N

16

E_PAD

33

AVDD10

3

LC14 0.1u_10V_X7R_04

LC4

0.1u_16V_Y5V_04

LC13

0.1u_16V_Y5V_04

6LR3 *0_04

L_L1

*WCM2012F2S-SHORT

1

4

2

3

LC8

0.1u_16V_Y5V_04

LC5

0.1u_16V_Y5V_04

LR7 1K_04

LC15

*1u_6.3V_X5R_04

LC2

1u_6.3V_X5R_04

LR13 75_1%_04

LR15 2.49K_1%_04

3LR3 *0_04

LL2

FCM1005KF-121T03

1 2

LR14 75_1%_04

L_EML3

*WCM2012F2S-SHORT

1

4

2

3

L_EML2

*WCM2012F2S-SHORT

1

4

2

3

LR2 10K_04

LC16 *0.1u_16V_Y5V_04

1LR3 *0_04

LC9

10p_50V_NPO_04

LC6

0.1u_16V_Y5V_04

LR11 75_1%_04

LD1 RB751S-40C2

AC

LH3 *H8_0D2_8

LC20

*100P_50V_NPO_04

LC1

2.2u_6.3V_X5R_04

LC11 0.1u_10V_X7R_04

LC18 *47p_50V_NPO_04LL3

FCM1005KF-121T03

1 2

4LR3 *0_04

L_J_LAN1

FP225H-030S10M

PCB Footprint = fp225h-030gxxm

6-20-94K20-130

1

2

3

4

5

6

7

8

9

10

13

19

12

16

14

18

15

11

17

20

21

24

22

23

25

26

27

28

29

30

LC22

*4.7u_6.3V_X5R_06

5LR3 *0_04

LC21

0.1u_16V_Y5V_04

LC23

*0.1u_16V_Y5V_04

LC17 *47p_50V_NPO_04

LR8 *0402_short

LR10 *20mil_06

L_J_CCD1

87213-0800G

1 2 3 4 5 6 7 8

LC24

*0.1u_16V_Y5V_04

LC12

0.1u_16V_Y5V_04

LC19

0.01u_16V_X7R_04

LR4 *15mil_short

LR12 75_1%_04

L_EML1

*WCM2012F2S-SHORT

1

4

2

3

LH5 *H6_5B3_9D3_7

C10202-10839-L

L_J_RJ1

DD-

8

DD+

7

DB-

6

DC-

5

DC+

4

DB+

3

DA-

2

DA+1shield

GND1

shield

GND2

LC25

*4.7u_6.3V_X5R_06

LC10

*4.7u_6.3V_X5R_06

LC7

10p_50V_NPO_04

LR3

*15mil_short

L_U1

AP2821KTR-G1

M-SOT23-5

VIN

4

VIN

5

EN

3

VOUT

1

GND

2

L_EML4

*WCM2012F2S-SHORT

1

4

2

3

LL57

NS892402

TCT1

1

TD1+

2

TD1-

3

TCT2

4

TD2+

5

TD2-

6

TCT3

7

TD3+

8

TD3-

9

TCT4

10

TD4+

11

TD4-12MX4-

13

MX4+

14

MCT4

15

MX3-

16

MX3+

17

MCT3

18

MX2-

19

MX2+

20

MCT2

21

MX1-

22

MX1+

23

MCT1

24

LR1 1M_04

LR5 *1K_04

LH6

*H6_5B3_4D3_2

LH2 *H6_0B7_0D2_8

2LR3 *0_04

LR6 10K_04

LL1

*UHP252012NF-2R2M

1 2

LC3

100PF 2KV 1206

LR9 15K_1%_04

LX1

FSX3L 25MHZ

1 2

34

Sheet 67 of 74

LAN Board

LAN Board

B.Schematic Diagrams

B - 68 LAN Board

USB Board, Receiver

1

2

3

4

5

A A

B B

C C

D D

R1

C

R2

30mils

VOUT=1.25(1+R1/R2) IF USE NCT3705U-33 LDO, mount C, dismount R1, R2.

SLG55593VTR USB Charging PORT

USB3.0 PORT1

USB3.0 Max Trace length Follow Design Guide

80 mil

Default Low

䚖䚖䚖䚖⇵⇵⇵⇵ἧἧἧἧ䓐䓐䓐䓐㬌㬌㬌㬌㕁㕁㕁㕁SLG55593VTR :6-02-55593-9D0

W/ USB CHARGER

USB3.0 PORT2

100 MIL

2A/90mohm

6-20-B4Z40-109

CLOSE TO CONNECTOR

USB3.0 Max Trace length Follow Design Guide

USB Board Connect

2016.12.30

USB CONNECTOR SIDE

AAI2C_SCK_20 AAI2C_SDA_20

RU_USB_DD_ON#

RU_USB_PP1_J

RU_RXN1_J

RU_TXN1_J

RU_RXP1_J

RU_TXP1_J

RU_USB_PN1_J

RU_USB_PP1_J RU_USB_PN1_J

RU_USB_PP1_CON

RU_USB_PN1_CON

RU_USB_DD_ON#

RU_USB_PP1_A

RU_USB_PN1 RU_USB_PN1_A

RU_USB_PP1

RU_DD_ON#

RU_TXN2_J

RU_RXN2_J

RU_TXP2_J

RU_RXP2_J

RU_USB_PN2_J

RU_USB_PP2_J

RU_DD_ON

AAI2C_SCK_20AAI2C_SDA_20

RU_USB3_RXP2

RU_USB3_RXN2

RU_USB3_TXN2

RU_USB3_TXP2RU_DD_ON#

RU_DD_ON

RU_USB_PP1 RU_USB_PN1

RU_USB3_RXP2 RU_USB3_RXN2

RU_RXP2_J

RU_RXN2_J

RU_TXN2_J

RU_TXP2_J

RU_USB3_TXP2

RU_USB3_TXN2

RU_USB3_TXN1 RU_USB3_TXP1

RU_USB3_RXP1

RU_USB3_RXN1

RU_USB_PP2_J

RU_USB_PN2_J

RU_USB3_RXN1 RU_USB3_RXP1 RU_RXP1_J

RU_RXN1_J

RU_TXN1_JRU_USB3_TXN1 RU_USB3_TXN1_J

RU_USB3_TXP1 RU_USB3_TXP1_J RU_TXP1_J

RU_USB_PN1_A

RU_USB_PP1_A

RU_3.3V

RU_GND

RU_3.3V

RU_VDD5

RU_GND

RU_GND RU_GND

RU_3.3V

RU_USBVCC_CHRU_VDD5

RU_VDD5RU_VDD5

RU_VDD5

RU_USBVCC_CH

RU_USBVCC3.0_2

RU_GND

RU_VDD5

RU_GND

RU_GNDRU_GND

RU_GND

RU_GND RU_GND

RU_GND

RU_VDD5

RU_GND

RU_3.3V

RU_GND

RU_3.3V

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9503-D02

D03

[68] USB Board_U(USB 3.0)REDEIVER

A3

68 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9503-D02

D03

[68] USB Board_U(USB 3.0)REDEIVER

A3

68 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9503-D02

D03

[68] USB Board_U(USB 3.0)REDEIVER

A3

68 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

5RUR2 *0_04

UU7

ASM1464

PCB Footprint = QFN24-4X4MM

VCC

1

EQ1

2

DE1

3

OS1

4

EN_RXD

5

GND

6

NC

7

RX1-

8

RX+

9

GND

10

TX2-

11

TX2+

12

VCC13CM14OS215DE216EQ217GND

18

RX2+

19

RX2-

20

GND

21

TX1+

22

TX1-

23

NC

24

GND

25

UC18

0.1u_16V_Y5V_04

UR31 4.7K_04

UC25

0.1u_16V_Y5V_04

UC41

*0.01u_16V_X7R_04

UR34 *4.7K_04

UR7 10K_04

UC21

10u_6.3V_X5R_06

UR41 0_04

UC44

1u_6.3V_X5R_04

UR21 *0_04

UL3

*WCM2012F2S-SHORT

1

4

2

3

UC26 22u_6.3V_X5R_08

UC40

1u_6.3V_X5R_04

UR35 *4.7K_04

UR22 *0_04

UH8 *H6_0D2_3

UC16

*100p_50V_NPO_04

EMI

UR36 *4.7K_04

2RUR2 *0_04

UR23 *0_04

Standard-A

U_J_USB3_4

377AH09FZT S4NVCB

PCB Footprint = 317AH09FZTS4T4CX

P/N = 6-20-B4Z40-109

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

UH5 *H4_0D2_6

UR37 2K_1%_04

UC300.1u_10V_X7R_04

UC22

22u_6.3V_X5R_08

UR24 *0_04

UC45

*0.01u_16V_X7R_04

UD8

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

UC19

10u_6.3V_X5R_06

UR38 *0_04

UC43

0.1u_10V_X7R_04

UC23

0.1u_16V_Y5V_04

UR42 *4.7K_04

UR25 *0_04

UR6

*0402_short

UR5 100K_04

UC31 0.1u_10V_X7R_04

1RUR2 *0_04

UR43 *4.7K_04

UR26 0_04

UR47

200K_1%_04

UC27 22u_6.3V_X5R_08

6RUR2 *0_04

UC32 0.1u_10V_X7R_04

UU5

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT1VIN

5

GND

2

EN#4OC#

3

UC39

1u_6.3V_X5R_04

UR44 *4.7K_04

UC35 0.1u_10V_X7R_04

4RUR2 *0_04

UC20

*0.1u_16V_Y5V_04

EMI

UC33 0.1u_10V_X7R_04

UR45 *4.7K_04

UC36 0.1u_10V_X7R_04

UC28

22u_6.3V_X5R_08

UC34 0.1u_10V_X7R_04

UC290.1u_10V_X7R_04

Standard-A

U_J_USB3_3

377AH09FZT S4NVCB

PCB Footprint = 317AH09FZTS4T4CX

P/N = 6-20-B4Z40-109

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

UR48

120K_1%_04

UR27 *4.7K_04

UC42

0.01u_16V_X7R_04

UC37 0.1u_10V_X7R_04

3RUR2 *0_04

UR46 10K_04

UR28 *4.7K_04

U_J_USB2

FP225H-030S10M

PCB Footprint = fp225h-030gxxm

6-20-94K20-130

1

2

3

4

5

6

7

8

9

10

13

19

12

16

14

18

15

11

17

20

21

24

22

23

25

26

27

28

29

30

UR39 *0_04

UC38 0.1u_10V_X7R_04

UU8

NCT3705U-A

IN

1

GND

2

SHDN#

3

VOUT

5

SET

4

UR29 *4.7K_04

UR40 *0_04

UR32 4.7K_04

UD7

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

UU4

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT

1

VIN

5

GND

2

EN#4OC#

3

UR30 4.7K_04

1

UH7

*MTH8_0D2_8

2

3

4

5

UR33 4.7K_04

UU6

SLG55593VTR

PCB Footprint = TDFN8-2X2MM

PRE#

1

DM

2

DP

3

CDP4VCC

5

TDP

6

TDM

7

CB

8

GND

9

Sheet 68 of 74

USB Board,

Reciever

Schematic Diagrams

B.Schematic Diagrams

USB Board, Receiver B - 69

Schematic Diagrams

1

2

3

4

5

A A

B B

C C

D D

SLG55593VTR USB Charging PORT

USB3.0 PORT1

USB3.0 Max Trace length Follow Design Guide

80 mil

Default Low

䚖䚖䚖䚖⇵⇵⇵⇵ἧἧἧἧ䓐䓐䓐䓐㬌㬌㬌㬌㕁㕁㕁㕁SLG55593VTR :6-02-55593-9D0

W/ USB CHARGER

USB3.0 PORT2

100 MIL

2A/90mohm

6-20-B4Z40-109

CLOSE TO CONNECTOR

USB3.0 Max Trace length Follow Design Guide

USB Board Connect

2016.12.30

U_USB_DD_ON#

U_USB_PP1_J

U_RXN1_J

U_TXN1_J

U_RXP1_J

U_TXP1_J

U_USB_PN1_J

U_USB_DD_ON#

U_USB_PP1_A

U_USB_PN1 U_USB_PN1_A

U_USB_PP1

U_DD_ON#

U_TXN2_J

U_RXN2_J

U_TXP2_J

U_RXP2_J

U_USB_PN2_J

U_USB_PP2_J

U_DD_ON

U_USB3_TXN2 U_USB3_TXP2 U_TXP2_J

U_TXN2_J

U_USB_PN2

U_USB_PP2 U_USB_PP2_CON

U_USB_PN2_CON U_USB_PN2_J

U_USB_PP2_J

U_USB3_RXP2

U_USB3_RXN2

U_RXP2_J

U_RXN2_J

U_DD_ON U_DD_ON#

U_USB_PP1 U_USB_PN1

U_USB3_RXN2

U_USB3_RXP2

U_USB_PN1_J

U_USB_PP1_J

U_RXP1_J

U_RXN1_J

U_USB_PP1_CON

U_USB_PN1_CON

U_USB_PP1_A

U_USB_PN1_A

U_USB3_RXP1

U_USB3_RXN1

U_TXN1_J U_TXP1_J

U_USB3_TXN1 U_USB3_TXP1 U_USB3_TXP1_J

U_USB3_TXN1_J

U_USB3_TXN2 U_USB3_TXP2

U_USB_PN2 U_USB_PP2

U_USB3_TXP1

U_USB3_TXN1

U_USB3_RXN1 U_USB3_RXP1

U_USBVCC_CHU_VDD5

U_VDD5U_VDD5

U_VDD5

U_USBVCC_CH

U_USBVCC3.0_2

U_GND

U_VDD5

U_GND

U_GNDU_GND

U_GND

U_GND U_GND

U_GND

U_VDD5

U_GND

U_GND U_GND

U_GND

U_GND U_GND

U_GND

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9503-D01C

D03

[69] USB Board_U(USB 3.0)

A3

69 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9503-D01C

D03

[69] USB Board_U(USB 3.0)

A3

69 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9503-D01C

D03

[69] USB Board_U(USB 3.0)

A3

69 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

UH3 *H4_0D2_6

UD1

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

UC2

22u_6.3V_X5R_08

Standard-A

U_J_USB3_2

377AH09FZT S4NVCB

PCB Footprint = 317AH09FZTS4T4CX

P/N = 6-20-B4Z40-109

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

UD3

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

2UR1 *0_04

Standard-A

U_J_USB3_1

377AH09FZT S4NVCB

PCB Footprint = 317AH09FZTS4T4CX

P/N = 6-20-B4Z40-109

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

UL2

*WCM2012F2S-SHORT

1

4

2

3

3UR1 *0_04

UD4

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

UU2

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT

1

VIN

5

GND

2

EN#4OC#

3

UC11

0.1u_16V_Y5V_04

UC3

22u_6.3V_X5R_08

UR1

*0402_short

UC12 22u_6.3V_X5R_08

UC7

*100p_50V_NPO_04

EMI

U_J_USB1

FP225H-030S10M

PCB Footprint = fp225h-030gxxm

6-20-94K20-130

1

2

3

4

5

6

7

8

9

10

13

19

12

16

14

18

15

11

17

20

21

24

22

23

25

26

27

28

29

30

UC14 0.1u_10V_X7R_04

UC8

10u_6.3V_X5R_06

UU1

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT1VIN

5

GND

2

EN#4OC#

3

UC1

0.1u_16V_Y5V_04

UC15 0.1u_10V_X7R_04

UC13 22u_6.3V_X5R_08

UH1 *H6_0D2_3

6UR1 *0_04

UR3 10K_04

UC9

10u_6.3V_X5R_06

UC6

*0.1u_16V_Y5V_04

EMI

5UR1 *0_04

UL1

*WCM2012F2S-SHORT

1

4

2

3

1

UH4

*MTH8_0D2_8

2

3

4

5

4UR1 *0_04

UC50.1u_10V_X7R_04

UD2

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

UC40.1u_10V_X7R_04

UC10

0.1u_16V_Y5V_04

UU3

SLG55593VTR

PCB Footprint = TDFN8-2X2MM

PRE#

1

DM

2

DP

3

CDP

4

VCC

5

TDP

6

TDM

7

CB

8

GND

9

1UR1 *0_04

UR4 100K_04

Sheet 69 of 74

USB Board

B.Schematic Diagrams

B - 70 USB Board

LED Board

5

4

3

2

1

D D

C C

B B

A A

HDD LED

BAT CHARGE/FULL LED

AC IN/POWER ON LED

AIRPLANE LED

Oragne

Green

Oragne

Green

6-20-94K50-012

L_WLAN_AIRPLANE# LSATA_LED#

LLED_ACIN

LLED_PWR

LLED_BAT_CHG

LLED_BAT_FULL

LSATA_LED#_CON

L_WLAN_AIRPLANE#_CON

LLED_ACIN LLED_PWR LLED_BAT_CHG_CON LLED_BAT_FULL_CON

LLED_BAT_FULL

LLED_BAT_CHG

LSATA_LED# L_WLAN_AIRPLANE#

D_3.3VS

D_GND

D_GND D_GND

D_GNDD_GND

D_GND

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9504-D02

D03

[70] Led Board_D(LED)

Custom

70 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9504-D02

D03

[70] Led Board_D(LED)

Custom

70 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9504-D02

D03

[70] Led Board_D(LED)

Custom

70 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P955HQx

DH1 *H6023

UYG

UHY

DD4

RY-SP195UHYUYG4

1

3

2

4

DD5

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

DD3

RY-SP190YG34-5M

AC

DD2

RY-SP190YG34-5M

AC

DR4 1K_04

UYG

UHY

DD1

RY-SP195UHYUYG4

1

3

2

4

DR6

330_04

DR3 1K_04

3LR1 *0_04

DR2 1K_04

6LR1 *0_04

D63 *TEA10402V15A0

12

5LR1 *0_04

DJ_LED1

FP225H-012S10M

PCB Footprint = fp225-012g

1

2

3

4

5

6

7

8

9

10

11

12

NC1

NC2

1LR1 *0_04

D62

*TEA10402V15A0

12

4LR1 *0_04

2LR1 *0_04

DR1

330_04

DR5 1K_04

Sheet 70 of 74

LED Board

Schematic Diagrams

B.Schematic Diagrams

LED Board B - 71

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

TO M/B

TO BOTTOM/B

6-20-94K30-108

TO T/P 8 PIN

T_TP_BTN_L

T_TP_BTN_RT_TP_SMB_CLK

T_TP_CLK

T_TP_DATA

T_TP_BTN_L T_TP_BTN_R

T_TP_SMB_CLK T_TP_SMB_DAT

T_TP_CLK T_TP_DATA

T_TP_SMB_DAT

TGNDTGND

T_TP_VCC

TGND

T_TP_VCC

TGND

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9502-D02

D03

[71] Click Board_T(T/P Switch)

A4

71 74Friday, June 23, 2017

P955HQx

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9502-D02

D03

[71] Click Board_T(T/P Switch)

A4

71 74Friday, June 23, 2017

P955HQx

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9502-D02

D03

[71] Click Board_T(T/P Switch)

A4

71 74Friday, June 23, 2017

P955HQx

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

TJ_CLICK

FP226H-004S10M

1 2 3 4

TD4

*V15AVLC0402

12

2TR *0_04

TH1 *H5_7D3_7

6TR *0_043TR *0_04

TH2 *H5_7D3_7

TD1

*V15AVLC0402

12

1TR *0_04

TD2

*V15AVLC0402

12

TJ_MB

FP225H-006S10M

PCB Footprint = fp225h-006xxxm

1

2

3

4

5

6

5TR *0_04

TJ_TP1

FP225H-008S11M

fp225h-008gxxxm_r

1 2 3 4 5 6 7 8

4TR *0_04

TC1

0.1u_10V_X7R_04

TD3

*V15AVLC0402

12

Sheet 71 of 74

Click Board

B.Schematic Diagrams

B - 72 Click Board

Reader Board

1

2

3

4

5

6

7

8

A A

B B

C C

D D

Place Near Conn

Near Cardreader CONN

LENGTH <2INCH

| CLK - DATA | <= 100mils

| DATA.x - DATA.y | <= 100mils CLK NEED DOUBLE SPACE THEN OTHER

50ohm +/- 15%

PCH

䪗ᶲẞ

RTS5250

5/21 update PCB Footprint

60 mil

1.2A

CARD READER

SD_CARD SUPPORT UHS-II

20 mil

12 mil

L<200mils

NEAR PIN11

60 mil

40 mil

SD Card Remove Fall time less than 1 ms when SD card remove.

40 mil

Near Cardreader CONN

40 mil

20 mil

MDIO0~5

攟攟攟攟䞕䞕䞕䞕ⶖⶖⶖⶖ

<200 mil

20 mil

40 mil

20 mil

0618 VALUE UPDATE

100ohm +/- 15%

3.3VS:1575mA

6-21-A4710-120

Card Reader Board Connect

6-21-C1400-225

100 mil

USB3.0 PORT3

100 mil

6-21-B4A50-009

USB3.0 Max Trace length Follow Design Guide

ARc

㔯㔯㔯㔯⫿⫿⫿⫿≈≈≈≈姣姣姣姣

HP+SPDIF

SIM CONN

㔯㔯㔯㔯⫿⫿⫿⫿≈≈≈≈姣姣姣姣

MIC

2SJ3011-00511F

MIC JACK

HP JACK

CO-LAY

G1Gain G0

-6db

0db

3db

6db

ER46 ER47

ER48 ER47

ER48 ER45

ER46 ER45

6-02-61322-AW0 TPA6132A2 6-02-61322-AW0 SV3H706

E_PCIE_TXN3_CARD

E_PCIE_TXP3_CARD

E_CLK_SRC3_CARD

E_CLK_SRC3_CARD# E_PCIE_RXP3_CARD E_PCIE_RXN3_CARD

E_RTS5249_HSOP E_RTS5249_HSON

E_BUF_PLT_RST#

E_CLK_REQ3_CARD#

E_RREF

E_SD_WP/MS_BS E_SD_D1/SD_RCLK_M E_SD_D0/SD_RCLK_P

E_SD_LN1_P

E_SD_LN1_M

E_SD_LN0_P

E_SD_LN0_M

E_SD_CLK/MS_D0

E_CARD_3V3

E_SD_CD#

E_SD_CMD/MS_D2

E_SD_D3/MS_D3

E_SD_D2/MS_CLK

E_SP1

E_DV33_18

E_SP4

E_SP2

E_SP6 E_SP5

E_SD_D0/SD_RCLK_P

E_SD_D3/MS_D3

E_SD_D2/MS_CLK

E_SD_CMD/MS_D2

E_SD_D1/SD_RCLK_M

E_MS_INS#

E_SD_CD#

E_SD_WP/MS_BS E_CR1_LEDN

E_PCIE_WAKE#

E_SD_LN0_P E_SD_LN0_M

E_SD_LN1_M E_SD_LN1_P

E_SDREG2

E_SD_CLK/MS_D0E_SP3

E_PCIE_WAKE# E_BUF_PLT_RST# E_CLK_REQ3_CARD#

E_PCIE_TXN3_CARD E_PCIE_TXP3_CARD

E_CLK_SRC3_CARD# E_CLK_SRC3_CARD

E_SIM_DET E_UIM_PWR E_UIM_DATA E_UIM_CLK E_UIM_RST

E_DD_ON#

E_USB_PN3_J

E_USB_PP3_J

E_TXP3_J

E_TXN3_J

E_RXP3_J

E_RXN3_J

E_USB3_RXN3 E_USB3_RXP3

E_USB_PN3_J

E_RXP3_J

E_TXN3_J

E_RXN3_J

E_TXP3_J

E_USB_PP3_J

E_USB_PN3

E_USB_PP3

E_HP_AUDG

E_HEADPHONE-L E_HEADPHONE-R

E_USB3_TXP3

E_USB3_TXN3

E_USB_PN3

E_USB_PP3

E_DD_ON#

E_USB3_RXN3 E_USB3_RXP3

E_USB3_TXP3

E_USB3_TXN3

E_SPDIFO E_MIC1-JD E_FRONT-JD E_MIC1_R_M E_MIC1_L_M

E_PCIE_RXN3_CARD E_PCIE_RXP3_CARD

E_HEADPHONE-RC E_HEADPHONE-LC

E_HP_AUDG

E_FRONT-JD

E_SPDIFO

E_EC_AMP_EN

E_UIM_CLK

E_SIM_DET

E_UIM_PWR

E_UIM_RST

E_UIM_DATA E_UIM_VPP

E_MIC1-JD

E_MIC1_R_M E_MIC1_L_M

E_SV3H715PHONE-LCE_HEADPHONE-L

E_HEADPHONE-R E_SV3H715PHONE-RC

E_EC_AMP_EN

E_HEADPHONE-RC

E_HEADPHONE-LC

G1 G0

E_3.3VS

E_VCC_CARD

E_3.3VS

E_AV12

E_3.3V_IN

E_VCC_CARD

E_CARD_3V3

E_SD_VDD2

E_VCC_CARD

E_SD_VDD2

E_DV12_S

E_3.3VS

E_DV12_S

E_3.3VS

E_3V3AUX

EGND EGND

EGND

EGND EGND

EGND

EGND EGND

EGND

EUDGEGND

EGND

EGND EGND EUDG

E_USBVCC3.0_5

E_5V

E_USBVCC3.0_5

E_5VS

E_5V

E_3.3VS

EGND

EUDG

EGND

EUDG

E_5VS

EGNDEGNDEGND

EGND

EGND EGND EGND EGND

E_3.3V

EGND

EUDG EUDG

EGND

EUDG

E_3.3V

EGND

E_3.3V

EUDG

EUDG EUDG

EUDG

EUDG EUDG

Title

Size Document Number Rev

Date: Sheet

of

6-71-P950V-D03

D03

[72] Reader Board_E(3G,Card)

Custom

72 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P950V-D03

D03

[72] Reader Board_E(3G,Card)

Custom

72 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P950V-D03

D03

[72] Reader Board_E(3G,Card)

Custom

72 74Friday, June 23, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

E_CN1

PSDCT1-20GLBS1NN4H0

CD/DAT3

16

VSS1

11

VSS2

5

DAT2

18

D0+

17

CMD

14

VDD1

9

CLK

7

DAT0/RCLK+

3

DAT1/RCLK-

2

VSS3

19

D0-

15

VSS4

13

GND

20

VDD2

10

D1-

8

D1+

6

VSS5

4

CD

12

WP

1

GND3

23

GND2

22

GND1

21

GND4

24

EC34

0.1u_16V_Y5V_04

ER11 0_04

EL2

*WCM2012F2S-SHORT

142

3

EC42 2.2u_16V_X5R_06

ER15

*0402_short

EH4 *H6_5B4_7D3_7

(TOP VIEW)

E_J_SIM1

FLY-160429-02

UIM_DATA

C4

UIM_VPP

C6

UIM_GND

C5

UIM_PWR

C1

UIM_RST

C2

UIM_CLK

C3

GND1

UIM_I/O

C7

UIM_MCMD

C8

DETECT_SW

SW1

GND2

GND3

GND4

EC39

100p_50V_NPO_04

ER23 10K_04

EC13

0.1u_16V_Y5V_04

ER45

10K_04

EC15 0.1u_16V_Y5V_04

EC25

0.1u_16V_Y5V_04

EH3 *H6_5B5_5D2_3

ER2 *0_04

ER20 *20mil short-p

ER16

*0402_short

EH5 *H6_5B5_5D2_3

ER12

22K_04

ER21 6.2K_1%_04

ER27 0.2R_5%_06

EC10 22u_6.3V_X5R_08

EC35

0.1u_16V_Y5V_04

ER17 *4.7K_04

ER46

*10K_04

1ER2 *0_04

EC28

4.7u_6.3V_X5R_06

2ER2 *0_04

ER43 *0_04

EC41 2.2u_16V_X5R_06

ED1

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

ED3*AVLC5S02100

12

EC11 0.1u_10V_X7R_04

ER5

*1K_04

ER10

*28mil_short-p

EC38

0.1u_16V_Y5V_04

ER1 *47K_04

EC33 1u_6.3V_X5R_04

EC21

22p_50V_NPO_04

ER34 *0402_short

VSS

EU3

SV3H706

INL+

2

INR-

4

INR+

3

INL-

1

OUTR5GO6G17PVSS

8

PVDD

12

CP

11

PGND

10

CN

9

OUTL

16

SGND

15

VDD

14

EC

13

EPAD

17

ED2

DT1140-04LP-7

5

1 2 3 4

10

9 8 7 6

ER41

10K_04

EC46

0.1u_16V_Y5V_04

ER8

22K_04

C2055

1u_16V_X7R_06

EL4 FCM1005KF-121T03

EC30

4.7u_6.3V_X5R_06

ED67 *RB751S-40H

A C

ER24

*10K_04

5ER2 *0_04

EC24

4.7u_6.3V_X5R_06

ER33 *0402_short

ER18 0_04

EC43

2.2u_16V_X5R_06

EL6 FCM1005KF-121T03

EC31

*0.1u_16V_Y5V_04

EC32 1u_6.3V_X5R_04

ER28 10K_04

EC17 0.1u_16V_Y5V_04

EC47

0.1u_16V_Y5V_04

ER26 *20mil short-p

ER4 0_04

EC9 0.1u_16V_Y5V_04

EL3 FCM1005KF-121T03

EC48

2.2u_16V_X5R_06

ER37

100K_04

E_J_EN1

50185-05041-001

112

2

334

4

556

6

778

8

9910

10

111112

12

131314

14

151516

16

171718

18

191920

20

212122

22

232324

24

252526

26

272728

28

292930

30

313132

32

333334

34

353536

36

373738

38

393940

40

424241

41

434344

44

454546

46

474748

48

494950

50

ER3 *0_04

EC36

*10u_6.3V_X5R_06

EU1

uP7549UMA5-20

PCB Footprint = M-SOT23-5

VOUT1VIN

5

GND

2

EN#4OC#

3

EC14

10u_6.3V_X5R_06

EC18

10u_6.3V_X5R_06

EC3 22u_6.3V_X5R_08

3ER2 *0_04

EC1

100p_50V_NPO_04

DRIVE

IC

TX

E_J_COMBO1

2SJ3011-005111F

7

4

1

5

6

A B C

ER39 32.4_1%_04

EH6 *H6_5B5_5D2_3

1

EH1

*MTH8_0D2_8

2

3

4

5

DRIVE

IC

TX

E_J_HP1

2SJ3011-003111F

7

4

1

5

6

A B C

EH2 *H5_0D2_5

EC16 0.1u_16V_Y5V_04

ER30 *0402_short

ED4*AVLC5S02100

12

ER38

100K_04

EC2

100p_50V_NPO_04

EL1 FCM1005KF-121T03

EC22 0.1u_10V_X7R_04

ER6

*1K_04

ER40 32.4_1%_04

EC49

2.2u_16V_X5R_06

RTS5250

QFN32

EU2

RTS5250-GR

HSIP

3

HSIN

4

REFCLKP

5

REFCLKN

6

HSOP

7

HSON

8

AV1210RREF93V3_IN11CARD_3V312DV12_S14SP1/SD_RCLK_M

15

SD_LN1_P

22

DV33_18

18

SP4

19

SP5

20

SP6

21

GPIO

28

SP7

29

SD_CD#

30

MS_INS#

31

WAKE#

32

SP3

17

GND

33

PERST#

1

CLKREQ#

2

SD_VDD213SP2/SD_RCLK_P

16

SD_LN1_M

23

SDREG2

24

SD_LN0_M

25

SD_LN0_P

26

3V3aux

27

ER44 *0_04

Standard-A

E_J_USB3_1

C107KX-909H9-L

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+

9

SHIELD1

GND1

SHIELD2

GND2

SHIELD3

GND3

SHIELD4

GND4

4ER2 *0_04

EC40

0.1u_16V_Y5V_04

ER42 22_04

ER47

*10K_04

ED5*AVLC5S02100

12

EC44

2.2u_16V_X5R_06

EC37

4.7u_6.3V_X5R_06

EC20

4.7u_6.3V_X5R_06

ER22 *10K_04

ER29 *0402_short

ER48

10K_04

EC7

100p_50V_NPO_04

ER14 0_04

ED6 RB751S-40C2

A C

EC8

0.1u_16V_Y5V_04

ER32 *0402_short

EC45

10u_6.3V_X5R_06

EQ1

*2SK3018S3

G

DS

EC4

100p_50V_NPO_04

6ER2 *0_04

ER19

*0402_short

EC27

0.1u_16V_Y5V_04

ER36

0_04

ER25

*150_06

ER35

220_04

EC23 0.1u_10V_X7R_04

ER31 0_04

EC12 0.1u_10V_X7R_04

EL7 FCM1005KF-121T03

EC19

0.1u_16V_Y5V_04

EC26

0.1u_16V_Y5V_04

EC29

0.1u_16V_Y5V_04

Sheet 72 of 74 Reader Board

Schematic Diagrams

B.Schematic Diagrams

Reader Board B - 73

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A A

P955HQ POWER BOARD

B_SW1

21 43

5

6

POWER BUTTON

VARISTOR

6-24-30003-006

P650Rx, P670Rx POWER SWITCH LED

20mil

6-53-3050B-B41 100g

5

3

1

6

For P955

P/N: 6-20-94A40-004

W_M_BTN#

W_GND

W_3.3VS

W_GND

W_GNDW_GND

W_GND

W_3.3VS

Title

Size Document Number Rev

Date: Sheet

of

6-71-P955C-D01

D03

[73] Power Board_P(P955HQ)

A4

73 74Friday, June 23, 2017

P955HQx

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P955C-D01

D03

[73] Power Board_P(P955HQ)

A4

73 74Friday, June 23, 2017

P955HQx

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-P955C-D01

D03

[73] Power Board_P(P955HQ)

A4

73 74Friday, June 23, 2017

P955HQx

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

5WR1 *0_04

WC2019

*0.1u_16V_Y5V_04

1WR1 *0_04

WR2216

*1K_04

4WR1 *0_04

2WR1 *0_04

WD66

*RY-SP190DBW71-5A

P/N = RY-SP190DNB84-5/1X

AC

WSW4 *T4BJB10BQR

3

1

4

2

WD65

*V15AVLC0402

12

WH1 *H7_0D2_3

WC2018

*0.1u_50V_Y5V_06

WH2 *H7_0D2_3

WJ_SW1

*FP226H-004S10M

1 2 3 4

3WR1 *0_04 6WR1 *0_04

Sheet 73 of 74

Power Board

B.Schematic Diagrams

B - 74

Power Sequence

5

4

3

2

1

D D

C C

B B

A A

VDD3

VDD5

3.3VA

DDR_VTT_PG_CTRL

RSMRST#

SUSC#

DD_ON

3.3V

5V

1.0V_VCCSFR,1.0_VCCST

SUSB#

5VS

3.3VS

VDDQ

VTT_MEN

VCCSA

PM_PWROK

DELAY_PWRGD

VCCIO_PWRGD

PM_PCH_PWROK

PWR_BTN#

VCCIO/1.0DX_VCCSTG

6 7 5 v T

B D . J O ! I J

4 1 / : : n T

9 2 / 2 n T

VCCST_PWRGD

3 / 4 4 n T

2 8 9 n T

3 6 5 / 3 n T

SYS_PWROK

8 4 : / 6 n T

VCORE

DDR4_DRAMRST3#

PLT_RST#

BIOS:P10, EC:P7 , ME FW: 11.6.20.1221

Q p x f s ! P o

: 5 8 v T

2 / 4 : n T

VDD1.0

4 1 / 5 n T

EC_SLP_SUS#

4 1 / : n T

2 8 9 / 6 n T

2.5V

2 / 1 5 n T

: 1 8 v T

VDDQ_PWRGD

4 / 5 2 n T

4 7 v T

8 2 2 v T

8 8 3 v T

8 8 3 v T 4 / 8 7 n T

4 / 8 7 n T

2 / 8 n T

H_PWRGD

3 5 9 / 9 n T

3 6 2 / 6 n T

3 5 9 / 9 n T

2 / 1 : T

VCCGT

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

2 3 6 n T

2 9 3 n T

VCCSFR_OC

6 / 7 5 n T

ALL_SYS_PWRGD

8 9 3 v T

6 / 7 5 n T

6 / 6 7 n T

6 / 6 8 n T

7 / 7 9 n T

VCORE_PG

8 / 8 3 n T

2 7 1 n T

2017.3.31

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[74] POWER UP SEQUENCE

Custom

74 74Friday, June 23, 2017

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[74] POWER UP SEQUENCE

Custom

74 74Friday, June 23, 2017

Title

Size Document Number Rev

Date: Sheet

of

6-71-P9500-D03

D03

[74] POWER UP SEQUENCE

Custom

74 74Friday, June 23, 2017

Sheet 74 of 74

Power Sequence

Schematic Diagrams

B.Schematic Diagrams

Power Sequence B - 75

CLEVO P955HQ3 Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual

Mainboard Overview - Top (Key Parts)

Mainboard Overview - Bottom (Key Parts)

Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

Appendix B: Schematic Diagrams

Sheet 1 of 74 System Block Diagram

System Block Diagram

Processor 1/7

Sheet 2 of 74 Processor 1/7

Sheet 3 of 74

Processor 2/7

Sheet 4 of 74

Processor 3/7

Sheet 5 of 74

Processor 4/7

Processor 5/7

Sheet 6 of 74 Processor 5/7

Sheet 7 of 74 Processor 6/

Processor 6/7

Processor 7/7

Sheet 8 of 74 Processor 7/7

Sheet 9 of 74 DDR4 CHA SO- DIMM_0

DDR4 CHA SO-DIMM_0

Sheet 10 of 74 DDR4 CHB SO- DIMM_0

DDR4 CHB SO-DIMM_0

Sheet 11 of 74

Panel, Inverter

Sheet 12 of 74

Mini DP Port

Sheet 13 of 74

HDMI Connector

VGA PCI Express

Sheet 14 of 74 VGA PCI Express

Sheet 15 of 74 GPU Frame Buffer Partition

GPU Frame Buffer Partition

Sheet 16 of 74 Frame Buffer Partition A

FRAME BUFFER PARTITION A

Sheet 17 of 74 Frame Buffer Partition B

FRAME BUFFER PARTITION B

Frame Buffer Partition A_B

Sheet 18 of 74 Frame Buffer Partition A_B

Sheet 19 of 74 GPU Frame Buffer Partition

GPU Frame Buffer Partition

Frame Buffer Partition C

Sheet 20 of 74 Frame Buffer Partition C

FRAME BUFFER PARTITION D

Sheet 21 of 74 Frame Buffer Partition D

Frame Buffer Partition C_D

Sheet 22 of 74 Frame Buffer Partition C_D

GPU DECOUPLING1

Sheet 23 of 74 GPU Decoupling 1

GPU Decoupling 2

Sheet 24 of 74 GPU Decoupling 2

Sheet 25 of 74

Straps and XTAL

IFP I/O Interface

Sheet 26 of 74 IFP I/O Interface

Sheet 27 of 74 Misc - GPIO, I2C and ROM

Misc - GPIO, I2C and ROM

GPU NVVDD, FBVDDQ

Sheet 28 of 74 GPU NVVDD, FBVDDQ

Sheet 29 of 74 GPU GND & Sequence

GPU GND & Sequence

Sheet 30 of 74

PCH 1/9

Sheet 31 of 74

PCH 2/9

PCH 3/9

Sheet 32 of 74 PCH 3/9

Sheet 33 of 74

PCH 4/9

PCH 5/9

Sheet 34 of 74 PCH 5/9

Sheet 35 of 74

PCH 6/9

PCH 7/9

Sheet 1 of 74

System Block

Diagram

Sheet 2 of 74

Processor 1/7

Sheet 6 of 74

Processor 5/7

Sheet 7 of 74

Processor 6/

Sheet 8 of 74

Processor 7/7

Sheet 9 of 74

DDR4 CHA SO-

DIMM_0

Sheet 10 of 74

DDR4 CHB SO-

DIMM_0

Sheet 14 of 74

VGA PCI Express

Sheet 15 of 74

GPU Frame Buffer

Partition

Sheet 16 of 74

Frame Buffer

Partition A

Sheet 17 of 74

Frame Buffer

Partition B

Sheet 18 of 74

Frame Buffer Partition A_B

Sheet 19 of 74

GPU Frame Buffer

Partition

Sheet 20 of 74

Frame Buffer

Partition C

Sheet 21 of 74

Frame Buffer

Partition D

Sheet 22 of 74

Frame Buffer Partition C_D

Sheet 23 of 74

GPU Decoupling 1

Sheet 24 of 74

GPU Decoupling 2

Sheet 26 of 74

IFP I/O Interface

Sheet 27 of 74

Misc - GPIO, I2C

and ROM

Sheet 28 of 74

GPU NVVDD,

FBVDDQ

Sheet 29 of 74

GPU GND &

Sequence

Sheet 32 of 74

PCH 3/9

Sheet 34 of 74

PCH 5/9

Sheet 36 of 74

PCH 7/9

Sheet 38 of 74

PCH 9/9

Sheet 40 of 74

Backlight KB

Sheet 42 of 74

Smart AMP

ALC1306

Sheet 43 of 74

3D AMP

Headphone

Sheet 44 of 74

ASM2142 1/3

Sheet 48 of 74

M.2 WLAN+BT,

PCIE4X SSD

Sheet 52 of 74 5V, 5VS, 3.3V,

3.3VS, 3.3VA

Sheet 53 of 74

1.0DX_VCCSTG/

VCCSFR_OC/2.5V

Sheet 54 of 74

1V8_RUN/AON,

NV3V3

Sheet 55 of 74

PEX_VDD

Sheet 56 of 74

VDD3, VDD5

Sheet 58 of 74

Power 1.0V, VCCIO

Sheet 59 of 74

VCore & VCCGT

Output 1

Sheet 60 of 74

VCore & VCCGT

Output 2

Sheet 61 of 74

VCCSA

Sheet 62 of 74

AC_In, Charger

Sheet 63 of 74

NVVDDS

Sheet 64 of 74

NVVDD 1

Sheet 66 of 74

FBVDDQ

Sheet 67 of 74

LAN Board

Sheet 68 of 74

USB Board,

Reciever

Sheet 70 of 74

LED Board
