Clevo P870DM2, P870DM2-G service manual

P870DM2(-G)

Notebook Computer
P870DM2(-G)

Service Manual

Preface

Preface

I

Preface

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven­dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica­tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.

Version 1.0
July 2016

Trademarks

Intel and Intel Core are trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective companies.

II

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the P870DM2(-
G) series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.

Preface

Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS

Preface

III

Preface

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per­sons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) durin g an ele ctrical sto rm. There may be a remote risk of elec­trical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19.5V, 11.8A (230 Watts) minimum AC/DC Adapter.

IV

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Preface

Do not expose the computer
to any shock or vibration.

Do not place it on an unstable
surface.

Do not place anything heavy
on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the co mputer could be badly damaged.

Do not expose it to excessive
heat or direct sunlight.

Do not leave it in a place
where foreign matter or mois­ture may affect the system.

Don’t use or store the com­puter in a humid environment.

Do not place the computer on
any surface which will block
the vents.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power
until you properly shut down
all programs.

Do not turn off any peripheral
devices when the computer is
on.

Do not disassemble the com­puter by yourself.

Perform routine maintenance
on your computer.

Preface

V

Preface



Removal Warning

When removing any
cover(s) and screw(s)
for the purposes of de­vice upgrade, remem­ber to replace the
cover(s) and screw(s)
before restoring power
to the system.

Also note the following
when the cover is re­moved:

• Hazardous mov­ing parts.

• Keep away from
moving fan blades

Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and discon­nected all peripherals
and cables (including
telephone lines and
power cord). You must
also remove your bat­tery in order to prevent
accidentally turning the
machine on.

4. Avoid interference. Keep the computer away from high capacity transformers, electric moto rs, and other strong mag-
netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Preface

VI

Use only approved brands of
peripherals.

Unplug the power cord befor e
attaching peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requ ires a steady, uninterrupte d power supp ly. If you are
unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconn ect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power
cord if you are wet.

Do not use the power cord if
it is broken.

Do not place heavy objects
on the power cord.

Battery Precautions



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var­ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your l ocal solid waste
officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Preface

Preface

VII

Preface

Figure 1

Opening the Lid/LCD/

Computer with AC/DC

Adapter Plugged-In

133°

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on Disc
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro­gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

System Startup

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in
position.

4. Securely attach any peripherals you want to use with
the computer (e.g. keyboard and mouse) to their
ports.

5. Attach the AC/DC adapter to the DC-In jack at the
rear of the computer, then plug the AC power cord
into an outlet, and connect the AC power cord to the
AC/DC adapter (make sure you use the adapter
when first setting up the computer, as to safe­guard the computer during shipping the battery will
be locked to not power the system until first con­nected to the AC/DC adapter).

6. Use one hand to raise the lid/LCD to a comfortable
viewing angle (do not to exceed 135 degrees);
the other hand (as illustrated in Figure 1) to support
the base of the computer (Note: Never lift the
computer by the lid/LCD).

7. Press the power button to turn the computer “on”.

use

VIII

Contents

Preface

Introduction ..............................................1-1

Overview ......................................................................................... 1-1

External Locator - Top View with LCD Panel Open ......................1-4

External Locator - Front & Right side Views .................................1-5

External Locator - Left Side & Rear View .....................................1-6

External Locator - Bottom View .....................................................1-7

Mainboard Overview - Top (Key Parts) .........................................1-8

Mainboard Overview - Bottom (Key Parts) ....................................1-9

Mainboard Overview - Top (Connectors) .....................................1-10

Mainboard Overview - Bottom (Connectors) ...............................1-11

Disassembly ...............................................2-1

Overview ......................................................................................... 2-1

Maintenance Tools ..........................................................................2-2

Connections .....................................................................................2-2

Maintenance Precautions .................................................................2-3

Disassembly Steps ...........................................................................2-4

Removing the Battery ......................................................................2-5

Removing the Hard Disk Drive .......................................................2-7

Removing the Primary System Memory (RAM) .........................2-10

Removing the System Memory (RAM) from Under the Keyboard ..2­12

Removing and Installing the Video Card ......................................2-14

Removing and Installing the Processor .........................................2-17

Removing the Wireless LAN Module ...........................................2-20

Wireless LAN, Combo Module Cables .........................................2-21

Removing the WiGig Module .......................................................2-22

Removing the M.2 SSD Module ...................................................2-23

Part Lists ..................................................A-1

Part List Illustration Location ........................................................A-2

Top ................................................................................................. A-3

Bottom .......................................................................................... A-4

LCD ............................................................................................... A-5

MB (VGA-1) ................................................................................. A-6

MB (VGA-2) ................................................................................. A-7

MB (Dual VGA) ............................................................................ A-8

MB (N17E-G3) .............................................................................. A-9

VGA (N17E-G2) .......................................................................... A-10

VGA (N17E-G3) .......................................................................... A-11

HDD ............................................................................................. A-12

Schematic Diagrams.................................B-1

Block Diagram ................................................................................B-2

Processor 1/5 ...................................................................................B-3

Processor 2/5 ...................................................................................B-4

Processor 3/5 ...................................................................................B-5

Processor 4/5 ...................................................................................B-6

Processor 5/5 ...................................................................................B-7

DDR4 CHA SO-DIMM_0 ..............................................................B-8

DDR4 CHA SO-DIMM_1 ..............................................................B-9

DDR4 CHB SO-DIMM_0 ............................................................B-10

DDR4 CHB SO-DIMM_1 ............................................................B-11

MXM 3.0 Master ..........................................................................B-12

MXM 3.0 Slave ............................................................................B-13

Panel, Inverter ...............................................................................B-14

HDMI ............................................................................................B-15

SPT-H 1/7 .....................................................................................B-16

SPT-H 2/7 .....................................................................................B-17

SPT-H 3/7 .....................................................................................B-18

SPT-H 4/7 .....................................................................................B-19

SPT-H 5/7 .....................................................................................B-20

Preface

IX

Preface

SPT-H 6/7 ..................................................................................... B-21

SPT-H 7/7 ..................................................................................... B-22

Main EC IT8587 ...........................................................................B-23

Second EC IT8587 ....................................................................... B-24

TPM SLB9665TT ........................................................................ B-25

CPU, VGA Fan Conn ...................................................................B-26

Backlight Keyboard ......................................................................B-27

CCD, USB Charging ....................................................................B-28

AR_TBT .......................................................................................B-29

AR_Power .................................................................................... B-30

TPS65982, Type C1 ..................................................................... B-31

TPS65982, Type C2 ..................................................................... B-32

PS8338B+mDP_1 ........................................................................ B-33

PS8338B+mDP_2 ........................................................................ B-34

M.2 WLAN+BT ........................................................................... B-35

M.2 M Key ................................................................................... B-36

Preface

RTS5250 .......................................................................................B-37

LAN_1 E2400 .............................................................................. B-38

LAN_2 E2400 .............................................................................. B-39

Click, Finger Conn ....................................................................... B-40

HDD & Second HDD ................................................................... B-41

USB Port ...................................................................................... B-42

5VS, 3.3VS, 1.0 V Series .............................................................B-43

2.5V, 5VS_2 ................................................................................. B-44

Fan_CPU, VGA Power 12V ........................................................ B-45

AMP10V, VCCSA .......................................................................B-46

DDR4 VDDQ & VTT, VCCPLL_OC ......................................... B-47

Power Charger, DC IN .................................................................B-48

VCCIO, 1.0VA ............................................................................. B-49

VCore ........................................................................................... B-50

VCore Output Stage ..................................................................... B-51

VDD3, VDD5 ...............................................................................B-52

Charger LED Board ......................................................................B-53

Click Board ...................................................................................B-54

Finger Sensor Board .....................................................................B-55

Power Switch LED Board ............................................................B-56

Audio Codec .................................................................................B-57

Audio Board (Speaker) .................................................................B-58

Audio Board (Subwoofer) ............................................................B-59

ESS DAC ......................................................................................B-60

HP AMP ........................................................................................B-61

Audio Jack ....................................................................................B-62

Power Sequence ............................................................................B-63

X

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the P870DM2(-G) series notebook computer. Infor­mation about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information
about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.

Operating systems (e.g. Windows 8.1, etc.) have their own manuals as do application software (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.

Introduction

The P870DM2(-G) series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed descrip­tion of the upgrade procedures for each specific component. Please note the warning and safety information indicated by
the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

1.Introduction

Overview 1 - 1

Introduction



Latest Specification Information

The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu­facturer's release schedule. Check with your
service center for more details.



CPU Speed & Computer in DC Mode

Note that when the computer is in DC mode
(powered by the battery only) the CPU may not
run at full speed. This is a design feature imple­mented in order to protect the battery.



SO-DIMM Memory Types

All SO-DIMM memory modules in­stalled in the system should be iden­tical (the same size and brand) in
order to prevent unexpected system
behavior.

Do not mix SO-DIMM memory mod­ule sizes and brands otherwise un­expected system problems may
occur

.

Specifications

1.Introduction

Processor Options

i7-6700K (4.00GHz)*
8MB Smart Cache, 14nm, DDR4-2133MHz, TDP 91W
i5-6600K (3.50GHz)*
6MB Smart Cache, 14nm, DDR4-2133MHz, TDP 91W
i7-6700 (3.40GHz)
8MB Smart Cache, 14nm, DDR4-2133MHz, TDP 65W
i5-6500 (3.20GHz)

6MB Smart Cache, 14nm, DDR4-2133MHz, TDP 65W
*Supports Intel® XTU overclocking technology depending on

CPU SKU

Video Adapter Options

NVIDIA® GeForce GTX 1070 PCIe Video Card
8GB GDDR5 Video RAM on board

Supports GPU Overclocking
Supports NVIDIA® SLI Technology

NVIDIA® GeForce GTX 1080 PCIe Video Card
8GB GDDR5X Video RAM

Supports GPU Overclocking

LCD Options

17.3" (43.94cm), 16:9, QFHD (3840x2160)/FHD (1920x1080)

Core Logic

Intel® Z170 Chipset

BIOS

AMI BIOS (64Mb SPI Flash-ROM)

Pointing Device

Built-In Secure Pad (with Microsoft PTP Multi Gesture &
Scrolling Functionality)

Keyboard

Full Color Illuminated Full-size Winkey Keyboard (with
numeric keypad and anti-ghost keys)

Memory

Four 260 Pin SO-DIMM Sockets Supporting DDR4 2133/
2400MHz Memory

(The real memory operating frequency depends on the FSB
of the processor.)

Memory Expandable from 8GB (minimum) up to 64GB
(maximum)

Supports XMP 2666/3000 MHz (XMP depends on processor
and works in dual channel)

Audio

High Definition Audio Compliant Interface
S/PDIF Digital Output
Two Speakers
Sound Blaster Audio
ESS™ SABRE HIFI DAC for High Resolution Headphone

Audio
Built-In Array Microphone
Sub-Woofer

Note: External 7.1CH Audio Output Supported by Micro­phone-In, Line-In and Line-Out and 2-in-1 Audio Jack

1 - 2 Overview

Introduction



Power Converter

You must use the power converter
supplied with the dual AC/DC adapt­ers connected to power this comput­er. Do not use a single AC/DC
adapter to power the system.

Storage

Two changeable 2.5" (6cm) 7.0mm (h)/ 9.5mm (h) SATA
(Serial) Hard Disk Drives/Solid State Drives (SSD) support­ing RAID level 0/1

(Factory Option) Two M.2 SATA 2280 SSDs supporting
RAID level 0/1

Or
(Factory Option) Two M.2 PCIe

Gen3 x4 2280 SSDs supporting RAID

level 0/1

Security

Security (Kensington® Type) Lock Slot
BIOS Password
Fingerprint Reader Module
Trusted Platform Module 2.0
Intel PTT for Systems Without TPM Hardware

Interface

Five USB 3.0 (USB 3.1 Gen 1) Ports (Including one AC/DC
Powered USB port)

Two USB 3.1 Gen 2 Ports (Type C)
Two Mini DisplayPorts (1.3)
One HDMI-Out Port
One 2-In-1 Audio Jack (Headphone/ S/PDIF Optical Output

Combo Jack)
One Microphone-In Jack
One Line-Out Jack
One Line-In Jack
Two RJ-45 LAN Jacks
One DC-In Jack

M.2 Slots

Slot 1 for Combo WLAN and Bluetooth Module
Slot 2 for SATA or PCIe Gen3 x4 SSD
Slot 3 for SATA or PCIe Gen3 x4 SSD

Communication

Built-In Qualcomm 10/100/1000Mb Base-TX Ethernet LAN

2.0M FHD PC Camera Module

WLAN/ Bluetooth M.2 Modules:

(Factory Option) Intel® Wireless-AC 8260 Wireless LAN
(802.11ac) + Bluetooth 4.1

(Factory Option) Intel® Wireless-N 7265 Wireless LAN
(802.11b/g/n) + Bluetooth 4.0

(Factory Option) Intel® Wireless-AC 3165 Wireless LAN
(802.11ac) + Bluetooth 4.0

(Factory Option) Qualcomm® Atheros Killer™ Wireless-AC
1535 Wireless LAN (802.11ac) + Bluetooth 4.1

(Factory Option) Wireless LAN (802.11ad) + Bluetooth 4.1
combo

Card Reader

Embedded Multi-In-1 Push-Push Card Reader

MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC (up to UHS-

II)

Features

Supports NVIDIA® G-SYNC™ Technology
(G-SYNC is only supported if you have a G-SYNC cap able
display and a GTX series video adapter)
Virtual Reality Ready

Power

Embedded 8-cell Smart Lithium-Ion Battery Pack, 89WH
Dual Full Range AC/DC Adapters with the Power Converter

Box
Full Range AC/DC Adapter

AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 11.8A (230W)

Environmental Spec

Temperature

Operating: 10°C - 35°C
Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%
Non-Operating: 10% - 90%

Dimensions & Weight

428mm (w) * 308mm (d) * 47.2mm (h)

4.8kg (

Barebone System with 1 Video Card and 89WH Bat-

tery)

1.Introduction

Overview 1 - 3

Introduction

Figure 1

Top View

1. PC Camera

2. PC Camera LED

3. Built-In Array
Microphone

4. LCD

5. Speakers

6. Power Button

7. LED Indicators

8. Keyboard

9. TouchPad and
Buttons

10.Fingerprint
Reader

2 1

8

9

7

6

5

4

5

3

10

3

7

1.Introduction

External Locator - Top View with LCD Panel Open

1 - 4 External Locator - Top View with LCD Panel Open

External Locator - Front & Right side Views

Figure 2

Front Views

1. LED Power
Indicators

2. Vents

Figure 3

Right Side Views

1. USB 3.0/3.1 Port

2. Multi-in-1 Card
Reader

3. USB 3.1 Ports

4. Mini Display Port 1

5. Mini Display Port 2

6. Security Lock Slot

1

Front

22

Right

1

2 3

4

5

6

3

Introduction

1.Introduction

External Locator - Front & Right side Views 1 - 5

1.Introduction

Figure 4

Left Side View

1. RJ-45 LAN Jacks

2. USB 3.0 Ports

3. Powered USB 3.0/

3.1 Port

4. Line-In Jack

5. Microphone Jack

6. Line-Out Jack

7. Headphone & S/
PDIF-Out combo
Jack

3

4

1

1

2

Left

2

5

6 7

Figure 5

Rear View

1. Vent/Fan Intake

2. HDMI-Out Port

3. USB 3.0/3.1 Port

4. DC-In Jack

Rear

4

1

2

3

1

Introduction

External Locator - Left Side & Rear View

1 - 6 External Locator - Left Side & Rear View

External Locator - Bottom View

Figure 6

Bottom View

1. Vents

2. Sub Woofer



Overheating

To prevent your com­puter from overheating
make sure nothing
blocks the vent/fan in­takes while the com­puter is in use.

2

1

1

1

Introduction

1.Introduction

External Locator - Bottom View 1 - 7

Introduction

Figure 7

Mainboard Top

Key Parts

1. Memory Slots
DDR4 SO-DIMM

2. Platform
Controller Hub

3. KBC ITE IT8587

1

2

3 3

1.Introduction

Mainboard Overview - Top (Key Parts)

1 - 8 Mainboard Overview - Top (Key Parts)

Mainboard Overview - Bottom (Key Parts)

Figure 8

Mainboard Bottom

Key Parts

1. VGA-Card
Connector

2. CPU Socket (no
CPU installed)

3. Memory Slots
DDR4 SO-DIMM
(Primary)

4. Hard Disk
Connector

2

1

4

3

1

4

Introduction

1.Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 9

Introduction

Figure 9

Mainboard Top

Connectors

1. RJ-45 LAN Jacks

2. USB 3.0/3.1 Ports

3. Powered USB 3.0/

3.1 Port

4. Multi-in-1 Card
Reader

5. USB 3.1 Port

6. Mini Display Port 1

7. MIni Display Port 2

8. KB LED Connector

9. TP Connector

10.WLAN Card
Connector

11. Keyboard Cable
Connector

12.Panel Cable
Connector

13.M.2 Card
Connector

14.Button LED
Connector

1

2

4

5

7

8

11

13

3

5

9

10

1

2

12

13

2

11

14

6

1.Introduction

Mainboard Overview - Top (Connectors)

1 - 10 Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

Figure 10

Mainboard Bottom

Connectors

1. HDMI-Out Port

2. USB 3.0/3.1 Port

3. DC-In Jack

4. 126 Pin Audio
Connector

5. 22 Pin Audio
Connector

6. Battery
Connector

1 2 3

4

6

5

Introduction

1.Introduction

Mainboard Overview - Bottom (Connectors) 1 - 11

1.Introduction

Introduction

1-12

Chapter 2: Disassembly



Information



Warning

Overview

This chapter provides step-by-step instructions for disassembling the P870DM2(-G) series notebook’s parts and subsys­tems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Disassembly

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are
repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis­assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ­ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.

2.Disassembly

Overview 2 - 1

Disassembly

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replac­ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.

2 - 2 Overview

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When re­placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.

Maintenance Precautions



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and discon­nected all peripherals
and cables (including
telephone lines and
power cord). You must
also remove your bat­tery in order to prevent
accidentally turning the
machine on.

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re­moval and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the com pute r, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro­duce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small part s, such as
screws, loose inside the computer.

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Disassembly

2.Disassembly

Overview 2 - 3

Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

2.Disassembly

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

To remove the Primary System Memory:

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 10

To remove the System Memory under the Keyboard:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 12

3. Remove the system memory page 2 - 13

To remove and install the Video Card:

1. Remove the battery page 2 - 5

2. Remove the video card-2 page 2 - 14

2. Remove the video card-1 page 2 - 15

3. Install the video card page 2 - 16

To remove and install the Processor:

1. Remove the battery page 2 - 5

2. Remove the video card page 2 - 14

3. Remove the processor page 2 - 17

4. Install the processor page 2 - 19

To remove the WLAN Module:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 12

3. Remove the wireless LAN page 2 - 20

To remove the WiGig Module:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 12

3. Remove the WiGig page 2 - 22

To remove and install the M.2 SSD:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 12

3. Remove the M.2 SSD-1 page 2 - 23

4. Remove the M.2 SSD-2 page 2 - 24

5. Install the M.2 SSD page 2 - 25

2 - 4 Disassembly Steps

Removing the Battery

1

91011

12

Figure 1

Battery Removal

a. Remove the screws.
b. Remove the bottom case.
c. Locate the battery.

2

a.

b.

3

4

5

10

12

6

7

9

c.

10

1

8

11



10.Bottom Case

•9 Screws

1. Turn the computer off, and turn it over.

2. Remove the screws - (Figure 1a).

3. Carefully lift the bottom case

4. The battery will be visible at point on the computer (Figure 1c

up in the direction of the arrow and remove it (Figure 1b).

Disassembly

).

2.Disassembly

Removing the Battery 2 - 5

Disassembly

13

161718

Figure 2

Battery Removal

(cont’d.)

d. Remove the screws.
e. Lift the battery off the

computer.

f. Reinsert the bottom case

and tighten the screws.

d.

e.

17

13

14

16

15

18

f.

18



17. Battery

•4 Screws

5. Carefully remove screws - (Figure 2b).

6. Lift the battery off the computer (Figure 2e

7. Reinsert the bottom case starting from point

).

as shown (Figure 2f) to avoid damaging the rear eSATA/USB 3.0

port. Tighten the screws to secure the bottom case in place.

2.Disassembly

2 - 6 Removing the Battery

Removing the Hard Disk Drive

Figure 3

HDD Assembly

Removal

a. Locate the HDD.
b. Remove the screws.



•2 Screws

1

2

3



HDD System Warning

New HDD’s are blank. Before you begin make sure:

You have backed up any data you want to keep from your old HDD.

You have all the CD-ROMs and FDDs required to install your operating system and programs.

If you have access to the internet, download the latest application and hardware driver updates for

the operating system you plan to install. Copy these to a removable medium.

a.

2

1

1

b.

3

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 7mm/

9.5mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as out­lined in Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Removal Process

1. Turn off the computer, and remove the battery (page 2 - 5).

2. The HDD(s) will be visible at point on the mainboard (Figure 3a

3. Remove screws

Disassembly

).

/ from the HDD assembly (Figure 3b).

2.Disassembly

Removing the Hard Disk Drive 2 - 7

Disassembly

4

567

8

9

c.

d.

7

8

6



Installing 9.5mm or 7mm HDD

Note that the hard disks pictured on the following pages are all
7mm(h) hard disk drive.

There are two hard disk drive options:

Two changeable 2.5" (6cm) 7.0mm (h) SATA (Serial) Hard Disk
Drives/Solid State Drives (SSD) supporting RAID level 0/1
Or
One changeable 2.5" (6cm) 9.5mm (h) SATA (Serial) Hard Disk
Drive/Solid State Drive (SSD)

For more information, contact your distributor/supplier, and bear in
mind your warranty terms.

9

4

5 5

4

4

5



4. HDD Assembly

8. HDD Bracket

9. HDD

•2 Screws

Figure 4

HDD Assembly

Removal (cont’d.)

c. Slightly lift and pull the

HDD in the direction of
the arrow.

d. Remove the screws and

bracket from the HDD.

4. Slightly lift the hard disk assembly by the tab at an angle while holding the notebook in place, and pull it in the
direction of arrow to release it

(Figure 4c).

5. Remove the hard disk assembly out of the bay.

6. Remove screws - and bracket from the hard disk (Figure 4d).

7. Reverse the process to install a new hard disk (do not forget to replace the screws and take care when inserting
the new hard disk by lifting the mylar underneath the video card for smooth insertion).

2.Disassembly

2 - 8 Removing the Hard Disk Drive

Hard Disk Size Note (Foam Rubber Insert)

Figure 5

Foam Rubber

Insert for 7mm(H)

HDDs

• If you are replacing a 9.5mm(H)
HDD with a 7mm(H) HDD then
insert the foam rubber insert.

• If you are replacing a 7mm(H) HDD
with a 9.5mm(H) HDD then remove
the foam rubber insert.

HDD-2HDD-1

Note that the hard disks pictured on these pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard disk
drives will be installed.

Disassembly

2.Disassembly

Removing the Hard Disk Drive 2 - 9

Disassembly

Figure 6

RAM Module

Removal

a. Locate the module.
b. Gently pull the two

release latches on
the sides of the
memory socket(s) in
the direction indicat­ed below.

c. The RAM module

will pop-up, and you
can remove it.

123

4



4. RAM Module

2

3

1

a.

5

4

b. c.

2.Disassembly

Removing the Primary System Memory (RAM)

The computer has four memory sockets for 260 pin Small Outline Dual In-line (SO-DIMM) DDR 4 type memory modules.
The total memory size is automatically detected by the POST routine once you turn on your computer.

Note that four SO-DIMMs are only supported by Quad-Core CPUs; Dual-Core CPUs support two SO-DIM Ms maxi -

mum.
Two primary memory sockets are located under component bay cover (the bottom case cover), and two secondary

memory sockets are located under the keyboard (not user upgradable). If you are installing only two RAM modules
then they should be installed in the primary memory sockets under the component bay cover.

Note that the RAM located under the keyboard is not user upgradable.

Memory Upgrade Process

1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).

2. The modules will be visible at point (Figure 6a

3. Gently pull the two release latches (
(Figure 6b

4. The RAM module will pop-up, and you can remove it (Figure 6c

).

& ) on the sides of the memory socket(s) in the direction indicated below

).

).

2 - 10 Removing the Primary System Memory (RAM)

5. Pull the latches to release the second module if necessary.



Contact Warning

Be careful not to touch the metal pins on the module’s connecting
edge. Even the cleanest hands have oils which can attract particles,
and degrade the module’s performance.

6. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

7. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.

8. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

9. Replace the bay cover and screws.

10. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

Disassembly

2.Disassembly

Removing the Primary System Memory (RAM) 2 - 11

Disassembly

Figure 7

Keyboard

Removal

a. Remove the screw.
b. Eject the keyboard

using a special eject
stick to push the
keyboard out while
releasing the key­board as shown.

1

234



3. Eject Stick

•1 Screw

2

a. b.

1

3

4

Removing the System Memory (RAM) from Under the Keyboard

The computer has four memory sockets for 260 pin Small Outline Dual In-line (SO-DIMM) DDR 4 type memory modules.
The total memory size is automatically detected by the POST routine once you turn on your computer.

Two primary memory sockets are located under component bay cover (the bottom case cover), and two secondary
memory sockets are located under the keyboard. If you are installing only two RAM modules then they should be in­stalled in the primary memory sockets under the component bay cover.

Memory Upgrade Process

1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).

2. Remove the screw

3. Open it up with the LCD on a flat surface before pressing at point
stick with a diameter no bigger than 2.5mm) to do this while releasing the keyboard in the direction of the
arrow

2.Disassembly

as shown (Figure 7b).

(Figure 7a).

to release the keyboard module (use an eject

2 - 12 Removing the System Memory (RAM) from Under the Keyboard

4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cables - .

5

6868910111213

14

15

e.

11

d.

15

15

12

14

13

14

13

15

c.

8

9

10

7

10

10

6

10

5

9

9



Contact Warning

Be careful not to touch the metal pins on the mod­ule’s connecting edge. Even the cleanest hands
have oils which can attract particles, and degrade
the module’s performance.

Figure 8

KB & RAM Module

Removal

c. Lift the keyboard up,

and disconnect the
keyboard ribbon cable
from the locking collar
socket.

d. Remove the keyboard

and the memory sock­ets will be visible.

e. Pull the two release

latches on the sides of
the memory socket(s)
in the direction indicat­ed.



5. Keyboard

15.RAM Modules

5. Disconnect the keyboard ribbon cables
driver to pry the locking collar pins away from the base (Figure 8c).

6. Remove the keyboard and the memory sockets & will be visible (Figure 8d).

7. Gently pull the two release latches (

8. The RAM module will pop-up, and you can remove it (Figure 8e).

9. Pull the latches to release the second module if necessary.

10. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

1 1. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it

will go. DO NOT FORCE the module; it should fit without much pressure.

12. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

13. Replace the keyboard, bay cover and screws.

14. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

Disassembly

- from the locking collar socket by using a small flat-head screw-

& ) on the sides of the memory socket(s) in the direction indicated below .

2.Disassembly

Removing the System Memory (RAM) from Under the Keyboard 2 - 13

Disassembly



5. Heat Sink Unit

10.Video Card

•6 Screws



Caution

The heat sink, and video
card area in general,
contains parts which are
subject to high tempera­tures. Allow the area
time to cool before re­moving these parts.

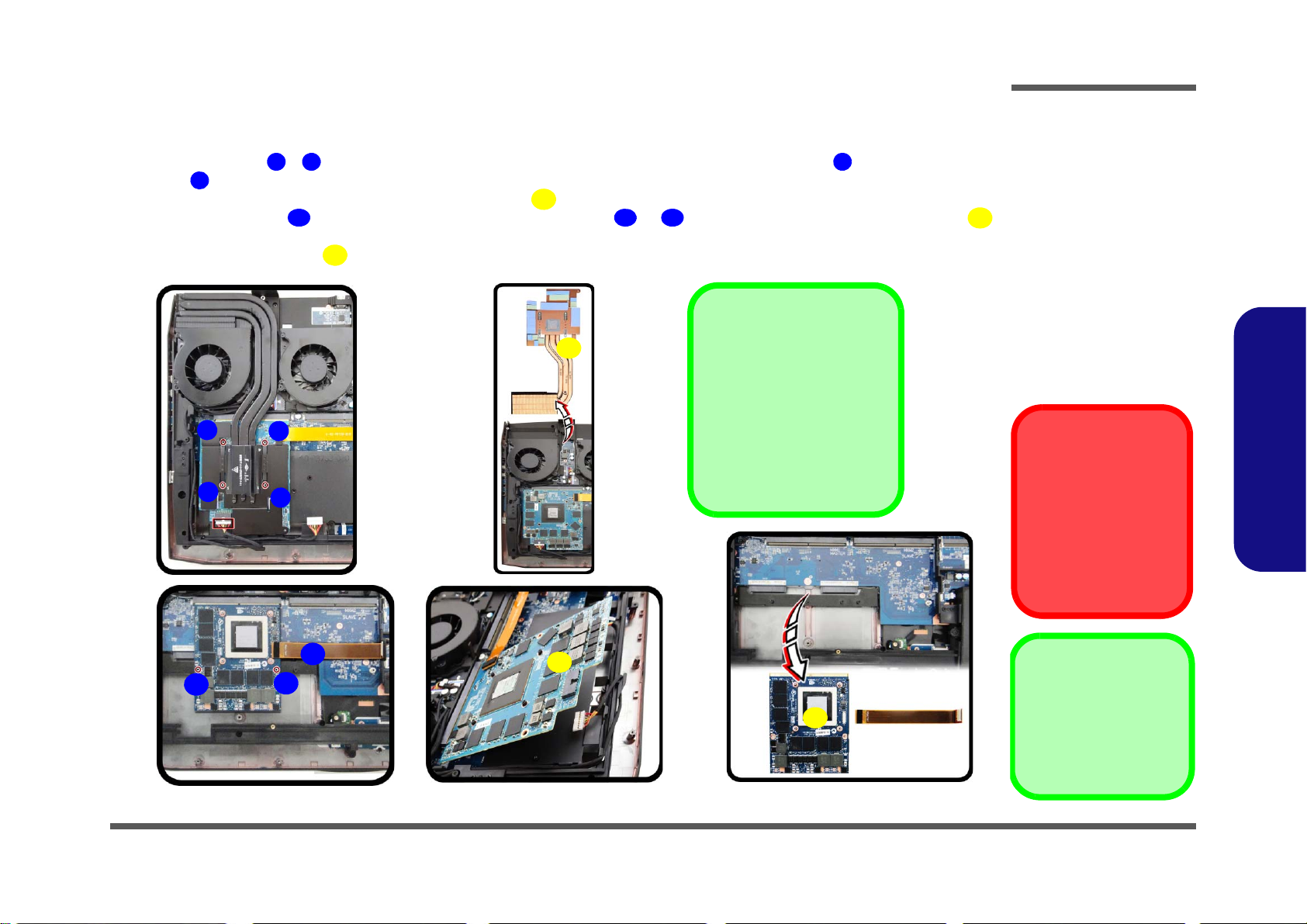

Figure 9

Video Card-2

Removal Procedure

a. Remove the screws in

the correct order.

b. Carefully remove the

heat sink units.

c. Remove the video card

cable connector and
screws. The video card
will pop up.

d. Remove the video card.

144

15678

9

10

9

4

a.

2

1

3

10

c.

10



Heat Sink Screw Removal

and Insertion

Remove the screws from the heat
sink in the order indicated here:

4-

3-2-1

.

When tightening the screws,
make sure that they are tightened
in the order:

1-2-3-4

.

10

9

7

b.

d.

5

6

8

Removing and Installing the Video Card

Video Card-2 Removal Procedure

1. Turn off the computer, turn it over and remove the battery (page 2 - 5).

2.

Remove screws - from the heat sink unit in the order indicated on the label (i.e screw first through to
screw last)

3.

Carefully (it may be hot) remove the heat sink unit (Figure 9b).

4. Remove the connector & and screws & from the video card. The video card will pop up.

5. Remove the video card (Figure 9d).

(Figure 9a).

2.Disassembly

2 - 14 Removing and Installing the Video Card

Video Card-1 Removal Procedure



5. Heat Sink Unit

9. Video Card

•6 Screws



Caution

The heat sink, and video
card area in general,
contains parts which are
subject to high tempera­tures. Allow the area
time to cool before re­moving these parts.

Figure 10

Video Card-1

Removal Procedure

a. Remove the screws in

the correct order.

b. Carefully remove the

heat sink units.

c. Remove the video card

cable connector and
screws. The video card
will pop up.

d. Remove the video card.

144

15678

9

9

4

a.

2

1

3

9

c.



Heat Sink Screw Removal

and Insertion

Remove the screws from the heat
sink in the order indicated here:

4-

3-2-1

.

When tightening the screws,
make sure that they are tightened
in the order:

1-2-3-4

.

5

7

8

b.

d.

9

6

1. Turn off the computer, turn it over and remove the battery (page 2 - 5) and Video card-2 (page 2 - 14).

2.

Remove screws - from the heat sink unit in the order indicated on the label (i.e screw first through to
screw last)

3.

Carefully (it may be hot) remove the heat sink unit (Figure 10b).

4. Remove connector (in case of two video cards) and screws & from the video card. The video card

will pop up (Figure 10c).

5. Remove the video card (Figure 10d).

(Figure 10a).

Disassembly

2.Disassembly

Removing and Installing the Video Card 2 - 15

Disassembly

Figure 11

Installing a New

Video Card

e. Insert the video card at

a 30 degree angle.

f. Fit the connectors

straight and even, and
secure the card with the
screws.

9

e. f.

9

11

10

10

11



9. Video Card

•2 Screws



Caution

The heat sink, and video
card area in general,
contains parts which are
subject to high tempera­tures. Allow the area
time to cool before re­moving these parts.

2.Disassembly

Installing a New Video Card

1. Prepare to fit the video card into the slot by holding it at about a 30° angle (Figure 11e).

2. The card needs to be fully into the slot, and the video card and socket have a guide-key and pin which align to

allow the card to fit securely (Figure 11f)

3. Fit the connectors firmly into the socket, straight and evenly.

.

2 - 16 Removing and Installing the Video Card

4. DO NOT attempt to push one end of the card in ahead of the other.

5. The card’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the socket
as it will go. DO NOT FORCE the card; it should fit without much pressure.

6. Secure the card with screws & (Figure 10 on page 2 - 15).

7.

Place the heat sink back on the card, and secure the screws in the order indicated in Figure 10 on page 2 - 15.

8.

Reinsert the component bay cover, and secure with the screws as indicated in Figure 2 on page 2 - 6.

Removing and Installing the Processor

14415

Figure 12

Processor

Removal

Procedure

a. Remove the screws

in the correct order.

b. Carefully remove

the heat sink unit.



5. Heat Sink Unit

•4 Screws

a.

5

b.

Note:
Loosen the screws in the reverse
order 4-3-2-1 as indicated.

3

4

1

2

Processor Removal Procedure

1. Turn off the computer, remove the battery (page 2 - 5) and video card-2 heatsink (page 2 - 14).

2. Remove screws - from the heat sink unit in the order indicated on the label (i.e screw first through to
screw last Figure 12a)

3. Carefully (it may be hot) remove the heat sink unit (Figure 12b).

.

Disassembly

2.Disassembly

Removing and Installing the Processor 2 - 17

Disassembly

667

A

Figure 13

Processor Removal

(cont’d)

c. Move the latch and

bracket fully in the direc­tion indicated to unlock
the CPU.

d. Lift the CPU out of the

socket.



Caution

The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al­low the area time to cool before re­moving these parts.

c.

d.

Unlock

A

6

6

7



A. CPU

2.Disassembly

4. Press down and hold the latch (with the latch held down you will be able to release it).

5. Move the latch and bracket fully in the direction indicated to unlock the CPU(Figure 13c).

6. Carefully (it may be hot) lift the CPU up out of the socket (Figure 13d).

7. See page 2 - 19 for information on inserting a new CPU.

8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).

2 - 18 Removing and Installing the Processor

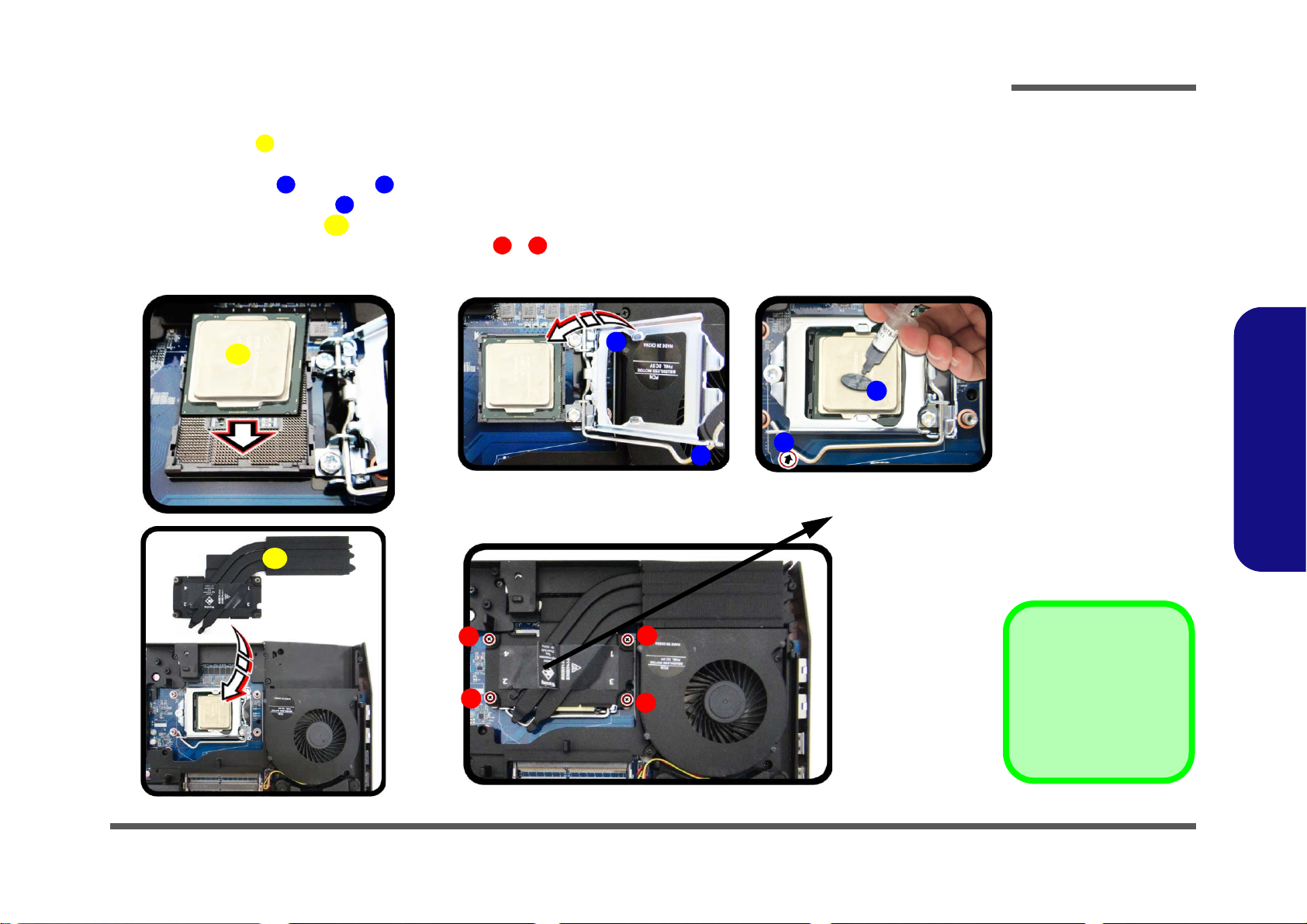

Processor Installation Procedure

ABC

D

E

1

4

b.

c. d.

C

a.

E

4

1

3

Note:
Tighten the screws in
the order 1-2-3-4 as in­dicated.

2

A

B

D

C

Figure 14

Processor

Installation

a. Insert the CPU.
b. Move the latch and

bracket fully in the direc­tion indicated to lock the
CPU. Apply thermal

grease.
c. Insert the heat sink.
d. Tighten the screws.



A. CPU
E. Heat Sink

•4 Screws

1. Insert the CPU ; pay careful attention to the pin alignment (Figure 14a), it will fit only one way (DO NOT FORCE
IT!).

2. Move the bracket and latch fully in the direction indicated to lock the CPU.

3. Apply the thermal grease to the top of the CPU as shown (Figure 14b).

4. Insert the heat sink unit

5. Tighten the CPU heat sink screws in the order -

6. Replace the CPU fan, component bay cover and tighten the screws (page 2 - 17).

as indicated in Figure 14c.

(the order as indicated on the label and Figure 14d).

Disassembly

2.Disassembly

Removing and Installing the Processor 2 - 19

Disassembly

123

4

5



5. WLAN Module

•1 Screw

Figure 15

Wireless LAN

Module Removal

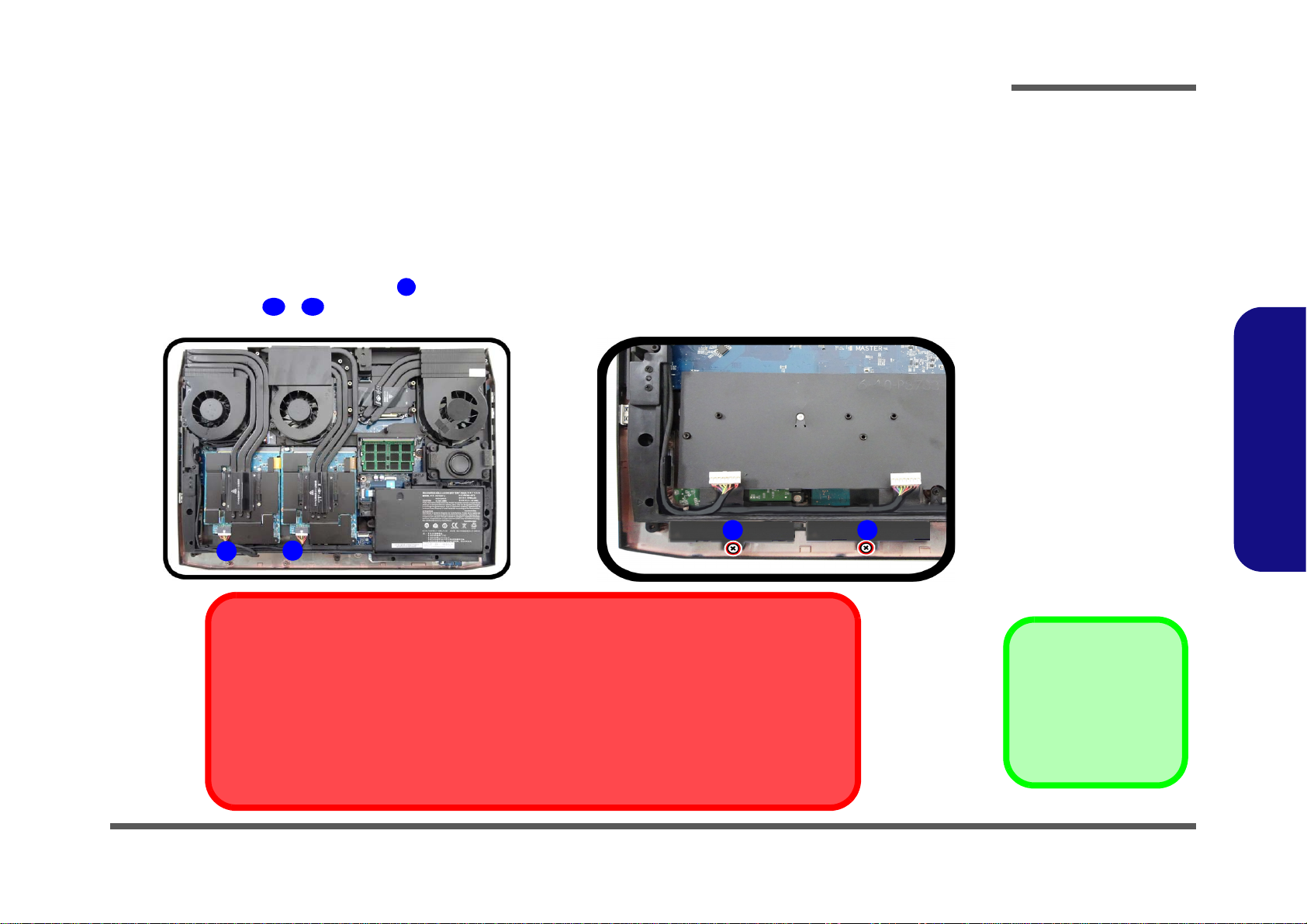

a. The Wireless LAN mod-

ule will be visible at point

under the keyboard

b. Disconnect the cables

and remove the screw.

c. The WLAN module will

pop up.

d. Lift the WLAN module

out.

1

5

b.

a.

d.

2

3

5

c.

4

1

Removing the Wireless LAN Module

1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 12).

2. The Wireless LAN module will be visible at point under the keyboard (Figure 15a).

3. Carefully disconnect cables - , then remove screw from the module socket (Figure 15b).

4. The Wireless LAN module will pop-up (Figure 15c).

5. Lift the Wireless LAN module (Figure 15d) up and off the computer.

.

2.Disassembly

2 - 20 Removing the Wireless LAN Module

Wireless LAN, Combo Module Cables

Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, 3G and LTE modules are
not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for iden­tification as outlined in the table below.

Disassembly

Module Type

WLAN/WLAN & Bluetooth
Combo

WiGig

Antenna

Type

WM 1 Black

WM 3 White
WM 1 Blue White
WM 2 Black
WM 3 Black

Cable Color

Cable Cover

Type

TransparentWM 2 Gray

Transparent

Cable 1 is usually connected to antenna 1 (Main) on the module, and cable 2 to antenna 2 (Aux).

2.Disassembly

Wireless LAN, Combo Module Cables 2 - 21

Disassembly

1

2

4

5

6

6

b.

a.

d.

2

3

6

c.

5

1

4



5. WiGig Module

•1 Screw

Figure 16

WiGig Module

Removal

a. The module will be visi -

ble at point under the
keyboard

b. Disconnect the cables

and remove the screw.
c. The module will pop up.
d. Lift the module out.

1

Removing the WiGig Module

1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 12).

2. The module will be visible at point under the keyboard (Figure 16a).

3. Carefully disconnect cables - , then remove screw from the module socket (Figure 16b).

4. The module will pop-up (Figure 16c).

5. Lift the module (Figure 16d) up and off the computer.

.

2.Disassembly

2 - 22 Removing the WiGig Module

Removing the M.2 SSD Module

Figure 17

M.2 SSD-1 Module

Removal

a. Locate the module.
b. Remove the screw.
c. The module will pop-up.
d. Lift the module up off the

socket.

1263634

a.

b.

3

2

3

c.

d.

4

1



3. M.2 SSD Module

•1 Screw

Removing the M.2 SSD-1 Module

1. Turn off the computer, remove the battery (page 2 - 5), and component bay cover (page 2 - 10).

2. Locate the module; it is visible at point

3. Carefully remove the screw from the module

4. The M.2 SSD module will pop-up (Figure 17c

5. Lift the M.2 SSD module up and off the computer (Figure 17d

6. Reverse the process to install a new module (make sure that the hexagonal screw

(Figure 17a).

(Figure 17b).

).

).

is in the correct location).

Disassembly

2.Disassembly

Removing the M.2 SSD Module 2 - 23

Disassembly



3. M.2 SSD Module

•1 Screw

Figure 18

M.2 SSD-2 Module

Removal

a. Locate the module.
b. Remove the screws.
c. The module will pop up.
d. Lift the module out.

1263633

a. c.

3

3

d.

2

4

b.

1

Removing the M.2 SSD-2 Module

1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).

2. Locate the module; it is visible at point

3. Remove the screw from the SSD (Figure 18a

4. The M.2 SSD module will pop-up (Figure 18b

5. Lift the M.2 SSD module up and off the computer (Figure 18c

6. Reverse the process to install a new module (make sure that the hexagonal screw
depending upon the size of the module).

(Figure 18a).

).

).

).

is in the correct location

2.Disassembly

2 - 24 Removing the M.2 SSD Module

M.2 SSD Installation Procedure

1

2

3

a.

b.

1

c.

1

2

2

3

3

SDD-2SDD-1

SDD-2

SDD-1



1. M.2 SSD Module

3. Thermal Pad

•1 Screw

Figure 19

M.2 SSD Module

Installation

a. Insert the module.
b. Tighten the screw.
c. Place the thermal pad

as shown.



Caution

The thermal pad is only
required when using
Samsung SM951 M.2
SSD module. Make sure
you place the thermal
pad’s adhesive side
down on the module
surface as illustrated.

1. Insert the module in the computer (Figure 19a).

2. Tighten the screw to secure it in place (Figure 19b).

3. Only place the thermal pad

on the module’s chip edge as shown when using specific module (Figure 19c).

Disassembly

2.Disassembly

Removing the M.2 SSD Module 2 - 25

Disassembly

2.Disassembly

2-26

Appendix A: Part Lists

This appendix breaks down the P870DM2(-G) series notebook’s construction into a series of illustrations. The compo­nent part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.

Part Lists

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

A.Part Lists

A-1

Part Lists

Table A- 1

Part List Illustration

Location

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Parts

Top page A - 3
Bottom page A - 4
LCD page A - 5
MB (VGA-1) page A - 6
MB (VGA-2) page A - 7
MB (Dual VGA) page A - 8

A.Part Lists

A - 2 Part List Illustration Location

MB (N17E-G3) page A - 9
VGA (N17E-G2) page A - 10
VGA (N17E-G3) page A - 11
HDD page A - 12

Top

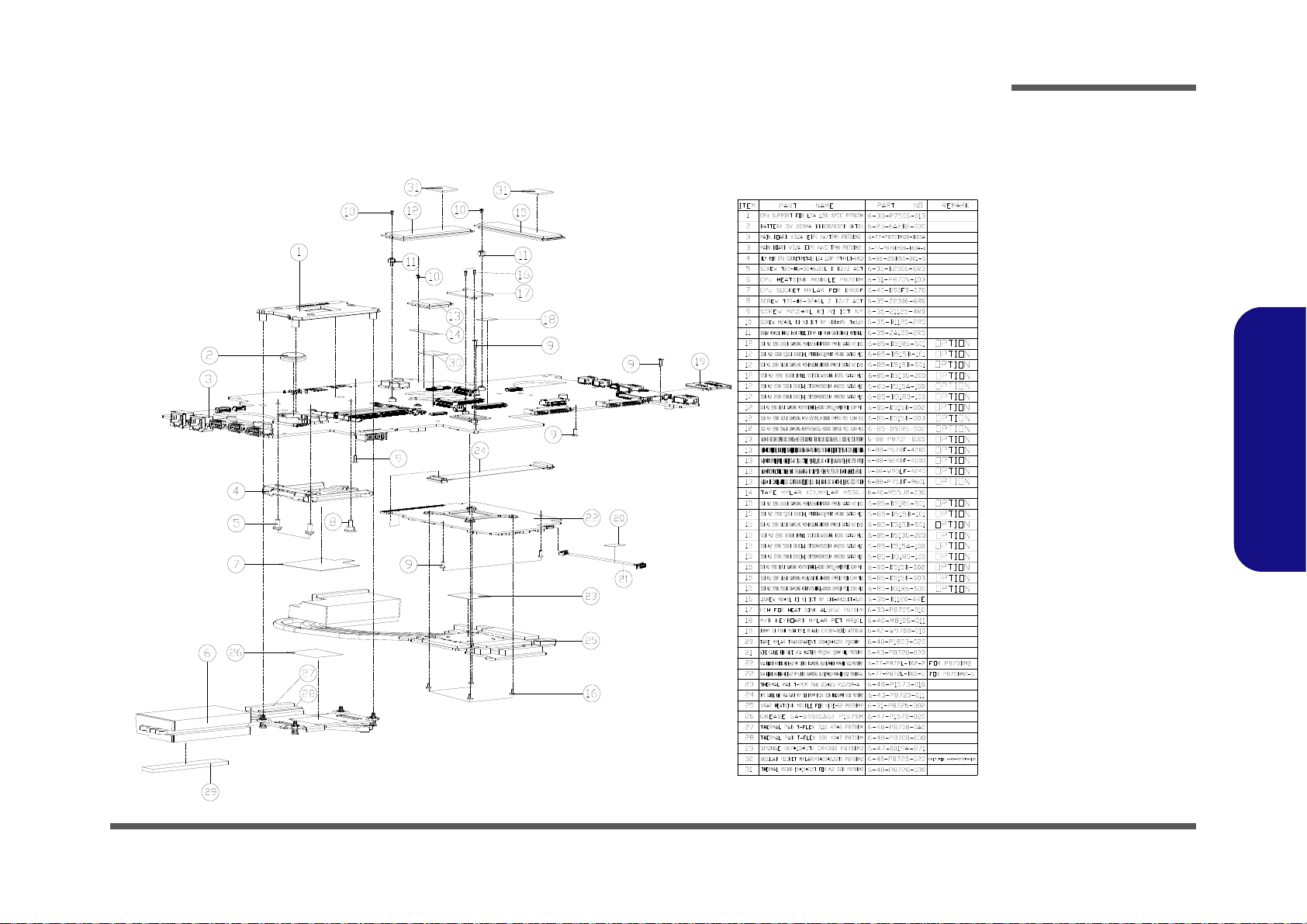

Figure A - 1

Top

Part Lists

A.Part Lists

Top A - 3

Part Lists

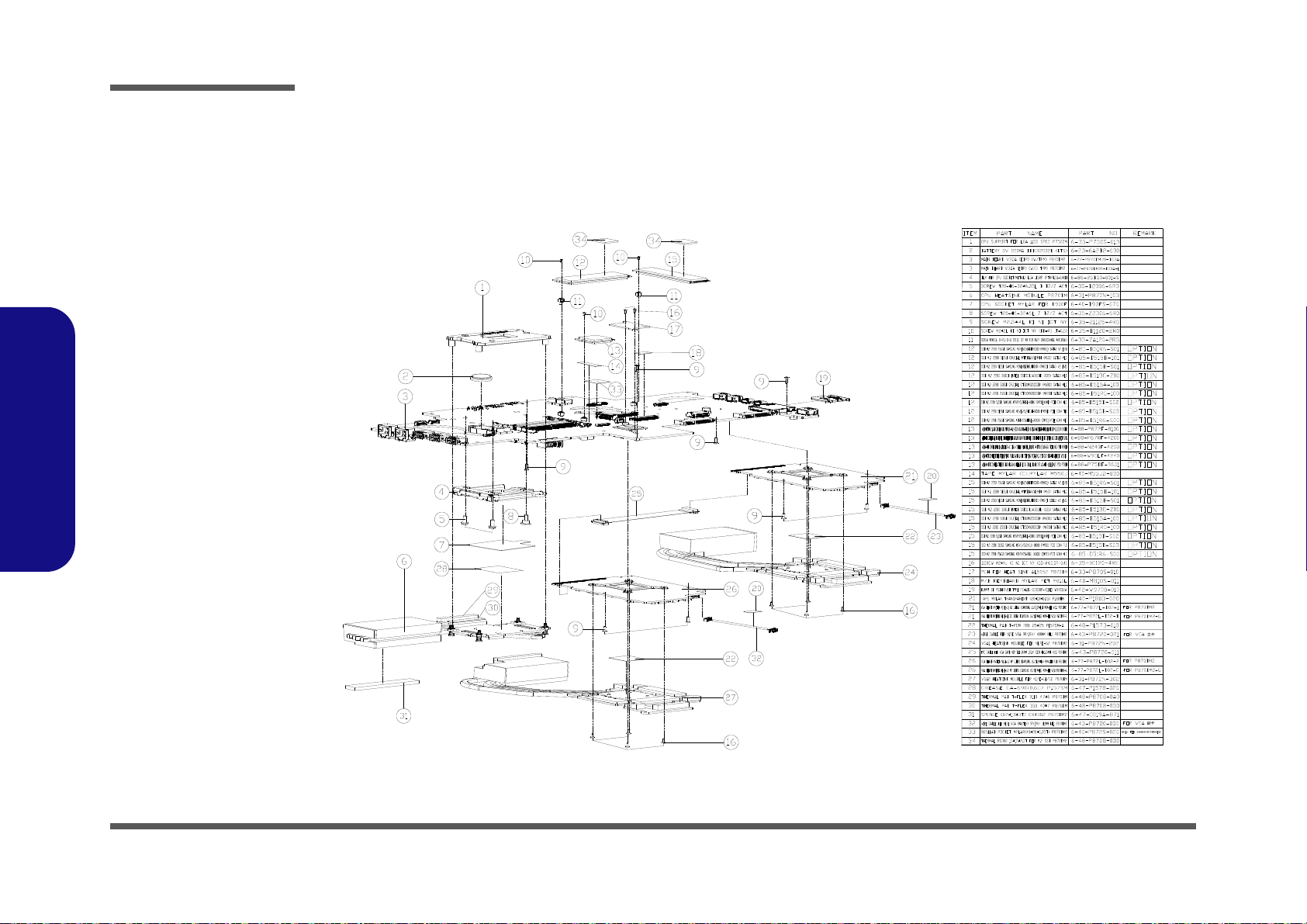

Figure A - 2

Bottom

A.Part Lists

Bottom

A - 4 Bottom

LCD

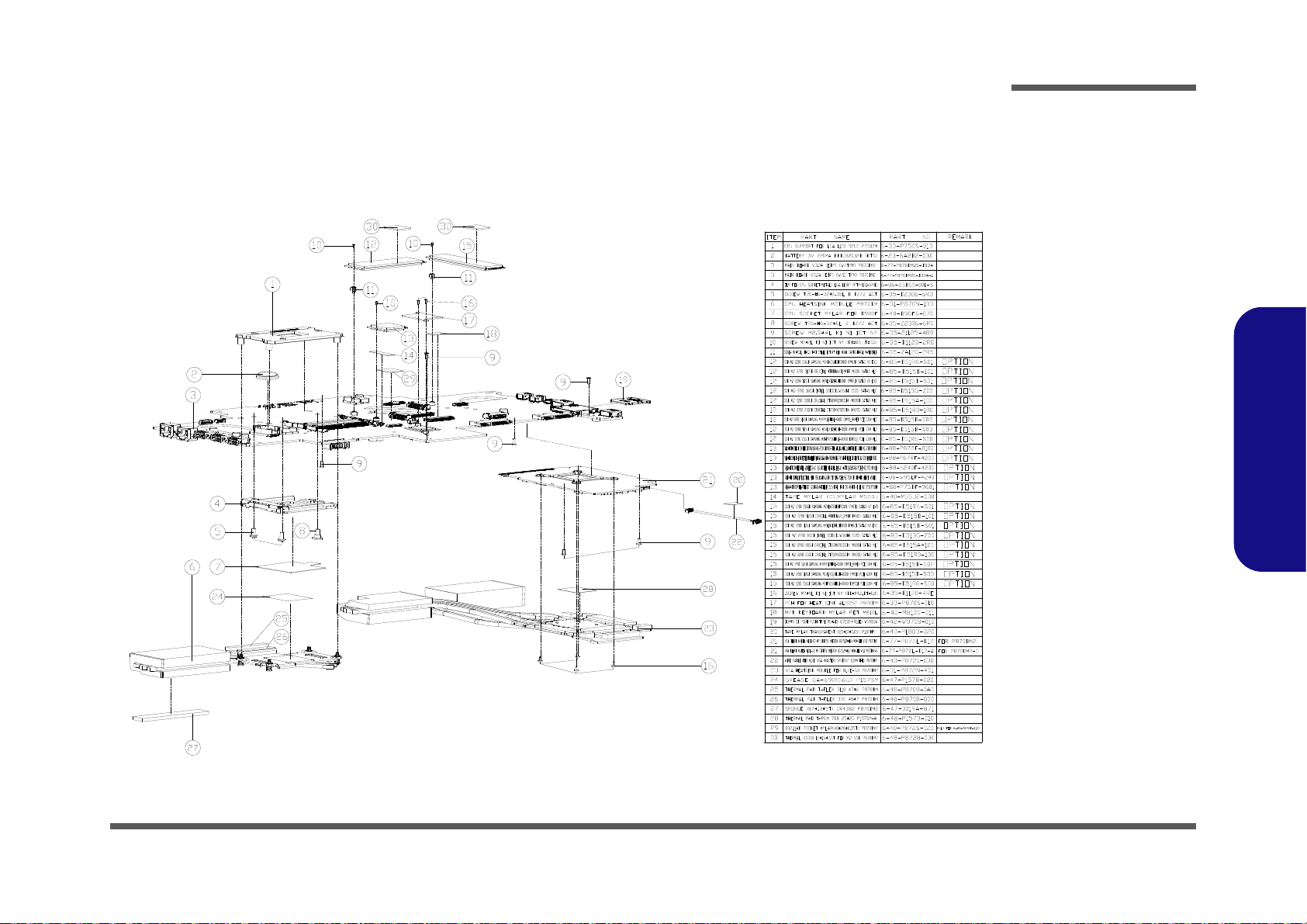

Figure A - 3

LCD

Part Lists

A.Part Lists

LCD A - 5

Part Lists

Figure A - 4

MB (VGA-1)

A.Part Lists

MB (VGA-1)

A - 6 MB (VGA-1)

MB (VGA-2)

Figure A - 5

MB (VGA-2)

Part Lists

A.Part Lists

MB (VGA-2) A - 7

Part Lists

Figure A - 6

MB (Dual VGA)

A.Part Lists

MB (Dual VGA)

A - 8

MB (N17E-G3)

Figure A - 7

MB (N17E-G3)

Part Lists

A.Part Lists

MB (N17E-G3) A - 9

Part Lists

Figure A - 8

VGA (N17E-G2)

A.Part Lists

VGA (N17E-G2)

A - 10 VGA (N17E-G2)

VGA (N17E-G3)

Figure A - 9

VGA (N17E-G3)

Part Lists

A.Part Lists

VGA (N17E-G3) A - 11

Part Lists

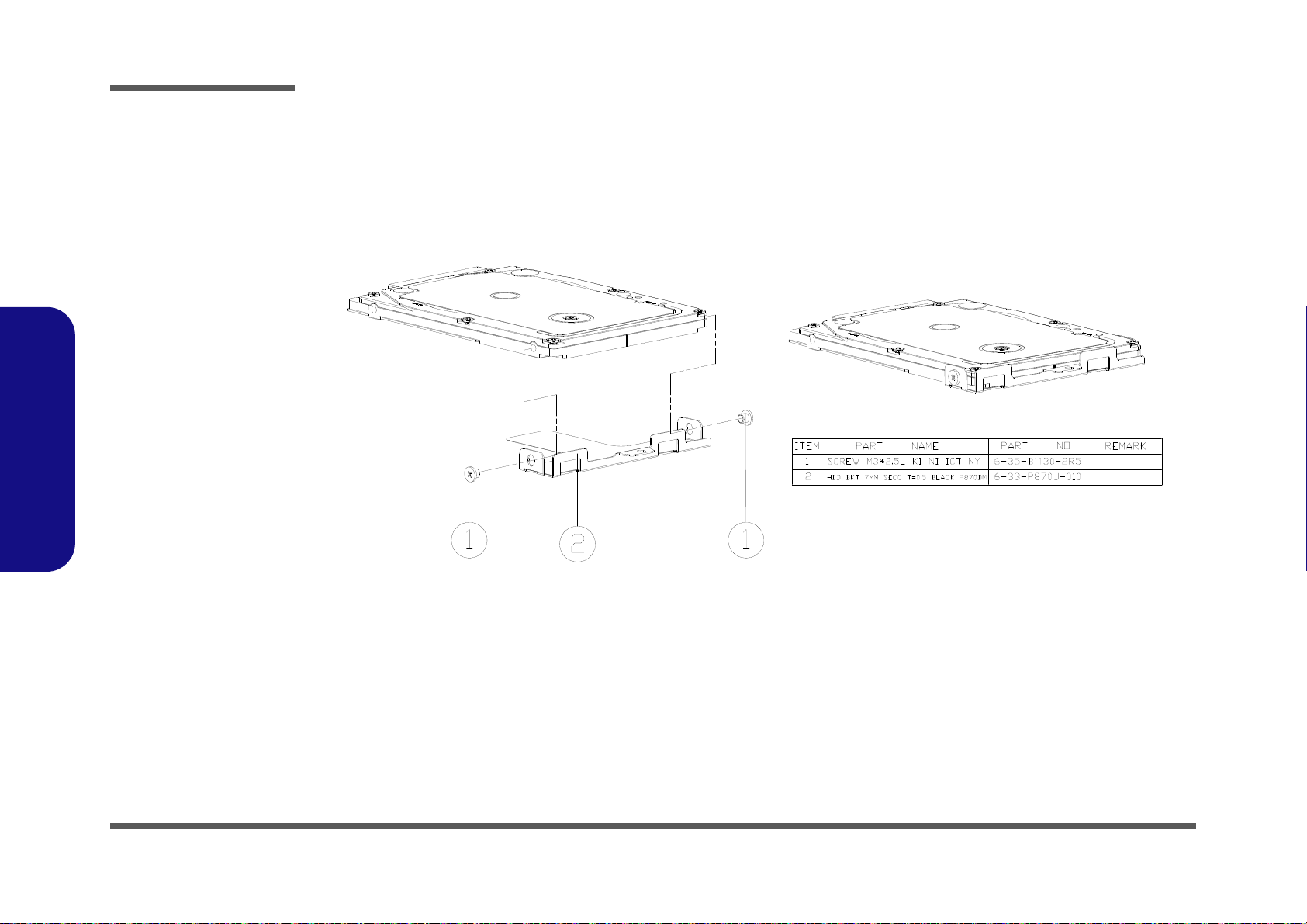

Figure A - 10

HDD

A.Part Lists

HDD

A - 12 HDD

Appendix B: Schematic Diagrams

Table B - 1

Schematic

Diagrams



Version Note

The schematic dia­grams in this chapter
are based upon version
6-7P-P8726-002. If
your mainboard (or oth­er boards) are a later
version, please check
with the Service Center
for updated diagrams
(if required).

This appendix has circuit diagrams of the P870DM2(-G) notebook’s PCB’s. The following table indicates where to find
the appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page

Block Diagram - Page B - 2 Main EC IT8587 - Page B - 23 2.5V, 5VS_2 - Page B - 44

Processor 1/5 - Page B - 3 Second EC IT8587 - Page B - 24 Fan_CPU, VGA Power 12V - Page B - 45

Processor 2/5 - Page B - 4 TPM SLB9665TT - Page B - 25 AMP10V, VCCSA - Page B - 46

Processor 3/5 - Page B - 5 CPU, VGA Fan Conn - Page B - 26 DDR4 VDDQ & VTT, VCCPLL_OC - Page B - 47

Processor 4/5 - Page B - 6 Backlight Keyboard - Page B - 27 Power Charger, DC IN - Page B - 48

Processor 5/5 - Page B - 7 CCD, USB Charging - Page B - 28 VCCIO, 1.0VA - Page B - 49

DDR4 CHA SO-DIMM_0 - Page B - 8 AR_TBT - Page B - 29 VCore - Page B - 50

DDR4 CHA SO-DIMM_1 - Page B - 9 AR_Power - Page B - 30 VCore Output Stage - Page B - 51

DDR4 CHB SO-DIMM_0 - Page B - 10 TPS65982, Type C1 - Page B - 31 VDD3, VDD5 - Page B - 52

DDR4 CHB SO-DIMM_1 - Page B - 11 TPS65982, Type C2 - Page B - 32 Charger LED Board - Page B - 53

Schematic Diagrams

B.Schematic Diagrams

MXM 3.0 Master - Page B - 12 PS8338B+mDP_1 - Page B - 33 Click Board - Page B - 54

MXM 3.0 Slave - Page B - 13 PS8338B+mDP_2 - Page B - 34 Finger Sensor Board - Page B - 55

Panel, Inverter - Page B - 14 M.2 WLAN+BT - Page B - 35 Power Switch LED Board - Page B - 56

HDMI - Page B - 15 M.2 M Key - Page B - 36 Audio Codec - Page B - 57

SPT-H 1/7 - Page B - 16 RTS5250 - Page B - 37 Audio Board (Speaker) - Page B - 58

SPT-H 2/7 - Page B - 17 LAN_1 E2400 - Page B - 38 Audio Board (Subwoofer) - Page B - 59

SPT-H 3/7 - Page B - 18 LAN_2 E2400 - Page B - 39 ESS DAC - Page B - 60

SPT-H 4/7 - Page B - 19 Click, Finger Conn - Page B - 40 HP AMP - Page B - 61

SPT-H 5/7 - Page B - 20 HDD & Second HDD - Page B - 41 Audio Jack - Page B - 62

SPT-H 6/7 - Page B - 21 USB Port - Page B - 42 Power Sequence - Page B - 63

SPT-H 7/7 - Page B - 22 5VS, 3.3VS, 1.0 V Series - Page B - 43

B-1

Schematic Diagrams

Sheet 1 of 62

Block Diagram

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

P870DM2/DM3 Skylake System Block Diagram

SHEET 56

<=7"

PCIE

23x23mm FCBGA

480 Mbps

SHEET 2,3,4,5,6

3"~12"

D MIC

DDR IV

S-processor

24 MHz

<=9"

SHEET 7,8,9,10

SO-DIMM*4

32.768KHz

AZALIA LINK

<=8"

Azalia Codec

USB 2.0

DMI*4

SHEET 15~21

SATA III 6.0Gb/s

SHEET 27

1866/2133 MHz
DDR4 / 1.2V

REALTEK
ALC898

100 MHz

SLI

P. 11

PCIEx8

MXM-III VGA
Slave

PCIEx8

MXM-III VGA
Master

P. 12

PCIEx16

USB 3.0

5 Gbps

eDP

SHEET 13

SATA 4,5

24 MHz

SHEET 40

HDD&2nd HDD

<7"

HP
OUT

LINE
IN

MIC
IN

SPDIF
OUT

SHEET 61

M KEY

NGFF PCIE

SOCKET

SHEET 35

SATA 0

NGFF PCIE

SATA 3

SHEET 35

SOCKET

M KEY

3"~9"

SHEET 38

SMART
BATTERY

SHEET 46

RT5

SHEET 2

THERMAL
SENSOR

SMART
FANx3

SHEET 25

EC SMBUS

AC-IN

SHEET 26

LED control

TOUCH PAD
CLICK BOARD

LPC

BIOS
SPI

SHEET 15

EC

32.768 KHz SHEET 22

ITE 8587E
(512KB ROM)

TPM2.0

SHEET 24

PCIe9~12

SHEET 41

USB3.0
PORT2

(USB2)

(Charging)

USB3.0
PORT3

SHEET 41

(USB3)

SHEET 27

USB3.0
PORT1

(USB1)

CCD

(USB6)

SHEET 27

FingerPrint

SHEET39

FINGER PRINTER

12 MHz

(USB7)

Realtek

SHEET 36

RTS5250

CARD READER

PCIe4

SHEET 37

LAN_1

Qualcomm

E2400

Qualcomm
E2400

LAN_2

25
MHz

25
MHz

SHEET 37

RJ-45

SHEET 28,29

Alpine Ridge

SHEET 30

USB Type C1

SHEET 30

TPS65982

RJ-45

PCIe1,2

SOCKET

NGFF PCIE

A+E KEY

SHEET 34

WLAN+BT

PCIe19 PCIe20

USB8

PCIe5~PCIe8

Hi-End HP

SHEET 56

SHEET 57

TAS5766MDCA_1

TI

SHEET 57

TI

PCM1861

/Ed^W<Z
&ƌŽŶƚ>

Second EC

SHEET 23

ITE 8587E

SHEET 23

SPI ROM

25
MHz

PS8338B

mDP_2

SHEET 33

MUX

DDI1

/Ed^W<Z
&ƌŽŶƚZ

SHEET 33

SHEET 38

SHEET 38

SHEET 41

5V,3.3V,5VS,3.3VS,3.3VS_2,

3.3VA,VCCST_VCCPLL

<=9"

<=7"

24 MHz

<=14.5"

CHARGER LED B'D 6-71-P8704-D02

USB3.0
PORT5

SHEET 41

(USB5)

37.5x37.5mm
35W~95W

LGA1151 Socket

SKL_PCH_H
Skylake PCH
PCH-H(Z170)

PCIe13~16

2.5V,5VS_2

SHEET 42

SHEET 43

AMP10V,VCCSA

DDR4 VDDQ&VTT_MEM,VCCPLL_OC

SHEET 44

SHEET 45

DC_IN,PWR CHARGER
VCCIO,1.0VA

SHEET 46

SHEET 47,48

VCORE,VCCGT
VDD3,VDD5

SHEET 49

SHEET 52

SHEET 53

CLICK B'D 6-71-P8722-D02A
FINGER SENSOR B'D 6-71-P870F-D03

SHEET 54

POWER SWITCHLED B'D 6-71-P872S-D01

SHEET 55

AUDIO BOARD

AUDIO B'D 6-71-P8728-D02A

^htKK&Z

SHEET 58

TAS5766MDCA_2

TI

SHEET 32

PS8338B

mDP_1

SHEET 32

SHEET 56~61

SHEET 26

INT. Backlight K/B

HDMI

PS8409

SHEET 14

SHEET 14

MUX

USB3.0
PORT4

SHEET 41

(USB4)

SHEET 31

USB Type C2

SHEET 31

TPS65982

Title

Size Document Number Rev

Date: Sheet

of

6-7P-P8726-004

1.0

[01] BLOCK DIAGRAM

Custom

162Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-7P-P8726-004

1.0

[01] BLOCK DIAGRAM

Custom

162Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-7P-P8726-004

1.0

[01] BLOCK DIAGRAM

Custom

162Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Block Diagram

B.Schematic Diagrams

B - 2 Block Diagram

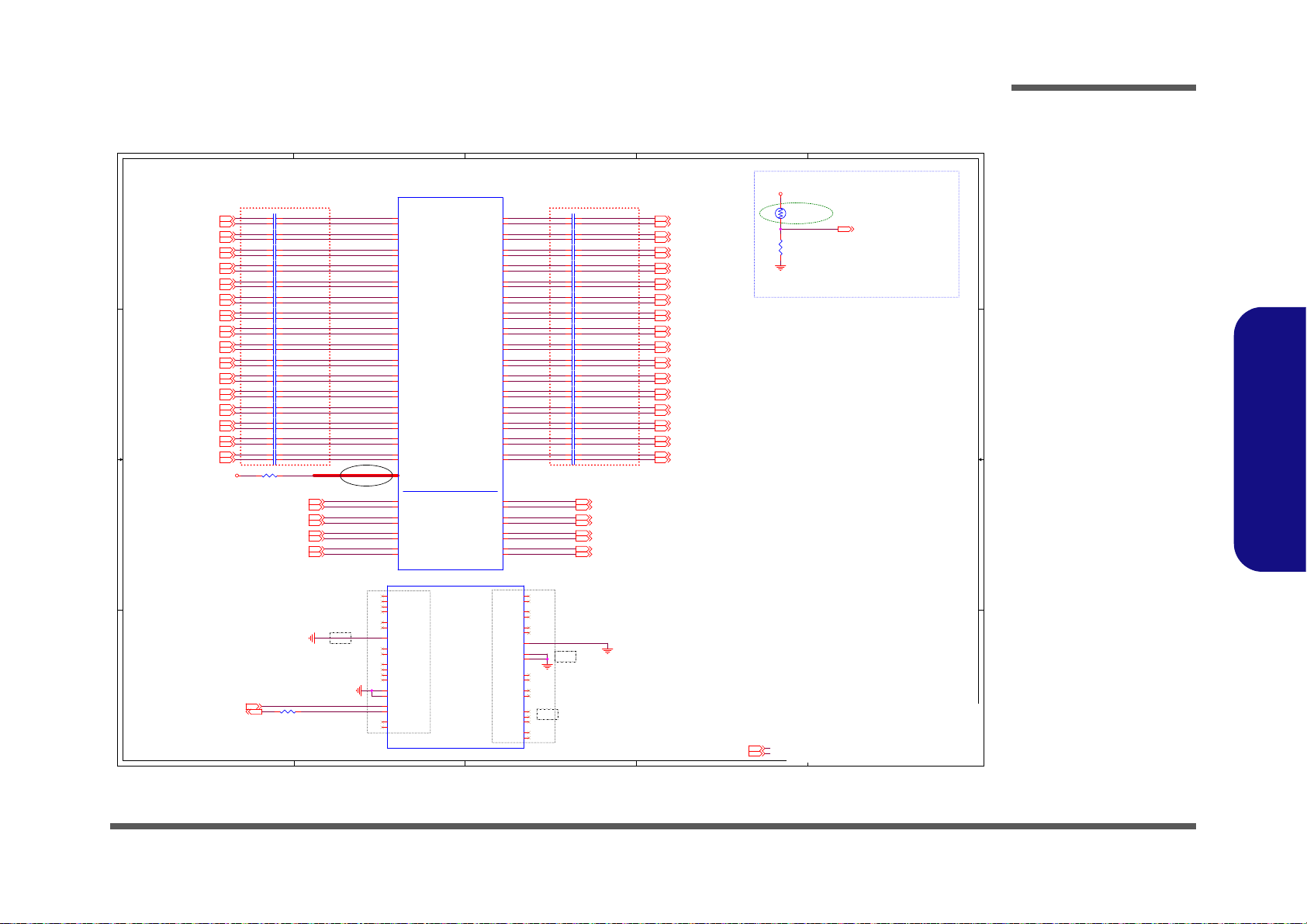

Processor 1/5

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

月

MXM SIDE

SKYLAKE-S Processor 1/5 ( DMI,FDI,PEG ,RSVD)

12 mil

CAD Note: Capacitor need to be placed
close to buffer output pin

PLACE NEAR CPU

P/N 6-17-10320-731

月

MXM SIDE

Remove test point,6/6 Tim

Remove test point,6/6 Tim

DEL, Ivy11/30

DEL, Ivy11/30

DEL, Ivy11/30

PEG_RX#_2

PEG_RX_2

PEG_RX#_3

PEG_RX_3

PEG_RX#_4

PEG_RX_4

PEG_RX#_5

PEG_RX_5

PEG_RX#_6

PEG_RX_6

PEG_RX#_7

PEG_RX_7

PEG_RX_8
PEG_RX#_8

CPU_2_PCH_TRIGGER_R

PEG_RX_9
PEG_RX#_9

PCH_2_CPU_TRIGGER

PEG_RX_10
PEG_RX#_10

PEG_RX_11
PEG_RX#_11

PEG_RX_12
PEG_RX#_12

PEG_RX_13
PEG_RX#_13

PEG_RX_14
PEG_RX#_14

PEG_RX_15
PEG_RX#_15

PEG_TX_0
PEG_TX#_0

PEG_TX_1
PEG_TX#_1

PEG_TX_2
PEG_TX#_2

PEG_TX_3
PEG_TX#_3

PEG_TX_4
PEG_TX#_4

PEG_TX_5
PEG_TX#_5

PEG_TX_6
PEG_TX#_6

PEG_TX_7
PEG_TX#_7

PEG_TX_8
PEG_TX#_8

PEG_TX_9
PEG_TX#_9

PEG_TX_10
PEG_TX#_10

PEG_TX_11
PEG_TX#_11

PEG_TX_12
PEG_TX#_12

PEG_TX_13
PEG_TX#_13

PEG_TX_14
PEG_TX#_14

PEG_TX_15
PEG_TX#_15

PEG_RCOMP

PEG_RX#_0

PEG_RX_0

PEG_RX#_1

PEG_RX_1

VCCIO

3.3V

PEG_RX#011

PEG_RX011

PEG_RX#111

PEG_RX111

PEG_RX#211

PEG_RX211

PEG_RX#311

PEG_RX311

PEG_RX#411

PEG_RX411

PEG_RX#511

PEG_RX511

PEG_RX#611

PEG_RX611

PEG_RX#711

PEG_RX711

PEG_RX#812

PEG_RX812

PEG_RX#912

PEG_RX912

PEG_RX#1012

PEG_RX1012

PEG_RX#1112

PEG_RX1112

PEG_RX#1212

PEG_RX1212

PEG_RX#1312

PEG_RX1312

PEG_RX#1412

PEG_RX1412

PEG_RX#1512

PEG_RX1512

PEG_TX#0 11

PEG_TX0 11

PEG_TX#1 11

PEG_TX1 11

PEG_TX#2 11

PEG_TX2 11

PEG_TX#3 11

PEG_TX3 11

PEG_TX#4 11

PEG_TX4 11

PEG_TX#5 11

PEG_TX5 11

PEG_TX#6 11

PEG_TX6 11

PEG_TX#7 11

PEG_TX7 11

PEG_TX#8 12

PEG_TX8 12

PEG_TX#9 12

PEG_TX9 12

PEG_TX#10 12

PEG_TX10 12

PEG_TX#11 12

PEG_TX11 12

PEG_TX#12 12

PEG_TX12 12

PEG_TX#13 12

PEG_TX13 12

PEG_TX#14 12

PEG_TX14 12

PEG_TX#15 12

PEG_TX15 12

DMI_RXP019
DMI_RXN019

DMI_RXP119
DMI_RXN119

DMI_RXP219
DMI_RXN219

DMI_RXP319
DMI_RXN319

DMI_TXP0 19
DMI_TXN0 19

DMI_TXN1 19

DMI_TXP1 19

DMI_TXP2 19
DMI_TXN2 19

DMI_TXP3 19
DMI_TXN3 19

THERM_VOLT 22

PCH_2_CPU_TRIGGER21

CPU_2_PCH_TRIGGER21

3.3V12,13,14,16,18,24,29,34,39,42,43,46,48

VCCIO3,5,48

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[02] Processor 1/5-DMI,PEG,RSVD

A3

262Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[02] Processor 1/5-DMI,PEG,RSVD

A3

262Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[02] Processor 1/5-DMI,PEG,RSVD

A3

262Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C632 0.22u_10V_X5R_04

C737 0.22u_10V_X5R_04

C653 0.22u_10V_X5R_04

C721 0.22u_10V_X5R_04

C638 0.22u_10V_X5R_04

C726 0.22u_10V_X5R_04

C628 0.22u_10V_X5R_04

C724 0.22u_10V_X5R_04

C657 0.22u_10V_X5R_04

C637 0.22u_10V_X5R_04

C748 0.22u_10V_X5R_04

C630 0.22u_10V_X5R_04

C722 0.22u_10V_X5R_04

C652 0.22u_10V_X5R_04

C720 0.22u_10V_X5R_04

C742 0.22u_10V_X5R_04

C739 0.22u_10V_X5R_04

C747 0.22u_10V_X5R_04

C723 0.22u_10V_X5R_04

C745 0.22u_10V_X5R_04

C626 0.22u_10V_X5R_04

C649 0.22u_10V_X5R_04

C651 0.22u_10V_X5R_04

C654 0.22u_10V_X5R_04

SKL_S_CPU

LGA1151

REV = 1.2

?

?

10 OF 12

U1J

SKL_S_CPU_LGA

RSVD_TP

H12

RSVD

AU39

RSVD

AU40

RSVD_TP

AV1

RSVD_TP

J8

RSVD_TP

J7

RSVD

B39

RSVD_TP

AV39

VSS

AT15

VSS

AR23

VSS

AR22

RSVD

J15

RSVD

J14

RSVD

AU10

RSVD

AU9

RSVD

J13

RSVD

K13

RSVD

J11

RSVD

K11

RSVD

D15

RSVD_TP

AW38

RSVD

L10

RSVD_TP

L8

RSVD_TP

K8

RSVD

K12

RSVD_TP

H11

RSVD

J17

RSVD

J19

RSVD

C40

VSS

G8

VSS

AY3

PROC_TRIGIN

D1

PROC_TRIGOUT

B3

RSVD

L12

RSVD

K10

VSS

H8

RSVD_TP

AW2

C740 0.22u_10V_X5R_04

C633 0.22u_10V_X5R_04

C646 0.22u_10V_X5R_04

C631 0.22u_10V_X5R_04

C744 0.22u_10V_X5R_04

C749 0.22u_10V_X5R_04

C622 0.22u_10V_X5R_04

C743 0.22u_10V_X5R_04

C736 0.22u_10V_X5R_04

C621 0.22u_10V_X5R_04

C648 0.22u_10V_X5R_04

C627 0.22u_10V_X5R_04

C624 0.22u_10V_X5R_04

C716 0.22u_10V_X5R_04

C629 0.22u_10V_X5R_04

C725 0.22u_10V_X5R_04

C719 0.22u_10V_X5R_04

R48 24.9_1%_04

C717 0.22u_10V_X5R_04

C656 0.22u_10V_X5R_04

C727 0.22u_10V_X5R_04

C718 0.22u_10V_X5R_04

LGA1151

SKL_S_CPU

3 OF 12

?

?

REV = 1.2

U1C

SKL_S_CPU_LGA

PEG_RXN[2]

D5

PEG_RXP[2]

D6

PEG_RXP[3]

E5

PEG_RXN[3]

E4

PEG_RXN[4]

F5

PEG_RXP[0]

B8

PEG_RXP[13]

R5

DMI_TXN[3]

AF3

DMI_TXP[3]

AF2

DMI_TXN[2]

AE1

DMI_TXP[2]

AE2

DMI_TXP[1]

AD3

DMI_TXN[1]

AD2

DMI_TXN[0]

AC1

DMI_TXP[0]

AC2

DMI_RXP[3]

AC4

DMI_RXN[3]

AC5

DMI_RXN[2]

AB3

DMI_RXP[2]

AB4

DMI_RXP[1]

AA4

DMI_RXN[1]

AA5

DMI_RXP[0]

Y3

DMI_RXN[0]

Y4

PEG_RCOMP

L7

PEG_RXP[15]

U5

PEG_RXP[14]

T6

PEG_RXN[15]

U4

PEG_RXP[8]

K6

PEG_RXN[7]

J4

PEG_RXP[7]

J5

PEG_RXN[0]

B7

PEG_RXP[1]

C7

PEG_RXN[1]

C6

PEG_RXP[4]

F6

PEG_RXP[5]

G5

PEG_RXP[6]

H6

PEG_RXP[10]

M6

PEG_RXN[10]

M5

PEG_RXP[11]

N5

PEG_RXN[11]

N4

PEG_RXP[12]

P6

PEG_RXN[13]

R4

PEG_RXN[14]

T5

PEG_TXP[0]

A5

PEG_TXN[0]

A6

PEG_TXP[1]

B4

PEG_TXN[1]

B5

PEG_TXN[2]

C4

PEG_TXP[2]

C3

PEG_TXN[3]

D3

PEG_TXP[3]

D2

PEG_TXP[4]

E1

PEG_TXN[5]

F3

PEG_TXN[4]

E2

PEG_TXP[5]

F2

PEG_TXN[6]

G2

PEG_TXP[6]

G1

PEG_TXP[7]

H2

PEG_TXP[8]

J1

PEG_TXN[10]

L2

PEG_TXP[10]

L1

PEG_TXN[9]

K3

PEG_TXP[11]

M2

PEG_TXN[11]

M3

PEG_TXN[12]

N2

PEG_TXP[12]

N1

PEG_TXN[13]

P3

PEG_TXP[13]

P2

PEG_TXN[14]

R1

PEG_TXP[14]

R2

PEG_TXP[15]

T2

PEG_TXN[15]

T3

PEG_RXN[12]

P5

PEG_RXN[9]

L4

PEG_RXN[8]

K5

PEG_TXP[9]

K2

PEG_TXN[8]

J2

PEG_RXP[9]

L5

PEG_TXN[7]

H3

PEG_RXN[5]

G4

PEG_RXN[6]

H5

R72
10K_1%_04

C623 0.22u_10V_X5R_04

C746 0.22u_10V_X5R_04

C639 0.22u_10V_X5R_04

RT1
TH05-3H103FR

1 2

R495 20_1%_04

C658 0.22u_10V_X5R_04

C735 0.22u_10V_X5R_04

C750 0.22u_10V_X5R_04

C655 0.22u_10V_X5R_04

C738 0.22u_10V_X5R_04

C645 0.22u_10V_X5R_04

C625 0.22u_10V_X5R_04

C636 0.22u_10V_X5R_04

C647 0.22u_10V_X5R_04

C634 0.22u_10V_X5R_04

C635 0.22u_10V_X5R_04

C650 0.22u_10V_X5R_04

C659 0.22u_10V_X5R_04

C640 0.22u_10V_X5R_04

C644 0.22u_10V_X5R_04

C741 0.22u_10V_X5R_04

Sheet 2 of 62

Processor 1/5

Schematic Diagrams

B.Schematic Diagrams

Processor 1/5 B - 3

Schematic Diagrams

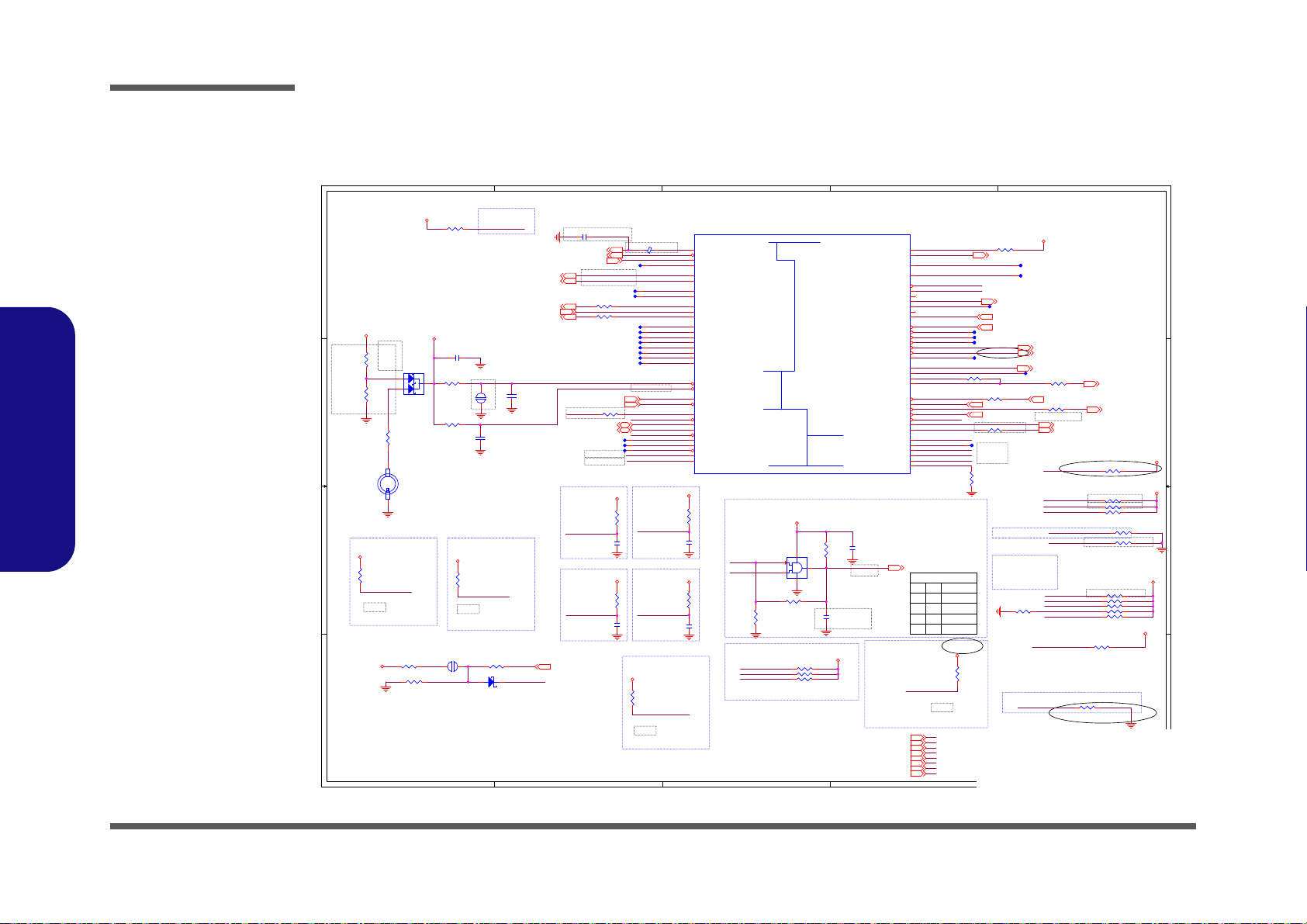

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

2/6

H_TCK TERMINATION PLACE NEAR CPU WITHIN 1.1 INCH

CPU_24MHZ

SKYLAKE-S Processor 2/7 (JTAG,CLK,CFG ,DISPLAY)

PLACE INSIDE CPU CAVITY

CAD Note: Capacitor need to be placed
close to buffer output pin

Modify(CRB

䁢

2.8K_1%),

3/30 Tim

Modify,4/1 Tim

Modify,4/1 Tim

Remove 0Ohm,6/6 Tim

Stall reset sequence after PCU PLL lock until de-asserted:
1 = (Default) Normal Operation;
No stall.
0 = Stall.

CFG TABLE

CFG[0]

CFG[1]

CCD

CFG[19:8]

Reserved configuration lane.

CFG[2]

PCI Express* Static x16 Lane Numbering Reversal.
1 = Normal operation
0 = Lane numbers reversed.

CFG[3]

Reserved configuration lane.

CFG[4]

eDP enable:
1 = Disabled.
0 = Enabled.

CFG[6:5]

PCI Express* Bifurcation
00 = 1 x8, 2 x4 PCI Express*
01 = reserved
10 = 2 x8 PCI Express*
11 = 1 x16 PCI Express*

CFG[7]

PEG Training:
1 = (default) PEG Train immediately following RESET# deassertion.
0 = PEG Wait for BIOS for training.

Reserved configuration lanes.

Remove test point,6/7 Tim

Modify,6/7 Tim

Modify,6/7 Tim

Modify 1%,6/14 Tim

DEL,Ivy 11/30

1.

⍾㴰忋䳸军

PCH

2.

⇒昌

*0_04

DEL, Ivy 11/30

DEL, Ivy11/30

DEL, Ivy11/30

DEL, Ivy11/30

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

Modify ,Ivy12/30

value *10mil change *0402_short,
Ivy12/30

value *10mil change *0402_short,
Ivy12/30

CFG_RCOMP

H_TDO

H_PREQ_N

H_TRST_N

H_TCK

H_TDO

H_TRST_N

H_PREQ_N

H_TCK

H_PROCHOT# H_PROCHOT_R_N

H_VIDSOUT

H_VIDSCK

CPU_VIDALERT_N

H_VIDALERT_N

H_VIDSOUT
H_PROCHOT#
H_THRMTRIP#

DDR_VTT_CNTL

VCCST_PWRGD_CPU

H_SKTOCC_N

H_CATERR#

H_PWRGD

H_PM_DOWN_R

H_THRMTRIP#

PECI

H_PM_SYNC

H_THERMTRIP_N

SKL_CNL_N

CFG6

CFG8

CFG2

CFG5

CFG9

CFG11

CFG13

CFG12

CFG14
CFG15

H_PROCHOT#

CFG3

CFG10

AUD_AZACPU_SDI_R

DP_RCOMP

CFG17
CFG16
CFG19
CFG18

XDP_BPM3

XDP_BPM2

XDP_BPM1

XDP_BPM0

CFG0

H_TDI
H_TMS

H_PRDY_N

VCCST_VCCPLL

3.3VA

VCCIO

VCCST_VCCPLL

PCH_CPU_BCLK_DP18
PCH_CPU_BCLK_DN18

PCH_CPU_PCIBCLK_DP18
PCH_CPU_PCIBCLK_DN18

PCH_CPU_NSSC_CLK_DP18
PCH_CPU_NSSC_CLK_DN18

H_PROCHOT#47,49

H_CPU_SVIDALERT#49

H_CPU_SVIDDAT49

H_CPU_SVIDCLK49

H_PECI16,22

H_PWRGD17

PLTRST_CPU_N16

H_PM_DOWN16

H_THRMTRIP#16

H_PM_SYNC16

H_SKTOCC_N18

VCCST_VCCPLL5,17,42,47,49

3.3VA15,16,17,19,20,42

AUD_AZACPU_SDO_R 17

AUD_AZACPU_SCLK_R 17

AUD_AZACPU_SDI 17

VCCIO2,5,48

H_PROCHOT_EC22

VCCST_PWRGD20

DDR_VTT_CNTL46

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[03] Processor 2/5-CLK,MISC,DIS

A3

362Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[03] Processor 2/5-CLK,MISC,DIS

A3

362Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[03] Processor 2/5-CLK,MISC,DIS

A3

362Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R505 2.74K_1%_04

R504 6.04K_1%_04

R513 *0402_short

R34 *1K_04

R509 75_1%_04
R46 1K_1%_04

R43 *1K_04

R507 56.2_1%_04

R508 100_1%_04

SKL_S_CPU

LGA1151

5 OF 12

?

?REV = 1.2

U1E

SKL_S_CPU_LGA

PCI_BCLKP

W1

VIDSCK

E38

CATERR#

D13

PROC_SELECT#

AB36

SKTOCC#

AB35

ZVM#

AC38

DDR_VTT_CNTL

AC36

VIDSOUT

E40

CLK24P

K9

CLK24N

J9

CFG_RCOMP

M11

PROC_PRDY#

B10

PROC_PREQ#

B9

PROC_TRST#

F12

PROC_TCK

F11

PROC_TMS

F13

PROC_TDI

G12

PROC_TDO

H13

BPM#[3]

H14

BPM#[2]

G14

BPM#[1]

D17

BPM#[0]

D16

CFG[18]

G18

CFG[17]

F14

CFG[15]

H19

CFG[14]

F21

CFG[13]

F20

CFG[12]

G20

CFG[11]

H17

CFG[10]

F17

CFG[9]

E16

CFG[8]

G16

CFG[7]

H20

CFG[5]

H18

CFG[6]

G21

CFG[4]

F19

CFG[3]

H16

CFG[2]

F16

CFG[1]

F15

CFG[0]

H15

PCI_BCLKN

W2

BCLKN

W4

BCLKP

W5

THERMTRIP#

D11

PECI

G7

PM_DOWN

D8

PM_SYNC

E8

RESET#

E7

PROCPWRGD

F8

PROCHOT#

C39

VCCST_PWRGD

U2

RSVD_AC37

AC37

CFG[19]

F18

CFG[16]

E14

VIDALERT#

E39

R514

100K_04

R487 *51_04

R35 *1K_04

R510 100_04

C517

47P_50V_NPO_04

R506 220_04

R493 20_1%_04

R492 *51_04

R512 *0402_short

R524 49.9_1%_04

R500 20_1%_04

R481 51_04

R39

1K_04

R47 *0402_short

R532 10K_04

R41 *0402_short

R40 *1K_04

R488 51_04

R511 *0402_short

Q28

2SK3018S3

G

DS

LGA1151

SKL_S_CPU

?

4 OF 12

?REV = 1.2

U1D

SKL_S_CPU_LGA

DDI1_TXN[3]

D23

EDP_TXN[1]

C9

EDP_TXN[2]

H10

EDP_TXP[2]

G10

DDI1_TXN[1]

E22

DDI1_TXP[1]

D22

DDI1_TXN[0]

D21

DDI1_TXP[2]

B23

DDI1_TXN[2]

A23

DDI1_TXP[3]

C23

DDI1_TXP[0]

C21

EDP_TXP[0]

E10

EDP_TXN[0]

D10

EDP_TXP[1]

D9

EDP_TXN[3]

G9

EDP_TXP[3]

F9

EDP_AUXP

D12

EDP_AUXN

E12

EDP_DISP_UTIL

D14

EDP_RCOMP

M9

PROC_AUDIO_CLK

V3

PROC_AUDIO_SDI

V2

PROC_AUDIO_SDO

U1

DDI1_AUXP

B13

DDI2_TXN[2]

D19

DDI2_TXP[3]

D20

DDI2_TXP[2]

C19

DDI2_TXN[1]

E18

DDI2_TXP[1]

D18

DDI2_TXN[0]

A18

DDI2_TXP[0]

B18

DDI1_AUXN

C13

DDI2_TXN[3]

E20

DDI2_AUXN

B12

DDI2_AUXP

A12

DDI3_TXP[0]

B14

DDI3_TXN[0]

A14

DDI3_TXP[1]

C15

DDI3_TXN[1]

B15

DDI3_TXP[2]

B16

DDI3_TXN[2]

A16

DDI3_TXP[3]

C17

DDI3_TXN[3]

B17

DDI3_AUXN

C11

DDI3_AUXP

B11

R4924.9_1%_04

Sheet 3 of 62

Processor 2/5

Processor 2/5

B.Schematic Diagrams

B - 4 Processor 2/5

Processor 3/5

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

1/29

SKYLAKE-S Processor 3/5 ( DDR4 )

Modify,3/12 Tim

Modify,3/12 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/3 Tim

M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4

M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37

M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47

M_A_DQ38

M_A_DQ49
M_A_DQ50

M_A_DQ28

M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55

M_A_DQ48

M_A_DQ5
M_A_DQ6

M_A_DQ56
M_A_DQ57
M_A_DQ58

M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63

M_A_DQ59

M_A_DQ7
M_A_DQ8
M_A_DQ9

M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19

M_A_DQ10

M_A_DQ21
M_A_DQ22

M_A_DQ0

M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27

M_A_DQ20

M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63

M_B_DQ11
M_B_DQ12

M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10

M_B_DQ0

M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46

DDR0_VREF_DQ

M_A_DQ[63:0] 7,8 M_B_DQ[63:0] 9,10

M_A_CKE1 7

M_A_CKE0 7

M_A_CKE2 8
M_A_CKE3 8

M_A_CS0# 7
M_A_CS1# 7
M_A_CS2# 8
M_A_CS3# 8

M_A_ODT1 7

M_A_ODT0 7

M_A_ODT3 8

M_A_ODT2 8

M_A_CK0 7
M_A_CK#0 7
M_A_CK1 7
M_A_CK#1 7

M_A_CK3 8
M_A_CK#3 8

M_A_CK2 8
M_A_CK#2 8

M_B_CK3 10
M_B_CK#3 10

M_B_CK2 10
M_B_CK#2 10

M_B_CK1 9
M_B_CK#1 9

M_B_CK0 9
M_B_CK#0 9

M_B_CKE2 10
M_B_CKE3 10

M_B_CKE1 9

M_B_CKE0 9

M_B_CS3# 10

M_B_CS2# 10

M_B_CS0# 9
M_B_CS1# 9

M_B_ODT2 10
M_B_ODT3 10

M_B_ODT0 9
M_B_ODT1 9

DDR_VREF_CA 7

DDR1_VREF_DQ 9

DDR0_A_PARITY 7,8
DDR0_A_ALERT# 7,8

DDR1_B_PARITY 9,10
DDR1_B_ALERT# 9,10

M_A_BA0 7,8
M_A_BA1 7,8
M_A_BG0 7,8

M_A_BG1 7,8
M_A_ACT# 7,8

M_A_A16 7,8
M_A_A14 7,8
M_A_A15 7,8

M_B_A16 9,10
M_B_A14 9,10
M_B_A15 9,10

M_B_BA0 9,10
M_B_BA1 9,10
M_B_BG0 9,10

M_B_BG1 9,10
M_B_ACT# 9,10

M_B_A0 9,10
M_B_A1 9,10
M_B_A2 9,10
M_B_A3 9,10
M_B_A4 9,10
M_B_A5 9,10
M_B_A6 9,10
M_B_A7 9,10
M_B_A8 9,10
M_B_A9 9,10
M_B_A10 9,10
M_B_A11 9,10
M_B_A12 9,10
M_B_A13 9,10

M_A_A0 7,8
M_A_A1 7,8
M_A_A2 7,8
M_A_A3 7,8
M_A_A4 7,8
M_A_A5 7,8
M_A_A6 7,8
M_A_A7 7,8
M_A_A8 7,8
M_A_A9 7,8
M_A_A10 7,8
M_A_A11 7,8
M_A_A12 7,8
M_A_A13 7,8

M_A_DQS0 7,8
M_A_DQS1 7,8
M_A_DQS2 7,8
M_A_DQS3 7,8

M_A_DQS#0 7,8
M_A_DQS#1 7,8
M_A_DQS#2 7,8
M_A_DQS#3 7,8

M_B_DQS#0 9,10
M_B_DQS#1 9,10
M_B_DQS#2 9,10
M_B_DQS#3 9,10

M_B_DQS#5 9,10
M_B_DQS#6 9,10
M_B_DQS#7 9,10

M_B_DQS#4 9,10

M_B_DQS0 9,10
M_B_DQS1 9,10
M_B_DQS2 9,10
M_B_DQS3 9,10
M_B_DQS4 9,10
M_B_DQS5 9,10
M_B_DQS6 9,10
M_B_DQS7 9,10

M_A_DQS4 7,8
M_A_DQS5 7,8
M_A_DQS6 7,8
M_A_DQS7 7,8

M_A_DQS#5 7,8
M_A_DQS#6 7,8
M_A_DQS#7 7,8

M_A_DQS#4 7,8

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[04] Processor 3/5-DDR4

A3

462Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[04] Processor 3/5-DDR4

A3

462Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[04] Processor 3/5-DDR4

A3

462Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

SKL_S_CPU

LGA1151

DDR CHANNEL A

?

1 OF 12

?

REV = 1.2

U1A

SKL_S_CPU_LGA

DDR0_DQ[16]/DDR0_DQ[32]

AN38

DDR0_ODT[1]

AU14

DDR0_ODT[2]

AU12

DDR0_ODT[3]

AY10

DDR0_DQ[20]/DDR0_DQ[36]

AN39

DDR0_DQ[21]/DDR0_DQ[37]

AN37

DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT#

AU24

DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]

AV23

DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]

AV12

DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12]

AV22

DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]

AU22

DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]

AY14

DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9]

AT22

DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8]

AT20

DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7]

AU21

DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6]

AV20

DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5]

AU20

DDR0_MA[4]

AT19

DDR0_MA[3]

AV19

DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]

AU17

DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1]

AU18

DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]

AW15

DDR0_DQ[28]/DDR0_DQ[44]

AU37

DDR0_DQ[29]/DDR0_DQ[45]

AV37

DDR0_DQ[30]/DDR0_DQ[46]

AT35

DDR0_DQSN[2]/DDR0_DQSN[4]

AP39

DDR0_DQSN[3]/DDR0_DQSN[5]

AU36

DDR0_DQSN[4]/DDR1_DQSN[0]

AW7

DDR0_DQSN[5]/DDR1_DQSN[1]

AU3

DDR0_DQ[40]/DDR1_DQ[8]

AY4

DDR0_DQ[41]/DDR1_DQ[9]

AV4

DDR0_DQ[53]/DDR1_DQ[37]

AM2

DDR0_DQ[49]/DDR1_DQ[33]

AM4

DDR0_DQ[45]/DDR1_DQ[13]

AW4

DDR0_ECC[6]

AW31

DDR0_DQ[63]/DDR1_DQ[47]

AK1

DDR0_DQ[54]/DDR1_DQ[38]

AP1

DDR0_DQ[55]/DDR1_DQ[39]

AM1

DDR0_DQ[43]/DDR1_DQ[11]

AT2

DDR0_DQ[19]/DDR0_DQ[35]

AR37

DDR0_ECC[4]

AU31

DDR0_DQ[60]/DDR1_DQ[44]

AH4

DDR0_DQ[4]

AE39

DDR0_DQ[2]

AG38

DDR0_DQ[3]

AG37

DDR0_DQ[5]

AE40

DDR0_DQ[6]

AG39

DDR0_DQ[7]

AG40

DDR0_DQ[8]

AJ38

DDR0_DQ[9]

AJ37

DDR0_DQ[10]

AL38

DDR0_DQ[11]

AL37

DDR0_DQ[13]

AJ39

DDR0_DQ[14]

AL39

DDR0_DQ[18]/DDR0_DQ[34]

AR38

DDR0_DQ[23]/DDR0_DQ[39]

AR40

DDR0_DQ[25]/DDR0_DQ[41]

AU38

DDR0_DQ[27]/DDR0_DQ[43]

AW35

DDR0_DQ[12]

AJ40

DDR0_DQ[17]/DDR0_DQ[33]

AN40

DDR0_DQ[15]

AL40

DDR0_CKP[0]

AW18

DDR0_DQ[42]/DDR1_DQ[10]

AT1

DDR0_DQ[37]/DDR1_DQ[5]

AV8

DDR0_DQ[36]/DDR1_DQ[4]

AU8

DDR0_DQ[34]/DDR1_DQ[2]

AV6

DDR0_DQ[33]/DDR1_DQ[1]

AW8

DDR0_DQ[32]/DDR1_DQ[0]

AY8

DDR0_DQ[26]/DDR0_DQ[42]

AV35

DDR0_DQ[22]/DDR0_DQ[38]

AR39

DDR0_ECC[3]

AV31

DDR0_DQ[58]/DDR1_DQ[42]

AK4

DDR0_DQ[52]/DDR1_DQ[36]

AP4

DDR0_DQ[47]/DDR1_DQ[15]

AT3

DDR0_DQ[44]/DDR1_DQ[12]

AV3

DDR0_DQ[39]/DDR1_DQ[7]

AY6

DDR0_DQ[31]/DDR0_DQ[47]

AU35

DDR0_DQSP[8]

AV32

DDR0_DQSN[8]

AU32

DDR0_DQSP[7]/DDR1_DQSP[5]

AJ2

DDR0_DQSP[6]/DDR1_DQSP[4]

AN2

DDR0_DQSP[5]/DDR1_DQSP[1]

AU2

DDR0_DQSP[4]/DDR1_DQSP[0]

AV7

DDR0_DQSP[3]/DDR0_DQSP[5]

AV36

DDR0_DQSP[2]/DDR0_DQSP[4]

AP38

DDR0_DQSP[1]

AK38

DDR0_DQSP[0]

AF38

DDR0_DQSN[7]/DDR1_DQSN[5]

AJ3

DDR0_DQSN[6]/DDR1_DQSN[4]

AN3

DDR0_DQSN[1]

AK39

DDR0_DQSN[0]

AF39

DDR0_PAR

AY15

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]

AY11

DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]

AV14

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]

AW13

DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]

AW23

DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]

AV15

DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0]

AY13

DDR0_CS#[3]

AV10

DDR0_ODT[0]

AW11

DDR0_CS#[2]

AV13

DDR0_CS#[1]

AU11

DDR0_CKE[3]

AV25

DDR0_CS#[0]

AW12

DDR0_CKE[1]

AW24

DDR0_CKE[2]

AV24

DDR0_CKE[0]

AY24

DDR0_CKN[3]

AU16

DDR0_CKN[2]

AV16

DDR0_CKP[3]

AT16

DDR0_CKP[2]

AW16

DDR0_CKN[1]

AY17

DDR0_CKP[1]

AW17

DDR0_CKN[0]

AV18

DDR0_ECC[7]

AY31

DDR0_ECC[5]

AV33

DDR0_ECC[2]

AW33

DDR0_ECC[1]

AT33

DDR0_ECC[0]

AU33

DDR0_DQ[62]/DDR1_DQ[46]

AH3

DDR0_DQ[61]/DDR1_DQ[45]

AK2

DDR0_DQ[59]/DDR1_DQ[43]

AH2

DDR0_DQ[56]/DDR1_DQ[40]

AK3

DDR0_DQ[57]/DDR1_DQ[41]

AH1

DDR0_DQ[51]/DDR1_DQ[35]

AM3

DDR0_DQ[50]/DDR1_DQ[34]

AP3

DDR0_DQ[48]/DDR1_DQ[32]

AP2

DDR0_DQ[46]/DDR1_DQ[14]

AT4

DDR0_DQ[38]/DDR1_DQ[6]

AW6

DDR0_DQ[35]/DDR1_DQ[3]

AU6

DDR0_DQ[24]/DDR0_DQ[40]

AW37

DDR0_ALERT#

AT23

DDR0_DQ[1]

AE37

DDR0_DQ[0]

AE38

SKL_S_CPU

DDR CHANNEL B

LGA1151

2 OF 12

?

?

REV = 1.2

U1B

SKL_S_CPU_LGA

DDR1_DQ[47]/DDR1_DQ[31]

AP6

DDR1_DQ[49]

AL10

DDR1_DQ[40]/DDR1_DQ[24]

AP10

DDR1_DQ[39]/DDR1_DQ[23]

AL12

DDR1_DQ[61]

AH6

DDR1_DQ[26]/DDR0_DQ[58]

AP29

DDR1_DQ[19]/DDR0_DQ[51]

AP32

DDR1_DQ[0]/DDR0_DQ[16]

AD34

DDR1_DQ[1]/DDR0_DQ[17]

AD35

DDR1_DQ[4]/DDR0_DQ[20]

AE35

DDR1_DQ[5]/DDR0_DQ[21]

AE34

DDR1_DQ[2]/DDR0_DQ[18]

AG35

DDR1_DQ[3]/DDR0_DQ[19]

AH35

DDR1_DQ[6]/DDR0_DQ[22]

AG34

DDR1_DQ[8]/DDR0_DQ[24]

AK35

DDR1_DQ[7]/DDR0_DQ[23]

AH34

DDR1_DQ[9]/DDR0_DQ[25]

AL35

DDR1_DQ[11]/DDR0_DQ[27]

AL32

DDR1_DQ[10]/DDR0_DQ[26]

AK32

DDR1_DQ[14]/DDR0_DQ[30]

AK31

DDR1_DQ[12]/DDR0_DQ[28]

AK34

DDR1_DQ[13]/DDR0_DQ[29]

AL34

DDR1_DQ[16]/DDR0_DQ[48]

AP35

DDR1_DQ[15]/DDR0_DQ[31]

AL31

DDR1_DQ[18]/DDR0_DQ[50]

AN32

DDR1_DQ[17]/DDR0_DQ[49]

AN35

DDR1_DQ[21]/DDR0_DQ[53]

AP34

DDR1_DQ[20]/DDR0_DQ[52]

AN34

DDR1_DQ[22]/DDR0_DQ[54]

AN31

DDR1_DQ[24]/DDR0_DQ[56]

AL29

DDR1_DQ[23]/DDR0_DQ[55]

AP31

DDR1_DQ[25]/DDR0_DQ[57]

AM29

DDR1_DQ[27]/DDR0_DQ[59]

AR29

DDR1_DQ[28]/DDR0_DQ[60]

AM28

DDR1_DQ[29]/DDR0_DQ[61]

AL28

DDR1_DQ[31]/DDR0_DQ[63]

AP28

DDR1_DQ[30]/DDR0_DQ[62]

AR28

DDR1_DQ[32]/DDR1_DQ[16]

AR12

DDR1_DQ[33]/DDR1_DQ[17]

AP12

DDR1_DQ[34]/DDR1_DQ[18]

AM13

DDR1_DQ[35]/DDR1_DQ[19]

AL13

DDR1_DQ[37]/DDR1_DQ[21]

AP13

DDR1_DQ[36]/DDR1_DQ[20]

AR13

DDR1_DQ[38]/DDR1_DQ[22]

AM12

DDR1_DQ[41]/DDR1_DQ[25]

AR10

DDR1_DQ[42]/DDR1_DQ[26]

AR7

DDR1_DQ[44]/DDR1_DQ[28]

AR9

DDR1_DQ[43]/DDR1_DQ[27]

AP7

DDR1_DQ[45]/DDR1_DQ[29]

AP9

DDR1_DQ[46]/DDR1_DQ[30]

AR6

DDR1_DQ[48]

AM10

DDR1_DQ[50]

AM7

DDR1_DQ[52]

AM9

DDR1_DQ[51]

AL7

DDR1_DQ[55]

AL6

DDR1_DQ[54]

AM6

DDR1_DQ[53]

AL9

DDR1_DQ[56]

AJ6

DDR1_DQ[57]

AJ7

DDR1_DQ[58]

AE6

DDR1_DQ[60]

AH7

DDR1_DQ[59]

AF7

DDR1_DQ[63]

AF6

DDR1_ECC[0]

AR25

DDR1_ECC[1]

AR26

DDR1_ECC[2]

AM26

DDR1_ECC[3]

AM25

DDR1_ECC[5]

AP25

DDR1_ECC[4]

AP26

DDR1_ECC[7]

AL26

DDR1_ECC[6]

AL25

DDR1_CKN[0]

AM21

DDR1_CKP[0]

AM20

DDR1_CKP[1]

AP22

DDR1_CKN[1]

AP21

DDR1_CKP[2]

AN20

DDR1_CKN[2]

AN21

DDR1_CKP[3]

AP19

DDR1_CKN[3]

AP20

DDR1_CKE[0]

AY29

DDR1_CKE[1]

AV29

DDR1_CKE[2]

AW29

DDR1_CS#[0]

AP17

DDR1_CKE[3]

AU29

DDR1_CS#[1]

AN15

DDR1_ODT[3]

AL15

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]

AP16

DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]

AL17

DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]

AL18

DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0]

AW28

DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1]

AL22

DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]

AM22

DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5]

AL23

DDR1_MA[4]

AP23

DDR1_MA[3]

AM23

DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6]

AW26

DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]

AY26

DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9]

AW27

DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8]

AU26

DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]

AP18

DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12]

AV27

DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]

AU27

DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]

AR15

DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1]

AY28

DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT#

AU28

DDR1_PAR

AL20

DDR1_ALERT#

AY25

DDR1_DQSN[1]/DDR0_DQSN[3]

AK33

DDR1_DQSN[3]/DDR0_DQSN[7]

AN29

DDR1_DQSN[4]/DDR1_DQSN[2]

AN13

DDR1_DQSN[5]/DDR1_DQSN[3]

AR8

DDR1_DQSP[0]/DDR0_DQSP[2]

AF35

DDR1_DQSP[1]/DDR0_DQSP[3]

AL33

DDR1_DQSP[2]/DDR0_DQSP[6]

AP33

DDR1_DQSP[3]/DDR0_DQSP[7]

AN28

DDR1_DQSP[5]/DDR1_DQSP[3]

AP8

DDR1_DQSP[4]/DDR1_DQSP[2]

AN12

DDR1_DQSP[6]

AL8

DDR1_DQSP[7]

AG7

DDR1_DQSN[8]

AN26

DDR1_DQSP[8]

AN25

DDR_VREF_CA

AB40

DDR0_VREF_DQ

AC40

DDR1_VREF_DQ

AC39

DDR1_DQSN[7]

AG6

DDR1_DQSN[6]

AM8

DDR1_DQSN[2]/DDR0_DQSN[6]

AN33

DDR1_DQSN[0]/DDR0_DQSN[2]

AF34

DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]

AL19

DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1]

AM18

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]

AN18

DDR1_ODT[2]

AP15

DDR1_ODT[1]

AL16

DDR1_CS#[2]

AN17

DDR1_CS#[3]

AM15

DDR1_ODT[0]

AM16

DDR1_DQ[62]

AE7

Sheet 4 of 62

Processor 3/5

Schematic Diagrams

B.Schematic Diagrams

Processor 3/5 B - 5

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

FOR 44e only

VCCFUSEPRG IS TIED
TO VCCST_VCCPLL

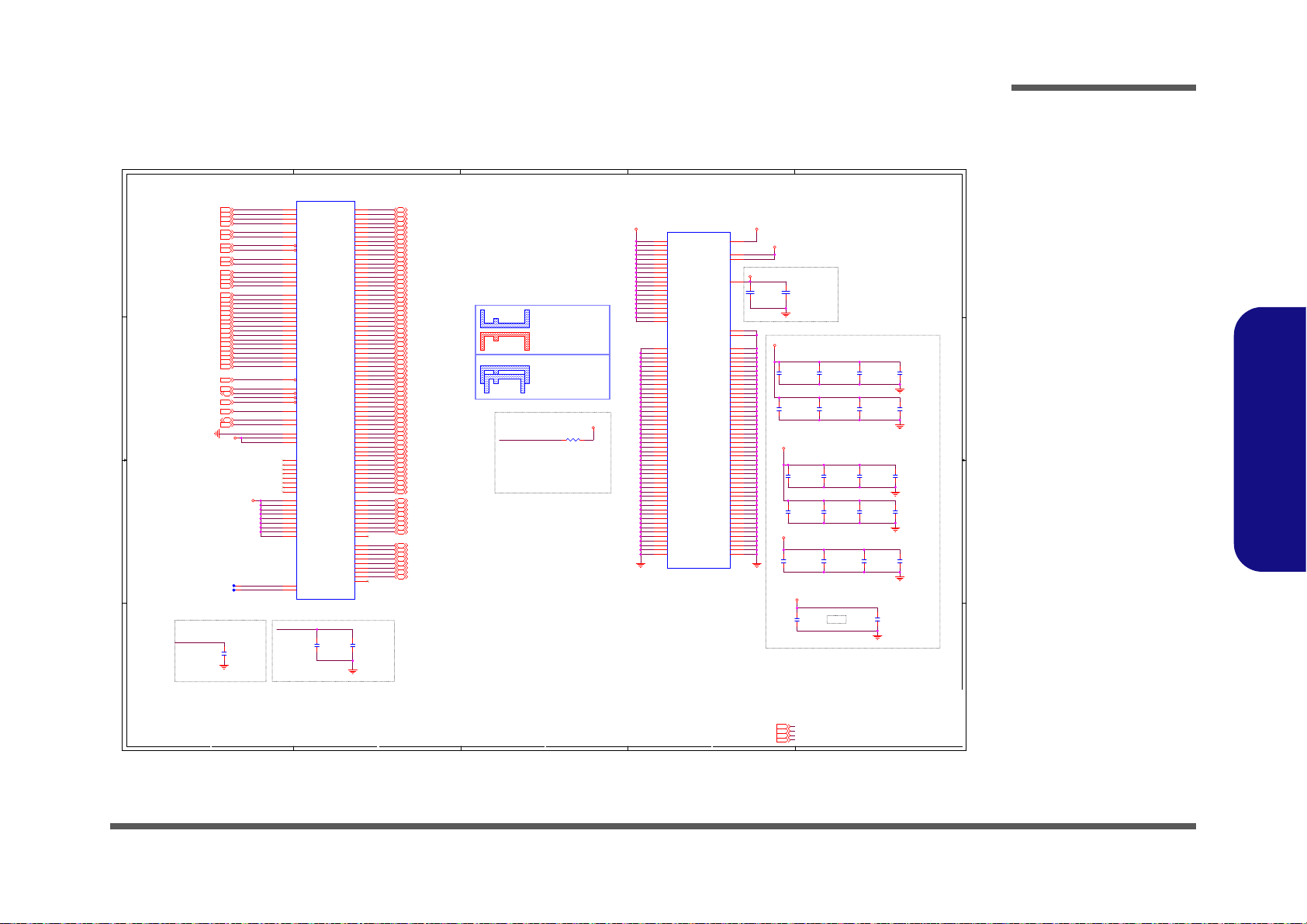

SKYLAKE-S Processor 4/5 ( POWER )

FOR OCK only

DESIGN NOTE:

PLACE CAPS IN SOCKET EDGE BOTTOM/TOP

PLACE CAPS IN SOCKET EDGE BOTTOM/TOP

DESIGN NOTE:

PLACE CAPS IN SOCKET EDGE BOTTOM/TOP

DESIGN NOTE:

DESIGN NOTE:

PLACE CAPS IN SOCKET
EDGE BOTTOM/TOP

4.2A

PLACE CAPS IN SOCKET EDGE BOTTOM/TOP

DESIGN NOTE:

4.2A

2/13

Modify,4/1 Tim

Remove Jump,6/7 Tim

Stuff R78,remove VCCIO_SENSE
6/7 Tim

⇒昌

VCORE

Ivy 11/30

Delete ,
Ivy12/23

VCCPLL_OC_R

VCCOPC_SENSE
VCCEOPIO_SENSE
VSS_OPC_EOPIO_SENSE

VCCFUSEPRG

VDDQ

VCCPLL_OC

VCORE

VCCST_VCCPLL

VCORE

VCCSA

VCCIO

VCORE

VCCSA

VDDQ

VCCIO

VDDQ

VCORE

VCCOPC_NC

VCCEOPIO_NC

VCC_OPC_1P8_NC VCC_OPC_1P8_NC1

VCCIO

VCCSA

VCCSA_SENSE 45

VSS_SA_IO_SENSE 45

VCORE50

VCCST_VCCPLL3,17,42,47,49

VCCSA45

VCCIO2,3,48

VDDQ7,8,9,10,17,46

VCCCORE_SENSE 49
VSSCORE_SENSE 49

VCCPLL_OC46 Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[05] Processor 4/5-POWER

A3

562Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[05] Processor 4/5-POWER

A3

562Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[05] Processor 4/5-POWER

A3

562Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C532

22u_6.3V_X5R_08

C492

22u_6.3V_X5R_08

C494

22u_6.3V_X5R_08

C100

22u_6.3V_X5R_08

R38

100_1%_04

C529

22u_6.3V_X5R_08

C81

22u_6.3V_X5R_08

C99

22u_6.3V_X5R_08

C117

0.1u_10V_X7R_04

J5 *40mil

12

C75

22u_6.3V_X5R_08

C48

22u_6.3V_X5R_08

C116

22u_6.3V_X5R_08

R78

100_1%_04

+

C569

*560u_2.5V_6.6*6.6*5.9

C77

22u_6.3V_X5R_08

SKL_S_CPU

LGA1151

?

7 OF 12

REV = 1.2

?U1G

SKL_S_CPU_LGA

VCC

B37

VCC

B35

VCC

B32

VCC

J24

VCC

G27

VCC

G28

VCC

G29

VCC

J22

VCC

J23

VCC

J25

VCC

L20

VCC

K18

VCC

K20

VCC

K23

VCC

L19

VCC

L16

VCC

L17

VCC

L18

VCC

F23

VCC

L22

VCC

L21

VCC

E34

VCC

E36

VCC

F25

VCC

F27

VCC

F29

VCC

G30

VCC

H22

VCC

H23

VCC

H27

VCC

H31

VCC

AJ11

VCC

AJ15

VCC

AJ19

VCC

M13

VCC

L29

VCC

E24

VCC

K21

VCC

C36

VCC

H32

VCC

J21

VCC

F33

VCC

F32

VCC

F34

VCC

G23

VCC

G26

VCC

G24

VCC

G25

VCC

J26

VCC

J28

VCC

J27

VCC

J29

VCC

J30

VCC

J31

VCC

K16

VCC

K25

VCC

K27

VCC

K29

VCC

K31

VCC

L14

VCC

L15

VCC

L23

VCC

L24

VCC

L25

VCC

L26

VCC

L27

VCC

L28

VCC

M14

VCC

L30

VCC

M18

VCC

M16

VCC

M20

VCC

M24

VCC

M22

VCC

M28

VCC

M26

VCC

M30

VCC

A25

VCC

A27

VCC

A26

VCC

A28

VCC

A30

VCC

A29

VCC

B29

VCC

B27

VCC

B25

VCC

B31

VCC

B33

VCC

B34

VCC

B36

VCC

C25

VCC

C27

VCC

C26

VCC

C30

VCC

C29

VCC

C28

VCC

C34

VCC

C32

VCC

D27

VCC

D25

VCC

D29

VCC

D31

VCC

D32

VCC

D34

VCC

D33

VCC

D36

VCC

D35

VCC

E26

VCC

E25

VCC

E27

VCC

E28

VCC

E29

VCC

E30

VCC

E32

VCC

F24

VCC

F31

VCC

G32

VCC

H25

VCC

H29

VCC

AJ12

VCC

AJ16

VCC

AJ14

VCC

AJ20

VCC

AJ22

VCC

AJ18

VCC

AJ21

VCC

AJ13

VCC

AJ17

VSS_SENSE

D38

VCC_SENSE

C38

R57

0_06

C102

22u_6.3V_X5R_08

C114

22u_6.3V_X5R_08

C78

22u_6.3V_X5R_08

C44

22u_6.3V_X5R_08

C97

22u_6.3V_X5R_08

C567

22u_6.3V_X5R_08

T7

C514

22u_6.3V_X5R_08

C46

22u_6.3V_X5R_08

C535

0.1u_10V_X7R_04

C511

22u_6.3V_X5R_08

C496

22u_6.3V_X5R_08

SKL_S_CPU

LGA1151

REV = 1.2 ?

9 OF 12

?U1I

SKL_S_CPU_LGA

VCCIO

AK14

VCCIO

AJ23

VCCIO

T8

VCCST

V6

VCCOPC

AJ29

VCCOPC

AK27

VCCEOPIO

AJ25

VCCEOPIO

AJ26

VCC_OPC_1P8

AB37

VCC_OPC_1P8

AB38

VCCSA_SENSE

AD5

VCCIO_SENSE

AF4

VSS_SAIO_SENSE

AE4

VCCOPC

AJ27

VCCOPC

AJ30

VDDQ

AU23

VDDQ

AV11

VDDQ

AV21

VDDQ

AW10

VDDQ

AW14

VDDQ

AW25

VDDQ

AY12

VDDQ

AY16

VDDQ

AY18

VDDQ

AY23

VCCPLL_OC

AJ9

VCCOPC

AJ28

VCCIO

AK24

VCCOPC_SENSE

AK21

VCCEOPIO_SENSE

AJ24

VSSOPC_EOPIO_SENSE

AK22

VCCSA

AB6

VCCSA

AA7

VDDQ

AT21

VDDQ

AU13

VDDQ

AU15

VDDQ

AU19

VDDQ

AV17

VDDQ

AT18

VCCSA

AB7

VCCSA

AB8

VCCSA

AC7

VCCSA

AC8

VCCSA

N7

VCCSA

P7

VCCSA

R7

VCCSA

T7

VCCSA

U7

VCCSA

Y6

VCCSA

Y8

VCCSA

W7

VCCSA

V7

VCCIO

AK11

VCCIO

M8

VCCIO

P8

VCCIO

U8

VCCIO

W8

VCCST

V5

VCCPLL

V4

VCCSA

AA6

VCCSA

Y7

C528

22u_6.3V_X5R_08

C70

22u_6.3V_X5R_08

C527

1u_6.3V_X5R_04

C47

22u_6.3V_X5R_08

C495

22u_6.3V_X5R_08

C493

22u_6.3V_X5R_08

C536

22u_6.3V_X5R_08

C566

22u_6.3V_X5R_08

R33

100_1%_04

C103

22u_6.3V_X5R_08

C62

22u_6.3V_X5R_08

C526

22u_6.3V_X5R_08

C101

22u_6.3V_X5R_08

R71 *0_04

T8

C79

0.1u_10V_X7R_04

C73

22u_6.3V_X5R_08

C512

22u_6.3V_X5R_08

R70 0_04

+

C570

*560u_2.5V_6.6*6.6*5.9

R32

100_1%_04

C565

22u_6.3V_X5R_08

C45

22u_6.3V_X5R_08

T9

C113

22u_6.3V_X5R_08

C537

22u_6.3V_X5R_08

C568

22u_6.3V_X5R_08

C98

22u_6.3V_X5R_08

R37

100_1%_04

C513

22u_6.3V_X5R_08

C76

22u_6.3V_X5R_08

C115

22u_6.3V_X5R_08

C74

22u_6.3V_X5R_08

C531

22u_6.3V_X5R_08

C530

22u_6.3V_X5R_08

Sheet 5 of 62

Processor 4/5

Processor 4/5

B.Schematic Diagrams

B - 6 Processor 4/5

Processor 5/5

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SKYLAKE-S Processor 5/5 ( GND )

DESIGN NOTE:

PLACE CAPS IN SOCKET EDGE BOTTOM/TOP

Modify,4/3 Tim

Remove Jump,6/7 Tim

Cap all delete ,
Ivy 11/30

枸䔁⇒昌

Ivy12/11

VCCGTX_SENSE
VSSGTX_SENSE

VCCGTX

VCCGT

VCCGTX

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[06] Processor 5/5-VCCGT,GND

A3

662Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[06] Processor 5/5-VCCGT,GND

A3

662Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[06] Processor 5/5-VCCGT,GND

A3

662Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

SKL_S_CPU

LGA1151

REV = 1.2

?

?

8 OF 12

U1H

SKL_S_CPU_LGA

VCCGT

J39

VCCGT

N36

VCCGT

M38

VCCGT

M33

VCCGT

L38

VCCGTX

L31

VCCGTX

L33

VCCGTX

M32

VCCGT

AB34

VCCGT

G36

VCCGT

G37

VCCGT

G38

VCCGT

AB33

VCCGT

AA38

VCCGT

AA37

VCCGT

AA34

VCCGTX

F35

VCCGTX

J35

VCCGTX

K32

VCCGTX

K34

VCCGTX

G34

VCCGTX

G35

VCCGTX

H33

VCCGTX

H34

VCCGTX

J33

VSSGT_SENSE

F38

VCCGT_SENSE

F39

VSSGTX_SENSE

F36

VCCGTX_SENSE

F37

VCCGT

AA36

VCCGT

G39

VCCGT

H36

VCCGT

G40

VCCGT

H38

VCCGT

H40

VCCGT

J36

VCCGT

J38

VCCGT

J37

VCCGT

J40

VCCGT

K36

VCCGT

K40

VCCGT

K38

VCCGT

L34

VCCGT

L35

VCCGT

L36

VCCGT

L37

VCCGT

L40

VCCGT

M36

VCCGT

M34

VCCGT

N34

VCCGT

M40

VCCGT

N35

VCCGT

N37

VCCGT

N39

VCCGT

N38

VCCGT

P34

VCCGT

N40

VCCGT

P33

VCCGT

P38

VCCGT

P36

VCCGT

P40

VCCGT

R34

VCCGT

R35

VCCGT

R36

VCCGT

R37

VCCGT

R38

VCCGT

R39

VCCGT

R40

VCCGT

T33

VCCGT

T34

VCCGT

T36

VCCGT

T38

VCCGT

T40

VCCGT

U36

VCCGT

U34

VCCGT

U35

VCCGT

U37

VCCGT

U39

VCCGT

V33

VCCGT

U40

VCCGT

V34

VCCGT

V36

VCCGT

V38

VCCGT

V40

VCCGT

W34

VCCGT

W36

VCCGT

W35

VCCGT

W37

VCCGT

Y33

VCCGT

W38

VCCGT

Y38

VCCGT

Y36

VCCGT

Y34

VCCGT

AA35

VCCGT

L39

VCCGT

U38

SKL_S_CPU

LGA1151

REV = 1.2

?

?

11 of 12

U1K

SKL_S_CPU_LGA

VSS

AB5

VSS

AC3

VSS

AC33

VSS

AB39

VSS

AA8

VSS

A17

VSS

A11

VSS

AA33

VSS

AA3

VSS

A24

VSS

A13

VSS

A15

VSS

AG1

VSS

AH8

VSS

AJ1

VSS

AH40

VSS

AH5

VSS

AH39

VSS

AH38

VSS

AH37

VSS

AH36

VSS

AG8

VSS

AH33

VSS

AG5

VSS

AG4

VSS

AG36

VSS

AG33

VSS

AG3

VSS

AG2

VSS

AR30

VSS

AR3

VSS

AR27

VSS

C37

VSS

AT10

VSS

H30

VSS

AV38

VSS

AV9

VSS

L11

VSS

J16

VSS_NCTF

D40

VSS

K35

VSS

K37

VSS

K33

VSS

K30

VSS

K28

VSS

K26

VSS

K24

VSS_NCTF

C2

VSS_NCTF

A4

VSS

H7

VSS

H37

VSS

H28

VSS

AT30

VSS

AT25

VSS

AT14

VSS

C10

VSS

D24

VSS

L6

VSS

L9

VSS

D37

VSS

AR33

VSS

AU1

VSS

AT9

VSS

AT28

VSS

AT32

VSS

B30

VSS

B26

VSS

B24

VSS

AY9

VSS

AY7

VSS

AY5

VSS

AY30

VSS

AY27

VSS

AW9

VSS

AW5

VSS

AW36

VSS

AW34

VSS

AW32

VSS

AW30

VSS

AW3

VSS

AV5

VSS

AV34

VSS

AV30

VSS

AV28

VSS

AV26

VSS

AV2

VSS

AU7

VSS

AU5

VSS

AU30

VSS

AT7

VSS

AT6

VSS

AT5

VSS

AT40

VSS

AT39

VSS

AT36

VSS

AT24

VSS

AT17

VSS

AT13

VSS

AT12

VSS

AT11

VSS

AR5

VSS

AR4

VSS

AR36

VSS

AR35

VSS

AR34

VSS

AR32

VSS

AR31

VSS

B6

VSS

C12

VSS

C14

VSS

C16

VSS

C18

VSS

C20

VSS

C22

VSS

C35

VSS

C33

VSS

C31

VSS

C24

VSS

C5

VSS

C8

VSS

D26

VSS

D28

VSS

D30

VSS

D4

LGA1151

SKL_S_CPU

REV = 1.2 ?

6 OF 12

?U1F

SKL_S_CPU_LGA

VSS

AC34

VSS

AC35

VSS

AC6

VSS

AD33

VSS

AD1

VSS

AD38

VSS

AD39

VSS

AD4

VSS

AD6

VSS

AD40

VSS

AD7

VSS

AD8

VSS

AE3

VSS

AE36

VSS

AE5

VSS

AE33

VSS

AF1

VSS

AE8

VSS

AF33

VSS

AF36

VSS

AF37

VSS

AF40

VSS

AF5

VSS

AF8

VSS

A7

VSS

AJ31

VSS

AJ32

VSS

AJ33

VSS

AJ34

VSS

AJ35

VSS

AJ36

VSS

AJ4

VSS

AJ5

VSS

AJ8

VSS

AK10

VSS

AK12

VSS

AK13

VSS

AK15

VSS

AK16

VSS

AK17

VSS

AK18

VSS

AK19

VSS

AK20

VSS

AK23

VSS

AK25

VSS

AK26

VSS

AK28

VSS

AK5

VSS

AK8

VSS

AK9

VSS

AL14

VSS

AL11

VSS

AL1

VSS

AL2

VSS

AL21

VSS

AL24

VSS

AL27

VSS

AL3

VSS

AL30

VSS

AL36

VSS

AL4

VSS

AL5

VSS

AM11

VSS

AM14

VSS

AM17

VSS

AM19

VSS

AM24

VSS

AM27

VSS

AM30

VSS

AM31

VSS

AM32

VSS

AM33

VSS

AM34

VSS

AM35

VSS

AM36

VSS

AM37

VSS

AM38

VSS

AM39

VSS

AM40

VSS

AM5

VSS

AN1

VSS

AN10

VSS

AN11

VSS

AN14

VSS

AN16

VSS

AN19

VSS

AN22

VSS

AN23

VSS

AN24

VSS

AN27

VSS

AN30

VSS

AN36

VSS

AN4

VSS

AN5

VSS

AN6

VSS

AN7

VSS

AN8

VSS

AN9

VSS

AP11

VSS

AP14

VSS

AP24

VSS

AP27

VSS

AP30

VSS

AP36

VSS

AP37

VSS

AP40

VSS

AP5

VSS

AR1

VSS

AR11

VSS

AR14

VSS

AR16

VSS

AR17

VSS

AR18

VSS

AR19

VSS

AR2

VSS

AR20

VSS

AR21

VSS

AD37

VSS

AD36

VSS

AK7

VSS

AK6

VSS

AK40

VSS

AK37

VSS

AK36

VSS

AK30

VSS

AK29

SKL_S_CPU

LGA1151

REV = 1.2

?

?

12 of 12

U1L

SKL_S_CPU_LGA

VSS

D39

VSS

D7

VSS

E11

VSS

E13

VSS

E17

VSS

E15

VSS

E19

VSS

E21

VSS

E23

VSS

E3

VSS

E31

VSS

E33

VSS

E37

VSS

E35

VSS

E6

VSS

E9

VSS

F1

VSS

F22

VSS

F10

VSS

F26

VSS

F28

VSS

F30

VSS

F40

VSS

F4

VSS

F7

VSS

G11

VSS

G13

VSS

G17

VSS

G15

VSS

G19

VSS

G22

VSS

G3

VSS

G31

VSS

G33

VSS

G6

VSS

H1

VSS

H21

VSS

H24

VSS

H26

VSS

H35

VSS

H39

VSS

H4

VSS

H9

VSS

J10

VSS

J12

VSS

J18

VSS

J20

VSS

J32

VSS

J3

VSS

J34

VSS

J6

VSS

K1

VSS

K15

VSS

K14

VSS

K17

VSS

K19

VSS

K22

VSS_NCTF

B38

VSS

U3

VSS

U33

VSS

T4

VSS

T37

VSS

T1

VSS

T35

VSS

R6

VSS

R33

VSS

R8

VSS

P4

VSS

R3

VSS

P39

VSS

P35

VSS

P37

VSS

N8

VSS

P1

VSS

N6

VSS

N33

VSS

N3

VSS

M4

VSS

M7

VSS

M39

VSS

M35

VSS

M37

VSS

M29

VSS

M25

VSS

M27

VSS

M23

VSS

M21

VSS

M19

VSS

M15

VSS

M17

VSS

M10

VSS

M12

VSS

M1

VSS

L32

VSS

L3

VSS

L13

VSS

K7

VSS

K4

VSS

K39

VSS

AU25

VSS

AU34

VSS

AU4

VSS

B28

VSS

AT38

VSS

AT37

VSS

AT34

VSS

AT31

VSS

AT29

VSS

AT27

VSS

AT26

VSS

AR24

VSS

T39

VSS

V35

VSS

U6

VSS

V1

VSS

V37

VSS

V39

VSS

AT8

VSS

W3

VSS

V8

VSS

W33

VSS

Y35

VSS

W6

VSS

Y37

VSS

Y5

Sheet 6 of 62

Processor 5/5

Schematic Diagrams

B.Schematic Diagrams

Processor 5/5 B - 7

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

JDIMM2 = CHA DIMM1 001

TOP

JDIMM4 = CHB DIMM1 011

JDIMM1 = CHA DIMM0 000

JDIMM3 = CHB DIMM0 010

W>d,W>K^dK^K/DDW>d,Wt/d,/EϮϬϬD/>^

&ZKDd,^K/DDͲϬ

dK,:/DDϭϮ

W>>K^dK^K/DD

W>>K^dKW/E

W>>K^dK,

1.2V

0.6V

BOT

DEL 1/12

DEL 1/12

DEL 1/12

W>>K^dK^K/DD

3/4 Tim

3/12 Tim

2/27 Tim

2/27 Tim

Follow SKL MOW

Modify,3/4 Tim

Modify,3/12 Tim

Modify,4/2 Tim

Remove DIMM setting res,6/7 Tim

Modify,6/7 Tim

RAM1

Delete ,
Ivy12/23

DIMM0_CHA_EVENT#

VREFCA_CHA_DIMM

DDR4_DRAMRST#

VREFCA_CHA_DIMM

DIMM0_CHA_EVENT#

DIMM0_CHA_S2#
DIMM0_CHA_S3#

VDDQ

VDDQ

VDDQ

2.5V

VTT_MEM

VDDQ

VDDQ VTT_MEM

2.5V

3.3VS

VDDQ

M_A_CK04
M_A_CK#04
M_A_CK14
M_A_CK#14

M_A_CKE04
M_A_CKE14

M_A_CS0#4
M_A_CS1#4

M_A_ODT04
M_A_ODT14

M_A_BA04,8
M_A_BA14,8

M_A_BG04,8

M_A_A164,8

M_A_A144,8
M_A_A154,8

M_A_A04,8
M_A_A14,8

M_A_A54,8
M_A_A64,8

M_A_A34,8
M_A_A44,8

M_A_A24,8

M_A_A104,8
M_A_A114,8

M_A_A84,8
M_A_A94,8

M_A_A74,8

M_A_A124,8
M_A_A134,8

M_A_BG14,8

M_A_ACT#4,8

DDR0_A_PARITY4,8
DDR0_A_ALERT#4,8

DDR4_DRAMRST#8,9,10,17

SMB_DATA_MAIN8,9,10,15

SMB_CLK_MAIN8,9,10,15

DDR_VREF_CA4

M_A_DQS0 4,8
M_A_DQS1 4,8
M_A_DQS2 4,8
M_A_DQS3 4,8
M_A_DQS4 4,8
M_A_DQS5 4,8
M_A_DQS6 4,8
M_A_DQS7 4,8

M_A_DQS#0 4,8
M_A_DQS#1 4,8
M_A_DQS#2 4,8
M_A_DQS#3 4,8
M_A_DQS#4 4,8
M_A_DQS#5 4,8
M_A_DQS#6 4,8
M_A_DQS#7 4,8

VREFCA_CHA_DIMM 8

M_A_DQ58 4,8

M_A_DQ63 4,8
M_A_DQ57 4,8
M_A_DQ60 4,8

M_A_DQ28 4,8

M_A_DQ29 4,8

M_A_DQ0 4,8

M_A_DQ1 4,8

M_A_DQ2 4,8
M_A_DQ3 4,8

M_A_DQ4 4,8

M_A_DQ5 4,8

M_A_DQ6 4,8
M_A_DQ7 4,8
M_A_DQ8 4,8

M_A_DQ9 4,8

M_A_DQ10 4,8

M_A_DQ11 4,8

M_A_DQ12 4,8

M_A_DQ13 4,8

M_A_DQ14 4,8

M_A_DQ15 4,8

M_A_DQ16 4,8

M_A_DQ17 4,8

M_A_DQ18 4,8

M_A_DQ19 4,8

M_A_DQ20 4,8

M_A_DQ21 4,8

M_A_DQ22 4,8

M_A_DQ23 4,8

M_A_DQ24 4,8

M_A_DQ25 4,8

M_A_DQ26 4,8

M_A_DQ27 4,8

M_A_DQ30 4,8
M_A_DQ31 4,8

M_A_DQ32 4,8

M_A_DQ33 4,8

M_A_DQ34 4,8

M_A_DQ35 4,8

M_A_DQ36 4,8

M_A_DQ37 4,8

M_A_DQ38 4,8

M_A_DQ39 4,8

M_A_DQ40 4,8

M_A_DQ41 4,8

M_A_DQ42 4,8

M_A_DQ43 4,8

M_A_DQ44 4,8

M_A_DQ45 4,8
M_A_DQ46 4,8

M_A_DQ47 4,8

M_A_DQ48 4,8

M_A_DQ49 4,8

M_A_DQ50 4,8

M_A_DQ51 4,8

M_A_DQ52 4,8

M_A_DQ53 4,8
M_A_DQ54 4,8

M_A_DQ55 4,8

M_A_DQ56 4,8

M_A_DQ59 4,8

M_A_DQ61 4,8

M_A_DQ62 4,8

2.5V7,8,9,10,43

VTT_MEM7,8,9,10,46

VDDQ5,7,8,9,10,17,46

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[07] DDR4 CHA SO-DIMM_0

Custom

762Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[07] DDR4 CHA SO-DIMM_0

Custom

762Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[07] DDR4 CHA SO-DIMM_0

Custom

762Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C595

10u_6.3V_X5R_06

C809

0.1u_16V_X7R_04

C764

10u_6.3V_X5R_06

R648 2_1%_04

C810

0.022u_16V_X7R_04

C758

10u_6.3V_X5R_06

C268

1u_6.3V_X5R_04

R645

1K_1%_04

C600

10u_6.3V_X5R_06

C596

0.1u_16V_X7R_04

C271

1u_6.3V_X5R_04

C777

*0.1u_10V_X7R_04

C775

10u_6.3V_X5R_06

R646 0_04

C761

0.1u_16V_X7R_04

C605

1u_6.3V_X5R_04

C776

1u_6.3V_X5R_04

C757

10u_6.3V_X5R_06

JDIMM1A

D4AS0-26001-1P92

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

R156

240_1%_04

R644

1K_1%_04

C784

10u_6.3V_X5R_06

JDIMM1B

D4AS0-26001-1P92

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C603

1u_6.3V_X5R_04

C275

1u_6.3V_X5R_04

C269

1u_6.3V_X5R_04

C771

10u_6.3V_X5R_06

C664

10u_6.3V_X5R_06

R649

24.9_1%_04

C573

0.1u_16V_X7R_04

C756

10u_6.3V_X5R_06

C602

1u_6.3V_X5R_04

C754

1u_6.3V_X5R_04

C576

10u_6.3V_X5R_06

C594

2.2u_6.3V_X5R_04

C808

1u_6.3V_X5R_04

C755

1u_6.3V_X5R_04

C572

*2.2u_10V_X5R_04

Sheet 7 of 62

DDR4 CHA SO-

DIMM _0

DDR4 CHA SO-DIMM_0

B.Schematic Diagrams

B - 8 DDR4 CHA SO-DIMM_0

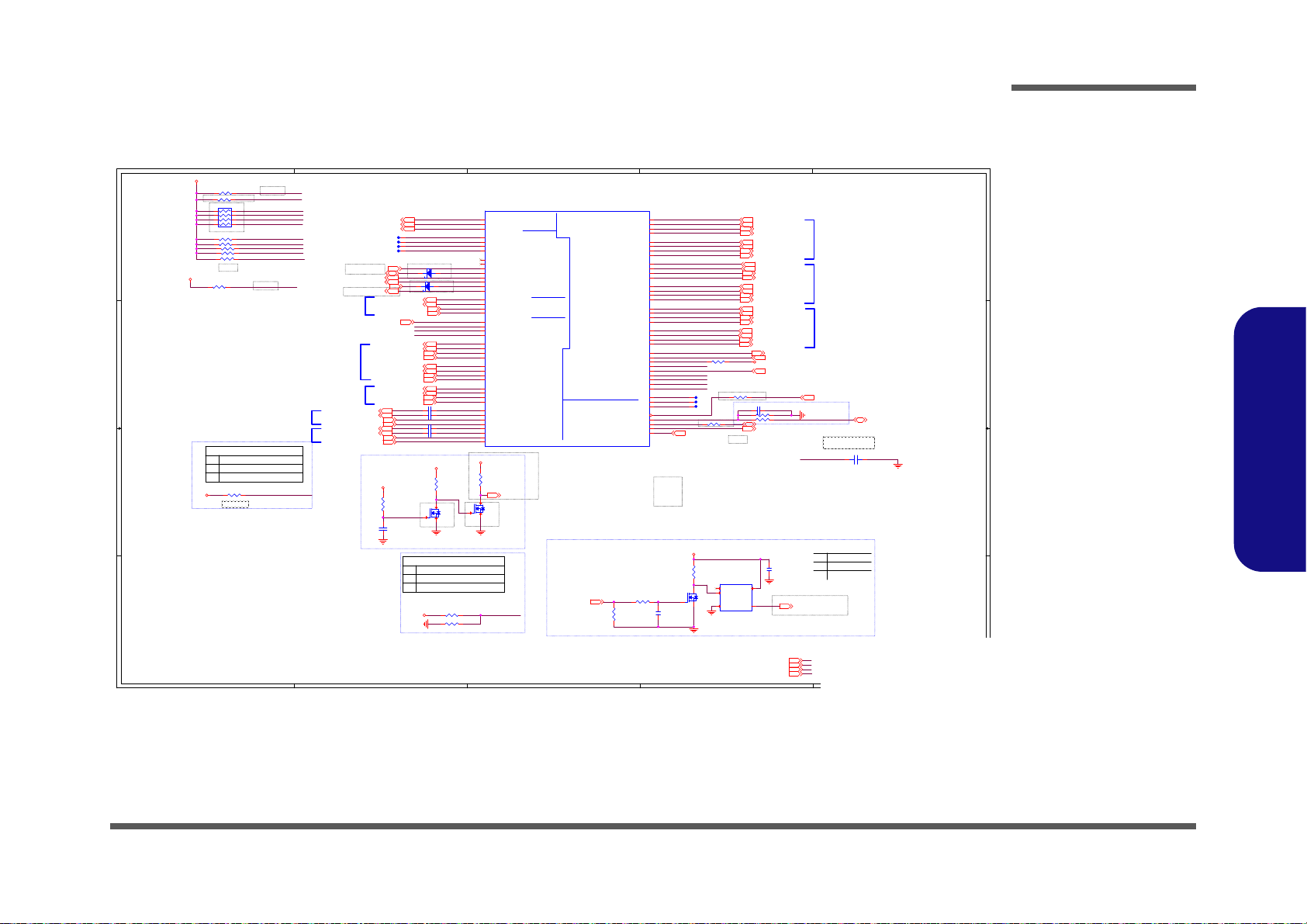

DDR4 CHA SO-DIMM_1

Sheet 8 of 62

DDR4 CHA SO-

DIMM _1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

W>d,W>K^dK^K/DD

W>>K^dK^K/DD

W>d,Wt/d,/EϮϬϬD/>^
&ZKDd,^K/DDͲϬ

W>>K^dKW/E

W>>K^dK^K/DD

DEL 1/12

DEL 1/12

DEL 1/12

3/4 Tim

2/27 Tim

JDIMM2 = CHA DIMM1 001

TOP

JDIMM4 = CHB DIMM1 011

JDIMM1 = CHA DIMM0 000

JDIMM3 = CHB DIMM0 010

BOT

Modify,3/4 Tim

Modify,3/12 Tim

3/12 Tim

Follow SKL MOW

Modify,6/7 Tim

RAM3

Remove DIMM setting res,6/7 Tim

Delete ,
Ivy12/23

DIMM1_CHA_EVENT#

VREFCA_CHA_DIMM

DIMM1_CHA_EVENT#

DDR4_DRAMRST#

DIMM1_CHA_S2#
DIMM1_CHA_S3#

VDDQ

VDDQ

VDDQ VTT_MEM

2.5V

3.3VS

2.5V

VTT_MEM

VDDQ

VDDQ

3.3VS

M_A_CK24
M_A_CK#24
M_A_CK34
M_A_CK#34

M_A_CKE34

M_A_CKE24

M_A_CS2#4
M_A_CS3#4

M_A_ODT24
M_A_ODT34

M_A_BA04,7
M_A_BA14,7

M_A_BG04,7

M_A_A164,7

M_A_A144,7
M_A_A154,7

M_A_A04,7
M_A_A14,7

M_A_A54,7
M_A_A64,7

M_A_A34,7
M_A_A44,7

M_A_A24,7

M_A_A104,7
M_A_A114,7

M_A_A84,7
M_A_A94,7

M_A_A74,7

M_A_A124,7
M_A_A134,7

M_A_ACT#4,7

M_A_BG14,7

DDR0_A_PARITY4,7

DDR4_DRAMRST#7,9,10,17

VREFCA_CHA_DIMM7

DDR0_A_ALERT#4,7

M_A_DQS0 4,7
M_A_DQS1 4,7
M_A_DQS2 4,7
M_A_DQS3 4,7
M_A_DQS4 4,7
M_A_DQS5 4,7
M_A_DQS6 4,7
M_A_DQS7 4,7

M_A_DQS#0 4,7
M_A_DQS#1 4,7
M_A_DQS#2 4,7
M_A_DQS#3 4,7
M_A_DQS#4 4,7
M_A_DQS#5 4,7
M_A_DQS#6 4,7
M_A_DQS#7 4,7

2.5V7,9,10,43

VTT_MEM7,9,10,46

VDDQ5,7,9,10,17,46

3.3VS7,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

SMB_DATA_MAIN7,9,10,15

SMB_CLK_MAIN7,9,10,15

M_A_DQ58 4,7

M_A_DQ63 4,7
M_A_DQ57 4,7
M_A_DQ60 4,7

M_A_DQ28 4,7

M_A_DQ29 4,7

M_A_DQ0 4,7

M_A_DQ1 4,7

M_A_DQ2 4,7
M_A_DQ3 4,7

M_A_DQ4 4,7

M_A_DQ5 4,7

M_A_DQ6 4,7
M_A_DQ7 4,7
M_A_DQ8 4,7

M_A_DQ9 4,7

M_A_DQ10 4,7

M_A_DQ11 4,7

M_A_DQ12 4,7

M_A_DQ13 4,7

M_A_DQ14 4,7

M_A_DQ15 4,7

M_A_DQ16 4,7

M_A_DQ17 4,7

M_A_DQ18 4,7

M_A_DQ19 4,7

M_A_DQ20 4,7

M_A_DQ21 4,7

M_A_DQ22 4,7

M_A_DQ23 4,7

M_A_DQ24 4,7

M_A_DQ25 4,7

M_A_DQ26 4,7

M_A_DQ27 4,7

M_A_DQ30 4,7
M_A_DQ31 4,7

M_A_DQ32 4,7

M_A_DQ33 4,7

M_A_DQ34 4,7

M_A_DQ35 4,7

M_A_DQ36 4,7

M_A_DQ37 4,7

M_A_DQ38 4,7

M_A_DQ39 4,7

M_A_DQ40 4,7

M_A_DQ41 4,7

M_A_DQ42 4,7

M_A_DQ43 4,7

M_A_DQ44 4,7

M_A_DQ45 4,7
M_A_DQ46 4,7

M_A_DQ47 4,7

M_A_DQ48 4,7

M_A_DQ49 4,7

M_A_DQ50 4,7

M_A_DQ51 4,7

M_A_DQ52 4,7

M_A_DQ53 4,7
M_A_DQ54 4,7

M_A_DQ55 4,7

M_A_DQ56 4,7

M_A_DQ59 4,7

M_A_DQ61 4,7

M_A_DQ62 4,7

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[08] DDR4 CHA SO-DIMM_1

Custom

862Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[08] DDR4 CHA SO-DIMM_1

Custom

862Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[08] DDR4 CHA SO-DIMM_1

Custom

862Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C582

10u_6.3V_X5R_06

C263

1u_6.3V_X5R_04

C583

10u_6.3V_X5R_06

C579

10u_6.3V_X5R_06

R624240_1%_04

C617

10u_6.3V_X5R_06

C262

1u_6.3V_X5R_04

C272

0.1u_16V_X7R_04

C281

2.2u_6.3V_X5R_04

JDIMM2A

D4AS0-26001-1P40

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

C590

1u_6.3V_X5R_04

C321

10u_6.3V_X5R_06

JDIMM2B

D4AS0-26001-1P40

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C571

*2.2u_10V_X5R_04

C236

1u_6.3V_X5R_04

C591

1u_6.3V_X5R_04

C278

10u_6.3V_X5R_06

C266

*0.1u_10V_X7R_04

C606

1u_6.3V_X5R_04

C584

10u_6.3V_X5R_06

C781

10u_6.3V_X5R_06

C276

1u_6.3V_X5R_04

C780

1u_6.3V_X5R_04

C772

1u_6.3V_X5R_04

C587

10u_6.3V_X5R_06

C778

10u_6.3V_X5R_06

C277

0.1u_16V_X7R_04

C782

1u_6.3V_X5R_04

C608

1u_6.3V_X5R_04

C581

10u_6.3V_X5R_06

Schematic Diagrams

B.Schematic Diagrams

DDR4 CHA SO-DIMM_1 B - 9

Schematic Diagrams

Sheet 9 of 62

DDR4 CHB SO-

DIMM _0

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

W>>K^dK^K/DD

W>d,Wt/d,/EϮϬϬD/>^
&ZKDd,^K/DDͲϭ

W>d,W>K^dK^K/DD

W>>K^dK^K/DD

W>>K^dKW/E

DEL 1/12

DEL 1/12

DEL 1/12

dK,:/DDϯϰ

W>>K^dK,

3/4 Tim

2/27 Tim

JDIMM2 = CHA DIMM1 001

TOP

JDIMM4 = CHB DIMM1 011

JDIMM1 = CHA DIMM0 000

JDIMM3 = CHB DIMM0 010

BOT

Modify,3/4 Tim

Modify,3/12 Tim

3/12 Tim

Follow SKL MOW

RAM2

Remove DIMM setting res,6/7 Tim

Modify,6/7 Tim

Delete ,
Ivy12/23

VREFCA_CHB_DIMM

DIMM0_CHB_EVENT#

DIMM0_CHB_EVENT#

DDR4_DRAMRST#

VREFCA_CHB_DIMM

VREFCA_CHB_DIMM

DIMM0_CHB_S2#
DIMM0_CHB_S3#

VDDQ

VDDQ

VDDQ

VDDQ

VTT_MEM

2.5V

3.3VS

2.5V

VTT_MEM

VDDQ

VDDQ

3.3VS

DDR4_DRAMRST#7,8,10,17

M_B_A164,10

M_B_A144,10
M_B_A154,10

M_B_A04,10
M_B_A14,10

M_B_A54,10
M_B_A64,10

M_B_A34,10
M_B_A44,10

M_B_A24,10

M_B_A104,10
M_B_A114,10

M_B_A84,10
M_B_A94,10

M_B_A74,10

M_B_A124,10
M_B_A134,10

M_B_BG14,10

M_B_CK04
M_B_CK#04
M_B_CK14
M_B_CK#14

M_B_CKE04
M_B_CKE14

M_B_CS0#4
M_B_CS1#4

M_B_ODT04
M_B_ODT14

M_B_BA04,10
M_B_BA14,10

M_B_BG04,10

M_B_ACT#4,10

DDR1_B_ALERT#4,10

DDR1_B_PARITY4,10

M_B_DQS0 4,10
M_B_DQS1 4,10
M_B_DQS2 4,10
M_B_DQS3 4,10
M_B_DQS4 4,10
M_B_DQS5 4,10
M_B_DQS6 4,10
M_B_DQS7 4,10

M_B_DQS#0 4,10
M_B_DQS#1 4,10
M_B_DQS#2 4,10
M_B_DQS#3 4,10

M_B_DQS#5 4,10
M_B_DQS#6 4,10
M_B_DQS#7 4,10

M_B_DQS#4 4,10

2.5V7,8,10,43

VTT_MEM7,8,10,46

VDDQ5,7,8,10,17,46

3.3VS7,8,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

VREFCA_CHB_DIMM 10

DDR1_VREF_DQ4

SMB_DATA_MAIN7,8,10,15

SMB_CLK_MAIN7,8,10,15

M_B_DQ2 4,10

M_B_DQ1 4,10

M_B_DQ37 4,10

M_B_DQ33 4,10

M_B_DQ32 4,10

M_B_DQ36 4,10

M_B_DQ34 4,10

M_B_DQ35 4,10

M_B_DQ39 4,10

M_B_DQ38 4,10

M_B_DQ53 4,10

M_B_DQ49 4,10

M_B_DQ55 4,10
M_B_DQ54 4,10

M_B_DQ51 4,10
M_B_DQ50 4,10

M_B_DQ56 4,10

M_B_DQ60 4,10

M_B_DQ63 4,10
M_B_DQ58 4,10

M_B_DQ59 4,10
M_B_DQ62 4,10

M_B_DQ17 4,10

M_B_DQ16 4,10

M_B_DQ20 4,10

M_B_DQ21 4,10

M_B_DQ18 4,10

M_B_DQ22 4,10

M_B_DQ29 4,10
M_B_DQ24 4,10

M_B_DQ28 4,10

M_B_DQ7 4,10
M_B_DQ3 4,10

M_B_DQ0 4,10

M_B_DQ6 4,10

M_B_DQ25 4,10

M_B_DQ9 4,10

M_B_DQ8 4,10

M_B_DQ11 4,10

M_B_DQ15 4,10

M_B_DQ14 4,10

M_B_DQ10 4,10

M_B_DQ13 4,10

M_B_DQ12 4,10

M_B_DQ31 4,10

M_B_DQ19 4,10

M_B_DQ23 4,10

M_B_DQ30 4,10

M_B_DQ44 4,10

M_B_DQ41 4,10

M_B_DQ43 4,10

M_B_DQ42 4,10

M_B_DQ40 4,10

M_B_DQ45 4,10
M_B_DQ46 4,10

M_B_DQ47 4,10

M_B_DQ52 4,10

M_B_DQ48 4,10

M_B_DQ57 4,10

M_B_DQ61 4,10

M_B_DQ5 4,10

M_B_DQ4 4,10

M_B_DQ26 4,10

M_B_DQ27 4,10

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[09] DDR4 CHB SO-DIMM_0

Custom

962Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[09] DDR4 CHB SO-DIMM_0

Custom

962Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[09] DDR4 CHB SO-DIMM_0

Custom

962Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C763

1u_6.3V_X5R_04

R625240_1%_04

C773

10u_6.3V_X5R_06

C274

1u_6.3V_X5R_04

C599

1u_6.3V_X5R_04

C323

1u_6.3V_X5R_04

C592

10u_6.3V_X5R_06

R622 0_04

C785

10u_6.3V_X5R_06

C760

1u_6.3V_X5R_04

C619

1u_6.3V_X5R_04

C765

0.1u_16V_X7R_04

C807

10u_6.3V_X5R_06

C324

1u_6.3V_X5R_04

R647

1K_1%_04

C593

10u_6.3V_X5R_06

C770

0.1u_16V_X7R_04

C586

10u_6.3V_X5R_06

R621

1K_1%_04

C766

*2.2u_10V_X5R_04

C267

*0.1u_10V_X7R_04

C585

10u_6.3V_X5R_06

C351

2.2u_6.3V_X5R_04

C783

10u_6.3V_X5R_06

C762

0.1u_16V_X7R_04

C768

1u_6.3V_X5R_04

C774

10u_6.3V_X5R_06

R650

24.9_1%_04

C270

1u_6.3V_X5R_04

C209

10u_6.3V_X5R_06

R623 2_1%_04

JDIMM3A

D4AS0-26001-1P52

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

C811

0.022u_16V_X7R_04

JDIMM3B

D4AS0-26001-1P52

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C597

1u_6.3V_X5R_04

C769

1u_6.3V_X5R_04

C210

10u_6.3V_X5R_06

C350

0.1u_16V_X7R_04

DDR4 CHB SO-DIMM_0

B.Schematic Diagrams

B - 10 DDR4 CHB SO-DIMM_0

DDR4 CHB SO-DIMM_1

Sheet 10 of 62

DDR4 CHB SO-

DIMM _1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

W>>K^dK^K/DD

W>d,Wt/d,/EϮϬϬD/>^
&ZKDd,^K/DDͲϭ

W>d,W>K^dK^K/DD

W>>K^dK^K/DD

W>>K^dKW/E

DEL 1/12

DEL 1/12

DEL 1/12

3/4 Tim

2/27 Tim

Modify,3/12 Tim

Modify,3/12 Tim

JDIMM2 = CHA DIMM1 001

TOP

JDIMM4 = CHB DIMM1 011

JDIMM1 = CHA DIMM0 000

JDIMM3 = CHB DIMM0 010

BOT

3/12 Tim

Follow SKL MOW

Modify,6/7 Tim

Remove DIMM setting res,6/7 Tim

RAM4

Delete ,
Ivy12/23

DIMM1_CHB_EVENT#

DIMM1_CHB_EVENT#

DDR4_DRAMRST#

VREFCA_CHB_DIMM

DIMM1_CHB_S2#
DIMM1_CHB_S3#

VDDQ

VDDQ

VDDQ

VDDQ

VTT_MEM

2.5V

3.3VS

2.5V

VTT_MEM

VDDQ

3.3VS

VREFCA_CHB_DIMM9

M_B_ACT#4,9

DDR1_B_ALERT#4,9

DDR4_DRAMRST#7,8,9,17

M_B_A164,9

M_B_A144,9
M_B_A154,9

M_B_A04,9
M_B_A14,9

M_B_A54,9
M_B_A64,9

M_B_A34,9
M_B_A44,9

M_B_A24,9

M_B_A104,9
M_B_A114,9

M_B_A84,9
M_B_A94,9

M_B_A74,9

M_B_A124,9
M_B_A134,9

M_B_BA14,9

M_B_BG04,9
M_B_BG14,9

M_B_CK24
M_B_CK#24
M_B_CK34
M_B_CK#34

M_B_CKE34

M_B_CKE24

M_B_CS2#4
M_B_CS3#4

M_B_ODT24
M_B_ODT34

M_B_BA04,9

DDR1_B_PARITY4,9

M_B_DQS0 4,9
M_B_DQS1 4,9
M_B_DQS2 4,9
M_B_DQS3 4,9
M_B_DQS4 4,9
M_B_DQS5 4,9
M_B_DQS6 4,9
M_B_DQS7 4,9

M_B_DQS#0 4,9
M_B_DQS#1 4,9
M_B_DQS#2 4,9
M_B_DQS#3 4,9

M_B_DQS#5 4,9
M_B_DQS#6 4,9
M_B_DQS#7 4,9

M_B_DQS#4 4,9

2.5V7,8,9,43

VTT_MEM7,8,9,46

VDDQ5,7,8,9,17,46

3.3VS7,8,9,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

SMB_DATA_MAIN7,8,9,15

SMB_CLK_MAIN7,8,9,15

M_B_DQ2 4,9

M_B_DQ1 4,9

M_B_DQ37 4,9

M_B_DQ33 4,9

M_B_DQ32 4,9

M_B_DQ34 4,9

M_B_DQ36 4,9

M_B_DQ35 4,9

M_B_DQ39 4,9

M_B_DQ38 4,9

M_B_DQ53 4,9

M_B_DQ49 4,9

M_B_DQ55 4,9
M_B_DQ54 4,9

M_B_DQ51 4,9
M_B_DQ50 4,9

M_B_DQ56 4,9

M_B_DQ60 4,9

M_B_DQ63 4,9
M_B_DQ58 4,9

M_B_DQ62 4,9

M_B_DQ59 4,9

M_B_DQ17 4,9

M_B_DQ16 4,9

M_B_DQ21 4,9
M_B_DQ20 4,9

M_B_DQ18 4,9

M_B_DQ22 4,9

M_B_DQ29 4,9
M_B_DQ24 4,9

M_B_DQ28 4,9
M_B_DQ25 4,9

M_B_DQ31 4,9

M_B_DQ30 4,9

M_B_DQ7 4,9

M_B_DQ0 4,9

M_B_DQ3 4,9

M_B_DQ8 4,9

M_B_DQ9 4,9

M_B_DQ6 4,9

M_B_DQ14 4,9

M_B_DQ15 4,9

M_B_DQ11 4,9
M_B_DQ12 4,9

M_B_DQ13 4,9

M_B_DQ10 4,9

M_B_DQ19 4,9

M_B_DQ23 4,9

M_B_DQ41 4,9

M_B_DQ44 4,9

M_B_DQ40 4,9

M_B_DQ42 4,9

M_B_DQ43 4,9

M_B_DQ47 4,9

M_B_DQ46 4,9

M_B_DQ45 4,9

M_B_DQ52 4,9

M_B_DQ48 4,9

M_B_DQ5 4,9

M_B_DQ57 4,9

M_B_DQ4 4,9

M_B_DQ61 4,9

M_B_DQ26 4,9

M_B_DQ27 4,9

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[10] DDR4 CHB SO-DIMM_1

Custom

10 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[10] DDR4 CHB SO-DIMM_1

Custom

10 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[10] DDR4 CHB SO-DIMM_1

Custom

10 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C319

10u_6.3V_X5R_06

C273

0.1u_16V_X7R_04

C577

10u_6.3V_X5R_06

C786

1u_6.3V_X5R_04

C322

1u_6.3V_X5R_04

C279

1u_6.3V_X5R_04

JDIMM4A

D4AR0-26001-1P40

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

C767

*2.2u_10V_X5R_04

C589

10u_6.3V_X5R_06

C574

10u_6.3V_X5R_06

JDIMM4B

D4AR0-26001-1P40

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C208

10u_6.3V_X5R_06

C237

2.2u_6.3V_X5R_04

R626240_1%_04

C575

10u_6.3V_X5R_06

C779

1u_6.3V_X5R_04

C598

10u_6.3V_X5R_06

C607

*0.1u_10V_X7R_04

C265

1u_6.3V_X5R_04

C759

10u_6.3V_X5R_06

C261

1u_6.3V_X5R_04

C609

1u_6.3V_X5R_04

C580

10u_6.3V_X5R_06

C238

0.1u_16V_X7R_04

C211

10u_6.3V_X5R_06

C601

1u_6.3V_X5R_04

C578

10u_6.3V_X5R_06

C604

1u_6.3V_X5R_04

C264

1u_6.3V_X5R_04

C280

1u_6.3V_X5R_04

Schematic Diagrams

B.Schematic Diagrams

DDR4 CHB SO-DIMM_1 B - 11

Schematic Diagrams

Sheet 11 of 62

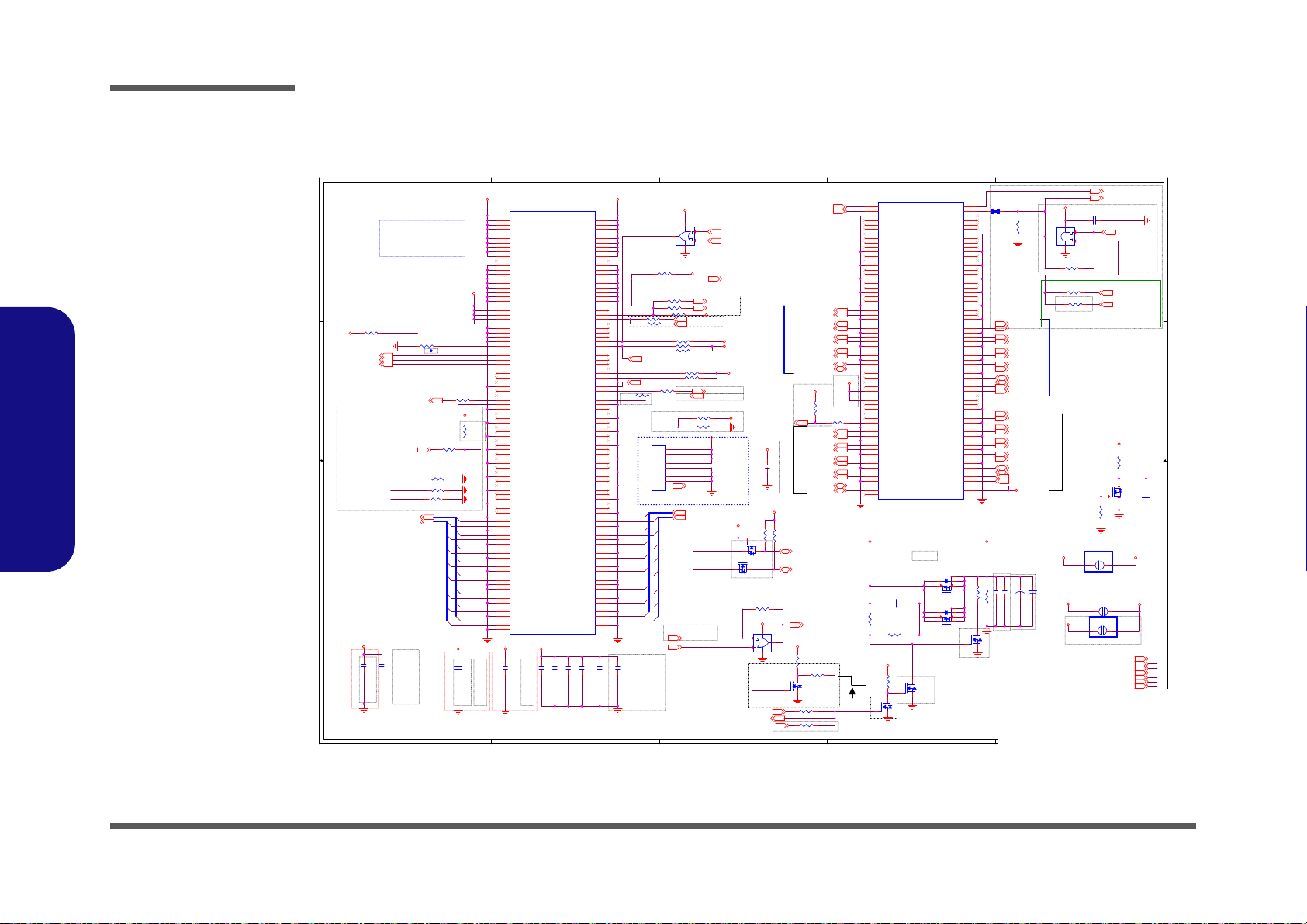

MXM 3.0 Master

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

MXM 3.0

3VRUN(1A)--3.3V

PWR_SRC(10A)--7-20V
5VRUN(2.5A)--5V

CLOSE TO MXM PIN E1

CLOSE TO MXM CONN.

Protect for plugging MXMcard
while battery mode

14A

14A

Display Port C(HDMI)

Display Port D(eDP)

Max: 0.5inch

PWRGD TO RESET 军⮹200us

5V_RUN

3V3_RUN

2A

3A

DDI1(MUX)

DDI2(MUX)

'Ͳ^zE

SWAP HDMI 0,1,2->2,1,0
Tim 1/27

nVidia recommend 1/10

nVidia recommend 1/10

check OEM4,5 to PCH GPIO,1/12

2A

3A

ON

nVidia recommend ,1/20 Tim

nVidia recommend,1/22 Tim

Cancel LVDS circuit,
2/2 Tim

3/5 Tim

Modify,3/10 Tim

Modify,3/18 Tim

Follow

ℙ䓐䶂嶗

,3/26 Tim

Modify,4/13 Tim

Follow NV Recommend,
4/16 Tim

DEFAULT SHORT

Modify net name,6/7 Tim

Modify net name,6/7 Tim

Modify net name,6/7 Tim

Modify 3V,5V net name,6/7 Tim

Modify net name,6/7 Tim

Modify net name,22uF
6/7 Tim

Modify,6/7 Tim

Modify for no stuff,
6/7 Tim

Modify for no stuff,
6/7 Tim

STUFF,6/12 Tim

Modify value,6/15 Tim

Modify value,
8/14 Tim

Modify Ivy 11/30

Modify Ivy 11/30

ADD, Ivy 03/01

Del, Ivy 11/30

CLOSE TO MXM PIN E2

CLOSE TO MXM CONN.

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

Layout

䨢攻ᶵ嵛

,

㓭⇒昌ˤ

Ivy12/17

Modify,
Ivy
12/24

Add Ivy,01/11

Del, Ivy 11/30

Del, Ivy 11/30

vaule *10mil_short change *0402_short,
Ivy12/30

Add VDD3

⮶

N17暨天,

Ivy04/01

Add,N16&N17

䓐

,Ivy12/30

Add MXM N17&N16

⎗ℙ䓐

,Ivy1230

Modify,Ivy 01/05

Modify value,Ivy01/11

EC CONTROL

PCH CONTROL

Modify,4/4 Tim

modify,Ivy 03/02

ADD,04/11 Ivy

follow NV

㓡ᶲẞ

,03/18 Ivy

follow NV

ᶲẞ

,03/18 Ivy

Modify,03/18 Ivy

Modify

ᶲẞ

TC7SZ08FU C615

ᶵᶲẞ

R579

Ivy03/30

Modify,Ivy04/16

ADD,Ivy04/01

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

ADD,Ivy04/01

Modify value,
8/14 Tim

DEFAULT SHORT

EC

⍵⎹

ADD ,04/13Ivy

ADD ,04/13Ivy

Modify,04/16Ivy

Modify,05/13Ivy

EMI,05/30

PEG_RX#7

PEG_TX7

PEG_RX7

PEG_TX#5

PEG_TX6

OEM4

PEG_TX4

PEG_TX#7

PEG_RX#6

PEG_RX4

OEM5

PEG_RX#2
PEG_RX2

PEG_RX#1
PEG_RX1

PEG_RX#0

TH_ALERT#1

PEG_TX2

PEG_TX#2

PEG_TX#0

PEG_TX1

PEG_TX#1

PEG_TX0

PEG_RX0

VGA_PWRGD1

SMC_VGA_THERM_R

SMD_VGA_THERM_R

PEG_TX5

PEG_RX6

PEG_RX#4

PEG_RX#5

PEX_STD_SW#1

PEG_RX5

PEG_TX#3

PEG_TX#4

PEG_RX3

PEG_RX#3

PEG_TX#6

PEG_TX3

MXM_VGA_DISABLE#

OEM7

OEM7

VGA_ENAVDD

VGA_BKLTEN

VGA_BKLPWM

HDMI_CEC1

HDMI_CEC1

dGPU_1V8_EN#

TH_OVERT#1

MXM_RST#

1V8_AON_EN

1V8_AON_EN

SMD_VGA_THERM_R

SMC_VGA_THERM_R

dGPU_1V8_EN#

dGPU_1V8_EN

NV_MXM_ID1

NV_MXMID1

3V3_RUN

PWR_SRC3V3_RUN

PWR_SRC

5V_RUN

3.3VS

3.3VS

PWR_SRC PWR_SRC

3.3VS

3V3_RUN

5V

VIN PWR_SRC

3.3VS

3.3VS

5V_RUN

5VS

3.3VS 3V3_RUN

3.3VS

3.3VS

PWR_SRC

5V_RUN

3V3_ON

VDD3

3.3VS

5V_RUN_OUT

3V3_RUN

VDD3

5VS

3.3VS

VDD3

3.3VS

PWR_SRC

CLK_PCIE_MXM1#18
CLK_PCIE_MXM118

HDMI_CLOCKP14

HDMI_CTRLCLK14

HDMI_CTRLDATA14

HDMI_DATA2N14

PEG_RX[0..7]2

PEG_RX#[0..7]2

PEG_TX[0..7] 2

PEG_TX#[0..7] 2

MXM1_PRSNT# 18,22

VGA_ENAVDD13
VGA_BKLTEN13

5VS12,13,14,15,22,25,39,40,42,46

VIN12,13,22,42,43,44,45,46,47,48,49,50,51

3.3VS7,8,9,10,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

HDMI_HPD 14
EDP_HPD 13

DP_AUX 13

DP_AUX# 13

DP_TXN0 13
DP_TXP0 13

VGA_BKLPWM13

5V12,14,20,26,30,31,39,41,42,43,45,46,48,49,50

DP_TXP1 13

DP_TXN1 13

DP_TXN2 13
DP_TXP2 13

DP_TXP3 13

DP_TXN3 13

HDMI_DATA2P14

HDMI_DATA1P14

HDMI_DATA1N14

HDMI_DATA0N14
HDMI_DATA0P14

HDMI_CLOCKN14

MUX_1P_A32

MUX_1N_A32

MUX_2N_A32
MUX_2P_A32

MUX_3N_A32
MUX_3P_A32

MUX_AUXN_A32
MUX_AUXP_A32

MUX_0N_A32
MUX_0P_A32

MUX_0P 33

MUX_2N 33
MUX_2P 33

MUX_3P 33

MUX_3N 33

MUX_AUXN 33
MUX_AUXP 33

MUX_0N 33

MUX_1N 33
MUX_1P 33

MUX_HPD_A 32

MUX_HPD 33

FRAME_LOCK#13

GC6_FB_EN18

TH_OVERT#1 22

SUSB14,32,33,42,46

dGPU_1V8_EN#12

VBATT_BOOST# 12,22

AC/BATL# 12,47

ALL_SYS_PWRGD 12,13,20,22

CABLE_DET1 22

SUSB#12,13,17,20,22,23,27,28,39,42,43,44,45,46

1V8_AON_EN 12,42

dGPU_1V8_EN22

VDD312,15,16,17,19,20,22,23,34,37,38,39,42,43,45,47,48,51

dGPU_PWR_EN# 12,18

MXM1_CLKREQ# 18

PLT_RST# 15,20

MXM_RST# 12

DGPU_RST# 22

DGPU_RST#_PCH 18

DGPU_PWRGD1 11,12

GPU_EVENT# 16

NV3V3_EN1 12

DD_ON#41,42,46

NV_SUSB# 12

DGPU_PWRGD111,12

3.3V2,12,13,14,16,18,24,29,34,39,42,43,46,48

3V3_ON12,42

SMC_VGA_THERM 22,26

SMD_VGA_THERM 22,26

5V_RUN_OUT12,42

NV_MXMID1 22

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[11] MXM 3.0 MASTER

Custom

11 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[11] MXM 3.0 MASTER

Custom

11 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[11] MXM 3.0 MASTER

Custom

11 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

MXM 3.0 MODULE BOARD CONNECTOR

J_MXM1A

91782-3140M-NV-01

GND

E3-10

5V

1

5V

3

5V

5

5V

7

5V

9

GND

11

GND

13

GND

15

GND

17

PEX_STD_SW#

19

VGA_DISABLE#

21

PNL_PWR_EN

23

PNL_BL_EN

25

PNL_BL_PWM

27

HDMI_CEC

29

DVI_HPD

31

LVDS_DDC_DAT

33

LVDS_DDC_CLK

35

GND

37

OEM

39

OEM

41

OEM

43

OEM

45

GND

47

PEX_RX15#

49

PEX_RX15

51

GND

53

PEX_RX14#

55

PEX_RX14

57

GND

59

PEX_RX13#

61

PEX_RX13

63

GND

65

PEX_RX12#

67

PEX_RX12

69

GND

71

PEX_RX11#

73

PEX_RX11

75

GND

77

PEX_RX10#

79

PEX_RX10

81

GND

83

PEX_RX9#

85

PEX_RX9

87

GND

89

PEX_RX8#

91

PEX_RX8

93

GND

95

PEX_RX7#

97

PEX_RX7

99

GND

101

PEX_RX6#

103

PEX_RX6

105

GND

107

PEX_RX5#

109

PEX_RX5

111

GND

113

PEX_RX4#

115

PEX_RX4

117

GND

119

PEX_RX3#

121

PEX_RX3

123

GND

125

PWR_SRC

E2-5

GND

E4-10

PRSNT_R#

2

WAKE#

4

PWR_GOOD

6

PWR_EN

8

RSVD

10

RSVD

12

RSVD

14

RSVD

16

PWR_LEVEL

18

TH_OVERT#

20

TH_ALERT#

22

TH_PWM

24

GPIO0

26

GPIO1

28

GPIO2

30

SMB_DAT

32

SMB_CLK

34

GND

36

OEM

38

OEM

40

OEM

42

OEM

44

GND

46

PEX_TX15#

48

PEX_TX15

50

GND

52

PEX_TX14#

54

PEX_TX14

56

GND

58

PEX_TX13#

60

PEX_TX13

62

GND

64

PEX_TX12#

66

PEX_TX12

68

GND

70

PEX_TX11#

72

PEX_TX11

74

GND

76

PEX_TX10#

78

PEX_TX10

80

GND

82

PEX_TX9#

84

PEX_TX9

86

GND

88

PEX_TX8#

90

PEX_TX8

92

GND

94

PEX_TX7#

96

PEX_TX7

98

GND

100

PEX_TX6#

102

PEX_TX6

104

GND

106

PEX_TX5#

108

PEX_TX5

110

GND

112

PEX_TX4#

114

PEX_TX4

116

GND

118

PEX_TX3#

120

PEX_TX3

122

GND

124

GND

133

PEX_RX2#

135

PEX_RX2

137

GND

139

PEX_RX1#

141

PEX_RX1

143

GND

145

PEX_RX0#

147

PEX_RX0

149

GND

134

PEX_TX2#

136

PEX_TX2

138

GND

140

PEX_TX1#

142

PEX_TX1

144

GND

146

PEX_TX0#

148

PEX_TX0

150

GND

152

GND

151

PWR_SRC

E2-1

PWR_SRC

E2-2

PWR_SRC

E2-3

PWR_SRC

E2-4

PWR_SRC

E2-6

PWR_SRC

E2-7

PWR_SRC

E2-8

PWR_SRC

E2-9

PWR_SRC

E2-10

GND

E4-1

GND

E4-2

GND

E4-3

GND

E4-4

GND

E4-5

GND

E4-6

GND

E4-7

GND

E4-8

GND

E4-9

PWR_SRC

E1-1

PWR_SRC

E1-2

PWR_SRC

E1-3

PWR_SRC

E1-4

PWR_SRC

E1-5

PWR_SRC

E1-6

PWR_SRC

E1-7

PWR_SRC

E1-8

PWR_SRC

E1-9

PWR_SRC

E1-10

GND

E3-1

GND

E3-2

GND

E3-3

GND

E3-4

GND

E3-5

GND

E3-6

GND

E3-7

GND

E3-8

GND

E3-9

R559 0_04

R529 *100K_04

R540

100K_04

C709

10u_25V_X5R_08

+

C976

EEEFZ1E101P

Q71

*2SK3018S3

G

DS

C713

0.1u_50V_Y5V_06

U67

74AHC1G32GW

4

53

1

2

Q11
P2003EVG

4

62
5731

8

C715

22u_6.3V_X5R_08

R539 20K_04

R561 *47K_04

R579 *0_04

R1151 0_04

R1052

*0_04

C797

4.7u_25V_X5R_08

Q31

2SK3018S3

G

DS

R611 0_04

R566

2.2K_04

PJ84
*3mm

1 2

PJ69
*3mm

1 2

S

D

G

Q30B
MTDK5S6R

5

34

R567

2.2K_04

C615 0.1u_16V_Y5V_04

R562 *10K_04

R613 100K_04

R1164

*100K_04

R542 *0_04

R637

100K_04

Q70
2SK3018S3

G

DS

R1063 0_04

U46

74AHC1G32GW

4

53

1

2

R587 0_04

S

D

G

Q36A

MTDK5S6R

2

61

R1146 0_04

R565 100K_04

U45

TC7SZ08FU

1

2

5

4

3

C541

*0.01u_50V_X7R_04

R1165

*100K_04

PJ67
*2mm

1 2

C711

0.1u_50V_Y5V_06

R1155

0_04

R588 10K_04

S

D

G

Q36B MTDK5S6R

5

34

R580

100K_04

R1158

*10K_04

R589 100K_04

Q8
P2003EVG

4

62
5731

8

C796

4.7u_25V_X5R_08

MXM 3.0 MODULE BOARD CONNECTOR

J_MXM1B

91782-3140M-NV-01

PEX_REFCLK#

153

PEX_REFCLK

155

GND

157

RSVD

159

RSVD

161

RSVD

163

RSVD

165

RSVD

167

LVDS_UCLK#

169

LVDS_UCLK

171

GND

173

LVDS_UTX3#

175

LVDS_UTX3

177

GND

179

LVDS_UTX2#

181

LVDS_UTX2

183

GND

185

LVDS_UTX1#

187

LVDS_UTX1

189

GND

191

LVDS_UTX0#

193

LVDS_UTX0

195

GND

197

DP_C_L0#

199

DP_C_L0

201

GND

203

DP_C_L1#

205

DP_C_L1

207

GND

209

DP_C_L2#

211

DP_C_L2

213

GND

215

DP_C_L3#

217

DP_C_L3

219

GND

221

DP_C_AUX#

223

DP_C_AUX

225

RSVD

227

RSVD

229

RSVD

231

RSVD

233

RSVD

235

RSVD

237

RSVD

239

RSVD

241

RSVD

243

RSVD

245

RSVD

247

RSVD

249

GND

251

DP_A_L0#

253

DP_A_L0

255

GND

257

DP_A_L1#

259

DP_A_L1

261

GND

263

DP_A_L2#

265

DP_A_L2

267

GND

269

DP_A_L3#

271

DP_A_L3

273

GND

275

DP_A_AUX#

277

DP_A_AUX

279

PRSNT_L#

281

CLK_REQ#

154

PEX_RST#

156

VGA_DDC_DAT

158

VGA_DDC_CLK

160

VGA_VSYNC

162

VGA_HSYNC

164

GND

166

VGA_RED

168

VGA_GREEN

170

VGA_BLUE

172

GND

174

LVDS_LCLK#

176

LVDS_LCLK

178

GND

180

LVDS_LTX3#

182

LVDS_LTX3

184

GND

186

LVDS_LTX2#

188

LVDS_LTX2

190

GND

192

LVDS_LTX1#

194

LVDS_LTX1

196

GND

198

LVDS_LTX0#

200

LVDS_LTX0

202

GND

204

DP_D_L0#

206

DP_D_L0

208

GND

210

DP_D_L1#

212

DP_D_L1

214

GND

216

DP_D_L2#

218

DP_D_L2

220

GND

222

DP_D_L3#

224

DP_D_L3

226

GND

228

DP_D_AUX#

230

DP_D_AUX

232

DP_C_HPD

234

DP_D_HPD

236

RSVD

238

RSVD

240

RSVD

242

GND

244

DP_B_L0#

246

DP_B_L0

248

GND

250

DP_B_L1#

252

DP_B_L1

254

GND

256

DP_B_L2#

258

DP_B_L2

260

GND

262

DP_B_L3#

264

DP_B_L3

266

GND

268

DP_B_AUX#

270

DP_B_AUX

272

DP_B_HPD

274

DP_A_HPD

276

3V3

278

3V3

280

R1157 *0_04

R568
*10mil_short

+

C975

EEEFZ1E101P

R533 20K_04

J_DC1

50299-00901-004

P/N = ?

1
2
3
4
5
6
7
8
9

R11

*100K_04

R1156
10K_04

C710

0.01u_50V_X7R_04

R564 100K_04

R615 100K_04

R617 0_04

C798

4.7u_25V_X5R_08

R1150

*10K_04

R563 100K_04

C163 *0.1u_50V_Y5V_06

R560 *0_04

C1382

0.1u_50V_Y5V_06

S

D

G

Q30A

MTDK5S6R

2

61

R614 100K_04

C1120

*0.1u_16V_Y5V_04

R618 0_04

R541 *0_04

R1163 *0_04

R616 *100K_04

R534

10K_04

C642

4.7u_25V_X5R_08

C620

4.7u_25V_X5R_08

C171 *0.1u_50V_Y5V_06

R590 0_04

MXM 3.0 Master

B.Schematic Diagrams

B - 12 MXM 3.0 Master

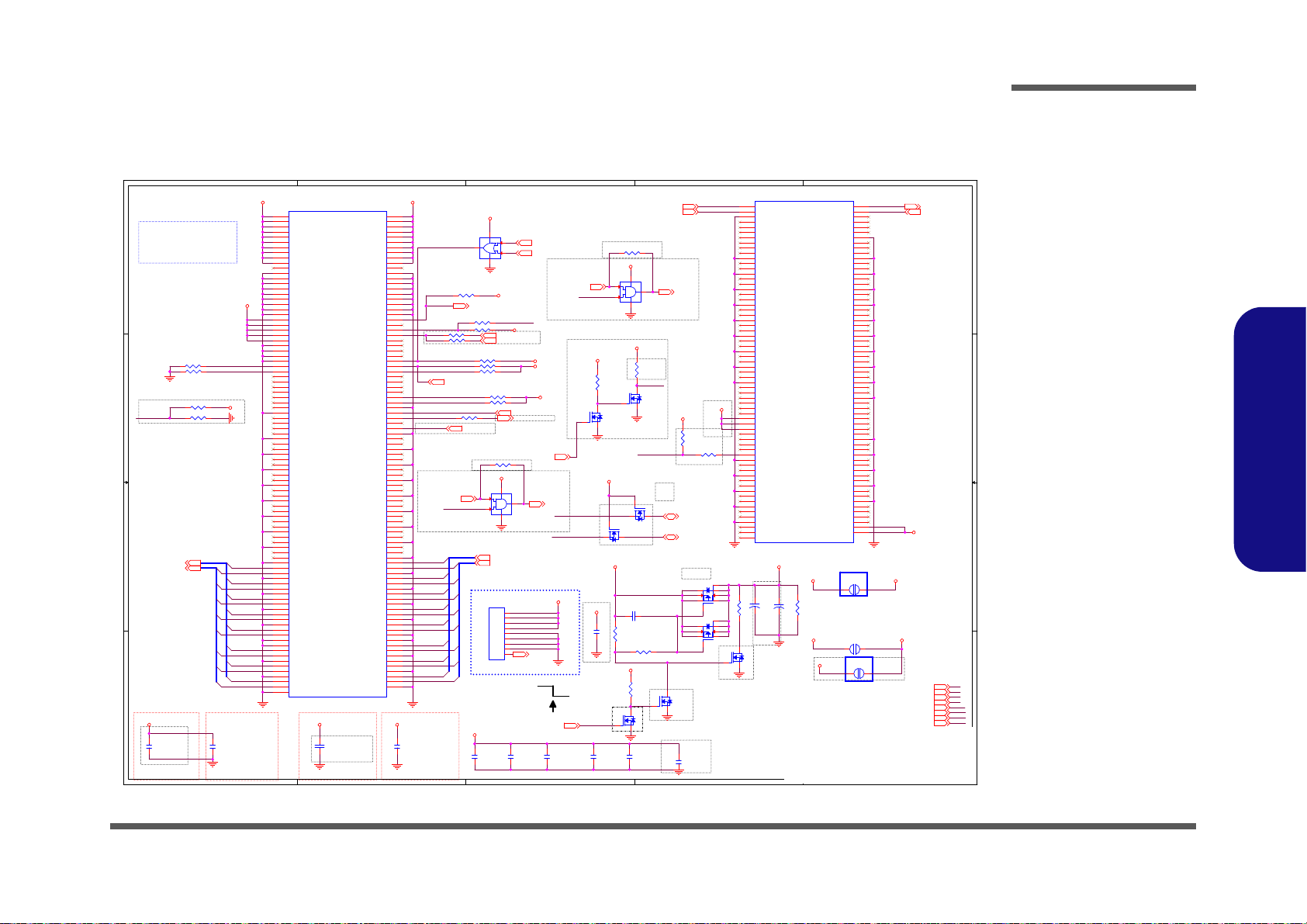

MXM 3.0 Slave

Sheet 12 of 62

MXM 3.0 Slave

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

MXM 3.0

3VRUN(1A)--3.3V

PWR_SRC(10A)--7-20V
5VRUN(2.5A)--5V

CLOSE TO MXM CONN.CLOSE TO MXM PIN E1 CLOSE TO MXM CONN.CLOSE TO MXM PIN E2

14A

14A

Max: 0.5inch

2A

3A

2A

3VRUN2

3A

5VRUN2

FOR nv recommend

FOR nv recommend

ON

nVidia recommend ,1/20 Tim

nVidia recommend ,1/20 Tim

STUFF,6/12 Tim

nVidia recommend,1/22 Tim

1/29 Tim

Follow

ℙ䓐䶂嶗

,3/26 Tim

Modify,4/13 Tim

DEFAULT SHORT

Modify net name,
6/7 Tim

Modify net name,
6/7 Tim

Modify 3V,5V net name,6/7 Tim

Modify net name,
6/7 Tim

Modify net name,
6/7 Tim

Modify,6/7 Tim

Delete *0.1uF/50V

冯

*0.01uF/50V

Ivy12/03

Modify value,
8/14 Tim

Modify value,
8/14 Tim

Modify Ivy 11/30 Modify Ivy 11/30

Modify Ivy 11/30

Modify Ivy 11/30

nVidia recommend,3/5 Tim

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

Layout

䨢攻ᶵ嵛

,

㓭⇒昌ˤ

Ivy12/17

Modify,3/18 Tim

Modify,
Ivy
12/24

Del 330u ,add EEEFZ1E101P,
Ivy01/11

Add VDD3

⮶

N17暨天,

Ivy04/01

Add,N16&N17

䓐

,Ivy12/30

Modify value,Ivy01/11

ADD NV3V3 POWER EN,Ivy04/07

ADD,Ivy04/01

DEFAULT SHORT

ADD NV3V3 POWER EN,Ivy04/07

ADD ,04/11Ivy

ADD ,04/16Ivy

ADD ,04/13Ivy

ADD ,04/13Ivy

㓡ᶲẞ

,04/16Ivy

㓡ᶲẞ

,04/16Ivy

㓡ᶵᶲẞ

,04/16Ivy

㓡ᶵᶲẞ

,04/16Ivy

Modify,04/16Ivy

Modify,05/13 Ivy

Modify,05/13 Ivy

EMI,05/30

PEG_RX#15

PEG_TX15

PEG_RX15

PEG_TX#13

PEG_TX14

PEG_TX12

PEG_TX#15

PEG_RX#14

PEG_RX12

PEG_RX#10
PEG_RX10

PEG_RX#9
PEG_RX9

PEG_RX#8

TH_ALERT#2

PEG_TX10

PEG_TX#10

PEG_TX#8

PEG_TX9

PEG_TX#9

PEG_TX8

SMD_VGA_THERM_R2

SMC_VGA_THERM_R2

PEG_RX8

VGA_PWRGD2

SMC_VGA_THERM_R2

SMD_VGA_THERM_R2

PEG_TX13

PEG_RX14

PEG_RX#12

PEG_RX#13

PEX_STD_SW#2

PEG_RX13

PEG_TX#11

PEG_TX#12

PEG_RX11

PEG_RX#11

PEG_TX#14

PEG_TX11

TH_OVERT#2

VGA_DISABLE

1V8_AON_EN

NV3V3_EN2

NV3V3_EN2

NV_SUSB#

DGPU_PWRGD2

DGPU_PWRGD2

NV_MXM_ID2NV_MXMID2

3V3_RUN2

PWR_SRC2

3V3_RUN25V_RUN2PWR_SRC2

5V_RUN2

3.3VS

3.3VS

PWR_SRC2 PWR_SRC2

3.3VS

3V3_RUN2

5V

VIN PWR_SRC2

3.3VS

5VS

3.3VS

5VS

3V3_RUN2

5V_RUN2

3.3VS

PWR_SRC2

3V3_ON

VDD3

3.3V

3.3V

5V_RUN_OUT

3V3_RUN

VDD3

3.3VS

PWR_SRC2

MXM_RST# 11

CLK_PCIE_MXM2#18
CLK_PCIE_MXM218

PEG_RX[8..15]2

PEG_RX#[8..15]2

PEG_TX[8..15] 2

PEG_TX#[8..15] 2

MXM2_PRSNT# 18,22

VIN11,13,22,42,43,44,45,46,47,48,49,50,51

5V11,14,20,26,30,31,39,41,42,43,45,46,48,49,50

5VS11,13,14,15,22,25,39,40,42,46

3.3VS7,8,9,10,11,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

MXM2_CLKREQ# 18

dGPU_1V8_EN#11

TH_OVERT#2 22

SMC_BAT 22,23,47

SMD_BAT 22,23,47

VBATT_BOOST# 11,22

AC/BATL# 11,47

ALL_SYS_PWRGD 11,13,20,22

CABLE_DET2 22

1V8_AON_EN 11,42

VDD311,15,16,17,19,20,22,23,34,37,38,39,42,43,45,47,48,51

dGPU_PWR_EN# 11,18

NV3V3_EN111

NV3V3_EN 42

SUSB#11,13,17,20,22,23,27,28,39,42,43,44,45,46

NV_SUSB# 11

3.3V2,13,14,16,18,24,29,34,39,42,43,46,48

3V3_ON11,42

5V_RUN_OUT11,42

DGPU_PWRGD111

DGPU_PWRGD_OUT 16

NV_MXMID2 22

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[12] MXM 3.0 SLAVE

A3

12 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[12] MXM 3.0 SLAVE

A3

12 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[12] MXM 3.0 SLAVE

A3

12 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R572 10K_04

S

D

G

Q68A
MTDK5S6R

2

61

R574 100K_04

S

D

G

Q32B
MTDK5S6R

5

34

Q34
P2003EVG

4

62
5731

8

R1147 0_04

U74

*TC7SZ08FU

1

2

5

4

3

C802

4.7u_25V_X5R_08

S

D

G

Q68B
MTDK5S6R

5

34

R548 20K_04

C803

10u_25V_X5R_08

R619 0_04

Q33
2SK3018S3

G

DS

PJ86
*3mm

1 2

R1160

*10K_04

C801

4.7u_25V_X5R_08

R1159 0_04

R570 *10K_04

R569 *47K_04

R806 *0_04

C564 *0.01u_50V_X7R_04

S

D

G

Q37B
MTDK5S6R

5

34

S

D

G

Q37A
MTDK5S6R

2

61

C669

4.7u_25V_X5R_08

C800

4.7u_25V_X5R_08

R1161 *0_04

MXM 3.0 MODULE BOARD CONNECTOR

J_MXM2B

91782-3140M-NV-01

PEX_REFCLK#

153

PEX_REFCLK

155

GND

157

RSVD

159

RSVD

161

RSVD

163

RSVD

165

RSVD

167

LVDS_UCLK#

169

LVDS_UCLK

171

GND

173

LVDS_UTX3#

175

LVDS_UTX3

177

GND

179

LVDS_UTX2#

181

LVDS_UTX2

183

GND

185

LVDS_UTX1#

187

LVDS_UTX1

189

GND

191

LVDS_UTX0#

193

LVDS_UTX0

195

GND

197

DP_C_L0#

199

DP_C_L0

201

GND

203

DP_C_L1#

205

DP_C_L1

207

GND

209

DP_C_L2#

211

DP_C_L2

213

GND

215

DP_C_L3#

217

DP_C_L3

219

GND

221

DP_C_AUX#

223

DP_C_AUX

225

RSVD

227

RSVD

229

RSVD

231

RSVD

233

RSVD

235

RSVD

237

RSVD

239

RSVD

241

RSVD

243

RSVD

245

RSVD

247

RSVD

249

GND

251

DP_A_L0#

253

DP_A_L0

255

GND

257

DP_A_L1#

259

DP_A_L1

261

GND

263

DP_A_L2#

265

DP_A_L2

267

GND

269

DP_A_L3#

271

DP_A_L3

273

GND

275

DP_A_AUX#

277

DP_A_AUX

279

PRSNT_L#

281

CLK_REQ#

154

PEX_RST#

156

VGA_DDC_DAT

158

VGA_DDC_CLK

160

VGA_VSYNC

162

VGA_HSYNC

164

GND

166

VGA_RED

168

VGA_GREEN

170

VGA_BLUE

172

GND

174

LVDS_LCLK#

176

LVDS_LCLK

178

GND

180

LVDS_LTX3#

182

LVDS_LTX3

184

GND

186

LVDS_LTX2#

188

LVDS_LTX2

190

GND

192

LVDS_LTX1#

194

LVDS_LTX1

196

GND

198

LVDS_LTX0#

200

LVDS_LTX0

202

GND

204

DP_D_L0#

206

DP_D_L0

208

GND

210

DP_D_L1#

212

DP_D_L1

214

GND

216

DP_D_L2#

218

DP_D_L2

220

GND

222

DP_D_L3#

224

DP_D_L3

226

GND

228

DP_D_AUX#

230

DP_D_AUX

232

DP_C_HPD

234

DP_D_HPD

236

RSVD

238

RSVD

240

RSVD

242

GND

244

DP_B_L0#

246

DP_B_L0

248

GND

250

DP_B_L1#

252

DP_B_L1

254

GND

256

DP_B_L2#

258

DP_B_L2

260

GND

262

DP_B_L3#

264

DP_B_L3

266

GND

268

DP_B_AUX#

270

DP_B_AUX

272

DP_B_HPD

274

DP_A_HPD

276

3V3

278

3V3

280

R1166 *0_04

C729

0.1u_50V_Y5V_06

C733

22u_6.3V_X5R_08

MXM 3.0 MODULE BOARD CONNECTOR

J_MXM2A

91782-3140M-NV-01

GND

E3-10

5V

1

5V

3

5V

5

5V

7

5V

9

GND

11

GND

13

GND

15

GND

17

PEX_STD_SW#

19

VGA_DISABLE#

21

PNL_PWR_EN

23

PNL_BL_EN

25

PNL_BL_PWM

27

HDMI_CEC

29

DVI_HPD

31

LVDS_DDC_DAT

33

LVDS_DDC_CLK

35

GND

37

OEM

39

OEM

41

OEM

43

OEM

45

GND

47

PEX_RX15#

49

PEX_RX15

51

GND

53

PEX_RX14#

55

PEX_RX14

57

GND

59

PEX_RX13#

61

PEX_RX13

63

GND

65

PEX_RX12#

67

PEX_RX12

69

GND

71

PEX_RX11#

73

PEX_RX11

75

GND

77

PEX_RX10#

79

PEX_RX10

81

GND

83

PEX_RX9#

85

PEX_RX9

87

GND

89

PEX_RX8#

91

PEX_RX8

93

GND

95

PEX_RX7#

97

PEX_RX7

99

GND

101

PEX_RX6#

103

PEX_RX6

105

GND

107

PEX_RX5#

109

PEX_RX5

111

GND

113

PEX_RX4#

115

PEX_RX4

117

GND

119

PEX_RX3#

121

PEX_RX3

123

GND

125

PWR_SRC

E2-5

GND

E4-10

PRSNT_R#

2

WAKE#

4

PWR_GOOD

6

PWR_EN

8

RSVD

10

RSVD

12

RSVD

14

RSVD

16

PWR_LEVEL

18

TH_OVERT#

20

TH_ALERT#

22

TH_PWM

24

GPIO0

26

GPIO1

28

GPIO2

30

SMB_DAT

32

SMB_CLK

34

GND

36

OEM

38

OEM

40

OEM

42

OEM

44

GND

46

PEX_TX15#

48

PEX_TX15

50

GND

52

PEX_TX14#

54

PEX_TX14

56

GND

58

PEX_TX13#

60

PEX_TX13

62

GND

64

PEX_TX12#

66

PEX_TX12

68

GND

70

PEX_TX11#

72

PEX_TX11

74

GND

76

PEX_TX10#

78

PEX_TX10

80

GND

82

PEX_TX9#

84

PEX_TX9

86

GND

88

PEX_TX8#

90

PEX_TX8

92

GND

94

PEX_TX7#

96

PEX_TX7

98

GND

100

PEX_TX6#

102

PEX_TX6

104

GND

106

PEX_TX5#

108

PEX_TX5

110

GND

112

PEX_TX4#

114

PEX_TX4

116

GND

118

PEX_TX3#

120

PEX_TX3

122

GND

124

GND

133

PEX_RX2#

135

PEX_RX2

137

GND

139

PEX_RX1#

141

PEX_RX1

143

GND

145

PEX_RX0#

147

PEX_RX0

149

GND

134

PEX_TX2#

136

PEX_TX2

138

GND

140

PEX_TX1#

142

PEX_TX1

144

GND

146

PEX_TX0#

148

PEX_TX0

150

GND

152

GND

151

PWR_SRC

E2-1

PWR_SRC

E2-2

PWR_SRC

E2-3

PWR_SRC

E2-4

PWR_SRC

E2-6

PWR_SRC

E2-7

PWR_SRC

E2-8

PWR_SRC

E2-9

PWR_SRC

E2-10

GND

E4-1

GND

E4-2

GND

E4-3

GND

E4-4

GND

E4-5

GND

E4-6

GND

E4-7

GND

E4-8

GND

E4-9

PWR_SRC

E1-1

PWR_SRC

E1-2

PWR_SRC

E1-3

PWR_SRC

E1-4

PWR_SRC

E1-5

PWR_SRC

E1-6

PWR_SRC

E1-7

PWR_SRC

E1-8

PWR_SRC

E1-9

PWR_SRC

E1-10

GND

E3-1

GND

E3-2

GND

E3-3

GND

E3-4

GND

E3-5

GND

E3-6

GND

E3-7

GND

E3-8

GND

E3-9

R550

100K_04

R1148
*10K_04

R551

10K_04

S

D

G

Q32A

MTDK5S6R

2

61

C1383

0.1u_50V_Y5V_06

R571 0_04

R1167

*100K_04

R549 20K_04

R575 100K_04

C732

0.01u_50V_X7R_04

C731

0.1u_50V_Y5V_06

+

C643

EEEFZ1E101P

C661

4.7u_25V_X5R_08

R547 *100K_04

R1168

*100K_04

Q35
P2003EVG

4

62
5731

8

R1162 0_04

R1149
10K_04

J_DC2

50299-00901-004

P/N = ?

1
2
3
4
5
6
7
8
9

+

C973

EEEFZ1E101P

PJ70
*3mm

1 2

PJ68
*2mm

1 2

R620 0_04

R578 100K_04

R573 100K_04

U77

*TC7SZ08FU

1

2

5

4

3

U47

74AHC1G32GW

4

53

1

2

Schematic Diagrams

B.Schematic Diagrams

MXM 3.0 Slave B - 13

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

EDP

㗪ᶲẞ

eDP

2A

1A

>80 mil

2A

PANEL POWER

PANEL CONNECTOR (For coaxial cable)

2A

Remove 0Ohm,6/7 Tim

Cancel BRIGHTNESS,3/6 Tim

Modify,3/30 Tim

Modify value,4/20 Tim

Modify,6/4 Tim

Modify for short
6/7 Tim

Add,6/7 Tim

Follow common design,
6/8 Tim

Modify,03/25 Ivy

Add,6/15 Tim

Modify,7/29 Tim

Modify value,
8/14 Tim

Delete C119,

妋㰢䓊䶂ἧ䓐⣿䫺崟⫸

ᶲℕ儛戭㞙㗪,㚫冯暞ẞ⸚㴱⓷柴

,10/6 Tim

ᾖ㓡

layoutỵ伖,

Ivy12/07

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

DEL Discharge for brightness
(follow common design)
Ivy12/10

Delete,
Ivy12/17

Delete FOLLOW nv recommend
,Ivy12/22

vaule *10mil_short change *0402_short,
Ivy12/30

Modify ,Ivy01/07

Modify ,Ivy01/07

Modify ,Ivy04/01

Modify,Ivy 04/01

DEL,Ivy03/16

Modify follow NV,6/3 Tim

follow common design,Ivy 03/30 Ivy

旸㳩暣旣

follow common design,04/01 Ivy

follow common design,03/31 Ivy

枸䔁 婧㔜

POWER SEQUENCE

㈿⸚㒦枸䔁

DEFAULT

ADD,Ivy04/01

follow NV ,04/14Ivy

Add,6/3 Tim

婧㔜

timing,㓭Delete,

6/6 Tim

FRAME_LOCK#_R

DAUX

DAUX#

DRX2

DRX3

DRX3#

DRX0

DRX0#

DRX1

DRX1#

DRX2#

HPD_L

INV_BLON

BRIGHTNESS_R

LVDD_EN#

PANEL_PWR

BRIGHTNESS_R

HPD_L

VGA_ENAVDD

BLON1

BLON2

LID_SW#1

INV_BLON

VGA_ENAVDD

PLVDD

5VS

NV3V3

PLVDD

3.3V

VIN

VLED

3.3VS

PANEL_PWR

VLED

PANEL_PWR

3.3V

3.3V

3.3V

3.3V

PLVDD

3.3VS

3.3VS

PLVDD

3.3V2,12,14,16,18,24,29,34,39,42,43,46,48

5VS11,12,14,15,22,25,39,40,42,46

VIN11,12,22,42,43,44,45,46,47,48,49,50,51

VGA_BKLPWM 11

3.3VS7,8,9,10,11,12,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

VGA_ENAVDD11

DP_TXP211

DP_TXN211

DP_TXN311
DP_TXP311

EDP_HPD 11

DP_TXP011

DP_TXN011

DP_TXP111

DP_TXN111

DP_AUX11

DP_AUX#11

FRAME_LOCK#11

ALL_SYS_PWRGD11,12,20,22

SB_BLON15

LID_SW#22,39

VGA_BKLTEN11

BKL_EN22

NV3V314,32,33,42

GSYNC_ID15

SUSB#11,12,17,20,22,23,27,28,39,42,43,44,45,46

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[13] PANEL,INVERTER

Custom

13 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[13] PANEL,INVERTER

Custom

13 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[13] PANEL,INVERTER

Custom

13 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C498

*220p_50V_X7R_04

C106

0.1u_50V_Y5V_06

C500

*1u_6.3V_X5R_04

C908

0.01u_50V_X7R_04

C105 0.1u_10V_X7R_04

C499

1u_6.3V_X5R_04

C88 0.1u_10V_X7R_04

R50

4.7K_06

C107

0.22u_50V_Y5V_06

C501

10u_6.3V_X5R_06

C86 0.1u_10V_X7R_04

J_EDP1

LVDFH-04008-TP00+

PCB Footprint = lvdfh-04008-tp

40

40

39

39

38

38

37

37

36

36

35

35

34

34

33

33

32

32

31

31

30

30

29

29

28

28

27

27

26

26

25

25

24

24

23

23

22

22

21

21

20

20

19

19

18

18

17

17

16

16

15

15

14

14

13

13

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

GND1

GND1

GND2

GND2

GND3

GND3

GND4

GND4

GND5

GND5

R63
100K_04

C85 0.1u_10V_X7R_04

J11

3mm

1 2

R521 100K_04

C83 0.1u_10V_X7R_04

U39A
74LCX08FT

1

2

3

147

D29

*LBAV99LT1G

A

C

AC

R519 *0402_short

R520

100K_04

C497
1u_6.3V_X5R_04

Q27

2SK3018S3

G

D S

S

D

G

Q5B
MTDK5S6R

5

34

S

D

G

Q5A

MTDK5S6R

2

61

R1014 *10K_04

J10

3mm

1 2

C104 0.1u_10V_X7R_04

R526 *100K_04

J2

3mm

1 2

C907

0.1u_50V_Y5V_06

R59 *100K_04

U39B
74LCX08FT

4

5

6

147

R518 *10K_04

C89 0.1u_10V_X7R_04

R62

150K_1%_04

Q6A
MTS3572G6

S24D2

3

G2

5

C87 0.1u_10V_X7R_04

C84 0.1u_10V_X7R_04

R1144 0_04

R1145 *0_04

C82 0.1u_10V_X7R_04

C505

0.1u_10V_X7R_04

R1012 *100K_04

U38

AP2821KTR-G1

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

R1143

*100K_04

U39C
74LCX08FT

9

10

8

147

C119

0.1u_50V_Y5V_06

R61

10K_04

R64

100K_04

R517 1K_04

Q6B

MTS3572G6

S1

2

D1

6

G1

1

R501

100K_04

R1075 1K_04

U39D
74LCX08FT

12

13

11

147

R1204 10K_04

J4
*OPEN_2A

12

R60 *100K_04

Sheet 13 of 62

Panel, Inverter

Panel, Inverter

B.Schematic Diagrams

B - 14 Panel, Inverter

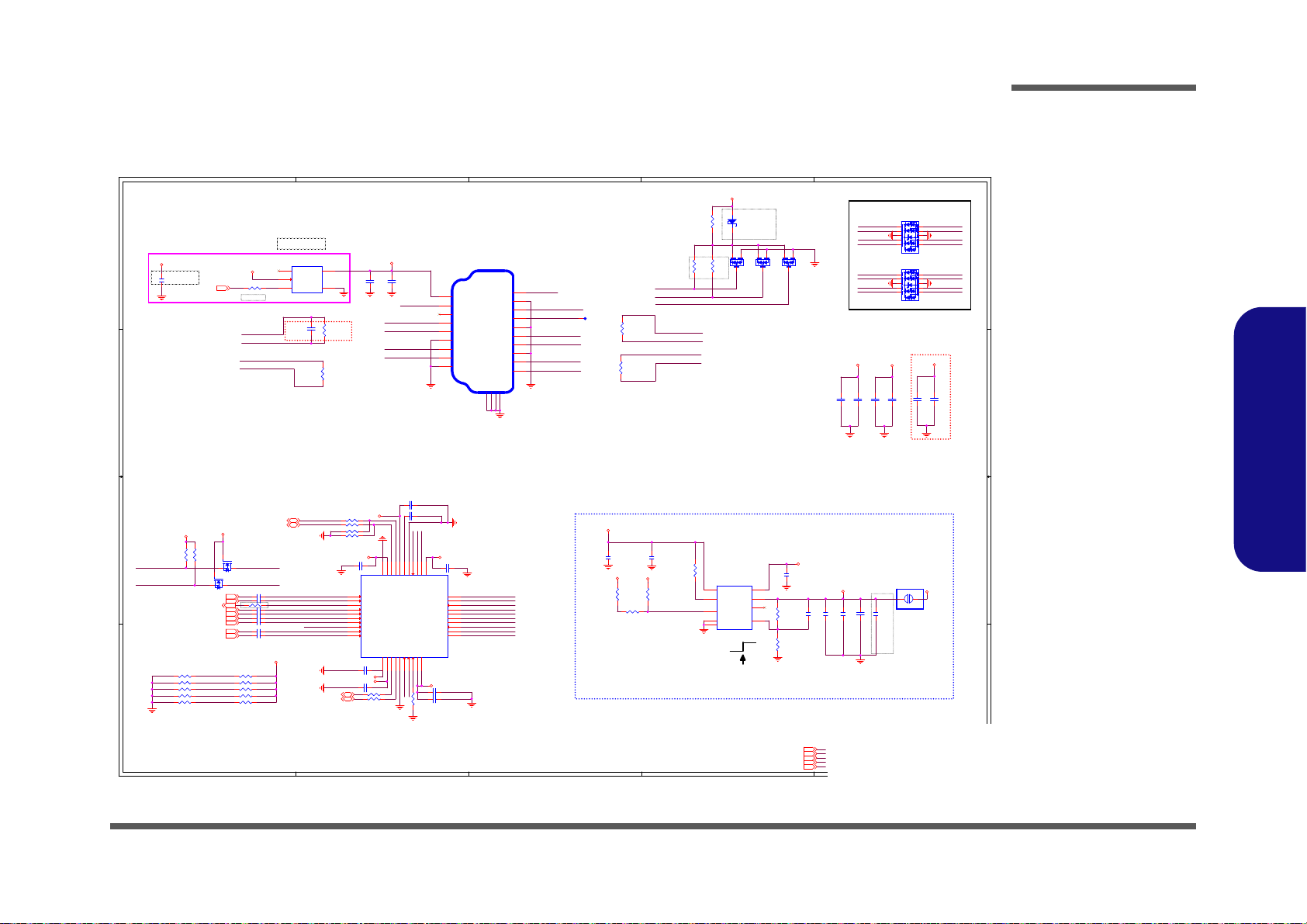

HDMI

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

HDMI CONNECTOR

PIN GND1~4=GND

Modify,4/1 Tim

HDMI Repeater

Follow

ℙ䓐䶂嶗

Ivy12/03

Add(follow common design)
Ivy12/11

Delete ,Ivy12/21

Modify,4/14 Tim

HDMI ESD W/O LEVELSHIFT

暨ᶲ

, NET ⎗SWAP

For ESD

follow NV
3/6 Tim

Follow NV⺢嬘,3/4 Tim

Add,Ivy05/26

DEFAULT SHORT

Modify,6/4 Tim

ON

1A

1A

Rb

Ra

Vout = 0.8V ( 1 + Ra / Rb )

1.1VS

for EMI,Ivy05/27

for EMI,Ivy05/27

0.1A

0.4A

0.4A

for EMI,Ivy05/27

for EMI,Ivy05/27

0.4A

0.4A

0.1A

follow NV,Ivy05/27

for EMI,Ivy05/27

Modify circuit,5/31 Tim

Modify circuit,5/31 Tim

HDMI_CEC

HDMI_SCL-C

HDMI_SDA-C

TMDS_DATA2-RJTMDS_DATA2-R

TMDS_DATA2#-RJ

TMDS_DATA1-RJ

TMDS_DATA1#-RJTMDS_DATA1#-R

TMDS_DATA1-R

TMDS_DATA2#-R

TMDS_DATA0-RJTMDS_DATA0-R

TMDS_DATA0#-RJ

TMDS_CLOCK-RJ

TMDS_CLOCK#-RJTMDS_CLOCK#-R

TMDS_CLOCK-R

TMDS_DATA0#-R

HDMI_HPD-C

HDMI_SDA-C

HDMI_SCL-C

HDMI_HPD-C

I2C_EN/PIN

HDMI_CLOCKN_C

HDMI_DATA0N_C

PRE_SEL

EQ_SEL/A0

HDMI_SEL#/A1

HDMI_SCL-C

HDMI_SDA-C

SLEW_CTL

OE

HDMI_CTRLCLK-C

HDMI_CTRLDATA-C

TMDS_DATA2-R
TMDS_DATA2#-R

TMDS_DATA1-R
TMDS_DATA1#-R

TMDS_DATA0#-R

TMDS_DATA0-R

TMDS_CLOCK-R
TMDS_CLOCK#-R

HDMI_CLOCKP_C

HDMI_DATA1P_C

HDMI_HPD_C

HDMI_DATA1N_C

HDMI_DATA2P_C
HDMI_DATA2N_C

HDMI_DATA0P_C

HDMI_HPD-C

TMDS_DATA2-R

TMDS_DATA0#-RJ

TMDS_DATA2#-R

TMDS_DATA1#-R

TMDS_DATA1-R

TMDS_CLOCK#-R

TMDS_CLOCK-R

I2C_EN/PIN

PRE_SEL

EQ_SEL/A0

HDMI_SEL#/A1

SLEW_CTL

OE

HDMI_CTRLCLK
HDMI_CTRLDATA

HDMI_CTRLDATA

HDMI_CTRLCLK

HDMI_SDA-C

HDMI_SCL-C

TMDS_DATA0-R

TMDS_DATA0#-R

TMDS_DATA0-RJ

TMDS_DATA2#-RJ

TMDS_DATA2-RJ

TMDS_CLOCK#-RJ

TMDS_CLOCK-RJ

TMDS_DATA1#-RJ

TMDS_DATA1-RJ

HDMI_5VS

5VS

5VS

HDMI_5VS

3.3VS

3.3VS

1.1VS

1.1VS

1.1VS1.1VS

3.3V

5V

1.1VS

V1.1_R

3.3VS

3.3VS

3.3VS

NV3V3

HDMI_5VS

3.3VS

1.1VS

HDMI_5VS

SUSB11,32,33,42,46

PCH_SMB_CLK15,17,39,46
PCH_SMB_DATA15,17,39,46

HDMI_CLOCKP11
HDMI_CLOCKN11

HDMI_DATA1P11
HDMI_DATA1N11

HDMI_DATA2P11
HDMI_DATA2N11

HDMI_DATA0P11
HDMI_DATA0N11

HDMI_CTRLCLK11
HDMI_CTRLDATA11

3.3V2,12,13,14,16,18,24,29,34,39,42,43,46,48
5V11,12,14,20,26,30,31,39,41,42,43,45,46,48,49,50

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49
5VS11,12,13,14,15,22,25,39,40,42,46

NV3V313,14,32,33,42

HDMI_HPD11

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[14] HDMI CONN(DP159),1.1VS

Custom

14 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[14] HDMI CONN(DP159),1.1VS

Custom

14 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[14] HDMI CONN(DP159),1.1VS

Custom

14 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R475

2K_04

R5

*0_04

C13630.1u_16V_Y5V_04

C1365 0.1u_16V_Y5V_04

C1371 0.1u_10V_X7R_04

C13610.1u_16V_Y5V_04

R4

47K_04

R1198 0_04

C1377

*6p_50V_NPO_04

C1375

*1.5P_50V_04

C1372 0.1u_10V_X7R_04

C1366 0.1u_16V_Y5V_04

R119164.9K_1%_04

C1367 0.1u_10V_X7R_04

R118664.9K_1%_04

R1192 *64.9K_1%_04

R1194

*64.9K_1%_04

R1187*64.9K_1%_04

U2
G9661-25ADJF11U

GND

8

VCNTL

4

NC

5

VIN

3

VOUT

6

VFB

7

POK

1

EN

2

GND

9

R1199 *0_04

U7

SY6288D20AAC

PCB Footprint = M-SOT23-5A

VOUT

1

VIN

5

GND2EN#

4

OC#

3

R1195

10K_04

C7

82p_50V_NPO_04

C1368 0.1u_10V_X7R_04

R1061 *64.9K_1%_04

C1373 0.1u_10V_X7R_04

D2

RB551V-30S2

AC

C961

*10u_6.3V_X5R_06

DP159RSB

U115

IN_D2p

1

IN_D2n

2

HPD_SRC

3

IN_D1p

4

IN_D1n

5

IN_D0p

6

IN_D0n

7

I2C_EN/PIN

8

IN_CLKp

9

IN_CLKn

10

VCC_3V311VDD_1V1

12

OUT_D0p

25

OUT_D1n

26

OUT_D1p

27

HPD_SNK

28

OUT_D2n

29

OUT_D2p

30

VDD_1V1

31

SCL_SNK

32

SDA_SNK

33

SLEW_CTL

34

GND

35

OE

36

VCC_3V3

37

SCL_SRC

38

SDA_SRC

39

VDD_1V1

40

GND_PAD

41

SCL_CTL13SDA_CTL14GND15PRE_SEL16EQ_SEL/A017VSADJ18VDD_1V119VDD_1V1

20

OUT_CLKn

21

OUT_CLKp

22

HDMI_SEL#/A1

23

OUT_D0n

24

R1200 *0_04

C1380

*100p_50V_NPO_04

R2

20K_1%_04

C394 0.1u_10V_X7R_04

R199

*180_1%_04

R1203 1K_04

R1196 *0_04

C13640.1u_16V_Y5V_04

R1193*64.9K_1%_04

C15

22u_6.3V_X5R_08

R1170 *0_04

R1182

*180_1%_04

C1

0.1u_16V_Y5V_04

J_HDMI1

116E-1C001-20Y

P/N = 6-21-13K20-019

SHIELD2

2

TMDS DATA1+

4

TMDS DATA1-

6

SHIELD0

8

TMDS CLOCK+

10

TMDS CLOCK-

12

RESERVED

14

SDA

16

+5V

18

TMDS DATA2+

1

TMDS DATA2-

3

SHIELD1

5

TMDS DATA0+

7

TMDS DATA0-

9

CLK SHIELD

11

CEC

13

SCL

15

DDC/CEC GND

17

HOT PLUG DETECT

19

GND

GND1

GND

GND2

GND

GND3

GND

GND4

C1374 0.1u_16V_Y5V_04

C1381

*0.1u_16V_Y5V_04

R1184

*180_1%_04

C1369 0.1u_10V_X7R_04

C2

10u_6.3V_X5R_06

S

D

G

Q73B

*MTDK5S6R

5

34

R1171 *0_04

R1188 *64.9K_1%_04

C4

1u_10V_Y5V_06

D23

*BAV99 RECTIFIER

A

C

AC

C1360 0.1u_16V_Y5V_04

R1185

*180_1%_04

R3

7.5K_1%_04

C1370 0.1u_10V_X7R_04

R1189 *64.9K_1%_04

S

D

G

Q73A

*MTDK5S6R

2

61

J1

*OPEN_2mm

1 2

C1362 0.1u_16V_Y5V_04

C6

0.1u_10V_X5R_04

D25

*BAV99 RECTIFIER

A

C

AC

C1378

*0.01u_16V_Y5V_04

R1201

2.2K_04

C5

10u_6.3V_X5R_06

D26

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

D24

*BAV99 RECTIFIER

A

C

AC

C16

22u_6.3V_X5R_08

R1058 6.49K_1%_04

R1202

2.2K_04

R1053*64.9K_1%_04

R474

2K_04

C3

10u_6.3V_X5R_06

C1379

*6p_50V_NPO_04

D27

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

C1359

*10u_6.3V_X5R_06

R1190 *64.9K_1%_04

C1376

*0.01u_16V_Y5V_04

R1197 0_04

R13

0_04

Sheet 14 of 62

HDMI

Schematic Diagrams

B.Schematic Diagrams

HDMI B - 15

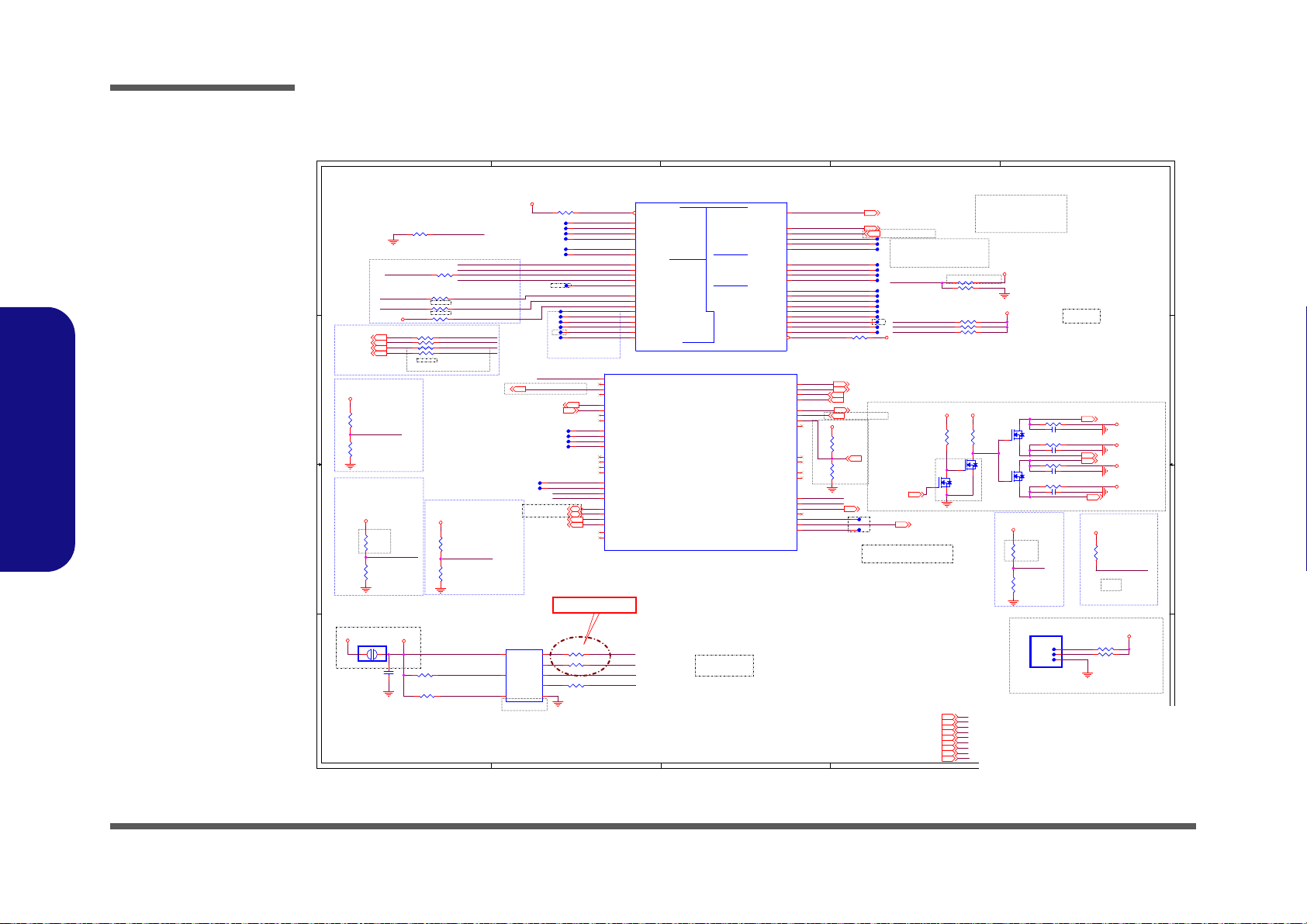

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DESIGN NOTE:

TOUCH PANEL

RTC Wake UP

DESIGN NOTE:

BOOT HALT ENABLED IF LOW
PCH HAS INTERNAL WEAK PU

DESIGN NOTE:

JTAG ODT IS DISABLED IF LOW
PCH HAS INTERNAL WEAK PU

ME+ BIOS ROM 8MB

SPI_* = 0.5"~2"

SPT-H (SPI,GPP)

DESIGN NOTE:

SMB RESUME/MAIN LOGIC

DESIGN NOTE:

BOOT SELECT STRAP
IF SAMPLED HIGH, LPC IS SELECTED
ELSE SPI PCH HAS INTERNAL WEAK PD.

Follow PDG,3/30 Tim

Follow PDG Single Flash:15ohm,2/27 Tim

Reserve for BIOS,2/27 Tim

䔁⣏㷔溆,㧁䣢㔯⫿

RX
TX
GND

Add㷔溆,2/27 Tim

⚈

core base

⯂㛒䡢⭂㓭枸䔁

,

6/10 Tim

FOR TPM,2/27 Tim

Add,2/27 Tim

Modify(on TBT),6/13 Tim

change footprint to socket MSO8(ACA-SPI-004-T03)
3/2

CS0#,CS1# SWAP,3/3 Tim

Add,3/4 Tim

FOR 8587 AUTO LOAD

3/6 Tim

Add,3/6 Tim

D/KhW>/E'&h>>sK>d'
DKt,E^DW>>Kt

Modify,4/3 Tim

DESIGN NOTE:

EDP/LVDS det
H:EDP L:LVDS

EDP only,3/27 Tim

Follow Checklist,
3/27 Tim

DESIGN NOTE:

MB det

Add,4/2 Tim

Add,4/7 Tim

Modify,4/19 Tim

DEFAULT SHORT

Remove U56,change to U54D

Modify value,
8/14 Tim

Modify Value,10/6

Modify Ivy11/30

Modify Ivy11/30

Modify Ivy11/30

Modify Ivy11/30

Modify Ivy11/30

Delete BIOS ROM 4MB
Ivy11/30

Modify Ivy11/30

Modify Ivy11/30

Delete 3.3VS,add Res
Ivy11/30

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Modify,
12/24

Modifiy,Ivy1230

Add,Ivy01/12

Add,Ivy01/08

Modify,Ivy01/12

㓡ᶲẞ

,Ivy1/22

MB det
P870DM2 R452

ᶲẞ

,R455

ᶵᶲẞ

P870DM3 R455ᶲẞ,R452

ᶵᶲẞ

Add,Ivy 03/07

ADD ,03/17 Ivy

Modify,Ivy04/01

DEL,Ivy05/27

TBCIO_PLUG_EVENT

EXTTS_SNI_DRV0_PCH

EXTTS_SNI_DRV1_PCH

SSPI_CS0# SPI_CS0#

SPI_MOSI

SPI_SCLK

SPI_MISO

PME#

UART2_TXD

TP_PCH_AG15
TP_PCH_AG14
TP_PCH_AF17
TP_PCH_E17

UART2_RXD

LPSS_GSPI1_MOSI

TP_PCH_AR19
TP_PCH_AN17

SPI_MISO

SPI1_TCHPNL_CLK
SPI1_TCHPNL_CS_N
SPI1_TCHPNL_MOSI
SPI1_TCHPNL_MISO

PLT_RST#

SM_INTRUDER#SPI1_TCHPNL_IO2

PCH_SPI_IO2

PCH_SPI_IO3SSPI_HOLD#0

SSPI_WP#0

SPI_CS_2#

TP_GPP_H_11
TP_GPP_H_10

VOL_DOWN_PCH
VOL_UP_PCH
HOME_BTN_PCH

TP_GPP_H_18
M.2_WIGIG_RST_R
M.2_WIGIG_WAKE_R_N

M.2_WIGIG_WAKE_CTRL_N

M.2_WIGIG_WGPIO

TBT_FRC_PWR

TBCIO_PLUG_EVENT

GSXDOUT

EXTTS_SNI_DRV0_PCH
TCH_PNL_INTR_N

BT_RF_KILL_R_N

TCH_PNL_INTR_N

EXTTS_SNI_DRV1_PCH

SPI_MOSI

SPI_MISO

SPI_SCLK

SPI_MOSI

SPI_MISO

SSPI_WP#0 SSPI_CS0#

SSPI_HOLD#0

LPSS_GSPI1_MOSI

SPI1_TCHPNL_IO3

UART2_RXD
UART2_TXD

UART2_CTS#
UART2_RTS#

AMP_FAULT1

AMP_FAULT2

GPP_A22

SPI_CS0#

SPI_SCLK

SPI_MOSI

GPP_A23

GPP_A23

PCH_SPI_IO3

GPP_A22

SPI_CS1#

GPP_H_12

3.3VS

V3P3A_V1P8A_PCH_SPI

V3P3A_V1P8A_PCH_SPI

3.3VA 5VS

3.3VA

3.3VA

3.3VS

3.3VS

VDD3

3.3VA

3.3VS

VCCPGPPA

RTCVCC

3.3VA

3.3VA

3.3V_SPI

3.3VA

3.3VS

3.3VS

VDD311,12,16,17,19,20,22,23,34,37,38,39,42,43,45,47,48,51

3.3VS7,8,9,10,11,12,13,14,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

5VS11,12,13,14,22,25,39,40,42,46

V3P3A_V1P8A_PCH_SPI20

RTCVCC17,20

SMB_DATA_MAIN 7,8,9,10

SMB_CLK_MAIN 7,8,9,10

PCH_SMB_DATA 14,17,39,46

PCH_SMB_CLK 14,17,39,46

VCCPGPPA20

HSPI_SCLK22

HSPI_CE#22

HSPI_MSO22

HSPI_MSI22

TBT_FRC_PWR 28

3.3VA3,16,17,19,20,42

PLT_RST# 11,20

LPSS_GSPI0_MOSI18

SB_BLON 13

TPM_DET# 24

TP_I2C_CLK39
TP_I2C_DATA39

LPSS_GSPI0_MISO34

TBTA_ACE_GPIO0 30

TBTA_ACE_GPIO3 30

TBTA_ACE_GPIO2 30

PS8338B_PCH 33

PS8338B_PCH_A 32

3.3V_SPI20

3.3V2,12,13,14,16,18,24,29,34,39,42,43,46,48

PCH_I2C_DATA39

PCH_I2C_CLK39

PCH_HP_PLUG39

GSYNC_ID 13

PM_PCH_PWROK17,20,22

TBTB_ACE_GPIO0 31

TBCIO_PLUG_EVENT 28

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[15] SPT-H 1/7-SPI/GPP

A3

15 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[15] SPT-H 1/7-SPI/GPP

A3

15 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[15] SPT-H 1/7-SPI/GPP

A3

15 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R1017 *49.9K_04

S

D

G

Q45B

MTDK5S6R

5

34

R438 33_04

PJ47

*OPEN-1mm

1 2

R460 15_1%_04

R1076
100K_04

R433 10K_04

SKL_PCH_H

REV = 1.3

1 OF 12

?

?U31A

Z170 MP

INTRUDER#

BE11

GPP_H10/SML2CLK

BD34

GPP_H11/SML2DATA

AW35

GPP_H12/SML2ALERT#

BD35

GPP_H13/SML3CLK

BC35

GPP_H14/SML3DATA

BA35

GPP_H15/SML3ALERT#

BB36

GPP_H16/SML4CLK

BD39

GPP_H17/SML4DATA

BE34

GPP_H18/SML4ALERT#

BC36

GPP_B4/CPU_GP3

BD24

GPP_B3/CPU_GP2

BC23

GPP_E7/CPU_GP1

AE44

GPP_E3/CPU_GP0

AF41

GPP_G15/GSXSRESET#

R41

GPP_G14/GSXDIN

R42

GPP_G13/GSXSLOAD

R36

GPP_G12/GSXDOUT

R39

GPP_G16/GSXCLK

P43

GPP_B13/PLTRST#

BB27

GPP_D21

AG44

GPP_D22

AH43

GPP_D3

AN41

GPP_D0

AL39

SPI0_CS2#

AT31

SPI0_IO3

BD30

SPI0_IO2

BC29

SPI0_CLK

BC31

SPI0_CS0#

BD31

RSVD

AE17

RSVD

AF17

RSVD

AG14

TP5

AR19

TP4

AN17

SPI0_MOSI

BB29

SPI0_MISO

BE30

SPI0_CS1#

AW31

GPP_D1

AN36

GPP_D2

AN38

RSVD

AG15

GPP_A11/PME#

BD17

S

D

G

Q45A

MTDK5S6R

2

61

R428 33_04

R420

33_04

R425 0_04

R685 *1K_04

R471 33_04

R740 1K_04

R1077
*100K_04

C877 *1u_6.3V_X5R_04

R473 1K_1%_04

R765

1K_04

R1018 *49.9K_04

R418

*4.7K_04

R416 15_1%_04

R401 *1K_04

R436 8.2K_04

R419

*20K_04

R793 1M_04

R472 1K_1%_04

R748

*20K_04

C889 *1u_6.3V_X5R_04

R782 1K_04

SKL_PCH_H

?

?

11 OF 12

REV = 1.3

U31K

Z170 MP

GPP_B22/GSPI1_MOSI

AT29

GPP_B21/GSPI1_MISO

AR29

GPP_B20/GSPI1_CLK

AV29

GPP_B19/GSPI1_CS#

BC27

GPP_B18/GSPI0_MOSI

BD28

GPP_B17/GSPI0_MISO

BD27

GPP_B16/GSPI0_CLK

AW27

GPP_B15/GSPI0_CS#

AR24

GPP_C9/UART0_TXD

AV44

GPP_C8/UART0_RXD

BA41

GPP_C11/UART0_CTS#

AU44

GPP_C10/UART0_RTS#

AV43

GPP_C15/UART1_CTS#/ISH_UART1_CTS#

AU41

GPP_C14/UART1_RTS#/ISH_UART1_RTS#

AT44

GPP_C13/UART1_TXD/ISH_UART1_TXD

AT43

GPP_C12/UART1_RXD/ISH_UART1_RXD

AU43

GPP_C23/UART2_CTS#

AN43

GPP_C22/UART2_RTS#

AN44

GPP_C21/UART2_TXD

AR39

GPP_C20/UART2_RXD

AR45

GPP_C19/I2C1_SCL

AR41

GPP_C18/I2C1_SDA

AR44

GPP_C17/I2C0_SCL

AR38

GPP_C16/I2C0_SDA

AT42

GPP_D4/ISH_I2C2_SDA/I2C3_SDA

AM44

GPP_D23/ISH_I2C2_SCL/I2C3_SCL

AJ44

GPP_D9

AL44

GPP_D10

AL36

GPP_D11

AL35

GPP_D12

AJ39

GPP_D16/ISH_UART0_CTS#

AJ43

GPP_D15/ISH_UART0_RTS#

AL43

GPP_D14/ISH_UART0_TXD

AK44

GPP_D13/ISH_UART0_RXD

AK45

GPP_H20/ISH_I2C0_SCL

BC38

GPP_H19/ISH_I2C0_SDA

BB38

GPP_H22/ISH_I2C1_SCL

BD38

GPP_H21/ISH_I2C1_SDA

BE39

GPP_A23/ISH_GP5

BC22

GPP_A22/ISH_GP4

BD18

GPP_A21/ISH_GP3

BE21

GPP_A20/ISH_GP2

BD22

GPP_A19/ISH_GP1

BD21

GPP_A18/ISH_GP0

BB22

GPP_A17/ISH_GP7

BC19

C878 *1u_6.3V_X5R_04

R440 33_04

R746 *10K_04

R443 0_04

Q44

2SK3018S3

G

DS

R741 1K_04

U12

GD25B64CSIGR

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R455

*10K_04

R780 1K_04

R717 8.2K_04

C476

0.1u_10V_X7R_04

R682 *10K_04

Q43
2SK3018S3

G

DS

R452

10K_04

R464

10K_04

R747

*4.7K_04

C891 *1u_6.3V_X5R_04

R441

*1K_04

R429 33_04

R439

*4.7K_04

R369 10K_04

R762

1K_04

Sheet 15 of 62

SPT-H 1/7

SPT-H 1/7

B.Schematic Diagrams

B - 16 SPT-H 1/7

SPT-H 2/7

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DESIGN NOTE:

V3P3A PWRGD CIRCUIT

GFX STYLE

GFX SELECT TABLE

10CUSTOMER GFX

NORMAL GFX

DESIGN NOTE:

SV ADVANCE MENU JUMPER

BOARD STYLE

SV ADVANCE MENU TABLE

10NORMAL MENU (DEFAULT)

SV ADVANCE MENU

DESIGN NOTE:

PECI TO PCH OPTION

Function Table

L

H

H

L

YA

DESIGN NOTE:

SCHMITT-TRIGGER INVERTER

PCH_PWRGD & VCCST_PWRGD

SPT-H CLINK/FAN/SATA/HOST

^^ϭ΀DͲ<z΁

^^ϭ΀DͲ<z΁

^^Ϯ΀DͲ<z΁

Modify 0.1uF for Gen2,2/25 Tim

'>Eϭ

'>EϮ

^^ϭ΀DͲ<z΁

^d,ϭ,Ϯ

^^Ϯ΀DͲ<z΁

Remove GPIO2_FB_TGL_REQ,GPIO_FB_CLAMP,2/27 Tim
Modify SWI# pin,3/18 Tim

2/27 Tim

2/27 Tim

Remove DDR voltage circuit(GPP_G0,GPP_G1)
6/7 Tim

Modify,3/4 Tim

Modify,4/4 Tim

3/6 Tim

Modify,6/10 Tim

Modify,6/3 Tim

Modify,4/2 Tim

Add,4/3 Tim

Modify,4/11 Tim

Add,6/7 Tim

Add,6/15 Tim

Add,6/15 Tim

Modify net,6/15 Tim

Modify net,6/15 Tim

Modify value,
8/14 Tim

Modify Ivy11/30

Modify Ivy11/30

Del, Ivy11/30

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Add,Ivy 03/10

GC6,Ivy04/11

SATA_GP6

PCH_SATA_LED#

GP39_GFX_CRB_DETECT
SV_ADVANCE_GP48

PCH_RSVD

SWI#_R

SCI#_R

SATA_GP1

SATA_GP7

SATA_GP6

SATA_GP7

SATA_GP2

SATA_GP5

H_THRMTRIP#

GP39_GFX_CRB_DETECT

SV_ADVANCE_GP48

L_BKLTEN
L_VDDEN

L_BKLTCT

SCI#_R

H_THRMTRIP#

H_THRMTRIP#_PCH
PCH_PECI

TP_GPP_G_9_PWM1
TP_GPP_G_10_PWM2
TP_GPP_G_11_PWM3

PCH_SATA_LED#

M.2_SSD1_PEDET
M.2_SSD2_PEDET

TP_GPP_G_8_PWM0

PCH_RSVD

GPU_EVENT#

SATA_GP4

SATA_GP4
SATA_GP5
SATA_GP2

SWI#_R

3.3VS

3.3VS

3.3V

3.3VS

3.3VS

3.3VA

VDD3

3.3VA

3.3VA

CL_DATA134
CL_RST#134

CL_CLK134

PCH_SATA_LED# 35

3.3VS7,8,9,10,11,12,13,14,15,17,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

VR_READY45

VDD311,12,15,17,19,20,22,23,34,37,38,39,42,43,45,47,48,51

3.3V2,12,13,14,18,24,29,34,39,42,43,46,48

H_PM_SYNC 3
PLTRST_CPU_N 3

H_PM_DOWN 3

H_PECI 3,22

H_THRMTRIP# 3

3.3VA3,15,17,19,20,42

M.2_SSD1_PEDET 35

PCH_CONFIG_JUMPER18

PS8338B_SW33

PCIE_TXP11_SSD35

PCIE_TXN11_SSD35

PCIE_RXP11_SSD35
PCIE_RXN11_SSD35

PCIE_TXP13_SSD35

PCIE_TXN13_SSD35

PCIE_TXN12_SSD35

PCIE_TXP12_SSD35

PCIE_RXP12_SSD35
PCIE_RXN12_SSD35

PCIE_RXN13_SSD35
PCIE_RXP13_SSD35

PCIE_TXN14_SSD35
PCIE_TXP14_SSD35

PCIE_RXP14_SSD35

PCIE_RXN14_SSD35

PCIE_RXN19_GLAN137

PCIE_RXP19_GLAN137

PCIE_TXN19_GLAN137

PCIE_TXP19_GLAN137

PCIE_TXN20_GLAN238

PCIE_TXP20_GLAN238

PCIE_RXP20_GLAN238
PCIE_RXN20_GLAN238

PCIE_RXP10_SSD 35

PCIE_TXP10_SSD 35

PCIE_TXN10_SSD 35

PCIE_RXN10_SSD 35

PCIE_TXP9_SSD 35

PCIE_TXN9_SSD 35

PCIE_RXP9_SSD 35

PCIE_RXN9_SSD 35

PCIE_RXN17_HDD1 40

PCIE_TXN17_HDD1 40
PCIE_TXP17_HDD1 40

PCIE_RXP17_HDD1 40

PCIE_TXN18_HDD2 40

PCIE_RXN18_HDD2 40
PCIE_RXP18_HDD2 40

PCIE_TXP18_HDD2 40

PCIE_TXP15_SSD 35

PCIE_TXN15_SSD 35

PCIE_RXP15_SSD 35

PCIE_RXN15_SSD 35

PCIE_RXP16_SSD 35

PCIE_TXP16_SSD 35

PCIE_TXN16_SSD 35

PCIE_RXN16_SSD 35

GPU_EVENT#11

SWI#17,22

M.2_SSD2_PEDET 35

74LVC1G14GW_OUT 20

VCC_3P3A_PWRGD 48

SCI#22

PS8338B_SW_A32

DGPU_PWRGD_OUT12

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[16] SPT-H 2/7-CLINK/FAN/SATA

Custom

16 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[16] SPT-H 2/7-CLINK/FAN/SATA

Custom

16 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[16] SPT-H 2/7-CLINK/FAN/SATA

Custom

16 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R341 *10K_04

R791

22K_04

R365 10K_04

C424 0.1u_10V_X7R_04

R795

100K_04

U57

74LVC1G14GW

NC

1

A

2

GND

3

VCC

5

Y

4

D70

RB751V-40(lision)

AC

R711 10K_04

C897

0.01u_16V_X7R_04

CLINK

FAN

PCIe/SATA

HOST

SKL_PCH_H

?

?

3 OF 12

REV = 1.3

U31C

Z170 MP

CL_CLK

AV2

CL_DATA

AV3

CL_RST#

AW2

GPP_G8/FAN_PWM_0

R44

GPP_G9/FAN_PWM_1

R43

GPP_G10/FAN_PWM_2

U39

GPP_G11/FAN_PWM_3

N42

GPP_G0/FAN_TACH_0

U43

GPP_G1/FAN_TACH_1

U42

GPP_G2/FAN_TACH_2

U41

GPP_G3/FAN_TACH_3

M44

GPP_G4/FAN_TACH_4

U36

GPP_G5/FAN_TACH_5

P44

GPP_G6/FAN_TACH_6

T45

GPP_G7/FAN_TACH_7

T44

PCIE11_TXP

B33

PCIE11_TXN

C33

PCIE11_RXP

K31

PCIE11_RXN

L31

GPP_F10/SCLOCK

AB33

GPP_F11/SLOAD

AB35

GPP_F13/SDATAOUT0

AA44

GPP_F12/SDATAOUT1

AA45

PCIE14_TXN/SATA1B_TXN

B38

PCIE14_TXP/SATA1B_TXP

C38

PCIE14_RXN/SATA1B_RXN

D39

PCIE14_RXP/SATA1B_RXP

E37

PCIE13_TXN/SATA0B_TXN

C36

PCIE13_TXP/SATA0B_TXP

B36

PCIE13_RXN/SATA0B_RXN

G35

PCIE13_RXP/SATA0B_RXP

E35

PCIE12_TXP

A35

PCIE12_TXN

B35

PCIE12_RXP

H33

PCIE12_RXN

G33

PCIE20_TXP

J45

PCIE20_TXN

K44

PCIE20_RXP

N38

PCIE20_RXN

N39

PCIE19_TXP

H44

PCIE19_TXN

H43

PCIE19_RXP

L39

PCIE19_RXN

L37

PCIE9_RXN/SATA0A_RXN

G31

PCIE9_RXP/SATA0A_RXP

H31

PCIE9_TXN/SATA0A_TXN

C31

PCIE9_TXP/SATA0A_TXP

B31

PCIE10_RXN/SATA1A_RXN

G29

PCIE10_RXP/SATA1A_RXP

E29

PCIE10_TXN/SATA1A_TXN

C32

PCIE10_TXP/SATA1A_TXP

B32

PCIE15_RXN/SATA2_RXN

F41

PCIE15_RXP/SATA2_RXP

E41

PCIE15_TXN/SATA2_TXN

B39

PCIE15_TXP/SATA2_TXP

A39

PCIE16_RXN/SATA3_RXN

D43

PCIE16_RXP/SATA3_RXP

E42

PCIE16_TXN/SATA3_TXN

A41

PCIE16_TXP/SATA3_TXP

A40

PCIE17_RXN/SATA4_RXN

H42

PCIE17_RXP/SATA4_RXP

H40

PCIE17_TXN/SATA4_TXN

E45

PCIE17_TXP/SATA4_TXP

F45

PCIE18_RXN/SATA5_RXN

K37

PCIE18_RXP/SATA5_RXP

G37

PCIE18_TXN/SATA5_TXN

G45

PCIE18_TXP/SATA5_TXP

G44

GPP_E8/SATALED#

AD44

GPP_E0/SATAXPCIE0/SATAGP0

AG36

GPP_E1/SATAXPCIE1/SATAGP1

AG35

GPP_E2/SATAXPCIE2/SATAGP2

AG39

GPP_F0/SATAXPCIE3/SATAGP3

AD35

GPP_F1/SATAXPCIE4/SATAGP4

AD31

GPP_F2/SATAXPCIE5/SATAGP5

AD38

GPP_F3/SATAXPCIE6/SATAGP6

AC43

GPP_F4/SATAXPCIE7/SATAGP7

AB44

GPP_F21/EDP_BKLTCTL

W36

GPP_F20/EDP_BKLTEN

W35

GPP_F19/EDP_VDDEN

W42

THERMTRIP#

AJ3

PECI

AL3

PM_SYNC

AJ4

PLTRST_CPU#

AK2

PM_DOWN

AH2

C454 *47PF_50V_X5R_04

R733 10K_04

R716 10K_04

R789 10K_04

R358 *0_04

S

D

G

Q48A
MTDK5S6R

2

61

R357 1K_04

C892

0.1u_10V_X7R_04

S

D

G

Q48B
MTDK5S6R

5

34

RN1

10K_8P4R_04

81

72

653

4

R360 560_04

C431 *0.1u_10V_X7R_04

R718 10K_04

R790

*10K_04

C421 0.1u_10V_X7R_04

R324 10K_04

R368 10K_04

C422 0.1u_10V_X7R_04

R373 20K_04

C895

1u_6.3V_X5R_04

R343 10K_04

R794

100K_04

R370 *0_04

R797

10K_04

R363 30.1_1%_04

Q47

2SK3018S3

G

DS

D69

RB751V-40(lision)

AC

C423 0.1u_10V_X7R_04

R372 10K_04

Sheet 16 of 62

SPT-H 2/7

Schematic Diagrams

B.Schematic Diagrams

SPT-H 2/7 B - 17

Schematic Diagrams

Sheet 17 of 62

SPT-H 3/7

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

TLS CONFIDENTIALITY ENABLED
IF SAMPLED HIGH(DEFAULT)
PCH HAS INTERNAL WEAK PD

DESIGN NOTE: DESIGN NOTE:

ESPI/LPC SELECT STRAP
IF SAMPLED HIGH, ESPI IS
SELECTED ELSE LPC
PCH HAS INTERNAL WEAK PD

DESIGN NOTE:

EXI BOOT STALL BYPASS IS
ENABLED IF SAMPLED HIGH
PCH HAS INTERNAL WEAK PD

DESIGN NOTE:

TOP SWAP OVERRIDE STRAP
HIGH:TOP SWAP ENABLED
LOW:TOP SWAP DISABLED(DEFAULT)
PCH HAS INTERNAL WEAK PD

OD PLL VR ENABLE: DISABLED WHEN SAMPLED LOW

PU/PD for JTAG signals

Function Table

L

L

L

L

AB

L

H

HL

Y

HHLH

PLATFORM RST BUFFER

DESIGN NOTE:

1/30

1/30

SPT-H (HDA,SMB,JTAG,GPIO)

1/30

IF SAMPLED HIGH,FLASH
DESCRIPTOR SECURITY
IS OVERIDEN

ijıŮŪŭŴ

IJıŮŪŭŴ

STUFF FOR NON-DEEP SX

3/5 Tim

㍉岤⺢嬘㓡䁢

MAIN SOURCE

暨ℵ䡢娵

footprint, Ivy03/23

Modify,2/27 Tim

Cancel 33ohm,3/1 Tim

Cancel 33ohm,3/1 Tim

Follow SKL MOW,3/1 Tim

Modify,3/4 Tim

Modify,3/27 Tim

Modify,4/4 Tim

AC_PRESENT
DEEP SX:PU 10K
NON-DEEP SX:NC

DESIGN NOTE:

Modify,4/13 Tim

Follow P75,4/16 Tim

Remove EC_RTC_RESET circuit and JUMP,
4/16 Tim

Modify value,4/20 Tim

Follow

ℙ䓐姕妰

,

6/7 Tim

follow common design,
6/7 Tim

follow common design,
Ivy12/11

Bead

㓡军⮷㜧

,

6/15 Tim

Remove 0Ohm,6/7 Tim

Remove PCH_SLP_SUS# to EC,
6/7 Tim

EMI

天㯪

:R1015 D02 BOM STUFF BEAD(6-19-31001-238),

6/18 Tim

Modify,7/2 Tim

Modify Ivy 11/30

DEL
(follow common design)
Ivy12/10

follow common design,
6/7 Tim

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Delete ,
Ivy12/23

Delete ,
Ivy12/24

Modify,
Ivy12/24

Add,1/4 Tim

PCH_PORT80_LED

GPP_C_5

SMLINK0_CLK

SMLINK0_DATA

PCH_HOT_R_N

SMC_CPU_THERM_R

SMD_CPU_THERM_R

PCH_JTAG_TCK

PCH_JTAG_TDI

PCH_JTAG_TDO

PCH_JTAG_TMS

ITP_PMODE

H_PWRGD_R

HDA_SPKR

HDA_SPKR

SYS_RESET#

PWR_BTN#

AC_PRESENT

PCH_LAN_WAKE#

SUSACK#

SUS_CLK

BATLOW_N

SUS_CLK

SLP_S5#

SLP_S0#

SLP_LAN#

SLP_A#_N

PCIE_WAKE#

SYS_PWROK

SYS_PWROK

TP_GPP_G_17

DRAM_CRESETB

VRALERTB_PU

VRALERTB_PU

PCH_JTAG_TDO

PCH_JTAG_TMS
PCH_JTAG_TDI

DRAM_CRESETB

SUSC#

ITP_PMODE

LANPHYPC

SX_EXIT_HOLDOFF

RSMRST#

RSMRST#

HDA_SDOUT

PCH_PORT80_LED

SMLINK0_CLK
SMLINK0_DATA

GPP_C_5

PCH_HOT_R_N

SMC_CPU_THERM_R

TP_PCH_BD1
TP_PCH_BE2

AUD_AZACPU_SCLK

AUD_AZACPU_SDO

HDA_SDOUT

SLP_WLAN#

PCIE_WAKE#
BATLOW_N

RTC_VBAT_1

RTC_RST#
SRTCRST#

SSP0_SCLK

SUS_PWR_ACK

SSP0_TXD

SSP0_RXD

SSP0_SFRM
DMIC_DATA0

DMIC_DATA1

DMIC_CLK0

DMIC_CLK1

SUS_PWR_ACK

PCH_LAN_WAKE#
AC_PRESENT
PWR_BTN#

SYS_RESET#

HDA_SDI1

PM_CLKRUN#

PM_CLKRUN#

DDR_VOLTAGE_SEL

SMD_CPU_THERM_R

PCH_JTAGX

RSMRST#

PCH_DPWROK

3.3VS

3.3VA

3.3VS

VDDQ

3.3VA

RTCVCC

3.3VA

3.3VA

3.3VA

3.3VA

3.3VA

3.3VA

3.3VA
VDD3

DVDDIO_AUDIO

VCCST_VCCPLL

3.3VA

1.0VA

VDD3

H_PWRGD 3

HDA_SPKR 39

PWR_BTN# 22

AC_PRESENT 22

SUSB# 11,12,13,20,22,23,27,28,39,42,43,44,45,46
SUSC# 22,23,42,43,45,46

PCIE_WAKE# 28,34,36,37,38

SYS_PWROK 20

DDR4_DRAMRST# 7,8,9,10

HDA_BITCLK39
HDA_RST#39
HDA_SDIN039

ME_WE# 22

AUD_AZACPU_SCLK_R3

AUD_AZACPU_SDO_R3

AUD_AZACPU_SDI3

PM_PCH_PWROK15,20,22

VDD311,12,15,16,19,20,22,23,34,37,38,39,42,43,45,47,48,51

3.3VS7,8,9,10,11,12,13,14,15,16,18,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

DVDDIO_AUDIO20

RTCVCC15,20

VCCST_VCCPLL3,5,42,47,49

HDA_SYNC39

VDDQ5,7,8,9,10,46

1.0VA20,42,48

SWI# 16,22

SLP_SUS# 22,42,51

3.3VA3,15,16,19,20,42

HDA_SDOUT39

PCH_SMB_DATA14,15,39,46

PCH_SMB_CLK14,15,39,46

DDR_VOLTAGE_SEL 46

SUS_PWR_ACK_R 22

PM_CLKRUN# 24

SUS_CLK 34

RSMRST#22

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[17] SPT-H 3/7-HDA/SMB/JTAG/GPI

A3

17 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[17] SPT-H 3/7-HDA/SMB/JTAG/GPI

A3

17 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[17] SPT-H 3/7-HDA/SMB/JTAG/GPI

A3

17 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R386

*51_04

R382 33_04

C

A

A

D7

BAT54CWH

1

2

3

R403

499_1%_04

U34

*TC7SZ08FU

1

2

5

4

3

R384 51_04

R760

499_1%_04

R720 1.5K_04

R388

1K_04

R385 51_04

R45610K_04

R457 0_04

R413

*4.7K_04

R809

45.3K_1%_04

R387 1K_04

R768 *0_04

R342 *0_04

C893

1u_6.3V_X5R_04

R381 33_04

R758 *1K_04

R399 *1K_04

R808

1.5K_1%_04

R405 *100K_04

R448 4.7K_04

C463

*100PF_50V_X7R_04

R408 *1K_04

R769 1K_04

R397 2.2K_04

R432*10K_04

R767
20K_1%_04

R743

4.7K_04

R770 *910_04

R434 0_04

JOPEN2

*CV_40mil

12

R771 1K_04

D45 RB751V-40(lision)

A C

.

L59

FCM1005MF-600T01

R792
20K_1%_04

JOPEN1
*CV_40mil

1 2

R742

*4.7K_04

R361 30.1_1%_04

R749

*4.7K_04

R406 *0_04

R458

470_04

R447 3K_1%_04

C940

*22p_50V_NPO_04

R454 *10K_04

R449 10K_04

R389

1K_04

R450 10K_04

R96

1K_04

C467

*100PF_50V_X7R_04

AUDIO

SKL_PCH_H

SMBUS

JTAG

REV = 1.3

4 OF 12

?

?U31D

Z170 MP

JTAG_TCK

AN3

JTAG_TDI

AP2

JTAG_TDO

AP1

JTAG_TMS

AR2

JTAGX

AR3

ITP_PMODE

AT2

PROCPWRGD

AM3

GPP_B14/SPKR

BD26

SYS_RESET#

AW1

GPD3/PWRBTN#

AT13

SLP_SUS#

BB13

GPD1/ACPRESENT

BB15

GPD2/LAN_WAKE#

BD11

GPP_A13/SUSWARN#/SUSPWRDNACK

BD19

GPP_A15/SUSACK#

BB19

GPD0/BATLOW#

BD13

GPD8/SUSCLK

AN15

GPD10/SLP_S5#

BA13

GPD5/SLP_S4#

BD15

GPD4/SLP_S3#

AW15

GPP_B12/SLP_S0#

BC26

SLP_LAN#

AV15

GPD6/SLP_A#

BC15

WAKE#

BC13

SYS_PWROK

AY1

GPP_B11

AN24

GPP_G17/ADR_COMPLETE

N44

GPP_B0

AR27

GPP_B1

AL27

GPP_B2/VRALERT#

BD23

DRAM_RESET#

BC14

GPD9/SLP_WLAN#

AV13

GPD11/LANPHYPC

AR15

GPP_A8/CLKRUN#

AW22

GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLDOFF#

BB17

GPP_C7/SML1DATA

AW45

GPP_C6/SML1CLK

AW42

GPP_B23/SML1ALERT#/PCHHOT#

AT27

GPP_C4/SML0DATA

BB39

GPP_C3/SML0CLK

AY44

GPP_C5/SML0ALERT#

BA40

GPP_C1/SMBDATA

BB43

GPP_C0/SMBCLK

AW44

GPP_C2/SMBALERT#

BB41

DSW_PWROK

AV11

RSMRST#

BA11

PCH_PWROK

AW11

SRTCRST#

BB10

RTCRST#

BC10

GPP_D17/DMIC_CLK1

AJ42

GPP_D18/DMIC_DATA1

AJ38

GPP_D19/DMIC_CLK0

AJ35

GPP_D20/DMIC_DATA0

AH44

GPP_D5/SSP0_SFRM

AJ33

GPP_D6/SSP0_TXD

AM43

GPP_D7/SSP0_RXD

AN42

GPP_D8/SSP0_SCLK

AL42

DISPA_BCLK

AM2

DISPA_SDI

AN2

DISPA_SDO

AM1

RSVD

BE2

RSVD

BD1

HDA_SDO

BB7

HDA_SDI0

BE7

HDA_RST#

BD8

HDA_BCLK

BA9

HDA_SYNC

BD9

HDA_SDI1

BC8

C886

*100PF_50V_X7R_04

C477

*0.1u_10V_X7R_04

C896

1u_6.3V_X5R_04

R437 8.2K_04

R383 51_04

C474

0.1u_10V_X7R_04

J_CBAT1
C1369-00-A

-

2

+

1

C180 1u_6.3V_X5R_04

R410 10K_04

R431

*10K_04

C462

*100PF_50V_X7R_04

R407 *0_04

SPT-H 3/7

B.Schematic Diagrams

B - 18 SPT-H 3/7

SPT-H 4/7

Sheet 18 of 62

SPT-H 4/7

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SPT-H (CLK,REQ,GPP,DDP)

DESIGN NOTE:
SYS_PWROK NORMAL POWER DOWN
TRIGGERED BY PCH

DESIGN NOTE:

FOR SOP ENABLE AND FLASH
STUFF FOR RECOVERY USAGE ONLY

* DEFAULT JUMPER SETTING

RECOVER/CONFIGURE HEADER

R468 STUFF

R413 STUFF,R468 REMOVE

MODE

R442 STUFF,R468 REMOVE

NORMAL

CONFIGURE

RECOVERY

DESIGN NOTE:

TEST SETUP MENU JUMPER

BOARD STYLE

TEST SETUP MENU TABLE

10DISABLED (DEFAULT)

TEST SETUP MENU ENABLED

4/3 Tim

2/27 Tim

3/20 Tim

P/N:
6-22-24R00-1BA

2/27 Tim

follow PDG,3/1 Tim

P/N:
6-22-32R76-0B2
6-22-32R76-0BG
6-22-32R76-0BJ

Follow PDG,3/2 Tim

STRAP:GPP_I6,I8,I10(internal PD)
0: PORT B,C,D NOT detected
1:PORT B,C,D detected

3/6 Tim

Modify,4/2 Tim

Reserved,4/2 Tim

Follow NV,3/5 Tim

4/3 Tim

Modify,4/14 Tim

Remove SUSB# to SYS_PWROK circuit,
6/7 Tim

Remove 0Ohm,6/8 Tim

Adj value,6/8 Tim

Remove test point,6/10 Tim

Modify,6/10 Tim

Add,6/15 Tim

DEL, Ivy11/30

DEL, Ivy11/30

Modify Ivy03/02

Modify Ivy03/02

(Page17)

Delete HDA_SPKR

枸䔁

PU 2.2K,Ivy12/07

Modify Ivy,03/18

Modify Ivy,12/24

follow common design, Ivy 03/01

ADD,Ivy 03/02

Modify,Ivy03/16

Modify value,04/08Ivy

TP_CLKOUT_48

XTAL_24M_PCH_OUT
XTAL_24M_PCH_IN

XCLK_RBIAS

RTC_X1
RTC_X2

RTC_X1
RTC_X2

PCH_XDP_CLK_R_DN
PCH_XDP_CLK_R_DP

DDSP_1_HPD0

TEST_SETUP_MENU

DGPU_RST#_PCH

TEST_SETUP_MENU

CARD_CLKREQ#
SSD1_CLKREQ#
SSD2_CLKREQ#

MXM1_CLKREQ#
MXM2_CLKREQ#

DGPU_RST#_PCH

dGPU_PWR_EN#

dGPU_PWR_EN#
GC6_FB_EN

MXM2_PRSNT#

MXM1_PRSNT#

IVCAM_DFU

GPP_I0

TBT_CLKREQ#

V1P0A_VCCF24_1P0

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

3.3V

PCH_CPU_NSSC_CLK_DN3

PCH_CPU_NSSC_CLK_DP3

PCH_CPU_BCLK_DN3

PCH_CPU_BCLK_DP3

PCH_CPU_PCIBCLK_DN 3

PCH_CPU_PCIBCLK_DP 3

3.3VS7,8,9,10,11,12,13,14,15,16,17,19,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

H_SKTOCC_N 3

PCH_CONFIG_JUMPER 16

LPSS_GSPI0_MOSI 15

V1P0A_VCCF24_1P020

GC6_FB_EN 11

SSD1_CLKREQ#35
SSD2_CLKREQ#35

WLAN_CLKREQ#34

MXM1_CLKREQ#11
MXM2_CLKREQ#12

CARD_CLKREQ#36

CLK_PCIE_WLAN# 34
CLK_PCIE_WLAN 34

CLK_PCIE_CARD# 36
CLK_PCIE_CARD 36

CLK_PCIE_SSD1 35

TBT_REFCLK_100_N 28
TBT_REFCLK_100_P 28

CLK_PCIE_SSD2# 35
CLK_PCIE_SSD2 35

CLK_PCIE_SSD1# 35

CLK_PCIE_MXM1 11

CLK_PCIE_MXM2# 12
CLK_PCIE_MXM2 12

CLK_PCIE_MXM1# 11

CLK_PCIE_GLAN2 38

CLK_PCIE_GLAN2# 38

CLK_PCIE_GLAN1# 37
CLK_PCIE_GLAN1 37

TBTA_ACE_GPIO7 30,31

MXM1_PRSNT#11,22
MXM2_PRSNT#12,22

SMI#19,22,23

WIGIG_CLKREQ#34

CLK_PCIE_WIGIG 34

CLK_PCIE_WIGIG# 34

DGPU_RST#_PCH 11

dGPU_PWR_EN# 11,12

TBT_CLKREQ#28

3.3V2,12,13,14,16,24,29,34,39,42,43,46,48

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[18] SPT-H 4/7-CLK,REQ,GPP

Custom

18 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[18] SPT-H 4/7-CLK,REQ,GPP

Custom

18 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[18] SPT-H 4/7-CLK,REQ,GPP

Custom

18 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R422 47K_04

R700
10K_04

R442 *2.2K_04

R766 10K_04

C466

12p_50V_NPO_04

R400 100K_04

R323 47K_04

R683 10K_04

R686
*0_04

R404

10M_06

R414 10K_04

C850

12p_50V_NPO_04

R735 10K_04

R435 10K_04

C849

12p_50V_NPO_04

R310 2.7K_1%_04

R468 1K_04

SKL_PCH_H

?

?

7 OF 12

REV = 1.3

U31G

Z170 MP

GPP_A16/CLKOUT_48

AR17

CLKOUT_CPUNSSC_P

G1

CLKOUT_CPUNSSC

F1

CLKOUT_CPUBCLK_P

G2

CLKOUT_CPUBCLK

H2

XTAL24_OUT

A5

XTAL24_IN

A6

XCLK_BIASREF

E1

RTCX1

BC9

RTCX2

BD10

GPP_B5/SRCCLKREQ0#

BC24

GPP_B6/SRCCLKREQ1#

AW24

GPP_B7/SRCCLKREQ2#

AT24

GPP_B8/SRCCLKREQ3#

BD25

GPP_B9/SRCCLKREQ4#

BB24

GPP_B10/SRCCLKREQ5#

BE25

GPP_H0/SRCCLKREQ6#

AT33

GPP_H1/SRCCLKREQ7#

AR31

GPP_H2/SRCCLKREQ8#

BD32

GPP_H3/SRCCLKREQ9#

BC32

GPP_H4/SRCCLKREQ10#

BB31

GPP_H5/SRCCLKREQ11#

BC33

GPP_H6/SRCCLKREQ12#

BA33

GPP_H7/SRCCLKREQ13#

AW33

GPP_H8/SRCCLKREQ14#

BB33

GPP_H9/SRCCLKREQ15#

BD33

CLKOUT_PCIE_N15

R13

CLKOUT_PCIE_P15

R11

CLKOUT_PCIE_N14

P1

CLKOUT_PCIE_P14

R2

CLKOUT_PCIE_N13

W7

CLKOUT_PCIE_P13

Y5

CLKOUT_PCIE_N12

U2

CLKOUT_PCIE_P12

U3

CLKOUT_ITPXDP

L1

CLKOUT_ITPXDP_P

L2

CLKOUT_CPUPCIBCLK

J1

CLKOUT_CPUPCIBCLK_P

J2

CLKOUT_PCIE_N0

N7

CLKOUT_PCIE_P0

N8

CLKOUT_PCIE_N1

L7

CLKOUT_PCIE_P1

L5

CLKOUT_PCIE_N2

D3

CLKOUT_PCIE_P2

F2

CLKOUT_PCIE_N3

E5

CLKOUT_PCIE_P3

G4

CLKOUT_PCIE_N4

D5

CLKOUT_PCIE_P4

E6

CLKOUT_PCIE_N5

D8

CLKOUT_PCIE_P5

D7

CLKOUT_PCIE_N6

R8

CLKOUT_PCIE_P6

R7

CLKOUT_PCIE_N7

U5

CLKOUT_PCIE_P7

U7

CLKOUT_PCIE_N8

W10

CLKOUT_PCIE_P8

W11

CLKOUT_PCIE_N9

N3

CLKOUT_PCIE_P9

N2

CLKOUT_PCIE_N10

P3

CLKOUT_PCIE_P10

P2

CLKOUT_PCIE_N11

R3

CLKOUT_PCIE_P11

R4

R684 10K_04

R543 10K_04

X5

FSX3M_24MHZ

21

34

R415 10K_04

R313 *10K_04

R687 *301_1%_04

R764 10K_04

SKL_PCH_H

?

?

5 OF 12

REV = 1.3

U31E

Z170 MP

GPP_I0/DDPB_HPD0

AW4

GPP_I1/DDPC_HPD1

AY2

GPP_I2/DDPD_HPD2

AV4

GPP_I3/DDPE_HPD3

BA4

GPP_I4/EDP_HPD

BD7

GPP_I7/DDPC_CTRLCLK

BB3

GPP_I8/DDPC_CTRLDATA

BD6

GPP_I5/DDPB_CTRLCLK

BA5

GPP_I6/DDPB_CTRLDATA

BC4

GPP_I9/DDPD_CTRLCLK

BE5

GPP_I10/DDPD_CTRLDATA

BE6

GPP_F14

Y44

GPP_F23

V44

GPP_F22

W39

GPP_G23

L43

GPP_G22

L44

GPP_G21

U35

GPP_G20

R35

GPP_H23

BD36

D71 RB751V-40(lision)

AC

R1022 *10K_04

X4

1TJS125DJ4A420P_32.768KHz

14

3 2

C465

12p_50V_NPO_04

R690

1M_1%_04

R312 *10K_04

Schematic Diagrams

B.Schematic Diagrams

SPT-H 4/7 B - 19

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SPT-H (DMI,PCIe,USB,LPC)

DESIGN NOTE:

PD FOR I2S MODE
DEFAULT PU HDA MODE

DESIGN NOTE:

USED TO DETECT 2X4 PRESENCE
JA PIN 4 WILL PULL GPIO TO GND
WHEN 2X4 PLUG IN
CONNECT TO GPIO

DESIGN NOTE:

DFX TEST MODE
XTAL INPUT IS SINGLE ENDED IF SAMPLED LOW ELSE DIFFERENTIAL

USB2 COMP RES: PLACE WITHIN 1 INCH

DESIGN NOTE:

ůƉŝŶĞZŝĚŐĞ

Modify 0.1uF for Gen2,2/25 Tim

t>E

ĂƌĚZĞĂĚĞƌ

USB2.0

DEVICE

USB TABLE

USB3.0
1
2
3
4

6

1
2
3

CCD

USB3 PORT 1
USB3 PORT 2

USB3 PORT 3
4
5

7
8

FINGERPRINT

BT

5

Thunderbolt

USB3 PORT 5

USB2.0

DEVICE

USB TABLE

USB3.0
1
2
3
4

6

1
2
3

CCD

USB3 PORT 1
USB3 PORT 2

USB3 PORT 3
4
5

7
8

FINGERPRINT
BT

5

USB3 PORT 4

USB3 PORT 5

Add,2/27 Tim

Add,2/27 Tim

Modify,6/8 Tim

Add,3/13 Tim

Modify,3/17 Tim

Modify,3/18 Tim

Follow Checklist,3/27 Tim

Follow Checklist,3/27 Tim

Modify,4/3 Tim

Modify,3/30 Tim

Modify,4/3 Tim

Modify,6/10 Tim

Modify,6/14 Tim

Modify Ivy11/30

Modify Ivy11/30

Follow

ℙ䓐䶂嶗

,
Delete S4_STATE#
Ivy12/24

add,
Ivy03/18

add,
Ivy03/15

Delete Ivy,12/24

value *10mil change *0402_short,
Ivy12/30

value *10mil change *0402_short,
Ivy12/30

follow INTEL

℔㜧

Modify value&footprint
,Ivy01/12

Modify net name,Ivy03/16

t/'/'η

TP_GPP_E_6

PCH_CODEC_IRQTP_GPP_F_9

TP_GPP_F_8

TP_GPP_E_5

2X4_POWER_DETECT

PCH_SMI_N
2X4_POWER_DETECT

LPC_0_ESPI_CLK_EC
PCH_CLK_PCI_TPM

SERIRQ
SB_KBCRST#
PCH_SMI_N
PCH_SMI_N

SERIRQ

SB_KBCRST#

L_FRAME_N_R

USB2_OC1#

VISACH2_D3

USB2_OC2#

USB2_OC4#
USB2_OC5#
USB2_OC6#
GPIO_PCIESLOT_RST_R

USB2_COMP
USB2_VBUSSENSE

USB2_ID

TP_PCH_AB13

USB2_OC0#

PCIECOMP_P

PCIECOMP_N

RSVD_PCH_BD14_N

TP_GPP_F_7

USB2_OC1#

USB2_OC5#

USB2_OC6#
GPIO_PCIESLOT_RST_R

PCH_CODEC_IRQ

USB2_OC2#

USB2_OC4#

SUS_STAT#

3.3VA

3.3VS

3.3VS

VDD3

3.3VS

3.3VA

3.3VA

DMI_TXN12

DMI_TXN02
DMI_TXP02

DMI_TXN32

DMI_TXN22

DMI_RXN02

DMI_TXP32

DMI_TXP12

DMI_TXP22

DMI_RXN32

DMI_RXN22

DMI_RXN12

DMI_RXP22

DMI_RXP12

DMI_RXP02

DMI_RXP32

PCLK_TPM 24

PCLK_KBC 22,23

LPC_AD0 22,23,24
LPC_AD1 22,23,24
LPC_AD2 22,23,24
LPC_AD3 22,23,24

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,20,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

PCH_MUTE# 39

VDD311,12,15,16,17,20,22,23,34,37,38,39,42,43,45,47,48,51

3.3VA3,15,16,17,20,42

SMI# 18,22,23

SERIRQ 22,23,24

LPC_FRAME# 22,23,24

SB_KBCRST# 22

PCIE_TXN4_CARD36

PCIE_TXP4_CARD36

PCIE_RXN4_CARD36
PCIE_RXP4_CARD36

PCIE_RXN5_TBT28
PCIE_RXP5_TBT28

PCIE_TXN5_TBT28

PCIE_TXP5_TBT28

PCIE_RXN6_TBT28
PCIE_RXP6_TBT28

PCIE_RXN7_TBT28
PCIE_RXP7_TBT28

PCIE_TXN6_TBT28

PCIE_TXP6_TBT28

PCIE_TXN7_TBT28

PCIE_TXP7_TBT28

PCIE_TXN8_TBT28

PCIE_TXP8_TBT28

PCIE_RXP8_TBT28

PCIE_RXN8_TBT28

USB3_TXN127
USB3_TXP127
USB3_RXN127
USB3_RXP127

USB3_TXN241
USB3_TXP241
USB3_RXN241
USB3_RXP241

USB3_RXN341

USB3_TXN341
USB3_TXP341
USB3_RXP341

USB_PN1 27
USB_PP1 27
USB_PN2 41
USB_PP2 41
USB_PN3 41
USB_PP3 41

USB_PP5 41

USB_PN5 41

USB_PP6 27

USB_PN6 27

USB2_OC0# 27

USB3_RXP541

USB3_TXN541
USB3_TXP541
USB3_RXN541

USB_PP7 39

USB_PN7 39

USB_PP8 34

USB_PN8 34

PCIE_RXN1_WLAN34
PCIE_RXP1_WLAN34

PCIE_TXN1_WLAN34

PCIE_TXP1_WLAN34

PCIE_TXN2_WIGIG#34

PCIE_TXP2_WIGIG34

PCIE_RXN2_WIGIG#34

PCIE_RXP2_WIGIG34

USB_PN4 41
USB_PP4 41

USB3_RXN441

USB3_TXP441
USB3_TXN441
USB3_RXP441

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[19] SPT-H 5/7-DMI,PCIe,USB

A3

19 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[19] SPT-H 5/7-DMI,PCIe,USB

A3

19 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[19] SPT-H 5/7-DMI,PCIe,USB

A3

19 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R362 1K_04

R327 *0_04

R301 100_1%_04

DMI

USB 2.0

SKL_PCH_H

PCIe/USB 3

?

?

2 OF 12

REV = 1.3

U31B

Z170 MP

USB2N_1

AF5

USB2P_1

AG7

USB2N_2

AD5

USB2P_2

AD7

USB2N_3

AG8

USB2P_3

AG10

USB2N_4

AE1

USB2P_4

AE2

USB2N_5

AC2

USB2P_5

AC3

USB2N_6

AF2

USB2P_6

AF3

USB2N_7

AB3

USB2P_7

AB2

USB2N_8

AL8

USB2P_8

AL7

USB2N_9

AA1

USB2P_9

AA2

USB2N_10

AJ8

USB2P_10

AJ7

USB2N_11

W2

USB2P_11

W3

USB2N_12

AD3

USB2P_12

AD2

USB2N_13

V2

USB2P_13

V1

USB2N_14

AJ11

USB2P_14

AJ13

GPP_E9/USB2_OC0#

AD43

GPP_E10/USB2_OC1#

AD42

GPP_E11/USB2_OC2#

AD39

GPP_E12/USB2_OC3#

AC44

GPP_F15/USB2_OCB_4

Y43

GPP_F16/USB2_OCB_5

Y41

GPP_F17/USB2_OCB_6

W44

GPP_F18/USB2_OCB_7

W43

USB2_COMP

AG3

USB2_VBUSSENSE

AD10

RSVD_AB13

AB13

USB2_ID

AG2

GPD7/RSVD

BD14

DMI_RXN0

L27

DMI_RXP0

N27

DMI_TXN0

C27

DMI_TXP0

B27

DMI_RXN1

E24

DMI_RXP1

G24

DMI_TXN1

B28

DMI_TXP1

A28

DMI_RXN2

G27

DMI_RXP2

E26

DMI_TXN2

B29

DMI_TXP2

C29

DMI_RXN3

L29

DMI_RXP3

K29

DMI_TXN3

B30

DMI_TXP3

A30

PCIE_RCOMPN

B18

PCIE_RCOMPP

C17

PCIE1_RXN/USB3_7_RXN

H15

PCIE1_RXP/USB3_7_RXP

G15

PCIE1_TXN/USB3_7_TXN

A16

PCIE1_TXP/USB3_7_TXP

B16

PCIE2_TXN/USB3_8_TXN

B19

PCIE2_TXP/USB3_8_TXP

C19

PCIE2_RXN/USB3_8_RXN

E17

PCIE2_RXP/USB3_8_RXP

G17

PCIE3_RXN/USB3_9_RXN

L17

PCIE3_RXP/USB3_9_RXP

K17

PCIE3_TXN/USB3_9_TXN

B20

PCIE3_TXP/USB3_9_TXP

C20

PCIE4_RXN/USB3_10_RXN

E20

PCIE4_RXP/USB3_10_RXP

G19

PCIE4_TXN/USB3_10_TXN

B21

PCIE4_TXP/USB3_10_TXP

A21

PCIE5_RXN

K19

PCIE5_RXP

L19

PCIE5_TXN

D22

PCIE5_TXP

C22

PCIE6_RXN

G22

PCIE6_RXP

E22

PCIE6_TXN

B22

PCIE6_TXP

A23

PCIE7_RXN

L22

PCIE7_RXP

K22

PCIE7_TXN

C23

PCIE7_TXP

B23

PCIE8_RXN

K24

PCIE8_RXP

L24

PCIE8_TXN

C24

PCIE8_TXP

B24

C400 0.22u_10V_X5R_02

R326 *10K_04

RN2

10K_8P4R_04

81

72

653

4

R702
100K_04

R721 1K_04

C397 0.1u_10V_X7R_04

R753 22_1%_04

C401 0.22u_10V_X5R_02

C834 0.22u_10V_X5R_02

R703
*100K_04

R788 10K_04

R755 22_1%_04

C833 0.22u_10V_X5R_02

R754 *0402_short

R338 *10K_04

R339 10K_04

C398 0.22u_10V_X5R_02

USB

SATA

LPC/eSPI

SKL_PCH_H

?

?

6 OF 12

REV = 1.3

U31F

Z170 MP

USB3_1_TXN

C11

USB3_1_TXP

B11

USB3_1_RXN

B7

USB3_1_RXP

A7

USB3_2_TXN/SSIC_1_TXN

B12

USB3_2_TXP/SSIC_1_TXP

A12

USB3_2_RXN/SSIC_1_RXN

C8

USB3_2_RXP/SSIC_1_RXP

B8

USB3_6_TXN

B15

USB3_6_TXP

C15

USB3_6_RXN

K15

USB3_6_RXP

K13

USB3_5_TXN

B14

USB3_5_TXP

C14

USB3_5_RXN

G13

USB3_5_RXP

H13

USB3_3_TXP/SSIC_2_TXP

D13

USB3_3_TXN/SSIC_2_TXN

C13

USB3_3_RXP/SSIC_2_RXP

A9

USB3_3_RXN/SSIC_2_RXN

B10

USB3_4_TXP

B13

USB3_4_TXN

A14

USB3_4_RXP

G11

USB3_4_RXN

E11

GPP_A1/LAD0/ESPI_IO0

AT22

GPP_A2/LAD1/ESPI_IO1

AV22

GPP_A3/LAD2/ESPI_IO2

AT19

GPP_A4/LAD3/ESPI_IO3

BD16

GPP_A5/LFRAME#/ESPI_CS#

BE16

GPP_A6/SERIRQ

BA17

GPP_A7/PIRQA#/ESPI_ALERT0#

AW17

GPP_A0/RCIN#/ESPI_ALERT1#

AT17

GPP_A14/SUS_STAT#/ESPI_RESET#

BC18

GPP_A9/CLKOUT_LPC0/ESPI_CLK

BC17

GPP_A10/CLKOUT_LPC1

AV19

GPP_G19/SMI#

M45

GPP_G18/NMI#

N43

GPP_E6/DEVSLP2

AE45

GPP_E5/DEVSLP1

AG43

GPP_E4/DEVSLP0

AG42

GPP_F9/DEVSLP7

AB39

GPP_F8/DEVSLP6

AB36

GPP_F7/DEVSLP5

AB43

GPP_F6/DEVSLP4

AB42

GPP_F5/DEVSLP3

AB41

C402 0.22u_10V_X5R_02

C956 0.22u_10V_X5R_04

R787 10K_04

C958 0.22u_10V_X5R_04

C957 0.22u_10V_X5R_04

R340 10K_04

C396 0.1u_10V_X7R_04

C959 0.22u_10V_X5R_04

R786 10K_04

C403 0.22u_10V_X5R_02

C399 0.22u_10V_X5R_02

R344 *0402_short

R325 *10K_04

R334

113_1%_04

R712 10K_04

R451 *10K_04

R367 10K_04

Sheet 19 of 62

SPT-H 5/7

SPT-H 5/7

B.Schematic Diagrams

B - 20 SPT-H 5/7

SPT-H 6/7

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

NEAR AJ5,AL5

NEAR A42,A43,B43

NEAR K2,K3

NEAR BA20

NEAR AJ41,AL41

NEAR AD13

NEAR BC42,BD40

NEAR K2,K3

NEAR AN5

NEAR AD41

NEAR W15

NEAR BA22

SPT-H (POWER)

BOARD CAP FOR VCCDSW_1P0

DESIGN NOTE:

EDGE CAP FOR VCCMPHY_1P0 AND VCCDUSB_1P0

DESIGN NOTE:

BOARD CAP FOR VCCPRTCPRIM_3P3

DESIGN NOTE:

EDGE CAP FOR VCCPGPPEF(PLACE HOLDER)

DESIGN NOTE:

EDGE CAP FOR VCCPGPPBCH (PLACE HOLDER)

DESIGN NOTE:

EDGE CAP FOR VCCPGPPG(PLACE HOLDER)

DESIGN NOTE:

BOARD CAP FOR VCCATS

DESIGN NOTE:

EDGE CAP FOR VCCPHVC_3P3
(PLACE HOLDER)

DESIGN NOTE:

EDGE CAP FOR VCCPHVC_3P3
(PLACE HOLDER)

DESIGN NOTE:

GROUP D POWER
SPT-H :1.8V

DESIGN NOTE:

EDGE CAP FOR VCCPUSBDSW_3P3
PLACE HOLDER

DESIGN NOTE:

DESIGN NOTE:

BOARD GENERAL DCPL CAPS

VCCIO_EN=(VDDQ_PWRGD & SUSB#)

DESIGN NOTE:

PLACE HOLDER FOR VCCMPHYPLL_1P0 FILTER

DESIGN NOTE:

PLACE HOLDER FOR VCCAUSB_1P0 AND VCCAAZPLL_1P0 FILTER

1.0VA->SUSC#->VDDQ->DDR1.2V_PWRGD->VCCIO

DESIGN NOTE:

PLACE HOLDER FOR VCCMPHYPLL_1P0 FILTER

DESIGN NOTE:

BOARD CAP FOR VCCPRTC_3P3

Follow Check list,3/20 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/3 Tim

Modify,4/11 Tim

Modify,6/3 Tim

Modify,6/6 Tim

close to U54

ALL_SYS_PWROK to EC delay 99ms
generate PM_PWROK

Modify,6/11 Tim

Close to PCH

Delete ,
Ivy12/23

Delete ,
Ivy12/23

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

+P1V0_PRIME_PCH_FUSE_2V8

+VCCPFUSE_3P3

VCC_RTCEXT_CAP

SYS_PWROK_R

SUSB#

PLT_RST#

3.3VS

3.3VA
VCCPRTC_3P3

VCCPGPPD

3.3VA

3.3VA

RTCVCC

5V

VDD3

1.0VA V1P0A_VCCAPLL

1.0VA V1P0A_VCCAMPHYPLL

1.0VA

V1P0A_VCCF24_1P0

RTCVCC

VCCPRTC_3P3

V1P0A_VCCAMPHYPLL

3.3V_SPI

V3P3A_V1P8A_PCH_SPI

P1V0_PCH_VCCDSW

1.0VA

3.3VA

3.3VA

3.3VA

3.3VA

3.3VS

3.3VA

V1P0A_VCCF24_1P0

VDD3 VDD3

VDD3

1.0VA

DVDDIO_AUDIO

VCCPGPPA

V1P0A_VCCF24_1P0

1.0VA

V1P0A_VCCAPLL

VDD3

3.3VA

VCCPGPPD

1.0VA

1.0VA

1.0VA

1.0VA

1.0VA

VDD3

3.3VA

1.0VA

3.3VA

VDD3

DVDDIO_AUDIO

VDD3

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,22,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

VDD311,12,15,16,17,19,22,23,34,37,38,39,42,43,45,47,48,51

1.0VA17,42,48

V3P3A_V1P8A_PCH_SPI15

5V11,12,14,26,30,31,39,41,42,43,45,46,48,49,50

DVDDIO_AUDIO17

V1P0A_VCCF24_1P018

RTCVCC15,17

VCCIO_PWRGD45,48,49

SYS_PWROK 17

ALL_SYS_PWRGD 11,12,13,22

VCCPGPPA15

3.3VA3,15,16,17,19,42

VR_ON 49

PM_PWROK22

VCCST_PWRGD 3

PM_PCH_PWROK 15,17,22

SUSB#

74LVC1G14GW_OUT16

5VS_PWRGD43

BUF_PLT_RST# 22,23,24,28,34,35,36,37,38

PLT_RST#11,15

3.3V_SPI15

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[20] SPT-H 6/7-POWER

A3

20 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[20] SPT-H 6/7-POWER

A3

20 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[20] SPT-H 6/7-POWER

A3

20 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C881

0.1u_10V_X7R_04

U54B

74LCX08FT

4

5

6

147

R691 *28mil short-p

R751 *28mil short-p

C869

1u_6.3V_X5R_04

C544

0.1u_10V_X7R_04

C871

0.1u_10V_X7R_04

C848

1u_6.3V_X5R_04

C865

1u_6.3V_X5R_04

R734
*28mil short-p

C851

*22u_6.3V_X5R_08

C885

1u_6.3V_X5R_04

C866

22u_6.3V_X5R_08

C867

1u_6.3V_X5R_04

R761 *28mil short-p

C812

0.1u_10V_X7R_04

R722 *28mil short-p

R727

10K_04

C868

*22u_6.3V_X5R_08

R783 249_1%_04

C874

1u_6.3V_X5R_04

VCCGPIO

CORE

MPHY

USB

SKL_PCH_H

REV = 1.3

8 OF 12

?

?U31H

Z170 MP

VCCPCIE3PLL_1P0

C44

VCCPRIM_3P3

BE4

VCCPRIM_3P3

BE3

VCCPGPPCD

BB45

VCCPGPPCD

BC45

VCCSPI

BE42

VCCSPI

BE43

VCCPGPPCD

BA45

VCCPRIM_1P0

AJ25

VCCPRIM_1P0

AJ23

VCCPRIM_1P0

AJ21

VCCPRIM_1P0

AJ20

DCPRTC

BA26

VCCRTC

BA22

VCCRTCPRIM_3P3

BA20

VCCATS

AD13

VCCPRIM_1P0

AD15

VCCPRIM_3P3

AN5

VCCPGPPG

AD41

VCCPGPPEF

AL41

VCCPGPPEF

AJ41

VCCPGPPCD

BC44

VCCPGPPBH

BD40

VCCPGPPBH

BC42

VCCPGPPA

BA31

VCCDSW_3P3

BA24

VCCPRIM_1P0

AL22

VCCPRIM_3P3

BD3

VCCSPI

BE41

VCCHDAPLL_1P0

AN19

VCCHDA

BA15

VCCDSW_3P3

W15

VCCUSB2PLL_1P0

AL5

VCCUSB2PLL_1P0

AJ5

VCCPRIM_1P0

AC17

VCCAPLLEBB_1P0

V28

VCCAMPHYPLL_1P0

B43

VCCPCIE3PLL_1P0

C45

VCCAMPHYPLL_1P0

A43

VCCMPHY_1P0

V26

VCCMPHY_1P0

U21

VCCCLK5

K3

VCCCLK6

R17

VCCCLK3

R19

VCCCLK5

K2

VCCCLK1

N17

DCPDSW_1P0

BA29

VCCPRIM_1P0

Y25

VCCPRIM_1P0

Y23

VCCPRIM_1P0

AE26

VCCPRIM_1P0

AE23

VCCPRIM_1P0

AC28

VCCPRIM_1P0

AC26

VCCPRIM_1P0

AC23

VCCPRIM_1P0

AA28

VCCPRIM_1P0

AA26

VCCPRIM_1P0

AA23

VCCCLK2

V17

VCCCLK4

U20

VCCMPHY_1P0

U23

VCCMPHY_1P0

U25

VCCMPHY_1P0

U26

U54C
74LCX08FT

9

10

8

147

R784

249_1%_04

C408

22u_6.3V_X5R_08

C882
1u_6.3V_X5R_04

C884

0.1u_10V_X7R_04

U54D
74LCX08FT

12

13

11

147

C887

0.1u_10V_X7R_04

C875

0.1u_10V_X7R_04

R311 *28mil short-p

C852

22u_6.3V_X5R_08

C880
*0.1u_10V_X7R_04

R731 *28mil short-p

C407

*22u_6.3V_X5R_08

R763 *28mil short-p

R781

100K_04

C876

22u_6.3V_X5R_08

R724 1K_04

C870

*0.1u_10V_X7R_04

C879

10u_6.3V_X5R_06

C863

0.1u_10V_X7R_04

C872

0.1u_10V_X7R_04

R729

10K_04

R1013 *28mil short-p

C873

1u_6.3V_X5R_04

C883

1u_6.3V_X5R_04

C890 0.1u_10V_X7R_04

R776 *28mil short-p

C864
*0.1u_10V_X7R_04

R726 0_04

U54A

74LCX08FT

1

2

3

147

Sheet 20 of 62

SPT-H 6/7

Schematic Diagrams

,13,17,22,23,27,28,39,42,43,44,45,46

B.Schematic Diagrams

SPT-H 6/7 B - 21

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SPT -H (RSVD,GND)

Modify,3/4 Tim

Modify Ivy 11/30

TP_PCH_C1
TP_PCH_D1

TP_PCH_P31
TP_PCH_N31

TP_PCH_AR22
TP_PCH_W13
TP_PCH_U13

TP_PCH_P27
TP_PCH_R27
TP_PCH_N29
TP_PCH_P29
TP_PCH_AN29
TP_PCH_R24
TP_PCH_P24

CPU_2_PCH_TRIGGER 2

PCH_2_CPU_TRIGGER 2

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[21] SPT-H 7/7-RSVD/GND

A3

21 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[21] SPT-H 7/7-RSVD/GND

A3

21 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[21] SPT-H 7/7-RSVD/GND

A3

21 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R359 30.1_1%_04

SKL_PCH_H

?

?

9 OF 12

REV = 1.3

U31I

Z170 MP

VSS

AE29

VSS

AE4

VSS

AE42

VSS

AF18

VSS

AF20

VSS

AF21

VSS

AF23

VSS

AF25

VSS

AF26

VSS

AF28

VSS

AF29

VSS

AG11

VSS

AG13

VSS

AG31

VSS

AG32

VSS

AG33

VSS

AG38

VSS

AG4

VSS

AH1

VSS

AH17

VSS

AH18

VSS

AH20

VSS

AH21

VSS

AH23

VSS

AH25

VSS

AH26

VSS

AH28

VSS

AH29

VSS

AH45

VSS

AJ10

VSS

AJ14

VSS

AJ15

VSS

AJ17

VSS

AJ18

VSS

AJ26

VSS

AJ28

VSS

AJ29

VSS

AJ31

VSS

AJ32

VSS

AJ36

VSS

AK4

VSS

AK42

VSS

AU7

VSS

AV17

VSS

AV24

VSS

AV27

VSS

AV31

VSS

AV33

VSS

AV6

VSS

AW13

VSS

AW19

VSS

AW29

VSS

AW37

VSS

AW9

VSS

AY38

VSS

AY45

VSS

B25

VSS

B3

VSS

B37

VSS

B40

VSS

B6

VSS

BA1

VSS

BB11

VSS

BB16

VSS

BB21

VSS

BB25

VSS

BB30

VSS

BB34

VSS

BC2

VSS

BD43

VSS

BE14

VSS

BE18

VSS

BE23

VSS

BE28

VSS

BE32

VSS

BE37

VSS

BE40

VSS

BE9

VSS

C10

VSS

C2

VSS

C28

VSS

C37

VSS

J7

VSS

K10

VSS

K27

VSS

K33

VSS

K36

VSS

K4

VSS

K42

VSS

K43

VSS

L12

VSS

L13

VSS

L15

VSS

L4

VSS

L41

VSS

L8

VSS

M35

VSS

M42

VSS

N10

VSS

N15

VSS

N19

VSS

N22

VSS

N24

VSS

N35

VSS

N36

VSS

N4

VSS

N41

VSS

N5

VSS

P17

VSS

P19

VSS

P22

VSS

P45

VSS

R10

VSS

R14

VSS

R22

VSS

R29

VSS

R33

VSS

R38

VSS

R5

VSS

T1

VSS

T2

VSS

T4

VSS

Y18

VSS

Y20

VSS

Y21

VSS

Y26

VSS

Y28

VSS

Y29

VSS

A18

VSS

A25

VSS

A32

VSS

A37

VSS

AA17

VSS

AA18

VSS

AA20

VSS

AA21

VSS

AA25

VSS

AA29

VSS

AA4

VSS

AA42

VSS

AB10

VSS

AC18

VSS

AN10

VSS

AN4

VSS

AR5

VSS

AR7

VSS

U15

VSS

AL4

SKL_PCH_H

REV = 1.3

10 OF 12

?

?U31J

Z170 MP

VSS

A44

VSS

BC1

VSS

BB1

RSVD

D1

RSVD

C1

VSS

B1

VSS

A2

VSS

B2

VSS

A3

VSS

A4

VSS

B45

VSS

BE44

VSS

BD44

VSS

BD45

PCH_TRIGIN

AK1

PCH_TRIGOUT

AL2

CPU_TRST#

AY5

PRDY#

AT4

PREQ#

AT3

RSVD

P24

RSVD

R24

RSVD

AN29

RSVD

P29

RSVD

N29

RSVD

R27

RSVD

P27

RSVD

N31

RSVD

P31

RSVD

U13

RSVD

W13

RSVD

AR22

VSS

B44

VSS

A42

VSS

D45

VSS

BD2

SKL_PCH_H

?

?

12 OF 12

REV = 1.3

U31L

Z170 MP

VSS

AB11

VSS

AB7

VSS

AB14

VSS

AB31

VSS

AB32

VSS

AB38

VSS

AB4

VSS

AB5

VSS

AC1

VSS

AC20

VSS

AC21

VSS

AC25

VSS

AC29

VSS

AC45

VSS

AB8

VSS

AD11

VSS

AD14

VSS

AB15

VSS

AD32

VSS

AD33

VSS

AD36

VSS

AD4

VSS

AD8

VSS

AE18

VSS

AE20

VSS

AE21

VSS

AE25

VSS

AE28

VSS

AL10

VSS

AL11

VSS

AL13

VSS

AL17

VSS

AL19

VSS

AL24

VSS

AL29

VSS

AL32

VSS

AL33

VSS

AL38

VSS

AM15

VSS

AM17

VSS

AM19

VSS

AM22

VSS

AM24

VSS

AM27

VSS

AM29

VSS

AM45

VSS

AN11

VSS

AN22

VSS

AN27

VSS

AN31

VSS

AN39

VSS

AN7

VSS

AN8

VSS

AP11

VSS

AP4

VSS

AR33

VSS

AR34

VSS

AR42

VSS

AR9

VSS

AT10

VSS

AT15

VSS

AT36

VSS

AT9

VSS

AU1

VSS

AU35

VSS

AU36

VSS

AU39

VSS

AU45

VSS

C4

VSS

C42

VSS

D10

VSS

D12

VSS

D15

VSS

D16

VSS

D17

VSS

D19

VSS

D21

VSS

D24

VSS

D25

VSS

D27

VSS

D29

VSS

D30

VSS

D31

VSS

D33

VSS

D35

VSS

D36

VSS

E13

VSS

E15

VSS

E31

VSS

E33

VSS

F44

VSS

F8

VSS

G42

VSS

G9

VSS

H17

VSS

H19

VSS

H22

VSS

H24

VSS

H27

VSS

H29

VSS

H3

VSS

H35

VSS

J10

VSS

J11

VSS

J3

VSS

J39

VSS

J5

VSS

T42

VSS

U10

VSS

U11

VSS

U14

VSS

U17

VSS

U18

VSS

U28

VSS

U29

VSS

U31

VSS

U32

VSS

U33

VSS

U38

VSS

U4

VSS

U8

VSS

V18

VSS

V20

VSS

V21

VSS

V23

VSS

V25

VSS

V29

VSS

V3

VSS

V45

VSS

W14

VSS

W31

VSS

W32

VSS

W33

VSS

W38

VSS

W4

VSS

W8

VSS

Y17

Sheet 21 of 62

SPT-H 7/7

SPT-H 7/7

B.Schematic Diagrams

B - 22 SPT-H 7/7

Main EC IT8587

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B B

C C

D D

MODEL_ID

10KV1.0

RA

RA

RB

DEBUG PORT

IT8587

KWd/KE;⎗ẍ怠㑯㗗⏎枸䔁Ϳ

OPTION (

⎗ẍ嬲≽ὅEC㍸ὃ䘬

EXECL堐)

㛒⛐

EXECL

堐䘬≇傥⎗ẍ冒埴␥⎵

⚢⭂ἧ䓐

FOR WLAN

Pin 66~73

䔞㓡

gpio ⎒傥input

䃉㱽

ouput

ᶼ ⢾悐天

pull high.

BAV99:
M:6-06-00099-011
S:6-06-00099-014

EMI Solution

for MXM card
optimus

EC天㯪,1/27 Tim 1/29 Tim

EC

暨㯪

,1/30 Tim

Modify,3/12 Tim

Modify,4/7 Tim

Modify,3/18 Tim

DEL SPI ROM PULL DOWN

暣旣

,3/23 Tim

Add,4/1 Tim

follow common design,
6/10 Tim

Modify,4/8 Tim

Modify,4/7 Tim

Modify,4/10 Tim

Modify,4/16 Tim

⍾㴰

connector,

10/6 Tim

WLANᶵsupport,㓭remove
,6/7 Tim

follow common design,

7/29 Tim

9~19V
Zener Diode-->4.85~5.1V

Add common design,
6/7 Tim

Remove PCH_SLP_SUS# to EC,
6/7 Tim

EC REQ,6/12 Tim

Modify net name,6/13 Tim

DEFAULT

㓡ᶲẞ

, (

⤪㰺㚱ᶲẞ

, RTC

便暣忶⣏

)

8/3

Modify value,
8/14 Tim

Modify Ivy11/30

Modify Ivy11/30

Modify Ivy03/02

Modify Ivy11/30

Modify Ivy11/30

Modify Ivy11/30

LAYOUT

㗪㧁䣢

CLK

LAYOUT

㗪㧁䣢

DATA

Follow

ℙ䓐䶂嶗

, Ivy11/30

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

2N3904
Change
BTN3904
Ivy12/10

DEL GA20
follow common design
Ivy12/10

DEL SMC_CPU_THERM
Ivy12/10

DEL(follow common design)
Ivy12/10

DEL(follow common design)
Ivy12/10

DEL(follow common design)
Ivy12/10

follow common design
,Ivy03/31

follow common design,
Ivy12/14

Delete,
Ivy12/17

Modify,Ivy01/05

Delete ,Ivy12/21

㓡ᶲẞ

Ivy,12/24

vaule &footprint change,
Ivy12/30

vaule modify 1% ,Ivy12/31

Modify,Ivy01/05

Modify,Ivy04/13

X

Modify,
Ivy04/11

ADD,03/18 Ivy

Modify ,03/25 Ivy

follow common design,03/30 Ivy

PROJECT NAME

P870DM2

ADD ,04/13Ivy

ADD,04/13 Ivy

KBC_SCI#

KBC_WRESET#

MODEL_ID

MODEL_ID

80CLK

3IN1

EC_RSMRST#

3IN1

KBC_SMBCLK0
KBC_SMBDAT0

BAT_DET

ALSPI_SCLK

ALSPI_MSO

ALSPI_MSI

ALSPI_CE#

KBC_SCI#

KBC2_ADC
SMC_BAT

BAT_DET

SMD_BAT

KBC_SMBCLK0

KBC_SMBus_CLK1
KBC_SMBus_DAT1

KBC_SMBCLK0
KBC_SMBDAT0

KBC_SMBus_CLK1

KBC_SMBus_DAT1

OVERT#1

OVERT#1

VBATT_BOOST#

OVERT#2

80CLK

OVERT#2

KBC_SMBDAT0

EC_RSMRST#

BAT_VOLT

BAT_VOLT

CABLE_DET1
CABLE_DET2

VDD3

VDD3

KBC_AGND

KBC_AVDD

VDD3

VDD3

VDD3

VDD3

VDD3

KBC_AGND

3.3VS

VDD3

3.3VS

5VS

5VS

VDD3 VDD3

3.3VS

3.3VS

VDD3

VDD3

VDD3

VIN

VDD3

VDD3

VDD3

BUF_PLT_RST#20,23,24,28,34,35,36,37,38

LPC_FRAME#19,23,24

SERIRQ19,23,24

PCLK_KBC19,23

LPC_AD319,23,24

LPC_AD219,23,24

LPC_AD119,23,24

LPC_AD019,23,24

AC_PRESENT17

LED_ACIN39

AC_IN#47

SMI#18,19,23

KBC_MUTE#39

CPU_FAN125

DD_ON 27,42,51

LOT6_CHG 47

LAN_WAKEUP# 37,38

CPU_FANSEN 25

SB_KBCRST# 19

SMC_BAT12,22,23,47

SMD_BAT12,22,23,47

BAT_DET47

VDD3 11,12,15,16,17,19,20,23,34,37,38,39,42,43,45,47,48,51

3.3VS 7,8,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

CCD_EN 27

SUSB#11,12,13,17,20,23,27,28,39,42,43,44,45,46

SUSC#17,23,42,43,45,46

PWR_SW#23,42
LID_SW#13,39

KBC_BEEP39

LED_BAT_CHG39

H_PECI3,16

THERM_VOLT2
TOTAL_CUR47

H_PROCHOT_EC3

HSPI_CE# 15

PWR_BTN#17

HSPI_MSI 15
HSPI_MSO 15
HSPI_SCLK 15

PM_PWROK 20

SMC_BAT12,22,23,47
SMD_BAT12,22,23,47

SCI#16

KBC2_SCI# 23

USB_CHARGE_EN 27,42,51

BT_EN 34
WLAN_EN 34

WLAN_PWR_EN 34

ALL_SYS_PWRGD 11,12,13,20

VGA_FANSEN 25

VGA_FAN125

LED_BAT_FULL39

KBC2_ADC23

KBC2_INT#23

KBC2_GPIO1 23

KBC2_DAC23

KBC_SMBus_CLK123
KBC_SMBus_DAT123

SMC_VGA_THERM11,26

SMD_VGA_THERM11,26

5VS 11,12,13,14,15,25,39,40,42,46

TH_OVERT#111

ME_WE#17

VGA_FAN225

FANSEN_SEL 25

SWI# 16,17

TH_OVERT#212

GPI623

BKL_EN 13

EC_CTRL_EN# 26

MXM2_PRSNT# 12,18

SLP_SUS# 17,42,51

VBATT_BOOST#11,12

PM_PCH_PWROK15,17,20

LED_PWR39

SUS_PWR_ACK_R17

KBC2_GPIO0 23

KBC2_GPIO2 23

RSMRST# 17

VIN 11,12,13,42,43,44,45,46,47,48,49,50,51

EC_GPIO 23

BAT_VOLT47

dGPU_1V8_EN 11

MODEL_ID23

MXM1_PRSNT# 11,18

DGPU_RST# 11

TBTA_HRESET30

TBTA_MRESET30

CABLE_DET1 11
CABLE_DET2 12

NV_MXMID2 12

NV_MXMID1 11

EC_NV3V3_EN42

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[22] MAIN EC IT8587

A3

22 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[22] MAIN EC IT8587

A3

22 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[22] MAIN EC IT8587

A3

22 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R328 43_1%_04

R347

10K_04

R699 *0_04

R203 33_04

R1019 *100K_04

S

D

G

Q42A

MTDK5S6R

2

61

C385 0.1u_16V_Y5V_04

R305
10K_04

R278

*0_04

C435

0.1u_16V_Y5V_04

R681

2.2K_04

R302 0_04

R659 47_04

J_80DEBUG1

85205-04001

1
2
3
4

U52

*TC7SZ08FU

1

2

5

4

3

R277

*0_04

R349 100K_04

C847

0.1u_16V_Y5V_04

R985

90.9K_1%_04

D41

BAV99 RECTIFIER

A

C

AC

.

L22
HCB1005KF-121T20

C432

0.1u_16V_Y5V_04

C387

0.1u_16V_Y5V_04

Q62

2SK3018S3

G

DS

R202 *1.5K_04

D59

ZD5231BS2

AC

LPC

DAC

SMBUS

PWM

PS/2

WAKE UP

GP INTERRUPT

UART

K/B MATRIX

IT8587

ADC

U28A

IT8587E/FX

GPB6/KBRST#

4

GPM6/SERIRQ

5

GPM5/LFRAME#

6

GPM3/LAD3

7

GPM2/LAD2

8

GPM1/LAD1

9

GPM0/LAD0

10

GPM4/LPCCLK

13

WRST#

14

GPD4/ECSMI#

15

GPC7/PWUREQ#/BBO/SMCLK2ALT

16

GPD0/RI1#

18

GPE7/L80LLAT/5VT

20

GPD1/RI2#/5VT

21

GPD2/LPCRST#/5VT

22

GPD3/ECSCI#/5VT

23

GPA1/PWM1/5VT

25

GPA5/PWM5/5VT

31

GPA6/PWM6/SSCK/5VT

32

GPD5/GINT/CTS0#/5VT

33

GPA7/PWM7/RIG1#/5VT

34

GPJ1

77

GPJ3/DAC3/TACH1B

79

GPF0/PS2CLK0/TMB0/CEC/5VT

85

GPF2/PS2CLK1/DTR0#/5VT

87

GPF4/PS2CLK2/5VT

89

GPF5/PS2DAT2/5VT

90

GPB0/RXD/SIN0/5VT

108

GPB1/TXD/SOUT0/5VT

109

GPB3/SMCLK0/5VT

110

GPB4/SMDAT0/5VT

111

GPF6/SMCLK2/PECI

117

GPB5/GA20

126

5VT/LPCPD#/GPE6

17

5VT/L80HLAT/BAO/GPE0

19

5VT/RTS1#/GPE5

35

KSO0/PD0

36

KSO1/PD1

37

KSO2/PD2

38

KSO3/PD3

39

KSO4/PD4

40

KSO5/PD5

41

KSO6/PD6

42

KSO7/PD7

43

KSO8/ACK#

44

KSO9/BUSY

45

KSO10/PE

46

TACH0A/GPD6

47

KSO11/ERR#

51

KSO12/SLCT

52

KSO13

53

KSO14

54

KSO15

55

KSI0/STB#

58

KSI1/AFD#

59

KSI2/INIT#

60

KSI3/SLIN#

61

KSI4

62

KSI5

63

KSI6

64

KSI7

65

5VT/SSCE1#/VCEN/TM/GPG0

106

5VT/( PD )DTR1#/SBUSY/ID7/GPG1

107

5VT/RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7

112

TMRI0/GPC4

120

CTX0/TMA0/GPB2

123

TMRI1/GPC6

124

VBAT

3

VCC

11

VSTBY126VSTBY2

50

AVCC

74

VSTBY392VSTBY4

114

VSTBY5

121

VSTBY6

127

VSS11VCORE12VSS327VSS449AVSS

75

VSS591VSS6

113

VSS7

122

GPF1/PS2DAT0/TMB1/5VT

86

GPF3/PS2DAT1/RTS0#/5VT

88

GPI0/ADC0

66

GPI1/ADC1

67

GPI3/ADC3

69

GPI4/ADC4

70

GPI7/ADC7/CTS1#

73

5VT/CTX1/SOUT1/DAT3/ID2/GPH2

95

5VT/FSCE#/GPG3

101

5VT/FMOSI/GPG4

102

5VT/FMISO/GPG5

103

5VT/FSCK/GPG7

105

5VT/DSR0#/GPG6

104

R969

47K_04

R282 *10K_04

D42

BAV99 RECTIFIER

A

C

AC

R671 47_04

U60

TC7SZ08FU

1

2

5

4

3

D39

BAV99 RECTIFIER

A

C

AC

R667 1.5K_04

.

L32 HCB1005KF-121T20

R280
*20mil short-p

R350 *0_04

C832

10u_10V_Y5V_08

R665 1.5K_04

R314 0_04

C939

*0.1u_16V_Y5V_04

D43RB751V-40(lision)

A C

R304 0_04

R285 10K_1%_04

R223 *1.5K_04

C844

0.1u_16V_Y5V_04
R281 10K_04

R224 33_04

C425

10p_50V_NPO_04

R1016

20K_1%_04

R317 0_04

R968

47K_04

C828

0.1u_16V_Y5V_04

R284 10K_04

IT8587

U28B

IT8587E/FX

GPA0/PWM0/5VT

24

GPA2/PWM2/5VT

28

GPA3/PWM3/5VT

29

GPA4/PWM4/5VT

30

GPI2/ADC2

68

GPI5/ADC5/DCD1#

71

GPI6/ADC6/DSR1#

72

GPJ0/TACH2

76

GPJ4/DAC4/DCD0#

80

GPJ5/DAC5/RIG0#

81

GPC1/SMCLK1/5VT

115

GPC2/SMDAT1/5VT

116

GPE4/PWRSW

125

CK32KE/GPJ7

2

TACH1/TMA1/GPD7

48

5VT/EGAD/GPE1

82

5VT/EGCS#/GPE2

83

5VT/EGCLK/GPE3

84

5VT/CLKRUN#/ID0/GPH0

93

5VT/ID3/GPH3

96

5VT/ID4/GPH4

97

5VT/ID5/GPH5

98

5VT/ID6/GPH6

99

5VT/SSCE0#/GPG2

100

5VT/CRX0/GPC0

119

CK32K/GPJ6

128

5VT/CRX1/SIN1/SMCLK3/ID1/GPH1

94

GPJ2/DAC2//TACH0B

78

GPF7/SMDAT2/PECIRQT#

118

KSO16/SMOSI/GPC3

56

KSO17/SMISO/GPC5

57

R279 10K_04

R1009

10K_04

R315 0_04

R680

2.2K_04

S

D

G

Q42B

MTDK5S6R

5

34

C434 0.1u_16V_Y5V_04

C388 1u_6.3V_X5R_04

R346

10K_04

R283 0_04

Q23

2SK3018S3

G

DS

R1021 *100K_04

Q19

2SK3018S3

G

DS

Q63
BTN3904

B

E C

Sheet 22 of 62

Main EC IT8587

Schematic Diagrams

B.Schematic Diagrams

Main EC IT8587 B - 23

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

6-04-02510-A91

For Auto load code

EMI Solution

Backlight KB 17"

dK>ϭKZ

Modify,4/16 Tim

Modify,Ivy01/13

Add,4/13 Tim

8/3

FOR POWER SWITCH B'D,
6/13 Tim

Modify Ivy11/30

LAYOUT

㗪㧁䣢

CLK

LAYOUT

㗪㧁䣢

DATA

Modify Ivy11/30

Delete PS8330B_EC2
,Ivy12/21

vaule &footprint change,
Ivy12/30

Modify,Ivy01/08

Modify,Ivy01/12

add ,03/25 Ivy

KB-SI0

KB-SI4

KB-SI6

KB-SI1

KB-SI7

KB-SI3

KB-SI5

KB-SI2

KB-SO13

KB-SO7

KB-SO15

KB-SO2

KB-SO9

KB-SO14

KB-SO6

KB-SO8

KB-SO11

KB-SO5

KB-SO10

KB-SO1

KB-SO4

KB-SO12

KB-SO0

KB-SO3

KB-SO16
KB-SO17

KB-SO18
KB-SO19
KB-SO20
KB-SO21
KB-SO22

KB-SO25

KBC2_WRESET#

EC_VCC

KBC2_SPI_SO
KBC2_SPI_CE#
KBC2_SPI_SCLK

KBC2_SPI_SI

KBC2_SPI_CE#
KBC2_SPI_SI
KBC2_SPI_SO

KBC2_SPI_SCLK

KBC2_SMBus_CLK0

KBC2_SMBus_CLK0
KBC2_SMBus_DAT0
KBC2_SMBus_CLK1
KBC2_SMBus_DAT1

KBC2_SMBus_DAT0

KBC2_SMBus_CLK0

KB-SO26
KB-SO27
KB-SO28
KB-SO29
KB-SO30
KB-SO31
KB-SO32
KB-SO33
KB-SO34
KB-SO35
KB-SO36
KB-SO37
KB-SO38
KB-SO39
KB-SO40
KB-SO41
KB-SO42
KB-SO43

KB-SO13

KB-SO7

KB-SO15

KB-SO2

KB-SO9

KB-SO14

KB-SO6

KB-SO8

KB-SO11

KB-SO5

KB-SO10

KB-SO1

KB-SO4

KB-SO12

KB-SO0

KB-SO3

KB-SO16
KB-SO17

KB-SI0

KB-SI4

KB-SI6

KB-SI1

KB-SI7

KB-SI3

KB-SI5

KB-SI2

KB-SO19

KB-SO18

KB-SO20
KB-SO21
KB-SO22
KB-SO23
KB-SO24
KB-SO25

KB-SO27
KB-SO28
KB-SO29
KB-SO30
KB-SO31
KB-SO32
KB-SO33
KB-SO34
KB-SO35
KB-SO36
KB-SO37
KB-SO38
KB-SO39
KB-SO40
KB-SO41
KB-SO42
KB-SO43

KB-SO26

KB-SO24

KB-SO23

KBC2_SMBus_DAT0

EC2_SMB_DATA

EC2_SMB_CLK

VDD3

KBC_AVDD2

VDD3

VDD3

KBC_AGND

KBC_AGND

VDD3

VDD3

3.3VS

VDD3

VCC3V3_SX_SYS

VCC3V3_SX_SYS

BUF_PLT_RST#20,22,24,28,34,35,36,37,38

LPC_FRAME#19,22,24

SERIRQ19,22,24

PCLK_KBC19,22

LPC_AD319,22,24

LPC_AD219,22,24

LPC_AD119,22,24

LPC_AD019,22,24

KBC2_SCI#22

SUSB#11,12,13,17,20,22,27,28,39,42,43,44,45,46

SUSC#17,22,42,43,45,46

TP_CLK39

TP_DATA39

KBC2_GPIO0 22
KBC2_GPIO1 22
KBC2_GPIO2 22

KBC2_INT#22

SMC_BAT12,22,47

SMD_BAT12,22,47
KBC_SMBus_CLK122
KBC_SMBus_DAT122

VDD3 11,12,15,16,17,19,20,22,34,37,38,39,42,43,45,47,48,51

KBC2_DAC22

KBC2_ADC22

PWR_SW#22,42

3.3VS 7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,24,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

EC_SSD_LED#35

GPI622

SMI#18,19,22

LED1_PS139
LED1_PS239
LED1_PS339
LED1_PS439
LED1_PS539
LED1_PS639
LED1_PS739

LED_CT139

EC_GPIO 22

EC2_SMB_DATA39

EC2_SMB_CLK39

EC2_HP_PLUG39

MODEL_ID22

ACE_I2C_SDA230,31

ACE_I2C_SCL230,31

VCC3V3_SX_SYS 28,29,30,31

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[23] 2ND EC IT8587

A3

23 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[23] 2ND EC IT8587

A3

23 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[23] 2ND EC IT8587

A3

23 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C393

*20p_50V_NPO_04

S

D

G

Q67A

*MTDK5S6R

2

61

R1051
*20mil short-p

R669 47_04

.

L24
HCB1005KF-121T20

R662 0_04

S

D

G

Q67B

*MTDK5S6R

5

34

R289 4.7K_04

U27

GD25D10BTIGR

M-SO8

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R668 *47_04

K/B MATRIXLPC

SMBUS

PS/2

PWM

DAC

IT8587

ADC

GPIO

FLASH

PWM/COUNTER

EXT GPIO

LPC/WAKE UP

CLOCK

K/B 2"

U29

IT8587E/FX

WRST#

14

LPCCLK

13

LAD0

10

LAD1

9

LAD2

8

LAD3

7

LFRAME#

6

LPCPD#/WUI6/GPE6

17

SERIRQ

5

ECSMI#/GPD4

15

ECSCI#/GPD3

23

GA20/GPB5

126

KBRST#/GPB6

4

KSI0/STB#

58

KSI1/AFD#

59

KSI2/INIT#

60

KSI3/SLIN#

61

KSI4

62

KSI5

63

KSI6

64

KSI7

65

KSO0/PD0

36

KSO1/PD1

37

KSO2/PD2

38

KSO3/PD3

39

KSO4/PD4

40

KSO5/PD5

41

KSO6/PD6

42

KSO7/PD7

43

KSO8/ACK#

44

KSO9/BUSY

45

KSO10/PE

46

KSO11/ERR#

51

KSO12/SLCT

52

KSO13

53

KSO14

54

KSO15

55

VCC

11

VSTBY26VSTBY50VSTBY92VSTBY

114

VSTBY

127

VSTBY

121

VBAT

3

AVCC

74

PS2CLK0/GPF0

85

PS2DAT0/GPF1

86

PS2CLK1/GPF2

87

TMRI0/WUI2/GPC4

120

TMRI1/WUI3/GPC6

124

LPCRST#/WUI4/GPD2

22

WUI5/GPE5

35

PWRSW/GPE4

125

RI1#/WUI0/GPD0

18

RI2#/WUI1/GPD1

21

RING#/PWRFAIL#/LPCRST#/GPB7

112

TXD/GPB1

109

RXD/GPB0

108

CTX/GPB2

123

PS2DAT1/GPF3

88

PS2CLK2/GPF4

89

PS2DAT2/GPF5

90

TACH0/GPD6

47

TACH1/GPD7

48

PWM0/GPA0

24

PWM1/GPA1

25

PWM2/GPA2

28

PWM3/GPA3

29

PWM4/GPA4

30

PWM5/GPA5

31

PWM6/GPA6

32

PWM7/GPA7

34

ADC0/GPI0

66

ADC1/GPI1

67

ADC2/GPI2

68

ADC3/GPI3

69

ADC4/GPI4

70

ADC5/GPI5

71

ADC6/GPI6

72

ADC7/GPI7

73

VSS1VSS12VSS27VSS49VSS

122

VSS

113

AVSS

75

CK32KE

2

CK32K

128

DAC3/GPJ3

79

DAC2/GPJ2

78

GPJ1

77

GPJ0

76

EGCS#/GPE2

83

EGCLK/GPE3

84

EGAD/GPE1

82

GINT/GPD5

33

L80LLAT/GPE7

20

VSS

91

DAC5/GPJ5

81

DAC4/GPJ4

80

PWUREQ#/GPC7

16

CRX/GPC0

119

KSO16/GPC3

56

KSO17/GPC5

57

ID0/GPH0

93

ID1/GPH1

94

ID2/GPH2

95

ID3/GPH3

96

ID4/GPH4

97

ID5/GPH5

98

ID6/GPH6

99

( PD )ID7/GPG1

107

SMCLK0/GPB3

110

SMDAT0/GPB4

111

SMCLK1/GPC1

115

SMDAT1/GPC2

116

SMCLK2/GPF6

117

SMDAT2/GPF7

118

FLFRAME#/GPG2

100

FLAD0/SCE#

101

FLAD1/SI

102

FLAD2/SO

103

FLAD3/GPG6

104

FLCLK/SCK

105

FLRST#/WUI7/TM/GPG0

106

L80HLAT/GPE0

19

C436

*0.1u_16V_Y5V_04

R678 *0_04

C438

*0.1u_16V_Y5V_04

R286 100K_04

.

L23 HCB1005KF-121T20

J_BLKB17_1
85219-2607N

4
5
6

8

11
12

14
15

1
2
3

7

9

10

13

16
17

18

19

20

21

22

23

24

25

26

C392

0.1u_16V_Y5V_04

R355 1.5K_04

J_BLKB17_2

50584-0260N-001

4
5
6

8

11
12

14
15

1
2
3

7

9

10

13

16
17
18
19
20
21
22
23
24
25
26

R288 0_04

C843

0.1u_16V_Y5V_04

R666 *47_04

C827

0.1u_16V_Y5V_04

C437

0.1u_16V_Y5V_04

R319 15_1%_04

C389 0.1u_16V_Y5V_04

R320 1K_04

C390

0.1u_16V_Y5V_04

R677 100K_04

C409

0.1u_16V_Y5V_04

C842

10u_10V_Y5V_08

C391

0.1u_16V_Y5V_04

R663 0_04

R353 1.5K_04

R356 33_04

R318 15_1%_04

R291 47_04

R287 0_04

R354 33_04

Sheet 23 of 62

Second EC IT8587

Second EC IT8587

B.Schematic Diagrams

B - 24 Second EC IT8587

TPM SLB9665TT

5

4

3

2

1

D D

C C

B B

A

A

U22 SLB9665TT
R248 4.7K_04
C302 0.1u_16V_Y5V_04
C303 0.1u_16V_Y5V_04
C301 0.1u_16V_Y5V_04
C304 0.1u_16V_Y5V_04
R276 0_04

PIN5

SLB9665TT & NPCT650 COLAY

LPC reset timing:

Asserted before entering S4

LPCPD# inactive to LRST# inactive 32~96us

SLB9665TT

H:W TPM
L:W/O TPM

FOR

ℙ䓐䶂嶗天㯪

,1/27 Tim

Modify,3/9 Tim

SLB9665ĺSTUFF 4.7K Ohm
NPCT650ĺSTUFF 0 Ohm

SLB9665ĺNO STUFF
NPCT650ĺSTUFF 0 Ohm

SLB9665 and NPCT650ĺNO STUFF

SLB9665 and NPCT650ĺNO STUFF

follow common design,6/10 Tim

NPCT650ĺSTUFF

SLB9665ĺSTUFF

PIN10 PIN19

PIN24

PIN5

Follow

ℙ䓐䶂嶗

,

Ivy12/08

Follow

ℙ䓐䶂嶗

,
Delete PCLK_TPM,
Ivy12/08

Follow

ℙ䓐䶂嶗

,
Delete TPM_GPIO,
Ivy12/08

Follow

ℙ䓐䶂嶗

,
Delete,
Ivy12/08

follow common design ,04/11Ivy

Modify value,Ivy05/26

TPM_BADD

TPM_PP

BUF_PLT_RST#

CLKRUN#

TPM_BADD

TPM_GPIO

TPM_PWR

TPM_PWR

3.3V

3.3VS

3.3VS

LPC_AD119,22,23

LPC_AD319,22,23

LPC_AD219,22,23

PCLK_TPM19

LPC_AD019,22,23

BUF_PLT_RST#20,22,23,28,34,35,36,37,38

SERIRQ19,22,23

LPC_FRAME#19,22,23

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,25,26,27,29,32,33,34,36,39,40,42,45,46,48,49

TPM_DET#15

PM_CLKRUN#17

3.3V2,12,13,14,16,18,29,34,39,42,43,46,48

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[24] TPM2.0 SLB9665TT

A3

24 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[24] TPM2.0 SLB9665TT

A3

24 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[24] TPM2.0 SLB9665TT

A3

24 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C941

10u_6.3V_X5R_06

C942

*10u_6.3V_X5R_06

R377 *0_04

R994 *10K_04

C459

0.1u_16V_Y5V_04
R1000 0_04

R990 *0_04 R378

10K_04

C412

0.1u_16V_Y5V_04

R379
*100K_04

C458

0.1u_16V_Y5V_04

R999 *0_04

TPM

U30

SLB9665TT_5.51

LAD3

17

LAD0

26

LAD1

23

LAD2

20

NC_2

10

NC_5

13

VDD4

24

VDD3

19

LFRAME#

22

LCLK

21

LRESET#

16

SERIRQ

27

CLKRUN#/GPIO4

15

VSS_1

4

NC_3

11

VSS_2

18

VSS_3

25

GPIO2/GPX

6

GPIO1

2

NC_6

14

TEST

8

GPIO3/BADD

9

PP

7

GPIO0/XOR_OUT

1

NC_1

3

NC_4

12

LPCPD#

28

VSB

5

R375 4.7K_04

Sheet 24 of 62

TPM SLB9665TT

Schematic Diagrams

B.Schematic Diagrams

TPM SLB9665TT B - 25

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A

A

CPU_FAN

VGA_FAN

śɥ
śɨ

2/5 Tim

12V(5V) CPU FAN CONTROL

12V(5V) VGA1 FAN CONTROL

12V(5V) VGA2 FAN CONTROL

J_FAN1

1

3

3

J_FAN2

1

VGA_FAN

J_FAN1

3

1

NCT3941S

NCT3940S-A

U66 12V DM3 U66 5V DM2

R1024R1023

R1044

CO-LAY

CO-LAY

CO-LAY

CO-LAY

CO-LAY

CO-LAY

CPU FAN

NCT3941S

NCT3940S-A

U64 12V DM3 U64 5V DM2

R1030R1031

R1046

R1047

R1045

VGA1 FAN

NCT3941S

NCT3940S-A

U65 12V DM3 U65 5V DM2

R1033R1032

R1049

R1050

R1048

VGA2 FAN

R1028

R1029

Delete,6/4 Tim

Delete,6/4 Tim

Delete,6/4 Tim

CPU_FANSEN1

VGA_FANSEN1
VGA_FANSEN2

C_VIN

C_VOUT

V1_VIN

V1_VOUT

V1_EN

V2_VOUT

V2_VIN

CPU_FANSEN1

VGA_FANSEN2

VGA_FANSEN1

C_EN

V2_EN

C_VOUT

C_EN

CPU_FAN1_OUT

C_VIN

V1_VOUT

V1_EN

VGA_FAN2_OUT

V1_VIN

V2_VOUT

V2_EN

VGA_FAN1_OUT

V2_VIN

5VS

CPU_FAN1_OUT

VGA_FAN2_OUT

VGA_FAN1_OUT

3.3VS

3.3VS

3.3VS

CPU_FAN_PWR

5VS_2

VGA_FAN_PWR5VS_2

VGA_FAN_PWR5VS_2

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,26,27,29,32,33,34,36,39,40,42,45,46,48,49

5VS_226,43

VGA_FANSEN 22

FANSEN_SEL22

CPU_FANSEN 22

5VS11,12,13,14,15,22,39,40,42,46

CPU_FAN1 22

VGA_FAN2 22

VGA_FAN1 22

CPU_FAN_PWR44
VGA_FAN_PWR44

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[25] CPU,VGA FAN CONN

A3

25 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[25] CPU,VGA FAN CONN

A3

25 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[25] CPU,VGA FAN CONN

A3

25 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

U66

NCT3941S

EN

3

GND

5

VIN

2

VOUT

1

VSET

4

GND

6

GND

8

GND

7

T-PAD

9

C963

4.7u_25V_X5R_08

R1047

*0_04

R1028

*0_06_2A

R606 4.7K_04

C962

0.1u_16V_Y5V_04

U64

NCT3941S

EN

3

GND

5

VIN

2

VOUT

1

VSET

4

GND

6

GND

8

GND

7

T-PAD

9

C972

0.1u_16V_Y5V_04

C830

*120P_50V_NPO_04

R581

4.7K_04

R1048 *0_06_2A

R1030

*0_06_2A

C968

4.7u_25V_X5R_08

J_CPUFAN1

50273-0037N-001

1
2
3

R1049 0_06_2A

R1032

0_06_2A

R1029
0_06_2A

R1031

0_06_2A

R558 4.7K_04

R1023 0_06_2A

R1033

*0_06_2A

U65

NCT3941S

EN

3

GND

5

VIN

2

VOUT

1

VSET

4

GND

6

GND

8

GND

7

T-PAD

9

J_VGAFAN1

50273-0037N-001

1
2
3

C966

0.1u_16V_Y5V_04

R1050

*0_04

R1024

*0_06_2A

C964

10u_25V_X5R_08

R1044 *0_04

C971

10u_25V_X5R_08

C969

4.7u_25V_X5R_08

J_VGAFAN2

50273-0037N-001

1
2
3

C846*120P_50V_NPO_04

U51

PI5A3158BZAE

0B0

2

1B0

11

S0

10

0B1

5

1B1

8

S1

7

VCC

12

A0

1

GND

3

VCC

9

GND

6

A1

4

R1045 *0_06_2A

C845 0.1u_16V_Y5V_04

R1046 0_06_2A

C970

10u_25V_X5R_08

Sheet 25 of 62

CPU, VGA Fan

Conn

CPU, VGA Fan Conn

B.Schematic Diagrams

B - 26 CPU, VGA Fan Conn

Backlight Keyboard

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

9

BACKLIGHT KEYBOARD

ἧ䓐ᶳ㍍妠

CONN

check, EC EC_CTRL_EN#,TP_EN # to 2nd EC,1/12

Modify LED backlight control,
6/9 Tim

6-20-53100-008

FOR A側LED BOARD

page38 change to page26,6/7 Tim

Modify,6/9 Tim

Modify Ivy11/30

㊧㌱

PJ33 layout

暨㲐シ

trace

⮔⹎

vaule &footprint change,
Ivy12/30

vaule &footprint change,
Ivy12/30

KBZONE3_R

KBZONE2_B

KBZONE3_G

KBZONE2_R

KBZONE1_B

KBZONE2_G

KBZONE1_R

KBZONE3_B

KBZONE1_G

KBZONE2_B
KBZONE2_R
KBZONE2_G

KBZONE3_B
KBZONE3_R
KBZONE3_G

KBZONE1_B
KBZONE1_R
KBZONE1_G KB_LED_PWR

LEDB1
LEDR1
LEDG1

LEDB2
LEDR2
LEDG2

LEDR1
LEDG1
LEDB1

LEDR2
LEDG2
LEDB2

3.3VS

5VS_2

5VS_2

5V

5VS_225,43

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,27,29,32,33,34,36,39,40,42,45,46,48,49

SMC_VGA_THERM11,22
SMD_VGA_THERM11,22

EC_CTRL_EN#22

5V11,12,14,20,30,31,39,41,42,43,45,46,48,49,50

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[26] BACKLIGHT KEYBOARD

A3

26 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[26] BACKLIGHT KEYBOARD

A3

26 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[26] BACKLIGHT KEYBOARD

A3

26 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R988 *28mil short-p
R989 *28mil short-p

R200 *28mil short-p

R218

10K_04

U23

PCA9622

LED12

22

LED11

21

LED13

23

A1

3

A2

4

A3

5

A4

6

LED0

7

VSS

9

LED1

8

LED2

10

LED3

11

LED4

12

LED5

13

VSS

14

LED6

15

LED7

16

LED8

17

LED10

20

VSS

24

A0

2

LED9

18

VSS

1

VSS19LED14

25

A5

28

A6

29

SCL

30

SDA

31

VDD

32

OE#

27

LED16

26

J_LED2

85204-08001

1
2
3
4
5
6
7
8

R216
0_04

C291

4.7u_25V_X5R_08

J_KBLED_1

FP225H-012S10M

1
2
3
4
5
6
7
8
9
10
11
12

NC1

NC2

R217

10K_04

R219

*10K_04

R987 *28mil short-p

R215 0_04
R214 0_04

C318

0.1u_10V_X5R_04

R220
*0_04

C292

*0.1u_10V_X5R_04

R201 *0_06

Sheet 26 of 62

Backlight Keyboard

Schematic Diagrams

B.Schematic Diagrams

Backlight Keyboard B - 27

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

From KBC default HI

48 mil

CCD

1A1A

Port 5

6-21-C3A00-108

6-11-22711-AB7

USB3.0 Max Trace length
Follow Design Guide

D02

PCBfootprint:
dfn10-2_5x1mm-short

If select CB pin contact to SUSB#, you can Support
DCP mode and Apple-compliant devices charge in
S3 status.

W/ USB CHARGER

Default Low

For W/ or W/O Intel Vpro
change parts stuff

2A/90mohm

⍾㴰

W/O USB CHARGER

SLG55583 USB Charging PORT

USB3.0 PORT1

SLG55593VTR: 6-02-55593-9D0

2/2 Tim

Modify,2/27 Tim

Modify,4/7 Tim

6-21-B4A20-009

Modify,4/2 Tim

Footprint M-SOT23-5

ᾖ㓡䁢

M-SOT23-5A

6/14 Tim

For Safety LPS.

80 mil

Modify value,
8/14 Tim

Modify Ivy11/30

Modify Ivy11/30

Delete,Ivy12/21

USB3_RX1_PJ
USB3_RX1_NJ

USB3_TX1P

USB3_TX1NJ

USB3_TX1PJ

USB3_RXN1

USB3_RXP1

USB3_TX1N

USB_PP1_RJ

USB_PN1_RJ

USB_PN1_R

USB_PP1_R

PRE#

USB_PN1

USB_PP1

USB_DD_ON#

PRE#

USB_DD_ON#

USB_PN1RUSB_PN1_R

USB_PP1_R USB_PP1R

USB_PN1_RJ

USB_PP1_RJ

CCD_PWR

3.3VS

3.3VS

VDD5

VDD5

VDD5

USBVCC3.0_1

VDD5

USBVCC3.0_1

CCD_EN22

USB_PN619
USB_PP619

MIC_DATA39
MIC_CLK39

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,29,32,33,34,36,39,40,42,45,46,48,49

USB3_RXP119
USB3_RXN119

USB3_TXP119

USB3_TXN119

USB_PP119

USB_PN119

DD_ON22,42,51

SUSB#11,12,13,17,20,22,23,28,39,42,43,44,45,46

USB_CHARGE_EN22,42,51

VDD539,42,46,51

USB2_OC0#19

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[27] CCD,USB Charging

Custom

27 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[27] CCD,USB Charging

Custom

27 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[27] CCD,USB Charging

Custom

27 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R266 0_04

D21

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

R269

1M_04

C140

2.2u_6.3V_X5R_04

C384

0.1u_16V_Y5V_04

C132

1u_6.3V_X5R_04

C367

0.1u_16V_Y5V_04

S

D

G

Q18B

MTDK5S6R

5

34

R239 *0_04

C365 0.1u_10V_X7R_04

R267 *0_04

D20

DT1140-04LP-7

5

1
2
3
4

10

9
8
7
6

C338

10u_10V_Y5V_08

R264
10K_04

R268
100K_04

C383

0.1u_16V_Y5V_04

C366 0.1u_10V_X7R_04

L21

*WCM2012F2S-161T03-short

142

3

J_CCD1

WB247H-008S11M

1
2
3
4
5
6
7
8

U22

SY6288D20AAC

PCB Footprint = M-SOT23-5A

VOUT

1

VIN

5

GND2EN#

4

OC#

3

+

C337 *220u_6.3V_6.3*6.3*4.2

U25

SLG55593VTR

TDFN8-2X2MM

PRE#

1

DM

2

DP

3

CDP4VCC

5

TDP

6

TDM

7

CB

8

GND

9

U10

AP2821KTR-G1

VIN

4

VIN

5

EN

3

VOUT

1

GND

2

Standard-A

J_USB3_1

C19009-90905-L

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

SHIELD

GND3

SHIELD

GND4

R265 *0_04

R299
100K_04

C364 22u_6.3V_X5R_08

S

D

G

Q18A
MTDK5S6R

2

61

C336 22u_6.3V_X5R_08

Sheet 27 of 62

CCD, USB

Charging

CCD, USB Charging

B.Schematic Diagrams

B - 28 CCD, USB Charging

AR_TBT

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CPU /

Policy

Manager

TBT USB TYPE C

NOTE:
DPSRC NOT IS USE:STUFF
DPSRC IS USE:NO STUFF.

XTAL

+/-0.5%

AR/PPS COMMON FLASH

CPU PCIE RX

CPU PCIE TX

DDI1(MUX)

IF SOME OF GPIOs ARE NOT IN USE FOLLOW TABLE BELOW:
GPIO | TERMINATION | Power Rail

---------------------------------------------------­GPIO_0 | 10K PU | VCC3V3_LC
GPIO_1 | 10K PU | VCC3V3_LC
GPIO_2 | 100K PD |
GPIO_3 | 100k PD |
GPIO_4 | 10K PU | VCC3V3_LC
GPIO_5 | 10K PU | VCC3V3_LC
GPIO_6 | 100K PD |
GPIO_7 | 100K PD |
GPIO_8 | 100K PD |
POC_GPIO_0 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_1 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_2 | 100K PD |
POC_GPIO_3 | 100K PD |
POC_GPIO_4 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_5 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_6 | 100K PD |

DEBUG PINs:

PIN | TERMINATION

------------------------------­MONDC_SVR | GND
MONDC_DPSNK_0 | GND
MONDC_DPSNK_1 | GND
MONDC_DPSRC | GND
MONDC_CIO_0 | GND
MONDC_CIO_1 | GND
TEST_EDM | GND
FUSE_VQPS_64 | GND
FUSE_VQPS_128 | GND
ATEST_P/N | FLOATING
USB2_ATEST | FLOATING
PCIE_ATEST | FLOATING

NOTE:
SNK0_DDC_data/clk ?connect to 2k PU only if SRC0 is connected and support HDMI (a.i HDMI or DP++ connector). Otherwise can be 100k PD.
SNK1_DDC_data ?connect to 100k PD. If SRC0 support HDMI, connect as SNK0_CFG1 to GPU and/or appropriate AUX/DDC demux control
SNK1_DDC_clk ?connect to 100k PD.

Modify,3/16 Tim

R973 check ,1/14

7/30

2/4 Tim

3/16 Tim

Add PU 10K,2/25 Tim

Modify,3/6 Tim

Modify,3/12 Tim

Add,3/6 Tim

Modify,3/16 Tim

Modify,3/17 Tim

Modify,3/18 Tim

Modify Ivy 11/30

follow intel,6/11 Tim

Add

昼㺷暣

,6/11 Tim

RTD3_CIO_PWR_EN
RTD3_USB_PWR_EN

VCC3V3_S0_SYS

Modify Ivy11/30

*10K_04
*10K_04

Modify Ivy 11/30

Support RTD3

天㍍⇘

PCH

Add

昼㺷暣

,6/11 Tim

Add Thunderbolt
Ivy12/17

Modify New part,Ivy01/06

follow INTEL

℔㜧

Modify value&footprint
,Ivy01/12

follow INTEL

℔㜧

Modify value&footprint
,Ivy01/12

follow INTEL

℔㜧

Modify value&footprint
,Ivy01/12

Add,Ivy 03/12

Add,Ivy 03/14

Modify,Ivy 03/12

Add,Ivy 03/12

Modify,Ivy03/16

Modify,03/16 Ivy

ADD,03/17 Ivy

DEL VCC3V3_S0_SYS,03/17 Ivy

Modify,Ivy04/01

Modify value,04/08Ivy

TBTA_HPD

TBTA_I2C_INT

TBT_I2C_SCL

TBT_I2C_SDA

OUT2_HPD

OUT2_HPD_A

TBT_FORCE_PWR

TBT_TMU_CLK_OUT

TBTA_I2C_INT

DPSNK0_ML0_N

DPSNK0_ML0_P

DPSNK0_ML1_N

DPSNK0_ML1_P

DPSNK0_ML2_N

DPSNK0_ML2_P

DPSNK0_ML3_P
DPSNK0_ML3_N

DPSNK0_AUX_N

DPSNK0_AUX_P

TBT_EE_WP_N

TBT_I2C_SDA

TBT_SRC_HPD

TBT_I2C_SCL
TBT_EE_WP_N
TBT_TMU_CLK_OUT

TBT_CIO_PLUG_EVENT_N

TBT_CLKREQ_N

BUF_PLT_RST#_AR

TBT_CLKREQ_N

TBT_SRC_CFG1

TBT_RSENSE

TBT_RBIAS

TBTA_LSTX

PB_USB2_RBIAS

TBTA_LSRX

TBT_XTAL_25_OUT

TBT_XTAL_25_IN

TBT_TDI

TBT_TDO

TBT_TMS

TBT_TEST_PWG

TBT_TEST_EN

TBT_XTAL_25_OUT

TBT_XTAL_25_IN

TBTA_HPD

TBT_I2C_SCL

TBT_I2C_SDA

PCIe_RBIAS

PET0_P
PET0_N

TBT_BATLOW_N

TBT_FORCE_PWR

RTD3_USB_PWR_EN

RTD3_CIO_PWR_EN

TBT_SLP_S3_N

TBTA_I2C_INT

PET1_N

PET1_P

PET2_P
PET2_N

PET3_N

PET3_P

DPSRC_RBIASTBT_SNK0_DDC_CLK

TBT_SNK0_DDC_DATA

TBT_SNK1_DDC_CLK

SINK0_CFG1

TBT_SNK1_DDC_CLK

DPSNK_RBIAS

TBTA_AUX_N

TBTA_AUX_P

PA_USB2_RBIAS

TBTA_TX1_P
TBTA_TX1_N

TBTA_TX0_P
TBTA_TX0_N

TBT_BATLOW_N

TBT_SLP_S3_N

TBT_CIO_PLUG_EVENT_N

TBTB_I2C_INT

TBTB_LSTX
TBTB_LSRX
TBTB_HPD

TBT_HDMI_DDC_DATA
TBT_HDMI_DDC_CLK
TBT_SRC_CFG1

SINK0_CFG1

TBT_EE_CS_N

TBT_EE_DO

TBT_EE_DI

TBT_EE_CLK

TBT_HOLD_N

TBT_TCK

TBTB_I2C_INT

TBTB_LSTX
TBTB_LSRX
TBTB_HPD

TBT_SRC_HPD

TBT_SNK0_DDC_DATA

TBT_SNK0_DDC_CLK

TBT_HDMI_DDC_CLK

TBT_HDMI_DDC_DATA

OUT2_HPD_A

BUF_PLT_RST#_AR

RTD3_CIO_PWR_EN
RTD3_USB_PWR_EN

TBT_SLP_S3_N

TBT_PCIe_WAKE_N

DPSNK1_ML0_N

DPSNK1_ML0_P

DPSNK1_ML1_N

DPSNK1_ML1_P

DPSNK1_ML2_N

DPSNK1_ML2_P

DPSNK1_ML3_P
DPSNK1_ML3_N

DPSNK1_AUX_N

DPSNK1_AUX_P

TBTB_AUX_P

TBTB_AUX_N

TBTB_TX1_P

TBTB_TX1_N

TBTB_TX0_P
TBTB_TX0_N

TBT_CLKREQ_N

VCC3V3_FLASH

VCC3V3_SX_SYS

VCC3V3_LC

VCC3V3_SX_SYS

VCC3V3_SX_SYS

VCC3V3_SX_SYS

VCC3V3_SX_SYS

VCC3V3_SX_SYS23,29,30,31

PCIE_WAKE# 17,34,36,37,38

TBT_FRC_PWR 15

PCIE_TXP5_TBT19
PCIE_TXN5_TBT19

PCIE_TXP6_TBT19
PCIE_TXN6_TBT19

PCIE_TXP7_TBT19
PCIE_TXN7_TBT19

PCIE_RXP5_TBT 19
PCIE_RXN5_TBT 19

PCIE_RXP6_TBT 19
PCIE_RXN6_TBT 19

PCIE_RXP7_TBT 19
PCIE_RXN7_TBT 19

PCIE_RXP8_TBT 19
PCIE_RXN8_TBT 19

TBTA_HPD 28,30

TBTA_I2C_INT 30

TBT_I2C_SDA 30,31
TBT_I2C_SCL 30,31

PCIE_TXP8_TBT19
PCIE_TXN8_TBT19

TBT_REFCLK_100_P18
TBT_REFCLK_100_N18

TBTA_CA2HD_1_P30

TBTA_CA2HD_1_N30

TBTA_CA2HD_0_P30
TBTA_CA2HD_0_N30

TBTA_LSRX30
TBTA_HPD28,30

TBT_RESET_N 30

TBT_EE_DO 30

TBTA_USB2_D_P30

TBTA_USB2_D_N30

TBTA_DPSRC_AUX_P30

TBTA_DPSRC_AUX_N30

TBTA_HD2CA_1_P30
TBTA_HD2CA_1_N30

TBTA_HD2CA_0_P30
TBTA_HD2CA_0_N30

TBTA_LSTX30

TBT_EE_DI 30

TBT_EE_CS_N 30
TBT_EE_CLK 30

VCC3V3_FLASH30,31

VCC3V3_LC29

OUT2_HPD33

OUT2_D0p33
OUT2_D0n33

OUT2_D1p33
OUT2_D1n33

OUT2_D2p33
OUT2_D2n33

OUT2_D3p33
OUT2_D3n33

OUT2_AUXp_SCL33
OUT2_AUXn_SDA33

BUF_PLT_RST# 20,22,23,24,34,35,36,37,38

SUSB# 11,12,13,17,20,22,23,27,39,42,43,44,45,46

TBTB_USB2_D_P 31
TBTB_USB2_D_N 31

TBTB_CA2HD_0_P 31

TBTB_CA2HD_0_N 31

OUT2_D0p_A32
OUT2_D0n_A32

OUT2_D1p_A32
OUT2_D1n_A32

OUT2_D2p_A32
OUT2_D2n_A32

OUT2_D3p_A32
OUT2_D3n_A32

OUT2_AUXp_SCL_A32
OUT2_AUXn_SDA_A32

OUT2_HPD_A32

TBTB_HPD 31

TBTB_LSRX 31

TBTB_LSTX 31

TBTB_DPSRC_AUX_P 31
TBTB_DPSRC_AUX_N 31

TBTB_I2C_INT 31

TBTB_CA2HD_1_P 31
TBTB_CA2HD_1_N 31

TBTB_HD2CA_1_P 31

TBTB_HD2CA_1_N 31

TBTB_HD2CA_0_P 31

TBTB_HD2CA_0_N 31

TBT_CLKREQ#18

TBCIO_PLUG_EVENT 15

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[28] AR_TBT

Custom

28 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[28] AR_TBT

Custom

28 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[28] AR_TBT

Custom

28 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R609 100K_04

C376 0.1u_6.3V_X5R_02

R651

3.3K_1%_04

C372 0.1u_6.3V_X5R_02

R635 100K_04

C301 0.22u_10V_X5R_02

C1100

0.22u_10V_X5R_02

R636 *10K_04

R208 100K_04

C1045 0.1u_10V_X7R_04

C357 0.22u_10V_X5R_02

R178 1M_04

C790 0.1u_10V_X7R_04

R231 2.2K_1%_04

C1101

0.22u_10V_X5R_02

U63

TC7SZ08FU

1

2

5

4

3

R180 1M_04

R600 100K_04

C1046 0.1u_10V_X7R_04

PCIe GEN3

Port A

PORT B

SINK PORT 0

Misc

TBT PORTS

SOURCE PORT 0

SINK PORT 1

LC GPIOPOC GPIO

DEBUG

MISC

POC

POC

U33A

DSL6540

Y

PA_TX0_P

A19

PA_TX0_N

B19

PA_TX1_P

A17

PA_TX1_N

B17

PCIE_RX1_P

T23

PCIE_RX1_N

T22

PCIE_RX0_P

Y23

PCIE_RX0_N

Y22

PCIE_TX1_P

P23

PCIE_TX1_N

P22

PCIE_TX0_P

V23

PCIE_TX0_N

V22

PCIE_REFCLK_100_IN_P

V19

PCIE_REFCLK_100_IN_N

T19

PA_RX1_N

B15

PA_RX1_P

A15

PA_RX0_P

B21

PA_RX0_N

A21

PCIE_CLKREQ_N

AC5

DPSNK0_ML0_P

AB7

DPSNK0_ML0_N

AC7

DPSNK0_ML1_P

AB9

DPSNK0_ML1_N

AC9

DPSNK0_ML2_P

AB11

DPSNK0_ML2_N

AC11

DPSNK0_ML3_P

AB13

DPSNK0_ML3_N

AC13

DPSNK0_AUX_P

Y11

DPSNK0_AUX_N

W11

DPSNK0_HPD

AA2

PERST_N

L4

DPSNK1_ML0_P

AB15

DPSNK1_ML0_N

AC15

DPSNK1_ML1_P

AB17

DPSNK1_ML1_N

AC17

DPSNK1_ML2_P

AB19

DPSNK1_ML2_N

AC19

DPSNK1_ML3_P

AB21

DPSNK1_ML3_N

AC21

DPSNK1_AUX_P

Y12

DPSNK1_AUX_N

W12

DPSNK1_HPD

Y6

DPSNK0_DDC_CLK

Y5

DPSNK0_DDC_DATA

R4

DPSNK1_DDC_CLK

Y8

DPSNK1_DDC_DATA

N4

PCIE_TX2_P

K23

PCIE_TX2_N

K22

PCIE_TX3_P

F23

PCIE_TX3_N

F22

PCIE_RX2_P

M23

PCIE_RX2_N

M22

PCIE_RX3_P

H23

PCIE_RX3_N

H22

DPSRC_ML0_P

R2

DPSRC_ML0_N

R1

DPSRC_ML1_P

N2

DPSRC_ML1_N

N1

DPSRC_ML2_P

L2

DPSRC_ML2_N

L1

DPSRC_ML3_P

J2

DPSRC_ML3_N

J1

DPSRC_AUX_P

W19

DPSRC_AUX_N

Y19

DPSRC_HPD

G1

PB_TX1_P

A9

PB_TX1_N

B9

PB_RX1_P

B7

PB_RX1_N

A7

PB_TX0_P

A11

PB_TX0_N

B11

PB_RX0_P

A13

PB_RX0_N

B13

POC_GPIO_1

E2

POC_GPIO_0

J4

PA_LSTX

A5

PA_DPSRC_HPD

M4

PA_USB2_D_P

E20

PA_USB2_D_N

D20

PB_LSRX

B5

PB_LSTX

B4

PB_DPSRC_HPD

G2

GPIO_0

U1

GPIO_1

U2

GPIO_2

V1

GPIO_3

V2

GPIO_4

W1

GPIO_5

W2

GPIO_6

Y1

GPIO_7

Y2

GPIO_8

AA1

XTAL_25_IN

D22

XTAL_25_OUT

D23

PCIE_RBIAS

N16

EE_DI

AB3

EE_DO

AC4

EE_CS_N

AC3

EE_CLK

AB4

TDI

Y4

TMS

V4

TCK

T4

TDO

W4

TEST_EN

E1

TEST_PWR_GOOD

AB5

RESET_N

F4

PA_LSRX

A4

RBIAS

H6

RSENSE

J6

DPSRC_RBIAS

N6

POC_GPIO_2

D4

POC_GPIO_3

H4

POC_GPIO_4

F2

POC_GPIO_5

D2

POC_GPIO_6

F1

PB_USB2_D_P

E19

PB_USB2_D_N

D19

PB_USB2_RBIAS

F19

PA_USB2_RBIAS

H19

DPSNK_RBIAS

Y18

PA_DPSRC_AUX_P

Y15

PA_DPSRC_AUX_N

W15

PB_DPSRC_AUX_P

Y16

PB_DPSRC_AUX_N

W16

THERMDA

AC23

THERMDA

AB23

PCIE_ATEST

V18

TEST_EDM

AC1

FUSE_VQPS_64

L15

FUSE_VQPS_128

N15

MONDC_CIO_0

C23

MONDC_CIO_1

C22

MONDC_SVR

D6

ATEST_P

A23

ATEST_N

B23

USB2_ATEST

E18

MONDC_DPSNK_0

W13

MONDC_DPSNK_1

W18

MONDC_DPSRC

AB2

R258 100K_04

R629 100K_04

R632 *10K_04

R230 2.2K_1%_04

R602 10K_04

R262 10K_04

C373 0.1u_6.3V_X5R_02

U62

TC7SZ08FU

1

2

5

4

3

R205 10K_04

C377 0.1u_6.3V_X5R_02

C326

10p_50V_NPO_04

R228 0_04

R227 14K_1%_04

R207 100_04

C302 0.22u_10V_X5R_02

C356 0.22u_10V_X5R_02

R261 100_04

C329 0.22u_10V_X5R_02

R608 0_04

R603 10K_04

R628 100K_04

X3

FSX3L 25MHZ

12

3 4

C1096 0.1u_10V_X7R_04

C1037 0.1u_6.3V_X5R_02

R259 1M_04

R598 499_1%_04

C379 0.22u_10V_X5R_02

C378 0.1u_6.3V_X5R_02

C374 0.1u_6.3V_X5R_02

R610

3.3K_1%_04

C1038 0.1u_6.3V_X5R_02

C793 0.1u_10V_X7R_04

R229 1M_04

C303 0.22u_10V_X5R_02

C359 0.22u_10V_X5R_02

U73

*TC7SZ08FU

1

2

5

4

3

R597 499_1%_04

C1039 0.1u_6.3V_X5R_02

R607 3.01K_1%_04

C328 0.22u_10V_X5R_02

R260 100K_04

C327

10p_50V_NPO_04

R634 100K_04

R179 1M_04

R599 4.75K_0.5%_04

R226 100K_04

R631 *10K_04

C1097

0.1u_10V_X7R_04

C371 0.1u_6.3V_X5R_02

C1040 0.1u_6.3V_X5R_02

R181 1M_04

C375 0.1u_6.3V_X5R_02

C794 0.1u_10V_X7R_04

C817

0.1u_10V_X7R_04

C1041 0.1u_6.3V_X5R_02

U50

W25Q80DV

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R225 100K_04

R206 10K_04

R656

3.3K_1%_04

C358 0.22u_10V_X5R_02

C304 0.22u_10V_X5R_02

C380 0.22u_10V_X5R_02

C1042 0.1u_6.3V_X5R_02

C789 0.1u_10V_X7R_04

R630 100K_04

R255 0_04

R1131 0_04

C10980.22u_10V_X5R_02

C1043 0.1u_6.3V_X5R_02

R633 *10K_04

R257 100K_04

R627 14K_1%_04

R605 100K_04

R232 10K_04

R655

3.3K_1%_04

C10990.22u_10V_X5R_02

C1044 0.1u_6.3V_X5R_02

Sheet 28 of 62

AR_TBT

Schematic Diagrams

B.Schematic Diagrams

AR_TBT B - 29

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

check CRB schematic ,1/12

Modify Footprint(

䇰㛔忚昶

),3/9 Tim

Modify,3/13 Tim

㧁姣䵈刚㟮㟮

:Share same GND plane with SVR_VSS of AR

Modify circuit,
6/11 Tim

120MIL

120MIL

DEFAULT SHORT

follow intel,6/13 Tim

Modify Ivy 11/30

Modify value Ivy,12/24

DEL VCC3V3_S0_SYS,03/17 Ivy

VCC3V3_ANA_PCIE
VCC3V3_ANA_USB2

TBT_SVR_IND

VCC0V9_LVR_OUT

VCC0V9_SVR

VCC0V9_DP

VCC0V9_USB

VCC0V9_PCIE

VCC0V9_CIO

VCC0V9_CIO VCC0V9_USB VCC0V9_PCIE VCC0V9_DP VCC3V3_LC VCC3V3_SX_SYS

VCC3V3_S0_SYS

VCC3V3_SX_SYS

3.3VS

3.3V

VCC3V3_S0 VCC3V3_S0_SYS

VCC3V3_S0

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,32,33,34,36,39,40,42,45,46,48,49

3.3V2,12,13,14,16,18,24,34,39,42,43,46,48

VCC3V3_SX_SYS23,28,30,31

VCC3V3_LC28

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[29] AR_Power

Custom

29 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[29] AR_Power

Custom

29 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[29] AR_Power

Custom

29 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

GND VCC

U33B

DSL6540

Y

VCC3P3_SX

F8

VCC3P3_SVR

A3

VCC3P3_SVR

B3

SVR_IND

C2

SVR_IND

D1

SVR_VSS

A1

SVR_VSS

B1

VCC3P3_SVR

A2

SVR_IND

C1

SVR_VSS

B2

VCC0P9_ANA_DPSNK

V13

VCC0P9_ANA_DPSNK

V12

VCC0P9_ANA_DPSNK

V11

VCC0P9_SVR_ANA

F11

VCC0P9_SVR_ANA

F12

VCC0P9_ANA_PCIE_2

L18

VCC0P9_DP

L11

VCC0P9_CIO

R9

VCC0P9_CIO

R11

VCC0P9_ANA_PCIE_2

M18

VCC0P9_PCIE

M16

VCC0P9_PCIE

M13

VCC0P9_USB

R15

VCC3P3_LC

R6

VCC0P9_ANA_DPSRC

L6

VCC0P9_ANA_DPSRC

M6

VCC0P9_SVR

M9

VCC0P9_PCIE

M15

VCC0P9_SVR

L9

VCC3P3_S0

R13

VCC3P3_ANA_PCIE

L16

VCC0P9_LVR_SENSE

H11

VCC0P9_LVR

J11

VCC0P9_LVR

H18

VCC0P9_USB

R16

VCC0P9_LVR

F18

VCC3P3_ANA_USB2

J16

VCC0P9_DP

L12

VCC0P9_DP

L8

VCC0P9_DP

T11

VCC0P9_ANA_PCIE_2

N18

VCC0P9_CIO

R12

VCC0P9_ANA_PCIE_1

L19

VCC0P9_ANA_PCIE_1

N19

VCC0P9_DP

T12

VCC0P9_DP

M8

VCC0P9_CIO

R8

VCC3P3A

H9

VCC0P9_SVR_SENSE

J9

VCC0P9_SVR_ANA

F13

VCC0P9_SVR_ANA

F15

VCC0P9_SVR_ANA

E12

VCC0P9_SVR_ANA

E13

VSS_ANA

A6

VSS_ANA

A8

VSS_ANA

A10

VSS_ANA

A12

VSS_ANA

A14

VSS_ANA

A16

VSS_ANA

A18

VSS_ANA

A20

VSS_ANA

A22

VSS_ANA

B6

VSS_ANA

B8

VSS_ANA

B10

VSS_ANA

B12

VSS_ANA

B14

VSS_ANA

B16

VSS_ANA

B18

VSS_ANA

B20

VSS_ANA

B22

VSS_ANA

E22

VSS_ANA

E23

VSS_ANA

F9

VSS_ANA

F20

VSS_ANA

F16

VSS_ANA

J5

VSS_ANA

J19

VSS_ANA

J20

VSS_ANA

L5

VSS_ANA

J18

VSS_ANA

J22

VSS_ANA

J23

VSS_ANA

K1

VSS_ANA

K2

VSS_ANA

L20

VSS_ANA

L22

VSS_ANA

L23

VSS_ANA

M1

VSS_ANA

M2

VSS_ANA

M5

VSS_ANA

M19

VSS_ANA

M20

VSS_ANA

N5

VSS_ANA

N20

VSS_ANA

N22

VSS_ANA

N23

VSS_ANA

AA22

VSS_ANA

AA23

VSS_ANA

AB6

VSS_ANA

AB8

VSS_ANA

AB10

VSS_ANA

AB12

VSS_ANA

AB14

VSS_ANA

AB16

VSS_ANA

AB18

VSS_ANA

AB20

VSS_ANA

AB22

VSS_ANA

AC6

VSS_ANA

AC8

VSS_ANA

AC10

VSS_ANA

AC12

VSS_ANA

AC14

VSS_ANA

AC16

VSS_ANA

AC18

VSS_ANA

AC20

VSS_ANA

AC22

VSS

D5

VSS

E4

VSS

E5

VSS

E6

VSS

F5

VSS

F6

VSS

H5

VSS

H8

VSS

J8

VSS

J12

VSS

J13

VSS

J15

VSS

L13

VSS

M12

VSS

N9

VSS

N8

VSS

N11

VSS

N12

VSS

N13

VSS

T6

VSS

T8

VSS

T9

VSS

T13

VSS

T15

VSS

T16

VSS

T18

VSS

AB1

VSS

AC2

VSS_ANA

D8

VSS_ANA

D9

VSS_ANA

D11

VSS_ANA

D12

VSS_ANA

D13

VSS_ANA

D15

VSS_ANA

D16

VSS_ANA

D18

VSS_ANA

E8

VSS_ANA

E9

VSS_ANA

E11

VSS_ANA

E15

VSS_ANA

E16

VSS_ANA

H1

VSS_ANA

H2

VSS_ANA

H12

VSS_ANA

H13

VSS_ANA

H15

VSS_ANA

H16

VSS_ANA

H20

VSS_ANA

G22

VSS_ANA

G23

VSS_ANAP1VSS_ANAP2VSS_ANAR5VSS_ANA

R18

VSS_ANA

R19

VSS_ANA

W5

VSS_ANA

W6

VSS_ANA

W8

VSS_ANA

W9

VSS_ANA

W20

VSS_ANA

W22

VSS_ANA

W23

VSS_ANA

Y9

VSS_ANA

Y13

VSS_ANA

Y20

VSS

M11

VSS_ANA

V5

VSS_ANA

V6

VSS_ANA

V8

VSS_ANA

V9

VSS_ANA

V15

VSS_ANA

V16

VSS_ANA

V20

VSS_ANA

R20

VSS_ANA

R22

VSS_ANA

R23

VSS_ANAT1VSS_ANAT2VSS_ANAT5VSS_ANA

T20

VSS_ANA

U23

VSS_ANA

U22

C282

47uF_6.3V_X5R_08

C693

1u_6.3V_X5R_04

C677

1u_6.3V_X5R_04

C704

1u_6.3V_X5R_04

C945

47uF_6.3V_X5R_08

C695

1u_6.3V_X5R_04

PJ78
*2mm

1 2

C703

1u_6.3V_X5R_04

C676

1u_6.3V_X5R_04

C700

1u_6.3V_X5R_04

C296

47uF_6.3V_X5R_08

C694

1u_6.3V_X5R_04

C679

1u_6.3V_X5R_04

C791

1u_6.3V_X5R_04

R1004 0_06

C687

1u_6.3V_X5R_04

C943

47uF_6.3V_X5R_08

C696

1u_6.3V_X5R_04

C792

1u_6.3V_X5R_04

C707

1u_6.3V_X5R_04

L17

XFL4012-601MEC

PCB Footprint = XFL4012-2

C702

1u_6.3V_X5R_04

C699

1u_6.3V_X5R_04

C706

0.1u_10V_X7R_04

C698

1u_6.3V_X5R_04

C688

1u_6.3V_X5R_04

C298

10u_6.3V_X5R_06

C697

1u_6.3V_X5R_04

C685

1u_6.3V_X5R_04

C684

1u_6.3V_X5R_04

C667

10u_6.3V_X5R_06

C668

1u_6.3V_X5R_04

C283

10u_6.3V_X5R_06

C705

1u_6.3V_X5R_04

C300

10u_6.3V_X5R_06

C678

10u_6.3V_X5R_06

C680

1u_6.3V_X5R_04

C701

1u_6.3V_X5R_04

PJ34
*2mm

1 2

C708

1u_6.3V_X5R_04

C681

1u_6.3V_X5R_04

C297

47uF_6.3V_X5R_08

.

L52

CPI160809UF-1R0M

C683

1u_6.3V_X5R_04

C682

1u_6.3V_X5R_04

C299

10u_6.3V_X5R_06

C944

1u_6.3V_X5R_04

Sheet 29 of 62

AR_Power

AR_Power

B.Schematic Diagrams

B - 30 AR_Power

TPS65982, Type C1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

WHEN CONNECT BUSPOWERZ TO GND,
CONNECT ALSO RPD_Gn to C_CCn

0.1%

Primary

NOTE:
PAY ATTENTION SYMBOL
OF TPS65982 BASED ON DS R0.92
AND MIGHT BE FUTURE CHANGES.

80Ohm, 0.01Ohm DCR, 8A Idc

C825~C828 change to 1u_25V_X5R_06

TO AP SPI ROM

close to pin,1/14

7/30

2/4 Tim

2/4 Tim

2/4 Tim

2/4 Tim

2/4 Tim

2/5 Tim

TI

⺢嬘

,2/5 Tim

RESERVED,3/6 Tim

Add,3/6 Tim

Add,3/12 Tim

3/16 Tim

Modify,3/18 Tim

Modify Footprint,6/10 Tim

Modify,4/9 Tim

DEFAULT

Add,6/4 Tim

Modify,6/11 Tim

Add,6/11 Tim

Modify,6/11 Tim

Modify net,6/11 Tim

Modify net,6/11 Tim

Modify,6/13 Tim

NO STUFF,6/18 Tim

Modify,6/13 Tim

Modify value,8/6 Tim

Modify Ivy 11/30

Modify Ivy03/12

ἧ䓐2柮

65982

㚫䓐⇘

or

⎗䓙EC㍏⇞

Modify value,Ivy01/11

C251 C252 C611 C612
follow INTEL

℔㜧

Modify value,Ivy01/12

follow INTEL

℔㜧

Modify value,Ivy03/01

follow INTEL

℔㜧

Modify value,Ivy03/01

Modify,Ivy01/12

Add,Ivy 03/16

Modify,Ivy03/16

Modify,03/17 Ivy

ADD,03/18 Ivy

Modify ,03/25 Ivy

add ,03/25 Ivy

TBTA_SS

TBTA_CA2HD_0_N

TBTA_CA2HD_0_P

TBTA_HD2CA_0_N

TBTA_HD2CA_0_P

TBTA_HD2CA_1_P

TBTA_HD2CA_1_NTBTA_CA2HD_1_N

TBTA_CA2HD_1_P

TBTA_CC1_J

TBTA_CC2_J

TBTA_SBU2_J

TBTA_SBU1_J

VCC1V8A_TBTA_LDO

VCC1V8D_TBTA_LDO

TBTA_LDO_BMC

TBTA_SBU2

TBTA_SBU1

TBTA_USB2_BP
TBTA_USB2_BN

TBTA_DIG_AUD_P

TBTA_USB2_TP

TBTA_USB2_TN

TBTA_DIG_AUD_N

TBTA_DEBUG1
TBTA_DEBUG2

TBTA_USB2_TP_J
TBTA_USB2_TN_J

TBTA_USB2_BN_J
TBTA_USB2_BP_J

VCC_HV_SYS_A

TBTA_ROSC

TBTA_DBG_CTL1
TBTA_DBG_CTL2

TBTA_DPSRC_AUX_N

TBTA_DPSRC_AUX_P

TBTA_ACE_GPIO6

TBTA_CC2

TBTA_CC1

GPIO_0

GPIO_0

GPIO_7

GPIO_7

TBTA_ACE_GPIO6

TBTA_HD2CA_0_P

TBTA_HD2CA_0_N

TBTA_CA2HD_1_N

TBTA_CA2HD_1_P

TBTA_USB2_TN_J
TBTA_USB2_TP_J

TBTA_USB2_BP_J

TBTA_USB2_BN_JTBTA_USB2_BN

TBTA_USB2_BP

TBTA_USB2_TN
TBTA_USB2_TP

TBTA_HD2CA_1_N

TBTA_CA2HD_0_N

TBTA_HD2CA_1_P

TBTA_CA2HD_0_P

TBTA_CC1_J

TBTA_CC2_JTBTA_CC2

TBTA_CC1

TBTA_I2C_IRQ2Z

ACE_I2C_SCL2

ACE_I2C_SDA2

TBTA_SBU1_J

TBTA_SBU2_JTBTA_SBU2

TBTA_SBU1

5V

VCC5V0_SYS

VCC3V3_SX_SYS

VCC5V0_SYS

TBTA_VBUS

VCC3V3_FLASH

VCC3V3_FLASH

VCC3V3_FLASH

VCC3V3_FLASH

VCC3V3_SX_SYS

VCC3V3_SX_SYS

VCC3V3_SX_SYS23,28,29,31

5V11,12,14,20,26,31,39,41,42,43,45,46,48,49,50

TBTA_I2C_INT28

VCC3V3_FLASH28,31

TBT_EE_DO28

TBT_EE_CS_N28

TBT_EE_CLK28
TBT_EE_DI28

TBTA_HPD28

TBTA_USB2_D_P28
TBTA_USB2_D_N28

TBTA_DPSRC_AUX_P28
TBTA_DPSRC_AUX_N28

TBTA_LSRX28

TBTA_LSTX28

TBTA_CA2HD_1_P28

TBTA_HD2CA_0_N28

TBTA_CA2HD_1_N28

TBTA_HD2CA_0_P28

TBTA_CA2HD_0_P28
TBTA_CA2HD_0_N28

TBTA_HD2CA_1_N28
TBTA_HD2CA_1_P28

TBTA_ACE_GPIO015

TBTA_ACE_GPIO215
TBTA_ACE_GPIO315

TBTA_ACE_GPIO718,31

TBT_RESET_N 28

TBTA_I2C_IRQ2Z31

UART_MOSI31
UART_MISO31

TBTB_I2C_IRQ2Z31

TBTA_ACE_GPIO631

TBT_I2C_SDA28,31
TBT_I2C_SCL28,31

ACE_I2C_SDA223,31
ACE_I2C_SCL223,31

TBTA_MRESET22
TBTA_HRESET22

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[30] TPS65982,TYPE C1

Custom

30 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[30] TPS65982,TYPE C1

Custom

30 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[30] TPS65982,TYPE C1

Custom

30 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

D66

CPDZC5V0SPC-HF

12

R595 1M_04

3A 3A

U35
TPS65982ABZQZ

Y

PP_5V0

A11

PP_5V0

B11

PP_5V0

C11

PP_HVA6PP_HVA7PP_HV

A8

VBUS

H11

VBUS

J10

VBUS

J11

VIN_3V3

H1

LDO_3V3

G1

LDO_1V8A

K1

LDO_1V8D

A2

LDO_BMC

E1

VOUT_3V3

H2

C_CC1

L9

C_CC2

L10

M_RESET

E11

RESETZ

F11

R_OSC

G2

SENSEP

B10

SENSEN

A10

HV_GATE1

B9

GPIO_0

B2

GPIO_1

C2

GPIO_2

D10

GPIO_3

G11

GPIO_4

C10

GPIO_5

E10

GPIO_6

G10

BUSPOWERZ

F10

I2C_SDA1

D1

I2C_SCL1

D2

I2C_IRQ1Z

C1

I2C_SDA2

A5

I2C_SCL2

B5

I2C_IRQ2Z

B6

I2C_ADDR

F1

SPI_CLK

A3

SPI_MOSI

B4

SPI_MISO

A4

SPI_SS_Z

B3

SWD_DAT

F4

SWD_CLK

G4

UART_RX

F2

UART_TX

E2

USB_RP_P

L5

USB_RP_N

K5

LSX_P2R

K4

LSX_R2P

L4

DEBUG3

L3

DEBUG4

K3

DEBUG_CTL1

E4

DEBUG_CTL2

D5

DEBUG1

L2

DEBUG2

K2

AUX_P

J1

AUX_N

J2

C_USB_TP

K6

C_USB_TN

L6

C_USB_BP

K7

C_USB_BN

L7

C_SBU1

K8

C_SBU2

L8

GND

A1

PP_CABLE

H10

PP_5V0

D11

PP_HV

B7

VBUS

K11

HV_GATE2

A9

RPD_G1

K9

RPD_G2

K10

GND

B8

HRESET

D6

GNDD8GNDE5GNDE6GNDE7GNDE8GNDF5GNDF6GNDF7GNDF8GNDG5GNDG6GNDG7GNDG8GNDH4GND

H5

SS

H7

GND

H8

GPIO_7

D7

GPIO_8

H6

GND

L1

VDDIO

B1

C331

0.1u_10V_X7R_04

D61

CPDZC5V0SPC-HF

12

R1139 0_04

R189 100K_04

D67

CPDZC5V0SPC-HF

12

D64

CPDZC5V0SPC-HF

12

R233 0_04

R182 *10K_04

R185 *0_04

R1137 100K_04

C308

2.2u_16V_X5R_06

R593 *0_04

R237 *10K_04

C333

1u_16V_X5R_06

C332

2.2u_16V_X5R_06

R188 100K_04

R1136 *0_04

R592 *10K_04

C611 1u_10V_X5R_02

C330

22u_6.3V_X5R_08

R591 10K_04

R236 *3.3K_04

C252 1u_10V_X5R_02

R1141

100K_04

C361

22u_6.3V_X5R_08

R584
15K_0.1%_04

D63

CPDZC5V0SPC-HF

12

R235 *3.3K_04

C382

22u_6.3V_X5R_08

C666

0.22u_10V_X5R_04

C360

10u_25V_X5R_08

C335

2.2u_16V_X5R_06

R210 *0_04

R238 *0_04

C251 1u_10V_X5R_02

R234 *10K_04

C307

10u_25V_X5R_08

D68

DT1140-04LP-7

5

1
2
3
4

10

9
8
7
6

J_TYPEC1
DX07S024JJ2

Y

GND

A1

TX0_P

A2

TX0_N

A3

VBUS

A4

CC1

A5

USB2_P_T

A6

USB2_N_T

A7

SBU1

A8

VBUS

A9

RX1_N

A10

RX1_P

A11

GND

A12

GND

B12

RX0_P

B11

RX0_N

B10

VBUS

B9

SBU2

B8

USB2_N_B

B7

USB2_P_B

B6

CC2

B5

VBUS

B4

TX1_N

B3

TX1_P

B2

GND

B1

CGND

GND1

CGND

GND2

CGND

GND3

CGND

GND4

R184

0_04

C665

1u_16V_X5R_06

R209 100K_04

C613
1u_25V_X5R_06

R582 100K_04

C306

220p_50V_NPO_04

D62

CPDZC5V0SPC-HF

12

R596

0_04

D51

CPDZC5V0SPC-HF

12

L30

HCB2012KF-800T80

C381

22u_6.3V_X5R_08

PJ36
*3mm

1 2

D65

CPDZC5V0SPC-HF

12

R186 100K_04

C334

10u_6.3V_X5R_06

C612 1u_10V_X5R_02

R583 100K_04

R594 10K_04

C305

220p_50V_NPO_04

R183 *0_04

D14
DT1140-04LP-7

5

1
2
3
4

10

9
8
7
6

R585 0_04

D34

CSOD140SH

A C

R187 100K_04

R1133

0_04

Sheet 30 of 62

TPS65982, Type C1

Schematic Diagrams

B.Schematic Diagrams

TPS65982, Type C1 B - 31

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Add,6/11 Tim

Add,3/6 Tim

TI⺢嬘,2/5 Tim

2/4 Tim

Modify,6/13 Tim

follow INTEL

℔㜧

Modify value,Ivy03/01

follow INTEL

℔㜧

Modify value,Ivy03/01

Modify,Ivy01/12

7/30

DEFAULT

Add,6/4 Tim

C825~C828 change to 1u_25V_X5R_06

Modify,6/11 Tim

80Ohm, 0.01Ohm DCR, 8A Idc

2/4 Tim

Modify net,6/11 Tim

Modify net,6/11 Tim

TO AP SPI ROM

3/16 Tim

close to pin,1/14

2/4 Tim

NOTE:
PAY ATTENTION SYMBOL
OF TPS65982 BASED ON DS R0.92
AND MIGHT BE FUTURE CHANGES.

2/4 Tim

WHEN CONNECT BUSPOWERZ TO GND,
CONNECT ALSO RPD_Gn to C_CCn

2/4 Tim

C251 C252 C611 C612
follow INTEL

℔㜧

Modify value,Ivy01/12

0.1%

Modify Footprint,6/10 Tim

Modify Ivy 11/30

Modify,4/9 Tim

Secondary

Modify,3/18 Tim

RESERVED,3/6 Tim

Modify,6/13 Tim

Modify value,Ivy01/11

Modify value,8/6 Tim

Modify,6/11 Tim

2/5 Tim

Modify Ivy03/16

Modify Ivy03/12

Modify,Ivy 03/12

Add,Ivy 03/14

del,03/16 Ivy

Modify,03/18 Ivy

Modify,03/17 Ivy

㚜㓡

DATA CLK㍍军EC2 ,03/17 Ivy

Modify ,03/25 Ivy

Modify ,03/25 Ivy

add ,03/25 Ivy

GPIO_0_B

TBTB_DPSRC_AUX_N

TBTB_HD2CA_1_N

TBTB_CA2HD_0_N

TBTB_DPSRC_AUX_P

TBTB_HD2CA_1_P

TBTA_ACE_GPIO6

TBTB_MRESET

TBTB_SS

TBTB_CC2

TBTB_CC1

TBTB_CA2HD_0_N

TBTB_CA2HD_0_P

TBTB_HD2CA_0_N

TBTB_HD2CA_0_P

TBTB_HD2CA_1_P

TBTB_HD2CA_1_NTBTB_CA2HD_1_N

TBTB_CA2HD_1_P

TBTB_CC1_J

TBTB_CC2_J

TBTB_SBU2_J

TBTB_SBU1_J

VCC1V8A_TBTB_LDO

VCC1V8D_TBTB_LDO

TBTB_LDO_BMC

TBTB_HD2CA_0_P

TBTB_SBU2

TBTB_SBU1

TBTB_USB2_BP

TBTB_USB2_BN

TBTB_DIG_AUD_P

TBTB_USB2_TP
TBTB_USB2_TN

TBTB_DIG_AUD_N

TBTB_DEBUG1
TBTB_DEBUG2

TBTB_USB2_TP_J
TBTB_USB2_TN_J

TBTB_USB2_BN_J
TBTB_USB2_BP_J

VCC_HV_SYS_B

TBTB_ROSC

TBTB_DBG_CTL1
TBTB_DBG_CTL2

TBTB_CA2HD_0_P

GPIO_0_B

GPIO_7_B

TBTB_HD2CA_0_N

TBTB_CA2HD_1_N

TBTB_CA2HD_1_P

GPIO_7_B

VCC3V3_TBTB_LDO

VCC3V3_TBTB_LDO TBTB_I2C_IRQ2Z

TBTB_HRESET

TBTB_USB2_BP_J
TBTB_USB2_BN_J

TBTB_USB2_TN_J
TBTB_USB2_TP_J

TBTB_USB2_BP
TBTB_USB2_BN

TBTB_USB2_TN
TBTB_USB2_TP

TBTB_SBU2_J
TBTB_SBU1_J

TBTB_CC1_J
TBTB_CC2_JTBTB_CC2

TBTB_CC1

TBTB_SBU1

TBTB_SBU2

5V

VCC5V0_SYS_B

VCC3V3_SX_SYS

VCC5V0_SYS_B

TBTB_VBUS

VCC3V3_TBTB_LDO

VCC3V3_TBTB_LDO

VCC3V3_FLASH

VCC3V3_SX_SYS

VCC3V3_TBTB_LDO

VCC3V3_SX_SYS23,28,29,30

5V11,12,14,20,26,30,39,41,42,43,45,46,48,49,50

TBT_I2C_SDA28,30

TBTB_I2C_INT28

VCC3V3_FLASH28,30

TBT_I2C_SCL28,30

TBTB_HPD28

TBTB_USB2_D_P28
TBTB_USB2_D_N28

TBTB_DPSRC_AUX_P28
TBTB_DPSRC_AUX_N28

TBTB_LSRX28

TBTB_LSTX28

TBTB_CA2HD_1_P28

TBTB_HD2CA_0_N28

TBTB_CA2HD_1_N28

TBTB_HD2CA_0_P28

TBTB_CA2HD_0_P28
TBTB_CA2HD_0_N28

TBTB_HD2CA_1_N28
TBTB_HD2CA_1_P28

TBTA_ACE_GPIO718,30

ACE_I2C_SDA223,30
ACE_I2C_SCL223,30

UART_MISO30
UART_MOSI30

TBTB_I2C_IRQ2Z30

TBTA_I2C_IRQ2Z30

TBTA_ACE_GPIO630

TBTB_ACE_GPIO015

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[31] TPS65982,TYPE C2

Custom

31 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[31] TPS65982,TYPE C2

Custom

31 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[31] TPS65982,TYPE C2

Custom

31 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R1111 100K_04

D88
DT1140-04LP-7

5

1
2
3
4

10

9
8
7
6

D83

CPDZC5V0SPC-HF

12

L60

HCB2012KF-800T80

C1094

22u_6.3V_X5R_08

R1113 100K_04

R1103

0_04

R1118 *0_04

D86

CPDZC5V0SPC-HF

12

C1093

2.2u_16V_X5R_06

R1125 100K_04

C1079

0.1u_10V_X7R_04

R1107
15K_0.1%_04

C1076

10u_25V_X5R_08

R1129 *10K_04

R1142

100K_04

D81

CPDZC5V0SPC-HF

12

C1095

22u_6.3V_X5R_08

D79

CPDZC5V0SPC-HF

12

R1126 100K_04

C1088

220p_50V_NPO_04

R1104 100K_04

R1122 *0_04

C1081
1u_25V_X5R_06

D85

CPDZC5V0SPC-HF

12

R1114 100K_04

R1138 100K_04

R1106 0_04

R1105 100K_04

R1127 100K_04

R1140 0_04

C1086

0.22u_10V_X5R_04

D78
DT1140-04LP-7

5

1
2
3
4

10

9
8
7
6

C1089

220p_50V_NPO_04

R1132

*93.1K_04

D82

CPDZC5V0SPC-HF

12

R1124 0_04

R1128 3.3K_1%_04

C1087 1u_10V_X5R_02

J_TYPEC2
DX07S024JJ2

Y

GND

A1

TX0_P

A2

TX0_N

A3

VBUS

A4

CC1

A5

USB2_P_T

A6

USB2_N_T

A7

SBU1

A8

VBUS

A9

RX1_N

A10

RX1_P

A11

GND

A12

GND

B12

RX0_P

B11

RX0_N

B10

VBUS

B9

SBU2

B8

USB2_N_B

B7

USB2_P_B

B6

CC2

B5

VBUS

B4

TX1_N

B3

TX1_P

B2

GND

B1

CGND

GND1

CGND

GND2

CGND

GND3

CGND

GND4

C1077

22u_6.3V_X5R_08

R1109 10K_04

R1112 100K_04

C1082

1u_16V_X5R_06

R1116 *10K_04

C1091

2.2u_16V_X5R_06

C1075

22u_6.3V_X5R_08

R1115 100K_04

C1090 1u_10V_X5R_02

C1083

10u_25V_X5R_08

C1078

10u_6.3V_X5R_06

C1080 1u_10V_X5R_02

C1085 1u_10V_X5R_02

PJ83
*3mm

1 2

R1110 10K_04

C1092

2.2u_16V_X5R_06

3A 3A

U72
TPS65982ABZQZ

Y

PP_5V0

A11

PP_5V0

B11

PP_5V0

C11

PP_HVA6PP_HVA7PP_HV

A8

VBUS

H11

VBUS

J10

VBUS

J11

VIN_3V3

H1

LDO_3V3

G1

LDO_1V8A

K1

LDO_1V8D

A2

LDO_BMC

E1

VOUT_3V3

H2

C_CC1

L9

C_CC2

L10

M_RESET

E11

RESETZ

F11

R_OSC

G2

SENSEP

B10

SENSEN

A10

HV_GATE1

B9

GPIO_0

B2

GPIO_1

C2

GPIO_2

D10

GPIO_3

G11

GPIO_4

C10

GPIO_5

E10

GPIO_6

G10

BUSPOWERZ

F10

I2C_SDA1

D1

I2C_SCL1

D2

I2C_IRQ1Z

C1

I2C_SDA2

A5

I2C_SCL2

B5

I2C_IRQ2Z

B6

I2C_ADDR

F1

SPI_CLK

A3

SPI_MOSI

B4

SPI_MISO

A4

SPI_SS_Z

B3

SWD_DAT

F4

SWD_CLK

G4

UART_RX

F2

UART_TX

E2

USB_RP_P

L5

USB_RP_N

K5

LSX_P2R

K4

LSX_R2P

L4

DEBUG3

L3

DEBUG4

K3

DEBUG_CTL1

E4

DEBUG_CTL2

D5

DEBUG1

L2

DEBUG2

K2

AUX_P

J1

AUX_N

J2

C_USB_TP

K6

C_USB_TN

L6

C_USB_BP

K7

C_USB_BN

L7

C_SBU1

K8

C_SBU2

L8

GND

A1

PP_CABLE

H10

PP_5V0

D11

PP_HV

B7

VBUS

K11

HV_GATE2

A9

RPD_G1

K9

RPD_G2

K10

GNDB8GNDD8GNDE5GNDE6GNDE7GNDE8GNDF5GNDF6GNDF7GNDF8GNDG5GNDG6GNDG7GNDG8GNDH4GND

H5

SS

H7

GND

H8

GPIO_7

D7

GPIO_8

H6

GND

L1

VDDIO

B1

HRESET

D6

D87

CSOD140SH

A C

C1084

1u_16V_X5R_06

D80

CPDZC5V0SPC-HF

12

R1117 *10K_04

D84

CPDZC5V0SPC-HF

12

R1102 1M_04

Sheet 31 of 62

TPS65982, Type C2

TPS65982, Type C2

B.Schematic Diagrams

B - 32 TPS65982, Type C2

PS8338B+mDP_1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

$XWRWHVWHQDEOH,QWHUQDOSXOOGRZQDWa.㫉, 3.3V I/O.

L: Auto test disable & input offset cancellation enable
(default)
H: Auto test enable & input offset cancellation enable
M: Auto test disable & input offset cancellation disable

Automatic EQ disable; Internal pull down at
~150K

㫉

, 3.3V IO
L: Automatic EQ enable (default)
H: Automatic EQ disable

3URJUDPPDEOHLQSXWHTXDOL]DWLRQOHYHOV,QWHUQDOSXOOGRZQDWa.㫉,

3.3V I/O.
L: default, LEQ, compensate channel loss up to11.5dB @ HBR2
H: HEQ, compensate channel loss up to 14.5dB @ HBR2
M: LLEQ, compensate channel loss up to 8.5dB @ HBR2

Port switching control or priority configuration;
Internal pull down at ~150K

㫉

, 3.3V I/O.
L: Port1 is selected or with higher priority (default)
H: Port2 is selected or with higher priority

Chip operational mode configuration;
Internal pull down at ~150K

㫉

, 3.3V

I/O.
L: Control switching mode (default)
H: Automatic switching mode

3 Levels Input:
L: Low
H: High
M: VDD33/2, connect both
pull-up and pull-down resistors

AUX interception disable for Port y (y = 1, 2). Internal pull down at
~150K㫉, 9,2
L: AUX interception enable, driver configuration is set by link training
(default)
H: AUX interception disable, driver output with fixed 800mV and 0dB
M: AUX interception disable, driver output with fixed 400mV and 0dB

Hybrid DDC/AUX

Output swing adjustment for Port y (y = 1, 2). Internal pull down at
~150K

㫉

, 9,2

L: default
H: +20%
M: -16.7%

Modify,3/16 Tim

check IN_CA,1/13

DEFAULT:LOW

3/12 Tim

Modify,3/12 Tim

DDC DATA/CLK

3/19 Tim

MINI DP PORT

W^ϴϯϯϴͲWŝŶŽŶƚƌŽůDŽĚĞ

PS8338B

ℏ悐㚱㈿

ESD,2/5 Tim

check add ESD ,1/12

1/30 Tim

MINI DISPLAY PORT 1(PS8338B)

月

PS8338B

月

Mini DP Conn

Add,4/7 Tim

PD PIN:
L:Normal operation(default)
H:Chip power down

Footprint M-SOT23-5

ᾖ㓡䁢

M-SOT23-5A

6/14 Tim

For Safety LPS.

Modify Ivy 11/30

Delete Ivy 11/30

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

Delete ,Ivy12/21

Modify ,Ivy01/07

Modify value,Ivy01/11

Modify,Ivy02/03

Modify vaule,03/18 Ivy

follow common design,Ivy04/01

value㓡0_04

⍇㛔㗗

FCM1005KF-121T03 (6-19-31001-245)
,06/04 Ivy

3.3VS

GND

PI0_A

PS8338B_CFG0_A

PC11_A

PC20_A

PC21_A

3.3VS

PC10_A

PS8338B_PEQ_A

3.3VS

IN_D2n_A

IN_D2p_A

IN_D1n_A

IN_D1p_A

PS8338B_PEQ_A

IN_D0n_A

IN_D0p_A

3.3VS

IN_CA_DET_A

3.3VS

PI0_A

OUT2_D2n_A

PS8338B_SW_A

OUT2_D3p_A

OUT2_D3n_A

OUT2_CA_DET_A

3.3VS

PS8338B_CFG0_A

IN_D3n_A

IN_D3p_A

OUT2_D2p_A

OUT2_D0p_A

OUT2_D0n_A

OUT2_D1p_A

OUT2_D1n_A

PS8338B_SW_A

3.3VS

GND

MUX_AUXP_A

PC11_A

3.3VS

3.3VS

MUX_AUXN_A

IN_AUXp_A

GND

OUT2_AUXp_SCL_A

IN_AUXn_A

3.3VS

OUT2_AUXn_SDA_A

PC10_A

MUX_HPD_A

NV3V3

IN_AUXp_A

IN_CA_DET_A

NV3V3

GND

NV3V3

MUX_AUXP_A
MUX_AUXN_A

3.3VS

GND

PC21_A

3.3VS

GND

PC20_A

OUT1_HPD_A

OUT1_CA_DET_A

IN_AUXn_A

3.3VS

3.3VS

OUT1_AUXn_SDA_A

OUT1_AUXp_SCL_A

OUT1_D2n_A

OUT1_D3n_A

OUT1_D3p_A

OUT1_D0n_A

OUT1_D0p_A

OUT1_D2p_A

OUT1_D1n_A

OUT1_D1p_A

NV3V3

OUT1_D0p_J_A
OUT1_D0n_J_A

OUT1_D1p_J_A
OUT1_D1n_J_A

OUT1_D2n_J_A

OUT1_D2p_J_A

OUT1_D3n_J_A

OUT1_D3p_J_A

OUT1_AUXn_SDA_A

OUT1_AUXp_SCL_A

HPD_A

OUT1_CA_DET_A

OUT1_D3p_A
OUT1_D3n_A

OUT1_D2n_A

OUT1_D1n_A

OUT1_D2p_A

OUT1_D0p_A
OUT1_D0n_A

OUT1_D1p_A

OUT1_D0p_J_A

OUT1_D2p_J_A
OUT1_D2n_J_A

OUT1_D1n_J_A

OUT1_D1p_J_A

OUT1_D0n_J_A

OUT1_D3p_J_A
OUT1_D3n_J_A

PS8338B_PD_A

PS8338B_PD_A

PI1_A

HPD_AOUT1_HPD_A

3.3VS_FUSE_DP1

3.3VS_FUSE_DP1

NV3V3

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,33,34,36,39,40,42,45,46,48,49

PS8338B_SW_A16

MUX_AUXP_A11

MUX_AUXN_A11

MUX_3N_A11

MUX_3P_A11

MUX_2N_A11

MUX_2P_A11

MUX_1N_A11

MUX_1P_A11

MUX_0N_A11

MUX_0P_A11

MUX_HPD_A11

OUT2_HPD_A 28

OUT2_AUXn_SDA_A 28
OUT2_AUXp_SCL_A 28

OUT2_D0p_A 28

OUT2_D0n_A 28

OUT2_D1p_A 28

OUT2_D1n_A 28

OUT2_D2p_A 28

OUT2_D2n_A 28

OUT2_D3p_A 28

OUT2_D3n_A 28

PS8338B_PCH_A15

SUSB11,14,33,42,46

NV3V313,14,33,42

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[32] PS8338B+mDP_1

Custom

32 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[32] PS8338B+mDP_1

Custom

32 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[32] PS8338B+mDP_1

Custom

32 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C1067 0.1u_16V_X7R_04

C1047 0.1u_16V_X7R_04

R1080

4.99K_1%_04

C1059 0.1u_16V_X7R_04

C1053 0.1u_16V_X7R_04

C1071 0.1u_16V_X7R_04

C1068 0.1u_16V_X7R_04

R1084

*4.7K_04

R1081
100K_04

Q65

AO3415

G

D S

R1099 *4.7K_04

C1118

*220p_50V_NPO_04

R1095
100K_04

R1085

4.7K_04

R1092
100K_04

D76

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

C1072 0.1u_16V_X7R_04

R1096

*4.7K_04

.

L61 0_04

R1086
100K_04

C1060 0.1u_16V_X7R_04

R1090

5.1M_04

C1073 0.1u_16V_X7R_04

R1097

4.7K_04

C1048

0.01u_16V_X7R_04

C10610.01u_16V_X7R_04

C1054 0.1u_16V_X7R_04

C1119

*220p_50V_NPO_04

C1049 0.1u_16V_X7R_04

R1100

*4.7K_04

C1062 0.1u_16V_X7R_04

C1055 0.1u_16V_X7R_04

C1074

0.1u_16V_X7R_04

R1087

*4.7K_04

R1093 *0_04

C1056 0.1u_16V_X7R_04

C1050 0.1u_16V_X7R_04

R1101

4.7K_04

R1094

*4.7K_04

C1057 0.1u_16V_X7R_04

J_MDP1
C17722-120A9-L

Y

PCB Footprint = c17722-120xx-l

GND

1

ML_LANE0P

3

ML_LANE0N

5

GND

7

ML_LANE1P

9

ML_LANE1N

11

GND

13

ML_LANE2P

15

ML_LANE2N

17

RETURN

19

HPD

2

CONFIG1

4

CONFIG2

6

GND

8

ML_LANE3P

10

ML_LANE3N

12

GND

14

AUX_CHP

16

AUX_CHN

18

DP_PWR

20

CGND

GND1

CGND

GND2

CGND

GND3

CGND

GND4

R1088
1M_04

C1063

0.1u_16V_X7R_04

Q66

2SK3018S3

G

DS

C1069 0.1u_16V_X7R_04

R1089

*4.7K_04

C1064
10u_6.3V_X5R_06

D77

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

U70

PS8338B

PI1/SCL_CTL

1

I2C_CTL_EN

2

IN_HPD

3

IN_CA_DET

4

VDD33

5

IN_D0p

6

IN_D0n

7

PEQ

8

IN_D1p

9

IN_D1n

10

GND

11

IN_D2p

12

IN_D2n

13

PD

14

IN_D3p

15

IN_D3n

16

CEXT

17

SW

18

GND

19

REXT

20

VDD3321IN_DDC_SCL22IN_DDC_SDA23IN_AUXp24IN_AUXn25OUT1_AUXp_SCL26OUT1_AUXn_SDA27OUT2_AUXp_SCL28OUT2_AUXn_SDA29VDD33

30

OUT2_D3n

31

OUT2_D3p

32

OUT2_CA_DET

33

OUT2_D2n

34

OUT2_D2p

35

OUT2_D1n

36

OUT2_D1p

37

OUT2_HPD

38

OUT2_D0n

39

OUT2_D0p

40

OUT1_D3n

41

OUT1_D3p

42

OUT1_CA_DET

43

OUT1_D2n

44

OUT1_D2p

45

OUT1_D1n

46

OUT1_D1p

47

OUT1_HPD

48

OUT1_D0n

49

OUT1_D0p

50

VDD33

51

GND

52

PC2153PC2054PC1155PC10

56

VDD33

57

CFG158CFG0

59

PI0/SDA_CTL

60

EPAD

61

C10700.01u_16V_X7R_04

Q64

AO3415

G

D S

C1065

2.2u_6.3V_X5R_04

C1058

0.01u_16V_X7R_04

R1082 *4.7K_04

R1078

*4.7K_04

C1051 0.1u_16V_X7R_04

U71

SY6288D20AAC

PCB Footprint = M-SOT23-5A

VOUT

1

VIN

5

GND2EN#

4

OC#

3

C1066 0.1u_16V_X7R_04

R1091 *4.7K_04 R1083

*4.7K_04

R1079

*4.7K_04

C1052

10u_6.3V_X5R_06

R1098

*4.7K_04

Sheet 32 of 62

PS8338B+mDP_1

Schematic Diagrams

B.Schematic Diagrams

PS8338B+mDP_1 B - 33

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D

C

B

A

A

$XWRWHVWHQDEOH,QWHUQDOSXOOGRZQDWa.㫉, 3.3V I/O.

L: Auto test disable & input offset cancellation enable
(default)
H: Auto test enable & input offset cancellation enable
M: Auto test disable & input offset cancellation disable

Automatic EQ disable; Internal pull down at
~150K

㫉

, 3.3V IO
L: Automatic EQ enable (default)
H: Automatic EQ disable

3URJUDPPDEOHLQSXWHTXDOL]DWLRQOHYHOV,QWHUQDOSXOOGRZQDWa.㫉,

3.3V I/O.
L: default, LEQ, compensate channel loss up to11.5dB @ HBR2
H: HEQ, compensate channel loss up to 14.5dB @ HBR2
M: LLEQ, compensate channel loss up to 8.5dB @ HBR2

Port switching control or priority configuration;
Internal pull down at ~150K

㫉

, 3.3V I/O.
L: Port1 is selected or with higher priority (default)
H: Port2 is selected or with higher priority

Chip operational mode configuration;
Internal pull down at ~150K

㫉

, 3.3V

I/O.
L: Control switching mode (default)
H: Automatic switching mode

3 Levels Input:
L: Low
H: High
M: VDD33/2, connect both
pull-up and pull-down resistors

AUX interception disable for Port y (y = 1, 2). Internal pull down at
~150K

㫉

, 9,2

L: AUX interception enable, driver configuration is set by link training
(default)
H: AUX interception disable, driver output with fixed 800mV and 0dB
M: AUX interception disable, driver output with fixed 400mV and 0dB

Hybrid DDC/AUX

Output swing adjustment for Port y (y = 1, 2). Internal pull down at
~150K㫉, 9,2
L: default
H: +20%
M: -16.7%

Modify,3/16 Tim

check IN_CA,1/13

DEFAULT:LOW

3/12 Tim

Modify,3/12 Tim

DDC DATA/CLK

3/19 Tim

MINI DP PORT

W^ϴϯϯϴͲWŝŶŽŶƚƌŽůDŽĚĞ

PS8338B

ℏ悐㚱㈿

ESD,2/5 Tim

check add ESD ,1/12

1/30 Tim

MINI DISPLAY PORT 2(PS8338B)

月

PS8338B

月

Mini DP Conn

Add,4/7 Tim

PD PIN:
L:Normal operation(default)
H:Chip power down

Footprint M-SOT23-5

ᾖ㓡䁢

M-SOT23-5A

6/14 Tim

For Safety LPS.

Modify Ivy 11/30

Delete Ivy 11/30

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/09

Delete ,Ivy12/21

Modify ,Ivy01/07

Modify value,Ivy01/11

Modify,Ivy02/03

Modify vaule,03/18 Ivy

follow common design,Ivy04/01

value㓡0_04

⍇㛔㗗

FCM1005KF-121T03 (6-19-31001-245)
,06/04 Ivy

3.3VS

GND

PI0

PS8338B_CFG0

PC11

PC20

PC21

3.3VS

PC10

PS8338B_PEQ

3.3VS

IN_D2n

IN_D2p

IN_D1n

IN_D1p

PS8338B_PEQ

IN_D0n

IN_D0p

3.3VS

IN_CA_DET

3.3VSPI0

OUT2_D2n

PS8338B_SW

OUT2_D3p

OUT2_D3n

OUT2_CA_DET

3.3VS

PS8338B_CFG0

IN_D3n

IN_D3p

OUT2_D2p

OUT2_D0p

OUT2_D0n

OUT2_D1p

OUT2_D1n

PS8338B_SW

3.3VS

GND

MUX_AUXP

PC11

3.3VS

3.3VS

MUX_AUXN

IN_AUXp

GND

OUT2_AUXp_SCL

IN_AUXn

3.3VS

OUT2_AUXn_SDA

PC10

MUX_HPD

NV3V3

IN_AUXp

IN_CA_DET

NV3V3

GND

NV3V3

MUX_AUXP
MUX_AUXN

3.3VS

GND

PC21

3.3VS

GND

PC20

OUT1_HPD

OUT1_CA_DET

IN_AUXn

3.3VS

3.3VS

OUT1_AUXn_SDA

OUT1_AUXp_SCL

OUT1_D2n

OUT1_D3n

OUT1_D3p

OUT1_D0n

OUT1_D0p

OUT1_D2p

OUT1_D1n

OUT1_D1p

NV3V3

OUT1_D0p_J
OUT1_D0n_J

OUT1_D1p_J
OUT1_D1n_J

OUT1_D2n_J

OUT1_D2p_J

OUT1_D3n_J

OUT1_D3p_J

OUT1_AUXn_SDA

OUT1_AUXp_SCL

HPD

OUT1_CA_DET

OUT1_D3p
OUT1_D3n

OUT1_D2n

OUT1_D1n

OUT1_D2p

OUT1_D0p
OUT1_D0n

OUT1_D1p

OUT1_D0p_J

OUT1_D2p_J
OUT1_D2n_J

OUT1_D1n_J

OUT1_D1p_J

OUT1_D0n_J

OUT1_D3p_J
OUT1_D3n_J

PS8338B_PD

PS8338B_PD

PI1

HPD

OUT1_HPD

3.3VS_FUSE_DP2

3.3VS_FUSE_DP2

NV3V3

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,34,36,39,40,42,45,46,48,49

PS8338B_SW16

MUX_AUXP11

MUX_AUXN11

MUX_3N11

MUX_3P11

MUX_2N11

MUX_2P11

MUX_1N11

MUX_1P11

MUX_0N11

MUX_0P11

MUX_HPD11

OUT2_HPD 28

OUT2_AUXn_SDA 28

OUT2_AUXp_SCL 28

OUT2_D0p 28

OUT2_D0n 28

OUT2_D1p 28

OUT2_D1n 28

OUT2_D2p 28

OUT2_D2n 28

OUT2_D3p 28

OUT2_D3n 28

PS8338B_PCH15

SUSB11,14,32,42,46

NV3V313,14,32,42

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[33] PS8338B+mDP_2

Custom

33 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[33] PS8338B+mDP_2

Custom

33 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet of

6-71-P8720-D03

1.0

[33] PS8338B+mDP_2

Custom

33 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R110

*4.7K_04

R163

*4.7K_04

R144

4.99K_1%_04

R107

*4.7K_04

U17

PS8338B

PI1/SCL_CTL

1

I2C_CTL_EN

2

IN_HPD

3

IN_CA_DET

4

VDD33

5

IN_D0p

6

IN_D0n

7

PEQ

8

IN_D1p

9

IN_D1n

10

GND

11

IN_D2p

12

IN_D2n

13

PD

14

IN_D3p

15

IN_D3n

16

CEXT

17

SW

18

GND

19

REXT

20

VDD3321IN_DDC_SCL22IN_DDC_SDA23IN_AUXp24IN_AUXn25OUT1_AUXp_SCL26OUT1_AUXn_SDA27OUT2_AUXp_SCL28OUT2_AUXn_SDA29VDD33

30

OUT2_D3n

31

OUT2_D3p

32

OUT2_CA_DET

33

OUT2_D2n

34

OUT2_D2p

35

OUT2_D1n

36

OUT2_D1p

37

OUT2_HPD

38

OUT2_D0n

39

OUT2_D0p

40

OUT1_D3n

41

OUT1_D3p

42

OUT1_CA_DET

43

OUT1_D2n

44

OUT1_D2p

45

OUT1_D1n

46

OUT1_D1p

47

OUT1_HPD

48

OUT1_D0n

49

OUT1_D0p

50

VDD33

51

GND

52

PC2153PC2054PC1155PC10

56

VDD33

57

CFG158CFG0

59

PI0/SDA_CTL

60

EPAD

61

R553
100K_04

C221 0.1u_16V_X7R_04

R143 *4.7K_04

R141

4.7K_04

R552
100K_04

R108

*4.7K_04

C196 0.1u_16V_X7R_04

R105

*4.7K_04

C199

0.01u_16V_X7R_04

R100
1M_04

C248 0.1u_16V_X7R_04

Q16

AO3415

G

D S

R109

*4.7K_04

C244 0.1u_16V_X7R_04

C223

10u_6.3V_X5R_06

C247 0.1u_16V_X7R_04

D8

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

R99

5.1M_04

C249 0.1u_16V_X7R_04

C217 0.1u_16V_X7R_04

C1117

*220p_50V_NPO_04

C173 0.1u_16V_X7R_04

D9

*DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

C245 0.1u_16V_X7R_04

C198

0.01u_16V_X7R_04

R120 *4.7K_04

C181 0.1u_16V_X7R_04

C218 0.1u_16V_X7R_04

Q17

AO3415

G

D S

R145
100K_04

R253 *0_04

C1740.01u_16V_X7R_04

R106

*4.7K_04

C182 0.1u_16V_X7R_04

C222

10u_6.3V_X5R_06

C1116

*220p_50V_NPO_04

C197

0.1u_16V_X7R_04

C246

2.2u_6.3V_X5R_04

C172 0.1u_16V_X7R_04

C183 0.1u_16V_X7R_04

R146
100K_04

C219 0.1u_16V_X7R_04

R162

4.7K_04

R111

*4.7K_04

J_MDP2
C17722-120A9-L

Y

PCB Footprint = c17722-120xx-l

GND

1

ML_LANE0P

3

ML_LANE0N

5

GND

7

ML_LANE1P

9

ML_LANE1N

11

GND

13

ML_LANE2P

15

ML_LANE2N

17

RETURN

19

HPD

2

CONFIG1

4

CONFIG2

6

GND

8

ML_LANE3P

10

ML_LANE3N

12

GND

14

AUX_CHP

16

AUX_CHN

18

DP_PWR

20

CGND

GND1

CGND

GND2

CGND

GND3

CGND

GND4

C184 0.1u_16V_X7R_04

C1860.01u_16V_X7R_04

U11

SY6288D20AAC

PCB Footprint = M-SOT23-5A

VOUT

1

VIN

5

GND2EN#

4

OC#

3

R112

*4.7K_04

R121 *4.7K_04

.

L27

0_04

C200 0.1u_16V_X7R_04

C220 0.1u_16V_X7R_04

C185 0.1u_16V_X7R_04

R164

*4.7K_04

C250

0.1u_16V_X7R_04

Q15

2SK3018S3

G

DS

R142

4.7K_04

Sheet 33 of 62

PS8338B+mDP_2

PS8338B+mDP_2

B.Schematic Diagrams

B - 34 PS8338B+mDP_2

M.2 WLAN+BT

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

WLAN+BT

>80 mil

40 mil

40 mil

>80 mil

M: NCT3522U -- 6-02-03522-9C0
S: G5243A ---- 6-02-05243-9C0
AP2821KTR-G1 6-02-02821-9C0

CLOSE TO SLOT SIDE,1/20 Tim

Add,3/4 Tim

RF暨㯪,3/12 Tim

Modify,3/30 Tim

USB

暨婳

BIOS

姕⭂䁢

XHCI

follow common design,
03/01 Ivy

D02 BOM STUFF H=4MM(6-21-84K20-075),
6/18 Tim

Delete,Ivy11/30

follow common design
,Ivy04/07

㚜㓡

footprint 冯value Ivy,12/24

follow common design,Ivy 03/02

follow common design,Ivy 03/02

Modify net name,Ivy03/16

ADD ,04/11Ivy

WLAN_CLKREQ#

BUF_PLT_RST#

WLAN_3.3V

WLAN_3.3V

WLAN_3.3V

WLAN_3.3V

3.3V

VDD3

3.3VS

3.3VS

VDD311,12,15,16,17,19,20,22,23,37,38,39,42,43,45,47,48,51

BT_EN 22

WLAN_EN 22

PCIE_TXP1_WLAN19

PCIE_TXN1_WLAN19

PCIE_RXN1_WLAN19
PCIE_RXP1_WLAN19

CLK_PCIE_WLAN18

CLK_PCIE_WLAN#18

PCIE_WAKE#17,28,34,36,37,38

BUF_PLT_RST# 20,22,23,24,28,35,36,37,38

CL_DATA1 16

CL_CLK1 16

CL_RST#1 16

WLAN_PWR_EN22

USB_PP819

USB_PN819

3.3V2,12,13,14,16,18,24,29,39,42,43,46,48

WLAN_CLKREQ#18

LPSS_GSPI0_MISO 15PCIE_TXP2_WIGIG19

PCIE_TXN2_WIGIG#19

PCIE_RXN2_WIGIG#19
PCIE_RXP2_WIGIG19

SUS_CLK 17

PCIE_WAKE# 17,28,34,36,37,38

WIGIG_CLKREQ# 18

CLK_PCIE_WIGIG#18

CLK_PCIE_WIGIG18

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,36,39,40,42,45,46,48,49

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[34] M.2 WLAN+BT

A3

34 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[34] M.2 WLAN+BT

A3

34 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[34] M.2 WLAN+BT

A3

34 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R159 *0_04

R175 0_04

R1073 *0_04

R172 *0_04

U21

AP2821KTR-G1

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

C295

0.1u_16V_Y5V_04

R171 *0_04

C294

22u_6.3V_X5R_08

C325

0.1u_16V_Y5V_04

J8 OPEN_2A

12

R1074

10K_04

R158 10K_04

E KEY

A KEY

J_WLAN1

NFSA0-S6701-TP40

SUSCLK(32Khz)(O)

50

CLKREQ0#(IO)

53

GND9

69

REFCLKP0

47

REFCLKN0

49

PEWake0#(IO)

55

Reserved/PERp1

65

Reserved/PERn1

67

Reserved/PETp1

59

Reserved/PETn1

61

GND8

63

GND3

33

GND10

75

3.3V2

72

NC7

34

I2C CLK(O)

60

NC6

32

USB_D-

5

USB_D+

3

I2C DATA(IO)

58

COEX1(I/O)1.8V

48

PERST0#(O)

52

COEX3(I/O)1.8V

44

GND7

57

LED#2(I)(OD)

16

3.3V0

2

VENDOR DEFINED0

38

GND0

1

LED#1(I)(OD)

6

NC0

17

W_DISABLE#1(O)

56

3.3V1

4

GND1

7

GND2

18

VENDOR DEFINED1

40

GND4

39

PETp0

35

PERp0

41

PERn0

43

PETn0

37

GND5

45

GND6

51

ALERT#(I)

62

COEX2(I/O)1.8V

46

3.3V3

74

NC1

19

NC3

21

NC5

23

NC2

20

NC4

22

NC8

36

VENDOR DEFINED2

42

Reserved/W_DISABLE#2(O)

54

Reserved1

64

UIM_SWP/PERST1#

66

UIM_Power_Out/CLKREQ1#

68

UIM_Power_In/Gpio1/PEWake1#

70

Reserved/REFCLKP1

71

Reserved/REFCLKN1

73

R176 10K_04

R173 *0_04

C355

1u_6.3V_X5R_04

R204 *0_04

C293

22u_6.3V_X5R_08

R177 10K_04

Sheet 34 of 62

M.2 WLAN+BT

Schematic Diagrams

B.Schematic Diagrams

M.2 WLAN+BT B - 35

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A

A

L:SATA
H:PCIE

>120 mil

NGFF_M (M2) SSD1 (PCIE 4X)

>120 mil

80 mils

NGFF_M (M2) SSD2 (PCIE 4X)

>120 mil

80 mils

L:SATA
H:PCIE

FOLLOW COMMON DESIGN
6/11 Tim

default IRST CONTROL

>120 mil

Remove SATA,PCIE select circuit
6/11 Tim

Remove SATA,PCIE select circuit
6/11 Tim

follow common design
6/11 Tim

follow common design
6/11 Tim

D02 BOM STUFF H=4MM(6-21-84K70-075),
6/18 Tim

D02 BOM STUFF H=4MM(6-21-84K70-075),
6/18 Tim

Follow

ℙ䓐䶂嶗

Ivy11/30

Follow

ℙ䓐䶂嶗

Ivy11/30

Follow

ℙ䓐䶂嶗

Ivy11/30

Follow

ℙ䓐䶂嶗

Ivy11/30

Delete,Ivy12/07

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/9

MTN7002ZHS3
CHANGE
2SK3018S3
Ivy 12/9

Modify value Ivy,12/24

Modify value Ivy,12/24

NGFF_PEDET1

NGFF_PEDET2

M.2_SSD2_PEDET

NGFF_PEDET2

3.3VS_2

3.3VS_2

3.3VS_2

3.3VS_2

GND GNDGND

GND GNDGND

GND

3.3VS_2

3.3VS_2

3.3VS_2

GND GNDGND

GND

GND

GND

3.3VS_2

GNDGND

3.3VS_2

GND

PCH_SATA_LED# 16

PCH_HDD_LED39

BUF_PLT_RST# 20,22,23,24,28,34,35,36,37,38

SSD1_CLKREQ# 18

CLK_PCIE_SSD1#18

CLK_PCIE_SSD118

PCIE_RXP10_SSD16
PCIE_RXN10_SSD16

PCIE_RXP11_SSD16

PCIE_RXN11_SSD16

PCIE_RXP12_SSD16

PCIE_RXN12_SSD16

PCIE_TXN9_SSD16

PCIE_TXP9_SSD16

PCIE_TXP10_SSD16

PCIE_TXN10_SSD16

PCIE_TXP11_SSD16

PCIE_TXN11_SSD16

PCIE_TXP12_SSD16

PCIE_TXN12_SSD16

PCIE_RXN9_SSD16

PCIE_RXP9_SSD16

CLK_PCIE_SSD2#18

CLK_PCIE_SSD218

M.2_SSD1_PEDET16

3.3VS_242

M.2_SSD2_PEDET16

EC_SSD_LED# 23

PCIE_RXN13_SSD16

PCIE_RXP13_SSD16

PCIE_TXN13_SSD16

PCIE_TXP13_SSD16

PCIE_RXP14_SSD16

PCIE_RXN14_SSD16

PCIE_TXN14_SSD16

PCIE_TXP14_SSD16

PCIE_RXP15_SSD16

PCIE_RXN15_SSD16

PCIE_TXN15_SSD16

PCIE_TXP15_SSD16

PCIE_RXP16_SSD16

PCIE_RXN16_SSD16

PCIE_TXN16_SSD16

PCIE_TXP16_SSD16

SSD2_CLKREQ# 18
BUF_PLT_RST# 20,22,23,24,28,34,35,36,37,38

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[35] M.2 M KEY(SSD1,SSD2)

A2

35 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[35] M.2 M KEY(SSD1,SSD2)

A2

35 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[35] M.2 M KEY(SSD1,SSD2)

A2

35 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C160

0.1u_10V_X7R_04

C821

10u_6.3V_X5R_06

C820

0.1u_10V_X7R_04

U26

TC7SZ08FU

1

2

5

4

3

R293 0_04

C540

0.1u_10V_X7R_04

C162

10u_6.3V_X5R_06

R92

*10K_04

Q10

*2SK3018S3

G

DS

C543

0.1u_10V_X7R_04

C542

10u_6.3V_X5R_06

C126

0.22u_10V_X5R_04

C413

0.22u_10V_X5R_04

C822

0.1u_10V_X7R_04

C414 0.22u_10V_X5R_04

R93 0_04

C818

0.1u_10V_X7R_04

C819

0.1u_10V_X7R_04

C415 0.22u_10V_X5R_04

R307

*10K_04

C161

0.1u_10V_X7R_04

C539

0.1u_10V_X7R_04

C141

0.22u_10V_X5R_04

C127

0.22u_10V_X5R_04

C824

10u_6.3V_X5R_06

C416 0.22u_10V_X5R_04

C143 0.22u_10V_X5R_04

C417 0.22u_10V_X5R_04

Q21

*2SK3018S3

G

DS

C418 0.22u_10V_X5R_04

M KEY

J_SSD1

NFSM0-S6701-TP40

SUSCLK(32Khz)(O)

68

CLKREQ#(IO)

52

GND11

71

REFCLKP

55

REFCLKN

53

PEWake#(IO)

54

PEDET(NC-PCIe/GND-SATA)

69

GND10

57

DAS/DSS#(I)(OD)

10

GND12

73

3.3V2

12

NC18

67

NC1

8

NC0

6

DEVSLP(O)

38

PERST#(O)

50

GND9

51

3.3V0

2

GND0

1

3.3V1

4

GND1

3

GND2

9

PERp0/SATA-B-

43

PETp0/SATA-A+

49

PETn0/SATA-A-

47

PERn0/SATA-B+

41

GND7

39

GND8

45

GND13

75

3.3V3

14

3.3V4

16

PERn3

5

PERp3

7

3.3V5

18

GND3

15

PETn3

11

PETp3

13

GND5

27

PETn2

23

GND4

21

PERn2

17

PERp2

19

PETp2

25

NC3

22

NC2

20

NC5

26

NC4

24

NC7

30

NC9

34

NC6

28

NC8

32

NC10

36

NC12

42

NC13

44

NC15

48

NC14

46

NC11

40

PETp1

37

PETn1

35

PERp1

31

PERn1

29

GND6

33

NC16

56

NC17

58

3.3V6

70

3.3V7

72

3.3V8

74

C419 0.22u_10V_X5R_04

R321 0_04

C135 0.22u_10V_X5R_04

C133 0.22u_10V_X5R_04

C823

0.1u_10V_X7R_04

C420 0.22u_10V_X5R_04

M KEY

J_SSD2

NFSM0-S6701-TP40

SUSCLK(32Khz)(O)

68

CLKREQ#(IO)

52

GND11

71

REFCLKP

55

REFCLKN

53

PEWake#(IO)

54

PEDET(NC-PCIe/GND-SATA)

69

GND10

57

DAS/DSS#(I)(OD)

10

GND12

73

3.3V2

12

NC18

67

NC1

8

NC0

6

DEVSLP(O)

38

PERST#(O)

50

GND9

51

3.3V0

2

GND0

1

3.3V1

4

GND1

3

GND2

9

PERp0/SATA-B-

43

PETp0/SATA-A+

49

PETn0/SATA-A-

47

PERn0/SATA-B+

41

GND7

39

GND8

45

GND13

75

3.3V3

14

3.3V4

16

PERn3

5

PERp3

7

3.3V5

18

GND3

15

PETn3

11

PETp3

13

GND5

27

PETn2

23

GND4

21

PERn2

17

PERp2

19

PETp2

25

NC3

22

NC2

20

NC5

26

NC4

24

NC7

30

NC9

34

NC6

28

NC8

32

NC10

36

NC12

42

NC13

44

NC15

48

NC14

46

NC11

40

PETp1

37

PETn1

35

PERp1

31

PERn1

29

GND6

33

NC16

56

NC17

58

3.3V6

70

3.3V7

72

3.3V8

74

C142

0.22u_10V_X5R_04

C134

0.22u_10V_X5R_04

Sheet 35 of 62

M.2 M Key

M.2 M Key

B.Schematic Diagrams

B - 36 M.2 M Key

RTS5250

Sheet 36 of 62

RTS5250

5

4

3

2

1

D D

C C

B B

A

A

Place Near Conn

Near Cardreader CONN

LENGTH <2INCH

| CLK - DATA | <= 100mils

| DATA.x - DATA.y | <= 100mils

CLK NEED DOUBLE SPACE THEN OTHER

50ohm +/- 15%

RTS5250

5/21 update PCB Footprint

60 mil

1.2A

CARD READER

SD_CARD SUPPORT UHS-II

20 mil

12 mil

L<200mils

NEAR PIN11

60 mil

40 mil

SD Card Remove Fall time less than 1 ms
when SD card remove.

40 mil

Near Cardreader CONN

40 mil

40 mil

MDIO0~5

攟䞕ⶖ

<200 mil

20 mil

20 mil

0618 VALUE UPDATE

100ohm +/- 15%

100ohm +/- 15%

100ohm +/- 15%

DEL 4.7uf_6.3V_X5R_06,1/14

Support Runtime D3 mode => R489 and R490 don't mount
No Support Runtime D3 mode => R489 and R490 mount

Follow

℔䓐䶂嶗

,1/28 Tim

PCIE_WAKE# PCH

䪗ᶲẞ

,Ivy11/30

PCH

䪗ᶲẞ

,Ivy11/30

Modify vaule,Ivy 03/04

RTS5249_HSOP
RTS5249_HSON

CARD_CLKREQ#

RREF

SD_WP/MS_BS
SD_D1/SD_RCLK_M
SD_D0/SD_RCLK_P

SD_LN1_P

SD_LN1_M

SD_LN0_P

SD_LN0_M

SD_CLK/MS_D0

CARD_3V3

SD_CD#

SD_CMD/MS_D2

SD_D3/MS_D3

SD_D2/MS_CLK

SP1

DV33_18

SP4

SP2

SP6
SP5

SD_D0/SD_RCLK_P

SD_D3/MS_D3

SD_D2/MS_CLK

SD_CMD/MS_D2

SD_D1/SD_RCLK_M

MS_INS#

SD_CD#

SD_WP/MS_BS CR1_LEDN

PCIE_WAKE#

SD_LN0_P
SD_LN0_M

SD_LN1_M
SD_LN1_P

SDREG2

SD_CLK/MS_D0

SP3

CARD_CLKREQ#

VCC_CARD

AV12

3.3V_IN

VCC_CARD

CARD_3V3

SD_VDD2

VCC_CARD

SD_VDD2

DV12_S

3.3VS

DV12_S

3.3V_IN

3.3VAUX

3.3V_IN

3.3VAUX

PCIE_TXN4_CARD19

PCIE_TXP4_CARD19

CLK_PCIE_CARD18
CLK_PCIE_CARD#18

PCIE_RXN4_CARD19

PCIE_RXP4_CARD19

CARD_CLKREQ#18

PCIE_WAKE#17,28,34,37,38

BUF_PLT_RST#20,22,23,24,28,34,35,37,38

3.3VS7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23,24,25,26,27,29,32,33,34,39,40,42,45,46,48,49

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[36] RTS5250 (CardReader only)

A3

36 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[36] RTS5250 (CardReader only)

A3

36 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[36] RTS5250 (CardReader only)

A3

36 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

C451

*10u_6.3V_X5R_06

C428

0.1u_16V_Y5V_04

R697

*150_06

C835

6.8p_50V_NPO_04

C427

4.7u_6.3V_X5R_06

C853 1u_6.3V_X5R_04

R694 0_04

CN1

PSDCT1-20GLBS1NN4H0

CD/DAT3

16

VSS1

11

VSS2

5

DAT2

18

D0+

17

CMD

14

VDD1

9

CLK

7

DAT0/RCLK+

3

DAT1/RCLK-

2

VSS3

19

D0-

15

VSS4

13

GND

20

VDD2

10

D1-

8

D1+

6

VSS5

4

CD

12

WP

1

GND3

23

GND2

22

GND1

21

GND4

24

R693 0_04

R675 0_06

R698 0.2R_5%_06

R676 6.2K_1%_04

R692 0_04

C855

0.1u_16V_Y5V_04

R674 0_04

R661 0_06

C839

0.1u_16V_Y5V_04

R673 0_04

C856 1u_6.3V_X5R_04

R672 0_04

C841 0.1u_10V_X7R_04

RTS5250

QFN32

U53

RTS5250-GR

HSIP

3

HSIN

4

REFCLKP

5

REFCLKN

6

HSOP

7

HSON

8

AV1210RREF93V3_IN11CARD_3V312DV12_S14SP1/SD_RCLK_M

15

SD_LN1_P

22

DV33_18

18

SP4

19

SP5

20

SP6

21

GPIO

28

SP7

29

SD_CD#

30

MS_INS#

31

WAKE#

32

SP3

17

GND

33

PERST#

1

CLKREQ#

2

SD_VDD213SP2/SD_RCLK_P

16

SD_LN1_M

23

SDREG2

24

SD_LN0_M

25

SD_LN0_P

26

3V3aux

27

C838

10u_6.3V_X5R_06

C837

4.7u_6.3V_X5R_06

C854 0.1u_10V_X7R_04

C836

0.1u_16V_Y5V_04

R709 0_04

R708 10K_04

C450

4.7u_6.3V_X5R_06

C858

0.1u_16V_Y5V_04

C453

0.1u_16V_Y5V_04

C429

0.1u_16V_Y5V_04

C840

0.1u_16V_Y5V_04

C452

0.1u_16V_Y5V_04

C857

10u_6.3V_X5R_06

R695

*10K_04

Schematic Diagrams

B.Schematic Diagrams

RTS5250 B - 37

Schematic Diagrams

Sheet 37 of 62

LAN_1 E2400

5

4

3

2

1

D D

C C

B B

A

A

If AVDDL/DVDDL comes from internal SWR: mount Lb;
If AVDDL/DVDDL comes from internal LDO: no mout Lb

ȱȱŚŖ

ȱȱ

If AVDDL/DVDDL comes from internal SWR:
mount La,Ca,Cb,Cc
If AVDDL/DVDDL comes from internal LDO:
no mount La,Ca,Cb,Cc

An external clock source can be used in place of a crystal.
The value of Cd depends on the voltage of clock source.
For detailed information, please refer to the design guide.

CaCb

Lb

Lc

Cd

PPS_A is used for IEEE 1588 timing synchronization and
is an output pin to output an accurate 1Hz clock.
Currently this pin can be floating.

Cc

La

>ͺ>/E<ͺ
/ĨƐǁŝƚĐŚƌĞŐƵůĂƚŽƌĂƉƉůŝĞĚŵŽƵŶƚZĂ
/Ĩ>KĂƉƉůŝĞĚŵŽƵŶƚZď

RaRbRcRe

>ͺdͺ
/ĨŚŝŐŚĐŽƌĞǀŽůƚĂŐĞĂƉƉůŝĞĚŵŽƵŶƚZĐ
ZĞĐŽŵŵĞŶĚƚŽƵƐĞŚŝŐŚĐŽƌĞǀŽůƚĂŐĞŵŽĚĞĨŽƌϮϮϬϭͲ

/ĨůŽǁĐŽƌĞǀŽůƚĂŐĞĂƉƉůŝĞĚŵŽƵŶƚZĚ

Rd

>Ϯͺ
/ĨϮϱD,njĐůŽĐŬĂƉƉůŝĞĚŵŽƵŶƚZĞ
/ĨϰϴD,njĐůŽĐŬĂƉƉůŝĞĚŵŽƵŶƚZĨ

Rf

ȱȱŗŜ

ȱȱŗ

FOR S5 WAKE UP ON LAN

LAN WAKE UP

600ohm/1.3A

LAN_1(E2400)

ONLY FOR SWR MODE
(no stuff)

ONLY FOR SWR MODE
(no stuff)

R719 ONLY FOR SWR MODE
(no stuff)

Stanley 0104

PU 10K on EC side

Main 6-21-B4000-008
2nd 6-21-B4070-008
3rd 6-21-B4080-008

Cg Ch

Ci

Cf

LDO MODE

choke modify short for EMI,
6/11 Tim

Modify,3/12 Tim

Modify,4/11 Tim

Modify,4/11 Tim

Modify value,4/20 Tim

Modify value,04/08 Ivy

LAN POWER PLAN change to VDD3_1,
6/11

8/4 EMI

Modify Ivy11/30

EMI Ce

枸䔁⇒昌

Ivy12/10

EMI Cf

枸䔁⇒昌

Ivy12/10

EMI Cg

枸䔁⇒昌

Ivy12/10

EMI Ch

枸䔁⇒昌

Ivy12/10

Ce

EMI

枸䔁⇒昌

Ivy12/21

EMI Ci

枸䔁⇒昌

Ivy12/21

vaule &footprint change,
Ivy12/30

vaule change,
Ivy12/30

DVDDL_A

PPS_A

AVDDL_A

MDI0+_A

MDI0-_A

MDI1+_A

AVDDVCO_A

MDI1-_A

MDI2+_A

MDI2-_A

CLKREQn_A

G1_GND

PCIE_RXP19_GLAN1
PCIE_RXN19_GLAN1

PCIE_TXP19_GLAN1
PCIE_TXN19_GLAN1

BUF_PLT_RST#

AVDDH_A

VDD3_1

CLKREQn_A

RBIAS_A

DEBUGMODE[0]_A

XTLO_A
XTLI_A

AVDDL_A

RSTn_A

LAN_WAKEUP#_A

DEBUGMODE[0]_A

AVDDL_A

AVDDVCO_A

AVDDL_AMDI3+_A

XTLO_A

MDI3-_A

AVDDH_A

PCIE_RXP19_GLAN1
PCIE_RXN19_GLAN1

AVDDVCO_A

PCIE_TXN19_GLAN1

PCIE_TXP19_GLAN1

LX_A

XTLI_A

LED2_A

LED_LINK_A

LED_ACT_A

DVDDL_A

VDD3_1

DVDDL_A

LED2_A

LED_ACT_A

LED_LINK_A

BUF_PLT_RST#

LAN_WAKEUP#_A PCIE_WAKE#

VDD3

PCIE_WAKE#

LX_A

G1_GND

NMDI1+_A_R

NMDI0+_A_R

NMDI0-_A_R

NMDI1-_A_R

NMDI2-_A_R

NMDI2+_A_R

NMDI3+_A_R
NMDI3-_A_R

AVDDL_A

NMDI0-_A

NMDI0+_A

NMDI1-_A

NMDI1+_A

NMDI2+_A

NMDI2-_A

NMDI3-_A

NMDI3+_A

MDI0+_A
MDI0-_A
MDI1+_A
MDI1-_A

MDI2+_A
MDI2-_A
MDI3+_A
MDI3-_A

CLK_PCIE_GLAN1#

CLK_PCIE_GLAN1

NMDI0+_A

NMDI0-_A

NMDI1+_A

NMDI1-_A

NMDI2+_A

NMDI2-_A

NMDI3+_A

NMDI3-_A

NMDI0+_A_R

NMDI0-_A_R

NMDI1+_A_R

NMDI1-_A_R

NMDI2+_A_R

NMDI2-_A_R

NMDI3-_A_R

NMDI3+_A_R

VDD3_1

VDD3_1

VDD3

VDD3_1

VDD3_1

VDD3_1

G1_GND

G1_GND

VDD3_1

G1_GND G2_GND

LAN_WAKEUP# 22,38

CLK_PCIE_GLAN1# 18
CLK_PCIE_GLAN1 18

VDD3 11,12,15,16,17,19,20,22,23,34,38,39,42,43,45,47,48,51

BUF_PLT_RST# 20,22,23,24,28,34,35,36,38

PCIE_WAKE# 17,28,34,36,38

PCIE_RXP19_GLAN1 16
PCIE_RXN19_GLAN1 16

PCIE_TXP19_GLAN1 16
PCIE_TXN19_GLAN1 16

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[37] LAN_1 E2400

Custom

37 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[37] LAN_1 E2400

Custom

37 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

Title

Size Document Number Rev

Date: Sheet

of

6-71-P8720-D03

1.0

[37] LAN_1 E2400

Custom

37 62Monday, June 06, 2016

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

SCHEMATIC1

R124

4.7K_04

L3

*WCM2012F2S-161T03-short

142

3

L10

*BLM18KG601SN1

C231

*1000P_50V_X7R_04

R55

75_04

C235

10u_6.3V_X5R_06

C234

10u_6.3V_X5R_06

L11

*BLM18KG601SN1

R125
*10K_04

Atheros
E2400

E2400

U15

VDD33

1

PERSTn

2

WAKEn

3

DEBUGMODE[0]

5

CLKREQn

4

AVDDL_REG

6

XTLO

7

XTLI

8

AVDDH_REG

9

RBIAS

10

TX_P

30

TX_N

29

NC

28

TESTMODE[2]

27

TESTMODE[1]

26

TESTMODE[0]

25

PPS

24

LED[2]

23

AVDDH

22

TRXN3

21

LX

40

LED[1]39LED[0]

38

DVDDL_REG

37

RX_N

36

RX_P

35

AVDDL

34

REFCLK_P

33

REFCLK_N

32

AVDDL

31

TRXP011TRXN012AVDDL13TRXP114TRXN115AVDD3316TRXP217TRXN218AVDDL19TRXP3

20

GND

41

R113

2.37K_1%_04

R129
*10K_04

R148 *0_06

C188 1u_6.3V_X5R_04

PJS-08SL3B

J_RJ1

DD-

8

DD+

7

DB-

6

DC-

5

DC+

4

DB+

3

DA-

2

DA+1shield

GND1

shield

GND2

C228 *4.7u_6.3V_X5R_06

R1002 *28mil short-p

R150
*10K_04

C110

0.1u_16V_X7R_04

C191 *5P_50V_NPO_04

C226 0.1u_16V_X7R_04

C259

*0.1u_16V_X7R_04

C90

0.1u_16V_X7R_04

C190 0.1u_16V_X7R_04

R66 75_04

C203

1u_6.3V_X5R_04

C260

*10u_6.3V_X5R_06

R126 *499_04

R127 30K_1%_04

C205 12P_50V_NPO_04

C120 0.1u_16V_X7R_04

C206 12P_50V_NPO_04

C207

1u_6.3V_X5R_04

R149

4.7K_04

C230 0.1u_16V_X7R_04

R152
*4.7K_04

L4

*WCM2012F2S-161T03-short

142

3

R147 0_06

C229 0.1u_16V_X7R_04

R65

75_04

L2

*WCM2012F2S-161T03-short

142

3

C202

0.1u_16V_X7R_04

C61

100P_2KV_NPO_12

C204

0.1u_16V_X7R_04

X1
FSX3L 25MHZ

12

3 4

R154 *0402_short

C65

0.1u_16V_X7R_04

C256 *1u_6.3V_X5R_04

C227 0.1u_16V_X7R_04

C257 1u_6.3V_X5R_04

L12

*BCMC252012-4R7SM

C201 0.1u_16V_X7R_04

R155 0_04

R128 4.7K_04

L1

*WCM2012F2S-161T03-short

142

3

C225 0.1u_16V_X7R_04

D13 RB751S-40H

AC

C92

0.1u_16V_X7R_04

C233

1u_6.3V_X5R_04

C258

*1000P_50V_X7R_04

R42

75_04

C187 0.1u_16V_X7R_04

C232

0.1u_16V_X7R_04

L57

NS892402

TCT1

1

TD1+

2

TD1-

3

TCT2

4

TD2+

5

TD2-

6

TCT3

7

TD3+

8

TD3-

9

TCT4

10

TD4+

11

TD4-

12

MX4-

13

MX4+

14

MCT4

15

MX3-

16

MX3+

17

MCT3

18

MX2-

19

MX2+

20

MCT2

21

MX1-

22

MX1+

23

MCT1

24

R151
10K_04

C189 0.1u_16V_X7R_04

LAN_1 E2400

B.Schematic Diagrams

B - 38 LAN_1 E2400

5

4

3

2

1
