Clevo P640HJ, P641HJ User guide
Introduction (English)
This Concise User’s Guide introduces the main features
of your computer. The English version of this guide begins on page 1. The expanded User’s Manual is on the
Device Drivers & Utilities + User’s Manual disc.
Einführung (Deutsch)
Dieses Ausführliche Benutzerhandbuch führt Sie in die
Hauptfunktionen des Computers ein. Die deutsche Version des Handbuchs beginnt auf Seite 33. Das erweiterte
Benutzerhandbuch finden Sie auf der Disc für die Gerätetreiber und Hilfsprogramme (Disc Device Drivers &
Utilities + User's Manual).
Présentation (Français)
Ce Guide Utilisateur Concis présente les fonctionnalités
principales de votre ordinateur. La version française de
ce guide commence à la page 65. Le Manuel de l'Utilisa-
teur étendu se trouve sur le disque de Pilotes & Utilitaires + Manuel de l'Utilisateur (disque Device Drivers
& Utilities + User's Manual).
Introducción (Español)
Esta Guía del Usuario Concisa le presenta las características principales de su ordenador. La versión española de
esta guía comienza en la página 97. El Manual del usua-
rio completo se encuentra en el disco de Controladores
del dispositivo y Utilidades + Manual del usuario (disco
Device Drivers & Utilities + User's Manual).
Introduzione (Italiano)
La presente Guida Rapida per l'Utente introduce le caratteristiche principali del computer. La versione italiana di
questa guida inizia da pagina 129. Il Manuale utente
completo si trova nel disco contenente driver e utilità +
Manuale utente (disco Device Drivers & Utilities +
User's Manual).
I
Contents
About this Concise User Guide ......................................................... 1
System Startup ................................................................................... 4

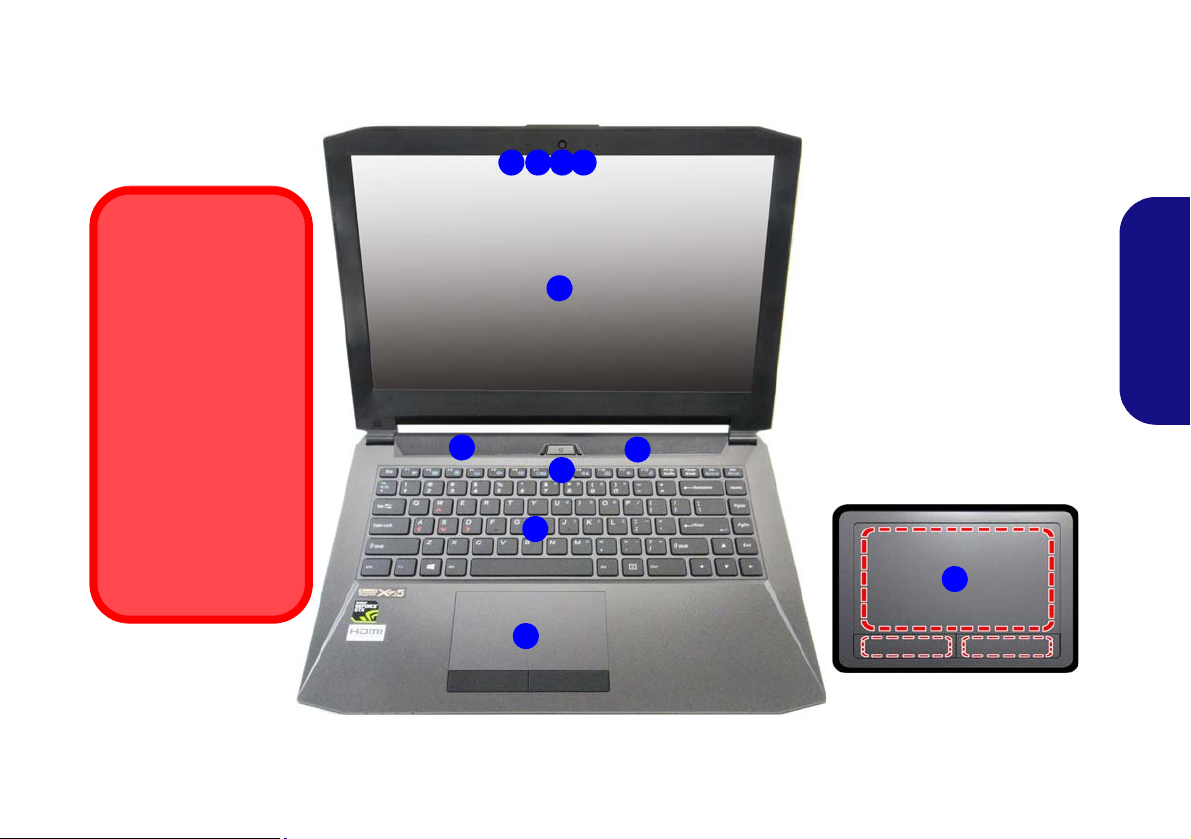

System Map: Front View with LCD Panel Open
LED Indicators ................................................................................... 5
Keyboard & Function Keys ............................................................... 7
Control Center ................................................................................... 8
Flexikey® Application .................................................................... 11
System Map: Front, Rear & Bottom Views ..................................... 15
System Map: Left & Right Views ...................................................16
Windows 10 Start Menu, Context Menu, Taskbar, Control Panel
and Settings ......................................................................................17
Video Features ................................................................................. 18
GPU Overclocking ........................................................................... 20
Audio Features .................................................................................21
PC Camera ....................................................................................... 23
Power Options ................................................................................. 23
Driver Installation ............................................................................ 24
Wireless LAN Module (Option) ...................................................... 26
Bluetooth Module (Option) .............................................................28
TPM (Option) ..................................................................................29
Troubleshooting ............................................................................... 30
Specifications ................................................................................... 31
Inhalt
Über das Ausführliche Benutzerhandbuch ......................................33
Schnellstart .......................................................................................36
Systemübersicht: Ansicht von vorne mit geöffnetem
LCD-Bildschirm .............................................................................. 37
LED-Anzeigen ................................................................................. 38
Tastatur & Funktionstasten ..............................................................39
Control Center .................................................................................. 40
Flexikey® Anwendung ....................................................................43
Systemübersicht: Ansicht von vorne, hinten und unten ..................47
Systemübersicht: Ansicht von links und rechts ...............................48
Start-Menü, Kontextmenü, Taskleiste, Systemsteuerung und
Einstellungen von Windows 10 .......................................................49
Grafikfunktionen .............................................................................. 50
GPU Übertakten ...............................................................................52

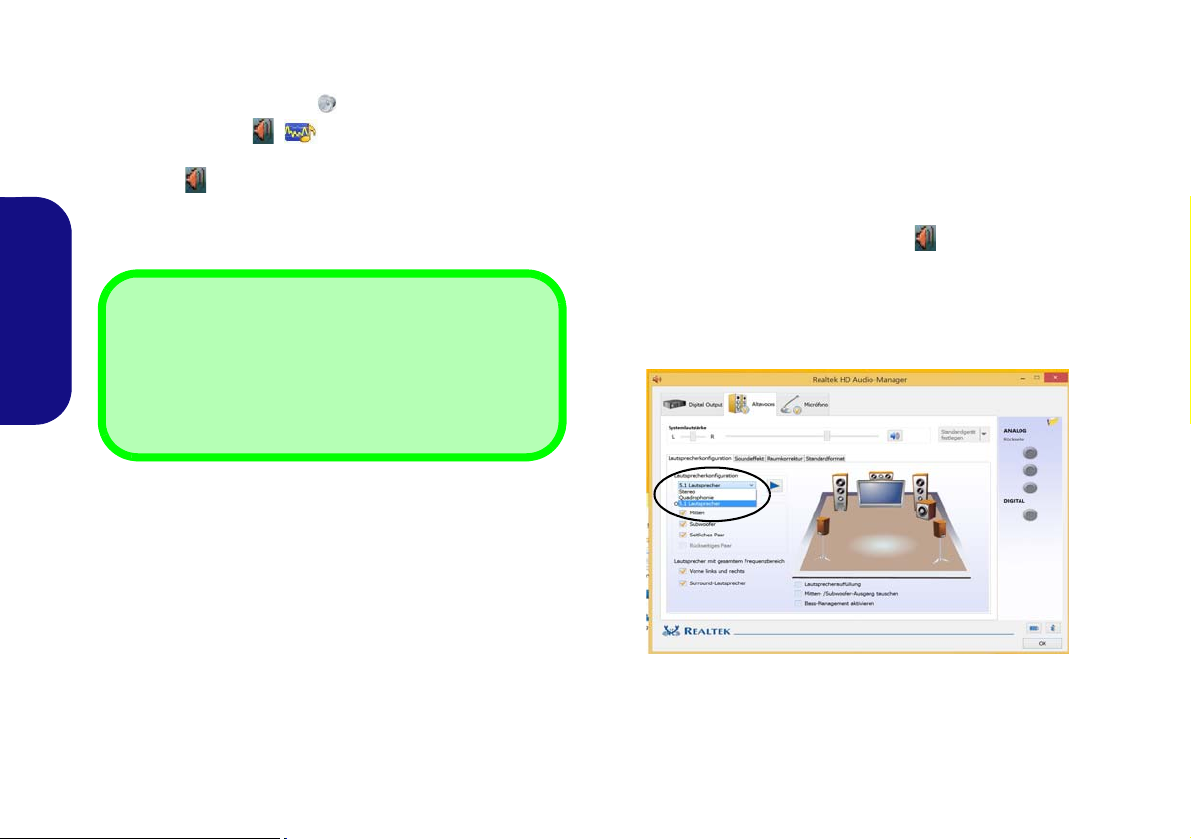

Audiofunktionen .............................................................................. 53
PC-Kamera .......................................................................................55
Energieoptionen ............................................................................... 55
Installation der Treiber ..................................................................... 56
Wireless-LAN-Modul (Option) .......................................................58
Bluetooth-Modul (Option) ...............................................................60

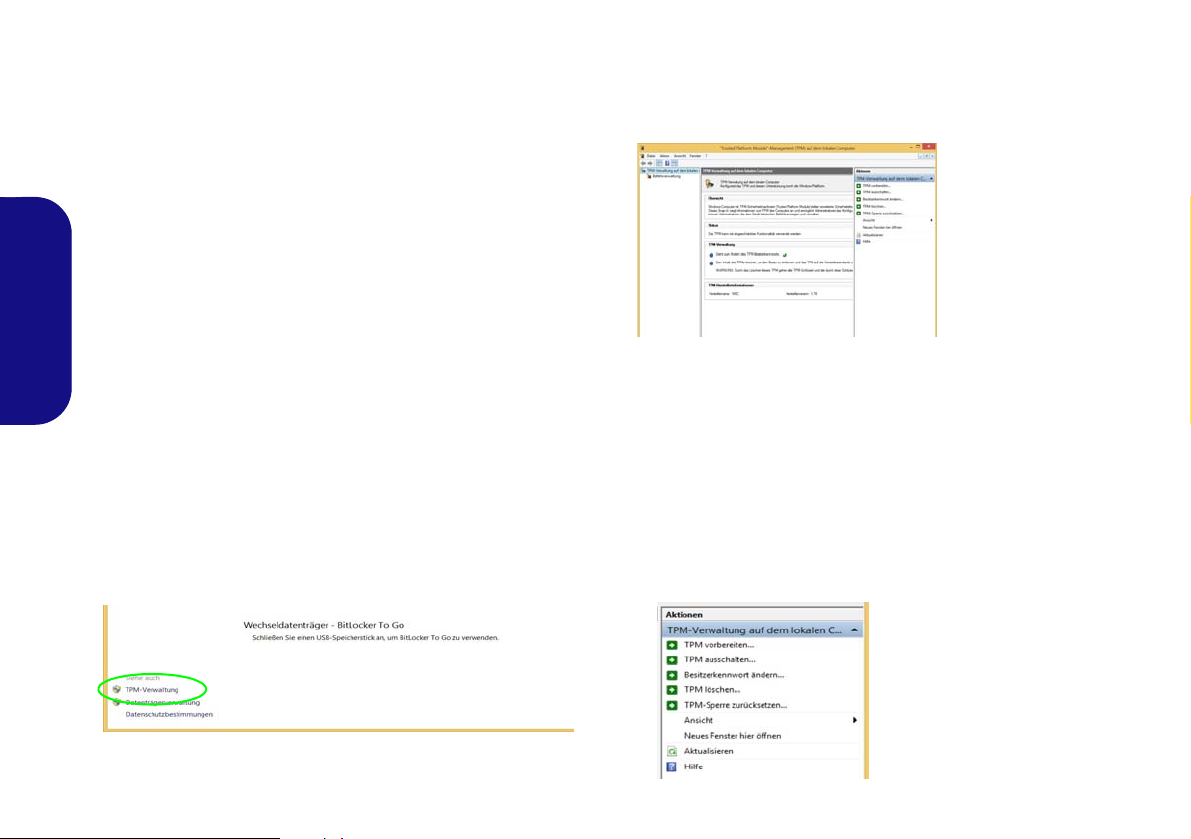

TPM (Option) ..................................................................................61
Fehlerbehebung ................................................................................ 62
Technische Daten .............................................................................63
II
Sommaire
A propos de ce Guide Utilisateur Concis ......................................... 65

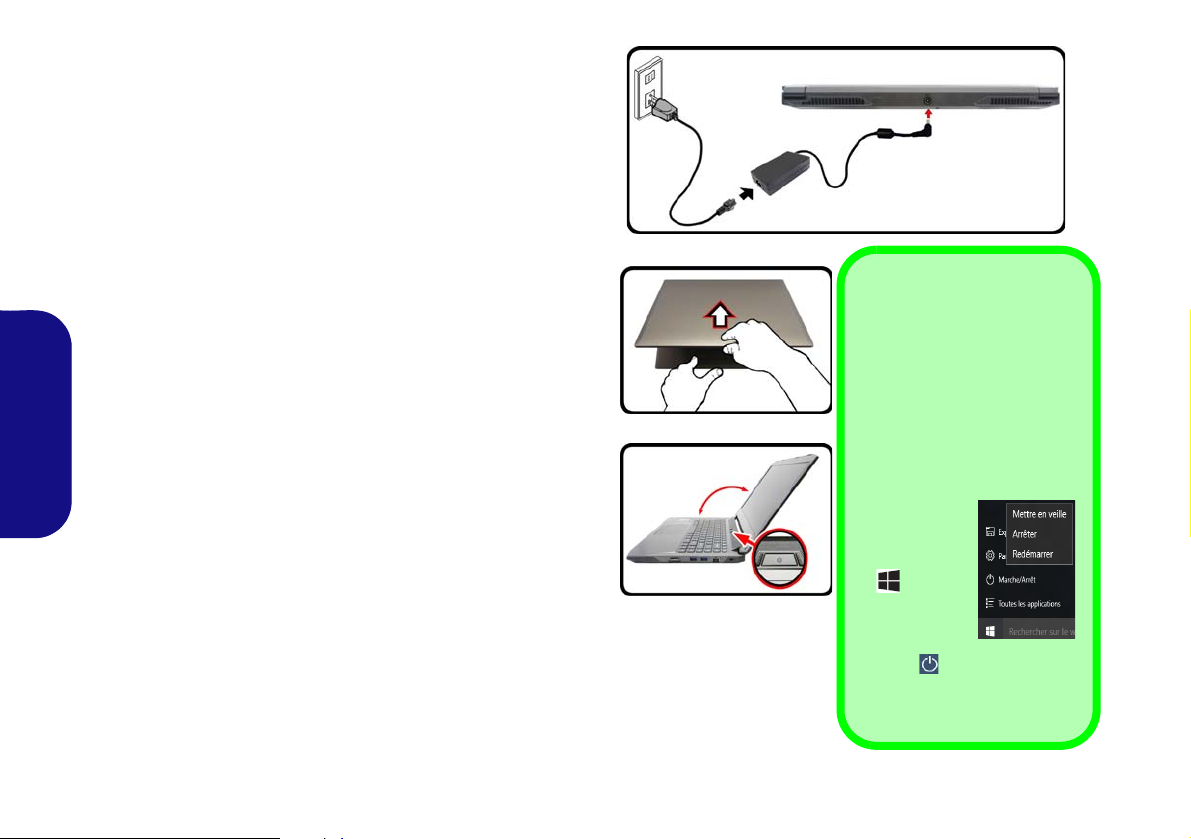

Guide de démarrage rapide .............................................................. 68
Carte du système: Vue de face avec l’écran LCD ouvert ................69
Indicateurs LED ...............................................................................70
Clavier & touches fonction .............................................................. 71

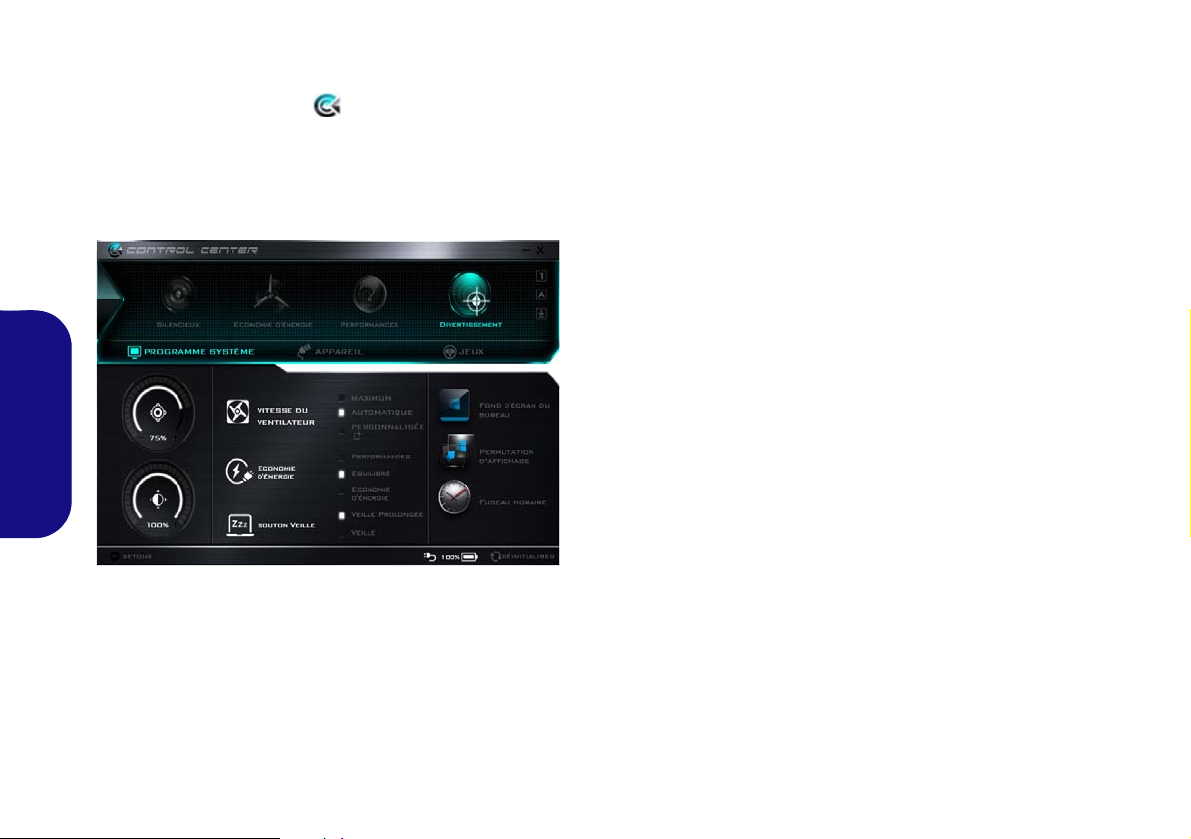

Control Center ................................................................................. 72
Application Flexikey® .................................................................... 75
Carte du système: Vues de face, arrière et dessous ........................ 79
Carte du système: Vues de gauche et droite ................................... 80
Menu Démarrer, Menu contextuel, Barre des tâches, Panneau de
Configuration et Paramètres de Windows 10 .................................. 81
Caractéristiques vidéo ......................................................................82
Surfréquençage du GPU ..................................................................84

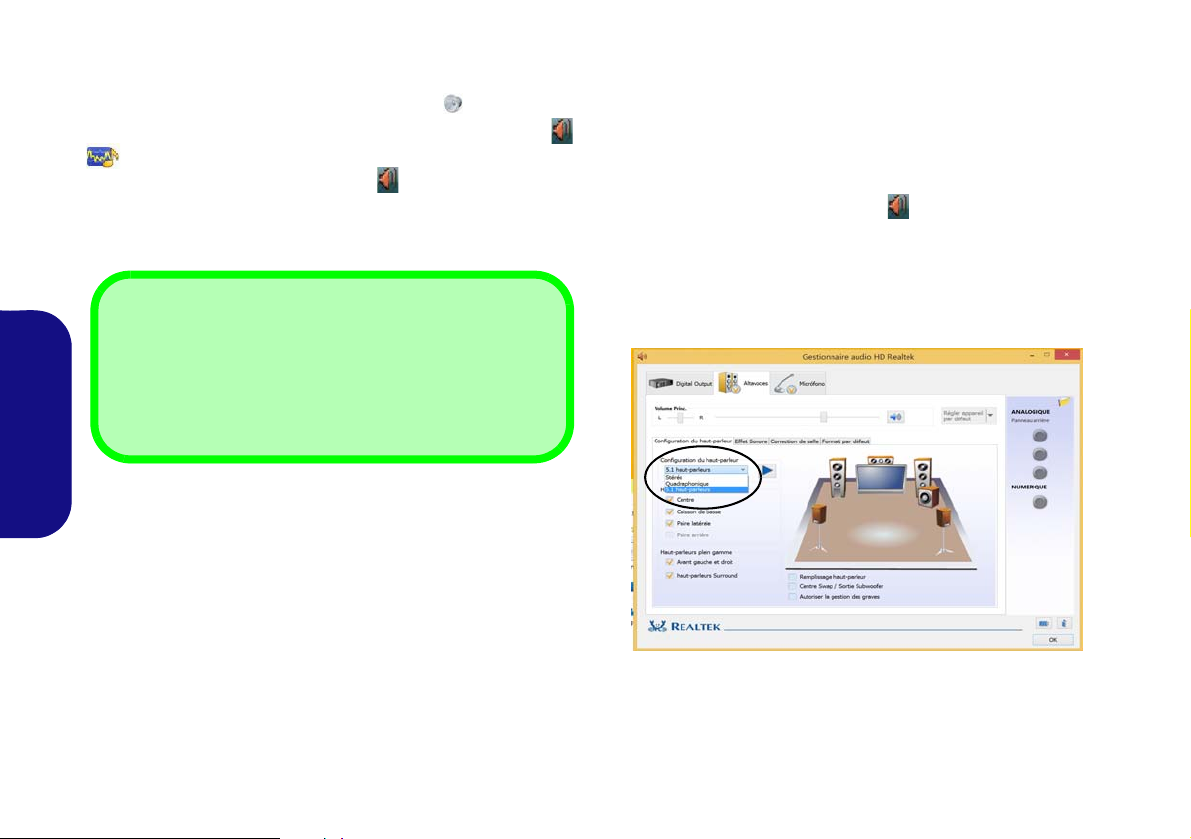

Caractéristiques audio ......................................................................85
Caméra PC ....................................................................................... 87
Options d’alimentation ....................................................................87
Installation du pilote ........................................................................88
Module LAN sans fil (Option) ........................................................ 90
Module Bluetooth (Option) .............................................................92
TPM (Option) ..................................................................................93
Dépannage ....................................................................................... 94
Spécifications ................................................................................... 95
Contenidos
Acerca de esta Guía del Usuario Concisa ........................................97
Guía rápida para empezar ..............................................................100
Mapa del sistema: Vista frontal con panel LCD abierto
Indicadores LED ............................................................................ 101
Teclado & teclas de función ..........................................................103
Control Center ................................................................................ 104
Aplicación Flexikey® ....................................................................107
Mapa del sistema: Vistas frontal, posterior e inferior ....................111
Mapa del sistema: Vistas izquierda y derecha ...............................112
Menú Inicio, Menú contextual, Barra de tareas, Panel de Control y
Configuración de Windows 10 ......................................................113
Parámetros de vídeo .......................................................................114
Overclocking de GPU ....................................................................116
Características de audio .................................................................117
Cámara PC .....................................................................................119
Opciones de energía .......................................................................119
Instalación de controladores ..........................................................120
Módulo LAN Wireless (Opción) ...................................................122
Módulo Bluetooth (Opción) ........................................................... 124
TPM (Opción) ................................................................................125
Solución de problemas ...................................................................126
Especificaciones ............................................................................. 127
III
Sommario
Informazioni sulla Guida Rapida per l'Utente ............................... 129
Guida di avvio rapido ....................................................................132
Descrizione del sistema: Vista anteriore con pannello
LCD aperto Indicatori LED ........................................................... 133
Tastiera & tasti funzione ................................................................135
Control Center ............................................................................... 136
Applicazione Flexikey® ................................................................ 139
Descrizione del sistema: Vista anteriore, posteriore e inferiore ..143
Descrizione del sistema: Vista sinistra e destra ............................144
Menu Start, Menu contestuale, Barra delle applicazioni, Pannello
di controllo e Impostazioni di Windows 10 ...................................145
Funzioni video ...............................................................................146
Overclocking GPU ......................................................................... 148
Funzionalità audio ......................................................................... 149
Camera PC ..................................................................................... 151
Opzioni risparmio energia ............................................................. 151
Installazione driver ........................................................................152
Modulo LAN Wireless (Opzione) .................................................154
Modulo Bluetooth (Opzione) .........................................................156
TPM (Opzione) ..............................................................................157
Risoluzione dei problemi ...............................................................158
Specifiche tecniche ........................................................................159
IV
About this Concise User Guide
FCC Statement
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
1.This device may not cause
harmful interference.
2. This device must accept any
interference received, including interference that may
cause undesired operation.
This quick guide is a brief introduction to getting your system started. This is a s upplement, and not a substitute for the
expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual
disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper oper ation of
the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual disc does not contain an operating system.
Regulatory and Safety Information
Please pay careful attention to the full regulatory notices and safety information
contained in the expanded User’s Manual on the Device Drivers & Utilities + Us-
er’s Manual disc.
© February 2017
Trademarks
Intel and Intel Core are trademarks/registered trademarks of Intel Corporation.
English
1
Instructions for Care and Operation
The computer is quite rugged, but it can be damaged. To
prevent this, follow these suggestions:
• Don’t drop it, or expose it to shock. If the computer falls, the
case and the components could be damaged.
• Keep it dry, and don’t overheat it. Keep the computer and
power supply away from any kind of heating element. This is an
English
electrical appliance. If water or any other liquid gets into it, the
computer could be badly damaged.
• Avoid interference. Keep the computer away from high capacity
transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage your data.
• Follow the proper working procedur e s for the computer. Shut
the computer down properly and don’t forget to save your work.
Remember to periodically save your data as data may be lost.
• Note that in computer’s featuring a raised LCD electro-pl ated
logo, the logo is covered by a protective adhesive. Due to general
wear and tear, this adhesive may deter iorate over time and the
exposed logo may develop sharp edges. Be careful when handling
the computer in this case, and avoid touching the raised LCD
electro-plated logo. Avoid placing any other items in the carrying
bag which may rub against the top of the computer during transport. If any such wear and tear develops contact your service center.
Power & Battery Safety
• Only use an AC/DC adapter approved for use with this computer.
• Use only the power cord and batteries indicated in this manual.
• Your AC/DC adapter may be designed for international travel but
it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service
representative or local power company.
• The AC/DC adapter may have either a 2-prong or a 3-prong
grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible
outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it
by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Make sure that your computer is completely powered off before
putting it into a travel bag (or any such container).
• Only use batteries designed for this computer. The wrong battery
type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that
appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it
may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the computer’s system. Incorrect
recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair
or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged
battery. Always dispose of batteries carefully. Batteri es ma y
explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts bef ore disposing of the battery.
• Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
• Do not touch the battery contacts with your hands or metal
objects.
2
Polymer Battery Precautions
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended
by the manufacturer. Discard used battery according to the
manufacturer’s instructions.
Note the following information which is specific to polymer batteries only, and where applicable, this overrides
the general battery precaution information.
• Polymer batteries may experience a slight expansion or swelling,
however this is part of the battery’s safety mechanism and is not a
cause for concern.
• Use proper handling procedures when using polymer batteries.
Do not use polymer batteries in high ambient temperature environments, and do not store unused batteries for extended periods.
Cleaning
• Use a soft clean cloth to clean the computer, but do not apply
cleaner directly to the computer.
• Do not use volatile (petroleum distillates) or abrasive cleaners on
any part of the computer.
• (For Computer Models Supplied with Light Blue Cleaning
Cloth) Some computer models in this series come supplied with a
light blue cleaning cloth. To clean the computer case with this
cloth follow the instructions below.
• Power off the computer and peripherals.
• Disconnect the AC/DC adapter from the computer.
• Use a little water to dampen the cloth slightly.
• Clean the computer case with the cloth.
• Dry the computer with a dry cloth, or allow it time to dry
before turning on.
• Reconnect the AC/DC adapter and turn the computer on.
Servicing
Attempting to service the computer yourself may violate
your warranty and expose you and the computer to electric
shock. Refer all servicing to qualified service personnel,
particularly under any of the following conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to any liquids.
• If the computer does not work normally when you follow the
operating instructions.
• If the computer has been dropped or damaged (do not touch the
poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
English
3
System Startup
135°
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
Shut Down
Note that you should always
shut your computer down by
choosing the Shut down
command in Windows (see
below). This will help prevent
hard disk or system problems.
1. Click the
Start
Menu
icon .
2. Click the
Power
item .
3. Choose
Shut
Down from the menu.
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the computer
(e.g. keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack at the rear of the
computer, then plug the AC power cord into an outlet, and connect
the AC power cord to the AC/DC adapter
English
the adapter when first setting up the computer, as to
safeguard the computer during shipping the battery will be locked
to not power the system until first connected to the AC/DC
adapter).
5. Use one hand to raise the lid/LCD to a comfortable viewing angle
(do not to exceed 135 degrees);
in Figure 1) to support the base of the computer (Note: Never lift
the computer by the lid/LCD).
6. Press the power button to turn the computer “on”.
System Software
Your computer may already come with system software preinstalled. Where this is not the case, or where you a re re-configuring your computer for a different system, y ou will find
this manual refers to Microsoft Windows 10.
(make sure you use
use the other hand (as illustrated
4
System Map: Front View with LCD Panel Open
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission
devices aboard aircraft
is usually prohibited.
Make sure the WLAN,
Bluetooth & 3G/4G
module(s) are OFF if
you are using the computer aboard aircraft by
putting the system in to
Airplane Mode.
241 3
5
6
8
7
3
Figure 2
Front View with LCD Panel
Open
1. PC Camera
2. *PC Camera LED
*When the PC camera is in
use, the LED will be
illuminated.
3. Built-In Array Microphone
4. LCD
5. Speakers
6. Power Button
7. Keyboard
8. Touchpad & Buttons
Note that the Touchpad and
Buttons valid operational
area is that indicated within
the red dotted lines above.
5
8
English
5
LED Indicators
The LED indicators on the computer display helpful information about the current status of the computer.
Icon Color Description
English
Green
Green The Hard Disk is in use
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking
Orange
Orange The AC/DC Adapter is Plugged In
Airplane Mode is ON (the WLAN, Blue-
tooth and 3G/4G Modules are OFF)
The Battery Has Reached Critically Low
Power Status
*The powered USB 3.0 port (see page 16) may be toggled
on /off by means of the Fn + Power Button key combination. When the powered USB port is on it will supply power (for charging devices only, not for operating devices)
when the system is off but still powered by the AC/DC
adapter plugged into a working outlet, or powered by the
battery with a capacity level above 20% (this may not
work with certain devices - see page 29).
6
Blinking
Orange*
Green The Computer is On
Blinking
Green
The AC/DC adapter is plugged in and the
powered USB Port is on*
The Computer is in Sleep Mode
Table 1 - LED Indicators
Keyboard & Function Keys
Function Keys
Numeric
Keypad
Fn Key
Windows Logo Key
ScrLk &
NumLk
Figure 3 - Keyboard
The keyboard includes a numeric keypad for easy numeric data input. Pressing Fn + NumLk turns on/off the numeric keypad. It also features function keys to allow you
to change operational features instantly. The function
keys (F1 - F12 etc.) will act as hot keys when pressed
while the Fn key is held down. In addition to the basic
function key combinations, some visual indicators are
available when the Control Center driver is installed.
Keys Function/Visual Indicators Keys Function/Visual Indicators
English
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Play/Pause (in Audio/Video Programs)
Touchpad Toggle
Turn LCD Backlight Off
(Press a key to or use Touchpad to turn on)
Mute Toggle
Toggle Keyboard Illumi-
nation/Adjust Brightness
Level
Volume Decrease/
Increase
Change Display Configuration (see page 19)
Brightness Decrease/
PC Camera Power
Increase
Toggle
Table 2 - Function Keys & Visual Indicators
Fn +
Fn +
Fn +
Fn +
Fn + Power But-
ton
Fn +
Fn +
Fn +
Airplane Mode Toggle
Sleep Toggle
Number Lock Toggle
Scroll Lock Toggle
Caps Lock Toggle
Powered USB Port Power Toggle (see page 16)
Control Center Toggle (see page 8)
Fan Automatic Control/
Full Power
Disable/Enable Flexikey®
(see page 11)
7
Control Center
Figure 4 - Control Center
Press the Fn + Esc key combination, or double-click the
icon in the notification area of the taskbar to toggle
the Control Center on/off. The Control Center gives
quick access to frequently used controls and enables you
to quickly turn the camera/Touchpad on/off.
English
Power Modes
You can set a Power Mode by clicking the appropriate
icon at the top of the Control Center. Each power mode
will affect the Power Conservation Mode, Airplane Mode,
Power Plan and PC camera power etc.
Control Center Menus
The Control Center contains 3 menu headings (System
Program, Device and Gaming) under the Power Modes.
Click the Control Center icons to toggle the appropriate
function, or hold the mouse button down and move the
dial control where applicable. Certain functions will automatically be adjusted when a power mode is selected.
Click the menu headings and then click any of the buttons.
8
Power Status
The Power Status icon will show whether you are currently powered by the battery, or by the AC/DC adapter
plugged in to a working power outlet. The power status
bar will show the current battery charge state.
Brightness
The Brightness icon will show the current screen brightness level. You can use the slider to adjust the screen
brightness or the Fn + F8/F9 key combinations, or use the
Fn + F2 key combination to turn off the LED backlight
(press any key to turn it on again). Note that screen brightness is also effected by the Power Mode selected.
Volume
The Volume icon will show the current volume level. You
can use the slider to adjust the volume or the Fn + F5/F6
key combinations, or use the Fn + F3 key combination to
mute the volume.
Power Conservation
This system supports Energy Star power management
features that place computers (CPU, hard drive, etc.) into
a low-power sleep mode after a designated period of inactivity. Click either the Performance, Balanced or Power
Saving button.
Fan Speed
The fan speed will adjust itself automatically to control
the heat of the CPU. However you can adjust the setting to
maximum if you prefer. Select Custom and click on the
sliders to adjust the settings to your preference, however
these settings can be overidden by the system, as a safety
precaution, if it requires heavier use of the fan.
Sleep Button
Click either the Hibernate or Sleep button to have the
computer enter the selected power-saving mode.
Display Switch
Click the Display Switch button to access the menu (or
use the + P key combination) and select the appropriate display mode.
Time Zone
Clicking the Time Zone button will access the Date and
Time Windows control panel.
Desktop Background
Clicking the Desktop Background button will allow you
to change the desktop background picture.
English
9

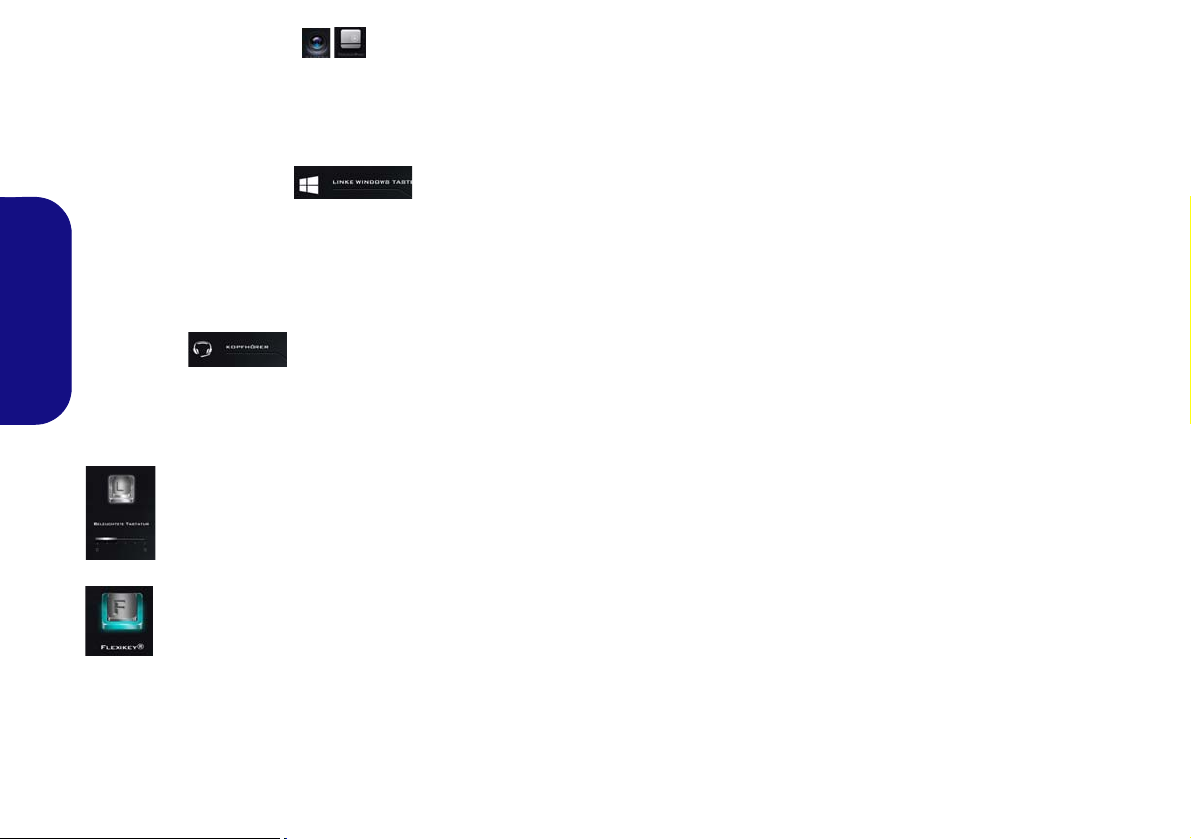

Touchpad/PC Camera
Click either of these buttons to toggle the Touchpad or
camera module’s power status. Note that the power status
of the camera module is also effected by the Power Mode
selected.
Left Windows Key
Click Disable to disable the Windows Logo Key on the
English
left side of the keyboard. This may be useful if you are using the gaming keys (W, A, S & D) and wish to avoid accidentally triggering menus with the Windows Logo Key.
Headphone
The headphones may be set for different effects using this
menu.
Backlight Keyboard
Click the numbers under the Backlight Keyboard icon to adjust the brightness of the keyboard backlight LED.
Flexikey®
Click the button to access the Flexikey® application.
10
Flexikey® Application
Enabling or Disabling the Flexikey® Profile in Use
You can enable or disable any keyboard or mouse profile
functions currently in use by using the Fn + key
combination. Pressing this key combination will toggle you
between the currently selected keyboard or mouse profile
to the standard keyboard and/or mouse settings, and back
again.
Windows Logo Key and P key
Note that you can assign actions to any keyboard key except the Windows Logo Key and P key.
Figure 5
Flexikey®
Applica-
tion
The Flexikey® application is a quick hotkey configura-
tion application, which allows you to assign a single key
to launch multiple key combinations, or to launch pro-
grams and applications, to create text macros and to
disable certain keys. The application can also be used to
configure the mouse buttons to create hotkeys for gam-
ing etc. All the configuration settings are retained under
(up to12) profiles to which the settings are applied.
The Flexikey® application can be accessed by clicking
the button
ter or by clicking the icon
the desktop taskbar.
in the Gaming section of the Control Cen-
in the notification area of
Profiles
The menus on the left side of the application relate to Profiles. You can Add or Delete profiles (you can maintain
12 active Profiles), Export and Import profiles from the
menus. If you double-click on a profile you can change the
Profile Name, and change an Image file (images created
using PNG files).
English
Keyboard and Mouse Settings
Click Enable to create settings for the keyboard and/or
mouse by clicking the button on the top left of the screen
(e.g. you may wish to create a profile with settings only
for the mouse or keyboard). Clicking on the keyboard or
mouse icons will allow you to access the settings page for
either the keyboard or mouse.
Figure 6 - Enable (Keyboard & Mouse)
11
123
4
5
Keyboard Settings
The keyboard settings allow you to configure actions for
any single key (or a combination of keys). Click the key
and then select the Action Type (Express Key, Launch
App, Express Text or Disable) from the menu at the bottom of the page. You can rename the action by clicking in
the Name box, and click in Tool Tips to type in a note to
remind you of the action’s function.
English
Figure 7 - Keyboard Configuration
Mouse Settings
The mouse settings allow you to configure actions for the
left , right and middle buttons of any attached
mouse, and also for any backward and forward
buttons if applicable (on a gaming type mouse). Click the
button number and then select the Action Type (Express
Key, Launch App, Express Text or Disable) from the
menu at the bottom of the page. You can rename the action
12
by clicking in the Name box, and click in Tool Tips to
type in a note to remind you of the action’s function.
Figure 8 - Mouse Configuration
Flexikey® Application Features:
• EXPRESS KEY - This feature allows you to configure a
single key (or mouse click) to send multiple key combinations, or to create more useful shortcut keys This is useful
in gaming or when using applications which have a complex set of keyboard shortcuts.
• LAUNCH APP - This simply assigns single keys (or
mouse clicks) to launch any program’s or application’s
executable file.
• EXPRESS TEXT - With this you can assign single keys
(or mouse clicks) to send commonly used strings of text.
• DISABLE - Use this function to disable any keyboard
keys or mouse buttons.
• STATISTICS - Use this to quickly record keys in use in
any application, and to disable unused keys.
Keyboard Settings - Express Key
To configure a single key to send multiple key combinations, or to create more useful shortcut keys, use Express
Key.
1. Enable and select the keyboard under your chosen profile, click
on a key to select it, and then click to select Express Key in
Action Type.
2. In the following example we want to change an existing game
key configuration which uses the left shift key for sprinting, and
the W key for moving forwards, to use the left Ctrl key to
combine this movement to sprint forward.
3. Click on the chosen key for the shortcut action.
4. Click in the Tool Tips field and type to give the key combination
a name e.g. “Sprint Fwds”, then click back in the Name field (to
avoid adding the recorded keys to the Tool Tips name).
5. Click Start Record and then press the key or keys (in this case
we will press Left Shift and W) required (make sure you press
the key(s) required and do not click on them).
6. Click Stop Record to complete the process.
9. If you want to clear all the settings click Restore to return to the
default key setting.
10. Any assigned Express Keys will appear in orange.
Keyboard Settings - Launch App
You can configure keys to launch any application or program as follows:
1. Enable and select the keyboard under your chosen profile, click
to select a key to launch the appllication, and then click to select
Launch App in Action Type.
2. Click Browse... at the bottom right of the application window.
Figure 10 - Keyboard - Launch App
English
Figure 9 - Keyboard - Express Key
7. Click Save to save the settings within your chosen profile.
8. If you want to remove any individual key click to select it, and
then click Delete.
3. Navigate to the executable file of the application and click
Open.
4. The key will now be configured to open the selected application
under your chosen Profile, and the key will appear in green.
5. If you want to remove any Launch App key, select it and click
on Restore.
6. Click Save to save the settings within your chosen profile.
13
Keyboard Settings - Express Text
A single key can be set to send a string of text within any
application using Express Text.
1. Enable and select the keyboard under your chosen profile, click
to select a key, and then click to select Express Text in Action
Type.
2. Click in Start key if required (the Start key is the key used in
your target program to open a text message), or you can leave
English
it blank if you prefer.
3. Click in the Click to type field and type in your message.
Figure 11 - Keyboard - Express Text
4. Click in Send key if required (the Send key is the key used in
your target program to send a text message e.g the Enter key
would be the most commonly used), or you can leave it blank if
you prefer.
5. The key will now be configured to send the text message in the
target program under your chosen Profile, and the key will
appear in blue.
6. If you want to remove any Express Text key, select it and click
on Restore.
7. Click Save to save the settings within your chosen profile.
Keyboard Settings - Disable
You can use the program to disable any keys not required.
1. Enable and select the keyboard under your chosen profile, click
to select a key to disable, and then click to select Disable in
Action Type.
2. The key will now be disabled.
3. If you want to enable the key again, select it and click on
Restore.
4. Click Save to save the settings within your chosen profile.
5. The key will be disabled under your chosen Profile, and the key
will appear in gray.
14
System Map: Front, Rear & Bottom Views
Overheating
To prevent your computer
from overheating make
sure nothing blocks any
vent while the comp uter is
in use.
Bottom Cover Removal
Warning
Do not remove any cover(s) and/or screw(s) for
the purposes of device upgrade as this may violate
the terms of your warranty.
If you need to replace/remove the hard disk/RAM
etc., for any reason,
please contact your distributor/supplier for further information.
2
2
2
3
2
Rear
Figure 12
Front, Rear & Bottom Views
1. LED Indicators
2. Vent
3. DC-In Jack
2
2
2
2
1
Front
English
15
System Map: Left & Right Views
2
6
3
4
Left
Right
11
7
13
12
1
8
9
5
4
Figure 13
Left & Right Views
1. Mini DisplayPort 1 (1.4
Ready)
2. Mini DisplayPort 2 (1.2)
3. HDMI-Out Port
4. USB 3.0 (USB 3.1 Gen
1) Ports
5. USB 3.0 (USB 3.1 Gen
1) Type-C Port
Or
(Factory Option) USB
3.1 Gen 2 Type-C Port
6. Microphone Jack
7. Headphone Jack
8. S/PDIF-Out Jack
9. USIM Card Reader (for
3G/4G USIM Cards)
10. Multi-in-1 Card Reader
11. *Powered USB 3.0 (USB
3.1 Gen 1) Port
*Toggle power to this
port by using Fn + power
button (see Table 1 on
page 6
).
12. RJ-45 LAN Jack
13. Security Lock Slot
10
USIM Card Ejection
Simply press on the USIM card to
eject it, however do not do this
while a connection is in progress.
If you do eject the card while a 3G/
4G connection is ongoing, you will
need to shut down the system, reinsert the USIM card, restart the
system and then reestablish the
3G/4G connection.
If you wish to change USIM cards
then you will also need to shut
down the system, reinsert the
USIM card, restart the system and
then reestablish the 3G/4G connection.
Mini DisplayPorts
External displays can be configured either using the
Intel HD Graphics Control Panel or by the Project
menu (press + P or Fn + F7).
If you wish to configure an external display connected
to Mini DisplayPort 1 you must use Project
menu to control the display configuration.
1
English
16
Windows 10 Start Menu, Context Menu, Taskbar, Control Panel and Settings
Most of the apps, control panels, utilities and programs within Windows 10 can be
accessed from the Start Menu by clicking the icon in the taskbar in the lower
left corner of the screen (or by pressing the Windows Logo Key on the keyboard).
Right-click the Start Menu icon (or use the Windows Logo Key + X key
combination) to bring up an advanced Context Menu of useful features such as
Control Panel, Programs and Features, Power Options, Task Manager, Search, File
Explorer, Command Prompt, Device Manager and Network Connections etc.
The notification area of the taskbar is in the bottom right of the screen. Some of the
control panels and applications referred to throughout the course of this manual can
be accessed from here.
Throughout this manual you will see an instruction to open the Control Panel. To
access the Control Panel, right-click the Start Menu icon
lower left corner of the screen and select Control Panel from the menu. Or, press
the Windows L ogo Key on your keyboard and X to bring up the context menu,
and then press P to bring up the Control Panel.
The Settings item in the Start Menu (and also as an App) gives you quick access
to a number of system settings control panels allowing you to adjust settings for
System, Devices, Network & Internet, Personalization, Accounts, Time & language, Ease of Access, Privacy and Update & security.
in the taskbar in the
English
Figure 14 - Start Menu, Context Menu, Taskbar, Control Panel and Settings
17
Video Features
The system features both an Intel’s Integrated GPU (for
power-saving) and an NVIDIA’s discrete GPU (for performance). You can switch display devices, and configure
display options, from the Display control panel in Win-
dows as long as the video drivers are installed.
To access the Display control panel in Windows:
1. Go to the Control Panel.
2. Click Display (icon) - in the Appearances and
Personalization category.
3. Make the required changes from the Display, Resolution,
Orientation or Multiple display menus.
Click Apply to save the settings.
4.
Microsoft Hybrid Graphics
English
Microsoft Hybrid Graphics is a seamless technology
designed to get best performance from the graphics system while allowing longer battery life, without having to
manually change settings. The computer’s operating system (and some applications) will automatically switch
between the integrated GPU and the discrete GPU when
required by the applications in use.
18
To access the Intel® HD Graphics Control Panel:
1. Right-click the desktop and select Graphics Properties from
the menu.
OR
2. Click the icon in the notification area of the Desktop
taskbar and select Graphics Properties from the menu.
To access the NVIDIA Control Panel:
1. Go to the Control Panel.
2. Click NVIDIA Control Panel (icon) - in the Appearances and
Personalization category.
OR
3. Right-click the desktop and select NVIDIA Control Panel from
the menu.
Display Devices
Mini DisplayPorts
External displays can be configured either using
the Intel HD Graphics Control Panel or by the
Project menu (press + P or Fn + F7).
If you wish to configure an external display connected to Mini DisplayPort 1 ( in Figure 13
on page 16) you must use Project menu to con-
trol the display configuration.
1
Note that you can use external displays connected to the HDMI-Out port and/or Mini DisplayPort. See your display
device manual to see which formats are supported.
In Windows it is possible to quickly configure external displays from the Project menu (press the Windows Logo Key
and the P key).
To configure the displays using the Project menu:
1. Attach your external display device to the appropriate port, and then turn it on.
2. Press the + P (or Fn + F7) key combination.
3. Click on any one of the options from the menu to select PC screen only, Duplicate, Extend or Second screen only.
Figure 15 - Project Menu
English
19
Audio Features
Volume Adjustment
The sound volume level can also be set using the volume
control within Windows. Click the Speaker icon in the
taskbar to check the setting
.
You can configure the audio options on your computer
from the Sound control panel in Windows, or from the
Realtek HD Audio Manager
tion area/Control panel (right-click the notification area
icon to bring up an audio menu). The volume may also
be adjusted by means of the Fn + F5/F6 key combination.
English
/ icon in the notifica-
Setup for 5.1 Surround Sound
To setup your system for 5.1 surround sound you will
need to connect the audio cables to the Headphone-Out,
Microphone-In and S/PDIF-Out jacks.
1. Go to the Control Panel.
2. Click Realtek HD Audio Manager (or right-click the notification
area icon
3. Click Speakers (tab) and click Speaker Configuration (tab).
4. Select 5.1 Speaker from the Speaker Configuration pull-down
menu.
and select Sound Manager).
Figure 16 - Speaker Configuration
20
5. Plug in the cables (you may require an adapter to connect each
cable to the appropriate jack e.g a stereo mini to dual RCA
adapter) from your speakers as follows:
• Headphone-Out Jack = Side Speaker Out
• Microphone-In Jack = Center/Subwoofer Speaker Out
• S/PDIF-Out Jack = Front Speaker Out
6. As you plug in each cable a dialog box will pop up.
Figure 17
Sound Blaster X-Fi
MB5
(Taskbar Notifica-
tion Area Icon)
7. Click to put a tick in the appropriate box according to the
speaker plugged-in (e.g. Side Speaker Out), and then click OK
to save the setting.
8. Click OK to exit Realt e k HD Audio Manager.
Setup for Audio Recording
To record audio sources on your computer at optimum
quality follow the instructions below:
1. Go to the Control Panel.
2. Click Realtek HD Audio Manager (or right-click the notification
area icon
3. Click Microphone Effects (tab) in Microphone (tab), and then
click to select Noise Suppression (button), or adjust the
Recording Volume level to around 60, to obtain the optimum
recording quality.
4. Click OK to close the Sound control panel.
and select Sound Manager).
Sound Blaster Audio
Install the Sound Blaster application to allow you to
configure the audio settings to your requirements for the
best performance in games, music and movies.
English
Sound Blaster X-Fi MB5 AP Installation
1. Click Option Drivers (button).
2. Click 5.Install SB X-Fi MB 5 AP > Yes.
3. Choose the language you prefer and click Next.
4. Click Yes to accept the license.
5. Click Next > Full Installation (button).
6. Click Next > Finish to restart the computer.

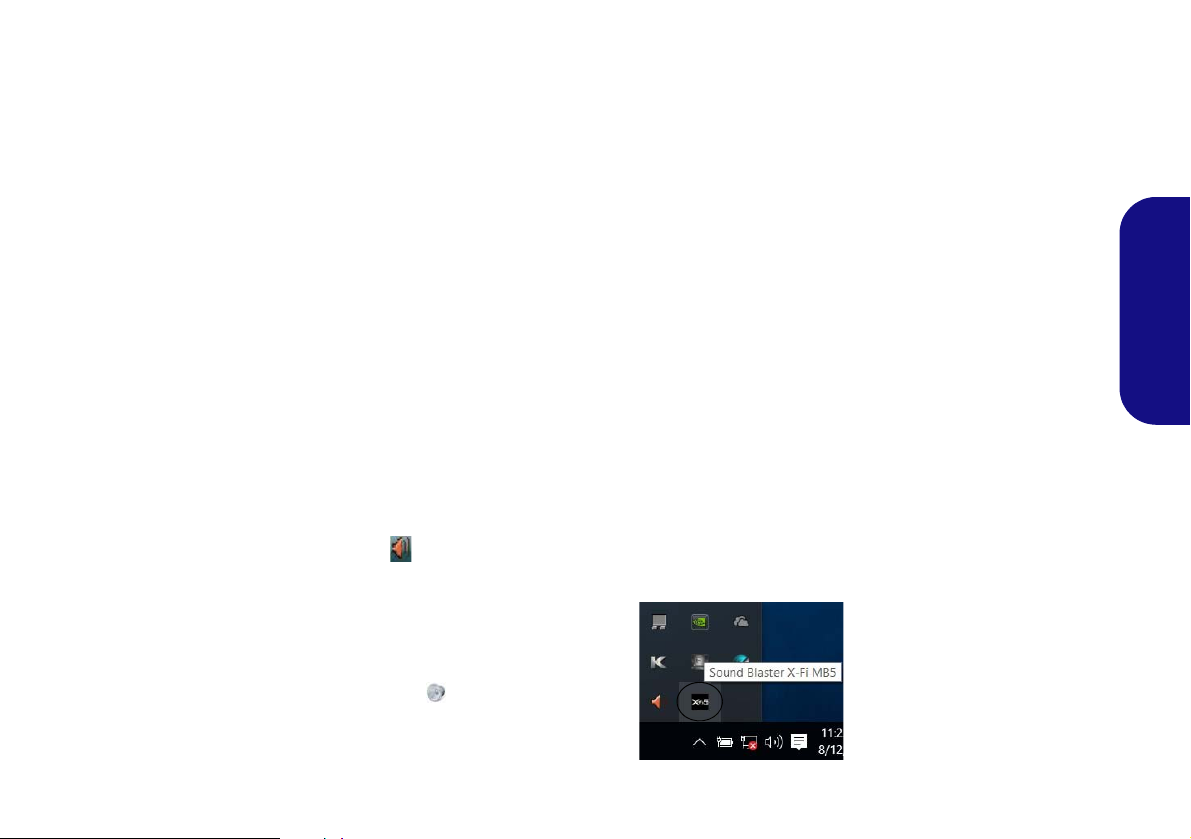

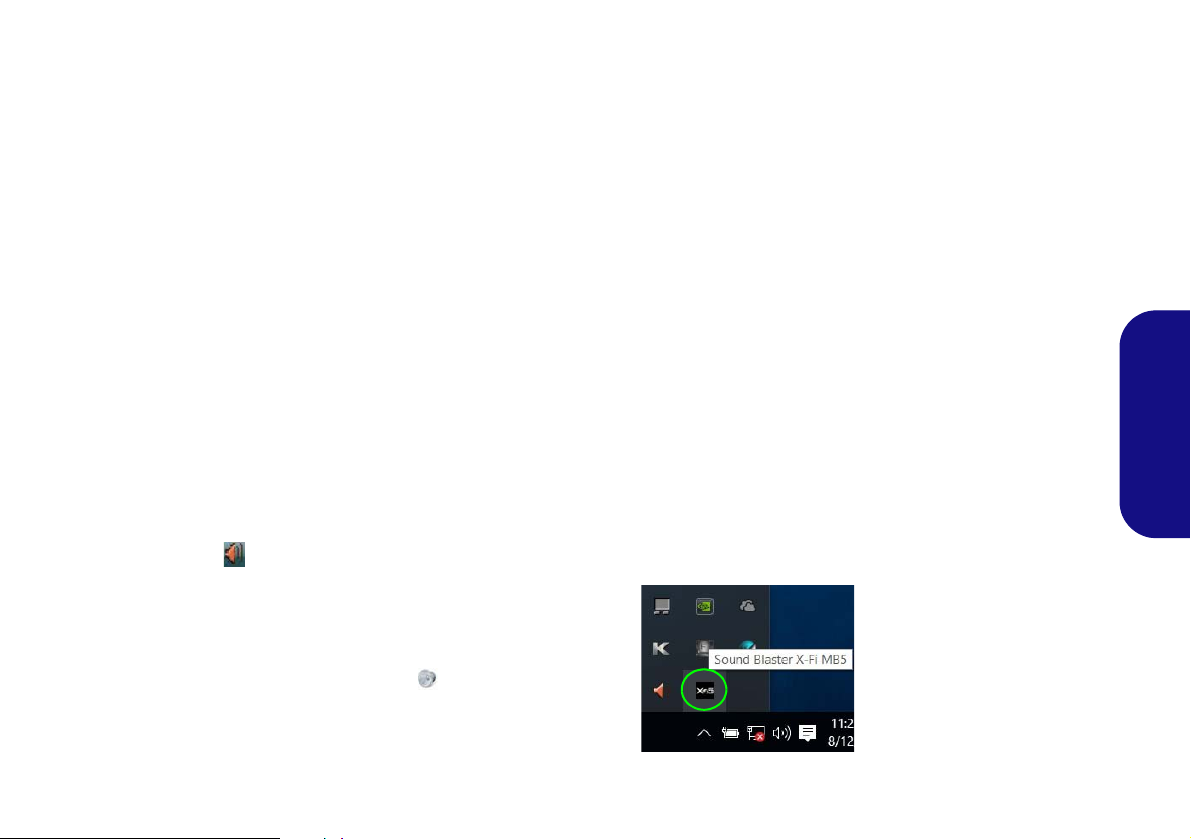

Sound Blaster X-Fi MB5 Application
Run the Sound Blaster control panel from the notification
area of the taskbar. Click on the tabs to access any of the
control panel menus. Note that the Sound Blaster audio effects do not apply to audio generated through an HDMI/
Mini DisplayPort connection.
21
PC Camera
Figure 18 - Power Options
Use the Fn + F10 key combination to toggle power to the
PC Camera module. When the PC Camera is in use the PC
Camera LED will be illuminated (see page 5).
Camera App
Note that you need to use the Camera app in Windows to take pictures and capture video.
English
1. Run the Camera app from the Start menu by clicking on the
Camera app icon
the search box to find the Camera app if it is not pinned to the
Start menu).
2. Click to select either photo
3. Click the photo icon
briefly turn yellow as the picture is taken.
4. Click on the video icon
capture begins a timer will appear at the bottom of the screen
and the icon will turn yellow).
5. To stop video capture click the video icon again.
6. Captured photos and videos will be saved to a Camera Roll
folder within the Pictures folder in This PC, and to the Photos
app stored in the Start menu.
in All Apps (you can type “camera” into
or video mode.
to take a picture, and the icon will
to start video capture (if video
Power Options
The Power Options (Hardware and Sound menu) control panel icon in Windows allows you to configure power
management features for your computer. You can conserve power by means of power plans and configure the
options for the power button, sleep button (Fn + F12),
computer lid (when closed), display and sleep mode (the
default power saving state) from the left menu. Note that
the Power saver plan may have an affect on computer
performance.
Click to select one of the existing plans, or click Create a
power plan in the left menu and select the options to create a new plan. Click Change Plan Settings and click
Change advanced power settings to access further configuration options.
22
Driver Installation
Driver Installation & Power
When installing drivers make sure your computer is
powered by the AC/DC adapter connected to a working
power source. Some drivers draw a significant amount
of power during the installation procedure, and if the remaining battery capacity is not adequate this may cause
the system to shut down and cause system problems
(note that there is no safety issue involved here, and the
battery will be rechargeable within 1 minute).
The Device Drivers & Utilities + User’s Manual disc con-
tains the drivers and utilities necessary for the proper operation of the computer. Insert the disc and click Install
Drivers (button), or Option Drivers (button) to access
the Optional driver menu. Install the drivers in the order
indicated in Table 3. Click to select the drivers you wish
to install (you should note down the drivers as you install
them). Note: If you need to reinstall any driver, you
should uninstall the driver first.
Manual Driver Installation
Click the Browse CD/DVD button in the Drivers Installer application and browse to the executable file in the ap-
propriate driver folder.
If a
Found New Hardware
stallation procedure, click Cancel and follow the installation procedure as directed.
wizard appears
during the in-
Driver Page#
Chipset
Video (VGA)
NVIDIA Video (NVIDIA VGA) page 24
LAN
Cardreader
Touchpad
Airplane Mode (Airplane)
Control Center page 24
MEI
Audio
Intel® SGX page 24
Intel® Rapid Storage Technology (IRST)
page 24
page 24
page 24
page 24
page 24
page 24
page 24
page 24
page 24
English
Wireless LAN Module (Optional)
Bluetooth Module (Optional) page 27
Sound Blaster Audio
Enable Windows Update*
*After installing all the drivers make sure you enable Windows
Update in order to get all the latest security updates etc. (all
updates will include the latest hotfixes from Microsoft).
Table 3 - Driver Installation
page 25
page 21
23
Chipset
1. Click Install Drivers (button).
2. Click 1.Install Chipset Driver >
Yes.
3. Click Next > Accept > Install.
4. Click Restart Now to restart the
computer.
English
Video (VGA)
1. Click 2.Install VGA Driver > Yes.
2. Click Next > Yes > Next > Next.
3. Click Finish to restart the com-
puter.
NVIDIA Video (NVIDIA VGA)
1. Click 3.Install NVIDIA VGA
Driver > Yes.
2. Click AGREE AND CONTINUE
(button) to accept the terms of the
license agreement.
3. Click Next > Close.
LAN
1. Click 4.Install LAN Driver > Yes.
2. Click Next > Install > Finish.
CardReader
1. Click 5.Install Cardreader Driver
> Yes.
2. Click Finish.
24
Touchpad
1. Click 6.Install Touchpad Driver >
Yes.
2. Click Next.
3. Click the tickbox to accept the
license, and then click Next.
4. Click Finish > Restart Now to
restart the computer.
Airplane Mode (Airplane)
1. Click 7.Install Airplane Driver >
Yes.
2. Click Next > Install > Finish to
restart the computer.
Control Center
1. Click 8.Install Contr ol Center AP
> Yes.
2. Click Next > Install > Finish to
restart the computer.
MEI
1. Click 9.Install MEI Driver > Yes.
2. Click Next.
3. Click the tickbox to accept the
license, and then click Next.
4. Click Next > Finish.
Audio
1. Click 10.Install Audio Driver >
Yes.
2. Click Next > Finish to restart the
computer.
Intel SGX
Make sure the option SW Guard Extensions (SGX) is enabled in the
BIOS (Advanced Menu > Advanced
Chipset Control).
1. Click Option Drivers (button).
2. Click 3.Install Intel SGX Driver >
Yes.
3. Click Next and click the tickbox to
accept the license and click Next.
4. Click Next > Install > Finish.
IRST
1. Click Option Drivers.
2. Click 4.Install IRST Driver > Yes.
3. Click Next > Next.
4. Click the tickbox to accept the
license and click Next.
5. Click Next > Next > Next.
6. Click Finish to restart the computer
.
