About this Concise User Guide

FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, includ­ing interference that may cause undesired operation.
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the expanded English language User’s Ma nual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper operation of the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure (or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s Manual disc does not contain an operating system.

Regulatory and Safety Information

Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Man­ual on the Device Drivers & Utilities + User’s Manual disc.
©
August 2020

Trademarks

Intel is a trademark/registered trademark of Intel Corporation. Windows is a registered trademark of Microsoft Corporation.
English
1
Instructions for Care and Operation
The computer is quite rugged, but it can be damaged. To pre­vent this, follow these suggestions:
• Don’t drop it, or expose it to shock. If the computer falls, the
case and the components could be damaged.
• Keep it dry, and don’t overheat it. Keep the computer and
power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the
English
computer could be badly damaged.
• Avoid interference. Keep the computer away from high capacity
transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data.
• Follow the proper working procedures for the computer. Shut
the computer down properly and don’t forget to save your work. Remember to periodically save your data as data may be lost.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service person­nel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the fol­lowing conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to any liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the panel breaks).
• If there is an unusual odor, heat or smoke coming from your com­puter.
Safety Information
• Only use an AC/DC adapter approved for use with this computer.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Make sure that your computer is completely powered off before putting it into a travel bag (or any such container).
• Before cleaning the computer, make sure it is disconnected from any external power supplies, peripherals and cables.
• Use a soft clean cloth to clean the computer, but do not apply cleaner directly to the computer. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.
• Note that in computer’s featuring a raised electro-plated logo, the logo is covered by a protective adhesive. Due to general wear and tear, this adhesive may deteriorate over time and the exposed logo may develop sharp edges. Be careful when handling the computer in this case, and avoid touching the raised electro-plated logo. Avoid placing any other items in the carrying bag which may rub against the top of the computer during transport. If any such wear and tear develops contact your service center.
2
Polymer/Lithium-Ion Battery Precautions
Battery Disposal & Caution
The product that you have purchased contains a recharge­able battery. The battery is recyclable. At the end of its use­ful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Re­place only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.
Note the following information which is specific to Polymer/ Lithium-Ion batteries only, and where applicable, this over­rides the general battery precaution information.
• Polymer/Lithium-Ion batteries may experience a slight expansion or swelling, however this is part of the battery’s safety mechanism and is not a cause for concern.
• Use proper handling procedures when using Polymer/Lithium-Ion batteries. Do not use Polymer/Lithium-Ion batteries in high ambi­ent temperature environments, and do not store unused batteries for extended periods.
• If you are working in areas of low temperature use the AC/DC adapter to power the computer.
English
3

System Startup

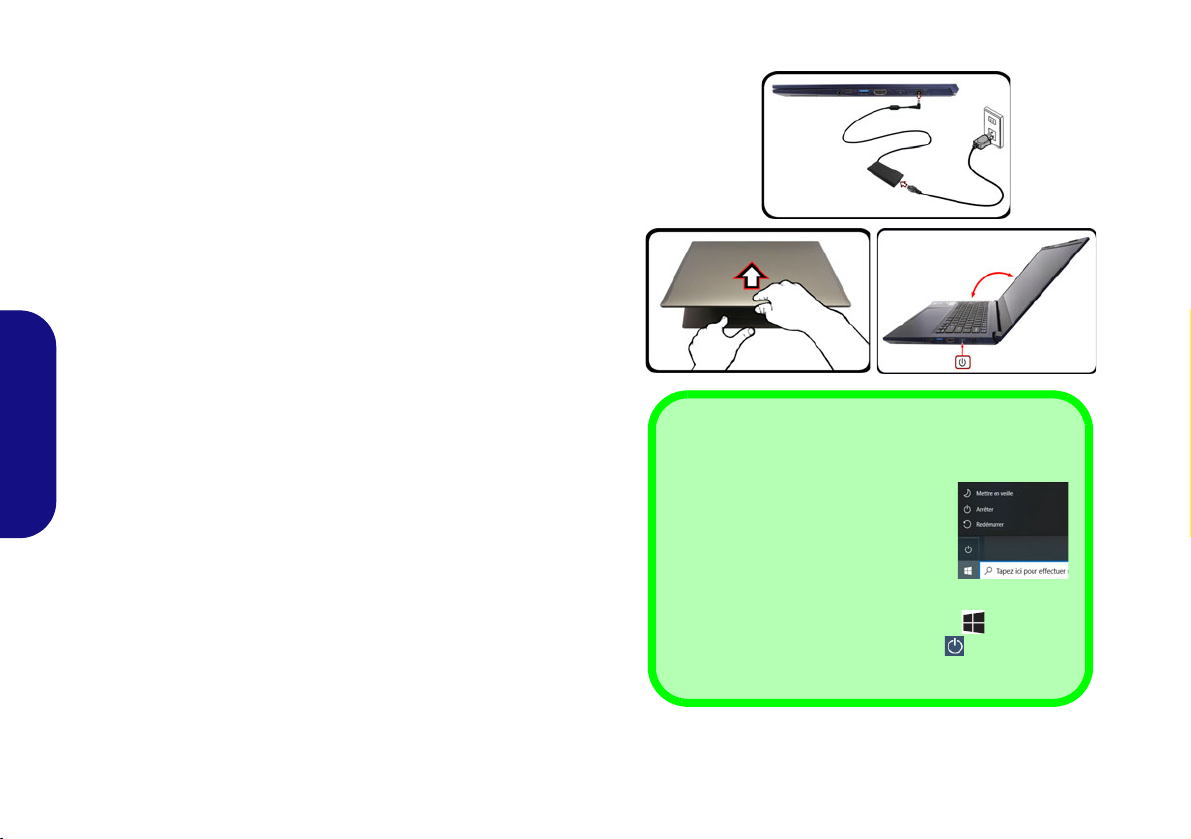

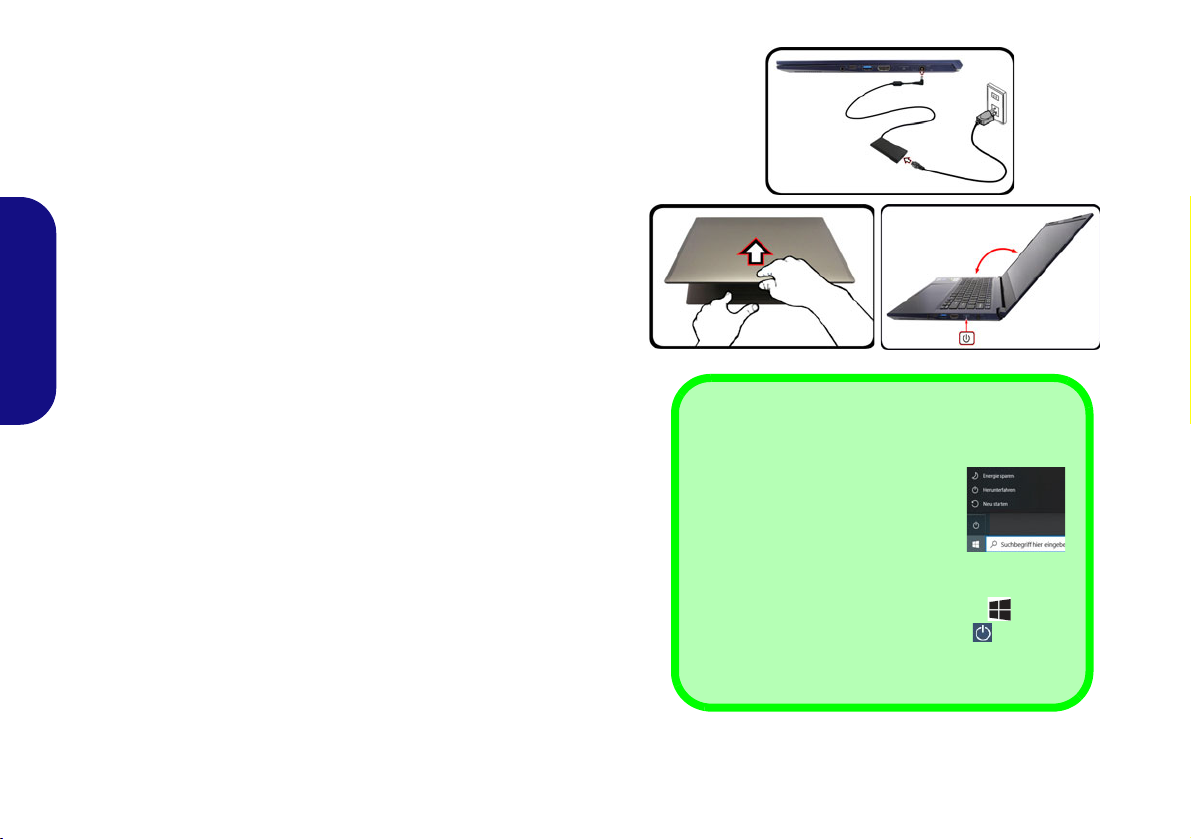

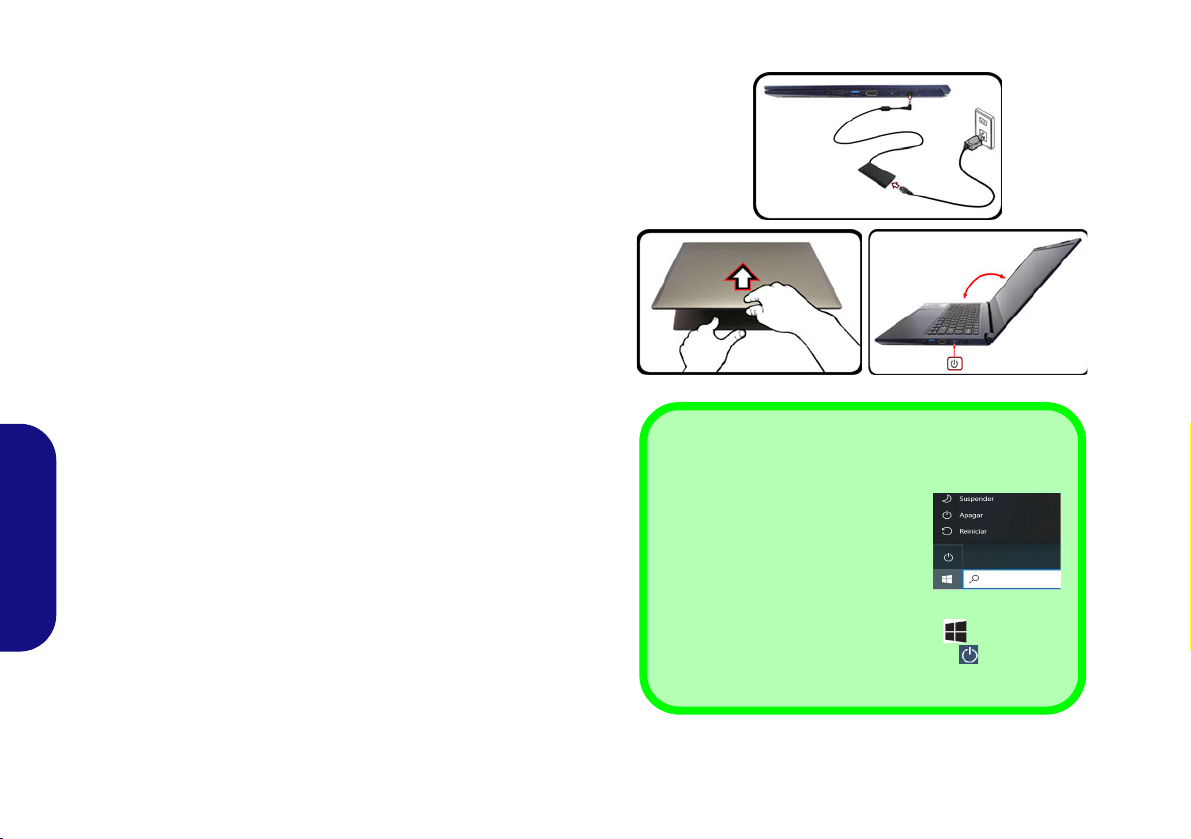

Figure 1 - Opening the Lid/Computer with AC/
DC Adapter Plugged-In
Shut Down
Note that you should always shut your computer down by choosing the Shut down command in Windows (see below). This will help prevent hard disk or system problems.
1. Click the Start Menu icon .
2. Click the Power item .
3. Choose Shut down from the
menu.
130ﾟ
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the computer
(e.g. keyboard and mouse) to their ports.
4. When first setting up the computer use the following procedure
(as to safeguard the computer during shipping, the battery will be locked to not power the system until first connected to the AC/DC
English
adapter and initially set up as below):
• Attach the AC/DC adapter cord to the DC-In jack on the right of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC/DC adapter. The battery will now be unlocked.
5. Use one hand to raise the exceed 130 degrees); use the other hand (as illustrated in Figure 1) to support the base of the computer (Note: Never lift the computer by the lid).
6. Press the power button on the right side of the computer to turn it on (note that the lid must be open for the power button to function).
lid to a comfortable viewing angle

System Software

Your computer may already come with system software pre­installed. Where this is not the case, or where you are re-con­figuring your computer for a different system, you will find this manual refers to Microsoft Windows 10.
(do not
4

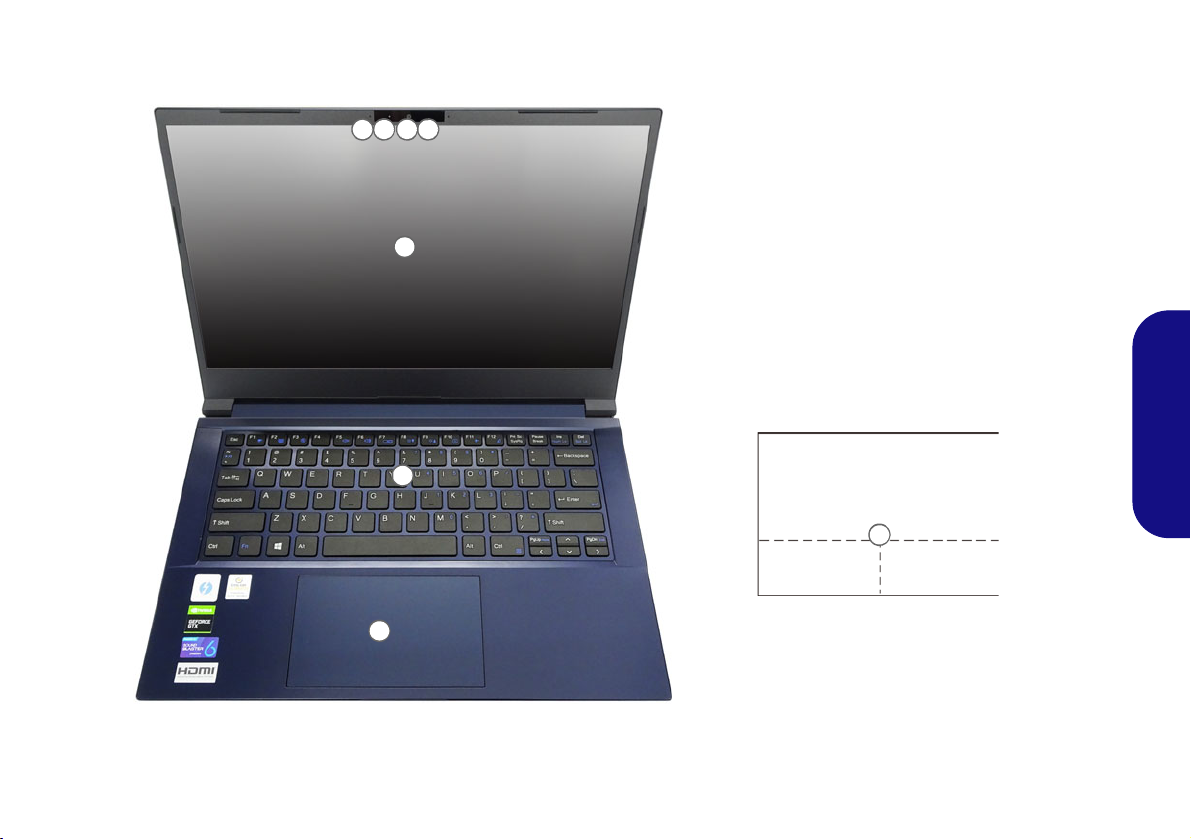

System Map: Front View with Display Open

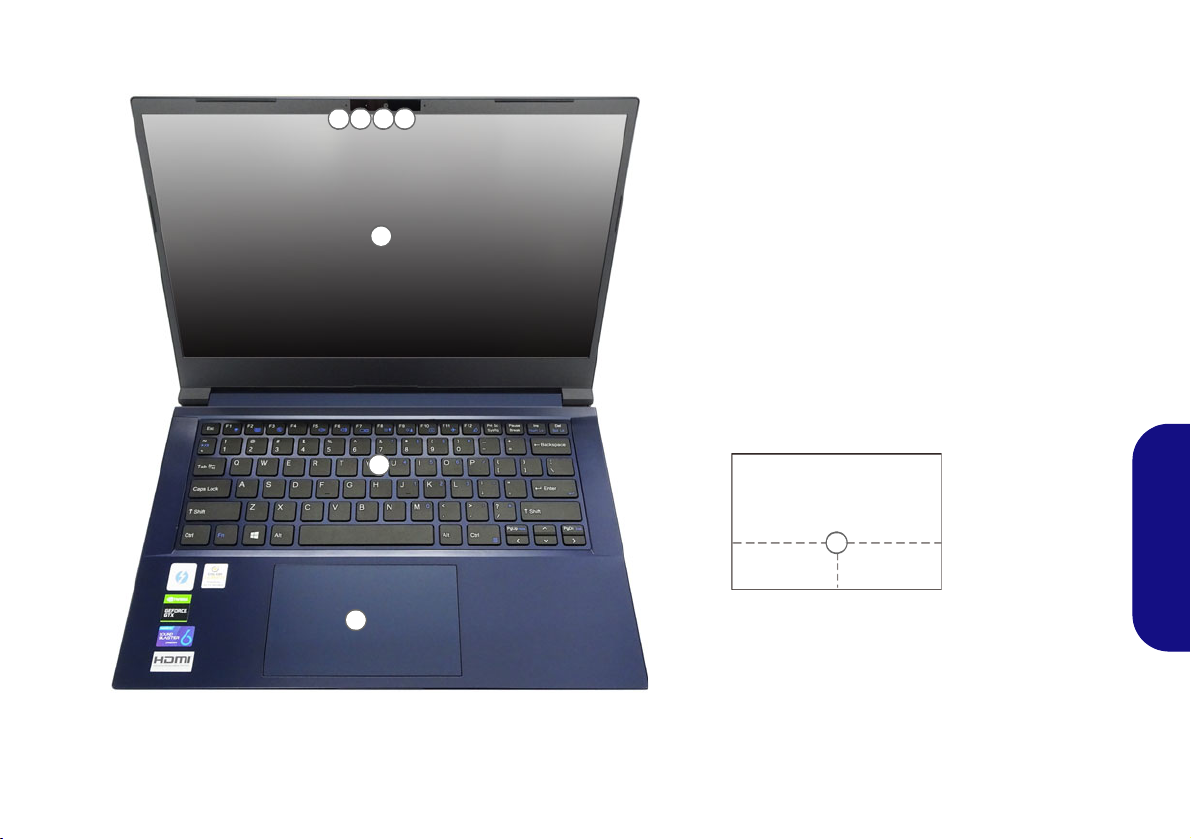

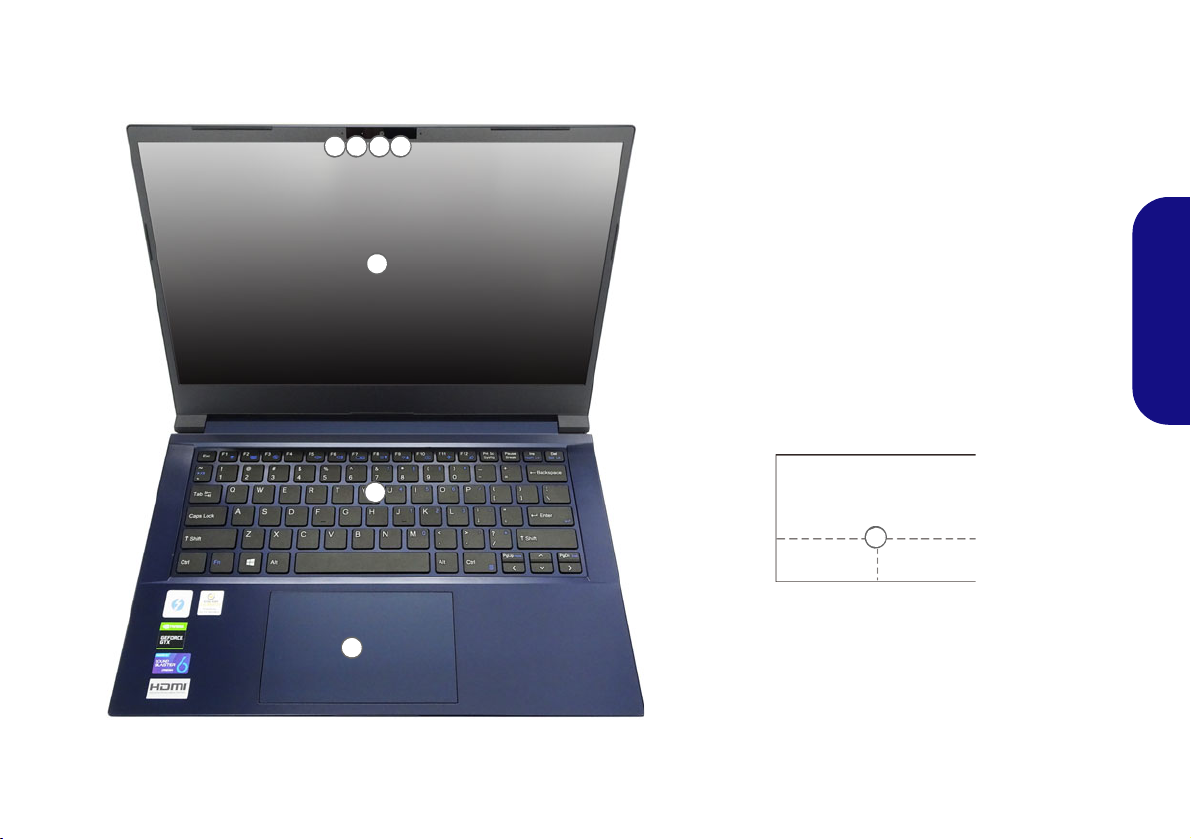

Figure 2
Front View with Display Open
1. PC Camera Or
(Factory Option) Windows Hello Camera
2. *Camera LED
*When the camera is in use, the LED will be illuminated.
3. Built-In Array Microphone
4. Display
5. Keyboard
6. Touchpad & Buttons
Note that the Touchpad and But­tons valid operational area is that indicated within the dotted lines above.
12 33
6
5
4
6
English
5

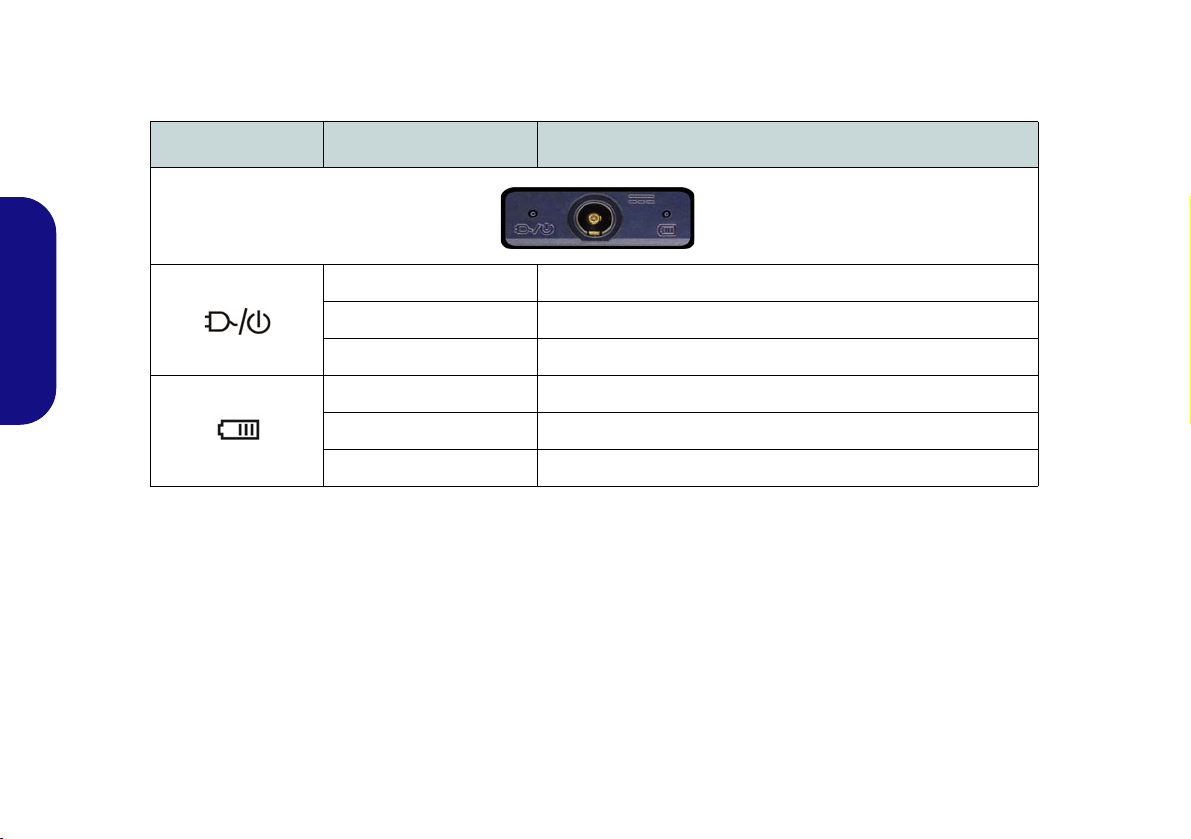

LED Indicators

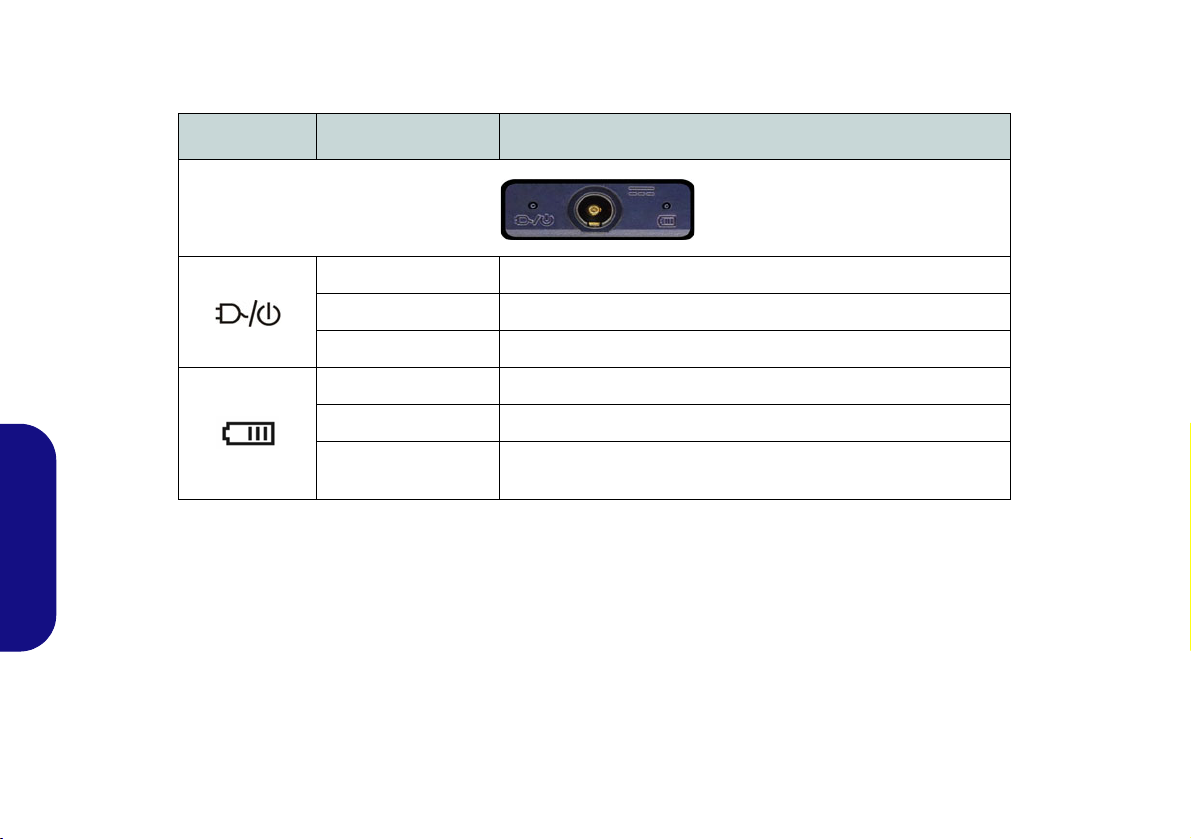

The LED indicators on the computer display helpful information about the current status of the computer.

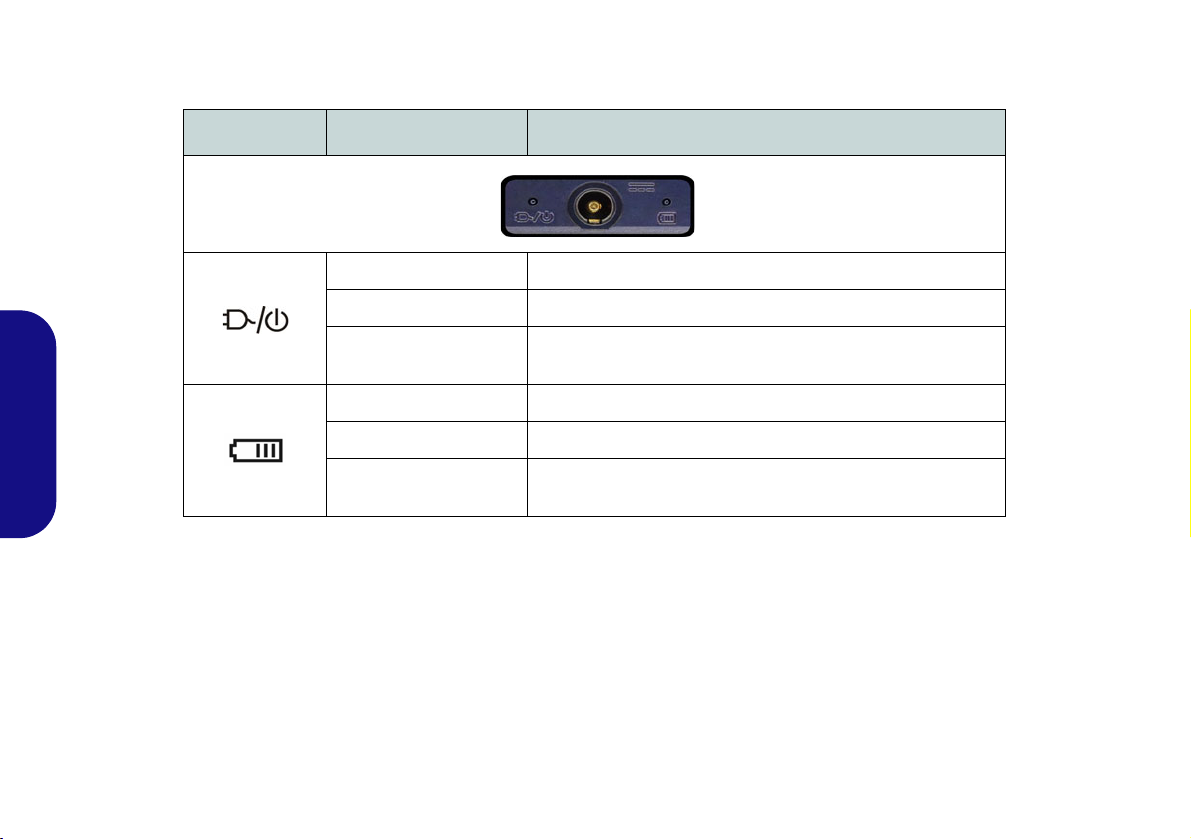

Icon Color Description
English
Orange The AC/DC Adapter is Plugged In
Green The Computer is On
Blinking Green The Computer is in Sleep Mode
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange The Battery Has Reached Critically Low Power Status
Table 1 - LED Indicators
6

Keyboard

Function Keys
Numeric Keypad
Fn Key
Menu/Application Key
Num Lk & Scr Lk
Windows Logo Key
Wireless Device
Operation Aboard
Aircraft
The use of any portable electronic transmission de­vices aboard aircraft is usu­ally prohibited.
Make sure the wireless modules are OFF if you are using the computer aboard aircraft by putting the sys­tem in to Airplane Mode (see Table 2 on page 8).
Figure 3 - Keyboard
The keyboard has a numeric keypad for easy numeric data input. Pressing Fn + Num Lk turns on/off the numeric keypad. It also features function keys to allow you to change operational features instantly.
(Factory Option) White-LED Keyboard
Refer to White-LED Keyboard (Option) on page 16. The keyboard illumination level may be adjusted, or turned off/ on, by using the Fn + keys.
English
7

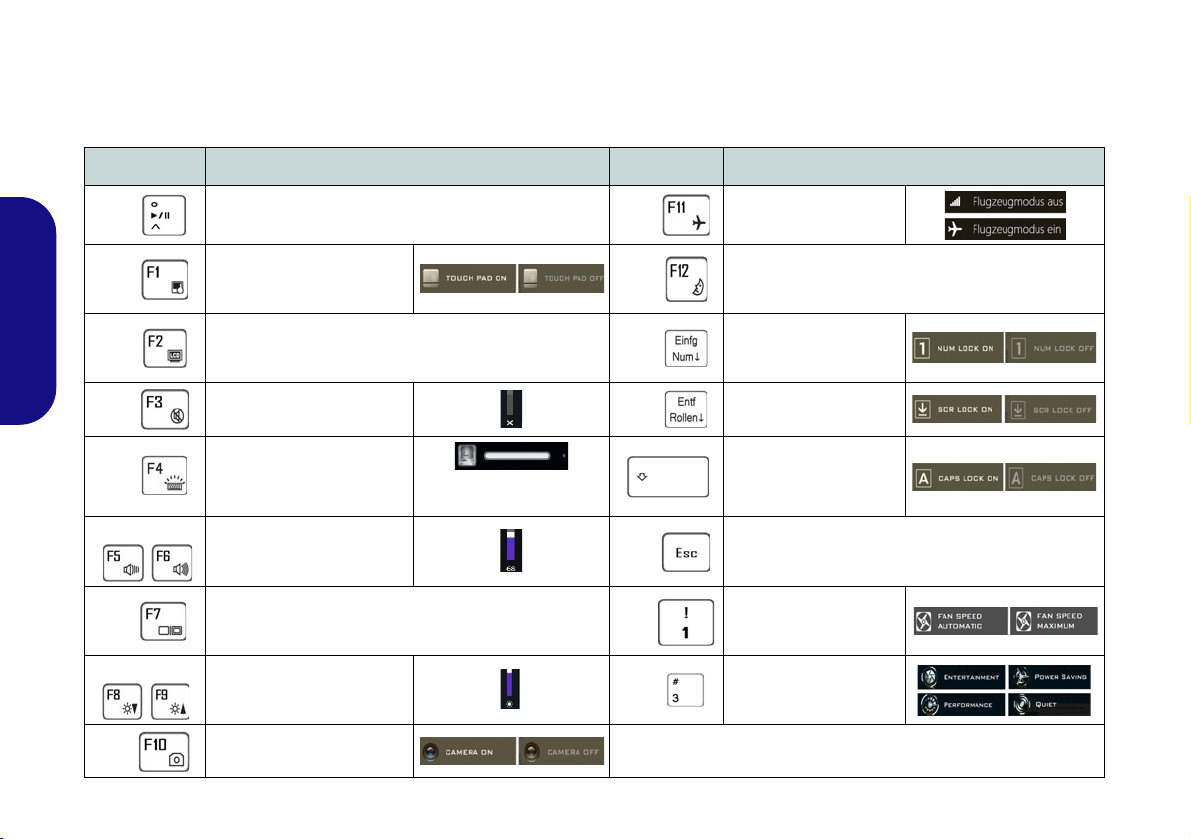

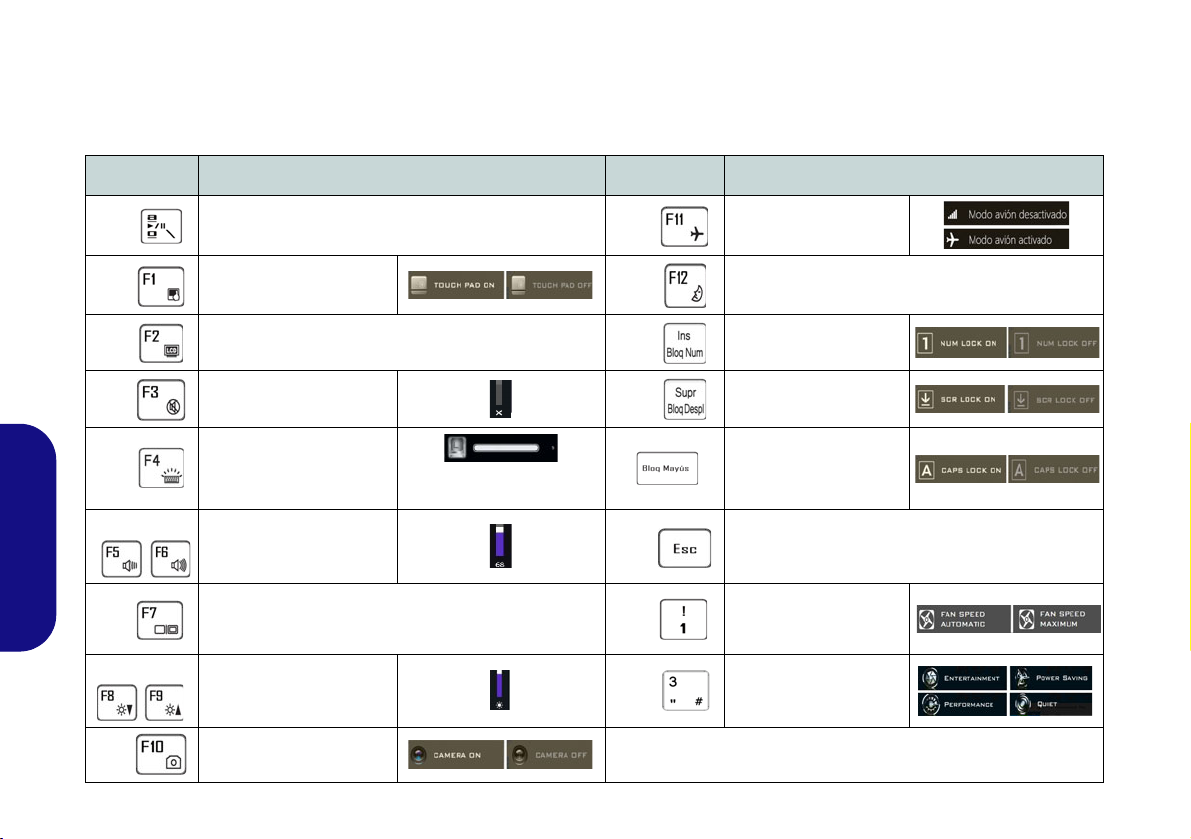

Function Keys & Visual Indicators

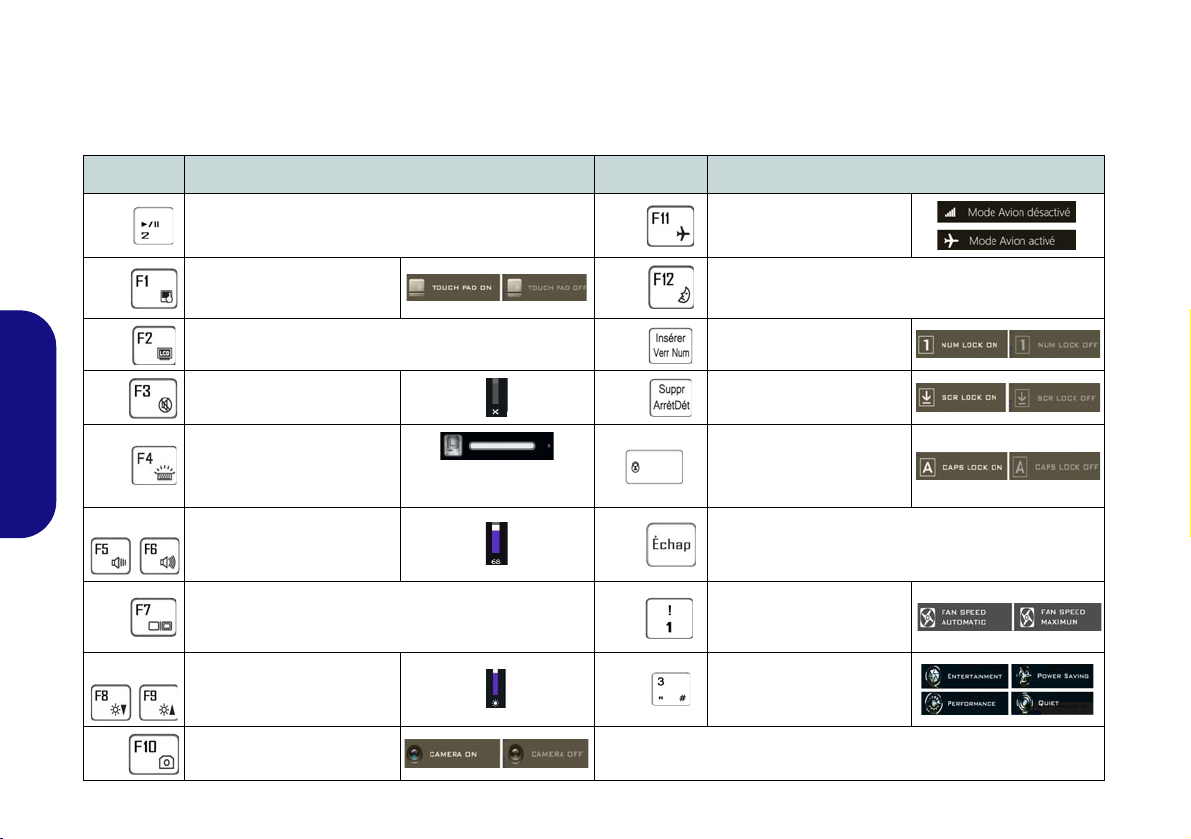

The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the basic function key combinations, some visual indicators are available when the Control Center driver is installed.
Keys Function/Visual Indicators Keys Function/Visual Indicators
Fn +
English
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Play/Pause (in Audio/Video Programs)
Touchpad Toggle Fn +
Turn Display Backlight Off
(Press a key to or use Touchpad to turn on)
Mute Toggle
Toggle Keyboard Illumi-
nation/Adjust Brightness
Level
Volume Decrease/
Increase
Change Display Configuration (see page 18)
Display Brightness Decrease/Increase
Camera Power
Toggle
(For White-LED Key-
boards)
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Airplane Mode Tog-
gle
(Or press any key to resume)
Number Lock Toggle
Scroll Lock Toggle
Caps Lock Toggle
Control Center Tog-
gle (see page 11)
Fan Automatic Con-
trol/ Full Power
Power Modes Toggle
Sleep Toggle
Table 2 - Function Keys & Visual Indicators
Fn +
8

System Map: Front, Left & Right Views

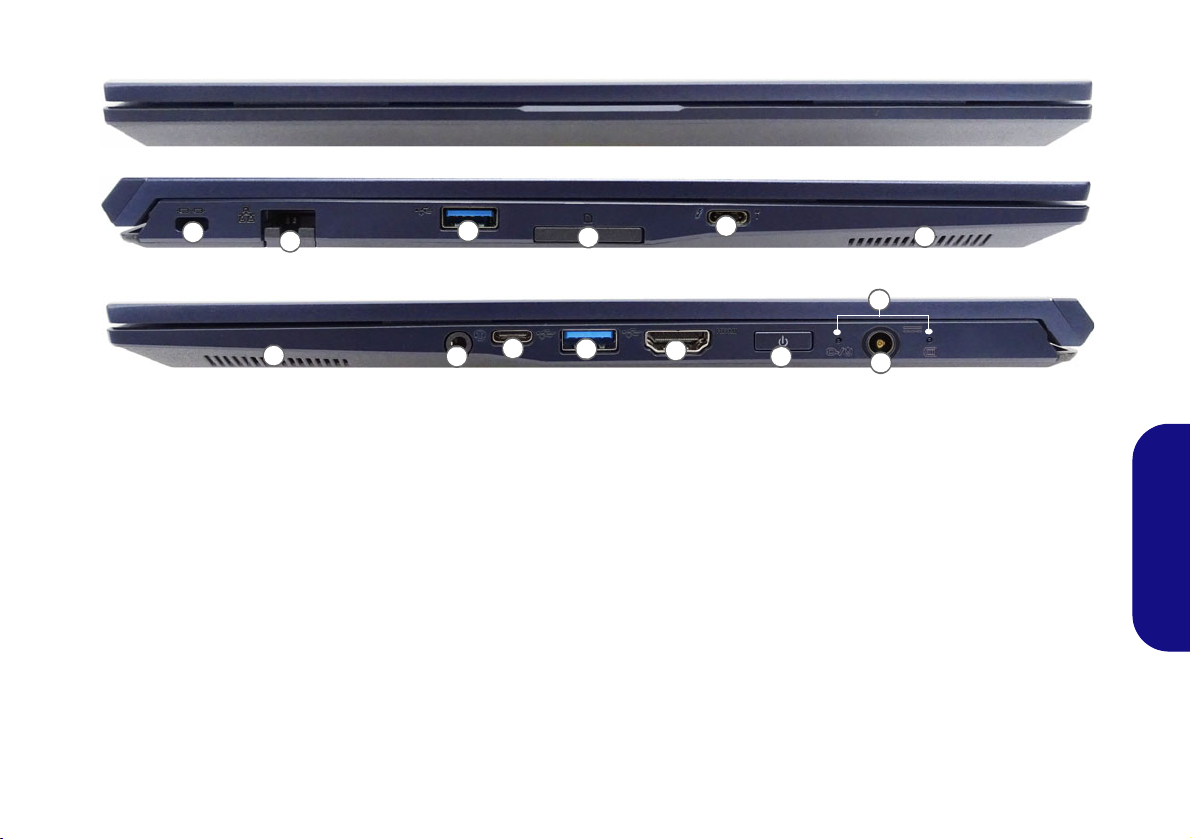

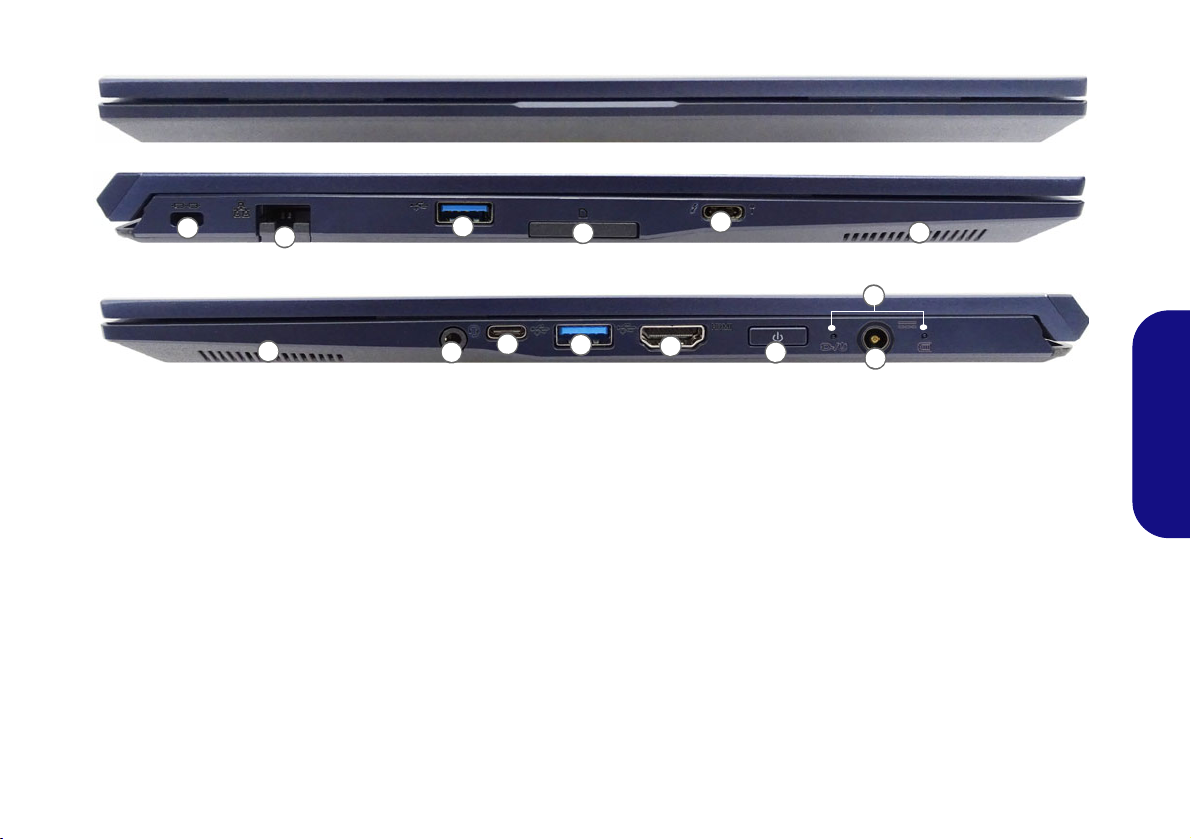

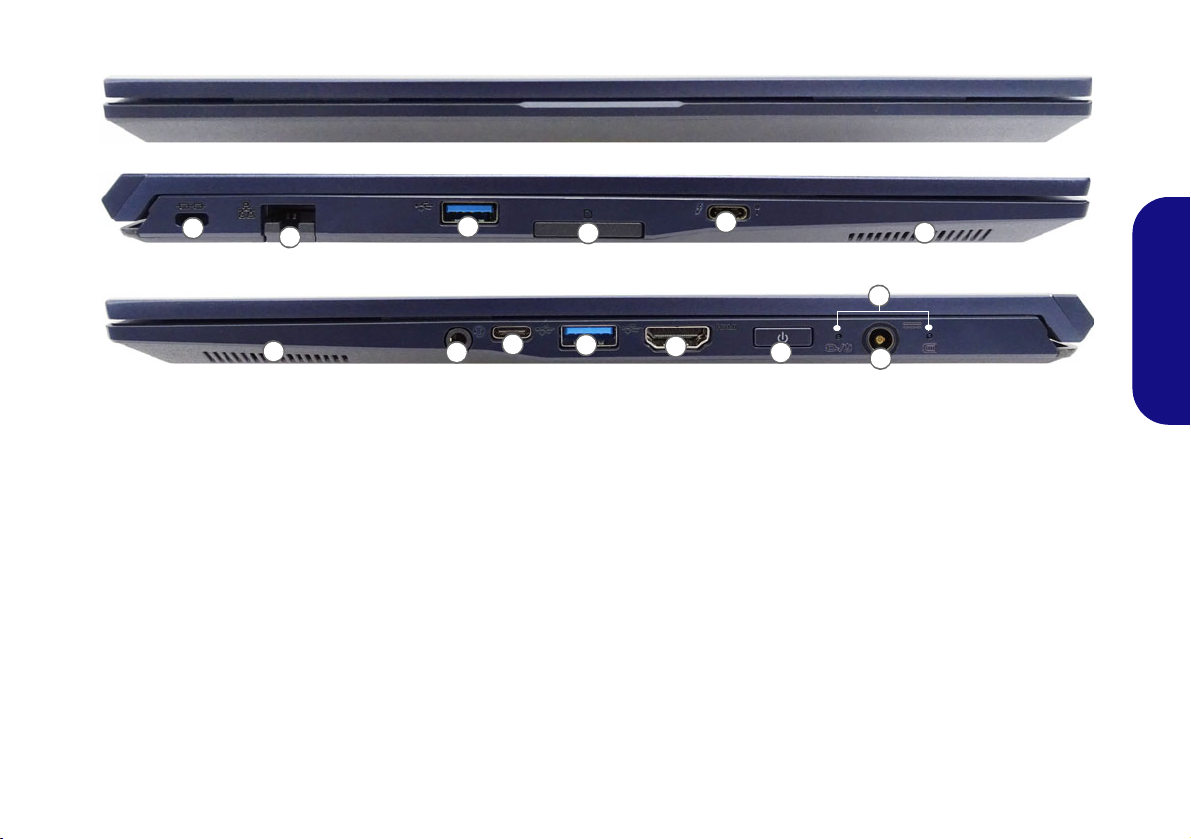

Figure 4 - Front, Left & Right Views
1. Security Lock Slot
2. RJ-45 LAN Jack
3. USB 3.2 Gen 1 Type-A Ports
4. SD Card Reader
5. Thunderbolt 4 Port with Power Delivery (DC-In)* *This port allows you to use a third party AC/DC adapter/ power bank plugged into the port as a power supply. If you are using a power bank make sure that it complies with the USB-C PD (Power Delivery) standard specification (20V/65W - 20V/ 100W). If you are using a third party AC/DC adapter, the rating of the adapter must be at least 20Volts, 3.25A (65 Watts) and it should be appropriately certified.
6. Speakers
7. 2-In-1 Audio Jack (Headphone / Microphone)
8. USB 3.2 Gen 2 Type-C Port
9. HDMI-Out Port
10. Power Button
11. LED Indicators
12. DC-In Jack
Front
Left
Right
1
3
4
5
6
7
2
6
8
9
10
11
12
3
English
9

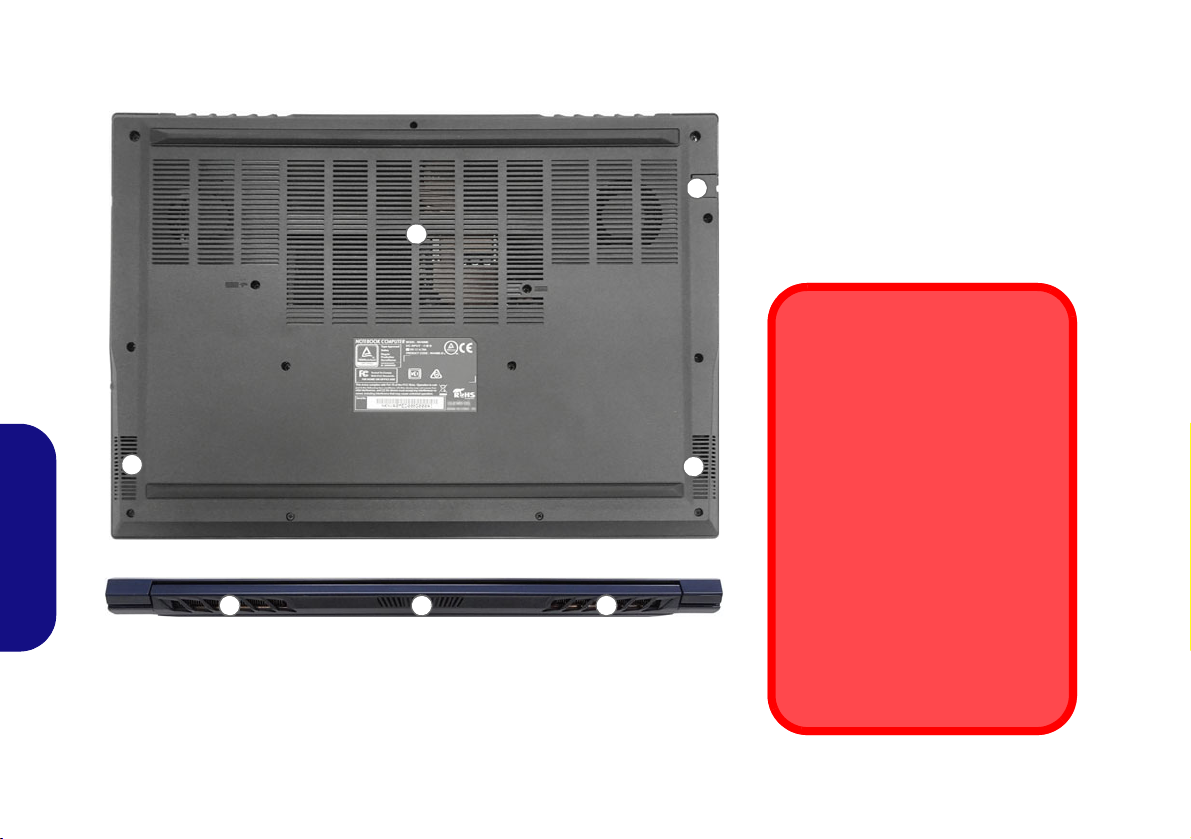

System Map: Bottom & Rear Views

Bottom Cover Removal
Warning
Do not remove any cover(s) and/or screw(s) for the pur­poses of device upgrade as this may violate the terms of your warranty. If you need to replace/remove the SSD/ RAM etc., for any reason, please contact your distribu­tor/supplier for further infor­mation.
Overheating
To prevent your computer from overheating make sure nothing blocks any vent while the computer is in use.

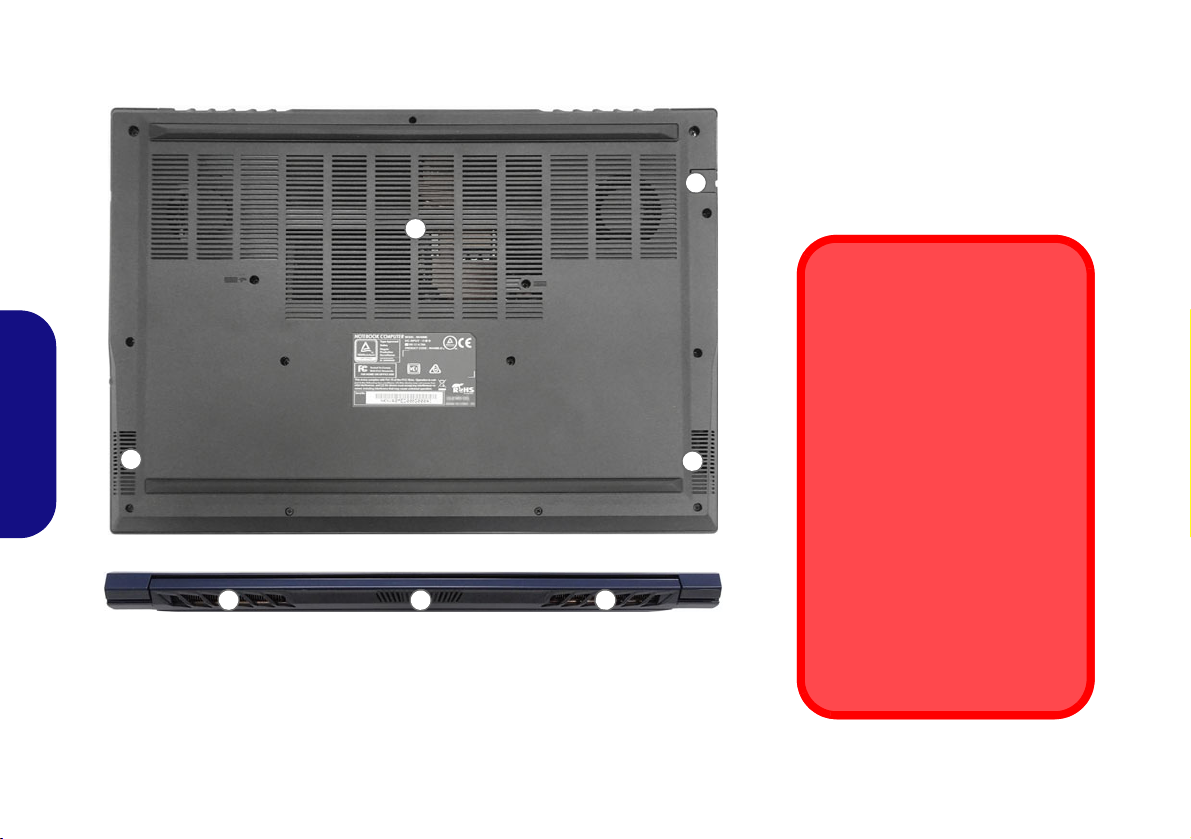

Figure 5

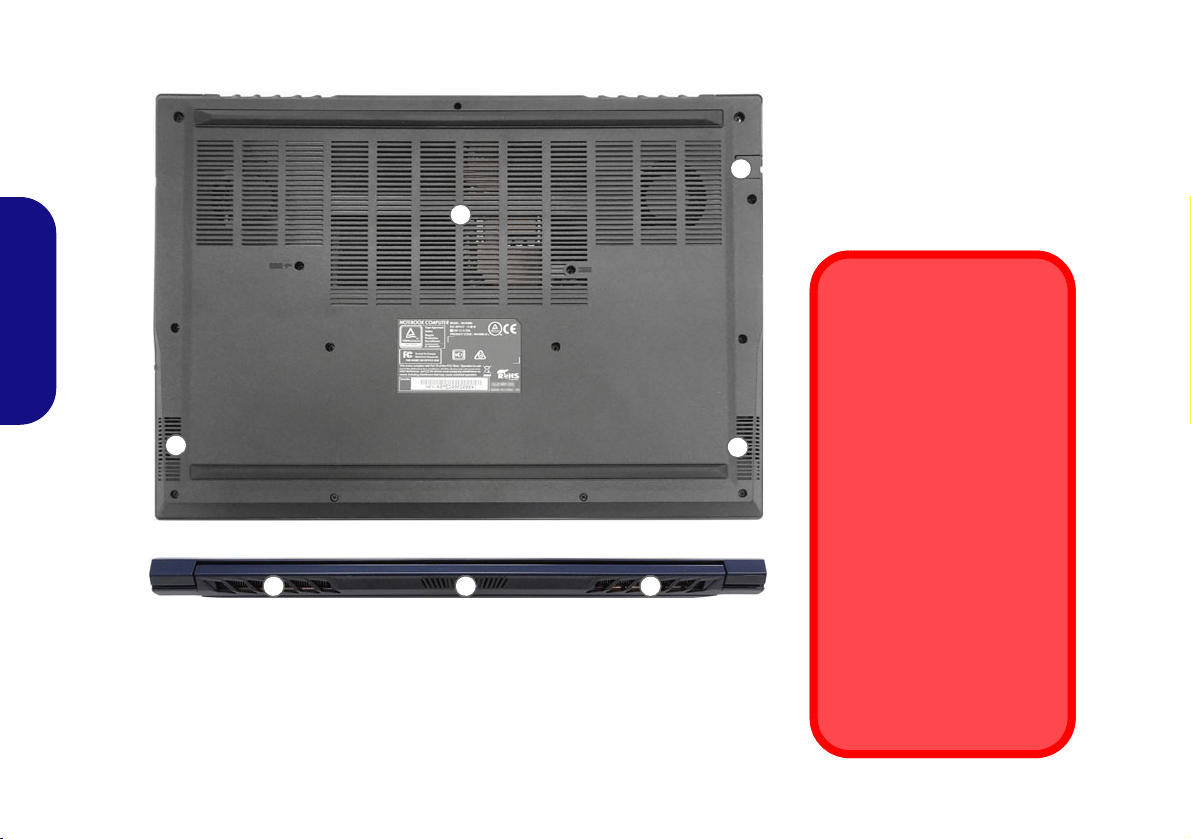

Bottom & Rear Views
1. Vent
2. RJ-45 LAN Jack
3. Speakers
3
1
3
1 11
2
English
10

Control Center

Run the Control Center from the Start menu in Windows . You can also press the Fn + Esc key com- bination, or double-click the icon in the notification area of the taskbar to access the Control Center. The Con-
trol Center provides quick access to Power Modes, Fan settings, LED Keyboard configuration (for the optional LED keyboard) and the Flexikey application.
English

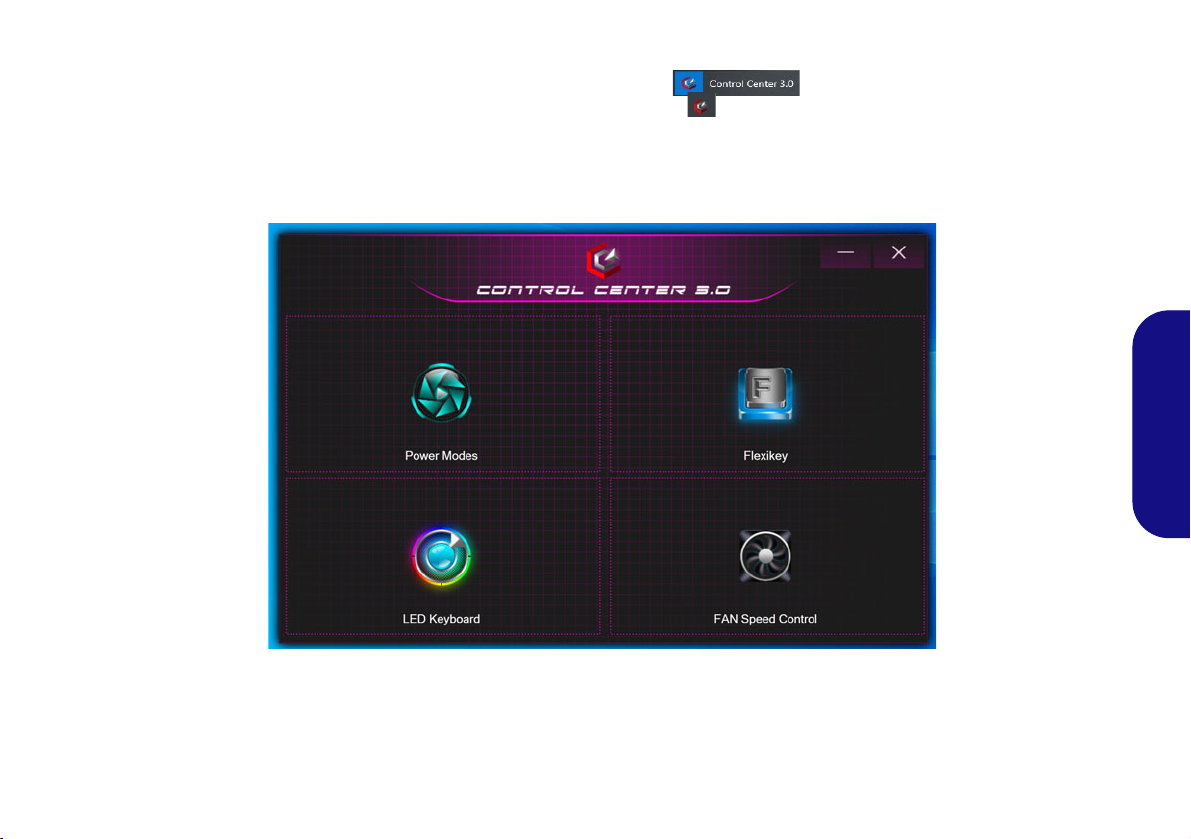

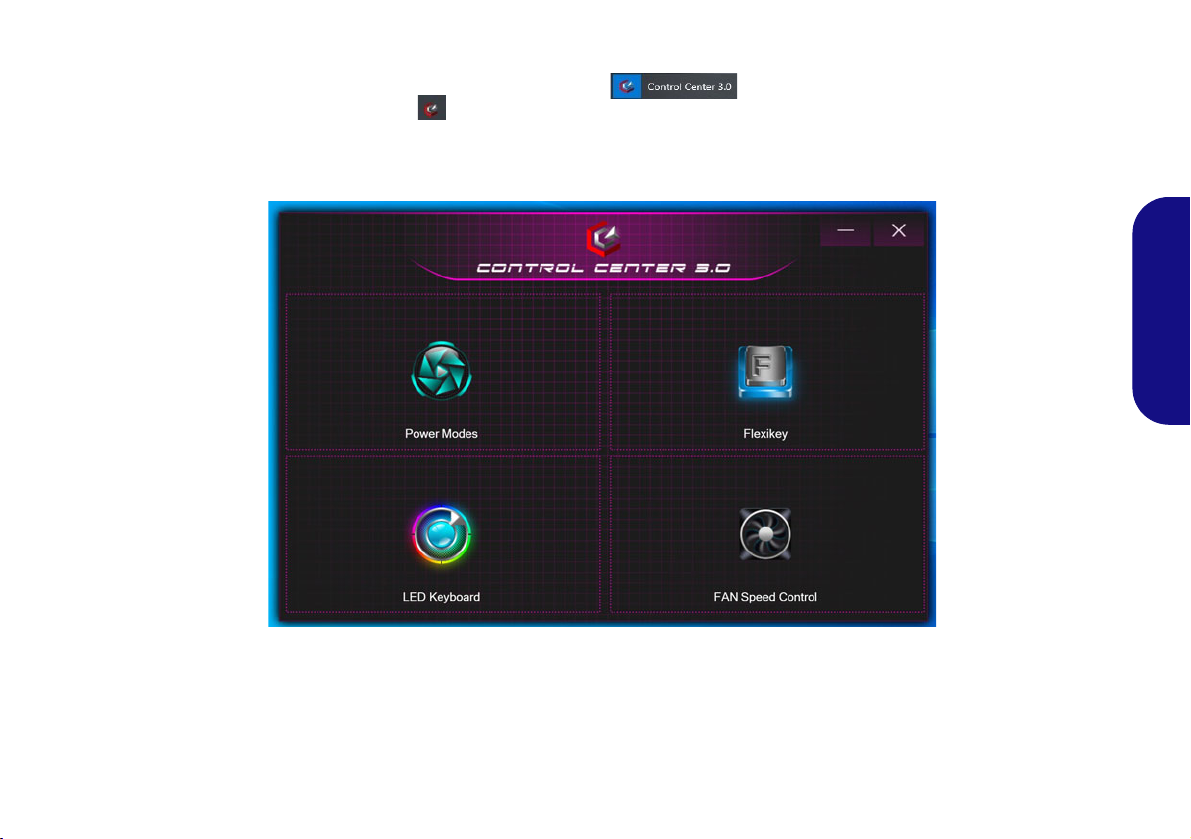

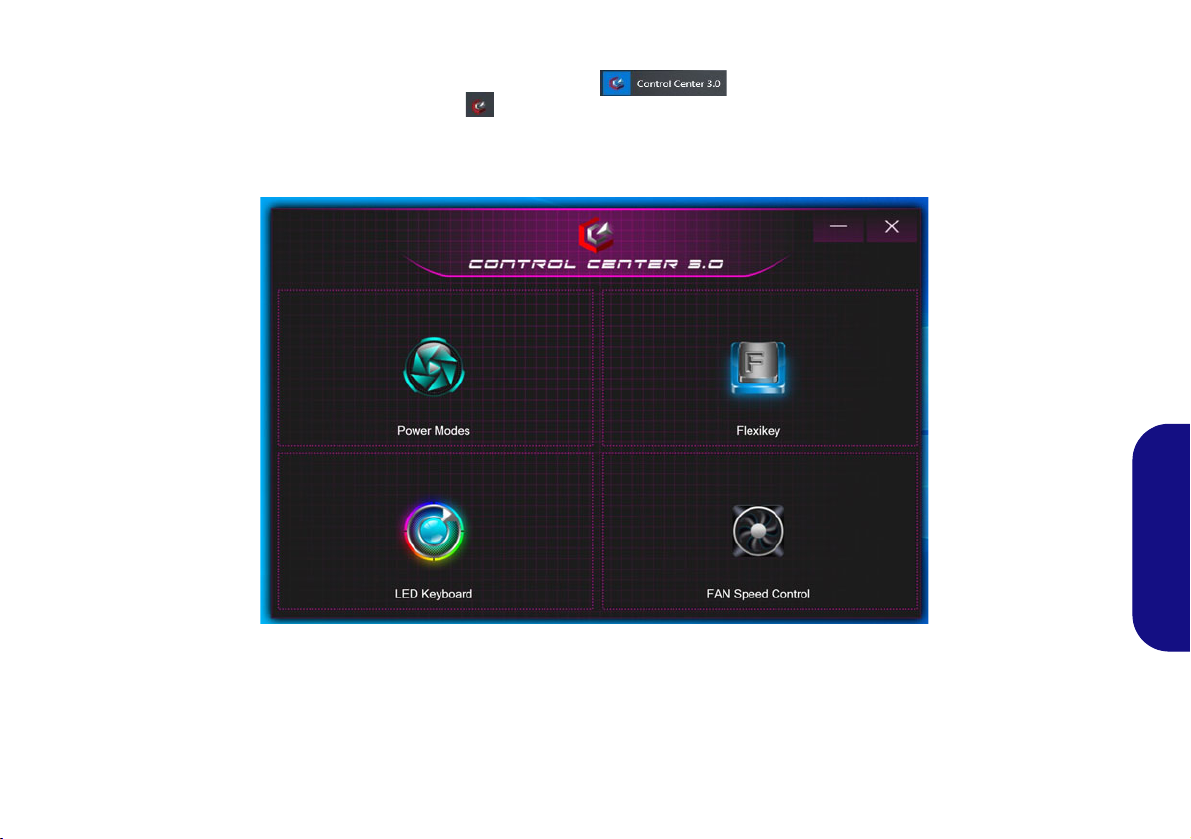

Figure 6 - Control Center
Note the LED Keyboard item will only appear for LED keyboards only.
11

Power Modes

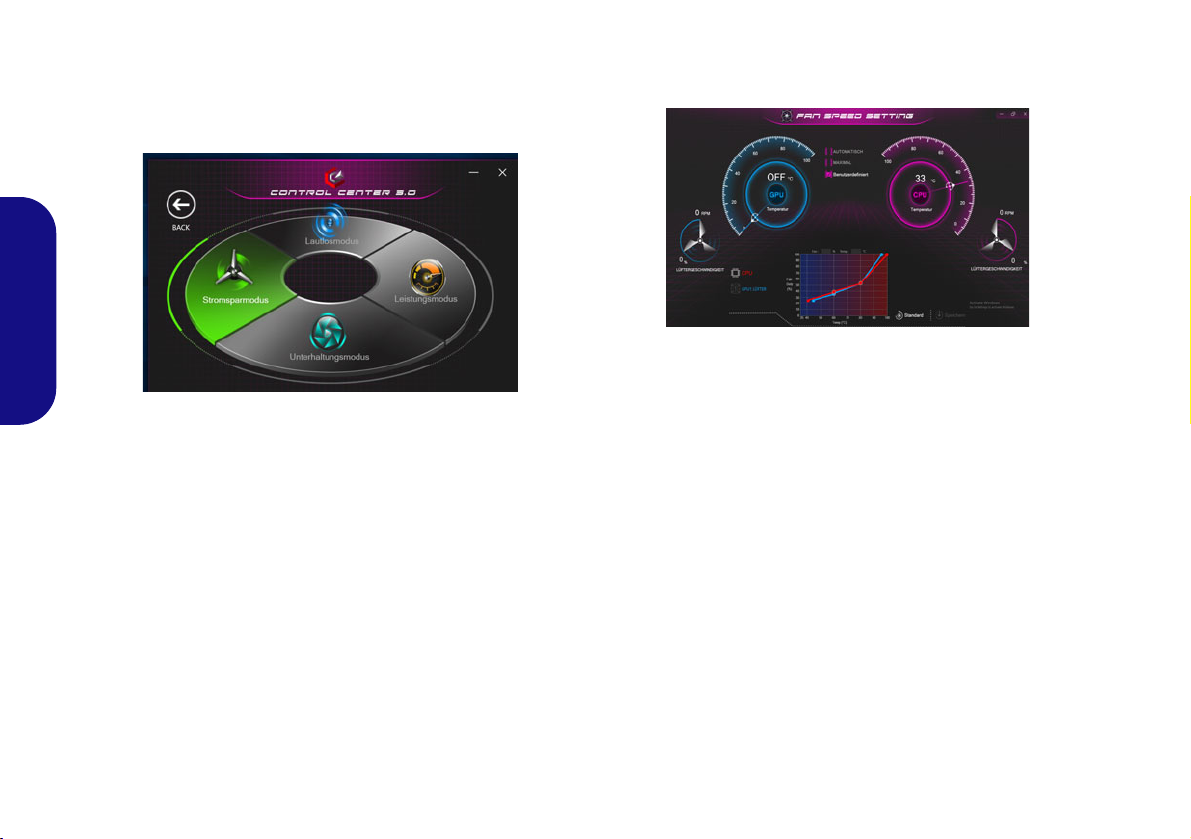

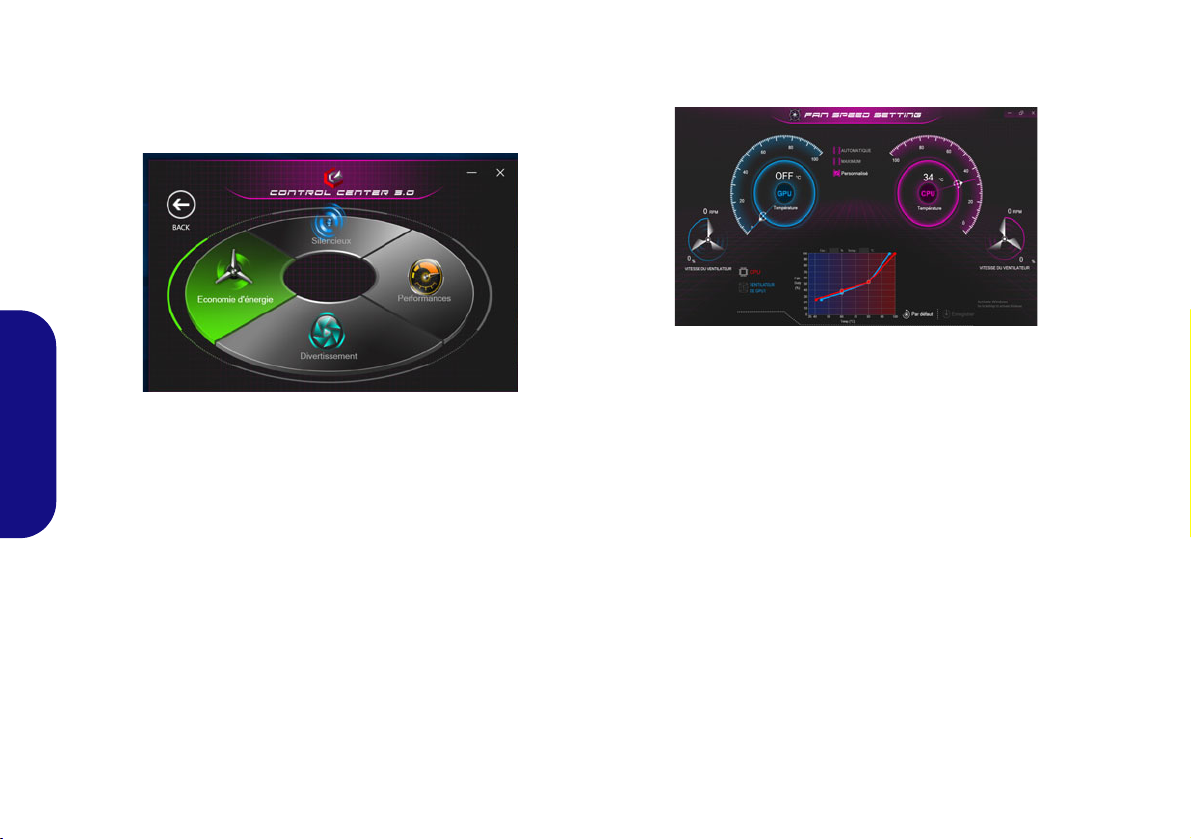

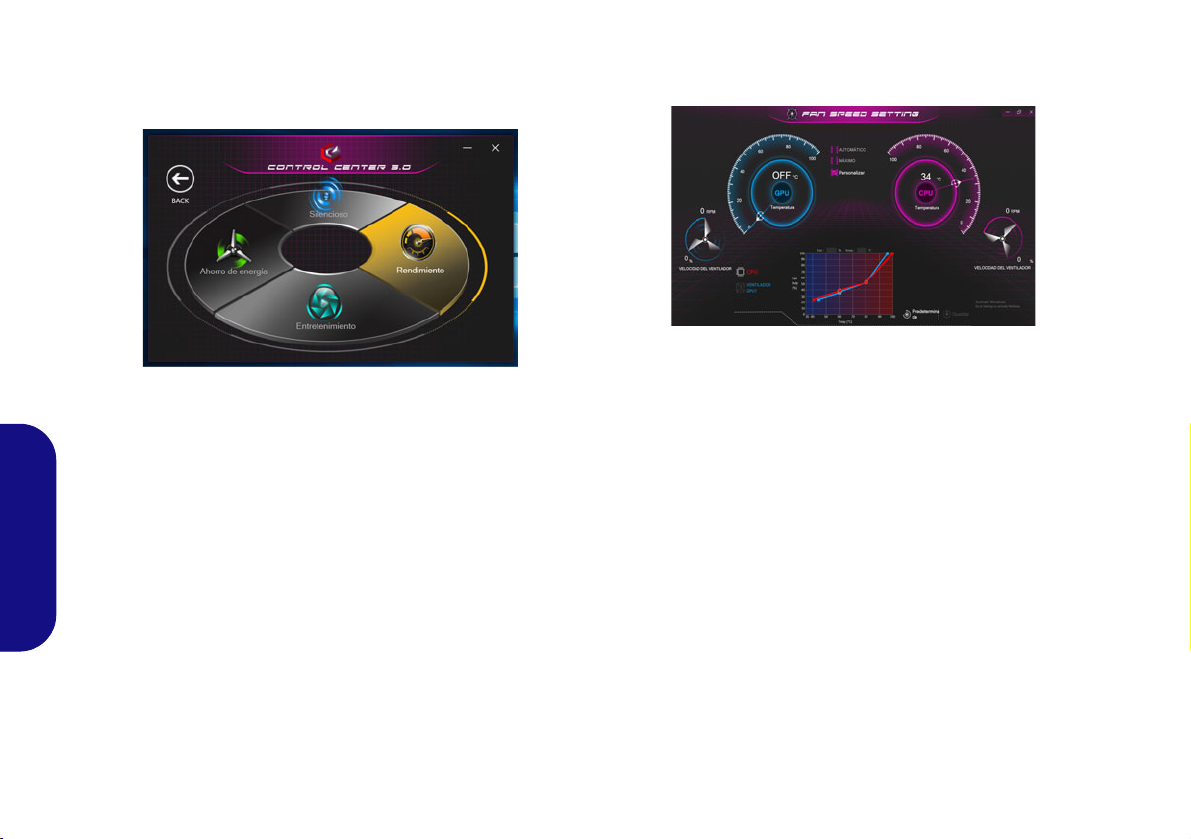

Figure 7 - Power Modes
Figure 8 - Fan Speed Control
Power Modes allows you to adjust the power mode by clicking the appropriate icon.
English
• Power Saving mode saves battery life (CPU Turbo Boost
will be on and dGPU Turbo will be off).
• Quiet mode focuses on reducing fan noise and will
decrease both CPU and GPU power.
• Entertainment mode balances CPU and GPU power and
is ideal for watching videos etc.
• Performance mode is ideal for gaming with higher CPU
and GPU performance.
Note: You can use the Fn + 3 key combination to quickly toggle through, and select, the Power Modes.

Fan Speed Control

You can set the fan speed to Maximum (full power), Au- tomatic/Slient or Custom. The fan speed will adjust itself
automatically to control the heat of the CPU/GPU. You can use the Offset slider to adjust the settings to your pref­erence. However you can adjust the setting to Maximum if you prefer.
The Custom setting allows you to click and drag on any of the 2 midrange nodes on the graph in order to adjust the temperature parameters of the CPU Fan or GPU Fan.
All these settings can be overidden by the system, as a safety precaution, if it requires heavier use of the fan.
12

Flexikey® Application

Enabling or Disabling the Flexikey® Profile in Use

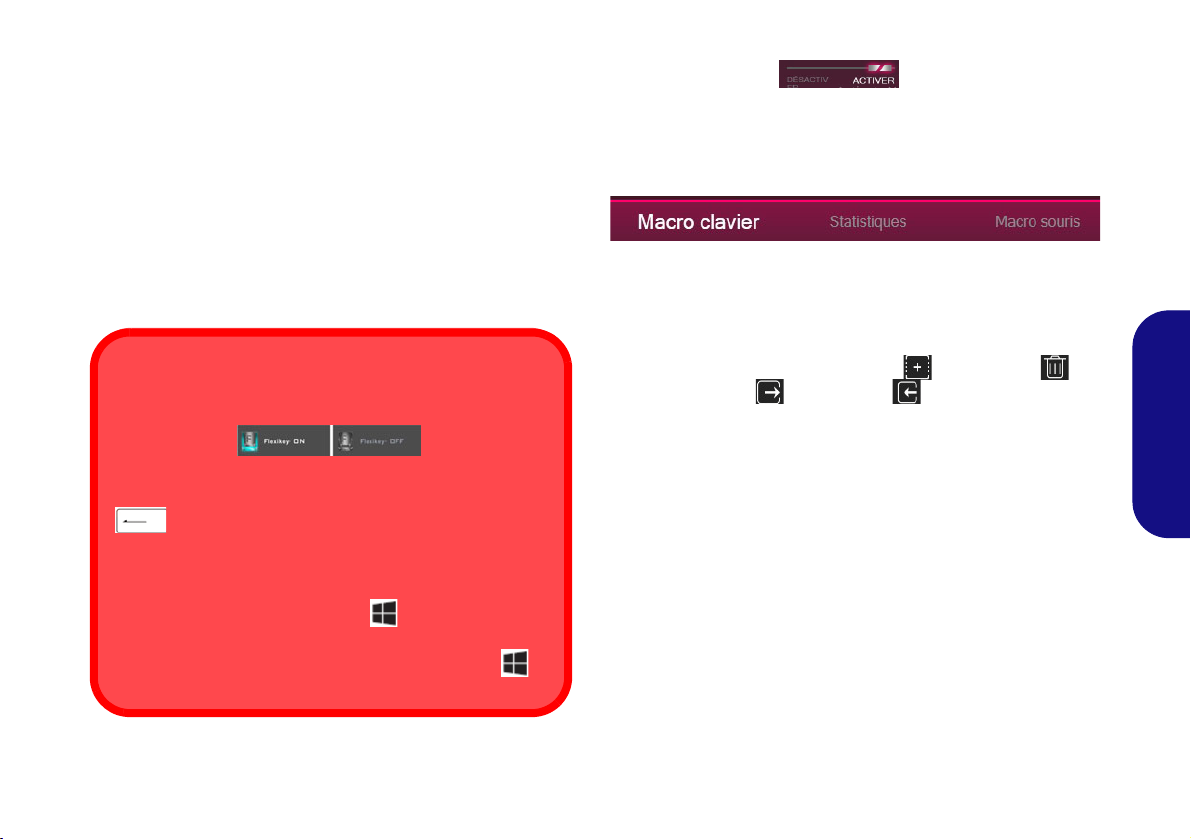

You can enable or disable any keyboard or mouse profile functions currently in use by using the Fn + key combination. Pressing this key combination will toggle you between the currently selected keyboard or mouse profile to the standard keyboard and/or mouse settings, and back again.
Windows Logo Key and P key
Note that you can assign actions to any keyboard key ex­cept the Windows Logo Key and P key.
The Flexikey® application is a quick hotkey configura­tion application, which allows you to assign a single key to launch multiple key combinations, or to create text macros and to disable certain keys. The application can also be used to configure the mouse buttons to create hotkeys for gaming etc.

Keyboard and Mouse Settings

Click Enable (at the bottom right of the ap­plication window) to create settings for the keyboard and/ or mouse. Clicking on Keyboard Macro or Mouse Mac-
ro will allow you to access the settings page for either the
keyboard or mouse.
English
Click Flexikey in the Control Center to access the Flexikey® application.
Figure 9 - Enable (Keyboard Macro & Mouse Macro)

Profiles

The controls at the top right side of the application relate to Profiles. You can Add /Delete profiles, Export
and Import profiles by clicking on the appropriate
icon. If you double-click on a profile you can change the profile name. If you double-click on a profile you can change the profile name, and change an image file (images created using PNG files).
13

Flexikey® Application Features:

123
4
5
1
2
3
4
5
• Express Key - This feature allows you to configure a sin-
gle key (or mouse click) to send multiple key combina­tions, or to create more useful shortcut keys This is useful in gaming or when using applications which have a com­plex set of keyboard shortcuts.
• Express Text - With this you can assign single keys (or
mouse clicks) to send commonly used strings of text.
• Disable - Use this function to disable any keyboard keys or
English
mouse buttons.
Keyboard Settings
The keyboard settings allow you to configure actions for any single key (or a combination of keys). Click the key and then select the action type (Express Key, Express Text or Disable) from the menu at the top of the page.
Mouse Settings
The mouse settings allow you to configure actions for the left , right and middle buttons of any attached mouse, and also for any forward and backward buttons if applicable (on a gaming type mouse). Click the button number and then select the action type (Express Key, Express Text or Disable) from the menu at the top of the page.

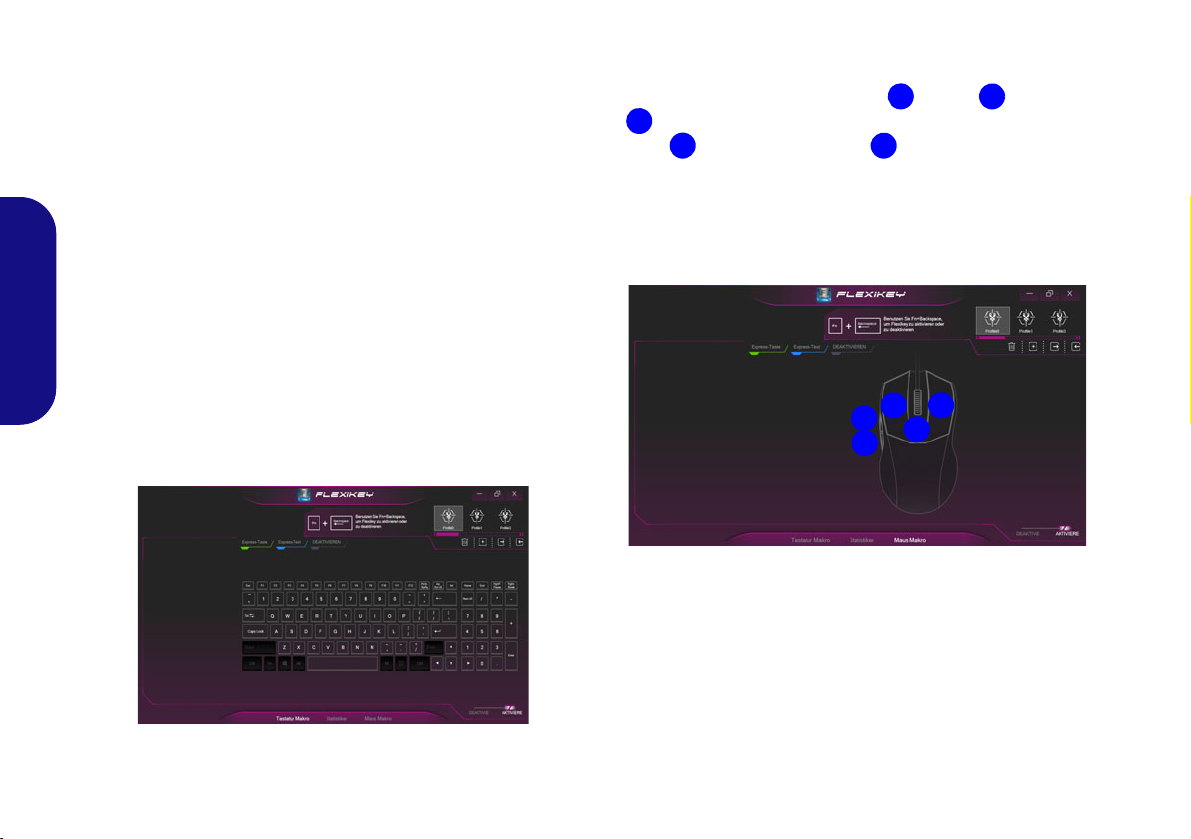

Figure 11 - Mouse Configuration
Figure 10 - Keyboard Configuration
14

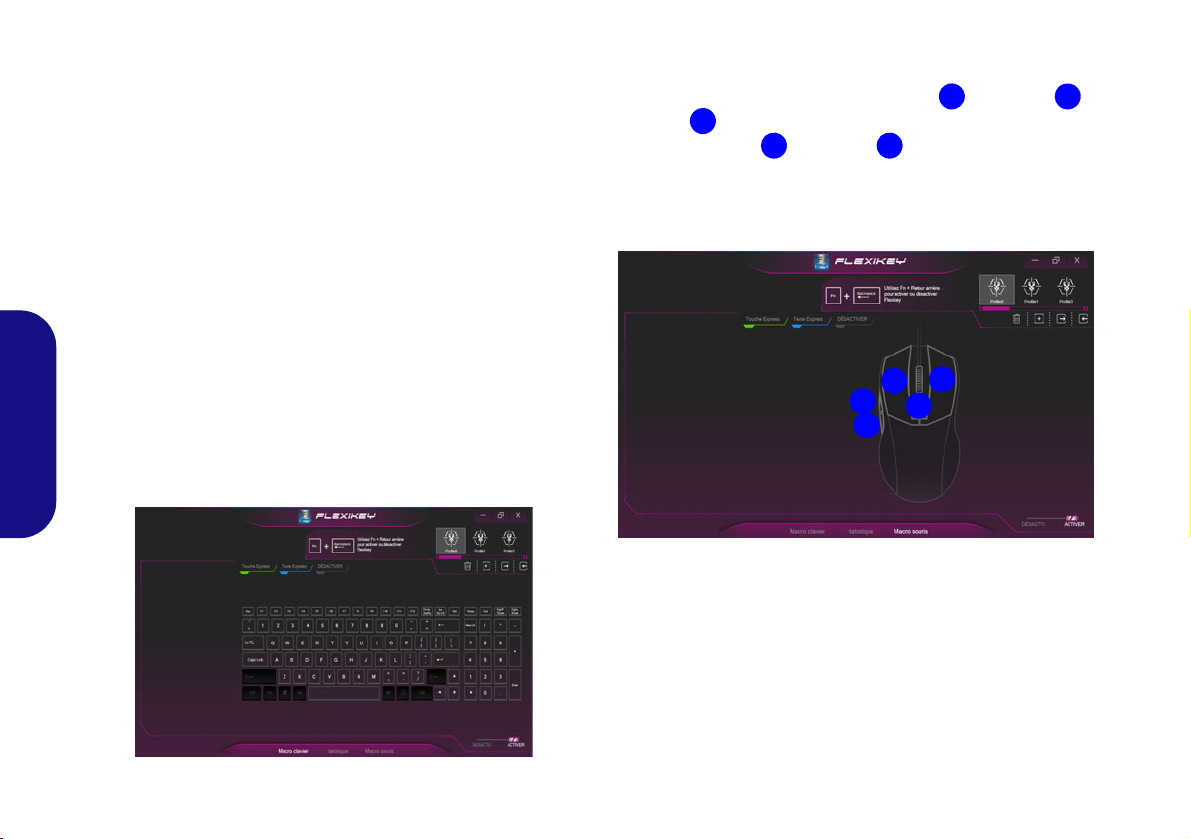

Keyboard Settings - Express Key
To configure a single key to send multiple key combina­tions, or to create more useful shortcut keys, use Express Key.
1. Enable and select Keyboard Macro under your chosen profile,
click on the chosen key to select it, and then click to select Express Key.
2. In the following example we want to change an existing game
key configuration which uses the left shift key for sprinting, and the W key for moving forwards, to use the 1 key to combine this movement to sprint forward.
3. Click the Record keys (in this case we will press Left Shift and W) required (make sure you press the key(s) required and do not click on them).
4. Click the Record and stop recording.
5. If you want to remove any individual key click to select it, and then click Restore.
6. Any assigned Express Keys will appear in green.
button and then press the key or
button again to complete the process
Keyboard Settings - Express Text
A single key can be set to send a string of text within any application using Express Text.
1. Enable and select Keyboard Macro under your chosen profile, click to select a key, and then click to select Express Text.
2. Click the Record (the Start key is the key used in your target program to open a text message).
3. Click in the Text Content field and type in your message and click Save.
button in Start key and press a key
4. Click the Record (the Send key is the key used in your target program to send a text message e.g the Enter key would be the most commonly used).
5. The key will now be configured to send the text message in the target program under your chosen Profile, and the key will appear in blue.
6. If you want to remove any Express Text key, select it and click on Restore.
button in Send key and press a key
Keyboard Settings - Disable
You can use the program to disable any keys not required.
1. Enable and select Keyboard Macro under your chosen profile, click to select a key to disable, and then click to select Disable.
2. The key will now be disabled.
3. If you want to enable the key again, select it and click on Restore.
4. The key will be disabled under your chosen Profile, and the key will appear in gray.
English
15

White-LED Keyboard (Option)

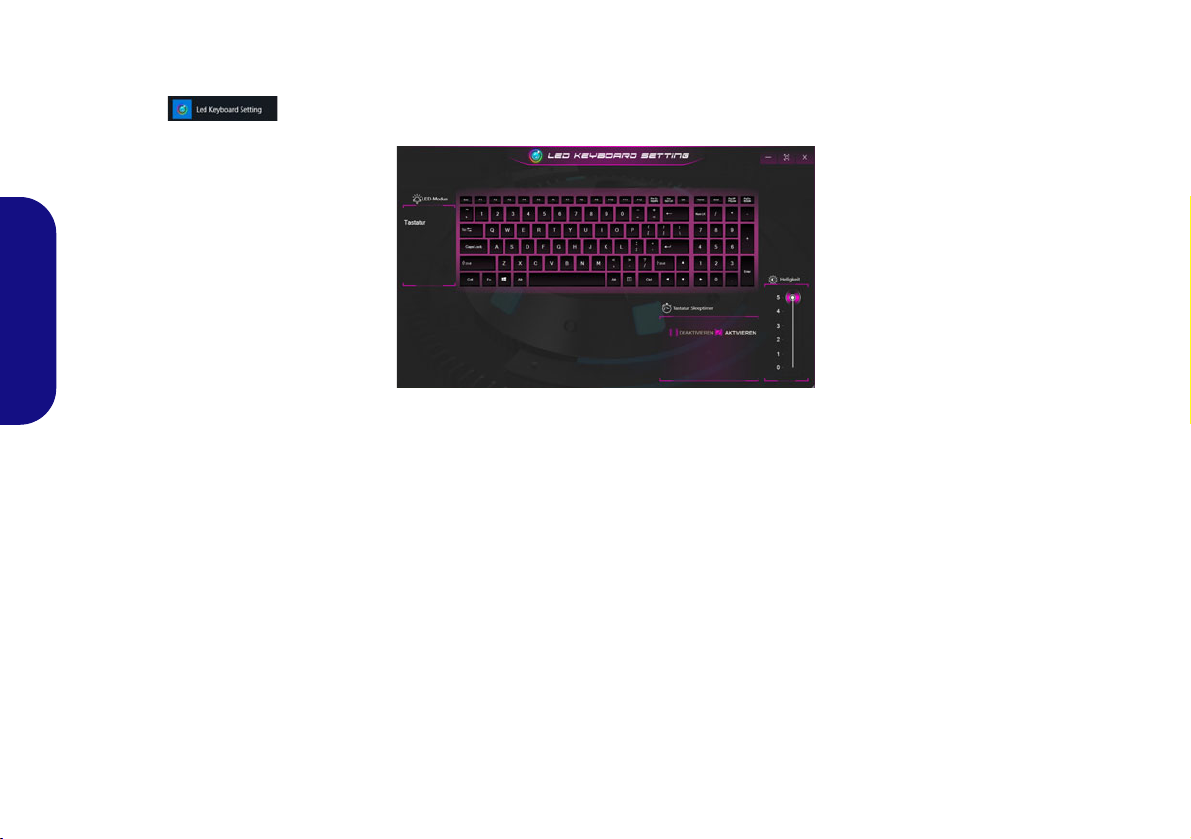

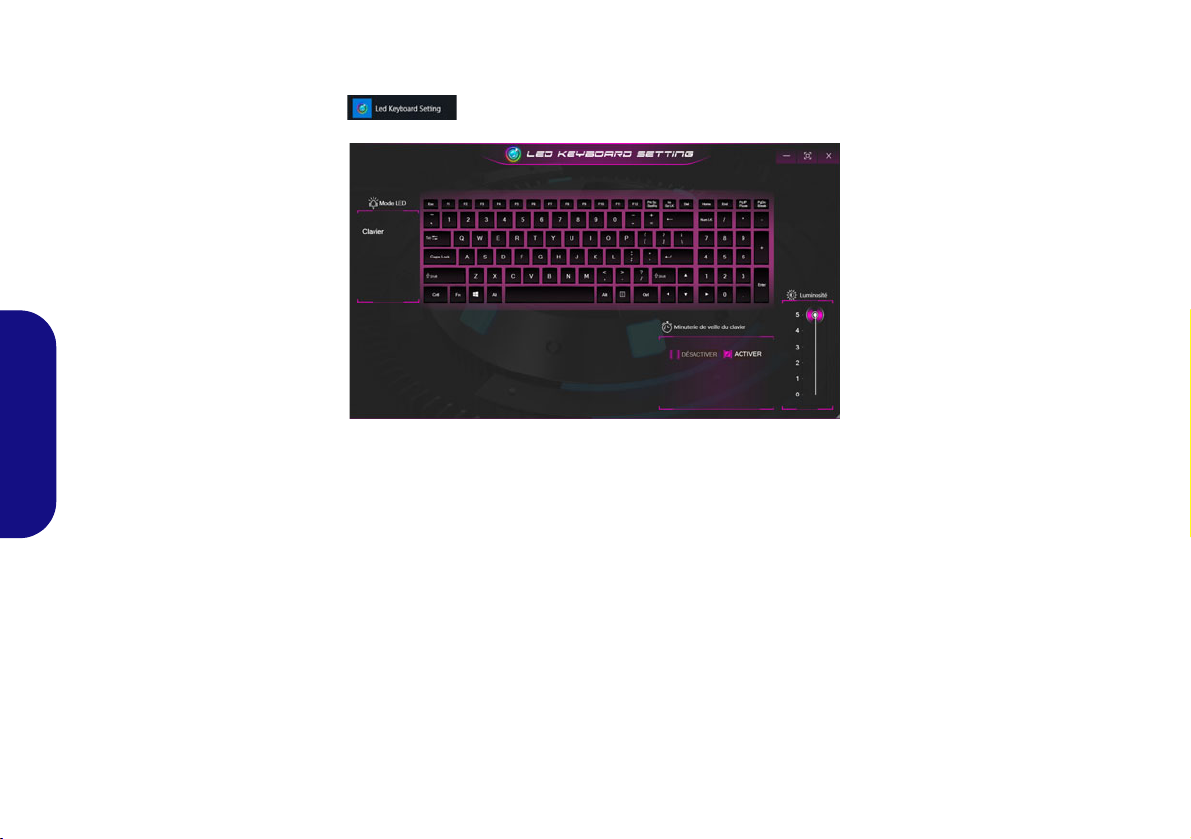

Figure 12 - LED Keyboard Application
The LED Keyboard application can be accessed by clicking LED Keyboard in the Control Center or from the Start menu in Windows .
English

KB Sleep Timer

Enable and then select the amount of time for which the system is idle before the keyboard LED enters sleep mode (i.e. the LED keyboard illumination will turn off to save power).

KB Brightness

You can adjust the keyboard brightness using the Brightness slider.
16
Windows 10 Start Menu, Context Menu,
Figure 13
Start Menu,
Context Menu,
Taskbar, Con­trol Panel and
Settings
Taskbar, Control Panel and Settings

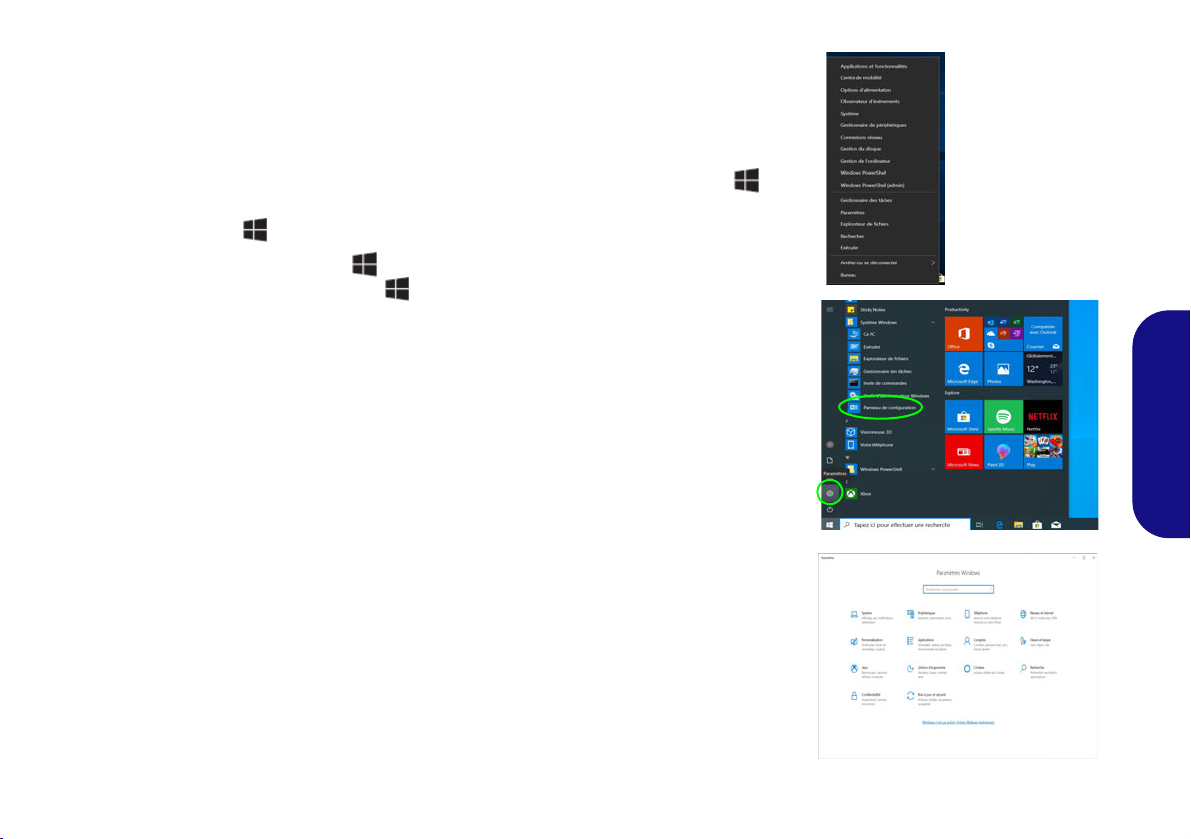

Most of the apps, control panels, utilities and programs within Windows 10 can be accessed from the Start Menu by clicking the icon in the taskbar in the lower left corner of the screen (or by pressing the Windows Logo Key on the key­board).

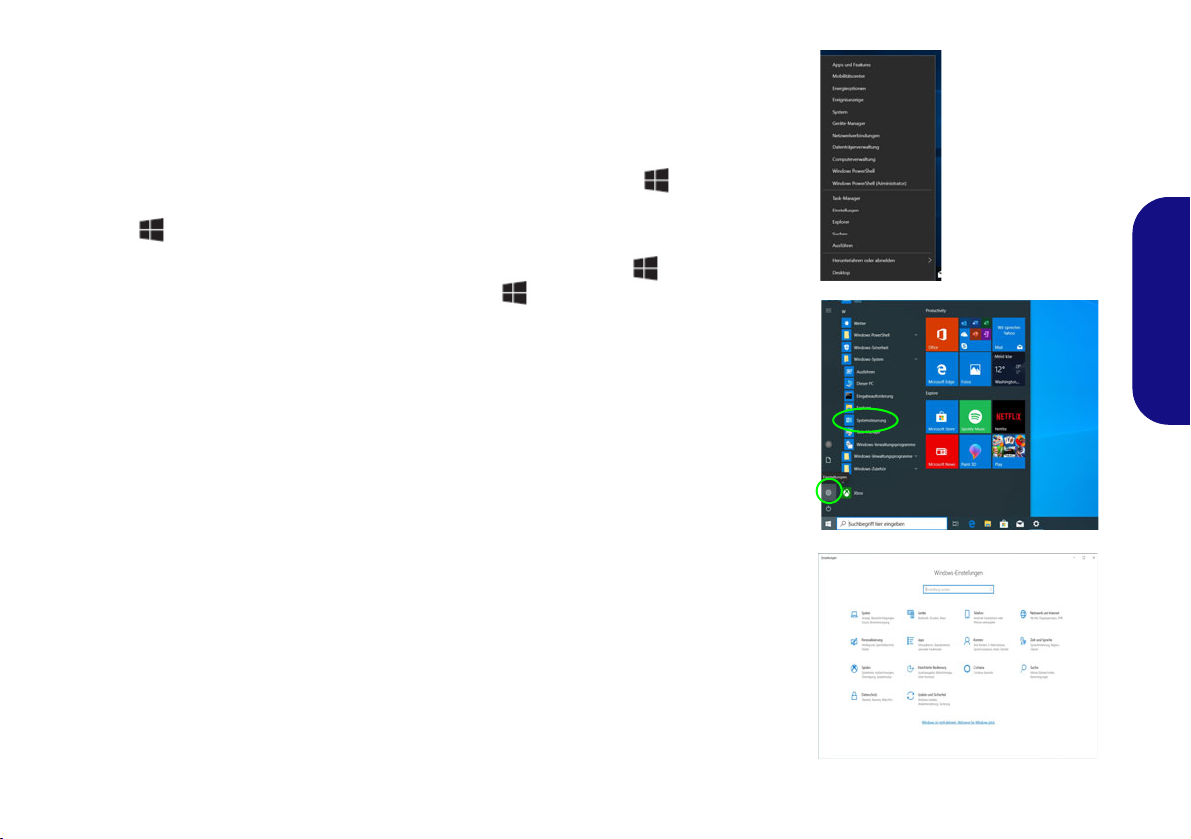

Right-click the Start Menu icon (or use the Windows Logo Key + X key combination) to bring up an advanced Context Menu of useful features such as Apps and Features, Power Options, Task Manager, Search, File Explorer, Device Manager and Network Connections etc.
The notification area of the taskbar is in the bottom right of the screen. Some of the control panels and applications referred to throughout the course of this manual can be accessed from here.
Throughout this manual you will see an instruction to open the Control Panel. To access the Control Panel, select Control Panel under the Windows System item in the Start Menu.
The Settings item in the Start Menu (and also as an App) gives you quick access to a number of system settings control panels allowing you to adjust settings for Sys­tem, Devices, Phone, Network & Internet, Personalization, Apps, Accounts, Time & Language, Gaming, Ease of Access, Search, Cortana, Privacy and Update & Se­curity.
English
17

Video Features

Figure 14
Project
The system features both an Intel’s Integrated GPU (for power-saving) and an NVIDIA’s discrete GPU (for per­formance). You can switch display devices, and configure display options as long as the video drivers are installed.

Microsoft Hybrid Graphics

Microsoft Hybrid Graphics is a seamless technology
English
designed to get best performance from the graphics sys­tem while allowing longer battery life, without having to manually change settings. The computer’s operating sys­tem (and some applications) will automatically switch between the integrated GPU and the discrete GPU when required by the applications in use.

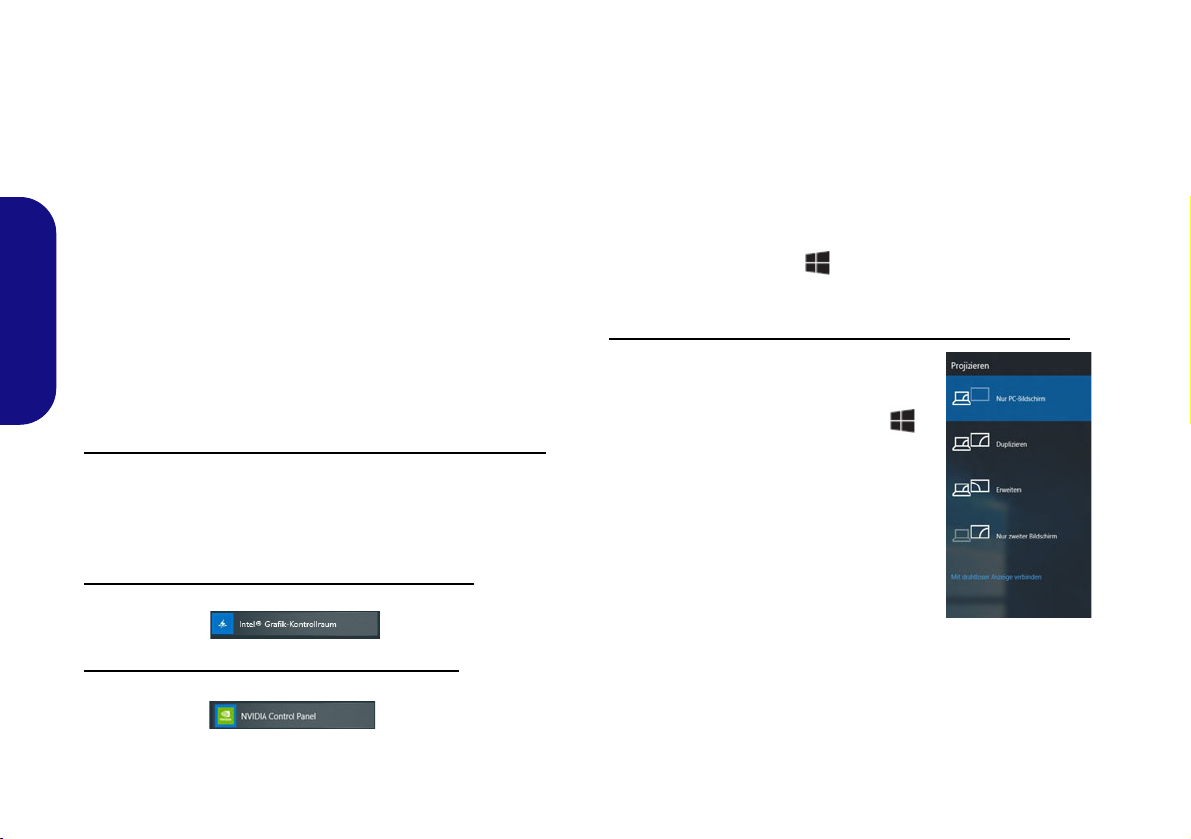

To access the Display control panel in Windows:
1. Right-click the desktop and select Display settings from the
menu.
2. Choose the required display settings from the menus.
To access the Intel® Graphics Command Center:
1. Access the Intel® Graphics Command Center from the Start
menu in Windows .

Display Devices

Note that you can use external displays connected to the HDMI-Out port and/or Thunderbolt 4 port. See your dis­play device manual to see which formats are supported.
In Windows it is possible to quickly configure external displays from the Project menu (press the Windows Logo Key and the P key or press the Fn + F7 key combination).

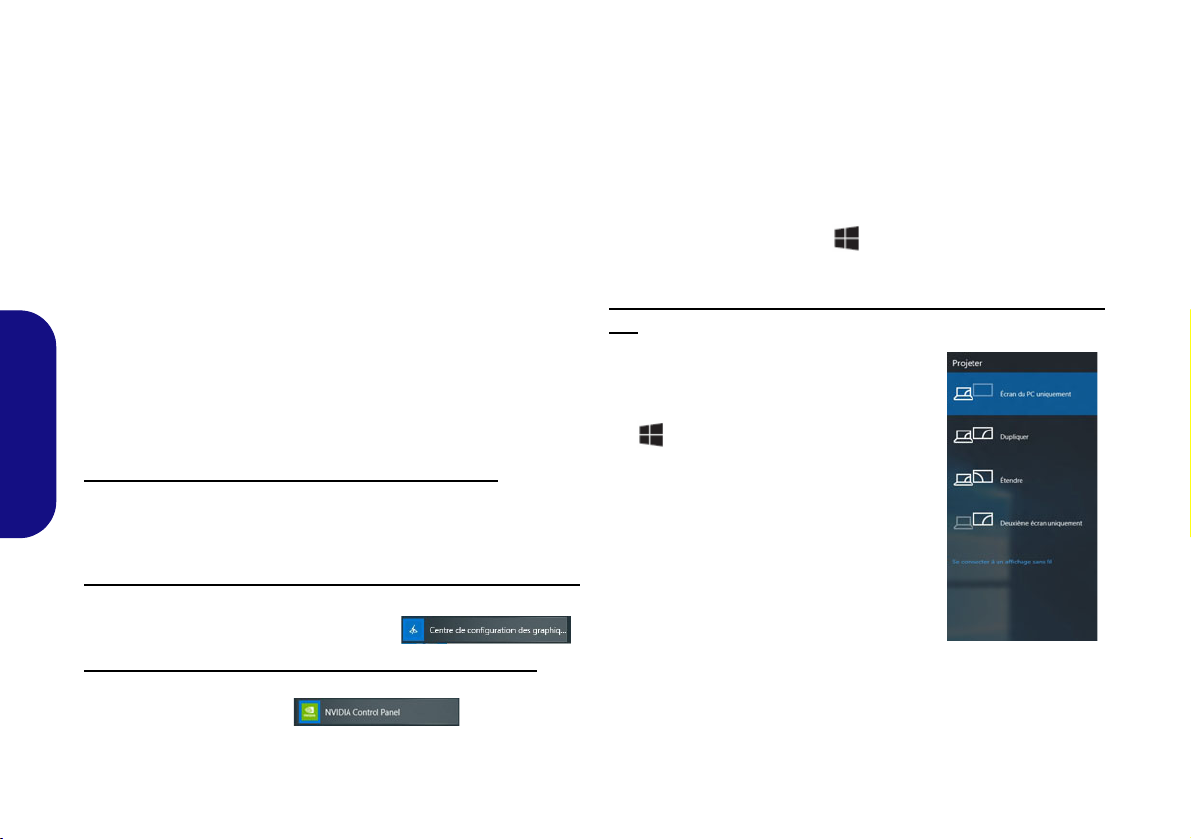

To configure the displays using the Project menu:
1. Attach your external display device to the appropriate port, and then turn it on.
2. Press the + P (or Fn + F7) key combination.
3. Click on any one of the options from the menu to select PC screen only,
Duplicate, Extend or Second screen only.
4. You can also click Connect to a wireless display at the bottom of the Project screen and follow the steps to
connect to any wireless enabled display.
To access the NVIDIA Control Panel:
1. Access the NVIDIA Control Panel from the Start menu in Win­dows .
OR
2. Right-click the desktop and select NVIDIA Control Panel from the menu.
18

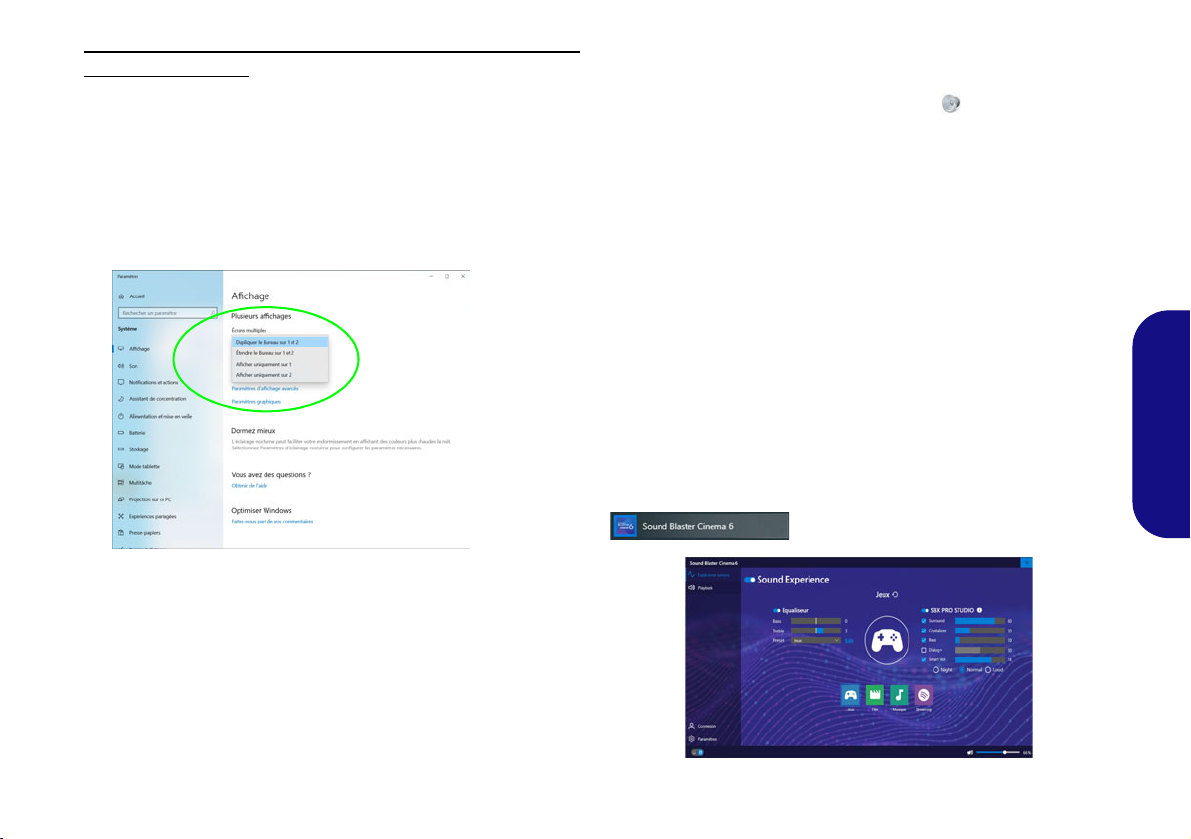

To configure the displays using the Display control panel:

Figure 15
Display
(Multiple
displays)
1. Attach your external display(s) to the appropriate port, and turn it(them) on.
2. Right-click the desktop and select Display settings from the menu.
3. Click the Detect button.
4. The computer will then detect any attached displays.
5. You can configure up to 3 displays from the Multiple displays menu.

Audio Features

You can configure the audio options on your computer from the Sound control panel in Windows.
The volume may be adjusted by means of the Fn + F5/F6 key combination. The sound volume level can also be set using the volume control within Windows. Click the Speaker icon in the taskbar to check the setting.

Sound Blaster Cinema 6

The Sound Blaster Cinema 6 application allows you to configure the audio settings to your requirements for the best performance in games, music and movies.
Sound Blaster Cinema 6 Application
Run the Sound Blaster Cinema 6 control panel from the Start menu in Windows .
English

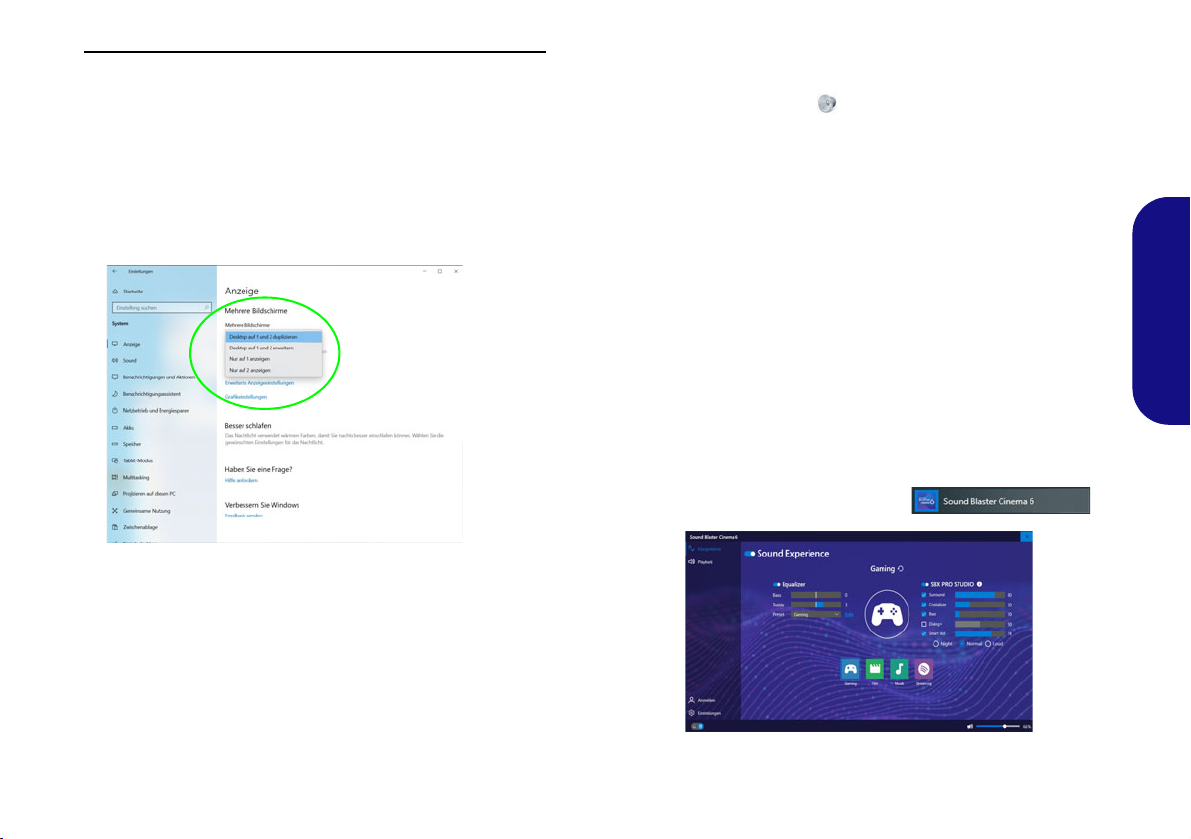

Figure 16 - Sound Blaster Cinema 6
19

Power Options

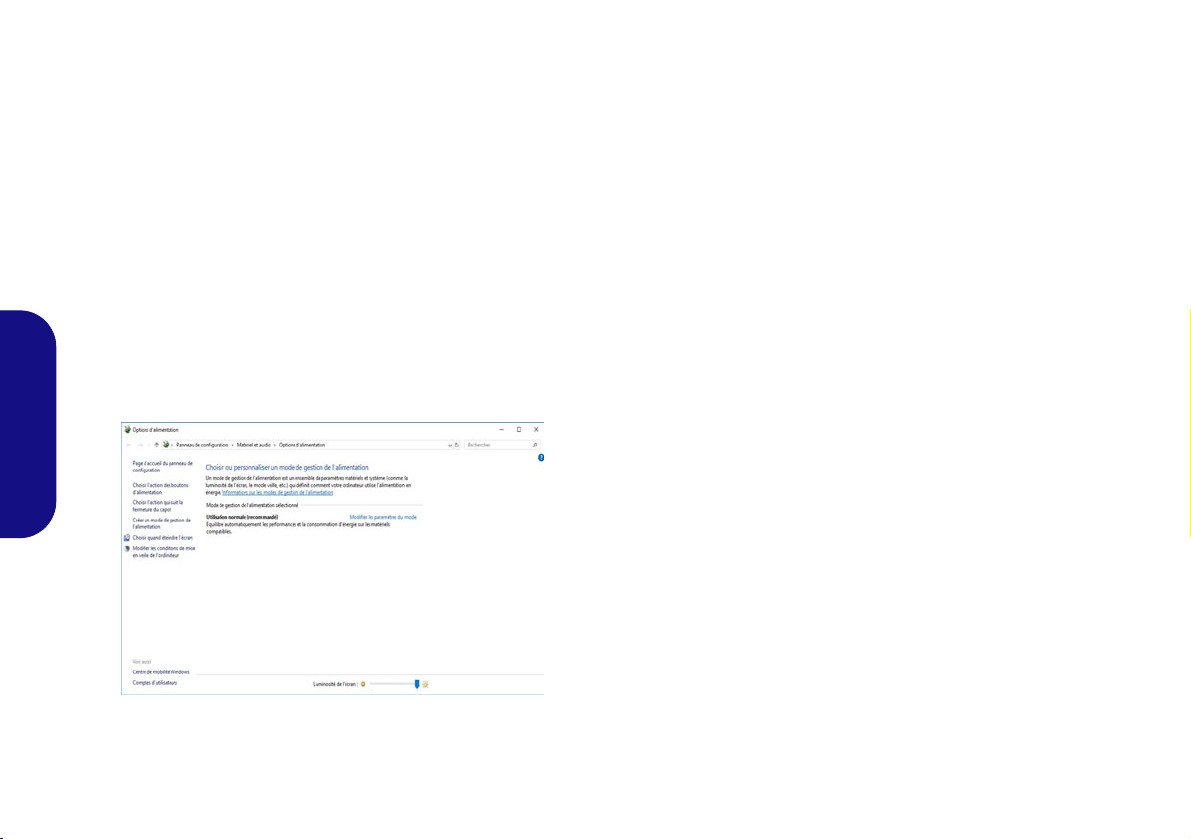

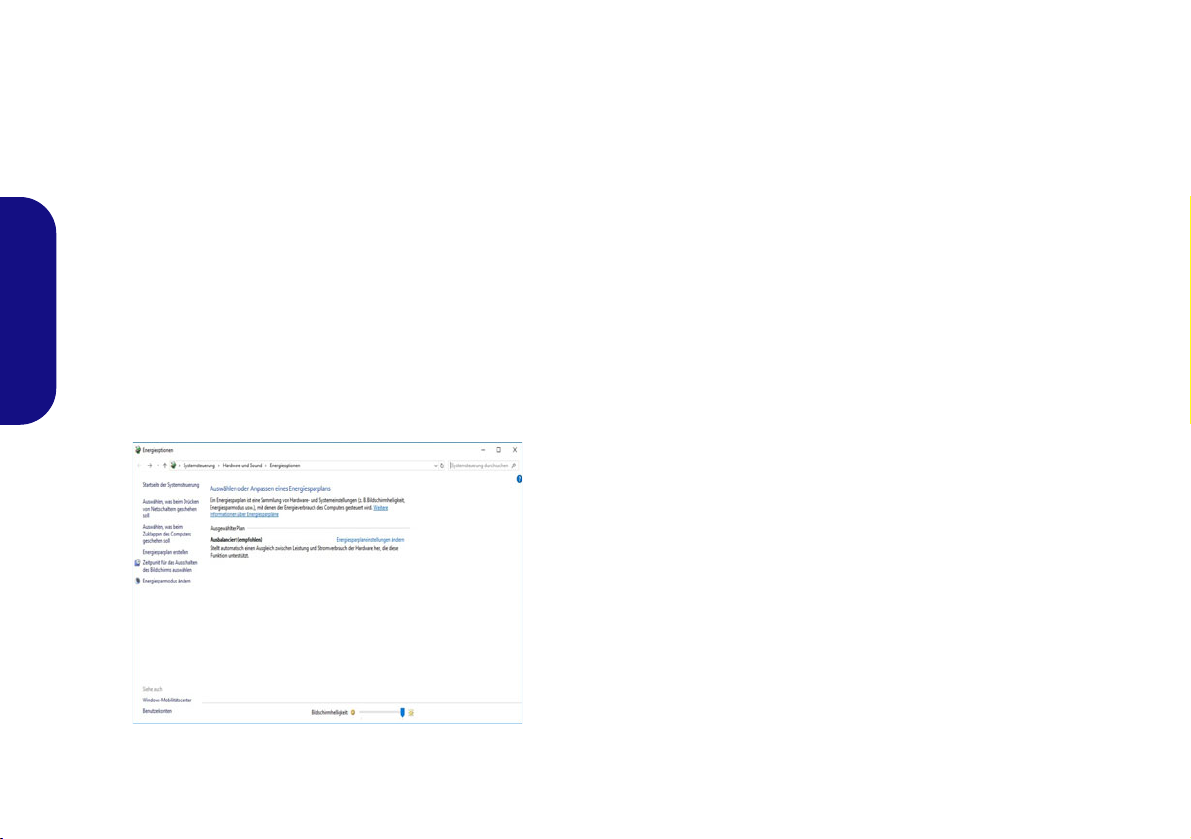

Figure 17 - Power Options
The Power Options (Hardware and Sound menu) con­trol panel icon in Windows allows you to configure power management features for your computer. You can con­serve power by means of power plans and configure the options for the power button, sleep button (Fn + F12), computer lid (when closed), display and sleep mode (the default power saving state) from the left menu.
English
Click Create a power plan in the left menu and select the options to create a new plan. Click Change Plan Settings and click Change advanced power settings to access fur- ther configuration options.

Sleep (Modern Standby)

This system supports Sleep mode as Modern Standby. In this case the system will continue to download mail, Windows updates, calendar updates and even VoIP calls
via a Windows Store app, even when the system is in Sleep (Modern Standby) mode, in much the same way as
a smartphone.
In Sleep (Modern Standby) all of your work, settings and preferences are saved to memory before the system sleeps. When you are not using your computer for a certain length of time, which you specify in the operating system, it will enter Sleep (Modern Standby) to save power.
The PC wakes from Sleep (Modern Standby) within seconds and will return you to where you last left off (what was on your desktop) without reopening the appli­cation(s) and file(s) you last used.
20

Driver Installation

Driver Installation & Power
When installing drivers make sure your computer is powered by the AC/DC adapter connect­ed to a working power source. Some drivers draw a significant amount of power during the in­stallation procedure, and if the remaining battery capacity is not adequate this may cause the system to shut down and cause system problems (note that there is no safety issue involved here, and the battery will be re­chargeable within 1 minute).

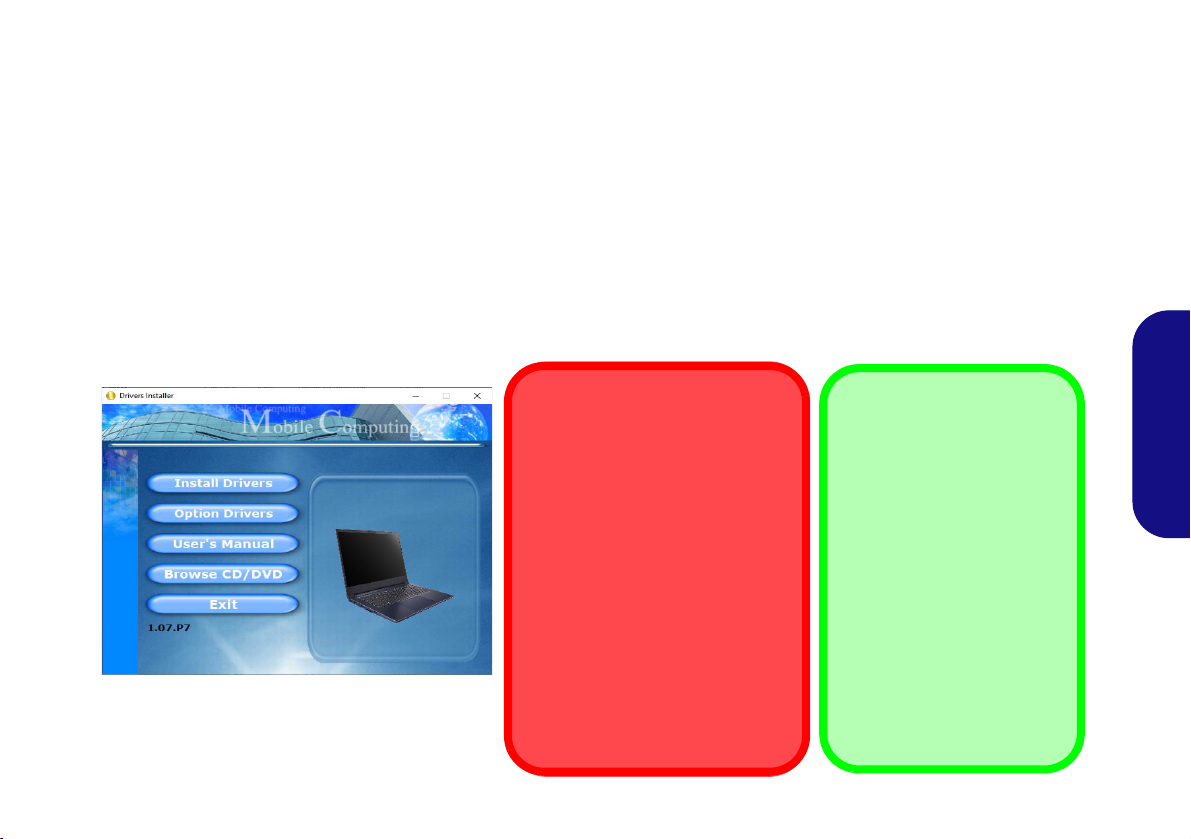

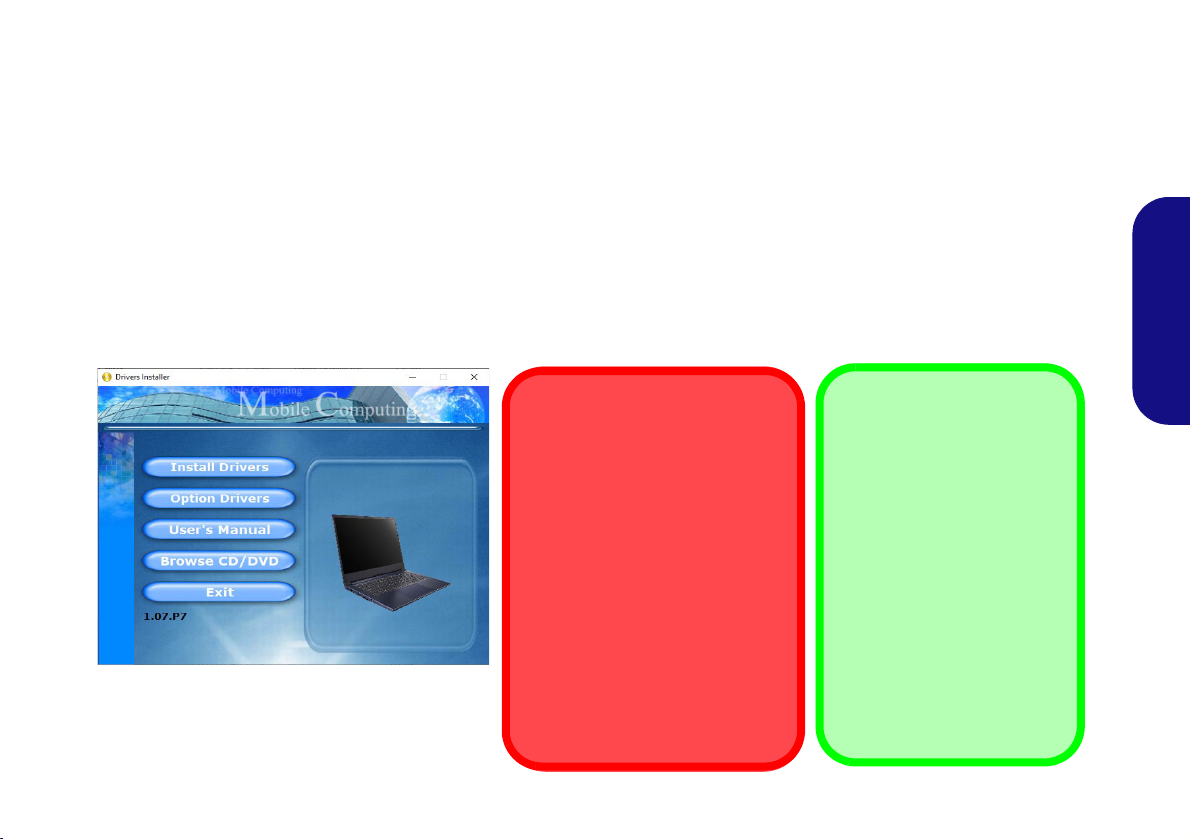

Figure 18 - Install Drivers
Driver Installation
General Guidelines
As a general guide follow the default on-screen in­structions for each driver (e.g. Next > Next > Fin- ish) unless you are an advanced user. In many cases a restart is required to install the driver.
Make sure any modules (e.g. WLAN or Bluetooth) are ON before installing the appropriate driver.
The Device Drivers & Utilities + User’s Manual disc contains the drivers and utilities necessary for the proper operation of the computer. This setup will probably have already been done for you. If this is not the case, insert the disc and click
Install Drivers (button), or Option Drivers (button) to access the Optional driver menu. Install the drivers in the or- der indicated in Figure 18. Click to select the drivers you wish to install (you should note down the drivers as you install them). Note: If you need to reinstall any driver, you should uninstall the driver first

Latest Updates

After installing all the drivers make sure you enable Check for updates (Settings > Update & Security > Check for updates) and go to the Microsoft Store and click Downloads and updates > Get updates to update all Apps etc.
.
English
21

Wireless LAN Module (Option)

Make sure the Wireless LAN module is turned on (and not in Airplane Mode) before configuration begins.

Bluetooth Module (Option)

Make sure the Bluetooth module is turned on (and not in Airplane Mode) before configuration begins.

WLAN Configuration in Windows

1. Click the icon in the notification area of the taskbar.
2. A list of available access points will appear.
3. Double-click an access point to connect to it (or click it and click
English
Connect).
4. Enter a network security key (password) if required, and click Next.
5. You can choose to find other devices or not.
6. When you are connected to the network access point it will display Connected.
7. Select any connected network and click Disconnect to disconnect from a connected access point.
8. You can click the Airplane Mode button to turn the mode On or Off.
9. Alternatively you can click the Wi-Fi button to turn just the Wi-Fi On or Off.

Bluetooth Configuration in Windows

1. Click the Settings item in the Start Menu and then click Devices.
2. Click Bluetooth & other devices.
3. Click Add Bluetooth & other device > Bluetooth and a list of
discovered devices will appear.
4. Double-click the device you want to pair with the computer and
click Connect.
5. Select a device and click Remove Device > Yes to disconnect
from any device.
22
Windows Hello Camera (Op-
Figure 19
Windows Hello (Face Recogni-
tion)
Windows Hello Camera and Power-Saving
If you turn off the Camera (e.g. by using the Fn + F10 key combination or Control Center icon) then the facial recog­nition system will not function.
If the system enters and resumes from Hibernate, is re­started, or is shut down and restarted with the camera turned off, then the facial recognition system will not func­tion.
tion)
The Windows Hello camera is compatible with the Win­dows Hello facial recognition system. The Windows
Hello camera provides a user-friendly interface with a sin­gle form of verification to log on to your computer.
The Windows Hello camera module uses the Sign-in op- tions configuration of the Windows Account.
Windows Hello Camera Module Config­uration
1. Before setting up the facial recognition system make sure that:
• The system is powered by the AC/DC adapter (if the system is
powered by the battery then facial recognition will not work).
• If you are a glasses wearer then it is recommended that you
remove your glasses in order to prevent reflection problems hampering the facial recognition system.

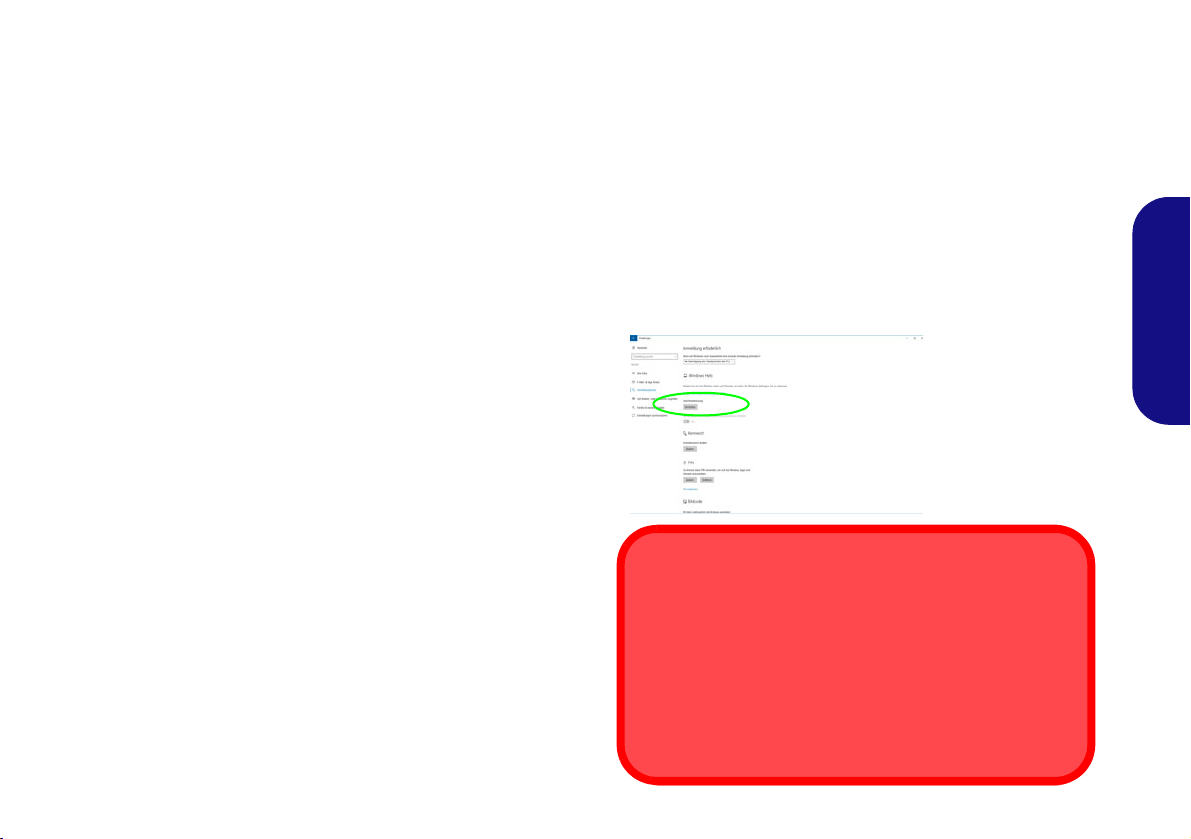

2. Click the Settings item in the Start Menu.
3.
Click Accounts and then click Sign-in options.
4. You will need to add a Windows password (click Add under Password).
5. After you have added the password you will need to also add a PIN.
6. Under Windows Hello click Set up under Face Recognition.
7. Click Get Started and the Windows Hello Setup Wizard will then guide you through the set up process to scan your face.
8. You will need to key in the pin number on initial setup.
9. Keep looking directly at the screen and the system will scan your face (the blue bar underneath your picture indicates the progress of the scan).
10. The system will then prompt with “All Set!”, so click Close to exit the Setup Wizard.
11. Restart the computer after the scanning process has been completed.
12. You can use the facial recognition system to unlock your computer the next time you start the system. The system will prompt with “Getting ready...” and after seeing this simply look directly (as it prompts “Looking for you...” / “Making sure it’s
you..”) at the screen to complete the scan.
23
English

X-Rite Color Assistant (Option)

(For systems supporting the Pantone Certificate only)
The X-Rite Color Assistant application allows you to cal­ibrate the screen for optimum color display.
Run the X-Rite Color Assistant app from the Apps screen to calibrate the screen (there should also be a desktop
English
icon), and if running then access the ap­plication from the icon in the taskbar’s System Tray.

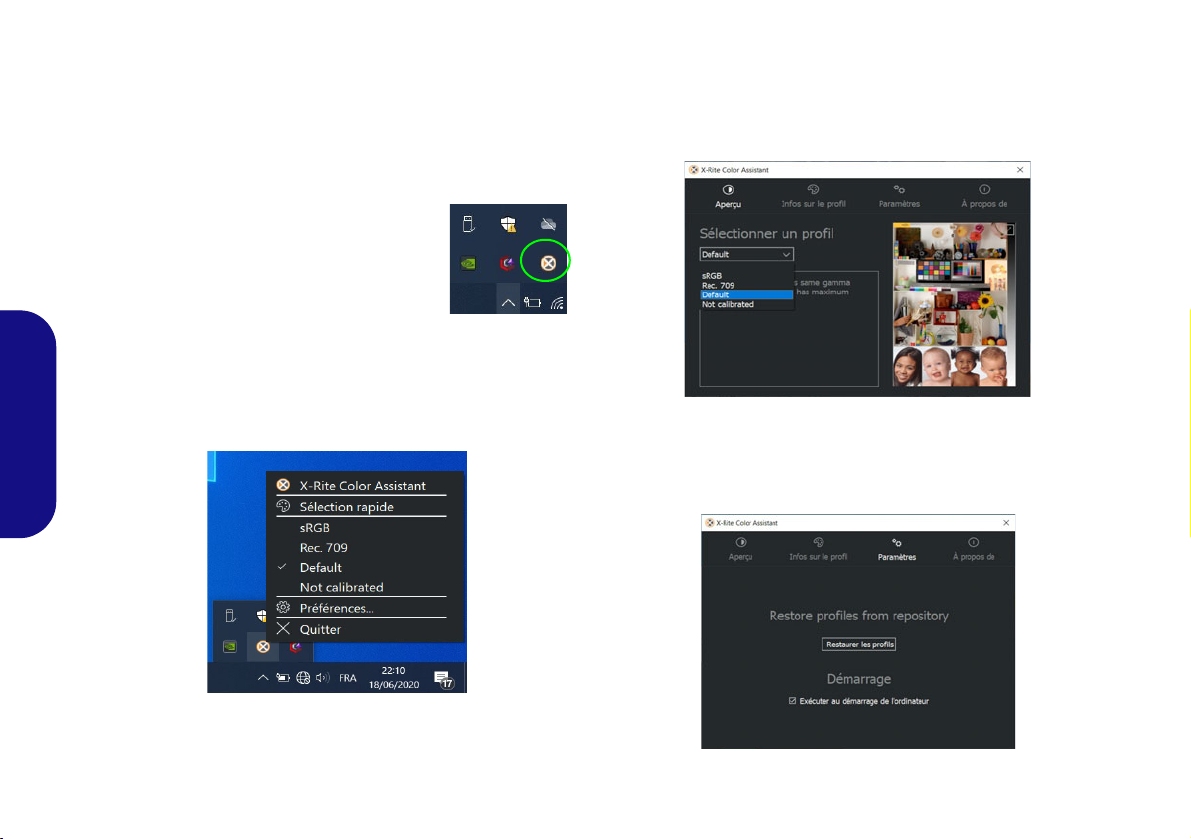

Right-clicking the taskbar icon will bring up the Quick Selection menu and you can choose a profile from the menu.
You can select a Profile to change the screen color, and you view the difference in the changed screen color from the picture on the right.

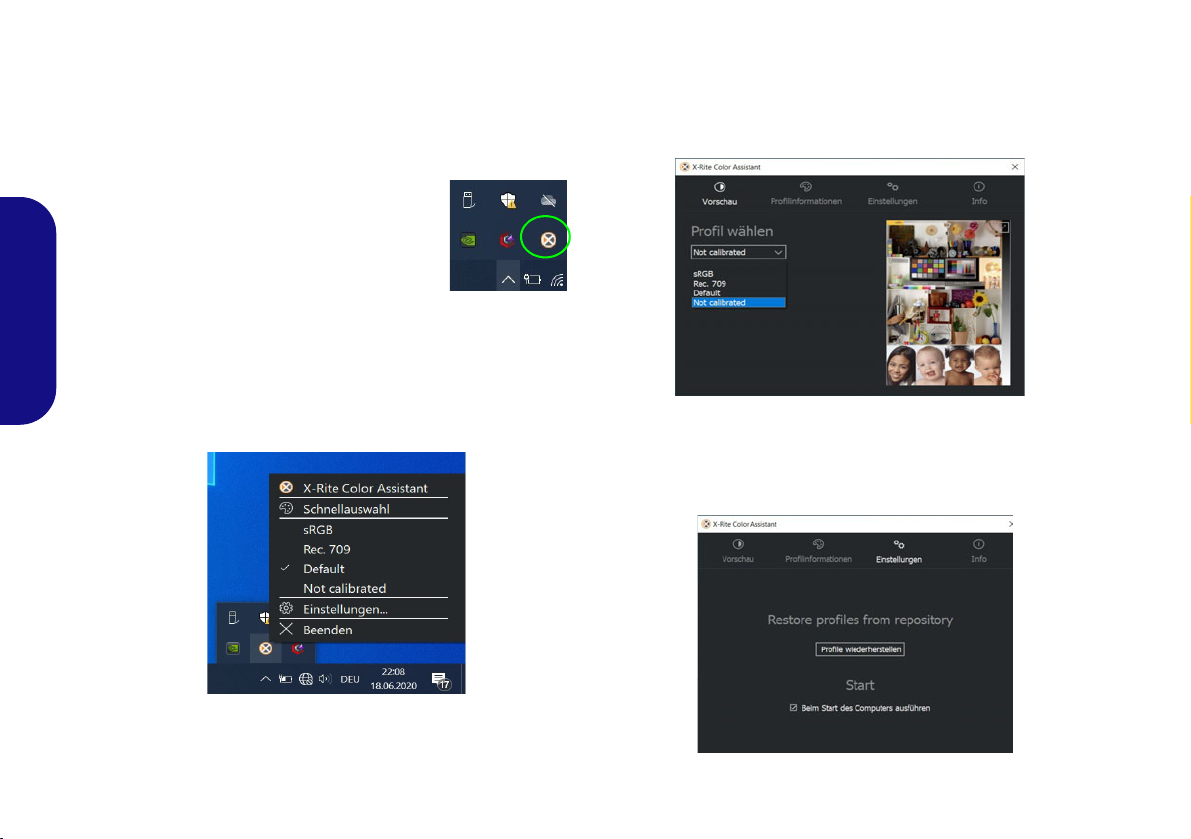

Figure 21 - X-Rite Color Assistant - Preview
The Settings tab can be used to restore customized pro­files.
Figure 20 - Right-Click X-Rite Color Assistant Taskbar
Icon
24
Figure 22 - X-Rite Color Assistant - Settings

TPM (Option)

Figure 23
Security -
Trusted
Computing
Figure 24
BitLocker Drive
Encryption
(TPM Admini-
stration)
Figure 25
Trusted Plat­form Module
(TPM) Manage-
ment on Local Computer Ad-
ministration

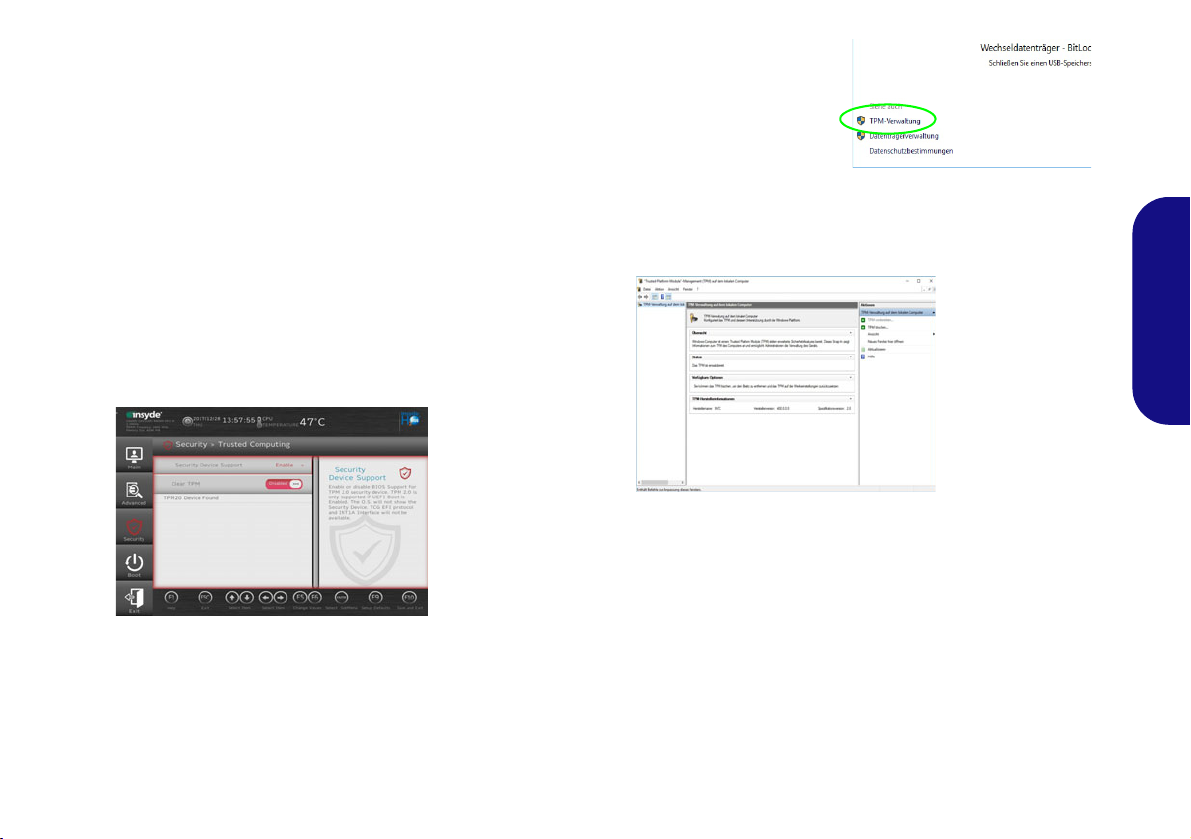

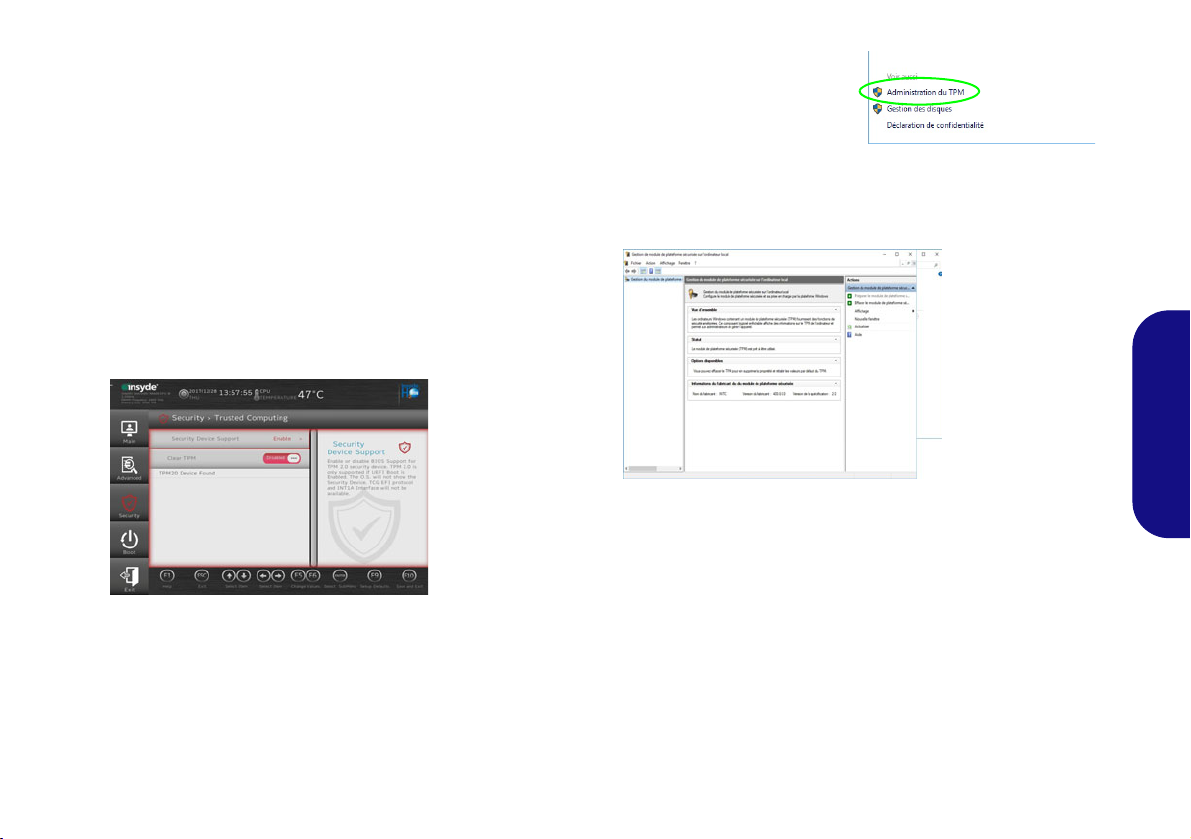

Before setting up the TPM (Trusted Platform Module) functions you must initialize the security platform.
3. Click TPM Administration.

Activating TPM

1. Restart the computer.
2. Enter the BIOS pressing F2 during the POST/startup.
3. Click Setup Utility and select the Security menu.
4. Click TPM Configuration and select Enable for Security Device Support.
5. You will then need to press/click F10 to save the changes and restart the computer.

TPM Management in Windows

You can manage your TPM settings from within Windows:
1. Go to the Control Panel.
2.
Click
BitLocker Drive Encryption (System and Security).
English
4. The TPM Management window allows you to configure the TPM
within Windows. As TPM is usually administered within large enterprises and organizations, your system administrator will need to assist you in managing the information here.
TPM Actions
1. Click Prepare the TPM and follow the instructions in the Wizard to prepare the TPM (this will probably require a restart of the
computer and confirmation of the setting changes after restart by pressing the appropriate F key).
2. After the restart the TPM will be prepared and you can then use the Actions menu to Turn TPM off, Change Owner Password, Clear TPM or Reset TPM Lockout.
3. A wizard will help take you through any setup steps.
25

Troubleshooting

Problem Possible Cause - Solution
The Wireless LAN/Bluetooth modules cannot be detected.
The Camera module cannot be detected.
English
Gaming performance is slow. It is recommended that you use Maximum fan speed when playing games. Use the
The modules are off as the computer is in Airplane Mode. Use the Fn + F11 key combination to toggle Airplane Mode on/off (see Table 2 on page 8).
The module is off. Press the Fn + F10 key combination in order to enable the module (see
Table 2 on page 8). Run the camera application to view the camera picture.
Fn + 1 key combination to adjust the fan speed.
26
Loading...
+ 114 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
