About this Concise User Guide ...........................................................1
Contents
System Startup .....................................................................................4
Intel® Optane™ Setup ........................................................................5

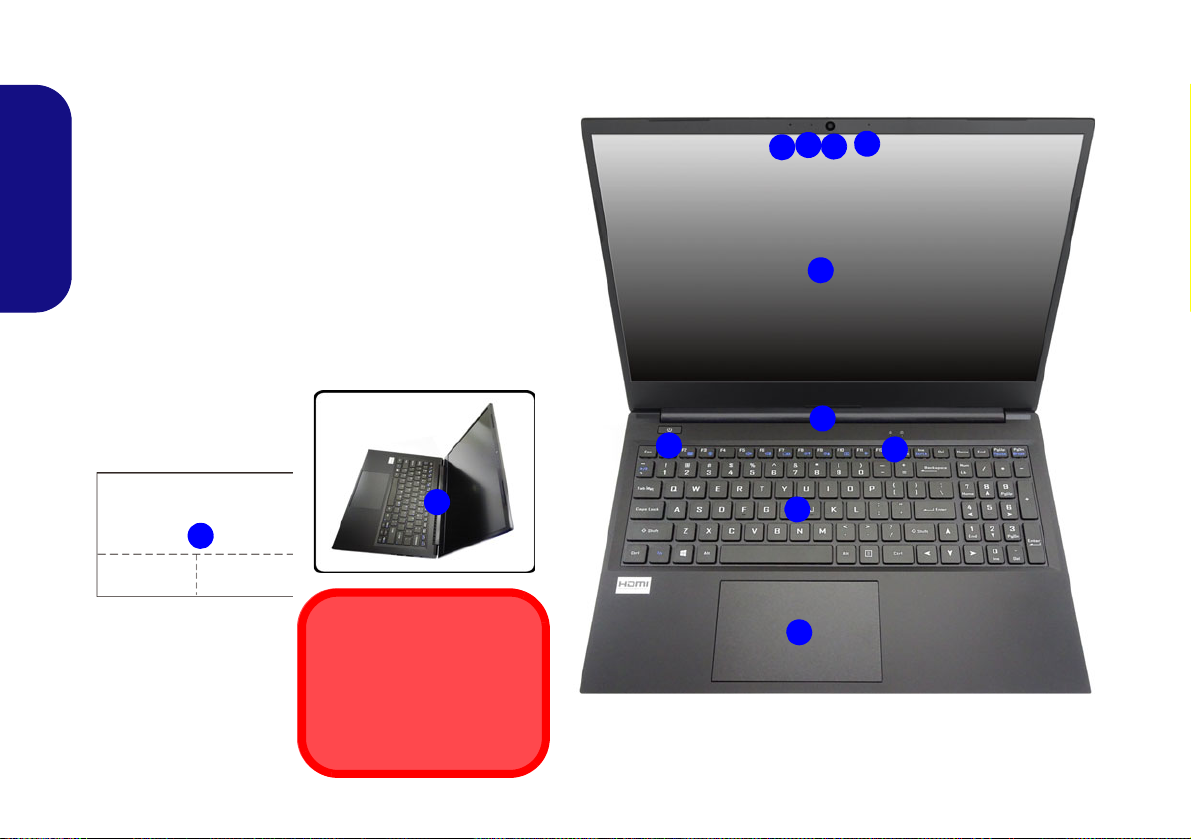

System Map: Front View with LCD Panel Open (Model A) .............7
System Map: Front View with LCD Panel Open (Model B) .............8
LED Indicators ....................................................................................9
Keyboard (Model A) .........................................................................10
Keyboard (Model B) ..........................................................................11
System Map: Front, Left & Right Views (Model A) .......................13
System Map: Front, Left & Right Views (Model B) ........................14
System Map: Bottom & Rear Views .................................................15

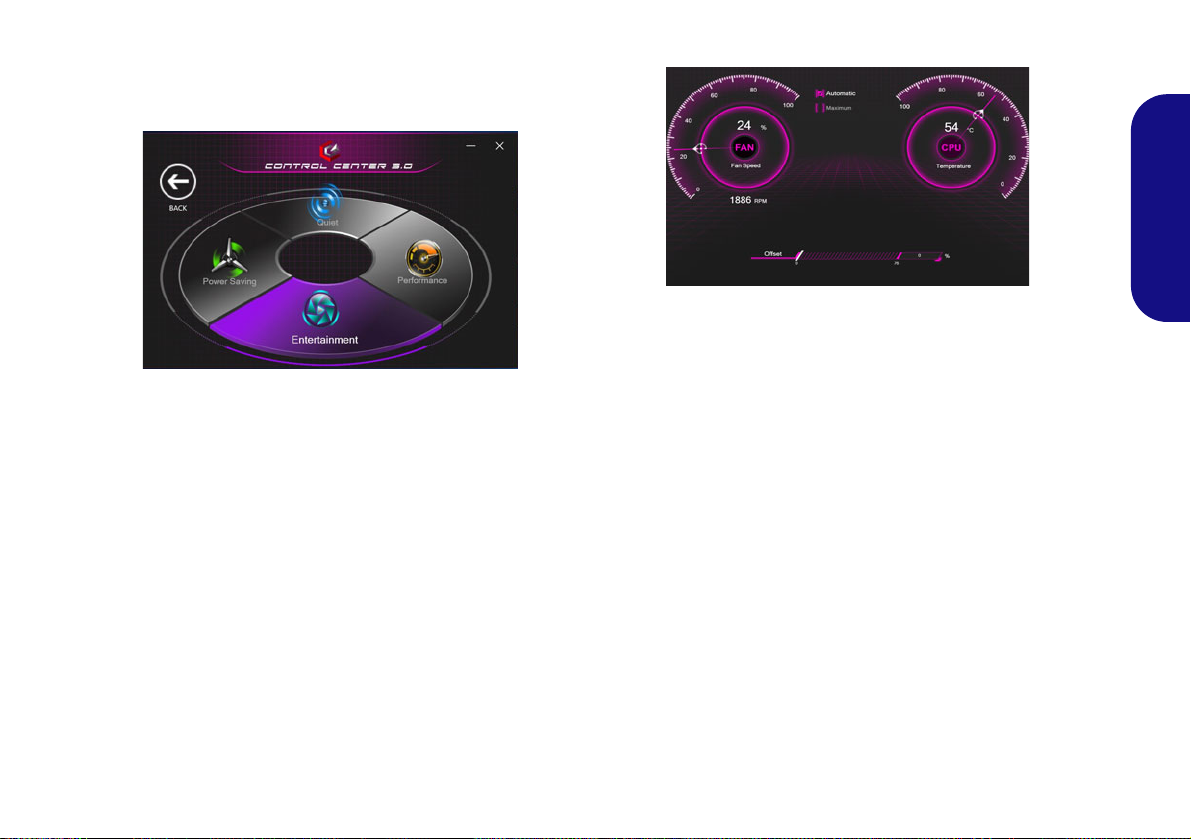

Control Center ...................................................................................16
White-LED Keyboard (Option - Model A Only) ..............................18
Multi-Color LED Keyboard (Option - Model B Only) .....................19
Windows 10 Start Menu, Context Menu, Taskbar, Control Panel and
Settings ..............................................................................................20
Video Features ...................................................................................21
Audio Features ................................................................... ................22

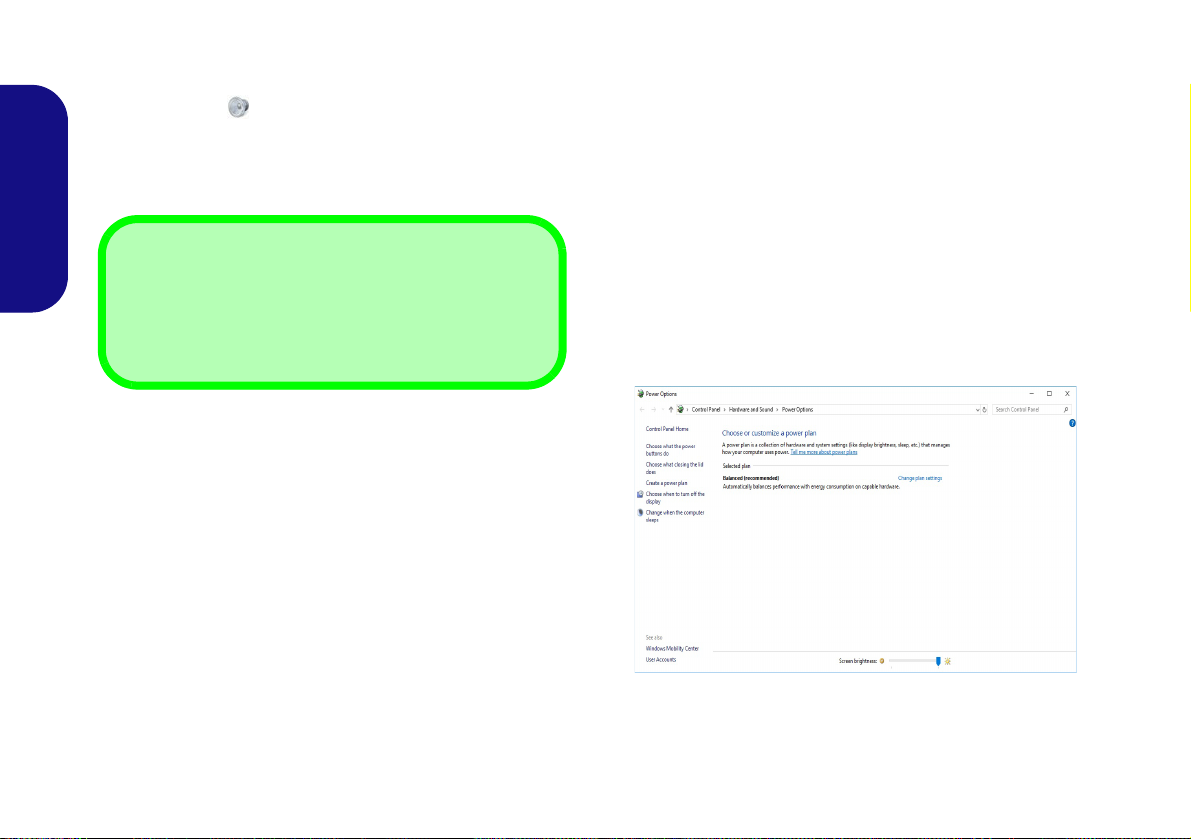

Power Options ...................................... ................................... ..........22
Driver Installation ............................................... .. .............................23
Wireless LAN Module (Option) ........................................................ 24
Bluetooth Module (Option) ...............................................................24

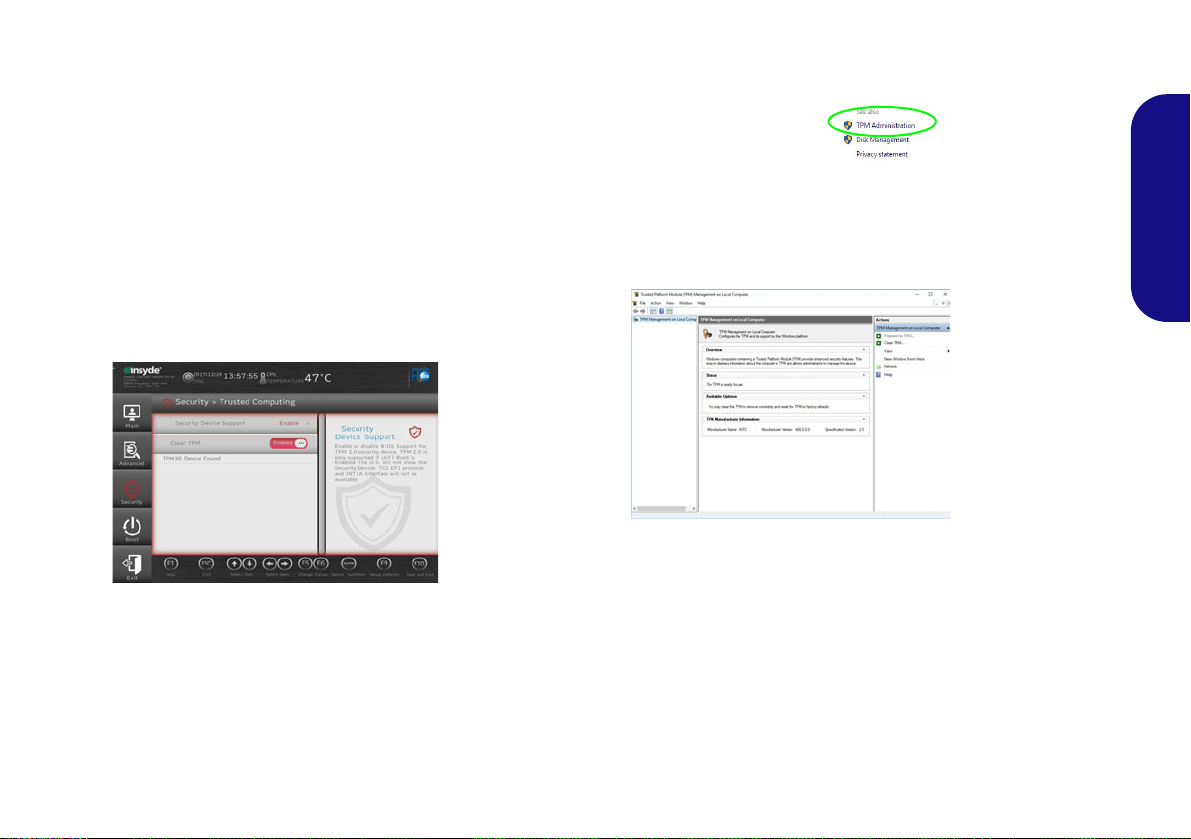

TPM (Option) .......................... .................................. ........................25
Troubleshooting .................................................................................26
Specifications ....................................................................................27
Inhalt
Über das Ausführliche Benutzerhandbuch ........................................29
Schnellstart ........................................................................................32
Intel® Optane™ Setup ......................................................................33
Systemübersicht: Ansicht von vorne mit geöffnetem LCD-Bildschirm
(Modell A) .........................................................................................35
Systemübersicht: Ansicht von vorne mit geöffnetem LCD-Bildschirm
(Modell B) .........................................................................................36
LED-Anzeigen ...................................................................................37
Tastatur (Modell A) ......................................... ..................................38
Tastatur (Modell B) ............................... .................................. ..........39
Systemübersicht: Ansicht von vorne, links und rechts (Modell A) ..41
Systemübersicht: Ansicht von vorne, links und rechts (Modell B) ..42
Systemübersicht: Ansicht von unten und hinten ...............................43
Control Center ...................................................................................44
Weiße LED-Tastatur (Option - Nur Modell A) ................................46
Mehrfarbige LED-Tastatur (Option - Nur Modell B) .......................47
Start-Menü, Kontextmenü, Taskleiste, Systemsteuerung und Einstel-
lungen von Windows 10 ....................................................................48
Grafikfunktionen ............................................................................... 49
Audiofunktionen ...............................................................................50
Energieoptionen ................................................................................50
Installation der Treiber ......................................................................51
Wireless-LAN-Modul (Option) ........................................................52
Bluetooth-Modul (Option) ................................................................52
TPM (Option) .................................. ................................... ...............53
Fehlerbehebung .................................................................................54
Technische Daten ......................................................................... 55
Sommaire
A propos de ce Guide Utilisateur Concis ..........................................57
Guide de démarrage rapide ...............................................................60
Configuration Intel® Optane™ .........................................................61
Carte du système: Vue de face avec l’écran LCD ouvert
(Modèle A) ........................................................................................63
Carte du système: Vue de face avec l’écran LCD ouvert
(Modèle B) .........................................................................................64
Indicateurs LED ...................................................................... ..........65
Clavier (Modèle A) ...........................................................................66
Clavier (Modèle B) ...........................................................................67
Carte du système: Vues de face, gauche et droite (Modèle A) ......... 69
Carte du système: Vues de face, gauche et droite (Modèle B) ......... 70
Carte du système: Vues de dessous et arrière ..................................71
Control Center ...................................................................................72
Clavier à LED blanche (Option - Modèle A seulement) ...................74
Clavier à LED multicolore (Option - Modèle B seulement) .............75
Menu Démarrer, Menu contextuel, Barre des tâches, Panneau de Con-
figuration et Paramètres de Windows 10 ........................................... 76
Caractéristiques vidéo .......................................................................77
Caractéristiques audio .......................................................................78
Options d’alimentation ......................................................................78
Installation du pilote ................................................ ..........................79
Module LAN sans fil (Option) ..........................................................80
Module Bluetooth (Option) ...............................................................80
TPM (Option) .......................... .................................. ........................81
Dépannage .........................................................................................82
Spécifications ....................................................................................83
Contenidos
Acerca de esta Guía del Usuario Concisa ..........................................85
Guía rápida para empezar ..................................................................88
Configuración de Intel® Optane™ ...................................................89
Mapa del sistema: Vista frontal con panel LCD abierto (Modelo A) 91
Mapa del sistema: Vista frontal con panel LCD abierto (Modelo B) 92
Indicadores LED ................................................. ...............................93
Teclado (Modelo A) ..........................................................................94
Teclado (Modelo B) ..........................................................................95
Mapa del sistema: Vistas frontal, izquierda y derecha (Modelo A) ..97
Mapa del sistema: Vistas frontal, izquierda y derecha (Modelo B) ..98
Mapa del sistema: Vistas inferior y posterior ...................................99
Control Center .................................................................................100
Teclado con LED blanco (Opción - Sólo Modelo A) ......................102
Teclado LED multicolor (Opción - Sólo Modelo B) .......................103
Menú Inicio, Menú contextual, Barra de tareas, Panel de Control y
Configuración de Windows 10 ................................ ........................104
Parámetros de vídeo ........................................................................105
Características de audio ........................................ ...........................106
Opciones de energía .......................................................... ..............106
Instalación de controladores ............................................................107
Módulo LAN Wireless (Opción) .....................................................108
Módulo Bluetooth (Opción) ............................................................108
TPM (Opción) ............................ .....................................................109
Solución de problemas ............................ ........................................110
Especificaciones .............................................................................111
Sommario
Informazioni su questa guida rapida ...............................................113
Guida di avvio rapido ......................................................................116
Configurazione Intel® Optane™ ....................................................117
Descrizione del sistema: Vista anteriore con pannello LCD aperto
(Modello A) .....................................................................................119
Descrizione del sistema: Vista anteriore con pannello LCD aperto
(Modello B) .....................................................................................120
Indicatori LED ................................................................................ 121
Tastiera (Modello A) .................................. .....................................122
Tastiera (Modello B) .......................................................................123
Descrizione del sistema: Vista anteriore, sinistra e destra ..............125
(Modello A) ....................................................................................125
Descrizione del sistema: Vista anteriore, sinistra e destra ..............126
(Modello B) ....................................................................................126
Descrizione del sistema: Vista inferiore e posteriore ......................127
Control Center .................................................................................128
Tastiera con LED bianchi (Opzione - Solo Modello A) .................130
Tastiera LED multicolore (Opzione - Solo Modello B) ..................131
Menu Start, Menu contestuale, Barra delle applicazioni, Pannello di
controllo e Impostazioni di Windows 10 ........................................132
Funzioni video .................................................................................133
Funzionalità audio ...........................................................................134
Opzioni risparmio energia ...............................................................134
Installazione driver ..........................................................................135
Modulo LAN Wireless (Opzione) ...................................................136
Modulo Bluetooth (Opzione) ..........................................................136
TPM (Opzione) ...............................................................................137
Risoluzione dei problemi ..................................................... ...........138
Specifiche tecniche ........................................................................139
About this Concise User Guide
FCC Statement
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
1.This device may not cause
harmful interference.
2. This device must accept any
interference received, including interference that may
cause undesired operation.
This quick guide is a brief introduction to getting your system started. This is a s upplement, and not a substitute for the
expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual
disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper oper ation of
the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual disc does not contain an operating system.
Regulatory and Safety Information
Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Manual on the Device Drivers & Utilities + User’s Manual disc.
© January 2020
Trademarks
Intel is a trademark/registered trademark of Intel Corporation.
Windows is a registered trademark of Microsoft Corporation.
English
1
Instructions for Care and Operation
The computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
• Don’t drop it, or expose it to shock. If the computer falls, the
case and the components could be damaged.
• Keep it dry, and don’t overheat it. Keep the computer and
power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the
English
computer could be badly damaged.
• Avoid interfer ence. Keep the computer away from high capacity
transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage your data.
• Follow the proper working procedures for the computer. Shut
the computer down properly and don’t forget to save your work.
Remember to periodically save your data as data may be lost.
Servicing
Do not attempt to service the computer yourself. Doing so may
violate your warranty and expose you and the computer to
electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer
servicing to qualified service personnel under any of the fo llowing conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to any liquids.
• If the computer does not work normally when you follow the
operating instructions.
• If the computer has been dropped or damaged (do not touch the
poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
Safety Information
• Only use an AC/DC adapter approved for use with this computer.
• Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
• Do not continue to use a battery that has been dropped, or that
appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it
may cause circuit damage, which may possibly result in fire.
• Make sure that your computer is completely powered off before
putting it into a travel bag (or any such container).
• Before cleaning the computer, make sure it is disconnected from
any external power supplies, peripherals and cables.
• Use a soft clean cloth to clean the computer, but do not apply
cleaner directly to the computer. Do not use volatile (petroleum
distillates) or abrasive cleaners on any part of the computer.
• Do not try to repair a battery pack. Refer any battery pack repair
or replacement to your service representative or qualified service
personnel.
• Note that in computer’s featuring a raised LCD electro-plated
logo, the logo is covered by a protective adhesive. Due to general
wear and tear, this adhesive may deteriorate over time and the
exposed logo may develop sharp edges. Be careful when handling
the computer in this case, and avoid touching the raised LCD
electro-plated logo. Avoid placing any other items in the carrying
bag which may rub against the top of the computer during transport. If any such wear and tear develops contact your service center.
2
Polymer/Lithium-Ion Battery Precautions
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended
by the manufacturer. Discard used battery a ccording to the
manufacturer’s instructions.
Note the following information which is specific to Polymer/
Lithium-Ion batteries only, and where applicable, this overrides the general battery precaution information.
• Polymer/Lithium-Ion batteries may experience a slight expansion
or swelling, however this is part of the battery’ s safety mech anism
and is not a cause for concern.
• Use proper handling procedures when using Polymer/Lithium-Ion
batteries. Do not use Polymer/Lithium-Ion batteries in high ambient temperature environments, and do not store unused batteries
for extended periods.
• If you are working in areas of low temperature use the AC/DC
adapter to power the computer.
English
3
System Startup
Figure 1 - Opening the Lid/LCD/Computer with
AC/DC Adapter Plugged-In
Shut Down
Note that you should always
shut your computer down by
choosing the Shut down
command in Windows (see
below). This will help prevent hard disk or system
problems.
1. Click the Start Menu icon
.
2. Click the Power item .
3. Choose Shut down
from the menu.
180ﾟ
Model B
Model A
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the computer
(e.g. keyboard and mouse) to their ports.
4. When first setting up the computer use the following procedure
(as to safeguard the computer during shipping, the battery will be
locked to not power the system until first connected to the AC/DC
English
adapter and initially set up as below):
• Attach the AC/DC adapter cord to the DC-In jack on the right of
the computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC/DC adapter. The battery will
now be unlocked.
5. Use one hand to raise the
not exceed 180 degrees); use the other hand (as illustrated in
Figure 1) to support the base of the computer (Note: Never lift the
computer by the lid/LCD).
6. Press the power button on the left side of the computer to turn it on
(note that the lid/LCD must be open for the power button to
function).
lid/LCD to a comfortable viewing angle
(do
System Software
Your computer may already come with system software preinstalled. Where this is not the case, or where you are re-configuring your computer for a different system, you will find
this manual refers to Microsoft Windows 10.
Intel® Optane™ Support
You need to setup Intel® Optane™ before installing your
Windows 10 operating system (see Intel® Optane™ Setup
on page 5).
4
Intel® Optane™ Setup
Intel® Optane™ is a combination of a compatible memory device and Intel Rapid Storage Technology soft-
ware. This combination is designed to speed up your
system performance by caching boot data, executables,
frequently accessed data and system page files to a non
volatile, low latency Intel® Optane™ SSD.
Contact your distributor or supplier to see if your system
supports this technology.
If you are reinstalling a system that has previously been
setup in Intel RST Premium mode, make sure you have
disabled the Intel Optane Memory (see Disabling Intel®
Optane™ on page 6).
Intel® Optane™ Setup Procedure
You need to setup Intel® Optane™ before installing your
Windows 10 operating system, and you will need to prepare the following in order to do so.
• The Microsoft Windows 10 OS DVD.
• An attached extern al DVD drive.
• An Intel® Optane™ SSD installed in your system.
• The Device Drivers & Utilities + User’s Manual disc.
4. Press Esc to exit the menu and go to the Main menu.
5. Select OffBoard NVMe Controller Configuration and press
Enter to check that an Intel® Optane™ SSD is present.
6. Press Esc to exit the menu and go to the Advanced menu.
7. Select SATA Mode, press Enter and select Intel RST
Premium... and select <OK>.
8. Press F10 to “Save and Exit” and select <Yes>, however note
below.
• Make sure the Windows 10 OS DVD is in the attached DVD
drive and as the computer starts up it will automatically boot
from the Windows 10 OS DVD (you will be prompted to press
a key to boot from the DVD).
9. Click Next > Install Now to continue installing the operating
system as normal (see your Windows documentation if you
need help on installing the Windows OS).
10. Select Custom: Install Windows only (advanced).
11. It is recommended that you select and then delete existing
partitions.
12. Click New to create a partition for Windows.
13. It is very important to make sure that when you create the
partition, leave at least a minimum of unallocated space of 5MB.
14. Follow the on-screen instructions to install the Windows 10
operating system.
15. Install the Windows drivers (see page 23). Make sure you install
the Intel® Rapid Storage Technology (IRST) driver.
16. Run the Intel® Rapid Storage Technology application.
English
1. Start-up your notebook computer and press F2 to enter the BIOS
and go to the Setup Utility.
2. Go to the Boot menu, select UEFI Setting and press Enter.
3. Set UEFI Boot to “Enabled”.
5
17. Click Enable.
Figure 2 - Intel® Rapid Storage Technology - Status
English
18. The system will pop-up a message and ask you to select a
compatible fast drive (in this case there should only be one
option).
19. You will need to rest art the computer af ter enabling Optane, and
make sure the system is powered by the powered AC/DC
adapter, and not by battery only.
20. Click Yes to begin the process (this may take some time).
21. After the process has been completed restart the computer.
Disabling Intel® Optane™
If you wish to disable an existing Intel® Optane™ setup
then follow the procedure below to do so.
1. Run the Intel® Rapid Storage Technology application.
2. Click Disable.
3. Click Yes when the message pops up.
4. Restart the computer to complete the process.
5. Run the Intel® Rapid Storage Technology application.
6. The Status of Intel® Optane™ Memory is indicated in the
Window.
6
System Map: Front View with LCD Panel Open (Model A)
Figure 3
Front View with LCD Panel Open (Model A)
1. PC Camera
2. *PC Camera LED
*When the PC camera is in use, the LED will be
illuminated.
3. Built-In Array Microphone
4. LCD
5. Vent
6. LED Indicators
7. Keyboard
8. Touchpad & Buttons
5
5
7
4
2 13
8
6
14" (35.56cm)
Overheating
To prevent your computer
from overheating make sure
nothing blocks any vent
while the computer is in use.
Note that the Touchpad
and Buttons valid operational area is that indicated within the dotted
lines above.
8
3
English
7
System Map: Front View with LCD Panel Open (Model B)
Figure 4
Front View with LCD Panel Open (Model B)
1. PC Camera
2. *PC Camera LED
*When the PC camera is in use, the LED will be
illuminated.
3. Built-In Array Microphone
4. LCD
5. Vent
6. Power Button
7. LED Indicators
8. Keyboard
9. Touchpad & Buttons
5
7
4
2
1
3
8
6
9
15.6" (39.62cm)
Note that the Touchpad and Buttons valid
operational area is that
indicated within the
dotted lines above.
9
5
Overheating
To prevent your computer
from overheating make sure
nothing blocks any vent
while the computer is in use.
3
English
8
LED Indicators
LED
The LED indicators on the computer display helpful information about the current status of the computer.
Icon Color Description
OFF The Computer is Off
White The Computer is On
Screen Rotation
The computer’s LCD can be opened up to 180 degrees,
and you can use the Fn + R key combination to fully rotate
the screen. You can use this to rotate the screen to allow
someone sitting facing you to view the screen if required.
English
Blinking
White
White Caps Lock Activated
White
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking
Orange
Table 1 - LED Indicators
The Computer is in Sleep Mode
Number Lock (Numeric Keypad) Acti-
vated
The Battery Has Reached Critically
Low Power Status
Figure 5 - LCD Panel Open to 180 degrees with Screen Ro-
tated
9
Keyboard (Model A)
Function Keys
Numeric
Keypad
Fn Key
Menu/Application Key
Num Lk &
Scr Lk
Windows Logo Key
Function Keys
Numeric
Keypad
Fn Key
Menu/Application Key
Num Lk &
Scr Lk
Windows Logo Key
The keyboard has a numeric keypad for easy numeric data input. Pressing Fn + Num Lk turns on/off the numeric keypad. It also features function keys to allow you to change operational features instantly.
English
Figure 6 - Keyboard
(Factory Option) White-LED Keyboard
Refer to White-LED Keyboard (Option - Model A Only) on page 18. The keyboard illumination level may be adjusted,
or turned off/on, by using the Fn + keys.
10
Figure 7 - (Factory Option) White-LED Keyboard
Keyboard (Model B)
Function Keys
Numeric
Keypad
Fn Key
Menu/Application Key
Num Lk &
Scr Lk
Windows Logo Key
Function Keys
Numeric
Keypad
Fn Key
Menu/Application Key
Num Lk &
Scr Lk
Windows Logo Key
The keyboard has a numeric keypad for easy numeric data input. Pressing Num Lk turns on/off the numeric keypad. It
also features function keys to allow you to change operational features instantly.
Figure 8 - Full-size Keyboard
(Factory Option) Multi-Color LED Keyboard
Refer to Multi-Color LED Keyboard (Option - Model B Only) on page 19.
English
Figure 9 - (Factory Option) Full-size Multi-Color LED Keyboard
11
Function Keys & Visual Indicators
The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the
basic function key combinations, some visual indicators are available when the Control Center driver is installed.
Keys Function/Visual Indicators Keys Function/Visual Indicators
Fn +
English
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Fn +
Play/Pause (in Audio/Video Programs)
Touchpad Toggle
Turn LCD Backlight Off
(Press a key to or use Touchpad to turn on)
Mute Toggle
Toggle Keyboard Illu-
mination/Adjust
Brightness Level
Volume Decrease/
Increase
Change Display Configuration (see page 21)
Brightness
Decrease/Increase
Camera Power
Toggle
(For White-LED Key-
boards)
Fn +
Fn +
Fn +
/Fn +
/
Fn +
Fn +
Fn +
Airplane Mode Tog-
gle
Number Lock T oggle
Scroll Lock Toggle
Caps Lock Toggle
Control Center Toggle (see page 16)
Fan Automatic Con-
trol/ Full Power
Sleep Toggle
Rotate the Screen
Table 2 - Function Keys & Visual Indicators
12
System Map: Front, Left & Right Views (Model A)
Figure 10 - Front, Left & Right Views (Model A)
1. Security Lock Slot
2. RJ-45 LAN Jack
3. MicroSD Card Reader
4. USB 2.0 Port
Or
(Factory Option) USB 3.2 Gen 1 Type-A Port
5. Power Button
6. 2-In-1 Audio Jack (Headphone and
Microphone)
7. Speakers
8. USB 3.2 Gen 1 Type-C Port
or
USB 3.2 Gen 2 Type-C Port
(Depending on CPU Type)
9. USB 3.2 Gen 1 Type-A Port or
USB 3.2 Gen 2 Type-A Port
(Depending on CPU Type)
10. HDMI-Out Port
11. Battery Power LED Indicator
12. DC-In Jack
4
5
1
8
2
7
9
Front
Left
Right
3
6
11
7
10
12
English
13
System Map: Front, Left & Right Views (Model B)
Figure 11 - Front, Left & Right Views (Model B)
1. Security Lock Slot
2. RJ-45 LAN Jack
3. MicroSD Card Reader
4. USB 2.0 Ports
5. (
Factory Option) USIM Card
Reader (for 4G USIM Cards)
6. 2-In-1 Audio Jack
(Headphone and Microphone)
7. Speakers
8. USB 3.2 Gen 1 Type-C Port
or
USB 3.2 Gen 2 Type-C Port
(Depending on CPU Type)
9. USB 3.2 Gen 1 Type-A Port or
USB 3.2 Gen 2 Type-A Port
(Depending on CPU Type)
10. HDMI-Out Port
11. Battery Power LED Indicator
12. DC-In Jack
1
2
Front
Left
Right
4
5
7
3
6
4
8
9
117
10
12
USIM Card Ejection
Simply press on the USIM card to eject it, however
do not do this while a connection is in progress.
If you do eject the card while a 4G connection is ongoing, you will need to shut down the system, reinsert the USIM card, restart the system and then
reestablish the 4G connection.
If you wish to change USIM cards then you will also
need to shut down the system, reinsert the USIM
card, restart the system and then reestablish the
4G connection.
English
14
System Map: Bottom & Rear Views
Bottom Cover Removal Warning
Do not remove any cover(s) and/or screw(s) for the purposes of device upgrade as this may violate the terms of your warranty. If you need to replace/
remove the SSD/RAM etc., for any reason, please contact your distributor/sup-
plier for further information.
Overheating
To prevent your computer from overheating make sure nothi ng blocks any vent
while the computer is in use.
Figure 12
Bottom & Rear Views
1. Vent
2. RJ-45 LAN Jack
3. Speakers
3
1
2
3
1
2
Model A
Model B
3
3
English
15
Control Center
Run the Control Center from the Start menu in Windows . You can also press the Fn + Esc key combination, or double-click the icon in the notification area of the taskbar to access the Control Center. The Con-
trol Center provides quick access to Power Modes, Fan settings an d LED Keyboard configuration (for the optional
LED keyboard).
English
16
Figure 13 - Control Center
Power Modes
Figure 14 - Power Modes
Figure 15 - Fan Speed Control
Power Modes allows you to adjust the power mode by
clicking the appropriate icon.
• Power Saving mode focuses on saving battery life (the
CPU Turbo Boost and dGPU Turbo will be off).
• Quiet mode focuses on reducing fan noise and will
decrease both CPU and GPU power.
• Entertainment mode balances CPU and GPU power and
is ideal for watching videos etc.
• Performance mode is ideal for gaming with higher CPU
and GPU performance.
Fan Speed Control
English
You can set the fan speed to Maximum (full power) or
Automatic/Slient. The fan speed will adjust itself auto-
matically to control the heat of the CPU/GPU. You can
use the Offset slider to adjust the settings to your preference. However you can adjust the setting to Maximum if
you prefer.
All these settings can be overidden by the system, as a
safety precaution, if it requires heavier use of the fan.
17
White-LED Keyboard (Option - Model A Only)
Figure 16 - LED Keyboard Application
The LED Keyboard application can be accessed by clicking LED Keyboard in the Control Center or from the Start
menu in Windows .
English
KB Sleep Timer
Enable and then select the amount of time for which the system is idle before the keyboard LED enters sleep mode (i.e.
the LED keyboard illumination will turn off to save power).
KB Brightness
You can adjust the keyboard brightness using the Brightness slider.
18
Multi-Color LED Keyboard (Option - Model B Only)
The LED Keyboard application can be accessed by click-
ing LED Keyboard in the Control Center (or by pressing the Fn plus key) or from the Start menu in
Windows .
Color Swatch
The color swatch in the middle of the screen allows you to
select a range of colors for your keyboard backlight by
clicking on the color required. Click to select any color
from the swatch to apply to the keyboard.
KB Sleep Timer
Enable and then select the amount of time for which the
system is idle before the keyboard LED enters sleep mode
(i.e. the LED keyboard illumination will turn off to save
power).
English
Figure 17 - LED Keyboard Application
The keyboard LED may be configured using the Fn + key
combination outlined in the table below.
Keyboard LED Function key Combinations
Fn +
Fn +
Fn +
Fn +
Launch the LED Keyboard Application
Toggle the Keyboard LED On/Off
Keyboard LED Illumination Decrease
Keyboard LED Illumination Increase
Table 3 - Keyboard LEDs
KB Brightness
You can adjust the keyboard brightness using the Brightness slider.
19
Windows 10 Start Menu, Context Menu,
Figure 18
Start Menu,
Context Menu,
Taskbar, Control Panel and
Settings
Taskbar, Control Panel and Settings
Most of the apps, control panels, utilities and programs within Windows 10 can be
accessed from the Start Menu by clicking the icon in the taskbar in the lower
left corner of the screen (or by pressing the Windows Logo Key on the keyboard).
Right-click the Start Menu icon (or use the Windows Logo Key + X key
English
combination) to bring up an advanced Context Menu of useful features such as
Apps and Features, Power Options, Task Manager, Search, File Explorer, Device
Manager and Network Connections etc.
The notification area of the taskbar is in the bottom right of the screen. Some of the
control panels and applications referred to throughout the course of this manual can
be accessed from here.
Throughout this manual you will see an instruction to open the Control Panel. To
access the Control Panel, select Control Panel under the Windows System item in
the Start Menu.
The Settings item in the Start Menu (and also as an App) gives you quick access to
a number of system settings control panels allowing you to adjust settings for System, Devices, Phone, Network & Internet, Personalization, Apps, Accounts, Time
& Language, Gaming, Ease of Access, Search, Cortana, Privacy and Update & Security.
20
Video Features
Figure 19
Project
The system features an Intel integrated GPU. You can
switch display devices, and configure display options,
from the Display control panel in Windows as long as the
video driver is installed.
Display Devices
Besides the built-in LCD, you can also use an external display (connected to the HDMI-Out port) as your display
device. See your display device manual to see which formats are supported.
English
To access the Display control panel in Windows:
1. Right-click the desktop and select Display settings from the
menu.
2. Choose the required display settings from the menus.
To access the Intel® UHD Graphics Control Panel:
1. Access the Intel® UHD Graphics Control Panel from the Start
menu in Windows.
In Windows it is possible to quickly configure external
displays from the Project menu (press the Windows
Logo Key and the P key or press the Fn + F7 key
combination).
To configure the displays using the Project menu:
1. Attach your external display device to
the appropriate port, and then turn it
on.
2. Press the + P (or Fn + F7) key
combination.
3. Click on any one of the options from
the menu to select PC screen only,
Duplicate, Extend or Second screen
only.
4. You can also click Connect to a
wireless display at the bottom of the
Project screen and follow the steps to
connect to any wireless enabled
display.
21
Audio Features
Volume Adjustment
The sound volume level can also be set using the volume
control within Windows. Click the Speaker icon in the
taskbar to check the setting
.
Figure 20 - Power Options
You can configure the audio options on your computer
from the Sound control panel in Windows.
The volume may be adjusted by means of the Fn + F5/F6
key combination.
English
Power Options
The Power Options (Hardware and Sound menu) control panel icon in Windows allows you to configure power
management features for your computer. You can conserve power by means of power plans and configure the
options for the power button, sleep button (Fn + F12),
computer lid (when closed), display and sleep mode (the
default power saving state) from the left menu.
Click Create a power plan in the left menu and select the
options to create a new plan. Click Change Plan Settings
and click Change advanced power settings to access further configuration options.
22
Driver Installation
Driver Installation & Power
When installing drivers make
sure your computer is powered
by the AC/DC adapter connected to a working power source.
Some drivers draw a significant
amount of power during the installation procedure, and if the
remaining battery capacity is not
adequate this may cause the
system to shut down and cause
system problems (note that
there is no safety issue involved
here, and the battery will be rechargeable within 1 minute).
Figure 21 - Install Drivers
Driver Installation
General Guidelines
As a general guide follow
the default on-screen instructions for each driver
(e.g. Next > Next > Fin-
ish) unless you are an
advanced user. In many
cases a restart is required
to install the driver.
Make sure any modules
(e.g. WLAN or Bluetooth)
are ON before installing
the appropriate driver.
The Device Drivers & Utilities + User’s Manual disc contains the drivers and utilities necessary for the proper operation
of the computer. This setup will probably have already been done for you. If this is not the case, insert the disc and click
Install Drivers (button), or Option Drivers (button) to access the Optional driver menu. Install the drivers in the order indicated in Figure 21. Click to select the drivers you wish to install (you should note down the drivers as you
install them). Note: If you need to reinstall any driver, you should uninstall the driver first
Latest Updates
After installing all the drivers make sure you enable Check for updates (Settings > Update & Security > Check for
updates) and go to the Microsoft Store and click Downloads and updates > Get updates to update all Apps etc.
.
English
23
Wireless LAN Module (Option)
Make sure the Wireless LAN module is turned on (and not
in Airplane Mode) before configuration begins.
Bluetooth Module (Option)
Make sure the Bluetooth module is turned on (and not in
Airplane Mode) before configuration begins.
WLAN Configuration in Windows
1. Click the icon in the notification area of the taskbar.
2. A list of available access points will appear.
3. Double-click an access point to connect to it (or click it and click
English
Connect).
4. Enter a network security key (password) if required, and click
Next.
5. You can choose to find other devices or not.
6. When you are connected to the network access point it will
display Connected.
7. Select any connected network and click Disconnect to
disconnect from a connected access point.
8. You can click the Airplane Mode button to turn the mode On or
Off.
9. Alternatively you can click the Wi-Fi button to turn just the Wi-Fi
On or Off.
Bluetooth Configuration in Windows
1. Click the Settings it em in the Start Menu and then click Devices.
2. Click Bluetooth & other devices.
3. Click Add Bluetooth & other device > Bluetooth and a list of
discovered devices will appear.
4. Double-click the device you want to pair with the computer and
click Connect.
5. Select a device and click Remove Device > Yes to disconnect
from any device.
24
TPM (Option)
Figure 22
Security -
Trusted
Computing
Figure 23
BitLocker Drive
Encryption
(TPM Admini-
stration)
Figure 24
Trusted Platform Module
(TPM) Manage-
ment on Local
Computer Ad-
ministration
Before setting up the TPM (Trusted Platform Module)
functions you must initialize the security platform.
3. Click TPM Administration.
Activating TPM
1. Restart the computer.
2. Enter the BIOS pressing F2 during the POST/startup.
3. Click Setup Utility and select the Security menu.
4. Click TPM Configuration and select Enable for Security
Device Support.
5. You will then need to press/click F10 to save the changes and
restart the computer.
TPM Management in Windows
You can manage your TPM settings from within Windows:
1. Go to the Control Panel.
2.
Click
BitLocker Drive Encryption (System and Security).
English
4. The TPM Management window allows you to configure the TPM
within Windows. As TPM is usually administered within large
enterprises and organizations, your system administrator will
need to assist you in managing the information here.
TPM Actions
1. Click Prepare the TPM and follow the instructions in the Wizard
to prepare the TPM (this will probably require a restart of the
computer and confirmation of the setting changes after restart by
pressing the appropriate F key).
2. After the restart the TPM will be prepared and you can then use
the Actions menu to T urn TPM off, Change Owner Password,
Clear TPM or Reset TPM Lockout.
3. A wizard will help take you through any setup steps.
25
Troubleshooting
Problem Possible Cause - Solution
The Wireless LAN/Bluetooth
modules cannot be detected.
The Camera module cannot be
detected.
English
Gaming performance is slow. It is recommended that you use Maximum fan speed when playing games. Use the
The modules are off as the computer is in Airplane Mode. Use the Fn + F11 key
combination to toggle Airplane Mode on/off (see Table 2 on page 12).
The module is off. Press the Fn + F10 key comb inati on in order to enab le th e module (see
Table 2 on page 12). Run the camera application to view the camera picture.
Fn + 1 key combination to adjust the fan speed.
26
