Clevo N855HL service manual

N855HL

Notebook Computer
N855HL

Service Manual

Preface

Preface

I

Preface

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven­dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica­tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.

Version 1.0
July 2017

Trademarks

Intel and Intel Core are trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and /or registered trademarks of their respective companies.

II

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the N855HL se-
ries notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.

Preface

Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS

Preface

III

Preface

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per­sons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) durin g an ele ctrical sto rm. There may be a remote risk of elec­trical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit as follows:

• AC Input of 100 - 240V, 50 - 60Hz, DC Output of 19.5V, 6.15A (120 Watts) minimum AC/DC Adapter.

FCC Statement

IV

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Preface

Do not expose the computer
to any shock or vibration.

Do not place it on an unstable
surface.

Do not place anything heavy
on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the co mputer could be badly damaged.

Do not expose it to excessive
heat or direct sunlight.

Do not leave it in a place
where foreign matter or mois­ture may affect the system.

Don’t use or store the com­puter in a humid environment.

Do not place the computer on
any surface which will block
the vents.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power
until you properly shut down
all programs.

Do not turn off any peripheral
devices when the computer is
on.

Do not disassemble the com­puter by yourself.

Perform routine maintenance
on your computer.

Preface

V

Preface



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and discon­nected all peripherals
and cables (including
telephone lines and
power cord). It is advis­able to also remove
your battery in order to
prevent accidentally
turning the machine
on.

4. Avoid interference. Keep the computer away from high capacity transformers, electric moto rs, and other strong mag-
netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral de vices.

Preface

VI

Use only approved brands of
peripherals.

Unplug the power cord befor e
attaching peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requ ires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconn ect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power
cord if you are wet.

Do not use the power cord if
it is broken.

Do not place heavy objects
on the power cord.

Battery Precautions



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var­ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Preface

Preface

VII

Preface



Powering the

Computer On

After every disassem­bly, make sure that the
bottom case’s screws
are all inserted and
tightened before turn­ing the computer on.

Figure 1

Opening the Lid/LCD/

Computer with AC/DC

Adapter Plugged-In



Shut Down

Note that you should always shut your computer down by
choosing the Shut down command in Windows (see be­low). This will help prevent hard disk or system problems.

Click the icon in the Start Screen and
choose Shut down from the menu.

Or

Right-click the Start button

at the bottom of the Start

Screen or the Desktop and choose Shut down or sign out
> Shut down from the context menu.

130°

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD/DVD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro­gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

System Startup

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in position.

4. Securely attach any peripherals you want to use with the
computer (e.g. keyboard and mouse) to their ports.

5. When first setting up the computer use the following proce-
dure (as to safeguard the computer during shipping, the battery
will be locked to not power the system until first connected to the

Preface

VIII

AC/DC adapter and initially set up as below):

• Attach the AC/DC adapter cord to the DC-In jack at the rear of

the computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC/DC adapter and leave it
there for 6 seconds or longer.

• Remove the adapter cord from the computer’s DC-In jack, and

then plug it back in again; the battery will now be unlocked.

6. Use one hand to raise the
(do not exceed 135 degrees); use the other hand (as illustrated in
Figure 1) to support the base of the computer (Note: Never lif t the
computer by the lid/LCD).

7. Press the power button to turn the comp ut er “on ”.

lid/LCD to a comfortable viewing angle

Contents

Preface

Introduction ..............................................1-1

Overview ......................................................................................... 1-1

Specifications ..................................................................................1-2

External Locator - Top View with LCD Panel Open ......................1-4

External Locator - Front & Right Side Views .................................1-5

External Locator - Left Side & Rear View .....................................1-6

External Locator - Bottom View .....................................................1-7

Mainboard Overview - Top (Key Parts) .........................................1-8

Mainboard Overview - Bottom (Key Parts) ....................................1-9

Mainboard Overview - Top (Connectors) .....................................1-10

Mainboard Overview - Bottom (Connectors) ...............................1-11

Disassembly ...............................................2-1

Overview ......................................................................................... 2-1

Maintenance Tools ..........................................................................2-2

Connections .....................................................................................2-2

Maintenance Precautions .................................................................2-3

Disassembly Steps ...........................................................................2-4

Removing the Battery ......................................................................2-5

Removing the Keyboard ..................................................................2-6

Removing the Hard Disk Drive .......................................................2-7

Removing the System Memory (RAM) ..........................................2-9

Removing the M.2 SSD Module ...................................................2-10

Removing the Wireless LAN Module ...........................................2-11

Wireless LAN, Combo, 3G & LTE Module Cables .....................2-12

Removing the 3G Module .............................................................2-13

Removing the CCD .......................................................................2-14

Part Lists ..................................................A-1

Part List Illustration Location ........................................................A-2

Top .................................................................................................A-3

Bottom ........................................................................................... A-4

Main Board ................................................................................... A-5

HDD .............................................................................................. A-6

LCD ............................................................................................... A-7

Schematic Diagrams.................................B-1

System Block Diagram ...................................................................B-2

Processor 1/6 ...................................................................................B-3

Processor 2/6 ...................................................................................B-4

Processor 3/6 ...................................................................................B-5

Processor 4/6 ...................................................................................B-6

Processor 5/6 ...................................................................................B-7

Processor 6/6 ...................................................................................B-8

DDR4 CHA SO-DIMM ..................................................................B-9

DDR4 CHB SO-DIMM ................................................................B-10

VGA PCI-E Interface ....................................................................B-11

VGA Frame Buffer Interface ........................................................B-12

VGA Frame Buffer A ...................................................................B-13

VGA Frame Buffer A ...................................................................B-14

VGA I/0 ........................................................................................B-15

VGA NVVDD Coupling ..............................................................B-16

Panel, Inverter ...............................................................................B-17

CRT ...............................................................................................B-18

HDMI ............................................................................................B-19

PCH 1/9 ........................................................................................B-20

PCH 2/9 ........................................................................................B-21

PCH 3/9 ........................................................................................B-22

PCH 4/9 ........................................................................................B-23

PCH 5/9 ........................................................................................B-24

PCH 6/9 ........................................................................................B-25

PCH 7/9 ........................................................................................B-26

Preface

IX

Preface

PCH 8/9 ........................................................................................ B-27

PCH 9/9 ........................................................................................ B-28

M.2 3G Card ................................................................................. B-29

M.2 WLAN+BT, SSD .................................................................. B-30

ASM 1142 & 2142 ....................................................................... B-31

ASM Power .................................................................................. B-32

USB, Charger ............................................................................... B-33

Card Reader / LAN RTL8411B ...................................................B-34

HDD, Click TP, Audio, Hall Con. ............................................... B-35

LED, CCD, TPM, Power SW Con. ..............................................B-36

Audio Codec ALC269 VC2 ......................................................... B-37

KBC-ITE IT8587 ......................................................................... B-38

5V, 5VS, 3.3V, 3.3VS, 3.3VA ..................................................... B-39

VDD1.0, VCCIO ..........................................................................B-40

VDD3, VDD5 ...............................................................................B-41

DDR 1.2V/0.6VS, 2.5V ...............................................................B-42

Preface

VCore, VCCGT Output Stage ...................................................... B-43

VCC_Core, VCCGT .................................................................... B-44

1.0DX_VCCSTG/VCCSFR_OC, 3.3VA .....................................B-45

VCCSA .........................................................................................B-46

AC_In, Charger ............................................................................ B-47

NVVDD .......................................................................................B-48

FBVDDQ .....................................................................................B-49

PEX_VDD/3V3 ............................................................................B-50

Audio Board ................................................................................. B-51

Power Switch Board .....................................................................B-52

Hall Sensor Board ........................................................................ B-53

Click Board .................................................................................. B-54

LED Board ................................................................................... B-55

Power Sequence ........................................................................... B-56

Download the BIOS ........................................................................C-1

Unzip the downloaded files to a bootable CD/DVD or

USB Flash drive ..............................................................................C-1

Set the computer to boot from the external drive ...........................C-1

Use the flash tools to update the BIOS ...........................................C-2

Restart the computer (booting from the HDD) ...............................C-2

Updating the FLASH ROM BIOS......... C-1

X

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the N855HL series notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri­vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.

Operating systems (e.g. Windows 10, etc.) have their own manuals as do application softwares (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.

Introduction

The N855HL series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description of
the upgrade procedures for each specific component. Please take note of the warning and safety information indicated
by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

1.Introduction

Overview 1 - 1

Introduction



Latest Specification Information

The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu­facturer's release schedule. Check with your
service center for more details.



CPU

The CPU is not a user serviceable part. Ac­cessing the CPU in any way may violate your
warranty.

Specifications

1.Introduction

Processor Options

Intel® Core™ i7 Processor

i7-7700HQ (2.80GHz)

6MB Smart Cache, 14nm, DDR4-2400MHz, TDP 45W
Intel® Core™ i5 Processor

i5-7300HQ (2.50GHz)

6MB Smart Cache, 14nm, DDR4-2400MHz, TDP 45W
Intel® Core™ i3 Processor
i3-7100H (3.00GHz)
3MB Smart Cache, 14nm, DDR4-2400MHz, TDP 35W

Core Logic

Intel® HM175 Chipset

BIOS

64Mb SPI Flash ROM
AMI BIOS

Memory

Two 260 Pin SO-DIMM Sockets Supporting DDR4 2400MHz
Memory

Memory Expandable up to 32GB
(The real memory operating frequency depends on the FSB

of the processor.)

LCD Options

15.6" (39.62cm), 16:9, HD (1366x768)/ FHD (1920x1080)

Video Adapter

Intel® Integrated GPU and NVIDIA® Discrete GPU
Supports Microsoft Hybrid Graphics

Intel Integrated GPU
Intel HD Graphics 630

Dynamic Frequency
Intel Dynamic Video Memory Technology
Microsoft DirectX®12 Compatible

NVIDIA® Discrete GPU
NVIDIA® GeForce MX150
2GB GDDR5 Video RAM on board

Microsoft DirectX® 12 Compatible

Storage

One Changeable 2.5" 7.0mm (h) SATA3 HDD/SSD
(Factory Option) One M.2 SATA/PCIe Gen3 x4 Solid State

Drive (SSD)

Audio

High Definition Audio Compliant Interface
2 * Built-In Speakers
Built-In Array Microphone
Or
(Factory Option ) Built-In Microphone

™

Sound Blaster

Cinema 3

Security

1 - 2 Specifications

Security (Kensington® Type) Lock Slot
BIOS Password
Intel PTT for systems without hardware TPM
(Factory Option) TPM v 2.0

Introduction



USB 3.1 Gen 2

Note that when a single USB device is plugged
in to a USB 3.1 Gen 2 port the data transfer
speed will be 10Gbps, however when two devic­es are plugged in to both USB 3.1 Gen 2 ports,
this bandwidth will be shared between the ports.

Keyboard

Full-size “WinKey” keyboard (with numeric keypad)
Or
(Factory Option) Full-size “WinKey” Illuminated White-LED

Keyboard (with numeric keypad)

Pointing Device

Built-in Touchpad

Interface

One USB 2.0 Port
One USB 3.0 (USB 3.1 Gen 1) Type-A Port

One USB 3.0 (USB 3.1 Gen 1) T ype-A Port a nd one USB 3.0
(USB 3.1 Gen 1) Type-C Port*

Or
(Factory Option) One USB 3.1 Gen 2 Type-A Port and one

USB 3.1 Gen 2 Type-C Port*

One HDMI-Out Port
One External Monitor Port
One Headphone-Out Jack
One Microphone-In Jack
One RJ-45 LAN Jack
One DC-in Jack

Card Reader

Embedded Multi-In-1 Card Reader

MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC

M.2 Slots

Slot 1 for WLAN and Bluetooth Combo Module
Slot 2 for SATA/PCIe Gen3 x4 SSD
(Factory Option) Slot 3 for 3G/4G Module

Communication

Built-In Gigabit Ethernet LAN

1.0M HD PC Camera Module
(Factory Option) 2.0M FHD PC Camera Module
(Factory Option) M.2 3G or 4G Module

WLAN/ Bluetooth M.2 Modules:

(Factory Option) Intel® Dual Band Wireless-AC 8265 Wire­less LAN (802.11ac) + Bluetooth 4.1

(Factory Option) Intel® Dual band Wireless-AC 3168 Wire­less LAN (802.11ac) + Bluetooth 4.0

Environmental Spec

Temperature

Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%
Non-Operating: 10% - 90%

Power

Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 4.74A (90W)

(Factory Option) Removable 6 Cell Smart Lithium-Ion Bat­tery Pack, 62WH

(Factory Option) Removable 6 Cell Smart Lithium-Ion Bat­tery Pack, 47WH

Dimensions & Weight

378mm (w) * 267mm (d) * 24.9mm (h)

2.3kg (Barebone with 47WH Battery)

1.Introduction

Specifications 1 - 3

Introduction

Figure 1

Top View

1. PC Camera

2. *PC Camera LED

*When the PC
camera is in use,
the LED will be
illuminated.

3. Built-In Array
Microphone

4. LCD

5. Power Button

6. Keyboard

7. To uchpad &

Buttons

2 1

7

6

4

5

33

1.Introduction

External Locator - Top View with LCD Panel Open

1 - 4 External Locator - Top View with LCD Panel Open

External Locator - Front & Right Side Views

Figure 2

Front View

1. LED Indicator

FRONT VIEW

1

RIGHT SIDE VIEW

1

2

4

3

5

6

Figure 3

Right Side View

1. Headphone-Out
Jack

2. Microphone-In
Jack

3. USB 2.0 Port

4. USB 3.0 (USB

3.1 Gen 1) Type
A Port

5. Vent

6. Security Lock
Slot

Introduction

1.Introduction

External Locator - Front & Right Side Views 1 - 5

Introduction

Figure 4

Left Side View

1. DC-In Jack

2. RJ-45 LAN Jack

3. External Display
Port

4. HDMI-Out Port

5. USB 3.0 (USB 3.1
Gen 1) Type C Port
Or
(Factory Option)
USB 3.1 Gen 2
Type C Port

6. USB 3.0 (USB 3.1
Gen 1) Type A Port
Or
(Factory Option)
USB 3.1 Gen 2
Type A Port

7. Multi-in-1 Card

LEFT SIDE VIEW

1

2

3

4

5

6

7

Figure 5

Rear View

1. Vent

REAR VIEW

1

1.Introduction

External Locator - Left Side & Rear View

/

1 - 6 External Locator - Left Side & Rear View

External Locator - Bottom View



Overheating

To prevent your com­puter from overhea­ting, make sure no­thing blocks any vent
while the computer is
in use.

2

1

3

2

3

Figure 6

Bottom View

1. Battery

2. Vent

3. Speakers

Introduction

1.Introduction

External Locator - Bottom View 1 - 7

Introduction

Figure 7

Mainboard Top

Key Parts

1. KBC-ITE IT8587

1

1.Introduction

Mainboard Overview - Top (Key Parts)

1 - 8 Mainboard Overview - Top (Key Parts)

1

2

3

4

5

6

7

Figure 8

Mainboard Bottom

Key Parts

1. GPU

2. CPU

3. Memory Slots
DDR4 SO-DIMM

4. Mini-Card
Connector (WLAN
Module)

5. PCH

6. CMOS Battery

7. M.2-Card
Connector (SSD
Module)

Mainboard Overview - Bottom (Key Parts)

Introduction

1.Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 9

Introduction

Figure 9

Mainboard Top

Connectors

1. DC-In Jack

2. RJ-45 LAN Jack

3. External Display
Port

4. HDMI-Out Port

5. USB Port 3.0/3.1
(Type C)
Connector

6. USB Port 3.0/3.1
(Type A)
Connector

7. Multi-in-1 Card
Reader

8. KB LED
Connector

9. Keyboard Cable
Connector

10

7

8

6

5

1

2

3

4

9

1.Introduction

Mainboard Overview - Top (Connectors)

1 - 10 Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

Figure 10

Mainboard Bottom

Connectors

1. CCD Connector

2. Fan Connector

3. HDD Connector

4. Speaker Connector

5. LCD Connector

1

2

5

3

2

4

4

Introduction

1.Introduction

Mainboard Overview - Bottom (Connectors) 1 - 11

1.Introduction

Introduction

1 - 12

Chapter 2: Disassembly



Information



Warning

Overview

This chapter provides step-by-step instructions for disassembling the N855HL series notebook’s parts and subsystems.
When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Disassembly

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are
repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis­assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ­ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.

2.Disassembly

Overview 2 - 1

Disassembly

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replac­ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.

2 - 2 Overview

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When re­placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.

Maintenance Precautions



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and discon­nected all peripherals
and cables (including
telephone lines and
power cord). It is advis­able to also remove
your battery in order to
prevent accidentally
turning the machine
on.

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a removal and/or
replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and /or upgrades on a st able surface. If the computer falls, the case and other compo nents
could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the compute r out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage components and/or data. You should also monitor the position of magnet­ized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

5. Be careful with power . Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the compu te r, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity. Before han­dling any part in the computer, discharge any static electricity inside the computer. When handling a pr inted circuit board, do
not use gloves or other materials which allow static electricity buildup. We suggest that you use an anti-static wrist strap
instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands produce oils
which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is of ten attracted to charged
surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as screws,
loose inside the computer.

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
(For Computer Models Supplied with Light Blue Cleaning Cloth) Some computer models in this series come supplied with a
light blue cleaning cloth. To clean the computer case with this cloth follow the instructions below.

• Power off the computer and peripherals.

• Disconnect the AC/DC adapter from the computer.

• Use a little water to dampen the cloth slightly.

• Clean the computer case with the cloth.

• Dry the computer with a dry cloth, or allow it time to dry before turning on.

• Reconnect the AC/DC adapter and turn the computer on.

Disassembly

2.Disassembly

Overview 2 - 3

Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

2.Disassembly

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the Keyboard:

1. Remove the keyboard page 2 - 6

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

To remove the System Memory:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

3. Remove the system memory page 2 - 9

To remove the M.2 SSD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

3. Remove the SSD page 2 - 10

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

3. Remove the WLAN page 2 - 11

To remove the 3G Module:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

3. Remove the 3G page 2 - 13

To remove the CCD Module:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

3. Remove the CCD module page 2 - 14

2 - 4 Disassembly Steps

Removing the Battery

122

3

Figure 1

Battery Removal

a. Slide the latch i n the

direction of the arrow.
and slide the latch in

the direction of the arrow.
b. Lift the battery.
c. Remove the battery.

1

2

1

a.

b.

3

c.

3

2



3. Battery

1. Turn the computer off, and turn it over.

2. Slide the latch in the direction of the arrow (Figure 1a).

3. Slide the latch in the direction of the arrow.

4. While holding the latch , lift the battery (Figure 1b) out of the compartment (Figure 1c

Disassembly

).

2.Disassembly

Removing the Battery 2 - 5

Disassembly

123456778

6

a. b.

1

2

c.

6

7

8

6

3

4

8

5



4. Eject Stick

6. Keyboard

•2 Screws

Figure 2

Keyboard Removal

a. Remove the screws from

the bottom of the compu­ter and then eject the
keyboard using a special
eject stick to push the
keyboard out while re­leasing the keyboard as
shown.

b. Lift the keyboard up and

disconnect the keyboard
ribbon cable from the
locking collar socket.

c. Remove the keyboard.



Re-inserting the Key-

board

When re-inserting the
keyboard firstly , align the
keyboard tabs at the bot­tom of the keyboard with
the slots in the case.

Removing the Keyboard

1. Turn off the computer, turn it over.

2. Remove screws

3. Open it up with the LCD on a flat surface before pressing at point
cial eject stick to do this) while releasing the keyboard in the direction of the arrow

4. Carefully lift the keyboard
board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar pins

away from the base (Figure 2b).

5. Carefully lift the keyboard off the computer (Figure 2c).

2.Disassembly

- from the bottom of the computer.

up, being careful not to bend the keyboard ribbon cable . Disconnect the key-

to release the keyboard module (use the spe-

as shown (Figure 2a).

2 - 6 Removing the Keyboard

Removing the Hard Disk Drive

612

171819

20

2

a.

b.

1

3

4

5

18

13

20

6

7

17

8

9

11

12

14

15

10

c.

18

19

16

Figure 3

HDD Assembly

Removal

a. Remove the SD card

cover and screws.

b. Remove the bottom

case.

c. Locate the HDD.



20.Hard Disk

•16 Screws



Powering the
Computer On

After every disassem­bly, make sure that the
bottom case’s screws
are all inserted and
tightened before turn­ing the computer on.

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as
outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Disassembly Process

1. Turn off the computer, and remove the battery (page 2 - 5).

2. Remove the SD card cover and screws - (Figure 3a).

3. Carefully lift the bottom case

4. The HDD will be visible at point on the mainboard (Figure 3c

Disassembly

up from point and remove it (Figure 3b).

).

2.Disassembly

Removing the Hard Disk Drive 2 - 7

Disassembly

2

34567

8

9

d.

6

4

3

e.

g.

5

7

8

9



HDD System Warning

New HDD’s are blank. Before you begin make
sure:

You have backed up any data you want to keep
from your old HDD.

You have all the CD-ROMs and FDDs required
to install your operating system and programs.

If you have access to the internet, download the
latest application and hardware driver updates
for the operating system you plan to install. Copy
these to a removable medium.

2

f.



4. HDD Assembly

8. Bracket

9. HDD

•2 Screws

Figure 4

HDD Assembly

Removal (cont’d.)

d. Remove the screws.
e. Slightly lift and pull the

HDD in the direction of
the arrow.

f. Lift the HDD assembly

out of the bay.

g. Remove the screws and

bracket from the HDD.

5. screws from the HDD assembly (Figure 4d).

6. Slightly lift and pull the hard disk assembly in the direction of arrow

(Figure 4e).

7. Lift the hard disk assembly out of the bay (Figure 4f).

8. Remove screws - and bracket from the hard disk (Figure 4g).

9. Reverse the process to install a new hard disk (do not forget to replace the screws).

2.Disassembly

2 - 8 Removing the Hard Disk Drive

Removing the System Memory (RAM)

123

4

b.

c.

2

3

2

3

1

a.

4



4. RAM Module

Figure 5

RAM Module

Removal

a. The RAM modules

will be visible at point

on the main-

board.

b. Pull the release lat-

ches.

c. Remove the module.



Contact Warning

Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean­est hands have oils
which can attract parti­cles, and degrade the
module’s performance.

1

The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR3L up to 1600 MHz. The main memory can be expanded up to 16GB. The total memory size is automatically de­tected by the POST routine once you turn on your computer.

Memory Upgrade Process

1. Turn off the computer, turn it over, remove the battery (page 2 - 5).

2. The RAM-2 modules will be visible at point

3. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the

4. Pull the latches to release the second module if necessary.

5. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

6. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot

7. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

8. Replace the bottom cover and the screws

9. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

on the mainboard (Figure 5a).

arrows (Figure 5b).

as it will go. DO NOT FORCE IT; it should fit without much pressure.

The RAM module will pop-up (Figure 5c), and you can then remove it.

(see page 2 - 7).

Disassembly

2.Disassembly

Removing the System Memory (RAM) 2 - 9

Disassembly

1

2

3

b.

c.

a.

2

3

1

3



3.M2 SSD Module

•1 Screw

Figure 6

M.2 SSD Module

Removal

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module

will pop up.

Removing the M.2 SSD Module

M.2 SSD Module Removal Procedure

1. Turn off the computer, turn it over, remove the battery (page 2 - 5).

2. The M.2 SSD module will be visible at point on the mainboard (Figure 6a).

3. Remove the screw

4. The M.2 SSD module (Figure 6c) will pop-up, and you can remove it from the computer.

(Figure 6b)

2.Disassembly

2 - 10 Removing the M.2 SSD Module

Removing the Wireless LAN Module

123

4

5

b.

c.

a.

2

3

5

1

5

4



5.Wireless LAN Module

•1 Screw

Figure 7

Wireless LAN

Module Removal

a. Locate the WLAN.
b. Disconnect the cables

and remove the screw.

c. The WLAN module will

pop up.

Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 7b).

1. Turn off the computer, turn it over, remove the battery (page 2 - 5).

2. The Wireless LAN module will be visible at point on the mainboard (Figure 7a).

3. Carefully disconnect the cables & , and then remove the screw

4. The Wireless LAN module (Figure 7c) will pop-up, and you can remove it from the computer.

(Figure 7b)

Disassembly

2.Disassembly

Removing the Wireless LAN Module 2 - 11

Disassembly

Wireless LAN, Combo, 3G & LTE Module Cables

Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, 3G and LTE modules are
not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for iden­tification as outlined in the table below.

2.Disassembly

Module Type

WLAN/WLAN & Bluetooth
Combo

LTE Broadband

Antenna

Type

WM 1 Black Transparent
WM 2 Black White
LTE 1 Black Black
LTE 2 Black Blue

Cable Color

Cable Cover

Type

Cable 1 is usually connected to antenna 1 (Main) on the module, and cable 2 to antenna 2 (Aux).

2 - 12 Wireless LAN, Combo, 3G & LTE Module Cables

Removing the 3G Module

Figure 8

3G Module Removal

a. Locate the module.
b. Disconnect the cables and

remove the screw.
c. The module will pop-up.
d. Lift the module up off the

socket.

1

234

5

5

a.

b.

1

2

5

c.

3

4

5

d.



5. 3G Module

•1 Screw

3G Module Removal Procedure

1. Turn off the computer, remove the battery (page 2 - 5).

2. Locate the module, it is visible at point

3. Carefully disconnect the cables & , and then remove the screw from the module

4. The module will pop-up

5. Lift the module up and off the computer

(Figure 8c).

(Figure 8a).

(Figure 8d).

Disassembly

(Figure 8b).

2.Disassembly

Removing the 3G Module 2 - 13

1234567

8

9

b.

a.

6

2

1

5

9

7

8

4

3



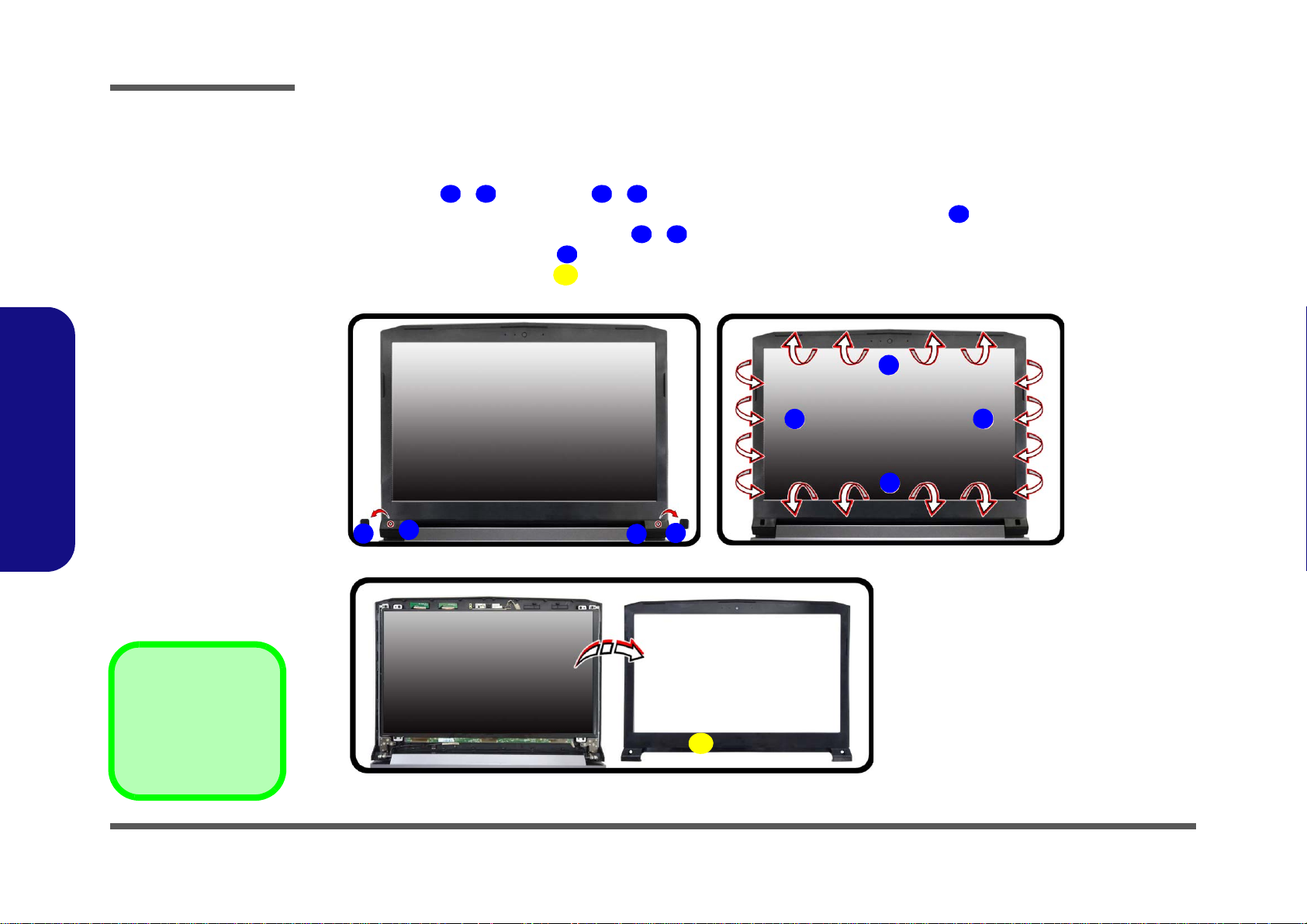

9. LCD Front Cover

•2 Screws

Figure 9

CCD Removal

a. Remove rubber and

screws. Then carefully
release the inner frame
of the LCD panel at the
points indicated by the
arrows.

b. Remove the LCD front

cover.

Disassembly

Removing the CCD

1. Turn off the computer, turn it over to remove the battery (page 2 - 5).

2. Lay the computer down on a flat surface with the top case up forming a 90 degree angle. Carefully remove the
rubber covers - and screws - .

3. Run your fingers around the inner frame of the LCD panel to lift at the upper point as indicated by the arrows.
Lift the outer frame at the middle points - as indicated by the arrows, and then run your fingers around the
inner frame at the lower point as indicated by the arrows (Figure 9a).

4. Remove the LCD front cover (Figure 9b).

2.Disassembly

2 - 14 Removing the CCD

10

11

d.

c.

11

10



11. CCD Module

Figure 10

CCD Removal

(cont’d)

c. Disconnect the cable.
d. Remove the CCD mod-

ule.

Disassembly

5. Disconnect the cable (Figure 10c).

6. Remove the CCD module (Figure 10d).

7. Reverse the process to install a new CCD module.

2.Disassembly

Removing the CCD 2 - 15

Disassembly

2.Disassembly

2 - 16

Appendix A:Part Lists

This appendix breaks down the N855HL series notebook’s construction into a series of illustrations. The component part
numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

A.Part Lists

A - 1

Table A - 1

Part List Illustration

Location

Part List Illustration Location

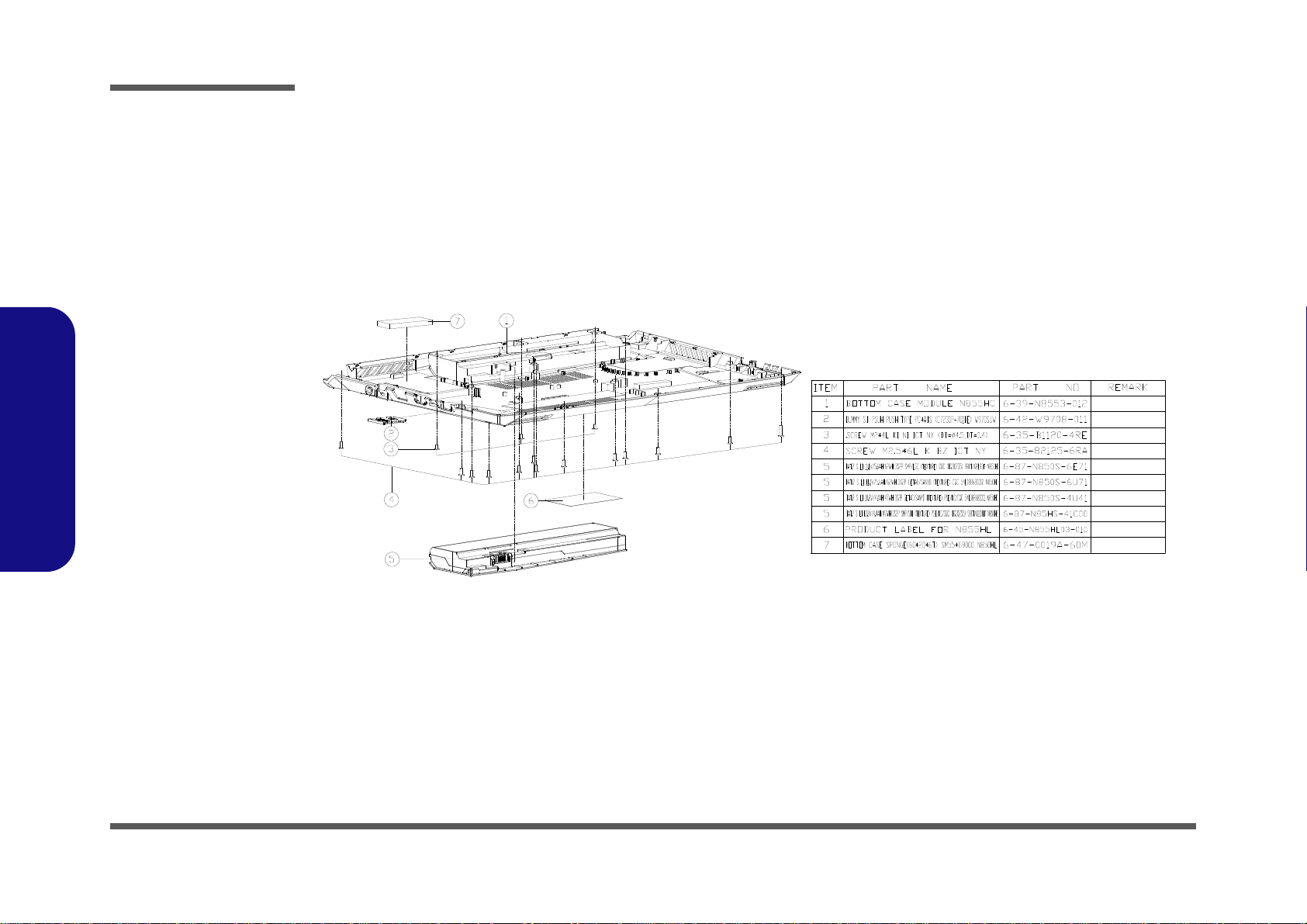

The following table indicates where to find the appropriate part list illustration.

Part

Top

page A - 3

A.Part Lists

Bottom
Main Board
HDD
LCD

page A - 4
page A - 5
page A - 6
page A - 7

A - 2

Top

Figure A - 1

Top

A.Part Lists

Top A - 3

A.Part Lists

Figure A - 2

Bottom

Bottom

A - 4 Bottom

Main Board

Figure A - 3

Main Board

A.Part Lists

Main Board A - 5

A.Part Lists

Figure A - 4

HDD

HDD

A - 6 HDD

LCD

Figure A - 5

LCD

A.Part Lists

LCD A - 7

A.Part Lists

A - 8

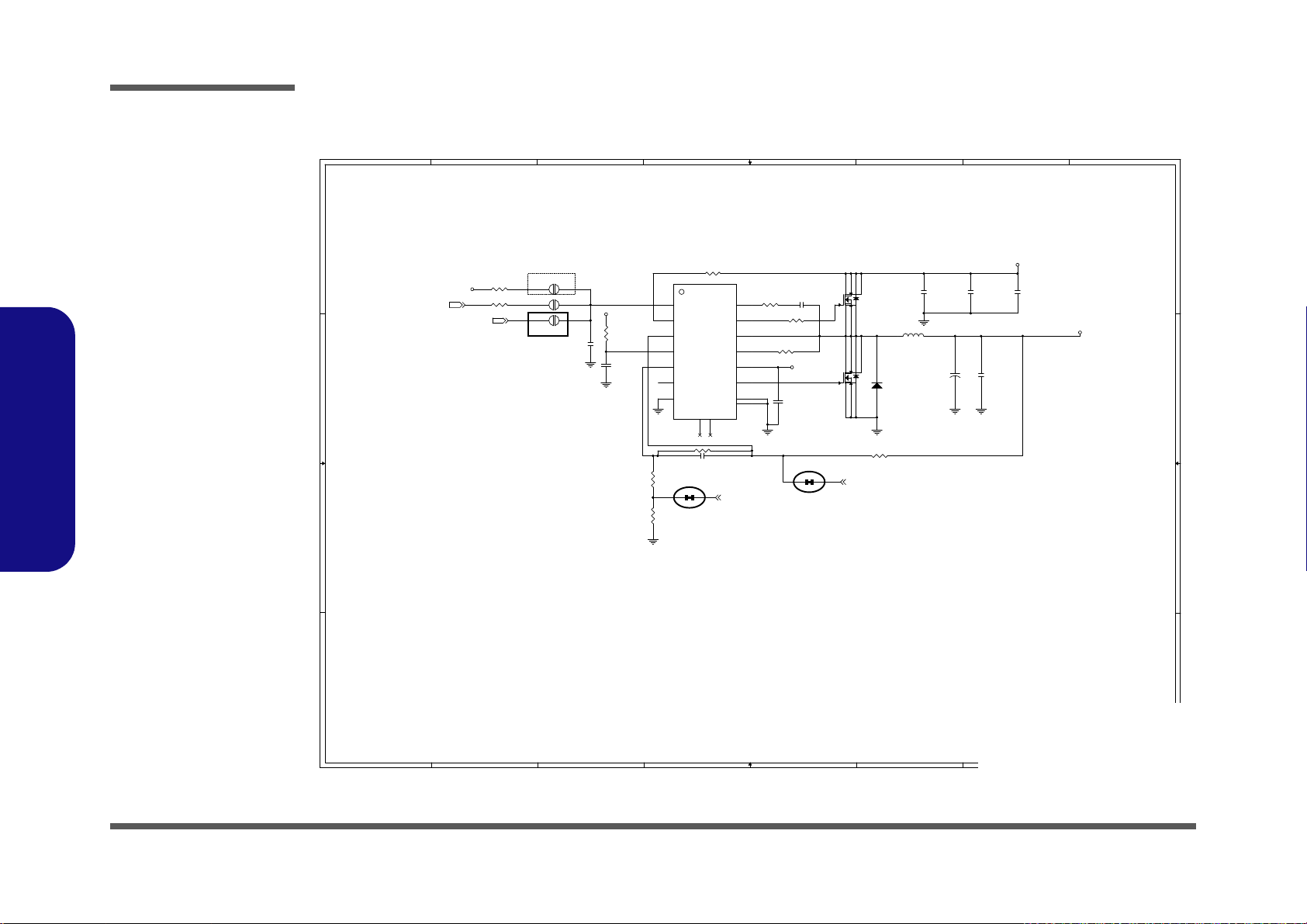

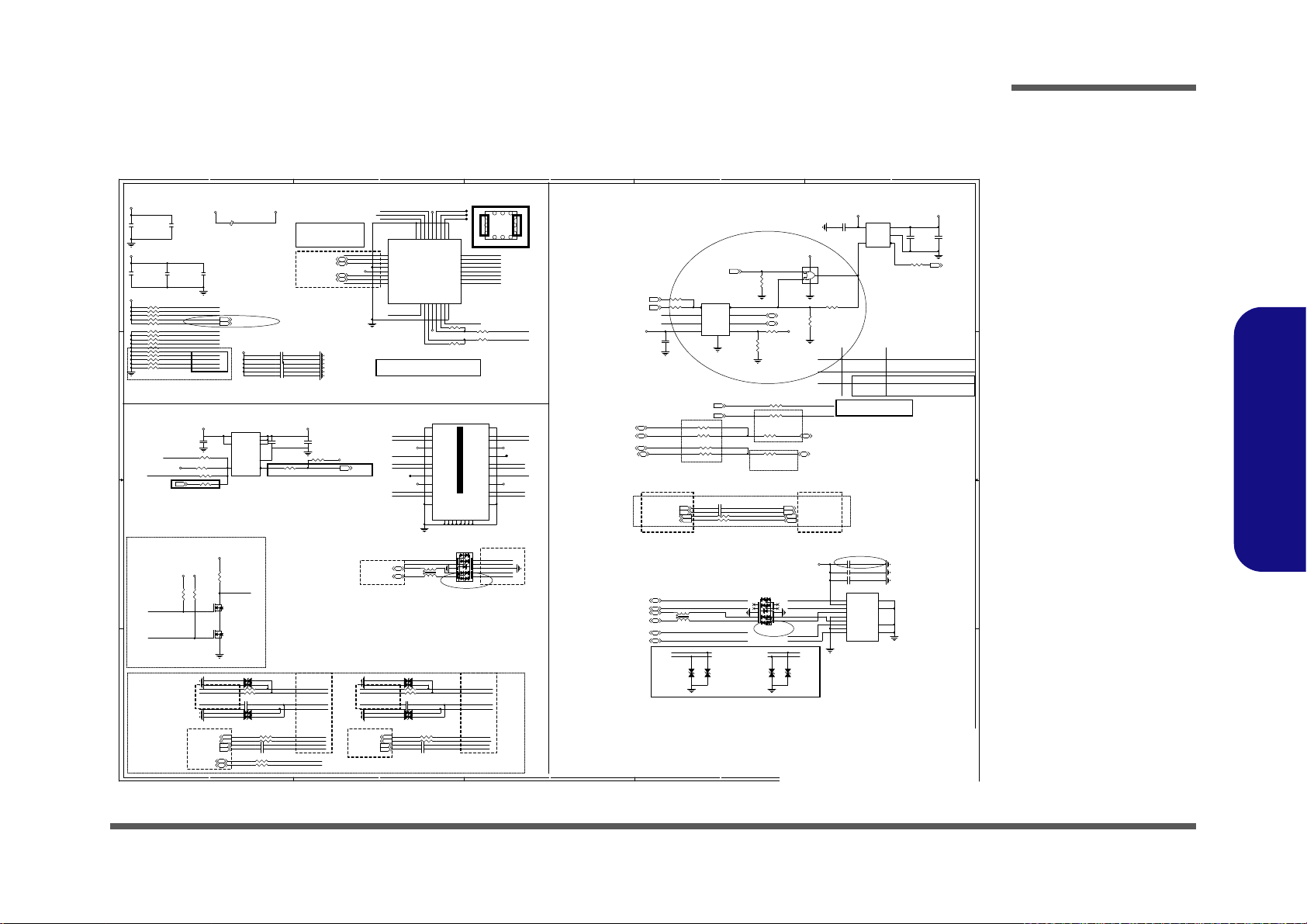

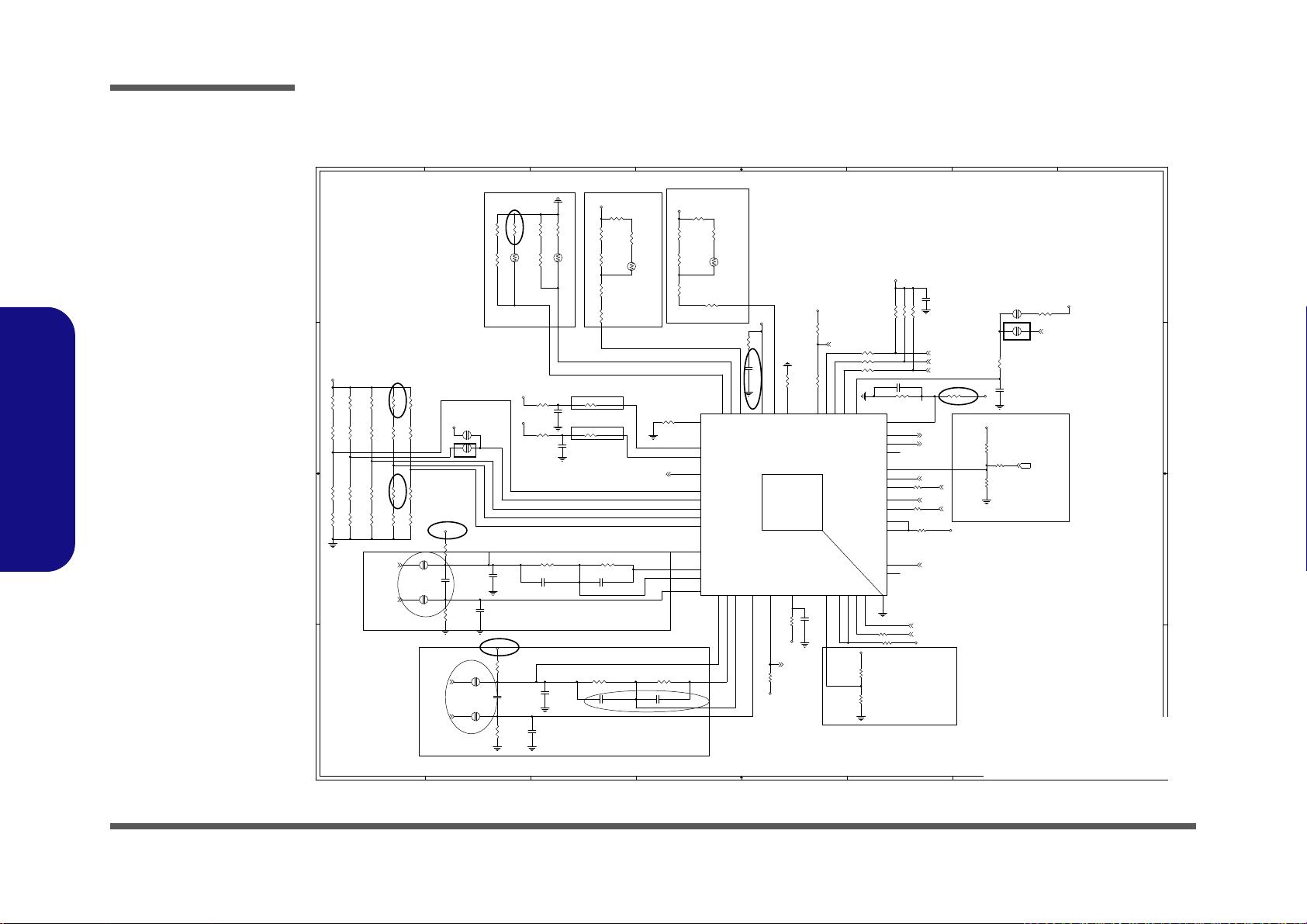

Appendix B: Schematic Diagrams

Table B - 1

SCHEMATIC

DIAGRAMS



Version Note

The schematic dia­grams in this chapter
are based upon ver­sion 6-7P-N85L6-001.
If your mainboard (or
other boards) are a lat­er version, please
check with the Service
Center for updated di­agrams (if required).

This appendix has circuit diagrams of the N855HL notebook’s PCB’s. The following table indicates where to find the
appropriate schematic diagram.

System Block Diagram - Page B - 2 PCH 4/9 - Page B - 23 VCC_Core, VCCGT - Page B - 44
Processor 1/6 - Page B - 3 PCH 5/9 - Page B - 24 1.0DX_VCCSTG/VCCSFR_OC, 3.3VA - Page B - 45
Processor 2/6 - Page B - 4 PCH 6/9 - Page B - 25 VCCSA - Page B - 46
Processor 3/6 - Page B - 5 PCH 7/9 - Page B - 26 AC_In, Charger - Page B - 47
Processor 4/6 - Page B - 6 PCH 8/9 - Page B - 27 NVVDD - Page B - 48
Processor 5/6 - Page B - 7 PCH 9/9 - Page B - 28 FBVDDQ - Page B - 49
Processor 6/6 - Page B - 8 M.2 3G Card - Page B - 29 PEX_VDD/3V3 - Page B - 50
DDR4 CHA SO-DIMM - Page B - 9 M.2 WLAN+BT, SSD - Page B - 30 Audio Board - Page B - 51
DDR4 CHB SO-DIMM - Page B - 10 ASM 1142 & 2142 - Page B - 31 Power Switch Board - Page B - 52
VGA PCI-E Interface - Page B - 11 ASM Power - Page B - 32 Hall Sensor Board - Page B - 53
VGA Frame Buffer Interface - Page B - 12 USB, Charger - Page B - 33 Click Board - Page B - 54
VGA Frame Buffer A - Page B - 13 Card Reader / LAN RTL8411B - Page B - 34 LED Board - Page B - 55
VGA Frame Buffer A - Page B - 14 HDD, Click TP, Audio, Hall Con. - Page B - 35 Power Sequence - Page B - 56
VGA I/0 - Page B - 15 LED, CCD, TPM, Power SW Con. - Page B - 36
VGA NVVDD Coupling - Page B - 16 Audio Codec ALC269 VC2 - Page B - 37
Panel, Inverter - Page B - 17 KBC-ITE IT8587 - Page B - 38
CRT - Page B - 18 5V, 5VS, 3.3V, 3.3VS, 3.3VA - Page B - 39
HDMI - Page B - 19 VDD1.0, VCCIO - Page B - 40
PCH 1/9 - Page B - 20 VDD3, VDD5 - Page B - 41
PCH 2/9 - Page B - 21 DDR 1.2V/0.6VS, 2.5V - Page B - 42
PCH 3/9 - Page B - 22 VCore, VCCGT Output Stage - Page B - 43

Schematic Diagrams

Diagram - Page Diagram - Page Diagram - Page

B.Schematic Diagrams

B - 1

Schematic Diagrams

Sheet 1 of 55

System Block

Diagram

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SHEET 41

GPU NVDIDA NVVDD

1.0V, VCCIO

SHEET 39

5V,3V,5VS,3VS

VDD3,VDD5

SHEET 48

SHEET 40

VCCGT/VCORE Output stage

SHEET 43,44

VDDQ(1.2V),VTT_MEM(0.6V)

SHEET 42

VCC_CORE & VCCGT

1.0DX_VCCSTG/VCCSFR_OC

SHEET 45

N850HL System Block Diagram (Kabylake)

PCIE PORT 7

TOUCH PAD

LPC

SMART
BATTERY

CARD READER

SO-DIMMB

SHEET 49

HP
OUT

SHEET 39

CLICK BOARD

2 vias 1" ~ 7"

PCIE

23x23mm
837 Ball FCBGA

480 Mbps

NGFF A.E Key
M.2 WLAN+BT

SHEET 2,3,4,5,6,7

SPI

DDR4

Kabylake-H

24 MHz

SHEET 22

4VIA

2.5"~9"

MIC
IN

SHEET 8

SHEET 40

SHEET 9

128pins LQFP

SO-DIMMA

32.768KHz

EC SMBUS AZALIA LINK

0.1"~13

DDR4 DDR4

SYSTEM SMBUS

LAN

BIOS
SPI

SHEET 22

SATA HDD

SHEET 37

ITE 8587

2 vias 3"~7.5"

H Platform
Controller
Hub (PCH-H)
HM175

SATA 4 port
USB2.0 14 port

USB3.0 4 port

INT. K/B

EC

Azalia Codec

SHEET 37

0.5"~11"

SHEET 36

USB2.0

SHEET 32

DMI*4

BGA1440

37.5x37.5mm

SHEET 35

32.768 KHz

USB3.0

5 Gbps

REALTEK

SHEET ,22,23,24,
25,26,27,28,29,30

SHEET 2

SATA I/II/III 6.0Gb/s

2133 MHz
DDR4 /1.2

CCD +D-Mic

SHEET 38

ALC269
VB7

KBY-H 42 45W

14*14*1.6mm

100 MHz

THERMAL
SENSOR

33 MHz

SHEET 40

SMART
FAN

SHEET 40

25
MHz

PCIE*4

RTL8411B

USB2.0 PORT4

(USB3.0 PORT4)

USB3.0

SHEET 53

AUDIO BOARD

SHEET 36

SHEET 36

SOCKET

6IN1

RJ-45

USB2.0

USB2.0 PORT11

USB3.0/USB3.1

(USB3.0 PORT1)

(USB3.0 PORT6)

PCIe 8 port

SHEET 35

USB3.0/USB3.1

USB2.0 PORT2

USB2.0 PORT6USB2.0 PORT1

SATA III PORT2

Power: 1.05V.1.5V,

3.3V,VCORE(VR12.5)

1866/2133 MHz
DDR4 / 1.2V

Optional

SHEET 38

TPM 2.0

AC-IN

SHEET 46

VCCSA

SHEET 45

3.3VA

SHEET 47

AC_IN Charger

SMB BUS

SHEET 10,11,12,
13,14,15

nVIDIA

<10" (4 VIA)

RTD2168
DP TO VGA

SHEET 20

<6.5" (3 VIA)

HDMI

SHEET 21

NGFF M Key
PCIE 4X SSD

SHEET 32

NGFF
M.2 B Key
3G / LTE
USB2.0 PORT5

SHEET 31

PCIE
PORT
9,10,11,12

GEN 3

6-71-N85L0-D01

6-71-N8508-D03

6-71-N850S-D03

6-71-N8704-D03

BOM:6-77-N850S-D03

BOM:6-77-N8704-D03

SHEET 55

BOM:6-77-N8508-D03

N850HL

SHEET 51

PHONE JACK x2;USB2.0 x1;USB3.0 x1

AUDIO BOARD

SHEET 1~50

MAIN BOARD (N850)

6-7P-N85L6-001

6IN1

N850 POWER SWITCH BOARD

SHEET 52

N870 LED BOARD

PCIE PORT 5

Asmedia

PCIE 2X

USB3.1

(Optional charger)

PCIE
PORT 1,2

SHEET 33,34

6-71-N8501-D03A

BOM:6-77-N8501-D03

SHEET 53

N850 Hall Sensor BOARD

20
MHz

6-71-N8502-D03

BOM:6-77-N8502-D03

SHEET 54

N850 CLICK BOARD

TYPE-CTYPE-A

SPK-L & SPK-R

SATA

USB3.0

<4.7"

3VIA
3" ~ 9"

3VIA
3" ~ 12"

<14"

Tx 3VIA
Rx 2VIA

2.5"~8"

2VIA
3"~7"

3VIA
3" ~ 12"

2 VIA:3"~8"
4 VIA:3"~9"

2 vias <10"

PANEL Connector

SHEET 19

SHEET 39

EDP

(USB3.0 PORT5)

(USB3.0 PORT2)

Nvidia
N17S-G1 RAM SIZE 2GB (256Mbx32x2))GDDR5

595 Balls(GB2C-64)

N850HL--N17S-G1
N870HL--N17S-G1

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[01]BLOCK DIAGRAM

A3

156Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[01]BLOCK DIAGRAM

A3

156Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[01]BLOCK DIAGRAM

A3

156Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

System Block Diagram

B.Schematic Diagrams

B - 2 System Block Diagram

Processor 1/6

Sheet 2 of 55

Processor 1/6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PLACE NEAR CPU

P/N 6-17-10320-731

CPU HOLD

12 mils

ŅŅŊġ ŕŐġ ŗňł

ʼnŅŎŊġ IJįĵţ

EDP

CLOSE TO CPUWidth = 12mil
Space = 25mil
lengh = 100mil(max)

CLOSE TO CPU

6-36-00180-250(BOT)

DEL PEG X4 2/22

ℙ䓐 暞 ẞ 㕁

6-17-10420-734 TH05-4F104FR (M-R0402)

PEG_TX_0
PEG_TX#_0

PEG_TX_1
PEG_TX#_1

PEG_TX_2
PEG_TX#_2

PEG_TX_3
PEG_TX#_3

PEG_COMP

EDP_DISP_UTIL

EDP_RCOMP

PROC_AUDIO_SDO

VCCIO

3.3V

VCCIO

DMI_IT_MR_0_DP21
DMI_IT_MR_0_DN21

DMI_IT_MR_1_DP21
DMI_IT_MR_1_DN21

DMI_IT_MR_2_DP21
DMI_IT_MR_2_DN21

DMI_IT_MR_3_DP21
DMI_IT_MR_3_DN21

PEG_RX#310

PEG_RX310

PEG_RX210

PEG_RX010

PEG_RX110

PEG_RX#210

PEG_RX#110

PEG_RX#010

DMI_MT_IR_0_DP 21
DMI_MT_IR_0_DN 21

DMI_MT_IR_1_DP 21
DMI_MT_IR_1_DN 21

DMI_MT_IR_2_DP 21
DMI_MT_IR_2_DN 21

DMI_MT_IR_3_DP 21
DMI_MT_IR_3_DN 21

PEG_TX#2 10

PEG_TX#3 10

PEG_TX#0 10

PEG_TX#1 10

PEG_TX3 10

PEG_TX0 10

PEG_TX1 10

PEG_TX2 10

THERM_VOLT 38

HDMI_DATA0P19

HDMI_DATA0N19

HDMI_DATA1N19

HDMI_DATA1P19

HDMI_CLOCKN19

HDMI_CLOCKP19

HDMI_DATA2P19
HDMI_DATA2N19

EDP_TXN_0 17

EDP_TXN_1 17

EDP_TXP_1 17

EDP_TXP_0 17

AUD_AZACPU_SCLK 23
AUD_AZACPU_SDO_R 23

AUD_AZACPU_SDI 23

EDP_AUXP 17
EDP_AUXN 17VGA_AUX_CH_N18

VGA_AUX_CH_P18

VGA_LANE0P18
VGA_LANE0N18

VGA_LANE1N18

VGA_LANE1P18

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[02] Processor 1/7-DMI/PEG/DISPLAY

A3

256Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[02] Processor 1/7-DMI/PEG/DISPLAY

A3

256Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[02] Processor 1/7-DMI/PEG/DISPLAY

A3

256Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R378 20_1%_04

SKYLAKE_HALO

BGA1440

4 OF 14

?

?

REV = 1

U29D

QL2X

DDI1_TXN[3]

J38

EDP_TXN[1]

E28

EDP_TXN[2]

B29

EDP_TXP[2]

A29

DDI1_TXN[2]

H36

DDI1_TXP[3]

J37

EDP_TXP[0]

D29

EDP_TXN[0]

E29

EDP_TXP[1]

F28

EDP_TXN[3]

B28

EDP_TXP[3]

C28

EDP_AUXP

C26

EDP_AUXN

B26

EDP_DISP_UTIL

A33

EDP_RCOMP

D37

PROC_AUDIO_CLK

G27

PROC_AUDIO_SDI

G25

PROC_AUDIO_SDO

G29

DDI1_AUXP

D27

DDI2_TXN[2]

F35

DDI2_TXP[3]

E37

DDI2_TXP[2]

F34

DDI2_TXN[1]

G38

DDI2_TXP[1]

F37

DDI2_TXN[0]

H33

DDI2_TXP[0]

H34

DDI1_AUXN

E27

DDI2_TXN[3]

E36

DDI2_AUXN

E26

DDI2_AUXP

F26

DDI3_TXP[0]

C34

DDI3_TXN[0]

D34

DDI3_TXP[1]

B36

DDI3_TXN[1]

B34

DDI3_TXP[2]

F33

DDI3_TXN[2]

E33

DDI3_TXP[3]

C33

DDI3_TXN[3]

B33

DDI3_AUXN

B27

DDI3_AUXP

A27

DDI1_TXP[0]

K36

DDI1_TXN[0]

K37

DDI1_TXP[1]

J35

DDI1_TXN[1]

J34

DDI1_TXP[2]

H37

C551 0.22u_10V_X5R_04

C549 0.22u_10V_X5R_04

C550 0.22u_10V_X5R_04

C533 0.22u_10V_X5R_04

H15
H7_0D4_3

R498

24.9_1%_04

C535 0.22u_10V_X5R_04

SKYLAKE_HALO

BGA1440

3 OF 14

?

?

REV = 1

U29C

QL2X

PEG_RXN[0]

D25

PEG_RXN[2]

D23

PEG_RXP[2]

E23

PEG_RXN[1]

F24

PEG_RXP[13]

F12

DMI_TXN[3]

B4

DMI_TXP[3]

D4

DMI_TXN[2]

A5

DMI_TXP[2]

B5

DMI_TXP[1]

C6

DMI_TXN[1]

B6

DMI_TXN[0]

A8

DMI_TXP[0]

B8

DMI_RXP[3]

J8

DMI_RXN[3]

J9

DMI_RXN[2]

E5

DMI_RXP[2]

D5

DMI_RXP[1]

E6

DMI_RXN[1]

F6

DMI_RXP[0]

D8

DMI_RXN[0]

E8

PEG_RCOMP

G2

PEG_RXP[15]

F10

PEG_RXP[14]

D11

PEG_RXN[15]

E10

PEG_RXP[8]

D17

PEG_RXN[7]

F18

PEG_RXP[7]

E18

PEG_RXN[3]

F22

PEG_RXP[1]

E24

PEG_RXP[3]

E22

PEG_RXP[4]

E21

PEG_RXN[4]

D21

PEG_RXP[5]

E20

PEG_RXP[6]

E19

PEG_RXP[10]

D15

PEG_RXN[10]

E15

PEG_RXP[11]

F14

PEG_RXN[11]

E14

PEG_RXP[12]

D13

PEG_RXN[13]

E12

PEG_RXN[14]

E11

PEG_TXP[0]

B25

PEG_TXN[0]

A25

PEG_TXP[1]

B24

PEG_TXN[1]

C24

PEG_TXN[2]

A23

PEG_TXP[2]

B23

PEG_TXN[3]

C22

PEG_TXP[3]

B22

PEG_TXP[4]

B21

PEG_TXN[5]

C20

PEG_TXN[4]

A21

PEG_TXP[5]

B20

PEG_TXN[6]

A19

PEG_TXP[6]

B19

PEG_TXP[7]

B18

PEG_TXP[8]

A17

PEG_TXN[10]

B15

PEG_TXP[10]

A15

PEG_TXN[9]

B16

PEG_TXP[11]

C14

PEG_TXN[11]

B14

PEG_TXN[12]

B13

PEG_TXP[12]

A13

PEG_TXN[13]

B12

PEG_TXP[13]

C12

PEG_TXN[14]

B11

PEG_TXP[14]

A11

PEG_TXP[15]

C10

PEG_TXN[15]

B10

PEG_RXN[12]

E13

PEG_RXN[9]

E16

PEG_RXN[8]

E17

PEG_TXP[9]

C16

PEG_TXN[8]

B17

PEG_RXP[9]

F16

PEG_TXN[7]

C18

PEG_RXN[5]

F20

PEG_RXN[6]

D19

PEG_RXP[0]

E25

R442
20K_1%_04

C534 0.22u_10V_X5R_04

H16
H7_0D4_3

H13
H7_5D5_5

R23 24.9_1%_04

C532 0.22u_10V_X5R_04

H12
H7_0D4_3

RT5
TH05-4F104FR

1 2

C536 0.22u_10V_X5R_04

Schematic Diagrams

B.Schematic Diagrams

Processor 1/6 B - 3

Schematic Diagrams

Sheet 3 of 55

Processor 2/6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CLOSE TO CPU

M_A_DQ9

M_A_DQ36

M_A_DQ25

M_A_DQ51

M_A_DQ10

M_A_DQ37

M_A_DQ26

M_A_DQ52

M_A_DQ11

M_A_DQ38

M_A_DQ27

M_A_DQ53

M_A_DQ12

M_A_DQ39

M_A_DQ28

M_A_DQ54

M_A_DQ13

M_A_DQ40

M_A_DQ29

M_A_DQ55

M_A_DQ14

M_A_DQ41

M_A_DQ30

M_A_DQ15

M_A_DQ56

M_A_DQ1

M_A_DQ42

M_A_DQ31

M_A_DQ16

M_A_DQ57

M_A_DQ43

M_A_DQ32

M_A_DQ17

M_A_DQ58

M_A_DQ0

M_A_DQ2

M_A_DQ44

M_A_DQ18

M_A_DQ59

M_A_DQ3

M_A_DQ45

M_A_DQ19

M_A_DQ60

M_A_DQ4

M_A_DQ46

M_A_DQ20

M_A_DQ61

M_A_DQ5

M_A_DQ47

M_A_DQ21

M_A_DQ6

M_A_DQ62

M_A_DQ33

M_A_DQ48

M_A_DQ22

M_A_DQ7

M_A_DQ63

M_A_DQ34

M_A_DQ49

M_A_DQ23

M_A_DQ8

M_A_DQ35

M_A_DQ50

M_A_DQ24

M_B_DQ0

M_B_DQ33

M_B_DQ18

M_B_DQ48

M_B_DQ34

M_B_DQ19

M_B_DQ49

M_B_DQ57

M_B_DQ35

M_B_DQ20

M_B_DQ50

M_B_DQ36

M_B_DQ58

M_B_DQ21

M_B_DQ2

M_B_DQ51

M_B_DQ37

M_B_DQ3

M_B_DQ22

M_B_DQ59

M_B_DQ52

M_B_DQ11

M_B_DQ4

M_B_DQ38

M_B_DQ23

M_B_DQ60

M_B_DQ53

M_B_DQ12

M_B_DQ5

M_B_DQ24

M_B_DQ39

M_B_DQ61

M_B_DQ54

M_B_DQ6

M_B_DQ25

M_B_DQ40

M_B_DQ62

M_B_DQ55

M_B_DQ26

M_B_DQ41

M_B_DQ63

M_B_DQ27

M_B_DQ42

M_B_DQ28

M_B_DQ43

M_B_DQ13

M_B_DQ29

M_B_DQ44

M_B_DQ14

M_B_DQ7

M_B_DQ30

M_B_DQ45

M_B_DQ15

M_B_DQ56

M_B_DQ1

M_B_DQ8

M_B_DQ31

M_B_DQ46

M_B_DQ16

M_B_DQ9

M_B_DQ32

M_B_DQ17

M_B_DQ47

M_B_DQ10

DDR_RCOMP0
DDR_RCOMP1
DDR_RCOMP2

M_A_DQS#1

M_A_DQS#0

M_A_DQS0

M_A_DQS7

M_A_DQS#4

M_A_DQS3

M_A_DQS2

M_A_DQS1

M_A_DQS4

M_A_DQS#2

M_A_DQS5
M_A_DQS6

M_A_DQS#3

M_A_DQS#7

M_A_DQS#5
M_A_DQS#6

M_B_DQS#5
M_B_DQS#6

M_B_DQS#4

M_B_DQS#7

M_B_DQS5
M_B_DQS6

M_B_DQS4

M_B_DQS7

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS3

M_B_DQS2

M_B_DQS1

M_B_DQS0

DIMM_DQ_CPU_VREF_A

M_B_CKE0 9
M_B_CKE1 9

M_B_CS#0 9
M_B_CS#1 9

M_B_ODT0 9
M_B_ODT1 9

M_B_RAS# 9
M_B_WE# 9
M_B_CAS# 9

M_B_BA0 9
M_B_BA1 9
M_B_BG0 9

M_B_CLK_DDR0 9
M_B_CLK_DDR#0 9
M_B_CLK_DDR#1 9
M_B_CLK_DDR1 9

M_B_DQ[63:0]9M_A_DQ[63:0]8

M_A_CLK_DDR0 8
M_A_CLK_DDR#0 8
M_A_CLK_DDR#1 8
M_A_CLK_DDR1 8

M_A_CKE0 8
M_A_CKE1 8

M_A_CS#0 8
M_A_CS#1 8

M_A_ODT0 8
M_A_ODT1 8

M_A_RAS# 8
M_A_WE# 8
M_A_CAS# 8

M_A_DQS#[3:0] 8

M_A_DQS[7:4] 8

M_A_DQS[3:0] 8

M_A_DQS#[7:4] 8

M_A_A0 8
M_A_A1 8
M_A_A2 8
M_A_A3 8
M_A_A4 8
M_A_A5 8
M_A_A6 8
M_A_A7 8
M_A_A8 8
M_A_A9 8
M_A_A10 8
M_A_A11 8
M_A_A12 8
M_A_A13 8
M_A_BG1 8
M_A_ACT# 8

DDR0_A_PARITY 8
DDR0_A_ALERT# 8

M_B_A0 9
M_B_A1 9
M_B_A2 9
M_B_A3 9
M_B_A4 9
M_B_A5 9
M_B_A6 9
M_B_A7 9
M_B_A8 9
M_B_A9 9
M_B_A10 9
M_B_A11 9
M_B_A12 9
M_B_A13 9
M_B_BG1 9
M_B_ACT# 9

DDR1_B_PARITY 9
DDR1_B_ALERT# 9

M_B_DQS#[7:4] 9

M_B_DQS[7:4] 9

M_B_DQS#[3:0] 9

M_B_DQS[3:0] 9

DIMM_CA_CPU_VREF_A 8

DIMM_DQ_CPU_VREF_B 9

M_A_BA0 8
M_A_BA1 8
M_A_BG0 8

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[03] Processor 3/7-DDR4

A3

356Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[03] Processor 3/7-DDR4

A3

356Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[03] Processor 3/7-DDR4

A3

356Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R499 75_1%_04

DDR CHANNEL A

SKYLAKE_HALO

BGA1440

1 OF 14

?

?

REV = 1

U29A

QL2X

DDR0_DQ[36]/DDR1_DQ[ 4]

AB5

DDR0_DQ[35]/DDR1_DQ[ 3]

AA5

DDR0_DQ[34]/DDR1_DQ[ 2]

AA4

DDR0_DQ[32]/DDR1_DQ[ 0]

AB1

DDR0_DQ[31]/DDR0_DQ[ 47]

BC2

DDR0_DQ[30]/DDR0_DQ[ 46]

BC1

DDR0_DQ[45]/DDR1_DQ[ 13]

V4

DDR0_ECC[6]

AY1

DDR0_DQ[63]/DDR1_DQ[ 47]

L1

DDR0_DQ[54]/DDR1_DQ[ 38]

R1

DDR0_DQ[55]/DDR1_DQ[ 39]

P1

DDR0_DQ[43]/DDR1_DQ[ 11]

U2

DDR0_DQ[28]/DDR0_DQ[ 44]

BD5

DDR0_DQ[20]/DDR0_DQ[ 36]

BG2

DDR0_DQ[19]/DDR0_DQ[ 35]

BF5

DDR0_DQ[16]/DDR0_DQ[ 32]

BG4

DDR0_ECC[4]

BA5

DDR0_DQ[60]/DDR1_DQ[ 44]

M5

DDR0_DQ[4]

BN5

DDR0_DQ[2]

BP3

DDR0_DQ[3]

BR3

DDR0_DQ[5]

BP6

DDR0_DQ[6]

BP2

DDR0_DQ[7]

BN3

DDR0_DQ[8]

BL4

DDR0_DQ[9]

BL5

DDR0_DQ[10]

BL2

DDR0_DQ[11]

BM1

DDR0_DQ[13]

BK5

DDR0_DQ[14]

BK1

DDR0_DQ[18]/DDR0_DQ[ 34]

BF4

DDR0_DQ[21]/DDR0_DQ[ 37]

BG1

DDR0_DQ[23]/DDR0_DQ[ 39]

BF2

DDR0_DQ[25]/DDR0_DQ[ 41]

BD1

DDR0_DQ[27]/DDR0_DQ[ 43]

BC5

DDR0_DQ[29]/DDR0_DQ[ 45]

BD4

DDR0_DQ[12]

BK4

DDR0_DQ[17]/DDR0_DQ[ 33]

BG5

DDR0_DQ[15]

BK2

DDR0_CKP[0]

AG1

DDR0_DQ[42]/DDR1_DQ[ 10]

U1

DDR0_DQ[41]/DDR1_DQ[ 9]

V2

DDR0_DQ[40]/DDR1_DQ[ 8]

V5

DDR0_DQ[37]/DDR1_DQ[ 5]

AB4

DDR0_DQ[33]/DDR1_DQ[ 1]

AB2

DDR0_DQ[26]/DDR0_DQ[ 42]

BC4

DDR0_DQ[22]/DDR0_DQ[ 38]

BF1

DDR0_ECC[3]

AY5

DDR0_DQ[58]/DDR1_DQ[ 42]

L4

DDR0_DQ[52]/DDR1_DQ[ 36]

R5

DDR0_DQ[47]/DDR1_DQ[ 15]

U4

DDR0_DQ[44]/DDR1_DQ[ 12]

V1

DDR0_DQ[39]/DDR1_DQ[ 7]

AA1

DDR0_DQSP[8]

AY3

DDR0_DQSN[8]

BA3

DDR0_DQSN[7]/DDR1_DQSN[ 5]

L3

DDR0_DQSN[6]/DDR1_DQSN[ 4]

P3

DDR0_DQSN[5]/DDR1_DQSN[ 1]

U3

DDR0_DQSN[4]/DDR1_DQSN[ 0]

AA3

DDR0_DQSP[3]/DDR0_DQSP[5]

BC3

DDR0_DQSP[2]/DDR0_DQSP[4]

BF3

DDR0_DQSP[1]

BK3

DDR0_DQSP[0]

BP5

DDR0_DQSP[7]/DDR1_DQSP[5]

M3

DDR0_DQSP[5]/DDR1_DQSP[1]

V3

DDR0_DQSP[6]/DDR1_DQSP[4]

R3

DDR0_DQSN[3]/DDR0_DQSN[ 5]

BD3

DDR0_DQSP[4]/DDR1_DQSP[0]

AB3

DDR0_DQSN[1]

BL3

DDR0_DQSN[2]/DDR0_DQSN[ 4]

BG3

DDR0_DQSN[0]

BR5

DDR0_PAR

AG3

DDR0_MA[14]/DDR0_CAA[9]/ DDR0_BG[1]

AU2

DDR0_MA[15]/DDR0_CAA[8]/ DDR0_ACT#

AU3

DDR0_MA[13]/DDR0_CAB[0]/ DDR0_MA[13]

AE3

DDR0_MA[12]/DDR0_CAA[6]/ DDR0_MA[12]

AU4

DDR0_MA[11]/DDR0_CAA[7]/ DDR0_MA[11]

AN2

DDR0_MA[8]/DDR0_CAA[3]/ DDR0_MA[8]

AN3

DDR0_MA[9]/DDR0_CAA[1]/ DDR0_MA[9]

AT4

DDR0_MA[10]/DDR0_CAB[7]/ DDR0_MA[10]

AH2

DDR0_MA[6]/DDR0_CAA[2]/ DDR0_MA[6]

AP3

DDR0_MA[7]/DDR0_CAA[4]/ DDR0_MA[7]

AN1

DDR0_MA[5]/DDR0_CAA[0]/ DDR0_MA[5]

AP1

DDR0_MA[4]

AP2

DDR0_MA[3]

AP5

DDR0_MA[2]/DDR0_CAB[5]/ DDR0_MA[2]

AN4

DDR0_MA[1]/DDR0_CAB[8]/ DDR0_MA[1]

AP4

DDR0_MA[0]/DDR0_CAB[9]/ DDR0_MA[0]

AH3

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[ 15]

AD1

DDR0_WE#/DDR0_CAB[2] /DDR0_MA[14]

AG4

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[ 16]

AH4

DDR0_BA[2]/DDR0_CAA[5]/ DDR0_BG[0]

AU1

DDR0_BA[1]/DDR0_CAB[6]/ DDR0_BA[1]

AH1

DDR0_BA[0]/DDR0_CAB[4]/ DDR0_BA[0]

AH5

DDR0_ODT[3]

AD4

DDR0_ODT[2]

AE1

DDR0_ODT[1]

AE4

DDR0_CS#[3]

AE5

DDR0_ODT[0]

AD3

DDR0_CS#[2]

AD2

DDR0_CS#[1]

AE2

DDR0_CKE[3]

AT5

DDR0_CS#[0]

AD5

DDR0_CKE[1]

AT2

DDR0_CKE[2]

AT3

DDR0_CKE[0]

AT1

DDR0_CLKN[3]

AL1

DDR0_CLKN[2]

AK3

DDR0_CLKP[3]

AL2

DDR0_CLKP[2]

AL3

DDR0_CKP[1]

AK2

DDR0_CKN[1]

AK1

DDR0_CKN[0]

AG2

DDR0_ECC[7]

AY2

DDR0_ECC[5]

BA4

DDR0_ECC[2]

AY4

DDR0_ECC[1]

BA1

DDR0_ECC[0]

BA2

DDR0_DQ[62]/DDR1_DQ[ 46]

L5

DDR0_DQ[61]/DDR1_DQ[ 45]

M2

DDR0_DQ[59]/DDR1_DQ[ 43]

L2

DDR0_DQ[56]/DDR1_DQ[ 40]

M4

DDR0_DQ[57]/DDR1_DQ[ 41]

M1

DDR0_DQ[53]/DDR1_DQ[ 37]

P2

DDR0_DQ[51]/DDR1_DQ[ 35]

P4

DDR0_DQ[50]/DDR1_DQ[ 34]

R4

DDR0_DQ[49]/DDR1_DQ[ 33]

P5

DDR0_DQ[48]/DDR1_DQ[ 32]

R2

DDR0_DQ[46]/DDR1_DQ[ 14]

U5

DDR0_DQ[38]/DDR1_DQ[ 6]

AA2

DDR0_DQ[24]/DDR0_DQ[ 40]

BD2

DDR0_ALERT#

AU5

DDR0_DQ[1]

BT6

DDR0_DQ[0]

BR6

R500 100_1%_04

DDR CHANNEL B

BGA1440

SKYLAKE_HALO

2 OF 14

REV = 1

?

?

U29B

QL2X

DDR1_DQ[0]/DDR0_DQ[ 16]

BT11

DDR1_DQ[3]/DDR0_DQ[ 19]

BR8

DDR1_DQ[4]/DDR0_DQ[ 20]

BP11

DDR1_DQ[5]/DDR0_DQ[ 21]

BN11

DDR1_DQ[6]/DDR0_DQ[ 22]

BP8

DDR1_DQ[7]/DDR0_DQ[ 23]

BN8

DDR1_DQ[8]/DDR0_DQ[ 24]

BL12

DDR1_DQ[9]/DDR0_DQ[ 25]

BL11

DDR1_DQ[11]/DDR0_DQ[ 27]

BJ8

DDR1_DQ[12]/DDR0_DQ[ 28]

BJ11

DDR1_DQ[14]/DDR0_DQ[ 30]

BL7

DDR1_DQ[15]/DDR0_DQ[ 31]

BJ7

DDR1_DQ[2]/DDR0_DQ[ 18]

BT8

DDR1_DQ[1]/DDR0_DQ[ 17]

BR11

DDR1_ECC[3]

AW8

DDR1_ECC[4]

AY10

DDR1_ECC[5]

AW10

DDR1_ECC[6]

AY7

DDR1_ECC[7]

AW7

DDR1_DQ[61]

M10

DDR1_DQ[60]

L10

DDR1_DQ[59]

M8

DDR1_DQ[58]

L7

DDR1_DQ[57]

M11

DDR1_DQ[56]

L11

DDR1_DQ[55]

P8

DDR1_DQ[54]

R7

DDR1_DQ[53]

P10

DDR1_ODT[0]

AF7

DDR1_CS#[3]

AE10

DDR1_CS#[2]

AF10

DDR1_ODT[1]

AE8

DDR1_ODT[2]

AE9

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[ 16]

AH10

DDR1_BA[1]/DDR1_CAB[6]/ DDR1_BA[1]

AH9

DDR1_MA[0]/DDR1_CAB[9]/ DDR1_MA[0]

AJ9

DDR1_DQSN[6]

R9

DDR0_VREF_DQ

BP13

DDR_VREF_CA

BN13

DDR1_DQSN[5]/DDR1_DQSN[ 3]

W9

DDR1_PAR

AJ7

DDR1_MA[15]/DDR1_CAA[8]/ DDR1_ACT#

AT9

DDR1_MA[14]/DDR1_CAA[9]/ DDR1_BG[1]

AR7

DDR1_MA[13]/DDR1_CAB[0]/ DDR1_MA[13]

AF9

DDR1_MA[11]/DDR1_CAA[7]/ DDR1_MA[11]

AN11

DDR1_MA[12]/DDR1_CAA[6]/ DDR1_MA[12]

AR10

DDR1_MA[10]/DDR1_CAB[7]/ DDR1_MA[10]

AH7

DDR1_MA[8]/DDR1_CAA[3]/ DDR1_MA[8]

AN8

DDR1_MA[9]/DDR1_CAA[1]/ DDR1_MA[9]

AR11

DDR1_MA[7]/DDR1_CAA[4]/ DDR1_MA[7]

AN10

DDR1_MA[6]/DDR1_CAA[2]/ DDR1_MA[6]

AN7

DDR1_MA[3]

AL5

DDR1_MA[4]

AL6

DDR1_MA[5]/DDR1_CAA[0]/ DDR1_MA[5]

AM6

DDR1_MA[2]/DDR1_CAB[5]/ DDR1_MA[2]

AK5

DDR1_MA[1]/DDR1_CAB[8]/ DDR1_MA[1]

AK6

DDR1_BA[2]/DDR1_CAA[5]/ DDR1_BG[0]

AR9

DDR1_BA[0]/DDR1_CAB[4]/ DDR1_BA[0]

AH8

DDR1_WE#/DDR1_CAB[2]/ DDR1_MA[14]

AH11

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[ 15]

AF8

DDR1_ODT[3]

AE11

DDR1_CS#[1]

AE7

DDR1_CKE[3]

AT11

DDR1_CS#[0]

AF11

DDR1_CKE[2]

AT7

DDR1_CKE[1]

AT10

DDR1_CKE[0]

AT8

DDR1_CLKN[3]

AJ11

DDR1_CLKP[3]

AJ10

DDR1_CLKN[2]

AM10

DDR1_CLKP[2]

AM11

DDR1_CKP[1]

AM7

DDR1_CKN[1]

AM8

DDR1_CKP[0]

AM9

DDR1_CKN[0]

AN9

DDR1_ECC[2]

AY8

DDR1_ECC[1]

AY11

DDR1_ECC[0]

AW11

DDR1_DQ[63]

L8

DDR1_DQ[62]

M7

DDR1_DQ[51]

R8

DDR1_DQ[52]

R10

DDR1_DQ[50]

P7

DDR1_DQ[49]

P11

DDR1_DQ[48]

R11

DDR1_DQ[46]/DDR1_DQ[ 30]

V7

DDR1_DQ[47]/DDR1_DQ[ 31]

V8

DDR1_DQ[45]/DDR1_DQ[ 29]

W10

DDR1_DQ[43]/DDR1_DQ[ 27]

V11

DDR1_DQ[44]/DDR1_DQ[ 28]

W11

DDR1_DQ[40]/DDR1_DQ[ 24]

W8

DDR1_DQ[42]/DDR1_DQ[ 26]

V10

DDR1_DQ[41]/DDR1_DQ[ 25]

W7

DDR1_DQ[39]/DDR1_DQ[ 23]

AC7

DDR1_DQ[38]/DDR1_DQ[ 22]

AC8

DDR1_DQ[37]/DDR1_DQ[ 21]

AA8

DDR1_DQ[29]/DDR0_DQ[ 61]

BB10

DDR1_DQ[23]/DDR0_DQ[ 55]

BF7

DDR1_DQ[20]/DDR0_DQ[ 52]

BF11

DDR1_DQ[21]/DDR0_DQ[ 53]

BF10

DDR1_DQ[17]/DDR0_DQ[ 49]

BG10

DDR1_DQ[18]/DDR0_DQ[ 50]

BG8

DDR1_DQ[16]/DDR0_DQ[ 48]

BG11

DDR1_DQ[13]/DDR0_DQ[ 29]

BJ10

DDR1_DQ[10]/DDR0_DQ[ 26]

BL8

DDR1_DQ[19]/DDR0_DQ[ 51]

BF8

DDR1_DQ[26]/DDR0_DQ[ 58]

BB8

DDR1_VREF_DQ

BR13

DDR1_DQSN[8]

AY9

DDR1_DQSP[8]

AW9

DDR1_DQSP[7]

L9

DDR1_DQSP[6]

P9

DDR1_DQSP[5]/DDR1_DQSP[3]

V9

DDR1_DQSP[4]/DDR1_DQSP[2]

AA9

DDR1_DQSP[3]/DDR0_DQSP[7]

BB9

DDR1_DQSP[2]/DDR0_DQSP[6]

BF9

DDR1_DQSP[1]/DDR0_DQSP[3]

BJ9

DDR1_DQSP[0]/DDR0_DQSP[2]

BR9

DDR1_DQSN[7]

M9

DDR1_DQSN[4]/DDR1_DQSN[ 2]

AC9

DDR1_DQSN[3]/DDR0_DQSN[ 7]

BC9

DDR1_DQSN[2]/DDR0_DQSN[ 6]

BG9

DDR1_DQSN[1]/DDR0_DQSN[ 3]

BL9

DDR1_DQSN[0]/DDR0_DQSN[ 2]

BP9

DDR1_ALERT#

AR8

DDR1_DQ[36]/DDR1_DQ[ 20]

AA7

DDR1_DQ[35]/DDR1_DQ[ 19]

AC10

DDR1_DQ[34]/DDR1_DQ[ 18]

AC11

DDR1_DQ[33]/DDR1_DQ[ 17]

AA10

DDR1_DQ[32]/DDR1_DQ[ 16]

AA11

DDR1_DQ[31]/DDR0_DQ[ 63]

BB7

DDR1_DQ[30]/DDR0_DQ[ 62]

BC7

DDR1_DQ[28]/DDR0_DQ[ 60]

BC10

DDR1_DQ[27]/DDR0_DQ[ 59]

BC8

DDR1_DQ[25]/DDR0_DQ[ 57]

BC11

DDR1_DQ[24]/DDR0_DQ[ 56]

BB11

DDR1_DQ[22]/DDR0_DQ[ 54]

BG7

DDR_RCOMP[0]

G1

DDR_RCOMP[1]

H1

DDR_RCOMP[2]

J2

R497 121_1%_04

Processor 2/6

B.Schematic Diagrams

B - 4 Processor 2/6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CFG7

DEFENSIVE PULL DOWN SITE

1: (Default) PEG Train immediately following xxRESETB de assertion
0: PEG Wait for BIOS for training

CFG4

1: DISABLED;
NO PHYSICAL DISPLAY PORT ATTACHED
TO EMBEDDED DISPLAY PORT
0: ENABLED;
AN EXTERNAL DISPLAY PORT DEVICE
IS CONNECTED TO THE EMBE DDED
DISPLAY PORT

DISPLAY PORT PRESENCE STRAP

CFG2

1: (DEFAULT)NORMAL OPERATION;
LANE# DEFINITION MATCHES
SOCKET PIN MAP DEFINITION
0: LANE REVERSAL

PCI EXPRESS STATIC LANE REVERSAL FOR ALL PEG PORTS

CFG[6:5]

11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

PCIE PORT BIFURCATION STRAPS

CFG[0]: Stall reset sequence after PCU

Ʉ

PLL lock until de-asserted:
— 1 = (Default) Normal Operation;
No stall.
— 0 = Stall.

CFG[1]: Reserved configuration lane.

Ʉ

CFG[2]: PCI Express* Static x16 Lane

Ʉ

Numbering Reversal.
— 1 = Normal operation
— 0 = Lane numbers reversed.

CFG[3]: Reserved configuration lane.

Ʉ

CFG[4]: eDP enable:

Ʉ

— 1 = Disabled.
— 0 = Enabled.

CFG[6:5]: PCI Express* Bifurcation

Ʉ

— 00 = 1 x8, 2 x4 PCI Express*
— 01 = reserved
— 10 = 2 x8 PCI Express*
— 11 = 1 x16 PCI Express*

CFG[7]: PEG Training:

Ʉ

— 1 = (default) PEG Train
immediately following RESET# de
assertion.
— 0 = PEG Wait for BIOS for
training.

CFG[19:8]: Reserved configuration

Ʉ

lanes.

TO EC

NEAR CPU

TO PCH-H

VCCST_PWRGD

CAD Note: Capacitor need to be placed
close to buffer output pin

VIDALERT#

PROCHOT#

H_PROCHOT#

VCCST_PWRGD_CPUVCCST_PWRGD

PM_DOWN
PECI

H_SKTOCC_N

H_TDO
H_TDI
H_TMS
H_TCK

H_TRST#
H_PREQ#
H_PRDY#

CFG_RCOMP

CFG0

CFG3
CFG4
CFG5
CFG6
CFG7

H_TDO

H_TCK

H_SKTOCC_N

CFG8

SYS_PWRGD#

VCCST_PWRGD

H_PROCHOT#

1.0V_VCCST

3.3VA

1.0V_VCCST

1.0V_VCCST

VDD3

1.0DX_VCCSTG

H_PROCHOT#44

PCH_CPU_BCLK_R_DN25

PCH_CPU_BCLK_R_DP25

PCH_CPU_PCIBCLK_R_DN25

PCH_CPU_PCIBCLK_R_DP25

CPU_24MHZ_R_DN25

CPU_24MHZ_R_DP25

H_PWRGD23

PLTRST_CPU_N22

H_PM_SYNC22

H_SKTOCC_N24

DDR_VTT_PG_CTRL42

H_CPU_SVIDCLK44

H_CPU_SVIDDAT44
H_CPU_SVIDALRT#44

PCH_THERMTRIP#22

PCH_PECI22

H_PM_DOWN22

H_PECI38

ALL_SYS_PWRGD17,21,38,44

H_PROCHOT_EC38

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[04]Processor 4/7-CLK/JTAG/MISC

A3

456Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[04]Processor 4/7-CLK/JTAG/MISC

A3

456Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[04]Processor 4/7-CLK/JTAG/MISC

A3

456Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R382 12.1_1%_04

R379 499_1%_04

R30

56.2_1%_04

R43 1K_04

C537

47P_50V_NPO_04

T86

SKYLAKE_HALO

BGA1440

5 OF 14

REV = 1

?

?

U29E

QL2X

PROC_SELECT#

BN1

CATERR#

BM30

SKTOCC#

BR33

PM_DOWN

BP31

PM_SYNC

BM34

RESET#

BP35

PROCPWRGD

BT31

VCCST_PWRGD

H13

CFG[17]

BN23

CFG[15]

BT19

CFG[16]

BP23

CFG[11]

BT22

CFG[12]

BM19

CFG[10]

BT23

CFG[9]

BR22

CLK24N

D31

CFG[1]

BN27

CFG[3]

BN28

CFG[18]

BN22

PROC_TDI

BL32

CFG[0]

BN25

CFG[2]

BN26

CFG[4]

BR20

CFG[6]

BT20

CFG[5]

BM20

CFG[7]

BP20

CFG[8]

BR23

CFG[13]

BR19

CFG[14]

BP19

CFG[19]

BP22

PROC_PREQ#

BL30

PROC_PRDY#

BP27

VIDSCK

BH32

PROC_TDO

BT28

CLK24P

E31

PCI_BCLKN

C36

PCI_BCLKP

D35

BCLKN

A32

VIDSOUT

BH29

PROCHOT#

BR30

DDR_VTT_CNTL

BT13

CFG_RCOMP

BT25

PROC_TRST#

BP30

PROC_TCK

BR28

PROC_TMS

BP28

VIDALERT#

BH31

THERMTRIP#

J31

PECI

BT34

BCLKP

B31

BPM#[0]

BR27

BPM#[1]

BT27

BPM#[2]

BM31

BPM#[3]

BT30

S

D

G

Q34B
MTDK3S6R

5

34

R422

100K_04

C496
*0.1u_10V_X7R_04

R73

1K_04

R53 1K_04

R383 *0402_short

R74 60.4_1%_04

C495
*0.1u_10V_X7R_04

T81

R31

220_04

S

D

G

Q34A
MTDK3S6R

2

61

R361 20K_04

R421 1K_04

T19

Q36

2SK3018S3

G

DS

R381 20_1%_04

R398 51_04

R401

49.9_1%_04

R360

100K_04

R399 51_04

R44

100_04

T87

R420 1K_04

R402 100K_04

Sheet 4 of 55

Processor 3/6

Processor 3/6

Schematic Diagrams

B.Schematic Diagrams

Processor 3/6 B - 5

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PLACE CAPS AT BACK

CPU_BACK_VCCCORE

PLACE CAPS AT BOARD EDGE

CPU_TOP_VCCCORE

INTEL

㰺㍍

INTEL㰺

㍍

PLACE CAP BACKSIDE

CPU_BACK_VCCEOPIO

őōłńņġłōōġŕʼnņġœņŔŊŔŕŐœŔġŊŏ
ŕʼnŊŔġőłňņġĮġŏņłœġńőŖ

PLACE CAPS IN SOCKET EDGE TOP

CPU_TOP_EDRAM_1P8

68A 68A

0.05A

VSS_VCORE_SENSEVCC_VCORE_SENSE

OPCE_RCOMP2

OPCE_RCOMP

OPC_RCOMP

VCORE

VCORE

VCORE

VCORE VCORE VCORE

VCCEDRAM

VCCEDRAM_ED2

VCCEOPIO

VCCEOPIO_ED2

V1.8S_EDRAM

VCCEDRAM_FUSEPRG

VCCEOPIO

V1.8S_EDRAM

VCC_VCORE_SENSE 44

VSS_VCORE_SENSE 44

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[05] Processor 5/7-POWER1

A3

556Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[05] Processor 5/7-POWER1

A3

556Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[05] Processor 5/7-POWER1

A3

556Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C219

*22u_6.3V_X6S_08

R380

*49.9_1%_04

C22

*10u_6.3V_X5R_06

C203

*22u_4V_X6S_06

C222

*22u_4V_X6S_06

BGA1440

SKYLAKE_HALO

?

?

10 OF 14

REV = 1

U29J

QL2X

OPC_RCOMP

BT29

VCCOPC

BK20

VCCOPC

BL16

VCCOPC

BL18

VCCOPC

BL17

VCCOPC

BL19

VCCOPC

BM17

VCCOPC

BL21

RSVD

BJ27

RSVD

BK23

RSVD

BK27

RSVD

BL23

RSVD

BL25

RSVD

BL28

RSVD

BL27

VCCEOPIO

BP15

VCCEOPIO

BT15

RSVD

BT16

RSVD

BR16

RSVD

BP16

RSVD

BP17

VSSEOPIO_SENSE

BM15

VCCEOPIO_SENSE

BN15

VCC_OPC_1P8

BM14

VCC_OPC_1P8

BL14

RSVD

BN16

RSVD

BJ36

RSVD

BJ35

ZVM#

AT13

MSM#

AW13

MSM2#

AY13

ZVM2#

AU13

OPCE_RCOMP

BR25

OPCE_RCOMP2

BP25

RSVD

BM22

RSVD

BL22

VSSOPC_SENSE

BM16

RSVD

BM24

VCCOPC

BJ19

VCCOPC

BJ17

VCCOPC

BJ20

VCCOPC

BK17

VCCOPC

BK19

VCCOPC

BL20

VCCOPC

BN17

RSVD

BJ23

RSVD

BJ26

RSVD

BK26

RSVD

BL24

RSVD

BL26

VCCOPC_SENSE

BL15

VCCEOPIO

BR15

R400

*49.9_1%_04

+

C505

390uF_2.5V_10m_6.3*6

C180

1u_6.3V_X6S_04

C552

*22u_6.3V_X5R_06

R419

*49.9_1%_04

C179

1u_6.3V_X6S_04

C38

*10u_4V_X6S_06

C248

1u_6.3V_X6S_04

C246

1u_6.3V_X6S_04

C217

22u_6.3V_X6S_08

C39

10u_6.3V_X5R_06

C121

1u_6.3V_X6S_04

C216

1u_6.3V_X6S_04

C235

*22u_4V_X6S_06

C74

10u_4V_X6S_06

C183

10u_4V_X6S_06

C177

*1u_6.3V_X6S_04

C221

10u_4V_X6S_06

BGA1440

SKYLAKE_HALO

?

7 OF 14

REV = 1 ?

U29G

QL2X

VCC

P14

VCC

V31

VCC

V13

VCC

V14

VCC

U36

VCC

U32

VCC

U31

VCC

U33

VCC

U34

VCC

U35

VCC

T37

VCC

T36

VCC

U30

VCC

U29

VCC

T29

VCC

T35

VCC

T32

VCC

R38

VCC

R35

VCC

R36

VCC

R34

VCC

R37

VCC

R33

VCC

R31

VCC

R13

VCC

P36

VCC

R32

VCC

P31

VCC

P30

VCC

P29

VCC

Y30

VCC

Y31

VCC

Y29

VCC

W36

VCC

W35

VCC

W32

VCC

W38

VCC

W29

VCC

W31

VCC

W30

VCC

V35

VCC

V36

VCC

P13

VCC

N37

VCC

N38

VCC

N36

VCC

N35

VCC

N32

VCC

N31

VCC

N30

VCC

N14

VCC

N13

VCC

L13

VCC

AF38

VCC

K13

VCC

K14

VCC

AF37

VCC

AF36

VCC

AF35

VCC

AE38

VCC

AE37

VCC

AD32

VSS_SENSE

AG38

VCC_SENSE

AG37

VCC

AC36

VCC

AD13

VCC

AD14

VCC

AD31

VCC

AD33

VCC

AD34

VCC

AD35

VCC

AD36

VCC

AD37

VCC

AD38

VCC

AE13

VCC

AE14

VCC

AE30

VCC

AE31

VCC

AE32

VCC

AE36

VCC

AE35

VCC

T31

VCC

T30

VCC

L14

VCC

Y32

VCC

Y33

VCC

Y34

VCC

Y35

VCC

Y36

VCC

P32

VCC

P33

VCC

P34

VCC

P35

VCC

V34

VCC

V32

VCC

T38

VCC

W37

VCC

V33

VCC

W14

VCC

AB31

VCC

AB32

VCC

AC30

VCC

AC32

VCC

AC33

VCC

AC34

VCC

AC35

VCC

AB37

VCC

AB38

VCC

AC13

VCC

AC14

VCC

AC29

VCC

AC31

VCC

V38

VCC

V37

VCC

W13

VCC

AB30

VCC

AB29

VCC

AA38

VCC

AA37

VCC

AA35

VCC

AA34

VCC

AA33

VCC

AA32

VCC

AA31

VCC

AA13

VCC

AA36

VCC

AB36

VCC

AB35

C124

1u_6.3V_X6S_04

C218

22u_6.3V_X6S_08

C23

*10u_6.3V_X5R_06

C244

1u_6.3V_X6S_04

C122

1u_6.3V_X6S_04

C220

*10u_4V_X6S_06

C223

*1u_6.3V_X6S_04

C182

1u_6.3V_X6S_04

C247

*1u_6.3V_X6S_04

C184

*1u_6.3V_X6S_04

C185

*1u_6.3V_X6S_04

C125

1u_6.3V_X6S_04

C123

1u_6.3V_X6S_04

C181

22u_6.3V_X6S_08

C178

22u_6.3V_X6S_08

R374

*49.9_1%_04

C215

*22u_6.3V_X6S_08

C120

*1u_6.3V_X6S_04

Sheet 5 of 55

Processor 4/6

Processor 4/6

B.Schematic Diagrams

B - 6 Processor 4/6

Processor 5/6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AROUND_CPU

PLACE CAP BACKSIDE

PLACE CAP BACKSIDE

PLACE CAP IN BOARD EDGE

CPU_TOP_VCCSA

PLACE CAP IN BACK SIDE

CPU_BACK_VCCSA

NEAR TO CPU PIN

11.1A

5.5A

2.8A

0.15A

0.06A

place to angle

T104
T106
T103
T105

Gary_Change footprint

Gary_D02 for common design(to X6S)

VCCIO_SENSE
VSS_IO_SENSE

TP_SKL_BM33
TP_SKL_BL33

TP_SKL_BJ14
TP_SKL_BJ13

TP_SKL_BJ16
TP_SKL_BK16

TP_SKL_BK24
TP_SKL_BJ24

TP_SKL_BJ34
TP_SKL_BJ33

TP_SKL_B2
TP_SKL_B38
TP_SKL_BP1
TP_SKL_BR2
TP_SKL_C1
TP_SKL_C38

TP_SKL_D1
TP_SKL_E1
TP_SKL_E3
TP_SKL_E2

TP_SKL_BR1
TP_SKL_BT2

TP_SKL_N29
TP_SKL_R14
TP_SKL_AE29
TP_SKL_AA14

PROC_TRIGOUT

TP_SKL_BR35
TP_SKL_BR31
TP_SKL_BH30

VCCSA VDDQ

VCCIO

VCCVDDQ_CLK

VCCSFR_OC

1.0V_VCCST

1.0DX_VCCSTG VCCFUSEPRG

1.0V_VCCST

VCCVDDQ_CLK VDDQ

VCCVDDQ_CLK

1.0DX_VCCSTG VCCSFR_OC

1.0V_VCCST 1.0V_VCCST

VDDQ

VDDQ VCCIO

VCCSAVCCSA VCCSA VCCSA

VCCIO

CPU_2_PCH_TRIGGER28

PCH_2_CPU_TRIGGER28

VCCSA_SENSE 46
VSS_SA_SENSE 46

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[06] Processor 6/7-POWER2

A3

656Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[06] Processor 6/7-POWER2

A3

656Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[06] Processor 6/7-POWER2

A3

656Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

BGA1440

SKYLAKE_HALO

9 OF 14

?

?REV = 1

U29I

QL2X

VCCSTG

G30

VCCIO

J21

VCCIO

J26

VCCIO

J27

VCCIO

J20

VCCIO

J17

VCCIO

J19

VCCIO

J15

VCCIO

J16

VCCIO

H27

VCCIO

H26

VCCIO

H21

VCCIO

H19

VCCIO

H20

VCCIO

H17

VCCIO

H16

VCCIO

H15

VCCIO

G19

VCCIO

G21

VCCIO

G17

VCCIO

G15

VCCIO

AG12

VCCSA

M34

VCCSA

M33

VCCSA

M32

VCCSA

M31

VCCSA

M30

VCCSA

L38

VCCSA

M29

VCCSA

L37

VCCSA

L36

VCCSA

L32

VCCSA

L35

VCCSA

L31

VCCSA

K35

VCCSA

K34

VCCSA

K29

VCCSA

J30

VCCIO_SENSE

H14

VSSIO_SENSE

J14

VSSSA_SENSE

M37

VCCSA_SENSE

M38

VCCPLL

J28

VCCPLL

H28

VDDQ

AJ12

VDDQ

AG9

VDDQ

AG5

VDDQ

AF6

VDDQ

AF5

VDDQ

AE12

VDDQ

AA6

VDDQ

AL11

VDDQ

AP6

VDDQ

AP7

VDDQ

AR6

VDDQ

AR12

VCCSA

K33

VCCSA

K32

VCCSA

K31

VCCSA

K30

VDDQ

AT12

VDDQ

AY6

VDDQ

AW6

VDDQ

J5

VDDQ

J6

VDDQ

K12

VDDQ

K6

VDDQ

L12

VDDQ

L6

VDDQ

R6

VDDQ

T6

VDDQ

W6

VDDQC

Y12

VCCPLL_OC

BH13

VCCST

H30

VCCSTG

H29

VCCPLL_OC

G11

VCCSA

M36

VCCSA

M35

R71

100_1%_04

C641

10u_6.3V_X5R_06

C520

10u_6.3V_X5R_06

C225

10u_4V_X6S_06

R377 30.1_1%_04

C404

*22u_6.3V_X5R_08

C252

1u_6.3V_X6S_04

C370

1u_6.3V_X5R_04

C249

10u_4V_X6S_06

C396

*22u_6.3V_X5R_08

C41

*22u_6.3V_X5R_08

C76

1u_6.3V_X5R_04

C250

22u_4V_X6S_06

C239

22u_6.3V_X6S_08

R72

100_1%_04

C392

*22u_6.3V_X5R_08

BGA1440

SKYLAKE_HALO

11 OF 14

?

?REV = 1

U29K

QL2X

RSVD

BT17

RSVD

BR17

RSVD

BJ28

RSVD

BK28

RSVD_TP

BK16

RSVD_TP

BJ16

VSS

BJ18

RSVD

BL34

RSVD

BN33

RSVD_TP

BJ13

RSVD

AA14

RSVD

AE29

RSVD_TP

BT2

RSVD

BN35

RSVD

J24

RSVD_TP

E3

RSVD_TP

E2

RSVD_TP

BR1

RSVD

A36

NCTF

C38

NCTF

C1

NCTF

BR2

NCTF

BP1

NCTF

B2

NCTF

B38

PROC_TRIGOUT

J23

PROC_TRIGIN

H23

RSVD

A37

RSVD

R14

RSVD

N29

RSVD

H24

RSVD_TP

BJ14

RSVD

AJ8

RSVD_TP

D1

RSVD_TP

E1

RSVD_TP

BM33

RSVD_TP

BL33

RSVD_TP

BK24

RSVD_TP

BJ24

RSVD

BK21

RSVD

BJ21

VSS

BK18

RSVD_TP

BJ34

RSVD_TP

BJ33

RSVD

G13

RSVD

BL31

RSVD

F30

RSVD

E30

RSVD

B30

RSVD

C30

RSVD

G3

RSVD

J3

RSVD

BR35

RSVD

BR31

RSVD

BH30

R32 *28mil short-p

C44

1u_6.3V_X5R_04

C245

*10u_6.3V_X5R_04

C43

10u_6.3V_X5R_06

C40

*10u_6.3V_X5R_06

C224

*10u_6.3V_X5R_04

C226

1u_6.3V_X6S_04

C238

10u_4V_X6S_06

R147 *28mil short-p

C595

10u_6.3V_X5R_06

C42

22u_6.3V_X5R_08

C77

1u_6.3V_X5R_04

C243

10u_6.3V_X5R_04

C521

10u_6.3V_X5R_06

C166

1u_6.3V_X5R_04

C251

1u_6.3V_X6S_04

Sheet 6 of 55

Processor 5/6

Schematic Diagrams

B.Schematic Diagrams

Processor 5/6 B - 7

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PLACE CAP IN BOARD EDGE

CPU_TOP_VCCGTU

PLACE CAP IN BACK SIDE

CPU_BACK_VCCGT

PLACE CAP IN BOARD EDGE

CPU_TOP_VCCGT

55A 55 A

55A

0314 DEL 0314 DEL

VSSGTX_SENSE

VCCGTX_SENSE

VCCGTVCC GT

VCCGTU

VCCGT

VCCGTU

VCCGT

VCCGT

VCCGT

VCCGT

VSSGT_SENSE 44

VCCGT_SENSE 44

Title

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[07] Processor 7/7-POWER/GND

Custom

756Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[07] Processor 7/7-POWER/GND

Custom

756Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[07] Processor 7/7-POWER/GND

Custom

756Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C115

1u_6.3V_X6S_04

SKYLAKE_HALO

BGA1440

?

?REV = 1

6 OF 14

U29F

QL2X

VSS

G9

VSS

F36

VSS

F23

VSS

F11

VSS

Y11

VSS

W34

VSS

V12

VSS

W3

VSS

T34

VSS

T5

VSS

T11

VSS

P12

VSS

R30

VSS

N11

VSS

N1

VSS

N6

VSS

L33

VSS

K10

VSS

K2

VSS

J25

VSS

J4

VSS

H18

VSS

G8

VSS

F21

VSS

F9

VSS

F2

VSS

D16

VSS

E4

VSS

D6

VSS

C31

VSS

D22

VSS

D12

VSS

E35

VSS

F5

VSS

F15

VSS

J36

VSS

K8

VSS

L29

VSS

M13

VSS

N9

VSS

N4

VSS

N34

VSS

R12

VSS

T3

VSS

T14

VSS

W1

VSS

U38

VSS

W12

VSS

Y37

VSS

Y9

VSS

D9

VSS

C27

VSS

H22

VSS

G26

VSS

G18

VSS

Y10

VSS

W33

VSS

Y38

VSS

W2

VSS

T4

VSS

T10

VSS

R29

VSS

P6

VSS

N10

VSS

M14

VSS

N5

VSS

K1

VSS

J22

VSS

H35

VSS

H12

VSS

G23

VSS

G14

VSS

G6

VSS

E38

VSS

D33

VSS

D14

VSS

D3

VSS

J7

VSS

L34

VSS

K3

VSS

J32

VSS

K11

VSS

N2

VSS

N7

VSS

N12

VSS

T1

VSS

P37

VSS

T7

VSS

U6

VSS

Y7

VSS

W4

VSS

Y13

VSS

D20

VSS

E34

VSS

C29

VSS

D10

VSS

F4

VSS

G4

VSS

G10

VSS

F13

VSS

F25

VSS

G20

VSS

J10

VSS

J33

VSS

G28

VSS

H25

VSS

K5

VSS

N33

VSS

N8

VSS

M6

VSS

K38

VSS

N3

VSS

U37

VSS

T13

VSS

T2

VSS

P38

VSS

T8

VSS

Y8

VSS

W5

VSS

V30

VSS

Y14

NCTFVSS

D38

VSS

F17

VSS

K4

VSS

M12

VSS

K7

VSS

C37

VSS

D24

VSS

D26

VSS

D30

VSS

D28

VSS

V29

VSS

T12

VSS

T33

VSS

V6

VSS

F8

VSS

F19

VSS

F29

VSS

L30

VSS

K9

VSS

G24

VSS

G16

VSS

F31

VSS

F27

VSS

G5

VSS

G12

VSS

G22

VSS

H11

VSS

H32

VSS

J18

VSS

T9

VSS

F3

VSS

E9

VSS

D18

C167

*10u_4V_X6S_06

C109

*1u_6.3V_X6S_04

C214

22u_6.3V_X6S_08

C522

10u_6.3V_X5R_06

C119

1u_6.3V_X6S_04

C169

22u_6.3V_X6S_08

C116

1u_6.3V_X6S_04

C205

10u_4V_X6S_06

C210

10u_4V_X6S_06

C113

1u_6.3V_X6S_04

C236

1u_6.3V_X6S_04

C173

*1u_6.3V_X6S_04

C206

10u_4V_X6S_06

C211

*10u_4V_X6S_06

C240

1u_6.3V_X6S_04

C174

*1u_6.3V_X6S_04

C170

22u_6.3V_X6S_08

C242

*1u_6.3V_X6S_04

SKYLAKE_HALO

BGA1440

?

?

13 OF 14

REV = 1

U29M

QL2X

VSS

BB4

VSS

BB3

VSS

BB2

VSS

BB1

VSS

BA38

VSS

BA37

VSS

BA12

VSS

BA11

VSS

BA10

VSS

BA9

VSS

BA8

VSS

BA7

VSS

BA6

NCTFVSS

B37

VSS

B9

NCTFVSS

B3

VSS

AY34

VSS

AY33

VSS

AY14

VSS

AY12

VSS

AW30

VSS

AW29

VSS

AW12

VSS

AW5

VSS

AW4

VSS

AW3

VSS

AW2

VSS

AW1

VSS

AV38

VSS

AV37

VSS

AU34

VSS

AU33

VSS

AU12

VSS

AU11

VSS

AU10

VSS

AU9

VSS

AU8

VSS

AU7

VSS

AU6

VSS

AT30

VSS

AT29

VSS

AT6

VSS

AR38

VSS

AR37

VSS

AR14

VSS

AR13

VSS

AR5

VSS

AR4

VSS

AR3

VSS

AR2

VSS

AR1

VSS

AP34

VSS

AP33

VSS

AP12

VSS

AP11

VSS

AP10

VSS

AP9

VSS

AP8

VSS

AN30

VSS

AN29

VSS

AN12

VSS

AN6

VSS

AN5

VSS

AM38

VSS

AM37

VSS

AM12

VSS

AM5

VSS

AM4

VSS

AM3

VSS

AM2

VSS

AM1

VSS

AL34

VSS

AL33

VSS

AL14

VSS

AL12

VSS

AL10

VSS

AL9

VSS

AL8

VSS

AL7

VSS

AL4

VSS

AK30

VSS

AK29

VSS

AK4

VSS

AJ38

VSS

AJ37

VSS

AJ6

VSS

AJ5

VSS

AJ4

VSS

AJ3

VSS

AJ2

VSS

AJ1

VSS

AH34

VSS

AH33

VSS

AH12

VSS

AH6

VSS

AG30

VSS

AG29

VSS

AG11

VSS

AG10

VSS

AG8

VSS

AG7

VSS

AG6

VSS

AF14

VSS

AF13

VSS

AF12

VSS

AF4

VSS

AF3

VSS

AF2

VSS

AF1

VSS

AE34

VSS

AE33

VSS

AE6

VSS

AD30

VSS

AD29

VSS

AD12

VSS

AD11

VSS

AD10

VSS

AD9

VSS

AD8

VSS

AD7

VSS

AD6

VSS

AC38

VSS

AC37

VSS

AC12

VSS

AC6

VSS

AC5

VSS

AC4

VSS

AC3

VSS

AC2

VSS

AC1

VSS

AB34

VSS

AB33

VSS

AB6

VSS

AA30

VSS

AA29

VSS

AA12

NCTFVSS

A34

VSS

A30

VSS

A28

VSS

A26

VSS

A24

VSS

A22

VSS

A20

VSS

A18

VSS

A16

VSS

A14

VSS

A12

VSS

A10

VSS

A9

VSS

A6

NCTFVSS

A4

NCTFVSS

A3

C172

*1u_6.3V_X6S_04

C175

1u_6.3V_X6S_04

C112

1u_6.3V_X6S_04

C110

1u_6.3V_X6S_04

C111

22u_6.3V_X6S_08

C35

*10u_6.3V_X5R_06

C176

*22u_4V_X6S_06

C241

1u_6.3V_X6S_04

C171

*22u_6.3V_X6S_08

BGA1440

SKYLAKE_HALO

REV = 1??

8 OF 14

U29H

QL2X

VCCGT

BB37

VCCGT

BB35

VCCGT

BB34

VCCGT

BB32

VCCGT

BA31

VCCGT

BA30

VCCGT

BA29

VCCGT

BA14

VCCGT

AV30

VCCGT

AV29

VCCGT

AV31

VCCGT

AV32

VCCGT

AV33

VCCGT

AV35

VCCGT

AV34

VCCGT

AV36

VCCGT

AW14

VCCGT

AW31

VCCGT

AW33

VCCGT

AW32

VCCGT

AW34

VCCGT

AW35

VCCGT

AW36

VCCGT

AW37

VCCGT

AW38

VCCGT

AY38

VCCGT

BA13

VCCGT

BA33

VCCGT

BA35

VCCGT

BA36

VCCGT

BB13

VCCGT

BB31

VCCGT

BB14

VCCGT

BB33

VCCGT

BB36

VCCGT

BC29

VCCGT

BB38

VCCGT

BC30

VCCGT

BC31

VCCGT

BC32

VCCGT

BC35

VCCGT

BC36

VCCGT

BC37

VCCGT

BC38

VCCGT

BD13

VCCGT

BD29

VCCGT

BD14

VCCGT

BD30

VCCGT

BD31

VCCGT

BD32

VCCGT

BD33

VCCGT

BD34

VCCGT

BD35

VCCGT

BE31

VCCGT

BD36

VCCGT

BE32

VCCGT

BE33

VCCGT

BE34

VCCGT

BE36

VCCGT

BE35

VCCGT

AY29

VCCGT

AY30

VCCGT

AY31

VCCGT

AY35

VCCGT

BA34

VCCGT

BG35

VCCGT

BG34

VCCGT

BG36

VCCGT

BH33

VCCGT

BH34

VCCGT

BH36

VCCGT

BH35

VCCGT

BH38

VCCGT

BH37

VCCGT

BJ37

VCCGT

BL36

VCCGT

BJ38

VCCGT

BM36

VCCGT

BL37

VCCGT

BM37

VCCGT

BN37

VCCGT

BN36

VCCGT

BP37

VCCGT

BT37

VCCGT

BE38

VCCGT

BF14

VCCGT

BF13

VCCGT

BF29

VCCGT

BF30

VCCGT

BF31

VCCGT

BF35

VCCGT

BF32

VCCGT

BF36

VCCGT

BG32

VCCGT

BG31

VCCGT

BG33

VCCGT

BG29

VCCGT

BG30

VCCGT

BA32

VCCGT

BN38

VCCGT

BP38

VCCGT

BR37

VCCGT

AY32

VCCGT

AY36

VCCGT

AY37

VCCGT

BF38

VCCGT

BF37

VCCGT

BE37

C209

22u_6.3V_X6S_08

C208

10u_4V_X6S_06

C114

1u_6.3V_X6S_04

C212

22u_6.3V_X6S_08

C37

22u_6.3V_X5R_08

C213

22u_6.3V_X6S_08

C237

1u_6.3V_X6S_04

C118

1u_6.3V_X6S_04

SKYLAKE_HALO

BGA1440

?

?

12 OF 14

REV = 1

U29L

QL2X

VSS

C25

VSS

C23

VSS

C21

VSS

C19

VSS

C17

VSS

C15

VSS

C13

VSS

C11

VSS

C9

VSS

C8

VSS

C5

NCTFVSS

C2

NCTFVSS

BT36

NCTFVSS

BT35

VSS

BT32

VSS

BT26

VSS

BT24

VSS

BT21

VSS

BT18

VSS

BT14

VSS

BT12

VSS

BT9

VSS

BT5

NCTFVSS

BT4

NCTFVSS

BT3

NCTFVSS

BR38

VSS

BR36

VSS

BR34

VSS

BR29

VSS

BR26

VSS

BR24

VSS

BR21

VSS

BR18

VSS

BR14

VSS

BR12

VSS

BR7

VSS

BP34

VSS

BP33

VSS

BP29

VSS

BP26

VSS

BP24

VSS

BP21

VSS

BP18

VSS

BP14

VSS

BP12

VSS

BP7

VSS

BN34

VSS

BN31

VSS

BN30

VSS

BN29

VSS

BN24

VSS

BN21

VSS

BN20

VSS

BN19

VSS

BN18

VSS

BN14

VSS

BN12

VSS

BN9

VSS

BN7

VSS

BN4

VSS

BN2

VSS

BM38

VSS

BM35

VSS

BM29

VSS

BM28

VSS

BM27

VSS

BM26

VSS

BM25

VSS

BM23

VSS

BM21

VSS

BM18

VSS

BM13

VSS

BM12

VSS

BM11

VSS

BM9

VSS

BM8

VSS

BM7

VSS

BM6

VSS

BM5

VSS

BM3

VSS

BM2

VSS

BL38

VSS

BL35

VSS

BL29

VSS

BL13

VSS

BL6

VSS

BK29

VSS

BK25

VSS

BK22

VSS

BK15

VSS

BK14

VSS

BK13

VSS

BK6

VSS

BJ32

VSS

BJ31

VSS

BJ30

VSS

BJ29

VSS

BJ25

VSS

BJ22

VSS

BJ15

VSS

BJ12

VSS

BH14

VSS

BH12

VSS

BH11

VSS

BH10

VSS

BH9

VSS

BH8

VSS

BH7

VSS

BH6

VSS

BH5

VSS

BH4

VSS

BH3

VSS

BH2

VSS

BH1

VSS

BG38

VSS

BG37

VSS

BG14

VSS

BG13

VSS

BG12

VSS

BG6

VSS

BF34

VSS

BF33

VSS

BF12

VSS

BF6

VSS

BE30

VSS

BE29

VSS

BE6

VSS

BE5

VSS

BE4

VSS

BE3

VSS

BE2

VSS

BE1

VSS

BD38

VSS

BD37

VSS

BD12

VSS

BD11

VSS

BD10

VSS

BD9

VSS

BD8

VSS

BD7

VSS

BD6

VSS

BC34

VSS

BC33

VSS

BC14

VSS

BC13

VSS

BC12

VSS

BC6

VSS

BB30

VSS

BB29

VSS

BB12

VSS

BB6

VSS

BB5

SKYLAKE_HALO

BGA1440

?

?

14 OF 14

REV = 1

U29N

QL2X

VCCGT

AU38

VCCGT

AU37

VCCGT

AU36

VCCGT

AU35

VCCGT

AU32

VCCGT

AU31

VCCGT

AU30

VCCGT

AU29

VCCGT

AU14

VCCGT

AT38

VCCGT

AT37

VCCGT

AT36

VCCGT

AT35

VCCGT

AT34

VCCGT

AT33

VCCGT

AT32

VCCGT

AT31

VCCGT

AT14

VCCGT

AR36

VCCGT

AR35

VCCGT

AR34

VCCGT

AR33

VCCGT

AR32

VCCGT

AR31

VCCGT

AR30

VCCGT

AR29

VCCGT

AP38

VCCGT

AP37

VCCGT

AP36

VCCGT

AP35

VCCGT

AP32

VCCGT

AP31

VCCGT

AP30

VCCGT

AP29

VCCGT

AP14

VCCGT

AP13

VCCGT

AN38

VCCGT

AN37

VCCGT

AN36

VCCGT

AN35

VCCGT

AN34

VCCGT

AN33

VCCGT

AN32

VCCGT

AN31

VCCGT

AN14

VCCGT

AN13

VCCGT

AM36

VCCGT

AM35

VCCGT

AM34

VCCGT

AM33

VCCGT

AM32

VCCGT

AM31

VCCGT

AM30

VCCGT

AM29

VCCGT

AM14

VCCGT

AM13

VCCGT

AL38

VCCGT

AL37

VCCGT

AL36

VCCGT

AL35

VCCGT

AL32

VCCGT

AL31

VCCGT

AL30

VCCGT

AL29

VCCGT

AL13

VCCGT

AK38

VCCGT

AK37

VCCGT

AK36

VCCGT

AK35

VCCGT

AK34

VCCGT

AK33

VCCGT

AK32

VCCGT

AK31

VCCGT

AJ36

VCCGT

AJ35

VCCGT

AJ34

VCCGT

AJ33

VCCGT

AJ32

VCCGT

AJ31

VCCGT

AJ30

VCCGT

AJ29

VCCGTX

AJ14

VCCGTX

AJ13

VCCGT_SENSE

AH38

VSSGT_SENSE

AH37

VCCGTX_SENSE

AH36

VSSGTX_SENSE

AH35

VCCGTX

AH32

VCCGTX

AH31

VCCGTX

AH30

VCCGTX

AH29

VCCGTX

AH14

VCCGTX

AH13

VCCGTX

AG36

VCCGTX

AG35

VCCGTX

AG34

VCCGTX

AG33

VCCGTX

AG32

VCCGTX

AG31

VCCGTX

AG14

VCCGTX

AG13

VCCGTX

AF34

VCCGTX

AF33

VCCGTX

AF32

VCCGTX

AF31

VCCGTX

AF30

VCCGTX

AF29

C117

1u_6.3V_X6S_04

C36

*10u_6.3V_X5R_06

C73

1u_6.3V_X6S_04

C204

22u_6.3V_X6S_08

C207

10u_4V_X6S_06

C107

22u_6.3V_X6S_08

C523

10u_6.3V_X5R_06

C108

*1u_6.3V_X6S_04

C75

1u_6.3V_X6S_04

C168

22u_6.3V_X6S_08

Sheet 7 of 55

Processor 6/6

Processor 6/6

B.Schematic Diagrams

B - 8 Processor 6/6

DDR4 CHA SO-DIMM

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Channel A SO-DIMM 0[RAM1]

PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM

PLACE THE CAP CLOSE TO SODIMM

PLACE NEAR TO PIN

CHA_DIMM0=000
CHA_DIMM1=001
CHB_DIMM0=010
CHB_DIMM1=011

月

DIMM

䪗㒢㓦

RVS TYPE

H=5.2mm

6-86-24260-019

000

BOM value change

BOM value change

DIMM0_CHA_EVENT#

DDR4_DRAMRST#

DDR_VREFCA_CHA_DIMM

M_A_DQ0

M_A_DQ25

M_A_DQ24

M_A_DQ23

M_A_DQ33

M_A_DQ32

M_A_DQ39

M_A_DQ38

M_A_DQ37

M_A_DQ36

M_A_DQS#4

M_A_DQS#7

M_A_DQS#3

M_A_DQS#1

M_A_DQS#0

M_A_DQS#6

M_A_DQS#5

M_A_DQS#2

M_A_DQS4

M_A_DQS2

M_A_DQS1

M_A_DQS3

M_A_DQS7

M_A_DQS5

M_A_DQS0

M_A_DQS6

DDR4_DRAMRST#

DDR_VREFCA_CHA_DIMM

DDR_VREFCA_CHA_DIMM

M_A_DQ6

M_A_DQ7

M_A_DQ44

M_A_DQ3
M_A_DQ2

M_A_DQ5

M_A_DQ1

M_A_DQ4

M_A_DQ10

M_A_DQ9

M_A_DQ15

M_A_DQ13

M_A_DQ14

M_A_DQ12

M_A_DQ11

M_A_DQ8

M_A_DQ16

M_A_DQ18

M_A_DQ17

M_A_DQ20

M_A_DQ21

M_A_DQ19

M_A_DQ22

M_A_DQ26

M_A_DQ27

M_A_DQ29
M_A_DQ31

M_A_DQ30

M_A_DQ28

M_A_DQ35

M_A_DQ34

M_A_DQ40

M_A_DQ45

M_A_DQ41

M_A_DQ42

M_A_DQ46

M_A_DQ47

M_A_DQ43

M_A_DQ48
M_A_DQ49

M_A_DQ52
M_A_DQ55

M_A_DQ53

M_A_DQ51

M_A_DQ50

M_A_DQ58

M_A_DQ57

M_A_DQ56

M_A_DQ63
M_A_DQ62

M_A_DQ61

M_A_DQ60

M_A_DQ59

M_A_DQ54

VDDQ

VDDQ

VDDQ

VTT_MEM

VDDQ

3.3VS

2.5V

VDDQ

2.5V

VTT_MEM

VDDQ

VDDQ

DDR4_DRAMRST#9,23

DIMM_CA_CPU_VREF_A3

M_A_CS#13

M_A_CS#03

M_A_ODT13

M_A_ODT03

M_A_A03
M_A_A13

M_A_A53

M_A_A33

M_A_A23

M_A_A73

M_A_A63

M_A_A43

M_A_A103

M_A_A83
M_A_A93

M_A_A123
M_A_A133

M_A_A113

M_A_RAS#3

M_A_WE#3

M_A_CAS#3

M_A_CKE13

M_A_CKE03

M_A_BA03

M_A_BG03
M_A_BG13

M_A_BA13

M_A_DQS#[3:0] 3

M_A_DQS[3:0] 3

M_A_CLK_DDR13

M_A_CLK_DDR#03

M_A_CLK_DDR03

M_A_CLK_DDR#13

DDR0_A_PARITY3

M_A_ACT#3

DDR0_A_ALERT#3

SMB_DATA_MAIN_DDR49
SMB_CLK_MAIN_DDR49

M_A_DQS[7:4] 3

M_A_DQS#[7:4] 3

M_A_DQ[63:0] 3

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[08] DDR4 CHA SO-DIMM_0

A3

856Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[08] DDR4 CHA SO-DIMM_0

A3

856Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[08] DDR4 CHA SO-DIMM_0

A3

856Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C615

1u_6.3V_X5R_04

C363

*1u_6.3V_X5R_04

C616

*1u_6.3V_X5R_04

R234 1.8_1%_04

C409

*10u_6.3V_X5R_06

C373

10u_6.3V_X5R_06

C405

*10u_6.3V_X5R_06

C378

10u_6.3V_X5R_06

R232

1K_1%_04

C360

*10u_6.3V_X5R_06

R233

24.9_1%_04

R231

1K_1%_04

C357

0.1u_10V_X7R_04

C354

1u_6.3V_X5R_04

C617

*1u_6.3V_X5R_04

C361

*0.1u_10V_X7R_04

C403

*10u_6.3V_X5R_06

C376

*10u_6.3V_X5R_06

C353

1u_6.3V_X5R_04

C612

*1u_6.3V_X5R_04

+

C648

*330uF_2.5V_12m_6.6*6.6*4.2

C362

*2.2u_6.3V_X5R_04

J_DIMMA_2B

D4AR0-26001-1P52

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C614

*1u_6.3V_X5R_04

+

C640

*330uF_2.5V_12m_6.6*6.6*4.2

C355

0.1u_10V_X7R_04

C374

10u_6.3V_X5R_06

C371

*10u_6.3V_X5R_06

C359

1u_6.3V_X5R_04

C358

0.022u_16V_X7R_04

J_DIMMA_2A

D4AR0-26001-1P52

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

C613

1u_6.3V_X5R_04

C364

10u_6.3V_X5R_06

C356

*2.2u_6.3V_X5R_04

Sheet 8 of 55

DDR4 CHA SO-

DIMM

Schematic Diagrams

B.Schematic Diagrams

DDR4 CHA SO-DIMM B - 9

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

6-86-24260-003

Channel B SO-DIMM 0[RAM2]

PLACE NEAR TO PIN

PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM

PLACE THE CAP CLOSE TO SODIMM

H=5.2mm

STD TYPE

CHA_DIMM0=000
CHA_DIMM1=001
CHB_DIMM0=010
CHB_DIMM1=011

010

月

DIMM

䪗㒢㓦

DESIGN NOTE:

㚫㚱⸚㒦䘬 ⓷ 柴婳 ㉱ GND⊭央
⣏ VI A㗪␐怕 婳 怈 暊 20mil

SM BUS

1/10

BOM value change

BOM value change

M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7

M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7

DIMM0_CHB_EVENT#
DDR4_DRAMRST#

DDR_VREFCA_CHB_DIMM

DDR4_DRAMRST#

DDR_VREFCA_CHB_DIMM

M_B_DQ26

M_B_DQ48
M_B_DQ49

M_B_DQ14

M_B_DQ15
M_B_DQ8

M_B_DQ11

DDR_VREFCA_CHB_DIMM

M_B_DQ0

M_B_DQ2

M_B_DQ5

M_B_DQ7

M_B_DQ4

M_B_DQ1

M_B_DQ3

M_B_DQ6

M_B_DQ9

M_B_DQ10

M_B_DQ12

M_B_DQ13

M_B_DQ16

M_B_DQ18

M_B_DQ21

M_B_DQ19

M_B_DQ22

M_B_DQ23

M_B_DQ20

M_B_DQ31
M_B_DQ29

M_B_DQ17

M_B_DQ30

M_B_DQ24

M_B_DQ25

M_B_DQ27

M_B_DQ28

M_B_DQ35

M_B_DQ39

M_B_DQ32

M_B_DQ37

M_B_DQ34

M_B_DQ38

M_B_DQ36

M_B_DQ33

M_B_DQ41

M_B_DQ45

M_B_DQ46
M_B_DQ43

M_B_DQ40

M_B_DQ44

M_B_DQ42

M_B_DQ47

M_B_DQ54

M_B_DQ53
M_B_DQ50

M_B_DQ52

M_B_DQ61

M_B_DQ62

M_B_DQ60

M_B_DQ59

M_B_DQ57

M_B_DQ56
M_B_DQ63

M_B_DQ58

M_B_DQ51

M_B_DQ55

VDDQ

VTT_MEM

2.5V

3.3VS

VDDQ

VDDQ

2.5V

3.3VS

VDDQ

VDDQ

VDDQ

VTT_MEM

VDDQ

VTT_MEM

3.3VA

5VS

3.3VS

3.3VS

SMB_DATA_MAIN_DDR48,9

SMB_CLK_MAIN_DDR48,9

M_B_ODT03
M_B_ODT13

M_B_CS#03
M_B_CS#13

M_B_CKE03
M_B_CKE13

M_B_CLK_DDR13

M_B_CLK_DDR#13

M_B_CLK_DDR03

M_B_CLK_DDR#03

M_B_RAS#3

M_B_CAS#3

M_B_WE#3

M_B_BG13

M_B_BG03

M_B_BA03
M_B_BA13

M_B_A13

M_B_A03

M_B_A23
M_B_A33

M_B_A53

M_B_A43

M_B_A63
M_B_A73

M_B_A93

M_B_A83

M_B_A103
M_B_A113

M_B_A133

M_B_A123

DDR1_B_PARITY3

M_B_ACT#3

DDR1_B_ALERT#3

DDR4_DRAMRST#8,23

M_B_DQ[63:0] 3

M_B_DQS[3:0] 3

M_B_DQS#[3:0] 3

DIMM_DQ_CPU_VREF_B3

PM_PCH_PWROK21,23

SMB_DATA_MAIN_DDR4 8,9

SMB_CLK_MAIN_DDR4 8,9

SMB_CLK 23,35,42

SMB_DATA 23,35,42

M_B_DQS[7:4] 3

M_B_DQS#[7:4] 3

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[9] DDR4 CHB SO-DIMM_0

A3

956Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[9] DDR4 CHB SO-DIMM_0

A3

956Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[9] DDR4 CHB SO-DIMM_0

A3

956Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C379

*10u_6.3V_X5R_06

C416 *1u_6.3V_X5R_04

C382

1u_6.3V_X5R_04

R248

1K_04

C668

1u_6.3V_X5R_04

C666

0.1u_10V_X7R_04

R595

1K_1%_04

C410

1u_6.3V_X5R_04

C662

0.1u_10V_X7R_04

R594 1.8_1%_04

S

D

G

Q16B

MTDK3S6R

5

34

R244

*0_04

R257

240_1%_04

S

D

G

Q15A

MTDK3S6R

2

61

J_DIMMB_1B

D4AS0-26001-1P52

VDD19

163

VDD18

160

VDD17

159

VDD16

154

VDD15

153

VDD14

148

VDD13

147

VDD12

142

VDD11

141

VDD10

136

VDD9

135

VDD8

130

VDD7

129

VDD6

124

VDD5

123

VDD4

118

VDD3

117

VDD2

112

VDD1

111

VSS

251

VSS

247

VSS

243

VSS

239

VSS

235

VSS

231

VSS

227

VSS

223

VSS

217

VSS

213

VSS

209

VSS

205

VSS

201

VSS

197

VSS

193

VSS

189

VSS

185

VSS

181

VSS

175

VSS

171

VSS

167

VSS

107

VSS

103

VSS

99

VSS

93

VSS

89

VSS

85

VSS

81

VSS

77

VSS

73

VSS

69

VSS

65

VSS

61

VSS

57

VSS

51

VSS

47

VSS

43

VSS

39

VSS

35

VSS

31

VSS

27

VSS

23

VSS

19

VSS

15

VSS

9

VSS

5

VSS

1

VTT

258

VPP2

259

VPP1

257

VDDSPD

255

MT1

GND1

MT2

GND2

VSS

252

VSS

248

VSS

244

VSS

238

VSS

234

VSS

230

VSS

226

VSS

222

VSS

218

VSS

214

VSS

210

VSS

206

VSS

202

VSS

196

VSS

192

VSS

188

VSS

184

VSS

180

VSS

176

VSS

172

VSS

168

VSS

106

VSS

102

VSS

98

VSS

94

VSS

90

VSS

86

VSS

82

VSS

78

VSS

72

VSS

68

VSS

64

VSS

60

VSS

56

VSS

52

VSS

48

VSS

44

VSS

40

VSS

36

VSS

30

VSS

26

VSS

22

VSS

18

VSS

14

VSS

10

VSS

6

VSS

2

C665

0.1u_10V_X7R_04

R259

*0_04

C663

*2.2u_6.3V_X5R_04

C611

1u_6.3V_X5R_04

C383

*10u_6.3V_X5R_06

C671

1u_6.3V_X5R_04

R249 1K_04

C610

*0.1u_10V_X7R_04

C412

10u_6.3V_X5R_06

R591

1K_1%_04

C375

*10u_6.3V_X5R_06

C417 *1u_6.3V_X5R_04

S

D

G

Q16A

MTDK3S6R

2

61

C413

*10u_6.3V_X5R_06

C380

10u_6.3V_X5R_06

C408

0.1u_10V_X7R_04

J_DIMMB_1A

D4AS0-26001-1P52

CK0_T

137

CK0_C

139

CK1_T

138

CK1_C

140

CKE0

109

CKE1

110

S0*

149

S1*

157

ODT0

155

ODT1

161

BG0

115

BG1

113

BA0

150

BA1

145

A0

144

A1

133

A2

132

A3

131

A4

128

A5

126

A6

127

A7

122

A8

125

A9

121

A10_AP

146

A11

120

A12

119

A13

158

A14_WE*

151

A15_CAS*

156

A16_RAS*

152

ACT*

114

PARITY

143

ALERT*

116

EVENT*

134

RESET*

108

VREFCA

164

SDA

254

SCL

253

SA2

166

SA1

260

SA0

256

CB0_NC

92

CB1_NC

91

CB2_NC

101

CB3_NC

105

CB4_NC

88

CB5_NC

87

CB6_NC

100

CB7_NC

104

DM0*/DBI0*

12

DM1*/DBI1*

33

DM2*/DBI2*

54

DM3*/DBI3*

75

DM4*/DBI4*

178

DM5*/DBI5*

199

DM6*/DBI6*

220

DM7*/DBI7*

241

DM8*/DBI8*

96

S2*/C0

162

S3*/C1

165

DQ0

8

DQ1

7

DQ2

20

DQ3

21

DQ4

4

DQ5

3

DQ6

16

DQ7

17

DQ8

28

DQ9

29

DQ10

41

DQ11

42

DQ12

24

DQ13

25

DQ14

38

DQ15

37

DQ16

50

DQ17

49

DQ18

62

DQ19

63

DQ20

46

DQ21

45

DQ22

58

DQ23

59

DQ24

70

DQ25

71

DQ26

83

DQ27

84

DQ28

66

DQ29

67

DQ30

79

DQ31

80

DQ32

174

DQ33

173

DQ34

187

DQ35

186

DQ36

170

DQ37

169

DQ38

183

DQ39

182

DQ40

195

DQ41

194

DQ42

207

DQ43

208

DQ44

191

DQ45

190

DQ46

203

DQ47

204

DQ48

216

DQ49

215

DQ50

228

DQ51

229

DQ52

211

DQ53

212

DQ54

224

DQ55

225

DQ56

237

DQ57

236

DQ58

249

DQ59

250

DQ60

232

DQ61

233

DQ62

245

DQ63

246

DQS0_T

13

DQS1_T

34

DQS2_T

55

DQS3_T

76

DQS4_T

179

DQS5_T

200

DQS6_T

221

DQS7_T

242

DQS8_T

97

DQS0_C

11

DQS1_C

32

DQS2_C

53

DQS3_C

74

DQS4_C

177

DQS5_C

198

DQS6_C

219

DQS7_C

240

DQS8_C

95

R593

24.9_1%_04

C381

0.1u_10V_X7R_04

C669

0.1u_10V_X7R_04

C398 *1u_6.3V_X5R_04

C415

2.2u_6.3V_X5R_04

C372

10u_6.3V_X5R_06

C670

*0.1u_10V_X7R_04

C414

1u_6.3V_X5R_04

C377

10u_6.3V_X5R_06

C664

*0.1u_10V_X7R_04

C406

10u_6.3V_X5R_06

C384 *1u_6.3V_X5R_04

C407

*0.1u_10V_X7R_04

C661

0.022u_16V_X7R_04

R260 1K_04

C660

*0.1u_10V_X7R_04

C667

*0.1u_10V_X7R_04

C402

10u_6.3V_X5R_06

S

D

G

Q15B

MTDK3S6R

5

34

R243

1K_04

Sheet 9 of 55

DDR4 CHB SO-

DIMM

DDR4 CHB SO-DIMM

B.Schematic Diagrams

B - 10 DDR4 CHB SO-DIMM

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

N16P-GX

N16x 2.0

16mil

N16P-GT(6-03-10775-0S0)+DDR5 4G (6-04-44132-E45) R150 use 45.3K_1%_04

N16S-GTR(6-03-10877-0S0) +DDR5 8G(6-04-48032-E40/6-04-48032-E30) R150 use 4.99k_1%_04

GPU

6-34-TN70S-011(BOT)

PLACE NEAR BALLS PLAC E NEAR BGA

PLACE NEAR BGAPLACE NEAR BALLS

N17S=>1.8V

16mil

210 mA total

PLACE NEAR BALLS

N16 GC6 2.0

N17S=>VDD_RUN

PLACE UNDER BALLS

PLACE NEAR BALLS

12mil

47uF P/N : 6-07-47611-2C0

6-19-31001-024

6-22-27R00-1B8
6-22-27R00-1BF

1/11

N17=>1.8V

N17=>1.8V

N16S_N17S SUPPORT PCIE X4

CHANGE FOOTPRINT

Change power

Change power 0302

Change power 0302

0314 del

VGA_STRAP3

VGA_STRAP4

VGA_ROM_SI

VGA_ROM_SO

VGA_ROM_SCLK

VGA_STRAP0

VGA_STRAP1

VGA_STRAP2

PEX_CLKREQ#

X_OUTBUFF

XTAL_OUT

VGA_ROM_SCLK

VGA_ROM_SO

VGA_ROM_SI

VGA_STRAP4

VGA_STRAP3

VGA_STRAP2

VGA_STRAP0
VGA_STRAP1

VGA_STRAP5

VGA_STRAP5

VGA_ROM_CS#

PEX_CLKREQ#

VGA_PEXCLK
VGA_PEXCLK#

PEX_RX0
PEX_RX0#

PEX_RX1
PEX_RX1#

PEX_RX2
PEX_RX2#

PEX_RX3
PEX_RX3#

PEX_TERMP

VID_PLLVDD

XTAL_IN

VDD_AON

VDD_AON

VDD_AON

VDD_RUN

PEX_VDD

VDD_RUN

VDD_RUN

VDD_RUN

VDD_AON

VDD_AON

DGPU_PWRGD24,49

PEG_CLKREQ#25

GPU_PEX_RST#14

VGA_PEXCLK25
VGA_PEXCLK#25

PEG_RX#02

PEG_RX02

PEG_TX#02

PEG_TX02

PEG_RX12
PEG_RX#12

PEG_TX12
PEG_TX#12

PEG_RX22
PEG_RX#22

PEG_TX22
PEG_TX#22

PEG_TX32

PEG_RX32
PEG_RX#32

PEG_TX#32

DGPU_PEX_RST#14

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[10] VGA PCI-E Interface

Custom

10 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[10] VGA PCI-E Interface

Custom

10 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[10] VGA PCI-E Interface

Custom

10 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C48

0.22u_10V_X5R_04

X3

FSX-3M_27.000MHz_12FEO

21

34

R430

10K_04

NV FOOTPRINT

C52

10u_6.3V_X5R_06

NV FOOTPRINT

RESERVED

10/14 MISC2

NC

GM108

COMMON

?

INS31416137

U169K

C1

STRAP5

D3

STRAP4

E3

STRAP3

E4

STRAP2

D2

STRAP1

D1

STRAP0

D11

BUFRST

C12

ROM_SCLK

A12

ROM_SO

B12

ROM_SI

D12

ROM_CS

H17

H5_5D3_7

R89 *4.99K_1%_04

R413 49.9K_1% _04

C26 0.22u_10V_X5R_04

PEX LANES 15 - 4 ARE DEFEATURED

1/14 PCI_EXPRESS

COMMON

?

INS31399218

U169A

AG22

PEX_RX15

AG21

PEX_RX15

AG25

PEX_TX15

AG24

PEX_TX15

AF21

PEX_RX14

AE21

PEX_RX14

AE24

PEX_TX14

AF24

PEX_TX14

AE19

PEX_RX13

AF19

PEX_RX13

AE23

PEX_TX13

AD23

PEX_TX13

AG19

PEX_RX12

AG18

PEX_RX12

AB21

PEX_TX12

AC21

PEX_TX12

AF18

PEX_RX11

AE18

PEX_RX11

AC20

PEX_TX11

AD20

PEX_TX11

AE16

PEX_RX10

AF16

PEX_RX10

AC19

PEX_TX10

AB19

PEX_TX10

AG16

PEX_RX9

AG15

PEX_RX9

AB18

PEX_TX9

AC18

PEX_TX9

AF15

PEX_RX8

AE15

PEX_RX8

AC17

PEX_TX8

AD17

PEX_TX8

AE13

PEX_RX7

AF13

PEX_RX7

AC16

PEX_TX7

AB16

PEX_TX7

AG13

PEX_RX6

AG12

PEX_RX6

AB15

PEX_TX6

AC15

PEX_TX6

AF12

PEX_RX5

AE12

PEX_RX5

AC14

PEX_TX5

AD14

PEX_TX5

AE10

PEX_RX4

AF10

PEX_RX4

AC13

PEX_TX4

AB13

PEX_TX4

AG10

PEX_RX3

AG9

PEX_RX3

AB12

PEX_TX3

AC12

PEX_TX3

AF9

PEX_RX2

AE9

PEX_RX2

AC11

PEX_TX2

AD11

PEX_TX2

AE7

PEX_RX1

AF7

PEX_RX1

AC10

PEX_TX1

AB10

PEX_TX1

AG7

PEX_RX0

AG6

PEX_RX0

AB9

PEX_TX0

AC9

PEX_TX0

AD8

PEX_REFCLK

AE8

PEX_REFCLK

AC6

PEX_CLKREQ

AC7

PEX_RST

AF25

PEX_TERMP

AA9

PEX_PLL_HVDD

AA8

PEX_PLL_HVDD

AF27

PEX_HVDD

AF26

PEX_HVDD

AE25

PEX_HVDD

AD24

PEX_HVDD

AC23

PEX_HVDD

AB22

PEX_HVDD

AA21

PEX_HVDD

AA20

PEX_HVDD

AA19

PEX_HVDD

AA18

PEX_HVDD

AA16

PEX_HVDD

AA13

PEX_HVDD

AA12

PEX_HVDD

AA10

PEX_HVDD

AE27

PEX_DVDD

AE26

PEX_DVDD

AD25

PEX_DVDD

AC24

PEX_DVDD

AB23

PEX_DVDD

AA22

PEX_DVDD

R409 *4.99K_1% _04

R427

10K_04

C54

4.7u_6.3V_X6S_06

NV FOOTPRINT

R91 *14.7K_1%_04

C132

0.1u_10V_X7R_04

NV FOOTPRINT

C723

0.1u_10V_X7R_04

NV FOOTPRINT

C275

0.1u_10V_X7R_04

NV FOOTPRINT

C511

*4.7u_6.3V_X5R_06

NV FOOTPRINT

R412 *15K_1% _04

C58

1u_6.3V_X6S_04

NV FOOTPRINT

C188

*0.1u_10V_X7R_04

NV FOOTPRINT

14/14 VDD18

COMMON

?

INS31416879

U169E

G10

1V8_AON

G9

VDD18

G8

VDD18

G12

1V8_AON

R94 4.99K_1%_04

C130

*4.7u_6.3V_X5R_06

NV FOOTPRINT

C56

1u_6.3V_X6S_04

NV FOOTPRINT

.

L3

FCM1608KF-301T05

R417

*10mil_short

R406 100K_1%_04

R92 45.3K_1%_04

CHANGE

C46 0.22u_10V_X5R_04

C79

22u_6.3V_X6S_06

NV FOOTPRINT

C49 0.22u_10V_X5R_04

R389 0_04

㚱

SLG

ᶲẞ

C190

1u_6.3V_X6S_04

NV FOOTPRINT

C504

10u_4V_X6S_06

NV FOOTPRINT

C59

10u_4V_X6S_06

NV FOOTPRINT

C186

*22u_6.3V_X5R_08

NV FOOTPRINT

R408 *10K_04

C191

4.7u_6.3V_X6S_06

NV FOOTPRINT

C47 0.22u_10V_X5R_04

C508

*10u_6.3V_X5R_06

NV FOOTPRINT

T26

C546

15p_50V_NPO_04

C81

22u_6.3V_X5R_08

NV FOOTPRINT

C24 0.22u_10V_X5R_04

C88

1u_6.3V_X6S_04

NV FOOTPRINT

C548

0.1u_10V_X7R_04

NV FOOTPRINT

C189

0.1u_10V_X7R_04

NV FOOTPRINT

R95 *4.99K_1%_04

R428

*10K_04

NV FOOTPRINT

R394 *45.3K_1% _04

R416 *4.99K_1% _04

R390 0_04

㚱

SLG

ᶵᶲẞ

C57

4.7u_6.3V_X6S_06

NV FOOTPRINT

H10

H5_5D3_7

R90 0_04

Q1

2SK3018S3

G

D S

C85

1u_16V_X5R_06

NV FOOTPRINT

R3

10K_04

C509

22u_6.3V_X5R_08

NV FOOTPRINT

C25 0.22u_10V_X5R_04

C510

4.7u_6.3V_X5R_06

NV FOOTPRINT

C53

1u_6.3V_X6S_04

NV FOOTPRINT

C50 0.22u_10V_X5R_04

C575

4.7u_6.3V_X5R_06

NV FOOTPRINT

H18

H5_5D3_7

C274

0.1u_10V_X5R_04

NV FOOTPRINT

R15 2.49K_1%_04

NV FOOTPRINT

R391 *4.99K_1% _04

C187

0.1u_10V_X7R_04

NV FOOTPRINT

R414 *4.99K_1% _04

R415 *10K_04

R88 4.99K_1%_04

9/14 XTAL_PLL

NC

NC

PLLVDD

GM108

COMMON

?

INS31415921

U169L

A10

XTALSSIN

N6

VID_PLLVDD

F11

GPCPLL_AVDD

M6

SP_PLLVDD

L6

XS_PLLVDD

B10

XTALOUT

C10

XTALOUTBUFF

C11

XTALIN

C547

15p_50V_NPO_04

C131

0.1u_10V_X7R_04

NV FOOTPRINT

C512

4.7u_6.3V_X5R_06

NV FOOTPRINT

R411 *45.3K_1% _04

C55

10u_4V_X6S_06

NV FOOTPRINT

R410 *4.99K_1% _04

R46 *10K_04

C51

0.1u_10V_X7R_04

NV FOOTPRINT

H7

H5_5D3_7

Sheet 10 of 55

VGA PCI-E

Interface

VGA PCI-E Interface

Schematic Diagrams

B.Schematic Diagrams

VGA PCI-E Interface B - 11

E

E

D

D

C

C

B

B

A

A

D D

C C

B B

A A

DDR A

PLACE NEAR BALLS

Frame Buffer Interface

Description

Term

Near GPU

Under GPU

The total trace length measured
from GPU ball to capacitor is
no more than 150 mil

The total trace length measured
from GPU ball to capacitor is no
more than 850 mil

PLACE NEAR BGA

PLACE UNDER BGA

PLACE UNDER BGA

PLACE NEAR BGA

PLACE UNDER BGA

PLACE NEAR BGA

N17S 1.8

DEL NET

near

under

0314 del

FBA_D[63:32]

FBA_DBI[7:4]

FBA_D[31:0]

FBA_CMD29

FBA_CMD30

FBA_CMD14

FBA_CMD13

FBA_EDC[3:0]

FBA_DBI[3:0]

FBA_EDC[7:4]

FBA_EDC4

FBA_DBI1

FBA_DBI6

FBA_DBI2

FBA_DBI0

FBA_DBI5

FBA_EDC3

FBA_EDC2

FBA_EDC6

FBA_DBI4

FBA_DBI7

FBA_EDC0

FBA_EDC7

FBA_EDC1

FBA_DBI3

FBA_EDC5

FBA_D9

FBA_D11

FBA_D7
FBA_D8

FBA_D10

FBA_D12
FBA_D13

FBA_D15

FBA_D18

FBA_D20

FBA_D16

FBA_D19

FBA_D23

FBA_D17

FBA_D14

FBA_D32

FBA_D38

FBA_D36

FBA_D33

FBA_D37

FBA_D41

FBA_D29

FBA_D27

FBA_D26

FBA_D25

FBA_D40

FBA_D31

FBA_D30

FBA_D21

FBA_D35

FBA_D22

FBA_D39

FBA_D28

FBA_D34

FBA_D24

FBA_D45

FBA_D60

FBA_D54

FBA_D58

FBA_D49

FBA_D59

FBA_D43

FBA_D48

FBA_D50

FBA_D57

FBA_D51

FBA_D53

FBA_D55

FBA_D46

FBA_D61
FBA_D62

FBA_D52

FBA_D44

FBA_D47

FBA_D63

FBA_D42

FBA_D56

FBA_D0

FBA_D4

FBA_D3

FBA_D1

FBA_D6

FBA_D5

FBA_D2

FB_VREF_TP

FBA_CMD16

FBA_CMD4

FBA_CMD24

FBA_CMD7

FBA_CMD19

FBA_CMD27

FBA_CMD30

FBA_CMD26

FBA_CMD9

FBA_CMD13

FBA_CMD3

FBA_CMD2

FBA_CMD8

FBA_CMD15

FBA_CMD21

FBA_CMD18

FBA_CMD11

FBA_CMD0

FBA_CMD12

FBA_CMD28

FBA_CMD14

FBA_CMD25

FBA_CMD20

FBA_CMD6

FBA_CMD29

FBA_CMD10

FBA_CMD5

FBA_CMD1

FBA_CMD17

FBA_CMD22
FBA_CMD23

FBA_CMD31

FBA_CMD[31:0]

FBA_CLK0#
FBA_CLK1

FBA_CLK0

FBA_CLK1#

FB_PLLAVDD

FB_CAL_PU_GND

FB_CAL_PD_VDDQ

FB_CAL_TERM_GND

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FB_PLLAVDD

VDD_RUN

FBVDDQ

FBA_D[31:0]12

FBA_D[63:32]13

FBA_EDC[3:0]12

FBA_EDC[7:4]13

FBA_DBI[7:4]13

FBA_DBI[3:0]12

FBA_CMD3013

FBA_CMD1412

FBA_CMD2913

FBA_CMD1312

FBA_CMD[31:0] 12,13

FBA_CLK1 13

FBA_CLK0 12

FBA_CLK1# 13

FBA_CLK0# 12

FBA_WCK01 12

FBA_WCK67# 13

FBA_WCK67 13

FBA_WCK23# 12

FBA_WCK23 12

FBA_WCK01# 12

FBA_WCK45# 13

FBA_WCK45 13

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[11] VGA Frame Buffer Interfac

Custom

11 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[11] VGA Frame Buffer Interfac

Custom

11 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[11] VGA Frame Buffer Interfac

Custom

11 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C149

10u_4V_X6S_06

NV FOOTPRINT

C145

*1u_6.3V_X6S_04

NV FOOTPRINT

R25 10K_04

C94

10u_4V_X6S_06

NV FOOTPRINT

.

L32

HCB1608KF-300T60

2/14 FBA

COMMON

?

INS31417903

U169B

D23

FB_VREF

T27

FBA_DQS_RN7

AB27

FBA_DQS_RN6

W22

FBA_DQS_RN5

P25

FBA_DQS_RN4

A22

FBA_DQS_RN3

A16

FBA_DQS_RN2

C14

FBA_DQS_RN1

F19

FBA_DQS_RN0

T26

FBA_DQS_WP7

AB26

FBA_DQS_WP6

W23

FBA_DQS_WP5

R25

FBA_DQS_WP4

B22

FBA_DQS_WP3

B16

FBA_DQS_WP2

C15

FBA_DQS_WP1

E19

FBA_DQS_WP0

U25

FBA_DQM7

AA25

FBA_DQM6

W24

FBA_DQM5

P24

FBA_DQM4

C22

FBA_DQM3

C17

FBA_DQM2

D14

FBA_DQM1

D19

FBA_DQM0

W25

FBA_D63

W27

FBA_D62

V27

FBA_D61

V26

FBA_D60

R27

FBA_D59

N27

FBA_D58

T25

FBA_D57

R26

FBA_D56

Y25

FBA_D55

W26

FBA_D54

AA26

FBA_D53

AA27

FBA_D52

AC25

FBA_D51

AD26

FBA_D50

AB25

FBA_D49

AD27

FBA_D48

AA23

FBA_D47

Y22

FBA_D46

AA24

FBA_D45

Y24

FBA_D44

U22

FBA_D43

T23

FBA_D42

V22

FBA_D41

V23

FBA_D40

N24

FBA_D39

N23

FBA_D38

N26

FBA_D37

N25

FBA_D36

R23

FBA_D35

T22

FBA_D34

R24

FBA_D33

R22

FBA_D32

C21

FBA_D31

C20

FBA_D30

B21

FBA_D29

A21

FBA_D28

A24

FBA_D27

A25

FBA_D26

C23

FBA_D25

B24

FBA_D24

C19

FBA_D23

A19

FBA_D22

A18

FBA_D21

B18

FBA_D20

A15

FBA_D19

A13

FBA_D18

C16

FBA_D17

B15

FBA_D16

D13

FBA_D15

E13

FBA_D14

B13

FBA_D13

C13

FBA_D12

F13

FBA_D11

F15

FBA_D10

D15

FBA_D9

E15

FBA_D8

E21

FBA_D7

F20

FBA_D6

D21

FBA_D5

D20

FBA_D4

F17

FBA_D3

E16

FBA_D2

F18

FBA_D1

E18

FBA_D0

H22

FB_REFPLL_AVDD

P22

FB_PLL_AVDD

F16

FB_PLL_AVDD

V25

FBA_WCK67

V24

FBA_WCK67

U24

FBA_WCK45

T24

FBA_WCK45

D16

FBA_WCK23

D17

FBA_WCK23

C18

FBA_WCK01

D18

FBA_WCK01

M22

FBA_CLK1

N22

FBA_CLK1

D25

FBA_CLK0

D24

FBA_CLK0

J22

FBA_CMD35

F22

FBA_CMD34

B19

FBA_CMD32

J26

FBA_CMD31

J27

FBA_CMD30

K25

FBA_CMD29

K27

FBA_CMD28

J24

FBA_CMD27

J25

FBA_CMD26

J23

FBA_CMD25

K22

FBA_CMD24

K26

FBA_CMD23

M25

FBA_CMD22

M26

FBA_CMD21

M27

FBA_CMD20

K23

FBA_CMD19

K24

FBA_CMD18

M23

FBA_CMD17

M24

FBA_CMD16

G26

FBA_CMD15

G27

FBA_CMD14

G25

FBA_CMD13

F27

FBA_CMD12

G24

FBA_CMD11

G23

FBA_CMD10

G22

FBA_CMD9

F23

FBA_CMD8

F26

FBA_CMD7

F25

FBA_CMD6

D26

FBA_CMD5

D27

FBA_CMD4

F24

FBA_CMD3

E24

FBA_CMD2

C26

FBA_CMD1

C27

FBA_CMD0

R47 *60.4_1%_04

C93

1u_6.3V_X6S_04

NV FOOTPRINT

R51 10K_04

C147

1u_6.3V_X6S_04

NV FOOTPRINT

C261

22u_6.3V_X6S_08

NV FOOTPRINT

C507

0.1u_10V_X7R_04

NV FOOTPRINT

C567

0.1u_10V_X7R_04
NV FOOTPRINT

C227

*1u_6.3V_X6S_04

NV FOOTPRINT

C259

22u_6.3V_X6S_08

NV FOOTPRINT

C193

0.1u_10V_X7R_04

NV FOOTPRINT

12/14 FBVDDQ

COMMON

?

INS31420079

U169D

K21

FBVDDQ

J21

FBVDDQ

H26

FBVDDQ

H24

FBVDDQ

W21

FBVDDQ

V21

FBVDDQ

T21

FBVDDQ

R21

FBVDDQ

N21

FBVDDQ

M21

FBVDDQ

L26

FBVDDQ

L24

FBVDDQ

L22

FBVDDQ

G21

FBVDDQ

G20

FBVDDQ

G19

FBVDDQ

G18

FBVDDQ

G16

FBVDDQ

G15

FBVDDQ

G14

FBVDDQ

G13

FBVDDQ

F21

FBVDDQ

F14

FBVDDQ

E26

FBVDDQ

E23

FBVDDQ

C25

FBVDDQ

B26

FBVDDQ

B25

FB_CALTERM_GND

C24

FB_CAL_PU_GND

D22

FB_CAL_PD_VDDQ

C195

0.1u_10V_X7R_04

NV FOOTPRINT

R50 10K_04

C262

22u_6.3V_X6S_08

NV FOOTPRINT

C150

4.7u_6.3V_X6S_06

NV FOOTPRINT

C95

0.1u_10V_X7R_04

NV FOOTPRINT

R61 40.2_1%_04

R49 *60.4_1%_04

C565

22u_6.3V_X5R_08

NV FOOTPRINT

C574

4.7u_6.3V_X6S_06

NV FOOTPRINT

R26 10K_04

R62 60.4_1%_04

NV FOOTPRINT

C260

22u_6.3V_X6S_08

NV FOOTPRINT

C566

0.1u_10V_X7R_04
NV FOOTPRINT

C194

1u_6.3V_X6S_04

NV FOOTPRINT

C257

4.7u_6.3V_X6S_06

NV FOOTPRINT

C148

1u_6.3V_X6S_04

NV FOOTPRINT

C528

1u_6.3V_X6S_04

NV FOOTPRINT

C96

10u_4V_X6S_06

NV FOOTPRINT

R48 40.2_1%_04

NV FOOTPRINT

C146

1u_6.3V_X6S_04

NV FOOTPRINT

C192

0.1u_10V_X7R_04

NV FOOTPRINT

C27

10u_4V_X6S_06

NV FOOTPRINT

Sheet 11 of 55

VGA Frame Buffer

Interface

Schematic Diagrams

VGA Frame Buffer Interface

B.Schematic Diagrams

B - 12 VGA Frame Buffer Interface

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

OFBS!ESBN

VOEFS!ESBN

0307 Change 0ohm

0307 Change 0ohm

FBA_CMD0

FBA_CMD10
FBA_CMD11

FBA_CMD12

FBA_CMD13
FBA_CMD14

FBA_CMD15

FBA_CMD1

FBA_CMD2

FBA_CMD3
FBA_CMD4

FBA_CMD5

FBA_CMD6

FBA_CMD7

FBA_CMD8

FBA_CMD9

FBA_D0 FBA_D16

FBA_D17
FBA_D18
FBA_D19

FBA_D1

FBA_D20
FBA_D21
FBA_D22
FBA_D23

FBA_D2
FBA_D3
FBA_D4
FBA_D5
FBA_D6
FBA_D7

FBA_DBI0

FBA_DBI0
FBA_DBI1
FBA_DBI2

FBA_DBI2

FBA_DBI3

FBA_EDC0

FBA_EDC0
FBA_EDC1
FBA_EDC2

FBA_EDC2

FBA_EDC3

FBA_SEN0

FBA_SOE0

FBA_VREFC0

0.4

FBA_ZQ0

FBA_D10
FBA_D11
FBA_D12
FBA_D13
FBA_D14
FBA_D15

FBA_D8
FBA_D9

FBA_D24
FBA_D25
FBA_D26
FBA_D27
FBA_D28
FBA_D29
FBA_D30
FBA_D31

FBA_DBI3

FBA_EDC3

FBA_DBI1

FBA_EDC1

FBA_VREF_FET_L

FBA_VREFD_L FBA_VREFD_L

GND

GND GND GND GND

GND

GND

FBVDDQ

FBVDDQ

FBVDDQ

GND

GND

GND

GND

GND

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

GND

FBVDDQ

GND

GND GND

FBVDDQ

FBA_DBI[3:0]11

FBA_WCK23#11

FBA_WCK2311

FBA_D[31:0]11

FBA_EDC[3:0]11

FBA_WCK01#11

FBA_CLK011

FBA_WCK0111

FBA_CMD[31:0]11,13

FBA_CLK0#11

GPIO10_FBVREF_ALTV13,14

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[12] VGA Frame Buffer A

A3

12 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[12] VGA Frame Buffer A

A3

12 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[12] VGA Frame Buffer A

A3

12 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C564

10u_6.3V_X5R_06

C97

1u_6.3V_X5R_04

R426
121_1%_04

C525

10u_6.3V_X5R_06

S

D

G

Q6A
MTDK3S6R

2

61

NC

x16

NORMAL

NC

NC

NC

NC

NC

NC

NC

x32

NC

GND

COMMON

BGA170

INS1221112

U151D

K4G80325FB-HC03

CHANGE

D5

WCK01

D4

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

D2

DBI0

C2

EDC0

F2

DQ7

F4

DQ6

E2

DQ5

E4

DQ4

B2

DQ3

B4

DQ2

A2

DQ1

A4

DQ0

A10

VREFD

R75

549_1%_04

R76
*1.33K_1%_04

COMMON

BGA170

INS1220714

U151B

K4G80325FB-HC03

CHANGE

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

K4

A7_A8

K5

A6_A11

K10

A5_BA1

K11

A4_BA2

H10

A3_BA3

H11

A2_BA0

H5

A1_A9

H4

A0_A10

J4

ABI

G12

CS

L12

WE

L3

CAS

G3

RAS

R78
*549_1%_04

add 1k to VSS

Normal

COMMON

BGA170

INS1221418

U151C

K4G80325FB-HC03

CHANGE

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

J1

MF_VSS/SOE*

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

C231

820p_50V_X7R_04

C98

1u_6.3V_X5R_04

R80
*931_1%_04

C230

1u_6.3V_X5R_04

C228

820p_50V_X7R_04

R77

1.33K_1%_04

R33
0_04

R405

80.6_1%_04

C152

*0.1u_10V_X7R_04

C64

*1u_6.3V_X5R_04

C154

*1u_6.3V_X5R_04

C256

820p_50V_X7R_04

C196

0.1u_10V_X7R_04

C229

*0.1u_10V_X7R_04

C527

10u_6.3V_X5R_06

C197

*0.1u_10V_X7R_04

R63
0_04

C61

1u_6.3V_X5R_04

C153

1u_6.3V_X5R_04

R79

931_1%_04

C563

10u_6.3V_X5R_06

NORMAL

x16

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

x32

COMMON

BGA170

INS1220380

U151A

K4G80325FB-HC03

CHANGE

P5

WCK23

P4

WCK23

P2

DBI3

R2

EDC3

M2

DQ31

M4

DQ30

N2

DQ29

N4

DQ28

T2

DQ27

T4

DQ26

V2

DQ25

V4

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREFD

C151

0.1u_10V_X7R_04

Sheet 12 of 55

VGA Frame Buffer

A

VGA Frame Buffer A

Schematic Diagrams

B.Schematic Diagrams

VGA Frame Buffer A B - 13

Sheet 13 of 55

VGA Frame Buffer

A

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

OFBS!ESBN

VOEFS!ESBN

Gary_for NV feedback

0307 Change 0ohm

0307 Change 0ohm

FBA_D52

FBA_D51

FBA_D50

FBA_D49

FBA_D48

FBA_D55

FBA_D54

FBA_D53

FBA_DBI6

FBA_EDC6

FBA_D36

FBA_D35

FBA_D34

FBA_D33

FBA_D32

FBA_D39

FBA_D38

FBA_D37

FBA_DBI4

FBA_EDC4

FBA_D42

FBA_D41

FBA_D40

FBA_D47

FBA_D46

FBA_D45

FBA_D44

FBA_D43

FBA_D58

FBA_D57

FBA_D56

FBA_D62

FBA_D61

FBA_D60

FBA_D59

FBA_D63

FBA_DBI5 FBA_DBI7

FBA_EDC5 FBA_EDC7

FBA_CMD17

FBA_CMD16

FBA_CMD20

FBA_CMD19

FBA_CMD18

FBA_CMD22

FBA_CMD21

FBA_CMD25

FBA_CMD24

FBA_CMD23

FBA_CMD28

FBA_CMD27

FBA_CMD26

FBA_CMD30

FBA_CMD29

FBA_CMD31

FBA_DBI5

FBA_DBI4

FBA_EDC4

FBA_DBI6

FBA_EDC6

FBA_DBI7

FBA_EDC5

FBA_SEN2

FBA_EDC7

FBA_SOE3

FBA_VREFC1

FBA_ZQ2

FBA_VREF_FET_H

FBA_VREFD_H FBA_VREFD_H

GND

GNDGND

GND

GNDGND

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

GND

GND

GND

GND

GND

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQ

GND

FBVDDQ

GND

GND GND

FBVDDQ

FBA_CLK111

FBA_D[63:32]11

FBA_CLK1#11

FBA_CMD[31:0]11,12

GPIO10_FBVREF_ALTV12,14

FBA_DBI[7:4]11

FBA_EDC[7:4]11

FBA_WCK6711
FBA_WCK67#11

FBA_WCK45#11

FBA_WCK4511

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[13] VGA Frame Buffer A

A3

13 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[13] VGA Frame Buffer A

A3

13 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[13] VGA Frame Buffer A

A3

13 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C60

1u_6.3V_X5R_04

COMMON

BGA170_MIRR

INS1224528

U152B

K4G80325FB-HC03

CHANGE

J10

SEN

J13

ZQ

J14

VREFC

V5

NC_RFU_V5

A5

NC_RFU_A5

J11

CLK

J12

CLK

J3

CKE

J2

RESET

J5

RFU_A12

H4

A7_A8

H5

A6_A11

H10

A5_BA1

H11

A4_BA2

K10

A3_BA3

K11

A2_BA0

K5

A1_A9

K4

A0_A10

J4

ABI

L12

CS

G12

WE

G3

CAS

L3

RAS

C28

0.1u_10V_X7R_04

R98
*931_1%_04

R99

931_1%_04

C30

1u_6.3V_X5R_04

C32

*1u_6.3V_X5R_04

R16
0_04

NC

NC

NC

NC

NC

NC

NC

NC

GND

x32 x16

MIRRORED

NC

COMMON

BGA170_MIRR

INS1226066

U152A

K4G80325FB-HC03

CHANGE

D5

WCK23

D4

WCK23

D2

DBI3

C2

EDC3

F2

DQ31

F4

DQ30

E2

DQ29

E4

DQ28

B2

DQ27

B4

DQ26

A2

DQ25

A4

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREFD

R10

549_1%_04

C29

1u_6.3V_X5R_04

R367
121_1%_04

NC

NC

NC

NC

NC

NC

NC

NC

NC

x16x32

MIRRORED

NC

COMMON

BGA170_MIRR

INS1225672

U152D

K4G80325FB-HC03

CHANGE

P5

WCK01

P4

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

P2

DBI0

R2

EDC0

M2

DQ7

M4

DQ6

N2

DQ5

N4

DQ4

T2

DQ3

T4

DQ2

V2

DQ1

V4

DQ0

V10

VREFD

add 1k to VDD

Mirrored

COMMON

BGA170_MIRR

INS1224754

U152C

K4G80325FB-HC03

CHANGE

V3

VSSQ

V14

VSSQ

V12

VSSQ

V1

VSSQ

R4

VSSQ

R3

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

R1

VSSQ

N3

VSSQ

N14

VSSQ

N12

VSSQ

N1

VSSQ

M5

VSSQ

M10

VSSQ

K2

VSSQ

K13

VSSQ

H2

VSSQ

H13

VSSQ

F5

VSSQ

F10

VSSQ

E3

VSSQ

E14

VSSQ

E12

VSSQ

E1

VSSQ

C4

VSSQ

C3

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

C1

VSSQ

A3

VSSQ

A14

VSSQ

A12

VSSQ

A1

VSSQ

T5

VSS

T10

VSS

P10

VSS

L5

VSS

L10

VSS

K14

VSS

K1

VSS

H14

VSS

H1

VSS

G5

VSS

G10

VSS

D10

VSS

B5

VSS

B10

VSS

T3

VDDQ

T14

VDDQ

T12

VDDQ

T1

VDDQ

P3

VDDQ

P14

VDDQ

P12

VDDQ

P1

VDDQ

N5

VDDQ

N10

VDDQ

M3

VDDQ

M14

VDDQ

M12

VDDQ

M1

VDDQ

L2

VDDQ

L13

VDDQ

K3

VDDQ

K12

VDDQ

H3

VDDQ

H12

VDDQ

G2

VDDQ

G13

VDDQ

F3

VDDQ

F14

VDDQ

F12

VDDQ

F1

VDDQ

E5

VDDQ

E10

VDDQ

D3

VDDQ

D14

VDDQ

D12

VDDQ

D1

VDDQ

B3

VDDQ

B14

VDDQ

B12

VDDQ

B1

VDDQ

R5

VDD

R10

VDD

P11

VDD

L4

VDD

L14

VDD

L11

VDD

L1

VDD

G4

VDD

G14

VDD

G11

VDD

G1

VDD

D11

VDD

C5

VDD

C10

VDD

J1

SOE*/MF_VDD

R24 0_04

C33

*0.1u_10V_X7R_04

C31

0.1u_10V_X7R_04

R373

80.6_1%_04

C254

1u_6.3V_X5R_04

C63

1u_6.3V_X5R_04

R11

1.33K_1%_04

C506

10u_6.3V_X5R_06

C526

10u_6.3V_X5R_06

R96
*549_1%_04

C515

820p_50V_X7R_04

C255

0.1u_10V_X7R_04

S

D

G

Q6B
MTDK3S6R

5

34

C62

*0.1u_10V_X7R_04

R97
*1.33K_1%_04

C253

1u_6.3V_X5R_04

C21

820p_50V_X7R_04

C258

10u_6.3V_X5R_06

C503

10u_6.3V_X5R_06

C514

820p_50V_X7R_04

VGA Frame Buffer A

B.Schematic Diagrams

B - 14 VGA Frame Buffer A

VGA I/0

Sheet 14 of 55

VGA I/O

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

H

䁢ᶵ旵柣

L

䁢昌柣

AC_IN 䁢H,
BATTERY

䁢

L

AC/BATL#

DGPIO12_AC_DETECT

EC Alway low,

⎒㚱

bio s

忂䞍ㇵ ≽ἄ

,

ᶵ䃞㯠 怈 㗗

LOW

9/9 ᾖ

㬋

DEFAULT

N17
STUFF

NVVDDS㊧ ㌱ 0218

DEFAULT HW POWER SEQUENCE

HW POWER DOW N SEQUENCE

0221 add R for I2C PULL HI
0303 DEL R456 R71
0306 ADD PULL HI 3.3VS

CHANGE FOOTPRINT 2/22

CHANGE FOOTPRINT 2/22

CHANGE FOOTPRINT 2/22

change power plane 0223

0222 Del R2343

0222 add

0222 add

0223 Del

0223 Del DGPU_OVERT_PCH

䡢 娵

1.8V

Change 10K

⣂䘬冒⶙䚳䘬

GC6 2.X

1.8V

1.8V

1.8V

1.8V

1.8V

NVIDIA GPIO LEVEL SHIFT

0306 add PULL HI

0310 change OP

0314 change GND

1.8V

GPIO12_AC_DETECT

SMD_VGA_THERM1

SMC_VGA_THERM1

I2CB_SCL
I2CB_SDA

GPIO10_FBVREF_ALTV

SMC_VGA_THERM1 SMC_VGA_THERM

SMD_VGA_THERMSMD_VGA_THERM1

I2CC_SDA

I2CC_SCL

GPIO8_OVERT

VGA_GPIO1

GC6_GPU_EVENT

N17_VDD_MAIN_EN_R

dGPU_PWR_EN

GPIO8_OVERT

N17_VDD_MAIN_EN_R

N17_VDD_MAIN_EN_AND

GC6_GPU_EVENT

N17_VDD_MAIN_EN_R

GC6_FB_EN

GPIO8_OVERT

GPU_PEX_RST#

GPU_PEX_RST#

GPIO9_ALERT_FAN

GC6_FB_EN

GPIO9_ALERT_FAN

GPIO9_ALERT_FAN

GPIO10_FBVREF_ALTV

GPIO12_AC_DETECT

NVVDD_PSI

NVVDD_PSI

NV_EN_DOWN

GPIO8_OVERT

VGA_GPIO1

GC6_FB_EN

PLT_RST#

DGPU_RST#_PCH

DGPU_PEX_RST#

NV_FBVDDQ_EN

NV_PEXVDD_EN

NV_1V8RUN_EN

NV_1V8AON_EN

N17_VDD_MAIN_EN_R

dGPU_PWR_EN

VGA_GPIO1

DGPU_PEX_RST#

dGPU_PWR_EN

GC6_FB_EN

NV_EN_DOWN

NV_EN_DOWN

NV_1V8RUN_EN NV_NVVDD_EN

NV_EN_DOWN

NV_EN_DOWN

NV_PEXVDD_EN

NV_FBVDDQ_EN

VGA_GPIO1

NV_NVVDD_EN

I2CC_SDA
I2CC_SCL

I2CB_SDA
I2CB_SCL

N17_VDD_MAIN_EN_R

VGA_GPIO5

VGA_GPIO5

VDD_MAIN_EN

VGA_GPIO16

VGA_GPIO16

VGA_GPIO21

VGA_GPIO23

VGA_GPIO23

VDD_AON

NVVDD

VDD_AON

VDD_AON

VDD_AON

VDD_AON

3.3VS

VDD_AON

3.3VS

3.3VS

VDD_RUN

3.3VS

3.3V

VDD_AON

VDD_AON

VDD_AON

3.3VS

3.3VS

VDD_AON 3.3VS

VBATT_BOOST# 38

AC/BATL# 47

GPU_PEX_RST# 10

SMD_VGA_THERM 38

SMC_VGA_THERM 38

GPU_PWR_VID 48

VDD_MAIN_EN 48,50

dGPU_PWR_EN24,38,50

GPU_EVENT# 24

NVVDD_PWRGD14,48,49

dGPU_OVERT_EC 38

GPIO9_THERM_ALERT_EC 38

GPIO8_SYS_PEX_RST_MON#24

GPIO10_FBVREF_ALTV 12,13

NVVDD_PSI 48

NV_EN_DOWN23

PLT_RST#20,24

DGPU_RST#_PCH24

NV_FBVDDQ_EN 49

NV_PEXVDD_EN 50

NV_NVVDD_EN 48

NV_1V8RUN_EN 50

NV_1V8AON_EN 50

NVVDD_PWRGD14,48,49

DGPU_PEX_RST#10

GC6_FB_EN14,24,38,49

GC6_FB_EN 14,24,38,49

GPIO4_1V8_MAIN_EN_R23

Title

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[14] VGA I/O

Custom

14 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[14] VGA I/O

Custom

14 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[14] VGA I/O

Custom

14 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R395 *10K_04

T73

R418

100K_04

U47

SLG4U41460V

VDD

1

VIN_DOWN

2

OVERT#

3

SUSB#

4

NVVDDS_PWRGD

5

GC6_FB_EN

6

GC6_FB_EN_PCH

7

PLT_RST#

8

dGPU_RST#_PCH

9

GPU_PEX_RST#

10

FBVDDQ_EN

20

PEX_VDD_EN

19

NVVDDS_EN

18

NVVDD_EN

17

3V3_SYS_EN

16

1V8_MAIN_EN

15

1V8_AON_EN

14

GPIO4_1V8_MAIN_EN

13

dGPU_PWR_EN

12

GND

11

R495
*100K_04

R87 10K_04

R54
10K_04

RN4

2.2K_8P4R_04

123

4 5

678

R60

1.8K_1%_04

R582.2K_04

R393 *10mil_short

R396 *0_04

C588

*0.1u_10V_X7R_04

R429
0_04

C516

*0.1u_10V_X7R_04

R435 *10K_04

S

D

G

Q41A
MTDK5S6R

㚱SLGᶵᶲẞ

2

61

T20

T71

R439
10K_04
㚱SLGᶵᶲẞ

S

D

G

Q3A
MTDK3S6R

2

61

R118 100K_04

Q43

2SK3018S3

G

DS

U46
SN74LV1T08DCKR

1

2

5

4

3

R496 10K_04

㚱SLGᶲẞ

S

D

G

Q41B
MTDK5S6R

㚱SLGᶵᶲẞ

5

3

4

R440
*0_04

FLOATINGLEAVE NC

DESIGNS

EXCEPT

MUST

FOR THOSE SHOWN

PINS

GM108 COMPATIBLE

5/14 NC

GM108

PEX_PLLVDD
PEX_PLLVDD

PEX_SVDD_3V3

PEX_TSTCLK *

PEX_TSTCLK

MLS_REF0

COMMON

?

INS31416542

U169I

W5

NC

F6

NC

F5

NC

F10

NC

E10

NC

D10

NC

AG3

NC

AF4

NC

AF3

NC

AF22

NC

AF2

NC

AE4

NC

AE3

NC

AE22

NC

AD7

NC

AD10

NC

AB8

NC

AB6

NC

AA15

NC

AA14

NC

R55
10K_04

R436 10K_04

8/14 MISC1

I2CA_SCL

I2CA_SDA

GM108

COMMON

?

INS31420659

U169M

F12

THERMDP

E12

THERMDN

AE2

TS_VREF

A6

OVERT

B7

GPIO23

A7

GPIO22

C4

GPIO21

E6

GPIO20

F7

GPIO19

C2

GPIO18

D4

GPIO17

D5

GPIO16

C3

GPIO15

B3

GPIO14

B4

GPIO13

D7

GPIO12

E7

GPIO11

C5

GPIO10

F8

GPIO9

E9

GPIO8

B6

GPIO7

A4

GPIO6

A3

GPIO5

F9

GPIO4

C7

GPIO3

D6

GPIO2

B2

GPIO1

C6

GPIO0

C8

I2CB_SDA

C9

I2CB_SCL

B9

I2CC_SDA

A9

I2CC_SCL

D8

I2CS_SDA

D9

I2CS_SCL

T79

R453 *100K_04

R433 *10K_04

S

D

G

Q3B
MTDK3S6R

5

34

T145

Q40

2SK3018S3

㚱SLGᶵᶲẞ

G

DS

R392 0_04

N17S- STUFF

T70

R59

1.8K_1%_04

Q51
*2SK3018S3

G

DS

U39
SN74LV1T08DCKR

1

2

5

4

3

R93 100K_04

㚱SLGᶵᶲẞ

R397 10K_04

R494
*100K_04

C591

*0.1u_10V_X7R_04

R14
10K_04

NV FOOTPRINT

R432 *10K_04

U40
SN74LV1T08DCKR
㚱SLGᶵᶲẞ

1

2

5

4

3

R407 10K_04

TXC

TXD2/2

TXD1/1

TXD0/0

TXC/TXC

DVI HDMI DP

4/14 IFPAB

IFPAB

TXD1/4

TXD0/3

(DEFEATURED 0N GM108)

TXD2/5

SL/DL

COMMON

?

INS31420402

U169J

Y6

IFP_IOVDD

W6

IFP_IOVDD

W7

IFPAB_PLLVDD

AA6

IFPAB_RSET

AD4

IFPB_AUX_SCL

AD5

IFPB_AUX_SDA

AE1

IFPB_L0

AD1

IFPB_L0

AD3

IFPB_L1

AD2

IFPB_L1

AB3

IFPB_L2

AB2

IFPB_L2

AB5

IFPB_L3

AB4

IFPB_L3

AA4

IFPA_AUX_SCL

AA5

IFPA_AUX_SDA

AB1

IFPA_L0

AA1

IFPA_L0

AA3

IFPA_L1

AA2

IFPA_L1

Y4

IFPA_L2

Y3

IFPA_L2

AC3

IFPA_L3

AC4

IFPA_L3

R365 *10K_04

R455 10K_04
㚱SLGᶲẞ

Q52

*2SK3018S3

G

DS

R438 *10K_04

N17S NO STUFF

S

D

G

Q44A

*MTDK3S6R

2

61

RSVD

GM108

RSVD

7/14 VDDS

COMMON

?

INS31416294

U169F

U17

VDDS

U11

VDDS

T14

VDDS

P18

VDDS

P16

VDDS

P12

VDDS

P10

VDDS

M14

VDDS

L17

VDDS

L11

VDDS

F3

GNDS_SENSE

F4

VDDS_SENSE

T72

Q50
*2SK3018S3

G

DS

S

D

G

Q44B

*MTDK3S6R

5

34

R117 10K_04

R431 10K_04

N17S-STUFF

U8
SN74LV1T08DCKR
㚱SLGᶵᶲẞ

1

2

5

4

3

R454 0_04
㚱SLGᶲẞ

C589

*0.1u_10V_X7R_04

R437 *10K_04

R372
10K_04

T95

U41

74LV1T32DCKR

4

53

1

2

R572.2K_04

C590

*0.1u_10V_X7R_04

T85

T96

C568

0.1u_10V_X7R_04

㚱SLGᶵᶲẞ

3/14 JTAG

COMMON

?

INS31415217

U169N

AG4

JTAG_TRST

AD6

JTAG_TMS

AF6

JTAG_TDO

AE6

JTAG_TDI

AE5

JTAG_TCK

AD9

NVJTAG_SEL

U7
SN74LV1T08DCKR
㚱SLGᶵᶲẞ

1

2

5

4

3

Q53
*2SK3018S3

G

DS

R441 0_04

N17S-STUFF

Schematic Diagrams

B.Schematic Diagrams

VGA I/0 B - 15

Sheet 15 of 55

VGA NVVDD

Coupling

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Gary_from RS1 to PJ74

0222 Del

undernear

under

near

under

under

near

0314 add Michael 天

㯪

NVVDD

NVVDD

NVVDDNVVDD

GPU_VDD_SENSE 48
GPU_VSS_SENSE 48

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[15] VGA NVVDD Coupling

A3

15 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[15] VGA NVVDD Coupling

A3

15 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[15] VGA NVVDD Coupling

A3

15 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C14

10u_4V_X6S_06

NV FOOTPRINT

11/14 NVVDD

COMMON

?

INS31413859

U169C

V18

VDD

V16

VDD

V14

VDD

V12

VDD

V10

VDD

U15

VDD

U13

VDD

T18

VDD

T16

VDD

T12

VDD

T10

VDD

R17

VDD

R15

VDD

R13

VDD

R11

VDD

P14

VDD

N17

VDD

N15

VDD

N13

VDD

N11

VDD

M18

VDD

M16

VDD

M12

VDD

M10

VDD

L15

VDD

L13

VDD

K18

VDD

K16

VDD

K14

VDD

K12

VDD

K10

VDD

F1

GND_SENSE

F2

VDD_SENSE

C138

10u_4V_X6S_06

NV FOOTPRINT

C140

4.7u_6.3V_X6S_06

NV FOOTPRINT

C129

10u_4V_X6S_06

NV FOOTPRINT

C141

1u_6.3V_X6S_04

NV FOOTPRINT

C724

4.7u_6.3V_X6S_06

NV FOOTPRINT

C730

4.7u_6.3V_X6S_06

NV FOOTPRINT

C143

1u_6.3V_X6S_04

NV FOOTPRINT

C19

10u_4V_X6S_06

NV FOOTPRINT

C92

4.7u_6.3V_X6S_06

NV FOOTPRINT

C84

1u_6.3V_X6S_04

NV FOOTPRINT

C725

4.7u_6.3V_X6S_06

NV FOOTPRINT

C729

4.7u_6.3V_X6S_06

NV FOOTPRINT

C89

1u_6.3V_X6S_04

NV FOOTPRINT

C80

10u_4V_X6S_06

NV FOOTPRINT

C91

4.7u_6.3V_X6S_06

NV FOOTPRINT

C144

4.7u_6.3V_X6S_06

NV FOOTPRINT

C90

4.7u_6.3V_X6S_06

NV FOOTPRINT

C13

10u_4V_X6S_06

NV FOOTPRINT

C135

4.7u_6.3V_X6S_06

NV FOOTPRINT

C142

1u_6.3V_X6S_04

NV FOOTPRINT

C726

10u_4V_X6S_06

NV FOOTPRINT

C86

4.7u_6.3V_X6S_06

NV FOOTPRINT

C727

10u_4V_X6S_06

NV FOOTPRINT

XVDD AREA

PCB ADR/CMD

PWR REFERENCE

OPTIONAL GND:

13/14 GND

COMMON

?

INS31421525

U169H

H25

GND_OPT

H23

GND_OPT

L2

GND_OPT

H5

GND_OPT

H2

GND_OPT

E8

GND

E5

GND

E25

GND

E22

GND

E20

GND

E2

GND

E17

GND

E14

GND

E11

GND

B8

GND

B5

GND

B27

GND

B23

GND

B20

GND

B17

GND

B14

GND

B11

GND

B1

GND

AB14

GND

AG26

GND

AG2

GND

AF8

GND

AF5

GND

AF23

GND

AF20

GND

AF17

GND

AF14

GND

AF11

GND

AF1

GND

AB11

GND

AE20

GND

AE17

GND

AE14

GND

AE11

GND

AD22

GND

AD21

GND

AD19

GND

AD18

GND

AD16

GND

AD15

GND

A26

GND

AD13

GND

AD12

GND

AC8

GND

AC5

GND

AC26

GND

AC22

GND

AC2

GND

AB24

GND

AB20

GND

AB17

GND

A2

GND

L25

GND_OPT

L23

GND_OPT

U5

GND_OPT

U2

GND_OPT

P5

GND_OPT

P2

GND_OPT

AB7

GND

AA7

GND

Y5

GND

Y26

GND

Y23

GND

Y2

GND

V17

GND

V15

GND

V13

GND

V11

GND

U26

GND

U23

GND

U18

GND

U16

GND

U14

GND

U12

GND

U10

GND

T17

GND

T15

GND

T13

GND

T11

GND

R18

GND

R16

GND

R14

GND

R12

GND

R10

GND

P26

GND

P23

GND

P17

GND

P15

GND

P13

GND

P11

GND

N18

GND

N16

GND

N14

GND

N12

GND

N10

GND

M17

GND

M15

GND

M13

GND

M11

GND

L5

GND

L18

GND

L16

GND

L14

GND

L12

GND

L10

GND

K17

GND

K15

GND

K13

GND

K11

GND

C12

*10u_4V_X6S_06

NV FOOTPRINT

C16

10u_4V_X6S_06

NV FOOTPRINT

C728

10u_4V_X6S_06

NV FOOTPRINT

6/14 XVDD

RSVD

GM108

U169G
INS31422839

?
COMMON

N3

XVDD

N2

XVDD

N1

XVDD

M7

XVDD

M5

XVDD

M4

XVDD

M3

XVDD

M2

XVDD

M1

XVDD

L4

XVDD

L3

XVDD

K7

XVDD

K6

XVDD

K5

XVDD

K4

XVDD

K3

XVDD

K2

XVDD

K1

XVDD

J7

XVDD

J6

XVDD

J5

XVDD

J4

XVDD

J3

XVDD

J2

XVDD

J1

XVDD

H6

XVDD

H4

XVDD

H3

XVDD

G7

XVDD

G6

XVDD

G5

XVDD

G4

XVDD

G3

XVDD

G2

XVDD

G1

XVDD

W4

XVDD

W3

XVDD

W2

XVDD

W1

XVDD

V7

XVDD

V6

XVDD

V5

XVDD

V4

XVDD

V3

XVDD

V2

XVDD

V1

XVDD

U6

XVDD

U4

XVDD

U3

XVDD

T7

XVDD

T6

XVDD

T5

XVDD

T4

XVDD

T3

XVDD

T2

XVDD

T1

XVDD

R7

XVDD

R6

XVDD

R5

XVDD

R4

XVDD

R3

XVDD

R2

XVDD

R1

XVDD

P6

XVDD

P4

XVDD

P3

XVDD

N7

XVDD

N5

XVDD

N4

XVDD

C136

1u_6.3V_X6S_04

NV FOOTPRINT

C78

10u_4V_X6S_06

NV FOOTPRINT

C82

4.7u_6.3V_X6S_06

NV FOOTPRINT

C137

1u_6.3V_X6S_04

NV FOOTPRINT

C133

4.7u_6.3V_X5R_06

NV FOOTPRINT

C126

22u_6.3V_X5R_08

NV FOOTPRINT

C83

4.7u_6.3V_X6S_06

NV FOOTPRINT

C15

10u_4V_X6S_06

NV FOOTPRINT

C731

22u_6.3V_X5R_08

NV FOOTPRINT

C87

1u_6.3V_X6S_04

NV FOOTPRINT

C127

22u_6.3V_X5R_08

NV FOOTPRINT

C134

4.7u_6.3V_X5R_06

NV FOOTPRINT

C18

10u_4V_X6S_06

NV FOOTPRINT

C17

10u_4V_X6S_06

NV FOOTPRINT

C139

4.7u_6.3V_X6S_06

NV FOOTPRINT

C128

10u_4V_X6S_06

NV FOOTPRINT

C732

22u_6.3V_X5R_08

NV FOOTPRINT

VGA NVVDD Coupling

B.Schematic Diagrams

B - 16 VGA NVVDD Coupling

Panel, Inverter

Sheet 16 of 55

Panel, Inverter

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PANEL POWER

PANEL CONNECTOR

Entire trace of Panel VCC should be wider than 80-mil

PLVDD 3.3V 3A

INV_BLON

D02A

2A

1029

ℙ䓐䶂嶗

modify

3A

SHORT

6-06-75140-068

SHORT

BRIGHTNESS

LED PANEL (EDP Channel).

2A

1A

BOM value change

BOM value change

For common design change net name

For common design change net name

For common design BOE Panel

Fro common design

Fro common design

Fro common design

Fro common design

Fro common design

0310 change ᶲ

ẞ

BLON1

SB_BLON

BLON2

INV_BLON

LID_SW#1

BKLEN

LVDD_EN#1

LVDD_EN

VDDIN

PANELEN

PANELEN

INV_BLON

eDPHPD

BRIGHTNESS_R

BRIGHTNESS_R

eDPHPD

3.3V

3.3V

3.3V

3.3V

VIN VLED

PLVDD

3.3VS

3.3V

VIN

3.3VS

VLED

3.3VS

PLVDD

3.3VS

PLVDD

BKL_EN38

ALL_SYS_PWRGD4,21,38,44

LID_SW#35,38

SB_BLON28

BLON22

NB_ENAVDD22,38

SUSB#21,32,33,39,40,42

EDP_HPD 24

EDP_BRIGHTNESS 22

EDP_TXP_02

EDP_TXN_02

EDP_AUXP2

EDP_AUXN2

EDP_TXN_12
EDP_TXP_12

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[17]PANEL,INVERTER

A3

17 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[17]PANEL,INVERTER

A3

17 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[17]PANEL,INVERTER

A3

17 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C539 0.1u_10V_X7R_04

R486 *0_04

D30

BAV99N3

A

C

AC

J_LCD1

lvdfh-03008-tp00+

PCB Footprint = lvdfh-030xx-tx00

current = 0.3A

30

30

29

29

28

28

27

27

26

26

25

25

24

24

23

23

22

22

21

21

20

20

19

19

18

18

17

17

16

16

15

15

14

14

13

13

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

GND1

GND1

GND2

GND2

GND3

GND3

GND4

GND4

GND5

GND5

PJ52

3mm

1 2

C542 0.1u_10V_X7R_04

R386

*100K_04

R505

*15mil_short_06

R384 *100K_04

U49B
74LCX08FT

4

5

6

147

C543 0.1u_10V_X7R_04

Q38B

*MTS3572G6

S1

2

D1

6

G1

1

R504

100K_04

R568

*100K_04

C529

*0.22u_50V_Y5V_06

R490

100K_04

R566

*10K_04

R567

*15mil_short_06

C233 0.1u_10V_X7R_04

Q38A
*MTS3572G6

S24D2

3

G2

5

C582

22u_6.3V_X5R_06

R484

*4.7K_06

R551 *100K_04

C5450.1u_50V_Y5V_06

C163

*0.1u_50V_Y5V_06

C584

1u_6.3V_X5R_04

R492

100K_04

R552 100K_04

R558 0_04

R403 100K_04

C5440.1u_50V_Y5V_06

R489 *0402_short

C581

*10u_6.3V_X5R_06

U49D
74LCX08FT

12

13

11

147

R404 100K_04

R485 *0_04

PJ47

OPEN_2A

12

C580

1u_6.3V_X5R_04

U49C
74LCX08FT

9

10

8

147

C583

0.1u_10V_X7R_04

R491 1K_04

C538 0.1u_10V_X7R_04

U49A
74LCX08FT

1

2

3

147

R488 *10K_04

R385

*150K_04

C540 0.1u_10V_X7R_04

R487

100K_04

S

D

G

Q45A

*MTDK5S6R

2

6

1

S

D

G

Q45B

*MTDK5S6R

5

3

4

C585

*220p_50V_NPO_04

C541 0.1u_10V_X7R_04

U48

UP7553PMA5-25

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

C162

*0.1u_50V_Y5V_06

C579

1u_6.3V_X5R_04

Schematic Diagrams

B.Schematic Diagrams

Panel, Inverter B - 17

Schematic Diagrams

Sheet 17 of 55

CRt

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CRT

POWER

RaRb

Ra R1496 pull up VCCK_V12 from LDO enable

Rb R1497 pull down VCCK_V12 from external

Power On Configuration

Rc RcRcRd

Re Rf

Rom only mode

ep mode

EEPROM MODE

POL1_SDA POL1_SDC

Rc

Rf

Rd Re

Rd Rf

H

H

H

L

L

L

I2C Control Debug Port
connect to EC/PCH

RTD2168 Slave Address
0x64 / 0x65 and 0x68 / 0x 69

DP Signals from GPU

6-20-14X60-015

6-19-31001-003

6-19-31001-003

6-19-31001-003

6-06-75140-068

6-13-36R01-28C

6-03-02168-030

For common design change net name

For common design change net name

For common design change

For common design change

DAC_GREEN

DAC_RED

FGRN

FBLUE

FRED

DAC_BLUE

VGA_SDA

VGA_SCL

VGA_HS_R

VGA_VS_R

VGA_HSYNC

VGA_VSYNC

RTD2168_AVCC33

VDD_DAC_33

DAC_RED

DAC_GREEN

DAC_BLUE

VDD_DAC_33

RTD2168_VCCK_V12

3.3VS

VGA_HS

VGA_VS

VGA_SDA

1.2V_LDO_EN

POL1_SDA

POL2_SDC

3.3VS

VGA_SCL

CSDA

CSCL

RTD2168_AVCC33

VGA_HPD

LANE1_N

LANE1_P

LANE0_P

LANE0_N

RRX

AUX_CH_P

AUX_CH_N

RTD2168_VCCK_V12

XTLO

1.2V_LDO_EN

VGA_VS_R

VGA_HS_RVGA_HS

VGA_VS

POL1_SDA

POL2_SDC

CSDA

CSCL

AUX_CH_N

AUX_CH_P

LANE1_P

LANE1_N

LANE0_P

LANE0_N

VGA_HPD

5VS5VS_CRT

3.3VS

3.3VS

3.3VS

5VS_CRT

5VS_CRT

3.3VS

3.3VS

3.3VS

3.3VS

VGA_AUX_CH_N2

VGA_AUX_CH_P2

VGA_LANE0P2

VGA_LANE0N2

VGA_LANE1P2

VGA_LANE1N2

VGA_HPD24

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[18]CRT

A3

18 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[18]CRT

A3

18 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[18]CRT

A3

18 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

L2

FCM1005MF-600T01

C69

*1u_6.3V_X5R_04

C155

0.1u_16V_Y5V_04

C158 0.1u_16V_Y5V_04

R376 36_1%_04

R38 4.7K_04

C157 0.1u_16V_Y5V_04

R12

2.2K_04

C159 10u_6.3V_X5R_06

C161 2.2u_6.3V_X5R_04

C66

15p_50V_NPO_04

U38

*U74LVC1G125G-AL5-R

125

4

3

C100

15p_50V_NPO_04

C156 0.1u_16V_Y5V_04

R28

75_1%_04

R39 *4.7K_04

R36 *4.7K_04

R40 *4.7K_04

RTD2168

U3

RTD2168-CG

HPD1SMB_SCL2SMB_SDA3VGA_SCL4DVCC_335VGA_SDA6VSYNC7HSYNC

8

AVCC_33

24

POL2_SCL

23

POL1_SDA

22

LDO_EN

21

DVCC_33

20

VCCK_12

19

XO

18

XI/CKIN

17

EPAD_GND

33

LANE1N

32

LANE1P

31

LANE0N

30

LANE0P

29

RRX

28

AUX_N

27

AUX_P

26

AVCC_12

25

VDD_DAC_33

9

BLUE_P

10

BLUE_N

11

GREEN_P

12

GREEN_N

13

GND_DAC

14

RED_P

15

RED_N

16

C65

10p_50V_NPO_04

R17 36_1%_04

R37 4.7K_04

R34 4.7K_04

R35 *4.7K_04

L7

FCM1005MF-600T01

C102

15p_50V_NPO_04

C101

15p_50V_NPO_04

C67

15p_50V_NPO_04

L4 FCM1005MF-600T01

C524

10p_50V_NPO_04

R19

75_1%_04

C530
10u_6.3V_X5R_06

R22 100K_04

C106 0.1u_10V_X5R_04

R27

75_1%_04

L1 FCM1005MF-600T01

C104 0.1u_10V_X5R_04

C531

1000p_50V_X7R_04

R20

*4.7K_04

R375 0_04

R21

*4.7K_04

C72 0.1u_10V_X5R_04

C105 0.1u_10V_X5R_04

L5 FCM1005MF-600T01

U2

*U74LVC1G125G-AL5-R

125

4

3

C160

*1u_6.3V_X5R_04

R13 *4.7K_04

C99

15p_50V_NPO_04

R18 0_04

R387 *4.7K_04

D27

RB751S-40H

AC

R388

2.2K_04

C70 0.1u_16V_Y5V_04

C103 0.1u_10V_X5R_04

C34

1000p_50V_X7R_04

C71 0.1u_10V_X5R_04

R41 4.7K_04

J_CRT1

DS15146BAC067

8

7

6

5

4

3

2

1

9

10

11

12

13

14

15

GND2

GND1

C68

0.1u_16V_Y5V_04

R29 12K_1%_04

CRT

B.Schematic Diagrams

B - 18 CRT

HDMI

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

1. Differential pair mismatch < 5 mil

2. CPU to Level Shift total trace length < 5.5” ,via count 2 ,reference to ground.

ʀ

3. Level Shift to HDMI connector total trace length < 1” ,via count 2 ,reference to ground.

ʀ

4. Trace Impedance follow Intel PDG. 85 Ohm +/- 15%

5. Connector

ἧ䓐

SM D Type

L>5.5"

⤪暨天忶

4K2K,

婳 ἧ䓐

PS8401A

⤪攟⹎䃉㱽 䫎 ⎰

<5.5",

⇯ 暨 天 ἧ 䓐

PS8407A,

攟⹎䫎 ⎰

5"+1",

⎗ ἧ 䓐

AS1442K婳ASMEDIA

⸓ ⾁ 䡢 娵ㆾἧ 䓐

PS8201A

Support HDMI 1.4b 4K2K,

暨≈

4K2 K leve l shifter,

Layout

攟⹎暨㍏⇞

Chi pse t to L evel shi fter <5.5 i nch, Level

shifter to Connector <1 inch, Connector

ἧ䓐

SM D Type

ཥ ቚIENJ!2/5 c!5L3L!Mbzpv u!Hvjef/

R4.4

HDMI CONNECTOR ( W/O LEVELSHIFT)

PIN GND1~4=GND

For ESD

SCL/SDA 暨PULL HI GH (CHECK PCH䪗)

EMI

㓡䁢

COMMO N CHOK E SHORT

暞ẞ

枸䔁暣旣嶐-+ℑ 䪗 旣ῤ晐

EM I

婧 㔜 嬲 ≽

EMI

㓡䁢

COMMO N CHOK E SHORT

暞ẞ

枸䔁暣 旣嶐-+ℑ 䪗 旣ῤ晐

EM I

婧 㔜 嬲 ≽

廠↢␥⎵ẍ

I NTE L IC PI N⭂佑,

㍍ 䶂 䡢 娵

CHIPSET䪗 CONNECTOR

䪗

DATA2 DATA0
DATA1 DATA1
DATA0 DATA2
CLOCK CLOCK

⤪㚱ᶵ ⎴,ℵὅIC天㯪 ⍣婧㔜

6-21-14230-019

6-02-75495-9C0

Gary_change to nonstuff

䃉LEVEL SHI FT㗪天ᶲ ẞ

BRANCH POINT

HDMI ESD W/O LEVELSHIFT 暨ᶲ, NE T ⎗SWAP

䃉LEVEL SHI FT㗪天ᶲ ẞ

Gary_for leakage current

BRANCH POINT

BOM value change

BOM value change

For common design change

For common design change

For common design change

0310 change 4.7k

HDMI_CEC

HDMI_SCL-C

HDMI_SDA-C

HDMI_HPD-C

HDMI_SDA-C

HDMI_SCL-C

TMDS_DATA2#

TMDS_DATA0

TMDS_DATA2

TMDS_DATA0#

TMDS_DATA2#-RR

TMDS_DATA0-RR

TMDS_DATA0#-RR

TMDS_DATA2-RR

TMDS_DATA2#J

TMDS_DATA0J

TMDS_DATA2J

TMDS_DATA0#J

TMDS_CLOCK#

TMDS_DATA1#

TMDS_DATA1

TMDS_DATA1#-RR

TMDS_DATA1-RR

TMDS_CLOCK#-RR

TMDS_CLOCK-RR TMDS_CLOCK

TMDS_CLOCK#J

TMDS_DATA1#J

TMDS_DATA1J

TMDS_CLOCKJ

HDMI_DATA2P

HDMI_DATA0P

HDMI_DATA1P
HDMI_DATA1N

HDMI_DATA2N

HDMI_DATA0N

HDMI_CLOCKP
HDMI_CLOCKN TMDS_CLOCK#-RR

TMDS_CLOCK-RR

TMDS_DATA1#-RR

TMDS_DATA1-RR

TMDS_DATA2#-RR

TMDS_DATA2-RR

TMDS_DATA0#-RR

TMDS_DATA0-RR TMDS_DATA0 -RR

TMDS_DATA0#-RR

TMDS_CLOCK#-RR

TMDS_CLOCK-RR

TMDS_DATA1#-RR

TMDS_DATA1-RR

TMDS_DATA2#-RR

TMDS_DATA2-RR

TMDS_DATA0J
TMDS_DATA0#J

TMDS_CLOCK#J

TMDS_CLOCKJ

TMDS_CLOCK#

TMDS_CLOCK

TMDS_DATA0#

TMDS_DATA0

TMDS_DATA1#J

TMDS_DATA1J

TMDS_DATA1#

TMDS_DATA1

TMDS_DATA2#J

TMDS_DATA2J

TMDS_DATA2#

TMDS_DATA2

HDMI_HPD-CHDMI_HPD

HDMI_CTRLDATA

HDMI_CTRLCLK HDMI_SCL-C

HDMI_SDA-C

HDMI_SCL-C

HDMI_SDA-C

HDMI_HPD-C

5VS

HDMI_5VS

GND

5VS

5VS

3.3VS

HDMI_5VS

HDMI_5VS

HDMI_DATA0P2
HDMI_DATA0N2

HDMI_DATA2P2
HDMI_DATA2N2

HDMI_CLOCKP2

HDMI_DATA1P2

HDMI_CLOCKN2

HDMI_DATA1N2

SUSB32,35,39

HDMI_CTRLDATA24

HDMI_CTRLCLK24

HDMI_HPD24

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[19] HDMI 1.4b

Custom

19 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[19] HDMI 1.4b

Custom

19 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[19] HDMI 1.4b

Custom

19 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

D29

BAV99 RECTIFIER

A

C

AC

R506 499_1%_04C263 0.1u_10V_X7R_04

R119

*180_1%_04

U44

uP7549UMA5-20

OC#

3

VIN

5

EN#

4

VOUT

1

GND

2

R65

4.7K_04

R525 499_1%_04C278 0.1u_10V_X7R_04

R8120K_04

R526 499_1%_04

D28

BAV99 RECTIFIER

A

C

AC

D2
RB751S-40H

AC

R529

1M_04

R508 499_1%_04

R64

4.7K_04

L11

*WCM2012F2S-SHORT

142

3

R524 499_1%_04

C232

22u_6.3V_X5R_08

D3

BAV99 RECTIFIER

A

C

AC

C562

*10u_6.3V_X5R_06

D5

TVUDF1004AD0

5

1

2

3

4

10

9

8

7

6

C573

22u_6.3V_X5R_08

R527 499_1%_04

L9

*WCM2012F2S-SHORT

142

3

R120

*180_1%_04

R528 499_1%_04

S

D

G

Q7A

MTDK3S6R

2

61

C266 0.1u_10V_X7R_04

D6

TVUDF1004AD0

5

1

2

3

4

10

9

8

7

6

S

D

G

Q7B

MTDK3S6R

5

34

C277 0.1u_10V_X7R_04
C276 0.1u_10V_X7R_04

L8

*WCM2012F2S-SHORT

142

3

J_HDMI1

16-A1030-1003-0

SHIELD2

2

TMDS DATA1+

4

TMDS DATA1-

6

SHIELD0

8

TMDS CLOCK+

10

TMDS CLOCK-

12

RESERVED

14

SDA

16

+5V

18

TMDS DATA2+

1

TMDS DATA2-

3

SHIELD1

5

TMDS DATA0+

7

TMDS DATA0-

9

CLK SHIELD

11

CEC

13

SCL

15

DDC/CEC GND

17

HOT PLUG DETECT

19

C279 0.1u_10V_X7R_04

R101
*180_1%_04

R100

*180_1%_04

Q54
2SK3018S3

G

DS

C264 0.1u_10V_X7R_04

Q46

UK3018

G

D S

R507 499_1%_04

L10

*WCM2012F2S-SHORT

142

3

C265 0.1u_10V_X7R_04

Sheet 18 of 55

HDMI

Schematic Diagrams

B.Schematic Diagrams

HDMI B - 19

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

RTC Wake UP

For ITE IT8587B Test

ME+BIOS ROM 8MB

BOOT HALT
ENABLE:LOW
(INTERNAL WEAK PD)

CONSENT STRAP
ENABLE:LOW
(INTERNAL WEAK PU)

JTAG ODT
DISABLE:LOW
(INTERNAL WEAK PU)

GPP_G_14_GSXDIN:
DMI AC COUPLING FULL VOLTAGE MODE
WHEN SAMPLED LOW

SPI_* = 1"~6.5"

PESONALITY STRAP
ENABLE:LOW
(INTERNAL WEAK PU)

ESPI FLASH SHARING MODE
MASTER ATTACHED FLASH SHARING:LOW
SLAVE ATTACEHD FLASH SHARING:HIGH
(INTERNAL WEAK PD)

6-04-02564-492

Leakage

SHORT

SPI_SI_M

SPI_SO_M

SPI_CS0#

SPI_SCLK_M

SPI_WP#

SPI_SI_R

SPI_SO_R

SPI_CS_0#

SPI_SCLK_R

SPI_SI_R
SPI_SO_R
SPI_SCLK_R
SPI_CS_0#

HSPI_MSI
HSPI_MSO
HSPI_SCLK
HSPI_CE#

SMI#_R

SPI_IO2 SPI_IO3

SPI_SI_R SPI_SO_R

SPI_SI_R
SPI_SO_R
SPI_CS_0#
SPI_SCLK_R

SMI#_R

LAN_WUP#

SPI_IO2
SPI_IO3

SPI_WP#
SPI_HOLD#

GPP_G_14_GSXDIN

SML4ALERT#
SML4DATA
SML4CLK
SML3ALERT#

SML3CLK
GPP_H_12

SML2DATA
SML2CLK
INTRUD ER#

SML3DATA

GPP_H_12

EXTTS_SNI_DRV0
TCH_PNL_INTR#

EXTTS_SNI_DRV1

SPI_HOLD#

VCC_RTC

SPI_3.3V

3.3VS

3.3VA

3.3VS

VDD3

HSPI_CE#38

HSPI_MSI38
HSPI_MSO38
HSPI_SCLK38

PLT_RST# 14,24

LAN_WAKEUP#30,34,38

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[20] PCH 1/12-SPI/SMBUS

A3

20 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[20] PCH 1/12-SPI/SMBUS

A3

20 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[20] PCH 1/12-SPI/SMBUS

A3

20 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PJ50 1mm

12

T125

R468 0_04

T126

R447

*4.7K_04

R445 0_04

R478 *0_04

R448 33_04

R139 *10K_04

T56

R446

*4.7K_04

R466 0_04

T89

C576

0.1u_16V_Y5V_04

R456 33_04

RN5 *10K_8P4R_04

1

2

3

4 5

6
7
8

R463

*4.7K_04

T90

R457 1K_1%_04

T103

R458 1K_04

T34

R459 33_04

SPT-H_PCH

REV = 1.31 OF 12

U45A

HM175

INTRUDER#

BE11

GPP_H10/SML2CLK

BD34

GPP_H11/SML2DATA

AW35

GPP_H12/SML2ALERT#

BD35

GPP_H13/SML3CLK

BC35

GPP_H14/SML3DATA

BA35

GPP_H15/SML3ALERT#

BB36

GPP_H16/SML4CLK

BD39

GPP_H17/SML4DATA

BE34

GPP_H18/SML4ALERT#

BC36

GPP_B4/CPU_GP3

BD24

GPP_B3/CPU_GP2

BC23

GPP_E7/CPU_GP1

AE44

GPP_E3/CPU_GP0

AF41

GPP_G14/GSXDIN

R42

GPP_G13/GSXSLOAD

R36

GPP_G12/GSXDOUT

R39

GPP_G16/GSXCLK

P43

GPP_B13/PLTRST#

BB27

GPP_D21/SPI1_IO2

AG44

GPP_D22/SPI1_IO3

AH43

GPP_D2/SPI1_MISO

AN38

GPP_D3/SPI1_MOSI

AN41

GPP_D0/SPI1_CS#

AL39

GPP_D1/SPI1_CLK

AN36

SPI0_CS2#

AT31

SPI0_IO3

BD30

SPI0_IO2

BC29

SPI0_CS1#

AW31

SPI0_CLK

BC31

SPI0_CS0#

BD31

SPI0_MISO

BE30

SPI0_MOSI

BB29

TP1

AN17

TP2

AR19

RSVD

AE17

RSVD

AF17

RSVD

AG14

RSVD

AG15

GPP_A11/PME#

BD17

GPP_G15/GSXSRESET#

R41

T35

R110 330K_04

R443 0_04

R465 33_04

T104

R467

*1K_04

U43

GD25B64CSIGR

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

R469 0_04

T42

R470

*4.7K_04

R460 33_04

T105

Sheet 19 of 55

PCH 1/9

PCH 1/9

B.Schematic Diagrams

B - 20 PCH 1/9

PCH 2/9

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

EC DELAY 99ms(UP)

USB2 COMP RES: PLACE WITHIN 1 INCH

DESIGN NOTE:

4- Port 4 Audio USB3.0 Con.

1- USB3 Port 1 Charger

6- Type-C

2- CCD

WLAN

RTL8411B GLAN

5- 3G

3- BT

Differential between RCOMPN/RCOMPP.

Length matched to less than 1% trace.

USB TABLE

USB2.0

DEVICE

USB3.0

Charger, PORT 3

CCD

BT

Type-C

LTE

2

3

4

5

6

11

11

OCI_B#

OCI_A#

OC

5,6

2

TO VR_ON & EC

ON

11-Port 11 Audio USB2.0 Con.

Audio USB3.0 Con.

4

Audio USB2.0 Con.

PCIECOMP_N
PCIECOMP_P

USB_OC0#
USB_OC1#
USB_OC2#
VISACH2_D3
USB_OC4#
USB_OC5#
USB_OC6#
USB_OC7#

USB2_COMP
USB2_VBUSSENSE
TP_PCH_AB13
USB2_ID

SYS_PWROK_RDELAY_PWRGD

PCIE7_TXN
PCIE7_TXP

PCIE5_TXN
PCIE5_TXP

USB_OC0#

USB_OC1#

USB_OC2#

VISACH2_D3

USB_OC6#
USB_OC7#

ALL_SYS_PWRGD

USB_OC4#

USB_OC5#

ALL_SYS_PWRGD_R

ALL_SYS_PWRGD_R

VDD3

VDD3VDD3

3.3VA

VDD3

PM_PCH_PWROK 9,23

PM_PWROK38

SYS_PWROK 23

VCORE_PG44

DMI_MT_IR_0_DN2
DMI_MT_IR_0_DP2

DMI_MT_IR_1_DN2
DMI_MT_IR_1_DP2

DMI_MT_IR_2_DN2
DMI_MT_IR_2_DP2

DMI_MT_IR_3_DN2
DMI_MT_IR_3_DP2

DMI_IT_MR_0_DN2

DMI_IT_MR_0_DP2

DMI_IT_MR_1_DN2

DMI_IT_MR_1_DP2

DMI_IT_MR_2_DN2

DMI_IT_MR_2_DP2

DMI_IT_MR_3_DN2

DMI_IT_MR_3_DP2

USB_PP1 33

USB_PN1 33

USB_PP2 36

USB_PN2 36

USB_PN3 30
USB_PP3 30

USB_PP5 29

USB_PN5 29

USB_PN6 33
USB_PP6 33

PCIE_TXP7_WLAN30

PCIE_TXN7_WLAN30

PCIE_RXP7_WLAN30

PCIE_RXN7_WLAN30

PCIE_TXP5_GLAN34

PCIE_TXN5_GLAN34

PCIE_RXP5_GLAN34

PCIE_RXN5_GLAN34

PCH_DPWROK23

SUSB#17,32,33,39,40,42

VCCIO_PWRGD40,46

USB_PN4 35
USB_PP4 35

PCIE_TXP1_ASM31

PCIE_TXN1_ASM31

PCIE_RXP1_ASM31

PCIE_RXN1_ASM31

USB_PN11 35
USB_PP11 35

PCIE_RXP2_ASM31

PCIE_RXN2_ASM31

PCIE_TXP2_ASM31

PCIE_TXN2_ASM31

ALL_SYS_PWRGD 4,17,38,44

ALL_SYS_PWRGD_R38

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[21] PCH 2/12-DMI/PCIE/USB2.0

A3

21 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[21] PCH 2/12-DMI/PCIE/USB2.0

A3

21 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[21] PCH 2/12-DMI/PCIE/USB2.0

A3

21 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C336 0.1u_10V_X7R_04

RN8

*10K_8P4R_04

1

2

3

4 5

6
7
8

C620 0.1u_10V_X7R_04

DMI

USB 2.0

SPT-H_PCH

PCIe/USB 3

2 OF 12 REV = 1.3

U45B

HM175

USB2N_1

AF5

USB2P_1

AG7

USB2N_2

AD5

USB2P_2

AD7

USB2N_3

AG8

USB2P_3

AG10

USB2N_4

AE1

USB2P_4

AE2

USB2N_5

AC2

USB2P_5

AC3

USB2N_6

AF2

USB2P_6

AF3

USB2N_7

AB3

USB2P_7

AB2

USB2N_8

AL8

USB2P_8

AL7

USB2N_9

AA1

USB2P_9

AA2

USB2N_10

AJ8

USB2P_10

AJ7

USB2N_11

W2

USB2P_11

W3

USB2N_12

AD3

USB2P_12

AD2

USB2N_13

V2

USB2P_13

V1

USB2N_14

AJ11

USB2P_14

AJ13

GPP_E9/USB2_OC0#

AD43

GPP_E10/USB2_OC1#

AD42

GPP_E11/USB2_OC2#

AD39

GPP_E12/USB2_OC3#

AC44

GPP_F15/USB2_OCB_4

Y43

GPP_F16/USB2_OCB_5

Y41

GPP_F17/USB2_OCB_6

W44

GPP_F18/USB2_OCB_7

W43

USB2_COMP

AG3

USB2_VBUSSENSE

AD10

RSVD_AB13

AB13

USB2_ID

AG2

GPD7/RSVD

BD14

DMI_RXN0

L27

DMI_RXP0

N27

DMI_TXN0

C27

DMI_TXP0

B27

DMI_RXN1

E24

DMI_RXP1

G24

DMI_TXN1

B28

DMI_TXP1

A28

DMI_RXN2

G27

DMI_RXP2

E26

DMI_TXN2

B29

DMI_TXP2

C29

DMI_RXN3

L29

DMI_RXP3

K29

DMI_TXN3

B30

DMI_TXP3

A30

PCIE_RCOMPN

B18

PCIE_RCOMPP

C17

PCIE1_RXN/USB3_7_RXN

H15

PCIE1_RXP/USB3_7_RXP

G15

PCIE1_TXN/USB3_7_TXN

A16

PCIE1_TXP/USB3_7_TXP

B16

PCIE2_TXN/USB3_8_TXN

B19

PCIE2_TXP/USB3_8_TXP

C19

PCIE2_RXN/USB3_8_RXN

E17

PCIE2_RXP/USB3_8_RXP

G17

PCIE3_RXN/USB3_9_RXN

L17

PCIE3_RXP/USB3_9_RXP

K17

PCIE3_TXN/USB3_9_TXN

B20

PCIE3_TXP/USB3_9_TXP

C20

PCIE4_RXN/USB3_10_RXN

E20

PCIE4_RXP/USB3_10_RXP

G19

PCIE4_TXN/USB3_10_TXN

B21

PCIE4_TXP/USB3_10_TXP

A21

PCIE5_RXN

K19

PCIE5_RXP

L19

PCIE5_TXN

D22

PCIE5_TXP

C22

PCIE6_RXN

G22

PCIE6_RXP

E22

PCIE6_TXN

B22

PCIE6_TXP

A23

PCIE7_RXN

L22

PCIE7_RXP

K22

PCIE7_TXN

C23

PCIE7_TXP

B23

PCIE8_RXN

K24

PCIE8_RXP

L24

PCIE8_TXN

C24

PCIE8_TXP

B24

U10D
74LVC08APW

12

13

11

147

R157 1K_04

U10C
74LVC08APW

9

10

8

147

R502 1K_04

R634 0_04

R153

10K_04

R555 100_1%_04

R155 0_04

R154 *0_04 C294

*0.1u_10V_X7R_04

R122

*10K_04

R537 1K_04

U10A
74LVC08APW

1

2

3

147

C624 0.22u_10V_X5R_04USB3.1

R538 113_1%_04

U10B
74LVC08APW

4

5

6

147

C623 0.22u_10V_X5R_04USB3.1
C622 0.22u_10V_X5R_04USB3.1

RN7 *10K_8P4R_04

1
2
3
4 5

6

7

8

C337 0.1u_10V_X7R_04

C621 0.22u_10V_X5R_04USB3.1

C619 0.1u_10V_X7R_04

Sheet 20 of 55

PCH 2/9

Schematic Diagrams

B.Schematic Diagrams

PCH 2/9 B - 21

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

BIOS RECOVERY
ENABLE :LOW

PCH_RSVD

SCI

SSD

MFG_MODE

嶇

BIOS 䡢

娵

SATAGP0 & SATAGP1
H: SATA

L: PCIe

SSD

GFX SELECT TABLE
NORMAL GFX:LOW
CUSTOMER GFX:HIGH

Main HDD

SSD

SSD

MFG_MODEPCH_RSVDBIOS_REC

SATA_LED#
SATAGP0
SATAGP1
SATAGP2
SATAGP3

PCH_PECI
H_PM_SYNC_R

PCH_THERMTRIP#PCH_THERMTRIP#_R

PCIE12_TXP
PCIE12_TXN

PCIE11_TXP
PCIE11_TXN

BIOS_REC
PCH_RSVD

SCI#_R

ODD_DA#_R

GP39_GFX_CRB_DETECT

SWI#_R

PCIE10_TXN
PCIE10_TXP

PCIE9_TXN
PCIE9_TXP

MFG_MODE

GP39_GFX_CRB_DETECT

SATAGP0

SATAGP1

SATAGP2

SATAGP3

SATA_LED#

SCI#_R

SWI#_R

3.3VS 3.3VS 3.3VS

1.0V_VCCST

3.3VS

3.3VS

3.3VA

SCI#38

PCIE_RXP11_SSD30
PCIE_RXN11_SSD30

PCIE_TXP11_SSD30
PCIE_TXN11_SSD30

EDP_BRIGHTNESS 17
BLON 17
NB_ENAVDD 17,38

SATAGP0 30

SATA_LED# 36

PLTRST_CPU_N 4

H_PM_DOWN 4

PCH_PECI 4

H_PM_SYNC 4

PCH_THERMTRIP# 4

PCIE_TXP12_SSD30
PCIE_TXN12_SSD30

PCIE_RXN12_SSD30

PCIE_RXP12_SSD30

SWI#38

SATA_RXP2 35

SATA_TXP2 35

SATA_TXN2 35

SATA_RXN2 35

PCIE_TXP10_SSD 30

PCIE_RXP10_SSD 30

PCIE_RXN10_SSD 30

PCIE_TXN10_SSD 30

PCIE_TXP9_SSD 30

PCIE_RXP9_SSD 30

PCIE_RXN9_SSD 30

PCIE_TXN9_SSD 30

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[22] PCH 3/12-PCIE/SATA/HOST

A3

22 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[22] PCH 3/12-PCIE/SATA/HOST

A3

22 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[22] PCH 3/12-PCIE/SATA/HOST

A3

22 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R541 10K_04

R530 10K_04

CLINK

FAN

PCIe/SATA

HOST

SPT-H_PCH

3 OF 12 REV = 1.3

U45C

HM175

CL_CLK

AV2

CL_DATA

AV3

CL_RST#

AW2

GPP_G8/FAN_PWM_0

R44

GPP_G9/FAN_PWM_1

R43

GPP_G10/FAN_PWM_2

U39

GPP_G11/FAN_PWM_3

N42

GPP_G0/FAN_TACH_0

U43

GPP_G1/FAN_TACH_1

U42

GPP_G2/FAN_TACH_2

U41

GPP_G3/FAN_TACH_3

M44

GPP_G4/FAN_TACH_4

U36

GPP_G5/FAN_TACH_5

P44

GPP_G6/FAN_TACH_6

T45

GPP_G7/FAN_TACH_7

T44

PCIE11_TXP

B33

PCIE11_TXN

C33

PCIE11_RXP

K31

PCIE11_RXN

L31

GPP_F10/SCLOCK

AB33

GPP_F11/SLOAD

AB35

GPP_F13/SDATAOUT0

AA44

GPP_F12/SDATAOUT1

AA45

PCIE14_TXN/SATA1B_TXN

B38

PCIE14_TXP/SATA1B_TXP

C38

PCIE14_RXN/SATA1B_RXN

D39

PCIE14_RXP/SATA1B_RXP

E37

PCIE13_TXN/SATA0B_TXN

C36

PCIE13_TXP/SATA0B_TXP

B36

PCIE13_RXN/SATA0B_RXN

G35

PCIE13_RXP/SATA0B_RXP

E35

PCIE12_TXP

A35

PCIE12_TXN

B35

PCIE12_RXP

H33

PCIE12_RXN

G33

PCIE20_TXP/SATA7_TXP

J45

PCIE20_TXN/SATA7_TXN

K44

PCIE20_RXP/SATA7_RXP

N38

PCIE20_RXN/SATA7_RXN

N39

PCIE19_TXP/SATA6_TXP

H44

PCIE19_TXN/SATA6_TXN

H43

PCIE19_RXP/SATA6_RXP

L39

PCIE19_RXN/SATA6_RXN

L37

PCIE9_RXN/SATA0A_RXN

G31

PCIE9_RXP/SATA0A_RXP

H31

PCIE9_TXN/SATA0A_TXN

C31

PCIE9_TXP/SATA0A_TXP

B31

PCIE10_RXN/SATA1A_RXN

G29

PCIE10_RXP/SATA1A_RXP

E29

PCIE10_TXN/SATA1A_TXN

C32

PCIE10_TXP/SATA1A_TXP

B32

PCIE15_RXN/SATA2_RXN

F41

PCIE15_RXP/SATA2_RXP

E41

PCIE15_TXN/SATA2_TXN

B39

PCIE15_TXP/SATA2_TXP

A39

PCIE16_RXN/SATA3_RXN

D43

PCIE16_RXP/SATA3_RXP

E42

PCIE16_TXN/SATA3_TXN

A41

PCIE16_TXP/SATA3_TXP

A40

PCIE17_RXN/SATA4_RXN

H42

PCIE17_RXP/SATA4_RXP

H40

PCIE17_TXN/SATA4_TXN

E45

PCIE17_TXP/SATA4_TXP

F45

PCIE18_RXN/SATA5_RXN

K37

PCIE18_RXP/SATA5_RXP

G37

PCIE18_TXN/SATA5_TXN

G45

PCIE18_TXP/SATA5_TXP

G44

GPP_E8/SATALED#

AD44

GPP_E0/SATAXPCIE0/SATAGP0

AG36

GPP_E1/SATAXPCIE1/SATAGP1

AG35

GPP_E2/SATAXPCIE2/SATAGP2

AG39

GPP_F0/SATAXPCIE3/SATAGP3

AD35

GPP_F1/SATAXPCIE4/SATAGP4

AD31

GPP_F2/SATAXPCIE5/SATAGP5

AD38

GPP_F3/SATAXPCIE6/SATAGP6

AC43

GPP_F4/SATAXPCIE7/SATAGP7

AB44

GPP_F21/EDP_BKLTCTL

W36

GPP_F20/EDP_BKLTEN

W35

GPP_F19/EDP_VDDEN

W42

THERMTRIP#

AJ3

PECI

AL3

PM_SYNC

AJ4

PLTRST_PROC#

AK2

PM_DOWN

AH2

C680 0.22u_10V_X5R_04

T123

RN3 10K_8P4R_04

1
2
3
4 5

6

7

8

R540 604_1%_04

R533

10K_04

C659 0.22u_10V_X5R_04

C658 0.22u_10V_X5R_04

T45

T116

R535
*10K_04

R539
1K_04

C691 0.22u_10V_X5R_04

R160

*10K_04

T36

R161

*10K_04

R536 30.1_1%_04

C681 0.22u_10V_X5R_04

T44

R531

*10K_04

T117

C697 0.22u_10V_X5R_04

C690 0.22u_10V_X5R_04

D32

RB751V-40(lision)

AC

C696 0.22u_10V_X5R_04

R532

*10K_04

D36 RB751V-40(lision)

AC

R543 10K_04

Sheet 21 of 55

PCH 3/9

PCH 3/9

B.Schematic Diagrams

B - 22 PCH 3/9

PCH 4/9

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

ESPI/LPC SELECT STARP
eSPI: HIGH
LPC: LOW
(INTERNAL WEAK PD)

TOP SWAP OVERRIDE STRAP
SWAP ENABLE: HIGH
SWAP DISABLE(DEFAULT): LOW
(INTERNAL WEAK PD)

EXI BOOT STALL BYPASS
ENABLE:HIGH
(INTERNAL WEAK PD)

OD PLL VR ENABLE DISABLED WHEN
SAMPLED LOW

ijı ŮŪ ŭŴ

ijı ŮŪ ŭŴ

IJı ŮŪ ŭŴ

CLOSE TO PCH

Intel I2S I/F

Intel DMIC I/F

DSX

Non DSX

Flash Descriptor Security Overide
Low = Disabled-(Default)
High = Enabled

DRAM_RST#

6-06-00054-06F

VCC_3P3DSW_PWRGD Design Note:

PCH_DPWROK > 10ms Delay

BOM value change

For common design change net name

For common design change net name

Type-C Power Delivery issue

SUSCLK

PCH_HOT_GNSS_DISABLESPKR_SMC_EXTSMIGPP_C5

SUS_PWR_ACK#_R

HDA_SDOUT

AUD_AZACPU_SDO

AUD_AZACPU_SCLK_R

RSMRST#

SKIN_THRM_SNSR_ALERT_N
SMB_CLK
SMB_DATA
GPP_C5
SML0_CLK
SML0_DATA
PCH_HOT_GNSS_DISABLE
SMC_CPU_THERM

PCH_DPWROK

ISH_GP_6_R
PM_CLKRUN#

LAN_DISABLE_N

DDR4_DRAMRST#
VRALERTB#

GPP_B0

PCIE_WAKE#
SLP_A#
PM_SLP_LAN#

SUSCLK
PM_BATLOW#

SUSWARN#

LAN_WAKE#
AC_PRESENT
SLP_SUS#_R
PWR_BTN#
SYS_RESET#

SPKR_SMC_EXTSMI

ITP_PMODE
PCH_JTAGX
PCH_JTAG_TMS
PCH_JTAG_TDO
PCH_JTAG_TDI
PCH_JTAG_TCK

RTC_VBAT_1

RTC_RST#

SRTC_RST#

SUS_PWR_ACK#_R

SUSWARN#

HDA_SDOUT

DDR4_DRAMRST#

SKIN_THRM_SNSR_ALERT_N

PCIE_WAKE#

SML0_CLK
SML0_DATA

SUSWARN#

PM_BATLOW#
AC_PRESENT

PM_CLKRUN#

SYS_RESET#

SMB_CLK

SMB_DATA
SMC_CPU_THERM
SMD_CPU_THERM

RTC3.2V

PCH_DPWROK

RSMRST#

RSMRST#

SLP_SUS#_R

SMD_CPU_THERM

PCH_SLP_WLAN#

RTC_VBAT

ASM1543_I_SEL0

ASM1543_I_SEL1

3.3VA 3.3VS 3.3VA

VCC_RTC

1.0V_VCCST

VDDQ

3.3VA

3.3VA

VDD3

VDD3

3.3VS

VDD3

VDD3

VDD3

VIN

VDD3

SUS_PWR_ACK# 38

AUD_AZACPU_SCLK2

AUD_AZACPU_SDO_R2

AUD_AZACPU_SDI2

HDA_BITCLK37

HDA_SDOUT23,37
HDA_SYNC37

HDA_RST#37

HDA_SDIN037

SMB_CLK9,35,42

SMB_DATA9,35,42

PM_PCH_PWROK9,21

RSMRST#23

H_PWRGD 4

SYS_PWROK 21

AC_PRESENT 38

PWR_BTN# 38

PCIE_WAKE# 31,34

SUSC#_PCH 38,39

SUSB#_PCH 38,39

SUSCLK 30

SUS_WARN# 38

HDA_SDOUT 23,37

ME_WE 38

DDR4_DRAMRST# 8,9

SLP_S0# 40

PCH_DPWROK21

RSMRST# 23

EC_RSMRST#38

RSMRST# 23

SLP_SUS# 38,40,45

PCH_SPKR 37

SLP_SUS#_EC 38

GPP_B0 42

PCH_SLP_WLAN# 38

NV_EN_DOWN14

GPIO4_1V8_MAIN_EN_R14

ASM1543_I_SEL0 33,38

ASM1543_I_SEL1 33,38

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[23] PCH 4/12-HDA/SMBUS/RTC

A3

23 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[23] PCH 4/12-HDA/SMBUS/RTC

A3

23 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[23] PCH 4/12-HDA/SMBUS/RTC

A3

23 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R630 0_04

R140

*4.7K_04

Q28

2SK3018S3

G

DS

C483

*1000p_50V_X7R_04

D20

ZD5231BS2

AC

JOPEN1
*OPEN_10mil-1MM

12

R451
470_04

R338

47K_04

R83 *0_04

R112 499_1%_04

RN1

10K_8P4R_04

1
2
3
4 5

6

7

8

R129 10K_04

J_RTC1
BBBCR2032B

-

2

+

1

C586

1u_6.3V_X5R_04

R341 90.9K_1%_04

R128 0_04

U36

TC7SZ08FU

1

2

5

4

3

JTAG

SMBUS

AUDIO

SPT-H_PCH

4 OF 12 REV = 1.3

U45D

HM175

HDA_BCLK

BA9

HDA_RST#

BD8

HDA_SDI0

BE7

HDA_SDI1

BC8

HDA_SDO

BB7

HDA_SYNC

BD9

RSVD_BD1

BD1

RSVD_BE2

BE2

DISPA_SDO

AM1

DISPA_SDI

AN2

DISPA_BCLK

AM2

GPP_D8/I2S0_SCLK

AL42

GPP_D7/I2S0_RXD

AN42

GPP_D6/I2S0_TXD

AM43

GPP_D5/I2S0_SFRM

AJ33

GPP_D20/DMIC_DATA0

AH44

GPP_D19/DMIC_CLK0

AJ35

GPP_D18/DMIC_DATA1

AJ38

GPP_D17/DMIC_CLK1

AJ42

RTCRST#

BC10

SRTCRST#

BB10

PCH_PWROK

AW11

RSMRST#

BA11

DSW_PWROK

AV11

GPP_C2/SMBALERT#

BB41

GPP_C0/SMBCLK

AW44

GPP_C1/SMBDATA

BB43

GPP_C5/SML0ALERT#

BA40

GPP_C3/SML0CLK

AY44

GPP_C4/SML0DATA

BB39

GPP_B23/SML1ALERT#/PCHHOT#

AT27

GPP_C6/SML1CLK

AW42

GPP_C7/SML1DATA

AW45

GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOL DOFF#

BB17

GPP_A8/CLKRUN#

AW22

GPD11/LANPHYPC

AR15

GPD9/SLP_WLAN#

AV13

DRAM_RESET#

BC14

GPP_B2/VRALERT#

BD23

GPP_B1

AL27

GPP_B0

AR27

GPP_G17/ADR_COMPLETE

N44

GPP_B11

AN24

SYS_PWROK

AY1

WAKE#

BC13

GPD6/SLP_A#

BC15

SLP_LAN#

AV15

GPP_B12/SLP_S0#

BC26

GPD4/SLP_S3#

AW15

GPD5/SLP_S4#

BD15

GPD10/SLP_S5#

BA13

GPD8/SUSCLK

AN15

GPD0/BATLOW#

BD13

GPP_A15/SUSACK#

BB19

GPP_A13/SUSWARN#/SUSPW RDNACK

BD19

GPD2/LAN_WAKE#

BD11

GPD1/ACPRESENT

BB15

SLP_SUS#

BB13

GPD3/PWRBTN#

AT13

SYS_RESET#

AW1

GPP_B14/SPKR

BD26

PROCPWRGD

AM3

ITP_PMODE

AT2

JTAGX

AR3

JTAG_TMS

AR2

JTAG_TDO

AP1

JTAG_TDI

AP2

JTAG_TCK

AN3

R84 *0_04

R471 *0_04

R130 *1.5K_04

C

A

A

D31

BAT54CS3

1

2

3

R516 30.1_1%_04

R339

47K_04

R472 1K_04

R340

20K_1%_04

R82 1K_04

R515 51_04

C592
1u_6.3V_X5R_04

D4 RB751V-40(lision)

A C

R474 0_04

R519

30.1K_1%_04

R517 51_04

R522 45.3K_1%_04

R631 0_04

R521 1.5K_1%_04

R523

1K_04

R114 *4.7K_04

R143

150K_1%_04

C593

10u_6.3V_X5R_06

Q29

MMBT3904H

B

E C

R475 *1K_04

R116 499_1%_04

R518 30.1_1%_04

R479 *10mil_short

RN6 1K_8P4R_04

1
2
3
4 5

6

7

8

R131

*4.7K_04

R520

30.1K_1%_04

R473 *0_04

R481 1K_04

Sheet 22 of 55

PCH 4/9

Schematic Diagrams

B.Schematic Diagrams

PCH 4/9 B - 23

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

24 Mhz

BUF_PLT_RST#

嶇

BIOS 䡢

娵

嶇

BIOS 䡢

娵

1-USB3 Port 1 Charger

VGA OUT(B)
HDMI OUT( C)

嶇

BIOS 䡢

娵

6-USB3.0 Type-C

2-3G NGFF M.2 B Key

6-01-00708-980

6-01-00708-980

GPIO8_SYS_PEX_RST_MON#

GPIO
H: R259--N870HX
L: R258--N850HX

H: R259--N870HC L: R258--N850HC

H: R259--N870HN

L: R258--N850HN

Audio Board USB3.0

Audio USB3.0 Con.

4

Audio USB2.0 Con.

USB TABLE

USB2.0

DEVICE

USB3.0

Charger, PORT 3

CCD

BT

Type-C

LTE

2

3

4

5

6

11

11

OCI_B#

OCI_A#

OC

5,6

2

Gary_D02 for common design

2017 2.17 ADD

0223 Del DGPU_OVERT_PCH

0303 OP

PLT_RST#

HDMI_CTRLCLK
HDMI_CTRLDATA
DGPU_SELECT#
DGPU_PRSNT#

HDMI_CTRLCLK
HDMI_CTRLDATA

DGPU_PWR_EN
DGPU_RST#_PCH

DGPU_PWRGD
GC6_FB_EN
GPU_EVENT#
DGPU_SELECT#

SERIRQ
LPC_PIRQA#
SB_KBCRST#
S4_STATE#

CLK_PCI_KBC_R
CLK_PCI_TPM_R

PCH_MUTE#

KBLED_DET

KBLED_DET

S4_STATE#

SMI#_RR

SERIRQ

SB_KBCRST#

PLT_RST#

DDPB_HPD

VGA_CLK
VGA_DATA

VGA_CLK
VGA_DATA

VGA_HPD

DGPU_PWR_EN

SMI#_RR

DGPU_RST#_PCH

DGPU_PRSNT#

DGPU_PWRGD

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

BUF_PLT_RST# 30,31,34,36,38

EDP_HPD17

HDMI_HPD19

GPU_EVENT# 14

GC6_FB_EN 14,38,49

DGPU_PWRGD 10,49

DGPU_PWR_EN 14,38,50

H_SKTOCC_N 4

USB3_RXP133

USB3_RXN133

USB3_TXP133

USB3_TXN133 LPC_AD0 36,38

LPC_AD1 36,38
LPC_AD2 36,38
LPC_AD3 36,38

LPC_FRAME# 36,38
SERIRQ 36,38

PCLK_KBC 38

SB_KBCRST# 38

PCLK_TPM 36

SMI# 38

HDMI_CTRLDATA 19

HDMI_CTRLCLK 19

USB3_RXP633

USB3_RXN633

USB3_TXP633

USB3_TXN633

USB3_RXP229

USB3_RXN229

USB3_TXP229

USB3_TXN229

PLT_RST# 14,20

GPIO8_SYS_PEX_RST_MON#14

VGA_HPD18

DEVSLP0 30

USB3_TXP435
USB3_TXN435

USB3_RXN435

USB3_RXP435

ASM_SMI# 28,31

USB3_RXP533

USB3_RXN533

USB3_TXP533

USB3_TXN533

DGPU_RST#_PCH 14

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[24] PCH 5_6/12-DPP/ESPI/USB3.0

A3

24 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[24] PCH 5_6/12-DPP/ESPI/USB3.0

A3

24 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[24] PCH 5_6/12-DPP/ESPI/USB3.0

A3

24 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

USB

SATA

LPC/eSPI

SPT-H_PCH

6 OF 12 REV = 1.3

U45F

HM175

USB3_1_TXN

C11

USB3_1_TXP

B11

USB3_1_RXN

B7

USB3_1_RXP

A7

USB3_2_TXN/SSIC_1_TXN

B12

USB3_2_TXP/SSIC_1_TXP

A12

USB3_2_RXN/SSIC_1_RXN

C8

USB3_2_RXP/SSIC_1_RXP

B8

USB3_6_TXN

B15

USB3_6_TXP

C15

USB3_6_RXN

K15

USB3_6_RXP

K13

USB3_5_TXN

B14

USB3_5_TXP

C14

USB3_5_RXN

G13

USB3_5_RXP

H13

USB3_3_TXP/SSIC_2_TXP

D13

USB3_3_TXN/SSIC_2_TXN

C13

USB3_3_RXP/SSIC_2_RXP

A9

USB3_3_RXN/SSIC_2_RXN

B10

USB3_4_TXP

B13

USB3_4_TXN

A14

USB3_4_RXP

G11

USB3_4_RXN

E11

GPP_A1/LAD0/ESPI_IO0

AT22

GPP_A2/LAD1/ESPI_IO1

AV22

GPP_A3/LAD2/ESPI_IO2

AT19

GPP_A4/LAD3/ESPI_IO3

BD16

GPP_A5/LFRAME#/ESPI_CS0#

BE16

GPP_A6/SERIRQ/ESPI_CS1#

BA17

GPP_A7/PIRQA#/ESPI_ALERT0#

AW17

GPP_A0/RCIN#/ESPI_ALERT1#

AT17

GPP_A14/SUS_STAT#/ESPI_RESET#

BC18

GPP_A9/CLKOUT_LPC0/ESPI_CLK

BC17

GPP_A10/CLKOUT_LPC1

AV19

GPP_G19/SMI#

M45

GPP_G18/NMI#

N43

GPP_E6/DEVSLP2

AE45

GPP_E5/DEVSLP1

AG43

GPP_E4/DEVSLP0

AG42

GPP_F9/DEVSLP7

AB39

GPP_F8/DEVSLP6

AB36

GPP_F7/DEVSLP5

AB43

GPP_F6/DEVSLP4

AB42

GPP_F5/DEVSLP3

AB41

R548 10K_04

R186

100K_04

㚱

SLG

ᶵᶲẞ

R103 2.2K_04

R592

100K_04

D33*RB751V-40(lision)

A C

R86 22_04
TPM

U12

TC7SZ08FU

㚱

SLG

ᶵᶲẞ

1

2

5

4

3

R183

100K_04

R104 2.2K_04

R105 2.2K_04

R184
1K_04
N85RC_RN

T38

RN9 10K_8P4R_04

1
2
3
4 5

6

7

8

R462 *10K_04

D35RB751V-40(lision)

A C

R514 *0_04

R185
*10K_04

R476 *10K_04

R125

100K_04

R107

100K_04

SPT-H_PCH

5 OF 12 REV = 1.3

U45E

HM175

GPP_I0/DDPB_HPD0

AW4

GPP_I1/DDPC_HPD1

AY2

GPP_I2/DDPD_HPD2

AV4

GPP_I3/DDPE_HPD3

BA4

GPP_I4/EDP_HPD

BD7

GPP_I7/DDPC_CTRLCLK

BB3

GPP_I8/DDPC_CTRLDATA

BD6

GPP_I5/DDPB_CTRLCLK

BA5

GPP_I6/DDPB_CTRLDATA

BC4

GPP_I9/DDPD_CTRLCLK

BE5

GPP_I10/DDPD_CTRLDATA

BE6

GPP_F14

Y44

GPP_F23

V44

GPP_F22

W39

GPP_G23

L43

GPP_G22

L44

GPP_G21

U35

GPP_G20

R35

GPP_H23

BD36

R503

100K_04

R4 *10K_04

R124

100K_04

U13

TC7SZ08FU

1

2

5

4

3

R85 22_04

T124

R123 2.2K_04

R542 *10K_04

Sheet 23 of 55

PCH 5/9

PCH 5/9

B.Schematic Diagrams

B - 24 PCH 5/9

PCH 6/9

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

RTC(10M RES): DON'T CHANGE TO 0402

PCIe* 100 MHz

32.768KHZ
6-22-32R76-0B2
6-22-32R76-0BJ

3G * 100 MHz

100 MHz

24 MHz

100 MHz

100 MHz

100 MHz

100 MHz

100 MHz

1 ASM1142
5 GLAN
6 WLAN
8 PEG(NV)
9 SSD (X 4 LANE)

PCI-E CLK Usage

6-07-18034-1A0

SPEC: 20PPM

2015.9.11

100 MHz

32.768KHz 暨␴ PCH

⎴ᶨ朊ᶵ⎗ ㇻ

VIA

XTAL

ᶳ㕡ᶵ⎗㚱

POWER OR

ᾉ嘇

RTC_X2

RTC_X1

XTAL24_O
XTAL24_IN

PCH_XDP_CLK_DN
PCH_XDP_CLK_DP

LAN_CLKREQ#
WLAN_CLKREQ#

PEG_CLKREQ#
SSD_CLKREQ#

XCLK_RBIAS

LAN_CLKREQ#

CARD_CLKREQ#

PEG_CLKREQ#

WLAN_CLKREQ#

SSD_CLKREQ#

CARD_CLKREQ#

PEG_CLKREQ#

VDD1.0

3.3VS

PCH_CPU_BCLK_R_DP4
PCH_CPU_BCLK_R_DN4

CPU_24MHZ_R_DP4
CPU_24MHZ_R_DN4

PCH_CPU_PCIBCLK_R_DP 4

PCH_CPU_PCIBCLK_R_DN 4

VGA_PEXCLK# 10
VGA_PEXCLK 10

CLK_PCIE_GLAN# 34
CLK_PCIE_GLAN 34

CLK_PCIE_MINI 30

CLK_P CIE_MIN I# 30

CLK_PCIE_SSD# 30
CLK_PCIE_SSD 30

PEG_CLKREQ#10
SSD_CLKREQ#30

LAN_CLKREQ#34
WLAN_CLKREQ#30

CLK_SRC1_ASM_100_DP 31

CLK_SRC1_ASM_100_DN 31

CLK_REQ1_ASM_CLKREQ_N31

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[25] PCH 7/12-CLKOUT

A3

25 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[25] PCH 7/12-CLKOUT

A3

25 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[25] PCH 7/12-CLKOUT

A3

25 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R482

*10mil_short

C577 10p_50V_NPO_04

C578 10p_50V_NPO_04

R556

1M_1%_04

R2 *10K_04

X4

CM200C_32.768KHZ
CM200S

14

3 2

C625 15p_50V_NPO_04

SPT-H_PCH

7 OF 12 REV = 1.3

U45G

HM175

GPP_A16/CLKOUT_48

AR17

CLKOUT_CPUNSSC_P

G1

CLKOUT_CPUNSSC

F1

CLKOUT_CPUBCLK_P

G2

CLKOUT_CPUBCLK

H2

XTAL24_OUT

A5

XTAL24_IN

A6

XCLK_BIASREF

E1

RTCX1

BC9

RTCX2

BD10

GPP_B5/SRCCLKREQ0#

BC24

GPP_B6/SRCCLKREQ1#

AW24

GPP_B7/SRCCLKREQ2#

AT24

GPP_B8/SRCCLKREQ3#

BD25

GPP_B9/SRCCLKREQ4#

BB24

GPP_B10/SRCCLKREQ5#

BE25

GPP_H0/SRCCLKREQ6#

AT33

GPP_H1/SRCCLKREQ7#

AR31

GPP_H2/SRCCLKREQ8#

BD32

GPP_H3/SRCCLKREQ9#

BC32

GPP_H4/SRCCLKREQ10#

BB31

GPP_H5/SRCCLKREQ11#

BC33

GPP_H6/SRCCLKREQ12#

BA33

GPP_H7/SRCCLKREQ13#

AW33

GPP_H8/SRCCLKREQ14#

BB33

GPP_H9/SRCCLKREQ15#

BD33

CLKOUT_PCIE_N15

R13

CLKOUT_PCIE_P15

R11

CLKOUT_PCIE_N14

P1

CLKOUT_PCIE_P14

R2

CLKOUT_PCIE_N13

W7

CLKOUT_PCIE_P13

Y5

CLKOUT_PCIE_N12

U2

CLKOUT_PCIE_P12

U3

CLKOUT_ITPXDP

L1

CLKOUT_ITPXDP_P

L2

CLKOUT_CPUPCIBCLK

J1

CLKOUT_CPUPCIBCLK_P

J2

CLKOUT_PCIE_N0

N7

CLKOUT_PCIE_P0

N8

CLKOUT_PCIE_N1

L7

CLKOUT_PCIE_P1

L5

CLKOUT_PCIE_N2

D3

CLKOUT_PCIE_P2

F2

CLKOUT_PCIE_N3

E5

CLKOUT_PCIE_P3

G4

CLKOUT_PCIE_N4

D5

CLKOUT_PCIE_P4

E6

CLKOUT_PCIE_N5

D8

CLKOUT_PCIE_P5

D7

CLKOUT_PCIE_N6

R8

CLKOUT_PCIE_P6

R7

CLKOUT_PCIE_N7

U5

CLKOUT_PCIE_P7

U7

CLKOUT_PCIE_N8

W10

CLKOUT_PCIE_P8

W11

CLKOUT_PCIE_N9

N3

CLKOUT_PCIE_P9

N2

CLKOUT_PCIE_N10

P3

CLKOUT_PCIE_P10

P2

CLKOUT_PCIE_N11

R3

CLKOUT_PCIE_P11

R4

RN2 10K_8P4R_04

1
2
3
4 5

6

7

8

R483

10M_06

C626 15p_50V_NPO_04

R464 100K_04

R557

*10mil_short

R549 2.7K_1%_04

X5

FSX3M_24MHZ

2 1

3 4

Sheet 24 of 55

PCH 6/9

Schematic Diagrams

B.Schematic Diagrams

PCH 6/9 B - 25

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CLOSE TO PCH
(3-5 mm)

2.899A

0.0454A

0.021A

0.024A

0.137A

0.006A

CLOSE TO PCH

0.533A

0.0908A

0.0061A

0.0002A

0.2875A

0.0811A

0.403A

0.007A

0.114A

0.229A

0.065A

0.0002A

0.082A

0.075A

0.078A

0.029A

3.53A

0.030A

0.11A

eSPI:1.8V
LPC:3.3V

0.05A

CLOSE TO PCH
(1-3 mm)

CLOSE TO PCH
(3-5 mm)

CLOSE TO PCH
(3-5 mm)

CLOSE TO PCH
(3-5 mm)

CLOSE TO PCH
(3-5 mm)

CLOSE TO PCH
(1-3 mm)

CLOSE TO PCH
(1-3 mm)

CLOSE TO PCH
(1-3 mm)

CLOSE TO PCH
(3-5 mm)

CLOSE TO PCH
(1-3 mm)

CLOSE TO PCH
(3-5 mm)

0.012A

0.033A

CLOSE TO PCH
(3-5 mm)

6-19-31001-275

6-19-31001-275

6-19-31001-275

CLOSE TO PCH
(3-5 mm)

Gary_Change footprint

V3.3A_VCCPGPPG

VCCPRTC3P3

VCC_RTCEXT_CAP

VCCPRTCPRIM_3P3

VCCDSW_1P0

VCCPHVC_3P3

V3.3A_V1.8A_VCCPGPPA

VCCF24_1P0_L

VCCAAZPLL_1P0_L

VCCAUSB_1P0_L

VCCPUSBDSW_3P3

V3.3A_V1.8A_VCCPAZIO

VCCAMPHYPLL_1P0

V3.3S_VCCATS

V3.3A_VCCPGPPBCH

V3.3A_VCCPGPPEF

V3.3A_V1.8A_VCCPSPI

V3.3A_V1.8A_VCCPGPPD

VCCPFUSE_3P3

VDD1.0

VCCAAZPLL_1P0

VDD1.0

VDD1.0

VDD1.0

VDD1.0

VDD3

VDD1.0

VDD3

3.3VA

3.3VA

3.3VA

3.3VA

3.3VA

VDD1.0

3.3VS

3.3VA

VDD1.0

SPI_3.3V

3.3VA

3.3VA

3.3VA

VCC_RTC

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[26] PCH 8/12-POWER

A3

26 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[26] PCH 8/12-POWER

A3

26 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sh eet

of

6-71-N85L0-D01

D01

[26] PCH 8/12-POWER

A3

26 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R113 *20mil_04

R109 *20mil_04

R158 *20mil_04

C298

1u_6.3V_X5R_04

C271

0.1u_10V_X7R_04

R159 *20mil_04

R126 *20mil_04

C269

1u_6.3V_X5R_04

C273

0.1u_10V_X7R_04

R127 *20mil_04

C268

*1u_6.3V_X5R_04

C270

1u_6.3V_X5R_04

C299

0.1u_10V_X7R_04

C297

1u_6.3V_X5R_04

R115 *20mil_04

C267

0.1u_10V_X7R_04

C284

0.1u_10V_X7R_04

C296

1u_6.3V_X5R_04

C618

1u_6.3V_X5R_04

.

L16 HCB1608KF-121T30

C596

*22u_6.3V_X5R_08

C304

1u_6.3V_X5R_04

VCCGPIO

CORE

MPHY

USB

SPT-H_PCH

REV = 1.38 OF 12

U45H

HM175

VCCPCIE3PLL_1P0

C44

VCCPRIM_3P3

BE4

VCCPRIM_3P3

BE3

VCCPGPPD

BB45

VCCPGPPD

BC45

VCCSPI

BE42

VCCSPI

BE43

VCCPGPPD

BA45

VCCPRIM_1P0

AJ23

VCCRTC

BA22

VCCRTCPRIM_3P3

BA20

VCCATS

AD13

VCCPRIM_1P0

AD15

VCCPRIM_3P3

AN5

VCCPGPPG

AD41

VCCPGPPEF

AL41

VCCPGPPEF

AJ41

VCCPGPPD

BC44

VCCPGPPBCH

BD40

VCCPGPPBCH

BC42

VCCPGPPA

BA31

VCCDSW_3P3

BA24

VCCPRIM_1P0

AL22

VCCPRIM_3P3

BD3

VCCSPI

BE41

VCCHDAPLL_1P0

AN19

VCCHDA

BA15

VCCDSW_3P3

W15

VCCUSB2PLL_1P0

AL5

VCCUSB2PLL_1P0

AJ5

VCCPRIM_1P0

AC17

VCCAPLLEBB_1P0

V28

VCCMPHYPLL_1P0

B43

VCCPCIE3PLL_1P0

C45

VCCMPHYPLL_1P0

A43

VCCMPHY_1P0

V26

VCCMPHY_1P0

U26

VCCMPHY_1P0

U25

VCCMPHY_1P0

U23

VCCMPHY_1P0

U21

VCCCLK5

K3

VCCCLK2

R17

VCCCLK2

V17

VCCCLK4

U20

VCCCLK3

R19

VCCCLK5

K2

DCPDSW_1P0

BA29

VCCPRIM_1P0

AA28

VCCPRIM_1P0

AA26

VCCPRIM_1P0

AA23

VCCPRIM_1P0

AJ25

VCCPRIM_1P0

AJ21

VCCPRIM_1P0

AJ20

VCCPRIM_1P0

AC23

VCCPRIM_1P0

AC26

VCCPRIM_1P0

AC28

VCCPRIM_1P0

AE23

VCCPRIM_1P0

AE26

VCCPRIM_1P0

Y23

VCCPRIM_1P0

Y25

DCPRTC

BA26

VCCCLK1

N17

C303

1u_6.3V_X5R_04

R461 *20mil_04

R156 *20mil_04

.

L34 HCB1608KF-121T30

C282

22u_6.3V_X5R_08

R501 *20mil_04

C283

0.1u_10V_X7R_04

R108 *20mil_04

R106 *20mil_04

R111 *20mil_04

C295
1u_6.3V_X5R_04

R199 *15mil_short

C281

0.1u_10V_X7R_04

C302

*22u_6.3V_X5R_08

.

L12

HCB1608KF-121T30

C272 1u_6.3V_X5R_04

R137 *20mil_04

Sheet 25 of 55

PCH 7/9

PCH 7/9

B.Schematic Diagrams

B - 26 PCH 7/9

5

4

3

2

1

D D

C C

B B

A

A

M/B PCH

6-34-D87PS-030(BOT)

For N870

GND GND

GND

GND GND GND

GND GND GND

GND GND GND

GND

GND GND GND

GND

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[27] PCH 9_12/12-VSS,Holes

A3

27 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[27] PCH 9_12/12-VSS,Holes

A3

27 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[27] PCH 9_12/12-VSS,Holes

A3

27 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

1

H3

MTH6_0D2_8

2

3 5

4

H2
C111D111N

1

H6

MTH7_0D2_8

2

3 5

4

1

H5

MTH7_0D2_8

2

3 5

4

H8
H7_5D5_5

M4
M-MARK

1

H30

MTH7_0D2_8

2

3 5

4

M2
M-MARK

H20

H7_0D2_8

H26

C67D67N

M6
M-MARK

H27

C67D67N

H21
C111D111N

H14
H7_5D5_5

H24
C111D111N

1

H29

MTH7_0D2_8

2

3 5

4

SPT-H_PCH

9 OF 12

REV = 1.3

U45I

HM175

VSS

AE29

VSS

AE4

VSS

AE42

VSS

AF18

VSS

AF20

VSS

AF21

VSS

AF23

VSS

AF25

VSS

AF26

VSS

AF28

VSS

AF29

VSS

AG11

VSS

AG13

VSS

AG31

VSS

AG32

VSS

AG33

VSS

AG38

VSS

AG4

VSS

AH1

VSS

AH17

VSS

AH18

VSS

AH20

VSS

AH21

VSS

AH23

VSS

AH25

VSS

AH26

VSS

AH28

VSS

AH29

VSS

AH45

VSS

AJ10

VSS

AJ14

VSS

AJ15

VSS

AJ17

VSS

AJ18

VSS

AJ26

VSS

AJ28

VSS

AJ29

VSS

AJ31

VSS

AJ32

VSS

AJ36

VSS

AK4

VSS

AK42

VSS

AU7

VSS

AV17

VSS

AV24

VSS

AV27

VSS

AV31

VSS

AV33

VSS

AV6

VSS

AW13

VSS

AW19

VSS

AW29

VSS

AW37

VSS

AW9

VSS

AY38

VSS

AY45

VSS

B25

VSS

B3

VSS

B37

VSS

B40

VSS

B6

VSS

BA1

VSS

BB11

VSS

BB16

VSS

BB21

VSS

BB25

VSS

BB30

VSS

BB34

VSS

BC2

VSS

BD43

VSS

BE14

VSS

BE18

VSS

BE23

VSS

BE28

VSS

BE32

VSS

BE37

VSS

BE40

VSS

BE9

VSS

C10

VSS

C2

VSS

C28

VSS

C37

VSS

J7

VSS

K10

VSS

K27

VSS

K33

VSS

K36

VSS

K4

VSS

K42

VSS

K43

VSS

L12

VSS

L13

VSS

L15

VSS

L4

VSS

L41

VSS

L8

VSS

M35

VSS

M42

VSS

N10

VSS

N15

VSS

N19

VSS

N22

VSS

N24

VSS

N35

VSS

N36

VSS

N4

VSS

N41

VSS

N5

VSS

P17

VSS

P19

VSS

P22

VSS

P45

VSS

R10

VSS

R14

VSS

R22

VSS

R29

VSS

R33

VSS

R38

VSS

R5

VSS

T1

VSS

T2

VSS

T4

VSS

Y18

VSS

Y20

VSS

Y21

VSS

Y26

VSS

Y28

VSS

Y29

VSS

A18

VSS

A25

VSS

A32

VSS

A37

VSS

AA17

VSS

AA18

VSS

AA20

VSS

AA21

VSS

AA25

VSS

AA29

VSS

AA4

VSS

AA42

VSS

AB10

VSS

AC18

VSS

AN10

VSS

AN4

VSS

AR5

VSS

AR7

VSS

U15

VSS

AL4

H4

C67D67N

M3
M-MARK

H9
H7_5D5_5

H1
C111D111N

M1
M-MARK

M5
M-MARK

SPT-H_PCH

12 OF 12

REV = 1.3

U45L

HM175

VSS

AB11

VSS

AB7

VSS

AB14

VSS

AB31

VSS

AB32

VSS

AB38

VSS

AB4

VSS

AB5

VSS

AC1

VSS

AC20

VSS

AC21

VSS

AC25

VSS

AC29

VSS

AC45

VSS

AB8

VSS

AD11

VSS

AD14

VSS

AB15

VSS

AD32

VSS

AD33

VSS

AD36

VSS

AD4

VSS

AD8

VSS

AE18

VSS

AE20

VSS

AE21

VSS

AE25

VSS

AE28

VSS

AL10

VSS

AL11

VSS

AL13

VSS

AL17

VSS

AL19

VSS

AL24

VSS

AL29

VSS

AL32

VSS

AL33

VSS

AL38

VSS

AM15

VSS

AM17

VSS

AM19

VSS

AM22

VSS

AM24

VSS

AM27

VSS

AM29

VSS

AM45

VSS

AN11

VSS

AN22

VSS

AN27

VSS

AN31

VSS

AN39

VSS

AN7

VSS

AN8

VSS

AP11

VSS

AP4

VSS

AR33

VSS

AR34

VSS

AR42

VSS

AR9

VSS

AT10

VSS

AT15

VSS

AT36

VSS

AT9

VSS

AU1

VSS

AU35

VSS

AU36

VSS

AU39

VSS

AU45

VSS

C4

VSS

C42

VSS

D10

VSS

D12

VSS

D15

VSS

D16

VSS

D17

VSS

D19

VSS

D21

VSS

D24

VSS

D25

VSS

D27

VSS

D29

VSS

D30

VSS

D31

VSS

D33

VSS

D35

VSS

D36

VSS

E13

VSS

E15

VSS

E31

VSS

E33

VSS

F44

VSS

F8

VSS

G42

VSS

G9

VSS

H17

VSS

H19

VSS

H22

VSS

H24

VSS

H27

VSS

H29

VSS

H3

VSS

H35

VSS

J10

VSS

J11

VSS

J3

VSS

J39

VSS

J5

VSS

T42

VSS

U10

VSS

U11

VSS

U14

VSS

U17

VSS

U18

VSS

U28

VSS

U29

VSS

U31

VSS

U32

VSS

U33

VSS

U38

VSS

U4

VSS

U8

VSS

V18

VSS

V20

VSS

V21

VSS

V23

VSS

V25

VSS

V29

VSS

V3

VSS

V45

VSS

W14

VSS

W31

VSS

W32

VSS

W33

VSS

W38

VSS

W4

VSS

W8

VSS

Y17

M7
M-MARK

M8
M-MARK

1

H28

MTH7_0D2_8

2

3 5

4

H22

H7_0D2_8

1

H19

MTH7_0D2_8

2

3 5

4

1

H23

MTH7_0D2_8

2

3 5

4

H11
H6028

PCH 8/9

Sheet 26 of 55

PCH 8/9

Schematic Diagrams

B.Schematic Diagrams

PCH 8/9 B - 27

Schematic Diagrams

5

4

3

2

1

D D

C C

B B

A

A

NO REBOOT STARP
ENABLE: HIGH
(INTERNAL WEAK PD)

BOOT STARP
ENABLE:LPC IS SELECT
(INTERNAL WEAK PD)

DFX TEST MODE QUALIFIER FOR OTHER
DFX STRAP WHEN SAMPLED LOW
(WEAK INTERNAL PU)

DEBUG
TX -> D+
RX -> D-

GPIO
H: W / TPM
L: W/O TPM

Open Cover

N850HL

N870HL

ID1(GPP_D9)

R580 Stuff H

LR583 Stuff

Gary_for OPTANE control

For OPTANE control

W/O TPM

W / TPM

R138 Stuff

TPM_DET(GPP_D12)

L

HR2141Stuff

Change HL board ID

LPSS_GSPI0_MOSI

LPSS_GSPI1_MOSI

RSVD22

PCH_XDP_PREQ#_R
PCH_XDP_PRDY#_R
H_TRST#_R
PCH_2_CPU_TRIGGER_R

BOARD_ID1
BOARD_ID2

DGPU_PWM_SELECT#

3G_CONFIG2
3G_CONFIG3

LPSS_GSPI1_MOSI

LPSS_GSPI0_MOSI

SB_BLON

UART2_TXD
UART2_RXD

TPM_DET

TPM_DET

SB_BLON

SATA_PWR_EN

BOARD_ID3

BOARD_ID3

3.3VS

3.3VA

3.3VS

3.3VS

3.3VS

VDD3

3.3VS

3.3VS

CPU_2_PCH_TRIGGER 6

PCH_2_CPU_TRIGGER 6

SB_BLON 17

ASM_SMI#24,28,31
ASM_SMI#24,28,31

SATA_PWR_EN 35

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[28] PCH 10_11/12-UART/I2C/GPIO

A3

28 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[28] PCH 10_11/12-UART/I2C/GPIO

A3

28 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: S heet

of

6-71-N85L0-D01

D01

[28] PCH 10_11/12-UART/I2C/GPIO

A3

28 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R138
1K_04

W/O TPM

R132

*4.7K_04

SPT-H_PCH

REV = 1.310 OF 12

U45J

HM175

VSS

A44

VSS

BC1

VSS

BB1

VSS

B1

VSS

A2

VSS

B2

VSS

A3

VSS

A4

VSS

B44

VSS

B45

VSS

A42

VSS

D45

VSS

BE44

VSS

BD44

VSS

BD45

VSS

BD2

PCH_TRIGIN

AK1

PCH_TRIGOUT

AL2

CPU_TRST#

AY5

PRDY#

AT4

PREQ#

AT3

RSVD

P24

RSVD

R24

RSVD

AN29

RSVD

P29

RSVD

N29

RSVD

R27

RSVD

P31

RSVD

U13

RSVD

W13

RSVD

AR22

RSVD

C1

RSVD

D1

RSVD

P27

RSVD

N31

T93

R135 1K_04

W/O LED KB

T92

R141
1K_04

W/ TPM

R133 *10K_04

R513 1K_04

N850HL

R534 30.1_1%_04

R134 *10K_04

R511 0_04USB3.1

R136 1K_04

R512 *0_04

T106

R550 *10K_04

R477 *10K_04

R510 10K_04

N870HL

SPT-H_PCH

11 OF 12 REV = 1.3

U45K

HM175

GPP_B22/GSPI1_MOSI

AT29

GPP_B21/GSPI1_MISO

AR29

GPP_B20/GSPI1_CLK

AV29

GPP_B19/GSPI1_CS#

BC27

GPP_B18/GSPI0_MOSI

BD28

GPP_B17/GSPI0_MISO

BD27

GPP_B16/GSPI0_CLK

AW27

GPP_B15/GSPI0_CS#

AR24

GPP_C9/UART0_TXD

AV44

GPP_C8/UART0_RXD

BA41

GPP_C11/UART0_CTS#

AU44

GPP_C10/UART0_RTS#

AV43

GPP_C15/UART1_CTS#/ISH_UART1_CTS#

AU41

GPP_C14/UART1_RTS#/ISH_UART1_RTS#

AT44

GPP_C13/UART1_TXD/ISH_UART1_TXD

AT43

GPP_C12/UART1_RXD/ISH_UART1_RXD

AU43

GPP_C23/UART2_CTS#

AN43

GPP_C22/UART2_RTS#

AN44

GPP_C21/UART2_TXD

AR39

GPP_C20/UART2_RXD

AR45

GPP_C19/I2C1_SCL

AR41

GPP_C18/I2C1_SDA

AR44

GPP_C17/I2C0_SCL

AR38

GPP_C16/I2C0_SDA

AT42

GPP_D4/ISH_I2C2_SDA/ISH_I2C3_ SDA

AM44

GPP_D23/ISH_I2C2_SCL/ISH_I 2C3_SCL

AJ44

GPP_D9

AL44

GPP_D10

AL36

GPP_D11

AL35

GPP_D12

AJ39

GPP_D16/ISH_UART0_CTS#

AJ43

GPP_D15/ISH_UART0_RTS#

AL43

GPP_D14/ISH_UART0_TXD/SML0BCLK/I2C2_SCL

AK44

GPP_D13/ISH_UART0_RXD/SML0BDATA/I 2C2_SDA

AK45

GPP_H20/ISH_I2C0_SCL

BC38

GPP_H19/ISH_I2C0_SDA

BB38

GPP_H22/ISH_I2C1_SCL

BD38

GPP_H21/ISH_I2C1_SDA

BE39

GPP_A23/ISH_GP5

BC22

GPP_A22/ISH_GP4

BD18

GPP_A21/ISH_GP3

BE21

GPP_A20/ISH_GP2

BD22

GPP_A19/ISH_GP1

BD21

GPP_A18/ISH_GP0

BB22

GPP_A17/ISH_GP7

BC19

R142

*4.7K_04

Sheet 27 of 55

PCH 9/9

PCH 9/9

B.Schematic Diagrams

B - 28 PCH 9/9

Sheet 28 of 55

M.2 3G Card

M.2 3G Card

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PCB Footprint

婳䡢娵㨇㥳ἧ 䓐 䘬

Connector

3G CARD

80 mils

80 mils

HUAWEI MU73 6

⎗㍍⍿

3.3V

CURRENT2A

㗪

,DON'T DROP BELOW 3.135V

LTE

普󰵶㷔 溆

Default ᶵᶲẞ

>120 mil>120 mil

3G POWER

ADD Ra, Qa Solution For PDA BUG:
When Battery discharge to shutdown,
the CMOS sometim es loss.

Windows 8 3G_POWEREN Always hi.

Ra

Qa

Rc

Ca

Rb

Qb

SIM CONN

6-86-2B010-004

HUAWEI MU736㬌PIN䁢1.8 V LEVEL

HI: Present
CONNECTOR

ἧ䓐

NORMA L CLOSED ( ㉱GN D )

⤪ᶵἧ䓐婳䡢娵⺈ ⓮ 㗗⏎暨天

PULL

HIGH,

⺢嬘䶂嶗 䃉

PULL HIGH

暣旣

Gary_change to nonstuff

Gary_RF Modify

6-34-P750S-010(BOT)

For common design change

For common design change name

USB3_TXP2_USB3
USB3_TXN2_USB3

USB3_RXP2_USB3
USB3_RXN2_USB3

UIM_DATA

UIM_PWR

UIM_RST

UIM_CLK

PWR_ON_OFF

3G_WAKE#

GPS_DISABLE#

DETECT_SW

BODYSAR_N

USB3_TXP2_USB3

USB3_TXN2_USB3

USB3_RXP2_USB3

USB3_RXN2_USB3

USB3_TX2

USB3_TX2#

M2B_3GSSD_LED#R

3G_EN
GPS_DISABLE#
3G_PWR_EN
3G_3.3V

3G_PWR_EN

PWR_ON_OFF

3G_PWR_EN

UIM_DATAUIM_D
UIM_CLK
UIM_RST

UIM_C

UIM_PWR

UIM_DATAUIM_PWR

DETECT_SW

GND

3G_3.3V

GND

3G_3.3V

GND

GNDGND

GND

GND

GND

3.3V

3G_3.3V

GND

GNDGND

GND

GND

USB_PP521

USB_PN521 3G_EN 38

USB3_TXP224

USB3_TXN224

USB3_RXP224

USB3_RXN224

3G_PWR_EN38

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[29] M.2 3G Card

A3

29 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[29] M.2 3G Card

A3

29 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[29] M.2 3G Card

A3

29 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

+

C720 220u_6.3V_6.3*6.3*4.2

LTE

H31
H6_5D3_7

LTE

C712 0.1u_16V_Y5V_04

LTE

C9

*0.1u_16V_Y5V_04

C702 0.1u_16V_Y5V_04

LTE

R350
10_06

LTE

R613 0_06

LTE

C703

470p_50V_X7R_04

LTE

T141

Q30A

MTS3572G6

LTE

S24D2

3

G2

5

Q31

UK3018

LTE

G

DS

C487 0.1u_16V_Y5V_04

LTE

Q30B

MTS3572G6

LTE

S1

2

D1

6

G1

1

C10

*22p_50V_NPO_04

R344
100K_04

LTE

R7 *4.7K_04

C705

0.1u_16V_Y5V_04

LTE

L40

*WCM2012F2S-SHORT

1

4

2

3

R343 330K_04

LTE

B KEY

J_3G1

NFSB0-S6701-TP40

PCB Footprint = NXSB0-S67XX-XX40

P/N = 6-21-84KD0-075

LTE

SUSCLK(32Khz)(O)

68

CLKREQ#(IO)

52

GND9

71

REFCLKP

55

REFCLKN

53

PEWake#(IO)

54

CONFIG_1

69

PETp1/USB3.0-Tx+/SSIC-TxP

37

PETn1/USB3.0-Tx-/SSIC-TxN

35

ANTCTL0(I)1.8V

59

PERp1/USB3.0-Rx+/SSIC-RxP

31

PERn1/USB3.0-Rx-/SSIC-RxN

29

GND8

57

GND3

27

GPIO_9/DAS/DSS#(I)( OD)

10

GND10

73

GPIO_8(IO)1.8V

28

UIM_RESET(I)

30

3.3V2

70

UIM_CLK(I)

32

UIM_DATA(IO)

34

UIM_PWR(I)

36

Reset#(O)1.8V

67

SIM Detect(O)

66

NC1

58

GPIO_0(IO)1.8V

40

NC0

56

USB_D-

9

USB_D+

7

DEVSLP(O)

38

COEX1(I/O)1.8V

64

PERST#(O)

50

COEX3(I/O)1.8V

60

GND7

51

W_DISABLE#1(O)

8

GPIO_5(IO)1.8V

20

3.3V0

2

GPIO_11(IO)1.8V

23

CONFIG_3

1

Full_Card_Power_Off#(O)1. 8V

6

GND0

3

CONFIG_0

21

3.3V1

4

GND1

5

GND2

11

GPIO_6(IO)1.8V

22

GPIO_7(IO)1.8V

24

GPIO_10(IO)1.8V

26

GPIO_12(IO)1.8V

25

GND4

33

PERp0/SATA-B-

43

PETp0/SATA-A+

49

PETn0/SATA-A-

47

PERn0/SATA-B+

41

GND5

39

GND6

45

ANTCTL1(I)1.8V

61

ANTCTL2(I)1.8V

63

ANTCTL3(I)1.8V

65

CONFIG_2

75

GPIO_1(IO)1.8V

42

GPIO_2(IO)1.8V

44

GPIO_3(IO)1.8V

46

GPIO_4(IO)1.8V

48

COEX2(I/O)1.8V

62

3.3V3

72

3.3V4

74

R616 10K_04

LTE

R615

*12K_04

C706

0.1u_16V_Y5V_04

LTE

+

C713

220u_6.3V_6.3*6.3*4.2

LTE

R8 0_04

_

LTE

C707

10u_6.3V_X5R_06

LTE

R5 *10mil_short C488

1u_6.3V_X5R_04

LTE

L41

*WCM2012F2S-SHORT

1

4

2

3

C11

0.01u_16V_X7R_04
LTE

C721

0.1u_10V_X7R_04LTE

R6

*10mil_short

C494

0.1u_16V_Y5V_04

LTE

(TOP VIEW)

J_SIM1

FLY-160429-02

LTE

UIM_DATA

C4

UIM_VPP

C6

UIM_GND

C5

UIM_PWR

C1

UIM_RST

C2

UIM_CLK

C3

GND1

GND1

UIM_I/O

C7

UIM_MCMD

C8

DETECT_SW

SW1

GND2

GND2

GND3

GND3

GND4

GND4

C722

0.1u_10V_X7R_04LTE

R614

*100_04

Schematic Diagrams

B.Schematic Diagrams

M.2 3G Card B - 29

Sheet 29 of 55

M.2 WLAN+BT,

SSD

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

WLAN+BT

>120 mil

PCB Footprint

婳䡢娵㨇㥳ἧ 䓐 䘬

Connector

40 mil

40 mil

32Khz

>120 mil

㍍⇘

EC ,枰冯EC

䡢娵

M: NCT3522U -- 6-02-03522-9C0
S: AP2821KTR-G1 6-02-02821-9C0

>120 mil

NGFF_M (M2) SSD (PCIE 4X)

>120 mil

PCB Footprint

婳䡢娵㨇㥳ἧ 䓐 䘬

Connector

80 mils

Reserved

SATAGP0

L: PCIe
H: SATA

普󰵶㷔溆

SSD_CLKREQ# Pu 10K near to PCH-H.

For common design

6-34-M56AS-011-1(TOP)

6-34-P750S-010(BOT)

6-34-P750S-010(BOT)

DEBUG PORT

For common design change net name

For common design

For common design

For common design

0310 del

0310 㓡 ᶲ

ẞ

PCIE_WLAN_WAKE0#

PCIE_SATA

SATA0_RXN_SSD
SATA0_RXP_SSD

WLAN_EN

BT_EN

WLAN_PWR_EN

WLAN_3.3V

3IN1

80PORT_DET#

M2M_SSD1_LED#

WLAN_3.3V

WLAN_3.3V

WLAN_3.3V

WLAN_3.3VVDD3

3.3VS

3.3VS

3.3VS

GND GNDGND

GND

GND GND

GND

GND

3.3VS

VDD3

USB_PP321

USB_PN321

BT_EN 38

WLAN_EN 38

PCIE_TXP7_WLAN21

PCIE_TXN7_WLAN21

PCIE_RXN7_WLAN21

PCIE_RXP7_WLAN21

CLK_PCIE_MINI25

CLK_P CIE_MIN I#25

WLAN_CLKREQ#25

LAN_WAKEUP#20,34,38

BUF_PLT_RST# 24,30,31,34,36,38

WLAN_PWR_EN38

BUF_PLT_RST# 24,30,31,34,36,38

SSD_CLKREQ# 25

CLK_PCIE_SSD#25

CLK_PCIE_SSD25

PCIE_TXP10_SSD22

PCIE_TXN10_SSD22

PCIE_TXN11_SSD22

PCIE_TXP11_SSD22

PCIE_TXP12_SSD22

PCIE_TXN12_SSD22

SATAGP022

PCIE_TXN9_SSD22

PCIE_TXP9_SSD22

PCIE_RXP9_SSD22

PCIE_RXN9_SSD22

PCIE_RXP10_SSD22

PCIE_RXN10_SSD22

PCIE_RXP11_SSD22
PCIE_RXN11_SSD22

PCIE_RXN12_SSD22

PCIE_RXP12_SSD22

DEVSLP0 24

SUSCLK 23

3IN1 38
80PORT_DET# 38

M2M_SSD1_LED# 36

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[30] M.2 WLAN+BT, PCIE4X SSD

A3

30 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[30] M.2 WLAN+BT, PCIE4X SSD

A3

30 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[30] M.2 WLAN+BT, PCIE4X SSD

A3

30 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

H33
H9_0B6_0D3_7

R230 0_04

C351

0.1u_16V_Y5V_04

C400

0.1u_16V_Y5V_04

R629 *0_04

C391

22u_6.3V_X5R_08

C352

22u_6.3V_X5R_08

U23

uP7553

EN

3

VIN

5

VIN/SS

4

VOUT

1

GND

2

R620 0_04

R621

10K_04

C710

0.1u_10V_X7R_04

C656

0.1u_10V_X7R_04

R619 0_04

R228 10K_04

C657

0.1u_10V_X7R_04

C654

22u_6.3V_X5R_08

R618 0_04

C389

1u_6.3V_X5R_04

Q58
2SK3018S3

G

DS

R609 *10mil_short

C655

0.1u_10V_X7R_04

C390

22u_6.3V_X5R_08

C711

22u_6.3V_X5R_08

R582 *0_04

H34
H9_0B6_0D3_7

C709

0.1u_10V_X7R_04

E KEY

A KEY

J_WLAN1

NFSA0-S6701-TP40

PCB Footprint = NXSA0-S67XX-XX40

P/N = 6-21-84K20-075

SUSCLK(32Khz)(O)

50

CLKREQ0#(IO)

53

GND9

69

REFCLKP0

47

REFCLKN0

49

PEWake0#(IO)

55

Reserved/PERp1

65

Reserved/PERn1

67

Reserved/PETp1

59

Reserved/PETn1

61

GND8

63

GND3

33

GND10

75

3.3V2

72

NC7

34

I2C CLK(O)

60

NC6

32

USB_D-

5

USB_D+

3

I2C DATA(IO)

58

COEX1(I/O)1.8V

48

PERST0#(O)

52

COEX3(I/O)1.8V

44

GND7

57

LED#2(I)(OD)

16

3.3V0

2

VENDOR DEFINED0

38

GND0

1

LED#1(I)(OD)

6

NC0

17

W_DISABLE#1(O)

56

3.3V1

4

GND1

7

GND2

18

VENDOR DEFINED1

40

GND4

39

PETp0

35

PERp0

41

PERn0

43

PETn0

37

GND5

45

GND6

51

ALERT#(I)

62

COEX2(I/O)1.8V

46

3.3V3

74

NC1

19

NC3

21

NC5

23

NC2

20

NC4

22

NC8

36

VENDOR DEFINED2

42

Reserved/W_DISABLE#2(O)

54

Reserved1

64

UIM_SWP/PERST1#

66

UIM_Power_Out/CLKREQ1#

68

UIM_Power_In/Gpio1/ PEWake1#

70

Reserved/REFCLKP1

71

Reserved/REFCLKN1

73

R608 *10mil_short

R229 10K_04

M KEY

J_SSD1

NFSM0-S6701-TP40

PCB Footprint = NXSM0-S67XX-XX40

P/N = 6-21-84KE0-075

SUSCLK(32Khz)(O)

68

CLKREQ#(IO)

52

GND11

71

REFCLKP

55

REFCLKN

53

PEWake#(IO)

54

PEDET(NC-PCIe/GND-SATA)

69

GND10

57

DAS/DSS#(I)(OD)

10

GND12

73

3.3V2

12

NC18

67

NC1

8

NC0

6

DEVSLP(O)

38

PERST#(O)

50

GND9

51

3.3V0

2

GND0

1

3.3V1

4

GND1

3

GND2

9

PERp0/SATA-B-

43

PETp0/SATA-A+

49

PETn0/SATA-A-

47

PERn0/SATA-B+

41

GND7

39

GND8

45

GND13

75

3.3V3

14

3.3V4

16

PERn3

5

PERp3

7

3.3V5

18

GND3

15

PETn3

11

PETp3

13

GND5

27

PETn2

23

GND4

21

PERn2

17

PERp2

19

PETp2

25

NC3

22

NC2

20

NC5

26

NC4

24

NC7

30

NC9

34

NC6

28

NC8

32

NC10

36

NC12

42

NC13

44

NC15

48

NC14

46

NC11

40

PETp1

37

PETn1

35

PERp1

31

PERn1

29

GND6

33

NC16

56

NC17

58

3.3V6

70

3.3V7

72

3.3V8

74

H32
H9_0B6_0D3_7

H25
H6_5D3_7

Schematic Diagrams

M.2 WLAN+BT, SSD

B.Schematic Diagrams

B - 30 M.2 WLAN+BT, SSD

Sheet 30 of 55

ASM 1142 & 2142

ASM 1142 & 2142

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

<0.5" , Diff : 95 ohm

ASM1142=>3.3V for pin20

ASM2142=>2.5VS for pin20

DELAY CIRCUIT--PORT RESET

暨婧㔜

Pin 33

Pin 21
Pin 34

Pin 4
Pin 32

Pin 20

Pin 24

Pin 1
Pin 12

HW STRAP

6-04-02510-A91

Pin 62

Pin 38

Pin 35
Pin 47
Pin 52

Pin 44
Pin 55

Gary_Change to 3.3V

Type A

Type C

Type C

Type A

Gary_non-stuff

Gary_non-stuff

SWAP 2/23

For common design

For common design

For common design

For common design

For common design

For common design

ASM1142_REXT

VDDP_12P

ASM_XTAL_20_OUT

ASM_XTAL_20_IN

ASM1142_SPI_SO

ASM1142_SPI_SCLK

ASM1142_SPI_CE#

ASM1142_UART_RX

ASM1142_PORST#

ASM1142_SPI_SI

ASM1142_UART_TX

ASM1142_UART_TX

VCC33_IN

ASM1142_PGND

EXTL_O

VCCSUS_IN

VDDSUS_OUT

ASM1142_TEST_EN

VDDU_12U

VCCSUS_VCCLU

ASM1142_SPI_CE#
ASM1142_SPI_SCLK

OCI_A#
OCI_B#
PRON_A
PRON_B

ASM1142_PORST#

OCI_A#
OCI_B#

ASM1142_SPI_SCLK

ASM1142_TEST_EN

VCCSUS_VCCLU

ASM1142_UART_RX

ASM1142_SPI_SO

PRON_B#

ASM_SMI#

CLK_REQ1_ASM_CLKREQ_N

ASM1142_SPI_SO
ASM1142_SPI_SI

ASM_1.2VS_1.05VS

ASM_3.3VS_2.5VS

ASM_1.2VS_1.05VS

ASM_3.3VS

ASM_3.3V

ASM_3.3VS

ASM_1.2VS_1.05VS

ASM_3.3VS ASM_1.2VS_1.05VS

ASM_1.2V_1.05V

ASM_3.3V

ASM_3.3VS

ASM_1.2VS_1.05VS

ASM_1.2V_1.05V

ASM_1.2VS_1.05VS

ASM_2.5VS

ASM_2.5VS ASM_3.3VS_2.5VS

ASM_3.3VS

ASM_3.3VS

ASM_3.3VS

ASM_3.3VS

ASM_3.3V

ASM_3.3VS

ASM_3.3V

ASM_1.2VS_1.05VS

ASM_3.3VS

ASM_3.3VS

ASM_3.3VS_2.5VS

3.3VS

ASM_3.3V

ASM_1.2V_1.05V

ASM_1.2VS_1.05VS

ASM_3.3VS

ASM_3.3V

ASM_3.3V

ASM_3.3V

ASM_3.3VS

ASM_3.3V

3.3V

CLK_SRC1_ASM_100_DN 25
CLK_SRC1_ASM_100_DP 25

PCIE_WAKE# 23,34

BUF_PLT_RST# 24,30,34,36,38

A_URXP_CM 33

USB3_TXN2_R 33
USB3_TXP2_R 33

A_URXN_CM 33

PA_USB2_DP 33
PA_USB2_DN 33

A_UDN33
A_UDP33

OCI_B# 33

OCI_A# 33

PRON_A 33
PRON_B 31

PRON_B31

PRON_B# 33

PCIE_RXN1_ASM21

PCIE_RXP1_ASM21

PCIE_RXP2_ASM21
PCIE_RXN2_ASM21

PCIE_TXN1_ASM21

PCIE_TXP1_ASM21

PCIE_TXP2_ASM21
PCIE_TXN2_ASM21

CLK_REQ1_ASM_CLKREQ_N25

ASM1142_PORST#_R38

ASM_SMI#24,28

B_URXN_CM 33
B_URXP_CM 33

USB3_TXP3_R 33

USB3_TXN3_R 33

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[31] ASM1142&2142

A3

31 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[31] ASM1142&2142

A3

31 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[31] ASM1142&2142

A3

31 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R215

*100K_04

C634 0.1u_16V_Y5V_04USB3.1

R178 0_04USB3.1_1142

C314 0.1u_16V_Y5V_04USB3.1

C642

0.1u_16V_Y5V_04

USB3.1

R194 0_04USB3.1

R220 0_04USB3.1

C324 0.22u_10V_X5R_04

USB3.1

C301 *10u_6.3V_X5R_06

R224

*100K_04

R210 0_04USB3.1

C328 0.22u_10V_X5R_04

USB3.1

PJ54

*OPEN_3mm

1 2

C331 0.1u_16V_Y5V_04USB3.1

R177 4.7K_04 USB3.1

R559 *4.7K_04

.

L35 HCB1608KF-121T30

USB3.1

R569 *4.7K_04

USB3.1

R182 *0_04

C310 0.1u_16V_Y5V_04USB3.1

R223 *4.7K_04

C3450.22u_10V_X5R_04 USB3.1

R221 0_04USB3.1

PR107

10K_04

USB3.1

R176 4.7K_04 USB3.1

C632 0.1u_16V_Y5V_04USB3.1

R570 4.7K_04

USB3.1

R577 *4.7K_04

C349 0.1u_16V_Y5V_04USB3.1

C329 0.22u_10V_X5R_04

USB3.1

.

L14 *HCB1608KF-121T30

USB3.1_2142

C309 0.1u_16V_Y5V_04USB3.1

R175 4.7K_04

USB3.1

X1
FSX3M 20.0000000M16FAO

USB3.1

12

3 4

D14
*RB751V-40H

A C

PR105

100K_04

USB3.1

R222 0_04USB3.1

R575
1K_04

USB3.1

ASM1142

U17

ASM1142

USB3.1

VDD

1

SMI#

2

PE_CLKREQ#

3

VCC

4

SPI_CLK

5

SPI_DO

6

SPI_CS#

7

SPI_DI

8

PORST#

9

UART_RX

10

UART_TX

11

VDD

12

VCC_IN

13

EXTL

14

PGND

15

VCCSUS_IN

16

VDDSUS_O17U2DM_B18U2DP_B19VCCSUS20VDDSUS21U2DM_A22U2DP_A23VCCSUS24PE_WAKE#25PRON_A26PRON_B27OCI_A#28OCI_B#29PE_RST#30TEST_EN31VCC

32

PRX1N

64

PRX1P

63

VCCP

62

PTX1N

61

PTX1P

60

REXT

59

VDDP

58

PTX0N

57

PTX0P

56

VCCP

55

PRX0N

54

PRX0P

53

VDDP

52

XI

51

XO

50

PECLKN

49

PECLKP

48

VDDU

47

U3RXN_A

46

U3RXP_A

45

VCCU

44

U3TXN_A

43

U3TXP_A

42

VDDU

41

U3TXN_B

40

U3TXP_B

39

VCCU

38

U3RXN_B

37

U3RXP_B

36

VDDU

35

VDDSUS

34

VDD

33

GND

65

C333

*10u_6.3V_X5R_06

C315 0.1u_16V_Y5V_04USB3.1

C335

*1u_6.3V_X5R_04

R573 12.1K_1%_04

USB3.1

R578 4.7K_04

USB3.1

PR104

10K_04

USB3.1

C34212p_50V_NPO_04 USB3.1

C343 0.1u_16V_Y5V_04USB3.1

.

L17 0_06

USB3.1_1142

R213 *0_04

C313 0.1u_16V_Y5V_04USB3.1

R576

4.7K_04

USB3.1

R211 0_04

USB3.1

R197

0_04

USB3.1

C3470.22u_10V_X5R_04 USB3.1

S

D

G

Q10B

*MTDK3S6R

5

34

C334

*10u_6.3V_X5R_06

R572 4.7K_04

USB3.1

PR103 *0_04

.

L18

*SWF2520CF-4R7M-M

C312 0.1u_16V_Y5V_04USB3.1

R214 0_04

USB3.1

R195 0_04USB3.1

C348 0.1u_16V_Y5V_04USB3.1

C635 4.7u_6.3V_X5R_06

USB3.1

C3460.22u_10V_X5R_04 USB3.1

C316 *10u_6.3V_X5R_06

C633 4.7u_6.3V_X5R_06USB3.1

D9 RB751S-40HUSB3.1

AC

PC45

*0.1u_16V_Y5V_04

C598 0.1u_16V_Y5V_04USB3.1

R198 *0_04

R579 *4.7K_04

R560 *4.7K_04

C3440.22u_10V_X5R_04 USB3.1

C311 0.1u_16V_Y5V_04USB3.1

U51

GD25D10BTIGR

M-SO8

USB3.1

CE#

1

SO

2

WP#

3

VSS

4

SI

5

SCK

6

HOLD#

7

VDD

8

C330 0.1u_16V_Y5V_04USB3.1

R580 4.7K_04

USB3.1

C332

*1u_6.3V_X5R_04

C636 0.1u_16V_Y5V_04USB3.1

R571 *0_04

USB3.1

C325 0.22u_10V_X5R_04

USB3.1

R196 0_04USB3.1

PQ9

UK3018

USB3.1

G

DS

S

D

G

Q10A
*MTDK3S6R

2

61

R212

*100K_04

R179 *0_04USB3.1_2142

Schematic Diagrams

B.Schematic Diagrams

ASM 1142 & 2142 B - 31

Sheet 31 of 55

ASM Power

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

For CV test

ASM_2.5VS

Layout trace 2A after jumper

For ASM2142

1A

ASM_1.2VS_1.05VS

2A

For CV test

Vout= Vref *( 1+( Rt/Rb))

1.05V=0.791 *( 1+( 40.2K/76.8K))

Rt

Rb

1A

for common design

Short

1.24V or 1.05V

1.05V = 0.8V ( 1 + 40.2K/ 127K )

Vout = 0.8V ( 1 + Ra / Rb )

1.21V = 0.8V ( 1 + 40.2K/ 76.8K )

1/24 ASM1142

⺢嬘暣⡻ᶲᾖ⇘

1.24 V

SUSB#_EN

3.3V

ASM_2.5VS

3.3V

ASM_1.2V_1.05V_P

ASM_1.2VS_1.05VS

5V

5V

5V

2.5V

ASM_1.2VA_1.05VA

ASM_1.2V_1.05V_P

VDDQ

VDD1.0

ASM_1.2V_1.05V

SUSB#17,21,33,39,40,42 SUSB 19,35,39

SUSB#_EN 39,45

DD_ON33,38,39,41,50

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[32] ASM_Power

A3

32 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[32] ASM_Power

A3

32 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[32] ASM_Power

A3

32 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PJ28 *CV-1mm

1 2

C386

*0.1u_10V_X7R_04

USB3.1_2142

G5016U22

USB3.1

CT2

10

OUT2

8

EN2

5

VBIAS

4

IN2

6

GND11EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

PC55

*0.1u_10V_X5R_04

USB3.1_2142

PJ26
*1mm

USB3.1

1 2

PL3

BCIHP0420TB-2R2M

USB3.1

1 2

PC53

*330p_50V_NPO_04

USB3.1_2142

PC58

22u_6.3V_X5R_08

USB3.1

PC69

4.7u_25V_X5R_08

USB3.1

PC59

0.22uF_10V_X5R_04

USB3.1

PC52

*10u_6.3V_X5R_06

PC70

1000p_50V_X7R_04

USB3.1

PJ25 *CV-1mm

1 2

PC56

4.7u_25V_X5R_08

USB3.1

PC57

*15p_50V_NPO_04

USB3.1

PC61

22u_6.3V_X5R_08

USB3.1

PJ27 *1mm

USB3.1_2142

1 2

PU6

MP2315GJ-Z

USB3.1

IN

2

AAM

1

EN/SYNC

6

FB

8

BST

5

SW

3

VCC

7

GND

4

C368

*0.1u_10V_X7R_04

PC60

0.1u_10V_X7R_04

USB3.1

PR126 10_06

USB3.1

.

L15 HCB1608KF-121T30

USB3.1

PR119

75K_1%_04

USB3.1

PJ24 *1mm

1 2

PC54

*0.1u_16V_Y5V_04

USB3.1_2142

PR121

40.2K_1%_04

USB3.1

C366

330p_50V_NPO_04

USB3.1

C387
1u_6.3V_X5R_04
USB3.1

PJ22
*1mm

USB3.1_2142

12

PR122

*0_04

USB3.1

PR131

*0_04

.

L19 *HCB1608KF-121T30

USB3.1

R253 *10K_04

USB3.1_2142

PR120

76.8K_1%_04

USB3.1

R240 10K_04

USB3.1

R239
*100_04

.

L20 *HCB1608KF-121T30

USB3.1

R266 10K_04

USB3.1

Q13

*2SK3018S3

G

DS

C365

0.1u_16V_Y5V_04

USB3.1

C427

1000p_50V_X7R_04

USB3.1

PR132

47K_1%_04

USB3.1

C367

0.1u_16V_Y5V_04

USB3.1

ASM Power

B.Schematic Diagrams

B - 32 ASM Power

Sheet 32 of 55

USB, Charger

USB, Charger

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

USB3.0/3.1 PORT(PORT3)

USB3.1

USB3.0/3.1 PORT(PORT1)

TYPE-C

80 mil

80 mil

Smart CDP

pin4

Function

0X

1

11

0

DCP autodetect with
mouse/keyboard wake up

S0 Charging with SDP

S0 Charging with CDP

CB
pin8

USB3.0 PORT(PORT3)

6-02-75495-9C0

W/O USB CHARGER

Co-lay

暞ẞ伖㕤妲嘇↮㓗嗽

暞ẞ伖㕤妲嘇↮㓗嗽

㒢㓦月役

C ONN.

W/O CHARGER

㗪

W/USB3.1 R641 STUFF

W/O CHARGER

㗪

W/USB3.0 R655 STUFF

MAIN 6-21-B4K30-024

Near to IC

pin#A4
pin#A9
pin#B4
pin#B9

pin#12

pin#5 pin#29

pin#12

CC1 CH

CC2 CH

ASM1142+ASM1543
USB3.1 Max
Trace length < 1.3"

0317

3.3A

100 MIL

close to connector

ASM1142+ASM1543 USB3.1 Max
Trace length < 1.3"

Thermal and GND via hole

pin33

pin1

Add TYPE-C Function

J_USB1

COLAY

COLAY

COLAY

To Con.To Con.

From PCHFrom PCH

To Con.

From ASM1142

From ASM1543

From ASM1543

From ASM1142From PCH

From ASM1142

Gary_Reserved for W/O ASM1543

Gary_NET name change

BOM value change

BOM value change

Default Low

SLG55583VTR : 6-02-55583-9D0 P2P
SLG55593VTR : 6-02-55593-9D0

For common design

For common design

Type-C Power Delivery issue

USB_PN1RJ

USB3_TXP3_R

USB3_TXN3_R USB3_TXN3_R

USB3_TXP3_R

B_URXP_CM

USB_PP1R USB_PP1RJ

B_URXP_CM
B_URXN_CM

USB_PN1R

B_URXN_CM

DD_ON#

USB_PP1

USB_PN1

USB_DD_ON#

B_UDN

B_UDP

PA_USB2_DN

PA_USB2_DP

PA_USB2_DN_R

PA_USB2_DP_R

B_URXP_CMUSB3_TXP3_R
B_URXN_CMUSB3_TXN3_R

USB_DD_ON#

A_URXN_SW1_J
A_URXP_SW1_J

A_UTXN_SW1_J
A_UTXP_SW1_J

A_UTXN_SW2_J

A_UTXP_SW2_J

A_URXN_SW2_J

A_URXP_SW2_J

TYPEC_UDP_J
TYPEC_UDN_J TYPEC_UDP_J

TYPEC_UDN_J

ASM1543_CC1_J

ASM1543_CC2_J

ASM1543_REXT

ASM1543_I_SEL1

ASM1543_I_SEL0

ASM1543_I_SEL1

ASM1543_I_SEL0

ASM1543_ROLE_SEL

ASM1543_ROLE_SEL

ASM1543_MODE_SEL

ASM1543_VCONN_EN

ASM1543_VCONN_EN
ASM1543_MODE_SEL

USB3_TXP2_R

USB3_TXN2_R

A_URXN_CM

A_URXP_CM

ASM1543_I_SEL0

ASM1543_I_SEL1

ASM1543_REXT

ASM1543_PWR_EN

A_UTXP_SW2

A_UTXP_SW1

A_UTXN_SW2

A_UTXN_SW1

ASM1543_CC1

ASM1543_CC2

ASM1543_ROLE_SEL

ASM1543_MODE_SEL

ASM1543_VCONN_EN

HC_RDY#

MC_RDY#

CC_RDY#

ASM1543_PWR_EN

A_UTXN_SW2_J

A_UTXP_SW2_J

A_URXP_SW2_J
A_URXN_SW2_J

TYPEC_UDP_J

TYPEC_UDN_J

ASM1543_CC2

ASM1543_CC1

ASM1543_CC2_J

ASM1543_CC1_J

A_URXP_SW1_J
A_URXN_SW1_J

A_UTXN_SW1_J

A_UTXP_SW1_J

A_URXP_SW2
A_URXN_SW2

A_UTXP_SW2
A_UTXN_SW2 A_UTXN_SW1

A_UTXP_SW1

A_URXN_SW1

A_URXP_SW1

USB3_TXN3_R

USB3_TXP3_R

B_URXN_CM

B_URXP_CM

A_UTXP_SW2_J
A_UTXN_SW2_J

A_URXN_SW2_J

A_URXP_SW2_J

A_UDN
A_UDP

CC_EN

ASM1543_CC1

ASM1543_CC2

A_UTXN_SW1_J

A_UTXP_SW1_J

A_URXP_SW1_J

A_URXN_SW1_J

CC_EN

A_URXN_SW1
A_URXP_SW1

A_URXN_SW2
A_URXP_SW2

PA_USB2_DP_R

PA_USB2_DN_R

CDP

USB_DD_ON#

USB_DD_ON#

GND

GND

GND

GND

GND

USBVCC_CH

VDD5 USBVCC_CH

USBVCC3.1_1

USBVCC3.1_1 USBVCC3.1_1

USBVCC3.1_1

ASM_3.3V

USBVCC3.1_1

5V5V_MUX

5V_MUX

ASM_3.3V

ASM_3.3V

5V_MUX

ASM_3.3V

3.3V

5V USBVCC3.1_1

3.3V

5V5V5V

VDD5 VDD5

VDD3

B_UDN33

B_UDP33

B_URXP_CM31,33

B_URXN_CM31,33

USB3_TXN3_R31,33

USB3_TXP3_R31,33

USB3_TXP2_R31

USB3_TXN2_R31

DD_ON#39,42

B_UDP 33

B_UDN 33

USB_PN121

USB_PP121

PA_USB2_DN31

PA_USB2_DP31

PRON_B#31,33

OCI_A# 31

PRON_A31

A_UDP31

A_UDN31

USB3_TXP124

USB3_TXP3_R 31,33
USB3_TXN124
USB3_RXP124
USB3_RXN124

B_URXN_CM 31,33

B_URXP_CM 31,33

USB3_TXN3_R 31,33

USB_PP621

USB3_RXP624
USB3_RXN624
USB3_TXP624

USB_PN621

USB3_TXN624

USB3_RXP524
USB3_RXN524
USB3_TXP524
USB3_TXN524

A_URXP_CM31

A_URXN_CM31

B_UDN 33

SUSB#17,21,32,39,40,42

B_UDP 33

DD_ON32,38,39,41,50

PRON_B#31,33

OCI_B# 31

ASM1543_I_SEL0 23,38
ASM1543_I_SEL1 23,38

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[33] USB3.0 CON, USB CHARGER

Custom

33 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[33] USB3.0 CON, USB CHARGER

Custom

33 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[33] USB3.0 CON, USB CHARGER

Custom

33 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R191 *1M_04

R585 0_04

W/O CHARGER

R237

0_04

USB3.1

R166

56K_04

USB3.0

R181 0_04USB3.0

L36

*WCM2012F2S-SHORT

142

3

D10 TEA10402V15A0

_

12

R172 0_04

USB3.1

R169 *2.2K_04

C341 0.1u_10V_X7R_04

U50

uP7549UMA5-20

OC#

3

VIN

5

EN#

4

VOUT

1

GND

2

R586 0_04

W/O CHARGER

D40 TEA10402V15A0

_

12

R190 *1M_04

R235

*10K_04

R238

0_04

USB3.1

S

D

G

Q9A
MTDK3S6R

_
USB3.0

2

61

.

L13 HCB1608KF- 121T30

USB3.1

R173 0_04

USB3.1

R218 0_04USB3.0

C629 0.1u_10V_X7R_04USB3. 0

R545 0_04 USB3.1

R204 2.2K_04USB3. 1 R227 0_04

CHARGER 3.0

C290

*0.1u_16V_Y5V_04

C292 22u_6.3V_X5R_08

C637
10u_6.3V_X5R_06

C628 0.22u_10V_X5R_04 USB3.1

R193 *1M_04

D11 TEA10402V15A0

_

12

D43

TEA10402V15A0

12

C300

10u_6.3V_X5R_06

C638

*0.1u_16V_Y5V_04

S

D

G

Q9B
MTDK3S6R

_
USB3.0

5

34

R149

*4.7K_04

R219 0_04USB3.0

C604 1u_6.3V_X5R_04

R201 0_04USB3.0

R206 *2.2K_04

R207 2.2K_04USB3. 1

C306 0.1u_10V_X7R_04USB3. 0

D8 TEA10402V15A0

_

12

R226 *0_04

D41

TEA10402V15A0

12

C605 1u_6.3V_X5R_04

C639 22u_6.3V_X5R_08

R208 *10K_04

R152 0_04

CHARGER

C326 0.1u_10V_X7R_04USB3. 0

R553 *10K_04

U11

uP7549PRA8-25

OC#

5

VIN1

2

EN

4

VOUT1

6

GND

1

VIN2

3

VOUT2

7

VOUT3

8

D38 TEA10402V15A0

_

12

C307 0.22u_10V_X5R_04 USB3.1

C631 22u_6.3V_X5R_08

C602 1u_6.3V_X5R_04

R174 12.1K_1%_04USB3.1

R165

4.7K_04

USB3.0

Standard-A

J_USB1

317AF09KSTFDP0CB

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

SHIELD

GND3

SHIELD

GND4

C327 0.1u_10V_X7R_04USB3. 0

R150 4.7K_04

C305 0.1u_10V_X7R_04USB3. 0 C630 0.1u_10V_X7R _04USB3.0

D42

TVUDF1004AD0

5

1
2
3
4

10

9
8
7
6

R189 0_04 USB3.1

C308 0.22u_10V_X5R_04 USB3.1

R562 0_04

CHARGER

U14

ASM1543

USB3.1

I_SEL0/MUX_EN#

1

DA_a

2

DA_b

3

GNDA1

4

VCC1

5

DB_a

6

DB_b

7

I_SEL1/MUX_SEL

8

REXT9DFP_CC210CC211VCONN12CC113DFP_CC114ROLE_SEL15GNDA2

16

DB_b2

17

DB_a2

18

DA_b2

19

DA_a2

20

DB_b1

21

DB_a1

22

DA_b1

23

DA_a1

24

GNDA3

25

HC_RDY#

26

MC_RDY#

27

CC_RDY#

28

VCC2

29

VCONN_EN

30

PWR_EN

31

MODE_SEL

32

GND

33

C603 1u_6.3V_X5R_04

R203 *2.2K_04

U20

SLG55593VTR
TDFN8-2X2MM

CHARGER

PRE#

1

DM

2

DP

3

CDP4VCC

5

TDP

6

TDM

7

CB

8

GND

9

C597

10u_6.3V_X5R_06

USB3.1

D46

TEA10402V15A0

12

R148 0_04USB3.1

R546 0_04USB3.0

R202 0_04 USB3.1

D39 TEA10402V15A0

_

12

R170 0_04

USB3.1

L33

*WCM2012F2S-SHORT

142

3

U9
74LVC1G32

CHARGER

4

53

1

2

C293 22u_6.3V_X5R_08

R554 10K_04USB3.1

C601

1u_6.3V_X5R_04

USB3.1

R188 0_04USB3.0

D44

TEA10402V15A0

12

R584

0_04

USB3.0

R236
10K_04

CHARGER

R205 0_04USB3.1

R547 0_04USB3.0

R544 0_04 USB3.1

D37 TEA10402V15A0

_

12

R209 10K_04USB3.1

R167

56K_04

USB3.0

C594

0.1u_10V_X7R_04

USB3.1

R561 0_04

W/O CHARGER3.1

C350

*0.1u_16V_Y5V_04

R583

0_04

USB3.0

R151 *0_04

J_TYPEC1
UCF3T-21S01-0P11
Y

_

GND

A1

TX0_P

A2

TX0_N

A3

VBUS

A4

CC1

A5

USB2_P_T

A6

USB2_N_T

A7

SBU1

A8

VBUS

A9

RX1_N

A10

RX1_P

A11

GND

A12

GND

B12

RX0_P

B11

RX0_N

B10

VBUS

B9

SBU2

B8

USB2_N_B

B7

USB2_P_B

B6

CC2

B5

VBUS

B4

TX1_N

B3

TX1_P

B2

GND

B1

GND1

GND1

GND2

GND2

GND3

GND3

GND4

GND4

GND5

GND5

GND6

GND6

GND7

GND7

GND8

GND8

C627 0.22u_10V_X5R_04 USB3.1

R192 *1M_04

C599

0.1u_10V_X7R_04

USB3.1

R180 0_04USB3.0

R563

100K_04

CHARGER

R574 0_04

W/O CHARGER3.0

D34

TVUDF1004AD0

5

1
2
3
4

10
9
8
7
6

C291

0.1u_16V_Y5V_04

R168 2.2K_04USB3. 1

C600

1u_6.3V_X5R_04

USB3.1

R121

100K_04

CHARGER

C340

0.1u_16V_Y5V_04

R164 0_04USB3.0

R171 0_04

USB3.1

D12 TEA10402V15A0

_

12

Schematic Diagrams

B.Schematic Diagrams

USB, Charger B - 33

Sheet 33 of 55

Card Reader /

LAN RTL8411B

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PCBfootprint:
HSX321G

Ra

Ca Cb

慷䓊䡢 娵

LDO M ODE OK⼴,

㓡

SHORT

暞ẞ

慷䓊䡢娵 ⼴ 暣 旣

,㓡S HORT

暞ẞ

Switching Regulator close to PIN48

(>20mil)

(>20mil)

PULL HIGH: SWR Mode

PULL LOW: LDO Mode

LDO Mode㗪: La,Ca,Cb ᶵᶲẞ,Raᶲ ẞ

PIN32PIN3 PIN8 PIN46

6-03-08411-032

6-06-75140-065

LAN (RTL8411B)

TO EC8587 PIN123 LAN_WAKEUP#

TO SB PCH WAKE#.

FOR S5 WAKE UP ON LAN

Near Cardreader CONN

capacitors must be close to pin side.

Remind that R109 using the
main power (S0 power).

LAN_CLKREQ#

⤪ᶵἧ䓐⎗㕟 攳,㕤

PCH

䪗 䚜 ㍍

PULL DOWN

BIOS pulls high or low to GPO pin,
Pkease refer to LAN/PHY Disable
Application Note.

PIN12

Crystal 㓡䓐 HSX3 2 1S(3. 2 X2. 5X0. 65)
meet realtek Freq tolerance 50ppm

VDD3 meet rising time
>1ms

PIN20 PIN20

6 IN 1 SOCKET - MMC / RSMMC

- SD / mini SD / SDHC / SDXC

6-21-A4450-111

⼭

EMI

䡢娵⬴,㓡

SHORT

崘 ℏ Ⰼ.

Close to chip

PIN11 PIN32 PIN48

LDO Mode

60 mil

PIN27

6-14-0R23F-01B-1

0.2_06

䔞斄攱host暣 㸸 / CARD ㉼ ㍺ 㗪 , VCC_ CARD
暣⡻ㅱỶ 㕤0.5ặ䈡 , 㚨⮹暨天 1ms㛇 攻

PIN13

40 mil

1013
modify

ℙ䓐䶂嶗

GIGA LAN (RTL8411)

LAN POART

6-20-B4P30-008

6-06-75140-068

6-07-5R074-1A0

SPEC:30PPM

㓦伖

TOP

朊

㓦伖

BOT

朊

EMI

Gary_change to 6 in1 CON.

VDD10

ENSWREG

REGOUT

XTAL1

XTAL2

RTL8411B_HSOP

ISOLATEB

RTL8411B_HSON

LAN_WAKEUP#

ENSWREG

LAN_MDIP1

CLKREQB

LAN_MDIN1

MS_BS/SD_WP#

REGOUT

SD_CD#

LAN_MDIP2

LAN_MDIN2

LAN_MDIP3

LAN_MDIN3

SD_D1

SD_CMD/MS_D2

SD_CLK/MS_D0

SD_D0/MS_D1

EECS

RSET

PERSTB

SD_D3/MS_D3

LAN_MDIP0

XTAL2

XTAL1

SD_D2/MS_CLK

LAN_MDIN0

SD_D1_R

SD_D3/MS_D3_R

SD_CMD/MS_D2_R

MS_BS/SD_WP#

SD_D0/MS_D1_R

SD_CD#

SD_CMD/MS_D2

SD_CLK/MS_D0_R

SD_D1

SD_CLK/MS_D0
SD_D3/MS_D3

SD_D0/MS_D1

SD_D2/MS_CLK

CARD_3V3

LMX1+

NMCT_4

LMX3+

LMX1-

NMCT_3

NMCT_1

LMX4+

LMX2-

LMX4-

NMCT_2

LMX2+

LMX3-

NMCT_R

DLMX4-

DLMX3-

DLMX3+

DLMX2+

DLMX1+

DLMX4+

DLMX1-

LAN_MDIN3

LAN_MDIP2

LAN_MDIN0

LAN_MDIN2

LAN_MDIP0

LAN_MDIP1
LAN_MDIN1

LAN_MDIP3

DLMX2-

SD_CLK/MS_D0_R

SD_D2/MS_CLK_R

SD_CMD/MS_D2_R

SD_D3/MS_D3_R

SD_D2/MS_CLK_R

SD_D1_R

SD_D0/MS_D1_R

VDD10

VDD10 VDD10 VDD10VDD10

VDD10

VDD10

AVDD33

CARD_3V3

EVDD10

AVDD33

VDD10

REGOUT
D3V3

VDD10

VDD33/18

AVDD33

VCC_CARD

3.3VS

3.3VS

VDD10

EVDD10

VCC_CARD

VDD3

D3V3

AVDD33

VDD33/18

VCC_CARD

CARD_3V3

LAN_GND LAN_GND

LAN_GND

AVDD33

PCIE_WAKE# 23,31

PCIE_RXN5_GLAN 21
PCIE_RXP5_GLAN 21

CLK_PCIE_GLAN 25

CLK_PCIE_GLAN# 25

PCIE_TXP5_GLAN 21

PCIE_TXN5_GLAN 21

LAN_CLKREQ# 25

BUF_PLT_RST# 24,30,31,36,38

LAN_WAKEUP# 20,30,38

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[34]CARD READER/ LAN RTL8411B

A3

34 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[34]CARD READER/ LAN RTL8411B

A3

34 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[34]CARD READER/ LAN RTL8411B

A3

34 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R321

*28mil short-p

R279 33_04

C280

0.1u_16V_Y5V_04

ER4

*10mil_short

R318 33_04

D19 RB751S-40H

AC

C425

0.1u_16V_Y5V_04

R371 75_04

C436

0.1u_10V_X7R_04

C437

0.1u_16V_Y5V_04

R323 10K_04

L27
*WCM2012F2S-SHORT

1

4

2

3

C421

0.1u_16V_Y5V_04

R280

*20mil_04

C423

0.1u_16V_Y5V_04

ER3

*10mil_short

QFN48

U28

RTL8411B

RTL8411B

MDIP0

1

MDIN0

2

MDIP1

4

MDIN1

5

MDIP2

6

MDIN2

7

AVDD10

8

MDIP3

9

MDIN3

10

HV_GIGA

11

VDD3

12

REG_OUT

36

VDDREG

35

VDD1

33

ISOLATEBPIN

31

PERSTBPIN

30

CLKREQBPIN

29

MS_BS/SD_WP#

28

DV33_18

27

HSON

26

HSOP

25

HV_GIGA

48

RSET

47

CKXTAL245CKXTAL1

44

MS_CD#

43

SD_CD#

42

LED0

41

LED_CR

40

LANWAKEB

39

LED1/GPO

38

LED2

37

CARD_3V313SD_D114SD_D0/MS_D115SD_CLK/MS_D016SD_CMD/MS_D217SD_D3/MS_D318SD_D2/MS_CLK19VDDTX20HSIP21HSIN22REFCLK_P23REFCLK_N

24

E_PAD

49

AVDD10

3

VD33

32

ENSWREG

34

LV_CEN

46

C445

4.7u_6.3V_X5R_06

C435

0.1u_10V_X7R_04

R303
15K_04

ER2

*10mil_short

C447 0.1u_10V_X7R_04

C439

10p_50V_NPO_04

C449

0.1u_16V_Y5V_04

R282 *1K_04

C426

10p_50V_NPO_04

R265 2.49K_1%_04

L31

GST5009 LF

TCT1

1

2

TD1+

3

TD1-

TCT2

4

5

TD2+

6

TD2-

TCT3

7

8

TD3+

9

TD3-

TCT4

10

11

TD4+

12

TD4-13MX4-

14

MX4+

MCT4

15

16

MX3-

17

MX3+

MCT3

18

19

MX2-

20

MX2+

MCT2

21

22

MX1-

23

MX1+

MCT1

24

130456-571

J_RJ_1

DD-

8

DD+

7

DB-

6

DC-

5

DC+

4

DB+

3

DA-

2

DA+1shield

GND1

shield

GND2

X2 FSX3L 25MHZ

1 2

34

C424

0.1u_16V_Y5V_04

R322 *15mil_short_06

R368 75_04

C419

0.1u_16V_Y5V_04

C513

100PF 2KV 1206

J_CARD-REV1

CM2S-061-H-N

PCB Footprint = SD-10395-001-3

SD_C/D

P11

SD_DATA1

P8

SD_DATA0

P7

SD_VSS2

P6

SD_CLK

P5

SD_VDD

P4

SD_VSS1

P3

SD_CMD

P2

SD_DATA3

P1

GND1

GND1

GND2

GND2

SD_DATA2

P9

SD_WP

P10

GND3

GND3

GND4

GND4

C448

0.1u_16V_Y5V_04

L30
*WCM2012F2S-SHORT

1

4

2

3

R302 1K_04

C422

0.1u_16V_Y5V_04

C450

0.1u_16V_Y5V_04

R299 33_04

C438

1u_6.3V_X5R_04

R301 *10mil_short

C446 0.1u_10V_X7R_04

R305 *10mil_short

R281
*10mil_short

C519

0.01u_16V_X7R_04

R320

*28mil short-p

R370 75_04

R263 33_04

L29
*WCM2012F2S-SHORT

1

4

2

3

R262 33_04

C434 *5p_50V_NPO_04

R304

*28mil short-p

R369 75_04

R300 0_04

C420

0.1u_16V_Y5V_04

R319 33_04

ER1

*10mil_short

R264 0.2R_5%_06

L28
*WCM2012F2S-SHORT

1

4

2

3

R283 1M_04

Card Reader / LAN RTL8411B

B.Schematic Diagrams

B - 34 Card Reader / LAN RTL8411B

Sheet 34 of 55

HDD, Click TP,

Audio, Hall Con.

HDD, Click TP, Audio, Hall Con.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Gen3

HDD CONNECT1 (MASTER)

CLICK PAD

PIN GND1~2=GND

FOR AUDIO BOARD

6-20-43790-122

HALL Sensor Board

Gary_Change footprint

BY

ἧ䓐䘬廠↢暣 ⡻   婧㔜

,

ὅ≇䌯( 旣ῤ &⊭墅⣏⮷

)

㓦暣徜 嶗 枸䔁ᶵᶲ

SATA_5VS

ON

FOR SUPPORT OPTANE project, SATA HDD≈POWER GATEING

暣嶗

2.5A2.5A

SHORT

Gary D02 non-stuff for HDD detect issue

FOR N870

For common design

JHDD_SATA_TXP2
JHDD_SATA_TXN2

JHDD_SATA_RXN2
JHDD_SATA_RXP2

MIC1_R_M

MIC1_L_M

SMB_CLK_R_J

SMB_DATA_R_J

SMB_DATA_R SMB_CLK_R

LID_SW#

SUSB

LID_SW#

TP_DATA_J
TP_CLK_J

SMB_DATA_R

SMB_CLK_RSMB_CLK_R_J

SMB_DATA_R_J

3.3VS

SATA_5VS

5V

AUDG

TP_VCC

3.3VSTP_VCC

3.3VS

3.3VS

3.3VS 3.3VS

VDD3

5VS

SATA_5VS

5V

SATA_5VS

GND

5V

AUDG

VDD3

3.3VS_AUD

SATA_RXN2 22
SATA_RXP2 22

SATA_TXN2 22

SATA_TXP2 22

MIC1_R_M 37

MIC1_L_M 37

MIC_SENSE 37

HP_SENSE 37

HEADPHONE-R 37

HEADPHONE-L 37

USB3_TXN4 24
USB3_TXP4 24

USB3_RXN4 24

USB3_RXP4 24

USB_PN11 21

USB_PP11 21

USB_PN4 21

USB_PP4 21

TP_CLK 38

TP_DATA 38

SMB_DATA9,23,42 SMB_CLK9,23,42

LID_SW#17,35,38

SATA_PWR_EN28

SUSB19,32,39

LID_SW#17,35,38

EAPD 37,38

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[35]HDD,CLICK TP,AUDIO,HALL CON.

A3

35 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[35]HDD,CLICK TP,AUDIO,HALL CON.

A3

35 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[35]HDD,CLICK TP,AUDIO,HALL CON.

A3

35 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R144

10K_04

C698 0.01u_16V_X7R_04

PJ57

OPEN_4mil

1 2

C652

10u_6.3V_X5R_06

C650

22u_6.3V_X5R_08

C289

*10u_6.3V_X5R_06

D7

*TVUDF1004AD0

5

1

2

3

4

10

9

8

7

6

S

D

G

Q8A

MTDK3S6R

2

6 1

C699 0.01u_16V_X7R_04

R145

10K_04

C644

10u_6.3V_X5R_06

C288

1u_6.3V_X5R_04

C285

0.1u_10V_X7R_04

C653

10u_6.3V_X5R_06

R146

*20mil_04

C643

10u_6.3V_X5R_06

J_HALL2

FP226H-004S10M

1
2
3
4

C651

22u_6.3V_X5R_08

J_HDD1

50887-0220A-H01

P/N = 6-20-43790-122

PCB Footprint = 50887-0220A-XXX

S1
S2
S3
S4
S5
S6
S7

P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15

NC2

NC1

R587

*10K_04

S

D

G

Q8B

MTDK3S6R

5

3 4

J_AUD1

T40 0.5P 2.0H FPC W/COVER

PCB Footprint = FP201-040X1-0M

_

1

2

3

4

5

6

7

8

9

10

11

12

GND1 GND2

13

14

15

16

18
17

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

C287

47p_50V_NPO_04

U52

M5938BRD1U

EN

2

GATE

1

VIN

9

VOUT

8

VBIAS

4

GND

3

VOUT

7

VOUT

6

VOUT

5

C700 0.01u_16V_X7R_04

J_HALL1

FP226H-004S10M

N85xRC_RN

1
2
3
4

D45

*RB0540S2

AC

J_TP1

FP225H-006S10M

1

2

3

4

5

6

C399

0.1u_10V_X7R_04

C286

47p_50V_NPO_04

C647

0.1u_10V_X7R_04

R162

2.2K_04

Q55

*MTN2002ZG3

G

DS

C701 0.01u_16V_X7R_04

C645

1u_6.3V_X5R_04

C649

1u_6.3V_X5R_04

R163

2.2K_04

C646

0.1u_10V_X7R_04

PJ56 *OPEN-3mm

1 2

R581

*220_06

Schematic Diagrams

B.Schematic Diagrams

HDD, Click TP, Audio, Hall Con. B - 35

Schematic Diagrams

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CCD+DMIC

TPM 2.0 (SLB9665TT)

5 mil
5 mil

1A1A

From KBC default HI

48 mil

D-MIC: mount L35 & L36
C630 & C631 => 47p_50V_NPO_04

A-MIC: mount R414
C630 => 100p_50V_NPO_04

Closs to J_CCD1

1030

ℙ䓐䶂嶗枸䔁姕妰

GPS! ҂ ٰ ё ૈᡂ୏

TPM_PP

HI: ACCESS
LOW: NORMAL ( Internal PD )

Asserted before entering S4
LPC reset timing:
LPCPD# inactive to LRST# inactive 32~96us

6-20-53100-008

婳

EC PIN24

復↢ầ

SSD

LED

≽ἄ䘬㊯䣢炻德忶AP忂䞍

BIOS

⛐⏲䞍

EC

 ↢≽ἄ

NGFF B & M KEY

LED

⤪

PCIE SS D LED

⭂佑 ⎴

SATA

LED

≽ἄ㗪炻婳䓐㬌 䶂 嶗

POWER SWITCH BOARD

6-52-55001-021

6-52-55001-021

HDD LED

Airplane mode

GREEN YELLOW

GREEN YELLOW

6-52-55002-04E

BAT LED

POWER ON LED

GREEN/YELLOW

GREEN/YELLOW

Windows 7

WLAN LED

Airplane OFF

Airplane ON

WLAN OFF

WLAN ON

Windows 8

ᶵṖ

Ṗ

ᶵṖ

Ṗ

N87Hx LED BOARD

Gary_for common design(ESD 6-24-30003-009)

2'nd 6-20-94K40-012

⬷农

2'nd 6-20-94K10-012

㿂勫

BOM vaule change

For common design

For common design

VDD_MIC

MIC_DATA_L

TPM_GPIO

LRESET#

TPM_GPIO

TPM_PP

BUF_PLT_RST#

LRESET#

M_BTN#

LED_HDD#

MIC_CLK_L

AIRPLAN_LED#

LED_HDD#

LED_BAT_CHG

LED_BAT_FULL

LED_PWR
LED_ACIN

LED_HDD#
AIRPLAN_LED#
LED_BAT_FULL
LED_BAT_CHG
LED_PWR
LED_ACIN

M2M_SSD1_LED#

CCD_PWR

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

3.3VS

GND

GND

GND

GND

GND

3.3VS

GND GND

USB_PN221
USB_PP221

CCD_EN38

MIC_DATA37
MIC_CLK37

LPC_AD124,38

LPC_AD324,38

LPC_AD224,38

PCLK_TPM24

LPC_AD024,38

BUF_PLT_RST#24,30,31,34,38

LPC_FRAME#24,38

SERIRQ24,38

M_BTN#39

SATA_LED# 22

EC_SSD_LED# 38

AIRPLAN_LED# 38

LED_BAT_FULL38
LED_BAT_CHG38

LED_PWR38
LED_ACIN38

M2M_SSD1_LED# 30

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[36]LED,CCD,TPM,POWER SW CON.

A3

36 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[36]LED,CCD,TPM,POWER SW CON.

A3

36 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[36]LED,CCD,TPM,POWER SW CON.

A3

36 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R356

270_04

N85xRC_RN

C443

0.1u_16V_Y5V_04

TPM

D53

RY-SP190YG34-5M N85xRC_RN

A C

C501

2.2u_6.3V_X5R_04

R352

270_04

N85xRC_RN

C499

180p_50V_NPO_04

C689

0.1u_16V_Y5V_04

TPM

C500

1u_6.3V_X5R_04

R353

270_04

N85xRC_RN

D23

*TVUDF1004AD0

5

1
2
3
4

10
9
8
7
6

D1

*AVL18S02015

12

R306 4.7K_04

TPM

R307 *0_04

TPM

U31

SLB9665TT

TPM

LAD3

17

LAD0

26

LAD1

23

LAD2

20

VDD2

10

NC_6

13

VDD4

24

VDD3

19

LFRAME#

22

LCLK

21

LRESET#_1

16

SERIRQ

27

NC_8

15

GND_1

4

GND_2

11

GND_3

18

GND_4

25

GPIO

6

NC_2

2

NC_7

14

NC_4

8

LRESET#_2

9

PP

7

NC_1

1

NC_3

3

NC_5

12

NC_9

28

VDD1

5

D24 RB751S-40H

A C

C498

180p_50V_NPO_04

R287 *4.7K_04

U35

TC7SZ08FU

1

2

5

4

3

C458

0.1u_16V_Y5V_04

TPM

J_SW1

FP226H-004S10M

1
2
3
4

R358 220_04

N85xRC_RN

SG

Y

D54

RY-SP155HYYG4-1

N85xRC_RN

132

4

R359 220_04

N85xRC_RN

L25 HCB1005KF-121T20

SG

Y

D55

RY-SP155HYYG4-1

N85xRC_RN

132

4

J_LED1

FP225H-012S10M

N87RC_RN

1

2

3

4

5

6

7

8

9

10

11

12

NC1

NC2

L26 HCB1005KF-121T20

U37

uP7553

VIN

4

VIN

5

EN

3

VOUT

1

GND

2

R1 *1K_04

R355

270_04

N85xRC_RN

C451

0.1u_16V_Y5V_04

TPM

J_CCD1

85204-08001

1
2
3
4
5
6
7
8

D52

RY-SP190YG34-5M N85xRC_RN

A C

Sheet 35 of 55

LED, CCD, TPM,

Power SW Con.

LED, CCD, TPM, Power SW Con.

B.Schematic Diagrams

B - 36 LED, CCD, TPM, Power SW Con.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

ALC269VC2 L75,C720

天ᶲẞ

Close to Codec

Close to Codec

For 3.3V HDA Link.

ALC269 ㍍ GND (⎴PIN42/PIN43)

ALC269 VB7

AUDIO CODEC

Thermal Pad Via Hole Max

DIGITALAN ALOG

Thermal Pad place 9
Via hole.

PC BEEP

6-06-00543-021

6-06-00543-020

6-19-31001-247

Connect VAULE FOR
REFERENCE BY
PROJECT

Closed to SB.

䡢娵

MIC

⮎橼㬋屈䪗

冯

FOOTPRINT

㗗⏎㏕ 惵

EMI Require

PCB Footprint㚜 ㎃ ALC26 9 VC2-QFN48-6 X 6M

FOR VOLUMN
ADJUST

PIN39 PIN39

PIN46PIN46

PIN25 PIN25

PIN38 PIN38

PIN9PIN9

PIN1 PIN1

䴙ᶨ

NE T NAME

FOR LAYOUT

HDA_RST# For 1.5V
HDA Link De-pop

PD# Control

AZ_RST# For 3.3V HDA
Link De-pop

㓡

06 SIZE

2014/10/21

21

J_SPK1

5VS

AZ_RST#

PD#

20ms

3.3VS_AUD

Dpefd! ! Tqfblfs! nffu! Q)SNT*! y! 91&
Tqfd/JG! Tqfblfs! ኱ ྗ ф ౗ ε ܭ!Q\SNT^y91&-

Ѹ ໪ ࿶җTqfb lfs!Wfo e p s!ᇡё /

Speaker wire length less than 8000mils , It don't need LC Filter.

Speaker 8 ohm------> 20mils, Via hole----->C40D20.

Speaker 4 ohm------> 30mils, Via hole----->C40D20.

SPKOUTR+,R-,L+,L- Trace width

6-20-43130-102

6-19-31001-274

6-19-31001-274

GND and AUDG space is
60mils ~ 100mils

Layout note:

PU 5V FOR
ALC269VB

VC2 Stuff 0_04

VC2 Stuff 0.1u_10V_X7R_04

VC2 Stuff 9.1K_04

For ALC269-VB7

For ALC269-VB7

For ALC269-VB7

For ALC269-VB7

MIC_DATA
MIC_CLK

AZ_SDOUT_R

AZ_SYNC_R

AZ_SDIN0_R

AZ_BITCLK_R

MIC1_VREFO_R
MIC2_VREFO

HEADPHONE-L
HEADPHONE-R

CODEC_CBN

CODEC_CBP

LINE1_L
LINE1_R

MIC1_R_C

MIC1_L_C

JDREF
MONO_OUT

SENSE_B

LINE2_R

LINE2_L

MIC_SENSE

HP_SENSE

SPKOUTR­SPKOUTR+

SPKOUTL-

SPKOUTL+

MIC1_R

MIC1_L

MIC1_VREFO_L

AZ_RST#_R

BEEP_C

CODEC_VREF

SENSE_A

AZ_RST#_R

LDO_CAP

MIC1_L_M

MIC1_R_M

MIC1_VREFO_L

MIC1_VREFO_R

BEEP_R

BEEP

SPKOUTL+_L

SPKOUTL-_L

SPKOUTL-

SPKOUTL+

SPKOUTR+_R

SPKOUTR-_R

SPKOUTR-

SPKOUTR+

CODEC_PD#

AZ_RST#_R

AUDG

5VS_AUD

5VS

AUDG

3.3VS

AUDG

AUDG

AUDG

AUDG

5VS

3.3VS_AUD

PVDD1_2

AUDGAUDG

AUDG

AUDG

3.3VS_AUD

DVDD_IO

5VS_AUD

3.3VS_AUD

3.3VS_AUD

5VS

HDA_SDIN023

HDA_BITCLK23

HDA_RST#23

HDA_SYNC23

HDA_SDOUT23

MIC_DATA36
MIC_CLK36

PCH_SPKR23

KBC_BEEP38

HEADPHONE-R 35

HEADPHONE-L 35

MIC_SENSE 35

HP_SENSE 35

KBC_MUTE#38

MIC1_R_M 35

MIC1_L_M 35

EAPD35,38

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[37]AUDIO CODEC ALC269 VC2

A3

37 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[37]AUDIO CODEC ALC269 VC2

A3

37 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[37]AUDIO CODEC ALC269 VC2

A3

37 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C679 0.1u_16V_Y5V_04

R610

10K_04

N85RC_RN

R351 *100K_04

R596 1K_04

C676

0.1u_16V_Y5V_04

C457

10u_6.3V_X5R_06

R606

4.7K_04

C678 4.7u_6.3V_X5R_06

C693 2.2u_6.3V_X5R_04

J_SPKL1

85204-0200N

1

2

NC2

NC1

C

A

A

D47
BAT54CS3

1

2

3

C489

1u_6.3V_X5R_04

Q32

*BSS138_NL

G

DS

R601 2.2K_04

C675

10u_6.3V_X5R_06

R346

*10K_04

C469

0.1u_16V_Y5V_04

R627 *20mil short-p

R331 *20mil short-p

C694

0.1u_16V_Y5V_04

C466

10u_6.3V_X5R_06

C716
180p_50V_NPO_04

C717

180p_50V_NPO_04

Q33

*2N7002W

G

DS

R597 1K_04

L39

HCB1005KF-121T20

1 2

R330 *20mil short-p

R611 22_04

C715
*1u_6.3V_X5R_04

C673 10u_6.3V_X5R_06

R602 2.2K_04

R600 20K_1%_04

R628 *20mil short-p

C

A

A

D21
BAT54AS3

1

2

3

L22

HCB1005KF-121T20

1 2

C704

0.1u_16V_Y5V_04

C686

1u_6.3V_X5R_04

CHANGE

C677 4.7u_6.3V_X5R_06

C714
180p_50V_NPO_04

C467

0.1u_16V_Y5V_04

R603 22_04

C692

2.2u_6.3V_X5R_04

R332 *20mil short-p

D22

*ZD5231BS2

A C

R607 47K_1%_04

CHANGE

L37 *HCB1005KF-121T20

1 2

R605 22_04

C685

*100p_50V_NPO_04

R622 *20mil short-p

DIGITAL

ANALOG

U53

ALC269-VB7

CHANGE

DVDD1

1

GPIO0-DMIC-DAT

2

GPIO1-DMIC-CLK

3

PD#

4

SDATA-OUT

5

BIT-CLK

6

DVSS2

7

SDATA-IN

8

DVDD-IO

9

SYNC

10

RESET#

11

PCBEEP

12

Sense A

13

LINE2-L

14

LINE2-R

15

MIC2-L

16

MIC2-R

17

Sense-B

18

JDREF

19

MONO-OUT

20

MIC1-L

21

MIC1-R

22

LINE1-L

23

LINE1-R

24

AVSS1

26

VREF

27

LDO_CAP

28

MIC2-VREFO

29

MIC1-VREFO-R

30

MIC1-VREFO-L

31

HP-OUT-L

32

AVSS2

37

OPVEE

34

CBN

35

CBP

36

HP-OUT-R

33

PVDD1

39

SPK-L+

40

SPK-L-

41

PVSS142PVSS2

43

SPK-R+

45

SPK-R-

44

PVDD2

46

EAPD/COMBO

47

SPDIFO

48

AVDD238AVDD1

25

GND

49

C684 1u_6.3V_X5R_04

R604 22_04

R345 22_04

Q56
MTN7002ZHS3

N85RC_RN

G

DS

C687

100p_50V_NPO_04

C674 0.1u_16V_Y5V_04

C683 0.1u_16V_Y5V_04

R598 20K_1%_04

R623 *20mil short-p

R612 4.7K_04

CHANGE

C470

0.1u_16V_Y5V_04

C688 22p_50V_NPO_04

C471

10u_6.3V_X5R_06

R599 39.2K_1%_04

L38

HCB1005KF-121T20

1 2

C456

0.1u_16V_Y5V_04

C695

10u_6.3V_X5R_06

C719

180p_50V_NPO_04

J_SPKR1

85204-0200N

1

2

NC2

NC1

C468
10u_6.3V_X5R_06

C682 100p_50V_NPO_04

N87RC_RN

C718

*1u_6.3V_X5R_04

Audio Codec ALC269 VC2

Sheet 36 of 55

Audio Codec

ALC269 VC2

Schematic Diagrams

B.Schematic Diagrams

Audio Codec ALC269 VC2 B - 37

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

RB

RA

J_FAN1

1

3

CPU_FAN

6-20-23120-003

KBC_LED

For common design

OPTION (

⎗ẍ怠㑯㗗⏎枸䔁

)

J_KB1

124

N850

6-03-08587-FX

6-20-94AF0-124

6-20-94K40-106

KBC LED CONTROL

Used for 15"

3/10

VGA FAN CONTROL

J_FAN2

1

VGA_FAN

3

6-20-23120-003

CPU FAN CONTROL

Debug Port

䘥 󱂒

J_KB2

124

N870

6-20-94K40-106

KBC_LED

N870 White LED Keyboard

⇌㕟 us b charge r ≇傥,
Pull low 㗪,㚱, pull high 㗪㰺 㚱

N850HC

N870HN

EC MODEL_ID LIST

RA RB

10K X

15.4K10K

10K 4.42K

10KX

N870HC

N850HN

VOLTAGE

3.3V

2V

1V

0V

Gary_D02 for ALC269-VB7 co-lay

For common design change net name

change TI charger net N.C/ Common design

change TI charger net N.C/ASM1543 PD

change TI charger net N.C/ASM1543 PD

N870HL

N850HL 10K

10K 1.78K

8.25K

0.5V

1.5V

For common design change net name

For common design

For common design BAV99: 6-06-00099-011

For common design

For common design

For N850HL

For common design change name

EC_PECI

KB-SI3

KB-SI2

KB-SO5

KB-SI1

KB-SO3
KB-SO4

KB-SO11

KB-SI6

KB-SI4

KB-SO8

KB-SO7

KB-SO6

KB-SO14

KB-SO2

KB-SO15

KB-SI0

KB-SI5

KB-SO12

KB-SO1

KB-SO10

KB-SO0

KB-SI7

KB-SO9

KB-SO13

BAT_DET

SMC_BAT
SMD_BAT

GPIO9_THERM_ALERT_EC

BAT_VOLT
CPU_FAN

AC_IN#

MODEL_ID

CPU_FAN

CPU_FANSEN

KB-SI3

KB-SI2

KB-SO5

KB-SI1

KB-SO3
KB-SO4

KB-SO11

KB-SI6

KB-SI4

KB-SO8

KB-SO7

KB-SO6

KB-SO14

KB-SO2

KB-SO15

KB-SI0

KB-SI5

KB-SO12

KB-SO1

KB-SO10

KB-SO0

KB-SI7

KB-SO9

KB-SO13

HSPI_SCLK

AUTO_LOAD_PWR

HSPI_MSO

HSPI_MSI

HSPI_CE#

CPU_FANSEN

KBC_WRESET#

KBC_WRESET#

CPU_FAN

BAT_DET
BAT_VOLT

MODEL_ID

3IN1

80PORT_DET#

VBATT_BOOST#

KBCLED

KBC_LED

KBC_LED

VBATT_BOOST#

EC_PECI

VGA_FAN

VGA_FANSEN

VGA_FAN

VGA_FANSEN

GA20

SMD_VGA_THERM

SMC_VGA_THERM

KBC_MUTE#

GC6_FB_EN

3IN1

80PORT_DET#

ALL_SYS_PWRGD_R

VDD3

VDD3

FAN_CPU_5VS

3.3VS

5VS

FAN_CPU_5VS

5VS_KBC

VDD3

VDD3

KBC_AGND

KBC_AGND

KBC_AVDD

VDD3

3.3VS

VDD3

VDD3

KBC_AGND

5VS

5VS_KBC

3.3VS

FAN_VGA_5VS

FAN_VGA_5VS

5VS

5VS_KBC

3.3VS

VDD3

VDD3

H_PECI 4

AIRPLAN_LED# 36

CCD_EN 36

BKL_EN 17

HSPI_CE# 20
HSPI_MSI 20
HSPI_MSO 20

NB_ENAVDD 17,22
LAN_WAKEUP# 20,30,34

SWI# 22

EC_RSMRST# 23

SB_KBCRST# 24

BUF_PLT_RST#24,30, 31,34,36

LPC_FRAME#24,36

AC_PRESENT23

LED_ACIN36

SMI#24

SERIRQ24,36

PCLK_KBC24

LPC_AD324,36

LPC_AD224,36

LPC_AD124,36

LPC_AD024,36

KBC_MUTE#37

AC_IN#47

SCI#22

SMC_VGA_THERM14
SMD_VGA_THERM14

THERM_VOLT2
TOTAL_CUR47

SMC_BAT38,47
SMD_BAT38,47

BAT_VOLT47

BAT_DET38,47

LED_BAT_FULL36

LED_BAT_CHG36

LED_PWR36

KBC_BEEP37

EC_SSD_LED#36

TP_CLK35

TP_DATA35

PWR_SW #39
LID_SW#17,35

PWR_BTN#23

H_PROCHOT_EC4

HSPI_SCLK 20

SUS_PWR_ACK#23

VBATT_BOOST#14

dGPU_OVERT_EC 14

GPIO9_THERM_ALERT_EC 14

USB_CHARGE_EN39,41

3G_EN 29

BT_EN30

DD_ON32,33,39,41,50

SUSB#_PCH 23,39
SUSC#_PCH 23,39

WLAN_PWR_EN 30

WLAN_EN 30

3G_PWR_EN 29

SUS_WARN# 23

PM_PWROK 21

ALL_SYS_PWRGD 4,17,21,44

SLP_SUS# 23,40, 45

SLP_SUS#_EC 23

ME_WE23

ASM1142_PORST#_R31

PCH_SLP_WL AN#23

GC6_FB_EN 14,24,49

dGPU_PWR_EN 14,24,50

EAPD35,37

80PORT_DET#30

3IN130

EC_EN 39

SMC_BAT38,47

SMD_BAT38,47

BAT_DET38,47

ASM1543_I_SEL1 23,33

ASM1543_I_SEL0 23,33

ALL_SYS_PWRGD_R

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[38]KBC-ITE IT8587

Custom

38 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[38]KBC-ITE IT8587

Custom

38 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size

Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[38]KBC-ITE IT8587

Custom

38 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C502

10u_6.3V_X5R_06

_

R452 4.7K_04

R633

*0_04

R269 *10mil_short

R312 *10mil_short

J_FAN2

1251-3AW-S-02(N)

1
2
3

R366 4.7K_04

U4

NCT3940S-A

VOUT

3

GND

5

VIN

2

FON

1

VSET

4

GND

6

GND

8

GND

7

R311 33_04

R337

100K_04

.

L21

HCB1005KF-121T20

C459

10u_6.3V_X5R_06

C452 10p_50V_NPO_04

R267 *10K_04

C481

0.1u_16V_Y5V_04

D18

BAV99 RECTIFIER

A

C

AC

R268 *10mil_short

R310 *10mil_short

R308 1.5K_04

C20

0.1u_10V_X5R_04

J_KB1

85208-24051

N85HL

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

25

26

C317

0.1u_10V_X7R_04WHITE_KB

U15

NCT3940S-A
WHITE_KB

VOUT

3

GND

5

VIN

2

FON

1

VSET

4

GND

6

GND

8

GND

7

C482

0.1u_16V_Y5V_04

K/B MATRIX

FLASH

LPC

SMBUS

PS/2

PWM

UART

DAC

CLOCK

IT8587

CIR

ADC

WAKE UP

PWM/COUNTER

LPC/WAKE UP

EXT GPIO

GP INTERRUPT

WAKE UP

GPIO

U32

IT8587E/FX

WRST#

14

LPCCLK

13

LAD0

10

LAD1

9

LAD2

8

LAD3

7

LFRAME#

6

( PD )LPCPD#/W UI6/G PE6

17

SERIRQ

5

ECSMI#/GPD4( PU )

15

ECSCI#/GPD3( PU )

23

GA20/GPB5

126

KBRST#/GPB6( PU )

4

KSI0/STB#

58

KSI1/AFD#

59

KSI2/INIT#

60

KSI3/SLIN#

61

KSI4

62

KSI5

63

KSI6

64

KSI7

65

KSO0/PD0

36

KSO1/PD1

37

KSO2/PD2

38

KSO3/PD3

39

KSO4/PD4

40

KSO5/PD5

41

KSO6/PD6

42

KSO7/PD7

43

KSO8/ACK#

44

KSO9/BUSY

45

KSO10/PE

46

KSO11/ERR#

51

KSO12/SLCT

52

KSO13

53

KSO14

54

KSO15

55

VCC

11

VSTBY26VSTBY50VSTBY92VSTBY

114

VSTBY

127

VSTBY

121

VBAT

3

AVCC

74

PS2CLK0/GPF0( PU )

85

PS2DAT0/GPF1( PU )

86

PS2CLK1/GPF2( PU )

87

( PD )TMRI0/WUI2/GPC4

120

( PD )TMRI1/WUI3/GPC6

124

LPCRST#/WUI4/GPD2( PU )

22

( PD )WUI5/GPE5

35

PWRSW /GPE4( PU )

125

RI1#/WUI0/GPD0( PU )

18

RI2#/WUI1/GPD1( PU )

21

( PD )RING#/PWRFAIL#/LPCRST#/GPB7

112

TXD/GPB1( PU )

109

RXD/GPB0( PU )

108

( PD )CTX/GPB2

123

PS2DAT1/GPF3( PU )

88

PS2CLK2/GPF4( PU )

89

PS2DAT2/GPF5( PU )

90

( PD )TACH0/GPD6

47

( PD )TACH1/GPD7

48

PWM0/GPA0 ( PU )

24

PWM1/GPA1 ( PU )

25

PWM2/GPA2 ( PU )

28

PWM3/GPA3 ( PU )

29

PWM4/GPA4 ( PU )

30

PWM5/GPA5 ( PU )

31

PWM6/GPA6 ( PU )

32

PWM7/GPA7 ( PU )

34

ADC0/GPI0

66

ADC1/GPI1

67

ADC2/GPI2

68

ADC3/GPI3

69

ADC4/GPI4

70

ADC5/GPI5

71

ADC6/GPI6

72

ADC7/GPI7

73

VSS1VSS12VSS27VSS49VSS

122

VSS

113

AVSS

75

CK32KE

2

CK32K

128

DAC3/GPJ3

79

DAC2/GPJ2

78

GPJ1

77

GPJ0

76

( PD )EGCS#/GPE2

83

( PD )EGCLK/GPE3

84

( PD )EGAD/GPE1

82

GINT/GPD5( PU )

33

L80LLAT/GPE7( PU )

20

VSS

91

DAC5/GPJ5

81

DAC4/GPJ4

80

PWUREQ#/G PC7( PU )

16

( PD )CRX/GPC0

119

( PD )KSO16/GPC3

56

( PD )KSO17/GPC5

57

( PD )GPH0/ID0

93

( PD )GPH1/ID1

94

( PD )GPH2/ID2

95

( PD )GPH3/ID3

96

( PD )GPH4/ID4

97

( PD )GPH5/ID5

98

( PD )GPH6/ID6

99

( PD )GPG1/ID7

107

SMCLK0/GPB3

110

SMDAT0/GPB4

111

SMCLK1/GPC1

115

SMDAT1/GPC2

116

SMCLK2/GPF6( PU )

117

SMDAT2/GPF 7( PU )

118

FLFRAME#/GPG2

100

FLAD0/SCE#

101

FLAD1/SI

102

FLAD2/SO

103

FLAD3/GPG6

104

FLCLK/SCK

105

( PD )FLRST#/WUI7/GPG0/TM

106

( PD )L80HLAT/GPE0

19

R274 10K_04

R289 10K_04

R326 10K_04

R272 *10mil_short

C479

0.1u_10V_X7R_04

R288 1.5K_04

R276 10K_1%_04

J_80DEBUG1

85204-04001

DEBUG PORT

1
2
3
4

J_KB2

85208-24051

N87HL

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

25

26

C429

0.1u_16V_Y5V_04

C477 0.1u_10V_X7R_04

R309 43_1%_04

J_FAN1

1251-3AW-S-02(N)

1
2
3

R327 10K_04

R617 *10K_04

R290 33_04

J_KBC_LED2

50541-00601-002

N87_WHITE

1

2

3

4

5

6

R255 *10mil_short

C672 0.1u_16V_Y5V_04

R275*0_04

R273 10K_04

CHANGE

R635

*0_04

R564.7K_04

D16

BAV99 RECTIFIER

A

C

AC

R632 *0_04

C318

10u_6.3V_X5R_06

N87_WHITE

R324 *0_04

C234

10u_6.3V_X5R_06

D17

BAV99 RECTIFIER

A

C

AC

U1

NCT3940S-A

VOUT

3

GND

5

VIN

2

FON

1

VSET

4

GND

6

GND

8

GND

7

C478

0.1u_16V_Y5V_04

C480

0.1u_16V_Y5V_04

J_KBC_LED1

50541-00601-002

N85_WHITE

1

2

3

4

5

6

R325 0_04

R270

10K_04

W/O CHARGER

R454.7K_04

C430

0.1u_16V_Y5V_04

C411 1u_6.3V_X5R_04

R271

10K_04

CHARGER

R256 8.25K_04

N870HLᶲẞ1.78K

C198

1u_6.3V_X5R_04

C319

10u_6.3V_X5R_06

N85_WHITE

Sheet 37 of 55

KBC-ITE IT8587

Schematic Diagrams

KBC-ITE IT8587

B.Schematic Diagrams

B - 38 KBC-ITE IT8587

1

1

2

2

3

3

4

4

5

5

A A

B B

C C

D D

EMI EMI

ON

6A

5V

6A

5VS

ON

6A

3.3V

6A

3.3VS

Clost to P2808B0

SHORT SHORT

DD_ON#

SUSB

SEQUENCE

1. NORMAL,

㬋ⷠ┇≽

SUSC#_PCH LOW, DD_ON & EC_EN⎴㬍HI

2. SUSC#_PCH

󱂑

HI ⎓愺EC㗪,

DD_ON HI, EC_EN DELAY 30ms

⛐

HI

For common design

VIN_U135

VA_U135

MBTN#_U135

INSTON_U135

DD_ON#

DD_ON

PWRSW#_U135

DDON_LATCH

USB_CHARGE_EN

DD_ON DD_ON_EN

SUSB#

VDD3_R

SUSB#_EN

CT1_U136

EN2_U136EN1_U136

DD_ON_EN SUSB#_EN

CT1_U137

3.3VS_ONEN1_U137

VDD3_R

DD_ON#

SUSB

DD_ON#

3.3VS_ON

SUSB

SUSC#_PCH

SUSB#_PCH

VIN1

VDD3

VDD3

VIN

VDD3

VIN VINVIN

VDD5

5V

VDD3

VDD5

5VS

VDD5

VDD3

3.3V

VDD3

3.3VS

VDD3

VDD3

VA

VIN

VAVIN VIN1

VDD3

VDD3

PWR_SW# 38

DD_ON

DD_ON# 33,42 SUSB 19,32,35

SUSB#17,21,32,33,39,40,42

M_BTN#36

USB_CHARGE_EN 38,41

SUSB#_EN 32,45

DD_ON_EN40

EC_EN38

SUSB# 17,21,32,33,39,40,42

SUSC# 40,42

SUSB#_PCH23,38

SUSC#_PCH23,38

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[39] 5V,5VS,3.3V,3.3VS,3.3VA

A3

39 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[39] 5V,5VS,3.3V,3.3VS,3.3VA

A3

39 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[39] 5V,5VS,3.3V,3.3VS,3.3VA

A3

39 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

R294 1K_1%_04

R317 1_1%_06

PQ11

2SK3018S3

G

DS

U26

*U74AHC1G08G-AL5-R

1

2

5

4

3

R342 10K_04

C474

470p_50V_X7R_04

G5016U34

CT2

10

OUT2

8

EN25VBIAS

4

IN2

6

GND11EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

R335
*100_04

R336
10K_04

S

D

G

Q25A

*MTDK3S6R

2

61

C462
220p_50V_NPO_04

PR136

10K_04

R480 0_04

R292 10K_04

C491
220p_50V_NPO_04

R314 100K_04

PJ40 *CV-1mm

1 2

R329
*100_04

R315
*100K_04

C463

330p_50V_NPO_04

U27

*U74AHC1G08G-AL5-R

1

2

5

4

3

C465

0.1u_16V_Y5V_04

R295 10K_04

R316 10K_04

Q24

*2SK3018S3

G

DS

PR144

10K_04

R313 *100K_04

R328
*100_04

R349
10K_04

R291 1K_1%_04

C454

0.1u_50V_Y5V_06

C455

0.1u_50V_Y5V_06

C4

0.01u_50V_X7R_04

G5016U33

CT2

10

OUT2

8

EN25VBIAS

4

IN2

6

GND11EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

PC74

*0.1u_16V_Y5V_04

R347
*100_04

R102 0_04

C490

0.1u_16V_Y5V_04

C484

*0.1u_10V_X7R_04

PJ41 1mm

1 2

PJ37 1mm

12

C492

0.1u_16V_Y5V_04

C453

0.1u_50V_Y5V_06

PR137 10K_04

C708
1u_6.3V_X5R_04

PR135

100K_04

PQ12

2SK3018S3

G

DS

U30

P2808B0

VA

1

VIN

2

M_BTN#

3

INSTANT-ON4GND

5

PWR_SW#

6

DD_ON_LATCH

7

VIN1

8

C460

0.1u_16V_Y5V_04

R348
10K_04

C493

*0.1u_10V_X7R_04

C7

0.01u_50V_X7R_04

Q27
*2SK3018S3

G

DS

PC71

*0.1u_16V_Y5V_04

C485
1u_6.3V_X5R_04

C473

0.1u_16V_Y5V_04

Q26

*2SK3018S3

G

DS

C464

0.1u_16V_Y5V_04

PJ38 *CV-1mm

1 2

C475

0.1u_16V_Y5V_04

C5

1000p_50V_X7R_04

C8

1000p_50V_X7R_04

C461

0.1u_16V_Y5V_04

PR143

100K_04

R293 *100K_04

S

D

G

Q25B

*MTDK3S6R

5

34

C486

*0.1u_10V_X7R_04

C476

*0.1u_10V_X7R_04

Sheet 38 of 55

5V, 5VS, 3.3V,

3.3VS, 3.3VA

5V, 5VS, 3.3V, 3.3VS, 3.3VA

Schematic Diagrams

B.Schematic Diagrams

5V, 5VS, 3.3V, 3.3VS, 3.3VA B - 39

Sheet 39 of 55

VDD1.0V, VCCIO

1

1

2

2

3

3

4

4

5

5

A A

B B

C C

D D

VTT_SELECT VTT VR Output Voltages
low 1.1 V
high (V1.1S_VTT) 1.05 V

6-01-00708-980

SHORT

ON

O.C.O 12A

1.0V

12A

For CV test

6A

VCCIO

1A

SHORT

SHORT

1A

VTT_SELECT VTT VR Output voltage
Low 1.1V
High(V1.1S_VTT) 1.05V

DSX

SHORT

for EMI

VDD1.0

NOTE:

1.0V_VCCST Ton need <10ms
G5016 TURN-ON TIME=1.21ms

For CV test

20mils-40mils

Gary_D02 for BUG solution

SHORT

TON_P1U1

DL_PU1

ILIM_PU 1

DH_PU1

LX_PU1

VCCIO_PWRGD

VCC_PU1

VFB_PU1

VDD1.0_PWRGD

VCCIO_EN

VCCIO_EN#

VCCIO_U27

CT1_U27

1V_VCCST

EN2_U27

VDD1.0_PWRGD

EN1_U27

VCCIO_EN

VDD1_EN

VREG5

VIN

VREG5

VDD3

VDD1.0

VDD3

VDD1.0 VDD1.0

VCCIO

VDD3

1.0V_VCCST

VDD3

VDD3

V1.0A

3.3V

VCCIO

3.3V

SUSC#39,40,42

SUSC#39,40,42

SUSB# 17,21,32,33,39,42

DDR 1.35V_PWRGD 42

DD_ON_EN39

SLP_SUS#23,38,45

VCCIO_PWRGD 21,46

SLP_S0# 23

VCCIO_EN 46

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[40] VDD1.0V, VCCIO

A3

40 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[40] VDD1.0V, VCCIO

A3

40 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[40] VDD1.0V, VCCIO

A3

40 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PJ14 *CV-1mm

1 2

C558

220p_50V_NPO_04

C199 0.1u_10V_X7R_04

S

D

G

Q4A

*MTDK3S6R

2

61

G5016 U42

CT2

10

OUT2

8

EN25VBIAS

4

IN2

6

GND11EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

R68
*100K_04

R357 *10mil_short

C557

0.1u_16V_Y5V_04
C559
220p_50V_NPO_04

EMR5

5.1_06

PJ48 3mm

1 2

C555

22u_6.3V_X5R_08

PR291

2.2_04

R67 *0_04

C472

*0.01u_16V_X7R_04

R449
20K_04

PJ36 1mm

1 2

PR142 0_06

R424

100K_04

S

D

G

Q4B

*MTDK3S6R

5

34

R334 100K_04

PC200 22u_6.3V_X5R_08

PU7

G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST

13

DH

12

LX

11

ILIM

10

VDD

9

DL

8

PGND

7

PGND

17

NC5NC

14

PC216

0.1u_50V_Y5V_06

PJ51
*CV-1mm

1 2

PC213

1u_6.3V_X5R_04

R69
*100_04

PR139
100K_1%_04

EMC3
1000p_50V_X7R_04

Q37

*2SK3018S3

G

DS

PJ49 3mm

1 2

PR141

4.12K_1%_04

Q42

MMBT3904H

B

E C

C560

0.1u_16V_Y5V_04

PR138 820K_1%_06

C571

1u_6.3V_X5R_04

R425
*100_04

PJ35 *CV-1mm

1 2

R66 *10mil_short

Q39

2SK3018S3

G

DS

PC208

1u_6.3V_X5R_04

PR134
0_06

R354 10K_04

PQ33

QM3006M3

4

5255315

PJ15 1mm

1 2

PL15

BCIHP0730-1R0M

PCB Footprint = BCIHP0735A

12

R450
100K_04

PC217

*4.7u_25V_X5R_08

PC72 *15p_50V_NPO_04

PQ35

QM3004M3

4

5255315

PC218

4.7u_25V_X5R_08

U6

TC7SZ08FU

1

2

5

4

3

PC73

0.1u_10V_X7R_04

R444
10K_04

R423
10K_04

PR140 42.2K_1%_04

C554

22u_6.3V_X5R_08

C572

0.1u_10V_X7R_04

PD15

CSOD140SH

M-SOD123

A C

+

PC207 220u_6.3V_6.3*6.3*4. 2

PC199 22u_6.3V_X5R_08

C570

0.1u_10V_X7R_04

PJ34 6mm

1 2

R333 *0_04

C561

0.1u_16V_Y5V_04

PR133 *0_12

C556

0.1u_16V_Y5V_04

C553

0.01u_16V_X7R_04

C569

0.022u_16V_X7R_04

Schematic Diagrams

VDD1.0, VCCIO

B.Schematic Diagrams

B - 40 VDD1.0, VCCIO

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

VDD3

S478! Opu! Tuvgg! -! S744! Tuvgg....Opo.Wqsp-! BD! JO! WEE4! Bmxbzt! PO/

S478-S744! Opu! Tuvgg...Wqsp-! BD! JO! WEE4-WEE6! Bmxbzt! PO/

12 A

R1

=2*(1+13K/19.1K)
=3.36

Vout=2*(1+R1/R2)

R2

R1

R2

Vout=2*(1+R1/R2)

=2*(1+30K/19.1K)
=5.1927

Qpxfs! po! WEE40WEE6! QXN

D01A

CV Test

VDD5

SHORT SHORT

for EMI

3A

2.5A

8A

Gary_D02 for BUG solution

EN_5V

EN_3V5V

DD_ON_EN_VDD

EN_5V

VDD3

VREF

VIN

SYS3V

VIN

VDD5

VREG3

VIN1

VREG5

VREF

VIN

VREG5

SYS5V

DD_ON32,33,38,39,50

USB_CHARGE_EN38,39

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[41] VDD3,VDD5

A3

41 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[41] VDD3,VDD5

A3

41 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[41] VDD3,VDD5

A3

41 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PR286
13K_1%_06

PC210

1u_6.3V_X5R_04

PR292

0_04

PC75

*1000p_50V_X7R_04

+

PC201

220u_6.3V_6.3*6.3*4.2

S

D

G

Q57A

MTDK3S6R

2

6

1

PC214

0.1u_16V_Y5V_04

PC78

0.1u_50V_Y5V_06

R624

*10mil_short

PJ42

5mm

1 2

PR295 *0_04

PD8

CSOD140SH

A C

PC80

*4.7u_25V_X5R_08

PR145
30K_1%_06

PQ36

QM3004M3

4

5255315

PR296 0_04

PC209

0.1u_10V_X7R_04

PR289 *10mil_short

PU15

TPS51125ARGER

VREF

3

EN1

1

VFB1

2

TONSEL

4

LDO5

17

LGATE1

19

PHASE1

20

VFB2

5

UGATE2

10

VCLK

18

BOOT2

9

EN2

6

VO2

7

LDO3

8

PHASE2

11

LGATE2

12

EN013SKIPSEL14GND15VIN

16

UGATE1

21

BOOT1

22

POK

23

VO1

24

GND PAD

25

PR147 *0_12

PC79

0.1u_50V_Y5V_06

PR294

*680K_1%_04

PQ37

QM3006M3

4

5255315

PC202 100p_50V_NPO_04

PQ32

QM3004M3

4

5255315

R626

100K_04

PD16

CSOD140SH

A C

PC77

*4.7u_25V_X5R_08

PD17

RB751V-40(lision)

AC

PC204
1u_6.3V_X5R_04

R625

10K_04

EMC1
1000p_50V_X7R_04

PC206
1000p_50V_X7R_04

PR293

0_04

PL16

BCIHP0730-4R7M

12

PR148 *0_12

PC82

0.1u_16V_Y5V_04

PJ39

5mm

12

PC215

4.7u_25V_X5R_08

PQ34

QM3006M3

4

5255315

PC205

1u_10V_Y5V_06

PC211

0.1u_10V_X7R_04

PR287

62K_1%_04

Q59

2SK3018S3

G

DS

PC81

4.7u_25V_X5R_08

PJ59
*CV-1mm

1 2

S

D

G

Q57B

MTDK3S6R

5

3

4

PR146

18.7K_1%_06

+

PC188

*EEEFZ1E101P

12

+

PC212220u_6.3V_6.3*6.3*4.2

PR290

62K_1%_04

PR297

2.2_06

+

PC164

*EEEFZ1E101P

12

PR288

19.1K_1%_06

PC76

4.7u_25V_X5R_08

PL17

BCIHP0730-2R2M

12

EMR1

5.1_06

PC203

1000p_50V_X7R_04

Sheet 40 of 55

VDD3, VDD5

VDD3, VDD5

Schematic Diagrams

B.Schematic Diagrams

VDD3, VDD5 B - 41

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

R1

R2

Modify, Ivy 03/01

DEL R1058

For CV test

3A

Ra

3A

Rb

2.5V

Vout = 0.8V ( 1 + Ra / Rb )

Layout trace 2A after jumper

2.52V = 0.8V ( 1 + 21.5/ 10 )

天月

PIN4

儛

CV Test

CV Test

DDR4

1.2V/0.6VS

⮔⹎≈⣏ 䁢

8mil

SHORT

SHORT

2A

1.2V

13A

VTT_MEM(0.6V)

ON

2A

SHORT

Hi 1.35V

DDR GPIO OUTPUT VOLTAGE SELECT

GPIO DDR Vout

Lo 1.2V

暣⡻堐

VDDQSET

2.5V_PG

VDDQSET

VDDQSET

5V

5V

VDDQ_R

5V

VIN

VDDQ_R

VDDQ

VTT_MEM

3.3V

5V

5V

5V

3.3V

5V

2.5V

3.3V

VIN

3.3V

SMB_DATA 9,23,35

SMB_CLK 9,23,35

DDR 1.35V_PWRGD 40

DD_ON#33,39

DDR_VTT_PG_CTRL4

SUSC#39,40,42

SUSC#39,40,42

SUSB#17,21,32,33,39,40

GPP_B023

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[42] DDR 1.2V/0.6VS,2.5V

A3

42 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[42] DDR 1.2V/0.6VS,2.5V

A3

42 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[42] DDR 1.2V/0.6VS,2.5V

A3

42 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PU5

G9661-25ADJF11U

GND

8

VCNTL

4

NC

5

VIN

3

VOUT

6

VFB

7

POK

1

EN

2

GND

9

PJ30 1mm

1 2

PR123 47K_04

C418

*1u_6.3V X5R_04

PQ10

*MTN7002ZHS3

G

DS

PR284
*15mil_short

C431

0.1u_10V_X7R_04

PC197 0.1u_10V_X5R_04

PQ30
MDU1516
ULTRASO-8

G

DS

PC198 *100p_50V_NPO_04

+

PC180
390uF_2.5V_10m_6.3*6

PC66

*10u_6.3V_X5R_06

PR281 402K_1%_04

EMC2

2200p_50V_X7R_04

PR128

*100K_04

C432
*0.1u_16V_Y5V_04

Q21
2SK3018S3

G

DS

PC189

4.7u_25V_X5R_08

R590 10K_04

U24

*uP1804A

VCC

1

BUS_SEL

2

GND

3

SDA4SCL

5

NC

6

NC

7

OUT

8

PJ58 2mm

12

PJ33
*CV-1mm

1 2

PR280 2.2_04

PD14

RB0540S2

A C

PC190

*4.7u_25V_X5R_08

C444

0.01u_16V_X7R_04

R277 10K_04

PJ31 *CV-1mm

1 2

R296 *1K_04

C433

*0.22u_10V_X5R_04

R588

10K_04

PR125
*30.1K_1%_04

PC65

82p_50V_NPO_04

PR285 6.04K_1%_04

PR127

21.5K_1%_04

PR282 10K_1%_06

PR283
*15mil_short

EMR3

2.2_1%_06

PC67

*0.01u_16V_X7R_04

PD13 CSOD140SH

A C

PR279 6.8K_1%_06

R298 100K_04

PC62

10u_6.3V_X5R_06

R258 10K_04

PC196

22u_6.3V_X5R_08

PC194

10u_6.3V_X5R_06

PQ31
MDU1531
ULTRASO-8

G

DS

R246

*10_04

Q23

2SK3018S3

G

DS

PC64

22u_6.3V_X5R_08

PJ55

8mm

1 2

PL14

BCIHP0730-1R0M

PCB Footprint = BCIHP0735A

1 2

R251 *0_04

PR129 *0_04

PC68

0.1u_10V_X7R_04

PJ32
*CV-1mm

1 2

R252

*10K_04

PC63

1u_6.3V_X5R_04

PC192

1u_10V_Y5V_06

PC191

0.1u_50V_Y5V_06

R250 *0_04

R245

*0_04

PU14
G5616BRZ1U

VTTGND

1

VLDOIN

19

VTT

20

VTTSNS

2

GND

3

TON

9

VTTREF4VCC5

11

PGOOD

10

S5

8

S3

7

VDDQSET

6

VDDQSNS

5

CS

13

PGND

14

DRVL

15

LL

16

DRVH

17

VBST

18

PVCC5

12

GND

21

PC193

1u_10V_Y5V_06

Q20
*2SK3018S3

G

DS

PR124

10K_1%_04

EMR2

2.2_1%_06

R297 10K_04

PC195 0.1u_10V_X7R_04

C385

*1u_6.3V X5R_04

R589 *10mil_short

EMR4

*15mil_short

Q19

2SK3018S3

G

DS

PR278 *0_12

PR130
*10K_04

R261

*0_04

R278 47K_04

Q22

MMBT3904H

B

E C

Sheet 41 of 55

DDR 1.2V/0.6VS,

2.5V

Schematic Diagrams

DDR 1.2V/0.6VS, 2.5V

B.Schematic Diagrams

B - 42 DDR 1.2V/0.6VS, 2.5V

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

VCORE & VCCGT OUTPUT STAGE

CHOKE CMME063T R15 Ḧ ✌ DCR=0.90mR

PPM=4453

CHOKE CMME063T R15 Ḧ ✌ DCR=0.90mR

hi side RDSON=6.8mR
lowi side RDSON=2.8mR

hi side RDSON=6.8mR
lowi side RDSON=2.8mR

㕘㕁

H-line 42
Loadline=2.65mr

H-line 42
Loadline=1.8mr

100u_25V_6.3*6.3*5.8

㔸

ㆸ 330uF_2.5V_9m_5.3*5*4.2

MPDVLPB330MB4R2S2

VCORE 2Phase

100u_25V_6.3*6.3*5.8

100u_25V_6.3*6.3*5.8

㔸

ㆸ 330uF_2.5V_9m_5.3*5*4.2

MPDVLPB330MB4R2S2

DEFAULT SHORT

2A

4A

66A

20A

0V~1.5V

0V~1.52V

Gary_D02 for BUG solution

Gary_D02 for BUG solution

Gary_D02 for BUG solution

Gary_D02 DEL PJ60

Gary_D02 DEL PJ61

Gary_D02 Change PC172 footprint

VCCGT_R change to

VCCGT

VCORE_R change to
VCORE

Gary_D02 PC157 non-stuff

Power Ken change Mos

5V

VCORE

VIN

5V

5V

VCCGT

VIN

VIN

PWM1144

DRVON143,44

PWM2144

CSP2144

CSN2144

CSP1144

CSN1144

DRVON143,44

PWM1244

DRVON143,44

CSP1244

CSN1244

Title

Size Do cument Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[43] VCORE,VCCGT OUTPUT STAGE

Custom

43 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Do cument Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[43] VCORE,VCCGT OUTPUT STAGE

Custom

43 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Do cument Number Re v

Date: Sheet

of

6-71-N85L0-D01

D01

[43] VCORE,VCCGT OUTPUT STAGE

Custom

43 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PR78
*20mil_04

PR260 1_1%_06

PC171

1u_16V_X5R_06

PR73

374_1%_04

PC158

*47u_2.5V_X6S_08

PC149

1u_16V_X5R_06

PL11

CMME063T-R15MS0R907

12

PC26

0.47u_16V_X7R_06

PC144

0.1u_25V_X7R_06

RT9610B

PU10

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND

6

LGATE

7

GND

9

PC32

4.7u_25V_X5R_08

PC143

4.7u_25V_X5R_08

PL10

CMME063T-R15MS0R907

12

+

PC162 390uF_2.5V_10m_6.3*6

PR233 1_1%_06

PC130

1u_25V_X5R_06

PC169

2200p_50V_X7R_04

+

PC183

*EEEFZ1E101P

PC167

4.7u_25V_X5R_08

PR246 1_1%_06

PR230

2.2_06

PC151

2200p_50V_X7R_04

PR258

2.2_1%_06

PC146

4.7u_25V_X5R_08

PC170

1u_25V_X5R_06

PQ24

MLP08

INS19909547

COMMON

CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PR247

2.2_1%_06

PR256
374_1%_04

PR257
*20mil_04

PQ25

MLP08

INS19909652

COMMON

CSD87350Q5D

1

D1

2

3

G1

4

S1

5

G2

6

D2

7

8

9

S2

PC150

1u_16V_X5R_06

PR75
*20mil_04

PC31

1u_25V_X5R_06

RT9610B

PU12

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND

6

LGATE

7

GND

9

PC129

4.7u_25V_X5R_08

PR255
*20mil_04

PL9

CMME063T-R15MS0R907

12

PC159

*47u_2.5V_X6S_08

PR231 1_1%_06

PC168

0.1u_25V_X7R_06

PC21

0.47u_16V_X7R_06

PQ27

MDU5693

1

283

4

9

567

PC33

4.7u_25V_X5R_08

+

PC152 *390uF_2.5V_10m_6.3*6

PR74
*20mil_04

PC145

2200p_50V_X7R_04

PC131

0.1u_25V_X7R_06

+

PC128

*EEEFZ1E101P

PR259

2.2_06

PR244 1_1%_06

+

PC161 390uF_2.5V_10m_6.3*6

PR245

2.2_1%_06

PR76
374_1%_04

RT9610B

PU11

BOOT

4

PWM

5

EN

1

VCC

8

UGATE

3

PHASE

2

PGND

6

LGATE

7

GND

9

PC22

0.47u_16V_X7R_06

PR77
*20mil_04

+

PC127

*EEEFZ1E101P

PR232

2.2_06

PR261 1_1%_06

Sheet 42 of 55

VCore, VCCGT

Output Stage

VCore, VCCGT Output Stage

Schematic Diagrams

B.Schematic Diagrams

VCore, VCCGT Output Stage B - 43

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Intel SKYLAKE IMVP8 POWER CKT - 2+1 PHASE

VBOOT=0.8V

FOR CV

H-line 42

unused floating.

CORE Max Switching Frequency=421Khz

unused floating.

The unused ISENAxP pins are recommended to be connected to VCC

PSYS&OFSA

GT Max Switching Frequency=425Khz

10k ntc

VCORE IMON GT IMON

NO Load Offset DISABLE

CORE

NO Load Offset
PSYS DISABLE

GT

Gary_power change footprint

Short

Short

Gary_D02 for BUG solution

Gary_D02 for BUG solution

Gary_D02 for BUG solution

Gary_D02 for BUG solution

VCORE_R change to
VCORE

VCCGT_R change to

VCCGT

PJ PIN change to short

PJ PIN change to short

TONSET

SET2

SET1

SET3

SETA1

SETA2

IMON

IMONA

OFSA/PSYS

OFSM

VR_ENABLE

TONSETA

5V

5V

VIN

VREF_VCORE

3.3VS

VREF_VCORE

1.0V_VCCST

1.0V_VCCST

5V

VIN

5V

VREF_VCORE

5V

5V

3.3VS

VCCGT

VIN

VCORE

VREF_VCORE

PWM21 43

PWM11 43

CSN21 43

CSN11 43

DRVON143

CSP21 43

CSP11 43

H_CPU_SVIDCLK 4

H_CPU_SVIDALRT# 4

H_CPU_SVIDDAT 4

VCORE_PG 21

VCC_VCORE_SENSE5

VSS_VCORE_SENSE5

VCCGT_SENSE7

VSSGT_SENSE7

ALL_SYS_PWRGD 4,17,21,38

PSYS 47

H_PROCHOT# 4

PWM12 43

CSN12 43

CSP12 43

Title

Size Docum ent Number Rev

Date: Sh eet

of

6-71-N85L0-D01

D01

[44] VCC_CORE & VCCGT

Custom

44 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Docum ent Number Rev

Date: Sh eet

of

6-71-N85L0-D01

D01

[44] VCC_CORE & VCCGT

Custom

44 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Docum ent Number Rev

Date: Sh eet

of

6-71-N85L0-D01

D01

[44] VCC_CORE & VCCGT

Custom

44 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PJ2 OPEN_4mil

1 2

PR39 10K_1%_04

PR4 0_04

PR195
*0_04

PR162

200K_1%_04

PR187

5.9K_1%_04

PR196
*0_04

PR200
0_04

PJ6 1mm

1 2

PR188

0_04

PR95 100_04

PR161

0_04

PR198
0_04

PR32
100_04

PR165

80.6K_1%_04

PJ4 *CV-1mm

1 2

PR13

21.5K_1%_04

PR92 45.3_1%_04

PR213 10K_06

PC20

100p_50V_X7R_04

PR41
100_04

PR10
56K_1%_04

RT2
100k_1%_04_NTC

1 2

PR34

100K_1%_04

PR191

0_04

PR57 680_1%_04

PR16

0_04

RT4

100k_1%_04_NTC

1 2

PR61 499K_1%_06

PR66 1_1%_06

PC17
*1000p_50V_X7R_04

PR33 10K_04

PR91 *45.3_1%_04

RT3

100k_1%_04_NTC

1 2

PR216

2.2_06

PR7

1K_1%_04

PR5

100_04

PC12
*1000p_50V_X7R_04

PC13
82pF_50V_NPO_04

PR254

8.45K_1%_04

PR67 1_1%_06

PR62 100K _1%_04

C6
*0.1u_10V_X7R_04

PR8 0_04

PC18
330p_50V_X7R_04

PC15
*1000p_50V_X7R_04

PR192

0_04

PR68 330K_1%_06

PR38

4.87K_1%_04

PR12

31.6K_1%_04

PR90

*1K_1%_04

PR253
100_04

PR60

432K_1%_06

PC2
*1000p_50V_X7R_04

PR35
1_04

PR59

0_04

PC27

0.22u_50V_Y5V_06

PR9

0_04

PR40

0_04

GND

RT3606BE

PU2 RT3606 BE

ISEN3N

3

PS4

43

VCLK

23

IMONA

19

VSEN

10

ISEN2N

7

ISEN3P

2

ISEN1N

4

NC

40

SET2

13

COMPA31FBA32RGNDA

29

SETA2

16

VSENA

30

OFSA/PSYS

26

IBIAS

28

ISENA1P

35

SET1

12

PGOOD

47

SETA1

15

PWMA1

42

EN

24

ISEN2P

6

ALERT#

21

ISEN1P

5

IMON

17

COMP

9

ISENA2P34ISENA2N

33

FB

8

RGND

11

VCC

27

TSEN

1

VDIO

22

GND

49

DVD

39

ISENA1N

36

PWMA2

41

PWM3

46

PWM1

45

PWM2

44

SET3

14

OFSM

25

TONSET

48

TONSETA

38

TSENA

37

V06

18

VRHOT

20

PR55 18K_1%_04

PJ5 1mm

1 2

PR166

2.37K _1%_04

PR14

42.2K_1%_04

PC14
100p_50V_NPO_04

PC122

4.7u_6.3V_X5R_04

PR17

36.5K_1%_04

PJ8 1mm

1 2

PR249

10K_1%_04

PR3 10_04

PC19
*1000p_50V_X7R_04

PR37

0_04

PR6

11K_1%_04

PR243
100_04

PR214

0_04

PR193

0_04

PR58 680_1%_04

PJ3 1mm

1 2

PR54 10K_1%_04

PC28 0.1u_16V_X7R_04

PR18

0_04

PR15

2K_1%_04

PR11
0_04

PC1

0.47u_16V_X7R_06

PR36

43.2K_1%_04

PR2 49.9_1%_04

PC42

1u_6.3V_X5R_04

PJ7 1mm

1 2

PC29

0.22u_50V_Y5V_06

PR64

10K_06

PJ1 *CV-1mm

1 2

PR65 560K_1%_06

PR189

806_1%_04

PR164

22.1K_1%_04

PR194

17.8K_1%_04

PC16
*1000p_50V_X7R_04

PR56 680_1%_04

PR199
20K_04

PR215

432K_1%_06

PR217 10K_06

RT1
EWTF02-103F3I-N

1 2

PR190

0_04

PR163

0_04

PR63 0_04

PR1
0_04

PR218
*0_04

PR197

33.2K_1%_04

Sheet 43 of 55

VCC_Core, VCCGT

Schematic Diagrams

VCC_Core, VCCGT

B.Schematic Diagrams

B - 44 VCC_Core, VCCGT

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

3.3VA

NOTE:

3.3VA Ton need <65us
M5938 TURON-ON TIME=60us

*1 VOUT rising time can be speed up if adding
R1 & D1 network between EN and GATE
*2 VOUT rising time can be slow down if adding
C1 between GATE and GND

*1 VOUT rising time can be speed up if adding
R1 & D1 network between EN and GATE
*2 VOUT rising time can be slow down if adding
C1 between GATE and GND

VCCSFR_OC

6-15-59381-7B06-15-59381-7B0

3A

SHORT

*1 VOUT rising time can be speed up if adding
R1 & D1 network between EN and GATE
*2 VOUT rising time can be slow down if adding
C1 between GATE and GND

1.0DX_VCCSTG

1A

SHORT

NOTE:

1.0DX_VCCSTG Ton need <65us
M5938 TURON-ON TIME=60us

6-15-59381-7B0

2015.5.20

Gary_Reserved PJ73

Gary_nonstuff

Gary_power change solution ic

*1 VOUT rising time can be speed up if adding
R1 & D1 network between EN and GATE
*2 VOUT rising time can be slow down if adding
C1 between GATE and GND

C1

VCCSFR_OC

1A

SHORT

6-15-59381-7B0

Gary_power change solution ic

Gary_D02 for BUG solution

3.3VA_ON

3.3VA_OUT

3.3VA_ON

SUSB#_EN

VOUT1_U140

VCCSTG_EN

VCCSTG_EN VCCSFROC_ENSUSB#_EN

VOUT2_U141

VCCSFROC_EN

3.3VA

VDD3

VDD3

VDD3

VCCIO

VDD1.0

1.0DX_VCCSTG

VDD3

5V

VDDQ

VCCSFR_OC

VDD3

5V

SLP_SUS#23,38,40

SUSB#_EN32,39

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[45]1.0DX_VCCSTG/VCCSFR_OC, 3.3VA

A3

45 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[45]1.0DX_VCCSTG/VCCSFR_OC, 3.3VA

A3

45 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[45]1.0DX_VCCSTG/VCCSFR_OC, 3.3VA

A3

45 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

C441

10u_6.3V_X5R_06

C428

10u_6.3V_X5R_06

U5

*EM5201V

VIN

2

VIN

1

VIN

9

ON

4

VBIAS

3

VOUT

6

GND

5

PJ29 1mm

1 2

R42

*100_04

C393

10u_6.3V_X5R_06

C201

*0.1u_10V_X7R_04

R286 *10mil_short

Q2

*2SK3018S3

G

DS

C165

*10u_6.3V_X5R_06

Q14

2SK3018S3

G

DS

Q5

*2SK3018S3

G

DS

PJ13 1mm

1 2

C397

10u_6.3V_X5R_06

C388

1u_6.3V_X5R_04

G5016U25

CT2

10

OUT2

8

EN2

5

VBIAS

4

IN2

6

GND

11

EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

C164
*10u_6.3V_X5R_06

C200

1u_6.3V_X5R_04

R241

100K_04

R247 0_04

C395

*0.1u_10V_X7R_04

Q12

2SK3018S3

G

DS

PJ21 1mm

1 2

R70

*100K_04

R254

100_04

C369

10u_6.3V_X5R_06

R52 *10K_04

R242

33_04

C442

*0.1u_10V_X7R_04

Q17

2SK3018S3

G

DS

C440

10u_6.3V_X5R_06

Q18

2SK3018S3

G

DS

PJ12 *1mm

1 2

U21

EM5201V

VIN

2

VIN

1

VIN

9

ON

4

VBIAS

3

VOUT

6

GND

5

R285 10K_04

C202
*10u_6.3V_X5R_06

C401

220p_50V_NPO_04

C394

*1u_6.3V_X5R_04

R284

100K_04

Sheet 44 of 55

1.0DX_VCCSTG/
VCCSFR_OC,

3.3VA

1.0DX_VCCSTG/VCCSFR_OC, 3.3VA

Schematic Diagrams

B.Schematic Diagrams

1.0DX_VCCSTG/VCCSFR_OC, 3.3VA B - 45

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SHORT

Modify,3/20 Ken

12/25 KEN

10A

For CV test

VCCSA

(40.2K/100K+1)*0.75=1.05V

PJ PIN change to short

PJ PIN change to short

5V

5V

VCCSA

VDD3

VIN

VCCIO_EN40

VCCIO_PWRGD21,40

VCCSA_SENSE 6

VSS_SA_SENSE 6

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[46] VCCSA

A3

46 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[46] VCCSA

A3

46 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number R e v

Date: Sheet

of

6-71-N85L0-D01

D01

[46] VCCSA

A3

46 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

+

PC160

390uF_2.5V_10m_6.3*6

PC39 *15p_50V_NPO_04

PR81 *20mil_04

PC30

0.1u_50V_Y5V_06

PR84

100_04

PR70 0_06

PC37

*0.01u_16V_X7R_04

PC36

1u_6.3V_X5R_04

PR69 100K_04

PR72

2.2_04

PJ10 1mm

1 2

PR71 4.12K_1%_04

PC165

4.7u_25V_X5R_08

PC35
1u_6.3V_X5R_04

R9

0_06

PD7CSOD140SH

A C

PQ23

QM3004M3

4

5255315

PR82 *20mil_04

PC38 22u_6.3V_X5R_08

PR80 820K_1%_06

PC34

0.1u_10V_X7R_04

PJ11 *CV-1mm

1 2

PQ26

QM3006M3

4

5255315

PR85

100K_1%_04

PR86 40.2K_1%_04

PR79 10K_04

PU3

G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST

13

DH

12

LX

11

ILIM

10

VDD

9

DL

8

PGND

7

PGND

17

NC5NC

14

PC166
*4.7u_25V_X5R_08

PJ9 *1mm

1 2

PR83 100_04

PL8

BCIHP0730-1R0M

PCB Footprint = BCIHP0735A

1 2

Sheet 45 of 55

VCCSA

Schematic Diagrams

VCCSA

B.Schematic Diagrams

B - 46 VCCSA

1

1

2

2

3

3

4

4

5

5

A A

B B

C C

D D

SMART CHARGER

6-20-B3810-003

D02A modify

Battery Voltage:

12V~16.8V

6-21-D34H0-105

Option close to EC

⼭䡢 娵

change Ti

0314 del

VA1

BTST

SMD_BAT

SMD_BAT

SMC_BAT

AC_IN

ACPRES

ACDRV

REGN

SMC_BAT

ILIM

Phase

CMSRC

ACP

BATDRV

SRP
SRN

LODRV

HIDRV

BATVLT

BATGS

V_BAT

IOUT

V_BAT

ACDET

PSYS44

VDD3

VA

VDD3

VDD3

VIN

VDD3

VDD3

VA

VDD3

V_BAT

V_BAT

AC/BATL# 14

AC_IN# 38

TOTAL_CUR 38

SMD_BAT 38

SMC_BAT 38

BAT_DET38

BAT_VOLT 38

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[47] AC_IN,CHARGER

Custom

47 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[47] AC_IN,CHARGER

Custom

47 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

Title

Size Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[47] AC_IN,CHARGER

Custom

47 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

D01

PR30

60.4K_1%_04

PC106

4.7u_25V_X7R_08

PC9

0.1u_16V_Y5V_04

PC120

4.7u_25V_X7R_08

PR300

*20mil_short_04

PD1
*RB0540S2

A C

PC4

100p_50V_NPO_04

PR298
*20mil_short_04

C497

10u_25V_X5R_08

PR53

10K_04

PR22

75K_1%_04

PR4910_04

PR158

2.2_06

PR301

*20mil_short_04

PC134

0.1u_50V_Y5V_06

PC91

4700p_50V_X7R_04

PR236

4.7_04

PC124

0.1u_50V_Y5V_06

PC108

0.01u_25V_X7R_04

PR20

10K_1%_04

PR43 0_04

PL2 HCB1005KF-121T20

PQ2

MTE1K0P15KN3

G

DS

PR50

75K_1%_04

PR21
*24K_1%_04

PD4

ZD5245BS2

AC

PC125

1000p_50V_X7R_04

PR52
100K_04

PR159

470K_04

L24

HCB2012KF-800T80

PQ22
QM3006M3

4

52
5531

5

PL4

BCIHP0730-4R7M

12

PQ13
QM3006M3

4

5255315

PR44

10K_1%_04

PC23

0.1u_50V_Y5V_06

PC8810u_25V_X5R_08

PR4810_04

PQ20
QM3006M3

4

5255315

PR31

*20K_04

PR29

10K_04

PR160

10K_1%_04

PC107

4.7u_25V_X7R_08

PC9010u_25V_X5R_08

PD2

SS1040WG

A C

JBAT1

C144DF-105A8-L

N87RC_RN

1

2

3

4

5

PD11
MDL914S2

AC

PR28 10K_04

PC1350.047u_16V_X7R_06

PQ4

BTN3904

M-SOT23-CBE

B

E C

PR51
287K_1%_04

PR186 *0_04

PC92

0.1u_50V_Y5V_06

PC8

0.1u_25V_X7R_06

PRS1

0.01_1%_32

PD9

*MESMAJ20A-G

A C

C2 30p_50V_NPO_04

PC10*10u_25V_X5R_08

JBAT2

C144DF-105A8-L

N85RC_RN

1

2

3

4

5

PQ21
QM3006M3

4

5 2
5

5 3

1

5

PQ18
QM3004M3

4

5255315

PC118

0.1u_50V_Y5V_06

PR234

4.02K_1%_04

PR25 0_06

PR219

4.7_06

PR299

*20mil_short_04

PRS4

0.01_1%_32

PR47

4.02K_1%_04

PR26
300K_1%_04

PR235

4.02K_1%_04

PC7

2.2u_16V_X5R_06

PQ3

2SK3018S3

G

DS

C1 30p_50V_NPO_04

PR220

4.7_06

PC11*10u_25V_X5R_08

PR24
10_1%_06

PR27

47K_04

PC3

100p_50V_NPO_04

PL1

HCB1005KF-121T20

PC119

4.7u_25V_X7R_08

PD3

SS1040WG

A C

PC6
1u_25V_X5R_06

PC123

2.2u_25V_X5R_08

PR45
*10K_1%_04

PR23 *0_04

PR4610_04

PC110

0.1u_50V_Y5V_06

PQ1

2SK3018S3

G

DS

PR19 0_04

PR42 0_04

PC121

1500p_50V_04

C3 30p_50V_NPO_04

PC117

1000p_50V_X7R_04

PD5

*MMSZ5232BS

A C

PU1

BQ24780SRUYR

ACN

1

ACP

2

CMSRC

3

ACDRV

4

ACOK

5

ACDET

6

IADP

7

IDCHG8PMON9PROCHOT#10SDA11SCL12CMPIN13CMPOUT

14

BATPRES#

15

TB_STAT#

16

BATSRC

17

BATDRV

18

SRN

19

SRP

20

ILIM

21

GND_1

22

LODRV

23

REGN

24

BTST

25

HIDRV

26

PHASE

27

VCC

28

GND_2

29

PC109

0.1u_50V_Y5V_06

PC24

0.1u_50V_Y5V_06

PC133

0.1u_50V_Y5V_06

PC93
*1u_25V_X5R_06

PD6

*MMSZ5232BS

A C

PC5

100p_50V_NPO_04

PC25

0.1u_50V_Y5V_06

J_DC_JACK1
2DC3003-002211

PCB Footprint = TDC-099DHSR2-L-005-J-1

P/N =

1
2

3

3

45

PD10
MDL914S2

AC

L23

*HCB2012KF-800T80

0.1u_50V_Y5V_06

Sheet 46 of 55

AC_In, Charger

AC_In, Charger

Schematic Diagrams

B.Schematic Diagrams

AC_In, Charger B - 47

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

0.6V~1.2V

NVVDD FOR N17_VGA

15A

15A

EMI

EMI

NVVDD PHASE 1 ~2

DEFAULT SHORT

30A

N17S STUFF RT8813D

Power Ken change Mos

㓦 暣 䶂 嶗

0303㓡 ᶵ

ᶲẞ

0307 Change ᶵ ᶲ

ẞ

0307枸 䔁㰺 SLG

㓦暣

0314 del

0314 change0603

0314 change0603

VDD_MAIN_EN

NVVDD_UGATE2

NVVDD_VREF

NVVDD_FBDRTN

NVVDD_PH1

NVVDD_COMP

NVVDD_REFADJ

NVVDD_UGATE1

NVVDD_UGATE2

NV_VDD

NVVDD_PVCC

NV_VDD

NVVDD_PH2

NVVDD_VREF

NVVDD_REFADJ

NVVDD_PWM3

NVVDD_PH2

NVVDD_PH1

NVVDD_DGPU_ON

5V

5VS

5V_5VS

5V_5VS

NVVDD

1.8V

VIN

VIN

5V_5VS

VIN

3.3V

VDD_AON

3.3VS

NVVDD

VDD3

GPU_VDD_SENSE15

NVVDD_PWRGD 14,49

GPU_VSS_SENSE15

NVVDD_PSI 14

VDD_MAIN_EN 14,50

NV_NVVDD_EN 14,48

NV_NVVDD_EN14,48

VDD_MAIN_EN#49,50

GPU_PWR_VID14

Titl e

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[48]NVVDD

Custom

48 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Titl e

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[48]NVVDD

Custom

48 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Titl e

Size

Document Number Rev

Date: Sheet

of

6-71-N85L0-D01

D01

[48]NVVDD

Custom

48 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PQ16

MDU5693

1

283

4

9

567

PR182
0_04

PR88

*15_1%_06

PJ44
*CV-40mil

1 2

PC87 0.1u_50V _Y5V_06

PR168 0_04

+

PC142 *EEEFZ1E101P

PR172

*0_04

PL5
BCIH1040-R36M

PR211

*12K_1%_04

+

PC140 *EEEFZ1E101P

PR208

*0_04

PR87

*15_1%_06

PC111

0.1u_25V_X7R_06

PC84

*0.01u_50V_X7R_04

PU8

RT8813D

N17S RT8813D

REFIN

7

VREF

8

TON

9

FB

11

COMP

12

EN

3

VID

5

PVCC

21

PSI

4

LGATE2

20

PHASE1

24

GND

25

FBDRTN

10

LGATE1

23

REFADJ

6

BOOST1

1

UGATE1

2

PGOOD16UGATE217BOOT2

18

PHASE2

19

ISEN313ISEN214ISEN1

15

PWM3

22

PC94

*4700p_50V_X7R_04

PR174 100_04

PR207
0_04

+

PC163 *330uF_2V_5*4.2

PC105 4.7u_25V_X7R_08

PR223 4.7K_1%_04

㚱SLG ᶵᶲẞ

PC104 4.7u_25V_X7R_08

PQ17

*MDU5693

1

283

4

9

567

PR171

*51K_1%_04

PC95

*1000P_50V_X7R_04

PC100 4.7u_25V_X7R_08

PC113

0.1u_25V_X7R_06

+

PC157 330uF_2V_5*4.2

PR201 *0_04

PR170

*15.8K_1%_04

PR203 10K_04

PR181 2.2_06

R362
12K_04

PC116

220p_50V_NPO_04

PR173 *10K_04

PR153 0_04

PR205 0_04

PR222 12K_04
㚱SLGᶵᶲẞ

D25 RB751V-40(lision)

㚱SLG ᶵᶲẞ

AC

PR179

2.2_06

PR183
100K_04

PC103 4.7u_25V_X7R_08

PQ5

*2SK3018S3

G

DS

PR150
*0_04

PC89 0.1u_50V_ Y5V_06

PR152 0_04

PR96 *0402_short

PC98

4700p_50V_X7R_04

PC96 *0.01u_50V_X7R_04

PC41
*10u_6.3V_X5R_06

PR167
*0_04

PR185

*0_04

PC112

1u_6.3V_X5R_04

PR263 0_04

PC126

220p_50V_NPO_04

PC83

*33p_50V_NPO_04

PR184
100K_04

PR89

*15_1%_06

PR151 0_04

PR206

0_04

PQ14

MDU5693

1

283

4

9

567

PR176 6.19K_1%_04

PR202 10K_04

PR180
0_04

C45

*2R5TPE220MAFB

PC40*10u_6.3V_X5R_06

PR178

*10K_04

PR212

*0_04

PR210 10K_04

PC99 4.7u_25V_ X7R_08

PR157

20.5K_1%_04

PR204 *10K_04

PR94

*15_1%_06

PR156

309_1%_04

PC115

0.1u_10V_X7R_04

㚱SLG ᶵᶲẞ

PC97

0.1u_10V_X7R_04

PC102 4.7u_25V_X7R_08

PR149 100_04

PR169

*0_04

PQ15

*MDU5693

1

283

4

9

567

PR155 16.5K_1%_04

PC85 *4700p_50V_X7R_04

PC114

*47p_50V_NPO_04

PR175

4.32K_1%_04

PR224 10K_04

PR209 0_04

+

PC155 330uF_2V_5*4.2

PQ6

*QM3006M3

4

5255315

+

PC156 330uF_2V_5*4.2

PR154 499K_1%_1/16W_04

PR229

5.1_06

PR228

5.1_06

PR221 2.2_04

PJ43 *CV-40mil

1 2

PC101 4.7u_25V_X7R_08

PR177 0_04

PR93
*2K_04

PR226 0_04

PC86 4.7u_25V _X7R_08

PC141 0.1u_10V_X7R_04

PL6

BCIH1040-R36M

Sheet 47 of 55

NVVDD

Schematic Diagrams

NVVDD

B.Schematic Diagrams

B - 48

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

FBVDDQ FOR N17 VGA

12A

EMI

1.35VS

GC6 2.0

SHORT

FBVDDQ

㓦暣䶂嶗ᾖ㓡

FB_PWRGD

FB_PWRGD

NV_FBVDDQ_EN

FB_PWRGD

DGPU_PWRGD

3.3VS

VIN

FBVDDQ

5V

5V

VIN

3.3V

VDD_AON

VDD3

3.3VS 3.3VS

PEXVDD_PWRGD49,50

NVVDD_PWRGD14,48,49

DGPU_PWRGD 10,24

GC6_FB_EN14,24,38

NVVDD_PWRGD14,48,49

PEXVDD_PWRGD49,50

NV_FBVDDQ_EN14

VDD_MAIN_EN#48,50

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[49]FBVDDQ

Custom

49 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[49]FBVDDQ

Custom

49 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[49]FBVDDQ

Custom

49 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PL12

BCIHP0730-1R0M

PCB Footprint = BCIHP0735A

1 2

PR113
0_06

PC176

4.7u_25V_X5R_08

PC49

*0.01u_16V_X7R_04

PC46

0.1u_10V_X7R_04

PC174

2200p_50V_X7R_04

PR264 0_04

㚱

SLG

ᶲẞ

C587

1000p_50V_X7R_04

S

D

G

Q35B

*MTDK3S6R

5

34

PR117
10K_04

PC177

4.7u_25V_X5R_08

PR265

2.2_1%_06

U16

74AHC1G32GW

㚱

SLG

ᶵᶲẞ

GND

3

B

2

A

1

Y

4

Vcc

5

+

PC172 *390uF_2.5V_10m_6.3*6_m

PR99

15_06

S

D

G

Q35A

*MTDK3S6R

2

61

PR112

2.2_04

PR116
100K_1%_04

PC182

1u_6.3V_X5R_04

PR98

15_06

R200 0_04

PR114

0_04

R363
*100K_04

C606

*0.1u_50V_Y5V_06

PC181

1u_6.3V_X5R_04

C

A

A

D13
BAT54AS3

1

2

3

PC47 *15p_50V_NPO_04

R364
*100K_04

PR100

15_06

PR106 *10K_04

PQ28
MDU1531
ULTRASO-8

G

DS

PD12 CSOD140SH

A C

PU4

G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST

13

DH

12

LX

11

ILIM

10

VDD

9

DL

8

PGND

7

PGND

17

NC5NC

14

PR101

15_06

PC43

10u_6.3V_X5R_06

㚱

SLG

ᶲẞ

PR108

*10mil_short

PR110 0_04

㚱

SLG

ᶵᶲẞ

PR115 84.5K

PR109 *0_04

PR97
2K_04

㚱

SLG

ᶲẞ

PR268

2.2_04

PJ20 *CV-1mm

1 2

PQ7
2SK3018S3

G

DS

PC44
*10u_6.3V_X5R_06

PR118 820K_1%_06

PR102 0_04

㚱

SLG

ᶵᶲẞ

PR111

3.6K_1%_04

PJ19
*CV-1mm

1 2

PC175

0.1u_50V_Y5V_06

PQ8

QM3006M3

4

5255315

PQ29
MDU1516
ULTRASO-8

G

DS

+

PC173 390uF_2.5V_10m_6.3*6_m

Sheet 48 of 55

FBVDDQ

FBVDDQ

Schematic Diagrams

B.Schematic Diagrams

FBVDDQ B - 49

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PEX_VDD

Cold boot/Optimus: 3V3_AON→ 3 V3_RUN → NVVD D→ PEX_VDD→ FBVDDQ
GC6 2.0 Exit: 3V3_RUN→ NVVDD, PEX_VDD

Rb

Rt

Vout= Vref * (1+(Rt/Rb))

1.05V= 0.6* (1+(15K/20K))

3A

N16-->1.05V

N17-->1V

0105

Rt

Rb

Open VREG Type 0

1.8V= 0.6 * (1+(20K/10K))

Vout= Vref * (1+(Rt/Rb))

1.8V for N17

2.6Amps @ 1.8V

1015
NV timing ADJ

1A 1A

EM5290
PCBfootprint:
TDFN14-2X3MM-A

2nd source G5016

VDD_AON
N17=>1V8_AON

N17A

VDD_RUN
N17=>1V8_RUN

㓦暣䶂嶗ᾖ㓡

㓦暣䶂嶗ᾖ㓡

0306 DEL PULL LOW

SHORT

SHORT

SHORT

SHORT

0307 Change OP

0307 Change 100ohm

PS6_FB_PEXVDD

PS6_FB_MARGIN_PEXVDD

PS6_FB_RR_PEXVDD

PS6_FB_RC_PEXVDD

PS6_VCC_PEXVDD

PS6_SW_PEXVDD

VDD_MAIN_EN_R

2.4A

0.400

4A

0.200

1.8V_PWRGD

1.8V_EN

VDD_MAIN_EN_R

VDD_MAIN_EN#

VDD_RUN_U36VDD_AON_U36

EN1_U36

VDD_MAIN_EN_R

CT2_U36

VDD_RUN_U36

NV_1V8RUN_EN

VDD_MAIN_EN#

NV_PEXVDD_EN

VDD_MAIN_EN#

VDD_AON_U36

NV_1V8AON_EN

VDD_MAIN_EN#

GND

3.3VS

5V

PEX_VDD

3.3V

1.8V

5V

VDD_RUN

VDD_RUN

3.3V

VDD3

VDD_RUNVDD_AON

3.3V

1.8V

3.3VS

VDD3

PEX_VDD

PEXVDD_PWRGD49

DD_ON32,33,38,39,41

VDD_MAIN_EN 14,48

VDD_MAIN_EN# 4 8,49

dGPU_PWR_EN14,24,38

NV_PEXVDD_EN14

NV_1V8RUN_EN 14NV_1V8AON_EN14

Titl e

Size

Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[50]PEX_VDD/3V3

Custom

50 56Tuesday, March 21, 2017

Titl e

Size

Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[50]PEX_VDD/3V3

Custom

50 56Tuesday, March 21, 2017

Titl e

Size

Document Number R ev

Date: Sheet

of

6-71-N85L0-D01

D01

[50]PEX_VDD/3V3

Custom

50 56Tuesday, March 21, 2017

R509

*10_06

PR272 *10K_04

R564 100K_1%_04

㚱SLGᶵᶲẞ

PR270 10K_1%_04

C338

0.1u_16V_Y5V_04

OpenVReg

G5671RE1U

INS29939716

PU9

DFN10

G5671RE1U

6

FB

8

VCC

9

VIN

2

SW

3

SW

10

VIN

4

PGOOD

5

EN

11

THERM

1NC7

NC

PR262 0_04

㚱SLGᶲẞ

PR273

10K_1%_04

PJ46
3mm

1 2

PC184

22u_6.3V_X5R_08

PR274 *160K_04

PJ16

OPEN_2A

1 2

R187

100_06

PR225 10K_04

PL13 BCIHP0420TB-2R2M

1 2

PR276 20.5K_1%_04

R225

1K_04

㚱SLGᶵᶲẞ

PC48

22u_6.3V_X5R_08

R217 0_06

PR277 0_04

C320

4.7u_6.3V_X5R_06

PR266 10K_04

PR239

10_06

PC153

22u_6.3V_X5R_08

PR252

10_06

U19

U74AHC1G08G-AL5-R

㚱SLGᶵᶲẞ

1

2

5

4

3

R216

10K_04

PC50

0.1u_10V_X7R_04

C321

68p_50V_NPO_04

PC138

0.1u_10V_X7R_04

PC187 *0.01u_16V_X7R_04

PR248

*10_06

C607

0.047u_10V_X7R_04
㚱SLGᶵᶲẞ

PC148

22u_6.3V_X5R_08

PJ18

*3mm

1 2

PC136

0.1u_10V_X7R_04

S

D

G

Q48A
MTDK3S6R

2

61

PJ17

OPEN_2A

1 2

PC154

22u_6.3V_X5R_08

OpenVReg

PU13

INS29941478

RT8071CGQW

DFN10
COMMON

1

FB

2

VCC

3

VIN

4

GND

5

GND

6

SW

7

SW

8

BOOT/NC

9

PGOOD

10

EN/FS

11

THERM

C339

0.1u_16V_Y5V_04

PR271 *39.2K_1%_04

PC179

*0.22u_10V_X5R_04

PC137 *22p_50V_NPO_04

S

D

G

Q48B
MTDK3S6R

5

34

C608

1u_6.3V_X5R_04

PR269

10_06

PR242 10K_04

PR238 13.7K_1%_04

S

D

G

Q47A
MTDK3S6R

2

61

D26 RB751V-40(lision)

㚱

SLG

ᶵᶲẞ

AC

C323

4.7u_6.3V_X5R_06

S

D

G

Q11A

MTDK3S6R

2

61

S

D

G

Q49B
MTDK3S6R

5

34

PR240 20K_1%_04

PC185

0.1u_10V_X7R_04

S

D

G

Q47B
MTDK3S6R

5

34

PR267 0_04

R565 100K_04

㚱SLG 0ohm

PR237 0_04

S

D

G

Q11B

MTDK3S6R

5

34

PC139

0.1u_10V_X5R_04

㚱

SLG

ᶵᶲẞ

S

D

G

Q49A
MTDK3S6R

2

61

PC178

1u_6.3V_X5R_04

EM5209U18

CT2

10

OUT2

8

EN25VBIAS

4

IN2

6

GND11EN1

3

CT1

12

OUT1

13

IN1

1

IN1

2

OUT1

14

IN2

7

OUT2

9

GND

15

PL7 BCIHP0420TB-2R2M

1 2

PR227 0_04

㚱SLGᶲẞ

PC51

22u_6.3V_X5R_08

PR241 39K_1%_04

㚱

SLG

ᶵᶲẞ

C322
68p_50V_NPO_04

PR275 *0_04

C609

0.22u_10V_X5R_04

㚱SLGᶵᶲẞ

PJ53 *CV-40mil

1 2

D15 RB751V-40(lision)㚱SLG

ᶵᶲẞ

AC

PJ45 *CV-40mil

1 2

PC186 *3300p_50V_X7R_04

Sheet 49 of 55 PEX_VDD/3V3

Schematic Diagrams

PEX_VDD/3V3

B.Schematic Diagrams

B - 50 PEX_VDD/3V3

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

USB PORT(PORT9)

AUDIO JACK

ConnectorAUDIO BOARD

6-71-N8508-D03

Ἕㆸ慵䔲

60 mil 60 mil

HEADPHONE

MIC IN

BLACK

BLACK

Resistor 32 or 33_04
meet WLK Test

VT1802P
75_04

6-20-B2800-106 2SJ-T351-S23

6-19-31001-245
6-19-31001-271

CLOSE TO CONNECTOR

USB3.0 CON

60 mil

USB2.0 CON

60 mil

6-02-62882-9C0

6-19-31001-004

6-19-31001-004

6-19-31001-004

6-19-31001-004

60 mil 60 mil

6-02-62882-9C0

CLOSE TO CONNECTOR

Gary_Change CON. for ME issue

Gary_SWAP

Gary_SWAP

Realtek Headphone Anti-Pop Circuit.

Gary_D02 for BUG solution

Gary_D02 for ME design

Gary_D02 for ALC269-VB7 co-lay

Gary_D02 for ALC269-VB7 co-lay

Gary_D02 for ALC269-VB7 co-lay

Gary_D02 for BUG solution

AHEADPHONE-R_R

AHEADPHONE-L_R

AHEADPHONE-R

AHEADPHONE-L

AMIC_SENSE

AMIC1-R_R

AMIC1-L

AMIC1-R

AMIC1-L_R

AHEADPHONE-R-R

AHEADPHONE-L-R

AUSB3_RX8_N_C

AUSB3_RX8_P_C

AUSB3_TX8_N_C

AUSB3_TX8_P_C

AUSB_PP8_C

AUSB_PN8_C

AUSB2_PP9
AUSB2_PN9

AUSB3_RX8P

AUSB3_RX8_N_C

AUSB3_RX8_P_C

AUSB3_TX8_N_C

AUSB3_RX8N

AUSB3_TX8_P_C

AUSB2_PP8

AUSB_PN8_C

AUSB3_TX8_N AUSB3_TX8N
AUSB3_TX8_P AUSB3_TX8P

AUSB2_PP9

AUSB2_PN9

AUSB_PP9

AUSB_PN9

AUSB_PP8

AUSB_PN8

AUSB_PP9_C
AUSB_PN9_C

AUSB3_RX8_N

AUSB3_RX8_P AUSB3_RX8P

AUSB3_RX8N

AHP_SENSE

AMIC_SENSE

AHEADPHONE-L
AHEADPHONE-R

AHP_SENSE

AUSB3_TX8_N
AUSB3_TX8_P

AUSB3_RX8_N

AUSB3_RX8_P

AUSB_PN8

AUSB_PP8

AUSB_PN9

AUSB_PP9

AMIC1-R

AMIC1-L

AUSB2_PN8

AUSB2_PN8
AUSB2_PP8 AUSB_PP8_C

AHEADPHONE-R-R

AHEADPHONE-L-R

AEAPD

AEAPD

AGND A_AUDG

AGND AGND

AGND AGND

AGND AGND

AGND

A_5V

A_USBVCC2

AGND

AGND

A_AUDG

A_AUDG

AGND AGND

AGND

AGND

A_USBVCC1

AGND

A_5V

AGND

AGND

AGND

AGND

A_USBVCC2

AGND

AGND

AGNDAGND

AGND AGND

AGNDAGND

AGND AGND

AGND

A_5V A_USBVCC1

AGND

AGND

AGND

AGND

A_AUDG

AGND

AGND

AGND

AGND

AGND

A_AUDG

AGND

A_3.3VS_AUD

A_AUDG

A_AUDGA_AUDG

A_3.3VS_AUD

Title

Size Document Number R ev

Date: Sheet

of

6-71-N8508-D03

D01

[51]AUDIO BOARD

A3

51 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-N8508-D03

D01

[51]AUDIO BOARD

A3

51 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number R ev

Date: Sheet

of

6-71-N8508-D03

D01

[51]AUDIO BOARD

A3

51 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

AC26 0.1u_10V_X7R_04

AL6

*WCM2012F2S-161T03-short

1

4

2

3

AC28

10u_6.3V_X5R_06

AH1
C71D71N

AJ_MIC1

JK06006BQ7648

PCB Footprint = 2SJ-T351-018-A

P/N = 6-20-B28L0-006

2

6

5

3

1

4

Standard-A

AJ_USB1

C19007-90905-L NEW

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+9SHIELD

GND1

SHIELD

GND2

SHIELD

GND3

SHIELD

GND4

AL4 FCM1005KF-121T03

AC15

10u_6.3V_X5R_06

AC20

10u_6.3V_X5R_06

AR17 1K_04

N85RC_RN

AU3

SY6288D20AAC

OC#

3

VIN

5

EN#

4

VOUT

1

GND

2

AL1

*WCM2012F2S-161T03-short

1

4

2

3

AR13

*220K_04

AC33 *22u_6.3V_X5R_08

AL5 FCM1005KF-121T03

AC14 *0.1u_10V_X7R_04

AC12 *22u_6.3V_X5R_08

AJ_HP1

JK06006BQ7648

PCB Footprint = 2SJ-T351-018-A

P/N = 6-20-B28L0-006

2

6

5

3

1

4

AQ2
BTD2444N3 SMD

N85RC_RN

B

E C

3AR *0_04

AC4 0.1u_10V_X7R_04

5AR *0_04

AC29

*0.1u_10V_X5R_04

AC3 0.1u_10V_X7R_04

AR15

1K_04

N85RC_RN

AQ3
BTD2444N3 SMD

N85RC_RN

B

E C

1AR *0_04

1

AH3

MTH6_0D2_3

2

3 5

4

AR16

1K_04

N85RC_RN

AJ_USB2

C107BF-10405-L

V+

1

GND1

GND1

DATA_L

2

DATA_H

3

GND

4

GND2

GND2

AGND

GND3

AGND

GND4

AC10 22u_6.3V_X5R_08

2AR *0_04

1

AH4

MTH6_0D2_3

2

3 5

4

AR14 1K_04

N85RC_RN

AC31 0.1u_10V_X7R_04

AD35

DT1140-04LP-7

5

1
2
3
4

10
9
8
7
6

AQ1
BTB1590N3

N85RC_RN

B

EC

AC6

100p_50V_NPO_04

4AR *0_04

AC34

10u_6.3V_X5R_06

N85RC_RN

AC27 22u_6.3V_X5R_08

AC1 0.1u_10V_X7R_04

AD36

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

AL7

*WCM2012F2S-161T03-short

1

4

2

3

AR12 82_04

AH5
C71D71N

AL3 FCM1005KF-121T03

AC5

100p_50V_NPO_04

AJ_AUD1

T40 0.5P 2.0H FPC W/COVER

PCB Footprint = FP201-040X1-0M

_

1
2
3
4
5
6
7
8

9
10
11
12

GND1GND2

13
14
15
16

18

17

19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

AU1

SY6288D20AAC

OC#

3

VIN

5

EN#

4

VOUT

1

GND

2

AR11 82_04

AC30

0.1u_10V_X7R_04

AC25 0.1u_10V_X7R_04

AC2

0.1u_10V_X7R_04

AC9

*0.1u_10V_X5R_04

6AR *0_04

AC7

100p_50V_NPO_04

AC11 *0.1u_10V_X7R_04

AC8

100p_50V_NPO_04

+

AC32 *100u_6.3V_B_A

AD37

DT1140-04LP-7

5

1

2

3

4

10

9

8

7

6

AL2 FCM1005KF-121T03

AC18

10u_6.3V_X5R_06

Sheet 50 of 55

Audio Board

Audio Board

Schematic Diagrams

B.Schematic Diagrams

Audio Board B - 51

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

WHITE

POWER SW BOARD

POWER
BOTTOM

6-71-N850S-D03

Ἕㆸ慵 䔲

6-52-57301-022

6-13-82001-2AB

POWER
BUTTON
LED

6-53-31500-B41

PCBfootprint:
TJE-53X-Q

BSW1

21

43

5

6

Gary_change for ME

For N855/N870

For N850

WHITE

6-52-57301-022

6-13-82001-2AB

POWER
BUTTON
LED

Gary_D02 for N870 ME design

BPWRBTN#

BPWRBTN#

BPWRBTN#

BH_3.3VS

BH_3.3VS

BDGND

BDGND

BDGNDBDGND

BDGND

BH_3.3VS

BDGND

BH_3.3VS

BDGND

Title

Size Document Number Rev

Date: Sheet

of

6-71-N850S-D03

D01

[52]POWER SWITCH BOARD

A3

52 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-N850S-D03

D01

[52]POWER SWITCH BOARD

A3

52 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet

of

6-71-N850S-D03

D01

[52]POWER SWITCH BOARD

A3

52 56Tuesday, March 21, 2017

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

BR4

820_06

N85RC_RN

BH4

H5_5D2_3

4BR *0_04

BJ_SW1

FP226H-004S10M

N850RC_RN

1
2
3
4

1BR *0_04

BD4

RY-SP190DBW71-5A

N85RC_RN

AC

BJ_SW2

FP226H-004S10M

N855N870RC_RN

1
2
3
4

6BR *0_04

BH2

H5_5D2_3

5BR *0_04

BR5

820_06

N87RC_RN

BH1

C71D71N

BD5

RY-SP190DBW71-5A

N87RC_RN

AC

2BR *0_04

BSW1
T4BJB10BQR

3

1

4

2

3BR *0_04

Sheet 51 of 55

Power Switch

Board

Schematic Diagrams

Power Switch Board

B.Schematic Diagrams

B - 52 Power Switch Board
