Clevo N750GU, N751GU User guide

Contents

About this Concise User Guide ......................................................... 1

System Startup ..................................................................................4

System Map: Front View with LCD Panel Open (Model A) ..........5

System Map: Front View with LCD Panel Open (Model B) ........... 6

LED Indicators ..................................................................................7

Keyboard ........................................................................................... 8

Control Center .................................................................................10

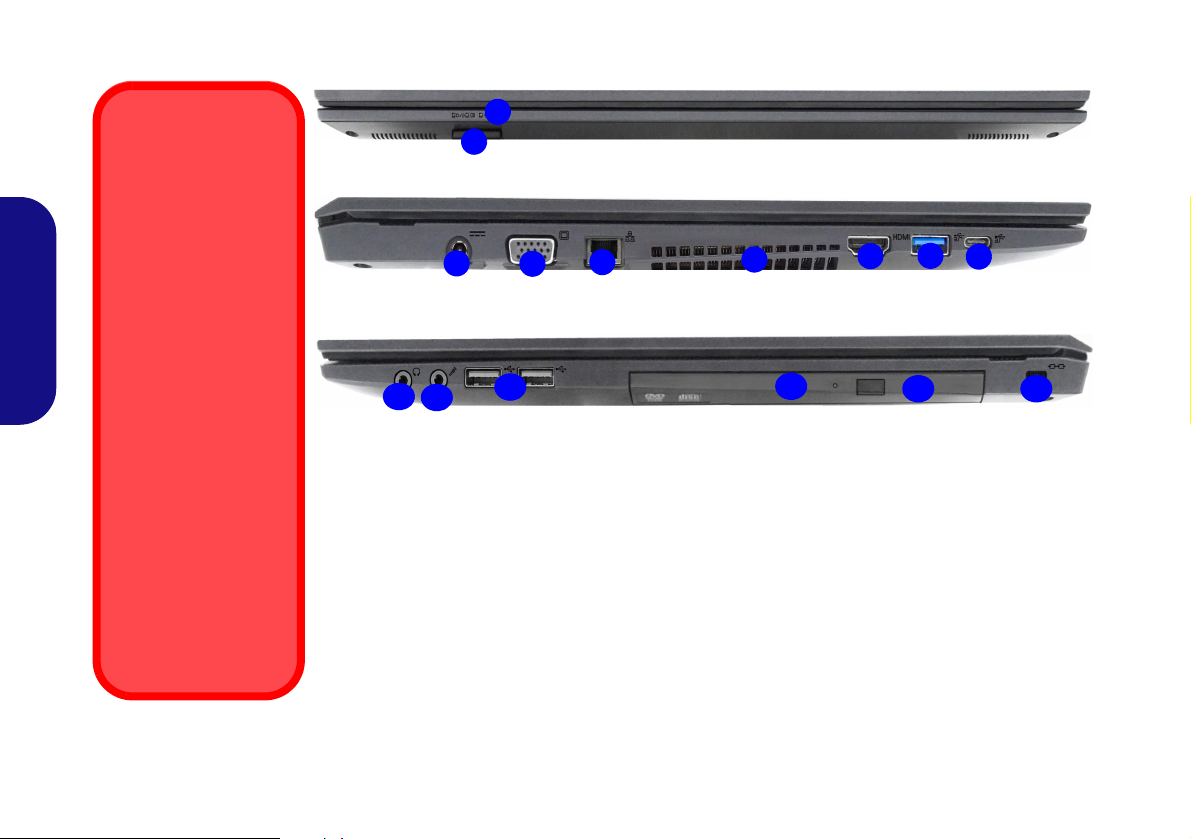

System Map: Front, Left & Right Views (Model A) ......................13

System Map: Front, Left & Right Views (Model B) ......................14

System Map: Bottom & Rear Views .............................................. 15

Windows 10 Start Menu, Context Menu, Taskbar, Control Panel

and Settings .....................................................................................16

Video Features ................................................................................17

Audio Features ................................................................................ 18

Power Options .................................................................................18

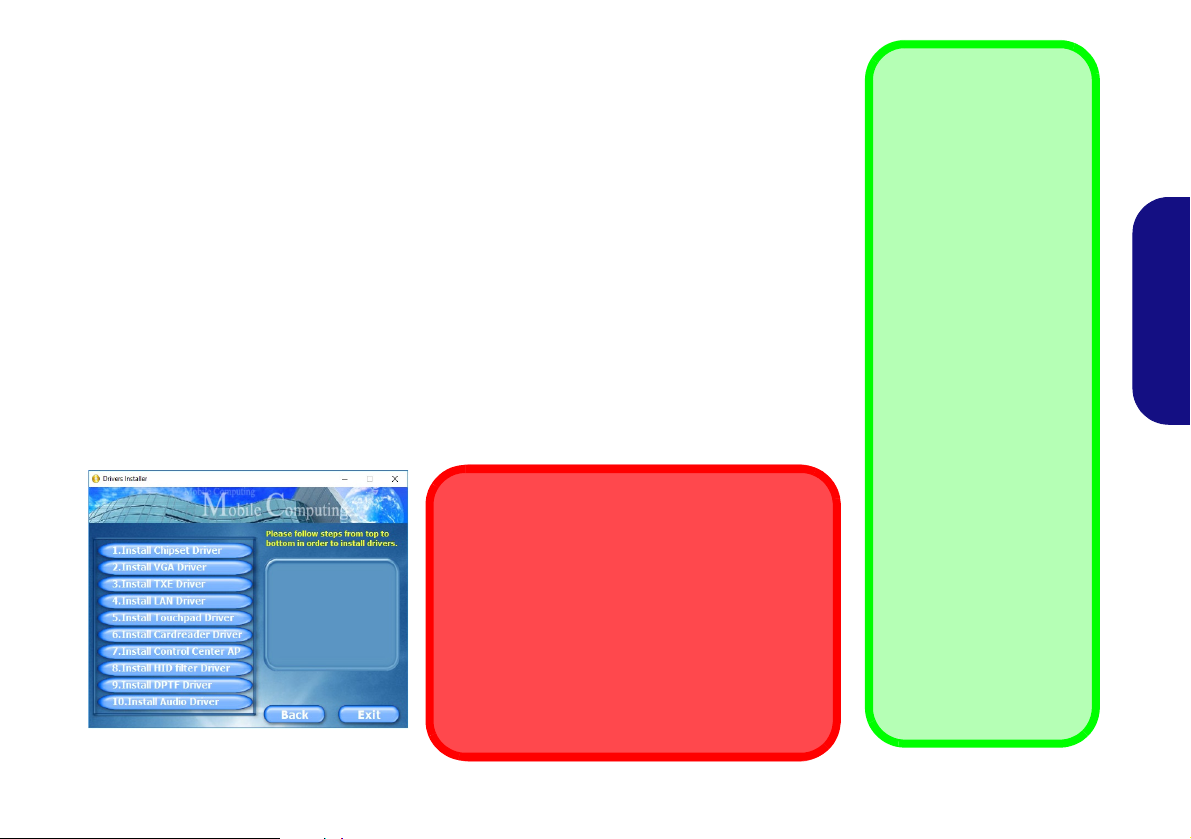

Driver Installation ........................................................................... 19

TPM (Option) ..................................................................................20

4G LTE Module (Option) ...............................................................21

Troubleshooting ..............................................................................22

Specifications ..................................................................................23

Inhalt

Über das Ausführliche Benutzerhandbuch .....................................25

Schnellstart ......................................................................................28

Systemübersicht: Ansicht von vorne mit geöffnetem LCD-Bildschirm

(Modell A) ...................................................................................29

Systemübersicht: Ansicht von vorne mit geöffnetem LCD-Bildschirm

(Modell B) ....................................................................................30

LED-Anzeigen ................................................................................31

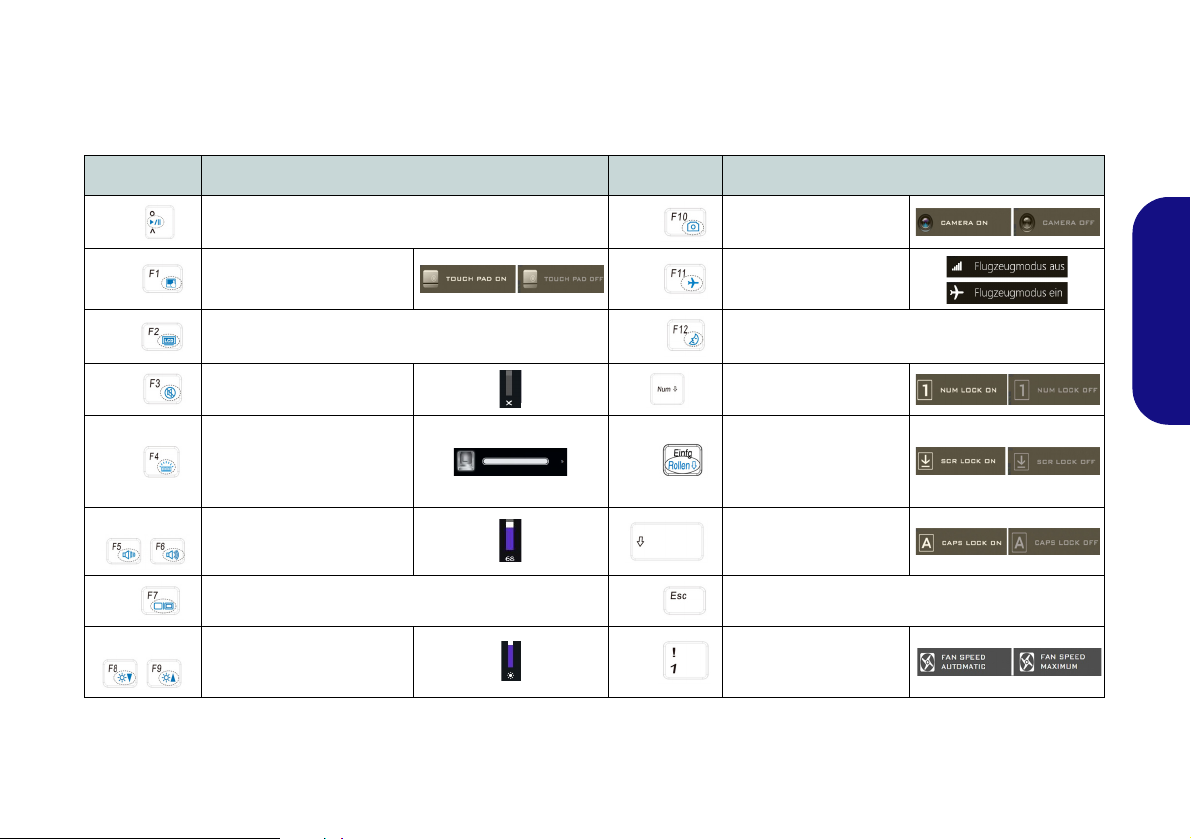

Tastatur ...........................................................................................32

Control Center .................................................................................34

Systemübersicht: Ansicht von vorne, links und rechts

(Modell A) .......................................................................................37

Systemübersicht: Ansicht von vorne, links und rechts (Modell B) .38

Systemübersicht: Ansicht von unten und hinten .............................39

Start-Menü, Kontextmenü, Taskleiste, Systemsteuerung und

Einstellungen von Windows 10 .......................................................40

Grafikfunktionen .............................................................................41

Audiofunktionen ..............................................................................42

Energieoptionen ..............................................................................42

Installation der Treiber ....................................................................43

TPM (Option) ..................................................................................44

4G LTE-Modul (Option) .................................................................45

Fehlerbehebung ...............................................................................46

Technische Daten ............................................................................47

Sommaire

A propos de ce Guide Utilisateur Concis ........................................49

Guide de démarrage rapide .............................................................52

Carte du système: Vue de face avec l’écran LCD ouvert

(Modèle A) .....................................................................................53

Carte du système: Vue de face avec l’écran LCD ouvert

(Modèle B) .....................................................................................54

Indicateurs LED ..............................................................................55

Clavier .............................................................................................56

Control Center .................................................................................58

Carte du système: Vues de face, gauche et droite (Modèle A) .......61

Carte du système: Vues de face, gauche et droite (Modèle B) .......62

Carte du système: Vues de dessous et arrière .................................63

Menu Démarrer, Menu contextuel, Barre des tâches, Panneau de

Configuration et Paramètres de Windows 10 ..................................64

Caractéristiques vidéo .....................................................................65

Caractéristiques audio .....................................................................66

Options d’alimentation ....................................................................66

Installation du pilote ....................................................................... 67

TPM (Option) ..................................................................................68

Module 4G LTE (Option) ...............................................................69

Dépannage .......................................................................................70

Spécifications ..................................................................................71

Contenidos

Acerca de esta Guía del Usuario Concisa ....................................... 73

Guía rápida para empezar ...............................................................76

Mapa del sistema: Vista frontal con panel LCD abierto

(Modelo A) ......................................................................................77

Mapa del sistema: Vista frontal con panel LCD abierto

(Modelo B) ......................................................................................78

Indicadores LED ............................................................................. 79

Teclado ............................................................................................80

Control Center .................................................................................82

Mapa del sistema: Vistas frontal, izquierda y derecha

(Modelo A) .....................................................................................85

Mapa del sistema: Vistas frontal, izquierda y derecha

(Modelo B) ..................................................................................... 86

Mapa del sistema: Vistas inferior y posterior .................................87

Menú Inicio, Menú contextual, Barra de tareas, Panel de Control y

Configuración de Windows 10 .......................................................88

Parámetros de vídeo ........................................................................ 89

Características de audio ..................................................................90

Opciones de energía ........................................................................90

Instalación de controladores ...........................................................91

TPM (Opción) .................................................................................92

Módulo 4G LTE (Opción) ..............................................................93

Solución de problemas ....................................................................94

Especificaciones ..............................................................................95

Sommario

Informazioni su questa guida rapida ...............................................97

Guida di avvio rapido ....................................................................100

Descrizione del sistema: Vista anteriore con pannello LCD aperto

(Modello A) ...................................................................................101

Descrizione del sistema: Vista anteriore con pannello LCD aperto

(Modello B) ...................................................................................102

Indicatori LED ...............................................................................103

Tastiera ..........................................................................................104

Control Center ...............................................................................106

Descrizione del sistema: Vista anteriore, sinistra e destra ............109

(Modello A) .................................................................................109

Descrizione del sistema: Vista anteriore, sinistra e destra ............110

(Modello B) .................................................................................110

Descrizione del sistema: Vista inferiore e posteriore ....................111

Menu Start, Menu contestuale, Barra delle applicazioni, Pannello di

controllo e Impostazioni di Windows 10 ......................................112

Funzioni video ...............................................................................113

Funzionalità audio .........................................................................114

Opzioni risparmio energia .............................................................114

Installazione driver ........................................................................115

TPM (Opzione) .............................................................................116

Modulo 4G LTE (Opzione) ...........................................................117

Risoluzione dei problemi ..............................................................118

Specifiche tecniche ........................................................................119

About this Concise User Guide



FCC Statement

This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:

1. This device may not cause
harmful interference.

2. This device must accept any
interference received, includ­ing interference that may
cause undesired operation.

This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the
expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual
disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper operation of
the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).

Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual disc does not contain an operating system.

Regulatory and Safety Information

Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Man­ual on the Device Drivers & Utilities + User’s Manual disc.

©

January 2018

Trademarks

Intel, Pentium and Celeron are trademarks/registered trademarks of Intel Corpo­ration.

English

1

Instructions for Care and Operation

The computer is quite rugged, but it can be damaged. To pre­vent this, follow these suggestions:

• Don’t drop it, or expose it to shock. If the computer falls, the

case and the components could be damaged.

• Keep it dry, and don’t overheat it. Keep the computer and

power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the

English

computer could be badly damaged.

• Avoid interference. Keep the computer away from high capacity

transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage your data.

• Follow the proper working procedures for the computer. Shut

the computer down properly and don’t forget to save your work.
Remember to periodically save your data as data may be lost.

Servicing

Do not attempt to service the computer yourself. Doing so may
violate your warranty and expose you and the computer to
electric shock. Refer all servicing to authorized service person­nel. Unplug the computer from the power supply. Then refer
servicing to qualified service personnel under any of the fol­lowing conditions:

• When the power cord or AC/DC adapter is damaged or frayed.

• If the computer has been exposed to any liquids.

• If the computer does not work normally when you follow the
operating instructions.

• If the computer has been dropped or damaged (do not touch the
poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your com­puter.

Safety Information

• Only use an AC/DC adapter approved for use with this computer.

• Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.

• Do not continue to use a battery that has been dropped, or that
appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it
may cause circuit damage, which may possibly result in fire.

• Make sure that your computer is completely powered off before
putting it into a travel bag (or any such container).

• Before cleaning the computer, make sure it is disconnected from
any external power supplies, peripherals and cables. It is advis­able to also remove your battery in order to prevent accidentally
turning the machine on.

• Use a soft clean cloth to clean the computer, but do not apply
cleaner directly to the computer. Do not use volatile (petroleum
distillates) or abrasive cleaners on any part of the computer.

• Do not try to repair a battery pack. Refer any battery pack repair
or replacement to your service representative or qualified service
personnel.

• Note that in computer’s featuring a raised LCD electro-plated
logo, the logo is covered by a protective adhesive. Due to general
wear and tear, this adhesive may deteriorate over time and the
exposed logo may develop sharp edges. Be careful when handling
the computer in this case, and avoid touching the raised LCD
electro-plated logo. Avoid placing any other items in the carrying
bag which may rub against the top of the computer during trans­port. If any such wear and tear develops contact your service cen­ter.

2

Polymer Battery Precautions



Battery Disposal & Caution

The product that you have purchased contains a recharge­able battery. The battery is recyclable. At the end of its use­ful life, under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal.

Danger of explosion if battery is incorrectly replaced. Re­place only with the same or equivalent type recommended
by the manufacturer. Discard used battery according to the
manufacturer’s instructions.

Note the following information which is specific to polymer
batteries only, and where applicable, this overrides the general
battery precaution information.

• Polymer batteries may experience a slight expansion or swelling,
however this is part of the battery’s safety mechanism and is not a
cause for concern.

• Use proper handling procedures when using polymer batteries.
Do not use polymer batteries in high ambient temperature envi­ronments, and do not store unused batteries for extended periods.

English

3

System Startup

Figure 1 - Opening the Lid/LCD/Computer with

AC/DC Adapter Plugged-In

130 ﾟ



Shut Down

Note that you should always shut
your computer down by choosing the
Shut down command in Windows
(see below). This will help prevent
hard disk or system problems.

1. Click the Start Menu icon .

2. Click the Power item .

3. Choose Shut Down from the

menu.

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in position.

4. Securely attach any peripherals you want to use with the computer (e.g.

keyboard and mouse) to their ports.

5. When first setting up the computer use the following procedure (as

English

to safeguard the computer during shipping, the battery will be locked to
not power the system until first connected to the AC/DC adapter and
initially set up as below):

• Attach the AC/DC adapter cord to the DC-In jack on the left of the
computer, then plug the AC power cord into an outlet, and connect
the AC power cord to the AC/DC adapter and leave it there for 6
seconds or longer.

• Remove the adapter cord from the computer’s DC-In jack, and then
plug it back in again; the battery will now be unlocked.

6. Use one hand to raise the
exceed 130 degrees); use the other hand (as illustrated in Figure 1) to
support the base of the computer (Note: Never lift the computer by the
lid/LCD).

7. Press the power button to turn the computer “on”.

System Software

Your computer may already come with system software pre-in­stalled. Where this is not the case, or where you are re-configur­ing your computer for a different system, you will find this
manual refers to Microsoft Windows 10.

lid/LCD to a comfortable viewing angle

(do not

4

System Map: Front View with LCD Panel Open (Model A)

Note that the Touchpad
and Buttons valid oper­ational area is that indi­cated within the red
dotted lines above.

Figure 2

Front View with LCD Panel

Open (Model A)

1. PC Camera

2. *PC Camera LED

*When the PC camera is in
use, the LED will be
illuminated.

3. Built-In Array Microphone

4. LCD

5. Power Button

6. Keyboard

7. Touchpad & Buttons

5

7

6

2

1

3

7

4



Wireless Device

Operation Aboard

Aircraft

The use of any por­table electronic
transmission devic­es aboard aircraft is
usually prohibited.

Make sure the
WLAN, Bluetooth
and 4G LTE mod­ule(s) are OFF if
you are using the
computer aboard
aircraft by putting
the system in to Air­plane Mode.

7

15,6” (39,62cm)

3

English

5

System Map: Front View with LCD Panel Open (Model B)

Note that the Touchpad
and Buttons valid oper­ational area is that indi­cated within the red
dotted lines above.

Figure 3

Front View with LCD

Panel Open (Model B)

1. PC Camera

2. *PC Camera LED

*When the PC camera is
in use, the LED will be
illuminated.

3. Built-In Array
Microphone

4. LCD

5. Power Button

6. Keyboard

7. Touchpad & Buttons

5

7

6

2

1

3

4



Wireless Device

Operation Aboard

Aircraft

The use of any por­table electronic
transmission devic­es aboard aircraft is
usually prohibited.

Make sure the
WLAN and Blue­tooth module(s) are
OFF if you are us­ing the computer
aboard aircraft by
putting the system
in to Airplane Mode.

7

17,3” (43,94cm)

English

6

LED Indicators

The LED indicators on the computer display helpful information about the current status of the computer.

Icon Color Description

Orange The AC/DC Adapter is Plugged In

Green The Computer is On

Blinking Green The Computer is in Sleep Mode

Orange The Battery is Charging

Green The Battery is Fully Charged

Blinking Orange The Battery Has Reached Critically Low Power Status

Green Airplane Mode is ON (the WLAN, Bluetooth and 4G LTE Modules are OFF)

Green The Hard Disk/Optical Device is in use

Table 1 - LED Indicators

English

7

Keyboard

Function Keys

Numeric
Keypad

Num Lk &
Scr Lk

Fn Key

Menu/Application Key

Windows Logo Key

The keyboard includes a numeric keypad (on the right side of the keyboard) for easy numeric data input. Pressing
Num Lk turns on/off the numeric keypad. It also features function keys to allow you to change operational features
instantly.

(Illuminated keyboard - Optional) The keyboard illumination level may be adjusted, or turned off/on, by using the
Fn + F4 keys.

English

Figure 4 - Keyboard

8

Function Keys & Visual Indicators

The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the
basic function key combinations, some visual indicators are available when the Control Center driver is installed (after
restart a control panel will pop-up to allow you to select the type of keyboard for your system).

Keys Function/Visual Indicators Keys Function/Visual Indicators

English

Fn +

Fn + Touchpad Toggle

Fn +

Fn +

Fn +

Fn +

Fn + Change Display Configuration (see page 17)

Fn +

Play/Pause (in Audio/Video Programs)

Turn LCD Backlight Off

(Press a key to or use Touchpad to turn on)

Mute Toggle Number Lock Toggle

Toggle Keyboard Illumi-

nation/Adjust Brightness

Level (Illuminated key-

boards only)

Volume Decrease/

Increase

Brightness Decrease/

Increase

Table 2 - Function Keys & Visual Indicators

Fn +

Fn +

Fn +

Fn +

Fn +

Fn +

PC Camera Power

Toggle

Airplane Mode Tog-

gle

Sleep Toggle

Scroll Lock Toggle

Caps Lock Toggle

Control Center Toggle (see page 10)

Fan Automatic Con-

trol/ Full Power

9

Control Center

Figure 5 - Control Center

Press the Fn + Esc key combination, or double-click the
icon in the notification area of the taskbar to toggle

the Control Center on/off. The Control Center gives
quick access to frequently used controls and enables you
to quickly turn the camera/Touchpad on/off.

English

Power Modes

You can set a Power Mode by clicking the appropriate
icon in the center

of the Control Center. Each power

mode will affect the Airplane Mode and PC camera pow­er.

Mode Airplane Mode PC Camera

Power Saving ON OFF

Quiet OFF ON

Performance OFF ON

Entertainment* OFF ON

*Clicking the Default button in Entertainment will reset the default
settings for this mode.

Control Center Menus

The Control Center contains two menu headings (Basic
Setting & Extra Setting). The Extra Setting tab allows

you to adjust the app skin color to your choice. A third
menu item (LED Device) is available for systems sup­porting illuminated white LED keyboards only.

10

Power Status

The Power Status icon will show whether you are cur­rently powered by the battery, or by the AC/DC adapter
plugged in to a working power outlet. The power status
bar will show the current battery charge state.

Brightness

The Brightness icon will show the current screen bright­ness level. You can use the dial to adjust the screen bright­ness or the Fn + F8/F9 key combinations.

PC Camera/Touchpad/Left Windows Key

Click these buttons to toggle the PC Camera or Touch-
pad power status, or to turn the Left Windows Key func-

tionality on/off. T

highlighted when it is enabled.

he button under the icon will appear

Note that the power sta-

tus of the camera module is also effected by the Power
Mode selected.

Fan Speed

You can set the fan speed to Maximum (full power) or
Automatic from this menu item. The fan speed will adjust

itself automatically to control the heat of the CPU. How­ever you can adjust the setting to maximum if you prefer.
Select Offset and click on the sliders to adjust the settings
to your preference, however these settings can be overid­den by the system, as a safety precaution, if it requires
heavier use of the fan.

Sleep Button

Click either the Hibernate or Sleep button to have the
computer enter the selected power-saving mode (you will

receive a warning before the system switches to the
power-saving mode and will need to click OK to con­firm).

Volume

The Volume icon will show the current volume level. You
can use the dial to adjust the volume or the Fn + F5/F6
key combinations, or use the Fn + F3 key combination to
mute the volume.

English

11

Caps Lock/Scroll Lock/Number Lock/Airplane
Mode

Click the button to toggle the appropriate lock mode and
Airplane Mode.

LED Device Menu - KB Sleep Timer/KB Bright-

English

ness

(For White-LED Keyboards)

Enable and then select the amount of time the system for
which the system is idle before the keyboard LED enters
sleep mode (i.e. the LED keyboard illumination will turn
off to save power). You can also adjust the keyboard
brightness.

12

System Map: Front, Left & Right Views (Model A)

1

Front

14

13

Figure 6 - Front, Left & Right Views (Model A)

1. LED Indicators

2. Multi-in-1 Card Reader

3. DC-In Jack

4. External Monitor Port

5. RJ-45 LAN Jack

6. Vent

7. HDMI-Out Port

8. USB 3.0 (USB 3.1 Gen 1) Type-A
Port

9. USB 3.0 (USB 3.1 Gen 1) Type-C Port

10. Headphone-Out Jack

11. Microphone-In Jack

12. USB 2.0 Ports

13. Optical Device Drive Bay

14. Emergency Eject Hole

15. Security Lock Slot

6

7

3

5

2

Right

4

10

12

9

8

11



Disc Emergency

Eject

If you need to manual­ly eject a disc (e.g.
due to an unexpected
power interruption)
you may push the end
of a straightened pa­per clip into the emer­gency eject hole. Do
not use a sharpened
pencil or similar object
that may break and
become lodged in the
hole.

Overheating

To prevent your com­puter from overheat­ing make sure nothing
blocks any vent while
the computer is in use.

Left

Right

15

English

13

System Map: Front, Left & Right Views (Model B)

1

Front

Figure 7 - Front, Left & Right Views (Model B)

1. LED Indicators

2. Multi-in-1 Card Reader

3. DC-In Jack

4. External Monitor Port

5. RJ-45 LAN Jack

6. Vent

7. HDMI-Out Port

8. USB 3.0 (USB 3.1 Gen 1) Type-A Port

9. USB 3.0 (USB 3.1 Gen 1) Type-C Port

10. Headphone-Out Jack

11. Microphone-In Jack

12. USB 2.0 Ports

13. Optical Device Drive Bay

14. Emergency Eject Hole

15. Security Lock Slot

6

7

3

5

2

Right

4

10

9

8

11



Disc Emergency

Eject

If you need to manual­ly eject a disc (e.g.
due to an unexpected
power interruption)
you may push the end
of a straightened pa­per clip into the emer­gency eject hole. Do
not use a sharpened
pencil or similar object
that may break and
become lodged in the
hole.

Overheating

To prevent your com­puter from overheat­ing make sure nothing
blocks any vent while
the computer is in use.

Left

Right

14

13

12

15

English

14

System Map: Bottom & Rear Views

Figure 8

Bottom & Rear Views

1. Battery

2. Vent

3. Speakers

2

1

3

2

3



Bottom Cover Removal Warning

Do not remove any cover(s) and/or screw(s) for the purposes of de­vice upgrade as this may violate the terms of your warranty. If you
need to replace/remove the hard disk/RAM/CPU etc., for any rea­son, please contact your distributor/supplier for further information.

Overheating

To prevent your computer from overheating make sure nothing
blocks any vent while the computer is in use.

Model A

Model B

2

1

3

2

3

English

15

Windows 10 Start Menu, Context Menu, Taskbar, Control Panel

Figure 9 - Start Menu, Context Menu, Taskbar, Control Panel and Settings

and Settings

Most of the apps, control panels, utilities and programs within Windows 10 can be accessed from the Start Menu by
clicking the icon in the taskbar in the lower left corner of the screen (or by pressing the Windows Logo Key
on the keyboard).

Right-click the Start Menu icon (or use the Windows Logo Key + X key combination) to bring up an advanced
Context Menu of useful features such as Programs and Features, Power Options, Task Manager, Search, File Explorer,

English

Command Prompt, Device Manager and Network Connections etc.

The notification area of the taskbar is in the bottom right of the screen. Some of the control panels and applications re­ferred to throughout the course of this manual can be accessed from here.

Throughout this manual you will see an instruction to open the Control Panel. To access the Control Panel, select Con­trol Panel under the Windows System item in the Start Menu.

The Settings item in the Start Menu (and also as an App) gives you quick access to a number of system settings control
panels allowing you to adjust settings for System, Devices, Network & Internet, Personalization, Apps, Accounts, Time
& language, Gaming, Ease of Access, Privacy and Update & security.

16

Video Features

Figure 10

Project

The system features an Intel integrated GPU. You can
switch display devices, and configure display options,
from the Display control panel in Windows as long as the
video driver is installed.

To access the Display control panel in Windows:

1. Right-click the desktop and select Display settings from the

menu.

2. Choose the required display settings from the menus.

3. Click Apply to save the settings.

To access the Intel® UHD Graphics Control Panel:

1. Right-click the desktop and select Intel(R) Graphics Settings

from the menu.

OR

2. Click the icon in the notification area of the Desktop taskbar

and select

Intel(R) Graphics Settings from the menu.

Display Devices

Note that you can use external displays connected to the
HDMI-Out port and/or external monitor port. See your
display device manual to see which formats are supported.

English

In Windows it is possible to quickly configure external
displays from the Project menu (press the Windows
Logo Key and the P key or press the Fn + F7 key
combination).

To configure the displays using the Project menu:

1. Attach your external
display device to the
appropriate port, and
then turn it on.

2. Press the + P (or
Fn + F7) key
combination.

3. Click on any one of the
options from the menu
to select PC screen

only, Duplicate,
Extend or Second
screen only.

17

Audio Features



Volume Adjustment

The sound volume level can also be set using the vol­ume control within Windows. Click the Speaker icon in
the taskbar to check the setting

.

Figure 11 - Power Options

You can configure the audio options on your computer
from the Sound control panel in Windows, or from the

Realtek HD Audio Manager

tion area/control panel (right-click the notification area
icon to bring up an audio menu).

The volume may be adjusted by means of the Fn + F5/F6

English

key combination.

/ icon in the notifica-

Power Options

The Power Options (Hardware and Sound menu) con­trol panel icon in Windows allows you to configure power
management features for your computer. You can con­serve power by means of power plans and configure the
options for the power button, sleep button (Fn + F12),
computer lid (when closed), display and sleep mode (the
default power saving state) from the left menu.

Click Create a power plan in the left menu and select the
options to create a new plan. Click Change Plan Settings
and click Change advanced power settings to access fur­ther configuration options.

18

Driver Installation



Driver Installation General

Guidelines

As a general guide follow the
default on-screen instruc­tions for each driver (e.g.
Next > Next > Finish) unless
you are an advanced user. In
many cases a restart is re­quired to install the driver.

Make sure any modules (e.g.
WLAN or Bluetooth) are ON
before installing the appropri­ate driver.

Windows Update

After installing all the drivers
make sure you enable Win-
dows Update in order to get
all the latest security updates
etc. (all updates will include
the latest hotfixes from Mi-
crosoft).



Driver Installation & Power

When installing drivers make sure
your computer is powered by the AC/
DC adapter connected to a working
power source. Some drivers draw a
significant amount of power during the
installation procedure, and if the re­maining battery capacity is not ade­quate this may cause the system to
shut down and cause system prob­lems (note that there is no safety is­sue involved here, and the battery will
be rechargeable within 1 minute).

Figure 12 - Install Drivers

The Device Drivers & Utilities + User’s Manual disc contains the drivers and utilities
necessary for the proper operation of the computer. This setup will probably have al­ready been done for you. If this is not the case, insert the disc and click Install Drivers
(button), or Option Drivers (button) to access the Optional driver menu. Install the
drivers in the order indicated in Figure 12. Click to select the drivers you wish to
install (you should note down the drivers as you install them). Note: If you need to
reinstall any driver, you should uninstall the driver first

Manual Driver Installation

Click the Browse CD/DVD button in the Drivers Installer application and browse to
the executable file in the appropriate driver folder.

If a

Found New Hardware

Cancel and follow the installation procedure as directed.

wizard appears

during the installation procedure, click

.

English

19

TPM (Option)

Figure 13

Security -

Trusted

Computing

Figure 14

BitLocker Drive

Encryption

(TPM Admini-

stration)

Figure 15

Trusted Plat­form Module

(TPM) Manage-

ment on Local
Computer Ad-

ministration

Before setting up the TPM (Trusted Platform Module)
functions you must initialize the security platform.

Activating TPM

1. Restart the computer.

2. Enter the BIOS pressing F2 during the POST/startup.

3. Click Setup Utility and select the Security menu.

English

4. Click TPM Configuration and select Enable for Security
Device Support.

5. You will then need to press/click F10 to save the changes and
restart the computer.

TPM Management in Windows

You can manage your TPM settings from within Windows:

1. Go to the Control Panel.

2.

Click

BitLocker Drive Encryption (System and Security).

20

3. Click TPM Administration.

4. The TPM Management window allows you to configure the TPM
within Windows. As TPM is usually administered within large
enterprises and organizations, your system administrator will
need to assist you in managing the information here.

TPM Actions

1. Click Prepare the TPM and follow the instructions in the Wizard
to prepare the TPM (this will probably require a restart of the

computer and confirmation of the setting changes after restart by
pressing the appropriate F key).

2. After the restart the TPM will be prepared and you can then use
the Actions menu to Turn TPM off, Change Owner Password,
Clear TPM or Reset TPM Lockout.

3. A wizard will help take you through any setup steps.

4G LTE Module (Option)

1



USIM Card

Orientation

Note that the USIM
card’s readable side
(with the gold-colored
contacts) should face
upwards as illustrated.

1

Figure 16

Remove the battery
and Insert the USIM

Card

(Optional for Model A Only)

If you have included an optional 4G LTE module in your purchase option, follow the instructions below to install the
USIM card (which will be provided by your service provider).

USIM Card Insertion

1. Turn off the computer, and turn it over and remove the battery .

2. Insert the USIM card as illustrated below until it clicks into position, and replace the battery.

English

21

Troubleshooting

Problem Possible Cause - Solution

The Wireless LAN/Bluetooth
modules cannot be detected.

The PC Camera module cannot be

English

detected.

The captured video files from the PC
Camera are taking up too much disk
space.

The modules are off as the computer is in Airplane Mode. Check the LED indicator
to see if it is in Airplane Mode (see Table 1 on page 7). Use the Fn + F11 key
combination to toggle Airplane Mode on/off (see Table 2 on page 9).

The module is off. Press the Fn + F10 key combination in order to enable the module (see

Table 2 on page 9). Run the camera application to view the camera picture.

Note that capturing high resolution video files requires a substantial amount of disk space
for each file.

Note that the Windows system requires a minimum of 20GB (64bit) of free space on the
C: drive system partition. It is recommended that you save the capture video file to a
location other than the C:drive, limit the file size of the captured video or reduce video
resolution.

22

Specifications



Latest Specification Information

The specifications listed in this sec­tion are correct at the time of going to
press. Certain items (particularly pro­cessor types/speeds) may be
changed, delayed or updated due to
the manufacturer's release schedule.
Check with your service center for de­tails.

Note that this computer model series
may support a range of CPUs and/or
video adapters.

To find out which CPU is installed on
your system go to the Start menu and
select Settings, and then select Sys-
tem and click About. This will also
provide information on the amount of
Installed RAM etc.

To get information on your system’s
video adapter go to the Start menu
and select Settings, and then select

System and click Display > Ad­vanced display settings > Display
adapter properties.

LCD Options

Model A:

15.6" (39.62cm), 16:9, HD (1366x768)/FHD
(1920x1080)

Model B:

17.3" (43.94cm), 16:9, HD+ (1600x900)/
FHD (1920x1080)

Memory

Two 260 Pin SO-DIMM Sockets Supporting
DDR4 2400MHz Memory

Memory Expandable up to 8GB
Compatible with 4GB or 8GB Modules

(The real memory operating frequency
depends on the FSB of the processor.)

BIOS

64Mb SPI Flash ROM
Insyde BIOS

Audio

High Definition Audio Compliant Interface
2 * Built-In Speakers
Built-In Array Microphone

Storage

One Changeable 2.5" 7mm (h) SATA HDD/
SSD

(Factory Option) One 9.0/9.5mm(h) Opti­cal Device Type Drive (DVD Writer)

Or
(Factory Option) Dummy ODD
Or
(Factory Option) 7mm (h) 2nd HDD/SSD

Caddy

(Factory Option) eMMC 32GB/64GB/
128GB

Pointing Device

Built-in Touchpad

Keyboard

Full-size “WinKey” keyboard (with numeric
keypad)

Or
(Factory Option) Full-size “WinKey” Illumi-

nated White-LED Keyboard (with numeric
keypad)

Security

Security (Kensington® Type) Lock Slot
BIOS Password
Intel PTT for Systems Without TPM Hard-

ware

English

23

M.2 Slots

Slot 1 for WLAN and Bluetooth Combo
Module

(Model A Only) Slot 2 for 4G LTE Module

Card Reader

Embedded Multi-In-1 Card Reader

MMC (MultiMedia Card)/RS MMC

English

SD (Secure Digital)/Mini SD/SDHC/
SDXC

Interface

One USB 3.0 (USB 3.1 Gen 1) Type-C Port*

*The maximum amount of current supplied
by USB Type-C ports is 500mA (USB 2.0)/
900mA (USB 3.1).

One USB 3.0 (USB 3.1 Gen 1) Type-A Port
Two USB 2.0 Ports
One HDMI-Out Port
One External Monitor Port
One Microphone-In Jack
One Headphone-Out Jack
One RJ-45 LAN Jack
One DC-in Jack

Communication

Built-In 10/100/1000Mb Base-TX Ethernet
LAN

1.0M HD PC Camera Module Module
(Factory Option - Model A Only) 4G LTE

M.2 Module

WLAN/ Bluetooth M.2 Modules:

(Factory Option) Intel® Dual Band Wire-
less-AC 9260 Wireless LAN (802.11ac) +
Bluetooth

(Factory Option) Intel® Dual Band Wire-
less-AC 9560 Wireless LAN (802.11ac) +
Bluetooth

(Factory Option) Intel® Dual Band Wire-
less-AC 9462 Wireless LAN (802.11ac) +
Bluetooth

Features

Supports Windows® 10 Cortana with Voice

Power

Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 2.1A (40W)

Removable 4 Cell Smart Lithium-Ion Bat­tery Pack, 31WH

(Factory Option) Removable 4 Cell Smart
Lithium-Ion Battery Pack, 44WH

Environmental Spec

Temperature

Operating: 5
Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%
Non-Operating: 10% - 90%

°C - 35°C

Dimensions & Weight

Model A:

377mm (w) * 259mm (d) * 24.8mm (h)
(Height Excluding Battery Area)

2.2kg (Barebone with 31WH Battery)

Model B:

418.5mm (w) * 287mm (d) * 26.4mm (h)
(Height Excluding Battery Area)

2.5kg (Barebone with 31WH Battery)

24

Über das Ausführliche Benutzerhandbuch

Diese Kurzanleitung soll einen Überblick über die Schritte geben, die dazu notwendig sind, das System zu starten. Dieses ist
nur eine Ergänzung und kein Ersatz für das erweiterte englischsprachige Benutzerhandbuch, das auf der mitgelieferten Disc
Device Drivers & Utilities + User's Manual im Adobe-Acrobat-Format vorliegt. Diese Disc enthält auch die Treiber und
Utility-Programme, die für einen einwandfreien Betrieb des Computers notwendig sind (Hinweis: Das Unternehmen behält
sich das Recht vor, diese Publikation ohne Vorankündigung zu überarbeiten und den Inhalt zu verändern).

Einige oder alle Funktionen des Computers sind bereits eingerichtet worden. Falls das nicht der Fall ist oder wenn Sie ein­zelne Teile des Systems neu konfigurieren (oder neu installieren) möchten, finden Sie eine Anleitung im erweiterten Benut-
zerhandbuch. Die Disc Device Drivers & Utilities + User's Manual enthält nicht das Betriebssystem.

Einhaltung gesetzlicher Vorschriften und Sicherheitshinweise

Beachten Sie sorgfältig die Hinweise zu gesetzlichen Vorschriften und zu Sicherheitshinweisen im erweiterten Benutzer­handbuch auf der Disc Device Drivers & Utilities + User's Manual.

© Januar 2018

Warenzeichen

Intel, Pentium und Celeron sind warenzeichen/eingetragenes warenzeichen der Intel Corporation.

Deutsch

25

Hinweise zu Pflege und Betrieb

Das Notebook ist zwar sehr stabil, kann aber dennoch be­schädigt werden. Damit es nicht dazu kommt, sollten Sie die
folgenden Hinweise beachten:

• Das Gerät darf nicht herunterfallen und in anderer Form Stößen
ausgesetzt werden. Wenn der Computer fällt, können das Gehäuse und
andere Komponenten beschädigt werden.

• Das Gerät darf nicht nass werden und sich nicht überhitzen. Compu­ter und Netzteil dürfen nicht in der Nähe von Wärmequellen stehen oder
gelagert werden. Dies ist ein elektrisches Gerät. Wenn Wasser oder
andere Flüssigkeiten eindringen, kann der Computer stark beschädigt
werden.

• Vermeiden Sie Interferenzen mit anderen Geräten. Halten Sie den
Computer fern von magnetischen Feldern, die von Stromquellen, Moni-

Deutsch

toren, Magneten etc. erzeugt werden. Die können die Leistung beein­trächtigen und Ihre Daten beschädigen.

• Achten Sie auf die richtige Bedienung des Computers. Schalten Sie
ihn erst aus, wenn alle Programme geschlossen wurden (speichern Sie
Ihre Daten!). Speichern Sie regelmäßig Ihre Daten, da diese verloren
gehen können, wenn der Akku verbraucht ist.

Reparatur

Nehmen Sie vor dem Reinigen des Wenn Sie versuchen, den
Computer selbst zu reparieren, können Ihre Garantieansprüche
verloren gehen. Außerdem besteht Stromschlaggefahr für Ihre
Gesundheit und das Gerät durch frei liegende Teile. Lassen Sie
Reparaturarbeiten nur von qualifizierten Reparaturfachleuten
durchführen, insbesondere wenn folgende Umstände vorliegen:

• Wenn das Netzkabel oder der AC/DC-Adapter beschädigt oder zerschlis­sen sind.
