V09.4.10
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information
contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or
any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear
in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse)
of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators
of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended
as an endorsement of that product or its manufacturer.
©September 2009
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home
or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Intel and Intel Core are trademarks/registered trademarks of Intel Corporation.
I
Preface
FCC Statement
(Federal Communications Commission)
You are cautioned that changes or modifications not expressly approved by the party responsible for comp liance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Re orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the service representative or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1. This device may not cause interference.
And
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
II
Preface
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.
Warning
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the
equipment.
III
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury
to persons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There
may be a remote risk of electrical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter - AC Input 100 -
240V, 50 - 60Hz/ DC Output 20V, 6.A (120W) minimum).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER, TELE-
COMMUNICATION LINE CORD
IV
This Computer’s Optical Device is a Laser Class 1 Product
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-
ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place where
foreign matter or moisture may
affect the system.
Don’t use or store the computer
in a humid environment.
Do not place the computer on
any surface that will block the
Vents/Fan Intakes.
V
Preface
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other
strong magnetic fields. These can hinder proper performance and damage your data.
4. Follow the proper workin g procedu res for t he comput er. Shut the computer down properly and don’t for ge t
to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not turn off the power until
you properly shut down all programs.
Do not turn off any peripheral
devices when the computer is
on.
5. Take care when using peripheral devices.
Use only approved brands of
peripherals.
VI
Do not disassemble the computer by yourself.
Unplug the power cord befor e
attaching peripheral devices.
Perform routine maintenance
on your computer.
Power Safety
The computer has specific power requirements:
Preface
• Only use a power adapter approved for use with this computer.
• Your AC/DC adapter may be designed for international travel but it still requires a
steady , uninterru pted power suppl y. If you are unsure of your local power specifications,
consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third
prong is an important safety feature; do not defeat its purpose. If you do not have access
to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not
by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current
load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power
supplies (i.e. AC/DC adapter or car adapter).
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade procedures, make sure that
you have turned off the
power, and disconnected all peripherals
and cables (including
telephone lines). It is
advisable to also remove your battery in
order to prevent accidentally turning the
machine on.
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even
if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly
result in fire.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service repre sent ative or qual-
ified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life,
under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with
your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the
manufacturer. Discard used battery according to the manufacturer’s instructions.
VIII
Preface
Cleaning
Do not apply cleaner directly to the computer; use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the
computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the
power supply. Then refer servicing to qualified service personnel under any of the following conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
Removal Warning
When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and
screw(s) before turning the computer on.
IX
Preface
Travel Considerations
Packing
As you get ready for your trip, run through this list to make sure the system is ready to go:
1. Check that the battery pack and any spares are fully charged.
2. Power off the computer and peripherals.
3. Close the display panel and make sure it’s latched.
4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.
5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However ,
check with your travel agent to see if you need any socket adapters.
6. Put the notebook in its carrying bag and secure it with the bag’s straps.
7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters
and/or cables.
8. Anticipate customs - Some jurisdictions may have import restrictions or require proof of ownership for both
hardware and software. Make sure your “papers” are handy.
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a
notebook which is powered on in a travel bag may cause the Vents/Fan Intakes to be blocked. To pre vent your computer
from overheating make sure nothing blocks the Vent/Fan Intakes while the computer is in use.
X
Preface
On the Road
In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting,
keep these points in mind:
Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very
common. Don’t check it with “normal” luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.
Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and
disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note:
Some airports also scan luggage with these devices.
Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight.
These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make
sure it’s secure. Contents may shift and/or fall out when the compartment is opened.
Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies)
charged.
Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer.
Wait a few minutes before turning it on so that any moisture can evaporate.
XI
Preface
Developing Good Work Habits
Developing good work habits is important if you need to work in front of the computer for long periods of time.
Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or
other joints. The following are some tips to reduce the strain:
•Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the
level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.
•Your knees should be slightly higher than your hips. Place you r fe et fl at on the floor or on a
footrest if necessary.
•Use a chair with a back and adjust it to support your lower back comfortably.
•Sit straight so that your knees, hips and elbows form approximately 90-degree angles when
you are working.
• Take periodic breaks if you are using the computer for long periods of time.
Remember to:
•Alter your posture frequently.
•Stretch and exercise your body several times a day.
•Take periodic breaks when you work at the computer for long periods of time. Frequent and
short breaks are better than fewer and longer breaks.
XII
Preface
Lighting
Proper lighting and a comfortable viewing angle can reduce eye strain and shoulder and neck muscle fatigue.
• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.
• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.
• Position the display directly in front of you at a comfortable viewing distance.
• Adjust the display-viewing angle to find the best position.
LCD Screen Care
To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for
an extended period of time) take the following precautions:
• Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.
• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).
• Rotate desktop background images every few days.
• Turn the monitor off when the system is not in use.
XIII
Preface
XIV
Contents
Notice ................................................................................. I
FCC Statement .............................................................II
FCC RF Radiation Exposure Statement: ................... III
Instructions for Care and Operation ........................... V
Power Safety .............................................................VII
Battery Precautions ................................................. VIII
Cleaning ..................................................................... IX
Servicing .................................................................... IX
Travel Considerations .................................................X
Preface
Function/Hot Key Indicators .......................................1-10
System Map: Front & Rear Views ...............................1-11

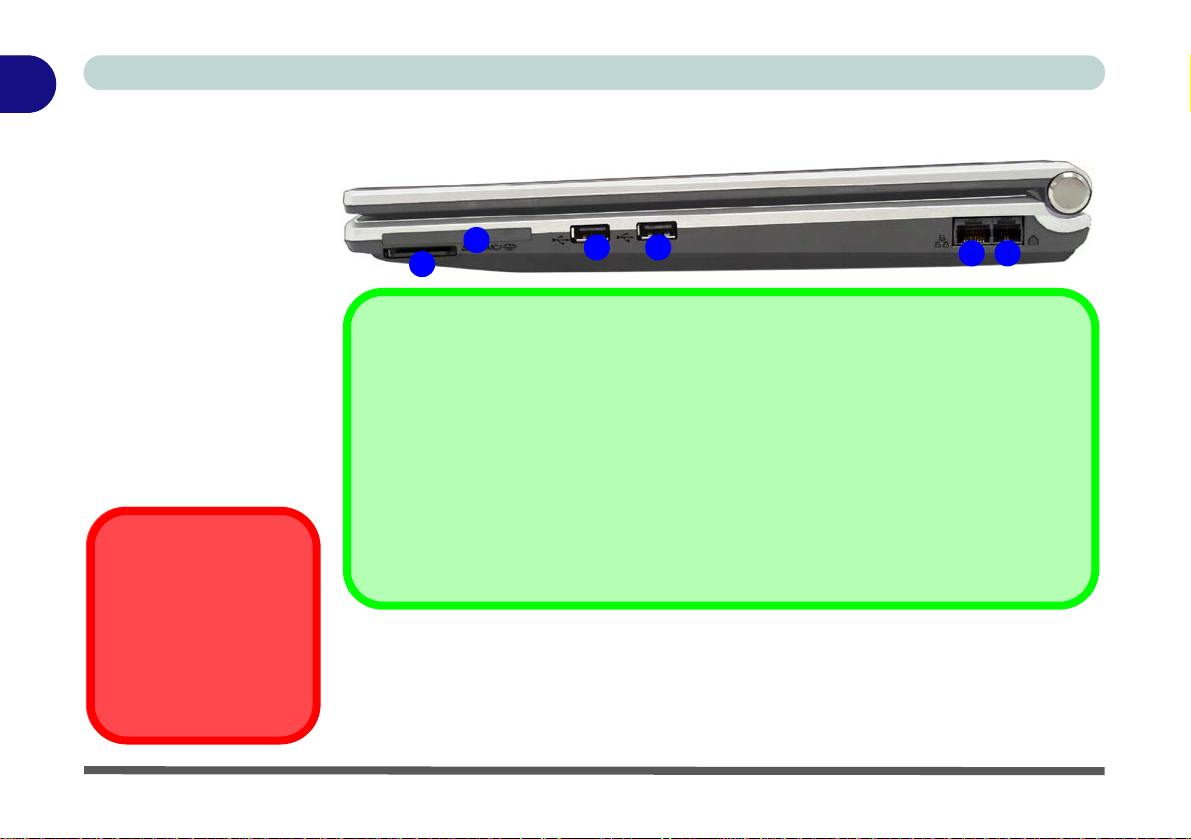

System Map: Right View .............................................1-12
System Map: Left View ...............................................1-13

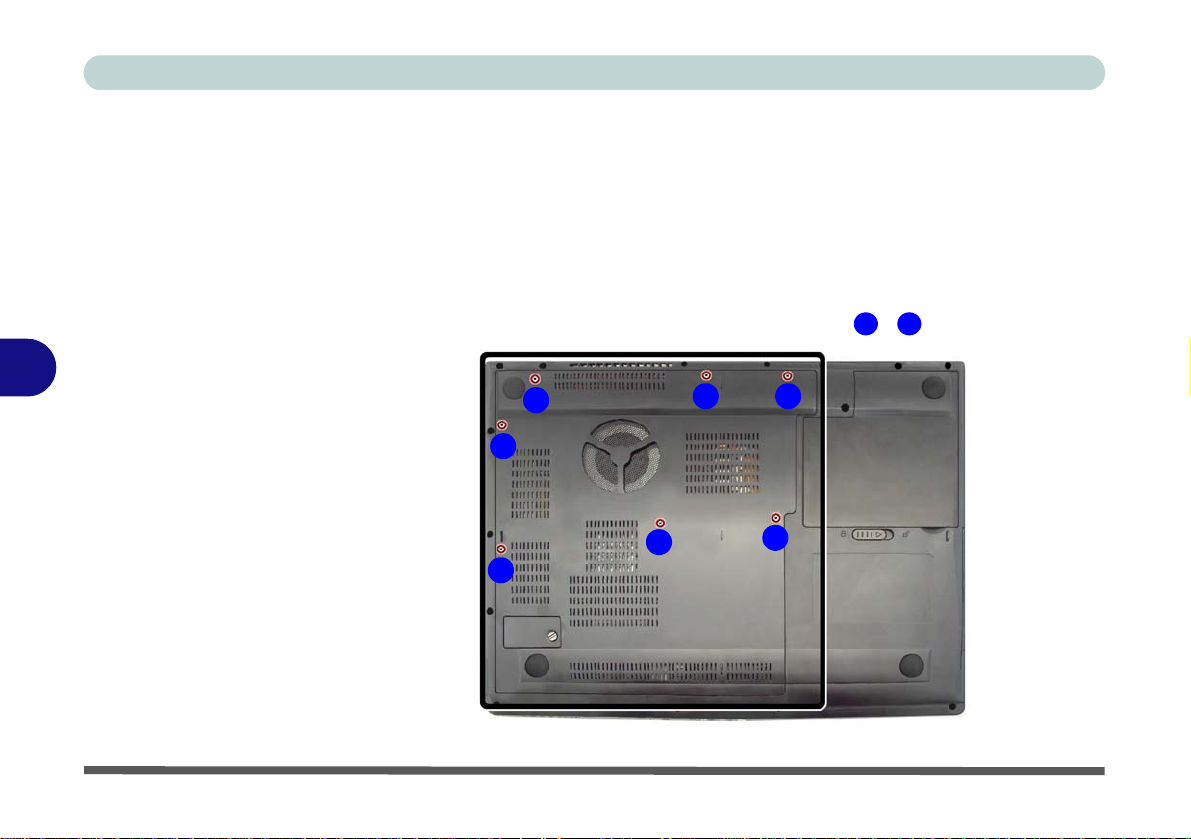

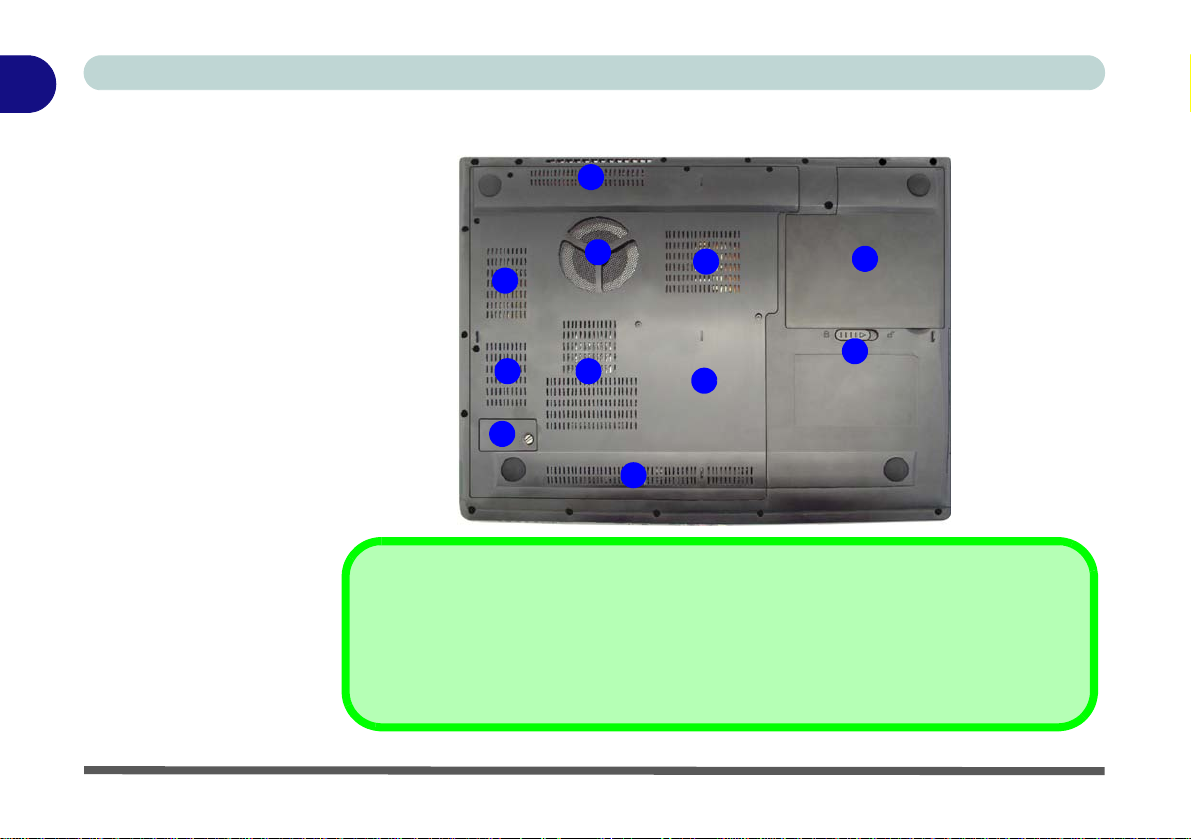

System Map: Bottom View ..........................................1-14
Windows Vista Start Menu & Control Panel ...............1-15
Video Features .............................................................1-16
Display Devices & Options .........................................1-17
Power Options ............................................ .... .... ..........1-18
Quick Start Guide
Overview ........................................................................1-1
Advanced Users .............................................................1-2
Beginners and Not-So-Advanced Users ........................1-2
Warning Boxes .................................................... ..........1-2
Not Included ..................................................................1-3
Model Differences .........................................................1-3
System Software ....................... .....................................1-4
System Startup ...............................................................1-5
System Map: LCD Panel Open ......................................1-6
LED Indicators ................................................. .... ..........1-7
Hot Key Buttons ............................................................1-8

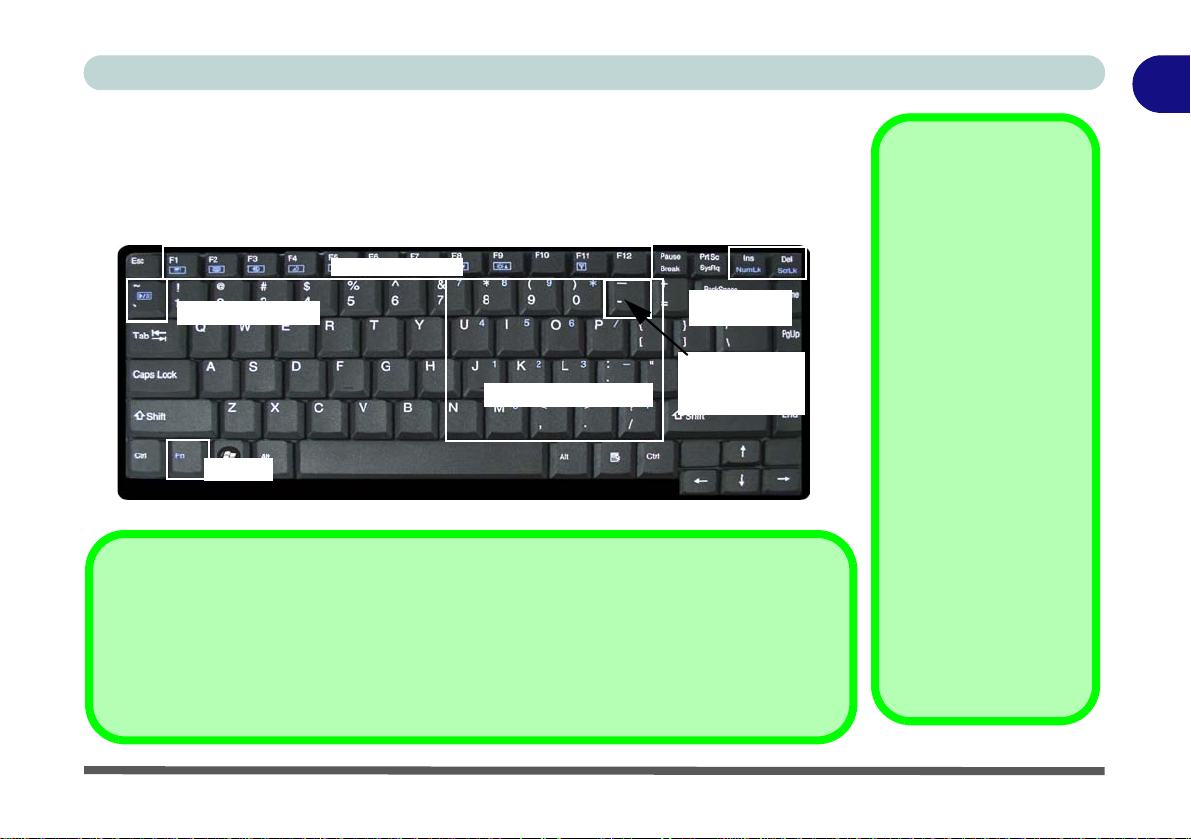

Keyboard ........................................................................1-9
Storage Devices, Mouse, Audio &
Printer
Overview ........................................................................2-1
Hard Disk Drive .............................................................2-2
Optical Device ...............................................................2-3
Loading Discs ................................................................ 2-3
Handling CDs or DVDs .................................................2-4
DVD Regional Codes ....................................................2-5

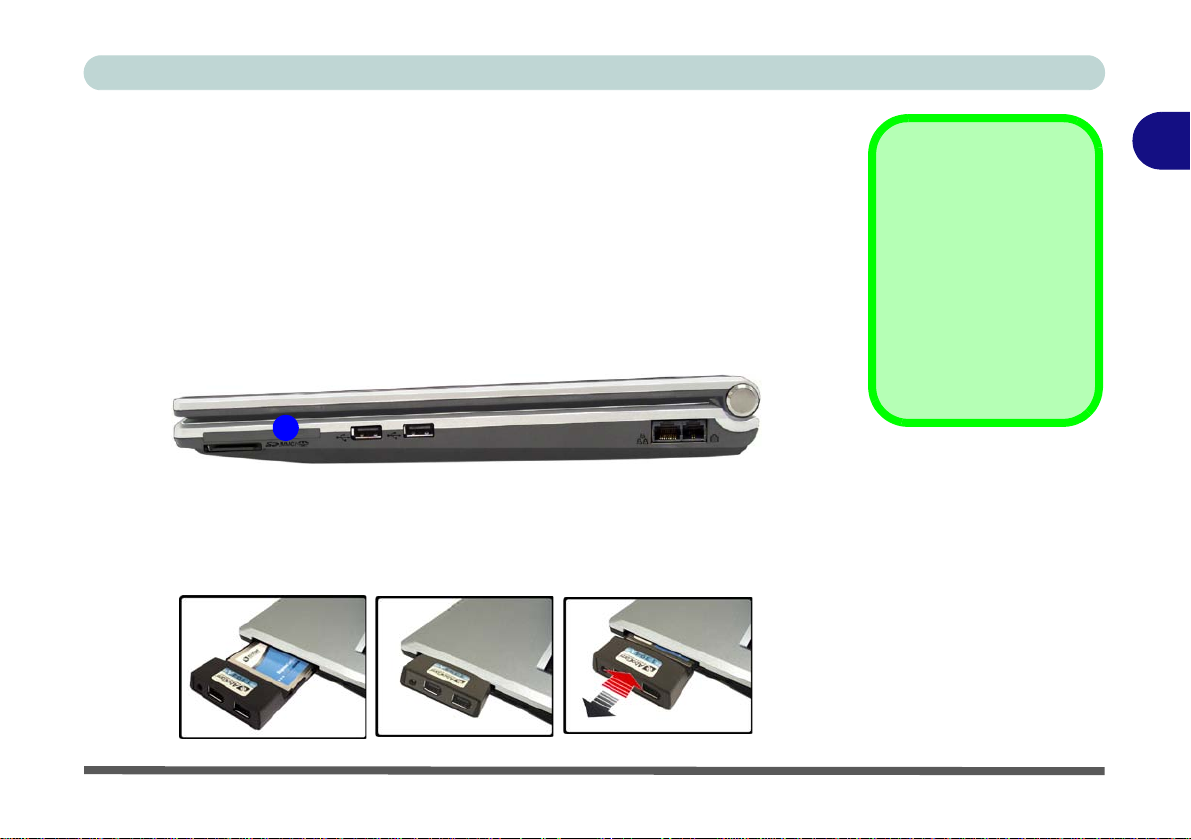

7-in-1 Card Reader .........................................................2-6
ExpressCard Slot ............................................................2-7

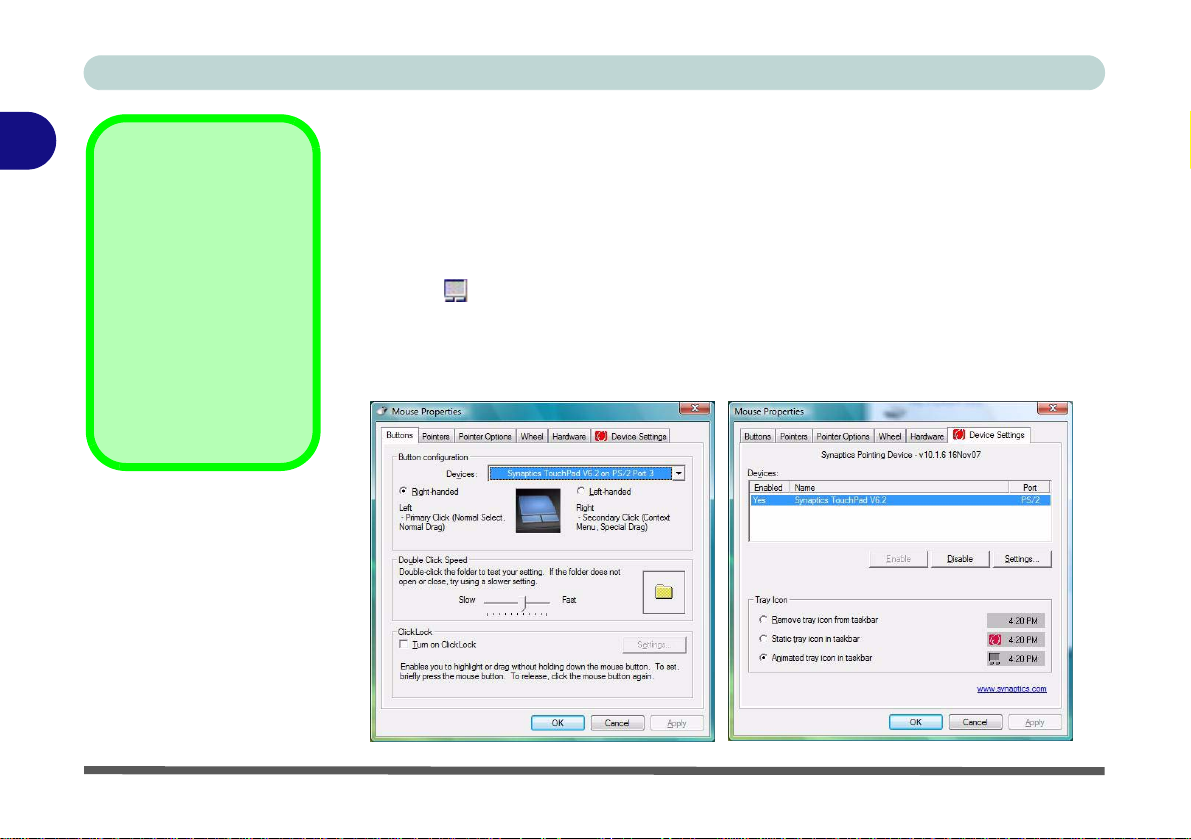

TouchPad and Buttons/Mouse .......................................2-8

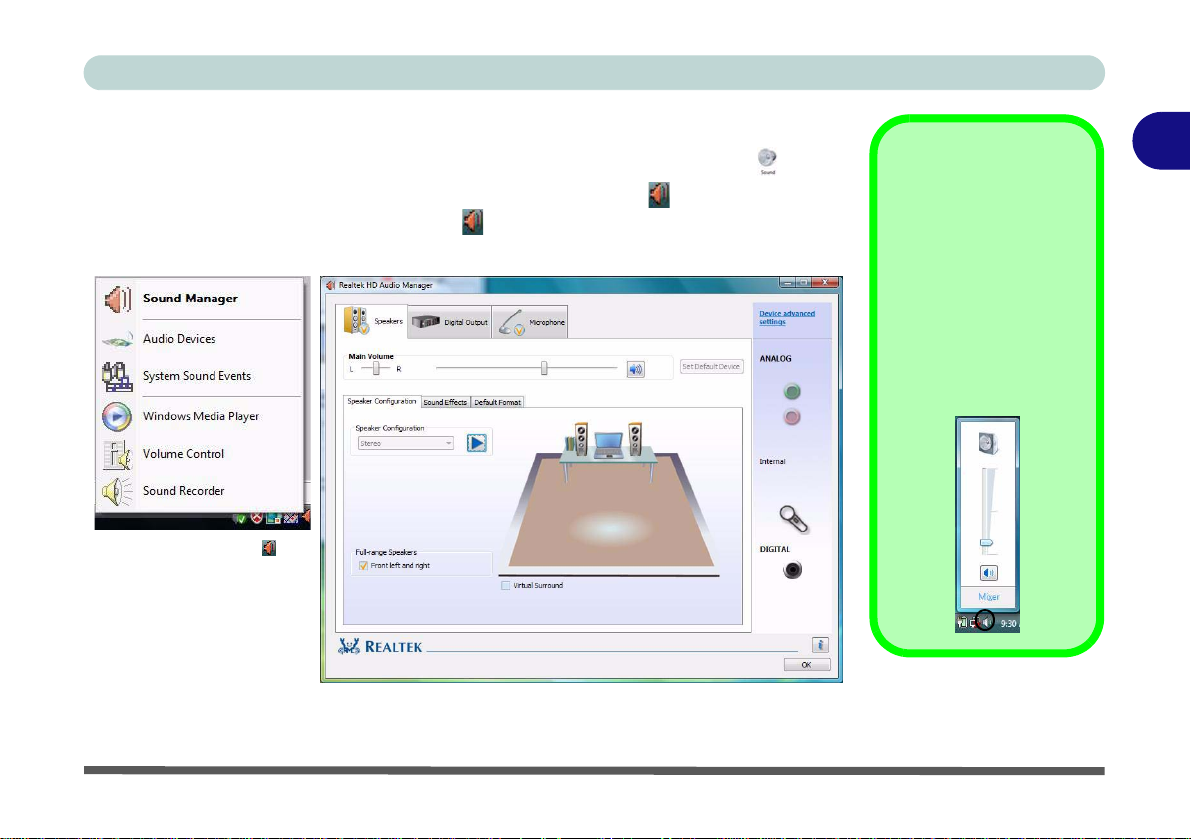

Audio Features ...............................................................2-9
Adding a Printer ................................................. .... ......2-10
XV
Preface
USB Printer ..................................................................2-10
Install Instructions: ......................................................2-10
Parallel Printer .............................................................2-10
Power Management
Overview ........................................................................3-1
The Power Sources .......................................... .... .... ......3-2
AC/DC Adapter .............................................................3-2
Battery ............................................................................3-2
Turning on the Computer ...............................................3-3

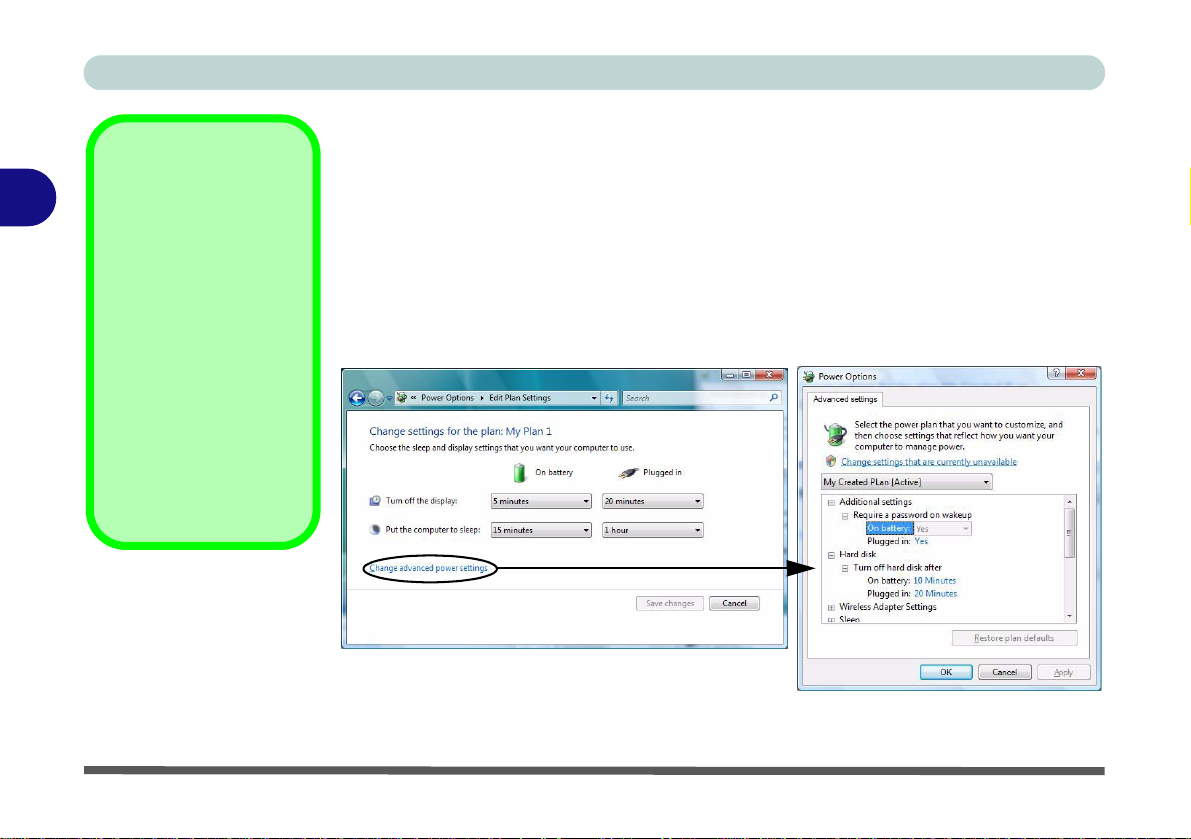

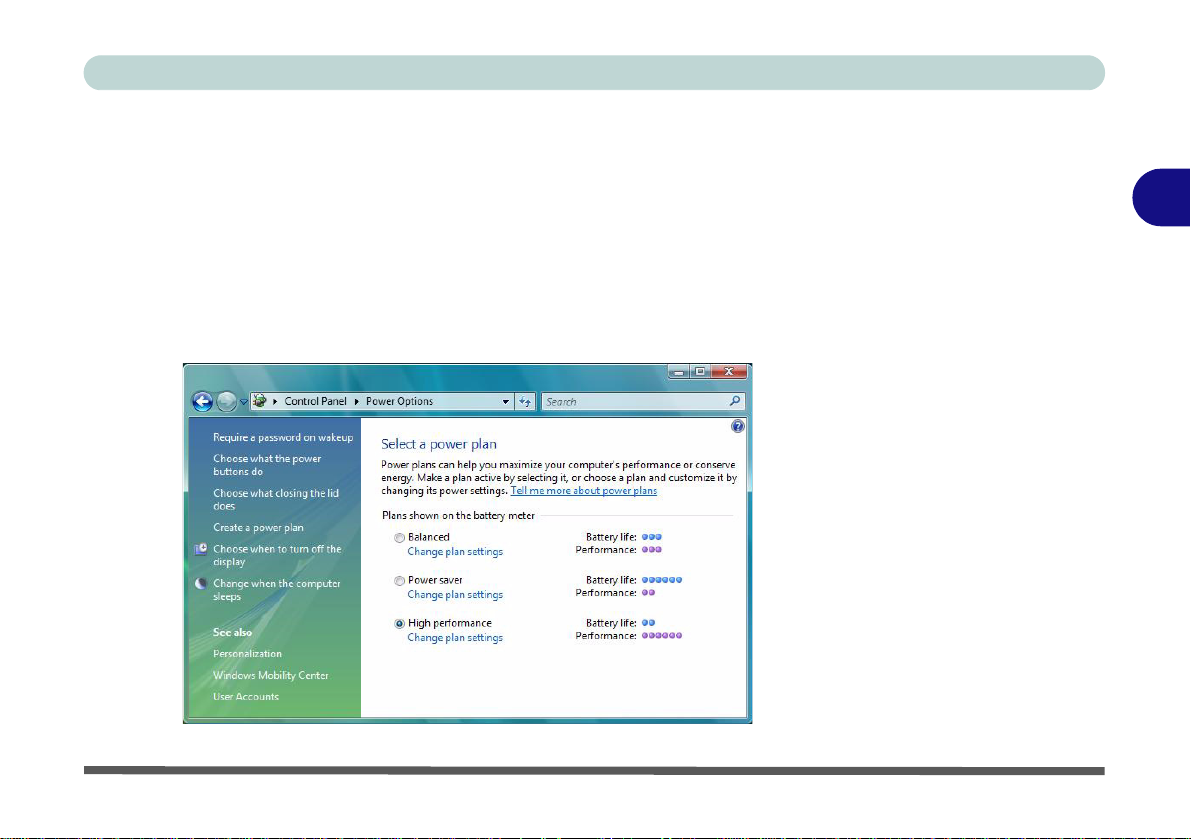

Power Plans ...................................................................3-4
Power-Saving States ......................................................3-6
Sleep ..............................................................................3-6
Hibernate ........................................................................3-7
Shut Down .....................................................................3-7
Configuring the Power Buttons .....................................3-8
Resuming Operation ......................................................3-9
Battery Information .....................................................3-10
Battery Power ..............................................................3-10
Conserving Battery Power ...........................................3-11
Battery Life .............................................................. ....3-12
New Battery .................................................................3-12
Recharging the Battery with the AC/DC Adapter .......3-12
Proper handling of the Battery Pack ............................3-13
Battery FAQ ................................................. .... ............3-14
Drivers & Utilities
What to Install ............................................................... .4-1
Module Driver Installation .............................................4-1
Driver Installation ..........................................................4-2
Manual Driver Installation .............................................4 -3
Updating/Reinstalling Individual Drivers ......................4-4
User Account Control (Win Vista) ................................4-4
Windows Security Message ...........................................4-4
New Hardware Found ....................................................4-4

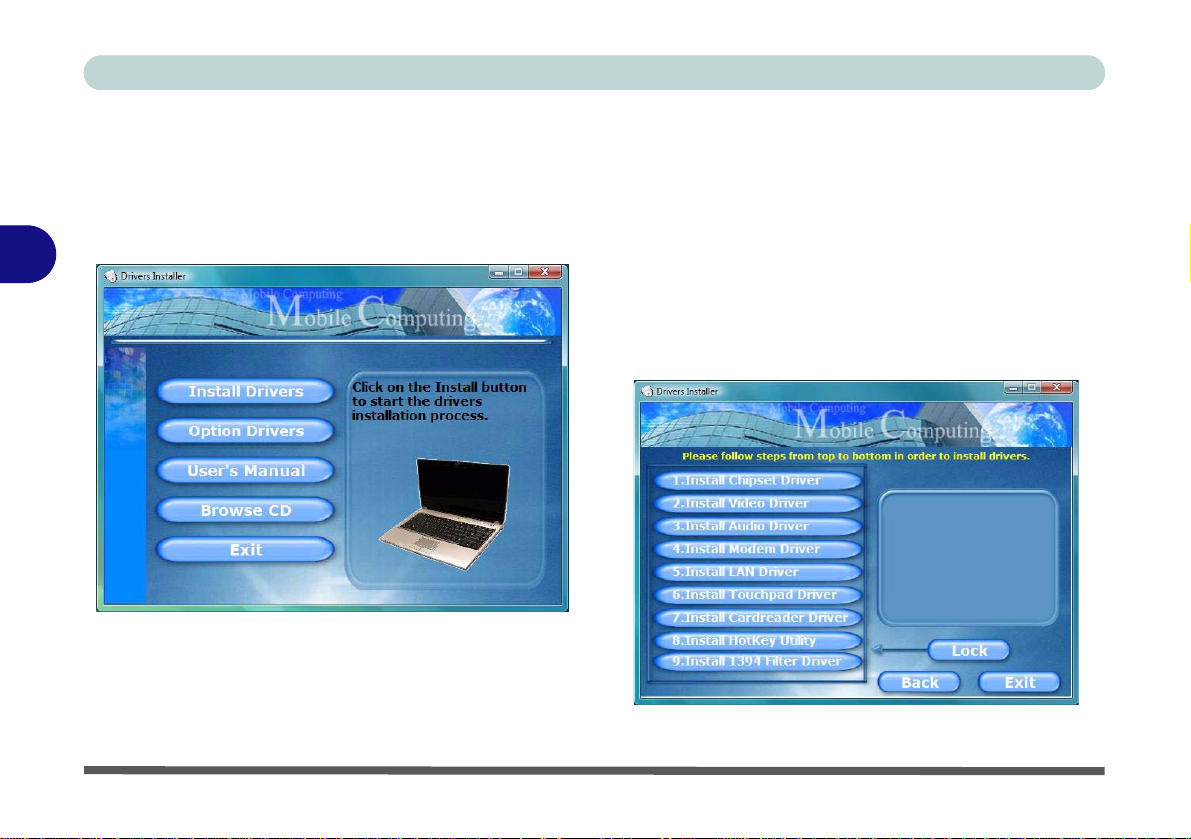

Driver Installation Procedure ......................................... 4-5
Chipset ...........................................................................4-5
Video ..............................................................................4-5
Audio .............................................................................4-5
Modem ...........................................................................4 -6
LAN ...............................................................................4-6
TouchPad .......................................................................4-6
Card Reader/ExpressCard ..............................................4-6
Hot Key ..........................................................................4-6
IEEE 1394 Filter Driver .................................................4-6
e-SATA Support ........................................ .... .... ............4-6
Optional Drivers ............................................................4-7
Wireless LAN ................................................................4-8
PC Camera .................. ...................................................4-8
3.5G Module ...................... ............................................4-8
Fingerprint Reader Module ............................................4-8
XVI
Preface
Intel Turbo Memory Technology Driver .......................4-8
BIOS Utilities
Overview ........................................................................5-1
The Power-On Self Test (POST) ................................... 5-2
Failing the POST ...........................................................5-3
Fatal Errors ....................................................................5-3
Non-Fatal Errors ............................................................5-3
The Setup Utility ...................................................... .... ..5-4
Entering Setup ...............................................................5-4
Setup Screens .................................................................5-5
Main Menu .....................................................................5-6
System Time & Date (Main Menu) ...............................5-6
SATA Port 1/2/3 (Main Menu) ......................................5-7
System/Extended Memory: (Main Menu) .....................5-7
BIOS Revision/VGA Card etc. (Main Menu) ...............5-7
Advanced Menu .............................................................5-8
Installed O/S (Advanced Menu) ....................................5-8
SATA Mode Selection (Advanced Menu) ....................5-9
DFOROM (Robson) Support (Advanced Menu > SATA
Mode Selection) .............................................................5-9
Boot-time Diagnostic Screen: (Advanced Menu) ........5-10
Legacy OS Boot: (Advanced Menu) ...........................5-10
Reset Configuration Data: (Advanced Menu) .............5-10
Power On Boot Beep (Advanced Menu) .....................5-10
Battery Low Alarm Beep: (Advanced Menu) ..............5-10
Fan Control (Advanced Menu) ....................................5-10
Security Menu ..............................................................5-11
Set Supervisor Password (Security Menu) ..................5-11
Set User Password (Security Menu) ............................5-12
Password on boot (Security Menu) ..............................5-12
Fixed disk boot sector (Security Menu) .......................5-12
Boot Menu ...................................................................5-13
Exit Menu ....................................................................5-14
Upgrading The Computer
Overview ........................................................................6-1
When Not to Upgrade ....................................................6-2
Removing the Battery ....................................................6-3

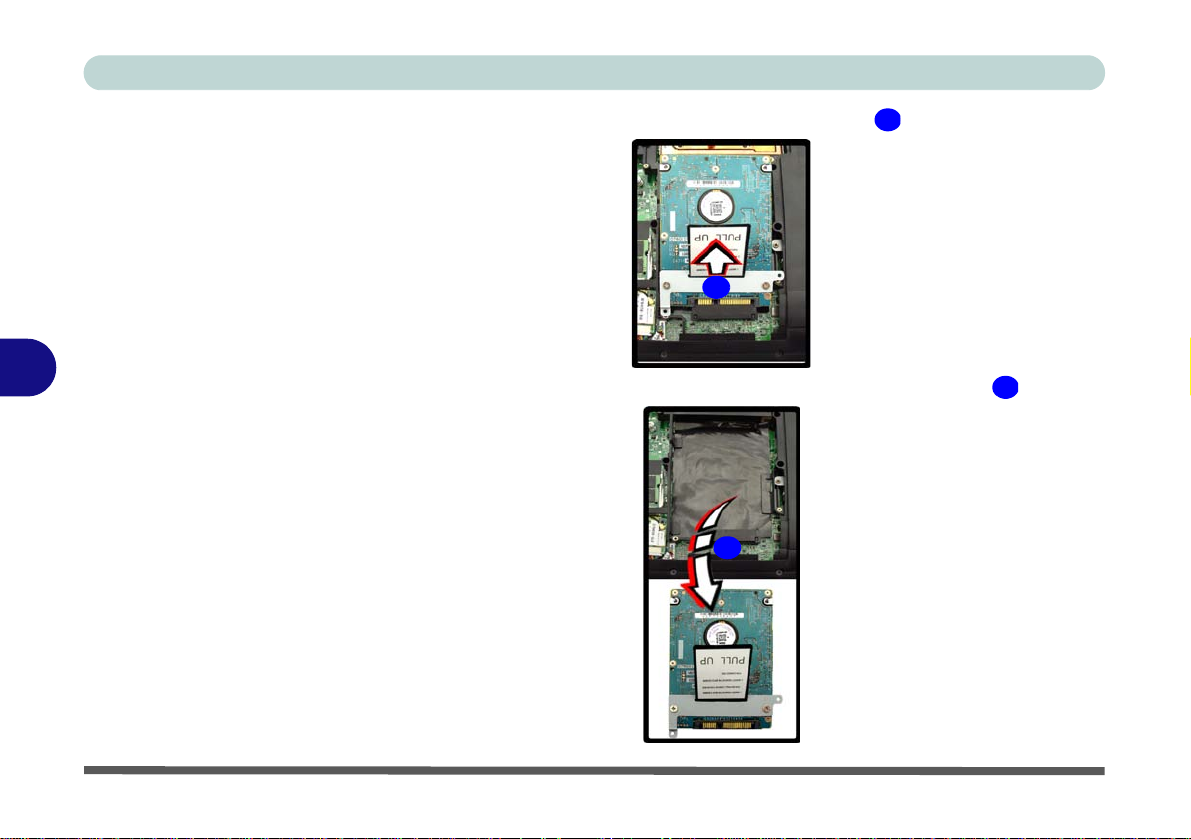

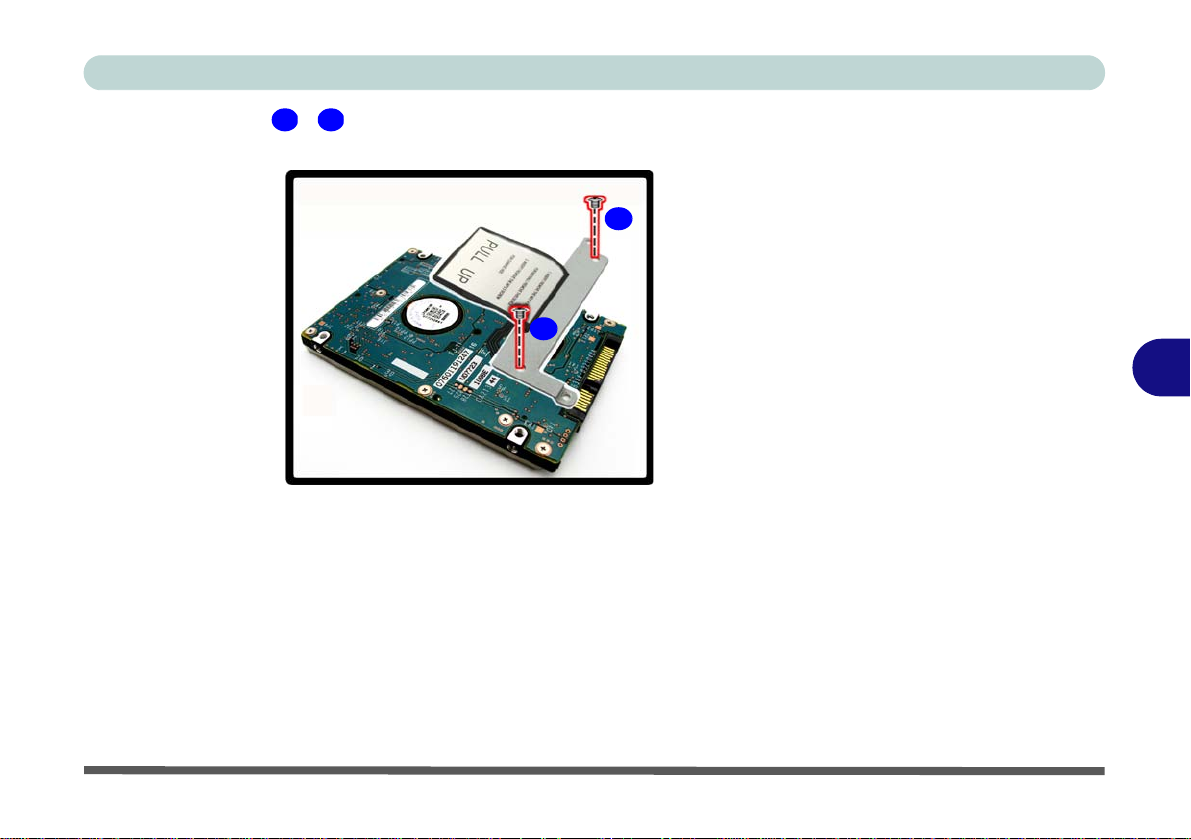

Upgrading the Hard Disk Drive .....................................6-4

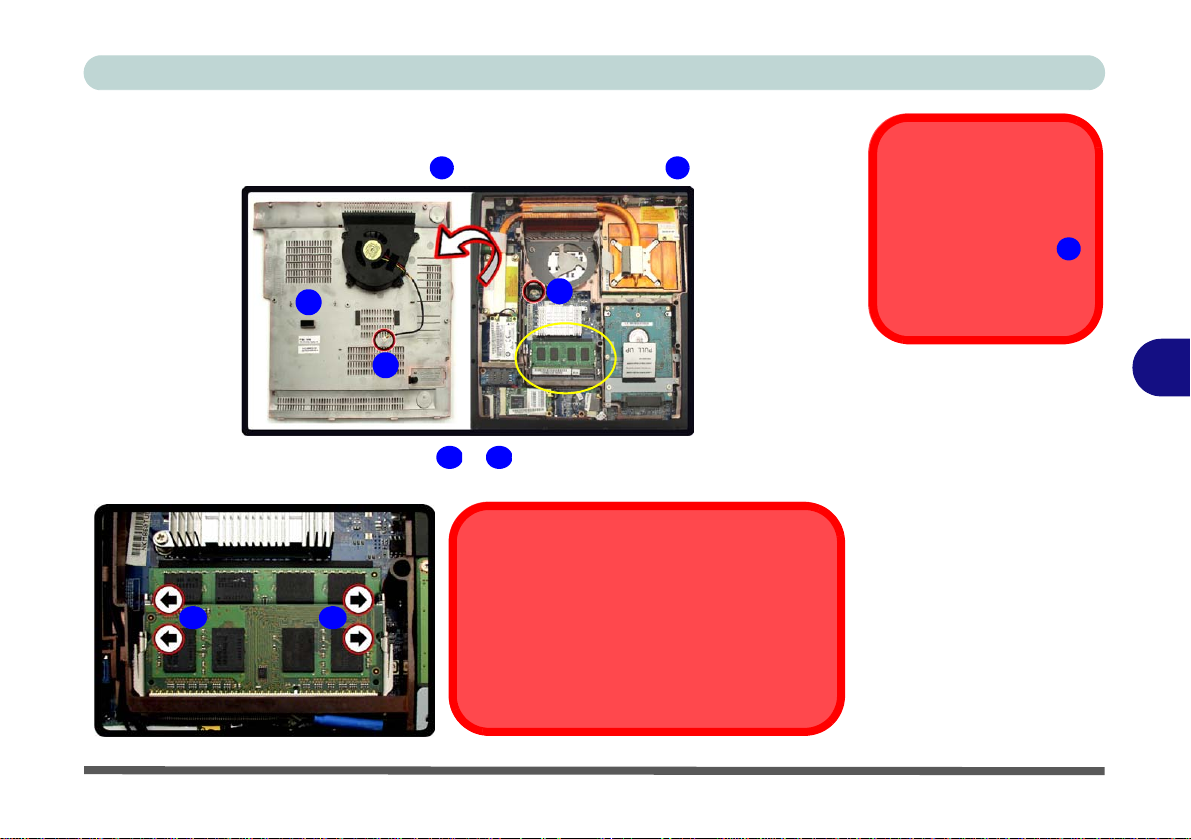

Upgrading the System Memory (RAM) ........................6-8
Upgrading the Optical (CD/DVD) Device ..................6-11
Modules
Overview ........................................................................7-1
Bluetooth Module .......................................................... 7 -2
Bluetooth Configuration in Windows Vista ..................7-3
Wireless LAN Module ...................................................7-7
Intel® Wi-Fi Link Series Driver Installation .................7-8
802.11b/g Driver Installation .........................................7-8
XVII
Preface
Connecting to a Wireless Network ................................ 7-9
Intel® My WiFi Installation & Configuration .............7-12
Intel® Wi-Fi Link Series My WiFi
Driver Installation ........................................................7-13
Windows Mobility Center ...........................................7-24
PC Camera Module ......................................................7-25
PC Camera Driver Installation .....................................7-25
PC Camera Audio Setup ..............................................7-26
3.5G Module ................................................................7-32
3G Watcher Application ..............................................7-34
3G Watcher Application Installation ...........................7-34
Short Messaging Service .............................................7-40
Fingerprint Reader Module ..........................................7-41
Fingerprint Reader Driver Installation .........................7-42
User Enrollment ...........................................................7-43
Fingerprint Control Center Features ............................7-45
Intel Turbo Memory Module .......................................7-46
Intel Turbo Memory & Matrix Storage Setup and
Driver Installation ........................................................7-46
Troubleshooting
Overview ........................................................................8-1
Basic Hints and Tips ......................................................8-2
Backup and General Maintenance .................................8-3
Viruses ........................................................................... 8-4
Upgrading and Adding New Hardware/Software .......... 8-5
Problems & Possible Solutions ......................................8-7
Screen Resolution Error ...............................................8-14
Interface (Ports & Jacks)
Overview ....................................................................... A-1
Ports and Jacks ..............................................................A-2
Card Reader ..................................................................A-2
DC-In Jack .................. ..................................................A-2
DVI-Out Port ................................................................A-2
e-SATA/USB Port ........................................................A-2
HDMI-Out Port .............................................................A-3
Headphone-Out Jack .....................................................A-3
Microphone-In Jack ......................................................A-3
Mini-IEEE 1394 Port ....................................................A-3
RJ-11 Phone Jack ..........................................................A-4
RJ-45 LAN Jack ............................................................A-4
S/PDIF-Out Jack ...........................................................A-4
Security Lock Slot ........................................................A-4
USB 2.0/1.1 Ports .........................................................A-4
NVIDIA Video Driver Controls
NVIDIA Video Driver Installation ...............................B-1
NVIDIA Control Panel ...................... .... .......................B-2
Attaching Other Displays ..............................................B-5
XVIII
Preface
HDMI Audio Configuration ......................................... B-7
Display Modes ..............................................................B-9
Enabling TV Display ..................................................B-12
Changing the TV Signal Format .................................B-13
Specifications
Processor Types ............................................................C-2
Core Logic .................................... ................................C-3
LCD .............................................................................. C-3
Security ......................................................................... C-3
Memory .........................................................................C-3
Video Adapter Options .................................................C-4
BIOS ............................................................................. C-4
Storage .......................................................................... C-4
Audio ............................................................................ C-5
Keyboard & Pointing Device ........................................C-5
ExpressCard Slot ..........................................................C-5
Mini-Card Slots ............................................................C-5
I/O Ports ........................................................................C-5
Communication ............................................................. C-6
Operating Systems Supported .......................................C -6
Power Management ......................................................C-6
Power ............................................................................ C-7
Environmental Spec ......................................................C-7
Physical Dimensions & Weight .................................... C-7
Optional ........................................................................C-7
Windows XP Information
DVD Regional Codes ...................................................D-2
Windows XP Start Menu & Control Panel ...................D-3
Audio Features ..............................................................D-4
Function/Hot Key Indicators ........................................D-5
Video Features ..............................................................D-6
Display Properties & NVIDIA Control Panel ..............D-7
NVIDIA Video Driver Controls ...................................D-8
Display Devices and Modes (NVIDIA).........................D-9
Attaching Other Displays.............................................D-10
HDMI Audio Configuration ........................................D-12
Power Management Features ......................................D-14
Power Schemes ...........................................................D-14
System Power Options.................................................D-15
Hibernate Mode vs. Shutdown ....................................D-15
Stand by Mode vs. Hibernate Mode ............................D-15
Stand by ......................................................................D-16
Hibernate .....................................................................D-16
Configuring the Power Button ....................................D-17
Battery Information .....................................................D-18
New Battery ................................................................D-18
Battery Life .................................................................D-18
Recharging the Battery with the AC/DC Adapter .......D-19
XIX
Preface
Proper handling of the Battery Pack ...........................D-20
Battery FAQ.............................................. ...................D-21
Driver Installation .......................................................D-22
Manual Driver Installation...........................................D-23
Updating/Reinstalling Individual Drivers ...................D-24
Found New Hardware Wizard.....................................D-24
Driver Installation Procedure.......................................D-24
Chipset ........................................................................ D-25
Audio ..........................................................................D-25
Video ...........................................................................D-25
Modem ........................................................................ D-25
LAN ............................................................................D-25
TouchPad .................................................................... D-26
Card Reader/ExpressCard ...........................................D-26
Hot Key .......................................................................D-26
Module Drivers............................................................D-26
Bluetooth Module ................. ......................................D-27
Bluetooth Configuration in Windows XP ...................D-29
To Add a Bluetooth Device ........................................D-30
Wireless LAN Module ................................................D-32
Intel WLAN Driver Installation ..................................D-33
802.11b/g WLAN Driver Installation .........................D-35
PC Camera Module .....................................................D-36
PC Camera Driver Installation ....................................D-37
PC Camera Audio Setup (all camera modules) ..........D-38
BisonCap .....................................................................D-39
Set Capture File ..........................................................D-39
Reducing Video File Size .................. .........................D-40
Eliminating Screen Flicker .........................................D-41
3.5G Module ...................... .... .....................................D-43
3G Watcher Application Installation ..........................D-43
Fingerprint Reader Module .........................................D-44
Fingerprint Reader Driver Installation ........................E-44
User Enrollment ..........................................................D-45
Fingerprint Control Center Features ...........................D-47
Windows 7 Information
Windows 7 Start Menu & Control Panel ...................... E-2
Function/Hot Key Indicators ........................................ E-3
Video Features ..............................................................E-4
Screen Resolution ......................................................... E-5
NVIDIA Control Panel ...................... .... ....................... E-6
Attaching Other Displays ..............................................E-7
Windows 7 Driver Installation .................................... E-11
Updating/Reinstalling Individual Drivers ................... E-12
Driver Installation Procedure ...................................... E-13
Chipset ........................................................................ E-13
Video ...........................................................................E-13
Audio .......................................................................... E-13
Modem ........................................................................ E-13
XX
LAN ............................................................................ E-14
TouchPad .................................................................... E-14
Card Reader/ExpressCard ...........................................E-14
IEEE 1394 Filter Driver .............................................. E-14
Hot Key ....................................................................... E-14
Optional Drivers ......................................................... E-15
Wireless LAN Module ................................................ E-16
Intel® Wi-Fi Link Series Driver Installation .............. E-17
802.11b/g Driver Installation ...................................... E-17
PC Camera Module ..................................................... E-18
PC Camera Driver Installation ....................................E-19
3.5G Module ............................................................... E-20
3G Watcher Application ............................................. E-21
3G Watcher Application Installation .......................... E-21
Fingerprint Reader Module .........................................E-22
Fingerprint Reader Driver Installation ........................E-22
User Enrollment ..........................................................E-23
Intel Turbo Memory Module ...................................... E-25
Intel Turbo Memory & Matrix Storage Setup and
Driver Installation .......................................................E-25
Other Notes: ................................................................ E-27
Bluetooth Module ................. .... .................................. E-27
Preface
XXI
Preface
XXII
Quick Start Guide
Chapter 1: Quick Start Guide
Overview
This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the
computer and to getting your system started. The remainder of the manual covers the following:
• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,
optical device, 7-in-1 card reader , ExpressCard/34/54), TouchPad & Mouse, Audio Features &
Printer.
• Chapter 3 The computer’s power management options.
• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the
computer’s subsystems.
• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).
• Chapter 6 Instructions for upgrading your computer.
• Chapter 7 A quick guide to the computer’s Wireless LAN, Bluetooth, PC Camera, Intel Turbo Memory,
TV Tuner, Security modules (some of which may be optional depending on your purchase configuration).
• Chapter 8 A troubleshooting guide.
• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external
devices.
• Appendix B Information on the NVIDIA Video driver controls.
• Appendix C The computer’s specification.
• Appendix D Information on the Windows XP OS.
• Appendix D Information on the Windows 7 OS.
1
Overview 1 - 1
1
Quick Start Guide
Advanced Users
If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful
to refer to “Drivers & Utilities” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer”
on page 6 - 1 in the User’s Manual. You may also find the notes marked with a
of interest to you. This manual
refers to the Windows Vista operating system (for specific driver information on Windows XP or Windows 7 see
“Windows XP Information” on page D - 1 or “Windows 7 Information” on page E - 1).
Beginners and Not-So-Advanced Users
Notes
Check the light colored
boxes with the mark
above to find detailed
information about the
computer’s features.
If you are new to computers (or do not have an advanced knowledge of them) then
the information contained in this Quick Start Guide should be enough to get you up
and running. Eventually you should try to look through all the documentation (more
detailed descriptions of the functions, setup and system controls are covered in the
remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You
may find it useful to refer to the notes marked with a
as indicated in the margin.
For a more detailed description of any of the interface ports and jacks see “Interface
(Ports & Jacks)” on page A - 1.
Warning Boxes
No matter what your level please pay careful attention to the warning and safety information indicated by the
symbol. Also please note the safety and handling instructions as indicated in the Preface.
1 - 2 Overview
Quick Start Guide
Not Included
Operating Systems (e.g. Windows Vista/ Windows XP/Windows 7 etc.) and applications (e.g. word processing,
spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.
Model Differences
This notebook series includes two different design types, however only one design is pictured in this manual.
Drivers
If you are installing new system software, or are re-configuring your computer for a different system, you will need to install
the appropriate drivers. Drivers are programs which act as an interface between the computer and a hardware component
e.g. a wireless network module. It is very important that you install the drivers in the order listed in Table 4 - 1, on page 4
- 3. You will be unable to use most advanced controls until the necessary drivers and utilities are properly installed. If your
system hasn’t been properly configured (your service representative may have already done that for you), refer to “Drivers
& Utilities” on page 4 - 1 for installation instructions.
Ports and Jacks
See “Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.
1
Overview 1 - 3
1
Quick Start Guide
System Software
Your computer may already come with system software pre-installed. Where this is not the case, or where you
are re-configuring your computer for a different system, you will find the operating systems below are supported.
See “Installed O/S (Advanced Menu)” on page 5 - 8 for information on setting the O/S in the BIOS before installing the operating system.
Operating System & Version Note
In order to run Windows XP without limitations or decreased
*Windows XP (Home or Professional)
Windows Vista - SP2 In order to run Windows Vista/ Windows 7 without limitations or
*Windows 7
Table 1 - 1 - Operating Systems Supported
performance, your computer requires a minimum 512MB of
system memory (RAM)
decreased performance, your computer requires a minimum 1GB
of system memory (RAM).
*Note: For information on the Windows XP OS see “Windows XP Information” on page D - 1. For information
on the Windows 7 OS see “Windows 7 Information” on page E - 1
Windows Vista Service Pack 2
Make sure you install Windows Vista Service Pack 2 (or a Windows Vista version which includes Service Pack 2) before
installing any drivers. Go to the Microsoft website for download details, or contact your service center.
1 - 4 Overview
Quick Start Guide
System Startup
1. Remove all packing mate ria ls, and plac e th e c omp uter on a stable surface.
2. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.
3. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an
outlet, and connect the AC power cord to the AC/DC adapter.
4. Use one hand to raise the
1 below) to support the base of the computer (Note: Never lift the computer by the lid/LCD).
5. Raise the lid/LCD to a comfortable viewing angle, and press the power button.
Note that you should always shut your computer down by choosing the Shut Down command from the Lock Button
Menu in Windows Vista. This will help prevent hard disk or system problems.
lid/LCD to a comfortable viewing angle;
Shutdown
use the other hand (as illustrated in Figure 1 -
1
Figure 1 - 1 - Opening the Lid/LCD/Computer with AC/DC Adapter Plugged-In
System Startup 1 - 5
1
Quick Start Guide
Figure 1 - 2
LCD Panel Open
1. Optional Built-In PC
Camera
2. LCD
3. Hot Key Buttons
4. Power Button
5. Speakers
6. Keyboard
7. Built-In Microphone
8. TouchPad and
Buttons
9. Fingerprint Reader
Module (optional)
8
9
System Map: LCD Panel Open
1
2
5 5
3
4
6
7
8
9
Wireless Device
Operation Aboard
Aircraft
The use of any portable electronic transmission devices
(e.g. WLAN or Bluetooth)
aboard aircraft is usually prohibited. Make sure any wireless modules are OFF if you
are using the computer
aboard aircraft.
Use the appropriate function
key combination (see Table 1
- 4, on page 1 - 10) to toggle
power to any wireless modules, and check the LED indicators to see if any modules
are powered on or not (see
Table 1 - 2, on page 1 - 7).
1 - 6 System Map: LCD Panel Open
Quick Start Guide
LED Indicators
The LED indicators on the computer display helpful information about the current status of the computer.
Icon Color Description Icon Color Description
Green The Computer is On Orange The Battery is Charging
1
Blinking
Green
Orange The AC/DC Adapter is Plugged In Green The Battery is Fully Charged
Green Number Lock is Activated Green Hard Disk Activity
Green Caps Lock is Activated Orange The Bluetooth Module is Powered On
Green Scroll Lock is Activated Green The WLAN Module is Powered On
The Computer is In Sleep Mode
Table 1 - 2 - LED Indicators
Blinking
Orange
The Battery has Reached Critically Low
Power Status
LED Indicators 1 - 7
1
Quick Start Guide
Hot Key Buttons
These buttons give instant access to the default Internet browser and e-mail program with one quick button press.
Hot Key Function
Activate the Default E-Mail Browser Activate the Default E-Mail Browser (Note
that In Windows 7 without Outlook/Outlook Express installed this button has no function. If
Outlook/Outlook Express are installed then the button will activate the application.)
Activate the Default Internet Program
Toggle *Silent Mode (for power saving)
Table 1 - 3 - Hot Key Buttons
*When enabled, Silent Mode will reduce fan noise and save power consumption. Note this may reduce computer performance.
1 - 8 Hot Key Buttons
Quick Start Guide
1
Keyboard
The keyboard has a numerical keypad for easy numeric data input, and features function keys to allow you to change operational features instantly. See Table 1 - 4, o n
page 1 - 10 for full function key combination details.
Function Keys
Play/Pause Key
Numerical Keypad
Fn Key
Figure 1 - 3 - Keyboard
Special Characters
Some software applications allow the number-keys to be used with Alt to produce special
characters. These special characters can only be produced by usi ng the numeric keypad.
Regular number keys (in the upper row of the keyboard) will not work. Make sure that Num-
Lk is on.
NumLk &
ScrLk Keys
3.5G Module
Power
Toggle Key
Other Keyboards
If your keyboard is
damaged or you just
want to make a
change, you can use
any standard USB keyboard. The system will
detect and enable it
automatically. However special functions/
hot-keys unique to the
system’s regular keyboard may not work.
NumLk & ScrLk
Hold down the Fn Key
and either NumLk or
ScrLk to enable number or scroll lock, and
check the LED indicator for status.
Keyboard 1 - 9
1
Quick Start Guide
Function/Hot Key Indicators
The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition
to the basic function key combinations; visual indicators (see the table below) are available when the hot key
utility is installed (see “Hot Key” on page 4 - 6). After installing the driver an icon will appear in the taskbar.
Fn Keys Function Fn Keys Function
Fn + ~ Play/Pause (in Audio/Video Programs) Fn + F7 Display Toggle
Fn +
Fn + F1 TouchPad Toggle Fn + F10
Fn + F2
Fn + F3 Mute Toggle Fn + F12
Fn + F4 Sleep Toggle
Fn + F5/
F6
3.5G Module Power Toggle
Turn LCD Backlight Off
(Press a key to or use TouchPad to turn on)
Volume Decrease/
Increase
Fn + F11
Table 1 - 4 - Function/Hot Key Combo Indicators
1 - 10 Function/Hot Key Indicators
Fn + F8/
F9
*When enabled, Silent Mode will reduce fan noise and save power
consumption. Note this may reduce computer performance.
Brightness Decrease/Increase
PC Camera Power
Toggle
WLAN Module Power
Toggle
Bluetooth Module Power
Toggle
*Silent Mode Toggle
Quick Start Guide
1
System Map: Front & Rear Views
1 2 3 4 5
9
6
7
8
10
Overheating
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake/Outlet while the computer is in use.
Mini-IEEE 1394 Port
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices. Make sure you install
the IEEE 1394 filter driver (see page 4 - 6).
e-SATA Port
Note that the Intel Matrix Storage driver is required to enable the e-SATA port (see “e-SATA Port
Support” on page 7 - 33) in Windows Vista.
11
12
Figure 1 - 4
Front View
1. Headphone-Out Jack
2. Microphone-In Jack
3. *S/PDIF-Out Jack
4. Mini-IEEE 1394 Port
5. LED Indicators
6. Vent/Fan Intake/
Outlet
7. DVI-Out Port
8. HDMI-Out Port
9. **Combined eSATA/
USB Port
10.USB 2.0 Port
11. DC-In Jack
12.Security Lock Slot
*
Note that the S/PDIF-Out
Jack will support 5.1 surround
sound, if connected to a 5.1
amplifier.
**Note that the eSATA port
does not support hot-swapping in Windows XP. Make
sure you install the Intel Ma-
trix driver for e-SATA support in Windows Vista.
System Map: Front & Rear Views 1 - 11
1
Quick Start Guide
Figure 1 - 5
Right View
1. Express Card Slot
2. 7-in-1 Card Reader
3. 2 * USB 2.0 Ports
4. RJ-45 LAN Jack
5. RJ-11 Phone Jack
USB Ports
Note that the connections to the USB ports
only fit one way, do not
force them.
System Map: Right View
1
2
The ExpressCard Slot accepts either ExpressCard/34 or ExpressCard/54 formats.
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
3
3
ExpressCard Slot
7-in-1 Card Reader
4 5
1 - 12 System Map: Right View
Quick Start Guide
1
System Map: Left View
Changing DVD Regional Codes
Go to the Control Panel and double-click
Device Manager (Hardware and Sound),
then click the + next to DVD/CD-ROM
drives. Double-click on the DVD-ROM de-
vice to bring up the Properties dialogue box,
and select the DVD Region (tab) to bring up
the control panel to allow you to adjust the regional code (see “DVD Regional Codes” on
page 2 - 5).
DVD region detection is device dependent,
not OS-dependent. You can select your module’s region code 5 times. The fifth selection
is permanent. This cannot be altered even if
you change your operating system or you
use the module in another computer.
1
CD/DVD Emergency Eject
If you need to manually eject a CD/DVD
(e.g. due to an unexpected power interruption) you may push the end of a
straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or any object that may
break and become lodged in the hole.
Don’t try to remove a floppy disk/CD/
DVD while the system is accessing it.
This may cause the system to “crash”.
Figure 1 - 6
Left View
1. Optional Device
Drive Bay
(for CD/DVD Device,
see page 2 - 3)
System Map: Left View 1 - 13
1
Quick Start Guide
Figure 1 - 7
Bottom View
1. Vent/Fan Intake/
Outlet
2. Battery
3. Battery Release
Latch
4. Component Bay
Cover
5. 3.5G USIM Card
Cover
System Map: Bottom View
1
1
1
1
1
1
4
5
1
Battery Information
Always completely discharge, then fully charge, a new battery before using it. Completely
discharge and charge the battery at least once every 30 days or after about 20 partial discharges. See “Battery Information” on page 3 - 10 for full instructions.
2
3
1 - 14 System Map: Bottom View
Quick Start Guide
Windows Vista Start Menu & Control Panel
Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are
accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk
drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu
icon , and then select Properties if you want to customize the appearance of the Start menu.
Click here to toggle Category View
Figure 1 - 8 - Start Menu & Control Panel
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control
Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features
in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea-
tures, however many new controls are added (or existing ones are enhanced) when you install the drivers listed
in Table 4 - 1, on page 4 - 3. To see all controls it may be necessary to toggle off Category View.
1
Windows Vista Start Menu & Control Panel 1 - 15
1
Quick Start Guide
Video Features
You can configure display options, from the Display Settings control panel in Windows as long as the appropriate video driver is installed. For more detailed video information see “NVIDIA Video Driver Controls” on
page B - 1.
To access Display Settings in Windows:
1. Click Start, and click Control Panel (or point to Settings and click Control Panel).
2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click
Personalization > Display Settings).
3. Move the slider to the preferred setting in Resolution: (Figure 1 - 9 on page 1 - 17).
4. Click the arrow, and scroll to the preferred setting In Colors: (Figure 1 - 9 on page 1 - 17).
5. Click Advanced Settings (button) (Figure 1 - 9 on page 1 - 17).
6. Click GeForce..... (tab).
7. Click Start the NVIDIA Control Panel (Figure 1 - 9 on page 1 - 17) to access the control panel.
8. The NVIDIA Control Panel can also be accessed by right-clicking the desktop, and then clicking NVIDIA
Control Panel (or from the NVIDIA Control Panel in the Windows control panel).
Note that card types, specifications and drivers are subject to continual updates and changes. Check with your service center for the latest
details on video cards supported.
3
4
Video Card Options
1
2
1 - 16 Video Features
Quick Start Guide
Display Devices & Options
Besides the built-in LCD, you can also use an external VGA monitor (CRT)/external Flat Panel Display or
TV (connected to the DVI-Out port/HDMI-Out port) as your display device.
1
1
2
4
3
Figure 1 - 9 - Display Settings & NVIDIA Control Panel
NVIDIA Display Mode Description
Single One display device is used.
Clone Both connected displays output the same view
Dualview Both connected displays are treated as separate devices, and act as a virtual desktop
Table 1 - 5 - NVIDIA Display Modes
Video Features 1 - 17
1
Quick Start Guide
Power Options
The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 15 ) allows you
to configure power management features for your computer. You can conserve power by means of power plans
and configure the options for the power button, sleep button, computer lid (when closed), display and sleep
mode from the left menu. Note that the Power saver plan may have an affect on computer performance.
Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to
create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con-
figuration options.
Pay attention to the instructions on battery care in “Battery Information” on page 3 - 10.
1 - 18 Power Options
Note: Sleep is the default power saving state in Windows Vista
Figure 1 - 10 - Power Options
Storage Devices, Mouse, Audio & Printer
Chapter 2: Storage Devices, Mouse, Audio & Printer
Overview
Read this chapter to learn more about the following main features and components
of the computer:
•Hard Disk Drive
• Optical Device
• 7-in-1 Card Reader
• ExpressCard Slot
• TouchPad and Buttons/Mouse
• Audio Features
• Adding a Printer
2
Overview 2 - 1
Storage Devices, Mouse, Audio & Printer
2
Before attempting to access any of the internal
components of your
computer please ensure
that the machine is not
connected to the AC
power, and that the machine is turned off. Also
ensure that all peripheral cables, including
phone lines, are disconnected from the computer.
Power Safety
Hard Disk Drive
The hard disk drive is used to store your data in the computer. The hard disk can be
taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height
of 9.5 mm. The hard disk is accessible from the bottom of your computer as seen
below. Further details on removing and inserting the hard disk are available in “Up-
grading the Hard Disk Drive” on page 6 - 4.
1
Figure 2 - 1
Hard Disk Location
2 - 2 Hard Disk Drive
Storage Devices, Mouse, Audio & Printer
Optical Device
There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the model you purchased (see “Storage” on page C - 4). The
optical device is usually labeled “Drive D:” and may be used as a boot device if
properly set in the BIOS (see “Boot Menu” on page 5 - 13).
Loading Discs
To insert a CD/DVD, press the open button and carefully place a CD/DVD onto
the disc tray with label-side facing up (use just enough force for the disc to click onto
the tray’s spindle). Gently push the CD/DVD tray in until its lock “clicks” and you
are ready to start. The busy indicator will light up while data is being accessed,
or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole
3
to open the tray.
1
2
2
1
3
Sound Volume
Adjustment
How high the sound volume can be set depends
on the setting of the volume control within Win-
dows. Click the Volume
icon on the taskbar to
check the setting.
Peripherals must be
connected before you
turn on the system.
Figure 2 - 2
Optical Device
2
Optical Device 2 - 3
Storage Devices, Mouse, Audio & Printer
2
CD Emergency Eject
If you need to manually
eject a CD (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. However please
do NOT use a sharpened pencil or similar
object that may break
and become lodged in
the hole.
Disk Eject Warning
Don’t try to remove a
CD/DVD while the system is accessing it. This
may cause the system
to “crash”.
Proper handling of your CDs/DVDs will prevent them from being damaged. Please
follow the advice below to make sure that the data stored on your CDs/DVDs can be
accessed.
Note the following:
• Hold the CD or DVD by the edges; do not touch the surface of the disc.
• Use a clean, soft, dry cloth to remove dust or fingerprints.
• Do not write on the surface with a pen.
• Do not attach paper or other materials to the surface of the disc.
• Do not store or place the CD or DVD in high-temperature areas.
• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.
• Do not bend the CD or DVD.
• Do not drop or subject the CD or DVD to shock.
Handling CDs or DVDs
2 - 4 Optical Device
Storage Devices, Mouse, Audio & Printer
DVD Regional Codes
To change the DVD regional codes see “Changing DVD Regional Codes” on
page 1 - 13.
DVD Regional Coding
Region Geographical Location
1 USA, Canada
2
3
4
5
6China
Western Europe, Japan, South
Africa, Middle East & Egypt
South-East Asia, Taiwan, South
Korea, The Philippines, Indonesia,
Hong Kong
South & Central America, Mexico,
Australia, New Zealand
N Korea, Russia, Eastern Europe,
India & Most of Africa
2
Table 2 - 1
DVD Regional Coding
Optical Device 2 - 5
Storage Devices, Mouse, Audio & Printer
2
Card Reader Cover
Make sure you keep the
cover in the card reader
when not in use. This
will help prevent foreign
objects and/or dust getting in to the card reader.
7-in-1 Card Reader
The card reader allows you to use some of the latest digital storage cards. Push the
card into the slot and it will appear as a removable device, and can be accessed in
the same way as your hard disk (s). Make sure you install the Card Reader driver
(see “Card Reader/ExpressCard” on page 4 - 6).
• MMC (MultiMedia Card)
• SD (Secure Digital)
• MS (Memory Stick)
• MS (Memory Stick Pro)
• MS Duo (requires PC adapter*)
• Mini SD (requires PC adapter*)
• RS MMC (requires PC adapter*)
*Note: The PC adapters are usually supplied with these cards.
Figure 2 - 3
Right View
1. Card Reader
1
2 - 6 7-in-1 Card Reader
Storage Devices, Mouse, Audio & Printer
ExpressCard Slot
The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/
34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC
Cards).
ExpressCard/54 is used for applications which require a larger interface slot, e.g.
CompactFlash card reader. The number denotes the card width; 54mm for the Express Card/54 and 34mm for the ExpressCard/34. Make sure you install the ExpressCard driver (see “Card Reader/ExpressCard” on page 4 - 6).
1
Inserting and Removing ExpressCards
• Align the ExpressCard with the slot and push it in until it locks into place (as
pictured in the generic figure below).
• To remove an ExpressCard, simply press the card to eject it.
ExpressCard
Slot Cover
Make sure you keep the
cover in the ExpressCard slot when not in
use. This will help prevent foreign objects and/
or dust getting in to the
ExpressCard Slot.
Figure 2 - 4
ExpressCard Slot
1. Express Card
Slot
2
ExpressCard Slot 2 - 7
Storage Devices, Mouse, Audio & Printer
2
If you are using an external mouse your operating system may be able
to auto-configure your
mouse during its installation or only enable its
basic functions. Be sure
to check the device’s
user documentation for
details.
Mouse Driver
TouchPad and Buttons/Mouse
The TouchPad is an alternative to the mouse; however, you can also add a mouse to
your computer through one of the USB ports. The TouchPad buttons function in
much the same way as a two-button mouse.
Install the TouchPad driver (see page 4 - 6) and then double-click the TouchPad
driver icon in the taskbar to configure the functions. You may then configure the
TouchPad tapping, buttons, scrolling, pointer motion and sensitivity options to your
preferences. The TouchPad may be toggled on/off by means of the Fn + F1 key
combination.
Figure 2 - 5
Mouse Properties
2 - 8 TouchPad and Buttons/Mouse
Storage Devices, Mouse, Audio & Printer
Audio Features
You can configure the audio options on your computer from the Sound control
panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/
control panel (right-click the taskbar icon to bring up an audio menu). The volume
may also be adjusted by means of the Fn + F5/F6 key combination.
Right-click the icon
to access the menu
above.
Note that the S/PDIF-Out
Jack will support 5.1 surround sound, if connected to
a 5.1 amplifier.
Sound Volume
Adjustment
The sound volume level
is set using the volume
control within Windows
(and the volume function keys on the computer). Click the volume
icon in the taskbar to
check the setting.
Figure 2 - 6
Realtek Audio
Manager
2
Audio Features 2 - 9
Storage Devices, Mouse, Audio & Printer
2
After setting up the printer attach the parallel cable to the printer.
Connect the printer’s
parallel cable to the Parallel to USB converter,
and then plug the converter into the USB port.
Turn ON the printer,
then turn ON the computer.
Windows will identify the
printer and either load
one of its own drivers or
ask you to supply one.
Follow the on-screen instructions.
Parallel Printer
Adding a Printer
The most commonly used peripheral is a printer. The following conventions will
help you to add a printer; however it is always best to refer to the printer manual for
specific instructions and configuration options.
USB Printer
Most new printers have a USB interface connection. You may use any one of the
ports to connect the printer.
Install Instructions:
1. Set up the printer according to its instructions (unp acking, p aper tray, toner/ink cartridge etc.).
2. Turn ON the computer.
3. Turn ON the printer.
4. Connect the printer’s USB cable to one of the USB ports on the comp uter.
5. Windows will identify the printer and either load one of its own drivers or ask you
to supply one. Follow the on-screen instructions.
Parallel Printer
This is still a very common type of printer. The install instructions are in the sidebar
(you will need to purchase a parallel to USB converter).
2 - 10 Adding a Printer
Power Management
Chapter 3: Power Management
Overview
To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer
(the monitor and hard disk drive) or the whole system.
This chapter covers:
• The Power Sources
• Turning on the Computer
• Power Plans
• Power-Saving States
• Configuring the Power Buttons
• Battery Information
The computer uses enhanced power saving techniques to give the operating system
(OS) direct control over the power and thermal states of devices and processors. For
example, this enables the OS to set devices into low-power states based on user settings and information from applications.
OS Note
Power management
functions will vary slightly depending on your
operating system. For
more information it is
best to refer to the user’s
manual of your operating system.
(Note: All pictures used
on the following pages
are from the Windows
Vista OS.)
3
Overview 3 - 1
Power Management
The Power Sources
The computer can be powered by either an AC/DC adapter or a battery pack.
3
AC/DC Adapter
Use only the AC/DC adapter that comes with your computer. The wrong type of AC/
DC adapter will damage the computer and its components (see page C - 7).
1. Attach the AC/DC adapter to the DC-In jack at the rear of the computer.
2. Plug the AC power cord into an outlet, and then conne ct the AC power co rd to the
AC/DC adapter.
3. Raise the lid/LCD to a comfortable viewing angle.
4. Press the power button to turn “On”.
Battery
The battery allows you to use your computer while you are on the road or when an
electrical outlet is unavailable. Battery life varies depending on the applications and
the configuration you're using. To increase battery life, let the battery discharge
completely before recharging (see “How do I completely discharge the battery?”
on page 3 - 14).
We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery Information” on page 3 - 10.
3 - 2 The Power Sources
Turning on the Computer
Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.
When the computer is on, you can use the power button as a Sleep/Hibernate hotkey button when it is pressed for less than 4 seconds (pressing and holding the power
button for longer than this will force the computer to shut down). Use Power Op-
tions (Hardware and Sound menu) control panel in Windows Vista to configure
this feature.
Forced Off
If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the power button for 4 seconds, or longer, to force the system to turn itself off.
Power Button Sleep
Sleep is the default power mode when the power button is pressed for less than 4 seconds.
You may configure the options for the power button from the Power Options (Hardware
and Sound menu) control panel in Windows Vista (see your OS’s documentation, or
“Configuring the Power Buttons” on page 3 - 8 for details).
Power Management
Shut Down
Note that you should always shut your computer down by choosing the
Shut Down command
from the Lock Button
Menu in Windows Vis-
ta. This will help prevent
hard disk or system
problems.
3
Turning on the Computer 3 - 3
Power Management
Power Plans
3
Resuming
Operation
See Table 3 - 1, on
page 3 - 9 for informa-
tion on how to resume
from a power-saving
state.
Password
It is recommended that
you enable a password
on system resume in order to protect your data.
Figure 3 - 1
Power Plan
Advanced Settings
The computer can be configured to conserve power by means of power plans. You
can use (or modify) an existing power plan, or create a new one.
The settings may be adjusted to set the display to turn off after a specified time, and
to send the computer into Sleep after a period of inactivity.
Click Change plan settings and then click Change advanced power settings to access further configuration options in Advanced Settings.
3 - 4 Power Plans
Each Windows Power Plan will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing
any reduced performance (especially under DC/battery power).
Choose High performance for maximum performance when the computer is powered from an AC power source. Choose the Power saver (bear in mind that this
scheme may slow down the overall performance of the computer in order to save
power) for maximum power saving when the computer is battery (DC power) powered.
Power Management
3
Figure 3 - 2
Power Plans
Power Plans3-5
Power Management
Power-Saving States
3
Power Button
The Power Button
in the Start Menu (in
Classic View use the
Shut Down button )
can be used to send the
computer into a powersaving state.
Sleep Mode &
Mobile PC Battery
A mobile PC in Sleep
uses very little battery
power.
After an extended period of time the computer
will save any open documents and applications
to hard disk.
You can use power-saving states to stop the computer’s operation and restart where
you left off. Sleep is the default power-saving state in Windows Vista.
Earlier versions of Windows used Stand By and Hibernate as system power-saving
states. Windows Vista combines the features of Stand By and Hibernate into the default Sleep power-saving state.
Sleep
In Sleep all of your work, settings and preferences are saved to memory before the
system sleeps. When you are not using your computer for a certain length of time,
which you specify in the operating system, it will enter Sleep to save power.
The PC wakes from Sleep within seconds and will return you to where you last left
off (what was on your desktop) without reopening the application(s) and file(s) you
last used.
If your mobile PC in Sleep is running on battery power the system will use only a
minimum amount of power. After an extended period the system will save all the
information to the hard disk and shut the computer down before the battery becomes
depleted.
3 - 6 Power-Saving States
Hibernate
Hibernate uses the least amount of power of all the power-saving states and saves
all of your information on a part of the hard disk before it turns the system off. If a
power failure occurs the system can restore your work from the hard disk; if a power
failure occurs when work is saved only to memory, then the work will be lost. Hi-
bernate will also return you to where you last left off within seconds. You should
put your mobile PC into Hibernate if you will not use the computer for a period of
time, and will not have the chance to charge the battery.
Shut Down
You should shut down the computer if you plan to install new hardware (don’t forget to remove the battery and follow all the safety instructions in Chapter 6), plan
to be away from the computer for several days, or you do not need it to wake up and
run a scheduled task. Returning to full operation from shut down takes longer than
from Sleep or Hibernate.
Power Management
3
Figure 3 - 3
Lock Button Menu
Power-Saving States 3 - 7
Power Management
Configuring the Power Buttons
3
Password
Protection
It is recommended that
you enable a password
on wake up in order to
protect your data.
However you can disable this setting from the
Power Options menu
by clicking Require a
password on wakeup
in the left menu, and selecting the options (click
Change settings that
are currently unavailable).
Figure 3 - 4
Power Options
Define Power
Buttons
The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the
computer in to a power-saving state.
3 - 8 Configuring the Power Buttons
Resuming Operation
You can resume operation from power-saving states by pressing the power button,
or in some cases pressing the sleep button (Fn + F4 key combo).
Power Status
Power Off Off Press the Power Button
Sleep Blinking Green
Icon Color
Press the Sleep Button (Fn + F4 Key Combo)
To Resume
Press the Power Button
Power Management
Closing the Lid
If you have chosen to
send the computer to
Sleep when the lid is
closed, raising the lid
will wake the system up.
3
Hibernate
Display Turned Off Green Press a Key or Move the Mouse/Touchpad
Off (battery)
Press the Power Button
Orange (AC/DC adapter)
Power Button
When the computer is on, you can use the power button as a Sleep/Hibernate hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for
longer than this will force shut the computer to shut down).
Configuring the Power Buttons 3 - 9
Table 3 - 1
Resuming
Operation
Power Management
Battery Information
3
Low Battery
Warning
When the battery is critically low, immediately
connect the AC/DC
adapter to the computer
or save your work, otherwise, the unsaved
data will be lost when
the power is depleted.
Figure 3 - 5
Battery Icon
(Taskbar) & Battery
Advanced Settings
Please follow these simple guidelines to get the best use out of your battery.
Battery Power
Your computer’s battery power is dependent upon many factors, including the programs you are running, and peripheral devices attached. You can set actions to be
taken (e.g. Shut down, Hibernate etc.), and set critical and low battery levels from
power plan Advanced Settings (see Figure 3 - 1 on page 3 - 4).
Click the battery icon in the taskbar to see the current battery level and charge
status.
3 - 10 Battery Information
Conserving Battery Power
•Use a power plan that conserves power (e.g Power saver), however note that
this may have an affect on computer performance.
• Lower the brightness level of the LCD display. The system will decrease LCD
brightness slightly to save power when it is not powered by the AC/DC adapter.
• Reduce the amount of time before the display is turned off.
• Close wireless, Bluetooth, modem or communication applications when they are
not being used.
• Disconnect/remove any unnecessary external devices e.g. USB devices,
ExpressCards etc.
Power Management
Windows Mobility
Center
The Windows Mobility
Center control panel
provides an easy point
of access for information
on battery status, power
plans used etc.
DO NOT use the Windows Mobility Center
to power on/off the
WLAN module as this
can cause some unexpected behavior.
Figure 3 - 6
Windows Mobility
Center
3
Conserving Battery Power 3 - 11
Power Management
Battery Life
Battery life may be shortened through improper maintenance. To optimize the life
3
and improve its performance, fully discharge and recharge the battery at least
once every 30 days.
We recommend that you do not remove the battery yourself. If you do need to remove the battery for any reason (e.g. long term storage) see “Removing the Battery”
on page 6 - 3.
New Battery
Always completely discharge, then fully charge, a new battery (see “Battery FAQ”
on page 3 - 14 for instructions on how to do this).
Recharging the Battery with the AC/DC Adapter
The battery pack automatically recharges when the AC/DC adapter is attached and
plugged into an electrical outlet. If the computer is powered on, and in use, it will
take several hours to fully recharge the battery. When the computer is turned off but
plugged into an electrical outlet, battery charge time is less. (Refer to “LED Indica-
tors” on page 1 - 7 for information on the battery charge status, and to “Battery Information” on page 3 - 10 for more information on how to maintain and properly
recharge the battery pack.)
3 - 12 Battery Life
Proper handling of the Battery Pack
• DO NOT disassemble the battery pack under any circumstances
• DO NOT expose the battery to fire or high temperatures, it may explode
• DO NOT connect the metal terminals (+, -) to each other
Damaged Battery Warning
Should you notice any physical defects (e.g. the battery is bent ou t of shape after being
dropped), or any unusual smells emanating from the notebook battery, shut your computer
down immediately and contact your service center. If the battery has bee n d roppe d we do
not recommend using it any further, as even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire . It is
recommended that you replace your computer battery every two years.
Power Management
Caution
Danger of explosion if
battery is incorrectly replaced.
Replace only with the
same or equivalent type
recommended by the
manufacturer. Discard
used battery according
to the manufacturer’s instructions.
3
Battery Life3-13
Power Management
Battery FAQ
How do I completely discharge the battery?
3
Figure 3 - 7
Power Plan Create
Use the computer with battery power until it shuts down due to a low battery. Don’t
turn off the computer even if a message indicates the battery is critically low, just let
the computer use up all of the battery power and shut down on its own.
1. Save and close all files and applications.
2. Create a power plan for discharging the battery and set all the options to Never.
3. Click Change plan settings (after saving it) and click Change advanced power
settings.
3 - 14 Battery Life
4. Scroll down to Battery and click + to expand the battery options.
5. Choose the options below (click Yes if a warning appears):
• Low battery levels = 0%
• Critical battery Levels = 0%
• Low battery action = Do Nothing
• Critical battery action (On battery) = Shut Down
• Critical battery action (Plugged in) = Do Nothing
Power Management
3
Figure 3 - 8
Power Options
Advanced Settings -
Battery
Battery Life3-15
Power Management
How do I fully charge the battery?
When charging the battery, don’t stop until the LED charging indicator light changes
from orange to green.
3
How do I maintain the battery?
Completely discharge and charge the battery at least once every 30 days or after
about 20 partial discharges.
3 - 16 Battery Life
Chapter 4: Drivers & Utilities
Drivers & Utilities
This chapter deals with installing the drivers and utilities essential to the operation or improvement of some
of the computer’s subsystems. The system takes advantage of some newer hardware components for
which the latest versions of most available operating
systems haven’t built in drivers and utilities. Thus,
some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to
manually install some system-required drivers and
utilities.
What to Install
The Device Drivers & Utilities + User’s Manual disc
contains the drivers and utilities necessary for the
proper operation of the computer.
Table 4 - 1, on page 4 - 3 lists what you need to install
and it is very important that the drivers are in-
stalled in the order indicated (see “Driver Installa-
tion” on page D - 22 for Windows XP driver
information or see “Windows 7 Driver Installation”
on page E - 11 for Windows 7 driver information).
Module Driver Installation
The procedures for installing drivers for the WLAN,
PC Camera, 3.5G, Fingerprint and Intel Turbo
Memory (and Intel Matrix Storage) modules are
provided in “Modules” on page 7 - 1.
4
What to Install 4 - 1
Drivers & Utilities
Driver Installation
Insert the Device Drivers & Utilities + User’s Manual
disc and click Install Drivers (button), or Option Driv-
ers (button) to access the Optional driver menu.
4
Figure 4 - 1 - Drivers Installer Screen 1
1. Check the driver installation order from Table 4 - 1,
on page 4 - 3 (the drivers must be installed in
this order) which is the same as that listed in the
Drivers Installer menu below.
2. Click to select the driver you wish to install, after
installing each driver it will become grayed out. If
you need to reinstall any driver, click the Unlock
button (you should uninstall the driver first).
3. Follow the instructions for each individual driver
installation procedure as listed on the following
pages.
4 - 2 Driver Installation
Figure 4 - 2 - Drivers Installer Screen 2
Drivers & Utilities
Driver Page
Chipset Page 4 - 5
Video Page 4 - 5
Audio Page 4 - 5
Modem
LAN Page 4 - 6
TouchPad
Card Reader/ExpressCard Page 4 - 6
Hot Key Page 4 - 6
IEEE 1394 Filter Driver Page 4 - 6
e-SATA Support Page 7 - 33
Wireless LAN Module Page 7 - 6
PC Camera Module Page 7 - 12
3.5G Module Page 7 - 19
Fingerprint Reader Module Page 7 - 28
Intel Turbo Memory Module Page 7 - 33
Page 4 - 6
Page 4 - 6
Manual Driver Installation
Click the Browse CD button in the Drivers Installer
application and browse to the executable file in the appropriate driver folder.
Windows Update
After installing all the drivers make sure you enable
Windows Update in order to get all the latest security
updates etc. (all updates will include the latest hotfixes
from Microsoft). See “Windows Update” on page 4 -
7 for instructions.
Windows Vista Service Pack 2
Make sure you install Windows Vista Service Pack 2
(or a Windows Vista version which includes Service
Pack 2) before installing any drivers. Go to the Microsoft website for download details, or contact your service
center.
4
Table 4 - 1 - Driver Installation
Driver Installation 4 - 3
Drivers & Utilities
Updating/Reinstalling Individual Drivers
If you wish to update/reinstall individual drivers it
may be necessary to uninstall the original driver.To do
this go to the Control Panel in the Windows OS and
double-click the Programs and Features icon (Pro-
4
grams > Uninstall a program). Click to select the
driver (if it is not listed see below) and click Uninstall,
and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as
outlined in this chapter.
If the driver is not listed in the Programs and Fea-
tures menu:
1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).
2. Double-click Device Manager (Hardware and
Sound > Device Manager).
3. Double-click the device you wish to update/reinstall
the driver for (you may need to click “+” to expand
the selection).
4. Click Driver (tab) and click the Update Driver or
Uninstall button and follow the on screen prompts.
User Account Control (Win Vista)
If a User Account Control prompt appears as part of
the driver installation procedure, click Continue/Al-
low, and follow the installation procedure as directed.
Windows Security Message
If you receive a Windows security message as part of
the driver installation process. Just click “Install this
driver software anyway” or Install to continue the in-
stallation procedure.
You will receive this message in cases where the driver has been released after the version of Windows you
are currently using. All the drivers provided will have
already received certification for Windows.
New Hardware Found
If you see the message “New Hardware Found” during the installation procedure (other than when out-
lined in the driver install procedure), click Cancel
to close the window, and follow the installation procedure.
4 - 4 Driver Installation
Drivers & Utilities
Driver Installation Procedure
Insert the Device Drivers & Utilities + User’s Manual
disc and click Install Drivers (button), or Option Driv-
ers (button) to access the Optional driver menu.
Driver Installation General Guidelines
The driver installation procedure outlined in this
Chapter (and in Chapter 7 Options & Modules),
are accurate at the time of going to press.
Drivers are always subject to upgrade and revision
so the exact procedure for certain drivers may differ
slightly. As a general guide follow the default on
screen instructions for each driver (e.g. Next > Next
> Finish) unless you are an advanced user. In many
cases a restart is required to install the driver.
Chipset
1. Click 1.Install Chipset Driver > Yes.
2. Click Next > Yes > Next > Next.
3. Click Finish to restart the computer.
Video
1. Click 2.Install Video Driver > Yes.
2. Click Next.
3. Click Finish to restart the computer.
Audio
1. Click 3. Install Audio Driver > Yes.
2. Click Next.
3. Click Finish to restart the computer.
4
Driver Installation 4 - 5
Drivers & Utilities
Modem
1. Click 4.Install Modem Driver > Yes.
2. Click OK.
3. The modem is now ready for configuration.
4
Modem Country Selection
Go to the Phone and Modem Options control panel
(Hardware and Sound) and make sure the modem
country selection is appropriate for you.
LAN
1. Click 5.Install LAN Driver > Yes.
2. Click Next > Install.
3. Click Finish.
TouchPad
1. Click 6.Install Touchpad Driver > Yes.
2. Click Next > Finish.
3. Click Restart Now to restart the computer.
Card Reader/ExpressCard
1.
Click
7.Install Cardreader Driver > Yes
.
2. Click Next > Install.
3. Click Finish.
Hot Key
1. Click 8.Install HotKey Utility > Yes.
2. Click Next > Install.
3. Click Finish > Finish to restart your computer.
IEEE 1394 Filter Driver
1. Click 9.Install 1394 Filter Driver > Yes.
2. Click Install > Finish.
e-SATA Support
See “Intel Turbo Memory & Matrix Storage Setup
and Driver Installation” on page 7 - 33 for instruc-
tions on installing this driver to enable the e-SATA
port.
4 - 6 Driver Installation
Windows Update
After installing all the drivers make sure you enable Windows Update in order to get all the latest security up-
dates etc. (all updates will include the latest hotfixes
from Microsoft).
To enable Windows Update make sure you are con-
nected to the internet:
1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).
2. Click Check for updates (Security), or doubleclick Security Center and click Windows Update.
3. Double-click Check for updates (button).
4. The computer will now check for updates (you
need to be connected to the internet).
5. Click Install now (button) to install the updates.
Drivers & Utilities
Optional Drivers
See the pages indicated for the driver installation procedures for any modules included in your purchase option.
4
Figure 4 - 3 - Optional Drivers Installer Screen
Driver Installation 4 - 7
Drivers & Utilities
Bluetooth Module
Note: The operating system is the default setting for
Bluetooth control in Windows Vista, and does not re-
quire a driver. See “Bluetooth Module” on page 7 - 2
for configuration instructions.
4
Wireless LAN
See the appropriate install procedure for your WLAN
module in “Wireless LAN Module” on page 7 - 6.
PC Camera
See the install procedure in “PC Camera Module” on
page 7 - 12.
3.5G Module
See the introduction in “3.5G Module” on page 7 - 19,
and check the installation procedure.
Fingerprint Reader Module
See the install procedure in “Fingerprint Reader
Module” on page 7 - 28.
Intel Turbo Memory Technology Driver
See the introduction in “Intel Turbo Memory Mod-
ule” on page 7 - 33, and check the installation proce-
dure. Note this driver is also required to enable
support for the e-SATA port.
4 - 8 Driver Installation
BIOS Utilities
Chapter 5: BIOS Utilities
Overview
This chapter gives a brief introduction to the computer’s built-in software:
Diagnostics: The POST (Power-On Self Test)
Configuration: The Setup utility
If your computer has never been set up, or you are mak ing important chan ges to the
system (e.g. hard disk setup), then you should review this chapter first and note the
original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your
system ever needs servicing.
There is one general rule: Don’t make any changes unless you are sure of what you
are doing. Many of the settings are required by the system, and changing them could
cause it to become unstable or worse. If you have any doubts, consult your service
representative.
BIOS Screens
Note that the BIOS
screens pictured on
these pages are intended for guidance in setting up your system’s
BIOS.
BIOS versions are subject to constant change
and revision, therefore
your computer’s actual
screens may appear
slightly different from
those pictured on these
pages.
5
Overview 5 - 1
BIOS Utilities
Phoenix SecureCore(tm) NB
Copyright 1985-2007 Phoenix Technologies Ltd.
All Rights Reserved
BIOS Revision: ********
KBC/EC Revision: ********
CPU=1Processors Detected, Cores per Processor = 2
Genuine Intel(R) CPU @ 2.40GHz
2046M System RAM Passed
System BIOS shadowed
Video BIOS shadowed
Fixed Disk 0: FUJITSU MHY2160BH
ATAPI CD-ROM: Optiarc CDRWDVD CRX890S
Mouse intialized
Press <F2> to enter SETUP
The Power-On Self Test (POST)
POST Screen
1.BIOS information
2.CPU type
3.Memory status
5
4.Enter Setup prompt
appears only during
POST
Note: The POST screen
as pictured is for guideline purposes only.
Each time you turn on the computer, the system takes a few seconds to conduct a
POST, including a quick test of the on-board RAM (memory).
As the POST proceeds, the computer will tell you if there is anything wrong. If there
is a problem that prevents the system from booting, it will display a system summary
and prompt you to run Setup.
If there are no problems, the Setup prompt will disappear and the system will load
the operating system. Once that starts, you can’t get into Setup without rebooting.
1
Figure 5 - 1
POST Screen
5 - 2 The Power-On Self Test (POST)
2
3
4
Failing the POST
Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.
Fatal Errors
These stop the boot process and usually indicate there is something seriously wrong
with your system. Take the computer to your service representative or authorized
service center as soon as possible.
Non-Fatal Errors
This kind of error still allows you to boot. You will get a message identifying the
problem (make a note of this message!) followed by the prompt:
• Press <F1> to resume
• <F2> to enter Setup
Press F1 to see if the boot process can continue. It may work, without the correct
configuration.
Press F2 to run the Setup program and try to correct the problem. If you still get an
error message after you change the setting, or if the “cure” seems even worse, call
for help.
BIOS Utilities
5
The Power-On Self Test (POST) 5 - 3
BIOS Utilities
BIOS Settings
Warning
The Setup Utility
The Phoenix Setup utility tells the system how to configure itself and manage basic
features and subsystems (e.g. port configuration).
Incorrect settings can
cause your system to
5
malfunction. To correct
mistakes, return to Set-
up and restore the Setup Defaults with <F9>.
5 - 4 The Setup Utility
Entering Setup
To enter Setup, turn on the computer and press F2 during the POST. The prompt
(Press F2 to Enter Setup) seen in Figure 5 - 1 on page 5 - 2 is usually present for a
few seconds after you turn on the system. If you get a “Keyboard Error”, (usually
because you pressed F2 too quickly) just press F2 again.
If the computer is already on, reboot using the Ctrl + Alt + Delete combination and
then hold down F2 when prompted. The Setup main menu will appear.
Setup Screens
The following pages contain additional advice on portions of the Setup.
Along the top of the screen is a menu bar with menu headings. When you select a
heading, a new screen appears. Scroll through the features listed on each screen to
make changes to Setup.
Instructions on how to navigate each screen are in the box along the bottom of the
screen. If these tools are confusing, press F1 to call up a General Help screen, and
then use the arrow keys to scroll up or down the page.
The Item Specific Help on the right side of each screen explains the highlighted
item and has useful messages about its options.
If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may
execute a command.
BIOS Utilities
Setup Menus
The Setup menus
shown in this section are
for reference only. Your
computer’s menus will
indicate the configuration appropriate for your
model and options.
5
The Setup Utility 5 - 5
BIOS Utilities
Main Advanced Security Boot Exit
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
Item Specific Help
<Tab>, <Shift Tab>, or
<Enter> selects field.
Main
System Time: [22:12:05]
System Date: [04/18/2008]
SATA Port 1 [FUJITSU MHW2160BH-(P]
SATA Port 2 [Optiarc DVD RWDVD CRX8]
SATA Port 3 [None]
System Memory: 640 KB
Extended Memory: 2045 MB
BIOS Revision: ********
KBC/EC Firmware Revision: ********
VGA Card: ********
VBIOS Revision: ********
VBIOS Build Date: ********
Phoenix SecureCore(tm) Setup Utility
Main Menu
Figure 5 - 2
Main Menu
5
System Time & Date (Main Menu)
The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you
can change the date and time settings in your operating system, you will also change
these settings. Some applications may also alter data files to reflect these changes.
5-6Main Menu
SATA Port 1/2/3 (Main Menu)
Pressing Enter opens the sub-menu to show the configuration of a hard disk or optical device drive on the computer’s SATA Ports. Use the Auto (Type:) setting to
have the items configured automatically for you.
System/Extended Memory: (Main Menu)
This item contains information on the system memory, and is not user configurable.
The system will auto detect the amount of memory installed.
BIOS Revision/VGA Card etc. (Main Menu)
This item contains information on the BIOS version and video card etc., and is not
user configurable.
BIOS Utilities
5
Main Menu 5 - 7
BIOS Utilities
Main AAdvanced Security Boot Exit
F1 He l p Sel ect I t em -/+ Cha nge Val ues F9 Set up Def a ul t s
Es c Exi t Sel ect Menu Ent er Sel ect Sub- Menu F10 Save and Exi t
ItemSpecific Help
Advanced
Sel ect t he oper ati ng
systeminstalled
on yo ur sy s t em whi c h
you wi l l use mos t
commonl y.
Not e : An i nc o r r e c t
set ti ng can cause
someoperating
systemstodisplay
unexpect ed behavi or .
Phoenix SecureCore(tm) Setup Utility
Installed O/S: [VISTA / Win 7]
SATA Mode Selection: [AHCI]
DFOROM (Robson) Support: [Enabled]
Legacy USB Support: [Enabled]
Boot-time Diagnostic Screen: [Disabled]
Legacy OS Boot: [Enabled]
Reset Configuration Data: [No]
Power On Boot Beep [Disabled]
Battery Low Alarm Beep [Enabled]
Fan Control: [Automatic]
Advanced Menu
Figure 5 - 3
Advanced Menu
5
SATA Mode & eSata Port
You should select AHCI
mode in SATA Mode Se-
lection to support the eSATA port in Windows
Vista (hot-swapping is not
supported in Windows
XP).
Select AHCI mode in Sata
Mode Selection if you
have included an Intel Tur-
bo Memory module in your
purchase configuration.
You should then enable
support for Intel Turbo
Memory from DFOROM
(Robson) Support (see
page 5 - 9).
Intel Turbo Memory
Installed O/S (Advanced Menu)
This setting tells the computer what kind of operating system you’re using. Make
sure you choose the correct setting for your O/S in order to prevent system problems.
Note: If you select the Vista/Win 7 O/S then the SATA Mode Selection menu will
become available. If you are installing the Windows XP O/S make sure you have set
the appropriate operating system here in order to prevent system problems.
Only available if Windows Vista / Win 7
is selected as the O/S.
5 - 8 Advanced Menu
SATA Mode Selection (Advanced Menu)
This menu is only available if you select the Vista/Win 7 O/S as your operating system. You can configure SATA (Serial ATA) control to operate in either IDE (native/
compatible) or AHCI (Advanced Host Controller Interface) modes from this menu.
The SATA mode should be set to AHCI mode for this system (unless you are sure
your hard disk can only operate in IDE mode). If you are unsure of the mode your
hard disk supports contact your service center. Note the following:
• If you have installed the Windows Vista/Win 7 O/S with AHCI enabled, DO
NOT disable it (see sidebar).
•The SATA mode should be set to AHCI if you have included an Intel Turbo
Memory (Robson) NAND flash memory card module
in your purchase option.
•The SATA mode should be set to AHCI to support eSATA port hot-swapping.
DFOROM (Robson) Support (Advanced Menu > SATA Mode Selection)
This item will only be available if you have selected AHCI in SATA Mode Selec-
tion. The option should be enabled only if you have included an optional Intel Turbo Memory Module in your purchase configuration. You should then install the
driver as per the instructions in “Intel Turbo Memory & Matrix Storage Setup and
Driver Installation” on page 7 - 33.
BIOS Utilities
SATA Mode
Selection
If you have installed the
Windows Vista/Win 7
operating system with
AHCI mode enabled
(default setting), DO
NOT disable AHCI
mode (if you wish to disable AHCI mode you will
need to reinstall the
Windows VIsta/Win 7
OS).
5
Advanced Menu 5 - 9
BIOS Utilities
Boot-time Diagnostic Screen: (Advanced Menu)
Use this menu item to enable/disable the Boot-time Diagnostic Screen.
Legacy OS Boot: (Advanced Menu)
Enable this item to support only system boot from the Legacy OS (e.g Windows Vista). If disabled the system will attempt to boot from the EFI (Extensible Firmware
Interface) before the Legacy OS.
5
Reset Configuration Data: (Advanced Menu)
This item is set to No as default. You can change the setting to Yes if you have installed a new add-on which has reconfigured the system, resulting in such a serious
system conflict that the operating system is unable to boot.
Power On Boot Beep (Advanced Menu)
Use this menu item to enable/disable the beep as the computer starts up.
Battery Low Alarm Beep: (Advanced Menu)
Use this menu item to enable/disable the battery low alarm beep.
Fan Control (Advanced Menu)
This menu item allows you to set the fan cooling behavior under light system activity
(if you choose Automatic the system will adjust the fan cooling as appropriate for
the system activity).
5 - 10 Advanced Menu
BIOS Utilities
t
bed
Security Menu
Main Advanced SSeeccuurriittyyBoot Exit
=
Supervisor Password Is: Clear
User Password Is: Clear
Set Supervisor Password [Enter]
Set User Password [
Password on boot: [
Fixed disk boot sector: [Normal]
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
Phoenix SecureCore(tm) Setup Utility
Set Supervisor Password (Security Menu)
You can set a password for access to the Phoenix SecureCore Setup Utility. This
will not affect access to the computer OS (only the Phoenix SecureCore Setup
Utility).
Security
Item Specific Help
Supervisor Password
e
]
controls access to the
setup utility.
Security Menu
The changes you
make here affect the
access to the Setup
utility itself, and also
access to your machine as it boots up after you turn it on.
These settings do not
affect your machine or
network passwords
which will be set in
your software OS.
Figure 5 - 4
Security Menu
5
Security Menu 5 - 11
BIOS Utilities
Set User Password (Security Menu)
Password Warning
If you set a boot password (Password on boot
is “Enabled“), NEVER
forget your password.
5
The consequences of
this could be serious. If
you cannot remember
your boot password you
must contact your vendor and you may lose all
of the information on
your hard disk.
You can set a password for user mode access to the Phoenix SecureCore Setup
Utility. This will not affect access to the computer OS, (only the Setup utility) unless
you choose to set a Password on Boot (see below). Many menu items in the Phoenix
SecureCore Setup Utility cannot be modified in user mode. You can only set the
user password after you have set the supervisor password.
Password on boot (Security Menu)
Specify whether or not a password should be entered to boot the computer (you may
only set a password on boot if a supervisor password is enabled). If “Enabled”
is selected, only users who enter a correct password can boot the system (see the
warning in the sidebar). The default setting is “Disabled”.
Note: To clear existing passwords press Enter and type the existing password, then
press Enter for the new password (without typing any password entry) and Enter
again to confirm the password clearance.
Fixed disk boot sector (Security Menu)
If you choose “Write-Protect” this will protect against viruses being written to the
hard disk boot sector (this is not a substitute for installing an anti- virus program - see
“Viruses” on page 8 - 4).
5 - 12 Security Menu
Boot Menu
Main Advanced Security
Boot priority order:
1: USB FDC:
2: USB KEY:
3: USB HDD:
4: IDE CD: Optiarc CDRWDVD CRX890S-(P
5: IDE HDD: FUJITSU MHY2160BH-(PM)
6: PCI BEV:
7:
8:
Excluded from boot order:
: USB CDROM:
: USB ZIP:
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
When you turn the computer on it will look for an operating system (e.g. Windows
Vista) from the devices listed in this menu, and in this priority order. If it cannot
find the operating system on that device, it will try to load it from the next device in
the order specified in the Boot priority order. Item specific help on the right is
available to help you move devices up and down the order.
Phoenix SecureCore(tm) Setup Utility
Boot
Exit
Item Specific Help
Keys used to view or
configure devices:
Up and Down arrows
select a device.
<+> and <-> moves
the device up or down.
<f> and <r> specifies
the device fixed or
removable.
<x> exclude or include
the device to boot.
<Shift + 1> enables or
disables a device.
<1 - 4> loads default
boot sequence.
BIOS Utilities
BIOS Screens
Note that the BIOS
screens pictured on
these pages are intended for guidance in setting up your system’s
BIOS.
BIOS versions are subject to constant change
and revision, therefore
your computer’s actual
screens may appear
slightly different from
those pictured on these
pages.
Figure 5 - 5
Boot Menu
5
Boot Menu 5 - 13
BIOS Utilities
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
Item Specific Help
Exit System Setup and
save your changes to
CMOS.
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Main Advanced Security Boot
Exit
Phoenix SecureCore(tm) Setup Utility
Exit Menu
Figure 5 - 6
Exit Menu
5
Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any
changes you have made to the Setup. You can also choose to restore the original Set-
up defaults that will return the Setup to its original state, and erase any previous
changes you have made in a previous session.
5 - 14 Exit Menu
Upgrading The Computer
Chapter 6: Upgrading The Computer
Overview
This chapter contains information on upgrading the computer. Follow the steps outlined to make the desired upgrades. If you have any trouble or problems you can contact your service representative for further help. Before you begin you will need:
• A small crosshead or Phillips screwdriver
• A small regular slotted (flathead) screwdriver
• An antistatic wrist strap
Before working with the internal components you will need to wear an antistatic
wrist strap to ground yourself because static electricity may damage the components.
The chapter includes:
• Removing the Battery
• Upgrading the Hard Disk Drive
• Upgrading the System Memory (RAM)
• Upgrading the Optical (CD/DVD) Device
Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6
Please make sure that you review each procedure before you perform it.
Overview 6 - 1
Upgrading The Computer
When Not to Upgrade
Power Safety Warning
These procedures involve opening the system’s case, adding and sometimes replacing parts.You should not perform any of these upgrades if:
Before you undertake
any upgrade procedures, make sure that
you have turned off the
power, and disconnected all peripherals and
6
cables (including telephone lines). It is advisable to also remove your
battery in order to prevent accidentally turning
the machine on.
6 - 2 Overview
• Your system is still under warranty or a service contract
• You don’t have all the necessary equipment
• You’re not in the correct environment
• You doubt your abilities
Under any of these conditions, contact your service representative to purchase or re-
place the component(s).
Removal Warning
When removing any cover(s) and screw(s) for the purposes of device upgrade, remember
to replace the cover(s) and screw(s) before turning the computer on.
Upgrading the Processor
If you want to upgrade your computer by replacing the existing processor with a faster/new one you will need to contact your customer service representative. We recommend that you do not do this yourself, since if it is done incorrectly you may
damage the processor or mainboard.
Upgrading The Computer
Removing the Battery
If you are confident in undertaking upgrade procedures yourself, for safety reasons
it is best to remove the battery.
1. Turn the computer off, turn it over and remove the battery.
2. Slide latch towards the unlock symbol and hold it in place, and lift the battery
2
up and out of the battery bay.
1
1
2
Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6
Figure 6 - 1
Battery Removal
Removing the Battery 6 - 3
Upgrading The Computer
Upgrading the Hard Disk Drive
HDD System Warning
New HDD’s are blank. Before you begin make sure:
You have backed up any
data you want to keep from
your old HDD.
You have all the CD-ROMs
and FDDs required to in-
6
stall your operating system
and programs.
If you have access to the internet, download the latest
application and hardware
driver updates for the operating system you plan to install. Copy these to a
removable medium.
Figure 6 - 2
Component Bay
Cover Screws
The hard disk drive(s) can be taken out to accommodate other 2.5" serial (SATA)
hard disk drives with a height of 9.5mm (h) (see “Storage” on page C - 4). Follow
your operating system’s installation instructions, and install all necessary drivers
and utilities (as outlined in “Drivers & Utilities” on page 4 - 1), when setting up a
new hard disk.
1. Turn off the computer, and turn it over and remove the batt er y.
2. Locate the component bay cover and remove screws - .
1
32
1 7
4
6
7
5
6 - 4 Upgrading the Hard Disk Drive
Upgrading The Computer
3. Carefully (a fan and cable are attached to the under side of the cover) lift up
the bay cover.
4. Carefully disconnect the fan cable , and remove the cover .
9
8 9
8
Fan Cable
Make sure you reconnect the fan cable
before screwing down
the bay cover.
8
8
5. Remove screws - from the hard disk cover.
10 11
11
10
Figure 6 - 3
Bay Cover Removal
Figure 6 - 4
Hard Disk Assembly
Screws
Upgrading the Hard Disk Drive 6 - 5
6
Upgrading The Computer
6. Pull the hard disk assembly in the direction of the arrow .
12
Figure 6 - 5
Hard Disk Pull
12
6
13
Figure 6 - 6
Hard Disk Removal
7. Carefully remove the hard di sk assembly in the direction of the arrow .
13
6 - 6 Upgrading the Hard Disk Drive
Upgrading The Computer
8. Remove screws - to separate the hard disk from the bracket.
9. Reverse the process to install any new hard disk.
14 15
14
20
15
Figure 6 - 7
Hard Disk Bracket
Removal
6
Upgrading the Hard Disk Drive 6 - 7
Upgrading The Computer
Upgrading the System Memory (RAM)
The computer has two memory sockets for 204 pin Small Outline Dual In-line (SODIMM) DDR III (DDR3) type memory modules (see “Memory” on page C - 3).
The total memory size is automatically detected by the POST routine once you turn
on your computer.
1. Turn off the computer, and turn it over and remove the batt er y.
2. Locate the component bay cover and remove screws - .
6
32
Figure 6 - 8
Component Bay
Cover Screws
1
4
1 7
5
6 - 8 Upgrading the System Memory (RAM)
6
7
Upgrading The Computer
3. Carefully (a fan and cable are attached to the under side of the cover) lift up
the bay cover.
4. Carefully disconnect the fan cable , and remove the cover .
9
8 9
8
Fan Cable
Make sure you reconnect the fan cable
before screwing down
the bay cover.
8
8
5. Gently pull the two release latches ( &
the direction indicated below.
10 11
10 11
) on the sides of the memory socket in
Contact Warning
Be careful not to touch the metal pins on the
module’s connecting edge. Even the cleanest hands have oils which can attract particles, and degrade the module’s
performance.
Upgrading the System Memory (RAM) 6 - 9
Figure 6 - 9
Bay Cover Removal
Figure 6 - 10
RAM Module
Release Latches
6
Upgrading The Computer
6. The RAM module will pop-up, and you can remove it.
Figure 6 - 11
RAM Module
Removal
Make sure you reconnect the fan cable
Single Memory
6
Module Installation
If your computer has a
single memory module,
then insert the module
into the Channel 0
(JDIMM1) socket. In this
case this is the lower
memory socket (the
socket closest to the
mainboard).
before screwing
down the bay cover.
7. Pull the latches to release the second module if necessary.
8. Insert a new module holding it at about a 30° angle and fit the connectors firmly
9. The module’s pin alignment will allow it to only fit one way. Make sure the module
10. Press the module in and down towards the mainbo ar d until th e soc ke t leve rs click
11. Replace the cover and screws (see Figure 6 - 9).
12. Restart the computer to allow the BIOS will register the new memory configuration
Fan Cable
8
(see Figure 6 - 9)
into the memory socket (see sidebar note if you are inserting a single module).
is seated as far into the socket as it will go. DO NOT FORCE the module; it should
fit without much pressure.
into place to secure the module.
as it starts up.
12
1212
6 - 10 Upgrading the System Memory (RAM)
