Clevo M810L, M811L service manual

Notebook Computer M810L/M811L

Service Manual

Preface

I

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.

Version 1.1 April 2009

Trademarks

Intel and Atom are trademarks of Intel Corporation. Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective companies.

II

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the M810L/ M811L series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications. Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade elements of the system.

Preface

Appendix A, Part Lists Appendix B, Schematic Diagrams

Preface

III

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) durin g an ele ctrical sto rm. There may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter – AC Input 100 - 240V, 50 - 60Hz, DC Output 19V, 1.57A).

Preface

IV

This Computer’s Optical Device is a Laser Class 1 Product

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Preface

Do not expose the computer to any shock or vibration.

Do not place it on an unstable surface.

Do not place anything heavy on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the co mputer could be badly damaged.

Do not expose it to excessive heat or direct sunlight.

Do not leave it in a place where foreign matter or moisture may affect the system.

Don’t use or store the computer in a humid environment.

Do not place the computer on any surface which will block the vents.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power until you properly shut down all programs.

Do not turn off any peripheral devices when the computer is on.

Do not disassemble the computer by yourself.

Perform routine maintenance on your computer.

Preface

V

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and oth er strong mag- netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Preface



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

Use only approved brands of peripherals.

Unplug the power cord befor e attaching peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requ ires a steady, uninterru pted power supp ly. If you are unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconn ect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

VI

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Preface



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your l ocal solid waste officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10% will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

VII

Preface

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the M810L/M811L series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.

Operating systems (e.g. Windows XP, Windows Vista, etc.) have their own manuals as do application software (e.g. word processing and database programs). If you have questions about those programs, you should consult those manuals.

Introduction

The M810L/M811L series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed description of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

1.Introduction

Overview 1 - 1

Introduction

1.Introduction

System Specifications

Processor

Intel® Atom® Processor N270 (1.6 GHz 512KB On-die L2 Cache & 533MHz FSB - BGA Package)

Core Logic

Intel® 82945GSE +82801GBM

Display

10.1” WSVGA (1024 * 576) TFT LCD

Memory

One 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 533 MHz Memory Memory Expandable up to 2GB

Video Adapter

Intel 945GSE Integrated Video Supports DirectX 9.0 Shared Memory Architecture

(up to 128MB shared video memory dynamically allocated from system memory where needed)

BIOS

One 8Mb SPI Flash ROM Phoenix™ BIOS

Storage One Changeable 2.5" 9.5 mm (h) SATA (Serial) Hard Disk Drive

1 - 2 System Specifications

Audio

High Definition Audio Compliant Interface Compliant with Microsoft UAA (Universal Audio Architecture) Direct Sound 3D™ Compatible 2 * Built-In Speakers Built-In Microphone

Pointing Device

Built-in TouchPad (scrolling key functionality integrated)

Keyboard

“WinKey” keyboard (with embedded numeric keypad)

Security

Kensington Lock

Interface

Two USB 2.0 Ports One Headphone-Out Jack One Microphone-In Jack One External Monitor Port One RJ-45 LAN Jack One DC-in Jack

Introduction

1.Introduction

Communication

10Mb/100Mb Base-T Ethernet LAN

802.11b/g Wireless LAN Mini-Card Module (Option)

1.3M Pixel USB PC Camera Module (Factory Option) *Bluetooth 2.1 + EDR (Enhanced Data Rate) Module (Factory Option) *UMTS/HSPDA-based 3.75G/HSPA Module with Mini Card Interface (Factory Option)

Card Reader

Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo)

Note: MS Duo/ Mini SD/ RS MMC Cards require a PC adapter

System Specifications 1 - 3

Introduction

1.Introduction

Slot

Two Mini Card Slots (USB & PCIE)

Slot 1: for Wireless LAN Module Slot 2: for 3.75G/HSPA Module

Operating System

Kensington Lock

Power

Full Range AC/DC Adapter AC Input: 100 - 240V, 50 - 60Hz DC Output: 19V, 1.57A (30 Watts)

Battery

Polymer Battery Pack, 3550mAh

Environmental Spec

Temperature Operating: 5 Non-Operating: -20°C - 60°C Relative Humidity Operating: 20% - 80% Non-Operating: 10% - 90%

°C - 35°C

Dimensions & Weight

272mm (w) * 188.6mm (d) * 26.4 - 29.5mm (h)

1.2 kg With 4 Cell Battery

1 - 4 System Specifications

Introduction

External Locator - Top View with LCD Panel Open

1

2

3

Figure 1

Top View

1. Optional Built-In PC Camera

2. LCD

3. Speakers

4. Keyboard

5. Built-In Microphone

6. Touchpad & Buttons

1.Introduction

4

5

6

External Locator - Top View with LCD Panel Open 1 - 5

Introduction

Figure 2

Front Views

1. LED Power & Communication Indicators

2. 7-in-1 Card Reader

3. Microphone-In Jack

4. Headphone-Out Jack

Figure 3

1.Introduction

Right Side Views

5. Hard Disk Drive Bay

6. Vent/Fan Intake/ Outlet

7. Power Button

External Locator - Front & Right side Views

1

5

432

6

7

1 - 6 External Locator - Front & Right side Views

External Locator - Left Side & Rear View

1

2

3

4

Introduction

Figure 4

Left Side View

1. Security Lock Slot

2. DC-In Jack

3. RJ-45 LAN Jack

4. 2 * USB 2.0 Ports

5. External Monitor Port

5

1.Introduction

Figure 5

Rear View

6

6. Battery

External Locator - Left Side & Rear View 1 - 7

Introduction

Figure 6

Bottom View

External Locator - Bottom View

1. Battery

1.Introduction



Overheating

1

To prevent your computer from overheating make sure nothing blocks the vent/fan intakes while the computer is in use.

1 - 8 External Locator - Bottom View

Introduction

Mainboard Overview - Top (Key Parts)

4

1

Figure 7

Mainboard Top

Key Parts

1. Card Reader Socket

2. Audio Codec

3. Intel Atom CPU

6

5

4. North Bridge

5. Memory Slots DDR2 SO-DIMM

6. Mini-Card Connector (WLAN Module)

1.Introduction

2

3

Mainboard Overview - Top (Key Parts) 1 - 9

Introduction

Figure 8

Mainboard Bottom

Key Parts

1. JMC261

2. South Bridge

3. SILEGO SLG8SP510T

4. KBC ITE IT8512E

1.Introduction

Mainboard Overview - Bottom (Key Parts)

1

2

3

4

1 - 10 Mainboard Overview - Bottom (Key Parts)

Introduction

Mainboard Overview - Top (Connectors)

1

2

3

4

1

10

Figure 9

Mainboard Top

Connectors

1. USB Port

2. Microphone Cable Connector

3. BT Cable Connector

4. Keyboard Cable Connector

5. TouchPad Cable Connector

6. CPU Fan Cable Connector

7. Speaker Connector

8. Power FFC Connector

9. CCD Cable Connector

10.LCD Cable Connector

1.Introduction

5

6

8

7

9

Mainboard Overview - Top (Connectors) 1 - 11

Introduction

Figure 10

Mainboard Bottom

Connectors

1. HDD Connector

1.Introduction

Mainboard Overview - Bottom (Connectors)

1 - 12 Mainboard Overview - Bottom (Connectors)

1

Chapter 2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the M810L/M811L series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Disassembly

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a  lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the disassembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.

2.Disassembly



Information



Warning

Overview 2 - 1

Disassembly

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replacing the connection, make sure the connector is oriented in the same way. The pin1 side is usually not indicated.

2 - 2 Overview

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the wires themselves. When replacing the connection, do not try to force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When replacing the connection, make sure the connector is oriented in the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small flat-head screwdriver - use just enough force to start.

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a removal and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage components and/or data. You should also monitor the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pu ll on the wir e.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity. Before handling any part in the computer, discharge any static electricity inside the computer. When handling a printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands produce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted to charged surfaces, reducing performance.

10. Keep track of the component s. When re moving or replacing any p art, be careful not to le ave small part s, such as screws, loose inside the computer.

Disassembly



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

2.Disassembly

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Overview 2 - 3

Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the Keyboard:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 6

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

To remove the System Memory:

2.Disassembly

2 - 4 Disassembly Steps

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 9

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 5

2. Remove the wireless LAN page 2 - 10

To remove the 3G Module:

1. Remove the battery page 2 - 5

2. Remove the 3G page 2 - 11

To remove the Bluetooth Module:

1. Remove the battery page 2 - 5

2. Remove the Bluetooth page 2 - 12

Removing the Battery

Disassembly

1. Turn the computer off, and turn it over.

2. Slide the latch in the direction of the arrow.

3. Slide the latch in the direction of the arrow, and hold it in place.

4. Slide the battery in the direction of the arrow .

1 2

3

6

a.

1

b.

4

Figure 1

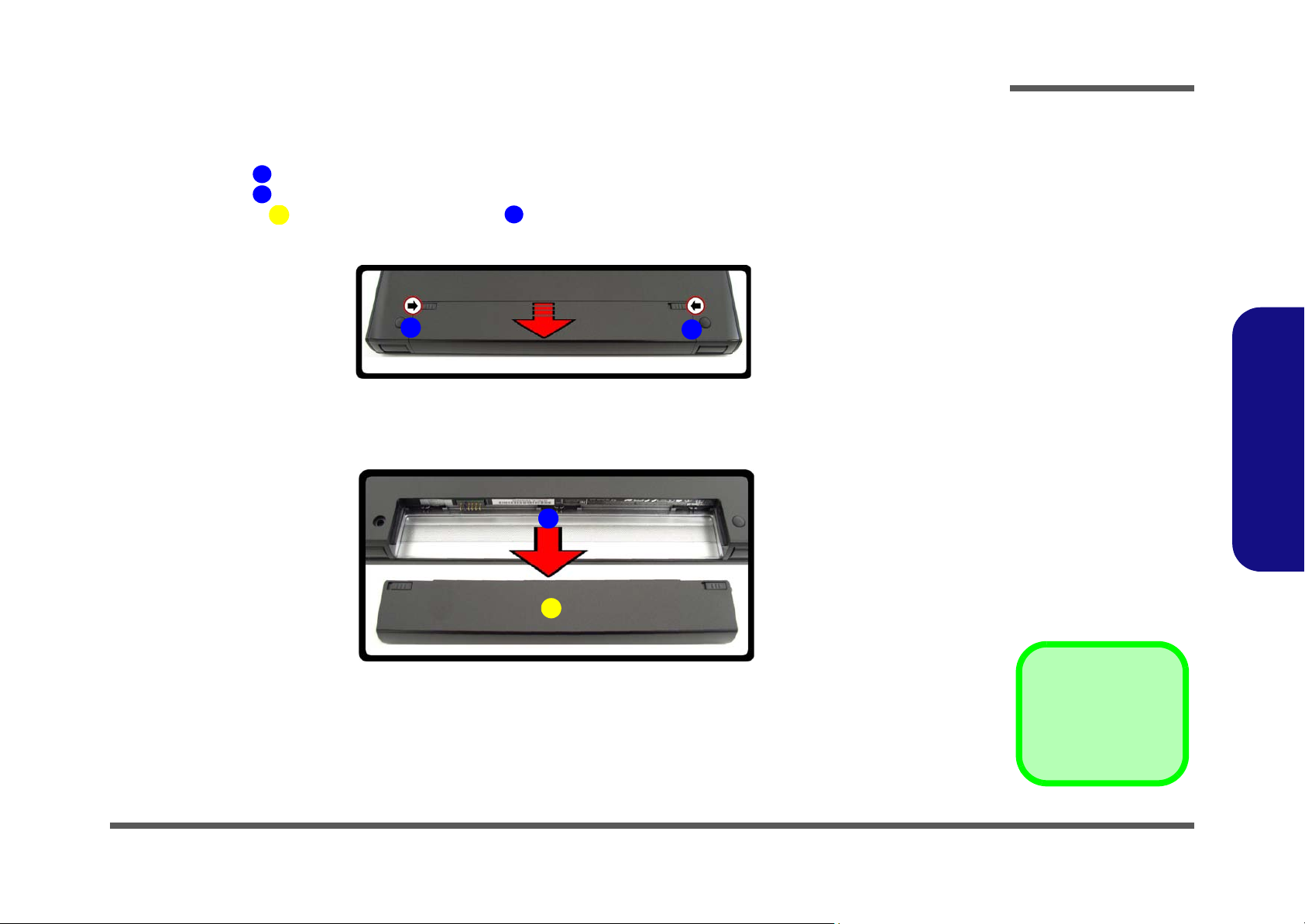

Battery Removal

a. Slide the latch and hold

in place.

b. Slide the battery in the di-

rection of the arrow.

2

2.Disassembly

3



3. Battery

Removing the Battery 2 - 5

Disassembly

Removing the Keyboard

Figure 2

Keyboard Removal

a. Press the three latches

to release the keyboard.

b. Lift the keyboard up and

disconnect the cable from the locking collar.

c. Remove the keyboard.



Re-Inserting the Key-

board

2.Disassembly

When re-inserting the keyboard firstly align the three keyboard tabs at the bottom of the keyboard with the slots in the case.

1. Turn off the computer, and remove the battery (page 2 - 5).

2. Press the three keyboard latches at the top of the keyboard to elevate the keyboard from its normal position (you may need to use a small screwdriver to do this).

3. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable (Figure 2b).

4. Disconnect the keyboard ribbon cable from the locking collar socket .

a.

4

5 6

c.

321

b.

5

4

6



4. Keyboard

2 - 6 Removing the Keyboard

Removing the Hard Disk Drive

Disassembly

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

1. Turn off the computer, remove the battery (page 2 - 5) and keyboard (page 2 - 6).

2. Remove the screw and then use a screwdriver to push out the hard disk bay cover at the point indicated in Figure 3.

a.

1 6

b.

1

Push the cover out here

3

2

3

Figure 3

HDD Assembly

Removal

a. Remove the screw and

push out the HDD bay cover.

b. Remove the HDD bay

cover.

2.Disassembly



HDD System Warning

New HDD’s are blank. Before you begin make sure: You have backed up any data you want to keep from your old HDD. You have all the CD-ROMs and FDDs required to install your operating system and programs. If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan

to install. Copy these to a removable medium.

Removing the Hard Disk Drive 2 - 7



2. HDD Bay Cover

•1 Screw

Disassembly

Figure 4

HDD Assembly

Removal (cont’d.)

c. Push at point 4 to slide

the HDD in the direction

of the arrow. d. Insert the HDD. e. insert the HDD bay cov-

er and tighten the screw.

5

3. Use a screwdriver to push the hard disk out of the bay at point (Figure 4c).

6

4

4. Carefully insert the hard disk into the bay until it is firmly connected (orientate the hard disk as illustrated in Figure

4d

; don’t force it as it only fits one way).

5. Insert the cover as illustrated in Figure 4e and secure the cover with the screw at point .

7

6. Secure the keyboard, replace the battery and restart the computer to allow the system to detect the hard disk drive.

c.

4

5

2.Disassembly



5. HDD

•1 Screw

2 - 8 Removing the Hard Disk Drive

d.

e.

7

6

Disassembly

Removing the System Memory (RAM)

The computer has one memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting DDR2 533MHz. The main memory can be expanded up to 2GB. The SO-DIMM modules supported are 1024MB, and 2048MB and DDRII Modules. The total memory size is automatically detected by the POST routine once you turn on your computer.

Memory Upgrade Process

1. Turn off the computer, remove the battery (page 2 - 5) and keyboard (page 2 - 6).

2. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the arrows (Figure 5a).

a.

1 2

3. The RAM module will pop-up (Figure 5b), and you can then remove it.

3

4. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

5. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it will go. DO NOT FORCE the module; it should fit without much pressure.

6. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

7. Secure the keyboard, replace the battery and restart the computer to allow the system to detect the hard disk drive.

8. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

1 2

b.

3

Figure 5

RAM Module

Removal

a. Pull the release

latch(es).

b. Remove the mod-

ule(s).

2.Disassembly



Contact Warning

Be careful not to touch the metal pins on the module’s connecting edge. Even the cleanest hands have oils which can attract particles, and degrade the module’s performance.



3. RAM Module

Removing the System Memory (RAM) 2 - 9

Disassembly

Figure 6

Wireless LAN

Module Removal

a. Disconnect the cable

and remove the screw.

b. The WLAN module will

pop up to allow you to remove it.

Note: Make sure you reconnect the antenna cable to “1” + “2” socket (Figure a).

2.Disassembly

Removing the Wireless LAN Module

1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 6).

2. Carefully disconnect cables - , then remove screw from the module socket.

3. The Wireless LAN module will pop-up.

4. Lift the Wireless LAN module up and off the computer.

a.

3

1

2 3

4

b.

1

4

2

4



4. WLAN Module

•1 Screw

2 - 10 Removing the Wireless LAN Module

Disassembly

Removing the 3G Module

1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 6).

2. Carefully disconnect cables - , then remove screw from the module socket.

3. The 3G module will pop-up.

4. Lift the 3G module

a.

b.

4

(Figure 8c) up and off the computer.

1

3

1

2 3

c.

2

4

Figure 7

3G Module Removal

a. Disconnect the cable and

remove the screw. b. The 3G module will pop up. c. Lift the 3G module up off

the socket.

2.Disassembly

4



4. 3G Module

•1 Screw

Removing the 3G Module 2 - 11

Disassembly

Figure 8

Bluetooth Module

Removal

a. Remove the rubber and

screws from the bottom case.

b. Turn the computer over,

remove the screws and disconnect the cables.

c. Lift the top case off the

computer.

d. Remove the screw and dis-

connect the connector.

e. Lift the Bluetooth module

up off the computer.

2.Disassembly

Removing the Bluetooth Module

1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard (page 2 - 6).

b.

1

4

11 12 14

5

c.

8

9

11

5

6 7

12

13

14

10

e.

15

2. Remove any rubber covers, and screws - (Figure 8a) from the bottom case.

3. Turn the computer over , remove screws - from the top case and carefully disconnect cables - from the mainboard (Figure 8b).

4. Carefully lift the top case

5. Remove the screw and disconnect the connector from the module.

16 17

6. Lift the Bluetooth module

15

(Figure 8c) up and off the computer.

18

(Figure 8e) up and off the computer.

a.

1

4

2

3

d.



15.Top case

18.Bluetooth Module

•12 Screws

2 - 12 Removing the Bluetooth Module

17

16

18

Appendix A: Part Lists

This appendix breaks down the M810L/M811L series notebook’s construction into a series of illustrations. The compo- nent part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the total number of duplicated parts used.

Part Lists

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

A.Part Lists

A-1

Part Lists

Table A- 1

Part List Illustration

A.Part Lists

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Location

Parts

Bottom page A - 3 LCD page A - 4

A - 2 Part List Illustration Location

Bottom

╭╭╭䂣㛳╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭

╭╭╭╭╭㾲䈷

㾲䈷╭╭╭╭╭╭

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭╭

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭▁㖌㿗▂㾲䈷╭╭╭

╭╭╭╭㾲䈷

▁㖌㿗▂㾲䈷

╭䐈㗱㔹╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭╭╭╭╭

㢼㵓▊▉♁♁╭╭╭╭╭╭╭╭╭㾲䈷

㢼㵓▊▉♁♁╭╭╭╭╭╭╭▁㖌㿗▂╭㾲䈷

╭䠂㖨▋╭㖃䏧╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭╭╭╭╭

╭㯵䀜╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭䧰㞡╭╭╭╭╭╭㾲䈷

㮄䈠╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

▁╭褜䊢╭▂㾲䈷

㾲䈷╭╭╭╭╭╭

㾲䈷

㾲䈷╭╭╭╭╭╭

╭㾲䈷

㾲䈷

╭㾲䈷

㾲䈷╭╭╭╭╭╭

╭㾲䈷

Part Lists

Figure A - 1

Bottom

A.Part Lists

Bottom A - 3

Part Lists

Figure A - 2

LCD

A.Part Lists

A - 4 LCD

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

䎼㣶╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

㶅㚔䖒䉋㘠╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭╭╭

㶅㚔䖒䉋㘠╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㖌㿗╭╭㾲䈷╭╭╭╭

㓶╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭䐈㥽䖒䉋㘠㩯▋▎♁♁╭╭㾲䈷

㕻㢲╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

╭╭╭╭╭㾲䈷╭╭╭

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭╭

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭

╭╭褜㬘╭╭╭╭╭╭╭㾲䈷

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

╭╭╭╭╭╭褜㬘╭╭╭╭╭╭╭㾲䈷╭╭

㾲䈷

╭╭╭╭褜㬘╭╭╭╭╭╭╭㾲䈷

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

褜㬘╭╭╭╭╭╭╭╭╭╭╭㾲䈷╭╭╭

╭╭╭╭╭㾲䈷╭╭╭

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

褜㬘╭╭╭╭╭╭╭╭╭㾲䈷

╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭╭㾲䈷

㾲䈷

㾲䈷╭╭╭

╭㾲䈷

㾲䈷

Appendix B: Schematic Diagrams

This appendix has circuit diagrams of the M810L/M811L notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram.

Schematic Diagrams

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 Clock Generator - Page B - 13 KBC-ITE IT8502E - Page B - 24

Diamondville SC 1/2 - Page B - 3 ICH7-M 1/4, SATA - Page B - 14 AC-In, Charger - Page B - 25

Diamondville SC 2/2 - Page B - 4 ICH7-M 2/4, PCI, USB, SPI - Page B - 15 3VS, 5VS, Power SW - Page B - 26

945GSE 1/5, Host - Page B - 5 ICH7-M 3/4 - Page B - 16 VDD3, VDD5, 3V, 5V - Page B - 27

945GSE 2/5 - Page B - 6 ICH7-M 4/4 - Page B - 17 Power 1.8V/0.9V - Page B - 28

945GSE 3/5, DDR - Page B - 7 USB Port, CCD, BT, LID SW - Page B - 18 Power 1.5VS/1.05VS, 2.5VS - Page B - 29

945GSE 4/5 - Page B - 8 Mini Card, WLAN, 3G Card - Page B - 19 VCORE - Page B - 30

945GSE 5/5 - Page B - 9 LED, Fan, TP, Panel LED - Page B - 20 Power Button Board - Page B - 31

DDRII SO-DIMM - 0 - Page B - 10 Card Reader JMB261 - Page B - 21 Power Button Board for M815 - Page B - 32

CRT - Page B - 11 LAN - Page B - 22

Panel, Inverter - Page B - 12 Audio Codec ALC269 - Page B - 23

Table B - 1

Schematic

Diagrams

B.Schematic Diagrams



Version Note

The schematic diagrams in this chapter are based upon version 6-7P-M8103-003. If your mainboard (or other boards) are a later version, please check with the Service Center for updated diagrams (if required).

B-1

Schematic Diagrams

System Block Diagram

Sheet 1 of 31

System Block

Diagram

B.Schematic Diagrams

AC-IN,CHARGER

CLICK BOARD

TOUCH PAD

32.768 KHz

INT. K/B

C LEVO M81 0L System Block Diagram

14.318 MHz

Colck Gen erat or

17.1mm*8.1mm*1.2mm TSSOP 64P IN

EC

ITE 85 0 2 E

128pins LQFP

14*14* 1. 6m m

THERMAL SENSOR

EMC1402

SATA I/II 3.0Gb/s

EC SMBUS

SMART FAN

SPI

SLG8SP510T

LCD CONNECT OR, IVERTER

CRT OUT

LPC

0.5"~11"

SMART BATTERY

<12"

<8"

33 MHz

32.768KHz

Intel Diamondville

PROCESSOR

BG A 437 pin

22mm*22mm

0.5"~5.5"

FSB

533 MHz

NORTH BRIDGE

I nte l 945 G SE

998 FCBGA

27mm*27mm*2.4mm

X2

<=8"

DMI

SOUTH BRIDGE

ICH7-M

652 BGA

31mm*31mm*2.28mm

USB2.0

480 Mbps

1"~16"

Memory Termination

400 / 533 MHz

SYSTEM SMBUS

0.1"~13

AZALIA LINK

PCIE

Mini Card

WLAN

(USB3)

100 MHz

24 MHz

Mini PCIE

3G

(USB4)

DDRII SO-DIMM0

<12"

SHEET22

MIC IN

Azalia Code c RealTek

ALC269

48pins QFN

9*9*1 .6mm

3VS , 5VS

VDD3,VDD5,3.3V,5V

1.05VS,1.5VS

1.8V,0.9VS(VTT_MEM)

VCORE

HP OUT

LAN+CARD READER

JMC261

INT SPK R

INT SPK L

INT MIC

25 MHz

B - 2 System Block Diagram

SATA HDD

(USB5)USB0 USB1

Bluetooth

(USB7)

CCD

RJ-45

7IN1

SOCKET

Diamondville SC 1/2

Schematic Diagrams

H_A#[31:3]4

H_ADSTB#04 H_REQ#[4:0]4

H_A#[31:3]4

H_AD ST B#14

H_A20M#13 H_F ER R #13 H_IG NN E #13 H_STPC L K#13 H_IN TR13 H_N MI13 H_SM I#13

1. 0 5 V S

RN1 8P4RX1K _04

1. 0 5 V S

RN6 *8P4RX1K_04

Layout Note:

1. 0 5 V S

Within 2.0" of the CPU

RN2 8P4RX56_04

R146 56_04 R144 56_04

H_A # 3 H_A # 4 H_A # 5 H_A # 6 H_A # 7 H_A # 8 H_A # 9 H_A#10 H_A#11 H_A#12 H_A#13 H_A#14 H_A#15 H_A#16

Z0201 H_R EQ #0 H_R EQ #1 H_R EQ #2 H_R EQ #3 H_REQ#4

H_A#17 H_A#18 H_A#19 H_A#20 H_A#21 H_A#22 H_A#23

H_A#25 H_A#26 H_A#27 H_A#28 H_A#29 H_A#30 H_A#31

H_A#32 H_A#33 H_A#34 H_A#35

Z0202

H_A20M# H_IGNNE #

H_STPCLK# H_INTR H_NMI H_SMI#

R143 * 1K _04

1 2 3 4 5

8 7 6

U3A

P21

A[ 3]#

H20

A[ 4]#

N20

A[ 5]#

R20

A[ 6]#

J19

A[ 7]#

N19

A[ 8]#

G20

A[ 9]#

M19

A[ 10]#

H21

A[ 11]#

L20

A[ 12]#

M20

A[ 13]#

K19

A[ 14]#

J20

A[ 15]#

L21

A[ 16]#

K20

AD ST B[0]#

D17

AP 0

N21

REQ[0]#

J21

REQ[1]#

G19

REQ[2]#

P20

REQ[3]#

R19

REQ[4]#

C19

A[ 17]#

F19

A[ 18]#

E21

A[ 19]#

A16

A[ 20]#

D19

A[ 21]#

C14

A[ 22]#

C18

A[ 23]#

C20

A[ 24]#

E20

A[ 25]#

D20

A[ 26]#

B18

A[ 27]#

C15

A[ 28]#

B16

A[ 29]#

B17

A[ 30]#

C16

A[ 31]#

A17

A[ 32]#

B14

A[ 33]#

B15

A[ 34]#

A14

A[ 35]#

B19

AD ST B[1]#

M18

AP 1

U18

A20M#

T16

FE RR #

J4

IG NN E#

R16

STPC L K#

T15

LINT0

R15

LINT1

U17

SM I#

D6

NC1

G6

NC2

H6

NC3

K4

NC4

K5

NC5

M15

NC6

L16

NC7

IN T EL AT O M

H_IGNNE#

H_A#32 H_A#34 H_A#33 H_A#35

H_STPCLK# H_SMI# H_PWRGD H_NMI

H_PROCHOT# H_BPM5# H_TMS H_TDI

H_TCK H_TRST#

AD D R GR OU P 0

AD D R GR OU P 1

V19

ADS#

Y19

BN R#

U21

BP RI#

T21

DEF ER#

T19

DRDY#

Y18

DB SY#

T20

BR 0#

F16

IER R#

V16

INI T#

CONTROL

W20

LOCK#

D15

R ESE T#

W18

RS[0]#

Y17

RS[1]#

U20

RS[2]#

W19

TRDY#

AA17

HI T#

V20

HITM#

K17

BPM[0]#

J18

BPM[1]#

H15

BPM[2]#

J15

BPM[3]#

K18

PRDY#

J16

PR EQ#

M1 7

TC K

N16

TDI

M1 6

TD O

L17

TM S

K16

TRS T#

V15

BR 1#

G17

XD P/ IT P S IG N AL S

PR O CH OT

E4

TH E R MD A

E5

TH ERMD C

H17

THER M TRIP#

TH ER MH CLK

V11

BCLK[0]

V12

BCLK[1]

C21

RS VD3

C1

RS VD2

A3

RS VD1

NC

3.3V

Layout Note:

Route H_THERMDA and H_THERMDC on same layer. 10 mil trace on 10 mil spacing.

H_AD S# 4 H_BNR# 4 H_BP RI# 4

H_DEFER# 4 H_DRDY# 4 H_D BSY # 4

H_BR 0 # 4 H_IE RR # Z0215

H_LOCK# 4

H_CPURST# 4

H_R S# 0 4

H_R S# 1 4

H_R S# 2 4

H_T R DY # 4

H_H IT# 4

H_H ITM# 4 H_B PM0 #

H_B PM1 # H_B PM3 #

H_B PM4 #

H_B PM5 #H_A#24 H_T C K H_T D I

H_T D O

H_T M S H_T R ST#

H_B R1 # Z0216

H_T H ER MD A H_T H ER MD C

PM_TH RMTRIP # 5,13

CLK_CPU_BCLK 12

CLK_CPU_BCLK# 12

R158 *0_04

1.05VS 1.05VS

R168 1K_1% _04

R 131 22_04

R137

56_04

P M_SY SRST# 15

H_PR O CH OT #

Layout note:

P M _T HR MT R IP # s ho ul d con ne c t to I C H7 a nd GM CH wi th o ut T -i n g

Thermal IC

R 118 * 20m il_short

H_THERMDC

C 246

*0.1U_16V_04

R 167

330_04

H_IN IT# 13

translation

Voltage F ROM IMV P6

Layout Note:

H_GTLREF

0.5" max, Zo= 55 Ohms

C239

10U _6.3V_06

C245

1000p_50V _04

Layout Note:

Close to Thermal IC

Zo=55 Ohm

C17 *1U _6.3V _04

V_THERM

1 2

3 5

6-02-01402-LD0 6-02-83771-LL0

U2

VDD D+

DGND

W83L771AW G

EMC1402

C13

0.1U_10V _X7R _04

TH E R M

ALERT

SD AT A

SCLK

H_D#[63:0]4

H_D ST BN #04 H_D ST BP#04 H_D INV #04

H_D#[63:0]4

H_D ST BN #14 H_D ST BP#14 H_D INV #14

R164 *1K_1%_04 R166 *1K_1%_04

CP U_BS E L04 CP U_BS E L14 CP U_BS E L24

Zo=60 Ohm

Z0213

R 125 10K_04 R 120 * 10mil_short

4

Z0214H_THERMDA

6

R 121 * 0_04 R 1 2 2 * 1 0K _0 4

7 8

R 128 4.7K_04 R 127 4.7K_04

U3B

Y11

H_D#0

D[0]#

W10

H_D#1 H_D # 33

D[1]#

Y12

H_D#2

D[2]#

AA14

H_D#3

AA11

H_D#4 H_D#5

AA16

H_D#6 H_D#7 H_D#8 H_D#9 H _D#10

AA13

H _D#11 H _D#12 H _D#13 H_D # 45 H _D#14 H _D#15

H_DP#0 H _D#16

H _D#17 H_D # 49 H _D#19

H _D#20 H _D#21 H _D#22 H _D#23 H _D#24 H _D#25 H _D#26 H _D#27 H _D#28 H _D#29 H _D#30 H _D#31

H_DP#1

H_GTLREF AC L KPH DCLKPH

H_ED M H_EXTG BR EF H_F O R CEP R# H_H FP L L H_M CE RR H_R SP#

R18 1K_1%_04

R15 2K_1%_04

1.05VS 3,4,6,7,12, 13,16,28

3.3V 11,14, 15,16,17,18,20, 26,27,28 VDD 3 13,17, 18,19,23,24,25, 26

W12

Y10

Y13

W15

Y16

W13

AA 9 Y14

Y15

W16

AA 5

AA 6

AA 8

N15

W9

W3

W7 W6

W2

W4

T17

P17

Y9

V9

Y8 U1

Y7

Y3 V3

U2

T3

V2 Y4

Y5 Y6 R4

A7 U5 V5

R6 M6

N6

T6

J6 H5 G5

V_TH ERM

VD D 3

IN T EL AT OM

1.05V S

DA TA GR P 0 DA TA GR P 1

D[3]# D[4]# D[5]# D[6]# D[7]# D[8]# D[9]# D[10]# D[11]# D[12]# D[13]# D[14]# D[15]# DSTBN[0]# D ST BP[0]# DINV[0]# DP#0

D[16]# D[17]# D[18]# D[19]# D[20]# D[21]# D[22]# D[23]# D[24]# D[25]# D[26]# D[27]# D[28]# D[29]# D[30]# D[31]# DSTBN[1]# D ST BP[1]# DINV[1]# DP#1

GTLREF AC L KPH D CL KPH BIN IT#

MISC

ED M EXTBG REF FO RC EPR # HFPLL MCERR# R SP# BSE L[ 0] BSE L[ 1] BSE L[ 2]

TH ERM _ ALER T# 2 3

SMD_CPU_THER M 23 SMC_CPU_THER M 23

PWR GOOD CO RE _ D ET

R3

H_D # 32

D[32]#

R2

D[33]#

P1

H_D # 34

D[34]#

N1

H_D # 35

D[35]#

M2

H_D # 36

D[36]#

P2

H_D # 37

D[37]#

J3

H_D # 38

D[38]#

N3

H_D # 39

D[39]#

G3

H_D # 40

D[40]#

H2

H_D # 41

D[41]#

N2

H_D # 42

D[42]#

DA TA GR P 2

L2

H_D # 43

D[43]#

M3

H_D # 44

D[44]#

J2

D[45]#

H1

H_D # 46

D[46]#

J1

H_D # 47

D[47]#

K2

DSTBN [2 ]#

K3

D ST BP[2]#

L1

DIN V [2 ]#

M4

H_D P# 2

DP#2

C2

H_D # 48

D[48]#

G2

D[49]#

F1

H_D # 50H _D#18

D[50]#

D3

H_D # 51

D[51]#

B4

H_D # 52

D[52]#

E1

H_D # 53

D[53]#

A5

H_D # 54

D[54]#

C3

H_D # 55

D[55]#

A6

H_D # 56

D[56]#

F2

H_D # 57

D[57]#

C6

H_D # 58

D[58]#

DA TA GR P 3

B6

H_D # 59

D[59]#

B3

H_D # 60

D[60]#

C4

H_D # 61

D[61]#

C7

H_D # 62

D[62]#

D2

H_D # 63

D[63]#

E2

DSTBN [3 ]#

F3

D ST BP[3]#

C5

DIN V [3 ]#

D4

H_D P# 3

DP#3

T1

CO MP 0

COMP[0]

T2

CO MP 1

COMP[1]

F20

CO MP 2

COMP[2]

F21

CO MP 3

COMP[3]

R18

DPRSTP#

CM RE F [1 ]

H_D PRS T P# H_D PSL P#

R17

D PSL P#

H_D PW R #

U4

DPW R#

H_PW RG D

V17 N18

SLP#

H_CORE_DET

A13

H_C PU_ C MR EF

B7

La yout no te:

C O MP 0, C O MP 2: 0. 5" Ma x, Z o =27. 4 O hm s C O MP 1, C O MP 3: 0. 5" Ma x, Z o =55 O hm s B e st e st i ma te is 1 8 m il s w ide t ra ce f o r ou t er l a ye rs a n d 14 m i ls w id e t ra c e if on i nt e rnal la ye rs .

H _D#[63:0] 4

H _ DS TB N# 2 4 H_DSTBP#2 4 H_DINV#2 4

H _D#[63:0] 4

H _ DS TB N# 3 4 H_DSTBP#3 4 H_DINV#3 4

R30 27.4_1% _04 R34 54.9_1% _04 R134 27.4_1%_04 R23 54.9_1% _04

H_DPRSTP# 13,29 H_DPSLP# 13 H_DPWR# 4 H_PWRGD 13 H_CPUSLP# 4,13

1. 05 V S

1

8

RN8

2

7

3

6

*8P 4R X1K_04

4 5

R 162 * 1K _04 R 155 * 1K _04

1.05VS

R 151 1K_1%_04 R 147 2K_1%_04

C 287 1U_6.3V_04

1.05VS

R 123 1K_1%_04 R 124 2K_1%_04

C 241 0.1U_10V_X7R_04

Zo=55 Ohm

H_A20M# H_D PRS TP # H_D PSL P# H_IN TR

H_D PW R #

H _E XTG BR EF

H_CPU_CMREF

Sheet 2 of 31

Diamondville SC

1/2

B.Schematic Diagrams

Diamondville SC 1/2 B - 3

Schematic Diagrams

Diamondville SC 2/2

Sheet 3 of 31

Diamondville SC

2/2

B.Schematic Diagrams

1. 05 V S

VCORE

C304

0.1U_10V_X7R_04

V10

A9 B9

A10 A11 A12 B10 B11 B12 C10 C11 C12 D10 D11 D12 E10 E11 E12 F10 F11 F12 G1 0 G1 1 G1 2 H10 H11 H12

J10 J11

J12 K10 K11 K12

L1 0

L1 1

L1 2 M1 0 M1 1 M1 2 N10 N11 N12 P10 P11 P12 R10 R11 R12

U3C

VCCF VCCQ1

VCCQ2

VCCP1 VCCP2 VCCP3 VCCP4 VCCP5 VCCP6 VCCP7 VCCP8 VCCP9 VCCP10 VCCP11 VCCP12 VCCP13 VCCP14 VCCP15 VCCP16 VCCP17 VCCP18 VCCP19 VCCP20 VCCP21 VCCP22 VCCP23 VCCP24 VCCP25 VCCP26 VCCP27 VCCP28 VCCP29 VCCP30 VCCP31 VCCP32 VCCP33 VCCP34 VCCP35 VCCP36 VCCP37 VCCP38 VCCP39 VCCP40 VCCP41 VCCP42 VCCP43 VCCP44 VCCP45

IN TEL A TOM

VTT1 VTT2 VTT3 VTT4 VTT5 VTT6 VTT7 VTT8

VTT9 VTT1 0 VTT1 1 VTT1 2 VTT1 3 VTT1 4 VTT1 5 VTT1 6 VTT1 7 VTT1 8 VTT1 9 VTT2 0 VTT2 1 VTT2 2 VTT2 3 VTT2 4 VTT2 5 VTT2 6 VTT2 7 VTT2 8 VTT2 9 VTT3 0 VTT3 1 VTT3 2

VCCPC 64 VCCPC 63 VCCPC 62 VCCPC 61

VCCA

VID[ 0] VID[ 1] VID[ 2] VID[ 3] VID[ 4] VID[ 5] VID[ 6]

VCCSENSE VSSSENSE

1.05VS

C9 D9 E9 F8 F9 G8 G14 H8 H14 J8

+VCCP = 1.05V (0.997V~1.102V)

J14 K8 K14 L8 L14 M8 M14 N8 N14 P8 P14 R8 R14 T8 T14 U8 U9 U10 U11 U12 U13 U14

F14 F13 E14 E13

D7

H_V ID 0

F15

H_V ID 1

D16

H_V ID 2

E18

H_V ID 3

G15

H_V ID 4

G16

H_V ID 5

E17

H_VID6 H_VID[6:0]

G18

C13 D13

R129 100_1%_04

VCO RE

C257

0.1U_10V_X7R_04

2A

C240 10U_6.3V_06

C286 1U_6.3V_04

20mils

C252 *10U_6.3V_06

VCCSENSE

VSSSENSE

PLACE NEAR CPU

C312 *2 2U _6 .3 V _0 8

C302 10 U_ 6. 3 V_0 6

C303 1U _6 .3 V _ 04

1. 5VS

Layout note:

Near pin D7

C254

0.1U_10V_X7R_04

Zo=55 Ohm 1/2 spacing

H_ VI D [ 6: 0] 29

VCCSEN SE 29 VSSSENSE 29

R126

Layout not e:

10 0_ 1%_ 04

Rout e VCCSENS E an d VSSSENSE traces at 27.4Ohm with 50 mil sp ac in g. Place PU and PD within 1 inch of CPU.

C279 *1 U_ 6. 3 V _0 4

C265 *1U_6.3V_04

A2 A4

A8 A15 A18 A19 A20

B1

B2

B5

B8 B13 B20 B21

C8

C17

D1 D5

D8 D14 D18 D21

E3 E6 E7

E8 E15 E16 E19

F4

F5

F6

F7 F17 F18

G1 G4 G7

G9 G1 3 G2 1

H3

H4

H7

H9 H13 H16 H18 H19

J5 J7

J9 J13 J17

K1

K6

K7

K9

K13 K15 K21

L3

L4

L5

L6

L7

L9 L1 3 L1 5 L1 8 L1 9

M1 M5 M7

M9 M1 3 M2 1

N4

U3D

V SS1 V SS2 V SS4 V SS5 V SS6 V SS7 V SS8 V SS9 V SS10 V SS11 V SS12 V SS13 V SS14 V SS15 V SS16 V SS17 V SS18 V SS19 V SS20 V SS21 V SS22 V SS23 V SS24 V SS25 V SS26 V SS27 V SS28 V SS29 V SS30 V SS31 V SS32 V SS33 V SS34 V SS35 V SS36 V SS37 V SS38 V SS39 V SS41 V SS42 V SS45 V SS46 V SS48 V SS49 V SS51 V SS52 V SS53 V SS54 V SS55 V SS56 V SS57 V SS58 V SS59 V SS60 V SS61 V SS62 V SS63 V SS64 V SS65 V SS66 V SS67 V SS68 V SS69 V SS70 V SS71 V SS72 V SS73 V SS74 V SS75 V SS76 V SS77 V SS78 V SS79 V SS80 V SS81 V SS82 V SS83 V SS84

IN TE L ATOM

VSS162 VSS161 VSS160 VSS159 VSS158 VSS157 VSS156 VSS155 VSS154 VSS153 VSS152 VSS151 VSS149 VSS148 VSS147 VSS146 VSS145 VSS144 VSS143 VSS142 VSS141 VSS140 VSS139 VSS138 VSS137 VSS136 VSS135 VSS134 VSS133 VSS132 VSS131 VSS130 VSS129 VSS128 VSS127 VSS126 VSS125 VSS124 VSS123 VSS122 VSS121 VSS120 VSS119 VSS118 VSS117 VSS116 VSS115 VSS114 VSS113 VSS112 VSS111 VSS110 VSS109 VSS108 VSS107 VSS106 VSS105 VSS104 VSS103 VSS102 VSS101 VSS100

VSS99 VSS98 VSS97 VSS96 VSS95

N5 N7 N9 N13 N17 P3 P4 P5 P6 P7 P9 P13 P15 P16 P18 P19 R1 R5 R7 R9 R13 R21 T4 T5 T7 T9 T10 T11 T12 T13 T18 U3 U6 U7 U15 U16 U19 V1 V4 V6 V7 V8 V13 V14 V18 V21 W1 W5 W8 W11 W14 W17 W21 Y1 Y2 Y20 Y21 AA2 AA3 AA4 AA7 AA10 AA12 AA15 AA18 AA19 AA20

VCOR E

C242 10 U_ 6. 3V _ 0 6

C226 *10U_6.3V_06

C266 1U _6 .3 V_0 4

C247 *1U_6.3V_04

C243 10U_6.3V_06

C234 *1 0U _6 .3 V _0 6

C248 1U_6.3V_04

C271 *1 U_ 6. 3V _ 04

C238 10 U_ 6. 3V _ 06

C231 *10U_6. 3V_06

C253 1U _6 .3 V _0 4

C276 *1U _6.3V_04

C237 10U_6.3V_06

C233 *10U_6.3V_06

C267 1U_6.3V_04

C282 *1 U _ 6. 3V _ 04

C236 10 U_ 6. 3V _ 06

C230 *10U_6.3V_06

C274 1U _6 .3 V _0 4

C292 *1U_6.3V_04

C235 10U_6.3V_06

C225 *1 0U _6 .3 V _0 6

C281 1U_6.3V_04

C296 *1 U _ 6. 3V _ 04

C260 1U _6 .3 V _0 4

C295 *1U _6.3V_04

C261 1U_6.3V_04

C291 *1 U_ 6. 3V _ 04

B - 4 Diamondville SC 2/2

1.05VS 2,4,6,7,12,13,16,28

1.5VS 5,6,7 ,1 4, 16,1 8 ,2 8 VCORE 29

945GSE 1/5, Host

Schematic Diagrams

Layout Notice:

10 mils wide, 20 mils spacing

1.05VS

R4 6 54. 9_1 % _0 4 R3 1 54. 9_1 % _0 4 R4 5 24. 9_1 % _0 4 R3 5 24. 9_1 % _0 4

Layout Notice:

MCH_HXSWING and MCH_HYSWING should be 10 mils traces and 20 mils spacing

1. 05 V S

R180 22 1_1 %_04

R182 10 0_1 %_04

1.05VS

R3 9 2 21 _1 %_04

MCH_HXSCOMP MCH_HYSCOMP MCH_HXRCOMP MCH_HYRCOMP

C331

0. 1U _10 V_X 7R _04

R38 10 0_1 %_0 4

H_D#[63:0]2

C332 *1U _ 6. 3V _ 04

C60

0. 1U _10 V_X 7R _04

MCH_HXRCOMP MCH_HXSCOMP MCH_HXSWING MCH_HYRCOMP MCH_HYSCOMP

MCH_HYSWING

C59 *1U_6.3V_04

H_D# 0 H_D# 1 H_D# 2 H_D# 3 H_D# 4 H_D# 5 H_D# 6 H_D# 7 H_D# 8 H_D# 9 H_D# 10 H_D# 11 H_D# 12 H_D# 13 H_D# 14 H_D# 15 H_D# 16 H_D# 17 H_D# 18 H_D# 19 H_D# 20 H_D# 21 H_D# 22 H_D# 23 H_D# 24 H_D# 25 H_D# 26 H_D# 27 H_D# 28 H_D# 29 H_D# 30 H_D# 31 H_D# 32 H_D# 33 H_D# 34 H_D# 35 H_D# 36 H_D# 37 H_D# 38 H_D# 39 H_D# 40 H_D# 41 H_D# 42 H_D# 43 H_D# 44 H_D# 45 H_D# 46 H_D# 47 H_D# 48 H_D# 49 H_D# 50 H_D# 51 H_D# 52 H_D# 53 H_D# 54 H_D# 55 H_D# 56 H_D# 57 H_D# 58 H_D# 59 H_D# 60 H_D# 61 H_D# 62 H_D# 63

C4 F6 H9 H6 F7 E3 C2 C3 K9 F5

J7 K7 H8 E5 K8

J8

J2

J3 N1 M5 K5

J5 H3

J4 N3 M4 M3 N8 N6 K3 N9 M1 V8 V9 R6

T8 R2 N5 N2 R5 U7 R8

T4

T7 R3

T5 V6 V3 W2 W1 V2 W4 W7 W5 V5

AB4 AB8

W8

AA9 AA8 AB1 AB7 AA2 AB5

A10

A6

C15

J1 K1 H1

U4A

H_D#_ 0 H_D#_ 1 H_D#_ 2 H_D#_ 3 H_D#_ 4 H_D#_ 5 H_D#_ 6 H_D#_ 7 H_D#_ 8 H_D#_ 9 H_D#_ 10 H_D#_ 11 H_D#_ 12 H_D#_ 13 H_D#_ 14 H_D#_ 15 H_D#_ 16 H_D#_ 17 H_D#_ 18 H_D#_ 19 H_D#_ 20 H_D#_ 21 H_D#_ 22 H_D#_ 23 H_D#_ 24 H_D#_ 25 H_D#_ 26 H_D#_ 27 H_D#_ 28 H_D#_ 29 H_D#_ 30 H_D#_ 31 H_D#_ 32 H_D#_ 33 H_D#_ 34 H_D#_ 35 H_D#_ 36 H_D#_ 37 H_D#_ 38 H_D#_ 39 H_D#_ 40 H_D#_ 41 H_D#_ 42 H_D#_ 43 H_D#_ 44 H_D#_ 45 H_D#_ 46 H_D#_ 47 H_D#_ 48 H_D#_ 49 H_D#_ 50 H_D#_ 51 H_D#_ 52 H_D#_ 53 H_D#_ 54 H_D#_ 55 H_D#_ 56 H_D#_ 57 H_D#_ 58 H_D#_ 59 H_D#_ 60 H_D#_ 61 H_D#_ 62 H_D#_ 63

H_XRC OMP H_XSCOMP H_XSWING H_Y RC OMP H_Y SCO MP H_Y SWI NG

Q G82 94 5G S E

HOST

H_A#_3 H_A#_4 H_A#_5 H_A#_6 H_A#_7 H_A#_8

H_A#_9 H_A #_10 H_A #_11 H_A #_12 H_A #_13 H_A #_14 H_A #_15 H_A #_16 H_A #_17 H_A #_18 H_A #_19 H_A #_20 H_A #_21 H_A #_22 H_A #_23 H_A #_24 H_A #_25 H_A #_26 H_A #_27 H_A #_28 H_A #_29 H_A #_30 H_A #_31

H_ADS#

H_ADS TB#_0 H_ADS TB#_1

H_VREF0

H_BNR#

H_BPRI#

H_BREQ0#

H_CP UR ST#

H_VREF1

HCLKN HCLKP

H_DBSY# H_DE FE R# H_DI NV# _0 H_DI NV# _1 H_DI NV# _2 H_DI NV# _3

H_DPW R#

H_DRDY#

H_DSTBN#_0 H_DSTBN#_1 H_DSTBN#_2 H_DSTBN#_3

H_DSTBP# _0 H_DSTBP# _1 H_DSTBP# _2 H_DSTBP# _3

H_HI T#

H_H ITM#

H_LO CK#

H_REQ# _0 H_REQ# _1 H_REQ# _2 H_REQ# _3 H_REQ# _4

H_RS # _0 H_RS # _1 H_RS # _2

H_SLPCPU#

H_TRDY#

F8

H_A#3

D12

H_A#4

C13

H_A#5

A8

H_A#6

E13

H_A#7

E12

H_A#8

J12

H_A#9

B13

H_A#10

A13

H_A#11

G13

H_A#12

A12

H_A#13

D14

H_A#14

F14

H_A#15

J13

H_A#16

E17

H_A#17

H15

H_A#18

G15

H_A#19

G14

H_A#20

A15

H_A#21

B18

H_A#22 H_A#23

B15 E14

H_A#24

H13

H_A#25

C14

H_A#26

A17

H_A#27

E15

H_A#28

H17

H_A#29

D17

H_A#30

G17

H_A#31

F10 C12

H16 E2

MCH_HVREF0

B9 C7 G8 B10 E1

AA6 AA5

C10 C6 H5 J6 T9 U6 G7 E6

F3 M8 T1 AA3 F4 M7 T2 AB3

C8 B4 C5

G9

H_REQ#0

E9

H_REQ#1

G12

H_REQ#2

B8

H_REQ#3

F12

H_REQ#4

A5 B6 G10

E8 E10

H_A #[ 31:3 ] 2

H_ADS# 2 H_ADSTB#0 2

H_ADSTB#1 2

H_B NR # 2 H_B PRI # 2 H_B R0 # 2 H_CP U RST# 2

CLK_MCH_BCLK# 12 CLK_MCH_BCLK 12

H_DB SY # 2 H_DE FE R # 2 H_DI NV# 0 2 H_DI NV# 1 2 H_DI NV# 2 2 H_DI NV# 3 2 H_DP W R# 2 H_DR DY # 2

H_DS TB N#0 2 H_DS TB N#1 2 H_DS TB N#2 2 H_DS TB N#3 2 H_DS TB P#0 2 H_DS TB P#1 2 H_DS TB P#2 2 H_DS TB P#3 2

H_HI T# 2 H_HI TM# 2 H_LO CK# 2

H_RE Q #[4:0] 2

H_RS # 0 2 H_RS # 1 2 H_RS # 2 2

H_CP U SLP# 2 ,13 H_TR DY # 2

Layout Notice:

0.1uF should be placed 100mils or less from GMCH pin.

1.0 5VS

R43 100_1%_04

C67

0.1U_10V_X7R_04

C68 *0 . 1 U_ 10 V_X7 R_ 04

R42 200_1%_04

1. 05 V S 2,3 ,6 , 7 ,1 2, 1 3, 16 ,2 8

1.05VS

Ho st Cl ock

R53 56_04

R49 1K_ 04

R22 1K_ 04

R48 1K_ 04

R21 1K_ 04

R47 1K_ 04

BSEL2 BSEL0 Frequency

BSEL 1

R 54 * 10 mil_ s h or t

R52 1K_04

CPU_BSEL12

CPU_BSEL22

R141 *10mil_short

R24 *0_04

R133 *10mil_short

R20 *0_04

FSB

FS B40 0101100 MHz

FS B53 3100133 MHz

CLK_BSEL0 12CPU_BSEL02

MCH_BSEL0 5

CLK_BSEL1 12

MCH_BSEL1 5

CLK_BSEL2 12

MCH_BSEL2 5

B.Schematic Diagrams

Sheet 4 of 31

945GSE 1/5, Host

945GSE 1/5, Host B - 5

Schematic Diagrams

945GSE 2/5

Sheet 5 of 31

945GSE 2/5

B.Schematic Diagrams

S L Z dif f=100 Ohm M S Z dif f=95 O hm

Zdiff=70 Ohm

1.8V

1.8 V

R119

10K_1%_04

R138 10K_1%_04

M_CL K_DD R09 M_CL K_DD R19

M_CL K_DD R0#9 M_CL K_DD R1#9

M_CKE09 M_CKE19

M_CS0#9 M_CS1#9

M_OD T09 M_OD T19

R1 7 8 0. 6_1 %_04 R1 6 8 0. 6_1 %_04

C270

2. 2U_ 6. 3V_0 6

DMI_TXN014 DMI_TXN114 DMI_TXP014 DMI_TXP114

DMI_RXN014 DMI_RXN114 DMI_RXP014 DMI_RXP114

C273

0.1U_10V_X7R_04

DMI_TXN0 DMI_TXN1DMI_TXN1 DMI_TXP0 DMI_TXP1

D MI_RXN0 D MI_RXN1 DMI_RXP0 DMI_RXP1

M_CLK_D DR0 M_CLK_D DR1

M_CLK_D DR2 M_CLK_D DR3

M_CLK_D DR0# M_CLK_D DR1#

M_CLK_D DR2# M_CLK_D DR3#

Z0 501 Z0 502

M_OD T2 M_OD T3

M_RC OMPN M_RC OMPP

M_ VR E F _MC H

C262

0.1 U_ 10V _ X7R _04

U4B

Y29

DMI_RXN_0

Y32

DMI_RXN_1

Y28

DMI_RXP_0

Y31

DMI_RXP_1

V28

DMI_TXN_0

V31

DMI_TXN_1

V29

DMI_TXP_0

V32

DMI_TXP_1

AF33

SM_CK_0

AG1

SM_CK_1

AJ1

SM_CK_2

AM30

SM_CK_3

AG33

SM_CK#_0

AF 1

SM_CK#_1

AK 1

SM_CK#_2

AN30

SM_CK#_3

AN21

SM_CKE_0

AN22

SM_CKE_1

AF26

SM_CKE_2

AF25

SM_CKE_3

AG14

SM_CS#_0

AF12

SM_CS#_1

AK14

SM_CS#_2

AH12

SM_CS#_3

AJ 2 1

SM_OC DCO MP_0

AF11

SM_OC DCO MP_1

AE12

SM_ODT_0

AF14

SM_ODT_1

AJ 1 4

SM_ODT_2

AJ 1 2

SM_ODT_3

AN12

SM_RCOMPN

AN14

SM_RCOMPP

AA33

SM_VREF_0

AE 1 A27

SM_VREF_1 D_REFCLKN

QG 829 45G SE

DMI

DDR2 MUXI NG

PM_ICHSY N C#

D_RE FSSC LKN D_REFSSCLKP

CFG _0 CFG _1 CFG _2 CFG _3 CFG _5 CFG _6

RESERVED1 RESERVED2 RESERVED7 RESERVED8 RESERVED9

CFG/ RSVD

PM_BM BUSY#

PM_EXTTS#_0 PM_EXTTS#_1

THR MTR I P #

PWROK RSTIN#

PM

CLK

D_REFCLKP

CLKR EQ#

C18 E18 G2 0 G1 8 J20 J18

K32 K31 C17 F18 A3

E31 G2 1 F26 H26 J15 AB29 W27

A26 J33 H33 J22

R165 *2.2K_04

MCH _CF G 3 MCH_ CFG5

R 157 2. 2K_0 4

MCH _CF G 6

R156 *2.2K_04

C a li s to ga S tra p p in g MCH _ C F G 5 MC H _ C F G 3 R es e r ve

MC H _ C F G 6 R es e r ve

PM_EXTTS#_0 PM_EXTTS#_1

NB_R STIN#

MCH_CLKREQ#

R17 1 10K_ 04

3.3 VS

R37 * 10K _ 04 R22 4 10K_ 04

LO W HIGH

DMIx2 Defalt

Min imi ze REF SET ro uti ng len gth an d shie ld wit h V SS

R17 4 *1 0m il _s hor t R36 *10mil_short

R183 100_04

PM _E XT TS # _ 0 PM _E XT TS # _ 1 MCH _CL KR E Q#

MCH_BSEL0 4 MCH_BSEL1 4 MCH_BSEL2 4

RSVD.

Zo=55 Ohm

MCH_ ICH _SYN C# 14

PM_BMBUSY# 15

PM _EXTTS 0# 9 PM_DPRSLPVR 15,29

PM_THRMTRIP# 2,13

IMVP6_PWRGD 15,29

PLT_RST# 14,15

CLK_DREF# 12 CLK_DREF 12 CLK_DREFSS# 12 CLK_DREFSS 1 2

MCH_ CLKR EQ# 12

DAC _BLU E10

DAC_GREEN10

DAC _RED10

CLK_PC IE_3GPLL#12 CLK_PCIE_3GPL L12

DAC_ DDCAC LK10

DAC_ DDC ADATA10

Zo=50 Ohm Zo=37.5 Ohm

DAC _BLUE_ 945 DAC _GREEN _945 DAC _RED_ 945

DAC_VSYNC10

DAC _HSYN C10

BLON11

3. 3VS

ENAVDD11

R33

10 0K_0 4

R 177 150_1% _ 04 R 170 150_1% _ 04 R 175 150_1% _ 04

R 163 39_ 04 R 161 39_ 04 R 154 255 _1% _ 04

7

R N17 8P4R X10 K_041

8

R1 53 1.5 K_04

3456 2

MAX =0. 5"

Zo=100 Ohm

L_DDC_ CLK11

L_ DDC _DATA11

R188 *10mil_short R187 *10mil_short R195 *10mil_short

L _B K LTC TL11, 23

LV DS-LCLKN11

LVDS-LCLKP11

LVD S- L0 N11 LVD S- L1 N11 LVD S- L2 N11

LVD S- L0 P11 LVD S- L1 P11 LVD S- L2 P11

L_DDC _CL K L_DDC _DAT A

N_CRT_VSYNC N_CRT_HSYNC N_CRT_REFSET

L_ CL KC TLA L_ CT LBDATAL_C LKC TLA L_DD C_C LK L_DD C_D ATA

L_ IBG

Z0 51 1

Z0 51 2 Z0 51 3

C333 22 P_50 V_ 04

H27

J27

Y26

AA26

H20 H22

A24 A23 E25

F25 C25 D25

F27 D27 H25

H30 G29

F28

E28 G28 H28

K30

K27

J29

J30

K29 D30

C30

A30

A29 G31

F32 D31

H31 G32 C31

F33 D33

F30

E33 D32

F29

C318 22P_50V_04

U4F

SDVO_CTRLDATA SDVO_CTRLCLK G_CLKN G_CLKP

C RT_DDC _CLK C RT_DDC _DATA

CRT_BLUE CRT_BLUE# CRT_GREEN CRT_GREEN# CRT_RED C RT_RED#

CRT_VSYNC CRT_HSYNC REFSET

L _B K LTC TL L_BKLTEN L_CLKCTLA L_CT LBDATA L_DD C_C LK L_DD C_D ATA L_VDDEN L_IBG L_VBG L_VREFH L_VREFL

LA_CLKN LA_CLKP LB_CLKN LB_CLKP

LA_DATAN_0 LA_DATAN_1 LA_DATAN_2

LA_DATAP_0 LA_DATAP_1 LA_DATAP_2

LB_DATAN_0 LB_DATAN_1 LB_DATAN_2

LB_DATAP_0 LB_DATAP_1 LB_DATAP_2

C327 22P_50V_04

1.5VS

EXP_A_COMPI

EXP_A_I COMPO

S D VO _ T VC LK I N #

SDVO_FLDSTAL L#

M ISC

SDVO_TVCLKIN

SDVO_FLDSTAL L

SDVO

SDVO_RED#

SDVO_GREEN#

SDV O_BLU E#

SDVO_CLKN

SDVO_GREEN

TV

L VDS V GA

TV_ D C ON SEL 0 TV_ D C ON SEL 1

DAC_ BLUE_945 DAC_ GREEN_ 945 DAC_ RED_945

R148 24.9_1%_04

SDVO_INT#

SDVO_INT

SDVO_RED

SDVO_BL UE SDVO_CLKP

TV_ DA CA TV_ DA CB TV_ D AC C

TV_ IR EF TV_IRT NA TV_IRT NB TV_ I R TN C

Q G82 94 5GSE

R28

PEG_COMP

M28 N30

R30 T29

M30 P30 T30

P28 N32 P32 T32

N28 M32 P33 R32

1. 5VS

A21 C20

C314

E20 G23

0.1U_10V_X7R_04

B21 C21 D21

G26 J26

B - 6 945GSE 2/5

1. 5VS 3, 6,7 ,1 4,1 6, 18, 28

1. 8V 7,9,2 7, 28

3. 3VS 6, 7,9 ,1 0,1 1, 12, 13 ,14 , 1 5,1 6, 18, 19, 20 ,22 ,2 3,2 5, 29

945GSE 3/5, DDR

C27 10U _6. 3V_0 6

C31 1 0U _6. 3V_0 6

1.05VS

C71 1 0U_ 6. 3V_06

C54

4.7U_6.3V_06

C293 *0 . 1U _10 V_X7 R_0 4

C278 *0.1U_10V_ X7R_ 04

Schematic Diagrams

Zo=55 Ohm

M_A_DQ[6 3:0]9

Zo=55 Ohm

M_A_D Q0 M_A_D Q1 M_A_D Q2 M_A_D Q3 M_A_D Q4 M_A_D Q5 M_A_D Q6 M_A_D Q7 M_A_D Q8 M_A_D Q9 M_A_D Q1 0 M_A_D Q1 1 M_A_D Q1 2 M_A_D Q1 3 M_A_D Q1 4 M_A_D Q1 5 M_A_D Q1 6 M_A_D Q1 7 M_A_D Q1 8 M_A_D Q1 9 M_A_D Q2 0 M_A_D Q2 1 M_A_D Q2 2 M_A_D Q2 3 M_A_D Q2 4 M_A_D Q2 5 M_A_D Q2 6 M_A_D Q2 7 M_A_D Q2 8 M_A_D Q2 9 M_A_D Q3 0 M_A_D Q3 1 M_A_D Q3 2 M_A_D Q3 3 M_A_D Q3 4 M_A_D Q3 5 M_A_D Q3 6 M_A_D Q3 7 M_A_D Q3 8 M_A_D Q3 9 M_A_D Q4 0 M_A_D Q4 1 M_A_D Q4 2 M_A_D Q4 3 M_A_D Q4 4 M_A_D Q4 5 M_A_D Q4 6 M_A_D Q4 7 M_A_D Q4 8 M_A_D Q4 9 M_A_D Q5 0 M_A_D Q5 1 M_A_D Q5 2 M_A_D Q5 3 M_A_D Q5 4 M_A_D Q5 5 M_A_D Q5 6 M_A_D Q5 7 M_A_D Q5 8 M_A_D Q5 9 M_A_D Q6 0 M_A_D Q6 1 M_A_D Q6 2 M_A_D Q6 3

M_B_C A S# M_B_R A S# M_B_W E #

AC31 AB28 AE33 AF32 AC33 AB32 AB31 AE31 AH31 AK31

AL 2 8 AK27 AH30

AL 3 2

AJ 2 8

AJ 2 7 AH32 AF31 AH27 AF28

AJ 3 2 AG31 AG28 AG27 AN27 AM26

AJ 2 6

AJ 2 5

AL 2 7 AN26 AH25 AG26 AM12

AL 1 1

AM11 AK11

AG11

AG19 AG21 AG20

AH9 AK 9

AM8 AK 8 AG9 AF 9 AF 8 AK 6 AF 7

AJ6 AH6 AN6 AM6 AK 3 AL2 AM5 AL5 AJ3 AJ2 AG2 AF 3 AE 7 AF 6 AH5 AG3 AG5 AF 5

U4C

SA_DQ_0 SA_DQ_1 SA_DQ_2 SA_DQ_3 SA_DQ_4 SA_DQ_5 SA_DQ_6 SA_DQ_7 SA_DQ_8 SA_DQ_9 SA_DQ_10 SA_DQ_11 SA_DQ_12 SA_DQ_13 SA_DQ_14 SA_DQ_15 SA_DQ_16 SA_DQ_17 SA_DQ_18 SA_DQ_19 SA_DQ_20 SA_DQ_21 SA_DQ_22 SA_DQ_23 SA_DQ_24 SA_DQ_25 SA_DQ_26 SA_DQ_27 SA_DQ_28 SA_DQ_29 SA_DQ_30 SA_DQ_31 SA_DQ_32 SA_DQ_33 SA_DQ_34 SA_DQ_35 SA_DQ_36 SA_DQ_37 SA_DQ_38 SA_DQ_39 SA_DQ_40 SA_DQ_41 SA_DQ_42 SA_DQ_43 SA_DQ_44 SA_DQ_45 SA_DQ_46 SA_DQ_47 SA_DQ_48 SA_DQ_49 SA_DQ_50 SA_DQ_51 SA_DQ_52 SA_DQ_53 SA_DQ_54 SA_DQ_55 SA_DQ_56 SA_DQ_57 SA_DQ_58 SA_DQ_59 SA_DQ_60 SA_DQ_61 SA_DQ_62 SA_DQ_63

SB_CAS# SB_RAS# SB_WE#

QG82945GSE

SA _ D Q S #_ 0 SA _ D Q S #_ 1 SA _ D Q S #_ 2 SA _ D Q S #_ 3 SA _ D Q S #_ 4 SA _ D Q S #_ 5 SA _ D Q S #_ 6 SA _ D Q S #_ 7

D DR2 SY STEM MEMORY

SA_RCVENIN#

SA_RCVENOUT#

SA _BS_ 0 SA _BS_ 1 SA _BS_ 2

SA _DM_ 0 SA _DM_ 1 SA _DM_ 2 SA _DM_ 3 SA _DM_ 4 SA _DM_ 5 SA _DM_ 6 SA _DM_ 7

SA_DQS_0 SA_DQS_1 SA_DQS_2 SA_DQS_3 SA_DQS_4 SA_DQS_5 SA_DQS_6 SA_DQS_7

SA_MA_0 SA_MA_1 SA_MA_2 SA_MA_3 SA_MA_4 SA_MA_5 SA_MA_6 SA_MA_7 SA_MA_8

SA_MA_9 SA_MA_10 SA_MA_11 SA_MA_12 SA_MA_13

SA _CAS#

SA _RAS#

SA_WE#

SB _BS_ 0 SB _BS_ 1 SB _BS_ 2

SB_MA_0

SB_MA_1

SB_MA_2

SB_MA_3

SB_MA_4

SB_MA_5

SB_MA_6

SB_MA_7

SB_MA_8

SB_MA_9 SB_MA_10 SB_MA_11 SB_MA_12 SB_MA_13

U4H

AK12 AH11 AG17

AB30 AL31 AF30 AK26 AL9 AG7 AK5 AH3

AC28 AJ30 AK33 AL25 AN9 AH8 AM2 AE3

AC29 AK30 AJ33 AM25 AN8 AJ8 AM3 AE2

M_A_A0

AJ15

M_A_A1

AM17

M_A_A2

AM15

M_A_A3

AH15

M_A_A4

AK15

M_A_A5

AN15

M_A_A6

AJ18

M_A_A7

AF19

M_A_A8

AN17

M_A_A9

AL17

M_A_A10

AG16

M_A_A11

AL18

M_A_A12

AG18

M_A_A13

AL14 AJ17

AK18

Z0601

AN28

Z0602

AM28 AH17

M_B_BS0#

AH21

M_B_BS1#

AJ20

M_B_BS2#

AE27

M_B_A0

AN20

M_B_A1

AL21

M_B_A2

AK21

M_B_A3

AK22

M_B_A4

AL22

M_B_A5

AH22

M_B_A6

AG22

M_B_A7

AF21

M_B_A8

AM21

M_B_A9

AE21

M_B_A10

AL20

M_B_A11

AE22

M_B_A12

AE26

M_B_A13

AE20

M_A_BS0# 9 M_A_BS1# 9 M_A_BS2# 9

M_A_DM0 9 M_A_DM1 9 M_A_DM2 9 M_A_DM3 9 M_A_DM4 9 M_A_DM5 9 M_A_DM6 9 M_A_DM7 9

M_A_DQS0 9 M_A_DQS1 9 M_A_DQS2 9 M_A_DQS3 9 M_A_DQS4 9 M_A_DQS5 9 M_A_DQS6 9 M_A_DQS7 9

M_A _D QS 0# 9 M_A _D QS 1# 9 M_A _D QS 2# 9 M_A _D QS 3# 9 M_A _D QS 4# 9 M_A _D QS 5# 9 M_A _D QS 6# 9 M_A _D QS 7# 9 M_A_A[13:0] 9

M_A _C AS# 9 M_A _R AS# 9

M_A _W E# 9

Zo=55 Ohm

Zdiff=85 Ohm

Zo=55 Ohm

1.05VS

T2 5 R25 P25 N25 M2 5 P24 N24 M2 4 Y22

W22

V22 U22

T2 2 R22 P22 N22 M2 2 Y21

W21

V21 U21

T2 1 R21 P21 N21 M2 1 Y20

W20

V20 U20

T2 0 R20 P20 N20 M2 0 Y19 P19 N19 M1 9 Y18 P18 N18 M1 8 Y17 P17 N17 M1 7 Y16 P16 N16 M1 6 Y15 P15 N15 M1 5 Y14

W14

V14 U14

T1 4 R14 P14 N14 M1 4

T1 0 R10 P10 N10

L10

D1

M1 0 A18

AB 1 0 AA 1 0

VC C _ N C TF 1 VC C _ N C TF 2 VC C _ N C TF 3 VC C _ N C TF 4 VC C _ N C TF 5 VC C _ N C TF 6 VC C _ N C TF 7 VC C _ N C TF 8 VC C _ N C TF 9 VC C _ N C TF 1 0 VC C _ N C TF 1 1 VC C _ N C TF 1 2 VC C _ N C TF 1 3 VC C _ N C TF 1 4 VC C _ N C TF 1 5 VC C _ N C TF 1 6 VC C _ N C TF 1 7 VC C _ N C TF 1 8 VC C _ N C TF 1 9 VC C _ N C TF 2 0 VC C _ N C TF 2 1 VC C _ N C TF 2 2 VC C _ N C TF 2 3 VC C _ N C TF 2 4 VC C _ N C TF 2 5 VC C _ N C TF 2 6 VC C _ N C TF 2 7 VC C _ N C TF 2 8 VC C _ N C TF 2 9 VC C _ N C TF 3 0 VC C _ N C TF 3 1 VC C _ N C TF 3 2 VC C _ N C TF 3 3 VC C _ N C TF 3 4 VC C _ N C TF 3 5 VC C _ N C TF 3 6 VC C _ N C TF 3 7 VC C _ N C TF 3 8 VC C _ N C TF 3 9 VC C _ N C TF 4 0 VC C _ N C TF 4 1 VC C _ N C TF 4 2 VC C _ N C TF 4 3 VC C _ N C TF 4 4 VC C _ N C TF 4 5 VC C _ N C TF 4 6 VC C _ N C TF 4 7 VC C _ N C TF 4 8 VC C _ N C TF 4 9 VC C _ N C TF 5 0 VC C _ N C TF 5 1 VC C _ N C TF 5 2 VC C _ N C TF 5 3 VC C _ N C TF 5 4 VC C _ N C TF 5 5 VC C _ N C TF 5 6 VC C _ N C TF 5 7 VC C _ N C TF 5 8 VC C _ N C TF 5 9 VC C _ N C TF 6 0 VC C _ N C TF 6 1 VC C _ N C TF 6 2 VC C _ N C TF 6 3 VC C _ N C TF 6 4

VT T_ NC T F 1 VT T_ NC T F 2 VT T_ NC T F 3 VT T_ NC T F 4 VT T_ NC T F 5 VT T_ NC T F 6

RSVD_3 RSVD_4 RSVD_5 RSVD_6

QG82945 GS E

NCTF

VCCAU X_NCTF1 VCCAU X_NCTF2 VCCAU X_NCTF3 VCCAU X_NCTF4 VCCAU X_NCTF5 VCCAU X_NCTF6 VCCAU X_NCTF7 VCCAU X_NCTF8

VCCAU X_NCTF9 VC C A U X _N C TF 1 0 VC C A U X _N C TF 1 1 VC C A U X _N C TF 1 2 VC C A U X _N C TF 1 3 VC C A U X _N C TF 1 4 VC C A U X _N C TF 1 5 VC C A U X _N C TF 1 6 VC C A U X _N C TF 1 7 VC C A U X _N C TF 1 8 VC C A U X _N C TF 1 9 VC C A U X _N C TF 2 0 VC C A U X _N C TF 2 1 VC C A U X _N C TF 2 2 VC C A U X _N C TF 2 3 VC C A U X _N C TF 2 4 VC C A U X _N C TF 2 5 VC C A U X _N C TF 2 6 VC C A U X _N C TF 2 7 VC C A U X _N C TF 2 8 VC C A U X _N C TF 2 9 VC C A U X _N C TF 3 0 VC C A U X _N C TF 3 1 VC C A U X _N C TF 3 2 VC C A U X _N C TF 3 3 VC C A U X _N C TF 3 4 VC C A U X _N C TF 3 5 VC C A U X _N C TF 3 6 VC C A U X _N C TF 3 7 VC C A U X _N C TF 3 8

VSS_NCTF1 VSS_NCTF2 VSS_NCTF3 VSS_NCTF4 VSS_NCTF5 VSS_NCTF6 VSS_NCTF7 VSS_NCTF8

VSS_NCTF9 VSS_NCTF10 VSS_NCTF11 VSS_NCTF12 VSS_NCTF13 VSS_NCTF14 VSS_NCTF15 VSS_NCTF16 VSS_NCTF17 VSS_NCTF18 VSS_NCTF19

CFG_ 19

RESERVED10 RESERVED11 RESERVED12 RESERVED13 RESERVED14 RESERVED15 RESERVED16 RESERVED17 RESERVED18 RESERVED19 RESERVED20 RESERVED21 RESERVED22 RESERVED23 RESERVED24 RESERVED25

AD25 AC25 AB25 AD24 AC24 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 K14 AD13 Y13 W13 V13 U13 T13 R13 P13 N13 M13 AD12 Y12 W12 V12 U12 T12 R12 P12 N12 M12 AD11 AD10 K10 AN33 AA25 V25 U25 AA22 AA21 AA20 AA19 AA18 AA17 AA16 AA15 AA14 AA13 A4 A33 B2 AN1 C1

K28 K25

K26 R24 T24 K21 K19 K20 K24 K22 J17 K23 K17 K12 K13 K16 K15

1. 5V S

C272

0.1U_10V_X7R_04

MCH_C FG19 (DM I LANE REVERSAL)

MC H _C F G19

3.3 VS

R152

*1K_04

Norma l

HIGHLOWCalistoga S trapping

L anes Re vers ed

B.Schematic Diagrams

Sheet 6 of 31

945GSE 3/5, DDR

1. 05V S 2 ,3 ,4, 7, 12, 13 ,16 , 28

1. 5V S 3 ,5 ,7, 14 ,16 ,1 8,2 8

3. 3VS 5 ,7 , 9, 10 ,11 ,1 2, 1 3,1 4, 15, 16 , 18 ,19 ,2 0,2 2, 23, 25, 29

945GSE 3/5, DDR B - 7

Schematic Diagrams

Sheet 7 of 31

945GSE 4/5

B.Schematic Diagrams

945GSE 4/5

1.05VS

C283 10U_6.3V_06

C301 10U_6.3V_06

C72 10U_6. 3V_06

C297 10U_6. 3V_06

C280 10U_ 10V_ 08

C298 10 U_ 6. 3 V_0 6

C300 10U _6 . 3 V_0 6

C284

4. 7U_ 6. 3V _ 06

C 299

4.7U _6 .3 V_0 6

C73 *4.7U_6.3V_0 6

C294

0.1 U_ 10 V _X7R _04

1. 5VS

C269

0.1 U_ 10 V _X7R _04

C85

0.4 7U _1 0V _ 04

C79

0.4 7U _1 0V _ 04

C29

0.4 7U _1 0V _ 04

Z0701

Z0702

Z0703 Z0704

C311

0. 47 U_ 10 V _04

AD33 AD32 AD31 AD30 AD29 AD28 AD27 AC27 AD26 AC26

W18

W17

W16

AB26 AE19 AE18 AF17 AE17 AF16 AE16 AF15 AE15

T26

R26

P26 N26 M26

V19 U19

T19

V18

T18 R18

U17 R17

V16

T16 R16

V15 U15

T15

J14

J10 H10 AE9 AD9

U9 AD8 AD7 AD6

A14

D10

P9

L9 D9 P8

L8 D8 P7

L7 D7 A7 P6

L6 G6 D6 U5 P5

L5 G5 D5 Y4 U4 P4

L4 G4 D4 Y3 U3 P3

L3 G3 D3 Y2 U2 P2

L2 G2 D2

AA1

F1

U4D

VCC0 VCC1 VCC2 VCC3 VCC4 VCC5 VCC6 VCC7 VCC8 VCC9 VCC10 VCC11 VCC12 VCC13 VCC14 VCC15 VCC16 VCC17 VCC18 VCC19 VCC20 VCC21

VCCAUX1 VCCAUX2 VCCAUX3 VCCAUX4 VCCAUX5 VCCAUX6 VCCAUX7 VCCAUX8 VCCAUX9 VCCAUX10 VCCAUX11 VCCAUX12 VCCAUX13 VCCAUX14 VCCAUX15 VCCAUX16 VCCAUX17 VCCAUX18 VCCAUX19 VCCAUX20 VCCAUX21 VCCAUX22 VCCAUX23 VCCAUX24 VCCAUX25 VCCAUX26 VCCAUX27 VCCAUX28

VTT0 VTT1 VTT2 VTT3 VTT4 VTT5 VTT6 VTT7 VTT8 VTT9 VTT1 0 VTT1 1 VTT1 2 VTT1 3 VTT1 4 VTT1 5 VTT1 6 VTT1 7 VTT1 8 VTT1 9 VTT2 0 VTT2 1 VTT2 2 VTT2 3 VTT2 4 VTT2 5 VTT2 6 VTT2 7 VTT2 8 VTT2 9 VTT3 0 VTT3 1 VTT3 2 VTT3 3 VTT3 4 VTT3 6 VTT3 5 VTT3 7 VTT3 8 VTT3 9 VTT4 0

QG8294 5G SE

VCCATVDACA0 VCCATVDACA1 VCCATVDACB0 VCCATVDACB1 VC CATVD ACC 0 VC CATVD ACC 1

VCCATV BG VSSATVBG

VCCDTVDAC

VCCDQ TVDAC

VCCDLVDS0 VCCDLVDS1 VCCDLVDS2

VCCSM10 VCCSM11 VCCSM12 VCCSM13 VCCSM14 VCCSM15 VCCSM16 VCCSM17 VCCSM18 VCCSM19 VCCSM20 VCCSM21 VCCSM22 VCCSM23 VCCSM24 VCCSM25 VCCSM26 VCCSM27 VCCSM28 VCCSM29 VCCSM30 VCCSM31 VCCSM32 VCCSM33 VCCSM34 VCCSM35 VCCSM36 VCCSM37 VCCSM38 VCCSM39 VCCSM40 VCCSM41 VCCSM42 VCCSM43 VCCSM44 VCCSM45 VCCSM46 VCCSM47 VCCSM48 VCCSM49 VCCSM50

VCCSM51 VCCAMPLL VCCAHPL L

VCCADPLLA VCCADPLLB

VCCDHMPLL1

POWER

VCCDHMPLL2

VCCTXLVDS0 VCCTXLVDS1

VCCA3GPLL VCCA3GBG

VSSA3GBG VCCSYN C

VCC ACRTDA C 0 VCC ACRTDA C 1

VSSACRTDAC

VCCAL VDS VSSALVDS

VCCH V0 VCCH V1 VCCH V2 VCCSM0 VCCSM1 VCCSM2 VCCSM3 VCCSM4 VCCSM5 VCCSM6 VCCSM7 VCCSM8 VCCSM9

VCC3G0 VCC3G1

VTT41 VTT42 VTT43 VTT44 VTT45

B20 A20 B22 A22 D22 C22 D23 E23 F20 F22 C28 B28 A28 E26 D26 C26 AB33 AM32 AN29 AM29 AL29 AK29 AJ29 AH29 AG29 AF29 AE29 AN24 AM24 AL24 AK24 AJ24 AH24 AG24 AF24 AE24 AN18 AN16 AM16 AL16 AK16 AJ16 AN13 AM13 AL13 AK13 AJ13 AH13 AG13 AF13 AE13 AN4 AM10 AL10 AK10 AH1 AH10 AG10 AF10 AE10 AN7 AM7 AL7 AK7 AJ7 AH7 AN10 AJ10 AD1 AD2 B26 J32 AE5 AD5 D29 C29 U33 T33 V26 N33 M33 J23 C24 B24 B25 B31 B32

P1 L1 G1 U1 Y1

Z0705 Z0706

1.05VS

1.5VS

C244 1U _6 .3 V _0 4

Z0707

Z0708

Z0709

1.5VS_MPLL

1.5VS_HPLL

1.5VS_DPLLA

1.5VS_DPLLB

1.5VS

1.5VS_PC IE

C3 23 0. 1U _1 0V _ X7R _ 04

C32 2 0. 01U _5 0V_ 04

C28 1U_6.3V_04

C16 1U_6.3V_04

C19 1U_6.3V_04

2. 5VS

C336 10 U_ 6. 3V_0 6

C14 1U _6 .3 V_04

C251 10 U_ 6. 3V_0 6

C3 29 0. 1U _1 0V _X 7 R_ 04

C285

3.3 VS

C313

0.1U_10V_X7R_04

C259 10U_6.3V_06C910 U_ 6.3 V _0 6

C317 0.01U_50V_04

C326 0.01U_50V_04

10U _6 .3 V _0 6

C255 1 0U _6. 3V _ 06

2.5VS_CRTDAC

C 48 1 0U _6 .3 V_0 6

C306 0.1U_10V_X7R _04

1 .8V 5, 9, 27, 28 1 .05 VS 2, 3, 4, 6, 1 2, 13 ,1 6, 28 1 .5V S 3, 5, 6, 14, 16 , 1 8, 28

2.5VS 28 3 .3VS 5,6, 9, 10, 11 ,1 2, 13 ,1 4, 15, 16 ,1 8, 19 ,2 0, 22, 23 ,2 5, 29

1.5VS

C321

0. 1U _1 0V _ X7R_04

C250

4. 7U_ 6. 3V_ 06

2.5VS

1.5VS

*HC B10 05 K F -1 21T 20 _1 0mi l_ s h ort

*H CB10 05 K F -1 21 T20 _1 0mi l_ s h or t

*HC B10 05 K F -1 21T 20 _1 0mi l_ s h ort

2.5VS

2. 5V S

C52 0. 1U_ 10V _X7 R_ 04

C 277 1 0U _ 6. 3V _ 06

L7

L8

L1 3

L3 1

L9

*HCB1005KF-121T20_10mil_short

L3 0

R197 10_04

L3 2

*HCB1005KF-121T20_10mil_short

1. 8V

C249

C15

*4.7U_6.3V_0 6

1U_6.3V_04

1. 5VS _ 3G PLL

C324 10U_6.3V_06

C2 88 0. 1U _1 0V _X 7 R_ 04

C23 10U_6.3V_06

C25 10U_6.3V_06

C87 10U_6.3V_06

C307 10U_6.3V_06

C44 10U_6.3V_06

Z0710

1. 5VS _ MPLL

C21

0.1 U_ 10 V _X7R _04

1.5VS_HPLL

C24

0.1 U_ 10 V _X7R _04

1. 5VS _ DP LL A

C86

0.1 U_ 10 V _X7R _04

1. 5VS _ DP LL B

C310

0.1 U_ 10 V _X7R _04

C37 10U _6 .3 V _0 6

1. 5VS _ 3GPL L

D14 R B551V30

2. 5VS _ CRT DA C

C335 10U _6 .3 V _0 6

2.5VS

C315

0. 1U _1 0V _X7R _04

AC

1.5VS_PCIE

C36 *10U_10V_08

1. 05 VS

B - 8 945GSE 4/5

945GSE 5/5

Schematic Diagrams

U4E

AH33

VSS_1

Y33

G33 AK32 AG32 AE32 AC32 AA32

AM31 AJ31 AA31

AL30 AG30 AE30 AC30 AA30

AA29

AK28 AH28 AE28 AA28

AM27 AF27 AB27 AA27

AL26 AH26

W26

U26 AN25 AK25 AG25 AE25

G25

H23

AM22 AJ22 AF22

G22

H21 AM20

AK20 AH20 AF20

D20

W19

R19 AM18 AH18 AF18

U18

H18

D18 AK17

AH16

U16

V33 R33

U32 H32 E32 C32

U31

T31 R31 P31 N31 M31

J31 F31

Y30 V30 U30 G30 E30 B30

U29 R29 P29 N29 M29 H29 E29 B29

U28

T28

J28 D28

Y27 U27

T27 R27 P27 N27 M27 G27 E27 C27 B27

J25 A25 F23

B23

E22

J21 F21

V17

T17 F17 B17

VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11 VSS_12 VSS_13 VSS_14 VSS_15 VSS_16 VSS_17 VSS_18 VSS_19 VSS_20 VSS_21 VSS_22 VSS_23 VSS_24 VSS_25 VSS_26 VSS_27 VSS_28 VSS_29 VSS_30 VSS_31 VSS_32 VSS_33 VSS_34 VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46 VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57 VSS_58 VSS_59 VSS_60 VSS_61 VSS_62 VSS_63 VSS_64 VSS_65 VSS_66 VSS_67 VSS_68 VSS_69 VSS_70 VSS_71 VSS_72 VSS_73 VSS_74 VSS_75 VSS_76 VSS_77 VSS_78 VSS_79 VSS_80 VSS_81 VSS_82 VSS_83 VSS_84 VSS_85 VSS_86 VSS_87 VSS_88 VSS_89 VSS_90 VSS_91 VSS_92 VSS_93 VSS_94 VSS_95 VSS_96 VSS_97 VSS_98 VSS_99 VSS_100 VSS_101 VSS_102 VSS_103 VSS_104 VSS_105 VSS_106 VSS_107 VSS_108 VSS_109 VSS_110

QG82945GSE

VSS

VSS_111 VSS_112 VSS_113 VSS_114 VSS_115 VSS_116 VSS_117 VSS_118 VSS_119 VSS_120 VSS_121 VSS_122 VSS_123 VSS_124 VSS_125 VSS_126 VSS_127 VSS_128 VSS_129 VSS_130 VSS_131 VSS_132 VSS_133 VSS_134 VSS_135 VSS_136 VSS_137 VSS_138 VSS_139 VSS_140 VSS_141 VSS_142 VSS_143 VSS_144 VSS_145 VSS_146 VSS_147 VSS_148 VSS_149 VSS_150 VSS_151 VSS_152 VSS_153 VSS_154 VSS_155 VSS_156 VSS_157 VSS_158 VSS_159 VSS_160 VSS_161 VSS_162 VSS_163 VSS_164 VSS_165 VSS_166 VSS_167 VSS_168 VSS_169 VSS_170 VSS_171 VSS_172 VSS_173 VSS_174 VSS_175 VSS_176 VSS_177 VSS_178 VSS_179 VSS_180 VSS_181 VSS_182 VSS_183 VSS_184 VSS_185

J16 AL15 AG15 W15 R15 F15 D15 AM14 AH14 AE14 H14 B14 F13 D13 AL12 AG12 H12 B12 AN11 AJ1 1 AE11 AM9 AJ9 AB9 W9 R9 M9 J9 F9 C9 A9 AL8 AG8 AE8 U8 AA7 V7 R7 N7 H7 E7 B7 AL6 AG6 AE6 AB6 W6 T6 M6 K6 AN5 AJ5 B5 AA4 V4 R4 N4 K4 H4 E4 AL3 AD3 W3 T3 B3 AK2 AH2 AF2 AB2 M2 K2 H2 F2 V1 R1

AM33

AN32 AN31

AN19 AM19

AK19 AH19

W33

AL33

W28 W29

W32

AL19 AJ19

AN3

AN2

AM4 AD4

W31 AH4

AG4 AM1

C33 B33

A32

V27

J24

H24

G24 F24 E24 D24 K33 A31 E21 C23

Y9

J19 H19 G19 F19 E19 D19 C19 B19 A19

Y8 G16 F16 E16 D16 C16 B16

A16

Y7 AF4 AL4

AK4 AJ4

AE4

U4G

NC1 NC2 NC3 NC4 NC5 NC6 NC7 NC8 NC9 NC10 NC11 NC12 NC13 NC14 NC15 NC16 NC17 NC18 NC19 NC20 NC21 NC22 NC23 NC24 NC25 NC26 NC27 NC28 NC29 NC30 NC31 NC32 NC33 NC34 NC35 NC36 NC37 NC38 NC39 NC40 NC41 NC42 NC43 NC44 NC45 NC46 NC47 NC48 NC49 NC50 NC51 NC52 NC53 NC54 NC55 NC56 NC57 NC58 NC59 NC60

QG82945GSE

NC

RESERVED26 RESERVED27 RESERVED28 RESERVED29 RESERVED30 RESERVED31 RESERVED32 RESERVED33 RESERVED34 RESERVED35 RESERVED36 RESERVED37 RESERVED38 RESERVED39 RESERVED40 RESERVED41 RESERVED42

NC61 NC62 NC63 NC64 NC65 NC66 NC67 NC68 NC69 NC70 NC71 NC72

W30 Y6 AL1 Y5 Y10 W10 W25 V24 U24 V10 U10 K18

Y25 Y24 AB22 AB21 AB19 AB16 AB14 AA12 W24 AA24 AB24 AB20 AB18 AB15 AB13 AB12 AB17

B.Schematic Diagrams

Sheet 8 of 31

945GSE 5/5

945GSE 5/5 B - 9

Schematic Diagrams

DDRII SO-DIMM - 0

Sheet 9 of 31

DDRII SO-DIMM - 0

B.Schematic Diagrams

SO-DIMM 0

M_A_A[13:0]6

M_A_BS2#6 M_A_BS0#6 M_A_BS1#6

M_ A _D QS 06 M_ A _D QS 16 M_ A _D QS 26 M_ A _D QS 36 M_ A _D QS 46 M_ A _D QS 56 M_ A _D QS 66

MVREF_DIM0

C196

2.2U_6.3V_06

20mils

C195

2.2U_6.3V_06

C167 10U_10V_08

M_ A _D QS 76

M_ A _R A S#6 M_ A _C A S#6

M_CLK_DDR05

M_CLK_DDR0#5

M_CLK_DDR15

M_CLK_DDR1#5

ICH_SMBDAT012 ,1 5 ICH_SMBCLK012,1 5

M_A_DQS0#6 M_A_DQS1#6 M_A_DQS2#6 M_A_DQS3#6 M_A_DQS4#6 M_A_DQS5#6 M_A_DQS6#6 M_A_DQS7#6

Layout Note:

signal/space/signal: 7 / 4 / 7

3.3VS

1. 8V

20mils

C198

C1

+

*150U _4V_B

*1 50 U _ 4V_B

M_ A _D M06 M_ A _D M16 M_ A _D M26 M_ A _D M36 M_ A _D M46 M_ A _D M56 M_ A _D M66 M_ A _D M76

M_ A _W E #6

M_ CS 0 #5 M_ CS 1 #5

M_ CK E 05 M_ CK E 15

M_ OD T05 M_ OD T15

C200 10 U_ 10 V _0 8

M_A_BS2# M_A_BS0# M_A_BS1#

M_A_RAS# M_A_WE# M_A_CAS#

M_CS0# M_CS1#

M_CKE0 M_CKE1

M_ODT0 M_ODT1

C182

0. 1U _1 0V _X7R _0 4

C185

0.1U_10V_X7R_04

C197 10U_10V_08

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13

J_DIMM1

10 2 10 1 10 0

99 98 97 94 92 93 91

10 5

90 89

11 6

86 84

85 10 7 10 6

10

26

52

67 13 0 14 7 17 0 18 5

13

31

51

70 13 1 14 8 16 9 18 8

10 8 10 9 11 3

11 0 11 5

79

80

30

32 16 4 16 6

11 4 11 9

19 5 19 7

11

29

49

68 12 9 14 6 16 7 18 6

1

19 9

C187

4. 7U _6 .3 V_0 6

1. 8V

11 2

11 1

1179695

VDD

VD D

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12 A13 A14 A15 A16/BA2 BA0 BA1

DM0 DM1 DM2 DM3 DM4 DM5 DM6 DM7

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7

RAS# WE# CAS#

S0# S1#

CKE0 CKE1

CK0 CK0# CK1 CK1#

ODT0 ODT1

SDA SCL

DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7

VREF VDDSPD

VSS

VS S

VSS

18244153425459656066127

C172 *4.7 U_6.3V_06

1188182871038810 4

VD D

VSS

47

13 3

VSS

VD D

VDD

VSS

13 9

12 8

14 5

16 5

C190

0.1U_10V_X7R_04

18 3771248184787172121

VSS

VS S

VSS

VS S

VSS

17 1

17 2

18 7

178

1909213315534132

17 7

C191

0.1U_10V_X7R _04

VSS

122

196

VSS

193816 2

15 0

VSS

14 4

15 6

16 8231527

C188

0. 1U _1 0V _ X7R_0 4

13 84028

VSS

16 1

VSS

DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

NCTEST

VSS

149

VSS

VSS DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9

NC1 NC2 NC3 NC4

SA0 SA1

VSS

1734075-2

39

C171

0.1U_10V_X7R_04

+V T T _MEM RES IST OR S

16 -56 03 4- 45 A

M_ CS 0 #

8

M_ A _A 4

7

M_ A _A 0 M_ A _A 2 M_ OD T1

8

M_ CS 1 #

7

M_A_BS0# M_ A _C AS # M_ A _A 1 3

8

M_ OD T0

7

M_A_BS1# M_ A _R AS # M_ A _A 6

8

M_ A _A 1 1

7

M_ A _A 7 M_CKE1 M_ A _W E#

8

M_ A _A 1 0

7

M_ A _A 1 M_ A _A 3 M_ A _A 5

8

M_ A _A 1 2

7

M_ A _A 8 M_ A _A 9

M_A_BS2# M_CKE0

Layout note:

Place one cap close to every 2 pull-up resistors terminated to +VTT_MEM

R103 10K_1%_04

1. 8V

C192

0. 22 U_ 10V _ 04

C181 22 U_ 6. 3V_0 8

PM _EX TTS 0# 5

R2 10 K_0 4

C168

0. 1U _1 0V _X7R _0 4

M_A_DQ[63:0] 6

R1 10K_04

C166

0.1U_10V_X7R_04

1.8V

VTT_MEM

C170 22U_6.3V_08

C214 10U_10V_08

M_A_DQ0

5

M_A_DQ1

7

M_A_DQ2

17

M_A_DQ3

19

M_A_DQ4

4

M_A_DQ5

6

M_A_DQ6

14

M_A_DQ7

16

M_A_DQ8

23

M_A_DQ9

25

M_A_DQ10

35

M_A_DQ11

37

M_A_DQ12

20

M_A_DQ13

22

M_A_DQ14

36

M_A_DQ15

38

M_A_DQ16

43

M_A_DQ17

45

M_A_DQ18

55

M_A_DQ19

57

M_A_DQ20

44

M_A_DQ21

46

M_A_DQ22

56

M_A_DQ23

58

M_A_DQ24

61

M_A_DQ25

63

M_A_DQ26

73

M_A_DQ27

75

M_A_DQ28

62

M_A_DQ29

64

M_A_DQ30

74

M_A_DQ31

76

M_A_DQ32

12 3

M_A_DQ33

12 5

M_A_DQ34

13 5

M_A_DQ35

13 7

M_A_DQ36

12 4

M_A_DQ37

12 6

M_A_DQ38

13 4

M_A_DQ39

13 6

M_A_DQ40

14 1

M_A_DQ41

14 3

M_A_DQ42

15 1

M_A_DQ43

15 3

M_A_DQ44

14 0

M_A_DQ45

14 2

M_A_DQ46

15 2 15 4

M_A_DQ47 M_A_DQ48

15 7 15 9

M_A_DQ49

17 3

M_A_DQ50

17 5

M_A_DQ51

15 8

M_A_DQ52

16 0

M_A_DQ53

17 4

M_A_DQ54

17 6

M_A_DQ55

17 9

M_A_DQ56

18 1

M_A_DQ57

18 9

M_A_DQ58

19 1

M_A_DQ59

18 0

M_A_DQ60

18 2

M_A_DQ61

19 2

M_A_DQ62

19 4

M_A_DQ63

83

Z0901

12 0

Z0902

50 69 16 3

19 8

SA0_DIM0

20 0

SA1_DIM0

VTT_MEM

C204 0.1U_10V_X7R_04

RN10

1

8P4RX56_04

2 3456

1 2 3456

14 23

RN12 8P4RX56_04

RN9 8P4RX56_04

RN11 8P4RX56_04

RN13 8P4RX56_04

RN14 8P4RX56_04

RN15 4P2RX56_04

C175 0.01U_50V_04

C179 0.1U_10V_X7R_04

C209 0.1U_10V_X7R_04

C1 74 * 0 .1 U_ 10 V _X7R _ 04

C177 0.1U_10V_X7R_04

C208 0.1U_10V_X7R_04

C2 12 * 0 .1 U_ 10 V _X7R _ 04

C211 0.1U_10V_X7R_04

C2 10 * 0 .1 U_ 10 V _X7R _ 04

C2 07 * 0 .1 U_ 10 V _X7R _ 04

C206 0.1U_10V_X7R_04

C2 05 * 0 .1 U_ 10 V _X7R _ 04

C2 01 * 0 .1 U_ 10 V _X7R _ 04 C1 76 * 0 .1 U_ 10 V _X7R _ 04 C178 0.01U_50V_04 C1 80 * 0 .1 U_ 10 V _X7R _ 04

CLOSE TO SO-DIMM_0

R102 10K_1%_04

C169

C193

0.1U_10V_X7R_04

*0.1U_10V_X7R_04

MVREF_DIM0

C194 1U_6.3V_04

1.8V5,7, 27,28 VTT_MEM27

3.3VS5 ,6 ,7 ,10,1 1, 12 ,1 3, 14 ,1 5,1 6, 18 ,1 9, 20 , 2 2, 23, 25 , 2 9

C183

0. 1U _1 0V _ X7R_04

C173

*0 .1 U_10V_ X7R_04

3/ 20

B - 10 DDRII SO-DIMM - 0

CRT

CRT_HSYNC

CRT_VSYNC

Schematic Diagrams

A

C

D9

BAV99

AC

3. 3VS

R82 *1K_04

R242 3 9_04

R81 *1K_04

R233 3 9_04

AC

R92 1 50_ 1%_0 4

DAC _RED5 DAC _GREEN5 DAC _BLUE5

3.3VS

C

A

C

D8

D5

BAV99

AC

R91

R87

15 0_ 1%_0 4

15 0_1 %_04

Q1 7 *2N 7 00 2W

D S

C1 23 0. 1U _16 V_04

4

Q1 4 *2N 7 00 2W

D S

C134 *0. 1U_ 16V_04

4

C150 22P_ 50V _ 04

5VS

G

125

U8

3

SN74AHC1G125DCKR

5VS

G

125

U6 SN74AHC1G125DCKR

3

R83 *390 _0 4

R80 *390 _0 4

3.3VS

C144 22P_50V_04

DAC_RED DAC_GREEN D AC_BL UE

C137 22P_50V_04

DAC_ HSYN C 5

DAC_VSYNC 5

Zo=75 Ohm

1 2 346

CRT_HSYNC CRT_VSYNC CR T_DDCAC LK CR T_DDCAD AT

8 7

5

LP2 FCA3216KF4-12 1T03

CRT_DDCADAT

CRT_DDCACLK

LP1

FCA3 216 K F4-1 21T03

1 2 346

CRT_HSY NC_R

8

CRT_VSYNC_R

7

CRT_DDCACLK_R CRT_DDCADAT_R

5

DAC _RED _R DAC _GREEN_R DAC _BLUE_R

Q13 2N7002W

D S

R78 2.2K_04

R79 2.2K_04

D S

Q15 2N7002W

C145 *2 2P _5 0V_04

G

C140 *22P_50V_04

R76 2.2K_04

R241 2.2K_04

C 133 *2 2P _5 0V_0 4

3.3 VS

DAC_DDCADATA 5

5VS

DAC_DDCACL K 5

3. 3VS

J_CR T1

DZ11A91-ND208-AF

1 2 3 4 5 6 7 8

GN D1

Zo=75 Ohm

R72

*10mil_short

A

C

*BAV99

10 mil

CR T_D E TE C

C 129 1000 P_50 V _0 4

AC

C125 220 P_50 V _04

9 10 11 12 13 14 15

GN D2

R21 8 *1 00 _04

VDD3

CR T_DE T EC_ R#

D4

D18

AC

*S CS 75 1V-4 0

CR T_DDCA D AT_R CRT_HSYNC_R CRT_VSYNC_R CR T_DDCA C LK_R

C 119

C122

1 000 P_5 0V _0 4

220P_5 0V _0 4

VDD 3 11 , 1 6, 17, 26 , 27 ,2 8,2 9 5V 11 ,1 6, 17, 26 ,27 , 2 8,2 9

2. 5VS 7, 28

3. 3V 2,11 , 1 4,1 5, 16, 17 ,18 ,2 0, 26, 27 ,28

3. 3VS 5, 6, 7, 9,1 1, 12, 13 ,1 4,1 5, 16, 18 ,19 ,2 0, 22, 23 , 25 ,2 9 5VS 13 , 1 6, 19, 22 , 25 SYS15V 11,25,26 VIN 11,24,25,26,27,28,29

DETE C_CRT# 23

B.Schematic Diagrams

Sheet 10 of 31

CRT

CRT B - 11

Schematic Diagrams

Panel, Inverter

Sheet 11 of 31

Panel, Inverter

B.Schematic Diagrams

PANEL

J _LC D1

130

LVDS CO NN

ENAVDD5

J_LCD1

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

LVC-C30LPMSG-C

SYS15V SYS15V

Q11 DTC114EUA

B

PLVDD

C219

0.1U_16V_04

LVDS -L0N LVDS -L0P

LVDS -L1N LVDS -L1P

LVDS -L2N LVDS -L2P

LVDS-LCLKN LVDS-LCLKP

Z1 108 INV_BLON

R117

1M_04

Z1105

C

E

R116

1M_04

Q10

DS

2N7002W

G

7/13 Modify C4 from 0.1uF cha nge to

0.01uF for LVDS power time.

2A

C221

*10U_ 10V_08

5V_L ED

VIN_LED

L1

*HC B1 608KF -1 21T2 5

12

C3

*0. 1U_ 50V_06

Q8

1

2

3

Z1106

SI345 6BDV -T1-E 3

C232

0.01U _50V _04

D D

G

C4

*0. 1U _50V _06

D D

S

VIN

6

5

4

40 mil

3.3 V

3.3V S

123

R113 *100K_04

C216

0.1U _16V _04

45

CP2

678

*1 0P_8P 4C_04

C 223 *0 .1U_ 16V_0 4

G

DS

R115

75_1%_ 06

Q9 2N700 2W

L2

HCB16 08KF -12 1T25

123

45

CP1

678

*10P_8P4C_04

L_DDC_CLK 5

L_DDC_DATA 5 LVDS -L0 N 5 LVDS -L0 P 5

LVDS -L1 N 5 LVDS -L1 P 5

LVDS -L2 N 5 LVDS -L2 P 5

LVDS-LCLKN 5 LVDS-LCLKP 5

5V

L3

*15m il_s hort

C186

*10U_ 10V_08

C 189 * 0. 1U_1 6V_04

R 101 *330K_04

IN V_ BL O N

Z1109

Z1110

Z1111

12

Q2 *AO3415

DS

G

R7

*100K_04

R6

DS

*0_04

Q1

G

Q3 *2N7002W

*2N7002W

7/30

DS

R5

*10mil_short

5V_L ED

C7

*0 .1U_ 50V_06

INVERTER CON NEC TOR

3.3V 3.3V

R280 *1M_04

SB_BLON15

2A

PLVDD

BKL_EN23

R274 100K_04

BLON5

LID _SW#17, 23

PM_PWROK15,29

U11A

147

74LV C08 PW

1

2

U11B

147

74LVC08PW

4

3

Z11 02

6

5

3.3V

147

12

11

13

U11D 74LV C08P W

C163 *0 .1U _1 6V_ 0 4

U11C

147

74LV C08PW

9

Z1 103

Z1 104

8

10

R8

1M_04

INV_BLON

C408

*100P_50V_04

B - 12 Panel, Inverter

R 108 *10mil _sho rt

L_BKLTCT L5,2 3

R109 *0_04

Z1108

5V 16,17,26,27,28,29

2.5VS 7 ,28LCD _BRIGH TNE SS23

3.3V 2,14 ,15 ,16, 17, 18, 20, 26,2 7,2 8

3.3VS 5 ,6,7,9 ,10,12,13, 14,15, 16,18,19,20,2 2,23,25,29 5VS 10,1 3,1 6,19 ,22 ,25 SYS 15 V 2 5, 2 6 VIN 24,2 5,26,27,28,29

Clock Generator

CLOCK GENERATOR

PLACE CR YSTAL WITHIN 5 00 MILS OF CK410M

X3

1 2

14.318MHz C358 27P_50V_04

CLK _ IC H4 815

CLK _BSEL04

CLK _BSEL14

CLK _BSEL24

CLK _ IC H1 415

PM_STPCPU #15

PM_STPPCI#15

KBC_PCLK23

3. 3VS

PCLK_ICH14

FSL B BSE L1

FSLA BSEL0

FSLC BSEL2

01

010200 MHz

CLKEN#29

Zo=55 Ohm

C362 27P_50V_04

1.05VS

XT A L _I N

10mil

XT A L _O UT

R 21 0 33 _0 4 R67 2.2K_04

R230 10K_04 R 22 9 33 _0 4

R 21 2 33 _0 4

R208 1 0K _04 R2 13 * 1 0 K _0 4

R66 *10K_04 R65 10K _04 R211 33_04 R2 07 * 1 0 K _0 4

ICH_SMBCLK09,15 ICH _SMBDAT09,15

VRM _PWRG D15

Hos t Cl oc k Frequency

13 3 MH z0

Q16 2N7002W

G

C339 10 U_ 6. 3 V _0 6

3. 3VS

R228 10 K_0 4

DS

T84

CLK_BSEL 1

T6 6

T7 6

533 MH z

800 MH z

VRM_PWR GD

L33 *HCB1005KF-121T20_10mil_short

C340 1U_6.3V_04

26

20

48

Z1220

FSLA

FSLC

Z1202

Z1203

Z1204

Z1205

Z1206 Z1207

NC

60

X1

59

X2

10

USB_48MHz/FSLA

57

FSLB/TEST_MODE

62

REF0/FSLC /EST_SEL

37

CPU _STOP #

38

PCI_STOP#

5

PCI3

4

PCI2/TME

3

PCI1/CR#_B

1

PCI0/CR#_A

6

PCI4/27_Select

7

PCIF5/ITP_EN

64

SCLK

63

SDATA

56

CK_ PWR GD/ PD#

VDD _IO

VD D P LL 3_ I O

GNDPCI

GND48

GN D

8

11

151623

19

1.05VS_CLK

C368

C342

1U_6.3V_04

3. 3VS _ G 3. 3VS

9

61

49

39

55

45

36122

VDDSR C_IO3

VDDSRC _ IO1

VDDSR C_IO2

GN DSR C 1

GN D

GNDSRC2

42

29

VDDC PU_IO

GNDSRC3

27 MH z_ No nS S/ SR C 1 /S E1

GNDCPU

GNDREF

52

58

VDD 48

VDDPC I

VDDCPU

VDDSRC

VDDRE F

VD D PLL3

SRC3/C R#_C

SRC3 #/C R# _D

SRC1 1/C R# _H

SRC11#/C R#_G

SRC7/CR #_F

SRC7#/CR#_E

SRC2/SATA

SRC2#/ SATA#

SRC1 0#

SRC 8/ITP

SRC8#/I TP#

27MHz_ SS/SR C1# /SE 2

SRC0/DOTT_96

SR C0#/DO T C_96

SLG8SP510T

U16

CPU1

CPU1#

CPU0

CPU0#

SRC4

SRC4#

SRC9

SRC9#

SRC6

SRC6#

SRC10

51 50

54 53

27 28

24 25

33

CR#_H

32

CR#_G

44

CR#_F

43

CR#_E

30 31

21 22

41 40

34 35

47 46

17 18

13 14

C344

0. 1U _ 16 V _0 4

0. 1U _1 6V _ 0 4

C367

C369

1U _ 6. 3V _ 04

0. 1U _1 6V _ 0 4

CL K_MCH_BCL K 4 CL K_MCH_BCL K# 4

CL K_CPU_BC LK 2 CL K_CPU_BC LK# 2

CL K_PCIE_IC H 14 CL K_PCIE_IC H# 1 4

R225 470_04 R209 470_04

R227 470_04 R226 470_04

CL K_PCIE_MIN I 18 CLK_PC IE _M IN I# 18

CL K_SATA 13 CL K_SATA# 13

CL K_PCIE_JMC 261 20 CL K_PCIE_JMC 261# 20

CL K_PCIE_3GPL L 5 CL K_PCIE_3GPL L# 5

CLK_PC IE _M IN I_3G 18 CLK_PC IE _M IN I_3G # 18

CL K_DREFSS 5 CL K_DREFSS # 5

CL K_DREF 5 CL K_DREF# 5

MCH PCICLK : SRC10 / SRC 10# SRC11/CR#H MCHCLKREQ# MINI PCIECLK: SRC9 / SRC9# SRC11#/CR# G MINICLKREQ# NEWCARD PC IECLK: SRC8/I TP / SRC8#/ITP# SRC7#/CR#F

C343

0.1U_16V_04

C346

0.1U_16V_04

C366

0.1U_16V_04

C345

0.1U_16V_04

MCH_CLKREQ# 5 WLAN _CLKREQ# 18

3GCARD_CLKREQ# 18 C R_ CPP E #_ LA N 20

3.3VS

C108 10U_6.3V_06

L16

*H C B 10 0 5KF - 12 1T 2 0_ 10 m i l_s ho r t

C341

0. 1U _1 6V_ 0 4

C109 1U_6.3V_04

SL Z d if f= 10 0 Ohm MS Z d if f= 95 Ohm

1. 0 5VS 2 ,3 , 4, 6, 7, 13 ,1 6, 2 8

3.3VS 5,6,7,9,10,11,13,14,15,16,18,19,20,22,23,25,29

Schematic Diagrams

B.Schematic Diagrams

Sheet 12 of 31

Clock Generator

Clock Generator B - 13

Schematic Diagrams

ICH7-M 1/4, SATA

Sheet 13 of 31

ICH7-M 1/4, SATA

B.Schematic Diagrams

-+

2 1

SATA HDD

1021

C1 668 8- 122 04-Y

PI N GN D1 ~2 = G ND

J_RTC1 AAA-BAT-022-K01

J_SATA1

S1 S2 S3 S4 S5 S6 S7

P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15

D7 SCS751V-40

A C

VDD3

Z1 30 2

R85 1K_04

Trace >12mil

C132

0.1U_16V_04

SATATXP0 SATATXN0

SATARXP0_ R SATARXP0

Z132 7 Z132 8

Z132 9 Z133 0

D6 SCS751V-40

A C

Z1 303

RTCVCC

R27 332K_1%_06

ICH_INTVRMEN

R29 *0_04

near Connector

C361 3900P_ X7R_ 04 C359 3900P_ X7R_ 04

3.3 VS

C354

C355

*0.01U _50V_ 04

*1 0U_10V_0 8

C99

C98

*0.1U_16V_04

0. 1U_ 16V_0 4

C138 1U_10V_06

R26 20K_1%_04

R28 1M_04

Zo=55 Ohm

SL Zdiff=100 Ohm MS Zdiff=95 Ohm

SAT AR XN0SATARXN0_R

C101 *0.1U_ 16V_0 4

RTCVCC

C97 1U_6.3V_04

C139 *4.7U_6.3V_06

C26 1U _10 V_06

AZ _ BI TCL K22

AZ_SYNC22

AZ_RST#22

AZ_SDIN022

AZ _ SD O U T22

C 264 15P_ 50V_0 4

C 263 15P_ 50V_0 4

12

SATARXN0 SATARXP0

SATATXP0 SATARXN1

SATARXP1 SATATXN1 SATATXP1

3.3VS

R176 10K_04 R 178 4 .7K_0 4

C91 10U_1 0V_08

2

X2

3

32.768KHz

JOPEN 1 *OPEN_10mil-1MM

RTC CL EAR

R1 36 39 _04 R1 49 39 _04

R1 50 39 _04

R1 35 39 _04

C289 39 00P _X7R _ 04 C290 39 00P _X7R _ 04

CLK_SATA#12

CLK_SATA12

Zo=55 Ohm

R16 0 24. 9_1 %_04

Within 500mil

5VS

C106

+

*1 00U _6. 3V_B2

RTC_X1

14

R130 10 M_06

RTC_X2 RTCRST# INTRUD ER#

ICH_INTVRMEN Z132 5

AZ _ BI TC L K _ R AZ _ SY N C_ R

AZ _ RS T #_ R

AZ _ SD O U T _ R

SATA_LED#

IDE_IRQ IDE_PDIORDY

Z1318 Z1319

Z132 0SATATXN0 Z132 1

Z1324

AB1 AB2

AA3

W4 W1

W3

AF18

AF3 AE3 AG2 AH2

AF7 AE7 AG6 AH6

AF1 AE1

AH 1 0 AG 1 0

AF15 AH 1 5 AF16 AH 1 6 AG 1 6 AE15

U14A

Y5

Y1 Y2

V3 U3 U5

V4 T5

U7 V6 V7

U1 R6

R5 T2

T3 T1

T4

ICH7-M

RTXC1 RTCX2

RTCRST# INTRU DER#

INTVRMEN EE_CS

EE_SHCLK EE_DOUT EE_DIN

LAN_ CLK LAN_RSTSYNC LAN_ RXD 0

LAN_ RXD 1 LAN_ RXD 2

LAN_ TXD0 LAN_ TXD1 LAN_ TXD2

ACZ_BIT_CLK ACZ_SYNC

ACZ_RST# ACZ_SDIN0

ACZ_SDIN1 ACZ_SDIN2

ACZ_SDOUT SATALED# SATA0RXN

SATA0RXP SATA0TXN SATA0TXP

SATA2RXN SATA2RXP SATA2TXN SATA2TXP

SATA_CLKN SATA_CLKP

SATAR BIASN SATAR BIASP

DI OR# DI OW# DD ACK# IDEI RQ IORDY DD REQ

IDE

RTCLAN

A C-9 7/AZ AL I A

SATA

LPCCPU

(+3V S)

GPIO 49/ CPUP WR GD

LDRQ1#/ GPIO23

TP1/DPRSTP#

TP2/DPSLP#

TH ER MTR IP #

SATA HDD & ODD LED

3.3 VS

R44 *1 0K_04

SATA_LED#

SATA_LED# 19

LAD 0 LAD 1 LAD 2 LAD 3

LDRQ0#

LFRAME#

A20GATE

A20M#

CPUSLP#

FER R #

IGNNE#

I NI T3_ 3V#

INIT#

INTR

RCIN#

SMI#

STPCLK#

DD10 DD11 DD12 DD13 DD14 DD15

DC S1# DC S3#

NMI

DD 0 DD 1 DD 2 DD 3 DD 4 DD 5 DD 6 DD 7 DD 8 DD 9

DA0 DA1 DA2

AA6 AB5 AC4 Y6

AC3

LPC_ DR Q 0#

AA5 AB3 AE22

AH28 AG27 AF24

AH25 AG26 AG24

AG22 AG21 AF22 AF25

R196 10K_0 4

AG23 AH24

AF23 AH22 AF26

AB15 AE14 AG13 AF13 AD14 AC13 AD12 AC12 AE12 AF12 AB13 AC14 AF14 AH13 AH14 AC15

AH17 AE17 AF17

AE16 AD16

LPC_ AD0 LPC_ AD1 LPC_ AD2 LPC_ AD3

R60 10K_04

H_CP USLP_SB# IC H_DPR STP#

IC H_DPSLP#

Z132 6

SB_THRMTRIP#

LPC_AD[3:0] 23

LPC_FRAME# 23

3. 3VS

GA20# 23 H_A20M# 2

R2 06 *0_04 R1 99 *1 0m il _sh ort

R2 01 *1 0m il _sh ort

H_PWRGD 2

H_IGNNE# 2 H_INIT# 2

H_INTR 2

3. 3VS

SB_KBCRST# 23 H_NMI 2

H_SMI# 2 H_STPCLK# 2

R2 04 24 .9_ 1%_04

Layout note :

24 .9_1 % n eeds to pla ced wit hin 2" of I CH7 , 56 Ohm mu st b e p lace d w ithi n 2 " of 24. 9_1 % w/ o st ub.

1. 05 VS 2,3 ,4, 6, 7,1 2,1 6, 28

3. 3VS 5,6,7, 9, 10, 11, 12,14 ,15 ,16 ,1 8, 1 9,2 0,2 2, 23, 25, 29 5VS 10, 16, 19 , 22 ,25 VDD 3 2,1 7,1 8, 19, 23, 24, 25 ,26 RTCVCC 16

H_CP USLP# 2,4 H_DP RSTP# 2,29

H_DPSLP# 2 H_F ERR# 2

R202 56_04 R20 0 *5 6_0 4 R19 8 *5 6_0 4

PM_THRMTRI P# 2,5

R203 56_04

1.0 5VS

B - 14 ICH7-M 1/4, SATA

ICH7-M 2/4, PCI, USB, SPI

e

Schematic Diagrams

Z1426 Z1427 Z1428 Z1429

Z1401 Z1402 Z1403 Z1404

SPI_SCLK SPI_CS# Z1405

SPI_SI SPI_SO

PCI_REQ0# Z1417 PCI_REQ1# Z1418 PCI_REQ2# Z1419 PCI_REQ3# Z1420 PCI_REQ4#

PCI_REQ5#

PCI_C/BE0# PCI_C/BE1# PCI_C/BE2# PCI_C/BE3#

PC I_ IR DY # PCI_PAR PCI_RST# PCI_DEVSEL# PCI_PERR# PCI_LOCK# PCI_SERR# PCI_STOP# PCI_TRDY# PCI_FRAME#

PLT_RST#

PC I_ IN TE# PC I_ IN TF# PC I_ IN TG# PC I_ IN TH#

Z1424

F26 F25 E28 E27

H26 H25 G28 G27

K26 K25 J28 J27

M26 M25

L28 L27

P26

P25 N28 N27

T25

T24 R28 R27

R2 P6 P1

P5 P2

D3 C4 D5 D4 E5 C3 A2 B3

U14D

PE R n1 PE R p1 PE T n1 PE T p1

PE R n2 PE R p2 PE T n2 PE T p2

PE R n3 PE R p3 PE T n3 PE T p3

PE R n4 PE R p4 PE T n4 PE T p4

PE R n5 PE R p5 PE T n5 PE T p5

PE R n6 PE R p6 PE T n6 PE T p6

SP I _C LK SP I _C S # SP I _A R B

SP I _M O S I SP I _M I S O

OC0 # OC1 # OC2 # OC3 # OC4 # OC5 #/ GP I O2 9 OC6 #/ GP I O3 0 OC7 #/ GP I O3 1

I CH7-M

T147 T143 T142 T145

PLT_RST# 5,15 PCLK_ICH 12 PME# 23

MCH_ IC H_ SYN C# 5

PCI-Express

SPI

(+3V ) (+3V ) (+3V )

PCI_GNT4# PCI_GNT5#

DMI_C LKN DMI_CLKP

Direct Media Interfac

DMI_ ZCOM P

DMI_ IRC OMP

USB

USBRBIAS#

USBRBIAS

R40 1K_ 04

DMI0R XN DMI0RXP DMI0TXN DMI0TXP

DMI1R XN DMI1RXP DMI1TXN DMI1TXP

DMI2R XN DMI2RXP DMI2TXN DMI2TXP

DMI3R XN DMI3RXP DMI3TXN DMI3TXP

USBP0N USBP0P USBP1N USBP1P USBP2N USBP2P USBP3N USBP3P USBP4N USBP4P USBP5N USBP5P USBP6N USBP6P USBP7N USBP7P

R32 *1K_04

V26 V25 U28 U27

Y26 Y25 W28 W27

AB26 AB25 AA28 AA27

AD25 AD24 AC28 AC27

AE28 AE27

C25 D25

F1 F2 G4 G3 H1 H2 J4 J3 K1 K2 L4 L5 M1 M2 N4 N3

D2 D1

RA

DMI_RXN2 DMI_RXP2 DMI_TXN2 DMI_TXP2

DMI_RXN3 DMI_RXP3 DMI_TXN3 DMI_TXP3

R55

Z1410

24.9_1%_04

Z1435 Z1436

Z1430 Z1431

Z1411

R140

Z1411

22.6 _1 %_0 6

Place within 500 mils of ICH

R169 *1K_04

RB

DMI_ RXN0 5 DMI_ TXN0 5

DMI_TXP0 5 DMI_ RXN1 5

DMI_ RXP1 5 DMI_ TXN1 5 DMI_TXP1 5

CLK_PCIE_IC H# 1 2 CLK_PCIE_IC H 1 2

1. 5VS

USB_PN0 17 USB_PP0 17 USB_PN1 17 USB_PP1 17

USB_PN3 18 USB_PP3 18 USB_PN4 18 USB_PP4 18 USB_PN5 17 USB_PP5 17

USB_PN7 17 USB_PP7 17

ICH7 Boot BI OS selec t

GNT5#

Stra p

UnStuffLPC(default)

11

Place within 500 mils of ICH

on b oa rd on b oa rd

on d au gh te r boa rd

Zo=90 Ohm

USB0: PORT0 USB1: PORT1 USB2: PORT2 USB3: Mini PCIE/WLAN USB4: Mini PCIE/3G USB5: Bluetooth USB6: X USB7: CCD

Zo=60 Ohm

GNT4#

RB

RA

Unstaff

3.3V 2,11, 15,16,17,18,20,26,27,28

1.5 VS 3,5 ,6 ,7,16, 18 ,28

3.3 VS 5,6 ,7 ,9,10, 11 ,12,1 3, 15,1 6, 18,1 9, 20,2 2, 23,25, 29

B.Schematic Diagrams

Sheet 14 of 31

ICH7-M 2/4, PCI,

USB, SPI

Layout Guide: Near ICH7M 100mil

PLT_RST#: BUF_PLT_RST#:

3.3VS

N/B,IDE,KBC,LAN

MINI CARD

8

RN21

7

8 P4R X10K_0 4

8

RN5

7

8 P4R X10K_0 4

8

RN19

7

8 P4R X10K_0 4

8

RN18

7

8 P4R X10K_0 4

8

RN16

7

8 P4R X10K_0 4 RN20

1

8 P4R X10K_0 4

2 3 4 5

C3 28 * 0. 1U _1 6V_ 04

1

PL T_ RS T#

2

1 2 3456

8 7 6

3. 3V

5

3

PCI_STOP# PCI_FRAME# PCI_REQ1# PCI_REQ2# PCI_REQ5# PCI_INTG# PCI_INTE# PCI_INTF# PCI_SERR# PCI_LOCK# PCI_REQ3# PCI_TRDY# PCI_INTH# PCI_REQ0# PCI_IRDY# PCI_PERR# PCI_INTA# PCI_INTB# PCI_INTC# PCI_INTD# PCI_REQ4# PCI_DEVSEL#

U15 74AHC1G08GW

4

SL Zdiff=100 Ohm MS Zdiff=95 Ohm

BUF_PLT_RST# 18,20,23

R191 100K_04

PCIE_RXN1_WLAN18 PCIE_RXP1_WLAN18 DMI_ RXP0 5 PCIE_TXN1_WLAN18 PCIE_TXP1_ WLAN18

PCIE_RXN2_3G18 PCIE_RXP2_3G18 PCI E_T XN 2_ 3G18 PCIE_TXP2_3G18

PCIE_RXN5_CARD20 PCIE_RXP5_CARD20

PCI E_T XN 5_ CAR D20 PCIE_TXP5_ CARD20

RN4

8 P4R X10K_ 04

3. 3V

PC I_ IN TA# PC I_ IN TB# PC I_ IN TC# PC I_ IN TD#

C3 48 0. 1U _1 0V _ X7R _0 4 C3 47 0. 1U _1 0V _ X7R _0 4

C3 53 0. 1U _1 0V _ X7R _0 4 C3 52 0. 1U _1 0V _ X7R _0 4

C3 51 0. 1U _1 0V _ X7R _0 4 C3 50 0. 1U _1 0V _ X7R _0 4

1

8

USB_ OC 1# USB_ OC 0#

2

7

USB_ OC 2#

3456

USB_ OC 3#

1

8

2

7

PCI

(+3VS) (+3VS)

(+5VS)

(+3VS)

(+5V S) (+5V S) (+5V S) (+5V S)

MISC

3456

RN3 8P4RX10K_04

REQ0#

GN T0 #

REQ1#

GN T1 #

REQ2#

GN T2 #

REQ3#

GN T3 #

REQ4#/GPIO22

GN T4 #/ GPI O4 8

REQ5#/GPIO1

GN T5 #/ GPI O1 7

C/BE0# C/BE1# C/BE2# C/BE3#

IR DY #

PAR

PCIRST#

DEVSEL#

PERR#

PLOC K#

SERR#

STOP#

TR D Y #

FRAME# PLTRST#

PCIC LK

PME#

GPI O2 /PI RQ E# GPI O3 /PI RQ F #

GPIO4/PIR QG#

RSVD[6] RSVD[7] RSVD[8]

D7 E7 C16 D16 C17 D17 E13 F13 A13 A14 C8 D8

B15 C12 D12 C15

A7 E10 B18 A12 C9 E11 B10 F15 F14 F16

C26 A9 B19

G8 F7 F8

AE9 AG8 AH8 F21

TP3

3. 3V

U14B

E18

AD0

C18

AD1

A16

AD2

F18

AD3

E16

AD4

A18

AD5

E17

AD6

A17

AD7

A15

AD8

C14

AD9

E14

AD10

D14

AD11

B12

AD12

C13

AD13

G15

AD14

G13

AD15

E12

AD16

C11

AD17

D11

AD18

A11

AD19

A10

AD20

F11

AD21

F10

AD22

E9

AD23

D9

AD24

B9

AD25

A8

AD26

A6

AD27

C7

AD28

B6

AD29

E6

AD30

D6

AD31

Interrupt I/F

A3

PIRQA#

B4

PIRQB#

C5

PIRQC#

B5 G7

PIRQD# GPIO5/PIRQH#

AE5

RSVD[ 1]

AD5

RSVD[ 2]

AG4

RSVD[ 3]

AH4

RSVD[ 4]

AD9 AH20

RSVD[ 5] M CH _SY NC #

ICH7-M

PCIE_ TXN1_C PCIE_ TXP1_ C

PCIE_ TXN2_C PCIE_ TXP2_ C

PCIE_ RXN3 PCIE_ RXP3 PCIE_ TXN3_C PCIE_ TXP3_ C

PCIE_ TXN4_C PCIE_ TXP4_ C

USB_OC1#

Z1406 Z1407 Z1408 Z1409

ICH7-M 2/4, PCI, USB, SPI B - 15

Schematic Diagrams

Sheet 15 of 31

ICH7-M 3/4

B.Schematic Diagrams

ICH7-M 3/4

3. 3V S

3. 3V

ICH_SUSB#

SB_RS MRST#

ICH_SUSC# SB_RS MRST#

4 5 3

6

8P 4R X10 K _0 4

2

7

RN 7

1

8

R50 10K_ 04 R56 *1 0K_04

R1 90 2.2 K _0 4 R1 93 2.2 K _0 4

1

8

RN 23

2

7

3

6

8P 4R X10 K _0 4

4 5

R205 *10K_ 04

R1 84 100 K_04 R61 100K_04

1

8

RN 22

2

7

8P 4R X10 K _0 4

3

6

4 5

R51 1K_0 4

3. 3V

147

4 5

3. 3V

147

9

10

U18B 74LVC08PW

U18C 74LVC08PW

POWER GOOD

PM _C LK RU N# SCI# PM_THRM # LPC_SIRQ

PM_STPPC I# PM_STPC PU#

ICH _SMBCLK0 ICH _SMBDAT0

PM_RI# LIN KAL ERT# ICH _SMBCLK1 ICH _SMBDAT1

LPC_PD#

INSTAN T_ON SB_MUTE#

ICH _SUSB#

SWI#

PM_SYSRST#

SMI#

PCIE_W AKE#_N

6

8

R257 *1M_04

R244 *1M_04

SUSB# 23,2 5

SUSC# 23

CLK_ICH14

R139 *R_04

CLK_ICH48

U14C

C22

SMBCLK

B22

S MBDATA

A26

LI NKALERT#

B25

SMLINK0

A25

SMLINK1

A28

RI#

A19

SPKR

A27

S US_STAT#

A22

SYS_RST#

AB18

GPI O0/BM_BU SY#

B23

GPIO11/SMBALERT#

AC2 0

GPIO18/STPPCI#

AF21

GPI O20 /STPC PU#

A21

GPIO26

B21

GPIO27

E23

GPIO28

AG1 8

GPIO32/CLKRUN#

AC1 9

GPI O33 /AZ_D OC K_EN#

U2

GPI O34 /AZ_D OC K_RST#

F20

WAKE#

AH2 1

SERIRQ

AF20

THRM#

AD2 2

VRMPWRGD

AC2 1

GPIO6

AC1 8

GPIO7

E21

GPIO8

IC H 7-M

AC

D22 C H355PT

AC

/LPCPD#

(+3V) (+3V)

(+3V)

(+3VS ) (+3VS )

(+3V)

R243 *1M_04

(+3VS)

(+3 VS ) (+3 VS )

(+3VS)

PM_PWROKSUSB#

Z1506

CLK14

CLK48 SUSCLK SLP_S3#

SLP_S4# SLP_S5#

PWRO K

TP0/BATLOW#

PWRBTN#

LAN_RST#

RSMRST#

GPI O 9

(+3V)

GPIO10

(+3V) (+3V)

GPIO12 GPIO13

(+3V)

GPIO14

(+3V) (+3V)

GPIO15

(+3V)

GPIO24

(+3V)

GPIO25 GPIO35

(+3VS)

GPIO38

(+3VS)

GPIO39

(+3VS)

11

IMVP6_PWR GD5, 29

AF19 AH18 AH19 AE19

AC1 B2

C20 B24

D23 F22

AA4 AC22 C21 C23

C19 Y4 E20

A20 F19 E19 R4 E22 R3 D20 AD21 AD20 AE20

PM_PWR OK

GPI O21/SATA0GP

(+3VS)

GPI O19/SATA1GP

(+3VS)

GPI O36/SATA2GP

(+3VS)

SA TA

GPIO

SMB

GPI O37/SATA3GP

(+3VS)

Clocks

(+3V)

GPIO16/DPRSL PVR

(+3VS)

SYS

GP IO

Power MGT

(+3VS) (+3VS)

GPIO

3. 3V

U18D

147

74LVC08PW

12 13

Z1507 LC DI D 0 LC DI D 1

CLK_I C H1 4 CLK_I C H4 8

Z1508

ICH_SUSB#

ICH_SUSC# SLP_S5#

SB_PWROK Z1509 SB_BATLOW#

LAN_RST# Z1510 Z1511

Z1512 Z1513 Z1514 Z1515 Z1516 Z1517 Z1518 Z1519 Z1520 Z1521

R1 89 10K_ 04 R1 81 10K_ 04

CLK _I C H1 4 12 CLK _I C H4 8 12

R6 4 * 10 m i l_ s h or t

R179 8.2K_1%_04

SB _PW R _B TN # 2 3

R173 *1 0mil_s hort

R172 *10K_04

3. 3 V

U18A

147

74LVC08PW

1 2

SCI#23 SMI#23

3. 3VS

ICH _SMBCLK0 ICH _SMBDAT0 LI N K ALE RT # ICH _SMBCLK1 ICH _SMBDAT1

PM_RI#

LP C_PD # PM_SYSRST#

PM_STPPC I# PM_STPC PU#

INSTAN T_ON SB_MUT E#

PM _C LK RU N# ODD_DETECT#

Z1502

PCIE_ WAK E#_N

LP C_SIR Q PM_THRM #

VRM_PW RGD Z1503

SCI#

D19 *SCS355V

VCC P_PW RGD28

1.8V_PWRGD27

ICH_SMBCLK09, 12 ICH _SMBDAT09, 12

ICH _ SPKR22 PM_SYSR ST#2 PM_BMBUSY #5

SWI#23

PM_STPPCI#12

PM_STPCPU#12 SB_BLON11

SB_MUTE#22 PM_CLKRU N #23

PCIE_WAKE #18,20

R57 * 10m il_ sh ort

LPC_SIRQ23

VRM_PW RGD12

Z1504

C256 *C_04

Z1505

C275 *C_04R145 *R_04

Layo ut note :

It"s for internal testing purposes only

R63 *100K_04

3.3V

R237 100_04 R234 10K _04

R258 * 10mil_short

3

Z1524 SB_PW ROK

R256 10K_04

PM_DPRSL PVR 5 ,29

PLT_R ST# 5,14

SB_RSMRS T# 23

SB_PW ROK

C402 *0.1U_16V_04

B - 16 ICH7-M 3/4

POWER OK

3. 3VS

C419 *0. 1U_10 V_X7R_ 04

U22

3

VCC

*G 69 0L 29 3 T7 3

(IMP809)

RST#

GND

EC_PM_PWR OK23

2

Z1525

1

R255 *10mil_short

R26 1 *1 00_0 4

R254 *100K_04

PM_PWR OK

PM_PWROK 11,29

VDD3 2,13,17,18,19,23,24,25,26

3.3V 2,11, 14,16,17,18,20,26,27,28

3.3VS 5,6,7, 9,10,11,12,13,14,16,18,19, 20,22,23, 25,29 5 VS 1 0, 13 , 16 ,1 9 ,2 2, 25

ICH7-M 4/4

Schematic Diagrams

Layout note:

P lac e w ithi n 1 00 m ils o f p in AD17 of ICH 7 o n t he bott om side or 1 40 mil s on th e to p side

3. 3VS5VS AC

D3

R41

SCS751V-40

10 0_0 4

VC C 5 R EF

C69

C75

1U _6. 3V _0 4

0. 1U_ 10V _X 7R_ 04

L 14 * H CB160 8K F -1 21T 25_ 32m il _s hor t

1. 5VS

Layout note:

Pl ace abo ve Cap s wi thi n 10 0 m ils of ICH on the bo t tom si de or 1 40 mil s on th e to p n ear D28 , T 28, AD2 8

1. 5VS

Layout note:

Pla ce with in 100 mils of ICH on th e bottom side or 140 mils on the top

L1 1

*H C B 100 5KF -12 1T2 0_ 10m i l_s hor t

Layout note : Layout note :

Pl ace wit hin 100 mil s of IC H on th e bo tto m si de or 140 mils on th e t op

3.3 VS

Layout note :

Pl ace wit hin 100 mil s o f IC H o n th e b otto m s ide or 140 mils on the top

Layout note:

Plac e w ith in 1 00 mils of p in F6 of I CH7 on the bot tom side of 140m ils on the to p

5V 3.3V

C105 10U _6. 3V _0 6

L15

*H CB10 05KF - 121 T20 _10 mi l_ s ho rt

C34

C32 10U_6.3V_06

0 .1U _16 V_04

C62 0 .1U _16 V_04

AC

D2

R25

SCS751V-40

10 _04

V5 R E F _S U S

C45

C39

1U _6. 3V _0 4

0. 1U_ 10V _ X7R _04

C102

C90 10 U_6 .3V _ 06

10 U_6 .3V _ 06

C 107 10U_6.3V_06

1.5 VS1.5 VS

Pl ace wit hin 100 mil s of ICH on the bo ttom si de or 1 40 mi ls o n t he t op nea r pi n A G5

1.5 VS

Layout note :

Pl ace wit hin 100 mil s of ICH on the bo ttom si de or 1 40 mi ls o n t he t op nea r pi n A G9

3.3V

C33

0.1 U_1 6V _0 4

1. 5VS _P CIE _ ICH

C 349

0.1U_10V_X7R_04

C104

0. 01U _50 V _04

1.5VS

5VS

C65

0. 1U_ 16V _0 4

3.3VS

C268 0 .1 U_1 0V _X7 R_0 4

C20

0.1U_16V_04

VCC5REF V5REF_ SUS

C103 0 .1U _10 V _X7 R_0 4

C95 0 .1U _16 V _04

C38 1U_ 6. 3V _04

C55 1U_ 6. 3V _04

Z1602

Z1603

Z1604 Z1605

U 14F

G1 0

V5 R E F [1 ]

AD17

V5 R E F [2 ]

F6

V5 R E F _S u s

AA 2 2

Vcc 1_ 5_B[ 1]

AA 2 3

Vcc 1_ 5_B[ 2]

AB 2 2

Vcc 1_ 5_B[ 3]

AB 2 3

Vcc 1_ 5_B[ 4]

AC23

Vcc 1_ 5_B[ 5]

AC24

Vcc 1_ 5_B[ 6]

AC25

Vcc 1_ 5_B[ 7]

AC26

Vcc 1_ 5_B[ 8]

AD26

Vcc 1_ 5_B[ 9]

AD27

Vcc 1_ 5_B[ 10]

AD28

Vcc 1_ 5_B[ 11]

D26

Vcc 1_ 5_B[ 12]

D27

Vcc 1_ 5_B[ 13]

D28

Vcc 1_ 5_B[ 14]

E24

Vcc 1_ 5_B[ 15]

E25

Vcc 1_ 5_B[ 16]

E26

Vcc 1_ 5_B[ 17]

F23

Vcc 1_ 5_B[ 18]

F24

Vcc 1_ 5_B[ 19]

G2 2

Vcc 1_ 5_B[ 20]

G2 3

Vcc 1_ 5_B[ 21]

H22

Vcc 1_ 5_B[ 22]

H23

Vcc 1_ 5_B[ 23]

J22

Vcc 1_ 5_B[ 24]

J23

Vcc 1_ 5_B[ 25]

K22

Vcc 1_ 5_B[ 26]

K23

Vcc 1_ 5_B[ 27]

L2 2

Vcc 1_ 5_B[ 28]

L2 3

Vcc 1_ 5_B[ 29]

M2 2

Vcc 1_ 5_B[ 30]

M2 3

Vcc 1_ 5_B[ 31]

N22

Vcc 1_ 5_B[ 32]

N23

Vcc 1_ 5_B[ 33]

P22

Vcc 1_ 5_B[ 34]

P23

Vcc 1_ 5_B[ 35]

R22

Vcc 1_ 5_B[ 36]

R23

Vcc 1_ 5_B[ 37]

R24

Vcc 1_ 5_B[ 38]

R25

Vcc 1_ 5_B[ 39]

R26

Vcc 1_ 5_B[ 40]

T2 2

Vcc 1_ 5_B[ 41]

T2 3

Vcc 1_ 5_B[ 42]

T2 6

Vcc 1_ 5_B[ 43]

T2 7

Vcc 1_ 5_B[ 44]

T2 8

Vcc 1_ 5_B[ 45]

U22

Vcc 1_ 5_B[ 46]

U23

Vcc 1_ 5_B[ 47]

V22

Vcc 1_ 5_B[ 48]

V23

Vcc 1_ 5_B[ 49]

W22

Vcc 1_ 5_B[ 50]

W23

Vcc 1_ 5_B[ 51]

Y22

Vcc 1_ 5_B[ 52]

Y23

Vcc 1_ 5_B[ 53]

B27

Vc c 3 _ 3[ 1]

AG28

Vc c D M IP LL

AB7

Vcc 1_ 5_A[ 1]

AC6

Vcc 1_ 5_A[ 2]

AC7

Vcc 1_ 5_A[ 3]

AD6

Vcc 1_ 5_A[ 4]

AE6

Vcc 1_ 5_A[ 5]

AF5

Vcc 1_ 5_A[ 6]

AF6

Vcc 1_ 5_A[ 7]

AG5

Vcc 1_ 5_A[ 8]

AH5

Vcc 1_ 5_A[ 9]

AD2

VccSATAPLL

AH11

Vc c 3 _ 3[ 2]

AB 1 0

Vcc 1_ 5_A[ 10]

AB9

Vcc 1_ 5_A[ 11]

AC10

Vcc 1_ 5_A[ 12]

AD10

Vcc 1_ 5_A[ 13]

AE 1 0

Vcc 1_ 5_A[ 14]

AF 1 0

Vcc 1_ 5_A[ 15]

AF9

Vcc 1_ 5_A[ 16]

AG9

Vcc 1_ 5_A[ 17]

AH9

Vcc 1_ 5_A[ 18]

E3

Vcc Sus 3_3 [19 ]

C1

VccUSBPLL

AA2

Vcc Sus 1_0 5/V c cLA N1 _05 [ 1 ]

Y7

Vcc Sus 1_0 5/V c cLA N1 _05 [ 2 ]

ICH7-M

Vc c1_ 05[ 1] Vc c1_ 05[ 2] Vc c1_ 05[ 3] Vc c1_ 05[ 4] Vc c1_ 05[ 5] Vc c1_ 05[ 6] Vc c1_ 05[ 7] Vc c1_ 05[ 8] Vc c1_ 05[ 9]

CO RE

Vcc 1_0 5[1 0] Vcc 1_0 5[1 1] Vcc 1_0 5[1 2] Vcc 1_0 5[1 3] Vcc 1_0 5[1 4] Vcc 1_0 5[1 5] Vcc 1_0 5[1 6] Vcc 1_0 5[1 7] Vcc 1_0 5[1 8] Vcc 1_0 5[1 9] Vcc 1_0 5[2 0]

VC C P AUX

VccS us 3_ 3/V cc LAN3 _3[ 1] VccS us 3_ 3/V cc LAN3 _3[ 2] VccS us 3_ 3/V cc LAN3 _3[ 3] VccS us 3_ 3/V cc LAN3 _3[ 4]

Vc c3 _ 3/ Vc c HD A

Vcc Sus 3_3 /Vcc Su sHD A

V_CPU _IO[1] V_CPU _IO[2]

VCC A3 GP

V_CPU _IO[3]

Vcc3 _3[3] Vcc3 _3[4] Vcc3 _3[5] Vcc3 _3[6] Vcc3 _3[7] Vcc3 _3[8]

ID E

Vcc3 _3[9] Vcc3_3[10] Vcc3_3[11]

Vcc3_3[12] Vcc3_3[13] Vcc3_3[14] Vcc3_3[15] Vcc3_3[16]

PC I

Vcc3_3[17] Vcc3_3[18] Vcc3_3[19] Vcc3_3[20] Vcc3_3[21]

VccRTC Vcc Sus3 _3[ 1] Vcc Sus3 _3[ 2]

Vcc Sus3 _3[ 3] Vcc Sus3 _3[ 4] Vcc Sus3 _3[ 5] Vcc Sus3 _3[ 6]

Vcc Sus3 _3[ 7] Vcc Sus3 _3[ 8] Vcc Sus3 _3[ 9]

VccSu s3_3[1 0] VccSu s3_3[1 1] VccSu s3_3[1 2]

USB

VccSu s3_3[1 3] VccSu s3_3[1 4] VccSu s3_3[1 5] VccSu s3_3[1 6] VccSu s3_3[1 7] VccSu s3_3[1 8]

Vcc 1_5 _A[ 1 9] Vcc 1_5 _A[ 2 0]

Vcc 1_5 _A[ 2 1]

ATXARX

Vcc 1_5 _A[ 2 2] Vcc 1_5 _A[ 2 3]

Vcc 1_5 _A[ 2 4] Vcc 1_5 _A[ 2 5]

VccSu s1_05[ 1] VccSu s1_05[ 2]

VccSu s1_05[ 3]

Vcc 1_5 _A[ 2 6] Vcc 1_5 _A[ 2 7] Vcc 1_5 _A[ 2 8] Vcc 1_5 _A[ 2 9] Vcc 1_5 _A[ 3 0]

U SB COR E

C81 *0. 1U_ 10 V_ X7R _04

L11 L12 L14 L16 L17 L18 M1 1 M1 8 P11 P18 T11 T18 U11 U18 V11 V12 V14 V16 V17 V18

V5 V1 W2 W7

U6 R7

3. 3V

AE23 AE26 AH26

AA7 AB12 AB20 AC16 AD13 AD18 AG12 AG15 AG19

A5 B13 B16 B7 C10 D15 F9 G1 1

Layout note:

G1 2

Di str ibut e i n P CI s ect ion

G1 6 W5 P7 A24

C24 D19 D22 G1 9

K3 K4 K5 K6 L1 L2 L3 L6 L7 M6 M7 N7

AB17 AC17

T7 F17 G1 7

AB8 AC8

K7

Z160 6

C28

Z160 7 Z160 8

G2 0 A1

H6 H7 J6 J7

C64 *0.1U_10V_X7R_04

C63

0 .1U _10 V _X7 R_0 4

Layout note:

Plac e a t MC H e dge

C77

Layout note:

0.1 U_1 6V _0 4

Place on seco nda ry sid e u nde r MC H

C53

0. 1U_ 16V _ 04

Layout note:

C78

Pla ce with in 100 mil s

0.1 U_1 6V _0 4

of ICH 7 on th e botto m side of 140mils on the to p

C42

C66 0 .1 U_1 6V _04

0.1 U_1 6V _0 4

C47

C46

0 .1 U_1 6V _04

0.1 U_1 6V _0 4

3. 3V

C80

C89

*0 . 1U _16 V _04

0.1 U_1 6V _0 4

3. 3V

C43

C35

*0 . 1U _16 V _04

0.1 U_1 6V _0 4

1.5VS

Layout note:

1.5VS

C51

0.1 U_1 6V _0 4

Place within 100 mils of ICH7 on the botto m side of 140mils on the to p

C57 *1U_6.3V_04

C84 1U _6. 3V _0 4

3.3VS

C70

0. 1U _16 V_04

C41 10U_6.3V_06

C49

0. 1U_ 16V _ 04

C30 *0 . 1U _16 V _04

C74

C76

10U _6. 3V _0 6

3.3VS

Layout note:

Place within 100 mils of ICH7 on the bo ttom side of 140 mil s o n the top

3.3VS

3. 3VS

RTCVCC

1. 05VS 2,3 ,4, 6, 7,1 2,1 3, 28

1. 5VS 3 ,5 , 6, 7, 14, 18, 28

3. 3V 2 ,1 1, 1 4,1 5, 17, 18, 20 ,26 ,27 , 2 8

3. 3VS 5 ,6 , 7, 9, 10, 11, 12, 13 ,14 ,15 ,1 8,1 9,2 0, 22, 23, 25 ,29 5VS 1 0, 13, 19, 22 ,25 RTCVCC 1 3 5V 1 1, 17, 26, 27 ,28 ,29

1. 5VS

C50 *0. 1U_ 16V _ 04

C100 10U _6. 3V _0 6

C8 2 * 0. 1U_ 10V _ X7 R _0 4

3.3V3.3 V3.3V5V 1. 05VS 1.05VS 1.05VS

C94 *0.1 U_16V_04

1. 05VS

1.05VS

C56 1U_6.3V_04

C 83 0 .1U _10 V _X 7R_ 04

U14E

A4

VSS[1]

A23

VSS[2]

B1

VSS[3]

B8

VSS[4]

B11

VSS[5]

B14

VSS[6]

B17

VSS[7]

B20

VSS[8]

B26

VSS[9]

B28

VSS[10]

C2

VSS[11]

C6

VSS[12]

C27

VSS[13]

D10

VSS[14]

D13

VSS[15]

D18

VSS[16]

D21

VSS[17]

D24

VSS[18]

E1

VSS[19]

E2

VSS[20]

E4

VSS[21]

E8

VSS[22]

E15

VSS[23]

F3

VSS[24]

F4

VSS[25]

F5

VSS[26]

F12

VSS[27]

F27

VSS[28]

F28

VSS[29]

G1

VSS[30]

G2

VSS[31]

G5

VSS[32]

G6

VSS[33]

G9

VSS[34]

G14

VSS[35]

G18

VSS[36]

G21

VSS[37]

G24

VSS[38]

G25

VSS[39]

G26

VSS[40]

H3

VSS[41]

H4

VSS[42]

H5

VSS[43]

H24

VSS[44]

H27

VSS[45]

H28

VSS[46]

J1

VSS[47]

J2

VSS[48]

J5

VSS[49]

J24

VSS[50]

J25

VSS[51]

J26

VSS[52]

K24

VSS[53]

K27

VSS[54]

K28

VSS[55]

L13

VSS[56]

L15

VSS[57]

L24

VSS[58]

L25

VSS[59]

L26

VSS[60]

M3

VSS[61]

M4

VSS[62]

M5

VSS[63]

M12

VSS[64]

M13

VSS[65]

M14

VSS[66]

M15

VSS[67]

M16

VSS[68]

M17

VSS[69]

M24

VSS[70]

M27

VSS[71]

M28

VSS[72]

N1

VSS[73]

N2

VSS[74]

N5

VSS[75]

N6

VSS[76]

N11

VSS[77]

N12

VSS[78]

N13

VSS[79]

N14

VSS[80]

N15

VSS[81]

N16

VSS[82]

N17

VSS[83]

N18

VSS[84]

N24

VSS[85]

N25

VSS[86]

N26

VSS[87]

P3

VSS[88]

P4

VSS[89]

P12

VSS[90]

P13

VSS[91]

P14

VSS[92]

P15

VSS[93]

P16

VSS[94]

P17

VSS[95]

P24

VSS[96]

P27

VSS[97]

ICH7-M

VSS[98]

VSS[99] VSS[100] VSS[101] VSS[102] VSS[103] VSS[104] VSS[105] VSS[106] VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158] VSS[159] VSS[160] VSS[161] VSS[162] VSS[163] VSS[164] VSS[165] VSS[166] VSS[167] VSS[168] VSS[169] VSS[170] VSS[171] VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179] VSS[180] VSS[181] VSS[182] VSS[183] VSS[184] VSS[185] VSS[186] VSS[187] VSS[188] VSS[189] VSS[190] VSS[191] VSS[192] VSS[193] VSS[194]

P28 R1 R11 R12 R13 R14 R15 R16 R17 R18 T6 T12 T13 T14 T15 T16 T17 U4 U12 U13 U14 U15 U16 U17 U24 U25 U26 V2 V13 V15 V24 V27 V28 W6 W24 W25 W26 Y3 Y24 Y27 Y28 AA1 AA24 AA25 AA26 AB4 AB6 AB11 AB14 AB16 AB19 AB21 AB24 AB27 AB28 AC2 AC5 AC9 AC11 AD1 AD3 AD4 AD7 AD8 AD11 AD15 AD19 AD23 AE2 AE4 AE8 AE11 AE13 AE18 AE21 AE24 AE25 AF2 AF4 AF8 AF11 AF27 AF28 AG1 AG3 AG7 AG11 AG14 AG17 AG20 AG25 AH1 AH3 AH7 AH12 AH23 AH27

Sheet 16 of 31

ICH7-M 4/4

B.Schematic Diagrams

ICH7-M 4/4 B - 17

Schematic Diagrams

USB Port, CCD, BT, LID SW

Sheet 17 of 31

USB Port, CCD, BT,

LID SW

B.Schematic Diagrams

LID SWITCH IC

Bluetooth

Port 5

CCD

5V

L26

*HCB1608KF-121T25_32mil_short

C199 10 U_ 10V _ 08

From H8 default HI

VD D 3

7/21

C1 84 1 U_6 . 3 V_04

R 105 10 0K_0 4

CC D_EN23

C2

0.1U_16V_04

1

3. 3V

R3 10K_ 04 U1

3

VCC

OU T GND

ME2 68- 00 2H 20G-4 0G

2

L1 7

*H CB16 08KF - 121 T2 5_32m i l_ sho rt

USB_PN514 USB_PP514 BT_D ET#23

3.3V

BT_EN19,23

Z1707

G

Z1708

Z1709

G

C113

0.1 U_ 16V _ 04

R69 *10mil_short R73 *10mil_short

R74 10K_04

G

Q6 MT P3 4 03N 3

DS

A0 34 09

R104 20 K_1% _ 04

DS

Q7 2N 70 02W

PSU1, PSU2

1

R4 10 0K_0 4

LID_SW# 11,23

2

3

5 0mil

C 111 10U_10V_08

USB_PN6_R U SB_ P P6_R

BT_EN#

Q5

DS

2N7002W

3. 3V_ BT

C6

0.1 U_ 16V _ 04

CCD_DE T#23

J_BT1

1 2 3 4 5 6

87 21 2- 06G 0

48 mil

USB_PN714 USB_PP714

C5 1 0U_ 10 V _08

5V_ CCD

J_BT1

J_CCD 1

85 204 -0 50 01

61

6-20 -4 1A1 0-1 06

J_ CCD 1

1

5

1 2 3 4 5

USB PORT

USBVCC01

*H C B 16 08KF - 121 T2 5_3 2m i l_s ho rt

3. 3V

USBVCC01

100 MIL

R142 *10K_04

5V

DD_ON#26,27

+

C40 *100U_10V_D

+

C22 22 0U_ 6. 3V _6 * 5.9

USB_VCC0 1_0

60 mil

C61

0. 1U _1 6V _0 4

*WCM2012F2S-161T03-s hort

4

3

USB_PN 0_R

1

2

USB_PP0_R

L12

USB_VCC0 1_0

60 mil

C10

0. 1U _1 6V _0 4

*WCM2012F2S-161T03-s hort

4

3

USB_PN 1_R

1

2

USB_PP1_R

L6

L10

L20

USB_PN014 USB_PP014

USB_ PN114 USB_ PP114

U13

VOUT1

FLG# VIN1 VOUT2

VOUT3VI N2

GNDEN #

RT 97 15BG S

6- 02 -0 971 5- 920

J_USB2

V+ DATA_L DATA_H GND

6

83 14

GN D1

GND 2

GND1

GN D2

5 2 7

Port 0

1 2 3 4

KS- 001HL -ANBA

PIN GND3~4=GN D

Port 1

J_USB1

1

V+

2

DATA_L

3

DATA_H

4

GND

GN D1

KS- 001HL -ANBA

PIN GND3~4=GN D

VDD3 2,13,18,19,23,24,25,26

1.5VS 3,5,6,7,14,16,18, 28

3.3V 2,11,14,15,16,18,20,26,27,28

3.3VS 5,6,7,9,10,11,12, 13, 14,15,16,18,19,20,22, 23,25,29 5V 11,16,26,27,28,29 5VS 10,13,16,19,22,25

GND 2

G ND1

GN D2

B - 18 USB Port, CCD, BT, LID SW

Mini Card, WLAN, 3G Card

MINI-PCIE CARD AND Debug Port

J_MINI1

PCIE_RXN1_WLAN14

PCIE_RXP1_WLAN14 PCIE_TXN1_WLAN14 PCIE_T XP1_ WLAN14

For Kedron WLAN Device

3G CARD

3.3VS

3GCARD _CLKR EQ#12

PCIE_WAKE#15, 20

3.3 VS

WLAN_CLKREQ#12 CLK_PCIE_MINI#12

CLK_PCIE_MI NI12

WLAN _DET#23

80PORT_DET#23

3I N123

3. 3V

CL_CLK1 CL_DATA1 CL_RST#1

R14 * 0_ 04

VDD3

FOR Debug por t POWER

PCIE_WAKE#15 ,20

R68 10K_04

CLK_PCIE_M INI _3G#12

CLK_PCIE _MINI _3G12

3G_DET#23

PC IE _ R XN 2 _ 3 G14

PCIE _R XP2_3 G14 PC I E _T XN 2 _3G14

PC I E _ T XP 2_ 3 G14

C112

C110

10U_10V_08

.1U _16 V_04

R1 12 10K _04

J_3G1

1

WAKE#

3

COEX1

5

COEX2

7

CLKREQ#

11

REFCLK-

13

REFCLK+

9

GND0

15

GND1

21

GND2

27

GND3

29

GND4

35

GND11

23

PETn0

25

PETp0

31

PERn0

33

PERp0

17

R ese rv ed0

19

R ese rv ed1

37

GND12

39

3.3VAUX_3

41

3.3VAUX_4

43

GND13

45

R ese rv ed2

47

R ese rv ed3

49

R ese rv ed4

51

R ese rv ed5

88908-5204

5. 2mm /RV S/B LACK

1

WAKE#

3

BT_DATA

5

BT_CHCLK

7

CLKREQ #

11

REFCLK-

13

REFCLK+

9

GND 0

15

GND 1

21

GND 2

27

GND 3

29

GND 4

35

GND 11

23

PE Tn0

25

PE Tp0

31

PE Rn0

33

PE Rp0

17

NC3

19

NC4

37

NC6

39

NC7

41

NC8

43

NC9

45

NC10

47

NC11

49

NC12

51

NC13

8 8911-5204

5 .2m m /R VS/B LAC K

3. 3V AUX_ 0 UIM_PWR

UIM_DATA

UIM_CLK

UIM_RES ET

UIM_VPP

KEY

W_DISABLE#

PERSET#

SMB_CLK

SM B _ DA TA

3. 3V AUX_ 1

3. 3V AUX_ 2

LED_W WA N#

LED_WLAN# LED_ WP AN #

1.5V_0

GN D5

GN D6 GN D7 GN D8 GN D9

GND1 0

USB_D-

USB_D+

1.5V_1

1.5V_2

3. 3V_0

1. 5V_0

UIM_PWR

UI M_DATA

UI M_CLK

UIM_RESET

UI M_VPP

GND5

KEY

GND6 GND7 GND8 GND9

GN D10

W_DISABLE#

PERSET#

NC(SMB_CLK)

NC(S MB_DATA)

NC(USB_D-)

NC(USB_D+)

3.3VAUX

1. 5V_1

1. 5V_2

3. 3V_1

NC(LED_W WA N#)

LED_ WLAN #

NC(LED_WPAN#)

20 mil

2 6

UI M_PWR

8

UI M_DATA

10

UI M_CLK

12

UI M_RST

14

UIM_VPP

16 4

18 26 34 40 50

20 22 30 32 36 38

24 28 48 52 42 44 46

C357 220U_4V_D2 C96 .1U_1 6V_0 4

2 6 8 10 12 14 16

4

18 26 34 40 50

20 22 30 32 36 38

24 28 48 52 42 44 46

+

R 62 0 _04

3G_3.3V

C338

+

22 0U_ 4V _D2

C 217 0 .1u _16 V_04

MUIM_PWR MUIM_DATA MUIM_CLK MUIM_RST MUIM_VPP

R 9 0_04

WLAN1.5VS

3. 3V

3G_3.3V

1.5VS

C92 .1U_16V_04

3G _EN 23 BUF_PLT_RST# 14,20,23

C58 .1U_1 6V_04

WLAN1.5VS

R 114 10K_ 04

WLAN _EN BUF_PLT_RST#

3.3 V

80CLK 2 3

1. 5VS

3.3V

C218

0. 1u_ 16V _0 4

USB_PN4 1 4 USB_PP4 14

C93 .1U_16V_04

R11 1 0_ 06

WLAN_EN 19,23 BUF_PLT_RST# 14,20,23

WDT_ EN 23 USB_PN3 14 USB_PP3 14

3G_3. 3V3G_3.3V

1.5VS

C222 10U_6 .3V_0 6

WLAN_PWR Signal default HI for WLAN

1.BIOS Setup HI for Intel PCIE WLAN

2.USB WLAN BIOS Setup LOW for Fn+F 10

3. 3V S

C220

0.1u_16V_04

SIM CONN

R110

0_04

UI M_CLK UI M_RST UI M_PWR

UIM_CLK_ R

C213 *22P_50V_04

3G POWER

VDD3 2 ,13,17,19,2 3,24,2 5,26

1.5VS 3 ,5,6,7 ,1 4,16,28

3.3 V 2,11 , 14 ,15 ,1 6,1 7,2 0,2 6, 27, 28

3.3VS 5 ,6,7,9 ,1 0,11,12,13, 14,15, 16,19,20,22,23 ,2 5,29 5V 1 1,1 6 ,1 7,2 6, 27, 28, 29

3.3 V 3G_3. 3V

J_SIM1

LO CK

(TOP V IEW )

C3

UIM_CLK

C2

UIM_RST

OPEN

SIM LOC K 9171 8-0 060 A

>48 mil

C334 10U_10V_08

C88 1U_6.3V_ 04

R58 100K_04

3G_POWER EN23

From H8 default HI

R106 *4.7K_04

UI M_DATA

UIM_VPP

UIM_GNDUIM_PWR

GND

GN D1

GND 2

GND3

UIM_DATA_R

C7 C6 C5C1

GND

R194 * 0_06

Q12

AO 341 5

G

R59 20K_1 %_04

DS

Q4 2N7 002 W

G

DS

R107 0_04

C202 *22P_50V_04

>48 mil

UIM_DATA UIM_VPP

C203 *22P _5 0V _04

C337

0.1 U_1 6V_04

C215 *2 2P _50 V_04

Schematic Diagrams

B.Schematic Diagrams

Sheet 18 of 31

MIni Card, WLAN,

3G Card

Mini Card, WLAN, 3G Card B - 19

Schematic Diagrams

LED, Fan, TP, Panel LED

Sheet 19 of 31

LED, Fan, TP, Panel

LED

B.Schematic Diagrams

LED

POWER ON LED

BAT LED

H13 C354B276D163H4C354B276D163

H6

2

9

3

8

1

4

7

5 6

MTH8_0 D 2- 3

H15

2

9

3

8

1

4

7

5 6

MTH8_0 D 2- 3

H1

2 3

1

4 5 6

MT H8_ 0D 2 -3

R281

22 0_0 4

13

42

R286

22 0_0 4

3421

H12

9

2

8

3

7

4 5 6

MTH8 _0D 2-3

VDD3 3. 3VS3. 3VSVD D 3

1

Y

2

VD D 3 VD D3

Z190 3 Z1904

1

Y

2

1

R 282 2 20_ 04

3

SG

4

R 287 2 20_ 04

3

SG

4

9 8 7

D10 KPB-3025YSGC

D11 KPB-3025YSGC

M9 M- MA RK 1

H9

2 3

1

4 5 6

MTH8_0 D 2- 3

LED_ BAT_ F ULL # 23LED_ B AT_CH G#23

9

2

8

3

7

4 5 6

H2

1

MTH8_0 D 2- 3

M11 M-MARK1

WLAN/ BT LED

H10

2

9

3

8

4

7

5 6

MTH8_0D2 -3

M3 M-M A RK 1

D TC114EUA

HDD/CD-ROM LED

M7

M13

M- MA RK 1

M-MARK1

H11

9

2

8

3

1

7

4 5 6

MTH8 _0D 2-3

M5

M2

M-M AR K 1

M- MA RK 1

B

Q19

M12 M-MARK1

1

3421

3.3VS

M4 M- MA RK 1

R283 22 0_0 4

Z1905Z190 1 Z1902 Z190 6

1

Y

2

C

E

R285 22 0_0 4

SATA_L ED

AC

D13 KP- 201 2SGC

H3

9

2

8

3

7

4 5 6

MTH8_0 D 2- 3

M10 M-M AR K1

SG

C

E

R284 220 _04

3

D12 KPB-3025YSGC

4

Z190 8Z1907

D TC1 14EUA

SATA_L ED# 13

1

B

Q2 0

H7 C 237 B128 D10 7

9 8 7

M1 4 M- MA RK 1

WLAN_EN 18,23LED_PW R# 23 BT_EN17,23LED_ACI N#23

M1 M-M AR K1

H5 C 237 B128D 107

R 288 *0 _04

M8 M- MA RK 1

FAN CONTROL

CLICK CONN

6 -20 -94A 20- 112

H14

H8

C2 37B1 28D 107

C2 37B1 28D1 07

M6 M-MARK1

12

J_TP1

1

5VS5VS_FAN

CPU_FAN23

FON#

R132

*0 _04

CPU_ FANSEN23

J_TP1

1 2 3 4 5 6 7 8

9 10 11 12

871 51- 12 07G

CTPBUT TON_L

CTPBUT TON_R

TP_ CL K TP_ DA TA

LIF T KEY

SW1

TJ G- 533 -S-T /R

1 3

3.3VS

5VS

C 325 0 .1U _16 V _04

5

6

2 4

R1 92 *1 5m il _sh or t

U12

FON#

1 2 3 4

5VS

R19 4.7K_04

D1 C H35 5PT

10 30

C SW1 ~2

13

3 .3VS 5,6 ,7 ,9, 10, 11 ,12 ,13 ,14 ,1 5,1 6, 1 8, 20, 22, 23, 25 ,29 5 VS 10, 13, 16 ,22,25 VDD 3 2, 1 3, 17, 18, 23, 24 ,25,26

FO N VI N VO U T VSET

APE8872

C 258 0 .1U _16 V _04

C316 *1U _6. 3V_04

42

8

GND

7

GND

6

GND

5

GND

5VS_FAN

C18 10U _10 V_ 08

AC

5VS_TP

R185 10 K_04

C319 22 P_50V _ 04

RIGHT KEY

SW2

TJ G- 533 -S-T /R

1 3

R186 10K_ 04

C320 22P_ 50V _0 4

5

6

J_FAN1

1 2 3

8 520 5-0 300 1

J_ FAN 1

3

1

C330 *10U _10 V_08

2 4

CTPBUTTON_ RCTPBU TT ON_L

TP_CL K 23 TP_ DA T A 23

B - 20 LED, Fan, TP, Panel LED

Card Reader JMB261

Schematic Diagrams

JMB261

3. 3V

R2 78 4. 7K _0 4 R2 69 4. 7K _0 4

VCC_CARD

RN24 8P4RX 10K_ 04

LANXOUT

LANXIN

DVDD

C378

0. 1U_ 16V _ 04

Pi n#2 6 Pin#1 7

DVDD

C414

0. 1U_ 16V _ 04

Pi n#5 1

3. 3V

C417 *10U _10 V_08

Pi n#3 8 Re ser ved

3. 3V

C388 10 U_1 0V_08

Re ser ved

Pl ace all capacitors clo sed t o chip . Th e subscript in each CAP incicates the pin n umber of JMC251/JMC261 that sho ul d be closed to.

1

8

2

7

3456

R245 1M_04

X4 2 5MHz12

C386

22P_50V_04

C381 *0.1U_16V_04

Pi n#1 7

C382

0. 1U_ 16V _0 4

Pi n#6 2

C394

0. 1U_ 16V _0 4

Pi n#3 8

C399

0. 1U_ 16V _0 4

SD _ C D # MS_ I N S#

SD _ W P SD _ B S MDI O13

SD_C LK

D03 TO D03A Change J MC2 61 fro m 10x10 to 7x7

LAN_LED0 LAN_LED1

DVDD

LAN_ MDI P021 LAN_ MDI N021

DVDD

LAN_ MDI P121 LAN_ MDI N121

3.3 V

LAN_ MDI P 2 LAN_ MDI N 2

DVDD

LAN_ MDI P 3 LAN_ MDI N 3

C385 22P_ 50V _ 04

C376 *10U _10 V_08

Reserved

C412

C375

0. 1U_ 16V _0 4

10U _10 V_08

Pin#55 Pin#55

Res erv ed

Card Reader Power

CR1_PCTLN

C415

C400

0.1 U_1 6V _0 4

*0.1U_16V_04

Pin#45

Pin #27

S witc hin g R egul ato r

C380

C398

0. 1U_ 16V _0 4

0.1 U_1 6V _0 4

Pin #2Pi n#5 9 Pi n#5 9 Pin#11

(>20mil )

SWF 25 20C F-4R 7M-M

F or J MC2 51/ 261 only

U19

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

JMC 261

L34

ARFB12REGLX

.

R 249 22_0 4

LED0 LED1 VDD GN D VIP_1 VIN_1 AVDD1 2 VIP_2 VIN_2 GN D AVDD3 3 VIP_3(NC) VIN _3( NC) AVDD1 2(NC) VIP_4(NC) VIN _4( NC)

R88 12 K_04

3.3 V 3.3 V

SD _D0

SD_D1

SD_D 2

SD_D3

SD_BS

MDIO7

SD_WP

MDIO8

MDIO9

48

MDIO1

MDIO0

3738394041424344454647

363534

GND

MDIO8

VDDIO

MD IO7

MDIO6

MD IO5

MDIO4

MDIO3

VD DIO

MD IO2

MDIO9

SMB_SDA/CR_LEDN

JMC251 JMC261

(LQFP 64)

REXT

VDDX33

XIN

123456789101112141516

LAN XIN

3. 3V 3. 3V

C390 10 U_6 .3V _ 08

Pi n#7 Pin#7

XOUT

GNDLXFB12

REGLX

LANXOUT

SMB_SCL /LED2

VDDR EG

CLKN

CLKP

AVDDH

RXP

AR FB12

C416

0.1 U_1 6V _04

Pin #8 Pi n# 8

VCC_CARD

R10 0 75_0 6

(> 20mi l)

C396

0. 1U_ 16V _0 4

M DIO Sin gle E nd = 50 Ohm

MDIO11

MD IO1 0

MDIO12

33

MDIO10

MDIO11

MDIO12

GN D MDI O1 3 MDI O1 4

TESTN VDDIO

VDD

VCC3O CR_CD0 N CR_CD1 N

CREQN

MPD

WAKEN

RSTN

AVDDX

GN D

TXN

TXP

RXN

13

C4 06 0.1 U _1 0V_X 7R_ 04 C4 03 0.1 U _1 0V_X 7R_ 04

C401 10U_6.3V_08

DVDD

32

MD I O1 3

31

MD I O1 4

30

CR 1_LEDN

29 28 27 26

CR 1_PCTLN

25

SD_CD#

24

MS_ IN S#

23 22

LAN _LE D2

CR _CP PE #_L A N

21 20 19

PCIE_WAKE#

18

XR S TN

17

PC Ie D ifferen tia l Pa irs = 1 00 Ohm

3. 3V

Fo r J MC25 1/2 61 on ly

3.3V

DVDD

CR_CPPE#_LAN 12 PCIE_WAKE# 15,18

DVDD

PCIE_RXP5_CARD 14 P CI E _ R XN 5_ C AR D 14

PC I E_TXN5_ CA RD 1 4 PC I E_TXP5_C AR D 14

CLK_P CI E_JM C26 1 12 CLK_PCIE_JMC261# 12

SD_C LK

C387 *10P_50V_04

Near Cardreader CONN

R2 68 * 0 _04

R2 67 0 _04

VCC_CARD

C 393 *0 . 1U _16 V_ 04

R1 NC

NC

1. For JMC251/JM C261 o nly.

2. MP D connect to Mai n Power or RSTN fo r D3E applic aion, to A UX po wer oth erwise.

C 41 Functio n

R32

NCNCNC

NCR20 Enable D3E (1)

1 00KNC0 .1u

R277 *0_04 R27 6 10 0K_0 4

C41 3 0.1U _16 V_04

BUF_PLT_R ST# 14,18 ,23

C395

4. 7U_ 10V _ 08

Disable D3 E0 Enable D3E (2)NC

3. 3V

3. 3VS

VCC_CARD

3. 3V

3.3V

3.3VS

LAN_LED2

C R1_ LE DN

R262 4 .7K_04 R263 4 .7K_04

VCC_CARD

C164 *0. 1U _16 V_04

U10

8

VC C

6

SC L

5

SD A

4

GND

*AT2 4C02BN

C165 *0. 1U_ 16 V_04

WP

A0 A1 A2

4 IN 1 SOCKE T SD/ MMC/MS /MS Pr o

C392

0.1 U_1 6V _0 4

C391

0.1 U_1 6V _0 4

SD_ CD# SD_WP SD_D1 SD_D0

SD_BS SD_CLK SD_D1 SD_D0

SD_D2 MS_ IN S#

SD_D3 SD_BS SD_CLK

SD_D3 SD_D2

J_CA RD _NOR1

P1

CD_SD

P2

WP_SD

P3

DAT1_SD

P4

DAT0_SD

P5

WP GND _SD

P6

VSS_SD

P7

VSS_MS

P8

BS_MS

P9

CLK_SD

P10

DAT1_MS

P11

SDIO/DAT0_MS

P12

VDD_SD

P13

DAT2_MS

P14

VSS_SD

P15

INS_MS

P16

DAT3_MS

P17

CMD_SD

P18

SC LK _MS

P19

VCC_MS

P20

CD/DAT3_SD

P21

VSS_MS

MSD 019 -C0 -10A0(N orm a l)

1021

P23

GND

P24

GND

P25

GND

P26P22

GNDDAT2_SD

6-21-G4000-126

3.3 V2 ,11 ,1 4, 1 5,1 6, 17, 18, 26 ,27 , 28

3.3 VS5,6, 7, 9, 10, 11, 12 ,13 , 14 ,1 5,1 6, 1 8, 19, 22, 23 ,25 ,29

1.8 V5,7,9,27,28

7

1 2 3

B.Schematic Diagrams

Sheet 20 of 31

Card Read JMB261

Card Reader JMB261 B - 21

Schematic Diagrams

LAN

Sheet 21 of 31

LAN

B.Schematic Diagrams

LAN (JMB261))

LAN_M DI P020 LAN_M DI N020

LAN_M DI P120 LAN_M DI N120

R296 *10mil_short

C228 *0.01U _50V _04

C229

0.1U_50V _06

Z2108 Z2109

RD_CT TD_C T

L27

7

TX+

TD +

TX-TD -

4 12

NC NC

5

NC

1

RD+

RX+

2

RD-

RX-

3 14

RD_CT RX_CT

6

TX_C T

TD _C T

NS6816 80

5VS

A

C

A

AC

GN D 2

BAV99

C

D23

D24

BAV99

AC

A

C

A

C

D25

LP4

*W CM201 2F2 S-161T0 3-short

MLMX0-_R

4

MLMX0+_R

1

*W CM201 2F2 S-161T0 3-short

MLMX1-_R

4

MLMX1+_R

1

MLMX0 +_R

10

MLMX0 -_R

98

Z2110 Z2111

13

MLMX1 +_R

16

MLMX1 -_R

15

RX_C T TX_CT

11

R12 75_1 %_ 04

C8

10 00p_2K V_ 12

LP3

R13 75 _1% _04

MLM X0-

3

MLM X0+

2

MLM X1-

3

MLM X1+

2

MLM X0+ MLM X0MLM X1+ MLM X1-

DC _NP DD _NP

R11

R10

75_1%_04

Z2112

BAV99

AC

R J _45

1 GN D 1 2 3 6

4 5 7 8

PINPJS-A8JD3G

D26

BAV99

AC

D A + s hield DADB+ DB-

DC+ DCDD+ DD-

shield

B - 22 LAN

5VS13,16,19,22, 25

3.3VS5,6,7,9,1 0, 11,12, 13,14, 15,16, 18,19, 20,22, 23, 25,29

3.3V2,11,14,15, 16,17, 18,20, 26,27, 28

Audio Codec ALC269

Schematic Diagrams

Low mute!

SB_MUTE#15

KBC_MUTE#23

KBC_BEEP23

ICH_SPKR15

PC BEEP

SPKOUTL+

SPKOUTL-

SPKOUTR+

1U _6. 3V _0 4

L28

FC M160 8K-1 21T 06

L29

FC M1608K - 121 T06

L4

FC M160 8K-1 21T 06

8/ 20

L5

FC M1608K - 121 T06

C370 *0.1U_10V_X7R_04

C152

C155

SPKOUTL+_L

C522

*1U_16V_06

SPKOUTL-_L

SPKOUTR+_ R

C523

*1U_16V_06

SPKOUTR-_ RSPKOUTR-

AZ_SDOUT13 ,17 AZ_BITCLK13 ,17

AZ_SDIN013

AZ_SYNC13,17

AZ_RST#13,17

BEEP

AUDG

3.3VS

R235

*100K_04

1 2

R93 10K_04 R94 1K_04

C 153 10 0P _5 0V_04

C224 18 0P_5 0V _04

C227 18 0P_5 0V _04

C11 18 0P_5 0V _04

C12 18 0P_5 0V _04

FC M1608K -1 21 T06

C 460 0 .1U _16 V _04

3. 3VS3. 3VS

C120

*0.1U_10V_X7R_04

5

4

MUTEAPM#

U7

3

74AHC1G08GW

C 142 * 22 P_50 V_ 04

R89 22_ 04

3.3VS_AU D

L35

Z2204

3.3VS_AUD

C154 1U_ 6.3 V _04

1 2 3 4

R238

100K_04

SPKOUTL+ SPKOUTL-

SPKOUTRSPKOUTR+

SPDIFO

Z2205

J_SPK1

1 2 3 4

852 05 -04 001

C130 10U _10 V_08

Z2201

Z2202 Z2203

C149

*0. 1U_ 16V_ 04

4

40 41

44 45

47 48

2 3

5 6

8 10 11 12

INT_MIC

C524

0.1 U_1 6V _0 4

U24

PD#

SPK-L+ SPK-L-

SPK-RSPK-R+

SPDIF C2/E APD SPDIFO

GPIO 0 GPIO 1

DIGITAL

SDATA-OUT BIT-CLK SDATA-IN SYNC RESET# PCBEEP

42

R293 75_1 %_ 04

1

PV S S 1

PVSS2

43

MI C 2- VR EFO

9

DVDD 1

7

R289 * 10mil _s ho rt

C1 46 0.1 U_1 6V_0 4

C525 10U _10 V_08

5VS

39

46

PVDD1

D V DD- IO

DVSS2

C3 79 0.1 U _1 6V_04 C3 71 10U_ 10V _ 08

38

25

PV D D 2

AVDD2

AVDD1

ANALOG

GN D

AVSS1

AVSS2

26

49

AUDG

R159

4.7 K_04

IN T_MIC_R

C305 680 P_50 V_ 04

3.3VS_AUD

C128

0.1 U_1 6V _0 4

Sense A LIN E 2-L

LI NE 2-R

MIC 2-L

MIC 2-R

Sense-B

JD REF

MO NO - OU T

MIC 1-L

MIC 1-R

LIN E 1-L LI NE 1-R

VREF

MI C 1- V R EF O-L

MIC1 -VREF O-R

MI C 2- VR EFO

HP-OUT-L HP-OU T-R

CBN

OPVEE

CRVREF

ALC 269 Q

313237

8 520 4-0 20 01

PCB F o otp ri nt = 85 204 -02 R

AUDG

C124

C121

0 .1 U_1 6V _0 4

10U _10 V_08

13 14

Z2214

15

Z2213

16

MI C 2_ L

17

MI C 2_ R

18

Z2212

19

Z2211

20

Z2210

21

C1 48 4.7 U_6 .3 V_ 06

22

C1 43 4.7 U_6 .3 V_ 06

Z2209 MIC1-R

23

Z2207

24

Z2206

27 28

MIC1-VREFO-L MIC1-VREFO-R

30

MIC2-VREFO

29

HEADPHON E-L HEADPHON E-R

33

CAP-

C 135 2. 2U_ 6.3 V _06

35 36

CBP

34

C531

2. 2U_ 6.3 V_06

AUDG

J_ INT MIC 1

J_INTMIC1

1 2

1

2

L1 9

C 526

1 0U_ 10 V_ 08

AUDG

C527 4.7 U _6 .3 V_ 06 C528 4.7 U _6 .3 V_ 06

MIC 1-LZ2208

AUDG

MI C 1- R

MI C 1- L MIC1-VREFO-L MIC1-VREFO-R

HEADPHON E-R HEADPHON E-L

FC M1608 K-12 1T0 6

U5

4 5

OUT VI N

1

SHDN#

23

GNDBYP

*G924

C 364 * 0. 1U_ 16V_ 04

MIC_SEN SEJD_SENSE HP_SENSE

INT_MIC

AUDG

R291 1K _0 4 R292 1K _0 4

R24 8 4. 7 K_04 R24 6 4. 7 K_04

R9 6 100_1 %_04 R9 7 100_1 %_04

1. 5VS 3,5 .. 7,1 4, 16. .18 ,2 7

3. 3VS 5.. 7, 9.. 21 , 23 ,24 ,2 7,2 8 5VS 11, 13 ,16 ,17 , 2 0,2 4

5VS_AUD 5VS

R 98 2 0K_1 %_ 04 R 99 3 9. 2K_1%_ 04

R290 20K _ 1%_04

C529 0.1 U _1 6V_0 4 C530 10 U_1 0V_0 8

CAP+

MIC_SENSE

2

1

6

C114 1U _6. 3V _0 4

HP_SENSE

PHONE-R PHONE-L

3 4

5

L24 FC M1005K F -1 21 T031 2 L25 FC M1005K F -1 21 T031 2

L23

FC M1005K F -1 21 T03

1 2 1 2

L22

FC M1005K F -1 21 T03

Layout Note:

V ery clo se t o A udi o Co dec

R 294 *0_0 4

R 295 0_04

JP1 *10mil_ sho rt

C3 84 0 .1U _16 V_04

C4 07 0 .1U _16 V_04

JP2 * 10m il _s hor t JP3 * 10m il _s hor t

C162

C161

100 P_50 V_ 04

C160

C159

100 P_50 V_ 04

AUDG

Z2232 Z2233

Z2234

Z2235 Z2236

Z2237

AUDG

J_MIC1

5 4

R

3 2

L

6 1

2SJ- S 351 -S30

MIC IN

BLACK

J_HP1

5 4

R

3 2

L

6 1

2SJ- S 351 -S30

HEA DPHO NE

BLACK

B.Schematic Diagrams

Sheet 22 of 31

Audio Codec

ALC269

Audio Codec ALC269 B - 23

Schematic Diagrams

KBC-ITE IT8502E

Sheet 23 of 31

KBC-ITE IT8502E

B.Schematic Diagrams

AC_IN#

LOW ACTIVE

C383

*0.1U _50V _0 6

LPC_ AD [3: 0]13

KBC _ PC LK12

LPC_ FR AME#13

BUF_PLT_R ST#14, 18, 20

LED_ACIN#19

THERM_ALERT#2

WLAN_EN18, 19

3G_POWE REN18

KBC_MUTE#22

DETEC_CRT#10

SMC_CPU_THERM2 SMD_CPU_THERM2

LED_B AT_CH G#19 LED_B AT_FU LL#19

80PORT_DET#18

W EB0--->AP K EY WEB1--->EMAILKEY WEB2 --->WWW KEY

CPU_FAN19

LCD_BRIGHTNESS11

VD D 3

LPC_SIRQ15

AC_IN#24

APKEY#

3G_D ET#18 CCD_DET#17

SMC _ BAT24

SM D_ BA T24

KBC_BEEP22

LED_PWR#19

80C LK18 3I N118

TP_C L K19

TP_D ATA19

PWR _S W#25 LID_ SW#11, 17

R2 22 12 0K _04 C3 65 0. 1U _16V _04

R2 20 10 0_04

C1 18 * 0.1 U_16 V_04

C397

10U _10V_ 08

3.3VS

LPC_ AD 0 LPC_ AD 1 LPC_ AD 2 LPC_ AD 3

KBC _ W RE SE T# KBC _ G A2 0#

AC _I N #

WEB1#

CPU_FAN_R GPJ1 WLAN_PWR

BAT _ DE T BAT _ VO LT _R CHG_CUR JMB_D3D DETEC CRT# 3G_D ET#

MODE L_ ID

SM C_ VG A _TH ERM SM D_ VG A _TH ERM

BR I GH T NE SS LED_S CROL L#

LED_NUM# LED_CAP#

80CL K 3IN1

80PO RT_D ET#

LED _TH R OTT LE#

THE RM_ RST #

WEB2#

KBC_RXD KBC _ TXD

CPU_FAN_R

BRIGHTNESS

C363

0. 1U_1 6V_04

C374

0. 1U_1 6V_04

10

9 8 7

13

6 5

22

14

126

4 16 20

23 15

76 77 78 79 80 81

66 67 68 69 70 71 72 73

110 111 115 116 117 118

24 25 28 29 30 31 32 34

85 86 87 88 89 90

125

18 21

33

108 109

C389

C356

0. 1U_1 6V_04

11265092114

U17

LAD0

VCC LAD1 LAD2 LAD3 LPCC LK LFRA ME# SERIRQ LPCR ST#/ WU I4/ GP D2( P U )

WRST#

GA20/GPB5 KBRST#/GPB6( PU ) PWUREQ #/G PC 7( PU ) L80LL AT/ GPE 7( PU )

ECSCI#/GPD 3( PU ) ECSMI #/G PD 4( PU )

DAC

DAC0/GPJ0 DAC1/GPJ1 DAC2/GPJ2 DAC3/GPJ3 DAC4/GPJ4 DAC5/GPJ5

ADC

ADC0/GPI0 ADC1/GPI1 ADC2/GPI2 ADC3/GPI3 ADC4/GPI4 ADC5/GPI5 ADC6/GPI6 ADC7/GPI7

SMBUS

SMCLK0/GPB3 SMDAT0 /GPB4 SMCLK1/GPC1 SMDAT1 /GPC2 SMCLK2/GPF6( PU ) SMDAT2 /GPF7( PU )

PWM

PWM0/GPA0( PU ) PWM1/GPA1( PU ) PWM2/GPA2( PU ) PWM3/GPA3( PU ) PWM4/GPA4( PU ) PWM5/GPA5( PU ) PWM6/GPA6( PU ) PWM7/GPA7( PU )

PS/2

PS2CLK0/GPF0( PU ) PS2DAT0/GPF1( PU ) PS2CLK1/GPF2( PU ) PS2DAT1/GPF3( PU ) PS2CLK2/GPF4( PU ) PS2DAT2/GPF5( PU )

WAKE UP

PWRSW/GPE4( PU ) RI1#/ WUI0/GPD0( PU )

RI2#/ WUI1/GPD1( PU )

GP INTERR UPT

GINT/GPD5( PU )

( PD )R ING#/PWRF AIL# /LPCRST# /GPB7

UART

RXD/GPB0( PU ) TXD/ GPB1( PU )

IT8502 E

127

121374

VS T B Y

VSTBY

VS T B Y

VSTBY

K/B MA T RIX

LPC

IT8502E

FLASH

( PD )FLR ST#/ WU I 7/ GP G0/T M

GPIO

EXT GP I O

WAKE UP

( PD )LPCPD#/WUI6/GPE6

PWM/COUNTER

( PD )TMRI 0/W U I 2/ GPC 4 ( PD )TMRI 1/W U I 3/ GPC 6

CIR

LPC/WAKE UP

VS S

VSS

VS S

VSS

1122749122

113

91

NC1 NC_04

KBC_AGND

C372

0. 1U_ 10V_X7R _04

KBC_AVDD

KBC_AGND

VBAT

AVCC

KSO 9 / BU S Y

KSO11/ERR#

KSO12/SLCT

FLFRAME#/GPG2

FLAD0/SCE#

FLAD3/GPG6

( P D )K SO 16/ GPC 3 ( P D )K SO 17/ GPC 5

( PD )GPH0 /ID 0 ( PD )GPH1 /ID 1 ( PD )GPH2 /ID 2 ( PD )GPH3 /ID 3 ( PD )GPH4 /ID 4 ( PD )GPH5 /ID 5 ( PD )GPH6 /ID 6 ( PD )GPG1/ ID 7

( PD )EGAD/GPE1 ( PD )EGCS#/GPE2 ( PD )EGCLK/GPE3

( PD )WUI5/GPE5

( PD )TAC H0/ GPD 6 ( PD )TAC H1/ GPD 7

( PD )CR X/GPC 0

( PD )CTX/GPB2

( PD )L80HL AT /GP E0

CLOCK

VSS

AVSS

75

KSI0/STB# KSI1/AFD# KSI2/INIT# KSI 3 / S LI N #

KSO0/PD0 KSO1/PD1 KSO2/PD2 KSO3/PD3 KSO4/PD4 KSO5/PD5 KSO6/PD6 KSO7/PD7

KSO 8 / AC K #

KSO10/PE

KSO 1 3 KSO 1 4 KSO 1 5

FLAD1/SI

FLAD2/SO

FL CLK /S CK

CK32KE

CK32K

L18

*HC B100 5KF -121 T20_10m il _s hort

C117

0.1U _16 V_04

KSI4 KSI5 KSI6 KSI7

58 59 60 61 62 63 64 65

36 37 38 39 40 41 42 43 44 45 46 51 52 53 54 55

100 101 102 103 104 105 106

56 57

93 94 95 96 97 98 99 107

82 83 84

35 17

47 48

120 124

119 123

19

112

2 128

VDD3

C116

*0 .1U _ 16V _0 4

124

J _KB 1

KB- S I0 KB- S I1 KB- S I2 KB- S I3 KB- S I4 KB- S I5 KB- S I6 KB- S I7

KB- S O0 KB- S O1 KB- S O2 KB- S O3 KB- S O4 KB- S O5 KB- S O6 KB- S O7 KB- S O8 KB- S O9 KB- S O1 0 KB- S O1 1 KB- S O1 2 KB- S O1 3 KB- S O1 4 KB- S O1 5

R 90 100K_04

FL FRA M# KBC _S P I _ CE # KBC _S P I _ SI KBC _S P I _ SO KBC _G PG 6 KBC _S P I _ SC L K

KBC_CLKRUN#

WDT_EN

3G_EN

KBC _S MI # KBC _S C I # KBC _P W R BT N #

KBC _R SM RS T# KBC _R ST #

CIR_IN

KBC _S W I #

KBC_CK32KE KBC_CK32K

R84 *10M_06

X1

1 4

32

C127

32. 768KH z

15P_50V_04

J_KB1

85202- 2405 1

4 5 6

8 11 12 14 15

1

2

3

7

9 10 13 16 17 18 19 20 21 22 23 24

CCD_EN 17

SU SB # 1 5, 25 SU SC # 1 5

BT_EN 17,19 BKL _ EN 1 1

WLAN_DET# 18 BT _D ET # 1 7 DD_O N 25, 26 3G_EN 18

CPU_FANSEN 19

VC OR E _O N 29 EC _P M_ P WR OK 15

L_B KLTC TL 5, 1 1 PM E# 14

CHG_EN 24

C126 15P _50 V_04

VDD3

KBC_CLKRUN#

KBC_SWI# KBC_GA20#

KBC_SMI#

KBC_SCI# KBC_RST#

KBC_PWRBTN#

KBC_RSMRST#

R260

*10K _04

MR# _A T35 10

C 404

*0.1U_16V_04

SMC_BAT24

SMD_BAT24

BAT_DET24

BAT_VOLT24

CHG_CUR24

R270 *10K_0 4

R2 52 *10K_04

VD D 3

U20

3

MR #

5

VCC

2

GN D

*A AT35 10I GV-2.9 3-C -C- T1

SMC_B AT

SMD_B AT

BAT_DET

BAT1_V OLT

CHG_CUR

R240 *10mil_short

R221 *10mil_short R247 *10mil_short

R231 *10mil_short

R236 *10mil_short R223 *10mil_short

R239 *10mil_short

R216 *10mil_short

VD D 3

RESET#

WDI

C410

0.1 U_1 6V_04

R2 73 1K_04

RESET#_AT3510

1 4

AC

D20 BAV99

AC

D21 BAV99

AC

D15 BAV99

AC

D16 BAV99

AC

D17 *BAV99

???

KBC _ FL ASH

KBC _ H OL D #

3IN 1

VDD3

C A

C

A C

A

C A

PM_CLKR U N# 15

SW I # 15 GA20# 13

SM I# 15

SC I # 15 SB_KBCRST# 13

SB_PWR _B TN# 15

SB_RSMRST# 15

8

3

7

R271

*100K_04

WD_D IS ABLE

G

DS

Q18 *2N7002W

8Mbi t

U21

VDD

CE#SOWP# SCK

VSS

HOLD#

SST25 VF08 0B S O8

WDT_EN

VDD 3

R259

100K _04

KBC_WRESET#

C405

0. 1U_1 6V_04

MODEL_ID

V1.0 X10K

MODE L _I D

CCD_DET#

3G_D ET#

SMC_BAT SMD_BAT

BAT_DET

DE TEC _C RT#

BAT1_VOLT

R2 15 100 _04

CHG_CUR

R70 10 0_04

KBC _SP I_* _R = 0.1 "~0 .5"

5

KBC_SPI_SI_R

SI

R 275 47 _04

2

KBC_SPI_SO_R

R 266 15 _1% _04

1

KBC_SPI_CE#_R

R 264 15 _1% _04

6

KBC_SPI_SCLK_R

R 272 47 _04R2 65 4.7K _04

4

U32 f rom S S T 25VF 080 B SO8 c ha n ge to EN25F 80 S O8.

J_H 8DBG 1

WDT_EN KBC_TXD

1

2 10 9

3IN1

WDT_EN 18

PJ16

WD_DISABLE

1 2

20mi l

RA

RB

M710L

VDD 3

RA

R75 10K_04

R77 *10K_04

RB

R219 10K_04

R217 10K_04

R 250 4.7K _04 R 251 4.7K _04

R214 10K_04

R 71 10K_04

KBC_PCLK_RKBC_PCLK

R 232 *10_ 04

C373 * 10P_5 0V _04

BAT_VO LT_R

C360 1U_6.3V_04

CHG_CUR_R

C115 *1U_6.3V_04

KBC_SPI _SI

C4 20 * 33 P_50V _04

KBC_SPI _SO

C4 11 * 33 P_50V _04

KBC_SPI _CE#

C4 09 * 33 P_50V _04

KBC_SPI _SCLK

C4 18 * 33 P_50V _04

J_H8DBG1

SPUFZ -10 S3-VB -0- B

6-21-C2A00-210

VDD3 2, 13, 17, 18, 19, 24,2 5,2 6

3. 3VS 5, 6,7 ,9, 10, 11, 12, 13, 14, 15, 16, 18, 19, 20, 22, 25, 29

VDD3

12 34

KBC _ R XD

56

80CL K

78

80PORT _DET#

910

VD D 3

B - 24 KBC-ITE IT8502E

AC-In, Charger

Schematic Diagrams

J_DC-JACK1 2DC- G726- I03

GND 1 GND 2

VA

103 0

1 2

3 4

PR4 130K_1%_ 04

PR3 10K_ 1%_0 4

SGND5

VA _IN

PL1

HCB4532KF-80 0T60

PC1

0. 1U_ 50 V_ 06

PQ 2 4

P2003EVG

8 PQ1A 7 3 6 2 5

PR8 10K_1% _0 4

PR1 51K_1% _0 4

PR75

20 m_20

1 4

PR82 200K_04

PR81 100K_04

PR70 10K_1%_04

PC91

0.01u_50V_04

PC 5

0.1 U_5 0V _0 6

PC 9 3 4.7U _25 V _08

PC13

100 p_ 50V_ 04

PC96

100 0p _50 V_04

VA

PC92 4.7U_25V_08

*C _ 50V_ 04

PR83 10K_ 06

PC97

PR9

1K_1%_04

PR78 22 K_1% _0 4

PC100

PU7

1 2 3 4 5 6 7 8

MB39A132

0.1u_50V_06

VCC

-I NC 1 +INC1 ACIN ACOK

-I NE 3 ADJ 1 COMP1

VIN

2 1

0.1u_50V_06

PC101

0.1 u_ 25V_ X7R _06

PD1 FM05 40 -N

VA

32

CTL2

T RE RMA L P AD

-I N E 1

9101112131415

AO4932

PC14

CB

OUT-1

OUT C 1

OUTC 2

AC

8

1U_25V_08

LX

VB

+I N C 2

-I N C2

7

PR71 *1 0m i l_shor t

PC95

25262728293031

PGND

OUT - 2

CEL LS

AD J 2

COMP 2

CO M P3

16

VIN CTL1 GND

VREF

RT

CS ADJ3 BATT

SGND

PR 7 4

10 K_1% _0 4

VA

24 23 22 21 20 19 18

PR79 *10mil_short

17 33

PC94

1000 p_5 0V_0 4

SGND5SGND5

3

PR76 *10mil_short

CTL1

5

6

PQ1B

4

AO49 32

PR 1 5 0_0 4

PC99

0. 1u _50 V_06

4.7UH 5.5A 6.8*7.3*3.5

1 2

PR2 10_06

PC9 1000p_50V_04

SGND5

PR16 *0_04

PC102 0 .1 u_1 6V_04

SGND5

VA

PL2

SGND5

PR72 *1 5m il_s hor t

PC89 4.7U_25V_08

CELL ?

PR80

39. 2K_ 1% _0 4

SGND5

SMC_BAT23 SMD_BAT23

BAT_DET23

PC88 4.7U_25V_08

PC103

0. 1u _16 V_04

M710L co nnector

BAT

PR6 10_04 PR5 10_04 PR7 100_0 4

PC4 30p_ 50V_ 04

PD9

UDZ16B

PQ4 DTA114EUA

G

AC

SYS5V

B DS

DS

2N7 002 W

PR 2 0 100 K_04

2N7 002 W

PC17 0 .1 u_5 0V_06

CE

PQ3

PC12 *0.1u_16V_04

PQ7

PC 3

PC2

30p _5 0V_0 4

3 0p_ 50 V_04

PQ22

4

P2003EVG

5731 62

8

PC 8 4.7U_25V_0 8

PC 7 4.7U_25V_0 8

PC90 *4.7U_25V_08

PR17

49.9 K_1% _0 4

PR18 1K_1%_04

PR11 22K_1%_ 04

SGND5

PR13 20m_ 20

BAT

PC18

+

*1 5U _ 25V_ 6X4 .5

VA

CHG_EN23

SYS5V

PC 6 4. 7U _ 25V _ 08

BTD-05TI 1G

1 2 3 4

5

PMBAT1

Ch ar ge Curren t 3.0A Ch ar ge Voltage 8.4V Total Pow e r 40W

PR21 30K_ 1% _0 4

PR24

6. 04 K_1% _0 4

VDD3

PR48 10K_04

C

PQ25

B

D TC1 14EU A

E

SYS5V

DS

G

12

PJ1

OPEN- 1m m

PR 2 2 100K_04

PQ6

2N7 002 W

CTL1

PC20 0 .1 u_1 6V_04

AC_IN# 23

BAT_VOLT 23

B.Schematic Diagrams

Sheet 24 of 31

AC-In, Charger

TO TA L_ C UR

CH G_CUR23

0.5V/1A

PR69 *0_04

PR73 *0_04

PR12 *10mil_short

SGND5

VA25

VI N11 ,2 5,2 6, 27, 28 ,29 VDD32, 13 ,17 ,1 8, 1 9, 23, 25 ,26 SYS5V26, 28

3.3 V2,1 1,1 4, 15, 16 ,17 ,1 8,2 0, 26, 27 , 28

AC-In, Charger B - 25

Schematic Diagrams

3VS, 5VS, Power SW

Sheet 25 of 31

3VS, 5VS,

Power SW

B.Schematic Diagrams

PQ29 ME4410A

8 7 3 6 2 5

PQ35 ME4410A

8 7 3 6 2 5

PQ19

G

1 4

DS

1 4

DS

Z2509

DS

Power Pla ne

G

SUSBL#

Power Plane

G

PQ9

DS

2N7002W

G

5VSVDD5

3.3VS

SUSBL#

PC116

0.1U _16V_0 4

SUSBL# 2 7,28

PC149

0.1U _16V_0 4

DD_ON 2 3, 26

PC107 10U_10V_0 8

PC150 10U_10V_0 8

PR 87 *100K _04

PR 13 4 *100K _04

SUSBL#

FOR POWER SWITCH B OA RD

J_SW2

J_SW1

1

4

85201-0 4051_R

PR49 *10_ 06

Z2505

DS

PQ3 4

G

*2N700 2W

PR50 10_06

Z2506

DS

PQ3 3

G

2N7002W

3.3VS

1 2

M_BTN#

3 4

PC153

0.1 U_50V _06

PQ5 MTP3403N3

G

SYS15V

VA

DS

Z250 7

A03409

PR10 20K_1%_04

Z2510

PR112 100K_04

PR 77 1M_04

PC 98 1000P_50V _04

PR 57 1M_04

PC 78 4700P_50V _04

PD2 SCS140P

A C

PD3 SCS140P

A C

PC129

0.1 U_50V _06

EN_5VS

VDD3

EN_3. 3VS

2N7002W

VIN1

PQ8 2N7002 W

PQ23

SUSB#15 ,23 SUS BL 28

PWR_SW#23

VI N

SYS3V

12

PJ2

20mil

PJ 3

1 2

20mil

VDD3 VIN

PR68 100K_04

PQ3 0

DS

2N7002W

G

PC48

0.1U_ 50V_06

PR41 10 K_04

M_BTN#

PC52 *0.1 u_16V_0 4

B

Z2512

CE

Z2511

PQ1 4 DTA114EUA

PR19 1 00K_04

PR109 1 00K_04

B - 26 3VS, 5VS, Power SW

SYS15V11, 2 6

1.5VS3,5, 6,7, 14 ,16, 18, 28 VD D526,29 VD D32,13 , 17,18, 19 ,23, 24,26 VA24 VI N11, 24,26 , 27,28, 29

1.05VS2, 3, 4,6, 7,12 , 13,16, 28

3.3VS5,6, 7,9, 1 0,11, 12, 13, 14,15, 16 ,18, 19,20, 22,23, 29 5VS10,13 ,16,19, 22 VI N 126

VDD3, VDD5, 3V, 5V

INTVCC2

PR88 422K_06

SGND 4

PR103 10K_04

SGND 4

INTVCC2

PR104

12.1K_1%_04

PC39

PR39

10K_04

PC42

0.01U_50V_04

PR92

1.2K_1%_04

PR96

0.22U_6.3V_06

SGND 4

PC35

1000P_50V_04

PC155 33P_50V_04

PC27

1.2K_1%_04 *0.1U_25V_04

Ra

PR29 10K_1%_04

Rb

PR32

2.94K_1%_04

PC110

1000P_50V_04

PC105

2.2U_6.3V_06

SGND 4

PR91 75K_06

SGND 4

PR95

137K_1%_04

SGND 4 SGND 4

Z2608

12345

21

FB

SGND 4

PAD

20

ENL

19

RTON

18

AGND

17

EN/PSV

16

ILIM

PGOO D

PR37 *113K_04

PR34

*10mil_short

131415

12

ILIM

EN

11

PGD

10

VOUT

9

Z2621 Z2615

FB

N.C

PC38

8

0.01U_50V_04

PR93 2.2_06

PC106

1000P_50V_X7R_04

Z2610

Z2618

PU1

NC

FBL

VD DA

VOUT

VIN

VLDO

SC418

BST

DH

LX

PGNDDLVD DP

R PSV

1112131415

PR 10 2 1 5K _ 1%_ 04 PR36 100K_04

PR40 2 4.9K_1%_06

PU2

16

SC412A

1

DH

N.C

LX

2

BST

3

VCC

4

DL

17

PAD

GND

RTN

N.C

567

6 7 8 9 10

Z2613

Z2614 Z2612

Z2611

Z2601 Z2602 Z2603

LGATE1

FM0540-N

PR85

2.2_06

PC114

1U_25V_X7R _08

PD11

PC25

0.1U_25V_06

PC41 1U_10V_06

AC

PC43 1U_16V_X5R _06

INTVCC2

PC113 1U_10V_06

PR111 15mil_short

PC44

1U _1 0V_ 06

8

3

8

3

AC

1

7

5

4

PNC2 N C_06

SGND 4

1

2

7

5

6

4

PD13

*FM0540-N

2

PQ12A

AO4932

6

PQ15A

AO4932

PQ15B AO4932

VIN1

PQ12B AO4932

PC123

0.1U_50V_06

1 2

+

PC40 *1 5U _25V _ 6* 4 .5

PL4

4.7UH 5.5A 6.8*7.3 * 3.5

PC24

470P_50V_04

PC26

*30P_50V_0 4

PC126

4.7U_25V_X5R_08

PL5

2.5uH_7*7*3.5

1 2

PNC1 N C_06

SGND 6

VIN

PC125

4.7U_25V_X5R_08

PR23 91K_1%_06

PR25 10K_1%_04

SGND 4

VIN

PC132

4.7U_25V_X5R_08

4A

+

PC22 220U_6.3V_6*5.9

5A

+

PC72 220U_6.3V_6*5.9

SYS5V

SYS3V

1 2

PC29

0.1U_16V_04

PC63

0.1U_16V_04

PJ4

5mm

1 2

PC108

0.01U_50V_04

LGATE1 Z2626

PC111

0.01U_50V_04

VDD5

VDD3

PJ9

5mm

Z2627

PD6 F M0540-N

A C

PD4 F M0540-N

PD5 F M0540-N

A C

PD7 F M0540-N

Schematic Diagrams

AC

SY S5V

SY S10V

PC21 2200P_50V_04

AC

SY S15V

PC30 2200P_50V_04

B.Schematic Diagrams

Sheet 26 of 31

VDD3, VDD5, 3V, 5V

SGND6 SGND 6

PQ36 ME4410A

VDD3SYS1 5V 5VVDD53.3V SYS15V

8 7 3 6 2 5

1

DS

4

PQ18 2N7002W

Power Plane

G

PR122 *100K_04

PR56 1M_04

PC70 1000P_50V_04

SGND 6

PR35 1M_04

Z2625Z2624

PC115 *2200P_50V_04

DD_ON

G

PR30 100K_04

SY S5V

DS

PR33 100K_04

DD_ON#

PQ11

2N7002W

PC36 *0.1U_16V_0 4

VIN1 25 SY S15V 1 1,25

3.3V 2,11,14,15,16,17,18,20,27,28 VDD3 2,13,17,18,19,23, 24,25 5V 11,16,17,27,28,29 VDD5 25,29

DD_ON# 17,27

12

PJ6

20mil

SY S5V 2 4,28 VI N 11, 24 ,25, 27 ,2 8, 29

PQ28

ME4410A

8 7 3 6 2 5

1

Power Plane

4

PQ13

DS

2N7002W

G

3A3A 3A

PR84 *100K_04

DD_ON#DD_ON#

DD_ON23,25

3A

VDD3, VDD5, 3V, 5V B - 27

Schematic Diagrams

Power 1.8V/0.9V

Sheet 27 of 31

Power 1.8V/0.9V

B.Schematic Diagrams

VTT_ME M

VSSA

VDDQ

PC2 8

100P_50V_04

PR1 00 10_06

Z2708

PC1 09 1U_10V_06

PC1 38 1 0U _ 6. 3 V_0 6

PJ15

OPEN _ 2A

12

Ra

PR27

1.8K_1%_04

Rb

PR31 10K_1%_04

PR1 06

*20K_1%_06

DD_ON#17, 26

SUSBL #25,28

*10U_6.3V_06

5V

PR 98 10 _0 6

PC112 1U_10V_06

PR1 01

10_04

PC119

*0 .06 8U _ 50 V_ 06

3A

PC135

PC1 30

1 0U _ 6. 3V _0 6

PR8 9 47 K _ 04

DD_ON#

PR90

47 K_ 04

PC1 20 *0.1U_16V_04

PR1 05 *15mil_short

PC128 10U_6.3V_06

G

VDDQ

DS

PC34 1U_10V_06

PQ27

2N7002W

PQ26

2N7002W

PR97

1. 5M _ 04

PC31

10 0 0p _ 50 V _ 04

PC127 1 0U _ 6. 3V _0 6

PC32

0. 1U _ 16 V_ 04

VTTEN

PC121

0. 1U _ 16 V_ 04

PC124 1U _1 0 V_ 06

1.8VEN

PR9 9 10_06

Z2701

Z2702

Z2703 Z2704

Z2705

Z2706 Z2707

PC33

1U_10V_06

Z2709

PR8 6

*0_04

5V

PU3

3

VDDQ S

2

TO N

6

FB

8

REF

9

COM P

10

VTTS

5

VCCA

4

VSSA

14

VTT

15

VTT

12

VDDP2

13

VDDP2

1

EN/PSV

11

VTTEN

SC4 86

VDD P1

PGND 2 PGND 1 PGND 1 PGND 2

7

PGD

PR26

Z2712

24

BST

DH

ILIM

LX

DL

*1 5mi l _s ho r t

23

PR38

Z2714

21

15K_1%_04

Z2715

22

Z2716

19

20

5V

PC46

1U_10V_06

25 18 16 17

AC

PD1 0 FM0540-N

Z2717

PC118

0.1U_25V_X7R_06

Z2718Z2713

3.3VVIN

PR125 100K_04

1.8V_PWRGD

1

2

PQ10A

AO4932

8

7

5

6

3

PQ10B

4

AO4932

1. 8 V _PW R G D 1 5

PC117

0.1U_50V_06

PR2 8 *10_06

PC3 7 *100 0p_50V_04

PC122

4.7U_25V_X5R_08

PL3

1 2

2.5uH_6.5*6.9*3

VIN

+

PC23 5 60 U _2 . 5 V_ 6* 6

PR94 *15mil_short

VDDQ

PC1 5

0.1U_16V_04

VSSA

6A

PC1 6

0.01U_50V_04

PJ5

1 2

8mm

1. 8 V

B - 28 Power 1.8V/0.9V

SYS 15V11,25,26 VIN11,24,25,26,28,29 5V11,16,17,26,28,29

3. 3V2,11,14,15,16,17,18,20,26,28

1. 8V5, 7, 9 ,2 8 VTT_MEM9

Power 1.5VS/1.05VS, 2.5VS

PR117 56 0K_ 04

5V

SUSBL#25,2 7

VCCP_PW RGD15

PWRGD_1.5VS

2N 70 02 W

SUSBL#25,2 7

2N 70 02 W

SUSBL#25,2 7

3. 3V

PQ31

PQ37

G

PR115 10K_04

PR110 0_ 04

PC134

0. 01 u_ 50 V_0 4

PR123 *1K_04

3. 3V

5V

PR126 20 0K_ 04

DS

G

5V

PR135 20 0K_ 04

DS

G

DS

PQ32

2N 70 02 W

PWRGD_2.5VS

PC136

0. 1U _1 6V _ 04

Z2801 Z2802 Z2806

PR107

3. 6K_ 1% _ 04

PC131

PR108

20 p_ 50 V_0 4

10 K_1 % _0 4

PWRGD_1.5VS VS1.5

PC60

0. 1u _1 6V_ 04

PC61

0. 1U _1 0V _ X7R_ 04

PWRGD_2.5VS

PC85

0. 1u _1 6V_ 04

PC152

0. 1U _1 0V _ X7R_ 04

12 11 10

9

Z2807

PC69 10 U _1 0V _ 08

Z2810

PC87 10 U _1 0V _ 08

PR42 10K_1%_04

Z2803

131415

N.C

EN

ILIM PGD VOUT FB

N.C

8

1.8V

PC57 10U_10V_08

3.3V

PC86 10U_10V_08

N.C

RTN

5 9 7

8 1

5 9 7

8 1

PU8 SC 41 2A

16

DH

LX

BST

VCC

DL

PAD

GND

567

PU5

VIN VIN POK

EN GN D

APE8953

PU6

VIN VIN POK

EN GN D

APE8953

Z2804

1

Z2805

2 3 4 17

PC47 1U_10V_06

6

VCNTL

4

VOUT

3

VOUT

2

VFB

Rb

6

VCNTL

4

VOUT

3

VOUT

2

VFB

Rb

5V

AC

PD8 FM0540 -N

PC137

0.1u_50V_06

Z3305

5V

PC14 3 1U_10V_06

Ra

PR132 1 K_1%_04

Z2808

PC 14 8 15n _1 0V _ X7 R_ 0 4

PR133

1.2K_1%_04

5V

PC15 1 1U_10V_06

VS2.5

Ra

PR65 1 K_1%_04

Z2811

PC84 33n_16V_X7R_04

PR66

470_1%_06

1

2

PQ16A

AO4932

8

7

5

6

PQ16B

3

AO4932

4

Vout = 0.8V ( 1 + Ra / Rb )

<NAME>

PL7 1U H_ 6. 5*6 .9 *3

1 2

PC75 10U_ 10 V_0 8

PC82 10U_ 10 V_0 8

PC50

+

*15U_25V_6X4.5

PC76 10 U_ 10 V_08

PC83 10 U_ 10 V_08

+

PC80 560U _2 .5 V _6 * 6

PC74

0. 1u _1 6V_ 04

PC81

0. 1u _1 6V_ 04

Schematic Diagrams

SY S5V

7A

PC77

0. 1u _1 6V_ 04

1. 5VS

3A

PJ12

1 2

OPEN -3 m m

PJ14

1 2

OPEN -3 m m

SYS5V24 ,2 6

1. 8V5, 7, 9, 27

3. 3V S5,6,7,9,10,11,12,13,14,15,16,18,19,20,22,23,25,29

2. 5V S7 VIN11,24,25,26,27,29 VDD525 , 2 6, 29 5V11,16,17,26,27,29

3. 3V2, 11 ,1 4, 15, 1 6, 17 ,1 8, 20 ,2 6, 27

1. 5V S3, 5, 6, 7, 14 ,1 6, 18

1. 05 V S2, 3, 4, 6, 7, 12 ,1 3, 16

2. 5VS

PJ13

1 2

OPEN-5mm

1.05VS

PR14 100K_04

SUSBL#

DS

PQ2

2N7002W

PC19 *0.1U_16V_04

SUSBL25

G

B.Schematic Diagrams

Sheet 28 of 31

Power 1.5VS/

1.05VS, 2.5VS

Power 1.5VS/1.05VS, 2.5VS B - 29

Schematic Diagrams

VCORE

Sheet 29 of 31

VCORE

B.Schematic Diagrams

PC141

4. 7U _2 5V _ X5R_0 8

4A

+

PC 79 5 60U _2 .5 V _6 *6

VIN

+

PC51 *15U_25V_4.5*6

PJ10

1 2

OPEN- 5mm

PC 73 0 .1 U _1 0V _ X 7R _04

VCCSENSE 3

1

PC139<VAL UE>

2

SGND3

VIN11,24,25,26,27,28 VDD525,26 5V11,16,17,26,27,28

3.3VS5 ,6 ,7 ,9,1 0,1 1, 12 , 1 3, 14, 15 , 1 6, 18, 19 ,2 0, 22 ,23 ,2 5 VCORE3

1

PR 45

2

1

PC54

<VA LU E > 2

PC53

<VALUE>

SGND3

CS+Z2 91 2

1

2

CS-

FOR EMI

1

PR120

2

VCCA

1

PC144 1U _1 0V_0 6

2

SGND3

PC5 5 <VALUE>

1 2

PR116

10 K_04

PR43 <VALUE>

TTRI P CS+

CS-

VSSSENSE

VREFVC

EN_ VCO RE

5V

IMVP6_PWRGD 5,15

SGND3

12

VSSSENSE 3

DRN

1

PR47

<VALUE>

2 1

PC64 *2200P_06

2

PM_DPRSLPVR 5,15

PR44

<VALUE>

PR119 *15mil_short

8

3

VC C A

12

PTH2 10 0K_5%_06 NTC

1

2

CS1N

PC71

100P_5 0V_ 04

PR54 17.4K_1%_04

DRN

PC68 *3 . 3 nF_1 6V _ 04

Z2917

2

1

2

7 5

6

4

1

PC56

<VALUE>

2

SGND3

PR52

<VALUE>

SGND3

PQ17A AO4932

PQ17B AO4932

PC142 0 .1U _5 0V_ 06

VCORESENSE

PR60 *0 _04

PR61 28K_1 %_04

PC133

22 nF _ 16V_ 04

PL6

1.5uH_4.7*5.2*3

1 2

DR N CS1N

*1 0m i l_s hort

Z2913

PC140

4.7U _2 5V _ X5R_0 8

PR58

PJ8

1 2

20 mi l PJ7

1 2

20 mi l

PTH1

10 0K_ 5% _0 6 N T C

V_CORE VCORE

VCCSENSE

12

PR114

100_04

PR113

100_04

1

AC

PC5 8

PD12

*15mil_short

V5

ERROUT

141312

1

2

Z2911

PC145 180P_ 50V_ 04

G

2

<VALUE>

PR124

TG DRN

BG

25262728293031

PWRGD

CLK EN#

RAMP

DPRSL

TTRIP

DAC

SS

ERROUT

PR121

VDD5

DS

EN

CS+ CSFB+

FB-

VC CA

SS DAC

PR 62 100 K_0 4

Z2 91 4

Z2910

1

PC66

<VALUE>

2

24 23 22 21 20 19 18 17

1

PC65

2

12

FM0540-N

EN_ VCO RE Z2916

*100P_50V_04

G

PJ 11

20mil

3. 3V S 1

2

1

PC62

2

VDD5

PR46

IMVP6_PWRG D

PC59

0.01U_50V_04

PR59 10K_04

DS

PQ21

2N7 00 2W

VCORESENSE

VIN

PC49

0.1U _5 0V _ 06

H_VID[6:0 ]

H_DPRS TP#2, 13

FOR EMI

PC10 0 .1U _5 0V _ 06

H_VID[6:0 ] 3

12

PR130 <VALUE>

PC45

0. 1U _5 0V_ 06

H_VI D63 H_VI D53 H_VI D43 H_VI D33 H_VI D23 H_VI D13 H_VI D03

SGND 3

2

<VALUE>

1

PR129

PC104

0. 1U _5 0V _0 6

PC11 0 .1U _5 0V _ 06

PM_PWROK11 ,1 5

VCORE_ON23

3. 3VS

<VALUE>

PC147

CLKEN#12

PR55

1 2

PR131

PR128

PR127

1

2

*100P_50V_04

SGND3

PR64 *10mil_short

3.3VS

Z2901

1

2

1 2 3 4 5 6 7

Z2909

8

PC146

1

130K_1%_04

2

PC67

1000P_50V_04

30 .1K _ 1% _ 04

PR63 *0_04

PR118 680_ 04

VID6 VID5 VID4 VID3 VID2 VID1 VID0 DPRSTP#

GN D

33

HY S CLSET

VREFVC

1

2

10 0P _ 50 V _04

7/2 3

BST

32

TG

BST

VRTT#

PU4

SC454

HYS

CLSET

VR EF

910111516

PR51

130 K _1 % _04

PR 5 3

150K_1 %_04

PC 1 5 4 *0.1 U_50V_06

Z2915

2N7002W

BG

DRN

VCCA

AGND

PQ20

B - 30 VCORE

Power Button Board

POWER SW FOR M810L

Schematic Diagrams

B.Schematic Diagrams

SMM2 M-MA RK 1

SMGN D

SMM3 M-MAR K1

SMM4 M-MAR K1

POWER BUTTON

SMSW1

12

34

PTCF -V

SMM1 M-MARK1

SM_B TN#

SMC 1 *0.1u_16V_04

SMH1

2 3 4 5 6

MTH8_0D2-3

1

SMH2

9

2

8

3

7

4 5 6

MTH8_0D2-3

SMGN DSMGND

SM_3.3 VS

SMJ_SW1

4 3 2 1

85201-04051_R

SMGN DSMGN D

9 8

1

7

SM_3.3VS

3

SMR1 220_04

POWER _LED

12

SMGN D

SMD1

RY -SP110DNB74-5/1X

Sheet 30 of 31

Power Button

Board

Power Button Board B - 31

Schematic Diagrams

Sheet 31 of 31

Power Button

Board for M815

Power Button Board for M815

POWER SW FOR M815L

POWER BUTTON

SHSW1

TJG-533-S-T/R

1 3

2 4

5

6

SH GND SHGND

SHGND

SH _BT N#

SHC 1 *0.1u_16V_04

SH_3.3VS

SHJ_SW1

4 3 2 1

85201-04051_R

SH_3.3VS

SHR1 220_04

SH_POWER_LED

AC

SHGND

SHD1 KPC-3216QBC-C

B.Schematic Diagrams

B - 32 Power Button Board for M815

SHM1 M-MARK1

SHM2

M-MAR K1

SHM3 M-MAR K1

SFM4 M-MA RK 1

SHH1

2

9

3

8

1

4

7

5 6

MTH8_0D2-3

SH GND SH GND

SHH2

2 3

1

4 5 6

MTH8_0D2-3

9 8 7

Clevo M810L, M811L service manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Trademarks

About this Manual

IMPORTANT SAFETY INSTRUCTIONS

This Computer’s Optical Device is a Laser Class 1 Product

Instructions for Care and Operation

Power Safety

Battery Precautions

Battery Guidelines

Related Documents

Chapter 1: Introduction

Overview

System Specifications

External Locator - Top View with LCD Panel Open

External Locator - Front & Right side Views

External Locator - Left Side & Rear View

External Locator - Bottom View

Mainboard Overview - Top (Key Parts)

Mainboard Overview - Bottom (Key Parts)

Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

Chapter 2: Disassembly

Overview

Maintenance Tools

Connections

Maintenance Precautions

Cleaning

Disassembly Steps

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the Keyboard:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 6

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

To remove the System Memory:

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 9

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 5

2. Remove the wireless LAN page 2 - 10

1. Remove the battery page 2 - 5

2. Remove the 3G page 2 - 11

1. Remove the battery page 2 - 5

2. Remove the Bluetooth page 2 - 12

Removing the Battery

Removing the Keyboard

Removing the Hard Disk Drive

Hard Disk Upgrade Process

Removing the System Memory (RAM)

Memory Upgrade Process

Removing the Wireless LAN Module

Removing the 3G Module

Removing the Bluetooth Module

Appendix A: Part Lists

Part List Illustration Location

Bottom

Appendix B: Schematic Diagrams

System Block Diagram

Diamondville SC 1/2

Diamondville SC 2/2

945GSE 1/5, Host

945GSE 2/5

945GSE 3/5, DDR

945GSE 4/5

945GSE 5/5

DDRII SO-DIMM - 0

Panel, Inverter

Clock Generator

ICH7-M 1/4, SATA

ICH7-M 2/4, PCI, USB, SPI

ICH7-M 3/4

ICH7-M 4/4

USB Port, CCD, BT, LID SW

Mini Card, WLAN, 3G Card
