Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information
contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or
any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear
in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse)
of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators
of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended
as an endorsement of that product or its manufacturer.
©October 2007
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home
or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Intel, Celeron, and Intel Core are trademarks/registered trademarks of Intel Corporation.
I
Preface
FCC Statement
(Federal Communications Commission)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Re orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the service representative or an experienced radio/TV technician for help.
Warning
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the
equipment.
II
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury
to persons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There
may be a remote risk of electrical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC
Output of 19V, 3.42A (65 Watts)/18.5V, 3.5A (65 Watts) minimum AC/DC Adapter for Model A and B computers, OR 19V, 4.74A (90 Watts) minimum AC/DC Adapter for Model C computers.
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product
III
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-
ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or moisture may affect the system.
Don’t use or store the computer in a humid environment.
Do not place the computer on
any surface that will block the
Vents/Fan Intakes.
IV
Preface
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other
strong magnetic fields. These can hinder proper performance and damage your data.
4. Follow the proper workin g procedu res for t he computer. Shut the computer down proper ly and don ’t for ge t
to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
5. Take care when using peripheral devices.
Use only approved brands of
peripherals.
Do not disassemble the computer by yourself.
Unplug the power cord befor e
attaching peripheral devices.
Perform routine maintenance
on your computer.
V
Preface
Power Safety
The computer has specific power requirements:
Power Safety
Warning
Before you undertake
any upgrade procedures, make sure that
you have turned off the
power, and disconnected all peripherals
and cables (including
telephone lines). It is
advisable to also remove your battery in
order to prevent accidentally turning the
machine on.
VI
• Only use a power adapter approved for use with this computer.
• Your AC/DC adapter may be designed for intern ational travel but it still re quires a steady,
uninterrupted power supply. If you are unsure of your local power specifications, consult
your service representative or local power company.
• The power adapter may have either a 2-pr ong or a 3-prong ground ed plug. The third prong
is an important safety feature; do not defeat its purpose. If you do not have access to a
compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be su re to disconnect it by the plug head, not by
its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load
of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e. AC/DC adapter or car adapter).
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even
if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly
result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service repre sent ative or qualified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life,
under various state and local laws, it may be illegal to dispose of this battery in to the municipal waste stream. Check with
your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalen t type recommended by the
manufacturer. Discard used battery according to the manufacturer’s instructions.
VII
Preface
Cleaning
Do not apply cleaner directly to the computer; use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the
computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the
power supply. Then refer servicing to qualified service personnel under any of the following conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
Removal Warning
When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and
screw(s) before turning the computer on.
VIII
Preface
Travel Considerations
Packing
As you get ready for your trip, run through this list to make sure the system is ready to go:
1. Check that the battery pack and any spares are fully charged.
2. Power off the computer and peripherals.
3. Close the display panel and make sure it’s latched.
4. Disconnect the AC/DC adapter and cables. Stow them in the carrying bag.
5. The AC/DC adapter uses volt ages from 100 to 240 volt s so you won’t need a second volt age adapter. However ,
check with your travel agent to see if you need any socket adapters.
6. Put the notebook in its carrying bag and secure it with the bag’s straps.
7. If you’re taking any perip herals (e.g. a printer, mouse or digital camera), pack them and those devices’ adapters
and/or cables.
8. Anticipate customs - Some jurisdictions may have import restrictions or requ ire proof of ownershi p for both hard-
ware and software. Make sure your documents are prepared.
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a
notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s)/outlet(s) to be blocked. To prev ent your
computer from overheating make sure nothing blocks the vent(s)/fan intake(s)/outlet(s) while the computer is in use.
IX
Preface
On the Road
In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting,
keep these points in mind:
Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very
common. Don’t check it with normal luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.
Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and
disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note:
Some airports also scan luggage with these devices.
Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight.
These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make
sure it’s secure. Contents may shift and/or fall out when the compartment is opened.
Get power where you can - If an electrical outlet is available, use the AC/DC adapter and keep your battery(ies)
charged.
Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer.
Wait a few minutes before turning it on so that any moisture can evaporate.
X
Preface
Developing Good Work Habits
Developing good work habits is important if you need to work in front of the computer for long periods of time.
Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or
other joints. The following are some tips to reduce the strain:
• Adjust the height of the chair and/or desk so that the keyboard is at or slightly belo w the
level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.
• Your knees should be slightly higher than your hips. Place your feet flat on the floor or on
a footrest if necessary.
• Use a chair with a back and adjust it to support your lower back comfortably.
• Sit straight so that your knees, hips and elbows form approximately 90-degree angles
when you are working.
• Take periodic breaks if you are using the computer for long periods of time.
Remember to:
• Alter your posture frequently.
• Stretch and exercise your body several times a day.
• Take periodic breaks when you work at the computer for long periods of time. Frequent
and short breaks are better than fewer and longer breaks.
XI
Preface
Lighting
Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and
shoulders.
• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.
• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.
• Position the display directly in front of you at a comfortable viewing distance.
• Adjust the display-viewing angle to find the best position.
LCD Screen Care
To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for
an extended period of time) take the following precautions:

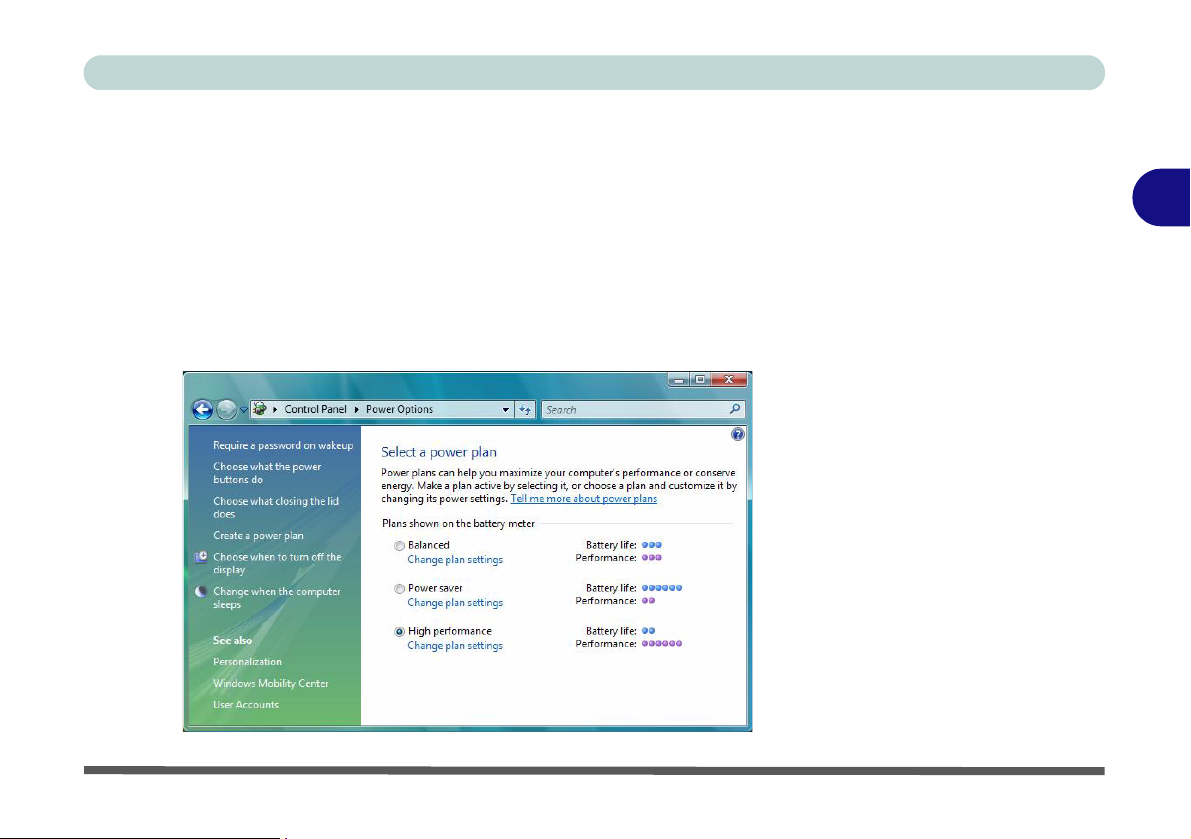

• Set the Windows Power Plans to turn the screen off after a few minutes of screen idl e time.
• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).
• Rotate desktop background images every few days.
• Turn the monitor off when the system is not in use.
XII
Contents
Notice ................................................................................. I
FCC Statement .............................................................II
Instructions for Care and Operation ..........................IV
Power Safety ..............................................................VI
Battery Precautions ...................................................VII
Cleaning .................................................................. VIII
Servicing ................................................................. VIII
Travel Considerations ................................................IX
Quick Start Guide
Overview ........................................................................1-1
Model Differences .......................................................1-2
Advanced Users ...........................................................1-3
Beginners and Not-So-Advanced Users ......................1-3
Warning Boxes ............................................................1-3
Not Included ................................................................1-4
System Software ..........................................................1-5
Operating Systems Supported ....................................1-5
System Startup ...............................................................1-6
System Map: LCD Panel Open (Models A & B) ..........1-7
System Map: LCD Panel Open (Model C) ....................1-8
LED Indicators ................................................. .... ..........1-9
Keyboard ......................................................................1-10
Preface
Function Keys ............................................................1-10
Hot Key Buttons ..........................................................1-12
PC Camera Hot Key Buttons .....................................1-14
Recording Audio ........................................................1-15
Application Quick Buttons ........................................1-16
System Map: Front & Rear Views ...............................1-17
System Map: Left View ...............................................1-18
System Map: Right View .............................................1-19
System Map: Bottom View ..........................................1-20
Windows Vista Start Menu & Control Panel ...............1-21
Video Features .............................................................1-22
Power Options ............................................ .... .... ..........1-24
Features & Components
Overview ........................................................................2-1
Hard Disk Drive .............................................................2-2
Optical (CD/DVD) Device ............................................2-3
Loading Discs ..............................................................2-3
Handling CDs or DVDs ...............................................2-4
DVD Regional Codes ..................................................2-5
7-in-1 Card Reader .........................................................2-6
ExpressCard Slot ............................................................2-7
Inserting and Removing ExpressCards ........................2-7
XIII
Preface
TouchPad and Buttons/Mouse .......................................2-8
Audio Features ...............................................................2-9
Audio Recording Setup .............................................2-10
Adding a Printer ...........................................................2-11
USB Printer .......................................................... ....2-11
Parallel Printer ..........................................................2-11
Power Management
Overview ........................................................................3-1
The Power Sources ........................................................3-2
AC/DC Adapter ................................................. .... ......3-2
Battery .........................................................................3-2
Turning on the Computer ...............................................3-3
Power Plans ...................................................................3-4
Power-Saving States ......................................................3-6
Sleep ...........................................................................3-6
Hibernate ....................................................................3-7
Shut Down ..................................................................3-7
Configuring the Power Buttons .....................................3-8
Resuming Operation ...................................................3-9
Battery Information .....................................................3-10
Battery Charging on Model B & C Computers .........3-10
Battery Power ...........................................................3-11
Conserving Battery Power ...........................................3-12
Battery Life .............................................................. ....3-13
New Battery ..............................................................3-13
Recharging the Batter y with the AC/DC Adapter .....3-13
Proper handling of the Battery Pack .........................3-14
Battery FAQ ..............................................................3-15
Drivers & Utilities
What to Install ............................................................... .4-1
Module Driver Installation ..........................................4-1
Driver Installation ..........................................................4-2
Driver Installation Order ............................................4-3
Updating/Reinstalling Individual Drivers ...................4-4
User Account Control (Win Vista) ..............................4-4
Windows Security Message .........................................4-4
New Hardware Found ..................................................4-4
Driver Installation Procedure .......................................4-5
Video (VIA - Model A) ..............................................4-5
Video (NVIDIA - Models B & C) ..............................4-5
Audio ..........................................................................4-5
Modem ........................................................................ 4-5
LAN ............................................................................4-5
CardReader ................................................................. 4-6
TouchPad .................................................................... 4-6
Hot Key Utility ...........................................................4-6
Quick Button Utility ................................................... 4-7
Wireless LAN Module ...............................................4-8
XIV
Preface
PC Camera Module ....................................................4-8
Fingerprint Module .....................................................4-8
BIOS Utilities
Overview ........................................................................5-1
The Power-On Self Test (POST) ................................... 5-2
Failing the POST .........................................................5-3
Fatal Errors .................................................................5-3
Non-Fatal Errors .........................................................5-3
Setup Screens ......................................................... ......5-4
Main Menu .....................................................................5-5
System Time & Date (Main Menu) ...............................5-5
IDE Channel 0/2 Master (Main Menu) ..........................5-6
System/Extended Memory: (Main Menu) .....................5-6
Advanced Menu .............................................................5-7
Installed O/S: (Advanced Menu) ...................................5-7
Boot-time Diagnostic Screen: (Advanced Menu) ..........5-8
Legacy USB Support: (Advanced Menu) ......................5-8
Reset Configuration Data: (Advanced Menu) ...............5-8
Security Menu ................................................................5-9
Set Supervisor Password (Security Menu) ....................5-9
Password on boot: (Security Menu) ............................5-10
Boot Menu ...................................................................5-11
Exit Menu ....................................................................5-12
Upgrading The Computer
Overview ........................................................................6-1
When Not to Upgrade ..................................................6-2
Removing the Battery ....................................................6-3
Upgrading the Hard Disk Drive .....................................6-4
Upgrading the Optical (CD/DVD) Device ....................6-6
Upgrading the System Memory (RAM) ........................6-7
Upgrading the Processor ..............................................6-10
Modules & Options
Overview ........................................................................7-1
802.11 b/g USB WLAN Module ...................................7-2
802.11 b/g WLAN Driver Installation ........................7-2
Connecting to a Wireless Network .............................. 7-3
Windows Mobility Center ...........................................7-6
Bluetooth Module ..........................................................7-7
Bluetooth Configuration in Windows Vista ...............7-8
PC Camera Module ......................................................7-11
PC Camera Driver Installation .................................7-12
PC Camera Audio Setup ...........................................7-13
BisonCap (1.3M Cam)/VideoView (2.0M Cam) ......7-15
Fingerprint Reader Module ..........................................7-19
Fingerprint Reader Driver Installation .....................7-19
XV
Preface
Troubleshooting
Overview ........................................................................8-1
Basic Hints and Tips ......................................................8-2
Backup and General Maintenance .................................8-3
Viruses ........................................................................... 8-4
Upgrading and Adding New Hardware/Software ..........8-5
Problems and Possible Solutions ...................................8-7
Screen Resolution Error ...............................................8-13
Interface (Ports & Jacks)
Notebook Ports and Jacks .............................................A-2
VIA Video Driver Controls
VIA Video Driver Installation ...................................... B-1
Video ......................................................................... B-1
Advanced Video Controls ............................................. B-2
Video Driver Controls ............................................... B-2
Video Memory ...........................................................B-2
VIA S3Tray Plus Utility .............................................B-3
Attaching Other Displays .............................................B-4
Display Modes ..............................................................B-6
NVIDIA Video Driver Controls
NVIDIA Video Driver Installation ............................... C-1
NVIDIA Control Panel .................................................C-2
Attaching Other Displays ..............................................C-5
Display Modes ..............................................................C-7
Specifications
Processor ....................................................................... D-1
Core Logic ....................................................................D-1
Memory ......................................................................... D-2
LCD ..............................................................................D-2
Video Adapter ...............................................................D-2
Security ......................................................................... D-2
BIOS .............................................................................D-2
Storage ..........................................................................D-3
Audio ............................................................................D-3
Keyboard & Pointing Device ........................................D-3
Interface ........................................................................D-3
Card Reader ..................................................................D-3
ExpressCard Slot ...........................................................D-3
Communication .............................................................D-4
Power Management ............................................... ... ....D-4
Power ............................................................................D-4
Battery ........................................................................... D-4
Environmental Spec ......................................................D-4
Dimensions ...................................................................D-4
& Weight .......................................................................D-4
XVI
Preface
Optional ........................................................................D-5
Windows XP Information
DVD Regional Codes ...................................................E-2
Windows XP Start Menu & Control Panel ................... E-3
TouchPad and Buttons/Mouse ......................................E-4
Function Keys/Hot Keys ...............................................E-5
PC Camera Hot Key Buttons ........................................ E-6
Application Quick Buttons ........................................... E-7
Recording Audio ...........................................................E-8
Audio Features ............................................................E-10
Video Features ............................................................E-11
Advanced Video Controls ........................................... E-12
Video Driver Controls ................................................ E-12
Video Memory ............................................................E-12
VIA Video Driver Controls ........................................ E-13
VIA S3Tray Plus Utility .............................................E-13
VIA S3 Display Control Panels ..................................E-14
Display Devices (VIA) ............................................... E-15
Display Modes (VIA) ................................................. E-16
NVIDIA Video Driver Controls ................................. E-18
Display Devices and Modes (NVIDIA) ..................... E-20
Attaching Other Displays (NVIDIA) ..........................E-21
Power Management Features ......................................E-22
Advanced Configuration and Power Interface ........... E-22
The Power Sources .....................................................E-23
AC/DC Adapter ..........................................................E-23
Battery ......................................................................... E-23
Turning on the Computer ............................................E-24
Power Schemes ...........................................................E-25
System Power Options ................................................ E-27
Hibernate Mode vs. Shutdown ....................................E-27
Stand by Mode vs. Hibernate Mode ........................... E-27
Stand by ......................................................................E-28
Hibernate .....................................................................E-28
Configuring the Power Button ....................................E-29
Battery Information ..................................................... E-30
New Battery ................................................................ E-30
Battery Life .................................................................E-30
Recharging the Battery with the AC/DC Adapter ...... E-31
Proper handling of the Battery Pack ........................... E-32
Battery FAQ ................................................................ E-33
Driver Installation .......................................................E-34
Driver Installation Order .............................................E-35
Updating/Reinstalling Individual Drivers ...................E-35
Chipset ........................................................................ E-37
Video ...........................................................................E-37
Bus .............................................................................. E-37
Modem ........................................................................ E-38
Audio .......................................................................... E-38
XVII
Preface
LAN ............................................................................ E-38
TouchPad .................................................................... E-38
CardReader ................................................................. E-38
Hot Key Utility (Model A & B Computers) ............... E-38
Hot Key Utility (Model C Computers) .......................E-38
Quick Button Utility ................................................... E-39
802.11 b/g USB WLAN Module ................................ E-40
802.11 b/g WLAN Driver Installation ........................E-40
Bluetooth Module .................................................... ...E-42
Bluetooth Configuration in Windows XP ................... E-44
PC Camera Module ..................................................... E-47
PC Camera Driver Installation ....................................E-48
Fingerprint Reader ...................................................... E-54
Fingerprint Reader Driver Installation ........................E-54
User Enrollment ..........................................................E-55
XVIII
Quick Start Guide
Chapter 1: Quick Start Guide
Overview
This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the
computer and to getting your system started. The remainder of the manual covers the following:
• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,
optical device, 7-in-1 card reader, ExpressCard/34/54), TouchPad & Mouse, Function/Hot
Keys, Quick Buttons, Audio & Printer.
• Chapter 3 The computer’s power saving options.
• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the
computer’s subsystems.
• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).
• Chapter 6 Instructions for upgrading your computer.
• Chapter 7 A quick guide to the computer’s Wir eless LAN, Bluetooth, PC Camera and Fingerprint modules
(some of which may be optional depending on your purchase configuration).
• Chapter 8 A troubleshooting guide.
• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external
devices.
• Appendix B Information on the VIA Video driver controls.
• Appendix C Information on the NVIDIA Video driver controls.
• Appendix D The computer’s specification.
• Appendix E
Information on the Windows XP OS.
1
Overview 1 - 1
1
Quick Start Guide
Model Differences
This notebook series includes three different model types. The models differ as indicated in the table below.
Feature Model A Model B Model C
Video Adapter
Windows Vista Version
Supported
Zoom & Audio Record
Buttons
Power Supply Adapter 65W (DC Output 19V, 3.42A or 18.5V, 3.5A) 90W (DC Output 19V, 4.74A)
Display Supported
VIA Integrated Video System
(Internal On Chip)
Windows Vista Home Basic Edition
(64-bit)
Yes
See Table 1 - 4, on page 1 - 11
15.4" WXGA
Windows Vista (64-bit) Home Basic Edition/Home Premium Edition
Windows Vista (64-bit) Business Edition/Enterprise Edition/Ultimate Edition
NVIDIA Discrete Video System
(External On Board)
No
17" WXGA
17.1" WSXGA+
17.1" WUXGA
Table 1 - 1 - Model Differences
1 - 2 Overview
Quick Start Guide
Advanced Users
If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful
to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on
page 6 - 1 in the remainder of the User’s Manual. You may also find the notes marked with a
of interest to
you.
Beginners and Not-So-Advanced Users
If you are new to computers (or do not have an advanced knowledge of them) then
the information contained in the Quick Start Guide chapter should be enough to get
you up and running. Eventually you should try to look through all the docu mentation
(more detailed descriptions of the functions, setup and system controls are covered
in the remainder of the User’s Manual), but do not worry if you do not understand
everything the first time. Keep this manual nearby and refer to it to learn as you go.
You may find it useful to refer to the notes marked with a
as indicated in the mar-
Check the light colored
boxes with the mark
above to find detailed information about the computer’s features.
Notes
gin. For a more detailed description of any of the interface ports and jacks see “In-
terface (Ports & Jacks)” on page A - 1.
Warning Boxes
No matter what your level please pay careful attention to the warning and safety information indicated by the
symbol. Also please note the safety and handling instructions as indicated in the Preface.
1
Overview 1 - 3
1
Quick Start Guide
Not Included
Operating Systems (e.g. Windows Vista/Windows XP) and applications (e.g. word processing, spreadsheet and
database programs) have their own manuals, so please consult the appropriate manuals.
Drivers
If you are installing new system software, or are re-configuring your computer for a different system, you will need to install
the drivers listed in “Drivers & Utilities” on page 4 - 1. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order
listed in Table , on page 4 - 3. You will be unable to use most advanced cont rols until the necessary drivers and utilities
are properly installed. If your system hasn’t been properly configured (your service representative may have already done
that for you); refer to Chapter 4 for installation instructions.
Ports and Jacks
See “Notebook Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.
1 - 4 Overview
Quick Start Guide
System Software
Your computer may already come with system software pre-installed. Where this is not the case, or where you
are re-configuring your computer for a different system, you will find this manual refers to the Microsoft Win-
dows Vista operating system (see the table below). Further information on installing the drivers and utilities is
available in Chapters 4 & 7 of the expanded User’s Manual on the Device Drivers & Utilities + User’s Manual
CD-ROM.
Operating Systems Supported
Operating Systems Supported
Note
Model A Computers Model B & C Computers
1
*Windows XP Home or Professional Editions
Windows Vista (64-bit) Home Basic Edition
Windows Vista (64-bit) Home Premium Edition
Windows Vista (64-bit)
Business/Enterprise/Ultimate Editions
Table 1 - 2 - Operating Systems Supported
In order to run Windows
Vista without limitations or
decreased performance,
your computer requires a
minimum 1GB of system
memory (RAM).
*For information on the Windows XP OS (see the Device Drivers & Utilities + User’s Manual CD-ROM).
Overview 1 - 5
1
Quick Start Guide
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports.
4. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an
outlet, and connect the AC power cord to the AC/DC adapter.
5. Raise the lid/LCD to a comfortable viewing angle, and press the power button to turn the computer “on”.
6. Adjust the LCD panel to a comfortable viewing angle.
7. The LED indicators show the power and battery status of the computer.
Shutdown
Note that you should always shut your computer down by choosing
the Shut Down command from the Lock Button Menu in Win-
dows Vista. This will help prevent hard disk or system problems.
Figure 1 - 1 - AC/DC Adapter In
1 - 6 System Startup
System Map: LCD Panel Open (Models A & B)
1. Optional Built-In PC Camera
2. LCD
3. Speakers
4. Power Button
5. Hot Key Buttons
6. Hot Key Buttons (Record
7. Keyboard
8. TouchPad and Buttons
9. Built-In Microphone
10. LED Indicators
11. Fingerprint Reader
4
6
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission devices aboard aircraft is usually prohibited. Make sure
the module(s) are OFF if
you are using the computer
aboard aircraft.
Use the key combinations to
toggle power to the WLAN/
Bluetooth modules, and
check the LED indicator
icon to see if the modules
are powered on or not (see
Table 1 - 4, on page 1 - 11/
Table 1 - 3, on page 1 - 9).
1
2
3
5
7
3
Quick Start Guide
Audio & PC Camera Zoom)
(Optional)
10
1
8
9
10
Figure 1 - 2 - Top View with LCD Panel Open Models A & B
System Map: LCD Panel Open (Models A & B) 1 - 7
11
1
Quick Start Guide
System Map: LCD Panel Open (Model C)
1. Optional Built-In PC Camera
2. LCD
3. Speakers
4. Power Button
5. Hot Key Buttons
6. Keyboard
7. TouchPad and Buttons
8. Built-In Microphone
9. LED Indicators
10. Fingerprint Reader
(Optional)
5
4
9
3 3
4
5
1
2
6
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission devices aboard aircraft is usually prohibited. Make sure
the module(s) are OFF if
you are using the computer
aboard aircraft.
Use the key combinations to
toggle power to the WLAN/
Bluetooth modules, and
check the LED indicator
icon to see if the modules
are powered on or not (see
Table 1 - 4, on page 1 - 11/
Table 1 - 3, on page 1 - 9).
7
10
Figure 1 - 3 - LCD Panel Open Model C
1 - 8 System Map: LCD Panel Open (Model C)
8
9
LED Indicators
The LED indicators display helpful information about the current status of the computer.
Icon Color Description
Green Number Lock Activated
Green Caps Lock Activated
Green Scroll Lock Activated
Green The Computer is On
Blinking Green The Computer is in Sleep Mode
Orange The AC/DC Adapter is Plugged In & the Computer is Powered Off
Orange The AC/DC Adapter is Plugged In & the Battery is Charging
Blinking Orange The Battery has Reached Critically Low Power Status
Green The Battery is Fully Charged
Green Hard Disk Activity
Quick Start Guide
1
Green The WLAN/Bluetooth Module(s) is/are Powered On
Table 1 - 3 - LED Indicators
LED Indicators 1 - 9
1
Quick Start Guide
Keyboard
The keyboard has a numeric keypad for easy numeric
data input, and features function keys to allow you to
change operational features instantly. Note that Model
C computers have a numeric keypad to the right of the
main keyboard.
Function Keys
NumLk &
Numeric
Keypad
Fn Key
Models A & B
Function Keys
Fn Key
Model C
Figure 1 - 4 - Keyboard
ScrLk Keys
NumLk/
ScrLk Key
Numeric
Keypad
Function Keys
The function keys (F1 - F12 etc.) will act as hot keys
when pressed while the Fn key is held down (see
Table 1 - 4, on page 1 - 11). In addition to the basic
function key combinations; visual indicators are
available when the hot key driver is installed (see “Hot
Key Utility” on page 4 - 6). After installing the driver
an icon will appear in the taskbar.
Other Keyboards
If your keyboard is damaged or you just want to make a
change, you can use any standard USB keyboard. The system will detect and enable it automatica lly. However special
functions/hot keys unique to the system’s regular keyboard
may not work.
1 - 10 Keyboard
Quick Start Guide
1
Keys/
Button
Fn + ~ Play/Pause (in Audio/Video Programs) Fn + F10
Fn + F1
Fn + F2
Fn + F3 Mute Toggle Fn + NumLk Number Lock Toggle (Models A & B)
Fn + F4 Sleep Toggle Fn + ScrLk Scroll Lock Toggle
Fn + F5/F6
Fn + F7 Display Toggle
Fn + F8/F9
TouchPad
Toggle
(Press a key to or use TouchPad to turn on)
Volume
Decrease/
Increase
Brightness
Decrease/
Increase
Function
Turn LCD Backlight Off
Keys/
Button
PC Camera
Power Toggle
Fn + F11
Fn + F12
NumLk Number Lock Toggle (Model C)
WLAN Module
Power Toggle
Bluetooth
Module Power
Toggle
Audio Record
Start/Stop
Take Still Picture/ Launch Application (if Quick Button
driver is installed - see page 1 - 16)
Function
Activate Camera Program/
Table 1 - 4 - Function Keys/Hot Key Buttons & Visual Indicators
Keyboard 1 - 11
1
Quick Start Guide
Hot Key Buttons
These buttons give instant access to the functions indicated in the table overleaf. The Application and zoom
hot key functions depend on whether or not a PC Camera module is installed. Note that Model C does not
have Audio Record and Zoom (or Application Quick Buttons 2 & 3) hot key buttons.
In addition to the basic function key combinations visual indicators are available when the hot key driver is installed (see “Hot Key Utility” on page 4 - 6). After installing the driver an icon will appear in the taskbar.
The hot key buttons give quick access to the default internet browser and e-mail program . The PC Camera
buttons can be used to run the camera application, to take still pictures and to zoom the camera in/out
(Model C computers do not have zoom keys) if a PC Camera module is installed. If you have not included a PC
Camera module in your purchase option, you can install the Quick Button driver to enable you to use the hot
key buttons to launch applications of your choice (see “Application Quick Buttons” on page 1 - 16 for details).
1 - 12 Hot Key Buttons
Hot Key Button Function
PC Camera Installed Activate the Camera program/Take Still Picture (See Page 7 - 19)
PC Camera Not Installed Activate Application Quick Button 1 (See Page 1 - 16)
Activate the Default Internet Program
Activate the Default E-Mail Browser
Quick Start Guide
1
Models A & B
Only
Models A & B
Only
Models A & B
Only
Audio Record Start/Stop (See Page 1 - 14)
PC Camera Installed Camera Zoom-In (See Page 1 - 14)
PC Camera Not Installed Activate Application Quick Button 2 (See Page 1 - 16)
PC Camera Installed Camera Zoom-Out (See Page 1 - 14)
PC Camera Not Installed Activate Application Quick Button 3 (See Page 1 - 16)
Table 1 - 5 - Hot Key Buttons
Hot Key Buttons 1 - 13
1
Quick Start Guide
PC Camera Hot Key Buttons
You can use the PC Camera hot key buttons to run the BisonCap or VideoView program, to take still
pictures and to zoom the camera in and out (Models A & B only).
1. Make sure the PC Camera is on (use the Fn + F10 key combination to power on the camera).
2. Press the application hot key button once.
3. The BisonCap/VideoView application will run.
4. Use the zoom hot key buttons (Models A & B only) to obtain the picture required.
5. Press the application hot key button for a second time (you will hear a camera motor sound to indicate the
picture is being taken).
6. The picture (in JPEG format) will be placed in the Snapshot folder on the desktop.

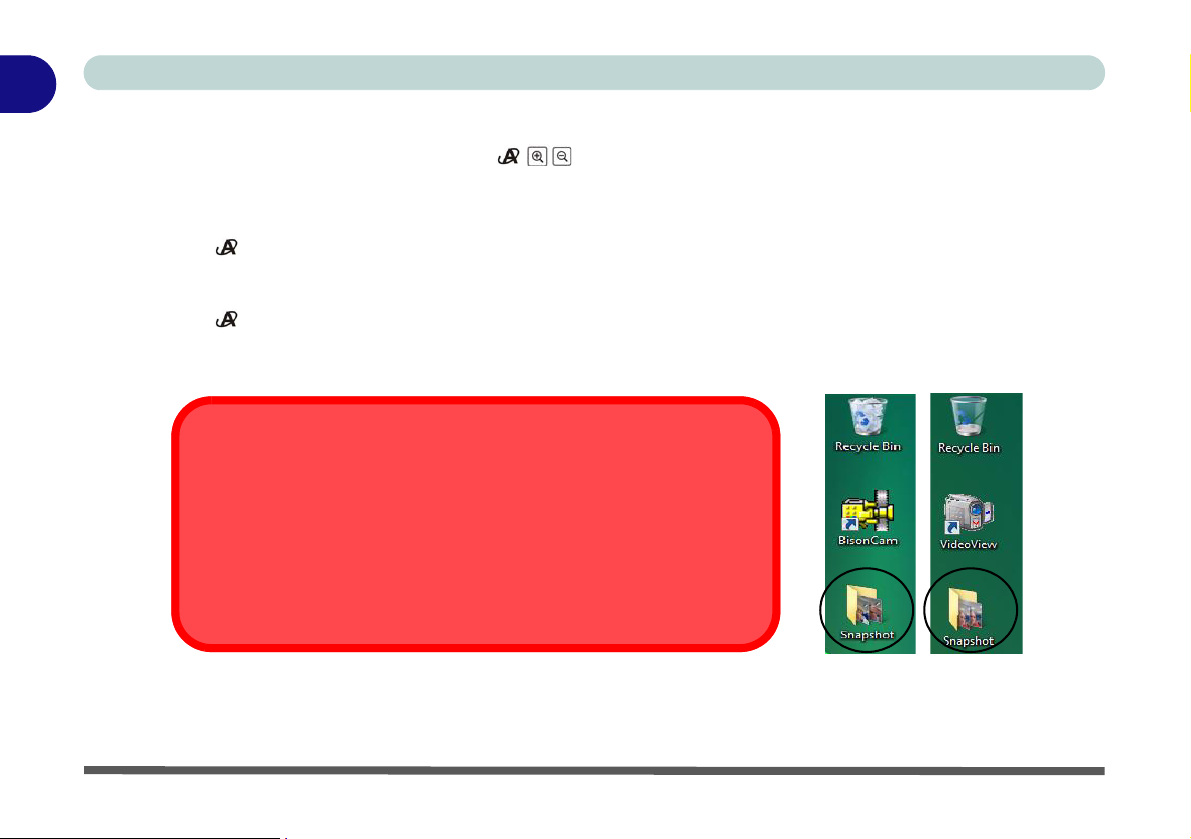

Snapshot Folder
The Snapshot folder’s default location is on the desktop. Do not move
this folder or an error may appear when you try to take a still picture using the application hot key button.
If you accidentally delete or move the folder, you can create a new
Snapshot folder on the desktop in order to capture the files.
1 - 14 Hot Key Buttons
Figure 1 - 5 - Snapshot Folder
Recording Audio
(Models A & B Only)
The audio record hot key button allows you to record audio from either the builtin microphone, or from a microphone connected to the microphone-in jack. To
record on the computer, setup the audio recording options in Windows as follows (al-
so see Figure 2 - 8 on page 2 - 10).
1. Click Start, and click Control Panel (or point to Settings and click Control Panel).
2. Click Sound (Hardware and Sound).
3. Click Recording (tab).
4. Right-click Microphone (VIA High Definition Audio) and make sure the item is not
disabled (if you wish to record from the internal microphone make sure that the
Front Mic is not disabled).
5. Double-click Microphone/Front Mic (or select Properties from the right-click
menu).
6. Click Levels (tab), and adjust the Microphone/Front Mic slider to the level
required.
7. Click OK and close the control panels.
8. Press the audio record button to begin the recording process (the record icon
will flash in the top left of the screen).
9. Press the audio record button again to stop the recording process (the record
icon will disappear from the top left of the screen).
10. The recorded audio file (in .wav format) will appear in the wav folder in the Users
folder (
11. Double-click the file to playback the recorded audio.
C:\Users\wav
).
Quick Start Guide
Model C Computers
Note that Model C computers do not have audio record or camera
zoom hot key buttons.
1
Hot Key Buttons 1 - 15
1
Quick Start Guide
Application Quick Buttons
Note that the quick button driver is designed to allow
use of the Hot Key buttons
quick buttons, if you have not included a PC Camera
module in your purchase option (only install the
quick button utility if the PC Camera is not installed). You will need to install the quick button
utility to enable the functions.
The application quick buttons give instant access to
user-defined applications, with one quick button press.
To configure a program to open when the application
quick buttons (see
Table 1 - 5, on page 1 - 13)
are pressed, follow the instructions below.
cation quick buttons will function as long as the program is running (the icon will appear in the taskbar).
If the program is not running you will need to restart
the computer.
1. Press a button or right-click the icon in
the taskbar.
2. Select Setup from the menu, scroll to AP1/2/3 (or
only Application 1 for Model C computers) and
select Custom.
as application
The appli-
3. An Open dialog box will appear on the screen.
4. Browse to the directory where the desired
application.exe program exists.
5. Double-Click on the program file or choose Open.
Models A & B
Model C
Application.exe
You will need to locate the actual application executable (.exe) file, not just the shortcut. To find the appli-
cation right-click its shortcut on the desktop and click
Properties. Click the shortcut (tab) and see where the
executable file is located by clicking the Open File Location (button).
Figure 1 - 6 - Application Quick Button Configuration
Screens
1 - 16 Hot Key Buttons
System Map: Front & Rear Views
Quick Start Guide
1
Models A & B
1
Models A & B
2
3
5 5
2
3
Model C
Model C
Figure 1 - 7 - Front & Rear Views
4
1
4
1. LED Indicators
2. 1 * USB Port
3. DC-In Jack
4. Battery
5. LCD Latches
(Model C Only)
1
1
System Map: Front & Rear Views 1 - 17
1
Quick Start Guide
System Map: Left View
Figure 1 - 8 - Left View
1. Security Lock Slot
2. Optical Device Drive Bay (see
page 2 - 3)
3. RJ-11 Modem Jack
4. S/PDIF-Out Jack
5. Microphone-In Jack
6. Headphone-Out Jack
7. Recording Line-In Jack (see page A - 2)
1
CD Emergency Eject
If you need to manually eject a CD/DVD (e.g. due to an
unexpected power interruption) you may push the end
of a straightened paper clip into the emergency eject
hole. Do not use a sharpened pencil or similar object
that may break and become lodged in the hole.
Media Warning
Don’t try to remove a floppy disk/CD/DVD while the system is accessing it. This may cause the system to
“crash”.
Models A & B
1
2
5
4 637
Model C
2
54 637
Changing DVD Regional Codes
Go to the Control Panel and double-click Device Manager
(Hardware and Sound), then click the + next to DVD/CDROM drives. Double-click on the DVD-ROM device to bring
up the Properties dialogue box, and select the DVD Region
(tab) to bring up the control panel to allow you to adjust the
regional code (see “DVD Regional Codes” on page 2 - 5).
DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The
fifth selection is permanent. This cannot be altered even if
you change your operating system or you use the module in
another computer.
1 - 18 System Map: Left View
System Map: Right View
Quick Start Guide
1
Models A & B
1
2
43
3
5
Model C
1
2
3
3
4
5
Figure 1 - 9 - Right View
1. ExpressCard Slot
(see page 2 - 7)
2. 7-in-1 Card Reader
3. 2 * USB 2.0 Ports
4. RJ-45 LAN Jack
5. External Monitor Port
ExpressCard Slot
The ExpressCard Slot accepts either ExpressCard/34 or ExpressCard/54 formats.
7-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) / MS Pro (Memory Stick Pro)
MS Duo (requires PC adapter) / Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
System Map: Right View 1 - 19
1
Quick Start Guide
System Map: Bottom View
Figure 1 - 10 - Bottom View
1. Vent/Fan Intake/Outlet
2. Battery
3. Hard Disk Bay Cover
4. CPU/RAM Bay Cover
2
Model C
4
1
1
1
3
2
Models A & B
4
1
Battery Information
CPU
The CPU is not a user serviceable part. Opening this
compartment, or accessing
the CPU in any way, may vi-
3
1
olate your warranty.
Overheating
To prevent your computer
from overheating make sure
nothing blocks any Vent/Fan
Intake while the computer is
in use.
Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery
at least once every 30 days or after about 20 partial discharges. See “Battery Information” on page 3 - 10 for full instructions.
1 - 20 System Map: Bottom View
Quick Start Guide
Windows Vista Start Menu & Control Panel
Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are
accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk
drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu
icon , and then select Properties if you want to customize the appearance of the Start menu.
Click here to toggle Views
Figure 1 - 11 - Start Menu & Control Panel
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control
Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features
in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea-
tures, however many new controls are added (or existing ones are enhanced) when you install the drivers listed
in Table 4 - 1, on page 4 - 3. To see all controls it may be necessary to toggle to Classic View on.
1
Windows Vista Start Menu & Control Panel 1 - 21
1
Quick Start Guide
Video Features
This computer features two different (either VIA for Model A or NVIDIA for Models B & C) video options.
You will be provided with an appropriate driver on the
You can switch display devices, and configure display options, from the Display Settings control panel (in Person-
alization) in Windows Vista.
To access Display Settings in Windows Vista:
1. Click Start, and click Control Panel (or point to Settings and click Control Panel).
2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click Personalization >
Display Settings).
3. Move the slider to the preferred setting in Resolution: .
4. Click the arrow, and scroll to the preferred setting In Colors: .
5. Click Advanced Settings (button) to bring up the Advanced Settings tabs.
3
For VIA S3Display
1. Clicking through the S3 tabs (Figure 1 - 12 on page 1 - 23) allows you to make any video adjustments you require.
4
For NVIDIA GeForce
1. Click GeForce..... (tab).
2. Click Start the NVIDIA Control Panel (Figure 1 - 12 on page 1 - 23) to access the control panel.
3. The NVIDIA Control Panel can also be accessed by right-clicking the desktop, and then clicking NVIDIA Control Panel.
5
Device Drivers & Utilities + User’s Manual CD-ROM.
1
2
1 - 22 Video Features
Quick Start Guide
4
1
1
1
2
3
2
3
Figure 1 - 12 - Display Settings
5
Video Features 1 - 23
1
Quick Start Guide
Power Options
The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 21 ) allows you
to configure power management features for your computer. You can conserve power by means of power plans
and configure the options for the power button, sleep button, computer lid (when closed), display and sleep
mode from the left menu. Note that the Power saver plan may have an affect on computer performance.
Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to
create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con-
figuration options.
Pay attention to the instructions on battery care in “Battery Information” on page 3 - 10.
1 - 24 Power Options
Note: Sleep is the default power saving state in Windows Vista
Figure 1 - 13 - Power Options
Features & Components
Chapter 2: Features & Components
Overview
Read this chapter to learn more about the following main features and components
of the computer:
•Hard Disk Drive
• Optical (CD/DVD) Device
• 7-in-1 Card Reader
• ExpressCard Slot
• TouchPad and Buttons/Mouse
• Audio Features
• Adding a Printer
2
Overview 2 - 1
Features & Components
2
Before attempting to access any of the internal
components of your
computer please ensure
that the machine is not
connected to the AC
power, and that the machine is turned off. Also
ensure that all peripheral cables, including
phone lines, are disconnected from the computer.
Power Safety
Hard Disk Drive
The hard disk drive is used to store your data in the computer. The hard disk can be
taken out to accommodate other 2.5" serial (SATA) hard disk drives (see “Storage”
on page D - 3) with a height of 9.5 mm.
The hard disk is accessible from the bottom of your computer as seen below. For further details see “Upgrading the Hard Disk Drive” on page 6 - 4.
Models A & B
Model C
Figure 2 - 1
Hard Disk Location
2 - 2 Hard Disk Drive
Features & Components
Optical (CD/DVD) Device
There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the module you purchased (see “Storage” on page D - 3). The
optical device is usually labeled “Drive D:” and may be used as a boot device if
properly set in the BIOS (see “Security Menu” on page 5 - 9).
Loading Discs
To insert a CD/DVD, press the open button and carefully place a CD/DVD onto
the disc tray with label-side facing up (use just enough force for the disc to click onto
the tray’s spindle). Gently push the CD/DVD tray in until its lock “clicks” and you
are ready to start. The busy indicator will light up while data is being accessed,
or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole
3
to open the tray.
1
2
1
2 3
Sound Volume
Adjustment
How high the sound volume can be set depends
on the setting of the volume control within Win-
dows. Click the Volume
icon on the taskbar to
check the setting (see
“Audio Features” on
page 2 - 9).
Figure 2 - 2
Optical Device
2
Optical (CD/DVD) Device 2 - 3
Features & Components
2
CD Emergency Eject
If you need to manually
eject a CD (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. However please
do NOT use a sharpened pencil or similar
object that may break
and become lodged in
the hole.
Disk Eject Warning
Don’t try to remove a
CD/DVD while the system is accessing it. This
may cause the system
to “crash”.
Proper handling of your CDs/DVDs will prevent them from being damaged. Please
follow the advice below to make sure that the data stored on your CDs/DVDs can be
accessed.
Note the following:
• Hold the CD or DVD by the edges; do not touch the surface of the disc.
• Use a clean, soft, dry cloth to remove dust or fingerprints.
• Do not write on the surface with a pen.
• Do not attach paper or other materials to the surface of the disc.
• Do not store or place the CD or DVD in high-temperature areas.
• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.
• Do not bend the CD or DVD.
• Do not drop or subject the CD or DVD to shock.
Handling CDs or DVDs
2 - 4 Optical (CD/DVD) Device
Features & Components
DVD Regional Codes
To change the DVD regional codes see “Changing DVD Regional Codes” on
page 1 - 18.
.
DVD Regional Coding
Region Geographical Location
1 USA, Canada
2
3
4
5
6China
Western Europe, Japan, South
Africa, Middle East & Egypt
South-East Asia, Taiwan, South
Korea, The Philippines, Indonesia,
Hong Kong
South & Central America, Mexico,
Australia, New Zealand
N Korea, Russia, Eastern Europe,
India & Most of Africa
2
Table 2 - 1
DVD Regional Coding
Figure 2 - 3
DVD Regions
Optical (CD/DVD) Device 2 - 5
Features & Components
2
Card Reader Cover
Make sure you keep the
rubber cover provided in
the card reader when
not in use. This will help
prevent foreign objects
and/or dust getting in to
the card reader.
7-in-1 Card Reader
The card reader allows you to use some of the latest digital storage cards. Push the
card into the slot and it will appear as a removable device, and can be accessed in
the same way as your hard disk (s). Make sure you install the Card Reader driver
(see “CardReader” on page 4 - 6).
• MMC (MultiM edia Card)
• SD (Secure Digital)
• MS (Memory Stick)
• MS Pro (Memory Stick Pro)
• MS Duo (requires PC adapter*)
• Mini SD (requires PC adapter*)
• RS MMC (requires PC adapter*)
*Note: The PC adapters are usually supplied with these cards.
Figure 2 - 4
Right View
1. Card Reader
1
1
Models A & B
Model C
2 - 6 7-in-1 Card Reader
Features & Components
ExpressCard Slot
The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/
34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC
Cards).
ExpressCard/54 is used for applications which require a larger interface slot, e.g.
CompactFlash card reader. The number denotes the card width; 54mm for the Express Card/54 and 34mm for the ExpressCard/34.
Inserting and Removing ExpressCards
• Align the ExpressCard with the slot and push it in until it locks into place.
• To remove an ExpressCard, simply press the card to eject it.
ExpressCard
Slot Cover
Make sure you keep the
rubber cover provided in
the ExpressCard slot
when not in use. This
will help prevent foreign
objects and/or dust getting in to the ExpressCard Slot.
Figure 2 - 5
Express Card Slots
2
ExpressCard Slot 2 - 7
Features & Components
2
TouchPad and Buttons/Mouse
The TouchPad is an alternative to the mouse; however, you can also add a mouse to
Mouse Driver
If you are using an external mouse your operating system may be
able to auto-configure
your mouse during its
installation or only enable its basic functions.
Be sure to check the
device’s user documentation for details.
your computer through one of the USB ports. The TouchPad buttons function in
much the same way as a two-button mouse.
Once you have installed the TouchPad driver (see “TouchPad” on page 4 - 6) you
can configure the functions by double-clicking the TouchPad driver icon on the
taskbar. You may then configure the TouchPad tapping, buttons, scrolling, pointer
motion and sensitivity options to your preferences. You will find further information
at www.synaptics.com.
Figure 2 - 6
Mouse Properties
2 - 8 TouchPad and Buttons/Mouse
Features & Components
Audio Features
You can configure the audio options on your computer from the Sound control
panel in Windows, or from the VIA Audio Deck icon in the taskbar, or on the
desktop (this will bring up the VIA Audio Deck menu). The volume may also be
adjusted by means of the Fn + F5/F6 key combination.
Click any of the buttons (e.g. ) on the left to expand the audio menu selections.
Sound Volume
Adjustment
The sound volume level
is set using the volume
control within Windows
(and the volume function keys on the computer). Click the volume
icon in the taskbar to
check the setting.
Figure 2 - 7
VIA Audio Deck
Menus
2
Audio Features 2 - 9
Features & Components
2
Figure 2 - 8
Audio Setup for
Recording
(Windows Vista)
Audio recording options can be adjusted from the
1. Click
2. Click Sound (Hardware and Sound).
3. Click Recording (tab).
4. Right-click Microphone (VIA High Definition Audio) and make sure the item is not
5. Double-click
6. Click
7. Click OK and close the cont ro l panels.
Start
, and click
disabled (if you wish to record from the internal microphone make sure that the
Front Mic is not disabled).
Microphone/Front Mic
Levels
(tab), and adjust the
Right-click
Control Panel
Microphone/Front Mic
(or point to
(or select
Sound
Properties
control panel in
Settings
Windows
and click
from the right-click menu).
slider to the level required.
Control Panel
.
).
Audio Recording Setup
2 - 10 Audio Features
Features & Components
Adding a Printer
The most commonly used peripheral is a printer. The following conventions will
help you to add a printer; however it is always best to refer to the printer manual for
specific instructions and configuration options.
USB Printer
Most current printers have a USB interface connection. You may use any one of the
ports to connect the printer.
Install Instructions:
1. Set up the printer according to its instructions (unpacking, paper tray, toner/ink car-
tridge etc.).
2. Turn ON the computer.
3. Turn ON the printer.
4. Connect the printer’s USB cable to one of the USB ports on the computer.
5. Windows will identify the printer and either load one of its own drivers or ask you
to supply one. Follow the on-screen instructions.
Parallel Printer
This is still a very common type of printer. The install instructions are in the sidebar,
however you will need to purchase a parallel to USB converter.
Parallel Printer
After setting up the printer attach the parallel cable to the printer.
Connect the printer’s
parallel cable to the Parallel to USB converter,
and then plug the converter into the USB port.
Turn ON the printer,
then turn ON the computer.
Windows will identify the
printer and either load
one of its own drivers or
ask you to supply one.
Follow the on-screen instructions.
2
Adding a Printer 2 - 11
Features & Components
2
2-12
Power Management
Chapter 3: Power Management
Overview
To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer
(the monitor and hard disk drive) or the whole system. This chapter covers:
• The P ower Sources
• Turning on the Computer
• Power Plans
• Power-Saving States
• Configuring the Power Buttons
• Battery Information
The computer uses enhanced power saving techniques to give the operating system
(OS) direct control over the power and thermal states of devices and processors. For
example, this enables the OS to set devices into low-power states based on user settings and information from applications.
OS Note
Power management
functions will vary slightly depending on your
operating system. For
more information it is
best to refer to the user’s
manual of your operating system.
(Note: All pictures used
on the following pages
are from the Windows
Vista OS.)
3
Overview 3 - 1
Power Management
The Power Sources
The computer can be powered by either an AC/DC adapter or a battery pack.
3
AC/DC Adapter
Use only the AC/DC adapter that comes with your computer. The wrong type of AC/
DC adapter will damage the computer and its components.
1. Attach the AC/DC adapter to the DC-in jack at the rear of the computer.
2. Plug the AC power cord into an outlet, and then connect the AC power cord to the
AC/DC adapter.
3. Raise the lid/LCD to a comfortable viewing angle.
4. Press the power button to turn “On”.
Battery
The battery allows you to use your computer while you are on the road or when an
electrical outlet is unavailable. Battery life varies depending on the applications and
the configuration you're using. To increase battery life, let the battery discharge
completely before recharging (see “How do I completely discharge the battery?”
on page 3 - 15).
We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery Information” on page 3 - 10.
3 - 2 The Power Sources
Turning on the Computer
Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.
When the computer is on, you can use the power button as a Sleep/Hibernate hot key
button when it is pressed for less than 4 seconds (pressing and holding the power
button for longer than this will force the computer to shut down). Use Power Op-
tions (Hardware and Sound menu) control panel in Windows Vista to configure
this feature.
Forced Off
If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the power button for 4 seconds, or longer, to force the system to turn itself off.
Power Button Sleep
Sleep is the default power mode when the power button is pressed for less than 4 seconds.
You may configure the options for the power button from the Power Options (Hardware
and Sound menu) control panel in Windows Vista (see your OS’s documentation, or
“Configuring the Power Buttons” on page 3 - 8 for details).
Power Management
Shut Down
Note that you should always shut your computer down by choosing the
Shut Down command
from the Lock Button
Menu in Windows Vis-
ta. This will help prevent
hard disk or system
problems.
3
Turning on the Computer 3 - 3
Power Management
Power Plans
3
Resuming
Operation
See Table 3 - 1, on
page 3 - 9 for informa-
tion on how to resume
from a power-saving
state.
Password
It is recommended that
you enable a password
on system resume in order to protect your data.
Figure 3 - 1
Power Plan
Advanced Settings
The computer can be configured to conserve power by means of power plans. You
can use (or modify) an existing power plan, or create a new one.
The settings may be adjusted to set the display to turn off after a specified time, and
to send the computer into Sleep after a period of inactivity.
Click Change plan settings and then click Change advanced power settings to access further configuration options in Advanced Settings.
3 - 4 Power Plans
Each Windows power plan will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing
any reduced performance (especially under DC/battery power).
Choose High performance for maximum performance when the computer is powered from an AC power source. Choose the Power saver (bear in mind that this
scheme may slow down the overall performance of the computer in order to save
power) for maximum power saving when the computer is battery (DC power) powered.
Power Management
3
Figure 3 - 2
Power Plans
Power Plans3-5
Power Management
Power-Saving States
3
Power Button
The Power Button
in the Start Menu (in
Classic View use the
Shut Down button )
can be used to send the
computer into a powersaving state.
Sleep Mode &
Mobile PC Battery
A mobile PC in Sleep
uses very little battery
power.
After an extended period of time the computer
will save any open documents and applications
to hard disk.
You can use power-saving states to stop the computer’s operation and restart where
you left off. Sleep is the default power-saving state in Windows Vista.
Earlier versions of Windows used Stand By and Hibernate as system power-saving
states. Windows Vista combines the features of Stand By and Hibernate into the default Sleep power-saving state.
Sleep
In Sleep all of your work, settings and preferences are saved to memory before the
system sleeps. When you are not using your computer for a certain length of time,
which you specify in the operating system, it will enter Sleep to save power.
The PC wakes from Sleep within seconds and will return you to where you last left
off (what was on your desktop) without reopening the application(s) and file(s) you
last used.
If your mobile PC in Sleep is running on battery power the system will use only a
minimum amount of power. After an extended period the system will save all the
information to the hard disk and shut the computer down before the battery becomes
depleted.
3 - 6 Power-Saving States
Hibernate
Hibernate uses the least amount of power of all the power-saving states and saves
all of your information on a part of the hard disk before it turns the system off. If a
power failure occurs the system can restore your work from the hard disk; if a power
failure occurs when work is saved only to memory, then the work will be lost. Hi-
bernate will also return you to where you last left off within seconds. You should
put your mobile PC into Hibernate if you will not use the computer for a period of
time, and will not have the chance to charge the battery.
Shut Down
You should shut down the computer if you plan to install new hardware (don’t forget to remove the battery and follow all the safety instructions in Chapter 6), plan
to be away from the computer for several days, or you do not need it to wake up and
run a scheduled task. Returning to full operation from shut down takes longer than
from Sleep or Hibernate.
Power Management
3
Figure 3 - 3
Lock Button Menu
Power-Saving States 3 - 7
Power Management
Configuring the Power Buttons
3
Password
Protection
It is recommended that
you enable a password
on wake up in order to
protect your data.
However you can disable this setting from the
Power Options menu
by clicking Require a
password on wakeup
in the left menu, and selecting the options (click
Change settings that
are currently unavailable).
Figure 3 - 4
Power Options
Define Power
Buttons
The power/sleep button (Fn + F4 key combo) and closed lid may be set to send the
computer in to a power-saving state.
3 - 8 Configuring the Power Buttons
Resuming Operation
You can resume operation from power-saving states by pressing the power button,
or in some cases pressing the sleep button (Fn + F4 key combo).
Power Status
Power Off Off Press the Power Button
Sleep Blinking Green
Icon Color
Press the Sleep Button (Fn + F4 Key Combo)
To Resume
Press the Power Button
Power Management
Closing the Lid
If you have chosen to
send the computer to
Sleep when the lid is
closed, raising the lid
will wake the system up.
3
Hibernate
Display Turned Off Green Press a Key or Move the Mouse/Touchpad
Off (battery)
Press the Power Button
Orange (AC/DC adapter)
Power Button
When the computer is on, you can use the power button as a Sleep/Hibernate hot key button when it
is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut
the computer down).
USB Devices
Note that plugging a USB device in to a USB port in Stand by or Hibernate mode will wake the system
up.
Configuring the Power Buttons 3 - 9
Table 3 - 1
Resuming
Operation
Resolution Error
If you are experiencing
screen resolution problems/screen flickering after
resuming from Sleep in
Windows Vista (for NVIDIA Models B & C only) see
page
8 - 12.
Power Management
Battery Information
3
Low Battery
Warning
When the battery is critically low, immediately
connect the AC/DC
adapter to the computer
or save your work, otherwise, the unsaved
data will be lost when
the power is depleted.
Please follow these simple guidelines to get the best use out of your battery.
Battery Charging on Model B & C Computers
Note that Model B & C computers under a heavy load (e.g. using applications which
require a lot of video processing), while running on battery power, will take time (3
to 20 minutes before charging begins) to recharge the battery when plugged in to the
AC/DC adapter. This is due to safety considerations which dictate that the battery
should only start to recharge when the computer has reached a safe temperature to
do so.
Make sure you save your work when the battery LED is blinking orange, and plug
in the AC/DC adapter. The battery LED will change from blinking orange to orange
when the battery starts to charge (3 to 20 minutes before charging begins).
3 - 10 Battery Information
Battery Power
Your computer’s battery power is dependent upon many factors, including the programs you are running, and peripheral devices attached. You can set actions to be
taken (e.g. Shut down, Hibernate etc.), and set critical and low battery levels from
power plan Advanced Settings (see Figure 3 - 1 on page 3 - 4).
Click the battery icon in the taskbar to see the current battery level and charge
status.
Power Management
3
Figure 3 - 5
Battery Icon
(Taskbar) & Battery
Advanced Settings
Battery Information 3 - 11
Power Management
Conserving Battery Power
3
Windows Mobility
Center
The Windows Mobility
Center control panel pro-
vides an easy point of access for information on
battery status, power plans
used and wireless device
status etc.
Figure 3 - 6
Windows Mobility
Center
•Use a power plan that conserves power (e.g Power saver), however note that
this may have an affect on computer performance.
• Lower the brightness level of the LCD display. The system will decrease LCD
brightness slightly to save power when it is not powered by the AC/DC adapter.
• Reduce the amount of time before the display is turned off.
• Close wireless, Bluetooth, modem or communication applications when they are
not being used.
• Disconnect/remove any unnece ssary external devices e.g. USB devices,
ExpressCards etc.
3 - 12 Conserving Battery Power
Battery Life
Battery life may be shortened through improper maintenance. To optimize the life
and improve its performance, fully discharge and recharge the battery at least
once every 30 days.
We recommend that you do not remove the battery yourself. If you do need to remove the battery for any reason see “Removing the Battery” on page 6 - 3.
New Battery
Always completely discharge, then fully charge, a new battery (see “Battery FAQ”
on page 3 - 15 for instructions on how to do this).
Recharging the Battery with the AC/DC Adapter
The battery pack automatically recharges when the AC/DC adapter is attached and
plugged into an electrical outlet. If the computer is powered on, and in use, it will
take several hours to fully recharge the battery. When the computer is turned off but
plugged into an electrical outlet, battery charge time is less. (Refer to “LED Indica-
tors” on page 1 - 9 for information on the battery charge status, and to “Battery Information” on page 3 - 10 for more information on how to maintain and properly
recharge the battery pack.)
Power Management
3
Battery Life3-13
Power Management
Proper handling of the Battery Pack
3
Caution
Danger of explosion if
battery is incorrectly replaced.
• DO NOT disassemble the battery pack under any circumstances
• DO NOT expose the battery to fire or high temperatures, it may explode
• DO NOT connect the metal terminals (+, -) to each other
Replace only with the
same or equivalent type
recommended by the
manufacturer. Discard
used battery according
to the manufacturer’s instructions.
Should you notice any physical defects (e.g. the battery is bent ou t of shape after being
dropped), or any unusual smells emanating from the notebook battery, shut your computer
down immediately and contact your service center. If the battery has bee n d roppe d we do
not recommend using it any further, as even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire . It is
recommended that you replace your computer battery every two years.
Damaged Battery Warning
3 - 14 Battery Life
Battery FAQ
How do I completely discharge the battery?
Use the computer with battery power until it shuts down due to a low battery. Don’t
turn off the computer even if a message indicates the battery is critically low, just let
the computer use up all of the battery power and shut down on its own.
1. Save and close all files and applications.
2. Create a power plan for discharging the battery and set all the options to Never.
3. Click Change plan settings (after saving it) and click Change advanced power
settings.
Power Management
3
Figure 3 - 7
Power Plan Create
Battery Life3-15
Power Management
4. Scroll down to Battery and click + to expand the battery options.
5. Choose the options below (click Yes if a warning appears):
3
Figure 3 - 8
Power Options
Advanced Settings -
Battery
• Low battery levels = 0%
• Critical battery Levels = 0%
• Low battery action = Do Nothing
• Critical battery action (On battery) = Shut Down
• Critical battery action (Plugged in) = Do Nothing
3 - 16 Battery Life
How do I fully charge the battery?
When charging the battery, don’t stop until the LED charging indicator light changes
from orange to green.
How do I maintain the battery?
Completely discharge and charge the battery at least once every 30 days or after
about 20 partial discharges.
Power Management
3
Battery Life3-17
Power Management
3
3-18
Chapter 4: Drivers & Utilities
Drivers & Utilities
This chapter deals with installing the drivers and utilities essential to the operation or improvement of some
of the computer’s subsystems. The system takes advantage of some newer hardware components for
which the latest versions of most available operating
systems haven’t built in drivers and utilities. Thus,
some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to
manually install some system-required drivers and
utilities.
What to Install
The Device Drivers & Utilities + User’s Manual CDROM contains the drivers and utilities necessary for
the proper operation of the computer. There will be
two CDs provided; one will contain drivers for Win-
dows Vista, the other will contain drivers for Windows
XP (make sure you install the appropriate drivers for
your system).
Table 4 - 1, on pag e 4 - 3 lists what you need to install
and it is very important that the drivers are in-
stalled in the order indicated (see “Driver Installa-
tion” on page E - 34 for Windows XP information).
Module Driver Installation
The procedures for installing drivers for the Wireless
LAN, PC Camera and Fingerprint Reader modules
are provided in “Modules & Options” on page 7 - 1.
4
What to Install 4 - 1
Drivers & Utilities
Driver Installation
Insert the Device Drivers & Utilities + User’s Manual
CD-ROM and click Install Drivers (button) or Option
Drivers (button).
4
Figure 4 - 1 - Drivers Installer Screen 1
1. Check the driver installation order from Table 4 - 1,
on page 4 - 3 (the dri ve r s mus t be installed in
this order) which is the same as that listed in the
Drivers Installer menu below.
2. Click to select the driver you wish to install, after
installing each driver it will become grayed out (if
you need to reinstall any driver, click the Unlock
button).
3. Follow the instructions for each individual driver
installation procedure as listed on the following
pages.
Note the Fingerprint
Utility will only appear if
you have included the Fingerprint Reader Module in
your purchase option.
4 - 2 Driver Installation
Figure 4 - 2 - Drivers Installer Screen 2
Driver Installation Order
.
Driver Page #
Drivers & Utilities
Video (VIA - Model A) Page 4 - 5
Video (NVIDIA - Models B & C) Page 4 - 5
Audio Page 4 - 5
Modem Page 4 - 5
LAN Page 4 - 5
CardReader Page 4 - 6
TouchPad Page 4 - 6
Hot Key Utility Page 4 - 7
Quick Button Utility Page 4 - 7
802.11 b/g USB WLAN Module Page 7 - 2
PC Camera Module Page 7 - 12
Fingerprint Reader Module Page 7 - 19
Table 4 - 1- Driver Installation Order
Manual Driver Installation
Click Browse CD (button) in the Drivers Installer
application and browse to the executable file in
the appropriate driver folder.
Windows Update
After installing all the drivers make sure you enable Windows Update in order to get all the latest security updates
etc. (all updates will include the latest hotfixes from Microsoft). See “Windows Update” on page 4 - 6 for instructions.
Driver Installation 4 - 3
4
Drivers & Utilities
Updating/Reinstalling Individual Drivers
If you wish to update/reinstall individual drivers it
may be necessary to uninstall the original driver.To do
this go to the Control Panel in the Windows OS and
double-click the Programs and Features icon (Pro-
4
grams > Uninstall a program). Click to select the
driver (if it is not listed see below) and click Uninstall,
and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as
outlined in this chapter.
If the driver is not listed in the Programs and Fea-
tures menu:
1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).
2. Double-click Device Manager (Hardware and
Sound > Device Manager).
3. Double-click the device you wish to update/reinstall
the driver for (you may need to click “+” to expand
the selection).
4. Click Driver (tab) and click the Update Driver or
Uninstall button and follow the on screen prompts.
User Account Control (Win Vista)
If a User Account Control prompt appears as part of
the driver installation procedure, click Continue or
Allow, and follow the installation procedure as directed.
Windows Security Message
If you receive a Windows security message as part of
the driver installation process. Just click “Install this
driver software anyway” or Install to continue the in-
stallation procedure.
You will receive this message in cases where the driver has been released after the version of Windows you
are currently using. All the drivers provided will have
already received certification for Windows.
New Hardware Found
If you see the message “New Hardware Found”
(Found New Hardware Wizard) during the installation procedure (other than when outlined in the driver
install procedure), click Cancel to close the window,
and follow the installation procedure as directed.
4 - 4 Driver Installation
Drivers & Utilities
Driver Installation Procedure
Insert the Device Drivers & Utilities + User’s Manual
CD-ROM and click Install Drivers (button).
Video (VIA - Model A)
1. Click 1.Install Video Driver > Yes.
2. Click Next > Next.
3. Click Finish to restart the computer .
Video (NVIDIA - Models B & C)
1. Click 1.Install Video Driver > Yes.
2. Click Next.
3. Click Finish to restart the computer .
Audio
1. Click 2.Install Audio Driver > Yes.
2. Click Next.
3. Click the button to accept the license and click
Next.
4. Click Next > Next > Next.
5. Click Finish to restart the computer .
Modem
1. Click 3.Install Modem Driver > Yes.
2. Click OK.
3. The modem is ready for dial-up configuration.
4
Modem Country Selection
Go to the Phone and Modem Options control panel
(Hardware and Sound) and make sure the modem
country selection is appropriate for you.
LAN
1. Click 4.Install LAN Driver > Yes.
2. Click OK.
3. The network settings can mow be configured.
Driver Installation 4 - 5
Drivers & Utilities
CardReader
1. Click 5.Install Cardreader Driver > Yes.
2. Click Next > Next.
3. Click Finish to restart the computer.
4
TouchPad
1. Click 6.Install Touchpad Driver > Yes.
2. Click Next.
3. Click Finish > Restart Now to restart the computer.
Hot Key Utility
1. Click 7.Install Hotkey Driver > Yes.
2. Click Next > Install.
3. Click Finish > Finish to restart the computer.
Windows Update
After installing all the drivers make sure you enable Windows Update in order to get all the latest security up-
dates etc. (all updates will include the latest hotfixes
from Microsoft).
To enable Windows Update make sure you are con-
nected to the internet:
1. Click Start, and click Control Panel (or point
to Settings and click Control Panel).
2. Click Check for updates (Security), or
double-click Security Center and click
Windows Update.
3. Double-click Check for updates (button).
4. The computer will now check for updates
(you need to be connected to the internet).
5. Click Install now (button) to install the
updates.
4 - 6 Driver Installation
Quick Button Utility
If you do not have a PC Camera module installed,
you can install the Quick Button driver to enable you
to use the hot key buttons to launch applications of
your choice (see “Application Quick Buttons” on
page 1 - 16 for details).
You will need to install the Quick Button driver manually as it does not appear in the Drivers Installer
menu.
1. Insert the Device Drivers & Utilities + User’s
Manual CD-ROM and click Browse CD (but-
ton).
2. Double-click to open the Option > QButton
folders.
3. Double-click the Setup.exe file.
4. Click Next > Finish to restart the computer.
Drivers & Utilities
Adding/Removing a PC Camera
Note that the Quick Button and PC Camera drivers cannot co-exist.
If you wish to add a PC Camera module to your computer at a later date, then uninstall the Quick Button Driver
(entitled Multimedia Keyboard Driver) before installing the PC Camera and driver. Drivers can be uninstalled from the Programs and Features (Programs >
Uninstall a program) control panel in Windows.
If you wish to remove a PC Camera module from your
computer at a later date, then uninstall the PC Camera
Driver after removing the camera module. You can then
insert the Device Drivers & Utilities + User’s Manual
CD-ROM and install the Quick Button driver from the
Driver Installation menu.
4
Driver Installation 4 - 7
Drivers & Utilities
Wireless LAN Module
See the introduction in “802.11 b/g USB WLAN Mod-
ule” on page 7 - 2, and check the installation proce-
dure.
4
Bluetooth Module
Note: The operating system is the default setting for
Bluetooth control in Windows Vista, and does not re-
quire a driver. See “Bluetooth Module” on page 7 - 7
for configuration instructions.
PC Camera Module
See the introduction in “PC Camera Module” on
page 7 - 11, and check the installation procedure.
Fingerprint Module
See the introduction in “Fingerprint Reader Module”
on page 7 - 19, and check the installation procedure.
4 - 8 Driver Installation
BIOS Utilities
Chapter 5: BIOS Utilities
Overview
This chapter gives a brief introduction to the computer’s built-in software:
The Setup utility
If your computer has never been set up, or you are mak ing important chan ges to the
system (e.g. hard disk setup), then you should review this chapter first and note the
original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your
system ever needs servicing.
There is one general rule: Don’t make any changes unless you are sure of what you
are doing. Many of the settings are required by the system, and changing them could
cause it to become unstable or worse. If you have any doubts, consult your service
representative.
BIOS Settings
Warning
Incorrect settings can
cause your system to
malfunction. To correct
mistakes, return to Set-
up and restore the Setup Defaults with <F9>.
5
Overview 5 - 1
BIOS Utilities
Phoenix TrustedCore(tm) NB
Copyright 1985-2005 Phoenix Technologies Ltd.
All Rights Reserved
Bios Version: ******
KBC/EC Firmware Version: ******
FSB 200*4MHz DDR667 CL=5T Single Channel 2T ,CPU ID = 06FD
CPU=1Processors Detected, Cores per Processor = 2
Intel (R) Core(TM)2 Duo CPU T7100 @ 1.80GHz
632K System RAM Passed
1022M Extended RAM Passed
2048 KB L2 Cache
System BIOS shadowed
Video BIOS shadowed
ATAPI CD-ROM: Optiarc DVD RW AD-7520B
Fixed Disk 0: FUJITSU MHV2100BH PL
Mouse intialized
Press <F2> to enter SETUP
The Power-On Self Test (POST)
POST Screen
1.BIOS information
2.CPU type
3.Memory status
5
4.Enter Setup prompt
appears only during
POST
Note:
The
POST
screen
as pictured right is for
guideline purposes only.
POST
The
screen on
your computer may appear slightly different. If
you disable the
Boot-
time Diagnostic Screen
the POST screen will not
appear.
Figure 5 - 1
POST Screen
Each time you turn on the computer, the system takes a few seconds to conduct a
POST, including a quick test of the on-board RAM (memory).
As the POST proceeds, the computer will tell you if there is anything wrong. If there
is a problem that prevents the system from booting, it will display a system summary
and prompt you to run Setup.
If there are no problems, the Setup prompt will disappear and the system will load
the operating system. Once that starts, you can’t get into Setup without rebooting.
,
1
2
3
4
5 - 2 The Power-On Self Test (POST)
Failing the POST
Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.
Fatal Errors
These stop the boot process and usually indicate there is something seriously wrong
with your system. Take the computer to your service representative or authorized
service center as soon as possible.
Non-Fatal Errors
This kind of error still allows you to boot. You will get a message identifying the
problem (make a note of this message!) followed by the prompt:
• Press <F1> to resume
• <F2> to ent er Setup
Press F1 to see if the boot process can continue. It may work, without the correct
configuration.
BIOS Utilities
5
Press F2 to run the Setup program and try to correct the problem. If you still get an
error message after you change the setting, or if the “cure” seems even worse, call
for help.
The Power-On Self Test (POST) 5 - 3
BIOS Utilities
Setup Screens
Setup Menus
The Setup menus
shown in this section are
for reference only. Your
5
computer’s menus will
indicate the configuration appropriate for your
model and options.
The following pages contain additional advice on portions of the Setup.
Along the top of the screen is a menu bar with five (5) menu headings. When you
select a heading, a new screen appears. Scroll through the features listed on each
screen to make changes to Setup.
Instructions on how to navigate each screen are in the box along the bottom of the
screen. If these tools are confusing, press F1 to call up a General Help screen, and
then use the arrow keys to scroll up or down the page.
The Item Specific Help on the right side of each screen explains the highlighted
item and has useful messages about its options.
If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may
execute a command.
5 - 4 The Power-On Self Test (POST)
Main Menu
BIOS Utilities
PhoenixBIOS Setup Utility
Main Advanced Security Boot Exit
Main
System Time: [22:11:05]
System Date: [08/20/2007]
IDE Channel 0 Master [Optiarc DVD-RW AD-7530B-(]
IDE Channel 2 Master [FUJITSU MHV2100BH PL-(S1)]
System Memory 633 KB
Extended Memory 1022 MB
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
09
Item Specific Help
<Tab>, <Shift Tab>, or
<Enter> selects field.
System Time & Date (Main Menu)
The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you
can change the date and time settings in your operating system, you will also change
these settings. Some applications may also alter data files to reflect these changes.
Figure 5 - 2
Main Menu
5
Main Menu 5 - 5
BIOS Utilities
IDE Channel 0/2 Master (Main Menu)
Pressing Enter opens the sub-menu to show the configuration of either a DVD/CD
Device or HDD on the computer’s IDE Channels. Use the Auto (Type:) setting to
have the items configured automatically for you.
System/Extended Memory: (Main Menu)
This item contains information on the system memory, and is not user configurable.
5
The system will auto detect the amount of memory installed.
5-6Main Menu
Advanced Menu
BIOS Utilities
Main Advanced Security Boot Exit
Installed O/S: [WinXP/Vista]
Boot-time Diagnostic Screen: [Enabled]
Legacy USB Support: [Enabled]
Reset Configuration Data: [No]
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
Advanced
Item Specific Help
Select the operating
system installed
on your system which
you will use most
commonly.
Note: An incorrect
setting can cause
some operating
systems to display
unexpected behavior.
Installed O/S: (Advanced Menu)
This setting tells the computer what kind of operating system you’re using.
PhoenixBIOS Setup Utility
Figure 5 - 3
Advanced Menu
5
Advanced Menu 5 - 7
BIOS Utilities
Boot-time Diagnostic Screen: (Advanced Menu)
Use this menu item to enable/disable the Boot-time Diagnostic Screen (see “The
Power-On Self Test (POST)” on page 5 - 2).
Legacy USB Support: (Advanced Menu)
Choose “Enabled” if you intend to use USB devices in systems which do not normally support USB functionality (e.g. DOS). The default setting is “Enabled” and
5
does not need to be changed if you intend to use your USB devices in Windows.
Reset Configuration Data: (Advanced Menu)
This item is set to No as default. You can change the setting to Yes if you have installed a new add-on which has reconfigured the system, resulting in such a serious
system conflict that the operating system is unable to boot.
5 - 8 Advanced Menu
Security Menu
PhoenixBIOS Setup Utility
Main Advanced SSeeccuurriittyyBoot Exit
Supervisor Password Is: Clear
Set Supervisor Password [Enter]
Password on boot:
Fixed disk boot sector: [Normal]
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
Set Supervisor Password (Security Menu)
You can set a password for access to the Setup utility. This will not affect access to
the computer OS, (only the Setup utility) unless you choose to set a Password on
Boot (see over).
Security
Item Specific Help
Supervisor Password
controls access to the
b
e
setup utility.
BIOS Utilities
Figure 5 - 4
Security Menu
5
Security Menu
The changes you make
here affect the access to
the Setup utility itself,
and also access to your
machine as it boots up
after you turn it on.
These settings do not
affect your machine or
network passwords
which will be set in your
software OS.
Security Menu 5 - 9
BIOS Utilities
Password on boot: (Security Menu)
Password Warning
If you set a boot password (Password on boot
is “Enabled“), NEVER
forget your password.
5
The consequences of
this could be serious. If
you cannot remember
your boot password you
must contact your vendor and you may lose all
of the information on
your hard disk.
Specify whether or not a password should be entered to boot the computer. If “Enabled” is selected, only users who enter a correct password can boot the system (see
the warning in the sidebar). The default setting is “Disabled”.
Note: To clear existing passwords press Enter and type the existing password, then
press Enter for the new password (without typing any password entry) and Enter
again to confirm the password clearance.
Fixed disk boot sector: (Security Menu)
If you choose “Write Protect” this will protect against viruses being written to the
hard disk boot sector (this is not a substitute for installing an anti- virus program - see
“Viruses” on page 8 - 4).
5 - 10 Security Menu
Boot Menu
BIOS Utilities
PhoenixBIOS Setup Utility
Main Advanced Security Boot Exit
Boot priority order:
1: IDE 0: Optiarc DVD RW AD 7530B-(P
2: IDE 4: FUJITSU MHV2100BH PL-(S1)
3: USB HDD:
4: USB KEY:
5: USB FDC:
6: PCI BEV:
7:
8:
Excluded from boot order:
: USB CDROM:
: USB ZIP
: USB LS120
: PCI SCSI
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select Sub-Menu F10 Save and Exit
Item Specific Help
Keys used to view or
configure devices:
Up and Down arrows
select a device.
<+> and <-> moves
the device up or down.
<f> and <r> specifies
the device fixed or
removable.
<x> exclude or include
the device to boot.
<Shift +1> enables or
disables a device.
<1 - 4> Loads default
boot sequence.
When you turn the computer on it will look for an operating system (e.g. WindowsXP) from the devices listed in this menu, and in this priority order. If it cannot
find the operating system on that device, it will try to load it from the next device in
the order specified in the Boot priority order. Item specific help on the right is
available to help you move devices up and down the order.
Figure 5 - 5
Boot Menu
5
Boot Menu 5 - 11
BIOS Utilities
PhoenixBIOS Setup Utility
Main Advanced Security Boot Exit
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Execute Command F10 Save and Exit
Item Specific Help
Exit System Setup and
save your changes to
CMOS.
Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit Menu
Figure 5 - 6
Exit Menu
5
Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any
changes you have made to the Setup. You can also choose to restore the original Set-
up defaults that will return the Setup to its original state, and erase any previous
changes you have made in a previous session.
5 - 12 Exit Menu
Upgrading The Computer
Chapter 6: Upgrading The Computer
Overview
This chapter contains information on upgrading the computer. Follow the steps outlined to make the desired upgrades. If you have any trouble or problems you can contact your service representative for further help. Before you begin you will need:
• A smal l crosshead or Phillips screwdriver
• A small regular slotted (flathead) screwdriver
• An antistatic wrist strap
Before working with the internal components you will need to wear an antistatic
wrist strap to ground yourself because static electricity may damage the components.
The chapter includes:
• Removing the Battery
• Upgrading the Hard Disk Drive
• Upgrading the Optical (CD/DVD) Device
• Upgrading the System Memory (RAM)
Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6
Please make sure that you review each procedure before you perform it.
Overview 6 - 1
Upgrading The Computer
When Not to Upgrade
Power Safety
Warning
Before you undertake
any upgrade procedures, make sure that
you have turned off the
power, and disconnect-
6
ed all peripherals and
cables (including telephone lines). It is advisable to also remove your
battery in order to prevent accidentally turning
the machine on.
These procedures involve opening the system’s case, adding and sometimes replacing parts.
You should not perform any of these upgrades if:
• Your system is still under warranty or a service contract
• You don’t have all the necessary equipment
• You’re not in the correct environment
• You doubt your abilities
Under any of these conditions, contact your service representative to purchase or replace the component(s).
Removal Warning
When removing any cover(s) and screw(s) for the purposes of device upgrade, remember
to replace the cover(s) and screw(s) before turning the computer on.
6 - 2 Overview
Upgrading The Computer
Removing the Battery
If you are confident in undertaking upgrade procedures yourself, for safety reasons
it is best to remove the battery.
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
3. Slide the latch in the direction of the arrow, and hold it in place.
4. Slide the battery out in the direction of the arrow .
1
1
2
3
2
3
Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6
Figure 6 - 1
Battery Removal
Removing the Battery 6 - 3
Upgrading The Computer
Upgrading the Hard Disk Drive
HDD System
Warning
New HDD’s are blank. Before you begin make sure:
You have backed up any
data you want to keep from
your old HDD.
6
You have all the CD-ROMs
and FDDs required to install your operating system
and programs.
If you have access to the internet, download the latest
application and hardware
driver updates for the operating system you plan to install. Copy these to a
removable medium.
Figure 6 - 2
Hard Disk Bay &
Screw
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard
disk drives with a height of 9.5mm (h) (see “Storage” on page D - 3). Follow your
operating system’s installation instructions, and install all necessary drivers and utilities (see “Driver Installation” on page 4 - 2), when setting up a new hard disk.
1. Turn off the computer, and turn it over and remove the battery.
2. Remove the HDD bay cover screws - (Models A & B)/ - (Model C).
3. Remove the HDD bay cover .
5
Models A & B
1
1
3
Model C
32
1
4
1
2
3
4
55
6 - 4 Upgrading the Hard Disk Drive
Upgrading The Computer
4. Grip the tab and slide the hard disk in the direction of arrow .
Models A & B Model C
6
6 6
5. Lift the hard disk up in the direction of arrow .
6. Remove the screws & and cover .
7. Reverse the process to install a new hard disk drive.
Models A & B
8 9 10
7
Model C
9
7
8
10
7
Figure 6 - 3
HDD Slide
6
Figure 6 - 4
HDD Removal
Upgrading the Hard Disk Drive 6 - 5
Upgrading The Computer
Upgrading the Optical (CD/DVD) Device
1. Turn off the computer, and turn it over and remove the battery.
2. Remove the HDD bay cover screws - (Models A & B)/ - (Model C).
3. Remove the HDD bay cover .
4. Remove the screw at point , and use a screwdriver to carefully push out the
5. Reverse the process to install the new device.
optical device at point .
7
1
3
5
6
1
4
6
Models A & B Model C
Figure 6 - 5
Removing the CD/
DVD Device
6
6 - 6 Upgrading the Optical (CD/DVD) Device
1
2
3
1
2
3
4
55
7
