Clevo M400A, M40AE, M400G, M40GE User guide
Introduction (English)
This Concise User’s Guide introduces the main features
of your computer. The English version of this guide begins on page 1. The expanded User’s Manual is on the
Device Drivers & Utilities + User’s Manual CD-ROM.
Einführung (Deutsch)
Dieses Ausführliche Benutzerhandbuch führt Sie in die
Hauptfunktionen des Notebooks ein. Die deutsche Version des Handbuchs beginnt auf Seite 45. Das erweiterte
Benutzerhandbuch finden Sie auf der CD-ROM für die
Gerätetreiber und Hilfsprogramme (CD-ROM Device
Drivers & Utilities + User's Manual).
Présentation (Français)
Ce Guide Utilisateur Concis présente les fonctionnalités
principales de votre ordinateur. La version française de
ce guide commence à la page 89. Le Manuel de l'Utilisa-
teur étendu se trouve sur le CD-ROM de Pilotes & Utilitaires + Manuel de l'Utilisateur (CD-ROM Device
Drivers & Utilities + User's Manual).
Introducción (Español)
Esta Guía del Usuario Concisa le presenta las características principales de su ordenador. La versión española de
esta guía comienza en la página 133. El Manual del usua-
rio completo se encuentra en el CD-ROM de Controladores del dispositivo y Utilidades + Manual del usuario
(CD-ROM Device Drivers & Utilities + User's Manual).
Introduzione (Italiano)
La presente Guida Rapida per l'Utente introduce le caratteristiche principali del computer. La versione italiana di
questa guida inizia da pagina 177. Il Manuale utente
completo si trova nel CD contenente driver e utilità +
Manuale utente (CD-ROM Device Drivers & Utilities +
User's Manual).
I
Contents
Notice ................................................................................................1
About this Concise User Guide .........................................................2
Instructions for Care and Operation ..................................................3
Quick Start Guide .............................................................................7

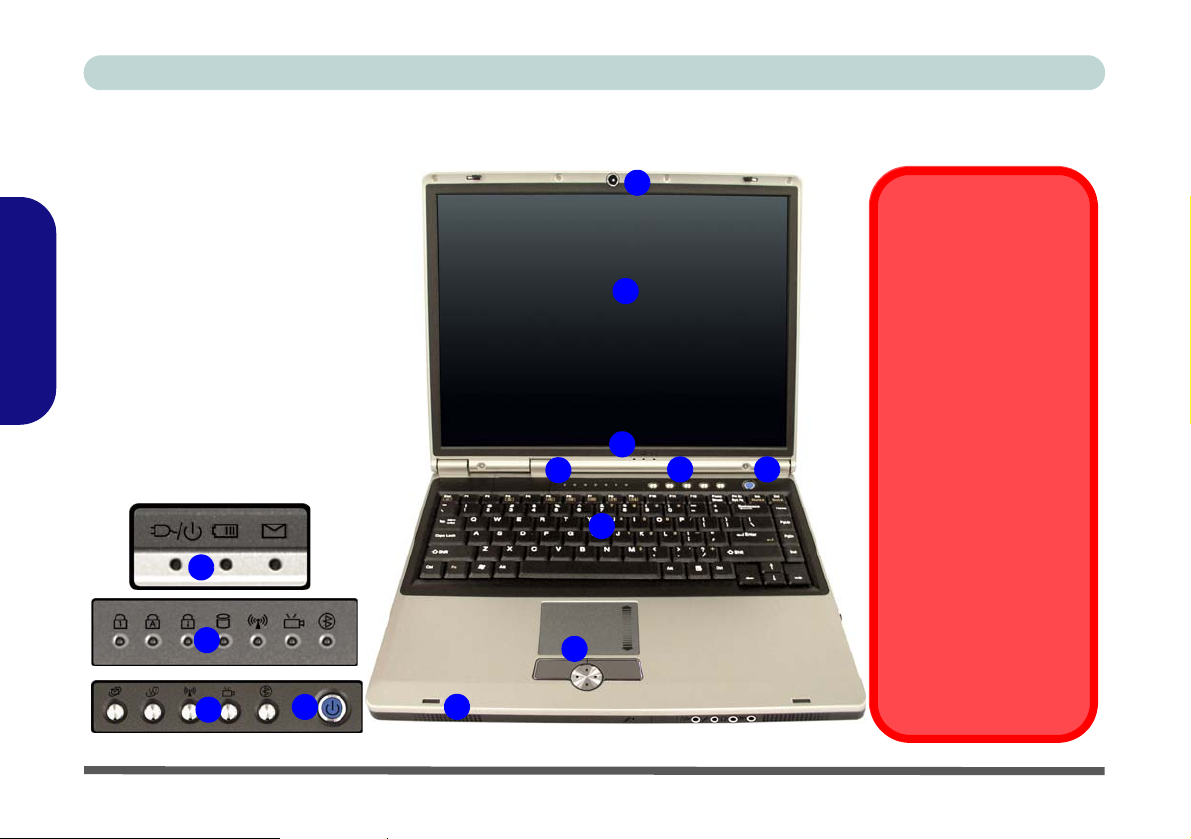

System Map: Top View with LCD Panel Open ..............................10
System Map: Front & Rear Views ..................................................14
System Map: Left View ..................................................................15
System Map: Right View ................................................................16
System Map: Bottom View .............................................................17
Hard Disk Drive ..............................................................................18
Windows XP Start Menu & Control Panel .....................................19
Video Features ................................................................................ 20
Audio Features ................................................................................25
Power Management Features ..........................................................26
Driver Installation ...........................................................................28
Troubleshooting ..............................................................................37
Specifications ..................................................................................38
Inhalt
Hinweis ...........................................................................................45
Über das Ausführliche Benutzerhandbuch .....................................46
Hinweise zu Pflege und Betrieb ......................................................47
Schnellstart ......................................................................................51
Modellunterschiede .........................................................................52
Systemsoftware ...............................................................................53
Systemübersicht: Ansicht von oben mit geöffnetem
LCD-Bildschirm ..............................................................................54
Systemübersicht: Ansicht von vorne und Rückansicht ...................58
Systemübersicht: Ansicht von links ................................................59
Systemübersicht: Ansicht von rechts ..............................................60
Systemübersicht: Ansicht von unten ...............................................61
Festplatte .........................................................................................62
Windows XP Startmenü und Systemsteuerung ...............................63
Grafikfunktionen .............................................................................64
Audiofunktionen ..............................................................................69

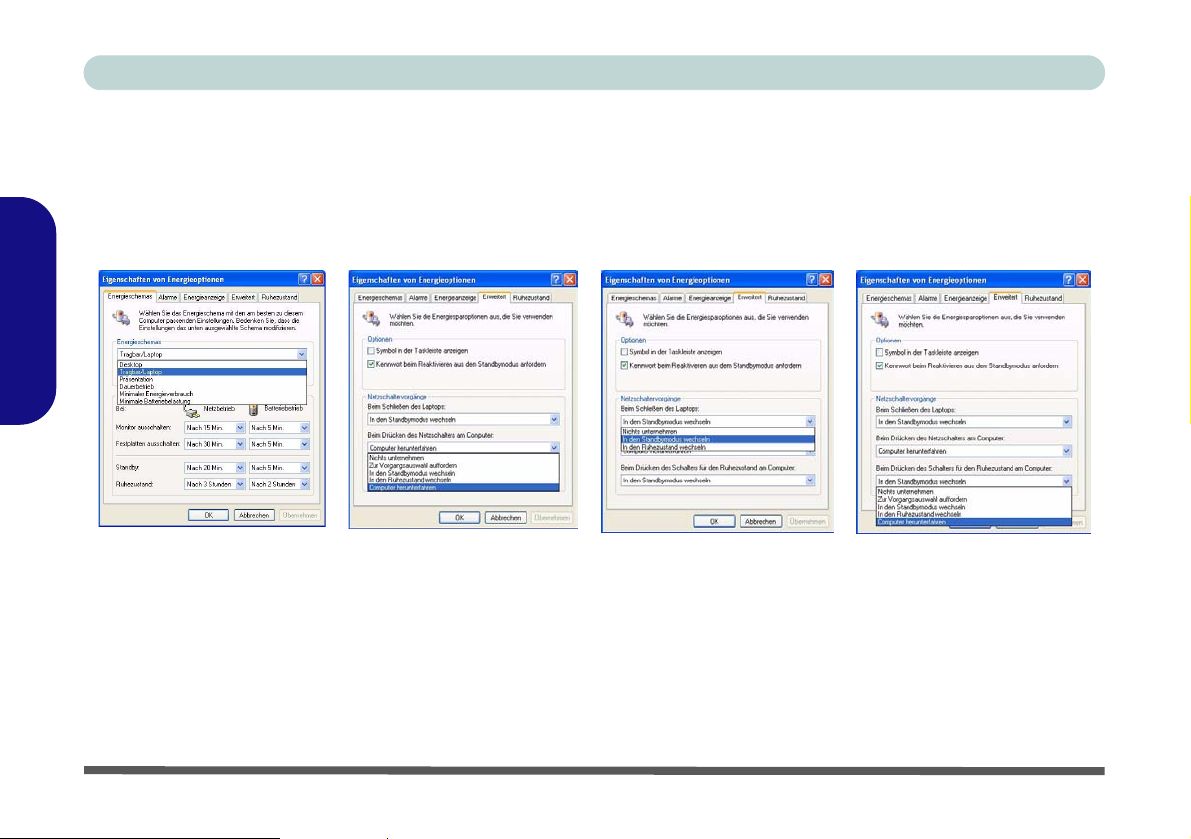

Energieverwaltungsfunktionen ........................................................70
Installation der Treiber ....................................................................72
Fehlerbehebung ...............................................................................81
Technische Daten ............................................................................82
Sommaire
Avertissement ..................................................................................89
A propos de ce Guide Utilisateur Concis ........................................90
Instructions d’entretien et d’utilisation ...........................................91
Guide de démarrage rapide .............................................................95
Différences entre modèles ...............................................................96
Logiciel système ..............................................................................97
Carte du système : Vue du dessus avec l’écran LCD ouvert ..........98
Carte du système : Vues de face & arrière ....................................102
Carte du système : Vue gauche .....................................................103
Carte du système : Vue droite .......................................................104
II
Carte du système : Vue d’en dessous ............................................105
Disque dur .....................................................................................106
Menu Démarrer & Panneau de configuration de Windows XP ....107
Caractéristiques vidéo ...................................................................108
Caractéristiques Audio ..................................................................113
Caractéristiques de gestion de l’alimentation ...............................114
Installation du pilote .....................................................................116
Dépannage .....................................................................................125
Spécifications ................................................................................126
Contenidos
Aviso .............................................................................................133
Acerca de esta Guía del Usuario Concisa .....................................134
Instrucciones para el cuidado y funcionamiento ...........................135
Guía rápida para empezar ............................................................. 139
Diferencias de modelos .................................................................140
Software de sistema ...................................................................... 141
Mapa del sistema: Vista superior con panel LCD abierto ............ 142
Mapa del sistema: Vistas frontal y posterior .................................146
Mapa del sistema: Vista izquierda ................................................147
Mapa del sistema: Vista derecha ...................................................148
Mapa del sistema: Vista inferior ...................................................149
Disco Duro ....................................................................................150
Menú Inicio y Panel de control de Windows XP ..........................151
Parámetros de vídeo ......................................................................152
Características de audio ................................................................157
Funciones de administración de energía .......................................158
Instalación de controladores ..........................................................160
Solución de problemas ..................................................................169
Especificaciones ............................................................................170
Sommario
Avviso ...........................................................................................177
Informazioni sulla Guida Rapida per l'Utente ...............................178
Istruzioni per la custodia e il funzionamento ................................179
Guida di avvio rapido ....................................................................183
Differenze dei modelli ...................................................................184
Software del sistema ......................................................................185
Descrizione del sistema: Vista superiore con pannello LCD
aperto .............................................................................................186
Descrizione del sistema: Vista anteriore e posteriore ...................190
Descrizione del sistema: Vista sinistra ..........................................191
Descrizione del sistema: Vista destra ............................................192
Descrizione del sistema: Vista inferiore ........................................193
Unità disco rigido ..........................................................................194
Menu Start e Pannello di controllo di Windows XP .....................195
Funzioni video ...............................................................................196
Funzionalità audio .........................................................................201
Funzioni di risparmio energetico ...................................................202
Installazione driver ........................................................................204
Risoluzione dei problemi ..............................................................213
Specifiche tecniche ........................................................................214
III
Concise User’s Guide
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this
publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted
or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks
of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.
©March 2005
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home or other limited
viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Intel® and Pentium® are US registered trademarks of Intel Corporation.
is a trademark of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.
English
Notice - 1
Concise User’s Guide
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for
the expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s
Manual CD-ROM supplied with your computer. This CD-ROM also contains the drivers and utilities necessary for
English
the proper operation of the computer.
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual CD-ROM does not contain an operating system.
Regulatory Information
Regulatory notices and information are contained in the expanded User’s Manual on the Device Drivers & Utilities
+ User’s Manual CD-ROM.
2 - About this Concise User Guide
Concise User’s Guide
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic
fields. These can hinder proper performance and damage your data.
4. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your
work. Remember to periodically save your data as data may be lost if the battery is depleted.
5. Take care when using peripheral devices.
Wireless Device Operation Aboard Aircraft
The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the modules are OFF if you are using the computer aboard aircraft.
English
Instructions for Care and Operation - 3
Concise User’s Guide
Power Safety
The computer has specific power requirements:
• Only use an AC adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If
English
you are unsure of your local power specifications, consult your service representative or local power company.
• The AC adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature;
do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Power Safety Warning
Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally
turning the machine on.
4 - Instructions for Care and Operation
Concise User’s Guide
Cleaning
Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or
abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Refer servicing to qualified service personnel under any of the following conditions:
• When the power cord is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting
a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s) to be blocked. To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s) while the computer is in use.
English
Instructions for Care and Operation - 5
Concise User’s Guide
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way.
Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may pos-
English
sibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful
life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by
the manufacturer. Discard used battery according to the manufacturer’s instructions.
6 - Instructions for Care and Operation
Concise User’s Guide
Quick Start Guide
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the
notebook (e.g. keyboard and mouse) to their ports.
4. Attach the AC adapter to the DC-In jack at the rear of the
computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC adapter.
5. Move the LCD latches in the direction of the arrows to
release the top cover.
6. Raise the lid/LCD to a comfortable viewing angle, and press the
power button to turn the computer “on”.
7. Adjust the LCD panel to a comfortable viewing angle.
8. The LED indicators show the power and battery status of
the computer, and give notification of e-mail received.
1
2
1 1
Figure 1 - AC Adapter Plugged-In & Top Panel with LCD Closed
Shutdown
Please note that you should always shut your computer down by choosing the Turn Off Computer command from the Start
menu in Windows. This will help prevent hard disk or system problems.
2
1. LCD Latches
2. LED Power &
Communication
Indicators
English
Quick Start Guide - 7
Concise User’s Guide
Model Differences
This notebook series includes four different model types. The models differ in video support, system memory (RAM)
supported, and AC adapter supplied. Models A & B include ATI X700 (ATI M26) PCI Express video cards; Models
C & D include built-in Intel (Intel GMA 900) video (see “Video Features” on page 20). Models A & B are supplied
with a 90W AC adapter; Models C & D are supplied with a 65W AC adapter. Models A & C support DDR RAM;
English
Models B & D support DDRII (DDR2) RAM.
Feature Model A Model B Model C Model D
Video Adapter
AC Adapter
RAM (Memory) Supported
ATI X700 PCI Express Video Card Intel GMA 900 On-Board
90W 65W
DDR DDRII (DDR2) DDR DDRII (DDR2)
Table 1 - Model Differences
RAM Modules Supported
If you intend to upgrade or replace your memory (RAM) modules, make sure you are using the appropriate module type for your
computer. Model A & C computers support DDR RAM modules; Model B & D computers support DDRII (DDR2) RAM modules.
These types of RAM modules are not interchangeable, and they differ in size very slightly. If you are unsure which module type
your computer supports then consult your service center.
8 - Quick Start Guide
Concise User’s Guide
System Software
Operating Systems (e.g. Windows XP etc.) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals. Your computer may already come with
system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find this manual refers to the Microsoft Windows XP operating system. Further information on
installing the drivers and utilities is available in Chapters 4 & 7 of the expanded User’s Manual on the Device Drivers
& User’s Manual CD-ROM.
Drivers
If you are installing/re-installing new system software, you will need to install the drivers listed in “Driver Installation” on
page 28. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless net-
work module. It is very important that you install the drivers in the order listed in Table 7 on page 28. You will be unable to use
most advanced controls until the necessary drivers and utilities are properly installed.
English
Quick Start Guide - 9
Concise User’s Guide
System Map: Top View with LCD Panel Open
1. Optional Built-In
2. LCD
English
3. LED Power &
4. LED Status Indicators
5. AP-Key Buttons
6. Power Button
7. Keyboard
8. TouchPad and Buttons
9. Speaker
PC Camera
Communication Indicators
3
4
5
6
1
2
3
4
5
6
7
8
9
Figure 2 - Top View with LCD Panel Open
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission
devices aboard aircraft is
usually prohibited. Make
sure the module(s) are
OFF if you are using the
computer aboard aircraft.
Use the AP-Key buttons
to toggle power to the
wireless modules (see
Table 4 on page 12),
and check the status indicators to see if the modules are powered on or
not (see Table 3 on
page 11).
10 - System Map: Top View with LCD Panel Open
Concise User’s Guide
LED Indicators
Table 2 - LED Power & Communication Indicators
Icon Color Description
Orange DC Power is Plugged In
Green The Computer is On
Blinking Green
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange
Blinking Green
*Note: The Automail driver (see page 34) must be in-
stalled, and the program configured appropriately, in order to receive mail notification.
The Computer is in Standby
Mode
The Battery Has Reached
Critically Low Power Status
New Mail Has Arrived
*
Table 3 - LED Status Indicators
Icon Color Description
Green
Green Caps Lock Activated
Green
Green Hard Disk Activity
Green
Green
Green
NumLk (Numeric Keypad)
Activated
Scroll Lock Activated (to activate
press Fn & ScrLk)
The WLAN Module is Powered
On
The Optional PC Camera
Module is Powered On
The Optional Bluetooth Module
is Powered On
English
System Map: Top View with LCD Panel Open - 11
Concise User’s Guide
AP-Key Buttons
These buttons give instant access to the default Internet
browser and e-mail program, and toggle power to the optional module(s) (WLAN/Bluetooth/PC Camera). Make
sure you install the driver to enable the functions of the
English
AP-Key butttons.
Table 4 - AP-Key Buttons
AP-Key Function
Activate the Default E-Mail Program
Activate the Default Internet Browser
Toggle Power to the Wireless LAN Module
Toggle Power to the Optional PC Camera
Module
Toggle Power to the Optional Bluetooth
Module
Keyboard
The keyboard has an embedded numerical keypad for
easy numeric data input (see Figure 3) and features
Function Keys to allow you to change operational features instantly.
Function Keys
NumLk &
ScrLk Keys
Numeric Keypad
Fn Key
Figure 3 - Keyboard
Other Keyboards
If your keyboard is damaged or you just want to make a
change, you can use any standard USB keyboard. The
system will detect and enable it automatically. However
special functions/hot keys unique to the system’s regular
keyboard may not work.
12 - System Map: Top View with LCD Panel Open
Concise User’s Guide
Function Keys
To use the function keys, press and hold the Fn key, then press the appropriate function key (Esc - F10 etc.).
Key Function Key Function
Fn Function Key Fn + F8 Decrease LCD Brightness
Fn + Esc Sleep Toggle Fn + F9 Increase LCD Brightness
Fn + F3 Mute Toggle Fn + F10 SRS WOW Toggle (Factory Option)
Fn + F5 Decrease Audio Volume Fn + NumLk NumLk (Numeric Keypad) Toggle
Fn + F6 Increase Audio Volume Fn + ScrLk Scroll Lock Toggle
Fn + F7 Display Toggle
Table 5 - Function & Hot Keys
Special Characters
Some software applications allow the number-keys to be used with Alt to produce special characters. These special characters
can only be produced by using the numeric keypad. Regular number keys (in the upper row of the keyboard) will not work. Make
sure that the numeric keypad (NumLk) is on.
English
System Map: Top View with LCD Panel Open - 13
Concise User’s Guide
System Map: Front & Rear Views
Front & Rear Views
English
1. LCD Latches
2. Speaker
3. Built-In Microphone
4. Infrared Transceiver
5. S/PDIF-Out Jack
6. Microphone-In Jack
7. Headphone-Out Jack
8. Line-In Jack
9. Vent/Fan Intake
10. DC-In Jack
11. Security Lock Slot
12. Parallel Port
13. 2 * USB 2.0 Ports
Figure 4
1
1
2
53 4
9
10
11
12
6 7 8
13
Overheating
To prevent your computer from
overheating make sure nothing
blocks the vent(s)/fan intake(s)
while the computer is in use.
14 - System Map: Front & Rear Views
Concise User’s Guide
System Map: Left View
1
The Mini-IEEE 1394 Port only supports SELF POWERED IEEE 1394 devices.
2
Mini-IEEE 1394 Port
3
Figure 5
Left View
1. RJ-45 LAN Jack
2. S-Video-Out Jack
3. External Monitor Port
4. Mini-IEEE 1394 Port
5. 2 * USB 2.0 Ports
5
5
4
External USB Hard Disk Drives
If you are using an external USB HDD (or any USB device with a
power rating of 500mA or above), make sure you use the power
supply which comes with the device.
English
System Map: Left View - 15
Concise User’s Guide
System Map: Right View
Figure 6 - Right View
1. Optical Device Drive Bay
(for CD/DVD Device)
English
2. PC Card Slot
3. 3-in-1 Card Reader (reads SD/ MMC/ &
MS formats)
4. RJ-11 Phone Jack
5. Speaker
CD Emergency Eject
If you need to manually eject a CD/DVD (e.g.
due to an unexpected power interruption) you
may push the end of a straightened paper clip
into the emergency eject hole. Do not use a
sharpened pencil or similar object that may
break and become lodged in the hole.
Media Warning
Don’t try to remove a floppy disk/CD/DVD
while the system is accessing it. This may
cause the system to “crash”.
2
1
3 4
5
Changing DVD Regional Codes
Go to the Control Panel and double-click System > Hardware (tab), click
Device Manager, then click the + next to DVD/CD-ROM drives. Double-
click on the DVD-ROM device to bring up the Properties dialogue box, and
select the DVD Region (tab) to bring up the control panel to allow you to
adjust the regional code.
DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent.
This cannot be altered even if you change your operating system or you use
the module in another computer.
3-in-1 Card Reader
The card reader allows you to use some of the latest digital storage cards.
Push the card into the slot and it will appear as a removable device.
• MMC (MultiMedia Card)
• SD (Secure Digital)
• MS (Memory Stick)
16 - System Map: Right View
Concise User’s Guide
System Map: Bottom View
Figure 7
CPU
The CPU is not a user serviceable part. Opening this
compartment, or accessing
the CPU in any way, may violate your warranty.
Overheating
To prevent your computer
from overheating make sure
nothing blocks the vent(s)/
fan intake(s) while the computer is in use.
1
3
2
1
6
1. Vent/Fan Intake
2. Modem/Bluetooth &
4
3. CPU Cover
4. Hard Disk/Memory (RAM)/
5
5. Battery Cover
6. Video Card Cover (Models
Battery Information
Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery at
least once every 30 days or after about 20 partial discharges. Your computer’s battery life is dependent upon many factors, including the programs you are running, and peripheral devices attached. Power Options and settings in the OS will help prolong
the battery life if configured appropriately.
Bottom View
Modem Combo Module
Cover
WLAN Cover
A & B only)
English
System Map: Bottom View - 17
Concise User’s Guide
Hard Disk Drive
The hard disk drive is used to store your data in the computer. The hard disk can be taken out to accommodate other
2.5" serial (SATA) OR parallel (PATA) hard disk drives with a height of 9.5 mm. The hard disk is accessible from
the bottom of your computer (see Figure 7 on page 17). Further details on removing and inserting the hard disk are
English
available in Chapter 6 of the expanded User’s Manual on the Device Drivers & User’s Manual CD-ROM.
Parallel & Serial Cables
The system can support either serial (SATA) OR parallel (PATA)
hard disks, however different cables are used to support each hard
disk type. If you are changing hard disk types then you will be required to change the cable.
Before you undertake any upgrade procedures, make sure that
you have turned off the power, and disconnected all peripherals
and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.
18 - Hard Disk Drive
Power Safety
Parallel
Serial
Hard Disk
Figure 8 - Hard Disks
Concise User’s Guide
Windows XP Start Menu & Control Panel
Most of the control panels, utilities and programs within Windows XP (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a
shortcut will usually be placed in the Start menu and/or the desktop. You can customize the look of the Start menu
by right-clicking the Start menu and selecting Properties from the menu.
Click here to toggle Category View
Figure 9 - Start Menu & Control Panel
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel
is accessed from the Start menu, and it allows you to configure the settings for most of the key features in Windows
(e.g. power, video, network, audio etc.). Windows XP provides basic controls for many of the features, however many
new controls are added (or existing ones are enhanced) when you install the drivers listed in Table 7 on page 28. To
see all controls it may be necessary to toggle off Category View.
English
Windows XP Start Menu & Control Panel - 19
Concise User’s Guide
Video Features
Your computer will have EITHER an ATI X700 (ATI M26) PCI Express video card (Model A & B computers),
OR built-in Intel (Intel GMA 900) on-board video (Model C & D computers), depending on your purchase option
(see “Display” on page 41).
English
You can switch display devices, and configure display options, from the Display control panel in Windows as long
as the appropriate video driver is installed.
To access Display Properties in Windows:
1. Click Start (menu), point to Settings and click Control Panel (or just click Start > Control Panel).
2. Double-click Display (icon); Display (icon) is in Appearance and Themes (category).
3. In the Display Properties dialog box, click Settings (tab).
4. Move the slider to the preferred setting in Screen resolution (Figure 10 on page 21).
5. Click the arrow, and scroll to the preferred setting in Color quality
6. You can also access Display Properties by right-clicking the desktop and scrolling down and clicking Properties. Click
Settings (tab) and adjust as above.
7. Open the Display Properties control panel, and click Advanced (button) (Figure 10 on page 21) to bring up the
Advanced properties tabs.
Either
8. Click through the ATI tabs to make any video adjustments you require for Model A & B computers.
OR
9. Click Intel(R) Graphics Media Accelerator Driver (tab), and click Graphics Properties (button) to make any video
adjustments you require for Model C & D computers.
1
2
(Figure 10 on page 21).
3
20 - Video Features
ATI Display Properties
Concise User’s Guide
English
1
2
3
Intel Display Properties
1
2
3
Figure 10 - Display Properties Desktop
Video Features - 21
Concise User’s Guide
Display Devices & Options
Besides the built-in LCD, you can also use a CRT/LCD monitor or TV as your display device. A CRT/LCD monitor
connects to the external monitor port, a TV to the S-Video-Out jack.
The following display modes are available.
English
ATI Display Mode Description
Multiple - Clone Both connected displays output the same view
Multiple - Extended Desktop Both connected displays are treated as separate devices, and act as a virtual desktop
*Intel Display Mode Description
Intel(R) Dual Display Clone Both connected displays output the same view and may be configured independently
Extended Desktop Both connected displays are treated as separate devices, and act as a virtual desktop
*Note: Intel (Intel GMA 900) on-board video (Model C & D computers) does not feature dedicated video memory. Intel® Dynamic
Video Memory Technology (DVMT) automatically and dynamically allocates as much (up to 224MB) system memory (RAM) as needed to the video system (the video driver must be installed - see page 33). DVMT returns whatever memory is no longer needed to
the operating system.
22 - Video Features
Single One of the connected displays is used as the display device
Single One of the connected displays is used as the display device
Table 6 - Display Options
Concise User’s Guide
Attaching Other Displays (ATI Driver)
If you prefer to use a CRT/LCD monitor, connect it to the external monitor port on the left of the computer.
1. Attach your external monitor to the external monitor port (or TV to the S-Video-Out jack), and turn it on.
2. Select the Displays tab (see “Video Features” on page 20) in the ATI Mobility Radeon X700 properties.
3. Click the enable/disable button / for the display device you wish to use.
4. Click Apply.
5. Click Yes to accept the settings and OK to save the changes.
Function Key Combination
You can use the Fn + F7 key combination to toggle through
the display options:
• Notebook Only
• External Display Only
• Notebook + External Display
Make sure you give the displays enough time to refresh.
Figure 11 - ATI Display Settings
English
6. Select One display as Primary , the remaining as the Clone (the Clone may operate in either Clone Mode, or
Extended Desktop Mode).
Video Features - 23
Concise User’s Guide
Attaching Other Displays (Intel Driver)
If you prefer to use a CRT/LCD monitor, connect it to the external monitor port on the left of the computer.
1. Attach your external monitor to the external monitor port (or TV to the S-Video-Out jack), and turn it on.
2. Go to the Graphics Properties control panel (see “Video Features” on page 20) and click Devices (tab).
English
3. Choose the display option from the list on the left.
4. Choose which attached device will be Primary or Secondary.
5. Click Apply (and OK to confirm the settings change) and OK (button).
Television Display Warning
After you have connected a TV as a Display device for the first time, the
Television icon will appear in the Devices tab permanently thereafter
(whether or not a television is connected to the S-Video-Out jack).
If you select the Television as the single display device when no TV is connected to the S-Video-Out jack, the notebook screen may appear blank. If
this happens use the Fn + F7 key combination to toggle through the display
options until the display reappears on the notebook screen.
24 - Video Features
Figure 12 - Intel Devices Tab
