Clevo M38AW User guide
Introduction (English)
This Concise User’s Guide introduces the main features
of your computer. The English version of this guide begins on page 1. The expanded User’s Manual is on the
Device Drivers & Utilities + User’s Manual CD-ROM.
Einführung (Deutsch)
Dieses Ausführliche Benutzerhandbuch führt Sie in die
Hauptfunktionen des Notebooks ein. Die deutsche Version des Handbuchs beginnt auf Seite 39. Das erweiterte
Benutzerhandbuch finden Sie auf der CD-ROM für die
Gerätetreiber und Hilfsprogramme (CD-ROM Device
Drivers & Utilities + User's Manual).
Présentation (Français)
Ce Guide Utilisateur Concis présente les fonctionnalités
principales de votre ordinateur. La version française de
ce guide commence à la page 77. Le Manuel de l'Utilisa-
teur étendu se trouve sur le CD-ROM de Pilotes & Utilitaires + Manuel de l'Utilisateur (CD-ROM Device
Drivers & Utilities + User's Manual).
Introducción (Español)
Esta Guía del Usuario Concisa le presenta las características principales de su ordenador. La versión española de
esta guía comienza en la página 115. El Manual del usua-
rio completo se encuentra en el CD-ROM de Controladores del dispositivo y Utilidades + Manual del usuario
(CD-ROM Device Drivers & Utilities + User's Manual).
Introduzione (Italiano)
La presente Guida Rapida per l'Utente introduce le caratteristiche principali del computer. La versione italiana di
questa guida inizia da pagina 153. Il Manuale utente
completo si trova nel CD contenente driver e utilità +
Manuale utente (CD-ROM Device Drivers & Utilities +
User's Manual).
I
Contents
Notice ................................................................................................1
About this Concise User Guide .........................................................2
Instructions for Care and Operation ..................................................3
Quick Start Guide .............................................................................7

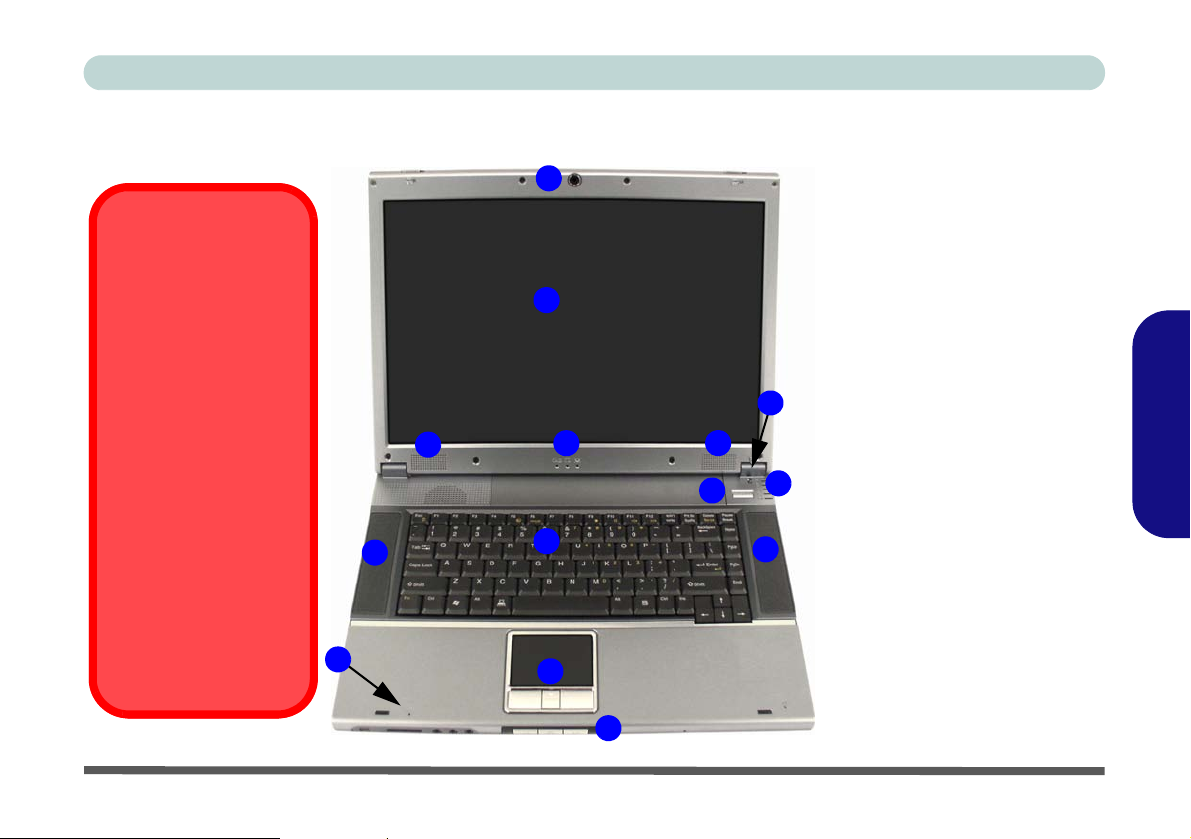

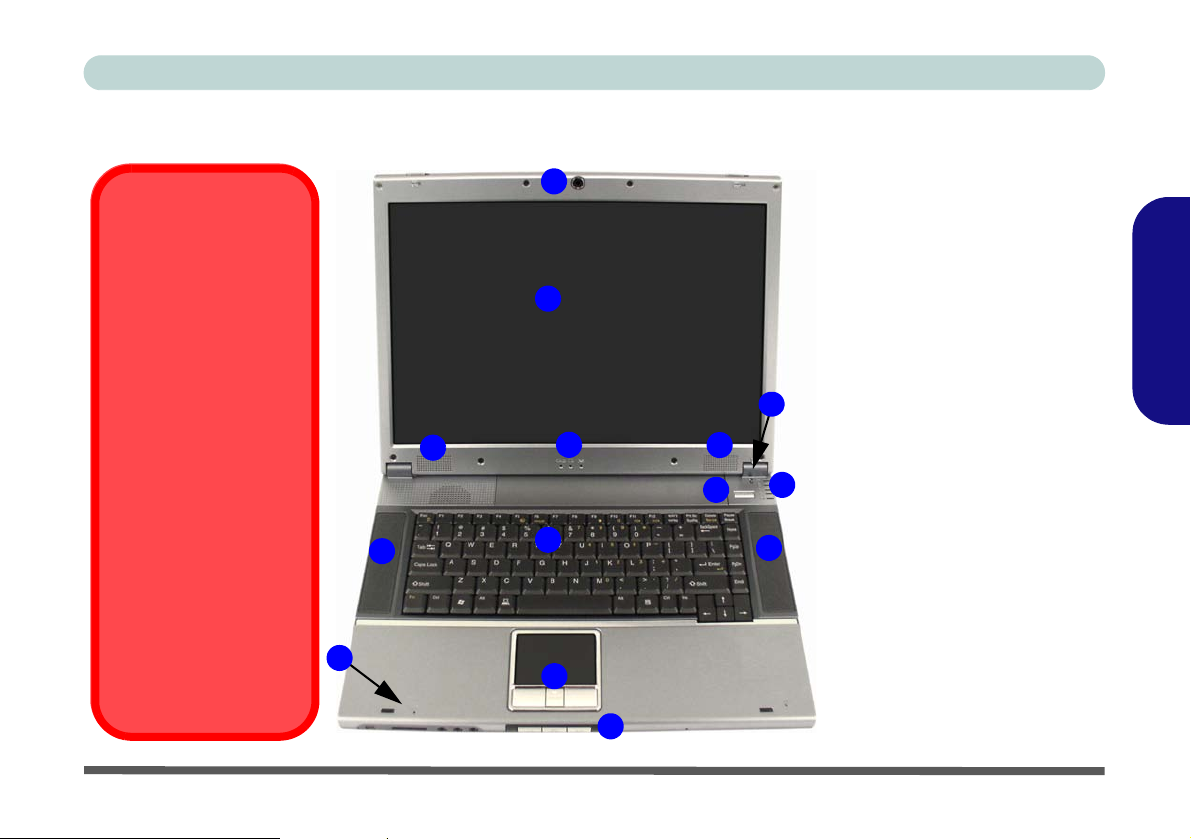

System Map: Top View with LCD Panel Open ................................ 9

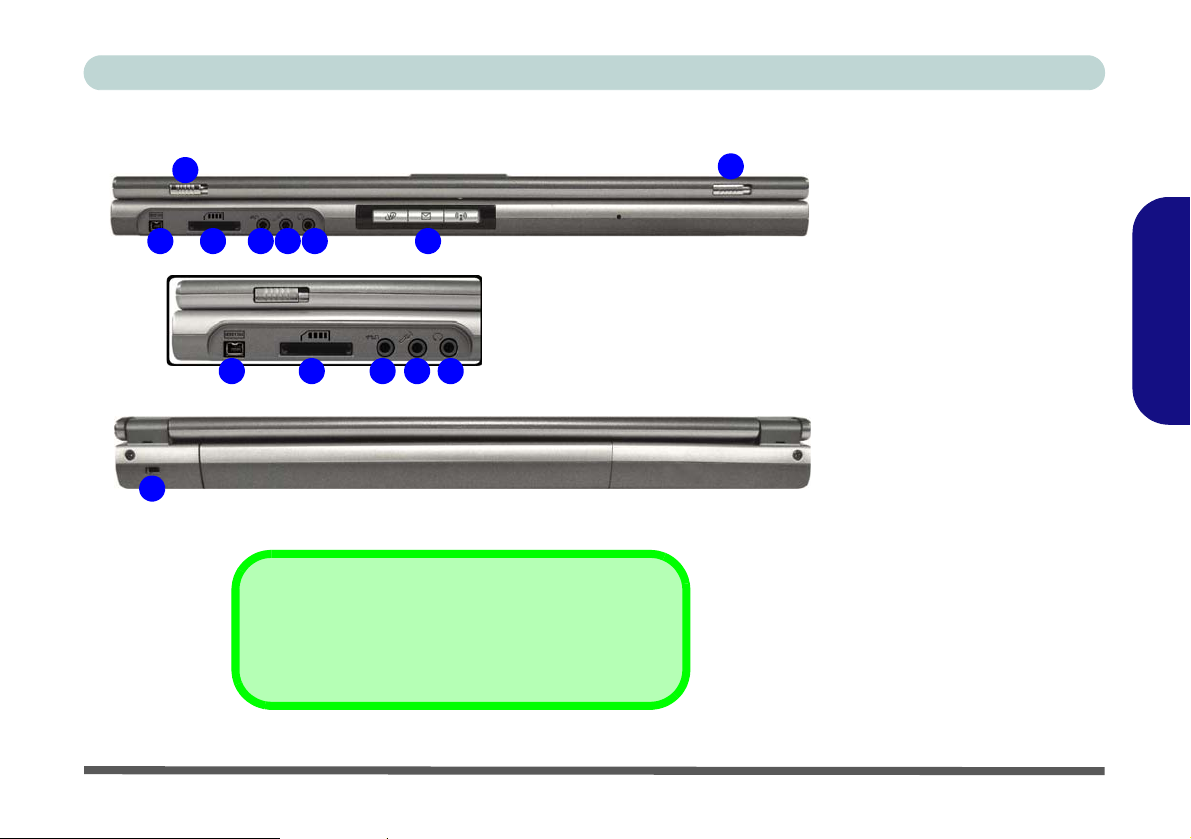

System Map: Front & Rear Views ..................................................13
System Map: Left View ..................................................................14
System Map: Right View ................................................................15

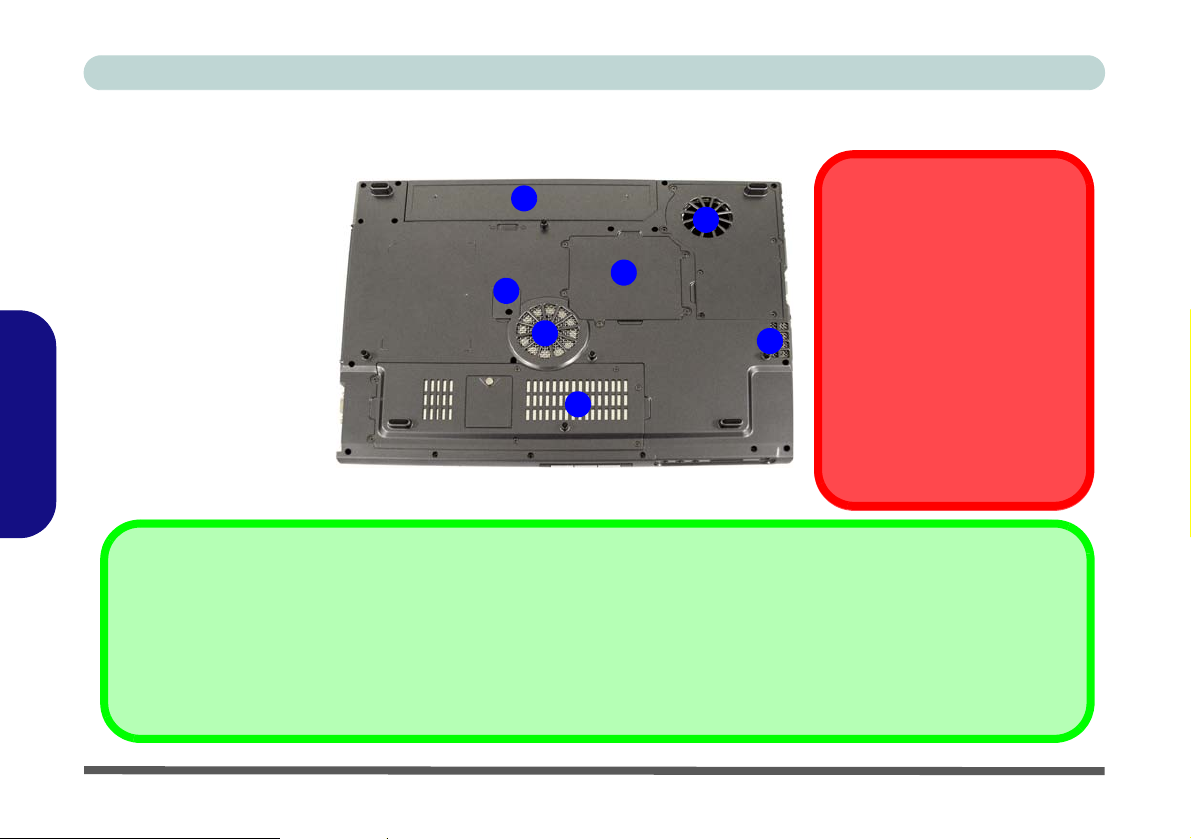

System Map: Bottom View .............................................................16
Windows XP Start Menu & Control Panel .....................................17
Video Features ................................................................................ 18
Audio Features ................................................................................22
Power Management Features ..........................................................23

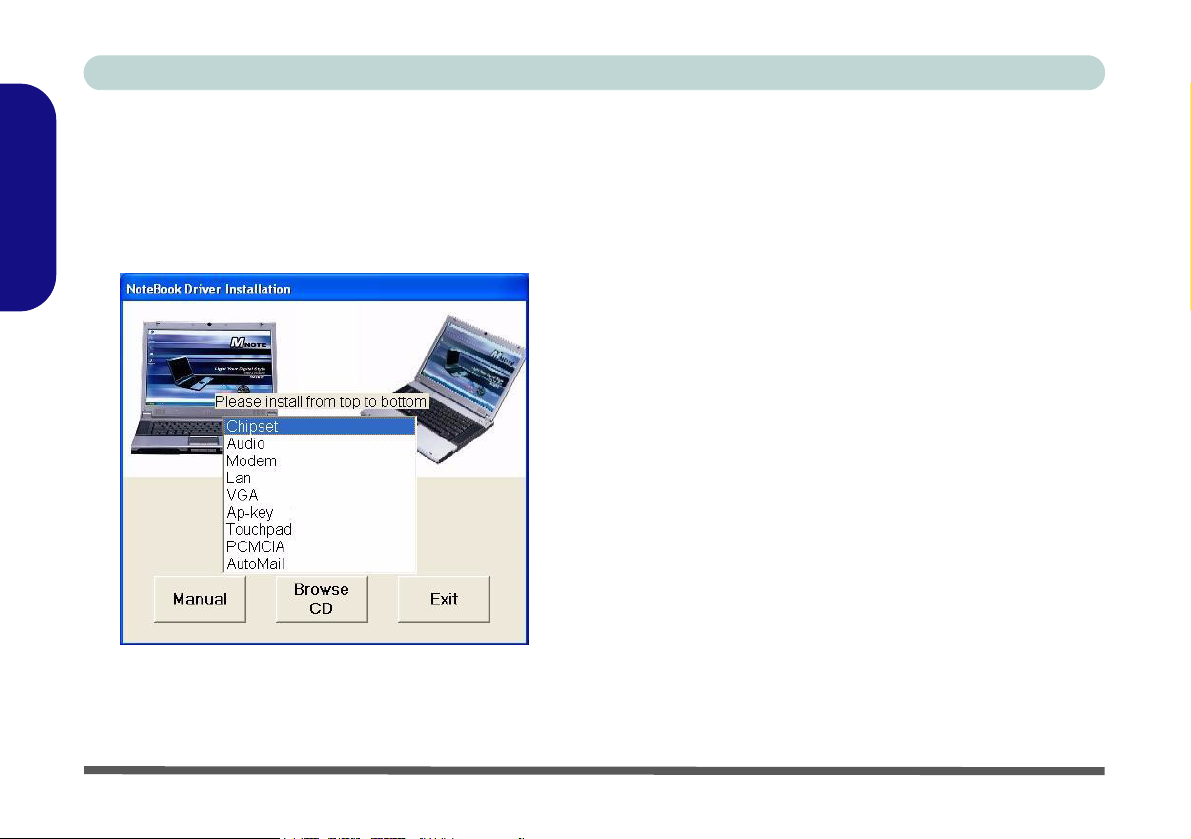

Driver Installation ...........................................................................25
Troubleshooting ..............................................................................33
Specifications ..................................................................................34
Inhalt
Hinweis ...........................................................................................39
Über das Ausführliche Benutzerhandbuch .....................................40
Hinweise zu Pflege und Betrieb ......................................................41
Schnellstart ......................................................................................45
Systemsoftware ...............................................................................46
Systemübersicht: Ansicht von oben mit geöffnetem
LCD-Bildschirm .............................................................................47
Systemübersicht: Ansicht von vorne und Rückansicht ...................51
Systemübersicht: Ansicht von links ................................................52
Systemübersicht: Ansicht von rechts ..............................................53
Systemübersicht: Ansicht von unten ...............................................54

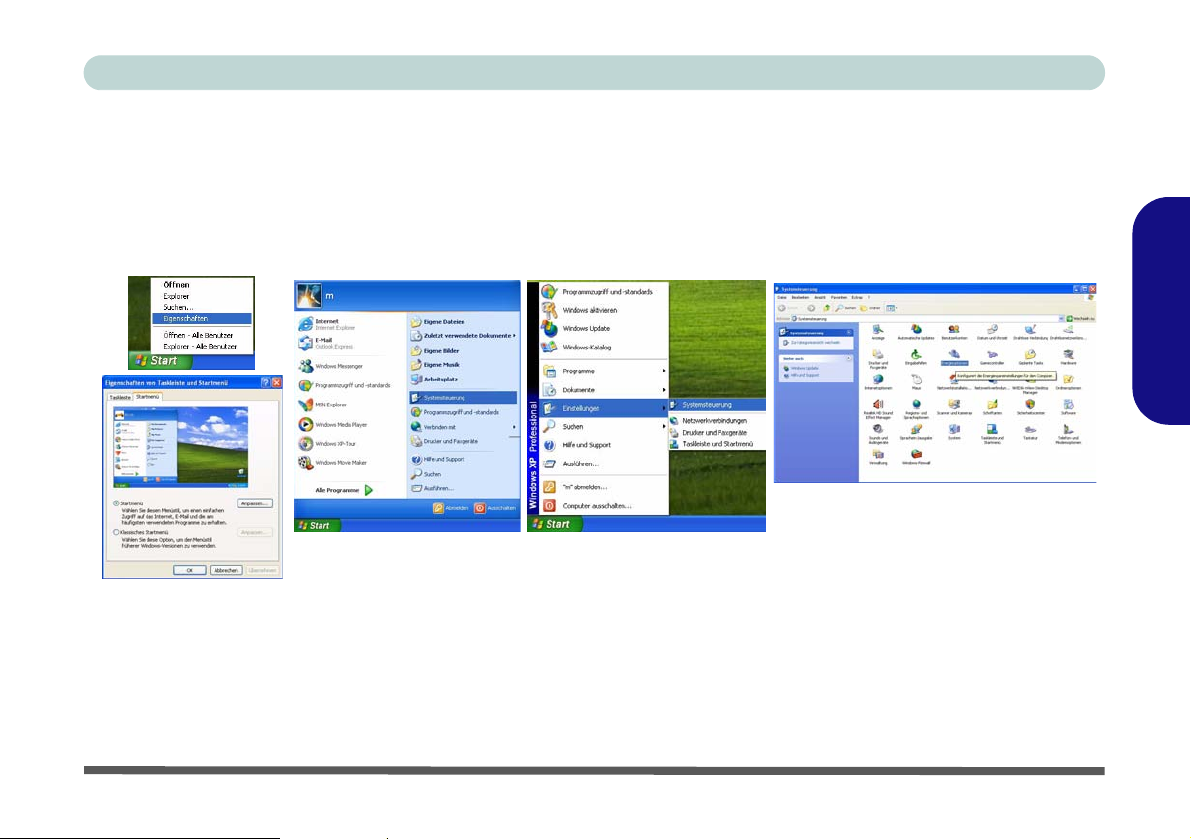

Windows XP Startmenü und Systemsteuerung ...............................55

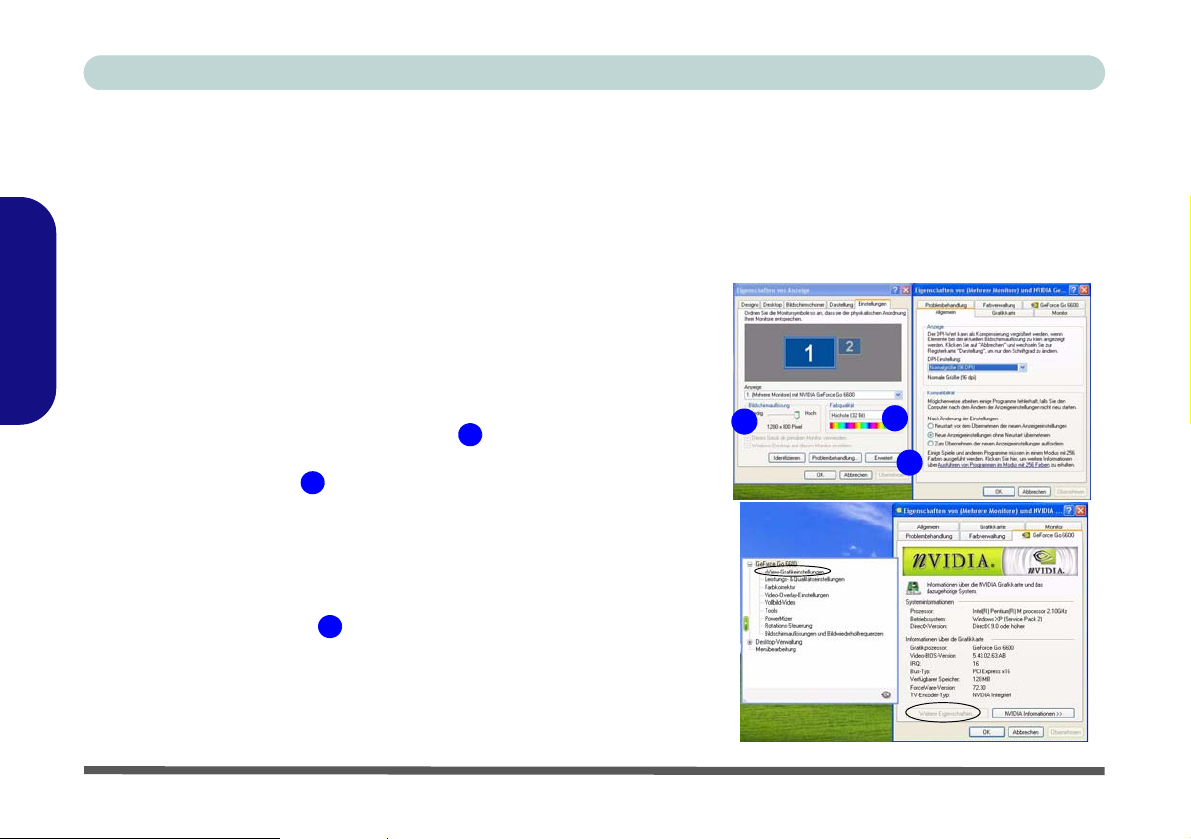

Grafikfunktionen .............................................................................56
Audiofunktionen ..............................................................................60

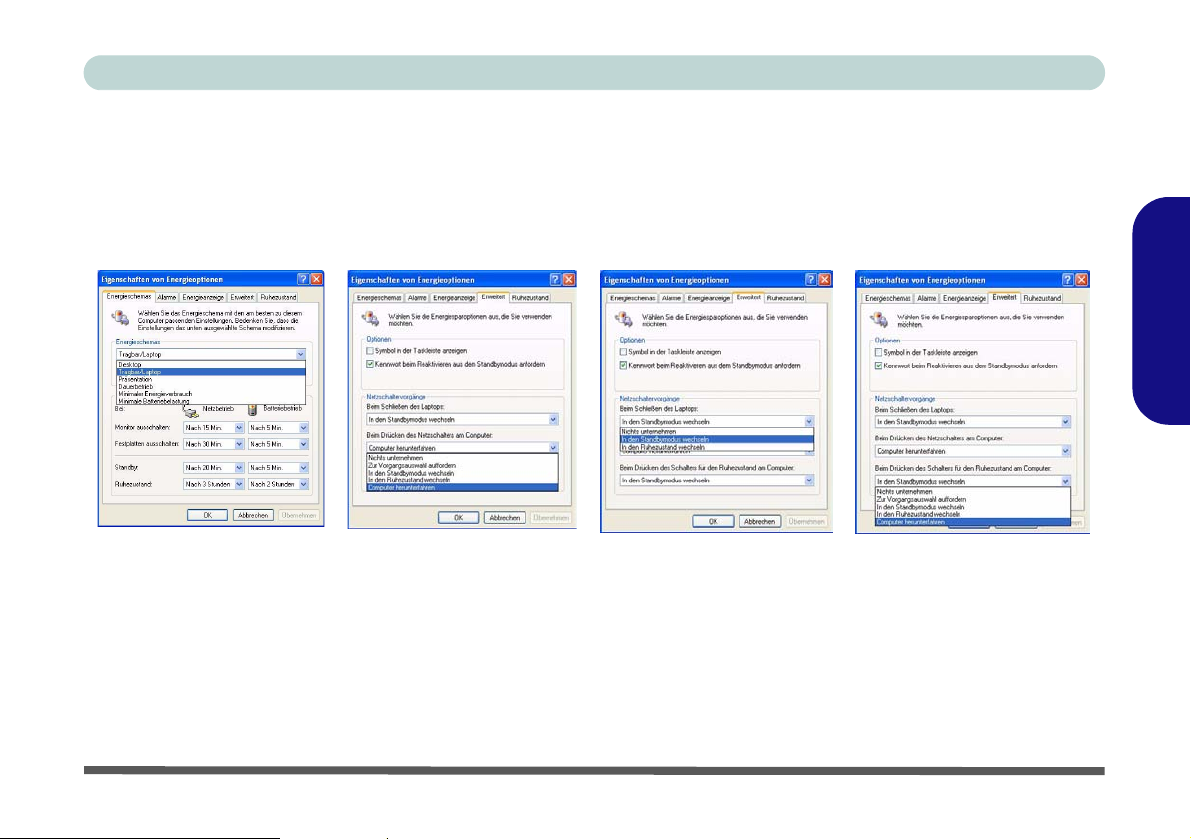

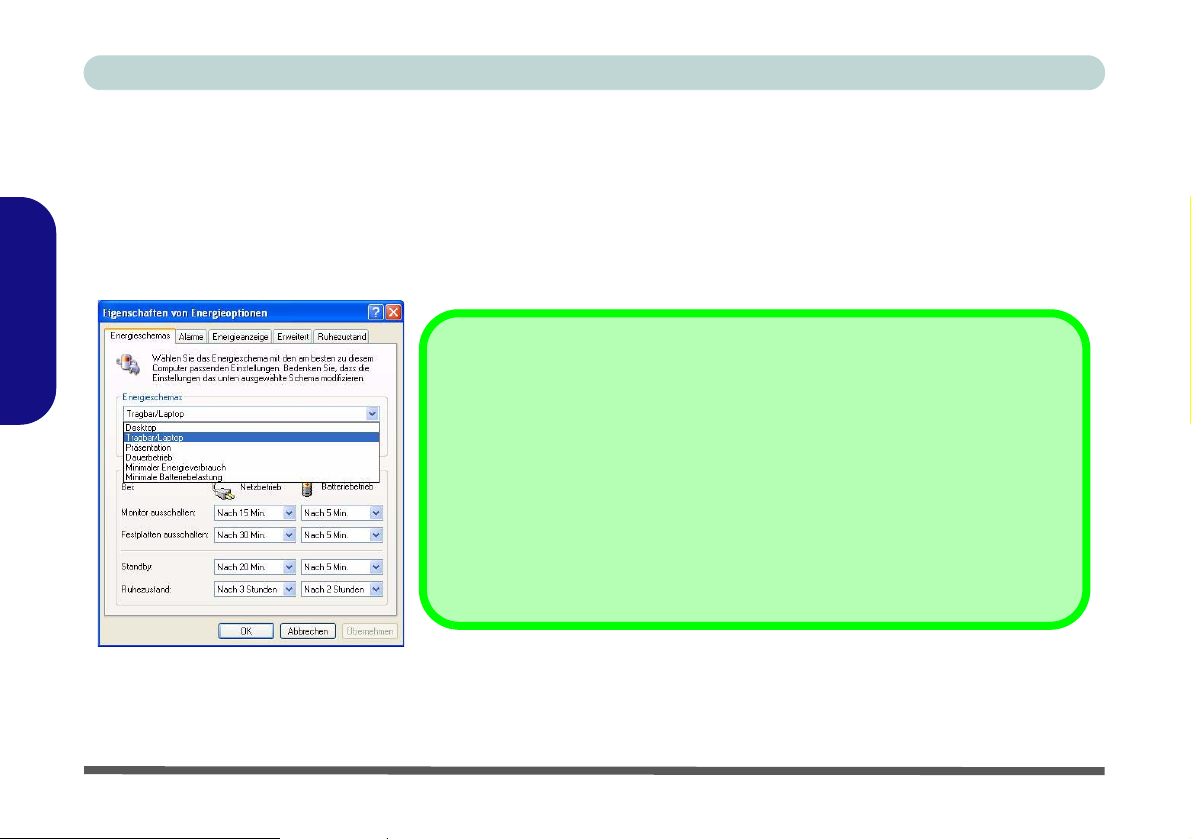

Energieverwaltungsfunktionen ........................................................61
Installation der Treiber ....................................................................63
Fehlerbehebung ...............................................................................71
Technische Daten ............................................................................72
Sommaire
Avertissement ..................................................................................77
A propos de ce Guide Utilisateur Concis ........................................78
Instructions d’entretien et d’utilisation ...........................................79
Guide de démarrage rapide .............................................................83
Logiciel système ..............................................................................84
Carte du système : Vue du dessus avec l’écran LCD ouvert ..........85

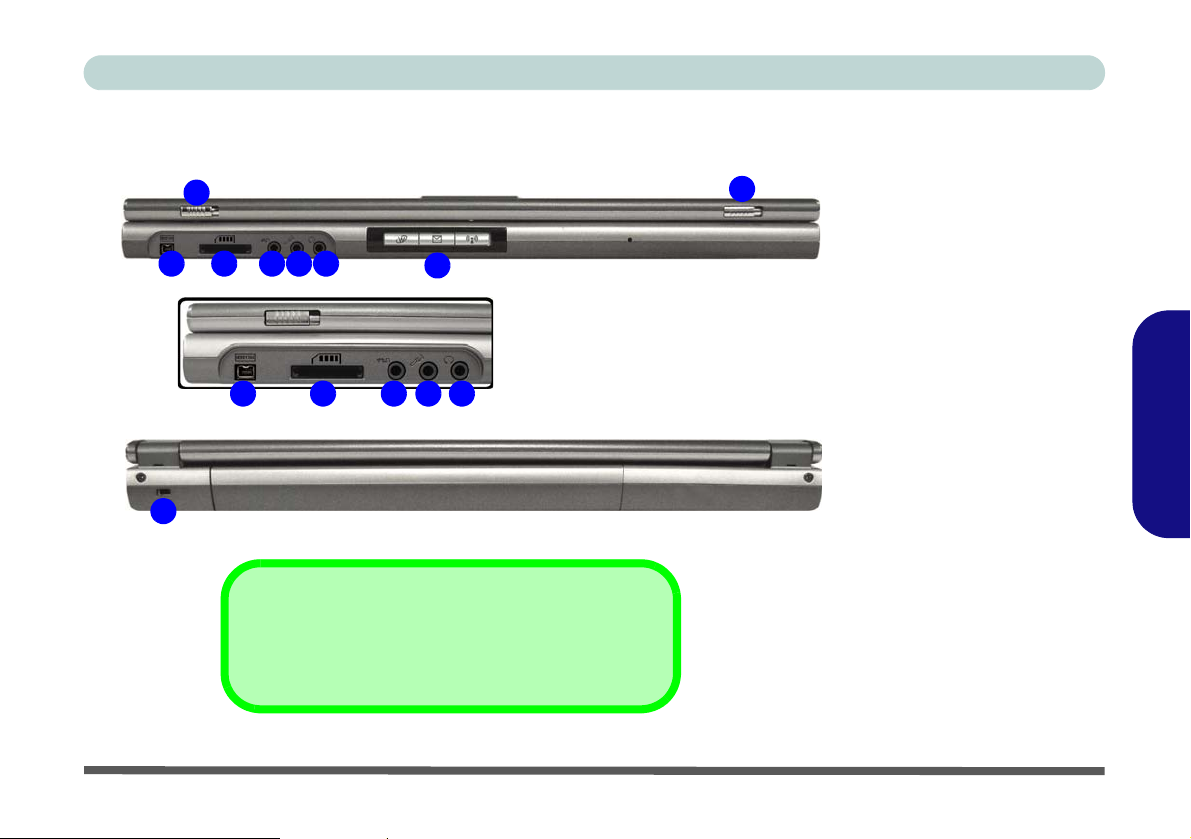

Carte du système : Vues de face & arrière ......................................89
Carte du système : Vue gauche .......................................................90
Carte du système : Vue droite .........................................................91
Carte du système : Vue d’en dessous ..............................................92

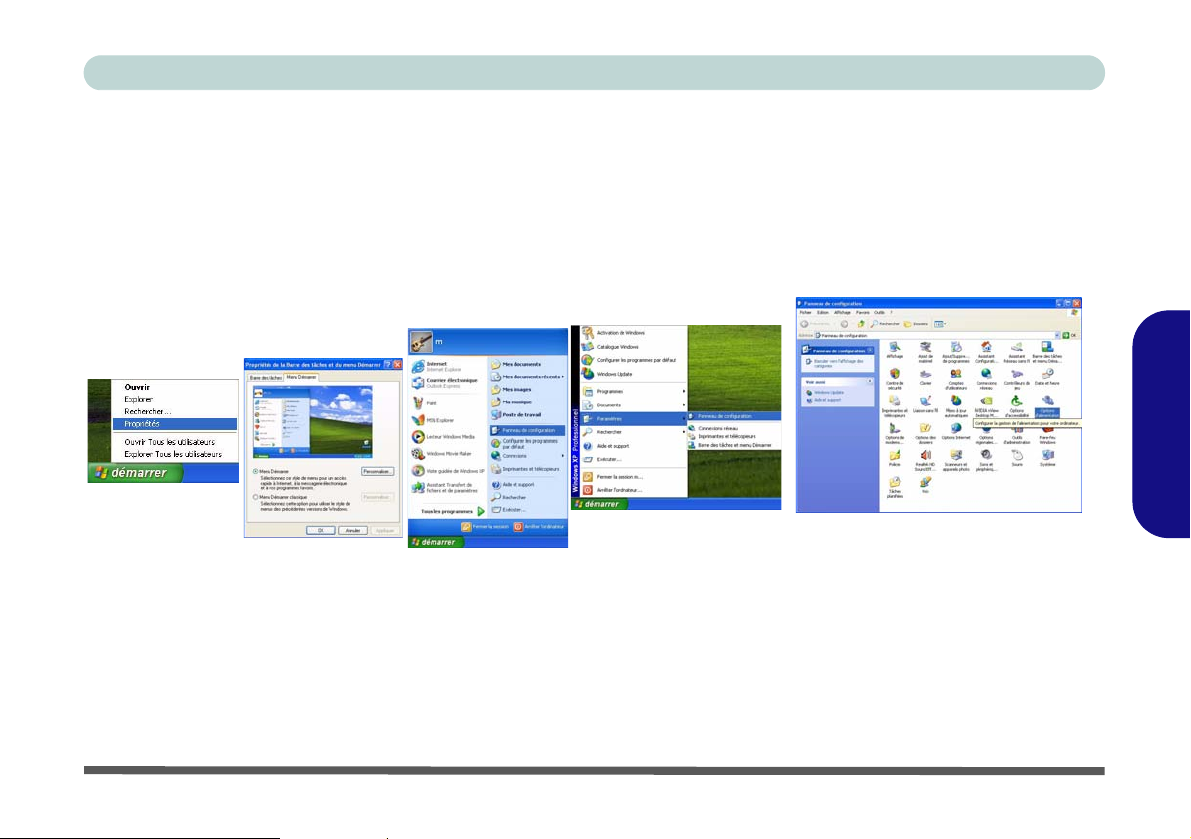

Menu Démarrer & Panneau de configuration de Windows XP ......93
Caractéristiques vidéo .....................................................................94
Caractéristiques Audio ....................................................................98
II
Caractéristiques de gestion de l’alimentation .................................99
Installation du pilote .....................................................................101
Dépannage .....................................................................................109
Spécifications ................................................................................110
Contenidos
Aviso .............................................................................................115
Acerca de esta Guía del Usuario Concisa .....................................116
Instrucciones para el cuidado y funcionamiento ...........................117
Guía rápida para empezar ............................................................. 121
Software de sistema ...................................................................... 122
Mapa del sistema: Vista superior con panel LCD abierto ............ 123
Mapa del sistema: Vistas frontal y posterior .................................127
Mapa del sistema: Vista izquierda ................................................128
Mapa del sistema: Vista derecha ...................................................129
Mapa del sistema: Vista inferior ...................................................130
Menú Inicio y Panel de control de Windows XP ..........................131
Parámetros de vídeo ......................................................................132
Características de audio ................................................................136
Funciones de administración de energía .......................................137
Instalación de controladores .........................................................139
Solución de problemas ..................................................................147
Especificaciones ............................................................................148
Sommario
Avviso ...........................................................................................153
Informazioni sulla Guida Rapida per l'Utente ...............................154
Istruzioni per la custodia e il funzionamento ................................155
Guida di avvio rapido ....................................................................159
Software del sistema ......................................................................160
Descrizione del sistema: Vista superiore con pannello LCD
aperto .............................................................................................161
Descrizione del sistema: Vista anteriore e posteriore ...................165
Descrizione del sistema: Vista sinistra ..........................................166
Descrizione del sistema: Vista destra ............................................167
Descrizione del sistema: Vista inferiore ........................................168
Menu Start e Pannello di controllo di Windows XP .....................169
Funzioni video ...............................................................................170
Funzionalità audio .........................................................................174
Funzioni di risparmio energetico ...................................................175
Installazione driver ........................................................................177
Risoluzione dei problemi ..............................................................185
Specifiche tecniche ........................................................................186
III
Concise User’s Guide
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this
publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted
or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks
of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.
©May 2005
Trademarks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home or other limited
viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Intel® and Pentium® are US registered trademarks of Intel Corporation.
is a trademark of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.
English
Notice - 1
Concise User’s Guide
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for
the expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s
Manual CD-ROM supplied with your computer. This CD-ROM also contains the drivers and utilities necessary for
English
the proper operation of the computer.
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual CD-ROM does not contain an operating system.
Regulatory Information
Regulatory notices and information are contained in the expanded User’s Manual on the Device Drivers & Utilities
+ User’s Manual CD-ROM.
2 - About this Concise User Guide
Concise User’s Guide
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic
fields. These can hinder proper performance and damage your data.
4. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your
work. Remember to periodically save your data as data may be lost if the battery is depleted.
5. Take care when using peripheral devices.
Wireless Device Operation Aboard Aircraft
The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the modules are OFF if you are using the computer aboard aircraft.
English
Instructions for Care and Operation - 3
Concise User’s Guide
Power Safety
The computer has specific power requirements:
• Only use an AC adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If
English
you are unsure of your local power specifications, consult your service representative or local power company.
• The AC adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature;
do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Power Safety Warning
Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally
turning the machine on.
4 - Instructions for Care and Operation
Concise User’s Guide
Cleaning
Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or
abrasive cleaners on any part of the computer.
Servicing
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Refer servicing to qualified service personnel under any of the following conditions:
• When the power cord is damaged or frayed.
• If the computer has been exposed to rain or other liquids.
• If the computer does not work normally when you follow the operating instructions.
• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your computer.
Power Off Before Traveling
Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting
a notebook which is powered on in a travel bag may cause the vent(s)/fan intake(s) to be blocked. To prevent your computer from overheating make sure nothing blocks the vent(s)/fan intake(s) while the computer is in use.
English
Instructions for Care and Operation - 5
Concise User’s Guide
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way.
Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may pos-
English
sibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries
may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal & Caution
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful
life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by
the manufacturer. Discard used battery according to the manufacturer’s instructions.
6 - Instructions for Care and Operation
Concise User’s Guide
Quick Start Guide
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Securely attach any peripherals you want to use with the
notebook (e.g. keyboard and mouse) to their ports.
4. Attach the AC adapter to the DC-In jack on the right of the
computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC adapter.
5. Move the LCD latches in the direction of the arrows to
release the top cover.
6. Raise the lid/LCD to a comfortable viewing angle, and press
the power button to turn the computer “on”.
7. Adjust the LCD panel to a comfortable viewing angle.
8. The LED indicators show the power and battery status of
the computer, and give notification of e-mail received.

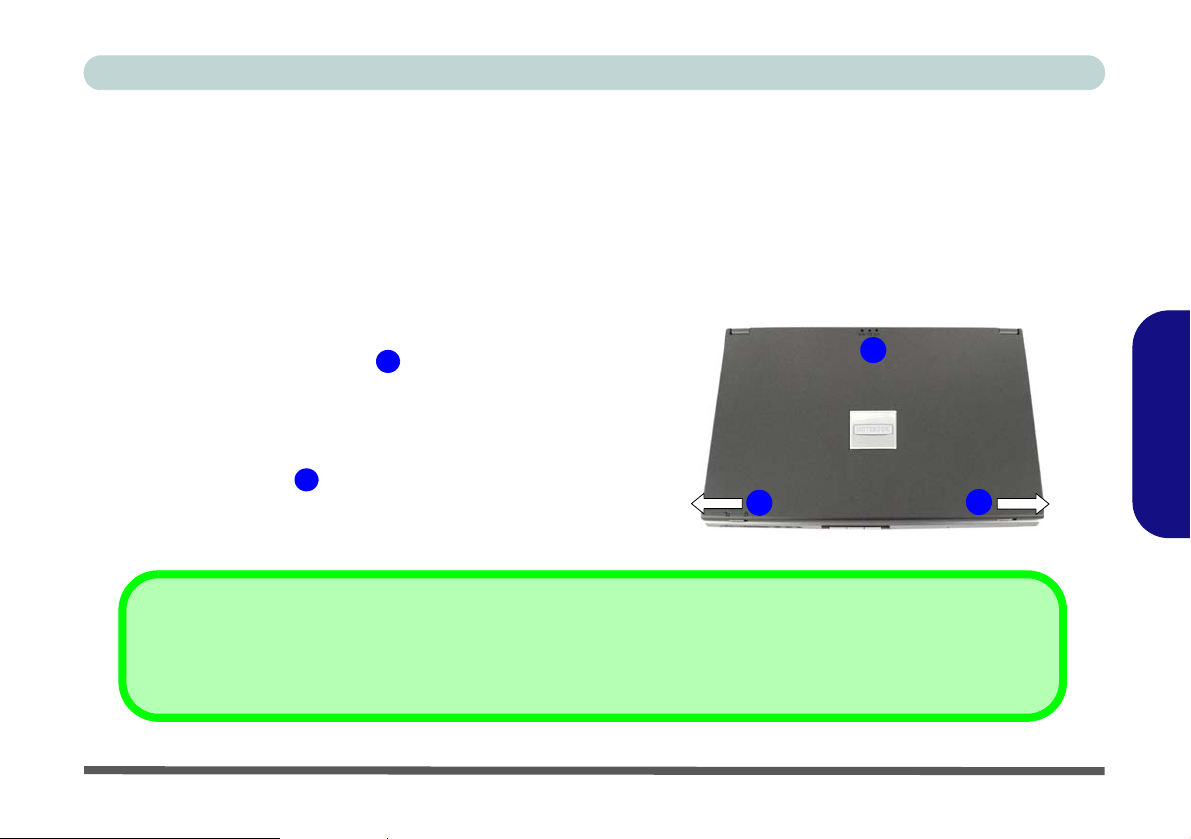

1
2

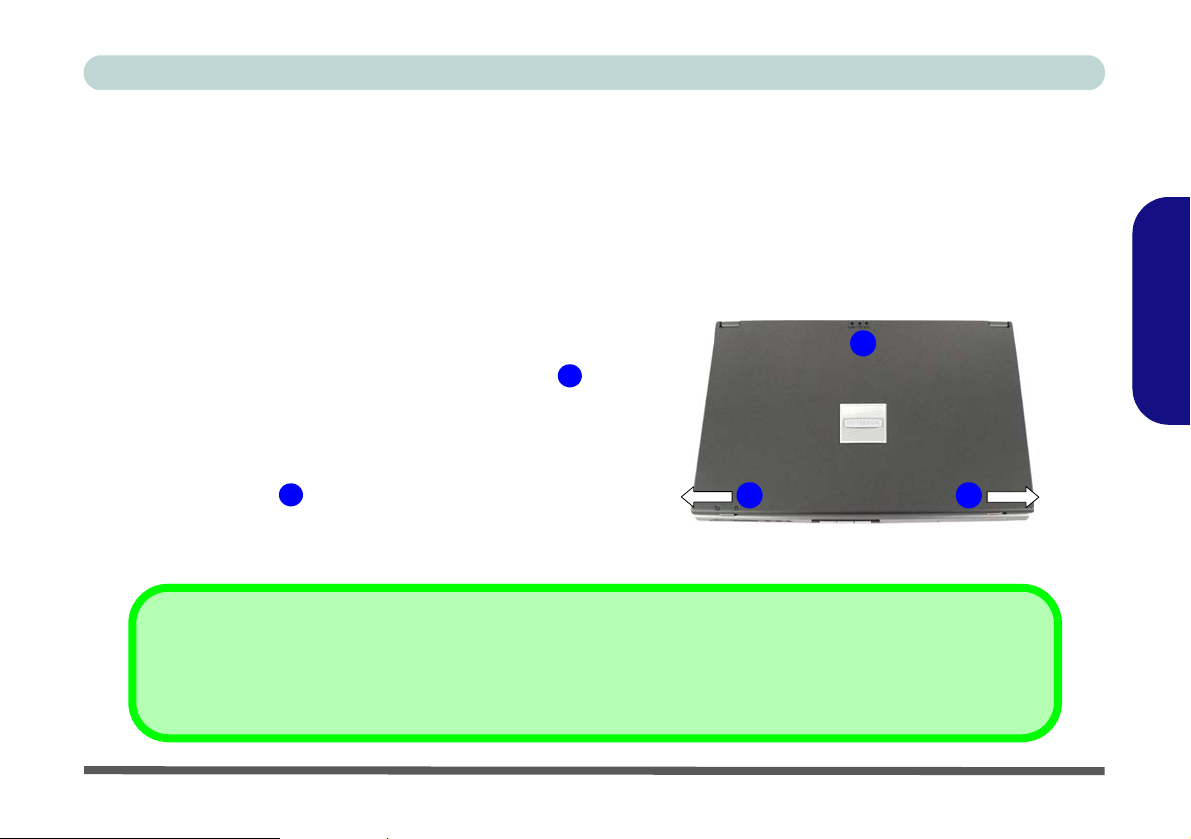

1. LCD Latches
2. LED Power & Communication Indicators
Top Panel with LCD Closed
1 1
Shutdown
Please note that you should always shut your computer down by choosing the Turn Off Computer command from the Start
menu in Windows. This will help prevent hard disk or system problems.
Figure 1
2
English
Quick Start Guide - 7
Concise User’s Guide
System Software
Operating Systems (e.g. Windows XP etc.) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals. Your computer may already come with
system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find this manual refers to the Microsoft Windows XP operating system. Further information on
English
installing the drivers and utilities is available in Chapters 4 & 7 of the expanded User’s Manual on the Device Drivers
& User’s Manual CD-ROM.

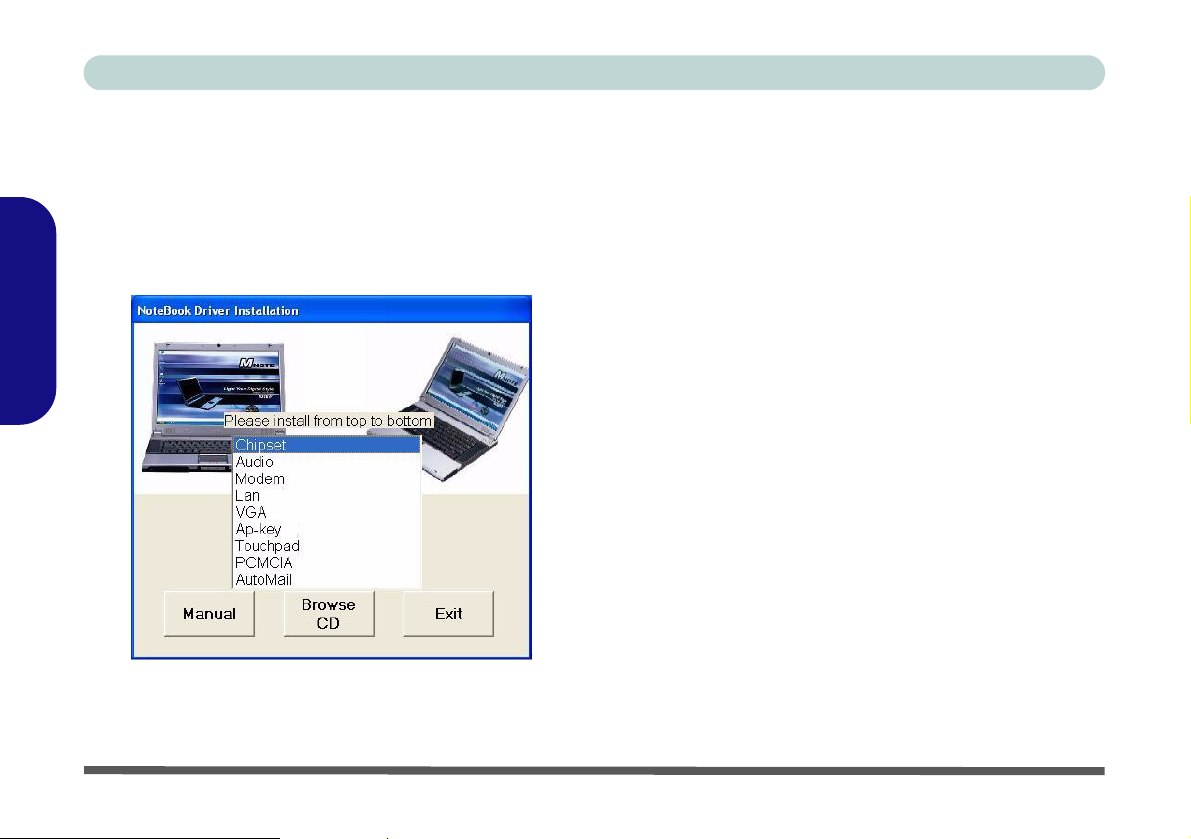

Drivers
If you are installing/re-installing new system software, you will need to install the drivers listed in “Driver Installation” on
page 25. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless net-
work module. It is very important that you install the drivers in the order listed in Table 7 on page 25. You will be unable to use
most advanced controls until the necessary drivers and utilities are properly installed.
8 - Quick Start Guide
Concise User’s Guide
System Map: Top View with LCD Panel Open
1
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission
devices aboard aircraft is
usually prohibited. Make
sure the module(s) are
OFF if you are using the
computer aboard aircraft.
Check “LED Status In-
dicators” on page 10,
“AP-Key Buttons” on
page 11 and “WLAN/
Bluetooth Toggle Power Order” on page 11
for the power status of
both the WLAN and Bluetooth modules.
4
4
9
2
8
10
5
3
4
7
6
4
English
Figure 2
Top View with LCD Panel
Open
1. Optional Built-In
PC Camera
2. LCD
3. LED Power &
Communication Indicators
4. Speakers
5. Lid Sensor
6. LED Status Indicators
7. Power Button
8. Keyboard
9. Built-In Microphone
10. TouchPad and Buttons
11. AP-Key Buttons
11
System Map: Top View with LCD Panel Open - 9
Concise User’s Guide

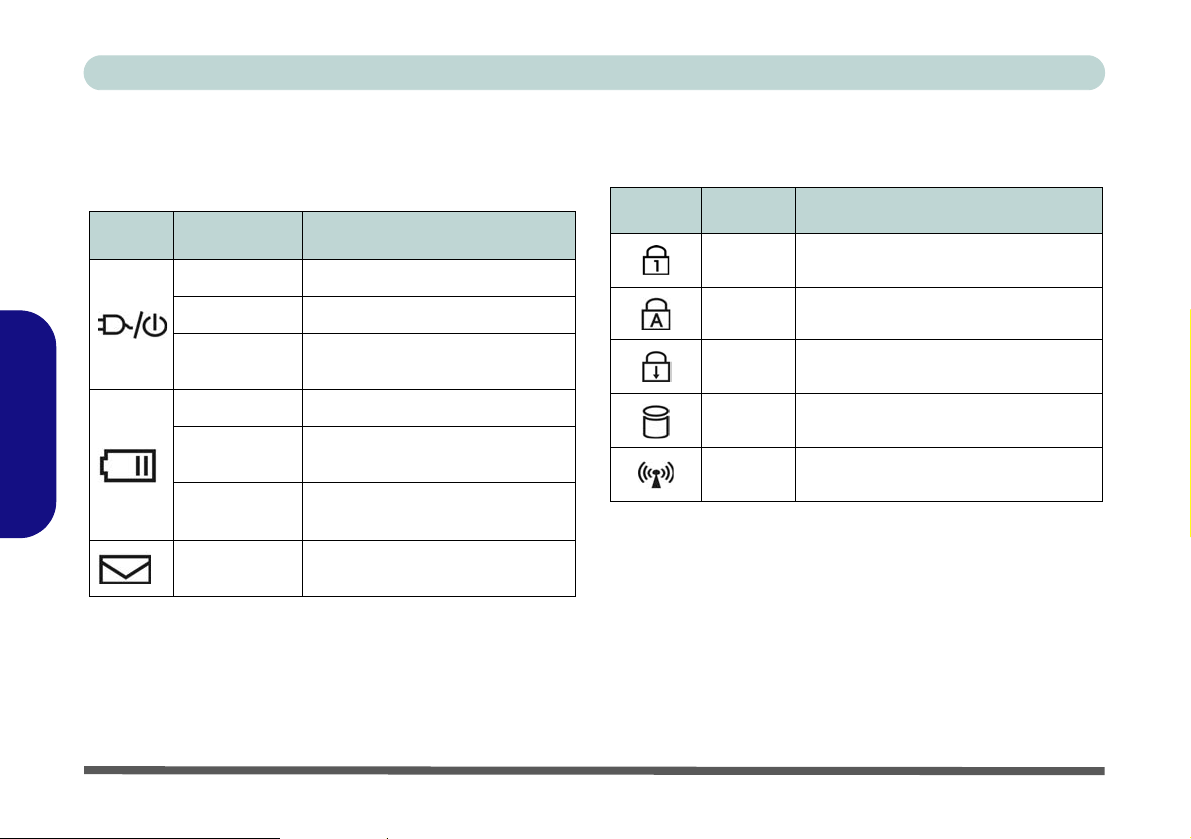

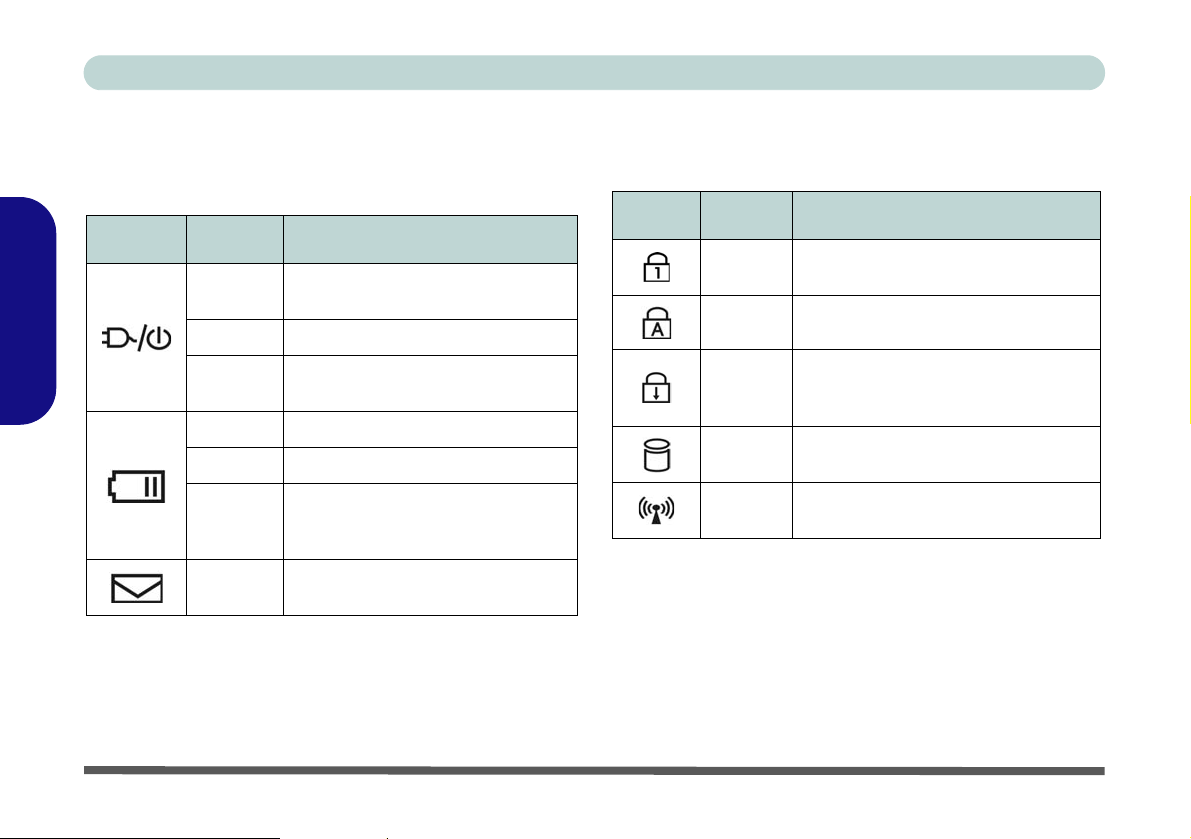

LED Indicators
Table 1 - LED Power & Communication Indicators
Icon Color Description
English
Orange DC Power is Plugged In
Green The Computer is On
Blinking Green
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange
Blinking Green
The Computer is in Standby
Mode
The Battery Has Reached
Critically Low Power Status
New Mail Has Arrived
*Note: The Automail driver (see page 30) must be in-
stalled, and the program configured appropriately, in order to receive mail notification.
Table 2 - LED Status Indicators
Icon Color Description
Green
Green Caps Lock Activated
Green
Green Hard Disk Activity
Green
NumLk (Numeric Keypad)
Activated
Scroll Lock Activated (to activate
press Fn & ScrLk)
WLAN or/and Bluetooth is/are
Powered On
*
10 - System Map: Top View with LCD Panel Open
Concise User’s Guide

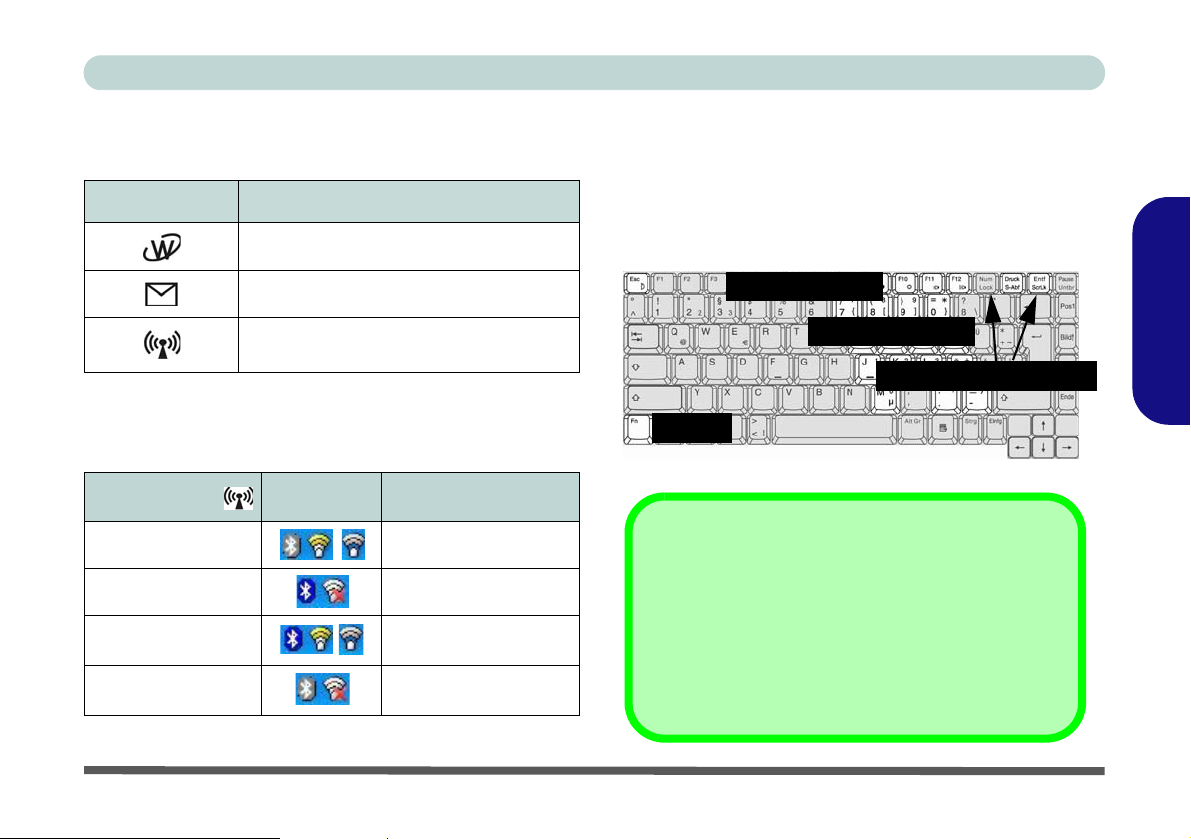

AP-Key Buttons
Table 3 - AP-Key Buttons
AP-Key Button Function
Activate the Default E-Mail Program
Activate the Default Internet Browser
Toggle the Wireless LAN/Bluetooth
module power ON/OFF (see Table 4)
Table 4 - WLAN/Bluetooth Toggle Power Order
Press
Once
Twice Bluetooth module only ON
Three Times
Four Times
Icon(s) Function
/
/
WLAN module only ON
Both WLAN & Bluetooth
modules ON
Both WLAN & Bluetooth
modules OFF
Keyboard
The keyboard has an embedded numerical keypad for
easy numeric data input (see Figure 3) and features
Function Keys to allow you to change operational features instantly.
Function Keys
Num Lock &
ScrLk Keys
Numeric Keypad
Fn Key
Figure 3 - Keyboard
Other Keyboards
If your keyboard is damaged or you just want to make a
change, you can use any standard USB keyboard. The
system will detect and enable it automatically. However
special functions/hot keys unique to the system’s regular
keyboard may not work.
English
System Map: Top View with LCD Panel Open - 11
Concise User’s Guide
Function Keys
To use the function keys, press and hold the Fn key, then press the appropriate function key (Esc - F12 etc.).
Key Function Key Function
English
Fn Function Key Fn + F9 Decrease LCD Brightness
Fn + Esc Sleep Toggle Fn + F10 Increase LCD Brightness
Fn + F5 Mute Toggle Fn + F11 Decrease Audio Volume
Fn + F6 Display Toggle Fn + F12 Increase Audio Volume
Fn + F7 SRS WOW Toggle Num Lock Numeric Keypad Toggle
Fn + F8 PC Camera Module Toggle Fn + ScrLk Scroll Lock Toggle
Table 5 - Function Keys
Special Characters
Some software applications allow the number-keys to be used with Alt to produce special characters. These special characters
can only be produced by using the numeric keypad. Regular number keys (in the upper row of the keyboard) will not work. Make
sure that the numeric keypad (Num Lock) is on.
12 - System Map: Top View with LCD Panel Open
Concise User’s Guide
System Map: Front & Rear Views
1
2 4 5 63
32 4 5 6
8
The Mini-IEEE 1394 Port only supports SELF POWERED IEEE 1394 devices.
7
Mini-IEEE 1394 Port
English
1
1. LCD Latches
2. Mini-IEEE 1394 Port
3. 4-in-1 Card Reader
4. S/PDIF-Out Jack
5. Microphone-In Jack
6. Headphone-Out Jack
7. AP-Key Buttons
8. Security Lock Slot
Figure 4
Front & Rear Views
System Map: Front & Rear Views - 13
Concise User’s Guide

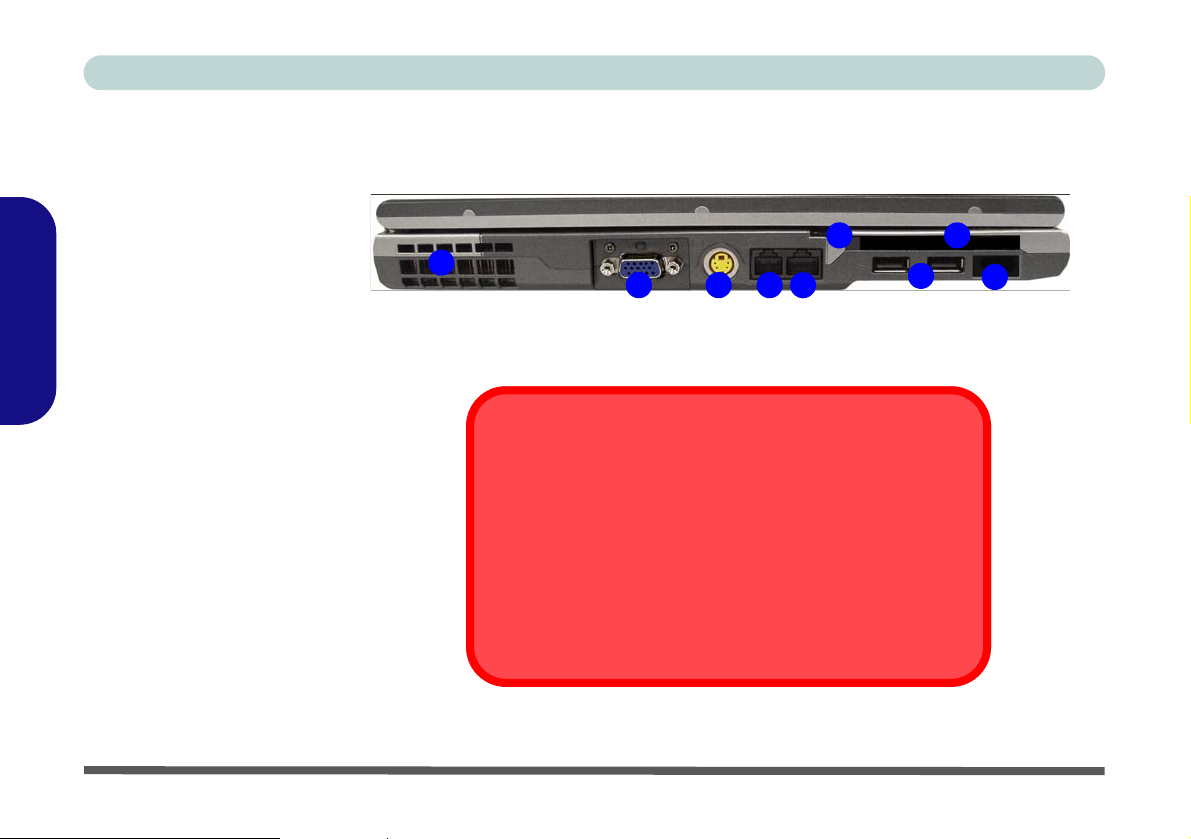

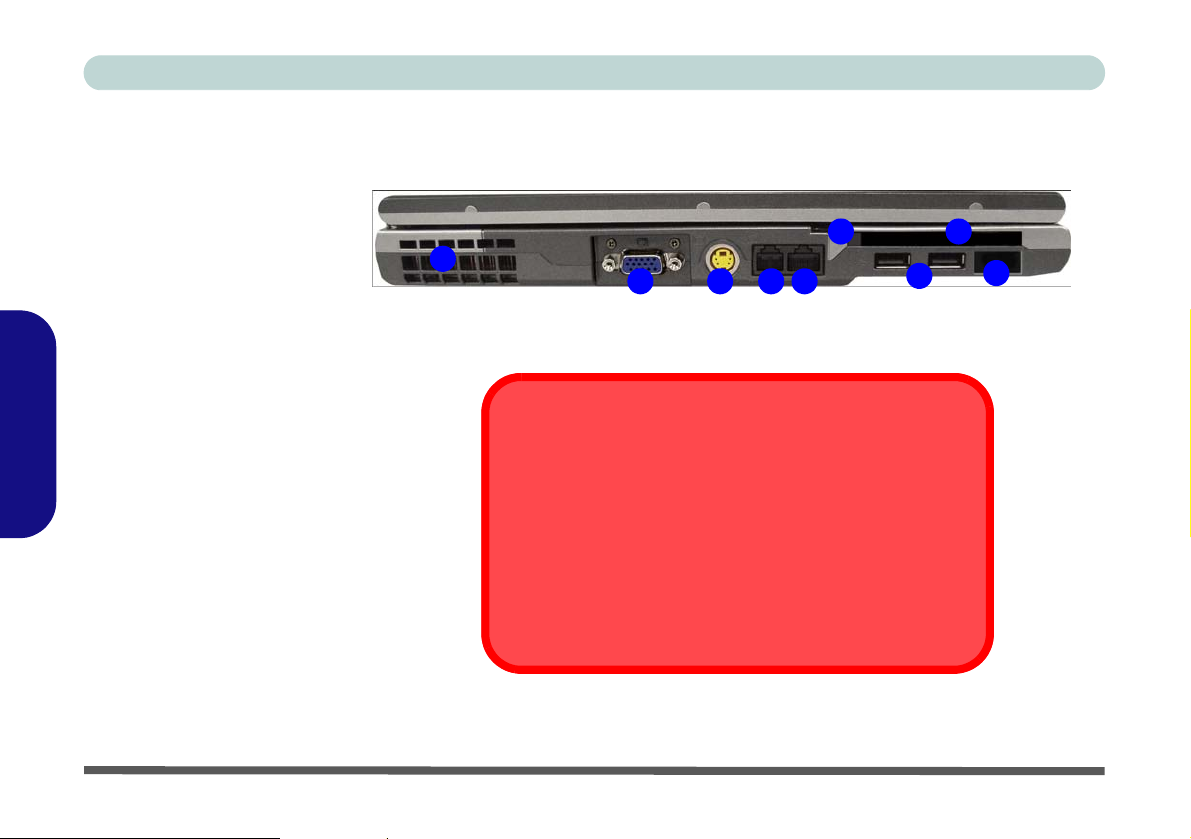

System Map: Left View
Figure 5
Left View
English
1. Vent
2. External Monitor Port
3. S-Video-Out Jack
4. RJ-11 Phone Jack
5. RJ-45 LAN Jack
6. 2 * USB 2.0 Ports
7. Infrared Transceiver
8. PC Card Slot
9. PC Card Eject Button
89
3 4152
6
External USB Hard Disk Drives
If you are using an external USB HDD (or any USB device with a
power rating of 500mA or above), make sure you use the power
supply which comes with the device.
Overheating
To prevent your computer from overheating make sure nothing
blocks the vent(s)/fan intake(s) while the computer is in use.
7
14 - System Map: Left View
Concise User’s Guide

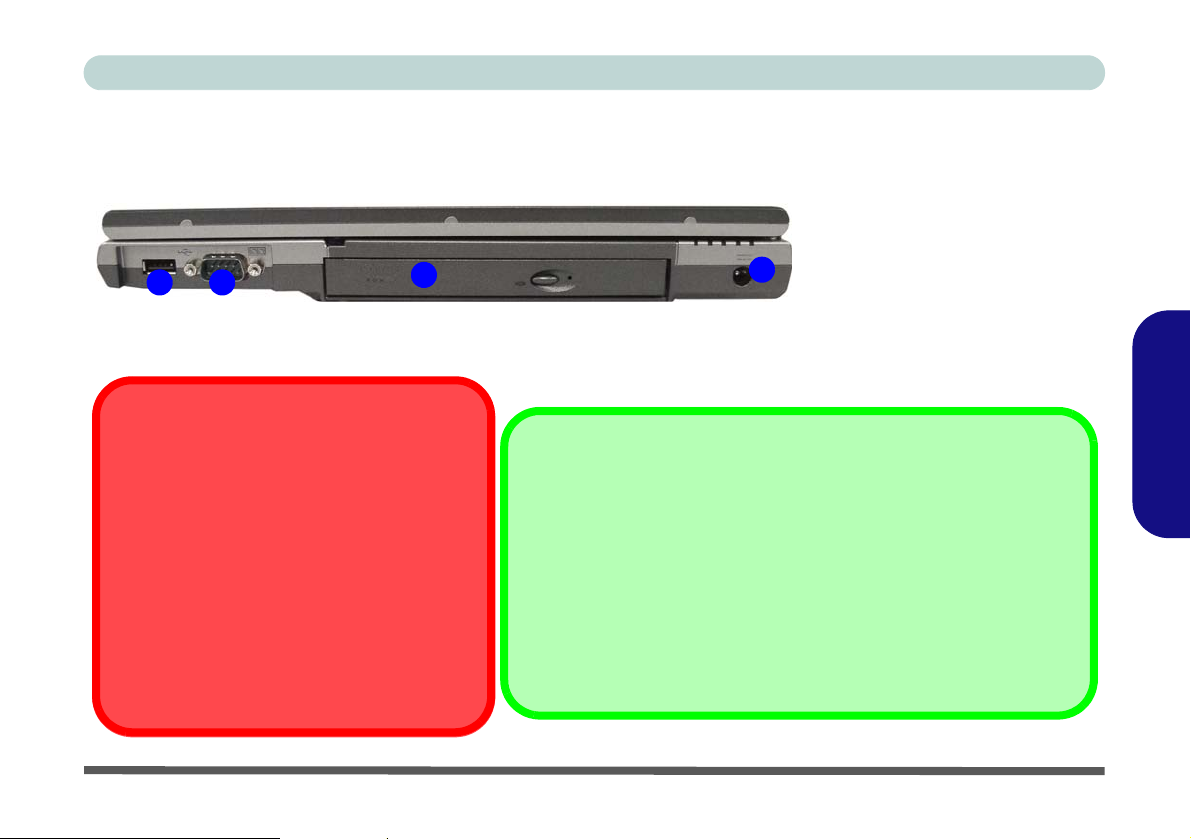

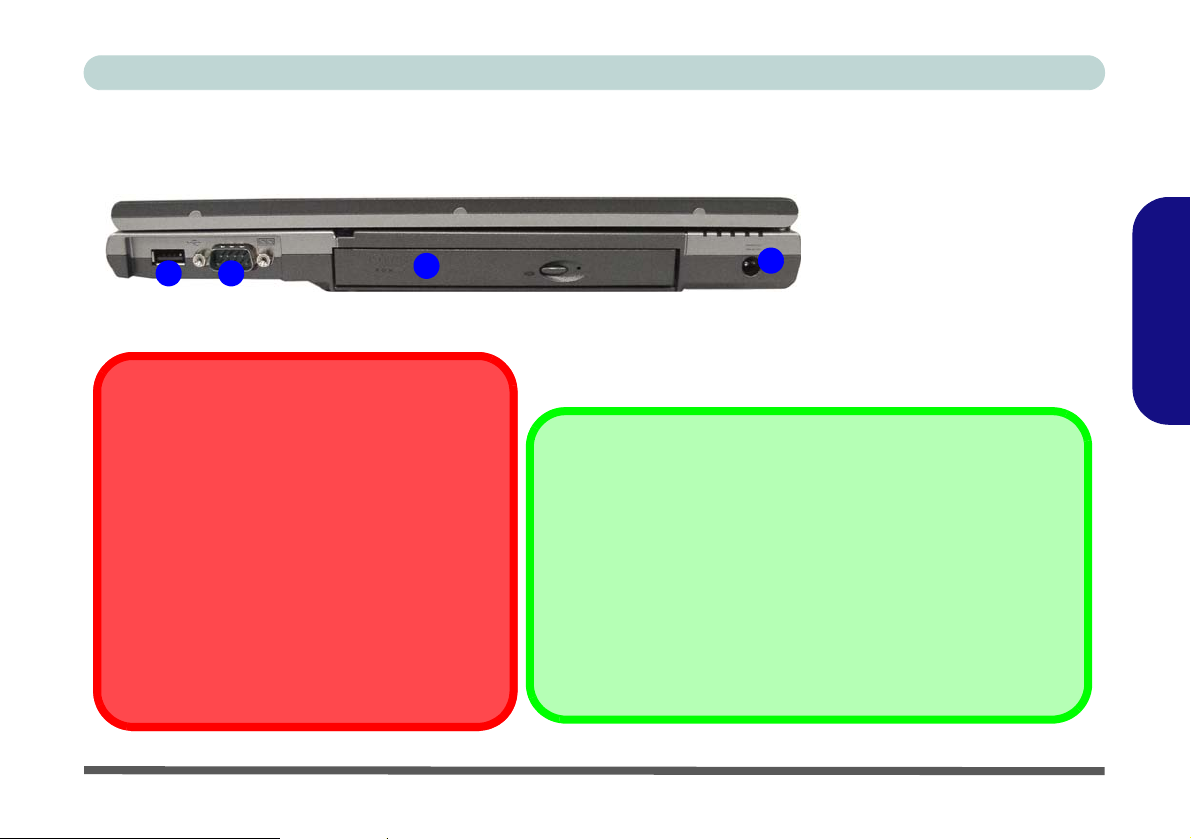

System Map: Right View
1 2
CD Emergency Eject
If you need to manually eject a CD/DVD (e.g.
due to an unexpected power interruption) you
may push the end of a straightened paper clip
into the emergency eject hole. Do not use a
sharpened pencil or similar object that may
break and become lodged in the hole.
Media Warning
Don’t try to remove a floppy disk/CD/DVD
while the system is accessing it. This may
cause the system to “crash”.
3
Figure 6
Right View
1. USB 2.0 Port
4
2. Serial Port
3. Optical Device Drive Bay
(for CD/DVD Device)
4. DC-In Jack
Changing DVD Regional Codes
Go to the Control Panel and double-click System > Hardware (tab), click
Device Manager, then click the + next to DVD/CD-ROM drives. Double-
click on the DVD-ROM device to bring up the Properties dialogue box, and
select the DVD Region (tab) to bring up the control panel to allow you to
adjust the regional code.
DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent.
This cannot be altered even if you change your operating system or you use
the module in another computer.
English
System Map: Right View - 15
Concise User’s Guide

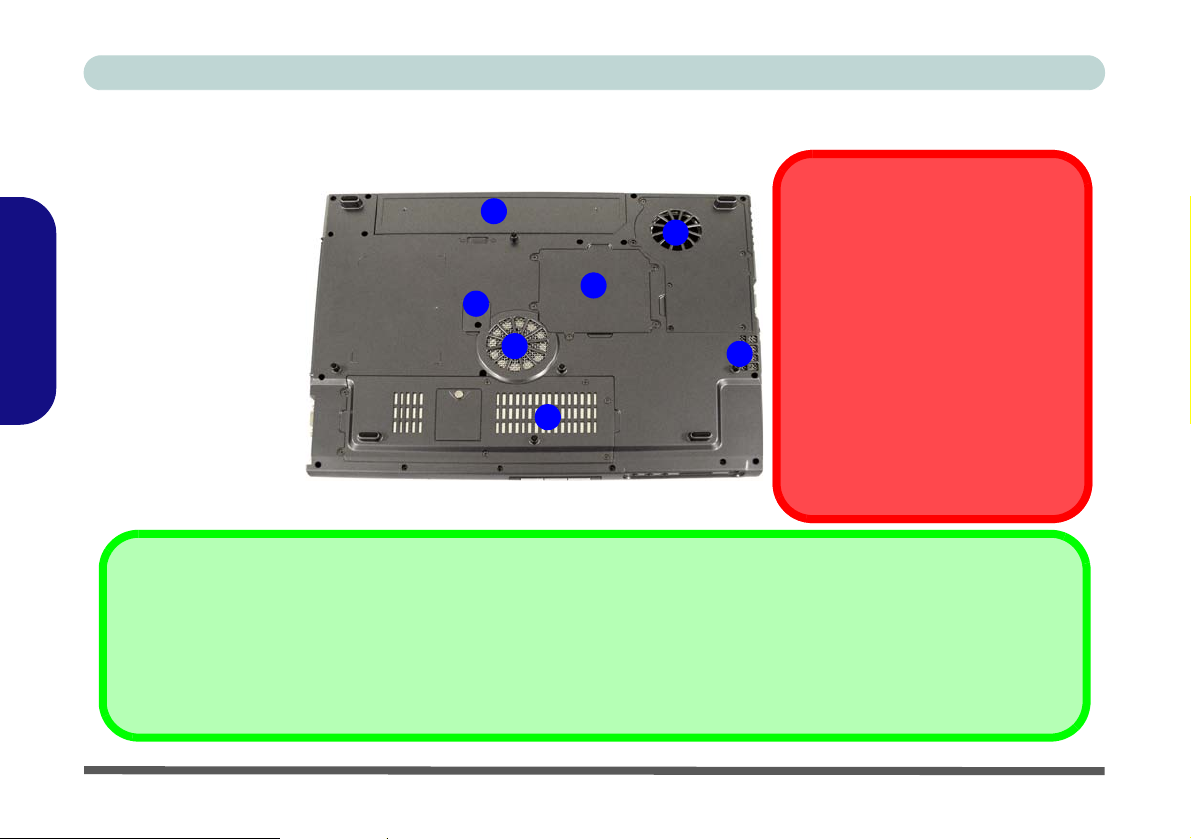

System Map: Bottom View
English
1. Vent/Fan Intake
2. Battery
3. RAM Bay Cover
4. Hard Disk/WLAN &
5. Optical (CD/DVD) Device
Figure 7
Bottom View
Bluetooth Module Bay
Cover
Screw Cover
2
1
The CPU is not a user ser-
5
3
1
1
4
viceable part. Opening this
compartment, or accessing
the CPU in any way, may violate your warranty.
To prevent your computer
from overheating make sure
nothing blocks the vent(s)/
fan intake(s) while the computer is in use.
CPU
Overheating
Battery Information
Always completely discharge, then fully charge, a new battery before using it. Completely discharge and charge the battery at
least once every 30 days or after about 20 partial discharges. Your computer’s battery life is dependent upon many factors, including the programs you are running, and peripheral devices attached. Power Options and settings in the OS will help prolong
the battery life if configured appropriately.
16 - System Map: Bottom View
Concise User’s Guide
Windows XP Start Menu & Control Panel
Most of the control panels, utilities and programs within Windows XP (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a
shortcut will usually be placed in the Start menu and/or the desktop. You can customize the look of the Start menu
by right-clicking the Start menu and selecting Properties from the menu.
Click here to toggle Category View
Figure 8 - Start Menu & Control Panel
In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel
is accessed from the Start menu, and it allows you to configure the settings for most of the key features in Windows
(e.g. power, video, network, audio etc.). Windows XP provides basic controls for many of the features, however many
new controls are added (or existing ones are enhanced) when you install the drivers listed in Table 7 on page 25. To
see all controls it may be necessary to toggle off Category View.
English
Windows XP Start Menu & Control Panel - 17
Concise User’s Guide
Video Features
You can switch display devices, and configure display options, from the Display control panel in Windows as long
as the appropriate video driver is installed.
English
To access Display Properties in Windows:
1. Click Start (menu), point to Settings and click Control Panel (or
just click Start > Control Panel).
2. Double-click Display (icon); Display (icon) is in Appearance and
Themes (category).
3. In the Display Properties dialog box, click Settings (tab).
4. Move the slider to the preferred setting in Screen resolution .
5. Click the arrow, and scroll to the preferred setting in Color quality
2
.
6. You can also access Display Properties by right-clicking the
desktop and scrolling down and clicking Properties. Click
Settings (tab) and adjust as above.
7. Open the Display Properties control panel, and click Advanced
(button) to bring up the Advanced properties tabs.
8. Click GeForce Go 6600 (tab).
9. Click Additional Properties (button) for further video options.
3
1

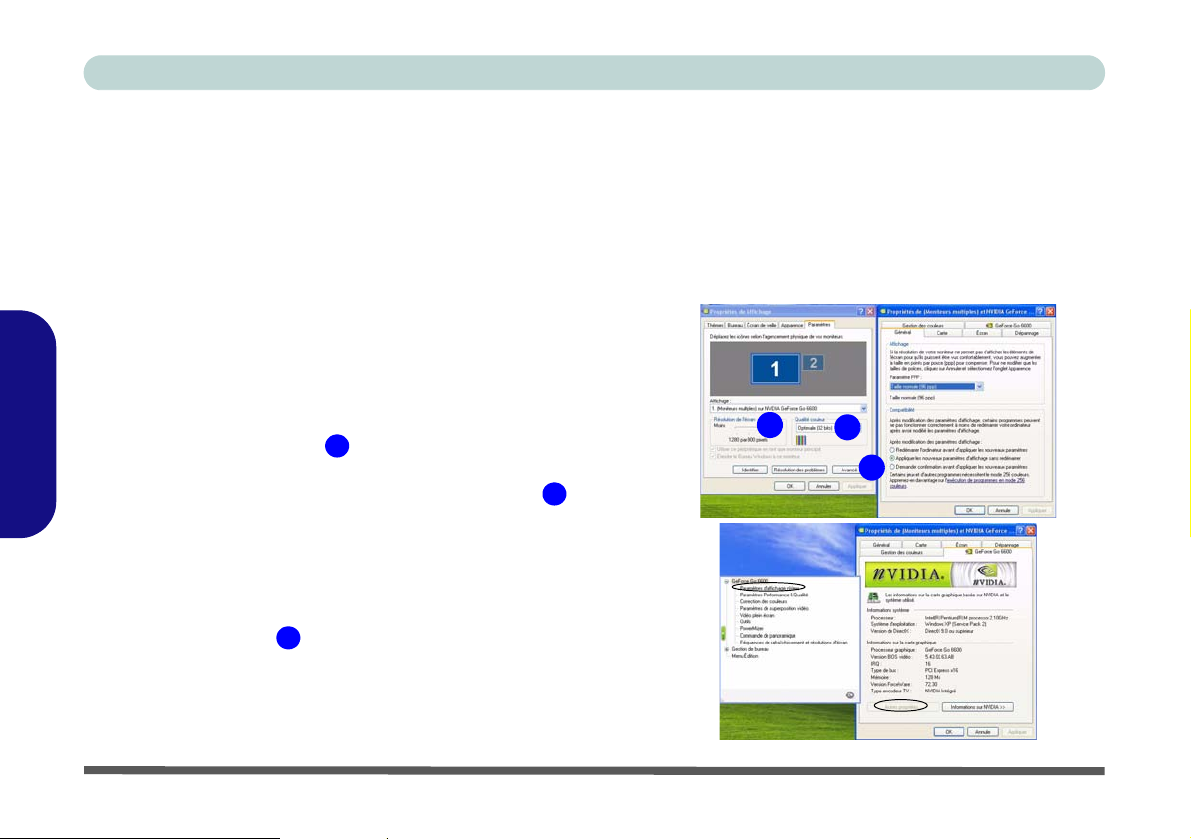

Figure 9 - Display Properties
1
2
3
18 - Video Features
Concise User’s Guide
Display Devices & Options
Besides the built-in LCD, you can also use a CRT/LCD monitor or TV as your display device. A CRT/LCD monitor
connects to the external monitor port, a TV to the S-Video-Out jack.
Display Mode Description
Single (Single display) One of the connected displays is used as the display device
Clone Both connected displays output the same view
Dualview Both connected displays are treated as separate devices, and act as a virtual desktop
Table 6 - Display Options
Clone Mode and Dualview Mode
Clone Mode simply shows an exact copy of the Primary display desktop on the
Secondary display. This mode will drive multiple displays with the same content
and each display device can be configured independently. Dualview Mode treats
both connected displays as separate devices, and they act as a virtual desktop resulting in a large workspace. When Dualview is enabled, you can drag any icons
or windows across to the other display desktop. It is therefore possible to have one
program visible in one of the displays, and a different program visible in the other
display.
The following display modes are available.
Cyberlink Power DVD
Do not switch display modes
(e.g. from Dualview to Clone
etc.) when playing DVDs in the
Cyberlink Power DVD 6 program. Set the display mode be-
fore launching the program.
English
Video Features - 19
Concise User’s Guide
Attaching Other Displays
If you prefer to use a CRT/LCD monitor, connect it to the external monitor port on the left of the computer.
1. Attach your external monitor to the external monitor port (or TV to the S-Video-Out jack), and turn it on.
2. Click Additional Properties in the GeForce Go 6600 Properties control panel (see “Video Features” on page 18).
English
3. Select nView Display Settings.
4. Select the display mode from the nView Display Mode drop box.
5. Select Apply.
6. Click Yes to confirm the settings.
Function Key Combination
You can use the Fn + F6 key combination to toggle through
the display options:
• Notebook Only
• External Display Only
• Notebook + External Display
Make sure you give the displays enough time to refresh.
20 - Video Features

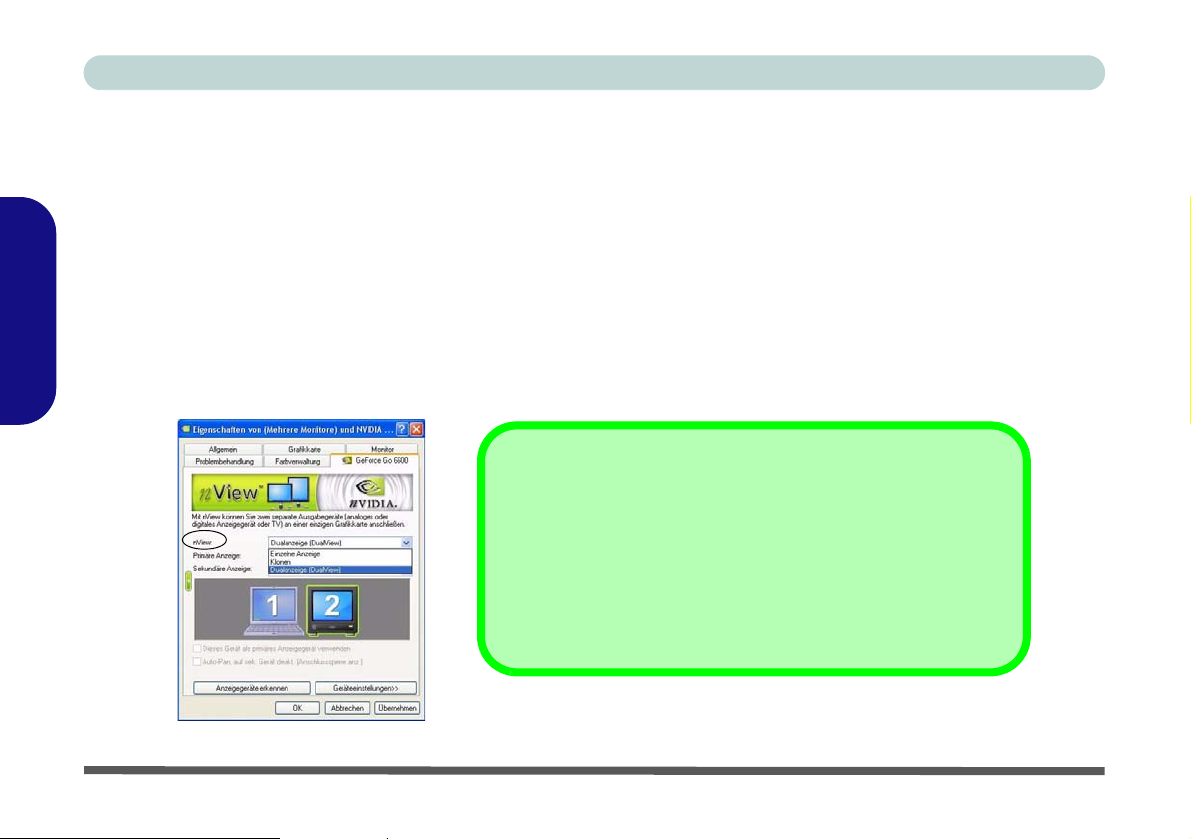

Figure 10 - Display Settings
Concise User’s Guide
7. Select the display option from the Primary display/ Secondary display dropbox. If you have a TV and external CRT/LCD
monitor attached you will have a number of available options.
8. Select and Apply the appropriate option.

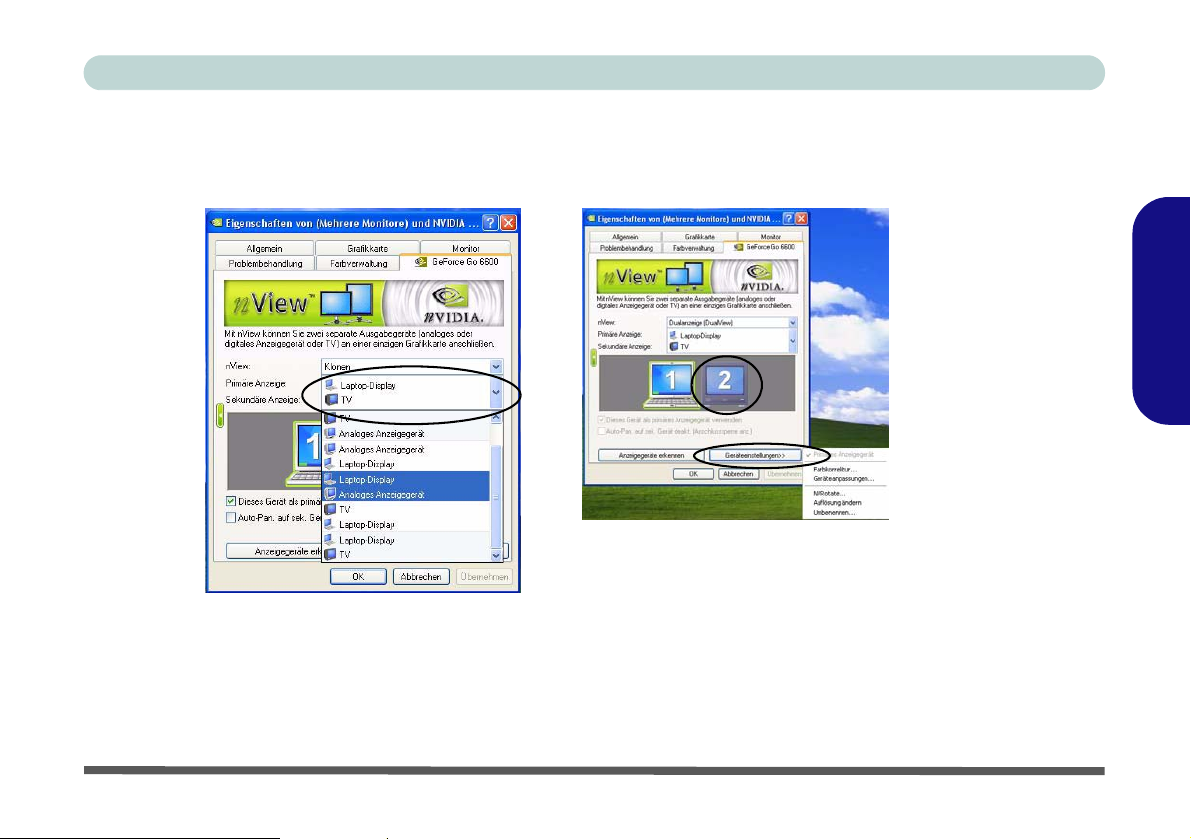

Figure 11 - Primary/Secondary Display
Dropbox & Device Settings
9. Click the monitor icon to select it, then click the Device Settings button to make any adjustments for the selected display
(including Screen Resolutions & Refresh Rates).
10. Click Apply to confirm any setting changes.
English
Video Features - 21
Concise User’s Guide
Audio Features
You can configure the audio options on your computer from the Sounds and Audio Devices control panel (see
Figure 8 on page 17), or from the Sound Effect Manager icon in the taskbar/control panel (this will bring up the
Realtek Audio Configuration menus). The volume may also be adjusted by means of the Fn + F11/F12 key combi-
English
nation. The SRS WOW Surround can be toggled using the Fn + F7 key combination.
Sound Volume Adjustment
How high the sound volume can be set depends on the setting of
the volume control within Windows. Click the Volume icon on the
taskbar to check the setting.
TruBass Software Support
SRS WOW Surround Sound Technology provides TruBass hard-
ware support. Turn off this function in any software applications
which provide TruBass support. In Windows Media Player this
item is in the View > Enhancements > SRS WOW Effects menu.
The SRS WOW Effects should be turned off (see left).
22 - Audio Features

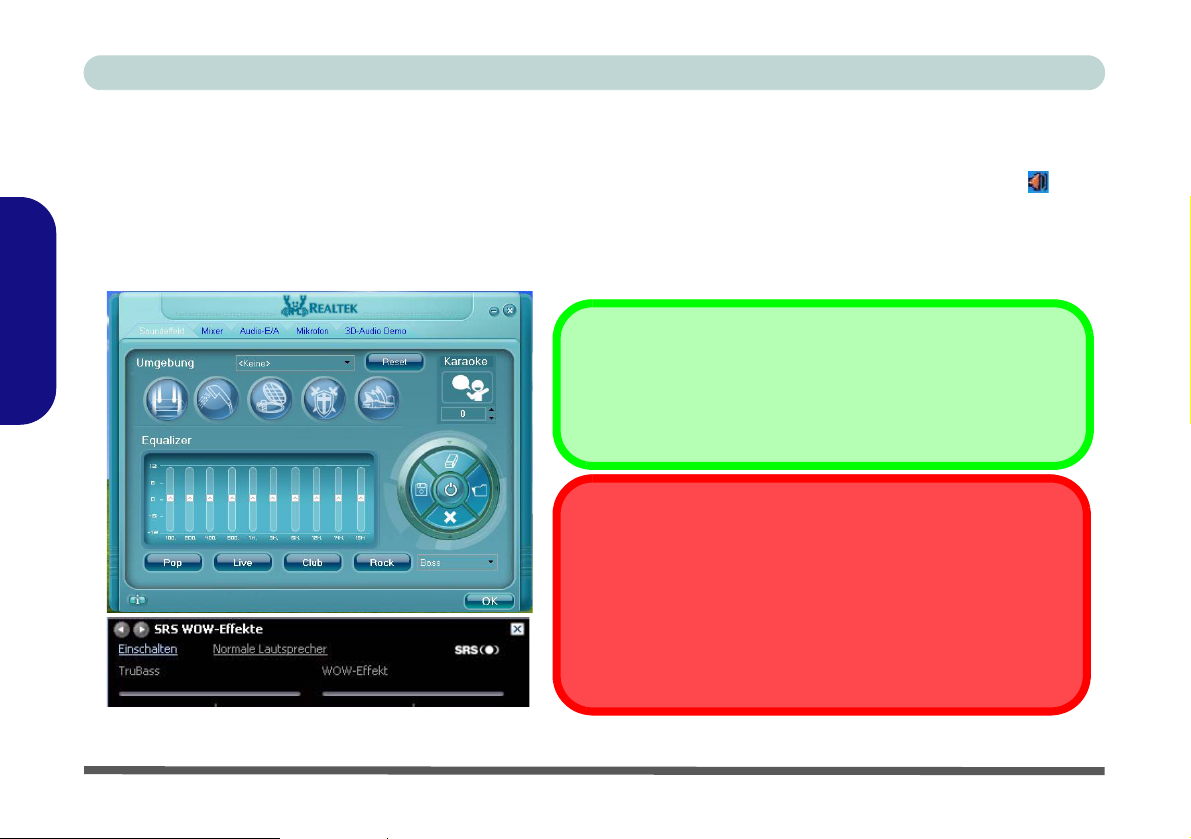

Figure 12 - Realtek Audio Configurations Menus
Concise User’s Guide
Power Management Features
The Power Options control panel in Windows (see page 17) allows you to configure power management features for
your computer. You may conserve power through individual components such as the monitor or hard disk (by means
of Power Schemes), or you may use either Standby or Hibernate mode to conserve power throughout the system
(enable Hibernate support from the control panel as pictured in Figure 13).
Figure 13 - Power Options
The computer’s power button, sleep button (Fn + Esc key combination), and Lid Sensor may be set to send the
computer in to either Standby or Hibernate mode.
Power Saving and Performance
Power Schemes may have an affect on your computer performance (see “Power Schemes” on page 24).
English
Power Management Features - 23
Concise User’s Guide
Power Schemes
You can set your computer to conserve power through individual components by means of Power Schemes. You can
also adjust the settings for each scheme to set the monitor to turn off after a specified time, and the computer's hard
disk motor to turn off if the hard disk drive has not been accessed for a specified period of time (if the system reads
or writes data, the hard disk motor will be turned back on). The schemes may also be set to set a specified time for
English
the system to enter Standby or Hibernate mode.
Windows Power Schemes
Each Windows Power Scheme will also adjust the processor performance of
your machine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power).
Choose the Home/Office Desk scheme for maximum performance when the
computer is powered from an AC power source. Choose the Max Battery
scheme (bear in mind that this scheme may slow down the overall performance
of the computer in order to save power) for maximum power saving when the
computer is battery (DC power) powered.
Windows will use Portable/Laptop as the default scheme.
24 - Power Management Features
Figure 14 - Power Options
Loading...
