Clevo D400K, D470K User guide

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.

©June 2004

Trademarks

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. AMD Athlon is a trademark of Advanced Micro Devices, Inc.

Preface

FCC Statement

(Federal Communications Commission)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienced radio/TV technician for help.



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standards could void your authority to operate the equipment.

Preface

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit (DC Output 20V, 6A minimum).

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,

TELECOMMUNICATION LINE CORD

III

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Do not expose the computer to any shock or vibration.

Do not place it on an unstable surface.

Do not place anything heavy on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

Do not expose it to excessive heat or direct sunlight.

Do not leave it in a place where foreign matter or moisture may affect the system.

Don’t use or store the computer in a humid environment.

Do not place the computer on any surface which will block the vents.

Preface

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power until you properly shut down all programs.

Do not turn off any peripheral devices when the computer is on.

5. Take care when using peripheral devices.

Use only approved brands of peripherals.

Do not disassemble the computer by yourself.

Unplug the power cord before attaching peripheral devices.

Perform routine maintenance on your computer.

Preface

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

VII

Preface

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord or AC/DC adapter is damaged or frayed.

• If the computer has been exposed to rain or other liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.

VIII

Preface

Travel Considerations

Packing

As you get ready for your trip, run through this list to make sure the system is ready to go:

1. Check that the battery pack and any spares are fully charged.

2. Power off the computer and peripherals.

3. Close the display panel and make sure it’s latched.

4. Disconnect the AC adapter and cables. Stow them in the carrying bag.

5. The AC adapter uses voltages from 100 to 240 volts so you won’t need a second voltage adapter.

However, check with your travel agent to see if you need any socket adapters.

6. Put the notebook in its carrying bag and secure it with the bag’s straps.

7. If you’re taking any peripherals (e.g. a printer, mouse or digital camera), pack them and those

devices’ adapters and/or cables.

8. Anticipate customs - Some jurisdictions may have import restrictions or require proof of ownership

for both hardware and software. Make sure your “papers” are handy (it may be useful to have the computer in a sleep mode before going through customs).



Power Off Before Traveling

Make sure that your notebook is completely powered off before putting it into a travel bag (or any such container). Putting a notebook which is powered on in a travel bag may cause the vents/intakes to be blocked. To prevent your computer from overheating make sure nothing blocks the vent/fan intake while the computer is in use.

Preface

On the Road

In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshooting, keep these points in mind:

Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common. Don’t check it with “normal” luggage. Baggage handlers may not be sufficiently careful. Avoid knocking the computer against hard objects.

Beware of Electromagnetic fields - Devices such as metal detectors & X-ray machines can damage the computer, hard disk, floppy disks, and other media. They may also destroy any stored data - Pass your computer and disks around the devices. Ask security officials to hand-inspect them (you may be asked to turn it on). Note: Some airports also scan luggage with these devices.

Fly safely - Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, follow them. If you stow the notebook in an overhead compartment, make sure it’s secure. Contents may shift and/or fall out when the compartment is opened.

Get power where you can - If an electrical outlet is available, use the AC adapter and keep your battery(ies) charged.

Keep it dry - If you move quickly from a cold to a warm location, water vapor can condense inside the computer. Wait a few minutes before turning it on so that any moisture can evaporate.

Preface

Developing Good Work Habits

Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. The following are some tips to reduce the strain:

• Adjust the height of the chair and/or desk so that the keyboard is at or slightly below the level of your elbow. Keep your forearms, wrists, and hands in a relaxed position.

• Your knees should be slightly higher than your hips. Place your feet flat on the floor or on a footrest if necessary.

• Use a chair with a back and adjust it to support your lower back comfortably.

• Sit straight so that your knees, hips and elbows form approximately 90-degree angles when you are working.

• Take periodic breaks if you are using the computer for long periods of time.

Remember to:

• Alter your posture frequently.

• Stretch and exercise your body several times a day.

• Take periodic breaks when you work at the computer for long periods of time. Frequent and short breaks are better than fewer and longer breaks.

Preface

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display viewing angle to find the best position.

XII

Preface

Notice .......................................................................... I

Trademarks ..........................................................I

FCC Statement ...................................................II

Instructions for Care and Operation ................. IV

Power Safety .....................................................VI

Battery Precautions ..........................................VII

Cleaning ........................................................ VIII

Servicing ........................................................ VIII

Travel Considerations .......................................IX

Introduction ..................................1-1

Overview ..................................................................1-1

Advanced Users ..................................................1-1

Beginners and Not-So-Advanced Users .............1-1

Warning Boxes ...................................................1-2

Not Included .......................................................1-2

System Software .................................................1-2

Quick Start Guide .....................................................1-3

System Map ..............................................................1-4

Getting to Know Your Computer .......................1-4

Top View ..................................................................1-6

Top View with LCD Panel Open .......................1-7

PC Camera ......................................................1-7

LCD Panel ...................................................... 1-8

Microphone .................................................... 1-8

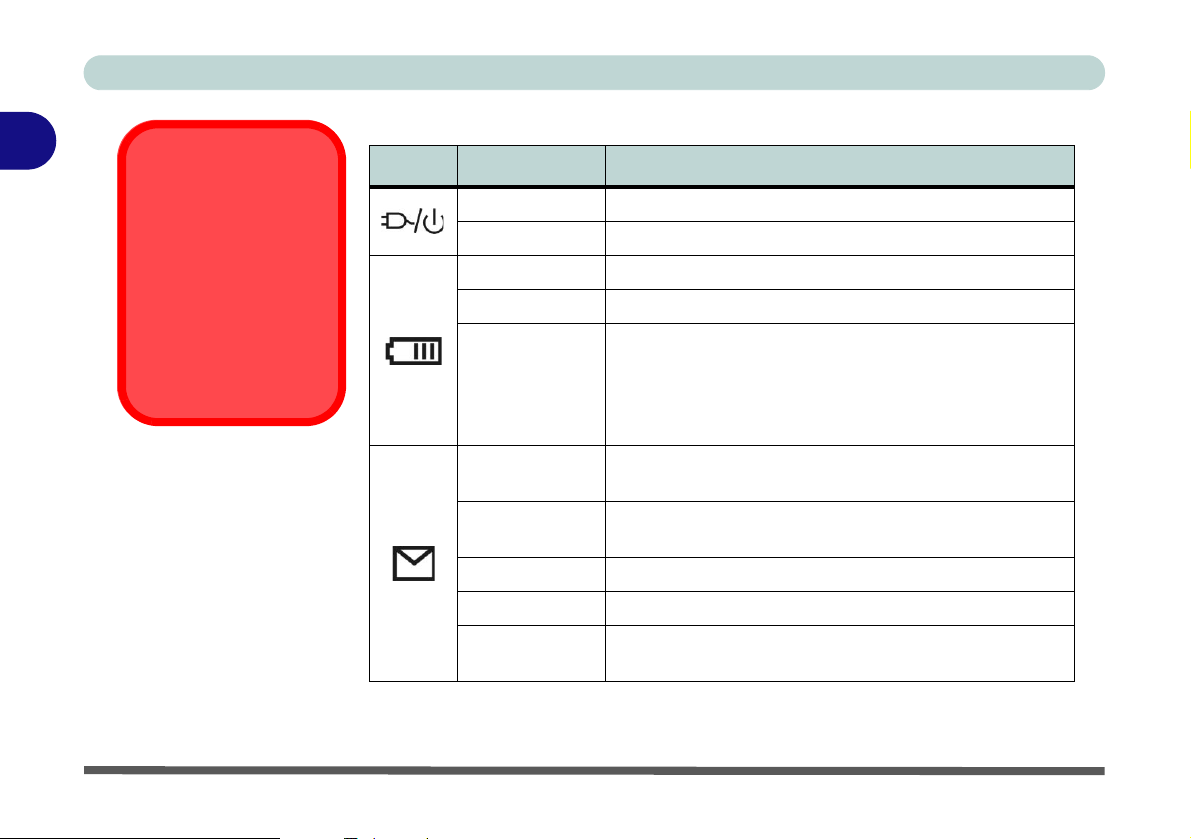

LED Power & Communication Indicators ..... 1-8

LED Status Indicators .................................... 1-8

Hot-Key Buttons ............................................ 1-8

Close Cover Switch ....................................... 1-9

Power Button ................................................. 1-9

Keyboard ........................................................ 1-9

TouchPad & Buttons .................................... 1-10

Stereo Speakers ............................................ 1-10

Front View ............................................................. 1-11

Consumer Infrared Transceiver (Optional with

TV Tuner) .................................................... 1-11

Mini-IEEE 1394 Port ................................... 1-11

S/PDIF Out Port ........................................... 1-12

Microphone-In Jack ..................................... 1-12

Headphone/Speakers-Out Jack .................... 1-12

Infrared Transceiver ..................................... 1-12

Stereo Speakers ............................................ 1-12

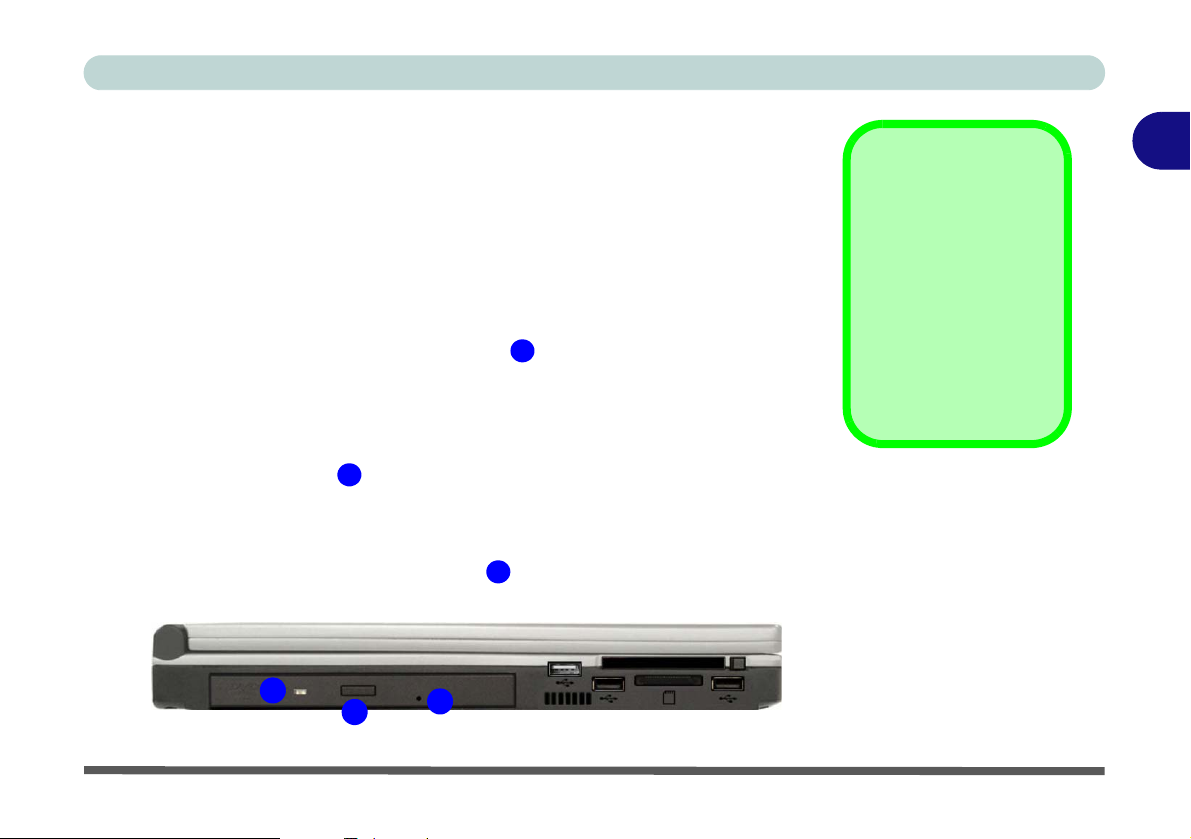

Left Side View ....................................................... 1-13

Optical Device Bay ...................................... 1-13

USB 2.0/1.1 Port .......................................... 1-14

3-in-1 Card Reader ....................................... 1-14

PC Card Slot ................................................ 1-14

Right Side View ..................................................... 1-15

XIII

Preface

Security Lock Slot ........................................1-15

TV Tuner Module (Optional) .......................1-15

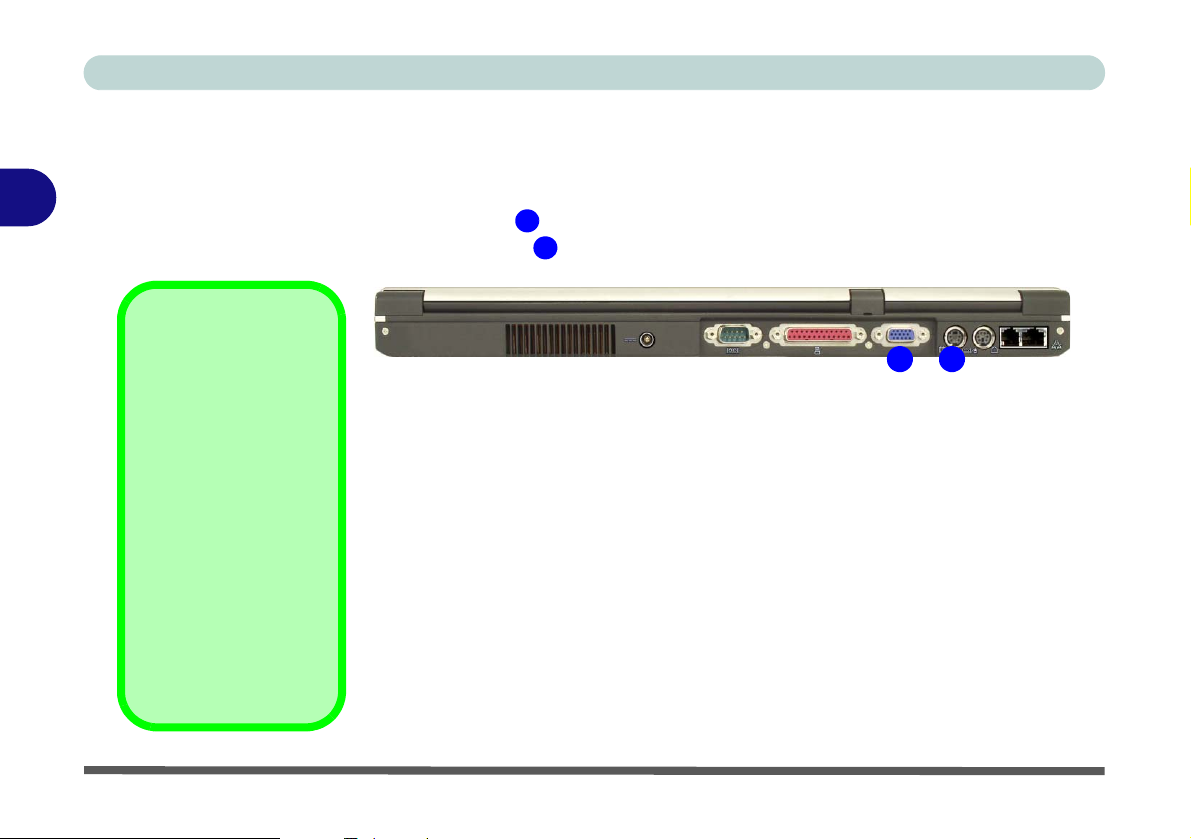

Rear View ...............................................................1-16

Vent ..............................................................1-16

DC-In Jack ....................................................1-16

Serial Port .....................................................1-17

Connect a serial type mouse to this port. .....1-17

Printer/Parallel Port ......................................1-17

External Monitor (VGA) Port ......................1-17

S-Video-Out Port ..........................................1-17

PS/2 Type Port .............................................1-17

RJ-11 Phone Jack .........................................1-18

RJ-45 LAN Jack ...........................................1-18

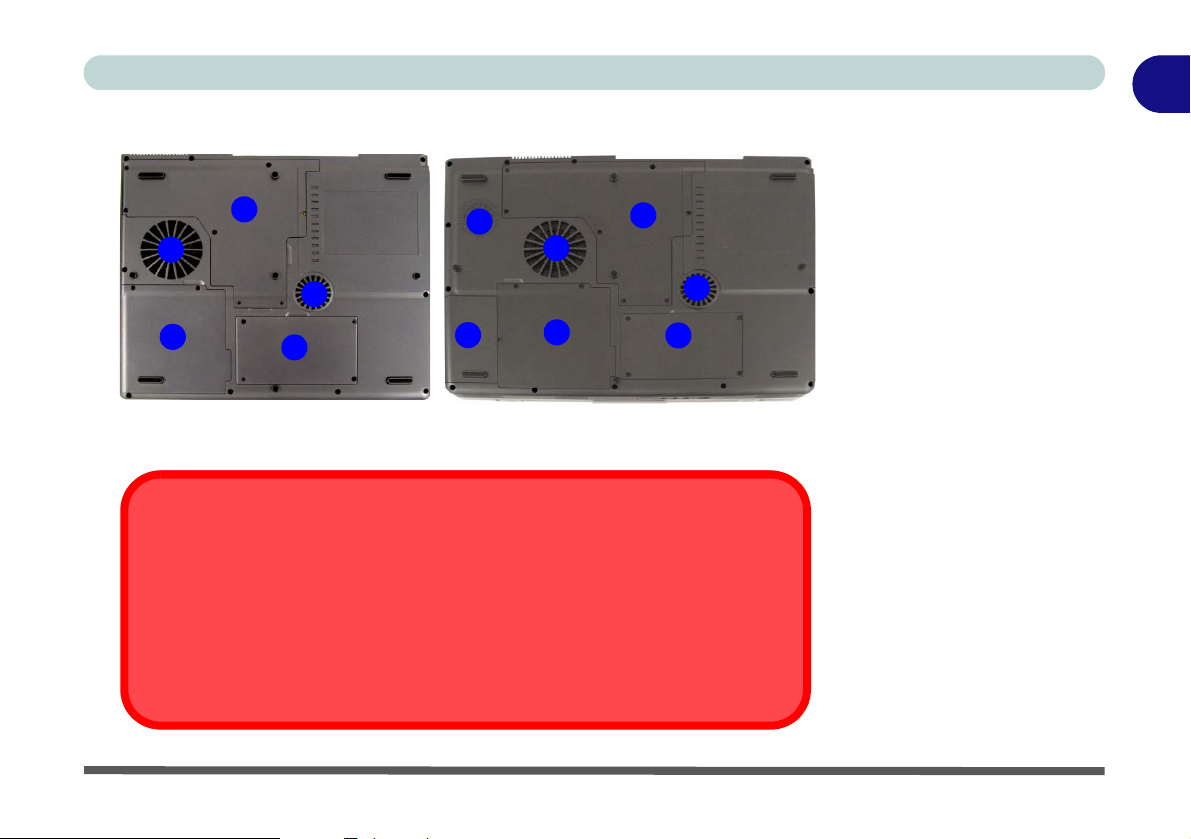

Bottom View ..........................................................1-19

Vent ..............................................................1-20

Battery ..........................................................1-20

Hard Disk Drive ...........................................1-20

Sub Woofer ..................................................1-20

Wireless LAN (Network) & Bluetooth Modules 1-21

Using The Computer ...................2-1

Overview ..................................................................2-1

The Power Sources ...................................................2-2

AC Adapter .........................................................2-2

Battery ................................................................ 2-3

Recharging the Battery with the AC Adapter .... 2-3

Proper handling of the Battery Pack .............. 2-3

Turning on the Computer ......................................... 2-4

LED Indicators ......................................................... 2-5

LED Status Indicators ........................................ 2-5

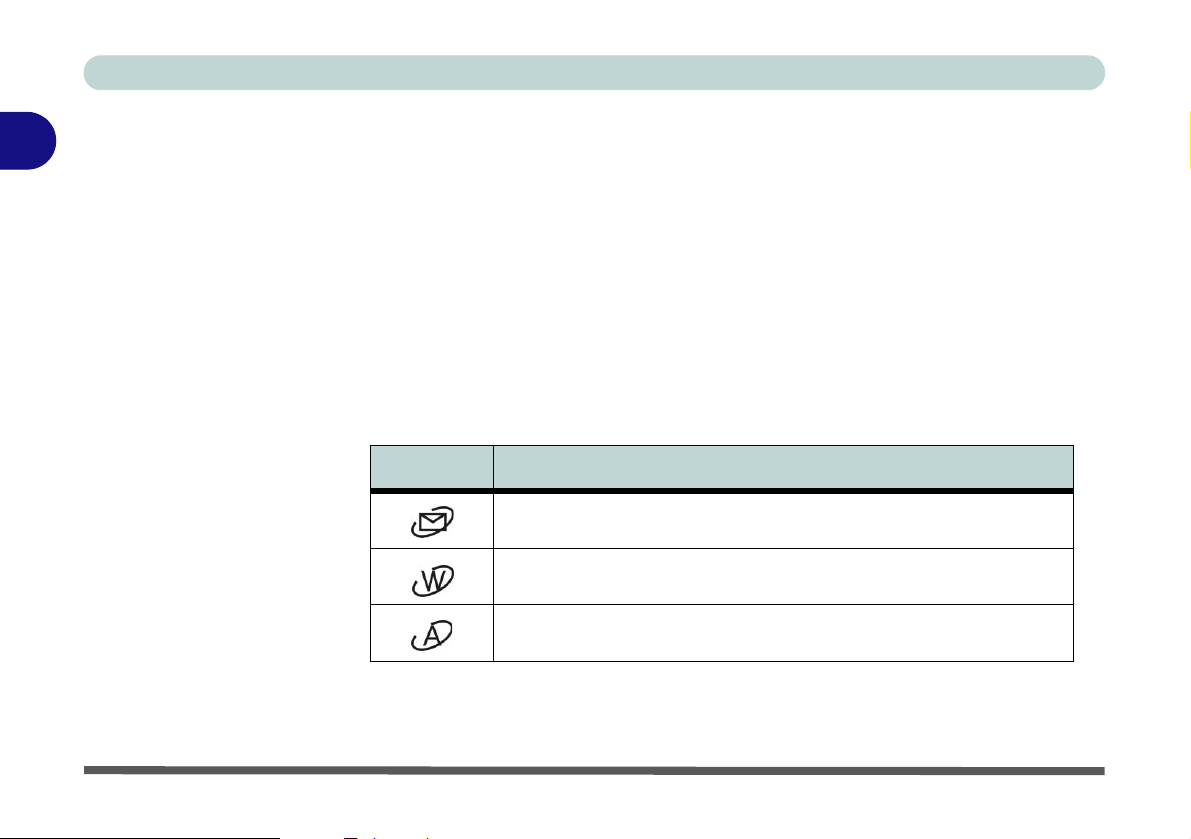

LED Power & Communication Indicators ......... 2-6

Auto Mail Checker ................................................... 2-7

Special Group ................................................ 2-9

Hard Disk Drive ..................................................... 2-10

Optical Device ....................................................... 2-11

Loading Discs .................................................. 2-11

Handling CDs or DVDs ................................... 2-12

DVD Regional Codes ....................................... 2-13

Changing DVD Regional Codes .................. 2-14

PC Card Slot .......................................................... 2-15

Inserting and Removing PC Cards ................... 2-15

Hot-Keys ................................................................ 2-16

Hot-Key Buttons .............................................. 2-16

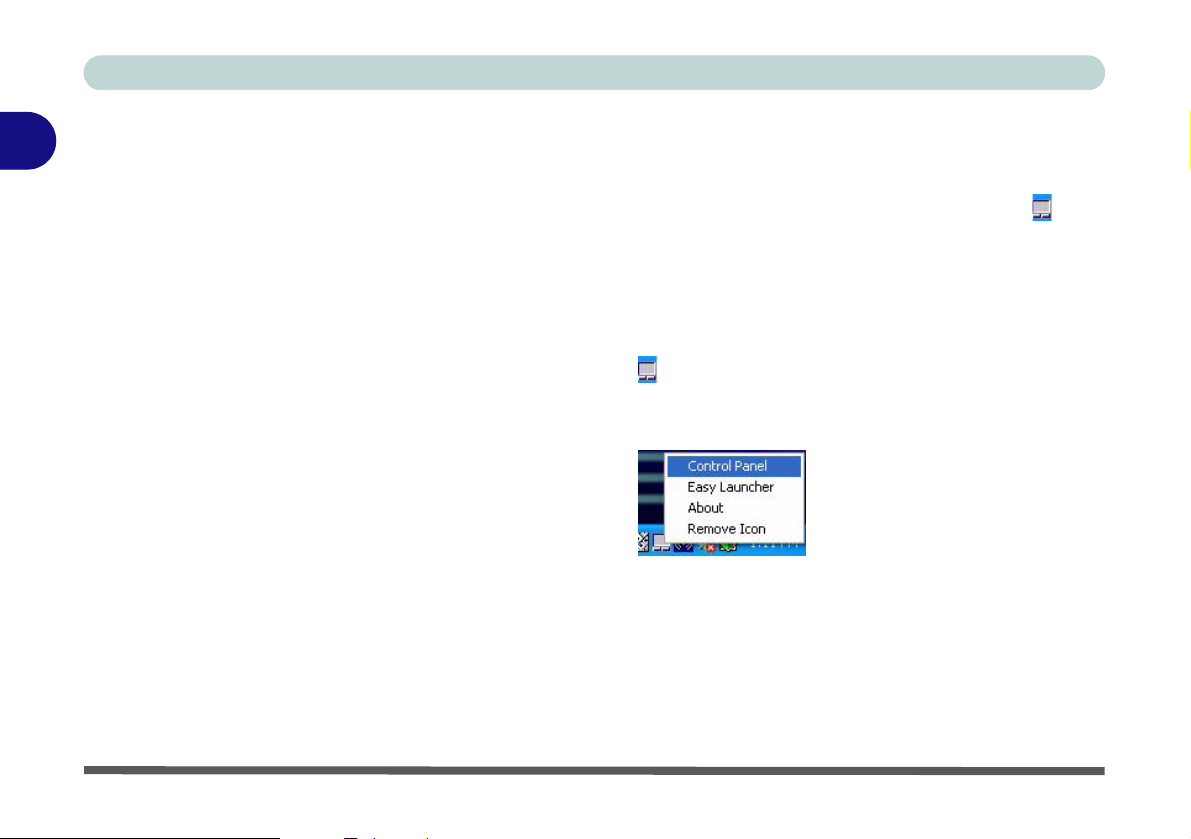

Programming the Hot-Key Buttons ................. 2-16

Function Keys and Numeric Keypad ..................... 2-18

Function Keys .............................................. 2-18

Numeric Keypad .......................................... 2-19

TouchPad and Buttons/Mouse ............................... 2-21

Configuring the TouchPad and Buttons ....... 2-22

XIV

Preface

Adding a Printer .....................................................2-24

USB Printer Install Instructions: ..................2-24

Parallel Printer Install Instructions: ..............2-24

Advanced Controls ......................3-1

Overview ..................................................................3-1

Advanced Video Controls ........................................3-2

Opening the LCD ................................................3-2

Video Driver Controls ..............................................3-3

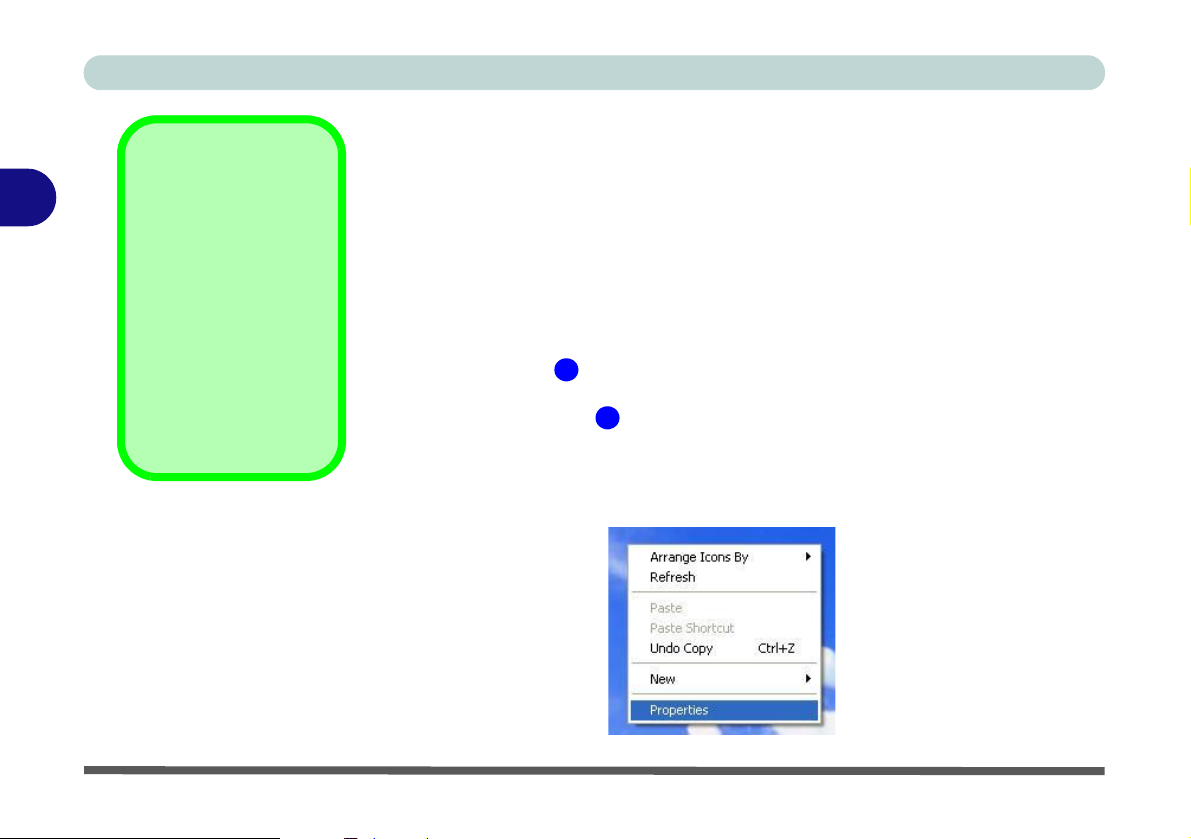

Making Adjustments for the Display ..................3-4

Display Devices ........................................................3-8

Switching/Enabling Displays (Keyboard) .......... 3-8

Display Options ........................................................3-9

Enabling Other Displays ........................................3-10

Clone Mode ......................................................3-11

Extended Desktop Mode ..................................3-12

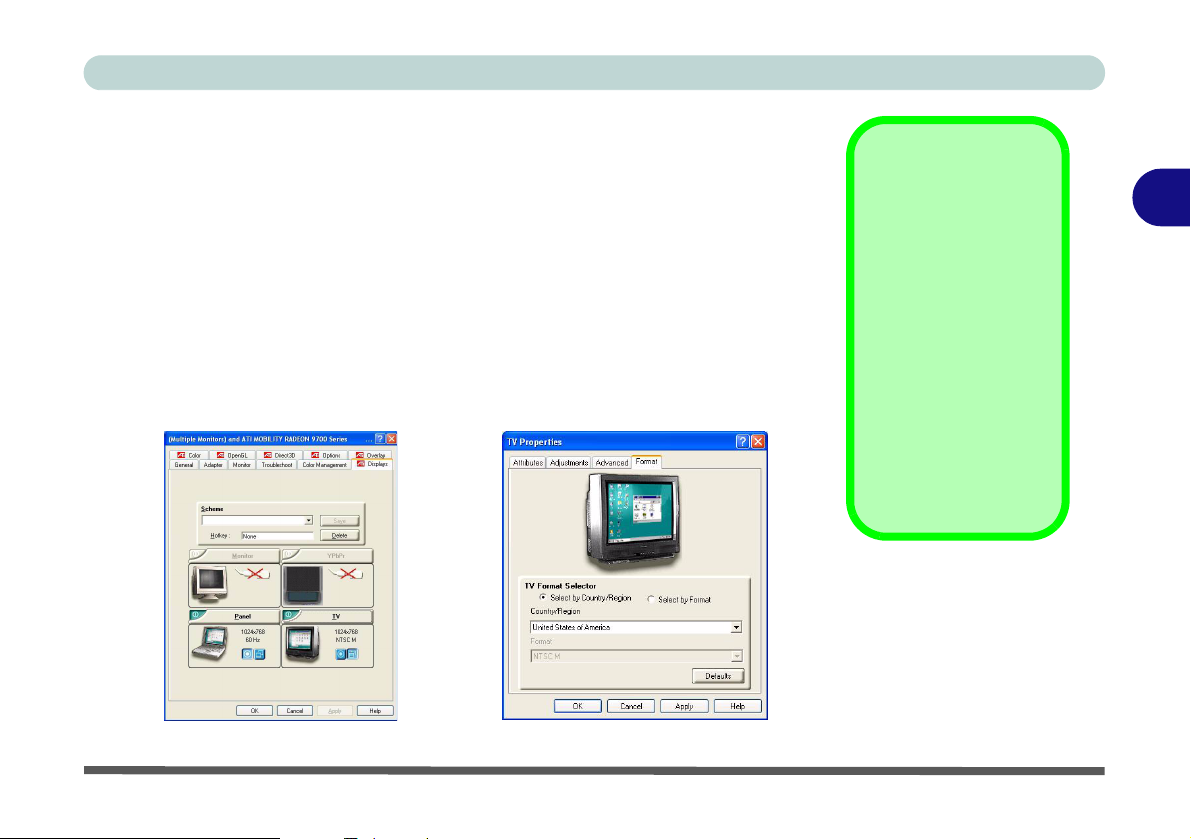

Enabling TV Display ..............................................3-15

Power Management Features .................................3-16

Advanced Configuration and Power Interface .3-16

Enabling Power Options .........................................3-17

Power Schemes ......................................................3-18

Conserving Power (System) .............................3-19

Hibernate Mode vs. Shutdown .........................3-19

Standby Mode vs. Hibernate Mode ..................3-19

Standby .........................................................3-20

Hibernate ...................................................... 3-20

Configuring the Power Button ......................... 3-21

Battery Information ................................................ 3-22

New Battery ................................................. 3-22

Battery Life .................................................. 3-22

Battery FAQ ..................................................... 3-23

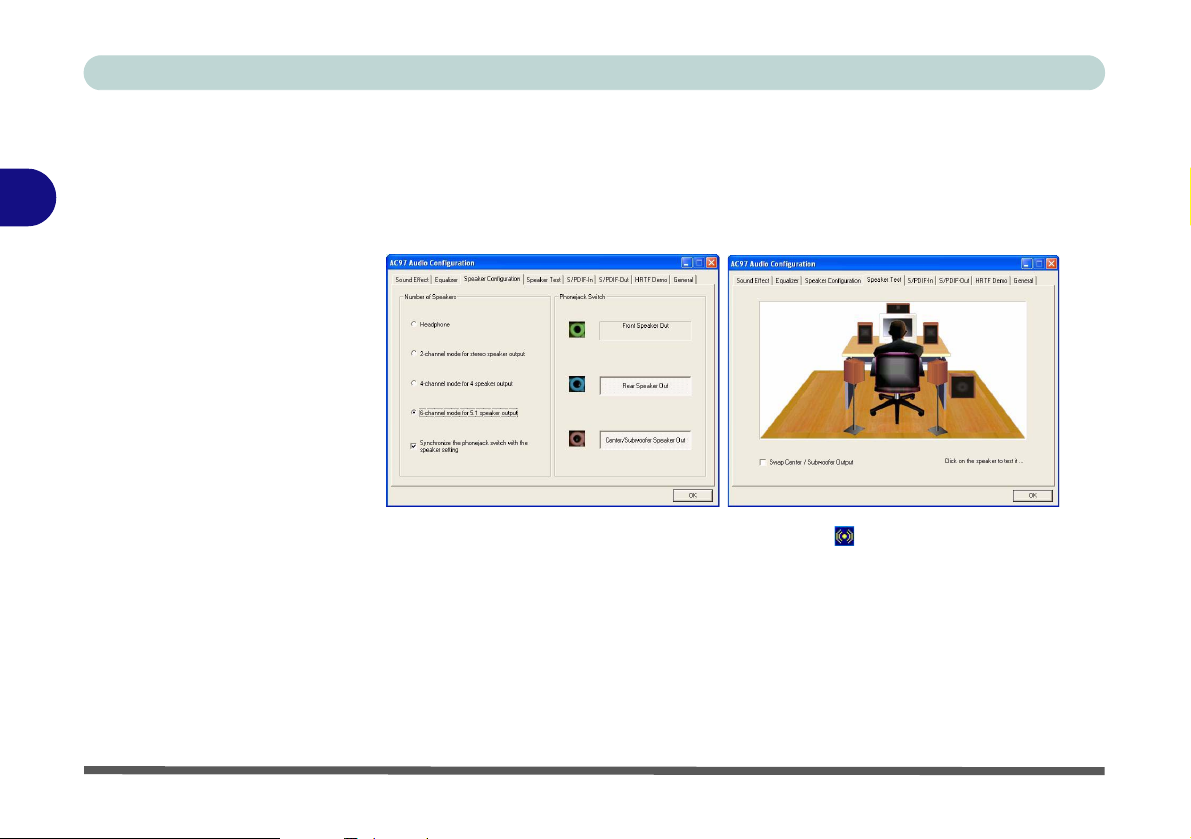

Configuring the Audio System .............................. 3-24

Configuring the Infrared Settings for FIR ............. 3-25

Drivers & Utilities ........................4-1

Overview .................................................................. 4-1

What to Install .......................................................... 4-1

Optional Module Drivers ................................... 4-1

Authorized Driver Message ............................... 4-3

Version Conflict Message .................................. 4-3

Updating/Reinstalling Individual Drivers .......... 4-4

Windows 2000 Professional .................................... 4-6

New Hardware Found ........................................ 4-6

AMD Processor Driver (Win2000) ................ 4-6

AGP (Win2000) ............................................. 4-6

Video (Win2000) ........................................... 4-6

Audio (Win2000) ........................................... 4-7

LAN (Win2000) ............................................. 4-7

PC Card/PCMCIA (Win2000) ....................... 4-7

3-in-1 Card Reader (Win2000) ...................... 4-7

Preface

Infrared Controller (Win2000) ....................... 4-8

Hot-Key (Win2000) .......................................4-8

Modem (Win2000) .........................................4-8

AutoMail (Win2000) ......................................4-9

Aver TV Studio II - Optional (Win2000) .......4-9

PC Camera - Optional (Win2000) ..................4-9

Bluetooth (Win2000) ....................................4-10

Wireless LAN (Win2000) ............................4-10

Windows XP ..........................................................4-11

New Hardware Found .......................................4-11

AMD Processor Driver (WinXP) .................4-11

AGP (WinXP) ..............................................4-12

Video (WinXP) ............................................4-12

Audio (WinXP) ............................................4-12

LAN (WinXP) ..............................................4-13

TouchPad (WinXP) ......................................4-13

PC Card/PCMCIA (WinXP) ........................4-13

3-in-1 Card Reader (WinXP) .......................4-13

Infrared Controller (WinXP) ........................4-14

Hot-Key (WinXP) ........................................4-14

Modem (WinXP) ..........................................4-15

AutoMail (WinXP) .......................................4-15

Aver TV Studio II - Optional (WinXP) .......4-15

PC Camera - Optional (WinXP) ...................4-16

Bluetooth (WinXP) ......................................4-16

Wireless LAN (WinXP) ............................... 4-16

BIOS Utilities ...............................5-1

Overview .................................................................. 5-1

The Power-On Self Test (POST) ............................. 5-2

Failing the POST ................................................ 5-3

Fatal Errors .................................................... 5-3

Non-Fatal Errors ............................................ 5-3

The Setup Program .................................................. 5-4

Entering Setup .................................................... 5-4

Setup Screens ..................................................... 5-5

Main Menu ............................................................... 5-6

Advanced Menu ....................................................... 5-8

Security Menu ........................................................ 5-10

Boot Menu ............................................................. 5-12

Exit Menu .............................................................. 5-14

Upgrading The Computer ...........6-1

Overview .................................................................. 6-1

When Not to Upgrade ........................................ 6-2

Removing the Battery .............................................. 6-3

Battery Removal Process ................................... 6-3

Upgrading the Hard Disk Drive ............................... 6-4

Hard Disk Upgrade Process ............................... 6-4

Upgrading the System Memory (RAM) .................. 6-6

XVI

Preface

Upgrading the Optical Device ..................................6-9

Upgrading the Processor ........................................6-11

Optional Modules .........................7-1

Overview ..................................................................7-1

3-in-1 Card Reader Module ......................................7-2

TV Tuner Module .....................................................7-3

Aver TV Studio II Driver Installation - (WinXP/

Win2000) ............................................................7-5

Aver TV Studio II Application Installation -

(WinXP/Win2000) ..............................................7-5

PC Camera ................................................................7-6

PC Camera Driver Installation (Win2000/WinXP)

.............................................................................7-7

Audio Setup ....................................................7-8

AMCAP ........................................................7-10

Set Capture File ...........................................7-10

Eliminating Screen Flicker ..........................7-11

The Bluetooth & Wireless LAN Modules ..............7-12

Bluetooth Module ...................................................7-13

Bluetooth Driver Installation (Win2000) .....7-13

Bluetooth Driver Audio Setup (Win2000) .......7-14

Bluetooth Driver Installation (WinXP) ........ 7-15

Control Panel Options (Bluetooth) ...................7-17

Audio ...........................................................7-17

Hyper Terminal ........................................... 7-17

FAX (WinXP) ............................................. 7-17

FAX (Win2000) .......................................... 7-18

802.11b Wireless LAN Module ............................. 7-19

802.11b Wireless LAN Driver Installation

(Win2000) .................................................... 7-19

802.11b Wireless LAN Driver Installation

(WinXP) ....................................................... 7-20

802.11g Wireless LAN Module ............................. 7-21

802.11g Wireless LAN Driver Installation

(Win2000) .................................................... 7-21

802.11g Wireless LAN Driver Installation

(WinXP) ....................................................... 7-22

802.11b+g Wireless LAN Module

(Model A Only) ..................................................... 7-23

802.11b+g Wireless LAN Driver Installation

(Win2000) .................................................... 7-23

802.11b+g Wireless LAN Driver Installation

(WinXP) ....................................................... 7-24

Troubleshooting ...........................8-1

Overview .................................................................. 8-1

Basic Hints and Tips ................................................ 8-2

Backup and General Maintenance ........................... 8-3

Viruses ..................................................................... 8-4

XVII

Preface

Upgrading and Adding New Hardware/Software .... 8-5

Power ........................................................................8-7

Display .....................................................................8-9

Boot Password ........................................................8-10

Audio & CD Device ...............................................8-11

Keyboard ................................................................8-12

Operation ................................................................8-13

Modules ..................................................................8-14

Appendix A. Specifications

- Model A

Appendix B. Specifications

- Model B

XVIII

Introduction

Chapter 1: Introduction

Overview

This manual refers to the hardware and essential software required to run your notebook computer. Depending on how your system is configured, some or all of the features described may already be set up. This chapter covers:

• The Manual — how to use it

• System Map — navigating around your computer

Advanced Users

If you are an advanced user you may skip over most of this manual. However you may find it useful to refer to “What to Install” on page 4 - 1,

ities” on page 5 - 1 and

also find the notes marked with a

“Upgrading The Computer” on page 6 - 1. You may

 of interest to you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then you should try to look through all the documentation. Do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

 as indicated in the margin.

“BIOS Util-



Notes

Check the light colored boxes with the mark above to find detailed information about the computer’s features.

Overview 1 - 1

Introduction

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the  symbol. Also please note the safety and handling instructions as indicated in the

Preface.

Not Included

Operating Systems (e.g. Windows 2000 Professional, Windows XP etc.) have their own manuals, as do applications (e.g. word processing, spreadsheet and database programs). If you have questions about the operating systems or programs then please consult the appropriate manuals.

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find this manual refers to the following operating systems:

• Microsoft Windows 2000

• Microsoft Windows XP Home and Professional Editions

1 - 2 Overview

Quick Start Guide

This guide assumes that you are already familiar with computers and can tell at a glance what and where all the key components are. If you are not that comfortable with this type of device, then please refer to the following pages, which give an overview of the system.

It is still best to review these steps, before taking any action. If there is anything you are not sure about, then please refer to the appropriate chapter before continuing.

Unless you need to install an operating system, your computer should be ready to work right out of the box. Before you begin please follow the safety instructions in the Preface.

1. Remove all packing materials, CDs/DVDs, floppy disks, and any PC Cards.

2. Securely attach any peripherals you want to use with the notebook (e.g.

keyboard and mouse) to their ports.

3. Attach the AC adapter to the DC-In jack at the rear of the computer (see

“Rear View” on page 1 - 16), then plug the AC power cord into an outlet,

and connect the AC power cord to the AC adapter.

4. Raise the lid/LCD to a comfortable viewing angle.

5. Press the power button to turn “on”.

Introduction



Peripheral Devices

Please note that peripherals (printers, digital cameras, etc.) which attach to your computer by either

USB or Mini-IEEE 1394 ports may be

connected after Windows is up and run-

ning. All other peripherals must be connected before you turn on the system.

Quick Start Guide 1 - 3

Introduction

System Map

Your computer has a lot of built-in features. Most of these are enabled by your operating system. Further explanations of the various subsystems are covered in the chapter or pages indicated.

Getting to Know Your Computer

The following graphics will help you to become familiar with the basic functions, and to learn the location of the various ports and components of your computer.

1 - 4 System Map

Model Differences

This notebook series includes two different model types according to the specifications and designs. You can identify if your computer is Model A or B by checking Table 1 - 1 “Model Difference” below. See the pictures in Figure 1

- 1 for the design differences.

Feature Model A Model B

Designs Supported See Figure 1 - 1 for details

Introduction

Table 1 - 1

Model Differences

LCD

DDR SGRAM

Built-In Speakers

Built-In Sub Woofer

TV Tuner

15.0" - XGA

15.0" - SXGA+

64MB 128MB

No Optional

17.0" - WXGA



Design Types

This manual refers to the notebook designs pictured on this page.

The designs vary slightly in external design. Photographs used throughout this manual are of Model B unless specified otherwise.

System Map 1 - 5

Introduction

Figure 1 - 1

Top View with LCD

Panel Closed

1. LCD Latches

2. LED Power & Communication Indicators

Top View

Model A Model B

To open the LCD display:

1. Place the computer on a stable surface.

2. Move the LCD latches in the direction of the arrows to release the top cover.

3. Lift the top cover to reveal the LCD panel and keyboard.

4. Adjust the LCD panel to a comfortable viewing angle.

5. The LED indicators show the power and battery status of the computer, give notification of e-mail received, and the power status of wireless modules.

1 - 6 Top View

Introduction

Top View with LCD Panel Open

11 11

11 1111

Model A Model B

PC Camera

If you have purchased the optional PC Camera, make sure you install the software application (see “PC Camera” on page 7 - 6).

Figure 1 - 2

Top View with LCD

Panel Open

1. Optional PC Camera

2. LCD Panel

3. Built-In Microphone

4. LED Power & Communication Indicators

5. LED Status Indicators

6. Hot-Key buttons

7. Close Cover Switch

8. Power Button

9. Keyboard

10. TouchPad and Buttons

11. Built-In Speakers

Top View 1 - 7

Introduction

LCD Panel

The computer comes with a 15.0" OR a 17.0" TFT (Liquid Crystal Display) screen, depending upon the configuration purchased. See “Model Differenc-

es” on page 1 - 5 for details.

Microphone

Record on your notebook computer with the built-in microphone.

LED Power & Communication Indicators

These indicators display the computer’s system power status and battery status. The third indicator may be configured to give a visual confirmation when e-mail is received in the default e-mail program (see “LED Power & Commu-

nication Indicators” on page 2 - 6).

LED Status Indicators

These display the system’s operational status. Refer to “LED Status Indica-

tors” on page 2 - 5 for more information on what the lights mean.

Hot-Key Buttons

The three hot-keys allow you instant access to your default Internet browser, default e-mail program, and an application of your choice. To learn how to set the buttons, see “Hot-Keys” on page 2 - 16.

1 - 8 Top View

Close Cover Switch

This switch acts as a sensor to tell when the LCD Panel is closed. When this LCD cover sensor is activated, the setting of your operating system’s power scheme (“When I close the lid of my portable computer”) sends the computer into a power saving state (see Figure 3 - 15 on page 3 - 21).

Power Button

Press this button to turn your computer on or off (see “Turning on the

Computer” on page 2 - 4).

a suspend/resume key in the power management control panel of your operating system (see “Configuring the Power Button” on page 3 - 21).

This button may also be configured to be used as

Introduction



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the power button for 4 seconds, or longer, to force the system to turn itself off.

Keyboard

The computer has a “Win Key” keyboard including a numeric keypad. It has the same features as a full-sized desktop keyboard and can easily be replaced with a different language keyboard should you desire.

Shutdown

Please note that you should always shut your computer down by choosing the Shut

Down/Turn Off Computer command from

the Start menu in Windows. This will help

prevent hard disk or system problems.

Top View 1 - 9

Introduction

TouchPad & Buttons

The pointing device features a sensitive glide pad for precise movements. It functions the same way as a two-button mouse. The right TouchPad button is the same as the right mouse button; the left TouchPad button is the same as the left mouse button. The central button may be used to scroll up and down, or may be configured to perform a variety of functions (see “Configuring the

TouchPad and Buttons” on page 2 - 22).



Driver Warning

The TouchPad driver is only supported in Windows XP, so do not install the driver if you are using Windows 2000. If you are using the Windows 2000, use the mouse control panel to configure the functions (click Start and point to Settings and click

Control Panel then double-click the Mouse icon).

Stereo Speakers

Two (Model A)/Six (Model B including the Sub Woofer) built-in speakers provide rich, stereo sound.

1 - 10 Top View

Introduction

Front View

1 1

3148 8

2 8

Model A

5 6 73 48 8

Model B

5 6 7



Mini-IEEE 1394

The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.

Consumer Infrared Transceiver (Optional with TV Tuner)

For Model B only - The remote control unit, supplied with the optional TV Tuner, may be used to control the tuner functions through this transceiver.

Mini-IEEE 1394 Port

This port allows high-speed connection to various peripheral devices, e.g. external disk drives and digital cameras (see note above).

Figure 1 - 3

Front View

1. LCD Latches

2. Model B only Consumer Infrared Transceiver (functions with optional TV Tuner)

3. Mini-IEEE 1394 Port

4. S/PDIF Out Port

5. Microphone-In Jack

6. Headphone/ Speakers-Out Jack

7. Infrared Transceiver

8. Built-In Speakers

Front View 1 - 11

Introduction

S/PDIF Out Port

This S/PDIF (Sony/Philips Digital Interface Format) Out Port allows you to connect your DVD-capable PC to a Dolby AC-3 compatible receiver for “5.1” or ‘dts’ surround sound.

Microphone-In Jack

Record on your notebook computer with an external microphone.

Headphone/Speakers-Out Jack

Headphones or speakers may be connected through this jack. Note: Set your system’s volume to a reduced level before connecting to this jack.



Infrared

Communication

The Infrared transceiver operates on a “Line of Sight”. Make sure nothing is blocking the “Line of Sight” between your system’s transceiver and the destination’s transceiver.

Infrared Transceiver

The infrared transceiver enables communication between the computer and another similarly equipped device, and is 4M bps FIR, IrDA 1.1 compliant. For further information please refer to the manual of the device you wish to connect (see “Configuring the Infrared Settings for FIR” on page 3 - 25).

Stereo Speakers

Two (Model A)/Six (Model B including the Sub Woofer) built-in speakers provide rich, stereo sound.

1 - 12 Front View

Introduction

Left Side View

Model A

2 2

Model B

2 2

Optical Device Bay

The optical device bay will contain a 5.25" (12.7mm height) CD/DVD type device. The actual device will depend on your purchase option (see “Storage”

on page A - 2 for options). For more information on using the drive please

refer to “Optical Device” on page 2 - 11.



CD Emergency Eject

If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or similar object that may break and become lodged in the hole.

Figure 1 - 4

Left Side View

1. Optical Device Bay

2. 3 * USB 2.0/1.1 Ports

3. 3-in-1 Card Reader for SD/MS & MS Pro/MMC

4. PC Card Slot

5. PC Card Slot Eject Button

Left Side View 1 - 13

Introduction

USB 2.0/1.1 Port

These USB 2.0 compatible ports (USB 2.0 is fully USB 1.1 compliant) are for low-speed peripherals such as keyboards, mice or scanners, and for highspeed peripherals such as external HDDs, digital video cameras or high-speed scanners etc. Devices can be plugged into the computer, and unplugged from the computer, without the need to turn the system off (if the power rating of your USB device is 500mA or above, make sure you use the power supply which comes with the device).

3-in-1 Card Reader



Card Reader Cover

Make sure you keep the cover in the card reader when not is use. This will help prevent foreign objects and/or dust getting in to the card reader.

The card reader allows you to use some of the latest digital storage card formats (Secure Digital / Memory Stick & Memory Stick Pro /Multi Media Card). Push the card into the slot and it will appear as a removable device (see

“3-in-1 Card Reader Module” on page 7 - 2).

PC Card Slot

The 3.3V/5V slot may be used for a Type-II PC card (PC Cards were also previously referred to as PCMCIA) and fully supports Cardbus. Refer to “PC

Card Slot” on page 2 - 15 for more information.

1 - 14 Left Side View

Introduction

Right Side View

Model A

Model B

Security Lock Slot

To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store.

TV Tuner Module (Optional)

For Model B only - With the optional TV tuner installed you can watch TV, video conference and capture still and video images on your computer (see

“TV Tuner Module” on page 7 - 3 for more details).

Figure 1 - 5

Right Side View

1. Security Lock Slot

2. Model B only - TV Tuner Module (Optional)

Right Side View 1 - 15

Introduction

Figure 1 - 6

Rear View

1. Vent

2. DC-In Jack

3. Serial Port

4. Parallel Port

5. External Monitor (VGA) Port

6. S-Video-Out Port

7. PS/2 Type Port

8. RJ-11 Phone Jack

9. RJ-45 LAN Jack

Rear View

3 4 5

Model A

3 4 5

Model B

6 7 8



Overheating

To prevent your computer from overheating make sure nothing blocks the vent/fan intake while the computer is in use.

Vent

This enable airflow to prevent the notebook from overheating.

DC-In Jack

Plug the supplied AC adapter into this jack to power your notebook.

1 - 16 Rear View

Serial Port

Connect a serial type mouse to this port.

Printer/Parallel Port

This port supports ECP (Extended Capabilities Port) and EPP (Enhanced Parallel Port).

External Monitor (VGA) Port

Connect an external VGA monitor (CRT) to this port to allow dual video or simultaneous display on the LCD and external VGA monitor (see “Display

Devices” on page 3 - 8).

S-Video-Out Port

Connect your television to your computer and view DVDs, VCDs or anything else your computer can display. You will need an S-Video cable to make the connection. Enable this port from the video driver controls (see “Enabling TV

Display” on page 3 - 15).

PS/2 Type Port

Connect an external PS/2 type mouse or keyboard to this port. You can use a “Y” splitter if you want to attach both.

Introduction

Rear View 1 - 17

Introduction

RJ-11 Phone Jack

This port connects to the built-in modem. You may plug the telephone line directly into this RJ-11 telephone connection. Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.

RJ-45 LAN Jack

This port supports LAN (Network) functions. Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.

1 - 18 Rear View

Introduction

Bottom View

Model A Model B



CPU

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Overheating

To prevent your computer from overheating make sure nothing blocks the vent/fan intake while the computer is in use.

Figure 1 - 7

Bottom View

1. Vent/Fan Intake

2. Battery Cover

3. Hard Disk, Modem, Bluetooth, & WLAN Cover

4. CPU & Memory (RAM) Socket Cover

5. Model B only Sub Woofer

6. Model B only - TV Tuner (Optional)

Bottom View 1 - 19

Introduction

Vent

This enables airflow to prevent the notebook from overheating.

Battery

See “Battery Information” on page 3 - 22 for instructions on battery use and care.

Hard Disk Drive

The internal hard disk drive is used to store your data. See information on page

6 - 4 for information on upgrading/replacing your hard disk drive.



Drive Warning

Don’t try to remove the hard disk (HDD) while the system is on. This could cause data loss or damage. Unauthorized removal or tampering with the HDD may violate your warranty. If you are in doubt, consult your service representative.

Sub Woofer

For Model B only - The sub woofer enhances the audio output with a deep precise bass sound.

1 - 20 Bottom View

Wireless LAN (Network) & Bluetooth Modules

Your notebook computer may have an optional Wireless Network module and/or optional Bluetooth module(s). If included, the antenna and other com- ponents are not externally visible (check with your service representative). If your configuration includes either wireless module, make sure you install the driver(s) for it/them (see “The Bluetooth & Wireless LAN Modules” on

page 7 - 12). Make sure any wireless module is OFF when you are using

the computer aboard aircraft by using the appropriate key combination below.



Power Toggle for the Wireless LAN and Bluetooth Modules

You will need to enable power to the modules by using the following key combinations:

Fn + F11 = Wireless LAN Module Power Toggle Fn + F12 = Bluetooth Module Power Toggle

When the Wireless LAN module is powered on, the LED will be green.

When the Bluetooth module is powered on, the LED will be orange.

Do not try to use the Wireless LAN module and the Bluetooth module at the same time, as this may cause a communication conflict.

Introduction



Wireless Device

Operation Aboard

Aircraft

The use of any portable electronic transmission devices aboard aircraft is usually prohibited. Make sure the module(s) are OFF if you are using the computer aboard aircraft. When the computer first ‘Boots Up’ the module(s) will be OFF.

If you restart the computer the power status of the module will remain the same as it was before the restart. If you shut down the computer the module will turn OFF.

Bottom View 1 - 21

Introduction

1-22

Using The Computer

Chapter 2: Using The Computer

Overview

To learn more about using your computer, please read this chapter.

This chapter includes:

• The Power Sources

• Turning on the Computer

• The LED Indicators

• Auto Mail Checker

• The Hard Disk Drive

• The Optical (CD/DVD) Device

• The PC Card Slot

• The Hot-Key Buttons, Function Keys & Numeric Keypad

• The TouchPad & Buttons/Mouse

• Adding a Printer (general guidelines)

Overview 2 - 1

Using The Computer

Standby or Hibernate



Power Button as

Button

The Power Sources

The computer can be powered by either an AC adapter or a battery pack.

AC Adapter

Use only the AC adapter that comes with your computer. The wrong type of

If you are using a fully ACPI-compliant OS, (such as Windows

2000 Professional, or Windows XP) you can

use the OS’s “Power Options” control panel to set the power button to send the system into Standby or Hibernate mode (see your OS’s documentation, or

“Configuring the Power Button” on page 3 - 21 for de-

tails).

AC adapter will damage the computer and its components.

1. Attach the AC adapter to the DC-in jack at the rear of the computer.

2. Plug the AC power cord into an outlet, then connect the AC power cord to the AC adapter.

3. Raise the lid/LCD to a comfortable viewing angle.

4. Press the power button to turn “on”.

2 - 2 The Power Sources

Using The Computer

Battery

The battery allows you to use your notebook computer while you are on the road or an electrical outlet is unavailable. Battery life varies depending on the applications and the configuration you're using. To increase battery life, let the battery discharge completely before recharging (see “How do I com-

pletely discharge the battery?” on page 3 - 23).

We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery Information” on page 3 - 22.

Recharging the Battery with the AC Adapter

The battery pack automatically recharges when the AC adapter is attached and plugged into an electrical outlet. If the computer is powered on, and in use, it will take several hours to fully recharge the battery. When the computer is turned off but plugged into an electrical outlet, battery charge time is less. (Refer to “LED Power & Communication Indicators” on page 2 - 6 for information on the battery charge status, and to “Battery Information” on page 3 - 22 for more information on how to maintain the battery pack.)

Proper handling of the Battery Pack

• DO NOT disassemble the battery pack under any circumstances

• DO NOT expose the battery to fire or high temperatures, it may explode

• DO NOT connect the metal terminals (+, -) to each other



Battery Removal

We recommend that you do not remove the battery yourself. Please consult your service representative should you need to remove the battery for any reason.

Low Battery Warning

When the battery is critically low, immediately connect the AC adapter to the computer or save your work, otherwise, the unsaved data will be lost when the power is depleted.

The Power Sources 2 - 3

Using The Computer

Note that you should always shut your computer down by choosing the Shut Down/

Turn Off Computer

command from the

Start menu in Windows. This will help

prevent hard disk or system problems.



Shutdown

Turning on the Computer

Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.

When the computer is on, you can use the power button as a Standby/Hibernate/Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the computer down). Use Power Options in the Windows control panel to configure this feature.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the power button for 4 seconds, or longer, to force the system to turn itself off.

2 - 4 Turning on the Computer

Using The Computer

LED Indicators

There are two sets of LED indicators (LED Status Indicators and LED Pow- er & Communication Indicators) on your computer that will display helpful information about the current status of the computer. The LED Power & Communication Indicators are also visible when the top of your computer

is closed.

LED Status Indicators

Icon Color Description

Green Hard Disk activity

Green Number Lock is activated

Green Caps Lock is activated

Green Scroll Lock is activated (to activate press Fn & ScrLk)

Table 2 - 1

LED Status

Indicators



Scroll Lock

To enable and disable the Scroll Lock feature, press the Fn and ScrLk keys simultaneously.

LED Indicators2-5

Using The Computer

Do not try to use the Wireless LAN module and the Bluetooth module at the same time, as this may cause a communication conflict.



Communication

Conflict

Table 2 - 2

LED Power &

Communication

Indicators

Icon Color Description

Green The computer is on

Blinking Green The computer is in standby mode

Orange The battery is being charged

Green The battery is fully charged

The battery has reached critically low power status

Battery Low Level1 - Slow Audible Beep

Blinking Orange

Battery Low Level2 - Fast Audible Beep

Blinking Green

& Orange

Fast Blinking

Green & Orange

Green The (optional) Wireless LAN module is On

Orange The (optional) Bluetooth module is On

Half Orange/

Half Green

New mail has arrived from users defined in the Special

Both the (optional) Wireless LAN and Bluetooth modules

On 1 Sec ~ Off 8 Sec

On 1 Sec ~ Off 3 Sec

New mail has arrived

Group in the Auto Mail Checker

are On (see sidebar)

LED Power & Communication Indicators

2 - 6 LED Indicators

Using The Computer

Auto Mail Checker

After you have installed the driver for the Auto Mail program (see “What to

Install” on page 4 - 1) you may then configure it to give you notification when

you receive new mail. You must be online to receive this notification (note that this program only supports the POP3 protocol), and your default mail program does not need to be open.

The Auto Mail Checker appears as an icon in the taskbar. Clicking on the icon will bring up the following options menu. (If you have not input your mail account data, then you will be prompted to do so.)

Select Open to bring up the control panel for the program.

Figure 2 - 1

Auto Mail Checker

(Startup Menu)

Auto Mail Checker 2 - 7

Using The Computer

You may then configure the options for your mailserver, name, password, pro-

Check with your Internet Service Provider, network administrator or Mail Service provider for details on what to put on these pages.



Note

gram and method(s) of notification.

Figure 2 - 2

Auto Mail

Checker Account

Setup and

Options

2 - 8 Auto Mail Checker

Using The Computer

Special Group

You may add the e-mail addresses of those you wish to assign to your special group here. The Mail LED will then blink fast when mail is received from members of this group, if LED notification is enabled in the control panel (Figure 2 - 2).

Figure 2 - 3

Special Group Setup

Auto Mail Checker 2 - 9

Using The Computer

Before attempting to access any of the internal components of your notebook please ensure that the machine is not connected to the AC power, and that the machine is turned off. Also ensure that all peripheral cables, including phone lines, are disconnected from the computer.



Power Safety

Hard Disk Drive

The hard disk drive is used to store your data in the notebook computer. The hard disk can be taken out to accommodate other 2.5" IDE hard disk drives with a height of 9.5 mm.

The hard disk is accessible from the bottom of your computer as seen below. Further details on removing and inserting the hard disk are available in

“Upgrading the Hard Disk Drive” on page 6 - 4.

Hard Disk

Figure 2 - 4

Hard Disk Location

2 - 10 Hard Disk Drive

Using The Computer

Optical Device

The optical device bay will contain a 5.25" CD-ROM/DVD type optical device. The actual device type will depend on the option you purchased (see

“Storage” on page A - 2). The CD device is usually labeled “Drive D:”, and

may be used as a boot device if properly set in the BIOS (“Boot Menu” on

page 5 - 12).

Loading Discs

To insert a CD/DVD, press the open button and carefully place a CD/DVD onto the disc tray with label-side facing up (use just enough force for the disc to click onto the tray’s spindle).

Gently push the CD/DVD tray in until its lock “clicks” and you are ready to start. The busy indicator will light up while data is being accessed, or while

an audio/video CD, or DVD, is playing.

If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole to open the tray.



Sound Volume

Adjustment

How high the sound volume can be set depends on the setting of the volume control within Windows. Click the Volume icon on the taskbar to check the setting.

Figure 2 - 5

Optical Device

Optical Device 2 - 11

Using The Computer

CD Emergency Eject

If you need to manually eject a CD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. However please do NOT use a sharpened pencil or similar object that may break and become lodged in the hole.



Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDROMs/DVD-ROMs can be accessed.

Remember to:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Handling CDs or DVDs

2 - 12 Optical Device

Using The Computer

DVD Regional Codes

DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer.

Figure 2 - 6

DVD Regional Codes

(Windows XP)

Optical Device 2 - 13

Using The Computer

Go to the Control Panel in WindowsXP/Windows 2000 and double-click Sys- tem > Hardware (tab), click Device Manager, then click the + next to DVD/ CD-ROM drives. Double-click on the DVD-ROM device to bring up the Properties menu, and select the DVD Region (tab) to bring up the control

panel as seen in “DVD Regional Codes (Windows XP)” on page 2 - 13. To change the TV system to/from PAL or NTSC see “TV Format” on page 3 -

15.

Table 2 - 3

Changing DVD Regional Codes

DVD Regional Coding

Region

1 USA, Canada

2 Western Europe, Japan, South Africa, Middle East & Egypt

4 South & Central America, Mexico, Australia, New Zealand

5 N Korea, Russia, Eastern Europe, India & Most of Africa

6 China

South-East Asia, Taiwan, South Korea, The Philippines, Indonesia, Hong

DVD Regional Coding

Geographical Location

Kong

2 - 14 Optical Device

Using The Computer

PC Card Slot

The computer is equipped with a PCMCIA 3.3V/5V slot for one type II PC Card. Make sure you install the driver for the PC Card (see “What to Install”

on page 4 - 1).

Inserting and Removing PC Cards

• Align the PC Card with the slot and push it in until it locks into place.

• To remove a PC Card, simply press the eject button next to the slot.

Figure 2 - 7

PC Card Slot

PC Card Slot 2 - 15

Using The Computer

Hot-Keys

The computer has two sets of Hot-Keys, three Hot-Key buttons on the computer, and the function key combinations on the keyboard.

Hot-Key Buttons

These keys access the internet, e-mail or a user-defined application with one quick button press. To use the “user-defined Hot-Key”, you must install the Hot-Key driver. Refer to “What to Install” on page 4 - 1 for driver installation steps.

Programming the Hot-Key Buttons

Hot-Key Function

Table 2 - 4

Hot-Key Buttons

Activate the user specified application e.g. Microsoft Word or Excel

After installing the Hot-Key driver you can configure or change the settings.

Activate the default e-mail program

Activate the default Internet browser

2 - 16 Hot-Keys

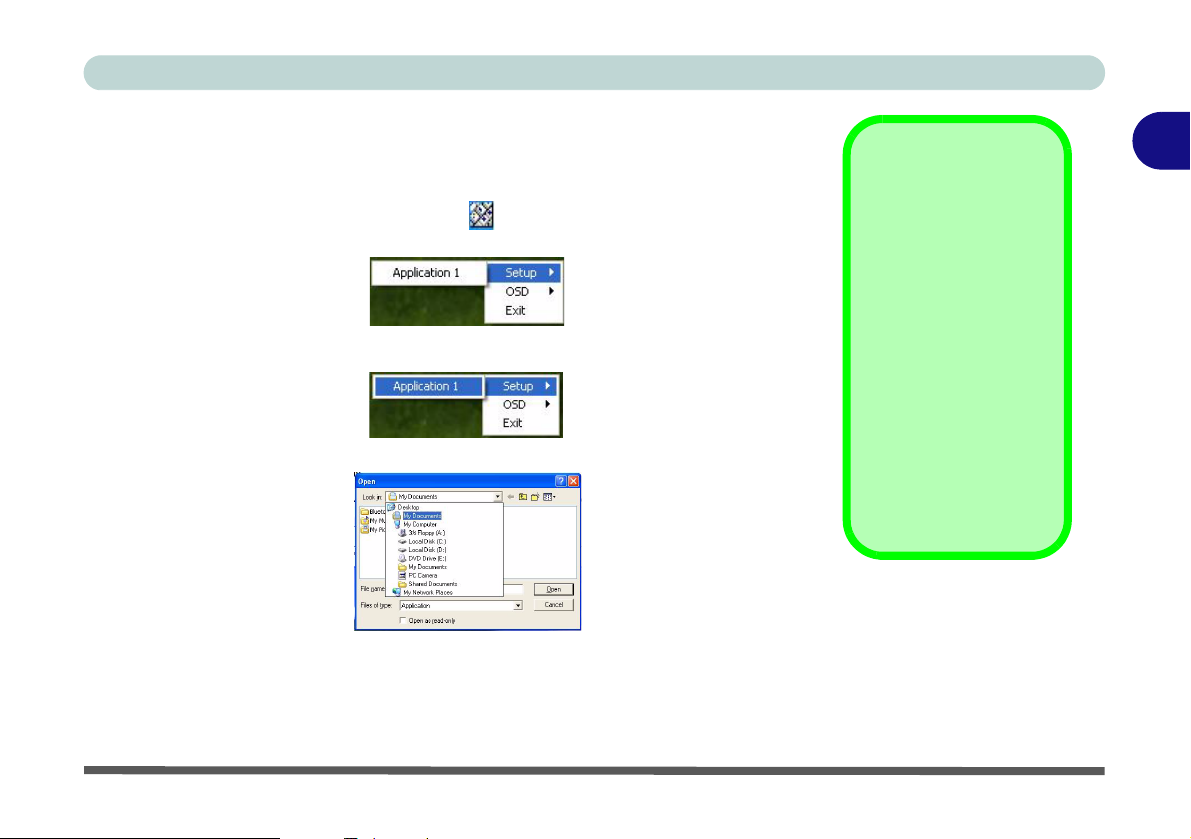

To configure and specify an application for Application 1 (the default HotKey setting is for the CD Player/Media Player application), you must follow

the instructions below.

1. Right click the Hot-Key driver icon in the taskbar and the following menu will appear.

2. Select Setup from the menu and scroll to Application 1 and press Enter.

3. An Open dialog box will appear on the screen.

4. Browse to the directory where the desired application.exe (see the sidebar) program exists.

5. Double-Click on the program file or choose Open.

6. The Hot-Key is now set to execute that program.

Using The Computer



Application.exe

You will need to locate the actual application executable (.exe) file, not just the shortcut. To find the application right-click its shortcut on the desktop and click Properties. Click the shortcut (tab) and see where the executable file is located by clicking the Find Tar-

get (button).

Hot-Keys 2 - 17

Using The Computer

If your keyboard is damaged or you just want to make a change, you can use any standard PS/2 or USB keyboard. The system will detect and enable it automatically. However special functions/hot keys unique to the system’s regular keyboard may not work.



Other Keyboards

Table 2 - 5

Function Keys

Function Keys and Numeric Keypad

Function Keys

On the bottom-left of the keyboard is the Fn key or Function key. The Fn key allows you to change operational features instantly. To use the functions press and hold the Fn key, then press the appropriate function key (F3 - F12 etc.) located on your keyboard.

Keys Description

Fn Function Key

Fn + F3 Mute Toggle

Fn + F4 Sleep/Resume Toggle

Fn + F5 Decrease Audio Volume

Fn + F6 Increase Audio Volume

Fn + F7 Display Toggle

Fn + F8 Decrease LCD Brightness

Fn + F9 Increase LCD Brightness

Fn + F11 Wireless LAN Module Toggle

Fn + F12 Bluetooth Module Toggle

Fn + NumLk Number Lock Toggle (For Model A only)

Fn + ScrLk/Scr Lk Scroll Lock Toggle

2 - 18 Function Keys and Numeric Keypad

Using The Computer

Numeric Keypad

For Model A only - The keyboard has an embedded numerical keypad for easy numeric data input. The numeric keys are highlighted by a yellow typeface.

Activate the Number Lock feature by pressing and holding the Fn key, then press the NumLk key at the top right of the keyboard. You may check if Num- ber Lock is enabled or not by looking at the LED status indicators (see “LED

Indicators” on page 2 - 5). If the Number Lock is enabled, you do not need

to hold the Fn key down to type a number from the numeric keypad.

Activate Scroll Lock by pressing and holding the Fn key, then press the ScrLk key at the top right of the keyboard.

Function Keys

NumLk & ScrLk

Keys

Numeric Keypad

Fn Key



Special Characters

Some software applications allow the number-keys to be used with Alt to produce special characters. These special characters can only be produced by using the numeric keypad. Regular number keys (in the upper row of the keyboard) will not work. Make sure that Num Lk is on.

Figure 2 - 8

Keyboard

(Model A only)

Function Keys and Numeric Keypad 2 - 19

Using The Computer

For Model B only - The keyboard includes a numerical keypad (on the right

side of the keyboard) for easy numeric data input.

Activate the Number Lock feature by pressing the Num Lk key at the top right of the keyboard. You may check if Number Lock is enabled or not by looking at the LED status indicators (see “LED Status Indicators” on page 2

- 5).

Activate Scroll Lock by pressing and holding the Fn key, then press the Scr Lk key at the top right of the keyboard.

Function Keys

Figure 2 - 9

Keyboard

(Model B only)

Fn Key

Num Lk & Scr Lk

Key

Numeric Keypad

2 - 20 Function Keys and Numeric Keypad

Using The Computer

TouchPad and Buttons/Mouse

The TouchPad is a device for pointing (controlling input positioning) on the computer’s display screen by sensing finger movement, and downward pressure.

It is an alternative to the mouse, however, you can also add a mouse to

your computer either through the PS/2 port, or one of the USB ports.



Driver Warning

The TouchPad buttons function in much the same way as a two-button mouse. The central button may be configured (if you are using the Windows XP OS) to function as you require (see “Mouse Properties” on page 2 - 23 for screen examples).



Mouse Driver

If you are using an external mouse your operating system may be able to auto-configure your mouse during its installation or only enable its basic functions. Be sure to check the device’s user documentation for details.

TouchPad Taskbar

Icon

You can add the TouchPad icon to the taskbar from the Mouse control panel, in the Others tab. Re- start the computer to see the icon appear in the taskbar.

TouchPad and Buttons/Mouse 2 - 21

Using The Computer

Once you have installed the TouchPad driver for the Windows XP OS (see

“What to Install” on page 4 - 1) you can configure the functions from the

Mouse Properties control panel by double-clicking the TouchPad icon in the taskbar, or by going to the Mouse control panel in Windows (Start menu and point to Settings and click Control Panel, then double-click the Mouse icon). In Windows XP the Mouse control panel is in the Printers and Other Hardware Category.

Right-click the taskbar icon and select Easy Launcher to run programs from this menu. To add programs to the menu, see “Easy Launcher” on

page 2 - 23 for details.

Configuring the TouchPad and Buttons

2 - 22 TouchPad and Buttons/Mouse

Using The Computer

WinXP Only



Easy Launcher

Add programs to the menu from the Others tab in the Mouse Properties control panel. Click on Set-

tings for Easy Launcher to get the

settings options.

Click the New button and browse to any programs you wish to add to the menu.

Run Easy Launcher by right-clicking the icon in the taskbar.

Click Close or Mini- mize to quit the menu.

Figure 2 - 10

Mouse Properties

TouchPad and Buttons/Mouse 2 - 23

Using The Computer

Adding a Printer

The most commonly used peripheral is a printer. Most current printers have a USB interface, however parallel interface printers are still very common. The following conventions will help you to add a printer, but it is always best to refer to the printer manual for specific instructions and configuration options. You may use any of the USB ports, or the parallel port, on your computer to connect an appropriate printer.

USB Printer Install Instructions:

1. Set up the printer according to its instructions (unpacking, paper tray, toner/ ink cartridge etc.).

2. Turn ON the computer, then turn ON the printer.

3. Connect the printer’s USB cable to one of the USB ports on the computer.

4. Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.

Parallel Printer Install Instructions:

1. Set up the printer according to its instructions (unpacking, paper tray, toner/ ink cartridge etc.).

2. Attach the parallel cable to the printer.

3. Connect the printer’s parallel cable to the parallel port on the computer.

4. Turn ON the printer, then turn ON the computer.

5. Windows will identify the printer and either load one of its own drivers or ask you to supply one. Follow the on-screen instructions.

2 - 24 Adding a Printer

Chapter 3: Advanced Controls

Advanced Controls

Overview

This chapter covers:

• Advanced Video Controls

• Power and Battery Management Features

• Configuring the Audio System

• Configuring the Infrared settings for FIR

Note: All operating system pictures in this manual are from the Microsoft Windows XP OS.



Drivers

You are unable to use most advanced controls until the necessary drivers and utilities are properly installed. If your system hasn’t been properly configured (your service representative may have already done that for you), refer to “What

to Install” on page 4 1 for installation in-

structions.

Overview 3 - 1

Advanced Controls

Advanced Video Controls



Protecting the LCD

Do not allow any foreign objects (i.e. paper or plastic) to get between the lid/LCD and the work panel. They could damage or scratch the LCD and/or accidentally activate the close cover switch.

Figure 3 - 1

Video Controls

This section is about making adjustments for the LCD, and switching display devices.

Opening the LCD

As you open the lid, adjust it so you can look at the screen straight on, without any glare. If necessary, adjust the brightness controls (Fn + F8/F9). The Fn + F7 key combination can be used to toggle through the display options.

F8 F9

Model A only

F9F7

Model B only

3 - 2 Advanced Video Controls

Video Driver Controls

The video interface lets you change the screen resolution and color output to whatever is most comfortable/efficient for you. This is a matter of hardware, video memory and the driver for your operating system. The driver interface shows the available options (see “Model Differences” on page 1 - 5 for LCD options).

Advanced Controls



Screenshots

All screenshots in this chapter are from the Windows XP OS.

You can switch display devices from the Display Properties control panel in

Windows as long as the video driver is installed (see “What to Install” on

page 4 - 1).

Video Driver Controls 3 - 3

If you are using the Windows 2000 OS some screens may appear slightly different.

Advanced Controls

Making Adjustments for the Display



Screen Resolution/

Screen Area Note

The higher the resolution you set the LCD for, the more information the LCD can display on screen. To change the LCD’s resolution and color depth go to the Display Properties control panel in Windows:

You may set the resolution to a higher setting than the panel supports, however this will require you to pan (scroll) around the screen as the display area will be larger than what you can see on the LCD.

1. Click Start, point to Settings (or just click Control Panel from the Start

2. Double-click Display (icon).

3. In the Display Properties dialog box, click Settings (tab).

4. In Screen area/resolution, move the slider to the preferred setting for

5. In Colors/Color quality, click the arrow and scroll to the preferred setting

You can also access Display Properties by right-clicking the desktop and scrolling down and clicking Properties. Click Settings (tab) and adjust as above.

Figure 3 - 2

Right-Click

Desktop

3 - 4 Video Driver Controls

menu) and click Control Panel.

resolution (see in Figure 3 - 3 on page 3 - 5).

for color depth (see in Figure 3 - 3 on page 3 - 5).

Advanced Controls

Figure 3 - 3

Advanced Display

Properties

Open the Display Properties control panel and click the Advanced (button)

to bring up the ATI Mobility Radeon 9700 Series Properties tabs. Click-

ing through these tabs allows you to make any video adjustments you require.

Video Driver Controls 3 - 5



ATI Mobility Radeon

9700 Series

Properties

You can also access ATI Mobility Radeon Properties by rightclicking the ATI icon

in the taskbar. Point to Settings and click ATI Display Set-

tings.

Advanced Controls

Figure 3 - 4

ATI Mobility Radeon

9700 Properties Tabs

Help Menu



Help Menus

Right-click on almost any item in the tabs to bring up the “What’s This?” button.

Click the “What’s This?” button to bring up the help menu.

3 - 6 Video Driver Controls

Access the menus from ATI taskbar to get further help on display options, TV options etc. Right-click the ATI icon in the taskbar and point to Help or Troubleshooting (Figure 3 - 5). You can also switch between the displays and go to the ATI Mobility Radeon 9700 Series Properties.

Advanced Controls

Figure 3 - 5

ATI Menus

Video Driver Controls 3 - 7

Advanced Controls

Display Devices

Besides the built-in LCD, you can also use an external VGA monitor or TV/

Figure 3 - 6

Rear View

HDTV as your display device. A VGA monitor connects to the external monitor (VGA) port S-Video Out port .

, a TV/HDTV (HDTV’s require an HDTV converter) to the



Using the Driver to

Switch Displays

If you only use the keyboard toggle to switch through the display options you will not have all the configuration options available to you. If you want to access the options listed in “ATI Mobility Rade-

on 9700 Properties Tabs” on page 3 - 6

use the driver control panel to configure the settings.

3 - 8 Display Devices

1 2

Switching/Enabling Displays (Keyboard)

You can switch display devices with the Fn + Display (F7) toggle. With the video driver installed, you also can use its built-in controls to switch the dis-

play options. If you haven’t installed the video driver, refer to (see “What to

Install” on page 4 - 1) for setup instructions. To switch the display options:

1. Plug the VGA monitor or TV into the appropriate port.

2. Press and hold the Fn key, while simultaneously pressing the F7 key.

3. You may toggle through the options to display the notebook’s LCD only, the external display alone and the LCD and the external display together (make sure you allow time for the screens to refresh as you toggle through).

Display Options

The display devices must be enabled, then configured to your requirements. The following are the display options:

1. The built-in LCD.

2. An external monitor connected to the VGA port.

3. A TV/HDTV Out port.

(HDTV’s require an HDTV converter) connected to the S-Video

Display Mode Windows XP Windows 2000

Advanced Controls



TV Support

You cannot set your flat panel display and TV to the same display mode.

Single

Multiple - Clone Mode

Multiple - Extended Desktop Mode

Single - Either the LCD, Monitor or TV/HDTV as a display device. Multiple (Clone) - The LCD, Monitor or TV/HDTV outputting the same view Multiple (Extended Desktop) -The LCD, Monitor or TV/HDTV outputting a

different view (in Windows XP only) - see “Extended Desktop Mode” on

page 3 - 12.

Not Available

Table 3 - 1

Display Options

Display Options 3 - 9

Advanced Controls

Enabling Other Displays



Primary & Clone

Displays

The Primary display in an Extended Desktop environment will be associated with display Icon 1 in the settings tab.

The Clone display will set the associated display to show a copy of the Primary desktop.

The Clone display in an Extended Desktop environment will show the portion of the desktop extended from the Primary display.

Other displays are enabled from Display in the ATI Mobility Radeon 9700 Series Properties Window (see

1. Attach your external monitor to the external monitor (VGA) port (or TV/ HDTV to the S-Video Out port), and turn it on.

2. Go to the Advanced Display Settings (see Figure 3 - 3 on page 3 - 5).

3. Select the Displays tab (see Figure 3 - 7).

4. Click the enable/disable button / for the display device you wish to use.

5. Click Apply and an image will appear on the display device (give the monitor a few seconds for the image to refresh).

6. Click Yes to accept the settings.

7. Select One display as Primary , the remaining as the Clone (the Clone may operate in either Clone Mode, or Extended Desktop Mode).

8. Click OK to save the changes.

Figure 3 - 7).

Figure 3 - 7

Displays

3 - 10 Enabling Other Displays

Clone Mode

Clone Mode simply shows an exact copy of the Primary display desktop on the other display(s). This mode will drive multiple displays with the same content. Use this feature to display the screen through a projector for a presentation. Each display device can be configured independently as this allows you to set the options for overhead projectors etc., which require specific resolutions and refresh rates. Click on the bar of the device in question to bring up the configuration options.

Advanced Controls



Display Data Channel

Information

Click the “Use DCC Information” button to

disable/enable DCC.

DCC is a data channel used by newer monitors to provide information (e.g. maximum resolution and refresh rates) to the video adapter.

Different monitors support different resolutions and refresh rates (you will need to experiment for the best setting).

Figure 3 - 8

Monitor Properties

Enabling Other Displays 3 - 11

Advanced Controls

Extended Desktop Mode

The system supports Extended Desktop (the LCD and a monitor showing dif-

ferent views) in multiple display environments in Windows XP (this mode is NOT supported in

Windows 2000). An Extended Desktop creates a desktop

spanning multiple displays and acts as a large workspace.

To get this effect:

1. Attach your external monitor to the external monitor (VGA) port (or TV/ HDTV to the S-Video Out port), and turn it on.

2. Go to the Advanced Display Settings (see Figure 3 - 3 on page 3 - 5).

3. Select the Displays tab (see Figure 3 - 7 on page 3 - 10).

4. Click the enable/disable button / for the display device you wish to use (Monitor).

5. Click Apply and an image will appear on the display device (give the monitor a few seconds for the image to refresh).

6. Click Yes to accept the settings and OK to save the changes.

7. Use the Display Properties (see Figure 3 - 9 on page 3 - 13) window to select the second monitor by clicking on the icon, or by selecting it from the “Display:” pop-up menu.

8. Click “Extend my Windows desktop onto this monitor.”.

9. Click Apply > OK.

10. Use the Display Properties (Figure 3 - 9 on page 3 - 13) control panel to drag the monitor icons to match the physical arrangement you wish to use.

3 - 12 Enabling Other Displays

Advanced Controls

11. In the example shown in Figure 3 - 9 the primary monitor is on the left, the other display is on the right.

Click either the Display popup menu, or click the icon for the appropriate display.

Then click the tick box to extend the primary display’s desktop to it.

The icons may be dragged to match the physical arrangement you wish to use.

12. With the Extended Desktop Mode enabled, drag any icons or windows across to the other display desktop. It is therefore possible to have one program visible in one of the monitors, and a different program visible in the other monitor.

Figure 3 - 9

Extended Desktop

Monitor

Arrangement



Help

Further help is available through the menus accessed from the taskbar (see Figure 3 -

5 on page 3 - 7).

Enabling Other Displays 3 - 13

Advanced Controls

13. One display will be set to 1 (Primary), and the other to 2 (Clone). The displays may be switched as long as one as set to Primary.

Figure 3 - 10

Displays Tab

(Extended Desktop

Mode)

14. To switch from Extended Desktop mode back to Clone mode, first uncheck the tick box to disable the Extended Desktop (via the settings tab in the Display Properties control panel) and click Apply (see “Extended Desktop

Monitor Arrangement” on page 3 - 13).

15. Repeat the procedure in “Enabling Other Displays” on page 3 - 10 (make sure you have selected the appropriate display to get all the ATI Mobility Radeon 9700 Series Properties tabs) to return to Clone mode (click the / button to enable any displays if necessary).

3 - 14 Enabling Other Displays

Enabling TV Display

To display desktop images on a TV/HDTV display, connect the TV to your computer by using an S-Video cable from the TV to the S-Video Out port on the computer (see Figure 3 - 6 on page 3 - 8). You will need to enable the TV display from the Displays tab (Figure 3 - 7 on page 3 - 10). Both the standard TV’s and High Definition TV’s (HDTV’s require an HDTV converter) are enabled and configured from the tab entitled TV (the YPbPr control panel is not used).

Further help is available to help you troubleshoot your TV connection through the menus accessed from the taskbar (see Figure 3 - 5 on page 3 - 7).

Advanced Controls



TV Format

If you need to change the format for TV Broadcast, plug your TV in to the S-Video Out port then go to

Display Properties > Settings > Advanced > Displays and click TV (button).

Click the Format (tab) and select a country from the list.

Figure 3 - 11

TV Format

Enabling TV Display 3 - 15

Advanced Controls

Power Management Features



OS Note

Power management functions will vary slightly depending on your operating system. For more information it is best to refer to the user’s manual of your operating system.

(Note: All pictures used on the following pages are from the Windows XP OS.)

To conserve power, especially when using the battery, your notebook computer uses the ACPI power management system. Power management conserves power by controlling individual components of the computer (the monitor and hard disk drive) or the whole system.

Advanced Configuration and Power Interface

The ACPI interface provides the computer with enhanced power saving techniques and gives the operating system (OS) direct control over the power and thermal states of devices and processors. For example, it enables the OS to set devices into low-power states based on user settings and information from applications. ACPI is fully supported in Windows 2000 and Windows XP.

3 - 16 Power Management Features

Enabling Power Options

Power Options are enabled through the control panel in your Windows sys- tem (Power Options). With other operating systems you may have power management available, so check your documentation.

Advanced Controls

Figure 3 - 12

Power Options

Control Panel

You may conserve power through individual components or throughout the whole system.

Enabling Power Options 3 - 17

Advanced Controls



Power Schemes

Power Schemes & CPU Performance

Windows Power Schemes also adjust

the processor performance of your machine in order to save power.

This is worth bearing in mind if you are experiencing any reduced performance (especially under battery power). The “Always On” setting will give the highest performance, and the “Max Battery” setting will give the highest power savings.

Figure 3 - 13

Power Schemes

You can set your computer to conserve power through individual components by means of Power Schemes. Each scheme will also adjust the processor per- formance of your machine in order to save power (see sidebar).

The settings

for each scheme can be adjusted to set the monitor to turn off after a specified time, and the computer's hard disk motor to turn off if the hard disk drive has not been accessed for a specified period of time (if the system reads or writes data, the hard disk motor will be turned back on). You can also set a specified time for the system to enter Standby or Hibernate modes (see “Conserving

Power (System)” on page 3 - 19).



Resuming Operation

The system can resume from Monitor or Hard Disk Standby by pressing a key on the keyboard.

3-18Power Schemes

Conserving Power (System)

With this function you can stop the notebook’s operation and restart where you left off. This system features Standby and Hibernate sleep mode levels (Hibernate mode will need to be enabled by clicking the option in the Hiber- nate tab in the Power Options control panel - Figure 3 - 14 on page 3 - 20).

Hibernate Mode vs. Shutdown

Hibernate mode and Shutdown are the same in that the system is off and you need to press the power button to turn it on. Their main difference is:

When you come back from hibernation, you can return to where you last left off (what was on your desktop) without reopening the application(s) and file(s) you last used.

You can use either method depending on your needs.

Standby Mode vs. Hibernate Mode

If you want to stay away from your work for just a while, you can put the system on standby instead of in hibernation. It takes a longer time to wake up the system from Hibernate mode than from Standby mode.

Advanced Controls

Power Schemes 3 - 19

Advanced Controls

Standby



System Resume

The system can resume from Standby mode by:

Standby saves the least amount of power, but takes the shortest time to return to full operation. During Standby the hard disk is turned off, and the CPU is made to idle at its slowest speed. All open applications are retained in memory. When you are not using your computer for a certain length of time, which you specify in the operating system, it will enter Standby mode to save power.

• Pressing the power button

• Pressing the Fn + F4 key combination

• An alarm resume that is enabled and expires

• An incoming call received on the modem (if enabled)

• Network card activity (if enabled)

Figure 3 - 14

Enable Hibernation

3-20Power Schemes

Hibernate

Hibernate uses no power and saves all of your information on a part of the HDD before it turns the system off. Although it saves the most power it takes the longest time to return to full operation. You can set your notebook to automatically enter Hibernate mode when the battery power is almost depleted. You will need to enable Hibernate mode from the Hibernate tab in the Power Options control panel. The system will resume from Hibernate mode by pressing the power button.

Configuring the Power Button

The power button may be set to send the computer in to either Standby or Hibernate mode. In Standby mode, the LED will flash green, and in Hibernate mode the LED will be off. If you are in a power saving mode set to

save power through individual components (e.g. hard disk, monitor), the LED will remain green.

Advanced Controls

Figure 3 - 15

Power Options

(Advanced - Power

Buttons)

Power Button

Lid

Sleep/Resume (Sleep) Button



Sleep Button

You may also configure the Sleep/Resume key combination (Fn + F4) from the menu illustrated in Figure 3 - 15. In Windows this is referred to as the Sleep button.

Power Schemes 3 - 21

Advanced Controls

Battery Information



Caution

Danger of explosion if battery is incorrectly replaced.

Please follow these simple guidelines to get the best use out of your battery.

New Battery

Always completely discharge, then fully charge, a new battery before using it (see “Battery FAQ” on page 3 - 23 for instructions on how to do this).

Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Battery Life

Your notebook computer’s battery life is dependent upon many factors, including the programs you are running, and peripheral devices attached. Power

Options (you may set low battery Alarms and actions, and check the Power Meter from the Power Options control panel), and settings in the OS will

help prolong the battery life if configured appropriately.

Figure 3 - 16

Power Options

(Alarm & Power

Meter)

3 - 22 Battery Information

Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days.

We recommend that you do not remove the battery yourself. If you need to remove the battery for any reason see “Battery Removal Process” on page 6 - 3.

Battery FAQ

How do I completely discharge the battery?

Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer by yourself even when you see a message that indicates the battery is critically low, just let the computer use up all of the battery power and shut down on its own. Disable the Power Options functions in the Control Panel, especially any Alarms (unclick the tickboxes - see page

3 - 22) and Schemes (change all the settings to Never - see page 3 - 18). As

the battery nears the end of its life save and close any critical files.

How do I fully charge the battery?

When charging the battery, don’t stop until the LED charging indicator light turns from orange to green.

How do I maintain the battery?

Completely discharge and charge the battery at least once every 30 days or after about 20 partial discharges.

Advanced Controls



Conserving Battery

Power

To conserve battery power:

Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by the AC adapter.

Close modem or communication applications when they are not being used.

Remove any unused PC Cards from the computer (PC Cards quickly use up battery power even if the system enters sleep mode).

Disconnect any unnecessary external devices.

Battery Information 3 - 23

Advanced Controls

Configuring the Audio System

For Model B only - To setup the computer’s audio system in 6-Channel mode,

Table 3 - 2

6-Channel Mode

Configuration

follow the instructions below (make sure you have installed the audio driver see “What to Install” on page 4 - 1).

1. Double-click the AC97 Audio Configuration icon in the taskbar. Alternatively go to the Start menu and point to Settings (or just click Con-

trol Panel) and click Control Panel, then double-click the Sound Effect Manager icon).

2. Click Speaker Configuration (tab) and select 6-channel mode for 5.1 speaker output.

3. You can check the speaker setup from Speaker Test (tab).

4. Click OK and close the open windows.

3 - 24 Configuring the Audio System

Configuring the Infrared Settings for FIR

Make sure you install the driver for the infrared device (see “What to Install”

on page 4 - 1).

Advanced Controls



Infrared

Communication

To configure your computer for Fast Infrared (FIR) communication follow these steps:

1. Click Start, point to Settings (or just click Control Panel from the Start menu) and click Control Panel.

2. Double-click Wireless Link icon.

3. Click Hardware (tab), then click Properties (button).

4. Select Advanced (tab).

5. Select “Infrared Transceiver” and change the Value to “HP HSDL 3600”.

6. Click OK > OK.

For further information, please refer to the manual of the device you wish to connect.

Configuring the Infrared Settings for FIR 3 - 25

The infrared transceiver operates on a “Line of Sight”.

Make sure nothing is blocking the “Line of Sight” between your system’s transceiver and the destination’s transceiver.

Advanced Controls

3-26

Chapter 4: Drivers & Utilities

Drivers & Utilities

Overview

This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers and utilities. In this chapter, we group driver and utility installation instructions by operating system. The following operating systems are covered.

• Windows 2000 Professional

• Windows XP Home & Professional Editions

What to Install

The Device Drivers & Utilities + User’s Manual CD-ROM contains the drivers and utilities neces-

sary for the proper operation of the computer. Additional CD-ROMs are provided with any optional modules included in your purchase (see below).

Table 4 - 1 on page 4 - 5 lists what you need to in-

stall manually according to your choice of the operating system. It is very important that the drivers are installed in the order indicated in the table.

Optional Module Drivers

The procedures for installing drivers for the optional Wireless LAN, PC Camera, Bluetooth and TV Tuner modules are provided in “Optional

Modules” on page 7 - 1. Make sure that the drivers

are installed in the order indicated in Table 4 - 1 on

page 4 - 5. If your purchase does not include any of

the optional modules, DO NOT Install the drivers for them.

Overview 4 - 1

Drivers & Utilities

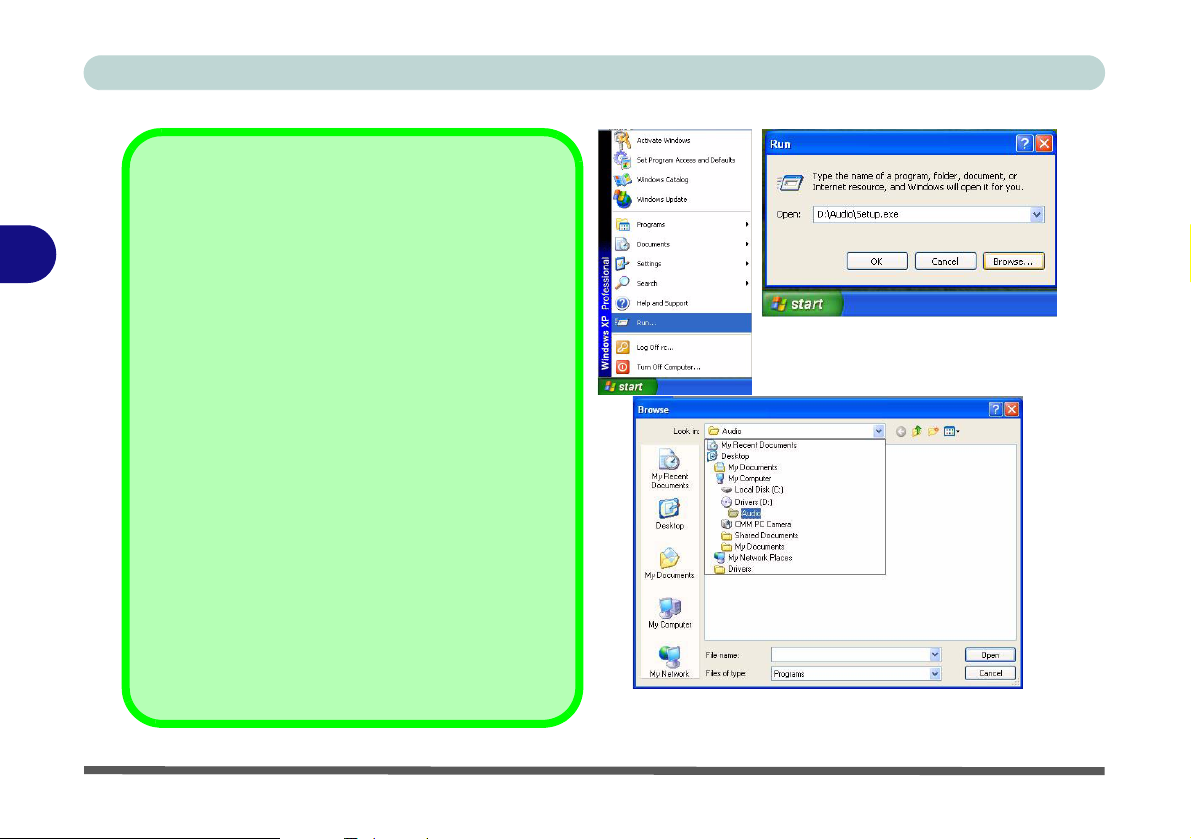

Navigate (Browse..) to D:



You will notice that many of the instructions for driver installation require you to “Navigate (Browse) to D:”. We assume that you will install all drivers and utilities from the built-in CD device and it is assigned to “Drive D:”. In addition, all file extensions can be seen

In this case “D:” is the drive specified for your CD device. Not all computers are setup the same way, and some computers have the CD listed under a different drive letter - e.g. if you have two hard drives (or hard disk partitions) one may be designated as “Drive C:” and the other as “Drive D:”. In this case the CD device may be designated as “Drive E:” - Please make sure you are actually navigating to the correct drive letter for the CD device.

When you click the Browse (button) after clicking Run in the Start menu you will see the “Look in:” dialog box at the top of the Browse window. Click the scroll button to navigate to My Computer to display the devices and drive letters.

4 - 2 What to Install

Figure 4 - 1 - Navigate (Browse..) to..



Windows 2000 Service Pack 4

Make sure that your Windows 2000 version includes Service Pack 4 on the installation CD.

Drivers & Utilities

Authorized Driver Message

If you receive a message telling you that the driver you are installing is not authorized (Digital Signa-

ture Not Found), just click Yes or Continue Anyway to ignore the message and continue the

installation procedure.

Windows XP Service Pack 1/1a

Make sure that you install Windows XP Service Pack 1/1a after installing all the drivers (if your

Windows XP version includes Service Pack 1/1a you can skip this step).

You will receive this message in cases where the driver has been released after the version of Win- dows you are currently using. All the drivers provided will have already received certification for Windows.

Version Conflict Message

During driver installation if you encounter any “file version conflict” message, please click the default option offered by Windows (this will be the highlighted option).

What to Install 4 - 3

Drivers & Utilities

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.

To do this go to the Control Panel in the Windows OS and double-click the Add/Remove Programs

item. If you see the individual driver listed (if not see below), uninstall it, following the on screen prompts (it may be necessary to restart the computer). Go to the appropriate section of the manual to complete the update/reinstall procedure for the driver in question.

If the driver is not listed in the Add/Remove Pro- grams item:

1. Click Start (menu), point to Settings and click Control Panel. Double-click System (icon) and then click Hardware (tab) > Device Man- ager (button).

2. Double-click the device you wish to update/ reinstall the driver for (you may need to click “+”).

3. Look for the Update Driver button (check the Driver tab) and follow the on screen prompts.

4 - 4 What to Install

Feature Windows 2000 Windows XP

AMD Processor page 4 - 6 page 4 - 11

AGP page 4 - 6 page 4 - 12

Drivers & Utilities

Video page 4 - 6 page 4 - 12

LAN page 4 - 7 page 4 - 13

TouchPad N/A page 4 - 13

PC Card/PCMCIA page 4 - 7 page 4 - 13

3-in-1 Card Reader page 4 - 7 page 4 - 13

Infrared Controller (FIR) page 4 - 8 page 4 - 14

Hot-Key page 4 - 8 page 4 - 14

Modem page 4 - 8 page 4 - 15

Auto Mail page 4 - 9 page 4 - 15

TV Tuner (Model B only) See page 7 - 5

PC Camera See page 7 - 7

Bluetooth See page 7 - 13 See page 7 - 15

802.11b Wireless LAN See page 7 - 19 See page 7 - 20

802.11g Wireless LAN See page 7 - 21 See page 7 - 22

802.11b+g Wireless LAN (Model A only) See page 7 - 23 See page 7 - 24

Table 4 - 1

Install Procedure

What to Install 4 - 5

Drivers & Utilities

Windows 2000 Professional

This section covers driver and utility installation instructions for Windows 2000 Professional.

New Hardware Found

If you see the message “New Hardware Found” (Found New Hardware Wizard) during the installation procedure (other than when outlined in the driver install procedure), click Cancel to close the window, and follow the installation procedure as directed.

AMD Processor Driver (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse...) to D:\Drivers\AMDK8\WIN2000\Setup.exe and click OK > Next > Next.

3. Click Finish to restart the computer.

AGP (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse..) to D:\Drivers\AGP\Setup.exe and click OK.

3. To continue click Next > Next.

4. Click Finish to restart the computer.



Windows 2000 Service Pack 4

Make sure that your Windows 2000 version includes Service Pack 4 on the installation CD.

Video (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse..) to D:\Drivers\Video\Setup.exe and click OK.

3. To continue click Next > Yes > Express.

4. Click Finish to restart the computer.

5. See Chapter 3 for details on adjusting the video settings.

4 - 6 Windows 2000 Professional

Drivers & Utilities

Audio (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse...) to

D:\Drivers\Audio\Setup.exe and click OK > Next.

3. Click Finish to restart the computer.

4. You can double-click the AC97 Audio Configuration icon in the taskbar for configuration options (see “Configuring the

Audio System” on page 3 - 24).

5. You can also go to the Sounds and Audio Devices control panel for further configuration

options.

6. Click Start (menu) and point to Settings (or click Control Panel) and click Control Panel then double-click the Sounds and Audio Devices icon.

If you are in the Category View, choose Sounds,

Speech and Audio Devices > Sounds and Audio Devices.

LAN (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse...) to D:\Drivers\LAN\Setup.exe and click OK.

3. To continue click Next.

4. Click Finish, then restart the computer.

5. The network settings can now be configured.

PC Card/PCMCIA (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse..) to

D:\Drivers\PCMCIA\Setup.exe and click OK.

3. Click Next > Next.

4. Click Finish to restart the computer.

3-in-1 Card Reader (Win2000)

1. Click Start (menu) > Run...

2. Navigate (Browse..) to

D:\Drivers\CardReader\Setup.exe and click OK.

3. Click Next > Next.

4. Click Finish to restart the computer.

Windows 2000 Professional 4 - 7

Drivers & Utilities

Infrared Controller (Win2000)

1. Click Start (menu), point to Settings and click Control Panel. Double-click System (icon) and then click Hardware (tab) > Device Man- ager (button).

2. Click Device Manager (tab), then click “+” next to Other devices (if its sub-items are not shown).

3. Double-click Unknown device, and click Driver (tab).

4. Click Update Driver (button) > Next.

5. When the Upgrade Device Driver Wizard appears, click Next (make sure that you have selected “Search for a suitable driver for my device (recommended)”) and click Next.

6. When Locate Driver Files appears, select ONLY “Specify a location” and click Next.

7. Navigate (Browse...) to D:\Drivers\FIR and click Open > OK > Next.

8. Click Finish and close the open windows.

9. To configure the FIR settings see “Configuring

the Infrared Settings for FIR” on page 3 - 25.

Hot-Key (Win2000)

1. Click Start (menu) > Run...
