Clevo D400P, D410P Service Manual

Notebook Computer

D400P/D410P

Service Manual

Preface

I

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.

Version 1.0 February 2004

Trademarks

Intel® and Pentium® are registered trademarks of Intel Corporation. Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and./or registered trademarks of their respective companies.

II

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the D400P/D410P series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications. Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade elements of the system.

Preface

Appendix A, Part Lists Appendix B, Schematic Diagrams

Preface

III

Preface

1: Introduction

Overview

This manual covers the information you need to service or upgrade the D400P/D410P series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.

Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have their own manuals as do application software (e.g. word processing and database programs). If you have questions about those programs, you should consult those manuals.

The D400P/D410P series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed description of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1.Introduction

Overview 1 - 1

Introduction

System Specifications

1.Introduction



Video Memory

The system allocates or "shares" a portion of system memory for video use. "Shared" memory is user-configurable via the SCU. The default setting is set to 32MB.

Processor

• Intel Pentium 4 Processor - (478-pin) FC-PGA2 package (

µ0.13) 0.13 Micron Process Technology, 512KB L2

Cache & 400MHz FSB - 2.0/ 2.2/ 2.4/ 2.5/ 2.6 GHz (

µ0.13) 0.13 Micron Process Technology, 512KB L2

Cache & 533MHz FSB - 2.26/ 2.4/ 2.53/ 2.66/ 2.8/ 3.06* GHz

* Only Pentium 4 processors of 3.06GHz support Hyper-

Threading Technology

• Intel Celeron Processor - (478-pin) FC-PGA2 package (

µ0.18) 0.18 Micron Process Technology, 128KB L2

Cache & 400MHz FSB - 1.7/ 1.8 GHz (

µ0.13) 0.13 Micron Process Technology, 128KB L2

Cache & 400MHz FSB - 2.0/ 2.1/ 2.2 GHz

• Mobile Intel Pentium 4 Processor (Portability) - (478-pin)

FC-PGA2 package

µ0.13) 0.13 Micron Process Technology, 512KB L2

( Cache & 533MHz FSB - 2.26/ 2.4/ 2.66/ 2.8/ 3.06 GHz (

µ0.13) 0.13 Micron Process Technology, 512KB L2

Cache & 533MHz FSB with Hyper-Threading Technology - 2.66/ 2.8/ 3.06 GHz

Core Logic

• SIS M650 + 962

Structure

• PC99 compliant

Security

• Security (Kensington® Type) Lock

•BIOS Password

Memory

• Two 200-pins DDR SODIMM sockets, supporting DDR SDRAM SODIMM (2.5V)

- DDR 200/ DDR 266/ DDR 333 compliant

• Memory expandable up to 1024MB (128/256/512MB SODIMM Modules)

BIOS

• One 512KB Flash ROM

•Phoenix BIOS

LCD Options

• 14.1" XGA TFT (1024*768)

• 15.0" XGA TFT (1024*768)

• 15.0" SXGA+ TFT(1400*1050)

Display

• High Performance 256-bit 3D engine

• Advanced HW accelerator for DVD playback

• Fully Direct X 8.0 compliant graphics engine

• Dual-View display monitor

1 - 2 System Specifications

Introduction

Storage Devices

•3.5" 3-mode Floppy Disk Drive

• Easy changeable 2.5" 9.5 mm (h) Hard Disk Drive Supporting Master mode IDE Supports PIO mode 4 ATA-33/66/100/133 Ultra DMA

• 12.7mm(h) Device Bay for ONE of the following drive

configuration options:

•CD-ROM

•DVD-ROM

•CD-RW

• Combination CD-RW/DVD-ROM

Audio

• AC'97 2.1 compliant interface

• 3D stereo enhanced sound system

• Compatible with Sound-Blaster PRO™

• S/PDIF Digital output (5.1 CH) for DVD content and

stereo audio

• Microphone-in jack

• Headphone-out jack

• Built-in microphone

• 2 built-in speakers

Keyboard

• “Win Key” keyboard

Interface

• Three USB 2.0/ 1.1 ports

• One Mini-IEEE 1394 port

• One S-Video Out port for TV output

• One serial port

• One parallel port (LPT1), supporting ECP / EPP

• One external CRT monitor port

• One external keyboard/mouse (through Y cable) PS/2 port

• One speaker-out/headphone-out jack

• One microphone-in jack

• One RJ-11 jack for modem

• One RJ-45 jack for 100M/10M LAN

• One S/PDIF Out port

• One DC-in jack

• Wireless module On/Off switch

• Built-in 3 instant keys: WWW, email, and application

PC Card

• One type II PCMCIA 3.3V/5V socket supporting CardBus

Communication

• 10/100Mb Ethernet LAN built-in

• 56K MDC modem V.90 & V.92 compliant

• 802.11b wireless LAN module (available as a factory option)

• Bluetooth module (available as a factory option)

• PC Camera module (available as a factory option)

1.Introduction

Pointing Device

• Built-in TouchPad (scrolling key functionality integrated)

System Specifications 1 - 3

Introduction

1.Introduction

Power Management

• Supports ACPI v1.0b

• Supports suspend to RAM (S3)

• Supports suspend to disk (S4)

• Supports Battery low suspend

• Supports resume from modem ring

Power

• Full range AC adapter

• AC-Input 100~240V, 50~60Hz

• DC Output 20V, 6A

• Supports one removable Smart Li-Ion battery

Indicators

• LED indicators (HDD, Power On/ AC-In/ Suspend, Battery Charging/Battery Full, Num Lock, Caps Lock, Scroll Lock, E-mail)

Environmental Spec

• Temperature

Operating: 5 Non-Operating: -20

°C ~ 35°C (w/o packing)

°C ~ 60°C (packing)

Physical Dimensions

• 329 (w) x 275 (d) x 36.5 (h) mm

Weight

• Around 2.8 kg (depend on optional modules included) without battery

Optional

• DVD-ROM Drive

•CD-RW Drive

• Combination Drive

•DVD-RW Drive

• Software DVD player

• Wireless LAN module

• Bluetooth module

•Video Camera

• Relative Humidity Operating: 20% ~ 80% Non-Operating: 10% ~ 90%

1 - 4 System Specifications

Design Differences

This manual refers to the two notebook designs pictured below. The designs vary slightly in external design. Photographs used throughout this manual are of Design I.

Introduction

1.Introduction

Figure 1

Design Differences

Design I

Design II

System Specifications 1 - 5

Introduction

Figure 2

Top View

1. Optional Built-in USB Camera

2. LCD

3. Built-In Microphone

4. LED Power & Communication Indicators

5. LED Status Indicators

6. Hot-Key buttons

7. Close Cover Switch

8. Power Button

1.Introduction

9. Keyboard

10. TouchPad and Buttons

External Locator - Top View

1

2

3

4

5

6

8

7

1 - 6 External Locator - Top View

9

10

Introduction

External Locator - Front & Left Side Views

1

8 8

2

4 5

3

6 7

Figure 3

Front View

1

1. LCD Latches

2. Mini IEEE 1394 Port

3. S/PDIF Out Port

4. Microphone Jack

5. Headphone Jack

6. Infrared Transceiver

7. Wireless Module ON/OFF Switch

8. Built-In Speakers

1.Introduction

Figure 4

Left Side View

1. CD-ROM Bezel or CD-ROM Device

2

1

4

3

5

2. USB 2.0/1.1 Port

3. Floppy Disk Drive

4. PC Card/ PCMCIA Slot

5. PC Card/PCMCIA Slot Eject Buttons

External Locator - Front & Left Side Views 1 - 7

Introduction

Figure 5

Right Side View

1. Security Lock Slot

Figure 6

Rear View

External Locator - Right Side & Rear Views

2

3

4 5 6 7 8 9

1

10

1. Vent

2. DC-In Jack

3. 2 * USB Ports

1.Introduction

4. External Monitor (CRT) Port

5. Parallel Port

6. Serial Port

7. S-Video-Out Port

8. PS/2 Type Port

9. RJ-11 Phone Jack

10. RJ-45 LAN Jack

1 - 8 External Locator - Right Side & Rear Views

1

External Locator - Bottom View

5

1

Introduction

Figure 7

Bottom View

1. Vent/Fan Intake

2. Battery Cover

3. Hard Disk Cover

4. Bluetooth Module Cover

5. CPU Heatsink Cover

1.Introduction

Note: The RAM and

optional Wireless LAN module are located under the CPU

4

Heatsink Cover

2

3

External Locator - Bottom View 1 - 9

Introduction

Figure 8

Mainboard Top

Key Parts

1. PC Card Assembly

2. Northbridge - SiS M650

3. Southbridge - SiS 962

4. Flash ROM BIOS

1.Introduction

Mainboard Overview - Top (Key Parts)

4

2

3

1 - 10 Mainboard Overview - Top (Key Parts)

1

Mainboard Overview - Bottom (Key Parts)

Introduction

Figure 9

Mainboard Bottom

Key Parts

1

3

4

8

2

9

7

6

10

5

1. CPU Socket (no CPU installed)

2. Memory Sockets (no memory installed)

3. SiS 302LV TVOut Controller

4. LAN Controller RTL8100BL

5. CardBus ENE CB1410

6. ALC202 - Audio Codec

7. 1394 PHY TSB41AB1

8. Clock Generator

9. Keyboard Controller - KBC H8 H8S-2149 HM

10. LPC Super I/O NS PC87393

1.Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 11

Introduction

Figure 10

Mainboard Top

Connectors

1. Modem Cable Connector (CN1)

2. LCD and Inverter Cable Connector (JLCD1)

3. Video Camera Module Connector (JCCD1)

4. Switch Board Cable Connector (JSW1)

5. Fan Cable Connector (JFAN1)

1.Introduction

6. TouchPad Cable Connector (JTP1)

7. Keyboard Cable Connector (JKB1)

8. Modem Module Connector (JMDC1)

9. Speaker Cable Connector (JSPK1)

10. Floppy Disk Cable Controller (JFDD1)

11. Speaker Cable Connector (JSPK2)

Mainboard Overview - Top (Connectors)

1

2

8

11

10

3

6

4

5

7

9

1 - 12 Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

1

Introduction

Figure 11

Mainboard Bottom

Connectors

2

3

4

7

5

6

1. Wireless LAN Cable Connector (JWL1)

2. Fan Cable Connector (JFAN2)

3. CD Device Connector (JCDROM1)

4. Hard Disk Cable Connector (JHDD1)

5. Bluetooth Module Connector (JBT1)

6. CMOS Battery Cable Connector (JBAT1)

7. Battery Cable Connector (CN5)

1.Introduction

Mainboard Overview - Bottom (Connectors) 1 - 13

Introduction

1.Introduction

1-14

2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the D400P/D410P series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Disassembly

Procedures such as upgrading/replacing the RAM, CD device and hard disk are included in the User’s Manual but are repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the disassembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a

An example of these types of boxes are shown in the sidebar.

 will provide any possible helpful information. A box with a  contains warnings.



2.Disassembly



Information



Warning

Overview 2 - 1

Disassembly

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the

battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to gently pry

the locking collar away from its base. When replacing the connection, make sure the connector is oriented in the same way. The pin1 side is usually not indicated.

2 - 2 Overview

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently rock it from side

to side as you pull it out. Do not pull on the wires themselves. When replacing the connection, do not try to force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pliers to gently

lift the connector away from its socket. When replacing the connection, make sure the connector is oriented in the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as you pull them

apart. If the connection is very tight, use a small flat-head screwdriver - use just enough force to start.

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a removal and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage components and/or data. You should also monitor the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity. Before handling any part in the computer, discharge any static electricity inside the computer. When handling a printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands produce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as screws, loose inside the computer.

Disassembly



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

2.Disassembly

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Overview 2 - 3

Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM

THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

2.Disassembly

To remove the Battery:

1. Remove the battery page 2 - 8

To remove the HDD:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

To remove the System Memory:

1. Remove the battery page 2 - 8

2. Remove the system memory page 2 - 10

To remove the CD Device:

1. Remove the battery page 2 - 8

2. Remove the CD Device page 2 - 12

To remove the Bluetooth Module:

1. Remove the battery page 2 - 8

2. Remove the Bluetooth module page 2 - 14

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 8

2. Remove the Wireless LAN module page 2 - 15

To remove the Processor:

1. Remove the battery page 2 - 8

2. Remove the processor page 2 - 16

To remove the Keyboard:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

To remove the Keyboard Shielding Plate:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

3. Remove the keyboard shielding plate page 2 - 19

To remove the LCD and Top Case:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

2 - 4 Disassembly Steps

Disassembly

To remove the TouchPad and Click Board:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the touchpad and click board page 2 - 22

To remove the Switch Board:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the switch board page 2 - 23

To remove the Modem:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the modem page 2 - 24

To remove the Speakers:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

2.Disassembly

Disassembly Steps 2 - 5

Disassembly

2.Disassembly

To remove the Mainboard:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

To remove the Fan Unit:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

13. Remove the fan unit page 2 - 27

To remove the Floppy Disk Drive Assembly:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

13. Remove the floppy disk drive page 2 - 28

To remove the PC Card Assembly:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

13. Remove the PC Card assembly page 2 - 29

2 - 6 Disassembly Steps

Disassembly

To remove the LCD Front Panel Module:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

To remove the Inverter:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

12. Remove the inverter page 2 - 31

To remove the PC Video Camera Module:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

12. Remove the PC Video Camera page 2 - 32

To remove the LCD Module:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the CD Device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

12. Remove the inverter page 2 - 31

13. Remove the LCD module page 2 - 33

2.Disassembly

Disassembly Steps 2 - 7

Disassembly

Figure 1

Battery Removal

a. Remove the 2 screws

and the battery cover.

b. Carefully disconnect the

battery cable and remove the battery.

2.Disassembly

Removing the Battery

1. Turn the computer off, and turn it over.

2. Remove screws

3. Carefully (use a small screwdriver) disconnect the battery cable at point

4. Lift the battery out of the computer.

5. When replacing the battery, connect the cable first.

a.

1 2 3

& (Figure 1a) from the battery cover , and remove the cover.

5

b.

3

4

(Figure 1b).

4



3. Battery Cover

5. Battery

•2 Screws

2 - 8 Removing the Battery

1 2

5

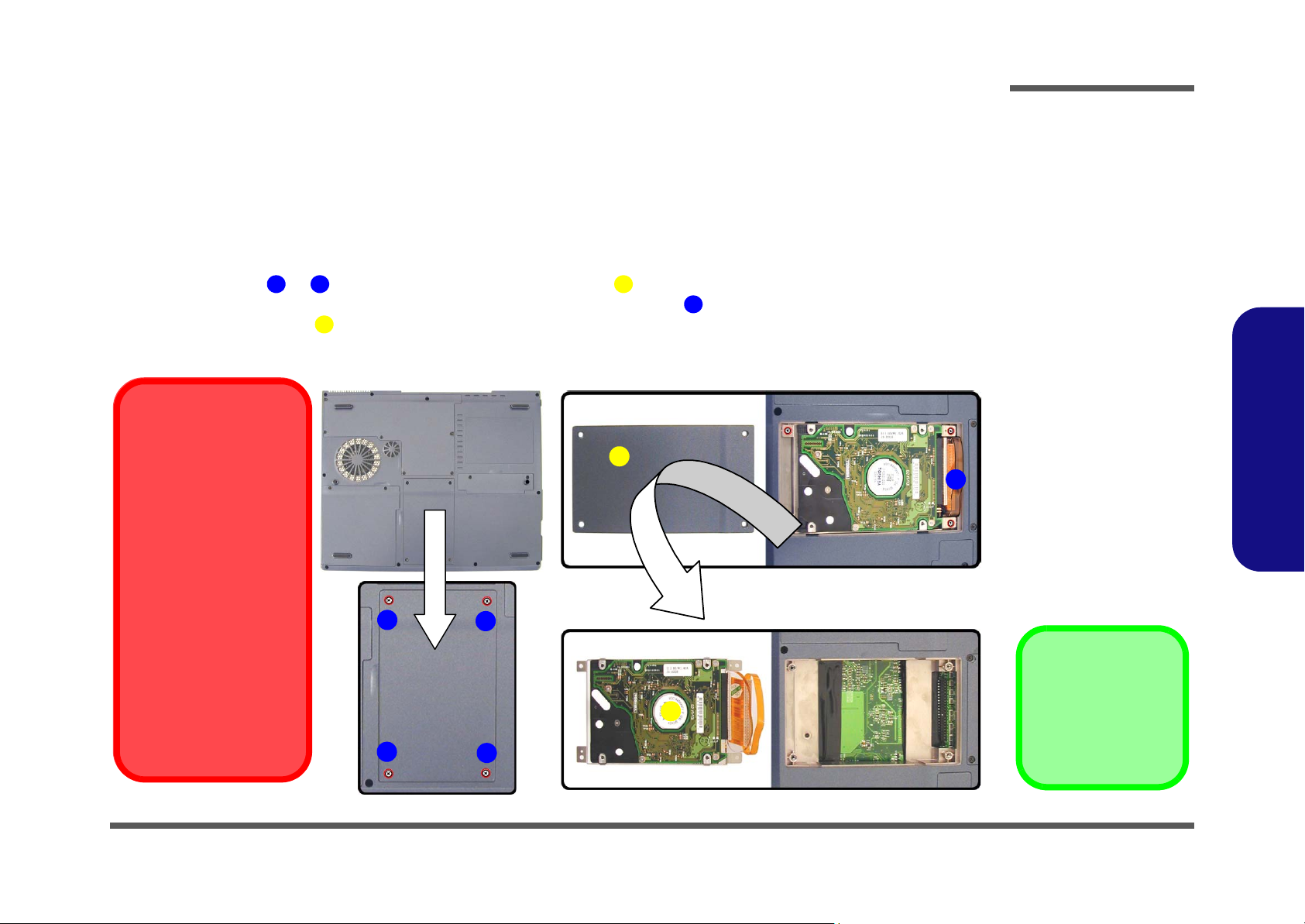

Removing the Hard Disk Drive

The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" IDE hard disk drives with a height of 9.5mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in

Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

1 4 5

2. Remove screws

3. Carefully (use a small screwdriver) disconnect the battery cable at point

4. Lift the HDD assembly out of the computer.

5. Reverse the process to install a new hard disk.

& (Figure 2a) from the hard disk cover , and remove the cover.

6

(Figure 2b).

7

a. b.



HDD System Warning

New HDD’s are blank. Before you begin make sure:

You have backed up any data you want to keep from your old HDD.

5

6

Disassembly

2.Disassembly

Figure 2

HDD Assembly

Assembly Removal

a. Remove the 4 screws. b. Disconnect the HDD ca-

ble and lift the HDD assembly out of the bay.

You have all the CD-ROMs and FDDs required to install your operating system and programs.

If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan to install. Copy these to a removable medium.

1

2



5. Hard Disk Cover

7

4

3

Removing the Hard Disk Drive 2 - 9

7. Hard Disk

•4 Screws

Disassembly

Figure 3

Memory Socket

Cover Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

Removing the System Memory (RAM)

The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting DDR 200/266 MHz. The main memory can be expanded up to 1024MB. The SO-DIMM modules supported are 128Mb, 256Mb, and 512Mb. The total memory size is automatically detected by the POST routine once you turn on your computer.

Memory Upgrade Process

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

2. Remove screws - (Figure 3a) from the memory socket cover

3. Carefully lift up the memory socket cover (Figure 3b) (a fan cable is still attached to the mainboard and you can disconnect it).

4. If there is a module currently installed which needs to be upgraded/replaced then remove it.

a.

1 6

7 8

b.

.

2.Disassembly



7. Socket Cover

•6 Screws

2 - 10 Removing the System Memory (RAM)

7

8

1

2

3

6

54

Disassembly

5. Gently pull the two release latches ( & ) on the sides of the memory socket toward the sides of the computer.

1 2

a.

3

12

6. The module (Figure 4b) will pop-up, and you can remove it.

3

7. Repeat the process for the second module if necessary.

8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

9. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot as it will go. DO NOT FORCE IT; it should fit without much pressure.

b.

Figure 4

Removing/

Installing a RAM

Module

a. Pull the release

latches.

b.Remove the module.



Contact Warning

Be careful not to touch the metal pins on the module’s connecting edge. Even the cleanest hands have oils which can attract particles, and degrade the module’s performance.

2.Disassembly

3 3

10. Press the module down towards the mainboard until the slot levers click into place to secure the module.

11. Replace the memory socket cover (be careful with the fan cable) and the 6 screws (see page 2 - 10).

12. Restart the computer.

13. The BIOS will register the new memory configuration as it starts up.

Removing the System Memory (RAM) 2 - 11



3. RAM Module

Disassembly

Removing the CD Device

The easy changeable CD device may be upgraded or changed.

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

2. Remove screws - (Figure 5a) from the memory socket cover

3. Carefully lift up the memory socket cover (a fan cable is still attached to the mainboard and you can disconnect it).

1 6

7 8

.

Figure 5

Memory Socket

Cover Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

2.Disassembly



7. Socket Cover

a.

b.

7

8

1

2

3

6

54

•6 Screws

2 - 12 Removing the CD Device

Disassembly

4. Use a screwdriver to carefully push the CD device assembly out of the computer at point .

1 2

2

1

Figure 6

CD Device Removal

Push the CD device out off the computer at point

2.

2.Disassembly

5. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The screw holes should line up.

6. Replace the memory socket cover (be careful with the fan cable) and the 6 screws (see page 2 - 12 ).

7. Restart the computer to allow it to automatically detect the new device.

Removing the CD Device 2 - 13



1. CD Device

Disassembly

Figure 7

Bluetooth Module

Removal

Removing the Bluetooth Module

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

2. Remove screws - (Figure 7a) from the Bluetooth module cover

3. Carefully lift up the Bluetooth module cover off the computer.

4. Remove screws - (Figure 7c) and carefully disconnect cables -

10

(Figure 7d).

a.

1 2

3

3 6 8 9

.

b.

, then remove the Bluetooth module

a. Remove the screws. b. Carefully lift the cover off

the computer.

c. Remove the screws and

disconnect the cables.

d. Remove the Bluetooth

module.

2.Disassembly



3. Bluetooth Cover

10. Bluetooth Module

•6 Screws

c.

1

3

2

d.

43

8

6

9

5

10

2 - 14 Removing the Bluetooth Module

Removing the Wireless LAN Module

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

2. Remove screws - from the memory socket cover

3. Carefully lift up the memory socket cover (a fan cable is still attached to the mainboard and you can disconnect it).

4. Remove screws

5. Lift the Wireless Lan module

1 6

7 8

- (Figure 8c), and carefully disconnect cables & .

9 10 11 12

13

(Figure 8d) off the computer.

.

Disassembly

Figure 8

Wireless LAN

Module Removal

a.

1

6

2

3

54

c. d.

11

9

10

12

b.

8

7

a. Remove the screws. b. Carefully lift the cover off

the computer.



Antenna Cable

Connection

When re-inserting a Wireless LAN module, make sure the antenna cable connects to the connector J1 which is indicated as point 12 in Figure 8c.

2.Disassembly

13



7. Socket Cover

13. WLAN Module

.

•8 Screws

Removing the Wireless LAN Module 2 - 15

Disassembly

Figure 9

Processor Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

c. Remove the screws in

the order indicated.

d. Remove the heat sink.

Removing the Processor

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

2. Remove screws - from the memory socket cover

3. Carefully lift up the memory socket cover (a fan cable is still attached to the mainboard and you can disconnect it).

4. Remove screws

5. Carefully lift up the heat sink (Figure 9d) off the computer.

a.

1 6

7 8

- (Figure 9c) from the heat sink, in the order indicated on the label.

9 12

13

1

b.

.

8

6

2

3



Reassembly Screw

Order

2.Disassembly

When replacing the heat sink, make sure you insert the screws in the same order indicated on the label.



7. Socket Cover

13. Heat Sink

•10 Screws

2 - 16 Removing the Processor

54

c. d.

12

9

10

11

7

13

Disassembly

6. Unlock the processor by raising lever (Figure 10a).

7. Lift the CPU (Figure 10b) off the computer.

3

1

a.

1

c.

b.

3

Figure 10

Processor Removal

(cont’d)

a. Raise the lever to unlock

the CPU.

b. Lift the CPU off the sock-

et.

2.Disassembly



Caution

3

The heat sink, and CPU area in general, contains parts which are subject to high temperatures. Allow the area time to cool before removing these parts.



3. CPU

Removing the Processor 2 - 17

Disassembly

Removing the Keyboard

1. Turn off the computer, remove the battery (page 2 - 8).

2. Press the three keyboard latches at the top of the keyboard to elevate the keyboard from its normal position (you may need to use a small screwdriver to do this).

3. Carefully lift the keyboard up and out, being careful not to bend the keyboard ribbon cable (Figure 11b).

4. Disconnect the keyboard ribbon cable from the locking collar socket (Figure 11b) and lift the keyboard up out of the computer.

2 3

1

Figure 11

Keyboard Removal

a. Press the latches to ele-

vate the keyboard.

b. Disconnect the keyboard

cable form the locking collar.

c. Remove the keyboard.

2.Disassembly



3. Keyboard

a.

c.

b.

1

3

2

2 - 18 Removing the Keyboard

Removing the Keyboard Shielding Plate

1. Turn off the computer, remove the battery (page 2 - 8) and keyboard (page 2 - 18).

2. Remove screws - (Figure 12a) from the keyboard shielding plate and lift the plate off the computer.

a.

1 2 543

1 9 10

b.

Disassembly

Figure 12

Keyboard Shielding

Plate Removal

a. Remove the screws from

the shielding plate.

b. Lift the plate off the com-

puter.

2.Disassembly

6

8

7

9

10



10. Shielding Plate

•9 Screws

Removing the Keyboard Shielding Plate 2 - 19

Disassembly

Removing the LCD and Top Case

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18) and keyboard shielding plate (page 2 - 19).

2. Remove screws

3. Remove screws

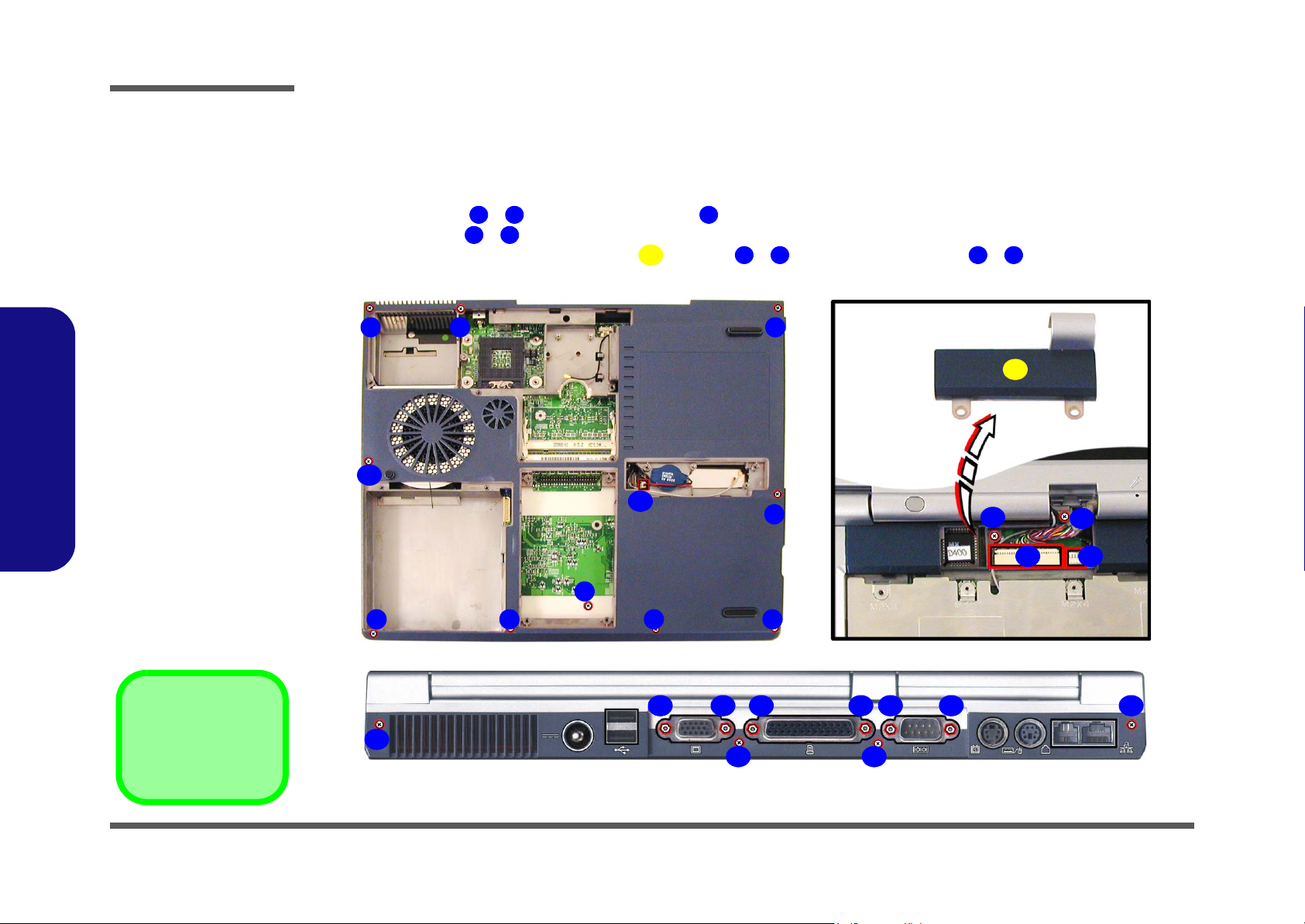

4. Remove the LCD cable shielding cover , screws

- , and disconnect cable (Figure 13a) from the bottom off the computer.

1 10 11

- (Figure 13b) from the rear off the computer.

12 21

26

- and disconnect cables - (Figure 13c).

22 23 24 25

Figure 13

LCD & Top Case

Removal

a. Remove the screws from

the bottom of the computer.

b. Remove the screws from

the rear of the computer.

c. Remove the LCD cable

shielding cover and disconnect the cables.

2.Disassembly



26. LCD cable cover

a.

1 2

10

9

b.

12

c.

3

26

11

4

22

23

24 25

7

8

6

5

13 141516 171819 20 21

•20 Screws

2 - 20 Removing the LCD and Top Case

Disassembly

5. Slide the LCD hinge covers & (Figure 14a) out of the computer.

6. Remove screws assembly (Figure 14c) off the computer.

5

7. Remove screws

& (Figure 14b) then carefully (pay careful attention to the antenna cables) lift the LCD

3 4

& (Figure 14d) and disconnect cables & , then lift the top case assembly off the

6 7 8 9

1 2

computer.

a.

c.

21

b.

3 4

10

Figure 14

LCD & Top Case

Removal Cont’d

5

a. Remove the hinge cov-

ers.

b. Remove the screws from

the LCD.

c. Lift the LCD top case as-

sembly.

d. Remove the screws and

disconnect the cables.

e. Lift the top case assem-

bly off the computer.

2.Disassembly

d.

6

7

e.



1&2. Hinge covers

8

10

9

Removing the LCD and Top Case 2 - 21

5. LCD Assembly

10. Top Case

•4 Screws

Disassembly

Figure 15

TouchPad and Click

Board Removal

a. Remove the screws. b. Separate the assembly

from the top case. c. Disconnect the cable. d. Remove the screws. e. Separate the touchpad

and click board.

2.Disassembly

Removing the TouchPad and Click Board

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

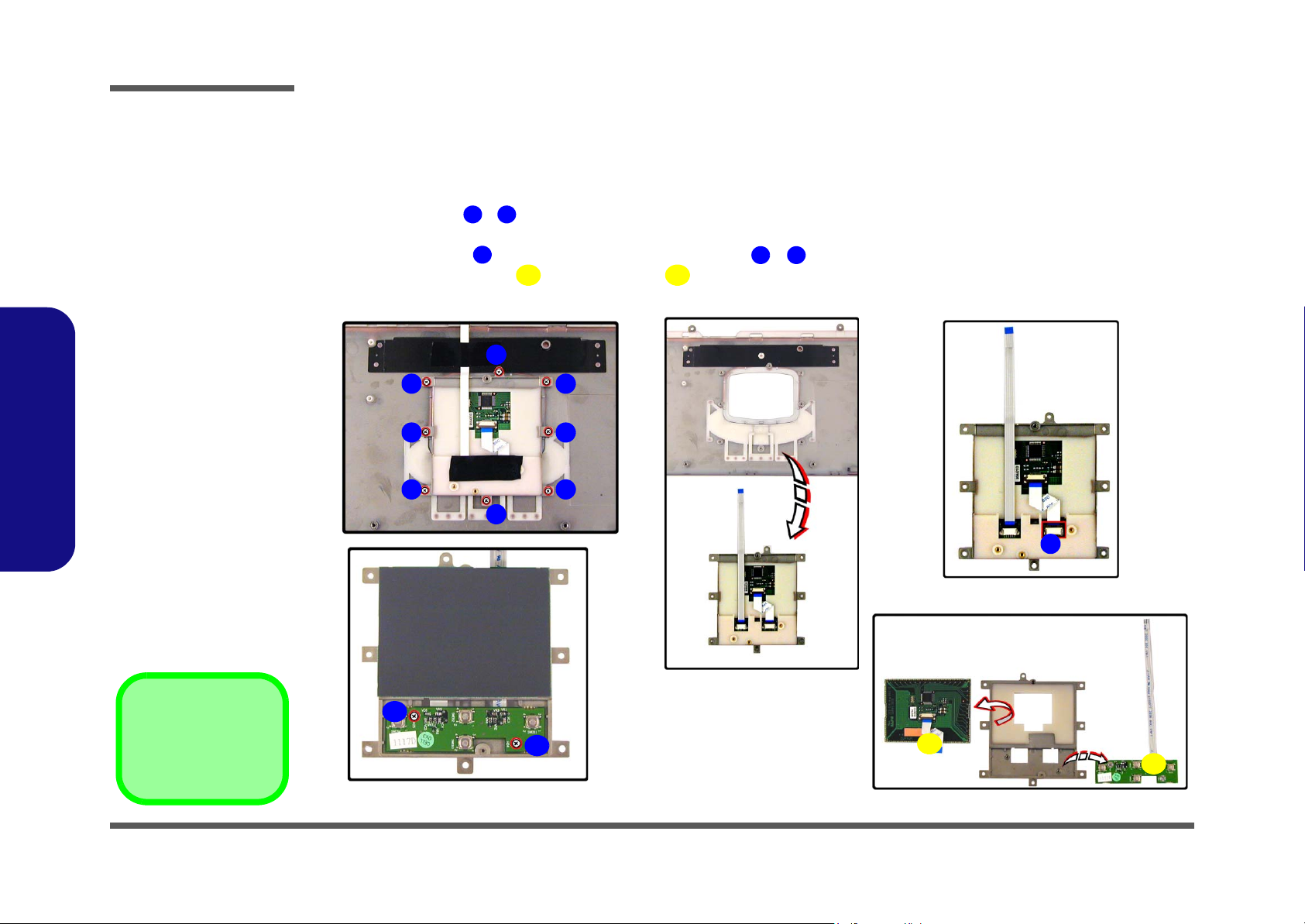

2. Remove screws - (Figure 15a) from the touchpad and click board assembly, and lift the assembly off the top case.

3. Disconnect cable (Figure 15c) and remove screws

4. Separate the touchpad and click board

a.

1

8

7

1 8

9

2

6

12

- (Figure 15d).

10 11

13

(Figure 15e).

b.

c.

3

4

5

d.



12. Touch Pad

13. Click Board

10

•10 Screws

2 - 22 Removing the TouchPad and Click Board

11

9

e.

12

13

Removing the Switch Board

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

2. Remove screws & (Figure 16a) from the switch board assembly.

3. Lift the switch board assembly

1 2

3

(Figure 16b) off the top case.

10

Disassembly

a. b.

1

2

Figure 16

Switch Board

Removal

2.Disassembly

a. Remove the screws. b. Lift the switch board as-

sembly off the top case.

3



3. Switch Board

•2 Screws

Removing the Switch Board 2 - 23

Disassembly

Figure 17

Modem Removal

Remove the screws, disconnect the cable, and remove the modem module.

2.Disassembly

Removing the Modem

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

2. Remove screws & (Figure 17) from the modem and disconnect cable .

3. Remove the modem module .

1 2 3

4

3



4. Modem

•2 Screws

2 - 24 Removing the Modem

2

4

1

Removing the Speakers

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

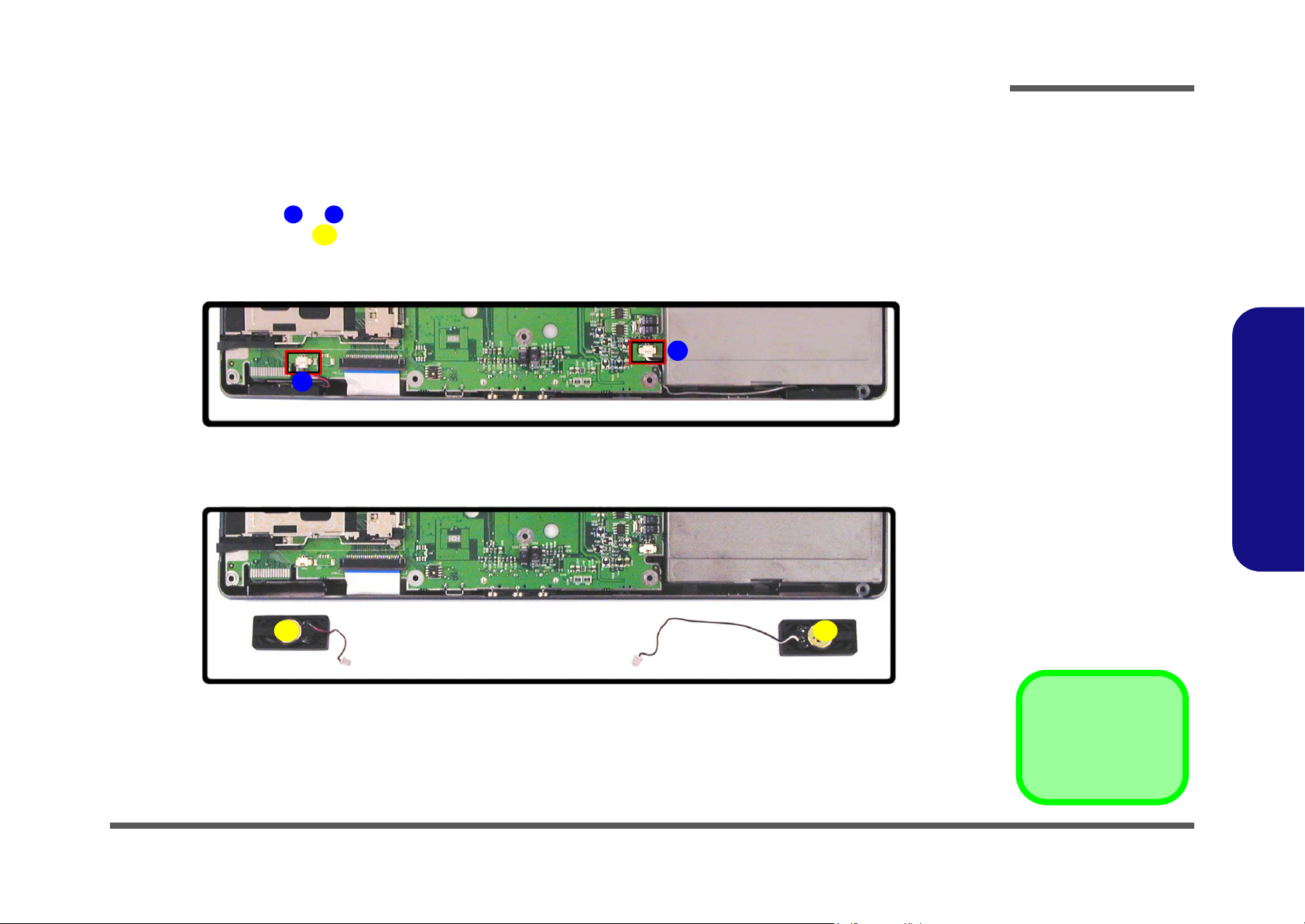

2. Disconnect cables & (Figure 18a) from the speakers to the mainboard.

3. Remove the speakers (Figure 18b).

a.

1 2

3

Disassembly

Figure 18

Speakers Removal

b.

2

1

3

a. Disconnect the cables. b. Remove the speakers.

2.Disassembly



3. Speakers

Removing the Speakers 2 - 25

Disassembly

Figure 19

Mainboard Removal

a. Disconnect the cables

and remove the screws.

b. Separate the mainboard,

rear bracket and bottom case.

Removing the Mainboard

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and speakers (page 2 - 25).

2. Disconnect cables & (Figure 19a) and remove screws & .

3. Separate the mainboard , rear bracket and bottom case (Figure 19b).

a. b.

1 2 3 4

5 6

4

2

7

5

6

2.Disassembly



5. Mainboard

6. Rear Bracket

7. Bottom Case

•2 Screws

2 - 26 Removing the Mainboard

3

7

1

Removing the Fan Unit

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-

board (

2. Remove screws - (Figure 20a) and lift out the fan unit .

page 2 - 26).

1 4 5

Disassembly

a.

b.

Figure 20

2

1

Fan Unit Removal

a. Remove the screws b. Lift out the fan unit.

2.Disassembly

34

5



5. Fan Unit

•4 Screws

Removing the Fan Unit 2 - 27

Disassembly

Figure 21

Floppy Disk Drive

Assembly Removal

a. Remove the screws b. Lift out the FDD assem-

bly

c. Separate the brackets,

FDD and cable.

Removing the Floppy Disk Drive Assembly

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-

board (

2. Remove screws - (Figure 21a) and lift out the floppy disk drive assembly.

3. Remove screws - (Figure 21c) and you can then separate the brackets , floppy disk drive unit , and cable .

a. b.

page 2 - 26).

1 4 5 8

11

1 2

9 10

2.Disassembly



9. Brackets

10. Floppy Disk Drive

11. Cable

•8 Screws

2 - 28 Removing the Floppy Disk Drive Assembly

c.

34

11

6

9

5

10

9

7

8

Removing the PC Card Assembly

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-

board (

2. Remove screws & (Figure 22a).

3. Carefully ease (use a small screwdriver) the metal pins which hold the PC Card assembly in place, at points &

4

4. Lift off the PC Card assembly (Figure 22c) off the mainboard.

a. b.

page 2 - 26).

1 2

(Figure 22b) off the black plastic unit.

5

1

3

4

Disassembly

Figure 22

PC Card Assembly

Removal

a. Remove the screws. b. Separate the metal pins

from the black plastic unit.

c. Lift the PC Card assem-

bly off the mainboard.

2.Disassembly

c.

2

5

3



5. PC Card Assembly

•2 Screws

Removing the PC Card Assembly 2 - 29

Disassembly

Removing the LCD Front Panel Module

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), and the top case and LCD (page 2 - 20).

2. Remove the rubber covers and screws at points - (Figure 23a).

3. Run your finger around the middle of the frame to carefully unsnap the LCD front panel module (Figure 23b) from the back.

1 6

7

Figure 23

LCD Front Panel

Module Removal

a. Remove the rubber cov-

wers and screws.

b. Unsnap the LCD front

panel from the back.

2.Disassembly



7. LCD Front Panel

a.

b.

1

2

3

4

56

•6 Screws & Rubber Covers

2-30

7

Removing the Inverter

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and LCD front panel (page 2 - 30).

2. Remove screw (Figure 24a).

3. Turn the inverter over and disconnect the cables & (Figure 24b).

4. Lift the inverter (Figure 24c) off the LCD assembly.

1

2 3

4

Disassembly

Figure 24

Inverter Removal

a.

b.

c.

a. Remove the screw. b. Turn the inverter over

and disconnect the ca-

1

2

3

bles.

c. Lift the inverter off the

LCD assembly.

2.Disassembly



4. Inverter

4

•1 Screw

Removing the Inverter 2 - 31

Disassembly

Figure 25

PC Camera Module

Removal

a. Disconnect the cable. b. Lift the PC Camera off

the LCD assembly.

c. If you need to remove

the antenna first remove the LCD module then the screw, and the antenna

2.Disassembly

cable.

Removing the PC Video Camera Module

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and LCD front panel (page 2 - 30).

2. Disconnect cable (Figure 25a).

3. Lift the PC camera module (Figure 25b) off the LCD assembly.

4. If you need to remove the antenna cable, first remove the LCD module ( the antenna cable (Figure 25c).

a.

1

2

page 2 - 33), then remove screw and

4

3

c.

3

4

b.

2



2. PC Camera

4. Antenna Cable

•1 Screw

2 - 32 Removing the PC Video Camera Module

Removing the LCD Module

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), LCD front panel (page 2 - 30) and

inverter (

2. Remove screws - (Figure 26a).

3. Separate the display back panel (Figure 26b), hinges and LCD module assembly.

4. Remove screws

a. b.

page 2 - 31).

1 6

7 8

- (Figure 26c) and separate the LCD module and brackets .

9 16

1 2

17

18

Disassembly

Figure 26

LCD Module

Removal

a. Remove the screws.

7

b. Separate the back pan-

el, hinges and LCD module assembly.

c. Remove the screws and

separate the brackets and LCD module.

2.Disassembly

8 8

c.

56

34

9

10

17

13

14

1818



11

12

15

16

7. Back Panel

8. Hinges

17. LCD module

18. Brackets

•14 Screws

Removing the LCD Module 2 - 33

Disassembly

2.Disassembly

2-34

Appendix A:Part Lists

This appendix breaks down the D400P/D410P series notebook’s construction into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure

to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the

total number of duplicated parts used.

Part Lists

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the

time of publication. Over the product life, some parts may be improved or re-configured, resulting in

new part numbers.

A.Part Lists

A-1

Part Lists

Table 1 - 1

Part List Illustration

Location

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Part 400P 410P

Top

page A - 3 page A - 13

A.Part Lists

Bottom

LCD 14”

LCD 15"

CD-ROM Drive

CD-RW Drive

Combo Drive

DVD-ROM Drive

Floppy Disk Drive

Hard Disk Drive

page A - 4 page A - 14

page A - 5 page A - 15

page A - 6 page A - 16

page A - 7 page A - 17

page A - 8 page A - 18

page A - 9 page A - 19

page A - 10 page A - 20

page A - 11 page A - 21

page A - 12 page A - 22

A - 2 Part List Illustration Location

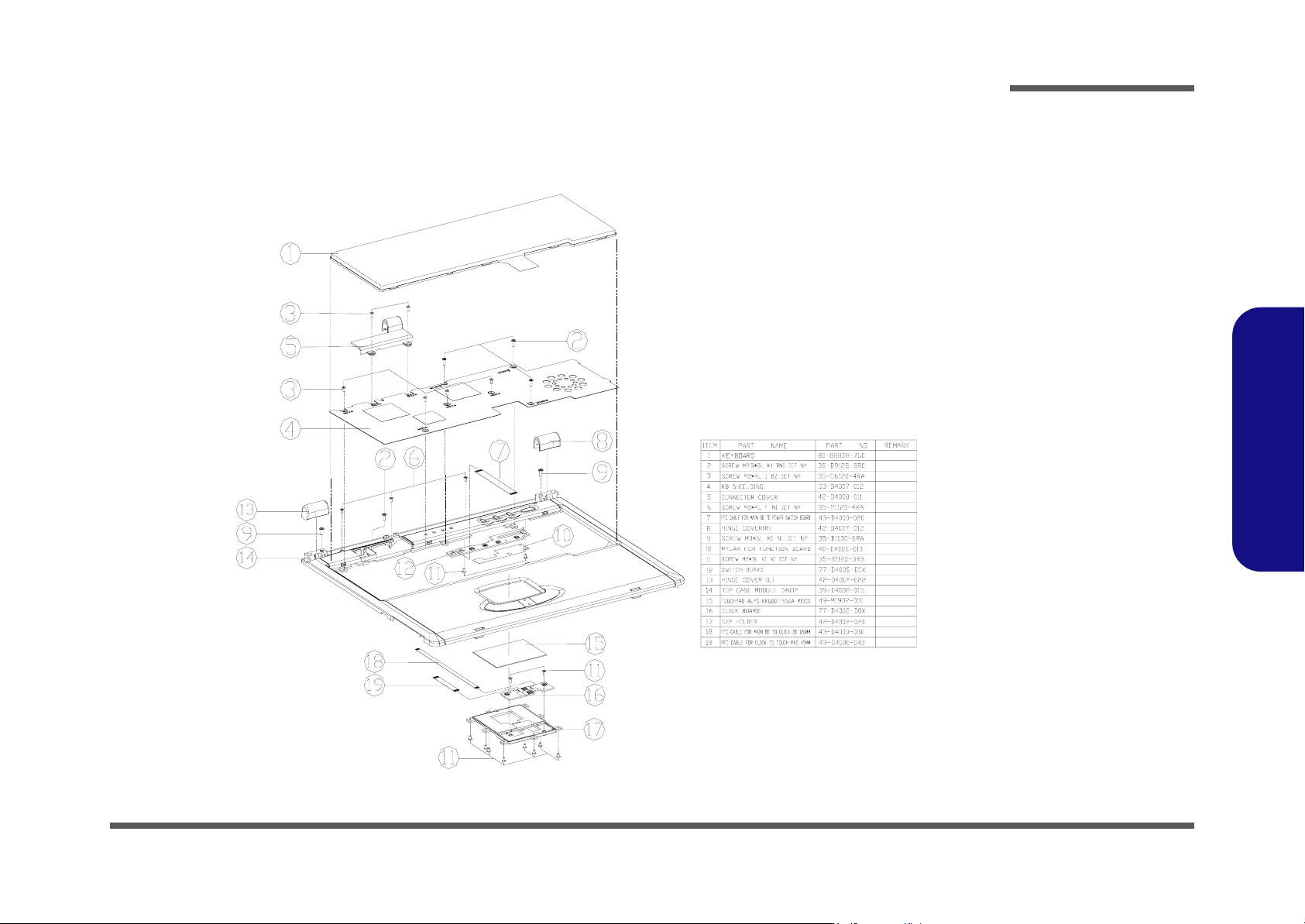

Top (400P)

Part Lists

Figure 1

Top (400P)

A.Part Lists

Top (400P) A - 3

Part Lists

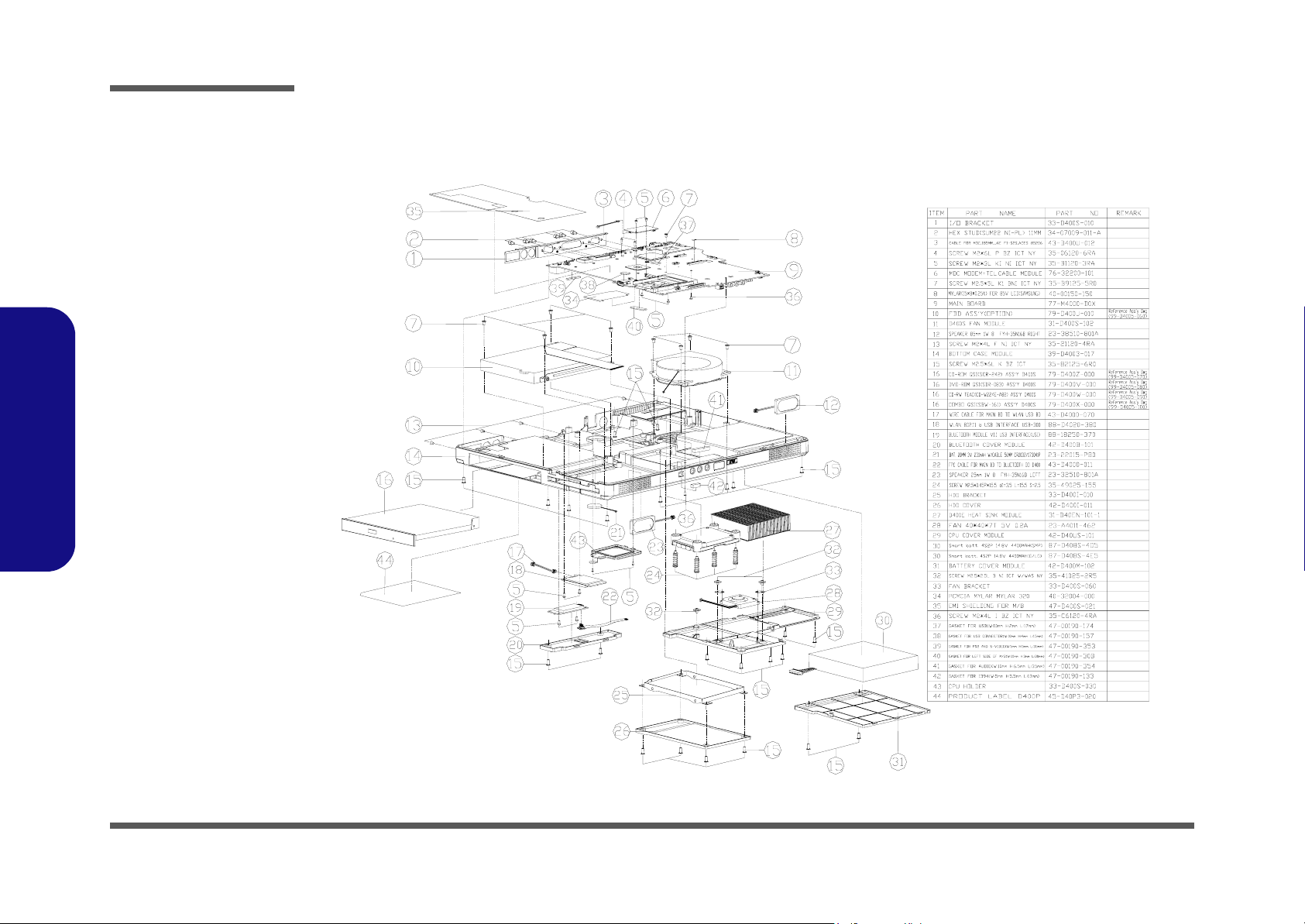

Bottom (400P)

A.Part Lists

Bottom (400P)

Figure 2

A - 4 Bottom (400P)

LCD 14" (400P)

Part Lists

Figure 3

LCD 14" (400P)

A.Part Lists

LCD 14" (400P) A - 5

Part Lists

LCD 15" (400P)

A.Part Lists

LCD 15" (400P)

Figure 4

A - 6 LCD 15" (400P)

CD-ROM Drive (400P)

Part Lists

Figure 5

CD-ROM Drive

(400P)

A.Part Lists

CD-ROM Drive (400P) A - 7

Part Lists

CD-RW Drive

A.Part Lists

CD-RW Drive (400P)

Figure 6

(400P)

A - 8 CD-RW Drive (400P)

Combo Drive (400P)

Part Lists

Figure 7

Combo Drive

(400P)

A.Part Lists

Combo Drive (400P) A - 9

Part Lists

DVD-ROM Drive

A.Part Lists

DVD-ROM Drive (400P)

Figure 8

(400P)

A - 10 DVD-ROM Drive (400P)

Floppy Disk Drive (400P)

Part Lists

Figure 9

Floppy Disk Drive

(400P)

A.Part Lists

Floppy Disk Drive (400P) A - 11

Part Lists

Figure 10

HDD Drive (400P)

A.Part Lists

Hard Disk Drive (400P)

A - 12 Hard Disk Drive (400P)

Top (410P)

Part Lists

Figure 11

Top (410P)

A.Part Lists

Top (410P) A - 13

Part Lists

Bottom (410P)

A.Part Lists

Bottom (410P)

Figure 12

A - 14 Bottom (410P)

LCD 14" (410P)

Part Lists

Figure 13

LCD 14" (410P)

A.Part Lists

LCD 14" (410P) A - 15

Part Lists

LCD 15" (410P)

A.Part Lists

LCD 15" (410P)

Figure 14

A - 16 LCD 15" (410P)

CD-ROM Drive (410P)

Part Lists

Figure 15

CD-ROM Drive

(410P)

A.Part Lists

CD-ROM Drive (410P) A - 17

Part Lists

Figure 16

CD-RW Drive

A.Part Lists

CD-RW Drive (410P)

(410P)

A - 18 CD-RW Drive (410P)

Combo Drive (410P)

Part Lists

Figure 17

Combo Drive

(410P)

A.Part Lists

Combo Drive (410P) A - 19

Part Lists

Figure 18

DVD-ROM Drive

A.Part Lists

DVD-ROM Drive (410P)

(410P)

A - 20 DVD-ROM Drive (410P)

Floppy Disk Drive (410P)

Part Lists

Figure 19

Floppy Disk Drive

(410P)

A.Part Lists

Floppy Disk Drive (410P) A - 21

Part Lists

Figure 20

HDD Drive (410P)

A.Part Lists

Hard Disk Drive (410P)

A - 22 Hard Disk Drive (410P)

Appendix B:Schematic Diagrams

This appendix has circuit diagrams of the D400P/D410P notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram.

Schematic Diagrams

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 962 (PCI/IDE/HyperZip) 1 of 4 - Page B - 14 LAN RTL8100BL - Page B - 26

Socket 478 1 of 2 - Page B - 3 962 (Misc Signals) 2 of 4 - Page B - 15 Audio Codec ALC201A - Page B - 27

Socket 478 & ITP 2 of 2 - Page B - 4 962 (USB I/F) 3 of 4 - Page B - 16 Audio Out & Off Board Connectors - Page B - 28

Clock Generator - Page B - 5 962 (Power & RTC) 4 of 4 - Page B - 17 System Power Control - Page B - 29

M650 (Host/AGP) 1 of 4 - Page B - 6 HDD/Combo Connector - Page B - 18 Fan Control and SpeedStep - Page B - 30

M650 (Memory for DDR) 2 of 4 - Page B - 7 USB Port - Page B - 19 VCORE - Page B - 31

M650 (& CRT Out) 3 of 4 - Page B - 8 PCMCIA ENE1410 - Page B - 20 DDR Power - Page B - 32

M650 (Power) 4 of 4 - Page B - 9 PCMCIA Power - Page B - 21 System - Page B - 33

DDR Memory DIMM - Page B - 10 1394 PHY TSB41LV01 - Page B - 22 Charger - Page B - 34

DDR SSTL-2 Termination - Page B - 11 LPC Super I/O - Page B - 23 SW Board and HotKey - Page B - 35

LVDS Interface (SiS302LV) - Page B - 12 LPT/COM Port - Page B - 24 TouchPad and Switch Board - Page B - 36

Panel Con & LED Indicator - Page B - 13 LPC H8 - Page B - 25

Table 1

Schematic

Diagrams

B.Schematic Diagrams

(71-M4000-D03) B - 1

Schematic Diagrams

System Block Diagram

D400 System Block Diagram

Sheet 1 of 41

System Block

Diagram

B.Schematic Diagrams

TV-OUT

PANEL

BLUE BOOTH

USB PORT

Video Camera

Wireless LAN

HDD/CD-ROM CON

MODEM

SiS 302LV

CRT PORT

Ultra 66/100/133

USB 2.0 I/F

AC ' 97 I/F

VB-LINK

RGB

NORTHWOOD

SOCKET - 478

Host Bus

GTL+ & AGTL

SiS M650

702 mBGA

MuTIOL

GENERATOR

SiS 962

371 mBGA

AUDIOMDC CODEC

ALC201A RTL8100BL

LPC I/F

INT.KB

EXT.KB

EXT.PS2

KBC H8

H8S-2149 HM

TOUCH PAD

LPC Super I/O

FLASH ROM

PCI I/F

Realtek

NS PC87393

XBUS

CLOCK

DDR INTERFACE

DIMM1

M I I I/F

CardBus ENE 1410

Rtt

DIMM2

1394 PHY

TSB41LV01

FDD CONCOM/PRT PORT IR

B - 2

Socket 478 1 of 2

Schematic Diagrams

HD#[0..63]

VCC_CORE

JCPU1A

B21

HD#0 HD#1

B22

HD#2

A23

HD#3

A25

HD#4

C21 D22

HD#5 HD#6

B24

HD#7

C23 C24

HD#8 HD#9

B25

HD#10

G22 H21

HD#11 HD#12

C26

HD#13

D23

HD#14

J21

HD#15

D25 H22

HD#16

E24

HD#17 HD#18

G23

HD#19

F23

HD#20

F24 E25

HD#21 HD#22

F26

HD#23

D26

HD#24

L21

HD#25

G26 H24

HD#26 HD#27

M21

HD#28

L22

HD#29

J24

HD#30

K23

HD#31

H25

HD#32

M23 N22

HD#33

P21

HD#34

M24

HD#35

N23

HD#36

M26

HD#37 HD#38

N26

HD#39

N25

HD#40

R21

HD#41

P24

R25

HD#42 HD#43

R24

HD#44

T26

HD#45

T25 T22

HD#46 HD#47

T23

HD#48

U26

HD#49

U24 U23

HD#50

V25

HD#51 HD#52

U21

V22

HD#53

V24

HD#54

W26

HD#55 HD#56

Y26 W25

HD#57

Y23

HD#58 HD#59

Y24

HD#60

Y21

AA25

HD#61

AA22

HD#62 HD#63

AA24

RS#0 RS#1 RS#2

F1

G5

F4

RS#0[5] RS#1[5] RS#2[5]

VCC_CORE +2.5V

HD#[0..63][5]

A10

A12

A14

VCC

VCC D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37 D38 D39 D40 D41 D42 D43 D44 D45 D46 D47 D48 D49 D50 D51 D52 D53 D54 D55 D56 D57 D58 D59 D60 D61 D62 D63

RS0 RS1 RS2

H1H4H23

C683

0.1UF

VCC_CORE

A16

A18

A20A8AA10

AA12

AA14

AA16

AA18

AA8

AB11

AB13

AB15

AB17

AB19

AB7

AB9

AC10

AC12

AC14

AC16

AC18

AC8

AD11

AD13

AD15

AD17

AD19

AD7

AD9

AE10

AE12

AE14

AE16

AE18

AE20

AE6

AE8

AF11

AF13

AF15

AF17

AF19

AF2

AF21

AF5

AF7

AF9

B11

B13

B15

B17

B19B7B9

C10

C12

C14

C16

C18

C20C8D11

D13

D15

D17

D19D7D9

E10

E12

VCC

INTEL P4 CPU SOCKET 478 PART 1

MOBIL CPU AD25=DPSLP(H_DPSLP#) A6=GHI#(PM_CPUPERF#)

VSS

H26

A11

A13

A15

A17

A19

A21

A24

A26A3A9

AA1

AA11

AA13

AA15

AA17

AA19

AA23

AA26

AA4

AA7

AA9

AB10

AB12

AB14

AB16

AB18

AB20

AB21

AB24

AB3

AB6

AB8

AC11

AC13

AC15

AC17

AC19

AC2

AC22

AC25

AC5

AC7

AC9

AD1

AD10

AD12

AD14

AD16

AD18

AD21

AD23

AD4

AD8

AE11

AE13

AE15

AE17

AE19

AE22

VCC_CORE

C348

C312

10U(0805)

C416

10U(0805)

C389

10U(0805)

C328

10U(0805)

C315

10U(0805)

C314

10U(0805)

C325

10U(0805)

C340

10U(0805)

C347

10U(0805)

C345

10U(0805)

AE24

AE26

AE7

AE9

AF1

C324

10U(0805)

VSS

AF10

AF12

AF14

AF16

C391

10U(0805)

T

E14

E16

E18

E20E8F11

F13

F15

F17

F19

F9

A7

VCC

VSS

AF6

AF8

B10

C126

10U(0805)

VCC

VSS

B12

B14

B16

C111

10U(0805)

NCNCNCNCNCNCNC

VCC

VSS

B18

B20

B23

VCC

VSS

SKTOCC#

AF18

AF20

AF26

T

A22

VSS

B26B4B8

AD2

AD3

VSS

C98

10U(0805)

T

J26

K25

K26

L25

AE21

AF24

AF25

AB1

A35

DEP0

DEP1

DEP2

DEP3

A34 A33 A32 A31 A30 A29 A28 A27 A26 A25 A24 A23 A22 A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10

A9 A8 A7 A6 A5 A4 A3

VID0 VID1 VID2 VID3 VID4

REQ4 REQ3 REQ2 REQ1 REQ0

BPM5 BPM4 BPM3 BPM2 BPM1 BPM0

DPSLP#

GHI#

TESTHI10

TESTHI9 TESTHI8 TESTHI7 TESTHI6 TESTHI5 TESTHI4 TESTHI3 TESTHI2 TESTHI1 TESTHI0

VSS

NORTHWOOD478

C11

C13

C15

C17

C19

C2

C99

C31

10U(0805)

T

HA#31 HA#30 HA#29 HA#28 HA#27 HA#26 HA#25 HA#24 HA#23 HA#22 HA#21 HA#20 HA#19 HA#18 HA#17 HA#16 HA#15 HA#14 HA#13 HA#12 HA#11 HA#10 HA#9 HA#8 HA#7 HA#6 HA#5 HA#4 HA#3

HREQ#4 HREQ#3 HREQ#2 HREQ#1 HREQ#0

HBPRM5# HBPRM4#

C45

10U(0805)

HA#[3..31]

HREQ#[0..4]

HBPM1# HBPM0#

H_DPSLP#

PM_CPUPERF#

R245 R279 R320 R326 R325 R259 R260 R246 R248 R261 R262 R321 R247

VID[0..4]

R518 R519 R520 R521 R522

VID0

0

VID1

0

VID2

0

VID3

0

VID4

0

HREQ#[0..4][5]

HBPRM5# [3] HBPRM4# [3]

HBPM1# [3] HBPM0# [3]

51 51 51 51 51 51 51 51 51 51 51 51 51

VID[0..4] [15,36]

HA#[3..31] [3,5]

SWEB8

6 5 4 3 2 1

SW DIP-6

Vup [36]

H_DPSLP#[29,36] PM_CPUPERF#[15]

Design Guide updates for P4P/845

VCC_CORE

7 8 9 10 11 12

R523 51 R524 51 R525 51 R526 51 R527 51

R648 51

B.Schematic Diagrams

Sheet 2 of 41

Socket 478 1 of 2

Y1 W2 V3 U4 T5 W1 R6 V2 T4 U3 P6 U1 T2 R3 P4 P3 R2 T1 N5 N4 N2 M1 N1 M4 M3 L2 M6 L3 K1 L6 K4 K2

AE5 AE4 AE3 AE2 AE1

H3 J3 J4 K5 J1

AB4 AA5 Y6 AC4 AB5 AC6

AD25 A6 Y3 W4 U6 AB22 AA20 AC23 AC24 AC20 AC21 AA2 AD24

C341

0.1UF

C417

0.1UF

C418

0.1UF

C343

0.1UF

C388

0.1UF

C300

0.1UF

C342

0.1UF

C327

0.1UF

C329

0.1UF

C344

0.1UF

C311

0.1UF

C310

0.1UF

C326

0.1UF

C339

0.1UF

C350

0.1UF

C109

0.1UF

C386

0.1UF

C390

0.1UF

C110

0.1UF

Socket 478 1 of 2 (71-M4000-D03) B - 3

Schematic Diagrams

Sheet 3 of 41

Socket 478 & ITP

2 of 2

B.Schematic Diagrams

Socket 478 & ITP 2 of 2

VCC_CORE

HCLK-CPU HCLK-CPU#

DBI#[0..3]5

L69

4.7uH_SMD_30%

1 2

L71

4.7uH_SMD_30%

RP40 4P2R-0(R)

HCLK-CPU4

HCLK-CPU#4

HDSTBP#35 HDSTBP#25 HDSTBP#15 HDSTBP#05 HDSTBN#35 HDSTBN#25 HDSTBN#15 HDSTBN#05

C318

47U/16V

4

DBI#[0..3]

HASTB#15 HASTB#05

NMI15

INTR15

R42 R243 51.1_1%

HCLK-ITP0

1

HCLK-ITP0#

23

DBI#3 DBI#2 DBI#1 DBI#0

HASTB#1 HASTB#0 DBRESET

NMI INTR

HCLK-CPU HCLK-CPU#

HDSTBP#3 HDSTBP#2 HDSTBP#1 HDSTBP#0 HDSTBN#3 HDSTBN#2 HDSTBN#1 HDSTBN#0

C317

47U/16V

51.1_1%

JCPU1B

AE23

AD20

AD22

AC26 AD26

V21 P26 G25 E21

R5

L5

AE25

E5 D1

AF22 AF23

P1

L24

W23 P23

J23 F21 W22 R22 K22 E22

A5

T

A4

T

E11 E13 E15 E17 E19 E23 E26

E4 E7

E9 F10 F12 F14 F16 F18

F2 F22 F25

F5

F8 G21 G24

G3 R4

CPURST#

C25C5C7C9D10

D12

D14

D16

D18

D20

D21

D24D3D6

VSS

+3V

VSS

R686

1K(R)

C

E

MMBT3904(R)

VSS

L26L4M2

Q36

2N7002(R)

G

Q37

VSS

M22

M25M5N21

VCCIOPLL

VCCA

VSSA

ITP_CLK0 ITP_CLK1

DB#3 DB#2 DB#1 DB#0

ADSTB1 ADSTB0 DBRESET

LINT1 LINT0

BCLK0 BCLK1

COMP1 COMP0

STBP3 STBP2 STBP1 STBP0 STBN3 STBN2 STBN1 STBN0

VCC_SENSE VSS_SENSE

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VSS

K24K3K6L1L23

J2

J22

J25J5K21

G6

B

R687 4.7K(R)

D8

E1

VSS

N24N3N6P2P22

Disable HT function

DS

L< 0.1 inch

VSS

C22

VSS

F20

AA6

AA21

GTLREF1

GTLREF0

VSS

P25

P5

HA#31 2,5

CPUGTLVREFA

CPUGTLVREFB

F6

IERR

MCERR

FERR

GTLREF3

GTLREF2

STPCLK

BINIT

DBSY

DRDY

TRDY

LOCK

DEFER

TRST

PROCHOT

IGNNE

A20M

PWRGOOD

RESET

THERMDA THERMDC

THERMTRIP

BSEL0 BSEL1

VCCVID

VCCVIDPRG

VSS

R1

R23

R26

VCC_CORE

49.9_1%

R275 R63 49.9_1%

C316

C313

220P

IERR

AC3 V6

FERR#

B6

STPCLK#

Y4 AA3

INIT#

W5

INIT

AB2

RSP

DBSY#

H5

DRDY#

H2

HTRDY#

J6

ADS#

G1

ADS

HLOCK#

G4

BREQ0#

H6

BR0

BNR#

G2

BNR

HIT#

F3

HIT

HITM#

E3

HITM

BPRI#

D2

BPRI

DEFER#

E2

HTCK

D4

TCK

HTDI

C1

TDI

HTMS

F7

TMS

HTRST#

E6

HTDO

D5

TDO

PROCHOT#

C3

IGNNE#

B2

SMI#

B5

SMI

A20M#

C6

CPUSLP#

AB26

SLP

CPUPWRGD

AB23

CPURST#

AB25

THERMDA

B3

THERMDC

C4

THERMTRIP#

A2

AD6 AD5

AC1

AP0

V5

AP1

AF4 AF3

T

Y5

VSS

Y25

VSS

Y22

VSS

Y2

VSS

W6

VSS

W3

VSS

W24

VSS

W21

VSS

V4

VSS

V26

VSS

V23

VSS

V1

VSS

U5

VSS

U25

VSS

U22

VSS

U2

VSS

T6

VSS

T3

VSS

T24

VSS

T21

VSS

ALERT#27

C330

1UF

T

VCCVID

THERMDA

THERMDC

+3V

BSEL0 4 BSEL1 4

1 2

C385 0.1UF

ALERT#

R317 10K

R276

100_1%

FERR# 15 STPCLK# 15

INIT# 15

DBSY# 5 DRDY# 5 HTRDY# 5 ADS# 5 HLOCK# 5 BREQ0# 5 BNR# 5 HIT# 5 HITM# 5 BPRI# 5 DEFER# 5

IGNNE# 15 SMI# 15 A20M# 15 CPUSLP# 15 CPUPWRGD 5 CPURST# 5

20

mils

C80

2200P

C346

220P

SENSE_VCC

U27

2

VCC

3

DXP

4

DXN

11

ALERT#

7

GND

8

GND

EN1617

C349

220P

VCC_CORE

C323

0.1UF

C113

0.1UF

R319 200

STBY#

SMBDATA

SMBCLK

ADD1 ADD0

NC/CRIT1 NC/CRIT0

NC/OS#

NC NC

R64

C112

100_1%

1UF

C376

0.1UF

VCC_CORE

C387

0.1UF

R316

4.7K

T T T T T

C301

0.1UF

+3V VDD3

R156

R318

1K

4.7K

NEAR U18

R157

1K

HBPM0#2

HBPM1#2

HBPRM4#2

HBPRM5#2

TMP_SMDATA24

TMP_SMCLK24

C302

0.1UF

15

12

14

6 10

1 5 9 13 16

CPU SIGNAL TERMINALION

CLOSE TO CPU

FERR#

BREQ0#

PROCHOT#

CPUPWRGD

THERMTRIP#

A20M#

STPCLK#

CPUSLP#

SMI#

INIT#

IGNNE#

INTR

NMI

CPURST#

HTDO

IERR

DBRESET

HTMS

HCLK-ITP0

HCLK-ITP0#

ITP_STPWR

T

HBPM0#

HBPM1#

HBPRM4#

HBPRM5#

HTCK

ITP/TAP TERMINATION

CLOSE TO ITP PORT

ITP/TAP TERMINATION

CLOSE TO CPU

HTDI

HTRST#

NORTHWOOD478

R274

R56

R293

R270

R302

R273

R327

R256

R292 56_1%

R328 56_1%

R303 56_1%

R57 56_1%

R58 56_1%

R258 51_1%

R280

R297 10K

R257 150

R52

R219 51_1%

R218 51_1%

R244 1.5K

R284 51

R285

R298 51

R299 51

R50

R306

R51 680

62_1%

51_1%

62_1%

51_1%

62_1%

56_1%

75

40.2_1%

51

27.4_1%

VCC_CORE

150

VCC_CORE

B - 4 Socket 478 & ITP 2 of 2 (71-M4000-D03)

Clock Generator

+3VS

L84

FCM2012V121

1 2

C401

C76

0.1UF

10UF/10V

R59

10K

VTT

R62

10K

PLEASE PLACE IN COMP SIDE AND NEAR TOGETHER

C

B

E

+2.5VS

10U(0805)

+3VS

Frequency Selection

R67 4.7K R66 4.7K R65 4.7K(R) R61 4.7K(R) R60 4.7K(R)

+3VS

R283

4.7K

BSEL1 BSEL0 Function

L L L H H L H H

C208

C85

0.1UF

+3VS+3VS

R43

10K

B

Q20 2N3904

Clock Buffer (DDR)

C565

0.01UF

R296

4.7K

C84

C

Q19

E

2N3904

+3VS

C207

0.1UF

FS0 FS1 FS2 FS3 FS4

BSEL0 [3] BSEL1 [3]

C81

0.1UF

CPUSTP#[15,29]

+3VS

L33

1 2

FCM2012V121

+2.5VS

FCM1608K121

C102

0.1UF

1 2

C90

0.1UF

C77

10UF/10V

L94

1 2

Main Clock Generator

U28

CLK_VCC3

C105

C103

C104

0.1UF

L21

FWDSDCLKO[6]

+2.5V

+1.8VS

0.1UF

+3VS

R37

10K

D10

AC

1SS355

R45

475_1%

FCM1608K121

C83

0.1UF

C78

C86

0.01UF

0.1UF

BUFFERVCC

C532

C523

0.1UF

10U(0805)

BUF_2.5VS

C560

C549

10U(0805)

0.01UF

FWDSDCLKO

C684

0.1UF

FS4 FS3 FS2 FS1 FS0 0 0 0 1 1

0 0 0 0 1 100M 100M 66M 66M 33M

1 11 13 19 28 29 42 48

12

5

8 18 24 25 32 41 46

45

33

38

36

C82

0.01UF

37

ICS 952001 CY 28342

C550

C557

0.1UF

C556

0.1UF

SMBCLK

SMBDAT

FB_IN

T T T

CLOCK GEN (650)

VDDREF VDDZ VDDPCI VDDPCI VDD48 VDDAGP VDDCPU VDDSD

PCI_STOP#

VSSREF VSSZ VSSPCI VSSPCI VSS48 VSSAGP VSSCPU VSSSD

CPU_STOP#

PD#/VTT_PWRGD

IREF

VDDA

VSSA

24_48M/MULTISEL

XIN

6

Y5

1 2

14.318MHz

C92 10PF

U29

CLOCK BUFFER (DDR48)

3

VDD

12

VDD

23

VDD

10

AVDD

7

SCLK

22

SDATA

8

CLK_IN

20

FB_IN

9

NC

18

NC

21

NC

ICS 93722 CY28352

CPU SDRAM ZCLK AGP PCI 100M 133M 66M 66M 33M

CPUCLK0

CPUCLK#0

CPUCLK1

CPUCLK#1

SDCLK

AGPCLK0 AGPCLK1

ZCLK0 ZCLK1

PCICLK_F0/FS3 PCICLK_F1/FS4

PCICLK0 PCICLK1 PCICLK2 PCICLK3 PCICLK4 PCICLK5

REF0/FS0 REF1/FS1 REF2/FS2

SDATA

XOUT

7

CLK0

CLK#0

CLK1

CLK#1

CLK2

CLK#2

CLK3

CLK#3

CLK4

CLK#4

CLK5

CLK#5

FB_OUT

GND GND GND GND

SCLK

10PF

40 39

44 43

47

31 30

9 10

14 15 16 17 20 21 22 23

2 3 4

27

48M

MULTISEL

26

SMBCLK

35

SMBDAT

34

C91

2 1

4 5

13 14

17 16

24 25

26 27

FB_OUT

19

28 15 11 6

CPU-1

RP44

CPU-2

CPU-3

RP43

CPU-4

SD-1

AGP-1 AGP-2

ZIP-1 ZIP-2

FS3 FS4

PCI-2 PCI-3 PCI-4 PCI-5 PCI-6

FS0 FS1 FS2

USB-1

RP75 4P2R-0123

4

RP76 4P2R-01

4

RP77 4P2R-0

2 3 1

RP62 4P2R-01

2 3

RP61 4P2R-0

2 3 1

RP60 4P2R-0

2 3 1

NEAR DDR SODIMM

Damping Resistors Place near to the Clock Outputs

1

4

2 3

4P2R-33

1

4

2 3

4P2R-33

R309 22

R310

22

R311 22

R334 22 R335 22

R336

33 R337 33 R338 33 R339 33 R340 33 R341 33 R342 33

T

R331

33 R332 33 R333 33

R312

22 R313

22

SMBCLK [7,15] SMBDAT [7,15]

R44

MULTISEL

DDRCLK3 DDRCLK#3

DDRCLK0 DDRCLK#0

23

DDRCLK2 DDRCLK#2

4

DDRCLK4

4

DDRCLK#4

DDRCLK1 DDRCLK#1

4

DDRCLK5 DDRCLK#5

4

R384

22

FB_IN

By-Pass Capacitors Place near to the Clock Buffer

C533 10PF(R)

FB_IN

HCLK-CPU HCLK-CPU#

HCLK-650 HCLK-650#

SDCLK

AGPCLK AGPCLKATI

ZCLK0 ZCLK1

PCICLK961

PCICLK1394

PCICLKPCMPCI-1

PCICLKLAN

PCICLKIO

PCICLKH8 PCLK_80P

REFCLK0 REFCLK1 CLKAPIC

UCLK48M SIO48M

T

0(R)

DDRCLK3[7] DDRCLK#3[7]

DDRCLK0[7] DDRCLK#0[7]

DDRCLK2[7] DDRCLK#2[7]

DDRCLK4[7] DDRCLK#4[7]

DDRCLK1[7] DDRCLK#1[7]

DDRCLK5[7] DDRCLK#5[7]

HCLK-CPU [3] HCLK-CPU# [3]

HCLK-650 [5] HCLK-650# [5]

SDCLK [6]

AGPCLK [5]

AGPCLKATI [30]

ZCLK0 [9] ZCLK1 [13]

PCICLK961 [13]

PCICLKPCM [19] PCICLKLAN [25] PCICLKIO [22] PCICLKH8 [24] PCLK_80P [20]

14.381MHZ

REFCLK0 [9] REFCLK1 [15] CLKAPIC [15]

48 MHZ

UCLK48M [16] SIO48M [22]

By-Pass Capacitors Place near to the Clock Outputs

HCLK-CPU

R34 R33

HCLK-CPU#

HCLK-650

R36

HCLK-650#

R35

C75

SDCLK

C74

AGPCLK

C688

AGPCLKATI

C121 10PF(R)

ZCLK0

C120 10PF(R)

ZCLK1

C119

PCICLK961

C118 10PF(R)

PCICLK1394

C117 10PF(R)

PCICLKPCM

C116 10PF(R)

PCICLKLAN

C115 10PF(R)

PCICLKIO

C114

PCICLKH8

C73 10PF(R)

UCLK48M

10PF(R)

49.9_1%

Schematic Diagrams

B.Schematic Diagrams

Sheet 4 of 41

Clock Generator

Clock Generator (71-M4000-D03) B - 5

Schematic Diagrams

M650 (Host/AGP) 1 of 4

Sheet 5 of 41

M650 (Host/AGP)

1 of 4

B.Schematic Diagrams

AAD18/AHSYNC[30] AAD30/BHSYNC[30]

VTT

R264

20_1%

R263

113_1%

HPCVERF = 2/3 VCCP

HCLK-650[4]

HCLK-650#[4]

HLOCK#[3]

DEFER#[3]

HTRDY#[3]

CPURST#[3]

CPUPWRGD[3]

BPRI#[3]

BREQ0#[3]

RS#2[2] RS#1[2] RS#0[2]

ADS#[3]

HITM#[3]

HIT#[3]

DRDY#[3]

DBSY#[3]

BNR#[3]

HREQ#4[2] HREQ#3[2] HREQ#2[2] HREQ#1[2] HREQ#0[2]

HASTB#1[3] HASTB#0[3]

HA#[3..31][2,3]

VTT

C29

R272 150_1%

0.01UF

HNCVREF

C30

R271

75_1%

0.01UF

VTT

place this

C303

capacitor

R249

under 650 solder

75_1%

0.01UF

side

HVREF

C365

C304

R250 150_1%

C1XAVDD C4XAVDD

C1XAVSS C4XAVSS

0.01UF

FCM1608K121

9.06mA

C447

0.1UF

L89

1 2

C448

0.01UF

AAD17/AVSYNC[30]

HNCOMP

Rds-on(n) = 10 ohm HNCVERF = 1/3 VCCP

HPCOMP

Rds-on(p) = 56 ohm

HCLK-650 HCLK-650#

HLOCK# DEFER# HTRDY# CPURST# CPUPWRGD BPRI# BREQ0#

RS#2 RS#1 RS#0

ADS# HITM# HIT# DRDY# DBSY# BNR#

HREQ#4 HREQ#3 HREQ#2 HREQ#1 HREQ#0

HASTB#1 HASTB#0

HA#[3..31]

20MIL 20MIL 20MIL 20MIL

AJ26

AH26

U24 U26

V26 C20 D19

T27 U25

T24

T26 U29

V28

T28 U28 W26

V24

V27

W28 W29 W24 W25 Y27

AD24

AA24

HA#31

AF26

HA#30

AE25

HA#29 AGPCLK

AH28

HA#28

AD26

HA#27

AG29

HA#26

AE26

HA#25 A1XAVDD

AF28

HA#24 A1XAVSS

AC24

HA#23

AG28

HA#22 A4XAVDD

AE29

HA#21 A4XAVSS

AD28

HA#20

AC25

HA#19 AVREFGC

AD27

HA#18

AE28

HA#17

AF27

HA#16

AB24

HA#15 HDSTBN#3

AB26

HA#14 HDSTBN#2

AC28

HA#13 HDSTBN#1

AC26

HA#12 HDSTBN#0

AC29

HA#11

AA26

HA#10 HDSTBP#3

AB28

HA#9 HDSTBP#2

AB27

HA#8 HDSTBP#1

AA25

HA#7 HDSTBP#0

AA29

HA#6

AA28

HA#5

Y26

HA#4

Y24

HA#3

Y28

+3VS

C474

10UF/10V

N19 N18 N13 N14

R26 22(R)

AAD18/AHSYNC

AAD17/AVSYNC

CPUCLK CPUCLK#

HLOCK# DEFER# HTRDY# CPURST# CPUPWRGD BPRI# BREQ0#

RS#2 RS#1 RS#0

ADS# HITM# HIT# DRDY# DBSY# BNR#

HREQ#4 HREQ#3 HREQ#2 HREQ#1 HREQ#0

HASTB#1 HASTB#0

HA#31 HA#30 HA#29 HA#28 HA#27 HA#26 HA#25 HA#24 HA#23 HA#22 HA#21 HA#20 HA#19 HA#18 HA#17 HA#16 HA#15 HA#14 HA#13 HA#12 HA#11 HA#10 HA#9 HA#8 HA#7 HA#6 HA#5 HA#4 HA#3

HD#63

HD#62

B21

F19

A21

HD#62

HD#63

10mA 10mA

C445

0.1UF

22(R)

R28

C1XAVSS

C1XAVDD

C4XAVDD

AJ27

C4XAVSS

HPCOMP

HNCOMP

HVREF

U21

T21

P21

N21

J17

B20

B19

HVREF0

HVREF1

HVREF2

HVREF3

HVREF4

HPCOMP

C4XAVDD

HNCOMP

C4XAVSS

AH25

AJ25

AH27

C1XAVSS

C1XAVDD

HOST

HD#61

HD#60

HD#59

HD#58

HD#57

HD#56

HD#55

HD#54

HD#53

HD#52

HD#51

HD#50

HD#49

HD#48

E19

D22

D20

HD#58

HD#60

HD#61

HD#59

FCM1608K121

1 2

C446

0.01UF

B22

C22

HD#57

HD#56

L88

HD#47

B23

A23

D21

F22

D24

D23

C24

B24

E25

HD#51

HD#50

HD#53

HD#55

HD#54

HD#47

HD#52

HD#48

HD#49

+3VS +3VS +3VS

C473

10UF/10V

R17 22(R)

VAHSYNC [10]

VAVSYNC [10]

ST1

ST0

HNCVREF

ST2

AAD0

A19A7F9B7M6M5M4L3L6L4K6L2K3J3K4J2J6J4J1H6F4F1G6E3F5E2E4E1D3D4C2F7C3E6B2D5D6A3D7C5A5C6D8

ST0

ST1

ST2

VBD7/AAD0

HNCOMPVREF

AAD1

VBD6/AAD1

AAD2

VBD5/AAD2

AAD3

VBD4/AAD3

AAD4

VBD3/AAD4

AAD5

VBD2/AAD5

AAD6

CBD1/AAD6

AAD7

CBD0/AAD7

AAD8

VAD6/AAD8

AAD31/BVSYNC[30]

AAD9

VAD5/AAD9

AAD30/BHSYNC

R25 22(R)

AAD31/BVSYNC

SBA7

SBA3

SBA4

SBA6

SBA5

AAD18/AHSYNC

AAD16/VADE

AAD13

AAD11

AAD17/AVSYNC

AAD14

AAD10

AAD12

AAD15

AAD19

AAD20

VAD4/AAD10

VAD7/AAD11

VAD8/AAD12

VAD9/AAD13

VADE/AAD16

VBD11/AAD19

VAD10/AAD14

VAD11/AAD15

VAVSYNC/AAD17

VAHSYNC/AAD18

AAD29/VBCTL1

AAD28/VBCTL0

AAD30/BHSYNC

AAD31/BVSYNC

AAD27/VBDE

AAD26

AAD22

AAD25

AAD24

AAD23

AAD21

SBA7

SBA6

SBA5

SBA4

SBA3

VBD8/AAD21

VBD9/AAD22

VAD1/AAD23

VAD0/AAD24

VAD2/AAD25

VAD3/AAD26

VBDE/AAD27

VBD10/AAD20

VBCTL0AAD28

VBCTL1/AAD29

VBVSYNCAAD31

VBHSYNC/AAD30

AGP

M650-1

HD#46

HD#45

HD#44

HD#43

HD#42

HD#41

HD#40

HD#39

HD#38

HD#37

HD#36

HD#35

HD#34

HD#33

HD#32

HD#31

HD#30

HD#29

HD#28

HD#27

HD#26

HD#25

HD#24

HD#23

HD#22

HD#21

HD#20

HD#19

HD#18

HD#17

HD#16

HD#15

HD#14

HD#13

HD#12

HD#11

HD#10

HD#9

HD#8

HD#7

HD#6

HD#5

E23

D25

A25

C26

B26

B27

D26

B28

E26

F28

G25

F27

F26

G24

H24

G29

J26

G26

J25

H26

G28

H28

J24

K28

J29

K27

J28

HD#37

HD#33

HD#34

HD#42

HD#45

HD#46

HD#43

HD#44

HD#41

HD#40

A1XAVDD A4XAVDD

A1XAVSS

HD#31

HD#35

HD#36

HD#38

HD#30

HD#28

HD#29

HD#27

HD#32

HD#39

FCM1608K121

1 2

C333

C332

0.1UF

0.01UF

HD#21

HD#20

HD#22

HD#23

HD#25

HD#24

HD#26

L72

C305

10UF/10V

M24

L26

HD#18

HD#19

A4XAVSS

K26

L25

L28

M26

P26

HD#13

HD#14

HD#16

HD#17

HD#15

L29

HD#12

N24

N26

HD#10

HD#11

10mA

C335

0.1UF

M27

N28

P27

N29

HD#8

HD#9

HD#7

HD#6

FCM1608K121

1 2

C334

0.01UF

HD#4

R24

R28

HD#5

HD#4

L73

VBHSYNC [10]

VBVSYNC [10]

SBA1

SBA2

SBA0

C7

AC/BE#3

SBA2

SBA1

AC/BE#2 AC/BE#1 AC/BE#0

VBCLK/SBA0

VBCAD/AREQ#

AFRAME#

AIRDY# ATRDY#

ADEVSEL#

ASERR# ASTOP#

VBHCLK/RBF# VGPIO2/WBF# VGPIO3/PIPE#

SB_STB#

VAGCLK/AD_STB0

VAGCLKN/AD_STB#0

VBGCLK/AD_STB1

VBGCLKN/AD_STB#1

AGPCLK

AGPRCOMP

A1XAVDD A1XAVSS

A4XAVDD A4XAVSS

AGPVREF

AGPVSSREF

HDSTBN#3 HDSTBN#2 HDSTBN#1 HDSTBN#0

HDSTBP#3 HDSTBP#2 HDSTBP#1 HDSTBP#0

DBI#3

HD#3

HD#2

HD#1

HD#0

M28

P28

R26

R29

E21

A27

DBI#3

DBI#2

HD#0

HD#3

HD#1

HD#2

C306

10UF/10V

AGNT#

APAR

SB_STB

DBI#2

H27

DBI#1

BGA1A

NC NC NC

DBI#1

R25

DBI#0

HD#[0..63]

R18 22(R)

C26

10PF(R)

F6 F3 H4 K5

C9 A6 G2 G1 G3 G4 H5 H1

H3

E8 F8 D9

D10 B3 C4

B5 A4

K1 L1

C1 D1

B10

M1

B9 A9

B8 A8

M3 M2

F20 F23 K24 P24

F21 F24 L24 N25

DBI#0

SIS M650

DBI#[0..3]

NEAR SISM650

AC/BE#3 AC/BE#2 AC/BE#1 AC/BE#0

AREQ# AGNT# AFRAME# AIRDY# ATRDY# ADEVSEL# ASERR# ASTOP#

APAR

RBF# WBF# PIPE#

T T T

SB_STB SB_STB#

AD_STB0 AD_STB#0

AD_STB1 AD_STB#1

AGPRCOMP

VBCLK [10]

R253 0(R)

AGNT# [30] AFRAME# [30] AIRDY# [30] ATRDY# [30] ADEVSEL# [30]

ASTOP# [30]

APAR [30]

R265 0(R) R266 0(R) R252 0(R)

SB_STB [30] SB_STB# [30]

22(R)

R40

22(R)

R21

AGPCLK [4]

R41 60_1%

HDSTBN#[0..3]

HDSTBP#[0..3]

DBI#[0..3] [3]

HD#[0..63] [2]

VBCAD

VBCAD [10]

R254 4.7K(R)

R251 4.7K(R)

PIN D1 CH7017 CONNECT TO VBGCLKN SIS301LV NC BUT SIS301LV PULL GND

VAGCLK

VBGCLK

VBHCLK

VBCAD

C383 0603(R)

C24 0603(R)

+3VS

VBHCLK [10]

VBCAD [10]

+3VS

VAGCLK [10]

VBGCLK [10]

SiS_AGP1.5/3.3

HDSTBN#[0..3] [3]

HDSTBP#[0..3] [3]

SiS_AGP1.5/3.3

R546 8.2K R548 8.2K R550 8.2K R552 8.2K R553 8.2K R555 8.2K R689 8.2K R558 8.2K

R559 8.2K R560 8.2K R561 8.2K R563 8.2K R565 8.2K R567 8.2K R568 8.2K

R569 8.2K R572 8.2K R573 8.2K

Close M650

AAD16/VADE

AAD27/VBDE

AAD28/VBCTL0

AAD29/VBCTL1

ST[0..2]

AAD[0..15]

AAD[19..26]

SBA[0..7]

AC/BE#[0..3]

AREQ#

RBF#

WBF#

AD_STB[0..1]

AD_STB#[0..1]

SiS_AGP1.5/3.3

R38 200_1%

10mA

R39 300_1%

AFRAME# ATRDY# AIRDY# ADEVSEL# ASTOP# ASERR# AGNT# RBF#

PIPE# SB_STB AD_STB0 AD_STB1 AREQ# WBF# APAR

SB_STB# AD_STB#0 AD_STB#1

AAD16 [10,30]

AAD27 [10,30]

AAD28 [10,30]

AAD29 [10,30]

ST[0..2] [30]

AAD[0..15] [10,30]

AAD[19..26] [10,30]

SBA[0..7] [30]

AC/BE#[0..3] [30]

AREQ# [30]

RBF# [30]

WBF# [30]

AD_STB[0..1] [30]

AD_STB#[0..1] [30]

AVREFGC

C79

0.1UF

Near SiSM650

C830

10UF

B - 6 M650 (Host/AGP) 1 of 4 (71-M4000-D03)

M650 (Memory for DDR) 2 of 4

Schematic Diagrams

Rs place close to DIMM1

MD4

RP46

MD5 DQM0 MD6

8P4R-10

MD13

RP47

DQM1 MD14 MD15

8P4R-10

MD3

RP16

MD8 MD12 MD7

8P4R-10

MD17

RP14

MD16 MD20 MD21

8P4R-10

DQM2

RP48

MD22 MD23 MD28

8P4R-10

MD29

RP49

DQM3 MD30 MD31

8P4R-10

MD36

RP52

MD37 DQM4 MD38

8P4R-10

MD39

RP53

MD44 MD45 DQM5

8P4R-10

MD46

RP54

MD47 MD52 MD53

8P4R-10

DQM6

RP55

MD54 MD55 MD60

8P4R-10

MD61

RP56

DQM7 MD62 MD63

8P4R-10

MD0

RP17

MD1 /RMD1 DQS0 MD2

8P4R-10

MD10

RP15

MD11 DQS1 MD9

8P4R-10

MD24 MD19

RP13

MD18 DQS2

8P4R-10

MD27 MD26

RP12

DQS3 MD25

8P4R-10

MD34 DQS4

RP9

MD33

8P4R-10

MD41

RP8

MD40 MD35

8P4R-10

MD48 MD49

RP7

MD43 MD42

8P4R-10

MD56 MD51

RP6

MD50 DQS6

8P4R-10

MD59 MD58

RP5

DQS7 MD57

8P4R-10

18 27 36 45

/RMD13

18

/RDQM1

27

/RMD14

36

/RMD15

45 18 27 36 45

/RMD17

18

/RMD16

27

/RMD20

36

/RMD21

45 18 27 36 45

/RMD29

18

/RDQM3

27

/RMD30

36

/RMD31

45 18 27 36 45

/RMD39

18

/RMD44

27

/RMD45

36

/RDQM5

45 18 27 36 45

/RDQM6

18

/RMD54

27

/RMD55

36

/RMD60

45 18 27 36 45

/RMD0

45 36

/RDQS0

27

/RMD2

18 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45

/RMD[0..63]

/RDQM[0..7]

/RDQS[0..7]

/RMA[0..14]

/RCS#[0..5]

CKE[0..5]

/RMD4 /RMD5 MD1 /RDQM0

/RMD3 /RMD8 /RMD12 /RMD7

/RDQM2 /RMD22 /RMD23 /RMD28

/RMD36 /RMD37 /RDQM4 /RMD38

/RMD46 /RMD47 /RMD52 /RMD53

/RMD61 /RDQM7 /RMD62 /RMD63

/RMD10 /RMD11 /RDQS1 /RMD9 /RMD24 /RMD19 /RMD18 /RDQS2 /RMD27 /RMD26 /RDQS3 /RMD25 /RMD34 /RDQS4 /RMD33 /RMD32MD32 /RDQS5DQS5 /RMD41 /RMD40 /RMD35 /RMD48 /RMD49 /RMD43 /RMD42 /RMD56 /RMD51 /RMD50 /RDQS6 /RMD59 /RMD58 /RDQS7 /RMD57

/RMD[0..63] [7,8]

/RDQM[0..7] [7,8]

/RDQS[0..7] [7,8]

/RMA[0..14] [7,8]

/RCS#[0..5] [7,8]

CKE[0..5] [7]

BGA1B

MD0

AJ23

MD0

AG22 AH21

AD23 AE23 AF22 AF21 AD22 AH22 AD21 AG20 AE19 AF19 AE21 AD20 AD19 AH19 AF20 AH20 AF18 AG18 AH17 AD16 AD18 AD17 AF17

AE17 AH18 AD14 AG14

AE13

AF14 AD13 AF13 AH13 AH14 AD10 AH10

AG10 AF10

AJ21

AJ17

AJ13

AJ15

AE9 AD8

AH9 AF9 AD9

AJ9 AH5 AG4 AE5 AH3 AG6 AF6 AF5 AF4 AH4

AJ3 AE4 AD6 AE2 AC5 AG2 AG1 AF3 AC6 AD4 AF2 AB6 AD3 AA6 AB3 AC4 AE1 AD2 AC1 AB4 AC2

MD1 MD2 MD3 MD4 MD5 MD6 MD7 DQM0 DQS0/CSB#0 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 DQM1 DQS1/CSB#1 MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 DQM2 DQS2/CSB#2 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 DQM3 DQS3/CSB#3 MD32 MD33 MD34 MD35 MD36 MD37 MD38 MD39 DQM4 DQS4/CSB#4 MD40 MD41 MD42 MD43 MD44 MD45 MD46 MD47 DQM5 DQS5/CSB#5 MD48 MD49 MD50 MD51 MD52 MD53 MD54 MD55 DQM6 DQS6/CSB#6 MD56 MD57 MD58 MD59 MD60 MD61 MD62 MD63 DQM7 DQS7/CSB#7

SIS M650

M650-2

SRAS# SCAS#

SWE#

S3AUXSW#

SDCLK

FWDSDCLKO

SDRCLKI

SDAVDD

SDAVSS

DDRAVDD

DDRAVSS

DDRVREFA DDRVREFB

DRAM_SEL

MA10 MA11 MA12 MA13 MA14

CS#0 CS#1 CS#2 CS#3 CS#4 CS#5

CKE0 CKE1 CKE2 CKE3 CKE4 CKE5

RP50 8P4R-08 1

T

10PF(R)

MA13 MA8 MA6

MA4 MA2 MA0

MA12 MA5 MA7 MA9 MA14

MA11

MA10

MA1

MA3

0

R330

SDCLK [4]

FWDSDCLKO

R55 4.7K

RP51 8P4R-08 1

RP11 8P4R-0

RP10

/RSRAS# /RSCAS# /RSWE#

/RCS#0 /RCS#1 /RCS#2 /RCS#3 /RCS#4 /RCS#5

AH11

MA0

AF12

MA1

AH12

MA2

AG12

MA3

AD12

MA4

AH15

MA5

AF15

MA6

AH16

MA7

AE15

MA8

AD15

MA9

AF11 AG8 AJ11 AG16 AF16

AH8 AJ7 AH7

AE7 AF7 AH6 AJ5 AF8 AD7

AB2 AA4 AB1 Y6 AA5 Y5 Y4

AA3

AD11

AE11

Y1

Y2

AA1

AA2

AJ19 AH2

W3

CS#0 CS#1 CS#2 CS#3 CS#4 CS#5

R329 22

C424

R355 R356 0 R106 0

R105 R357 0 R140 0 R116 0 R119 0 R120 0

R111 0 R110 0

MD2 MD3/RMD6 MD4 MD5 MD6 MD7 DQM0 DQS0 MA0 MD8 MA1 MD9 MA2 MD10 MA3 MD11 MA4 MD12 MA5 MD13 MA6 MD14 MA7 MD15 MA8 DQM1 MA9 DQS1 MA10 MD16 MA11 MD17 MA12 MD18 MA13 MD19 MA14 MD20 MD21 SRAS# MD22 SCAS# MD23 SWE# DQM2 DQS2 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 DQM3 DQS3 MD32 CKE0 MD33 CKE1 MD34 CKE2 MD35 CKE3 MD36 CKE4 MD37 CKE5 MD38 S3AUXSW# MD39 DQM4 DQS4 MD40 SDCLK MD41 MD42 MD43 MD44 MD45 MD46 MD47 DQM5 SDAVDD DQS5 MD48 SDAVSS MD49 MD50 MD51 DDRAVDD MD52 MD53 DDRAVSS MD54 MD55 DQM6 DQS6 DDRVREFA MD56 DDRVREFB MD57 MD58 MD59 MD60 MD61 MD62 MD63 DQM7 DQS7

Rs place close to DIMM1

7 2 653

4

7 2 653

4 8 1 7 2 653

4

8P4R-0

8 1 7 2 653

4

S3AUXSW# [13,28]

10K

+3V

FWDSDCLKO [4]

+3V

T

/RMA13 /RMA8

/RMA6 /RMA4 /RMA2 /RMA0 /RMA12

/RSRAS# [7,8] /RSCAS# [7,8] /RSWE# [7,8]

SRAS#

SCAS#

SWE#

/RMA5 /RMA7 /RMA9 /RMA14 /RMA11 /RMA10 /RMA1 /RMA3

C454 10PF(R)

C455 10PF(R)

C471 10PF(R)

SDAVDD

SDAVSS

DDRAVDD

DDRAVSS

DDRVREFA

DDRVREFB

5.69mA

C108

0.1UF

8.76mA

C124

0.1UF

C450

0.01UF

C470

0.01UF

C457

0.01UF

C472

0.01UF

L25

FCM1608K121

1 2

C107

0.01UF

20MIL

L26

FCM1608K121

1 2

C125

0.01UF

20MIL

+2.5V

R343

150_1%

B.Schematic Diagrams

R345

150_1%

Sheet 6 of 41

+2.5V

R344

150_1%

R346

150_1%

+3VS

C106

10UF/10V

N8

+3VS

C123

10UF/10V

N9

(Memory for DDR)

M650

2 of 4

M650 (Memory for DDR) 2 of 4 (71-M4000-D03) B - 7

Schematic Diagrams

Sheet 7 of 41

M650 & CRT Out

3 of 4

B.Schematic Diagrams

M650 (& CRT Out) 3 of 4

BGA1C SIS M650

C87

10UF/10V

R[30]

G[30]

B[30]

+1.8VS

+3VS

ZAD[0..15][13]

L22 FCM1608K121

1 2

N6

L24

FCM1608K121

1 2

C93

10UF/10V

N7

L85

FCM1608K121

1 2

C415

10UF/10V

N15

R

G

B

ROUT

GOUT

BOUT

+3VS

ZCLK0[4]

ZUREQ[13] ZDREQ[13]

ZSTB0[13]

ZSTB#0[13]

ZSTB1[13]

ZSTB#1[13]

+1.8VS

R47

150_1%

R46

150_1%

C95

0.1UF

20MIL

10MIL

R693 0

R694 0

R695 0

R696 0(R)

R697 0(R)

R698 0(R)

A

ZCLK0

ZUREQ ZDREQ

ZSTB0

ZSTB#0

ZSTB1 ZSTB#1

ZAD[0..15]

C399

0.1UF

ZVREF

C400

0.1UF

35.4mA

56

C94

R48

56

R49

0.01UF

6.49mA

C96

0.1UF

7.92mA

C413

C414

0.1UF

D2

DA204U

AC

A

AC

C

ZAD0 ZAD1 ZAD2 ZAD3 ZAD4 ZAD5 ZAD6 ZAD7 ZAD8 ZAD9 ZAD10 ZAD11 ZAD12 ZAD13 ZAD14 ZAD15

VDDZCMP

ZCMP_N

ZCMP_P

VSSZCMP

Z1XAVDD

C97

0.01UF

Z1XAVSS

Z4XAVDD

0.01UF

Z4XAVSS

C7

22P

D3

DA204U

C

V3

ZCLK

U6

ZUREQ

U1

ZDREQ

T3

ZSTB0

T1

ZSTB#0

P1

ZSTB1

P3

ZSTB#1

T4

ZAD0

R3

ZAD1

T5

ZAD2

T6

ZAD3

R2

ZAD4

R6

ZAD5

R1

ZAD6

R4

ZAD7

P4

ZAD8

N3

ZAD9

P5

ZAD10

P6

ZAD11

N1

ZAD12

N6

ZAD13

N2

ZAD14

N4

ZAD15

U3

ZVREF

M650-3

V5

VDDZCMP

U4

ZCMP_N

U2

ZCMP_P

V6

VSSZCMP

W1

Z1XAVDD

W2

Z1XAVSS

V2

Z4XAVDD

V1

Z4XAVSS

C8

R199

R200

22P

75

AC

C

A

HyperZip

R201

C6

75

22P

D21

DA204U

VGA

R4 FCM1608K121

R5 FCM1608K121

R3 FCM1608K121

VOSCI

ROUT GOUT

BOUT

HSYNC

VSYNC

VGPIO0 VGPIO1 CSYNC RSYNC

LSYNC

INT#A

PCIRST#

PWROK

AUXOK

VCOMP

VVBWN

DACAVDD1 DACAVDD2

DACAVSS1 DACAVSS2

VRSET

DCLKAVDD

DCLKAVSS

ECLKAVDD

ECLKAVSS

DLLEN# TESTMODE0 TESTMODE1 TESTMODE2

TRAP0 TRAP1

ENTEST

C243

22P

C242

22P

C15

A12 B13 A13

F13 E13

D13 D12 E12 A11 F12

B11 Y3 W4 W6

E14

F14

B12 C13

C12 C14

D14

B15

A15

B14

A14

E11 C11 F11 A10

E10 D11 F10

FRED_10

FGRN_10

FBLU_10

C245

22P

R-OUT G-OUT B-OUT

Z0801 Z0802

CSYNC RSYNC LSYNC

DACAVDD

DACAVSS

DCLKAVDD

ECLKAVDD

ECLKAVSS

DLLEN# TMODE0 TMODE1 TMODE2

TRAP0 TRAP1

ENTEST

REFCLK0

R690 0(R) R691 0(R) R692 0(R)

R232 R230

R231 100(R) R229 100(R)

T T T

INTA# PCIRST# PWRGD AUXOK

C19

VCOMP

C20

VVBWN

C18

0.1UF

VRSET

C21

0.01UF

C287

0.01UF

T T T T

T T T

VJVGA1

CEN/VGA DSUB

1

2

3

4

T

5

6

7

8

REFCLK0 [4]

ROUT GOUT BOUT

33(R)

HSYNC

33(R)

VSYNC

DDC1CLK DDC1DATA

INTA# [10,13,30] PCIRST# [10,13,14,20,22,24,30] PWRGD [15,26,29] AUXOK [15,24,27,28]

0.1UF

L9

1 2

FCM1608K121

C17

N1

1UF

R16

130_1%

L10

1 2

FCM1608K121

C22

0.1UF

L52

1 2

FCM1608K121

C271

0.1UF

7.57mA

18.07mA

10MIL

D1 F01J2E

9

10

11

T

MID1_10

12

HS_10

13

VS_10

14

MID3_10

15

16

17

N12

84.8mA

20MIL

+3VS

C244

220P

+1.8VS

C13

10UF/10V

C265

10UF/10V

AC

NOTE: This page is for universal PCB design( suitable for both 645 or 650)

NB Hardware Trap Table

0 DLLEN# DRAM_SEL TRAP0

TRAP1 CSYNC RSYNC LSYNC

enable PLL SDR normal

TV selection, NTSC/PAL(0/1) enable VB enable VGA interface enable panel link

RSYNC

ENTEST

PWRGD

AUXOK

C266

10UF/10V

R528

HSY[30]

R529

VSY[30]

+3VS

R530

4.7K

VGADDCDATA[30]

VGADDCCLK[30]

+5VS

R209

R207

R210

2.2K

4.7K(R)

C3

220P

+5VS

C5

220P

C4

220P

L6

L45

L43

L44

FCM1608K121

1 2

FCM1608K121

1 2

FCM1608K121

1 2

FCM1608K121

1 2

disable PLL DDR NB debug mode

R233

R234 4.7K

C428

C442 0.1UF

+3VS

Q25

G

2N7002

S D

33

S D

33

G

+3VS

R531

4.7K

R532

R533

R208

4.7K(R)

DDC1DATA

DDC1CLK

1

4.7K

0.1UF

Q26 2N7002

33

HSYNC

VSYNC

1(DDR)

+3VS

+5VS +5VS

1

D34

DA221(R)

3 2

+3VS

Q27

G

2N7002

S D

G

Q28

2N7002

+3VS

embedded pull-low (30~50K Ohm)Default

0

0 yes

0 0 1 0

1

D35

DA221(R)

3 2

HSYNC

VSYNC

+5VS

R534

6.8K

DDC1DATA

DDC1CLK

yes yes

R535

6.8K

B - 8 M650 (& CRT Out) 3 of 4 (71-M4000-D03)

M650 (Power) 4 of 4

Schematic Diagrams

+2.5V

+3VS

L131

BK2125HS121(R)

SiS_AGP1.5/3.3

+1.5VS

L132

BK2125HS121

+1.8VS

C449

1UF C425

1UF C436

0.1UF C441

0.1UF

+1.8VS

C360

0.1UF C374

0.1UF

0.1UF C398

10U(0805)

+1.5VS

+3VS

C382

0.1UF C380

C421

1UF

C371

0.1UF

+

C500 220U(D)

C451

1UF C433

1UF C434

0.1UF C439

0.1UF

C407

0.1UF C408

0.1UF

C397

0.1UF C61

0.1UF

B.Schematic Diagrams

Sheet 8 of 41

M650 (Power)

4 of 4

+2.5V

C452

10U(0805)

C411

10U(0805)

C456

10U(0805)

C422

10U(0805)

C438

0.1UF C435

0.1UF C453

0.1UF C437

0.1UF

+3VS

C27

10UF/10V

C44

1UF C381

0.1UF C367

0.1UF

C363

1UF C357

1UF C405

1UF C366

1UF

+1.8VS +3V

C396

0.1UF C378

10U(0805)

+1.5VS

C23

0.1UF C28

0.1UF

VTT +1.8VS +3VS +3V

VTT

12

H21

H22

J16

J20

J21

J22

K16

K17

K18

K19

K20

K21

L20

M20

N20

P20

R20

R21

T20

U20

V20

W20

Y20

Y21

AA20

AA21

AA22

AB21

AB22

L12

L14

L15

L16

L18

M11

M19

N11

P19

R11

T19

U11

V19

W11

W13

W15

W17

P11

J14

J15

K15

K10

K12

K14

M10

W10

Y11

A16

VTT

A17

VTT

VSS

P14

P15

P16

P17

P18

VTT

IVDD

M650-4

Power

VSS

R12

VSS

R13

R14

R15

R16

R17

R18

T12

T13

IVDD

OVDD

PVDDZ

VSS

T14

T15

T16

T17

T18

U12

U13

U14

U15

VSS

U16

U17

U18

V12

V13

V14

V15

V16

V17

VTT

A18

VTT

B16

VTT

B17

VTT

B18

VTT

C16

VTT

C17

VTT

C18

VTT

D15

VTT

D16

VTT

D17

VTT

D18

VTT

E15

VTT

E16

VTT

E17

VTT

E18

VTT

F15

VTT

F16

VTT

F17

VTT

F18

VTT

AB5

VDDM

AD5

VDDM

AE6

VDDM

AE8

VDDM

AE10

VDDM

AE12

VDDM

AE14

VDDM

AE16

VDDM

AE18

VDDM

AE20

VDDM

AE22

VDDM

V10

VDDM

V11

VDDM

W18

VDDM

Y9

VDDM

Y10

VDDM

Y12

VDDM

Y14

VDDM

Y16

VDDM

Y18

VDDM

Y19

VDDM

AA8

VDDM

AA9

VDDM

AA10

VDDM

AA13

VDDM

AA14

VDDM

AA15

VDDM

AA16

VDDM

AA17

VDDM

AB8

VDDM

AB9

VDDM

AB13

VDDM

AB17

VDDM

E5

VDDQ

E7

VDDQ

E9

VDDQ

G5

VDDQ

J5

VDDQ

L5

VDDQ

H8

VDDQ

H9

VDDQ

J8

VDDQ

J9

VDDQ

J10

VDDQ

J13

VDDQ

K9

VDDQ

K11

VDDQ

K13

VDDQ

L10

VDDQ

N9

VDDQ

N10

VDDQ

N5

VDDZ

R5

VDDZ

U5

VDDZ

W5

VDDZ

P9

VDDZ

P10

VDDZ

R9

VDDZ

R10

VDDZ

T9

VDDZ

T10

VDDZ

T11

VDDZ

PVDDP

VSS

L17

L19

N19

R19

U19

W19

M12

M13

M14

M15

M16

M17

M18

VSS

N12

N13

N14

N15

N16

N17

N18

P12

P13

OVDD

VSS

V18

OVDD

VSS

PVDD

Y13

PVDD

PVDDM

VSS

B25

C28

C29

D27

D28

E28

E29

Y15

AF23

Y17

PVDDM

VSS

AF24

PVDDM

VSS

AF25

BGA1D

U10

AUX1.8 AUX3.3

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VSS

AG24

AG26

+1.8V

U9

+3V

A20 A22 A24 A26 C19 C21 C23 C25 C27 E20 E22 E24 F25 H25 K25 M25 P25 T25 V25 Y25 AB25 AD25 E27 G27 J27 L27 N27 R27 U27 W27 AA27 AC27 AE27 D29 F29 H29 K29 M29 P29 T29 V29 Y29 AB29 AD29 AF29 AE24 AG25 B4 B6 C8 C10 D2 F2 H2 K2

P2 T2 V4 AD1 AF1 AC3 AE3 AG3 AG5 AG7 AG9 AG11 AG13 AG15 AG17 AG19 AG21 AG23 AJ4 AJ6 AJ8 AJ10 AJ12 AJ14 AJ16 AJ18 AJ20 AJ22 AJ24 AG27

VSS

SIS M650

AH23

AH24

SiS_AGP1.5/3.3

+1.8V

10U(0805)

C681 0.1UF

+3VS

C682 0.1UF

C370

0.1UF C25

0.1UF C372

0.1UF C373

10U(0805)

Place these capacitors under 650 solder side

VTT

C392

0.1UF C419

0.1UF C364

0.1UF C352

0.1UF

C412

C427

1UF C426

0.1UF

+1.8VS

VTT

C368

0.1UF C358

0.1UF C359

0.1UF C369

10U(0805)

C394

0.1UF C409

0.1UF C379

0.1UF C393

0.1UF

+3V

C377

10U(0805)

C331

10U(0805)

C420

10U(0805)

C353

10U(0805)

+2.5V

C410

10UF/10V

C423

1UF C395

0.1UF

+1.8VS

M650 (Power) 4 of 4 (71-M4000-D03) B - 9

Schematic Diagrams

Sheet 9 of 41

DDR Memory DIMM

B.Schematic Diagrams

DDR Memory DIMM

91021223334364546575869708182929394113

CN3

VDD

VSS

/RMA[0..14][6,8]

/RDQM[0..7][6,8]

/RCS#[0..5][6,8]

/RDQS[0..7][6,8] CKE[0..5][6]

+2.5V

/RSRAS#[6,8]

/RSCAS#[6,8]

+3VS

VDDSPD

/RMA0

112 111 110 109 108 107 106 105 102 101 115 100

117 116

134 148 170 184

133 147 169 183

118 119 120

121 122

160 158

193 195

197 199

R114

10K

DDR SO-DIMM

SMBCLK

SMBDAT

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11

99

A12

BA0 BA1

12

DM0

26

DM1

48

DM2

62

DM3 DM4 DM5 DM6 DM7

78

DM8

11

DQS0

25

DQS1

47

DQS2

61

DQS3 DQS4 DQS5 DQS6 DQS7

77

DQS8

RAS# WE# CAS#

S0# S1#

96

CKE0

95

CKE1

35

CK0

37

CK0# CK1 CK1#

89

CK2

91

CK2#

SDA SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

1

VREF

2

VREF VDDSPD VDDID

VSS

3415162728383940515263647576878890103

VSS

addr =1010000b

VSS

/RMA1 /RMA2 /RMA3 /RMA4 /RMA5 /RMA6 /RMA7 /RMA8 /RMA9 /RMA10 /RMA13 /RMA14

/RMA11 /RMA12

/RDQM0 /RDQM1 /RDQM2 /RDQM3 /RDQM4 /RDQM5 /RDQM6 /RDQM7

R354

8.2K

/RDQS0 /RDQS1 /RDQS2 /RDQS3 /RDQS4 /RDQS5 /RDQS6 /RDQS7

/RSRAS# /RSWE#

/RSWE#[6,8]

/RSCAS#

/RCS#0 /RCS#1

CKE0 CKE1

DDRCLK0 DDRCLK#0 DDRCLK1 DDRCLK#1 DDRCLK2 DDRCLK#2

SMBDAT SMBCLK

R115

DDRVREF

0

VDDSPD

C152

0.1UF

SMBCLK[4,15]

SMBDAT[4,15]

114

131

132

VDD

VSS

104

125

126

/RMA[0..14]

/RDQM[0..7]

/RCS#[0..5]

/RDQS[0..7]

+2.5V

CN4

VDD

VSS

VDD

VSS

C137

10U(0805)

VDD

VSS

VDD

VSS

+2.5V

91021223334364546575869708182929394113

VDD

A10/AP

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS8

RAS#

WE#

CAS#

CKE0 CKE1

CK0#

CK1#

CK2#

SDA

VREF VREF

VDDSPD

VDDID

VSS

DDR SO-DIMM_H

3415162728383940515263647576878890103

C534

10U(0805)

/RMA0

112

A0

111

A1

/RMA2

110

A2

/RMA3

109

A3

/RMA4

108

A4

/RMA5

107

A5

106

A6

/RMA7

105

A7

/RMA8

102

A8

/RMA9

101

A9

/RMA10

115

/RMA13

100

A11

/RMA14

99

A12

/RMA11

117

BA0

/RMA12

116

BA1

/RDQM0

12

DM0

/RDQM1

26

DM1

/RDQM2

48

DM2

/RDQM3

62

DM3

/RDQM4

134

DM4

/RDQM5

148

DM5

/RDQM6

170

DM6

/RDQM7

184

DM7

R126 8.2K

78

DM8

/RDQS0

11

/RDQS1

25

/RDQS2

47

/RDQS3

61

/RDQS4

133

/RDQS5

147

/RDQS6

169

/RDQS7

183 77

/RSRAS#

118

/RSWE#

119

/RSCAS#

120

/RCS#2

121

S0#

/RCS#3

122

S1#

CKE2

96

CKE3

95

DDRCLK3

35

CK0

DDRCLK#3

37

DDRCLK4

160

CK1

DDRCLK#4

158

DDRCLK5

89

CK2

DDRCLK#5

91

SMBDAT

193

SMBCLK

195

SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

DDRVREF

1 2 197

VDDSPD

199

R136

10K

CKE4 CKE2 CKE3 CKE5

CKE0 CKE1

+2.5V

DDRVREF GEN. & DECOUPLING

+2.5V

R92

75_1%

R108

75_1%

NEAR M650

DIMM DECOUPLING

C487

C174

0.1UF

C142

C173

0.1UF

C183

C169

0.1UF

4

R112 470 R107 470

C488

0.1UF

C184

0.1UF

C175

0.1UF

+2.5V

RP20

81 72 653

8P4R-470

C138

C139

0.01UF

0.1UF

C144

C149

0.01UF

0.1UF

NEAR DIMM0 NEAR DIMM1

C158

C168

0.1UF

+2.5V

C172

C176

0.1UF

+2.5V

C143

C181

0.1UF

C171

0.01UF

DDRVREF

C170

0.01UF

+2.5V

C136

0.1UF

C182

0.1UF

C535

0.1UF

114

131

132

143

144

155

156

157

167

168

179

180

191

127 129 135 139 128 130 136 140 141 145 151 153 142 146 152 154 163 165 171 175 164 166 172 176 177 181 187 189 178 182 188 190

123 124 200

194 196 198

5

7 13 17

6

8 14 18 19 23 29 31 20 24 30 32 41 43 49 53 42 44 50 54 55 59 65 67 56 60 66 68

85

86 97 98

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

DU DU DU DU DU/RESET# DU/A13 DU/BA2

SA0 SA1 SA2

192

VDD

addr =1010001b

VSS

162

173

174

185

186

104

125

126

137

138

149

150

159

161

C519

220U(D)

+

C141

10U(0805)

C180

10U(0805)

143

144

155

156

157

167

168

179

180

191

192

VDD

DU/RESET#

VSS

137

138

149

VSS

150

159

161

162

173

174

185

186

/RMD0

5

DQ0

/RMD1 /RMA1

7

DQ1

/RMD2

13

DQ2

/RMD3

17

DQ3

/RMD4

6

DQ4

/RMD5

8

DQ5

/RMD6 /RMA6

14

DQ6

/RMD7

18

DQ7

/RMD8

19

DQ8

/RMD9

23

DQ9

/RMD10

29

DQ10

/RMD11

31

DQ11

/RMD12

20

DQ12

/RMD13

24

DQ13

/RMD14

30

DQ14

/RMD15

32

DQ15

/RMD16

41

DQ16

/RMD17

43

DQ17

/RMD18

49

DQ18

/RMD19

53

DQ19

/RMD20

42

DQ20

/RMD21

44

DQ21

/RMD22

50

DQ22

/RMD23

54

DQ23

/RMD24

55

DQ24

/RMD25

59

DQ25

/RMD26

65

DQ26

/RMD27

67

DQ27

/RMD28

56

DQ28

/RMD29

60

DQ29

/RMD30

66

DQ30

/RMD31

68

DQ31

/RMD32

127

DQ32

/RMD33

129

DQ33

/RMD34

135

DQ34

/RMD35

139

DQ35

/RMD36

128

DQ36

/RMD37

130

DQ37

/RMD38

136

DQ38

/RMD39

140

DQ39

/RMD40

141

DQ40

/RMD41

145

DQ41

/RMD42

151

DQ42

/RMD43

153

DQ43

/RMD44

142

DQ44

/RMD45

146

DQ45

/RMD46

152

DQ46

/RMD47

154

DQ47

/RMD48

163

DQ48

/RMD49

165

DQ49

/RMD50

171

DQ50

/RMD51

175

DQ51

/RMD52

164

DQ52

/RMD53

166

DQ53

/RMD54

172

DQ54

/RMD55

176

DQ55

/RMD56

177

DQ56

/RMD57

181

DQ57

/RMD58

187

DQ58

/RMD59

189

DQ59

/RMD60

178

DQ60

/RMD61

182

DQ61

/RMD62

188

DQ62

/RMD63

190

DQ63

85 123 124 200 86 97 98

194 196 198

VDDSPD

T T T T

DDRST

T T T T

R121

1K

DDRCLK[0..5]

DDRCLK#[0..5]

/RMD[0..63]

DU/A13 DU/BA2

DDRCLK#[0..5][4]

DU DU DU DU

SA0 SA1 SA2

DDRCLK[0..5][4]

/RMD[0..63][6,8]

CKE[0..5]

B - 10 DDR Memory DIMM (71-M4000-D03)

DDR SSTL-2 Termination

SSTL-2 Termination Resistors

Schematic Diagrams

MD/DQM(/DQS)RsSSTL-2 MA/Control CS CKE

SSTL-2 SSTL-2 OD 2.5V

/RSCAS#[6,7]

/RSWE#[6,7]

DDR

10 0 0

/RMD0 /RMD1 /RDQS0 /RMD2

/RMD3 /RMD8 /RMD9 /RDQS1

/RMD10 /RMD11 /RMD16 /RMD17

/RDQS2 /RMD18 /RMD19 /RMD24

/RMD25 /RDQS3 /RMD26 /RMD27

/RMA14 /RMA9 /RMA7 /RMA5

/RMA3 /RMA1 /RMA10 /RMA11

/RMD32 /RMD33 /RDQS4 /RMD34

/RMD35 /RMD40 /RMD41 /RDQS5

/RMD42 /RMD43 /RMD48 /RMD49

/RDQS6 /RMD50 /RMD51 /RMD56

/RMD57 /RDQS7 /RMD58 /RMD59

/RSCAS#

/RSWE#

Rtt 33 33 47

8 1 7 2 653

4

RP63 8P4R-33

8 1 7 2 653

4

RP64 8P4R-33

8 1 7 2 653

4

RP65 8P4R-33

8 1 7 2 653

4

RP66 8P4R-33

8 1 7 2 653

4

RP67 8P4R-33

8 1 7 2 653

4

RP68 8P4R-33

8 1 7 2 653

4

RP69 8P4R-33

8 1 7 2 653

4

RP70 8P4R-33

8 1 7 2 653

4

RP71 8P4R-33

8 1 7 2 653

4

RP72 8P4R-33

8 1 7 2 653

4

RP73 8P4R-33

8 1 7 2 653

4

RP74 8P4R-33

R137 33

R396 33

+1.25VS

/RMD[0..63]

+1.25VS

/RDQM[0..7]

/RDQS[0..7]

/RMA[0..14]

/RMA2 /RMA0 /RMA12

/RSRAS#[6,7]

/RSRAS#

/RMD6 /RDQM0 /RMD5 /RMD4

/RDQM1 /RMD13 /RMD12 /RMD7

/RMD20 /RMD21 /RMD15 /RMD14

/RDQM2 /RMD22 /RMD23 /RMD28

/RMD29 /RDQM3 /RMD30 /RMD31

/RMA8 /RMA13 /RMA4 /RMA6

/RMD37 /RMD36 /RDQM4 /RMD38

/RMD44 /RMD45 /RDQM5 /RMD39

/RMD47 /RMD46 /RMD52 /RMD53

/RDQM6 /RMD54 /RMD55 /RMD60

/RMD61 /RDQM7 /RMD62 /RMD63

/RCS#1 /RCS#0 /RCS#3 /RCS#2

/RCS#4 /RCS#5

4 653 7 2 8 1

RP34 8P4R-33

81

72

6

3

5

4

RP31 8P4R-33

81

72

6

3

5

4

RP30 8P4R-33

81

72

6

3

5

4

RP29 8P4R-33

5

4

6

3

72

81

RP28 8P4R-33

5

4

6

3

72

81

RP27 8P4R-33

5

4

6

3

72

81

RP25 8P4R-33

4 653 7 2 8 1

RP33 8P4R-33

81

72

6

3

5

4

RP24 8P4R-33

5

4

6

3

72

81

RP23 8P4R-33

5

4

6

3

72

81

RP22 8P4R-33

5

4

6

3

72

81

RP21 8P4R-33

81

72

6

3

5

4

RP26 8P4R-47

R138 47 R139 47

+1.25VS

/RCS#[0..5]

DECOUPLING CAPACITOR FOR SSTL-2 END TERMIANTION VTT ISLAND 0603 Package placed within 200mils of VTT Termination R-packs

C154 0.1UF

C189 0.1UF

C162 0.1UF

C536 0.1UF

C187 0.1UF

C538 0.1UF

C541 0.1UF

C156 0.1UF

C537 0.1UF

C159 0.1UF

C164 0.1UF

C192 0.1UFC160 0.1UF

C186 0.1UF

C546 0.1UF

C542 0.1UF

/RMD[0..63][6,7]

/RDQM[0..7][6,7]

/RDQS[0..7][6,7]

/RMA[0..14] [6,7]

/RCS#[0..5][6,7]

C185 0.1UF

C193 0.1UF

C166 0.1UF

C157 0.1UF

C191 0.1UF

C153 0.1UF

C544 0.1UF

C540 0.1UF

B.Schematic Diagrams

Sheet 10 of 41

DDR SSTL-2

Termination

C188 0.1UF

C161 0.1UF

C165 0.1UF

C163 0.1UF

C190 0.1UF

C155 0.1UF

C543 0.1UF

C545 0.1UF

DDR SSTL-2 Termination (71-M4000-D03) B - 11

Schematic Diagrams

LVDS Interface (SiS302LV)

Sheet 11 of 41

LVDS interface

(SiS302LV)

B.Schematic Diagrams

COMPOSITE Z1301

D23

A

R213 75

DVDD AAD16/VADE DGND

T

VBCAD VBHCLK DGND DVDD VREF2

T

R19 100 R20 100

V5V

INTA# PCIRST#

T

ENAVDD ENABKL

R211 0(R)

R212 0

L47

1 2

2.7UH

C250 33PF(R)

C262

C251

330PF

VAHSYNC[5]

VAVSYNC[5]

103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128

VAGCLK[5]

DVDD/DVDD4 DE2/VADE FLD/STL2/DVSS4 AS/RESERVED SPD/VBCAD SPC/VBHCLK HIN/DVSS5 VIN/DVDD5 VREF2/OVDD SDD/GPIOA(GPI) SDC/GPIOB(GPI) DD1/GPIOC(GPI) DC1/GPIOD(GPI) DD2/LDDCDATA DC2/LDDCCLK V5V/V5V HOUT/V2HSYNC VOUT/V2VSYNC HPD/LCDSENSE HPINT*/INTA# GPIO[0]/EXTRSTN GPIO[1]/PFTEST1 GPIO[2]/PFTEST2 GPIO[3]/PFTESTO ENAVDD/GPIOG(GP ENABKL/GPIOH(GP

COMPOSITE[30]

Y

Y[30]

C

C[30]

D22

AC

DA204U(R)

C

A

+3VS

AAD[0..15]

AAD[0..15][5,30]

AAD[19..26]

AAD[19..26][5,30]

AAD16[5,30]

VBCAD[5]

VBHCLK[5]

LDDCDATA

T

LDDCCLK

INTA#[9,13,30]

PCIRST#[9,13,14,20,22,24,30]

ENAVDD[11,30] ENABKL[11,30]

LDC0-

LDC0-[11,30]

LDC0+[11,30]

LDC1+[11,30]

LDC2+[11,30]

LDC3+[11,30]

LL1C+[11,30]

LDC4+[11,30]

LDC5+[11,30]

LDC6+[11,30]

LDC7+[11,30] LL2C+[11,30]

LDC0+ LDC1-

LDC1-[11,30]

LDC1+ LDC2-

LDC2-[11,30]

LDC2+ LDC3-

LDC3-[11,30]

LDC3+ LL1C-

LL1C-[11,30]

LL1C+

LDC4-

LDC4-[11,30]

LDC4+ LDC5-

LDC5-[11,30]

LDC5+ LDC6-

LDC6-[11,30]

LDC6+ LDC7-

LDC7-[11,30]

LDC7+ LL2C+ LL2C-

LL2C-[11,30]

C248 33PF(R)

L46

1 2

FCM1608K-121T07

R202

C261

75

330PF

VAGCLK

DGND

AAD18/AHSYNC

AAD17/AVSYNC

AAD13

AAD15

AAD14

100

101

102

D2[9]/VAD9

DGND/OVSS

V2/VAVSYNC

D2[10]/VAD10

D2[11]/VAD11

H2/VAHSYNC

LVDSPLLVDD/LPLL

RESERVED/LPLLCA

LVDSPLLVSS/LPLL

LAVSS/LGND

RESERVED/LL2C

RESERVED/LL2C*

12345678910111213141516171819202122232425262728293031323334353637

LL2C+

LPLLGND

LPLLVDD

LPLLCAP

LL2C-

LGND

C49

LPLLVDD

NC

LVDD1

301LV/302LV:R894/R895

C249

330PF

AAD8

AAD12

AAD11

D2[6]/VAD6

D2[7]/VAD7

D2[8]/VAD8

LAVDD/LVDD

RESERVED/LDC7

RESERVED?LDC7*

LDC7-

LVDD1

LGND

LDC7+

DGND

DGND/DVSS3

XCLK2/VAGCLK

LAVSS/LGND

RESERVED/LDC6

LDC6+

DVDD

XCLK2*/DVDD3

RESERVED/LDC6*

LDC6-

R23

R22 0

AAD9

D2[5]/VAD5

LAVDD/LVDD

LVDD1

JTV1

2

5

6

SVIDEO CON

PIN(GND1,GND2)=GND

T

AAD26

AAD23

AAD24

AAD10

AAD25

D2[0]/VAD0

D2[1]/VAD1

D2[2]/VAD2

D2[3]/VAD3

D2[4]/VAD4

DVDD/RESERVED

RESERVED/LDC5

RESERVED/LDC5*

LVDSPLLVSS/LGND

RESERVED/LDC4

RESERVED/LDC4*

LVDSPLLVDD/LVDD

LDC4-

LDC4+

LDC5-

LGND

LDC5+

NC

34

1

AAD20

AAD19

D1[11]/VBD11

DVDD/RESERVED

LAVDD/LVDD

LX3P/LDC3

LVDD2

LDC3+

LDC3-

D1[10]/VBD10

LX3N/LDC3*

AAD22

AAD21

D1[9]/VBD9

LAVSS/LGND

LL1C+

LGND

D1[8]/VBD8

LXC1P/LL1C

AAD0

D1[7]/VBD7

LXC1N/LL1C*

LL1C-

AAD1

D1[6]/VBD6

LAVDD/LVDD

LVDD2

XCLK1/VBGCLK

LX2P/LDC2

LDC2+

DGND

DGND/DVSS2

LX2N/LDC2*

LDC2-

DVDD

XCLK1*/DVDD2

LAVSS/LGND

LGND

AAD2

D1[5]/VBD5

LX1P/LDC1

LDC1+

AAD3

D1[4]/VBD4

LX1N/LDC1*

LDC1-

AAD4

D1[3]/VBD3

LAVDD/LVDD

LVDD2

AAD5

D1[2]/VBD2

LX0P/LDC0

LDC0+

AAD6

D1[1]/VBD1

LX0N/LDC0*

LDC0-

VBGCLK

AAD28/VBCTL0

AAD7

AAD31/BVSYNC

AAD30/BHSYNC

6566676869707172737774757678798081828384858687888990919293949596979899

D1[0]/VBD0

V1/VBVSYNC

H1/VBHSYNC

DGND/VBCTL0

DVDD0/TVPLL_VDD

RESERVED/BOC/VS

DAC_GND/DAC_GND

LAVSS/LGND

EXTSWING/VSWING

DACVDD/DACVDD

V2RSET/ISET

38

ISET

VSWING

DAC_VDD

LGND

R269 2K

DVDD1/DVDD

VBDE/DE1

VBCTL1/FLD/STL1

DVSS1/VREF1

OVDD/VDDV

VBCLK/P-OUT

DVSS0/RESET*

TVCLKO/GPIO[5]

TSCLKI/GPIO4

PLL1VDD/TVPLL_V

VBOSCO/XO

VBRCLK(XIN)/XIN

PLL1GND/TVPLL_G

IOCS/C/HSYNC

DAC_VDD/DACA3

RESERVED/DACB3

IOC/DACA2

RESERVED/DACB2

IOY/DACA1

RESERVED/DACB1

IOCOMP/DACA0 V2COMP/DACB0

R267 147

R268 6K

C321 1UF

VBGCLK [5] AAD28 [5,30] VBHSYNC [5] VBVSYNC [5]

U22

DVDD

64

AAD27/VBDE

63

AAD29/VBCTL1

62

DGND

61

VDDV

60

VBCLK

59

DGND

58 57 56

DVDD

55

TVPLLVDD

54

VBOSCO

53

VBRCLK

52

TVPLLGND

51 50 49

DAC_GND

48

DAC_VDD

47 46 45 44 43 42

COMPOSITE

41

V2COMP

40

DAC_GND

39

SIS302LV(R)

+3VS

AAD27 [5,30] AAD29 [5,30]

VBCLK [5]

T

C

T

Y

T

Choose clock source:main board/crystal

Spread range:R120:+-1.5%/+-2.5%

VBOSCO

C52

14.318MHZ(R)

22P

R242 2.2K

R241 2.2K

+3VS

R1 :NC/22

Y3

LDDCDATA

LDDCCLK

+5VS

C48

10U/10V(R)

L15

FCM1608K121(R)

R24 10 C43

22P

V5V

C47

0.1UF

VREF2

VBRCLK

C46

0.1UF

+3VS

FCM1608K121(R)

+3VS

FCM1608K121(R)

+3VS

FCM1608K121(R)

+3VS

FCM1608K121(R)

N5

+3VS

L14

FCM1608K121(R)

N3

+3VS

L17

FCM1608K121(R)

L12

L13

L20

L18

10U/10V(R)

L11

FCM1608K121(R)

C32

N2

0.1UF

L19

FCM1608K121(R)

C69

N4

0.1UF

C37

10U/10V(R)

C38

10U/10V(R)

C60

10U/10V(R)

C67

10U/10V(R)

C50

C65

10U/10V(R)

C59

0.1UF

C42

NC/0.1uF

C41

0.1UF

C33

10U/10V(R)

C58

10U/10V(R)

C56

0.1UF

LVDD1

C36

0.1UF

LVDD2

C39

0.1UF

VDDV

C66

0.1UF

V2COMP

DAC_VDD

LPLLVDD

C34

0.1UF

LPLLGND

TVPLLVDD

C57

0.1UF

TVPLLGND

C35

0.1UF

LGND

C40

0.1UF

LGND

DVDD

C68

0.1UF

DGND

C51

0.1UF

DAC_GND

DVDD

C55

0.1UF

DGND

B - 12 LVDS Interface (SiS302LV) (71-M4000-D03)

Panel Con & LED Indicator

Schematic Diagrams

L68

LCDVCC

FCM2012V-121

TXOUT-LN0 TXOUT-LP0

TXOUT-LN1 TXOUT-LP1

TXOUT-LN2 TXOUT-LP2

TXOUT-LN3 TXOUT-LP3

TXCLK-LN TXCLK-LP

LCDID0[15,27,30] LCDID1[15,27,30] LCDID2[15,30]

L70

VIN

BK3216HS800

C290

C292

C294

10PF

C293

C291

10PF

LCDID0 LCDID1 LCDID2 E-MAIL CHA/BATLOW PANEL WL_LED

C289

0.1UF

C296

10PF

C297

C295

10PF

0.1UF

C298

10PF

C322

11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49

C299

10PF

JLCD1

1

2

1

3

4

3

5

6

5

7

8

7

9

10

9

12

11

14

13

16

15

18

17

20

19

22

21

24

23

26

25

28

27

30

29

32

31

34

33

36

35

38

37

40

39 41

42

43

44

45

46

47

48

49

50

CON50

L83 0

L82 0

L81 0

L80 0

L79 0

L78 0

L77 0

L76 0

L75 0

L74 0

L63 0

L62 0

L61 0

L60 0

L59 0

L58 0

L57 0

L56 0

L55 0

L54 0

E-MAIL

4

4800

8 7 6 5

LEDPWR[24]

PANEL

SCROLLOCK

CAPSLOCK

NUMLOCK

D4

A C

SML_010MT_G

Q16

3 2 1

C285

C286

0.1UF

LEDPWR

12V

G S

R657

10K

4.7U(0805)

R656

100K

D

2N7002

Q32

G S

VDD5

R655

Q30

D

100K

G S

Q31

D

2N7002

LEDVDD

TXOUT-LN0

TXOUT-LP0

TXOUT-LN1

TXOUT-LP1

TXOUT-LN2

TXOUT-LP2

TXOUT-LN3

TXOUT-LP3 LDC3+

TXCLK-LN

TXOUT-UN0 LDC4-

TXOUT-UP0

TXOUT-UN1

TXOUT-UP1

TXOUT-UN2

TXOUT-UP2

TXOUT-UN3

TXOUT-UP3

TXCLK-UN

TXCLK-UP

C278

C280

C274

C276

10PF

C277

C275

10PF

C282

10PF

C283

C281

C279

10PF

4

D

2N7002

+5VS

AC

147

R278

47K

Q17

QA QB

VCCGND

QC QD QE QF QG QH

Q15 2N3906

AC

+3VS

C338

C337

0.1UF

4.7U(0805)

Z245

C336

0.1UF

5 2

1 3

U23

TC7SZ08

C288

0.1UF

SCROLLOCK

3

CAPSLOCK

4

NUMLOCK

5

BAT_FULL

6

CHA/BATLOW

10

WL_LED

11

PWR/SUS_LED

12 13

R11 220(0805)

R10 220(0805)

R9 220(0805)

R8 220(0805)

12V LCDVCC

+3VS

R301

10K

G S

Q18

G S

GATE_LID_SW

LID_SW#

ENABKL

D52

F01J2E D53

F01J2E

R724 100K

IDE_LED#

D

2N7002

R288

10K(R)

R729

R728

10K

AC

74HCT164

C851

4.7U(0805)

+5VS

R220 4.7K

R289 10K

D8

F01J2E D9

F01J2E

LEDVDD

U3

1

A

2

B

8

CLK

9

CLR

D7

SML_010MT_G

D6

SML_010MT_G

D5

SML_010MT_G

Z511

ENAVDD[10,30]

ENAVDD

GATE_LID_SW[15]

LID_SW#[27]

ENABKL[10,30]

LEDDATA/WD[24]

164_RESET#[24]

LEDDATA/WD

LEDCLK

LEDCLK[24]

164_RESET#

LEDVDD

IDE_LED#[14]

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

C272

0.1UF(R)

L65

FCM2012V-121

C284

0.1UF

TXOUT-UN0 TXOUT-UP0

TXOUT-UN1 TXOUT-UP1

TXOUT-UN2 TXOUT-UP2

TXOUT-UN3 TXOUT-UP3

TXCLK-UN TXCLK-UP

L67 FCM2012V-121

BAT_FULL PWR/SUS_LED INTMIC

BRIGADJ ACIN_LED

C273

0.1UF(R)

LDC0-

LDC0+

LDC1-

LDC1+

LDC2-

LDC2+

LDC3-

LL1C-

LL1C+TXCLK-LP

LDC4+

LDC5-

LDC5+

LDC6-

LDC6+

LDC7-

LDC7+

LL2C-

LL2C+

LCDVCC

INTMIC [27] BRIGADJ [24]

ACIN_LED[24]

LDC0- [10,30]

LDC0+ [10,30]

LDC1- [10,30]

LDC1+ [10,30]

LDC2- [10,30]

LDC2+ [10,30]

LDC3- [10,30]

LDC3+ [10,30]

LL1C- [10,30]

LL1C+ [10,30]

LDC4- [10,30]

LDC4+ [10,30]

LDC5- [10,30]

LDC5+ [10,30]

LDC6- [10,30]

LDC6+ [10,30]

LDC7- [10,30]

LDC7+ [10,30]

LL2C- [10,30]

LL2C+ [10,30]

SYS5V

B.Schematic Diagrams

Sheet 12 of 41

Panel Con & LED

Indicator

Panel Con & LED Indicator (71-M4000-D03) B - 13

Schematic Diagrams

962 (PCI/IDE/HyperZip) 1 of 4

Sheet 13 of 41

962 (PCI/IDE/

HyperZip)

1 of 4

B.Schematic Diagrams

+3VS

FRAME# REQ2# SERR# STOP#

SUSB#[24,28]

RP32

1

10

1

10

TRDY#

9

IRDY#

8

PLOCK#

7

DEVSEL#

6

+3VS

4

C460

0.1UF

SZVREF ZUREQ

C459

0.1UF

+3V

R365

R366

10K

330K

INTD# INTA# INTB# INTC#

8P4R-2.2K

REQ0# REQ3# REQ4# REQ1#

8P4R-4.7K

GNT1# GNT3# GNT4#

+1.8VS

2

3

4

5

8 1

7 2

653

8 1

7 2

653

R390 4.7K R388 4.7K R389 4.7K

R76

150_1%

R77

150_1%

N10

10MIL

2 3 4 5

10P8R-2.7K

RN5

RN6

SUSB#

T

4

C513

0.1UF(R)

13 12 11 10

G

C514 0.1UF

PCIRST#

PCIRST# PRST#

U7

VCCCLR1#

Q1#CLK1

PR1#

CLR2# D2

Q2#

GND

CLK2 PR2#

74LVC74

Q35

DSR684 0(R) R685 0(R)

2N7002(R)

S3AUXSW#

PCICLK961[4]

Q1D1

Q2

PCIRST#[9,10,14,20,22,24,30]

141 52 63

9 8 7

DEVSEL#[19,25]

PCIRST#

+3V

C146

0.1UF

T T

PRST#

T

S3AUXSW# [6,28]

REQ2#[25]

REQ0#[19]

GNT2#[25]

GNT0#[19]

C/BE#3[19,20,25] C/BE#2[19,20,25] C/BE#1[19,20,25] C/BE#0[19,20,25]

INTA#[9,10,30]

INTC#[19] INTD#[25,30]

FRAME#[19,20,25]

IRDY#[19,20,25] TRDY#[19,20,25] STOP#[19,25]

SERR#[19,25]

PAR[19,25]

PCICLK961

R125

ZCLK1[4]

ZSTB0[9]

ZSTB#0[9]

ZSTB1[9]

ZSTB#1[9]

ZUREQ[9] ZDREQ[9]

PRST# [19,24,25]

REQ4# REQ3# REQ2# REQ1# REQ0#

GNT4# GNT3# GNT2# GNT1# GNT0#

C/BE#3 C/BE#2 C/BE#1 C/BE#0

INTA# INTB# INTC# INTD#

FRAME# IRDY# TRDY# STOP#

SERR# PAR DEVSEL# PLOCK#

33

ZCLK1

ZSTB0 ZSTB#0

ZSTB1 ZSTB#1

ZDREQ

AD[0..31]

BGA2A

F1

PREQ#4

F2

PREQ#3

E1

PREQ#2

H5

PREQ#1

F3

PREQ#0

H3

PGNT#4

G1

PGNT#3

G2

PGNT#2

G3

PGNT#1

H4

PGNT#0

K3

C/BE#3

M4

C/BE#2

P1

C/BE#1

R4

C/BE#0

E3

INT#A

F4

INT#B

E2

INT#C

G4

INT#D

M3

FRAME#

M1

IRDY#

M2

TRDY#

N4

STOP#

M5

SERR#

N3

PAR

N1

DEVSEL#

N2

PLOCK#

Y2

PCICLK

C3

PCIRST#

V20

ZCLK

N19

ZSTB0

N20

ZSTB0#

K20

ZSTB1

K19

ZSTB1#

N16

ZUREQ

N17

ZDREQ

R19

VDDZCMP

N18

ZCMP_N

R18

ZCMP_P

P18

VSSZCMP

U20

Z1XAVDD

U19

Z1XAVSS

T20

Z4XAVDD

T19

Z4XAVSS

R20

VZREF

P20

ZVSSREF

AD[0..31][19,20,25]

SZCMP_N

SZCMP_P SVSSZCMP

SZ1XAVDD SZ1XAVSS

SZ4XAVDD SZ4XAVSS

SZVREF

ZAD[0..15][9]

Analog Power supplies of Transzip function for 96X Chip.

L27

+3VS

FCM1608K121

1 2

C122

10UF/10V

N11

AD18

AD29

AD30

AD27

AD28

AD26

AD31

J5J4H2H1J3K4J2J1K5K2L3K1L1L4L5L2N5P2P3P4R2R3R1T1P5T2U1U2T3R5U3

AD31

AD30

AD29

AD28

AD27

AD26

AD17

AD19

AD24

AD21

AD25

AD22

AD23

AD25

AD24

AD23

AD22

AD21

AD12

AD15

AD20

AD14

AD13

AD16

AD20

AD19

AD18

AD17

AD16

AD15

AD14

AD13

PCI

962-1

HyperZip

ZAD0

ZAD1

ZAD2

ZAD3

ZAD4

ZAD5

ZAD6

ZAD7

ZAD8

ZAD9

ZAD10

ZAD11

ZAD12

ZAD13

ZAD14

K18

ZAD8

J20

K17

ZAD9

ZAD15

K16

H20

J18

H19

H18

+1.8VS

ZAD15

ZAD10

ZAD11

ZAD13

ZAD12

ZAD14

10UF/10V

+3VS

10UF/10V

10MIL

M18

ZAD0

6.49mA

C129

0.1UF

M19

ZAD1

M17

ZAD2

M16

ZAD3

M20

ZAD4

L16

L20

L18

ZAD5

ZAD6

ZAD7

SZ1XAVDD

C128

0.01UF

SZ1XAVSS

AD10

AD9

AD11

AD9

AD12

AD11

AD10

L87

FCM1608K121

1 2

C462

N17

L86

FCM1608K121

1 2

C440

N16

AD8

AD6

AD7

AD5

AD8

AD7

AD6

AD5

IDE

10MIL

AD4

7.92mA

AD3

AD1

AD2

AD3

AD2

35.64mA

C461

0.1UF

C458

0.1UF

IDESAA[0..2]

IDECS#A[0..1]

AD0

IDESAB[0..2]

IDECS#B[0..1]

V1

AD1

AD0

IDEAVDD

IDEAVSS

ICHRDYA

IDREQA

IIRQA

CBLIDA

IIOR#A

IIOW#A

IDACK#A

IDSAA2 IDSAA1 IDSAA0

IDECSA#1 IDECSA#0

ICHRDYB

IDREQB

IIRQB

CBLIDB

IIOR#B

IIOW#B

IDACK#B

IDSAB2 IDSAB1 IDSAB0

IDECSB#1 IDECSB#0

IDA0 IDA1 IDA2 IDA3 IDA4 IDA5 IDA6 IDA7 IDA8

IDA9 IDA10 IDA11 IDA12 IDA13 IDA14 IDA15

IDB0

IDB1

IDB2

IDB3

IDB4

IDB5

IDB6

IDB7

IDB8

IDB9 IDB10 IDB11 IDB12 IDB13 IDB14 IDB15

SIS962

SVDDZCMP

R75

C444

R74

0.01UF

SVSSZCMP

Y3 Y4

W10 V10 Y11 U12

V11 Y9 Y10

T11 U11 W11

T12 V12

W17 Y17 T16 U17

T14 W16 V16

Y18 T15 V17

U16 W18

U10 V9 W8 T9 Y7 V7 Y6 Y5 W6 U8 W7 V8 U9 Y8 T10 W9

Y16 V15 U14 W14 V13 T13 Y13 Y12 W12 W13 U13 Y14 V14 W15 Y15 U15

56

SZCMP_N

SZCMP_P

IDESAA[0..2] [14]

IDECS#A[0..1] [14]

IDESAB[0..2] [14]

IDECS#B[0..1] [14]

MIDEIOR#A MIDEIOW#A MIDACK#A

MIDESAA1 MIDESAA0

MIDECS#A1 MIDECS#A0

MIDEIOR#B MIDEIOW#B MIDACK#B

MIDESAB2 MIDESAB1 MIDESAB0

MIDECS#B1 MIDECS#B0

C150

0.01UF

ICHRDYA IDEREQA IDEIRQA CBLIDA

R98

R104

R103

R360

R363

R97

R358

R91

ICHRDYB

IDEREQB

IDEIRQB

CBLIDB

R352 10 R90 22 R87

R80 R351 R86

R349 R79

IDEDA0 IDEDA1 IDEDA2 IDEDA3 IDEDA4 IDEDA5 IDEDA6 IDEDA7 IDEDA8 IDEDA9 IDEDA10 IDEDA11 IDEDA12 IDEDA13 IDEDA14 IDEDA15

IDEDB0SVDDZCMP IDEDB1 IDEDB2 IDEDB3 IDEDB4 IDEDB5 IDEDB6 IDEDB7 IDEDB8 IDEDB9 IDEDB10 IDEDB11 IDEDB12 IDEDB13 IDEDB14 IDEDB15

R118 0

C151

0.1UF

IDEIOR#A

10

IDEIOW#A

22

IDACK#A

22

33 33 33

33 33

IDEIOR#B IDEIOW#B

22

IDACK#B

33 33 33

33 33

+1.8VS

ICHRDYA [14] IDEREQA [14] IDEIRQA [14] CBLIDA [14]

IDESAA2MIDESAA2 IDESAA1 IDESAA0

IDECS#A1 IDECS#A0

ICHRDYB [14] IDEREQB [14] IDEIRQB [14] CBLIDB [14]

IDESAB2 IDESAB1 IDESAB0

IDECS#B1 IDECS#B0

IDEIOR#A [14] IDEIOW#A [14] IDACK#A [14]

IDEIOR#B [14] IDEIOW#B [14] IDACK#B [14]

IDEDA[0..15] [14]

IDEDB[0..15] [14]

SZ4XAVDD

C443

0.01UF

SZ4XAVSS

B - 14 962 (PCI/IDE/HyperZip) 1 of 4 (71-M4000-D03)

962 (Misc Signals) 2 of 4

Schematic Diagrams

Programable on-die pull-high strength for CPU_S: ( Infinite, 150, 110, 56 Ohm)

INIT#[3]

A20M#[3]

SMI#[3]

INTR[3]

NMI[3]

IGNNE#[3]

FERR#[3] STPCLK#[3] CPUSLP#[3]

LPC_FRAME#[22,24]

LPC_DRQ#[22]

SERIRQ[19,22,24]

Y7

32.768KHZ

1 2

BATOK[18] PWRGD[9,26,29]

SMBDAT[4,7]

SMBCLK[4,7]

10K

PM_DPRSLPVR

EXTSMI#

GMUXSEL

PM_CPUPERF#

VGATE

LPC_AD0[22,24]

LPC_AD1[22,24]

LPC_AD2[22,24]

LPC_AD3[22,24]

REFCLK1[4]

PCBEEP[29]

PWRBTN#

C167

0.1UF

+3V

+3VS

R134

CLKAPIC

SMBDAT

SMBCLK

AC_SDIN0 AC_SDIN1

AC_RST# AC_BCLK

R361 4.7K

C178

C179

+3V

FROM H8

PWRBTN#[24]

AUXOK[9,24,27,28]

PM_DPRSLPVR[36]

EXTSMI#[24]

PM_CPUPERF#[2]

VGATE[29]

CLKAPIC[4]

15PF

20PF

AC_SDIN0[26] AC_SDIN1[20,26]

AC_SDOUT[20,26]

AC_SYNC[20,26]

AC_RST#[20,26]

AC_BCLK[20,26]

R96

PSON#[28,29]

PCBEEP( LPC addr mapping)

SB Hardware Trap

PCBEEP

INIT# A20M# SMI# INTR NMI IGNNE# FERR# STPCLK# CPUSLP#

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

LPC_FRAME# LPC_DRQ# SERIRQ

R132

10M

BATOK PWRGD

C196

0.1UF

R130 0

R129 0

R135 0 R387 0

R537

R398

D17 1SS355

A C

D36 1SS355

R84

R353 4.7K

GPIO18

4.7K

OSC32KHI

OSC32KHO

RTCVDD

C177

0.1UF

REFCLK1 SENTEST PCBEEP

961PME# PSON#

AUXOK

0

4.7K

AC

0(R)

+3VS

T

FOR C4

DPERSLP

T18

INIT#

P16

A20M#

R17

SMI#

R16

INTR

Y20

NMI

U18

IGNNE#

T17

FERR#

W20

STPCLK#

V19

CPUSLP#

Y19

APICCK

V18

APICD0

W19

APTCD1

V5

LAD0

T7

LAD1

U6

LAD2

W5

LAD3

W4

LFRAME#

U7

LDRQ#

V6

SIRQ

C2

OSC32KHI

D2

OSC32KHO

D3

BATOK

D1

PWROK

C1

RTCVDD

E4

RTCVSS

B2

GPIO20

A1

GPIO19

A2

AC_SDIN0

D5

AC_SDIN1

W2

AC_SDOUT

T5

AC_SYNC

D6

AC_RESET#

Y1

AC_BIT_CLK

W3

OSCI

G5

ENTEST

V3

SPK

A14

PWRBTN#

B14

PME#

D14

PSON#

A3

AUXOK

A15

ACPILED

B1

GPIO13/DPRSLPVR

E5

GPIO14

E13

GPIO15

A16

GPIO16

D13

GPIO17

B15

GPIO18/PMCLK

BGA2B

(AUX)

/geyserville

(AUX)

CPU_S

APIC

LPC

RTC

962-2

GPIO

AC97

(AUX)

ACPI

(AUX) (AUX)

/others

(AUX)

KBC

(AUX)

MII

GPIO

(MAIN)

(AUX)

(MAIN)

GPIO4/CLKRUN#

(AUX)

GPIO9/AC_SDIN2

GPIO10/AC_SDIN3

(AUX)

GPIO12/CPUSTP#

OSC25MHI

OSC25MHO

MIITXCLK

MIITXEN

MIITXD0

MIITXD1

MIITXD2

MIITXD3

MIIRXCLK

MIIRXDV

MIIRXER

MIIRXD0

MIIRXD1

MIIRXD2

MIIRXD3

MIICOL

MIICRS

MIIMDC

MIIMDIO

MIIAVDD

MIIAVSS

GPIO0

GPIO1/LDRQ1#

GPIO2/THERM#

GPIO3/EXTSMI#

GPIO5/PREQ5#

GPIO6/PGNT5#

GPIO7

GPIO8/RING

GPIO11

SIS962

A8 A9

A6

B6

E8

D7

C6

B4

A7

C7

C8

D8

A5

B5

A4

B7

E9

C5

E7

B9 B8

V2

GATE_LID_SW

T8

T4

T6

W1

U5

U4

C4

C14

LAN_PWRON

E6

B3

HWSUS_CB#

F5

CPUSTP#

D4

T

ATF_INT#

ID0

ID1

ID2

V_ADJ

R102 4.7K

1 2 3 4 5

RP19

10

9 8 7 6

10P8R-10K

R369 10K

R368 10K

R394

A C

D16 1N4148(R)

R699 0(R)

R700 0(R)

R701 0(R)

R123

A C

D14

A C

D13 1SS355

RP18

10

1

10

9

2

9

8

3

8

7

4

7

6

5

6

10P8R-10K

1

10

2

9

3

8

4

7

5

6

GATE_LID_SW [11]

4.7K

1SS355 R362

WAKE-UP

V_ADJ [36]

HWSUS_CB#[19]

CPUSTP# [4,29]

4.7K

EXTSMI#

LCDID0

LCDID1

LCDID2

+3V

SCI#

4.7K

+3V

C518

C510

0.1UF

0.01UF

+3VS

LCDID0 [11,27,30]

LCDID1 [11,27,30]

LCDID2 [11,30]

SCI# [24]

+3V

WAKE-UP[24]

It will change next verison

GMUXSEL

DPERSLP

AC_SDIN0

AC_SDIN1

LAN_PWRON

VID1[2,36]

NEED NOT to place close to 96X

GPIO pins NEED NOT to place close to 96X

HWSUS_CB#

RN11

LPC_AD1 LPC_AD3 LPC_AD2 LPC_AD0

8P4R-4.7K

R364 4.7K

LPC_DRQ#

R109

SERIRQ

R399 0

SENTEST

ATF_INT#

R395

CPUSTP#

R141

SMBDAT

R391

SMBCLK

R392

GPIO18

R94

LCDID0

R133 10K

LCDID1

R385 10K

LCDID2

R386 10K

R101 4.7K(R)

R131 4.7K

R124 100K

R370 100K

R371 100K

V_ADJ

R117 100K

961PME#

R95 4.7K

VGATE

R100 4.7K

R375 4.7k

D15

VID1 ATF_INT#

F01J2E

+3VS

18 27 36 45

4.7K

+3VS

4.7K

Sheet 14 of 41

B.Schematic Diagrams

962 (Misc Signals)

2 of 4

+3V

AC

962 (Misc Signals) 2 of 4 (71-M4000-D03) B - 15

Schematic Diagrams

962 (USB I/F) 3 of 4

BGA2C

Sheet 15 of 41

962 (USB I/F)

3 of 4

B.Schematic Diagrams

1394_MA2/EESK 1394_MA1/EEDI 1394_MA0/EEDO 1394_EECS

PHY_LPS[21]

PHY_REQ[21]

PHY_LKON[21]

PHY_D0[21] PHY_D1[21] PHY_D2[21] PHY_D3[21] PHY_D4[21] PHY_D5[21] PHY_D6[21]

PHY_D7[21] PHY_CTL0[21] PHY_CTL1[21]

PHY_CLK[21]

PHY_LPS PHY_REQ PHY_LKON PHY_D0 PHY_D1 PHY_D2 PHY_D3 PHY_D4 PHY_D5 PHY_D6 PHY_D7 PHY_CTL0 PHY_CTL1 PHY_CLK

F20

EESK(GPI21)

D20

EEDI(GPI22)

E20

EEDO(GPI23)

C20

EECS(GPI24)

A20

LPS

A19

LREQ

C19

LINKON

A12

D0

B12

D1

C12

D2

D12

D3

E12

D4

A13

D5

B13

D6

C13

D7

D11

CTL0

C11

CTL1

E11

SCLK

A10

T

IPB_OUT1

B10

T

IPB_OUT0

A11

T

NC

E10

T

NC

D9

T

NC

B11

T

NC

C9

T

NC

C10

T

NC

D10

T

NC

SIS962

USBCLK48M

USBVDD USBVDD USBVDD USBVDD

USBVSS USBVSS USBVSS USBVSS

OSC12MHI

OSC12MHO

USBREF

USBPVDD

USBPVSS

IVDD_AUX IVDD_AUX

USBREFAVDD

UV0+ UV0UV1+ UV1UV2+ UV2UV3+ UV3UV4+ UV4UV5+ UV5-

OC0# OC1# OC2# OC4# OC3# OC5#

V4

B18 C18 D18 D19 E14 D15 E18 F18 E16 E15 G18 G19

G20 G17 J16 H17 H16 G16

D16 F17 D17 E17

B17 E19 B19 F19

B16

A17

F16

A18

C15

C16 C17

USBREFAVDD

B20

UCLK48M

UV0+ UV0UV1+ UV1UV2+ UV2UV3+ UV3UV4+ UV4UV5+ UV5-

OC0# OC1# OC2#

R78 10K R347 10K R85 10K

C478

0.1UF

USBREF

USBPVDD

USBPVSS

IVDD_AUX

C134

0.1UF

C484

0.1UF

OSC12MHI

OSC12MHO

12 mil

UCLK48M[4]

UV0+ [17] UV0- [17] UV1+ [17] UV1- [17] UV2+ [17] UV2- [17]

C479

1UF

C131

15PF

C130

0.1UF

OC0# [17] OC1# [17] OC2# [17]

1 2

FCM2012V121

1 2

FCM2012V121(R)

C480

10UF/10V

R89 10M

Y6 12MHz

L29

1 2

FCM2012V121

JA3

1 2

SHORT-A

L143

L144

C135

20PF

C496

10UF/10V

+3VS

+3V

+3VS

UV3-

UV3+

UV4+ +DATA4

UV5+ +DATA5

+3VS

R71 22

R70 22

C465

C466

22P

Place these components near to SiS96X

R68 22

R69 22

C467

C468

22P

Place these components near to SiS96X

R72 22

R73 22

C463

C464

22P

Place these components near to SiS96X

1394_EECS 1394_MA2/EESK

1394_MA1/EEDI

1394_MA0/EEDO

R113 47K

U6

1

CS

VCC

2

SK

NC

3

DI

NC

4

DO

GND

9346

R239

15K

R222

15K

R401

15K

-DATA3

+DATA3

R240

15K

-DATA4UV4-

R221

15K

-DATA5UV5-

R402

15K

+3VS

8 7

T

6

T

5

C145

0.1UF

-DATA3 [17]

+DATA3 [17]

-DATA4 [17]

+DATA4 [17]

-DATA5 [17]

+DATA5 [17]

C132

0.1UF

L30

1 2

FCM2012V121

JA1

1 2

SHORT-A

20 mil 20 mil

C133

0.1UF

B - 16 962 (USB I/F) 3 of 4 (71-M4000-D03)

+1.8V

C140

10UF/10V

L146

1 2

FCM2012V121

C485

0.1UF

L90

1 2

FCM2012V121(R)

JA4

1 2

SHORT-A

USBREFIVDD_AUX

C486

0.1UF

L28

1 2R88 412_1%

4.7uH_SMD_30%

C498

10UF/10V

USBPVDD

C497

0.1UF

USBPVSS

+3VS

+3V

C503

10UF/10V

962 (Power & RTC) 4 of 4

Schematic Diagrams

+3VS

10UF/10V

C526

C489

10UF/10V

C490

0.1UF

C505

0.1UF

C508

0.1UF

C469

1UF

Put under 96X solder side

+1.8VS

C495

0.1UF

C517

+3V

51K

R408

10K

R407

0.1UF

C509

C516

0.1UF

E C

B

Q22

0.1UF

B

C492

C483

C

E

R406

10K

MMBT3906

Q5

MMBT3904

C493

0.1UF

C502

0.1UF

+3V

+2.5V

VTT

C351

0.1UF

C527

10UF/10V

BATOK [15]

C406

1UF

+1.8V

+3V

C520

0.1UF

+3VS

C528

0.1UF

+1.8VS

VTT

G15

N15 P17 K15

H15

M15

R10 R14

P15 R15

R11 R13

R12

F12

F10 F11 F14 F15

F13

J15 J17 L15 L17

G6

L6

R6

H6 K6 M6 P6 R7 R9

J6 N6 R8

F9

F7

F8

BGA2D

VDDZ VDDZ VDDZ VDDZ VDDZ VDDZ VDDZ PVDDZ IVDD IVDD IVDD IVDD IVDD IVDD IVDD

VTT VTT

OVDD OVDD OVDD OVDD OVDD OVDD OVDD OVDD

PVDD PVDD PVDD PVDD

IVDD_AUX IVDD_AUX

OVDD_AUX OVDD_AUX OVDD_AUX OVDD_AUX OVDD_AUX

PVDD_AUX PVDD_AUX

SIS962

H8

VSS

H9

VSS

H10

VSS

H11

VSS

H12

VSS

H13

VSS

J8

VSS

J9

VSS

J10

VSS

J11

VSS

J12

-4

VSS

K8

VSS

K9

VSS

K10

VSS

K11

VSS

L8

VSS

L9

VSS

L10

VSS

L11

VSS

M8

VSS

962

M9

VSS

M10

VSS

M11

VSS

N8

VSS

N9

VSS

N10

VSS

N11

VSS

N12

VSS

N13

VSS

J13

Power

VSSZ

J19

VSSZ

K12

VSSZ

K13

VSSZ

L12

VSSZ

L13

VSSZ

L19

VSSZ

M12

VSSZ

M13

VSSZ

P19

VSSZ

B.Schematic Diagrams

Sheet 16 of 41

962 (Power & RTC)

4 of 4

+1.8VS

C147

1UF

C475

0.1UF

+3V+1.8V

C494

0.1UF

C552

1UF

C525

0.1UF

C551

10UF/10V

C482

0.1UF

JBAT1

CON2

C524

R404

1K

2

1

A C

C476

0.1UF

C507

D26

1SS355

BAT

C501

0.1UF

+3VS

C506

0.1UF

R403 100

JOPEN

please put J5 on component side

J1

C477

0.1UF

2 1

C481

C127

10UF/10V

VTT

C491

0.1UF

RTCVDD

C194 1UF

Decoupling Capacitor

Place close to 96X

R405

C195

0.01UF

0.1UF

+3VS

D27

1SS355

C512

20K

+1.8V

AC

C511

1UF

C679 0.1UF

C680 0.1UF

C553 10UF/10V

962 (Power & RTC) 4 of 4 (71-M4000-D03) B - 17

Schematic Diagrams

HDD/Combo Connector

Sheet 17 of 41

HDD/Combo

Connector

B.Schematic Diagrams

+3VS

R277

R32 5.6K R300 10K

R238 10K

R147 R145 R150 R143

R348

R359

PCIRST#[9,10,13,20,22,24,30]

4.7K

5.6K 10K 10K

4.7K

MICHRDYB MIDEREQB IDEIRQB IDEDB7

MICHRDYA MIDEREQA IDEIRQA IDEDA7

PCIRST#

INDEX#[22]

DRV0#[22]

DISKCHG#[22]

MTR0#[22]

DIR#[22]

3MODE#[22]

STEP#[22]

WDATA#[22]

WGATE#[22]

TRK0#[22]

WRPRT#[22]

RDATA#[22]

HDSEL#[22]

CBLIDB[13]

CBLIDA [13]

+3VS

5 2

1 3

U25

TC7SZ08

C375

0.1UF

INDEX#

DRV0#

DISKCHG#

MTR0#

DIR# 3MODE# STEP#

WDATA#

WGATE#

TRK0#

WRPRT#

RDATA#

HDSEL#

RP41

4

653 72 81

8P4R-10 RP42

4

653 72 81

8P4R-10

IDEIOW#B[13] ICHRDYB[13]

IDEIRQB[13]

IDESAB1[13] IDESAB0[13]

IDECS#B0[13]

IDEDA8 IDEDA9 IDEDA10 IDEDA11 IDEDA12 IDEDA13 IDEDA14 IDEDA15

C673

0.1UF

Near To The Connector

4

C674

0.1UF

/2IDB7 /2IDB6 /2IDB5 /2IDB4

/2IDB3 /2IDB2 /2IDB1 /2IDB0

+5VS

RP35 8P4R-10

RP37 8P4R-10

81 72 653

IDESAA2[13]

IDECS#A1[13]

C675

10UF/10V

ICHRDYB IDEIRQB

10UF/10V

CD-L[26]

CDGND[26]

IDEIOW#B

R286 10

R287 82

IDESAB1 IDESAB0 IDECS#B0

C361

1IDA9

1IDA11 1IDA12 1IDA13 1IDA14 1IDA15

L100 BK3216HS800

C320

0.1UF

IDESAA2 IDECS#A1

+5VSFDDVCC

CD-L CDGND IDERST# /2IDB7 /2IDB6 /2IDB5 /2IDB4 /2IDB3 /2IDB2 /2IDB1 /2IDB0

MICHRDYB MIDEIRQB

HDDLED-1

CSEL

R305

0

1IDA8 1IDA9 1IDA10 1IDA11 1IDA12 1IDA13 1IDA14 1IDA15

JCDROM1

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

T

49

CDROM CON 50P

PIN(GND1,GND2)=GND

JHDD1

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

T

32

34

T

34

36

38

40

42

44

R148

44

0

HDD CON

T

+5VS

2 4 6

8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

1 3 5 7

9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30

T

32

T

34 36 38 40 42 44 46 48 50

T

IDERST#

1

1IDA7

3

1IDA6

5

1IDA5

7

1IDA4

9

1IDA3

11

1IDA2

13

1IDA1

15

1IDA0

17 19

T

21 23 25 27 29 31 33 35 37 39 41 43

R151 10K

R236 10K

CD-R

/2IDB8 /2IDB9 /2IDB10 /2IDB11 /2IDB12 /2IDB13 /2IDB14 /2IDB15 MIDEREQB

IDEIOR#B

IDACK#B

IDESAB2 IDECS#B1

MIDEREQA IDEIOW#A IDEIOR#A MICHRDYA IDACK#A MIDEIRQA IDESAA1 IDESAA0 IDECS#A0

C198

0.1UF

HDDLED-1

HDDLED-0

R31 82

C319

0.1UF

R144

R146

R149

HDDLED-0

C197

22UF/10V

CD-R [26]

C307

100U/10V

C201

22U/10V

IDEREQB

+5VS

82

10

82

+5VS

5 2

1 3

U2

TC7SZ08

1IDA7 1IDA6 1IDA51IDA8 1IDA4 1IDA31IDA10 1IDA2 1IDA1 1IDA0

+5VS

IDEDA10[13] IDEDA11[13] IDEDA12[13] IDEDA13[13] IDEDA14[13] IDEDA15[13]

JFDD1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

FDD CON 26P

IDEDB7 IDEDB6 IDEDB5 IDEDB4

IDEDB3 IDEDB2 IDEDB1 IDEDB0

IDEDA8[13] IDEDA9[13]

IDEDB7[13] IDEDB6[13] IDEDB5[13] IDEDB4[13]

IDEDB3[13] IDEDB2[13] IDEDB1[13] IDEDB0[13]

IDERST#

4

FDDVCC

T T T

T

/2IDB8 /2IDB9 /2IDB10 /2IDB11

/2IDB12 /2IDB13 /2IDB14 /2IDB15

IDEREQB [13]

IDEIOR#B [13]

IDACK#B [13]

IDESAB2 [13] IDECS#B1 [13]

8 1 7 2 653

IDEREQA [13] IDEIOW#A [13] IDEIOR#A [13] ICHRDYA [13] IDACK#A [13] IDEIRQA [13] IDESAA1 [13] IDESAA0 [13] IDECS#A0 [13]

IDE_LED#

4

RP36 8P4R-10

RP38 8P4R-10

RP3

8P4R-10 RP4

8P4R-10

IDEDB8 IDEDB9

653

IDEDB10

72

IDEDB11

81

IDEDB12 IDEDB13

653

IDEDB14

72

IDEDB15

81

IDEDA7 IDEDA6 IDEDA5 IDEDA4

4

IDEDA3 IDEDA2 IDEDA1 IDEDA0

4

IDEDB8[13] IDEDB9[13] IDEDB10[13] IDEDB11[13]

IDEDB12[13] IDEDB13[13] IDEDB14[13] IDEDB15[13]

IDEDA7[13] IDEDA6[13] IDEDA5[13] IDEDA4[13] IDEDA3[13] IDEDA2[13] IDEDA1[13] IDEDA0[13]

IDE_LED# [11]

B - 18 HDD/Combo Connector (71-M4000-D03)

USB Port

Schematic Diagrams

C554

0.1UF

NEAR CON

WLAN_DET#24

BTVCC

-DATA316

+DATA316

+

C200 100U/10V

+5V

C308

C309

10U

0.1UF

DATA2-

DATA2+

LINE-R26 LINE-L26

-DATA4

+DATA4

WLAN_DET#

1 2 3 4 5 6 7 8

9 10 11 12

DATA5DATA5+

CIR_RX24

L101

1 2

FCM1608K121

L102

1 2

FCM1608K121

NEAR CCD CON.

L123

1 2

FCM1608K121(R)

L124

1 2

FCM1608K121(R)

NEAR CRD CON.

R730 R731

L142

PLW3216S161SQ2(R)

L103

1 2

FCM1608K121

L104

1 2

FCM1608K121

NEAR CCD CON.

+3VS

R397

10K

T

C548

47PF

L105

C547

47PF

LINE-R LINE-L CIR_RX

L106

C847 47P(R)

C822

0.1UF

C849 47P(R)

0 0

21

34

C11

0.1UF

+3V

1 2

FCM1608K121

1 2

FCM1608K121

R237 100K

+3V

-DATA3

+DATA3

-DATA416

+DATA416

JBT1 BT CON

CCD CON C848 47P(R)

+5V

C823

10U

Card Reader CON(R) C850 47P(R)

+5V

TUNER_CON

RFVCC

+

C12

100U/10V

WIRELESS_CON

R514 100K

DATA5-

DATA5+

BT_DETACT# 24

JCCD1

1 2 3 4

JCR1

1 2 3 4

JTV2

1 2 3 4 5 6 7 8

JWL1

1 2 3 4 5

R734 0(R) R735 0(R)

5 6 7 8

SW1

SW DIP-4

4 3 2 1

-DATA5 +DATA5

OC0#16

OC1#16

-DATA5 16 +DATA5 16

R6 560K

R7 470K

OC0#

OC2#16

+5VS

OC1#

UV0-16

UV0+16

OC2#

+5VS

1 2

F1 1.1A

R206 560K

R205 470K

1 2

F3 1.1A

UV1-16

UV1+16

UV2-16

UV2+16

USBVCC0

UV0-

UV0+

C101

22P(R)

USBVCC1

UV1-

R419 560K

R418 470K

1 2

F2 1.1A

UV2-

UV2+

C1

10UF/10V

R54

R53 0

C100

22P(R)

C241

10UF/10V

Place these components near to SiS96X

D30

A C

F1AJ3

0

Place these components near to SiS96X

D31

A C

F1AJ3

R322

R323 0

C430

C429

22P(R)

USBVCC2

C564

10UF/10V

Place these components near to SiS96X

-DATA0

1 2

FCM2012V121

D32

A C

F1AJ3

R93

R99

L7

1 2

FCM2012V121

+DATA0

L42

0

FCM2012V121

0

C258

0.1UF

-DATA1

+DATA1UV1+

L32

1 2

R433

15K(R)

C10

0.1UF

-DATA2

+DATA2

R438

15K(R)

L51

PLW3216S161SQ2 L50

PLW3216S161SQ2

PLEASE CLOSE USB PORT

C205

0.1UF

R650 0(R)

R649 0(R)

R732

R733

21

34

21

34

DATA2-

DATA2+

L34

0

PLW3216S161SQ2

JUSB2 USB-PLUG

5

V+_OUT1

6

DATA_L1

7

DATA_H1

8

GND

1

V+_OUT2

2 3 4

DATA_L2 DATA_H2 GND

9

GND

10

Sheet 18 of 41

B.Schematic Diagrams

USB Port

JUSB1

1

V+

21

2

DATA_L

34

3

DATA_H

4

GND

GND1

GND2

USB

5

6

USB Port (71-M4000-D03) B - 19

Schematic Diagrams

Sheet 19 of 41

PCMCIA ENE1410

B.Schematic Diagrams

PCMCIA ENE1410

VPPD0[20]

VPPD1[20] VCCD0#[20] VCCD1#[20]

AD[0..31][13,20,25]

C/BE#[0..3][13,20,25]

PRST#[13,24,25]

R483 75(R)C620 15P(R)

HWSUS_CB#[15]

HWSUS_CB#

+3V

INTC#[13]

+3V

R464

R466

R474

R465

47K

LED_SKT PC_RING# ZVSEL0# ZVSEL1#

AD[0..31]

C/BE#[0..3]

+3V

PRST#

FRAME#[13,20,25]

TRDY#[13,20,25]

DEVSEL#[13,25]

STOP#[13,25]

PERR#[25]

SERR#[13,25]

REQ0#[13] GNT0#[13]

PCICLKPCM[4]

R469 33 R470 10K(R)

INTC#

R475 0

SERIRQ[15,22,24]

SPKROUT[29]

R473 0(R)

IRDY#[13,20,25]

PAR[13,25]

PME#[22,23,24,25]

AD23[13,25]

+3VS

R683 10K

FRAME# IRDY# TRDY# DEVSEL# STOP# PERR# SERR# PAR REQ0# GNT0# PCICLKPCM

PME#

AD23

ZVSEL0# PC_RING# SERIRQ ZVSEL1# LED_SKT

SPKROUT

AD31 AD30 AD29 AD28 AD27 AD26 AD25 AD24 AD23 AD22 AD21 AD20 AD19 AD18 AD17 AD16 AD15 AD14 AD13 AD12 AD11 AD10 AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0

C/BE#3 C/BE#2 C/BE#1 C/BE#0

GRST#

R472 0

R491 100

PERR#

B_VCC

C618

C645

0.1UF

VPPD0 VPPD1 VCCD0# VCCD1#

186244

717273

74

126

VPPD0

VPPD1

VCCCB

VCCD0#

VCCD1#

3

AD31

4

AD30

5

AD29

7

AD28

8

AD27

9

AD26

10

AD25

11

AD24

15

AD23

16

AD22

17

AD21

19

AD20

23

AD19

24

AD18

25

AD17

26

AD16

38

AD15

39

AD14

40

AD13

41

AD12

43

AD11

45

AD10

46

AD9

47

AD8

49

AD7

51

AD6

52

AD5

53

AD4

54 55 56 57

12 98 27 37 48

66 20 28 29 31 32 33 34 35 36

1 2

21

59 70

13

60 61 64 65 67 68 69

R471

10K

ENE1410

AD3 AD2 AD1 AD0

C/BE3# A17/CAD16 C/BE2# C/BE1# C/BE0#

GRST# PRST# FRAME# IRDY# TRDY# DEVSEL# STOP# PERR# SERR# PAR REQ# GNT# PCLK

RI_OUT#/PME# SUSPEND#

IDSEL

MF0/INTA# MF1/ZVSEL0# MF2/PC_RING# MF3/SERIRQ MF4/ZVSEL1# MF5/LED_SKT MF6/CLKRUN#

SPKROUT

6

10290122

138

VCC

VCCP

VCCCB

WP(IOIS16#)/CCLKRUN#

READY(IREQ#)/CINT#

BVD1(STSCHG#/RI#)/CSTSCHG

BVD2(SPKR#)/CAUDIO

GND

22

42

58

7894114

130

86

+3V

14

30

50

VCC

D0/CAD27 D1/CAD29

D2/CRSVD

D3/CAD0 D4/CAD1 D5/CAD3 D6/CAD5

D7/CAD7 D8/CAD28 D9/CAD30

D10/CAD31

D11/CAD2 D12/CAD4 D13/CAD6

D14/CRSVD

D15/CAD8

A0/CAD26 A1/CAD25 A2/CAD24 A3/CAD23 A4/CAD22 A5/CAD21 A6/CAD20 A7/CAD18

A8/CC/BE1#

A9/CAD14 A10/CAD9

A11/CAD12

A12/CC/BE2#

A13/CPAR

A14/CPERR#

A15/CIRDY#

A16/CCLK

A18/CRSVD

A19/CBLOCK#

A20/CSTOP#

A21/CDEVSEL#

A22/CTRDY#

A23/CFRAME#

A24/CAD17 A25/CAD19

INPACK#/CREQ#

IORD#/CAD13 IOWR#/CAD15

OE#/CAD11 WE#/CGNT#

WAIT#/CSERR#

REG#/CC/BE3#

RESET/CRST#

CD1#/CCD1# CD2#/CCD2#

CE1#/CC/BE0#

CE2#/CAD10

VS1#/CVS1 VS2#/CVS2

63

VCCI

PCI1410

C627

0.1UF

U32

+3V

C619

C608

C602

C601

C617

C632

C595

0.1UF

C644

0.1UF

B_CA14 [20]

B_CA19 [20] B_CA20 [20] B_CA21 [20] B_CA22 [20] B_CA23 [20]

B_INPACK[20]

B_WP# [20] B_WAIT# [20]

B_RDYBY# [20] B_RESET[20]

B_BVD1# [20] B_BVD2# [20] B_CD1# [20] B_CD2# [20]

B_VS1 [20] B_VS2 [20]

0.1UF

139

B_CD0

141

B_CD1

143

B_CD2

76

B_CD3

79

B_CD4

81

B_CD5

83

B_CD6

85

B_CD7

140

B_CD8

142

B_CD9

144

B_CD10

77

B_CD11

80

B_CD12

82

B_CD13

84

B_CD14

87

B_CD15

129

B_CA0

128

B_CA1

127

B_CA2

124

B_CA3

121

B_CA4

120

B_CA5

118

B_CA6

115

B_CA7

99

B_CA8

97

B_CA9

89

B_CA10

95

B_CA11

112

B_CA12

101

B_CA13

104

B_CA14

110

B_CA15

108

B_CA16 B_CA17

100

B_CA18

103

B_CA19

105

B_CA20

107

B_CA21

109

B_CA22

111

B_CA23

113

B_CA24

116

B_CA25

123

B_INPACK

93

B_IORD#

96

B_IOWR#

92

B_OE#

106

B_WE#

136

B_WP#

133

B_WAIT#

125

B_REG#

132

B_RDYBY#

119

B_RESET

135

B_BVD1#

134

B_BVD2#

75

B_CD1#

137

B_CD2#

88

B_CE1#

91

B_CE2#

131

B_VS1

117

B_VS2

0.1UF

10UF/10V

B_CA16

B_VCC

C646

10UF/10V

R490 R

R495 R

R489 47

B_CD0 B_CD1 B_CD2 B_CD3 B_CD4 B_CD5 B_CD6 B_CD7 B_CD8 B_CD9 B_CD10 B_CD11 B_CD12 B_CD13 B_CD14 B_CD15

B_CA0 B_CA1 B_CA2 B_CA3 B_CA4 B_CA5 B_CA6 B_CA7 B_CA8 B_CA9 B_CA10 B_CA11 B_CA12 B_CA13 B_CA14 B_CA15

B_CA17 B_CA18 B_CA19 B_CA20 B_CA21 B_CA22 B_CA23 B_CA24 B_CA25

B_INPACK B_IORD# B_IOWR# B_OE# B_WE# B_WP# B_WAIT# B_REG# B_RDYBY# B_RESET

B_BVD1#B_BVD1# B_BVD2# B_CD1# B_CD2# B_CE1# B_CE2# B_VS1 B_VS2

30

A30

31

A31

32

A32

2

A2

3

A3

4

A4

5

A5

6

A6

64

A64

65

A65

66

A66

37

A37

38

A38

39

A39

40

A40

41

A41

29

A29

28

A28

27

A27

26

A26

25

A25

24

A24

23

A23

22

A22

12

A12

11

A11

8

A8

10

A10

21

A21

13

A13

14

A14

20

A20

19

A19

46

A46

47

A47

48

A48

49

A49

50

A50

53

A53

54

A54

55

A55

56

A56

60

A60

44

A44

45

A45

9

A9

15

A15

33

A33

59

A59

61

A61

16

A16

58

A58

63

A63

62

A62

36

A36

67

A67

7

A7

42

A42

43

A43

57

A57

PCMCIA CON 68P

VPP1 VPP1

VCC VCC

GND GND GND GND

JPCM1

NC NC

B_VCC

17 51

C625

0.1UF

B_VPP

18 52

C626

0.1UF

72 71

1 34 35 68

B - 20 PCMCIA ENE1410 (71-M4000-D03)

PCMCIA Power

+12V

U17

9

12V

C588

0.1UF

5

5V

6

C599

0.1UF

5V

3

3.3V

4

3.3V

16

SHDN#

TPS2211

+3V

C597

4.7U(0805)

+5V

C598

0.1UF

C600

4.7U(0805)

R187 10K

+3V

BVCC BVCC BVCC

BVPP

VCCD0# VCCD1#

VPPD0 VPPD1

Schematic Diagrams

+5V

+3VS

11 12 13

10

1 2 15 14

8

OC#

7

GND

VCCD0# VCCD1# VPPD0 VPPD1

T

C590

0.1UF

C589

0.1UF

C591

4.7U(0805)

B_VPP

VCCD0# [19] VCCD1# [19] VPPD0 [19] VPPD1 [19]

B_VCC

R423

8.2K(R)

VDD3

R437 0

+3V

C567

0.1UF

AC_SDOUT[15,26]

AC_RST#[15,26]

AC_SDOUT AC_RST#

JMDC1

1

T

3 5

T

7

T

9

11

T

13

T

15 17 19 21 23 25 27 29 30

T

C568

0.1UF

MONO_OUT

AUDIO_PD

GND

MONO_PHONE AUXR AUXL CDGND CD_R CD_L GND

3.3V GND

3.3V SDATA_O RESET# GND MCLK BCLK

MDC CON

P_DN

SYNC SDATA_INB SDATA_INA

GND

R_D

VCC R_D R_D

VCC

C563 0.1UF

2

T

PHONE

4 6

T

8 10 12

T

14

T

16 18 20 22 24 26

T

28

AC_SYNC AC_SDIN1

AC_BCLK

PHONE [26]

AC_SYNC [15,26] AC_SDIN1 [15,26]

AC_BCLK [15,26]

+5VS

R431

10K(R)

R432

0

B.Schematic Diagrams

Sheet 20 of 41

PCMCIA Power

RN17

8P4R-43K

RP78

1 2 3 4 5

10P8R-43K

RN16

8P4R-43K

10

9 8 7 6

10 9 8 7 6

0.1UF(R)

B_WP#

B_RDYBY# B_WAIT# B_BVD2# B_BVD1#

C594

B_CA14 B_CA19 B_CA20 B_CA21

B_CD1# B_CD2# B_VS2 B_VS1

C662

0.1UF(R)

B_WP# [19]

B_RDYBY# [19] B_WAIT# [19] B_BVD2# [19] B_BVD1# [19]

B_CA14 [19] B_CA19 [19] B_CA20 [19] B_CA21 [19]

B_CD1# [19] B_CD2# [19] B_VS2 [19] B_VS1 [19]

AD[0..31][13,19,25]

C/BE#[0..3][13,19,25]

Debug Port

P1

1

AD2 AD4 AD6 AD8 AD10 AD12 AD14 AD15

C/BE#0 PCLK_80P C/BE#1 C/BE#2 FRAME# C/BE#3

L

3

L

5

L

7

L

9

L

11

L

13

L

15

L

17

L

19

L

21

L

23

L

25

L

27

T

L

29

T T

L

31

L

DEBUG-P80

AD1AD0

2

U

AD3

4

U

6

AD5

U

8

AD7

U

10

AD9

U

12

AD11

U

14

AD13

U

16

U

18

U

20

U

22

PCIRST#

U

24

U

26

IRDY#

U

28

TRDY#

U

30

U

32

U

PCLK_80P[4] PCIRST#[9,10,13,14,22,24,30] FRAME#[13,19,25] IRDY# [13,19,25] TRDY# [13,19,25]

+5V+5V

+3V

R496 43K

1 8 2 7 3 6 4 5

1 2 3 4 5

1 8 2 7 3 6 4 5

B_VCC

B_INPACK[19]

B_RESET[19]

B_CA22[19] B_CA23[19]

B_INPACK B_RESET B_CA22 B_CA23

PCMCIA Power (71-M4000-D03) B - 21

Schematic Diagrams

1394 PHY TSB41LV01

Sheet 21 of 41

1394 PHY

TSB41LV01

B.Schematic Diagrams

+3VS

L95

BLM21P221SGPTM00-03

C582

C573

0.01UF

PHY_D0[16] PHY_D1[16] PHY_D2[16] PHY_D3[16] PHY_D4[16] PHY_D5[16] PHY_D6[16] PHY_D7[16]

PHY3V

PHY_CTL0 PHY_CTL1 PHY_CLK PHY_REQ PHY_LKON PHY_LPS

R427 4.7K R435 10K

R651 1M

C824 220PF

R429 33

R436 1K

24.576MHz

PHY_CTL0[16] PHY_CTL1[16]

PHY_CLK[16] PHY_REQ[16]

PHY_LKON[16]

PHY_LPS[16]

C583

0.01UF

PHY_D0 PHY_D1 PHY_D2 PHY_D3 PHY_D4 PHY_D5 PHY_D6 PHY_D7

T

C211 0.1UF(K%)

Y1

1 2

C577 10PF

C581

0.1UF

C578 10PF

6 7 8

9 10 11 12 13

4

5

2

1 19 15 16

55 54

60 59

C586

0.1UF

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

CTL0 CTL1 PHYCLK/49.152M LREQ C/LKON LPS NC

FILTER1 FILTER0

XO XI

PHY3V

C585

C580

0.1UF

PHY3V

252661623031425152

DVDD

DGND

1718636432

AVDD

AGND

33

394849

C572

4.7U(0805)

AVDD

AGND

R170 6.34K_1%

R176 1M

Z216

564041

AVDD

PVDD

PGND

AGND

57

58

50

R0

ISO#

CPS CNA

PWRDN

RESET#

TESTM

TPB1-

TPB1+

TPA1-

TPA1+

TPBIAS1

TPB2-

TPB2+

TPA2-

TPA2+

TPBIAS2

TSB41AB1

Z240

U31

R1

23

PHYISO#

24

PHYCPS

3

Z1062

14

PHYCNA

Z241

53

27 28

Z218

SE

Z219

29

SM

Z220

20

PC0

Z221

21

PC1

22

Z222

PC2

34 35 36 37 38

Z223 Z224

Z225 Z226 Z227

R459 1K R460 1K

43 44 45 46 47

R422 1K(R) R439 4.7K R440 1K

C566 0.1UF

C213 0.1UF

R172 1K R177 1K

R171 4.7K(R) R173 R R174 R

R166 220

R167 220 R178 220

TPB1TPB1+ TPA1TPA1+ TPBIAS1

T T T

R428 220

R458

56.2_1%

C593 1UF

VDD5

PHY3V

R457

56.2_1%

R456

56.2_1%

R463

4.7K

R455

56.2_1%

C592 220P

L40

1 8

.. ..

2 7

3 6

FRC-1394

J2

1

TPB-

2

TPB+

3

TPA-

4

54

TPA+

1394_CON

GND GND

6 5

B - 22 1394 PHY TSB41LV01 (71-M4000-D03)

Clevo D400P, D410P Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Trademarks

About this Manual

Related Documents

1: Introduction

Overview

System Specifications

Processor

Core Logic

Structure

Security

Memory

BIOS

LCD Options

Display

Storage Devices

Audio

Keyboard

Interface

PC Card

Communication

Pointing Device

Power Management

Power

Indicators

Environmental Spec

Physical Dimensions

Weight

Optional

Design Differences

External Locator - Top View

External Locator - Front & Left Side Views

External Locator - Right Side & Rear Views

External Locator - Bottom View

Mainboard Overview - Top (Key Parts)

Mainboard Overview - Bottom (Key Parts)

Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

2: Disassembly

Overview

Maintenance Tools

Connections

Maintenance Precautions

Cleaning

Disassembly Steps

To remove the Battery:

1. Remove the battery page 2 - 8

To remove the HDD:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

To remove the System Memory:

1. Remove the battery page 2 - 8

2. Remove the system memory page 2 - 10

To remove the CD Device:

1. Remove the battery page 2 - 8

2. Remove the CD Device page 2 - 12

To remove the Bluetooth Module:

1. Remove the battery page 2 - 8

2. Remove the Bluetooth module page 2 - 14

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 8

2. Remove the Wireless LAN module page 2 - 15

To remove the Processor:

1. Remove the battery page 2 - 8

2. Remove the processor page 2 - 16

To remove the Keyboard:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

To remove the Keyboard Shielding Plate:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

3. Remove the keyboard shielding plate page 2 - 19

To remove the LCD and Top Case:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10
