Clevo D400F, D410F Service Manual

Notebook Computer

D400F/D410F

Service Manual

Preface

I

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer.

Version 1.0 June 2004

Trademarks

Intel® and Pentium® are registered trademarks of Intel Corporation. Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and./or registered trademarks of their respective companies.

II

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the D400F/ D410F series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications. Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade elements of the system.

Preface

Appendix A, Part Lists Appendix B, Schematic Diagrams

Preface

III

Preface

IMPORTANT SAFETY INSTRUCTIONS

When using any electrical equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit (DC Output 20V, 6A).

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

Preface

IV

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,

TELECOMMUNICATION LINE CORD

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

Preface

Do not expose the computer to any shock or vibration.

Do not place it on an unstable surface.

Do not place anything heavy on the computer.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

Do not expose it to excessive heat or direct sunlight.

Do not leave it in a place where foreign matter or moisture may affect the system.

Don’t use or store the computer in a humid environment.

Do not place the computer on any surface which will block the vents.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not turn off the power until you properly shut down all programs.

Do not turn off any peripheral devices when the computer is on.

Do not disassemble the computer by yourself.

Perform routine maintenance on your computer.

Preface

V

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Preface



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

Use only approved brands of peripherals.

Unplug the power cord before attaching peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

VI

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Preface



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface

VII

Preface

1: Introduction

Overview

This manual covers the information you need to service or upgrade the D400F/D410F series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.

Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have their own manuals as do application software (e.g. word processing and database programs). If you have questions about those programs, you should consult those manuals.

The D400F/D410F series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed description of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1.Introduction

Overview 1 - 1

Introduction

1.Introduction

System Specifications

Feature Specification

Processor Types Intel Pentium® 4 Processor (478-pin) FC-PGA2 Package

(µ0.13) 0.13 Micron Process Technology, 512KB On-die L2 Cache & 800MHz Front Side Bus - 2.26 ~ 3.2 GHz

Intel Pentium® 4 Processor (478-pin) FC-PGA2 Package (

µ0.13) 0.13 Micron Process Technology, 512KB On-die L2 Cache & 533MHz Front Side Bus - 2.26 ~ 3.2 GHz

Mobile Intel Pentium® 4 Processor (478-pin) FC-PGA2 Package (

µ0.13) 0.13 Micron Process Technology, 512KB On-die L2 Cache & 533MHz Front Side Bus - 2.26 ~ 3.2 GHz

Core Logic SiS M661FX + 963 Chipset

Security Security (Kensington® Type) Lock Slot, BIOS Password

Memory Two 200 Pins SODIMM Sockets, supporting DDR 333/ 400 MHz Modules

Expandable up to 1024 MB (128/ 256/ 512MB DDR Modules)

BIOS One 512KB Flash ROM, Phoenix BIOS

LCD Options 14.1" - XGA TFT (1024x768) 15.0" - XGA TFT (1024x768)

15.0" - SXGA+ TFT (1400x1050)

Display Integrated 128-bit 2D/3D Graphics Accelerator

Advanced HW accelerator for DVD playback Fully DirectX 9 compliant notebook GPU Shared memory up to 16/32/64MB DDR Dual-view display monitor

Storage Devices Fixed 7-in-1 Card Reader Module

1 - 2 System Specifications

Optical device bay:

CD-ROM drive DVD-ROM drive Combination DVD-ROM/CD-RW drive CD-RW drive DVD-RW drive

DVD-Dual drive Easy changeable 2.5" 9.5/12.7 mm (h) Hard Disk Drive Supports Master mode IDE, PIO mode 4, ATA-33/ 66/ 100/ 133, Ultra ATA Port

Feature Specification

PC Card One Type II PCMCIA 3.3V/5V socket supporting CardBus

Keyboard “WinKey” keyboard

Pointing Device Built-in TouchPad (scrolling key functionality integrated)

Introduction

Audio AC'97 2.2 compliant interface

3D stereo enhanced sound system Sound-Blaster PRO™ Compatible S/PDIF Digital output (5.1 CH)

Interface Two USB 2.0/1.1 ports

One Mini-IEEE 1394 port One S-Video out port for TV output One serial port One parallel port (LPT1) One infrared transceiver supporting IrDA 1.1/ FIR/SIR/ ASKIR One external monitor (VGA) port One PS/2 Port

Communication 56K Plug & Play modem (V.90 & V.92 Compliant)

Infrared transfer: 115.2K bps SIR/ 4M bps FIR, IrDA 1.1 compliant

802.11b wireless LAN module (factory option) PC Camera module (factory option) Bluetooth module (factory option) Built-in 10/100Mb Ethernet LAN

Power Management Supports ACPI v1.0b

Supports Standby mode Supports Hibernate mode

Power Full Range AC adapter

AC Input: 100~240V, 50~60Hz DC Output: 20V, 5.0A

Built-in microphone 2 Built-in speakers

One headphone-out jack One microphone-in jack One RJ-11 jack for modem One RJ-45 jack for LAN One DC-In jack One S/PDIF out port One Wireless device on/off switch 3 Built-in hot-key buttons: WWW, E-Mail, & application

Supports Battery low suspend Supports resume from modem ring

One removable Smart Li-Ion battery

1.Introduction

Indicator LED indicators (Power On/ AC-In/ Suspend, Battery Charging/Battery Full, E-Mail, HDD, Num Lock, Caps Lock,

Scroll Lock)

System Specifications 1 - 3

Introduction

Feature Specification

1.Introduction

Figure 1

Design Differences

Environmental Spec Temperature

Operating: 5°C ~ 35°C Non-Operating: -20°C ~ 60°C

Physical Dimensions 329 (w) x 275 (d) x 36.5 (h) mm

Weight Around 2.8 kg (depend on optional modules included) without battery

Optional DVD-ROM drive module

DVD-ROM & CD-RW Combo drive module CD-RW drive module DVD-RW drive module DVD-Dual drive module

Relative Humidity

20% ~ 80% 10% ~ 90%

Software DVD player Wireless LAN module Bluetooth module PC Camera module

Design Differences

This manual refers to the two notebook designs pictured below. The designs vary slightly in external design. Photographs used throughout this manual are of Design I.

1 - 4 System Specifications

Design I

Design II

External Locator - Top View

Introduction

Figure 2

1

2

3

4

5

6

8

7

Top View

1. Optional Built-in PC Camera

2. LCD

3. Built-In Microphone

4. LED Power & Communication Indicators

5. LED Status Indicators

6. AP-Key buttons

7. Close Cover/Lid Switch

8. Power Button

9. Keyboard

10. TouchPad and Buttons

1.Introduction

10

9

External Locator - Top View 1 - 5

Introduction

Figure 3

Front View

1. LCD Latches

2. Mini IEEE 1394 Port

3. S/P DIF Out Port

4. Microphone Jack

5. Headphone Jack

6. Infrared Transceiver

7. Wireless Device ON/OFF Switch

8. Built-In Speakers

1.Introduction

Figure 4

Left Side View

External Locator - Front & Left Side Views

1

8 8

2

4 5

3

6 7

1

1. 6-in1 Card Reader

2. CD-ROM Bezel or CD-ROM Device

3. PC Card/ PCMCIA Slot

4. PC Card/PCMCIA Slot Eject Buttons

1 - 6 External Locator - Front & Left Side Views

3

2

1

4

External Locator - Right Side & Rear Views

2

3

4 5 6 7 8 9

Introduction

Figure 5

Right Side View

1. Security Lock Slot

1

1.Introduction

Figure 6

10

Rear View

1

1. Vent

2. DC-In Jack

3. 2 * USB 2.0/1.1 Ports

4. External Monitor (CRT) Port

5. Parallel Port

6. Serial Port

7. S-Video-Out Port

8. PS/2 Type Port

9. RJ-11 Phone Jack

10. RJ-45 LAN Jack

External Locator - Right Side & Rear Views 1 - 7

Introduction

Figure 7

Bottom View

1. Vent/Fan Intake

2. Battery Cover

3. Hard Disk Cover

4. Bluetooth Module Cover

5. CPU, Heatsink, DDR, Wireless LAN Cover

External Locator - Bottom View

5

1

Note: The RAM and

optional Wireless LAN module are located under the CPU Heatsink Cover.

1.Introduction

1 - 8 External Locator - Bottom View

1

4

2

3

Introduction

Mainboard Overview - Top (Key Parts)

4

3

Figure 8

Mainboard Top

Key Parts

1. PC Card Assembly

2. Northbridge - SiS 661FX

3. Southbridge - SiS

2

963

4. LAN RTL 8100C

1.Introduction

1

Mainboard Overview - Top (Key Parts) 1 - 9

Introduction

Figure 9

Mainboard Bottom

Key Parts

1. CPU Socket (no CPU installed)

2. Memory Slots (no memory installed)

3. CardBus ENE 1410

4. ALC650 - Audio Codec

5. LPC - H8

6. LPC Super I/O NS PC87393

7. Clock Generator

8. Clock Buffer

9. Flash ROM

1.Introduction

10. 1394 PHY TSB41LV01

Mainboard Overview - Bottom (Key Parts)

1

7

2

8

9

6

1 - 10 Mainboard Overview - Bottom (Key Parts)

4

3

10

5

Introduction

Mainboard Overview - Top (Connectors)

1

7

8

9

2 3

5

Figure 10

Mainboard Top

Connectors

1. Modem Cable Connector (CN1)

2. LCD (and Inverter) Connector (LCD1)

3. Video Camera Cable Connector (JCCD1)

4. Power Switch

4

11

6

10

Board Cable Connector (JSW1)

5. TouchPad Cable Connector (JTP1)

6. Keyboard Cable Connector (JKB1)

7. Modem Module Connector (JMDC1)

8. Speaker Cable Connector (JSPK5)

9. Card Reader Connector (JCR1)

10. Speaker Cable Connector (JSPK3)

11. Fan Cable (JFAN2)

1.Introduction

Mainboard Overview - Top (Connectors) 1 - 11

Introduction

Figure 11

Mainboard Bottom

Connectors

1. Wireless LAN Connector (JWL1)

2. DDR Fan Cable Connector (JFAN4)

3. CD-ROM Device Connector (JCDROM1)

4. Hard Disk Cable Connector (JHDD1)

5. Bluetooth Module Connector (JBT1)

1.Introduction

6. CMOS Battery Cable Connector (JBAT1)

7. Battery Cable Connector (CN5)

Mainboard Overview - Bottom (Connectors)

1

2

3

4

7

5

6

1 - 12 Mainboard Overview - Bottom (Connectors)

2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the D400F/D410F series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Disassembly

Procedures such as upgrading/replacing the RAM, CD device and hard disk are included in the User’s Manual but are repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the disassembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a

An example of these types of boxes are shown in the sidebar.

 will provide any possible helpful information. A box with a  contains warnings.



2.Disassembly



Information



Warning

Overview 2 - 1

Disassembly

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the

battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to gently pry

the locking collar away from its base. When replacing the connection, make sure the connector is oriented in the same way. The pin1 side is usually not indicated.

2 - 2 Overview

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently rock it from side

to side as you pull it out. Do not pull on the wires themselves. When replacing the connection, do not try to force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pliers to gently

lift the connector away from its socket. When replacing the connection, make sure the connector is oriented in the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as you pull them

apart. If the connection is very tight, use a small flat-head screwdriver - use just enough force to start.

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a removal and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage components and/or data. You should also monitor the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity. Before handling any part in the computer, discharge any static electricity inside the computer. When handling a printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands produce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as screws, loose inside the computer.

Disassembly



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

2.Disassembly

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Overview 2 - 3

Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM

THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

2.Disassembly

To remove the Battery:

1. Remove the battery page 2 - 8

To remove the HDD:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

To remove the System Memory:

1. Remove the battery page 2 - 8

2. Remove the system memory page 2 - 10

To remove the Optical Device:

1. Remove the battery page 2 - 8

2. Remove the optical device page 2 - 12

To remove the Bluetooth Module:

1. Remove the battery page 2 - 8

2. Remove the Bluetooth module page 2 - 14

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 8

2. Remove the Wireless LAN module page 2 - 15

To remove the Processor:

1. Remove the battery page 2 - 8

2. Remove the processor page 2 - 16

To remove the Keyboard:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

To remove the Keyboard Shielding Plate:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

3. Remove the keyboard shielding plate page 2 - 19

To remove the LCD and Top Case:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

2 - 4 Disassembly Steps

Disassembly

To remove the TouchPad and Click Board:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the TouchPad and Click Boardpage 2 - 22

To remove the Switch Board:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the switch board page 2 - 23

To remove the Modem:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the modem page 2 - 24

To remove the Speakers:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

2.Disassembly

Disassembly Steps 2 - 5

Disassembly

2.Disassembly

To remove the Mainboard:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

To remove the Fan Unit:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

13. Remove the fan unit page 2 - 27

To remove the Card Reader Assembly:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

13. Remove the card reader page 2 - 28

To remove the PC Card Assembly:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the speakers page 2 - 25

12. Remove the mainboard page 2 - 26

13. Remove the PC Card assembly page 2 - 29

2 - 6 Disassembly Steps

Disassembly

To remove the LCD Front Panel Module:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

To remove the Inverter:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

12. Remove the inverter page 2 - 31

To remove the PC Video Camera Module:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

12. Remove the PC Video Camera page 2 - 32

To remove the LCD Module:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

3. Remove the system memory page 2 - 10

4. Remove the optical device page 2 - 12

5. Remove the Bluetooth module page 2 - 14

6. Remove the Wireless LAN module page 2 - 15

7. Remove the processor page 2 - 16

8. Remove the keyboard page 2 - 18

9. Remove the keyboard shielding plate page 2 - 19

10. Remove the LCD & top case page 2 - 20

11. Remove the front panel module page 2 - 30

12. Remove the inverter page 2 - 31

13. Remove the LCD module page 2 - 33

2.Disassembly

Disassembly Steps 2 - 7

Disassembly

Figure 1

Battery Removal

a. Remove the 2 screws

and the battery cover.

b. Carefully disconnect the

battery cable and remove the battery.

2.Disassembly

Removing the Battery

1. Turn the computer off, and turn it over.

2. Remove screws

3. Carefully (use a small screwdriver) disconnect the battery cable at point

4. Lift the battery out of the computer’s battery bay.

5. Connect the battery cable before reinserting the battery.

a.

1 2 3

& (Figure 1a) from the battery cover , and remove the cover.

5

b.

3

4

(Figure 1b).

4



3. Battery Cover

5. Battery

•2 Screws

2 - 8 Removing the Battery

1 2

5

Removing the Hard Disk Drive

The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" IDE hard disk drives with a height of 9.5mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in

Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

1. Turn off the computer, and remove the battery (page 2 - 8).

1 4 5

2. Remove screws

3. Carefully (use a small screwdriver) disconnect the battery cable at point

4. Lift the HDD assembly out of the computer.

5. Reverse the process to install a new hard disk.

- (Figure 2a) from the hard disk cover , and remove the cover.

6

(Figure 2b).

7

a. b.



HDD System Warning

New HDD’s are blank. Before you begin make sure:

You have backed up any data you want to keep from your old HDD.

5

6

Disassembly

2.Disassembly

Figure 2

HDD Assembly

Assembly Removal

a. Remove the 4 screws. b. Disconnect the HDD ca-

ble.

c. Lift the HDD assembly

out of the bay.

You have all the CD-ROMs and FDDs required to install your operating system and programs.

If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan to install. Copy these to a removable medium.

c.

1

2



5. Hard Disk Cover

7

4

3

Removing the Hard Disk Drive 2 - 9

7. Hard Disk

•4 Screws

Disassembly

Removing the System Memory (RAM)



Heat Sink Unit

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines). It is advisable to also remove your battery in order to prevent accidentally turning the machine on.

2.Disassembly

a. Remove the screws. b. Carefully lift the cover off

Figure 3

Memory Socket Cover Removal

the computer.

The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting DDR 333/400 MHz. The main memory can be expanded up to 1024MB. The SO-DIMM modules supported are 128Mb, 256Mb, and 512Mb. The total memory size is automatically detected by the POST routine once you turn on your computer.

Memory Upgrade Process

1. Turn off the computer, and remove the battery (page 2 - 8).

2. Remove screws - (Figure 3a) from the memory socket cover

3. Carefully lift up the memory socket cover (Figure 3b) (a fan cable is still attached to the mainboard and you

1 6

7 8

can disconnect it).

4. If there is a module currently installed which needs to be upgraded/replaced then remove it.

a.

b.

.

7

8

1



7. Socket Cover

2

•6 Screws

2 - 10 Removing the System Memory (RAM)

3

6

54

Disassembly

5. Gently pull the two release latches ( & ) on the sides of the memory socket toward the sides of the computer.

1 2

a.

3

12

6. The module (Figure 4b) will pop-up, and you can remove it.

3

7. Repeat the process for the second module if necessary.

8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

9. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot as it will go. DO NOT FORCE IT; it should fit without much pressure.

b.

Figure 4

Removing/

Installing a RAM

Module

a. Pull the release

latches.

b.Remove the module.



Contact Warning

Be careful not to touch the metal pins on the module’s connecting edge. Even the cleanest hands have oils which can attract particles, and degrade the module’s performance.

2.Disassembly

3 3

10. Press the module down towards the mainboard until the slot levers click into place to secure the module.

11. Replace the memory socket cover (be careful with the fan cable) and the 6 screws (see page 2 - 10).

12. Restart the computer.

13. The BIOS will register the new memory configuration as it starts up.

Removing the System Memory (RAM) 2 - 11



3. RAM Module

Disassembly

Removing the Optical Device

The easy changeable optical device may be upgraded or changed.

1. Turn off the computer, and remove the battery (page 2 - 8).

2. Remove screws - (Figure 5a) from the memory socket cover

3. Carefully lift up the memory socket cover (a fan cable is still attached to the mainboard and you can disconnect it).

1 6

7 8

.

Figure 5

Memory Socket Cover Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

2.Disassembly



7. Socket Cover

a.

b.

7

8

1

2

3

6

54

•6 Screws

2 - 12 Removing the Optical Device

Disassembly

4. Use a screwdriver to carefully push the CD device assembly out of the computer at point .

2

5. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The screw holes should line up.

6. Replace the memory socket cover (be careful with the fan cable) and the 6 screws (see page 2 - 12 ).

7. Restart the computer to allow it to automatically detect the new device.

1 2

1

Figure 6

CD Device Removal

Push the CD device out off the computer at point

2.

2.Disassembly



1. CD Device

Removing the Optical Device 2 - 13

Disassembly

Removing the Bluetooth Module

1. Turn off the computer, and remove the battery (page 2 - 8).

2. Remove screws - from the Bluetooth module cover

3. Carefully lift up the Bluetooth module cover off the computer.

4. Remove screws - and carefully disconnect cables -

1 2

3

3 6 8 9

.

, then remove the Bluetooth module .

10

Figure 7

Bluetooth Module

Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

c. Remove the screws and

disconnect the cables.

d. Remove the Bluetooth

module.

2.Disassembly



3. Bluetooth Cover

10. Bluetooth Module

a.

c.

b.

1

3

2

d.

43

8

6

9

5

10

•6 Screws

2 - 14 Removing the Bluetooth Module

Removing the Wireless LAN Module

1. Turn off the computer, and remove the battery (page 2 - 8).

2. Remove screws - from the memory socket cover

3. Carefully lift up the memory socket cover (a fan cable is still attached to the mainboard and you can disconnect it).

4. Remove screws

5. Lift the Wireless LAN module off the computer.

a.

1

2

1 6

7 8

- , and carefully disconnect cables & .

9 10 11 12

13

.

b.

6

3

8

Disassembly

Figure 8

Wireless LAN

Module Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

c. Remove the screws and

disconnect the cables.

d. Remove the WLAN

module.

2.Disassembly

54

c. d.

11

9

10

12

7

When re-inserting a Wireless LAN module, make sure the antenna cable connects to the connector J1 which is indicated as point 12.



Antenna Cable

Connection

13



7. Socket Cover

13. WLAN Module

.

•8 Screws

Removing the Wireless LAN Module 2 - 15

Disassembly

Figure 9

Processor Removal

a. Remove the screws. b. Carefully lift the cover off

the computer.

c. Remove the screws in

the order indicated.

d. Remove the heat sink.



Heat Sink Unit

The elongated heat sink pictured ap-

2.Disassembly

13

plies to models in this series with two CPU fan units. Some models may have a shorter heat sink unit and a single CPU fan.

Removing the Processor

1. Turn off the computer, and remove the battery (page 2 - 8).

2. Remove screws - from the memory socket cover

3. Carefully lift up the memory socket cover (a fan cable is still attached to the mainboard and you can disconnect it).

4. Remove screws

5. Carefully lift up the heat sink off the computer.



Reassembly Screw

Order

When replacing the heat sink, make sure you insert the screws in the same order indicated on the label.

c. d.

1 6

7 8

- from the heat sink, in the order indicated on the label.

9 12

13

a.

1

.

b.

6

2

3

54

12

10

8

7

13



7. Socket Cover

13. Heat Sink

•10 Screws

2 - 16 Removing the Processor

9

11

Disassembly

6. Remove screws & and lift the CPU holder off the computer.

7. Unlock the processor by raising lever .

8. Lift the CPU off the computer.

1 2

4

5

3

a.

1

2

3

c.

bc.

Figure 10

Processor Removal

(cont’d)

4

a. Remove the screws and

lift the CPU holder off the computer.

b. Raise the lever to unlock

the CPU.

c. Lift the CPU off the sock-

et.

2.Disassembly



Caution

The heat sink, and

5

CPU area in general, contains parts which are subject to high temperatures. Allow the area time to cool before removing these parts.



3. CPU Holder

5. CPU

Removing the Processor 2 - 17

Disassembly

Removing the Keyboard

1. Turn off the computer, remove the battery (page 2 - 8) and turn it over.

2. Press the three keyboard latches at the top of the keyboard to elevate the keyboard from its normal position (you may need to use a small screwdriver to do this).

3. Carefully lift the keyboard up and out, being careful not to bend the keyboard ribbon cable .

4. Disconnect the keyboard ribbon cable from the locking collar socket and lift the keyboard up out of the computer.

2 3

1

Figure 11

Keyboard Removal

a. Press the latches to ele-

vate the keyboard.

b. Disconnect the keyboard

cable from the locking collar.

c. Lift the keyboard up and

out of the computer.

2.Disassembly



3. Keyboard

a.

c.

b.

1

3

2

2 - 18 Removing the Keyboard

Removing the Keyboard Shielding Plate

1. Turn off the computer, remove the battery (page 2 - 8) and keyboard (page 2 - 18).

2. Remove screws - from the keyboard shielding plate and lift the plate off the computer.

a.

1 2 543

1 9 10

b.

Disassembly

Figure 12

Keyboard Shielding

Plate Removal

a. Remove the screws from

the shielding plate.

b. Lift the shielding plate off

the computer.

2.Disassembly

6

8

7

9

10



10. Shielding Plate

•9 Screws

Removing the Keyboard Shielding Plate 2 - 19

Disassembly

Removing the LCD and Top Case

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18) and keyboard shielding plate (page 2 - 19).

2. Remove screws

3. Remove screws

4. Remove the LCD cable shielding cover , screws

- , and disconnect cable from the bottom off the computer.

1 11 12

- from the rear off the computer.

13 16

21

- and disconnect cables - .

17 18 19 20

Figure 13

LCD & Top Case

Removal

a. Remove the screws from

the bottom of the computer.

b. Remove the screws from

the rear of the computer.

c. Remove the LCD cable

shielding cover and disconnect the cables.

2.Disassembly



a.

1 2

10

9

b.

13

c.

3

21

12

4

11

17

18

19 20

7

8

6

5

16

26. LCD cable cover

•14 Screws

2 - 20 Removing the LCD and Top Case

14 15

Disassembly

5. Slide the LCD hinge covers out of the computer.

6. Remove screws

- then carefully (pay careful attention to the antenna cables) lift the LCD assembly off

2 4

1

the computer.

7. Remove screws

& and disconnect cables & , then lift the top case assembly off the computer.

6 7 8 9

a.

b.

2 4

3

5

10

c.

Figure 14

LCD & Top Case

Removal Cont’d

11

5

a. Remove the hinge cov-

ers.

b. Remove the screws from

the LCD.

c. Lift the LCD top case as-

sembly.

d. Remove the screws and

disconnect the cables.

e. Lift the top case assem-

bly off the computer.

2.Disassembly

d.

6

7

e.



8

9

10

Removing the LCD and Top Case 2 - 21

1. Hinge covers

4. LCD Assembly

9. Top Case

•4 Screws

Disassembly

Removing the TouchPad and Click Board

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

2. Remove screws - from the TouchPad and click board assembly, and lift the assembly off the top case.

3. Disconnect cable and remove screws

4. Separate the TouchPad , click board and holder .

1 8

9

12

- .

10 11

13 14

Figure 15

TouchPad and Click

Board Removal

a. Remove the screws. b. Separate the assembly

from the top case. c. Disconnect the cable. d. Remove the screws. e. Separate the TouchPad

and click board.

2.Disassembly



12. TouchPad

13. Click Board

14. Holder

a.

d.

10

b.

c.

2

1

8

7

3

4

5

6

9

e.

14

11

12

13

•10 Screws

2 - 22 Removing the TouchPad and Click Board

Removing the LED Board

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

2. Remove screws & .

3. Carefully lift the LED board

1 2

3

off the top case module.

10

Disassembly

a. b.

1

2

Figure 16

LED Board Removal

a. Remove the screws. b. Lift the LED board off the

top case.

3

2.Disassembly



3. Switch Board

•2 Screws

Removing the LED Board 2 - 23

Disassembly

Figure 17

Modem Removal

Remove the screws, dis-

connect the cable, and

remove the modem

module.

2.Disassembly

Removing the Modem

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

2. Remove screws & (Figure 17) and disconnect the modem cable at point .

3. Remove the modem module

1 2 3

4

and cable.

3



4. Modem

•2 Screws

2 - 24 Removing the Modem

2

4

1

Removing the Speakers

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).

2. Disconnect cables & (Figure 18a) from the speakers to the mainboard.

3. Remove the speakers (Figure 18b).

a.

1 2

3

Disassembly

Figure 18

Speakers Removal

b.

2

1

3

a. Disconnect the cables. b. Remove the speakers.

2.Disassembly



3. Speakers

Removing the Speakers 2 - 25

Disassembly

Figure 19

Mainboard Removal

Removing the Mainboard

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and speakers (page 2 - 25).

2. Disconnect cables - and remove screws .

3. Remove screws

a. b.

1 3 4

5

- , separate the mainboard , rear bracket off the bottom case .

10

11 12 13

a. Disconnect the cables

and remove the screws. b. Remove screws and

carefully lift the main-

board, rear bracket off

the bottom case.

2.Disassembly



10. Mainboard

11. Rear Bracket

12. Bottom Case

•8 Screws

5 6

11

7

12

8 9

10

2

4

13

2

1

2 - 26 Removing the Mainboard

Removing the Fan Unit

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-

board (

2. Remove screws - and lift out the fan unit .

page 2 - 26).

1 4 5

Disassembly

a.

b.

Figure 20

2

1

Fan Unit Removal

a. Remove the screws b. Lift out the fan unit.

2.Disassembly

34

5



5. Fan Unit

•4 Screws

Removing the Fan Unit 2 - 27

Disassembly

Figure 21

Card Reader

Assembly Removal

Removing the Card Reader Assembly

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-

board (

2. Remove screws - and lift out the card reader .

page 2 - 26).

a.

1 2 3

b.

a. Remove the screws. b. Lift out the card reader.

2.Disassembly



3. Card Reader

•2 Screws

1

3

2

2 - 28 Removing the Card Reader Assembly

Removing the PCMCIA Assembly

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-

board (

2. Remove screws & (Figure 22a).

3. Carefully ease (use a small screwdriver) the metal pins which hold the PC Card assembly in place, at points &

4

4. Lift off the PC Card assembly (Figure 22c) off the mainboard.

a. b.

page 2 - 26).

1 2

(Figure 22b) off the black plastic unit.

5

1

3

4

Disassembly

Figure 22

PCMCIA Assembly

Removal

a. Remove the screws. b. Separate the metal pins

from the black plastic unit.

c. Lift the PC Card assem-

bly off the mainboard.

2.Disassembly

c.

2

5

3



5. PC Card Assembly

•2 Screws

Removing the PCMCIA Assembly 2 - 29

Disassembly

Removing the LCD Front Panel Module

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), and the top case and LCD (page 2 - 20).

2. Remove the rubber covers and screws at points - (Figure 23a).

3. Run your finger around the middle of the frame to carefully unsnap the LCD front panel module (Figure 23b) from the back.

1 6

7

Figure 23

LCD Front Panel

Module Removal

a. Remove the rubber cov-

wers and screws.

b. Unsnap the LCD front

panel from the back.

2.Disassembly



7. LCD Front Panel

a.

b.

1

2

3

4

56

•6 Screws & Rubber Covers

2-30

7

Removing the Inverter

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and LCD front panel (page 2 - 30).

2. Remove screw (Figure 24a).

3. Turn the inverter over and disconnect the cables & (Figure 24b).

4. Lift the inverter (Figure 24c) off the LCD assembly.

1

2 3

4

Disassembly

Figure 24

Inverter Removal

a.

b.

c.

a. Remove the screw. b. Turn the inverter over

and disconnect the ca-

1

2

3

bles.

c. Lift the inverter off the

LCD assembly.

2.Disassembly



4. Inverter

4

•1 Screw

Removing the Inverter 2 - 31

Disassembly

Figure 25

PC Camera Module

Removal

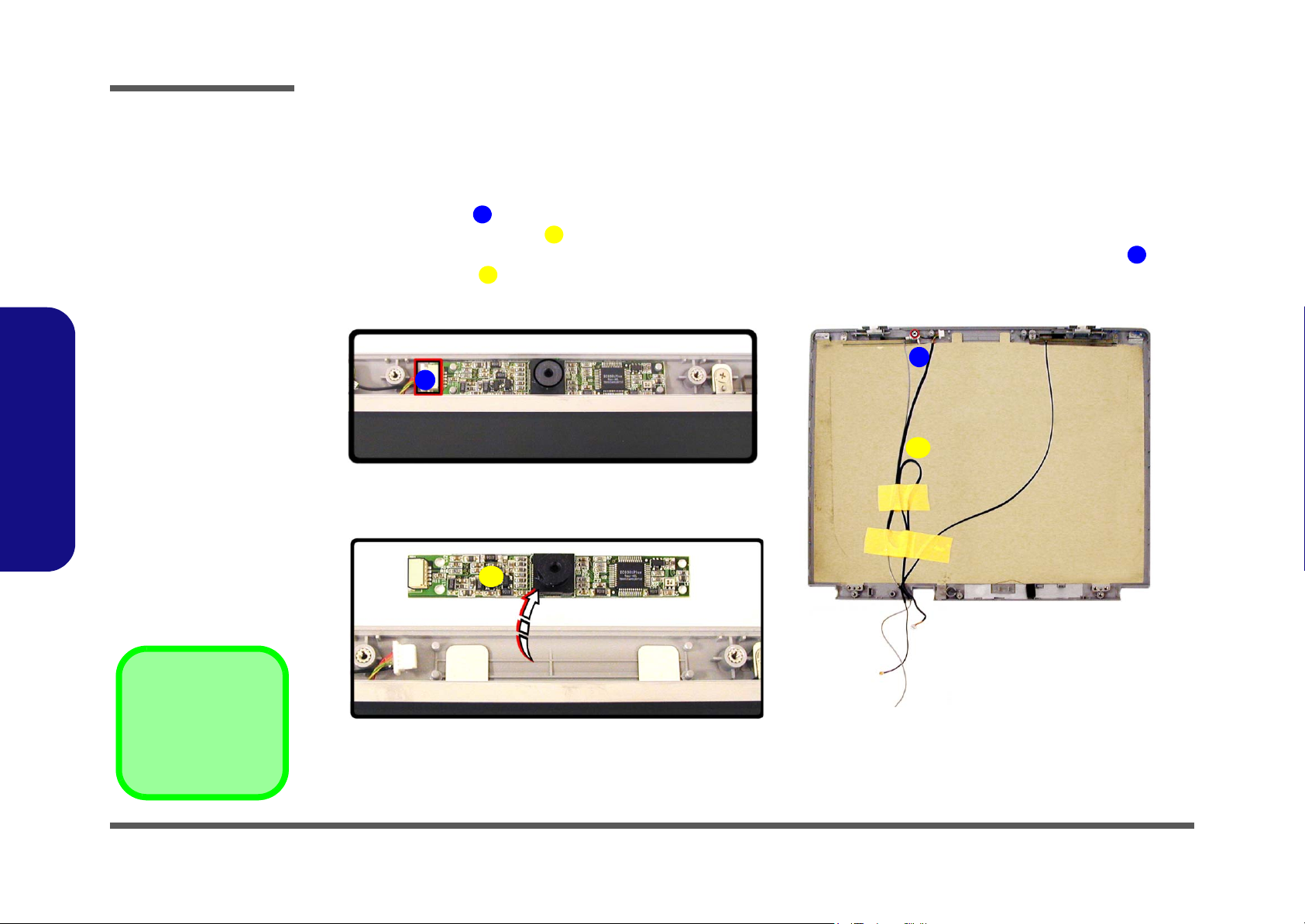

a. Disconnect the cable. b. Lift the PC Camera off

the LCD assembly.

c. If you need to remove

the antenna first remove the LCD module then the screw, and the antenna

2.Disassembly

cable.

Removing the PC Video Camera Module

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and LCD front panel (page 2 - 30).

2. Disconnect cable (Figure 25a).

3. Lift the PC camera module (Figure 25b) off the LCD assembly.

4. If you need to remove the antenna cable, first remove the LCD module ( the antenna cable (Figure 25c).

a.

1

2

page 2 - 33), then remove screw and

4

3

c.

3

4

b.

2



2. PC Camera

4. Antenna Cable

•1 Screw

2 - 32 Removing the PC Video Camera Module

Removing the LCD Panel

1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page

2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -

18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), LCD front panel (page 2 - 30) and

inverter (

2. Remove screws - (Figure 26a).

3. Separate the display back panel (Figure 26b), hinges and LCD module assembly.

4. Remove screws

a. b.

page 2 - 31).

1 6

7 8

- (Figure 26c) and separate the LCD module and brackets .

9 16

1 2

17

18

7

8 8

Disassembly

Figure 26

LCD Panel Removal

a. Remove the screws. b. Separate the back pan-

el, hinges and LCD module assembly.

c. Remove the screws and

separate the brackets and LCD module.

2.Disassembly

c.

56

34

9

10

17

13

14

1818



11

12

15

16

Removing the LCD Panel 2 - 33

7. Back Panel

8. Hinges

17. LCD module

18. Brackets

•14 Screws

Disassembly

2.Disassembly

2-34

Appendix A:Part Lists

This appendix breaks down the D400F/D410F series notebook’s construction into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure

to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the

total number of duplicated parts used.

Part Lists

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the

time of publication. Over the product life, some parts may be improved or re-configured, resulting in

new part numbers.

A.Part Lists

A-1

Part Lists

Table 1 - 1

Part List Illustration

Location

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Part D400F D410F

Top

page A - 3 page A - 13

A.Part Lists

Bottom

LCD 14”

LCD 15"

CD-ROM Drive

CD-RW Drive

Combo Drive

DVD-ROM Drive

Floppy Disk Drive

Hard Disk Drive

page A - 4 page A - 14

page A - 5 page A - 15

page A - 6 page A - 16

page A - 7 page A - 17

page A - 8 page A - 18

page A - 9 page A - 19

page A - 10 page A - 20

page A - 11 page A - 21

page A - 12 page A - 22

A - 2 Part List Illustration Location

Top (D400F)

Part Lists

Figure 1

Top (D400F)

A.Part Lists

Top (D400F) A - 3

Part Lists

Bottom (D400F)

A.Part Lists

Bottom (D400F)

無鉛

Figure 2

A - 4 Bottom (D400F)

無鉛

LCD 14" (D400F)

Part Lists

Figure 3

LCD 14" (D400F)

A.Part Lists

LCD 14" (D400F) A - 5

Part Lists

LCD 15" (D400F)

A.Part Lists

LCD 15" (D400F)

Figure 4

A - 6 LCD 15" (D400F)

CD-ROM Drive (D400F)

Part Lists

Figure 5

CD-ROM Drive

(D400F)

A.Part Lists

CD-ROM Drive (D400F) A - 7

Part Lists

CD-RW Drive

A.Part Lists

CD-RW Drive (D400F)

Figure 6

(D400F)

A - 8 CD-RW Drive (D400F)

Combo Drive (D400F)

Part Lists

Figure 7

Combo Drive

(D400F)

A.Part Lists

Combo Drive (D400F) A - 9

Part Lists

DVD-ROM Drive

A.Part Lists

DVD-ROM Drive (D400F)

Figure 8

(D400F)

A - 10 DVD-ROM Drive (D400F)

Floppy Disk Drive (D400F)

Part Lists

Figure 9

Floppy Disk Drive

(D400F)

A.Part Lists

Floppy Disk Drive (D400F) A - 11

Part Lists

Figure 10

HDD Drive (D400F)

A.Part Lists

Hard Disk Drive (D400F)

A - 12 Hard Disk Drive (D400F)

Top (D410F)

Part Lists

Figure 11

Top (D410F)

A.Part Lists

Top (D410F) A - 13

Part Lists

Bottom (D410F)

A.Part Lists

Figure 12

無鉛

A - 14 Bottom (D410F)

LCD 14" (D410F)

Part Lists

Figure 13

LCD 14" (D410F)

A.Part Lists

LCD 14" (D410F) A - 15

Part Lists

LCD 15" (D410F)

A.Part Lists

LCD 15" (D410F)

Figure 14

A - 16 LCD 15" (D410F)

CD-ROM Drive (D410F)

Part Lists

Figure 15

CD-ROM Drive

(D410F)

A.Part Lists

CD-ROM Drive (D410F) A - 17

Part Lists

Figure 16

CD-RW Drive

A.Part Lists

CD-RW Drive (D410F)

(D410F)

A - 18 CD-RW Drive (D410F)

Combo Drive (D410F)

Part Lists

Figure 17

Combo Drive

(D410F)

A.Part Lists

Combo Drive (D410F) A - 19

Part Lists

Figure 18

DVD-ROM Drive

A.Part Lists

DVD-ROM Drive (D410F)

(D410F)

A - 20 DVD-ROM Drive (D410F)

Floppy Disk Drive (D410F)

Part Lists

Figure 19

Floppy Disk Drive

(D410F)

A.Part Lists

Floppy Disk Drive (D410F) A - 21

Part Lists

Figure 20

HDD Drive (D410F)

A.Part Lists

Hard Disk Drive (D410F)

A - 22 Hard Disk Drive (D410F)

Appendix B:Schematic Diagrams

This appendix has circuit diagrams of the D400F/D410F notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram.

Schematic Diagrams

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 963-3 (USB I/F) 3 of 4 - Page B - 16 Fan Control and SpeedStep - Page B - 30

Socket 478 1 of 2 - Page B - 3 963-4 (Power & RTC) 4 of 4 - Page B - 17 Mobility M10-P - Page B - 31

Socket 478 & ITP 2 of 2 - Page B - 4 HDD/Combo Connector - Page B - 18 Mobility M10-P MEM A/B - Page B - 32

Clock Generator - Page B - 5 USB Port - Page B - 19 VGA DDR DRAM Channel A - Page B - 33

M648FX-1 (Host/AGP) 1 of 4 - Page B - 6 PCMCIA ENE1410 - Page B - 20 VGA DDR DRAM Channel B - Page B - 34

M648FX-2 (Memory for DDR) 2 of 4 - Page B - 7 PCMCIA Power & MDC Interface - Page B - 21 VGA DDR DRAM Termination - Page B - 35

M648FX-3 & CRT Out 3 of 4 - Page B - 8 1394 PHY TSB41LV01 - Page B - 22 Mobility M10-P POW - Page B - 36

M648FX-4 (Power) 4 of 4 - Page B - 9 LPC Super I/O - Page B - 23 VCORE - Page B - 37

DDR Memory DIMM - Page B - 10 LPT/COM Port - Page B - 24 +1.2V, +1.5V - Page B - 38

DDR SSTL-2 Termination - Page B - 11 LPC H8 - Page B - 25 +2.5V, +1.25V, +1.8V - Page B - 39

LVDS Interface (SiS302LV) - Page B - 12 LAN RTL8110S(B)-32/RTL8100C - Page B - 26 +3V, +5V, +12V - Page B - 40

Panel Con & LED Indicator - Page B - 13 Audio Codec ALC650 - Page B - 27 Charger - Page B - 41

963-1 (PCI/IDE/HyperZip) 1 of 4 - Page B - 14 Audio Out & Off Board Connectors - Page B - 28 SW Board and HotKey - Page B - 42

963-2 (Misc Signals) 2 of 4 - Page B - 15 System Power Control - Page B - 29 TouchPad and Switch Board - Page B - 43

Table 1

Schematic

Diagrams

B.Schematic Diagrams



Version Note

The schematic diagrams in this chapter are based upon version 71-D40U0-D04. If your mainboard (or other boards) are a later version, please check with the Service Center for updated diagrams (if required).

B-1

Schematic Diagrams

System Block Diagram

Sheet 1 of 42

System Block

Diagram

B.Schematic Diagrams

TV-OUT

PANEL

TV-OUT

PANEL

HDD/CD-ROM CON

BLUE BOOTH

USB PORT

Video Camera

Wireless LAN

B

2/16/32 DDRAM

MDC

MODEM

VGA

ATI M10P

A

2/16/32 DDRAM

( SiS 302LV )

PAGE 10

CRT PORT

Ultra 66/100/133

USB 2.0 I/F

AC ' 97 I/F

AUDIOCODEC

VB-LINK

ALC650

RGB

AGP Bus

66MHz

NORTHWOOD

&

PRESCOTT

SOCKET - 478

Host Bus

SiS 648FX

839 mBGA

MuTIOL 1G

SiS 963

371 mBGA

LPC I/F

CLOCK

GENERATOR

DDR INTERFACE

PCI I/F

Realtek

RTL 8110S

DIMM1

M I I

DIMM2

I/F

CardBus ENE 1410

Rtt

1394 PHY

TSB41LV01

B - 2

Card Reader

TV-Tuner

INT.KB

EXT.KB

EXT.PS2

KBC H8

H8S-2149 HM

TOUCH PAD

LPC Super I/O

NS PC87393

XBUS

FLASH ROM

COM/PRT PORT

IR

FDD CON

Socket 478 1 of 2

Schematic Diagrams

RS#05 RS#15 RS#25

HD#[0..63]

HD#0 HD#1 HD#2 HD#3 HD#4 HD#5 HD#6 HD#7 HD#8 HD#9 HD#10 HD#11 HD#12 HD#13 HD#14 HD#15 HD#16 HD#17 HD#18 HD#19 HD#20 HD#21 HD#22 HD#23 HD#24 HD#25 HD#26 HD#27 HD#28 HD#29 HD#30 HD#31 HD#32 HD#33 HD#34 HD#35 HD#36 HD#37 HD#38 HD#39 HD#40 HD#41 HD#42 HD#43 HD#44 HD#45 HD#46 HD#47 HD#48 HD#49 HD#50 HD#51 HD#52 HD#53 HD#54 HD#55 HD#56 HD#57 HD#58 HD#59 HD#60 HD#61 HD#62 HD#63

RS#0 RS#1 RS#2

AA25 AA22 AA24

B21 B22 A23 A25 C21 D22 B24 C23 C24 B25 G22 H21 C26 D23 J21 D25 H22 E24 G23 F23 F24 E25 F26 D26 L21 G26 H24 M21 L22 J24 K23 H25 M23 N22 P21 M24 N23 M26 N26 N25 R21 P24 R25 R24 T26 T25 T22 T23 U26 U24 U23 V25 U21 V22 V24

W26

Y26

W25

Y23 Y24 Y21

JCPU1A

F1 G5 F4

HD#[0..63]5

VCC_CORE

A10

A12

VCC

VCC D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37 D38 D39 D40 D41 D42 D43 D44 D45 D46 D47 D48 D49 D50 D51 D52 D53 D54 D55 D56 D57 D58 D59 D60 D61 D62 D63

RS0 RS1 RS2

A14

A16

A18

A20A8AA10

AA12

AA14

AA16

AA18

AA8

AB11

AB13

AB15

AB17

AB19

AB7

AB9

AC10

AC12

AC14

AC16

AC18

AC8

AD11

AD13

AD15

AD17

AD19

AD7

AD9

AE10

AE12

AE14

AE16

AE18

AE20

AE6

AE8

AF11

AF13

AF15

AF17

AF19

AF2

AF21

AF5

AF7

AF9

B11

B13

B15

B17

B19B7B9

C10

C12

C14

C16

C18

C20C8D11

D13

D15

D17

D19D7D9

E10

VCC

INTEL P4 CPU SOCKET 478 PART 1

VSS

BOOTSELECT

VSS

H1H4H23

H26

A11

A13

A15

A17

A19

A21

A24

A26A3A9

AA1

AA11

AA13

AA15

AA17

AA19

AA23

AA26

AA4

AA7

AA9

AB10

AB12

AB14

AB16

AB18

AB20

AB21

AB24

AB3

AB6

AB8

AC11

AC13

AC15

AC17

AC19

AC2

AC22

AC25

AC5

AC7

AC9

AD1

AD10

AD12

AD14

AD16

AD18

AD21

AD23

AD4

AD8

AE11

AE13

AE15

AE17

VSS

AE19

AE22

AE24

AE26

AE7

AE9

AF1

AF10

AF12

AF14

VIDPWRGD

T

E12

E14

E16

E18

E20E8F11

F13

F15

F17

F19

F9

A7

A22

VCC

VSS

OPTIMIZED/COMPAT#

AF16

AF18

AF20

AF26

AF6

NCNCNC

VCC

VSS

AF8

B10

B12

B14

B16

B18

B20

B23

B26B4B8

T

L25

AD2

AE21

NCNCNC

DEP3

VSS

C11

T

J26

K25

K26

AF24

AF25

DEP0

DEP1

DEP2

TESTHI10

VSS

C13

C15

C17

C19

C2

A35 A34 A33 A32 A31 A30 A29 A28 A27 A26 A25 A24 A23 A22 A21 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11 A10

A9 A8 A7 A6 A5 A4 A3

VID0 VID1 VID2 VID3 VID4

VID5 REQ4 REQ3 REQ2 REQ1 REQ0

BPM5 BPM4 BPM3 BPM2 BPM1 BPM0

DPSLP#

GHI#

TESTHI9 TESTHI8 TESTHI7 TESTHI6 TESTHI5 TESTHI4 TESTHI3 TESTHI2 TESTHI1 TESTHI0

NORTHWOOD478

AB1 Y1 W2 V3 U4 T5 W1 R6 V2 T4 U3 P6 U1 T2 R3 P4 P3 R2 T1 N5 N4 N2 M1 N1 M4 M3 L2 M6 L3 K1 L6 K4 K2

AE5 AE4 AE3 AE2 AE1 AD3 H3 J3 J4 K5 J1

AB4 AA5 Y6 AC4 AB5 AC6

AD25 A6 Y3 W4 U6 AB22 AA20 AC23 AC24 AC20 AC21 AA2 AD24

VIDPWRGD38

T

HA#31 HA#30 HA#29 HA#28 HA#27 HA#26 HA#25 HA#24 HA#23 HA#22 HA#21 HA#20 HA#19 HA#18 HA#17 HA#16 HA#15 HA#14 HA#13 HA#12 HA#11 HA#10 HA#9 HA#8 HA#7 HA#6 HA#5 HA#4 HA#3

HREQ#4 HREQ#3 HREQ#2 HREQ#1 HREQ#0

HBPRM5# HBPRM4#

HBPM1# HBPM0#

H_DPSLP#

PM_CPUPERF#

HA#[3..31]

VID0 VID1 VID2 VID3 VID4 VID5

HREQ#[0..4]

R291 R369 R406 R423 R422 R308 R309 R292 R294 R310 R311 R407 R293

R372

10K

HBPRM5# 3 HBPRM4# 3

HBPM1# 3 HBPM0# 3

51 51 51 51 51 51 51 51 51 51 51 51 51

HA#[3..31] 5

+3VS

81726

R387

10K

HREQ#[0..4]5

H_DPSLP#29,36 PM_CPUPERF#15

VCC_CORE

B.Schematic Diagrams

Sheet 2 of 42

5

RP35

8P4R-10K

3

4

VID0 36 VID1 36 VID2 36 VID3 36 VID4 36 VID5 36

Socket 478 1 of 2

VCC_CORE +2.5V

C115

0.1UF

VCC_CORE

C369

0.1UF

C514

0.1UF

VCC_CORE

C335

10U(0805)

C515

0.1UF

C513

10U(0805)

C373

0.1UF

C497

10U(0805)

C496

0.1UF

C374

10U(0805)

C13

0.1UF

C372

10U(0805)

C401

0.1UF

C370

10U(0805)

C371

0.1UF

C367

10U(0805)

C375

0.1UF

C403

0.1UF

C398

10U(0805)

PRE/NOR#

C400

10U(0805)

C396

0.1UF

C491

0.1UF

PRE/NOR# 36

C402

10U(0805)

C368

0.1UF

C404

10U(0805)

C397

0.1UF

T

C511

10U(0805)

C414

0.1UF

C73

0.1UF

C413

10U(0805)

C471

0.1UF

T

C494

10U(0805)

C434

0.1UF

C99

10U(0805)

C96

0.1UF

C98

10U(0805)

C97

10U(0805)

C36

10U(0805)

C37

10U(0805)

Socket 478 1 of 2 (71-D40U0-D04) B - 3

Schematic Diagrams

Sheet 3 of 42

Socket 478 & ITP

2 of 2

B.Schematic Diagrams

Socket 478 & ITP 2 of 2

VCC_CORE

HCLK-CPU HCLK-CPU#

DBI#[0..3]5

L98

4.7uH_SMD_30%

1 2

L99

4.7uH_SMD_30%

RP34 4P2R-0(R)

HCLK-CPU4

HCLK-CPU#4

HDSTBP#35 HDSTBP#25 HDSTBP#15 HDSTBP#05 HDSTBN#35 HDSTBN#25 HDSTBN#15 HDSTBN#05

VCC_SENSE36

VSS_SENSE36

C377

10U(0805)

4

DBI#[0..3]

HASTB#15 HASTB#05

NMI15

INTR15

R70 R13 51.1_1%

10U(0805)

HCLK-ITP0

1

HCLK-ITP0#

23

DBI#3 DBI#2 DBI#1 DBI#0

HASTB#1 HASTB#0 DBRESET

NMI INTR

HCLK-CPU HCLK-CPU#

51.1_1%

HDSTBP#3 HDSTBP#2 HDSTBP#1 HDSTBP#0 HDSTBN#3 HDSTBN#2 HDSTBN#1 HDSTBN#0

VCC_SENSE VSS_SENSE

AE23

AD20

C376

AD22

AC26 AD26

V21 P26 G25 E21

R5 L5

AE25

E5 D1

AF22 AF23

P1

L24

W23

P23

J23

F21

W22

R22 K22 E22

A5 A4

E11 E13 E15 E17 E19 E23 E26

E4 E7

E9 F10 F12 F14 F16 F18

F2 F22 F25

F5

F8 G21 G24

G3 R4

C25C5C7C9D10

D12

D14

D16

D18

D20

D21

JCPU1B

VSS

VCCIOPLL

VCCA

VSSA

ITP_CLK0 ITP_CLK1

DB#3 DB#2 DB#1 DB#0

ADSTB1 ADSTB0 DBRESET

LINT1 LINT0

BCLK0 BCLK1

COMP1 COMP0

STBP3 STBP2 STBP1 STBP0 STBN3 STBN2 STBN1 STBN0

VCC_SENSE VSS_SENSE

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

VSS

K24K3K6L1L23

J2

J22

J25J5K21

G6

D24D3D6

VSS

L26L4M2

M22

M25M5N21

D8

VSS

N24N3N6P2P22

SENSE_VCC_REST24

VCC_CORE

49.9_1%

C492

1UF

0.1UF

G

15

12

14

6 10

1 5 9 13 16

C74

C339

THERM#

DS

Q46

R324 R400 49.9_1%

R401

100_1%

VCC_CORE

C495

C337

0.1UF

2N7002

+3V VDD3

R404

R402

4.7K

T T T T T

THERM#15,24

R111

R110

2.2K

NEAR U18

HBPM0#2

HBPM1#2

HBPRM4#2

HBPRM5#2

TMP_SMDATA24

TMP_SMCLK24

CPU SIGNAL TERMINALION

CLOSE TO CPU

FERR#

BREQ0#

PROCHOT#

CPUPWRGD_CPU

THERMTRIP#

A20M#

STPCLK#

CPUSLP#

SMI#

INIT#

IGNNE#

INTR

NMI

CPURST#

HTDO

IERR

DBRESET

HTMSTHERMTRIP#

HCLK-ITP0

HCLK-ITP0#

ITP_STPWR

T

HBPM0#

HBPM1#

HBPRM4#

HBPRM5#

HTCK

ITP/TAP TERMINATION

CLOSE TO ITP PORT

ITP/TAP TERMINATION

CLOSE TO CPU

HTDI

HTRST#

R368

R93

R73

R305

R72

R345

R424

R304

R102 56_1%

R425 56_1%

R71 56_1%

R94 56_1%

R95 56_1%

R307 51_1%

R103

R371 10K

R306 150

R83

R263 51_1%

R264 51_1%

R290 1.5K

R349 51

R350

R348 51

R370 51

R81

R69

R82 680

62_1%

51_1%

62_1%

51_1%

62_1%

56_1%

75

39

51

27

VCC_CORE

150

VCC_CORE

CPUGTLVREFA CPUGTLVREFB

C338

C336

220P

F6

F20

AA6

AA21

E1

C22

VSS

MCERR

GTLREF3

GTLREF2

GTLREF1

GTLREF0

STPCLK

DEFER

PROCHOT

PWRGOOD

THERMDA THERMDC

THERMTRIP

VCCVID

VCCVIDPRG

VSS

P25

P5

R1

R23

R26

AC3

IERR

V6 B6

FERR

Y4 AA3

BINIT

W5

INIT

AB2

RSP

H5

DBSY

H2

DRDY

J6

TRDY

G1

ADS

G4

LOCK

H6

BR0

G2

BNR

F3

HIT

E3

HITM

D2

BPRI

E2 D4

TCK

C1

TDI

F7

TMS

E6

TRST

D5

TDO

C3 B2

IGNNE

B5

SMI

C6

A20M

AB26

SLP

AB23 AB25

RESET

B3 C4 A2

AD6

BSEL0

AD5

BSEL1

AC1

AP0

V5

AP1

AF4 AF3

Y5

VSS

Y25

VSS

Y22

VSS

Y2

VSS

W6

VSS

W3

VSS

W24

VSS

W21

VSS

V4

VSS

V26

VSS

V23

VSS

V1

VSS

U5

VSS

U25

VSS

U22

VSS

U2

VSS

T6

VSS

T3

VSS

T24

VSS

T21

VSS

NORTHWOOD478

IERR

FERR# STPCLK#

INIT#

DBSY# DRDY# HTRDY# ADS# HLOCK# BREQ0# BNR# HIT# HITM# BPRI# DEFER# HTCK HTDI HTMS HTRST# HTDO PROCHOT# IGNNE# SMI# A20M# CPUSLP# CPUPWRGD_CPU CPURST#

THERMDA THERMDC

Q44

DTA114EUA(R)

B

SENSE_VCC_REST

ALERT#27

C415

1UF

T

BSEL0 4 BSEL1 4

VCCVID

12

THERMDA

THERMDC

+3V

FERR# 15 STPCLK# 15

INIT# 15

DBSY# 5 DRDY# 5 HTRDY# 5 ADS# 5 HLOCK# 5 BREQ0# 5 BNR# 5 HIT# 5 HITM# 5 BPRI# 5 DEFER# 5

C775

0.1UF

E

C

1 2

C493 0.1UF

ALERT#

R403 10K

R323

100_1%

IGNNE# 15 SMI# 15 A20M# 15 CPUSLP# 15 CPUPWRGD_CPU 15 CPURST# 5

THERMTRIP#

20

mils

C75

2200P

C399

220P

SENSE_VCC

U20

2

VCC

3

DXP

4

DXN

11

ALERT#

7

GND

8

GND

EN1617

B

C405

220P

VCC_CORE

C412

0.1UF

C512

0.1UF

VDD3

R734

10K

C

Q47 PDC114

E

R405 200

STBY#

SMBDATA

SMBCLK

ADD1 ADD0

NC/CRIT1 NC/CRIT0

NC/OS#

NC NC

B - 4 Socket 478 & ITP 2 of 2 (71-D40U0-D04)

Clock Generator

+3VS

L30

FCM2012V121

1 2

C93

C81

0.1UF

10UF/10V

R101

10K

VTT

R437

10K

PLEASE PLACE IN COMP SIDE AND NEAR TOGETHER

C

B

E

+2.5VS

10U(0805)

+3VS

Frequency Selection

R462 4.7K R463 4.7K(R) R464 4.7K(R) R465 4.7K(R) R466 4.7K(R)

+3VS

R347

4.7K

BSEL1 BSEL0 Function

L L L H H L H H

Q37 2N3904

C220

R346

4.7K

C89

C107

C505

C504

0.1UF

+3VS+3VS

R436

10K

B

Clock Buffer (DDR)

C755

0.01UF

0.1UF

C

Q36

E

2N3904

C219

0.1UF

FS0 FS1 FS2 FS3 FS4

BSEL0 3 BSEL1 3

0.1UF

CPUSTP#15,29

+3VS

L51

1 2

FCM2012V121

+2.5VS

FCM1608K121

0.1UF

1 2

C88

0.1UF

C84

10UF/10V

L142

1 2

Main Clock Generator

U21

CLK_VCC3

C108

C555

C92

0.1UF

L29

FWDSDCLKO6

+2.5V

+1.8VS

0.1UF

+3VS

R92

10K

D16

AC

1SS355

R412

475_1%

FCM1608K121

C90

0.1UF

C82

C83

0.1UF

0.01UF

C753

10U(0805)

C708

0.1UF

BUFFERVCC

BUF_2.5VS

C736

0.01UF

C215

10U(0805)

FWDSDCLKO

C574

0.1UF

FS4 FS3 FS2 FS1 FS0 0 0 0 1 1

0 0 0 0 1 100M 100M 66M 66M 33M

1 11 13 19 28 29 42 48

12

5

8 18 24 25 32 41 46

45

33

38

36

C91

0.01UF

37

ICS 952011 CY 28342

C737

C210

0.1UF

C750

0.1UF

SMBCLK

SMBDAT

FB_IN

T T T

CLOCK GEN (660)

VDDREF VDDZ VDDPCI VDDPCI VDD48 VDDAGP VDDCPU VDDSD

PCI_STOP#

VSSREF VSSZ VSSPCI VSSPCI VSS48 VSSAGP VSSCPU VSSSD

CPU_STOP#

PD#/VTT_PWRGD

IREF

VDDA

VSSA

24_48M/MULTISEL

XIN

6

Y4

1 2

14.318MHz

C554 5PF

U24

CLOCK BUFFER (DDR48)

3

VDD

12

VDD

23

VDD

10

AVDD

7

SCLK

22

SDATA

8

CLK_IN

20

FB_IN

9

NC

18

NC

21

NC

ICS 93722 CY28352

CPU SDRAM ZCLK AGP PCI 100M 133M 66M 66M 33M

CPUCLK0

CPUCLK#0

CPUCLK1

CPUCLK#1

SDCLK

AGPCLK0 AGPCLK1

ZCLK0 ZCLK1

PCICLK_F0/FS3 PCICLK_F1/FS4

PCICLK0 PCICLK1 PCICLK2 PCICLK3 PCICLK4 PCICLK5

REF0/FS0 REF1/FS1 REF2/FS2

SDATA

XOUT

7

CLK0

CLK#0

CLK1

CLK#1

CLK2

CLK#2

CLK3

CLK#3

CLK4

CLK#4

CLK5

CLK#5

FB_OUT

GND GND GND GND

SCLK

5PF

40 39

44 43

47

31 30

9 10

14 15 16 17 20 21 22 23

2 3 4

27

48M

MULTISEL

26

SMBCLK

35

SMBDAT

34

C530

2 1

4 5

13 14

17 16

24 25

26 27

19

FB_OUT

28 15 11 6

CPU-1

RP37

CPU-2

CPU-3

RP36

CPU-4

SD-1

AGP-1 AGP-2

ZIP-1 ZIP-2

FS3 FS4

PCI-2 PCI-3 PCI-4 PCI-5 PCI-6

FS0 FS1 FS2

USB-1

RP64 4P2R-0123

4

RP65 4P2R-01

4

RP66 4P2R-0

2 3 1

RP51 4P2R-01

2 3

RP50 4P2R-0

2 3 1

RP49 4P2R-0

2 3 1

NEAR DDR SODIMM

Damping Resistors Place near to the Clock Outputs

1

4

2 3

4P2R-33

1

4

2 3

4P2R-33

R411 22

R413

22

R414 22

R451 22 R452 22

R453

33 R454 33 R455 33 R456 33 R457 33 R458 33 R435 33

T

R448

33 R449 33 R450 33

R91

22 R415

22

SMBCLK 7,15,25 SMBDAT 7,15,25

R416

MULTISEL

DDRCLK3 DDRCLK#3

DDRCLK0 DDRCLK#0

23

DDRCLK2 DDRCLK#2

4

DDRCLK4

4

DDRCLK#4

DDRCLK1 DDRCLK#1

4

DDRCLK5 DDRCLK#5

4

R523

22

FB_IN

By-Pass Capacitors Place near to the Clock Buffer

C709 10PF(R)

FB_IN

HCLK-CPU HCLK-CPU#

HCLK-661 HCLK-661#

SDCLK

AGPCLK AGPCLKATI

ZCLK0 ZCLK1

PCICLK963

PCICLK1394

PCICLKPCMPCI-1

PCICLKLAN

PCICLKIO

PCICLKH8 PCLK_80P

REFCLK0 REFCLK1 CLKAPIC

UCLK48M SIO48M

T

4.7K

DDRCLK37 DDRCLK#37

DDRCLK07 DDRCLK#07

DDRCLK27 DDRCLK#27

DDRCLK47 DDRCLK#47

DDRCLK17 DDRCLK#17

DDRCLK57 DDRCLK#57

HCLK-CPU 3 HCLK-CPU# 3

HCLK-661 5 HCLK-661# 5

AGPCLK 5 AGPCLKATI 30

ZCLK0 9 ZCLK1 13

PCICLK963 13

PCICLKPCM 19 PCICLKLAN 25 PCICLKIO 22 PCICLKH8 24 PCLK_80P 20

14.381MHZ

REFCLK0 9 REFCLK1 15 CLKAPIC 15

48 MHZ

UCLK48M 16 SIO48M 22

By-Pass Capacitors Place near to the Clock Outputs

HCLK-CPU

R395

HCLK-CPU#

R396

HCLK-661

R393

HCLK-661#

R394

C482

SDCLK

C483

AGPCLK

C506

AGPCLKATI

C600 10PF(R)

ZCLK0

C601 10PF(R)

ZCLK1

C602

PCICLK963

C603 10PF(R)

PCICLK1394

C122 10PF(R)

PCICLKPCM

C121 10PF(R)

PCICLKLAN

C120 10PF(R)

PCICLKIO

C119

PCICLKH8

C87 10PF(R)

UCLK48M

10PF(R)

49.9_1%

Schematic Diagrams

B.Schematic Diagrams

Sheet 4 of 42

Clock Generator

Clock Generator (71-D40U0-D04) B - 5

Schematic Diagrams

M648FX-1 (Host/AGP) 1 of 4

Sheet 5 of 42

M648FX-1

(Host/AGP)

1 of 4

B.Schematic Diagrams

R50 22(R)

AJ31 AJ33

T33

T35 V32 B23 F22 R34 U31

R33

T32 U35

V35 R35 U34 W34 U33 V33

W35 Y33 W31 W33 Y35

AG31

AA33

R36

AH33 AG33

AJ35 AF32

AJ34 AH32 AG35

AE31 AH35

AF35

AE35

AE33

AE34

AF33 AG34 AC33 AD32 AD33 AC35 AD35 AC31 AC34

AB35

AB32

AB33

AA35

AA31

Y32

AA34

648FX

C4XAVDD

C4XAVSS

AAD18/AHSYNC

AAD17/AVSYNC

BGA1A

CPUCLK CPUCLK#

HLOCK# DEFER# HTRDY# CPURST# CPUPWRGD BPRI# BREQ0#

RS#2 RS#1 RS#0

ADS# HITM# HIT# DRDY# DBSY# BNR#

HREQ4# HREQ3# HREQ2# HREQ1# HREQ0#

HASTB1# HASTB0#

DPWR#

HA31# HA30# HA29# HA28# HA27# HA26# HA25# HA24# HA23# HA22# HA21# HA20# HA19# HA18# HA17# HA16# HA15# HA14# HA13# HA12# HA11# HA10# HA9# HA8# HA7# HA6# HA5# HA4# HA3#

C517

0.1UF

R63

C1XAVSS

C1XAVDD

C4XAVDD

C4XAVSS

AL36

AK34

AJ36

AK35

C1XAVSS

C4XAVSS

C1XAVDD

C4XAVDD

HOST

HD63#

HD62#

HD61#

HD60#

HD59#

HD58#

HD57#

HD56#

C24

E23

B24

D23

D25

F24

C26

B25

B26

HD#60

HD#56

HD#62

HD#61

HD#57

HD#59

HD#63

HD#58

L125 FCM1608K121

10mA

1 2

C516

0.01UF

20MIL

VAHSYNC 10

22(R)

VAVSYNC 10

HPCOMP

HNCVREF

HVREF

HNCOMP

D22

C22

B22B6F7B5Y5W4V2W6V4U2V5U4R2T4R3T5P2R4N2R6L3L4K2L6J2J3K4J4J6H4G3H5F2G4E2G6E3F4D2F5E4B2E6

AA26

W26

U26

R26

L20

HVREF0

HVREF1

HVREF2

HVREF3

HVREF4

HCOMP_P

HCOMP_N

HCOMPVREF_N

AAD30/BHSYNC30

AAD31/BVSYNC30

ST2

ST0

ST1

AAD5

AAD2

AAD6

AAD0

AAD3

AAD7

AAD4

AAD1

ST0

ST1

ST2

AAD0

AAD1

AAD2

AAD3

AAD4

AAD5

AAD6

AAD16/VADE

AAD9

AAD8

AAD14

AAD13

AAD11

AAD15

AAD10

AAD12

AAD17/AVSYNC

AAD7

AAD8

AAD9

AAD10

AAD11

AAD12

AAD13

AAD14

AAD15

AAD16

648FX-1

HD55#

HD54#

HD53#

HD52#

HD51#

HD50#

HD49#

HD48#

HD47#

HD46#

HD45#

HD44#

HD43#

HD42#

HD41#

HD40#

HD39#

HD38#

HD37#

HD36#

HD35#

HD34#

HD33#

HD32#

HD31#

HD30#

HD29#

HD28#

HD27#

HD26#

D27

D26

E27

B27

D28

C28

B28

E29

F28

B29

C30

B30

B31

C32

D29

C33

B33

B35

D32

B34

E31

D31

HD#37

HD#43

HD#45

HD#49

HD#54

HD#55

HD#51

HD#53

HD#50

HD#52

HD#48

+3VS

C498

10/10V

N16

HD#47

HD#46

HD#44

A1XAVDD

A1XAVSS

HD#39

HD#41

HD#35

HD#34

HD#38

HD#40

HD#36

HD#42

10mA

1 2

C378

C407

0.01UF

0.1UF

D33

D35

G31

HD#30

HD#33

HD#31

HD#32

L116 FCM1608K121

20MIL

HD25#

C35

F33

E33

D34

E35

F32

HD#27

HD#26

HD#25

HD#28

HD#24

HD#29

+3VS

C342

10/10V

N13

AAD18/AHSYNC30

VTT

R313 20_1%

R312 112_1%

HCLK-6614

HCLK-661#4

HLOCK#3 DEFER#3

HTRDY#3

CPURST#3

CPUPWRGD3

BPRI#3

BREQ0#3

RS#22 RS#12 RS#02

ADS#3

HITM#3

HIT#3

DRDY#3

DBSY#3

BNR#3

HREQ#42 AD_STB#[0..1] 30 HREQ#32 HREQ#22 HREQ#12 HREQ#02

HASTB#13 HASTB#03

HA#[3..31]2

VTT

C34

R326 150_1%

0.01UF

HNCVREF

C35

R325 75_1%

0.01UF

VTT

place this

C340

capacitor

R295

under 650 solder

75_1%

0.01UF

side

C341

R296 150_1%

0.01UF

9.06mA

C1XAVDD

C111

0.1UF

C1XAVSS

HNCOMP

Rds-on(n) = 10 ohm HNCVERF = 1/3 VCCP

HPCOMP

Rds-on(p) = 56 ohm

HPCVERF = 2/3 VCCP

HCLK-661 HCLK-661#

HLOCK# DEFER# HTRDY# CPURST# CPUPWRGD BPRI# BREQ0#

RS#2 RS#1 RS#0

ADS# HITM# HIT# DRDY# DBSY# BNR#

HREQ#4 HREQ#3 HREQ#2 HREQ#1 HREQ#0

HASTB#1 HASTB#0

HA#[3..31]

HVREF

C451

0.1UF

L33 FCM1608K121

1 2

C113

0.01UF

20MIL

AAD17/AVSYNC30

T

HA#31 HA#30 HA#29 HA#28 HA#27 HA#26 HA#25 HA#24 HA#23 HA#22 HA#21 HA#20 HA#19 HA#18 HA#17 HA#16 HA#15 HA#14 HA#13 HA#12 HA#11 HA#10 HA#9 HA#8 HA#7 HA#6 HA#5 HA#4 HA#3

+3VS

C542

10/10V

N5

AAD30/BHSYNC

AAD31/BVSYNC

AAD18/AHSYNC

AAD19

AAD22

AAD21

AAD20

AAD17

AAD18

AAD19

AAD20

AAD21

AAD22

HD24#

HD23#

HD22#

HD21#

HD20#

HD19#

J34

G34

H35

F35

J33

HD#22

HD#21

HD#19

HD#20

HD#23

A4XAVDD

A4XAVSS

R22 22(R)

R41 22(R)

AAD27/VBDE

AAD24

AAD26

AAD23

AAD25

AAD23

AAD24

AAD25

AAD26

AAD27

HD18#

HD17#

HD16#

HD15#

HD14#

J31

G35

H33

J35

K32

HD#16

HD#14

HD#18

HD#15

HD#17

SBA6

SBA5

SBA7

AAD28/VBCTL0

AAD29/VBCTL1

AAD31/BVSYNC

AAD30/BHSYNC

SBA7

SBA6

AAD28

AAD29

AAD30

AAD31

AGP

HD13#

HD12#

HD11#

HD10#

HD9#

HD8#

HD7#

N33

K33

L31

L33

K35

L35

M35

M33

HD#9

HD#7

HD#8

HD#6

HD#12

HD#10

HD#11

HD#13

L117 FCM1608K121

1 2

10mA

C379

C408

0.01UF

0.1UF

SBA4

SBA5

HD6#

P32

HD#5

20MIL

SBA4

HD5#

SBA2

SBA3

HD4#

P33

L34

HD#4

HD#3

N14

VBHSYNC 10

VBVSYNC 10

SBA1

SBA0

B3

SBA2

SBA1

SBA0

HD3#

HD2#

HD1#

N34

N35

P35

HD#0

HD#1

HD#2

+3VS

AC/BE3# AC/BE2# AC/BE1# AC/BE0#

AFRAME#

AIRDY#

ATRDY#

ADEVSEL#

ASERR#

ASTOP#

GC_DET#

ADBIH/PIPE#

SB_STB

SB_STB#

AD_STB0

AD_STB0#

AD_STB1

AD_STB1#

AGPCLK

AGPCOMP_P

AGPCOMP_N

A1XAVDD

A1XAVSS

A4XAVDD

A4XAVSS

AGPVREF

AGPVSSREF

HDSTBN3# HDSTBN2# HDSTBN1# HDSTBN0#

HDSTBP3# HDSTBP2# HDSTBP1# HDSTBP0#

HD0#

DBI3#

F26

B32

DBI#2

DBI#3

C343

10/10V

R23 22(R)

C30

10PF(R)

AREQ# AGNT#

APAR

RBF#

WBF#

ADBIL

DBI2#

DBI1#

DBI0#

E34

R31

DBI#0

DBI#1

HD#[0..63]

NEAR SISM661

K5 M5 P4 U6

C6 E8 N6 M4 N4 L2 P5 M2

N3

D7 B4

C7 C4 D6

C2 D3

T2 U3

G2 H2

D8

W2 Y2 B8 C8

A7 B7

W3

Y4

D24 F30 G33 N31

E25 D30 H32 M32

DBI#[0..3]

AC/BE#3 AC/BE#2 AC/BE#1 AC/BE#0

AREQ# AGNT# AFRAME# AIRDY# ATRDY# ADEVSEL# ASERR# ASTOP#

APAR

RBF# WBF#

DBI_HI DBI_LOW

SB_STB SB_STB#

AD_STB0 AD_STB#0

AD_STB1 AD_STB#1

AGPCLK

AGPCOM_P AGPCOM_N A1XAVDD A1XAVSS

A4XAVDD A4XAVSS

AGPREF

HDSTBN#3 HDSTBN#2 HDSTBN#1 HDSTBN#0

HDSTBP#3 HDSTBP#2 HDSTBP#1 HDSTBP#0

VBCLK 10

R316 0(R)

AGNT# 30 AFRAME# 30 AIRDY# 30 ATRDY# 30 ADEVSEL# 30

ASTOP# 30

APAR 30

R314 0(R) R315 0(R)

R723 1K

SB_STB 30 SB_STB# 30

R68 22(R)

R373 22(R)

AGPCLK 4

R390 43.75_1% R408 50_1%%

HDSTBN#[0..3]

HDSTBP#[0..3]

DBI#[0..3] 3

HD#[0..63] 2

VBCAD

R297 4.7K(R)

DBI_HI 30 DBI_LOW 30

VAGCLK

VBGCLK

VBHCLK

C480 0603(R)

C439 0603(R)

AGP1.5/1.8

AAD16/VADE

AAD27/VBDE

AAD28/VBCTL0

AAD29/VBCTL1

ST[0..2]

AAD[0..15]

AAD[19..26]

SBA[0..7]

AC/BE#[0..3]

VBCAD 10

+3VS

VBHCLK 10

AD_STB[0..1]

AD_STB#[0..1]

HDSTBN#[0..3] 3

HDSTBP#[0..3] 3

R378 8.2K R388 8.2K R379 8.2K R380 8.2K R382 8.2K R389 8.2K R327 8.2K R328 8.2K R330 8.2K R64 8.2K R352 8.2K R351 8.2K R329 8.2K R381 8.2K

R331 8.2K R391 8.2K R374 8.2K

Close M661

VAGCLK 10

VBGCLK 10

AAD16/VADE 10,30

AAD27/VBDE 10,30

AAD28/VBCTL0 10,30

AAD29/VBCTL1 10,30

ST[0..2] 30

AAD[0..15] 10,30

AAD[19..26] 10,30

SBA[0..7] 30

AC/BE#[0..3] 30

AREQ#

RBF#

WBF#

AD_STB[0..1] 30

AGPREF

C503

0.1UF

AFRAME# ATRDY# AIRDY# ADEVSEL# ASTOP# ASERR# AGNT# RBF# SB_STB AD_STB0 AD_STB1 AREQ# WBF# APAR

SB_STB# AD_STB#0 AD_STB#1

AREQ# 30

RBF# 30

WBF# 30

AGP1.5/1.8

R410

300_1%

R409

95.3_1%

B - 6 M648FX-1 (Host/AGP) 1 of 4 (71-D40U0-D04)

M648FX-2 (Memory for DDR) 2 of 4

Schematic Diagrams

RP38 8P4R-10

RP39 8P4R-10

RP14 8P4R-10

RP12 8P4R-10

RP40 8P4R-10

RP41 8P4R-10

RP44 8P4R-10

RP45 8P4R-10

RP46 8P4R-10

RP47 8P4R-10

RP48 8P4R-10

RP15 8P4R-10

RP13 8P4R-10

RP11 8P4R-10

RP10 8P4R-10

RP7 8P4R-10

RP6 8P4R-10

RP5 8P4R-10

RP4 8P4R-10

RP3 8P4R-10

0402 Package

18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 45 36 27 18 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45 18 27 36 45

/RMD13 /RDQM1 /RMD14 /RMD15

/RMD17 /RMD16 /RMD20 /RMD21

/RMD29 /RDQM3 /RMD30 /RMD31

/RMD39 /RMD44 /RMD45 /RDQM5

/RDQM6 /RMD54 /RMD55 /RMD60

/RMD0

/RDQS0 /RMD2

Rs place close to DIMM1

MD4 MD5 DQM0

MD6 MD13 DQM1 MD14 MD15

MD8

MD12

MD3

MD7 MD17 MD16 MD20 MD21

DQM2

MD22

MD23

MD28 MD29 DQM3 MD30 MD31

MD36

MD37

DQM4

MD38 MD39 MD44 MD45 DQM5

MD46

MD47

MD52

MD53 DQM6 MD54 MD55 MD60

MD61

DQM7

MD62

MD63 MD0 MD1 /RMD1 DQS0 MD2

MD10

MD11

DQS1

MD9

MD24 MD19 MD18 DQS2 MD27 MD26 DQS3 MD25 MD34 DQS4 MD33

MD41 MD40 MD35 MD48 MD49 MD43 MD42 MD56 MD51 MD50 DQS6 MD59 MD58 DQS7 MD57

/RMD[0..63]

/RDQM[0..7]

/RDQS[0..7]

/RMA[0..14]

/RCS#[0..5]

CKE[0..5]

/RMD4 /RMD5 MD1 /RDQM0

/RMD8 /RMD12 /RMD3 /RMD7

/RDQM2 /RMD22 /RMD23 /RMD28

/RMD36 /RMD37 /RDQM4 /RMD38

/RMD46 /RMD47 /RMD52 /RMD53

/RMD61 /RDQM7 /RMD62 /RMD63

/RMD10 /RMD11 /RDQS1 /RMD9 /RMD24 /RMD19 /RMD18 /RDQS2 /RMD27 /RMD26 /RDQS3 /RMD25 /RMD34 /RDQS4 /RMD33 /RMD32MD32 /RDQS5DQS5 /RMD41 /RMD40 /RMD35 /RMD48 /RMD49 /RMD43 /RMD42 /RMD56 /RMD51 /RMD50 /RDQS6 /RMD59 /RMD58 /RDQS7 /RMD57

/RMD[0..63] 7,8

/RDQM[0..7] 7,8

/RDQS[0..7] 7,8

/RMA[0..14] 7,8

/RCS#[0..5] 7,8

CKE[0..5] 7

AN35 AP36 AK33 AM33 AN34 AK32 AR34 AN33 AR35 AP34 AM32 AL31 AR31 AL30 AN32 AR33 AN31 AM31 AR32 AP32 AP30 AR30 AM29 AL27 AN30 AN29 AL28 AN28 AL29 AR29 AP26 AN25 AR24 AL24 AL25 AR26 AM25 AN24 AP24 AR25 AN21 AP20 AN20 AL18 AM21 AR21 AL19 AM19 AL20 AR20 AL15 AL14 AN15 AR15 AN16 AM15 AN14 AL13 AP16 AR16 AM13 AL12 AL11 AR12 AP14 AR14 AN13 AP12 AN12 AR13 AL10 AR11

AM11 AN11 AP10

AN10 AR10

AM9 AR9

AN9

BGA1B

MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 DQM0 DQS0/CSB0# MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 DQM1 DQS1/CSB1# MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 DQM2 DQS2/CSB2# MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 DQM3 DQS3/CSB3# MD32 MD33 MD34 MD35 MD36 MD37 MD38 MD39 DQM4 DQS4/CSB4# MD40 MD41 MD42 MD43 MD44 MD45 MD46 MD47 DQM5 DQS5/CSB5# MD48 MD49 MD50 MD51 MD52 MD53 MD54 MD55 DQM6 DQS6/CSB6# MD56 MD57 MD58 MD59 MD60 MD61 MD62 MD63 DQM7 DQS7/CSB7#

661

MA10 MA11 MA12 MA13 MA14

SRAS# SCAS#

SWE#

CS0# CS1# CS2# CS3# CS4# CS5#

CKE0 CKE1 CKE2 CKE3 CKE4 CKE5

S3AUXSW#

FWDSDCLKO

DRAMTEST

DLLAVDD

DLLAVSS

DDRAVDD

DDRAVSS

DDRVREFA DDRVREFB

TRAP2

DDRCOMP_P DDRCOMP_N

RP42 8P4R-0

T

C519

+2.5V

MA13

0 0 0

0

MA8 MA6

MA5 MA7 MA9 MA14

R427

FWDSDCLKO

MA4

RP43 8P4R-08 1

MA2 MA0 MA12

RP9 8P4R-0

RP8

MA11 MA10 MA1 MA3

/RSRAS# /RSCAS# /RSWE#

/RCS#0 /RCS#1 /RCS#2 /RCS#3 /RCS#4 /RCS#5

10PF(R)

AR23

MA0

AN23

MA1

AN22

MA2

AM23

MA3

AL23

MA4

AL26

MA5

AN26

MA6

AN27

MA7

AR27

MA8

AR28

MA9

AP22 AN18 AR22 AP28 AM27 AT14

NC

T

SRAS#

AL17

SCAS#

AR19

SWE#

AN19

CS#0

AM17

CS#1

AL16

CS#2

AN17

CS#3

AR17

CS#4

AP18

CS#5

AR18

Rs place close to DIMM1

AP4 AT3 AR3 AP3 AR2 AN4 AP2

R426 22

AL21

AL22

T

AL35

AL34

AM35

AN36

AF16 AF23

AP1

T

R445 40_1%

AR8

R433 40_1%

AP8

R488 R489 R139

R136 R137 0 R491 0 R154 0 R138 0 R490 0

R140 0 R141 0

MD0

MD2 MD3/RMD6 MD4 MD5 MD6 MD7 DQM0 DQS0 MA0 MD8 MA1 MD9 MA2 MD10 MA3 MD11 MA4 MD12 MA5 MD13 MA6 MD14 MA7 MD15 MA8 DQM1 MA9 DQS1 MA10 MD16 MA11 MD17 MA12 MD18 MA13 MD19 MA14 MD20 MD21 MD22 MD23 DQM2 DQS2 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 DQM3 DQS3 MD32 CKE0 MD33 CKE1 MD34 CKE2 MD35 CKE3 MD36 CKE4 MD37 CKE5 MD38 S3AUXSW# MD39 DQM4 DQS4 MD40 MD41 MD42 MD43 MD44 MD45 MD46 MD47 DQM5 SDAVDD DQS5 MD48 SDAVSS MD49 MD50 MD51 DDRAVDD MD52 MD53 DDRAVSS MD54 MD55 DQM6 DQS6 DDRVREFA MD56 DDRVREFB MD57 MD58 MD59 MD60 MD61 MD62 MD63 DQM7 DQS7

Rs place close to DIMM1

0402 Package

8 1 7 2 653

4

7 2 653

4 8 1 7 2 653

4

8P4R-0

8 1 7 2 653

4

S3AUXSW# 28

10K

+3V

FWDSDCLKO 4

T

/RMA13 /RMA8

/RMA6 /RMA4 /RMA2 /RMA0 /RMA12

/RSRAS# 7,8 /RSCAS# 7,8 /RSWE# 7,8

SRAS#

SCAS#

SWE#

/RMA5 /RMA7 /RMA9 /RMA14 /RMA11 /RMA10 /RMA1 /RMA3

C591 10PF(R)

C592 10PF(R)

C613 10PF(R)

SDAVDD

SDAVSS

DDRAVDD

DDRAVSS

DDRVREFA

DDRVREFB

5.69mA

C112

0.1UF

8.76mA

C587

0.1UF

C593

0.01UF

C614

0.01UF

C589

0.01UF

C612

L37

FCM1608K121

1 2

C114

0.01UF

20MIL

L130

FCM1608K121

1 2

C586

0.01UF

20MIL

0.01UF

N6

N18

+2.5V

R461

150_1%

R473

150_1%

B.Schematic Diagrams

Sheet 6 of 42

+2.5V

R460

150_1%

R472

150_1%

+3VS

C611

10U/10V

+3VS

C570

10U/10V

M648FX-2

(Memory for DDR)

2 of 4

M648FX-2 (Memory for DDR) 2 of 4 (71-D40U0-D04) B - 7

Schematic Diagrams

M648FX-3 & CRT Out 3 of 4

Sheet 7 of 42

M648FX-3

& CRT Out

3 of 4

B.Schematic Diagrams

C552

10U/10V

R30

G30

B30

+1.8VS

+3VS

ZAD[0..16]13

L128 FCM1608K121

1 2

C526

0.1UF

N17

L36

FCM1608K121

1 2

C123

10U/10V

N4

L31

FCM1608K121

1 2

C527

10U/10V

N3

R

G

B

ROUT

GOUT

BOUT

+3VS

ZCLK04

ZUREQ13 ZDREQ13

ZSTB013

ZSTB#013

ZSTB113

ZSTB#113

+1.8VS

R446

150

R447

50

20MIL

10MIL

R248 0

R5 0

R9 0

R249 0(R)

R4 0(R)

R251 0(R)

A

35.4mA

AC

C

ZAD0 ZAD1 ZAD2 ZAD3 ZAD4 ZAD5 ZAD6 ZAD7 ZAD8 ZAD9 ZAD10 ZAD11 ZAD12 ZAD13 ZAD14 ZAD15 ZAD16

ZCMP_N

ZCMP_P

Z1XAVDD

Z1XAVSS

Z4XAVDD

Z4XAVSS

R253

D4

DA204U

BGA1C

AL6

ZCLK

AL4

ZUREQ

AK5

ZDREQ

AJ2

ZSTB0

AJ3

ZSTB0#

AE3

ZSTB1

AF2

ZSTB1#

AH5

ZAD0

AK2

ZAD1

AJ4

ZAD2

AJ6

ZAD3

AH2

ZAD4

AH4

ZAD5

AG3

ZAD6

AG6

ZAD7

AF4

ZAD8

AG2

ZAD9

AF5

ZAD10

AG4

ZAD11

AD2

ZAD12

AE6

ZAD13

AE2

ZAD14

AE4

ZAD15

AL3

ZAD16

AK4

ZVREF

AD5

ZCOMP_N

AD4

ZCOMP_P

AN1

Z1XAVDD

AM2

Z1XAVSS

AL2

Z4XAVDD

AL1

Z4XAVSS

661

R247 FCM1608K121

R6 FCM1608K121 R256

R3 FCM1608K121

C11

C9

R250

R11

22P

75

AC

D23

DA204U

C

A

PCIRST#

DACAVDD1 DACAVDD2

DACAVSS1 DACAVSS2

DCLKAVDD

DCLKAVSS

ECLKAVDD

ECLKAVSS

TESTMODE0 TESTMODE1 TESTMODE2

C267

22P

VOSCI

ROUT GOUT

BOUT

HSYNC VSYNC

VGPIO0 VGPIO1 CSYNC RSYNC

LSYNC

INT#A

PWROK

AUXOK

VCOMP

VVBWN

VRSET

DLLEN#

TRAP0 TRAP1

ENTEST

C3

22P

A15

B12 B13 A13

A11 B11

E13 C11 D12 E12 D11

C10 AN2 AM4 AN3

E15

E14

D13 D14

C12 C13

D15

B15

C15

B14

C14

E10 B10 B9 C9

D10 F9 D9

FRED_10

FGRN_10

FBLU_10

C10

22P

Z0801 Z0802

VCOMP

VVBWN

DACAVDD

DACAVSS

DCLKAVDD

ECLKAVDD

ECLKAVSS

REFCLK0

R277 R275

R276 100(R) R274 100(R)

CSYNC

T

RSYNC

T

LSYNC

T

INTA# PCIRST# PWRGD AUXOK

C23

C24

C22

0.1UF

VRSET

10MIL

C25

0.1UF

C313

0.1UF

DLLEN#

T

TMODE0

T

TMODE1

T

TMODE2

T

TRAP0

T

TRAP1

T

ENTEST

T

VJVGA1

CEN/VGA DSUB

1

2

3

4

T

5

6

7

8

REFCLK0 4

ROUT GOUT BOUT

33(R)

HSYNC VSYNC

33(R)

DDC1CLK DDC1DATA

INTA# 10,13,30 PCIRST# 10,13,14,20,22,24,30 PWRGD 15,29 AUXOK 15,24,27,28

0.1UF

L10

1 2

FCM1608K121

C21

1UF

R20 130_1%

L13

1 2

FCM1608K121

C26 1UF

L78

1 2

FCM1608K121

C314 1UF

10MIL

9

10

11

T

MID1_10

12

HS_10

13

VS_10

14

MID3_10

15

16

17

N1

+3VS

7.57mA

18.07mA

N10

D2 F01J2E

84.8mA

20MIL

C17

10U/10V

+3VS

AC

C268

220P

+1.8VS

C304

10U/10V

C6

220P

C305

10U/10V

+5VS

FCM1608K121

L2

1 2

FCM1608K121

L67

1 2

FCM1608K121

L65

1 2

FCM1608K121

L66

1 2

C8

C7

220P

ZCLK0

ZUREQ ZDREQ

ZSTB0 ZSTB#0

ZSTB1 ZSTB#1

ZAD[0..16]

C551

0.1UF

ZVREF

C550

0.1UF

56

R434

C528

0.01UF

56

R428

6.49mA

C110

C109

0.01UF

0.1UF

7.92mA

C95

C94

0.01UF

0.1UF

C284

22P

AC

D3

DA204U

C

A

NOTE: This page is for universal PCB design( suitable for both 645 or 650)

NB Hardware Trap Table

R278

R279 4.7K

C549

C598 0.1UF

Q24 2N7002

Q23 2N7002

R273

4.7K

R270

R21

disable PLL DDR NB debug mode

3 2

+3VS

G

S D

33

S D

33

G

+3VS

1

4.7K

0.1UF

+5VS +5VS

1

D8

DA221(R)

Q22 2N7002

Q25

2N7002

DLLEN# DRAM_SEL TRAP0

TRAP1 CSYNC RSYNC LSYNC

HSY30

VSY30

VGADDCDATA30

VGADDCCLK30

+5VS

4.7K(R)

R265

R272

R258

4.7K(R)

0 enable PLL SDR normal

TV selection, NTSC/PAL(0/1) enable VB enable VGA interface enable panel link

RSYNC

ENTEST

PWRGD

AUXOK

+3VS

G

S D

33

S D

33

G

+3VS

R271

4.7K

DDC1DATA

HSYNC

VSYNC

DDC1CLK

+3VS

3 2

R257

2.2K

DDC1DATA

DDC1CLK

0

1(DDR)

0 yes

0 0 1 0

1

D10

DA221(R)

HSYNC

VSYNC

+5VS

embedded pull-low (30~50K Ohm)Default

R18

2.2K

yes yes

B - 8 M648FX-3 & CRT Out 3 of 4 (71-D40U0-D04)

M648FX-4 (Power) 4 of 4

Schematic Diagrams

L124 FH50ACB321611T(R)

VTT

A17

A18

A19

A20

A21

B17

B18

B19

B20

B21

C17

C18

L25

VTT

L26

VTT

M18

VTT

M19

VTT

M20

VTT

M21

VTT

M22

VTT

M23

VTT

M24

VTT

M25

VTT

M26

VTT

N25

VTT

P25

VTT

R25

VTT

T25

VTT

U25

VTT

V25

VTT

W25

VTT

Y25

VTT

AA25

VTT

AL7

+2.5V

VDDM

AL8

VDDM

AL9

VDDM

AM6

VDDM

AM7

VDDM

AM8

VDDM

AN5

VDDM

AN6

VDDM

AN7

VDDM

AN8

VDDM

AP5

VDDM

AP6

VDDM

AP7

VDDM

AR4

VDDM

AR5

VDDM

AR6

VDDM

AR7

VDDM

AT4

VDDM

AT5

VDDM

AT6

VDDM

AT7

VDDM

AB25

VDDM

AC25

VDDM

AD12

VDDM

AD25

VDDM

AE11

VDDM

AE12

VDDM

AE13

VDDM

AE14

VDDM

AE15

VDDM

AE16

VDDM

AE17

VDDM

AE18

VDDM

AE19

VDDM

AE20

VDDM

AE21

VDDM

AE22

VDDM

AE23

VDDM

AE24

VDDM

AE25

VDDM

AE26

VDDM

AF11

VDDM

AF12

VDDM

AF25

VDDM

AF26

VDDM

AB24

PVDDM

AC13

PVDDM

AD14

PVDDM

AD16

PVDDM

AD18

PVDDM

AD20

PVDDM

AD22

PVDDM

P14

VSS

P15

VSS

P16

VSS

P17

VSS

P18

VSS

P19

VSS

P20

VSS

P21

VSS

P22

VSS

P23

VSS

R14

VSS

R15

VSS

R16

VSS

R17

VSS

R18

VSS

R19

VSS

R20

VSS

R21

VSS

R22

VSS

R23

VSS

T14

VSS

T15

VSS

T16

VSS

T17

VSS

T18

VSS

T19

VSS

T20

VSS

T21

VSS

T22

VSS

T23

VSS

U14

VSS

U15

VSS

U16

VSS

U17

VSS

U18

VSS

U19

VSS

U20

VSS

U21

VSS

U22

VSS

U23

VSS

V14

VSS

V15

VSS

V16

VSS

V17

VSS

V18

VSS

V19

VSS

V20

VSS

V21

VSS

V22

VSS

V23

VSS

W14

VSS

W15

VSS

W16

VSS

W17

VSS

W18

VSS

W19

VSS

W20

VSS

W21

VSS

W22

VSS

W23

VSS

C19

VTT

VSS

Y14

Y15

Y16

Y17

Y18

Y19

Y20

Y21

Y22

Y23

AA14

AA15

AA16

AA17

+1.5VS

80 mil

L123 FH50ACB321611T

+1.8VS

C20

C21

D17

D18

D19

D20

D21

E17

E18

E19

E20

E21

F17

F18

F19

F20

F21

N13

N14

N16

N18

N19

N20

N21

N22

N23

N24

P13

P24

R24

T13

T24

U24

V13

V24

W13

W24

Y13

VTT

IVDD

PVDD

VSS

AA18

AA19

AA20

AA21

AA22

AA23

AB14

AB15

AB16

AB17

AB18

AB19

VSS

AB20

AB21

AB22

AB23

AC14

AC15

AC16

AC17

AC18

AC19

AC20

AC21

AC22

Y24

IVDD

PVDD

VSS

AM10

AC32

AC36

AD34

AE32

AE36

AF34

AG32

AG36

AH34

AJ32

AC23

IVDD

AA24

AB13

AC24

AD13

AD15

AD17

AD19

AD21

AD23

AD24

N15

R13

U13

AA13

IVDD

VSS

IVDD

PVDD

VSS

AM12

AM14

AM16

AM18

AM20

AM22

AM24

AM26

AM28

AM30

AP9

AP11

AP13

AP15

+1.8VS

+3V

T

AD3

AE1

AF3

AG1

AH3

AJ1

AK3

AM3

W11

W12

Y11

Y12

AA12

D4D5AM5

IVDD

VDDZ

VSS

AP17

AP19

AP21

NCNCNC

VDDZ

VSS

AP23

VSS

AP25

AP27

AP29

AP31

AP33

AP35

AT8

AT10

AT12

AT16

AT18

AT20

AT22

AUX_IVDD

SUPPORT M660

BGA1D

L17

M17

N17

L126 0(R)

L127 0

+3V

AGP1.5/1.8

L25

FH50ACB321611T

L23

FH50ACB321611T(R)

IVDD

T T T T T T

+1.5V

+1.8V

+1.5VS

+1.8VS

AB12

AUX_IVDD

AC12

AUX3.3

VDD3.3

AA1

VDDQ

AA2

VDDQ

AA3

VDDQ

AA4

VDDQ

AA5

VDDQ

AA6

VDDQ

AB1

VDDQ

AB2

VDDQ

AB3

VDDQ

AB4

VDDQ

AB5

VDDQ

AB6

VDDQ

AC1

VDDQ

AC2

VDDQ

AC3

VDDQ

AC4

VDDQ

AC5

VDDQ

AC6

VDDQ

L11

VDDQ

L12

VDDQ

L13

VDDQ

M11

VDDQ

M12

VDDQ

M13

VDDQ

M14

VDDQ

M15

VDDQ

M16

VDDQ

N11

VDDQ

N12

VDDQ

P12

VDDQ

R12

VDDQ

T12

VDDQ

U12

VDDQ

V12

VDDQ

B16

IVDD

C16

IVDD

D16

IVDD

E16

IVDD

F15

IVDD

E11

NC

F11

NC

F13

NC

AL33

NC

AM34

NC

A9

NC

A3

VSS

A5

VSS

C1

VSS

C3

VSS

C5

VSS

E1

VSS

E5

VSS

E7

VSS

E9

VSS

F3

VSS

G1

VSS

G5

VSS

H3

VSS

J1

VSS

J5

VSS

K3

VSS

L1

VSS

L5

VSS

M3

VSS

N1

VSS

N5

VSS

P3

VSS

R1

VSS

R5

VSS

T3

VSS

U1

VSS

U5

VSS

V3

VSS

W1

VSS

W5

VSS

Y3

VSS

AE5

VSS

AG5

VSS

AJ5

VSS

AL5

VSS

A22

VSS

A24

VSS

A26

VSS

A28

VSS

A30

VSS

A32

VSS

A34

VSS

C23

VSS

C25

VSS

C27

VSS

C29

VSS

C31

VSS

C34

VSS

C36

VSS

E22

VSS

E24

VSS

E26

VSS

E28

VSS

E30

VSS

E32

VSS

E36

VSS

F34

VSS

G32

VSS

G36

VSS

H34

VSS

J32

VSS

J36

VSS

K34

VSS

L32

VSS

L36

VSS

M34

VSS

N32

VSS

N36

VSS

P34

VSS

R32

VSS

T34

VSS

U32

VSS

U36

VSS

V34

VSS

W32

VSS

W36

VSS

Y34

VSS

AA32

VSS

AA36

VSS

AB34

VSS

661

AT24

AT26

AT28

AT30

AT32

AT34

AL32

AUX_IVDD

+1.8VS

C524

0.1UF

C31

10U(0805)

C33

1UF

+1.8VS

C32

0.1UF C456

0.1UF

+3V

C453

1UF C455

0.1UF

AGP1.5/1.8

C438

0.1UF C29

0.1UF C458

10U(0805) C477

10U(0805)

Place these capacitors under 650 solder side

VTT

C472

0.1UF C500

0.1UF C448

0.1UF C416

0.1UF

LEDDATA/WD24,27

164_RESET#24

IDE_LED#14

IVDD

C437

0.1UF C436

0.1UF C518

1UF C450

0.1UF

+2.5V

C459

C595

0.1UF C502

10U(0805)

C522

0.1UF C457

10U(0805)

C597

10U(0805)

C521

10U(0805)

IVDD

+2.5V

C476

C547

0.1UF C520

0.1UF C544

0.1UF C475

0.1UF C596

0.1UF C474

0.1UF C546

0.1UF C501

0.1UF

R283

10K

D26

LEDDATA/WD

AC

F01J2E D35

LEDCLK

LEDCLK24

IDE_LED#

AC

F01J2E

164_RESET# E-MAIL

R282 100K

LEDVDD

D9

AC

R17 220(0805)

SML_010MT_G

D7

R16 220(0805)

AC

SML_010MT_G

D6

AC

R15 220(0805)

SML_010MT_G

+5VS

Q26 2N3906

Z511

R266 4.7K

VTT

C590

1UF C572

1UF C571

10U(0805) C545

0.1UF

+1.8VS

C473

10U(0805)

AGP1.5/1.8 AGP1.5/1.8

C419

0.1UF C28

0.1UF

LEDVDD

R281

10K

147

U3

1

3

A

QA

2

4

B

QB

VCCGND

5

QC

6

QD

10

QE

8

11

CLK

QF

12

QG

9

13

QH

CLR

74HCT164

C19

4.7U(0805)

SCROLLOCK

CAPSLOCK

NUMLOCK

A C

R14 220(0805)

SML_010MT_G

C316

0.1UF

SCROLLOCK CAPSLOCK NUMLOCK BAT_FULL CHA/BATLOW WL_LED PWR/SUS_LED

D5

C447

10U(0805)

C406

10U(0805)

C449

10U(0805)

C418

10U(0805)

C735 220U(D)

+3V

C523

0.1UF C454

0.1UF

C421

0.1UF C420

0.1UF

C479 0.1UF

+3VS

+1.8VS

C529 0.1UF

+1.8VS

10U(0805)

C525

0.1UF C478

0.1UF C481

C446

1UF C435

1UF C445

1UF C452

1UF

B.Schematic Diagrams

+

C594

1UF C573

1UF C543

0.1UF C548

0.1UF

BAT_FULL 11 CHA/BATLOW 11 WL_LED 11 PWR/SUS_LED 11 E-MAIL 11

Sheet 8 of 42

M648FX-4 (Power)

4 of 4

M648FX-4 (Power) 4 of 4 (71-D40U0-D04) B - 9

Schematic Diagrams

Sheet 9 of 42

DDR Memory DIMM

B.Schematic Diagrams

DDR Memory DIMM

91021223334364546575869708182929394113

CN3

VDD

addr =1010000b

VSS

/RMA[0..14]6,8

/RDQM[0..7]6,8

/RCS#[0..5]6,8

/RDQS[0..7]6,8 CKE[0..5]6

+2.5V

/RSRAS#6,8

/RSCAS#6,8

/RSWE#6,8

+3VS

VDDSPD

/RMA0

112

/RSRAS# /RSWE# /RSCAS#

R171

10K

SMBCLK

SMBDAT

A0

111

A1

110

A2

109

A3

108

A4

107

A5

106

A6

105

A7

102

A8

101

A9

115

A10/AP

100

A11

99

A12

117

BA0

116

BA1

12

DM0

26

DM1

48

DM2

62

DM3

134

DM4

148

DM5

170

DM6

184

DM7

78

DM8

11

DQS0

25

DQS1

47

DQS2

61

DQS3

133

DQS4

147

DQS5

169

DQS6

183

DQS7

77

DQS8

118

RAS#

119

WE#

120

CAS#

121

S0#

122

S1#

96

CKE0

95

CKE1

35

CK0

37

CK0#

160

CK1

158

CK1#

89

CK2

91

CK2#

193

SDA

195

SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

1

VREF

2

VREF

197

VDDSPD

199

VDDID

VSS

3415162728383940515263647576878890103

DDR SO-DIMM

VSS

/RMA1 /RMA2 /RMA3 /RMA4 /RMA5 /RMA6 /RMA7 /RMA8 /RMA9 /RMA10 /RMA13 /RMA14

/RMA11 /RMA12

/RDQM0 /RDQM1 /RDQM2 /RDQM3 /RDQM4 /RDQM5 /RDQM6 /RDQM7

R487

8.2K

/RDQS0 /RDQS1 /RDQS2 /RDQS3 /RDQS4 /RDQS5 /RDQS6 /RDQS7

/RCS#0 /RCS#1

CKE0 CKE1

DDRCLK0 DDRCLK#0 DDRCLK1 DDRCLK#1 DDRCLK2

DDRCLK#2

SMBDAT SMBCLK

R172

DDRVREF

0

VDDSPD

C165

0.1UF

SMBCLK4,15,25

SMBDAT4,15,25

114

VDD

VSS

104

/RDQM[0..7]

/RCS#[0..5]

/RDQS[0..7]

131

132

143

144

VDD

VSS

125

126

137

138

/RMA[0..14]

+2.5V

CN4

VDD

VSS

VDD

VSS

C588

10U(0805)

91021223334364546575869708182929394113

VDD

VSS

3415162728383940515263647576878890103

+2.5V

C712

10U(0805)

112

A0

111

A1

110

A2

109

A3

108

A4

107

A5

106

A6

105

A7

102

A8

101

A9

115

A10/AP

100

A11

99

A12

117

BA0

116

BA1

12

DM0

26

DM1

48

DM2

62

DM3

134

DM4

148

DM5

170

DM6

184

DM7

78

DM8

11

DQS0

25

DQS1

47

DQS2

61

DQS3

133

DQS4

147

DQS5

169

DQS6

183

DQS7

77

DQS8

118

RAS#

119

WE#

120

CAS#

121

S0#

122

S1#

96

CKE0

95

CKE1

35

CK0

37

CK0#

160

CK1

158

CK1#

89

CK2

91

CK2#

193

SDA

195

SCL

71

CB0

73

CB1

79

CB2

83

CB3

72

CB4

74

CB5

80

CB6

84

CB7

1

VREF

2

VREF

197

VDDSPD

199

VDDID

VSS

DDR SO-DIMM_H

/RMA0

/RMA2 /RMA3 /RMA4 /RMA5

/RMA7 /RMA8 /RMA9 /RMA10 /RMA13 /RMA14

/RMA11 /RMA12

/RDQM0 /RDQM1 /RDQM2 /RDQM3 /RDQM4 /RDQM5 /RDQM6 /RDQM7

R180 8.2K

/RDQS0 /RDQS1 /RDQS2 /RDQS3 /RDQS4 /RDQS5 /RDQS6 /RDQS7

/RSRAS# /RSWE# /RSCAS#

/RCS#2 /RCS#3

CKE2 CKE3

DDRCLK3 DDRCLK#3 DDRCLK4 DDRCLK#4 DDRCLK5 DDRCLK#5

SMBDAT SMBCLK

DDRVREF

R188

10K

VDDSPD

CKE4 CKE2 CKE3 CKE5

CKE0 CKE1

+2.5V

DDRVREF GEN. & DECOUPLING

+2.5V

R142

75_1%

R159

75_1%

DIMM DECOUPLING

C642

C186

0.1UF

C158

C185

0.1UF

C195

C177

0.1UF

4

R157 470 R158 470

C643

0.1UF

C196

0.1UF

C187

0.1UF

+2.5V

RP18

81 72 653

8P4R-470(0402)

C161

C162

0.01UF

0.1UF

C164

C182

0.01UF

0.1UF

NEAR DIMM0 NEAR DIMM1

C171

C172

0.1UF

+2.5V

C184

C188

0.1UF

+2.5V

C160

C193

0.1UF

C189

0.01UF

DDRVREF

C183

0.01UF

+2.5V

C159

0.1UF

C194

0.1UF

C713

0.1UF

114

131

132

143

144

155

156

157

167

168

179

180

191

127 129 135 139 128 130 136 140 141 145 151 153 142 146 152 154 163 165 171 175 164 166 172 176 177 181 187 189 178 182 188 190

123 124 200

194 196 198

13 17

14 18 19 23 29 31 20 24 30 32 41 43 49 53 42 44 50 54 55 59 65 67 56 60 66 68

85

86 97 98

5 7

6 8

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

DU DU DU DU DU/RESET# DU/A13 DU/BA2

SA0 SA1 SA2

192

VDD

addr =1010001b

VSS

162

173

174

185

186

104

125

126

137

138

149

150

159

161

C644

220U(D)

+

C157

10U(0805)

C192

10U(0805)

155

156

157

167

168

179

180

191

192

VDD

DU/RESET#

VSS

149

VSS

150

159

161

162

173

174

185

186

/RMD0

5

DQ0

/RMD1 /RMA1

7

DQ1

/RMD2

13

DQ2

/RMD3

17

DQ3

/RMD4

6

DQ4

/RMD5

8

DQ5

/RMD6 /RMA6

14

DQ6

/RMD7

18

DQ7

/RMD8

19

DQ8

/RMD9

23

DQ9

/RMD10

29

DQ10

/RMD11

31

DQ11

/RMD12

20

DQ12

/RMD13

24

DQ13

/RMD14

30

DQ14

/RMD15

32

DQ15

/RMD16

41

DQ16

/RMD17

43

DQ17

/RMD18

49

DQ18

/RMD19

53

DQ19

/RMD20

42

DQ20

/RMD21

44

DQ21

/RMD22

50

DQ22

/RMD23

54

DQ23

/RMD24

55

DQ24

/RMD25

59

DQ25

/RMD26

65

DQ26

/RMD27

67

DQ27

/RMD28

56

DQ28

/RMD29

60

DQ29

/RMD30

66

DQ30

/RMD31

68

DQ31

/RMD32

127

DQ32

/RMD33

129

DQ33

/RMD34

135

DQ34

/RMD35

139

DQ35

/RMD36

128

DQ36

/RMD37

130

DQ37

/RMD38

136

DQ38

/RMD39

140

DQ39

/RMD40

141

DQ40

/RMD41

145

DQ41

/RMD42

151

DQ42

/RMD43

153

DQ43

/RMD44

142

DQ44

/RMD45

146

DQ45

/RMD46

152

DQ46

/RMD47

154

DQ47

/RMD48

163

DQ48

/RMD49

165

DQ49

/RMD50

171

DQ50

/RMD51

175

DQ51

/RMD52

164

DQ52

/RMD53

166

DQ53

/RMD54

172

DQ54

/RMD55

176

DQ55

/RMD56

177

DQ56

/RMD57

181

DQ57

/RMD58

187

DQ58

/RMD59

189

DQ59

/RMD60

178

DQ60

/RMD61

182

DQ61

/RMD62

188

DQ62

/RMD63

190

DQ63

85 123 124 200 86 97 98

194 196 198

VDDSPD

T T T T

DDRST

T T T T

R179

1K

DDRCLK[0..5]

DDRCLK#[0..5]

/RMD[0..63]

DU/A13

DU/BA2

DDRCLK[0..5]4

DDRCLK#[0..5]4

DU DU DU DU

SA0 SA1 SA2

/RMD[0..63]6,8

CKE[0..5]

B - 10 DDR Memory DIMM (71-D40U0-D04)

DDR SSTL-2 Termination

SSTL-2 Termination Resistors

Schematic Diagrams

MD/DQM(/DQS)RsSSTL-2 MA/Control CS CKE

DDR

SSTL-2 SSTL-2 OD 2.5V

/RSCAS#6,7

/RSWE#6,7

10 0 0

/RMD0 /RMD1 /RDQS0 /RMD2

/RMD3 /RMD8 /RMD9 /RDQS1

/RMD10 /RMD11 /RMD16 /RMD17

/RDQS2 /RMD18 /RMD19 /RMD24

/RMD25 /RDQS3 /RMD26 /RMD27

/RMA14 /RMA9 /RMA7 /RMA5

/RMA3 /RMA1 /RMA10 /RMA11

/RMD32 /RMD33 /RDQS4 /RMD34

/RMD35 /RMD40 /RMD41 /RDQS5

/RMD42 /RMD43 /RMD48 /RMD49

/RDQS6 /RMD50 /RMD51 /RMD56

/RMD57 /RDQS7 /RMD58 /RMD59

/RSCAS#

/RSWE#

Rtt 33 33 47

0402 Package

8 1 7 2 653

4

RP52 8P4R-33

8 1 7 2 653

4

RP53 8P4R-33

8 1 7 2 653

4

RP54 8P4R-33

8 1 7 2 653

4

RP55 8P4R-33

8 1 7 2 653

4

RP56 8P4R-33

8 1 7 2 653

4

RP57 8P4R-33

8 1 7 2 653

4

RP58 8P4R-33

8 1 7 2 653

4

RP59 8P4R-33

8 1 7 2 653

4

RP60 8P4R-33

8 1 7 2 653

4

RP61 8P4R-33

8 1 7 2 653

4

RP62 8P4R-33

8 1 7 2 653

4

RP63 8P4R-33

R189 33

R526 33

+1.25VS

/RMD[0..63]

0402 Package

/RMA2 /RMA0 /RMA12

/RSRAS#6,7

/RSRAS#

/RMD6 /RDQM0 /RMD5 /RMD4

/RDQM1 /RMD13 /RMD12 /RMD7

/RMD20 /RMD21 /RMD15 /RMD14

/RDQM2 /RMD22 /RMD23 /RMD28

/RMD29 /RDQM3 /RMD30 /RMD31

/RMA8 /RMA13 /RMA4 /RMA6

/RMD37 /RMD36 /RDQM4 /RMD38

/RMD44 /RMD45 /RDQM5 /RMD39

/RMD47 /RMD46 /RMD52 /RMD53

/RCS#4 /RCS#5

RP31 8P4R-33

RP24 8P4R-33

RP23 8P4R-33

RP22 8P4R-33

RP21 8P4R-33

RP20 8P4R-33

RP17 8P4R-33

RP30 8P4R-33

RP29 8P4R-33

RP28 8P4R-33

/RDQM6 /RMD54 /RMD55 /RMD60

RP27 8P4R-33

/RMD61 /RDQM7 /RMD62 /RMD63

RP26 8P4R-33

/RCS#1 /RCS#0 /RCS#3 /RCS#2

RP19 8P4R-47(0402)

653 7 2 8 1

3 4

4 3

653 7 2 8 1

3 4

4 3

3 4

R156 47 R155 47

+1.25VS

4

81 72 6 5

5 6 72 81

4

81 72 6 5

5 6 72 81

+1.25VS

81 72 6 5

+1.25VS

/RDQM[0..7]

/RDQS[0..7]

/RMA[0..14]

/RCS#[0..5]

DECOUPLING CAPACITOR FOR SSTL-2 END TERMIANTION VTT ISLAND 0603 Package placed within 200mils of VTT Termination R-packs

C167 0.1UF

C203 0.1UF

C176 0.1UF

C714 0.1UF

C201 0.1UF

C716 0.1UF

C722 0.1UF

C169 0.1UF

C715 0.1UF

C173 0.1UF

C179 0.1UF

C206 0.1UFC174 0.1UF

C200 0.1UF

C726 0.1UF

C727 0.1UF

/RMD[0..63]6,7

/RDQM[0..7]6,7

/RDQS[0..7]6,7

/RMA[0..14] 6,7

/RCS#[0..5]6,7

C199 0.1UF

C207 0.1UF

C181 0.1UF

C170 0.1UF

C205 0.1UF

C166 0.1UF

C724 0.1UF

C721 0.1UF

B.Schematic Diagrams

Sheet 10 of 42

DDR SSTL-2

Termination

C202 0.1UF

C175 0.1UF

C180 0.1UF

C178 0.1UF

C204 0.1UF

C168 0.1UF

C728 0.1UF

C725 0.1UF

DDR SSTL-2 Termination (71-D40U0-D04) B - 11

Schematic Diagrams

LVDS Interface (SiS302LV)

Sheet 11 of 42

LVDS interface

(SiS302LV)

B.Schematic Diagrams

AAD[0..15]5,30

AAD[19..26]5,30

VBCAD

Y30

C30

Y

C

+3VS

R332 4.7K(R)

LDC0-11,30

LDC0+11,30

LDC1-11,30

LDC1+11,30

LDC2-11,30

LDC2+11,30

LDC3-11,30

LDC3+11,30

LL1C-11,30

LL1C+11,30

LDC4-11,30

LDC4+11,30

LDC5-11,30

LDC5+11,30

LDC6-11,30

LDC6+11,30

LDC7-11,30 LDC7+11,30 LL2C+11,30

LL2C-11,30

C

AAD16/VADE5,30

D24

AC

DA204U(R)

A

AAD[0..15]

AAD[19..26]

+3VS

VBCAD5

VBHCLK5

T

PCIRST#9,13,14,20,22,24,30

ENAVDD11,30 ENABKL11,30

LDC0LDC0+ LDC1LDC1+ LDC2LDC2+ LDC3LDC3+ LL1CLL1C+

LDC4LDC4+ LDC5LDC5+ LDC6LDC6+ LDC7LDC7+ LL2C+ LL2C-

C

LDDCDATA LDDCCLK

INTA#9,13,30

+3VS

D25

AC

DA204U(R)

A

R260 75

DVDD AAD16/VADE DGND

T

VBCAD VBHCLK DGND DVDD VREF2

T

R385 100 R386 100

V5V

INTA# PCIRST#

T

R719 4.7K

ENAVDD ENABKL

R259 0

L69

1 2

2.7UH

C275 33PF(R)

C300

330PF

103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128

C276

330PF

VAGCLK5

VAHSYNC5

VAVSYNC5

DVDD/DVDD4 DE2/VADE FLD/STL2/DVSS4 AS/RESERVED SPD/VBCAD SPC/VBHCLK HIN/DVSS5 VIN/DVDD5 VREF2/OVDD SDD/GPIOA(GPI) SDC/GPIOB(GPI) DD1/GPIOC(GPI) DC1/GPIOD(GPI) DD2/LDDCDATA DC2/LDDCCLK V5V/V5V HOUT/V2HSYNC VOUT/V2VSYNC HPD/LCDSENSE HPINT*/INTA# GPIO[0]/EXTRSTN GPIO[1]/PFTEST1 GPIO[2]/PFTEST2 GPIO[3]/PFTESTO ENAVDD/GPIOG(GP ENABKL/GPIOH(GP

C272 33PF(R)

L68

1 2

FCM1608K-121T07

R252

C297

75

330PF

VAGCLK

VAHSYNC

DGND

VAVSYNC

AAD13

AAD15

AAD14

100

101

102

DGND/OVSS

V2/VAVSYNC

D2[10]/VAD10

D2[11]/VAD11

H2/VAHSYNC

LVDSPLLVDD/LPLL

RESERVED/LPLLCA

LVDSPLLVSS/LPLL

LAVSS/LGND

RESERVED/LL2C

12345678910111213141516171819202122232425262728293031323334353637

LL2C+

LPLLGND

LPLLVDD

LPLLCAP

LL2C-

LGND

C387

LPLLVDD

NC

LVDD1

301LV/302LV:R894/R895

C273

330PF

AAD12

D2[9]/VAD9

RESERVED/LL2C*

LVDD1

D2[8]/VAD8

LAVDD/LVDD

AAD8

AAD11

D2[7]/VAD7

RESERVED/LDC7

LDC7-

LDC7+

JTV2

2

SVIDEO CON

PIN(GND1,GND2)=GND

DVDD

DGND

AAD9

AAD26

AAD10

D2[4]/VAD4

D2[5]/VAD5

D2[6]/VAD6

DGND/DVSS3

XCLK2*/DVDD3

XCLK2/VAGCLK

RESERVED?LDC7*

LAVSS/LGND

RESERVED/LDC6

RESERVED/LDC6*

LAVDD/LVDD

RESERVED/LDC5

LVDD1

LDC5-

LDC6-

LGND

LDC6+

LDC5+

R48

R47 0

D2[3]/VAD3

RESERVED/LDC5*

NC

6

AAD23

AAD25

D2[2]/VAD2

LVDSPLLVSS/LGND

LDC4+

LGND

D2[1]/VAD1

RESERVED/LDC4

5

AAD24

D2[0]/VAD0

RESERVED/LDC4*

LDC4-

34

1

T

AAD20

AAD19

D1[11]/VBD11

DVDD/RESERVED

LVDSPLLVDD/LVDD

LAVDD/LVDD

LX3P/LDC3

LDC3+

LVDD2

LDC3-

AAD22

D1[10]/VBD10

LX3N/LDC3*

LGND

D1[9]/VBD9

LAVSS/LGND

AAD0

AAD21

D1[8]/VBD8

LXC1P/LL1C

LL1C+

LL1C-

D1[7]/VBD7

LXC1N/LL1C*

AAD1

D1[6]/VBD6

LAVDD/LVDD

LVDD2

XCLK1/VBGCLK

LX2P/LDC2

LDC2+

DGND

DGND/DVSS2

LX2N/LDC2*

LDC2-

DVDD

XCLK1*/DVDD2

LAVSS/LGND

LGND

AAD2

D1[5]/VBD5

LX1P/LDC1

LDC1+

AAD3

D1[4]/VBD4

LX1N/LDC1*

LDC1-

AAD4

D1[3]/VBD3

LAVDD/LVDD

LVDD2

AAD5

D1[2]/VBD2

LX0P/LDC0

LDC0+

AAD6

D1[1]/VBD1

LX0N/LDC0*

LDC0-

VBGCLK

AAD7

VBVSYNC

AAD28/VBCTL0

VBHSYNC

6566676869707172737774757678798081828384858687888990919293949596979899

D1[0]/VBD0

V1/VBVSYNC

H1/VBHSYNC

DGND/VBCTL0

DAC_GND/DAC_GND

LAVSS/LGND

EXTSWING/VSWING

DACVDD/DACVDD

V2RSET/ISET

38

ISET

VSWING

DAC_VDD

LGND

R301 2K

DVDD1/DVDD

VBDE/DE1

VBCTL1/FLD/STL1

DVSS1/VREF1

OVDD/VDDV

VBCLK/P-OUT

DVSS0/RESET*

TVCLKO/GPIO[5]

TSCLKI/GPIO4

DVDD0/TVPLL_VDD

PLL1VDD/TVPLL_V

VBOSCO/XO

VBRCLK(XIN)/XIN

PLL1GND/TVPLL_G

RESERVED/BOC/VS

IOCS/C/HSYNC

DAC_VDD/DACA3

RESERVED/DACB3

IOC/DACA2

RESERVED/DACB2

IOY/DACA1

RESERVED/DACB1

IOCOMP/DACA0

V2COMP/DACB0

R299 147

R300 6K

C349 1UF

VBGCLK 5 AAD28/VBCTL0 5,30 VBHSYNC 5 VBVSYNC 5

U19

DVDD

64

AAD27/VBDE

63

AAD29/VBCTL1

62

DGND

61

VDDV

60

VBCLK

59

DGND

58 57 56

DVDD

55

TVPLLVDD

54

VBOSCO

53

VBRCLK

52

TVPLLGND

51 50 49

DAC_GND

48

DAC_VDD

47 46

C

45 44

Y

43 42

COMPOSITE

41

V2COMP

40

DAC_GND

39

SIS302LV(R)

R54 2.2K

R55 2.2K

+3VS

R1 :NC/22

Y2

LDDCDATA

LDDCCLK

+5VS

C424

10U/10V(R)

L22

FCM1608K121(R)

R353 10 C423

22P

+3VS

AAD27/VBDE 5,30 AAD29/VBCTL1 5,30

VBCLK 5

T

T T

Choose clock source:main board/crystal

Spread range:R120:+-1.5%/+-2.5%

VBOSCO

14.318MHZ(R)

C440

22P

V5V

C49

0.1UF

VREF2

VBRCLK

C67

0.1UF

+3VS

FCM1608K121(R)

+3VS

FCM1608K121(R)

+1.8VS

FCM1608K121(R)

+3VS

FCM1608K121(R)

+3VS

FCM1608K121(R)

+3VS

L18

FCM1608K121(R)

L19

L100

L15

L121

N15

L93

N11

L111

FCM1608K121(R)

C507

0.1UF

L20

FCM1608K121(R)

C308

0.1UF

10U/10V(R)

C318

10U/10V(R)

N12

N2

C462

10U/10V(R)

C52

10U/10V(R)

C348

10U/10V(R)

C56

C461

10U/10V(R)

C55

0.1UF

C409

NC/0.1uF

C382

0.1UF

C389

10U/10V(R)

C53

10U/10V(R)

C50

0.1UF

LVDD1

C386

0.1UF

LVDD2

C384

0.1UF

VDDV

C51

0.1UF

V2COMP

DAC_VDD

LPLLVDD

C388

0.1UF

LPLLGND

TVPLLVDD

C54

0.1UF

TVPLLGND

C385

0.1UF

LGND

C383

0.1UF

LGND

DVDD

C44

0.1UF

DGND

C422

0.1UF

DAC_GND

DVDD

C463

0.1UF

DGND

B - 12 LVDS Interface (SiS302LV) (71-D40U0-D04)

Panel Con & LED Indicator

Schematic Diagrams

LCDVCC

CHA/BATLOW12

WL_LED12

C294

C292

10PF

C293

C291

10PF

C295

10PF

C352

R288

4.7U(0805)

47K

Q28

D

C332

0.1UF

2N7002

R383 10K

+3VS

LEDPWR24

PANEL

60 mil

C351

0.1UF

Z245

R384

10K(R)

12V LCDVCC

+3VS

R287

10K

G S

Q30

R61 10K

G S

+5VS

AC

5 2

1 3

D

2N7002

U6

TC7SZ08

4

R60

10K(R)

ENAVDD

D15

F01J2E D14

F01J2E

C460

0.1UF

ENAVDD10,30

R59 10K

GATE_LID_SW15

LID_SW#27

ENABKL10,30

GATE_LID_SW

LID_SW#

ENABKL

8 7 6 5

LEDPWR

Q29

4800

3 2 1

4

12V

G S

C331

C330

4.7U(0805)

0.1UF

VDD5

R317

R38

100K

D

G S

2N7002

Q35

D

2N7002

R39

10K

TXOUT-LN0

TXOUT-LP0

TXOUT-LN1

TXOUT-LP1

TXOUT-LN2

TXOUT-LP2

TXOUT-LN3

TXOUT-LP3 LDC3+

TXCLK-LN

TXOUT-UN0 LDC4-

TXOUT-UP0

TXOUT-UN1

TXOUT-UP1

TXOUT-UN2

TXOUT-UP2

TXOUT-UN3

TXOUT-UP3

TXCLK-UN

TXCLK-UP

Q34

C286

10PF

G S

LEDVDD

C288

10PF

C287

10PF

D

2N7002

Q32

C290

10PF

C289

10PF

L97

FCM2012V-121

TXOUT-LN0 TXOUT-LP0

TXOUT-LN1 TXOUT-LP1

TXOUT-LN2 TXOUT-LP2

TXOUT-LN3 TXOUT-LP3

TXCLK-LN

LCDID015,30 LCDID115,30 LCDID215,27,30 E-MAIL12

TXCLK-LP

L94

VIN

BK3216HS800

C320

C324

C322

10PF

C321

C323

10PF

LCDID0 LCDID1 LCDID2 E-MAIL CHA/BATLOW PANEL WL_LED

C319

0.1UF

C326

10PF

C325

C327

10PF

C350

0.1UF

C328

10PF

11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49

C329

10PF

JLCD1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

CON50

L110 0

L109 0

L108 0

L107 0

L106 0

L105 0

L104 0

L103 0

L102 0

L101 0

L90 0

L89 0

L88 0

L87 0

L86 0

L85 0

L84 0

L83 0

L82 0

L81 0

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50

L96

FCM2012V-121

C311

0.1UF

TXOUT-UN0 TXOUT-UP0

TXOUT-UN1 TXOUT-UP1

TXOUT-UN2 TXOUT-UP2

TXOUT-UN3 TXOUT-UP3

TXCLK-UN TXCLK-UP

L95 FCM2012V-121

BAT_FULL PWR/SUS_LED INTMIC

BRIGADJ ACIN_LED

C309

C310

0.1UF(R)

LDC0-

LDC0+

LDC1-

LDC1+

LDC2-

LDC2+

LDC3-

LL1C-

LL1C+TXCLK-LP

LDC4+

LDC5-

LDC5+

LDC6-

LDC6+

LDC7-

LDC7+

LL2C-

LL2C+

LCDVCC

LDC0- 10,30

LDC0+ 10,30

LDC1- 10,30

LDC1+ 10,30

LDC2- 10,30

LDC2+ 10,30

LDC3- 10,30

LDC3+ 10,30

LL1C- 10,30

LL1C+ 10,30

LDC4- 10,30

LDC4+ 10,30

LDC5- 10,30

LDC5+ 10,30

LDC6- 10,30

LDC6+ 10,30

LDC7- 10,30

LDC7+ 10,30

LL2C- 10,30

LL2C+ 10,30

SYS5V

BAT_FULL 12 PWR/SUS_LED 12 INTMIC 27 BRIGADJ 24

ACIN_LED24

B.Schematic Diagrams

Sheet 12 of 42

Panel Con & LED

Indicator

Panel Con & LED Indicator (71-D40U0-D04) B - 13

Schematic Diagrams

963-1 (PCI/IDE/HyperZip) 1 of 4

Sheet 13 of 42

963-1 (PCI/IDE/

HyperZip)

1 of 4

B.Schematic Diagrams

SUSB#24,28

FRAME# REQ2# SERR# STOP#

INTD# INTA# INTB# INTC#

8P4R-2.2K

REQ0# REQ3# REQ4# REQ1#

8P4R-4.7K

GNT1# GNT3# GNT4#

+1.8VS

1 2 3 4 5

10P8R-2.7K

RN43

8 1 7 2 653

RN44

8 1 7 2 653

4/28 Modify

R533 4.7K R539 4.7K R540 4.7K

R476

150_1%

R475

50_1%

N19

10MIL

SUSB#

C743 0.1UF

PCIRST#

+3VS

RP32

10

1

10

TRDY#

9

2

9

IRDY#

8

3

8

PLOCK#

7

4

7

DEVSEL#

6

5

6

+3VS

4

FRAME#19,20,25

DEVSEL#19,25

PCICLK9634

PCIRST#9,10,14,20,22,24,30

C625

0.1UF

SZVREF ZUREQ

C624

0.1UF

+3V

R548

R547

10K

330K

T

C742

0.1UF(R)

U28

VCCCLR1#

Q1D1

Q1#CLK1

4

PR1#

13

Q2

CLR2#

12

Q2#

D2

11

GND

CLK2

10

PR2#

74LVC74

PCIRST#

+3V

C744

0.1UF

141 52

T

63

T

PRST#

9 8

T

7

REQ2#25

REQ0#19

GNT2#25

GNT0#19

C/BE#319,20,25 C/BE#219,20,25 C/BE#119,20,25 C/BE#019,20,25

INTA#9,10,30

INTC#19 INTD#25,30

IRDY#19,20,25 TRDY#19,20,25 STOP#19,25

SERR#19,25

PAR19,25

PCICLK963

R191

ZCLK14

ZSTB09

ZSTB#09

ZSTB19

ZSTB#19

ZUREQ9 ZDREQ9

PRST# 19,24,25

REQ4# REQ3# REQ2# REQ1# REQ0#

GNT4# GNT3# GNT2# GNT1# GNT0#

C/BE#3 C/BE#2 C/BE#1 C/BE#0

INTA# INTB# INTC# INTD#

SERR# PAR DEVSEL# PLOCK#

33

ZCLK1

ZSTB0 ZSTB#0

ZSTB1 ZSTB#1

ZDREQ

AD[0..31]

F1

PREQ4#

F2

PREQ3#

E1

PREQ2#

H5

PREQ1#

F3

PREQ0#

H3

PGNT4#

G1

PGNT3#

G2

PGNT2#

G3

PGNT1#

H4

PGNT0#

K3

C/BE3#

M4

C/BE2#

P1

C/BE1#

R4

C/BE0#

E3

INTA#

F4

INTB#

E2

INTC#

G4

INTD#

M3

FRAME#

M1

IRDY#

M2

TRDY#

N4

STOP#

M5

SERR#

N3

PAR

N1

DEVSEL#

N2

PLOCK#

Y2

PCICLK

C3

PCIRST#

V20

ZCLK

M19

ZSTB0

N20

ZSTB0#

J20

ZSTB1

K20

ZSTB1#

N16

ZUREQ

N17

ZDREQ

R19

VDDZCMP

N18

ZCMP_N

R18

ZCMP_P

P18

VSSZCMP

U20

Z1XAVDD

U19

Z1XAVSS

T20

Z4XAVDD

T19

Z4XAVSS

R20

ZVREF

AD[0..31]19,20,25

FRAME# IRDY# TRDY# STOP#

SZCMP_N

SZCMP_P SVSSZCMP

SZ1XAVDD SZ1XAVSS

SZ4XAVDD SZ4XAVSS

SZVREF

ZAD[0..16]9

Analog Power supplies of Transzip function for 96X Chip.

+3VS

L42 FCM1608K121

1 2

C615

10UF/10V

N9

AD18

AD29

AD30

AD27

AD28

AD26

AD31

J5J4H2H1J3K4J2J1K5K2L3K1L1L4L5L2N5P2P3P4R2R3R1T1P5T2U1U2T3R5U3

AD31

AD30

AD29

AD28

AD27

AD26

AD17

AD19

AD24

AD21

AD25

AD22

AD23

AD25

AD24

AD23

AD22

AD21

AD12

AD15

AD20

AD14

AD13

AD16

AD20

AD19

AD18

AD17

AD16

AD15

AD14

AD13

PCI

963-1

HyperZip

ZAD0

ZAD1

ZAD2

ZAD3

ZAD4

ZAD5

ZAD6

ZAD7

N19

M17

ZAD1

ZAD2

6.49mA

C149

0.1UF

M16

ZAD3

M20

ZAD4

L16

ZAD5

L20

ZAD6

ZAD8

L18

K18

ZAD8

ZAD7

SZ1XAVDD

C135

0.01UF

SZ1XAVSS

M18

ZAD0

10MIL

ZAD9

K19

ZAD9

1G

ZAD16

ZAD10

ZAD11

ZAD12

ZAD13

ZAD14

ZAD15

P20

K17

K16

H20

J18

H19

H18

+1.8VS

ZAD13

ZAD12

ZAD14

ZAD16

ZAD15

ZAD10

ZAD11

10UF/10V

+3VS

10UF/10V

AD10

AD9

AD11

AD9

AD12

AD11

AD10

L40

FCM1608K121

1 2

C617

N7

L41

FCM1608K121

1 2

C616

N8

AD8

AD6

AD7

AD5

AD8

AD7

AD6

IDE

10MIL

AD5

AD4

AD3

AD2

AD3

AD2

35.64mA

C133

0.1UF

7.92mA

C148

0.1UF

IDESAA[0..2]

IDECS#A[0..1]

AD1

AD0

IDESAB[0..2]

IDECS#B[0..1]

V1

AD1

AD0

IDEAVDD IDEAVSS

ICHRDYA

IDREQA

IIRQA

CBLIDA

IIORA#

IIOWA#

IDACKA#

IDSAA2 IDSAA1 IDSAA0

IDECSA1# IDECSA0#

ICHRDYB

IDREQB

IIRQB

CBLIDB

IIORB#

IIOWB#

IDACKB#

IDSAB2 IDSAB1 IDSAB0

IDECSB1# IDECSB0#

IDA0 IDA1 IDA2 IDA3 IDA4 IDA5 IDA6 IDA7 IDA8

IDA9 IDA10 IDA11 IDA12 IDA13 IDA14 IDA15

IDB0

IDB1

IDB2

IDB3

IDB4

IDB5

IDB6

IDB7

IDB8

IDB9 IDB10 IDB11 IDB12 IDB13 IDB14 IDB15

SVDDZCMP

R477

C147

R478

0.01UF

SVSSZCMP

BGA5A

Y3 Y4

W10 V10 Y11 U12

V11 Y9 Y10

T11 U11 W11

T12 V12

W17 Y17 T16 U17

T14 W16 V16

Y18 T15 V17

U16 W18

U10 V9 W8 T9 Y7 V7 Y6 Y5 W6 U8 W7 V8 U9 Y8 T10 W9

Y16 V15 U14 W14 V13 T13 Y13 Y12 W12 W13 U13 Y14 V14 W15 Y15 U15

963

56

SZCMP_N

SZCMP_P

IDESAA[0..2] 14

IDECS#A[0..1] 14

IDESAB[0..2] 14

IDECS#B[0..1] 14

C191

0.01UF

ICHRDYA IDEREQA IDEIRQA CBLIDA

IDEIOR#A IDEIOW#A IDACK#A

ICHRDYB

IDEREQB

IDEIRQB

CBLIDB

IDEIOR#B IDEIOW#B IDACK#B

IDEDA0 IDEDA1 IDEDA2 IDEDA3 IDEDA4 IDEDA5 IDEDA6 IDEDA7 IDEDA8 IDEDA9 IDEDA10 IDEDA11 IDEDA12 IDEDA13 IDEDA14 IDEDA15

IDEDB0SVDDZCMP IDEDB1 IDEDB2 IDEDB3 IDEDB4 IDEDB5 IDEDB6 IDEDB7 IDEDB8 IDEDB9 IDEDB10 IDEDB11 IDEDB12 IDEDB13 IDEDB14 IDEDB15

R519 0

C699

0.1UF

IDESAA2 IDESAA1 IDESAA0

IDECS#A1 IDECS#A0

IDESAB2 IDESAB1 IDESAB0

IDECS#B1 IDECS#B0

+1.8VS

ICHRDYA 14 IDEREQA 14 IDEIRQA 14 CBLIDA 14

IDEIOR#A 14 IDEIOW#A 14 IDACK#A 14

ICHRDYB 14 IDEREQB 14 IDEIRQB 14 CBLIDB 14

IDEIOR#B 14 IDEIOW#B 14 IDACK#B 14

IDEDA[0..15] 14

IDEDB[0..15] 14

SZ4XAVDD

C134

0.01UF

SZ4XAVSS

B - 14 963-1 (PCI/IDE/HyperZip) 1 of 4 (71-D40U0-D04)

963-2 (Misc Signals) 2 of 4

Schematic Diagrams

Programable on-die pull-high strength for CPU_S: ( Infinite, 150, 110, 56 Ohm)

INIT#3

A20M#3

SMI#3

INTR3

NMI3

IGNNE#3

FERR#3 STPCLK#3 CPUSLP#3

CLKAPIC4

C197

5PF

C198

15PF

AC_SDIN026 AC_SDIN120,26

AC_SDOUT20,26

AC_SYNC20,26

AC_RST#20,26

AC_BCLK20,26

R152

+3V

FROM H8

PWRBTN#24

PSON#28,29

AUXOK9,24,27,28

PM_DPRSLPVR36

EXTSMI#24

PM_CPUPERF#2

VGATE29

CLKAPIC

LPC_AD022,24

LPC_AD122,24

LPC_AD222,24

LPC_AD322,24

LPC_FRAME#22,24

LPC_DRQ#22

SERIRQ19,22,24

Y6

32.768KHZ

1 2

BATOK18 PWRGD9,29

SMBDAT4,7,25

10K

SMBDAT

SMBCLK

SMBCLK4,7,25

AC_SDIN0 AC_SDIN1

AC_RST# AC_BCLK

REFCLK14

PCBEEP29

PWRBTN#

C190

0.1UF

R536

+3V

EXTSMI# SCI#

GMUXSEL

R513 4.7K

+3V

PM_CPUPERF#

R163 R149 4.7K

+3VS

VGATE

LAN_PWRON26

PCBEEP( LPC addr mapping)

SB Hardware Trap

R196

PCBEEP

INIT# A20M# SMI# INTR NMI IGNNE# FERR# STPCLK# CPUSLP#

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

LPC_FRAME# LPC_DRQ# SERIRQ

R195

10M

BATOK PWRGD

C717

0.1UF

R193 0

R192 0

R197 0 R531 0

R178

D17 1SS355

+3VS

4.7K

OSC32KHI

OSC32KHO

RTCVDD

C719

0.1UF

REFCLK1 SENTEST PCBEEP

961PME# PSON#

AUXOK

T

FOR C4

0

DPERSLP

4.7K

AC

0

LAN_PWRON

T18 P16 R17 R16 Y20 U18

T17

W20

V19

Y19 V18

W19

V5 T7 U6

W5

W4

U7 V6

C2

D2

D3 D1

C1

E4

B2

A1

A2 D5

W2

T5

D6 Y1

W3

G5 V3

A14 B14 D14

A3

A15

B1

E5

E13

A16

D13

B15

INIT# A20M# SMI# INTR NMI IGNNE# FERR# STPCLK# CPUSLP#

APICCK/LDTREQ# APICD0/THERM2# APICD1/GPIOFF#

LAD0 LAD1 LAD2 LAD3

LFRAME# LDRQ# SIRQ

OSC32KHI

OSC32KHO

BATOK PWROK

RTCVDD

RTCVSS

GPIO20

GPIO19

AC_SDIN0 AC_SDIN1

AC_SDOUT AC_SYNC

AC_RESET# AC_BIT_CLK

OSCI ENTEST SPK

PWRBTN# PME# PSON#

AUXOK ACPILED

GPIO13

GPIO14

GPIO15/KBDAT

GPIO16/KBCLK

GPIO17/PMDAT

GPIO18/PMCLK

CPU_S

APIC

LPC

RTC

963-2

GPIO

AC97

ACPI

/others

KBC

/geyserville

MII

GPIO

OSC25MHI

OSC25MHO

TXCLK

RXCLK

RXDV

RXER

MIIAVDD MIIAVSS

GPIO0

GPIO1/LDRQ1#

GPIO2/THERM#

GPIO3/EXTSMI#

GPIO4/CLKRUN#

GPIO5/PREQ5#

GPIO6/PGNT5#

GPIO7

GPIO8/RING

GPIO9/AC_SDIN2

GPIO10/AC_SDIN3

GPIO11/OSC25M/STP_PCI#

GPIO12/CPUSTP#

CPUPWRGD_NB

RXD0

RXD1

RXD2

RXD3

MDIO

TXEN

TXD0

TXD1

TXD2

TXD3

CRS

MDC

COL

BGA5B

963

A8

A9

A6

B6

E8

D7

C6

B4

A7

C7

C8

D8

A5

B5

A4

B7

E9

C5

E7

B9 B8

V2

T8

T4

T6

W1

U5

U4

C4

C14

E6

B3

F5

D4

R521 10K

R520 10K

T

GATE_LID_SW

THERM#

ID0

ID1

ID2

GPIO9

V_ADJ

HWSUS_CB#

CPUSTP#

G

S D

Q45

2N7002

R166 4.7K

RP16

1

2

3

4

5

10P8R-10K

RP25

10

9

8

7

6

10P8R-10K

R153

A C

D29 1N4148(R)

R530 0(R)

R512 0(R)

R187 0(R)

R185 0

R177

R164 0

V_ADJ 36

HWSUS_CB#19

CPUSTP# 4,29

GPIO9

CPUPWRGD_CPU

10

9

8

7

6

1

2

3

4

5

GATE_LID_SW 11

THERM#3,24

4.7K

EXTSMI#

LCDID0

LCDID1

LCDID2

4.7K(R)

WAKE-UP

+3V

C702

C684

0.1UF

0.01UF

+3VS

LCDID0 11,30

LCDID1 11,30

LCDID2 11,27,30

SCI# 24

+3V

WAKE-UP24

It will change next verison

CPUPWRGD_CPU3CPUPWRGD_NB5

NEED NOT to place close to 96X

LPC_AD3 LPC_AD0 LPC_AD2 LPC_AD1

LPC_DRQ#

SERIRQ

SENTEST

GPIO pins NEED NOT to place close to 96X

THERM#

SMBDAT

SMBCLK

GPIO9

LCDID0

LCDID1

LCDID2

GMUXSEL

DPERSLP

AC_SDIN0

AC_SDIN1

LAN_PWRON

V_ADJ

961PME#

VGATE

HWSUS_CB#

RN97

8P4R-4.7K

R504 4.7K(R)

R510

R532 0

R511

R534

R537

R150

R538 10K

R517 10K

R518 10K

R165 4.7K(R)

R535 4.7K

R190 100K

R522 100K

R524 100K

R186 100K

R151 4.7K

R208 4.7K

R525 4.7k

18 27 36 45

4.7K(R)

4.7K

+3VS

B.Schematic Diagrams

Sheet 14 of 42

963-2

(Misc Signals)

2 of 4

+3V

963-2 (Misc Signals) 2 of 4 (71-D40U0-D04) B - 15

Schematic Diagrams

Sheet 15 of 42

963-3 (USB I/F)

3 of 4

B.Schematic Diagrams

963-3 (USB I/F) 3 of 4

BGA5C

1394_EECS 1394_MA0/EEDO 1394_MA1/EEDI 1394_MA2/EESK

PHY_LPS21

PHY_REQ21

PHY_LKON21

PHY_D021 PHY_D121 PHY_D221 PHY_D321 PHY_D421 PHY_D521 PHY_D621

PHY_D721 PHY_CTL021 PHY_CTL121

PHY_CLK21

PHY_LPS PHY_REQ PHY_LKON PHY_D0 PHY_D1 PHY_D2 PHY_D3 PHY_D4 PHY_D5 PHY_D6 PHY_D7 PHY_CTL0 PHY_CTL1 PHY_CLK

C20

GPIO24/EECS

E20

GPIO23/EEDO

D20

GPIO22/EEDI

F20

GPIO21/EESK

A20

LPS

A19

LREQ

C19

LINKON

A12

D0

B12

D1

C12

D2

D12

D3

E12

D4

A13

D5

B13

D6

C13

D7

D11

CTL0

C11

CTL1

E11

SCLK

A10

T

IPB_OUT1/ZCLKSEL

B10

T

IPB_OUT0/PLLENN

A11

T

RDFRAME

E10

T

IPB_RDCLK

D9

T

IPB_TDCLK

D10

T

TDFRAME

B11

T

IPBRST#

C10

T

IPB_IN0

C9

T

IPB_IN1

963

USBCLK48M

OSC12MHO

USBREFAVDD

UV0+

UV1+

UV2+

UV3+

UV4+

UV5+

OC0# OC1# OC2# OC3# OC4# OC5#

USBVDD USBVDD USBVDD USBVDD

USBVSS USBVSS USBVSS USBVSS

OSC12MHI

USBREF

USBPVDD

USBPVSS

IVDD_AUX IVDD_AUX

UV0-

UV1-

UV2-

UV3-

UV4-

UV5-

UCLK48M

V4

B18 C18 D18 D19 E14 D15 E18 F18 E16 E15 G18 G19 G20 G17 J16 H16 H17 G16

D16 D17 E17 F17

F19 E19 B19 B17

B16

A17

F16

A18

C15

C16 C17

USBREFAVDD

B20

+DATA0

-DATA0 +DATA1

-DATA1 +DATA2

-DATA2 +DATA3

-DATA3 +DATA4

-DATA4 UV5+ UV5-

OC0# OC1# OC2#

R492 10K R479 10K R502 10K

C648

0.1UF

OSC12MHI

OSC12MHO

USBREF

USBPVDD

USBPVSS

IVDD_AUX

C132

0.1UF

12 mil

UCLK48M4

+DATA0 17

-DATA0 17 +DATA1 17

-DATA1 17 +DATA2 17

-DATA2 17 +DATA3 17

-DATA3 17 +DATA4 17

-DATA4 17

C654

0.1UF

C155

15PF

C146

0.1UF

OC0# 17 OC1# 17 OC2# 17

FCM2012V121

1 2

FCM2012V121(R)

C649

C621

1UF

10UF/10V

R135 10M

Y5 12MHz

L38

1 2

FCM2012V121

JA1

1 2

SHORT-A

L133

1 2

L132

10UF/10V

C156

20PF

C620

+3VS

+3V

R170 0(R)

R169 0(R)

UV5-

UV5+

+3VS

1394_EECS 1394_MA2/EESK

1394_MA1/EEDI

1394_MA0/EEDO

R541 47K

SW1

1

8

2

7

3

6

4

5

SW DIP-4

R168 0(R)

R167 0(R)

U23

1

CS

2

SK

3

DI

4

DO

9346

DATA5DATA5+

8

VCC

7

NC

T

6

NC

T

5

GND

+3VS

C720

0.1UF

DATA5- 17 DATA5+ 17

-DATA5 17

+DATA5 17

+1.8V

C153

0.1UF

L44

1 2

FCM2012V121

JA3

1 2

SHORT-A

C669

10UF/10V

20 mil 20 mil

C154

0.1UF

B - 16 963-3 (USB I/F) 3 of 4 (71-D40U0-D04)

USBREFIVDD_AUX

R126 412_1%

C626

0.1UF

L39

1 2

4.7uH_SMD_30%

C618

10UF/10V

USBPVDD

USBPVSS

C152

0.1UF

C151

0.1UF

L43

1 2

FCM2012V121

L134

1 2

FCM2012V121(R)

JA2

1 2

SHORT-A

C619

10UF/10V

+3VS

+3V

963-4 (Power & RTC) 4 of 4

Schematic Diagrams

+3VS

10UF/10V

C650

C663

C710

10UF/10V

0.1UF

C678

0.1UF

Put under 96X solder side

C700

C701

0.1UF

C667

C683

0.1UF

+3V

Q39

E C

R198

51K

B

R199

10K

0.1UF

B

C664

C668

R555

10K

C

E

C682

0.1UF

MMBT3906

Q6

MMBT3904

0.1UF

C665

C685

C711

1UF

+1.8VS

+3V+1.8V

C647

0.1UF

C666

0.1UF

C739

1UF

C645

1UF

0.1UF

C732

C738

10UF/10V

C653

0.1UF

C731

R543

JBAT1

CON2

+3V

+2.5V

C417

0.1UF

BATOK 15

VTT

C499

1UF

CT1

10uF_1206

+1.8VS

G15

VDDZ

J15

VDDZ

J19

VDDZ

L15

VDDZ

L19

VDDZ

N15

VDDZ

P19

VDDZ

K15

PVDDZ

G6

IVDD

H15

IVDD

L6

IVDD

M15

IVDD

R6

IVDD

R10 R14

P15 R15

R11 R13

R12

F12

F10 F11 F14 F15

F13

H6 K6 M6 P6 R7 R9

J6 N6 R8

F9

F7

F8

IVDD IVDD

VTT VTT

OVDD OVDD OVDD OVDD OVDD OVDD OVDD OVDD

PVDD PVDD PVDD PVDD

IVDD_AUX IVDD_AUX

OVDD_AUX OVDD_AUX OVDD_AUX OVDD_AUX OVDD_AUX

PVDD_AUX PVDD_AUX

Power

VTT

+3VS

+1.8V

+3V

CB1

CB2

1uF

0.1uF

VSSZ VSSZ VSSZ VSSZ VSSZ VSSZ VSSZ VSSZ VSSZ VSSZ

BGA5D

H8

VSS

H9

VSS

H10

VSS

H11

VSS

H12

VSS

H13

VSS

J8

VSS

J9

VSS

J10

VSS

J11

VSS

J12

VSS

K8

VSS

K9

VSS

K10

VSS

K11

VSS

L8

VSS

L9

VSS

L10

VSS

L11

VSS

M8

VSS

M9

VSS

M10

VSS

M11

VSS

N8

VSS

N9

VSS

N10

VSS

N11

VSS

N12

VSS

N13

VSS

J13 J17 K12 K13 L12 L13 L17 M12 M13 P17

963

Sheet 16 of 42

963-4

(Power & RTC)

4 of 4

B.Schematic Diagrams

+1.8VS +1.8V

C687

R544

C733

0.01UF

+3VS

D34

1SS355

C686

0.1UF

20K

AC

1UF

C740 0.1UF

C723 0.1UF

C741 10UF/10V

J3

C652

0.1UF

2 1

C646

C661

10UF/10V

VTT

C662

0.1UF

RTCVDD

C718 1UF

Decoupling Capacitor

Place close to 96X

C651

C679

0.1UF

+3VS

C681

C680

0.1UF

R194 100

D33

1SS355

JOPEN

A C

BAT

1K

2

1

please put J5 on component side

963-4 (Power & RTC) 4 of 4 (71-D40U0-D04) B - 17

Schematic Diagrams

HDD/Combo Connector

Sheet 17 of 42

HDD/Combo

Connector

B.Schematic Diagrams

+3VS

R506

R505

R200

R298 5.6K

INDEX#22

DRV0#22

DISKCHG#22

MTR0#22

3MODE#22

STEP#22

WDATA#22

WGATE#22

TRK0#22

WRPRT#22

RDATA#22

HDSEL#22

0

T

+5VSFDDVCC

JCDROM1

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

CDROM CON 50P

PIN(GND1,GND2)=GND

JHDD1

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

HDD CON

T

+5VS

5 2

1 3

U7

TC7SZ08

CD-L26

CDGND26

IDEDB713 IDEDB613 IDEDB513

IDEIOW#B13

ICHRDYB13

IDEIRQB13

IDESAB113 IDESAB013

IDECS#B013

IDERST#

IDEDB413 IDEDB313 IDEDB213 IDEDB113 IDEDB013

IDEIOW#B ICHRDYB IDEIRQB IDESAB1 IDESAB0 IDECS#B0

C46

10UF/10V

IDEDA813

IDEDA913 IDEDA1013 IDEDA1113 IDEDA1213 IDEDA1313 IDEDA1413 IDEDA1513

IDESAA213

IDECS#A113

+5VS

C899

C898

0.1UF

Near To The Connector

4.7K

5.6K

PCIRST#9,10,13,20,22,24,30

DIR#22

IDEDA7

IDEDB7

PCIRST#

INDEX#

DRV0#

DISKCHG#

MTR0#

DIR# 3MODE# STEP#

WDATA#

WGATE#

TRK0#

WRPRT#

RDATA#

HDSEL#

CBLIDB13

CBLIDA 13

+3VS

5 2

1 3

FDDVCC

U4

TC7SZ08

T T T

T

C27

0.1UF

4

JFDD1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

FDD CON 26P

CD-L CDGND IDERST# IDEDB7 IDEDB6 IDEDB5 IDEDB4 IDEDB3 IDEDB2 IDEDB1 IDEDB0

HDDLED-1

CSEL

C381

0.1UF R392

0

IDEDA8 IDEDA9 IDEDA10 IDEDA11 IDEDA4 IDEDA12 IDEDA13 IDEDA14 IDEDA15

T

IDESAA2 IDECS#A1

C900

10UF/10V

T

R201

R202 10K

R62 10K

HDDLED-1

HDDLED-0

L153 BK3216HS800

CD-R

2

4

6

8

10

12

14

16

18

20

IDEREQB

22

IDEIOR#B

24

26

IDACK#B

28

30

T

32

T

IDESAB2

34

IDECS#B1

36

38

40

42

44

46

48

50

T

IDERST#

1

3

5

7

9

11

13

15

17

19

T

IDEREQA

21

IDEIOW#A

23

IDEIOR#A

25

ICHRDYA

27

IDACK#A

29

IDEIRQA

31

IDESAA1

33

IDESAA0

35

IDECS#A0

37

39

41

43

IDE_LED#

4

C380

0.1UF

HDDLED-0

C214

0.1UF

IDEDA7 IDEDA6 IDEDA5

IDEDA3 IDEDA2 IDEDA1 IDEDA0

C213

22UF/10V

CD-R 26

IDEDB8 IDEDB9 IDEDB10 IDEDB11 IDEDB12 IDEDB13 IDEDB14 IDEDB15

C344

100U/10V

IDE_LED# 12

IDEREQB 13

IDEIOR#B 13

IDACK#B 13

IDESAB2 13 IDECS#B1 13

+5VS+5VS

IDEDA713 IDEDA613 IDEDA513 IDEDA413 IDEDA313 IDEDA213 IDEDA113 IDEDA013

+5VS

C212

22U/10V

IDEDB813 IDEDB913 IDEDB1013 IDEDB1113 IDEDB1213 IDEDB1313 IDEDB1413 IDEDB1513

IDEREQA 13 IDEIOW#A 13 IDEIOR#A 13 ICHRDYA 13 IDACK#A 13 IDEIRQA 13 IDESAA1 13 IDESAA0 13 IDECS#A0 13

B - 18 HDD/Combo Connector (71-D40U0-D04)

Clevo D400F, D410F Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Trademarks

About this Manual

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

Instructions for Care and Operation

Power Safety

Battery Precautions

Related Documents

1: Introduction

Overview

System Specifications

Processor Types Intel Pentium® 4 Processor (478-pin) FC-PGA2 Package

Core Logic SiS M661FX + 963 Chipset

Security Security (Kensington® Type) Lock Slot, BIOS Password

Memory Two 200 Pins SODIMM Sockets, supporting DDR 333/ 400 MHz Modules

BIOS One 512KB Flash ROM, Phoenix BIOS

LCD Options 14.1" - XGA TFT (1024x768) 15.0" - XGA TFT (1024x768)

Display Integrated 128-bit 2D/3D Graphics Accelerator

Storage Devices Fixed 7-in-1 Card Reader Module

PC Card One Type II PCMCIA 3.3V/5V socket supporting CardBus

Keyboard “WinKey” keyboard

Pointing Device Built-in TouchPad (scrolling key functionality integrated)

Audio AC'97 2.2 compliant interface

Interface Two USB 2.0/1.1 ports

Communication 56K Plug & Play modem (V.90 & V.92 Compliant)

Power Management Supports ACPI v1.0b

Power Full Range AC adapter

Indicator LED indicators (Power On/ AC-In/ Suspend, Battery Charging/Battery Full, E-Mail, HDD, Num Lock, Caps Lock,

Design Differences

Environmental Spec Temperature

Physical Dimensions 329 (w) x 275 (d) x 36.5 (h) mm

Weight Around 2.8 kg (depend on optional modules included) without battery

Optional DVD-ROM drive module

External Locator - Top View

External Locator - Front & Left Side Views

External Locator - Right Side & Rear Views

External Locator - Bottom View

Mainboard Overview - Top (Key Parts)

Mainboard Overview - Bottom (Key Parts)

Mainboard Overview - Top (Connectors)

Mainboard Overview - Bottom (Connectors)

2: Disassembly

Overview

Maintenance Tools

Connections

Maintenance Precautions

Cleaning

Disassembly Steps

To remove the Battery:

1. Remove the battery page 2 - 8

To remove the HDD:

1. Remove the battery page 2 - 8

2. Remove the HDD page 2 - 9

To remove the System Memory:

1. Remove the battery page 2 - 8

2. Remove the system memory page 2 - 10

To remove the Optical Device:

1. Remove the battery page 2 - 8

2. Remove the optical device page 2 - 12

To remove the Bluetooth Module:

1. Remove the battery page 2 - 8

2. Remove the Bluetooth module page 2 - 14

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 8

2. Remove the Wireless LAN module page 2 - 15

To remove the Processor:

1. Remove the battery page 2 - 8

2. Remove the processor page 2 - 16

To remove the Keyboard:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

To remove the Keyboard Shielding Plate:

1. Remove the battery page 2 - 8

2. Remove the keyboard page 2 - 18

3. Remove the keyboard shielding plate page 2 - 19
