Clevo A190EU, A190EU-T User guide

V12.1.00

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publication, except for copies kept by the user for backup purposes. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. ©January 2012

Trademarks

Intel, Celeron, and Intel Core are trademarks/registered trademarks of Intel Corporation.

Preface

R&TTE Directive

This device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC.

This device will be sold in the following EEA countries: Austria, Italy, Belgium, Liechtenstein, Denmark, Luxembourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slovenia.

EuP-Standby and Off Mode Power Consumption Statement:

The figures below note the power consumption of this computer in compliance with European Commission (EC) regulations on power consumption in off mode or standby mode:

• Standby Mode < 2W

• Off Mode < 1W

Preface

CE Marking

This device has been tested to and conforms to the regulatory requirements of the European Union and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation. The CE Mark is obligatory for products it applies to: the manufacturer affixes the marking in order to be allowed to sell his product in the European market.

This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to attain CE Marking. A notified body has determined that this device has properly demonstrated that the requirements of the directive have been met and has issued a favorable certificate of expert opinion. As such the device will bear the notified body number 0560 after the CE mark.

The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a product. Secondly, CE Marking is mandatory for the product it applies to, whereas most q uality marking s are vo lu ntary.

III

Preface

FCC Statement

(Federal Communications Commission)

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienc ed radio/TV technician for help.

Operation is subject to the following two conditions:

1. This device may not cause interference. And

2. This device must accept any interference, including interfer ence that may cause undesired operation of the

device.

Preface



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the equipment.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment:

1. Do not use this product near water, for example n ear a ba th tub, wash bowl, kitchen sink or laundry tu b, in a wet

basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There

may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter – AC Input 100 -

240V, 50 - 60Hz, DC Output 19V, 4.74A (90 Watts).

This Computer’s Optical Device is a Laser Class 1 Product

Preface

Instructions for Care and Operation

The computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-

ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other

strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he computer. Shut the computer down properly and don’t forget

to save your work. Remember to periodically save your data as data may be lost.

5. Take care when using peripheral devices.

VII

Preface



Power Safety

Warning

Before you undertake any upgrade procedures, make sure that you have turned off the power, and disconnected all peripherals and cables (including telephone lines and power cord).

Power Safety

The computer has specific power requirements:

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Do not plug in the power cord if you are wet.

Do not use the power cord if it is broken.

Do not place heavy objects on the power cord.

VIII

Cleaning



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upg rade, remember to replace the cover(s) and screw(s) before restoring power to the system.

Also note the following when the cover is removed:

• Hazardous moving parts.

• Keep away from moving fan blades.

Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord is damaged or frayed.

• If the computer has been exposed to any liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.

Preface

Ergonomics

We designed your Multimedia PC system to be functional as well as attractive. To get most out of it, here are some suggestions on how to position and use the computer:

• The top third of the LCD (screen) should be at eye-level or slightly below.

• The LCD should be at least 18"/45cm. directly in front of you.

• If the screen resolution makes you strain to read, then adjust the resolution to something more co mfortable (see “Video

Features” on page 1 - 26).

• Angle the LCD (see “Tilting & Adjusting the LCD Screen Height” on page 1 - 7) so that it doesn’t reflect any light

into your eyes.

• Use a chair which offers good back support (especially lower-back). The seat should allow your feet to rest flat on the floor or on a footrest directly in front of you.

• If possible, illuminate your work area with natural daylight or use a steady-glowing (non-flickering) light source.

• Place the keyboard and mouse so that your arms are at your sides and your forearms are roughly parallel to the floor. Your wrists should flex slightly downward as you work. Your neck and shoulders should also be relaxed.

• T ake a break from the computer. Get up, stretch, flex your wrists, walk about, and look at something else for about 10 minutes every hour.

Preface



Carrying the Computer

We strongly recommend using both hands to move the computer (one hand gripping the handle area and the other gripping the computer) to avoid accidentally dropping it. Be careful that objects such as belt buckles etc. do not scratch the screen while it is being carried.

Lighting

Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders.

• Position the display to avoid glare or reflections from overhead lighting or outside sources of light.

• Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

• Position the display directly in front of you at a comfortable viewing distance.

• Adjust the display-viewing angle to find the best position.

LCD Screen Care

To prevent image persistence on LCD monitors (caused by the continuous display of graphics on the screen for an extended period of time) take the following precautions:

• Set the Windows Power Plans to turn the screen off after a few minutes of screen idle time.

• Use a rotating, moving or blank screen saver (this prevents an image from being displayed too long).

• Rotate desktop background images every few days.

• Turn the monitor off when the system is not in use.

Preface

Wall Mounting Information

The computer may be mounted on a wall for display. The system meets VESA MIS-D Standard (100mm * 100mm) for wall mounting. However if you intend to wall mount the system please contact your service center for information in order to avoid personal injury, or damage to the computer.

XII

Preface

Contents

Notice .............................................................................................................................................................I

EuP-Standby and Off Mode Power Consumption Statement: ..................................................................... II

FCC Statement ............................................................................................................................................IV

FCC RF Radiation Exposure Statement: .....................................................................................................V

Instructions for Care and Operation ......................................................................................................... VII

Power Safety ............................................................................................................................................VIII

Cleaning ......................................................................................................................................................IX

Servicing .....................................................................................................................................................IX

Ergonomics ..................................................................................................................................................X

Wall Mounting Information ...................................................................................................................... XII

Quick Start Guide

Overview ....................................................................................................................................................1-1

Advanced Users .........................................................................................................................................1-2

Beginners and Not-So-Advanced Users ....................................................................................................1-2

Warning Boxes ..........................................................................................................................................1-2

Not Included ..............................................................................................................................................1-3

System Software ........................................................................................................................................1-4

System Startup ...........................................................................................................................................1-5

System Map: Front View ...........................................................................................................................1-6

Tilting & Adjusting the LCD Screen Height .............................................................................................1-7

XIII

Preface

LED Indicators & Buttons .........................................................................................................................1-9

On Screen Display Indicators ..................................................................................................................1-10

System Map: Left View ...........................................................................................................................1-11

System Map: Right View .........................................................................................................................1-12

System Map: Rear View ..........................................................................................................................1-13

Windows Control Panel ...........................................................................................................................1-14

Windows 8 Start Screen & Desktop ........................................................................................................1-15

Windows 8 Charms Bar ...........................................................................................................................1-19

Windows 8 Control Panel ........................................................................................................................1-21

Windows 8 Taskbar .................................................................................................................................1-24

Keyboard Shortcuts - Windows 8 ............................................................................................................1-25

Video Features .........................................................................................................................................1-26

Power Options .........................................................................................................................................1-29

Running Metro UI Apps ..........................................................................................................................1-30

Features & Components

Overview ....................................................................................................................................................2-1

Hard Disk Drive .........................................................................................................................................2-2

Optical (CD/DVD) Device ........................................................................................................................2-3

Loading Discs ............................................................................................................................................2-3

Handling CDs or DVDs .............................................................................................................................2-4

DVD Regional Codes ................................................................................................................................2-5

XIV

Preface

Multi-in-1 Card Reader ..............................................................................................................................2-6

ExpressCard Slot .......................................................................................................................................2-7

Inserting and Removing

ExpressCards .............................................................................................................................................2-7

Audio Features ...........................................................................................................................................2-8

Setup for Audio Recording ........................................................................................................................2-9

Power Management

Overview ....................................................................................................................................................3-1

AC/DC Adapter .........................................................................................................................................3-2

Turning On the Computer ..........................................................................................................................3-3

Power Plans ...............................................................................................................................................3-4

Power-Saving States ..................................................................................................................................3-6

Sleep ..........................................................................................................................................................3-6

Hibernate ....................................................................................................................................................3-7

Shut down ..................................................................................................................................................3-7

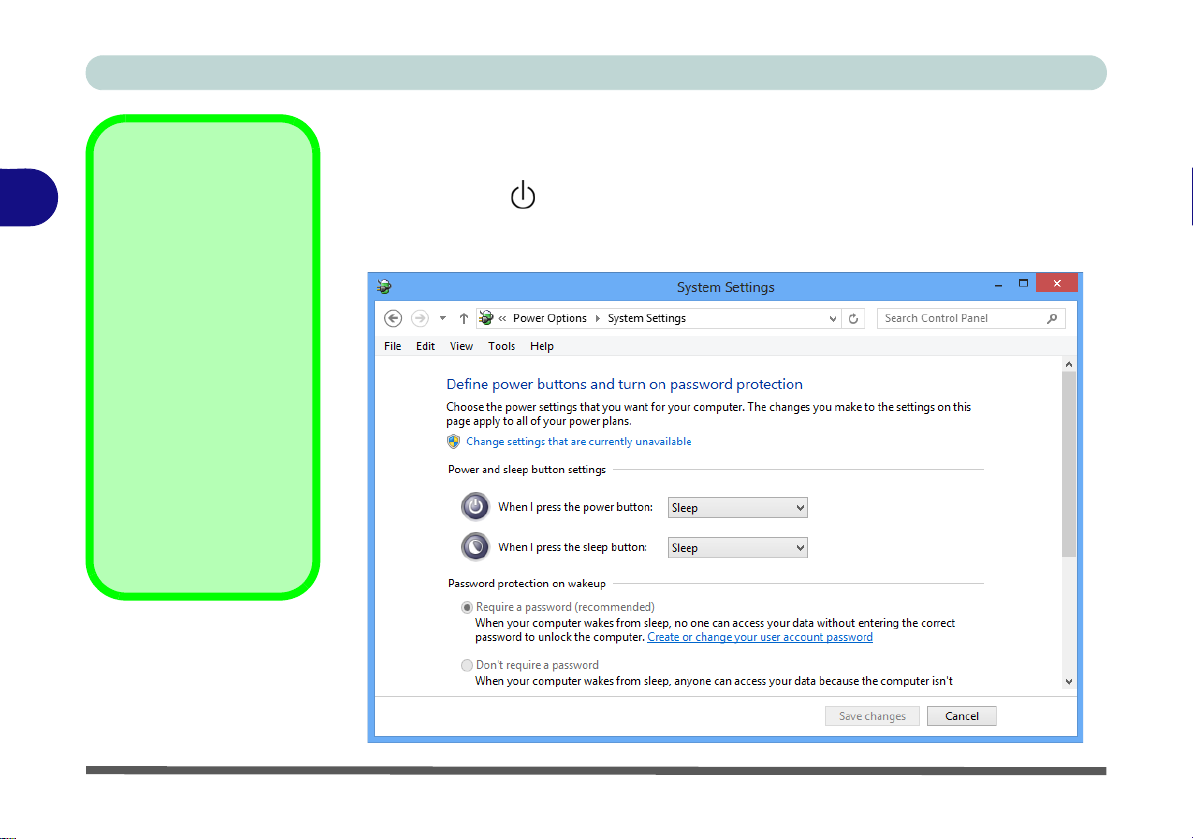

Configuring the Power Buttons .................................................................................................................3-8

Resuming Operation ................................................................................................................................3-10

Drivers & Utilities

What to Install ............................................................................................................................................4-1

Driver Installation (Windows 8)................................................................................................................D-2

Updating/Reinstalling Individual Drivers ..................................................................................................4-5

Preface

User Account Control ................................................................................................................................4-6

Windows Security Message .......................................................................................................................4-6

New Hardware Found ................................................................................................................................4-6

Driver Installation Procedure .....................................................................................................................4-7

Chipset .......................................................................................................................................................4-7

Video ..........................................................................................................................................................4-7

LAN ...........................................................................................................................................................4-7

ExpressCard/Card Reader ..........................................................................................................................4-7

On Screen Display .....................................................................................................................................4-7

MEI Driver .................................................................................................................................................4-7

Audio .........................................................................................................................................................4-7

Windows Experience Index .......................................................................................................................4-8

Optional Drivers ........................................................................................................................................4-9

BIOS Utilities

Overview ....................................................................................................................................................5-1

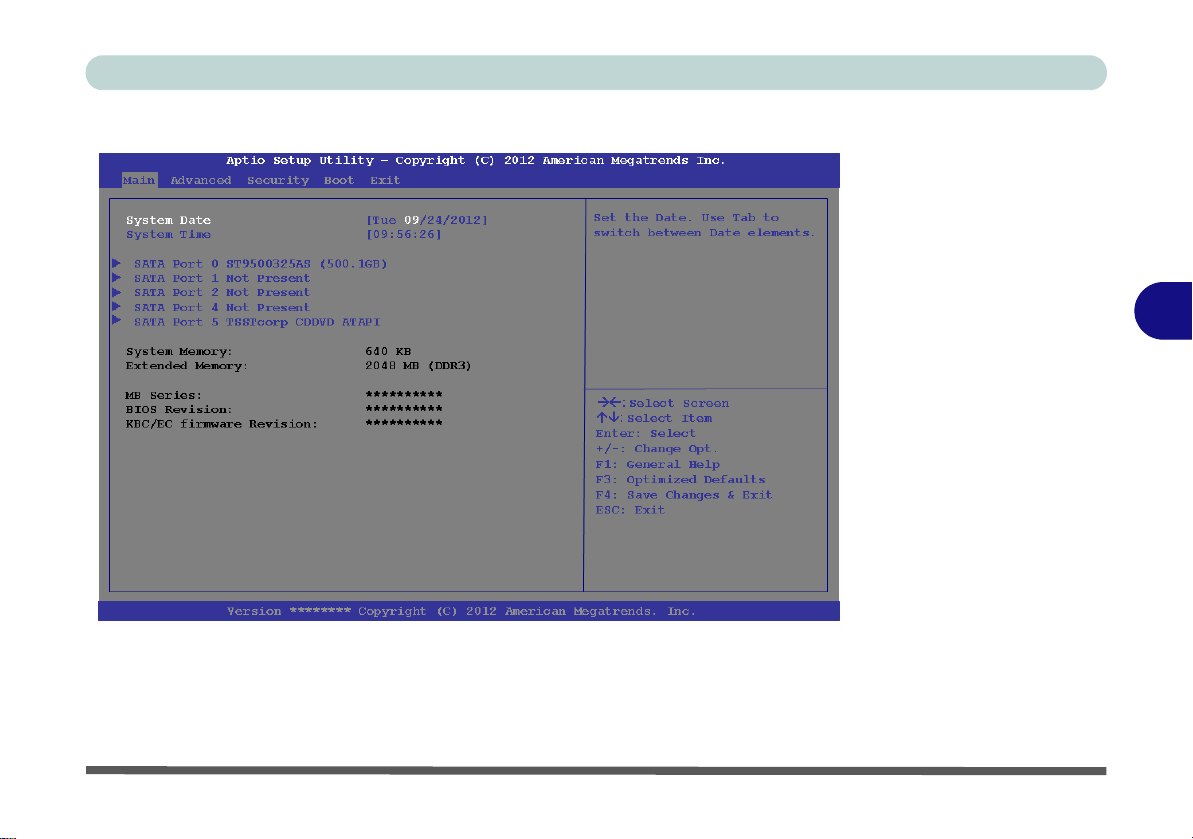

The Setup Utility ........................................................................................................................................5-2

Failing the POST .......................................................................................................................................5-3

Fatal Errors ................................................................................................................................................5-3

Non-Fatal Errors ........................................................................................................................................5-3

Setup Screens .............................................................................................................................................5-4

Main Menu .................................................................................................................................................5-5

XVI

Preface

System Time & Date (Main Menu) ...........................................................................................................5-5

SATA Port # (Main Menu) ........................................................................................................................5-6

System/Extended Memory: (Main Menu) .................................................................................................5-6

MB Series / BIOS Revision / KBC/EC firmware Revision ......................................................................5-6

Advanced Menu .........................................................................................................................................5-7

Advanced Chipset Control (Advanced Menu) ..........................................................................................5-7

Bluetooth Power Setting (Advanced Menu > Advanced Chipset Control) ...............................................5-8

Intel Smart Connect Technology (Advanced Menu) .................................................................................5-8

Intel(R) Rapid Start Technology (Advanced Menu) .................................................................................5-8

Intel Anti-Theft Technology (Advanced Menu) ........................................................................................5-8

SATA Mode Selection (Advanced Menu) ................................................................................................5-9

Boot Logo (Advanced Menu) ....................................................................................................................5-9

Power On Boot Beep (Advanced Menu) ...................................................................................................5-9

Battery Low Alarm Beep (Advanced Menu) .............................................................................................5-9

Super IO Configuration (Advanced Menu) ...............................................................................................5-9

Security Menu ..........................................................................................................................................5-10

Password on boot (Security Menu) ..........................................................................................................5-10

Set Supervisor Password (Security Menu) ..............................................................................................5-11

Set User Password (Security Menu) ........................................................................................................5-11

Secure Boot (Advanced Menu) ...............................................................................................................5-11

Boot Menu ...............................................................................................................................................5-12

Boot Option Priorities (Boot Menu) ........................................................................................................5-13

XVII

Preface

OS Select (Boot Menu) ............................................................................................................................5-13

UEFI Boot (Boot Menu > OS Select) .....................................................................................................5-13

Exit Menu ................................................................................................................................................5-14

Upgrading The Computer

Overview ....................................................................................................................................................6-1

When Not to Upgrade ................................................................................................................................6-2

Removing the Rear Top Cover ..................................................................................................................6-3

Upgrading the Hard Disk Drive .................................................................................................................6-6

Upgrading the System Memory (RAM) ....................................................................................................6-8

Upgrading the Processor ..........................................................................................................................6-11

Modules & Options

Overview ....................................................................................................................................................7-1

PC Camera Module (Windows 8) ..............................................................................................................7-2

PC Camera Audio Setup ............................................................................................................................7-3

Metro UI Camera App ...............................................................................................................................7-4

Taking Pictures/Capturing Video ..............................................................................................................7-6

Wireless LAN Module (Windows 8) .........................................................................................................7-9

3rd Party 802.11b/g/n Driver Installation ................................................................................................7-10

Intel® WLAN Driver Installation ............................................................................................................7-11

WLAN Configuration in Windows 8 ......................................................................................................7-12

Bluetooth & WLAN Combo Module (Windows 8) ................................................................................7-17

XVIII

Preface

3rd Party Bluetooth (V4.0) Combo Driver Installation ...........................................................................7-18

Intel Bluetooth Combo Driver Installation ..............................................................................................7-19

Bluetooth Configuration in Windows 8 ...................................................................................................7-20

Intel® Rapid Storage Technology ...........................................................................................................7-23

IRST Driver Installation ..........................................................................................................................7-23

Intel® Rapid Start Technology Driver ....................................................................................................7-24

Intel® Rapid Start Technology Configuration ........................................................................................7-25

Intel® Rapid Start Technology Driver Installation .................................................................................7-31

Intel® Smart Connect Technology ..........................................................................................................7-32

Intel® Smart Connect Technology Driver Installation ............................................................................7-32

Intel® Smart Connect Technology Configuration ...................................................................................7-33

Intel Smart Connect & Intel Rapid Start Technology .............................................................................7-36

Intel® Wireless Display Application .......................................................................................................7-38

Intel® WiDi Application Installation ......................................................................................................7-39

Intel® WiDi Application Configuration ..................................................................................................7-40

Troubleshooting

Overview ....................................................................................................................................................8-1

Basic Hints and Tips ..................................................................................................................................8-2

Backup and General Maintenance .............................................................................................................8-3

Viruses .......................................................................................................................................................8-4

Upgrading and Adding New Hardware/Software ......................................................................................8-5

XIX

Preface

Problems & Possible Solutions ..................................................................................................................8-7

Interface (Ports & Jacks)

Overview ...................................................................................................................................................A-1

Computer Ports and Jacks .........................................................................................................................A-2

Card Reader Port .......................................................................................................................................A-2

DC-In Jack ................................................................................................................................................A-2

e-SATA Port .............................................................................................................................................A-2

Headphone-Out Jack .................................................................................................................................A-2

Microphone-In Jack ..................................................................................................................................A-2

RJ-45 LAN Jack .......................................................................................................................................A-2

RS-232 COM/Serial Ports ........................................................................................................................A-3

Security Lock Slot ....................................................................................................................................A-3

USB 2.0/1.1 Ports .....................................................................................................................................A-3

USB 3.0 Port .............................................................................................................................................A-3

Intel Video Driver Controls

Intel Video Driver Installation ..................................................................................................................B-1

Video .........................................................................................................................................................B-1

Dynamic Video Memory Technology ......................................................................................................B-1

Intel® Graphics & Media Control Panel ..................................................................................................B-2

Display Devices & Options ......................................................................................................................B-5

Attaching Other Displays .........................................................................................................................B-6

Preface

To Configure Displays from Devices (Charms Bar) ................................................................................B-8

Specifications

Processor ...................................................................................................................................................C-2

Core Logic ................................................................................................................................................C-3

Display ......................................................................................................................................................C-3

Memory .....................................................................................................................................................C-3

Video Adapter ...........................................................................................................................................C-3

BIOS .........................................................................................................................................................C-3

Storage ......................................................................................................................................................C-3

Audio ........................................................................................................................................................C-3

Interface ....................................................................................................................................................C-3

Card Reader ..............................................................................................................................................C-4

Slots ..........................................................................................................................................................C-4

Communication .........................................................................................................................................C-4

Power Management ..................................................................................................................................C-4

Power ........................................................................................................................................................C-4

Security .....................................................................................................................................................C-4

Operating System ......................................................................................................................................C-4

Design Features ........................................................................................................................................C-4

LED Indicators ..........................................................................................................................................C-5

XXI

Preface

Environmental Spec ..................................................................................................................................C-5

Physical Dimensions & Weight ................................................................................................................C-5

Windows 7

Overview ...................................................................................................................................................D-1

Turning On the Computer .........................................................................................................................D-2

LED Indicators & Buttons ........................................................................................................................D-3

On Screen Display Indicators/Buttons ......................................................................................................D-4

Windows 7 Start Menu & Control Panel ..................................................................................................D-5

Video Features ..........................................................................................................................................D-6

Configuring an External Display in Windows 7 .......................................................................................D-8

Power Options ........................................................................................................................................D-11

Power Plans .............................................................................................................................................D-12

Audio Features ........................................................................................................................................D-14

Tablet PC Input Options for Touch Screen ............................................................................................D-16

Driver Installation ...................................................................................................................................D-20

Updating/Reinstalling Individual Drivers................................................................................................D-22

User Account Control..............................................................................................................................D-23

Windows Security Message.....................................................................................................................D-23

New Hardware Found..............................................................................................................................D-23

Driver Installation Procedure...................................................................................................................D-24

Optional Drivers ......................................................................................................................................D-26

XXII

Preface

PC Camera Module (Windows 7) ...........................................................................................................D-27

Wireless LAN Module (Windows 7) ......................................................................................................D-35

Connecting to a Wireless Network in Windows 7...................................................................................D-40

Connecting to a Wireless Network Using Intel® PROSet Wireless.......................................................D-43

Bluetooth & WLAN Combo Module (Windows 7) ...............................................................................D-54

Bluetooth Connection Problems .............................................................................................................D-61

Intel® Rapid Storage Technology ..........................................................................................................D-65

Intel® Rapid Start Technology Driver ...................................................................................................D-66

Intel® Smart Connect Technology .........................................................................................................D-74

Intel® Wireless Display Application (Windows 7) ................................................................................D-79

XXIII

Preface

XXIV

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,

optical device, Multi-in-1 card reader, ExpressCard/34/54) Audio & Printer.

• Chapter 3 The computer’s power saving options.

• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the

computer’s subsystems.

• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).

• Chapter 6 Instructions for upgrading your computer.

• Chapter 7 A quick guide to the computer’s PC Camera, Wireless LAN, Bluetooth & WLAN Combo and

Intel modules (some of which may be optional depending on your purchase configuration).

• Chapter 8 A troubleshooting guide.

• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external

devices.

• Appendix B Information on the Intel video driver controls.

• Appendix C The computer’s specification.

• Appendix D Information related to the Windows 7 operating system.

Overview 1 - 1



Notes

Check the light colored boxes with the mark above to find detailed information about the computer’s features.

Quick Start Guide

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on

page 6 - 1 in the User’s Manual. You may also find the notes marked with a

 of interest to you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then the information contained in this Quick Start Guide should be enough to get you up and running. Eventually you should try to look through all the documentation (more detailed descriptions of the functions, setup and system controls are covered in the remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a

 as indicated in the margin.

For a more detailed description of any of the interface ports and jacks see “Interface

(Ports & Jacks)” on page A - 1.

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 2 Overview

Quick Start Guide



Drivers

If you are installing new system software, or are re-configuring your computer for a different system, you will need to install the drivers listed in “Drivers & Utilities” on page 4 - 1. Drivers are programs which act as an interface between the computer and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order listed in Table 4 - 1, on page 4 - 4. You will be unable to use most advanced controls until the necessary drivers and utilities are properly installed. If your system hasn’t been properly configured (your service representative may have already done that for you), refer to “What to Install” on page 4 - 1 for installation instructions.

Ports and Jacks

See “Computer Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to communicate with external devices, connect to the internet etc.

Not Included

Operating Systems (e.g. Windows 8) and applications (e.g. word processing, spreadsheet and database programs) have their own manuals, so please consult the appropriate manuals.

Overview 1 - 3



Windows 7/8 OS

In order to run Windows 7 or 8 (32 Bit) without limitations or decreased performance, your computer requires a minimum

1GB of system memory (RAM), however if you are running Windows 7 or 8 (64 bit) your computer requires a minimum 2GB of system memory (RAM).

Quick Start Guide

System Software

Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find the Windows 7 (with Service Pack 1 in- stalled) and Windows 8 operating systems are supported.

The majority of this menu covers information covers information related to the Windows 8 operating system, however for specific information on the Windows 7 operating system see Appendix D.

Note: In order to run Windows without limitations or decreased performance, your computer requires a mini- mum 1GB of system memory (RAM).

1 - 4 Overview

Quick Start Guide



Shutdown

Note that you should always shut your computer down by choosing the Shut Down command from the bottom right of the Start menu in Win- dows 7, or by choosing the Shut Down com- mand from the Power item in Settings in the Charms Bar (use the Windows Logo Key + C key combination to access the Charms Bar) in Windows 8. This will help prevent hard disk or system problems.

Power Button (located along the bottom of the LCD)

System Startup

1. Remove all packing materials, CDs/DVDs and floppy disks etc.

2. Securely attach any peripherals you want to use with the computer to their ports (e.g keyboard and mouse e tc.)

3. Attach the AC/DC ad apter to the DC-In jack located under the LCD, the n plug the AC powe r cord into an outlet,

and connect the AC power cord to the AC/DC adapter.

4. Push the power button at the front of the computer (under the LCD) to turn the computer “on”.

Figure 1 - 1 - AC/DC Adapter Plugged-In/Power Button

System Startup 1 - 5

1. Built-In PC Camera

2. PC Camera LED

3. Built-In Microphone

4. LCD (With Optional Touch Panel for Windows 7 OS)

5. Power & System Activity LED Indicators

6. Function Buttons*

7. Power Button*

8. RJ-45 LAN Jack

9. 2 * USB Ports

10. eSATA Port

11. External Monitor Port

12. 2 * COM Ports

13. DC-In Jack

*Note the power and function buttons are located along the bottom underside of the LCD

12 12 13

Quick Start Guide

System Map: Front View

1 - 6 System Map: Front View

Figure 1 - 2 - Front View

Quick Start Guide

Tilting & Adjusting the LCD Screen Height

It is possible to tilt the LCD screen in order to get the best possible viewing angle of the screen without glare etc, and to raise/lower the screen height in order to get the best possible vertical viewing position of the screen.

• Hold the left and right sides of the computer to raise/lower the screen.

• Do not hold the bottom of the screen to adjust the viewing angle or height as the screen function buttons

are located there.

Figure 1 - 3 - LCD Screen Raise/Lower

Tilting & Adjusting the LCD Screen Height 1 - 7



Moving the Computer

We strongly recommend using both hands to move the computer. You can use one hand to grip the computer by the stand, and the other to hold the top of the LCD screen.

It is recommended that you carry the computer with the LCD facing your body to avoid scratching the surface against other objects. However take care not to scratch the LCD with any personal items, belt fittings or jewelry etc.(one hand gripping the stand and the other gripping the top of the computer to avoid accidentally dropping it).

Quick Start Guide

• Carefully apply pressure at the top of the screen to tilt it.

• Note that the screen has no fixed lock position and you are free to raise/lower and tilt the screen to any

position the stand allows (do not force it beyond the point of resistance).

Figure 1 - 4 - LCD Screen Tilt

1 - 8 Tilting & Adjusting the LCD Screen Height

Quick Start Guide

LED Indicators & Buttons

The LED indicators on the computer display helpful information about the current status of the computer.

Icon Color Description

Green The computer is On

Blinking Green The computer is in Sleep Mode

Orange

Green System Activity

Table 1 - 1 - LED Indicators

The AC/DC Adapter is Plugged in

& the Computer is Powered Off

The buttons located under the front panel icons allow you to make screen and input adjustments.

Figure 1 - 5 - Front Icons

Icon Description

Decrease/Increase Buttons - Use the buttons

to decrease/increase the brightness/volume

Function Menu Toggle - Use this button to

display the On Screen Display (see “On

Screen Display Indicators” on page 1 - 10)

Screen Power Toggle - Use this button to

toggle the LCD on/off

Table 1 - 2 - Function Buttons

LED Indicators & Buttons 1 - 9

Quick Start Guide

On Screen Display Indicators

Press the function menu button (see Table 1 - 2, on page 1 - 9) to bring up the On Screen Display. The OSD provides visual indicators for brightness, volume, WLAN, Bluetooth and camera power toggle (note that the camera and Bluetooth power indicators will only display if the modules are included in your purchase configuration) are available when the OSD driver is installed (see “On Screen Display” on page 4 - 6).

OSD Icon Description OSD Icon Description

Volume Decrease/Increase WLAN Power Toggle

Brightness Decrease/Increase Bluetooth Power Toggle

Camera Power Toggle

Table 1 - 3 - On Screen Display Indicators

The indicators will appear when the computer boots up, or resumes from a power saving state, in order to display the current power status of the camera and/or Blueto oth/WLAN modules. The OSD indicators will appear if you adjust the brightness or volume, and will also allow you to adjust the power status of the camera and/or Bluetooth/WLAN modules by using the mouse to click on the icon (note that this system does not display the Win- dows Mobility Center). If your purchase configuration includes the Multi-Touch Panel (Windows 7 only) you may use a finger to slide along the bars under the on-screen symbols to adjust the volume and brightness and controls, or to press the on/off buttons to toggle power to the camera and/or Bluetooth/WLAN modules.

1 - 10 On Screen Display Indicators

System Map: Left View

Figure 1 - 6

Left View

1. Stand

2. Multi-in-1 Card Reader

3. ExpressCard Slot (see page 2 - 7)

4. 3 * USB 3.0 Ports

5. Headphone/ Speaker-Out Jack

6. Microphone-In Jack



ExpressCard Slot

The ExpressCard Slot accepts either Express-

Card/34 or ExpressCard/54 formats.

5 6



Multi-in-1 Card Reader

The card reader allows you to use the most

popular digital storage card formats:

MMC (MultiMedia Card) / RSMMC

SD (Secure Digital) / Mini SD / SDHC /

SDXC Compatible

MS (Memory Stick) / MS Pro / MS Duo

USB 3.0 Port

USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black. Note that the USB 3.0 ports require a driver for Windows 7 (see ““USB 3.0 (Win 7 Only)”

on page D - 24) installation (Windows 8

does not require a driver installation) and do not support wake on USB.

Quick Start Guide

System Map: Left View 1 - 11

Figure 1 - 7 - Right View

1. Stand

2. Optical Device Drive Bay (for CD/DVD Device - see page 2 - 3)

3. Security Lock Slot



CD/DVD Emergency Eject

If you need to manually eject a CD/ DVD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. Do not use a sharpened pencil or similar object that may break and become lodged in the hole.



Changing DVD Regional Codes

Go to the Control Panel and double-click Device Manager (Hardware and Sound), then click the + next to DVD/CD-ROM drives. Double-click on the DVD-ROM de-

vice to bring up the Properties dialog box, and select the DVD Region (tab) to bring up the control panel to allow you to adjust the regional code. You can select your module’s region code 5 times (see “DVD Region

Note” on page 2 - 5).



Media Warning

Don’t try to remove the CD/DVD while the system is accessing it. This may cause the system to “crash”.

Quick Start Guide

System Map: Right View

1 - 12 System Map: Right View

System Map: Rear View

Figure 1 - 8

Rear View

1. Stand

2. Rear Component Cover

3. Vent/Fan Intake

4. Security Lock Slot

5. Carrying Handle Area



CPU

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your warranty.

Overheating

To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake while the computer is in use.



Carrying the Computer

Quick Start Guide

System Map: Rear View 1 - 13

Move the mouse to the

and right-click to access

bottom left of the screen

the menu.

Quick Start Guide

Windows Control Panel

Most of the control panels, utilities and applications within Windows are accessed from the Start menu in Windows 7 (Windows 7’s standard interface is the desktop), and from the Desktop in Windows 8 (see page 1 - 21

for more information on the Windows 8 Control Panel). Throughout this manual you will see an instruction to open the Control Panel. In Windows 8

right-click the

lower left hot corner to bring up the context menu (or use the Windows Logo Key + X key combination) and select Control Panel. If you are using a Touch Screen then access the Charms Bar from the desktop (not the Start screen), tap Settings, and tap Control Panel or access it from the All Apps menu.

Figure 1 - 9 - Windows 8 Context Menu & Charms Bar Settings (from Desktop App)

1 - 14 Windows Control Panel

Quick Start Guide

Desktop App

Windows 8 Start Screen & Desktop

The apps, control panels, utilities and programs within Windows 8 are accessed from the Metro user interface’s Start screen and/or Windows Desktop. The Desktop (which runs as an app within the Start screen) can be ac-

cessed by clicking/tapping the Desktop item in the Start screen (or by using the Windows Logo Key + D key combination).

Figure 1 - 10 - Windows Start Screen

Windows 8 Start Screen & Desktop 1 - 15

Right-click an icon to display the menu

Start Screen and click All Apps

Right-click on a blank area of the

Quick Start Guide

Apps & Tiles

The Windows 8 Start screen will contain a number of apps, and many more will be installed as you add more applications etc. Not all of these apps can fit on one screen so you will often need use the slider at the bottom of the screen in order to view all the necessary Apps.

Accessing Pining/Unpinning All Apps

You can add and remove the tiles for apps and control panels in the Start screen. Right-click on a blank area of the Metro UI Start screen and you will see the All Apps icon. Click the All Apps icon to display all the

installed applications etc. Right-click any icon, to bring up the menu at the bottom of the screen. You can then click the appropriate icon to pin the App to (or unpin from) the Start screen, or to the taskbar in the Desktop application.

Figure 1 - 11 - All Apps

1 - 16 Windows 8 Start Screen & Desktop

Quick Start Guide

Move the mouse to the bottom left of the screen and click to switch back to the Start screen.

Desktop Application

When the Desktop app is running (click th e app in the Start screen or use the Windows Logo Key + D key combination), and you are using a keyboard, you can use lower left hot corner to switch between the Start screen and the Windows Desktop. To do so move your mouse to hover over the bottom left corner of the screen and click the pop-up.

When you move to the lower left hot corner in the Start screen itself it will take you back to your most recently used app.

Figure 1 - 12 - Desktop

Windows 8 Start Screen & Desktop 1 - 17



Display Most

Recently Used

Apps

If you are in the Start screen, Desktop or an app you can move your mouse to the upper left corner of the screen to get back to the most recently used app.

To view all the most recently used Apps hover over the top left of the screen and then move the mouse down along the left side of the screen to display the list.

Move the mouse to the bottom left of the screen and right-click to access the menu.

Quick Start Guide

When the Desktop app is running you can right-click (keyboard only) the lower left hot corner (or use the Windows Logo Key + X key combination) to bring up an advanced context menu of useful features such as Control Panel, Programs and Features, Power Options, Task Manager, Search, Windows Explorer, Command Prompt, Device Manager and Network Connections etc.

Figure 1 - 13 - Advanced Context Menu (Right-Click lower left hot corner)

1 - 18 Windows 8 Start Screen & Desktop

Windows 8 Charms Bar

Move the mouse over a Charms Bar icon to activate the menu

Move the mouse to the top/lower right icons to activate the Charms Bar

The right side of the screen displays the Windows 8 Charms Bar. The Charms Bar contains the Search, Share, Start, Devices and Settings menus. To access up the Charms Bar move the cursor to the upper or lower right

corners of the screen, and then hover over one of the items in the Charms Bar to activate it (the bar will be black when it is active), or use the Windows Logo Key + C key combination.

Quick Start Guide

Figure 1 - 14 - Start Screen with Charms Bar

Windows 8 Start Screen & Desktop 1 - 19

Quick Start Guide

Charms Bar Items

• Search : You can search for any file, application, Apps and control panel settings with instantaneous

results.

•Share : This button is used to share information with people via mail or social networks.

•Start : Click to bring up the Start Menu (the same function as pressing the Windows Logo Key or click-

ing the bottom left of the screen).

• Devices : Click this button to change connected peripheral device settings e.g. an external display.

• Settings : This button gives instant access to the computer settings, such as Network, Audio, Notifications, Power and Keyboard (click Change PC Settings to activate the PC Settings menu).

Figure 1 - 15 - Settings Menu

1 - 20 Windows 8 Start Screen & Desktop

Quick Start Guide

Windows 8 Control Panel

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control Panel is much the same as that in Windows 7, however it can be accessed in a number of ways in Windows 8.

•Click Search in the Windows Charms Bar (see previous page) and the search pane will pop out. Type Control Panel and select it from the results to the left.

Figure 1 - 16 - Search (Control Panel)

• Click on Computer (you may need to pin Computer to the Start screen) in the Start screen, click on Computer in the top menu and select Open Control Panel from the ribbon.

Figure 1 - 17 - Open Control Panel (Computer)

Windows 8 Control Panel 1 - 21

Quick Start Guide

• When in the Desktop app (this does not apply to the Start screen) click on Settings in the Windows Charms Bar and select Control Panel from the menu.

Figure 1 - 18 - Settings Charms Bar (Desktop App Only)

• Right-click on a blank area of the Metro UI Start screen, click the All Apps icon and click Control Panel.

Figure 1 - 19 - All Apps - Control Panel

1 - 22 Windows 8 Control Panel

Quick Start Guide



Keyboard Shortcut to Control Panel

You can also use keyboard shortcuts to access the Contro l Pa nel. Press th e Win dows logo key and X to bring up the context menu, and then press P to bring up the Control Panel. Alternatively press the Windows logo key and R to bring up the Run dialog box, and then type “Control Panel” and press Enter to access the Control Panel.

• Right-clic k the lower left hot corner to br ing up the menu and select Control Panel (see Figure 1 - 13 on

page 1 - 18).

Windows 8 Control Panel 1 - 23

Quick Start Guide

Windows 8 Taskbar

In many instances throughout this manual you will see an instruction to access the notification area of the taskbar. In Windows 8 the taskbar is accessed from the Desktop application. If you are in the Start screen you will

need to click the Desktop app to switch to the Desktop.

The taskbar is displayed in much the same way as it was in Windows 7, and you can see the notification area of the taskbar in the bottom right of the screen. Some of the Control Panels and applications referred to during the course of this manual can be accessed from here.

Figure 1 - 20 - Desktop Taskbar

You can pin/unpin apps to/from the taskbar in much the same way as you can to the Start screen (see “Accessing

Pining/Unpinning All Apps” on page 1 - 16).

1 - 24 Windows 8 Control Panel

Keyboard Shortcuts - Windows 8



Windows Logo

Keyboard Shortcut

Use the Windows logo key + D key combi- nation to switch between the Start screen and Windows Desktop.

Menu/Application

Keyboard Shortcut

When the Desktop app is running you can use the Menu/Application key on the keyboard to display the context menu as per a mouse right-click. In the Start screen this function is useful to quickly display the All Apps icon.

Table 1 - 4

Windows 8

Keyboard Shortcuts

If you are using a keyboard with this system then note the function of the Windows Logo Key & Menu/Application Key (in the Start screen). The following keyboard

shortcuts are useful for navigation/operation in Windows 8.

Windows Logo Key +

Tap Winkey

Description

Toggle between the Start screen and the foremost

running app or the Windows Desktop C Display Charms menu D Switch to the Windows Desktop and toggle show Desktop

F Display file Search

I Open the Settings charm

K Open the Connect charm

L Lock the computer and display the Lock screen

P Display the Second Screen menu

Z Access the App Bar

Switch to the Windows desktop and launch Windows

Explorer with Computer displayed

Switch to the Windows Desktop and display the Run

dialog box

Quick Start Guide

Keyboard Shortcuts - Windows 8 1 - 25

Quick Start Guide

Video Features

You can switch display devices, and configure display options, from the Display control panel (in Appearances and Personalization) in Windows 8 in the same manner as Windows 7 running the Desktop app (see “Desktop

Application” on page 1 - 17 and Appendix B). In Windows 8 it is possible to quickly configure external displays

from the Devices menu item in the Charms Bar (see “Windows 8 Charms Bar” on page 1 - 19).

To Configure Displays from Devices (Charms Bar):

1. Attach your display to the external monitor port, and turn it on.

2. Go the Charms Bar and select Devices.

3. Click Second Screen.

4. Click on any one of the options from the menu to select Duplicate, Extend or a Single display.

1 - 26 Video Features

Figure 1 - 21 - Second Screen (Devices)

Quick Start Guide



Right-Click Desktop App

1. You can right-click the desktop and select Screen resolution (Figure 1 - 22).

2. Use the dropbox to select the screen Resolution (Figure 1

- 22).

3. Click Advanced settings (Figure 1 -

22) to bring up the

Advanced properties tabs.

123

To access Display (Control Panel) and Screen Resolution in Windows 8:

1. Go to the Control Panel.

2. Click Display (icon) - In the Appearance and Personalization category.

3. Adjust resolution.

Figure 1 - 22 - Screen Resolution

Video Features 1 - 27

Quick Start Guide

To access the Intel(R) Graphics Media Accelerator Driver for mobile control panel:

1. Click Advanced settings (Figure 1 - 22 on page 1 - 27) in the Screen Resolution control panel in Windows.

2. Click the Intel(R)... tab and click Graphics Properties (button) (Figure 1 - 23 on page 1 - 28).

3. Right-click the desktop and select Graphics Properties from the menu.

4. Click the icon in the notification area of the Desktop taskbar and select Graphics Properties from the menu.

Figure 1 - 23 - Intel GMA Driver for Mobile Control Panel

1 - 28 Video Features

Quick Start Guide

Power Options

Power Options (Hardware and Sound) can be accessed from the Control Panel. The Power Menu item in Set- tings in the Charms Bar in Windows 8 may be used to Shut down or Restart (you can also add Hibernate/ Sleep to the menu - see “Adding Hibernate/Sleep to the Power Menu” on page 3 - 9).

Shut Down, Restart or Sleep

1. Go to the Charms Bar and click Settings.

2. Click Power .

3. Select Sleep, Shut Down or Restart.

Figure 1 - 24 - Power (Settings)

Power Options 1 - 29



Screen Resolution for Metro Style Apps

(Windows 8)

The minimum resolution in which Metro style Apps will run is 1024x768. The minimum resolution required to support all the features of Windows

8 (including multitasking with snap) is 1366x768. These specs are the minimum screen resolution that supports all the

features of Windows 8 on a useful physical size.

Quick Start Guide

Running Metro UI Apps

To run apps in the Metro UI in Windows 8 you will need to check that the Screen Resolution and User Account Control Settings are compatible with the system requirements.

Screen Resolution Settings

1. Switch to the Windows Desktop (click the app or use the Windows logo key + D key combination).

2. Right-click a blank area of the Windows Desktop and select Screen Resolution. Adjust the Resolution to make sure that it is at least 1024 * 768, although preferably 1366 * 768 or above (see sidebar).

Figure 1 - 25 - Screen Resolution

1 - 30 Running Metro UI Apps

Quick Start Guide

User Account Control Settings

If your computer meets the minimum screen resolution requirements, and still you can't run Metro apps, then that you have to check the status of User Account Control (UAC). Metro apps may fail to open when the UAC is turned off. To check whether the UAC is on or off, follow the instructions below.

1. Open the Control Panel.

2. Click on User Accounts and then click on Change User Account Control settings (or click System and Security and click Change User Account Control Settings under Action Center).

3. If the slider is in the Never notify position, then the UAC is disabled.

4. To enable or turn on the UAC, move th e slider to Always no tify or Notify me when app s try t o make changes

to my computer (default) position, and then click OK.

Figure 1 - 26 - User Account Control

Running Metro UI Apps 1 - 31

Quick Start Guide

1 - 32

Features & Components

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components of the computer:

•Hard Disk Drive

• Optical (CD/DVD) Device

• Multi-in-1 Card Reader

• ExpressCard Slot

• Audio Features

Overview 2 - 1

Features & Components



Power Safety

Before attempting to access any of the internal components of your computer please ensure that the machine is not connected to the AC power, and that the machine is turned off. Also ensure that all peripheral cables, including phone lines, are disconnected from the computer.

Figure 2 - 1

Hard Disk Location

Hard Disk

Hard Disk Drive

The hard disk drive is used to store your data in the computer. The hard disk can be taken out to accommodate two other 2.5"serial (SATA) hard disk drives with a height of 9.5 mm.

The hard disk is accessible from the rear of your computer as seen below. For further details see “Upgrading the Hard Disk Drive” on page 6 - 6.

2 - 2 Hard Disk Drive

Features & Components



Volume Adjustment

The sound volume level can be set using the volume control in the Set-

tings menu in the Charms Bar (see “Au-

dio Features” on page 2 - 8).

Figure 2 - 2

Optical Device

123

Optical (CD/DVD) Device

There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual device will depend on the module you purchased (see “Storage” on page C - 3). The optical device is usually labeled “Drive D:” and may be used as a boot device if properly set in the BIOS (see “Boot Menu” on page 5 - 12).

Loading Discs

To insert a CD/DVD, press the open button and carefully place a CD/DVD onto the disc tray with label-side facing up (use just enough force for the disc to click onto the tray’s spindle). Gently push the CD/ DVD tray in until its lock “clicks” and you are ready to start. The busy indicator will light up while data is being accessed, or while an audio/video CD, or DVD, is playing. If power is unexpectedly interrupted, insert an object such as a straightened paper clip into the emergency eject hole to open the tray.

Optical (CD/DVD) Device 2 - 3

Features & Components



CD Emergency Eject

If you need to manually eject a CD (e.g. due to an unexpected power interruption) you may push the end of a straightened paper clip into the emergency eject hole. However please do NOT use a sharpened pencil or similar object that may break and become lodged in the hole.

Disk Eject Warning

Don’t try to remove a CD/DVD while the system is accessing it. This may cause the system to “crash”.

2 - 4 Optical (CD/DVD) Device

Handling CDs or DVDs

Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/DVDs can be accessed.

Note the following:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Features & Components



DVD Region Note

DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer.

Figure 2 - 3

DVD Region Codes

• Region 1 - USA & Canada

• Region 2 - Western Europe, Japan,

South Africa, Middle East & Egypt

• Region 3 - South-East Asia, Taiwan,

South Korea, The Philippines, Indonesia, Hong Kong

• Region 4 - South & Central Amer-

ica, Mexico, Australia, New Zealand

• Region 5 - N Korea, Russia, Eastern

Europe, India & Most of Africa

• Region 6 - China

DVD Regional Codes

To change the DVD regional codes:

1. Go to the Control Panel

2. Double-click Device Manager (Hardware and Sound), then click the + next to DVD/CD-ROM drives.

3. Double-click on the DVD-ROM device to bring up the Properties dialog box, and select the DVD Region (tab) to bring up the control p anel to allow you to adjust the regional code.

Optical (CD/DVD) Device 2 - 5

Features & Components



Card Reader Cover

Make sure you keep the cover in the card reader when not in use. This will help prevent foreign objects and/or dust getting in to the card reader.

Figure 2 - 4

Left View

1. Card Reader

• MMC (MultiMedia Card) / RSMMC

• SD (Secure Digital) / Mini SD / SDHC / SDXC

• MS (Memory Stick) / MS Pro / MS Duo

Multi-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device, and can be accessed in the same way as your hard disk (s). Make sure you install the Card Reader driver (see “ExpressCard/Card Reader” on page 4 - 7).

2 - 6 Multi-in-1 Card Reader

Features & Components



ExpressCard Slot

Cover

Make sure you keep the cover in the ExpressCard slot when not in use. This will help prevent foreign objects and/ or dust getting in to the ExpressCard Slot.

Figure 2 - 5

Left View

1. ExpressCard Slot

ExpressCard Slot

The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/ 34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC Cards).

ExpressCard/54 is used for applications which require a larger interface slot, e.g. CompactFlash card reader. The number denotes the card width; 54mm for the Express Card/54 and 34mm for the ExpressCard/34. Make sure you install the Card Reader driver (see “ExpressCard/Card Reader” on

page 4 - 7).

Inserting and Removing ExpressCards

• Align the ExpressCard with the slot and push it in until it locks into place.

• To remove an ExpressCard, simply press the card to eject it.

ExpressCard Slot 2 - 7

Features & Components



Volume Adjustment

The sound volume level can be set using the volume control in the Set-

tings menu in the Charms Bar.

Figure 2 - 6

Realtek Audio

Manager

Right-click the icon to access the menu above.

Note that many keyboards have built-in controls to allow you to adjust the audio volume.

Audio Features

You can configure the audio options on your computer from the Sound control panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar notification area/control panel of the Desktop app (right-click the taskbar notification area icon to bring up an audio menu). The volume may also be adjusted by means of the volume icon in the taskbar or the audio slider in the Settings menu (see sidebar).

2 - 8 Audio Features

Features & Components

Figure 2 - 7

Realtek Audio

Manager -

Recording Setup

Setup for Audio Recording

To record audio sources on your computer at optimum quality follow the instructions below:

1. Go to the

2. Click Realtek HD Audio Manager (Hardware and Sound), or right-click the

taskbar icon and select Sound Manager.

3. Click Microphone Effects (tab) in Microphone (tab), and then click to select

Noise Suppression (button), or adjust th e Recording Volume level to around 60, to obtain the optimum recording quality.

4. Click OK to close the control panel and save the settings.

Control Panel

Audio Features 2 - 9

Features & Components

2-10

Chapter 3: Power Management



OS Note

Power management functions will vary slightly depending on your operating system. For more information it is best to refer to the user’s manual of your operating system.

(Note: All pictures used on the following pages are from the Windows 8 OS.)

Power Options

Power management in Windows is configured from Power Options (Hardware and Sound), which can be accessed from the Con- trol Panel (see page 1 -

21).

Power Management

Overview

To conserve power, especially when using the battery, your computer power management conserves power by controlling individual components of the computer (the monitor and hard disk drive) or the whole system.

This chapter covers:

• AC/DC Adapter

• Turning On the Computer

• Power Plans

• Power-Saving States

• Configuring the Power Buttons

The computer uses enhanced power saving techniques to give the operating system (OS) direct control over the power and thermal states of devices and processors. For example, this enables the OS to set devices into low-power states based on user settings and information from applications.

Using some form of power management greatly increases the life span of the LCD.

Overview 3 - 1

Power Management

AC/DC Adapter

Use only the AC/DC adapter that comes with your computer. The wrong type of AC/

DC adapter will damage the computer and its components.

1. Attach th e AC/DC adapter to the DC-In jack located under the LCD.

2. Plug the AC power cord into an outlet, and then conne ct the AC power co rd to the AC/DC adapter.

3. Adjust the LCD to a comfortable viewing angle.

4. Press the power button on the fro nt of the computer for about 2 - 3 seconds to turn the computer “on” (note that the power LED on the front of the computer will turn from orange to green when the computer powers on).

3 - 2 AC/DC Adapter

Turning On the Computer

Figure 3 - 1

Power Menu

(Settings - Charms

Bar)



Shut Down

Note that you should always shut your computer down by choosing the Shut Down command from the Power Menu in the Set- tings menu in the Windows 8 Charms Bar.

This will help prevent hard disk or system problems. If you want to add Hibernate/ Sleep to the Power Menu

see “Adding Hi-

bernate/Sleep to the Power Menu” on page 3 - 9.

Now you are ready to begin using your computer. To turn it on simply press the power button on the front panel.

When the computer is on, you can use the power button as a Stand by/Hibernate/ Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the computer down). Use Power Options (Hardware and Sound) in the Windows control panel to configure this feature.

Power Management

Turning On the Computer 3 - 3

Power Management



Resuming Operation

See Table 3 - 1, on

page 3 - 10 for informa-

tion on how to resume from a power-saving state.

Password

It is recommended that you enable a password on system resume in order to protect your data.

Figure 3 - 2

Power Plan

Advanced Settings

Power Plans

The computer can be configured to conserve power by means of power plans. You

can use (or modify) an existing power plan, or create a new one.

3 - 4 Power Plans

The settings may be adjusted to set the display to turn off after a specified time, and to send the computer into Sleep after a period of inactivity.

Click Change plan settings and then click Change advanced power settings to access further configuration options in Advanced Settings.

Figure 3 - 3

Power Plans

Click to Show/Hide Additional Plans

Power Management

Each Windows power plan will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance.

Choose High performance (you may need to click Show additional plans to view the High performance plan) for maximum performance. Choose the Power saver (bear in mind that this scheme may slow down the overall performance of the computer in order to save power) for maximum power saving when required.

Power Plans 3 - 5

Power Management



Wake On LAN

Support

(Windows 8)

Wake-On-LAN is only supported from Sleep or

Hibernate states in Windows 8.

If you require your computer to wake up from network activity in Windows 8 then make sure that the computer is either in Sleep or Hiber- nate.

Wake-On-LAN is not supported from Shutdown states in Win- dows 8.

Power-Saving States

You can use power-saving states to stop the computer’s operation and restart where

you left off. Win 8 uses the Sleep, Hibernate and Shut Down power-saving states.

3 - 6 Power-Saving States

Sleep

In Sleep all of your work, settings and preferences are saved to memory before the system sleeps. When you are not using your computer for a certain length of time, which you specify in the operating system, it will enter Sleep to save power.

The PC wakes from Sleep within seconds and will return you to where you last left off (what was on your desktop) without reopening the application(s) and file(s) you last used.

To add Sleep to the Power Menu see “Adding Hibernate/Sleep to the Power

Menu” on page 3 - 9.

Hibernate

Figure 3 - 4

Power Menu

Hibernate uses the least amount of power of all the power-saving states and saves all of your information on a part of the hard disk before it turns the system off. If a power failure occurs the system can restore your work from the hard disk; if a power failure occurs when work is saved only to memory, then the work will be lost. Hi- bernate will also return you to where you last left off within seconds. You should put your PC into Hibernate if you will not use the computer for a period of time. To add Hibernate to the Power Menu see “Adding Hibernate/Sleep to the Power

Menu” on page 3 - 9.

Shut down

You should Shut down the computer if you plan to install new hardware, plan to be away from the computer for several days, or you do not need it to wake up and run a scheduled task. Returning to full operation from Shut down takes longer than from Sleep or Hibernate.

Power Management

Power-Saving States 3 - 7

Power Management



Password

Protection

It is recommended that you enable a password on wake up in order to protect your data.

However you can disable this setting from the Power Options menu by clicking Require a

password on wakeup

in the left menu, and selecting the options (click/ tap Change settings

that are currently unavailable).

Figure 3 - 5

Power Options

Define Power

Buttons

Configuring the Power Buttons

The power button may be set to send the computer in to either Sleep or Hibernate. In Sleep, the LED will blink green. In Hibernate the LED will be orange. If only the display is turned off, the LED will remain green. Click Choose what the power buttons do on the left menu in Power Options to bring up the menu.

3 - 8 Configuring the Power Buttons

Adding Hibernate/Sleep to the Power Menu

Figure 3 - 6

Power Options

Define Power

Buttons - Shutdown

Settings

Add Hibernate/Sleep to the Power Menu as follows.

1. Go to the Power Options (Hardware and Sound) control panel (see page 1 - 29).

2. Click “Change settings that are currently unavailable” .

3. Click Choose what the power but tons do.

4. Click to put a tick in the Hibernate/Sleep box under Shutdown settings.

5. Click Save Changes and close the control panel.

Power Management

Configuring the Power Buttons 3 - 9

Power Management

Table 3 - 1

Resuming

Operation



Power Button

When the computer is on, you can use the power button as a Sleep/Hibernate/Shut Down hot key button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will force the computer to shut down).

Resuming Operation

You can resume operation from power-saving states by pressing the power button, or in some cases pressing the sleep button (see your keyboard documentation).

Power Status

Power Off Off Press the Power Button

Sleep Blinking Green

Icon Color

Hibernate Orange (AC/DC adapter) Press the Power Button

Display Turned Off Green

3 - 10 Configuring the Power Buttons

To Resume

Press the Power Button

Press the Sleep Button

(see your keyboard documentation)

Press the Screen Power Toggle Button

Ctrl + Alt + Delete Key Combination

Figure 3 - 7

Ctrl + Alt + Delete

You can use the CTRL + ALT + DEL key combination from almost any of the Windows 8 interfaces/apps to bring up a full-screen displaying Lock, Switch User, Log

off, Change a password and Task Manager options. If you click the Power icon in the lower right corner of the screen a power management option menu appears to display Sleep, Shut down, and Restart.

Power Management

To fully control all the power options (including Hibernate mode) go to the Power Options control panel and configure the power button and sleep button to perform

the function selected.

Configuring the Power Buttons 3 - 11

Power Management

3-12

Chapter 4: Drivers & Utilities



Driver Installation &

Power

When installing drivers make sure your computer is powered by the AC/DC adapter connected to a working power source.

Some drivers draw a significant amount of power during the installation procedure, and if the remaining battery capacity is not adequate this may cause the system to shut down and cause system problems (note that there is no safety issue involved here, and the battery will be rechargeable within 1 minute).

This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. The system takes advantage of some newer hardware components for which the latest versions of most available operating systems haven’t built in drivers and utilities. Thus, some of the system components won’t be auto-configured with an appropriate driver or utility during operating system installation. Instead, you need to manually install some system-required drivers and utilities.

For information on the Windows 7 operating system see Appendix D.

What to Install

The Device Drivers & Utilities + Use r’s Manual disc contains the drivers and util- ities necessary for the proper operation of the computer. Table 4 - 1, on page 4 - 4 lists what you need to install and it is very important that the drivers are installed

in the order indicated (all drivers provided are for Windows 8 & Windows 7 with Service Pack 1).

The procedures for installing drivers for the PC Camera, Wireless LAN and Bluetooth & WLAN Combo modules are provided in “Modules & Options” on page 7

- 1.

Drivers & Utilities

What to Install 4 - 1

Drivers & Utilities



Driver Installation

If you miss the message above you can eject the Device Drivers & Utilities + User’s Manual disc and then

reinsert it. Alternatively double-click the d isc icon in Comp ut-

er (use the Windows logo key + E key combination to go to Computer in Windows Explorer).

Driver Installation (Windows 8)

1. Insert the Device Drivers & Utilities + User’s Manual disc into the computer’s DVD drive.

2. Click the message “Tap to choose what happens with this disc.”

3. Click Run autorun.exe.

4. Click Install Drivers (button), or Option Drivers (button) to access the Optional driver menu.

5. Check the driver installatio n order from T able 4 - 1, on page 4 - 4 (the drivers must be installed in this order)

6. Click to select the driver you wish to install, (you should note down the drivers as you install them).

7. Follow the instructions for each individual driver installation procedure as listed on the appropriate pages.

4 - 2 What to Install

which is the same as that listed in the Drivers Installer menu below.

Figure 4 - 1 - Autorun Driver Installation Disc

Drivers & Utilities

Follow the instructions to install the driver. Alternatively click Start, navigate (Browse..) to the executable file and then follow the manual setup instructions. Note: If you need to reinstall any driver, you should uninstall the driver first.

Figure 4 - 2 - Drivers Installer Screens

See Figure 4 - 3 on page 4 - 9 for the optional driver installer screen.

What to Install 4 - 3

Drivers & Utilities

Windows 8 Driver Page # Windows 8 Driver Page #

Chipset Page 4 - 7 PC Camera Module (Windows 8) - No driver is required for Windows 8 Video Page 4 - 7 Wireless LAN Module (Windows 8) Page 7 - 9

LAN Page 4 - 7 Bluetooth & WLAN Combo Module (Windows 8) Page 7 - 17 ExpressCard/Card Reader Page 4 - 7 Intel® Rapid Storage Technology Page 7 - 23 On Screen Display Page 4 - 7 Intel® Rapid Start Technology Driver Page 7 - 24 MEI Driver Page 4 - 7 Intel® Smart Connect Technology Page 7 - 32 Audio Page 4 - 7 Intel® Smart Connect Technology Page 7 - 38

Table 4 - 1 - Driver Installation

Note that you need to install both the WLAN & Bluetooth drivers for the WLAN & Bluetooth Combo modules. See Table D - 4, on page D - 21 for Windows 7 driver installation information.

4 - 4 What to Install

Drivers & Utilities

Manual Driver Installation

Click Bro wse CD/DVD (button) in the Drivers Installer application and browse to the executable file in the

appropriate driver folder.

Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest securi ty updates etc. (all updates will include the latest hotfixes from Microsoft). See “Windows Update” on page 4 -

8 for instructions.

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may be necessary to uninstall the original driver.To do this go to the Control Panel in the Windows OS and double-click the Programs and Features icon (Pro- grams > Uninstall a program). Click to select the driver (if it is not listed see below) and click Uninstall, and then follow the on screen prompts (it may be necessary to restart the computer). Reinstall the driver as outlined in this chapter.

If the driver is not listed in the Programs and Fea- tures menu:

1. Go to the Control Panel.

2. Double-click Device Manager (Hardware and

Sound > Devices and Printers > Device Manager).

3. Double-click the device you wish to update/reinstall the driver for (you may need to click “+” to expand the selection).

4. Click Driver (tab) and click the Update Driver or

Uninstall button and follow the on screen prompts.

What to Install 4 - 5

Drivers & Utilities



Driver Installation General Guidelines

The driver installation procedure outlined in this Chapter (and in Chapter 7 Options & Modules), are accurate at the time of going to press.

Drivers are always subject to upgrade and revision so the exact procedure for certain drivers may differ slightly. As a general guide follow the default on screen instructions for each driver (e.g. Next > Next > Finish) unless you are an advanced user. In many cases a restart is required to install the driver.

User Account Control

If a User Account Control prompt appears as part of the driver installation procedure, click Continue or Allow, and follow the installation procedure as directed.

Windows Security Message

If you receive a Windows security message as part of the driver installation process. Just click “Install this driver software anyway” or “Install” to continue the installation procedure.

You will receive this message in cases where the driver has been released after the version of Windows you are currently using. All the drivers provided will have already received certification for Windows.

New Hardware Found

If you see the message “New Hardware Found” during the installation procedure (other than when out- lined in the driver install procedure), click Cancel to close the window, and follow the installation procedure.

4 - 6 What to Install

Drivers & Utilities

Driver Installation Procedure

Insert the Device Drivers & Utilities + User’s Manual disc into your DVD drive and click Install Drivers (button).

Chipset

1. Click 1.Install Chipset Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

Video

1. Click 2.Install VGA Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

LAN

1. Click 3.Install LAN Driver > Yes.

2. Click Next > Install > Finish.

ExpressCard/Card Reader

1. Click 4.Install Cardreader Driver > Yes.

2. Click Finish.

On Screen Display

1. Click 5.Install OSD Driver > Yes.

2. Click Next > Next.

3. Click Finish > Finish to restart the computer.

MEI Driver

1. Click 6.Install MEI Driver > Yes.

2. Click Next > Yes > Next.

3. Click Finish.

Audio

1. Click 7.Install Audio Driver > Yes.

2. Click Next.

3. Click Finish to restart the computer.

Note that after installing the audio driver the system will not return to the Drivers Installer screen. To install any of the optional drivers listed overleaf, eject the Device Drivers & Utilities + User’s Manual disc and then reinsert it (or double-click the disc icon in My Computer), and click Option Drivers (button) to access the optional driver menu.

What to Install 4 - 7

Drivers & Utilities



Windows Update

After installing all the drivers make sure you enable Windows Update in order to get all the latest security up-

dates etc., (all updates will include the latest hotfixes from Microsoft).

To enable Windows Update make sure you are con- nected to the internet:

1. Go to the Control Panel.

2. Click Window s Update (System and Security).

3. Click Check for updates (button).

4. The computer will now check for updates (you need to be connected to the internet).

5. Click Install now (button) to begin checking for the updates.

6. Click Install updates (button) to install the updates.

(see overleaf)

Windows Experience Index

After the drivers are installed follow this procedure to ensure an accurate rating from the Windows Experi- ence Index:

1. Go to the Control Panel.

2. Click Performance Information and Tools (System and Security > System > Check the Windows Experience Index).

3. Click “Rate this computer”.

4. The computer will take a few minutes to assess the system performance.

5. Close the control panel.

4 - 8 What to Install

Drivers & Utilities

Optional Drivers

See the pages indicated in Table 4 - 1, on page 4 - 4 for the driver installation procedures for any modules included in your purchase option. Insert the Device Drivers & Utilities + User’s Manual disc and click Option Drivers (button) to access the optional driver menu.

Figure 4 - 3 - Optional Drivers

What to Install 4 - 9

Drivers & Utilities

4-10

Chapter 5: BIOS Utilities



BIOS Screens

Note that the BIOS screens pictured on these pages are intended for guidance in setting up your system’s BIOS.

BIOS versions are subject to constant change and revision, therefore your computer’s actual screens may appear slightly different from those pictured on these pages.

Overview

This chapter gives a brief introduction to the computer’s built-in software:

If your computer has never been set up, or you are making impo rtant changes to the system (e.g. hard disk setup), then you should review this chapter first and note the original settings found in Setup. Even if you are a beginner, keep a record of the settings you find and any changes you make. This information could be useful if your system ever needs servicing.

There is one general rule: Don’t make any changes unless you are sure of what you are doing. Many of the settings are required by the system, and changing them could cause it to become unstable or worse. If you have any doubts, consult your service representative.

BIOS Utilities

Overview 5 - 1

BIOS Utilities



BIOS Settings

Warning

Incorrect settings can cause your system to malfunction. To correct mistakes, return to Set-

up and restore the Previous Values with

<F2>, or Optimized Defaults with <F3>.

UEFI Boot & POST

When UEFI Boot is enabled, then the prompts to press F2 or F7 will not appear. However you can still press F2 to enter the setup, or F7 to choose the preferred boot device, if you press the key immediately the system boots up.

The Setup Utility

Each time you turn on the computer the system takes a few seconds to conduct a POST, including a quick test of the on-board RAM (memory).

5 - 2 The Setup Utility

As the POST proceeds, the computer will tell you if there is anything wrong. If there is a problem that prevents the system from booting, it will display a system summary and prompt you to run Setup.

If there are no problems, the Setup prompt will disappear and the system will load the operating system. Once that starts, you can’t get into Setup without rebooting.

The Aptio Setup Utility tells the syst em how to configure itself and manage basic features and subsystems (e.g. port configuration).

To enter Setup, turn on the computer and press F2 (give the system a few seconds to enter Setup). If the Boot Logo is enabled the F2 on screen will be highlighted to illustrate that the system is processing the request during the POST (or press F7 for boot options). If you get a “Keyboard Error”, (usually because you pressed F2 too quickly) just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and then hold down F2 when prompted. The Setup main menu will appear.

To see the boot options press F7 and choose your preferred boot device.

Failing the POST

Errors can be detected during the POST. There are two categories, “fatal” and “nonfatal”.

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized distributor/supplier as soon as possible.

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the problem (make a note of this message!) and you can then press F7 (the F7 on screen will be highlighted to illustrate that the system is processing the request) for boot options.

Press F2 (give the system a few seconds to enter Setup; the F2 on screen will be highlighted to illustrate that the system is processing the request) to run the Setup program and try to correct the problem. If you still get an error message after you change the setting, or if the “cure” seems even worse, call for help.

BIOS Utilities

The Setup Utility 5 - 3

BIOS Utilities



Setup Menus

The Setup menus shown in this section are for reference only. Your computer’s menus will indicate the configuration appropriate for your model and options.

Figure 5 - 1

Navigation Menu

Setup Screens

The following pages contain additional advice on portions of the Setup. Along the top of the screen is a menu bar with menu headings. When you select a heading, a new screen appears. Scroll through the features listed on each screen to make changes to Setup.

Instructions on how to navigate each screen are in the box at the bottom right side of the screen.

If these tools are confusing, press F1 to call up a General Help screen, and then use the arrow keys to scroll up or down the page.

5 - 4 The Setup Utility

The Item Specific Help on the upper right side of each screen explains the highlighted item and has useful messages about its options.

If you see an arrow next to an item, press Enter to go to a sub-menu on that subject. The sub-menu screen that appears has a similar layout, but the Enter key may execute a command.

Main Menu

Figure 5 - 2

Main Menu

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you can change the date and time settings in your operating system, you will also change these settings. Some applications may also alter data files to reflect these changes.

BIOS Utilities

Main Menu 5 - 5

BIOS Utilities

SATA Port # (Main Menu)

Pressing Enter opens the sub-menu to show the configuration of a optical Device/ HDD on the computer’s SATA Ports.

System/Extended Memory: (Main Menu)

This item contains information on the system memory, and is not user configurable. The system will auto detect the amount of memory installed.

MB Series / BIOS Revision / KBC/EC firmware Revision

This item contains information on the BIOS version etc., and is not user configurable.

5-6Main Menu

Advanced Menu

Figure 5 - 3

Advanced Menu

BIOS Utilities

Advanced Chipset Control (Advanced Menu)

The sub-menu here allows you to adjust the Bluetooth Power Setting.

Advanced Menu 5 - 7

BIOS Utilities

Bluetooth Power Setting (Advanced Menu > Advanced Chipset Control)

You can adjust the Bluetooth module power setting to your preference. The default setting (Disabled) will see the Bluetooth module powered off when the system is started up or restarted. Enabling the power setting will have the module retain the last power status (on or off) before any restart or shut down.

Intel Smart Connect Technology (Advanced Menu)

Smart Connect is a technology that makes checks on web applications that are open, when the computer is in Sleep mode, and thus allows updates to be made without the need to turn the computer on. The sub-menu here allows you to enable/disable the technology itself (ISCT Configuration). See “Intel® Smart Connect

Technology” on page 7 - 93.

Intel(R) Rapid Start Technology (Advanced Menu)

Enable/disable Intel(R) Rapid Start Technology from this menu. The rapid start hibernation mode can resume power within 5 to 6 seconds and can remember yo ur computer's state with zero power.

Intel Anti-Theft Technology (Advanced Menu)

Anti-Theft Technology, which is built-in to the processor of the computer, allows system administrators to render your computer useless to thieves by sending a poison pillencrypted SMS message over a 3G network etc. Administrators can also remotely unlock a recovered computer quickly, or direct the system to send location information (GPS coordinates) back to a central server.

5 - 8 Advanced Menu

SATA Mode Selection (Advanced Menu)



SATA Mode

Selection

If you have installed the Windows OS with either IDE or AHCI mode enabled, DO NOT disable the set mode (if you wish to disable the set mode you will need to reinstall the Windows OS).

You can configure SATA (Serial ATA) control to operate in IDE (native/compatible), AHCI (Advanced Host Controller Interface) modes from this menu. The SATA Mode should be set BEFORE installing an operating system, and after you have backed up all necessary files and data (see sidebar).

Boot Logo (Advanced Menu)

Use this menu item to enable/disable th e Boot Logo screen at system startup. If you disable the Boot Logo you will not see the F2 Enter Setup or F7 Boot Options prompts on the screen, however you can still press these keys, while the boot screen is displayed, to perform the Enter Setup or Boot Option functions.

Power On Boot Beep (Advanced Menu)

Use this menu item to enable/disable the beep as the computer starts up.

Battery Low Alarm Beep (Advanced Menu)

Use this menu item to enable/disable the battery low alarm beep.

Super IO Configuration (Advanced Menu)

Use this menu to enable/disable and configure the serial (RS-232) ports to your requirements. Change Settings allows you to change the IO and IRQ settings, and De- vice Mode allows you to set the ports to normal or high speed modes.

BIOS Utilities

Advanced Menu 5 - 9

BIOS Utilities



Security Menu

The changes you make here affect the access to the Setup utility itself, and also access to your machine as it boots up after you turn it on. These settings do not affect your machine or network passwords which will be set in your software OS.

Figure 5 - 4

Security Menu

5 - 10 Security Menu

Password on boot (Security Menu)

Specify whether or not a password should be entered to boot the computer (you may only set a password on boot if a supervisor password is enabled). If “Enabled” is selected, only users who enter a correct password can boot the system (see the warning in the sidebar).
