Clevo 2700T, 2200T Service Manual

Notice

The company reserves the right to revise this publication or to change its contents without notice.
Information contained herein is for reference only and does not constitute a commitment on the part
of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any
errors or inaccuracies that may appear in this publication nor are they in anyway responsible for
any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, trans­lated, transmitted or reduced to any machine readable form without prior consent from the vendor,
manufacturer or creators of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or regis­tered trademarks of their respective companies. They are mentioned for identification purposes only
and are not intended as an endorsement of that product or its manufacturer.

©October, 2001

Preface

Version 1.0

i

Service Manual

Contents

Chapter 1: Introduction

System specifications (general) ............................ 1-2

External components .............................................. 1-6

2200T................................................................................................1-6

2700T................................................................................................1-8

Mainboard overview .............................................. 1-10

Key parts ..................................................................................... 1-10

Cable connectors & switches ................................................. 1-11

Chapter 2: Disassembly

Size chart for screws and hex nuts: ........................................2-1

Disassembly steps ..................................................... 2- 2

Steps to remove the CD device assembly: .............................2-2

Steps to remove the CPU: ...........................................................2-2

Steps to remove the FDD: ..........................................................2-2

Steps to remove the HDD:..........................................................2-3

Steps to remove the inverter board: .......................................2-3

Steps to remove the LCD panel:...............................................2-3

Steps to remove the mainboard: ..............................................2-4

Steps to remove the modem module: ......................................2 -4

Removal Procedures ................................................ 2-5

Remove the battery .....................................................................2-5

Remove the keyboard .................................................................2-6

Remove the HDD assembly........................................................2-7

ii

Remove the CD device assembly..............................................2-8

Remove the heat sink ..................................................................2-9

Applying a heat sink pad...........................................................2-9

Remove the CPU ........................................................................ 2-10

Reinstall the CPU ...................................................................... 2-11

Separate the notebook base in two..................................... 2-12

Remove the FDD assembly ..................................................... 2-15

Remove the CD device tray .................................................... 2-15

Remove the Fan......................................................................... 2-15

Remove the mainboard and tray

from the bottom case................................................................ 2-16

Remove the mainboard

from the mainboard tray......................................................... 2-17

The LCD Panel ........................................................ 2-18

Remove the LCD panel frame ................................................ 2-18

Remove the LCD panel and bracket

from the LCD panel case * ..................................................... 2-19

Remove the LCD panel from the bracket ........................... 2-21

Remove only the LCD panel

(for 14.1” LCD screens)............. ..... ...... ..... ................................ 2-22

Remove the modem module ................................................... 2-24

Preface

iii

Service Manual

Appendix A:
Mechanical Drawings and Parts Lists

2200T ........................................................................... A-1

Bottom half assembly and parts list ...................................... A-1

LCD panel (13.3”) assembly and parts list ............................ A-2

LCD panel (14.1”) assembly and parts list ............................ A-3

Keyboard and TouchPad assembly and parts list .............A-4

FDD assembly and parts list.................................................... A-5

HDD assembly and parts list ................................................... A-6

CD-ROM assembly and parts list ............................................ A-7

DVD-ROM assembly and parts list ......................................... A-8

CD-RW assembly and parts list ............................................... A-9

DVD-ROM+CD-RW combo assembly and parts list ..........A-10

2700T ......................................................................... A-11

Bottom half assembly and parts list .................................... A-11

LCD panel (13.3”) assembly and parts list..........................A-12

LCD panel (14.1”) assembly and parts list..........................A-13

Keyboard and TouchPad assembly and parts list ........... A-14

FDD assembly and parts list..................................................A-15

HDD assembly and parts list ................................................. A-16

CD-ROM assembly and parts list .......................................... A-17

DVD-ROM assembly and parts list ....................................... A-18

CD-RW assembly and parts list .............................................A-19

DVD-ROM+CD-RW combo assembly and parts list ..........A-20

iv

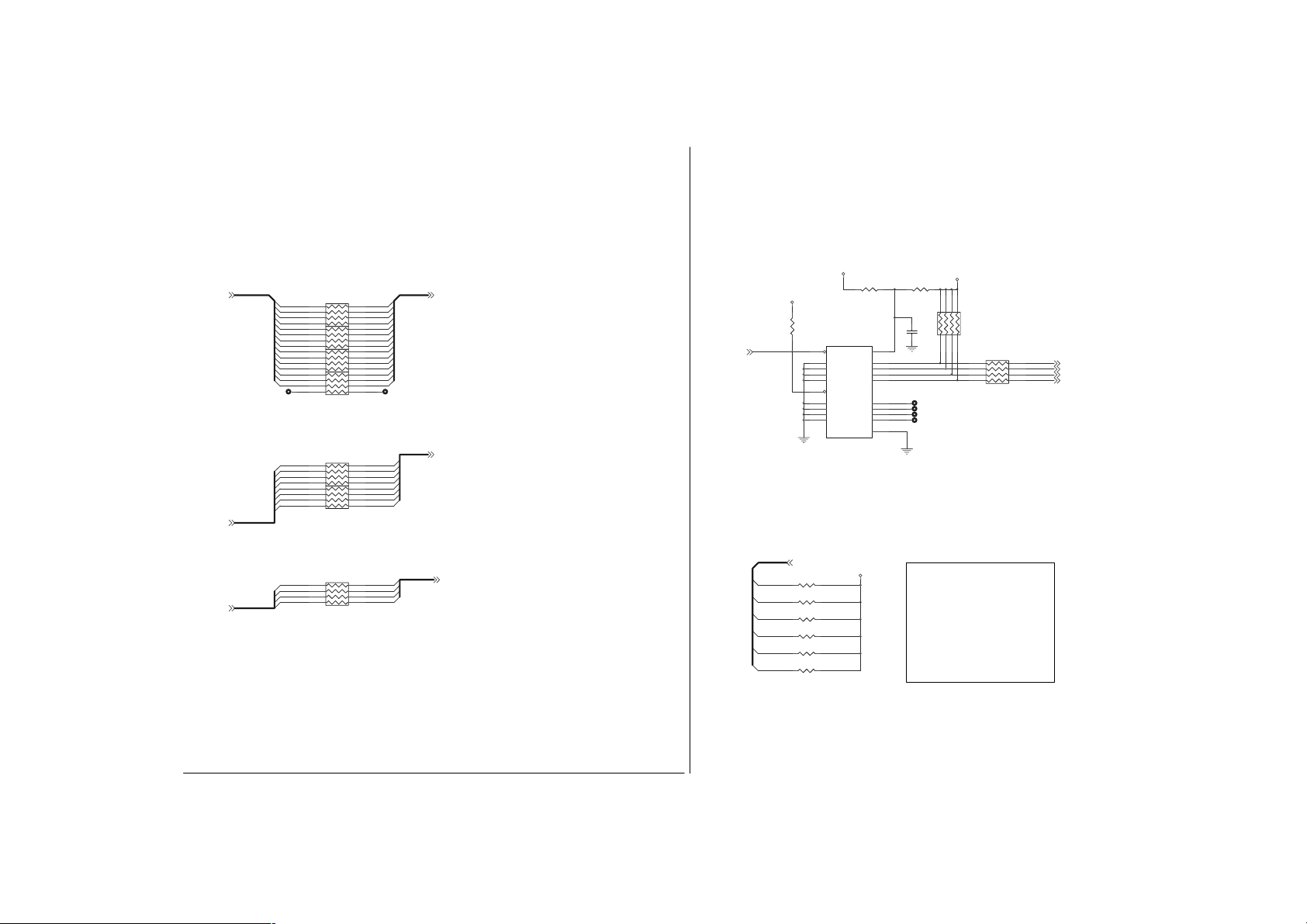

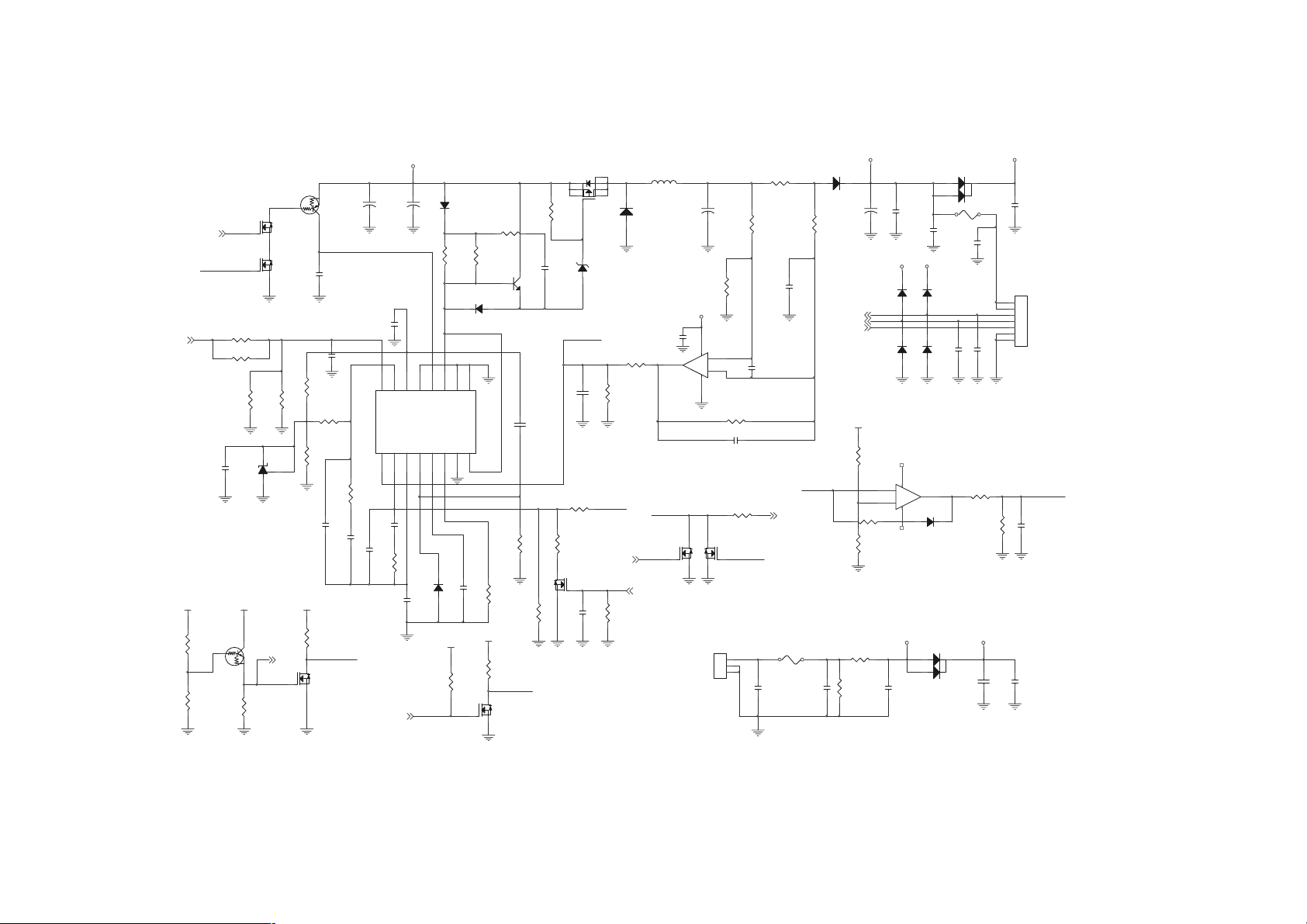

Appendix B: Schematic Diagrams

Mainboard (71-22T00-D03)..................................... B-1

Appendix C: Switch Settings

Clock Settings (SW6) .................................................................. C-1

Panel ID Settings (SW7) ............................................................C-2

Appendix D: Updating the Flash ROM BIOS

A: Download the BIOS update from the web site ..............D-1

B: Unzip the file onto a bootable floppy disk ....................D-1

C: Reboot your computer from the FDD ..............................D-1

D: Use the flash tools to update the flash BIOS ................D-2

E: Restart the computer booting from the HDD .................D-2

Preface

v

Service Manual

Notes:

vi

Chapter 1: Introduction

This manual covers information you will need to service or upgrade your Notebook Computer. Infor­mation about operating the computer (e.g. getting started, etc...) is in the User’s Manual. Driver Informa­tion is also found in the User’s Manual. The User’s Manual is shipped with the computer. Operating Sys­tems (Windows ME, Windows 2000, etc.) have their own manuals as do application software. If you have
any questions regarding those, please consult their user’s manual.

This manual is intended for service personnel who have completed sufficient training to un­dertake maintenance and inspection of personal computers. It is organized to allow you to look up basic
information for servicing and/or upgrading components of the notebook computer. The following informa­tion is covered.

– System overview
– Disassembly

Introduction

– Mechanical drawings and Parts Lists
– Schematic Diagrams
– Switch Settings
– Updating the Flash ROM BIOS

1 - 1

Service Manual

System specifications (general)

The main unit of the 2200T/2700T Notebook PC has the following components:

– Intel Pentium III-S/Pentium III/Celeron with AGP technology-based mainboard, using the

SiS630ST chipset solution supporting SDRAM with 0MB on-board DRAM, expandable to 32MB,

64MB, 128MB, 256MB, 512MB or 1GB using one or two expansion SODIMMs
– user-installed modules: CD-ROM or DVD-ROM or CD-RW or DVD+CD-RW
– main storage (HDD) bay: principal 12.7/9.5mm IDE HDD

supporting DMA mode 2, PIO mode 4, ATA-33/66/100
– User interfaces

- one internal, A4-size, AT-compatible keyboard

- one built-in touchpad

- one 1024x768 XGA Color TFT LCD with CCFT backlight, size 13.3” or 14.1”
supporting IDCT

– Power Solutions

1 - 2

- power bay: battery pack

- AC adapter

CPU

Introduction

Intel Pentium III-S

0.13 Micron Process Technology

Package Socket 370 (FC-PGA2)
L2 Cache 512K B
Speed 1.13/1.26/1.4 GHz

Intel Pentium III

0.13 Micron Process Technology

Package Socket 370 (FC-PGA2)
L2 Cache 256K B
Speed 1.13/1.2 GHz

0.18 Micron Process Technology

Package Socket 370 (FC-PGA)
L2 Cache 256K B
Speed 1.0 GHz

Intel Celeron

0.13 Micron Process Technology

Package Socket 370 (FC-PGA2)
L2 Cache 128KB
Speed 1.2/1.3/1.4 GHz

0.18 Micron Process Technology

Package Socket 370 (FC-PGA)
L2 Cache 128KB
Speed 800/850/900/950 MHz/1.0 GHz

Core Logic

SiS 630ST

System Memory

Socket: 2 SODIMM sockets
Type: SDRAM, 100/133MHz (PC100/

PC133)

Supported Modules: 32/64/128/256/512MB

SODIMM
Base 0 MB
Expansion 1 GB

1 - 3

Service Manual

BIOS

InSyde 256KB

Video

Controller built-in SiS630ST
Memory* SSMA
Built-in Display 13.3”/14.1”, XGA, TFT
Ports external CRT monitor port (x1)

S-Video connector (x1)

* The system allocates or “shares” a portion of
system memory for video use. “Shared” memory
size is user-configurable via the SCU. The video
memory can be set to 8MB/16MB/32MB/64MB.

Audio

Controller built-in SiS630ST
Compatibility Sound Blaster, MS Windows

Sound System

Storage Devices

HDD (fixed) 2.5”, 9.5mm/12.7mm (h),

IDE interface
supporting DMA mode 2, PIO
mode 4, ATA-33/66/100

FDD (fixed) 3.5”, 1.44MB, 3-mode

12.7mm CD Device

24X CD-ROM
8X DVD-ROM
4X CD-RW
DVD-ROM+CD-RW combo

Input

Keyboard A4-size, AT-compatible, with

special function keys and
built-in numeric keypad

TouchPad PS/2 interface

1 - 4

Compliance AC’97 specs
Built-in speaker x2
Built-in mic x1
Ports mic-in or S/PDIF out jack (x1)

speaker-out jack (x1)

I/O Ports

IEEE 1394 port x 1 (unpowered)
Parallel port x 1 (supporting ECP/EPP

1.7 & 1.9 modes)

PS/2 port x 1

Introduction

External CRT monitor port x 1
Infrared port x 1 (supporting IrDA 1.1,

ASKIR and FIR modes)
Micropone-in or S/PDIF out jack x 1
Speaker-out jack x 1
S-Video connector x 1
USB port x 2
RJ-45 jack for 100M/10M LAN x 1
RJ-11 jack for 56K MDC modem x 1
DC-in jack x 1

PCMCIA

1 Socket for Type II cards with CardBus support

Communication

100M/10M LAN on-board Modem module MDC, 56K,

Power Saving Management

APM ver 1.2 support YES
ACPI Ver 1.0b support YES
Soft Off by power button YES
Suspend to disk support YES
Battery low suspend YES
Resume from alarm time YES
Resume from modem ring YES

Environment

Temperature

Operating 5oC ~ 35oC
Non-Operating -20oC ~ 60oC

Relative Humidity

Operating 20% ~ 80%
Non-Operating 10% ~ 90%

V.90 compliant (optional)

Power

Full Range AC adapter

Input 100 - 240VAC, 50/60Hz, 1.5A (max)
Output 20VDC, 3.25A, 65W (max)

Battery pack smart, Lithium-Ion

Physical

Dimension

308 mm(W) x 254mm(D) x 37.5mm(H)

Weight

3.25KG (with Lithium-lon battery)

1 - 5

Service Manual

1) LCD panel

2) microphone

3) LED status
indicators

External components
2200T

4) Hot keys and
power button

5) Keyboard

6) Stereo
speakers

7) TouchPad
and buttons

8) LED power
indicators

9) Open latch

10) RAM cover

11) Battery cover

1

9

3

2

5

6

7

8

4

10

6

11

1 - 6

Introduction

12 ) Mic-in jack

13) Speaker-out jack

12 13

14

15

16

18

17

19

20

14) Volume knob

15) PC Card slot

16) Infrared port

17) FDD

18) CD device
(CD-ROM/DVD­ROM/CD-RW/
DVD+CD-RW)

19) Vent

20) Security slot

21 ) DC-in jack

22) PS/2 type port

23) Parallel port

24 ) Phone jack

25) Vent

26) External CRT
monitor port

21

22

23

24

25

26

27 ) Dual USB ports

28) S-Video

2827

29

30

connector

29 ) IEEE1394 port

30) LAN jack

1 - 7

Service Manual

1) LCD panel

2) microphone

2700T

3) LED status
indicators

4) Hot keys and
power button

5) Keyboard

6) Stereo
speakers

7) TouchPad
and buttons

8) LED power
indicators

9) Open latch

10) RAM cover

11) Battery cover

1

3

2

4

9

5

10

6

6

7

11

8

1 - 8

Introduction

12 ) Mic-in jack

13) Speaker-out jack

12 13

14

15

16

18

17

19

20

14) Volume knob

15) PC Card slot

16) Infrared port

17) FDD

18) CD device
(CD-ROM/DVD­ROM/CD-RW/
DVD+CD-RW)

19) Vent

20) Security slot

21 ) DC-in jack

22) PS/2 type port

23) Parallel port

24 ) Phone jack

25) Vent

26) External CRT
monitor port

21

22

23

24

25

26

27 ) Dual USB ports

28) S-Video

2827

29

30

connector

29 ) IEEE1394 port

30) LAN jack

1 - 9

Service Manual

Mainboard overview

Key parts

1) CPU socket (no
CPU installed)

2) Core logic
SiS630st

3) VR

4) ICS1893 Lan
PHY

5) 1394 PHY

6) Audio Codec

7) TI4410
(PCMCIA +
1394
Controller)

8) K/B Controller
M33867

9) CMOS battery

Top view

Bottom view

5

4

6

7

8

9

10

11

123

10 ) Flash BIOS

ROM

11) PCMCIA socket

1 - 10

Cable connectors & switches

Top view

Introduction

1

1) Microphone connector (CN13)

2) Panel connector (CN15)

2

3

7

8

4

15

14

11

12

8) K/B connector (CN17)

9) MDC connector (CN18)

13

6

5

9

10

14 ) CPU and Memory frequency

switch (SW6)

3) Inverter connector (CN12)

4) Heat sink connector (CN10)

5) Fan connector (CN11)

6) MDC cable connector (CN14)

7) HDD connector (CN16)

10) CD device connector (CN20)

11) FDD connector (CN19)

12) Indicative LED and
touchpad connector (CN21)

13) Internal Speaker connector
(CN22)

15 ) Panel ID switch (SW7)

1 - 11

Service Manual

Notes:

1 - 12

Chapter 2: Disassembly

To make the disassembly process easier each section may have a box in the page margin. Informa-

Disassembly

tion contained in the  boxes informs you what tools will be needed for a given procedure and the
amount of screws involved. A  box lists the components that are important for that particular

procedure. A contains information that may be helpful to you. Examples are shown on the left.

All screw and nuts used in the assembly of the Notebook Computer are assigned a letter. If
you encounter any problems reassembling the machine, refer to this table to make sure you are
using the proper screw or nut.

Size chart for screws and hex nuts:

retteL eziS retteL eziS

A
B
C
D

.mm5x7.1
.mm2x2
.mm3x2
.mm4x2

E
F

.mm5x2

.mm01x2

J

K

L
M
N
O

.mm6x5.2
.mm8x5.2

.mm41x5.2
.mm32x5.2

.mm5.3x6.2

.mm4x3



This box lists the
tools needed and
the amount of
screws used.

Note

Information in
thie box will give
possible useful
information.



This box lists the
names of the
relevant parts.

G
H

Q
R

P

wercsknistaeH

tunxehffodnatS

).mm11(dutsxeH

2 - 1

.mm3x5.2
.mm4x5.2

I

.mm5x5.2

Service Manual

Disassembly steps

From the list below choose the component that you want to disassemble, then follow the steps listed

Note

Remember to
wear an anti­static wrist strap
and remove all
power sources
when working on
the computer.

and go to the appropriate page for detailed instruction.

Steps to remove the CD device assembly:

Remove the battery p 2-5
Remove the keyboard p 2-6
Remove the heat sink p 2-9
Remove the CD device assembly p 2-8

Steps to remove the CPU:

Remove the battery p 2-5
Remove the keyboard p 2-6
Remove the heat sink p 2-9
Remove the CPU p 2-10

Steps to remove the FDD assembly:

Remove the battery p 2-5

2 - 2

Remove the keyboard p 2-6
Remove the HDD assembly p 2-7
Separate the notebook base in two p 2-12
Remove the FDD assembly from the mainboard p 2-15

Steps to remove the HDD assembly:

Remove the battery p 2-5
Remove the keyboard p 2-6
Remove the HDD assembly p 2-7

Steps to remove the inverter board:

Remove the battery p 2-5
Remove the LCD panel frame p 2-18
Remove the LCD panel from the LCD panel case p 2-19 (up to step 4)

Steps to remove the LCD panel:

Remove the battery p 2-5
Remove the LCD panel frame p 2-18
Remove the LCD panel and bracket from the LCD panel case p 2-19

Disassembly

Remove the LCD panel from the bracket p 2-21
Remove only the LCD panel (for 14.1” LCD screens) p 2-22

2 - 3

Service Manual

Steps to remove the mainboard:

Remove the battery p 2-5
Remove the keyboard p 2-6
Remove the HDD assembly p 2-7
Remove the CD device assembly p 2-8
Remove the heat sink p 2-9
Remove the CPU p 2-10
Separate the notebook base in two p 2-12
Remove the FDD assembly p 2-15
Remove the CD device tray p 2-15
Remove the fan p 2-15
Remove the mainboard from the bottom case p 2-16
Remove the mainboard from the mainboard tray p 2-17

2 - 4

Steps to remove the modem module:

Remove the battery p 2-5
Remove the keyboard p 2-6
Remove the heat sink p 2-9
Remove the modem module p 2-24

Removal Procedures

Remove the battery

1. Remove the 2 screws on the battery cover (figures 2-1).

Disassembly

2. Disconnect the battery connector from the computer.

3. Slide the battery out of the computer (figures 2-2).

2

L

1

L

2

M

figure 2-1a



1 Philips screw-

driver

2 screws

3

4

figure 2-2a



1) Battery
Cover

3

4

2) Battery
Connector
plug

3) Battery

1

M

figure 2-1b

figure 2-2b

Connector

4) Battery

2 - 5

Service Manual

Remove the keyboard



1) keyboard
latch

2) ribbon cable

1. Press the 4 keyboard latches at the top of the keyboard (figure 2-3).

2. Lift the top of the keyboard up and out of the computer (figure 2-4).

3. Remove the keyboard ribbon cable.

1

1 1

1

2 - 6

2

figure 2-3

figure 2-4

Remove the HDD assembly

1. Remove 3 screws (D) holding the HDD assembly in place (figure 2-5).

Disassembly



2. Lift the HDD assembly out of the case using the HDD tab (figure 2-6).

D

D

D

figure 2-5

1

1 Philips screw-

driver

3 screws



1) HDD assem­bly

2) HDD tab

3) HDD connec­tor

2

3

4

figure 2-6

4) HDD socket

Note

For information
on removing the
HDD from the
HDD assembly
go to Appendix
A.

2 - 7

Service Manual



1 Philips

screwdriver

1 screw

Note

For information
on removing the
CD device from
the assembly go
to Appendix A.

**

When reinstall­ing the CD de­vice assembly
you should do so
with the heat
sink removed.
Reinstall the
assembly, fasten
the screw and
then reinstall
the heat sink.
This will ensure
that there are no
interference
problems later
once you restart
your computer.

Remove the CD device assembly

1. Remove screw (I) in figure 2-7.

2. Use a small screwdriver to gently push the CD device assembly out of the case (figure 2-7).

3. Remove the heat sink. ** (refer to page 2-9 for heat sink removal steps)

I

figure 2-7

2 - 8

Disassembly

Remove the heat sink

1. Unscrew the 4 screws (P) securing the heat sink to the mainboard (figure 2-8).

2. Lift up the heat sink part way until you see the heat sink cable. Disconnect the cable from the
mainboard (figure 2-9).

3. Place the heat sink aside.

2

3

1b

2

P

P

P

P

4

2

3

1a

4



1 Philips screw-

driver

4 screws



1a)Heat sink

(for FC-PGA
Pentium III
and Celeron
CPUs)
Part no.: 31-

22C0N-10X

1b)Heat sink

(for FC-PGA2
Pentium III-S,
Pentium III
and Celeron

figure 2-8

figure 2-9

Applying a heat sink pad

1. When the heat sink has been removed you will need to apply a new heat sink pad before rein­stalling it. To do so simply peel off the old pad and adhere a new one to the same area.

CPUs)
Part no.: 31-

22T0N-10X

2) Cable connec­tor

3) Cable

4) Heat sink pad

2 - 9

Service Manual



1 Regular

screwdriver

1 CPU tool



1a) FC-PGA2

CPU

1b) FC-PGA

CPU

2) CPU lock

3) CPU Tool

4) Open Slot

**

The removal and
reinstallation/
replacement
procedures for
both FC-PGA
and FC-PGA2
CPUs are the
same. However,
both types of
CPUs go with
different heat
sinks (page 2-9).

Remove the CPU

1. Remove the CPU lock from
the CLOSE slot of the CPU
socket (figure 2-10a).

2. Place the CPU tool over
the CPU (figure 2-10b).

3. Place a screwdriver in
the OPEN slot of the
CPU socket and move it
to the left (figure 2-10b).

4. The CPU is now un­locked from the socket
so remove the CPU tool
and lift the CPU out of
the socket.

1a

2

figure 2-10a

1b

2

3

4

1a

figure 2-10b

2 - 10

Reinstall the CPU

Disassembly

1. Place the CPU firmly in the
socket.

2. Place the CPU tool over the
CPU (figure 2-11a).

3. Place a screwdriver in the
CLOSE slot of the CPU socket
(figure 2-11a) and move it to the
right.

4. The CPU is now secure in the
socket.

5. Remove the CPU tool, place
the CPU lock on the CLOSE
slot of the socket (figure 2­11b).



1 Regular

screwdriver

1 CPU tool

1

2

3



figure 2-11a

1) CPU

2) CPU tool

3) CLOSE slot

4) CPU lock

6. Now that the CPU is properly
installed, reinstall the heat
sink.

4

figure 2-11b

2 - 11

Service Manual



1 Philips screw­driver

1 Hex socket
wrench

Top: 1 Screw

1 Hex nut

Right Side:

1 Screw

Bottom:
7 Screws (2700T)
5 Screws (2200T)

Bottom Rear:

3 Screws
4 Hex nuts



1) microphone
connector

2) LCD panel
cable connec­tor

3) Inverter cable
connector

4) LCD panel
cable

5) Inverter cable

Separate the notebook base in two

With the CPU and heat sink, keyboard, HDD and CD device removed:

1. Remove screw (I), the LCD panel cable and
the inverter cable. When reinstalling make
sure to place the LCD panel cable on top of
the case and the inverter cable on the inside
of the case just above the hex nut (figure 2-

12).

4

1

2

3

I

5

figure 2-12

2 - 12

2. Remove screw (I) (figure 2-13).

Disassembly

I

figure 2-13

3. Close the LCD panel and go to the right side of the computer and remove screw (I) (figure 2-14).

I

figure 2-14

2 - 13

Service Manual



4. Remove the hex nuts (R) on the parallel port (figure 2-15).

5. Remove the hex nuts (R) on the monitor out port (figure 2-15).

1 Hex socket

wrench
4 Hex nuts
3 Screws



1) parallel port

2) monitor port

6. Remove screws (D) just above the ports (figure 2-15).

D D

R

7. Remove all screws as shown in (figures 2-16).

K

1

R

D

R

2

K

J

R

K

figure 2-15

K

J

2 - 14

J

DD

D

J

J

figure 2-16afigure 2-16a

Disassembly

Remove the FDD assembly

1. Remove screw (I).

2. Remove the hex nut (Q).

3. Unplug the FDD cable and lift the FDD as­sembly off of the mainboard.

1

Q

Remove the CD device tray

1. Remove screws (I).

2. Remove screw (F)

3. Unplug the CD device cable and slide the tray
slightly to the right and lift it off of the mainboard.

2

3

I

I

Remove the Fan

1. Unplug the fan cable
from the mainboard.

2. Lift out the fan.

1 Philips screw­driver

1 Hex socket
wrench

FDD:
1 Stand-off Hex
nut
1 Screw

CD device tray:
3 Screws

1) Fan

2) Fan cable

3) Fan cable

4) FDD assembly





connector

5) CD device tray

4

I

F

Note

5

figure 2-17

For information
on removing the
FDD from the
FDD assembly
go to Appendix
A.

2 - 15

Service Manual



1 Philips screw-

driver

1 Hex socket

wrench
2 Screws
1 Hex nut

Remove the mainboard and tray from the bottom case

1. Remove screws (F, H) and hex nut (Q).

2. Lift the mainboard up from the battery side and pull it out of the case.

Q

2 - 16

H

F

figure 2-18

Remove the mainboard from the mainboard tray

1. Lift the mainboard out of the tray.

Disassembly

mainboard bottom view

figure 2-19

mainboard top view

2 - 17

Service Manual



1 Philips

screwdriver

5 Screws



1) Top half of
notebook
computer

2) LCD panel in
back

3) LCD panel
frame

The LCD Panel

Remove the LCD panel frame

1. Remove the rubber stoppers in positions D and J (figure 2-20).

2. Remove the screws (D, J) (figure2-20).

3. Run your finger around the middle of the frame and separate
the frame from the back (figure 2-21).

2

D

1

J J

J

D

figure 2-20

2 - 18

3

figure 2-21

Disassembly

Remove the LCD panel and bracket from the LCD panel case *

1. Remove the bracket screws (D) on the side of the LCD panel (figure 2-22).

2. Remove the 4 screws (I) at the bottom of the LCD screen (figure 2-22).

3. Remove screws (D) securing the inverter board (figure 2-22).

D

D



1 Philips

screwdriver

10 Screws



1) Ground wire
(for reassem­bly, please
note where
the ground
wire is at­tached )

2) Inverter
Board

D

*

1

I

I

D

2

D

I

I

D

figure 2-22

The following
models need to
have the LCD
bracket removed.
2700T - 13.3”
2200T - 13.3”

2 - 19

Service Manual



1) Inverter
cable

2) LCD to in­verter cable

3) LCD cable

4) LCD cable
connector

5) LCD bracket

1

4. Lift the inverter board and disconnect the in­verter cable and the LCD to inverter cable (figure
2-23).

5. Lift the LCD screen and bracket out of the case
and place it atop the keyboard (figure 2-24).

6. Disconnect the LCD cable.

2

figure 2-23

5

3

5

2 - 20

4

figure 2-24

Remove the LCD panel from the bracket

Disassembly

1. Gently lift out the panel.

2. Remove the screws (C) holding the LCD in the bracket (figure 2-25).

C

C



1 Philips screw-

driver (small)

4 Screws

C

C

figure 2-25

2 - 21

Service Manual



1 Philips

screwdriver

4 Screws

Remove only the LCD panel (for 14.1” LCD screens)

Once the frame is removed from a 14.1” model, you will not need to remove the bracket. Instead:

1) Remove the four screws (figure 2-26)

E

E

2 - 22

E

E

figure 2-26

2) Gently remove the LCD panel from the case and place it on top of the keyboard (figure 2-27).

Disassembly

3) Remove the tape and connectors and lift the LCD panel out.

1

2



1) LCD cable

2) LCD cable
connector

figure 2-27

2 - 23

Service Manual

Remove the modem module



1 Philips

screwdriver

2 Screws



1) modem
module

2) modem cable

With the keyboard and heat sink removed:

1) Remove screws (H) (figure 2-28)

2) Disconnect the modem cable from the mainboard.(the modem module with the cable is still connected
to the mainboard via a board-to-board connector.)

3) Remove the modem module with the cable.

1

2

2

2 - 24

H

1

H

1

Mechanical Drawings and Parts Lists

Appendix A: Mechanical Drawings and Parts Lists

2200T

Bottom half assembly and parts list

2200T

A - 1

Service manual

LCD panel (13.3”) assembly and parts list

2200T

A - 2

LCD panel (14.1”) assembly and parts list

Mechanical Drawings and Parts Lists

2200T

A - 3

Service manual



Keyboard and Touchpad assembly and parts list

2200T

A - 4

FDD assembly and parts list

Mechanical Drawings and Parts Lists

2200T

A - 5

Service manual

HDD assembly and parts list

2200T

A - 6

CD-ROM assembly and parts list

Mechanical Drawings and Parts Lists

2200T

A - 7

Service manual

DVD-ROM assembly and parts list

2200T

A - 8

CD-RW assembly and parts list

Mechanical Drawings and Parts Lists

2200T

A - 9

Service manual

DVD-ROM+CD-RW combo assembly and parts list

2200T

A - 10

2700T

Bottom half assembly and parts list

Mechanical Drawings and Parts Lists

2700T

A - 11

Service manual

LCD panel (13.3”) assembly and parts list

2700T

A - 12

LCD panel (14.1”) assembly and parts list

Mechanical Drawings and Parts Lists

2700T

A - 13

Service manual



Keyboard and Touchpad assembly and parts list

2700T

A - 14

FDD assembly and parts list

Mechanical Drawings and Parts Lists

2700T

A - 15

Service manual

HDD assembly and parts list

2700T

A - 16

CD-ROM assembly and parts list

Mechanical Drawings and Parts Lists

2700T

A - 17

Service manual

DVD-ROM assembly and parts list

2700T

A - 18

CD-RW assembly and parts list

Mechanical Drawings and Parts Lists

2700T

A - 19

Service manual

DVD-ROM+CD-RW combo assembly and parts list

2700T

A - 20

Appendix B:Schematic Diagrams

Mainboard (71-22T00-D03)

Schematic Diagrams

Sheet 1 of 31

HA#[3..31]

PREQ#(2)

PRDY#

HREQ#[0..4]

DEFER#(4)

A20M#(2,10)

IGNNE#(2,10)

INTR(2,10)
NMI(2,10)

SLP#(2,10)

PinAF36(2)

IERR#(2)

BPRI#(4)

RS#0(4)
RS#1(4)
RS#2(4)

SMI#(2,10)

TCK
TDO
TDI
TMS
TRST#
PREQ#
PRDY#

ADS#

IERR#

BREQ0#
BPRI#
BNR#
HLOCK#

HIT#
HITM#
DEFER#

HTRDY#
RS#0
RS#1
RS#2

A20M#
CPU_FERR#
IGNNE#
PWRGOOD
SMI#

R168 47

R167 47

INTR
NMI

STPCLK#
SLP#

VCCT

R571
1K

B

ADS#(4)

BREQ0#(4)

BNR#(4)
HLOCK#(4)

HIT#(4)
HITM#(4)

HTRDY#(4)

CPU_FERR#(2)

PWRGOOD(2)

TCK(2)
TDO(2)

TDI(2)

TMS(2)

TRST#(2)

STPCLK#(2,10)

HREQ#[ 0..4](4)

HA#3
HA#4
HA#5
HA#6
HA#7
HA#8
HA#9
HA#10
HA#11
HA#12
HA#13
HA#14
HA#15
HA#16
HA#17
HA#18
HA#19
HA#20
HA#21
HA#22
HA#23
HA#24
HA#25
HA#26
HA#27
HA#28
HA#29
HA#30
HA#31

HREQ#0
HREQ#1
HREQ#2
HREQ#3
HREQ#4

Z744

Z743

R569
10K

C
E

Q46
2N3904

U9A

AK8

A#3

AH12

A#4

AH8

A#5

AN9

A#6

AL15

A#7

AH10

A#8

AL9

A#9

AH6

A#10

AK10

A#11

AN5

A#12

AL7

A#13

AK14

A#14

AL5

A#15

AN7

A#16

AE1

A#17

Z6

A#18

AG3

A#19

AC3

A#20

AJ1

A#21

AE3

A#22

AB6

A#23

AB4

A#24

AF6

A#25

Y3

A#26

AA1

A#27

AK6

A#28

Z4

A#29

AA3

A#30

AD4

A#31

X6

A#32

AC1

A#33

W3

A#34

AF4

A#35

AK18

REQ#0

AH16

REQ#1

AH18

REQ#2

AL19

REQ#3

AL17

REQ#4

AN31

ADS#

AE35

IERR#

AN29

BR0#

AN17

BPRI#

AH14

BNR#

AK20

LOCK#

AL25

HIT#

AL23

HITM#

AN19

DEFER#

G33

BP#2

E37

BP#3

C35

BPM#0

E35

BPM#1

AN25

TRDY #

AH26

RS#0

AH22

RS#1

AK28

RS#2

AE33

A20M#

AC35

FERR#

AG37

IGNNE#

AK26

PWGOOD

AJ35

SMI#

AL33

TCK

AN37

TDO

AN35

TDI

AK32

TMS

AN33

TRST#

J37

PREQ#

A35

PRDY#

M36

LINT0#/INTR

L37

LINT1#/NMI

AG35

STPCLK#

AH30

SLP#

TUALU TIN

VCCVCC

VCCT

R570

DS

10K

Q45
SI2302DS

G

G

Q47

2N7002

Cu+/Tu- (29)

DS

PinAG1 (2)
Cu-/Tu+ (2,3)

R572
1K

DBSY#

DRDY#

PICCLK

PICD1
PICD0

FLUSH#
RESET#
RESET#

BSEL0
BSEL1

CLKREF

W1

D#0

T4

D#1

N1

D#2

M6

D#3

U1

D#4

S3

D#5

T6

D#6

J1

D#7

S1

D#8

P6

D#9

Q3

D#10

M4

D#11

Q1

D#12

L1

D#13

N3

D#14

U3

D#15

H4

D#16

R4

D#17

P4

D#18

H6

D#19

L3

D#20

G1

D#21

F8

D#22

G3

D#23

K6

D#24

E3

D#25

E1

D#26

F12

D#27

A5

D#28

A3

D#29

J3

D#30

C5

D#31

F6

D#32

C1

D#33

C7

D#34

B2

D#35

C9

D#36

A9

D#37

D8

D#38

D10

D#39

C15

D#40

D14

D#41

D12

D#42

A7

D#43

A11

D#44

C11

D#45

A21

D#46

A15

D#47

A17

D#48

C13

D#49

C25

D#50

A13

D#51

D16

D#52

A23

D#53

C21

D#54

C19

D#55

C27

D#56

A19

D#57

C23

D#58

C17

D#59

A25

D#60

A27

D#61

E25

D#62

F16

D#63

AL27
AN27

J33
L35
J35

AG33

INIT#

AE37

Z907

X4
AH4

W37

BCLK

AJ33
AJ31

Y33

HD#0
HD#1
HD#2
HD#3
HD#4
HD#5
HD#6
HD#7
HD#8
HD#9
HD#10
HD#11
HD#12
HD#13
HD#14
HD#15
HD#16
HD#17
HD#18
HD#19
HD#20
HD#21
HD#22
HD#23
HD#24
HD#25
HD#26
HD#27
HD#28
HD#29
HD#30
HD#31
HD#32
HD#33
HD#34
HD#35
HD#36
HD#37
HD#38
HD#39
HD#40
HD#41
HD#42
HD#43
HD#44
HD#45
HD#46
HD#47
HD#48
HD#49
HD#50
HD#51
HD#52
HD#53
HD#54
HD#55
HD#56
HD#57
HD#58
HD#59
HD#60
HD#61
HD#62
HD#63

DBSY#
DRDY#

CPU_PICCLK

PICD1
PICD0

INIT#
FLUSH#

R553 1K

CPURST #
HCLKCPU
BSEL0

BSEL1
CLKREF

HD#[0..63]

DBSY# (4)
DRDY# (4)

CPU_PICCLK (3)
PICD1 (2)
PICD0 (2)

INIT# (2,10)
FLUSH# (2)

CPURST# (4)
HCLKCPU ( 3)
BSEL0 (2,3)

BSEL1 (2,3)

R300 150(1%)(0805)
R299 150(1%)(0805)

C322
.1U

CPURST#(4)
ITP_RST#(26)

TRST#(2)
PRDY#
PREQ#(2)

HD#[0..6 3]

VCCT

10
9
8
7
6

VCCT

10
9
8
7
6

VCCT

10
9
8
7
6

VCCT

10
9
8
7
6

VCCT

10
9
8
7
6

VCCT

10
9
8
7
6

VCCT

56
56

HD#1
HD#5
HD#8
HD#17

HD#0
HD#6

C369

HD#15

.1U

HD#4

HD#2
HD#14
HD#11
HD#13

HD#10
HD#12

C126

HD#18

.1U

HD#9

HD#35
HD#32
HD#29
HD#31

HD#26

C357

HD#19

.1U

HD#33

HD#24
HD#21
HD#23
HD#16

HD#20

C368

HD#7

.1U

HD#30

HD#22
HD#34
HD#43

HD#38
HD#36

C365

HD#37

.1U

HD#39

HD#45
HD#44
HD#42
HD#27

HD#51
HD#49
HD#41
HD#47

C367
.1U

HD#40
HD#52
HD#48
HD#59

HD#63
HD#57
HD#55
HD#46

C356

.1U

HD#50
HD#58
HD#53
HD#54

HD#56
HD#61
HD#62
HD#60

Titl e

Size Document Number Rev
Custom

Date: Sheet

Tuesday, September 11, 2001

HA#[3..31]

HA#28
HA#15
HA#12
HA#13

HA#16
HA#3
HA#9
HA#6

HA#25
HA#22
HA#17
HA#31

HA#5
HA#10
HA#21
HA#19

HA#30
HA#29 HD#25
HA#26
HA#18

HA#20
HA#24
HA#23
HA#27

HA#14
HA#7 HD#3
HA#4
HA#8

HA#11

PRDY# HD#28

PRDY#

HREQ#4

HREQ#4(4)

HREQ#0

HREQ#0(4)

BREQ0#(4)

BREQ0#
RS#2

RS#2(4)

DBSY#

DBSY#(4)

RS#0

RS#0(4)

DRDY#

DRDY#(4)

HIT#

HIT#(4)

HTRDY #

HTRDY#(4)

HITM #

HITM#(4)

RS#1

RS#1(4)

DEFER#

DEFER#(4)

HLOCK #

HLOCK#(4)

HREQ#3

HREQ#3(4)

HREQ#2

HREQ#2(4)

BPRI#

BPRI#(4)

HREQ#1

HREQ#1(4)

BNR#

BNR#(4)

V_IO2.5

TDI(2)
TDO(2)
TCK(2)
TMS(2)

CPURST#(4)

TDI
TDO
TCK
TMS
TRST#
PRDY#
PREQ#
CPURST#

ITP_RS T #

ADS#(4)

.1U(R)

CPURST#

ADS#

C482

C481

C480

.1U(R)

.1U

HA#[3..31] (4)

RP17

1

1

2

2

3

3

4

4

5

5

TSMC8R -56

RP9

1

1

2

2

3

3

4

4

5

5

TSMC8R -56

RP8

1

1

2

2

3

3

4

4

5

5

TSMC8R -56

RP16

1

1

2

2

3

3

4

4

5

5

TSMC8R -56

RP14

1

1

2

2

3

3

4

4

5

5

TSMC8R -56

RP15

1

1

2

2

3

3

4

4

5

5

TSMC8R -56

R308
R314

TP187
TP188
TP189
TP190
TP191
TP192
TP193
TP194

TP195

HD#[0..63](4)HD#[0..63] (4)HA#[3. .31](4)

10

9
8
7
6

10

9
8
7
6

10

9
8
7
6

10

9
8
7
6

10

9
8
7
6

10

9
8
7
6

RP7

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP6

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP4

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP5

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP1

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP2

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP3

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

RP11

1

10

1

10

2

9

2

9

3

8

3

8

4

7

4

7

5

6

5

6

TSMC8 R-56

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

CPU & AGTL TERMINATION

71-22T00-D03

VCCT

C337
.1U

VCCT

C325
.1U

VCCT

C287
.1U

VCCT

C307
.1U

VCCT

C40
.1U

VCCT

C41
.1U

VCCT

C42
.1U

VCCT

C234
.1U

A

31

of

1

B - 1

Service Manual

Sheet 2 of 31

CPU VRM S ELECT T ABLE FOR T UALAT I N

Cu-/Tu+(1,3)

GTLREF(4)

VID[4:0]
10000
10001
10010
10011
10100
10101
10110
10111
11000
11001
11010
11011
11100
11101
11110
11111

SI2305DS

G S

Q49

L70

0(0805)

V_IO2.5

V_IO1.5

VID0(27)
VID1(27)
VID2(27)
VID3(27)

VID25mV(27)

VCC_Core

1.00V

1.05V

1.10V

1.15V

1.20V

1.25V

1.30V

1.35V

1.40V

1.45V

1.50V

1.55V

1.60V

1.65V

1.70V

1.75V

D

20 MIL

VCCT

C547
.1U(0805)

VID0
VID1
VID2
VID3

VID25mV

V_IO1.5

G

D S

C88

4.7U

R559 75(1%)

Q48
SI2302DS

20 MIL

C354
.1U

C97
.1U

V_IO_CPU

V_IO2.5

Z893

R560
150(1%)

VCC_CORE

C494
10U

C129
.1U

C543
.1U

VCCT

R574 R

C279
.1U

VCCT

C283
.1U

AM36

AD32

AH24
AH32
AH36

AM12
AM16
AM20
AM24
AM28
AM32

AD36

AL35
AL37

AJ37
AK36
AA37

AB34

AF34

AJ13
AJ17
AJ21
AJ25
AJ29

AK34

AB36

AK12
AK22

VCCT

AN1AK24

AH20

AK16

AL13

AL21

AN11

AN15

G35

AA33

AA35

AN21

E23

S33

S37

U35

U37

C33

C31

A33

VID0

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

PR#

AC37

BR1

RSP#

F10

Z892

NCNCNCNCNCNCNCNCNC

L33

G37

N33

N35

Z891

VTT

N37

Q33

VID1

VCC3AERR#

VID2
VID3
VID4
VCC-CORE

AA5

VCC-CORE

AB2

VCC-CORE
VCC-CORE
VCC-CORE

AE5

VCC-CORE

AF2

VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE

AJ5

VCC-CORE

AJ9

VCC-CORE

AK2

VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE
VCC-CORE

AM4

VCC-CORE

AM8

VCC-CORE

B10

VCC-CORE

B14

VCC-CORE

B18

VCC-CORE

B22

VCC-CORE

B26

VCC-CORE

B30

VCC-CORE

B34

VCC-CORE

B6

VCC-CORE

C3

VCC-CORE

D20

VCC-CORE

D24

VCC-CORE

D28

VCC-CORE

D32

VCC-CORE

D36

VCC-CORE

D6

VCC-CORE

E13

VCC-CORE

E17

VCC-CORE

E5

VCC-CORE

E9

VCC-CORE

F14

VCC-CORE

F2

VCC-CORE

F22

VCC-CORE

F26

VCC-CORE

F30

VCC-CORE

F34

VCC-CORE

F4

VCC-CORE

H32

VCC-CORE

H36

VCC-CORE

J5

VCC-CORE

K2

VCC-CORE

K32

VCC-CORE

K34

VCC-CORE

M32

VCC-CORE

N5

VCC-CORE

P2

VCC-CORE

P34

VCC-CORE

R32

VCC-CORE

R36

VCC-CORE

S5

VCC-CORE

T2

VCC-CORE

T34

VCC-CORE

V32

VCC-CORE

V36

VCC-CORE

W5

VCC-CORE

X34

VCC-CORE

Y35

VCC-CORE

Z32

VCC-CORE
VCC_1.5V

Z36

VCC_2.5V
VCC_CMOS

E33

VREF0

F18

VREF1

K4

VREF2

R6

VREF3

V6

VREF4

AD6

VREF5
VREF6
VREF7

BERR#

BINIT #

AP#0

AP#1

V4

B36

AL11

AN13

AN23

R561 0

VCCT

R562 14

VCCT

VTT

VTT

Q35

Q37X2Y1

VTT

R2

VTT

NC

NC

W35

DEP#0

DEP#1

DEP#2

NC

NC

VCORE_DE

AK30

E21

A31

DEP#3

EDGCTRL/VR SEL

SLEWCTR L

E27

E31

C29

E29

DEP#4

DEP#5

DEP#6

CPUPRES#

THERMTRIP#

THER MDP
THER MDN

RTTCTRL

S35

RTTCTRL
SLE WCT RL

A29

GND
GND

DEP#7

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

GND
GND
GND
GND
GND
GND

NC
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

PLL1
PLL2

TUAL UTIN

A37
AB32
AC33
AC5
AD2
AD34
AF32
AF36
AG5
AH2
AH34
AJ11
AJ15
AJ19
AJ23
AJ27
AJ3
AJ7

AK4
AL1
AL3
AM10
AM14
AM18
AM2
AM22
AM26
AM30
AM34
AM6
AN3
B12
B16
B20
B24
B28
B32
B4
B8
D18
D2
D22
D26
D30
D34
D4
E11
E15
E19
E7
F20
F24
F28
F32
F36
G5
H2
H34
K36
L5
M2
M34
P32
P36
Q5
R34
T32
T36
U5
V2
V34
X32
X36
Y37
Y5
Z2
Z34

AG1

C37

AH28
AL31

AL29
W33

U33

R292
R282

U9B

PinAF36

Z897
Z899

Z898

PinAG1

VCC_COR E VCC_CORE

A C

R556

VCCT

THERMDP
THERMDN

PLL1
PLL2

110(1%)
110(1%)

PinAF36 (1)

VTT_PW RGD (3)

D47

F01J2E

R555

1K

R557

1K

THER MDP
THER MDN

R541 0

VCC3

VCC

PinAG1 (1)

VCCT

1K

STPCLK#(1,10)

IGNNE#(1,10)

FLUSH#(1)

PREQ#(1)

THER MDP

THER MDN

C77
10U

C51

.1U

SMI#(1, 10)

INIT#(1,10)

INTR(1,10)

NMI(1,10)

A20M#(1,10)

SLP#(1,10)
PICD0(1)
PICD1(1)

TCK(1)
TMS(1)

TDI(1)

TDO(1)

IERR#(1)
TRST#(1)

BSEL0(1,3)
BSEL1(1,3)

LO/HI#(10)

L19

4.7UH(0805)

C89
22U(1206)

C114

C113

10U

10U

C353

C286

.1U

.1U

C378

C377

.1U

.1U

STPCLK#
SMI#

INIT#
INTR
NMI
IGNNE#
A20M#

SLP#
PICD0
PICD1
FLUSH#
PREQ#
TCK
TMS
TDI
TDO

IERR#
TRST#

BSEL0

BSEL1

ATF_INT#(10)

R304 200(0805)
R79 R(0805)

C323 .1U (R)

Z806

C61
10U

VCC_COR E

C336

.1U

C376

.1U

C520

.1U(0805)

R80 1

C87

C355

4.7U

4.7U

C302

.1U

C375

C374

.1U

.1U

R312
R313
R134 470
R70 470
R69
R133
R311 470
R315
R280 150
R288 150
R111
R281
R321 150(R)
R322 200
R169 330
R316 150

R110
R320

R147
R148
R529 1.5K

Z717

C324

C305

C100

4.7U

4.7U

VCCT

C370

4.7U

C282

C127

.1U

.1U

.1U

12

+

C150

220U/6.3V

V_IO_CPU

C488

C489

.1U

.1U

V_IO_CPU

470

V_IO_CPU

470

470
470

330

150
330

R
680

1K
1K

C335

22P

3
4

11

2
7
8

Hardware Protect = 95«×

85
95

100
115

VCC_CORE

U8

DXP
DXN
ALERT#

GND(VCC)
GND
GND

TC1066

R297

R298

VDD3

STBY#

SMBDATA

SMBCLK

ADD1
ADD0

CRIT1/VCC

CRIT0

OS#

CRIT0

CRIT1

0
0
X

1

Titl e

Size Document N um ber Rev
Custom

Date: Sheet

C281
.1U

C483

10U

1K

PWROK

NC
NC

0
1
0
0

Tuesday, Sept em ber 11, 2001

C304

C306

C128

C284

.1U

.1U

.1U

.1U

C484

C486

10U

10U

C492

C491

.1U

.1U

VCC3

Z330

Q11

B

E C

150

2N3904

CPU_FERR#

D18

AC

F01J2E

TCK(1)

VCC3

R294

R301

1K

1K

15
12
14

6

Z210

10

Z211

1

Z241

5

Z240

9
13
16

Z936

TP227
R305

4.7K

R89 R
R302 10K

OS#

R303

4.7K(R)

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

CPU

71-22T00-D03

C98

C366

.1U

.1U

V_IO2.5

R291

4.7K

FERR#

CPU_FERR# (1)

PWRGOOD

R307 330
R573 510

Z717

R295
0

SDA_ATF (25)
SCL_ATF (25)

C303

.1U

C99

4.7U

TCK

OS# (26)

C285

.1U

C334

.1U

FERR# (10)

PWRGOOD (1)PWROK(10,26)

V_IO2.5

R590 1.3K

VCC3

of

2

C280

.1U

A

31

B - 2

Sheet 3 of 31

Schematic Diagrams

VCC3

VCCT

L56

BEAD

R552 10K

FS3

0
0
0
0
0
0
0
0
1
1

1
1
1
1
1

1
1

FS2

C384
.1U

C542
1U(0805)

0
0

0
1
1

1
1
1
0
0
0
0
1
1

1
1
1

C389

C441

.1U

.1U

L57

V_IO2.5

BEAD

B

Q41

2N3904

C552

0.1U(C)

CLOCK SELECT

FS0

FS1

0

0

1

0

0

1
1

1
0

0

1

0
1

0

1

1

0

0
1
0

1
1

1

0

0
1

0

01

1

1

1

VDDREF

C446
.1U

R549
100K

C
E

C444
.1U

C443

4.7U

CLOSE TO CLOCK GEN ER ATOR

C387

4.7U

VCC3VCC3

Z905

G

Q42

2N7002

1
2
3

C399
.1U

C386

0.01U

C395

C396

0.01U

.1U

CLOSE TO CLOCK GENERATOR

R550

2.2K

Z906

R551 0

DS

U34

N.C
IN
GND

TC7S 14F

5

VCC

4

OUT

SCL_ATFF(25)
SDA_ATFF(25)

C429

0.01U

C394
.1U

C541
R

C438
.1U

C397

0.01U

VTTPG_CLK

VCC3

VTT_PWRGD (2)

CLK2.5V

SCL_ATFF
SDA_ATFF

C427

0.01U

15
19
27
30
36
42

16
22
33
39
10

47

44

24
23

1

6

3

VDDREF
VDD

VDD
VDD
VDD
VDD
VDD
VDDPCI

GNDREF

GND
GND
GND
GND
GNDPCI

VDDLCPU

GNDL

SCLK
SDATA

X1

4

R332 1M

Z29

1 2

14.318MHz_DIP
C382

22P

Y6

CPU RATIO SELECT

MD43

MD42

MD41

(A20M#)

(IGNNE#)

0

0
0
0
0
1
1

1
1

0
0
0
0
1
1

1
1
1

0
1

0

01

1

1

0

0
1

0

0

1

11

1

00

0

1

1

0
101
0

01

1

1

0
11

1

SDRAM

100
100
100
100

133.6
133100
150
133

66.8
97
105
95

126.7
112

129.3

96.2

PCI

33.3

33.3

37.5

33.3

33.3

37.5

33.3

33.4

32.3
35

31.7

31.7

37.3

32.2

32.1

CPU
66

100
1500
133

66.8
100

133

66.8
970

95
95
112
97

96.2

1/2
1/3
1/4
1/5
2/533.4
2/7
2/9
2/11
1/6
1/7
1/870

Reserved

2/13
2/15
2/3
1/2

MD44
(NMI)

(INTR)

0
0
0
0
0
0
0
0
1
1

1
1
1
1
1
1

CPUCLKF
CPUCLK1
CPUCLK2

FS1/PCICLKF

FS2/PCIC LK1

PCICLK2
PCICLK3
PCICLK4
PCICLK5
PCICLK6

FS3/REF0

24_48/CPU 2.5_3.3V#

FS0/48MHZ

SDRAM0
SDRAM1
SDRAM2
SDRAM3
SDRAM4
SDRAM5
SDRAM6

SDRAM7
SDRAM_F0
SDRAM_F1

PCI_STOP#

CPU_STOP#

SDRAM_STOP#

X2

ICS9248-135

5

Z33

C383
22P

VCC3

VCC3

U26

46
45
43

7
8
9
11
12
13
14

2
48

REF1

25
26

28
29
31
32
34
35
37
38
40
41

18

PD#

21
20
17

RN64 8P4R_2. 7K

5 4
6 3
7 2
8 1

Z309
Z311
Z312

Z310
Z313

Z315

PCLKPIC

Cu-/Tu+(1,2)

R523 1K

BSEL0(1,2)
BSEL1(1,2)

MD44(4,5)
MD43(4,5)
MD42(4,5)
MD41(4,5)

MD40(4,5)

Z308
CPUCLK 0
CPUCLK 1

FS1
FS2

PCICLK2
PCICLK3
PCICLK4
PCICLK5
PCICLK6

FS3

REF1

Z397

FS0

TP173
TP172
TP171

SDRAM3
SDRAM4

SDRAM6
SDRAM7

TP168
TP165

R382 10K

CPU_STP#

SDRAM_STOP

G

Z594
Z596
Z597
Z595

BSEL0
BSEL1

MD44
MD43
MD42
MD41

MD40

R479 22(R)
R341 10
R342 10

R348 33
R346 33
R347 33
R350 33
R367 33
R368 33
R381 33

R339 22
R340 22

R391 10K
R392 22

R394 22
R393 22
R369 22
R352 22
R351 22

D43

F01J2E

CA

VTTPG_CLK

VDDREF

R591 0
R388 0

CLOSE TO CLOCK GENERATOR

R575 0
R576 130

DS

Q50
2N7002

SW6

1

12

2

11

3

10

4

9

Z761

8

5

7

6

SW DIP-6

R399 10K(R)
R398 10K(R)

R223 10K(R)
R205 10K(R)
R213 10K(R)
R222 10K(R)

R544 4.7K

Z650Z855

HCLKCPU
HCLK630S

PCLKPIC
PCLK80P
PCLK630S
PCLKTI
PCLKLPC
PCLKSIO

AGPCLK0

LPC14M
VOSCI

USBCLK

DCLKREF
MEMCLK4
MEMCLK3SDRAM5
MEMCLK2
MEMCLK1

PCISTP#

CPU_PICCLK (1)

FS0

FS1
FS2
FS3

HCLKCPU (1)
HCLK630S (4)

PCLKPIC
PCLK80P (25)
PCLK630S (11)
PCLKTI (16)
PCLKLPC (20)
PCLKSIO (21)
AGPCLK0 (7)

LPC14M (20)
VOSCI (7)

VDDREF

USBCLK (10)

DCLKREF (4)
MEMCLK 4 (5)
MEMCLK 3 (5)
MEMCLK 2 (5)
MEMCLK 1 (5)

PCISTP#
CPUSTP# (10)

VCC_CORE

Z761 (16)

Z650 (20)

R524
100K

VCC

8 1
7 2
6 3
5 4

VCC3

CPUCLK0
CPUCLK1
FS2
PCICLK2
PCICLK3
PCICLK4
PCICLK5
FS3
REF1
FS0
SDRAM7
SDRAM6
SDRAM5
SDRAM4
SDRAM3
PCICLK6
FS1

PCISTP#
CPU_S T P#
SDRAM_STOP

C536

C535

1000P

100P

RN60

8P4R_10K

Title

Size Document Number Rev

Custom

Date: Sheet

C390 R

C398 R

C393 10P

C420 10P

C421 10P

C425 10P

C426 10P

C385 10P

C388 10P

C445 10P

C422 R

C428 R

C439 R

C440 R

C447 R

C437 10P

C442 10P

R390 10K
R389 10K
R480 10K(R)

VCC

C538

C537

1000P

100P

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

CLOCK GENERATOR

0200-03.SCH
Tuesday, Sept ember 11, 2001

71-22T00-D03

VCC_CORE

C539

VCC3VCC3

100P

VDDREF

C540

100P

2.0

of

331

B - 3

Service Manual

Sheet 4 of 31

MD[0..6 3 ]

MD[0..63] (3,5,6,9)

MD51

MD61

MD59

MD63

MD60

MD56

MD57

MD55

MD54

MD58

MD62

MD46

MD48

MD53

MD47

MD52

MD45

MD50

MD49

MD44

MD36

MD41

MD37

MD39

MD38

MD40

MD42

MD43

MD28

MD31

MD30

MD34

MD35

MD33

MD32

MD29

MD27

MD19

MD21

MD25

MD26

MD17

MD23

MD22

MD24

MD18

MD14

MD16

MD20

MD15

MD6

MD0

MD2

MD8

MD3

MD13

MD5

MD11

MD12

MD9

MD10

MD1

MD4

MD7

VCCT

R78 56(R)

C86
.1U

T25

W28

W27

Y29

Y27

Y26

AA28

AA26

AB28

AB26

AC29

AC27

AC25

AD28

AD27

Y25

AG22

AJ22

AF21

AH21

AF20

AH20

AJ20

AG19

AJ19

AF18

AH18

AF17

AG17

AJ17

AF16

AH16

T24

W29

U25

W26

Y28

V25

AA29

AA27

AB29

AB27

V24

AC28

AC26

AD29

W25

AD26

AF22

AH22

AE23

AG21

AJ21

AG20

AE22

AF19

AH19

AE18

AG18

AJ18

AD20

HA#[3.. 31](1)

ADS#

HCLK630S(3)

CPURST#(1)

ADS#(1)
BNR#(1)
BPRI#(1)

DBSY#(1)

DEFER#(1)

DRDY#(1)

HIT#(1)

HITM#(1)

HLOCK#(1)
HTRDY#(1)
BREQ0#(1)

RS#2(1)

RS#1(1)

RS#0(1)

HREQ#4(1)
HREQ#3(1)
HREQ#2(1)
HREQ#1(1)
HREQ#0(1)

VCC3

R77 0

C359

+

10U

HCLK630S

CPURST#
ADS#
BNR#
BPRI#

DBSY#
DEFER#
DRDY#
HIT#
HITM#
HLOCK#
HTRDY#
BREQ0#

RS#2
RS#1
RS#0

HREQ#4
HREQ#3
HREQ#2
HREQ#1
HREQ#0

C338
1U

HA#31
HA#30
HA#29
HA#28
HA#27
HA#26
HA#25
HA#24
HA#23
HA#22
HA#21
HA#20
HA#19
HA#18
HA#17
HA#16
HA#15
HA#14
HA#13
HA#12
HA#11
HA#10
HA#9
HA#8
HA#7
HA#6
HA#5
HA#4
HA#3

C360

0.01U

M24

HA#[31]

H26

HA#[30]

G29

HA#[29]

J26

HA#[28]

H29

HA#[27]

H27

HA#[26]

K27

HA#[25]

H28

HA#[24]

J29

HA#[23]

J27

HA#[22]

K26

HA#[21]

J28

HA#[20]

K28

HA#[19]

L26

HA#[18]

L27

HA#[17]

L28

HA#[16]

K29

HA#[15]

M25

HA#[14]

M26

HA#[13]

M27

HA#[12]

L29

HA#[11]

N25

HA#[10]

N28

HA#[9]

M28

HA#[8]

M29

HA#[7]

N29

HA#[6]

N26

HA#[5]

P24

HA#[4]

N27

HA#[3]

V29

CPUCLK

G27

CPURST#

U26

ADS#

P28

BNR#

R29

BPRI#

U27

DBSY#

R26

DEFER#

T27

DRDY#

U28

HIT#

R24

HITM#

T29

HLOCK#

P25

HTRDY#

G28

BREQ0#

V26

RS#[2]

R25

RS#[1]

U29

RS#[0]

R27

HREQ#[4]

T26

HREQ#[3]

T28

HREQ#[2]

R28

HREQ#[1]

P27

HREQ#[0]

V27

Z34

CPUAVDD

AE19

SDAVDD

V28

CPUAVSS

AE20

SDAVSS

MD63

MD62

MD61

MD60

MD59

MD58

MD57

MD56

MD55

MD54

MD53

MD52

MD51

MD50

MD49

MD48

MD47

MD46

MD45

MD44

MD43

MD42

MD41

MD40

MD39

MD38

MD37

MD36

MD35

MD34

MD33

MD32

MD31

MD30

MD29

MD28

MD27

MD26

MD25

MD24

MD23

MD22

MD21

MD20

MD19

MD18

MD17

MD16

MD15

MD14

MD13

MD12

MD11

DRAM INTERFACE

HOST INTERFACE

HOST DATA BUS

HD#63

HD#62

HD#61

HD#60

HD#59

HD#58

HD#57

HD#56

HD#55

HD#54

HD#53

HD#52

HD#51

HD#50

HD#49

HD#48

HD#47

HD#46

HD#45

HD#44

HD#43

HD#42

HD#41

HD#40

HD#39

HD#38

HD#37

HD#36

HD#35

HD#34

HD#33

HD#32

HD#31

HD#30

HD#29

HD#28

HD#27

HD#26

HD#25

HD#24

HD#23

HD#22

HD#21

HD#20

HD#19

HD#18

HD#17

HD#16

HD#15

HD#14

HD#13

HD#12

HD#11

HD#10

HD#9

E21

A19

C19

B20

B21

B19

A21

A20

D19

E20

D20

B22

C22

C20

A22

D21

A23

C21

B23

C23

A25

E22

D22

D24

D23

C25

B25

C24

E25

F22

D25

E23

B26

E24

C26

A26

A27

D26

B27

C27

B28

F24

C28

D28

H24

C29

E26

D27

HD#63

HD#61

HD#60

HD#54

HD#58

HD#57

HD#62

HD#53

HD#56

HD#55

HD#59

HD#45

HD#43

HD#42

HD#48

HD#52

HD#49

HD#46

HD#47

HD#51

HD#44

HD#50

HD#36

HD#37

HD#41

HD#38

HD#40

HD#35

HD#39

HD#27

HD#31

HD#30

HD#32

HD#28

HD#26

HD#34

HD#33

HD#25

HD#29

HD#17

HD#21

HD#23

HD#24

HD#22

HD#19

HD#20

HD#18

HD#16

HD#8

J25

E28

D29

E27

H25

K24

F25

F27

E29

HD#10

HD#9

HD#14

HD#15

HD#7

HD#13

HD#12

HD#11

HD#8

AH17

MD9

MD8

MD7

MD6

MD5

MD4

MD3

MD10

MD2

DRAM INTERFACE

HD#7

HD#6

HD#5

HD#4

HD#3

HD#2

HD#1

HD#0

F26

L25

K25

F29

F28

G26

G25

HD#2

HD#4

HD#6

HD#3

HD#0

HD#5

HD#1

AE21

AG16

MD1

MD0

GTLVREFA
GTLVREFB

SiS630ST

CSA#[5]
CSA#[4]
CSA#[3]
CSA#[2]
CSA#[1]
CSA#[0]

CSB#[5]
CSB#[4]
CSB#[3]
CSB#[2]
CSB#[1]
CSB#[0]

MA[14]
MA[13]
MA[12]
MA[11]
MA[10]

MA[9]
MA[8]
MA[7]
MA[6]
MA[5]
MA[4]
MA[3]
MA[2]
MA[1]
MA[0]

DQM[7]
DQM[6]
DQM[5]
DQM[4]
DQM[3]
DQM[2]
DQM[1]
DQM[0]

SRAS#
SCAS#

SDCLK

VSSQA
VSSQB

WE#

CKE

AE24
AG24
AF24
AJ25
AH25
AG25

AF28
AF29
AA25
AE25
AE26
AE27

AB25
AF27
AF26
AG29
AG28
AG27
AH28
AB24
AH27
AD24
AJ27
AG26
AH26
AJ26
AF25

Y24
AE28
AF23
AG23
AD25
AE29
AJ24
AD22

AH23

AH24
AJ23

AJ16

E9
B24
P26

P29
A24

U6A

Z577

TP82

Z578

Z551
Z552
Z547
Z550
Z548
Z549

Z30

Z31
Z32

630SCKE

C549

4.7U(0805)

ICSA#3
ICSA#2
ICSA#1
ICSA#0

IMA14
IMA13
IMA12
IMA11
IMA10
IMA9
IMA8
IMA7
IMA6
IMA5
IMA4
IMA3
IMA2
IMA1
IMA0

IDQM7
IDQM6
IDQM5
IDQM4
IDQM3
IDQM2
IDQM1
IDQM0

R177 10

R178 10
R176 10

DCLKREF

TP100
TP99
TP72
TP83
TP101
TP98

C76

C75

TP102

VCCT

1000P

1000P

630SCKE (6)

R275

65 (1%)

GTLREF

R284

150 (1%)

RAMW#

SRAS#
SCAS#

ICSA#[0..3] (6)

IMA[0..14] (6)

IDQM[0..7] (6)

RAMW# (5)

SRAS# (5)
SCAS# (5)

DCLKREF (3)

GTLREF (2)

B - 4

HD#[0. .63](1)

HD#[0. .63]

Titl e

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

630(NORTHBRIDGE)

0200-04.SCH
Tuesday , Sept em ber 11 , 2001

71-22T00-D03

431

of

A

Sheet 5 of 31

MD[0..63](3,4,6,9)

MEMCL K1(3)

BANK0 BANK1

MD[0..63] MD[0..63] MD[0..63]

MEM_VCC

C195

+

C203

10U

.1U

DQM0(6)
DQM1(6)

MA0(6)
MA1(6)
MA2(6)

FB1
BEAD

SRAS#(4) SCAS# (4) SCAS# (4)

RAMW#(4)

CSA#0(6)
CSA#1(6)

R193
1K(R)

MA6(6)
MA8(6) MA8(6)

MA9(6)

MA10(6)
DQM2(6)

DQM3(6)

SDA_RA(25) SCL_RA (25) SDA_RB(25)

GND
MD0
MD1
MD2
MD3

MD4
MD5
MD6
MD7
GND
DQM0 DQM4 DQM0 DQM4
DQM1 DQM5 DQM1 DQM5

MA0
MA1
MA2
GND
MD8
MD9
MD10
MD11

MD12
MD13
MD14
MD15
GND

C204

C

Z651

T
T

SRAS# SCAS# SRAS# SCAS#
RAMW# CKE1 RAMW# CKE3
CSA#0 MA14 C SA#2 MA14
CSA#1

Z207

GND

MD16
MD17
MD18
MD19
GND
MD20
MD21
MD22
MD23

MA6
MA8
GND
MA9 MA12 MA9 MA 12
MA10 MA13 MA10 MA13

DQM2 DQM6 DQM2 DQM6
DQM3
GND
MD24
MD25
MD26
MD27

MD28
MD29
MD30
MD31
GND
SDA_RA SCL_RA SDA_RB

CN24

1

VSS

3

DQ0

5

DQ1

7

DQ2

9

DQ3

11

VCC

13

DQ4

15

DQ5

17

DQ6

19

DQ7

21

VSS

23

CE0#/DQM0

25

CE1#/DQM1

27

VCC

29

A0

31

A1

33

A2

35

VSS

37

DQ8

39

DQ9

41

DQ10

43

DQ11

45

VCC

47

DQ12

49

DQ13

51

DQ14

53

DQ15

55

VSS

57

RESVD/DQ64

59

RESVD/DQ65

61

CLK0

63

VCC

65

RAS#

67

WE#

69

CS0#

71

CS1#

73

QE#

75

VSS

77

RESVD/DQ66

79

T

RESVD/DQ67

81

VCC

83

DQ16

85

DQ17

87

DQ18

89

DQ19

91

VSS

93

DQ20

95

DQ21

97

DQ22

99

DQ23

101

VCC

103

A6

105

A8

107

VSS

109

A9

111

A10

113

VCC

115

CE2#/DQM2

117

CE3#/DQM3

119

VSS

121

DQ24

123

DQ25

125

DQ26

127

DQ27

129

VCC

131

DQ28

133

DQ29

135

DQ30

137

DQ31

139

VSS

141

SDA

143

VCC

SOCKET-DIMM144-R

DQ32
DQ33
DQ34
DQ35

DQ36
DQ37
DQ38
DQ39

CE4#/DQM4
CE5#/DQM5

DQ40
DQ41
DQ42
DQ43

DQ44
DQ45
DQ46
DQ47

RESVD/DQ68
RESVD/DQ69

CKE0
CAS#

CKE1

CLK1

RESVD/DQ70
RESVD/DQ71

DQ48
DQ49
DQ50
DQ51

DQ52
DQ53
DQ54
DQ55

BA0/A11
BA1/A12

CE6#/DQM6
CE7#/DQM7

DQ56
DQ57
DQ58
DQ59

DQ60
DQ61
DQ62
DQ63

VSS

VCC

VSS

VCC

A3
A4
A5

VSS

VCC

VSS

VCC

A12
A13

VSS

VCC

VSS

VCC

A7
VSS
A13

VCC

VSS

VCC

VSS
SCL

VCC

MEM_VCC

Z653

GND
MD0
MD1
MD2
MD3

MD4
MD5
MD6
MD7
GND

GND
MD8
MD9
MD10MD42
MD11

MD12MD44
MD13
MD14
MD15
GND

CSA#3
GND

MD17
MD18
MD19
GND
MD20
MD21
MD22
MD23

MA6
GND

MD24
MD26

MD27MD59
MD28

MD29
MD30
MD31

Z208

T
T

T
T

GND

2

MD32

4

MD33

6

MD34

8

MD35

10
12

MD36

14

MD37

16
18

MD38
MD39

20

GND

22
24
26
28

MA3 MA0

30

MA4 MA1 MA4

32

MA5 MA2 MA5

34

GND

36

MD40

38

MD41

40
42

MD43

44
46
48

MD45

50
52

MD46
MD47

54

GND

56
58

T

60

T

CKE0 CKE2

62
64
66
68
70
72

Z205

Z652

74

GND

76
78

TT

80

T

82
84

MD48 MD16

86

MD49
MD50

88
90

MD51
GND

92

MD52

94
96

MD53

98

MD54
MD55

100
102
104

MA7 MA7

106

MA11 MA8 MA 11
GND

108
110
112
114
116
118

DQM7 DQM3 DQM7
GND

120
122

MD56

124

MD57 MD25
MD58

126
128
130
132

MD60
MD61

134
136

MD62

138

MD63
GND

140
142
144

DQM4 (6)
DQM5 (6)

MA3 ( 6) MA0(6)
MA4 ( 6)
MA5 ( 6)

CKE0 (6) CKE2 (6)

CKE1 (6)
MA14 (6)

C216
C

MA7 ( 6)
MA11 (6)

MA12 (6)
MA13 (6)

DQM6 (6)
DQM7 (6)

MEMCL K3(3)

R192 1K R195 1K

FB2

MEMCLK 2 (3)

BEAD

DQM0(6)
DQM1(6)

MA1(6)
MA2(6)

C217
C

FB3
BEAD

SRAS#(4)

RAMW#(4)

CSA#2(6)
CSA#3(6)

R194
1K(R)

MA6(6)

MA9(6)

MA10(6)
DQM2(6)

DQM3(6)

CN25

1

VSS

3

DQ0

5

DQ1

7

DQ2

9

DQ3

11

VCC

13

DQ4

15

DQ5

17

DQ6

19

DQ7

21

VSS

23

CE0#/DQM0

25

CE1#/DQM1

27

VCC

29

A0

31

A1

33

A2

35

VSS

37

DQ8

39

DQ9

41

DQ10

43

DQ11

45

VCC

47

DQ12

49

DQ13

51

DQ14

53

DQ15

55

VSS

57

RESVD/DQ64

59

RESVD/DQ65

61

CLK0

63

VCC

65

RAS#

67

WE#

69

CS0#

71

CS1#

73

QE#

75

VSS

77

RESVD/DQ66

79

RESVD/DQ67

81

VCC

83

DQ16

85

DQ17

87

DQ18

89

DQ19

91

VSS

93

DQ20

95

DQ21

97

DQ22

99

DQ23

101

VCC

103

A6

105

A8

107

VSS

109

A9

111

A10

113

VCC

115

CE2#/DQM2

117

CE3#/DQM3

119

VSS

121

DQ24

123

DQ25

125

DQ26

127

DQ27

129

VCC

131

DQ28

133

DQ29

135

DQ30

137

DQ31

139

VSS

141

SDA

143

VCC

SOCKET-DIMM144

Schematic Diagrams

VCC3

BANK1BANK0

GND

2

VSS

MD32

4

DQ32

MD33

6

DQ33

MD34

8

DQ34

MD35

10

DQ35

12

VCC

MD36

14

DQ36

MD37

16

DQ37

MD38

18

DQ38

MD39

20

DQ39

GND

22

VSS

24

CE4#/DQM4

26

CE5#/DQM5

28

VCC

MA3

30

A3

32

A4

34

A5

GND

36

VSS

38

MD40

DQ40

40

MD41

DQ41

MD42

42

DQ42

44

MD43

DQ43

46

VCC

48

MD44

DQ44

50

MD45

DQ45

MD46

52

DQ46

54

MD47

DQ47

GND

56

VSS

58

RESVD/D Q68
RESVD/D Q69

CKE0
CAS#

CKE1

CLK1

RESVD/D Q70
RESVD/D Q71

DQ48
DQ49
DQ50
DQ51

DQ52
DQ53
DQ54
DQ55

BA0/A11
BA1/A12

CE6#/DQM6
CE7#/DQM7

DQ56
DQ57
DQ58
DQ59

DQ60
DQ61
DQ62
DQ63

VCC

A12
A13

VSS

VCC

VSS

VCC

A7

VSS

A13

VCC

VSS

VCC

VSS
SCL

VCC

T

60

T

62
64
66
68
70
72

Z206

Z654

74

GND

76
78

T

80

T

82
84

MD48

86

MD49
MD50

88

MD51

90
92

MD52

94
96

MD53
MD54

98

MD55

100
102
104
106

GND

108
110
112
114
116
118

GNDGND

120

MD56

122
124

MD57

126

MD58

128

MD59

130
132

MD60

134

MD61

136

MD62

138

MD63

GNDGND

140

SCL_RB

142
144

L24 BEAD(1206)

MEM_VC CMEM_VCCMEM_VC C

C515

.1U

DQM4 (6)
DQM5 (6)

MA3 (6)
MA4 (6)
MA5 (6)

CKE3 (6)
MA14 ( 6)

FB4

BEAD
C218
C

MA7 (6)
MA11 ( 6)

MA12 ( 6)
MA13 ( 6)

DQM6 (6)
DQM7 (6)

SCL_RB (25)

C516

.1U

MEM_VC C

C209

C205

C

.1U

MEMCLK4 (3)

MEM_VC C MEM_VCCMEM_VC C

C414

C416

10U

C409

10U

C415

.1U

C413

.1U

C411

.1U

0.01U

C412

0.01U

C410

0.01U

C196

0.01U

C402

C406

.1U

C404

.1U

C407

0.01U

C405

0.01U

C403

0.01U

C401

0.01U

Title

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

SODIMM

0200-05.SCH
Tuesday, Septem ber 11, 2001

71-22T00-D03

A

of

531

C197
.1U

.1U

C193
.1U

C194
.1U

C400

.1U

10U

10U

C408

C198

B - 5

Service Manual

Sheet 6 of 31

IMA[ 0 ..1 4]

IMA[0..14](4) MA[0..14] (5)

IDQM[0..7](4)

ICSA#[0.. 3](4)

RN17
8P4R_10

RN32
8P4R_10

RN31
8P4R_10

RN30
8P4R_10

RN29
8P4R_10

RN42
8P4R_10

IDQM[0..7]

ICSA#[0.. 3]

IMA14
IMA13
IMA11
IMA12
IMA7

IMA9
IMA8
IMA5
IMA3
IMA6
IMA4
IMA1
IMA2
IMA0

IDQM6
IDQM5
IDQM7
IDQM4
IDQM2
IDQM3
IDQM0
IDQM1

ICSA#3
ICSA#2
ICSA#1
ICSA#0

5 4
6 3
7 2
8 1
5 4
6 3
7 2
8 1
5 4
6 3
7 2
8 1
8 1
7 2
6 3
5 4

5 4
6 3
7 2
8 1
5 4
6 3
7 2
8 1

RN41

8 1
7 2
6 3
5 4

8P4R_10

MA14
MA13
MA11
MA12
MA7
MA10IMA10
MA9
MA8
MA5
MA3
MA6
MA4
MA1
MA2
MA0

DQM6
DQM5
DQM7
DQM4
DQM2
DQM3
DQM0
DQM1

CSA#3
CSA#2
CSA#1
CSA#0

TT

MA[0..14]

DQM[0..7]

CSA#[0..3]

DQM[0..7] (5)

CSA#[0..3] (5)

DRAM BUS DAMPIN G R ESISTOR NEAR SIS630S

VDD3

VDD3

R401

8.2K

630SCKE

630SCKE(4)

MD[0..63]

MD[0..63] (3,4,5,9)

R225 4.7K(R)

MD55

R226 4.7K(R)

MD54

R224 4.7K(R)

MD53

R383 4.7K(R)

MD38

R384 4.7K(R)

MD39

R400 4.7K

MD31

R219

0

Z657

U27

1

OE1#

2

1A1

4

1A2

6

1A3

8

1A4

19

OE2#

11

2A1

13

2A2

15

2A3

17

2A4

74LVC244

VCC3

20

VCC

18

Z406

1Y1

16

Z404

1Y2

14

Z405

1Y3

12

Z407

1Y4

9

Z614

2Y1

Z764

7

2Y2

5

Z615

2Y3

Z765

3

2Y4

10

GND

VCC3

R221

0(R)

817263

54

RN59
C448
.1U

T
T
T
T

MD[55..53]: CLOCK SKEW CONTROL OF AGP

MD38: VGA INTERRUPT FUNCTION

MD39: VGA ECLK AND MCLK MODE

MD31: QUICK START FUNCTION

8P4R_270

RN58

8P4R_22

DEFAULT 001

1: ENABLE
0: DISABLE

1: SYNCHRONOUS MODE
0: ASYNCHRONOUS MODE

1: ENABLE
0: DISABLE

81

CKE0
CKE1
CKE2
CKE3

CKE0 (5)
CKE1 (5)
CKE2 (5)
CKE3 (5)

72
63
54

B - 6

Title

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

RESI STOR

0200-06.SC H
Tuesday , September 11, 20 01

71-22T00-D03

of

631

A

Sheet 7 of 31

Schematic Diagrams

TP76 TP92 TP59 TP6 4

R[2..7]B[2..7]

TP77

R7

Z356

Z559

AAD17/B2

AAD20/B1

AAD19/B0

TP87

DACAVDDB

R6

AAD27/R7

AAD0

AAD1

AAD2

AD6

AG1

AF3

AF2

Z561

Z563

Z562

Z564

TP111 TP1 04

TP108 TP94

TP110 TP113 TP89

C243

0.01U

B4

B6

B7

B3

B2

B5

AB2Y6AA4

AA3Y4Y5Y2Y3V2V3V4V5W3W4Y1U3T1T4T5U1W5V1U4U5

AAD16/B5

AAD18/B3

B6/AIRDY#

B4/ACBE2#

B7/AFR AME#

BRG

RED

RED(9)

GREEN

GREEN(9)

BLUE

BLUE(9)

HSYNC

HSYNC(9)
VSYNC(9)

DDC1DATA(8,9)

DDC1CLK(8,9)

VOSCI(3)

R248 33
R247 33

VSYNC

R35 33

DDC1DATA

R36 33

DDC1CLK

TP30

VOSCI

ECLKAVDD

DCLKAVDD

DACAVDDC

DACAVDDB

C238

0.01U

C239

1U

VCOMP

DACAVDDC DCLKAVDD

VRSET
VVREF
VCOMP

B14

ROUT

A14

GOUT

A15

BOUT

D15

Z383

HSYNC

A16

Z384

VSYNC

C15

Z385

DDC1DATA

B16

Z386

DDC1CLK

C16

Z387

SSYNC

A11

VOSCI

E19

RSET

C14

VREF

B15

COMP

F15

ECLKAVDD

E15

ECLKAVSS

F16

DCLKAVDD

E16

DCLKAVSS

F18

DACAVDDC

F20

DACAVSSC

E14

DACAVDDB

D14

DACAVSSB

VCC3 VCC3 VCC3 VCC3

L38 0

C237
1U

C37
10U

TP63

R4

R3

R5

R2

Z558

Z357

SBA3/G7

AAD26/R6

AAD25/R5

AAD24/R4

AAD23/R3

AAD22/R2

AAD21/R1

R0/ACBE3#

AAD3

AAD4

AAD5

AAD6

AAD7

AAD8

AAD9

AAD10

AF1

AE4

AE3

AE2

AE1

AD5

AD4

Z569

Z571

Z567

Z566

Z568

Z570

Z565

TP91TP107 TP114

TP105 TP2

C242
1U

G[2..7]

AAD11

AD1

Z572

TP84

AAD12

AAD13

AC4

AC3

Z573

Z574

TP95

G7G3G2

G5

G4

G6

SBA4/G6

SBA5/G5

SBA6/G4

AAD14

AAD15

AC2

AC5

Z575

Z576

TP103

C34
10U

TP58

Z553

Z355

Z557

U2

AAD31/G3

AAD28/G2

AAD30/G1

AAD29/G0

SBA7

SBA0/VBBLANK#

ECLKAVDD

C291

0.01U

U6B

SBA2/DDC2C LK
SBA1/DDC2D AT

ACBE1#
ACBE0#

VBCAD/AREQ#

VGCLK/AGNT#

ATRDY#

ADEVSEL#

ASERR#

APAR

ASTOP#

VBHCLK/RBF#
VBCTL0/WBF#
VBCTL1/PIPE#

VBCLK/ST2

VBVSYNC/ ST1

VBHSYNC/ST0

SB_STB

SB_STB#
AD_STB0

AD_STB0#

AD_STB1

AD_STB1#

AGPCLK

AGPVREF

AGPRCOMP

AGPAVDD1

AGPAVSS1

AGPAVDD2

AGPAVSS2

AGPVSSREF

SiS630ST

L40 0L41 0

C241
1U

R1
R2
R3

AC1
AG2

R6
T6

AB3
AB4
AB6
AA5
AB5

P2
P1
U6

R4
R5
V6

T2
T3

AD2
AD3

W1
W2

AJ3

AA1
AB1
AE10

AD10
AE9

AD8
AA2

Z367
Z382

Z368
Z369

Z370
Z371

Z372
Z373

ENVDD#
ENABKKL
VBBLANK#

Z379
Z380

Z381

VGCLK

Z374

Z377
Z378

Z388
Z389
Z366

VBCLK
VBVSYNC
VBHSY NC

AGPCLK0

Z742

R306 8.2K
R88 60

C110
.1U

C35
10U

ENVDD# (9)
ENABKKL (13)
VBBLANK#

TP90
TP112

TP57

VGCLK (8)

R[2..7]

TP115

ADEVSEL# (8)

ASERR# (8)

TP74
TP88

TP62

G[2..7]

TP65
TP56

VBCLK
VBVSYNC (8)
VBHSYNC (8)

B[2..7]

TP61
TP60

TP106
TP93

TP75
TP73

AGPCLK0 (3)

L20 0(0805)

VCC3

VCC3

PLACE THESE CIRCUITS CLOSE TO SiS 630

VRSET

C272

0.01U

R[2..7]

R2
R3
R4
R5
R6
R7

G[2..7]

G2
G3
G4
G5
G6
G7

B[2..7]

B2
B3
B4
B5
B6

B7

VVREF

R276

140(1%)

L39 0

C240
1U

R50 0(R)

RN6

RN54

RN55

RN8

VBHSYNC(8)
VBVSYNC(8)
VBBLANK#

VGCLK(8)
VBCLK

R310 0
R108 0

C273
.1U

C36
10U

8P4R_0

8P4R_0

8P4R_0

8P4R_0

VBHSY NC
VBVSYNC
VBBLANK#

VGCLK
VBCLK

Z392

R56
0

2
8

14

Z395

21

44

81

P0
P1

45

72

P2

47

63

P3

48

54

P4

81

1

P5

72

3

63

P6

54

P7

4
6

P8

81

7

P9

72

9

P10

63

10

P11

54

12

P12

13

81

P13

15

72

P14

16

63

P15

18

54

19

P16

20

P17

22
23
25

26
27 46

R260

4.7K

P3(8)
P2(8)
P1(8)
P0
P4(8)
P5(8)

P7(8)
P8(8)

P9(8)
P10(8)
P11(8)

P13(8)
P14(8)
P15(8)
P16(8)
P17(8)

C59

C58

C50

1000P

1000P

1000P

VCC
VCC
VCC
VCC

TXIN0
TXIN1
TXIN2
TXIN3
TXIN4
TXIN5

TXIN6
TXIN7
TXIN8
TXIN9
TXIN1 0
TXIN1 1

TXIN1 2
TXIN1 3
TXIN1 4
TXIN1 5
TXIN1 6
TXIN1 7

TXIN1 8
TXIN1 9
TXIN2 0

TXCLKIN
PWRDWN# GND

TXOUT0+
TXOUT0-

TXOUT1+
TXOUT1-

TXOUT2+
TXOUT2-

TXCLKO+

TXCLKO-

PLLVCC

PLLGND
PLLGND

LVDSVCC

LVDSGND
LVDSGND
LVDSGND

CS5820

P3
P2
P1

P0

P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17

C321CC299

C

4 5

8P4C_C

L15 0(0805)

C60

C298

4.7U

1000P

U21

40

R0+

41

R0-

38

R1+

39

R1-

34

R2+

35

R2-

32

RCLKIN+

33

RCLKIN-

29

Z394

C264

28

.1U

30

37

Z393

C262

31

.1U

36
42
43

N/C

GND
GND
GND
GND

3 6

CP10

T

5
11
17
24

1 8

2 7

3 6

4 5

1 8

2 7

CP9

8P4C_C

3 6

4 5

8P4C_C

CP8

R0+ (9)
R0- (9)

R1+ (9)
R1- (9)

R2+ (9)
R2- (9)

RCLKIN+ (9)
RCLKIN- (9)

C263
1000P

C261
1000P

1 8

2 7

CP7
8P4C_C

L10 0(0805)
C247

4.7U

L11 0(0805)
C32

4.7U

1 8

2 7

3 6

4 5

VCC3

VCC3

Titl e

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

630(VGA) & LVDS

0200-07.SCH
Tuesday , Sept em be r 11, 2001

71-22T00-D03

of

731

A

B - 7

Service Manual

Sheet 8 of 31

VCC

L61

BEAD(0805)

C495

4.7U

P[1..5](7)

P5
P4 Z767
P3
P2 Z768

P1

P11

P10

P9

P[7..11](7)

P8
P7
P17
P16
P15
P14

P13

P[13..17](7)

TP183

Place close to SIS630S

R509 0

VGCLK

VGCLK(7)

Up to 47MHz

VBHSYNC
VBVSYNC

DDC1DATA
DDC1CLK

R511 0
R512 0

R518 0
R519 0

R587 R
R588 R

VCC3

R516

4.7K

VBHSY NC(7)
VBVSYN C(7)

DDC1DATA(7,9)
DDC1CLK(7,9)

ASERR#(7)

ADEVSEL#(7)

Z787

Z788
Z789

TP186

VCC3

R515

10K

R517

4.7K

Z791
Z792

U32

15

D15

14

D14

13

D13

12

D12

11

D11

10

D10

9

D9

7

D8

6

D7

4

D6

3

D5

2

D4

1

D3

44

D2

43

D1

42

D0

39

XCL K

40

H

41

V

35

DS/BCO

29

Z790

RESETB

26

SD

27

SC

32 33

XI XO/FIN

CH7005/6

Y7

Z793 Z794

14.31818MHz+-20PPM

C511
10P

The two external
loadcapacitors value
iseaqual to 2 x
crystalinternal cap -

12.5pF

AVDD
DVDD

DVDD
DVDD
DVDD

CSYNC

CVBS

RSET

POUT

AGND
DGND

DGND
DGND
DGND

VDD

GND
GND

25

Z766

31
5

16
30
38

17

21

C

22

Y

20

24

Z798

37

34
8

18
28
36

19
23

C499

C498

.1U

.1U

TP184

TP196

Place close

R510

to7005/6

360 1%

TP185

Connect to pin 19 ground
with short/wide
trace.

Analog and
digitalground should
connect to a common
ground plane

C512
10P

L62
BEAD(0805)

C496

4.7U

C501

C500

.1U

.1U

Place close to
7005

Z795
Z796

VCC3

C

VCC3

L63
BEAD(0805)

C497
10U

C503

C502

.1U

.1U

D35

DA204U

A

D36

AC

DA204U

C

A

AC

R508
75 1%

Place close to
7005/6

R513
75 1%

Place close to
7005/6

C504
C

Z805

L64

1 2

1.2uH(0805)

C514
150p

C505
C

Z804

L66

1 2

1.2uH(0805)

C506
150p

L65 0

1 2

C513
270p

L67 0

1 2

C507
270p

Z801

Z799

CN27

4

CRMA

2

GND

1

GND

3

LUMA

SVIDEO_C ON

5

SLD

6

SLD

7

SLD

8

SLD

ALL COMPONENTS MUST CLOSE TO SVIDEO_CON

B - 8

Sheet 9 of 31

Panel ID

13.3"

14.1"

VSYNC(7)

HSYNC(7)

GREEN(7)

R0+(7)
R0-(7)
R1+(7)
R1-(7)
R2+(7)

R2-(7)
RCLKIN+(7)
RCLKIN-(7)

LG
ADT
UNIPAC
HYUNDAI
LG
ADT L141 X1
CP T CL AA14 1XB 01
CPT
UNIPAC UP141X01
HYUNDAI

BLUE(7)

RED(7)

VCC

VSYNC

HSYNC

BLUE
GREEN
RED

R0­R1+
R1­R2+
R2­RCLKIN+
RCLKIN-

C

R272 18
R269 18
R270 18
R267 18
R268 18
R265 18
R266 18

LP133X7-C2CC
L133X2-1
UP133X01
HT13X14
LP141X5

CL AA14 1XC 01

HT14X13

R26 47

R253 47

D2

AC

DA204U

A

R271 18

R0+

Close to LCD connector.

C249
10P

10P

10P

SW7-1

SW7-2 SW7-3 SW7-4

VMD39 VMD3 6 VMD 33 VMD 32

1

1

1

1

1

1

1

1

1

1
1

1

1

1
11
1100
1110

10P

10P

00

1
0
0

00

C253

C250

C251

C269

ON=H=1 OFF=L=0

VCC

Q1

G

2N7002

S D

2N7002

Q9

C33

R254

33P

75

Z477 Z473

VCC

G
S D

Z474 Z475

D1

D16

AC

AC

C

DA204U

A

DA204U

C

A

C252
10P

00

00
0
0
0
00

R237
75

C254

C255

10P

10P

MD39 1 : LVDS

MD36 1 : 1024*768

MD32,MD 33 : PANEL ID

R236

C25

75

33P

0 : CM OS

0 : 800*600

C26
33P

RIN0+
RIN0­RIN1+
RIN1­RIN2+
RIN2­RCLK+
RCLK-

DDC1DATA(7,8)

DDC1CLK(7,8)

DDC1CLK

DDC1DATA

VCC

L27 BEAD
L43 BEAD

L28 BEAD
L30 BEAD
L31 BEAD

R0+

R0- RIN0 -

R1+

ENVDD#(7)

R4

2.2K

C10

33P

RN63

8P4R_10K

L26 BEAD

L29 BEAD

C12

33P

MD39

MD39(4,5,6)

MD36

MD36(4,5)

MD33

MD33(4,5)

MD32

MD32(4,5)

R235

2.2K

C9

33P

LAYOUT NOTE:
Make sure VIDEOGND is as c lean as poss ible
Also, the RED , GREEN , and BLU E signal t races
should be shielded with VIDEOGND traces.

L53 L

4 3

..

1 2

L52 L

4 3

..

1 2

ENVDD#

54
63
72
81

C11
220P

C13

220P

Schematic Diagrams

L51 L

RCLKIN+

RCLKIN-

12V

G S

SW7

1
2
3
4

Z469

C15
220P

R2+

R2-

R256
47K

D

2N7002

SW DIP-4

Z471
Z470
Z467

Z472
Z465
Z466

4 3

1 2

4 3

1 2

Z390

Q10

8
7
6
5

..

L50 L

..

VCC3

VCC3

CN5

8

15

7

14

6

13

5

12

4

11

3

10

2
9
1

CRT CONN. 15P

PIN18~29=GND

RIN2+

RIN2-

RCLK+

RCLK-

16
17

Q8

C256
.1U

1
2
3

D
D
G

SI3456DV

VCC

L2
BEAD(0805)

6

D

5

D

4

S

RCLK­RCLK+

C231
.1U

LCDVCC

LCDVC C

C230

4.7U

CN15

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20

LCD CONN . 20P

Z464

C16
.1U

Title

Size Document Num ber R ev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹ q ¸£ CLEVO CO.

LCD & CRT CON

0200-08.SCH
Tuesday, Sept em ber 11, 2001

71-22T00-D03

RIN0­RIN0+

RIN1­RIN1+

RIN2­RIN2+

931

of

A

RIN0+

RIN1+

RIN1-R1-

VCC

R255

2.2K

Z447

Z446
Z444
Z445

C14

220P

B - 9

Service Manual

Sheet 10 of 31

VCC3

R528

4.7K

D38

F01J2E

D39

F01J2E

RTCVDD

AC

AC

SYSPWGD

BATOK(26)

C518

C553

.1U

100P

EXTSM I

EXTSMI(23)

VCC3

VCC3

WAKE#(23)

TI_PME#(16,17)

SPKR(24)

PWR_ON#(23,24,31)

SUSPEND #(16,25)

EXTSMI#

PWRSW#(31)

SCI(23)

ATF_INT#(2)

VCC3

LO/HI#(2)

VCC3

ACIN#(23,24,26)

TXD3(14)

TXD0(14)
TXD1(14)
TXD2(14)

RXER(14)

TXCLK(14)

COL(14)
CRS(14)

SPDIF(19)

MDC(14)

RXCLK(14)

SDATI1(15,18 )
SDATI0(15,18 )
SDATO(15, 18)

SYNC(15,18)

AC_RESET#(15,18)

BIT_CLK(15,18)

AUXOK(26)

C519
100P

EXTSMI #

R343
10K

R327 300(R)

R333 300(R)

C294
.1U

EXTSMI#

SPKR

PWR_ON#
SUSPEND#
EXTSMI#

PWRSW#

SCI

Z856
ATF_INT#

LO/HI#

ACIN#

TXD3

TXD0
TXD1
TXD2
RXER
TXCLK
COL
CRS
SPDIF
MDC
RXCLK

SDATI1
SDATI0
SDATO
SYNC
AC_RESET#
BIT_CLK

AUXOK

SYSPWGD

C259
.1U

G S

Z718

Z719

R250 0

R32 0
R33 0

R249 10K
R589 10K

R34 0

R46 10M

Y1

1 2

32.768KHz_DI P
C43
10P

R336 10K

D

Q17
2N7002

D21

LED(R)

D22

LED(R)

C274
C

BATOK

C260
10P

Q13
2N3906(R)

Z720

Q14
2N3906(R)

Z721

Z560

Z483
Z484

VR_HI/LO#

GV_GATE

Z592

Z402

Z398

B

B

E18
E11

C7
B12
E10

B6
A6

D13

B7

A7
D8
C8

B8

C12
D12

E17
F12

C10

F14

C6

E12

D9

D10

B10
A10
A13

B13
D11
C13

A5

C4
C5

A4

B4
B5

SiS630ST

STPCLK#

CE

CPUST P #

CE

SPK
PSON#
ACPILED
EXTSMI#
PWRBTN#
RING
PME#
THER M#

KBDAT/VR-H I_LO#
KBCLK/LO_H I#
PMDAT/GV_GATE
PMCLK/GP13
KLOCK#/GP14/TXD

GP0/PREQ#3/TXD[
GP1/PGNT#3/TXD[
GP2/LDRQ1#/TXD[
GP3/RXER
GPIO4/VR-HI_LO#
GPIO5/LO_HI #
GPIO6/GV_GATE
GP7/SPDIF
GP8/MDC
GP9/RXCLK

AC_SDIN [1]
AC_SDIN [0]
AC_SDOUT
AC_SYNC
AC_RESET#
AC_BIT_CLK

AUXOK
PWROK

BATOK
RTCVDD

OSC32KHI
OSC32KHO

VDD3

STPCLK# (1,2)

CPUSTP# (3)

ACPI

KBC

GPIO

AC '97

RTC

RTCVSS

A3

LPC

HOST

SMBUS

USB

MII

F13

LFRAME#

CPUSTOP#/CPUSLP

TXEN/GP15/SMBAL#

RXDV/OC0#

MDIO/OC1 #

USBCLK48M

USBVDD0
USBVDD1

LANCLK25M

RESERVE2
RESERVE1

VSSA

VSSB

VSSC

VSSD

F17

N24

U24

SUSPEND#(16,25)

U6C

LDRQ#

A20M#

IGNNE#

FERR#

STPCLK#

SMBDAT

SMCLK

RXD[0]
RXD[1]
RXD[2]
RXD[3]

ENTEST

LAD0
LAD1
LAD2
LAD3

SIRQ

SMI#
INTR

INIT#

UV0­UV0+
UV1­UV1+
UV2­UV2+
UV3­UV3+
UV4­UV4+
UV5­UV5+

LPC PULL-HI GH
PLACE NEAR TO W 83626F

RN62

1

LAD0

2

LAD1

3

LAD2

4

LAD3

RN61

1

LDRQ#

2

SERIRQ

3

LFRAME#

Z935

TP228

Titl e

Size Docum ent N um ber R ev

Custom

Tuesday, Sept em ber 11, 2001

Date: Sheet

4

R47 10K

ATF_INT#

R251 10K

SUSPEND#

R252 10K

WAKE#

R455 10K

PWR_ON#

NEAR TO SiS 630

RN53

1

USBP2-

2

USBP2+
USBP1-

3
4

USBP1+

RN4

1

USBP4-

2

USBP4+

3

USBP5-

4

USBP5+

TXD0
TXD1
TXD2
SPDIF

TXCLK
COL
CRS
MDC
RXCLK
TXEN

RXER

ÂÅ ¤Ñ ¹q ¸£ CLEVO C O.

630S(SOUTHBRIDGE)

0200-09.SCH

VCC3

8
7
6
5

8P4R_4.7K

8
7
6
5

8P4R_4.7K

VDD3

8
7
6
5

8P4R_15K

8
7
6
5

8P4R_15K

R28 4.7K
R259 4. 7K
R258 4. 7K
R27 4.7K

R277 4. 7K
R13 4.7K
R231 4. 7K
R229 4. 7K
R278 4. 7K
R230 4. 7K

R12 4.7K

71-22T00-D03

VCC3

VDD3

of

10 31

A

R287 10

C297
10P

D17

F01J2 E

D

Q29

2N7002

LAD[0.. 3] (20)

LDRQ# (20)
LFRAME# (20)
SERIRQ (16,20,21)

NMI (1,2)
SMI# (1,2)
INTR (1,2)
A20M# (1,2)
INIT# (1,2)
IGNNE# (1,2)
FERR# (2)
STPCLK# (1,2)

TXEN (14)
SMBDATA (25)
SMBCLK (25)

RXDV (14)
MDIO (14)

USBP0- (15)
USBP0+ (15)

USBP3- (15)
USBP3+ (15)

USBCLK (3)

D40

AC

F01J2E

RXD0 (14)
RXD1 (14)
RXD2 (14)
RXD3 (14)

Z716

AC

R286 1.5K

SUSPEND

R426 10K

SLP#

CPUSTP#

3

SYSPWGD

SLP# (1,2)
CPUSTP# (3)

C275
.1U

Y2

OSC

25M OSC

SYSPWGDPWROK(2,26)

SUSPEND (24)

VCC
GNDNC

VCC3

VCC1.8

C276
.1U

VDD3

C277
10U

VDD3
4
21

C278
.1U

AG4

LAD0
LAD1

AF4
AJ4

LAD2
LAD3

AE5
AF5

LDRQ#
LFRAME#

AH4

Z758

R481 0

AG5
C18

NMI

D16
D18
B17
A17
B18
A18
C17
D17

A8
AG3
AH3

F10
D6

H5
J5
G5
H6
E5
F5
E6
F6
F8
E7
E8
D7
A12

B2
B3

C9
B9
E13
A9

D5
AE7

AH2

N2

PWR_ON(23, 30,31)

SUSPEND#

Z555

Z400
Z401

Z486

R296

4.7K

PWROK

D48

F01J2E

SERIRQ

NMI
SMI#
INTR
A20M#
INIT#
IGNNE#
FERR#
STPCLK#

R257 0
R48 R

TXEN

SMBDATA
SMBCLK

RXDV
MDIO

USBP0 ­USBP0 +
USBP1 ­USBP1 +

USBP2­USBP2+
USBP3­USBP3+
USBP4­USBP4+
USBP5­USBP5+

USBCLK

Z882

RXD0
RXD1
RXD2
RXD3

MIICLK

TP85
TP109

AC

G S

B - 10

Sheet 11 of 31

C/BE#[0..3](16,25)

PCLK630S(3)

PCIRST#(13,16,18,20, 25)

VCC1.8

C344

0.01U

REQ2#
REQ1#
REQ0#(16)

GNT2#
GNT1#
GNT0#(16)

INTA#(16)
INTB#(16)
INTC#
INTD#

FRAME#(16,25)

IRDY#(16, 25)

TRDY#(16,25)

STOP#(16)

SERR#(16)

DEVSEL#(16)

PCLK630S
PCIRST#

PAR(16)

C348

0.01U

REQ2#
REQ1#
REQ0#

GNT2#
GNT1#
GNT0#

C/BE#3
C/BE#2
C/BE#1
C/BE#0

INTA#
INTB#
INTC#
INTD#

FRAME#
IRDY#
TRDY#
STOP#

SERR#
PAR
DEVSEL#
PLOCK#

R31 33

C315

0.01U

Z505

C317
.1U

AJ15

Schematic Diagrams

VCC1.8

C112
1000P

IDB0
IDB1
IDB2
IDB3

IDB4
IDB5
IDB6
IDB7
IDB8
IDB9
IDB10

IDB11
IDB12
IDB13
IDB14
IDB15

IDSAB0
IDSAB1
IDSAB2
CBLIDB

ICHRDYB
IIRQB
IDREQB
IDACKB#
IIORB#
IIOWB#
IDECSB0#
IDECSB1#

SIORDY
SDREQ
IIRQB

R109 0

C111
.1U

RN23
8P4R_10

RN36
8P4R_10

RN34
8P4R_10

RN35
8P4R_10

R465 10
R175 82
R470 82
R461 33
R466 10
R467 22
R464 33
R460 33

RN24
8P4R_33

R459 4.7K
R458 5.6K
R174 10K

IDB0
IDB2
IDB1
IDB3

IDB5
IDB6
IDB7
IDB4
IDB8
IDB9
IDB11

IDB10
IDB12
IDB15
IDB14
IDB13

IDSAB0
IDSAB2
CBLIDB
IDSAB1

5
6
7
8
8
7
6
5
5
6
7
8
8
7
6
5

8
7
6
5

3
2
1
1
2
3
4
4
3
2
1
1
2
3
4

SIORDY
SIRQ
SDREQ
SDDACK#
SDIOR#
SDIOW#
SDCS0#
SDCS1#

1
2
3
4

SDD2
SDD1
SDD3
SDD5
SDD6
SDD7
SDD4
SDD8
SDD9
SDD11
SDD10
SDD12
SDD15
SDD14
SDD13

SDA0
SDA2
S66CBLID
SDA1

SIORDY (13)
SIRQ (13)
SDREQ (13)
SDDACK# (13)
SDIOR# (13)
SDIOW# (13)
SDCS0# (13)
SDCS1# (13)

SDD[0..15] (13)

SDA0 (13)
SDA2 (13)
S66CBLID (13)
SDA1 (13)

SDD0

4

Z506

U6D

C327
10U

AD31

D1

AD30

E4

AD29

J4

AD28

E3

AD27

K6

AD26

E2

AD25

E1

AD24

F4

AD23

F2

AD22

K5

AD21

F1

AD20

G4

AD19

G3

AD18

G2

AD17

G1

AD16

L5

AD15

K4

AD14

K3

AD13

M5

AD12

K2

AD11

K1

AD10

L3

AD9

N6

AD8

L2

AD7

M4

AD6

N5

AD5

M3

AD4

M2

AD3

M1

AD2

N4

AD1

P6

AD0

N3

C1

PREQ#[2]

C2

PREQ#[1]

C3

PREQ#[0]

D2

PGNT#[2]

D3

PGNT#[1]

D4

PGNT#[0]

F3

C/BE#[3]

H4

C/BE#[2]

J1

C/BE#[1]

L1

C/BE#[0]

N1

INTA#

P4

INTB#

P5

INTC#

P3

INTD#

H3

FRAME#

H2

IRDY#

H1

TRDY#

J2

STOP#

B11

SERR#

M6

PAR

J3

DEVSEL#

L4

PLOCK#
PCICLK

C11

PCIRST#

C314
.1U

C333
.1U

PCI

AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10

AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

SiS630ST

C328
10U

AD[0..31] (16,25)

PDD[0..15](13)

PDDACK#(13)

PDA1(13)
PDA2(13)

P66CBLID(13)

PDA0(13)

C329
10U

PIORDY(13)

PDIOR#(13)

PDIOW#(13)

PDCS0#(13)
PDCS1#(13)

PDREQ(13)

PIRQ(13)

PDA1
PDA2
P66CBLID
PDA0

PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

PIORDY
PIRQ
PDREQ
PDDACK#
PDIOR#
PDIOW#
PDCS0#
PDCS1#

PIORDY
PDREQ
IIRQA

8
7
6
5
8
7
6
5
4
3
2
1
4
3
2
1

R154 10
R131 82
R146 82
R162 33
R156 10
R153 22
R166 33
R164 33

1
2
3
4

RN22 8P4R_33

R157 4.7K
R155 5.6K
R132 10K

8
7
6
5

U6E

1

RN16

2

8P4R_10

3
4
1

RN15

2

8P4R_10

3
4
5

RN14

6

8P4R_10

7
8
5

RN21

6
7

8P4R_10

8

IDSAA1
IDSAA2
CBLIDA
IDSAA0

VCC3 VCC3

IDA0
IDA1
IDA2
IDA3
IDA4

IDA5

IDA6
IDA7
IDA8
IDA9
IDA10
IDA11
IDA12
IDA13
IDA14
IDA15

ICHRDYA
IIRQA
IDREQA
IDACKA#
IIORA#
IIOWA#
IDECSA0#
IDECSA1#

IDSAA0

IDSAA1
IDSAA2

CBLIDA

AE12

AD12
AE11

AD13

AE13

AF10

AE14
AD14

AE8

IDA0
IDA1

AG7

IDA2

AJ6

IDA3
IDA4

AF6

IDA5
IDA6

AH5

IDA7

AJ5

IDA8

AE6

IDA9

AG6

IDA10

AH6

IDA11

AF7

IDA12

AH7

IDA13

AJ7

IDA14
IDA15

ICHRDYA

AF9

IIRQA

AG8

IDREQ[A]

AJ8

IDACK#[A]

AH8

IIOR#[A]

AF8

IIOW#[A]

AJ9

IDEC SA#[0]
IDEC SA#[1]

AG9

IDSAA[0]
IDSAA[1]
IDSAA[2]

AH9

CBLIDA

SiS630ST

AH15

IDE

IDEAVDD

IDB10
IDB11
IDB12
IDB13
IDB14
IDB15

ICHRDYB

IIRQB

IDREQ[B]

IDACK#[B]

IIOR#[B]

IIOW#[B]
IDECSB#[0]
IDECSB#[1]

IDSAB[0]

IDSAB[1]

IDSAB[2]

CBLIDB

IDB0
IDB1
IDB2
IDB3
IDB4
IDB5
IDB6
IDB7
IDB8
IDB9

AE17
AG12
AF12
AH11
AE16
AJ10
AD15
AE15
AG10
AH10
AF11
AG11
AJ11
AD16
AH12
AJ12

AH13
AF15
AD17
AJ13
AG13
AF13
AH14
AJ14

AD18
AF14
AG14
AG15

C332

0.01U

NEAR TO 630S

C362

C345

0.01U

0.01U

C352
10U

C361
10U

C358
10U

C293
10U

VCC3

VCC3

R289 330

PLOCK#

R68 10K

PERR#

C/BE#0
C/BE#1
C/BE#2
C/BE#3

INTB#
INTA#
INTC#
INTD#

PAR

R290 10K

RN68 8P4R_10K

1

8

2

7

3

6

4

5

RN7 8P4R_10K

1

8

2

7

3

6

4

5

R201 10K

PERR#(16)

FRAME#

RN2 8P4R_10K

REQ2#

1

REQ1#

2

REQ0#

3
4

RN52 8P4R_10K

1

GNT0#
IRDY#

2

GNT2#

3

GNT1#

4

RN3 8P4R_10K

STOP#

1

DEVSEL#

2

SERR#

3

TRDY#

4

Titl e

Size Docum ent N umber Rev

Custom

Date: Sheet

VCC3

8
7
6
5

8
7
6
5

8
7
6
5

ÂÅ ¤Ñ ¹ q ¸£ C LEVO CO.

630S(PCI/IDE)

0200-10.SCH
Tuesday, Septem ber 11, 2001

71-22T00-D03

of

11 31

A

B - 11

Service Manual

Sheet 12 of 31

VCC1.8

GTLVTT

C347 .1U

C312 .1U

C313 .1U

C330

C521 330U

.1U

C310 1U

C309 1U

C288 .1U

C289 .1U

C346 .1U

C311 .1U

C316 .1U

C349 .1U

VCC3

VCC3

C339 .1U

C343 .1U

C340 .1U

C290 .1U

C319 . 1U

C350 . 1U

C364 . 1U

C342 .1U

C341 .1U

C326 .1U

C292 .1U

C318 . 1U

C331 . 1U

C351 . 1U

C363 . 1U

VDD3

VDD1.8

C246
10U

C2441UC245

0.01U

VCC1.8

VDD3

VDD1.8

VCC3

AA11
AA12
AA13
AA18
AA19
AA20
AA22
AB12
AB19
AB21
AB22

AB10
AB11
AB13
AB18
AB20

AA10
AA14
AA17
AA21
AB14
AB17

VCC3

GTLVTT

AA8

AA9

AB8

AB9N8P8P9U8V8V9W8W9Y8Y9

OVDD
OVDD

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD

H10

OVDD

H17

OVDD

J11

OVDD

J12

OVDD

J9

OVDD

K8

OVDD

K9

OVDD

M9

OVDD

U21

OVDD

U22

OVDD

V21

OVDD

V22

OVDD

W21

OVDD

W22

OVDD

Y21

OVDD

PVDD
PVDD
PVDD
PVDD
PVDD

H11

PVDD

H12

PVDD

H18

PVDD

J18

PVDD

L8

PVDD

M8

PVDD

N22

PVDD

T22

PVDD

Y22

PVDD

IVDD
IVDD
IVDD
IVDD
IVDD
IVDD

H13

IVDD

H16

IVDD

J10

IVDD

J13

IVDD

J16

IVDD

J17

IVDD

J19

IVDD

J20

IVDD

K21

IVDD

L21

IVDD

L9

IVDD

M21

IVDD

N21

IVDD

N9

IVDD

T21

IVDD

U9

IVDD

H9

AUX3.3V

J8

AUX1.8V

U6F
SiS630S_3

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

POWER

H19

H20

H21

H22

J21

J22

K22

L22

M22

VSS

VDDQ

VDDQ

VDDQ

GTLVTT

GTLVTT

GTLVTT

VSS
VSS

GTLVTT

GTLVTT

GTLVTT

GTLVTT

GTLVTT

GTLVTT

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD
VSSD

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

L13
L14
L15
L16
L17
M12
M13
M14
M15
M16
M17
M18
N11
N12
N13
N14
N15
N16
N17
N18
N19
P14
P15
P18
P19
R14
R15
T14
T15
U14
U15
V14
V15
W13
W14
W15

P16
P17
R16
R17
R18
R19
T16
T17
T18
T19
U16
U17
U18
U19
V16
V17
V18
W16
W17

P11
P12
P13
R11
R12
R13
T11
T12
T13
U11
U12
U13
V12
V13

R285 R(1206)
R274 0(1206)

Default : 1-2

VCCTVCC1.8

B - 12

C296
10U

C2951UC320

0.01U

Sheet 13 of 31

PCIRST#(11,16, 18,20,25)

PIRQ(11)

SW1

COVER CL OSE SW . 4P

R165
10K

PCIRST#(11,16,18,20, 25)

13
24

VCC

R129 0

R163 33

R130 0

R25
10K

C31
.1U

COVER_SW#

PDD[0..7]

PDDACK#(11)

R363 10K

VCC

R362 10K

HDDDASP#
CDDASP#

VCC VCC

R365

2.2K

ENABKKL

ENABKKL(7)

HDDRST#
PDD7
PDD6
PDD5
PDD4 PDD11
PDD3

PDD1
PDD0

PDREQ

PDREQ(11)

PDIOW#

PDIOW#(11)

PDIOR#

PDIOR#(11)

PIORDY

PIORDY(11)

PDDACK#
PDIRQ
PDA1

PDA1(11)

PDA0

PDA0(11)

PDCS0#

PDCS0#(11)

HDDD ASP#

HDD_VCC

CDRST#

G

S D

CN16

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50

HDD conn. 50P

R364
47K

Q18
2N7002

COVER_SW#

Z539

Z307

Schematic Diagrams

VCC

U23A

147

VCC

147

74HCT08

3

6

U23B
74HCT08

PDD[8..15]

TP7

P66CBLID (11)
PDA2 (11)
PDCS1# (11)

HDD_VCC

PDD[0. .15]

SDD[0. .15]

IDELED#

PANEL

R152
470

PDD[0..15] (11)

SDD[0..15] (11)

HDD_VCC

CD_VCC

1
2

4
5

PDD8
PDD9
PDD10

PDD12
PDD13PDD2
PDD14
PDD15

T

PCSEL

P66CBLID
PDA2
PDCS1#

The components should be close to the connector.

C173
.1U

C174
.1U

C191
10U

The components should be close to the connector.

C470
.1U

C471
.1U

IMDATA(23)

IMCLK(23)

BATLED#(24)
PWRLED#(24)
CHRLED#(24)

IMDATA
IMCLK
BATLED#
PWRLED#
CHRLED#

C472
10U

VDD

C476

33P

C477

33P

+

C192
100U/10V

+

C222
10U

VCC

L22

BEAD(1206)

L60

BEAD(1206)

CN21

1
2
3
4
5
6
7
8

T/P X CHR LE D 8 P

VCC

VCC

BRIGADJ
PANEL

VCC

L48 BEAD(1206)
L45 BEAD
L46 BEAD

C248
.1U

CN12

Z316

L44
BEAD(0805)

1
2
3
4

5
6
7
8
9
10

INVERTER 10P

13 31

of

Z319
Z318

Z317

SCROLED#(23)

CAPLED#(23)
NUMLED#(23)

C265
.1U

Title

Size Document Number Rev

Custom

0200-12.SCH
Tuesday, Septem ber 11, 2001

Date: Sheet

FDDLED#(21)

C266
.1U

ÂÅ ¤Ñ ¹ q ¸£ C LEVO CO.

IDE

SCROLED#
CAPLED#
NUMLED#
FDDLED#
IDELED#

71-22T00-D03

A

CD_L(18) CD_R (18)

R472
10K

SDD[0..7]

SIRQ(11)

R463 33

R462
10K

CD_L

SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0

SDIOW#

SDIOW#(11)

SIORDY

SIORDY(11)

SDIRQ
SDA1

SDA1(11)

SDA0

SDA0(11)

SDCS0#

SDCS0#(11)

CDDASP#

SCSEL

TP20

Z306

R450
470

CN20

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41

42

43

44

45

46

47

48

49

50

CD-ROM conn. 50P

PINGND1..2=GND

CD_R
SDD8

SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
SDREQ
SDIOR#

SDDACK#

Z304

S66CBLID
SDA2
SDCS1#

Z305

TP21

TP180

SDD[8..15]

SDREQ (11)
SDIOR# (11)

SDDACK# (11)
S66CBLID (11)

SDA2 (11)
SDCS1# (11)

BRIGADJ(23)

R471
10K

CD_VCCCD_VCC

PANEL

B - 13

Service Manual

Sheet 14 of 31

CRS(10)
COL(10)

TXD3(10)
TXD2(10)
TXD1(10)
TXD0(10)

TXEN(10)

TXCLK(10)

RXER(10)

RXCLK(10)

RXDV(10)

RXD0(10)
RXD1(10)
RXD2(10)
RXD3(10)

MDC(10)

MDI O(10)

1.HW/SW=1

SW MODE

2.MII/SI=0

MII MODE

3.NOD/REP=0

NODE OPERATION

10/100SEL: 10/100MHZ INDECATED

LOW=10 BASE-T, HIGH=100BASE-T

DPXSEL: HAL F OR FULL INDECATED

LOW=HALF-DUPLEX,
HIGH=FULL-DUPLEX

ANSEL: AU TO-NEGOTI TATI ON INDECATED

LOW=DISABLE,
HIGH=ENABLE

Y3
25M

Z15TXD2
Z16TXD1
Z17TXD0

54

Z23

63

Z24

72

Z25

81

Z26

R96 1K

R95 1K

R62 1K

REF_IN

REF_OUT

Z12
Z13

Z18
Z19

TXER

Z20
Z21

Z22

Z27
Z28

VDD3

VDD3

VDD3

48

TXD3

47

TXD2

46

TXD1

45

TXD0

44

TXEN

43

TXCLK

42

TXER

41

RXTRI

40

VSS_IO

39

RXER

38

RXCLK

37

VDD_IO

36

RXDV

35

RXD0

34

RXD1

33

RXD2

P1CL

P2LI

P0AC

495051525354555657585960616263

COL

LRX+

LTX+

CRS

VDD_I O

MDIO

MDC

RXD3

32

LRX-

LTX-

REF_IN

VDD_I O

REF_OUT

LOCK

VSS_D

VSS_IO

TP233

VDD3

LRX+

NEAR TO 1893

LRX­LTX+

LTX-

TP_C P

P1CL

P0AC

VSS_D

VSS_R

VSS_IO

VSS_R

HW/SW

DPXSEL

VDD_D

ANSEL

TP232

HW/SW

Z663

C54

.1U

P3TD

P4RD

PVCC3

U7

64

P2LI

P3TD

P4RD

VSS_T

VDD_T

NOD/REP
10/100SEL

TP_CP
VSS_T

TP_TX+

TP_TX­VDD_T
VDD_R

10TCSR

100TCSR

VSS_R
VSS_R

TP_RX+

TP_RX­VDD_R
VDD_R

VSS_R

RESETN

MII/SINCLSTA

171819202122232425262728293031

MII/SI

RESET-

R592

R

R52

61.9(1%)

R53

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

ICS1893

R94 10K

C104
.1U

C55

C

C53 C

PVCC3

LTX+
LTX-

10TCSR
100TCSR

LRX+
LRX-

VDD3

61.9(1%)

R60

61.9(1%)

Z664

R61

61.9(1%)

C66

.1U

C69 5P

C70 5P

CRS

R65 22

COL

R66 22

RN5

8 1

TXD3 Z14

7 2
6 3
5 4

TXEN NOD/REP
TXCLK TP_C P

RXER
RXCLK
RXDV

RXD0
RXD1
RXD2
RXD3

MDC
MDI O

8P4R_22

R74 22
R86 22

R84
1K

R85 22
R101 22
R100 22

RN9

8P4R_22

VDD3

R98

1.5K

R99 22
R97 22

HW/SW

MII /SI

NOD/REP

VDD3

PVCC3

PVCC3

TP229

10TCSR

R82 12.1K

VDD3

100TCSR

U20

1

RD+

RX+

2

RDC

RX-

3

Z263

4

Z264

TP43

7
6
8

5

Z517

TP44

C52

C

RXC
NC

TX+
TXC
TX-

NC

H0009

RD-

NC

TD+

TDC

TD­NC

R118 2K(1%)

C122 C

R83 1.54K(1%)

C94 C

RD+

16
14

Z78

RD-

15
13

Z518

TD+

10
11

Z79

9

TD-

12

Z579

C103
.1U

C68
.1U

TP22

TP23

R875R9

C21

1000P(1210)2KV

.1U

C106
.1U

C102

75

C83

C82

.1U

.1U

VDD3

C105

C71

.1U

.1U

Z80

Titl e

Size Document Number Rev

Custom

Date: Sheet

L17

1 2

BEAD(1206)

C67
.1U

SET PHY
ADDRESS=00001SET TRANSMITTING DRIVING CURRE NT

P0AC

R67 1K

(ADD0)

P1CL

R64 1K

(ADD1)

P2LI

R55 1K

(ADD2)

P3TD

R63 1K

(ADD3)

P4RD

R54 1K

(ADD4)

Z904

Z262

R41

R40

75

75

ÂÅ ¤Ñ ¹q ¸£ CLEVO C O.

LAN PHY

0200-13.SCH
Tuesday , September 11, 2001

VDD3

CN2

1
2
3
4
5
6
789

10

LAN RJ-45 8P

71-22T00-D03

of

14 31

A

B - 14

Sheet 15 of 31

Schematic Diagrams

L13 BEAD(1206)

VCC

USBP0-

USBP0-(10)

USBP0+

USBP0+(10)

USBP3-

USBP3-(10)

USBP3+

USBP3+(10)

VDD3

R543

VCC3

TP12
TP11

TP10
TP15

TP16

SDATO

SDATO(10,18)

AC_RESET#(10,18)

AC_RESET#

R370 0

TP17

MDC_RESET#

0(0805)

1

Z533

3
5

Z534

7

Z535

9

11

Z536

13

Z537

15
17
19
21
23
25
27
29 30

Z529

MONO_OU T
GND
AUXR
AUXL
CDGND
CD_R
CD_L
GND

3.3V
GND

3.3V
SDATA_O
RESET#
GND
MCLK BCLK

MONO_PHONE

SDATA_INB
SDATA_INA

MDC CON 30P

AUDIO_PD

P_DN

SYNC

GND

GND

GND

R_D
VCC

R_D
R_D

VCC

CN18

VCC

2

Z528
Z527

Z526
Z525
Z530

Z524

R353 0(R)

TP14
TP13

TP166
TP167

4
6
8
10
12
14
16
18
20
22
24
26
28

Z521 Z522

C49

0.01U

C8
47P(R)

C227
47P(R)

MODEMSPK

SYNC
SDATI1
SDATI0

BIT_CLK

MODEMSPK (18)

SYNC (10,18)
SDATI1 (10,18)
SDATI0 (10,18)

BIT_CLK (10,18)

C224
47P(R)

C24
47P(R)

C48
10U

F2

POLYFUSE

SMDC110

R3 22

R238 22
R11 22

USBVCC0 USBVCC1

R2
15K

R239
15K

L1 0
L25 0R232 22

L32 0
L6 0

VCC

Z324
Z323

Z325

Z326

R354
10K(R)

R355
0

R233
15K

R10
15K

L12 BEAD(1206)

VCC

BEAD(1206)

C225

47PC747P

C23

47P

47P

C228

C46

0.01U

CN14

MDC 2 P

F1

POLYFUSE

C47

SMDC110

10U

USBVCC0USBVCC1

L49

L47

BEAD(1206)

Z1
Z3
Z85

Z523
Z86
Z2

1
2

1
2
3
4

5
6
7
8

CN4

VCC
1DATA­1DATA+
GND

VCC
2DATA­2DATA+
GND

USB CON 8P

RING
TIP

CN29

123

4

RJ-11

B - 15

Service Manual

Sheet 16 of 31

B - 16

Sheet 17 of 31

TI_PME#(10,16)

B_VCC

10

VCC

C215

4.7U

VCC3_AUX

12V

C213
.1U

Z217

C190
.1U

R151 0(1206)

U12

2

IN

3

IN

4

EN

1

GND

TPS2032(R)

B_WP# (16)

B_RDY BY# (16)
B_WAIT# (16)
B_BVD2# (16)
B_BVD1# (16)

B_INPACK (16)
B_RESET (16)
B_CA22 (16)
B_CA15 (16)
B_CA21 (16)
B_CA20 (16)
B_CA14 (16)
B_CA19 (16)

U16

9

12V

5

5V

6

5V

3

3.3V

4

3.3V

16

SHDN#

TPS2211

R200

2.7K

OUT
OUT
OUT
OC#

VCC3_AUX

Z756

R199

2.7K

8
7
6
5

BVCC
BVCC
BVCC

BVPP

VCCD0#
VCCD1#

VPPD0
VPPD1

TP235

Z928

R209
47K

11
12
13

10

1
2
15
14

8

OC#

7

GND

R483 0(R)R482 0

C210
.1U

U18

8

VCC

7

WE#

6

SCL

S-24C02

VCC3 VCC3_AUX

R173 10K(R)

TI_PME#

C172
.1U

B_WP#

RN19

81

B_RDYBY#

72

B_WAIT#

63

B_BVD2#

54

8P4R_43K
RP10

5

10P8R_43K

C214
.1U

B_BVD1#

1

B_INPACK

2

B_RESET

3

B_CA22

4

B_CA15

6

B_CA21

7

B_CA20

8

B_CA14

9

B_CA19

VCC3

C212

4.7U

R191

10K

VCC3_AUX VCC

PHYSCLK

PHYSC LK(16)

PHYSDATA

PHYSD ATA(16)

C146
.1U

RN20

8P4R_43K

VCC3_AUX

R210

47K

Z929

C211
1U

AD0
AD1
AD2

GNDSDA

R206
47K

VCCD0#
VCCD1#
VPPD0
VPPD1

TP236

1
2
3
45

81
72
63
54R172 43K

ZVSEL0 #
ZVSEL1 #
LED_SKT

ZVSEL0# (16)
ZVSEL1# (16)
LED_SKT (16)

C188
.1U

C189
.1U

VCCD0# (16)
VCCD1# (16)
VPPD0 (16)
VPPD1 (16)

C187

4.7U

C171
.1U(R)

B_VS2
B_CD2#
B_CD1#
B_VS1

C145
.1U(R)

B_VCC

B_VPP

TPB1-(16)
TPB1+(16)
TPA1-(16)
TPA1+(16)

TPBIAS1(16)

B_VS2 (16)
B_CD2# (16)
B_CD1# (16)
B_VS1 (16)

TPB1­TPB1+
TPA1­TPA1+
TPBIAS1

R42

56.2_1%

C270
1U(0805)(K%)

H26
HoleC158D158

H11
HoleC120D87A

R43

56.2_1%

H25
HoleC158D158

H14
HoleC120D87A

FD16
C-MARK1

1

FD12
C-MARK1

1

D3
F1J4(2A)

A C C30 0.1u

B+

R45

R44

56.2_1%

56.2_1%

Z730

R273

4.7K

C271
220P

H1
HoleC158D158

SS1
Hole197D91

FD19
C-MARK1

1

FD13
C-MARK1

1

H13

2
3
4

1

5 6

HoleC237D107B

H22

2
3
4

1

5 6

HoleC237D110

Z735

R24 30
R23 30
R22 30
R21 30

L71

3

4

CML16D

FD20
C-MARK1

FD9
C-MARK1

9
8
7

9
8
7

.. ..

1

1

81

72
6

5

H2
HoleC158D158

FD22
C-MARK1

FD7
C-MARK1

H12

2
3
4

1

5 6

HoleC237D107A

H17

2
3
4

1

5 6

HoleC237D110

Z732

Z731

Z733
Z734

H3
O90X130D40X87

FD21
C-MARK1

1

1

FD10
C-MARK1

1

H9

9

2

8

3

7

4

1

5 6

HoleC237D107A

H16

9

2

8

3

7

4

1

5 6

HoleC237D110

CN8

1

VPP

2

VGND

3

TPB#

4

TPB

5

TPA#

6

TPA

1394_CON

CN16 PIN 10 ~ 17 : TPGND

H6

H7

Holeoblong

Holeoblong

FD18

FD17

C-MARK1

C-MARK1

1

1

FD1

FD14

C-MARK1

C-MARK1

1

1

1

H10

9

2
8
7

9
8
7

GND
GND
GND

9

3

8

4

7

1

5 6

HoleC237D107B

H8

2

9

3

8

4

7

1

5 6

HoleC237D110

H15

2

9

3

8

4

7

1

5 6

HoleC217D110

7
8
9

Title

Size Document N umber Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹ q ¸£ CLEVO CO.

0200-16.SCH
Tuesday, Sept em ber 11, 2001

H18
HoleC55D55

FD8

FD2

C-MARK1

C-MARK1

1

1

FD24

FD15

C-MARK1

C-MARK1

1

H24

2
3
4
5 6

HoleC237D110

2
3
4
5 6

HoleC237D110

2
3
4
5 6

HoleC237D110

2

9

3

8

4

7

1

5 6

HoleC217D110

H5

9

2

8

3

7

4

1

5 6

HoleC237D110

H23

2

9

3

8

4

7

1

5 6

HoleC237D110

PCMCIA PO W ER

71-22T00-D03

FD11
C-MARK1

1

H20

1

H4

1

H21

1

Schematic Diagrams

H19
HoleC55D55

1

FD23
C-MARK1

1

9
8
7

9
8
7

9
8
7

A

of

17 31

B - 17

Service Manual

Sheet 18 of 31

CID0 CID1

NC

NC
GND NC
NC

GND

GND

GND

DACGND

status
MASTER
SLAVE
SLAVE
SLAVE

DACVCC

DACGND

AC_RESET#(10,15)

PCIRST#(11,13,16,20,25)

AUDCLK(20)

SDATO(10,15)

BIT_CLK(10,15)

SDATI0(10,15)

SYNC(10,15)

DACVCC3

C169

10U

C138
.1U

R113 1(0805)

AUDCLK

SDATO
BIT_CLK

SDATI0
SYNC

AC_RESET#

R521 R

DACGND

DACGND

C119

0.047U(R)

R135 0(0805)

C130
.1U

R112 R(0805)

C167

C116

.1U

.1U

R149 22(R)

R150 47
R160 47

R520 0
C517 0.01U

C168

C156

.1U

10U(R)

C117 0. 01U(R)

R116 20K(R )
R115 20K(R )

R114 20K(R )

C115

4.7U

C184
10U

DACGND

C155

TP4

TP118
TP127
TP119
TP120
TP3

TP5

Z87
Z88

.1U(R)

Z832

Z327

Z328
Z89

Z92
Z320

Z507
Z419
Z418
Z508
Z509
Z510
Z511
Z512

CID0
CID1

Z513
Z420

1
9

25
38

2
3
5
6

8
10
11

27
28

37
33
34
39
40
41
43
44
45
46
47
48

DVDD1
DVDD2

AVDD1
AVDD2

XTL_IN
XTL_OUT
SDATA_OUT
BIT_CLK

SDATA_IN
SYNC
RESET#

VREF
VREFOU T

MONO_OUT
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

L21 BEAD(0805)

VCC3

U11

C479 0.01U

12

PC_BEEP

13

PHONE

21

MIC 1

35

LINE_OUT_L

36

LINE_OUT_R

18

CD_L

19

CD_GND

20

CD_R

23

LINE_IN _L

24

LINE_IN _R

14

AUX_L

15

AUX_R

16

VIDEO_L

17

VIDEO_R

22

MIC 2

29

AFILT1

30

AFILT2

31

CAP1

32

CAP2

AVSS1

AVSS2

VSS2

VSS1

7

4

26

42

DACGND

ALC201A

DACGND

DACGND

Z105 Z107

C162 . 1U

Z110

C179 1U

Z108
Z116

C166 1U

Z109 Z117

C183 0.01U

Z90

C181 0.01U

Z91

C163 0.01U

Z113

C177 0.01U

Z115

C178 0.01U

Z112

C164 0.01U

Z111

C182 0.01U

Z114

Z422
Z423
Z424
Z421

C132
10U(R)

Z118

C165 1U

Z106

DACGND

C131
.1U

Z757

DACGND

R477 20K
R184 20KC176 0.01U

DACGND DACGND

R182 20KC161 . 1U R 183 1K
R478 20K

MIC 1
SOUND_L
SOUND_R

R186 1K
R187 1K

R185 4.7K
R188 4.7K

C139
.1U

C141
10U

C199

0.01U

DACGND

C140
1000P

C180

0.01U

DACGND

CD_L
CD_R

DACGND

LBP (24)
MODE MSPK (15)

MIC1 (19)
SOUND_L (19)
SOUND_R (19)

C154
1000P

CD_L (13)
CD_R (13)

C151
.1U

C137
.1U

C136
10U

DACVCC3

B - 18

L14 BK2125HS330(0805)

IN
OFF#
GND

GND

U5

OUT

SET

GND
GND

MAX603(R)

8
5
7

6

VCC

C45

R73 10K(R)

10U(R)

1
4

Z321 Z10

2
3

R51
294K,1%(R)

R59
100K(R)

C65
.1U

L16 BEAD(1206)

C44 .1U

C64
10U

DACVCC

DACGND

R30 100K
R161 100K

AC'97 PULL-D OWN
PLACE NEAR TO AC'97 COD EC

Titl e

Size Doc um ent Number Rev

Custom

Date: Sheet

SDATI1

SDATI1 (10, 15)

SDATI0

SDATI0 (10, 15)

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

AUDIO CODEC

0200-17.SCH

71-22T00-D03

A

of

18 31Tuesday, Sept em ber 11, 2001

Sheet 19 of 31

VSOUND_L

C91 0.22U

C90 0.22U

DACVCC

R81 10K(1%)

Z95 Z84 Z96

R90 10K

Z97 Z83 Z9 8

L_OUT+ R_OUT+
L_OUT- R_OUT-

MUTEOUT

C92
.1U

DACGND DACGND DACGND

Z81

Z82

C101

R92
10K

10P

Z99 Z100

C93

4.7U

C118
1U

U10

4

L_LINE I N

5

R91
18K(1%)

L_HP IN

3

L_OUT+

10

L_OUT-

6 19

L_BYPASS R_BYPASS

8

SHUTDOWN

7

VDD

18

VDD

1

GND/H S

12

GND/H S

13

GND/H S

24

GND/H S

APA2020A

DACGND:25,26,27,28,29,30,31,32,33

R_LINE I N

R_HP IN

R_OUT+
R_OUT-

SE/BTL#

HP/LINE#

MUTE I N

MUTE O U T

21

Z923
Z924

AMP_DOWN
MUTEO UT

R71

18K(1%)

TP238
TP239

20

22
15

14
16

11
9

2

NC

17

NC

23

NC

R57 10K(1%)

R58 10K

C80

R72

10P

10K

R117

10K

DACGND DACGND

PHONE_IN

C81
1U

C78 0.22U

C79 0.22U

AMP_DOWN (23)

SOUND_R(18)

SOUND_L(18)

VSOUND_R

NEAR TO AKM4543

INT_MIC

C120 1U
C121 1U

L54 BEAD
L55 BEAD

Z665

C63
680P

DACGNDDACGND

C62
680P

R_OUT+
R_OUT­L_OUT­L_OUT+

VSOUND_R

Z666

VSOUND_L

TP237

PIN NC3.4=DACGND

CN22

1

1

2

2

3

3

4

4

SPEAKERS CONN . 4P

Z93

Z930

Z94

INT MIC CONN. 3P

VR1

2
3

1

6
5

VR-AUDIO

CN13

1
2
3

DACGND

Schematic Diagrams

R_OUT+

L_OUT+

+

C28 47U/16V_D

+

C27 47U/16V_D

C20
680P

DACGND

R6
1K

C232
680P

L3 BEAD

L36 BEAD

R243
1K

DACGND

Z4

Z122 Z102

DACGNDDACGND

C19
680P

DACVCC

C233
680P

R17
100K

R16 100K

Z5

Z101

CN9

4
3

5
2
1

EXT_SPEAKER

PHONE_IN

NEAR AKM4543 PIN

SPDIF(10)

SPDIFON(23)

MIC 1(18)

SPDIF
SPDIFON

MIC 1

DACGND

TP240
TP241

R242 7.5K

DACVCC

Z921
Z922

Z104

DACGND

8
7
6

C258

0.01U(R)

U1

NO
NIC
IN

PI5A319

R522 7.5K

COM

NC
GND
VCCNI C

C257 .1U R240 1K

C478

0.01U

Z103

C226

10U

DACGND

R241 0(R)

Z556

1
2
3
45

VCC

C29
.1U

INT_MIC

R1

7.5K(R)

L37

BEAD(0805)

SPDIFOU T

Z121

R586

C2

C1

R

680P

.22U(0603)

Titl e

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹ q ¸£ CLEVO CO.

AUDIO AMP

0200-18.SCH

CN1

4
3

5
2
1

MIC I N

71-22T00-D03

19 31Tuesday, September 11, 2001

A

of

B - 19

Service Manual

Sheet 20 of 31

VCC3 VCC

VCC

SMEMW#

R415 1K

SMEMR#

R413 1K

IOWR#

R416 8. 2K

IORD#

R417 8. 2K

MEMW #

R403 8. 2K

MEMR#

R402 8. 2K

IOCHK#

R411 4. 7K

SBHE#

R418 4. 7K(R)

IOCHRDY

R410 1K

OWS#

R412 1K

REFRESH#

R414 1K

M16#

R376 1K

IO16#

R359 1K

MASTE R#

R395

IRQ12

R377

IRQ14

R361

IRQ15

R360

10
9

IRQ11

8

IRQ10

7

IRQ9

6

IRQ7

10

SA16

9

SA17

8

SA18

7

SA19

6

10

LA23

9

LA22

8

LA21

7
6

10
9

DREQ7

8

DREQ6

7

DREQ5

6

Titl e

Size Docum ent N um ber Rev

Custom

0200-19.SCH
Tuesday , Sept em ber 11, 2001

Date: Sheet

1K
10K
10K
10K

VCC

RP26

1
2
3
4
5

VCC

6
7
8
9

10

VCC

1
2
3
4
5

VCC

1
2
3
4
5

1

10

2

9

3

8

4

7

5

6

10P8R_4.7K

RP23

6

5

7

4

8

3

9

2

10

1

10P8R_4.7K

RP20

1

10

2

9

3

8

4

7

5

6

10P8R_R

RP22

1

10

2

9

3

8

4

7

5

6

10P8R_R

10
9

SD7

8

SD6IRQ6

7

SD5

6

SD4

5

SD12

4

SD13

3

SD14

2

SD15

1

10

SA1

9

SA2

8

SA3

7

SA4

6

10

SA12

9

SA13

8

SA14

7

SA15

6

SD3
SD2
SD1
SD0

SD11
SD10
SD9
SD8

SA11
SA10
SA9
SA8

SA0
SA7
SA6
SA5

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

LPC-ISA BRI DGE

71-22T00-D03

20 31

A

of

IOW#

BALE

IOR#

OWS

AEN

C455
.1U

TC

W83626F

C456

C454
.1U

Z650 (3)

C450
.1U

TC (21)
AEN (21)

IORD# (21,23)
IOWR# (21,23)
IOCHRDY (21)

RSTDRV (21)
IO16#
M16#
IOCHK#
OWS#

LA[17..23]

SMEMW#
SMEMR#
REFRESH#

SBHE#
MEMR# (24)
MEMW # (24)
MASTE R#

DREQ[0..7]

DAK#[0..7]

R371 10K

IRQ1
KBDCS#
MCCS#
CPU_FAN
SELECTB
SELECTA
FLASH#

LPC14M
869_OSC

AUDCLK

.1U

U28

100

TC
AEN

59
86

IORD#

84

IOWR#

61

IOCHRDY

92

T

77

RSTDRV

11

IO16#
M16#

12
76

IOCHK#

81

OWS#

111

LA17

109

LA18

108

LA19
LA20

107

LA21

106
104

LA22

103

LA23

82

SMEMW#
SMEMR#

83
91

REFRESH#

101

T

SBHE#

102

MEMR#

112
113

MEMW #

123

MASTER#

3

DREQ0

90

DREQ1

79

DREQ2

88

DREQ3

1

DREQ5
DREQ6

127
124

4

DAK#0

89

DAK#1
DAK#2

99

DAK#3

87
2

DAK#5
DAK#6

128

DAK#7

126

38
39
40
62
63
64
65
66

Z650

26
27

Z6

R375 22

28

T

29

Z8

R374 22

R357

4.7K

VCC3

C431
.1U

20

545557085

105

SA[0..19]

SA[0..19](21,23,24)

SD[0..15]

SD[0..15](21,23,24)

IRQ[3..15]

IRQ[3..15](23)

LAD[0..3]

LAD[0..3](10)

LFRAME#(10)
PCLKLPC(3)

PCIRST#(11, 13,16,18,25)

SERIRQ(10,16, 21)

LDRQ#(10)

VCC

VCC3

BIOSCS#(24)

R372 10K

SA0
SA1
SA2
SA3
SA4
SA5
SA6
SA7
SA8
SA9
SA10
SA11
SA12
SA13
SA14
SA15
SA16
SA17
SA18
SA19

SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7
SD8
SD9
SD10
SD11
SD12
SD13
SD14
SD15

IRQ3 DREQ7
IRQ4
IRQ5
IRQ6
IRQ7
IRQ9
IRQ10
IRQ11
IRQ12
IRQ14
IRQ15

LAD0
LAD1
LAD2
LAD3

LFRAME#
PCLKLPC
PCIRST#
SERIRQ
LDRQ#

R358 4.7K

BIOSCS#

VCC3

Z7

Z514

R373

4.7K

L58

1 2

31
32
33
34
35
41
42
43
44
46
47
48
49
51
52
53
54
56
57
58

67
68
69
71
72
73
74

75
114
115
116
117
118
119
121
122

98

97

96

94

93

78

10

9
8
6
7

19

18

17

16

13

21

14

23

22

24

36

37

SA[0]
SA[1]
SA[2]
SA[3]
SA[4]
SA[5]
SA[6]
SA[7]
SA[8]
SA[9]
SA[10]
SA[11]
SA[12]
SA[13]
SA[14]
SA[15]
SA[16]
SA[17]
SA[18]
SA[19]

SD[0]
SD[1]
SD[2]
SD[3]
SD[4]
SD[5]
SD[6]
SD[7]
SD[8]
SD[9]
SD[10]
SD[11]
SD[12]
SD[13]
SD[14]
SD[15]

IRQ3
IRQ4
IRQ5
IRQ6
IRQ7
IRQ9
IRQ10
IRQ11
IRQ12
IRQ14
IRQ15

LAD[0]
LAD[1]
LAD[2]
LAD[3]

LFRAME#
PCICL K
PCIRST#
SERIRQ
LDRQ#

PWRDN#
80PCS#/KBEN

ROMCS#

BEAD

C430
.1U

Z9

VCC3

LPC-ISA

AVCC3

25

C424

10U

120

VCC5

VCC5

VCC5

VCC5

VCC5

VCC5

VCC5

IOCHRDY

SYSCLK
RSTDRV
IOCS16#

MEMCS16#

IOCHK#

LA[17]
LA[18]
LA[19]
LA[20]
LA[21]
LA[22]
LA[23]

SMEMW#

SMEMR#

REFRESH#

SBHE#
MEMR#

MEMW#

RTCEN/MASTER#

DRQ0
DRQ1
DRQ2
DRQ3
DRQ5
DRQ6
DRQ7

DACK0#

DACK1#

DACK2#

DACK3#

DACK5#

HEFRAS/DACK6#

DACK7#

IRQ1/GPIO[0]

KBCS#/GPI O[1]

MCCS#/GPIO[2]

PLED/GPIO[3]

IRQIN/ GPIO[4]

IRQ8/GPIO[5]

RTCCS#/GPIO[6]

IOHCS#/GPIO[7]

14.318M
14MOUT1
14MOUT2

24.576M/25M

AGND

GND

GND

GND

GND

GND

GND

GND

1550608095

110

30

125

C432
.1U

LA[17..23]

DREQ[0. .7] (21)

DAK#[0..7] (21)

IRQ1 (23)
KBDCS# (23)
MCCS# (23)
CPU_FAN (25)
SELECTB (23,25)
SELECTA (25)
FLASH# (24)

LPC14M (3)
869_OSC (21)

AUDCLK (18)

VCC3

C449
.1U

C452
.1U

IRQ3
IRQ4
IRQ5

LA17
LA18
LA19
LA20

DREQ0
DREQ1
DREQ2
DREQ3

VCC

1
2
3
4
5

VCC

1
2
3
4
5

VCC

1
2
3
4
5

1
2
3
4
5

RP27

1

10

2

9

3

8

4

7

5

6

10P8R_10K

RP24

1

10

2

9

3

8

4

7

5

6

10P8R_R

RP25

1

10

2

9

3

8

4

7

5

6

10P8R_10K

RP21

1

10

2

9

3

8

4

7

5

6

10P8R_10K

B - 20

Sheet 21 of 31

869_OSC(20)

VCC3

RP28

1

CTS2 #

CTS2#

DSR2#

DSR2#

SIN2

SIN2

DCD2#

DCD2#

RN66

8P4R_1K

INDEX#

INDEX#

TRK0 #

TRK0 #

RDATA#

RDATA#

DSKCHG#

DSKCHG#

3MODE#

3MODE#

WP#

WP#

SD[0.. 7]

SD[0..7](20,23, 24)

SA[0..15]

SA[0..15](20,23,24)

IORD#(20, 23)
IOWR#(20,23)

AEN(20)

RSTDRV(20)

TC(20)

IOCHRDY(20)

DAK#0(20)
DAK#1(20)

C459
C

VCC3

R451 10K

SERIRQ(10,16,20)

PCLKSIO(3)

VCC3

DAK#2(20)

DAK#3(20)
DREQ0(20)
DREQ1(20)
DREQ2(20)
DREQ3(20)

R420 10K

IRR3
IRRX2
IRTX2

R445
1K

869_OSC TRK0 #

10

10

2
3
4
5

678

4 5

1
2
3
4
5

10P8R_10K

CTS1#

9

9

8

8

7

7

6

6

R453

123

10K

SD0 PPD1 PD1
SD1 PPD2 PD2
SD2 PPD3 PD3
SD3 PPD4 PD4
SD4 PPD5 PD5
SD5 PPD6 PD6
SD6 PPD7 PD7
SD7

SA0 STROBE#
SA1 SLCTIN#
SA2 PPINIT#
SA3 AUTOFD#
SA4
SA5 PPERR#
SA6 PACK#
SA7 PBUSY
SA8 PPE
SA9 PSLCT
SA10
SA11 CTS1#
SA12 DSR1#
SA13 DCD1#
SA14 RI1#
SA15 SIN1

IORD#
IOWR# DTR1#
AEN
RSTDRV CTS2#
TC DSR2#
IOCHRDY DCD2#

Z198

DAK#0
DAK#1 RTS2#
DAK#2
DAK#3
DREQ0 RDATA#
DREQ1 WDATA#
DREQ2 DSKCHG#
DREQ3 WGATE#

Z201

SERIRQ HDSEL#
PCLKSIO WP#

Z202

IRR3
IRRX2 3MODE#
IRTX2

VCC

R429

10K

RI1#
DCD1#

RI2#

46
47
48
49
51
52
53
54

26
27
28
29
30
31
32
39
40
41
95
35
36

1
3

25
42

43
44
55
33

96
20

34
94
22
19
50
97
17

92
37
18
38

56
21

23
24

U30

CTS1#
RI1#
DCD1#
RI2#

D0
D1
D2
D3
D4
D5
D6
D7

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15

IOR#
IOW#
AEN
RESET
TC
IOCHRDY
IRQIN

DACK_A#
DACK_B#
DACK_C#
DACK_D#
DRQ_A
DRQ_B
DRQ_C
DRQ_D

ADRX#/CLKRUN#
SIRQ
CLK14
CLK33

PWRGD/GAMECS#
IRMODE/IRR3

IRRX2
IRTX2

VCC3

INIT#

ACK#
BUSY

SLCT

CTS1#

DSR1#

DCD1#

RXD1

TXD1

RTS1#

DTR1#

CTS2#

DSR2#

DCD2#

RTS2#

DTR2#

DIR#

STEP#
TRK0 #

INDEX#

MTR0#

DS0#

DSR1#

SIN1

C463

C458

.1U

.1U

69

PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7

RI1

RI2

PPD0 PD0

68
67
66
64
63
62
61

75
71
72
74

73
60
59
58

PE

57
80

78
83
82
76

SOUT1

77
79
81

90
88
85

RI2#

84

SIN2

86
87

Z199

89
91

Z200

14
7
15
8

DIR#

5

STEP#

6
9
11
12

INDEX#

10

MTR0#

100

DRV0#

2
99

16

Z213

37N3869

R488 10K
R489 10K

VCC3

C468

4.7U

VCC3

13

70

VCC

VCC

STROBE#

SLCTIN#

AUTOFD#

ERROR#

RXD2/IRRX

TXD2/IRTX

RDATA#

WDATA#

DSKCHG#

WGATE#

HDSEL#

WRTPRT#

DRVDEN 0

GND

459893

DRVDEN 1

GND

GND

65

GND

4

C464

0.01U

TP19
TP18

TP179

DSR1#
SIN1

RN51
8P4R_33

RN50
8P4R_33

TP181
TP182

PPERR# (22)
PACK# (22)
PBUSY (22)
PPE (22)
PSLCT (22)

CTS1#
DSR1#
DCD1#
RI1#
SIN1

RTS1 #

CTS2#
DSR2#
DCD2#
RI2#
SIN2

RDATA#
DSKCHG#
DIR#

STEP#
HDSEL#
TRK0 #
WP#
INDEX#
MTR0#
DRV0#

3MODE#

VCC3

IRRX2

IRR3

IRTX2

54
63
72
81
54
63
72
81

SLCTIN#
PPINIT #
AUTOFD#

VCC3 VCC3

R490
820

R427
1K

FDDVCC

L23

BEAD(0805)

C523

4.7U(0805)

IRRX2
IRR3
IRTX2

R546 1

FIRGND

PD0 (22)
PD1 (22)
PD2 (22)
PD3 (22)
PD4 (22)
PD5 (22)
PD6 (22)
PD7 (22)

RN67

1

8
7
6

R428
1K

WDATA#
WGATE#

2
3
45

8P4R_33

PSLIN#
PINIT#
PATFD#
PSTB#STROBE#

R444
820

NEAR TO THE CONNECTOR

C221

C220

.1U

.1U

R170

4.7K

R198

4.7K

FIRVCC

R181
47K

PSLIN# (22)
PINIT# (22)
PATFD# (22)
PSTB# (22)

3MODE#

C453
10U

817263

54

817263

RN43
8P4R_18

U14

8

RXD

3

FIR_SEL

9

TXD

11

GND

NC

DRV0# FDDLED# (13)

R452 0(R)

R443 0

L59

BEAD(1206)

+

C219
100U/10V

54

RN44
8P4R_18

C524 2200P

Z195

10

4

Z196

MDO

5

Z197

MD1

VCC

HSDL-3600

1

FIRVCC

VCC

Q25

G
S D

2N7002

FDDVCC

INDEX#
DRV0#
DSKCHG#

TP221
TP222

Z411

MTR0#

TP223

DIR#

Z412

STEP#
WDATA#
WGATE#
TRK0 #
WP#
RDATA#
HDSEL#

Titl e

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

S I / O

0200-20.SCH
Tuesday , Sept em ber 11, 2001

AGNDD

GND

276

C153 .47U(0805)

C152 10U

VCC

LEAD

R430
10K

FIRGND

R179 2.2K
R180 2.2K

FDDLED#DRV0#

FDD CON 26P

71-22T00-D03

CN19

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

Schematic Diagrams

FIRGND

A

of

21 31

B - 21

Service Manual

Sheet 22 of 31

VCC3

RP28

1

CTS2 #

CTS2#

DSR2#

DSR2#

SIN2

SIN2

DCD2#

DCD2#

RN66

8P4R_1K

INDEX#

INDEX#

TRK0#

TRK0#

RDATA#

RDATA#

DSKCHG#

DSKCHG#

3MODE#

3MODE#

WP#

WP#

SD[0..7]

SD[0..7](20, 23,24)

SA[0..15]

SA[0..15](20,23,24)

IORD#(20,23)
IOWR#(20,23)

AEN(20)

RSTDRV(20)

TC(20)

IOCHRDY(20)

DAK#0(20)
DAK#1(20)

C459
C

VCC3

R451 10K

SERIRQ(10,16,20)

PCLKSIO(3)

VCC3

DAK#2(20)

DAK#3(20)
DREQ0(20)
DREQ1(20)
DREQ2(20)
DREQ3(20)

R420 10K

IRR3
IRRX2
IRTX2

R445
1K

869_OSC TR K0#

869_OSC(20)

10

1

10

2

2

3

3

4

4

5

5

10P8R_10K

678

4 5

IORD#
IOWR# DTR1#
AEN
RSTDRV CTS2#
TC DSR2#
IOCHRDY DCD2#

DAK#0
DAK#1 RTS2#
DAK#2
DAK#3
DREQ0 RDATA#
DREQ1 WDATA#
DREQ2 DSKCHG#
DREQ3 WGATE#

SERIRQ HDSEL#
PCLKSIO WP#

IRR3
IRRX2 3MODE#
IRTX2

CTS1#

9

9

8

8

7

7

6

6

R453

123

10K

SD0 PPD1 PD1
SD1 PPD2 PD2
SD2 PPD3 PD3
SD3 PPD4 PD4
SD4 PPD5 PD5
SD5 PPD6 PD6
SD6 PPD7 PD7
SD7

SA0 STROBE#
SA1 SLCTIN#
SA2 PPINIT#
SA3 AUTOFD#
SA4
SA5 PPERR#
SA6 PACK#
SA7 PBUSY
SA8 PPE
SA9 PSLCT
SA10
SA11 CTS1#
SA12 DSR1#
SA13 DCD1#
SA14 RI1#
SA15 SIN1

Z198

Z201

Z202

VCC

R429

10K

RI1#
DCD1#

RI2#

U30

46

D0

47

D1

48

D2

49

D3

51

D4

52

D5

53

D6

54

D7

26

A0

27

A1

28

A2

29

A3

30

A4

31

A5

32

A6

39

A7

40

A8

41

A9

95

A10

35

A11

36

A12

1

A13

3

A14

25

A15

42

IOR#

43

IOW#

44

AEN

55

RESET

33

TC
IOCHRDY

96

IRQIN

20

DACK_A#

34

DACK_B#

94

DACK_C#

22

DACK_D#

19

DRQ_A

50

DRQ_B

97

DRQ_C

17

DRQ_D

92

ADRX#/CLKRUN#

37

SIRQ

18

CLK14

38

CLK33

56

PWRGD/GAMECS#

21

IRMODE/IRR3

23

IRRX2

24

IRTX2

CTS1#
RI1#
DCD1#
RI2#

VCC3

VCC3

VCC3

13

70

VCC

VCC

GND

GND

GND

GND

4

65

459893

R488 10K
R489 10K

C468

4.7U

PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7

STROBE#

SLCTIN#

INIT#

AUTOFD#

ERROR#

ACK#
BUSY

SLCT

CTS1#
DSR1#

DCD1#

RI1

RXD1

TXD1
RTS1#
DTR1#

CTS2#
DSR2#

DCD2#

RI2

RXD2/IRRX

TXD2/IRTX

RTS2#
DTR2#

RDATA#

WDATA#

DSKCHG#

WGATE#

DIR#
STEP#

HDSEL#

TRK0#

WRTPRT#

INDEX#

MTR0#

DS0#

DRVDEN0
DRVDEN1

DSR1#

DSR1#

SIN1

SIN1

C463

PE

C464

C458

.1U

0.01U

.1U

PPD0 PD0

69
68
67
66
64
63
62
61

75
71
72
74

73
60
59
58
57

80
78
83
82
76
77
79
81

90
88
85
84
86
87
89
91

14
7
15
8
5
6
9
11
12
10
100
2

99
16

37N3869

Z199
Z200

Z213

SOUT1

RI2#
SIN2

DIR#
STEP#

INDEX#
MTR0#
DRV0#

TP19
TP18

TP179

RN51
8P4R_33

RN50
8P4R_33

TP181
TP182

PPERR# (22)
PACK# (22)
PBUSY (22)
PPE (22)
PSLCT (22)

CTS1#
DSR1#
DCD1#
RI1#
SIN1

RTS1 #

CTS2#
DSR2#
DCD2#
RI2#
SIN2

RDATA#
DSKCHG#
DIR#

STEP#
HDSEL#
TRK0#
WP#
INDEX#
MTR0#
DRV0#

3MODE#

VCC3

IRRX2

IRR3

IRTX2

54
63
72
81
54
63
72
81

SLCTIN#
PPINIT#
AUTOFD#

VCC3 VCC3

R490
820

R427
1K

FDDVCC

L23

BEAD(0805)

C523

4.7U(0805)

IRRX2
IRR3
IRTX2

R546 1

FIRGND

PD0 (22)
PD1 (22)
PD2 (22)
PD3 (22)
PD4 (22)
PD5 (22)
PD6 (22)
PD7 (22)

RN67

1

8
7
6

R428
1K

WDATA#
WGATE#

2
3
45

8P4R_33

PSLIN#
PINIT#
PATFD#
PSTB#STROBE#

R444
820

NEAR TO THE CO NNECTOR

C221

C220

.1U

.1U

R170

4.7K

R198

4.7K

FIRVCC

R181
47K

PSLIN# (22)
PINIT# (22)
PATFD# (22)
PSTB# (22)

3MODE#

C453
10U

817263

54

817263

RN43
8P4R_18

U14

8

RXD

3

FIR_SEL

9

TXD

11

GND

NC

DRV0# FDDLED# (13)

R452 0(R)

R443 0

L59

BEAD(1206)

+

C219
100U/10V

54

RN44
8P4R_18

C524 2200P

Z195

10

4

Z196

MDO

5

Z197

MD1

VCC

HSDL-3600

1

FIRVCC

VCC

Q25

G
S D

2N7002

FDDVCC

INDEX#
DRV0#
DSKCHG#

TP221
TP222

Z411

MTR0#

TP223

DIR#

Z412

STEP#
WDATA#
WGATE#
TRK0#
WP#
RDATA#
HDSEL#

Titl e

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

S I / O

0200-20.SCH
Tuesday, Sept em ber 11, 2001

AGNDD

GND

276

C153 . 47U(0805)

C152 10U

VCC

LEAD

R430
10K

FIRGND

R179 2. 2K
R180 2. 2K

FDDLED#DRV0#

FDD CON 26P

71-22T00-D03

CN19

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

FIRGND

21 31

of

A

B - 22

Sheet 23 of 31

C373

.1U

VOLTAGE:2.5V

ACIN#(10,24,26)
TEMP(30)

A C

D44 F 01J2E

SELECTB (20,25)

CN17

ROW16

1

ROW15

2

ROW11

3

ROW10

4

ROW9

5

ROW8

6

COL2

7

COL1

8

COL8

9

COL7

10

ROW14

11

ROW13

12

ROW12

13

COL6

14

COL5

15

COL4

16

COL3

17

ROW7

18

ROW6

19

ROW5

20

ROW4

21

ROW3

22

ROW2

23

ROW1

24

HEAD24

VCC

R318

1K(0805)

D20

R530

AS2431

R

0

A C

A1

R531
R

147

U33A

1
2

7432

BATCHA

BATCHA(24,30)

EMDA

EMDA

EKDA IMDATA

EKDA

IMCLK

IMCLK(13)

EMCLK

EMCLK

1
2
3
4
5

U13

71

VCC

39

P17

40

P16

41

P15

42

P14

43

P13

44

P12

45

P11

46

P10

47

PO7

48

PO6

49

PO5

50

PO4

51

PO3

52

PO2

53

PO1

54

PO0

55

P37

56

P36

57

P35

58

P34

59

P33

60

P32

61

P31

62

P30

74

P67

75

P66

76

P65

77

P64

78

P63

79

P62

80

P61

1

P60

72

VREF

10

P57

11

P56

19

P46

21

P44

20

P45

35

P23

36

P22

37

P21

38

P20

12

P55

13

P54

25

RESET#

24

CNVSS

30

VSS

73

AVSS

M38867M8(LQFP)

R212 10K
R324 R

KBV3

RP18

10

1

9

2

8

3

7

4

6

5

10P8R_10K

10
9
8
7
6

COL4
COL3
COL2
COL1

DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

P53/WR#

P52/RD#
P51/CS#

P50/A0

P42/IRQ1

P43/IRQ12

P47/CS(ACPI)

P76/SDA
P77/SCL

P74/EMCLK

P71/EMDA

P75/EKCLK

P72/EKDA

P73/IMCLK

P70/IMDA

XOU T

BEEP_EN#
AMP_DOWN

ROW16
ROW15
ROW11
ROW10
ROW9
ROW8
COL2
COL1
COL8 COL4
COL7
ROW14
ROW13
ROW12
COL6
COL5
COL4
COL3
ROW7
ROW6
ROW5
ROW4
ROW3

ROW2

ROW1

PWR_ON(10,30,31)

3

Z914

VCC

RP19

1

1

2

2

3

3

4

4

5

5

10P8R_10K

KBV3

U33B

4
5

7432

10

9
8
7
6

PWR_ON

10
9
8
7
6

147

Z938
Z939
EKCLK

PWR_ON(10,30,31)

KBV3

R335 100K(R)

A C

D24
F01J2E(R)

KBV3

Z915

6

TP242
TP243

R145

0(0805)

C133

C134

0.01U

.1U

KBV3

R29 10K

D12 1SS355

PWR_ON

IMDATA (13)

EKCLK

AC

VDD3

D

C135

10U

GS

NDS352P(R)

Q2

R204 100K

KBV3

R329
10K

D23

AC

1SS355(R)

C381

10U

KBV3

AMP_DOWN(19)

FAN_PWM(25)

KBV3

PWR_ON #

ROW16
ROW15
ROW14
ROW13
ROW12
ROW11
ROW10

ROW9
ROW8

ROW7
ROW6
ROW5
ROW4
ROW3
ROW2
ROW1

COL8
COL7
COL6
COL5
COL4
COL3
COL2
COL1

ACIN#(10,24,26)

DUMPLO#(31)

DISBL(24)

WEBSW#

RING#(22)

EMAILSW#
USERSW#

BRIGADJ(13)

MBID 0

MBID 1

BEEP_EN#(24)

TEMP(30)

VCC3

SCI(10)

R328 100K

R334

10K(R)

COL6

COL6

COL7

COL7

COL5

COL5

COL8

COL8

PWR_ON# (10,24,31)

ROW16 SCROLED#
ROW15 NUMLED#
ROW14 CAPLED#
ROW13
ROW12
ROW11
ROW10
ROW9 SD7

ROW8 SD5
ROW7 SD4
ROW6 SD3
ROW5 SD2
ROW4 SD1
ROW3 SD0
ROW2
ROW1

COL8 IORD#
COL7
COL6 SA2
COL5
COL4
COL3
COL2 IRQ1
COL1 IRQ12

R144

10K

ACIN#
DUMPLO#
DISBL
WEBSW#
RING#
EMAILSW#
AMP_DOWN
USERSW#

Z159

BRIGADJ
FAN_PWM EKCLK
SCI EKDA
MBID 0
MBID 1 IMCLK

Z515

BATFULL#

Z160

BEEP_EN#

Z162
Z658

C379
.1U

R220

0

VCC3
KBV3

Schematic Diagrams

VCC

EMCLK

EMCLK

EMDA

Z157

Z155

C201

22P

Z164

EMDA
EKDA

EKCLK

SCROLED# (13)
NUMLED# (13)
CAPLED# (13)

SD7 (20,21,24)
SD6 (20,21,24)
SD5 (20,21,24)
SD4 (20,21,24)
SD3 (20,21,24)
SD2 (20,21,24)
SD1 (20,21,24)
SD0 (20,21,24)

IOWR# (20,21)
IORD# (20,21)

SA2 (20,21,24)

IRQ1 (20)
IRQ12 (20)

SMBDA (25)
SMBCL (25)

EMCLK
EMDA

EKCLK
EKDA

IMCLK (13)
IMDATA (13)

EXTSMI (10)
WAKE# (10)

1 2

C202

22P

EKDA
EKCLK

R330 4.7K
R475 0(R)

Q16 2N7002

R331

R476 0(R)

Q15

Y5
8MHZ

Y6:3-4 PIN->GND

KBV3

R345
R

R217
10K

COL3
COL2
COL1

31

P27

32

P26

33

P25

34

P24

63
64

SD6

65
66
67
68
69
70

IOWR#

14
15
16

Z156

17

23
22

18

3

SMBDA

2

SMBCL

5

EMCLK

8

EMDA

4
7

6
9

IMDATA

27

EXTSMI

P40

26

WAKE#

P41

28

Z163

XIN

29

L5
L34

L4
L35

R211 0

SD
G

4.7K

SD
G

2N7002

R344
10K

R218
R

BEAD(0803)
BEAD(0803)

BEAD(0803)
BEAD(0803)

KBDCS#

MCCS#

MBID 0
MBID 1

F3

POLYFUSE

SMDC110

C5
120PC6120P

SPDIFON

SPDIFON (19)

KBV3

KBDCS# (20)

VCC

KBV3

MCCS# (20)

USERSW#

VCC

EMAILSW#

WEBSW#

MBID 0
MBID 1

Titl e

Size Doc um ent N um ber Rev

0200-22.SCH

Custom

Tuesday, S ept em ber 11, 200 1

Date: Sheet

C545 0.1U
C22 .1U

Z149

80MIL80MIL

C546 10U(1206)(R)

CN3

4
6

Z150

2

C4

120P

KBV3

KBV3

KBV3

Z151
Z152

Z153

C3
120P

R126 10K

USERSW#

R127 10K

EMAILSW#

R128 10K

WEBSW#

1
5
398

MS_K/ B

WEB0 FUNCTION SW4P

C123
.1U

WEB1 FUNCTION SW4P

C124
.1U

WEB2 FUNCTION SW4P

C125
.1U

7

1 3
2 4

1 3
2 4

1 3
2 4

SW4

SW2

SW3

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO .

KB CONTROLLER

71-22T00-D03

of

23 31

A

B - 23

Service Manual

Sheet 24 of 31

12
11
10

27
26
23
25

28
29

22
24

31

DISBL

SPKR

SPKROUT

9
8
7
6
5

4

3
2

1

U22

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16

CE
OE
VPP
PGM

29F020

S D

G

SA[0..16]

13

O0

14

O1

15

O2

17

O3

18

O4

19

O5

20

O6

21

O7

32

VCC

30

A17

16

GND

Z142 Z143

Q36

2N7002

D33

A C

Z146

1SS355

C522

.1U

C465

0.047U

5 6

74HC14(TSSOP)

VCC

VCC

C418

C417

.1U

.1U

VCC3

R356

U24

10K

U31A

74HC14(TSSOP)

BEEP_EN#(23)

1

IN

2

IN

3

GND

TC7S32F

C A

Z145

9 8

Z141

1SS355

FLASH#

FLASH#(20)

MEMW #

MEMW#(20)

C467
.1U

14

1 2

VDD

VCC

OUT

U31D

74HC14(TSSOP)

R424

D30

Z242

VDD

VCC

5

4

R425

220K

Z626

LOOP

3M

R422 100K

C A

C423
.1U

SA18(20)

C460

1U(0805)

D29

C A

LOOP Z139

1SS355

D28

1SS355

B

Z148BEEP_EN#

VCCVC C

R566

R75

0

1K

C85
.1U

BIOSCS# SA17

BIOSCS#(20)

MEMR#

MEMR#(20)

R76 0(R)

SA18

VDD

R448
100K

U31E

11 10

74HC14(TSSOP)

C

Q24
2N3904

E

Z889

SA0
SA1
SA2
SA3
SA4
SA5
SA6
SA7
SA8
SA9
SA10
SA11
SA12
SA13
SA14
SA15
SA16

BAT_BEEP#

DISBL(23)

SPKR(10)

SPKROUT(16)

U31C

R439

4.7K

SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7

R454

2.2K

VCC

SA[0..16] (20,21, 23)

SD0 (20,21,23)
SD1 (20,21,23)
SD2 (20,21,23)
SD3 (20,21,23)
SD4 (20,21,23)
SD5 (20,21,23)
SD6 (20,21,23)
SD7 (20,21,23)

SA17 (20)

BATCHA(23, 30)

U31F

13 12

74HC14(TSSOP)

R423

Z136

100K

Z137

2N3906

2N3904

Z147

R446

C466

1K

.1U

Q32

PWR_ON# PWRLED#

LOOP

SUSPEND

SUSPEND(10)

ACIN#

ACIN#(10,23,26)

LOOP

VC

147

U33C

9

BATCHA

10

COM

C461
.01U(K%)

Z140

Q27

C

B

E

LBP

Q31

C

B

E

R438

1K(R)

E
C

7432

DACVCC

Q37

2N3904

8

COM

B

Z138

R93

10K

2N7002

S D
G

Z586

Q33
2N7002

S D
G

Z587

R447
0

DISBL

R440
10K

R457
10K

S D

Q28

G

2N7002

S D

Q35

G

2N7002

Z913

BAT_BEEP# BATLED#

R449 10K

CHRLED#

DISBL (23)

LBP (18)

PWRLED# (13)PWR_ON#(10,23,31)

VCC3

CHRLED# (13)

VDD3

BATLED# (13)

B - 24

Titl e

Size Document Number Rev

B

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO C O.

BI OS & PCBEEP

0200-23.SCH
Tuesday , Se pt em ber 11, 2001

71-22T00-D03

of

24 31

A

Sheet 25 of 31

KBV3

C208
.1U

BAT_DA(30)

SMBDA(23)

SMBCL(23)

BAT_CLK(30)

U17

1

VCC

2

GND

TP244

Z937

3 4

NC SMCLK

LTC1694(R)

BAT_DA
SMBDA

R202 0

SMBCL SMBDATA SCL_RA

R203 0

BAT_CLK

CPU_FAN(20)

SUSPEND #(10,16)

SUSPEND#

SMDA

FAN_PWM(23)

KBV3

D49 F01J2E

D50 F01J2E

5

R404

R408

R406

R409

10K

10K

10K

10K

KBV3

R338

10K

R337

32

D14

DA221(R)

1

VCC3

R585

10K

AC

AC

Z126

Z133

FAN_PWM

34

U31B

74HC14(TSSOP)

Z910
Z940CPU_FAN

32

D25

DA221(R)

1

40MIL

D15
F01J2E

40MIL

A C

9

10

12
13

10K

CN11

1

1

2

2

FAN_CON

VCC

147

FAN_HI

8

U23C
74HCT08

VCC

147

FAN_LOW

11

U23D
74HCT08

C

Q43

B

E

2SC4672

Z912

R564

2.4(1206)

40MIL

SELECTA SDA_ATF

SELECTA(20)

SELECTB

SELECTB(20,23)

SMBDATA(10)

SMBCLK

SMBCLK(10)

VCC

40MIL

L42

C525

C235

.1U

4.7U
BEAD(1206)

Z909

R563

0(0805)

Z126

40MIL

Z133

40MIL

C

Q44

B

E

2SC4672

Z911

R565

10(1206)

40MIL

SDA_ATF(2)

1
2

VCC

U29

16

VCC

1

EA#

15

EB#

14

S0

2

S1

7

YA

9

YB

8

GND

QS3253(R)

R583 0
R584 0

SCL_ATF SCL_ATFF

SCL_ATF(2)

SDA_ATF SDA_ATFF

AD[0..31](11,16)

CN10

1
2

FAN_CON

C/BE#[0. .3](11,16)

VCC3VCC3 VCC3

RN65

8P4R_4.7K

6

10A

5

11A

4

12A

3

13A

10

10B

11

11B

12

12B

13

13B

VCC

G
SD

TP245
TP246

123

Q22
2N7002

AD0
AD2
AD4
AD6
AD8
AD10
AD12
AD14

C/BE#0
C/BE#2

C/BE#3

Z926
Z927

678

45

R4051KR407

Q21

G

2N7002

SD

A1
A2
A3
A4
A5
A6
A7
A8

A9
A10
A11
A12
A13
A14
A15
A16

1K

Debug Port

P1

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

DEBUG-P80

SDA_RA
SDA_RB

SCL_RB
SCL_ATF

U
U
U
U
U
U
U
U
U
U
U
U
U
U
U
U

SCL_ATFF (3)

SDA_ATFF (3)

B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14

Z925

B15
B16

SDA_RA (5)
SDA_RB (5)

SDA_ATF (2)

SCL_RA (5)
SCL_RB (5)

SCL_ATF (2)

AD1
AD3
AD5
AD7
AD9
AD11
AD13
AD15

PCLK80P
PCIRST#C/BE#1
FRAME#
IRDY#
TRDY#

Schematic Diagrams

PCLK80P (3)
PCIRST# (11, 13,16,18,20)
FRAME# (11,16)
IRDY # (11,16)
TRDY# (11,16)

TP247

VCCVCC

Titl e

Size Docum ent Number Rev

B

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

FAN CONTROLLER

0200-24.SCH
Tuesday, Sept em ber 11, 2001

71-22T00-D03

of

25 31

A

B - 25

Service Manual

Sheet 26 of 31

VCC1.8

R228 150K(1%)

VCC3

120K(1%)

R49 61.9K_1%(R)

R227

ITP_RST#(1)

PWRGD

R39
100K(R)

PWRGD

C551
.1U

ITP _ RST#

VR_PWRGD

VCC

VCC

Z123

C223
.1U

R246 0(R)

U19

3

MR#

4

RST-I N

5

VCC

MAX6306UKD3

Z888

RESET#

GND

1

2

R38 10K

R567 0

VCC3

PWROK

C236
C(0805)

PWROK (2,10)

VCC3

R435

R434

OS#

OS#(2)

SHUTDOWN(31)

SHUTDOWN

10K

10K

Z239

G S

D

Q30

2N7002

D32

F01J2E

D31

F01J2E

CA

CA

Z238

C462
.1U

VDD3

G S

R419
10K

D

Q23

2N7002

AUXOK

C457
22U(1206)

AUXOK (10)

R542
100K(R)

VDD1.8

D6

1SS355

R158 10K

C148

0.01U

Z124

R442

1K(0805)

BATOK

AC

R317

100K(R)

ACIN#

C

Q34

B

E

2N3904

BATOK (10)

C160
22U(1206)

ACIN # (10,23,24)VR_PWRGD(27)

Z296

1.8V

R159 0

C544
220U(R)

PLEASE NEAR TO SIS630ST

RTCVDD

12

+

VDD3

C147
.1U

C149
1U

R456 100K

R441

VA

10K(0805)

C175
.1U

Z628

U3

3

VCCA

4

VCC

5

VCC3

LTC1728-5(R)

C39

C38

.1U

.1U

RESET#

GND

1

PWROK

PWROK (2,10)

2

Z409

D41
1SS355

Z895

C380
.1U

A C

Z896

A C

A C
CA

D42
1SS355

D45
1SS355

D46

F01J4L

R568
0

R15 10K

U2

1

IN1

2

IN2

3

GND

TC7S08F(R)

R37 0

VCC

OUT

VCC3

C17

5

4

.1U

PWRGD

C A

CA

Z715

A C

A C

Z410

A C

Z908

12

D7

F01J2 E (R)

D8

F01J4 L

D9
1SS355

D10
1SS355

D11
1SS355

R196
1K

BT1
BATTER Y

B - 26

VDD3

Sheet 27 of 31

PC78

PD14

RB751V(D)

PR72
100K(R)

PR65
1M(R)

PR51 3.9K
PC72

A C

PC71
PC70

PC66

PR48 10K(R)

PR53
600K 1%(R)

VC

PQ24
2N7002(D)

G

1000P

0.1U

0.01U

0.01U
330P

PR47 22K

DS

PG

RUN/SS

PR49
0(R)

PC69

1000P

VID25mV(2)

PR50

INTVCC

1M

PR52

10K

PC68

47P

PR66
0

PR54 10
PR55 10

PR56 10
PR57 10

PR78 0

1

RUN/SS

PC73

2

SENSE1+

3

1000P

SENSE1-

4

EAIN

5

PLLFLTR

6

PLLIN

7

FCB

8

9
10
11
12
13
14 36
15
16
17
18

PR73
0(R)

PU3

Ith

LTC1709-85

SGND
VDIFFOUT
VOS­VOS+
SENSE2­SENSE2+ NC
ATTEN OUT
ATTEN IN
B0
B1

PC82 1U

PGOOD

TG1

SW1

BOOST1

BG1
EXTVCC
INTVCC

PGND

BG2
BOOST2

SW2

TG2

VBIAS

Schematic Diagrams

PD20

A C

VIN2

1SS355

PR81 10

PC83

PD21
RB751V

A C
AC

PD19
RB751V

PC92

VID3 (2)
VID2 (2)
VID1 (2)
VID0 (2)

0.1U

INTVCC

PQ16
SI4884

INTVCC

0.1U

PC80

0.1U

PQ14
SI4404

PC81
10U

4

4

PQ15
SI4884

4

PQ11
SI4404

4

23
35

PR70 0

34

PR91

33

2.7

32

Vin

31
30

T

29
28
27

PR80

26

2.7

25

PR79 0

24

22
21

B4

20

B3

19

B2

B+

PC23

PC3

0.1U(0805)

+

62738

5

10U/25V

1

62738

5

PQ13
SI4404(Q)

4

1

62738

5

1

62738

5

PQ12
SI4404(Q)

4

1

PL4 1.1UH

62738

5

PD12
20QS04

1

A C

B+

PC20

+

10U/25V

PL5 1.1UH

62738

5

PD11

20QS04

1

A C

PR5

3m(2512)

PC65

0.1U(0805)

PR6

3m(2512)

PC9
220U(C)

12

+

PC17
220U

12

+

PR27 0

PC4
220U(C)

12

PC18
220U

12

VCC_CORE

PC6
220U(C)

PC5
220U(C)

12

12

+

+

+

VCC_CORE

PZD1

PC11

PC10

2.7V(PTZ)

220U

220U

12

12

+

+

+

A C

PR360PR35

0

VCC3+

Z691

PR108
10K

PR109
100K

VC

PR77
100K

Z291 1

DS

PQ29
2N7002

PR762MPC91

G

RUN/SS

DS

PQ27
2N7002

G

30P

PWR_ON+(28,29,31)

PR103

10K

B+

PQ33

DTC114EUA

B

PQ32

DTA114EUA

B

VIN2

CE

C

E

Titl e

Size Document Number Rev

A3

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

CPU POWER

0200-27.SCH

Tuesday, September 11, 2001

71-22T00-D03

of

27 31

A

VCC3+

PR100

PR89
10K

PQ31
2N3906(Q)

VR_PWRGD(26)

C

E

2N3904(Q)

B

PQ30

PR88
0

PG

PR101

10K(R)

10K(R)

E

B

C

PR110
10K(R)

INTVCC

PC96

0.1U(C)

PR90 10K(R)

PG

B - 27

Service Manual

Sheet 28 of 31

VDD3

PJ1

1 2

6mm

+

PC28
47U(C)

VDD3+

PC29

+

47U(C)

PC25

+

220U

6A

PC30

+

47U

PC34

+

47U

PR17

3.65K 1%

PR16
10K 1%

PC39

100P

B+

0.1U(0805)

PC35

PR11
15m(2512)

VL

PC42

+

10U/25V

PL9
CDRH-1205-100

PR14 0

PC43

+

10U/25V(C)

PC37

47P

PR13
1M

PR15
0(R)

PD33
1SS355

A C

VIN1(31)

2A 2A

PC127

62573

PQ2
Si4416

4A

8

8

A C

PD7
10QS06

2.5V

VL

0.1U

4

PR140 0

1

62573

4

PQ3
Si4812

1

PC139
1U

PR157

0

PR156

0(R)

PR149

Z2036

AC

PD9
RB751V

Z200 4
Z200 5Z2006

Z200 7
Z200 8
Z200 9

Z201 0

PR158

Z201 1

0

Z201 2

Z2013 Z2031

V+

10

PC124

4.7U/25V

22

25
27
26
24

15

10
11

V+

BST3
DH3

BST5

LX3

DH5

DL3

1

CSH3

2

CSL3
FB3

REF

SEQ

SKIP
RESET
SYNC
GND

CSH5

CSL5

VDD

12VOUT

3VON

5VON
SHDN
PGND

MAX1632

3

9

6
8

PC126

0.1U

VL

LX5

DL5

FB5

PU11

VL

PC125

PC38

10U

0.1U

PD8

RB751V

A C

21
18

Z2021

PR142 0

16

Z2022

17

Z2024

19

Z2025

14

Z2026

13
12

Z2027

12VR

5

4

3VON

28

5VON

7

PR12 10K

23
20

PC36

0.1U

PC129

0.1U

0.1A

Z2023

4

4

PC138

4.7U/25V

V+

62573

1

62573

1

PC40

+

10U/25V(C )

8

PQ5
Si4416

PD6

4A

10QS06

8

PQ4
Si4812

A C

PR153 0

PC41

+

10U/25V

4 2

PC141

47P

PR161
2M

12V12V+

PC132

0.1U(0805)

Z699

PL8

CDRH125-100

1:2.2

0.1A

12VR

PC31

PC32

PD5
11FS2

A C

PR10
15m(2512)

31

4.7U/25V

PC140

100P

PR160
10K 1%

4.7U/25V

PR159

10.7K 1%

6A

+

PC26
47U

VCC+

+

+

PC27
150U

1 2

PC33
47U(C)

PJ2

6mm

VCC

+

PC24
47U(C)

B - 28

12V+

PR151

PR143

100K

47K

Z677

Z676

DS

DS

PR150 0

PWR_ON+(27,29,31)

Z695

G

G

PQ46
2N7002

PQ47
2N7002

VDD3+

PC131

1000P

PQ43

Si4800

8
7 3
6 2
5

1
4

PC123

0.1U

1 2

PC130
10U

PJ8

5mm

PC116

0.1U

VCC3VCC3+

PC117
10U

PWR_ON+(27,29,31)

VDD_ON(29, 31)

PR154 10K

PR141 10K

PR135
33K(R)

PC128

1U

PC137

0.01U(C)

5VON

3VON

PR155
33K(R)

Sheet 29 of 31

Schematic Diagrams

VDD3+

PU7

1

IN

VC

T

Z881

PC57

0.1U(C)

PC113
1000P

PR19 0

B+

PR22

0(R)

Z3308

2

3

PC53

0.1U

Z3307

PC60

N.C

IN

3025LS

PC55
10U

Z3304

Z3305

Z3306

1U

PC115
10U

PR23
100K

PR25
100K

PR21

0(R)

PR128

47K

PR33
47K

PR32

75K

PWR_ON+(27,28,31)

PR28 10K

VDD_ON(28,31)

PR24 0

PR26 0(R)

VD

VOUT

VOUT

GND

GNDVC

14

PU2

17

V+

VDD

3

/SHDN

6

ILIM

18

/SKIP

7

REF

16

TON

AGND

NC

2

8

91011

Z932

TP249

NC

TP250

15

VCC

PGOOD

NC

Z933

8

7

6

54

PR18
10

Z688

BST

DH

DL

PGND

OUT

FB

MAX1714

PC51
10U

LX

V_IO+

PC99
10U

VD

19

PR20 5.1

1

Z3303

20

Z3312

13

12

Z3311

5
4

Z3310

Z934

PR29

2.49K 1%

PC104

0.1U

TP248

0.3A

PC52

0.1U

Z3313

PC59

0.1U

PC100
10U

AC

Z3301

PD10
RB751V

2

4

B+

8

1

5

6

3

PJ7

1 2

PC101

1mm

10U

PQ6A
SI4818

7

PQ6B

SI4818

PR31 0
PR30 2K 1%

PC58

V_IO2.5

PC47

PC49

10U

10U

PL1 SD104-100

PL2 BC 3316F-120M

30P

PC48
10U

+

PC50
47U

PC44

0.1U(0805)

PC46
10U

12V+

PR3

PR4

100K

100K

PQ9

Z679

2N7002

G

PWR_ON+(27,28,31)

VDD1.8+

4A

PC45
10U

1 2

PC148

0.1U

VDD1.8

PJ3

1mm

DS

DS

PQ8

G

2N7002

VDD1.8+

Z680

PQ7

Si4800

8
7 3
6 2
5

PC54

0.1U

VCC1.8+ VCC1.8

2A

1
4

PC147

0.1U

1 2

PC56
10U

PJ4

3mm

VDD3+

VDD1.8+

PWR_ON +(27,28,31)

PR39 0(0805)

PR38 0(0805)(R)

PC61
10U

PR8 47K

PR7
1M

Z903

2

1 5

Z760

PC16

0.1U

PU1

MIC29302BU(TO263)

VI

VO

ON/OF F ADJ

GND

3

VCCT+ VCCT

PR162
200

2A

PC63

10U

PC62

0.1U

4

PR34

1K 1%

PC64

10U

1 2

PC14

10U

Z487

PR37
62K

DS

PR40

4.99K 1%

G

PQ10
2N7002

Cu+/Tu- (1)

VDD3+

PU6

Z902

PC103

0.1U

Si3012LS

2

IN

VOUT

1 4

VC FB

GND

GND

GND

GND

785

6

3

150 1%

Z901

PR107

1.1K 1%

0.3A

PC107

PC111
10U

0.1U

Title

Size Doc um ent N um ber Rev

Custom

Date: Sheet

Tuesday, September 11, 2001

PJ5

3mm

PR123 47K PR114

PWR_ON +(27,28,31)

PR119
1M

V_IO1.5+

PC110

PC109

10U

10U

ÂÅ ¤Ñ ¹q ¸£ CLEVO CO.

VDD1.8,VCC1.8

0200-29.SCH

V_IO1.5

PJ6

1 2PC108 10U

1mm

71-22T00-D03

of

29 31

A

B - 29

Service Manual

Sheet 30 of 31

BAT+(31)

PR62
100K

Z57

PR61
10K(R)

AC_IN(31)

BAT_IN

PC74

0.1U

PQ21
2N7002

G

PQ19
2N7002

G

PR63 102K 1%

PR64 0(R)

PR59

18K 1%

PD16
TL431

VCVA

PQ25
DTC114EUA

C

B

E

PR86
10K

PR60
2M

C

A

DS

DS

V2.5

AC_IN (31)

PQ22
DTA114EUA

B

PR68
2K 1%

R

G

VC

PC86

0.1U

DS

E

C

PC77

0.1U(0805)

PR69

100K

PR74
2K 1%(R)

Z281 7

PR67
100K

AC_IN #

PQ26
2N7002

PC85

0.1U

PC75

0.1U

PC21
10U/25V

PC88

0.1U

PR75
10K

VA

PC22
10U/25V

PC76

0.1U

12

13

14

15

16

2IN-

REF

VCC

OUT

2IN+

PU4
TL594

1IN+

1IN-

FBK

DTCCTRT

1234567

PC89

0.1U

PR87
10K

PC87

0.1U(C)

TEMP

TEMP(23)

PD18
1SS355

A C

AC

11

C2

VC

PD13
1N4148

PR44
2K(0805)

10

E2

GND

PR42
100K

PD15

1N4148

8 9

PC79

1000P

G

C1 E1

PR45
2K(0805)

2SD1782K

DS

PQ23

AC

PR71

7.5K

PR43
100K

PQ18
2N7002

PR46

5.1

B

PR99

2.2K

BAT_IN

C
E

PR95

120K 1%

PC90
1U

PR41
100K

PC67

0.01U

DS

4

CURSEN

PC94

0.1U(0805)

PR96

30K 1%

PR97

8.06K 1%

PQ28
2N7002

G

PC95

1U

PQ1
Si4435

PZD2

9.1V(LL34)

A C

8
62

5731

CA

PR93 40 . 2K 1%

PR92
10K 1%

V2.5

TEMP(23)

PR98
100K

PL3

CDRH-1205-470
PD3
03A04

PC93

0.1U(0805)

PU5A
LM358

BATCHA1

PQ17
2N7002

G

PWR_ON (10,23,31)

PC19
10U/25V(O)

1

DS

2A2A

PR112
200K 1%

VA

84

3

+

2

-

PR102 200K 1%

PC97

PR58 0

DS

CON1

1
2
3

POWER JACK

PQ20
2N7002

G

PR9 25m(2010)

PR113
1K 1%

PC98

30P(C)

0.1U(C)

AC_IN#TEMP

Z618

PC1

0.1U(0805)

PR111
1K 1%

PC102

0.1U(C)

CURSEN

BATCHA (23,24)

PF1 5A

0.1U(0805)

PC143

BAT

PD4

CA

03A04

PC15
10U/25V

BAT_DA(25)

BAT_CLK(25)

TEMP(23)

VC

PR85
200K

PR94 2M

PR84
10K

PR2

0(1206)
PR1
100K

PU5B
LM358

PD27
1SS355

TEMP

PD31
1SS355

VC VC

5

+

6

-

PC2

1000P

PC13

0.1U(0805)

A C

PD32
1SS355

A C

84

A C

PD17 RB751V

VA

A1A2C

60QC04(TO-252)

A1A2C

PF2 7A

PC149

0.1U(0805)

PD28
1SS355

A C

PC118

30P

A C

7

PD1

PD2 60QC04(TO-252)

PC150

0.1U(0805)

PC133

30P

PR83 30K

PR82
10K

B+VC

PC7

22U/25V

B+

CON2

1
2
3
4
5
6
7

BAT CON

PC12

0.1U(0805)

BATCHA1

PC84

0.1U

PC8

0.1U(0805)

B - 30

Title

Size Document Number Rev

Custom

Date: Sheet

ÂÅ ¤Ñ ¹q ¸£ CLEVO C O.

CHARGER-PWM

0200-30.SCH

Tuesday, September 11, 2001

71-22T00-D03

30 31

of

A

Sheet 31 of 31

Schematic Diagrams

VCC3+VC

PR117 10M(R)

CE

B

C

E

PR116 2M(R)

PC106

4.7U/25V

B+

PD35

1SS355

PR115

95.3K 1%

PR104

25.5K 1%

CA

Z685

PR130

100K

PR146

100K

BAT+(30)

BAT

PQ36

DTA114EUA

VC

PQ37

DTC114EUA

PR124

B

10K

SW5

1 3

B+

2 4

POWER SW . 4P

Z689

C A

Z763

PR105

PC105

2M(R)

1U

VA

PQ40 2SB1198

Z687

Z684

PR138
100K

PD23

1SS355

PR129
10K

Z456

Z700

G

PC122

0.1U

DS

VREF

PC112
1U

PD24
1N4148

PD25
1N4148

PQ42
2N7002

5
6

CA

CA

1SS355

+

-

PD34

84

PU8B
LM393

PQ39
2N7002

DS

PC114

4.7U/25V

CA

7

Z460

G

VIN1 (28)

VDD3+

PR145 330K

Z762

PR120
47K

PD22

1SS355

AC_IN (30)

C A

PU10
MIC2951(SO8)

8

VI

3 5

ON/OFF ADJ

6

6

7

Z745

C A

PR144

PR152
100K

Hi => Shutdowm system

CA

SHUTDOWN (26)

Z920

PD38

PC145

TL431

0.1U

PD26
1SS355

VO
VO

GND

7

Z455

4

PC121 0.1U

PD29
1SS355

10K

G

Z683

PC134
1U

1
2

DS

VC

C

A

PQ44
2N7002

PR121
2K

PC119
10U

T

BAT+(30)

R

PC120

0.1U

PWRSW# (10)

PR134 95.3K 1%

PR122 47K

PC146

0.1U

VC

PZD3

5.6V(D)

PSM

A C

1U

PR132
22K 1%

VREF

PR137 0

PR136

3

VCC

RESET

GND

1

VREF

10K

2

PU9
TCM8 09(U )

2
3

PR131 330K

PR133
2M(R)

VDD

VDD_ON (28,29)

PWR_ON#(10,23,24)

-

+

8 4

VC

PWR_ON(10,23,30)

12V+

VCC3+

PU8A
LM393

1

A CPC144

PD36 RB751V

PC142

0.1U

C A

PR147 100K(R)

VDD3+

PWR_ON

DS

G

PR127
10K

PR126 0

VCC+

PD30
1SS355(D)

PR106
10K

PQ34
2N7002

Low => Battery Low to system

PR148 0

Z707

PC135

PC136

0.1U(C)

0.1U(C)

PQ38

DTA114EUA

G

DUMPLO# (23)

DTC114EUA(Q)

CE

B

Z708

DS

PQ35
2N7002

PD37 1N4148

PQ45
SI2305

PQ48

B

PR118
10K

PWR_ON (10,23,30)

CA

SD
G

PR139
10K(R)

Z706

C

E

PWR_ON+ (27,28,29)

VC

B - 31

Service Manual

Notes:

B - 32

Appendix C: Switch Settings

Clock Settings (SW6)

)BSF(UPC MARDS 1-6WS 2-6WS 3-6WS 4-6WS 6-6WS

66331-CPFFOFFOFFOFFONO
66001-CPFFOFFOFFOFFOFFO

001001-CPNOFFOFFOFFOFFO
001331-CPNOFFONOFFOFFO

Switch Settings

331331-CPNONONOFFOFFO

C - 1

Service Manual

EZIS DNARB .oNledoM 1-7WS 2-7WS 3-7WS 4-7WS

"3.31

GLCC2C-7X331PLNONOFFOFFO

TDA1-2X331LNONOFFOFFO

CAPINU10X331PUNONOFFOFFO

IADNUYH41X31THNONONOFFO

"1.41

GL5X141PLNONOFFOFFO

TDA1X141LNONOFFOFFO
TPC10BX141AALCNONOFFOFFO
TPC10CX141AALCNONOFFOFFO

CAPINU10X141PUNONOFFOFFO

IADNUYH31X41THNONONOFFO

Panel ID Settings (SW7)

C - 2

Updating the Flash ROM BIOS

Appendix D: Updating the Flash ROM BIOS

To update the FLASH ROM BIOS you must:

A:Download the BIOS update from the web site.
B:Unzip the files onto a bootable Floppy Disk.
C: Reboot your computer from the FDD.
D:Use the flash tools to update the flash BIOS.
E: Restart the computer booting from the HDD.

A: Download the BIOS update from the web site

1) Using your web browser go to www.clevo.com.tw

2) Choose Download from the menu bar at the top of the page.

3) In the Driver section select the model of your computer (2200T/2700T series) and the driver type (BIOS).

4) Select GO.

5) Click on 2xTRxxx.ZIP to download the BIOS files (including BIOS refresh tools).

B: Unzip the file onto a bootable floppy disk

Unzip the file you have just downloaded on to a bootable floppy disk.

(Some of the files you should see on this disk are: FP.EXE, FLASH.EXE and 2xTRxxx.BIN)

C: Reboot your computer from the FDD

With the bootable floopy disk containing the BIOS files in your Floppy Drive, restart the computer.

D - 1

Service Manual

D: Use the flash tools to update the flash BIOS

After the computer has been booted from the floppy disk:

1) Go to the DOS prompt.

2) Type in the command:

A: FP 2xTRxxx.BIN

(This file was one of the zipped files and is now on your bootable floppy disk. For example, if you have downloaded file
2xTR103.ZIP then you should type in the command “FP 2xTR103.BIN)

3) Remove the floppy disk from the drive.

E: Restart the computer booting from the HDD

Your notebook is now running normally with the updated BIOS.

D - 2
