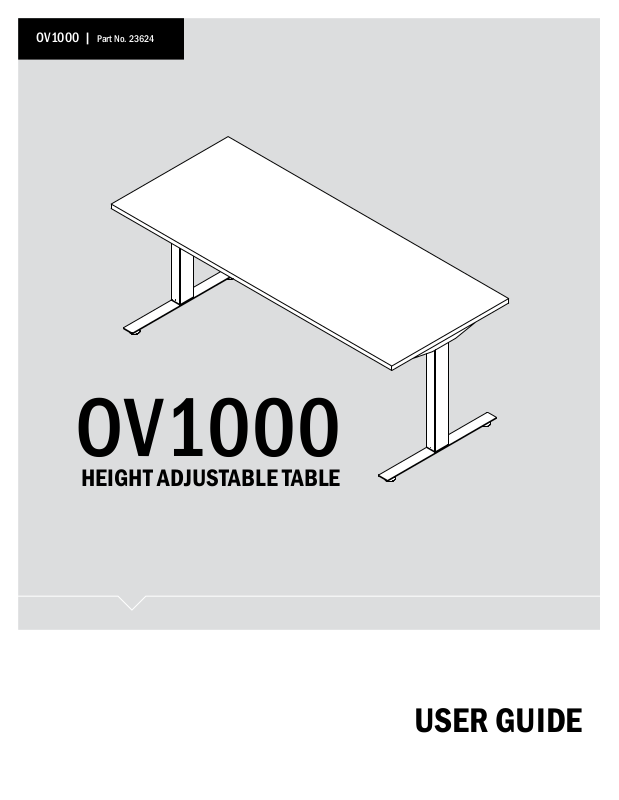

Clever OV1000 User Manual
OV1000 | Part No. 23624
OV1000
HEIGHT ADJUSTABLE TABLE
USER GUIDE
PRODUCT OVERVIEW
User Guide: OV1000
OV1000
HEIGHT ADJUSTABLE TABLE
A healthier work environment starts with the option to sit or stand
throughout the day. Our OV1000 table is the industry standard in
height-adjustable products, and your rst step towards improving
the efciency and well-being of your organization.
This kit supplies everything you need to assemble your
height-adjustable table base. Just add your own work surface
to personalize.
FEATURES
• Meets BIFMA X5.5 standards
• UL 962 approved
• Adjustable frame
• Six color options
• Holds up to 200 lb. load (two-leg) or 250 lb. (three-leg)
2 | OV1000
User Guide: OV1000
TABLE OF CONTENTS
Parts Diagram 4-8
Full Length 4
Independent 5
Independent with HAT Channel 6
Three-Leg: 90 Degree 7
Three-Leg: 120 Degree 8
TABLE OF CONTENTS
Safety Information 9-10
Assembly Instructions 11-17
Operation 18-19
Initialization and Reset 18
Handswitch Operation 18
Programmable Handswitch Operation 18
- Change the Height Unit 19
- Adjust Height Display 19
- Save Memory Position 19
- Recall Memory Position 19
Troubleshooting 20-21
Unit Errors 20
Handswitch Errors 21
Technical Data 22
Warranty 23
Standards & Certications 23
This manual explains how this sit-stand desk is assembled, used, and maintained.
All sit-stand tables are subjected to functional and quality tests before leaving
our facility.
OV1000 | 3
PARTS DIAGRAM
OV1000
PARTS DIAGRAM
User Guide: OV1000
FULL LENGTH
For tables up to 84"
4
10
1
3
5
2
8
9
7
PARTS Qty/Package
1. Beam 1
2. Column 2
4 | OV1000
6
DO NOT remove the foam
surrounding the motor.
3. Top Support 2
4. Foot 2
5.
M8x1.25 12mm Self-Threading Screw
6. M10x1.5 30mm Screw 4
7. Handswitch 1
8. Control Box 1
9. Power Cord 1
10. #10 x ¾ Screw 24
8
User Guide: OV1000
INDEPENDENT
For tables 60" or Less
PARTS DIAGRAM
3
5
1
10
2
4
6
9
8
7
PARTS Qty/Package
1. Independent Beam 2
2. Column 2
3. Top Support 2
4. Foot 2
DO NOT remove the foam
surrounding the motor.
5.
M8x1.25 12mm Self-Threading Screw
8
6. M10x1.5 30mm Screw 4
7. Handswitch 1
8. Control Box 1
9. Power Cord 1
10. #10 x ¾ Screw 24
OV1000 | 5
PARTS DIAGRAM
INDEPENDENT WITH HAT CHANNEL
For tables 60"−84"
User Guide: OV1000
5
1
6
11
3
10
2
4
9
8
PARTS Qty/Package
7
1. Independent Beam 2
2. Column 2
3. Top Support 2
4. Foot 2
5. HAT Channel 1
6.
M8x1.25 12mm Self-Threading Screw
8
6 | OV1000
DO NOT remove the foam
surrounding the motor.
7. M10x1.5 30mm Screw 4
8. Handswitch 1
9. Control Box 1
10. Power Cord 1
11. #10 x ¾ Screw 32
User Guide: OV1000
PARTS DIAGRAM
THREE-LEG: 90 DEGREE
For tables up to 72"
5
1
2
3
8
4
11
10
9
6
7
DO NOT remove the foam
surrounding the motor.
PARTS Qty/Package
1. Support Beam 2
2. Independent Beam 3
3.
M8x1.25 12mm Self-Threading Screw
4. Top Support 3
5. Column 3
6. Foot 3
7. M10x1.5 30mm Screw 4
8. #10-15 3/4" Screw 69
9. Handswitch 1
10. Control Box 1
11. Power Cord 1
12
OV1000 | 7
PARTS DIAGRAM
User Guide: OV1000
THREE-LEG: 120 DEGREE
For tables up to 60"
6
7
2
1
4
3
5
8
11
10
9
8 | OV1000
DO NOT remove the foam
surrounding the motor.
PARTS Qty/Package
1. Support Beam 1
2. Independent Beam 3
3.
M8x1.25 12mm Self-Threading Screw
4. Top Support 3
5. Column 3
6. Foot 3
7. M10x1.5 30mm Screw 4
8. #10-15 3/4" Screw 56
9. Handswitch 1
10. Control Box 1
11. Power Cord 1
12
