Repair Manual
Cleveland Range, Inc.
UNITED STATES
1333 East 179th ST, Cleveland, Ohio 44110
Phone: (216) 481-4900 - Telex: 98-0546 • FAX: (216) 481-3782
Toll Free: 1-800-338-2204 (in USA only)
CANADA
8251 Keele St. • Concord, Ontario, Canada L4K 1Z1
Phone: (416) 660-4747 • FAX: (416) 660-4492 Toll
Free: 1-800-387-3562 (in Canada only)
SKI-02
TABLE TOP ELECTRIC SKILLET
switch and test for continuity. Or with wiring
across terminals of switch. Voltage indicates
thermostat. An open circuit while in the "ON"
thermostat connected and unit on, check for
thermostat
across thermostat terminals. If t
here is
terminals and from terminals to ground. Either
to ground indicates a faulty element. Replace
SERVICING GUIDE
This section contains servicing information intended for use by Authorized Service Personnel.
A/ PROBLEM: Skillet fails to heat with pilot light on.
Probable Cause Test and Remedy
1. Faulty contactor(s) Check coil(s) and contacts of contactor(s).
2. Faulty wiring Check wiring to contactor(s). Replace if
necessary.
B/ PROBLEM: Skillet fails to heat with pilot light off. (power switch must be on and thermostat set).
Probable Cause Test and Remedy
1. Main power to skillet is off Check incoming power at terminal block.
2. Defective power switch With power source off, remove wiring from
connected and unit on, check for voltage
Replace if necessary.
3. Defective thermostat Shut the unit off and disconnect wiring from
thermostat. Check for continuity of
position indicates a faulty thermostat. Or with
voltage across thermostat. Voltage indicates
4. Defective high limit thermostat Repeat above procedure used for defective
thermostat.
C/ PROBLEM: Skillet fails to reach maximum 425°F at #10 setting.
Probable Cause Test and Remedy
1. Defective or improperly adjusted As unit shuts off early, check for voltage
voltage across terminals, re-calibrate or
2. Defective safety thermostat Repeat above procedure used for defective
thermostat.
D/ PROBLEM: Skillet has uneven heat over pan surface.
Probable Cause Test and Remedy
1. Defective contactor Check contactors for burned out contacts
2. Defective heating element block Check for continuity between element
an open circuit. Replace switch if necessary.
an open circuit, indicating a faulty thermostat.
replace thermostat.
and replace if required.
an open circuit between terminals or a short
3. Faulty wiring Inspect condition of wires and connections to
4. Uneven torquing of aluminum heating Follow element block torquing procedure.
blocks
if necessary.
elements and contactors. Repair if necessary.
MODEL SET-15 SKILLET
WIRING DIAGRAM
*3,000 W/Option Available For 208V Only

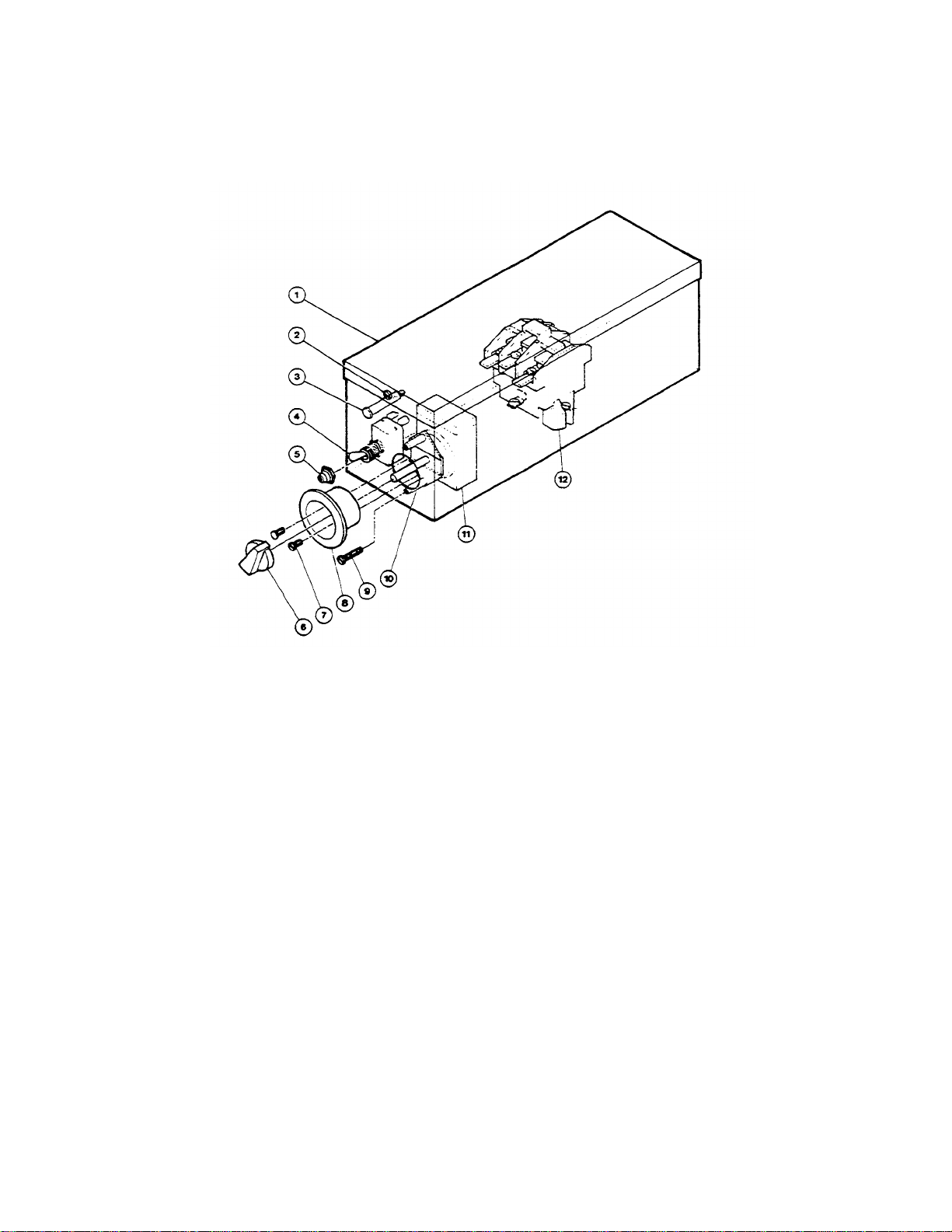

MODEL SET-15 SKILLET CONTROL HOUSING
Item No. Part No. Description Qty.
1 SK50401 Cover, Control Box 1
2 FA11502 Screw, Cover, 10-24 x1^" 2
3 SK50315 Pilot Light 1
4 SK50056 Switch, Toggle, ON/OFF 1
5 SK50062 Rubber Boot 1
6 SK50060 Knob, Thermostat 1
7 FA10135 Screw, Bezel, 6-32 x %" 2
8 SK00031 Bezel 1
9 FA10140 Screw, Thermostat, 6-32 x 1 1/4" 2
10 SK50058 Spacer 2
11 SK00028 Thermostat 1
12 KE51322 Contactor, 208-240V 1
Use only replacement pans which are factory supplied as to preserve the certification of Underwriters
Laboratories American Gas Association. Canadian Standards Association of Canadian Gas Association (as
applicable). The use other than factory supplied replacement parts will void the warranty.
KETTLE AND SKILLET FAUCET
Item No. Part No. Description Qty. Item No. Part No. Description Oty..
l SE50020 Hot Water Stem Assy. 1 10 KE51403 Double Pantry Control Valve 1
2 SE50021 Cold Water Stem Assy 1
3 SE50022 Yoke Connection Kit 1 11 N/A Old Style Single Pantry Control 1
4 FA00016 "0" Ring 1
5 FA95022 Retaining Ring 1
6 SE50064 Spout Nut 1
7 see chart 3/4" spout (please see ¾” 1
spout chart below)
8 N/A ¾” spout with Aerator (please 1 12 N/A 1" Spout (please order Item No. 1
order Item No. 4, 5, 6, 7)
9 KE51401 Single Pantry Control Valve 1 13 FA00115 "0" Ring 2
(incl. Item No. 2)
14 SE50061 Adapter (to adapt new style 1
N/A Old Style Double Pantry Control
(incl. Item No. 1, 2, 3)
Valve (please order Item No.
4, 5, 6, 7, 9)
Valve (please order Item No
4, 5, 6, 7, 10)
4, 5, 6, 7, 14)
spout to old style control
valve)
A B Part No.
4" 8" KE50833
10" 9" KE50832
6" 22" KE50831
12 ½” 14" KE50830
10 ¾” 14" KE50829
5" 14" KE50828
24" 9" KE50827
20” 9" KE50826
12 ½” 9" KE50825
Use only replacement parts which are factory supplied as to preserve the certification of Underwriters
Laboratories. American Gas Association. Canadian Standards Association or Canadian Gas Association (as
applicable). The use of other than factory supplied replacement parts will void the warranty.
MODEL SET-15 SKILLET
The pilot light cycles on and off, indicating power to the elements,
Controls electric power to the skillet.
This control knob allows the operator to select various heat
This allows the operator to manually tilt the skillet,
OPERATING CONTROLS
AND INDICATORS
For better understanding and confidence, the following explanation of the control system used on these skillets is offered.
Item
No.
3 Pilot Light (Control Housing Dwg.)
4 On/Off Toggle Switch (Control Housing Dwg.)
6 Thermostat Control Knob (Control Housing Dwg.)
16-17 Handle (Skillet Bottom Dwg.)
Description Function
controlled by the thermostat.
increments for operating the skillet.
MODEL SET-15 SKILLET BOTTOM AND COVER VENT CAP
Hem No. Part No. Description Qty.
1 SK00105 Screw, 1/4-20 x3/8” 1
2 SK50179 Washer 1
3-6 SK00054 Vent Cap Assy. 1
3 SK51032 Support Arm 1
4 SK50218 Knob 1
5 SK50131 Spacer 1
6 SK00059 Cover 1
7 SK50133 Spacer 1
8 SK50416 Washer. Spherical 7
9 FA21024 Nut, 5/16-18 6
10 SK00172 Element Block Assembly 1
11 SK00028 Thermostat 1
12 SK50434 Washer 2
13 KE00349 Bolt, 5/16-18x ½” 2
14 SK50028 Thermostat, High Limit (575°F, 302°C) 1
15 SK50408 Cover Spacer 1
16 KE50803 Handle 1
17 KE50151 Knob. Handle 1
18 SK50397 Plug Button 1
Use only replacement parts which are factory supplied as to preserve the certification of Underwriters
Laboratories. American Gas Association. Canadian Standards Association or Canadian Gas Association (as applicable).
The use of other than factory supplied replacement parts will void the warranty.
