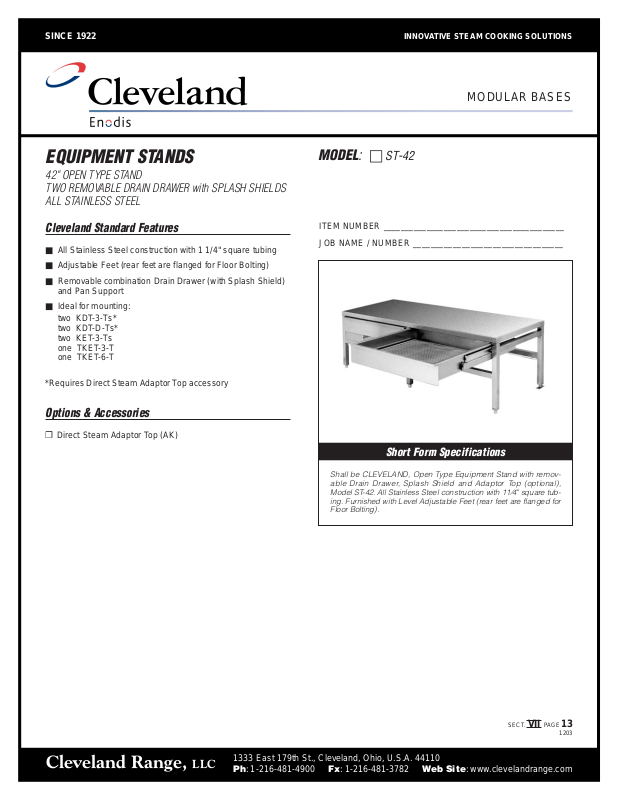

Cleveland ST-42 User Manual
1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Ph: 1-216-481-4900 Fx: 1-216-481-3782 Web Site: www.clevelandrange.com
Cleveland Range, LLC
SINCE 1922
INNOVATIVE STEAM COOKING SOLUTIONS
MODULAR BASES
MODEL: ST-42
ITEM NUMBER __________________________________________
JOB NAME / NUMBER __________________________________
Cleveland Standard Features
■ All Stainless Steel construction with 1 1/4" square tubing
■ Adjustable Feet (rear feet are flanged for Floor Bolting)
■ Removable combination Drain Drawer (with Splash Shield)
and Pan Support
■ Ideal for mounting:
two KDT-3-Ts*
two KDT-D-Ts*
two KET-3-Ts
one TKET-3-T
one TKET-6-T
*Requires Direct Steam Adaptor Top accessory
Options & Accessories
❐ Direct Steam Adaptor Top (AK)
Shall be CLEVELAND, Open Type Equipment Stand with removable Drain Drawer, Splash Shield and Adaptor Top (optional),
Model ST-42. All Stainless Steel construction with 11⁄4" square tubing. Furnished with Level Adjustable Feet (rear feet are flanged for
Floor Bolting).
Short Form Specifications
SECT. VII PAGE 13
1203
EQUIPMENT STANDS
42" OPEN TYPE STAND
TWO REMOVABLE DRAIN DRAWER with SPLASH SHIELDS
ALL STAINLESS STEEL
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Installations of Back Flow Preventers, Vacuum Breakers and other specific code requirements are the responsibility of the Owner and Installer.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., NSF, CGA, CSA, ETL and others.
(NOT TO SCALE)
SECT. VII PAGE 14
0402
Litho in U.S.A.
42
20 3/4"
17 5/8"
7 5/8"
4
19 1/2"20 3/8" 20 3/8"
18 5/8"
18 5/8"
2 5/8"
2 5/8"
5 3/8"
16 1/4"
DRAIN
PAN
1 1/4" NPT DRAIN
PAN NIPPLE
21 3/8"
(Drawer Fully Closed)
40 1/4"
(Drawer Fully Extended)
REAR VIEW / DRAIN PAN DETAIL
39 3/16"
39 11/16"
45 1/16"
35 11/16"
46 3/16"
37 5/8"
45 7/8"
40 3/8"
REAR CLEARANCE - 0" REAR CLEARANCE - 0"
REAR CLEARANCE - 0" REAR CLEARANCE - 0"
KDT-3-T
DIRECT STEAM
ADAPTOR TOP
REQUIRED (AK)
KET-3-T TKET-3-T
KDT-6-T
DIRECT STEAM
ADAPTOR TOP
REQUIRED (AK)
TKET-6-T
MOUNTING OPTIONS (SELECT TWO SINGLE UNITS OR ONE TWIN UNIT PER STAND)
