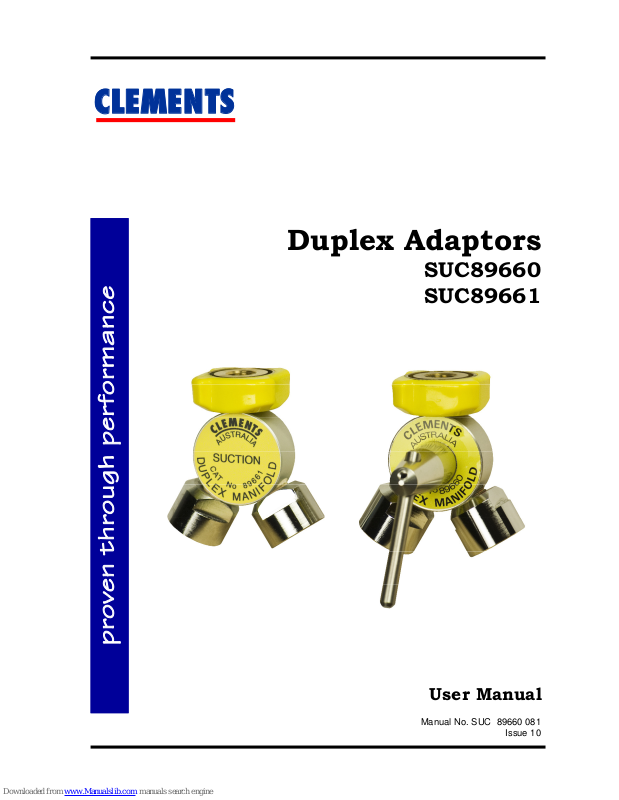

Clements SUC89660, SUC89661 User Manual
User Manual
CLEMENTS
Duplex Adaptors
SUC89660
SUC89661
Manual No. SUC 89660 081
Issue 10
2
CLEMENTS
Safety
Thank you for purchasing this Clements Duplex Adaptor.
For your safety it is imperative that this unit only be
operated by authorised personnel in accordance with the
instructions as described in this manual. Operated in this
way, the Duplex Adaptor will provide years of service.
Due to continual improvements in product design, the
Duplex Adaptor may vary in detail from the descriptions in
this manual. In the event of further questions please
contact your local distributor or BMDi TUTA Healthcare
direct.
User Manual
Duplex Adaptor
Manual Number SUC 89660 081 Issue 10
Copyright © 2014 BMDi TUTA Healthcare Pty Ltd
The information in this manual was originated by, and is the exclusive
property of BMDi TUTA Healthcare Pty Ltd. It is furnished for customer
information only, and is not an authorisation or licence to make this
product or to furnish this information to others.
BMDi TUTA Healthcare Pty Ltd
Unit 4B, 128-130 Frances Street
Lidcombe NSW 2141 Australia
Phone: +61 2 9466 5300
Website: www.medaust.com
C0086
Priory Analysts Ltd
The Pinnacle, 160 Midsummer Blvd
Milton Keynes, MK9 1FF, United Kingdom
EC REP
3
CLEMENTS
Contents
Contents
Specifications .................................................. 4
Transportation and Storage ............................ 5
Installation and Operation .............................. 6
Spares Parts………………………………. .............. 7
Troubleshooting………………………………………. 8
Cleaning .......................................................... 9
Disassembly .................................................... 10
Warranty .......................................................... 14
4
CLEMENTS
Specifications
Vacuum Range
0 to -100 kPa, 0 to -750 mmHg
Flow Rate
0 to 35 Litres of Free Air Per Minute
Lever No Lever
Height
100 mm 40 mm
Width
75 mm 75 mm
Depth
80 mm 80 mm
Weight
300 g 250 g
Duty Cycle
Continuous
Ambient Temperature
+5°C to 35° C
Standard Conditions
25°C, Sea Level, 101 kPa
Class
Class I (EU Class IIa)
ARTG
174693
GMDN
14325
Specifications
Intended Use
Connect two pieces of medical gas equipment to a single
medical gas terminal unit.
5
CLEMENTS
Transportation and Storage
Environmental conditions for transportation and storage are
shown in the following table.
Parameter Minimum Maximum
Temperature 10ºC 40ºC
Humidity 60% RH 95% RH
Barometric Pressure 700 mBar 1060 mBar
Warning Symbols Legend
The warning symbols marked on the equipment and their
meanings are shown as follows.
Caution, consult accompanying documents
Transportation and Storage
Waste Materials
The contents of the collection jars, suction tubing, bacteria filter,
internal exhaust filter may contain biohazard wastes. Handle using
safe handling procedures, which may include the use of rubber
gloves and eye protection, and dispose of according to local
protocols for biohazard materials.
Recycling
At the end of their service life, the Nozzle should be dismantled if
necessary, and returned to a local materials recycling centre.
