935302
Instruction Manual
10 pgs693.85 Kb0

Cleco 935302 Instruction Manual

Download

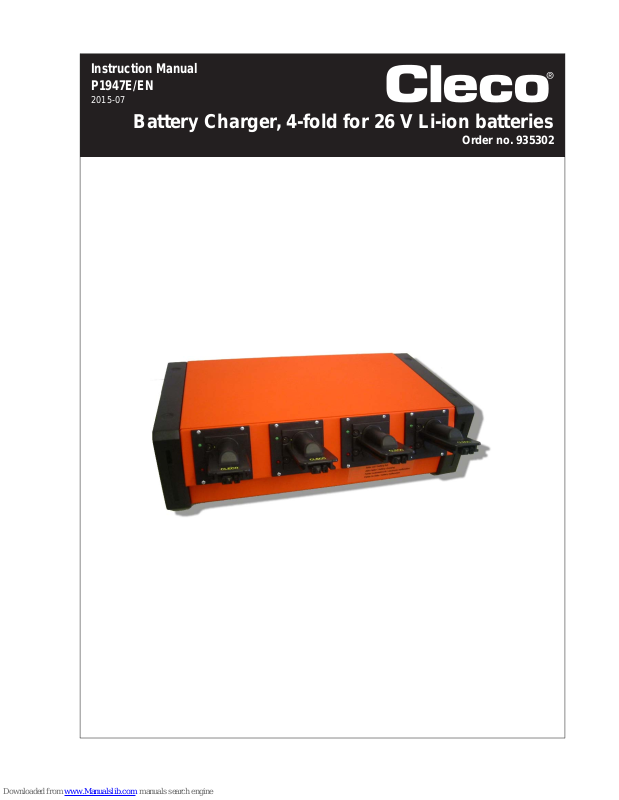

Battery Charger, 4-fold for 26 V Li-ion batteries
Order no. 935302
Instruction Manual P1947E/EN
2015-07
Contents
1 Safety 3
1.1 Warnings and information..................................................................... 3
1.2 Symbols on the product........................................................................ 3
1.3 Basic requirements for safe working practices..................................... 4
1.4 Designated use..................................................................................... 4
2 Items supplied / Transport 4
3 Product description 4
3.1 General description............................................................................... 4
4 Initial operation 5
5 Troubleshooting 5
6 Maintenance 6
7 Service 6
8 Technical data 6
8.1 Dimensions in mm................................................................................ 7
9Disposal 7
10 CE Declaration of Conformity 8
Safety
1
Copyright protection
Apex Tool Group reserves the right to modify, supplement or improve this document or the product without prior notice. This document may not be reproduced in whole or in part in any way, shape or form, or copied to another natural or machine-readable language or to a data carrier, whether electronic, mechanical, opti­cal or otherwise, without the express permission of Apex Tool Group.
1Safety
1.1 Warnings and information
Warning notes are identified by a signal word and a pictogram:
• The signal word describes the severity and the probab ility of the impending danger.
• The pictogram describes the type of danger.
1.2 Symbols on the product
Make sure you are familiar with the meanings before you start using the device.
WARNING!
Carefully read all safety information and instructions. Failure to comply with safety instructions and other instructions could result in electric shocks, burns and/or serious injuries.
WARNING!
A symbol combined with the word WARNING warns of a potentially dangerous situation for the health of personnel. If this warning is not observed, death or serious injury may occur.
CAUTION!
A symbol combined with the word CAUTION warns of a potentially harmful situation for the health of per­sonnel or damage to property or the environment. If this warning is not observed, injuries, property or envi­ronmental damage may occur.
This symbol indicates a general instruction. General instructions include application tips and special useful information, but no warnings against dangers.
Read the Instruction Manual before initial operation.
Always return used electrical equipment for recycling.
Only for EU countries: Do not dispose of electrical equipment with domestic waste! Pursuant to EU Directive 2002/96/EC, used electrical equipment must be collected separately and returned for environmentally compatible recycling.
Operation only indoors or in closed prem­ises
Battery Charger
4 P1947E/EN 2015-07 1947b_1_5 en.fm, 21.07.2015
1.3 Basic requirements for safe working practices
1.4 Designated use
• The charger is intended exclusively fo r char ging Apex Tool Group lithium ion batteries, order no.
935377.
2 Items supplied / Transport
Check shipment for transit damage and ensure that all items have been supplied: 1 Battery charger 1 EU power cable 1 Operating instructions Transport and store the charger in the original packaging. The packaging can be recycled.
3 Product description
3.1 General description
• Automatically detection of
- battery connected.
- charged battery guara ntees optimum charge results.
- defect battery.
• Optical display of charge state
• Fault display:
- Maximum charge time exceeded
- Battery short-circuit
• Automatic transition to conservation charging after full charging guarantees maximum battery operating time.
• Voltage monitoring prevents overdischarging or battery short-circuiting
CAUTION!
Electrical safety
Do not operate the charger if the housing, power cable or plug are dama ged. Do not use batteries which have been damag ed or modified in any way. Batteries which have been
damaged or modified may respond unpredictably, causing fire, explosion or injury.
Do not open the charger.Do not modify the charger structurally.Operate the charger in dry, enclosed rooms only.Protect the charger from moisture and rain. Never operate the charger under unsuitable ambient conditions (i.e. where combustible gases, solvents,
dust, vapors or moisture is present).
Workstation
Ensure that there is enough space at the workstation.Keep the work area clean and dry.
Initial operation
4
3.1.1 Display
4 Initial operation
5 Troubleshooting
LED Result
Green continuous light Charging compartment ready: power supply available, no battery
connected Red continuous light Battery being charged. Green flashing light Battery full: conservation charging Red flashing light, long Error in battery: defective or overdischarged battery. Red flashing light, short Charging electronics error.
WARNING!
Risk of explosion if other batteries are used
Use only Apex Tool Group lithium ion batteries, order no. 935377.
Never use other battery types.
Connect the charger to the power network:
green continuous light indicates that power is supplied.

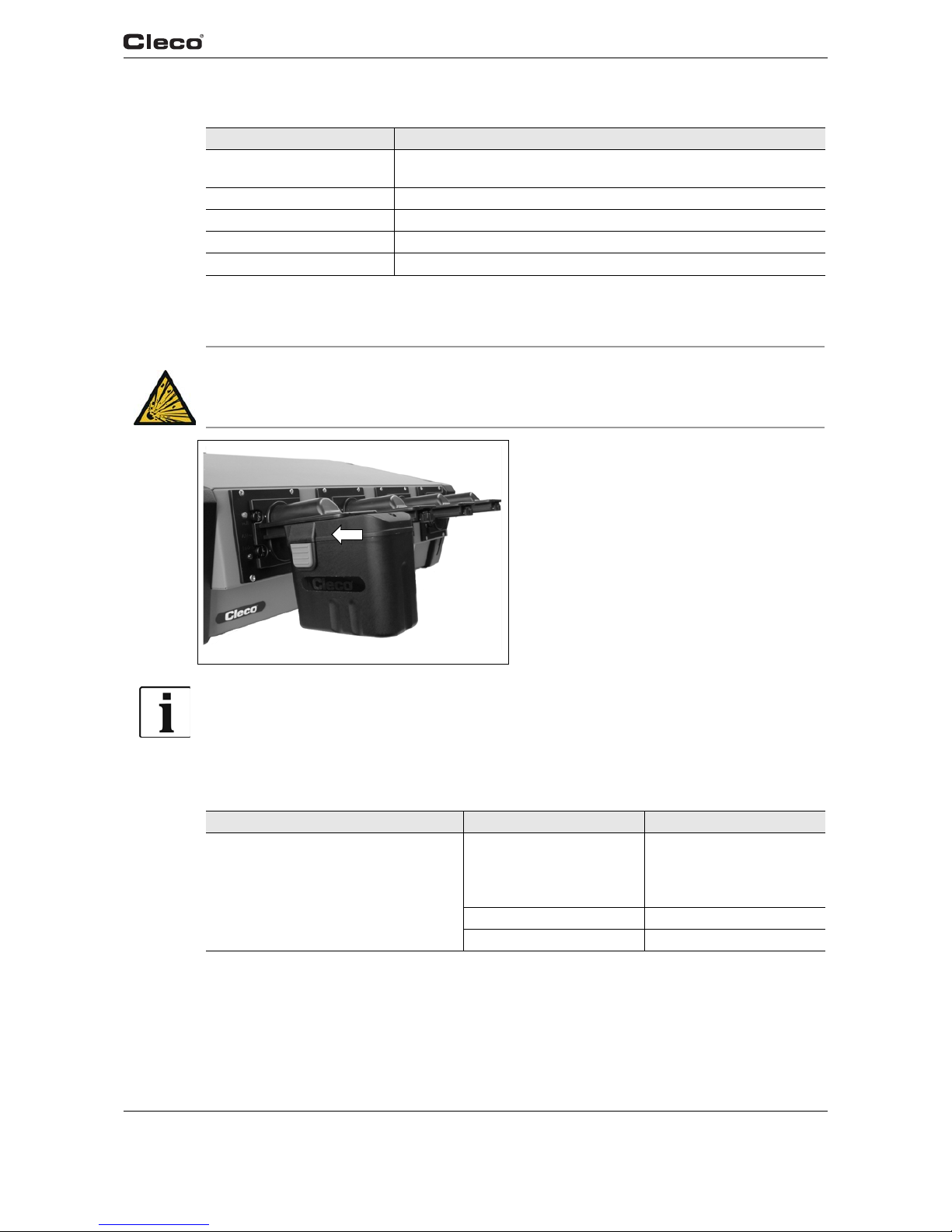

Mains switch on (see rear panel).Plug the battery into the charger unti l the stop.
After plug-in, the red continuous light is lit, indicat­ing that charging is in progress. When charging is finished, the charger automatically shuts off the charging process. Red continuous light goes out, green flashing light appears.
The red continuous light should not be lit before plugging in. If necessary, when changing batteries, wait a few seconds until the indicator goes off.
Error Cause Measure
The green continuous light is not lit when mains connection available.
No power supply voltage.
Check and restore the
power supply voltage.
Check the position of the
mains switch.
Power cable defective.
Replace power cable.
Charger defective
Replace charger.
Battery Charger
6 P1947E/EN 2015-07 1947b_1_5 en.fm, 21.07.2015
6 Maintenance
To ensure proper charger function, keep the contacts of the charger and batteries free of dirt.
7 Service
8 Technical data
The red continuous light is not lit when the battery plugged in.
The battery that is plugged in has already been charged (red LED stays off).
Check battery for proper
function.
The battery contacts are not connected correctly.
Plug the battery in again.
Contacts are dirty.
Clean the contacts of the
charger and battery.
Battery defective
Check battery and replace
if necessary.
CAUTION!
To clean the charger, make sure the power plug is disconnected and clean with a dry cloth.
If repair is required, send the complete charger to Apex Tool Group. It may be repaired only by authorized technicians. Opening the charger will void the warranty.
Features Data
Supply voltage 230 ±10% VAC Power supply frequency 50 to 60 Hz Power consumption max. 400 W Rated battery voltage 26 VDC End-of-charge voltage 29.4 ±1% VDC Charging current max. 2.5 A Degree of protection IP20 Weight 11.8 kg Charge time typ. 50 Ambient temperature +5 to 40 °C Storage temperature -20 °C to +70 °C (-4°F to 158°F) Relative humidity 0 to 90%, non-condensing
Error Cause Measure
Disposal
9

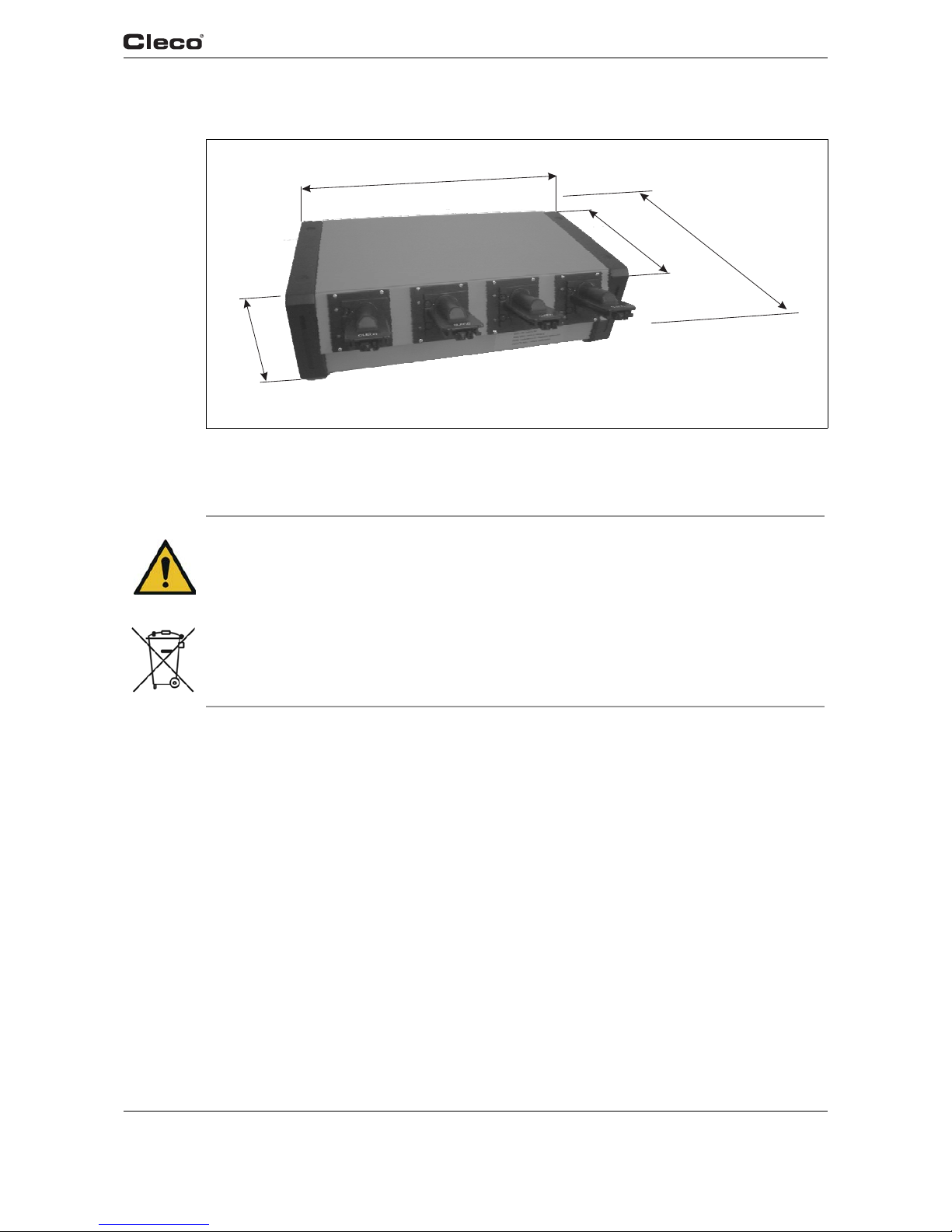

8.1 Dimensions in mm
9Disposal
CAUTION!
Injuries and environmental damage from improper disposal.
Components and auxiliary materials of the charger pose risks to the health and the environment.Separate the components of the packing and dispose of them by segregating them clearly .Follow the locally applicable regulations.
Return the charger and defective/used batteries to your company collection facility or to
Apex Tool Group.
Do not throw the batteries in household refuse, fire or liquids.
535
400
165
530*
* complete with battery and cable
Battery Charger
8 P1947E/EN 2015-07 1947b_1_5 en.fm, 21.07.2015

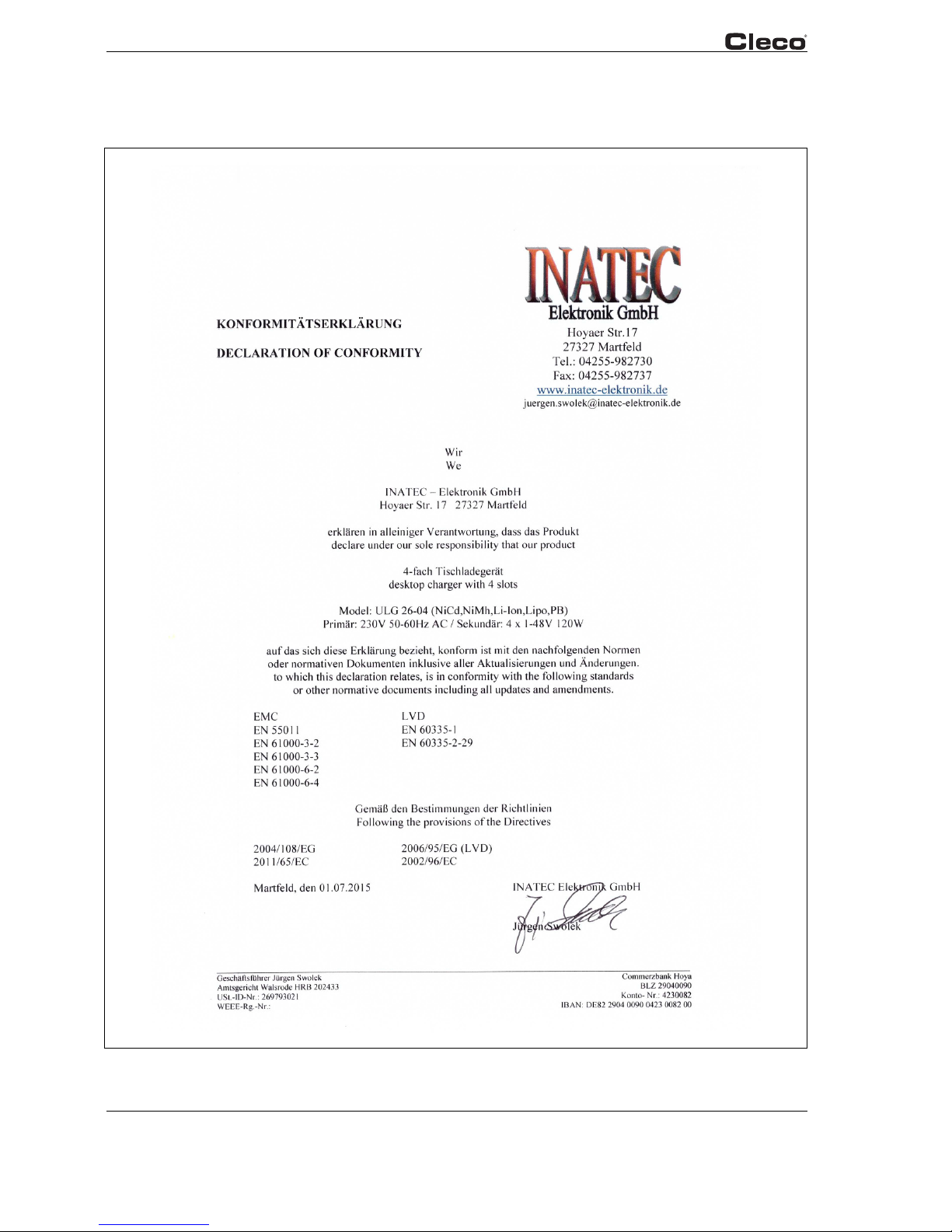

10 CE Declaration of Conformity
Please note that all locations may not service all products. Contact the nearest Apex Tool Group Sales & Service Center for the appropriate facility to handle your service requirements.
POWER TOOLS SALES & SERVICE CENTERS
Apex Tool Group, LLC
1000 Lufkin Road Apex, NC 27539 Phone: +1 (919) 387-0099 Fax: +1 (919) 387-2614 www.apexpowertools.com
EUROPE | MIDDLE EAST | AFRICA
Hungary
Apex Tool Group Hungária Kft. Platánfa u. 2 9027 Györ Hungary Phone: +36 96 66 1383 Fax: +36 96 66 1135
NORTH AMERICA | SOUTH AMERICA
Lexington, South Carolina
Apex Tool Group 670 Industrial Drive Lexington, SC 29072 Phone: +1 (800) 845-5629 Phone: +1 (919) 387-0099 Fax: +1 (803) 358-7681
Canada
Apex Tool Canada, Ltd. 7631 Bath Road Mississauga, Ontario L4T 3T1 Canada Phone: (866) 691-6212 Fax: (905) 673-4400
Mexico
Apex Tool Group Manufacturing México S. de R.L. de C.V. Vialidad El Pueblito #103 Parque Industrial Querétaro Querétaro, QRO 76220 Mexico Phone: +52 (442) 211 3800 Fax: +52 (800) 685 5560
Detroit, Michigan
Apex Tool Group 2630 Superior Court Auburn Hills, MI 48236 Phone: +1 (248) 393-5640 Fax: +1 (248) 391-6295
Brazil
Apex Tool Group Ind. Com. Ferram, Ltda. Av. Liberdade, 4055 Zona Industrial Iporanga Sorocaba, São Paulo CEP# 18087-170 Brazil Phone: +55 15 3238 3820 Fax: +55 15 3238 3938
Louisville, Kentucky
Apex Tool Group 1000 Glengarry Drive Suite 150 Fairdale, KY 40118 Phone: +1 (502) 708-3400 apexpowertools.com/service
ASIA PACIFIC
India
Apex Power Tools India Private Limited Gala No. 1, Plot No. 5 S. No. 234, 235 & 245 Indialand Global Industrial Park Taluka-Mulsi, Phase I Hinjawadi, Pune 411057 Maharashtra, India Phone: +91 020 66761111
Australia
Apex Tool Group 519 Nurigong Street, Albury NSW 2640 Australia Phone: +61 2 6058 0300
China
Apex Power Tool Trading (Shanghai) Co., Ltd Building A8, No. 38 Dongsheng Road Pudong, Shanghai China 201201 Phone: +86 21 60880320 Fax: +86 21 60880298
Japan
Apex Tool Group Japan Korin-Kaikan 5F, 3-6-23 Shibakoen, Minato-Ku, Tokyo 105-0011, JAPAN Phone: +81-3-6450-1840 Fax: +81-3-6450-1841
Korea
Apex Tool Group Korea #1503, Hibrand Living Bldg., 215 Yangjae-dong, Seocho-gu, Seoul 137-924, Korea Phone: +82-2-2155-0250 Fax: +82-2-2155-0252
| 0515 | 2015 Apex Tool Group GmbH & Co. OHG | Printed in Germany
England
Apex Tool Group GmbH & Co. OHG C/O Spline Gauges Piccadilly, Tamworth Staffordshire B78 2ER United Kingdom Phone: +44 1827 8727 71 Fax: +44 1827 8741 28
France
Apex Tool Group S.A.S. 25 rue Maurice Chevalier B.P. 28 77831 Ozoir-La-Ferrière Cedex, France Phone: +33 1 64 43 22 00 Fax: +33 1 64 43 17 17
Germany
Apex Tool Group GmbH & Co. OHG Industriestraße 1 73463 Westhausen Germany Phone: +49 (0) 73 63 81 0 Fax: +49 (0) 73 63 81 222
