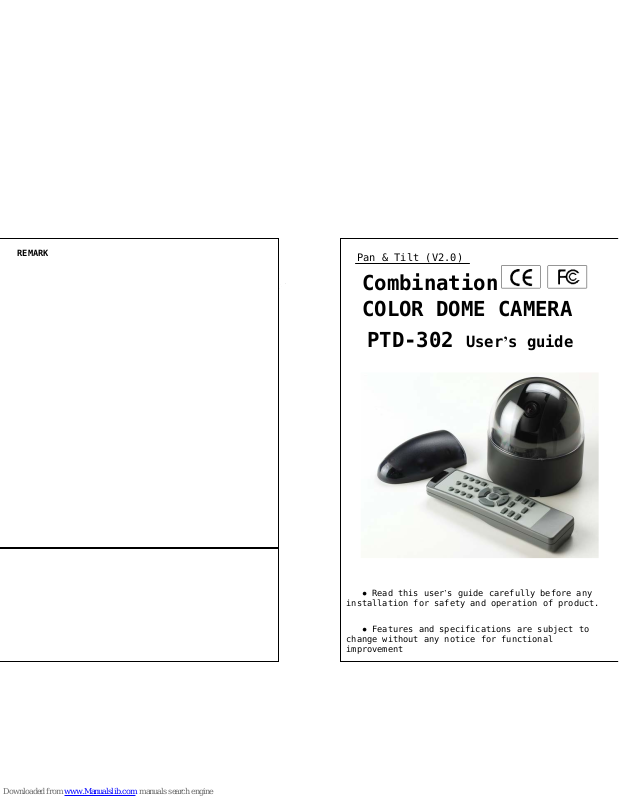

Clear Vision PTD-302 User Manual

REMARK

PTD-302 User’s guide

● Read this user’s guide carefully before any

installation for safety and operation of product.

● Features and specifications are subject to
change without any notice for functional
improvement

Pan & Tilt (V2.0)

Combination
COLOR DOME CAMERA

The surveillance direction of PT-102 is

turned freely left ,right ,up and down.
PT-101 can watch efficiently with light

weight, small size.

1

Summary & Special features

1. Summary

2. Special features

1) Small size and Hi-tech appearance.

2) Maximum 35˚/sec of speedy rotation. (PAN)

3) Function of AUTO PAN that has 16-step of
variable rotation angle is automatically stopped
after operating for 10minues.

4) Anti-impact cover (POLY CABONATE).

5) Convenient One-Touch Mount Bracket

6) Control operation with RS-485 telecommunication
protocol.

(RS-232 is Option.)

7) Connectable various DVR

8) Easy control with using remote controller

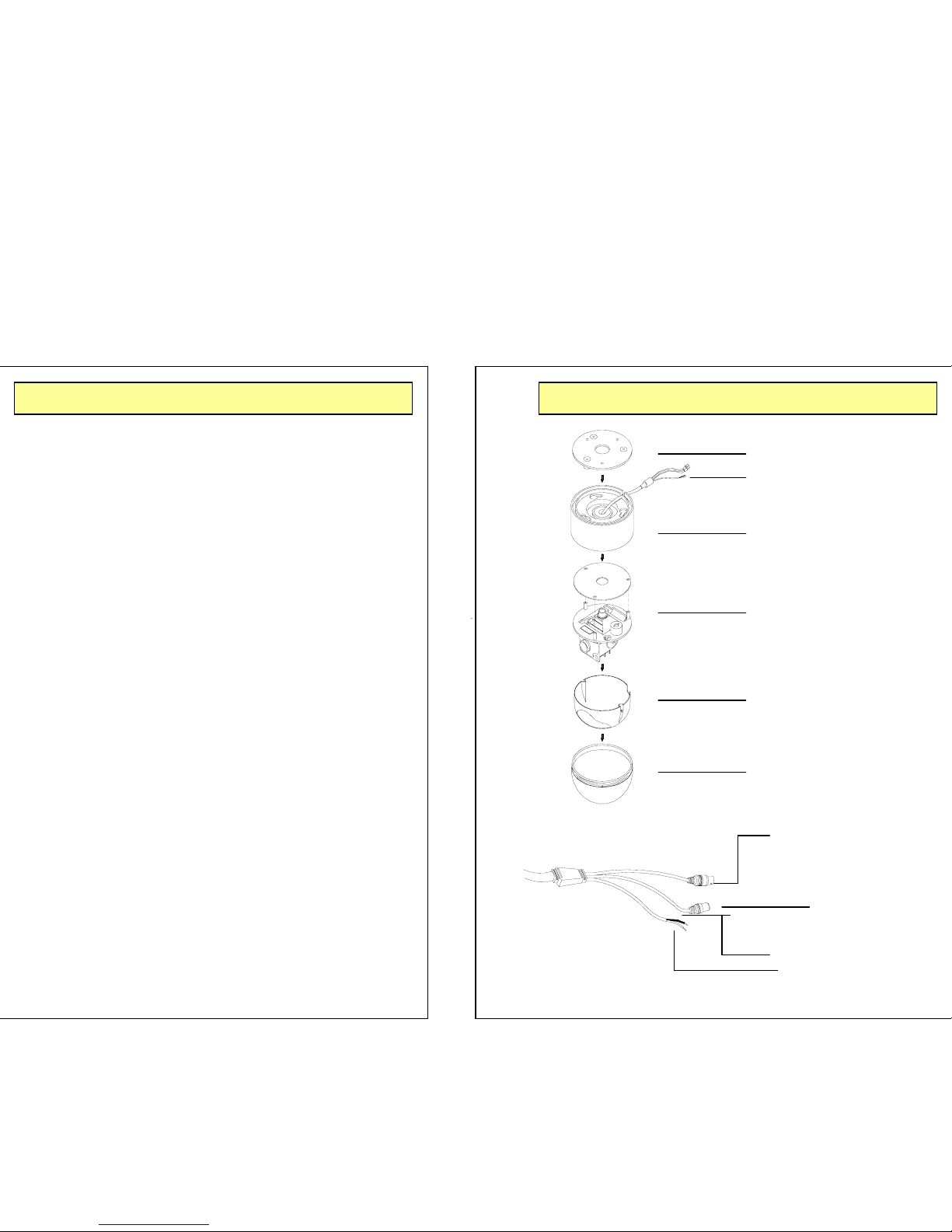

Part name and feature 1

2

MOUNTING BRACKET

CABLE

CAMERA & P/T MODULE

DOME COVER

SHIELD DOME

Camera Base

( Install mounting

bracket first and

install camera base)

Video Output

(Connecting to

Monitor)

Power Input

DC 12V,500mA

RS485 - Black

RS485 + White

• CABLE

Signal(RS485)

P.C.B

I.R receiver or connecting to a compu

3 4

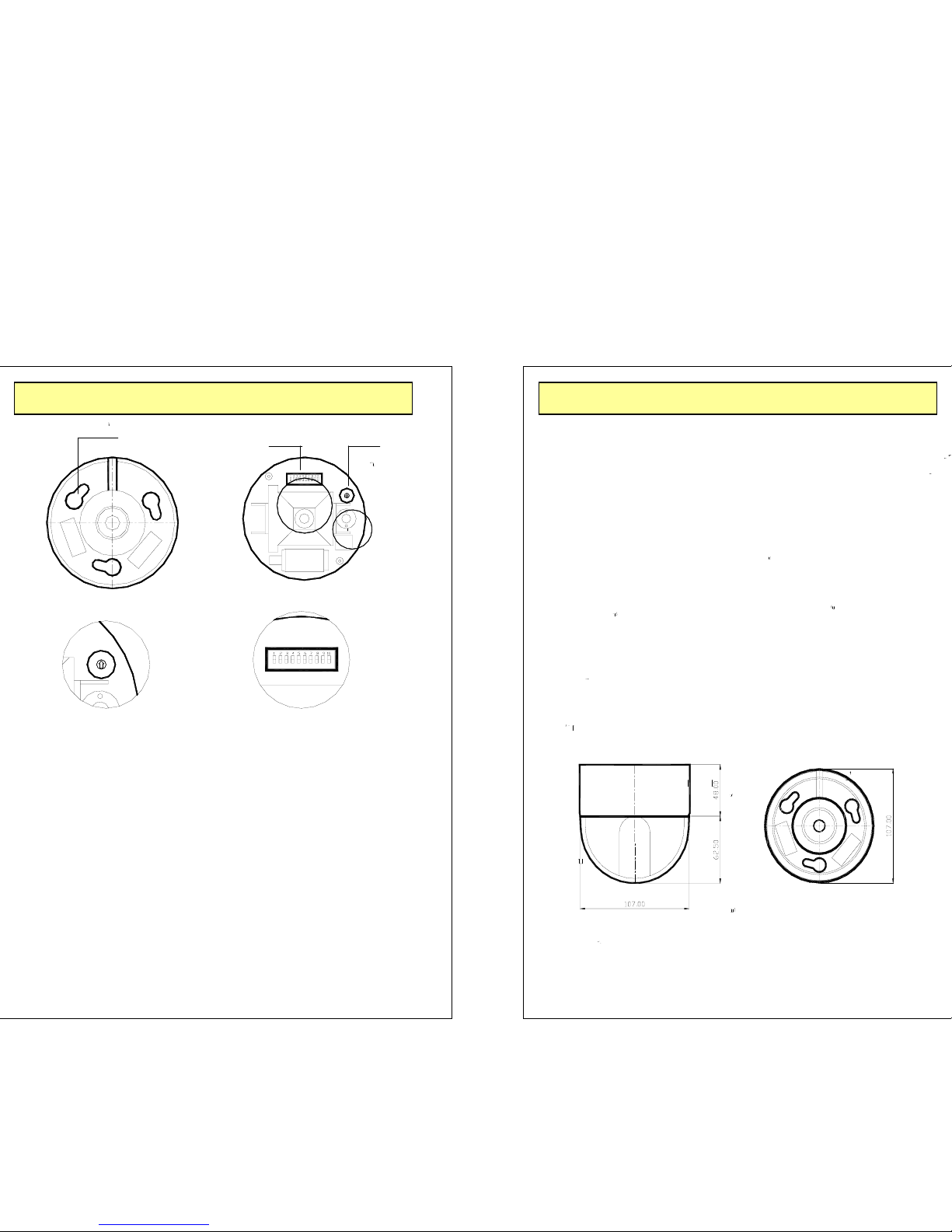

Part name and feature 2

BOTTOM

INNER

MOUNTING HOLE

Specifcation

Drawing

8

A.Detailed Drawing

(Sphere Setup)

9

F

6

7

8

3

4

5

1

2

0

A

B

C

D

E

A

B

B.Detailed Drawing

(ADDRESS S/W setup)

2

5

4

3

6

B

A

8

7

9

E

D

C

0

1

F

•Set up Auto Pan Sphere

-There are 1 to 16 step of set up sphere, fixable 20˚ for 1 step.

-Goods are shipped on 16 step(-320 ˚), do step in moderation.

2.Set Camera No.(Address, Last Grade, Free Set)

-S/W No.1 to No. 8 is for set up the Address.

-S/W No.9 is for set up the Free Set.

-S/W No.10 is for set up the Last Grade.
*See page7, function description.

Power input DC 12V,
500mA

Application environment Indoor
Operation of degree Pan – 320˚

Maximum

Tilt

-90˚ Maximum
Operation speed of PT Pan – 35˚/sec

Tilt

-30˚/sec

Loading capacity weight 100g Maximum
Housing material High impact

resistance plastic
Weight About

500g

••

(Unit:mm)

(Unit:mm)

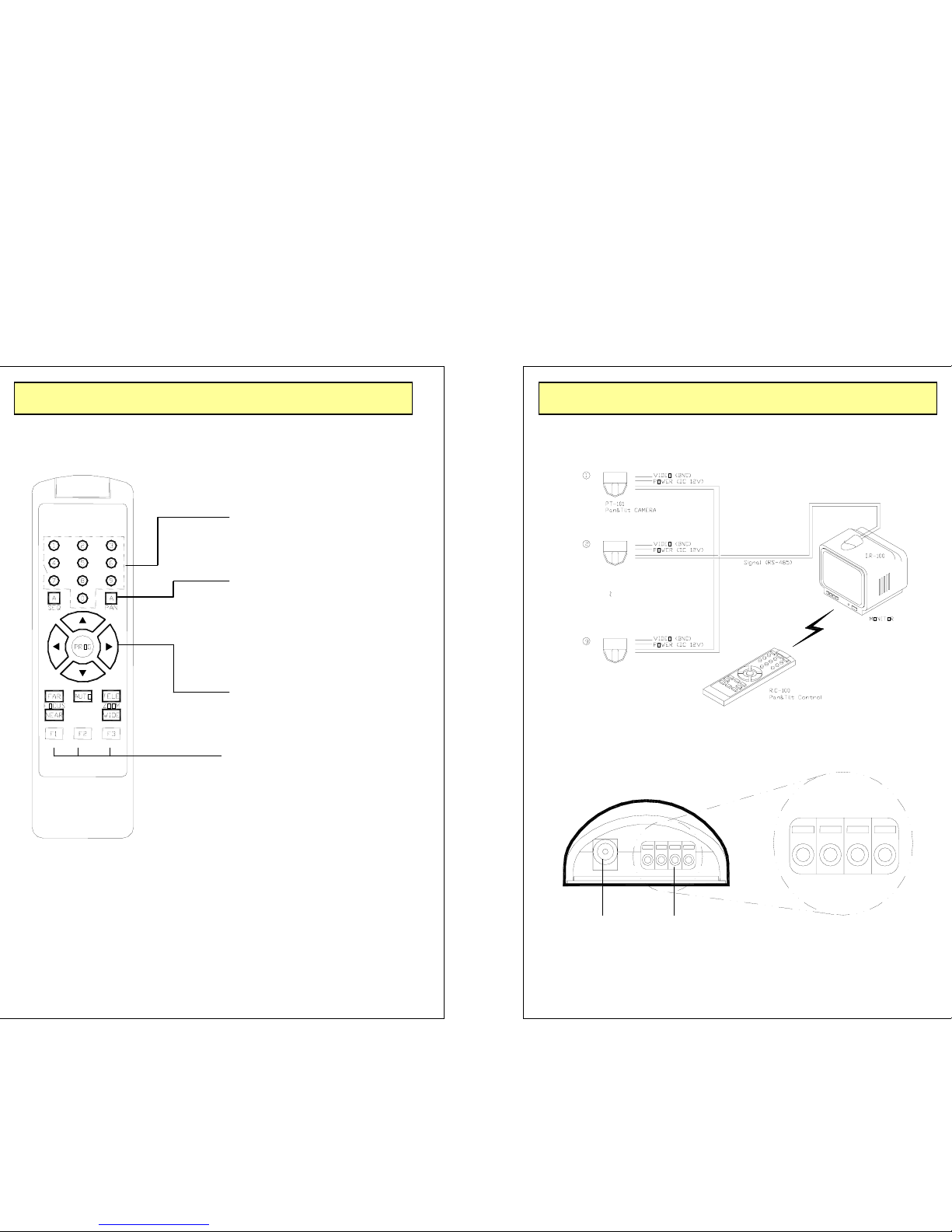

Remote controller operation

5

RC-100

• Camera selection

Use No.1 to No9 to select
settled address on PT-102.

• Auto Pan

On Auto Pan feature of selected
camera

• Auto pan is stopped by press Left, right
key.

• Auto Pan is automatically stopped after
operating for 10 minutes.

• Direction control key

Direction control key for
selected camera

•4.Extension of Address

F1 : UNIT 10
F2 : UNIT 20
F3 : UNIT 30

ex) Address 17 : F1 + No.7

• All other keys are disable in PT-102 feature.

6

Cable connection

IR-100

Power

DC 12V500mA

RS 485SIGNAL .

White Signal Cable to
white block, Black
signal cable to black
block

+- -+

RS485

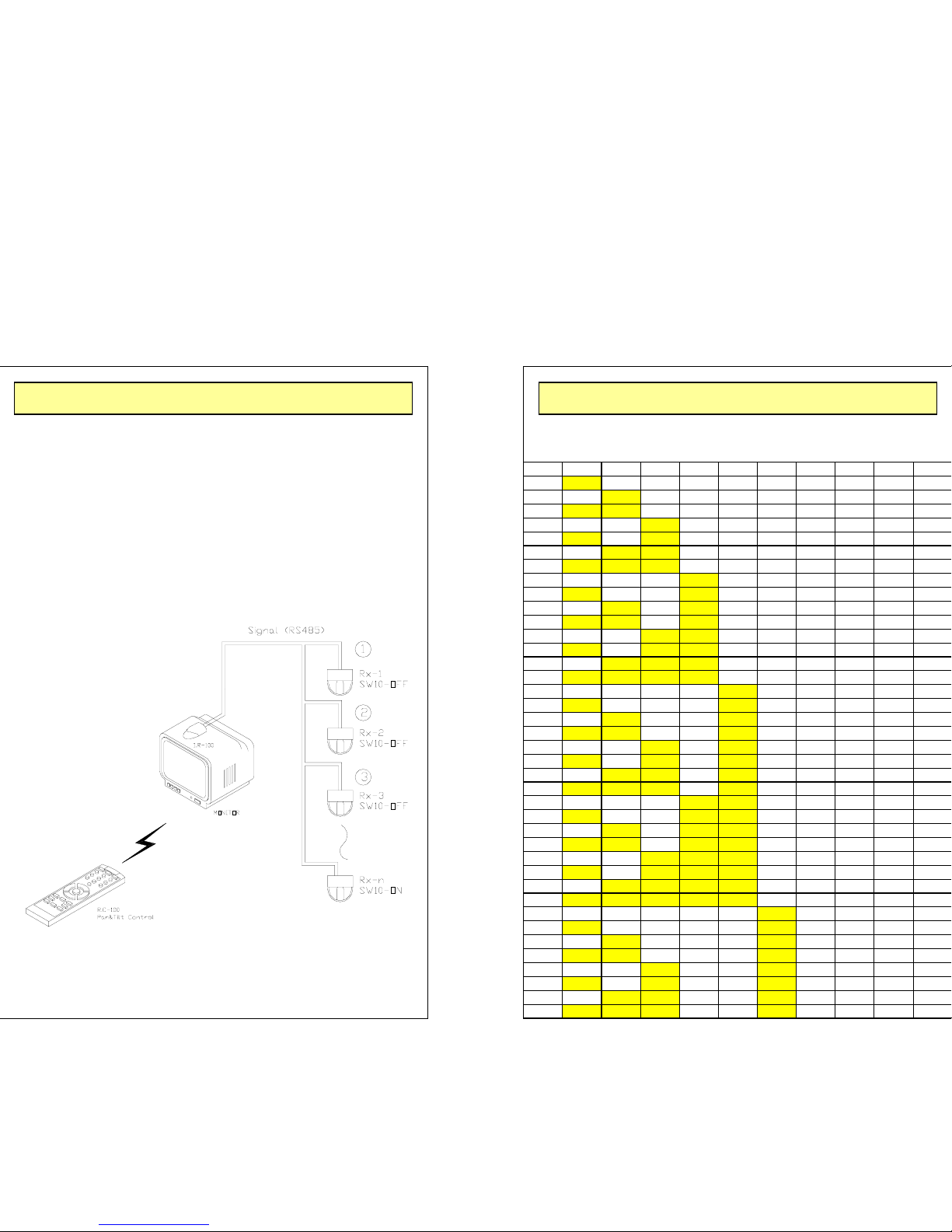

• PTD-302

Installation

example

DIP S/W

8

•S/W No.9 is option.

• The last grade of Rx in S/W No.10 must be turned on.

Address SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 SW 7 SW 8 SW 9 SW 10

1

ON OFF OFF OFF OFF OFF OFF OFF OFF OFF

2

OFF ON OFF OFF OFF OFF OFF OFF OFF OFF

3

ON ON OFF OFF OFF OFF OFF OFF OFF OFF

4

OFF OFF ON OFF OFF OFF OFF OFF OFF OFF

5

ON OFF ON OFF OFF OFF OFF OFF OFF OFF

6

OFF ON ON OFF OFF OFF OFF OFF OFF OFF

7

ON ON ON OFF OFF OFF OFF OFF OFF OFF

8

OFF OFF OFF ON OFF OFF OFF OFF OFF OFF

9

ON OFF OFF ON OFF OFF OFF OFF OFF OFF

10

OFF ON OFF ON OFF OFF OFF OFF OFF OFF

11

ON ON OFF ON OFF OFF OFF OFF OFF OFF

12

OFF OFF ON ON OFF OFF OFF OFF OFF OFF

13

ON OFF ON ON OFF OFF OFF OFF OFF OFF

14

OFF ON ON ON OFF OFF OFF OFF OFF OFF

15

ON ON ON ON OFF OFF OFF OFF OFF OFF

16

OFF OFF OFF OFF ON OFF OFF OFF OFF OFF

17

ON OFF OFF OFF ON OFF OFF OFF OFF OFF

18

OFF ON OFF OFF ON OFF OFF OFF OFF OFF

19

ON ON OFF OFF ON OFF OFF OFF OFF OFF

20

OFF OFF ON OFF ON OFF OFF OFF OFF OFF

21

ON OFF ON OFF ON OFF OFF OFF OFF OFF

22

OFF ON ON OFF ON OFF OFF OFF OFF OFF

23

ON ON ON OFF ON OFF OFF OFF OFF OFF

24

OFF OFF OFF ON ON OFF OFF OFF OFF OFF

25

ON OFF OFF ON ON OFF OFF OFF OFF OFF

26

OFF ON OFF ON ON OFF OFF OFF OFF OFF

27

ON ON OFF ON ON OFF OFF OFF OFF OFF

28

OFF OFF ON ON ON OFF OFF OFF OFF OFF

29

ON OFF ON ON ON OFF OFF OFF OFF OFF

30

OFF ON ON ON ON OFF OFF OFF OFF OFF

31

ON ON ON ON ON OFF OFF OFF OFF OFF

32

OFF OFF OFF OFF OFF ON OFF OFF OFF OFF

33

ON OFF OFF OFF OFF ON OFF OFF OFF OFF

34

OFF ON OFF OFF OFF ON OFF OFF OFF OFF

35

ON ON OFF OFF OFF ON OFF OFF OFF OFF

36

OFF OFF ON OFF OFF ON OFF OFF OFF OFF

37

ON OFF ON OFF OFF ON OFF OFF OFF OFF

38

OFF ON ON OFF OFF ON OFF OFF OFF OFF

39

ON ON ON OFF OFF ON OFF OFF OFF OFF

DIP S/W Establishment

7

1. SW 1 to SW 8 is S/W to set up the address.

2. SW 9 is S/W to select Free Set.

3. SW10 is S/W to adjust impedance of control cable.
Please turn on the last Rx of S/W, as below picture.
