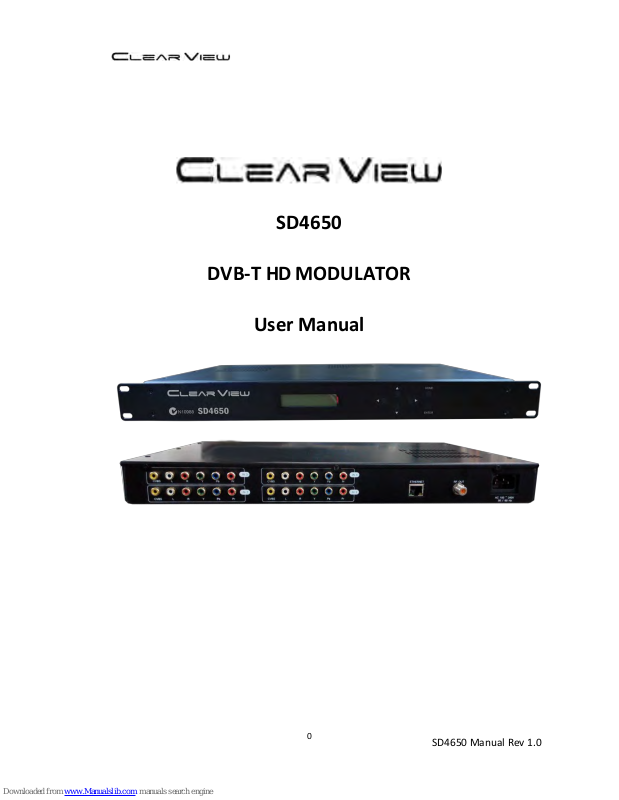

ClearView SD4650 User Manual
0
SD4650 Manual Rev 1.0
SD4650
DVB-T HD
MODULATOR
User Manual
1
SD4650 Manual Rev 1.0
TABLE OF CONTENT
1 GENERAL ...........................................................................................................2
1.1 Description ...................................................................................................................2
1.2 Specifications ................................................................................................................3
2 INSTALLATION ...................................................................................................4
2.1 What’s in the Box .......................................................................................................4
One power cable ........................................................................................................4
2.2 Connection .................................................................................................................4
2.2.1 DEVICE Programming and Setup ......................................................................4
2.3 Navigation and edition of values. .................................................................................5
3 OPERATING INSTRUCTIONS ...............................................................................5
3.1 Description of controls and components .....................................................................5
3.2 Starting .........................................................................................................................6
3.2.1 Beginning Setup .................................................................................................6
3.2.2 Step 1: Login ......................................................................................................6
3.2.3 Step 2: Right Click and Select “Status” ..............................................................7
3.2.4 Step 3: Setting Tab .............................................................................................8
3.2.5 Step 4: Local Save ..............................................................................................8
3.2.6 Step 5: IP Configuration Tab ..............................................................................9
3.2.7 Step 6: Save IP Configuration ............................................................................9
3.2.8 Step 7: Administration ......................................................................................9
4 Menu Tree ....................................................................................................... 10
4.1 Menu Tree of Front panel ........................................................................................ 10
4.2 Menu Tree of Web UI ............................................................................................... 11
2
SD4650 Manual Rev 1.0
DIGITAL MODULATOR
1 GENERAL
1.1 Description
The SD4650 module able to generate a signal in DVB-T format (Digital
Terrestrial Television) from YPbPr (RCA) and CVBS(RCA) input.
SD4650 is MPEG-4 and MPEG-2 encoding, DVB-T modulation integrated
device to convert YPbPr (RCA) and CVBS(RCA) signal to DVB-T RF out.
The SD4650 module adjusts the compression rate to the available bandwidth,
using the modulation DVB-T parameters.
3
SD4650 Manual Rev 1.0
1.2 Specifications
INPUT
Video Input
YPbPr ( 1080i,720P,576i/P,480i/P), CVBS
Video Input Level
1.0 V p-p
Video Mode
PAL / NTSC
Audio Input
Stereo
Audio Input Level
6 V p-p
Input Connectors
Video (RCA) - Audio (RCA)
OUT PUT
Frequency Range
177 -858 MHz
Output Level
100 dBuV
Channel Bandwidth
6,7,8 ,7-8 MHz
RF Level Adjustment
0~-30 dB typ.
Attenuation step
2dB per step
MER
30 dB typically
MODULATION
Video Resolution
1080i,576i,480i
Video Compression
HD H.264, MPEG-4 AVC / HP@L4.0, SD MPEG-2/ MP@ML
Audio Compression
MPEG2, AAC
Video Bit Rate
6 Mbit/S Max
Audio Bit Rate
384Kbits
DVB Insertion Tables
SDT, NIT
Editable Field
Service Name, TS ID, Network ID, Original NET ID,
LCN, Network name
Carrier (OFDM Mode)
2K/8K
Guard Intervals
1/4, 1/8, 1/16, 1/32
Code Rate (FEC)
1/2,2/3,3/4, 5/6, 7/8
Constellations
64 QAM /16 QAM / QPSK
MANAGEMENT / CONTROL
Front panel LCD control
6 Local keys on front panel
Web Management
RJ-45 Ethernet port
GENERAL
Power Supply
AC 100~240V 50/60Hz
Consumption
25 W
Languages
English
Dimensions
19” x 12.5” x 1.75”
Weight
2.8Kg
