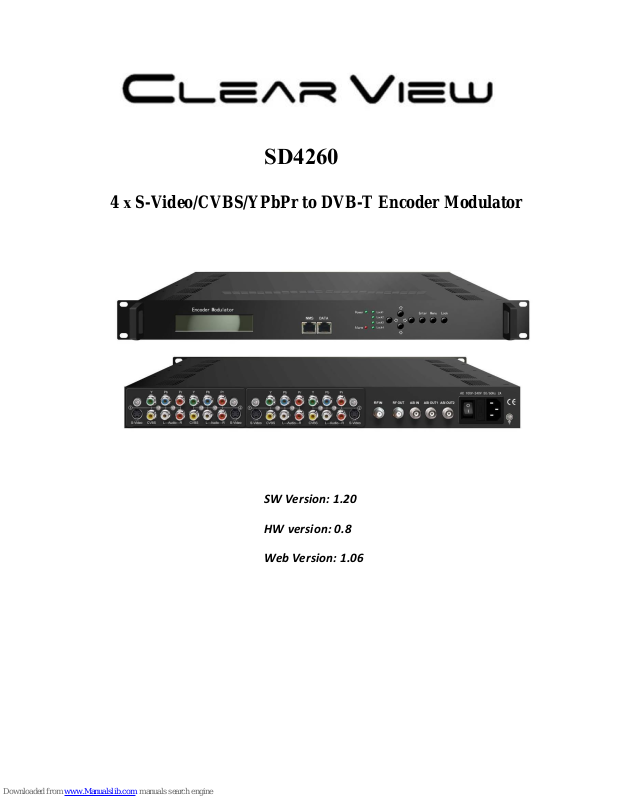

ClearView SD4260 User Manual

SW Version: 1.20

HW version: 0.8

Web Version: 1.06

4 x S-Video/CVBS/YPbPr to DVB-T Encoder Modulator

SD4260

About This Manual

Intended Audience

This user manual has been written to help people who have to use, to integrate and to
install the product. Some chapters require some prerequisite knowledge in electronics
and especially in broadcast technologies and standards.

Disclaimer

Copy Warning

No part of this document may be reproduced in any form without the written permission
of the copyright owner.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. ClearView shall have no liability

for any error or damage of any kind resulting from the use of this document.

This document includes some confidential information. Its usage is limited to the
owners of the product that it is relevant to. It cannot be copied, modified, or translated
in another language without prior written authorization from ClearView.

Directory

CHAPTER 1 INTRODUCTION ................................................................................................................... 1

1.1 PRODUCT OVERVIEW ............................................................................................................................... 1

1.2 KEY FEATURES ........................................................................................................................................ 1

1.3 SPECIFICATIONS ....................................................................................................................................... 2

1.4 PRINCIPLE CHART .................................................................................................................................... 3

1.5 APPEARANCE AND DESCRIPTION ............................................................................................................. 3

CHAPTER 2 INSTALLATION GUIDE ........................................................................................................... 2

2.1 GENERAL PRECAUTIONS .......................................................................................................................... 2

2.2 POWER PRECAUTIONS .............................................................................................................................. 2

2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING ..................................................... 2

2.4 ENVIRONMENT REQUIREMENT ................................................................................................................ 2

2.5 GROUNDING REQUIREMENT .................................................................................................................... 3

CHAPTER 3 OPERATION .......................................................................................................................... 4

3.1 LCD MENU STRUCTURE.......................................................................................................................... 4

3.2 INITIAL STATUS ........................................................................................................................................ 5

3.3 GENERAL SETTINGS FOR MAIN MENU ..................................................................................................... 6

CHAPTER 4 WEB NMS OPERATION ....................................................................................................... 14

4.1 LOGIN .................................................................................................................................................... 14

4.2 OPERATION ............................................................................................................................................ 15

CHAPTER 5 TROUBLESHOOTING ........................................................................................................... 25

CHAPTER 6 PACKING LIST ..................................................................................................................... 26

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Chapter 1 Introduction

1.1 Product Overview

1.2 Key Features

LCD display, Remote control and Firmware, web NMS management

 Updates via web

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

SD4260 series products are ClearView’s all-in-one devices which integrate encoding,
multiplexing and modulation to convert V/A signals into digital RF output. SD4260
is also equipped with 1 ASI input for re-mux, and output with 2 ASI ports and 1 IP port.
The signals source could be from satellite receivers, closed-circuit television cameras,
Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB
and etc with corresponding standard.
With its various inputs available, our SD4260 series products are widely used in
public places such as metro, market hall, theatre, hotels, resorts, and etc for advertising,

monitoring, training and educating in company, schools, campuses, hospital… It’s a

good choice to offer additional info channels..

 4x S-Video/YPbPr/CVBS inputs; 1x ASI input for re-mux; 1x RF input for mix
 MPEG2 video encoding

 MPEG1 Layer II, LC-AAC, and HE-AAC audio encoding
 1 x DVB-T RF output; 1 IP (UDP/RTP) output; 2 ASI mirrored output
 LCN support (Logical Channel Number)
 Excellent modulation quality: MER≥42dB


Page 1

1.3 Specifications

Input

4xS-Video/YPbPr/CVBS (RCA)

1×ASI input for re-mux, BNC interface

1×RF input for RF mixer, for combiner

Encoding Section

Video

Audio

Encoding

MPEG1 Layer II; LC-AAC; HE-AAC (4*Stereo or 8*mono)

Sample rate

48KHz

Bit rate

64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps

DVB-T Modulator Section

Standard

EN300744

FFT mode

2K, 8K

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥40dB

RF frequency

30~960MHz, 1KHz step

RF Out

2*DVB-T (2 carriers combined output)

RF output level

-30~ -10dbm (77~97 dbµV), 0.1db step

TS Output

2 * ASI mirrored outputs, BNC interface

2*MPTS or 4*SPTS over UDP or RTP, Ethernet interface (unicast / multicast)

Interface

Local interface

LCD + control buttons

Remote management

Web NMS Management

Language

English

General

Power supply

AC 100V~240V

Dimensions

482*300*44.5mm

Weight

3 kgs

Operation temperature

0~45℃

Encoding MPEG-2
Interface S-Video/YPbPr/CVBS *4 (RCA) Resolution
720*480_60i, 720*576_50i

Page 2

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

1.4 Principle Chart

M

U
X

ASI In

MPEG2/H.264

Encoding

V/A

RF In

V/A

MPEG2/H.264

Encoding

MPEG2/H.264

Encoding

V/A

V/A

MPEG2/H.264

Encoding

Build-in Combiner

RF out

DVB-T

Modulating

ASI&IP Output

Carrier A

DVB-T

Modulating

Carrier B

1.5 Appearance and Description

Front Panel Illustration

① LCD window: LCD display
② NMS & DATA ports
③ Power and Alarm Indicators
④ TS Lock Indicators

⑤ Navigation Buttons
⑥ Enter button: for confirm
⑦ Menu button: for back step
⑧ Lock button: press to lock set

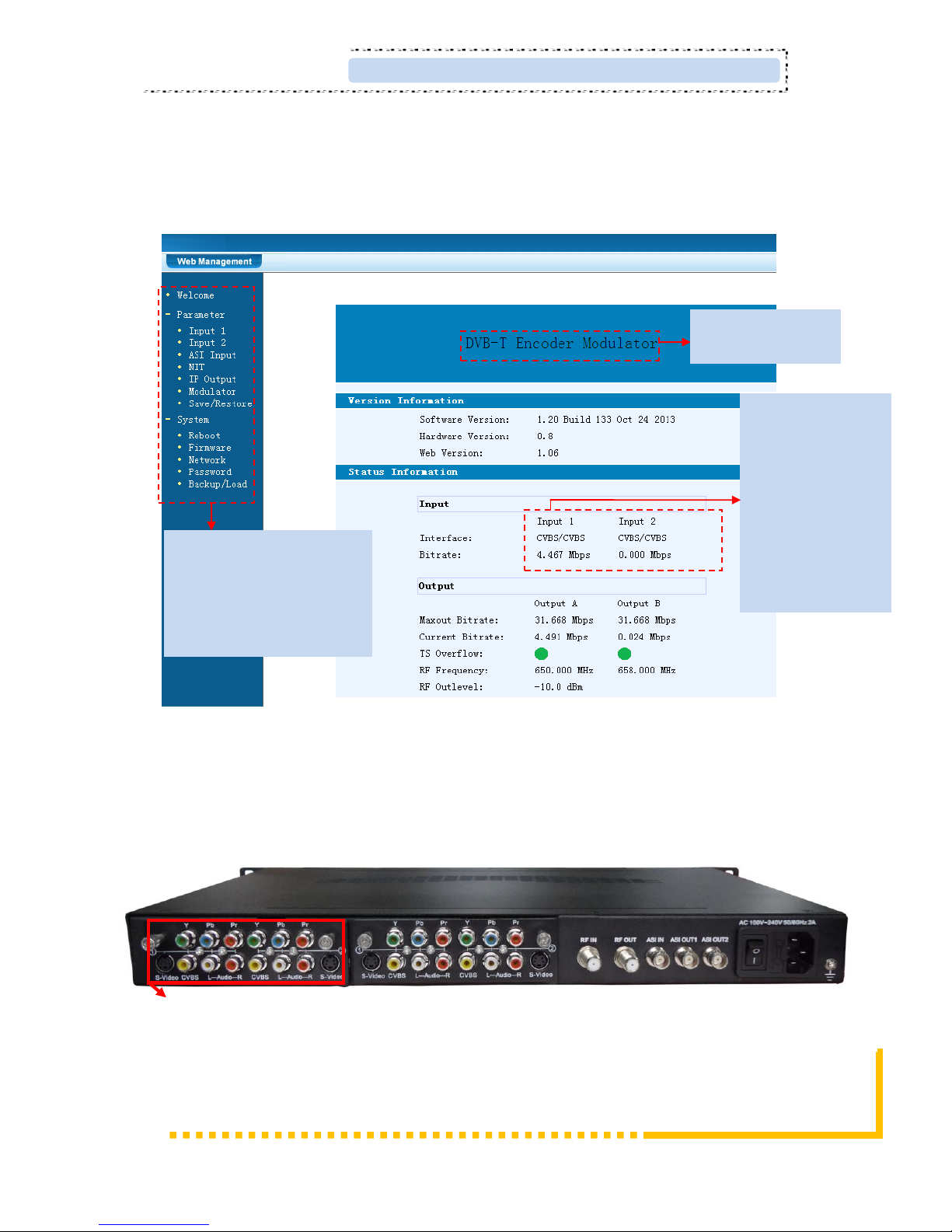

Rear Panel Illustration

① Program input channel 1
② Program input channel 2
③ Program input channel 3
④ Program input channel 4
⑤ RF in port (for RF mix)

⑥ RF out port
⑦ ASI input port
⑧ ASI output ports
⑨ Power supply
⑩ Grounding

Page 3

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Chapter 2 Installation Guide

This section is to explain the cautions the users must know in some case that possible
injure may bring to users when it’s used or installed. For this reason, please read all details
here and make in mind before installing or using the product.

2.1 General Precautions

 Must be operated and maintained free of dust or dirty.
 The cover should be securely fastened, do not open the cover of the products when the

power is on.

 After use, securely stow away all loose cables, external antenna, and others.

2.2 Power precautions

 When you connect the power source, make sure if it may cause overload.

 Avoid operating on a wet floor in the open. Make sure the extension cable is in good

condition

 Make sure the power switch is off before you start to install the device

2.3 Device’s Installation Flow Chart Illustrated as following

Connecting

Grouding
Wire and

Power

Cord

Acquisition

Check

Installing

Device

Setting

Parameter

Running

Device

Connecting

Signal

cable

2.4 Environment Requirement

Item

Requirement

Machine Hall

When user installs machine frame array in one machine hall,

Page 2

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Space

the distance between 2 rows of machine frames should be

1.2~1.5m and the distance against wall should be no less than

0.8m.

Machine Hall Floor

Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:

1X107~1X1010，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)

Environment
Temperature

5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended

Relative Humidity

20%~80% sustainable 10%~90% short time

Pressure

86~105KPa

Door & Window

Installing rubber strip for sealing door-gaps and dual level
glasses for window

Wall

It can be covered with wallpaper, or brightness less paint.

Fire Protection

Fire alarm system and extinguisher

Power

Requiring device power, air-conditioning power and lighting
power are independent to each other. Device power requires
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz. Please
carefully check before running.

2.5 Grounding Requirement

 All function modules’ good grounding is the basis of reliability and stability of devices.

Also, they are the most important guarantee of lightning arresting and interference
rejection. Therefore, the system must follow this rule.

 Grounding conductor must adopt copper conductor in order to reduce high frequency

impedance, and the grounding wire must be as thick and short as possible.

 Users should make sure the 2 ends of grounding wire well electric conducted and be

antirust.

 It is prohibited to use any other device as part of grounding electric circuit
 The area of the conduction between grounding wire and device’s frame should be no

less than 25 mm2.

Page 3

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Chapter 3 Operation

3.1 LCD Menu Structure

Switch On

Initializing

General Working Status

1 Alarm Status

2 Input Setting

2.1 Input 1

2.3 ASI

2.2 Input 2

Parse Program
Select Program A

2.1.1 Program 1

2.1.2 Program 2

2.2.1 Program 1

2.2.2 Program 2

(Same content with 2.1.1)
(Same content with 2.1.1)

(Same content with 2.1.1)

Video Bitrate
Audio Bitrate

3 Modulate Setingting

3.1 Output A

3.2 Output B

3.3 ASI Output

3.1.1 Bandwidth

3.1.2 Constellation

3.1.3 Transmission

(Same content with 3.1)

3.1.4 Guard Interval

Brightness

Contrast

Saturation

Hue

Sharpness

Aspect Ratio

Interface

B Frame in GOP

Select Program B

3.1.5 Code Rate

3.1.6 RF Frequency

3.1.8 RF On

3.1.7 RF Out Level

3.3.2 Output B

3.3.1 Output A

Page 4

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

4 IP output setting

4.1 Output A

4.2 Output B

4.1.2 Service IP

4.1.1 IP Out Port

(Same content with 4.1)

4.1.3 Output IP

4.1.4 Subnet Mask

4.1.5 Gateway

4.1.6 Port

5.2 Subnet Mask

5.3 Gateway

5.4 MAC Address

5.5 Reset Password

5.6 Web NMS Port

5.1 IP Address

Encoder Modulator
SW:XX HW:XX

5 Network setting

6 Saving Configuration

7 Load Configuration

7.1 Load Saved CFG

7.2 Load Defaut

8 Version

Encoder Modulator
SW:XX HW:XX

3.2 Initial Status

Switch on the device and after a few seconds’ initialization, it presents start-up pictures as
below:

 DVB-T: indicate the modulation standard of this device.
 A/B: to indicate the 4 carrier outputs
 XXX.XX MHz indicates the current output frequency (Range: 30~999MHz) of its

corresponding carrier output.

 X.XX Mbps: indicate the encoding bit rate of each encoding board respectively.

Start up…

Start OK…

DVB-T A XXX.00MHz
X.XXMbps X.XXMbps

Page 5

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

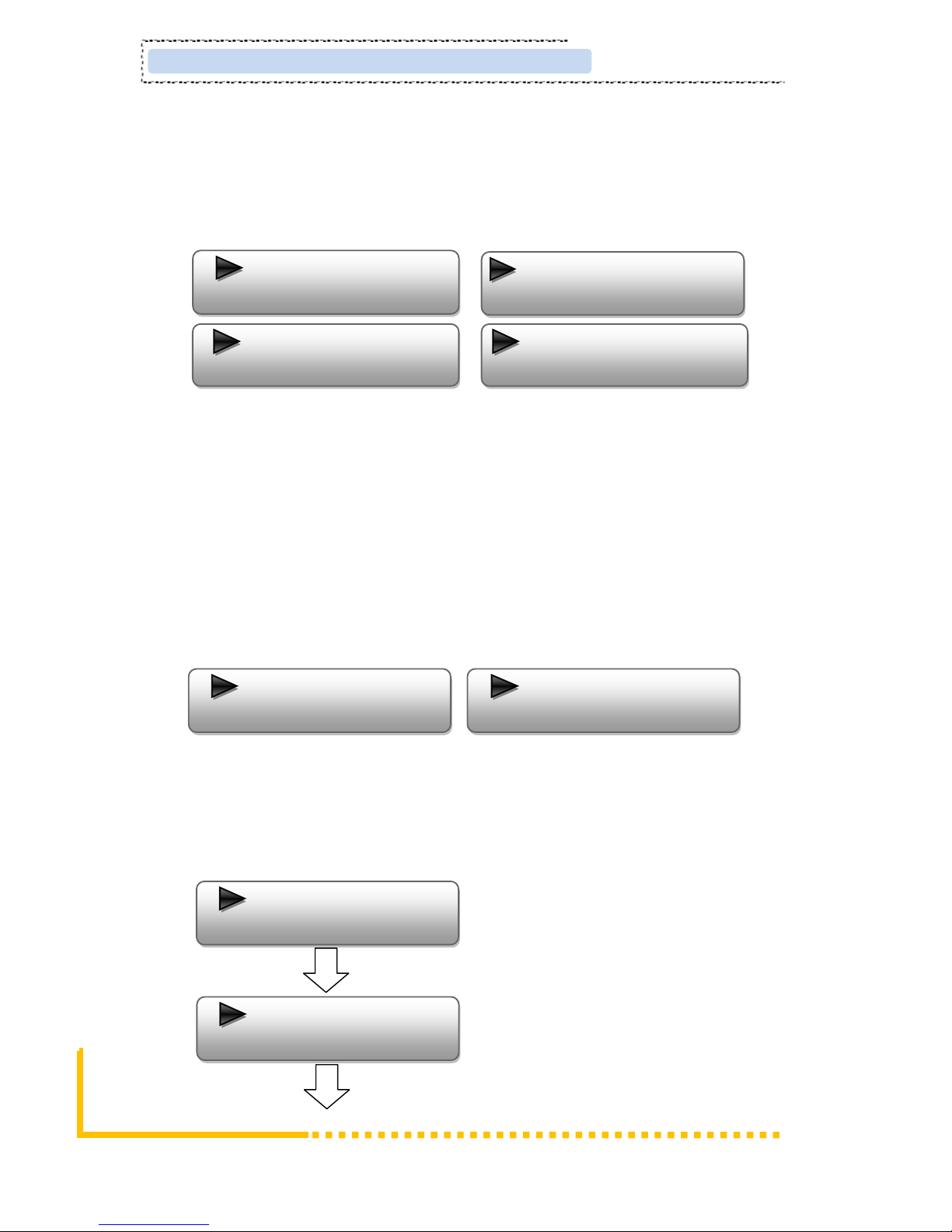

3.3 General Settings for Main Menu

Press “Lock” key on the front panel to enter the main menu. The LCD will display the
following pages where user can configure the parameters for the device:

User can press UP/DOWN buttons to specify menu item, and then press ENTER to
enter the submenus as below:

1) Alarm Status

The alarm indicator will turn on if there is no A/V signals inputting or outputting bit
rate overflows. User then can enter this menu to check the error type.

2) Encode Setting

Under this submenu, the LCD will show “2.1 Input 1”, “2.2 Input 2” and “2.3 ASI”.

“2.1 Input 1” and “2.2 Input 2” respectively represent the two encoding boards and there are

two programs under each input. User could enter each program to select one interface as the
signal source and set the related video & audio parameters.

1 Alarm Status
2 Input Setting

3 Modulate Setting
4 IP output Setting

7 Loading Config
8 Version

2.1 Input 1

2.2 Input 2

2.3 ASI

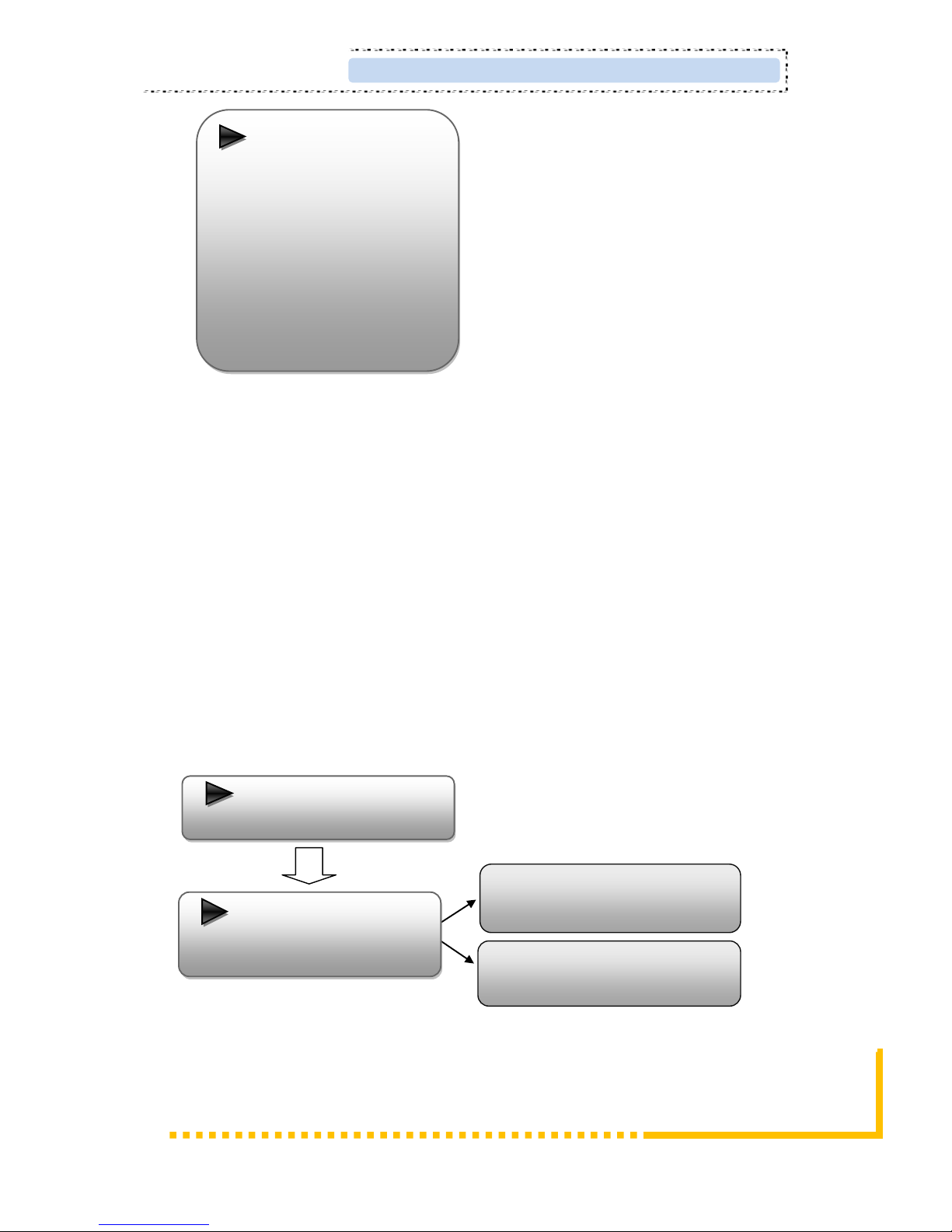

2.1 Input 1

2.1.1 Program 1

2.1.2 Program 2

5 Network Setting
6 Saving Config

Page 6

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

“Video Bit Rate”: Move the underline with LEFT/RIGHT keys and modify the
value of frequency with UP/DOWN keys, and press ENTER key to save the
settings

“Audio Bit Rate” is to select audio encoding bit rate (64-320Kbps) from the options
provided.

User can also adjust values of rest items (Brightness & Contrast & Saturation: 0-255;
Hue: -127 - +127)

“Interface”: Connect the signal source to the corresponding input channel and
select the interface from the options (CVBS, S-Video, YPbPr) provided in the
submenu. Press Enter key to confirm and the system will automatically search the
signal source.

“Parse Program” is for checking the quantity of input programs from the

corresponding Tuner input.
“Select Program” is for selecting programs from the ASI IN to output from carrier A/B.

►1 GXTV √

2 SZTV X

Parse Program
Get 3 programs

2.3 ASI

Parse Program
Select Program A
Select Program B

Video Bit Rate
Audio Bit Rate
Brightness
Contrast
Saturation
Hue
Sharpness
Aspect Ratio
Interface
B frame in GOP

Page 7

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Move the triangle mark to specify the program and press RIGHT/LEFT keys to shift

the mark between “√” and “X”. (“√”: to output the corresponding program; “X”: not to

output the corresponding program)

3) Modulator Setting

 Bandwidth

There are three possible options provided for selecting bandwidth: 6M, 7M, and 8M.
When the display shows them, user just need swift LEFT and RIGHT key to choose
and repressing ENTER to confirm.

When entering “Modulator” submenu, user can configure the modulating parameters
for the 1 carrier output separately:

Page 8

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

 Constellation

Four different constellations QPSK, 16QAM and 64QAM will be shown on the LCD
window. User can set constellation type with the same method mentioned above.

 Transmission Mode

When user enters Transmission Mode, the LCD would show the current working
mode. User can move LEFT/RIGHT keys to select and press ENTER key to
confirm. 2K and 8K are the options:

2K: When the device works as current mode, the number of current carrier is 2048
8K: When the device works as current mode, the number of current carrier is 8192

 Guard Interval

In communications, guard intervals are used to ensure that distant transmissions do not
interfere with each other. These transmissions may belong to different users (as in
TDMA) or same user (as in OFDM). The purpose of the guard interval is to introduce
immunity to propagation delays, echoes and reflections, to which digital data is
normally very sensitive. There are four possible options provided to be selected. They
are 1/4, 1/8, 1/16, 1/32. User can shift the LEFT/RIGHT keys to select and press
ENTER to confirm.

 Code Rate

Guard Interval

1/8 1/16 1/32

Bandwidth

6M 7M 8M

Constellation

QPSK 16QAM 64QAM

Transmission Mode

2K 8K

Page 9

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

The code rate includes 1/2, 2/3, 3/4, 5/6, and 7/8. After entering this submenu, the
LCD display would show them, users just need press LEFT and RIGHT buttons to
choose and press ENTER button to confirm.

 RF Frequency

The RF output frequency range is from 30 to 999MHz with 1K stepping. After
entering the RF frequency setting submenu, users the can press LEFT, RIGHT,
UP, and DOWN buttons to adjust the frequency and confirm by press ENTER
button.

 RF Out Level

The RF attenuation range is from -30~-10dbm (77~97dbµV) with 0.1db step.
After entering this setting submenu, user can shift UP/DOWN/LEFT/RIGHT
key to set the output level and press ENTER to confirm.

 RF On

This interface is to decide whether to enable the RF (carrier A) output or not.

OFF: to disable programs to output through carrier A.
ON: to enable programs to output through carrier A.

ASI Output:

RF Frequency

750.000 MHz

RF Out Level

-10.0 dbm

Code Rate
1/2 2/3 3/4 5/6

RF On

Off On

SD4260 encoder & modulator (DVB-T Modulating) is with two carrier output A,

Page 10

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

B.

Output A: the ASI output programs are same as carrier output A.
Output B: the ASI output programs are same as carrier output B.

4) IP Output Setting

The encoder & modulator in use is with two MPTS (or 4 SPTS), 4.1 and 4.2 are for
the settings of the two MPTS output respectively.

5) Network setting

After enter Network Setting, there are three submenus shows as the following LCD
displays.

5.5 Reset Password

5.6 Web Manage Port

5.3 Gateway

5.4 MAC Address

5.1 IP Address

5.2 Subnet Mask

4.1.1 IP Output

4.1.2 Service IP

4.1.3 Output IP

4.1.4 Subnet Mask

4.1.5 Gateway

4.1.6 Port

Output IP

224.002.002.002

Subnet mask

255.255.255.000

Gateway

192.168.002.000

Port
01234

IP Output
OFF ON

Service IP

192.168.002.137

ASI Output

Output A Output B

4.1 IP Output A

4.2 IP Output B

Page 11

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

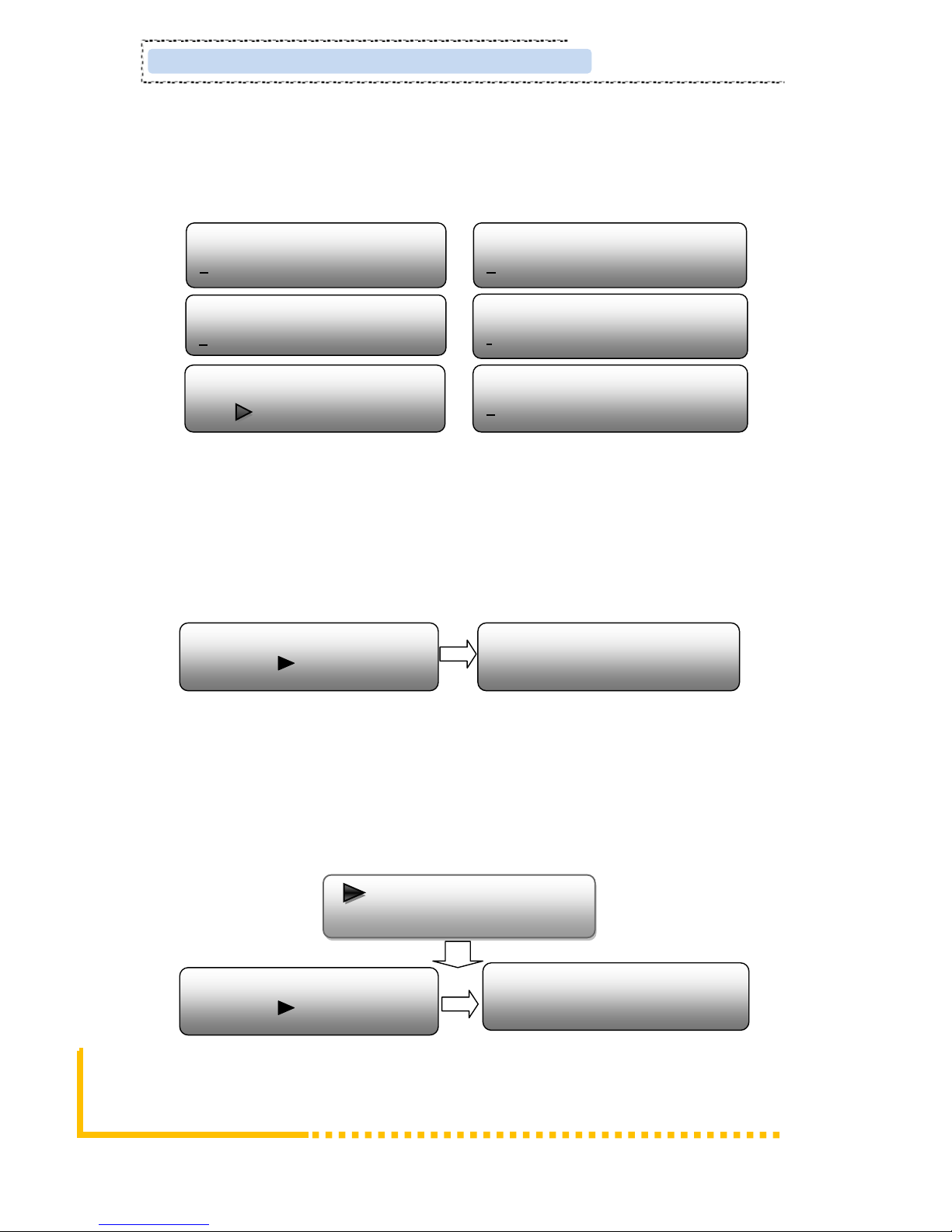

User can press “UP/DOWN” to choose this item and “ENTER” & “LEFT/RIGHT” to
set the parameters.

NOTE: The MAC address is according to the factory setting, and it is unique.

6) Saving Configuration

Users can enter Saving Configuration submenu for saving settings. Choose yes and
press ENTER to confirm.

7) Loading Configuration

At this menu, user can press UP/DWON key to select and repress ENTER to confirm.

User can restore the device into the last saved configuration by choosing “7.1” and
restore the device into factory configuration by choosing “7.2” the display will show

as below:

8) Version

User can check the software version and hardware version of this equipment under
this submenu.

IP Address

192.168.000.136

Subnet Mask

255.255.255.000

Gateway

192.168.000.001

MAC Address
ffffffffffffffffffffff

Reset Password?
Yes NO

Save Configuration?

Yes No

Saving Config…

Load Saved CFG?
Yes No

Loading Config…

7.1 Load Saved CFG

7.2 Load Default

Web Manage Port
00080

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 12

Encoder Modulator

SW X.XX HW X.X

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 13

Chapter 4 WEB NMS Operation

4.1 login

Figure-1

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

User not only can use front buttons to set configuration, but also can control and set the
configuration in computer by connecting the device to web NMS Port. User should ensure

that the computer’s IP address is different from the SD4260’s IP address; otherwise, it

would cause IP conflict.

The default IP address of this device is 192.168.0.136. (We can modify the IP through
the front panel.)
Connect the PC (Personal Computer) and the device with net cable, and use ping command
to confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx
(xxx can be 0 to 255 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder & Modulator’s
IP address in the browser’s address bar and press Enter.
It will display the Login interface as Figure-1. Input the Username and Password (Both the
default Username and Password are “admin”.) and then click “LOGIN” to start the device
setting.

Page 14

4.2 Operation

Welcome

When we confirm the login, it displays the WELCOME interface as Figure-2.

Figure-2

Input 1

From the menu on left side of the webpage, clicking “Input 1”, it displays the information
of the programs from the 1st encoding board as Figure-3.

The 1st encoding board: Program 1 & 2

User can click any item
here to enter the
corresponding interface
to check information or
set the parameters.

Device standard
and name

It displays the
signal source
interface as per
you set in “Input
1/2” interface and
displays real-time
encoding bit rate
of corresponding
input channel.

Page 15

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Figure-3

User can choose to output program via 2 carriers(A, B).

For user to turn to refer detailed explanation of terms on this interface

Click this button to apply the default setting of Input 1

Click this button to apply the modified parameters.

Input 2

Similarly, from the menu on left side of the webpage, clicking “Input 2”, it displays the
information of the programs from the 2ed encoding board.

The 2ed encoding board: Program 1 & 2

General
Settings for the
input programs:
User can edit
any item listed
as needed.

Program 1

Program 2

Video Status: Green light indicates
the corresponding source cables are
properly connected.
Encoding Status—Green light
indicates the encoding process is
running normally, which otherwise
turn to red.

Sd4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 16

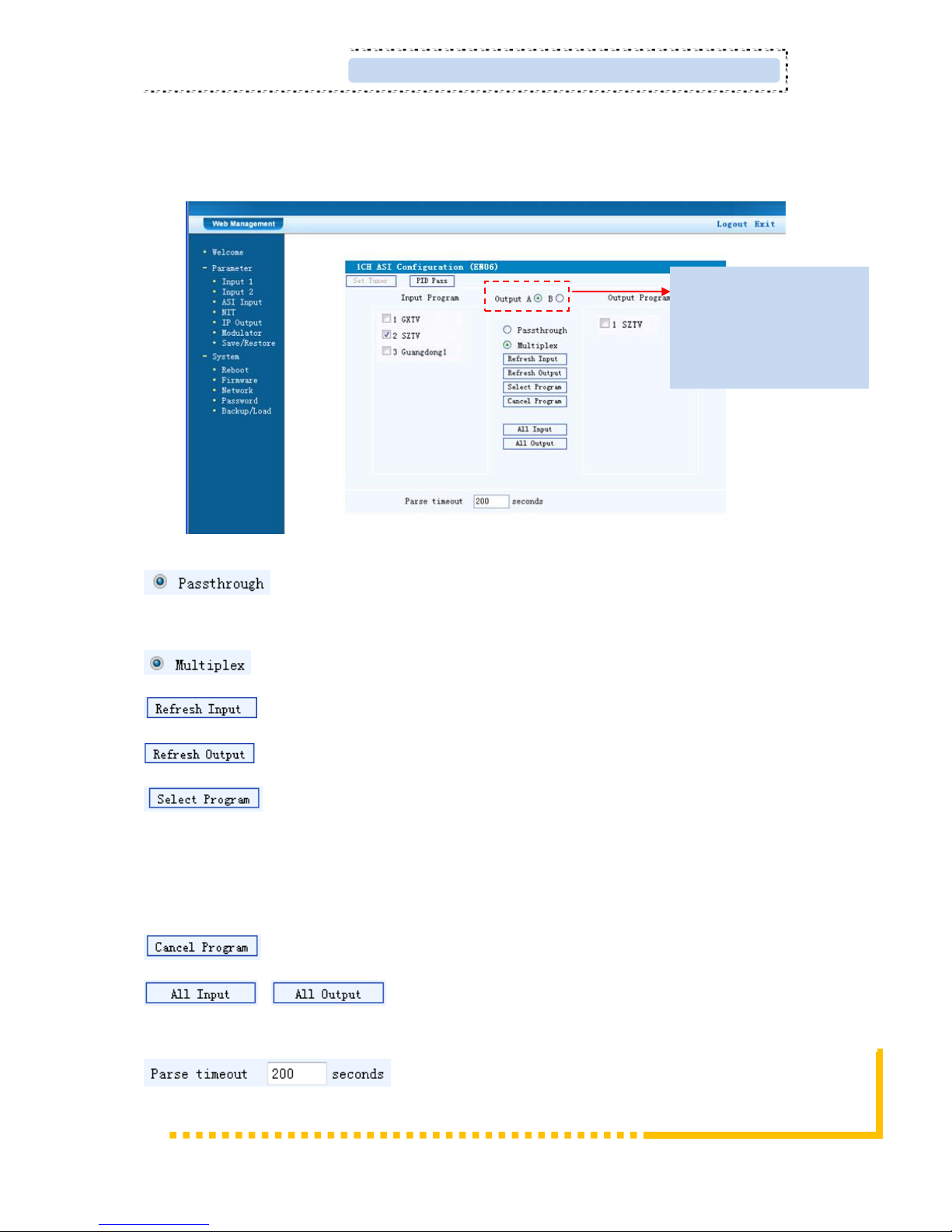

ASI Input

Click “ASI Input”, it will display ASI input program information as Figure-4. User can
parse and multiplex ASI IN programs in this interface.

Figure-4

If this item is selected, all the input programs will pass through without

any elimination.

Selecting this item to allow user select programs as required to output.

Click “Refresh Input” to refresh the input program list.

Click “Refresh Output” to refresh the output program list.

When user checks one input program with “√”, one can transfer the

checked program to the right box to output.
Here user can select the programs which we want to output or we can output all the
programs.

Similarly, user can cancel the multiplexed programs from the right box.

& to select all the input/output programs with one-time

clicking.

Time limitation to parse the input programs

The 2 letters represent
the 2 carrier outputs.
User can configure
different program group
for each carrier output.

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 17

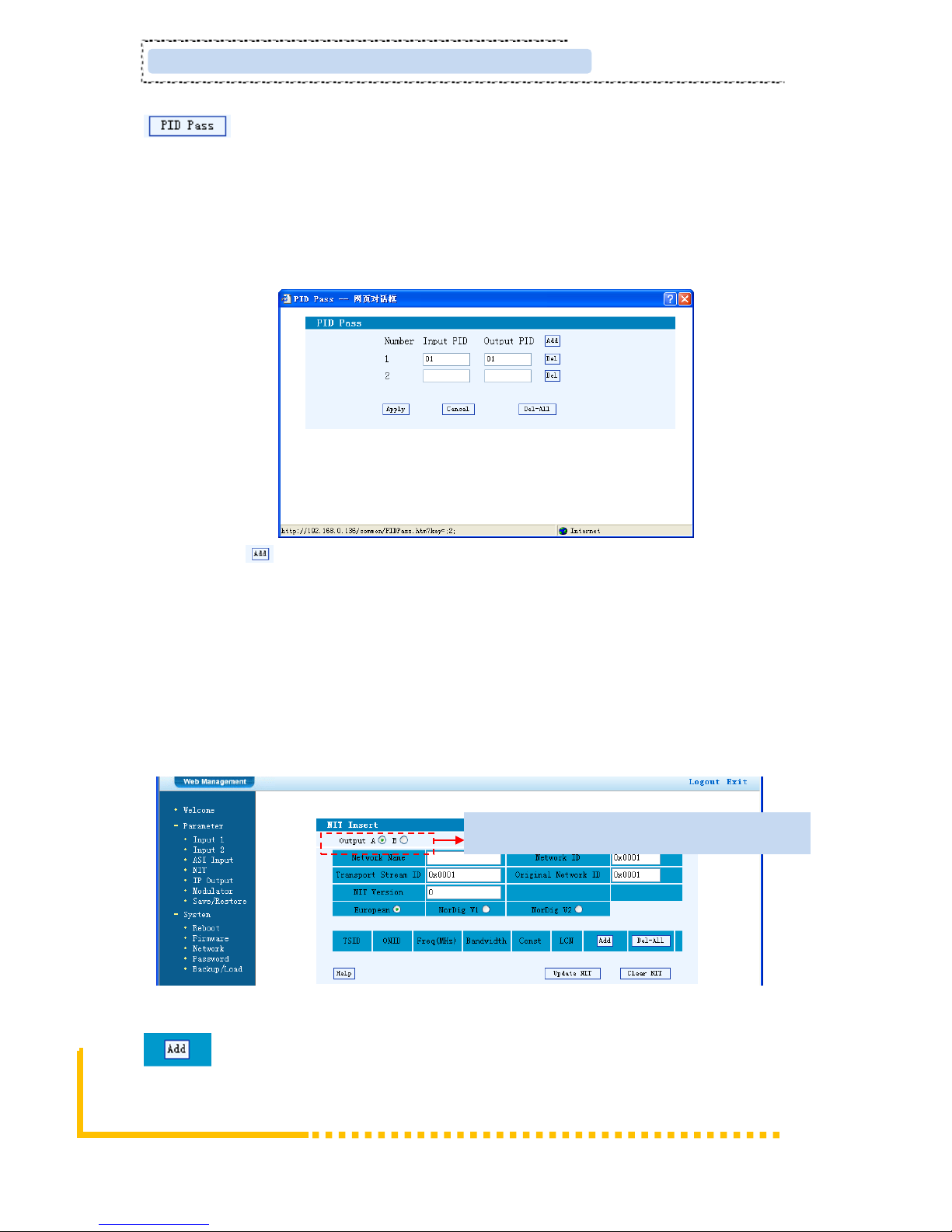

Click this button to trigger a dialog box as below, where to add the PIDs

which need pass through.

In some occasions, there are some PIDs which won’t belong to any program, such as EPG,

NIT tables and so on which user just wants to pass them through the multiplexing module
without changing anything. This is the main purpose of this function.

Click “Add” to add more boxes for filling the Input & Output PIDs, then click
“Apply” to confirm.

NIT Table setting

Click “NIT” from the menu to trigger the screen as Figure-5. Then click “Add” from this
screen to add the program descriptor in NIT Table.

Figure-5

Click “Add” from this page, it will display the screen as Figure-6 where it

requires to add Service ID and configure other parameters for the programs.

The 2 letters represent the 2 carrier outputs.

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 18

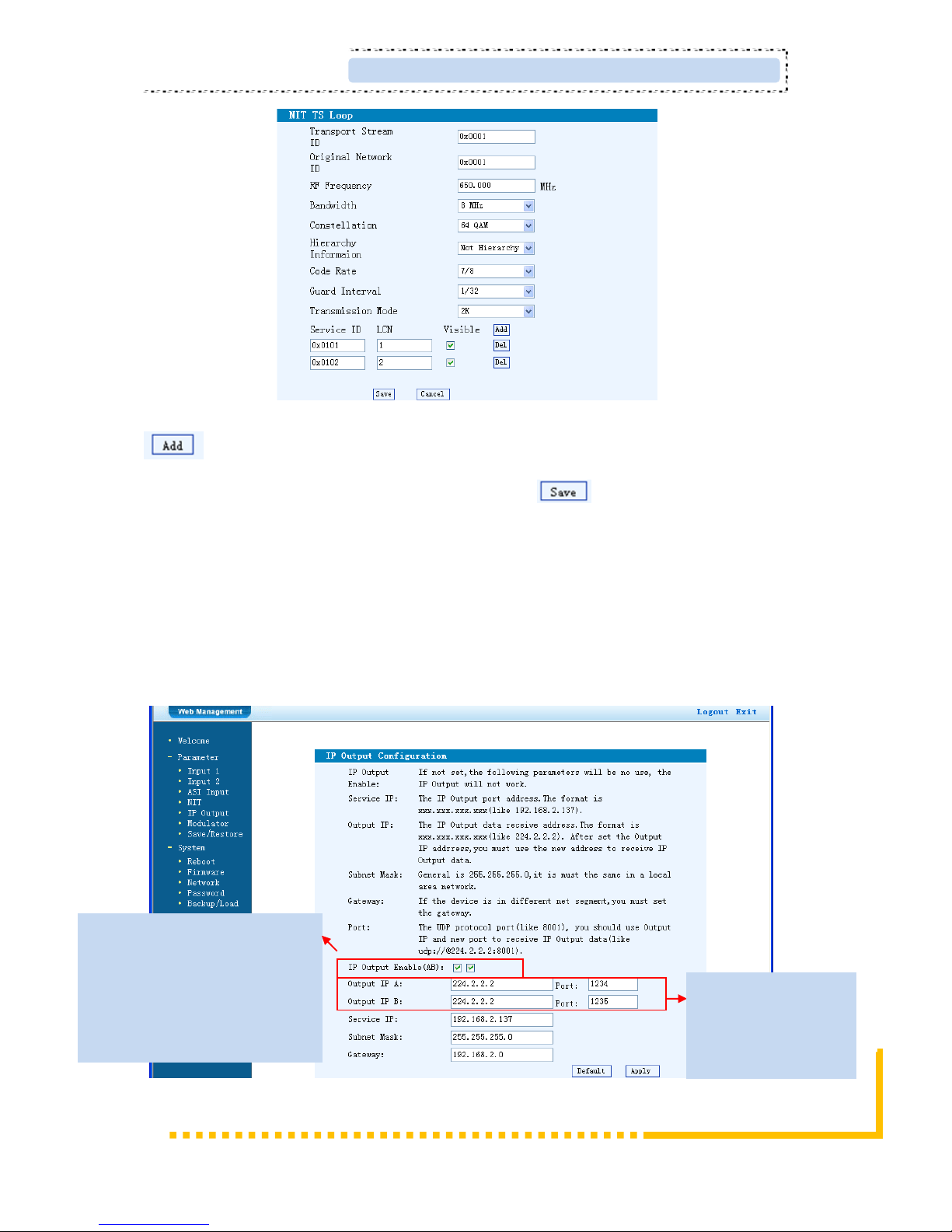

Figure-6

Here by clicking “Add”, users can set the program NIT in its respective field.

After setting all the data, users need to click on “Save” to save the setting.

IP Output

Click “IP Output” from the left menu, it will display the screen as Figure-7 where to
configure the output IP.
After setting the parameters, click “Apply” to save the setting.

Figure-7

This device is with 2 MPTS (or 4
SPTS) IP output. The 2 (or 4) boxes
represent respectively IP Channel.
Click the related box(es) to enable
the corresponding channel(s) to
output programs.

To configure the
output IP address and
ports for the IP
Channels respectively.

Sd4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 19

Modulator Setting

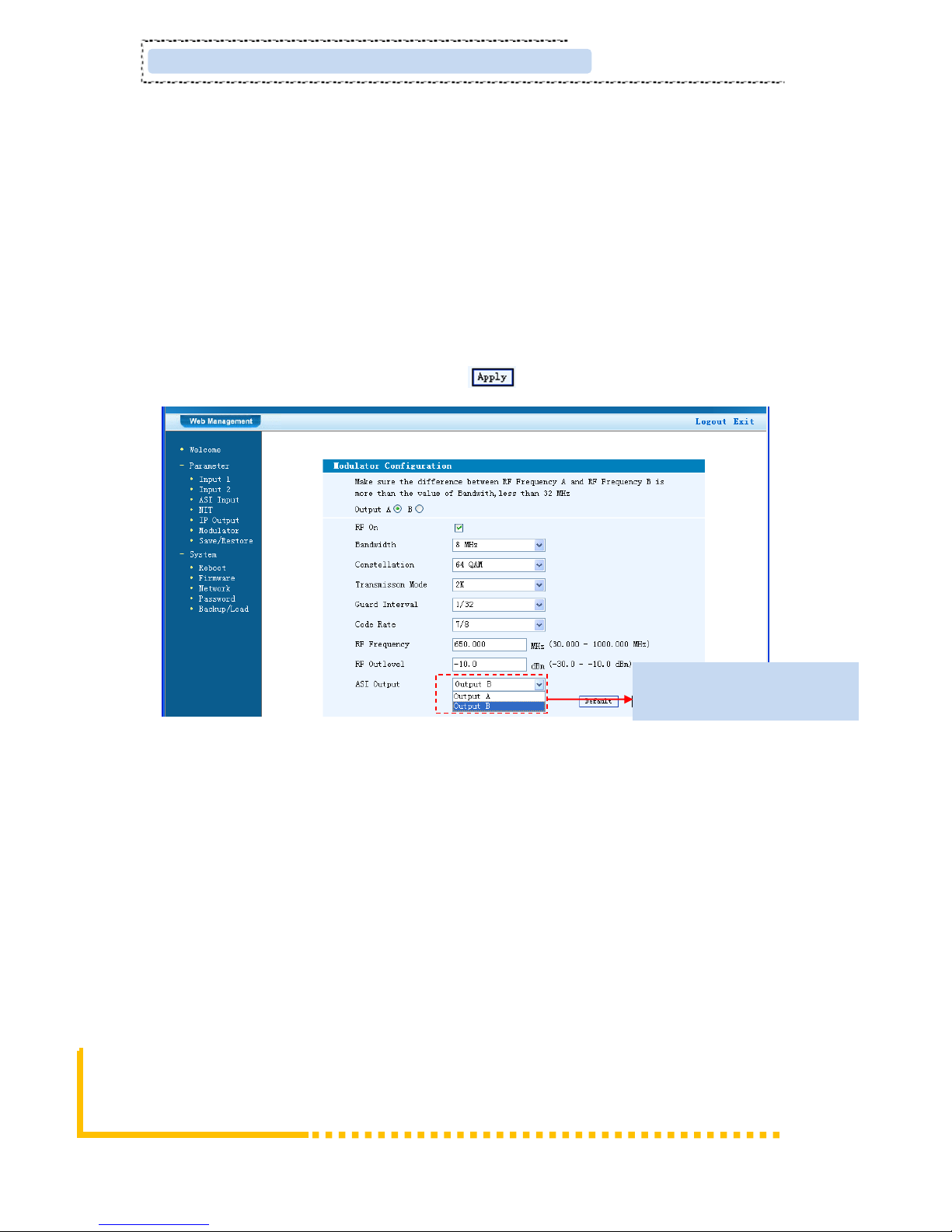

Enter in “Modulator” and it will display the Modulator Configuration screen as Figure-8
where can set modulation parameters.

RF On –To decide whether to enable the RF (carrier A/B) output or not.
ASI Output– To select carrier output channel for ASI output (Output A: The ASI output

programs are same as carrier A; Output B: The ASI output programs are same as carrier
B.)

After setting all the parameters, click “Apply” to save the Modulator Configuration.

Figure-8

Save/Restore

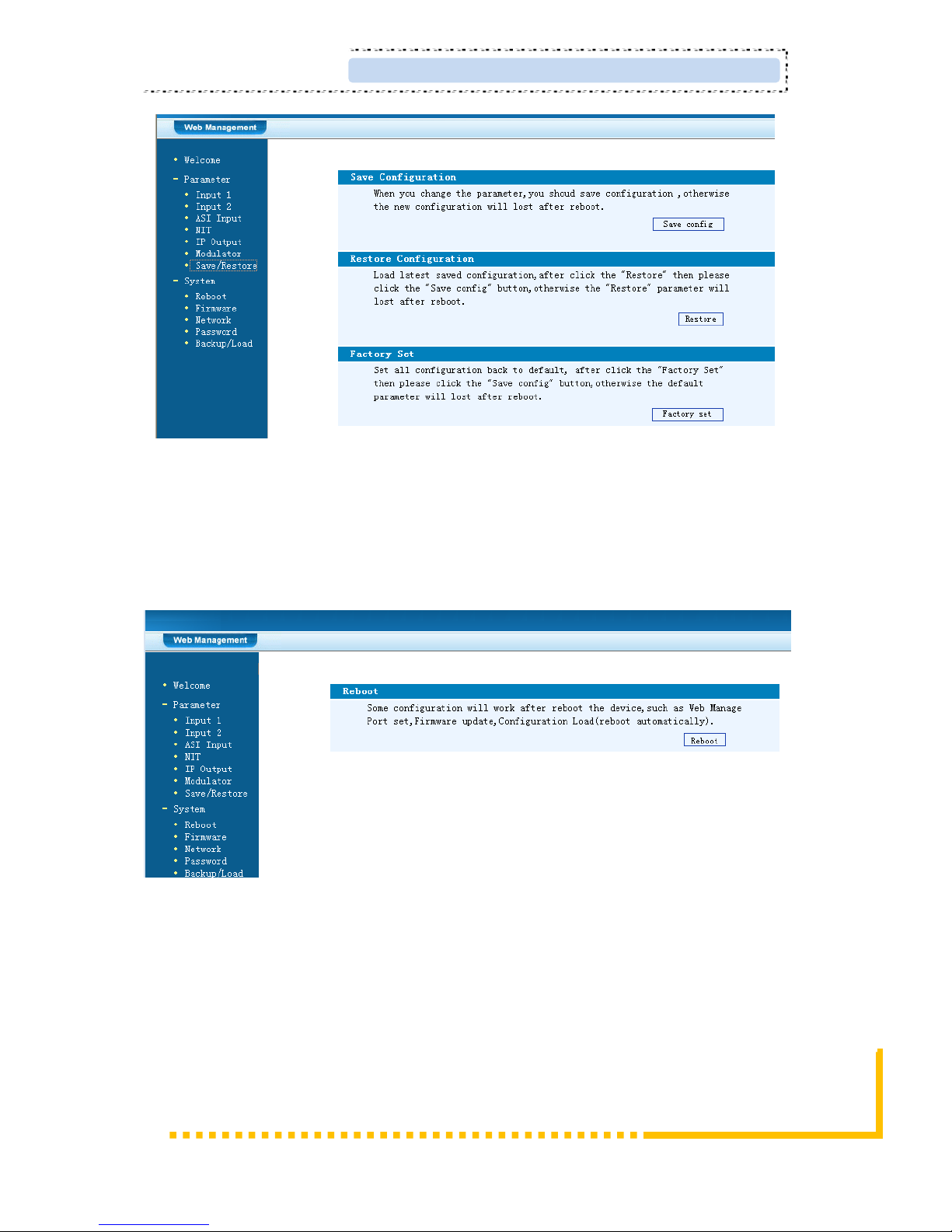

Clicking “Save/Restore” from the menu, it will display the screen as Figure-9 where can
save the configuration permanently to the device. Click “Save Configuration”, for store the
data permanently to the device.
By using “Restore Configuration” user can restore the latest saved configuration to the
device.
By using “Factory Set” user can import the default factory configuration.

To choose ASI output programs,
as a mirror of one carrier.

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 20

Figure-9

Restart the Device

Click “Reboot” from the menu, the screen will display as Figure-10. Here when clicking
“Reboot” box, it will restart the device automatically.

Figure-10

Update the Device

Click “Firmware” from the menu it will display the screen as Figure-11. Here user can
update the device by using the update file.
Click “Browse” to find the path of the device update file for this device then click
“Update” to update the device.

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 21

After updating the device, user needs to restart the device by using Reboot option.

Figure-11

Network

When user clicks “Network”, it will display the screen as Figure-12. It displays the
network information of the device. Here user can change the device network configuration
as needed.

Figure-12

Change Password

Browse Button

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 22

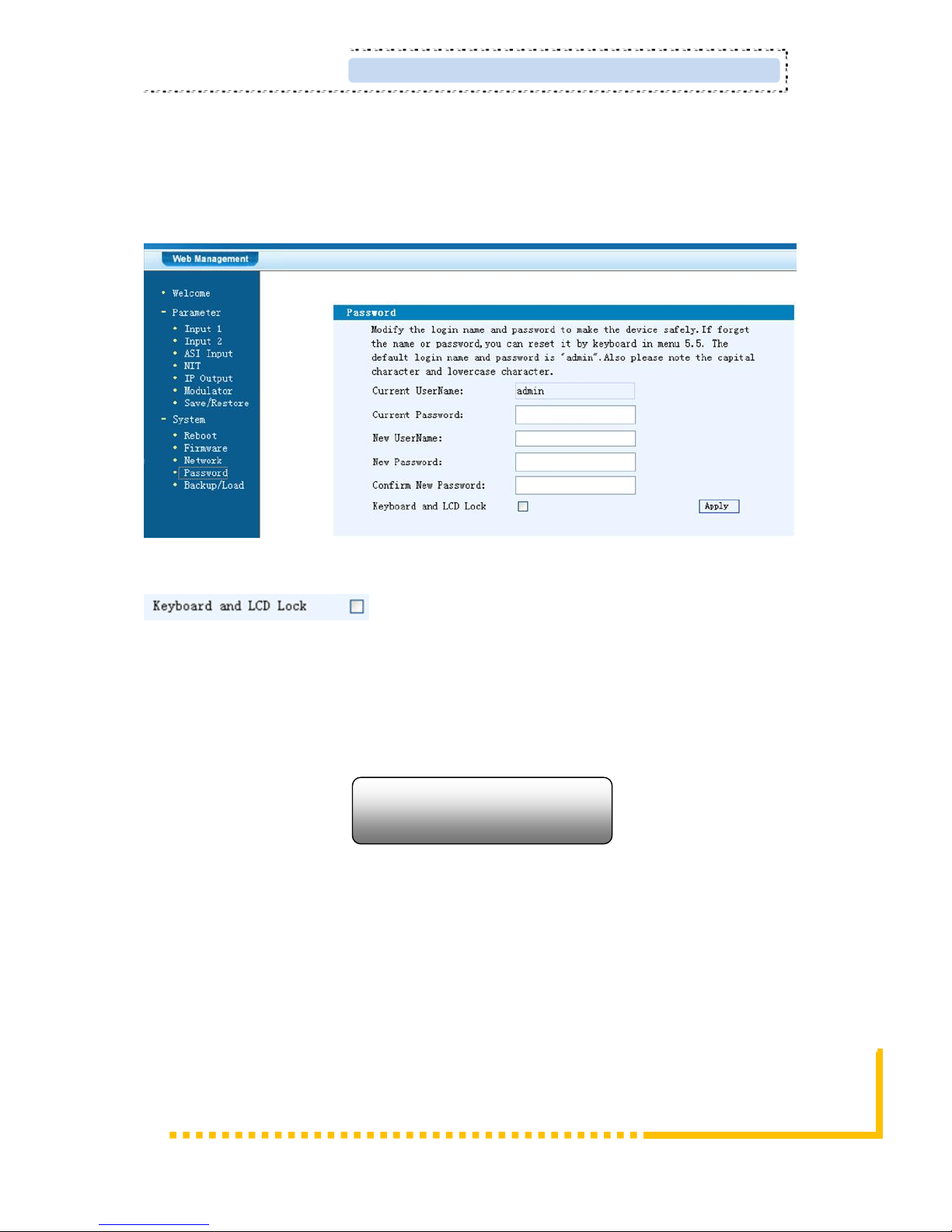

When user clicks “Password”, it will display the password screen as Figure-13. Here user
can change the Username and Password for login to the device.
After putting the current and new Username and Password, click Apply” to save the
configuration.

Figure-13

 Keyboard and LCD Lock: If it is marked with “√”，the LCD and keyboard will be
locked to avoid unexpected modification or view of the device information and

configurations. User can’t operate the keyboard & LCD while only the device IP address

can be noted in the LCD window.

Backup/Load

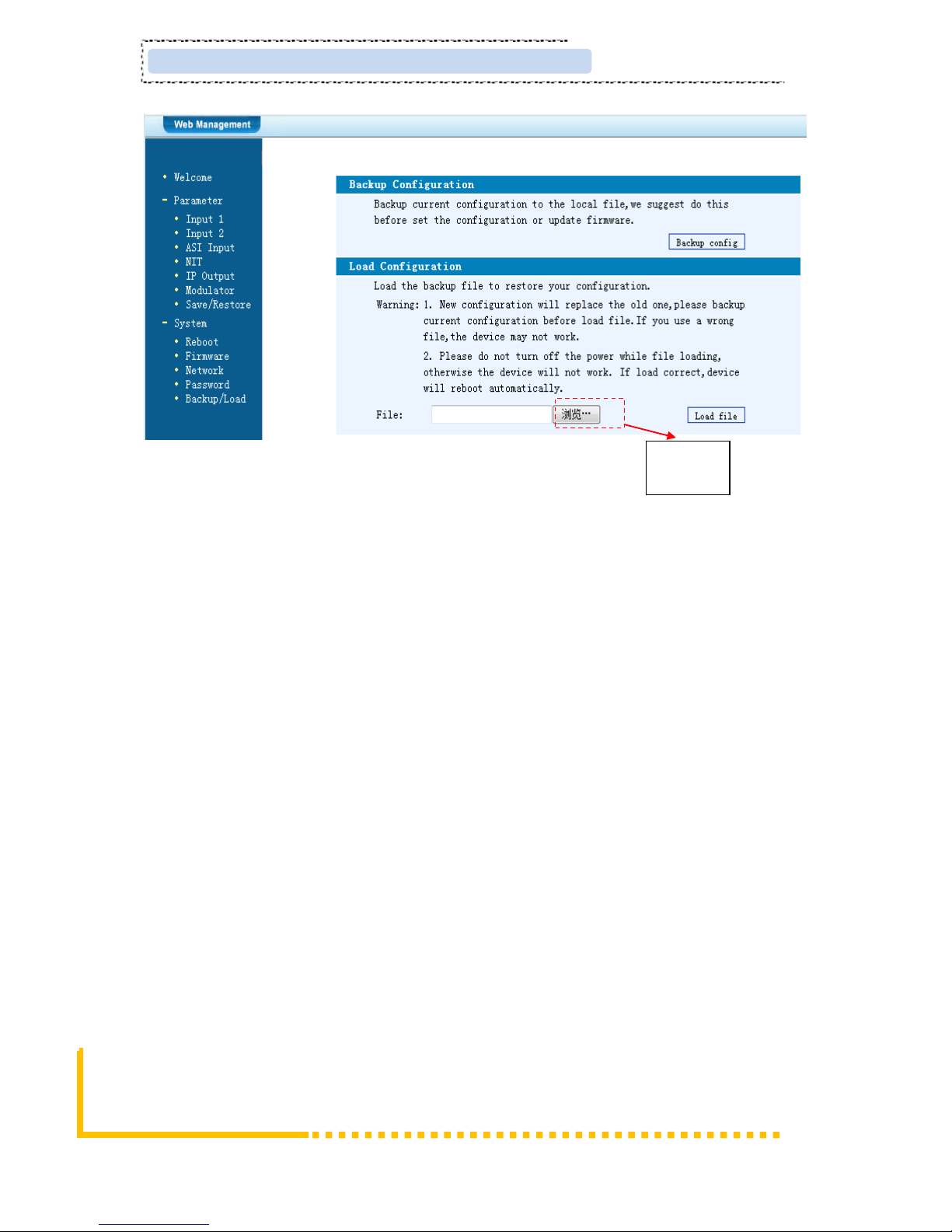

Click “Backup/Load” from the menu, it will display the screen as Figure-14.

Backup Configuration – To back up the device configuration file to a folder
Load Configuration – If user needs to load the old configuration to the device, click

“Browse” and find the backup configuration file path. After selecting the file, click “Load
File” to load the backup file to the device.

IP Address

192.168.000.136

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 23

Figure-14

Browse
Button

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 24

Chapter 5 Troubleshooting

Prevention Measure

 Installing the device at the place in which environment temperature between 0 to

45 °C

 Making sure good ventilation for the heat-sink on the rear panel and other heat-sink

bores if necessary

 Checking the input AC within the power supply working range and the connection

is correct before switching on device

 Checking the RF output level varies within tolerant range if it is necessary
 Checking all signal cables have been properly connected
 Frequently switching on/off device is prohibited; the interval between every

switching on/off must greater than 10 seconds.

Conditions need to unplug power cord

 Power cord or socket damaged.
 Any liquid flowed into device.
 Any stuff causes circuit short
 Device in damp environment
 Device was suffered from physical damage
 Longtime idle.
 After switching on and restoring to factory setting, device still cannot work properly.
 Maintenance needed

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Page 25

ClearView’s ISO9001 quality assurance system has been approved by CQC
organization. For guarantee the products’ quality, reliability and stability. All

ClearView products have been passed the testing and inspection before ship out
factory. The testing and inspection scheme already covers all the Optical,
Electronic and Mechanical criteria which have been published by DEXIN. To
prevent potential hazard, please strictly follow the operation conditions.

Chapter 6 Packing List

User Manual 1PC
S-Video Cables 4PCs
CVBS Cables 4PCs
YPbPr Cables 4PCs
Power Cord 1PC

Page 26

SD4260 S-Video/CVBS/YPbPr to DVB-T Encoder Modulator User Manual

Sd4260 Encoder Modulator 1PC
