ClearView K6 User Manual

HDAVS Camera User’s Manual

Version 1.0.1

2

Table of Contents

1 General Introduction .................................................................................................................. 1

1.1 Overview ........................................................................................................................ 1

1.2 Features ......................................................................................................................... 1

2 Device Framework ..................................................................................................................... 2

3 Installation.................................................................................................................................... 9

4 Menu ........................................................................................................................................... 17

4.1 HDAVS Settings ......................................................................................................... 17

4.2 Menu Operation .......................................................................................................... 17

i

Welcome

Thank you for purchasing our HDAVS camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

Important Safeguards and Warnings

1．Electrical safety

 All installation and operation here should conform to your local electrical safety codes.
 The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the

Limited power source is rated DC 12V or AC24V in the IEC60950-1. (Power supply requirement is
subject to the device label).

 Please install easy-to-use device for power off before installing wiring, which is for emergent power

off when necessary.

 Please check if the power supply meets the requirements of working voltage of the camera before

operating the device (The material and length of the power supply cable will influence terminal
voltage value).

 Please prevent the line cord from being trampled or pressed, especially the plug, power socket and

the junction from the device.

2．Environment

 Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus.
 Please transport, use and store the device within the range of allowed humidity and temperature.
 Please do not allow water and other liquid falling into the camera in case that the internal

components are damaged.

 Please keep the sound ventilation in case of heat accumulation.
 Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

 Please pack the device with standard factory packaging or material with same quality when

transporting the device.

 It is recommended to use the device together with lightning protection device to enhance lightning

protection effect.

 It is recommended to GND the device to enhance device reliability.
 It is advised to use qualified video transmission cable to improve video quality. It is recommended

to use 75-3 coaxial cable or higher standard.

Warning

 Please use the standard accessories provided by manufacturer and make sure the device is

installed and fixed by professional engineers.

 Please prevent the device surface from the radiation of laser beam when using laser beam device.

ii

 Please do not provide two or more power supply modes for the device, otherwise it may cause

damage to the device.

Statement

 Please refer to the actual product for more details; the manual is just for reference.
 The manual will be regularly upgraded according to the product update; the upgraded content will

be added in the manual without prior announcement.

 Please contact the customer service for the latest procedure and supplementary documentation.
 The company is not liable for any loss caused by the operation which is not followed by the manual.
 Please refer to the company’s final explanation if there is any doubt or dispute.

1

1 General Introduction

1.1 Overview

This series HDAVS camera conforms to the HDAVS standard. It supports video signal high­speed long distance transmission without any delay. It can be controlled by the HDAVS
conforming to the HDAVS.

1.2 Features

 High-performance CMOS image sensor, megapixel definition.
 Support HD video, control signal coaxial transmission.
 For 720P series, support 75-3 coaxial cable transmission without any loss. The distance is

over 800m. For 1080P series, support 75-3 coaxial cable transmission without any loss.
The distance is over 500m.

 Support HDAVS HD/SD output.
 Support ICR switch to realize surveillance both in the daytime and at night.
 Support OSD menu adjustment parameters.
 Support smart IR function.
 Support DWDR function.
 Support High speed, long distance real-time transmission.
 Support DC12V power supplying.
 Support IP67 compliance.
 Support ICR switch to realize surveillance both in the daytime and at night.
 Support photosensor IR control function.
 It can be applied to the various scenes such as store, supermarket, coffee shop, school,

hotel, office, restaurant, garden, parking lot and etc.

2

2 Device Framework

Please refer to Figure 2-1 for dimension information. The unit is mm.

Figure 2-1

Please refer to Figure 2-2 and Figure 2-3 for structure components of model A.

Figure 2-2

3

Figure 2-3

Please refer to Figure 2-4 for dimension information of model B. The unit is mm.

Figure 2-4

Please refer to Figure 2-5 for structure components of model B.

4

Figure 2-5

Please refer to Figure 2-6 for dimension information of model C. The unit is mm.

Figure 2-6

Please refer to Figure 2-7 for structure components of model C.

5

Figure 2-7

Please refer to Figure 2-8 and Figure 2-9 for dimension information of model D. The unit is mm.

Figure 2-8

Figure 2-9

6

Please refer to Figure 2-10 for structure components of model D.

Figure 2-10

Please refer to Figure 2-11 and Figure 2-12 for dimension information of model E. The unit is
mm.

Figure 2-11

Figure 2-12

7

Please refer to Figure 2-13 for structure components of model E.

Figure 2-13

Please refer to Figure 2-14 and Figure 2-15 for dimension information of model F. The unit is
mm.

Figure 2-14

Figure 2-15

8

Please refer to Figure 2-16 for structure components of model F.

Figure 2-16

Please refer to Figure 2-17 and Figure 2-18 for dimension information of model G. The unit is
mm.

Figure 2-17

Figure 2-18

9

3 Installation

Important
 Before the installation, please make sure the installation surface can sustain at

least 3X weight of the bracket and the camera.

Model A

Figure 3-1

Step1

Take out the camera cable through cable exit of the bracket chassis and install camera bracket.
If it is cement wall, you need to install expansion bolt first (the installation hole of expansion
bolt need to be in accordance with the bracket), then use self-tapping bolt to install bracket,
which is shown in Figure 3-1.

If it is wooden wall, you can skip the first step and use self-tapping bolt to install bracket
directly.

Step 2

Unscrew the M3×20 and M3×5 screws on the bracket in the direction shown in Figure 3-2,
adjust the camera to an exact location which needs to be monitored by rotating the bracket
and camera body, then secure the bolts.

10

Figure 3-2

Step 3

Connect the video output port of the device cable to the HDAVS, and connect the power port
of the device cable to the power.

Step 4

After the image is shown on the HDAVS, open the lower cover of the camera and adjust lens
focal length by focus/zoom lever to make the image clear and secure the lever. Retighten the
camera lower cover and complete the installation.

Model B/Model C

Figure 3-3

11

Figure 3-4

Step 1

Install the camera bracket according to your installation mode.

Before you install the bracket, please pull the cable through the cable exit of the
installation surface or pull the cable through the cable exit of the bracket.

 Please install the expansion bolt if you want to install in the cement wall (Please make

sure the installation holes of the expansion bolts are the same with the bracket.) Then you
can install the bracket.

 If you want to install in the wood surface, please skip the first step and then use the self-

tapping screws to install the bracket directly.

Step 2

Put the two self-tapping screws to the two expansion blots at the top left and the top right.
Secure the bracket on the self-tapping screws.

Important

The screw depth shall reserve 8mm-10mm to secure the bracket.

Step 3

Fix other two self-tapping screws and the secure. Now the camera is fixed on the installation
surface.

Step 4

Use the L wrench (provided) to loosen the adjusting screw to make the camera can monitor
the corresponding surveillance zone. Use the L wrench to adjust the adjusting screw to fix the
camera firmly.

Step 5

Connect the video output port of the device to the rear-end encode device such as DVR or
NVS. Then connect the power port of the device to the corresponding power supplying source.

12

Now you have completed the device installation and cable connection.
You can use the terminal encode device to view the monitor video.

Model D

Step 1

Dig three holes in the installation surface of the wall or the ceiling. Insert three expansion bolts
to the three holes and then lock firmly. See Figure 3-5.

Figure 3-5

Step 2

Line up the three screw holes at the bottom of the bracket to the three installation holes in the
wall or the ceiling, and then insert three screws to the three holes of the chassis of the bracket
and fix them firmly. Now secure the bracket on the installation surface of the wall or the ceiling.

Step 3

Adjust the camera to the proper monitor area via the three directions indicated in Figure 3-6
after you fixed the camera.

13

Figure 3-6

Model E

Figure 3-7

Step 1

Install the camera bracket.
Please install the expansion bolt if you want to install in the cement wall (Please make sure the
installation holes of the expansion bolts are the same with the bracket.) Then you can install
the bracket. See Figure 3-7.
If you want to install in the wood surface, please skip the first step and then use the self­tapping screws to install the bracket directly.

Step 2

Install the camera. Use the screws to install the camera to the bracket via the installation
pedestal of the bottom of the camera.

14

Step 3

Adjust the camera to the proper monitor area and then tighten the button of the bracket firmly
to fasten the camera. See Figure 3-8.

Figure 3-8

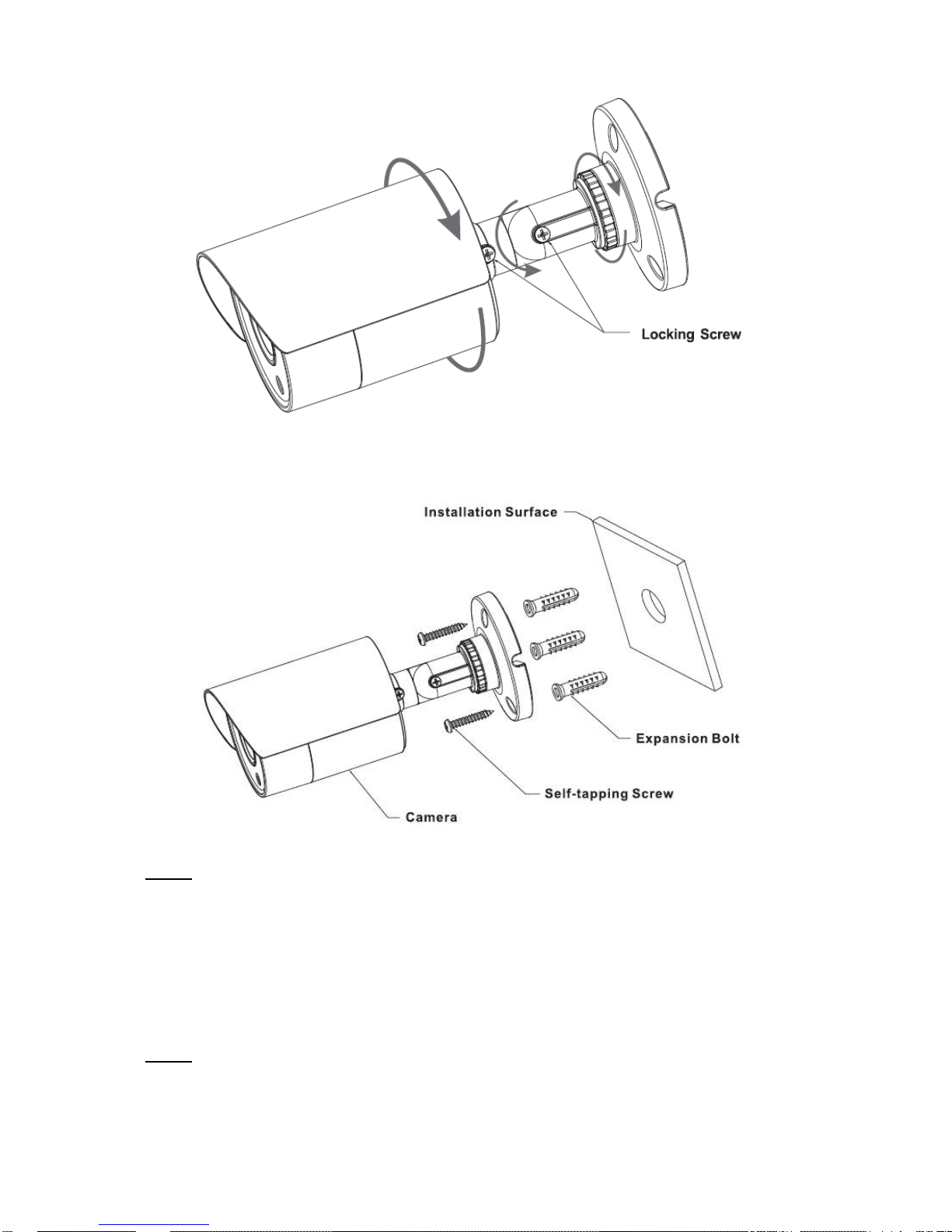

Model F

Figure 3-9

Step 1

 Please install the expansion bolt if you want to install in the cement wall (Please make

sure the installation holes of the expansion bolts are the same with the bracket.) Then you
can install the bracket. See Figure 3-9.

 If you want to install in the wood surface, please skip the first step and then use the self-

tapping screws to install the bracket directly.

Step 2

15

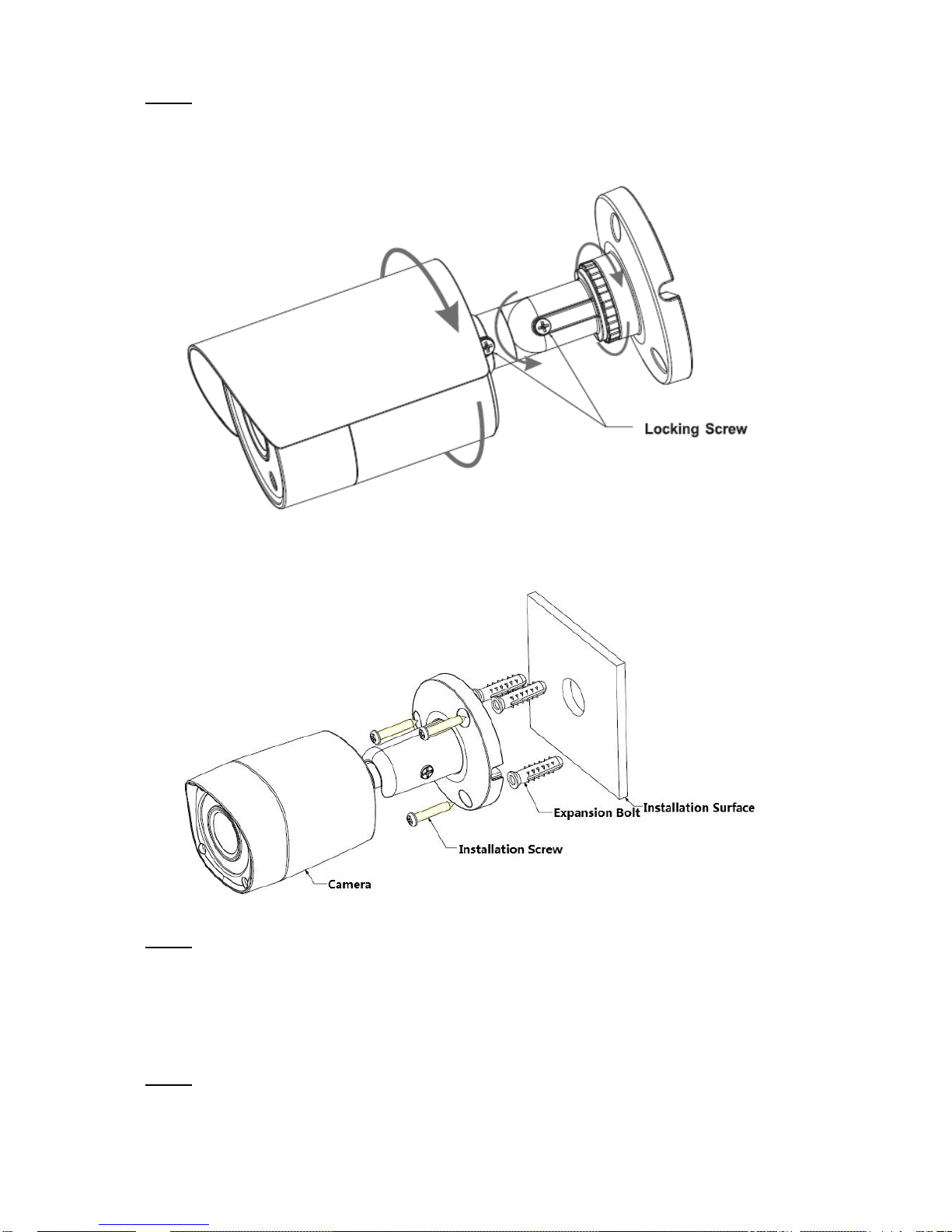

Unscrew the locking screws on the bracket in the direction shown in Figure 3-10, adjust the
camera to an exact location which needs to be monitored by rotating the bracket and camera
body, and then secure the bolts.

Figure 3-10

Step 3

Connect the video output port of the device cable to the terminal encode devices, and connect
the power port of the device cable to the power.

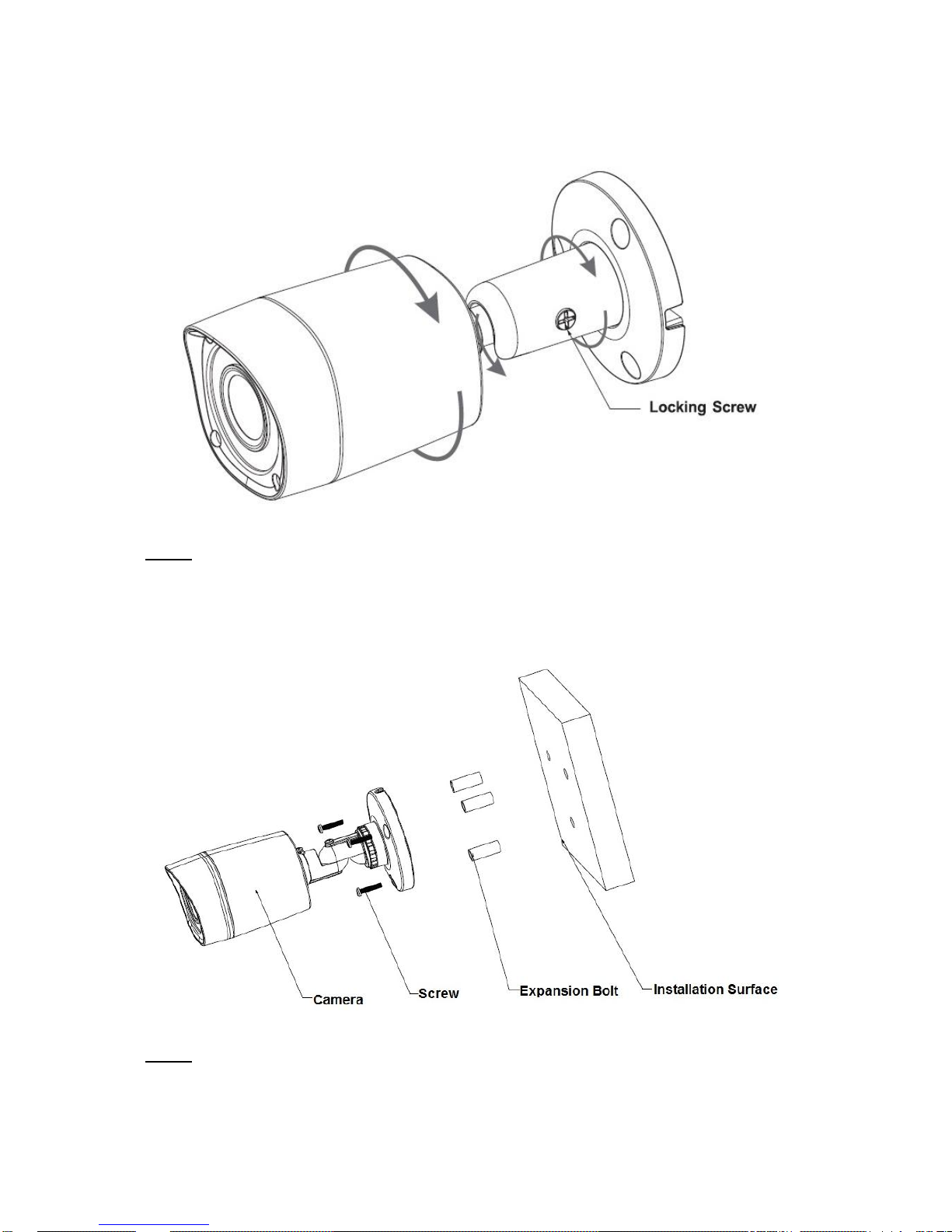

Model G

Figure 3-11

Step 1

Install the camera bracket.

16

Please install the expansion bolt if you want to install in the cement wall (Please make sure the
installation holes of the expansion bolts are the same with the bracket.) Then you can install
the bracket. See Figure 3-11.
If you want to install in the wood surface, please skip the first step and then use the self­tapping screws to install the bracket directly.

Step 2

Install the camera. Use the screws to install the camera to the bracket via the installation
pedestal of the bottom of the camera.

Step 3

Adjust the camera to the proper monitor area and then secure the button of the bracket to
fasten the camera. See Figure 3-12.

Figure 3-12

17

4 Menu

4.1 HDAVS Settings

This HDAVS camera series can adjust OSD menu via coaxial control. After connected the
camera to the HDAVS series HDAVS, from Main Menu->Setting->System->PTZ, you need to
select the channel number for access and set control mode as HDAVS and the protocol as
HD-AVS. Click “Save” button to save current setup. See Figure 4-1.

Figure 4-1

4.2 Menu Operation

Click the right mouse button and select “PTZ Control”, then you will see the “PTZ Setup” menu,
which is as shown in Figure 4-2 and Figure 4-3.

Figure 4-2

18

Figure 4-3

See Sheet 4-1 for the details of button functions.

Button

Function

Open menu

、

Select menu item

、

Select menu value

Sheet 4-1

If there is “ ”, click the “Confirm” button in “Menu Operation” interface to go to the 2nd menu.
Click “Return” button to go back to the previous menu interface.

Please use an UTC controller or enter the OSD menu for to switchover between HD & SD
video output.

Note

 This manual is for reference only. Slight difference may be found in the user

interface.

 All the designs and software here are subject to change without prior written

notice.

 All trademarks and registered trademarks mentioned are the properties of their

respective owners.

 If there is any uncertainty or controversy, please refer to the final explanation of

us.

 Please visit our website or contact your local service engineer for more

information.
