ClearView HD1112+ Quick Setup Manual

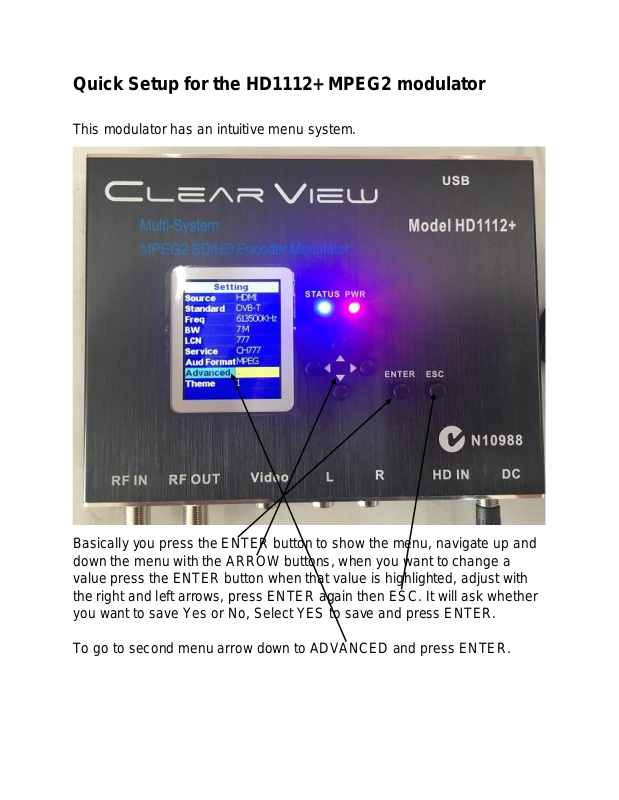

Quick Setup for the HD1112+ MPEG2 modulator

This modulator has an intuitive menu system.

Basically you press the ENTER button to show the menu, navigate up and
down the menu with the ARROW buttons, when you want to change a
value press the ENTER button when that value is highlighted, adjust with
the right and left arrows, press ENTER again then ESC. It will ask whether
you want to save Yes or No, Select YES to save and press ENTER.

To go to second menu arrow down to ADVANCED and press ENTER.

Advanced Menu

Same method of adjustment.
Press the ENTER button to show the menu, navigate up and down the

menu with the ARROW buttons, when you want to change a value press
the ENTER button when that value is highlighted, adjust with the right and
left arrows, press ENTER again then ESC. It will ask whether you want to
save Yes or No, Select YES to save and press ENTER.

The unit factory settings are Channel 40, 613.5MHz, 85dBuV output level,
LCN at 777, and input default is HDMI.
