ClearView Hawk04-HD, Hawk08-HD User Manual

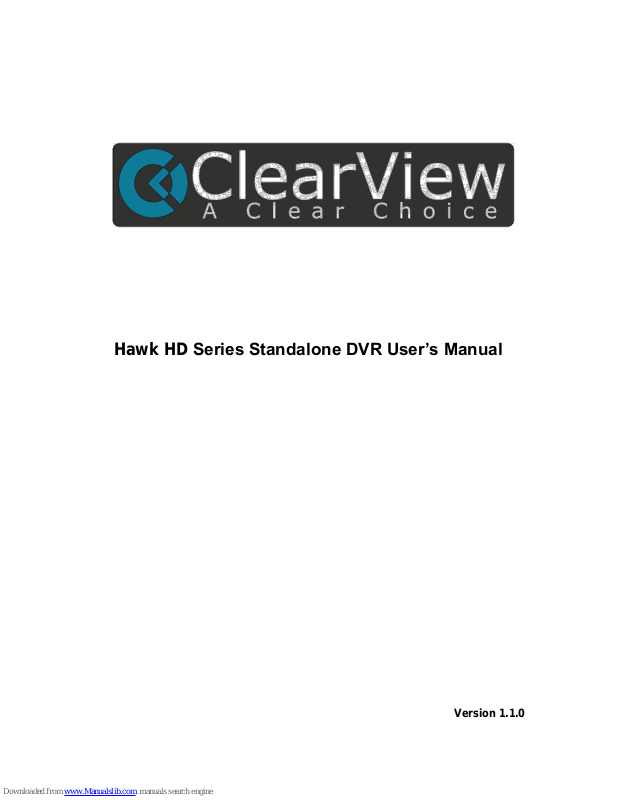

Hawk HD Series Standalone DVR User’s Manual
Version 1.1.0
Table of Contents
1 FEATURES AND SPECIFICATIONS ............................................................................................ 9
1.1 Overview ................................................................................................................................ 9
1.2 Features ................................................................................................................................. 9
1.3 Specifications ....................................................................................................................... 10
2 Overview and Controls .................................................................................................................... 13
2.1 Front Panel ........................................................................................................................... 13
2.2 Rear Panel ............................................................................................................................ 14
2.3 Connection Sample .............................................................................................................. 15
2.4 Re mote Control ................................................................................................................... 16
2.5 Mouse Control ..................................................................................................................... 18
2.6 Virtual Keyboard & Front Panel .......................................................................................... 19
3 Installation and Connections ............................................................................................................ 21
3.1 Check Unpacked DVR ......................................................................................................... 21
3.2 About Front Panel and Real Panel ....................................................................................... 21
3.3 HDD Installation .................................................................................................................. 21
3.4 Connecting Power Supply .................................................................................................... 23
3.5 Connecting Video Input and Output Devices ...................................................................... 23
3.6 Connecting Audio Input & Output, Bidirectional Audio ..................................................... 24
3.7 RS485 ................................................................................................................................... 24
3.8 Other Interfaces .................................................................................................................... 25
4 Overview of Navigation and Controls............................................................................................. 25
4.1 Login, Logout & Main Menu ............................................................................................... 25
4.2 Record .................................................................................................................................. 29
4.3 Search & Playback ............................................................................................................... 31
4.4 Schedule ............................................................................................................................... 34
4.5 Detect ................................................................................................................................... 38
4.6 Backup ................................................................................................................................. 42
4.7 PTZ Control and Color Setup .............................................................................................. 45
4.8 Preset/ Patrol/Pattern/Scan ................................................................................................... 46
4.9 Flip ....................................................................................................................................... 49
5 Understanding of Menu Operations and Controls .......................................................................... 50
5.1 Menu Tree ............................................................................................................................ 50
5.2 Main Menu ........................................................................................................................... 50
5.3 Setting .................................................................................................................................. 51
5.4 Search ................................................................................................................................... 67
5.5 Advanced ............................................................................................................................. 67
5.6 Infor mation ......................................................................................................................... 79
5.7 Shutdo wn ............................................................................................................................ 82
6 About Auxiliary Menu .................................................................................................................... 83
6.1 Go to Pan/Tilt/Zoom Menu ................................................................................................ 83
6.2 Preset /Patrol / Pattern /Border Function ............................................................................. 84
7 WEB OPER ATION ...................................................................................................................... 88
7.1 Network Connection ............................................................................................................ 88
7.2 Login .................................................................................................................................... 88
7.3 LAN Mode .......................................................................................................................... 89
7.4 WAN Login ......................................................................................................................... 97
7.5 Configure ........................................................................................................................... 100
7.6 Search ................................................................................................................................. 125
7.7 Alarm ................................................................................................................................. 128
7.8 About.................................................................................................................................. 129
7.9 Log out ............................................................................................................................... 130
7.10 Un-install Web Control ..................................................................................................... 130
8 Professional Surveillance System ................................................................................................. 131
9 FAQ .............................................................................................................................................. 132
Welcome
Thank you for purchasing our HD DVR!
This user’s manual is designed to be a reference tool for the installation and operation of
your system. Here you can find information about this series DVR features and functions, as well as a detailed menu tree. Before installation and operation please read the following safeguards and warnings carefully!
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by
improper handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.
3．Installation
Keep upwards. Handle with care. Do not apply power to the DVR before completing
installation. Do not place objects on the DVR
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
The DVR should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc.
This series product shall be transported, storage and used in the environment ranging from 0℃ to 40 ℃
6. Accessories
Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are
included. Contact your local retailer ASAP if something is broken in your package.
7. Lithium battery
Improper battery use may result in fire, explosion, or personal injury! When replace the battery, please make sure you are using the same model!
1 FEATURES AND SPECIFICATIONS
1.1 Overview
This series product is an excellent digital monitor product. It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame play function is suitable for detailed analysis. It has various functions such as record, playback, monitor at the same time and can guarantee audio video synchronization. This series product has advanced technology and strong network data transmission function.
This series device adopts embedded design to achieve high security and reliability. It can work in the local end, and at the same time, when connecting it to the professional surveillance software (PSS), it can connect to security network to realize strong network and remote monitor function.
This series product can be widely used in various areas such as banking, telecommunication, electric power, interrogation, transportation, intelligent resident zone, factory, warehouse, resources, and water conservancy.
1.2 Features
This series product has the following features:
• Real-time monitor It has analog output port, VGA, HDMI port. You can use monitor or displayer to realize
surveillance function. System supports TV/VGA output at the same time.
• Storage function Special data format to guarantee data security and can avoid vicious data modification.
• Compression format Support multiple-channel audio and video. An independent hardware decodes the audio and video
signal from each channel to maintain video and audio synchronization.
• Backup function Support backup operation via USB port (such as flash disk, portable HDD, burner) Client-
end user can download the file to local HDD to backup via network.
• Record playback function Support each channel real-time record independently, and at the same time it can support search, forward
play, network monitor, record search, download and etc. Support various playback modes: slow play, fast play, backward play and frame by frame play. Support time title overlay so that you can view event accurate occurred time Support specified zone enlargement.
• Network operation
Support network remote real-time monitor, remote record search and remote PTZ control.
• Communication port RS485 port can realize PTZ control.
Standard Ethernet port can realize network access function.
• PTZ control Support PTZ decoder via RS485.
Support various decode protocols to allow the PTZ to control the speed dome.
• Intelligent operation Mouse operation function
In the menu, support copy and paste setup function
• UPnP It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol.
Slight function differences may be found due to different series.
1.3 Specifications
Model
Hawk04-HD
Hawk08-HD
System
Main Processor
Embedded processor
Operating System
Embedded LINUX
Video
Input
4 channel, BNC
8 channel, BNC
Standard
NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input
1 channel, RCA
Output
1 channel, RCA
Two-way Talk
Reuse audio input/output channel 1
Display
Interface
1 HDMI, 1 VGA,
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split
1/4
1/4/8
Privacy Masking
4 rectangular zones (each camera)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression
H.264 / G.711
Resolution
720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704 ×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate
Main Stream:
720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
Extra Stream
CIF/QCIF(1~25/30fps) Bit Rate
48~6144Kb/s
Record Mode
Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback
1/4
1/4/8
Search Mode
Time/Date, MD & Exact search (accurate to second)
Playback Functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device / Network
Network
Ethernet
RJ-45 port (10/100M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
1 SATA port, up to 4TB
Auxiliary Interface
USB Interface
2 ports(1 Rear), USB2.0
RS485
1 port,For PTZ Control
General
Power Supply
DC12V/2A
Power Consumption
10W(without HDD)
Working Environment
-10 ~+55°C / 10~90%RH / 86~106kpa Dimension(W×D×H)
Mini 1U, 325mm×245mm×45mm
Weight
1.5KG(without HDD)
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first.
2.1 Front Panel
The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
Name
Icon
Function
Power button
Power button, press this button for three seconds to boot up
or shut down DVR.
Activate current control, modify setup, and then move up
Up/
、
and down.
Down
Increase/decrease numeral.
Assistant function such as PTZ menu.
Left/
⊳ �
Shift current activated control,
Right
When playback, click these buttons to control playback bar.
Go to previous menu, or cancel current operation.
ESC
ESC
When playback, click it to restore real-time monitor mode.
Confirm current operation
Enter
ENTER
Go to default button
Go to menu
One-window monitor mode, click this button to display
assistant function: PTZ control and image color.
Backspace function: in numeral control or text control, press
it for 1.5seconds to delete the previous character before the
Assistant
Fn
cursor.
In motion detection setup, working with Fn and direction
keys to realize setup.
In text mode, click it to switch between numeral, English
character(small/capitalized) and etc.
Realize other special functions.
USB port
To connect USB storage device, USB mouse.
Network
Network error occurs or there is no network connection, the
abnormal
Net indication
light becomes red to alert you.
light
HDD
abnormal
HDD
HDD error occurs or HDD capacity is below specified
indication
threshold value, the light becomes red to alert you.
light
IR Receiver
IR
It is to receive the signal from the remote control.
Alarm
Here you can view there is external alarm input or not. The
indication
Alarm
light becomes on when there is an external alarm. The light
light
become off when the external alarm stops.
2.2 Rear Panel
The 4-channel series product rear panel is shown as in Figure 2-2.
Figure 2-2
Please refer to the following sheet for detailed information.
SN
Name
SN
Name
SN
Name
1
Video input
2
Video output
3
Audio output
4
Audio input
5
Video VGA output
6
HDMI port
7
USB port
8
Network port
9
RS-485 input port
10
Power socket
11
On/off button
12
GND port
The 8-channel series product rear panel is shown as in Figure 2-3.
7
Figure 2-3
Please refer to the following sheet for detailed information.
SN
Name
SN
Name
SN
Name
1
Video input
2
Video output
3
Audio output
4
Audio input
5
Video VGA output
6
HDMI port
7
USB port
8
Network port
9
RS-485 input port
10
Power socket
11
On/off button
12
GND port
The 16-channel series product rear panel is shown as in Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
SN
Name
SN
Name
SN
Name
1
Video input
2
Video output
3
Audio output
4
Audio input
5
Video VGA output
6
HDMI port
7
USB port
8
Network port
9
RS-485 input port
10
Power socket
11
GND port
12
On/off button
When connect the Ethernet port, please use crossover cable to connect the PC and use the straight cable to connect to the switcher or router.
2.3 Connection Sample
The connection sample is shown as below. See Figure 2-5. The following figure is based on the 4-channel series product.
8
Figure 2-5
2.4 Re mote Control
The remote control interface is shown as in Figure 2-6. Please note remote control is not our standard accessory and it is not included in the
accessory bag.
9
Figure 2-6
Serial Number
Name
Function
1
Power button
Click it to boot up or shut down
the device.
2
Address
Click it to input device number,
so that you can control it.
3
Forward
Various forward speeds and
normal speed playback.
4
Slow play
Multiple slow play speeds or
normal playback.
Next record
In playback mode, playback the
5
next video.
6
Previous record
In playback mode, playback the
previous video.
7
Play/Pause
In pause mode, click this button
to realize normal playback.
In normal playback click this
button to pause playback.
In real-time monitor mode, click
this button to enter video search
menu.
8
Reverse/pause
Reverse playback pause mode,
click this button to realize normal
playback.
In reverse playback click this
button to pause playback.
10
9
Cancel
Go back to previous menu or
cancel current operation (close
upper interface or control)
10
Record
Start or stop record manually
In record interface, working with
the direction buttons to select the
record channel.
11
Direction keys
Switch current activated control,
go to left or right.
In playback mode, it is to control
the playback process bar.
Aux function(such as switch the
PTZ menu)
12
Confirm /menu key
go to default button
go to the menu
13
Multiple-window switch
Switch between multiple-window
and one-window.
14
Auxiliary key
In 1-ch monitor mode: pop up
assistant function：PTZ control
and Video color.
Switch the PTZ control menu in
PTZ control interface.
In motion detection interface,
working with direction keys to
complete setup.
15
0-9 number key
Input password, channel or
switch channel.
Shift is the button to switch the
input method.
2.5 Mouse Control
Left click
System pops up password input dialogue box if you have not logged in.
mouse
In real-time monitor mode, you can go to the main menu.
When you have selected one menu item, left click mouse to view menu
content.
Implement the control operation.
Modify checkbox or motion detection status.
Click combo box to pop up drop down list
11
In input box, you can select input methods. Left click the corresponding
button on the panel you can input numeral/English character
(small/capitalized). Here ← stands for backspace button. ＿ stands for space
button.
In English input mode: _stands for input a backspace icon and ← stands for
deleting the previous character.
In numeral input mode: _ stands for clear and ← stands for deleting the
previous numeral.
When input special sign, you can click corresponding numeral in the front
panel to input. For example, click numeral 1 you can input“/” , or you can click
the numeral in the on-screen keyboard directly.
Double left
Implement special control operation such as double click one item in the file
click mouse
list to playback the video.
In multiple-window mode, double left click one channel to view in full-window.
Double left click current video again to go back to previous multiple-window
mode.
Right click
In real-time monitor mode, pops up shortcut menu: one-window, four-window,
mouse
Pan/Tilt/Zoom, color setting, search, record, main menu.
Among which, Pan/Tilt/Zoom and color setting applies for current selected
channel.
If you are in multiple-window mode, system automatically switches to the
corresponding channel.
Exit current menu without saving the modification.
Press
In numeral input box: Increase or decrease numeral value.
middle
Switch the items in the check box.
button
Page up or page down
Move
Select current control or move control
mouse
Drag mouse
Select motion detection zone
Select privacy mask zone.
2.6 Virtual Keyboard & Front Panel
12
2.6.1 Virtual Keyboard
The system supports two input methods: numeral input and English character (small and capitalized) input. Move the cursor to the text column, the text is shown as blue, input button pops up on the right. Click that button to switch between numeral input and English input (capitalized and small), Use > or < to shift between small character and capitalized character.
2.6.2 Front Panel
Move the cursor to the text column. Click Fn key and use direction keys to select number you wanted. Please click enter button to input.
3 Installation and Connections
Note: All the installation and operations here should conform to your local electric safety rules.
3.1 Check Unpacked DVR
When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation. Then you can open the box to check the accessories. Please check the items in accordance with the list on the warranty card (Remote control is optional). Finally you can remove the protective film of the DVR.
Note
Remote control is not a standard accessory and it is not included in the accessory bag.
3.2 About Front Panel and Real Panel
For detailed information of the function keys in the front panel and the ports in the rear panel, please refer to the appendix for detailed information. The model in the front panel is very important; please check according to your purchase order. The label in the rear panel is very important too. Usually we need you to represent the serial number when we provide the service after sales.
3.3 HDD Installation
This series DVR has only one SATA HDD. Please use HDD of 7200rpm or higher. You can refer to the Appendix for recommended HDD brand. Please follow the instructions listed below to install hard disk.
1. Loosen the screws of the
2. Fix four screws in the HDD
3. Place the HDD in accordance with
upper cover and side panel.
(Turn just three rounds).
the four holes in the bottom.
4. Turn the device upside down
5. Fix the HDD firmly.
6. Connect the HDD cable and
and then turn the screws in
power cable.
firmly.
7. Put the cover in accordance
8. Secure the screws in the
with the clip and then place the
rear panel and the side panel.
upper cover back.
Note:
• You can connect the HDD data cable and the power cable first and then fix the HDD in the device.
• Please pay attention to the front cover. It adopts the vertical sliding design. You need to push the clip first and then put down.
3.4 Connecting Power Supply
Please check input voltage and device power button match or not. We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral
equipments operation such as cameras.
3.5 Connecting Video Input and Output Devices
Please note the following figure is based on the general series product.
3.5.1 Connecting Video Input
The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0V
P- P
， 75Ω.
The video signal should comply with your national standards. The input video signal shall have high SNR, low distortion; low interference, natural color and suitable lightness.
Guarantee the stability and reliability of the camera signal:
The camera shall be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. The camera and the DVR should have the same grounding to ensure the normal operation of the camera.
Guarantee stability and reliability of the transmission line
Please use high quality, sound shielded BNC. Please select suitable BNC model according to the transmission distance. If the distance is too long, you should use twisted pair cable, and you can add video compensation devices or use optical fiber to ensure video quality. You should keep the video signal away from the strong electromagnetic interference, especially the high tension current.
Keep connection lugs in well contact
The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint, lap welding and oxidation.
3.5.2 Connecting Video Output
Video output includes a BNC(PAL/NTSC1.0V
P-P
，75Ω）output ,a VGA output and HDMI output.
System supports BNC, VGA and HDMI output at the same time. When you are using pc-type monitor to replace the monitor, please pay attention to the following
points:
• To defer aging, do not allow the pc monitor to run for a long time.
• Regular demagnetization will keep device maintain proper status.
• Keep it away from strong electromagnetic interference devices.
Using TV as video output device is not a reliable substitution method. You also need to reduce the working hour and control the interference from power supply and other devices. The low quality TV may result in device damage.
3.6 Connecting Audio Input & Output, Bidirectional Audio
3.6.1 Audio Input
These series products adopt RCA port. Due to high impedance of audio input, please use active sound pick-up. Audio transmission is similar to video transmission. Try to avoid interference, dry joint,
loose contact and it shall be away from high tension current.
3.6.2 Audio Output
The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to low impedance earphone, active sound box or amplifier-drive audio output device. If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In this case you can adopt the following measures:
• Use better sound pick-up with better directing property.
• Reduce the volume of the sound box.
• Using more sound-absorbing materials in decoration can reduce voice echo and
improve acoustics environment.
• Adjust the layout to reduce happening of the squeaking.
3.7 RS485
When the DVR receives a camera control command, it transmits that command up the coaxial cable to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR. See Figure 3-1. Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This series DVRs support multiple protocols such as Pelco-D, Pelco-P. To connect PTZ devices to the DVR:
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.
Figure 3-1
3.8 Other Interfaces
There are still other interfaces on the DVR, such as USB ports.
4 Overview of Navigation and Controls
Important
• Slight difference may be found in the interface. All the interfaces listed below are based on the 4-channel series product.
Before operation, please make sure:
• You have properly installed HDD and connect all the cable connections.
• The provided input power and the device power are matched.
• The external power shall be DC +12V.
• Always use the stable current, if necessary UPS is a best alternative measure.
4.1 Login, Logout & Main Menu
4.1.1 Login
After system booted up, system pops up the startup wizard. Click the Cancel button; you can go to the system login interface.
Click the Next Step button; you can go to the startup wizard interface. Here you can set the system basic information. See Figure 4-1.
Figure 4-1
The system login interface is shown as in Figure 4-2. System consists of four accounts:
• Username: admin. Password: admin. (administrator, local and network)
• Username: 888888. Password: 888888. (administrator, local only)
• Username: 666666. Passwords: 666666(Lower authority user who can only monitor,
playback, backup and etc.)
• Username: default. Password: default(hidden user)
You can use USB mouse, front panel, remote control or keyboard to input. About input method:
Click to switch between numeral, English character (small/capitalized) and denotation.
Note: For security reason, please modify password after you first login.
Within 30 minutes, three times login failure will result in system alarm and five times login failure will result in account lock!
Figure 4-2
4.1.2 Main Menu

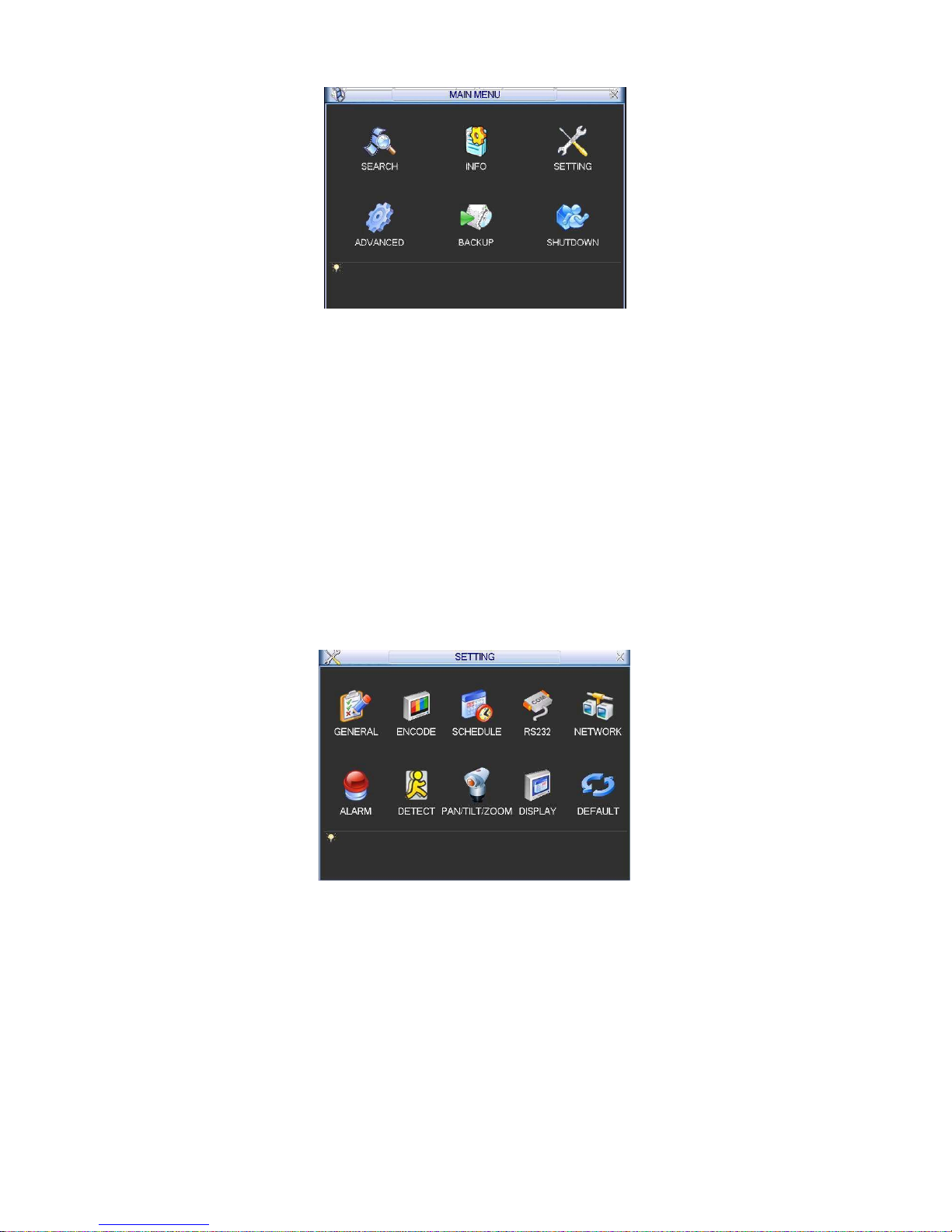

After you logged in, the system main menu is shown as below. See Figure 4-3. There are total six icons: search, information, setting, backup, advanced and shutdown. You
can move the cursor to highlight the icon, and then double click mouse to enter the sub-menu.
Figure 4-3
4.1.3 Logout
There are two ways for you to log out. One is from menu option:

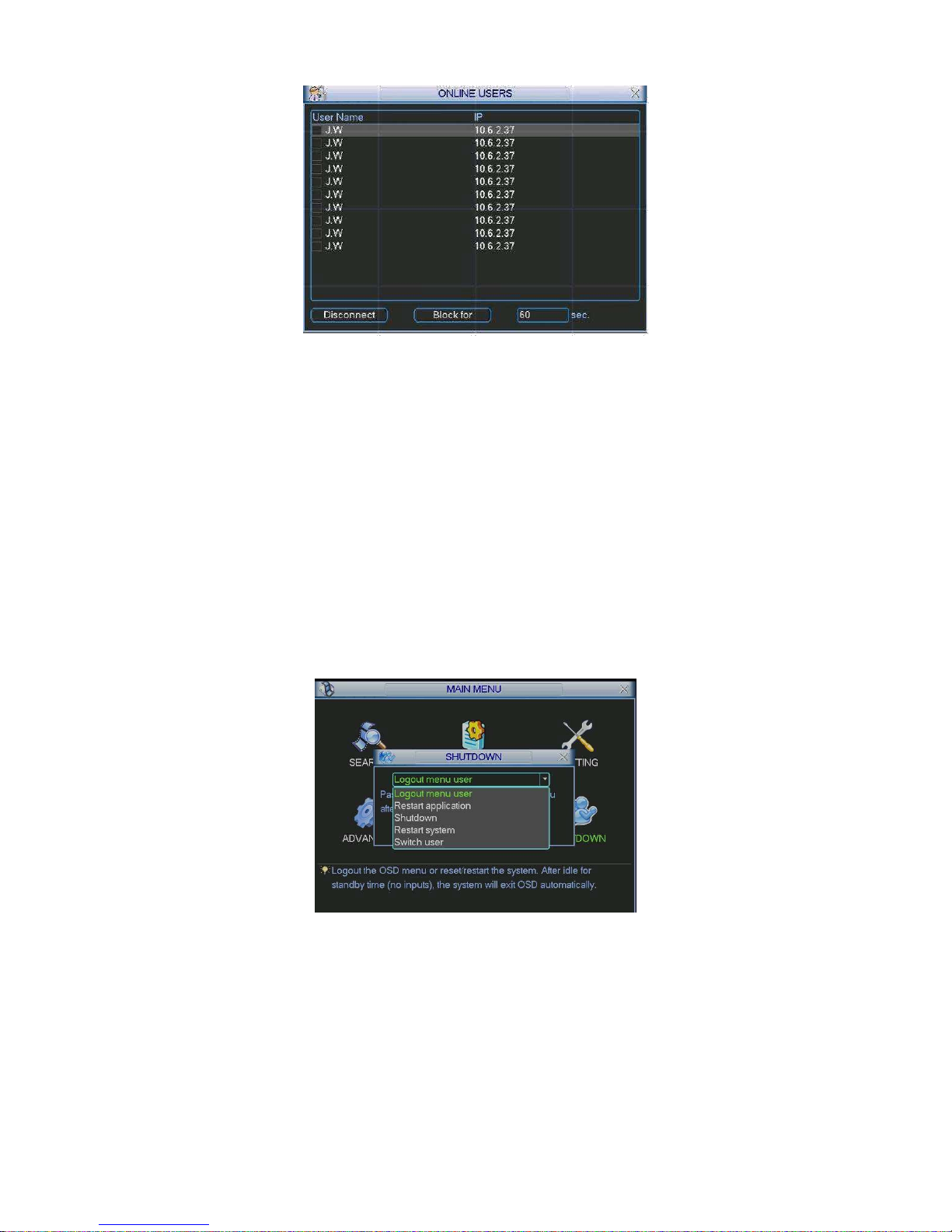

In the main menu, click shutdown button, you can see an interface is shown as below. See Figure 4-4. There are several options for you.
Figure 4-4
4.1.4 Auto Resume after Power Failure
The system can automatically backup video and resume previous working status after power failure.
4.1.5 Replace Button Battery
Please make sure to use the same battery model if possible.
We recommend replace battery regularly (such as one-year) to guarantee system time accuracy.
Note:
Before replacement, please save the system setup, otherwise, you may lose the data completely!
4.1.6 Preview Zoom Function
Move your mouse to the left top corner of the preview interface; you can see the preview zoom button. See Figure 4-5. Left click the icon; you can see a hook icon. Now you have enabled the preview zoom function. You can drag the mouse to zoom in the image.
Preview
zoom button
Figure 4-5
4.2 Record
4.2.1 Live Viewing
After you logged in, the system is in live viewing mode. You can see system date, time and channel name. If you want to change system date and time, you can refer to general settings (Main Menu->Setting->General). If you want to modify the channel name, please refer to the display settings (Main Menu->Setting->Display)
1
Recording status
3
Video loss
2
Motion detection
4
Camera lock
4.2.2 Record
Note:
You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed.
4.2.2.1 Record menu
Right click mouse or in the main menu, Advanced->Manual Record. You can see the manual record interface is shown as in Figure 4-6.
4.2.2.2 Basic operation
There are three statuses: schedule/manual/stop. Please highlight icon “○” to select corresponding channel.
• Manual: The highest priority. After manual setup, all selected channels will begin ordinary recording.
• Schedule: Channel records as you have set in recording setup (Main Menu->Setting- >Schedule)
• Stop: All channels stop recording.
Figure 4-6
4.2.2.3 Enable/disable record
Please check current channel status: “○” means it is not in recording status, “●” means it is in
recording status. You can use mouse or direction key to highlight channel number. See Figure 4-7.
Figure 4-7
4.2.2.4 Enable all channel recording
Highlight ○ below All, you can enable all channel recording.
• All channel schedule record
Please highlight “ALL” after “Schedule”. See Figure 4-8. When system is in schedule recording, all channels will record as you have previously set (Main menu->Setting->Schedule). The corresponding indication light in front panel will turn on.
Figure 4-8
21
• All channel manual record Please highlight “ALL” after “Manual.” See Figure 4-9.
When system is in manual recording, all scheduled set up you have set in will be null ((Main menu­>Setting->Schedule)). You can see indication light in front panel turns on, system begins manual record now.
Figure 4-9
4.2.2.5 Stop all channel recording
Please highlight “ALL” after “Stop”. See Figure 4-10. System stops all channel recording no matter what mode you have set in the menu (Main menu-
>Setting->Schedule)
Figure 4-10
4.3 Search & Playback

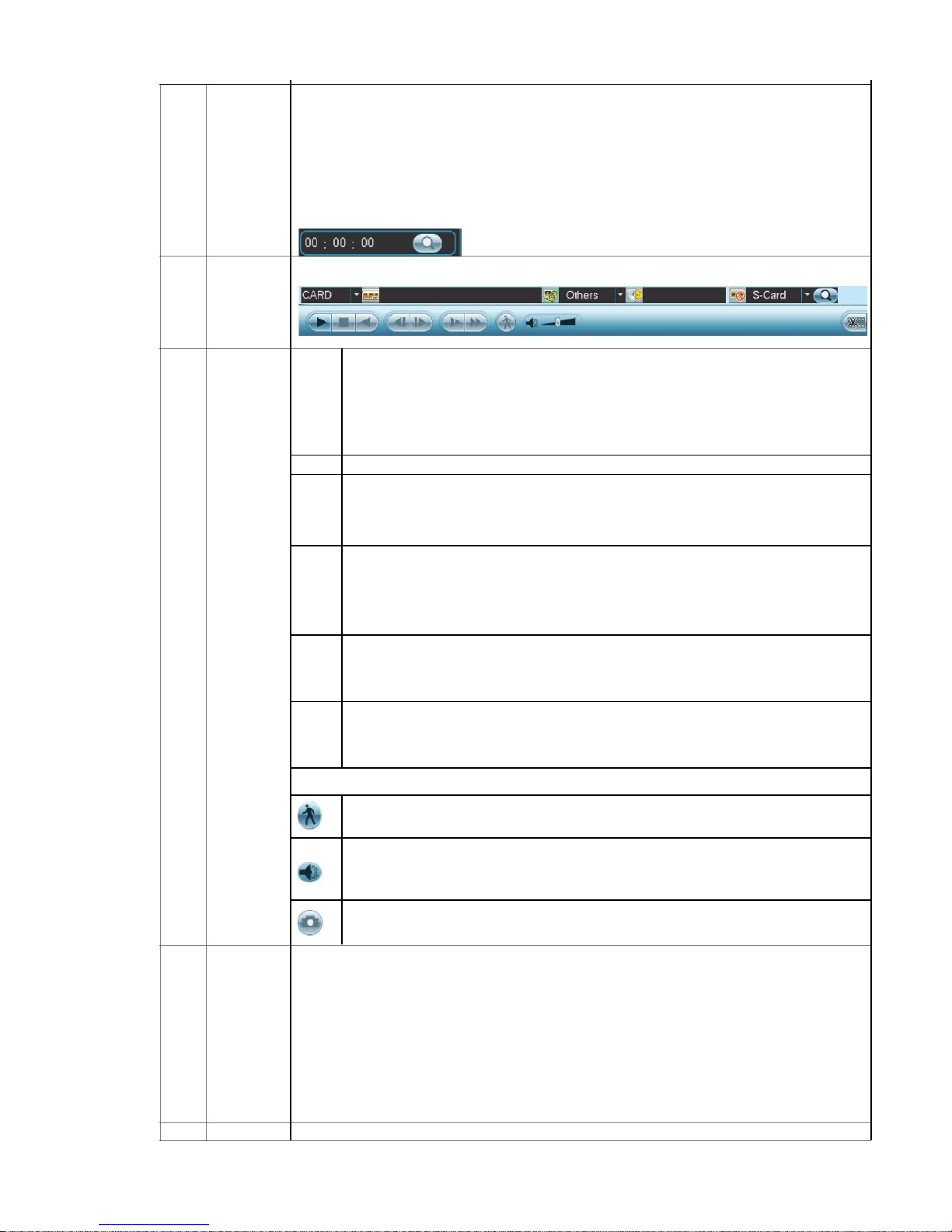

4.3.1 Search Menu

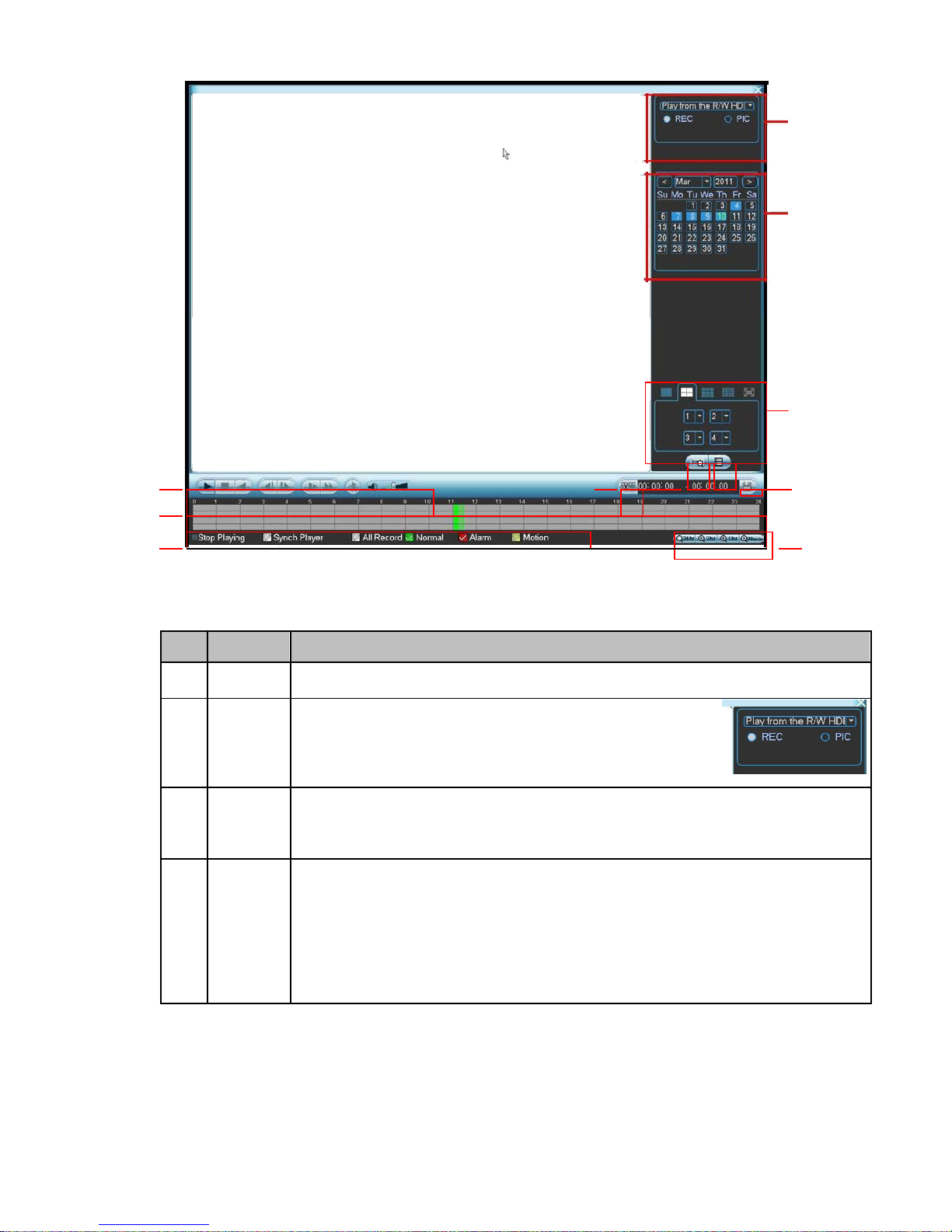

Click search button in the main menu, search interface is shown as below. See Figure 4-11. Usually there are three file types:
• R: Regular recording file.
• A: External alarm recording file.
• M: Motion detection recording file.
Loading...
+ 125 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
