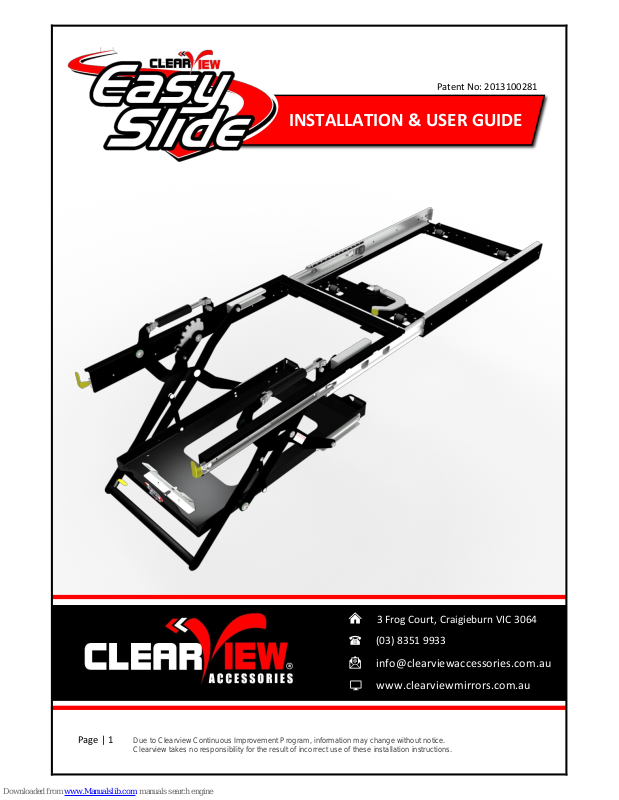

ClearView Easy Slide Installation & User Manual
Page | 1
Due to Clearview Continuous Improvement Program, information may change without notice.
Clearview takes no responsibility for the result of incorrect use of these installation instructions.
Patent No: 2013100281
INSTALLATION & USER GUIDE
3 Frog Court, Craigieburn VIC 3064
(03) 8351 9933
info@clearviewaccessories.com.au
www.clearviewmirrors.com.au
Page | 2
Due to Clearview Continuous Improvement Program, information may change without notice.
Clearview takes no responsibility for the result of incorrect use of these installation instructions.
Thank you for purchasing a Clearview Easy Slide. We are sure you will find the quality made product a huge
asset in your vehicle’s storage system.
The Easy Slide is designed to give the user better access to their fridge or freezer in the storage
compartment of their vehicle. No longer is it a struggle to see and reach into the fridge unit, as the Clearview
Easy Slide enables you to safely adjust the position of the fridge for the best access when needed, and
securely stow your fridge for the road.
IMPORTANT
The Clearview Easy Slide should only be mounted to a solid, fixed, flat timber/metal surface.
Do not attempt to fit the Easy Slide to an existing inbuilt fridge slide, warranty on the Easy Slide will be
made void if attempted.
This guide is for fitting a Clearview Easy Slide to a vehicle drawer system. Some assembly of the slide is
required prior to installation, as it has been partially dismantled for packaging and freight.
Please remove any cargo barrier dividers or shelving over the drawer system and ensure there are no tie
down lugs under the proposed positioning of the slide. Please also ensure the top of the mounting surface is
flat and free from debris. Leave plastic sleeves on gas struts for protection during assembly.
Description
Quantity
M8 x 32 Mounting Plate
4
M8 Flat Washer
4
M8 Nyloc Nut
4
M10 x 16 Button Head Bolt
2
M10 Flat Washer
2
Timber Screw
4
Easy Slide Plastic Chock
2
6mm Hex Key
1
Fridge Strap
4
