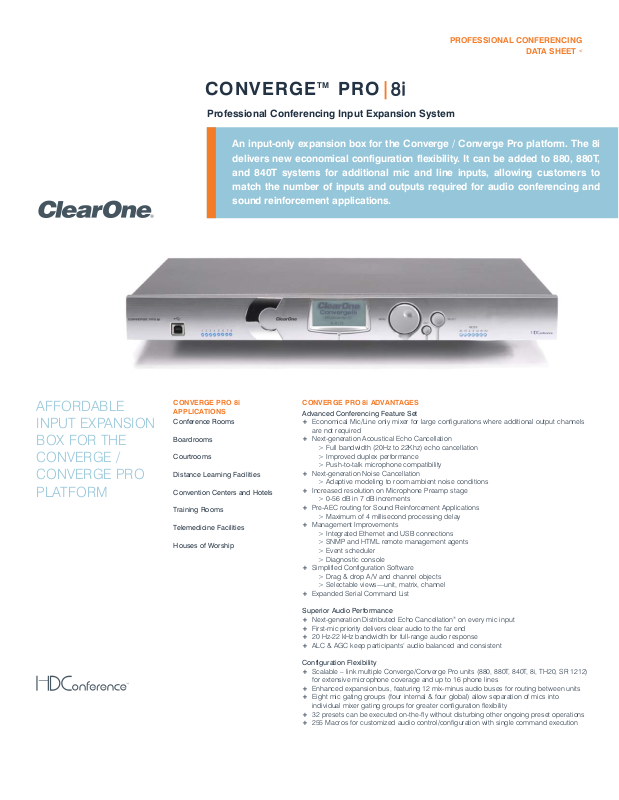

ClearOne CONVERGE PRO 8i Data Sheet

AFFORDABLE
INPUT EXPANSION
BOX FOR THE
CONVERGE /
CONVERGE PRO
PLATFORM

CONVERGE PRO 8i
APPLICATIONS

Conference Rooms

Boardrooms

Courtrooms

Distance Learning Facilities

Convention Centers and Hotels

Training Rooms

Telemedicine Facilities

Houses of Worship

CONVERGE PRO 8i ADVANTAGES

Advanced Conferencing Feature Set

+ Economical Mic/Line only mixer for large configurations where additional output channels

are not required

+ Next-generation Acoustical Echo Cancellation

> Full bandwidth (20Hz to 22Khz) echo cancellation
> Improved duplex performance
> Push-to-talk microphone compatibility

+ Next-generation Noise Cancellation

> Adaptive modeling to room ambient noise conditions

+ Increased resolution on Microphone Preamp stage

> 0-56 dB in 7 dB increments

+ Pre-AEC routing for Sound Reinforcement Applications

> Maximum of 4 millisecond processing delay

+ Management Improvements

> Integrated Ethernet and USB connections
> SNMP and HTML remote management agents
> Event scheduler
> Diagnostic console

+ Simplified Configuration Software

> Drag & drop A/V and channel objects
> Selectable views—unit, matrix, channel

+ Expanded Serial Command List

Superior Audio Performance

+ Next-generation Distributed Echo Cancellation

®

on every mic input

+ First-mic priority delivers clear audio to the far end
+ 20 Hz-22 kHz bandwidth for full-range audio response
+ ALC & AGC keep participants’ audio balanced and consistent

Configuration Flexibility

+ Scalable – link multiple Converge/Converge Pro units (880, 880T, 840T, 8i, TH20, SR 1212)

for extensive microphone coverage and up to 16 phone lines

+ Enhanced expansion bus, featuring 12 mix-minus audio buses for routing between units
+ Eight mic gating groups (four internal & four global) allow separation of mics into

individual mixer gating groups for greater configuration flexibility

+ 32 presets can be executed on-the-fly without disturbing other ongoing preset operations
+ 255 Macros for customized audio control/configuration with single command execution

Professional Conferencing Input Expansion System

An input-only expansion box for the Converge / Converge Pro platform. The 8i
delivers new economical configuration flexibility. It can be added to 880, 880T,
and 840T systems for additional mic and line inputs, allowing customers to
match the number of inputs and outputs required for audio conferencing and
sound reinforcement applications.

PROFESSIONAL CONFERENCING

DATA SHEET

<

CONVERGE

TM

PRO|8i

>

SPECIFICATIONS

CONVERGE PRO 8i DATA SHEET

<

>

CLEARONE LOCATIONS

>

CONVERGE PRO 8i BACK PANEL

Audio Performance

Conditions: Unless otherwise specified, all

measurements are performed with a 20 Hz

to 22 kHz BW limit (no weighting)
Frequency Response: 20 Hz to 22 kHz ±1dB
Noise (EIN): -126 dBu, 20 kHz BW, max gain,

Rs=150 Ω
THD+N: <0.02%
Dynamic Range: 100 dB (non A-weighted)
Crosstalk <-91 dB re 20 dBu @ 20 kHz

channel to channel

Auto Mixer Parameters

Number of Open Microphones (NOM)
PA Adaptive Mode
First Mic Priority Mode
Last Mic Mode
Maximum # of Mics Mode
Ambient Level
Gate Threshold Adjust
Off Attenuation Adjust
Hold Time
Decay Rate

Matrix Mixing Parameters

36x24 matrix
12 analog in/out
12 expansion bus in/out
8 assignable processing blocks in/out
4 assignable fader blocks in/out

Assignable Processing Blocks

Filters:

All pass

Low pass

High pass

Low shelving

High shelving

Parametric EQ

Notch

CD Horn
Crossovers:

Bessel

Butterworth

Linkwitz-Riley
Compressor
Delay; adjustable up to 250 ms

Assignable Fader Blocks

Gain/Mute

Microphone Input Configuration

Input Gain Adjust
Mic or Line Level
Phantom Power on/off
Echo Cancellation on/off
Noise Cancellation on/off
Filters:

All Pass
Low Pass
High Pass
Notch

PEQ
Mute on/off
Chairman Override on/off
AGC on/off
Automatic Level Control on/off
Auto Gate/Manual gate
Adaptive Ambient on/off
Pre AEC channel

Mic/Line Inputs 1-8

Push-on mini-terminal block, balanced,

bridging
Impedance: < 5 KΩ
Nominal Level: adjustable -56 dBu to 0 dBu
(7 dB step coarse gain adjustment)
Maximum Level: -65 dBu to +20 dBu
Echo Cancellation: 130 ms tail time (works

with 12 dB of room gain)
Noise Cancellation: 6–15 dB attenuation
Phantom Power: 24 V, selectable

Line Inputs 9-12

Push-on mini-terminal block, balanced,

bridging
Impedance: < 5 KΩ
Nominal Level: 0 dBu
Maximum Level: 20 dBu

Expansion Bus In/Out

Proprietary Network
RJ-45 (2), 1.9 Mbps
Category 5 twisted-pair cable 200’ maximum

cable length between any two Converge Pro
products

Ethernet

Autoswitching with Quality of Connection

(QoC)
10/100 Mbps Ethernet Network Port
10/100 Mbps Ethernet PC Port
RJ-45 Connectors

RS-232

Serial Command Protocol Only (Console

software not supported on RS-232 port)
DB-9 female
9,600/19,200/38,400/57,600/115,200 baud

rate; 8 bits, 1 stop, no parity
Hardware flow control on (default)/off

USB

Version 2.0 compatible
Type B connector

Control/Status

DB-25 female A/B (2)
Inputs A/B: active low (pull to ground)
Outputs A/B: open collector, 40 VDC max,

40 mA each
+3.3 VDC pins (2) (300 mA over-current

protected)

Configuration & Administration Software

Converge

TM

Console

Power Input Range

Auto-adjusting
100–240 VAC; 50/60 Hz

Power Consumption

30 W Typical

Dimensions (L x D x H)

17.25" x 10.25" x 1.75"

43.8 x 26 x 4.5 cm

Weight

7.5 lbs/3.3375 kg unit weight
12 lbs/5.4kg shipping weight

Operating Temperature

14° F/-10° C to 122° F/50° C ambient unit

temperature

Approvals & Compliance

AES48 compliant (audio equip grounding)
U.S.A. & Canada

CSA safety listed

EU Countries

RoHS compliant
WEEE compliant

See product manual for additional details

Optional Accessories

Converge Pro 880
Converge Pro 880T
Converge Pro 840T
Converge Pro TH20
Converge SR 1212

Tabletop Controller
Button Microphone – Omni-Directional
Button Microphone – Uni-Directional
Delta Microphone
Tabletop Microphone – Uni-Directional
JBL Wall-Mount Speakers

Part Number

910-151-810 Converge Pro 8i – 8-channel AEC
Microphone Mixer (no outputs)
